User Manual Fireplace
Before starting
- Read each step carefully before starting. It is very important that each step of instruction is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.
- Make sure all parts are included. Most board parts are labeled or stamped on the raw edge.
- Work in spacious area, preferably on a carpet, near the place the unit will be used.
- Have the following tools close at hand.
- Do not use power tools to assemble your furniture. Power tools may strip or damage the parts.
HELPFUL HINTS
- Visit our website for assembly video clips.
- Identify, sort and count the parts before attempting assembly.
- Call our toll free number if you need assistance identifying parts.

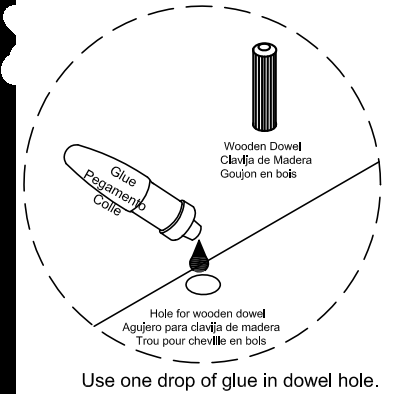

- Compression dowels are tapped in with a hammer.
- Slides have lips only on the right side.

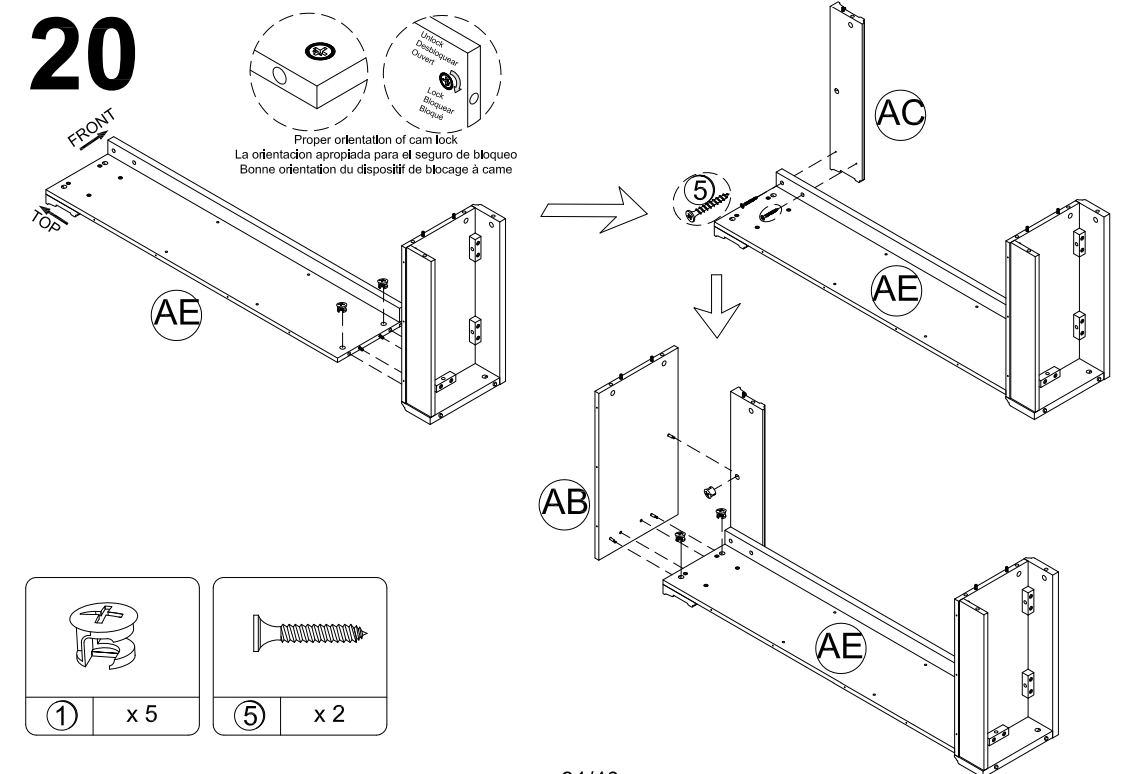

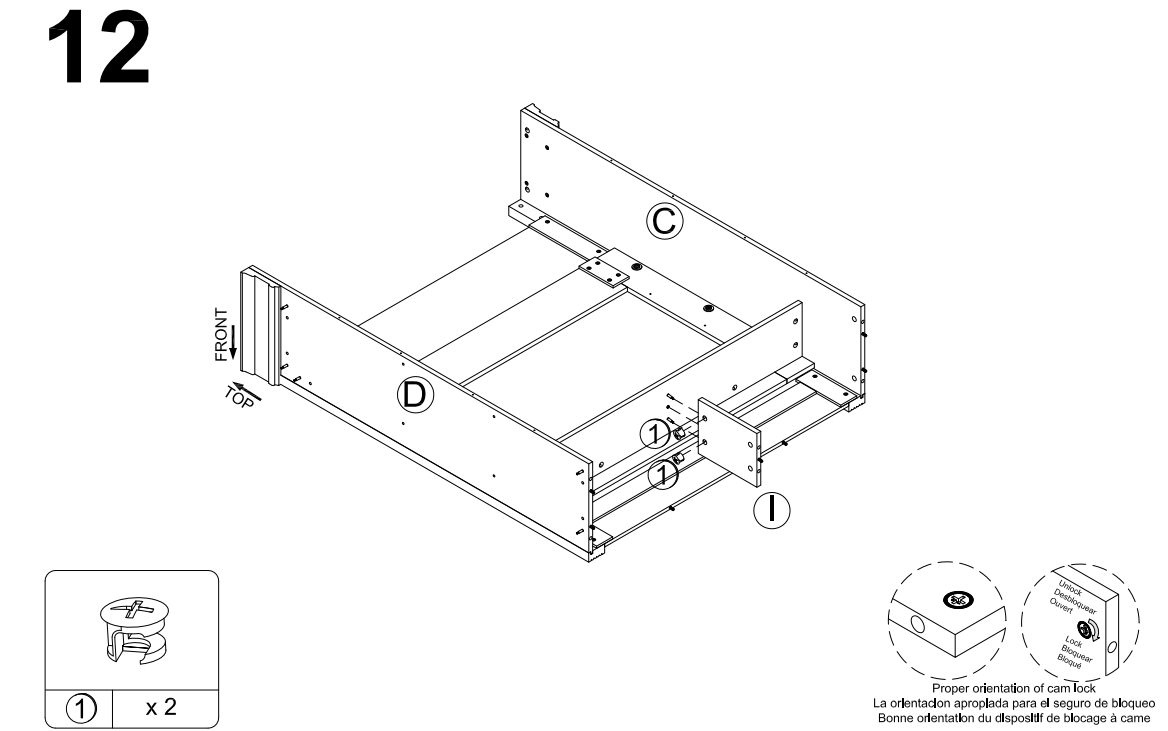

- Cam locks that are properly fastened on a horizontal board will face toward the center of the unit, on a vertical board the point on the lock will face the bottom.

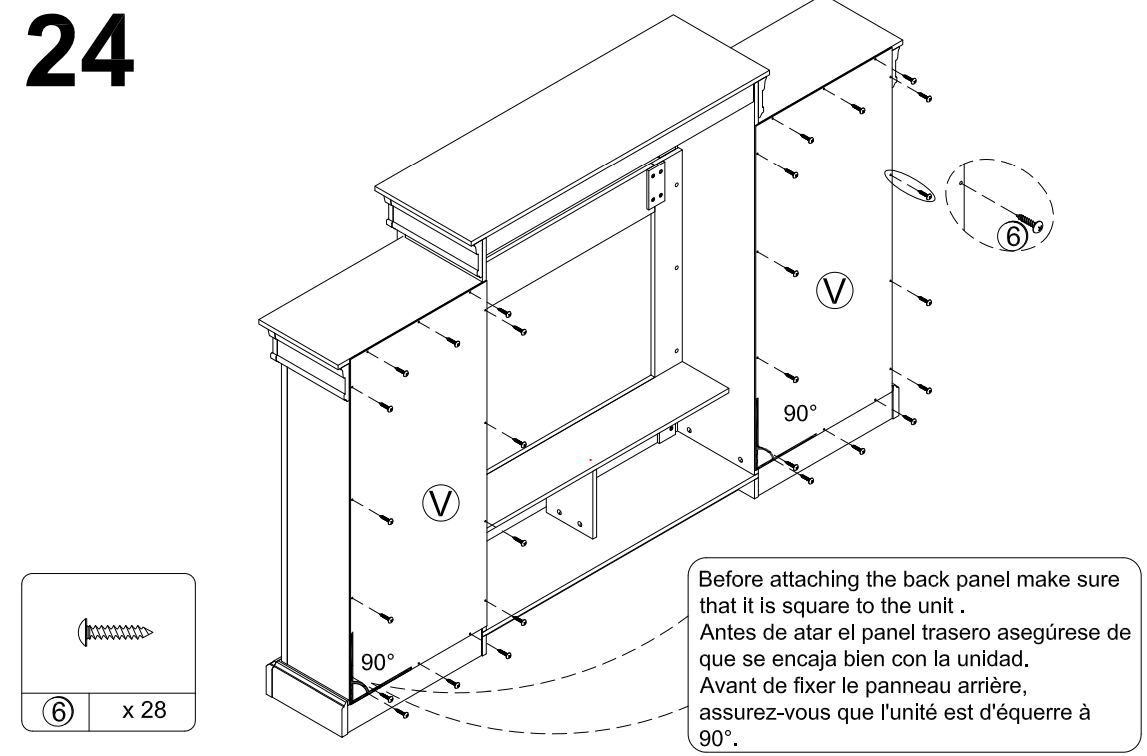

- Back panels provide stability and support. Use all the nails provided.
- When tapping nails into a board, be sure there are equal margins on all sides to square the unit.
- Units without the back panel installed may collapse.
- Clean the product with your favorite furniture polish and a soft cloth. DO NOT USE harsh chemicals or abrasive cleaners.
- Move your new furniture carefully, with two people lift and carry the unit to it's new location.
- Never push, drag or scoot your furniture (especially on carpet).
- Your furniture can be disassembled and reassembled to move.
- Additional parts are available for a nominal fee.

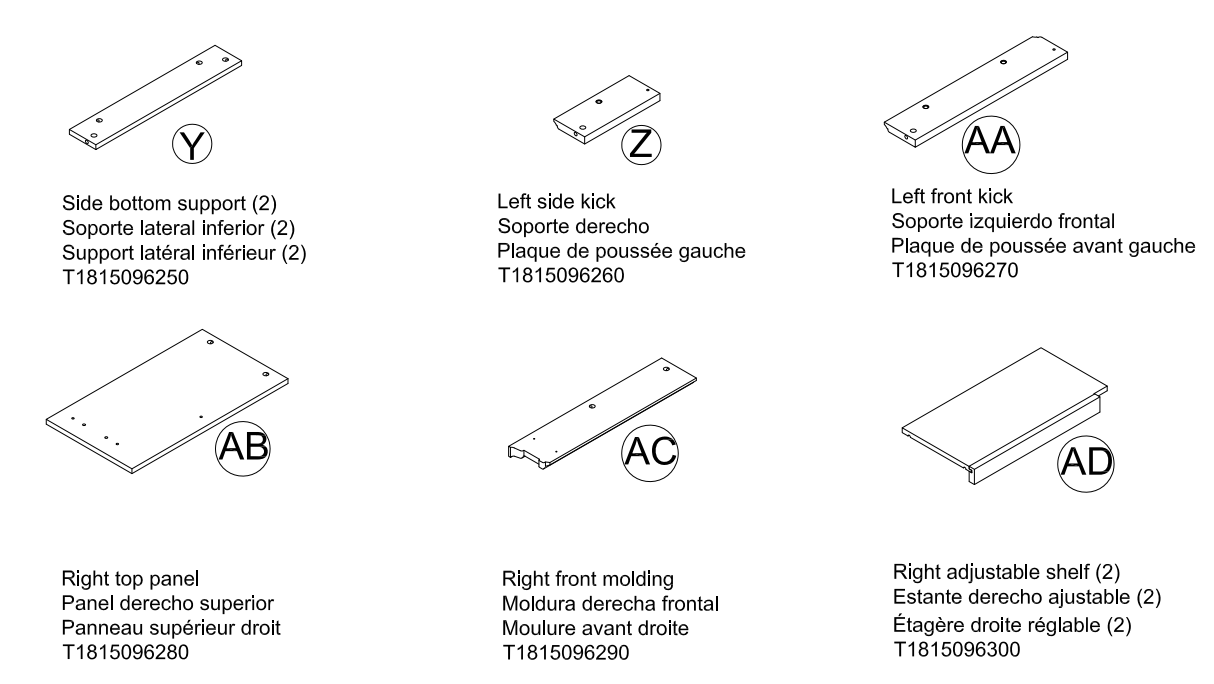

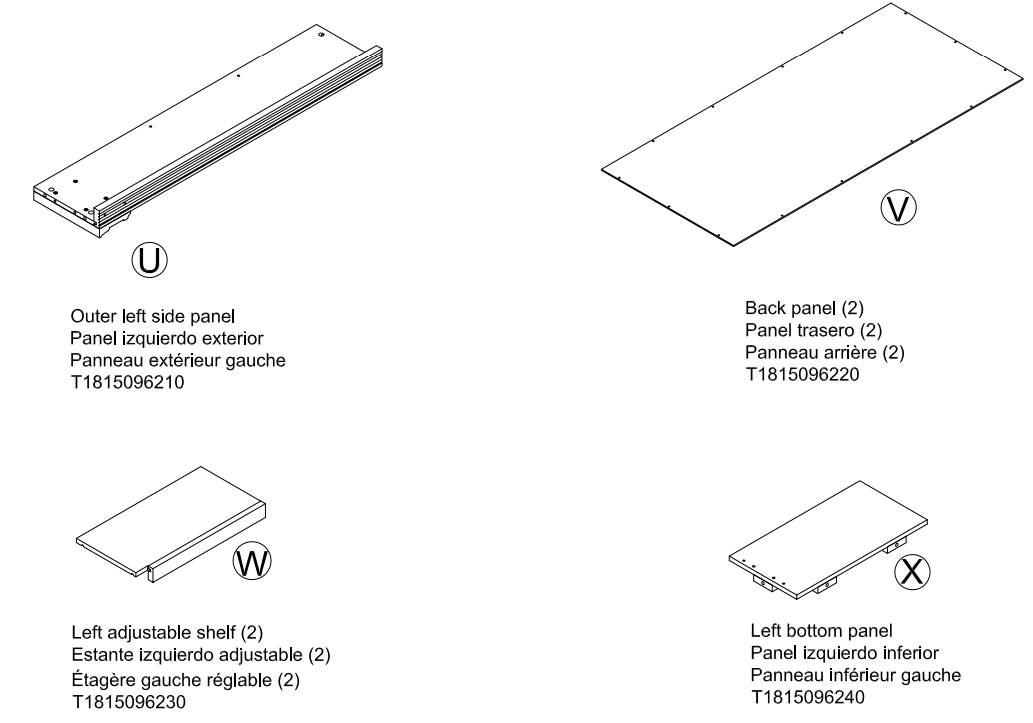

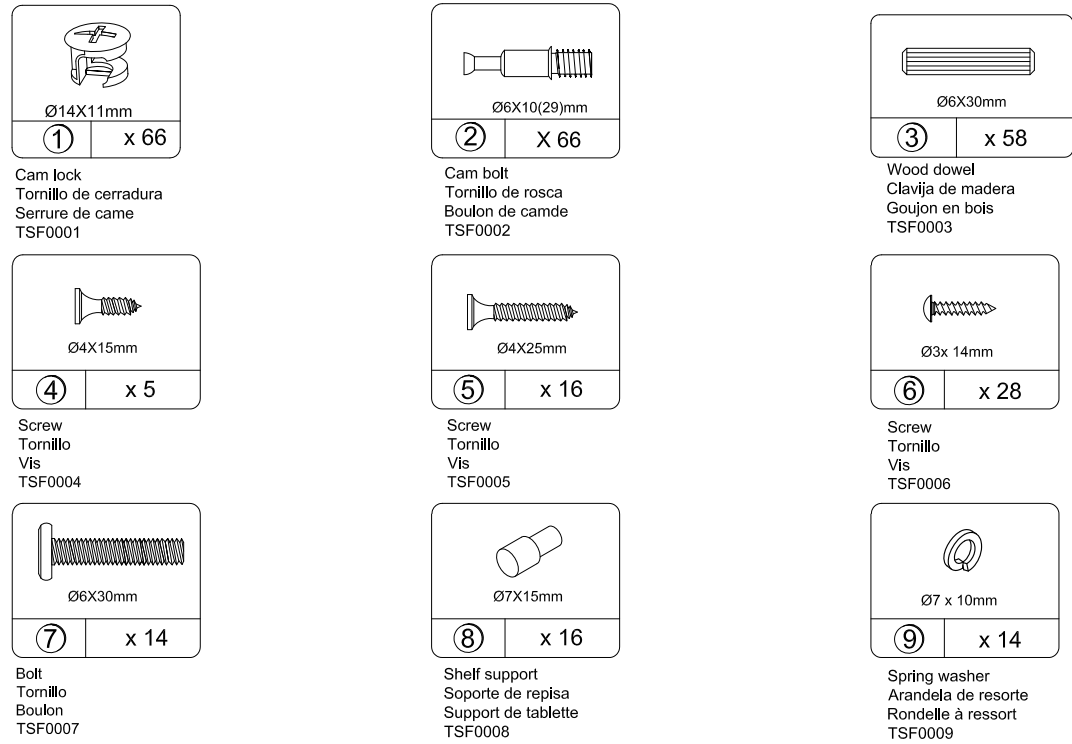

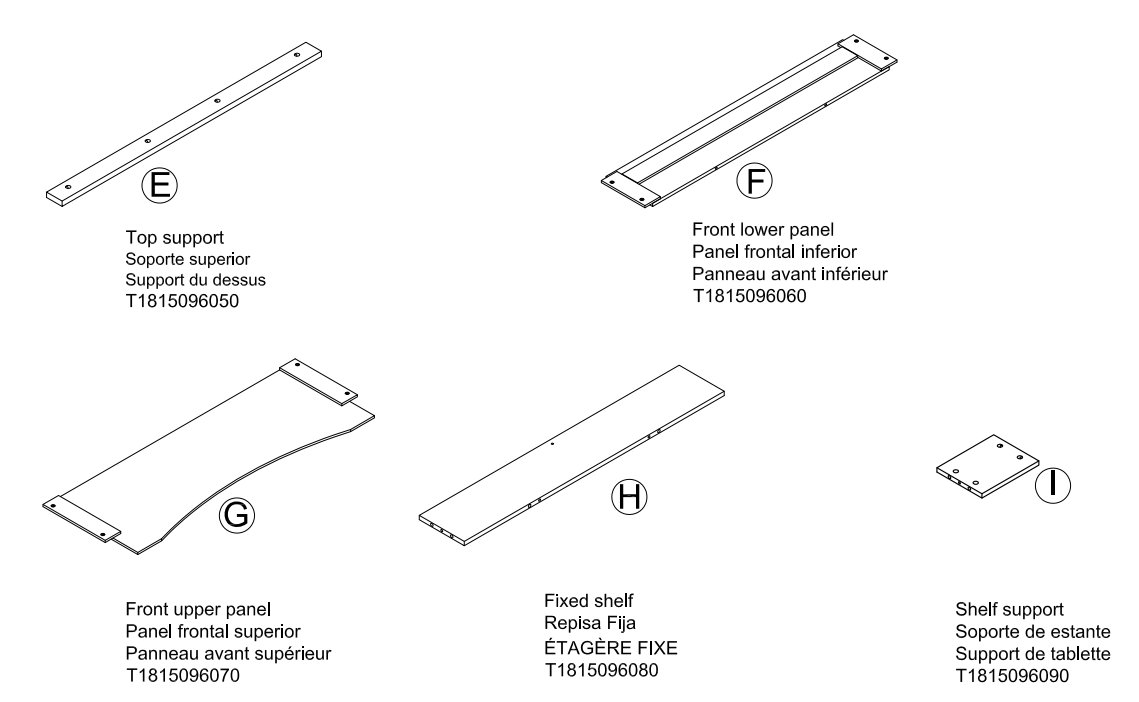

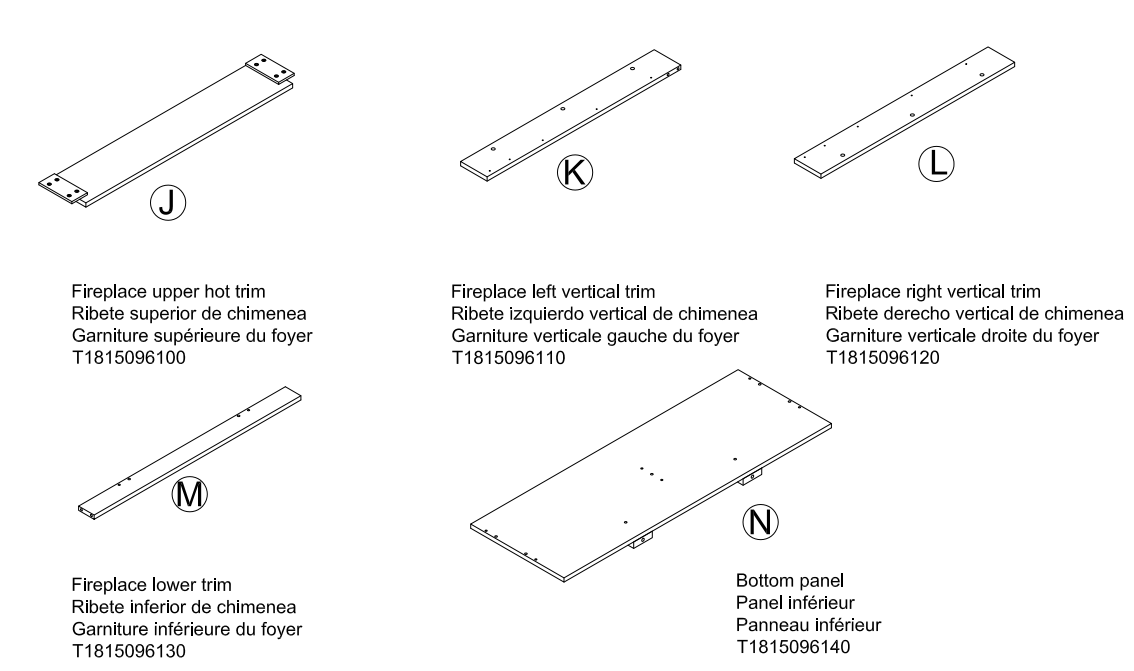

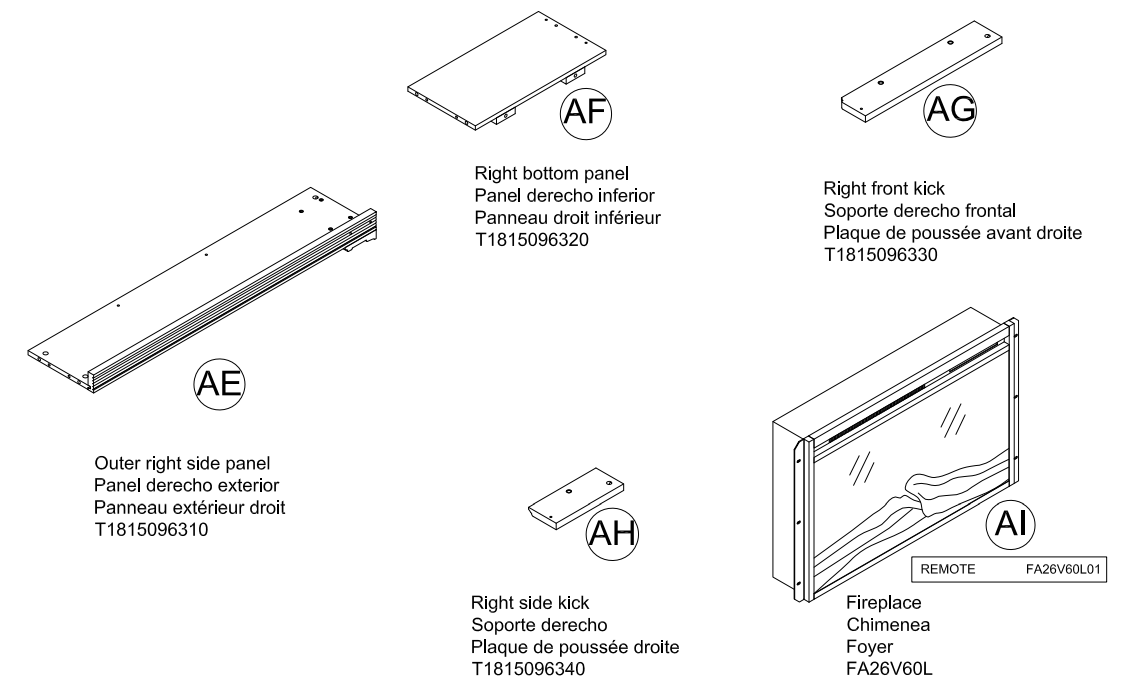

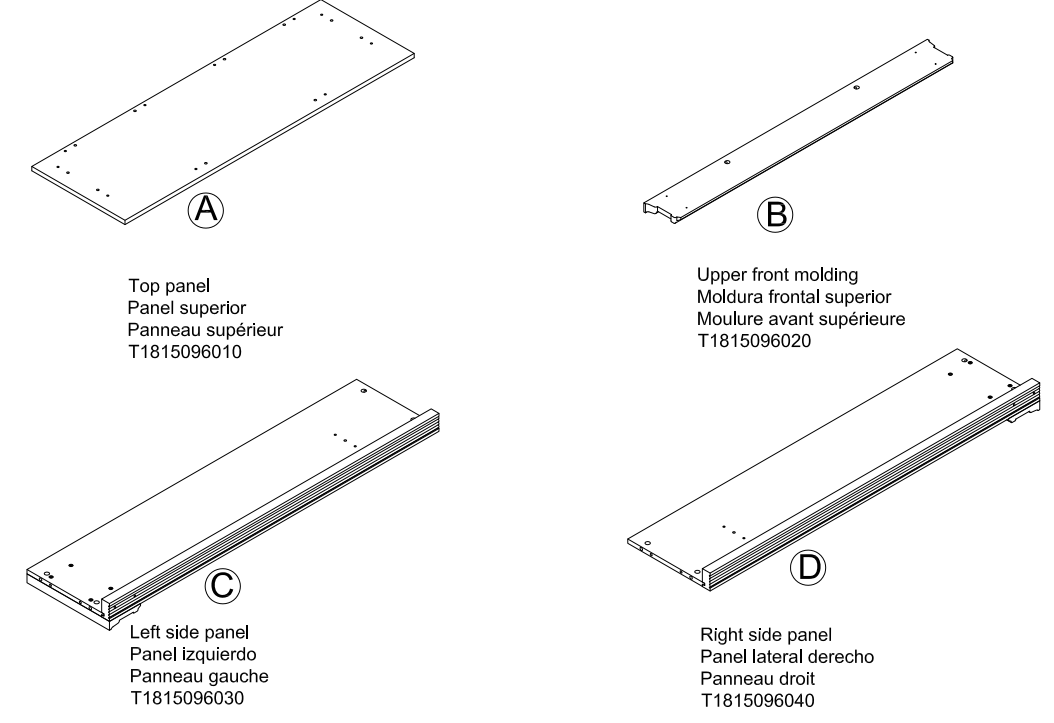

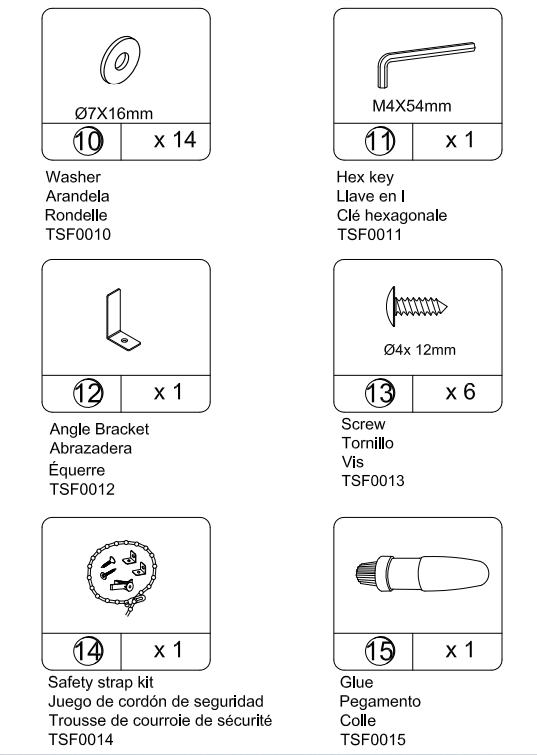

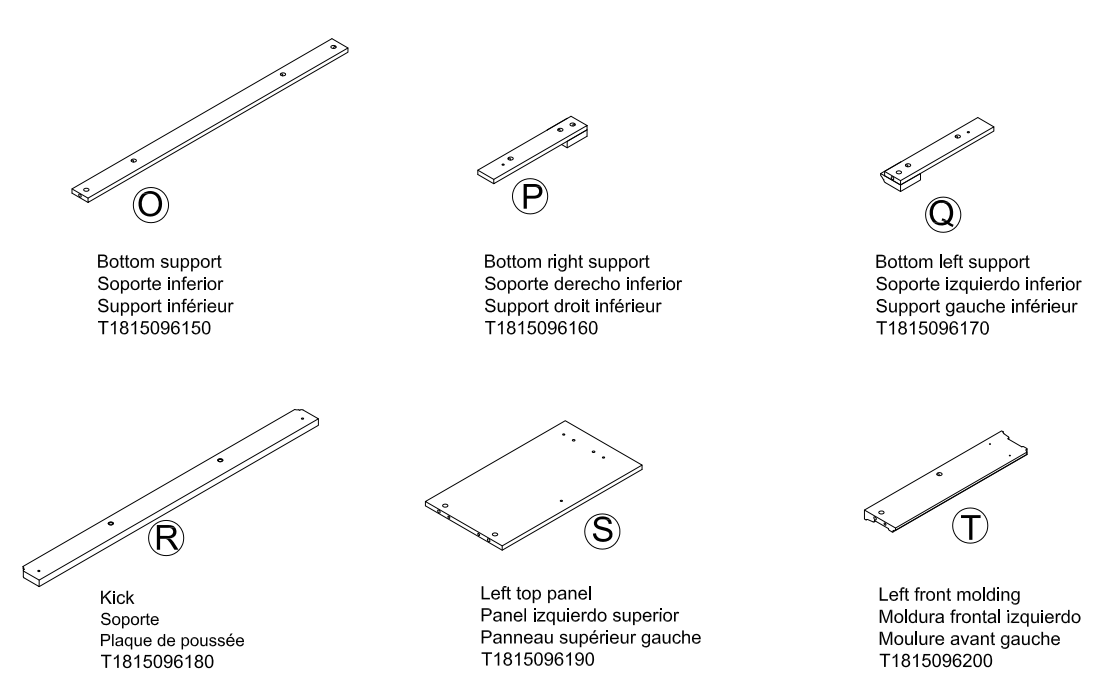

PARTS

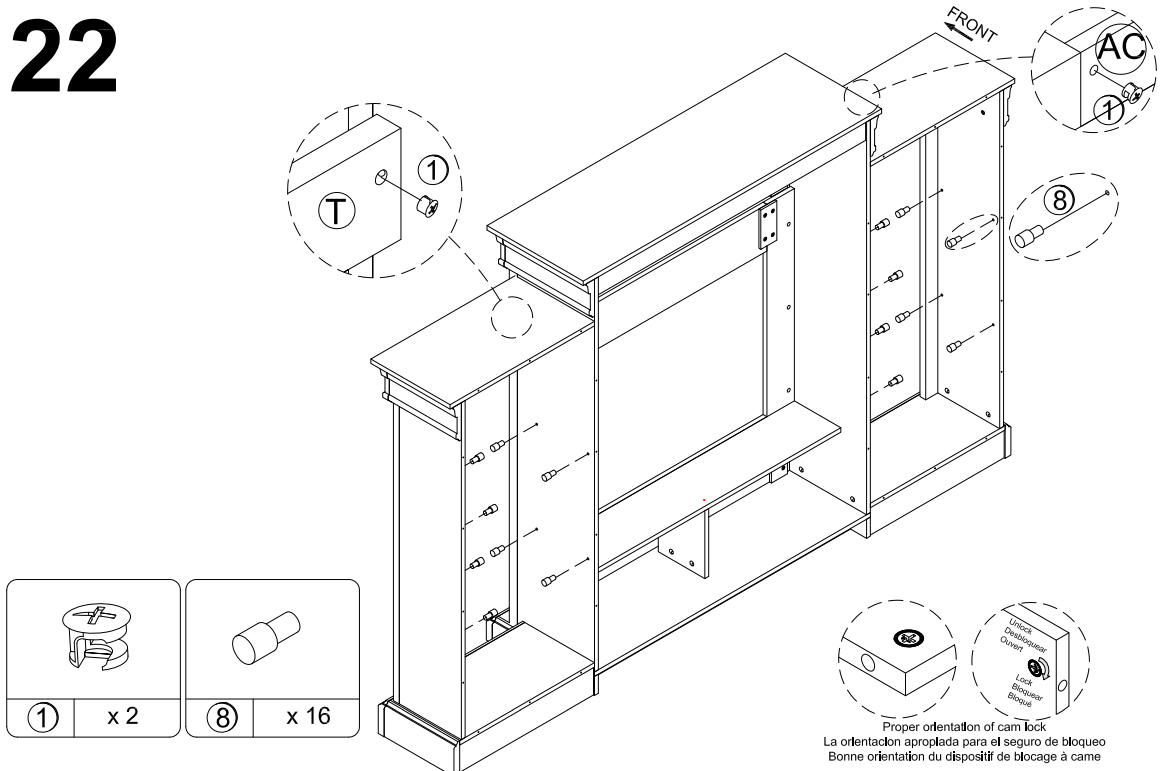

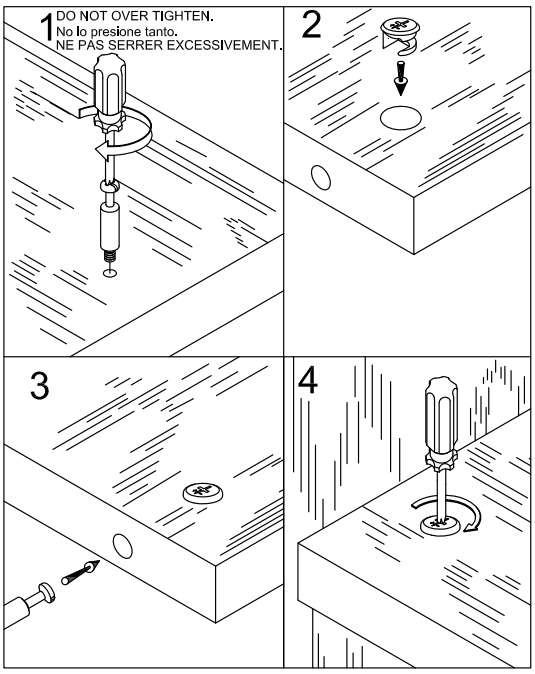

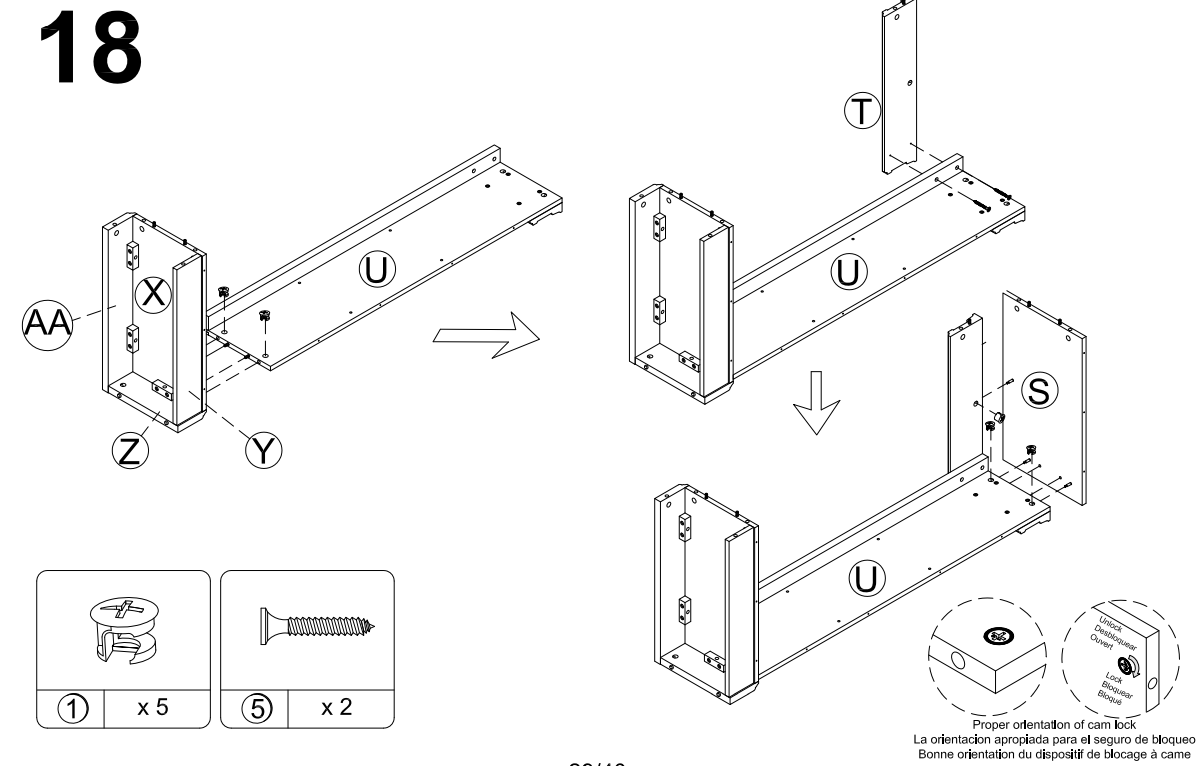

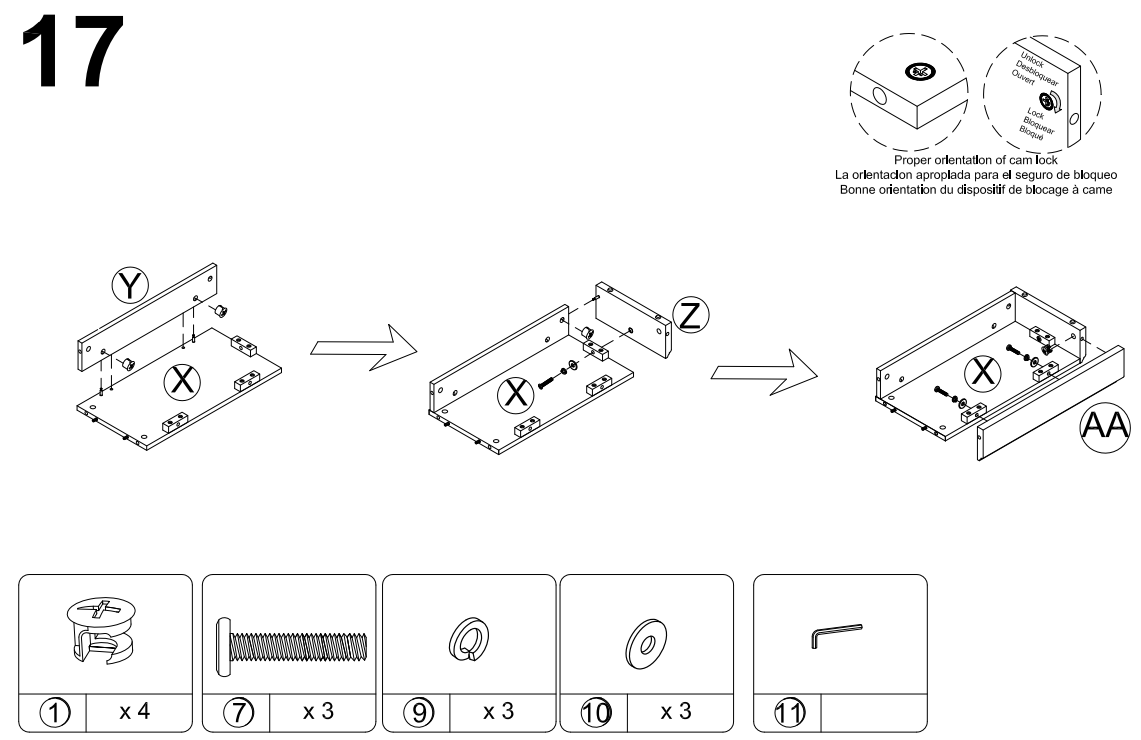

This illustration shows how the CAM fastening system work.

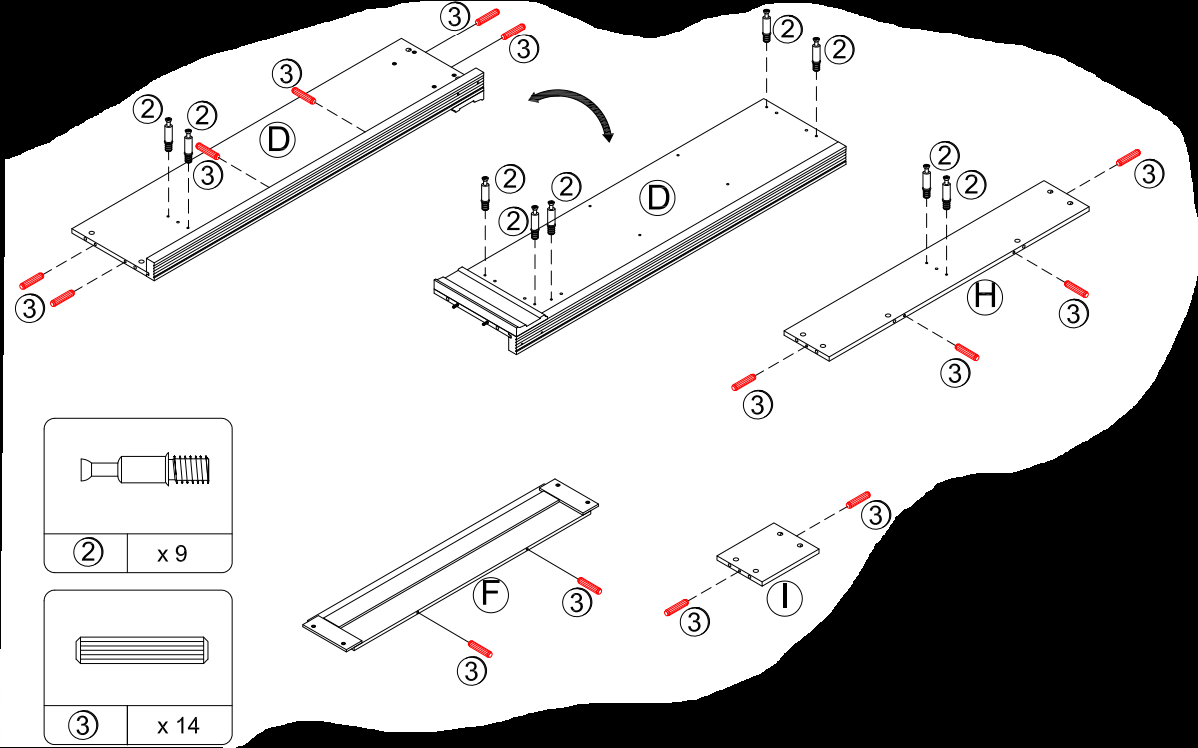

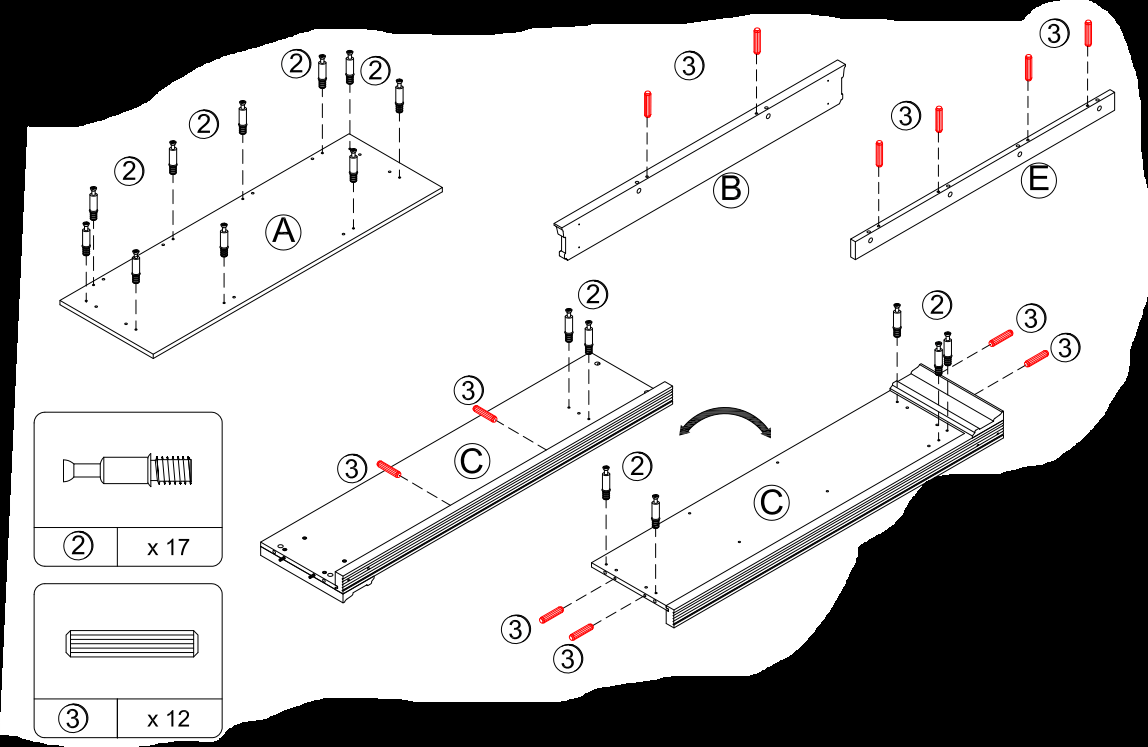

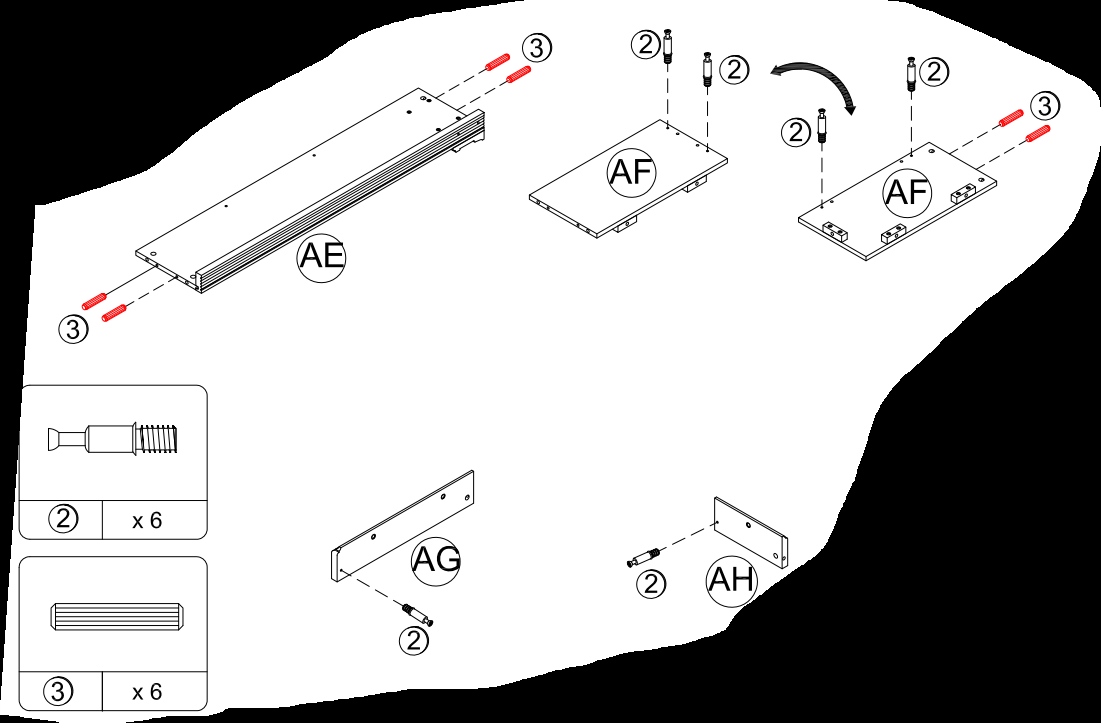

1.

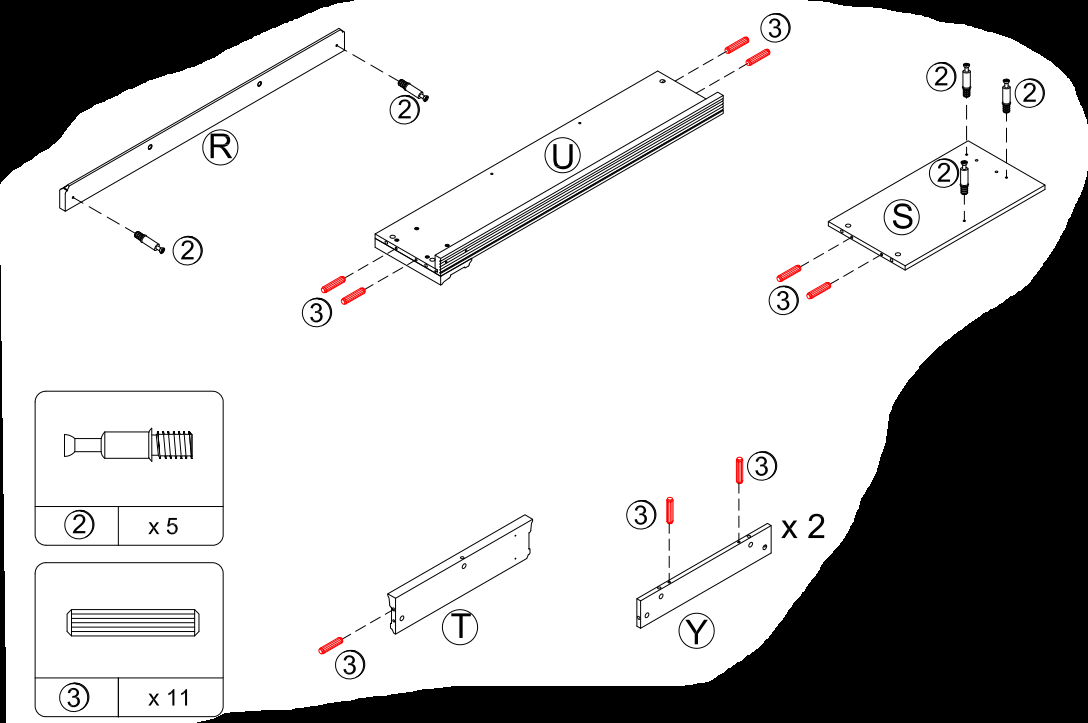

2.

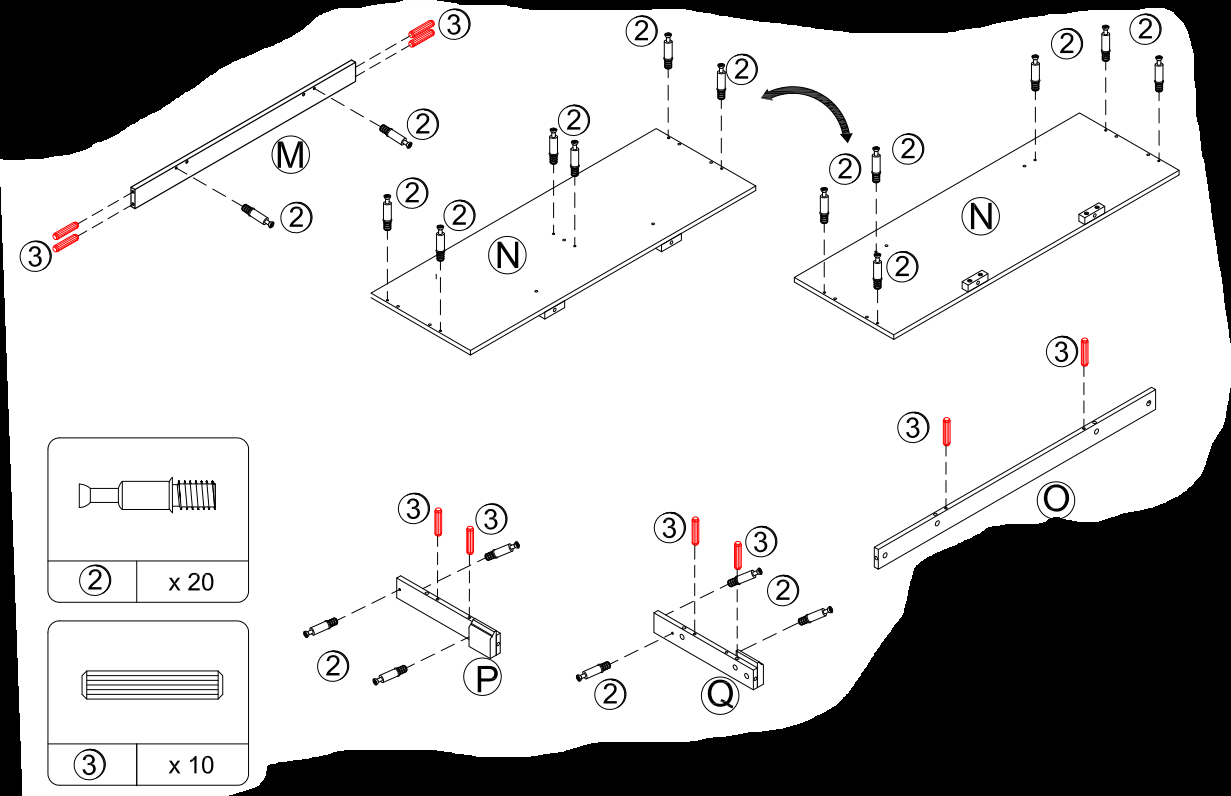

3.
4.
5.
6.
7.

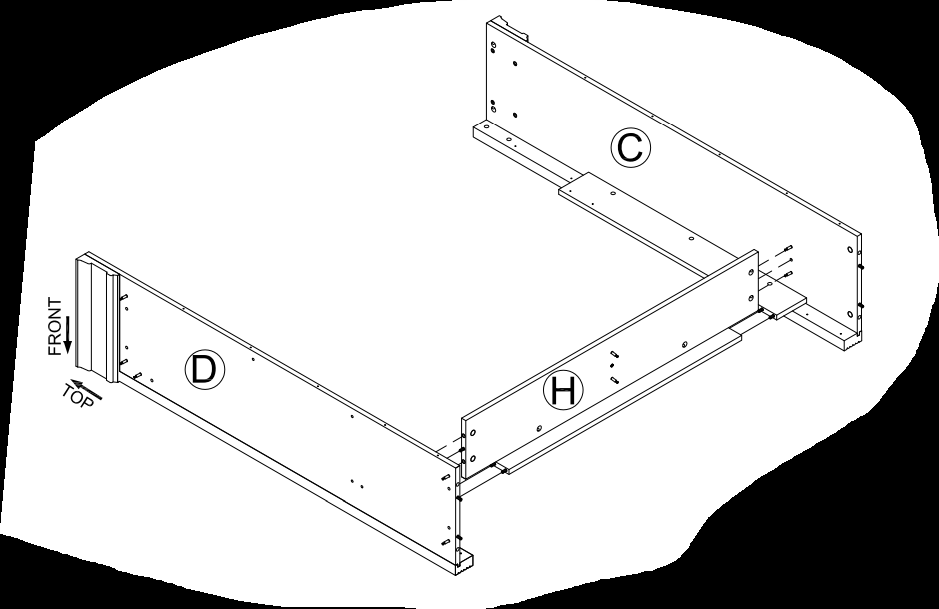

8.

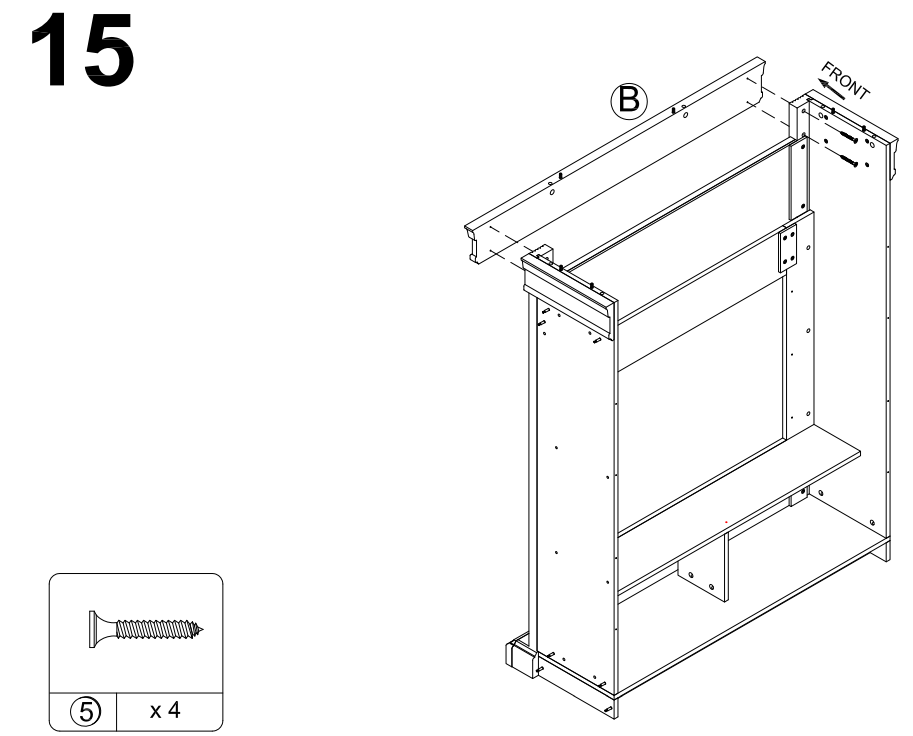

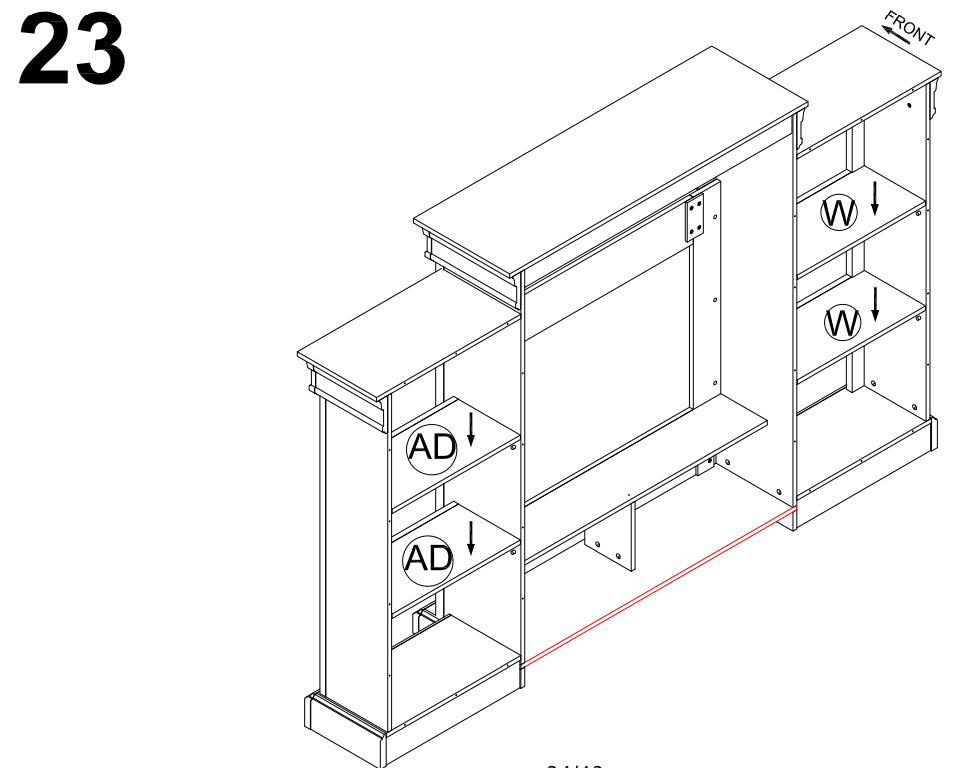

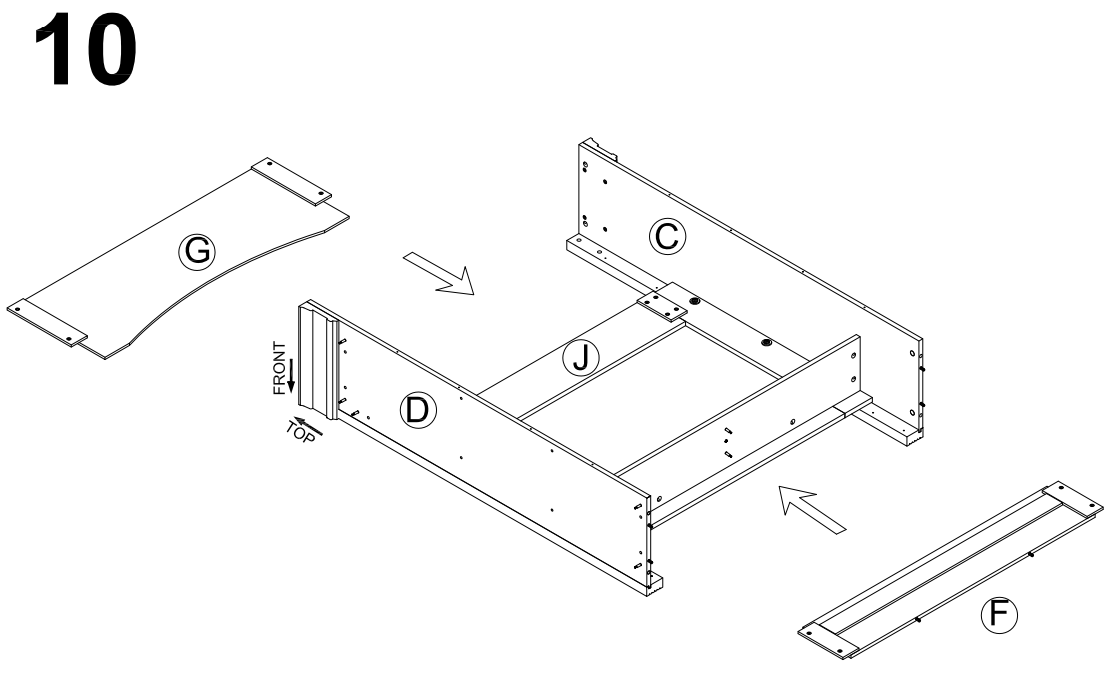

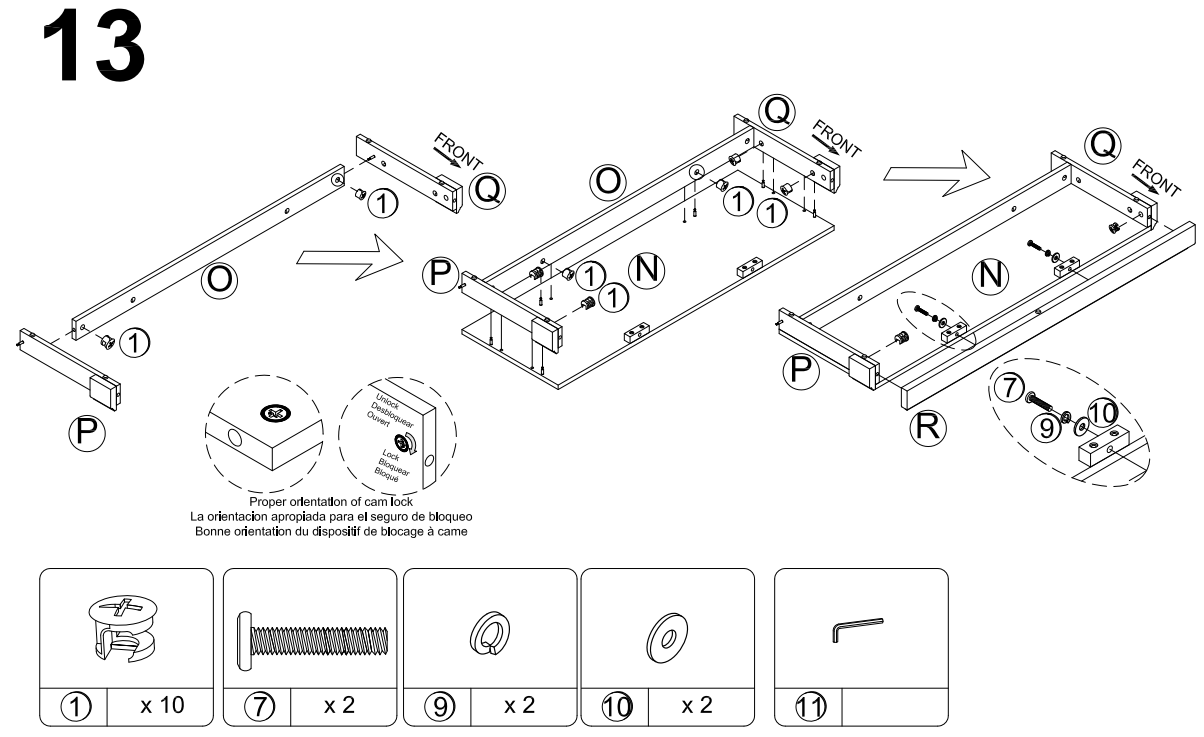

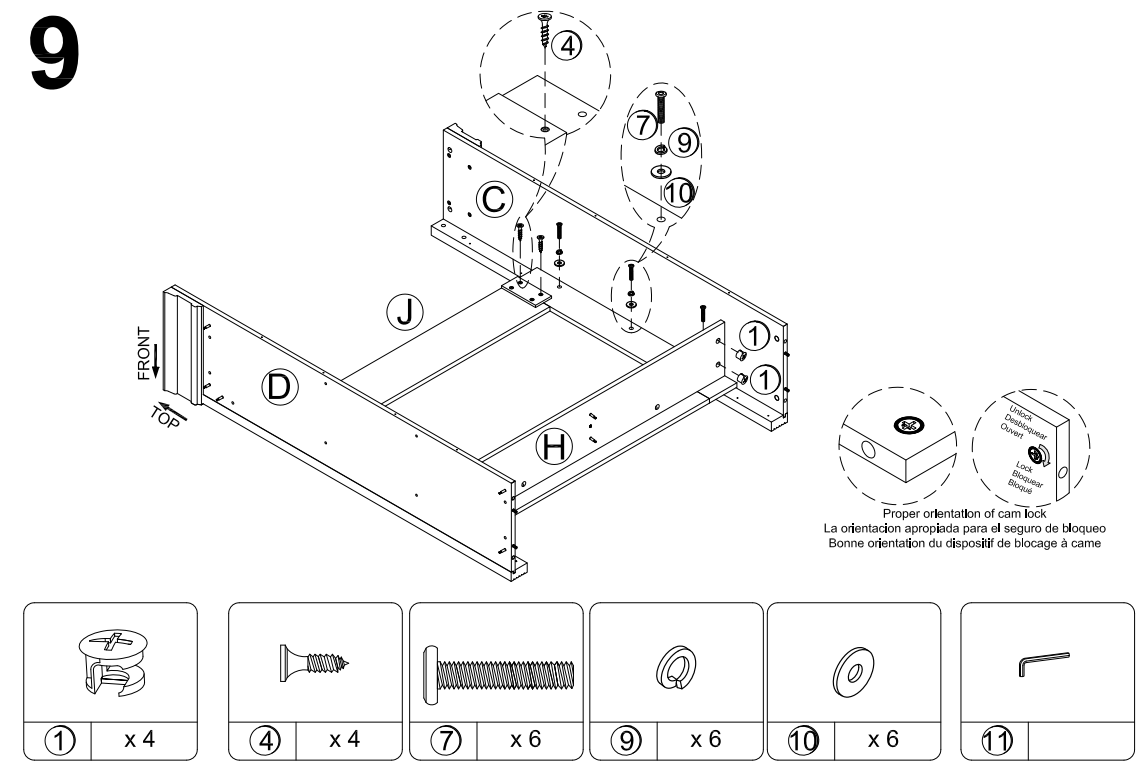

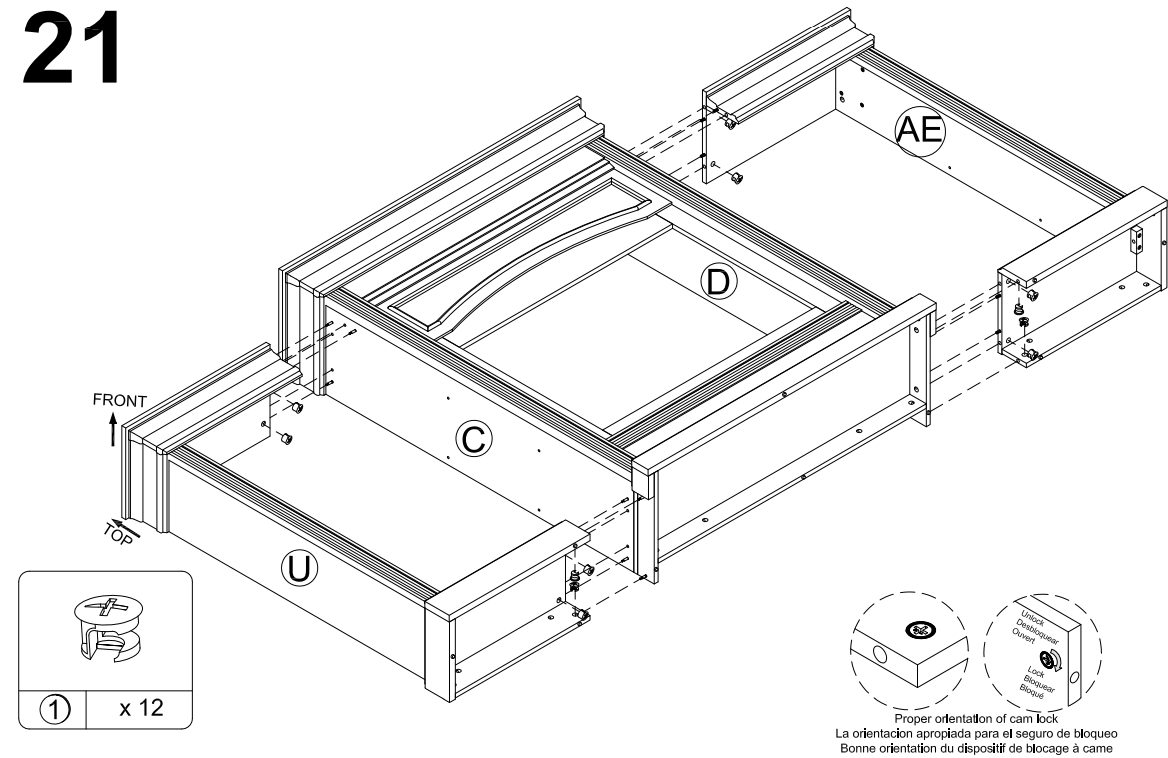

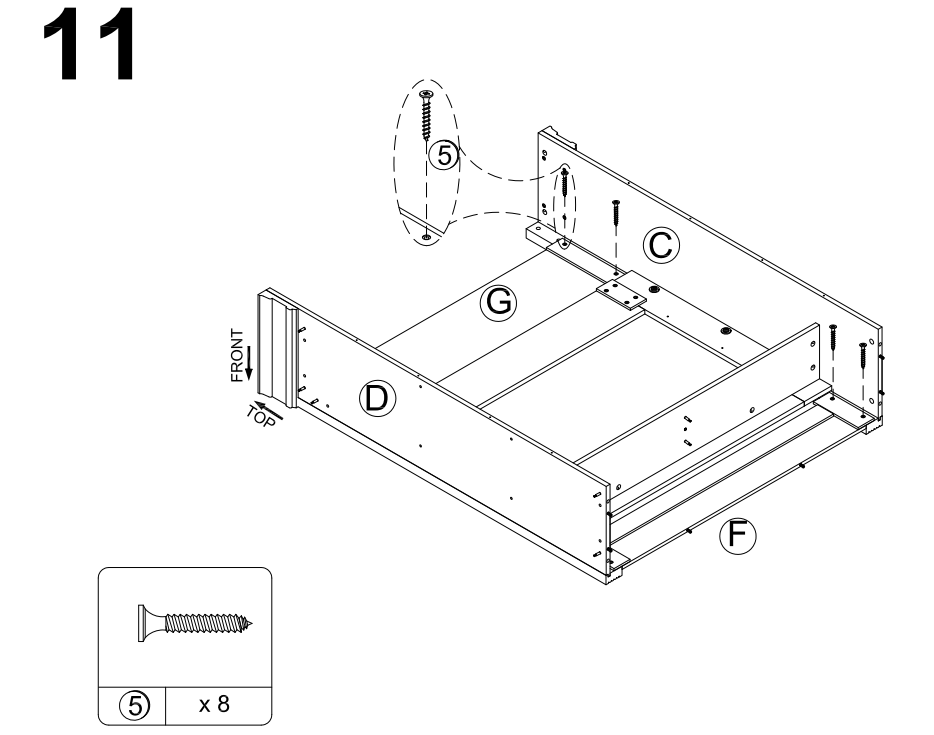

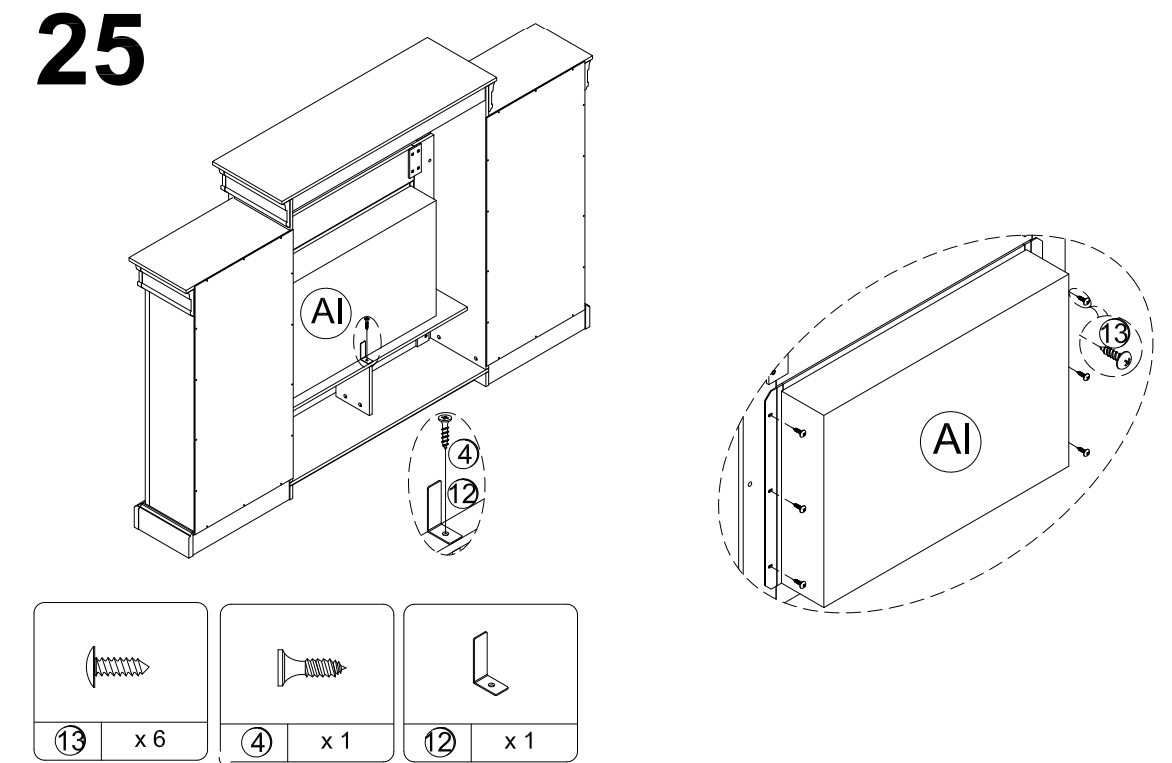

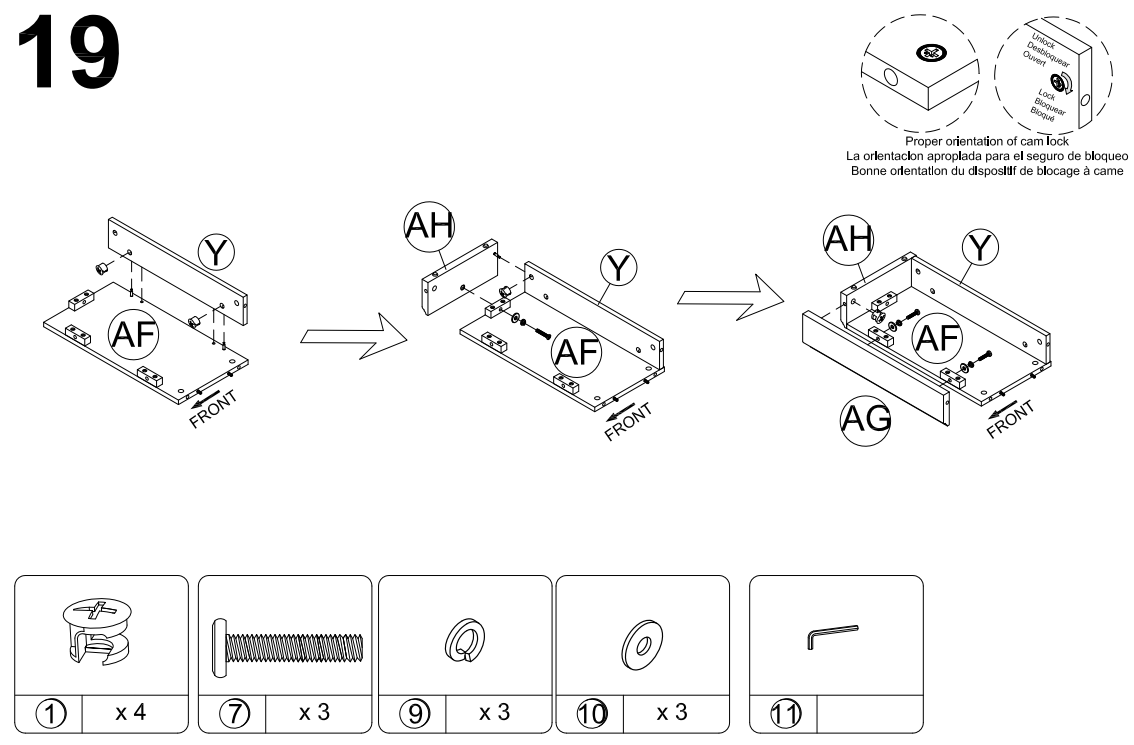

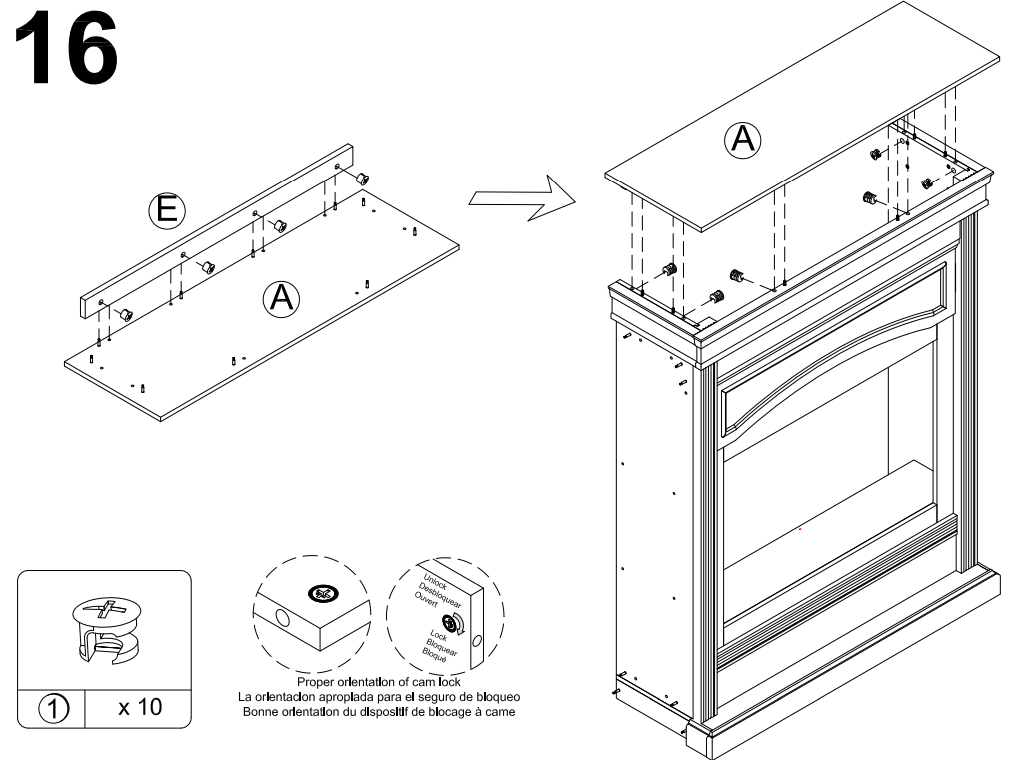

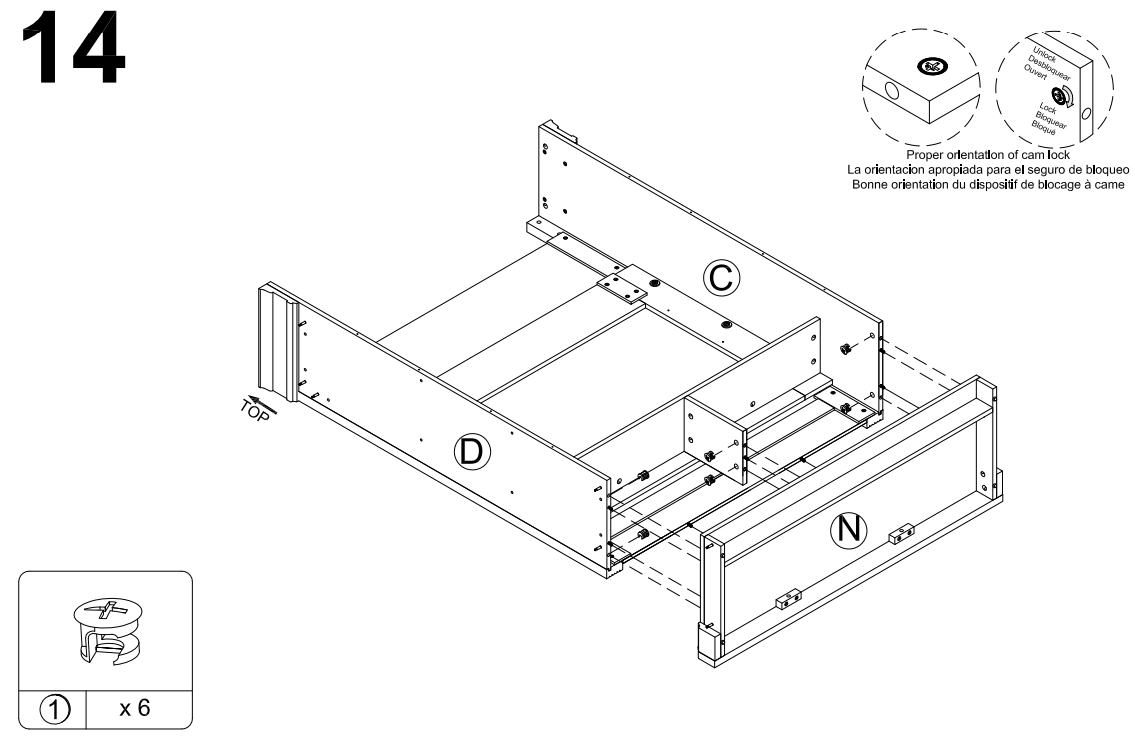

26. Before connecting the unit to a wall electric outlet.
Please carefully read and follow instructions and safety warnings in “Fireplace Homeowners Operating Manual” to operate your fireplace.
WARNING: IF THE INFORMATION IN THE FIREPALCE OPERATING MANUAL IS NOT FOLLOWED. AN ELECTRIC SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE. PERSONAL INJURY, OR LOSS OF LIFE .
27. WARNING: Risk of death or serious injury. This unit must be placed against a fixed in place wall at least as tall as television.
28. Drill a 10 mm diameter hole (3/8") in the wallboard. Tap the wall anchor into the hole until it is flush. Using screw to attach the steel bracket to the wallboard. Using screw to attach the steel bracket to the top shelf back. Move the furniture to its final position.
Thread the strap through the bracket as shown In the Illustration. tighten strap untll snug. Dot not over tighten.

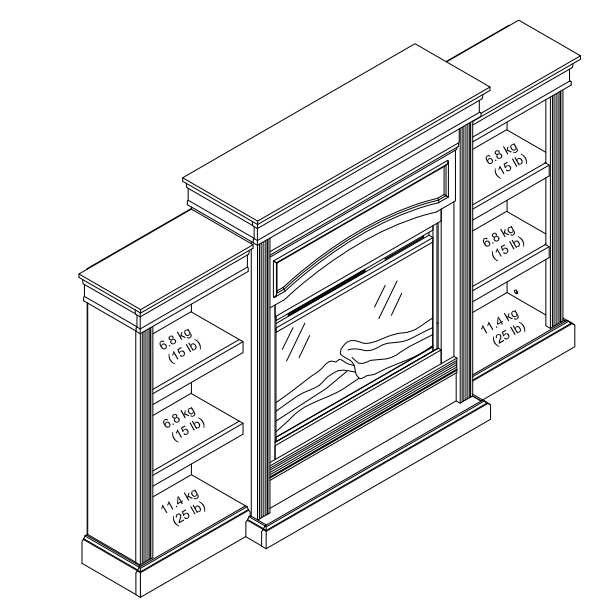

This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
WARNING: Please make sure that all objects are removed before moving the assembled unit. The unit must be team lifted, not dragged or pushed. Failure to do so could cause instability, product collapse, and/or serious injury.
