Denon AVR-X1700H DAB 7.2 Ch. 145W 8K AV Receiver with HEOS® Built-in and DAB+

Owner’s Manual - Transcript

• Page 1 - English - : AVRX1700H AVRX1700H DAB INTEGRATED NETWORK AV RECEIVER Owners Manual Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 2 - English - : Accessories Inserting the batteries Operating range of the remote control unit Features High quality sound High performance Easy operation Part names and functions Front panel Display Rear panel Remote control unit Connections Speaker installation Connecting speakers Before connecting speakers Speaker configuration and Amp Assign settings Connecting 51channel speakers Connecting 71channel speakers Connecting 51channel speakers Biamp connection of front speaker Connecting 51channel speakers Second pair of front speaker Connecting multizone speakers Connecting a TV Connection 1 TV equipped with an HDMI connector and compatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel Connection 2 TV equipped with an HDMI connector and incompatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel Connection 3 TV equipped without an HDMI connector Connecting a playback device Connecting a settop box Satellite tunercable TV Connecting a media player Connecting a Bluray Disc player or DVD player Connecting a game console or player device compatible with the 8K Connecting a turntable Connecting a USB memory device to the USB port Connecting FMAM antennas for FMAM model only Connecting a DABFM antenna for FMDAB model only Connecting to a home network LAN Wired LAN Wireless LAN Connecting the power cord Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 3 - English - : Playback Basic operation Turning the power on Selecting the input source Adjusting the volume Turning off the sound temporarily Muting Playback a Bluray Disc playerDVD player Playing a USB memory device Playing files stored on USB memory devices Listening to music on a Bluetooth device Playing music from Bluetooth device Pairing with other Bluetooth devices Reconnecting to this unit from a Bluetooth device Listening to audio on Bluetooth headphones Listening to audio on Bluetooth headphones Reconnecting to a Bluetooth headphones Disconnecting Bluetooth headphones Listening to FMAM broadcasts for FMAM model only Listening to FMAM broadcasts Tuning in by entering the frequency Direct Tune RDS Search PTY Search TP Search Radio text Changing the tune mode Tune Mode Tuning in to stations and presetting them automatically Auto Preset Presetting the current broadcast station Preset Memory Listening to preset stations Specify a name for the preset broadcast station Preset Name Skipping preset broadcast stations Preset Skip Cancelling Preset Skip Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 4 - English - : Listening to FMDAB broadcasts for FMDAB model only Listening to FM broadcasts Tuning in by entering the frequency Direct Tune RDS Search PTY Search TP Search Radio text Changing the tune mode Tune Mode Tuning in to stations and presetting them automatically Auto Preset Listening to DAB broadcasts Auto scanning DAB broadcast stations Auto Scan Checking the reception intensity of stations Tuning Aid Setting the order of broadcasting station Station Order Compressing the dynamic range DRC Resetting the DAB settings DAB Initialize Presetting the current FMDAB broadcast station Preset Memory Listening to preset stations Specify a name for the preset broadcast station Preset Name Skipping preset broadcast stations Preset Skip Cancelling Preset Skip Listening to Internet Radio Listening to Internet Radio Playing back files stored on a PC or NAS Playing back files stored on a PC or NAS Getting the HEOS App HEOS Account Playing from streaming music services Listening to the same music in multiple rooms AirPlay function Playing songs from your iPhone iPod touch or iPad Playing iTunes music with this unit Play a song from your iPhone iPod touch or iPad on multiple synced devices AirPlay 2 Spotify Connect function Playing Spotify music with this unit Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 5 - English - : Convenience functions Adding to HEOS Favorites Playing back HEOS Favorites Deleting a HEOS Favorites Adjusting the audibility of dialog and vocals Dialog Enhancer Adjusting the volume of each channel to match the input source Channel Level Adjust Adjusting the tone Tone Adjusting audio delay Audio Delay Displaying your desired video during audio playback Video Select Playing the same music in all zones All Zone Stereo Changing the speaker settings to match the listening environment Speaker Preset Selecting a sound mode Selecting a sound mode Direct playback Auto surround playback Description of sound mode types Sound mode that can be selected for each input signal HDMI Control function Setting procedure Sleep timer function Using the sleep timer Quick select plus function Calling up the settings Changing the settings Panel lock function Disabling all key button operations Disabling all button operations except VOLUME Canceling the Panel lock function Remote lock function Disabling the sensor function of the remote control unit Enabling the remote sensor function Web control function Controlling the unit from a web control Playback in ZONE2 Another room Connecting ZONE2 Playback in ZONE2 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 6 - English - : Settings Menu map Menu operations Audio Subwoofer Level SurrParameter Restorer Volume Audyssey Manual EQ Video HDMI Setup HDMI Upscaler On Screen Disp Screensaver 4K8K Signal Format HDCP Setup TV Format Inputs Input Assign Source Rename Hide Sources Source Level Speakers Audyssey Setup Procedure for speaker settings Audyssey Setup Error messages Retrieving Audyssey Setup settings Manual Setup Amp Assign Speaker Config Distances Levels Crossovers Bass Front Speaker Speaker Preset Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 7 - English - : Network Information Connection WiFi Setup Settings Network Control Friendly Name Diagnostics AirPlay WiFi and Bluetooth HEOS Account You have not signed in You have already signed in General Language ECO Bluetooth Transmitter ZONE2 Setup Zone Rename Quick SelNames Front Display Firmware Information Usage Data Save amp Load Setup Lock Reset Limiting the operating zone with the remote control Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 8 - English - : Tips Tips Troubleshooting Power does not turn on Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Desired sound does not come out Sound is interrupted or noise occurs No video is shown on the TV The menu screen is not displayed on the TV The color of the menu screen and operations content displayed on the television is different from normal AirPlay cannot be played back USB memory devices cannot be played back Bluetooth cannot be played back The Internet radio cannot be played back Music files on PC or NAS cannot be played back Various online services cannot be played The HDMI Control function does not work Cannot connect to a wireless LAN network Updateupgrade error messages Resetting factory settings Resetting network settings Restoring the firmware to the factory defaults Appendix About HDMI Relationship between video signals and monitor output Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output Sound modes and surround parameters Types of input signals and corresponding sound modes Explanation of terms Trademark information Specifications Index Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 9 - English - : Thank you for purchasing this Denon product To ensure proper operation please read this owners manual carefully before using the product After reading this manual be sure to keep it for future reference Accessories Check that the following parts are supplied with the product Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio Cable labels Power cord Sound calibration microphone Sound calibration microphone stand Remote control unit RC1244 R03AAA batteries DABFM indoor antenna for AVRX1700H DAB only AM loop antenna for AVRX1700H only FM indoor antenna for AVRX1700H only Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 10 - English - : Inserting the batteries Remove the rear lid in the direction of the arrow and remove it Insert two batteries correctly into the battery compartment as indicated Batteries Put the rear cover back on NOTE To prevent damage or leakage of battery fluid Do not use a new battery together with an old one Do not use two different types of batteries Remove the batteries from the remote control unit if it will not be in use for long periods If the battery fluid should leak carefully wipe the fluid off the inside of the battery compartment and insert new batteries Operating range of the remote control unit Point the remote control unit at the remote sensor when operating it Approx 7 m 30 30 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 11 - English - : Features High quality sound With discrete circuit technology the power amplifier provides identical quality for all 7channels 120 Watts x 7channels For optimum realism and stunning dynamic range the power amplifier section features discrete power devices not integrated circuitry By using high current high power discrete power devices the amplifier is able to easily drive high quality speakers Dolby Atmos v p 283 This unit is equipped with a decoder that supports Dolby Atmos audio format The placement or movement of sound is accurately reproduced by the addition of overhead speakers enabling you to experience an incredibly natural and realistic surround sound field Speaker Virtualizer v p 172 Speaker Virtualizer enables you to access a more immersive entertainment experience from traditional channel based speaker layouts through digital signal processing including Dolby Atmos height virtualization and surround virtualization Speaker Virtualizer is not for use when both height speakers and surround speakers are connected Height Virtualization may be applied when surround speakers are connected DTSX v p 287 This unit is equipped with the DTSX decoder technology DTSX brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience DTS VirtualX v p 287 DTS VirtualX technology features DTSs proprietary virtual height and virtual surround processing to deliver an immersive sound experience from any type of input source stereo to 714 channel and speaker configuration DTS VirtualX is not for use when Height speakers are connected Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 12 - English - : High performance 8K 60Hz inputoutput supported 8K 4K 120Hz 8K 4K 120Hz When 8K Ultra HD High Definition is used an inputoutput speed of 60 frames per second 60p is achieved for video signals When connected to 8K Ultra HD and 60p video signal input compatible TV you can enjoy the sense of realism only available from highdefinition images even when viewing fastmoving video This unit supports a wide range of HDR content delivering even higher definition video HDCP 23 This unit is compatible with HDCP 23 copyright protection standard Digital video processor upscales HD 1080p 4K to 8K 8K Ultra HD 8K 8K 1080p4K 8K up scaling This unit is equipped with a 8K video upscaling function that allows HD High Definition 1080p4K video to be output via HDMI at 8K 7680 4320 pixels resolution This function enables the device to be connected to a TV using a single HDMI cable and produces high definition images for any video source eARC Enhanced Audio Return Channel function compatibility The eARC function is compatible with conventional ARC function compatible audio formats in addition to multichannel linear PCM Dolby TrueHD Dolby Atmos DTSHD Master Audio DTSX and other audio formats a conventional ARC function cannot transmit Additionally connecting to an eARC functioncompatible television enables enjoyment of higherquality surround playback of the audio content played from your television Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 13 - English - : HDMI connections enable connection to various digital AV devices 6 inputs 1 output OutIn This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling connection to various HDMI compatible devices such as Bluray Disc players game consoles and HD video camcorders The device is equipped with a AirPlay function in addition to network functions such as Internet radio etc v p 123 You can enjoy a wide variety of content including listening to Internet Radio playing audio files stored on your PC This unit also supports Apple AirPlay which lets you stream your music library from an iPhone iPad iPod touch or iTunes Supports AirPlay 2 wireless audio Sync multiple AirPlay 2 compatible devicesspeakers for simultaneous playback This unit supports AirPlay 2 and requires iOS 114 or later Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 14 - English - : Playback of DSD and FLAC files via USB and networks This unit supports the playback of high resolution audio formats such as DSD 56 MHz and FLAC 192 kHz files It provides high quality playback of high resolution files Wireless connection with Bluetooth devices can be carried out easily v p 75 You can enjoy music simply by connecting wirelessly with your smartphone tablet PC etc Connect Bluetooth headphones This unit can transmit Bluetooth so you can enjoy audio wirelessly through your Bluetooth headphones Playback can be performed using connected speakers and Bluetooth headphones simultaneously or only using Bluetooth headphones Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index

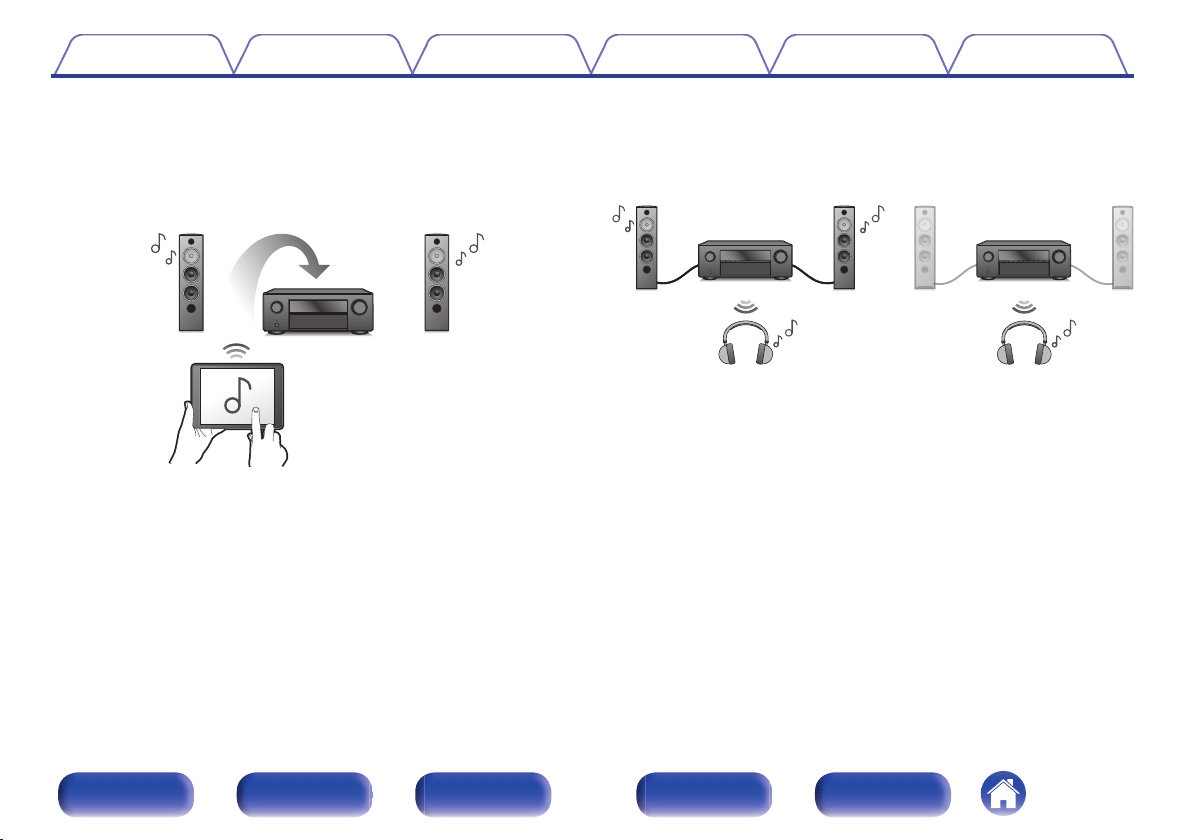

• Page 15 - English - : MultiRoom audio v p 134 GMAIN ZONEHGZONE2H You can select and play back the respective inputs in MAIN ZONE and ZONE2 In addition when the All Zone Stereo function is used the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time This is useful when you want to let the background music propagate throughout the whole house Energysaving design This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use and also an autostandby function that automatically turns off the power supply when the unit is not in use This helps reduce unnecessary power use Compatible with the Denon 2016 AVR Remote App z for performing basic operations of the unit with an iPad iPhone or Android devices Google Amazon Kindle Fire Along with many new features the graphics and user interface have been completely overhauled The new app gives you full control of this unit as well as access to its setup menu for detailed adjustments from your phones or tablets Denon 2016 AVR Remote App also gives you quick access to the receivers status display option menus Denon Blu ray Disc player control and online owners manual for your convenience z Download the appropriate Denon 2016 AVR Remote App for your iOS or Android devices This unit needs to be connected to the same LAN or WiFi wireless LAN network that the iPad iPhone or Android is connected to Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 16 - English - : HEOS provides streaming music from your favorite online music sources HEOS wireless multiroom sound system that enables you to enjoy your favorite music anywhere and everywhere around your home By utilizing your existing home network and the HEOS App available for iOS Android and Amazon devices you can explore browse and play music from your own music library or from many online streaming music services When multiple products with HEOS Builtin are connected to the same network they can be grouped to play the same music on all products simultaneously or different music can be played on each one Easy operation Setup Assistant provides easytofollow setup instructions First select the language when prompted Then simply follow the instructions displayed on the TV screen to set up the speakers network etc Easy to use Graphical User Interface This unit is equipped with a Graphical User Interface for improved operability Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 17 - English - : Part names and functions Front panel trqw e y Q Q2Q0 Q1 Q Q oiu For details see the next page Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 18 - English - : trqw e y oiu A Power operation button X Used to turn the power of the MAIN ZONE room where this unit is located onoff standby v p 69 B Power indicator This is lit as follows according to the power status Green Power on Off Normal standby Red When HDMI PassThrough is set to On v p 182 When HDMI Control is set to On v p 183 When Network Control is set to Always On v p 220 C SOURCE SELECT knob This selects the input source v p 69 D Remote control sensor This receives signals from the remote control unit v p 10 E Display This displays various pieces of information v p 20 F MASTER VOLUME knob This adjusts the volume level v p 70 G Tuner preset channel buttons TUNER PRESET CH These select preset broadcast stations v p 89 H ZONE2 ONOFF button This turns the power of ZONE2 another room onoff v p 162 I ZONE2 SOURCE button This selects the input source for ZONE2 v p 162 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 19 - English - : Q Q2 Q Q Q0 Q1 J DIMMER button Each press of this switches the brightness of the display v p 230 K STATUS button Each press of this switches the status information that is shown on the display L QUICK SELECT buttons With a single press of any of these buttons you can call up various settings youve registered to each button such as the input source volume level and sound mode settings v p 152 M Headphones jack PHONES This is used to connect headphones When the headphones are plugged into this jack audio will no longer be output from the connected speakers or from the SUBWOOFER connectors NOTE To prevent hearing loss do not raise the volume level excessively when using headphones N SETUP MIC jack This is used to connect the supplied Sound calibration microphone v p 197 O USB port T This is used to connect USB storages such as USB memory devices v p 61 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 20 - English - : Display uiytrewq oQ Q A Input mode indicators These light according to the audio input mode settings of each input source v p 192 B Surround back indicator This lights when audio signals are being output from the surround back speakers v p 208 C Decoder indicators These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running D Audyssey indicator This lights when MultEQ XT Dynamic EQ or Dynamic Volume has been set up v p 176 E Tuner reception mode indicators These light up according to the reception conditions when the input source is set to Tuner TUNED Lights up when the broadcast is properly tuned in STEREO Lights up when receiving FM stereo broadcasts RDS Lights up when receiving RDS broadcasts F Sleep timer indicator This lights when the sleep mode is selected v p 150 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 21 - English - : ui Q Q o G Volume indicator H MUTE indicator This blinks while the sound is muted v p 70 I Information display The input source name sound mode setting values and other information are displayed here J Input signal indicators The respective indicator will light corresponding to the input signal v p 192 K ZONE2 indicator This lights up when ZONE2 another room power is turned on v p 162 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 22 - English - : Rear panel o q Q1 Q2 Q wer ty u iq For details see the next page Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 23 - English - : qwer q A Rod antennas for Bluetoothwireless LAN Stand this antenna upright when connecting to a network via wireless LAN or when connecting to a handheld device via Bluetooth v p 66 90 320 320 90 The antenna clip can be removed from the rear panel A Rotate the antenna clip 90 degrees to the left B Pull the antenna clip out towards yourself The antenna clip is needed when transporting this unit Keep it in a safe place Attach the antenna clip by following the steps for removing it in reverse B Analog audio connectors AUDIO Used to connect devices equipped with analog audio connectors Connecting a settop box Satellite tunercable TV v p 56 Connecting a media player v p 57 Connecting a turntable v p 60 C PRE OUT connectors Used to connect a subwoofer with a builtin amplifier v p 37 D Video connectors VIDEO Used to connect devices equipped with video connectors Connection 3 TV equipped without an HDMI connector v p 54 Connecting a settop box Satellite tunercable TV v p 56 Connecting a media player v p 57 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 24 - English - : oQ1Q2 Q ty u i E Digital audio connectors DIGITAL AUDIO Used to connect devices equipped with digital audio connectors Connection 2 TV equipped with an HDMI connector and incompatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel v p 53 Connection 3 TV equipped without an HDMI connector v p 54 Connecting a settop box Satellite tunercable TV v p 56 F NETWORK connector Used to connect to a LAN cable when connecting to a wired LAN network v p 65 G HDMI connectors Used to connect devices equipped with HDMI connectors Connection 1 TV equipped with an HDMI connector and compatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel v p 52 Connection 2 TV equipped with an HDMI connector and incompatible with the ARC Audio Return Channel eARC Enhanced Audio Return Channel v p 53 Connecting a settop box Satellite tunercable TV v p 56 Connecting a Bluray Disc player or DVD player v p 58 Connecting a media player v p 57 Connecting a game console or player device compatible with the 8K v p 59 H AC inlet AC IN Used to connect the power cord v p 67 I SIGNAL GND terminal Used to connect a ground wire for the turntable v p 60 J DABFM antenna terminal ANTENNA for FMDAB model only Used to connect a DABFM antenna v p 64 K FMAM antenna terminals ANTENNA for FMAM model only Used to connect FM antennas and AM loop antennas v p 62 L Speaker terminals SPEAKERS Used to connect speakers v p 36 NOTE Do not touch the inner pins of the connectors on the rear panel Electrostatic discharge may cause permanent damage to the unit Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 25 - English - : Remote control unit A ZONE SELECT buttons These switch the zone MAIN ZONE ZONE2 that is operated through the remote control unit Playback in ZONE2 v p 162 Menu operations v p 168 B Input source select buttons These selects the input source Selecting the input source v p 69 Playback in ZONE2 v p 162 C Channelpage search buttons CHPAGE df These select radio stations registered to presets or switch pages v p 89 D MUTE button This mutes the output audio Turning off the sound temporarily Muting v p 70 Turning off the sound temporarily Muting ZONE2 v p 163 E Information button INFO This displays the status information on the TV screen v p 235 F Cursor buttons uio p These select items e t r y q w Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 26 - English - : G BACK button This returns to the previous screen H System buttons These perform playback related operations Tuning up Tuning down buttons TUNE These operate the tuner v p 83 I QUICK SELECT buttons 1 4 These call up settings registered to each button such as input source volume level and sound mode settings v p 152 J SOUND MODE buttons These select the sound mode v p 136 K Remote control signal transmitter This transmits signals from the remote control unit v p 10 L SLEEP button This sets the sleep timer v p 150 Q2 Q1 Q0 o i u Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 27 - English - : M POWER button X This turns the power onoff Turning the power on v p 69 Playback in ZONE2 v p 162 N ECO Mode button G This switches to ECO Mode v p 224 O VOLUME buttons df These adjusts the volume level Adjusting the volume v p 70 Adjusting the volume ZONE2 v p 163 P OPTION button This displays the option menu on the TV screen Q ENTER button This determines the selection R SETUP button This displays the menu on the TV screen v p 168 Q3 Q5 Q4 Q8 Q6 Q7 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 28 - English - : o Contents Speaker installation 29 Connecting speakers 36 Connecting a TV 51 Connecting a playback device 55 Connecting a USB memory device to the USB port 61 Connecting FMAM antennas for FMAM model only 62 Connecting a DABFM antenna for FMDAB model only 64 Connecting to a home network LAN 65 Connecting the power cord 67 NOTE Do not plug in the power cord until all connections have been completed However when the Setup Assistant is running follow the instructions in the Setup Assistant page 8 in the separate Quick Start Guide screen for making connections During Setup Assistant operation the inputoutput connectors do not conduct current Do not bundle power cords together with connection cables Doing so can result in noise o Cables used for connections Provide necessary cables according to the devices you want to connect Speaker cable Subwoofer cable HDMI cable Video cable Optical cable Audio cable R L R L LAN cable Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 29 - English - : Speaker installation Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room Speaker installation is explained using this example of a typical installation C FL FR SBL SBR SB SW1 SW2 SL SR FLFR Front speaker left right Place the FRONT left and right speakers an equal distance from the main listening position The distance between each speaker and your TV should also be the same C Center speaker Place the CENTER speaker in between the front speakers and above or below your TV SLSR Surround speaker left right Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position If you dont have surround back speakers move the surround speakers slightly behind your listening position SBLSBR Surround back speaker leftright Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position When using a single surround back speaker SB place it directly behind the listening position SW 12 Subwoofer Place the SUBWOOFER at a convenient location near the front speakers If you have two subwoofers place them asymmetrically across the front of your room Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 30 - English - : FHL FHR TFR TFL TMR TML FHLFHR Front height speaker leftright Place the FRONT HEIGHT left and right speakers directly above the front speakers Mount them as close to the ceiling as possible and aim them towards the main listening position TFLTFR Top front speaker leftright Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers TMLTMR Top middle speaker leftright Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 31 - English - : FDL FDR SDL SDR FDLFDR Front Dolby speaker leftright Place the FRONT Dolby Atmos Enabled speaker on the front speaker For a Dolby Atmos Enabled integrated with a front speaker place the Dolby Atmos Enabled speaker instead of the front speaker SDLSDR Surround Dolby speaker leftright Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker For a Dolby Atmos Enabled speaker integrated with a surround speaker place the Dolby Atmos Enabled speaker instead of the surround speaker About Dolby Atmos Enabled speakers Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward pointing speaker that is placed on the floor You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 32 - English - : This unit is compatible with Dolby Atmos and DTSX which offers an even wider and deeper surround sensation The SpVirtualizer must be set to On for Dolby Atmos playback with 51channel speaker configurations or less v p 172 DTSX can be selected regardless of the speaker configuration Use the illustration below as a guide for how high each speaker should be installed The height does not need to be exactly the same z z2 z3 Front height speaker z1 30 45 z2 30 55 z3 65 100 GViewed from the sideH Top middle speaker Top front speaker Front speaker Surround speaker Surround back speaker Point slightly downwards SL FHL TML TFL FL SR FHR TMR TFR FR C Height speakers layout GViewed from the topH Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 33 - English - : o When 71channel speakers are installed using surround back speakers z1 z2 z3 FL SW C SL SBL FR SR SBR Listening position z1 22 30 z2 90 110 z3 135 150 When using a single surround back speaker place it directly behind the listening position o When 51channel speakers are installed z1 z2 FL SW C SL FR SR z1 22 30 z2 120 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 34 - English - : o Layout including height speakers and ceiling speakers n Height speaker layout example Combination of 51channel layout and front height speakers FHL FHR C FL FR SW SL SR n Ceiling speaker layout example Combination of 51channel layout and top middle speakers TMR TML C FL FR SW SL SR Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 35 - English - : n Dolby Atmos Enabled speaker layout example Combination of 51channel layout and front Dolby speakers C FL FR FDL FDR SW SL SR Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 36 - English - : Connecting speakers Here we connect the speakers in the room to this unit Before connecting speakers NOTE Disconnect this units power plug from the power outlet before connecting the speakers Also turn off the subwoofer Connect so that the speaker cable core wires do not protrude from the speaker terminal The protection circuit may be activated if the core wires touch the rear panel or if the and sides touch each other Protection circuit v p 291 Never touch the speaker terminals while the power cord is connected Doing so could result in electric shock When the Setup Assistant page 8 in the separate Quick Start Guide is running follow the instructions in the Setup Assistant screen for making connections Power is not supplied to the speaker terminals while the Setup Assistant is running Use speakers with an impedance of 4 16 Ωohms NOTE Carry out the following settings when using a speaker with an impedance of 4 6 Ωohms 1 Press and hold the main units ZONE2 SOURCE and STATUS at the same time for at least 3 seconds VFormatlt PALgt appears on the display 2 Press DIMMER on the main unit three times SpImplt8ohmsgt appears on the display 3 Press TUNER PRESET CH or TUNER PRESET CH on the main unit to select the impedance 8ohms Default Select when the impedance for all of the connected speakers is 8 Ωohms or over 6ohms Select when the impedance for any of the connected speakers is 6 Ωohms 4ohms Select when the impedance for any of the connected speakers is 4 Ωohms 4 Press the main units STATUS to complete the setting Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 37 - English - : o Connecting the speaker cables Carefully check the left L and right R channels and red and black polarities on the speakers being connected to this unit and be sure to connect the channels and polarities correctly Peel off about 10 mm of sheathing from the tip of the speaker cable then either twist the core wire tightly or terminate it Turn the speaker terminal counterclockwise to loosen it Insert the speaker cables core wire to the hilt into the speaker terminal Turn the speaker terminal clockwise to tighten it o Connecting the subwoofer Use a subwoofer cable to connect the subwoofer Two subwoofers can be connected to this unit The same signal is output from the respective subwoofer terminals SW1 SW2 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 38 - English - : o About the cable labels supplied for channel identification The channel display section for speaker terminals on the rear panel is colorcoded for each channel to be identifiable Attach the cable label corresponding to each speaker to each speaker cable This makes it easy to connect the correct cable to the speaker terminals on the rear panel Speaker Color FRONT L White FRONT R Red CENTER Green SURROUND L Light Blue SURROUND R Blue SURROUND BACK L Beige SURROUND BACK R Brown FRONT HEIGHT L Beige FRONT HEIGHT R Brown ZONE2 L Beige ZONE2 R Brown TOP FRONT L Beige TOP FRONT R Brown TOP MIDDLE L Beige TOP MIDDLE R Brown FRONT DOLBY L Beige FRONT DOLBY R Brown SURROUND DOLBY L Beige SURROUND DOLBY R Brown SUBWOOFER 1 Black SUBWOOFER 2 Black Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 39 - English - : Attach the cable label for each channel to its speaker cable as shown in the diagram Refer to the table and attach the label to each speaker cable Then make connection so that the color of the speaker terminal matches that of the cable label G How to attach the cable labels H Speaker This unit Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 40 - English - : Speaker configuration and Amp Assign settings This unit has a builtin 7channel power amplifier In addition to the basic 51channel system a variety of speaker systems can be configured by changing the Amp Assign settings to suit the application such as 71channel systems biamp connections and 2channel systems for multizone playback v p 205 Perform Amp Assign settings to suit the number of rooms and speaker configuration to be installed v p 205 Playback speaker and zone Amp Assign settings Connection page MAIN ZONE ZONE2 51channel 2channel Preout Can be set in all Amp Assign modes 41 71channel surround back 2channel Preout Surround Back Default 42 71channel front height 2channel Preout Front Height 43 71channel top front 2channel Preout Top Front 44 71channel top middle 2channel Preout Top Middle 45 71channel front Dolby Atmos Enabled speaker 2channel Preout Front Dolby 46 71channel surround Dolby Atmos Enabled speaker 2channel Preout Surround Dolby 47 51channel biamp connection for front speaker 2channel Preout BiAmp 48 51channel second pair of front speaker 2channel Preout Front B 49 51channel 2channel Speaker out ZONE2 50 The sound mode that can be selected varies according to the speaker configuration See Sound modes and channel output v p 274 for the sound modes that are supported Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 41 - English - : Connecting 51channel speakers This serves as a basic 51channel surround system FL SW C SL FR SR SW C SR SLFLFR Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 42 - English - : Connecting 71channel speakers System for 71channel surround playback o Example connections when using surround back speakers This 71channel surround system is the same as a basic 51channel system but with surround back speakers FL SW C SL FR SR SBRSBL Set Assign Mode to Surround Back in the menu v p 205 SW C SR SLFLFR SBR SBL When using a single surround back speaker connect it to the SURROUND BACK L terminal Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 43 - English - : o Example connections when using front height speakers This 71channel surround system is the same as a basic 51channel system but with front height speakers FL SW C SL FHR FR SR FHL Set Assign Mode to Front Height in the menu v p 205 SW C SR SLFLFR FHR FHL Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 44 - English - : o Example connections when using top front speakers This 71channel surround system is the same as a basic 51channel system but with top front speakers C FL FR SW SL SR TFL TFR Set Assign Mode to Top Front in the menu v p 205 SW C SR SLFLFR TFR TFL Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 45 - English - : o Example connections when using top middle speakers This 71channel surround system is the same as a basic 51channel system but with top middle speakers C FL FR SW SL SR TML TMR Set Assign Mode to Top Middle in the menu v p 205 SW C SR SLFLFR TMR TML Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 46 - English - : o Example connections when using front Dolby Atmos Enabled speakers This 71channel surround system is the same as a basic 51channel system but with front Dolby Atmos Enabled speakers C SWFL FR SL SR FDL FDR Set Assign Mode to Front Dolby in the menu v p 205 SW C SR SLFLFR FDR FDL Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 47 - English - : o Example connections when using surround Dolby Atmos Enabled speakers This 71channel surround system is the same as a basic 51channel system but with surround Dolby Atmos Enabled speakers C FL FR SW SL SR SDL SDR Set Assign Mode to Surround Dolby in the menu v p 205 SW C SR SLFLFR SDR SDL Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 48 - English - : Connecting 51channel speakers Biamp connection of front speaker This system plays back 51channels You can use the biamp connection for front speakers Biamp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports biamplification This connection enables back EMF power returned without being output from the woofer to flow into the tweeter without affecting the sound quality producing a higher sound quality FL FR SW C SL SR BiAmp BiAmp Set Assign Mode to BiAmp in the menu v p 206 NOTE When making biamp connections be sure to remove the shortcircuiting plate or wire between the speakers woofer and tweeter terminals wqwq R L FLFR SW C SR SL Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 49 - English - : Connecting 51channel speakers Second pair of front speaker This system enables switching playback between front speakers A and B as desired SW C SL SR FLFL B A FRFR A B Set Assign Mode to Front B in the menu v p 206 SW C SR SL FR A FL A FR B FL B Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
• Page 50 - English - : Connecting multizone speakers o 51channel MAIN ZONE 2channel ZONE2 speaker connection This connection method constructs a 51channel speaker system in the MAIN ZONE and a 2channel system in ZONE2 MAIN ZONE FL SW C SL FR SR ZONE2 ZONE2 L ZONE2 R SW C SR SLFLFR ZONE2 R ZONE2 L Set Assign Mode to ZONE2 in the menu v p 206 Contents Connections Playback Settings Tips Appendix Front panel Display Rear panel Remote Index
