Black+Decker HNV220BCZ10FF Handheld Vacuum 2Ah, 10.8 Volts

Instruction Manual - Transcript

• Page 1 - English - : INSTRUCTION MANUAL CORDLESS HAND VACS Thank you for choosing BLACKDECKER PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON SAVE THIS MANUAL FOR FUTURE REFERENCE XX is a placeholder for the twodigit number at the end of your vacuums catalog number that designates your vacuums color CATALOG NUMBERS HNV115BXX HNV215BXX HNV220BXX
• Page 2 - English - : SAFETY GUIDELINES DEFINITIONS It is important for you to read and understand this manual The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS The symbols below are used to help you recognize this information DANGER Indicates an imminently hazardous situation which if not avoided will result in death or serious injury WARNING Indicates a potentially hazardous situation which if not avoided could result in death or serious injury CAUTION Indicates a potentially haz ard ous situation which if not avoided may result in minor or mod er ate injury NOTICE Used without the safety alert symbol indicates potentially hazardous situation which if not avoided may result in property damage IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance basic precautions should always be followed including the following READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE WARNING Read all safety warnings and all instructions Failure to follow the warnings and instructions listed below may result in electric shock fire and or serious injury WARNING Some household dust contains chemicals known to the State of California to cause cancer birth defects or other reproductive harm such as asbestos and lead in lead based paint WARNING To reduce the risk of fire electrical shock or injury WARNING To reduce the risk of electric shock Do not use outdoors or on wet surfaces Do not allow to be used as a toy Close attention is necessary when used by or near children Use only as described in this manual Use only manufacturers recommended attachments Do not use with damaged cord or plug If appliance is not working as it should has been dropped damaged left outdoors or dropped into water return it to a service center Do not pull or carry by cord use cord as a handle close a door on cord or pull cord around sharp edges or corners Do not run appliance over cord Keep cord away from heated surfaces Do not unplug by pulling on cord To unplug grasp the plug not the cord Do not handle charger including charger plug and charger terminals with wet hands Do not put any object into openings Do not use with any opening blocked keep free of dustlint hair and anything that may reduce air flow Keep hair loose clothing fingers and all parts of body away from openings and moving parts Use extra care when cleaning on stairs Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present Do not pick up anything that is burning or smoking such as cigarettes matches or hot ashes Do not use without dust bag andor filters in place Do not charge the unit outdoors Use only the charger supplied by the manufacturer to recharge Do not incinerate the appliance even if it is severely damaged The batteries can explode in a fire This appliance is intended for household use only and not for commercial or industrial use Shock Hazard To protect against risk of electrical shock do not put unit or charging base in water or other liquid Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces The unit should be placed or mounted away from sinks and hot surfaces Plug the charger directly into an electrical outlet Use the charger only in a standard electrical outlet 120V60Hz Unplug the charger from outlet before any routine cleaning or maintenance Do not look into the air vents when the unit is switched on as sometimes there is a possibility of small debris being discharged from the air vents especially after cleaning replacement of the filters as debris inside the unit can be disturbed
• Page 3 - English - : ADDITIONAL SAFETY WARNINGS a Prevent unintentional starting Ensure the switch is in the offposition before connecting to battery pack picking up or carrying the appliance Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents b Recharge only with the charger specified by the manufacturer A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack c Do not use a battery pack or appliance that is damaged or modified Damaged or modified batteries may exhibit unpredictable behavior resulting in fire explosion or risk of injury dDo not expose a battery pack or appliance to fire or excessive temperature Exposure to fire or temperature above 266F 130C may cause explosion e Have servicing performed by a qualified repair person using only identical replacement parts This will ensure that the safety of the product is maintained WARNING Do not attempt to modify or repair the appliance SAVE THESE INSTRUCTIONS Symbols The label on your tool may include the following symbols The symbols and their definitions are as follows V volts A amperes Hz hertz W watts min minutes or AC alternating current or DC direct current n o no load speed Class I Construction grounded earthing terminal safety alert symbol Class II Construction double insulated min or rpmrevolutions or reciprocation per minute FUCTIONAL DESCRIPTION 1 Onoff switch 2 Bowl release button 3 Dust bowl 4 Charger 5 Charging bracket HNV220B Models Only 6 Brush tool 7 Crevice tool Wall Mounting Figure A The product can be attached to a wall to provide a convenient storage and charging point for the appliance When mounting to a wall make sure the mounting method is suitable for the wall type and is appropriate to the weight of the appliance Mark the location of the charger bracket 5 screw holes on the wall within reach of an electrical outlet for charging the vacuum while it is on the wall bracket Fix the mounting bracket to the wall using appropriate screws and plugs for the type of wall and weight of the appliance Hang the appliance by placing the opening of the vacuum base over the hooks in the wall mount charging bracket A Assembly Accessories Figure B HNV220B Models Only Your hand vac may be supplied with some of the following accessories A brush tool 6 for furniture and stairs A crevice tool 7 for conned spaces Fitting Insert the appropriate accessory into the front of the appliance as show in Figure B Make sure the accessory is fully pushed in

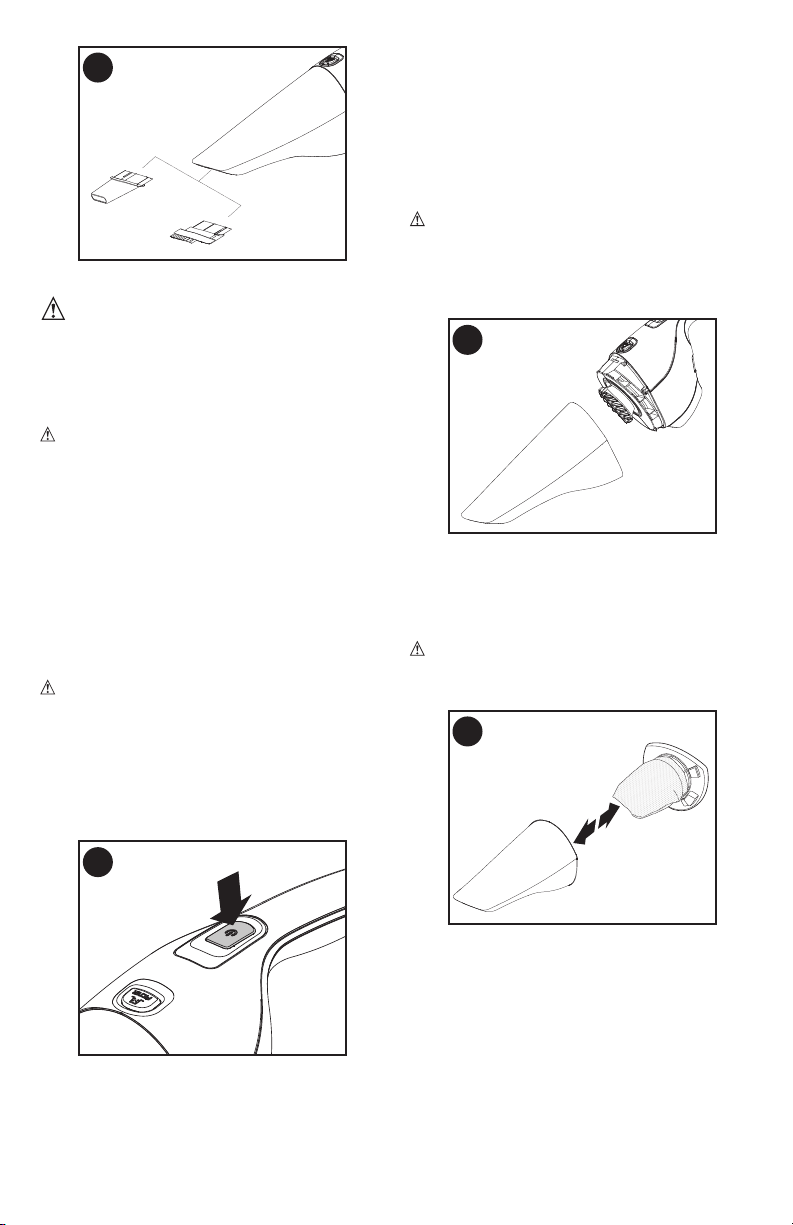

• Page 4 - English - : B Charging the battery WARNING For use only with the supplied charger Before rst use the battery must be charged for at least 10 hours Place the appliance on the charging bracket whenever it is not in use WARNING Before charging be sure to empty all contents and dry thoroughly if needed to avoid damage to your appliance Make sure the appliance is switched off Place the appliance on the charging bracket 5 Plug in the charger Leave the appliance to charge for at least 9 hours NOTE While charging the charger may become warm This is normal and does not indicate a problem The appliance can be left connected to the charger indenitely WARNING Do not charge the battery at ambient temperatures below 50 F or above 104 F Switching On Figure C To switch the appliance on depress the onoff button 1 Once the button is released the vacuum will turn off C Dry pick up For everyday spills of dry material Do not ll the dust bowl 3 beyond the end of the intake chute Optimizing the suction force In order to keep the suction force optimised the lters must be cleared regularly during use EMPTYING AND CLEANING THE PRODUCT Removing the dust bowl and lters Figures D amp E WARNING The lter is reusable and should be cleaned regularly Press the bowl release button 2 and pull the dust bowl 3 straight off as shown in Figure D D While holding the dust bowl over a bin or sink pull out the lter 8 to empty the contents as shown in Figure E To replace the dust bowl push it back onto the handle until it clicks rmly into place WARNING Never use the appliance without the lters Optimum dust collection will only be achieved with a clean lter E Cleaning the dust bowl and lter The dust bowl and lter can be washed in warm soapy water Make sure the lter and the dust bowl are dry before retting Replacing the lters The lters should be replaced every 6 to 9 months and whenever worn or damaged Replacement lters catalog number EVF100 are available from your BLACKDECKER dealer
• Page 5 - English - : MAINTENANCE Use only mild soap and damp cloth to clean the vac Never let any liquid get inside the vac never immerse any part of the vac into a liquid WARNING Make sure the vacuum is completely dry before using it IMPORTANT To assure product SAFETY and RELIABILITY repairs maintenance and adjustment other than those listed in this manual should be performed by authorized service centers or other qualified service organizations always using identical replacement parts The RBRC Seal The RBRC Rechargeable Battery Recycling Corporation Seal on the lithiumion batteries or battery packs indicates that the costs to recycle these batteries or battery packs at the end of their useful life have already been paid by BLACKDECKER In some areas it is illegal to place spent lithiumion batteries in the trash or municipal solid waste stream and the Call 2 Recycle program provides an environmentally conscious alternative Call 2 Recycle Inc in cooperation with BLACKDECKER and other battery users has established the program in the United States and Canada to facilitate the collection of spent lithiumion batteries Help protect our environment and conserve natural resources by returning the spent nickel cadmium nickel metal hydride or lithiumion batteries to an authorized BLACKDECKER service center or to your local retailer for recycling You may also contact your local recycling center for information on where to drop off the spent battery RBRC is a registered trademark of Call 2 Recycle Inc Accessories Recommended accessories for use with your appliance are available from your local dealer or authorized service center WARNING The use of any accessory not recommended for use with this appliance could be hazardous Check out a selection of vacuums and floor care offered in our online store
