Sun Joe 24V-X2-CS16-CT-RM 48-Volt iON+ Cordless Chain Saw 16-Inch Tool Only Certified Refurbished

Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, re

and/or serious injury. Save all warnings and instructions for

future reference.

if not followed, will result in serious injury or death.

if not avoided, could result in serious injury or death.

on type of wood. All of the wooden objects intended to be cut

with this chain saw should be no thicker than the guide bar's

maximum cutting capabilities.

Any other use diering from the above mentioned applications

poses a serious hazard to the user and may damage both the

tool and your personal property. Examples of improper use

include, but are not limited to:

power tool – Distractions can cause you to lose control.

matching outlets will reduce risk of electric shock.

Damaged or entangled cords increase the risk of electric

shock.

suitable for outdoor use reduces the risk of electric shock.

protected supply. Use of an RCD reduces the risk of

electric shock.

serious personal injury.

2. Use personal protective equipment. Always wear

eye protection – Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will

reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is

with your nger on the switch or energising power tools

all times – This enables better control of the power tool in

unexpected situations.

6. Dress properly. Do not wear loose clothing or

can be caught in moving parts.

7. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are

connected and properly used – Use of dust collection

can reduce dust-related hazards.

with the switch is dangerous and must be repaired.

3. Disconnect the battery packs from the power

preventive safety measures reduce the risk of starting

the power tool accidentally.

4. Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool – Power

maintained power tools.

maintained cutting tools with sharp cutting edges are less

likely to bind and are easier to control.

Use of the power tool for operations dierent from those

intended could result in a hazardous situation.

Kickback forces can be controlled by the operator if

proper precautions are taken. Do not let go of the

chain saw.

enables better control of the unit in unexpected situations.

manufacturer. Incorrect replacement of bars and chains

may cause chain breakage and/or kickback.

other batteries may damage the cordless chain saw and cause

it to malfunction, which can lead to serious personal injury.

is damaged or modied. Damaged or modied batteries may

exhibit unpredictable behavior resulting in re, explosion or

24V lithium-ion battery pack only in its designated iON+ 24V

lithium-ion charger. Other types of chargers present risk of re,

personal injury and damage. Do not wire a battery pack to a

power supply plug or car cigarette lighter. Such misuse will

permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the

battery packs in rain, snow or in damp or wet locations.

Do not use the battery packs or charger in the presence of

explosive atmospheres (gaseous fumes, dust or ammable

NOTE: The safe temperature range for the battery is

41°F – 105ºF (5°C – 40.5°C). Do not charge the battery

outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull

the plug, not the cord, from the receptacle to reduce the

risk of damage to the electrical plug and cord. Never carry

the charger by its cord or yank it by the cord to disconnect

it from the receptacle. Keep the cord away from heat, oil

and sharp edges. Make sure the cord will not be stepped

on, tripped over or subjected to damage or stress when the

properly wired 16 gauge or larger extension cord with the

female plug matching the male plug on the charger. Make

sure that the extension cord is in good electrical condition.

• Check the rated input for the charger before using – The

charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an

attachment not recommended or sold by the battery

charger or battery pack manufacturer may result in risk of

re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove

• Do not burn or incinerate battery packs – Battery

packs may explode, causing personal injury or damage.

Toxic fumes and materials are created when battery packs

are burned.

• Do not crush, drop or damage battery packs – Do not

use the battery packs or charger if they have sustained a

sharp blow, been dropped, run over or have been damaged

in any way (i.e. pierced with a nail, hit with a hammer,

stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose

1-866-SNOWJOE (1-866-766-9563) for assistance.

• Battery chemicals cause serious burns – Never let a

damaged battery pack contact the skin, eyes or mouth. If a

damaged battery pack leaks battery chemicals, use rubber

or neoprene gloves to safely dispose of it. If skin is exposed

to battery uids, wash the aected area with soap and

water and rinse with vinegar. If eyes are exposed to battery

chemicals, immediately ush with water for

20 minutes and seek medical attention. Remove and

dispose of contaminated clothing.

of re and severe personal injury.

• Store your battery packs and charger in a cool, dry

place – Do not store the battery packs or charger where

temperatures may exceed 105ºF (40.5ºC), such as in

direct sunlight or inside a vehicle or metal building during

the summer.

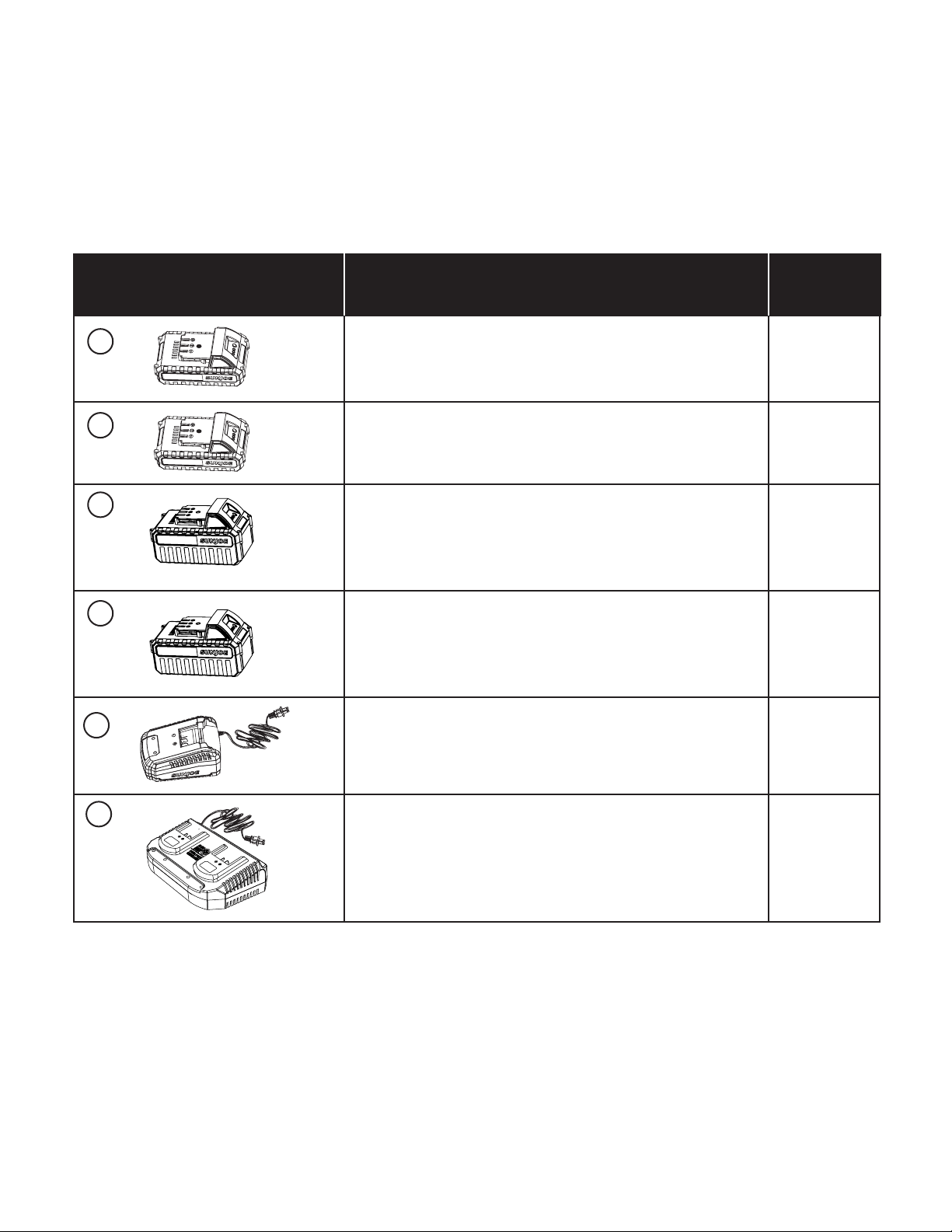

24VBAT, and 24VBAT-XR) must be purchased separately

for use with this cordless chain saw are only partially

4. Lithium-ion batteries are subject to a natural aging

process. The battery packs must be replaced at the latest

when its capacity falls to just 80% of its capacity when

new. Weakened cells in an aged battery pack are no

longer capable of meeting the high power requirements

needed for the proper operation of your chain saw, and

therefore pose a safety risk.

5. Do not throw battery packs into an open re as this poses

a risk of explosion.

6. Do not ignite the battery packs or expose them to re.

and direct sunlight. Only place fully charged batteries in

storage (charged to at least 40%).

8. Prevent the lithium-ion battery packs from freezing.

Battery packs that were stored below 32°F (0°C) for more

than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic

protection system and the battery cells. Avoid electrostatic

charging and never touch the battery poles.

to assemble and operate.

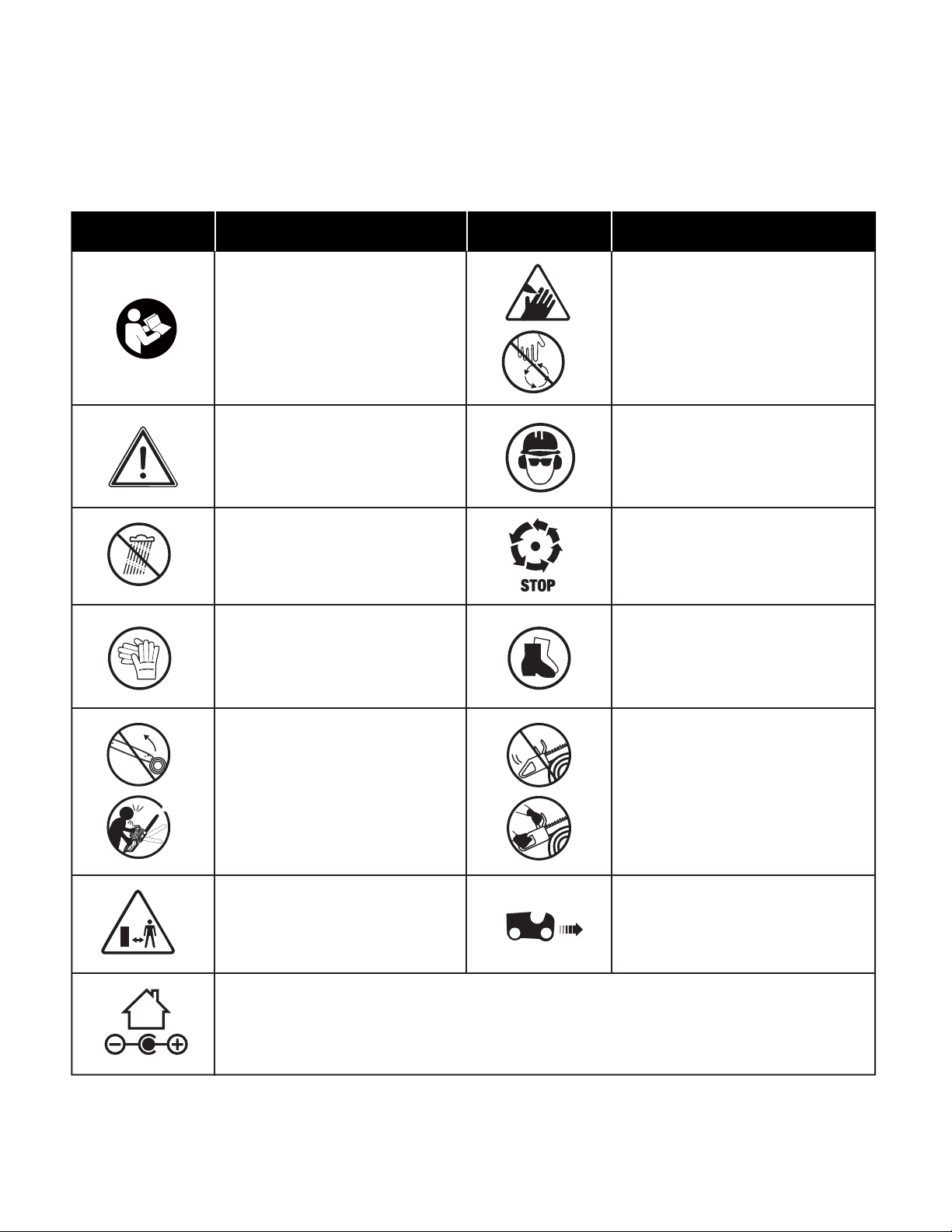

SAFETY ALERT – Indicates a

precaution, a warning or a danger.

The moving part will continuously

run for several seconds after you

turn o the machine.

WARNING! Do not expose the unit

to rain or wet conditions.

CAUTION! Avoid contacting the

guide bar tip with any object. Tip

against injury, wear ear defenders,

safety goggles, and head protection.

WARNING! Two hands are

always to be used when

operating the chain saw.

Correct direction of cutting teeth.

Keep bystanders and children a

safe distance away.

Wear safety footwear at all times to

provide protection against objects

that may accidentally fall on feet.

Wear safety gloves during use to

protect hands.

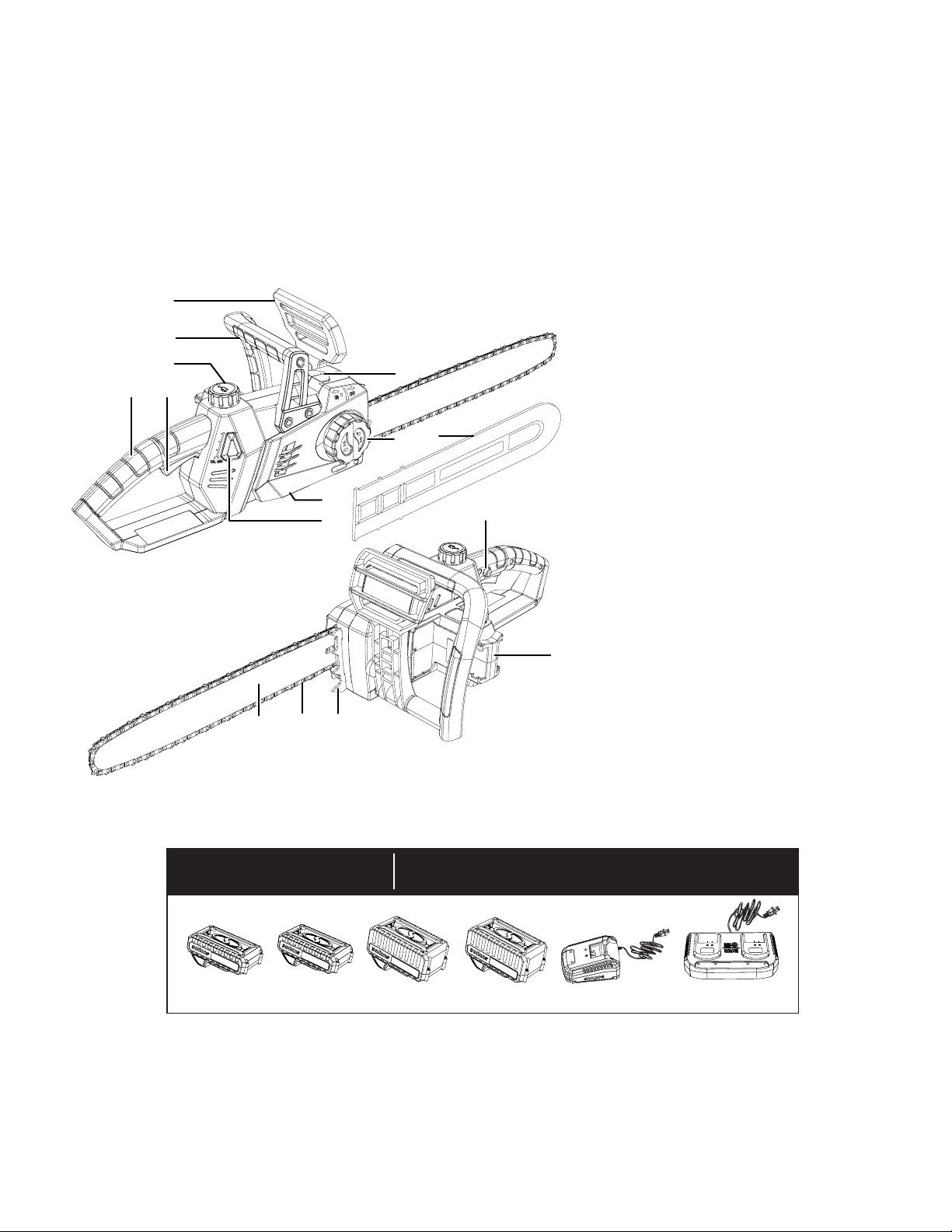

Read the owner’s manual and safety instructions carefully before operating cordless chain saw. Compare the illustration below to

the cordless chain saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual

for future reference.

6

11

12

131415

9

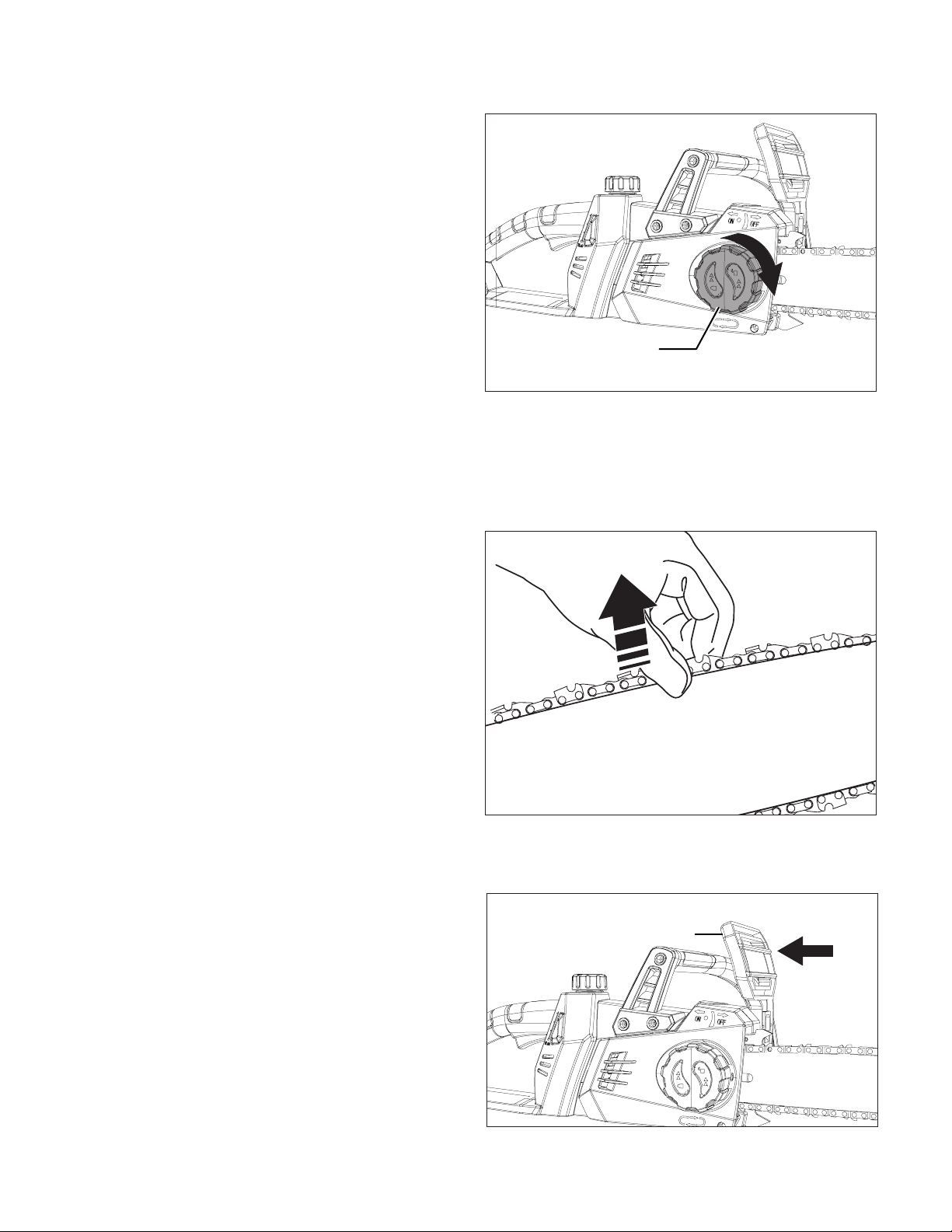

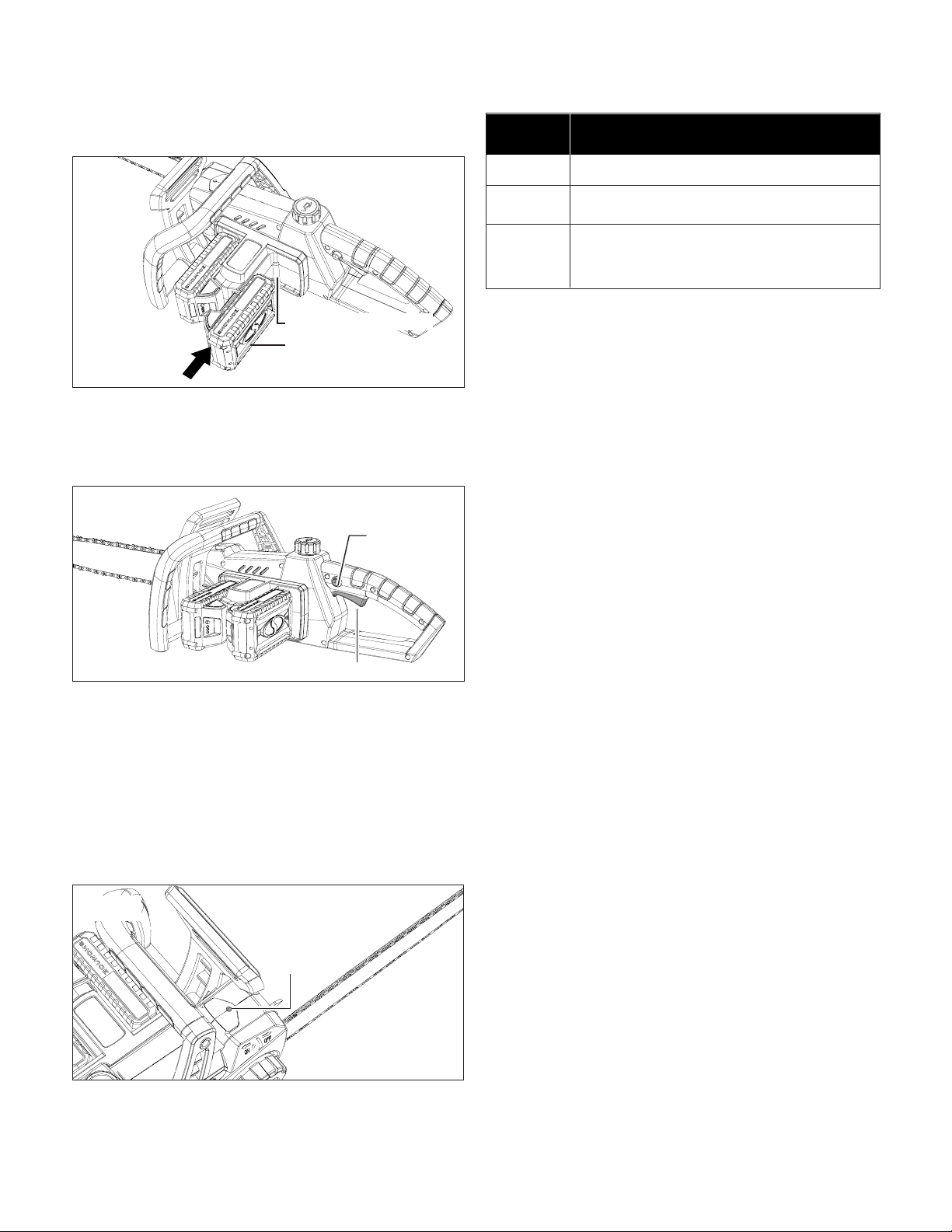

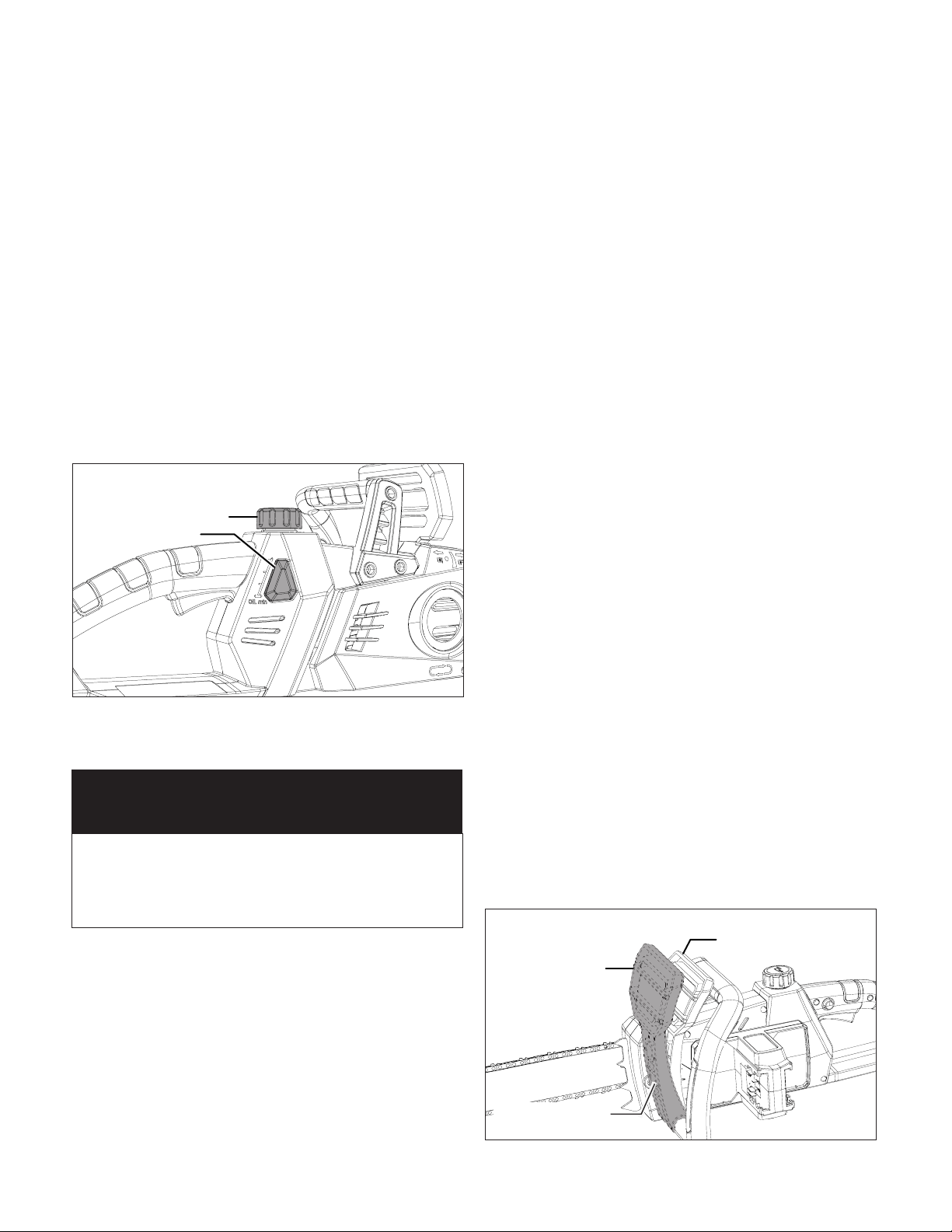

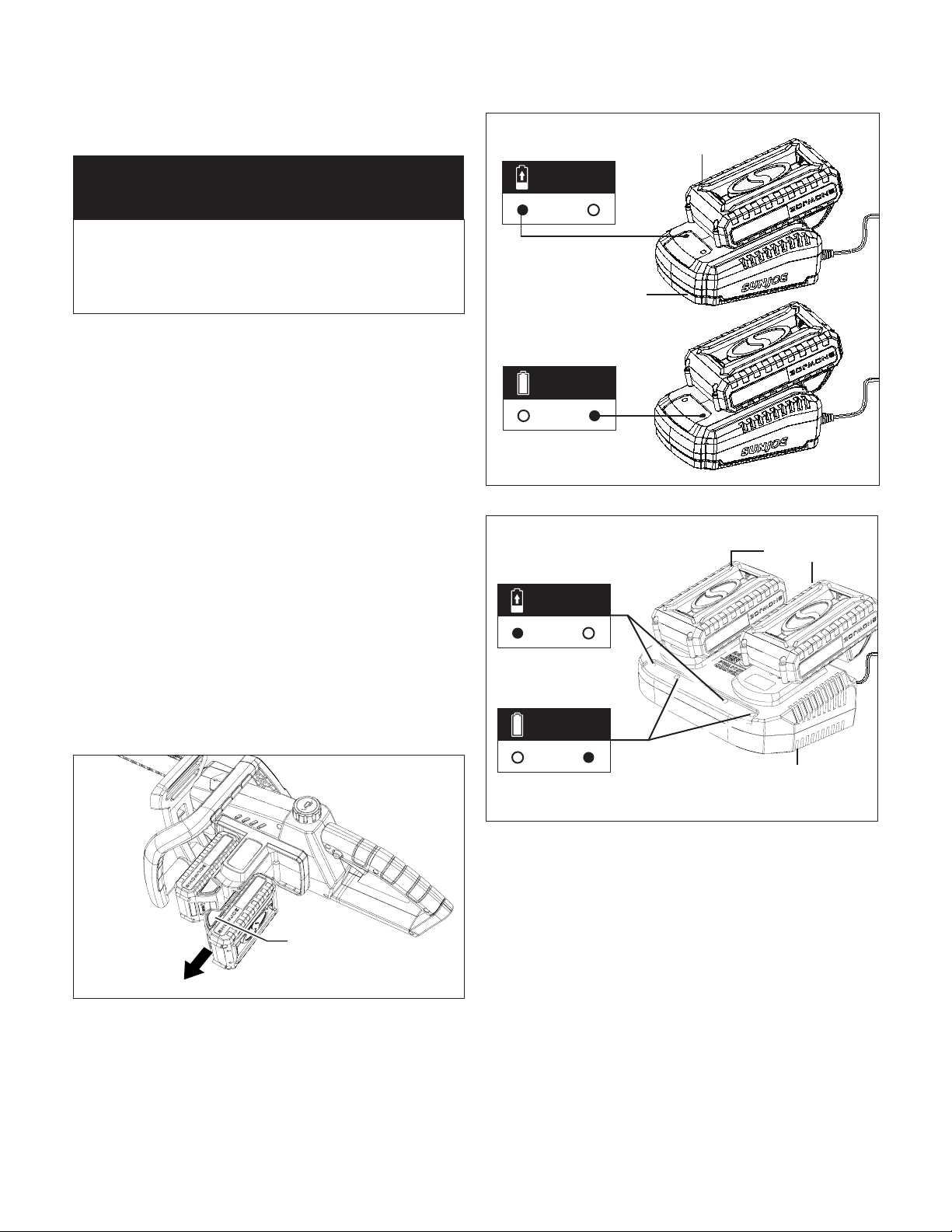

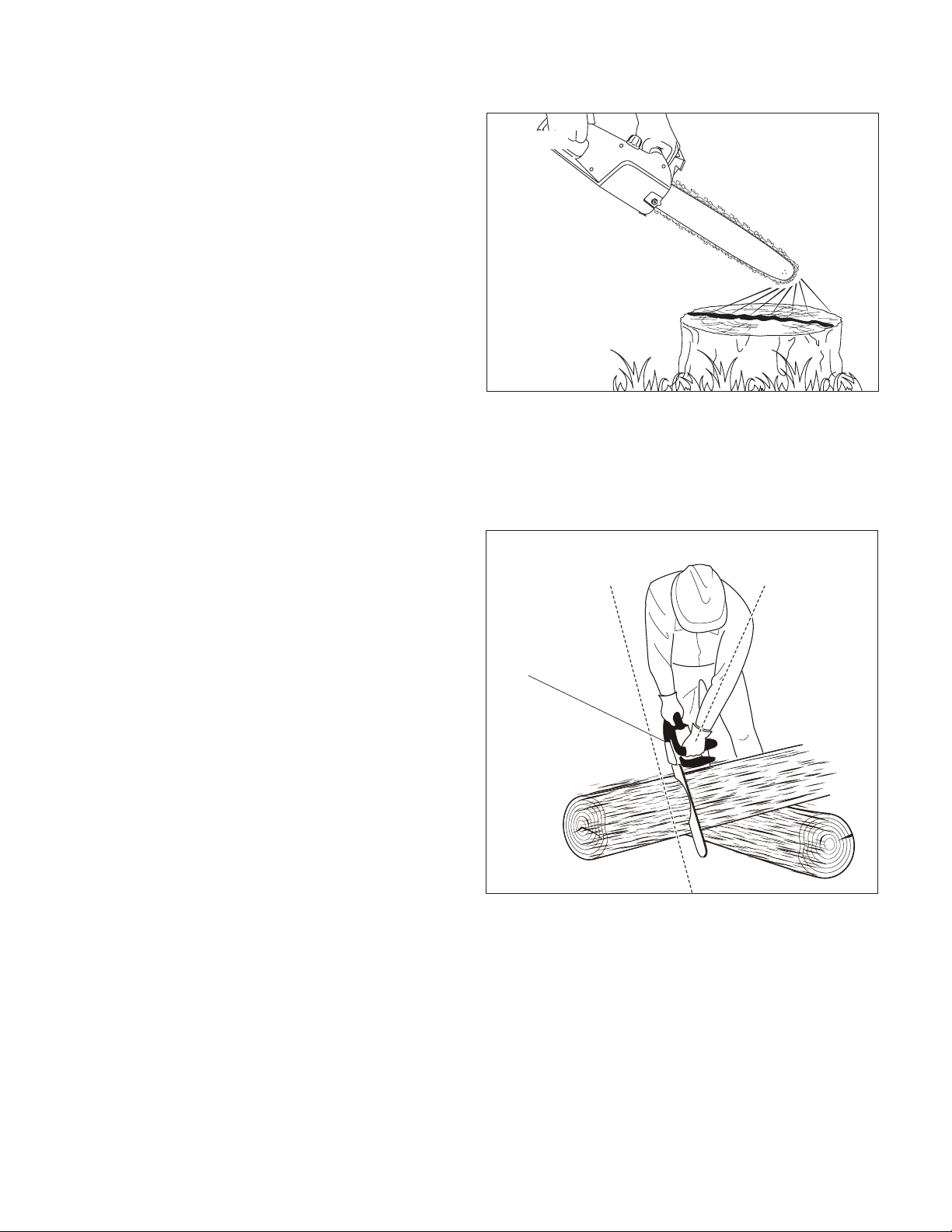

handle so that your body is to the left of the chain line.

maintaining a steady speed.

pressure. If you force the cut, damage to the bar, chain, or

unit can result.

kickback forces with a saw held high.

stops during sawing. Beware of kickback, which can occur if

the bar contacts an obstacle.

people at the same time, the felling operation should be

separated from the bucking operation by a distance of at

least twice the height of the tree being felled. Trees should

not be felled in a manner that would endanger any person,

strike any utility line or cause any property damage. If the

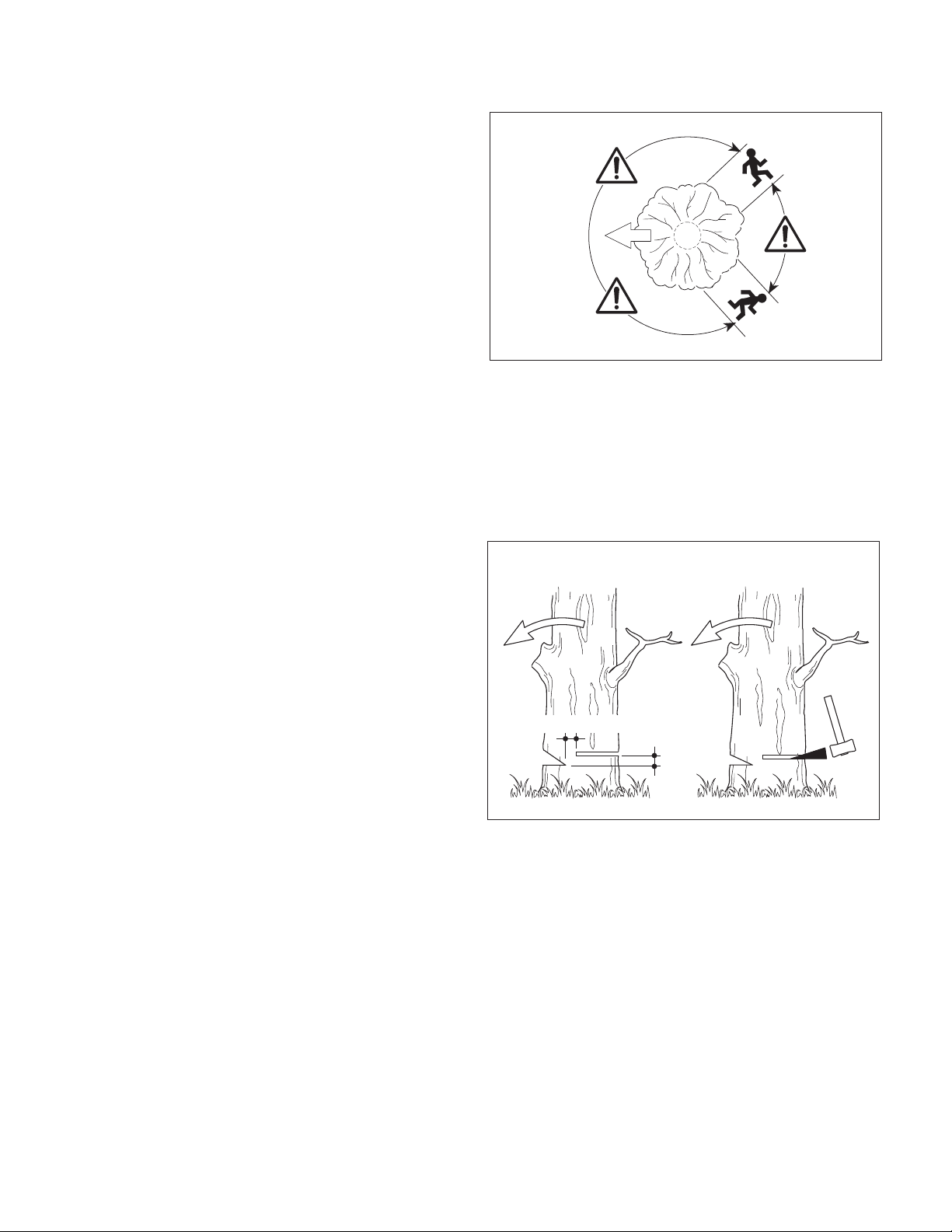

necessary before cuts are started. The escape path should

extend back and diagonally to the rear of the expected line

of fall as illustrated (Fig. 14).

tree, the location of larger branches and the wind direction

to help you judge which way the tree will fall.

from the tree.

Make the notch 1/3 the diameter of the tree, perpendicular to

the horizontal notching cut as illustrated (Fig. 15). Keep

the felling back cut parallel to the horizontal notching cut.

Strategically position the felling back cut so that enough

wood is left to act as a hinge. The hinge wood keeps the

tree from twisting and falling in the wrong direction. Do not

cut through the hinge.

to fall. If there is any chance that the tree may not fall in

the desired direction or it may rock back and bind the saw

chain, stop cutting before the felling back cut is complete

Limbing is the process in which branches are removed from a

fallen tree. When limbing, leave larger lower limbs to support

the log o the ground. Remove the small limbs in one cut as

illustrated (Fig. 16). Branches under tension should be cut from

the bottom up to avoid binding the chain saw.

maximum cutting thickness.

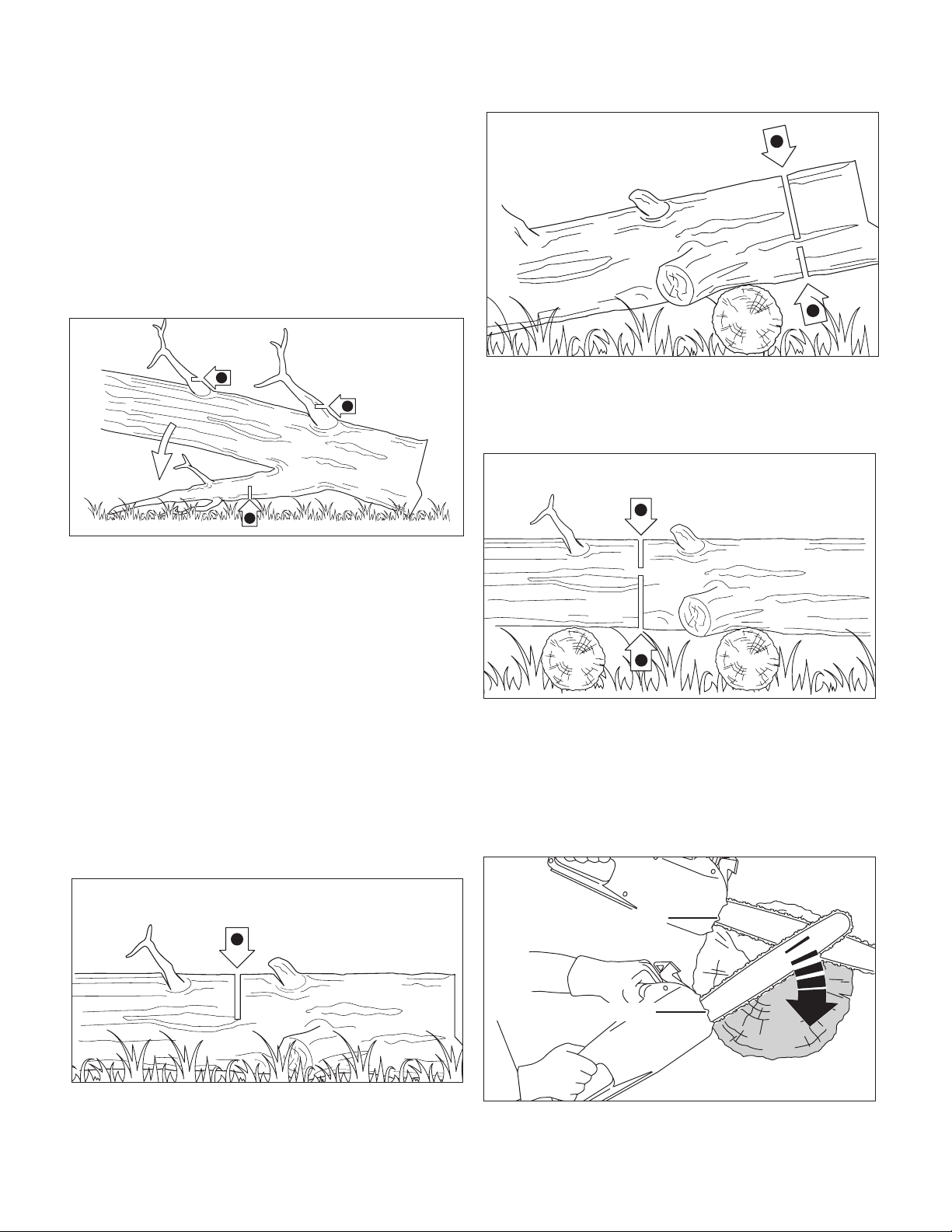

Bucking is the process in which a log is cut into lengths. It is

important to make sure your footing is rm and your weight is

evenly distributed on both feet. When possible, the log should

be raised and supported by the use of limbs, logs, or chocks.

Follow these simple directions for easy cutting:

• It is easier to saw a log using the spiked bumper

(Fig. 17D).

– When bucking on a slope, always stand on the uphill

side of the log. When cutting through the log,

maintain control by releasing the cutting pressure

near the end of the cut without relaxing your grip on

the chain saw handles. Do not let the chain contact

the ground.

After completing the cut, wait for the saw chain to stop before

you move the chain saw. Always stop the motor before moving

at 1-866-SNOWJOE (1-866-766-9563) for all maintenance

operations not foreseen in this manual. Any operation

performed in an unauthorized service center or by unqualied

personnel will completely invalidate the warranty.

• Correct maintenance is essential to maintain the original

eciency and safety of the machine over time.

• Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

• Never use the machine with worn or damaged parts.

performing any adjustments, maintenance, or repairs to your

cordless chain saw.

• Use protective gloves when handling the bar and chain.

• Keep the bar encased in its sheath, except when working

directly on the bar or the chain.

• Never dispose of oils or other polluting materials in

unauthorized places.

To avoid overheating and damage to the motor, always keep

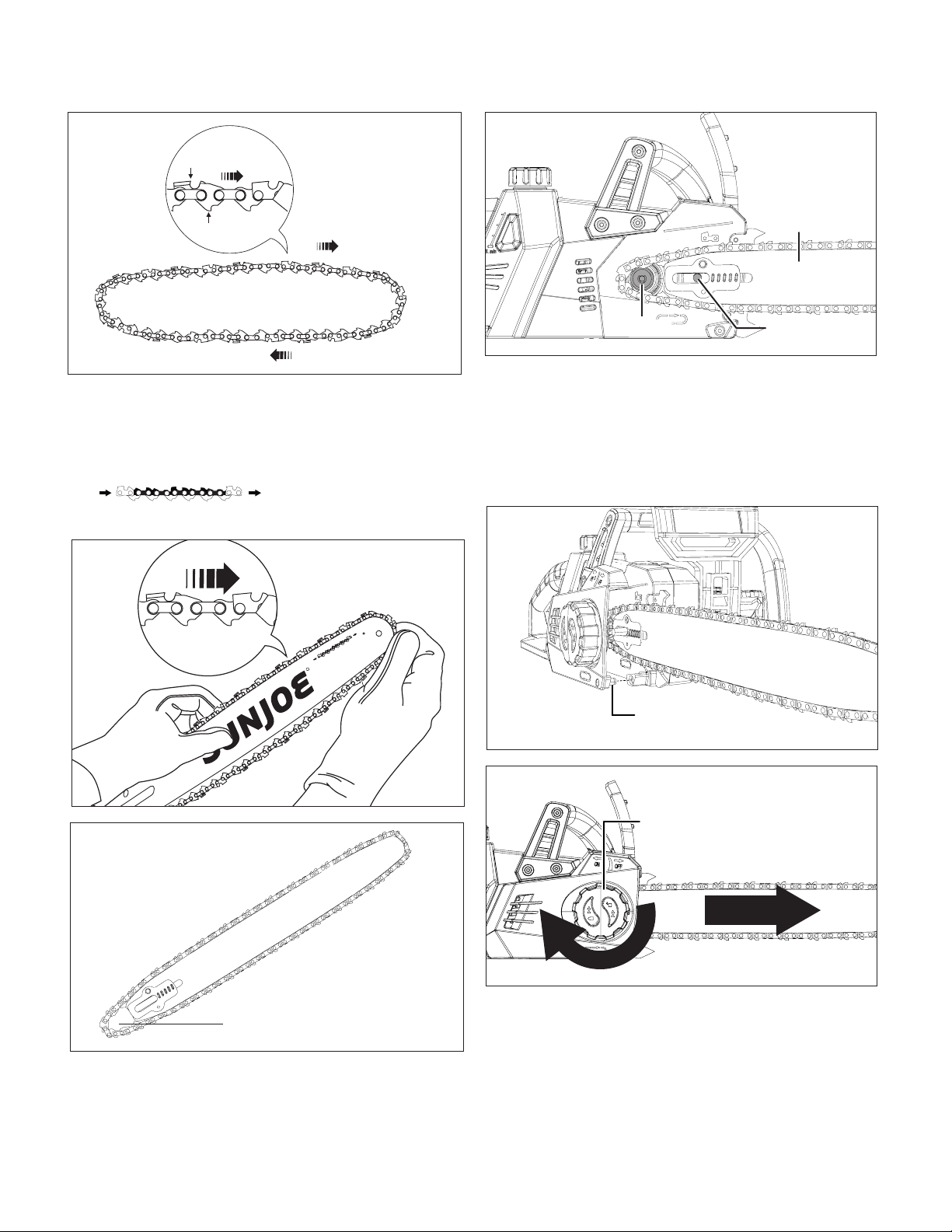

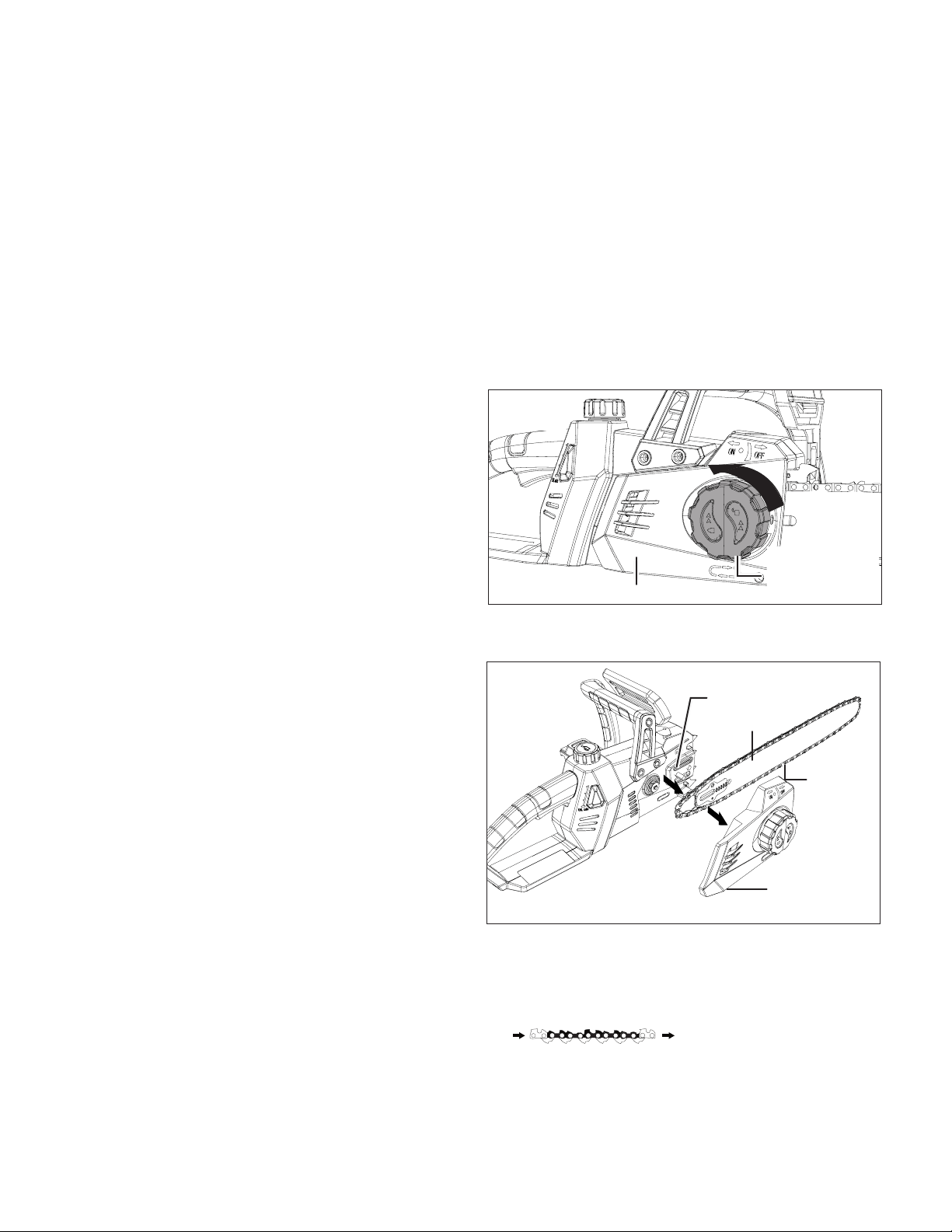

5. Starting at the tip, mount the chain drive links into the

bar groove, leaving a loop at the back of the bar. The

tension frequently, and adjust tension as required.

ats on the drive links hang out of the bar groove (Fig. 26).

NOTE: A new chain tends to stretch. Check the chain tension

frequently and re-tension as needed.

eciently, it is essential that the cutting components are

well-sharpened. It is highly recommended to replace the

It is possible, however, to sharpen the existing chain if the

sharpening is carefully performed. Any work on the chain and

(1-866-766-9563).

Sharpening is necessary when:

• The sawdust looks like dust;

• Cutting becomes more dicult;

• The cut is not straight;

• Vibrations increase.

An authorized service center will sharpen the chain using the

right tools to ensure minimum removal of material and even

sharpness on all the cutting edges.

suitable vise.

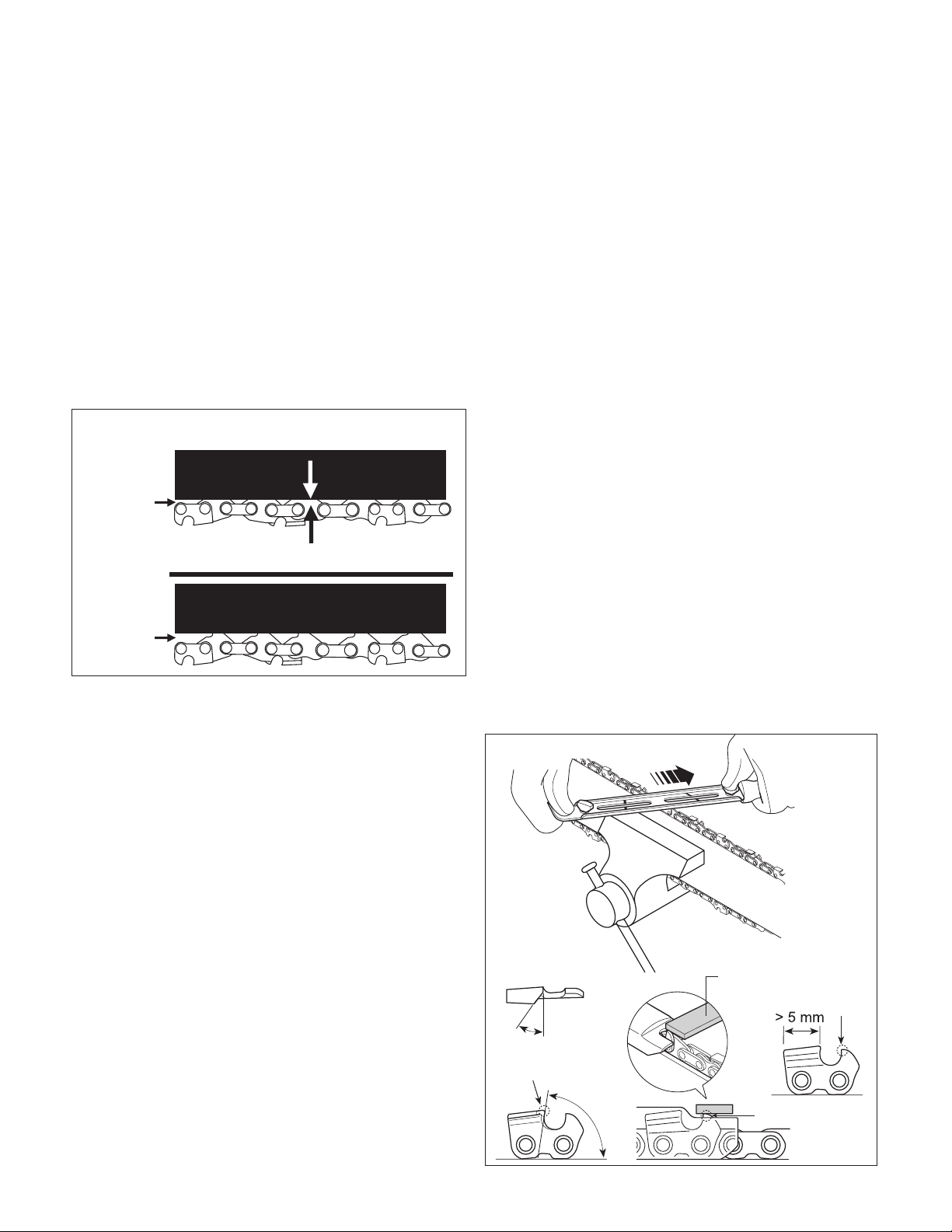

farther than the inspection tool and le any projecting

parts with a at le, rounding o the edges (Fig. 27).

and lubricate the chain in an oil bath. Replace the

chain whenever:

– The length of the cutting edges decreases to 5 mm

– There is too much play between the links and the rivets.

saw to distribute the wear for maximum bar life. Feathering or

burring of the bar rails is a normal process of bar wear. You

should smooth such faults with a le as soon as they occur.

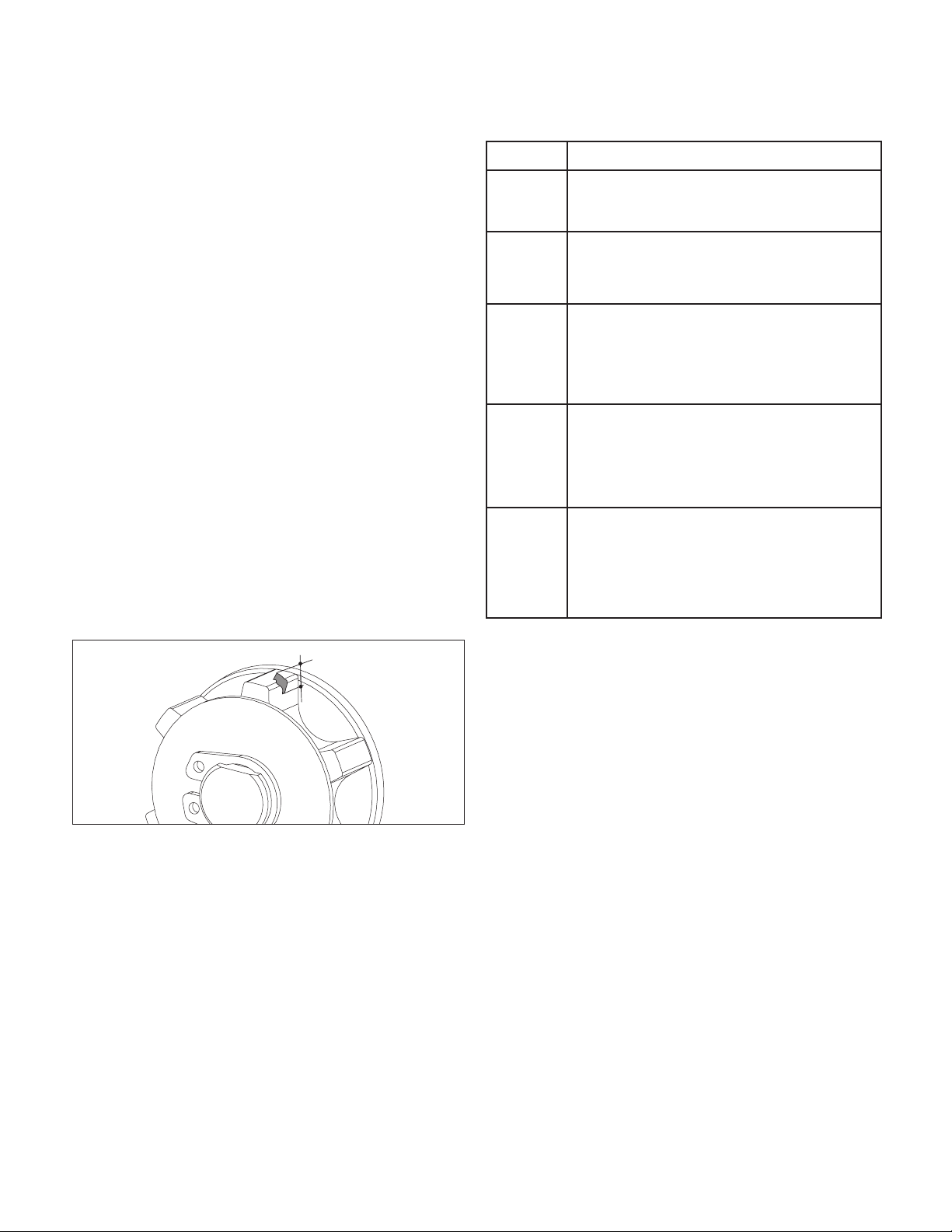

Turn the saw over, check the underside of the guide bar, and

make sure that the lubrication holes and chain groove are free

from impurities.

You can purchase replacement parts for your Sun Joe

24V-X2-CS16-CT-RM cordless chain saw by ordering online at

sunjoe.com or, to order by phone, contact Snow Joe

Sun Joe

Most diculties are easy to x. Consult the troubleshooting

table for common problems and their solutions. If you continue

to experience problems or need repairs beyond these minor

adjustments, please call 1-866-SNOWJOE (1-866-766-9563)

for assistance.

performing any adjustments, maintenance, or repairs to your

cordless chain saw.

motor housing.

remove any debris.

oil specically formulated for chain saws.

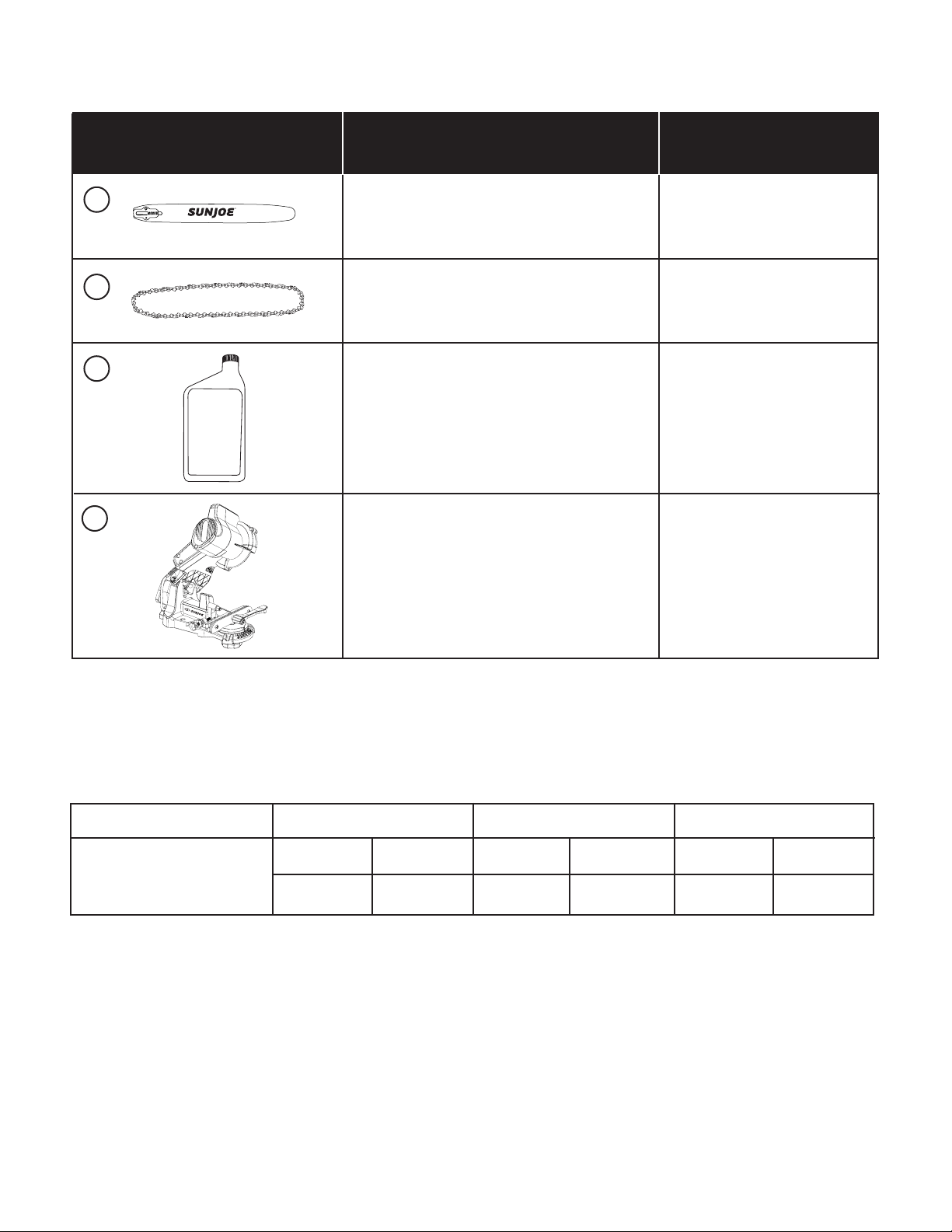

16-inch replacement bar SWJ-16BAR

16-inch replacement chain SWJ-16CHAIN

SWJ-OIL

Sold online at sunjoe.com or

you can purchase equivalent

iON+ 24V Cordless Chain
