Installation Information
Thank you for selecting Bose® ShowMatch DeltaQ array loudspeakers. This document is intended
to provide professional installers with basic installation and safety guidelines for using the array
frame multipoint bracket accessory with ShowMatch loudspeakers. Please read this document
before attempting installation.
The ShowMatch Array Frame Multipoint Bracket (SMAFMP) expands the number of rigging points along the center
rail of the Array Frame (SMAF) or T-Bar Array Frame (SMAFT) 7 to 45 possible points. Use Bose Modeler® software or
the Bose Array Tool to determine the correct position and orientation of the multipoint bracket on the array frame to
achieve the required aiming angles, and to confirm the array does not exceed load limits of the frame.
To install the array frame multipoint bracket, follow these instructions:
1. Use Bose Modeler or Bose Array Tool to generate a ShowMatch Array Rigging Report. For more information on
Modeler and the Bose Array Tool, see pro.Bose.com.
2. Obtain the pickup point from the ShowMatch Array Rigging Report. See Fig. 1.
3. The first letter in the pickup point (A through F) indicates a rigging point on the center rail of the array frame. See
Fig. 2.
4. The second letter in the pickup point (X or Y) indicates the correct orientation of the multipoint bracket on the
center rail. When oriented correctly, the arrow printed on the multipoint bracket points to the front of the array.
See Fig. 3.
5. Place the multipoint bracket on the center rail in the orientation indicated by the software. Align the front hole of
the bracket with the rigging point specified in Step 3, and secure using the included bolt. See Fig. 4:
6. Attach the rear hole using the included bolt. Fasten the included nuts to both bolts.
7. Use included bolt pins to secure the nuts.
8. Attach a standard shackle (not included) to the rigging point on the multipoint bracket as specified by the
software. See Fig. 5.
9. Connect the chains to the shackle attached to the multipoint bracket.
ShowMatch
TM
DeltaQ
TM
Array Loudspeaker
Array Frame Multipoint Bracket Accessory: SMAFMP

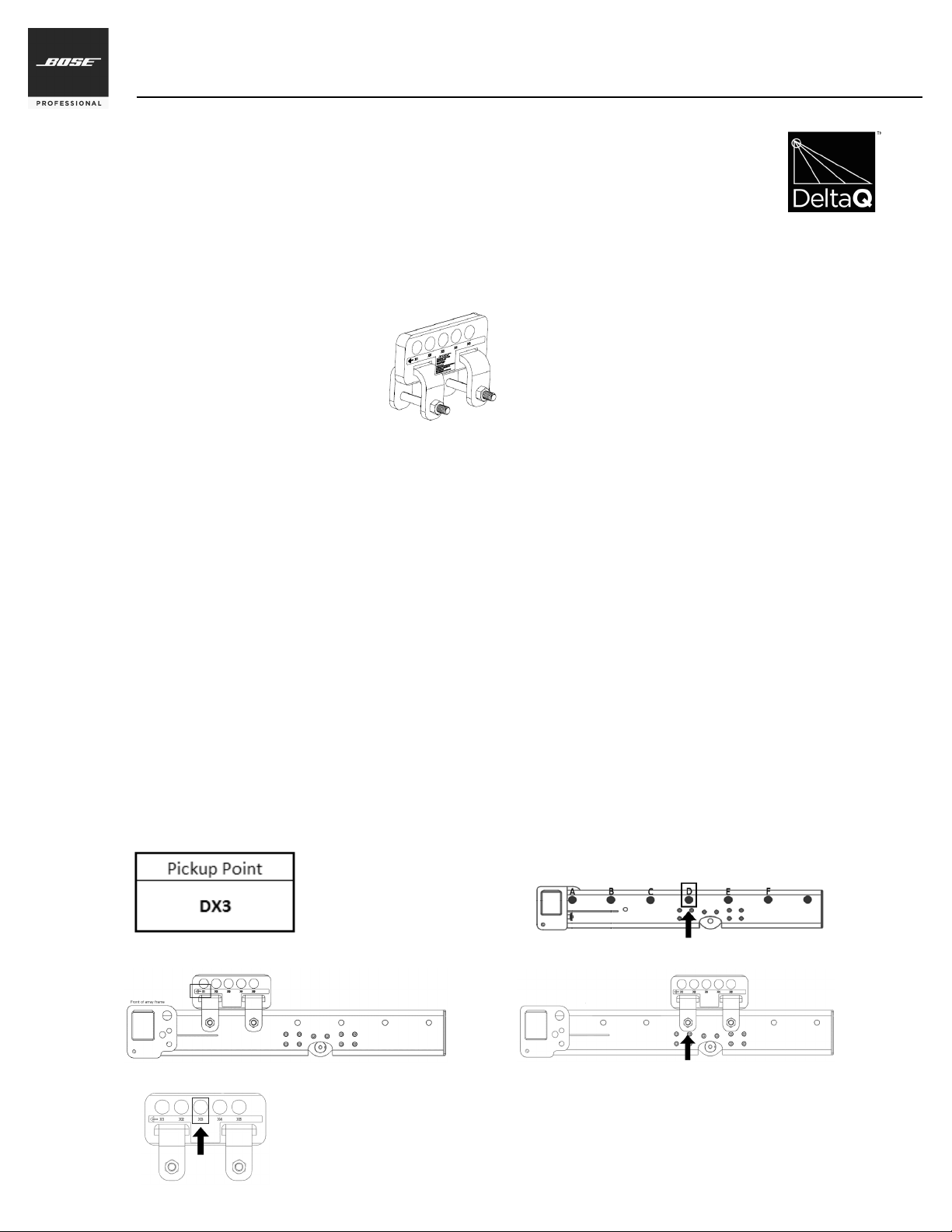

Fig. 1. Pickup point DX3
Fig. 2. Center rail rigging point D
Fig. 5. Rigging point X3
Fig. 4. Center rail rigging point D and orientation XFig. 3. Multipoint bracket orientation X
Multipoint bracket
©2016 Bose Corporation. All rights reserved.
The Mountain, Framingham, MA 01701-9168 USA,
www.pro.Bose.com
All trademarks are the property of their respective owners
AM781488 Rev. 00
Limited Warranty
Your product is covered by a limited warranty, Visit pro.Bose.com for
warranty details.
The warranty information provided with this product does not apply
in Australian and New Zealand. See our website at www.bose.com/au/
warranty or www.bose.com/nz/warranty for details of the Australian and
New Zealand warranty.

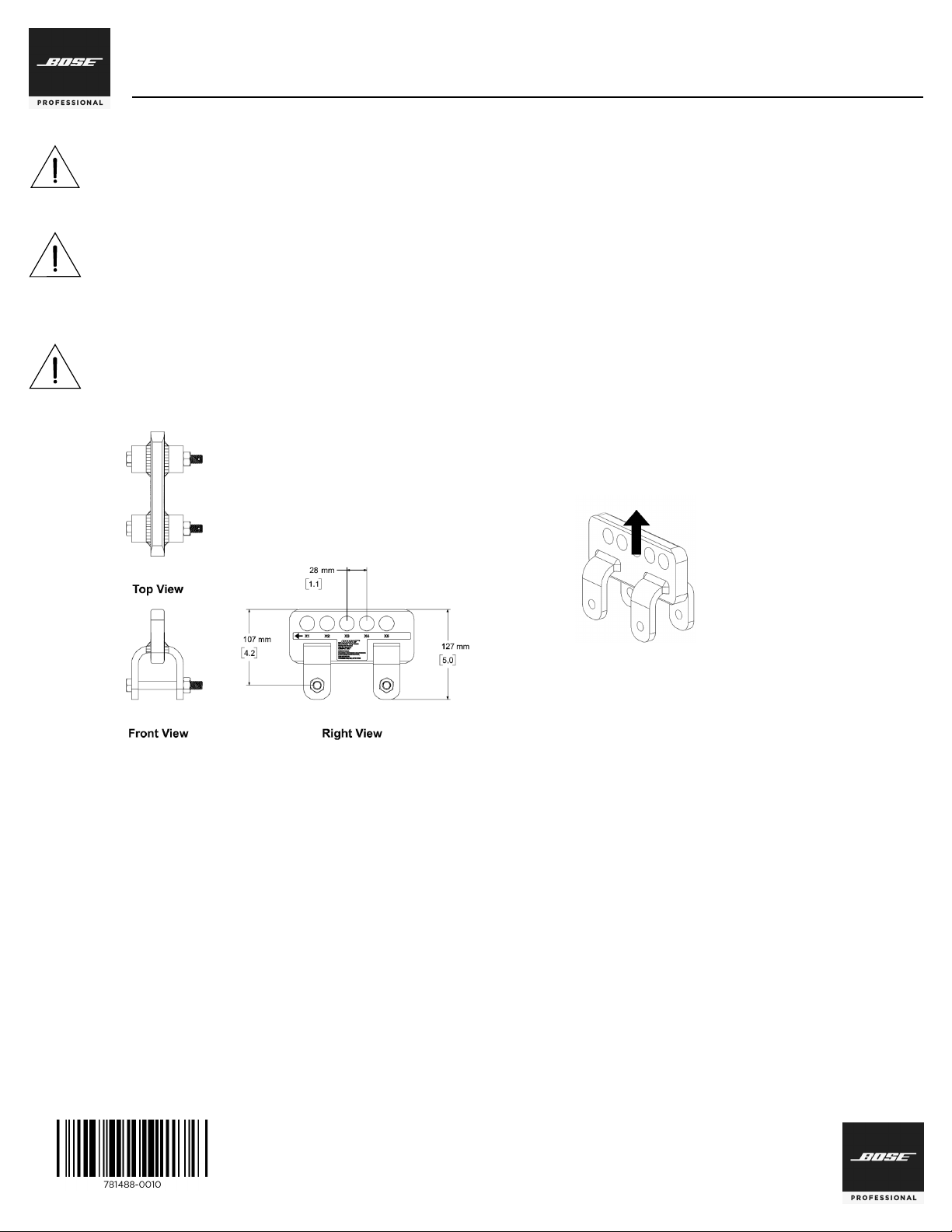

Product Dimensions
Single Point, 10:1 Working Load Limit
(in accordance with ANSI E1.8-2012)
ShowMatch Array Frame
Multipoint Bracket (SMAFMP)
WLL = 1800 lbs (815 kg)
Importer Information
European Union
Bose GP, Castleblayney Road, Carrickmacross, County Monaghan,
Ireland
China
Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No.
353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Taiwan
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road,
Taipei City 104, Taiwan
Tel: 886 2 2514 7977
Mexico
Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204,
Lomas de Chapultepec, 11000 México, D.F.
Tel: 001 800 900 2673
Safety Information
CAUTION: This product is intended for installation by professional installers only!
PRECAUCIÓN: Solo un instalador profesional deberá montar este producto!
ATTENTION: L’installation de ce produit est réservée à un technicien professionnel!
ACHTUNG: Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
CAUTION: Make no modification to system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system
performance.
PRECAUCIÓN: No realice alteraciones no autorizadas a este producto; esto podría comprometer la seguridad, el cumplimiento de las normas y
el rendimiento del sistema.
ATTENTION: Ne pas faire des modifications non autorisées à ce produit; ce qui pourrait compromettre la sécurité, la conformité réglementaire
et la performance du système.
ACHTUNG: Keine nicht autorisierten Veränderungen am Produkt vornehmen. Diese können die Sicherheit, die Einhaltung von Richtlinien und die
Systemleistung beeinträchtigen.
CAUTION: This accessory is for use with Bose ShowMatch DeltaQ Array loudspeakers only.
PRECAUCIÓN:Este accesorio está diseñado para usarse únicamente con altavoces Bose ShowMatch DeltaQ Array.
ATTENTION: Cet accessoire est destiné pour l’usage avec les haut-parleurs Bose ShowMatch Delta Q exclusivement.
ACHTUNG: Dieses Zubehör ist ausschließlich zur Verwendung mit Bose ShowMatch DeltaQ Array Lautsprechern vorgesehen.
ShowMatch
TM
DeltaQ
TM
Array Loudspeaker
Array Frame Multipoint Bracket Accessory: SMAFMP
Additional Information
For additional information on ShowMatch DeltaQ Array loudspeaker modules
and accessories, refer to the installation guide available at pro.Bose.com. To
request a printed copy, use the phone numbers provided.
Contact Information
Bose Corporation
The Mountain
Framingham, MA 01701 USA
Corporate Center: 508-879-7330
Americas Professional Systems,
Technical Support: 800-994-2673
