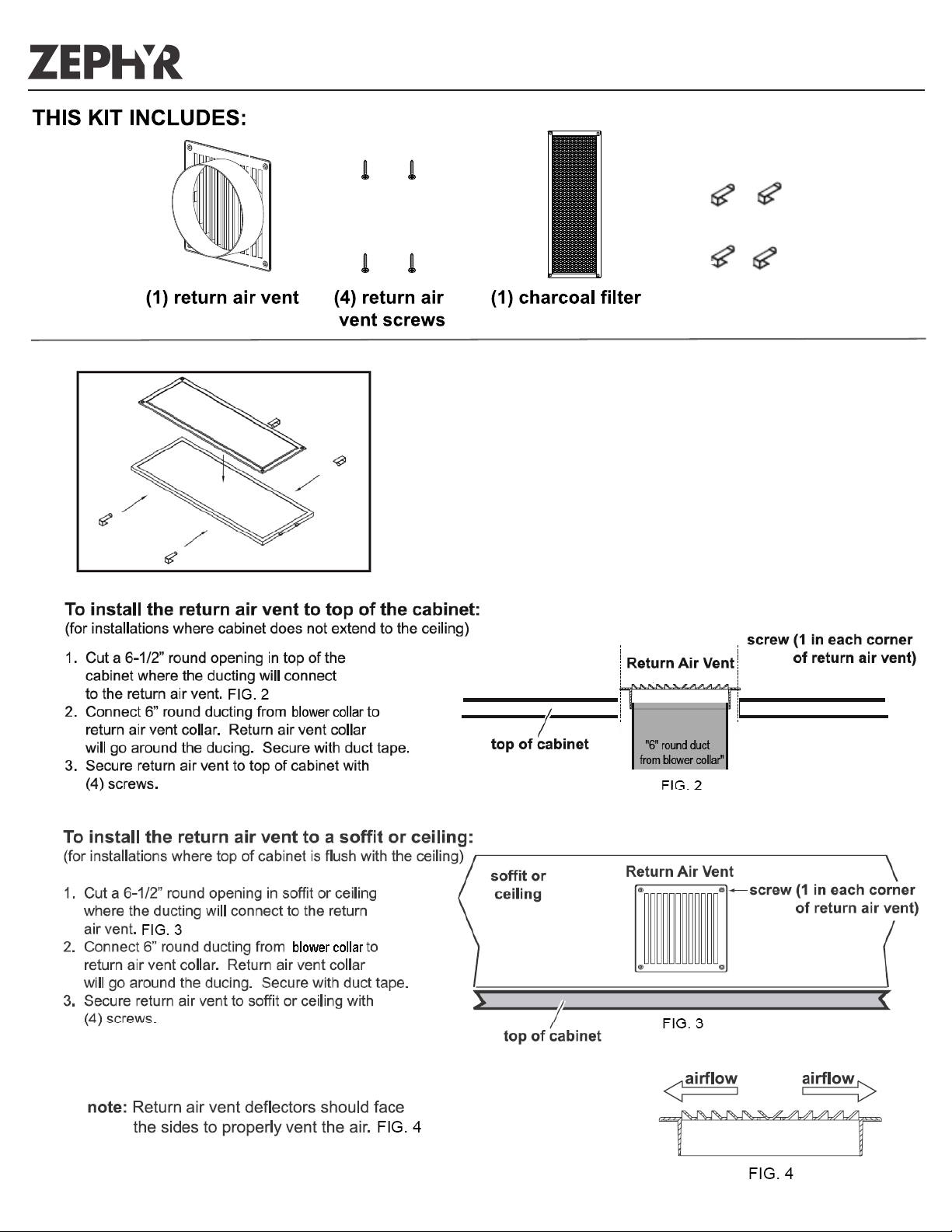

(4) C clips
1. Remove decorative mesh filter from hood
and place charcoal on the top of mesh filter.
Secure charcoal filter by 4 C clips from
recirculation kit, 2 C clips for each enlongated
side of charcoal filter, FIG. 1.
2. Reinstall decorative mesh filter.
3. Charcoal filter must be replaced after every
120 hours of use or approximately every 3
to 4 months based on an average daily use
of 1 hour of cooking time.
FIG. 1
1. Remove mesh filter from hood and place charcoal on
the top of mesh filter. Secure charcoal filter by 4 C clips
from recirculation kit, 2 C clips for each enlongated side
of charcoal filter, FIG. 1.
2. Reinstall mesh filter.
3. Charcoal filter must be replaced after every 120 hours of use or
approximately every 3 to 4 months based on an average daily
use of 1 hour of cooking time.
JUL14.0101 XP022373(1) 2277 Harbor Bay Pwky | Alameda, CA 94502 | 1.888.880.8368
FIG .1
ZRC-8400 / ZRC-00PI Recirculating Kit Instructions
