To install the optional waveguides, follow these instructions:
1. Verify the intended coverage pattern; number embossed on panel equals the horizontal coverage.
2. Remove the 6 screws that attach the grill to the loudspeaker module (3 on top of module and 3 on bottom).
3. Remove the grill. See Fig. 1.
4. Undo the 8 screws securing the waveguides into the module (4 on top of module and 4 on bottom). See Fig. 2.
5. Remove the waveguide panels from the module by pulling out the panels.
6. Place the new waveguide panels into the module. Confirm that the waveguide panel is fully seated in the module,
with no gaps, and is not obstructing the diraction slot. See Fig. 3.
7. Secure the new waveguide panels to the module by replacing the screws.
8. Re-attach the grill and replace the 6 screws.
Installation Information
Thank you for selecting Bose® ShowMatch DeltaQ array loudspeakers. This document is intended
to provide professional installers with basic installation and safety guidelines for using the
optional waveguides with ShowMatch loudspeakers. Please read this document before attempting
installation.
The horizontal coverage pattern of ShowMatch full-range loudspeakers can be changed by replacing the factory-
installed waveguides with the optional accessory waveguides. The following accessoriesare available:
• SM5WG55 waveguide provides 55° horizontal coverage for the SM5 loudspeaker.
• SM20WG12 waveguide provides 120° horizontal coverage for the SM20 loudspeaker.
Note: Waveguides are NOT interchangeable across dierent vertical-coverage ShowMatch loudspeakers.

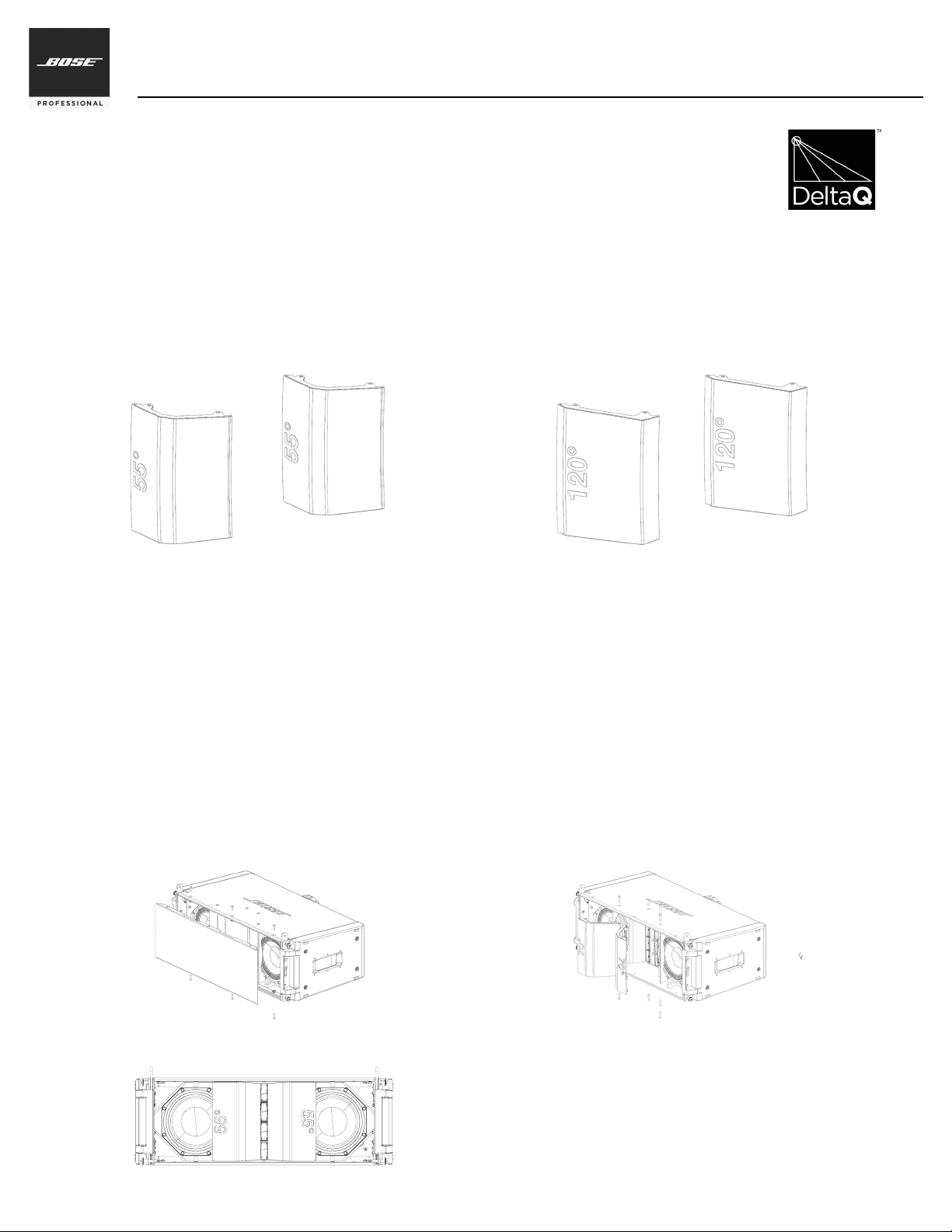

Fig. 1. Remove loudspeaker grill
Fig. 2. Remove factory-installed waveguides
Fig. 3. Install accessory waveguides
55° waveguide panels for SM5 loudspeaker 120° waveguide panels for SM20 loudspeaker
ShowMatch
TM
DeltaQ
TM
Array Loudspeaker
Waveguide Accessories: SM5WG55 and SM20WG12
©2016 Bose Corporation. All rights reserved.
The Mountain, Framingham, MA 01701-9168 USA,
www.pro.Bose.com
All trademarks are the property of their respective owners
AM772975 Rev. 00
ShowMatch
TM
DeltaQ
TM
Array Loudspeaker
Waveguide Accessories: SM5WG55 and SM20WG12
Limited Warranty
Your product is covered by a limited warranty, Visit pro.Bose.com for warranty details.
The warranty information provided with this product does not apply in Australian and New Zealand. See our website at www.bose.com/au/warranty or
www.bose.com/nz/warranty for details of the Australian and New Zealand warranty.
Importer Information
European Union
Bose GP, Castleblayney Road, Carrickmacross, County Monaghan, Ireland
China
Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Taiwan
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan
Tel: 886 2 2514 7977
Mexico
Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F.
Tel: 001 800 900 2673
Safety Information
CAUTION: This product is intended for installation by professional installers only!
PRECAUCIÓN: Solo un instalador profesional deberá montar este producto!
ATTENTION: L’installation de ce produit est réservée à un technicien professionnel!
ACHTUNG: Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
CAUTION: Make no modification to system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and
system performance.
PRECAUCIÓN: No realice alteraciones no autorizadas a este producto; esto podría comprometer la seguridad, el cumplimiento de las normas
y el rendimiento del sistema.
ATTENTION: Ne pas faire des modifications non autorisées à ce produit; ce qui pourrait compromettre la sécurité, la conformité réglementaire
et la performance du système.
ACHTUNG: Keine nicht autorisierten Veränderungen am Produkt vornehmen. Diese können die Sicherheit, die Einhaltung von Richtlinien und
die Systemleistung beeinträchtigen.
CAUTION: This accessory is intended for use with Bose ShowMatch DeltaQ Array loudspeakers only.
PRECAUCIÓN: Este accesorio está diseñado para usarse únicamente con altavoces Bose ShowMatch DeltaQ Array.
ATTENTION: Cet accessoire est destiné pour l’usage avec les haut-parleurs Bose ShowMatch Delta Q exclusivement.
ACHTUNG: Dieses Zubehör ist ausschließlich zur Verwendung mit Bose ShowMatch DeltaQ Array Lautsprechern vorgesehen.
Additional Information
For additional information on ShowMatch DeltaQ Array loudspeaker modules and accessories, refer to the installation guide available at pro.Bose.com. To
request a printed copy, use the phone numbers provided.
