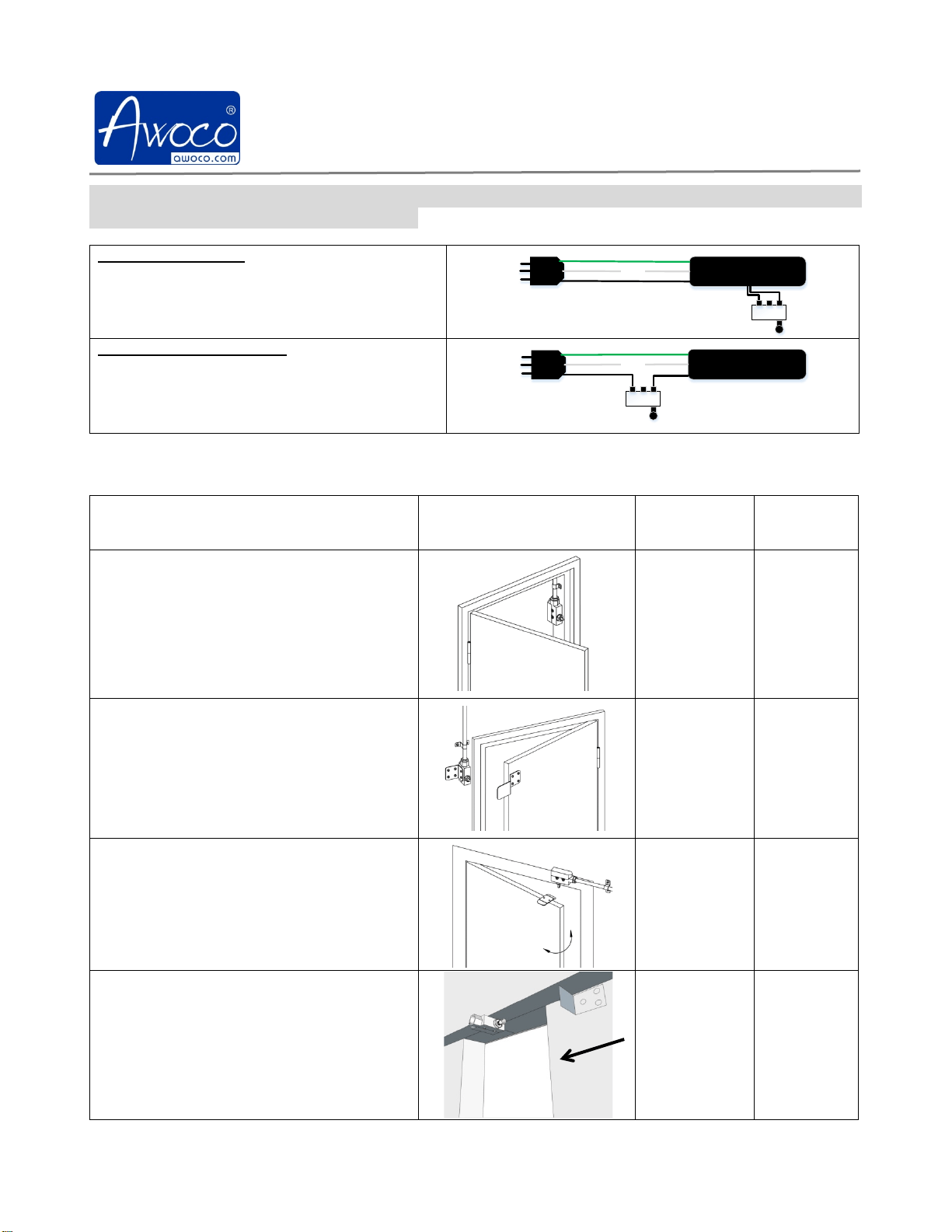

Plunger Micro Switch Installation Manual
Visit www.awoco.com for more information
Note: consult with your electrical professional for electrical connection. 120VAC
connection might require hard wired.
Awoco Air Curtains: Cut the connection nut off
the dedicated 2 wires for door switch, extend and
connect the wires to the micro switch’s NC and
COM poles.
Awoco
Air Curtain
Ground
Neutral
Hot
Plunger Micro switch
120V AC
Power Input
NC N O COM
Other brands’ air curtains: Cut the power cord’s
Hot wire (usually black color) and connects to the
micro switch NC and COM poles.
Other Brands
Air Curtain
Ground
Neutral
Hot
Hot
Plunger Micro switch
120V AC
Power Input
NC N O COM
The air curtain should be installed indoor, follow the below diagrams for the recommended
installation.
Door Type Installation Diagram
Applicable
Micro Switch
Models
Installation
Difficulty
Rating
Outward swing doors
If the door swings outward, mount the micro
switch on the side of the door frame or the
upper side of door frame.
TZ-6001
TZ-6003
Easy
Inward swing doors
If the door swings inward, please use metal
sheet to create the brackets (not included) to
install the micro switch.
TZ-6001
TZ-6003
Medium
In & out swing doors
If the door swings in and out, please place
the roller plunger micro switch on the upper
side of the door frame with a metal bracket
(not included) mounted on the top of the door.
TZ-6003 Hard
Middle ended sliding doors
If double sliding doors ended in the middle,
please place the plunger micro switch on the
upper side of the door frame with a metal
bracket (not included) mounted on the top of
the door.
TZ-6001
TZ-6002
TZ-6003
Easy
Door Type Installation Diagram
Applicable
Micro Switch
Models
Installation
Difficulty
Rating

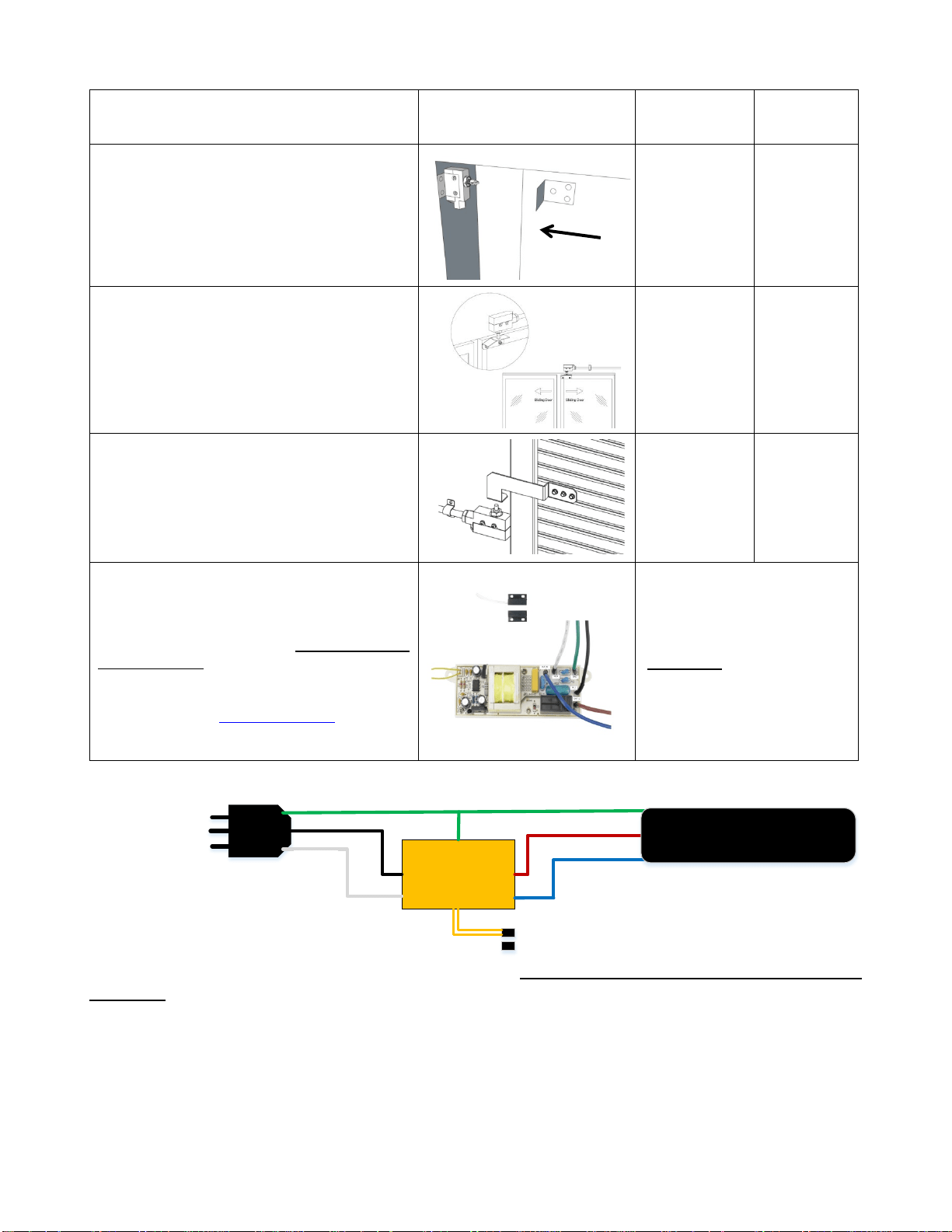

Side ended sliding doors
If a sliding door ended in the side
, please
place the plunger micro switch on the side of
the door frame with a metal bracket (not
included) mounted on the door.
TZ-6001
TZ-6002
TZ-6003
Easy
Sliding doors
With a metal bracket (not included), a micro
switch can be mounted on the top of the door
as shown in diagram. .
TZ-6002
Hard
Roll up gate
For roll up warehouse gate, please place the
roller plunger micro switch on the side of the
door frame with a metal bracket (not
included) mounted on the gate.
TZ-6001
TZ-6002
TZ-6003
Hard
If the door closer is defective or the door is
not closed fully, or the window is too light to
press the plunger, micro switch won’t work on
these situations.
Please refer to the Awoco
Magnetic Circuit
Conversion Kit
. It converts the 120VAC to
12VDC and use the magnetic switch.
The magnetic switch can be installed in all
situations. Visit www.awoco.com
for more
detail on magnetic switch EASY installation.
Magnetic Circuit
Conversion Kit
(require electrical connection
technique, but not hard)
WARNING: don’t replace the
120VAC micro switch directly
with a 12VDC magnetic
switch. The magnetic switch
will burn out at 120VAC. Get
the whole conversion kit.
Magnetic Circuit
Conversion Kit
Ground
Hot
Neutral
Hot
Neutral
Magnetic switch
120V AC
Power Input
12VDC
Other Brands
Air Curtain
If you want to buy new air curtains, please consider Awoco Magnetic Switch Controlled Air
Curtains which save you a lot of time on the door switch installation.
SUPPORT AND CONTACT
Visit www.awoco.com for Air Curtains, Door Switches, Range Hoods, and Hand Dryers.
Email sales@awoco.com or call 888-412-3428 for technical support and sales activity.
