User Manual

Parts and controls

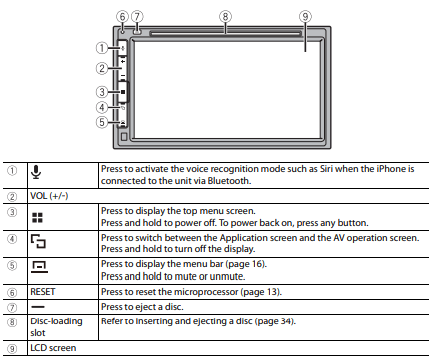

Main unit

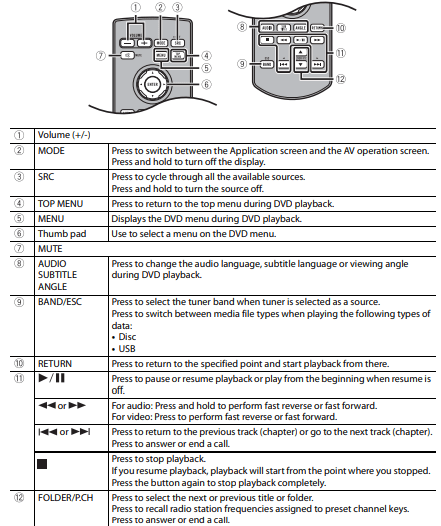

Remote Control

Basic operation

Resetting the microprocessor

CAUTION

  • Pressing the RESET button resets settings and recorded contents to the factory settings.
    • Do not perform this operation when a device is connected to this product.
    • Some of the settings and recorded contents will not be reset.
  • The microprocessor must be reset under the following conditions:
    • Prior to using this product for the first time after installation.
    • If this product fails to operate properly.
    • If there appears to be problems with the operation of the system.
  1. Turn the ignition switch OFF.
  2. Press RESET with a pen tip or other pointed tools.

Settings and recorded contents are reset to the factory settings.

Preparing the remote control

Remove the insulation sheet before use.

CAUTION

  • Remove the battery if the remote control is not used for a month or longer.
  • There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
  • Donot handle the battery with metallic tools.
  • Do not store the battery with metallic objects.
  • If the battery leaks, wipe the remote control completely clean and install a new battery.
  • When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.
  • Perchlorate Material - special handling may apply.

Using the remote control

Point the remote control in the direction of the front panel to operate.

NOTE

The remote contro! may not function properly in direct sunlight.

Important

  • Do not store the remote control in high temperatures or direct sunlight.
  • Do not let the remote control fall onto the floor, where it may become jammed under the brake or gas pedal.

Starting the unit

1 Start the engine to boot up the system.

The [Select Program Language] screen appears.

NOTE

From the second time on, the screen shown will differ depending on the previous conditions.

2 Touch the language.

3 Touch

The [Speaker Mode Settings] screen appears.

4 Touch the speaker modes.

[Standard Mode]

4-speaker system with front and rear speakers, or a 6-speaker system with front and rear speakers and subwoofers.

[Network Mode]

3-way system with a high range speaker, middle range speaker and subwoofer (low range speaker) for reproduction of high, middle and low frequencies (bands).

5 Touch [OK]

Initial Legal Disclaimer screen appears.

6 Touch [OK]

The top menu screen appears.

NOTE
Once the speaker mode is set, the setting cannot be changed unless this product is restored to the default settings. Restore the default settings to change the speaker mode setting .

Switching the speaker mode

To change the speaker mode, you need to restore this product to the default settings.

1 Restore the default setting

Using the touch panel

You can operate this product by touching the keys on the screen directly with your fingers.

NOTE

To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.

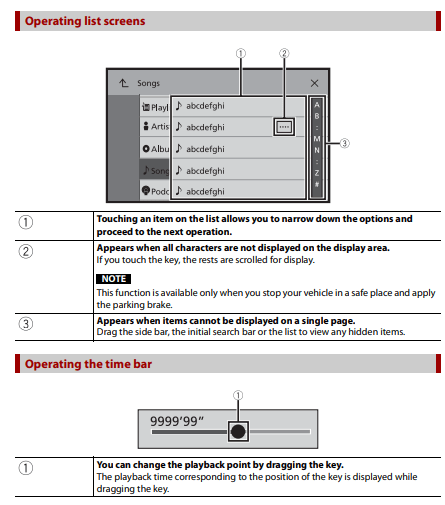

Common touch panel keys

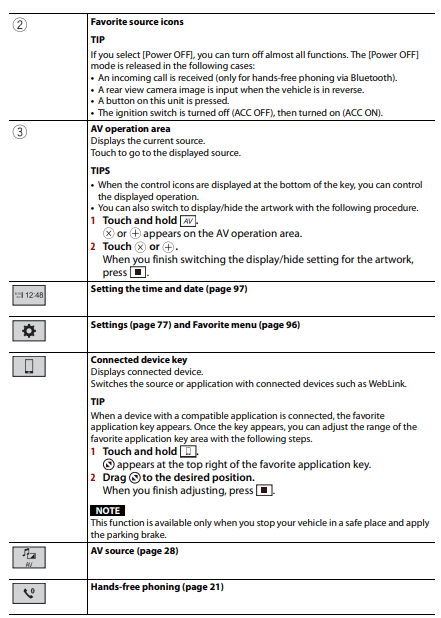

Top menu screen

Bluetooth

Bluetooth connection

1 Turn on the Bluetooth function on the device.

2 Press

3 Touch then

The Bluetooth screen appears.

4 Touch [Connection].

5 Touch

The unit starts to search for available devices, then displays them in the device list.

6 Touch the Bluetooth device name.

After the device is successfully registered, a Bluetooth connection is established by the system. Once the connection is established, the device name is displayed on the list.

NOTE

  • If five devices are already paired, [Memory Full] is displayed. Delete a paired device first
  • If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this product. Touch [Yes] to pair the device.
  • If you try to connect an unconnected cellular phone while two cellular phones are already connected, the first one of the two connected cellular phones will be disconnected and the unconnected cellular phone will be connected instead.

TIPS

  • The Bluetooth connection can also be made by detecting this product from the Bluetooth device. Before registration, make sure that [Visibility] in the [Bluetooth] menu is set to [On] (page 20). For details on Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.
  • Two cellular phones can be connected to this product at the same time.

Bluetooth settings

  1. Press
  2. Touch then

Switching the connected Bluetooth device

After registering and connecting the Bluetooth devices to this product, you can switch among the devices using the switch devices key in the phone function and some audio sources.

  • You can register up to five Bluetooth devices on this product
  • You can connect one of the registered devices to this product. In cases where the registered device is equipped with a phone function, a total of two devices can be connected at the same time when using the phone function. If two of the five registered devices are already connected, you can connect the remaining third device to use the audio function only from the switch devices key on the audio source screen.
  • The icon for the cellular phone currently being used is displayed on the Phone menu screen. If you connect two cellular phones to this product at the same time, you can switch between the cellular phones using the switch devices key. The contents of the phone menu are memorized for each connected cellular phone.
  • The switch devices key will appear for some audio sources. The audio source may ean automatically switch to another source depending on the selected device.

Hands-free phoning

To use this function you need to connect your cellular phone to this product via Bluetooth in advance (page 19).

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

Making a phone call

1 Press

2 Touch

The phone menu screen appears.

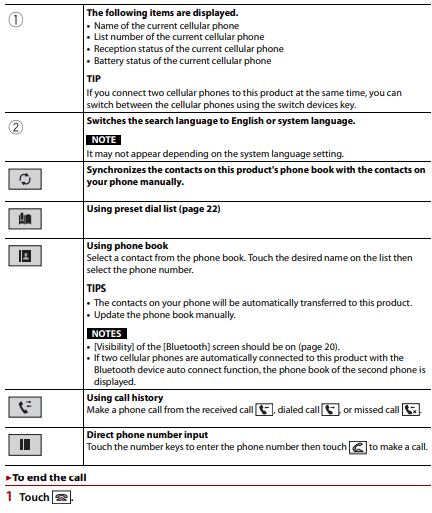

3 Touch one of the call icons on the phone menu screen.

Using the preset dial lists

Registering a phone number

You can easily store up to six phone numbers per device as presets.
1 Press

2 Touch

3 Touch or

On the [Phone Book] screen, touch the desired name to display the contact’s phone number.

4 Touch

Dialing from the preset dial list

1 Touch

2 Touch the desired entry on the list to make a call.
The dial screen appears and dialing starts.

Deleting a phone number

1 Press

2 Touch

3 Touch .

4 Touch

5 Touch [Yes].

Receiving a phone call

1 Touch answer the call.

Touch end the call.

NOTE
When two phones are connected at the same time, if an incoming call is received on the second phone while you are talking on the first phone, the dial confirmation screen for the second phone will be displayed.

Voice recognition function (for iPhone)

By connecting your iPhone to this product, you can use the voice recognition function (Siri Eyes Free Mode) on this product.

NOTES

  • When an iPhone is used, Siri Eyes Free Mode is available with this product.
  • In this chapter, iPhone and iPod touch will be referred to as “iPhone”
  1. Press
  2. Touch
  3. Touch

The voice recognition function launches and the voice control screen appears.

Minimizing the dial confirmation screen

  1. Touch

NOTES

  • The dial confirmation screen cannot be minimized on the AV operation screen.
  • AV sources cannot be selected even if the dial confirmation screen is minimized while talking on the phone or receiving an incoming call. on the top menu screen

Setting the private mode

During a conversation, you can switch to private mode (talk directly on your cellular phone).

  1. Touch roturn private mode on or off.

NOTES

  • If two cellular phones are connected to this product and the first phone is set to private mode, you can receive incoming calls on the second phone while maintaining the call in progress on the first phone.
  • When two cellular phones are connected to this product and private mode of the first phone is turned off, if an incoming call on the second phone is answered while a call is in progress on the first phone or while dialing or receiving a call on the first phone, the call, dialing, or receiving on the first phone is ended.

Adjusting the other party’s listening volume

This product can be adjusted to the other party's listening volume.

  1. Touch to switch between the three volume levels.

Notes for hands-free phoning

General notes

  • Connection to all cellular phones featuring Bluetooth wireless technology is not guaranteed.
  • The line-of-sight distance between this product and your cellular phone must be 10 meters or less when sending and receiving voice and data via Bluetooth technology.
  • With some cellular phones, the ring sound may not be output from the speakers.
  • If private mode is selected on the cellular phone, hands-free phoning may be disabled.

Registration and connection

  • Cellular phone operations vary depending on the type of cellular phone. Refer to the instruction manual that came with your cellular phone for detailed instructions.
  • When phone book transfer does not work, disconnect your phone and then perform pairing again from your phone to this product.

Making and receiving calls

  • You may hear a noise in the following situations:
    • When you answer the phone using the button on the phone.
    • When the person on the other end of the line hangs up the phone.
  • If the person on the other end of the line cannot hear the conversation due to an echo, decrease the volume level for hands-free phoning.
  • With some cellular phones, even after you press the accept button on the cellular phone when a call comes in, hands-free phoning may not be performed.
  • The registered name will appear if the phone number is already registered in the phone book. When the same phone number is registered under different names, only the phone number will be displayed.

The received call and dialed number histories

  • You cannot make a call to the entry of an unknown user (no phone number) in the received call history.
  • If calls are made by operating your cellular phone, no history data will be recorded in this product.

Phone book transfers

  • If there are more than 1000 phone book entries on your cellular phone, not all entries may download completely.
  • Depending on the phone, this product may not display the phone book correctly.
  • If the phone book in the phone contains image data, the phone book may not be transferred correctly.
  • Depending on the cellular phone, phone book transfer may not be available.

Bluetooth audio

Before using the Bluetooth audio player, register and connect the device to this product

NOTE

  • Depending on the Bluetooth audio player connected to this product, the available operations with this product may be limited to the following two levels:
    • A2DP (Advanced Audio Distribution Profile}: Only playing back songs on your audio player is possible.
    • A2DP and AVRCP (Audio/Video Remote Control Profile}: Playing back, pausing, selecting songs, etc, are possible.
  • Depending on the Bluetooth device connected to this product, the available operations with this product may be limited or differ from the descriptions in this manual.
  • While you are listening to songs on your Bluetooth device, refrain from operating the phone function as much as possible. If you try operating, the signal may cause noise for song playback.
  • When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause playback.

1 Press

2 Touch then

The system setting screen appears.

3 Touch [AV Source Settings].

4 Confirm that [Bluetooth Audio] is turned on.

5 Press

6 Touch .

The AV source screen appears.

7 Touch [Bluetooth Audio].

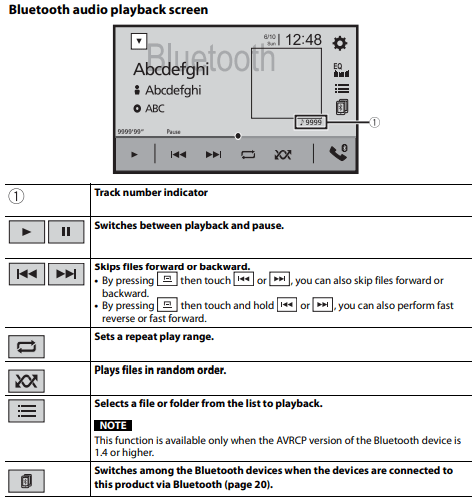

The Bluetooth audio playback screen appears.

Basic operation

AV source

Displaying the AV operation screen

1 Press then touch the AV operation key.

The AV operation screen appears.

Selecting a source

Source on the AV source selection screen

  1. Press then touch
  2. Touch the source icon.

When you select [Source OFF], the AV source is turned off.

Source on the source list

  1. Press then touch the AV operation key.
  2. Touch
  3. Touch the source key.

When you select [Source OFF], the AV source is turned off.

Changing the display order of source ites

NOTE

This function is available only when you stop your vehicle in a safe place and apply the parking brake.

Changing the display order of source icons

  1. Press then touch
  2. Touch and hold the source icon and drag the icon to the desired position.

Changing the display order of source keys

  1. Press then touch the AV operation key.
  2. Touch
  3. Touch
  4. Drag the source key to the desired position.

Adjusting the range of favorite source icons area

NOTE

This function is available only when you stop your vehicle in a safe place and apply the parking brake.

1 Press

2 Touch and hold

appears at the top left of the favorite source icons. w NM

3 Drag to the desired position.

When you finish adjusting, press

Radio

Starting procedure

  1. Press then touch
  2. Touch [Radio].

The Radio screen appears.

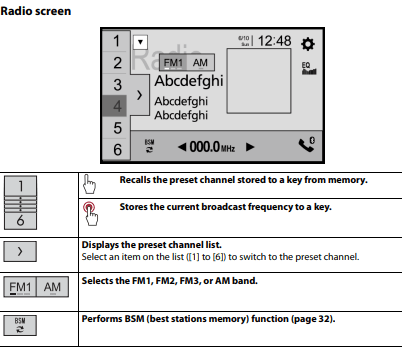

Basic operation

Storing the strongest broadcast frequencies (BSM)

The BSM (best stations memory) function automatically stores the six strongest broadcast frequencies under the preset channel keys [1] to [6].

NOTES

  • Storing broadcast frequencies with BSM may replace those you have already saved.
  • Previously stored broadcast frequencies may remain stored if the number of frequencies stored has not reached the limit.
  1. Touchto begin search.

While the message is displayed, the six strongest broadcast frequencies will be stored under the preset channel keys in the order of their signal strength. gest broadcast frequencies (BSM)

To cancel the storage process

  1. Touch [Cancel].

Radio settings

1 Press

2 Touch then

The system setting screen appears.

3 Touch [AV Source Settings].

4 Touch [Radio settings].

Disc

Inserting and ejecting a disc

You can play a normal music CD, Video-CD, or DVD-Video using the built-in drive of this product.

CAUTION

Do not insert anything other than a disc into the disc-loading slot.

Inserting a disc

  1. Insert a disc into the disc-loading slot.

The source changes and then playback will start.

NOTE

If the discis already set, select [Disc] as the playing source.

Ejecting a disc

  1. Press

Basic Operation

Audio source

Video soure

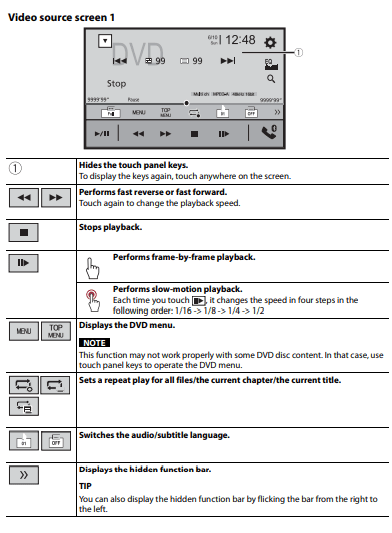

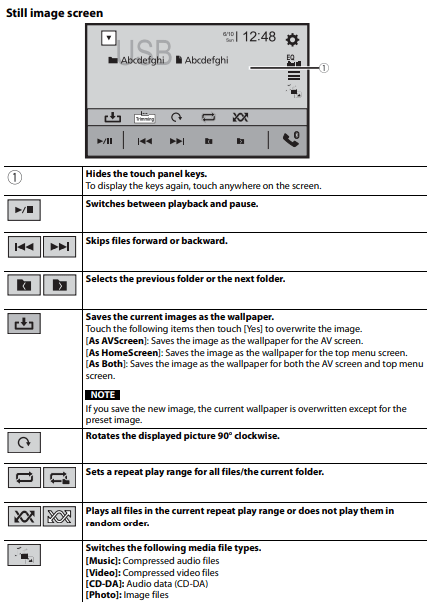

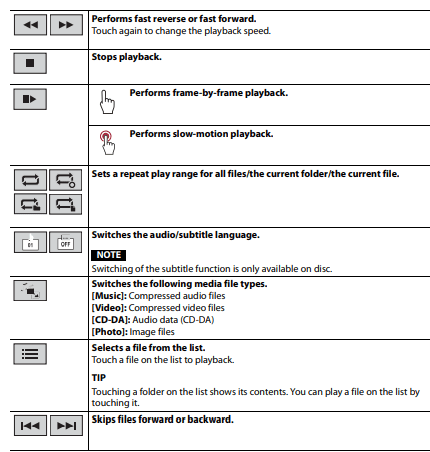

Compressed files

Inxerting and ejecting media

You can play compressed audio, compressed video, or still image files stored in a disc or an external storage device.

CAUTION

Do not insert anything other than a disc into the disc-loading slot.

Inserting a disc

1 Insert a disc into the disc-loading slot.

The source changes and then playback will start.

NOTE

If the discis already set, select [Disc] as the playing source.

Ejecting a disc

  1. Press

Plugging a USB storage device

  1. Pull out the plug from the USB port of the USB cable.
  2. Plug a USB storage device into the USB cable.

NOTE

  • This product may not achieve optimum performance with some USB storage devices.
  • Connection via a USB hub is not possible.
  • A USB cable is required for connection.

Unplugging a USB storage device

  1. Pull out the USB storage device from the USB cable.

NOTES

  • Check that no data is being accessed before pulling out the USB storage device.
  • Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.

Starting procedure

For Disc

  1. Insert the disc

TIP

If the discis already set, select [Disc] as the playing source.

For USB

  1. Press then touch
  2. Plug the USB storage device into the USB cable (page 39).
  3. Touch [USB].

Playback is performed in order of folder numbers. Folders are skipped if they contain no playable files.

Basic operation

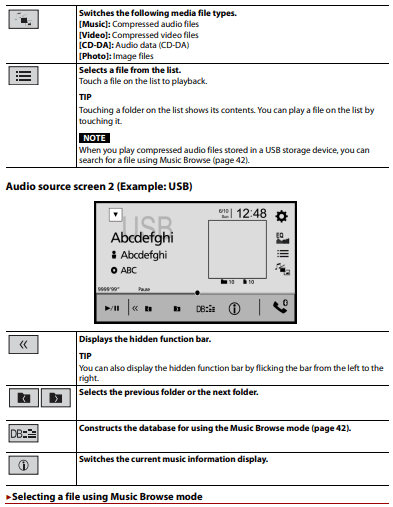

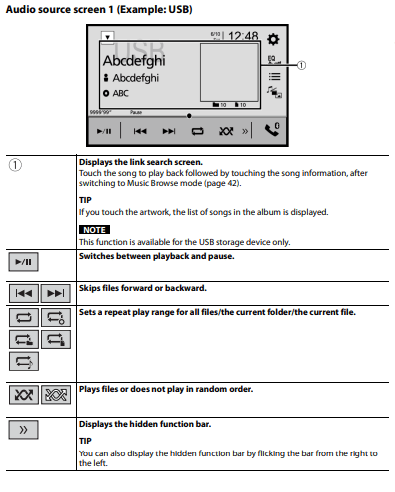

Audio source

You can select files to play back using the category list if the files contain tag information.

NOTES

  • This function is available for the USB storage device only.
  • Music Browse mode cannot be held once the power is turned off.

1 Touch to create a database.

Music Browse mode will be available after the database has been created.

2 Touch

3 Touch the desired category to display the file list.

4 Touch the item.

Refine the item until the desired song title or file name is displayed on the list.

5 Touch the desired song title or file name to play back.

If the selection made with Music Browse has been canceled, you can switch to Music Browse mode again by touching the [Tag] tab on the file/folder list screen and touching the desired track.

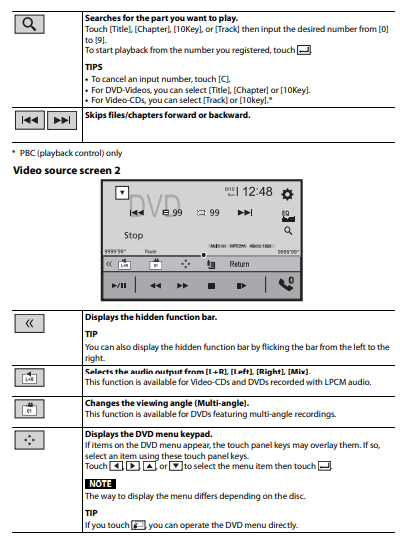

Video source

Still image source

AUX

You can display the video image output by the device connected to video input.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video. images, stop ina safe place and apply the parking brake. ites

NOTE

A Mini-jack AV cable (sold separately} is required for connection. For details, refer to the Installation Manual.

Starting procedure

  1. Press
  2. Touch then
  3. Touch [Input/Output settings]. ysy6uq a
  4. Confirm that [AUX Input] is turned on.
  5. Press then touch
  6. Touch [AUX].

The AUX screen appears.

Basic operation

AUX screen

AV input

You can display the video image output by the device connected to video or camera input. For details, refer to the Installation Manual.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video. images, stop ina safe place and apply the parking brake.

Starting procedure

  1. Press
  2. Touch then
  3. Touch [Input/Output settings].
  4. Touch [AV Input].
  5. Touch [Source] for AV source or [Camera] for camera.
  6. Press then touch
  7. Touch [AV] for AV source or [Camera View] for connected camera view.

The video image is displayed on the screen.

Using iDatalink

You can access the satellite radio source provided for the vehicle. The vehicle information and many OEM systems such as steering wheel controls, warning chimes, driver safety systems, and etc. can be displayed on this product by connecting the optional iDatalink adapter. It is also possible to add visual screens such as gauges, vehicle information, climate control, and parking assist. However, an extra interface module is required to access these features.

Important

  • For details about vehicle models that are compatible with the iDatalink adapter, refer to the information on our website.
  • After installing the iDatalink adapter, be sure to check the operations.
  • Functions and displays vary depending on the vehicle model. For details of the functions available for each model, refer to the information on our website.

Limitations

  • The data is transmitted to this product from your vehicle system via the connected iDatalink adapter. Therefore, the actual data contents displayed on your product may be different from the contents on the screen described in this manual.
  • When information on your vehicle or on the devices of your vehicle is sent from the iDatalink Maestro module, a screen notifying you of such information may pop up.

Activating iDatalink Maes

Before using and/or connecting the iDatalink Maestro adapter, you will need to first flash the Maestro RR module with the appropriate vehicle and head unit firmware.

  1. Find the device number (12 alphanumeric characters) on the label on the packaging of this product or on the product itself.
  2. Access the following website and follow the on-screen instructions to configure the desired firmware.
  3. Install the vehicle/head unit specific firmware on your iDatalink Maestro module.
  4. Connect this product to iDatalink Maestro, and then install this product to the vehicle.

The iDatalink function will be active.

NOTES

  • For details on installing the firmware, refer to iDatalink Maestro website.
  • For details on connecting this product to iDatalink Maestro, refer to the Installation Manual.
  • Youcan also check the device number on the [Firmware Information] screen of this product

Starting procedure

1 Connect the iDatalink Maestro adapter to this product.

For details, refer to the Installation manual.

2 Press then touch

3 Touch [Car Sources] or [Car Features].

The touched menu screen appears.

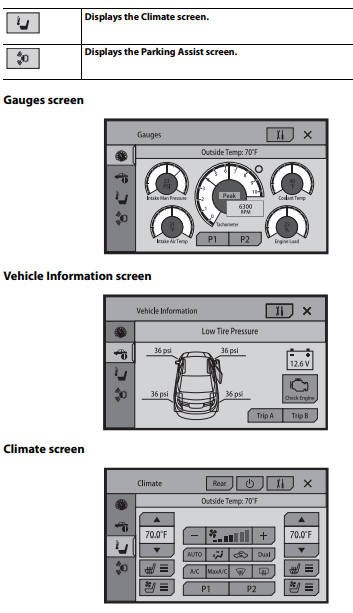

Using functions in Features

You can check and operate the following screens after selecting [Car Features] in the starting procedure. Touch one of the icons on the left side of the screen to change the feature.

iDatalink settings

  1. Press
  2. Touch then
  3. Touch [OEM Settings] or [OEM Volume Settings].

The setting screen for iDatalink appears.

  • [OEM Settings] Setting for iDatalink function when the iDatalink adapter is connected to the unit.
  • [OEM Volume Settings] Setting for iDatalink function volume when the iDatalink adapter is connected to the unit.

Troubleshooting

If you have problems operating this product, refer to this section. The most common problems are listed below, along with likely causes and solutions. Ifa solution to your problem cannot be found here, contact your dealer or the nearest authorized Pioneer service facility.

Common problems

Ablack screen is displayed, and operation is not possible using the touch panel keys.

  • [Power OFF] mode is on.
    • Press any button on this product to release the mode.

Problems with the AV screen

CD or DVD playback is not possible.

  • The disc is inserted upside down.
    • Insert the disc with the label upward.
  • The disc is dirty.
    • Clean the disc.
  • The disc is cracked or otherwise damaged.
    • Insert a normal, round disc.
  • The files on the disc are in an irregular file format.
    • Check the file format.
  • The disc format cannot be played back.
    • Replace the disc.
  • The loaded disc is a type this product cannot play.
    • Check what type of disc it is.

The screen is covered by a caution message and the video cannot be shown.

  • The parking brake lead is not connected or the parking brake is not applied.
    • Connect the parking brake lead correctly, and apply the parking brake.
  • The parking brake interlock is activated.
    • Park your vehicle in a safe place and apply the parking brake.

No video output from the connected equipment.

  • The [AV Input] or [AUX Input] setting is incorrect.
    • Correct the settings.

The audio or video skips.

  • This product is not firmly secured.
    • Secure this product firmly.

No sounds are produced. The volume level will not rise.

  • Cables are not connected correctly.
    • Connect the cables correctly.
  • The system is performing still, slow motion, or frame-by-frame playback with DVD-Video.
    • There is no sound during still, slow motion, or frame-by-frame playback with DVD-Video.
  • The system is paused or performing fast reverse or forward during the disc playback.
  • For the media other than music CD (CD-DA), there is no sound on fast reverse or forward.

The icon is displayed, and operation is impossible.

  • The operation is not compatible with the video configuration.
    • The operation is not possible. (For example, the DVD playing does not feature that angle, audio system, subtitle language, etc.)

Random playback in Music Browse mode is released in the USB storage device.

  • Random playback in Music Browse mode is canceled after the ignition switch is turned off {ACC OFF).
    • Switch to Music Browse mode again and turn on random playback.

The picture stops (pauses) and this product cannot be operated.

  • The reading of data is impossible during disc playback.
    • Stop playback once, then restart.

The picture is stretched, with an incorrect aspect ratio.

  • The aspect setting is incorrect for the display.
    • Select the appropriate setting for that image.

A parental lock message is displayed and DVD playback is not possible.

  • The parental lock is on.
    • Turn the parental lock off or change the level.

The parental lock for DVD playback cannot be canceled.

  • The code number is incorrect.
    • Input the correct code number.

Playback is not with the audio language and subtitle language settings selected in [DVD Setup].

  • The DVD playing does not feature dialog or subtitles in the language selected in [DVD Setup].
    • Switching to a selected language is not possible if the language selected in [DVD Setup] is not recorded on the disc.

The picture is extremely unclear/ distorted and dark during playback.

  • The disc features a signal to prohibit copying. (Some discs may have this.)
    • Since this product is compatible with the copy guard analog copy protect system, the picture may suffer from horizontal stripes or other imperfections when a disc with that kind of protection signal is viewed on some displays. This is not a malfunction.

iPod cannot be operated.

  • The iPod is frozen.
    • Reconnect the iPod with the USB interface cable for iPod/iPhone.
    • Update the iPod software version.
  • An error has occurred.
    • Reconnect the iPod with the USB interface cable for iPod/iPhone.
    • Park your vehicle in a safe place, and then turn off the ignition switch (ACC OFF). Subsequently, turn the ignition switch to on (ACC ON) again.
    • Update the iPod software version.
  • Cables are not connected correctly.
    • Connect the cables correctly.

Sound from the iPod cannot be heard.

  • The audio output direction may switch automatically when the Bluetooth and USB connections are used at the same time.
    • Use the iPod to change the audio output direction.

No back camera image when the vehicle is in reverse.

  • The back camera input setting on the receiver is set to Off.
    • Changethe back camera setting to On in the settings menu. (Refer to the System Settings section of this manual to adjust.)
  • The camera input may be loose or not connected.
    • Check the connection and make sure the male end of the camera is connected to the brown input on the back of the receiver. (Refer to the installation manual.)
  • The reverse lead on the receiver may not be connected to the proper wire at the reverse lamp.
    • Check the connection and make sure that the violet/white lead of the receiver is connected to the lead whose voltage changes when the shift lever is put in reverse. (Refer to the installation manual.)

Black screen displayed when the vehicle is in reverse, with no camera installed.

  • Back camera input is set to On.
    • Turn the setting to Offin the settings menu. (Refer to the System Settings section of this manual to adjust.)

Back image displayed when vehicle is not in reverse.

  • The camera polarity is not set properly in the Camera settings menu.
    • Review System Settings section of this manual for steps to switch the camera polarity. Park in a safe place, then while keeping your foot firmly on the brake, put the vehicle in reverse, access the System Settings menu, and change the camera polarity setting. Put vehicle back in park. (Refer to the System Settings section of this manual to adjust.)

Problems with the phone screen

Dialing is impossible because the touch panel keys for dialing are inactive.

  • Your phone is out of range for service.
    • Retry after re-entering the range for service.
  • The connection between the cellular phone and this product cannot be established.
    • Perform the connection process.
  • Ofthe two cellular phones connected to this product at the same time, if the first phone is dialing, ringing or a call is in progress, dialing cannot be performed on the second phone.
    • When the operation on the first of the two cellular phones is completed, use the switch devices key to switch to the second phone and then dial.

Problem with Alppication screen

A black screen is displayed.

  • While operating an application, the application was ended on the smartphone side.
    • Press to display the top menu screen.
  • The smartphone OS may be awaiting screen operation.
    • Stop the vehicle in a safe place and check the screen on the smartphone.

The screen is displayed, but operation does not work at all.

  • An error has occurred.
    • Park your vehicle in a safe place, and then turn off the ignition switch (ACC OFF). Subsequently, turn the ignition switch to on (ACC ON) again.

The smartphone was not charged.

  • Charging stopped because the temperature of the smartphone rose due to prolonged use of the smartphone during charging.
    • Disconnect the smartphone from the cable, and wait until the smartphone cools down.
  • More battery power was consumed than was gained from charging.
    • This problem may be resolved by stopping any unnecessary services on the smartphone.

Error messages

When problems occur with this product, an error message appears on the display.

Refer to the table below to identify the problem, then take the suggested corrective action. If the error persists, record the error message and contact your dealer or your nearest Pioneer service center.

Common

AMP Error

  • This product fails to operate or the speaker connection is incorrect; the protective circuit is activated.
    • Check the speaker connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or an authorized Pioneer Service Station for assistance.

Pandora

Error-19 (Communication error occurred.)

  • Communication failed.
    • Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.

Our content licenses limit the number of tracks you may skip.

  • Skip limit reached.
    • Do not exceed the skip limit.
    • Pandora limits the total number of skips per hour.

Log in error

  • You are not logged in to the Pandora application.
    • Please log in to the Pandora application.

Check USB

  • The USB connector or USB cable has short-circuited.
    • Check that the USB connector or USB cable is not caught in something or damaged.
  • The connected USB storage device consumes more than maximum allowable current.
    • Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.

Poor network connection. Listening will resume when it's restored.

  • The Pandora application is accessed/ relocated from outside the licensing region.
    • Access Pandora from within the licensing region.

Spotify

Skip limit reached.

  • Skip limit reached.
    • Do not exceed the skip limit.
    • Spotify limits the total number of skips per hour.

Check USB

  • The USB connector or USB cable has short-circuited.
    • Check that the USB connector or USB cable is not caught in something or damaged.
  • The connected USB storage device consumes more than maximum allowable current.
    • Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.

No Spotify

  • The Spotify application is not installed in the connected device.
    • Install the Spotify application in your mobile device.

Update App

  • The Spotify application is out of date.
    • Update to the latest Spotify application.

Login Please

  • You are not logged in to the Spotify application.
    • Please log in to the Spotify application.

No Signal

  • The connected device is out of area.
    • Connect the device to a network.

SiriusXM Satellite Radio

Check Antenna

  • The antenna connection is incorrect.
    • Check the antenna connection. If the message fails to disappear even after the engine is switched off/on, contact your dealer or the nearest authorized Pioneer service center for assistance.

Check Tuner

  • The SiriusXM Connect Vehicle Tuner connection is incorrect.
    • Check the tuner connection and battery voltage. If the message fails to disappear even after the engine is switched offfon, contact your dealer or the nearest authorized Pioneer service center for assistance.

No Signal

  • The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.
    • Verify that your vehicle is outdoors with a clear view of the southern sky.
    • Verify that the SiriusXM magnetic mountantenna is mounted on a metal surface on the outside of the vehicle.
    • Move the SiriusXM antenna away from any obstructions.

No Content

  • TuneScan™ is not available.
    • Perform the operation with another preset channel.

Channel Not Available

  • The channel that you have requested is nota valid SiriusXM channel.
    • Visit siriusxm.com for more information about the SiriusXM channel lineup.

Subscription Updated Press Enter to Continue

  • This product has detected a change in your SiriusXM subscription status.
    • Touch [Enter] to clear the message. In the U.S.A, visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription. In Canada, visit w.siriusxm.ca or call 1-877-438-9677 if you have questions about your subscription.

Channel Not Subscribed. Call SiriusXM to Subscribe.

  • The channel that you have requested is not included in your SiriusXM subscription package.
    • Check the content of your SiriusXM subscription package. In the U.S.A, visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel. In Canada, visit wsiriusxm.ca or call 1-877-438- 9677.

Channel Locked Please Enter the Lock Code

  • Locked by the radio Parental Control feature.
    • Release the channel lock.

Memory Full

  • The memory has become full while playback was paused.
    • Resume playback.

Memory Nearly Full

  • The memory has become nearly full while playback was paused.
    • Resume playback.

There are no qualified TuneMix music

  • There are no qualified TuneMix channels in this band.
    • Requires two or more qualified music channels to be stored as presets in the current band.

Disc

Error-02-XX/FF-FF

  • The disc is dirty.
    • Clean the disc.
  • The disc is scratched.
    • Replace the disc.
  • The disc is loaded upside down.
    • Check that the disc is loaded correctly.
  • There is an electrical or mechanical error.
    • Press the RESET button.

Different Region Disc

  • The disc does not have the same region number as this product.
    • Replace the DVD with one bearing the correct region number.

Unplayable Dise

  • This type of disc cannot be played on this product.
    • Replace the disc with one that can be played on this product.

Unplayable File

  • This type of file cannot be played on this product.
    • Select a file that can be played.

Skipped

  • The inserted disc contains DRM protected files.
    • The protected files are skipped.

Protect

  • All the files on the inserted disc are embedded with DRM.
    • Replace the disc.

TEMP

  • The temperature of this product is outside the normal operating range.
    • Wait until this product returns to a temperature within the normal operating limits.

Your device is not authorized to play this DivX protected video.

  • This product cannot play copy- protected DivX files.
    • Select a file that can be played.

Video frame rate not supported

  • DivX file's frame rate is more than 30 fps.
    • Select a file that can be played.

Audio Format not supported

  • This type of file is not supported on this product.
    • Select a file that can be played.

USB storage device

Error-02-9X/-DX

  • Communication failed.
    • Turn the ignition switch OFF and back ON.
    • Disconnect the USB storage device.
    • Change to a different source. Then, return to the USB storage device.

Unplayable File

  • There is no playable file in the USB storage device.
    • Check that the files in the USB storage device are compatible with this product.
  • Security for the connected USB storage device is enabled.
    • Follow the USB storage device instructions to disable security.

Skipped

  • The connected USB storage device contains DRM protected files.
    • The protected files are skipped.

Protect

  • All the files on the connected USB storage device are embedded with DRM.
    • Replace the USB storage device.

Incompatible USB

  • The connected USB storage device is not supported by this product.
    • Disconnect your device and replace it with a compatible USB storage device.

Check USB

  • The USB connector or USB cable has short-circuited.
    • Check that the USB connector or USB cable is not caught in something or damaged.
  • The connected USB storage device consumes more than maximum allowable current.
    • Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.

HUB Error

  • The connected USB hub is not supported by this product.
    • Directly connect the USB storage device to this product.

No Response

  • This product cannot recognize the connected USB storage device.
    • Disconnect the device and replace it with another USB storage device.

USB was disconnected for device protection. Do not re-insert this USB memory into the unit. Please restart the unit.

  • The USB connector or USB cable has short-circuited.
    • Check that the USB connector or USB cable is not caught in something or damaged.
  • The connected USB storage device consumes more than maximum allowable current.
    • Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect a compliant USB storage device.
  • The USB interface cable for iPod/iPhone has short-circuited.
    • Confirm that the USB interface cable for iPod/iPhone or USB cable is not caught in something or damaged.

Your device is not authorized to play this DivX protected video.

  • This product cannot play copy- protected DivX files.
    • Select a file that can be played.

Audio Format not supported

  • This type of file is not supported on this product.
    • Select a file that can be played.

iPod

Error-02-6X/-9X/-DX

  • iPod failure.
    • Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.

Error-02-67

  • The iPod firmware version is old.
    • Update the iPod version.

Bluetooth

Error-10 .

  • The power failed for the Bluetooth . module of this product.
    • Turn the ignition switch to OFF and then to ON.

If the error message is still displayed after performing the above action, please contact your dealer or an authorized Pioneer Service Station.

Handling and care of discs

Some basic precautions are necessary when handling your discs.

Built-in drive and care

  • Use only conventional, fully circular discs. Do not use shaped discs.
  • Do not use cracked, chipped, warped, or otherwise damaged discs as they may damage the built-in drive.
  • Use 12-cm discs. Do not use 8-cm discs or an adapter for 8-cm discs.
  • When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.
  • Do not attach labels, write on or apply chemicals to the surface of the discs.
  • Do not attach commercially available labels or other materials to the discs.
  • To clean a disc, wipe it with a soft cloth, moving outward from the center.
  • Condensation may temporarily impair the built-in drive's performance.
  • Playback of discs may not be possible because of disc characteristics, disc format, recorded application, playback environment, storage conditions and so on.
  • Road shocks may interrupt disc playback.
  • Read the precautions for discs before using them.

Ambient conditions for playing a disc

  • At extremely high temperatures, a temperature cutout protects this product by switching it off automatically.
  • Despite our careful design of the product, small scratches that do not affect actual operation may appear on the disc surface as a result of mechanical wear, ambient conditions for use or handling of the disc. This is nota sign of the malfunction of this product. Consider it to be normal wear and tear.


See other models: TS-A2500LB GM-DX871 DMH-1700NEX DMH-340EX DMH-WT76NEX

Pioneer AVH-521EX | Pages: 120 | File type: PDF | Filename: 92551930_avh-521ex.pdf | Size: 3.71 MB | Language: English | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - AVH-521EX photo

AVH 521EX Photo

Pioneer AVH-521EX Questions and Answers

Find answers or Ask a question.
  • Total questions: 1
  • Questions unAnswered : 1

Q: Rear speakers are off how can I get them back on is there a rear speaker setting Reply
