• Page 1 - English - : Contents Contents Contents These pages give an overview of the contents of your owners manual The first page of each section lists the topics discussed in that section Driver amp Passenger Safety 1 The most important safety guidelines how accessories and modifications can affect your safety and the location of safety related labels on your vehicle Instruments amp Controls 11 The location function and operation of the indicators driver controls and other operational components Before Driving69 The importance of wearing a seat belt helmet protective eyewear and other protective gear how to make sure you and your Honda are ready to drive plus load limits and guidelines on carrying cargo and towing a trailer Basic Operation amp Driving Guidelines81 How to start and stop the engine select a driving mode and gear plus guidelines for driving on hills and other offroad situations Servicing Your Honda 101 Why your vehicle needs regular maintenance what you need to know before servicing your vehicle a maintenance schedule and instructions for specific maintenance and adjustment items Tips 193 How to store and transport your Honda and how to be an environmentally responsible driver 2019 Pioneer 700 SXS700M2M2DM4M4D 31HL3650 MOM 16641 1803
• Page 2 - English - : Contents Contents Taking Care of the Unexpected203 What to do if you have a flat tire your engine wont start etc Technical Information 227 ID numbers technical specifications and other technical facts Consumer Information 245 Information on warranties emissions controls how to get a service manual and how to contact Honda Index251 Alphabetical listing of topics in the manual Quick Reference Handy facts about fuel engine oil tire sizes and air pressure
• Page 3: Honda PIONEER SXS700 M2 Two Passenger M2D Two Passenger Deluxe M4 Four Passenger M4D Four Passenger Deluxe OWNERS MANUAL
• Page 4 - English - : Introduction Introduction Introduction Congratulations on choosing your Honda Pioneer When you own a Honda youre part of a worldwide family of satisfied customers people who appreciate Hondas reputation for building quality into every product Before you begin driving your vehicle we recommend that you read this owners manual Its full of facts instructions safety information and helpful tips To help you find what you are looking for the manual contains a detailed list of contents at the beginning of each section and an alphabetical index at the back of the book To protect your investment we urge you to keep your vehicle well maintained Scheduled service is a must of course but its also important to observe the breakin guidelines and perform all pre drive and other periodic checks detailed in this manual As you read this manual you will find information that is preceded by a symbol This information is intended to help you avoid damage to your Honda other property or the environment Be sure to read the Warranties Booklet page 247 so you understand the coverages that protect your new Honda and are aware of your rights and responsibilities If you have any questions or if you ever need special service or repairs remember that your dealer knows your Honda SXS best and is dedicated to your complete satisfaction Please report any change of address or ownership to your dealer so we will be able to contact you concerning important product information You may also want to visit our website at USA wwwpowersportshondacom Canada wwwhondaca NOTICE
• Page 5 - English - : Introduction Introduction The following codes in this manual indicate each country SXS700M2 SXS700M2D SXS700M4 SXS700M4D The illustrations herein are based on the SXS700M4D AC type The specifications may vary with each locale A United States of America 49 states AC United States of America 50 states meets California A II A United States of America 49 states AC II AC United States of America 50 states meets California CM II CM Canada A United States of America 49 states AC United States of America 50 states meets California A II A United States of America 49 states AC II AC United States of America 50 states meets California CM II CM Canada
• Page 6 - English - : A Few Words About Safety A Few Words About Safety A Few Words About Safety Your safety and the safety of others is very important And operating your Honda safely is an important responsibility To help you make informed decisions about safety we have provided operating procedures and other information on labels and in this manual This information alerts you to potential hazards that could hurt you or others Of course it is not possible to warn you about all hazards associated with operating or maintaining this vehicle You must use your own good judgment You will find important safety information in a variety of forms including Safety Labels on the vehicle Safety Messages boxed messages preceded by a safety alert symbol and one of three signal words DANGER WARNING or CAUTION These signal words mean DANGER You WILL be KILLED or SERIOUSLY HURT if you dont follow instructions WARNING You CAN be KILLED or SERIOUSLY HURT if you dont follow instructions CAUTION You CAN be HURT if you dont follow instructions
• Page 7 - English - : A Few Words About Safety A Few Words About Safety Safety Headings such as Important Safety Reminders or Important Safety Precautions Safety Section Driver amp Passenger Safety beginning on page 1 Instructions how to operate this vehicle correctly and safely In addition to the above your owners manual is full of information that can help you safely operate and maintain your vehicle So please read it carefully
• Page 8 - English - : Driver amp Passenger Safety Driver amp Passenger Safety Driver amp Passenger Safety This section presents some of the most important information and recommendations to help you drive your Honda safely Please take a few moments to read these pages This section also shows you the location of safety labels on your vehicle Important Safety Information 2 Accessories amp Modifications 4 Safety Labels 6
• Page 9 - English - : Driver amp Passenger Safety Important Safety Information There is much that you can do to protect yourself and passengers Youll find many helpful recommendations throughout this manual The following are those we consider to be most important The driver should be at least 16 years old and tall enough to wear the seat belt properly and reach all the controls A passenger should also be tall enough for the seat belt to fit properly and brace themselves if needed placing both feet firmly on the floor Never allow anyone to ride in the middle of the bench seat There is no seat belt to restrain them Wearing a seat belt and positioning it properly is your best protection against injury in a crash or rollover We recommend that occupants always wear a helmet with a chin strap We also recommend that you wear eye protection boots gloves and other protection gear page 71 Making sure the doors are closed and the side nets are rolled down and secure help keep the drivers and passengers arms and legs inside the occupant protective structure OPS should the vehicle tip or turn over Follow Age and Size Recommendations Always Wear a Seat Belt Protect Your Head and Eyes Keep Doors and Side Nets Closed
• Page 10 - English - : Driver amp Passenger Safety Important Safety Information Your vehicle was designed to either carry a driver and one passenger SXS700M2M2D or a driver and up to three passengers SXS700M4M4D Never carry additional passengers in the cargo area as they could be thrown against or out of the vehicle and be seriously hurt or killed Do not carry more than 1000 lb 454 kg in the cargo bed and make sure all cargo is properly loaded as forward and centered as possible and secured to prevent shifting Its important to keep your vehicle properly maintained and in safe operating condition Having a breakdown can be difficult especially if you are stranded far from your base To help avoid problems inspect your Honda before each use and perform all recommended maintenance Alcohol and driving dont mix Even one drink can affect your judgment and your ability to respond to changing conditions Drugs can also impair your abilities So dont drive after consuming alcohol or drugs Your vehicle has been designed for use on private property and designated offhighway areas It does not have turn signals or many other items required for use on either paved or unpaved public roads Never Carry a Passenger in the Cargo Area Obey Loading Limits amp Guidelines Keep Your Vehicle in Safe Condition Dont Drink and Drive Stay Off Public Roads
• Page 11 - English - : Driver amp Passenger Safety Accessories amp Modifications Modifying your vehicle or using nonHonda accessories can make it unsafe Before you consider making any modifications or adding an accessory be sure to read the following information We strongly recommend that you use only Honda Genuine Accessories that have been specifically designed or approved and tested for your vehicle Because Honda cannot test all other accessories you must be personally responsible for the proper selection installation and use of nonHonda accessories You should also be aware that accessories add weight reducing the amount of cargo and total weight you can carry and can raise the vehicles center of gravity increasing the risk of a rollover Check with your dealer for assistance and always follow these guidelines Make sure the accessory does not obscure any lights reduce ground clearance limit suspension travel or steering travel or interfere with operating any controls Do not add any electrical equipment that will exceed the vehicles electrical system capacity page 233 A blown fuse can cause a loss of lights or engine power page 216 Accessories WARNING WARNING Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed Follow all instructions in this owners manual regarding accessories and modifications
• Page 12 - English - : Driver amp Passenger Safety Accessories amp Modifications We strongly advise you not to remove any original equipment or modify your Honda in any way that would change its design or operation Such changes could seriously impair your vehicles handling stability and braking and make it unsafe to drive We also advise you not to make any modifications or remove any equipment such as the spark arrester muffler or emissions control system components that would make your vehicle illegal in your area Modifications

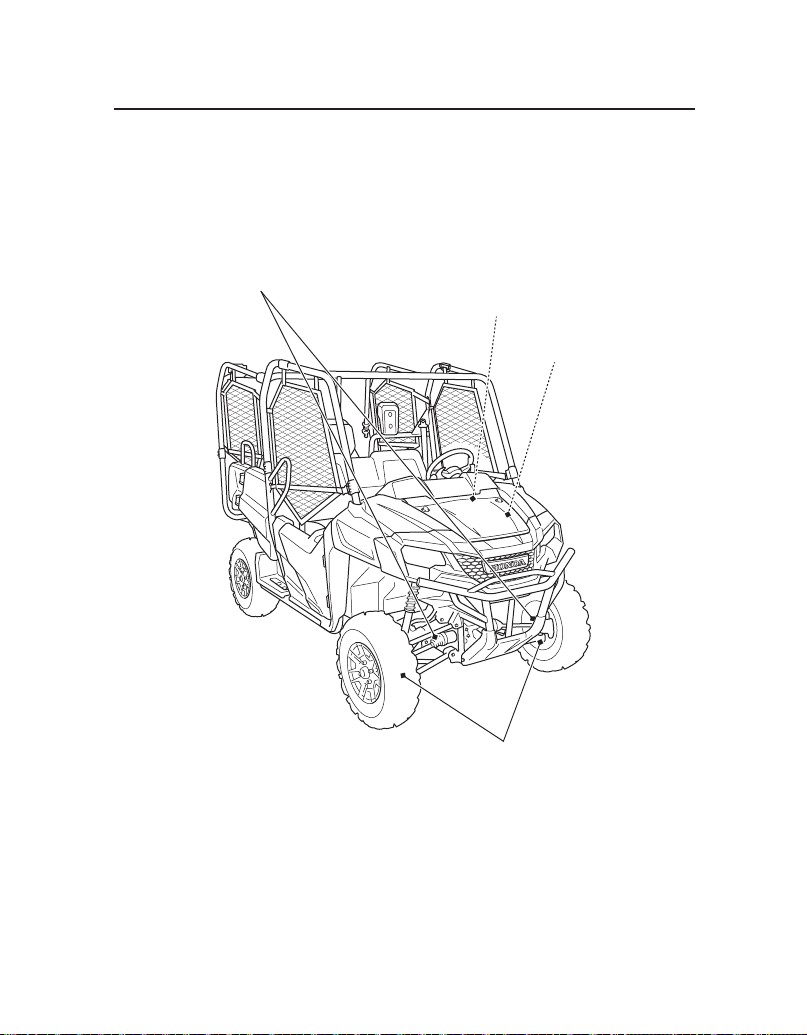

• Page 13 - English - : Driver amp Passenger Safety Safety Labels Your Honda comes with several labels that contain important information You and anyone else who operates or rides in the vehicle should read and understand this information before driving The labels should be considered permanent parts of the vehicle If a label comes off or becomes hard to read contact your Honda dealer for a replacement Indicates something apparent Indicates something concealed radiator cap danger tire amp overload warning
• Page 14: Driver amp Passenger Safety Safety Labels general warning tag
• Page 15: Driver amp Passenger Safety Safety Labels general warning shift amp drive select
• Page 17: Driver amp Passenger Safety BLANK PAGE
• Page 18 - English - : Instruments amp Controls Instruments amp Controls contd Instruments amp Controls The items listed below are described in this section Operation Component Locations 13 Indicators amp Displays 16 Neutral Indicator 17 Reverse Indicator 17 Parking Brake Indicator 17 Differential Lock Indicator 17 High CoolantOil Temperature Indicator 17 PGMFI Malfunction Indicator Lamp MIL 17 Seat Belt Indicator 17 Electric Power Steering EPS Indicator 18 Multifunction Display 21 Speedometer Display 22 Odometer Display 23 Gear position display 32 Driver Controls 33 Ignition Switch 33 Headlight Switch 34 ATMT Switch SXS700M2DM4D only 35 Shift Paddles SXS700M2DM4D only 36 Shift Select Lever 37 Drive Mode Select Lever 38 Parking Brake Lever 40 Doors 41 Side Nets 43 Seat 50 Seat 50 Rear Seat Conversion SXS700M4M4D only 51 Rear Seat Stopper Adjustment SXS700M4M4D only 53
• Page 19 - English - : Instruments amp Controls Instruments amp Controls Seat Belts 54 Passenger Handhold 61 Storage Compartments 62 Accessory Power Socket 63 Cargo Bed Controls 64 Tailgate Levers 64 TieDown Hooks 65 Tilt Bed Lever 66 Trailer Hitch 68
• Page 20 - English - : Instruments amp Controls Operation Component Locations headlight switch page 34 accessory power socket page 63 parking brake lever page 40 ignition switch page 33 drive mode select lever page 38 shift select lever page 37 indicators amp displays page 16 utility pocket ATMT switch SXS700M2DM4D only page 35 downshift paddle SXS700M2DM4D only page 36 upshift paddle SXS700M2DM4D only page 36
• Page 21: Instruments amp Controls Operation Component Locations front seat belt page 54 front side net page 43 front door page 41 passenger handhold page 61

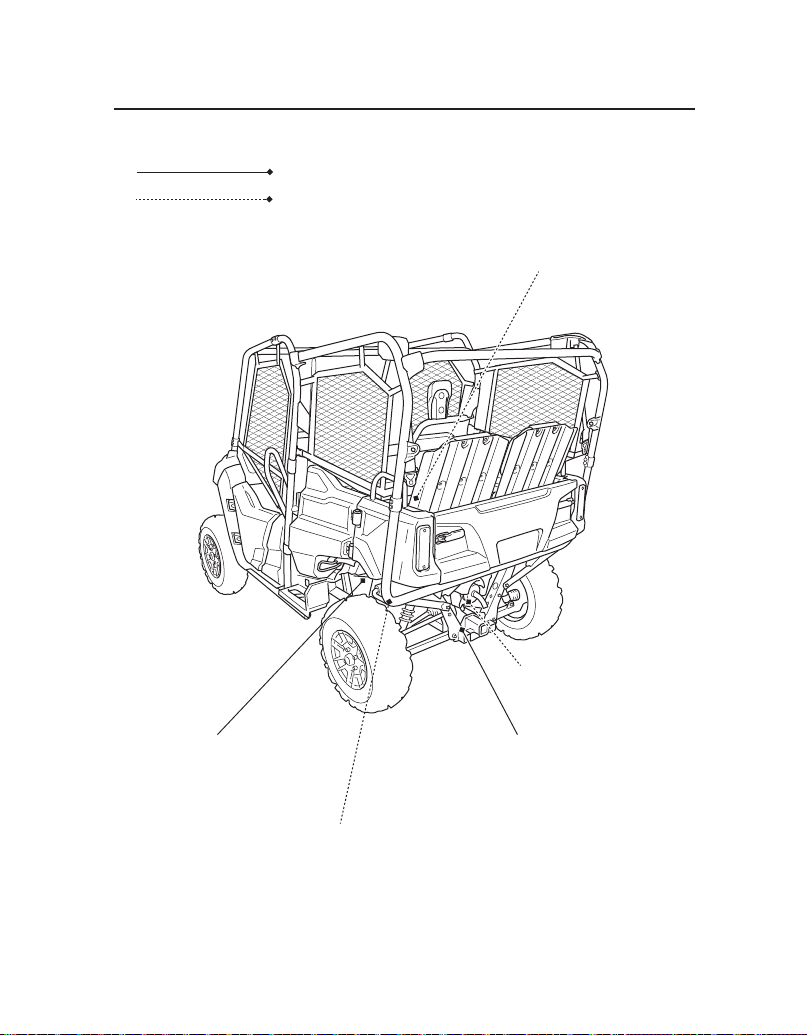

• Page 22 - English - : Instruments amp Controls Operation Component Locations rear door SXS700M4M4D only page 41 rear side net SXS700M4M4D only page 43 rear seat belt SXS700M4M4D only page 54 tilt bed lever page 66 cargo bed page 64 trailer hitch receiver page 68 tailgate levers page 64 rear seat SXS700M4M4D only page 50
• Page 23 - English - : Instruments amp Controls Indicators amp Displays The indicators and displays on your Honda SXS keep you informed alert you to possible problems and make your driving safer and more enjoyable Refer to the indicators frequently Their functions are described on the following pages Lamp Check The indicators come on and go off sequentially when you turn the ignition switch to the ON q position If one of these indicators does not come on key ON check have your dealer check for problems parking brake indicator multifunction display PGMFI malfunction indicator lamp MIL seat belt indicator reverse indicator neutral indicator differential lock indicator mode switch high coolantoil temperature indicator electric power steering EPS indicator SXS700M2DM4D only
• Page 24 - English - : Instruments amp Controls Indicators amp Displays Neutral Indicator This indicator comes on and stays on when the transmission is in neutral Reverse Indicator This indicator comes on and stays on when the transmission is in reverse Parking Brake Indicator This indicator comes on and stays on when the parking brake is on Differential Lock Indicator This indicator will be on when the 4WD diff lock mode engages along with the 4WD indicator page 32 High CoolantOil Temperature Indicator This indicator comes on and stays on when either the coolant temperature or the engine oil temperature is high enough to adversely affect the service life of the engine If this indicator comes on while you are driving stop as soon as possible turn the engine off and let it cool PGMFI Malfunction Indicator Lamp MIL This indicator comes on and stays on when there is a problem with your vehicles engine system If this happens reduce speed and take your vehicle to a dealer as soon as possible Seat Belt Indicator This indicator starts blinking if the drivers seat belt is not latched and remains blinking until the drivers seat belt is latched If the drivers seat belt is not latched properly the maximum vehicle speed will be limited by the seat belt speed limiting system page 55
• Page 25 - English - : Instruments amp Controls Indicators amp Displays Electric Power Steering EPS Indicator SXS700M2DM4D only This indicator comes on when the ignition switch is turned on and remains on until the engine is started This indicator comes on and stays on when there is abnormality in the electric power steering system
• Page 26 - English - : Instruments amp Controls Indicators amp Displays Multifunction display This display includes the following functions Speedometer display Shows driving speed in miles or kilometers per hour page 22 Odometer display Shows fuel gauge digital clock odometer tripmeter coolant temperature gauge hour meter maintenance tripmeter and maintenance hour meter page 23 Gear position display Shows gear position page 32 Mode switch This button is used to select the mode to change the mileage unit and adjust resets the digital clock tripmeter and hour meter page 21

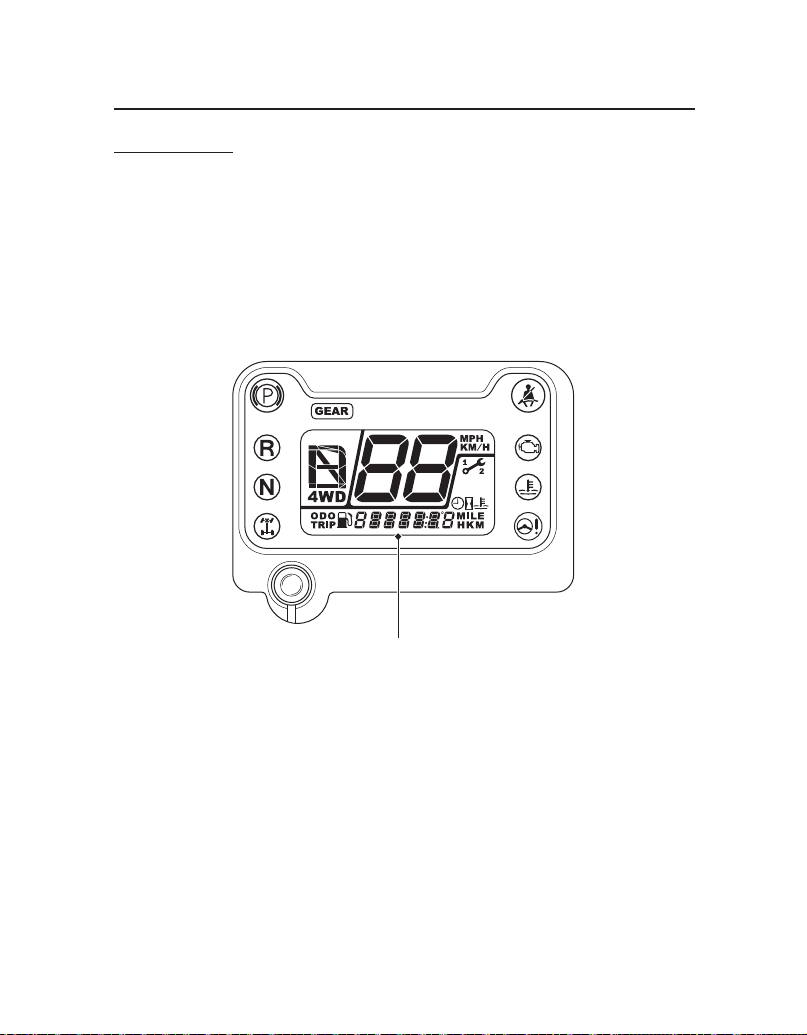

• Page 27 - English - : Instruments amp Controls Indicators amp Displays Display Check When the ignition switch is turned ON q the multifunction display will temporarily show all the modes and digital segments and initial message So you can make sure the liquid crystal display is functioning properly If any part of this display does not come on during the key ON check have your dealer check for problems multifunction display
• Page 28 - English - : Instruments amp Controls Indicators amp Displays The multifunction display consists of the following function displays Multifunction Display Speedometer display Odometer display Gear position display mode switch gear position display speedometer display odometer display
• Page 29 - English - : Instruments amp Controls Indicators amp Displays This display shows speed in miles or kilometers per hour Mileage Unit Change The speedometer odometer tripmeter and maintenance tripmeter show in either MPH and MILE or KMH and KM To change the mileage unit press and hold the mode switch for more than 5 seconds in odometer mode page 23 with the vehicle stopped Speedometer Blinking If the speedometer digits and seat belt indicator blink simultaneously while you are driving maximum vehicle speed will be limited to no more than 15 mph 24 kmh by the seat belt speed limiting system page 55 Speedometer Display mode switch KM MILE KMH MPH
• Page 30 - English - : Instruments amp Controls Indicators amp Displays This display includes fuel gauge digital clock odometer tripmeter coolant temperature gauge hour meter maintenance tripmeter and maintenance hour meter Each time you press the mode switch mode will change as shown in the illustration If there are unusual indications with your SXS and mode switch is not pressed for 10 seconds a message will automatically appear in the display Odometer Display Fuel gauge page 24 Digital clock page 26 Odometer page 27 Tripmeter page 27 Coolant temperature gauge page 28 Hour meter page 30 Maintenance tripmeter page 31 Maintenance hour meter page 31 When SXS is moving When SXS is not moving

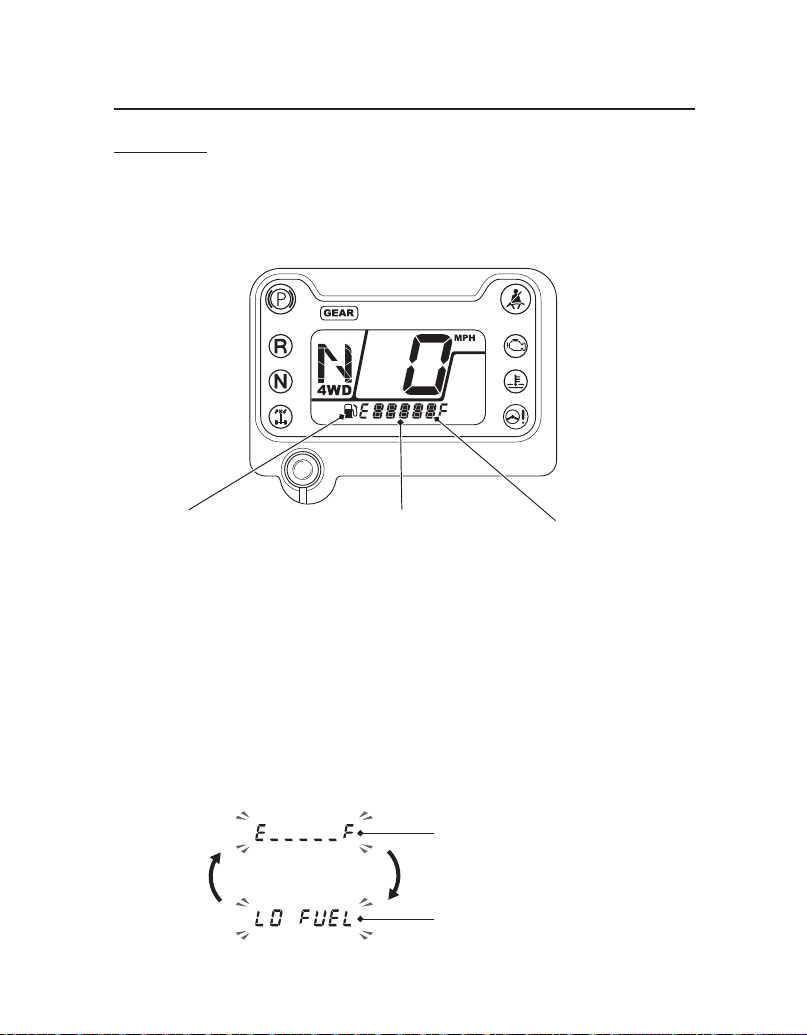

• Page 31 - English - : Instruments amp Controls Indicators amp Displays Fuel gauge The fuel gauge shows the approximate fuel supply available in a graduated display with the fuel symbol When the segment F goes on the fuel tank capacity is 79 US gal 30 ℓ Regardless of what mode the display is in when the fuel level reaches only one segment remaining the display will automatically switch to the fuel gauge display You should refuel as soon as possible The amount of fuel left in the tank with the vehicle on a firm level surface is approximately 276 US gal 105 ℓ The fuel gauge and LO FUEL will begin to blink alternately when the fuel level decreases further fuel symbol fuel gauge segment F fuel gauge LO FUEL message
• Page 32 - English - : Instruments amp Controls Indicators amp Displays Fuel gauge failure If the fuel system has an error the fuel gauge will blink If this occurs see your dealer as soon as possible fuel gauge

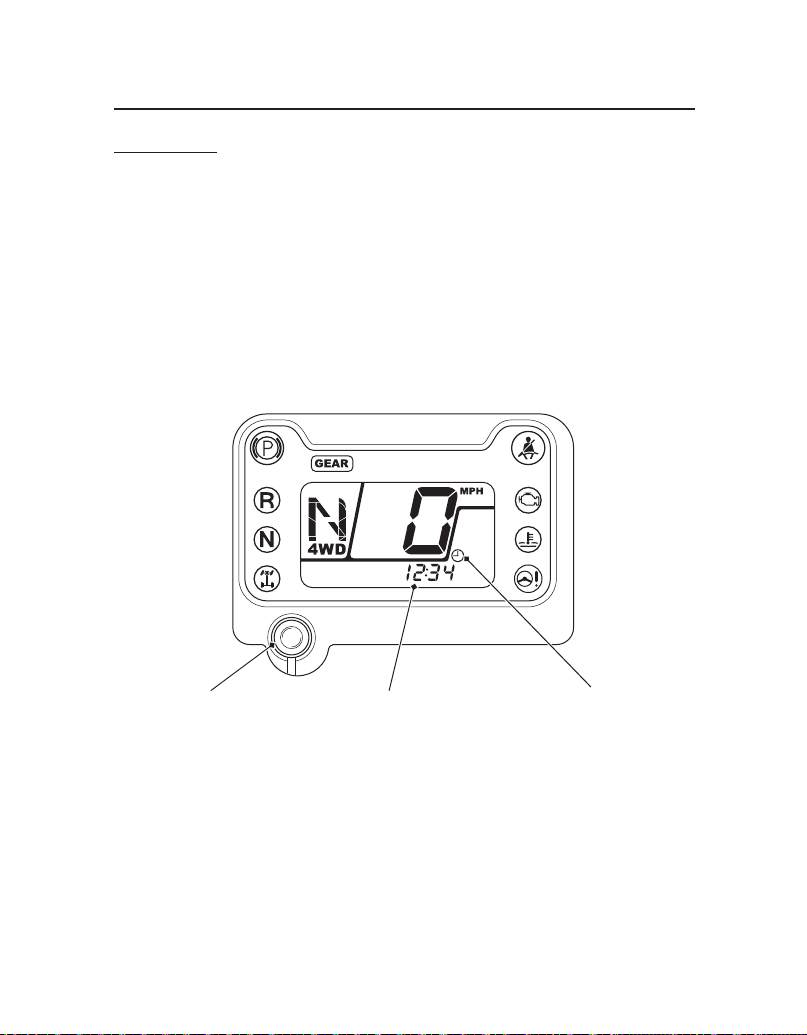

• Page 33 - English - : Instruments amp Controls Indicators amp Displays Digital clock The digital clock shows the hour and minutes with the 12hour clock display To set the time Turn the ignition switch to ON q Press and hold the mode switch in the clock mode The clock will start blinking Press and hold the mode switch until the desired time appears To complete setting the clock press the mode switch or turn the ignition switch OFF mode switch digital clock clock display
• Page 34 - English - : Instruments amp Controls Indicators amp Displays Odometer The odometer shows the total miles or kilometers ridden with the ODO display The odometer locks at 999999 when the readout exceeds 999999 Tripmeter The tripmeter shows the number of miles or kilometers ridden with the TRIP display since you last reset the tripmeter The tripmeter returns to 00 when the readout exceeds 9999 To reset the tripmeter press and hold the mode switch with the display in the tripmeter mode ODO display odometer mode switch TRIP display tripmeter
• Page 35 - English - : Instruments amp Controls Indicators amp Displays Coolant temperature gauge The coolant temperature gauge shows engine coolant temperature with the coolant temperature display When the segment begins to move above the C Cold display the engine is warm enough for the SXS to be ridden The normal operating temperature range is within the section between the H and C displays If all sections of the coolant temperature gauge including segment H and high coolantoil temperature indicator are on automatically appears in the display stop the engine and check the reserve tank coolant level Read pages 214 215 and do not drive the SXS until the problem has been corrected NOTICE Continuing to ride with an overheated engine can cause serious engine damage coolant temperature gauge coolant temperature display C H segment H high coolantoil temperature indicator
• Page 36 - English - : Instruments amp Controls Indicators amp Displays Coolant temperature gauge failure If the coolant temperature system has an error the coolant temperature gauge will blink and appear in the display andor high coolantoil temperature indicator will turn on If this occurs see your dealer as soon as possible coolant temperature gauge high coolantoil temperature indicator
• Page 37 - English - : Instruments amp Controls Indicators amp Displays Hour meter The hour meter display shows accumulated hours while the ignition is ON q The hour meter locks at 999999 when the readout exceeds 999999 hour meter hour meter display
• Page 38 - English - : Instruments amp Controls Indicators amp Displays Maintenance minder indicator The maintenance minder indicator appears in the display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule page 109 Reset the indicator after each scheduled maintenance is performed If the scheduled maintenance is performed before the maintenance minder indicator appears be sure to reset the maintenance minder after performing the scheduled maintenance Resetting the indicator To reset the indicator press and continue to hold the mode switch and turn the ignition switch to ON q The indicator message will light up and after 2 seconds will blink twice the maintenance minder indicator is reset Also the maintenance tripmeter and maintenance hour meter will reset See more details about maintenance minder indicator on page 107 maintenance minder indicator mode switch maintenance tripmeter maintenance hour meter mode switch
• Page 39 - English - : Instruments amp Controls Indicators amp Displays Gear position indicator The gear position indicator shows the gear position when the ignition switch is in the ON q position The indicator displays N for neutral R for reverse and D for the drive SXS700M2DM4D only When the shift paddles are operated the indicator displays the number of gear position 12 or 3 will be displayed on the gear position indicator when the transmission is not shifted into gear properly Before driving check that the gear position is properly displayed on the gear position indicator If the gear position indicator shows and blinks turn the ignition switch to the OFF w position and then turn it back to the ON q position again If the gear position indicator still shows and blinks see your dealer 4WD indicator This indicator will be on when the 4WD or 4WD diff lock mode engages page 38 Gear position display gear position indicator 4WD indicator
• Page 40 - English - : Instruments amp Controls Driver Controls The ignition switch is a threeposition keyoperated switch used to start and stop the engine OFF w The engine and all electrical circuits are off The key can be inserted and removed only when it is in this position ON q The electrical circuits are on You can use the accessory power socket in this position START p This position is used only to start the engine The key will automatically return to the ON q position when you let go of it Ignition Switch OFF w ON q ignition switch START p
• Page 41 - English - : Instruments amp Controls Driver Controls The headlight switch is located on the front console to the left of the steering wheel This switch turns the headlights and taillights on and off Headlight Switch headlight switch OFF t ON y
• Page 42 - English - : Instruments amp Controls Driver Controls The ATMT switch is located to the left of the shift select lever The ATMT switch has two positions AT automatic shift mode and MT manual shift mode To select the transmission mode turn the ATMT switch to the desired position See Shifting Gears page 84 ATMT Switch SXS700M2DM4D only ATMT switch AT MT

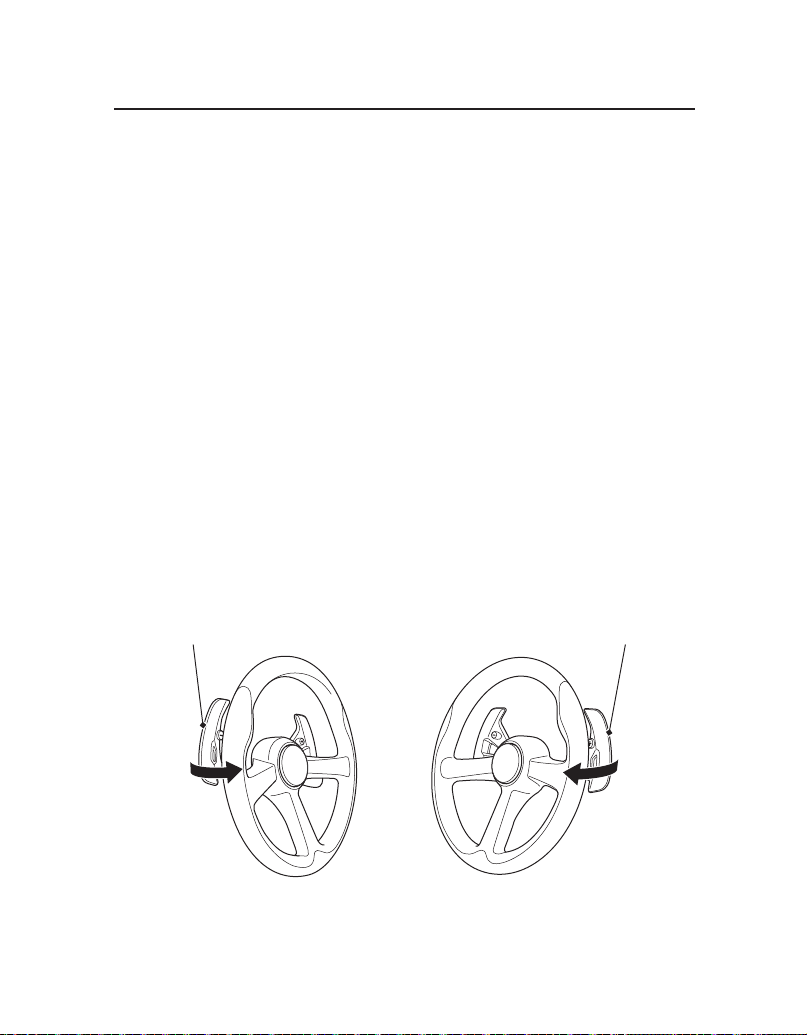

• Page 43 - English - : Instruments amp Controls Driver Controls Your Honda SXS is equipped with a pair of shift paddles that are located behind the steering wheel Pull the upshift paddle to shift to a higher gear position and the downshift paddle to shift to a lower gear position In MT mode the shift paddles are used to change gears while driving the SXS In AT mode you can drive the SXS without operating the shift paddles You can also operate the shift paddles to temporarily change the gear position See Shifting Gears page 84 Shift Paddles SXS700M2DM4D only downshift paddle upshift paddle
• Page 44 - English - : Instruments amp Controls Driver Controls Your Honda SXS is equipped with an automatic transmission The shift select lever located to the right of the steering wheel has three positions drive D neutral N and reverse R You should move the shift select lever only when the vehicle is stopped with your foot on the brake pedal and with the engine idling Use a firm motion to select the appropriate gear Have your vehicle checked by a dealer if you experience any shifting problems NOTICE Do not attempt to move the shift select lever with the engine speed above idle or while the vehicle is moving as you may damage the transmission Shift Select Lever shift select lever shift positions reverse R drive D neutral N

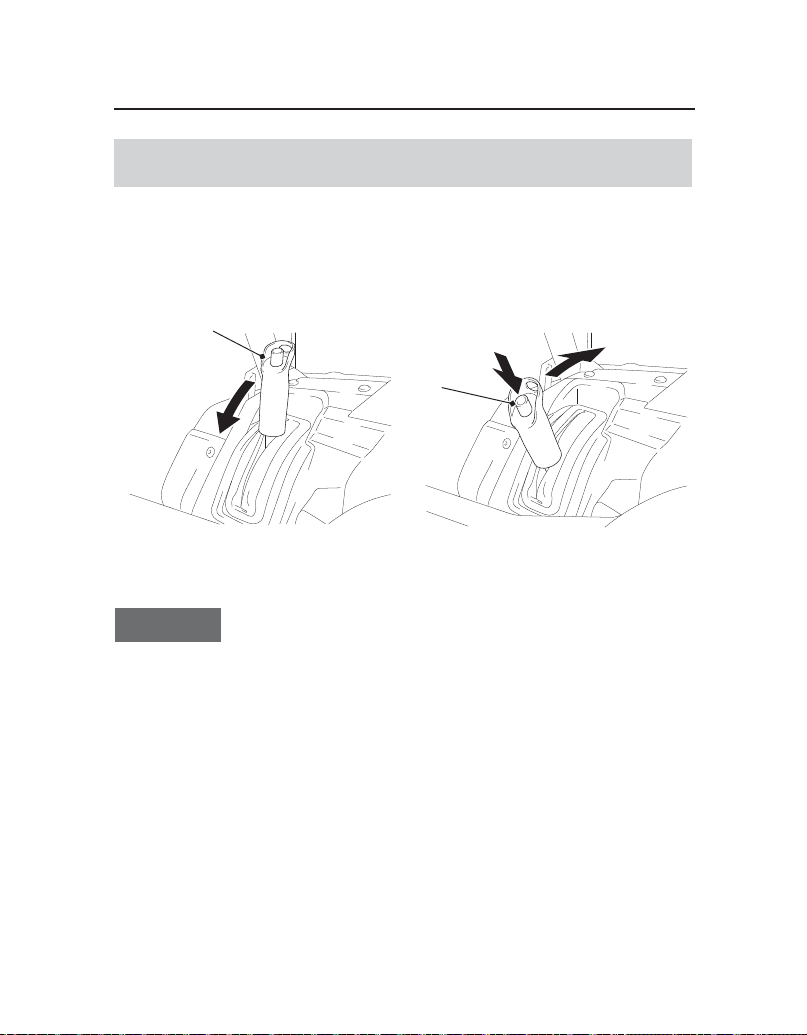

• Page 45 - English - : Instruments amp Controls Driver Controls The drive mode select lever located to the right of the shift select lever has three drive mode positions 2WD 4WD and 4WD diff lock To check your present drive mode look at the 4WD indicator and differential lock indicator 2WD mode Both indicators will be off when the 2WD mode engages 4WD mode The 4WD indicator will be on when the 4WD mode engages 4WD Diff Lock mode The 4WD indicator and differential lock indicator will be on when the 4WD diff lock mode engages Drive Mode Select Lever drive mode select lever drive mode positions
• Page 46 - English - : Instruments amp Controls Driver Controls You should change drive modes only when the vehicle is stopped and the engine is idling NOTICE Changing drive modes while the vehicle is moving could damage the drivetrain After changing the drive mode drive several yards making right and left turns and make sure that indicators work properly If the indicators do not go out or come on according to the drive mode position see your dealer
• Page 47 - English - : Instruments amp Controls Driver Controls The parking brake lever is located to the left of the steering wheel To apply the brake pull the lever down fully To release it pull down slightly push the button at the end of the lever then push lever forward NOTICE Driving with the parking brake on can damage the rear brake and drivetrain Parking Brake Lever button TO APPLY THE PARKING BRAKE parking brake lever TO RELEASE THE PARKING BRAKE
• Page 48 - English - : Instruments amp Controls Doors Your Honda SXS is equipped with doors to prevent branches gravel or other debris from getting inside the drivers compartment and to keep the drivers and passengers legs and feet inside the vehicle if your vehicle ever tips or overturns Be sure all doors are securely closed before driving your Honda SXS and never remove a door If a door is damaged or does not close securely see your dealer for repair or replacement Do not drive the Honda SXS with the doors open or removed SXS700M4M4D only Do not open the rear door while the cargo bed is raised Opening the rear doors while the cargo bed is raised will cause the seats to flip up unexpectedly The left and right doors can be opened in the same manner Open Pull up the handle Open the door Close Close the door securely until the second latch click is heard Make sure the door is closed securely handle handle FRONT REAR SXS700M4M4D only
• Page 49 - English - : Instruments amp Controls Doors If the doors rattles when closed turn the door stopper counterclockwise to adjust the doors Each door has a double latching mechanism Adjust the door stoppers so that it latches on the second click The left and right doors can be adjusted in the same manner Adjust Open the door page 41 Turn the door stopper counterclockwise to extend it and clockwise to retract it Make sure the door is closed securely until the second latch click is heard door stopper FRONT REAR SXS700M4M4D only door stopper

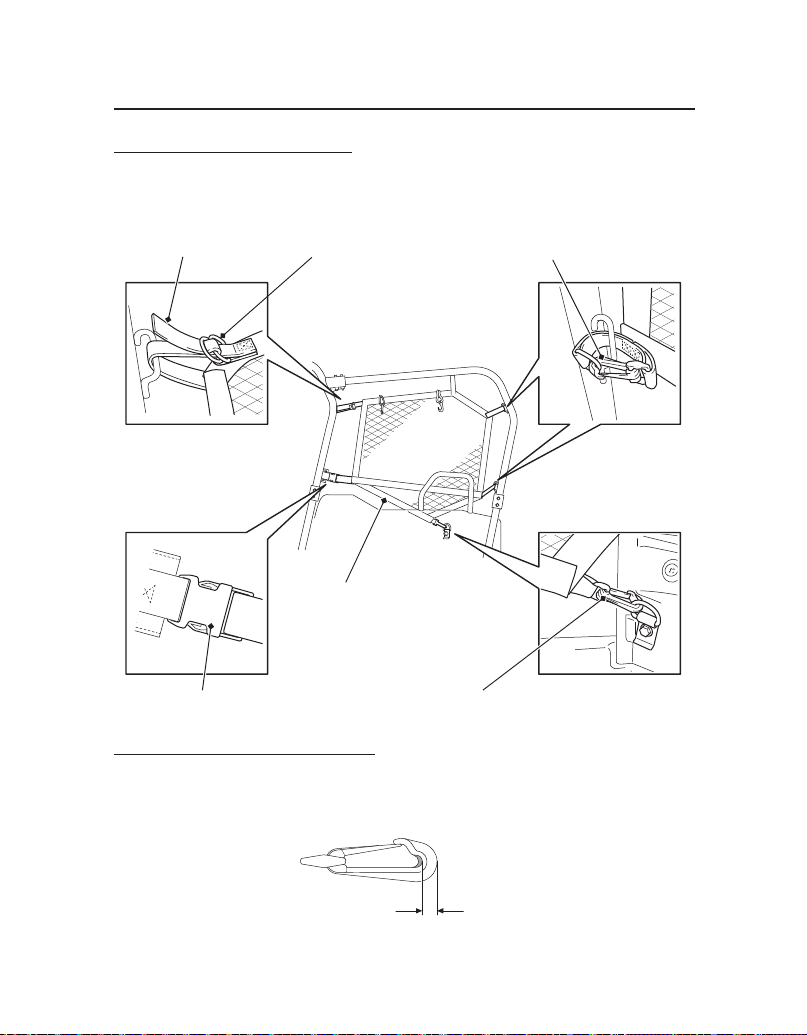

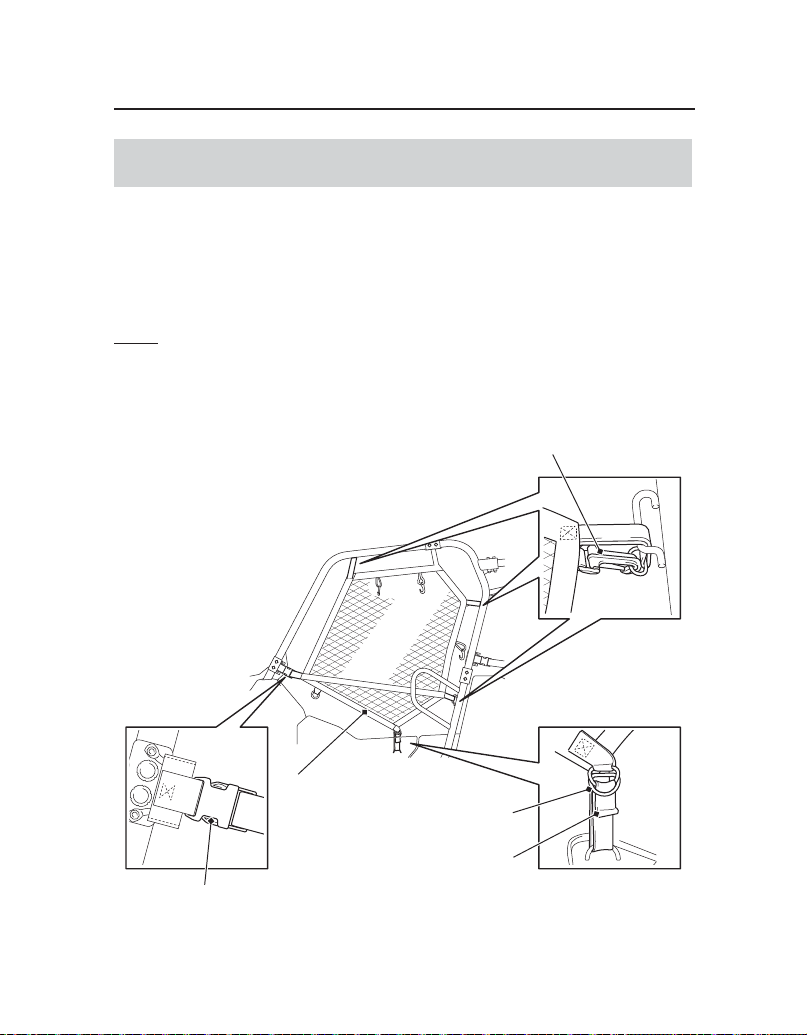

• Page 50 - English - : Instruments amp Controls Side Nets Your Honda SXS is equipped with side nets to prevent branches or other debris from getting inside the drivers compartment and to keep the drivers and passengers hands and arms inside the occupant protective structure OPS if the vehicle ever tips or overturns The side nets are secured to the OPS with side net Drings side net snap hooks and side net buckles To function properly the side nets should be tight If a side net is loose tighten the belts on the side net Drings Be sure the side nets are properly latched before driving your Honda SXS and never remove side nets from the vehicle Inspect the condition of the side net and its mounting hardware If there is wear deterioration damage or they do not latch and tighten securely see your dealer for repair or replacement
• Page 51 - English - : Instruments amp Controls Side Nets The left and right side nets can be set up in the same manner Inspect the side nets and their mounting hardware for damage as specified in the maintenance schedule on page 109 Front Hook the side net snap hooks and fasten the side net buckle Tighten the belt on the lower side net Dring Side Nets Set Up side net snap hook side net side net buckle belt side net Dring
