FM/AM
Portable
CD Player
Operating Instructions
About the area code
The area code of the location in which you purchased the CD player
is shown on upper left of the bar code label on the package.
For accessories supplied with your CD player, check the area code
of your model and see “Accessories (supplied/optional).”
3-048-732-22 (1)
D-FJ75TR
2000 Sony Corporation
2
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Certain countries may regulate disposal of
the battery used to power this product. Please
consult with your local authority.
INFORMATION
Listening for many hours at maximum
volume may damage your hearing.
3
Table of Contents
Getting started
Locating the Controls .................................. 4
Playing a CD
1.Connect your CD player.......................... 6
2.Insert a CD. ............................................. 6
3.Play a CD. ............................................... 7
Playback options
Playing tracks repeatedly (Repeat play) .... 10
Playing a single track (Single play)........... 10
Playing tracks in random order
(Shuffle play)......................................... 10
Playing tracks in your favorite order
(PGM play)............................................ 11
Using the radio
Listening to the radio................................. 12
Presetting radio stations automatically ...... 14
Presetting radio stations manually............. 15
Playing preset radio stations ...................... 16
Available features
G-PROTECTION function ........................ 17
Emphasizing the bass sound (SOUND) .... 17
Protecting your hearing (AVLS)................ 18
Locking the controls (HOLD) ................... 18
Turning off the operation beep sound........ 19
Connecting your CD player
Connecting a stereo system ....................... 20
Using your CD player in a car ................... 21
Connecting a power source
Using the rechargeable batteries................ 22
Using dry batteries..................................... 24
Notes on the power source ........................ 24
Additional information
Precautions ................................................ 25
Maintenance .............................................. 25
Troubleshooting......................................... 26
Specifications ............................................ 28
Accessories (supplied/optional) ................ 30
4
Getting started

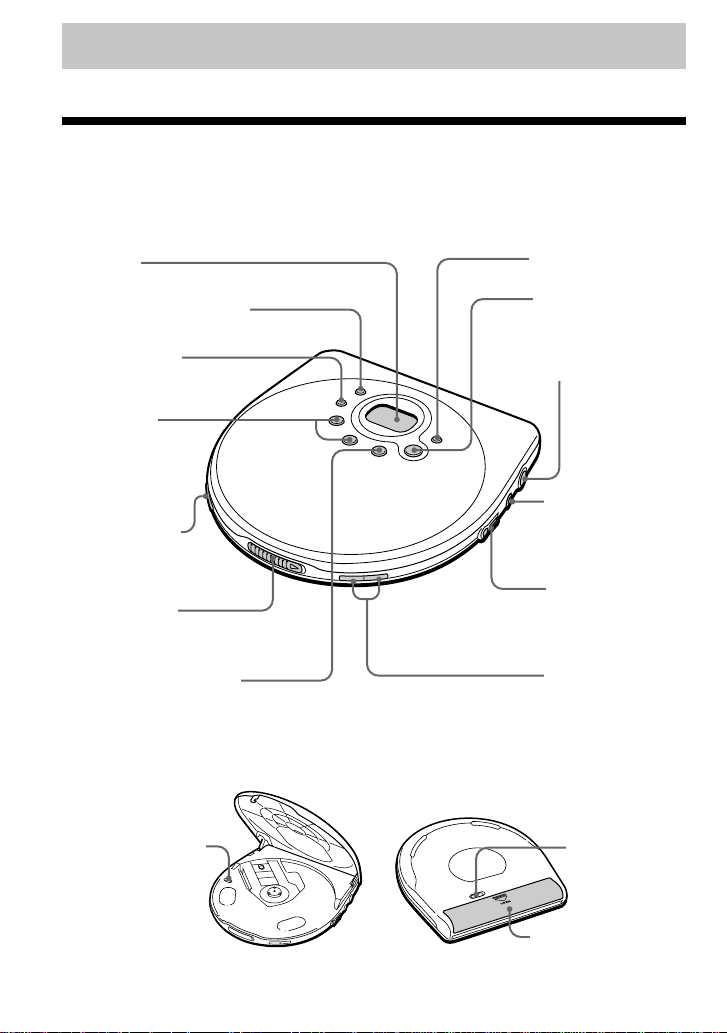

Locating the Controls
For details, see pages in parentheses.
CD player (front)
CD player (inside)
qs i/REMOTE jack
(page 6)
qg AVLS switch
(page 18)
qh Battery compartment
(page 22)
1 Display
(pages 8, 10, 11, 17, 18)
qd VOLUME +/–
buttons
(page 7)
5 HOLD switch
(page 18)
3 PLAY MODE
button
(pages 9 - 11)
6 OPEN switch
(page 6)
2 REPEAT/ENTER button
(pages 9 - 11)
8 SOUND button
(page 17)
q; DC IN 4.5 V
(external power
input) jack
(pages 6, 22)
9 u (play/pause)
button
(pages 7, 8, 11)
7 x (stop)/CHG (charge)
button
(pages 7, 19, 22)
CD player (rear)
4 ./>
(AMS/search)
buttons
(pages 7, 10, 11)
qf G-PROTECTION
switch
(page 17)
qa LINE OUT
(OPTICAL) jack
(page 20)
5
LCD remote control with built in digital tuner
Note
Use only the supplied LCD remote control with
built in digital tuner. You cannot operate this CD
player with the remote control supplied with other
CD players.
qk x (stop)/RADIO OFF
button
(pages 7, 12, 19)
ql Jog lever
u•MODE:
CD: play/pause (pages 7, 11)
Radio: selecting tuning mode (pages 14, 15)
./>•F–/F+:
CD: AMS/search (pages 7, 10, 11)
Radio: tuning, selecting preset number (pages 12, 15, 16)
Press or slide the lever to operate your CD player.
waHOLD switch
(page 18)
Getting started
qj Display
(pages 8, 12 - 16)
w; RADIO ON/BAND•
FM MODE button
(pages 12 - 16)
wd Clip (rear)
ws VOL (volume)
+/– buttons
(page 7)
6
Playing a CD
You can also use rechargeable batteries, dry batteries and a car battery as a power source.

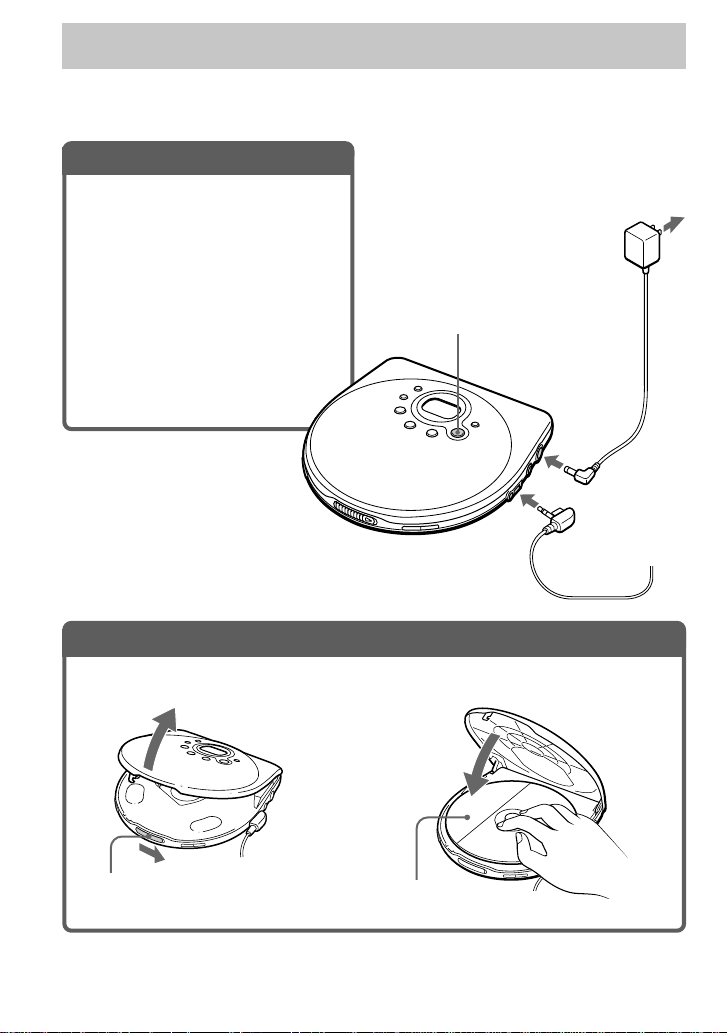

1
. Connect your CD player.
1 Connect the AC power adaptor.
2 Connect the headphones/earphones.
For models supplied with the LCD remote
control with built in digital tuner
• Connect the plug of the headphones/
earphones to the LCD remote control with
built in digital tuner.
• Connect the headphones/earphones to
the LCD remote control with built in
digital tuner firmly. A loose
connection may cause noise during
playback.
2
. Insert a CD.
1 Slide OPEN and raise the lid. 2 Place the CD on the tray and close
the lid.
Label side up
OPEN switch
to DC IN
4.5V
to i/
REMOTE
to an AC outlet
AC power
adaptor
u button
Headphones
or
Earphones
7
To Press
Play/Pause u
Stop x/CHG*
2
Find the beginning of the current track (AMS*
1
) .once quickly*
2
Find the beginning of the previous tracks (AMS) .repeatedly*
2
Find the beginning of the next track (AMS) > once quickly*
2
Find the beginning of the succeeding tracks (AMS) > repeatedly*
2
Go backwards quickly Hold down .*
2
Go forward quickly Hold down >*
2
*
1
Automatic Music Sensor
*
2
These operations can be done during both play and pause.
You can operate your CD player as shown in the above table by using the controls on the CD
player or LCD remote control with built in digital tuner.
Playing a CD
3
. Play a CD.
Adjust the volume by
pressing VOLUME + or –.
Press u.
(Continued)
Adjust the volume by
pressing VOL + or –.
Press the jog lever
toward u.
8
About the display
• When you press u after changing the CD or turning off and on the player, the total number
of tracks in the CD and total playing time appear for about two seconds.
• During play, the track number and the elapsed playing time of the current track appear.
• Between tracks, the time to the beginning of the next track appears with the “-” indication.
• During pause, the elapsed playing time flashes.
If the volume level does not increase
Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “Protecting your hearing
(AVLS).”
Playback starts from the point you stopped
Your CD player can recall the playback point where you stopped and then resume playing from
the same place (resume function). There is no ON/OFF switch of the resume function on this CD
player.
Removing the CD
Remove the CD while pressing the pivot in the center of the tray.
9
Playback options

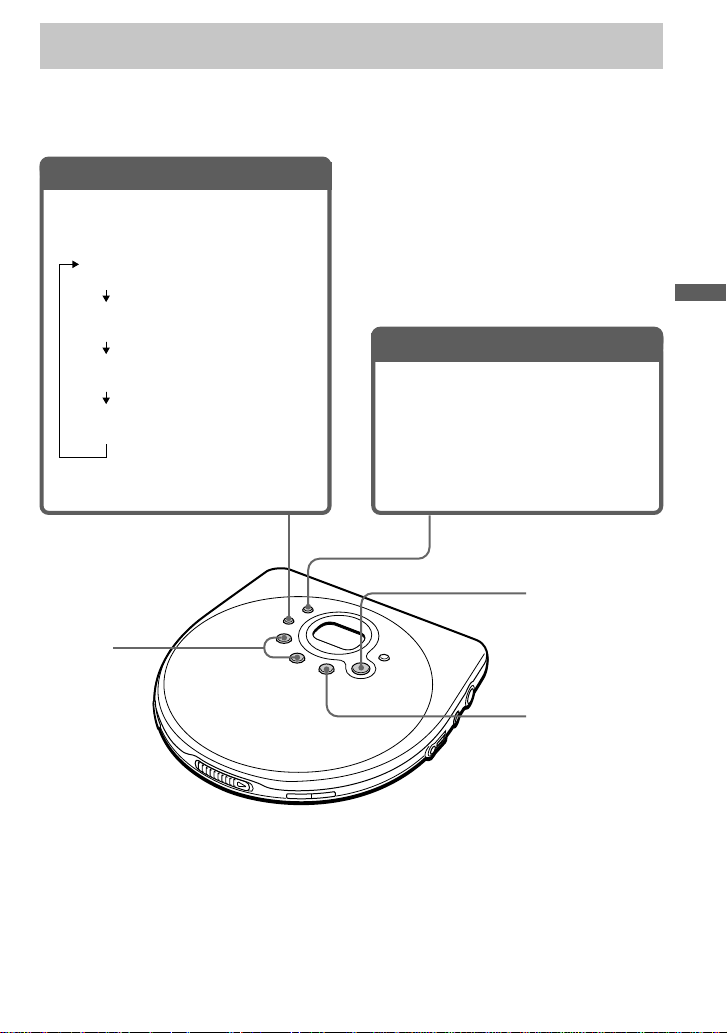

You can enjoy various ways of playback using PLAY MODE and REPEAT/ENTER.
PLAY MODE button
Each time you press the button, you can
change the playback mode.
“No indication”
(Normal play)
“1”
(Play a single track)
“SHUF”
(Play tracks in random order)
“PGM”
(Play tracks in your favorite order)
u button
REPEAT/ENTER button
REPEAT
You can repeat play that is selected using
PLAY MODE.
ENTER
You can select tracks for PGM play
mode.
x/CHG button
./>
buttons
Playback options
10
Playing tracks repeatedly (Repeat play)
You can play tracks repeatedly in normal, single, shuffle and PGM play modes.
During playback, press REPEAT/ENTER.
Note on ./>
During Repeat play, you can locate the first track after the last track by pressing > repeatedly.
You can also locate the last track after first track by pressing . repeatedly.
Playing a single track (Single play)
During playback, press PLAY MODE
repeatedly until “1” appears.
Playing tracks in random order (Shuffle play)
During playback, press PLAY MODE
repeatedly until “SHUF” appears.
11
Playing tracks in your favorite order (PGM play)
You can program the CD player to play up to 64 tracks in your favorite order.
1
During playback, press PLAY MODE
repeatedly until “PGM” appears.
2
Press . or > to select a track.
3
Press REPEAT/ENTER to enter
the selected track.
“00” appears and the playing order increases
by one.
4
Repeat steps 2 and 3 to select the tracks in your favorite order.
5
Press u to start the PGM play.
To check the program
During programming:
Press REPEAT/ENTER repeatedly before step 5.
During the PGM play:
Press PLAY MODE repeatedly until “PGM” flashes, then press REPEAT/ENTER.
Each time you press REPEAT/ENTER, the track number appears.
Notes
• When you finish entering the 64th track in step 3, the first selected track appears in the display.
• If you select more than 64 tracks, the first selected tracks are erased.
Track number
Playing order
Playback options
12
Using the radio
When listening to the radio, use the alkaline batteries or the rechargeable
batteries. This CD player is designed for portable usage; therefore, you cannot
listen to the radio using the AC power adaptor.
Before you operate the radio, do the followings:
• Stop the CD play.
• Disconnect the AC power adaptor from the CD player.
• Deactivate the HOLD function both on the CD player and LCD remote control with built in
digital tuner.
Listening to the radio
You can enjoy FM and AM programs.
1
Connect the headphones/earphones with LCD remote control with built in
digital tuner to the CD player.
2
Press RADIO ON/BAND to turn on the radio.
3
Press RADIO ON/BAND to select “FM” or “AM.”
4
Slide the jog lever toward ./F– or
>/F+ repeatedly to tune in the
station you want and adjust the
volume.
To turn off the radio
Press x/RADIO OFF.
To tune in to the station quickly
In step 4 slide the jog lever toward ./F– or >/F+ and hold it until the frequency digits
begin to change in the display. The CD player automatically scans the radio frequencies and
stops with the beep when it finds a clear station.
13
Using the radio
To improve broadcast reception
For FM, extend the headphones/earphones cord.
For AM, reorient the tuner-remote control itself.
If it is hard to listen to the FM broadcast
When listening to the radio, press and hold FM MODE (same as the RADIO ON/BAND button)
until “MONO” or “LOCAL” appears in the display. Each time you press and hold FM MODE,
the display changes as follows:
If FM broadcast is noisy, select “MONO.” If a strong station signal causes noise, select
“LOCAL.” If you select “MONO” or “LOCAL,” the noise will be reduced, but the radio will
play in monaural when you select “MONO.”
If appears in the display
Batteries in the CD player are used up. Charge the rechargeable batteries or replace all the dry
batteries with new LR6 (size AA) alkaline batteries.
Note
If you use the LCD remote control with built in digital tuner very close to the player, radio, TV,
computer, etc., noise may be heard. Use it away from these devices.
Headphones or
Earphones
No indication
(FM stereo broadcast)
MONO
LOCAL
14

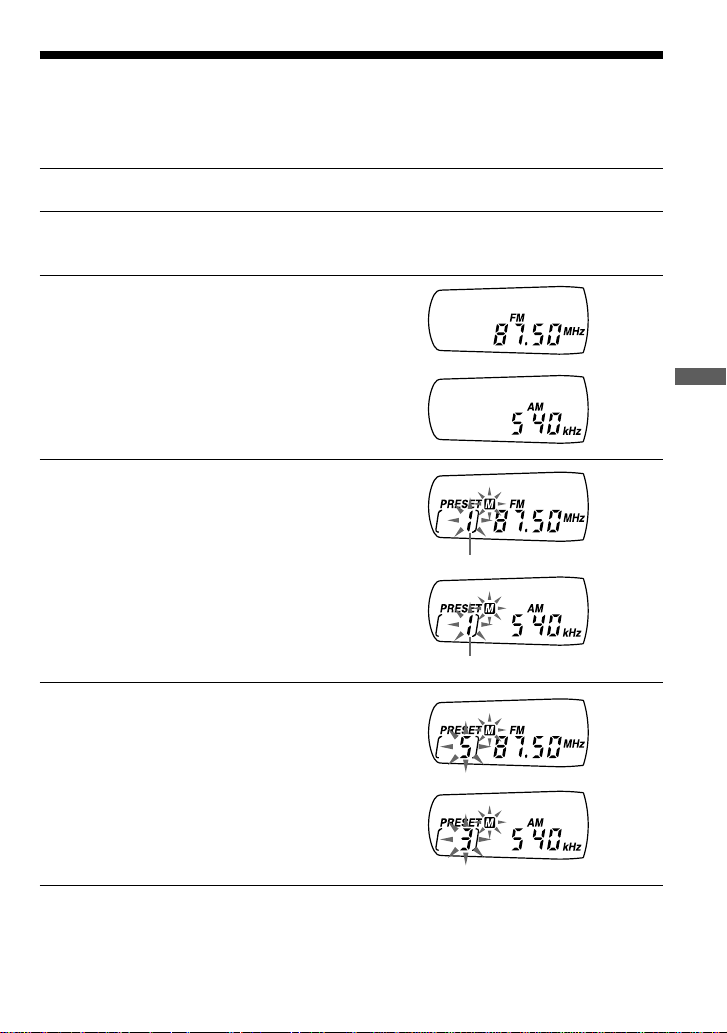

Presetting radio stations automatically
You can store radio stations into the player’s memory automatically as long as their signals are
strong enough. Once you’ve preset the stations, you can select the station using the preset
number. You can preset up to 40 stations, 30 for FM and 10 for AM.
1
Press RADIO ON/BAND to select “FM” or “AM.”
2
Press the jog lever toward u•MODE
until “PRESET” appears in the
display.
3
Press the jog lever toward u•MODE
and hold it until A flashes in the
display.
4
Press the jog lever toward u•MODE.
The stations are stored in memory (from the preset number 1 onward) from the lower
frequencies to the higher ones.
15
Using the radio
Presetting radio stations manually
If some stations cannot be preset automatically because their station signals are weak, you need
to preset them manually.
If you want to preset a certain station on a certain preset number, you have to preset it manually.
1
Press RADIO ON/BAND to select “FM” or “AM.”
2
Press the jog lever toward u•MODE until “PRESET” disappears from the
display.
3
Tune in the station you want to
preset.
4
Press the jog lever toward u•MODE
and hold it until M and the preset
number flash in the display.
5
Slide the jog lever toward ./F– or
>/F+ repeatedly until the preset
number you want appears in the
display.
Preset number
Preset number
(Continued)
16
Presetting radio stations manually
6
Press the jog lever toward u•MODE
and hold it until M and the preset
number stop flashing in the display.
Playing preset radio stations
You can tune in to the station easily by selecting the preset number.
1
Press RADIO ON/BAND to select “FM” or “AM.”
2
Slide the jog lever toward ./F– or >/F+ repeatedly until the preset
number you want appears in the display.
17
Emphasizing the bass
sound
(SOUND)
You can emphasize the bass-boosted sound.
Press SOUND to select “BASS ” or
“BASS .”
“BASS ” enhances the bass sound
more than “BASS ”.
Note
If the sound is distorted when using the SOUND
function, turn down the volume.
The selected sound mode is displayed.
B
Available features
G-PROTECTION
function
The G-PROTECTION function has been
developed to provide excellent protection
against sound skipping while jogging. This
function provides a higher level of shock
protection than the traditional one.
While jogging, be sure to hold your CD
player with the OPEN switch facing upward.
Set G-PROTECTION (under the lid) to
“ON.”
To turn off the G-PROTECTION
function
Set G-PROTECTION to “OFF.”
Note
Sound may skip if:
– the CD player receives stronger continuous
shock than expected or
– a dirty or scratched CD is played.
BASS
BASS
“No indication”
(Normal play)
Available features
18
Protecting your hearing
(AVLS)
The AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your hearing.
Set AVLS to “LIMIT.”
To turn off the AVLS function
Set AVLS to “NORM.”
Flashes when the volume is turned up
and beyond a certain level.
Locking the controls
(HOLD)
You can lock the controls on your CD player
to prevent accidental button presses.
Slide HOLD in the direction of the
arrow.
You can use the HOLD function with both
the CD player and LCD remote control with
built in digital tuner. You can still operate
your CD player using the LCD remote
control with built in digital tuner when
HOLD on the LCD remote control with built
in digital tuner is set to off.
To unlock the controls
Slide HOLD in the opposite direction of the
arrow.
Displayed when the HOLD
function is working.
19
Turning off the
operation beep sound
You can turn off the beep sound that is heard
from your headphones/earphones when you
operate your CD player.
1
Remove the power source (AC
power adaptor, rechargeable
batteries or dry batteries) from the
CD player.
2
Connect the power source while
pressing x/CHG on the CD player
or x/RADIO OFF on the LCD
remote control with built in digital
tuner.
To turn on the beep sound
Remove the power source and then connect
the power source without pressing x/CHG
or x/RADIO OFF.
Available features
20
Connecting a stereo
system
You can listen to CDs through a stereo
system and record CDs on a cassette tape and
a MiniDisc. For details, see the instruction
manual that comes with the connected
device.
Be sure to turn off all connected devices
before making connections.
Notes
• Before you play a CD, turn down the volume of
the connected device to avoid damaging the
connected speakers.
• Use the AC power adaptor for recording. If you
use the rechargeable batteries or dry batteries as a
power source, batteries may become completely
depleted during recording.
• Adjust the volume properly on the connected
device so that the sound will not be distorted.
When using the connecting cord
• You cannot adjust the volume of the
headphones/earphones on the CD player or
the LCD remote control with built in
digital tuner.
• If the sound is distorted, connect the device
to the i/REMOTE jack.
When using the optical digital
connecting cord
To record a CD on a MiniDisc, DAT, etc.,
make sure that the CD player is in pause
before operating the recording procedures.
About the SOUND function when
using the connecting cord
See the following table for valid functions
according to the types of connecting cord:
SOUND
Connecting cord No
Optical digital connecting cord
Yes*
* Functions only on the output sound from the
i/REMOTE jack; does not function on the
output sound from the LINE OUT (OPTICAL)
jack.
Stereo system,
cassette recorder,
radio cassette
recorder, etc.
to LINE OUT
(OPTICAL)
Connecting
cord
Left (white)
Right (red)
B
Connecting your CD player
MiniDisc
recorder, DAT
deck, etc.
Optical
digital
connecting
cord
21
About Joint Text (CD text copying
function)
The Joint Text function allows you to copy
the disc and track names that are on a CD
containing CD text information. By
connecting a Sony MD Walkman (MZ-R90/
R91), which supports Joint Text, to this CD
player, you can copy the CD text onto an MD
during recording. You must use an optical
digital connecting cable (POC-5B or other
model, not supplied) and the RK-TXT1 CD
text connecting cable (not supplied) to make
the connections.
For details, refer to the operating instructions
of the MD Walkman.
Using your CD player in
a car
You can use your CD player in a car by
connecting it to the car cassette deck.
You cannot use the car mount plate for this
CD player.
When you use your CD player in a car,
install it securely in a location that does not
interfere with your driving.
Optional car accessory needed
To connect your CD player to a car cassette
deck, you need the following car accessories
in “Accessories (supplied/optional)”:
• Car battery cord, and
• Car connecting pack*
For details, see the instruction manuals that
come with the optional accessories.
* Noise may be heard if you use an optional
connecting cord. It is recommended that you use
a Sony car connecting pack to reduce noise.
Switched ignition function (when
using the car battery cord)
With this feature, your CD player stops
automatically when you turn off the car
engine (turn off the ignition key) even if the
batteries are inserted in the CD player. This
function is invalid depending on the car
models.
Note
Use only the car battery cord listed in “Accessories
(supplied/optional).” If you use any other car
battery cord, a heat, smoke or malfunction may
occur.
Connecting your CD player
22
You can use the following power sources:
• Rechargeable batteries
• AC power adaptor (see “Playing a CD”)
• LR6 (size AA) alkaline batteries
For the battery life and charging time of the
rechargeable batteries, see “Specifications.”
Using the rechargeable
batteries
Charge the rechargeable batteries before
using them for the first time. You can use
only the following rechargeable batteries for
your CD player.
• NC-WMAA
• NH-WM2AA

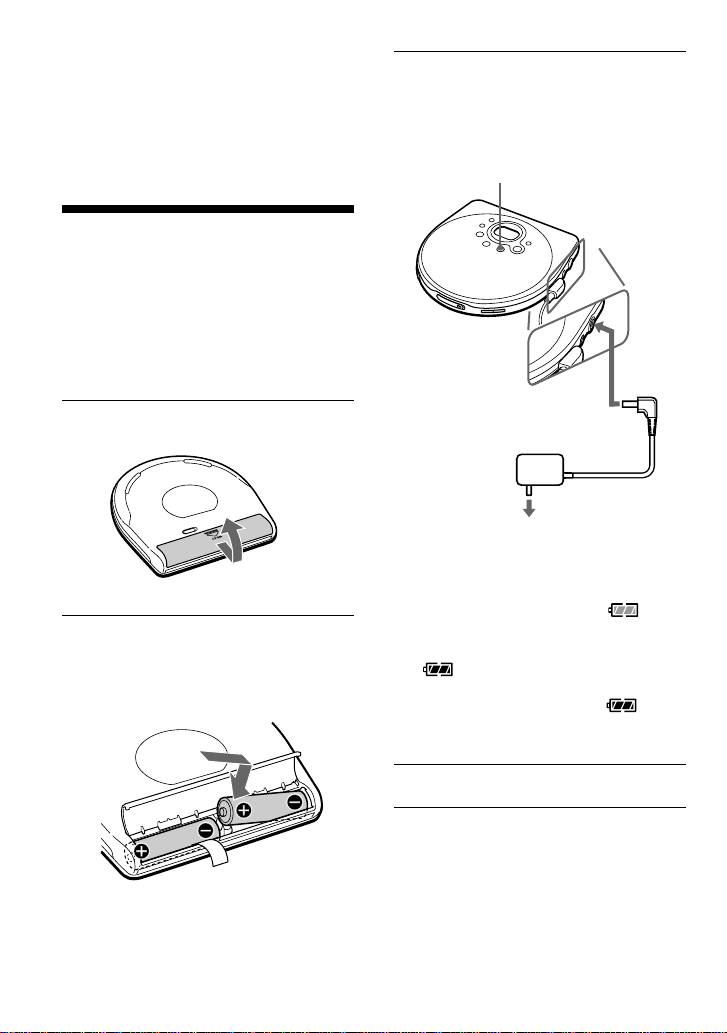

1
Open the battery compartment lid.
2
Insert two rechargeable batteries
by matching the 3 to the diagram
in the battery compartment and
close the lid.
3
Connect the AC power adaptor to
the DC IN 4.5 V jack of your CD
player and an AC outlet, then
press x/CHG to start charging.
The CD player charges the batteries. The
“CHG” indicator turns on in the display,
and the indicator sections of light
up in succession. When the batteries are
completely charged, the “CHG” and
indicators turn off.
If you press x/CHG after the charge has
already been completed, the
indicator flashes and “Full” appears in
the display.
4
Disconnect the AC power adaptor.
B
Connecting a power source
to an AC outlet
to DC IN 4.5 V
AC power adaptor
x/CHG button
(rear)
23

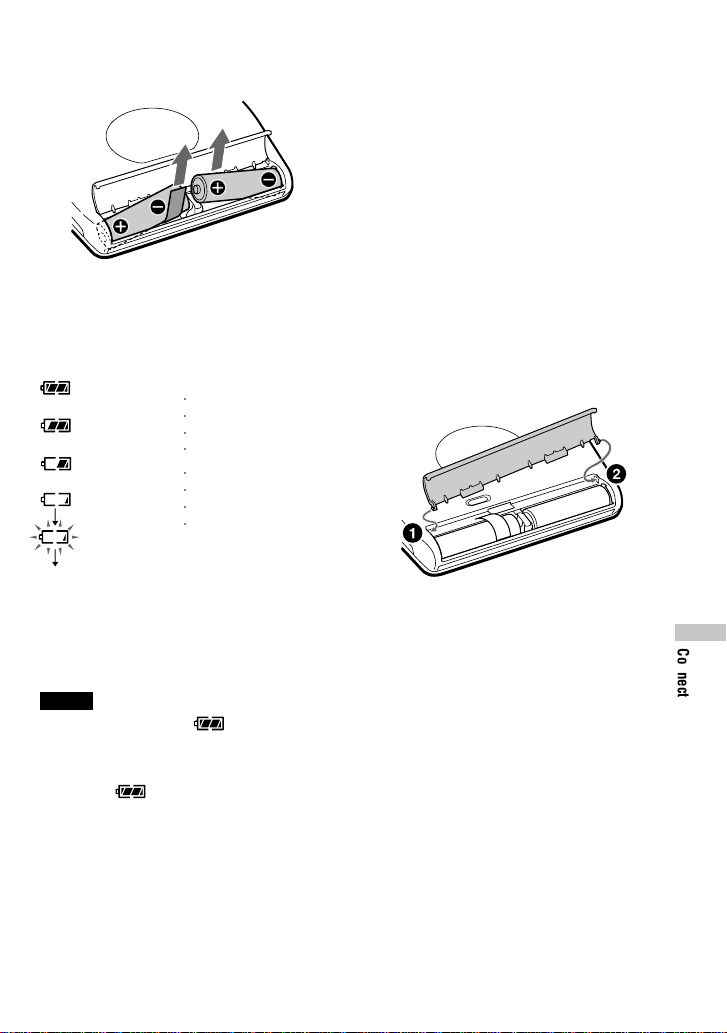

To remove the rechargeable batteries
Remove the batteries as illustrated below.
When to charge the rechargeable
batteries
You can check the remaining power of the
batteries in the display.
Battery power is full.
Battery power is getting low.
Battery power is low.
Lo batt* Batteries are depleted.
* Beep sounds.
To keep the original battery capacity for a
long time, charge the batteries only when
they are completely depleted.
Notes
• The indicator sections of roughly shows the
remaining battery power. One section does not
always indicate one-fourth of the battery power.
• Depending on operating conditions, the indicator
sections of
may increase or decrease.
When to replace the rechargeable
batteries
If the battery life becomes shorter by about
half, replace the batteries with new
rechargeable batteries.
Note on the rechargeable batteries
If the battery is new or has not been used for
a long time, it may not be charged
completely until you charge and discharge it
several times.
Note on carrying the rechargeable
batteries
Use the supplied battery carrying case to
prevent unexpected heat. If the rechargeable
batteries and the metallic objects are
contacted, heat or fire may occur due to a
short circuit.
To attach the battery compartment lid
If the battery compartment lid is detached by
an accidental drop, excessive force, etc.,
attach it as illustrated below.
r
r
r
○○○○
r
○○○○
r
Connecting a power source
24
Using dry batteries
Use only the following dry battery type for
your CD player:
• LR6 (size AA) alkaline batteries
Note
Be sure to remove the AC power adaptor when
using the dry batteries.
1
Open the battery compartment lid.
2
Insert two LR6 (size AA) batteries
by matching the 3 to the diagram
in the battery compartment.
To remove the batteries
Remove the batteries in the same way as
rechargeable batteries.
When to replace the batteries
You can check the remaining power of the
batteries in the display.
Battery power is full.
Battery power is getting low.
Battery power is low.
Lo batt* Batteries are depleted.
* Beep sounds.
When the batteries are depleted, replace both
batteries with new ones.
r
r
r
○○○○
Notes on the power
source
Disconnect all power sources when the CD
player is not used.
On AC power adaptor
• Use only the AC power adaptor supplied or
recommended in “Accessories (supplied/
optional).” Do not use any other AC power
adaptor. It may cause a malfunction.
Polarity of the plug
• When disconnecting the AC power adaptor
from the AC outlet, grasp the adaptor
itself. Do not pull it by the cord.
• Do not touch the AC power adaptor with
wet hands.
On rechargeable batteries
and dry batteries
• Do not charge the dry batteries.
• Do not throw the batteries into fire.
• Do not carry the batteries with coins or
other metallic objects. It can generate heat
if the positive and negative terminals of the
battery are accidentally contacted by a
metallic object.
• Do not mix rechargeable batteries with dry
batteries.
• Do not mix new batteries with old ones.
• Do not use different types of batteries
together.
• When the batteries are not to be used for a
long time, remove them.
• If battery leakage occurs, wipe off any
deposit in the battery compartment, and
install new batteries. In case the deposit
adheres to you, wash it off thoroughly.
r
○○○○
r
25
Precautions
On safety
• Should any solid objects or liquid fall into
the CD player, unplug it and have it
checked by qualified personnel before
operating it any further.
• Do not put any foreign objects in the DC
IN 4.5 V (external power input) jack.
On the CD player
• Keep the lens on the CD player clean and
do not touch it. If you do so, the lens may
be damaged and the CD player will not
operate properly.
• Do not put any heavy object on top of the
CD player. The CD player and the CD may
be damaged.
• Do not leave the CD player in a location
near heat sources, or in a place subject to
direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock,
unleveled surface, or in a car with its
windows closed.
• If the CD player causes interference to the
radio or television reception, turn off the
CD player or move it away from the radio
or television.
On handling CDs
• To keep the CD clean, handle it by its
edge. Do not touch the surface.
• Do not stick paper or tape onto the CD.
• Do not expose the CD to direct sunlight or
heat sources such as hot air ducts. Do not
leave the CD in a car parked under direct
sunlight.
On headphones/earphones
Road safety
Do not use headphones/earphones while
driving, cycling, or operating any motorized
vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be
potentially dangerous to play your headsets
at high volume while walking, especially at
pedestrian crossings. You should exercise
extreme caution or discontinue use in
potentially hazardous situations.
Preventing hearing damage
Avoid using headphones/earphones at high
volume. Hearing experts advise against
continuous, loud and extended play. If you
experience a ringing in your ears, reduce
volume or discontinue use.
Consideration for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and to
be considerate to the people around you.
Maintenance
To clean the casing
Use a soft cloth slightly moistened in water
or a mild detergent solution. Do not use
alcohol, benzine or thinner.
B
Additional information
Not these ways
Additional information
26
Troubleshooting
Should any problem persist after you have checked these symptoms, consult your nearest Sony
dealer.
CD player
Symptom
The volume does not increase
even if you press the VOLUME
+ button repeatedly.
No sound, or noise is heard.
The playing time is too short
when powered with the dry
batteries.
The playing time is too short
when powered with the
rechargeable batteries.
When you press u, “Lo
batt” or “00” appears in the
display. The CD does not
play.
“HI dc In” appears in the
display.
The CD does not play or
“no dISC” appears in the
display when a CD is placed
in the CD player.
“Hold” appears in the
display when you press a
button, and the CD does not
play.
Cause and/or corrective actions
c Set the AVLS switch to “NORM.” (page 18)
c The headphones/earphones are connected to the LINE OUT
(OPTICAL) jack. Connect them to the i/REMOTE jack.
(page 6)
c Connect the plugs firmly. (page 6)
c Plugs are dirty. Clean the plugs with a dry soft cloth periodically.
c Check that you are using alkaline batteries and not manganese
batteries. (page 24)
c Replace the batteries with new LR6 (size AA) alkaline batteries.
(page 24)
c Charge and discharge the rechargeable batteries several times.
(pages 22, 23)
c The rechargeable batteries are used up completely. Charge the
batteries. (pages 22, 23)
c Replace the batteries with new LR6 (size AA) alkaline batteries.
(page 24)
c Use only the AC power adaptor or car battery cord in “Accessories
(supplied/optional).” (page 30)
c Remove all power sources, then insert the batteries or connect the
AC power adaptor again. (pages 6, 22, 23, 24)
c The CD is dirty or defective. (page 25)
c Check that the CD is inserted with the label side up. (page 6)
c Moisture condensation has occurred.
Leave the CD player aside for several hours until the moisture
evaporates.
c Close the lid of the battery compartment firmly.
(page 22)
c Make sure the batteries are inserted correctly. (pages 22 - 24)
c Connect the AC power adaptor to an AC outlet securely. (page 6)
c The buttons are locked. Slide the HOLD switch back. (page 18)
27
CD player
Symptom
Cannot adjust the volume
with the VOLUME +/– buttons
on the CD player.
During recording with optical
digital connection, the track
number cannot be recorded
correctly.
The CD player does not start
charging.
After the batteries were
replaced, the volume
changed.
During play, the elapsed
playing time or some other
indications appear with the
“–” indication.
Radio
Symptom
“– – – ––” appears in the
display on the LCD remote
control with built in digital
tuner and the radio does not
operate.
appears in the display
on the LCD remote control
with built in digital tuner and
the radio does not operate.
The volume settings are
different when listening to
the CD and the radio.
You cannot turn off the radio
though you press and hold
x/RADIO OFF.
Cause and/or corrective actions
c
The CD player is connected to an audio device. Adjust the volume
using the volume control on the connected device.
(page 20)
c Record the track number again using the MiniDisc recorder, DAT
recorder, etc. (page 20)
c See the instruction manual that comes with the recording device.
(page 20)
c
During stop, press
x
/CHG. (page 22)
c After the batteries are replaced, the volume setting of the CD
player returns to the default.
c Remove the CD and then insert it again.
Cause and/or corrective actions
c
The supplied
LCD remote control with built in digital tuner
is
connected to a CD player other than this player. The supplied
LCD
remote control with built in digital tuner
should be used with this
player only.
c
When using the CD player by connecting the AC power adaptor,
you cannot operate the radio. Disconnect the AC power adaptor and
insert the batteries. (pages 12, 22, 24)
c
After
confirming that “– – – ––” or “no dISC” has disappeared
from the display, press RADIO ON/BAND again on the LCD
remote control with built in digital tuner.
c The rechargeable batteries are used up. Charge the batteries.
(pages 22, 23)
c The dry batteries are used up. Replace the batteries with new LR6
(size AA) alkaline batteries. (page 24)
c You can set the volume differently for CD play and radio
operation.
c Release x/RADIO OFF. When using the radio, x/RADIO OFF
functions at the time you release it.
Additional information
28
Specifications
CD player
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20 000 Hz
+1
–2
dB (measured by EIAJ CP-
307)
Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 kΩ
Recommended load impedance over 10 kΩ
Headphones (stereo minijack)
Approx.5 mW + Approx. 5 mW at 16 Ω
(Approx. 1 mW + Approx. 1 mW at 16
Ω
)*
*For the customers in France
Optical digital output (optical output connector)
Output level: –21 - –15 dBm
Wavelength: 630 - 690 nm at peak level
Radio (LCD remote control
with built in digital tuner)
Frequency range
FM: 87.5 - 108.0 MHz
AM: 531 - 1 602 kHz
Antenna
FM: Headphones/earphones cord antenna
AM: Built-in ferrite bar antenna
General
Power requirements
For the area code of the model you
purchased, check the upper left side of the
bar code on the package.
• Two Sony NC-WMAA rechargeable
batteries: 2.4 V DC
• Sony NH-WM2AA rechargeable batteries:
2.4 V DC
• Two LR6 (size AA) batteries: 3 V DC
• AC power adaptor (DC IN 4.5 V jack):
U2/CA2/E92/MX2 model: 120 V, 60 Hz
CED/CET/CEW/CEX/CE7/EE/EE1/E13/G5/
G6/G7/G8 model:
220 - 230 V, 50/60 Hz
CEK/3CE7 model: 230 - 240 V, 50 Hz
EA3 model: 110 - 240 V, 50/60 Hz
AU2 model: 240 V, 50 Hz
JE.W/E33 model: 100 - 240 V, 50/60 Hz
HK2 model: 220 V, 50/60 Hz
AR1/CN2 model: 220 V, 50 Hz
• Sony DCC-E345 car battery cord for use on
car battery: 4.5 V DC
29
Battery life* (approx. hours)
(When you use the CD player on a flat and stable
surface.)
Playing time varies depending on how the CD
player is used.
When using G-PROTECTION RADIO
on off on
Two NC-WMAA 8 7 14
(charged for
about 3 hours**)
NH-WM2AA 18 15 30
(charged for
about 4 hours**)
Two Sony alkaline 32 28 50
batteries LR6(SG)
* Measured value by the standard of EIAJ
(Electronic Industries Association of Japan).
** Charging time varies depending on how the
rechargeable battery is used.
Operating temperature
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 131.6 × 25.0 × 141.4 mm
(5
1
⁄4 × 1 × 5
5
⁄8 in.)
Mass (excluding accessories)
Approx. 185 g (6.6 oz.)
Design and specifications are subject to change
without notice.
Additional information
30
Accessories (supplied/optional)
Supplied accessories
For the area code of the location in which you
purchased the CD player, check the upper left side
of the bar code on the package.
AC power adaptor (1)
Headphones/earphones with LCD remote
control with built in digital tuner (1)
Rechargeable batteries (2)
Battery carrying case (1)
Carrying case (1)
Optional accessories
AC power adaptor AC-E45HG
Active speaker system SRS-T1
SRS-Z500
Car battery cord DCC-E345
Car battery cord with car connecting pack
DCC-E34CP
Car connecting pack CPA-9C
Connecting cord RK-G129HG
RK-G136HG
Optical digital connecting cord
POC-5B
POC-10B
POC-15B
POC-5AB
POC-10AB
POC-15AB
CD text connecting cable RK-TXT1
Rechargeable battery NH-WM2AA
Earphones MDR-E848LP
MDR-EX70LP
Headphones MDR-A44L
MDR-A110LP
Your dealer may not handle some of the
above listed accessories. Please ask the
dealer for detailed information about the
accessories in your country.
31
Stereo miniplug Micro plug
When connecting optional
headphones/earphones to the
supplied remote control
Use only headphones with stereo mini plugs.
You cannot use headphones with micro
plugs.
Additional information
Sony Corporation Printed in Malaysia
