Product Overview

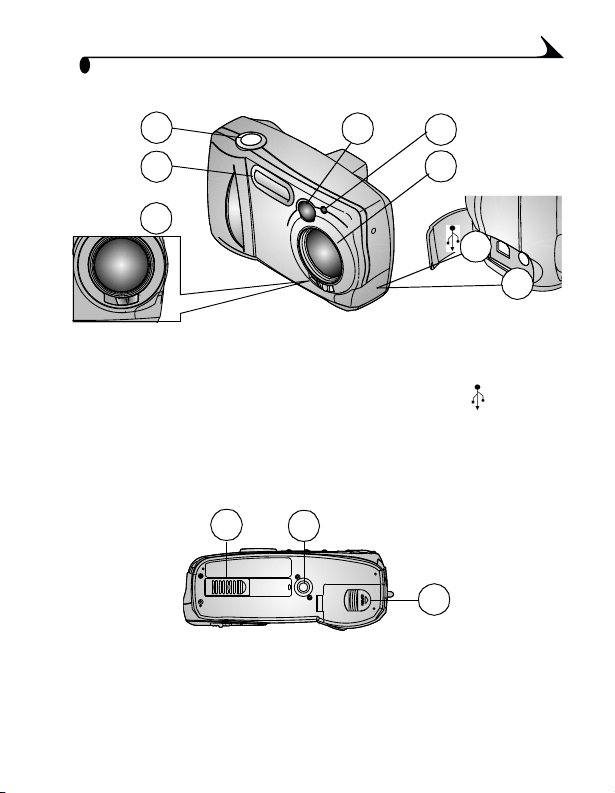

Camera Front
Camera Bottom
1 Shutter button 5 Self Timer light
2 Flash unit 6 Lens with built-in cover
3 On / Off switch 7a USB connector
4 Viewfinder lens 7b DC in connector
1 Camera Dock connector 2 Tripod mount socket
(door shown closed) 3 Battery door
5
4
6
3
7a
2
1
O
N
O
F
F
7b
1
2
3
iv
Product Overview
Camera Back
1 Viewfinder 8 Video out port
2 Ready light 9 Wrist strap post
3 Menu button 10 MMC/SD card door
4 Flash button 11 Review button
5 Share button 12 Delete button
6 Shutter button 13 Select button
7 4-way arrow / Zoom button 14 LCD
1
9
7
4 5
8
6
11
12
10
2
3
14
13
v
Table of Contents
1 Getting Started ...................................................................1
Install the Software First........................................................1
Need This Guide in Large Print? .............................................1
What Can I Do With My KODAK EASYSHARE CX4230
Zoom Digital Camera?...............................................................2
What Can I Do With My Digital Pictures? ...........................2
Camera Package Contents .................................................... 3
Attaching the Wrist Strap.................................................... 4
Loading the Batteries ............................................................. 4
Turning the Camera On and Off............................................ 5
Using the 4-Way Arrow/Zoom Button................................6
Selecting a Language...............................................................6
Setting the Clock .......................................................................7
Checking Camera Status........................................................ 8
Inserting an MMC/SD Card.................................................... 9
Choosing Internal Memory or MMC/SD Card...................10
Camera Modes ........................................................................... 11
2 Taking Pictures—Capture Mode .................................13
Take a Picture Anytime..........................................................13
Taking a Picture........................................................................13
Liveview—Using the LCD to Frame Your Subject ..........14
Quickview—Reviewing the Picture Just Taken ................15
Using the Flash.........................................................................16
vi
Using Optical Zoom ..................................................................17
Using Digital Zoom....................................................................17
Changing Picture-Taking Options........................................18
3 Reviewing Pictures—Review Mode ............................ 25
To Enter Review Mode............................................................25
To Access the Review Menus ..............................................26
Viewing Single Pictures.......................................................... 27
Viewing Multiple Pictures...................................................... 27
Deleting Pictures ....................................................................28
Protecting Pictures From Deletion ...................................28
Running a Slide Show.............................................................29
Displaying Pictures on a Television....................................30
Copying Pictures ......................................................................31
Magnifying Pictures ...............................................................32
Viewing Picture Information.................................................32
4 Tagging Pictures—Share Mode .................................33
When Can I Tag My Pictures? ..............................................33
To Access Share Mode/Menus...........................................33
Tagging Pictures for Printing ..............................................34
Tagging Pictures for Emailing .............................................35
Tagging Pictures as Favorites........................................... 36
5 Customizing Camera Settings—Setup Mode ........37
To Access Setup Mode/Menus........................................... 37
vii
Chapter
Returning to the Previous Menu ........................................38
Changing the Print Quantity Default ...............................38
Turning Off Quickview .............................................................39
Turning On Liveview.................................................................39
Setting Video Out...................................................................40
Formatting Memory or MMC/SD Card ..............................41
Viewing Camera Information................................................ 42
6 Installing the Software ................................................43
System Requirements ..........................................................43
Install the Software .............................................................. 45
7 Connecting to the Computer ........................................47
Important—Before You Connect .......................................47
Connecting to the Computer................................................47
Transferring Pictures to Your Computer ........................ 48
Printing Pictures from Your Computer............................48
Printing From an MMC/SD Card ........................................48
8 Using the KODAK EASYSHARE Camera Dock II ..49
Camera Dock Package Contents ....................................... 49
Installing the Camera Insert...............................................50
Connecting the Camera Dock................................................51
Installing the Battery Pack in the Camera..................... 52
Docking the Camera............................................................... 53
Charging the Battery Pack.................................................. 54
Transferring Pictures ............................................................ 55
viii
Chapter
Caution When Using a Tripod...............................................55
Earlier Camera Dock Model..................................................56
9 Troubleshooting ...............................................................57
Troubleshooting—Camera ................................................... 57
Troubleshooting—Camera Dock II .......................................71
10 Getting Help ....................................................................75
Helpful Web Links..................................................................... 75
Help in this User Guide ......................................................... 75
Software Help .......................................................................... 75
Telephone Customer Support..............................................76
11 Appendix ............................................................................ 79
Camera Specifications.......................................................... 79
Original Factory Settings—Camera..................................81
Upgrading Your Software and Firmware...........................81
Tips, Safety, Maintenance ...................................................82
Picture Storage Capacities.................................................83
Locating Pictures on an MMC/SD Card...........................83
Card File Naming Conventions ............................................84
Using Your Batteries.............................................................85
Battery-Saving Features.................................................... 86
Optional AC Adapter ............................................................ 86
Camera Dock II Specifications............................................87
Regulatory Information........................................................ 88
1
1 Getting Started
Install the Software First
It is important to install the KODAK EASYSHARE Software on your computer
before you connect the camera to the computer or attempt to transfer pictures.
See Chapter 6, Installing the Software or the Quick Start Guide for directions.
Need This Guide in Large Print?
For a large print version of this User’s Guide:
1 Go to http://www.kodak.com/go/cx4230support.
2 Under Explore EasyShare, click Service and Support.
3 Under Manuals/Guides, View PDF, click your language to open the User’s
Guide.
4 On a WINDOWS-based computer or a MACINTOSH OS 8.6/9.X:
m With the User’s Guide open; from the File menu, select Print.
m In the Print window, select Fit to Page. This is important!
On MACINTOSH OS X:
m With the User’s Guide open; from the File menu, select Page Setup.
m Change Scale to 200%. This is important!
5 Print as usual.
2
Chapter 1
What Can I Do With My KODAK
EASYSHARE CX4230 Zoom Digital
Camera?
Take Pictures —Enjoy point-and-shoot operation with flash, self timer,
and optical zoom features.
Review —Display, protect, and delete pictures.
Share—Tag your pictures for printing, emailing, and as Favorites.
Set Up —Customize your camera settings.
What Can I Do With My Digital Pictures?
Install the software from the KODAK EASYSHARE Software CD*, then:
Transfer—transfer pictures to your computer.
Share—automatically print, order online prints, and email your tagged
pictures.
Organize—use Favorites to easily organize, find, and retrieve your pictures
on the computer.
Edit—add special effects to your pictures, make a custom slide show, fix
red-eye, crop, rotate, and much more.
Print—print pictures directly to your home printer or order prints from an
online print provider. Or purchase an optional KODAK MMC (Multimedia)
card or an SD (Secure Digital) card and:
m Automatically print to any printer with an MMC/SD slot
m Make prints at any KODAK Picture Maker
m Take the card to your local photo retailer for professional printing
Refer to the Quick Start Guide or KODAK EASYSHARE Software Help for details
on working with your pictures.
* Some MACINTOSH operating systems may support limited KODAK
EASYSHARE Software features.
3
Chapter 1
Camera Package Contents
1 Camera
2 Wrist strap
3 USB cable
4 Video cable
(for viewing pictures on a television)
5 Custom camera insert*
6 KODAK CRV3 Lithium Battery or
equivalent** (not shown)
7 User’s Guide or CD, Software CD, and Quick
Start Guide (not shown)
NOTE: *The custom camera insert perfectly fits your camera to the optional
KODAK EASYSHARE Camera Dock II. DO NOT DISCARD.
** If your camera was packaged with a KODAK EASYSHARE Camera
Dock II, you received the KODAK EASYSHARE Ni-MH Rechargeable
Battery Pack and AC power adapter. For details, see page 49.
A KODAK EASYSHARE Camera Dock II may also be purchased separately at
your Kodak retail dealer or by visiting our Web site at
http://www.kodak.com/go/accessories.
3
4
1
2
5
4
Chapter 1
Attaching the Wrist Strap

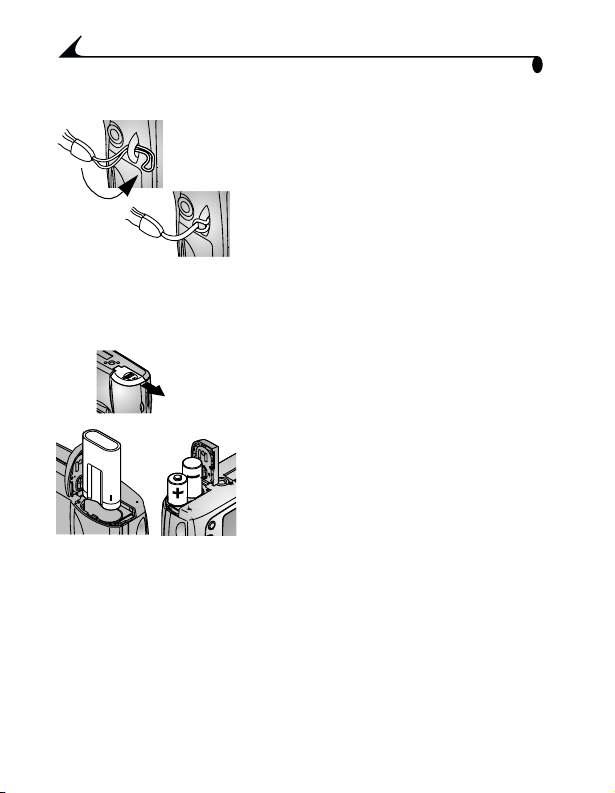

1 Thread the short loop of the strap through
the wrist strap post.
2 Thread the long end of the strap through the
short loop. Pull until secure.
Loading the Batteries
A KODAK CRV3 Lithium Battery, or equivalent, is included with your camera.*
1 Turn off the camera.
2 On the bottom of the camera, slide the
battery door and lift to open.
3 Insert the CRV3 Lithium battery or 2, AA
batteries.*
4 Close the battery door.
IMPORTANT BATTERY INFORMATION
For acceptable battery life and to make sure your camera operates
dependably, do not use alkaline batteries.
See page 85 for the types of batteries you can use in your camera.
* If your camera was packaged with a KODAK EASYSHARE Camera Dock II, see
page 52 for details on using the KODAK EASYSHARE Ni-MH Rechargeable
Battery Pack.
O
P
E
N
or
5
Chapter 1
Turning the Camera On and Off
1 Slide the On/Off switch to the On position.
The ready light blinks green while the
camera performs a self-check, then glows
steady green when the camera is ready to
take pictures.
2 To turn off the camera, slide the On/Off
switch to the Off position.
The camera completes operations that are
in process.
Built-in Lens Cover
The lens has a built-in cover that protects it from dust and scratches. The cover
opens when the camera is turned on and closes when the camera is turned off.
O
N
O
F
F
6
Chapter 1

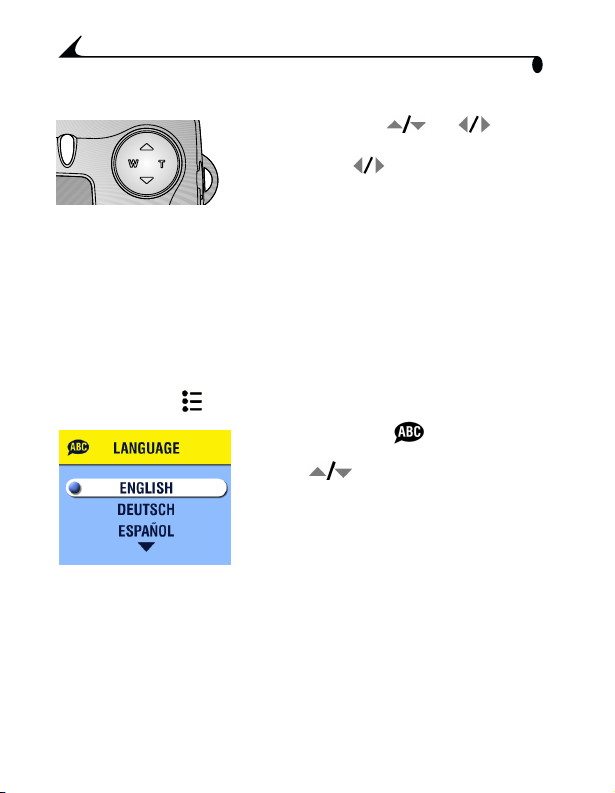

Using the 4-Way Arrow/Zoom Button
Navigating—use and (W/T)
to scroll through your pictures and menus.
Zoom—use (W/T) to zoom in or out
when taking pictures. See page 17.
Selecting a Language
You can display menus and screen messages in different languages.
The Language screen is automatically displayed the first time you turn on the
camera. If this is the first time the camera has been turned on, go to step 4.
To change the language after that:
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight Language , then press the
Select button.
4 Press to highlight a language, then
press the Select button.
5 Press the Menu button to turn off the menu.
Text is displayed in the selected language.
This setting remains until you change it.
7
Chapter 1

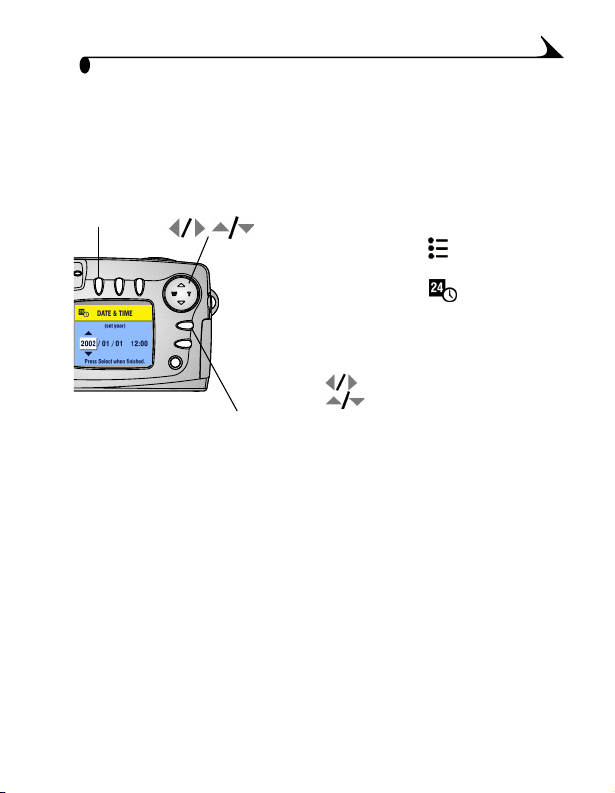

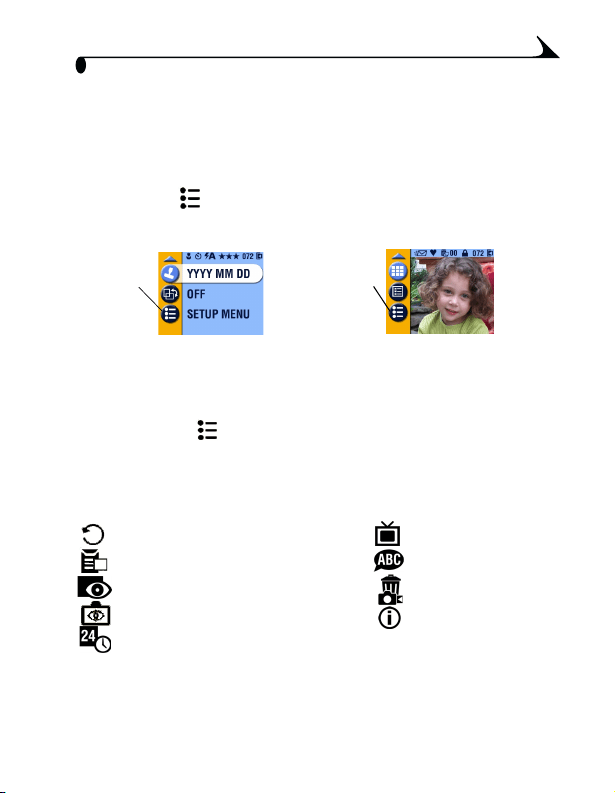

Setting the Clock
The Date & Time screen is automatically displayed the first time you turn on the
camera or if the battery is removed for an extended time. If this is the first time
the camera has been turned on, go to step 4.
To set the date and time after that:
1 In Capture or Review mode, press the Menu
button.
2 Highlight Setup Menu , then press the
Select button.
3 Highlight Date & Time , then press the
Select button.
The date format is YYYY/MM/DD in a
24-hour format.
4 Press to move through the fields.
Press to adjust the settings.
5 Press the Select button to accept the
changes.
6 Press the Menu button to turn off the menu.
The setting remains until you change it.
NOTE: Depending on your computer operating system, KODAK EASYSHARE
Software may allow your computer to automatically update the camera
clock when you connect the camera. See the KODAK EASYSHARE
Software Help for details.
Select
Menu
8
Chapter 1

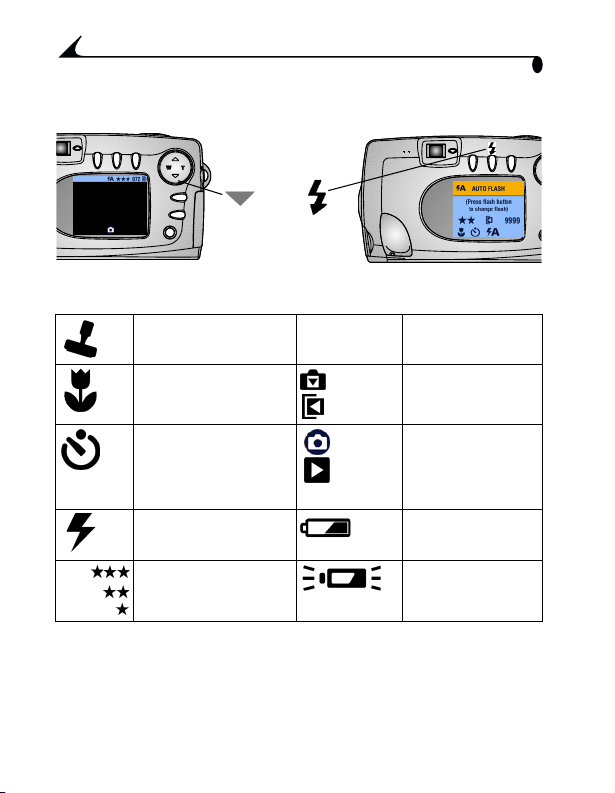

Checking Camera Status
To check the current camera settings press:
Camera Status Icons
Battery Status
If no battery icon appears on the LCD, the battery is fully charged.
*A blinking battery icon means the battery is too weak to power the camera.
The ready light blinks red for five seconds, then the camera turns off.
Date stamp Pictures remaining
Close up Storage location
Self Timer Camera mode
(icons not displayed
in Liveview)
Flash mode (page 16)Low Battery
Quality Exhausted battery
(blinking)*
or
072
Internal
Card
Capture
Review
Share
Good
Better
Best
9
Chapter 1
Inserting an MMC/SD Card
Optional MMC/SD cards provide removable, reusable storage for pictures.
CAUTION:
The card can only be inserted one way; forcing it may
damage the camera or card.
Do not insert or remove a card when the green ready light
is blinking; it may damage your pictures, card, or camera.
1 Turn off the camera.
2 Open the card door.
3 Orient the card as shown.
4 Push the card into the slot to seat the
connector. (To remove the card, push it in,
then release it. When the card is partially
ejected, pull it out.)
5 Close the door.
See page 83 for storage capacities. Purchase KODAK Multimedia Cards at your
Kodak retail dealer or on our Web site at
http://www.kodak.com/go/accessories.
10
Chapter 1
Choosing Internal Memory or MMC/SD
Card
The camera offers two options for storing pictures:
Internal Memory—store up to 23 pictures (at Best quality) in the 16 MB
internal memory.
MMC/SD Card—store as many pictures as you like, depending on the size of
the card.
See page 83 for storage capacities. Purchase KODAK Multimedia Cards at your
Kodak retail dealer or on our Web site at
http://www.kodak.com/go/accessories.
Changing Your Storage Location Setting
Use the Image Storage menu, available in Capture and Review modes, to
change the setting.
1 Turn on the camera.
2 Press the Menu button.
3 Select Image Storage , then press the Select button.
4 Press to highlight an option, then
press the Select button:
Auto (default)—the camera uses the
card if one is in the camera ; the
camera uses internal memory if no card is
in the camera .
Internal Memory—the camera always
uses internal memory, even if a card is
installed .
5 Highlight Continue, then press the Select button again.
The camera changes storage locations. The setting remains until you
change it and applies to all camera functions (Capture, Review).
6 Press the Menu button to turn off the menu.
11
Chapter 1

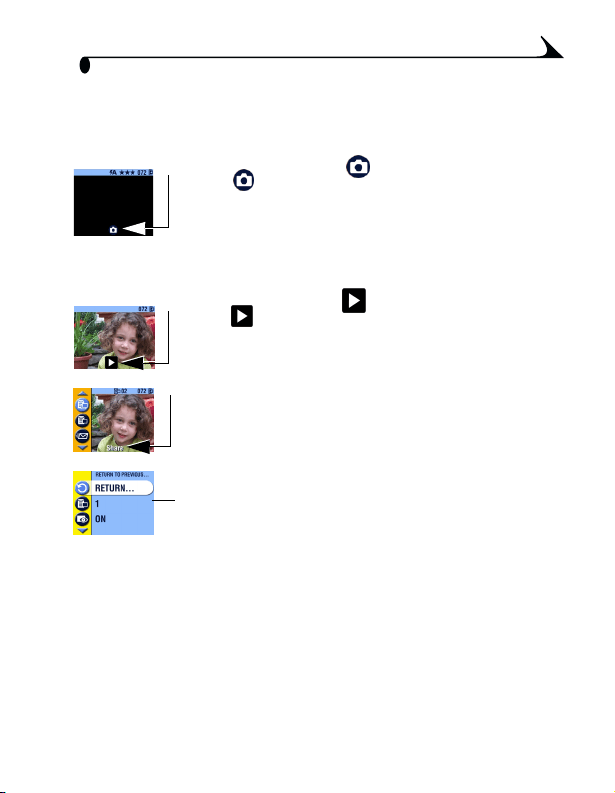

Camera Modes
The camera has four modes: Capture, Review, Share, and Setup. You can
always tell which mode the camera is in:
Capture —the LCD is blank, no image
is displayed. If you press the down arrow,
the status bar and mode icon are displayed.
See Chapter 2, Taking Pictures—Capture
Mode. But remember, you can press the
Shutter button and take a picture anytime,
no matter what mode the camera is in!
Review —the mode icon is displayed
on the LCD. See Chapter 3, Reviewing
Pictures—Review Mode.

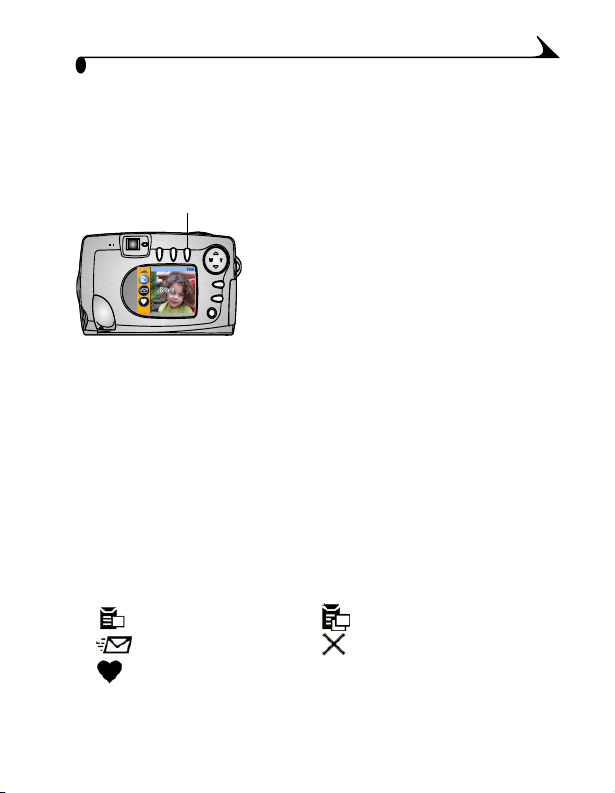

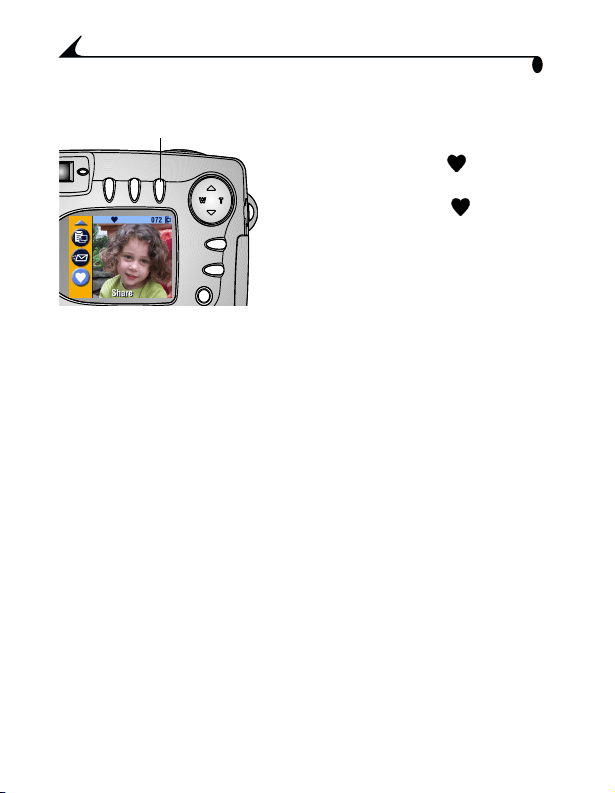

Share—
Share is displayed on the LCD;
Print, Email, and Favorite appear in the
menu bar; a picture is always displayed. See
Chapter 4, Tagging Pictures—Share Mode.
Setup—the menu bar is bright yellow; a
picture is never displayed. See Chapter 5,
Customizing Camera Settings—Setup Mode.
Capture
Review
Share
Setup
13
2 Taking Pictures—Capture
Mode
Take a Picture Anytime
The camera is in Capture mode when you turn it on. Press the Shutter
button to take a picture. But remember, you can press the Shutter button
anytime to take a picture, even if you are in Review, Share, or Setup mode!

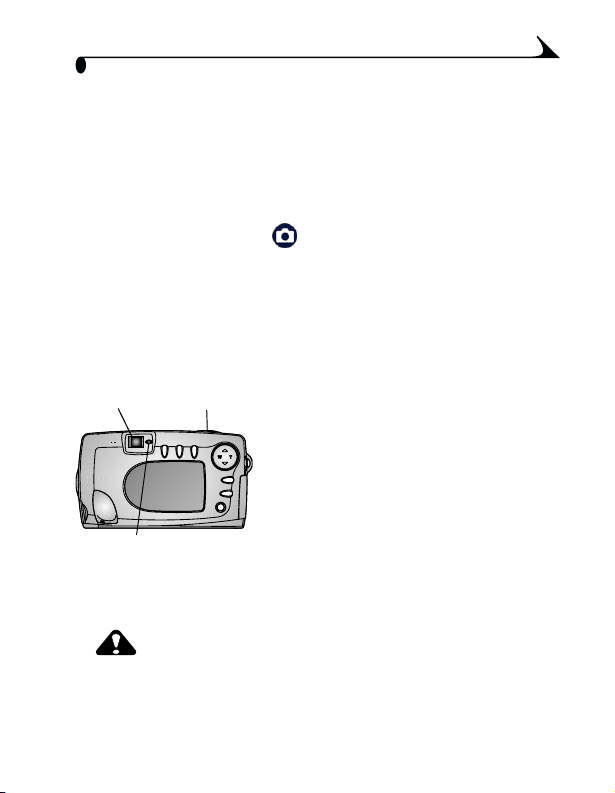

Taking a Picture
Before you take a picture, make sure your picture storage location is set the
way you want it (see page 10).
1 Use the Viewfinder to frame your subject.
(Or press the Select button and use the LCD.
See page 14.)
2 Press the Shutter button half-way down to
set exposure and focus.
3 Press the Shutter button completely down to
take the picture.
The ready light blinks green while the picture is saved. The ready light
blinks orange if the flash is recharging or if there is an auto-exposure or
auto-focus error.
CAUTION:
Do not insert or remove a card when the green ready light
is blinking. It may damage your pictures, card, or camera.
Viewfinder Press
Ready light
14
Chapter 2
Liveview—Using the LCD to Frame Your
Subject
When you turn on Liveview, the LCD displays a live image of what the lens sees.
Look at the LCD to frame your picture.
1 Make sure the camera is in Capture mode
(LCD is blank, no picture is displayed).
2 Press the Select button to turn on Liveview.
3 Frame your picture in the LCD.
4 Take the picture.
5 To turn off Liveview, press the Select button.
NOTE: Liveview quickly depletes battery power;
use it sparingly. To conserve battery
power, Liveview automatically turns off
after one minute.
To change the Liveview setting so it is on whenever the camera is on, see
page 39.
15
Chapter 2

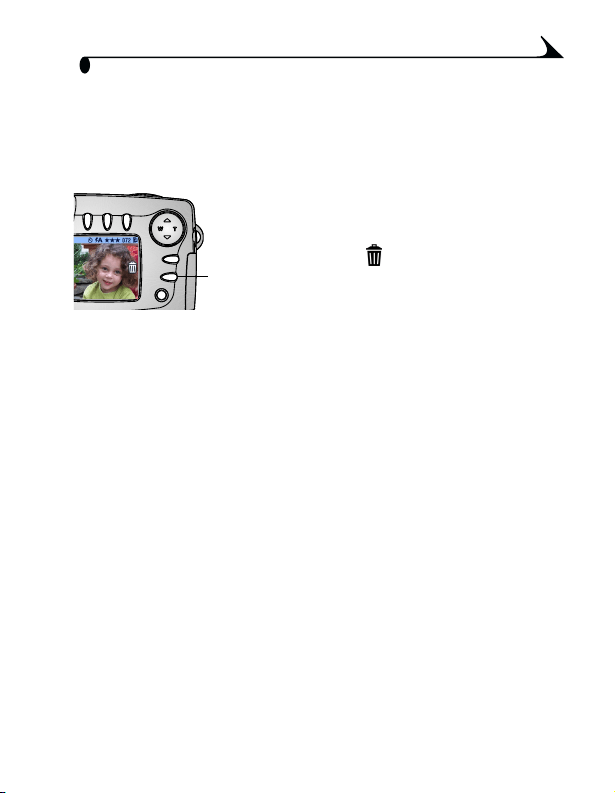

Quickview—Reviewing the Picture Just
Taken
After you take a picture, the LCD displays a Quickview of that picture for
approximately 5 seconds. While the picture is displayed, you can:
m Review it. If you take no action, the picture
is saved.
m Delete it. Press the Delete button while the
picture and are displayed.
NOTE: To save battery power, you can turn off the Quickview feature. See
page 39.
Delete
16
Chapter 2

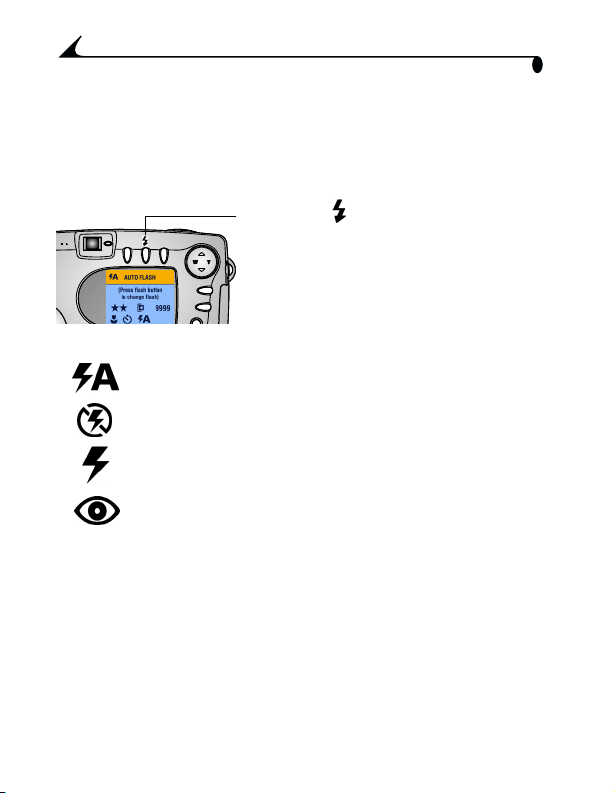

Using the Flash
Use the flash when you take pictures outdoors in heavy shadows, at night, or
indoors. Flash is effective between these distances:
m Wide angle: 1.6 to 12.8 ft (0.5 to 3.9 m)
m Telephoto: 1.6 to 7.5 ft (0.5 to 2.3 m)
Press the button repeatedly to scroll
through the flash options.
The flash icon displayed on the LCD is the
active option.
Current camera status icons are also
displayed (see page 8). The flash screen
turns off after 3 seconds.
NOTE: All flash options (except Red-eye) revert to Auto when the camera is
turned off.
The camera uses slow shutter speeds in low-light conditions with the
flash turned off. Take care to avoid camera shake; use a tripod or place
the camera on a steady surface.
Auto Flash—flash fires when the lighting conditions require it.
Flash Off—flash never fires.
Fill Flash—flash fires every time you take a picture, regardless
of the lighting conditions.
Red-eye—flash fires once so the subject’s eyes become
accustomed to the flash, then again when the picture is taken.
The Red-eye option remains in effect until you change it. See
page 19 for an exception with Close-up.
17
Chapter 2
Using Optical Zoom
Use Optical Zoom to get up to three times closer (3X) to your subject. When
you turn on the camera, the lens extends to the Wide Angle position.
1 Press Telephoto (T) to get closer to your
subject. Press Wide Angle (W) to get
farther away.
The change is displayed in the Viewfinder
or on the LCD if Liveview is on.
2 Take the picture.
Using Digital Zoom
Use Digital Zoom to get an additional 2X beyond the optical zoom limit. The
lens does not move during Digital Zoom.
IMPORTANT: You may notice a decrease in printed image quality
when using Digital Zoom.
1 Press the Select button to turn on Liveview.
2 Press Telephoto (T) to its farthest
position, the limit of optical zoom. Release
the button, then press it again.
The LCD displays the zoomed image and
the digital zoom icon .
3 Use the LCD to frame your subject, then take
the picture.
NOTE: Digital zoom is turned off when you press the Select button, turn off the
camera, turn Close-up on or off, or when the camera enters Auto
power-off.
WT
T
18
Chapter 2
Changing Picture-Taking Options
Use the Capture menus to change picture-taking options. If you are in Review,
Share, or Setup modes you must return to Capture mode before you can access
the Capture menus.
To Return to Capture From Another Mode
To return to Capture from:
m Any mode, press the Shutter button to take a picture and revert to Capture.
m Review mode, press the Review button.
m Share mode, press the Share button.
m Setup mode, and you got there from Capture, press the Menu button.
m Setup mode, and you got there from Review mode, press the Menu button,
then press the Review button.
To Access the Capture Menus
1 In Capture mode (LCD is blank, no picture is displayed), press the Menu
button.
2 Press the Menu button to turn off the menus.
Capture Menus
Close-up (page 19) Quality (page 22)
Self Timer (page 20) Date Stamp (page 23)
Image Storage (page 10) Orientation Sensor (page 24)
Exposure Compensation
(page 21)
Setup (page 37)
19
Chapter 2
Taking Close-up Pictures
The Close-up setting helps you gain sharpness and detail at close range. Use
Close-up between these distances:
m Wide angle: 3.9 to 23.6 in. (100 to 600 mm)
m Telephoto: 7.8 to 23.6 in. (200 to 600 mm)
To turn on Close-up:
1 In Capture mode, press the Menu button.
2 Highlight Close-up , then press the Select
button.
3 Highlight On, then press the Select button.
4 Press the Menu button to turn off the menu screen.
The Close-up icon appears in the status bar and the LCD
automatically enters Liveview.
5 Use the LCD to frame your subject and take the picture as usual.
The Close-up setting turns off when you turn off the camera.
NOTE: If the flash is set to Red-eye when you turn on Close-up, the flash setting
changes to Auto; the flash then changes back to Red-eye when you turn
off Close-up or turn off the camera.
20
Chapter 2
Putting Yourself in the Picture
The Self Timer creates a 10-second delay between the time you press the
Shutter button and the time the picture is taken.
1 In Capture mode, press the Menu button.
2 Highlight Self Timer , then press the
Select button.
3 Highlight On, then press the Select button.
4 Press the Menu button to turn off the menu
screen.
5 Place the camera on a flat surface or use a
tripod.
6 Press the shutter button completely down to
take the picture.
The red Self Timer light turns on for 8
seconds, then blinks for 2 seconds. The
picture is taken.
The Self Timer turns off after you take the
picture.
Self Timer light
Press
21
Chapter 2
Setting Exposure Compensation
Use Exposure Compensation to control how much light is allowed into the
camera. The exposure range is +2 to -2 in 1/2-step increments.
NOTE: This setting is ideal for controlling pictures in which the light source is
behind the subject (backlit), or for correcting pictures that are too light
or too dark.
1 In Capture mode, press the Menu button.
2 Highlight Exposure Compensation , then press Select.
3 Press to select the
Exposure Compensation setting.
m If your pictures are too light,
press to decrease (-) the
value.
m If your pictures are too dark,
press to increase (+) the
value.
4 Press Select to accept the change
and return to the menu screen.
5 Press Menu to exit the menu
screen.
This setting remains until you
change it.
22
Chapter 2
Setting Picture Quality
Use the Quality setting to select a picture resolution:
1 In Capture mode, press the Menu button.
2 Highlight Quality , then press the Select button.
The active Quality setting appears in the top left corner.
3 Highlight an option:
Best (2 MP)—for
printing up to 8 x 10 in. (20.3 x
25.4 cm); produces highest
picture resolution, more detail,
and largest file sizes.
Three stars appear in the status
bar.
Better (1 MP)—for
printing up to 5 x 7 in. (12.7 x
17.8 cm); pictures are medium
resolution with smaller file sizes.
Two stars appear in the status
bar.
Good (0.5 MP)— for
emailing or screen display;
pictures are lowest resolution
with smallest file sizes.
One star appears in the status
bar.
4 Press the Select button.
5 Press the Menu button to turn off the menu screen.
This setting remains until you change it.
FPO
23
Chapter 2
Placing the Date on Pictures
Use Date Stamp to imprint the date on your pictures.
1 Make sure the camera clock is set to the correct date (page 7).
2 In Capture mode, press the Menu button.
3 Highlight Date Stamp , then press the Select button.
4 Highlight an option:
Off
YYY/MM/DD
MM/DD/YY
DD/MM/YYYY
5 Press the Select button.
6 Press the Menu button to turn off
the menu.
The current date is printed in
the bottom right corner of new
pictures. This setting remains
until you change it.
24
Chapter 2
Turning Off the Orientation Sensor
If you turn the camera when you take a picture (for example, to take a
lengthwise or portrait, shot), the Orientation Sensor repositions the picture so
it is displayed correct side up during Quickview, Review, picture transfer, and
in video-out display.
The Orientation Sensor is turned on as the factory default. You can turn it off so
that pictures are displayed in the same orientation as they are taken.
1 In Capture mode, press the Menu button.
2 Highlight Orientation , then press the Select button.
3 Highlight Off, then press the Select button.
4 Press the Menu button to turn off the menu.
This setting remains until you change it.
25
3 Reviewing Pictures—Review
Mode
Use Review mode to view and work with the pictures that are stored in
internal memory or on a card. Remember, press the Shutter button to take a
picture anytime, even in Review mode (see page 13).
NOTE: Reviewing pictures on the LCD quickly depletes battery power. An
optional AC adapter is available (see page 86).
To Enter Review Mode
1 Press the Review button. The Review icon
appears at the bottom of the LCD.
2 Press the Review button again to exit Review
and return to Capture mode.
The icons displayed with the picture
indicate applied features.
Picture Information Icons
Review icon
Email Favorite Print tag, #
of copies
Protected Picture
number
Picture Location
Mode indicator Low battery Exhausted battery (blinking)
2
072
Internal memory
Card
Review
26
Chapter 3
To Access the Review Menus
Use the Review menus to work with the pictures that are stored in internal
memory or on a card.
1 Press the Review button.
2 Press the Menu button.
3 Press the Menu button to turn off the menus.
Review Menus
Protect (page 28) Magnify (page 32)
Image Storage (page 10) Multi-up (page 27)
Slide Show (page 29) Picture Information (page 32)
Copy (page 31) Setup (page 37)
27
Chapter 3

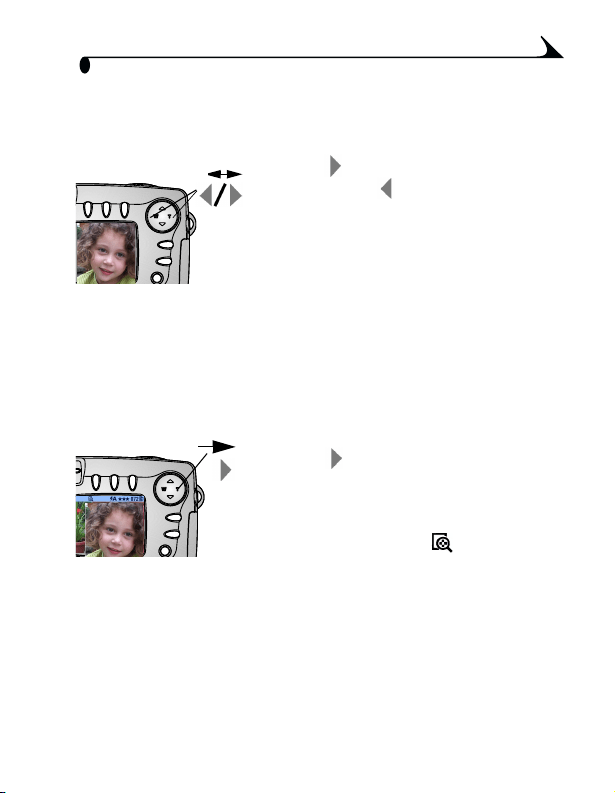

Viewing Single Pictures
1 Press the Review button.
The camera displays the last picture that
was taken or reviewed.
2 Press to scroll backward or forward
through the pictures.
Viewing Multiple Pictures
1 Press the Review button.
2 Press .
Nine pictures (thumbnails) are displayed
at once.
3 Press to display the previous or next row of thumbnails.
4 Press to scroll through the thumbnails one at a time.
The selected picture is highlighted in yellow.
5 Press the Select button to display a single view of the selected picture.
Viewing Multiple Pictures—Review Menu
You can also view multiple pictures through the Review menu, Multi-up option.
1 Press the Review button, then press the Menu button.
2 Highlight Multi-up , then press the Select button.
Nine pictures (thumbnails) are displayed at once.
3 Navigate through the thumbnails as described above.
Revie
w
Review
28
Chapter 3

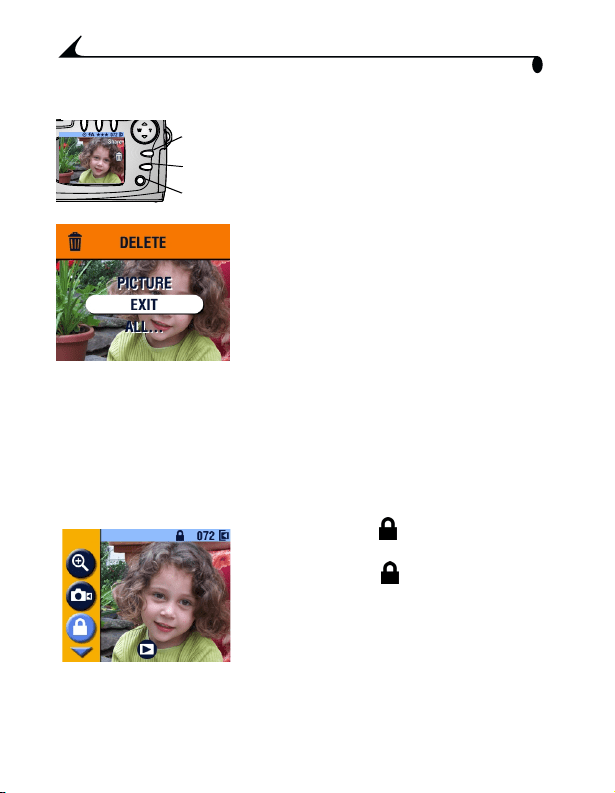

Deleting Pictures
1 Press the Review button.
2 Display a picture in single view or highlight
a picture in multiple view, then press the
Delete button.
3 Highlight an option, then press the Select
button:
PICTURE—deletes the displayed picture.
EXIT—exits the Delete screen.
ALL—deletes all pictures from your current
storage location.
NOTE: Protected pictures cannot be deleted; remove protection before deleting
(page 28).
Protecting Pictures From Deletion
1 Press the Review button, then locate the picture to protect.
2 Press the Menu button.
3 Highlight Protect , then press the Select
button.
The Protect icon appears with the
protected picture whenever it is
displayed. The picture cannot be deleted.
(Note, formatting deletes even protected
pictures, see page 41).
4 To remove protection, press the Select button again.
5 Press the Menu button to turn off the menu.
Review
Delete
Select
29
Chapter 3
Running a Slide Show
Use the Slide Show to display your pictures on the LCD in the order in which
you took them. To run a slide show on a television or other external device, see
page 30.
Starting the Slide Show
1 Press the Review button, then press the Menu button.
2 Highlight Slide Show , then press the Select button.
3 Highlight Begin Show, then press the Select
button.
The pictures are each displayed once in
the order in which you took them. Then
the camera returns to the Menu screen.
See Turning On Loop, page 30, for
continual display.
4 To cancel the Slide Show, press the Select button.
NOTE: If you connect or disconnect the video cable while a slide show is
running, the slide show stops.
Changing the Display Interval
The default setting displays each picture for 5 seconds. You can increase the
display interval to up to 60 seconds.
1 On the Slide Show menu, highlight Interval,
then press the Select button.
2 Press to select a display interval.
To scroll through the seconds quickly, press
and hold .
3 Press the Select button.
The Interval setting remains until you change it.
30
Chapter 3

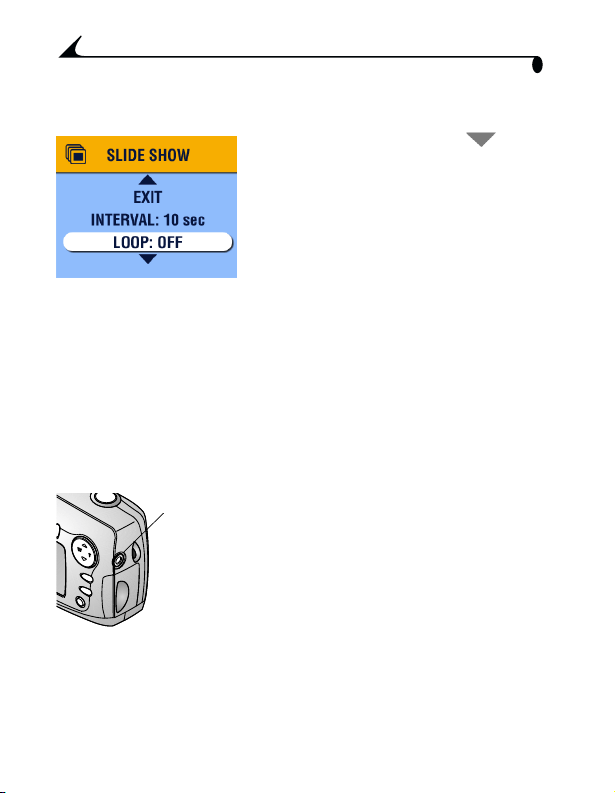

Turning On Loop
When you turn on Loop, the slide show is continuously repeated.
1 On the Slide Show menu, press to
scroll down to Loop; highlight Loop, then
press the Select button.
2 Highlight On, then press the Select button.
The loop slide show begins immediately.
It repeats continuously until you cancel
it by pressing the Select button or until
battery power is exhausted.
Loop reverts to Off when the loop slide
show stops.
Displaying Pictures on a Television
You can run a slide show or display your pictures on a television, computer
monitor, or digital projector (any device equipped with a video input).
NOTE: Ensure that the Video Out setting is correctly set to NTSC or PAL (see
page 40).
1 Connect the video cable from the video out
port on the camera to the video in port on
the television. (Refer to your television
User’s Guide for details on video in setup.)
The camera LCD turns off; the television
screen acts as the camera display.
2 You can now use the television screen to
review your pictures in single or multiple
views, run a slide show, or do anything on
the television screen that you can do on the
camera LCD.
Video out
port
31
Chapter 3
Copying Pictures
You can copy pictures from a card to internal memory, or from internal
memory to a card.
Before you copy make sure that:
m A card is inserted in the camera.
m The camera’s picture storage location is set to the location from which you
are copying. See Choosing Internal Memory or MMC/SD Card, page 10.
Copy pictures:
1 Press the Review button, then press the Menu button.
2 Highlight Copy , then press the Select button.
3 Highlight an option:
PICTURE—copies the current picture from
your selected storage location to the other
location.
EXIT—returns to the Copy screen.
ALL—copies all pictures from your
selected storage location to the other
location.
4 Press the Select button.
A progress bar monitors the copy process.
NOTE: Pictures are copied, not moved. To remove the pictures from the
original location after they are copied, delete them (see page 28).
Tags and protection are not copied. Print, email, and Favorite tags
are not copied with the picture (see page 33 to re-apply tags).
Protection settings are not copied (see page 28 to re-apply protection).
32
Chapter 3
Magnifying Pictures
1 Press the Review button, then press the Select button.
The picture is displayed at 2X magnification. The Magnify icon
and the magnification value are displayed on the screen.
2 Press the Select button again to display the picture at 4X magnification.
3 When the picture is magnified, press to navigate to different
parts of the picture.
4 Press the Select button again to redisplay the picture at the original size.
NOTE: You can also magnify pictures through the Magnify menu: press the
Review button, press the Menu button, highlight Magnify , then
press the Select button.
Viewing Picture Information
1 Press the Review button, then press the
Menu button.
2 Highlight the Picture Info menu , then
press the Select button.
The information about the displayed
picture is view-only and includes: file
name, location of the file if stored on a
card (there are no directories in internal
memory), date and time the picture was
taken, and the quality setting.
3 Press to display the previous/next picture, with that picture’s
information.
4 To exit Picture Info, press the Select button.
33
4 Tagging Pictures—Share
Mode
Press the Share button to tag your pictures:
m For automatic printing
m For automatic emailing
m As Favorites
For details on organizing, printing, or
emailing, see the Quick Start Guide or KODAK
EASYSHARE Software Help.
NOTE: MACINTOSH OS 8.6/9.x do not support the Share mode features.
When Can I Tag My Pictures?
You can tag pictures whenever they are displayed on the LCD in Review mode
(see page 25).
To Access Share Mode/Menus
1 Press the Share button.
2 Press the Share button again to exit Share mode and return to Capture or
Review mode.
Share
Share Menus
Print (page 34) Print All (page 34)
Email (page 35) Cancel Prints (page 34)
Favorite (page 36)
34
Chapter 4

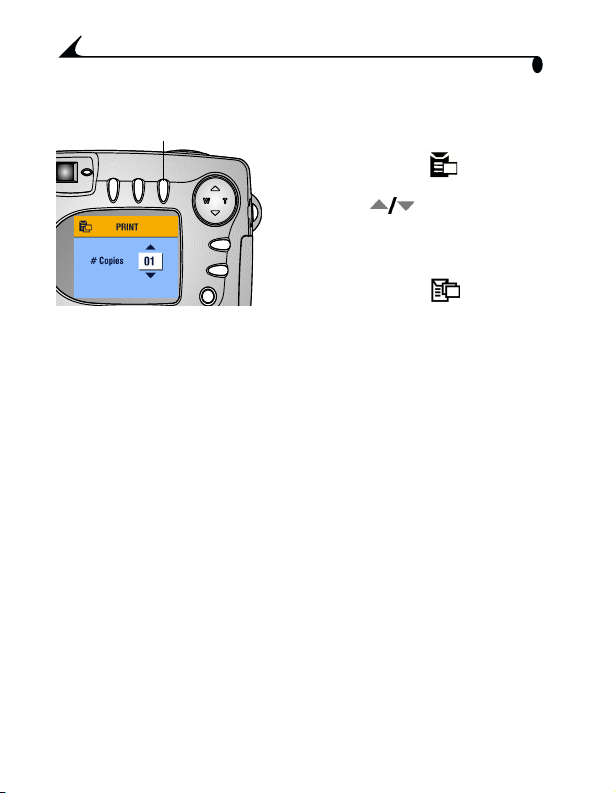

Tagging Pictures for Printing
1 Locate a picture, then press the
Share button.
2 Highlight Print and press
the Select button.
3 Press to select the
number of copies (0-99). Zero
removes the tag for that picture.
4 Press the Select button.
The Print icon appears
with the picture.
The default quantity is one. To change the default, see page 38.
5 To tag all pictures on the card or in internal memory, highlight Print All,
press the Select button, then indicate the number of copies as described
above.
6 To remove the print tagging for all pictures on the card or in internal
memory, highlight Cancel Prints, then press the Select button.
7 Press the Share button to return to Capture mode.
Printing Tagged Pictures
See page 48 for information on printing your digital pictures.
Share
35
Chapter 4

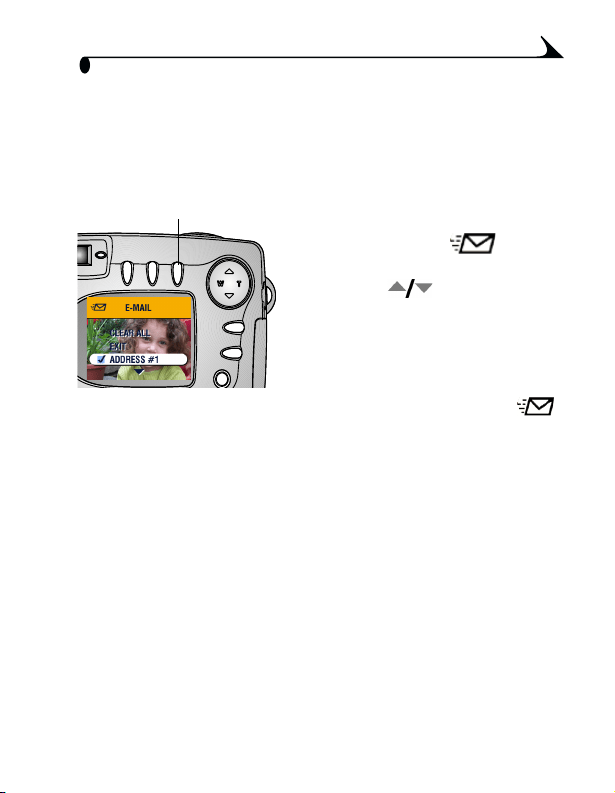

Tagging Pictures for Emailing
First, use KODAK EASYSHARE Software to create an email address book on
your computer, then copy up to 32 email addresses to the camera’s internal
memory. See the Quick Start Guide or KODAK EASYSHARE Software Help for
details.
1 Locate a picture, then press the
Share button.
2 Highlight Email , then
press the Select button.
3 Press to highlight an
email address, then press the
Select button.
To send the picture to more than
one person, repeat step 3 for
each address.
Selected addresses are noted with a check mark, and the email icon
appears with the picture.
4 To remove a selection, highlight a checked address and press the Select
button. To remove all email selections, select Clear All.
5 Highlight Exit, then press the Select button.
Your selections are saved.
6 Press the Share button to return to Capture mode.
Emailing Tagged Pictures
When you transfer the tagged pictures to your computer, the KODAK
EASYSHARE Software email screen opens and lets you immediately send the
pictures to the addresses you specified. See the Quick Start Guide or KODAK
EASYSHARE Software Help for details on address books and emailing.
Share
36
Chapter 4
Tagging Pictures as Favorites
1 Locate a picture, then press the
Share button.
2 Highlight Favorite , then press
the Select button.
The Favorite icon appears
with the picture.
3 To remove the tag, press the
Select button again.
4 Press the Share button to return
to Capture mode.
Using Favorites on Your Computer
See the KODAK EASYSHARE Software Help for details on retrieving and
organizing Favorites on your computer.
Share
37
5 Customizing Camera
Settings—Setup Mode
Use Setup mode to customize your camera settings. You can access Setup
mode two ways: in the Capture menu screen and the Review menu screen.
To Access Setup Mode/Menus
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup and press the Select button.
3 Press the Menu button to turn off the Setup menu and return to Capture or
Review mode.
Setup Menus
Return (page 38) Video Out (page 40)
Default Print Quantity (page 38) Language (page 6)
Quickview (page 39) Format (page 41)
Liveview (page 39) About (page 42)
Date/Time (page 7)
In
Capture
In
Review
mode
mode
38
Chapter 5
Returning to the Previous Menu
The Return feature lets you return to the menu screen from which you entered
the Setup menu.
m In the Setup menu, highlight Return ,
then press the Select button.
You are returned to the menu screen
from which you entered Setup: Capture or
Review.
Changing the Print Quantity Default
The Default Print Quantity setting determines the value that is displayed on the
Share Print screen (page 34). The default value is one.
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight Default Print Quantity , then
press the Select button.
4 Press to indicate the new default
quantity, then press the Select button.
5 Press the Menu button to turn off the menu.
This setting remains until you change it.
39
Chapter 5
Turning Off Quickview
After you take a picture, Quickview displays it on the LCD for approximately 5
seconds (see page 15). To save battery power, turn off Quickview:
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight Quickview , then press the Select button.
4 Highlight Off, then press the Select button.
5 Press the Menu button to turn off the menu.
The picture is not automatically displayed on the LCD after you take it.
To see the picture, press the Review button.
This setting remains until you change it.
Turning On Liveview
The Liveview feature displays a live image on the LCD so you can frame your
picture in the LCD instead of the Viewfinder (see page 14). The default setting
is Off, which means that you must press the Select button to see the live image.
IMPORTANT: Liveview quickly depletes battery power; use it
sparingly.
Turn on Liveview:
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight Liveview , then press the Select button.
4 Highlight On, then press the Select button.
The live image is displayed whenever the camera is on. Liveview
automatically turns off after one minute to conserve battery power.
You can manually turn it back on by pressing the Select button.
5 Press the Menu button to turn off the menu.
This setting remains until you change it.
40
Chapter 5
Setting Video Out
The Video Out feature lets you match the camera’s video signal to the standard
for your location. Video Out must be set correctly to run a slide show on an
external device (see page 30).
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight Video Out , then press the Select button.
4 Highlight an option:
NTSC—used in the United States and Japan
and most countries outside of Europe.
PAL—used in European countries.
5 Press the Select button to accept the change
and return to the Setup menu.
6 Press the Menu button to turn off the menu.
This setting remains until you change it.
41
Chapter 5
Formatting Memory or MMC/SD Card
CAUTION:
Formatting deletes everything in memory or on the card,
even protected pictures. Removing a card during
formatting may damage the card.
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight Format , then press the Select
button.
4 Highlight an option:
FORMAT CARD—deletes everything on the
card, even protected pictures, and
reformats the card for use in the camera.
CANCEL FORMAT—exits without making a
change.
FORMAT INTERNAL MEMORY—
reformats and deletes everything in internal
memory, even protected pictures and the
address book.
5 Press the Select button.
6 Highlight Continue, then press the Select button.
Once formatting begins, it is completed even if you turn off the camera
or change modes.
When the formatting is complete, the Setup menu is redisplayed.
7 Press the Menu button to turn off the menu.
42
Chapter 5
Viewing Camera Information
The About feature displays information that is helpful if you need to call for
service on your camera.
1 In Capture or Review mode, press the Menu button.
2 Highlight Setup , then press the Select button.
3 Highlight About , then press the Select
button.
The camera information is view-only.
4 Press the Menu button to turn off the menu.
43
6 Installing the Software
System Requirements
WINDOWS System Requirements
m Personal computer for WINDOWS 98, 98SE, ME, 2000, or XP
m 233 MHz processor or greater
m 64 MB of available RAM (128 MB for WINDOWS XP)
m 200 MB of available hard disk space
m CD-ROM drive
m Available USB port
m Color monitor with a minimum resolution of 800 x 600 pixels; High Color
(16-bit) or True Color (24-bit) recommended
m Internet access for online printing and emailing
MACINTOSH OS X System Requirements
m POWER MAC G3, G4, G4 Cube; iMAC; POWERBOOK G3, G4; iBOOK
computer
m MACINTOSH OS 10.1.2, minimum
m 128 MB of available RAM
m 200 MB of available hard disk space
m CD-ROM drive
m Built-in USB port
m Color monitor with a minimum resolution of 800 x 600 pixels; thousands
or millions of colors recommended
m Internet access for online printing and emailing
44
Chapter 6
MACINTOSH OS 8.6/9.x System Requirements
m PowerPC-based MACINTOSH computer
m MACINTOSH OS 8.6/9.x
m 64 MB of available RAM
m 200 MB of available hard disk space
m CD-ROM drive
m Built-in USB port
m Color monitor with a minimum resolution of 800 x 600 pixels; thousands
or millions of colors recommended
m Internet access for online printing and emailing
NOTE: OS 8.6/9.x do not support the Share button functions. OS X is
recommended for full functionality.
45
Chapter 6
Install the Software
For information on the software applications included on the KODAK
EASYSHARE Software CD, see the Quick Start Guide or KODAK EASYSHARE
Software Help.
CAUTION:
Do not install the KODAK
EASYSHARE Software with the
camera or Camera Dock
connected to the computer. It
may cause the software to load
incorrectly. If you have already
connected, disconnect the
camera or Camera Dock before
you proceed.
1 Before you begin, close all software applications that are open on your
computer.
2 Place the KODAK EASYSHARE Software CD
into the CD drive.
3 Load the software:
On a WINDOWS-based computer—if
the first install window does not appear,
choose Run from the Start menu and type
d:\setup.exe where d is the drive letter that
contains the CD.
On MACINTOSH OS 8.6/9.x—on the
install window, click Continue.
On MACINTOSH OS X—double-click the
CD icon on the desktop, then click the
Install icon.
46
Chapter 6
4
Follow the on-screen instructions to install the software. If prompted,
restart the computer when the installation is complete.
m Select Typical to automatically install the needed applications.
m Select Custom to choose the applications to install.
NOTE: When prompted, take a few minutes to electronically register your
camera and software. This lets you receive information regarding
software updates and registers some of the products included with the
camera. You must be connected to your Internet service provider to
register electronically.
For further installation help, see the Quick Start Guide.
47
7 Connecting to the Computer
Important—Before You Connect
Install the software from the KODAK EASYSHARE Software CD BEFORE you
connect the camera or Camera Dock to the computer.
Connecting to the Computer
You can transfer your pictures from the camera to the computer using either
the camera alone or the optional KODAK EASYSHARE Camera Dock or Camera
Dock II. See page 51 for connecting with a Camera Dock.
Connecting With the USB Cable
1 Turn off the camera.
2 Plug the labeled ( ) end of the USB cable
into the labeled USB port on your computer.
See your computer User’s Guide for details.
3 Plug the other end of the USB cable into the
labeled USB port on the camera.
An optional AC adapter is available for
your camera; it saves battery power when
transferring pictures (see page 86).
NOTE: You can also use a KODAK SD Multimedia Card Reader-Writer to
transfer your pictures. See your KODAK retail dealer or visit our Web
site at http://www.kodak.com/go/accessories.
48
Chapter 7
Transferring Pictures to Your Computer
For details on transferring pictures, see the Quick Start Guide or the KODAK
EASYSHARE Software Help.
Printing Pictures from Your Computer
For details on printing on your home printer and ordering prints from an
online print provider, see the Quick Start Guide or the KODAK EASYSHARE
Software Help.
Printing From an MMC/SD Card
m Automatically print tagged pictures when you insert your card into a printer
with an MMC/SD slot. See your printer user guide for details.
m Take your card to your local photo retailer for printing.
m Make your own prints at any KODAK Picture Maker.
49
8 Using the KODAK
EASYSHARE Camera Dock II
The KODAK EASYSHARE Camera Dock II (Camera Dock) makes it easy to
transfer your pictures to the computer. The Camera Dock is also a rapid battery
charger for the included KODAK EASYSHARE Ni-MH Rechargeable Battery
Pack, and supplies power to the camera.
To keep the Battery Pack charged and the camera always ready to take
pictures, store your camera in the Camera Dock.
Camera Dock Package Contents
1 Camera Dock
2 AC power adapter, 7-Volt
Some AC adapters may be different from
the one pictured.
3 Universal insert
4 KODAK EASYSHARE Ni-MH Rechargeable
Battery Pack
5 Quick Start Guide (not shown)
If a Camera Dock was not included with your camera, you can purchase one at
your KODAK retail dealer or visit our Web site at http://www.kodak.com/go/
accessories.
2
4
1
3
50
Chapter 8
Installing the Camera Insert
KODAK EASYSHARE digital cameras are packaged with a custom camera insert,
which is used to perfectly fit the camera to the Camera Dock.
1 Place the front tabs on the custom insert
into the slots in the Camera Dock cavity.
2 Fit the insert down into the cavity and snap
the insert into place.
If You Do Not Have the Custom Insert
If you do not have the custom insert that was included with your camera, use
the universal insert that is included with the Camera Dock II. The universal
insert works with all KODAK EASYSHARE cameras, but it does not fit the
cameras perfectly.
To order a custom camera insert visit our Web site at http://www.kodak.com/
go/accessories.
51
Chapter 8
Connecting the Camera Dock
After the KODAK EASYSHARE Software is loaded (see page 45), connect the
Camera Dock to your computer and to an external power source. You will
need:
m the USB cable included with your camera
m the AC adapter, 7-Volt included with the Camera Dock
IMPORTANT: Make sure your camera is NOT in the Camera Dock
when you are connecting to power and the computer.
1 Plug the labeled ( ) end of the USB cable
into the labeled USB port on your computer.
See your computer User’s Guide for details.
2 Plug the other end of the USB cable into the
square USB connector on the back of the
Camera Dock.
3 Plug the AC adapter into the round power
connector on the back of the Camera Dock
and into a power outlet.
Your AC adapter may be different from
the one pictured or may have additional
plugs. Use the plug that accommodates
your type of power outlet.
Leave the Camera Dock connected to the computer for easy access for
transferring pictures and charging the Battery Pack.
IMPORTANT: Use only the AC adapter, 7-Volt included with the
Camera Dock. Other adapters may cause damage to
your camera, Camera Dock, or computer.
1
2
3
DC
I
N
3V
52
Chapter 8
Installing the Battery Pack in the Camera
1 Open the battery door on the bottom of the
camera.
2 Install the Battery Pack as illustrated.
CAUTION:
The Battery Pack can only be
inserted into the camera in the
orientation shown. If the
Battery Pack does not easily
install, reposition it and try
again. DO NOT FORCE IT. Doing
so can damage your camera.
3 Close the battery door.
IMPORTANT: The Battery Pack is not charged when you receive it.
See page 54 for charging instructions.
O
P
E
N
53
Chapter 8

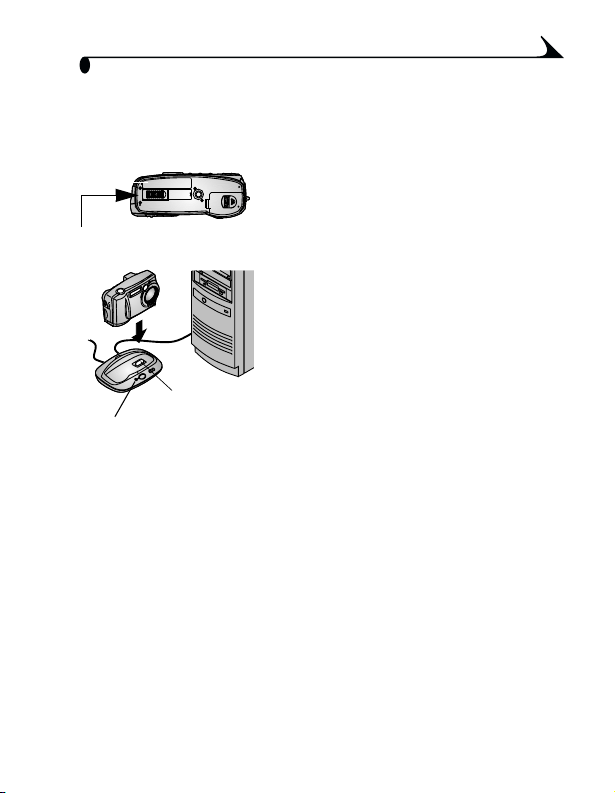

Docking the Camera
When you are ready to transfer your pictures from the camera to the computer,
or charge the Battery Pack, place the camera in the Camera Dock.
1 Tu rn off the camera.
2 On the camera bottom, slide the connector
cover open.
3 Place the camera in the Camera Dock and
push down to seat the connectors.
The Power/Transfer light
glows green when the
camera is properly
seated.
The camera is now powered by the
Camera Dock instead of the camera
batteries.
NOTE: If the KODAK EASYSHARE Ni-MH Rechargeable Battery Pack is in the
camera, the Camera Dock immediately begins charging (see page 54).
Connector cover
Power/Transfer light
Connector
54
Chapter 8
Charging the Battery Pack
The Battery Pack is not charged when you receive it.
1 Turn off the camera.
2 Make sure the Battery Pack is installed in the camera (see page 52).
3 Place the camera in the Camera Dock (see page 53).
m Charging begins immediately.
m The three green charging lights monitor the charging status:
m Full charging takes about 2.5 hours. After the Battery Pack is fully
charged, leave the camera in the Camera Dock to maintain the full
charge.
m Charging stops if you turn on the camera. If the camera is left in the
Camera Dock with the power on, charging resumes when the camera
enters Auto Power-off (see page 86).
NOTE: The Camera Dock only charges the provided KODAK EASYSHARE Ni-MH
Rechargeable Battery Pack. If you place the camera in the Camera Dock
with any other type of batteries, rechargeable or not, no charging takes
place.
Charging Lights
battery partially charged
battery low
battery fully charged
55
Chapter 8
Transferring Pictures
To transfer pictures from your camera to your computer:
1 Place the camera in the Camera
Dock.
The camera can be on or off.
2 Push the Connect button.
The Power/Transfer light blinks
green while the pictures are
transferring.
3 For details on transferring, organizing, printing, emailing, and editing your
pictures, see the Quick Start Guide or KODAK EASYSHARE Software Help.
NOTE: When your pictures are transferred, leave the camera in the Camera
Dock. Eight minutes after the transfer is complete, the Camera Dock
resumes charging as necessary.
Caution When Using a Tripod
Do not connect a tripod to the Camera Dock. Remove the camera from the
Camera Dock and connect the tripod directly to the camera.
Connect
Power/Transfer light
blinks
56
Chapter 8

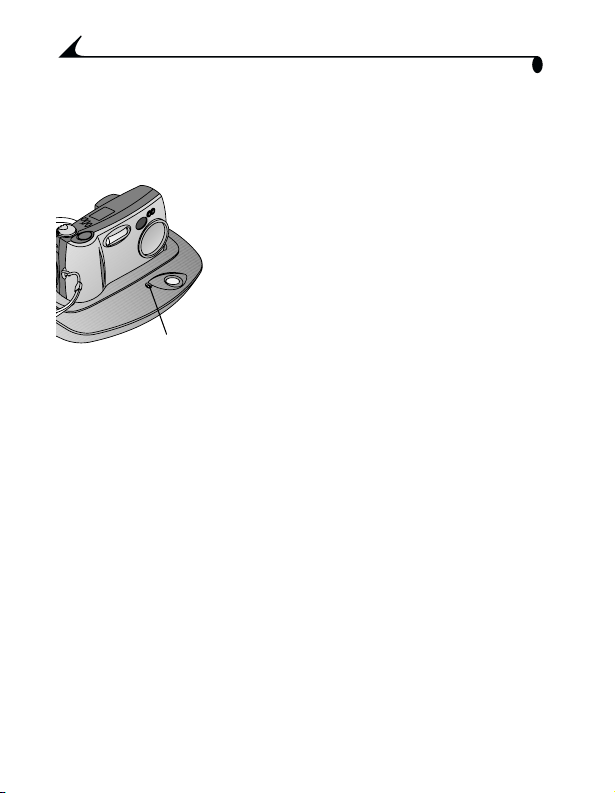

Earlier Camera Dock Model
If you have the KODAK EASYSHARE Camera Dock, not the Camera Dock II, the
functionality is exactly the same as described in this chapter. The only
difference is that the earlier Camera Dock has one indicator light.
Indicator light status:
Steady green—camera is properly seated
in the Camera Dock.
Blinking green— pictures are
transferring.
Steady red—Battery Pack is charging.
Blinking red—error condition.
Indicator light
57
9 Troubleshooting
This chapter contains help for your KODAK EASYSHARE CX4230 Zoom Digital
Camera or Camera Dock II.
Additional technical information is available in the ReadMe file located on the
KODAK EASYSHARE Software CD. For updates to Troubleshooting information,
visit our Web site at http://www.kodak.com/go/cx4230support.
Troubleshooting—Camera
Camera Problems
Camera
Problem Cause Solution
Camera does not
turn on.
Battery is not properly
installed.
Remove and reinstall the
batteries (page 4).
Battery is not charged. Replace or recharge the
batteries (page 4, page 54).
On/Off switch is not
completely in the On
position.
Turn the camera off then
back on (page 5).
58
Chapter 9
Camera does not
turn off; lens does
not retract.
Alkaline batteries were
installed in the camera.
DO NOT USE ALKALINE
BATTERIES. Turn off the
power switch, remove the
alkaline batteries, and
replace with an approved
battery type (page 85).
If the power switch is on
when you replace the
batteries, the camera may
not turn back on. In that
case, turn the power switch
off, then on.
Shutter button does
not work.
Camera is not turned on. Turn on the camera
(page 5).
The camera is
processing a picture; the
ready light is blinking.
Wait until the light stops
blinking before attempting
to take another picture.
The card or internal
memory is full.
Transfer pictures to your
computer (page 47), delete
pictures from the camera
(page 28), switch storage
locations (page 10), or
insert a card with available
memory (page 9).
Camera
Problem Cause Solution
59
Chapter 9
Part of the picture
is missing.
Something was blocking
the lens when the
picture was taken.
Keep hands, fingers, or other
objects away from the lens
when taking pictures.
Your eye or the picture
was not centered
correctly in the
viewfinder.
Leave space around subject
when centering picture in
viewfinder.
In Review mode,
you do not see a
picture on the LCD
or do not see the
picture you
expected.
The camera may not be
accessing the correct
storage location.
Check the picture storage
location setting (page 10).
In Review mode,
pictures are
displayed as black
screens.
The pictures were taken
with a different camera
or were generated with
other software.
Transfer the pictures to the
computer (page 47), or
delete the picture (page 28).
Camera
Problem Cause Solution
60
Chapter 9
Picture is too dark. Flash is not on or did not
function.
Turn on the flash (page 16).
The subject is too far
away for the flash to have
an effect.
Move so there is no more
than the following distance
between the camera and the
subject: 12.8 ft (3.9 m) in
Wide angle; 7.5 ft (2.3 m) in
Telephoto.
The subject is in front of
a bright light (backlit).
Use Fill flash (page 16) or
change your position so the
light is not behind the
subject.
Lighting condition is too
dark.
Increase exposure
compensation (page 21).
Camera freezes up
when a card is
inserted or
removed.
Camera detects an error
when the card was
inserted or removed.
Turn the camera off, then
back on. Make sure the
camera is turned off before
inserting or removing a
card.
Picture is too light. The flash is not needed. Change to Auto flash
(page 16).
The subject was too
close when the flash was
used.
Move so there is at least 1.6
ft (0.5 m) between the
camera and the subject.
Lighting condition is too
bright.
Decrease exposure
compensation (page 21).
Camera
Problem Cause Solution
61
Chapter 9
Stored pictures are
damaged.
The card was removed
when the ready light was
blinking.
Make sure the ready light is
not blinking before
removing the card.
Pictures remaining
number does not
decrease after
taking a picture.
Picture does not take up
sufficient space to
decrease the picture
remaining number.
The camera is operating
normally. Continue taking
pictures.
Picture is not clear. The lens is dirty. Clean the lens (page 82).
Subject too close when
taking picture.
Move so there is at least 1.6
ft (0.5 m) between the
camera and the subject; or
turn on Close-up (page 19).
Camera may be in Close-
up (page 19) and the
subject is too far away
for proper focus.
Turn off Close-up (page 19).
Subject or the camera
moved while the picture
was taken.
Hold the camera steady
while taking the picture.
The subject is too far
away for the flash to be
effective.
Move so there is no more
than the following distance
between the camera and the
subject: 12.8 ft (3.9 m) in
Wide angle; 7.5 ft (2.3 m) in
Telephoto.
Camera
Problem Cause Solution
62
Chapter 9
Slide show does
not run on external
video device.
Video Out setting is
incorrect.
Adjust the camera Video Out
setting (NTSC or PAL,
page 40).
External device is set
incorrectly.
Refer to the external device’s
user’s guide.
Slide show does
not run on LCD
screen.
The camera may not be
accessing the correct
storage location.
Check the picture storage
location setting (page 10).
Camera
Problem Cause Solution
63
Chapter 9
Camera/Computer Communications
Camera Communications
Problem Cause Solution
The computer
cannot
communicate with
the camera.
There is a problem with
the configuration of the
USB port on your
computer.
See the following file on the
KODAK EASYSHARE Software
CD: USB.html
Or, go to: www.kodak.com/
go/camerasupport
Camera power is off. Turn on the camera
(page 5).
Battery is not charged. Replace or recharge the
batteries (page 4, page 54).
Some Advanced Power
Management utilities on
laptops can turn off
ports to save battery life.
See the Power Management
section of your laptop user’s
guide to disable this feature.
USB cable is not
securely connected.
Connect cable to camera and
computer port (page 47).
Software is not installed. Install the software
(page 45).
There are too many
applications running on
your computer.
Disconnect your camera
from the computer. Close all
software applications,
reconnect your camera and
try again.
The Battery Monitor or
similar software runs
constantly.
Close that software before
starting the KODAK Software.
64
Chapter 9
Cannot transfer
pictures to
computer. The Add
New Hardware
Wizard cannot
locate drivers.
Software is not installed
on computer.
m Disconnect USB cable, or
Camera Dock, from
computer.
m Install KODAK
EASYSHARE Software
(page 45).
Cannot transfer
pictures to
computer.
Software is not fully or
correctly installed on
computer.
m Disconnect USB cable, or
Camera Dock, from
computer.
m Uninstall the software:
Start
→Settings→
Control Panel→Add/
Remove Programs
m Re-install KODAK
EASYSHARE Software
(page 45).
Camera Communications
Problem Cause Solution
65
Chapter 9
MMC/SD Cards
MMC/SD Card
Problem Cause Solution
The camera does not
recognize your
MMC/SD card.
The card may not be
MMC/SD certified.
Purchase a certified MMC/SD
card (page 9).
The card may be
corrupt.
Reformat the card (page 41).
Caution: Formatting erases all
pictures from the card.
No card is inserted in
camera or card is not
fully inserted.
Insert a card into the card slot,
then push to seat the connector
(page 9).
Camera freezes up
when a card is
inserted or removed.
Camera detects an
error when the card
was inserted or
removed.
Turn the camera off, then back
on.
Make sure the camera is off when
inserting or removing a card.
66
Chapter 9
Camera LCD Messages
LCD Messages
Message Cause Solution
No images to display There are no pictures
in the current storage
location.
Change your picture
storage location setting
(page 10).
Memory card requires
formatting
The card is corrupted
or formatted for
another digital camera.
Insert a new card or format
the card (page 41).
Memory card cannot
be read (Please format
memory card or insert
another card)
Internal memory
requires formatting
The camera internal
memory is corrupted.
Format the internal
memory (page 41).
Internal memory
cannot be read (Please
format internal
memory)
No memory card, Files
not copied
There is no card in the
camera. Your pictures
were not copied.
Insert a card.
Not enough space to
copy files
There is not enough
space in the location
you are copying to
(internal memory or
the card).
Delete pictures from the
location you are copying to
(page 28), or insert a new
card.
Read only card, change
to internal memory to
capture
The card in the camera
is write-protected.
To take a picture, insert a
new card or change storage
location to internal
memory (page 10).
67
Chapter 9
Card is protected
(Reset switch on card)
Switch on card is in
write-protect position.
Reset the switch as shown
on LCD.
Card is locked The card in the camera
is write-protected.
To take a picture, insert a
new card or change storage
location to internal
memory (page 10).
Date/Time entry screen
appears automatically
This is the first time you
turned on the camera;
or the batteries have
been removed for an
extended period of
time; or the batteries
are exhausted.
Reset the clock (page 7).
High camera
temperature. (Camera
will be turned off.)
The internal
temperature of the
camera is too high for
the camera to operate.
The viewfinder light
glows red and the
camera will turn off in
five seconds.
Leave the camera off for
several minutes, then turn
it back on.
If the message reappears,
repeat the sequence above
until the message does not
appear.
Memory Card is full There is no more space
on the card in the
camera.
Delete pictures from the
card (page 28), insert a
new card, or change
storage location to internal
memory (page 10).
LCD Messages
Message Cause Solution
68
Chapter 9
Internal Memory is full There is no more space
in the camera’s internal
memory.
Delete pictures from the
internal memory (page 28)
or change storage location
to Auto and insert card
(page 10).
Unrecognized File
Format
The camera cannot
read the picture format.
Transfer the unreadable
picture to the computer
(page 47), or delete the
picture (page 28).
No Address Book in
Camera
No email addresses
appear because there is
no address book.
Create and copy address
book from your computer.
See KODAK EASYSHARE
Software Help.
LCD Messages
Message Cause Solution
69
Chapter 9
Camera Ready Light Status
Camera Ready Light
Problem Cause Solution
Ready light does not
turn on and the
camera does not
work.
Camera is not turned
on.
Turn on the camera
(page 5).
Batteries are
exhausted.
Replace or recharge the
batteries (page 4, page 54).
Power switch was on
when batteries were
reloaded.
Turn camera off, then back
on.
Ready light glows
steady green.
Camera is on; ready
to take a picture.
The camera is operating
normally.
Ready light blinks red. Batteries are low or
exhausted.
Replace or recharge the
batteries (page 4, page 54).
Ready light
70
Chapter 9
Ready light glows
steady red.
Camera’s internal
memory or card is
full.
Transfer pictures to your
computer (page 47), delete
pictures from the camera
(page 28), switch storage
locations (page 10), or
insert a card with available
memory.
Camera processing
memory is full.
Wait. Resume picture taking
when the light turns green.
Your card is read-
only.
Change your storage location
to internal memory (see
page 10), or use a different
card.
Ready light blinks
green.
Picture is being
processed and saved
to the camera.
Camera is operating
normally.
Ready light blinks
orange.
Flash is not charged. Wait. Resume picture taking
when the light stops blinking
and turns green.
Auto exposure or
auto focus are not
locked.
Release the Shutter button
and recompose the picture.
Camera Ready Light
Problem Cause Solution
71
Chapter 9
Troubleshooting—Camera Dock II
Camera Dock II Problems
Camera Dock
Problem Cause Solution
Pictures are not
transferred to the
computer
AC adapter or USB
cable is not
securely
connected.
Check the connections (page 51).
Software is not
installed.
Install the software (page 45).
There are too
many applications
running on your
computer.
Close all software applications
and try again.
Camera was
removed from the
Camera Dock
during picture
transfer.
Replace the camera on the
Camera Dock and press the
Connect button.
Connect button
was not pressed.
Press the Connect button.
72
Chapter 9
Camera Dock II Light Status
Camera Dock Power/Transfer Light
Light Status Cause Comment
Light glows steady
green
Camera is properly seated in
the Camera Dock.
The camera and Camera
Dock are operating
normally.
Light blinks green Pictures are being
transferred to the computer.
Light is off Camera is not properly
seated in Camera Dock.
Remove the camera and
re-seat it (page 53).
Camera Dock Charging Lights
Light Status Cause Comment
No lights
Charging has not
started.
The camera is not in the Camera
Dock.
Camera is turned on. Turn off to
begin charging.
Battery in camera is not a
KODAK EASYSHARE Ni-MH
Rechargeable Battery Pack.
Power/Transfer
light
Battery charging
lights
73
Chapter 9
One green light
Battery is low. The camera and Camera Dock
are operating normally.
Two green lights
Battery is partially
charged.
Three green lights
Battery is fully
charged.
Camera Dock Error Light
Light Status Cause Comment
One blinking red
light
Battery Pack is installed
incorrectly.
Reinstall the Battery Pack
(page 52).
The Battery Pack or
connector pins are
damaged.
Check for damage.
The camera and Battery
Pack have been exposed to
very high or low
temperatures.
Slowly return the camera
and Battery Pack to room
temperature.
Battery in camera is not
rechargeable or no Battery
Pack is installed in camera.
Install a KODAK
EASYSHARE Ni-MH
Rechargeable Battery
Pack (page 52).
Camera Dock Charging Lights
Light Status Cause Comment
75
10Getting Help
Helpful Web Links
Help in this User Guide
See Chapter 9, Troubleshooting, for help with problems you may have with
your camera, camera/computer connections, Camera Dock, or MMC/SD cards.
Software Help
For help with the software included on the KODAK EASYSHARE Software CD,
see the Quick Start Guide or KODAK EASYSHARE Software Help.
http://www.kodak.com/go/pcbasics For help navigating through a
WINDOWS-based computer and
working with digital pictures.
http://www.kodak.com/go/cx4230support For help with your KODAK
EASYSHARE CX4230 Zoom
Digital Camera
http://www.kodak.com/go/cx4230downloads To download the latest camera
software and firmware
http://www.kodak.com/go/onetouch To optimize your printer for
prints with truer, vibrant colors
http://www.kodak.com/go/camerasupport For product support on cameras,
software, accessories, and more
http://www.kodak.com/go/accessories To purchase a full range of
digital camera accessories
76
Chapter 10
Telephone Customer Support
If you have questions concerning the operation of the software or camera, you
may speak directly to a customer support representative.
Before You Call
Before you call to speak to a customer support representative, please have the
camera connected to your computer, be at your computer, and have the
following information available:
Operating system__________________________________________
Processor speed (MHz) _____________________________________
Computer model __________________________________________
Amount of memory (MB) ____________________________________
Exact error message you received_______________________________
Version of installation CD____________________________________
Camera serial number______________________________________
77
Chapter 10
Telephone Numbers
Australia 1800 147 701
Austria/Osterreich 0179 567 357
Belgium/Belgique 02 713 14 45
Brazil 0800 15 0000
Canada 1 800 465 6325
China 800 820 6027
Denmark/Danmark 3 848 71 30
Ireland/Eire 01 407 3054
Finland/Suomi 0800 1 17056
France 01 55 1740 77
Germany/Deutschland 069 5007 0035
Greece 00800 441 25605
Hong Kong 800 901 514
India 91 22 617 5823
Italy/Italia 02 696 33452
Japan 81 3 5644 5500
Korea 0798 631 0024
Netherlands/Nederland 020 346 9372
New Zealand 0800 440 786
Norway/Norge 23 16 21 33
Philippines 1 800 1 888 9600
Portugal 021 415 4125
Singapore 800 6363 036
78
Chapter 10
For the most up-to-date listings, visit: http://www.kodak.com/US/en/digital/
contacts/DAIInternationalContacts.shtml.
Spain/España 91 749 76 53
Sweden/Sverige 08 587 704 21
Switzerland/Schweiz/Suisse 01 838 53 51
Taiwan 0080 861 008
Thailand 001 800 631 0017
UK 0870 243 0270
United States 1 800 235 6325
Outside the United States 585 726 7260
International Toll Line +44 131 458 6714
International Toll Fax Number +44 131 458 6962
79
11 Appendix
This appendix serves as a resource for technical information about your
KODAK EASYSHARE CX4230 Zoom Digital Camera, KODAK EASYSHARE Camera
Dock II, MMC/SD cards, batteries, and available accessories.
Camera Specifications
Specifications—KODAK EASYSHARE CX4230 Zoom Digital Camera
Pixel Resolution
(by Quality
setting)
2.0 MP 1632 x 1232, 1/5 JPEG compressed
1.0 MP 1184 x 888, 1/5 JPEG compressed
0.5 MP 816 x 616, 1/5 JPEG compressed
Color 24-bit, millions of colors
Picture File Format EXIF 2.2 (JPEG compression)
Picture Storage 16 MB internal memory
MMC (MultiMedia) or SD card
Viewfinder Optical real image
ISO Sensitivity Automatic (100, 200)
Flash Range Wide 1.6 to 12.8 ft (0.5 to 3.9 m)
Telephoto 1.6 to 7.5 ft (0.5 to 2.3 m)
Tripod Socket .25 in. (6 mm) threaded
Video Out NTSC or PAL
Operating Temperature 32 to 104
° F (0 to 40° C)
80
Chapter 11
Power Batteries 2 Lithium, AA
KODAK CRV3 Lithium Battery
2 Ni-MH, AA rechargeable
Alkaline batteries not recommended
Battery Pack,
Camera Dock
only
KODAK EASYSHARE Ni-MH Rechargeable
Battery Pack, recharge in Camera Dock
only.
Dock provides power to the camera.
3V, DC power in AC adapter not included
Lens Type Optical quality glass
Maximum
Aperture
Wide: f/2.7
Telephoto: f/4.6
Zoom, 6X 3X Optical zoom
2X Digital zoom
Focal Length 36 to 108 mm (equivalent to 35 mm
camera)
.22 to .66 in. (5.6 to 16.8 mm) actual
Focus Distance Standard: 19.7 in. (500 mm) to infinity
Focus Distance,
Close-Up
Wide: 3.4 to 23.6 in. (100 to 600 mm)
Telephoto: 7.9 to 23.6 in. (200 to
600 mm)
Dimensions Width 4.5 in. (115 mm)
Length 1.6 in. (40 mm)
Height 2.6 in. (66 mm)
Weight 7.8 oz (220 g) without batteries or card
Specifications—KODAK EASYSHARE CX4230 Zoom Digital Camera
81
Chapter 11
Original Factory Settings—Camera
Upgrading Your Software and Firmware
Take advantage of the latest enhancements to your Kodak software and camera
firmware. Software refers to the applications included on the KODAK
EASYSHARE Software CD. Camera firmware is the internal software that runs on
the camera.
To download the latest versions of software and firmware, go to: http://
www.kodak.com/go/cx4230downloads
Feature Factory Setting
Close-up Off
Date/Time 2002/1/1; 12:00
Date Stamp Off
Exposure Compensation 0
Flash Auto
Image Storage Auto
Liveview Off
Orientation Sensor On
Print Quantity 1
Quality 2.0 MP (highest resolution)
Quickview On
Self Timer Off
Slide Show Interval 5 seconds
Video Out NTSC
82
Chapter 11
Tips, Safety, Maintenance
m Always follow basic safety precautions. Refer to the “Important Safety
Instructions” booklet packed with your camera.
m Do not allow any chemicals, such as suntan lotion, to come into contact
with the painted surface of the camera.
m If the camera has been subjected to inclement weather or you suspect
water has gotten inside the camera, turn off the camera and remove the
battery and card. Allow all components to air-dry for at least 24 hours
before using the camera again.
m Clean the lens and back LCD:
1 Blow gently on the lens or LCD to remove dust and dirt.
2 Moisten the lens or LCD by breathing lightly on it.
3 Wipe the lens or LCD gently with a soft, lint-free cloth or an untreated
lens-cleaning tissue.
Do not use cleaning solutions unless they are designed specifically for
camera lenses. Do not wipe the camera lens or LCD with chemically
treated eyeglass lens tissue. It may scratch the lens.
m Clean the outside of the camera by wiping with a clean, dry cloth. Never use
harsh or abrasive cleaners or organic solvents on the camera or any of its
parts.
m Service agreements are available in some countries. Please contact a dealer
of Kodak products for more information.
83
Chapter 11
Picture Storage Capacities
Picture file sizes can vary. You may be able to store more or fewer pictures.
Purchase cards on our Web site at http://www.kodak.com/go/accessories.
Locating Pictures on an MMC/SD Card
Pictures stored on MMC/SD Cards use a standard agreed upon by many camera
manufacturers. This lets you use the cards in different cameras. If you use a
card reader to retrieve your files, the following description of the card file
structure may be helpful.
MISC folder—contains the order files created when you use the Share
feature to tag files for printing, emailing, and as favorites.
SYSTEM folder—used for updating camera firmware.
DCIM folder—root level folder, contains the 100K4230 folder. Each time you
turn on the camera or insert a different card, any empty folders within the
DCIM folder are removed.
100K4230 subfolder—contains all the pictures on the card.
Store this many pictures at:
Best Better Good
16 MB internal memory 23 48 95
8 MB card 12 23 48
16 MB card 23 48 95
32 MB card 48 95 192
64 MB card 95 192 383
96 MB card 144 288 576
192 MB card 288 576 1152
84
Chapter 11
Card File Naming Conventions
m Pictures are named DCP_nnnn.JPG, and are numbered in the order in
which they are taken. The first picture is named DCP_0001.JPG; the highest
number allowed is DCP_9999.JPG.
m When a card contains a picture named DCP_9999.JPG in the
\DCIM\100K4230 folder, subsequent pictures appear in a new folder
(\DCIM\101K4230), beginning with picture DCP_0001.JPG.
m Even if you transfer pictures to the computer or delete pictures from the
camera, the camera continues to use consecutive numbers for all
subsequent pictures. For example, if the last picture taken was
DCP_0007.JPG and you delete it, the next picture you take is named
DCP_0008.JPG.
m When you insert a different card into your camera, the next picture number
is defined by incrementing the higher of the last picture taken by the
camera, or the highest existing picture number in the folder.
m If you use the card in a camera other than the KODAK EASYSHARE CX4230
Zoom Digital Camera, and that camera manufacturer adheres to this file
structure standard, the \DCIM folder contains a folder named by that
camera. For more information, refer to the documentation that
accompanied that camera.
85
Chapter 11
Using Your Batteries
m Replacement Types—your camera can use the following battery types:
– 2, 1.5 volt AA lithium batteries
– 1, KODAK CRV3 Lithium Battery *
– 1, KODAK EASYSHARE Ni-MH Rechargeable Battery Pack,
rechargeable in the KODAK EASYSHARE Camera Docks *
– 2, 1.2 volt AA Nickel Metal Hydride (Ni-MH) batteries, rechargeable *
* Purchase these batteries on our Web site at http://www.kodak.com/go/
accessories.
For acceptable battery life, and to make sure your camera operates
dependably, we do not recommend or support alkaline batteries.
m To lengthen battery life, limit the following activities:
– Using Liveview (using the LCD as the viewfinder, see page 14)
– Reviewing your pictures on the LCD (see page 25)
– Excessive use of the flash
m NOT ALL BATTERIES ARE CREATED EQUAL! Battery life depends
significantly on battery age, usage conditions, type, and brand. Digital
camera requirements are very demanding on batteries. Not all batteries
perform well under these challenging conditions. For a comparison of
different battery types, refer to the Battery Option sheet that is included
with your camera.
m Battery performance is reduced at temperatures below 41 °F (5 °C). Carry
spare batteries when using your camera in cold weather, and keep them
warm until you are ready to take pictures. Do not discard cold batteries
that do not work. When they return to room temperature, they may
be usable.
86
Chapter 11
Battery-Saving Features
The LCD or camera turn off when the camera has been inactive.
Optional AC Adapter
To save battery power, purchase a KODAK Digital Camera AC Adapter, 3-Volt on
our Web site at http://www.kodak.com/go/accessories.
m Use the AC Adapter, 3-Volt when reviewing,
copying, and transferring pictures.
m Connect the 3-Volt adapter to the camera’s
DC-in port and to a power outlet.
CAUTION:
Do not use the Digital Camera AC Adapter, 3-Volt with a
KODAK EASYSHARE Camera Dock; it is NOT compatible.
Camera state If no activity, LCD
turns off after:
If no activity,
camera turns
off after:
To reactivate
camera:
LCD Off N/A
8 minutes
(Auto Power-off)
Press any button
LCD On; Liveview,
Review, any menu
screen
1 minute
Quickview on 5 seconds
Slide show 1 minute after slide
show ends
Any state N/A 1 hour
(Camera off)
Turn power
switch off and on
DC-in
port
87
Chapter 11
Camera Dock II Specifications
Specifications—KODAK EASYSHARE Camera Dock II
Communication with
computer
USB Cable included with KODAK
EASYSHARE Cameras
Dimensions
(without insert)
Width/Depth/
Height
5.9 in. /4.1 in. /1.4 in.
(150 mm/104 mm/35 mm)
Weight 5.5 oz (156 g)
Indicator lights Power/
Transfer
Indicates operating/transferring
pictures
Charging, 3
lights
Indicate charging and error conditions
Input voltage 7 ±0.7 V DC
Power DC input AC adapter included with Camera Dock
88
Chapter 11
Regulatory Information
FCC Compliance and Advisory
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) this device may not cause harmful interference,
and 2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase
the separation between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that to which the receiver is
connected; 4) consult the dealer or an experienced radio/TV technician for
additional suggestions.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Where shielded interface cables have been provided with the product or
specified additional components or accessories elsewhere defined to be used
with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
89
Chapter 11
Canadian DOC Statement
DOC Class B Compliance—This Class B digital apparatus complies with
Canadian ICES-003.
Observation des normes-Class B—Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.
VCCI Class B ITE
English translation:
This is a Class B product based on the standard of the Voluntary Control
Council for Interference from Information Technology Equipment (VCCI). If
this is used near a radio or television receiver in a domestic environment, it
may cause radio interference. Install and use the equipment according to the
instruction manual.
91
Index
A
about
camera information, 42
picture information, 32
AC adapter, optional, 86
accessories, buying, 75
adjusting
exposure, 21
picture quality, 22
resolution, 22
alkaline batteries, 4
arrow button, 6
auto
flash, 16
power-off, 86
storage location, 10
B
backlit scenes, 21
batteries
alkaline, 4
charging Battery Pack, 54
extending battery life, 85
loading Battery Pack, 52
loading CRV3, 4
power level icon, 25
replacement types, 85
tips, 85
with Camera Dock, 49
button
delete, 15, 28
flash, 16
four-way/zoom, 6
menu, 10, 34, 35, 36
review, iv
share, 34, 35, 36
shutter, 13
C
cables
power, Camera Dock, 51
power, camera optional, 86
USB, connect camera, 47
USB, connect Dock, 51
video, 3, 30
Camera Dock
charging Battery Pack, 54
docking camera, 53
earlier model, 56
installing insert, 50
lights status, 72
package contents, 49
92
Index
power connection, 51
specifications, 87
transferring pictures, 55
USB connection, 51
using, 49
Canadian compliance, 89
capture mode
accessing menus, 18
overview, 11
returning from other
modes, 18
taking pictures, 13
card, memory,9,10,83,84
caring for your camera, 82
changing storage location, 10
charging Battery Pack, 54
charging lights, Camera Dock
II, 54, 72
cleaning camera, lens, 82
clock, setting, 7
close-up scenes, 19
communication problems, 63
compensation, exposure, 21
computer
connecting camera, 47
connecting Camera Dock, 51
system requirements, 43
transferring pictures, 48, 55
connecting the camera
first, important note, 47
to Camera Dock, 53
to computer, 47
with USB cable, 47
connecting the Camera Dock, 51
contents
Camera Dock package, 49
camera package, 3
copying pictures
memory to card, 31
to computer, 48, 55
cover, lens, iii, 5
CRV3 battery, installing, 4
custom insert, 3, 50
customer support numbers, 76
customizing camera settings, 37
D
date
imprinting on pictures, 23
setting clock, 7
date stamp, 23
DCIM folder, card, 83
defaults
changing print quantity, 38
original factory settings, 81
93
Index
deleting
by formatting, 41
during quickview, 15
last picture, 15
pictures, 28
protected pictures, 28
digital pictures, using, 2, 48
digital zoom, 17
display problems, 59
displaying pictures, 25, 29
distance, close-up, 19
dock insert
custom, 3
universal, 50
Dock, Camera. See Camera
Dock
downloading pictures, 48, 55
E
EASYSHARE Software,
installing, 45
emailing pictures, 35
error light, Camera Dock, 73
error messages, 66
exposure, adjusting, 21
external video device
setting video out, 40
viewing pictures on, 30
F
favorites
icon, 25
tagging for, 36
FCC compliance, 88
features, camera overview, iii–iv
file names, card, 84
fill flash, 16
firmware
upgrading, 75, 81
version, 42
flash features, 16
focus distance, close-up, 19
folders, card, 83
formatting, memory & cards, 41
four-way arrow button, 6
G
guidelines, battery, 85
H
help
telephone support, 76
troubleshooting camera, 57
troubleshooting Camera
Dock, 71
web links, 75
with computers, 75
94
Index
I
icons
camera status, 8
capture menus, 18
picture information, 25
review menus, 26
setup menus, 37
share menus, 33
image storage menu, 10
images. See pictures
information
about camera, 42
about pictures, 32
product support, 75
insert, for Camera Dock
custom,3,50
universal, 49, 50
installing
Battery Pack, 52
CRV3 battery, 4
insert, Camera Dock, 50
MMC/SD card, 9
software, 45
internal memory
change storage location, 10
format, 41
internet, helpful web links, 75
K
KODAK EASYSHARE Software, 48
KODAK software
getting help, 48, 75
installing, 45
transferring pictures, 48
Kodak web sites, 75
L
language, setting, 6
large print, this user guide, 1
LCD (Liquid Crystal Display)
display languages, 6
error messages, 66
picture location icon, 8
reviewing last picture, 15
status bar, 8
turning off quickview, 39
turning on liveview, 39
using as viewfinder, 14
viewing pictures, 27
lens
cleaning, 82
cover, built-in, iii, 5
specifications, 80
lights
Camera Dock, 56
Camera Dock II, 54, 72–73
95
Index
ready, camera, 69
self-timer, camera, iii, 20
links, world wide web, 75
liveview
turning on, 39
using lcd as viewfinder, 14
loading
Battery Pack, 52
CRV3 battey, 4
insert, Camera Dock, 50
MMC/SD card, 9
software, 45
loop, slide show, 30
M
MACINTOSH
installing software on, 45
system requirements, 43, 44
magnify picture, 32
maintenance, camera, 82
memory
internal or card, 10
storage location setting, 10
memory card
inserting, 9
storage capacities, 83
menu button, 10, 34, 35, 36
menus
capture mode, 18
image storage, setting, 10
review mode, 26
setup mode, 37
share mode, 33
tagging pictures, 33
taking pictures, 18
MISC folder, card, 83
MMC/SD card
file name conventions, 84
file structure, 83
formatting, 41
inserting, 9
picture location, 10
printing from, 48
setting storage location, 10
storage capacities, 83
troubleshooting
problems, 65
mode indicator icon, 25
modes
camera, overview, 11
capture, 13, 18
review, 25
setup, 37
share, 33
monitor, requirements, 43
multi-up, viewing
thumbnails, 27
multiple pictures, viewing, 27
96
Index
N
NTSC, video out setting, 40
O
on/off switch, iii, 5
optical zoom, 17
orientation sensor, 24
overview
camera features, iii–iv
camera modes, 11
P
package contents
camera, 3
Camera Dock, 49
PAL, video out setting, 40
picture location icon, 25
picture number icon, 25
pictures
close-ups, 19
copying, 31
date imprint, 23
deleting, 28
downloading, 48, 55
emailing, tagged, 35
file naming, 84
information, viewing, 32
locating on card, 84
magnifying, 32
printing, 48
printing tagged, 34
protecting, 28
quality settings, 22
reviewing, 15, 25
status info, 25
storage capacity, 83
storage location, 10
tagging, 34, 35, 36
taking, 13
transferring to
computer, 48, 55
using on computer, 48
viewing, 27, 30
power
Camera Dock, 51
optional AC adapter, 86
turning camera on, 5
power light, Camera Dock, 72
powerdown, automatic, 86
print icon, 25
print sizes, per quality
setting, 22
printing
changing default quantity, 38
from a card, 48
optimizing printer, 75
pictures, 48
tagged pictures, 34
97
Index
this user guide, 1
protect icon, 25
protecting pictures, 28
Q
quality
print, digital zoom, 17
settings, 22, 83
quickview
deleting pictures, 15
reviewing last picture, 15
turning off, 39
R
ReadMe file, 57
ready light
status, 69
taking pictures, 13
red-eye, flash, 16
regulatory information, 88, 89
removeable memory card, 9
replacement batteries, types, 85
requirements
MACINTOSH OS, 43, 44
WINDOWS-based OS, 43
resolution, setting, 22
return to previous menu, 38
review mode
getting there, 25
menus, 26
overview, 11
picture information, 25
reviewing pictures, 25
reviewing pictures
as you take them, 15
deleting, 28
magnify, 32
on lcd, 27
picture information, 32
protecting, 28
slide show, 29
running slide show, 29
S
safety, 82
SD card, inserting, 9
self-timer, 20
service and support, 76
setting
clock, 7
date and time, 7
flash, 16
language, 6
NTSC/PAL, 40
picture quality, 22
picture storage location, 10
98
Index
resolution, 22
self-timer, 20
video out, 40
setup mode
getting there, 37
overview, 11
returning to previous, 38
using, 37
share button, 34, 35, 36
share mode
email tagging, 35
getting there, 33
overview, 11
print tagging, 34
tagging favorites, 36
shutoff, auto, 86
shutter button
problems, 58
self-timer delay, 20
taking pictures, 13
sleep mode, 86
slide show
continuous loop, 30
problems, 62
running, 29
software
help, 48, 75
installing, 45
upgrading, 75, 81
specifications
camera, 79
Camera Dock II, 87
MACINTOSH OS, 43, 44
WINDOWS-based OS, 43
status, camera, 8
storage capacity, memory, 83
storage location, 10
strap, wrist, 4
support, technical, 75–78
System folder, card, 83
system requirements
MACINTOSH OS, 43, 44
WINDOWS-based OS, 43
T
tagging pictures
for email, 35
for favorites, 36
for print, 34
print quantity default, 38
share mode, 33
when and where, 33
taking pictures
capture mode, 13
changing options, 18
close-up, 19
menus, 18
quality settings, 22
99
Index
using lcd as viewfinder, 14
telephone support, 76
television, viewing pictures, 30
thumbnails, viewing on lcd, 27
time, setting, 7
timer, shutter delay, 20
tips
battery guidelines, 85
maintenance, 82
ReadMe file, 57
safety, 82
transfer light, Camera Dock, 72
transferring pictures to
computer, 48, 55
trash can, deleting
pictures, 15, 28
tripod, connecting, iii, 55
troubleshooting problems
camera, 57
Camera Dock, 71
camera ready light, 69
communications, 63
error messages, 66
MMC/SD card, 65
turning camera on and off, 5
U
universal insert, 50
upgrading software,
firmware, 75, 81
URLs, Kodak web sites, 75
USB cable, connector, iii, 47, 51
V
VCCI compliance, 89
video out, setting, 30, 40
viewfinder
lens, iii
taking pictures, 13
using lcd instead, 14
viewing
camera information, 42
picture information, 32
viewing picture
after taking, 15
magnified, 32
on an external device, 30
on lcd, 27
W
Web links, 75
WINDOWS
installing software, 45
system requirements, 43
wrist strap, attaching, 4
Z
zoom
