Welcome
Congratulations on your purchase of a new
Honda motorcycle. Your selection of a
Honda makes you part of a worldwide family
of satisfied customers who appreciate
Honda's reputation for building quality into
every product.
To ensure your safety and riding pleasure:
●
Read this owner's manual carefully.
●
Follow all recommendations and
procedures contained in this manual.
●
Pay close attention to safety messages
contained in this manual and on the
motorcycle.
To protect your investment, we urge you to
take responsibility for keeping your
motorcycle well serviced and maintained.
Also, observe the break-in guidelines, and
always perform the pre-ride inspection and
other periodic checks in this manual.
When service is required, remember that your
Honda dealer knows your motorcycle best. If
you have the required mechanical “know-how”
and tools, you can purchase an official Honda
Service Manual to help you perform many
maintenance and repair tasks. 2 P. 122
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 123
You may also want to visit our website at
www.powersports.honda.com.
Happy riding!
20181004171657_31K75A300_enu_BOOK Page 2 Thursday, October 04 2018 17:24:28 JST
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this motorcycle safely is
an important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the motorcycle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your motorcycle,
other property, or the
environment.
20181004171657_31K75A300_enu_BOOK Page 3 Thursday, October 04 2018 17:24:28 JST
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions............................................... P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications........................... P. 14
Loading ................................................................ P. 15
20181004171657_31K75A300_enu_BOOK Page 5 Thursday, October 04 2018 17:24:28 JST
This section contains important information for safe riding of your motorcycle.
Please read this section carefully.
Motorcycle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding
onto the grab rails or your waist, leaning with
you in turns, and keeping their feet on the
footpegs, even when the motorcycle is stopped.
Take Time to Learn & Practice
Even if you have ridden other motorcycles,
practice riding in a safe area to become familiar
with how this motorcycle works and handles,
and to become accustomed to the motorcycle's
size and weight.
20181004171657_31K75A300_enu_BOOK Page 6 Thursday, October 04 2018 17:24:28 JST
Safety Guidelines
Motorcycle Safety
3
Continued
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
Other riding tips can be found in the You and
Your Motorcycle Riding Tips booklet that came
with your motorcycle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Don't Drink and Ride
Alcohol and riding don't mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time
gets worse with every additional drink. Don't
drink and ride, and don't let your friends drink
and ride either.
20181004171657_31K75A300_enu_BOOK Page 7 Thursday, October 04 2018 17:24:28 JST
Safety Guidelines
Motorcycle Safety
4
Keep Your Honda in Safe Condition
It's important to keep your motorcycle properly
maintained and in safe riding condition.
Inspect your motorcycle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 15), and do not modify
your motorcycle or install accessories that
would make your motorcycle unsafe (2 P. 14).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your motorcycle. Inspect for
fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebars, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your motorcycle may have suffered damage
that is not immediately apparent. Have your
motorcycle thoroughly checked at a qualified
service facility as soon as possible.
20181004171657_31K75A300_enu_BOOK Page 8 Thursday, October 04 2018 17:24:28 JST
Safety Guidelines
Motorcycle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your motorcycle inside a garage or
other enclosure.
3WARNING
Running the engine of your motorcycle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your motorcycle's engine
when it is located in a well ventilated
area outdoors.
20181004171657_31K75A300_enu_BOOK Page 9 Thursday, October 04 2018 17:24:28 JST
Safety Guidelines
Motorcycle Safety
6

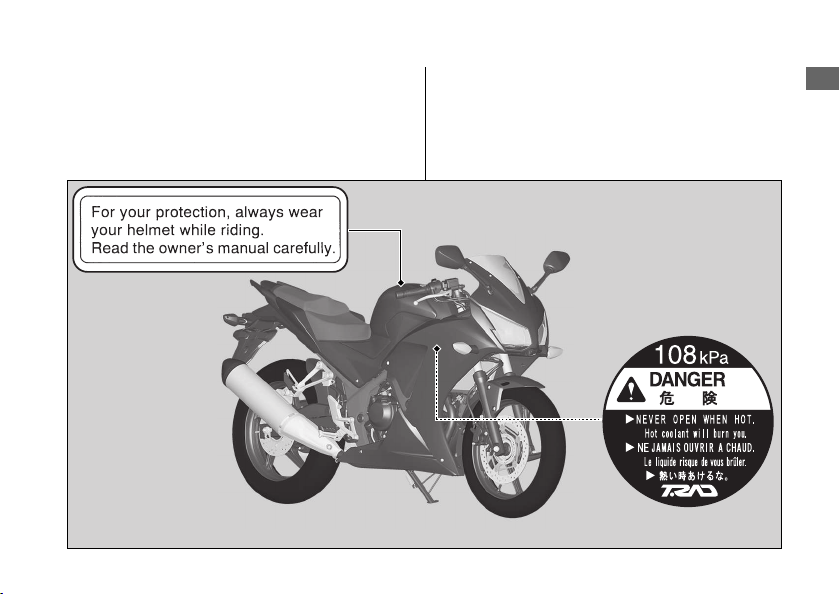

Safety Labels
Safety and information labels on your
motorcycle provide important safety
information and may warn you of potential
hazards that could cause serious injury. Read
these labels carefully and don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
20181004171657_31K75A300_enu_BOOK Page 10 Thursday, October 04 2018 17:24:28 JST
Safety Labels
Motorcycle Safety
7
Continued
20181004171657_31K75A300_enu_BOOK Page 11 Thursday, October 04 2018 17:24:28 JST
Safety Labels
Motorcycle Safety
8
Safety Precautions
● Ride cautiously and keep your hands on the
handlebars and feet on the footpegs.
● Keep passenger's hands onto the grab rails
or your waist, passenger's feet on the
footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective
clothing. Ride defensively in response to
weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
●
Must fit comfortably but securely, with the
chin strap fastened.
● Face shield with unobstructed field of vision
or other approved eye protection
Look for a DOT (Department of Transportation)
certification label on any helmet you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
#
Gloves
Full-finger leather gloves with high abrasion
resistance
20181004171657_31K75A300_enu_BOOK Page 12 Thursday, October 04 2018 17:24:28 JST
Safety Precautions
Motorcycle Safety
9
Continued
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your
motorcycle's future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
20181004171657_31K75A300_enu_BOOK Page 13 Thursday, October 04 2018 17:24:28 JST
Riding Precautions
Motorcycle Safety
10
Brakes
Observe the following guidelines:
● Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the
motorcycle's stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
#
Anti-lock Brake System (ABS)
CBR300RA
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
● ABS does not function at speeds below 6
mph (10 km/h).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
● Always use the recommended front/rear
tires and sprockets to ensure correct ABS
operation.
20181004171657_31K75A300_enu_BOOK Page 14 Thursday, October 04 2018 17:24:28 JST
Riding Precautions
Motorcycle Safety
11
Continued
#
Engine Braking
Engine braking helps slow your motorcycle
down when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the motorcycle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebars and remove the key when
leaving the motorcycle unattended.
Use of an anti-theft device is also
recommended.
20181004171657_31K75A300_enu_BOOK Page 15 Thursday, October 04 2018 17:24:28 JST
Riding Precautions
Motorcycle Safety
12
#

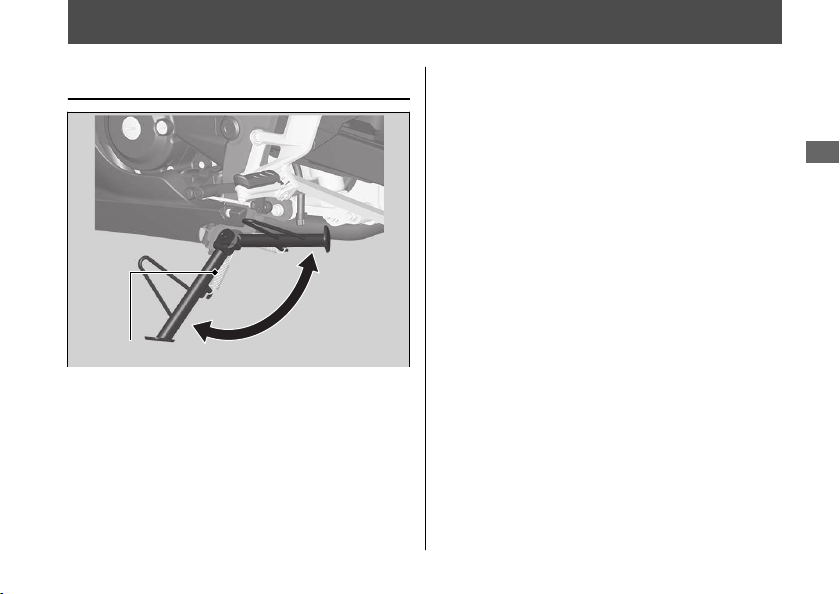

Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the motorcycle to the left until its
weight rests on the side stand.
4.
Turn the handlebars fully to the left.
u Turning the handlebars to the right
reduces stability and may cause the
motorcycle to fall.
5.
Turn the ignition switch to the LOCK
position and remove the key. 2 P. 26
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 121
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
20181004171657_31K75A300_enu_BOOK Page 16 Thursday, October 04 2018 17:24:28 JST
Riding Precautions
Motorcycle Safety
13
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your motorcycle by Honda or
make modifications to your motorcycle from its
original design. Doing so can make it unsafe.
Modifying your motorcycle may also void your
warranty and make your motorcycle illegal to
operate on public roads. Before deciding to
install accessories on your motorcycle be certain
the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your motorcycle. Your motorcycle was not
designed for these attachments, and their use
can seriously impair your motorcycle's handling.
20181004171657_31K75A300_enu_BOOK Page 17 Thursday, October 04 2018 17:24:28 JST
Accessories & Modifications
Motorcycle Safety
14

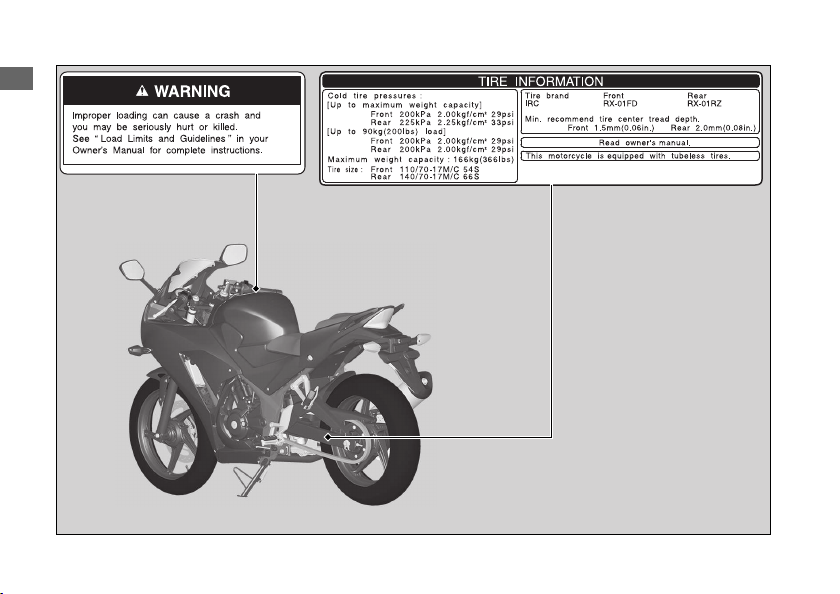

Loading
● Carrying extra weight affects your
motorcycle's handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity/Maximum
weight in storage compartment 2 P. 127
● Tie all luggage securely, evenly balanced
and close to the center of the motorcycle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
20181004171657_31K75A300_enu_BOOK Page 18 Thursday, October 04 2018 17:24:28 JST
Loading
Motorcycle Safety
15

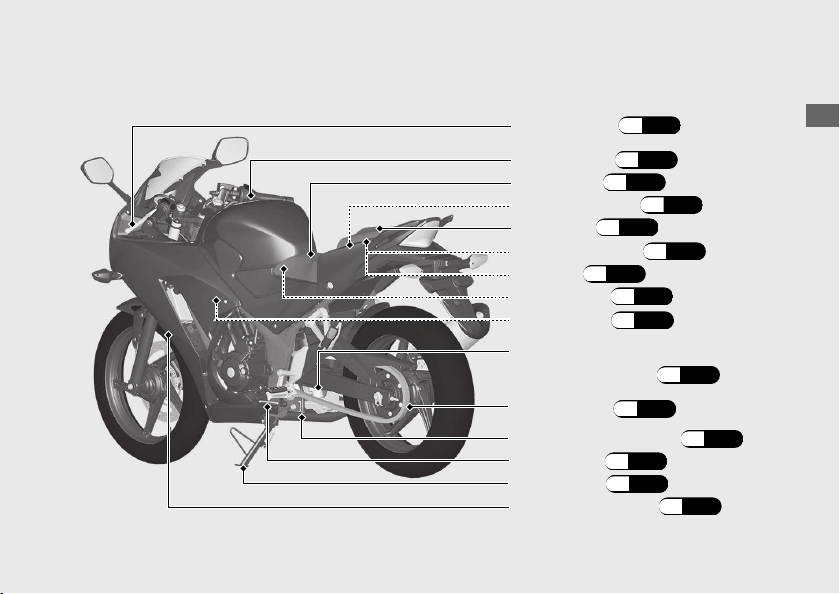

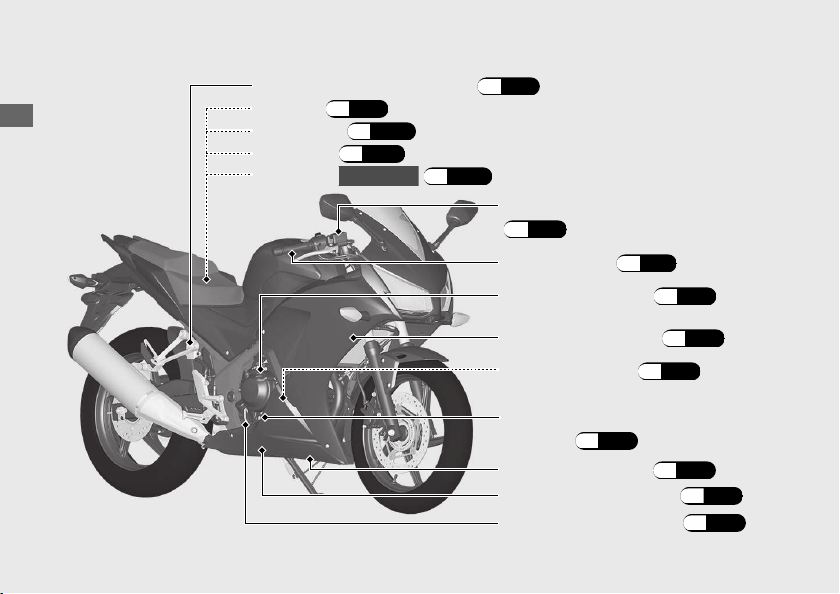

Parts Location
20181004171657_31K75A300_enu_BOOK Page 19 Thursday, October 04 2018 17:24:28 JST
Operation Guide
16

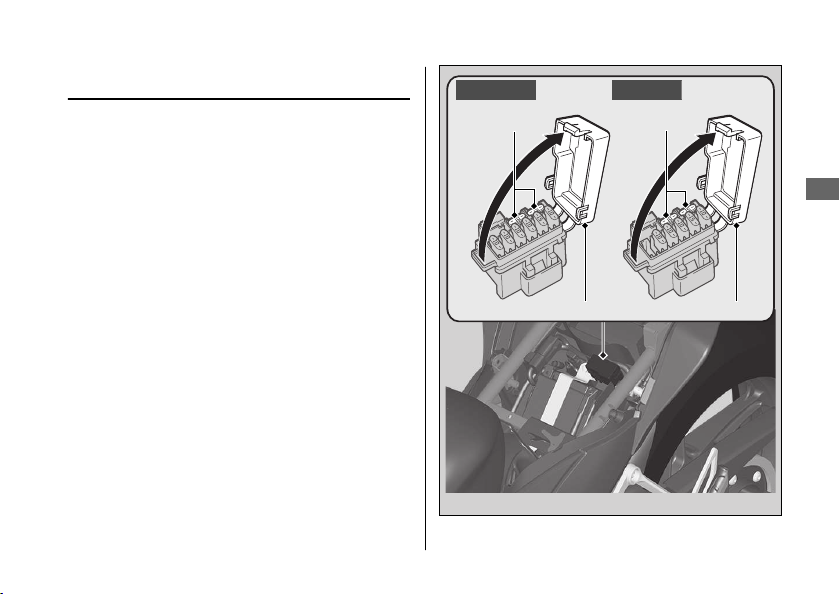

Fuse box (P.101)
Battery (P.53)

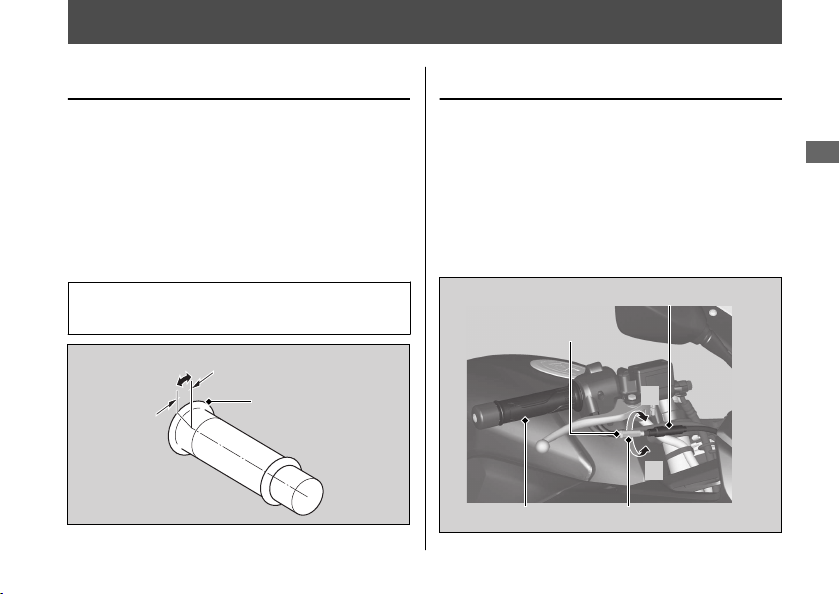

Throttle grip (P.81)
Coolant reserve tank (P.68)

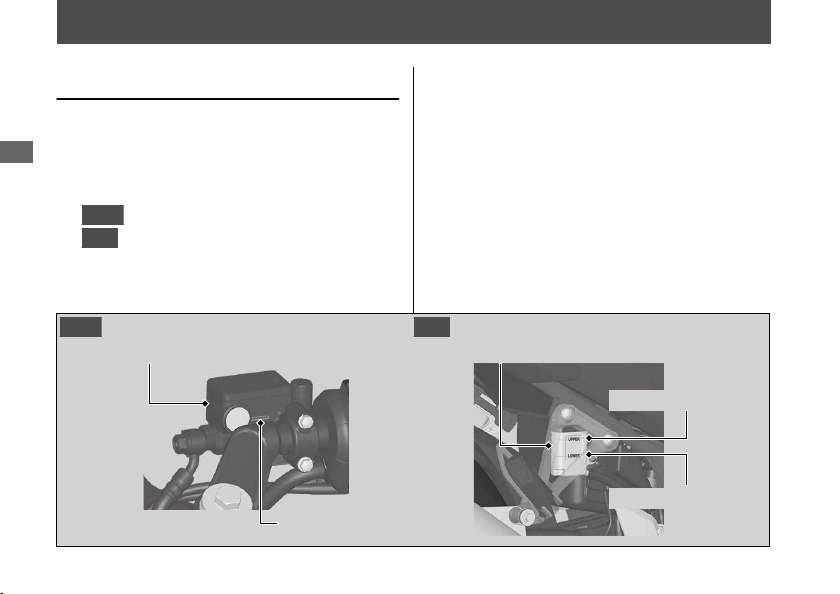

Rear brake fluid reservoir (P.70)
Engine oil fill cap (P.63)
Right middle cowl (P.56)
Front brake fluid reservoir
(P.70
)
Main fuse (P.102)
ABS fuse
CBR300RA
(P.103)

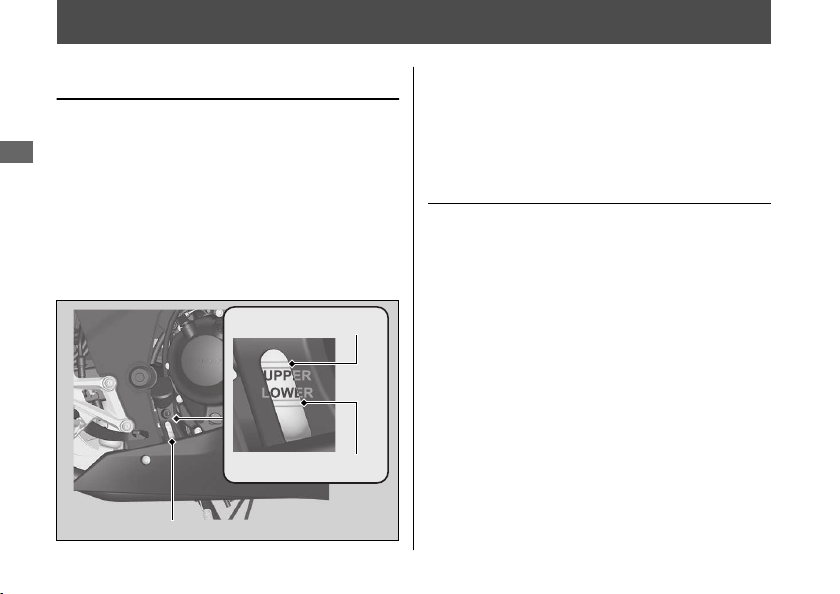

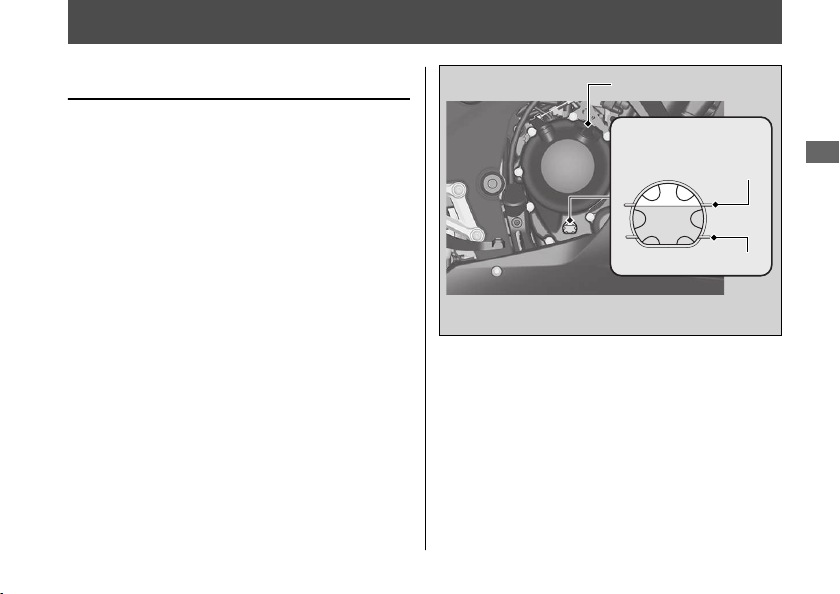

Engine oil level inspection
window
(P.63
)
Engine oil filter (P.65)

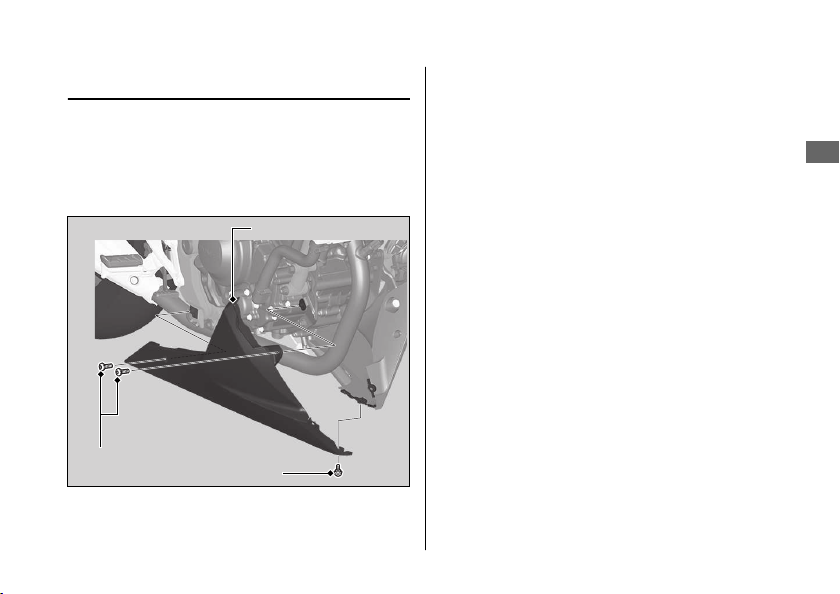

Right under cowl (P.59)
Engine oil drain bolt (P.65)
20181004171657_31K75A300_enu_BOOK Page 20 Thursday, October 04 2018 17:24:28 JST
Operation Guide
17

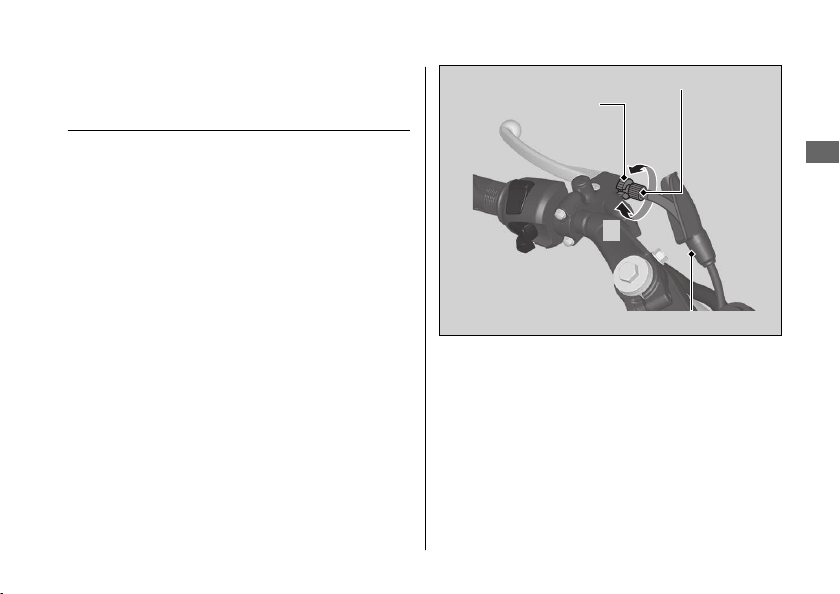

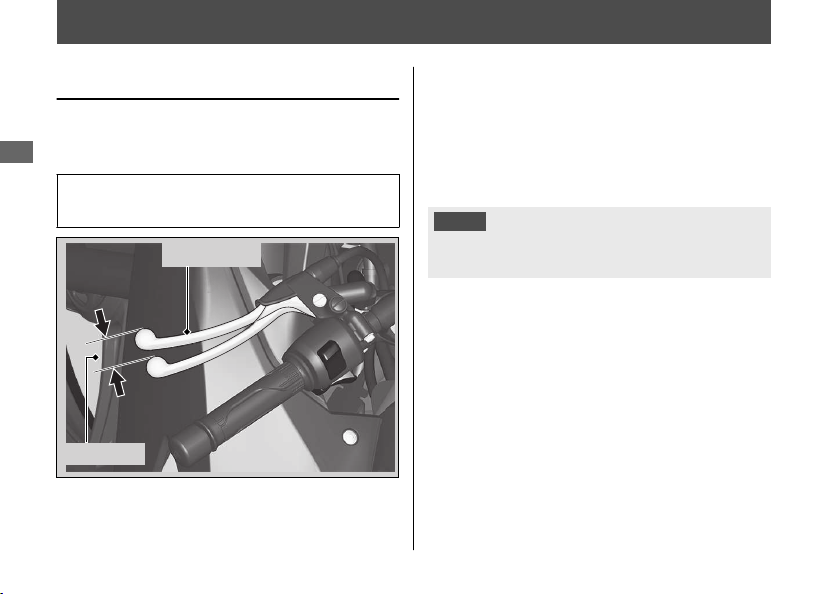

Clutch lever (P.78)

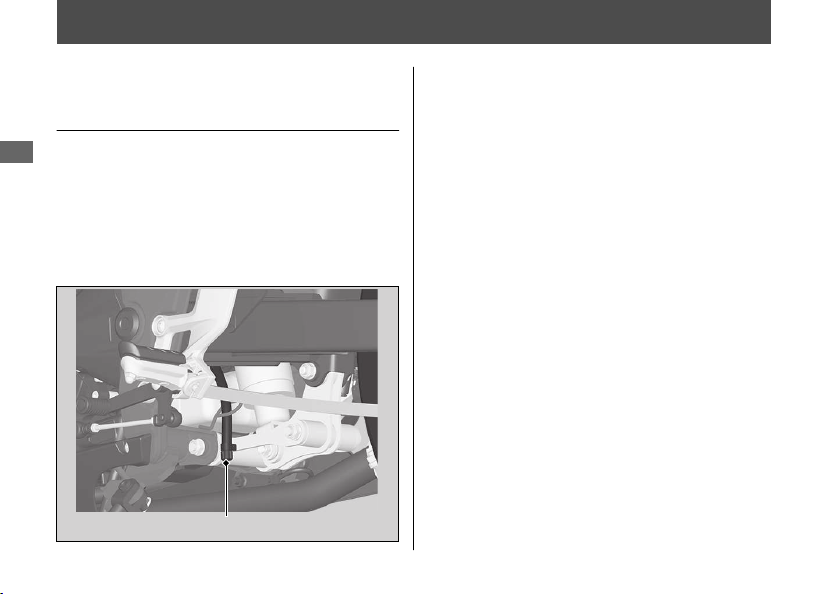

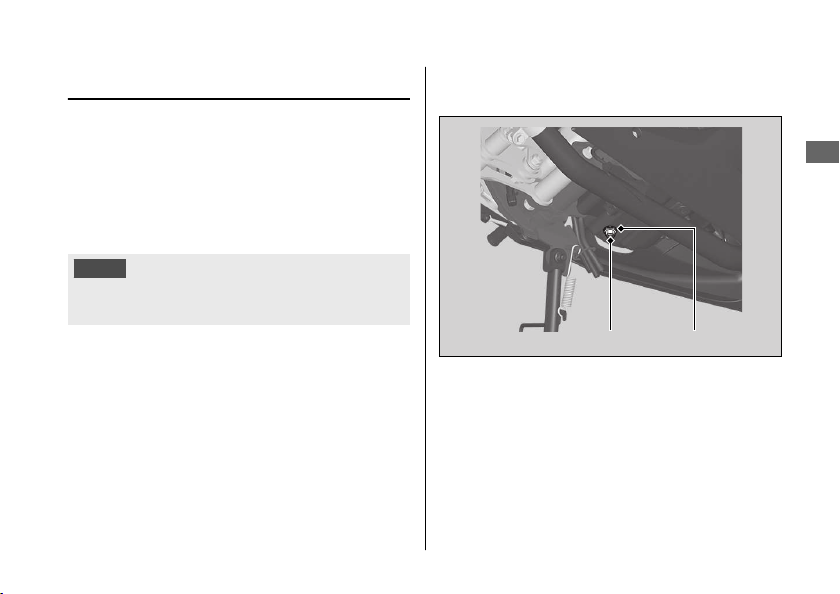

Crankcase breather (P.82)
Fuel fill cap (P.29)
Document bag (P.30)

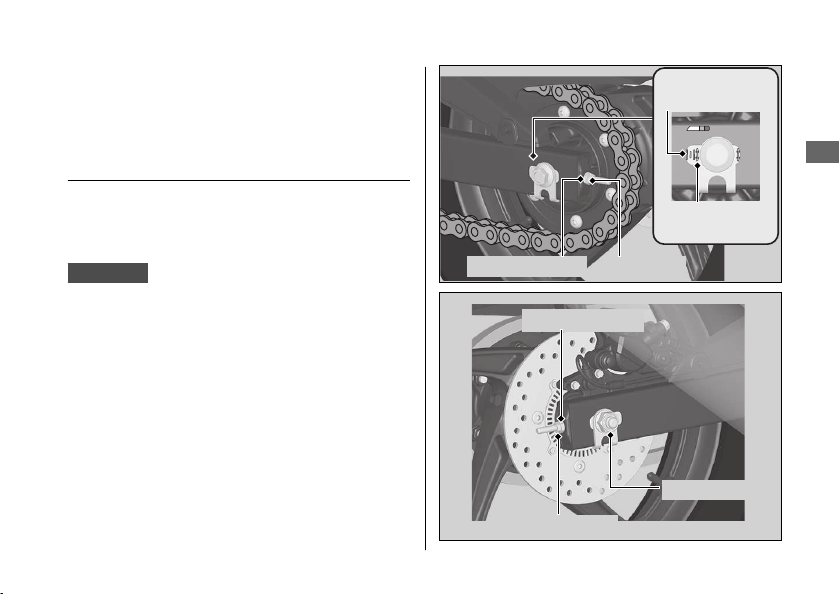

Drive chain (P.74)

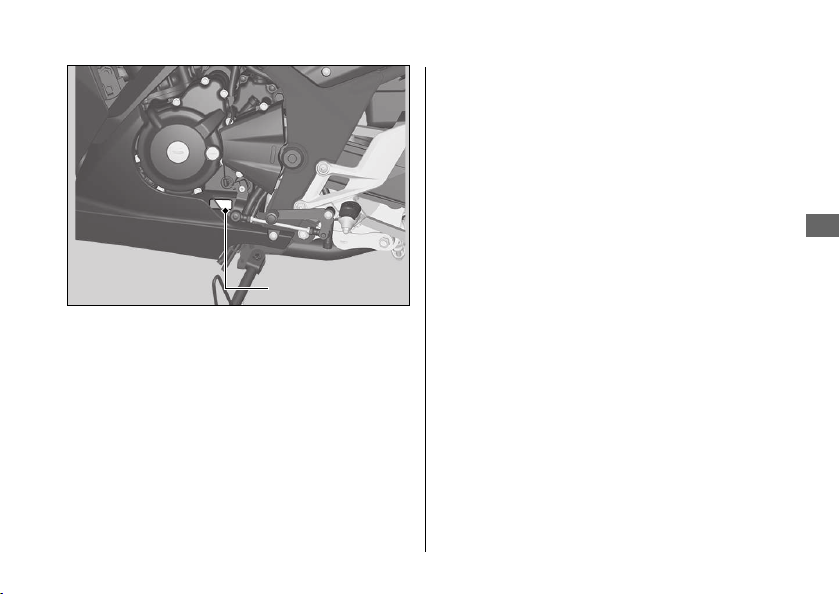

Side stand (P.73)
Shift lever (P.28)

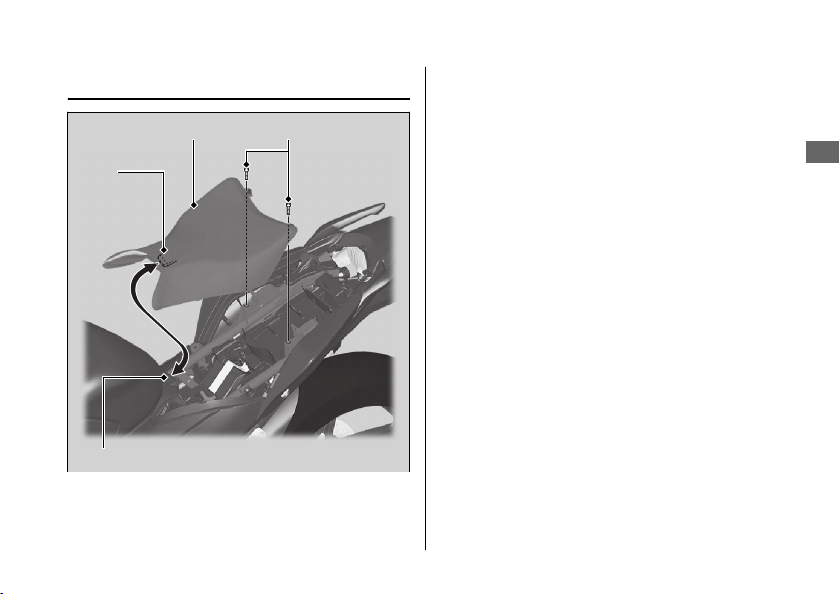

Front seat (P.55)
Rear seat (P.58)

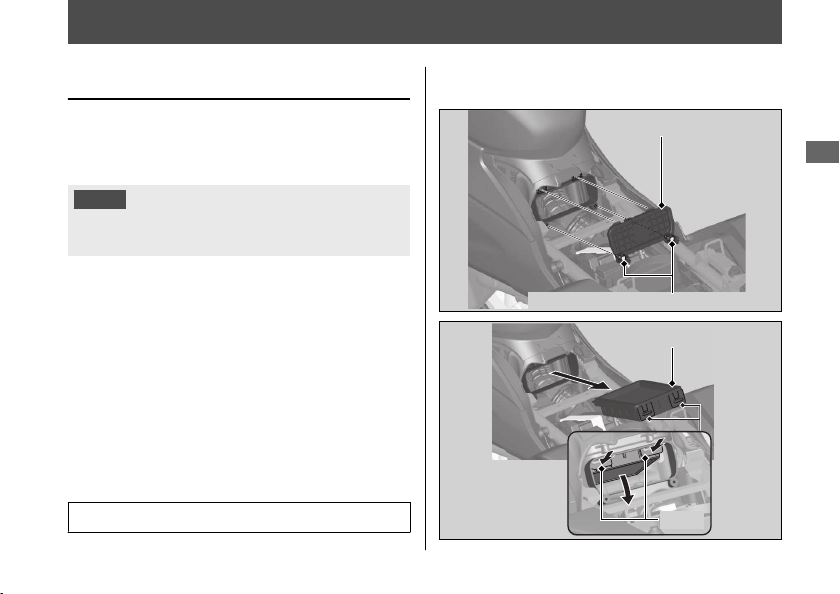

Tool kit (P.30)
Left middle cowl (P.56)

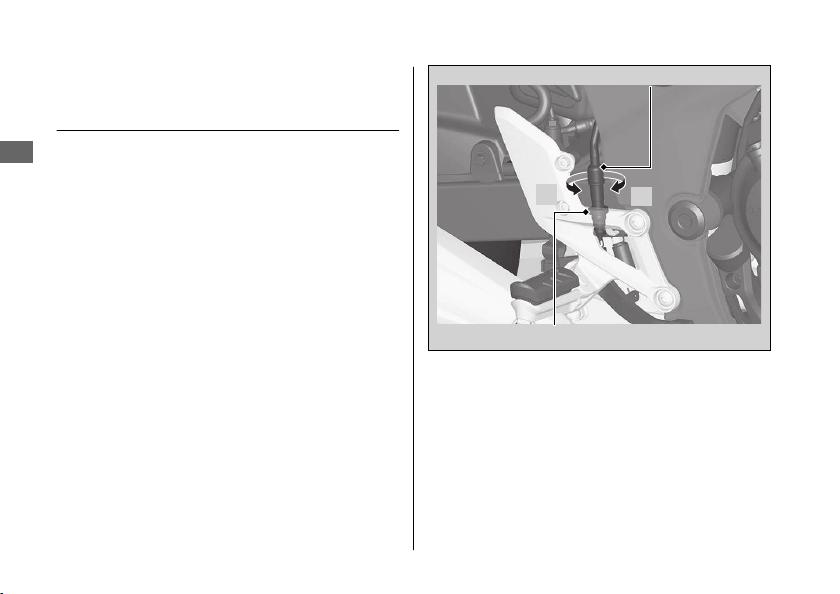

Rear suspension spring
preload adjuster
(P.84
)
Spark plug (P.60)
Air cleaner (P.67)
Helmet holder (P.30)

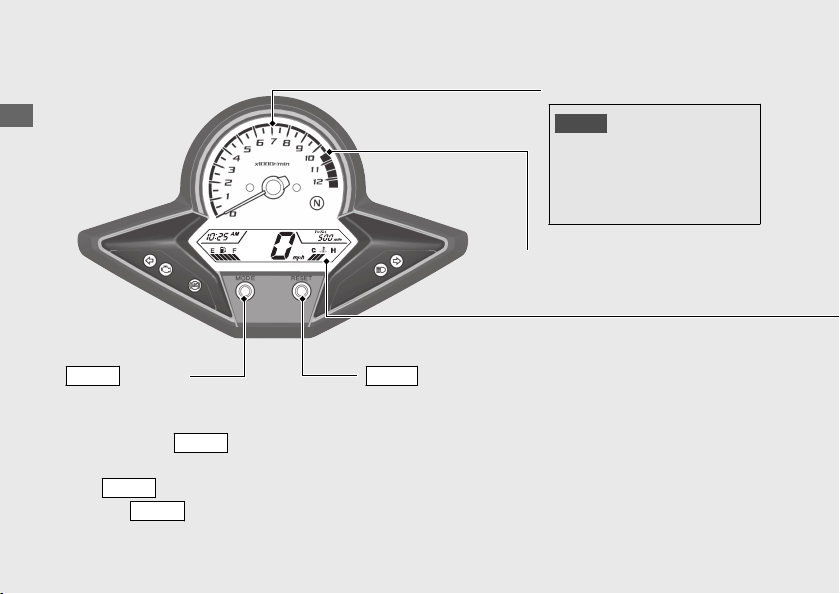

Instruments
20181004171657_31K75A300_enu_BOOK Page 21 Thursday, October 04 2018 17:24:28 JST
Operation Guide
18
Tachometer
NOTICE
Do not operate the engine in
the tachometer red zone.
Excessive engine speed can
adversely affect engine life.
Tachometer red zone
(excessive engine rpm range)
RESET
button
Changing the Speed and Mileage Unit
Press and hold
MODE
button to change the speed and mileage units (“mph” and “mile” /
“km/h” and “km”) for the speedometer, odometer and tripmeter at normal display.
MODE
button
Press
MODE
button to select either “mph” and “mile” or “km/h” and “km”, then press
and hold
MODE
button to set.
20181004171657_31K75A300_enu_BOOK Page 22 Thursday, October 04 2018 17:24:28 JST
Operation Guide
19
Continued
Remaining fuel when only 1st (E) segment
starts flashing:
approximately 0.82 US gal (3.1 L)
Fuel gauge
Speedometer
If any part of these displays does not come on when it should, have your dealer check for
problems.
When the ignition switch is turned to the ON position, all the mode and digital segments
will show.
Display Check
Coolant temperature gauge ( )
When the coolant is over specified
temperature, the segment H flashes.
If it comes on while riding: (P.87)
If the fuel gauge indicator flashes in
a repeat pattern or turns off:
(P.89
)
20181004171657_31K75A300_enu_BOOK Page 23 Thursday, October 04 2018 17:24:28 JST
Operation Guide
20
Instruments (Continued)
Clock (12-hour display)
Odometer [TOTAL] & Tripmeter
[TRIP]
MODE
button switches between
odometer and tripmeter.
• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since
tripmeter was reset (press and
hold
RESET
button to reset to
0.0 mile/km).
MODE
button
RESET
button
To set the clock:
a
Turn the ignition switch to the ON position.
b
Press and hold
MODE
and
RESET
buttons
until the hour digits start flashing.
c
Press
RESET
button until the desired hour
and AM/PM are displayed.
u
Press and hold
RESET
button to
advance the hour fast.
d
Press
MODE
button. The minute digits start
flashing.
e
Press
RESET
button until the desired minute
is displayed.
u Press and hold
RESET
button to
advance the minute fast.
f
Press
MODE
button. The clock is set.
If
MODE
button was not pressed during
the adjustment, adjustment will be
cancelled by the following conditions.
u No buttons were pressed for about
30 seconds.
u Turn the ignition switch to the OFF
position and then to the ON position.
20181004171657_31K75A300_enu_BOOK Page 24 Thursday, October 04 2018 17:24:28 JST
Operation Guide
21

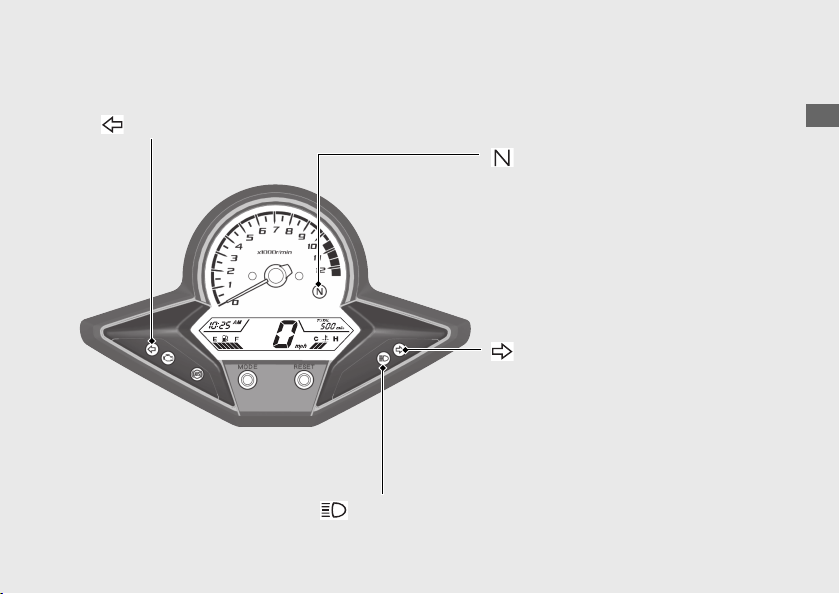

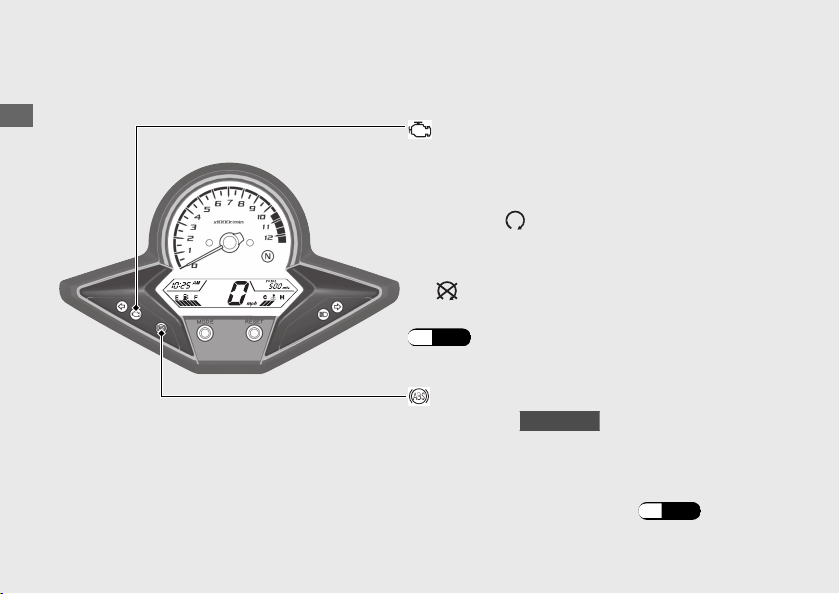

Indicators
20181004171657_31K75A300_enu_BOOK Page 25 Thursday, October 04 2018 17:24:28 JST
Operation Guide
22
Comes on briefly when the ignition switch is
turned to the ON position with the engine stop
switch in the
(Run) position.
If it comes on while engine is running:
(P.88
)
PGM-FI (Programmed Fuel Injection)
malfunction indicator lamp (MIL)
If one of these indicators does not come on when it should, have your dealer check for
problems.
ABS (Anti-lock Brake System)
indicator
CBR300RA
Comes on when the ignition switch is turned
to the ON position. Goes off when your speed
reaches approximately 6 mph (10 km/h).
If it comes on while riding: (P.88)
Comes on when the ignition switch is turned to
the ON position with the engine stop switch in
the
(Stop) position.
20181004171657_31K75A300_enu_BOOK Page 26 Thursday, October 04 2018 17:24:28 JST
Operation Guide
23
Right turn signal indicator
Left turn signal indicator
High beam indicator
Neutral indicator
Comes on when the transmission is
in Neutral.

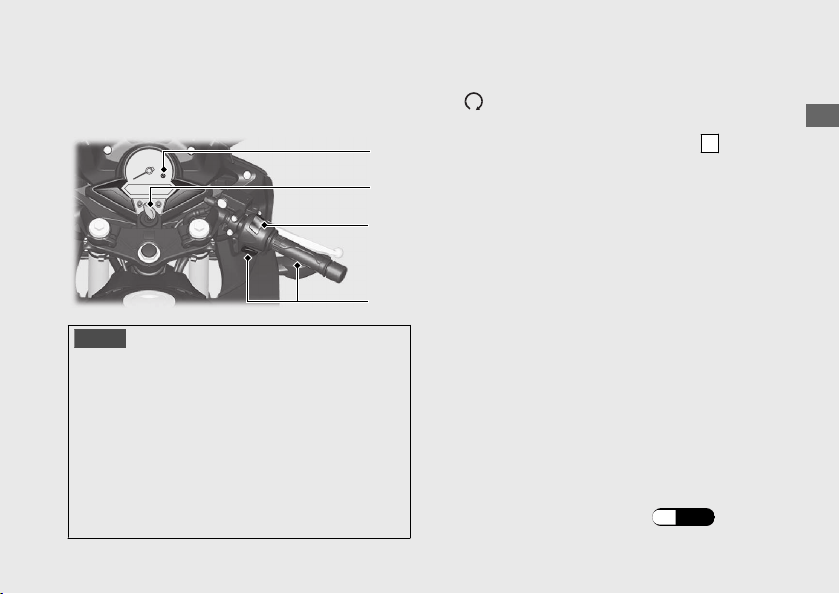

Switches
20181004171657_31K75A300_enu_BOOK Page 27 Thursday, October 04 2018 17:24:28 JST
Operation Guide
24
Headlight dimmer switch
• : High beam
• : Low beam
u Pressing the switch turns
the turn signal off.
Turn signal switch
Start button
Horn button
Engine stop switch
Should normally remain in the
(Run) position.
u In an emergency, switch to the
(Stop) position (the starter motor
will not operate) to stop the
engine.
20181004171657_31K75A300_enu_BOOK Page 28 Thursday, October 04 2018 17:24:28 JST
Operation Guide
25
Continued
Ignition Switch
Switches the electrical system on/off,
locks the steering.
u Key can be removed when in the OFF or
LOCK position.
ON
Turns electrical system
on for starting/riding.
OFF
Turns engine off.
LOCK
Locks steering.

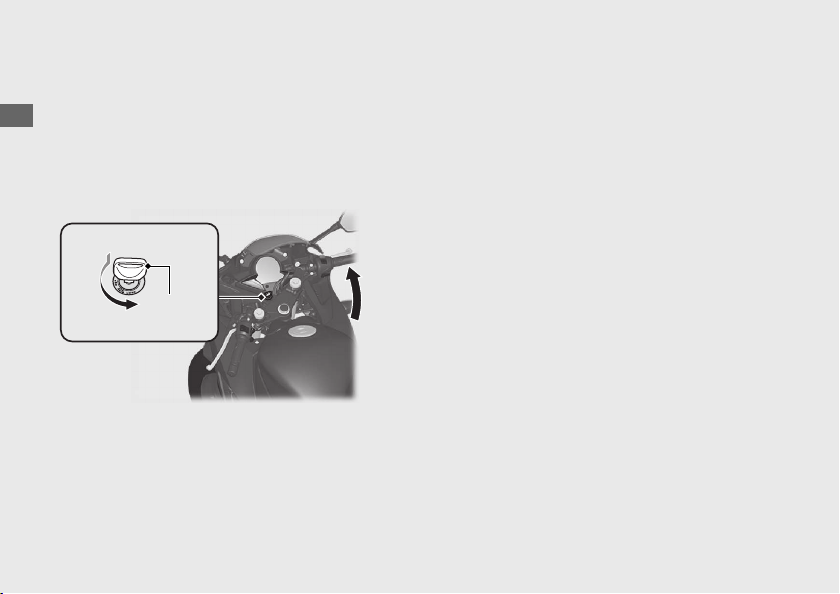

Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebars all the way to the left.
b
Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebars if the lock is
difficult to engage.
c
Remove the key.
#
Unlocking
Insert the key, push it in, and turn the ignition
switch to the OFF position.
20181004171657_31K75A300_enu_BOOK Page 29 Thursday, October 04 2018 17:24:28 JST
Operation Guide
26
Switches (Continued)
Push
b
Turn
Ignition
key
a
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the OFF position
and wait 10 seconds before trying to start
the engine again to recover battery voltage.
•
Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
•
Snapping the throttle or fast idling for more
than about 5 minutes may cause exhaust
pipe discoloration.
•
The engine will not start if the throttle is fully open.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the ON position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the
clutch lever to start your motorcycle with the
transmission in gear so long as the side
stand is raised.
d
Press the start button with the throttle
completely closed.
If the engine does not start:
a
Open the throttle fully and press the start
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly
if idling is unstable.
d
If the engine does not start, wait 10 seconds
before trying steps a & b again.
#
If Engine Will Not Start (P.86
)
20181004171657_31K75A300_enu_BOOK Page 30 Thursday, October 04 2018 17:24:28 JST
Operation Guide
27
a
c
d
b

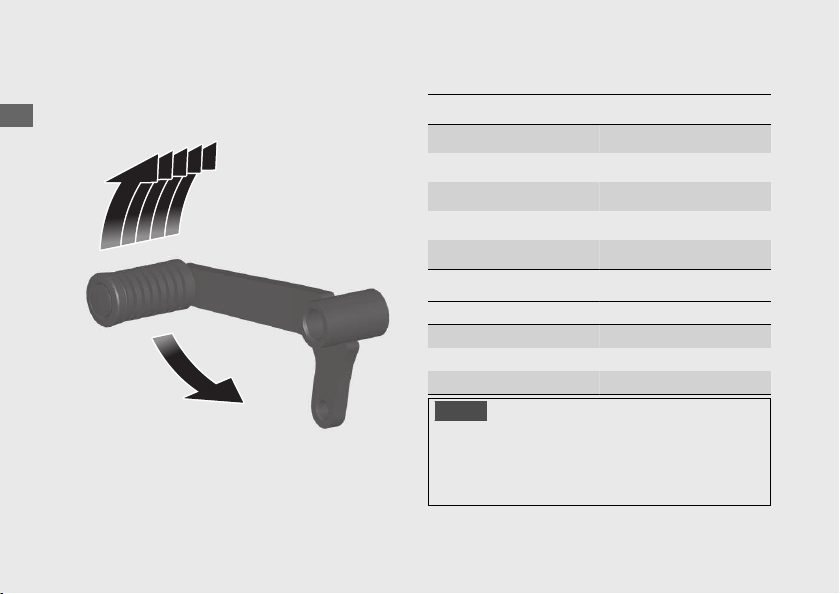

Shifting Gears
Your motorcycle transmission has 6 forward
gears in a one-down, five-up shift pattern.
If you put the motorcycle in gear with the
side stand down, the engine will shut off.
#
Recommended Shift Points
Shifting Up
From 1st to 2nd 12 mph (20 km/h)
From 2nd to 3rd 19 mph (30 km/h)
From 3rd to 4th 25 mph (40 km/h)
From 4th to 5th 31 mph (50 km/h)
From 5th to 6th 37 mph (60 km/h)
Shifting Down
From 6th to 5th 28 mph (45 km/h)
From 5th to 4th 22 mph (35 km/h)
From 4th to 3rd 16 mph (25 km/h)
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the motorcycle for long distances with
the engine off can damage the transmission.
20181004171657_31K75A300_enu_BOOK Page 31 Thursday, October 04 2018 17:24:28 JST
Operation Guide
28
2
3
4
5
6
1
N
Refueling
Do not fill with fuel above the filler neck plate.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity: 3.43 US gal (13.0 L)
#
Refueling and Fuel Guidelines (P.13)
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key,
and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refueling, align the fuel fill cap latch
with the slot in the filler neck. Push the fuel
fill cap into the filler neck until it snaps
closed and locks.
b
Remove the ignition key and close the lock
cover.
u
The ignition key cannot be removed if
the fuel fill cap is not locked.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
•
Wipe up spills immediately.
20181004171657_31K75A300_enu_BOOK Page 32 Thursday, October 04 2018 17:24:28 JST
Operation Guide
29
Ignition key
Filler neck plate
Fuel fill cap
Lock cover

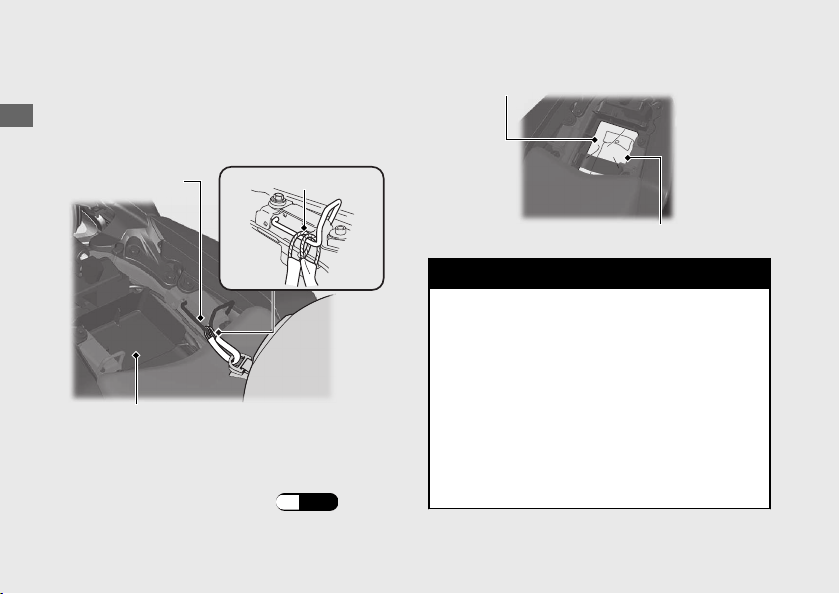

Storage Equipment
The helmet holder, helmet set wire (in the
tool kit), tool kit, storage compartment, and
document bag are located under the rear
seat.
u
Maximum Weight Limit: 6.6 lb (3.0 kg)
u
Use the helmet holder only when parked.
#
Removing the Rear Seat (P.58)
3WARNING
Riding with a helmet attached to the
holder can interfere with the rear wheel
or suspension and could cause a crash
in which you can be seriously hurt or
killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
20181004171657_31K75A300_enu_BOOK Page 33 Thursday, October 04 2018 17:24:28 JST
Operation Guide
30
Helmet set wire
Helmet holder
Storage compartment
Document bag
Tool kit
Importance of Maintenance ........................... P. 32
Maintenance Schedule.....................................P. 34
Maintenance Record......................................... P. 37
Maintenance Fundamentals ...........................P. 38

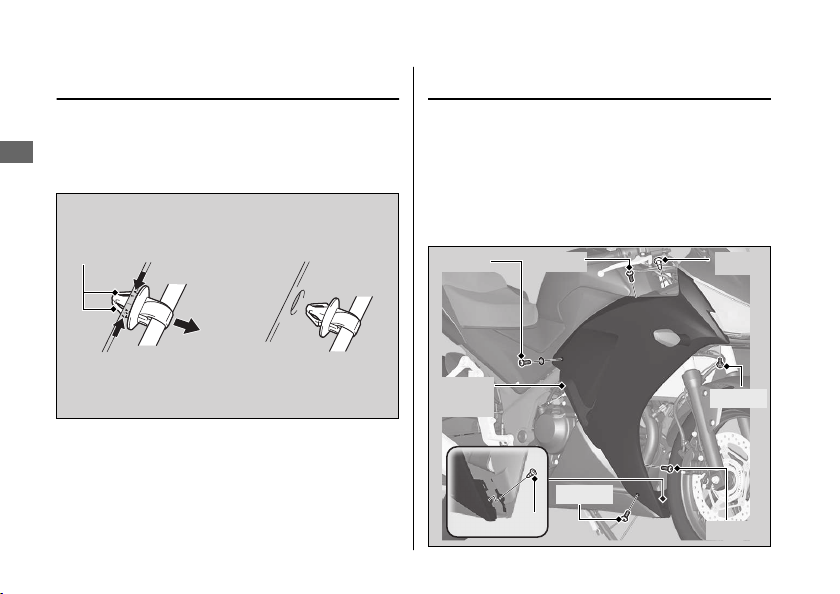

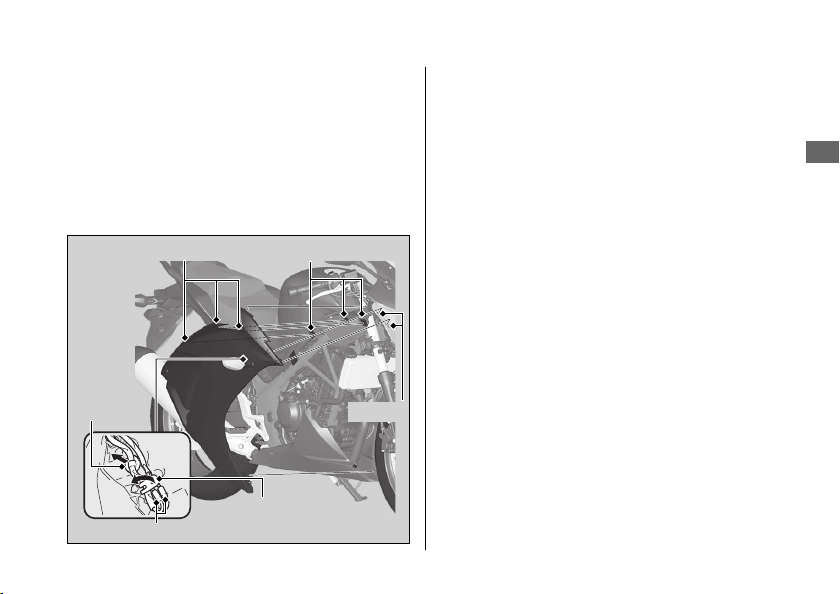

Removing & Installing Body Components..P. 53
Battery.................................................................... P. 53
Clip.......................................................................... P. 54
Front Seat.............................................................. P. 55
Harness Band Clip............................................... P. 56
Middle Cowl.......................................................... P. 56
Rear Seat ............................................................... P. 58
Right Under Cowl ................................................ P. 59
Spark Plug ........................................................... P. 60
Engine Oil ............................................................ P. 63
Air Cleaner........................................................... P. 67
Coolant.................................................................P. 68
Brakes................................................................... P. 70
Side Stand ........................................................... P. 73
Drive Chain..........................................................P. 74
Clutch ................................................................... P. 78
Throttle ................................................................ P. 81
Crankcase Breather ........................................... P. 82
Other Adjustments............................................ P. 83

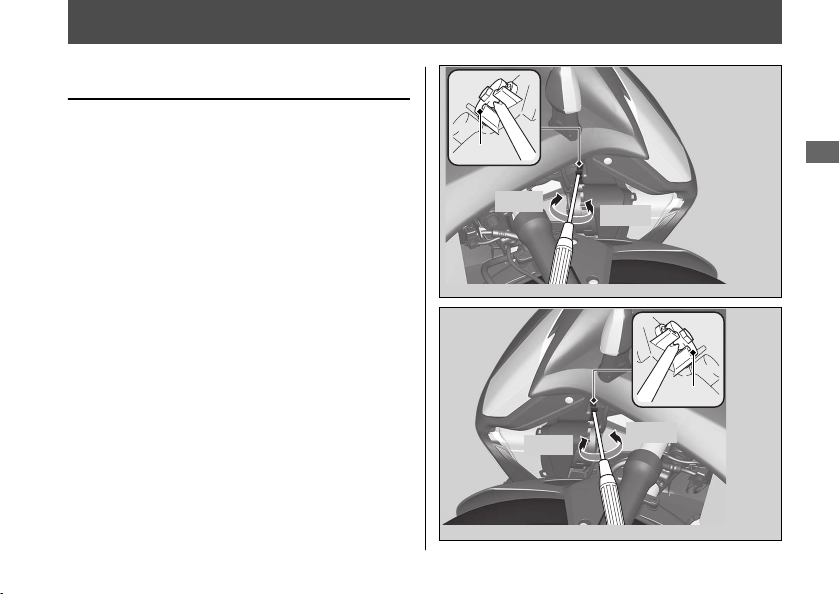

Adjusting the Headlight Aim ............................ P. 83
Adjusting the Rear Suspension ........................ P. 84
20181004171657_31K75A300_enu_BOOK Page 34 Thursday, October 04 2018 17:24:28 JST
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your motorcycle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your
motorcycle before each ride, and perform the
periodic checks specified in the Maintenance
Schedule. 2 P. 34
3WARNING
Improperly maintaining your
motorcycle or failing to correct a
problem before you ride can cause a
crash in which you can be seriously hurt
or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
20181004171657_31K75A300_enu_BOOK Page 35 Thursday, October 04 2018 17:24:28 JST
Maintenance
32
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), and the
California Air Resources Board (CARB). 2 P. 115
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
●
Stop the engine and remove the key.
●
Place your motorcycle on a firm, level
surface using the side stand or a
maintenance stand to provide support.
●
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
●
Run the engine only when instructed, and
do so in a well-ventilated area.
20181004171657_31K75A300_enu_BOOK Page 36 Thursday, October 04 2018 17:24:28 JST
Importance of Maintenance
Maintenance
33
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. All scheduled maintenance is
considered a normal owner operating cost and
will be charged to you by your dealer. Keeping
an accurate maintenance record will help
ensure your motorcycle is properly maintained.
2 P. 37
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your motorcycle, these service documents
should be transferred with the motorcycle to
the new owner.
20181004171657_31K75A300_enu_BOOK Page 37 Thursday, October 04 2018 17:24:28 JST
Maintenance
34
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Emission-Related Items
Fuel Line –
Throttle Operation 81
Air Cleaner
*2
52, 67
Crankcase Breather
*3
82
Spark Plug
Every 16,000 mi (25,600 km):
Every 32,000 mi (51,200 km):
60
Valve Clearance –
Engine Oil
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 8,000 mi (12,800 km) or 12 months:
65
Engine Oil Filter 65
Engine Idle Speed –
Radiator Coolant
*5
68
Cooling System –
Secondary Air Supply System –
Evaporative Emission Control System
*4
–
Maintenance Level Maintenance Legend
:
Intermediate. We recommend service by your dealer, unless
you have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 122).
:
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Clean
Lubricate
Replace
: Technical. In the interest of safety, have your
motorcycle serviced by your dealer.
20181004171657_31K75A300_enu_BOOK Page 38 Thursday, October 04 2018 17:24:28 JST
Maintenance Schedule
Maintenance
35
Continued
Items
Frequency
*1
× 1,000 mi 0.6 4 8 12 16 20 24
Refer to
page
× 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4
Non-Emission-Related Items
Drive Chain
Every 500 mi (800 km): ,
74
Brake Fluid
*5
70
Brake Pads Wear 71
Brake System 38
Brake Light Switch 72
Headlight Aim 83
Clutch System 78
Side Stand 73
Suspension 84
Nuts, Bolts, Fasteners –
Wheels/Tires 48
Steering Head Bearings –
Notes:
*
1 : At higher odometer readings, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : 50 STATE (meets California).
*
5 : Replace every 2 years, or at indicated odometer intervals, whichever comes first. Replacement requires mechanical skill.
20181004171657_31K75A300_enu_BOOK Page 39 Thursday, October 04 2018 17:24:28 JST
Maintenance Schedule
Maintenance
36
Maintenance Record
Distance Odometer Date Performed By: Notes
600 miles (1,000 km)
4,000 miles (6,400 km)
8,000 miles (12,800 km)
12,000 miles (19,200 km)
16,000 miles (25,600 km)
20,000 miles (32,000 km)
24,000 miles (38,400 km)
28,000 miles (44,800 km)
32,000 miles (51,200 km)
36,000 miles (57,600 km)
40,000 miles (64,000 km)
44,000 miles (70,400 km)
48,000 miles (76,800 km)
52,000 miles (83,200 km)
56,000 miles (89,600 km)
60,000 miles (96,000 km)
64,000 miles (102,400 km)
68,000 miles (108,800 km)
20181004171657_31K75A300_enu_BOOK Page 40 Thursday, October 04 2018 17:24:28 JST
Maintenance
37
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your motorcycle:
● Tire tread wear and air pressures are within
limits. 2 P. 48
●
Lights, horn, and turn signals operate
normally.
●
Check the condition of the drive chain.
Adjust slack and lubricate as needed. 2 P. 45
Check the following items if you are carrying a
passenger or cargo:
●
Combined weight is within load limits.
2 P. 127
●
Cargo is secured properly.
● Suspension is adjusted to suit load. 2 P. 84
Check the following items after you get on your
motorcycle:
● Throttle action moves smoothly without
binding. 2 P. 81
● Brake lever and pedal operate normally.
● Check the fuel level and refuel when
needed. 2 P. 13, 2 P. 29
● Engine stop switch functions properly.
2 P. 24
Check the following items at regular intervals:
●
Oil level is between the upper and lower
level marks. 2 P. 63
●
Brake fluid level is
Front: above the LWR level mark. 2 P. 70
Rear: between the UPPER and LOWER level
marks. 2 P. 70
●
Engine coolant level is between the UPPER
and LOWER level marks. 2 P. 68
●
Side stand functions properly. 2 P. 73
20181004171657_31K75A300_enu_BOOK Page 41 Thursday, October 04 2018 17:24:28 JST
Maintenance
38
Tires and wheels
Check the air pressure (2 P. 48), examine tread for wear and damage
(2 P. 48), and check the wheels for damage.
Fluid levels
Check the engine oil level (2 P. 63), engine coolant level (2 P. 68),
and brake fluid level (2 P. 70).
Lights
Check that the headlight, brake light, taillight, turn signals and license
plate light are working properly.
Controls
Check the freeplay of the clutch lever (2 P. 78), and throttle grip
(2 P. 81).
Drive chain
Check the slack (2 P. 74), adjust the slack (2 P. 75), and lubricate
(2 P. 46) as needed.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 34
20181004171657_31K75A300_enu_BOOK Page 42 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
39
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.
The color label is attached to the frame under
the rear seat. 2 P. 58
3WARNING
Installing non-Honda parts may make
your motorcycle unsafe and cause a
crash in which you can be seriously hurt
or killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your motorcycle.
20181004171657_31K75A300_enu_BOOK Page 43 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
40

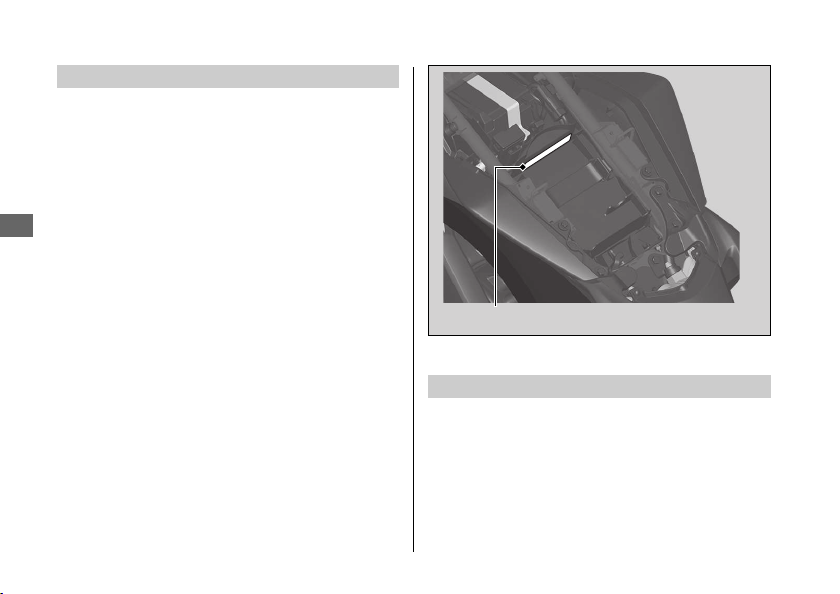

Color label
Battery
Your motorcycle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be harmful to the
environment and human health.
Always confirm local regulations for proper battery
disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
●
Electrolyte splashes onto your skin:
u
Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
20181004171657_31K75A300_enu_BOOK Page 44 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
41
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 53
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
20181004171657_31K75A300_enu_BOOK Page 45 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
42
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
motorcycle. If something electrical on your
motorcycle stops working, check for and
replace any blown fuses. 2 P. 101
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 129
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your motorcycle inspected
by your dealer.
20181004171657_31K75A300_enu_BOOK Page 46 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
43

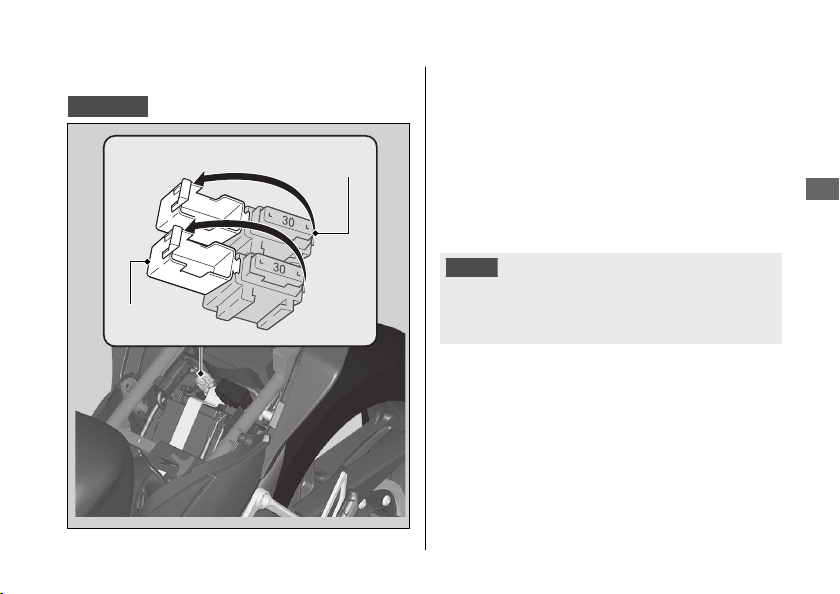

Blown fuse
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 128
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
●
JASO T 903 standard
*1
: MA
●
SAE standard
*2
: 10W-30
●
API classification
*3
: SG or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
20181004171657_31K75A300_enu_BOOK Page 47 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
44
Oil code
Oil classification
Not recommended Recommended
Brake Fluid
Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.
NOTICE
Brake fluid can damage plastic and painted
surfaces.
Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 4 Brake Fluid or equivalent
Drive Chain
The drive chain must be inspected and
lubricated regularly. Inspect the chain more
frequently if you often ride on bad roads, ride at
high speed, or ride with repeated fast
acceleration. 2 P. 74
If the chain does not move smoothly, makes
strange noises, has damaged rollers, has loose
pins, has missing O-rings, or kinks, have the
chain inspected by your dealer.
Also inspect the drive sprocket and driven
sprocket. If either has worn or damaged teeth,
have the sprocket replaced by your dealer.
20181004171657_31K75A300_enu_BOOK Page 48 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
45
Continued
Normal
(GOOD)
Worn
(REPLACE)
Damaged
(REPLACE)
NOTICE
Use of a new chain with worn sprockets will cause
rapid chain wear.
#
Cleaning and Lubricating
After inspecting the slack, clean the chain and
sprockets while rotating the rear wheel. Use a
dry cloth with chain cleaner designed
specifically for O-ring chains, or neutral
detergent. Use a soft brush if the chain is dirty.
After cleaning, wipe dry and lubricate with the
recommended lubricant.
Recommended lubricant:
Pro Honda HP Chain Lube or equivalent
Do not use a steam cleaner, a high pressure
cleaner, a wire brush, volatile solvent such as
gasoline and benzene, abrasive cleaner, chain
cleaner or lubricant NOT designed specifically
for O-ring chains as these can damage the
rubber O-ring seals.
Avoid getting lubricant on the brakes or tires.
Avoid applying excess chain lubricant to prevent
spray onto your clothes and the motorcycle.
20181004171657_31K75A300_enu_BOOK Page 49 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
46
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
NOTICE
Using coolant not specified for aluminum
engines or tap/mineral water can cause
corrosion.
Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the motorcycle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing
poor engine performance. 2 P. 82
20181004171657_31K75A300_enu_BOOK Page 50 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
47
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
20181004171657_31K75A300_enu_BOOK Page 51 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
48
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
For safe riding, you should replace the tires
when the minimum tread depth is reached.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
20181004171657_31K75A300_enu_BOOK Page 52 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
49
Continued
Wear indicator
location mark
or TWI
Have your tires replaced by your dealer.
For recommended tires, air pressure and
minimum tread depth, see “Specifications.”
2 P. 128
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Have the wheel balanced with Honda
Genuine balance weights or equivalent after
the tire is installed.
●
Do not install a tube inside a tubeless tire on
this motorcycle. Excessive heat build-up can
cause the tube to burst.
●
Use only tubeless tires on this motorcycle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your
motorcycle can adversely affect
handling and stability, and can cause a
crash in which you can be seriously hurt
or killed.
Always use the size and type of tires
recommended in this owner's manual.
20181004171657_31K75A300_enu_BOOK Page 53 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
50
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S.
Department of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
20181004171657_31K75A300_enu_BOOK Page 54 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
51
Tire Labeling Example
Tire identification
number (TIN)
Air Cleaner
This motorcycle is equipped with a viscous type
air cleaner element which cannot be cleaned
with compressed air or otherwise without
degrading its performance.
If the filter becomes dirty, replace it with a new
one.
20181004171657_31K75A300_enu_BOOK Page 55 Thursday, October 04 2018 17:24:28 JST
Maintenance Fundamentals
Maintenance
52
Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1.
Remove the front seat. 2 P. 55
2.
Remove the battery holder by removing
the bolt.
3.
Disconnect the negative - terminal from
the battery.
4.
Disconnect the positive + terminal from
the battery.
5.
Remove the battery taking care not to
drop the terminal nuts.
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive
+
terminal first. Make sure that bolts and nuts
are tight.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 21
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 41
“Battery Goes Dead.” 2 P. 97
20181004171657_31K75A300_enu_BOOK Page 56 Thursday, October 04 2018 17:24:28 JST
Maintenance
53
Positive
terminal
Battery holder
Negative
terminal
Battery
Bolt
Clip
#
Removal
1.
Press down on the center pin to release
the lock.
2.
Pull the clip out of the hole.
#
Installation
1.
Push the bottom of the center pin.
2.
Insert the clip into the hole.
3.
Press down on the center pin to lock the
clip.
20181004171657_31K75A300_enu_BOOK Page 57 Thursday, October 04 2018 17:24:28 JST
Removing & Installing Body Components u Clip
Maintenance
54
Center pin
Front Seat
#
Removal
1.
Remove the rear seat. 2 P. 58
2.
Remove the mounting bolts, and then pull
the front seat back and up.
#
Installation
1.
Insert the tab into the recess.
2.
Install and tighten the mounting bolts
securely.
Make sure that the seat is locked securely
in position by pulling it up lightly.
3.
Install the rear seat.
20181004171657_31K75A300_enu_BOOK Page 58 Thursday, October 04 2018 17:24:28 JST
Removing & Installing Body Components u Front Seat
Maintenance
55
Front seat Mounting bolts
Tab
Recess
Harness Band Clip
#
Removal
Pull the harness band clip while pressing
both side of the anchor.
#
Installation
Install the harness band clip until it seats
properly.
Middle Cowl
The right and left middle cowl removal can
be done in the same way.
#
Removal
1.
Remove the clips. 2 P. 54
2.
Remove the bolts A, bolts B and bolt C.
20181004171657_31K75A300_enu_BOOK Page 59 Thursday, October 04 2018 17:24:28 JST
Removing & Installing Body Components u Harness Band Clip
Maintenance
56
Anchor
Bolt A
Bolt C
Middle
cowl
Bolt B
ClipBolt A
Clip
Bolt B
3.
Release the tabs from the slots.
4.
Remove the middle cowl, bend up the
harness clip and disconnect the harness
band clip (2 P. 56) and front turn signal
connectors.
u Be careful not to apply weight to the
middle cowl.
u Carefully release the hooks.
#
Installation
Install the parts in the reverse order of
removal.
Check that the turn signals function properly
after you install the right middle cowl.
20181004171657_31K75A300_enu_BOOK Page 60 Thursday, October 04 2018 17:24:28 JST
Removing & Installing Body Components u Middle Cowl
Maintenance
57
Hooks
SlotsTabs
Harness
band clip
Harness clip
Front turn signal connectors
Rear Seat
#
Removal
1.
Insert the ignition key into the seat lock.
2.
Turn it clockwise, then pull the rear seat
up and back.
#
Installation
1.
Insert the prongs into the rear stays on
the frame.
2.
Push down on the rear of the rear seat.
Make sure that the seat is locked securely
in position by pulling it up lightly.
The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the rear seat.
20181004171657_31K75A300_enu_BOOK Page 61 Thursday, October 04 2018 17:24:28 JST
Removing & Installing Body Components u Rear Seat
Maintenance
58
Rear stays
Rear seat
Ignition key
Seat lock
Prongs
Right Under Cowl
#
Removal
1.
Remove the right middle cowl. 2 P. 56
2.
Remove the right under cowl by
removing the bolts D and screw.
#
Installation
Install the parts in the reverse order of
removal.
20181004171657_31K75A300_enu_BOOK Page 62 Thursday, October 04 2018 17:24:28 JST
Removing & Installing Body Components u Right Under Cowl
Maintenance
59
Right under cowl
Screw
Bolts D
Spark Plug
Checking Spark Plug
For the recommended spark plug, see
“Specifications.” 2 P. 128
Use only the recommended type of spark
plug in the recommended heat range.
NOTICE
Using a spark plug with an improper heat range
can cause engine damage.
This motorcycle uses spark plug that have an
iridium coated center electrode.
Be sure to observe the following when
servicing the spark plug.
● Do not clean the spark plug. If an
electrode is contaminated with
accumulated objects or dirt, replace the
spark plug with a new one.
● To check the spark plug gap, use only a
“wire-type feeler gauge.” To prevent
damaging the iridium coating of the
center electrode, never use a “leaf-type
feeler gauge.”
● Do not adjust the spark plug gap. If the
gap is out of specification, replace the
spark plug with a new one.
20181004171657_31K75A300_enu_BOOK Page 63 Thursday, October 04 2018 17:24:28 JST
Maintenance
60

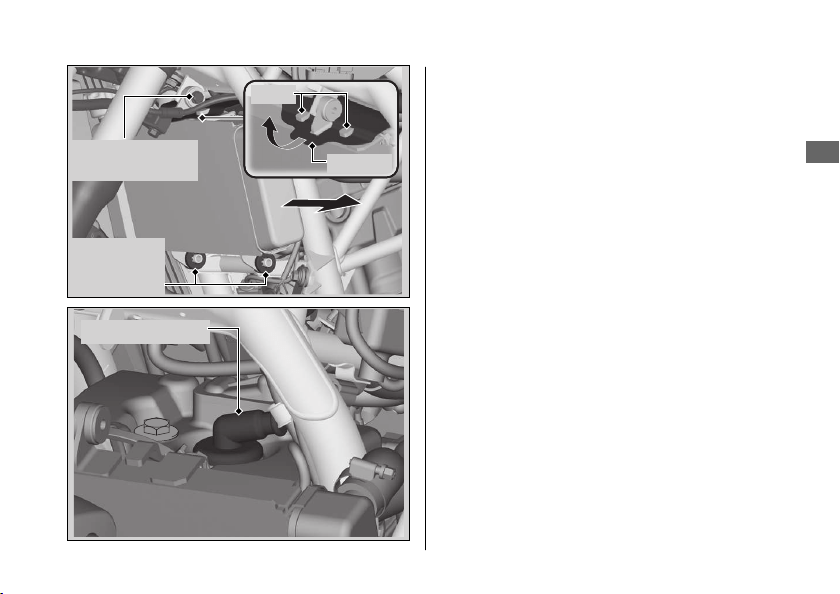

1.
Remove the left middle cowl. 2 P. 56
2.
Remove the radiator mounting bolt.
3.
Unhook the rubber from the radiator tabs.
4.
Release the radiator lower grommets
from the frame boss by moving the
radiator to the left.
5.
Disconnect the spark plug cap from the
spark plug.
6.
Clean any dirt from around the spark plug
base.
7.
Remove the spark plug using a suitable
spark plug wrench.
20181004171657_31K75A300_enu_BOOK Page 64 Thursday, October 04 2018 17:24:28 JST
Spark Plug u Checking Spark Plug
Maintenance
61
Continued
Radiator
mounting bolt
Tabs
Rubber
Radiator
lower
grommets
Spark plug cap
8.
Inspect the electrodes and center
porcelain for deposits, erosion or carbon
fouling.
u If the erosion or deposit is heavy,
replace the plug.
9.
Make sure that a 1.0 mm wire-type feeler
gauge cannot be inserted between the
spark plug gap. If the gauge fits in the
gap, replace the plug with a new one.
10.
Make sure the plug washer is in good
condition.
11.
Install the spark plug. With the plug
washer attached, thread the spark plug in
by hand to prevent cross-threading.
12.
Tighten the spark plug:
● If the old plug is good:
1/8 turn after it seats.
● If installing a new plug, tighten it twice
to prevent loosening:
a) First, tighten the plug:
1/2 turn after it seats.
b)
Then loosen the plug.
c)
Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
An improperly tightened spark plug can damage the
engine. If a plug is too loose, a piston may be damaged. If
a plug is too tight, the threads may be damaged.
13.
Install the parts in the reverse order of
removal.
u When reinstalling the spark plug cap,
take care to avoid pinching any cables
or wires.
20181004171657_31K75A300_enu_BOOK Page 65 Thursday, October 04 2018 17:24:28 JST
Spark Plug u Checking Spark Plug
Maintenance
62
Spark plug gap
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your motorcycle in an upright
position on a firm, level surface.
4.
Check that the oil level is between the
upper level and lower level marks on the
oil level inspection window.
20181004171657_31K75A300_enu_BOOK Page 66 Thursday, October 04 2018 17:24:28 JST
Maintenance
63
Oil fill cap
Lower level
Upper level
Oil level inspection
window
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 44, 2 P. 128
1.
Remove the oil fill cap. Add the
recommended oil until it reaches the
upper level mark.
u Place your motorcycle in an upright
position on a firm, level surface when
checking the oil level.
u
Do not overfill above the upper level
mark.
u
Make sure no foreign objects enter the
oil filler opening.
u
Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil. They may
affect lubrication and clutch operation.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 44
20181004171657_31K75A300_enu_BOOK Page 67 Thursday, October 04 2018 17:24:28 JST
Engine Oil u Adding Engine Oil
Maintenance
64
Changing Engine Oil & Filter
Changing the oil and filter requires special
tools. We recommend that you have your
motorcycle serviced by your dealer.
Use a new Honda Genuine oil filter or
equivalent specified for your model.
NOTICE
Using the wrong oil filter can result in serious
damage to the engine.
1.
Remove the right under cowl. 2 P. 59
2.
If the engine is cold, idle the engine for 3
to 5 minutes.
3.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
4.
Place your motorcycle on a firm, level
surface.
5.
Place a drain pan under the drain bolt.
6.
Remove the oil fill cap, drain bolt, and
sealing washer to drain the oil.
7.
Remove the oil filter cover, oil filter, spring
and gasket by removing the oil filter cover
bolts and let the remaining oil drain out.
u
Discard the oil and oil filter at an
approved recycling center.
20181004171657_31K75A300_enu_BOOK Page 68 Thursday, October 04 2018 17:24:28 JST

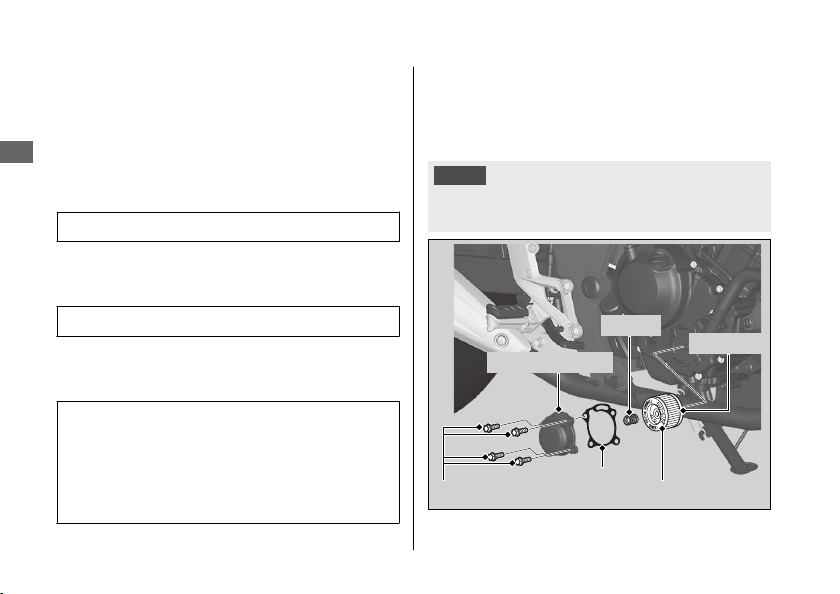

Engine Oil u Changing Engine Oil & Filter
Maintenance
65
Continued
Drain bolt Sealing washer
8.
Install the new oil filter with the OUT-SIDE
mark facing out.
9.
Install the oil filter spring into the oil filter
cover, and then install the new gasket and
oil filter cover by tightening the oil filter
cover bolts.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
10.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
Torque: 18 lbf·ft (24 N·m, 2.4 kgf·m)
11.
Fill the crankcase with the recommended oil
(2 P. 44, 2 P. 128) and install the oil fill cap.
Required oil
When changing oil & engine oil filter:
1.6 US qt (1.5 L)
When changing oil only:
1.5 US qt (1.4 L)
12.
Check the oil level. 2 P. 63
13.
Check that there are no oil leaks.
14.
Install the right under cowl and right
middle cowl.
NOTICE
Improper installation of the oil filter can result in
serious damage to the engine.
20181004171657_31K75A300_enu_BOOK Page 69 Thursday, October 04 2018 17:24:28 JST
Engine Oil u Changing Engine Oil & Filter
Maintenance
66
Oil filter cover
Spring
OUT-SIDE mark
Gasket
Oil filter cover bolts
Oil filter
Air Cleaner
Changing Air Cleaner Element
Use a new Honda Genuine air cleaner
element or an equivalent specified for your
motorcycle.
NOTICE
Using the wrong air cleaner element may cause
premature engine wear or performance problems.
1.
Remove the front seat. 2 P. 55
2.
Remove the air cleaner case cover by
removing the air cleaner case cover screws.
3.
Remove the air cleaner element by
pushing the tabs.
4.
Install the new air cleaner element.
u
Make sure the air cleaner element is
installed securely.
5.
Install the air cleaner case cover and
tighten the air cleaner case cover screws.
Torque: 0.8 lbf·ft (1.1 N·m, 0.1 kgf·m)
6.
Install the parts in the reverse order of
removal.
20181004171657_31K75A300_enu_BOOK Page 70 Thursday, October 04 2018 17:24:28 JST
Maintenance
67
Air cleaner case cover
Air cleaner case cover screws
Air cleaner element
Tabs
Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
1.
Place your motorcycle on a firm, level
surface.
2.
Hold your motorcycle in an upright position.
3.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your motorcycle inspected
by your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 47) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
20181004171657_31K75A300_enu_BOOK Page 71 Thursday, October 04 2018 17:24:28 JST
Maintenance
68
UPPER level
LOWER level
Reserve tank
1.
Remove the screw.
2.
Pull out the prong from the hole and
remove the reserve tank cover.
3.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
u Do not overfill above the UPPER level
mark.
u Make sure no foreign objects enter the
reserve tank opening.
4.
Securely reinstall the reserve tank cap.
5.
Install the reserve tank cover and tighten
the screw.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
20181004171657_31K75A300_enu_BOOK Page 72 Thursday, October 04 2018 17:24:28 JST
Coolant u Changing Coolant
Maintenance
69
Reserve tank cap
Reserve tank cover
Screw
Prong Hole
LWR
LWR

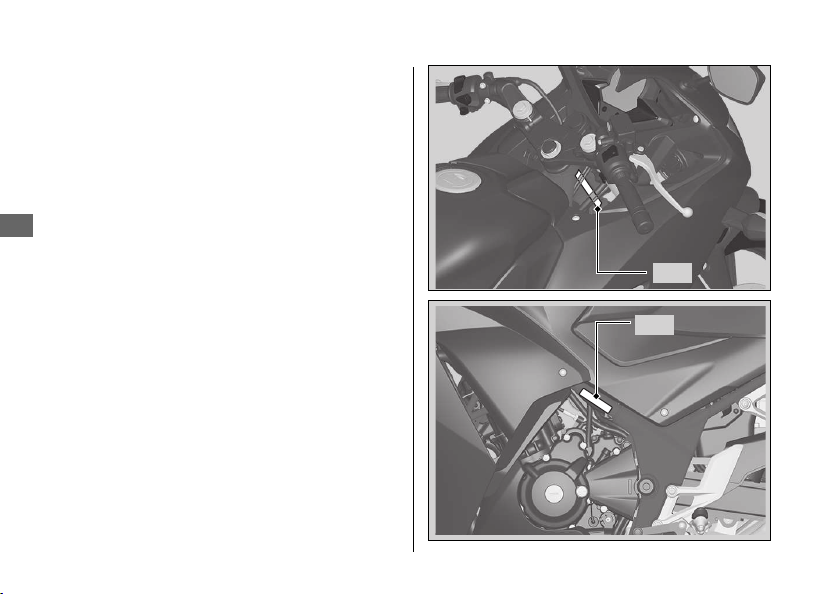

Brakes
Checking Brake Fluid
1.
Place your motorcycle in an upright
position on a firm, level surface.
2.
Check that the brake fluid reservoir is
horizontal and that the fluid level is:
Front
above the LWR mark.
Rear
between the LOWER level and
UPPER level marks.
If the brake fluid level in either reservoir is
below the LWR mark or LOWER level mark or
the brake lever and pedal freeplay becomes
excessive, inspect the brake pads for wear.
If the brake pads are not worn, you most
likely have a leak. Have your motorcycle
inspected by your dealer.
20181004171657_31K75A300_enu_BOOK Page 73 Thursday, October 04 2018 17:24:28 JST
Maintenance
70
Front brake fluid reservoir
LWR mark
UPPER level mark
LOWER level mark
Rear brake fluid reservoir
Front Rear
Inspecting the Brake Pads
Check the condition of the brake pad wear
indicators.
The pads need to be replaced if a brake pad
is worn to the indicator.
1.
Front
Inspect the brake pads from below
the brake caliper.
2.
Rear
Inspect the brake pads from the rear
right of the motorcycle.
If necessary have the pads replaced by your
dealer.
Always replace both left and right brake pads
at the same time.
20181004171657_31K75A300_enu_BOOK Page 74 Thursday, October 04 2018 17:24:28 JST
Brakes u Inspecting the Brake Pads
Maintenance
71
Front
Rear
Brake pads
Wear
indicator
Disc
Wear
indicator
Brake pads
Wear
indicator
Disc
CBR300R
CBR300RA
Wear
indicator
Brake pads
Wear
indicator
Wear
indicator
Disc

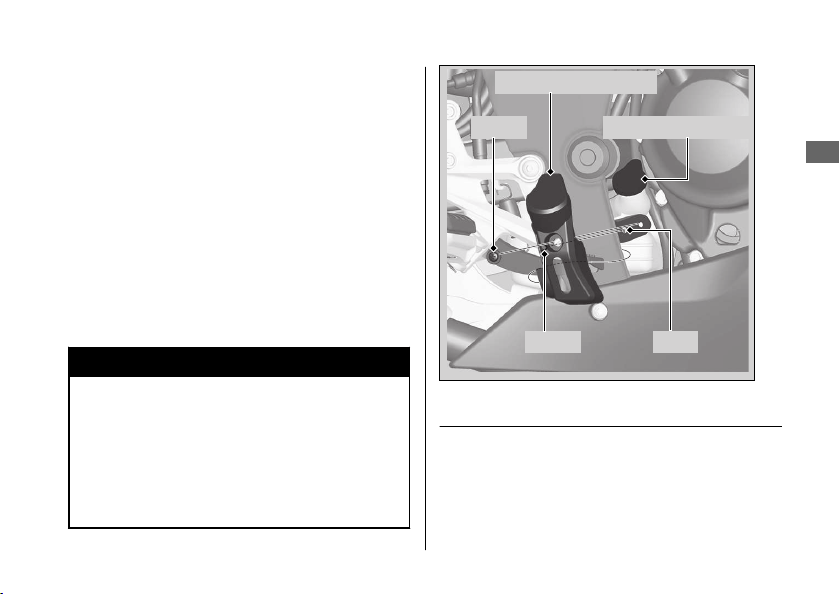

Adjusting the Brake Light
Switch
Check the operation of the brake light switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the switch
operates too late, or turn the nut in the
direction B if the switch operates too soon.
20181004171657_31K75A300_enu_BOOK Page 75 Thursday, October 04 2018 17:24:28 JST
Brakes u Adjusting the Brake Light Switch
Maintenance
72

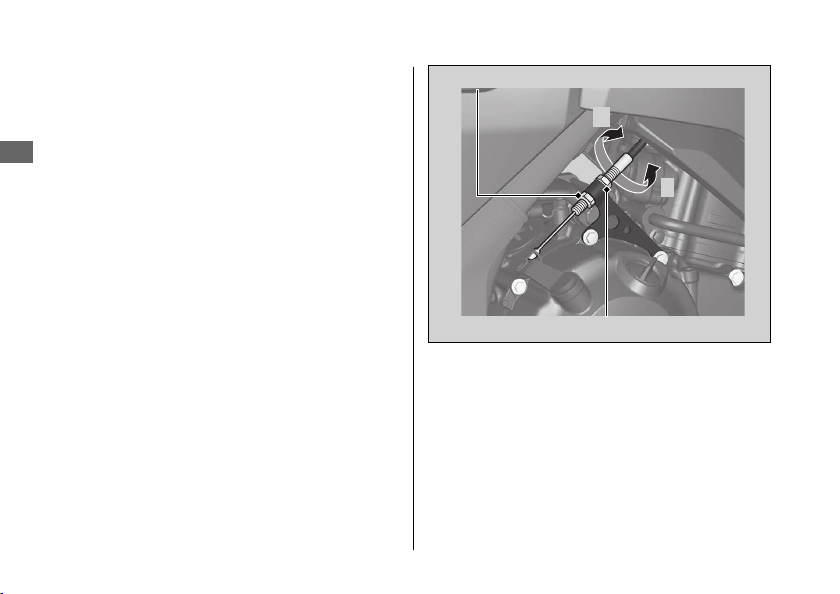

Brake light switch
Adjusting nut
B
A
Side Stand
Checking the Side Stand
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the motorcycle, shift the
transmission to Neutral, and raise the side
stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your motorcycle inspected by your dealer.
20181004171657_31K75A300_enu_BOOK Page 76 Thursday, October 04 2018 17:24:28 JST
Maintenance
73
Side stand spring
Drive Chain
Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Check the slack in the lower half of the
drive chain midway between the
sprockets.
Drive chain slack:
13/16 - 1 3/16 in (20 - 30 mm)
u Do not ride your motorcycle if the
slack exceeds 1 15/16 in (50 mm).
4.
Roll the motorcycle forward and check
that the chain moves smoothly.
20181004171657_31K75A300_enu_BOOK Page 77 Thursday, October 04 2018 17:24:28 JST
Maintenance
74
5.
Inspect the sprockets. 2 P. 45
6.
Clean and lubricate the drive chain.
2 P. 46
Adjusting the Drive Chain Slack
Adjusting the chain requires special tools.
Have the drive chain slack adjusted by your
dealer.
CBR300RA

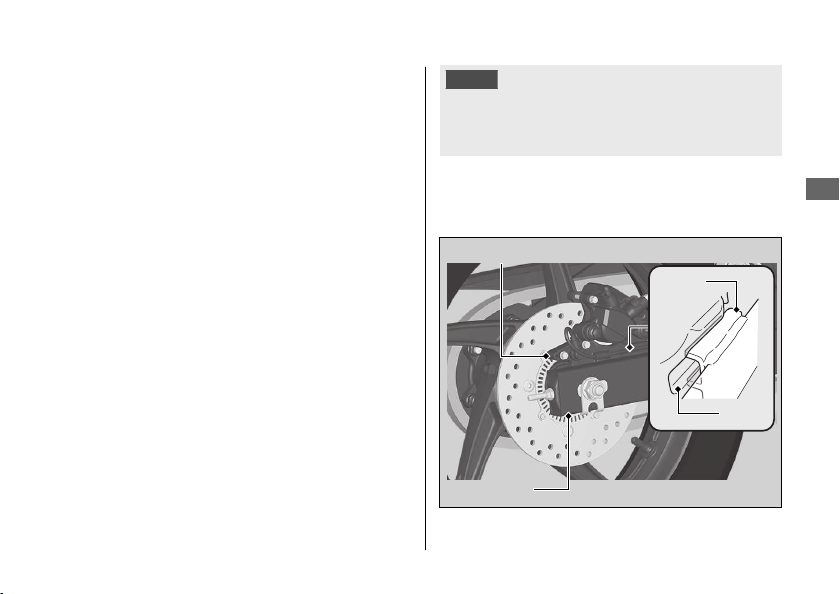

When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your motorcycle on its side stand on
a firm, level surface.
3.
Loosen the rear axle nut.
4.
Loosen the lock nuts on both sides of the
swingarm.
20181004171657_31K75A300_enu_BOOK Page 78 Thursday, October 04 2018 17:24:28 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
75
Continued
Front edge of
adjusting slot
Adjusting nut
Chain adjuster
index mark
Lock nut
Rear axle nut
Adjusting nut
Lock nut
5.
Turn both adjusting nuts an equal
number of turns until the correct drive
chain slack is obtained. Turn the adjusting
nuts clockwise to tighten the chain. Turn
the adjusting nuts counterclockwise and
push the rear wheel toward the front to
provide more slack.
Adjust the slack at a point midway
between the drive sprocket and the
driven sprocket.
Check the drive chain slack. 2 P. 74
6.
Check rear axle alignment by making sure
the chain adjuster index marks align with
the front edge of the adjusting slots.
Both marks should correspond. If the axle
is misaligned, turn the right or left
adjusting nut until the marks are aligned
and recheck chain slack.
7.
Tighten the rear axle nut.
Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m)
8.
Tighten the drive chain adjusting nuts
lightly, then hold the adjusting nuts and
tighten the lock nuts.
Torque: 15 lbf·ft (21 N·m, 2.1 kgf·m)
9.
Recheck drive chain slack.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20181004171657_31K75A300_enu_BOOK Page 79 Thursday, October 04 2018 17:24:28 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
76
#
Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the arrow mark on the
chain adjuster plate enters the red zone on
the label after the chain has been adjusted to
the proper slack, the chain is excessively worn
and must be replaced.
Chain:
RK 520KLO or DID 520VF
If necessary have the drive chain replaced by
your dealer.
20181004171657_31K75A300_enu_BOOK Page 80 Thursday, October 04 2018 17:24:28 JST
Drive Chain u Adjusting the Drive Chain Slack
Maintenance
77
Red zone
Arrow mark
Clutch
Checking the Clutch
#
Checking the Clutch Lever Freeplay
Check the clutch lever freeplay.
Freeplay at the clutch lever:
3/8 - 13/16 in (10 - 20 mm)
Check the clutch cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the clutch cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause
premature clutch wear.
20181004171657_31K75A300_enu_BOOK Page 81 Thursday, October 04 2018 17:24:28 JST
Maintenance
78
Freeplay
Clutch lever
Adjusting the Clutch Lever
Freeplay
#
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
1.
Pull back the rubber dust cover.
2.
Loosen the upper lock nut.
3.
Turn the upper clutch cable adjuster until
the freeplay is 3/8 - 13/16 in (10 - 20 mm).
4.
Tighten the upper lock nut and check the
freeplay again.
5.
Install the rubber dust cover.
#
Lower Adjustment
If the upper clutch cable adjuster is threaded
out near its limit, or the correct freeplay
cannot be obtained, attempt adjustment with
the lower clutch cable adjusting nut.
20181004171657_31K75A300_enu_BOOK Page 82 Thursday, October 04 2018 17:24:28 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
79
Continued
Upper clutch cable adjuster
Upper lock nut
Rubber dust cover
–
+
1.
Loosen the upper lock nut and turn the
upper clutch cable adjuster all the way in
(to provide maximum freeplay). Tighten
the upper lock nut.
2.
Loosen the lower lock nut.
3.
Turn the lower adjusting nut until the
clutch lever freeplay is 3/8 - 13/16 in (10 -
20 mm).
4.
Tighten the lower lock nut and check the
clutch lever freeplay.
5.
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the engine
does not stall and the motorcycle does
not creep. Gradually release the clutch
lever and open the throttle. Your
motorcycle should move smoothly and
accelerate gradually.
If proper adjustment cannot be obtained or
the clutch does not work correctly, see your
dealer.
20181004171657_31K75A300_enu_BOOK Page 83 Thursday, October 04 2018 17:24:28 JST
Clutch u Adjusting the Clutch Lever Freeplay
Maintenance
80
Lower adjusting nut
Lower lock nut
+
–
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the motorcycle
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1.
Slide the cable boot.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
- 1/4 in (2 - 6 mm).
4.
Tighten the lock nut, return the cable
boot, and inspect the throttle action
again.
20181004171657_31K75A300_enu_BOOK Page 84 Thursday, October 04 2018 17:24:28 JST
Maintenance
81
Freeplay
Flange
Throttle grip
Lock nut
Adjuster
Cable boot
–
+
Crankcase Breather
Cleaning the Crankcase
Breather
1.
Place a suitable container under the
crankcase breather tube.
2.
Remove the crankcase breather tube plug
from the tube.
3.
Drain deposits into a suitable container.
4.
Install the crankcase breather tube plug.
20181004171657_31K75A300_enu_BOOK Page 85 Thursday, October 04 2018 17:24:28 JST
Maintenance
82
Crankcase breather tube plug
Other Adjustments
Adjusting the Headlight Aim
You can adjust vertical aim of the headlight
for proper alignment. Turn the pinion in or
out as necessary using a Phillips screwdriver.
Obey local laws and regulations.
20181004171657_31K75A300_enu_BOOK Page 86 Thursday, October 04 2018 17:24:28 JST
Maintenance
83
Pinion
Raise
Lower
Pinion
Raise
Lower
Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
motorcycle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use a pin spanner and extension bar to turn
the adjuster. Position 1 is for a decrease
spring preload (soft), or turn the position 3 to
5 increase spring preload (hard). The
standard position is 2.
NOTICE
Attempting to adjust directly from 1 to 5 or 5 to 1
may damage the shock absorber.
NOTICE
Do not turn the adjuster beyond its limits.
20181004171657_31K75A300_enu_BOOK Page 87 Thursday, October 04 2018 17:24:28 JST
Other Adjustments u Adjusting the Rear Suspension
Maintenance
84
Extension bar
Adjuster
Pin spanner
1 2 3 4 5
Engine Will Not Start........................................ P. 86
Overheating (Segment H flashes in coolant
temperature gauge) ....................................... P. 87
Warning Indicators On or Flashing...............P. 88
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 88
ABS (Anti-lock Brake System) Indicator ......... P. 88
Other Warning Indications.............................. P. 89
Fuel Gauge Failure Indication...........................P. 89
Coolant Temperature Gauge Failure
Indication.............................................................P. 89
Tire Puncture ...................................................... P. 90
Electrical Trouble............................................... P. 97
Battery Goes Dead ..............................................P. 97
Burned-out Light Bulb........................................ P. 97
Blown Fuse..........................................................P. 101
20181004171657_31K75A300_enu_BOOK Page 88 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 27
●
Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 27
●
Make sure engine stop switch is in the
(Run) position. 2 P. 24
● Check for a blown fuse. 2 P. 101
●
Check for a loose battery connection
(2 P. 53) or battery terminal corrosion
(2 P. 41).
● Check the condition of the battery.
2 P. 97
If the problem continues, have your
motorcycle inspected by your dealer.
20181004171657_31K75A300_enu_BOOK Page 89 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
86
Overheating (Segment H flashes in coolant temperature gauge)
The engine is overheating when the following
occurs:
● The segment H flashes in the coolant
temperature gauge.
● Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
road and perform the following procedure.
Extended fast idling may cause the segment
H to flash.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
1.
Stop the engine using the ignition switch,
and then turn the ignition switch to the
ON position.
2.
Check that the radiator fan is operating,
and then turn the ignition switch to the
OFF position.
If the fan is not operating:
Suspect a fault. Do not start the engine.
Transport your motorcycle to your dealer.
If the fan is operating:
Allow the engine to cool with the ignition
switch in the OFF position.
3.
After the engine has cooled, inspect the
radiator hose and check if there is a leak.
2 P. 68
If there is a leak:
Do not start the engine. Transport your
motorcycle to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 68
u
Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the
temperature gauge.
20181004171657_31K75A300_enu_BOOK Page 90 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
87
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your
motorcycle inspected by your dealer as soon
as possible.
ABS (Anti-lock Brake System)
Indicator
CBR300RA
If the indicator operates in one of the
following ways, you may have a serious
problem with the ABS. Reduce your speed
and have your motorcycle inspected by your
dealer as soon as possible.
● Indicator comes on or starts flashing while
riding.
●
Indicator does not come on when the
ignition switch is in the ON position.
●
Indicator does not go off at speeds above
6 mph (10 km/h).
If the ABS indicator stays on, your brakes will
continue to work as a conventional system,
but without the anti-locking function.
The ABS indicator may flash if you turn the
rear wheel while the rear wheel is lifted off
the ground. In this case, turn the ignition
switch to the OFF position, and then to the
ON position again. The ABS indicator will go
off after your speed reaches 19 mph (30
km/h).
20181004171657_31K75A300_enu_BOOK Page 91 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
88
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, all segments
will blink or go off as shown in the illustration.
If this occurs, see your dealer as soon as
possible.
Coolant Temperature Gauge
Failure Indication
If the cooling system has an error, all
segments will blink or go off as shown in the
illustration.
If this occurs, see your dealer as soon as
possible.
20181004171657_31K75A300_enu_BOOK Page 92 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
89
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your motorcycle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your motorcycle with a
temporary tire repair can be risky. If the
temporary repair fails, you can crash
and be seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Removing Wheels
Follow these procedures if you need to
remove a wheel in order to repair a
puncture.
20181004171657_31K75A300_enu_BOOK Page 93 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
90
CBR300RA
When removing and installing the wheel, be
careful not to damage the wheel speed
sensor and pulser ring.
#
Front Wheel
Removal
1.
Place your motorcycle on a firm, level
surface.
2.
Remove the mounting bolts and remove
the brake caliper.
u
Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u
Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u
Do not pull the brake lever while the
brake caliper is removed.
3.
Remove the front axle nut.
20181004171657_31K75A300_enu_BOOK Page 94 Thursday, October 04 2018 17:24:28 JST
Tire Puncture u Removing Wheels
Troubleshooting
91
Continued

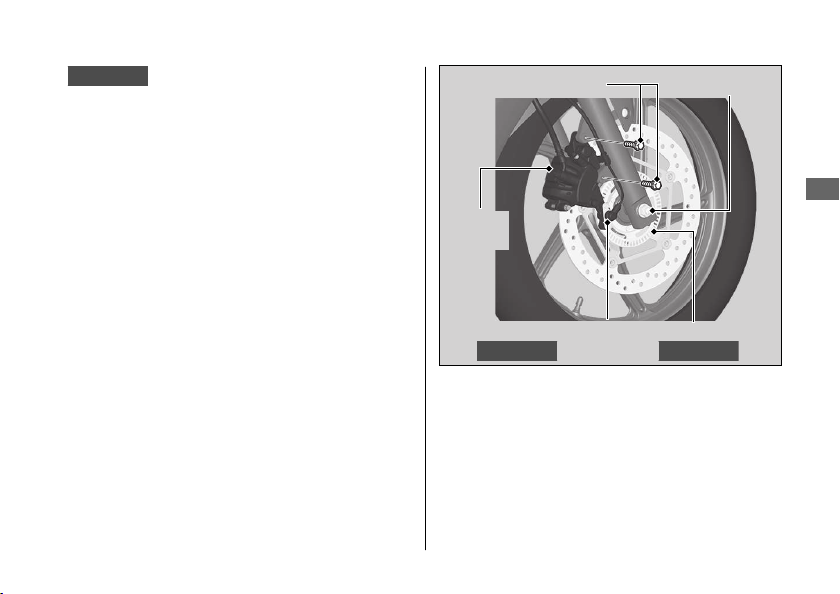

Front axle nut
Mounting bolts
Brake
caliper
Wheel speed sensor
CBR300RA
Pulser ring
CBR300RA
4.
Loosen the axle pinch bolt.
5.
Support your motorcycle securely and
raise the front wheel off the ground using
a maintenance stand or a hoist.
6.
Remove the front axle shaft, front wheel
and side collars.
20181004171657_31K75A300_enu_BOOK Page 95 Thursday, October 04 2018 17:24:28 JST
Tire Puncture u Removing Wheels
Troubleshooting
92

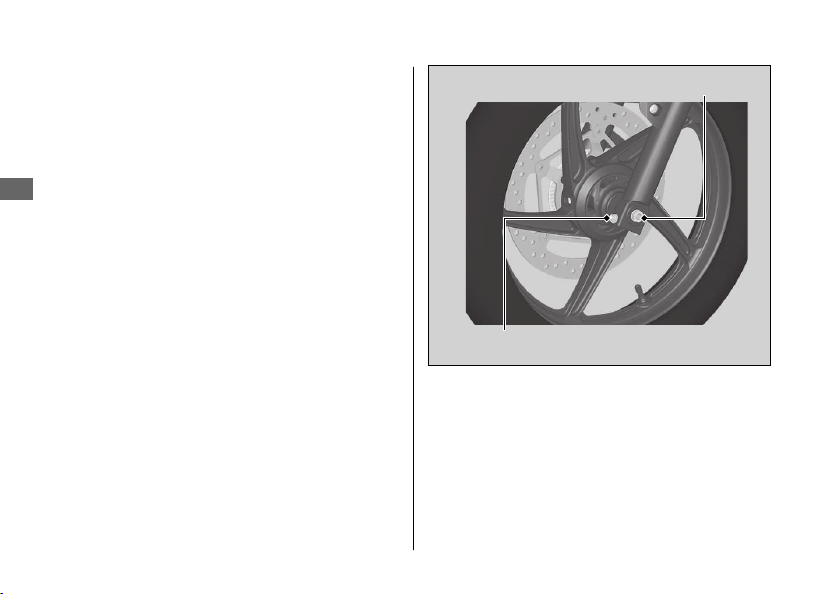

Front axle shaft
Axle pinch bolt
Installation
1.
Attach the side collars to the wheel.
2.
Position the wheel between the fork legs
and insert the front axle shaft from the left
side, through the wheel hub and right
fork leg.
3.
Tighten the front axle nut.
Torque: 44 lbf·ft (59 N·m, 6.0 kgf·m)
4.
Install the brake caliper and tighten the
mounting bolts.
Torque: 22 lbf·ft (30 N·m, 3.1 kgf·m)
u
Take care to prevent the brake caliper
from scratching the wheel during
installation.
u
Use new mounting bolts when
installing the brake caliper.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
5.
Lower the front wheel on the ground.
6.
Apply the brake lever several times. Then,
pump the fork several times.
7.
Tighten the axle pinch bolt.
Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m)
8.
Raise the front wheel off the ground
again, and check that the wheel rotates
freely after you release the brake.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20181004171657_31K75A300_enu_BOOK Page 96 Thursday, October 04 2018 17:24:28 JST
Tire Puncture u Removing Wheels
Troubleshooting
93
Continued
#
Rear Wheel
Removal
1.
Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2.
Loosen the rear axle nut, lock nuts and
turn the adjusting nuts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3.
Remove the rear axle nut and washer A.
4.
Remove the drive chain from the driven
sprocket by pushing the rear wheel
forward.
20181004171657_31K75A300_enu_BOOK Page 97 Thursday, October 04 2018 17:24:28 JST
Tire Puncture u Removing Wheels
Troubleshooting
94
Rear axle nut
Adjusting
nut
Lock nut
Wheel speed
sensor
CBR300RA
Pulser ring
CBR300RA
Washer A
Adjusting nut
Drive chain
Rear axle shaft
Lock nut
Washer B
5.
Remove the rear axle shaft, washer B,
brake caliper bracket, side collars and rear
wheel.
u Support the brake caliper assembly so
that it doesn’t hang from the brake
hose. Do not twist the brake hose.
u Avoid getting grease, oil, or dirt on the
disc or pad surfaces.
u Do not push the brake pedal while the
brake caliper is removed.
Installation
1.
To install the rear wheel, reverse the
removal procedure.
u
Take care to prevent the brake caliper
from scratching the wheel during
installation.
NOTICE
When installing a wheel or caliper into original
position, carefully fit the brake disc between the
pads to avoid scratching them.
2.
Make sure that the lug on the brake
caliper bracket is positioned in the slot on
the swingarm.
20181004171657_31K75A300_enu_BOOK Page 98 Thursday, October 04 2018 17:24:28 JST
Tire Puncture u Removing Wheels
Troubleshooting
95
Continued
Brake caliper bracket
Lug
Slot
Swingarm
3.
Adjust the drive chain. 2 P. 75
4.
Install and tighten the rear axle nut.
Torque: 65 lbf·ft (88 N·m, 9.0 kgf·m)
5.
After installing the wheel, apply the brake
pedal several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.
20181004171657_31K75A300_enu_BOOK Page 99 Thursday, October 04 2018 17:24:28 JST
Tire Puncture u Removing Wheels
Troubleshooting
96
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the motorcycle
before charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your motorcycle's electrical system and
is not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 129
20181004171657_31K75A300_enu_BOOK Page 100 Thursday, October 04 2018 17:24:28 JST
Troubleshooting
97
Continued
#

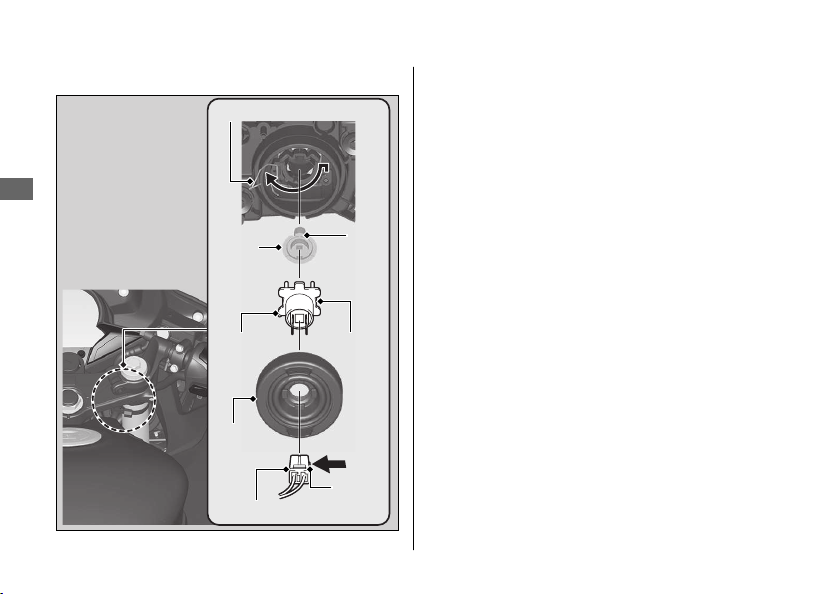

Headlight Bulb
The right and left headlight bulbs
replacement can be done in the same way.
1.
Pull off the connector while pushing the
knob.
2.
Remove the dust cover.
3.
Press the pin down and pull out the bulb
assembly without turning it.
4.
Carefully pull out the bulb from the
adaptor.
5.
Install a new bulb and parts in the reverse
order of removal.
u
Assemble the bulb and adaptor with
the bulb tab upward and the adaptor
prong left downward.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
20181004171657_31K75A300_enu_BOOK Page 101 Thursday, October 04 2018 17:24:28 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
98
Pin
Bulb
Tab
Prong Adaptor
Dust
cover
Connector
Knob
#

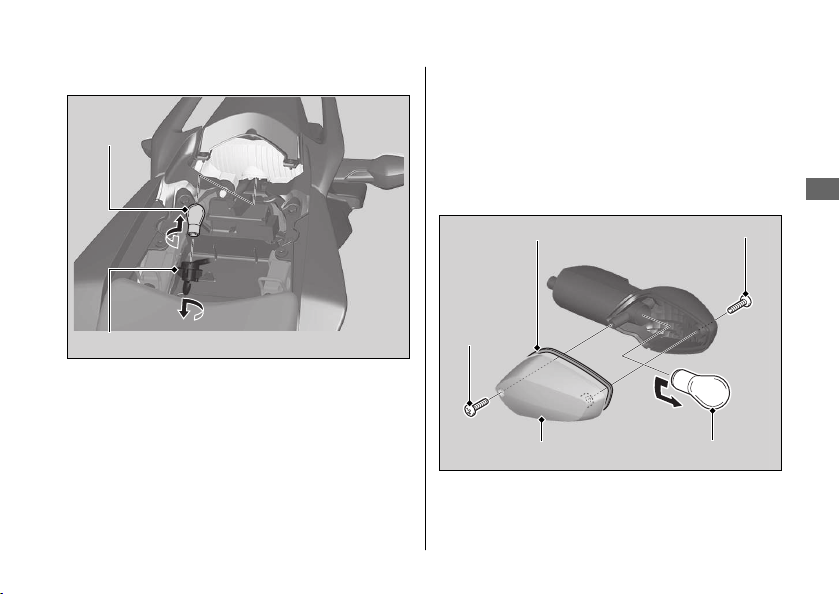

Brake Light/Taillight Bulb
1.
Remove the rear seat. 2 P. 58
2.
Turn the socket counterclockwise, and
remove it.
3.
Slightly press the bulb in and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
5.
Install the rear seat.
#
Front/Rear Turn Signal Bulb
1.
Remove the screw A and screw B.
2.
Remove the turn signal lens and lens
packing.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb in the reverse order of
removal.
u
Use only the amber bulb.
20181004171657_31K75A300_enu_BOOK Page 102 Thursday, October 04 2018 17:24:28 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
99
Continued
Bulb
Socket
Lens packing Screw A
Screw B

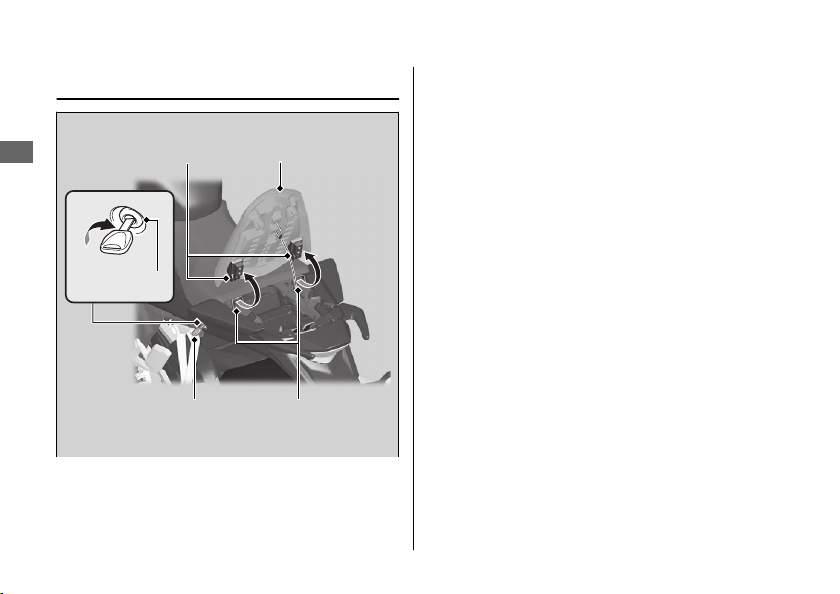

Turn signal lens Bulb
#
License Plate Light Bulb
1.
Remove the screws.
2.
Remove the license light cover and license
light cover packing.
3.
Pull out the bulb without turning.
4.
Install a new bulb in the reverse order of
removal.
20181004171657_31K75A300_enu_BOOK Page 103 Thursday, October 04 2018 17:24:28 JST
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
100
License light cover
Bulb Cover
packing
Screws
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 43
#
Fuse Box Fuses
1.
Remove the front seat. 2 P. 55
2.
Open the fuse box cover.
3.
Pull out the fuses one by one to check for
a blown fuse. Always replace a blown fuse
with a spare of the same rating.
4.
Close the fuse box cover.
5.
Reinstall parts in the reverse order of
removal.
20181004171657_31K75A300_enu_BOOK Page 104 Thursday, October 04 2018 17:24:28 JST
Electrical Trouble u Blown Fuse
Troubleshooting
101
Continued
Fuse box cover
Spare fuses
Fuse box cover
CBR300RA CBR300R
Spare fuses
#

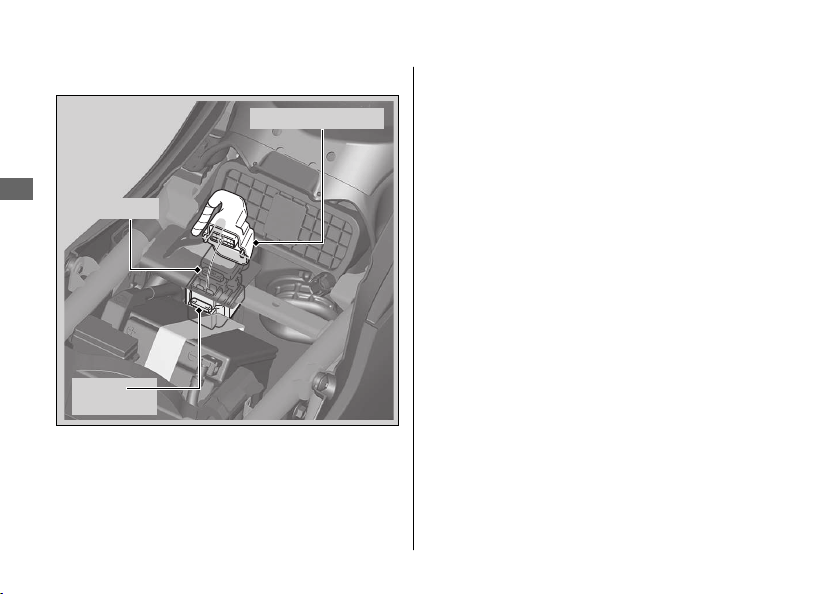

Main Fuse
1.
Remove the front seat. 2 P. 55
2.
Disconnect the wire connector of the
starter magnetic switch.
3.
Pull the main fuse out and check for a
blown fuse. Always replace a blown fuse
with a spare of the same rating.
u Spare main fuse is provided in the
starter magnetic switch.
4.
Reinstall parts in the reverse order of
removal.
20181004171657_31K75A300_enu_BOOK Page 105 Thursday, October 04 2018 17:24:28 JST
Electrical Trouble u Blown Fuse
Troubleshooting
102
Wire connector
Main fuse
Spare
main fuse
#
ABS Fuse
CBR300RA
1.
Remove the front seat. 2 P. 55
2.
Open the ABS fuse box cover.
3.
Pull the fuse out and check for a blown
fuse. Always replace a blown fuse with a
spare of the same rating.
4.
Close the ABS fuse box cover.
5.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your motorcycle
inspected by your dealer.
20181004171657_31K75A300_enu_BOOK Page 106 Thursday, October 04 2018 17:24:28 JST
Electrical Trouble u Blown Fuse
Troubleshooting
103
Spare fuse
ABS fuse
box cover
Keys..................................................................... P. 105
Instruments, Controls, & Other Features... P. 106
Caring for Your Motorcycle ..........................P. 107
Storing Your Motorcycle ............................... P. 111
Transporting Your Motorcycle..................... P. 112
You & the Environment ................................. P. 113
Vehicle Identification Number..................... P. 114
Emission Control Systems ............................. P. 115
Catalytic Converter ......................................... P. 120
Oxygenated Fuels............................................ P. 121
Authorized Manuals ....................................... P. 122
Warranty Coverage and Service .................. P. 123
Honda Contacts ............................................... P. 124
Reporting Safety Defects .............................. P. 126
20181004171657_31K75A300_enu_BOOK Page 107 Thursday, October 04 2018 17:24:28 JST
Information
Keys
Ignition Key
Be sure to record the key number provided with
the key number plate. Store the spare key and
key number in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all ignition keys and the key number,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
20181004171657_31K75A300_enu_BOOK Page 108 Thursday, October 04 2018 17:24:28 JST
Keys
Information
105
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The display locks at 999,999 when the read-out
exceeds 999,999.
Tripmeter
The tripmeter returns to 0.0 when the read-out
exceeds 999.9.
Document Bag
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bag located under the rear seat.
2 P. 58
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the
motorcycle falls over. To reset the sensor, you
must turn the ignition switch to the OFF position
and back to the ON position before the engine
can be restarted.
20181004171657_31K75A300_enu_BOOK Page 109 Thursday, October 04 2018 17:24:28 JST
Instruments, Controls, & Other Features
Information
106
Caring for Your Motorcycle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean
motorcycle makes it easier to spot potential
problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your motorcycle
thoroughly after riding on coastal or treated
roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your motorcycle thoroughly using a
low pressure garden hose to remove loose
dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the windscreen, headlight lens,
panels, and other plastic components
with extra care to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
3.
Thoroughly rinse your motorcycle with plenty
of clean water and dry with a soft, clean cloth.
4.
After the motorcycle dries, lubricate any
moving parts.
u
Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the motorcycle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your motorcycle.
Keep the wax clear of the tires and brakes.
u If your motorcycle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
20181004171657_31K75A300_enu_BOOK Page 110 Thursday, October 04 2018 17:24:28 JST
Caring for Your Motorcycle
Information
107
Continued
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
u
Any condensation inside the headlight
should dissipate after a few minutes of
running the engine with the headlight(s)
on.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
matte painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
20181004171657_31K75A300_enu_BOOK Page 111 Thursday, October 04 2018 17:24:28 JST
Caring for Your Motorcycle
Information
108
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline, brake fluid, or
detergents on the instruments, panels, or
headlight.
Windscreen
Using plenty of water, clean the windscreen with
a soft cloth or sponge. (Avoid using detergents
or any kind of chemical cleaner on the
windscreen.) Dry with a soft, clean cloth.
NOTICE
To avoid possible scratching or other damage,
use only water and a soft cloth or sponge to
clean the windscreen.
For a dirtier windscreen, use a diluted neutral
detergent with a sponge and plenty of water.
Make sure to wash off all the detergent.
(Detergent residue may cause windscreen
cracks.)
Replace the windscreen if scratches cannot be
removed and they obstruct clear vision.
20181004171657_31K75A300_enu_BOOK Page 112 Thursday, October 04 2018 17:24:28 JST
Caring for Your Motorcycle
Information
109
Continued
Take care to keep battery electrolyte, brake
fluid, or other chemical solvents off the
windscreen and screen garnish. They will
damage the plastic.
Exhaust Pipe and Muffler
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
NOTICE
Even though the exhaust is made of stainless
steel, it can become stained. Remove all marks
and blemishes as soon as they are noticed.
20181004171657_31K75A300_enu_BOOK Page 113 Thursday, October 04 2018 17:24:28 JST
Caring for Your Motorcycle
Information
110
Storing Your Motorcycle
If you store your motorcycle outdoors, you
should consider using a full-body motorcycle
cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your motorcycle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 45
● Place your motorcycle on a maintenance
stand and position a block so that both tires
are off the ground.
●
After rain, remove the body cover and allow
the motorcycle to dry.
●
Remove the battery (2 P. 53) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
After removing your motorcycle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
For more information about storage, refer to
the Honda Winter Storage Guide, available from
your dealer.
20181004171657_31K75A300_enu_BOOK Page 114 Thursday, October 04 2018 17:24:28 JST
Storing Your Motorcycle
Information
111
Transporting Your
Motorcycle
If your motorcycle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your motorcycle with a
wheel or wheels on the ground.
NOTICE
Towing your motorcycle can cause serious
damage to the transmission.
20181004171657_31K75A300_enu_BOOK Page 115 Thursday, October 04 2018 17:24:28 JST
Transporting Your Motorcycle
Information
112
You & the Environment
Owning and riding a motorcycle can be
enjoyable, but you must do your part to protect
the environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners
that contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
20181004171657_31K75A300_enu_BOOK Page 116 Thursday, October 04 2018 17:24:28 JST
You & the Environment
Information
113
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your motorcycle and are required in
order to register your motorcycle. They may
also be required when ordering replacement
parts.
You should record these numbers and keep
them in a safe place.
20181004171657_31K75A300_enu_BOOK Page 117 Thursday, October 04 2018 17:24:28 JST
Vehicle Identification Number
Information
114
VIN
VIN
Emission Control Systems
Your motorcycle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
20181004171657_31K75A300_enu_BOOK Page 118 Thursday, October 04 2018 17:24:28 JST
Emission Control Systems
Information
115
Continued
Engine number
Exhaust Emission Requirements
The U.S. Environmental Protection Agency (EPA)
and the California Air Resources Board (CARB)
require that your motorcycle comply with
applicable exhaust, crankcase, and fuel
permeation emission standards during its useful
life, when operated and maintained according
to the instructions provided.
CARB also requires that your motorcycle
comply with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor's
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is located under the rear seat. 2 P. 58
Noise Emission Requirements
The EPA requires that motorcycles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
20181004171657_31K75A300_enu_BOOK Page 119 Thursday, October 04 2018 17:24:28 JST
Emission Control Systems
Information
116
Vehicle emission control information label
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI (programmed fuel injection) system
uses sequential multiport fuel injection, and is
comprised of air intake, engine control, fuel
control, and exhaust control subsystems. The
engine control module (ECM) uses sensors to
determine how much air enters the engine, and
then controls how much fuel to inject.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
#
Catalytic Converters
The exhaust system contains one or more
catalytic converters. Catalytic converters use a
catalyst to convert most of the harmful exhaust
gas compounds into harmless compounds.
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
20181004171657_31K75A300_enu_BOOK Page 120 Thursday, October 04 2018 17:24:28 JST
Emission Control Systems
Information
117
Continued
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner housing and
throttle body.
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits the following acts or
the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
20181004171657_31K75A300_enu_BOOK Page 121 Thursday, October 04 2018 17:24:28 JST
Emission Control Systems
Information
118
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Motorcycle Exhaust
Emissions
Have your motorcycle inspected and repaired
by your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
20181004171657_31K75A300_enu_BOOK Page 122 Thursday, October 04 2018 17:24:28 JST
Emission Control Systems
Information
119
Catalytic Converter
This motorcycle is equipped with a three-way
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC), carbon monoxide
(CO), and oxides of nitrogen (NOx) in the
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
Follow these guidelines to protect your
motorcycle's catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the motorcycle.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
motorcycle serviced as soon as possible.
20181004171657_31K75A300_enu_BOOK Page 123 Thursday, October 04 2018 17:24:28 JST
Catalytic Converter
Information
120
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends are EPA-approved
and have been approved for use in your
motorcycle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Methanol (methyl alcohol) up to 5% by
volume that contain cosolvents and
corrosion inhibitors to protect the fuel
system. Never use a blend containing more
than 5%.
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
20181004171657_31K75A300_enu_BOOK Page 124 Thursday, October 04 2018 17:24:28 JST
Oxygenated Fuels
Information
121
Publication Item No. Description
61K3304 2019 CBR300R/RA CB300F/FA Service Manual
61CSM00 Common Service Manual
S9507 Winter Storage Guide
31K75A30 2019 CBR300R/RA Owner’s Manual
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and ATV.
The Winter Storage Guide in conjunction with
the Owner's Manual and Service Manual can
help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM EST
20181004171657_31K75A300_enu_BOOK Page 125 Thursday, October 04 2018 17:24:28 JST
Authorized Manuals
Information
122
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Motorcycle Limited Warranty
● Emission Control System Warranty
● Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
motorcycle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
You can extend almost all of your warranty
coverage through the Honda Protection Plan.
For more information, see your Honda dealer.
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
20181004171657_31K75A300_enu_BOOK Page 126 Thursday, October 04 2018 17:24:28 JST
Warranty Coverage and Service
Information
123
Continued
If you believe you have a problem with your
motorcycle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your
motorcycle or with your dealer, please send
your comments to the following address:
Motorcycle Division,
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Please include the following information in your
letter:
●
Name, address, and telephone number
●
Product model, year, and VIN
● Date of purchase
●
Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
20181004171657_31K75A300_enu_BOOK Page 127 Thursday, October 04 2018 17:24:28 JST
Honda Contacts
Information
124
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and most repairs. It has the latest
available service information from Honda and
also handles warranty inspections and repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products and Honda Genuine
Accessories that provide the same quality that
went into your motorcycle.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area.
20181004171657_31K75A300_enu_BOOK Page 128 Thursday, October 04 2018 17:24:28 JST
Honda Contacts
Information
125
Reporting Safety Defects
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov.
20181004171657_31K75A300_enu_BOOK Page 129 Thursday, October 04 2018 17:24:28 JST
Reporting Safety Defects
Information
126
Specifications
■ Main Components
Overall length 80.1 in (2,035 mm)
Overall width 28.3 in (720 mm)
Overall height 44.1 in (1,120 mm)
Wheelbase 54.3 in (1,380 mm)
Minimum ground clearance 5.7 in (145 mm)
Caster angle 25.1°
Trail 3.9 in (98 mm)
Curb weight
CBR300R 357 lb (162 kg)
CBR300RA 364 lb (165 kg)
Maximum weight capacity
*1
366 lb (166 kg)
Maximum weight in storage
compartment
*2
6.6 lb (3.0 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius 8.2 ft (2.5 m)
*1 : Including rider, passenger, all luggage, and accessories
*2 : Includes the weight of the luggage and added accessories
Displacement 17.4 cu-in (286 cm
3
)
Bore x stroke 2.99 x 2.48 in (76.0 x 63.0 mm)
Compression ratio 10.7:1
Fuel
Unleaded gasoline
Recommended fuel octane number: Pump
Octane Number (PON) 86 or higher.
Tank capacity 3.43 US gal (13.0 L)
Battery
YTX7L-BS
12 V-6 Ah (10 HR)
Gear ratio
1st 3.416
2nd 2.250
3rd 1.650
4th 1.350
5th 1.166
6th 1.038
Reduction ratio
(primary / final)
2.807 / 2.571
20181004171657_31K75A300_enu_BOOK Page 130 Thursday, October 04 2018 17:24:28 JST
Specifications
127
■ Service Data
Tire size
Front 110/70-17M/C 54S
Rear 140/70-17M/C 66S
Tire type Bias-ply, tubeless
Recommended tire
Front IRC RX-01FD
Rear IRC RX-01RZ
Tire air pressure
Up to
maximum
weight
capacity
Front
29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear
33 psi (225 kPa, 2.25 kgf/cm
2
)
Up to
200 lb
(90 kg)
load
Front
29 psi (200 kPa, 2.00 kgf/cm
2
)
Rear
29 psi (200 kPa, 2.00 kgf/cm
2
)
Minimum tread
depth
Front 0.06 in (1.5 mm)
Rear 0.08 in (2.0 mm)
Spark plug (standard) SIMR8A9 (NGK)
Spark plug gap
(non-
adjustable)
0.031 - 0.035 in (0.80 - 0.90
mm)
Idle speed
(non-
adjustable)
1,400 ± 100 rpm
Recommended
engine oil
API Service Classification SG or higher
except oils labeled as energy conserving or
resource conserving on the circular API
service label, SAE 10W-30, JASO T 903
standard MA, Pro Honda GN4 4-stroke oil
(USA & Canada) or Honda 4-stroke oil, or an
equivalent motorcycle oil
Engine oil
capacity
After
draining
1.5 US qt (1.4 L)
After
draining &
engine oil
filter change
1.6 US qt (1.5 L)
After
disassembly
1.9 US qt (1.8 L)
Recommended
brake fluid
Honda DOT 4 Brake Fluid
Cooling system
capacity
1.16 US qt (1.10 L)
Recommended
coolant
Pro Honda HP Coolant
Recommended
drive chain
lubricant
Pro Honda HP Chain Lube or equivalent
Drive chain slack 13/16 - 1 3/16 in (20 - 30 mm)
Standard drive
chain
RK 520KLO or DID 520VF
No. of links 108
20181004171657_31K75A300_enu_BOOK Page 131 Thursday, October 04 2018 17:24:28 JST
Specifications
Specifications
128
Standard sprocket
size
Drive
sprocket
14T
Driven
sprocket
36T
■ Bulbs
Headlight 12 V-55 W x 2
Brake Light/Taillight 12 V-21/5 W
Front turn signal 12 V-21 W x 2
Rear turn signal 12 V-21 W x 2
License plate light 12 V-5 W
■ Fuses
Main fuse 30 A
Other fuse
CBR300R 15 A, 10 A
CBR300RA 30 A, 15 A, 10 A
■ Torque Specifications
Oil filter cover bolt 9 lbf·ft (12 N·m, 1.2 kgf·m)
Engine oil drain bolt 18 lbf·ft (24 N·m, 2.4 kgf·m)
Air cleaner case cover screw 0.8 lbf·ft (1.1 N·m, 0.1 kgf·m)
Rear axle nut 65 lbf·ft (88 N·m, 9.0 kgf·m)
Drive chain adjusting lock nut 15 lbf·ft (21 N·m, 2.1 kgf·m)
Front axle nut 44 lbf·ft (59 N·m, 6.0 kgf·m)
Brake caliper mounting bolt 22 lbf·ft (30 N·m, 3.1 kgf·m)
Front axle pinch bolt 16 lbf·ft (22 N·m, 2.2 kgf·m)
20181004171657_31K75A300_enu_BOOK Page 132 Thursday, October 04 2018 17:24:28 JST
Specifications
Specifications
129
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
20181004171657_31K75A300_enu_BOOK Page 133 Thursday, October 04 2018 17:24:28 JST
130
Index
A
ABS (Anti-lock Brake System)....................... 11
ABS (Anti-lock Brake System)
Indicator .................................................... 22, 88
Accessories........................................................ 14
Air Cleaner .................................................. 52, 67
Authorized Manuals...................................... 122
B
Battery.......................................................... 41, 53
Brake Light Switch........................................... 72
Brake Light/Taillight ....................................... 99
Brakes
Fluid....................................................... 45, 70, 128
Pad Wear ............................................................. 71
Braking ............................................................... 11
Bulb
Brake Light/Taillight........................................... 99
Front/Rear Turn Signal ..................................... 99
Headlight.............................................................. 98
License Plate Light........................................... 100
C
Caring for Your Motorcycle ........................ 107
Catalytic Converter........................................ 120
Clip ...................................................................... 54
Clock ................................................................... 21
Clutch
Freeplay................................................................ 79
Clutch System................................................... 78
Color Label ........................................................ 40
Coolant......................................................... 47, 68
Coolant Temperature Gauge ........................ 19
Crankcase Breather ......................................... 82
Crash ..................................................................... 5
D
Digital Clock Adjustment............................... 21
Document Bag ......................................... 30, 106
Drive Chain.................................................. 45, 74
E
Electrical Trouble ............................................. 97
Emission Control Systems ........................... 115
20181004171657_31K75A300_enu_BOOK Page 134 Thursday, October 04 2018 17:24:28 JST
Index
131
Engine
Number.............................................................. 114
Oil.................................................................... 44, 63
Oil Filter ................................................................ 65
Overheats............................................................. 87
Starting ................................................................. 27
Stop Switch.......................................... 24, 27, 106
Stopping ............................................................ 106
Will Not Start....................................................... 86
Environment ................................................... 113
Equipment
Owner’s Manual........................................ 30, 106
Tool Kit.................................................................. 30
F
Flooded Engine ................................................ 27
Front Seat .......................................................... 55
Front/Rear Turn Signal................................... 99
Fuel
Gauge ................................................................... 19
Recommended................................................... 29
Remaining............................................................ 19
Tank Capacity ..................................................... 29
Fuses........................................................... 43, 101
G
Gasohol ............................................................ 121
Gasoline ............................................................. 29
H
Harness Band Clip ........................................... 56
Headlight ........................................................... 98
Headlight Aim .................................................. 83
Headlight Dimmer Switch ............................. 24
Helmet Holder.................................................. 30
High Beam Indicator....................................... 23
Honda Contacts ............................................. 124
Horn Button ...................................................... 24
I
Ignition Cut-off System
Banking Sensor................................................. 106
Side Stand............................................................ 73
Ignition Key..................................................... 105
Ignition Switch................................... 25, 27, 106
Indicators........................................................... 22
Information Record....................................... 130
Instruments ....................................................... 18
20181004171657_31K75A300_enu_BOOK Page 135 Thursday, October 04 2018 17:24:28 JST
Index
132
Instruments, Controls, ＆Other
Features ......................................................... 106
L
Labels.................................................................... 7
License Plate Light......................................... 100
Load Limits ........................................................ 15
Loading Guidelines.......................................... 15
M
Maintenance
Fundamentals ..................................................... 38
Importance .......................................................... 32
Safety .................................................................... 33
Schedule............................................................... 34
Maximum Weight Limit ................................. 15
MODE button ................................................... 18
Modifications.................................................... 14
N
Neutral Indicator ............................................. 23
O
Odometer ........................................................ 106
Oil
Engine ............................................................ 44, 63
Other Warning Indications............................ 89
Overheating ...................................................... 87
Oxygenated Fuels.......................................... 121
P
Parking ............................................................... 12
Parts Location................................................... 16
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL)...... 22, 88
Protective Apparel............................................. 9
R
Rear Seat............................................................ 58
Rear Suspension............................................... 84
Recommended
Coolant................................................................. 47
Fuel........................................................................ 29
Oil ................................................................. 44, 128
Refueling............................................................ 29
20181004171657_31K75A300_enu_BOOK Page 136 Thursday, October 04 2018 17:24:28 JST
Index
133
Removal
Battery................................................................... 53
Clip......................................................................... 54
Front Seat............................................................. 55
Harness Band Clip.............................................. 56
Middle Cowl ........................................................ 56
Rear Seat.............................................................. 58
Right Under Cowl............................................... 59
Repair Kit ........................................................... 90
Reporting Safety Defects............................. 126
RESET button .................................................... 18
Riding Precautions .......................................... 10
S
Safety Guidelines ............................................... 3
Safety Labels ....................................................... 7
Safety Precautions............................................. 9
Shifting Gears ................................................... 28
Side Stand.......................................................... 73
Side Stand Ignition Cut-off System ............ 73
Spark Plug ......................................................... 60
Specifications.................................................. 127
Speedometer .................................................... 19
Start Button....................................................... 24
Starting the Engine ......................................... 27
Steering Lock .................................................... 26
Stopping Engine ............................................ 106
Storage
Equipment ........................................................... 30
Owner’s Manual........................................ 30, 106
Tool Kit.................................................................. 30
Storage Compartment.................................... 30
Storing Your Motorcycle ............................. 111
Switches ............................................................. 24
T
Tachometer ....................................................... 18
Throttle............................................................... 81
Tires
Air Pressure ......................................................... 48
Puncture............................................................... 90
Replacing....................................................... 48, 90
Tool Kit............................................................... 30
Transporting Your Motorcycle................... 112
Tripmeter................................................... 20, 106
Troubleshooting .............................................. 85
