Notice to Users
© 1998 Sony Electronics Inc. All rights
reserved. This manual and the software
described herein, in whole or in part, may not
be reproduced, translated, or reduced to any
machine-readable form without prior written
approval.
SONY ELECTRONICS INC. PROVIDES NO
WARRANTY WITH REGARD TO THIS
MANUAL, THE SOFTWARE, OR OTHER
INFORMATION CONTAINED HEREIN
AND HEREBY EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE WITH
REGARD TO THIS MANUAL, THE
SOFTWARE, OR SUCH OTHER
INFORMATION. IN NO EVENT SHALL
SONY ELECTRONICS INC. BE LIABLE
FOR ANY INCIDENTAL,
CONSEQUENTIAL, OR SPECIAL
DAMAGES, WHETHER BASED ON TORT,
CONTRACT, OR OTHERWISE, ARISING
OUT OF OR IN CONNECTION WITH THIS
MANUAL, THE SOFTWARE, OR OTHER
INFORMATION CONTAINED HEREIN OR
THE USE THEREOF.
Sony Electronics Inc. reserves the right to
make any modification to this manual or the
information contained herein at any time
without notice. The software described
herein may also be governed by the terms of
a separate user license agreement.
Sony, VAIO, VAIO Slimtop, Memory Stick,
and the VAIO logo are trademarks of Sony.
Microsoft, Windows, and the Windows 98
logo are registered trademarks of Microsoft
Corporation. Intel and Pentium are
trademarks of Intel Corporation. K56flex is a
trademark of Lucent Technologies Inc. and
Rockwell International. All other trademarks
are trademarks of their respective owners.
Safety Information
Owner’s Record
The model number and serial number are
located on the back of your VAIO computer.
Record the serial number in the space
provided here. Refer to the model and serial
number when you call your Sony Service
Center.
Model Number: PCV-L400/PCV-L600/
PCV-L600S
Serial Number:________________________
❑ To prevent fire or shock hazard, do
not expose your VAIO computer to
rain or moisture.
❑ Never install modem or telephone
wiring during a lightning storm.
❑ Never install telephone jacks in wet
locations unless the jack is specifically
designed for wet locations
❑ Never touch uninsulated telephone
wire or terminals unless the telephone
line has been disconnected at the
network interface.
❑ Use caution when installing or
modifying telephone lines.
❑ Avoid using the modem during an
electrical storm.
❑ Do not use the modem or a telephone
to report a gas leak in the vicinity of
the leak.
!
The use of optical instruments
with this product will increase eye
hazard.
WARNING
Regulatory Information
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
❑ Reorient or relocate the receiving
antenna.
❑ Increase the separation between the
equipment and the receiver.
❑ Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
❑ Consult the dealer or an
experienced radio/TV technician
for help.
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Only peripherals (computer input/output
devices, terminals, printers, etc.) that
comply with FCC Class B limits may be
attached to this computer product.
Operation with non-compliant peripherals
is likely to result in interference to radio
and television reception.
All cables used to connect peripherals
must be shielded and grounded.
Operation with cables, connected to
peripherals, that are not shielded and
grounded, may result in interference to
radio and television reception.
Declaration of Conformity
Trade Name: SONY
Model No.: PCV-L400/PCV-L600/
PCV-L600S
Responsible Party:
Sony Electronics Inc.
Address:
1 Sony Drive
Park Ridge, NJ 07656
Telephone No: 201-930-6970
This device complies with Part 15 of
FCC Rules. Operation is subject to
the two following conditions: (1)
This device may not cause harmful
interference, and (2) this device
must accept any interference
received, including interference that
may cause undesired operation.
FCC Part 68
This equipment complies with Part 68 of the
FCC rules. The ringer equivalence number
(REN) and the FCC registration number are
printed on the modem board. If requested,
this information must be supplied to the
telephone company.
The REN is used to determine the quantity of
devices which may be connected to the
phone line. Excessive REN's on the telephone
line may result in the devices not ringing in
response to an incoming call. In most, but not
all areas, the sum of the REN's should not
exceed five (5.0). To be certain of the number
of devices that may be connected to the line,
as determined by the total REN's, contact the
telephone company to determine the
maximum REN for the calling area.
This modem uses the USOC RJ-11 telephone
jack.
If this equipment causes harm to the
telephone network, the telephone company
will, when practical, notify you in advance
that temporary discontinuance of service
may be required. If advance notice isn't
practical, the telephone company will notify
you as soon as possible. Also, you will be
advised of your right to file a complaint with
the FCC if you believe it is necessary.
The telephone company may make changes
in its facilities, equipment, operations or
procedures that could affect the operations of
the equipment. If this happens, the telephone
company will notify you in advance, in order
for you to make the necessary modifications
in order to maintain uninterrupted service.
If trouble is experienced with this modem,
for repair or warranty information, please
contact 1-888-4SONYPC, or write to the Sony
Customer Information Center, One Sony
Drive, Park Ridge, NJ 07656.
This equipment cannot be used on
telephone-company-provided coin service.
Connection to Party Line Service is subject to
state tariffs.
Repair of the modem should be made only
by a Sony Service Center or Sony authorized
agent. For the Sony Service Center nearest
you, call 1-800-222-SONY (1-800-222-7669).
Telephone Consumer
Protection Act of 1991
The Telephone Consumer Protection Act of
1991 makes it unlawful for any person to use
a computer or other electronic device to send
any message via a telephone facsimile
machine unless such message clearly
contains, in a margin at the top or bottom of
each transmitted page or on the first page of
the transmission, the date and time it is sent
and an identification of the business, other
entity, or individual sending the message,
and the telephone number of the sending
machine or such business, other entity, or
individual.
In order to program this information into
your facsimile, see your fax software
documentation.
✍ You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
v
Contents
Notice to Users .................................................................................... ii
Safety Information.............................................................................. ii
Regulatory Information..................................................................... iii
FCC Part 68 ......................................................................................... iv
Telephone Consumer Protection Act of 1991................................. iv
Chapter 1 — Identifying Components
Front View .......................................................................................2
Drives ...................................................................................................3
Buttons and Switches .........................................................................4
Indicators ..............................................................................................5
Connectors ...........................................................................................6
Slots .......................................................................................................7
Rear View .........................................................................................8
I/O Connectors ....................................................................................9
Expansion Slot....................................................................................12
Chapter 2 — Configuring Your System
Accessing the CMOS Setup Utility..............................................14
Changing the Display's Power Management Settings.............15
Configuring the System Board ....................................................17
Clear CMOS Jumper..........................................................................17
VGA Enable Jumper..........................................................................17
INTEN Jumper ...................................................................................18
Chapter 3 — Removing, Installing, and Replacing
Components
Removing the System Cover .......................................................20

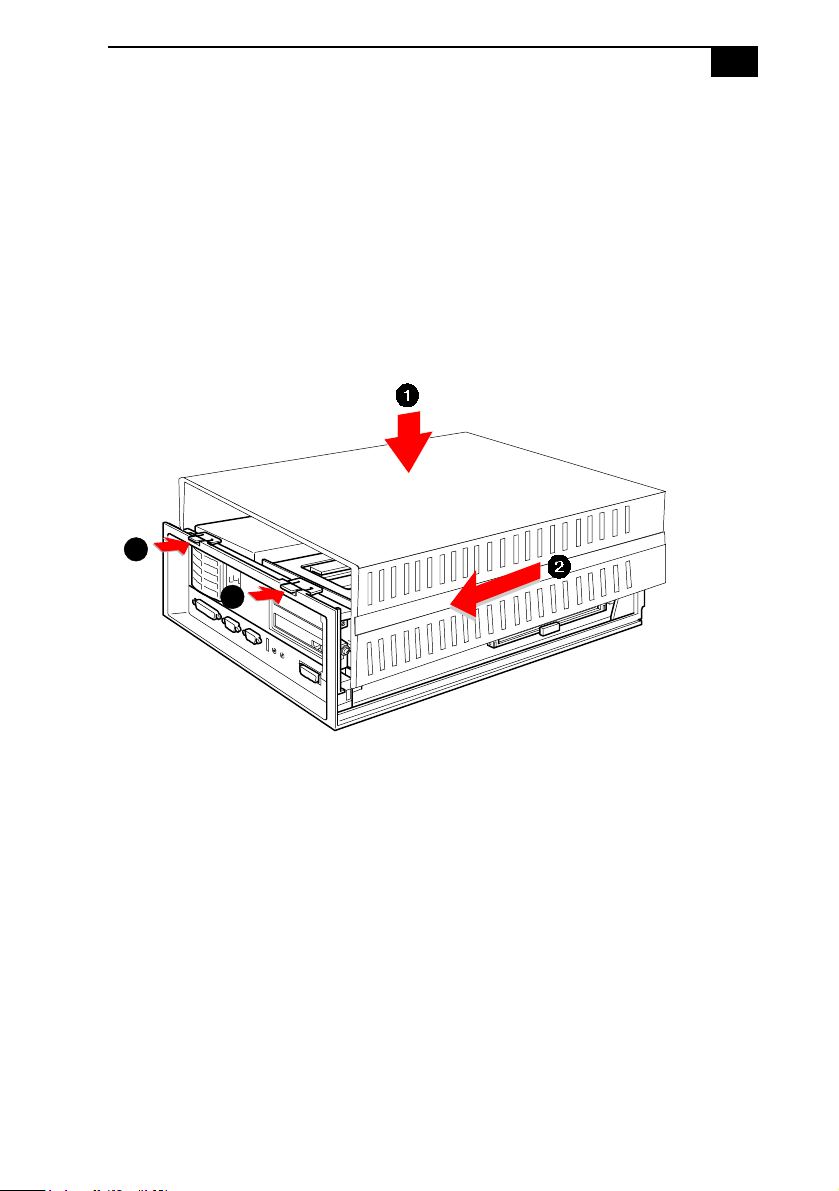

Replacing the System Cover ........................................................21
VAIO Computer Reference Manual
vi

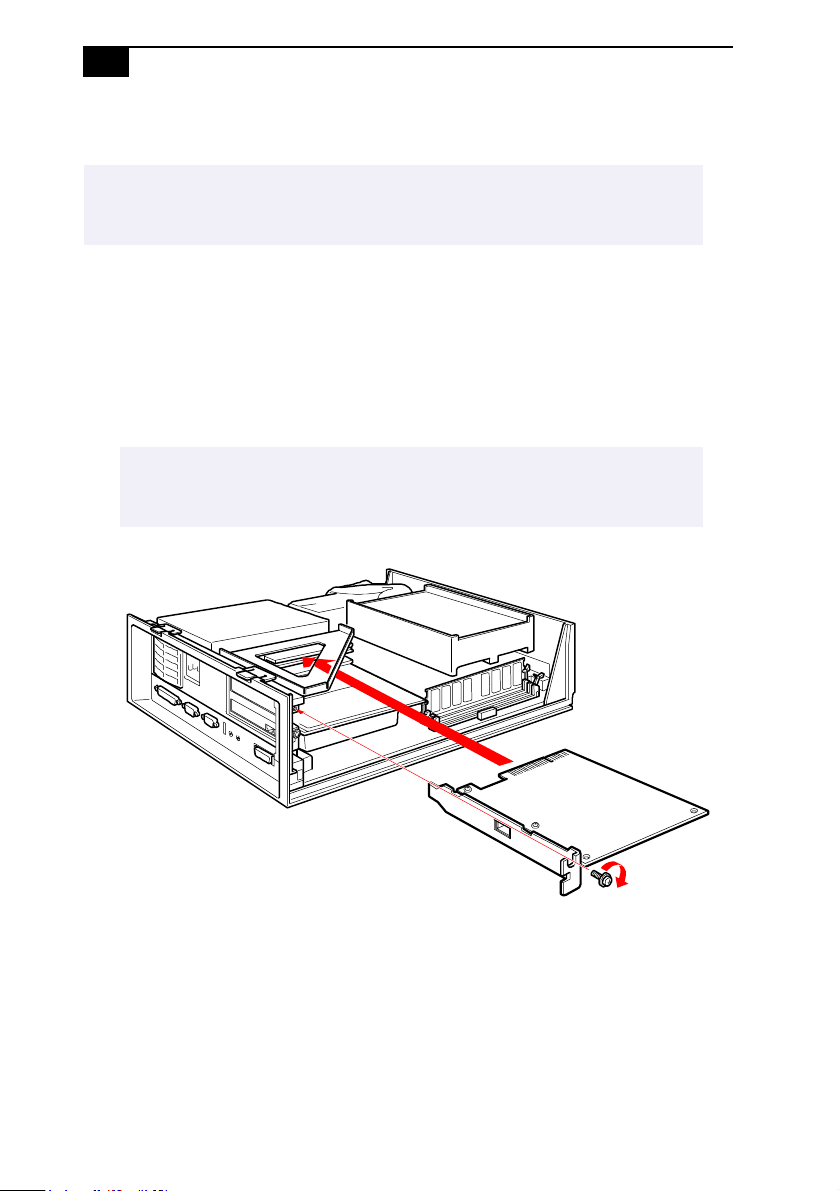

Installing an Add-In Card ............................................................22

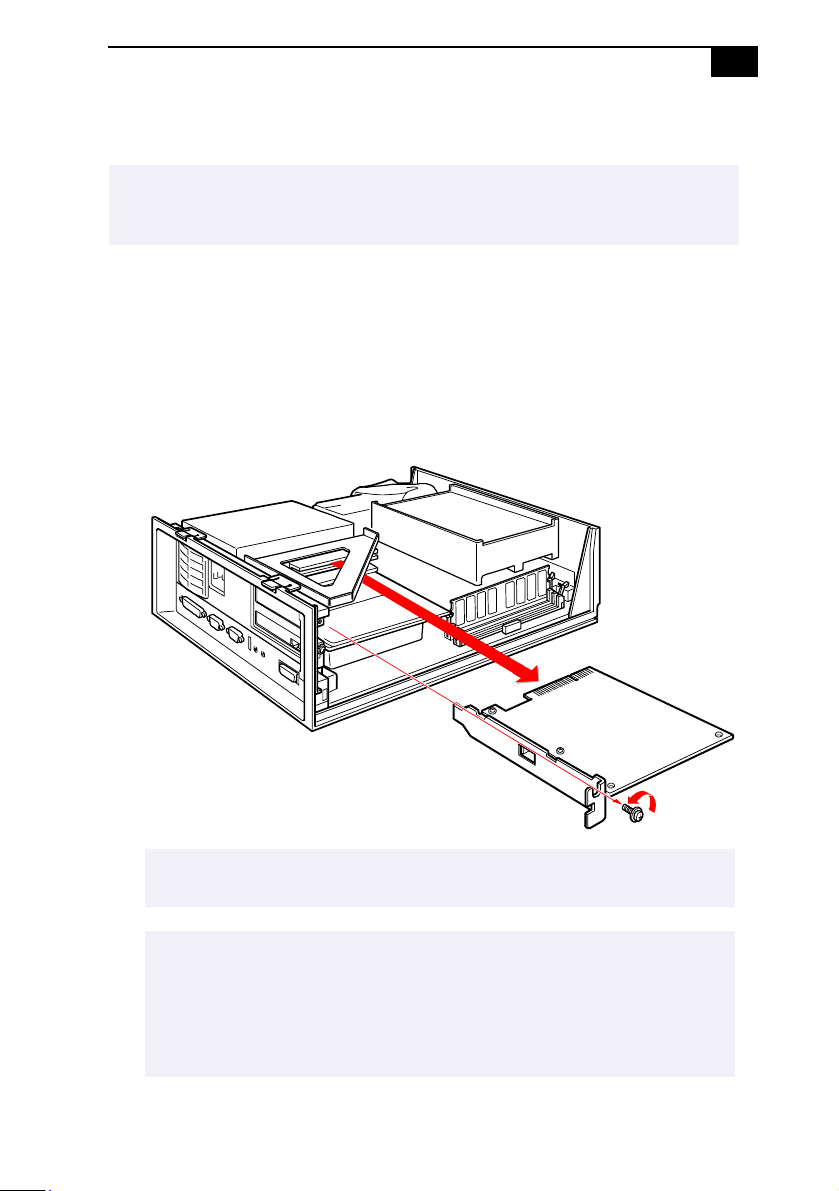

Removing an Add-in Card ...........................................................23
Replacing the Lithium Battery .....................................................25
Installing System Memory ...........................................................28
Removing a Memory Module .....................................................30
Removing a Slot Cover..................................................................32
Covering an Open I/O Slot ..........................................................33
Chapter 4 — System Board
Connectors ......................................................................................36
Front Panel Header............................................................................36
Diskette Drive (FLOPPY) Connector ..............................................37
IDE Connectors .................................................................................39
PCI Slot Connectors...........................................................................43
Memory Module (DIMM) Connectors ..........................................46
Power (ATX PWR) Connector .........................................................47
Fan (CPU FAN, CTRL PWR) Connectors ......................................48
Keyboard/Mouse (KB/MOUSE) Connector ................................49
USB Connectors .................................................................................50
Printer, Serial, and VGA Monitor Connectors ..............................51
LCD Monitor Connector (VAIO Slimtop LCD models only) .....53
Auxiliary (AUX) Connector .............................................................54
Wake On LAN (WOL_CON) Connector .......................................55
Line In and Line Out Connectors ...................................................56
Phones and Mic Connectors ............................................................57
Sony Memory Stick Connector .......................................................58
Configuration Jumpers .................................................................59
CMOS Clear (CMOS) ........................................................................59
VGA Enable (VGAEN) .....................................................................60
INTEN .................................................................................................61
Chapter 5 — Fax/Modem Card
Connectors .....................................................................................63
Chapter 6 — CMOS Setup Options
STANDARD CMOS SETUP Screen.............................................66
BIOS FEATURES SETUP Screen..................................................67
CHIPSET FEATURES SETUP Screen ..........................................70
vii
POWER MANAGEMENT SETUP Screen..................................73
PNP AND PCI SETUP Screen .....................................................75
LOAD BIOS DEFAULTS Screen..................................................77
LOAD SETUP DEFAULTS Screen ..............................................77
SUPERVISOR PASSWORD Screen.............................................77
USER PASSWORD Screen............................................................77
IDE HDD AUTO DETECTION Screen.......................................77
SAVE & EXIT SETUP Screen........................................................77
EXIT WITHOUT SAVING Screen...............................................77
Chapter 7 — Miscellaneous Technical Information
About User and Supervisor Passwords .....................................80
Beep Code Error Messages ..........................................................81
PCI Configuration Status and Error Messages .........................82
DMA Channel Assignments .......................................................84
IRQ Assignments ........................................................................85
System I/O Address Map ...........................................................86
Memory Map .................................................................................89
PCI Configuration Space Map ....................................................90
Chapter 8 — Specifications
Processors ......................................................................................91
Chipset ...........................................................................................91
PCI Bus ..........................................................................................91
Memory Modules (DIMMs) .......................................................91
DIMM Configurations ..................................................................92
L2 Cache .........................................................................................92
Graphics ........................................................................................92
Audio ..............................................................................................93
Communications ..........................................................................93
I/O and Expansion Slots .............................................................93
Drives and Controllers .................................................................94
System CMOS ...............................................................................94
viii
1
Chapter 1
Identifying Components
The following sections identify and describe each component that is
visible from the exterior of the VAIO Computer. Internal components are
identified in the appropriate section of this manual.
VAIO Computer Reference Manual
2
Front View
SHA0001.VS
D
FD CD HD
Flip-down panel
Identifying Components
3
Drives
Drive Description
Diskette drive 3.5-inch, 1.44 Mbyte.
CD-ROM drive CD-ROM disc read: 24X (maximum performance).
*
* Data on a CD-ROM disc is read at a variable transfer rate, ranging from 10.3X at the innermost track to
24X at the outermost track (the data transfer standard 1X rate is 150 kbytes/s). The average data transfer
rate is 17X (2550 kbytes/s).
SHA0002.VSD
FD CD HD
Floppy disk driveCD-ROM disc drive
VAIO Computer Reference Manual
4
Buttons and Switches
Button or switch Description
Power/Standby switch Turns system power on and off.
Floppy disk eject button Ejects a diskette.
CD-ROM disc eject button
Automatically opens and closes the CD-ROM tray.
Emergency eject hole Ejects a CD-ROM disc.
SHA0003.VSD
FD CD HD
Power on/off Floppy disk eject
CD-ROM disc eject
Manual eject hole
Identifying Components
5
Indicators
Indicator Description
Power/Standby indicator Standby (amber) indicates the computer is in
standby mode. On (green) indicates the
computer is out of standby mode, ready to
use. Off (no color) indicates the computer is
turned off.
Diskette drive access indicator On (green) indicates diskette drive activity.
CD-ROM drive access
indicator
On (orange) indicates CD-ROM disc activity.
Hard disk drive access
indicator
On (orange) indicates hard disk drive
activity.
SHA0004.VSD
FD CD HD
Power on/off
Diskette drive access indicator
CD-ROM drive access indicator
Hard drive access indicator
VAIO Computer Reference Manual
6
Connectors
Connector Description
MIC Connects to microphone.
PHONES Connects to headphones.
USB Connects to USB devices.
VOLUME Controls volume.
SHA0005.VS
D
F
D
C
D
H
D
MIC
PHONES
VOLUME
USB
Identifying Components
7
Slots
Slot Description
PC Card Slot Accommodates one Type II PCMCIA card
Memory Stick
™
Media Slot Accommodates Memory Stick media
SHA0006.VS
D
F
D
C
D
H
D
PC Card Slot Memory Stick
Media Slot
VAIO Computer Reference Manual
8
Rear View
Connector Description
Power AC input power
LINE Connects to phone cable from wall jack
PHONE Connects to telephone
PRINTER Connects to parallel device
SERIAL Connects to serial device
MONITOR Connects to VGA monitor
USB Connects to USB devices
LINE IN Connects to output connector on audio device
LINE OUT Connects to input connector on audio device
LCD Connects to VAIO Slimtop LCD
*
monitor
* VAIO Slimtop LCD models only.
KEYBOARD Connects to keyboard
SHA0007.VSD
PRINTER SERIAL MONITOR
USB LINE VIDEO
OUT
LCD KEYBOARD
OUTIN
LIN
E
PHON
E
Power LINE PHONE
PRINTER SERIAL MONITOR
USB
LINE IN
LINE OUT
LCD*
KEYBOARD
Identifying Components
9
I/O Connectors
The following section identifies the various I/O connectors.
PRINTER Port
The PRINTER port is a standard 25-pin DB-25 female connector assigned
as LPT1.
SERIAL Port
The SERIAL port is a standard 9-pin DB-9 male connector assigned as
COM1.
MONITOR
The MONITOR connector is a standard 15-pin female high-density VGA-
type connector.
KY0005.VSD
13 1
25 14
KY0057.VSD
51
9
6
SHA0009.VSD
VAIO Computer Reference Manual
10
USB Ports
A USB port is located on the front and real panels.
PHONE, MIC, LINE IN, and LINE OUT
The PHONES, MIC, LINE IN, and LINE OUT jacks are physically
identical, but have different connections. They are standard 3.5 mm stereo
mini-jacks. The PHONES and MIC jacks are located on the front panel.
The LINE IN and LINE OUT jacks are located on the rear panel.
LCD (VAIO Slimtop LCD models only)
The LCD connector is a 26-pin female MDR-type connector.
Connector Description
PHONES 1.0 Vrms output (typical)
MIC Electrolet condenser microphone input
LINE IN 1.0 Vrms input (typical), 10 Kohm impedance
LINE OUT 2.0 Vrms out (max)
! Do not connect any other LCD monitor other than the Sony VAIO Slimtop LCD
monitor.
KY0003.VS
D
Rear panel
Front panel
KY0013.VSD
LINE IN LINE OUT
Rear panel
PHONES MIC
Front panel
KY0004.VSD
Identifying Components
11
KEYBOARD
The KEYBOARD connector is a standard 6-pin PS/2
®
-type female
connector.
LINE and PHONE
The LINE and PHONE jacks are physically identical and have identical
connections. They are standard RJ-11 female phone jacks. However, the
LINE jack is for connecting to a telephone line that comes from the wall
jack, and the PHONE jack is for connecting the computer to a telephone.
✍ Accidentally plugging a phone line from the wall into the modem’s PHONE jack, and a
telephone into the LINE jack, will not damage the modem card or telephone equipment.
However, the modem will not work correctly.
1
6
2
3
4
5
KY0002.VSD
LINE PHONE
KY0014.VSD
VAIO Computer Reference Manual
12
Expansion Slot
One PCI slot is available for expansion. The other PCI slot is occupied by
the fax/modem card.
SHA0008.VSD
PRINTER SERIAL MONITOR
USB LINE VIDEO
OUT
LCD KEYBOARD
OUTIN
LINE PHONE
PCI Slot
13
Chapter 2
Configuring Your System
This chapter contains information on configuring your system.
Configuring your system can consist of the following:
❑ Making changes to the CMOS settings
❑ Making changes to the display's power management settings
❑ Changing the system board jumper position
VAIO Computer Reference Manual
14
Accessing the CMOS Setup Utility
You must access the CMOS Setup Utility to make changes to the CMOS
settings (see “CMOS Setup Options” on page 65 for information on
CMOS settings).
1 Reboot the system. The following message appears during the initial
boot sequence:
Press TAB to show POST screen, DEL to enter SETUP
2 Press DEL after the progress bar starts.
3 Use the arrow keys to select an item from the main menu.
4 Press Enter to display the options for the selected item.
5 Use the arrow keys to select an option.
6 Press Page Up or Page Down to modify the setting.
7 Press ESC to return to the main menu.
8 Select SAVE & EXIT SETUP, then press Enter. Follow the onscreen
prompts.
! Before rebooting the system, save any open files and exit Windows
®
.
Configuring Your System
15
Changing the Display's Power Management
Settings
A display that has power management capability is designed to operate
on reduced power or shut itself off after the system has been idle for a
specified period of time.
1 From the Start menu, point to Settings, then click Control Panel.
2 Click the Display icon.
3 Click the Screen Saver tab. The Energy-Star dialog box opens.
4 Click Settings.
The Power Management Properties dialog box opens, with the Power
Schemes tab displayed.
5 Select the power scheme that is most appropriate for the way you use
your computer.
To change a power scheme, change the settings for System standby,
VAIO Computer Reference Manual
16
Turn off monitor, and Turn off hard disks.
The System standby option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your computer
goes on standby when your computer is running on AC power.
Power is reactivated when you move the mouse or press a key.
The Turn off monitor option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your monitor
turns off when your computer is running on AC power. The display
reactivates when you move the mouse or press a key.
The Turn off hard disks option allows you to specify the period of
inactivity (in minutes) that you want to elapse before your hard disks
turn off when your computer is running on AC power.
6 To save a new power scheme, first modify the settings, click Save As,
type a descriptive name, and then click
OK.
7 Click the Advanced tab.
8 Select the desired settings, and then click OK.
Configuring Your System
17
Configuring the System Board
The system board contains the following configuration jumpers:
❑ Clear CMOS
❑ VGA Enable
❑ INTEN
Clear CMOS Jumper
The Clear CMOS jumper provides two modes of operation: Normal
mode, and Clear CMOS mode.
Normal mode allows normal access to the BIOS Setup Utility. The Central
Processing Unit (CPU) input clock is forced to remain at 100 MHz (fast
mode), and the Basic Input/Output System (BIOS) uses the User CMOS
settings (as opposed to the System CMOS settings). The CMOS and
NVRAM settings are only cleared if the checksum test returns false.
Access to specific setup fields is controlled by a supervisor password or
user password.
The Clear CMOS mode removes the password that is stored in CMOS. No
other parameters are cleared.
To change the Clear CMOS jumper, perform the following steps:
1 Remove the system cover (see “Removing the System Cover” on
page 20).
2 Set the jumpers as directed by a service technician (also see “CMOS
Clear (CMOS)” on page 59).
3 Reinstall the system cover (see “Replacing the System Cover” on
page 21).
VGA Enable Jumper
You can enable or disable the onboard VGA controller if you install a
VGA PCI add-in card.
✍
The configuration jumpers should never need changing unless otherwise directed by a
technical support or service technician.
! Before opening the system, save any open files, exit Windows, turn off the
power of the computer and all attached peripherals, and unplug the
power cord.
VAIO Computer Reference Manual
18
To change the VGA enable jumper, perform the following steps:
1 Remove the system cover (see “Removing the System Cover” on
page 20).
2 Set the jumper to enable or disable (see “VGA Enable (VGAEN)” on
page 60).
3 Reinstall the system cover (see “Replacing the System Cover” on
page 21).
INTEN Jumper
You can enable or disable the onboard VGA interrupt if you install a VGA
PCI add-in card.
To change the INTEN jumper, perform the following steps:
1 Remove the system cover (see “Removing the System Cover” on
page 20).
2 Set the jumper to enable or disable (see “INTEN” on page 61).
3 Reinstall the system cover (see “Replacing the System Cover” on
page 21).
19
Chapter 3
Removing, Installing, and
Replacing Components
This chapter describes removing, installing, and replacing major
components for upgrading, reconfiguring, and troubleshooting the
components.
! Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
VAIO Computer Reference Manual
20
Removing the System Cover
You must remove the system cover to access the system board, add-in
cards, power supply, battery, and internal drives.
1 From the rear of the unit, push down on the two tabs that secure the
system cover to the chassis.
2 Slide the system cover back. The panel slides back about ½ inch.
3 Lift straight up to remove it.
✍
This works best if the spacers are installed on the unit, or the unit sits on a rubber mat.
KY0064B.VSD
3
Removing, Installing, and Replacing Components
21
Replacing the System Cover
1 Position the system cover over the chassis such that the front portion
of the system cover extends past the front of the unit.
2 Carefully lower the system cover down over the chassis. The rear of
the system cover should be about ½ inch in from the rear of the unit.
3 Carefully slide the system cover back until the tabs snap into place.
Check the front to make sure all drives and connectors are correctly
aligned.
KY0077.VSD
3
3
VAIO Computer Reference Manual
22
Installing an Add-In Card
1 Remove the system cover (see “Removing the System Cover” on
page 20).
2 Remove the slot cover adjacent to the selected slot connector on the
system board (see “Removing a Slot Cover” on page 32).
3 Insert the add-in card into the PCI slot connector. Use a gentle
rocking motion, pressing down until the card is fully seated.
4 Attach any necessary cables to the card (see the instructions that came
with the add-in card).
5 Replace the system cover (see “Replacing the System Cover” on
page 21).
6 Turn on the computer and follow any instructions that came with the
add-in card.
! Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
✍
Align the card's bracket so that the bottom of the bracket fits into the slot at the
bottom of the chassis. Assure that the top of the bracket fits snugly against the
chassis lip after the card is fully inserted.
KY0070.VSD
Removing, Installing, and Replacing Components
23
Removing an Add-in Card
1 Remove the system cover (see “Removing the System Cover” on
page 20).
2 Disconnect any cables attached to the add-in card.
3 Remove the screw that secures the add-in card to the chassis.
4 Remove the add-in card from the PCI slot connector and store the
card in an anti-static wrapper for future use.
! Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
✍
Grasp the card with one hand on each end, and gently pull up as you rock the card
from side to side.
! Hold the add-in card by its edges and do not touch any components or
connector contacts on the card. Static electricity in your body may
damage sensitive components on the card. As a precaution, touch any
exposed metal part on the metal chassis (preferably the metal part on
the power supply) before handling an add-in card to discharge any static
electricity in your body.
KY0071.VSD
Removing, Installing, and Replacing Components
25
Replacing the Lithium Battery
You may need to replace the lithium battery if your computer consistently
loses the date or time settings after turning it off. The lithium battery has
a typical life of three years, after which the battery may be too weak to
power the CMOS memory.
1 Reboot your computer by selecting Shut Down... from the Start
menu, and then selecting Restart the computer.
2 If the error message “Error: Check date and time settings” appears
during the reboot sequence, press F3, then press F2 during the reboot
process to access the BIOS Setup Utility. Otherwise it is not necessary
to replace the battery at this time, and you can skip all remaining
steps.
3 Compare all the BIOS options to their default settings (see “CMOS
Setup Options” on page 65). Make a list of all the BIOS options that
are different from their default values. You will refer to this list when
you restore the BIOS settings later.
4 Press ESC, then select Exit from the main menu using the right arrow
key. The Exit Discarding Changes is automatically selected (it is the
first item in the list).
5 Press Enter, type N when prompted to save, then press Enter to exit
the BIOS Setup Utility.
6 Turn off the computer and unplug the power cord.
7 Remove the system cover (see “Removing the System Cover” on
page 20).
! When you remove the lithium battery, all values stored in the CMOS memory
(BIOS setup values and Plug and Play values) may be lost. Although the
computer can hold the charge for a short time while replacing the battery, it
is safer to assume that the settings will be lost. When the values are lost, the
BIOS values revert to their factory-default settings (see “Accessing the
CMOS Setup Utility” on page 14).
Do not handle damaged or leaking batteries.
The lithium battery may explode if mistreated. Do not disassemble it or
dispose of it in fire.
VAIO Computer Reference Manual
26
8 Remove all add-in cards (see “Removing an Add-in Card” on
page 23) to gain access to the battery. You may also need to
disconnect some cables.
9 Insert a small flathead screwdriver into the small space at the top of
the battery holder.
10 Gently pry the battery out and dispose of it according to the
instructions that came with the new battery.
11 Insert the new battery into the battery holder, with the plus (+) side
up.
12 Replace all add-in cards that were removed.
13 Reconnect any cables that were disconnected.
14 Replace the system cover (see “Replacing the System Cover” on
page 21).
15 Reconnect the power cord and turn on the computer.
! Touch any exposed metal part of chassis to discharge static electricity in
your body before handling an add-in card or other sensitive electronic
component.
✍
The Sony CR2032 battery is recommended. Using a type of battery other than a
CR2032 may present a risk of fire or explosion.
KY0072.VSD
Removing, Installing, and Replacing Components
27
16 If the error message “Error: Check date and time settings.” appears
during the reboot sequence, press DEL to access the CMOS Setup
Utility. If no error message displays, the computer’s CMOS settings
were retained during the battery replacement and you can skip the
remaining steps.
17 Refer to the list you made in step 3 and restore any non-default
CMOS settings (see “CMOS Setup Options” on page 65).
18 Select SAVE & EXIT SETUP from the main menu using the arrow
keys, then press Enter.
19 Type Y, then press Enter to save the changes and exit the CMOS Setup
Utility.
The computer’s CMOS settings are now restored.
VAIO Computer Reference Manual
28
Installing System Memory
1 If necessary, remove the memory module you wish to replace (see
“Removing a Memory Module” on page 30).
2 Remove the new memory module(s) from its anti-static package.
Hold the memory module only by its edges to prevent static-
electricity damage.
3 Choose the size of the memory module and configuration as shown
in the following table. Memory modules can vary in size and speed
between sockets. The minimum memory size is 8 MB. The maximum
memory size is 256 MB. The BIOS automatically detects the type, size,
and speed of the memory modules.
! Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
Memory module configurations (MB)
*
* The PCV-L400 is shipped with 64 MB. The PCV-L600 and
PCV-L600S are shipped with 128 MB. SDRAM is expandable to
256 MB on all models.
DIMM1 DIMM2
0, 8, 16, 32, 64, 128 0, 8, 16, 32, 64, 128
! Touch any exposed metal part of the chassis to discharge static electricity in
your body before handling a memory module.
✍
Use only 100 MHz FSB-supported memory. Do not mix 66 MHz memory with 100 MHz
memory. Supports SDRAM memory. Does not support EDO memory or buffered DIMM
memory.
Removing, Installing, and Replacing Components
29
4 Align the module over the appropriate socket, noting the location of
pin 1 on the module and pin 1 on the socket.
5 Carefully but firmly insert the edge of the module into the socket.
6 Press down firmly and evenly at both corners until the module is
fully seated.
7 Replace the system cover (see “Replacing the System Cover” on
page 21).
Your computer automatically recognizes the extra memory and
configures itself accordingly when you turn it on. No further action is
required.
✍
When the module is fully seated, the handles on each side are straight up and
locked into the slot on each side of the module. If the handles are not totally
straight upright, continue to press down on each side of the module until the
handles lock into place.
DIMM1
DIMM2
Pin 1 side
1
Indicates pin 1
Memory module (DIMM)
OM04586.VSD
Handles
Press down
here
VAIO Computer Reference Manual
30
Removing a Memory Module
You may need to remove a memory module if you change the memory
configuration or replace a bad module.
1 Remove the system cover (see “Removing the System Cover” on
page 20).
2 Locate the memory module you wish to remove.
! Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
KY0073.VSD
Removing, Installing, and Replacing Components
31
3 Push out the handle on each side of the memory module to eject the
module from its socket.
4 Lift the memory module out by grasping it by its edges. Store the
module in a static-free bag.
! Touch any exposed metal part of the chassis to discharge static
electricity in your body before handling the memory module.
Handles
Push out
KY0042.VSD
KY0043.VSD
VAIO Computer Reference Manual
32
Removing a Slot Cover
You remove a slot cover when you install an add-in card that occupies a
previously-empty slot.
1 Lay the system on its side with the open side facing up and the slot
covers facing you.
2 Locate the slot of the cover you want to remove.
3 Remove the screw from the slot cover.
4 Carefully remove the loose slot cover and retain it for future use.
KY0069.VSD
Removing, Installing, and Replacing Components
33
Covering an Open I/O Slot
Slot covers prevent air from escaping through the empty hole. If air
escapes, the components inside the computer cannot be properly cooled.
This may damage some components, especially the main processor
(which generates the most heat).
1 Fit the bottom end of the slot cover (removed earlier) between the
chassis and system board.
2 Push the slot cover in until it rests firmly on the lip in the chassis. All
add-in card brackets and slot covers rest on this lip.
3 Replace the screw (removed earlier) to secure the I/O slot cover.
KY0076.VSD
34
35
Chapter 4
System Board
This chapter identifies each component on the system board and provides
a detailed description of each connector and jumper on the system board.
Printer
Serial
VGA Monitor
USB1
Line In
Line Out
LCD Monitor
Keyboard/Mouse
Primary IDE CPU
AUX
Battery
CMOS
Clear
VGAEN
INTEN
Front Panel
Memory
Volume
Phone
Mic
Wake On LAN
PS Fan
CPU Bus Freq.
Multiplier
Power
Floppy
Secondary IDE
Reset
OM04581.VSD
CPU Fan
USB2
Sony Memory Stick
PCI Riser Slot
VAIO Computer Reference Manual
36
Connectors
Front Panel Header
The front panel header is a 10-pin header that provide connections to
various front panel functions.
Pin # Name Description
1 +5 +5V from power supply
2 LED (CD-ROM) Connects to LED on CD-ROM
3 LED (FDD) Connects to LED on floppy disk drive
4 LED (HDD) Connects to LED on IDE hard disk drive
5 LED (MODEM) Connects to LED on modem card
6 Reserved (not used)
7 LED3 Connects to Standby/Sleep (red) signal from
power supply
8 LED4 Connects to Power (green) anode signal from
power supply
9 POWER SW Connects to power switch
10 GND Connects to signal ground
KY0031.VS
D
Front panel header
System Board
37
Diskette Drive (FLOPPY) Connector
The FLOPPY connector is a 26-pin connector for a slim notebook-type
diskette drive.
Diskette Drive connector
Pin Signal
1+5V
2INDEX
3+5V
4 DRIVE_SELECT_0#
5+5V
6DSKCHG#
7NC
8READY#
9HD
10 MOTOR_ON#
11 NC
12 DIRECTION#
13 MODE_SELECT#
14 STEP#
15 GND
16 WRITE_DATA#
OM04701H.VSD
FLOPPY
VAIO Computer Reference Manual
38
17 GND
18 WRITE_GATE#
19 GND
20 TRACK_00#
21 GND
22 WRITE_PROTECT#
23 GND
24 READ_DATA#
25 GND
26 SIDE_ONE_SELECT#
Diskette Drive connector
(continued)
Pin Signal
System Board
39
IDE Connectors
There are two IDE (Integrated Drive Electronics) connectors: a Primary
IDE and a Secondary IDE connector.
The Primary IDE connector is a 40-pin 2.54mm pitch header-type
connector for the 3.5 inch hard disk drive.
The Secondary IDE connector is a 50-pin 2mm pitch header-type
connector for the slim notebook-type CD-ROM drive.
IDE Primary connector
Pin Signal
1 Reset IDE
2GND
3 Data 7
4 Data 8
5 Data 6
6 Data 9
7 Data 5
8 Data 10
9 Data 4
10 Data 11
11 Data 3
OM04701G.VS
D
Primary IDE
Secondary IDE
VAIO Computer Reference Manual
40
12 Data 12
13 Data 2
14 Data 13
15 Data 1
16 Data 14
17 Data 0
18 Data 15
19 GND
20 (Key)
21 DDRQ0
22 GND
23 I/O Write#
24 GND
25 I/O Read#
26 GND
27 IOCHRDY
28 P_ALE (Cable Select pull-up)
29 DDACK0#
30 GND
31 IRQ 14
32 Reserved
33 Address 1
34 Reserved
35 Address 0
36 Address 2
37 Chip Select 1P#
38 Chip Select 3P#
39 Activity#
40 GND
IDE Primary connector
(continued)
Pin Signal
System Board
41
IDE Secondary connector
Pin Signal
1LOUT
2ROUT
3LRTN (AGND)
4RRTN (AGND)
5HRST
6HD08
7HD07
8HD09
9HD07
10 HD10
11 HD05
12 HD11
13 HD04
14 HD12
15 HD03
16 HD13
17 HD02
18 HD14
19 HD01
20 HD15
21 HD00
22 DMARQ
23 GND
24 HIOR#
25 HIOW#
26 GND
27 HIORDY
28 DMACK#
29 HIRQ
30 HIOCS16#
31 HA01
32 PDIAG#
33 HA00
34 HA02
VAIO Computer Reference Manual
42
35 HCSO#
36 HSC1#
37 DASP#
38 +5V
39 +5V
40 +5V
41 +5V
42 +5V
43 GND
44 GND
45 GND
46 GND
47 CSEL
48 GND
49 Reserved
50 DIGITAL OUT
IDE Secondary connector
(continued)
Pin Signal
System Board
43

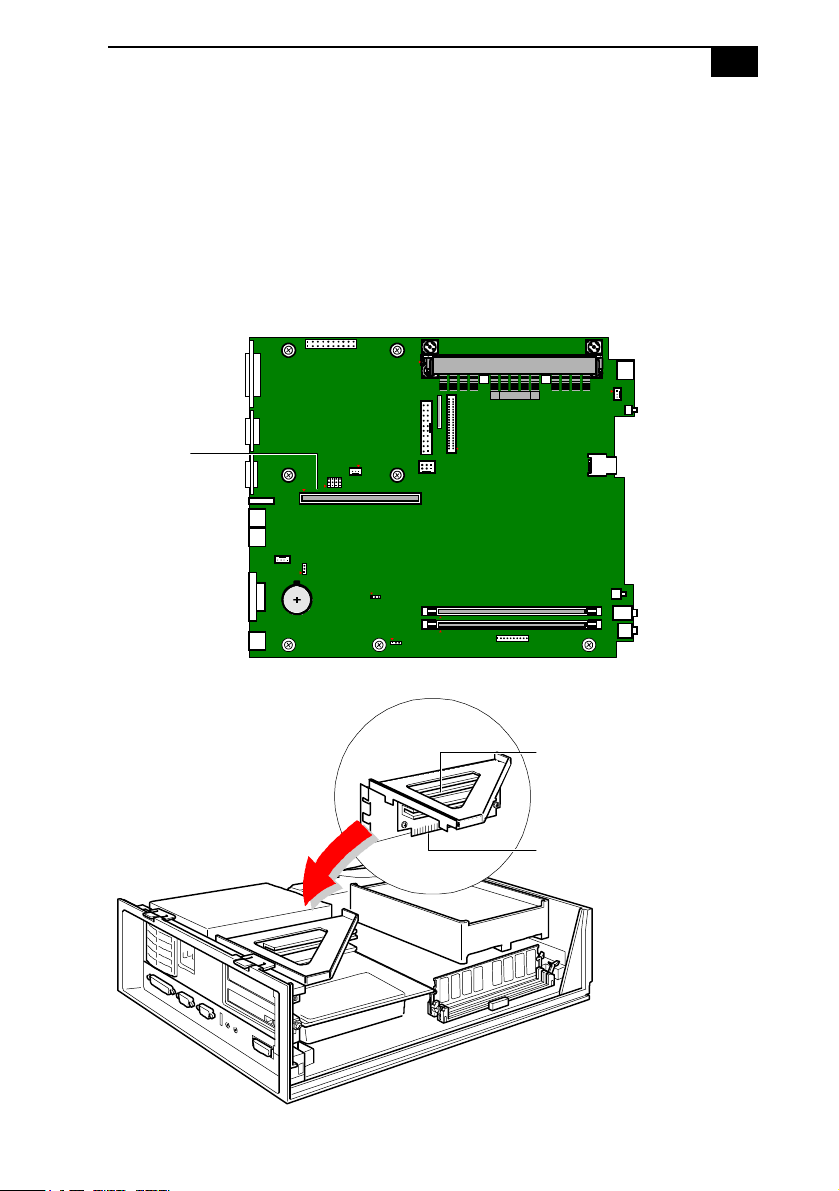

PCI Slot Connectors
The system board contains one PCI Riser slot connector for a PCI riser
card. The PCI riser card in turn provides two PCI slot connectors for PCI
add-in cards. One PCI slot connector is available for an add-in PCI card.
The other PCI slot connector is occupied by the fax/modem card.
The PCI slots in the riser card support 32-bit 5V and Universal (3.3/5V)
PCI add-in cards.
OM04599B.VSD
PCI slot for
riser card
KY0091.VSD
Two PCI slot connectors
PCI riser card
(plugs into PCI connector
on system board)
VAIO Computer Reference Manual
44
PCI Riser Slot connector
*
Pin Side B Signal Side A Signal
1-12V TRST#
2TCK +12V
3 GND TMS
4 TDO TDI
5+5V +5V
6+5V INTA#
7 INTB# INTC#
8 INTD# +5V
9 PRSNT1# Reserved
10 Reserved +5V (I/O)
11 PRSNT2# Reserved
12 GND GND
13 GND GND
14 Reserved *CLK2
15 GND RST#
16 CLK1 +5V (I/O)
17 GND *GND1#
18 *REQ1# GND
19 +5V (I/O) Reserved
20 AD31 AD30
21 AD29 *GNT2#
22 GND AD28
23 AD27 AD26
24 AD25 GND
25 *REQ2# AD24
26 C/BE3# ADSEL
27 AD23 +3.3V
28 GND AD22
29 AD21 AD20
30 AD19 GND
31 +3.3V AD18
32 AD17 AD16
33 C/BE2# +3.3V
34 GND FRAME#
System Board
45
35 IRDY# GND
36 +3.3V TRDY#
37 DEVSEL# GND
38 GND STOP#
39 LOCK# +3.3V
40 PERR# SDONE
41 +3.3V SBO#
42 SERR# GND
43 +3.3V PAR
44 C/BE1# AD15
45 AD14 +3.3V
46 GND AD13
47 AD12 AD11
48 AD10 GND
49 GND AD09
50 (Key) (Key)
51 (Key) (Key)
52 AD08 C/BE0#
53 AD07 +3.3V
54 +3.3V AD06
55 AD05 AD04
56 AD03 GND
57 GND AD02
58 AD01 AD00
59 +5V (I/O) +5V (I/O)
60 ACK64# REQ64#
61 +5V +5V
62 +5V +5V
* “#” means active low signal. “*” means signal is different from standard PCI. “GNT1#” means GNT#
signal for PCI slot 1. “CLK1” means signal for PCI slot 1. GNT2#” means GNT# signal for PCI slot 2.
“CLK2” means signal for PCI slot 2.
PCI Riser Slot connector
*
Pin Side B Signal Side A Signal
VAIO Computer Reference Manual
46
Memory Module (DIMM) Connectors
Both sides of each Dual Inline Memory Module (DIMM) look very
similar. The side with pin 1 has a small "1" to the left of pin 1. Be sure to
orient a DIMM correctly in the DIMM connector (a small triangle on the
connector indicates pin 1).
OM04710A.VSD
DIMM2
DIMM1
1
11
1
Indicates pin 1
Memory module (DIMM)
OM04908B.VSD
System Board
47
Power (ATX PWR) Connector
The ATX PWR connector is a 20-pin Molex-type header connector that
provides power to the ATX system board.
Power connector
Pin # Name Pin # Name
1+3.3V 11+3.3V
2 +3.3V 12 -12V
3GND 13GND
4 +5V 14 PS-ON# (power supply
remote on/off control)
5GND 15GND
6 +5V 16 GND
7GND 17GND
8 PWRGD (power good) 18 NC
9 +5VSB 19 +5V
10 +12V 20 +5V
OM04701I.VSD
1
10
11
20
ATX PWR
VAIO Computer Reference Manual
48
Fan (CPU FAN, CTRL PWR) Connectors
The CPU Fan connector is a 1 x 3-pin straight header connector that
controls the CPU cooling fan.
The CTRL PWR connector is a 2 x 3-pin connector that controls the power
supply cooling fan. It connects to P3 from the power supply.
CPU Fan connector
Pin Signal Name
1GND
2 FAN_CTRL (+12V)
3FAN_SEN
CTRL PWR connector
Pin Signal Name
1Fan M
2Fan C
*
* Power supply provides 12V to this pin when system is in Power On mode (for fastest fan speed), and 6V
when system is in Suspend mode (to reduce fan noise).
3 3.3V sense
4 NC (key)
5 Reserved
6 Reserved
KY0034.VS
D
4
1
6
3
CTRL PWR
CPU Fan
3
1
System Board
49
Keyboard/Mouse (KB/MOUSE) Connector
The combination keyboard/mouse connector is a 6-pin female PS/2-type
(mini-DIN) connector that can accommodate a PS/2 keyboard or mouse.
Keyboard/Mouse connector
Pin Signal Name
1 Keyboard data
2 Mouse data
3GND
4 +5V (fused)
5 Keyboard Clock
6 Mouse Clock
KY0032.VS
D
1
6
KB/MOUSE
VAIO Computer Reference Manual
50
USB Connectors
There are two USB ports that permit connection of two USB peripheral
devices directly to the system without having to use an external hub. If
more USB devices are needed, connect an external hub to either USB1 or
USB2.
USB1 is a standard USB connector accessible from the rear panel. USB2 is
a standard USB connector accessible from the front panel.
USB1 connector (rear panel)
Pin Signal Name
1Power
2USBP0#
3USBP0
4GND
USB2 connector (front panel)
Pin Signal Name
1Power
2USBP1#
3USBP1
4GND
KY0033.VS
D
USB1
USB2
System Board
51
Printer, Serial, and VGA Monitor Connectors
The Serial connector is a DB-9 male connector. The Printer connector is a
DB-25 female connector. The VGA Monitor connector is a 15-pin D-sub
female connector.
Printer connector
Pin Signal Name Pin Signal Name
1 STROBE# 14 AUTO FEED#
2 DATA BIT 0 15 FAULT#
3 DATA BIT 1 16 INIT#
4 DATA BIT 2 17 SLCT IN#
5DATA BIT 3 18GND
6DATA BIT 4 19GND
7DATA BIT 5 20GND
8DATA BIT 6 21GND
9DATA BIT 7 22GND
10 ACK# 23 GND
11 BUSY 24 GND
12 ERROR 25 GND
13 SELECT
OM04701D.VSD
PRINTER
13 1
25 14
SERIAL
15
69
VGA MONITOR
51
15 11
VAIO Computer Reference Manual
52
Serial 1 connector
Pin Signal Name
1DCD
2 RXD#
3 TXD#
4 DTR#
5GND
6DSR
7RTS
8CTS
9RI
VGA Monitor connector
Pin Signal Name
1RED
2GREEN
3BLUE
4GND
5 DDC GND
6RED GND
7GREEN GND
8 BLUE GND
9NC
10 GND
11 GND
12 SDA
13 HORIZONTAL SYNC
14 VERTICAL SYNC
15 SCL
System Board
53
LCD Monitor Connector (VAIO Slimtop LCD models only)
The LCD monitor connector is a 26-pin MDR-type connector for the Sony
VAIO Slimtop LCD monitor.
! Do not connect any other LCD monitor other than the Sony VAIO Slimtop LCD
monitor.
LCD Monitor connector
Pin Signal Pin Signal
1POWER GND 14TxOUT0 -
2 TxOUT0GND 15 TxOUT0 +
3 POWLED anode 16 SUSLED anode
4 TxOUT1 - 17 TxOUT1GND
5 TxOUT1 + 18 PVDDON
6 TxOUT2 - 19 TxOUT2GND
7 TxOUT2 + 20 Reserved
8 DETECT# 21 MSGLED#
9 BLON 22 TxCLKOUT -
10 TxCLKOUTGND 23 TxCLKOUT +
11 POWER +12V (Fused, 1A) 24 POWER +12V (Fused, 1A)
12 Audio R 25 Audio GND
13 Audio L 26 POWER GND
KY0094.VSD
LCD Monitor
VAIO Computer Reference Manual
54
Auxiliary (AUX) Connector
The AUX connector is a standard 4-pin ATAPI-style 2.54 mm single line
header connector for external audio sound input.
AUX connector
Pin Signal
1 Left Line In
2GND
3GND
4 Right Line In
KY0095.VSD
AUX
14
System Board
55
Wake On LAN (WOL_CON) Connector
The WOL_CON connector is a 3-pin header connector that provides the
Wake On LAN function.
Wake On LAN connector
Pin Signal
1+5V SB
2GND
3WOL signal
KY0096.VSD
13
WOL_CON
VAIO Computer Reference Manual
56
Line In and Line Out Connectors
The Line In and Line Out jacks are stereo mini-jacks (3.5 mm) that connect
to a stereo audio device (not an audio source from a video device).
Connect a stereo audio output jack to the Line In jack, and the Line Out
jack to a stereo audio input jack.
Line In jack
Pin Signal
Sleeve GND
Tip Audio-Left In
Ring Audio-Right In
Line Out jack
Pin Signal
Sleeve GND
Tip Audio-Left Out
Ring Audio-Right Out
KY0058.VSD
Line In
Line Out
System Board
57
Phones and Mic Connectors
The Phones jack is stereo mini-jack (3.5 mm) that connects to headphones.
The Mic jack is a stereo mini-jack (3.5 mm) that connects to a microphone.
Phones jack
Pin Signal
Sleeve GND
Tip Left Out
Ring Right Out
Mic jack
Pin Signal
Sleeve GND
Tip Microphone Mono In
Ring Electret Bias Voltage
KY0058A.VSD
Phones
Mic
Volume
control knob
VAIO Computer Reference Manual
58
Sony Memory Stick Connector
The Sony Memory Stick connector is a 10-pin MCR 103-10S connector.
Sony Memory Stick connector
Pin Signal
1VSS
2BS
3Reserved
4DIO
5Reserved
6 INS
7Reserved
8SCLK
9 VCC
10 VSS
KY0097.VSD
Sony Memory Stick
System Board
59
Configuration Jumpers
The configuration jumpers include CMOS Clear, VGA Enable, and
INTEN.
CMOS Clear (CMOS)
A jumper cap is installed on pins 2 and 3 (Normal) of the CMOS header
when the computer is shipped. Do not move the jumper cap to the CMOS
Clear position unless otherwise directed by a technical support person.
KY0059.VS
D
CMOS Clear
123
Normal
VAIO Computer Reference Manual
60
VGA Enable (VGAEN)
The VGAEN jumper is a 3-pin header that enables or disables the
onboard VGA controller. The computer ships with a jumper cap in the
Enable position.
KY0092.VS
D
VGA Enable
123
VGA Disable
System Board
61
INTEN
The INTEN jumper is a 3-pin header that enables or disables the onboard
VGA interrupt. The computer ships with a jumper cap in the Enable
position.
KY0093.VS
D
INT Enable
123
INT Disable
62
63
Chapter 5
Fax/Modem Card
The K56flex
™
technology/V.90-compatible data fax/modem card
occupies PCI slot #1 in the Riser card. The fax/modem card has two RJ-11
jacks that are accessible from the rear panel: one to connect a telephone
line, and one to connect a phone.
Connectors
Name Connector Type Description
Telephone RJ-11 Connects to phone
Line RJ-11 Connects to telephone line
KY0038.VS
D
Telephone
Line
64
65
Chapter 6
CMOS Setup Options
This chapter describes each screen in the CMOS SETUP UTILITY (see
“Accessing the CMOS Setup Utility” on page 14).
The CMOS Setup Utility presents the following menu items on the main
screen:
❑ STANDARD CMOS SETUP
❑ BIOS FEATURES SETUP
❑ CHIPSET FEATURES SETUP
❑ POWER MANAGEMENT SETUP
❑ PNP AND PCI SETUP
❑ LOAD BIOS DEFAULTS
❑ LOAD SETUP DEFAULTS
❑ SUPERVISOR PASSWORDS
❑ USER PASSWORD
❑ IDE HDD AUTO DETECTION
❑ SAVE & EXIT SETUP
❑ EXIT WITHOUT SAVING
Use the arrow keys to choose a menu item. Press Enter to display the
item’s options. Use the arrow keys to select an option. Use the Page Up or
Page Down keys to modify a setting.
Press Esc to go back to the main menu. Press F10 to save the changes and
exit, or press Esc to discard the changes. Follow the on-screen prompts for
other choices. The bottom of the screen presents a summary of the
keyboard keys to use for navigation and control.
The current setting is shown in [brackets] unless the item cannot be
modified. Items beneath the current setting indicate available settings.
VAIO Computer Reference Manual
66
STANDARD CMOS SETUP Screen
Date (mm:dd:yy): [Mar 15 1999]
Time (hh:mm:ss): [15:45:56]
HARD DISKS
Primary Master:
Primary Slave:
Secondary Master:
Secondary Slave:
Type [Auto]
User
None
Mode [NORMAL]
LBA
LARGE
Drive A: [1.44M, 3.5 in.]
2.88M, 3.5 in.
None
360K, 5.25 in.
1.2M, 5.25 in.
720K, 3.5 in.
Drive B: [None]
360K, 5.25 in.
1.2M, 5.25 in.
720K, 3.5 in.
1.44M, 3.5 in.
2.88M, 3.5 in.
Floppy 3 Mode Support: [Disabled]
Drive A
Drive B
Both
Video: [EGA/VGA]
CGA 40
CGA 80
MONO
Halt On: [All Errors]
No Errors
All, But Keyboard
All, But Diskette
All, But Disk/Key
CMOS Setup Options
67
BIOS FEATURES SETUP Screen
CPU Internal Core Speed: 400MHz
Boot Virus Detection: [Enabled]
Disabled
CPU Level 1 Cache: [Enabled]
Disabled
CPU Level 2 Cache: [Enabled]
Disabled
CPU Level 2 Cache ECC Check: [Disabled]
Enabled
BIOS Update: [Enabled]
Disabled
Turbo Mode: [Disabled]
Enabled
Quick Power On Self Test: [Enabled]
Disabled
HDD Sequence SCSI/IDE First: [IDE]
SCSI
Boot Sequence: [A, CDROM, C]
CDROM, C, A
D, A
E, A
F, A
C only
LS/ZIP, C
LAN, A, C
LAN, C, A
A, C
C, A
Boot Up Floppy Seek: [Disabled]
Enabled
Floppy Disk Access Control: [R/W]
Read Only
IDE HDD Block Mode Sectors: [HDD MAX]
Disabled
2
4
8
16
32
VAIO Computer Reference Manual
68
HDD S.M.A.R.T. capability: [Disabled]
Enabled
OS/2 Onboard Memory > 64M: [Disabled]
Enabled
Silent Boot: [Enabled]
Disabled
Boot Up Sound: [Enabled]
Disabled
Boot Up Volume:
*
[Medium]
High
Mute
Low
PCI/VGA Palette Snoop: [Disabled]
Enabled
Video ROM BIOS Shadow: [Enabled]
Disabled
C8000 - CBFFF Shadow: [Disabled]
Enabled
CC000 - CFFFF Shadow: [Disabled]
Enabled
D0000 - D3FFF Shadow: [Disabled]
Enabled
D4000 - D7FFF Shadow: [Disabled]
Enabled
D8000 - DBFFF Shadow: [Disabled]
Enabled
DC000 - DFFFF Shadow: [Disabled]
Enabled
Boot Up NumLock Status: [Off]
On
Typematic Rate Setting: [Disabled]
Enabled
* Becomes enabled only when Boot Up Sound is enabled.
CMOS Setup Options
69
Typematic Rate (Chars/Sec): [6]
8
10
12
15
20
24
30
Typematic Delay (Msec): [250]
500
750
1000
Security Option: [System]
Setup
PS/2 Mouse Function Control: [Auto]
Enabled
VAIO Computer Reference Manual
70
CHIPSET FEATURES SETUP Screen
SDRAM Configuration: [By SPD]
Disabled
7ns (143MHz)
8ns (125MHz)
SDRAM CAS Latency: [2T]
3T
SDRAM RAS to CAS Delay:
*
[2T]
3T
SDRAM RAS Precharge Time:
*
[2T]
3T
DRAM Idle Timer:
*
[10T]
12T
16T
32T
Infinite
0T
2T
4T
8T
SDRAM MA Wait State: [Normal]
Slow
Fast
Snoop Ahead: [Enabled]
Disabled
Host Bus Fast Data Ready: [Disabled]
Enabled
16-bit I/O Recovery Time: [1 BUSCLK]
2 BUSCLK
3 BUSCLK
4 BUSCLK
8-bit I/O Recovery Time: [1 BUSCLK]
2 BUSCLK
3 BUSCLK
4 BUSCLK
5 BUSCLK
6 BUSCLK
7 BUSCLK
8 BUSCLK
* These settings depend on the setting in SDRAM Configuration, and become enabled only when
SDRAM Configuration is Disabled.
CMOS Setup Options
71
Graphics Aperture Size: [64MB]
128MB
256MB
4MB
8MB
16MB
32MB
Video Memory Cache Mode: [UC]
USWC
PCI 2.1 Support: [Enabled]
Disabled
Memory Hole At 15M-16M: [Disabled]
Enabled
DRAM are 64 (Not 72) bits wide
Data Integrity Mode: Non-ECC
Onboard FDC Controller: [Enabled]
Disabled
Onboard FDC Swap A & B: [No Swap]
Swap AB
Onboard Serial Port 1: [3F8H/IRQ4]
2F8H/IRQ3
3E8H/IRQ4
2E8H/IRQ10
Disabled
Onboard Serial Port 21: [2F8H/IRQ3]
3E8H/IRQ4
2E8H/IRQ10
Disabled
3F8H/IRQ4
Onboard Parallel Port: [378H/IRQ7]
278H/IRQ5
Disabled
3BCH/IRQ7
Parallel Port Mode: [Normal]
EPP
ECP
ECP+EPP
ECP DMA Select:
*
[3]
1
* Enabled when Parallel Port Mode is ECP or ECP+EPP.
VAIO Computer Reference Manual
72
Onboard PCI IDE Enable: [Both]
Primary
Secondary
Disable
IDE Ultra DMA Mode: [Auto]
Disable
IDE0 Master PIO/DMA Mode:
IDE0 Slave PIO/DMA Mode:
IDE1 Master PIO/DMA Mode:
IDE1 Slave PIO/DMA Mode: [Auto]
0/0
1/0
2/0
3/1
4/2
CMOS Setup Options
73
POWER MANAGEMENT SETUP Screen
Power Management: [User Define]
Disable
Min Saving
Max Saving
Video Off Option: [Suspend -> Off]
Always On
Video Off Method: [DPMS OFF]
DPMS Reduce ON
Blank Screen
V/H SYNC+Blank
DPMS Standby
DPMS Suspend
** PM Timers **
HDD Power Down: [Disable]
1 Min
2 Min
3 Min
4 Min
5 Min
6 Min
7 Min
8 Min
9 Min
10 Min
11 Min
12 Min
13 Min
14 Min
15 Min
Suspend Mode:
*
[Disable]
30 Sec
1 Min
2 Min
4 Min
8 Min
20 Min
30 Min
40 Min
1 Hour
* Enabled only when Power Management is not Disable.
VAIO Computer Reference Manual
74
** Power Up Control **
PWR Button < 4 Secs: [Soft Off]
Suspend
PWR Up On Modem Act: [Enabled]
Disabled
Automatic Power Up: [Disabled]
Everyday
By Date
Time (hh:mm:ss) Alarm:
*
[17:32: 0]
Date Of Month Alarm:
†
[1]
.
.
.
31
** Fan Monitor **
CPU Fan Speed: [5273RPM]
Ignore
Power Fan Speed: [4017]
Ignore
** Thermal Monitor **
CPU Temperature: N/A
MB Temperature: [32°C/89°F]
Ignore
** Voltage Monitor **
VCORE Voltage: [2.0V]
Ignore
+3.3V Voltage: [3.3V]
Ignore
+5V Voltage: [5.1V]
Ignore
+12V Voltage: [11.7V]
Ignore
-12V Voltage: [-12.2V]
Ignore
* Displays only when Automatic Power Up is Everyday or By Date.
† Displays only when Automatic Power Up is By Date.
CMOS Setup Options
75
PNP AND PCI SETUP Screen
PNP OS Installed: [No]
Yes
Slot 1 IRQ:
Slot 2 IRQ: [Auto]
NA
3
4
5
7
9
10
11
12
14
15
PCI Latency Timer: [32] PCI Clock
.
.
.
255 PCI Clock
0 PCI Clock
1 PCI Clock
.
.
.
31 PCI Clock
IRQ 3 Used By ISA: [No/ICU]
Yes
IRQ 4 Used By ISA: [No/ICU]
Yes
IRQ 5 Used By ISA: [Yes]
No/ICU
IRQ 7 Used By ISA: [No/ICU]
Yes
IRQ 9 Used By ISA: [No/ICU]
Yes
IRQ 10 Used By ISA: [No/ICU]
Yes
IRQ 11 Used By ISA: [No/ICU]
Yes
IRQ 12 Used By ISA: [No/ICU]
Yes
VAIO Computer Reference Manual
76
IRQ 14 Used By ISA: [No/ICU]
Yes
IRQ 15 Used By ISA: [No/ICU]
Yes
DMA 1 Used By ISA: [No/ICU]
Yes
DMA 3 Used By ISA: [No/ICU]
Yes
DMA 5 Used By ISA: [No/ICU]
Yes
ISA MEM Block BASE: [No/ICU]
C800
CC00
D000
D400
D800
DC00
ISA MEM Block SIZE:
*
[8K]
16K
32K
64K
SYMBIOS SCSI BIOS: [Disabled]
Auto
USB IRQ: [Enabled]
Disabled
ONB VGA BIOS First: [No]
Yes
Onboard Audio: [Enabled]
Disabled]
Onboard Cardbus: [Enabled]
Disabled
* Displays only when ISA MEM Block BASE is not No/ICU.
CMOS Setup Options
77
LOAD BIOS DEFAULTS Screen
Press Enter to load BIOS default settings except standard CMOS setup.
LOAD SETUP DEFAULTS Screen
Press Enter to load setup defaults except standard CMOS setup.
SUPERVISOR PASSWORD Screen
Press Enter to change, set, or disable the supervisor password. Follow the prompts.
USER PASSWORD Screen
Press Enter to change, set, or disable the user password. Follow the
prompts.
IDE HDD AUTO DETECTION Screen
Press Enter to auto-configure the hard disk drives.
SAVE & EXIT SETUP Screen
Press Enter to save changes in the CMOS and exit CMOS Setup Utility. Follow the
prompts.
EXIT WITHOUT SAVING Screen
Press Enter to exit CMOS Setup Utility without saving the changes. Follow the
prompts.
78
79
Chapter 7
Miscellaneous Technical
Information
This chapter contains information on the following subjects:
❑ User and Supervisor password
❑ Beep code error messages
❑ PCI configuration status and error messages
❑ DMA channel assignments
❑ IRQ assignments
❑ System I/O address map
❑ Memory map
❑ PCI configuration space map
VAIO Computer Reference Manual
