USER MANUAL
Model: SB36312-G6
VIZIO 36" 3.1.2 Channel Sound Bar Home Theater Sound System
Please read this guide before using the product.
English - ii
Your Unit is designed and manufactured to operate within dened design limits, and misuse may result in electric shock or re. To prevent your Unit from
being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before
operating your Unit. Keep these instructions in a safe place for future reference.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power
supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
• To reduce the risk of electric shock or component damage, switch o the power before connecting other components to your Unit.
• Unplug the power cord before cleaning your Unit. A damp cloth is sucient for cleaning. Do not use a liquid or a spray cleaner on your Unit. Do not use
abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Unit from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning
on your Unit to avoid causing re, electric shock, or component damage.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Unit and to protect it from
overheating, be sure these openings are not blocked or covered. Do not place your Unit in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slots and openings on your Unit enclosure. Do not place any objects on the top of your Unit. Doing so could short circuit
parts causing a re or electric shock. Never spill liquids on your Unit.
• Always place the subwoofer on a at, level surface.
• Do not block the subwoofer ports. Allow for 1-2 inches of space around all sides for ventilation.
IMPORTANT SAFETY INSTRUCTIONS
English - iii
• WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued
exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable
discomfort.
• When connected to a power outlet, power is always owing into your Unit. To totally disconnect power, unplug the power cord.
• Do not overload power strips and extension cords. Overloading can result in re or electric shock.
• The wall socket should be located near your Unit and be easily accessible
• Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact
your dealer. Continuous use in this case may result in re or electric shock.
• Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately.
Do not try to repair your unit yourself.
• Avoid using dropped or damaged appliances. If your Unit is dropped and the housing is damaged, the internal components may function abnormally.
Unplug the power cord immediately and contact your dealer for repair. Continued use of your Unit may cause re or electric shock.
• Do not install your Unit in an area with heavy dust or high humidity. Operating your Unit in environments with heavy dust or high humidity may cause
re or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Unit.
• When unplugging your Unit, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause re or
electric shock. When your Unit will not be used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control batteries in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote
control or injure the operator.
• See the important note and rating located on the back of the unit.
• WARNING - This equipment is not waterproof. To prevent a re or shock hazard, do not place any container lled with liquid near the equipment (such
as a vase or ower pot) or expose it to dripping, splashing, rain, or moisture.
• CAUTION - Danger of explosion or re if batteries are mistreated. Replace only with the same or specied type.
• Do not leave the batteries exposed to direct sunlight for a long period of time with doors and windows closed. Do not disassemble the batteries or
dispose of it in re.
• Where the MAINS plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
The lighting ash with arrowhead symbol
within an equilateral triangle is intended
to alert the user to the presence of not
isolated dangerous voltage within the
product that may be sucient magnitude
to constitute a risk of shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
servicing instructions in the literature
accompanying the appliance.
Warning: This equipment is a Class II or
double insulated electrical appliance. It has
been designed in such a way that it does
not require a safety connection to electrical
earth.
English - iv
TABLE OF CONTENTS
Package Contents ............................................................................................................................................ 5
Controls & Connections ..................................................................................................................................6
First-Time Setup...............................................................................................................................................10
Proper Placement ............................................................................................................................................15
Using the Remote ............................................................................................................................................17
Using your tablet or smartphone as a remote .............................................................................................18
LED Indicators .................................................................................................................................................. 19
Using Button Combinations ...........................................................................................................................23
Programming the Sound Bar .........................................................................................................................24
Bluetooth Audio Pairing ..................................................................................................................................25
Using Bluetooth mode ....................................................................................................................................26
Advanced Setup ............................................................................................................................................... 27
Advanced Setup - HDMI ARC ..........................................................................................................................28
Connecting with HDMI ARC ............................................................................................................................29
Connecting a Subwoofer ...............................................................................................................................31
Wall-Mounting the Sound Bar ........................................................................................................................ 32
Help & Troubleshooting ..................................................................................................................................36
Frequently Asked Questions ..........................................................................................................................37
Limited Warranty ............................................................................................................................................. 38
Specications ...................................................................................................................................................41
Legal & Compliance .........................................................................................................................................42
English - 5
PACKAGE CONTENTS
2 x Wall
Mount Screws
Digital Optical
Cable
2 x Power Cables
VIZIO
Sound Bar Remote Control
with 2x AAA Batteries
Wireless Subwoofer
Stereo RCA to
3.5mm Audio Cable
3.5mm to 3.5mm
Audio Cable
2 x Wall
Mount Brackets
(Sound Bar)
HDMI Cable
Wall Mount Template
User Manual
English - 6
CONTROLS & CONNECTIONS
Power Port
OPTICAL
Digital Optical Audio In
3.5mm IN
Analog Audio In
(Stereo 3.5mm)
Front
Top
Back
Side
Angle
Back of Sound Bar
English - 7
USB*
USB In
* Supports .WAV and .MP3 le format playback only.
HDMI IN
HDMI In
HDMI OUT
HDMI Out (ARC) to TV
Ethernet
Ethernet In
English - 8
Top of Sound Bar
Input Press to change
the audio source.
Volume Increase or decrease
the loudness of the audio.
Power Press to turn
sound bar on or o.
Bluetooth Input Hold to pair.
(See ‘Bluetooth Audio Pairing’
for more information.)
Front
Top
Back
Side
Angle
Front
Top
Back
Side
English - 9
Back of Subwoofer
Power Button LED Indicator
Power Port
English - 10
Front
Top
Back
Side
Angle
Back of Sound Bar
FIRST-TIME SETUP
* Not all TVs/Displays have the audio outputs shown
above. To connect the sound bar directly to your
other devices (Blu-ray player, game system, etc.).
See your device’s user manual.
1
3.5MM TO
RCA CABLE
GOOD
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
OR
BETTER
DIGITAL OPTICAL
CABLE
†
† When using the digital input, if there is no audio:
(A) try setting the TV/Display output to PCM or
(B) Connect directly to your Blu-ray/other source,
some TV/Display do not pass through digital audio.
CHOOSE ONE CABLE*
and connect it to your tv
Ensure your TV is powered on.
English - 11

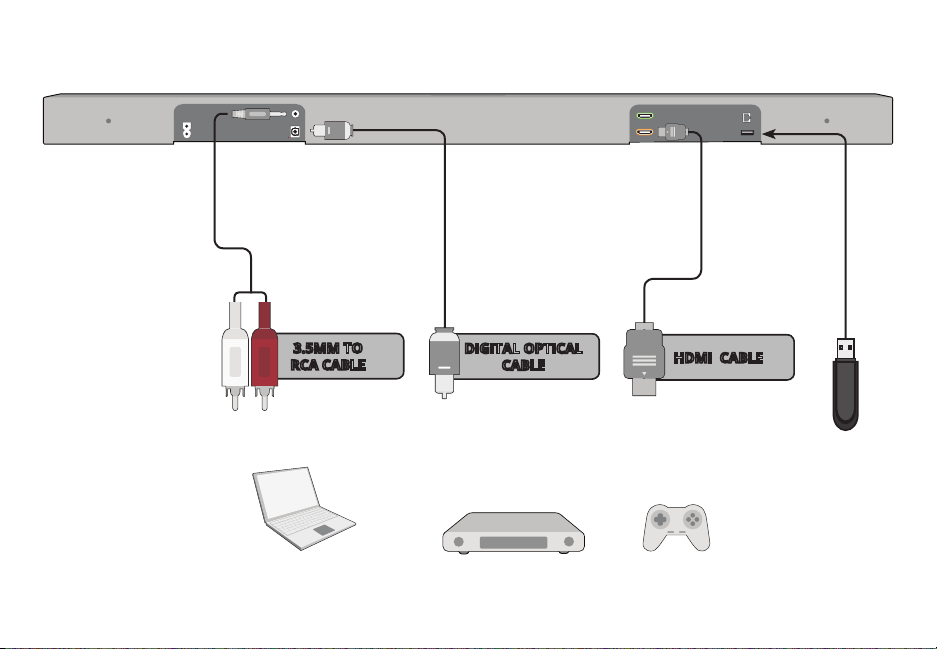

HDMI cables send Video (Out) and
receive Audio from the TV/Display. See
the
Connecting with HDMI
section for
more information.
Do not use HDMI IN for First-Time Setup.
See Advanced Setup if you would like to connect
HDMI devices (such as Blu-ray™ players, cable
boxes, and game consoles) to your Sound Bar.
Connect the sound bar to your TV/Display* using
one of the connection types to the left. Choose the
best possible connection type. Be sure the TV/Display
port is an audio output, not an audio input.
BEST
HDMI ARC
CABLE
English - 12
2
Connect the power cable to the sound bar AC
IN as shown.
Plug the power cable into an electrical outlet.
The sound bar will automatically begin
searching for an active input.*
The LED indicators on the front of the sound
bar will begin cycling in pairs through inputs
until an audio source is detected.**
Back of Sound Bar
Front
Top
Back
Side
Angle
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
*Occurs only during rst-time set up.
**Auto detect function only occurs once when the sound bar is rst powered on. To enable this feature again, you must do a Factory Reset (see the Using Button
Combinations section for more information) or press and hold the INPUT button for 3 seconds.
Tip: Pressing the INPUT button will stop
the auto detect function.
English - 13
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
4
Plug the power cable into
a power outlet.
Connect a power cable
to the subwoofer.
3
The subwoofer should
automatically power on and
link to the sound bar when
plugged in. The LED will glow
to solid to conrm.
5
Back of Subwoofer
English - 14
6
Remove the battery cover by gently
sliding it away from the remote.
7
Insert the included batteries and gently
slide the battery cover back into place.
8
You can press the INPUT button to switch between audio sources.
For example, if you connected your TV to AUX, set the sound bar
to AUX.
Input
Power
Top
Top
When needed, VIZIO recommends replacing
the batteries that came with this remote with
two, new Duracell ‘AAA’ alkaline batteries.
English - 15
Note: Do not block the
subwoofer port. Port should be
facing the front of the couch.

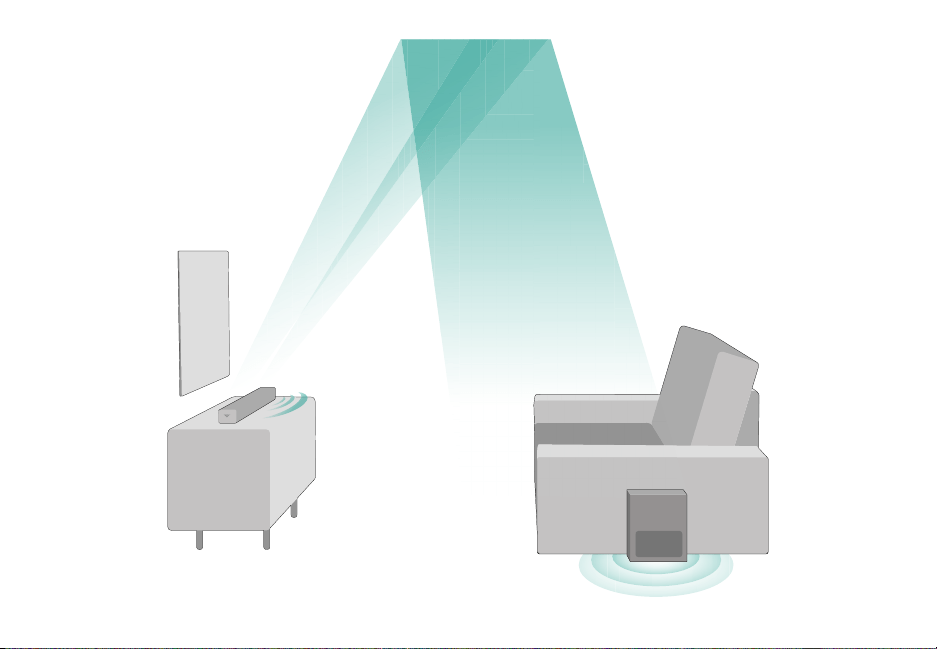

PROPER PLACEMENT
For the best surround sound experience, position the sound bar and subwoofer as shown. The sound bar
should be close to ear level. You'll get the best sound eect if your ceiling is at and 7.5 ft to 12 ft high.
Sound bar is centered
below the TV.
Subwoofer
OPTION 1
If your couch permits, you can place
the subwoofer underneath it.
Note: Make sure there is sucient room to freely place the
subwoofer underneath your couch. Do not place the couch
directly on top of the subwoofer if there isn't enough room.
English - 16
Note: Do not block the subwoofer port.
Sound bar is centered
below the TV.
Subwoofer
OPTION 2
You can also stand the subwoofer
upright with the ports facing out.
English - 17
USING THE REMOTE
Volume +/-
Press to increase and
decrease volume
Previous
Press to return to previous track
(Changes audio settings in Menu)
Menu
Press to access the menu
settings
Mute
Press to mute/unmute
Power
Press to turn on or o
Enter/Play/Pause
Press to select an option
Press to play or pause
Next
Press to skip to the next track.
(Changes audio settings in
Menu)
Display
Displays Sound Bar Settings
Input
Press to change the input
source
Up/Down
Press to cycle through settings
and options
*Press INPUT then
Previous
to select previous input.
Press INPUT then
Next
to select Bluetooth input.
English - 18
Visit www.vizio.com/smartcastapp for minimium requirements.
Download the VIZIO SmartCast Mobile™ app and turn your smartphone or
tablet into a remote to control your sound bar system.
• Visit www.vizio.com/smartcastapp on your device to download.
• Install the app and follow the on screen instructions to setup your device.
USING YOUR TABLET OR SMARTPHONE AS A REMOTE
This will allow you to:
Enable automatic
updates and future
enhancements
Cast your favorite
audio applications
Control your sound bar
with your phone or tablet
Connect to Wi-Fi
English - 19
Function LED Behavior Description
Bluetooth
Pairing
BT Pair
(When searching for device)
Flash from Bottom to Top
and back continuously.
Press the Enter button on the remote. The sound bar will be discoverable for
15 minutes. You can now search for the sound bar (VIZIO SB36312*) using
your Bluetooth Device. The sound bar will power down if no device is found.
Note: Set your Bluetooth device into pairing mode prior to the sound bar.
Bass Levels
Bass
Two center LEDs
indicate Bass level 0.
Press the Next/Previous button to increase/decrease the bass level.
The LED indicators will move to the top with increasing levels and to the
bottom with decreasing levels.
Treble Levels
Treble
Two center LEDs
indicate Treble level 0.
Press the Next/Previous button to increase/decrease the treble level.
The LED indicators will move to the top with increasing levels and to the
bottom with decreasing levels.
Center Levels
Center
Two center LEDs
indicate Dialogue
is centered.
Press the Next/Previous button to increase/decrease the presence of dialog
in the center channel. The LED indicators will move to the top when the
dialog presence is increased and to the bottom when the dialog presence is
decreased.
Press the Menu button and use the Up/Down Arrow buttons
on the remote to access the dierent functions and acoustic
settings of the sound bar. Each function and setting will
be displayed on the remote control’s LCD display. The LED
Indicators will behave dierently with each function.
LED INDICATORS
LED Indicators are located here.
*Sound bar name may be dierent if the sound bar was previously setup using the SmartCast Mobile app.
Front
Top
Back
Side
Angle
English - 20
Function LED Behavior Description
Height Levels
Two center LEDs
indicate height level 0.
Press the Next/Previous button to increase/decrease the level of the height
speakers. Use this adjustment to accommodate various ceiling heights and
seating distances.
Subwoofer Levels
Subwoofer
Two center LEDs
indicate subwoofer level 0.
Press the Next/Previous button to increase/decrease the level of the
subwoofer. The LED indicators will move to the top with increasing levels and to
the bottom with decreasing levels.
Note: Decreasing the level to the minimum turns o the subwoofer.
Equalizer Mode
EQ
Press the Next/Previous button to toggle between 3 preset equalizer settings,
Music, Direct and Movie.
Note: Movie mode is on by default.
Height Speakers
Height
Press the Next/Previous button to toggle between 3 preset height options.
When On is selected, the height speakers are turned on. When Virtual is
selected, the system creates a virtual height speaker eect using the front ring
speakers. When O is selected, the height speakers are turned o without
virtualizing height. Note: Default is setting is On
Volume
Leveling On/O
Vol Lv
Press the Next/Previous button to enable/disable Volume Leveling. When
enabled (On), Volume Leveling provides a consistent and comfortable volume
level for a more enjoyable listening experience.
Note: Default is setting is O.
Night Mode
On/O
Night
Press the Next/Previous button to enable/disable Night Mode. When enabled
(On), the sound bar will lower bass frequency levels to provide a more quiet
environment (ideal for apartment living and homes with sleeping children). The
setting will return to O when the sound bar is powered o.
Note: Default is setting is O.
Direct
Music
Movie
Virtual
O
On
Volume
Leveling O
Volume
Leveling On
Night Mode
O
Night Mode
On
Height +
English - 21
Function LED Behavior Description
AV Delay
AV Delay
Press the Next/Previous button to increase/decrease the amount of audio
delay. The LED indicators will move to the top with increasing audio delay
levels.
TV Remote
VZtv Rmt On
Press the Next/Previous button to enable/disable VIZIO TV Remotes. When
enabled (On), you can use a VIZIO TV remote control to turn on the sound bar
(using the TV Volume Up button) and control volume.
Program Remote
Prg Remote
−−
Press the Next/Previous and Play buttons to toggle and select and program
your TV remote to control the Volume Down, Volume Up, and Mute functions
on your sound bar. See the
Programming the Sound Bar
section for more
information.
Eco Power On/O
Eco Pwr
Press the Next/Previous button to enable/disable Eco Power Mode. When
enabled (On), the sound bar will go into standby after a period of inactivity.
The sound bar will automatically turn o when no audio signal is detected. O
disables this feature. Note: If you would like to cast content without the need to
manually turn on the sound bar, set this function to OFF.
Power LED
Pwr LED
Press the Next/Previous and Play buttons to enable/disable the Power LED.
Speaker Test
Spkr Test
—
Press the Play/Pause button to activate the speaker test function. A voice will
begin calling out each speaker beginning with
left front
. (Left Front, Center,
Right Front, Left Front Height, Right Front Height, and subwoofer-white noise)
If any of these are missing, check the connection and run the speaker test
function again.
LED at the bottom
indicates no delay
TV Remote On
TV Remote O
Eco Power On
Eco Power O
Power LED On
Power LED O
English - 22
Function LED Behavior Description
WiFi Setup
WiFi Setup
Press the Next/Previous and Play buttons to select and conrm enabling or
disabling WiFi Setup on your sound bar. WiFi Setup allows the VIZIO SmartCast
Mobile app to reconnect the sound bar to Wi-Fi or paired bluetooth devices in
the event of a lost connection or if a new device is being paired.
Reset
Reset All
Press the Next/Previous buttons to reset either Audio or All settings. Press the
Play button to select.
Audio - Only audio settings, such as bass and treble levels, will be reset.
All - All paired Bluetooth devices will be unpaired and all network settings will
be lost. All programmed IR remotes will also be removed. See the
Reset to
Factory Default Settings
section for more information.
Info
Info
−−
Press the Play button to have the sound bar verbally announce the current
sound bar input and audio type being played with corresponding LED
indicators.
When a Dolby
Audio, Dolby
Atmos or DTS
audio format is
detected.
Dolby Audio or DTS are available on the HDMI ARC, HDMI In, and Digital
Optical Audio In inputs. Dolby Atmos is available on HDMI ARC and HDMI In
when connected to supported devices and streaming services. When a Dolby
or DTS signal is detected, the Dolby Atmos (Green) / Dolby Audio (White)/ DTS
(Amber) indicator LED will light up for 5 seconds before fading away.
When the sound
bar successfully
connects to Wi-Fi.
When Wi-Fi is successfully set up via the VIZIO SmartCast Mobile app or through
an Ethernet connection, the blue indicator LED will light up to conrm a
successful connection.
Dolby Audio, Dolby Atmos
or DTS audio format is
detected Indicator LED
Wi-Fi Indicator LED
All 10 LEDs will
ash 3 times once
settings are reset
Single light with
sound upon
conrmation
English - 23
There are 3 functions that are triggered by 3 dierent
button combinations on the sound bar.
Function LED Behavior Description
Factory
Reset
Reset the sound bar to the factory default settings. To perform a Factory
Reset,
Press and Hold the Bluetooth( ) and Volume Down (—) buttons for
5 seconds.
Note: This will erase all settings and preferences that you have set.
VIZIO TV
Remote
Control
Enable/disable the use of a VIZIO TV remote control to power on and
adjust the volume of the sound bar. To enable/disable this function,
Press and Hold the Power ( ) and Volume Up ( + ) buttons for 5 seconds.
Energy
Star/
Ecomode
When the Energy Star setting is enabled, the sound bar will automatically
power down after a period of inactivity. When disabled, the sound bar
will remain powered on until you turn it o. To enable/disable this
function, Press and Hold the Power
( ) and Volume Down (—) buttons
for 5 seconds.
Note: Energy Star setting is enabled by default.
Enable VIZIO
TV Remote
All 10 LEDs will
ash 3 times
Disable VIZIO
TV Remote
Buttons are located here.
Enable
Energy Star
Disable Energy
Star
USING BUTTON COMBINATIONS
English - 24
PROGRAMMING THE SOUND BAR
You can program your sound bar to accept TV remote IR commands. Press the Menu button on the remote, then use
the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn
Vol +, and Learn Mute.
Function LED Behavior Description
Learn Volume
Down
Press the Play button to put the sound bar into learning mode. While the sound
bar is in learning mode, press the Volume Down button on the TV remote
control. All of the LED Indicators on the sound bar will ash two times indicating
that it has successfully recognized the TV remote.
Learn Volume Up
Press the Play button to put the sound bar into learning mode. While the sound bar
is in learning mode, press the Volume Up button on the TV remote control. All of the
LED Indicators on the sound bar will ash two times indicating that it has successfully
recognized the TV remote.
Learn Mute
Press the Play button to put the sound bar into learning mode. While the sound
bar is in learning mode, press the Mute button on the TV remote control. All of
the LED Indicators on the sound bar will ash two times indicating that it has
successfully recognized the TV remote.
Learn Vol+
Learn Mute
Learn Vol-
Turn o your TV speakers when
programming your sound bar.
Point both the sound bar and TV
remotes towards the front of the
sound bar when programming.
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Angle
(Waiting to learn)
Flash from bottom to top
and back continuously.
All of the LEDs will
blink twice to conrm.
English - 25
To pair the sound bar with a Bluetooth device:
1. Press and hold the Bluetooth button
on the sound bar for
ve (5) seconds or select the BT Pair option from the display
remote menu. When the sound bar is in Bluetooth Pairing
Mode, the LED Indicators on the Display Panel on the front of
the Sound Bar will light sequentially from bottom to top and
back again.
Once the device is paired, the LED Indicators will stop ashing.
2. You can now search for the sound bar (VIZIO SB36312*) using
your Bluetooth device. For more information, refer to the user
documentation that came with the device.
3. Play audio from your Bluetooth device. Volume can be
controlled on your source device and the sound bar.
BLUETOOTH AUDIO PAIRING
*Sound bar name may be dierent if the sound bar was previously setup using the SmartCast Mobile app.
Bluetooth
Device
Top of Sound Bar
Front
Top
Back
Side
Front
Top
Back
Side
Angle
The Last Yard
X
English - 26
Your sound bar supports music streaming from smart phones, tablets, and computers with Bluetooth
capability. Device compatibility will vary, see your device’s documentation for more information. Once you
have paired your source device to the sound bar, as long as you stay within range of the sound bar, your
device should remain paired. If the input is changed, the Bluetooth device will disconnect. If the source is
changed back to Bluetooth, any paired Bluetooth device will reconnect automatically.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio
format, so streamed music may lose some integrity when compared to a wired connection.
Try the following if your sound quality is less than optimal:
• If you hear any break-up or disconnect while streaming music from your device, move the source
device closer to the sound bar.
• Be sure that there are no solid obstructions in the line-of-sight between the sound bar and the source
device.
• Other wireless devices can aect Bluetooth range, including wireless security cameras, wireless video
baby monitors, cordless phones, and microwave ovens. Turning o or moving these devices may
improve Bluetooth range.
Your sound bar is not equipped with a microphone,
so it cannot operate as a hands-free device for a
smart phone.
Reduce the volume levels on your device and on the
sound bar before pressing Play. High volume levels
can damage your hearing.
USING BLUETOOTH MODE
English - 27
Back of Sound Bar
ADVANCED SETUP
USB Thumb Drive*
Note: Always use HDMI 2.0
certied cables.
* Supports .WAV and .MP3 le format playback only.
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Game Console
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Network Media Player
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Tablet/MP3 Player/Laptop
3.5MM TO
RCA CABLE
DIGITAL OPTICAL
CABLE
HDMI CABLE
English - 28
Front
Top
Back
Side
Angle
ADVANCED SETUP - HDMI ARC
HDMI CABLE
HDMI cables transmit both audio and video.
• To view video from these devices, turn
the sound bar on, then set the sound bar
input to HDMI In.
• Set your TV input to the HDMI port to
which the sound bar is connected.
Cable/Satellite Box
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
Blu-ray Player
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
OR
Note: Always use HDMI 2.0
certied cables.
Connect to HDMI (ARC) port on your TV
English - 29
CONNECTING WITH HDMI ARC
What is HDMI Audio Return Channel (ARC)?
Using HDMI ARC, your TV can send audio to the sound bar using an HDMI cable.
You will need to connect your sound bar to your TV’s HDMI ARC port using an HDMI cable that is ARC compatible.
To connect using HDMI*:
1. Connect one end of the HDMI cable to the HDMI 1 (ARC) port on the back of your TV.
2. Connect the other end to the HDMI OUT (ARC) port on your VIZIO sound bar.
3. From the AUDIO menu on your TV, change the Digital Audio Setting to Dolby Digital or Bitstream.
4. From the SYSTEM menu, enable CEC and ARC (SAC)
†
functions.
5. From the CEC menu, select Device Discovery to register the sound bar with the TV.
If you want to use the volume buttons on the TV remote control to
control the sound bar, enable System Audio Control from the CEC
menu.
*
The following steps are for use with a VIZIO TV, steps may dier by TV manufacturer. See your TV’s user manual for more information.
†
CEC Function naming may dier by TV manufacturer. See your TV’s user manual for more information.
English - 30
Back of TV*
* HDMI ARC port location may dier by TV manufacturer. See your TV’s user manual for more information.
Front
Top
Back
Side
Angle
Connect to HDMI (ARC) port on your TV
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
HOME THEATER DISPLAY | QUICK START GUIDE
Installation Guide | Models:
English - 31
Front
Top
Back
Side
Angle
The subwoofer has already been paired with the sound
bar by VIZIO. However, the subwoofer may need to be
re-linked to the sound bar if there is no sound coming
from the subwoofer.
1
First conrm that the power LED is illuminated.
Press and hold the ON/OFF button on the back of
the subwoofer for 5 seconds. The LED on the back
of the subwoofer will begin to blink.
2
Press and hold the Power button on the top of the
sound bar for 5 Seconds. The LED indicators on the
front will ash 3 times. The subwoofer is now linked
with the sound bar.
What does pairing mean?
Pairing means to wirelessly connect.
Buttons are located on
top of the sound bar
Back of subwoofer
Power button
CONNECTING A SUBWOOFER

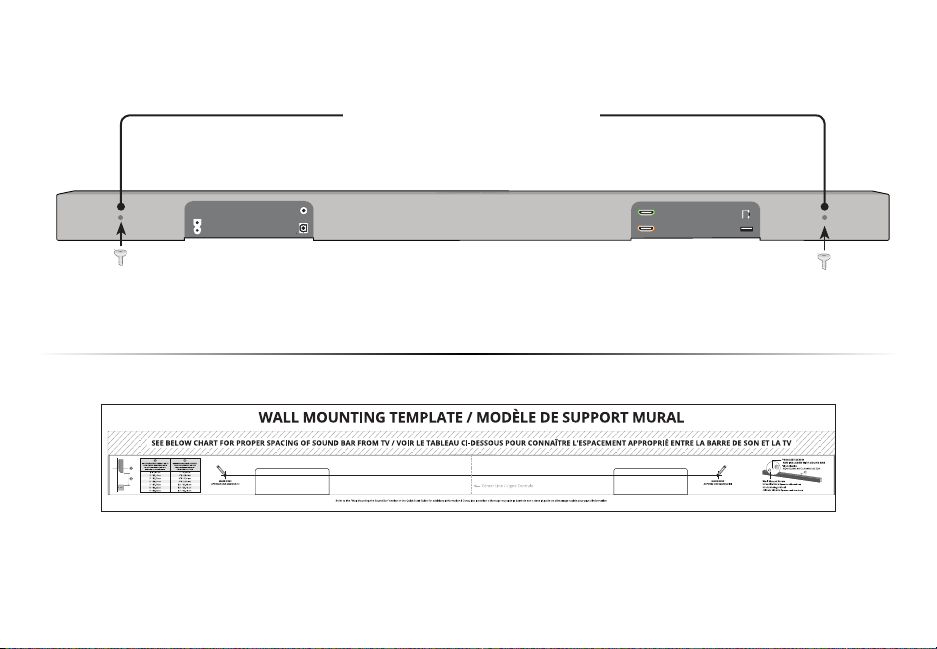

WALL-MOUNTING THE SOUND BAR
2
Place the included wall mounting template against the wall under your TV.
Mark the two bracket holes using a pencil.
Insert the two wall-mount screws into the wall-mount screw holes, and then
tighten them with a Phillips screwdriver.
Back of Sound Bar
1
Wall-Mount Screw Holes
English - 32
English - 33
Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for
brick/concrete walls).
Screws for attaching the brackets to the wall are not included. Choose the screw type and length
appropriate to your home’s construction. If in doubt, consult a professional installer.
3
If you are unfamiliar with power tools or the
layout of electrical wiring in the walls of your
home, consult a professional installer.
* Do not use any of the included screws for the wall mount installation. These are not intended for mounting.
Wall Mount Screw
Screw Size: M4 x 10
Included with sound bar
*Bracket Screw
Not Included with sound bar
Suggested Screw Size: 3.5 diameter.
1.63 mm length
Take a moment to register your product
VIZIO.COM/PRODUCT-REGISTRATION
Why register?
Customized Support
Get assistance quickly with your information on hand.
News and Oers
Take advantage of the latest news and special oers from VIZIO.
Safety and Satisfaction
Stay up-to-date with important product updates and notications.
English - 34
Award-Winning Customer Care At Your Convenience.
English - 35
NEED HELP?
Go to: support.vizio.com
You can also contact our support team at:
Phone: (844) 254-8087
Text Message: (205) 301-3729
Note: This number accepts SMS/MMS messages only. No voice calls are accepted.
Message and data rates may apply. (U.S. only).
Live chat
support available
Find help with:
•
New product setup
• Connecting your devices
• Technical problems
• Product updates and more
Se habla Español • Nous parlons Français
English - 36
There is no power.
• Press the POWER button on the remote control or on the top of your sound bar.
• Ensure the power cord is securely connected.
• Plug a dierent device into the electrical outlet to verify that the outlet is working correctly.
There is no sound.
• Increase the volume. Press Volume Up on the remote control or on the top of your sound bar.
• Press MUTE on the remote to ensure the sound bar is not muted.
• Press INPUT on the remote or on the top of your sound bar to select a dierent input source.
• When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM
or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio.
• On digital inputs, the input LEDs will ash rapidly if an unsupported format is present. Set the
source to output PCM.
• Your TV may be set to variable audio output. Conrm that the audio output setting is set to FIXED
or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device
is not muted.
I hear buzzing or
humming.
• Ensure all cables and wires are securely connected.
• Connect a dierent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does
not, the problem may be with the original device.
• Connect your device to a dierent input on the Sound Bar.
The remote
isn’t working.
• Replace the remote batteries with new ones.
• Point the remote directly at the center of the sound bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the
streaming application (e.g., Pandora doesn’t support the Back button).
HELP & TROUBLESHOOTING
English - 37
Can I adjust each of the sound bar
speaker channels individually?
• You cannot adjust each individual speaker. You can adjust the volume and presence of the
channel and height speakers. You can also turn the height channels On or O.
What sources play Dolby Atmos
content?
• Dolby Atmos content can be found on select streaming apps, on 4K UHD Blu-Ray discs, and on
some gaming systems and streaming sticks. To play Atmos content from these devices, connect
the device directly to the HDMI in port of the sound bar. Always use HDMI 2.0 certied cables.
• Dolby Atmos supported streaming apps built into to connected TVs may also be played on the
HDMI ARC port.
• SmartCast, Bluetooth, USB, Aux, Optical and Digital Coax inputs do not support Dolby Atmos.
The sound bar is in a room with a
vaulted ceiling. Will I hear all the
sounds properly?
• To clearly hear all Atmos has to oer, you will need a at ceiling that is between 7.5 and 12 feet
high. This allows the height speakers to reect o the ceiling providing the sounds that would
come from above.
• Vaulted ceilings or ceilings with acoustic treatments or tiles will diminish the eect. From the
remote control select Height --> Virtual for a virtualized height experience. Dolby Atmos content
will be played in Dolby Digital Plus format in this mode.
The system information say the
audio type is Dolby Atmos-Dolby
Digital Plus or Dolby Atmos-TrueHD.
How do I get one or the other?
• Dolby Atmos-TrueHD typically comes from a UHD Blu-ray player or console that is plugged into
the sound bar’s HDMI IN port. Dolby Atmos-Dolby Digital Plus is typically sent from supported
apps being played from a smart TV that is plugged into the sound bar's HDMI ARC port.
How do I know if I'm playing Dolby
Atmos content?
• You can verify content via the VIZIO SmartCast Mobile app. Download the VIZO SmartCast Mobile
app and sync your sound bar. Go to Settings >System Information to see what type of audio is
being played. Visit VIZIO.com/smartcast for more on the SmartCast Mobile app.
• When Dolby Atmos content is detected the audio format LED on the bar will briey appear green.
• From the remote control, choose the Info menu option and press the Play/Pause key. The sound
bar will announce the current input and audio format being played.
FREQUENTLY ASKED QUESTIONS
English - 38
UNITED STATES AND CANADA
BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS OF THIS WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS
WARRANTY CAREFULLY. IF YOU DO NOT AGREE TO THE TERMS OF THIS WARRANTY, DO NOT USE THE VIZIO PRODUCT AND, WITHIN THIRTY (30) DAYS OF THE
DATE OF PURCHASE, RETURN IT FOR A REFUND TO THE AUTHORIZED RETAILER WHERE YOU PURCHASED IT.
This warranty contains a binding arbitration agreement and a class action waiver for United States residents. If you live in the United States, the binding arbitration
agreement and class action waiver aect your rights under this warranty. Please read the text under the section titled “Binding Arbitration Agreement; Class
Action Waiver (U.S. Residents Only)” carefully.
How Long This Warranty Lasts
For non-commercial use, VIZIO warrants the product on the terms set forth below for one (1) year from the date of original purchase. For commercial use, VIZIO
warrants this product on the terms set forth below for ninety (90) days from the date of original purchase.
What This Warranty Covers
VIZIO warrants the product against defects in materials and workmanship when the product is used normally in accordance with VIZIO’s user guides and manuals.
Except where restricted by law, this warranty applies only to the original purchaser of a new product. The purchase must have been made from an authorized
retailer in the United States (including Puerto Rico) or Canada. The product must also be located in the country where it was purchased at the time of warranty
service.
How to Get Service
Before obtaining warranty service, you may visit www.vizio.com for additional help and troubleshooting. To obtain warranty service, contact VIZIO Technical
Support via email at [email protected] or via phone at 877 MY VIZIO (877-698-4946).
Your Obligations Before Service
You must obtain pre-authorization before sending your product to a VIZIO service center. You may be required to supply a purchase receipt (or copy) to show
that the product is within the warranty period.
When you return a product to a VIZIO service center, you must ship the product in its original packaging or in packaging that aords an equal degree of protection.
VIZIO Technical Support will provide instructions for packing and shipping the product to the VIZIO service center.
ALL USER DATA AND DOWNLOADED APPLICATIONS STORED ON A PRODUCT WILL BE DELETED IN THE COURSE OF SOME IN-HOME AND ALL SHIP-IN WARRANTY
SERVICE. If this occurs, your product will be restored to its original state. You will be responsible for restoring all applicable user data and downloaded applications.
Recovery and reinstallation of user data and downloaded applications is not covered under this warranty. In order to protect your personal information, VIZIO
recommends that you always clear all personal information from the product before it is serviced, regardless of the servicer.
VIZIO’s Responsibilities
If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no
charge for parts or labor during the warranty period. Replacement parts may be new or recertied at VIZIO’s option and sole discretion. Replacement parts and
VIZIO’s labor are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service, whichever is longer.
LIMITED WARRANTY
English - 39
Types of Service
Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will
cover return shipping to the customer.
What This Warranty Does Not Cover
This warranty does not cover: (a) cosmetic damage; (b) normal wear and tear; (c) improper operation; (d) improper voltage supply or power surges; (e) signal issues;
(f) damage from shipping; (g) acts of God; (h) customer misuse, modications or adjustments; (i) installation, set-up, or repairs attempted by anyone other than by
a VIZIO authorized service center; (j) products with unreadable or removed serial numbers; (k) products requiring routine maintenance; or (l) products sold “AS IS”,
“CLEARANCE”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
What to Do If You Are Not Satised With Service
If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue
informally and wish to le a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according
to the procedures described below, unless an exception applies. Submitting a claim to binding arbitration means that you do not have the right to have your claim
heard by a judge or jury. Instead your claim will be heard by a neutral arbitrator.
Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)
UNLESS YOU HAVE BROUGHT AN ELIGIBLE CLAIM IN SMALL CLAIMS COURT OR HAVE OPTED OUT AS DESCRIBED BELOW, ANY CONTROVERSY OR CLAIM RELATING
IN ANY WAY TO YOUR VIZIO PRODUCT, INCLUDING ANY CONTROVERSY OR CLAIM ARISING OUT OF OR RELATING TO THIS WARRANTY, A BREACH OF THIS
WARRANTY, OR THE VIZIO PRODUCT’S SALE, CONDITION OR PERFORMANCE, WILL BE SETTLED BY BINDING ARBITRATION ADMINISTERED BY THE AMERICAN
ARBITRATION ASSOCIATION AND CONDUCTED BY A SINGLE ARBITRATOR APPOINTED BY THE AMERICAN ARBITRATION ASSOCIATION, IN ACCORDANCE WITH
ITS COMMERCIAL ARBITRATION RULES AND ITS SUPPLEMENTARY PROCEDURES FOR CONSUMER-RELATED DISPUTES. You may learn more about the American
Arbitration Association and its rules for arbitration by visiting www.adr.org or by calling 800-778-7879. Since this warranty concerns a transaction in interstate or
international commerce, the Federal Arbitration Act will apply.
The ling fees to begin and carry out arbitration will be shared between you and VIZIO, but in no event will your fees ever exceed the amount allowable by the
American Arbitration Association, at which point VIZIO will cover all additional administrative fees and expenses. VIZIO waives its right to recover attorneys’ fees in
connection with any arbitration under this warranty. If you are the prevailing party in an arbitration to which the Supplementary Procedures for Consumer-Related
Disputes applies, then you are entitled to recover attorneys’ fees as the arbitrator may determine.
The dispute will be governed by the laws of the state or territory in which you resided at the time of your purchase (if in the United States). The place of arbitration
will be Irvine, California, or your county of residence (if in the United States). The arbitrator will have no authority to award punitive or other damages not measured
by the prevailing party’s actual damages, except as may be required by statute. The arbitrator will not award consequential damages, and any award will be limited
to monetary damages and will include no equitable relief, injunction, or direction to any party other than the direction to pay a monetary amount. Judgment on the
award rendered by the arbitrator will be binding and nal, except for any right of appeal provided by the Federal Arbitration Act, and may be entered in any court
having jurisdiction. Except as may be required by law, neither you nor VIZIO nor an arbitrator may disclose the existence, content, or results of any arbitration under
this warranty without the prior written consent of you and VIZIO.
ANY DISPUTE, WHETHER IN ARBITRATION, IN COURT, OR OTHERWISE, WILL BE CONDUCTED SOLELY ON AN INDIVIDUAL BASIS. VIZIO AND YOU AGREE THAT NO
PARTY WILL HAVE THE RIGHT OR AUTHORITY FOR ANY DISPUTE TO BE ARBITRATED AS A CLASS ACTION, A PRIVATE ATTORNEY GENERAL ACTION, OR IN ANY OTHER
PROCEEDING IN WHICH EITHER PARTY ACTS OR PROPOSES TO ACT IN A REPRESENTATIVE CAPACITY.
NO ARBITRATION OR PROCEEDING WILL BE JOINED, CONSOLIDATED, OR COMBINED WITH ANOTHER ARBITRATION OR PROCEEDING WITHOUT THE PRIOR
English - 40
WRITTEN CONSENT OF ALL PARTIES TO ANY SUCH ARBITRATION OR PROCEEDING.
Exceptions to Binding Arbitration Agreement and Class Action Waiver
IF YOU DO NOT WISH TO BE BOUND BY THE BINDING ARBITRATION AGREEMENT AND CLASS ACTION WAIVER, THEN: (1) you must notify VIZIO in writing within sixty
(60) days of the date that you purchased the product; (2) your written notication must be mailed to VIZIO at 39 Tesla, Irvine, CA 92618, Attn: Legal Department; and
(3) your written notication must include (a) your name, (b) your address, (c) the date you purchased the product, and (d) a clear statement that you wish to opt out
of the binding arbitration agreement and class action waiver.
In addition, you may pursue a claim in small claims court in your county of residence (if in the United States) or in Orange County, California. In such case the
provisions of the section titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents)” will not apply.
Exclusions and Limitations
TO THE GREATEST EXTENT PERMITTED BY APPLICABLE LAW, THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE DESCRIBED ABOVE. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL BE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
VIZIO WILL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF VIZIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND EVEN IF THE REMEDY FAILS
OF ITS ESSENTIAL PURPOSE. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
IN LIEU OF ANY OTHER REMEDY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER (INCLUDING VIZIO’S NEGLIGENCE,
ALLEGED DAMAGE, OR DEFECTIVE GOODS, NO MATTER WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT), VIZIO MAY, AT ITS SOLE AND EXCLUSIVE
OPTION AND IN ITS DISCRETION, REPAIR OR REPLACE YOUR PRODUCT, OR REFUND ITS PURCHASE PRICE. AS NOTED, SOME STATES AND PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
How the Law Applies
This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state and province to province. This warranty applies to
the greatest extent permitted by applicable law.
General
No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will
be severed from this warranty and all other terms will remain in eect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding
Arbitration Agreement; Class Action Waiver (U.S. Residents Only)” will not apply. This warranty applies to the maximum extent not prohibited by law.
Changes to Warranty
This warranty may change without notice, but any change will not aect your original warranty. Check www.vizio.com for the most current version.
English - 41
Specications
Sound Bar:
Forward Firing - Two 1.65" x 2.76" Full Range Driver for Each Channel (1 for left, 1 for right, 1 for center)
Upward Firing - Two 1.65" x 2.76" Full Range Driver for Each Channel (1 for left, 1 for right)
Subwoofer: One 5" Driver
Connections:
One 3.5mm Stereo Audio
One Optical (Toslink)
One USB (Supports .WAV and .MP3 format only)
HDMI In
HDMI Out (ARC)
Bluetooth
802.11n (Wireless)
Ethernet (RJ45)
Power Output DC 5V,500mA
Sound Pressure Level
(System):
103 dB
Frequency Response
(System):
40 Hz - 20 KHz
Voltage: 120 VAC, 60 Hz
Compliances: cTUVus / FCC Class B / ICES-003 /CEC / Energy star
English - 42
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
(1) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(2) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(3) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specied for point-to-point and non point-to-point
operation as appropriate.
(4) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Notice:
1. Any Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this equipment. It is the responsibilities of the user to
correct such interference.
FCC RF Radiation Exposure Statement
1. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
3. FCC RF Warning
This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
IC Statement
1. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
2. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
LEGAL & COMPLIANCE
English - 43
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Battery Disposal and Recycling
You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and/ or a battery, it must
be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options. For more information, visit www.vizio.com/
environment.
Software Licenses
All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By
using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy, as well as Google’s Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy
Policy may be updated from time to time and are available to view at http://www.vizio.com/ terms and http://www.vizio.com/privacy, respectively.
Export Regulations
Customer acknowledges that the VIZIO products, which include technology and software, are subject to customs and export control laws in the United States (“US”). The products
may also be subject to the customs and export control laws and regulations of the country in which the products are manufactured and/or received.
Internet Connectivity
Network conditions, environmental and other factors may negatively aect connectivity and the resulting audio quality, if any.
The applications and content of the applications pictured herein or described in accompanying documentation may only be available in certain countries or languages, may
require additional fees or subscription charges, and may be subject to future updates, modications or discontinuation without notice. VIZIO has no control over third party
applications or content and assumes no responsibility for the availability or interruption of such applications or content. Additional third party terms, conditions and restrictions
apply. A Google account is required to download applications from the Google Play store. A MyVIZIO account is required to access certain features of the VIZIO SmartCast app.
Information in this Quick Start Guide is subject to change without notice. To review the most updated version of this Quick Start Guide and the associated User Manual, go to
http://www.vizio.com.
© 2019 VIZIO, Inc. All Right Reserved.
Image(s) used under license from Shutterstock.com
This User Manual may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable eorts to ensure the accuracy of the
information provided herein. All product specications, functionality, features, congurations, performance, design and other product information described herein are subject
to change without notice. VIZIO, Inc. is not responsible for typographical, technical, or descriptive errors.
VIZIO, the VIZIO logo, the V logo, and other terms and phrases are trademarks or registered trademarks of VIZIO, Inc.
HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by VIZIO,Inc. is under license. Other trademarks and
trade names are those of their respective owners.
© 2019 Google Inc. All rights reserved. Android, Google Play, Chromecast and other marks are trademarks of Google inc.
Sound pressure level measured using pink noise at 1 meter, c-weighted.
Minimum requirements: Android 4.0 or later (to use the bluetooth functionality you must have Android™ 5.1 or later) iOS 9.0 or later. Subject to change. For a list of
Android™ supported devices see https://support.google.com/googleplay/answer/2844198?hl=en Article. iOS devices supported: iPhone, iPad.
®
English - 44
© 2019 VIZIO INC. ALL RIGHTS RESERVED.
190213SL
Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD Master Audio,
Virtual: X, The DTS-HD Master Audio logo and the DTS Virtual: X logo are registered trademarks or trademarks of DTS,
Inc. in the United State and/or other countries. © DTS, Inc. All rights reserved.
This product qualies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings
will be achieved. Changing the factory default settings or enabling other features will increase power consumption
that could exceed the limits necessary to qualify for ENERGY STAR rating.
We want to help you save energy.
Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD Master Audio,
Virtual: X, The DTS-HD Master Audio logo and the DTS Virtual: X logo are registered trademarks or trademarks of DTS,
Inc. in the United State and/or other countries. © DTS, Inc. All rights reserved.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby audio and the double-D symbol are
trademarks of Dolby Laboratories.
