USER MANUAL for Sound Bars
CONTROLS & CONNECTIONS

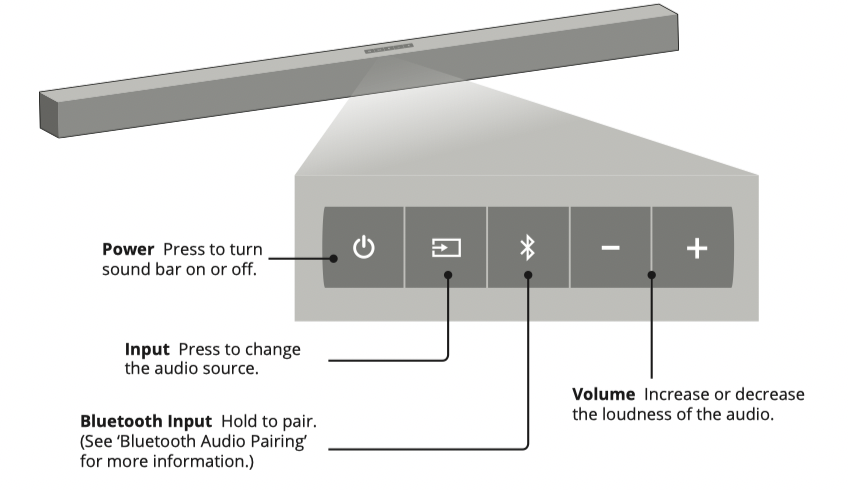

Top of Sound Bar
Back of Subwoofer
Back of Satellite Speaker
FIRST-TIME SETUP

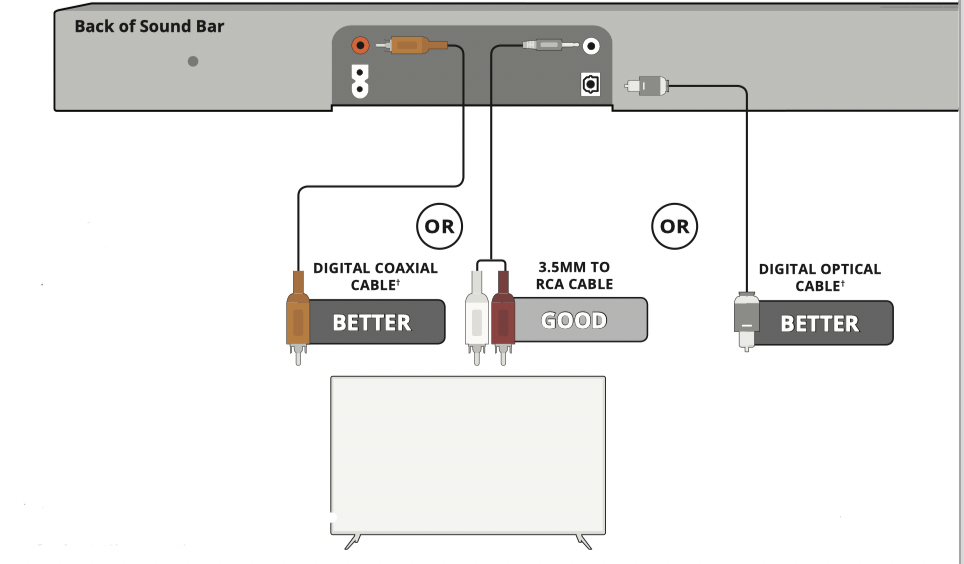

1. CHOOSE ONE CABLE* and connect it to your tv Ensure your TV powered on
* Not all TVs/Displays have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-Ray player, game system, etc.) See your device’s user manual.
† When using either of the Digital Inputs, if there is no audio: (A) try setting the TV/Display output to PCM or (B) Connect directly to your Blu-ray/other source, some TV/Displays do not pass through digital audio.
HDMI cables send Video (Out) and receive Audio from the TV/Display. See the Connecting with HDMI section for more information.
Connect the Sound Bar to your TV/Display* using one of the connection types to the left. Choose the best possible connection type. Be sure the TV/Display port is an audio output, not an audio input.
2. Connect the power cable to the sound bar AC IN as shown.
Plug the power cable into an electrical outlet.
The sound bar will automatically begin searching for an active input.*
The LED indicators on the front of the sound bar will begin cycling in pairs through inputs until an audio source is detected.**
Tip: Pressing the INPUT button will stop the auto detect function.
*Occurs only during first-time set up.
**Auto detect function only occurs once when the sound bar is first powered on. To enable this feature again, you must do a Factory Reset (see the Using Button Combinations section for more information) or press and hold the INPUT button for 3 seconds.
3. Connect the satellite speakers to the subwoofer using the included satellite speaker audio cables.
To properly connect the subwoofer and satellite speakers, ensure the notches on the cables and ports line up and that the cable is fully inserted.
Match the color coded speaker cable to the matching speaker port color. Blue for left surround and gray is for right surround.
Connect a power cable to the subwoofer.
Plug the power cable into a power outlet.
The subwoofer will automatically power on and link to the sound bar when plugged in. The LED will glow solid to confirm.
7.
Remove the battery cover by gently sliding it away from the remote.
8.
Insert the included batteries and gently slide the battery cover back into place.
9. You can press the INPUT button to switch between audio sources. For example, if you connected your TV to AUX, set the sound bar to AUX.
When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries.
PROPER PLACEMENT
For the best surround sound experience, position the sound bar, subwoofer, and satellite speakers as shown. The sound bar should be close to ear level.
You'll get the best sound effect if your ceiling is flat and 7.5ft to 12ft high.

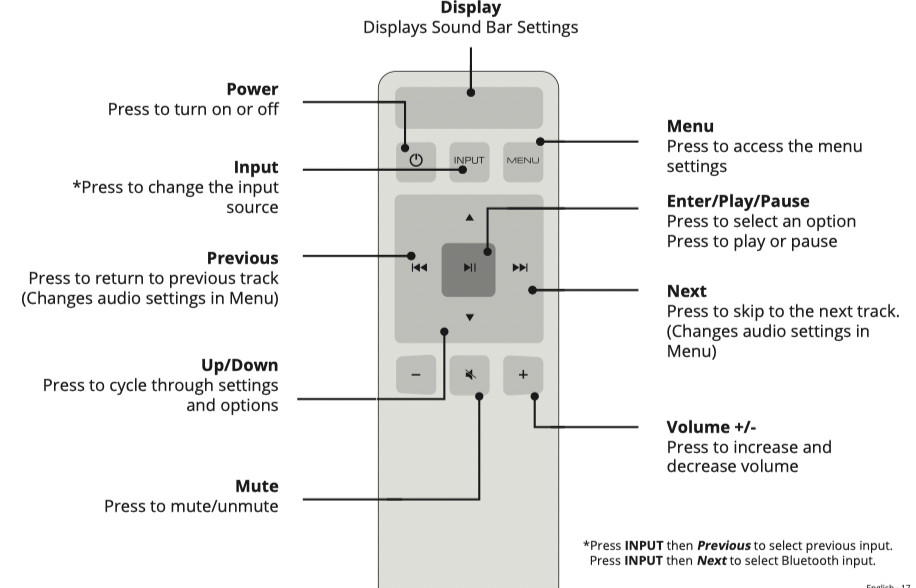

USING THE REMOTE
USING YOUR TABLET OR SMARTPHONE AS A REMOTE
Download the VIZIO SmartCast app and turn your smartphone or tablet into a remote to control your sound bar system.
To use your smartphone or tablet as your VIZIO SmartCast remote, download the VIZIO SmartCast app.
• Visit vizio/smartcastapp on your device to download.
• Install the app and follow the on screen instructions to setup your device.
LED INDICATORS
Press the Menu button and use the Up/Down Arrow buttons on the remote to access the different functions and acoustic settings of the sound bar. Each function and setting will be displayed on the remote control’s LCD display. The LED Indicators will behave differently with each function.
LED Indicators are located here.
*Sound bar name may be different if the sound bar was previously setup using the SmartCast App.
USING BUTTON COMBINATIONS
There are 3 functions that are triggered by 3 different button combinations on the sound bar.
Buttons are located here.
PROGRAMMING THE SOUND BAR
You can program your sound bar to accept TV remote IR commands. Press the Menu button on the remote, then use the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute.
Turn off your TV speakers when programming your sound bar.
PointTop both the sound bar and TV remotes towards the front of the soundBack bar when programming.
BLUETOOTH AUDIO PAIRING
To pair the sound bar with a Bluetooth device:
1. Press and hold the Bluetooth button
on the sound bar for five (5) seconds or select the BT Pair option from the display remote menu. When the sound bar is in Bluetooth Pairing Mode, the LED Indicators on the Display Panel on the front of the Sound Bar will light sequentially from bottom to top and back again.
Once the device is paired, the LED Indicators will stop flashing.
2. You can now search for the sound bar (VIZIO SB46514*) using your Bluetooth device. For more information, refer to the user documentation that came with the device.
3. Play audio from your Bluetooth device. Volume can be controlled on your source device and the sound bar.
USING BLUETOOTH MODE
Your sound bar supports music streaming from smart phones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired. If the input is changed, the Bluetooth device will disconnect. If the source is changed back to Bluetooth, any paired Bluetooth device will reconnect automatically.
Your sound bar is not equipped with a microphone, so it cannot operate as a hands-free device for a smart phone.
Maximizing Signal
A Bluetooth signal has a range of up to 30 feet. Keep in mind that Bluetooth is a compressed audio format, so streamed music may lose some integrity when compared to a wired connection.
Try the following if your sound quality is less than optimal:
• If you hear any break-up or disconnect while streaming music from your device, move the source device closer to the sound bar.
• Be sure that there are no solid obstructions in the line-of-sight between the sound bar and the source device.
• Other wireless devices can affect Bluetooth range, including wireless security cameras, wireless video baby monitors, cordless phones, and microwave ovens. Turning off or moving these devices may improve Bluetooth range.
Reduce the volume levels on your device and on the sound bar before pressing Play. High volume levels can damage your hearing.
ADVANCED SETUP
ADVANCED SETUP - HDMI ARC
HDMI cables transmit both audio and video. To view video from these devices, turn the sound bar on, then set the sound bar input to HDMI In. Set your TV input to the HDMI port to which the sound bar is connected.
CONNECTING WITH HDMI ARC
What is HDMI Audio Return Channel (ARC)?
Using HDMI ARC, your TV can send audio to the sound bar using an HDMI cable.
You will need to connect your sound bar to your TV’s HDMI ARC port using an HDMI cable that is ARC compatible.
To connect using HDMI*:
1. Connect one end of the HDMI cable to the HDMI 1 (ARC) port on the back of your TV.
2. Connect the other end to the HDMI OUT (ARC) port on your VIZIO Sound Bar.
3. From the AUDIO menu on your TV, change the Digital Audio Setting to Dolby Digital or Bitstream.
4. From the SYSTEM menu, enable CEC and ARC (SAC) † functions.
5. From the CEC menu, select Device Discovery to register the sound bar with the TV.
If you want to use the volume buttons on the TV remote control to control the sound bar, enable System Audio Control from the CEC menu.
* The following steps are for use with a VIZIO TV, steps may differ by TV manufacturer. See your TV’s user manual for more information.
† CEC Function naming may differ by TV manufacturer. See your TV’s user manual for more information.
* HDMI ARC port location may differ by TV manufacturer. See your TV’s user manual for more information.
CONNECTING A SUBWOOFER
The Subwoofer has already been paired with the Sound Bar by VIZIO. However, the Subwoofer may need to be re-linked to the Sound Bar if there is no sound coming from the Subwoofer.
What does pairing mean? Pairing means to wirelessly connect.
1.
First confirm that the power LED is illuminated. Press and hold the Pairing button on the back of the Subwoofer for 5 seconds. The LED on the back of the Subwoofer will begin to blink.
2.
With the sound bar powered on, press and hold the Power button on the top of the Sound Bar for 5 seconds. The LED indicators on the front will flash 3 times. The Subwoofer is now linked with the Sound Bar.
WALL-MOUNTING THE SOUND BAR
Insert the two wall-mount screws into the wall-mount screw holes, and then tighten them with a Phillips screwdriver.
2.
Place the included wall mounting template against the wall under your TV. Mark the two bracket holes using a pencil.
3 . Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls).
Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer.
If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.
* Do not use any of the included screws for the wall mount installation. These are not intended for mounting.
WALL-MOUNTING THE SATELLITE SPEAKERS
To wall-mount the satellite speakers:
1. Attach the wall mount screw to the back of the satellite speaker.
2. Secure the wall mount bracket to the wall. Bracket screw is not included.
3. Slide the speaker on to the wall bracket. Ensure the wall mount screw is secured within the bracket grooves.
Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/ concrete walls). Wall mounting hardware is not included.
If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.
* Do not use any of the included screws for the wall mount installation. These are not intended for mounting.
HELP & TROUBLESHOOTING
|
There is no power.
|
Press the POWER button on the remote control or on the top of your Sound Bar. |
|
|
Ensure the power cord is securely connected. |
||
|
Plug a different device into the electrical outlet to verify that the outlet is working correctly. |
||
|
Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar. |
||
|
Press MUTE on the remote to ensure the Sound Bar is not muted. |
||
|
Press INPUT on the remote or on the top of your Sound Bar to select a different input source. |
||
|
There is no sound.
|
When using either of the Digital Inputs, if there is no audio: (A) Try setting the TV output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio. |
|
|
Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information. |
||
|
If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted. |
||
|
Ensure all cables and wires are securely connected. Satellite cables have notches that must line up with the ports. |
||
|
I hear buzzing or humming.
|
Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device. |
|
|
Connect your device to a different input on the Sound Bar. |
||
|
Connect your Sound Bar to a different power outlet. |
||
|
Replace the remote batteries with new ones. |
||
|
The remote isn’t working.
|
Point the remote directly at the center of the Sound Bar when pressing a button. If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. (e.g., Pandora doesn’t support the Back button.) |
|
FREQUENTLY ASKED QUESTIONS
|
How do I know if I'm playing Dolby Atmos content?
|
You can verify content via the VIZIO SmartCast App. Download the VIZO SmartCast App and sync your sound bar. Go to Settings >System Information to see what type of audio is being played. Visit VIZIO.com/Setup for more on the SmartCast App. When Dolby Atmos content is detected the audio format LED on the bar will briefly appear green. |
|
|
From the remote control, choose the Info menu option and press the Play/Pause key. The sound bar will announce the current input and audio format being played. |
||
|
Can I adjust each of the sound bar speaker channels individually? |
You cannot adjust each individual speaker. You can adjust the volume and presence of the Center channel and Surround speakers. You can also turn the Height channels On or Off. |
|
|
What sources play Dolby Atmos content?
|
Dolby Atmos content can be found on select streaming apps, on 4K UHD Blu-Ray discs, and on some gaming systems and streaming sticks. To play Atmos content from these devices, connect the device directly to the HDMI in port of the sound bar. Dolby Atmos supported streaming apps built into to connected TVs may also be played on the HDMI ARC port. |
|
|
SmartCast, Bluetooth, USB, Aux, Optical and Digital Coax inputs do not support Dolby Atmos. |
||
|
The sound bar is in a room with a vaulted ceiling. Will I hear all the sounds properly? |
To clearly hear all Atmos has to offer, you will need a flat ceiling that is between 7.5 and 12 feet high. This allows the height speakers to reflect off the ceiling providing the sounds that would come from above. Vaulted ceilings or ceilings with acoustic treatments or tiles will diminish the effect. From the remote control select Height --> Virtual for a virtualized height experience. Dolby Atmos content will be played in Dolby Digital Plus format in this mode. |
|
|
The system information say the audio type is Dolby Atmos-Dolby Digital Plus or Dolby Atmos-TrueHD. How do I get one or the other? |
Dolby Atmos-TrueHD typically comes from a UHD Blu-Ray player or console that is plugged into the sound bar’s HDMI IN port. Dolby Atmos-Dolby Digital Plus is typically sent from supported apps being played from a smart TV that is plugged into the sound bar's HDMI ARC port. |
|
