Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when handling food
inside the oven cavity.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, as long they
are supervised or instructed by
adults who are responsible for
their safety.
• Children must not be allowed to
play with the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• The appliance must never be
cleaned by unsupervised children.
• The cooking process must always
be monitored. Short cooking
processes must be monitored
continuously.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
Instructions
5
EN
• DO NOT SPRAY AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN
OPERATION.
• Switch the appliance off
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Disconnect the main power
supply before performing any
work on the appliance.
• Have authorised personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a authorised technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Racks and trays must be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets for cleaning
the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• Do not spray any spray products
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
Instructions
6
• Do not place pans or trays
directly on the bottom of the oven
cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromium-
plating).
• Do not use rough or abrasive
materials or sharp metal scrapers.
Installation
• THIS APPLIANCE IS NOT TO BE
INSTALLED IN MARINE CRAFT
OR IN CARAVANS.
• The appliance must not be
installed on a pedestal.
• Place the appliance into the piece
of furniture with the aid of a
second person.
• Never use the oven door to lever
the appliance into place when
fitting.
• When positioning the appliance
during installation, do not use the
door handle to lift up or move this
appliance.
• Avoid exerting too much pressure
on the oven door when open.
• In order to avoid overheating the
appliance must not be installed
behind a decorative door or panel
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal protective
equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
Instructions
7
EN
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than the
one envisaged;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• the use of non-original spare parts.
1.4 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
the one envisaged;
• non-observance of the user
manual provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.5 This user manual
This user manual is an integral part
of the appliance and must therefore
be kept in its entirety and in an
accessible place for the whole
working life of the appliance.
Read this user manual carefully
before using the appliance.
1.6 Identification plate
• The identification plate bears the
technical data, serial number and
brand name of the appliance.
Do not remove the identification
plate for any reason.
Instructions
8
1.7 Disposal
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Consign the appliance to the
appropriate selective collection
centres for electrical and
electronic equipment waste, or
deliver it back to the retailer when
purchasing an equivalent product,
on a one for one basis.
Our appliances are packed in non-
polluting and recyclable materials.
• Consign the packing materials to
the appropriate selective
collection centres.
1.8 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Power voltage
Danger of electrocution
• Disconnect the main power
supply.
• Disconnect the power cable from
the electrical system.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for authorised persons:
installation, operation and
inspection.
Safety instructions
Information
Advice
Description
9
EN
2 Description
2.1 General Description

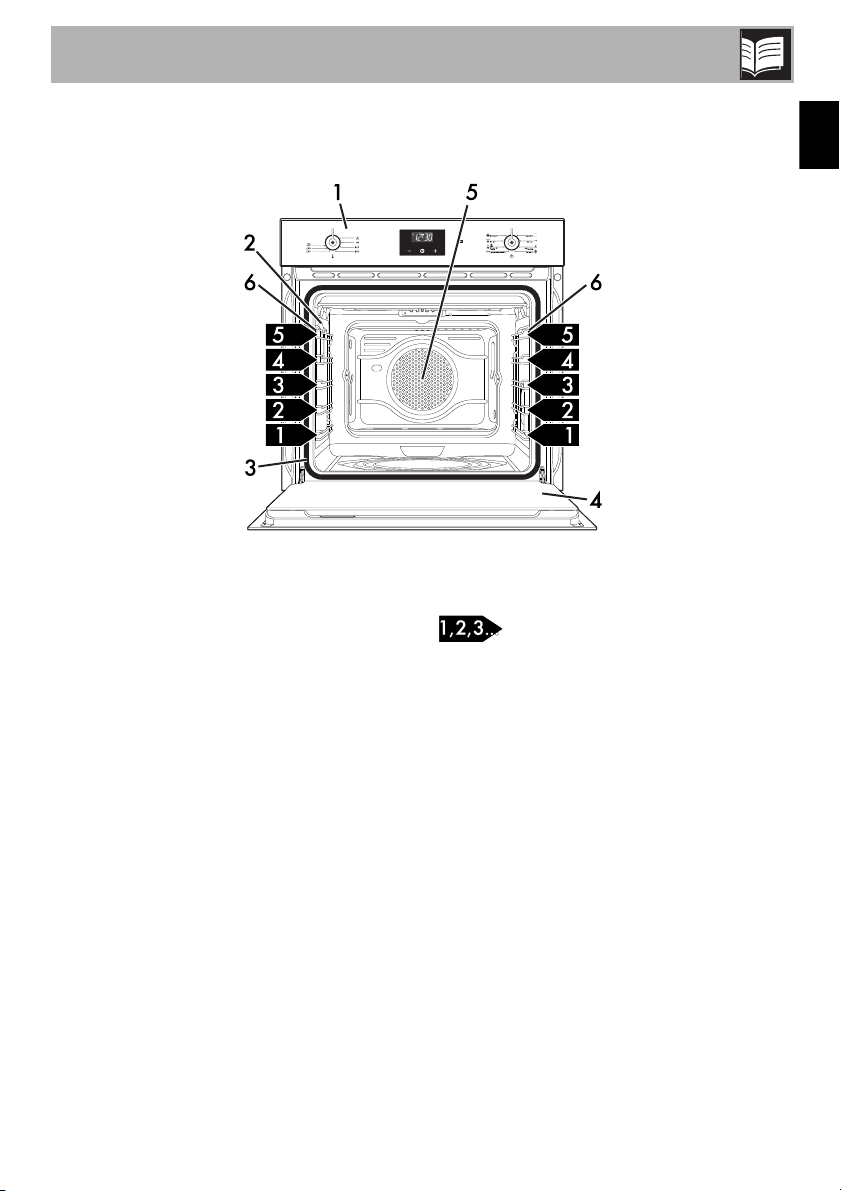

1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf
Use
10
2.2 Control panel
1 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
2 “Touch” Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
3 Thermostat indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
is kept constant inside the oven.
4 Function knob
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
2.3 Other parts
Shelves
The appliance features shelves for
positioning trays and racks at different
heights. The insertion heights are indicated
from the bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Use
11
EN
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected.
2.4 Available accessories
Tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Rack
Used for supporting containers with food
during cooking.
When the door is open, it is not
possible to turn off the interior
lighting.
Some models are not provided
with all accessories.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.
Use
12
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to get near the
oven when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
Use
13
EN
3.3 Using the accessories

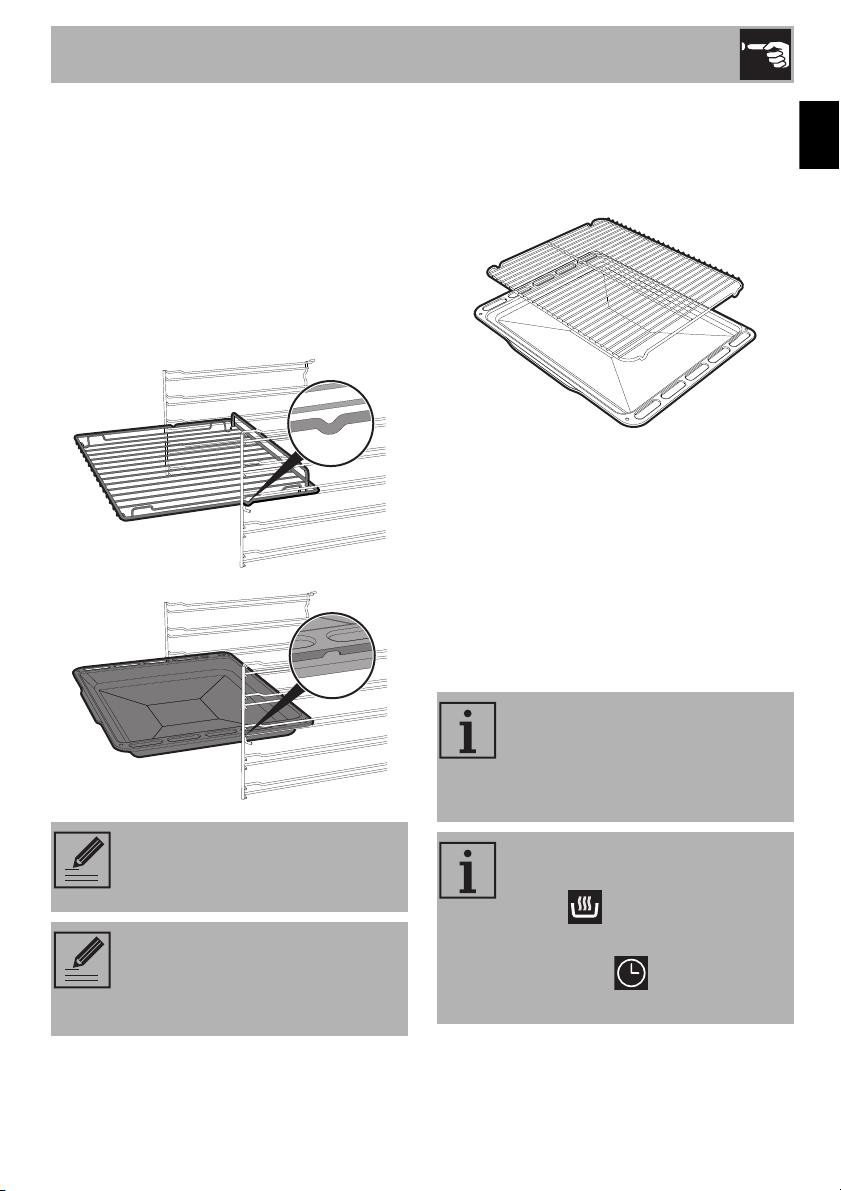

Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being removed
accidentally must face downwards and
towards the back of the oven cavity.
Tray rack
The tray rack has to be inserted into the tray.
In this way, fat can be collected separately
from the food that is being cooked.
3.4 Using the oven
Switching on the oven
To switch on the oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Carefully insert the racks and trays
as far as they will go into the oven
cavity.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Regular flashing of the thermostat
indicator light during cooking is
normal and indicates that the
temperature is being maintained
constant inside the oven.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.
Use
14
Functions list
Convection
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Static grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium thickness
meat and in combination with the
rotisserie (where fitted) gives the food
an even browning at the end of
cooking. Perfect for sausages, spare
ribs and bacon. This function enables
large quantities of food, particularly
meat, to be grilled evenly.
Base heat
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Supercook
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
we recommend using the 1
st
and 4
th
shelves.)
ECO (Energy-saving cooking)
This low energy consumption
function is particularly suitable for
cooking on a single shelf.
Ideal when cooking meat, fish and
vegetables. It is not recommended
for foods that require proving.
For greater energy savings and to
reduce the time required, it is
recommended to put foods in the
oven cavity without preheating it.
When using the ECO function,
avoid opening the oven door
during cooking.
When using the ECO function,
cooking times (and pre-heating, if
used) are longer.
Use
15
EN
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2
nd
and
4
th
shelf).
Fan grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. pork hock).
Fan forced
The combination of the fan and the
circular heating element
(incorporated in the rear of the oven)
allows you to cook different foods on
several levels, as long as they need
the same temperatures and same type
of cooking. Hot air circulation ensures
instant and even distribution of heat. It
will be possible, for instance, to cook
fish, vegetables and biscuits
simultaneously (on different levels)
without odours and flavours mingling.
Defrost
Rapid defrost is helped by the
activation of a fan to ensure uniform
distribution of room temperature air
inside the oven. Perfect for any type
of food.
Vapour Clean
This function makes cleaning easier
using the steam produced by a
small quantity of water poured into
a tray on the first shelf level.
Use
16
Advice for cooking with the Grill and the
Fan grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you turn the temperature knob to the
maximum value near the symbol to
optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
Use
17
EN
3.6 “Touch” Programmer clock
Value decrease key
Clock key
Value increase key
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Hold down the clock key for two
seconds. The dot between the hours and
the minutes flashes.
2. The time can be set via the value
increase key and value decrease
key . Keep the key pressed in to
increase or decrease rapidly.
3. Wait 7 seconds. The dot between the
hours and the minutes stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.
If the time is not set, the oven will
not switch on.
To change the time, hold down the
value increase key and value
decrease key at the same time
for two seconds, then set the time.
Use
18
Timed cooking
1. Keep the clock key pressed until the
symbol appears.
1. Press the clock key again. On the
display the symbol and the text
appear, alternating with the
current time.
2. Use the value increase and value
decrease keys to set the required
minutes of cooking.
3. Select a function and a cooking
temperature.
4. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
At the end of cooking the heating elements
will be deactivated. On the display, the
symbol turns off, the symbol
flashes and the buzzer sounds.
5. To turn the buzzer off, simply press one of
the programmer clock keys.
6. Press the clock key to reset the
programmer clock.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
It is not possible to set a cooking
time of more than 10 hours.
To cancel the set programming
press and hold down the value
increase and the value
decrease keys at the same
time and then turn the oven off
manually.
Use
19
EN
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Hold the menu key down for 2
seconds.
3. Press the menu key again. The
display will show the digits
and the text in sequence,
while the symbol flashes (for
example, the current time is 17:30)
4. Use the or key to set the
required minutes (for example 1 hour)
5. Press the menu key . The text
will appear on the display in
sequence with the pre-set cooking
duration added to the current time (for
example, the cooking end time shown is
18:30).
6. Press the or key to set the
cooking end time. (for example, 19:30).
7. Wait approx. 7 seconds without pressing
any key in order for the function to
activate. The current time will appear on
the display, and the symbols and
will turn off while the indicator
light comes on.
8. Select a cooking temperature and
function.
9. At the end of cooking the heating
elements will be deactivated. On the
display, symbol turns off, symbol
flashes and the buzzer sounds.
10. Return the function and temperature
knobs to 0.
11. To turn off the buzzer just press any key
of the programmer clock.
12. Press keys and at the same
time to reset the set program.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Bear in mind that a few minutes for
oven preheating must be added to
the cooking time.
It is not possible to set a cooking
time of more than 10 hours.
It is not possible to set a
programmed cooking time of more
than 24 hours.
After setting, hold the menu key
down for 2 seconds to
display the cooking time
remaining. Press the menu key
again. The display shows the text
and the remaining
cooking time in sequence.
Use
20
Minute minder timer
The minute minder timer can be activated at
any time.
1. Keep the clock key pressed for per
a few seconds. The display shows the
figures and the symbol
flashing between the hours and minutes.
2. Use the value increase and value
decrease keys to set the number of
minutes required.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the
symbols and appear on the
display.
A buzzer will sound when the set time is
reached.
4. Press the value decrease key to turn
the buzzer off.
Modifying the set data
1. Press the clock key .
2. Use the value increase and value
decrease keys to set the number of
minutes required.
Deleting the set data
1. Press the clock key .
2. Hold down the value increase and
value decrease keys at the same
time.
3. Then switch off the oven manually if
cooking is in progress.
Selecting the buzzer
The buzzer can have 3 tones.
1. Hold down the value increase and
value decrease keys at the same
time.
2. Press the clock key .
3. Press the value decrease key to
select a different buzzer tone.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
The minute minder timer can be set
from 1 minute to a maximum of 23
hours and 59 minutes.
Use
21
EN
Cooking information table
Food
Weight
(Kg)
Function Shelf
Temperature
(°C)
T im e
(minutes)
Lasagne
3 - 4 Convection 1 220 - 230 45 - 50
Pasta bake
3 - 4 Convection 1 220 - 230 45 - 50
Roast veal
2 Supercook/Fan Assisted 2 180 - 190 90 - 100
Pork
2 Supercook/Fan Assisted 2 180 - 190 70 - 80
Sausages
1.5 Fan grill 4 250 15
Roast beef
1 Supercook/Fan Assisted 2 200 40 - 45
Roast rabbit
1.5 Fan forced/Fan Assisted 2 180 - 190 70 - 80
Turkey breast
3 Supercook/Fan Assisted 2 180 - 190 110 - 120
Roast pork neck
2 - 3 Supercook/Fan Assisted 2 180 - 190 170 - 180
Roast chicken
1.2 Supercook/Fan Assisted 2 180 - 190 65 - 70
1
st
surface 2
nd
surface
Pork chops
1.5 Fan grill 4 250 15 5
Spare ribs
1.5 Fan grill 4 250 10 10
Bacon
0.7 Grill 5 250 7 8
Pork fillet
1.5 Fan grill 4 250 10 5
Beef fillet
1 Grill 5 250 10 7
Salmon trout
1.2 Supercook/Fan Assisted 2 150 - 160 35 - 40
Delicate fish
1.5 Supercook/Fan Assisted 2 160 60 - 65
Flounder
1.5 Supercook/Fan Assisted 2 160 45 - 50
Pizza
1Supercook/Fan Assisted 2 280 8 - 9
Bread
1 Fan forced/Fan Assisted 2 190 - 200 25 - 30
Focaccia
1 Supercook/Fan Assisted 2 180 - 190 20 - 25
Ring cake
1 Fan forced/Fan Assisted 2 160 55 - 60
Tarts
1 Fan forced/Fan Assisted 2 160 35 - 40
Ricotta cake
1 Fan forced/Fan Assisted 2 160 - 170 55 - 60
Jam tarts
1 Supercook/Fan Assisted 2 160 20 - 25
Paradise cake
1.2 Fan forced/Fan Assisted 2 160 55 - 60
Profiteroles
1.2 Supercook/Fan Assisted 2 180 80 - 90
Sponge cake
1 Fan forced/Fan Assisted 2 150 - 160 55 - 60
Rice pudding
1 Supercook/Fan Assisted 2 160 55 - 60
Brioches
0.6 Fan forced/Fan Assisted 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided as a guide only.
Cleaning and maintenance
22
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges or sharp scrapers
as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic finishes on the
surface (e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents on glass parts (e.g. powder
products, stain removers and metallic
sponges).
• Do not use rough or abrasive materials
or sharp metal scrapers.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
23
EN
4.3 Cleaning the door
Removing the door
For easier cleaning, the door can be
removed and placed on a canvas.
To remove the door proceed as follows:

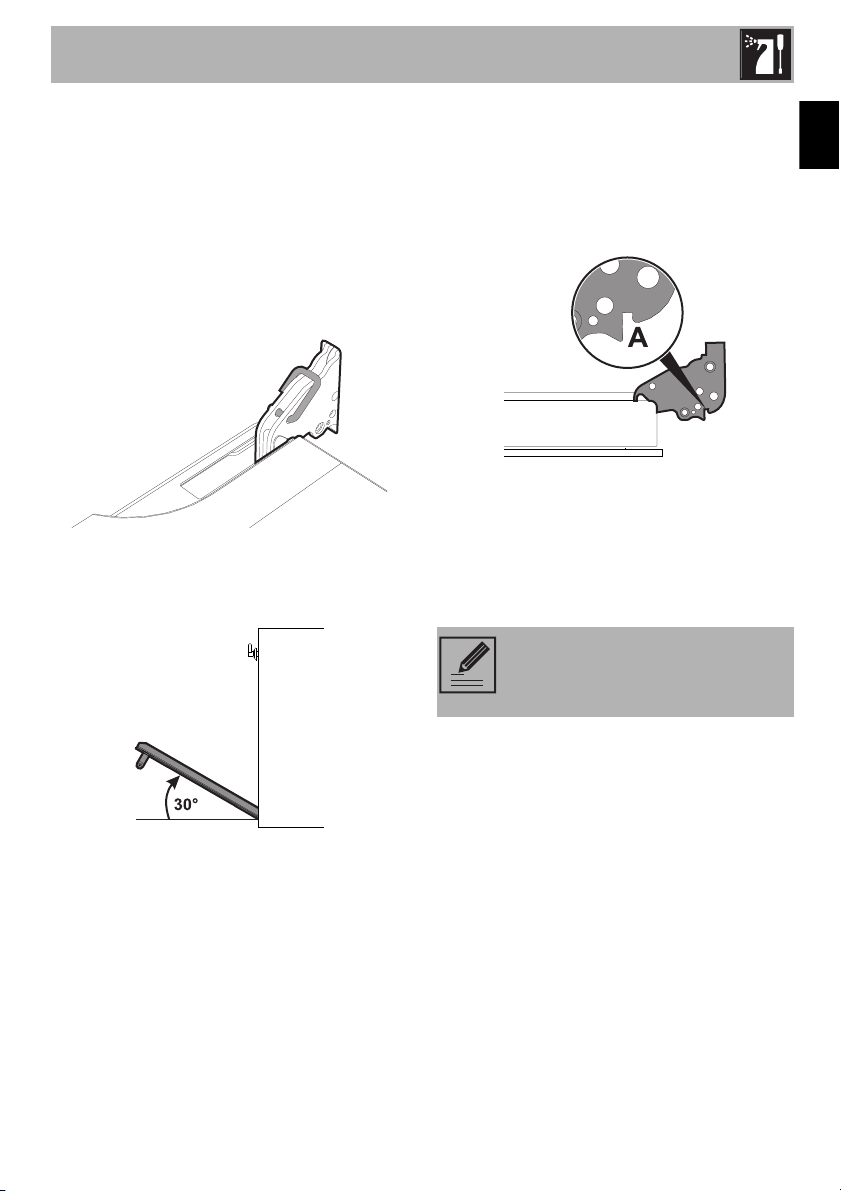

1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
24
Removing the internal glass panels
For easier cleaning, the internal glass
panels of the door can be removed.
1. Remove the internal glass panel by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). In
this way, the 4 pins attached to the glass
are released from their seats in the oven
door.
3. Some models have an intermediate glass
panel. Remove the intermediate glass
panel by lifting it upwards.
4. Clean the external glass panel and the
panels removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and a neutral detergent.
5. Refit the panels in the reverse order in
which they were removed.
6. Reposition the internal glass panel. Take
care to centre and secure the 4 pins into
their seats in the oven door by applying
slight pressure.
Cleaning and maintenance
25
EN
4.4 Cleaning the inside of the oven
Advice for cleaning the oven cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Do not allow food residues to dry inside the
oven cavity because doing so could
damage the enamel.
Before cleaning, remove all the parts that
can be removed.
For easier cleaning, it is recommended to
remove:
• The door;
• The rack/tray support frames;
• The seal.
Removing rack/tray support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily. This operation should be performed
each time the automatic cleaning cycle is
used (on some models only).
Removing the rack/tray support frames:
1. Pull the frame towards the inside of the
oven cavity to unhook it from its
groove A.
2. Then slide it out of the seats on the
back B.
3. When cleaning is complete, repeat the
above procedures to replace the rack/
tray support frames.
The oven should be operated at
the maximum temperature for
about 15-20 minutes after the use
of specific products, to burn off the
residues left inside the oven.
For easier cleaning, remove the
door.
Cleaning and maintenance
26
Vapour Clean: Assisted oven cleaning
Preliminary operations
Before starting the Vapour Clean function:
• Completely remove all accessories from
inside the oven. The upper guard can be
left inside the oven.
• Pour approx. 40 cc of water onto the
floor of the oven. Make sure it does not
overflow out of the cavity.
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
•Close the door.
Vapour Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapour for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
We recommend spraying approx.
20 times at the most.
Cleaning and maintenance
27
EN
Vapour Clean setting
1. Set a cooking time of 18 minutes using
the programmer clock.
2. Turn the function knob to the symbol
and the temperature knob to the
symbol .
The Vapour Clean cycle starts a few
seconds after the last press on the
programmer clock keys.
3. At the end of the Vapour Clean cycle, the
timer will deactivate the oven heating
elements, the buzzer will start to sound
and the numbers on the programmer
clock dial will flash.
End of the Vapour Clean cycle
1. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
2. Use an anti-scratch sponge with brass
filaments on tougher encrustations.
3. In case of grease residues use specific
oven cleaning products.
4. Remove the water left inside the oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan assisted function at 160°C for
approximately 10 minutes.
4.5 Extraordinary maintenance
Removing and installing the door seal
To remove the seal:
• Release the hooks in the 4 corners and
pull the seal outwards.
To install the seal:
• Attach the hooks in the 4 corners of the
seal.
Seal maintenance recommendations
The seals should be soft and flexible.
• To keep the seal clean, wash it using a
non-abrasive sponge and lukewarm
water.
We recommend wearing rubber
gloves for these operations.
For easier manual cleaning of the
parts difficult to reach, we
recommend removing the door.
Cleaning and maintenance
28

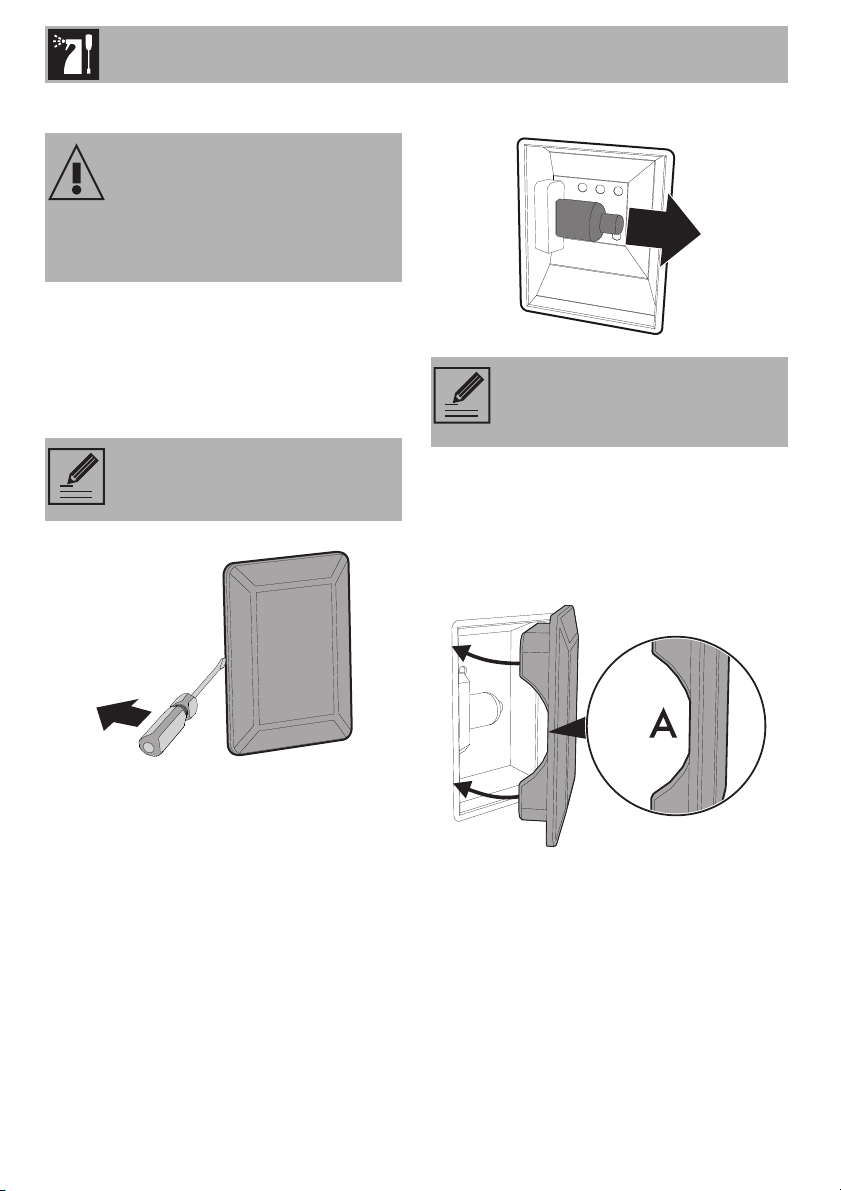

Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide the lamp out and remove it.
5. Replace the lamp with one of the same
type (40W).
6. Replace the bulb cover. Make sure that
the inner shaped part of the glass (A) is
facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Live parts
Danger of electrocution
• Unplug the appliance from the power
supply.
Be careful not to scratch the enamel
on the side of the oven.
Do not touch the halogen lamp
directly with your fingers, but hold it
using insulating material.
Installation
29
EN
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance works at 220-240 V~.
Use a three-pole cable (3 x 1.5 mm
2
internal conductors).
Make the ground connection using a wire
that is 20 mm longer than the other wires.
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters, gang sockets or
extensions as these could cause
overheating and a risk of burns.
Cable replacement
1. Unscrew the rear casing screws and
remove the casing in order to access the
terminal board.
2. Replace the cable.
3. Make sure that the cables (for the oven
or any cooktop) follow the best route in
order to avoid any contact with the
appliance.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
Installation
30
5.2 Positioning
Position of the power cable
(rear view)
Front panel seal
Glue the seal provided to the rear of the
front panel to prevent water or other liquids
from leaking in.
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cutout with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Check that the piece of furniture material
is heat resistant.
• Check that the piece of furniture has the
required slots.
• Do not install the appliance in a recess
which can be closed with a door or in a
cupboard.
Installation
31
EN
Fastening bushings
1. Remove the bushing covers inserted on
the front of the appliance.
2. Mount the appliance into the recess.
3. Secure the appliance to the piece of
furniture using the screws.
4. Cover the bushings using the covers that
were previously removed.

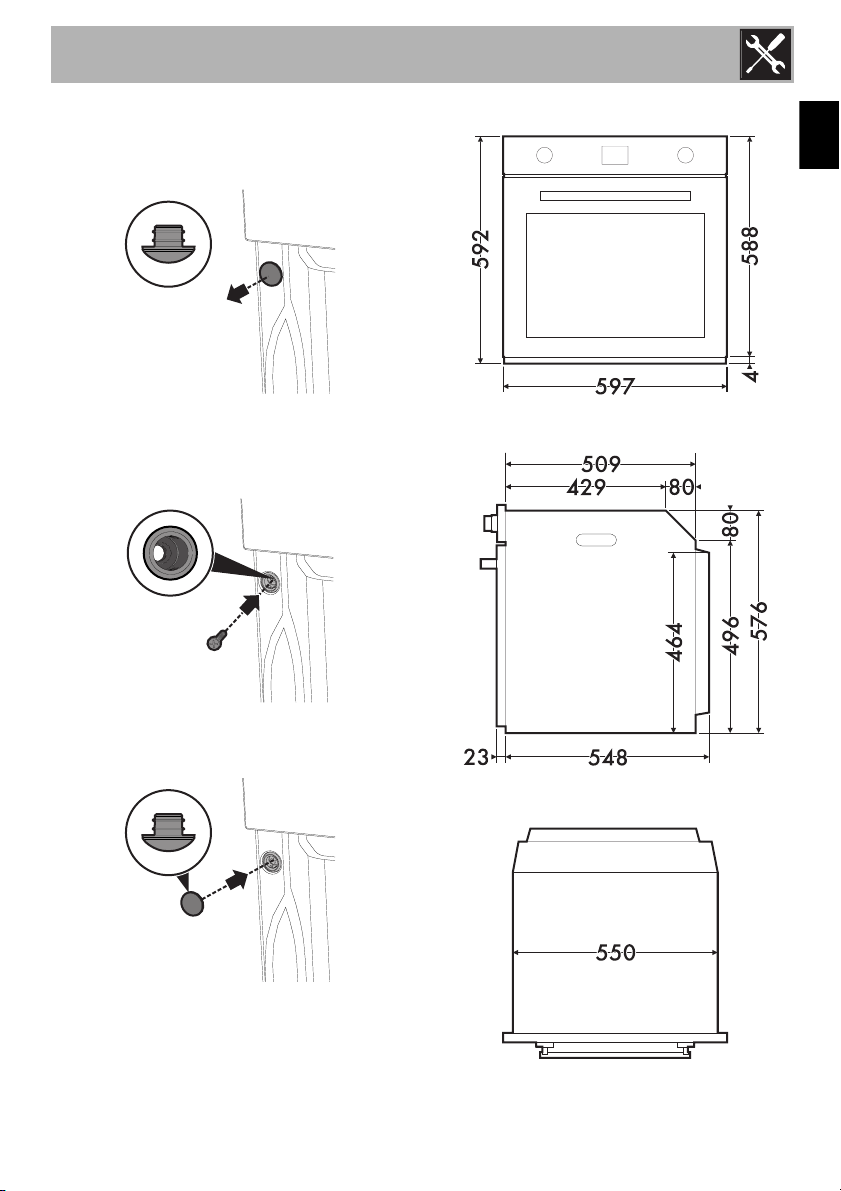

Appliance overall dimensions (mm)
Installation
32

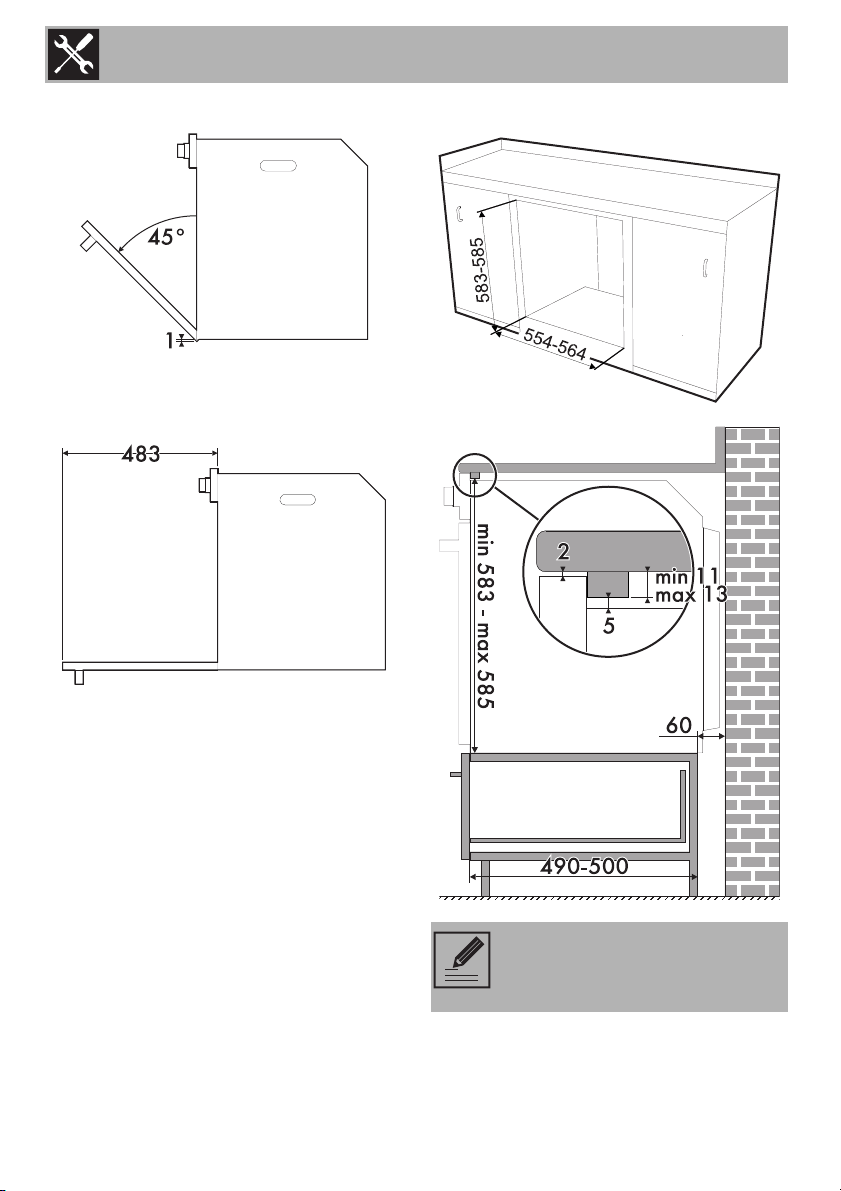

Mounting under worktops (mm)
Make sure that the piece of
furniture rear/bottom part has an
opening of approx. 60 mm.
Installation
33
EN

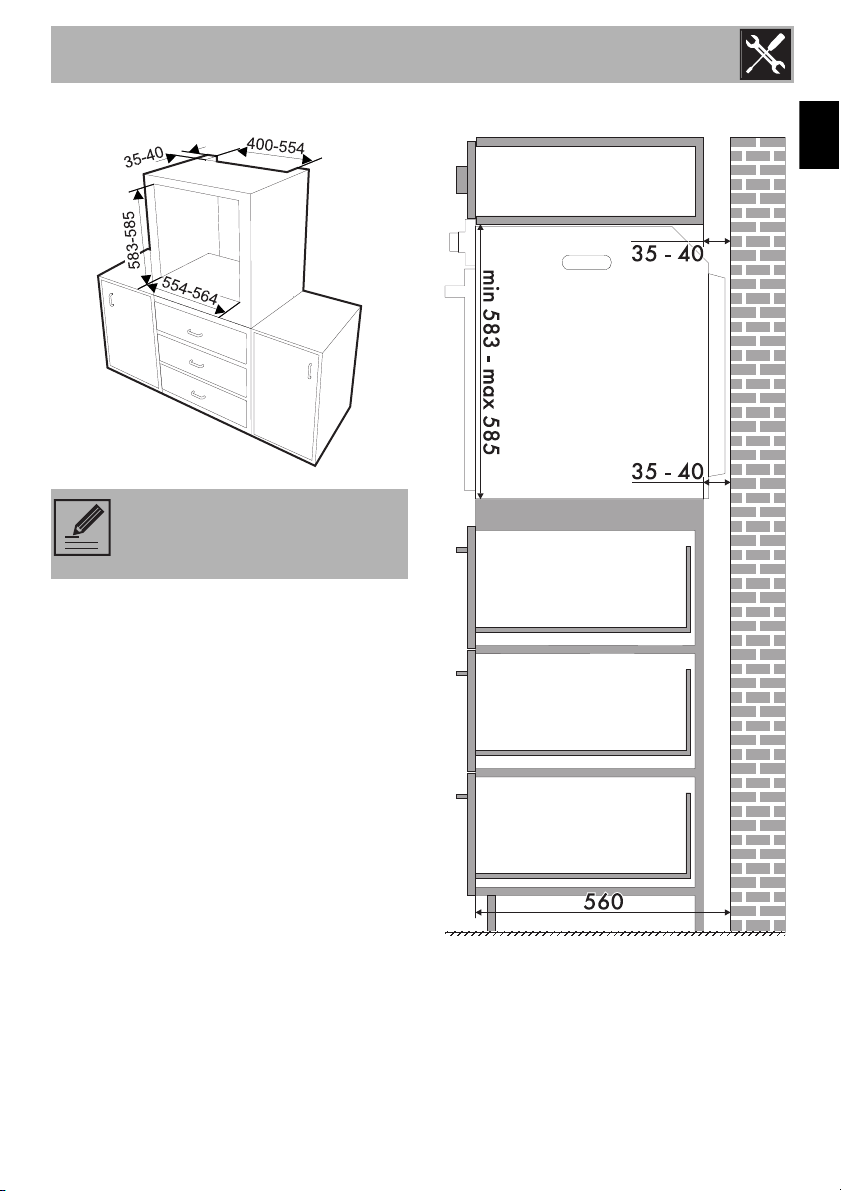

Mounting into a column (mm)
Make sure that the piece of
furniture top/rear part has an
opening approx. 35-40 mm deep.
914776413/A
