Contents
3
EN
1Instructions 4
1.1 General safety instructions 4
1.2 Appliance purpose 7
1.3 Manufacturer’s liability 8
1.4 This user manual 8
1.5 Identification plate 8
1.6 Disposal 8
1.7 How to read the user manual 9
2 Description 10
2.1 General Description 10
2.2 Control panel 11
2.3 Other parts 11
2.4 Available accessories 12
3Use 13
3.1 Instructions 13
3.2 First use 13
3.3 Using the accessories 14
3.4 Using the oven 14
3.5 Cooking advice 20
4 Cleaning and maintenance 24
4.1 Instructions 24
4.2 Cleaning the appliance 24
4.3 Removing the door 24
4.4 Cleaning the door glazing 25
4.5 Vapor Clean 27
4.6 Extraordinary maintenance 29
5Installation 31
5.1 Electrical connection 31
5.2 Instructions for the installer 31
5.3 Cable replacement 32
5.4 Positioning 32
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have been given
supervised or instruction
concerning use of the appliance
by a responsible person for their
safety.
• Young children should be
supervised to ensure that they do
not play with the appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Switch off the appliance
immediately after use.
• WARNING: Ensure the appliance
is switched off before replacing
the lamp to avoid the possibility of
an electric shock.
Instructions
5
EN
• WARNING - Accessible parts will
become hot when in use. Young
children should be kept away.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
•DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use a steam cleaner to
clean this appliance.
• Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean the oven glass door since
they can scratch the surface, which
may result in shattering of the
glass.
• Switch off the burners or the
electric hot plates of the hob
installed above the appliance
during the pyrolytic process
(where available).
• Do not seat on the appliance.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
Instructions
6
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
• This oven must not be installed
behind a decorative door in order
to avoid overheating.
Installation and maintenance
• THIS APPLIANCE
MUST NOT BE
INSTALLED
IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• If the electrical supply is restricted,
means of all-pole disconnection
must be accessible and
incorporated in the fixed wiring in
accordance with the wiring rules.
Instructions
7
EN
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• This appliance can be used up to
a maximum altitude of 4,000
metres above sea level.
• This appliance is not intended to
be installed onboard ships or
other vessels.
For this appliance
• Take care because steam may not
be visible at certain temperatures.
• Open the appliance door
carefully during or after cooking.
• Dishes must be heat and steam
resistant.
• Ensure that the appliance is
switched off before replacing the
bulb.
•Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• Do not install / use the appliance
outdoors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
Instructions
8
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare
parts.
1.4 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.5 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Instructions
9
EN
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
10
2 Description

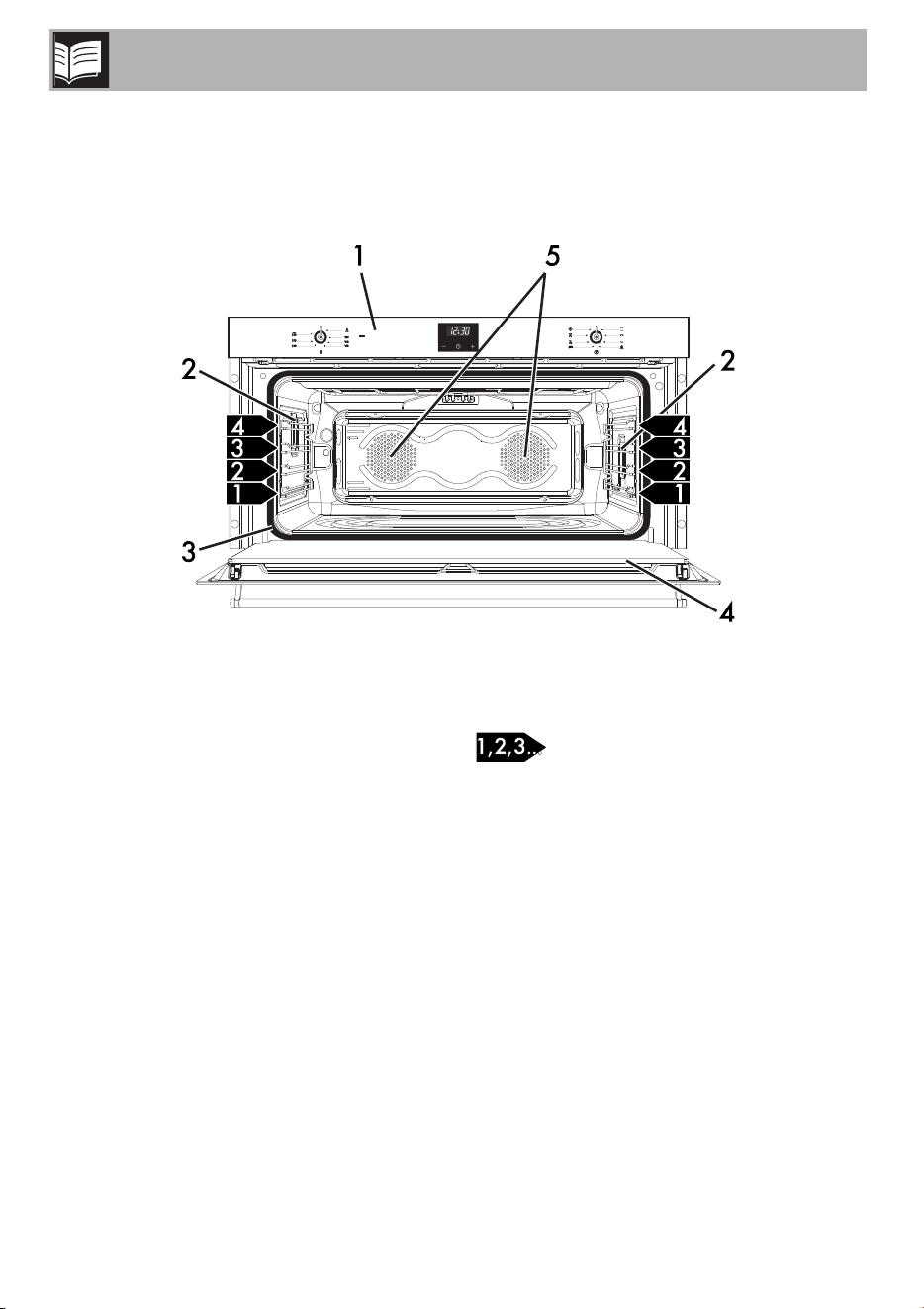

2.1 General Description
1 Control panel
2 Inside lights
3 Seal
4 Door
5 Fans
Frame shelf
Description
11
EN
2.2 Control panel
1 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.

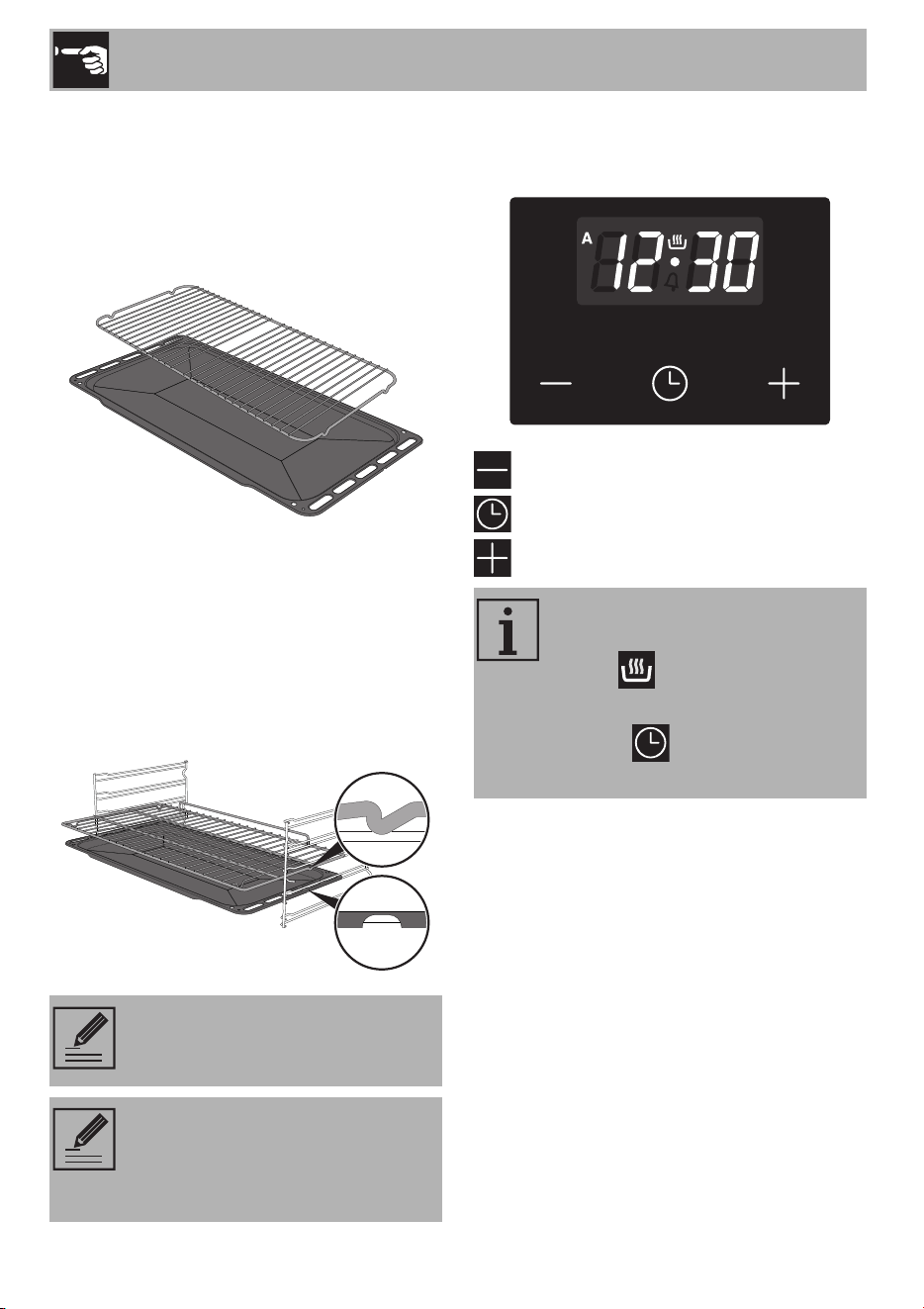

3 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
2 Thermostat indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It will then
turn on and off regularly, indicating that the
temperature set inside the oven is being
kept constant.
4 Function knob
This knob allows you to turn the appliance
on and off and select the various available
functions.
Turn the knob right or left to change/select
the required item.
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is started, apart from
the ECO and Vapor Clean functions
(on some models only).
• When the temperature knob is briefly
turned to the right (manual activation and
deactivation).
Keep the knob pressed in for at
least 5 seconds to immediately
complete any cooking operation.
When the door is open, it is not
possible to turn off the interior
lighting.
Description
12

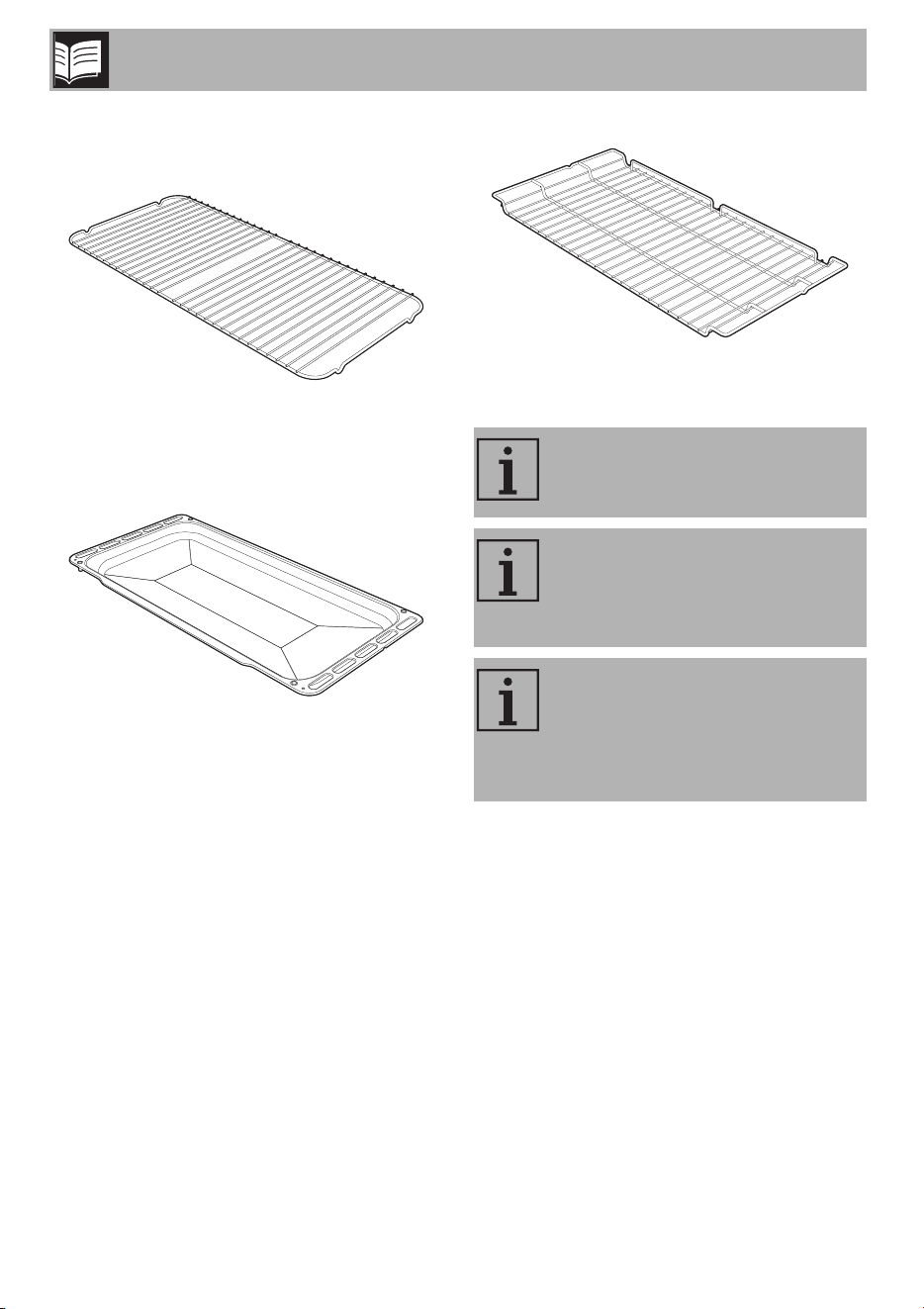

2.4 Available accessories
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rack
Useful for supporting containers with food
during cooking.
Some models are not provided
with all accessories.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
Use
13
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
•Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Use
14
3.3 Using the accessories
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the side
guides until they come to a complete stop.
The mechanical safety locks that prevent the
rack from being removed accidentally must
face downwards and towards the back of
the oven cavity.
3.4 Using the oven
Programmer clock
Value decrease key
Clock key
Value increase key
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.
Use
15
EN

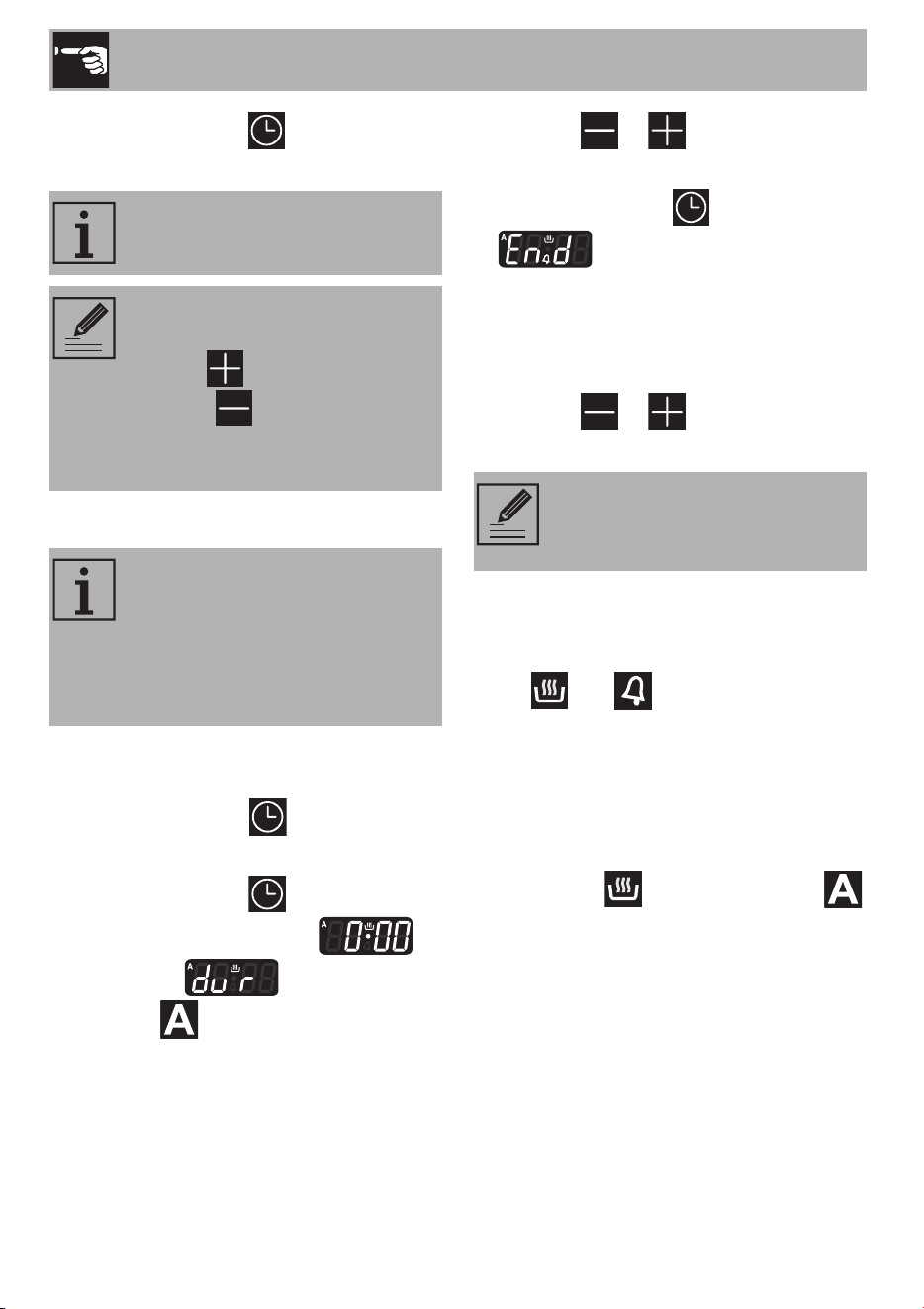

Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Hold down the clock key for two
seconds. The dot between the hours and
the minutes flashes.
2. The time can be set via the value
increase key and value decrease
key . Keep the key pressed in to
increase or decrease rapidly.
3. Wait 7 seconds. The dot between the
hours and the minutes stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Timed cooking
1. Keep the clock key pressed until the
symbol appears.
2. Press the clock key again. On the
display the symbol and the text
appear, alternating with the
current time.
3. Use the value increase and value
decrease keys to set the required
minutes of cooking.
4. Select a function and a cooking
temperature.
5. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
and symbols will appear on the
display.
At the end of cooking the heating elements
will be deactivated. On the display, the
symbol turns off, the symbol
flashes and the buzzer sounds.
6. To turn the buzzer off, simply press one of
the programmer clock keys.
If the time is not set, the oven will
not switch on.
To change the time, hold down the
value increase key and value
decrease key at the same time
for two seconds, then set the time.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Use
16
7. Press the clock key to reset the
programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Hold the menu key down for 2
seconds.
3. Press the menu key again. The
display will show the digits
and the text in sequence,
while the symbol flashes (for
example, the current time is 17:30).
4. Press the or key to set the
required minutes.(for example 1 hour).
5. Press the menu key . The text
will appear on the display in
sequence with the pre-set cooking
duration added to the current time (for
example, the cooking end time shown is
18:30).
6. Press the or key to set the
cooking end time (for example, 19:30).
7. Wait approx. 7 seconds without pressing
any key in order for the function to
activate. The current time appears and
the and symbols light up on the
display.
8. Select a cooking temperature and
function.
9. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer sounds.
It is not possible to set a cooking
time of more than 10 hours.
To cancel the set programming
press and hold down the value
increase and the value
decrease keys at the same
time and then turn the oven off
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Bear in mind that a few minutes for
oven preheating must be added to
the cooking time.
Use
17
EN
10. Return the function and temperature
knobs to 0.
11. To turn off the buzzer just press any key
of the programmer clock.
12. Press the and keys at the same
time to reset the set program.
Minute minder timer
The minute minder timer can be activated at
any time.
1. Keep the clock key pressed for per
a few seconds. The display shows the
figures and the symbol
flashing between the hours and minutes.
2. Use the value increase and value
decrease keys to set the number of
minutes required.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the and
symbols appear on the display.
A buzzer will sound when the set time is
reached.
4. Press the value decrease key to turn
the buzzer off.
It is not possible to set a cooking
time of more than 10 hours.
It is not possible to set a
programmed cooking time of more
than 24 hours.
After setting, hold the menu key
down for 2 seconds to display the
cooking time remaining. Press the
menu key again. The display
shows the text and the
remaining cooking time in
sequence.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
The minute minder timer can be set
from 1 minute to a maximum of 23
hours and 59 minutes.
Use
18
Modifying the set data
1. Press the clock key .
2. Use the value increase and value
decrease keys to set the number of
minutes required.
Deleting the set data
1. Press the clock key .
2. Hold down the value increase and
value decrease keys at the same
time.
3. Then switch off the oven manually if
cooking is in progress.
Selecting the buzzer
The buzzer can have 3 tones.
1. Hold down the value increase and
value decrease keys at the same
time.
2. Press the clock key .
Press the value decrease key to select
a different buzzer tone.
Functions list
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Use
19
EN
Lower element + fan with circulaire
Fan assisted cooking is combined
with the heat coming from below
and allows you to brown food
slightly at the same time. Perfect for
any type of food
ECO
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
Cooking (and preheating) times
are longer with the ECO function.
When using the ECO function,
avoid opening the door during
cooking.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2
nd
and
4
th
shelf).
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan with circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Use
20
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• For the same total weight, cooking time
will be greater for cooking a whole
piece than when it is cut into smaller
pieces.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• When cooking on multiple levels, food
should ideally be positioned on the
second and fourth shelves; increase
cooking time by a few minutes and only
used fan functions.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10°C,
selecting a longer cooking time if
necessary.
• The cooking time for meringues and
choux pastry will vary depending on the
size.
Use
21
EN
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• Bread and fruit, if divided into pieces, will
take the same amount of time to defrost,
regardless of the total weight and
quantity.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at
all times.
Use
22
Cooking information table
Food
Weight
(Kg)
Function Shelf
Temperature
(°C)
Time
(minutes)
Lasagne
2 Static 1 230 40 - 45
Pasta bake
2 Static 1 220 40 - 45
MEAT
Veal roast
2 - 2.5 Fan assisted 2 180 115 - 125
Pork loin
2 Fan assisted 2 180 80 - 85
Roast beef: medium
2 Circulaire 2 200 80 - 85
Roast rabbit (pieces)
1 Circulaire 2 180 70 - 75
Turkey breast
1.5 Fan assisted 2 180 - 190 80 - 90
Roast pork neck
2 Circulaire 2 180 - 190 150 - 160
Roast chicken
1.5 Circulaire 2 200 70 - 75
GRILLING (*)
1
st
side 2
nd
side
Sausages
0.5 - 1
Fan with grill
3max
95
Pork chops (200 g each)
tot. 1.5 Grill 4 max 17 6
Spare ribs (attached)
1 Fan with grill 3 max 13 7
Bacon (0.5 mm thick)
0.8 - 1 Fan with grill 3 max 8 3
Pork fillet (0.5 mm thick)
0.8 - 1 Grill 4 max 15 4
Beef fillet (2 cm thick)
0.8 - 1 Grill 4 max 6 4
WHOLE FISH
Salmon trout
0.5 Fan assisted 2 160 40 - 45
Monkfish
0.7 Fan with circulaire 2 160 65 - 70
Sea bass
0.5 Fan with circulaire 2 160 45 - 50
VEGETABLES
Roast potatoes
1.5 - 2 Fan assisted 2 190 35 - 40
Mixed roasted vegetables
1.5 - 2 Fan assisted 2 190 35 - 38
Grilled sliced vegetables (**)
0.5mm thick
Grill 4 max 10
7
DOUGH
Fresh pizza
1.5 - 2 Fan assisted 2 max 12 - 15
Bread (loaf)
0.4 Fan with circulaire 2 200 30
Focaccia
1.5 Fan assisted 2 180 25 - 28
Use
23
EN
DESSERTS/PASTRIES
Meringue (medium - small)
0.35 Fan with circulaire 2 120 80 - 90
Bundt cake
1.5 Fan with circulaire 2 160 55 - 60
Jam tart
1 Static 2 170 35 - 40
Ricotta cake
1.2 Static 2 180 45-50
Muffins
40 g each
Fan assisted/Fan
with circulaire
2 160 25 - 30
Paradise cake
1.2 Fan with circulaire 2 160 55 - 60
Profiteroles (medium - small)
dough 0.5 Fan with circulaire 2 180 70 - 75
Sponge cake
1 Fan with circulaire 2 150 55 - 60
Biscuits (0.5 mm thick)
dough 0.5 Fan assisted 2 160 14 - 16
Brioches
0.6 Fan assisted 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
(*) Grilling times depend on the thickness of the food and the level of cooking/browning you wish to
achieve.
(**) The times for grilled vegetables may vary depending on the thickness of the food and the type
of vegetable.
Roast meats should be turned during cooking to achieve uniform browning on all sides.
Cleaning and maintenance
24
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
Recommendations for cleaning the oven
cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, we recommend
removing:
•The door
• The rack/tray support frames
•The oven seal.
4.3 Removing the door
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
We recommend the use of
cleaning products distributed by
the manufacturer.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
25
EN

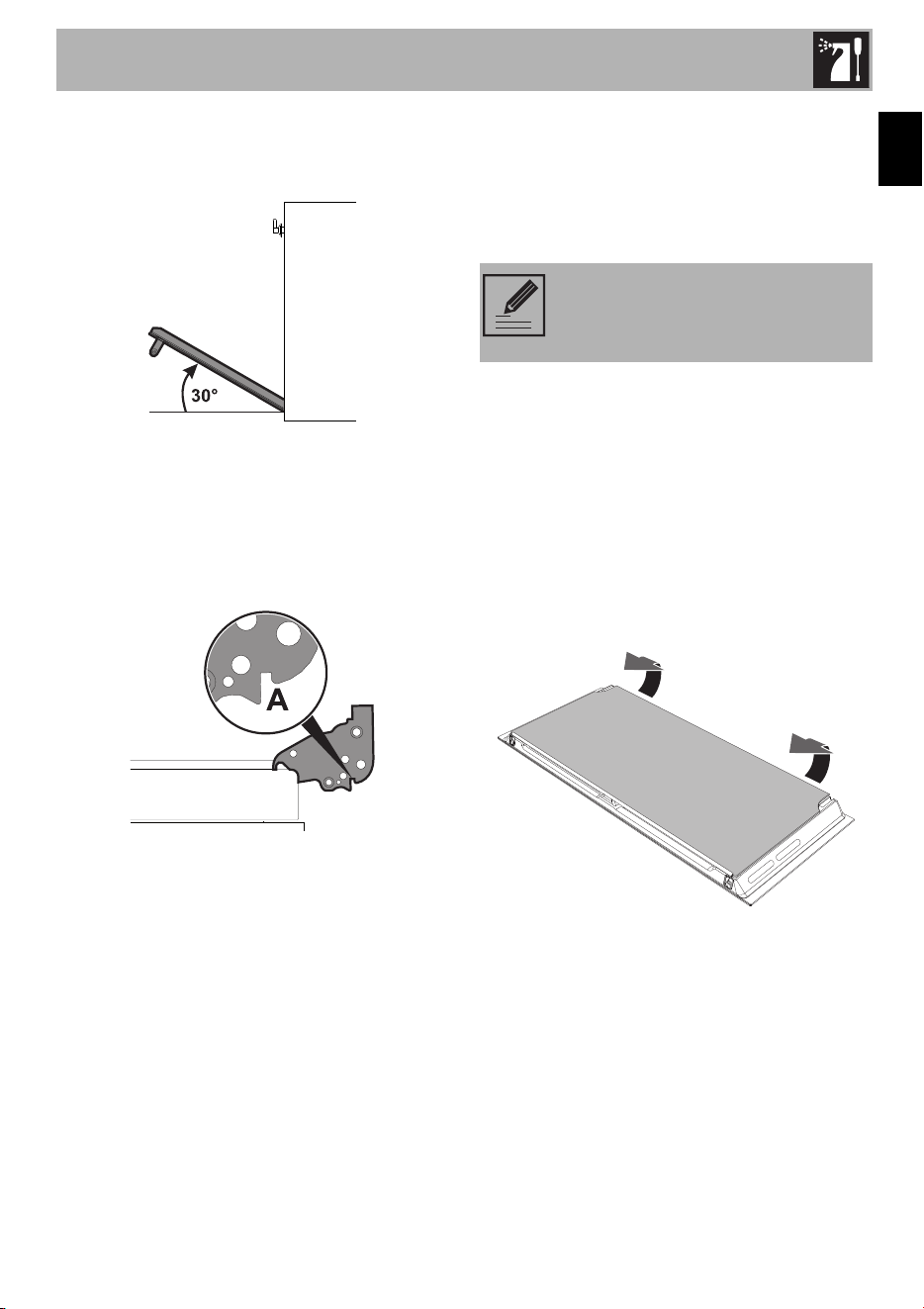

2. Grasp the door on both sides with both
hands, lift it so that it forms an angle of
around 30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.4 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.
1. Remove the door of the appliance or
lock it in position using the special pins.
2. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
26

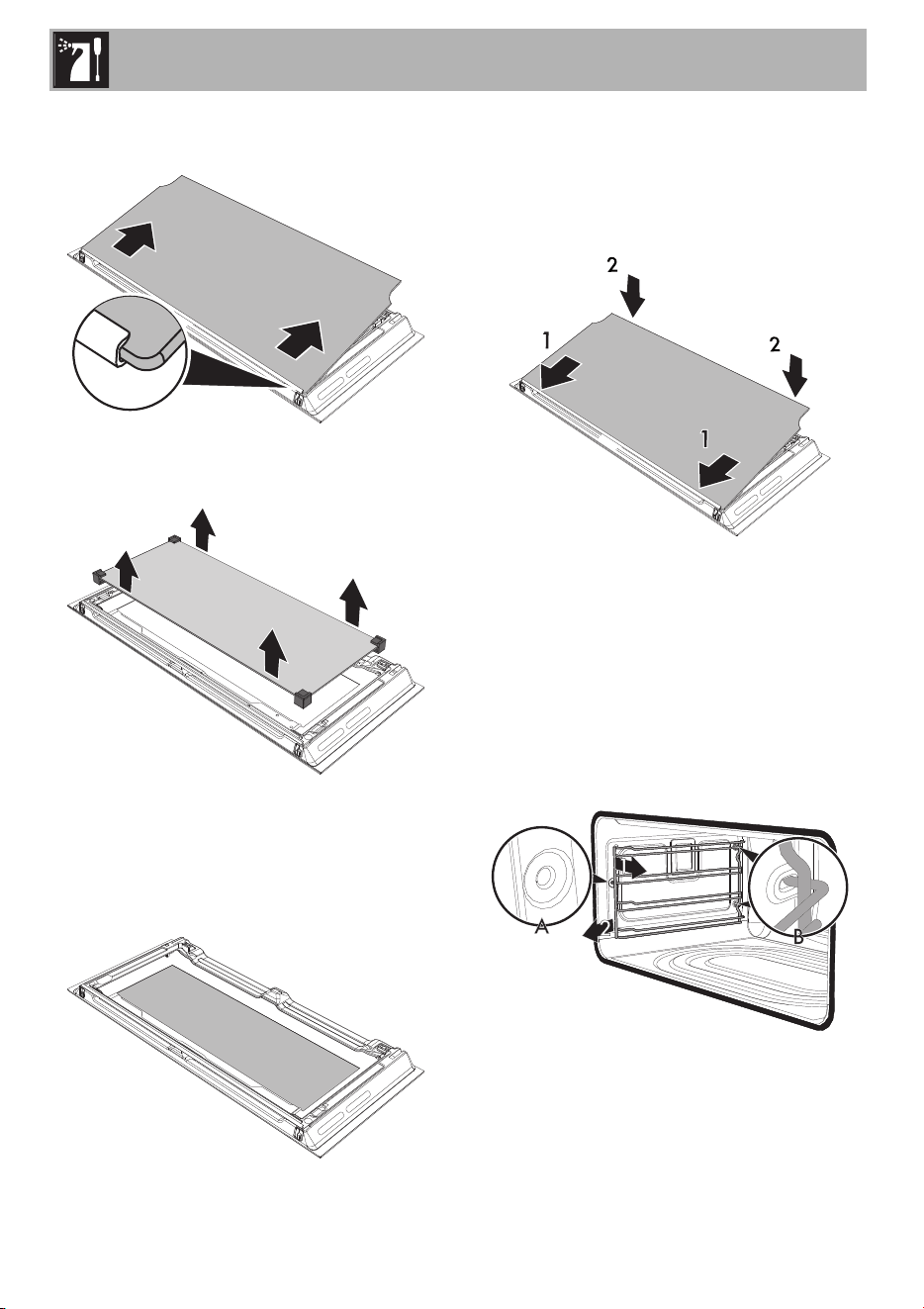

3. Then remove the internal glass pane from
the front profile.
4. Remove the intermediate glass unit by
lifting it upwards.
5. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
6. Reposition the intermediate glass unit.
7. Reposition the internal glass pane. Insert
the front part into the front profile (1).
Then lower the rear part and insert the
pins into their housings on the door by
applying slight pressure (2).
Removing rack/tray support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily.
To remove the rack/tray support frames:
• Pull the frame towards the inside of the
oven to unhook it from its groove A, then
slide it out of the seats B at the back.
• When cleaning is complete, repeat the
above procedures to put the rack/tray
support frames back in.
Cleaning and maintenance
27
EN

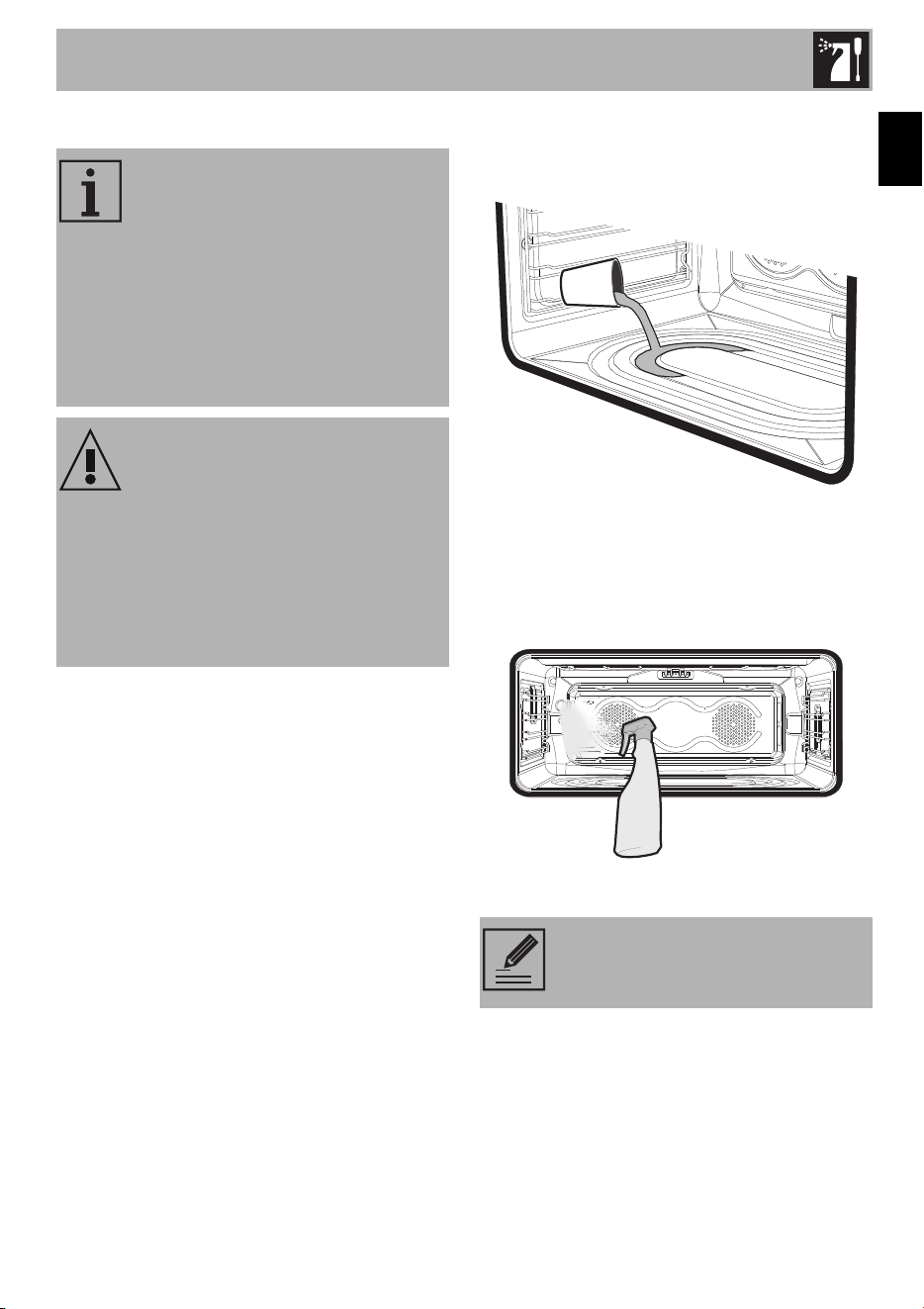

4.5 Vapor Clean
Preliminary operations
Before starting the Vapor Clean function:
• Completely remove all accessories from
inside the oven.
• Remove the rack/tray support frames.
• Detach removable guides, where fitted.
• Close the door.
• Pour approximately 400 cc of water into
the tray. Make sure it does not overflow
out of the cavity.
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray towards the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapour for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
We recommend spraying approx.
20 times at the most.
Cleaning and maintenance
28
Vapor Clean cycle setting
1. Set a cooking time of 18 minutes using
the programmer clock.
2. Turn the function knob to the symbol.
3. Turn the temperature knob to the
symbol.
The Vapor Clean cycle starts a few seconds
after the last press on the programmer clock
keys.
4. At the end of the Vapor Clean cycle, the
timer will deactivate the oven heating
elements, the buzzer will sound and the
numbers on the programmer clock will
flash.
End of the Vapor Clean cycle
5. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
6. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
7. In case of grease residues use specific
oven cleaning products.
8. Remove the water left inside the oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan assisted function at 160°C for
approximately 10 minutes.
We recommend wearing rubber
gloves for these operations.
We recommend removing the
door in order to make the manual
cleaning of the parts that are
difficult to reach easier.
Cleaning and maintenance
29
EN
4.6 Extraordinary maintenance

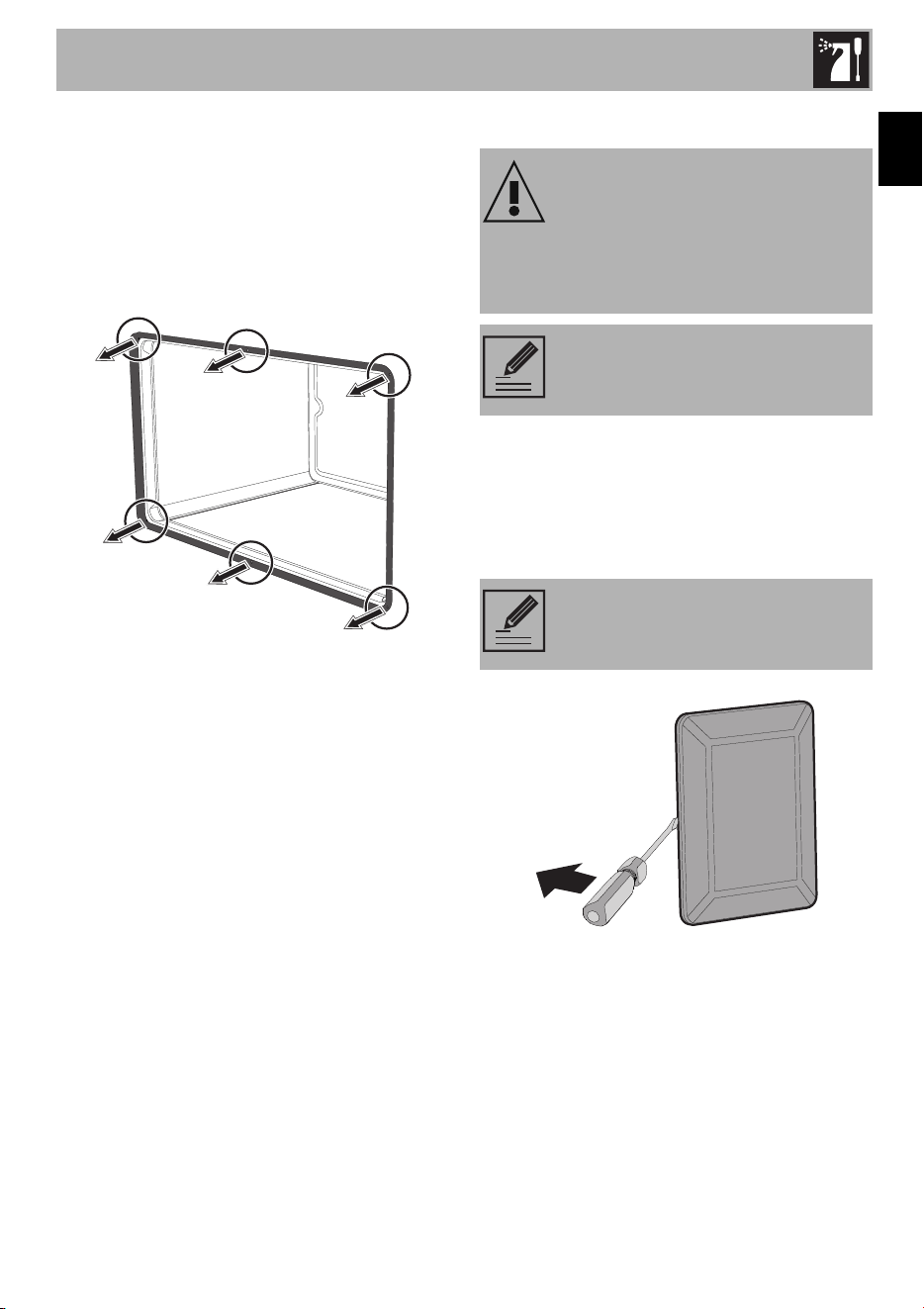

Installing and removing the seal
To remove the seal:
• Unhook the clips located in the 4 corners
and in the centre, then pull the seal
outwards.
To refit the seal:
• Hook the clips located in the 4 corners
and in the centre onto the gasket.
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
Live parts
Danger of electrocution
• Unplug the appliance.
The oven is fitted with two 40W
light bulbs.
Pay attention not to scratch the
oven cavity enamel.
Cleaning and maintenance
30

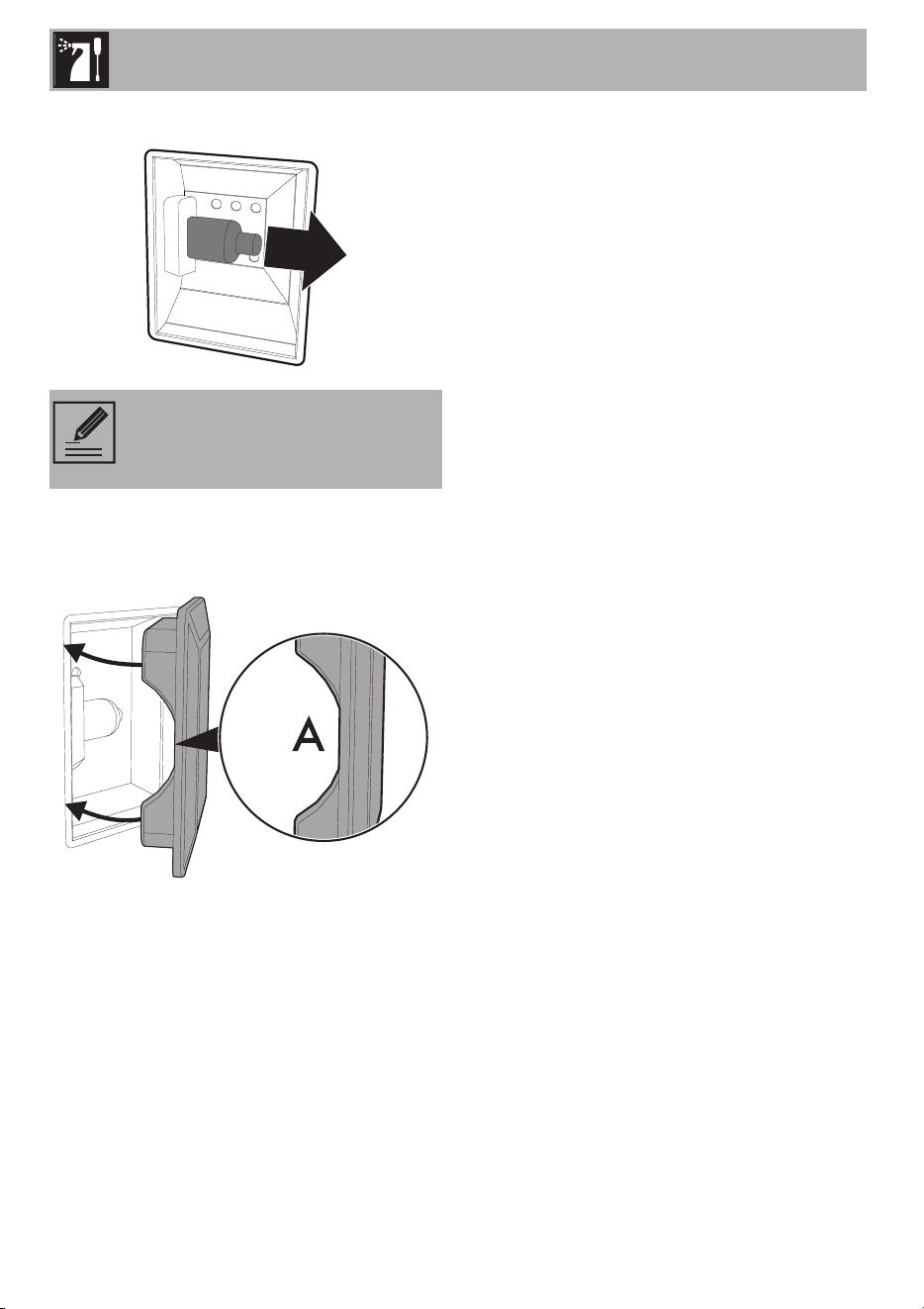

4. Slide out and remove the light bulb.
5. Fit the new light bulb.
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Do not touch the halogen light
bulb directly with your fingers, but
wrap it in insulating material.
Installation
31
EN
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance operates at 220-240 V~.
Use a three-core cable (3 x 1.5 mm
2
internal conductors).
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
Fixed connection
Fit the power line with an all-pole circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
5.2 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
Installation
32
5.3 Cable replacement
1. Unscrew the 6 screws on the rear casing.
Position of the screws and the power cable
(rear view)
2. Lift the rear casing slightly and remove it
to gain access to the terminal board.
3. Replace the cable.
4. Make sure that the cables (for the oven
or any hob) follow the best route in order
to avoid any contact with the appliance.
5.4 Positioning
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not install the appliance in a recess
which can be closed with a door, or in a
cupboard.
Installation
33
EN

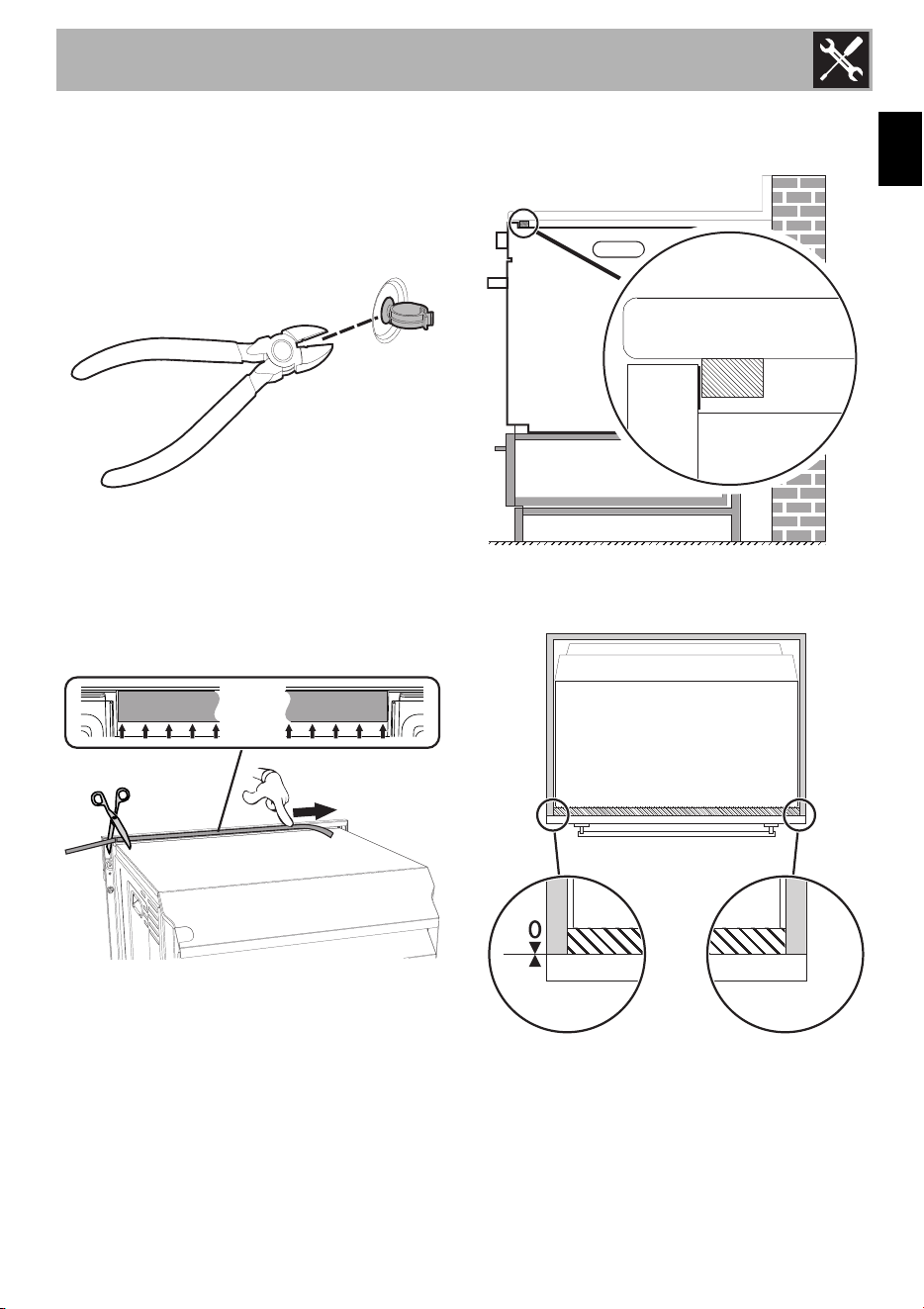

Removing the rear cable clamp
Before inserting the appliance, the cable
clamp on the rear casing should be
removed using a pair of scissors or a
specific tool.
Front panel seal
When installing under a worktop, the seal
provided must be glued to the back of the
front panel to prevent water or other liquids
leaking in from the worktop above.
Install a wooden bar underneath the
worktop.
Installation
34

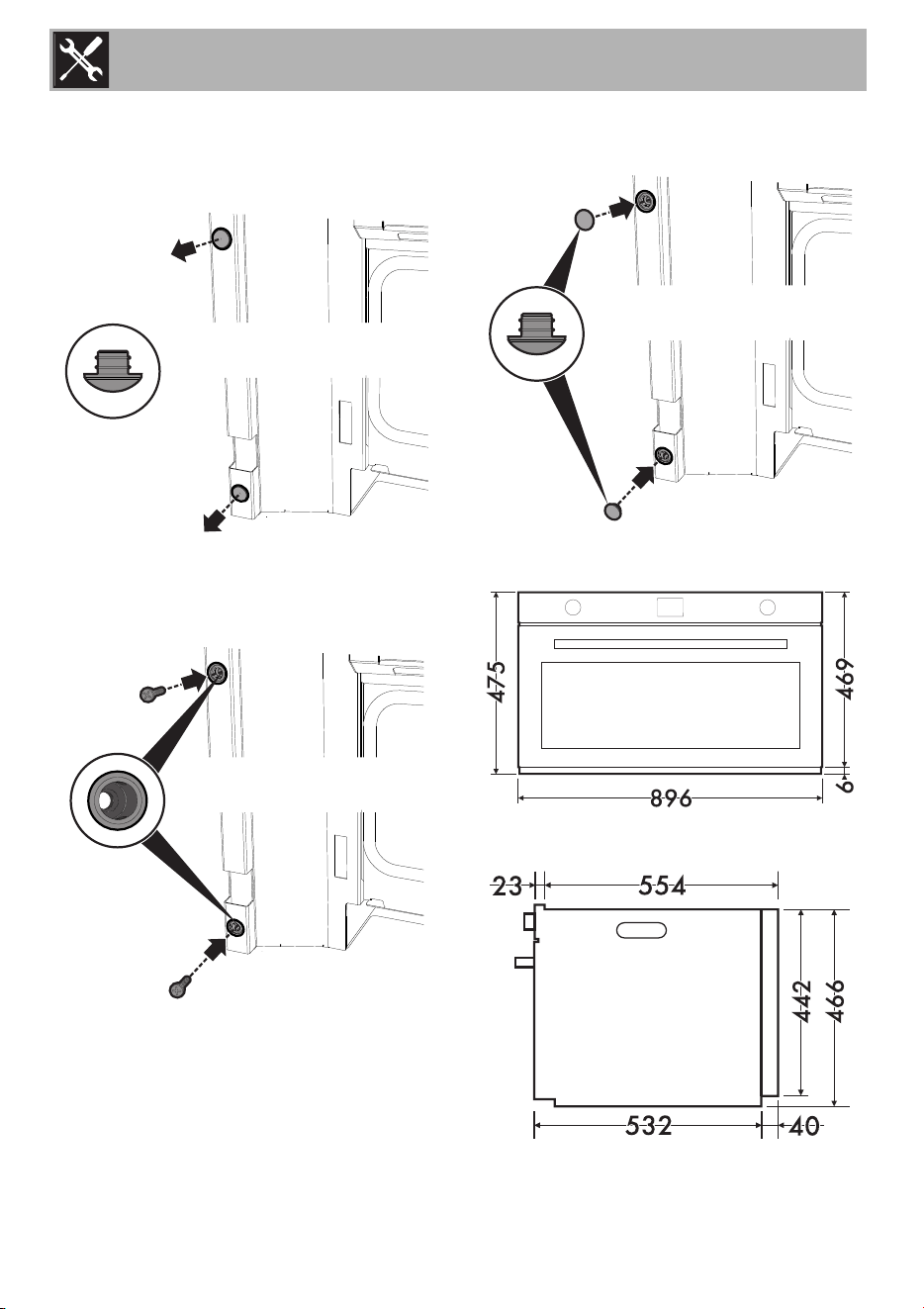

Fastening bushings
1. Remove the bushing covers on the front
of the oven.
2. Mount the appliance into the recess.
3. Secure the appliance to the carcase
using the screws.
4. Cover the bushings with the previously
removed covers.
Appliance overall dimensions (mm)
Installation
35
EN

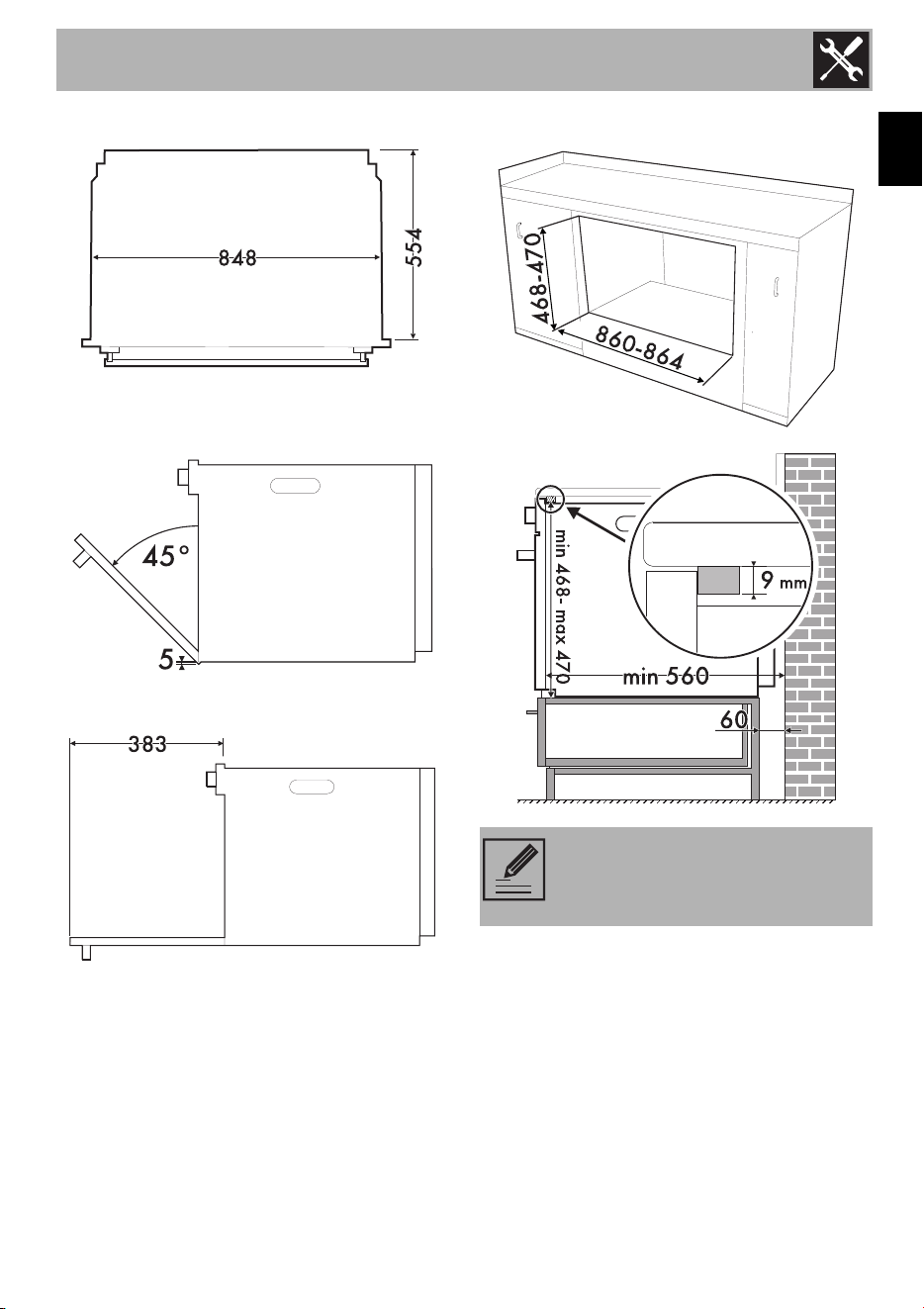

Mounting under worktops (mm)
Make sure that the carcase rear/
bottom section has an opening of
approx. 60 mm.
Installation
36

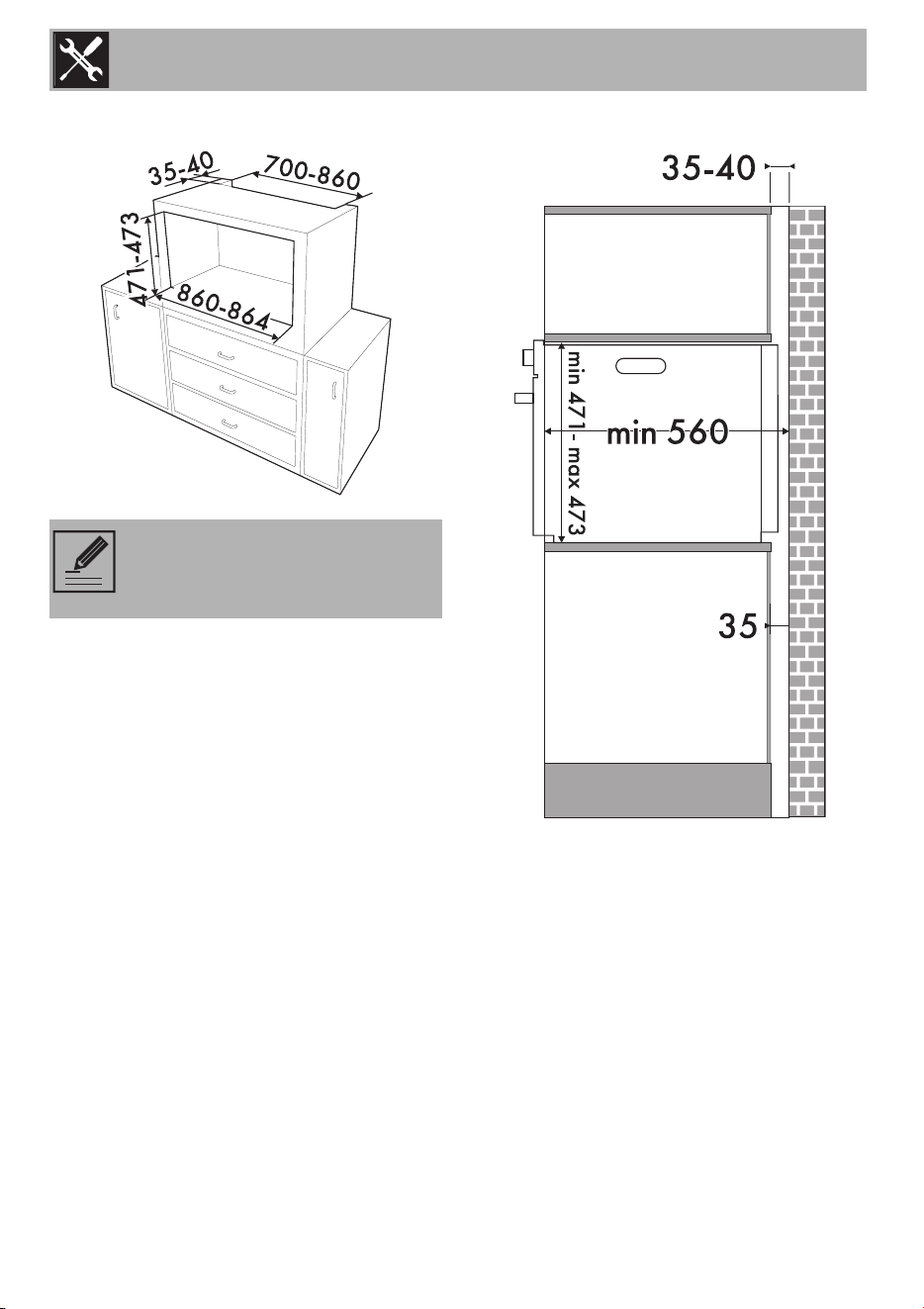

Mounting into a column (mm)
Make sure that the carcase top/
rear section has an opening
approx. 35-40 mm deep.
914778124/F
