Instruction Manual and Installation Instructions
Washing machine
WAW28640AU
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WAW28640AU:
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 5
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 23
3
* Getting to know the appliance 24
3
Z Laundry 28
3
C Detergent 29
3
/ Overview of programmes 30
3
0 Programme default settings 36
3
\ Additional programme settings 38
3
1 Operating the appliance 39
4
a Intelligent dosing system 43
4
Q Appliance settings 47
4
H Sensors 48
4
2 Cleaning and maintenance 48
4
3 Faults and what to do about them. 52
4
4 After-sales service 56
4
[ Consumption rates 57
4
J Technical data 57
4
r Aqua-Stop warranty 59
4
8 Intended use
5
Intended use
5
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16

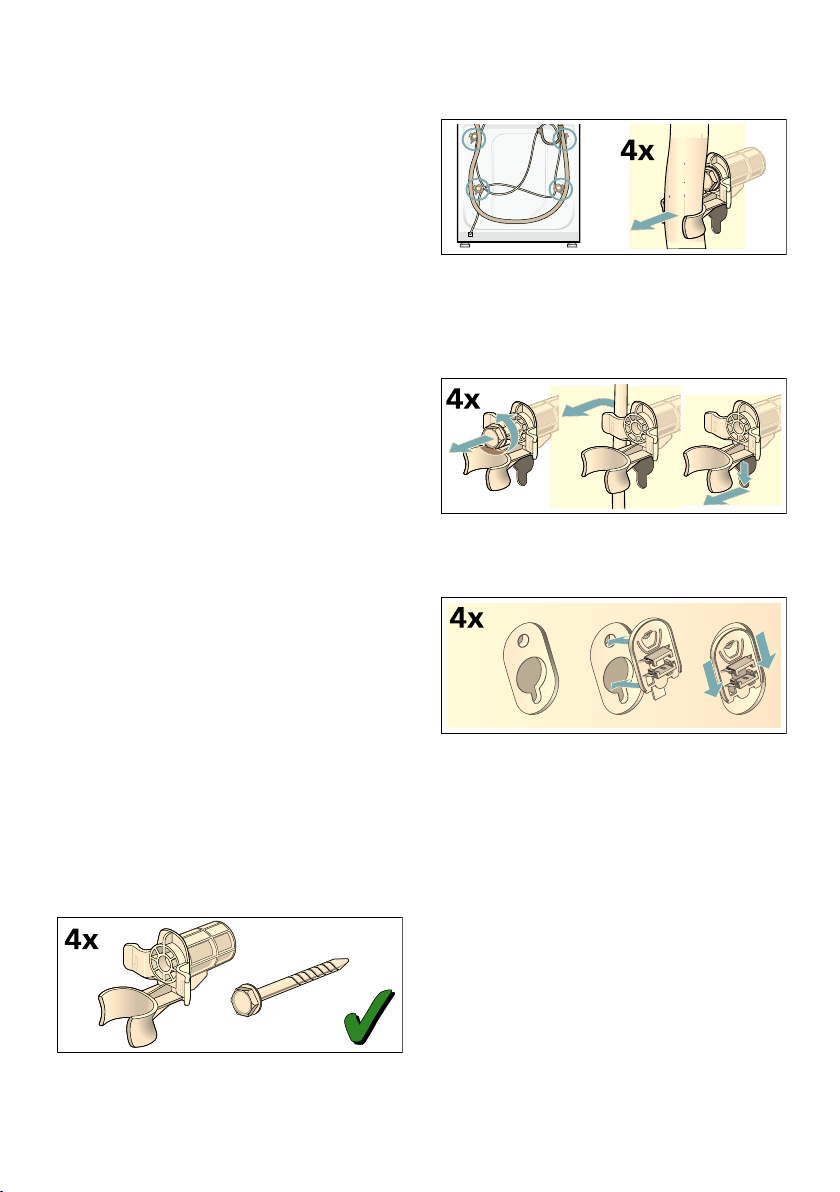

Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
17
Tip:
17
Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18
Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
20
: Warning
20
Danger of death!
20
Notes
20
Before washing for the first time
21
Notes
21
Preparatory work:
21
1. Check the machine.
21
2. Fill the dispenser ß and i. ~ Page 43
21
3. Remove the protective film from the control panel.
21
4. Plug into the mains.
21
5. Turn on the tap.
21
Run the programme without laundry:
21
1. Switch on the appliance.
21
2. Close the door (do not load any laundry).
21
3. Set the Drum Clean 90 °C programme.
21
4. Open the detergent drawer.
21
5. Pour approx. 1 litre of water into compartment v u.
21
6. Pour standard washing powder into compartment v uII.
21
Note:
21
7. Close the detergent drawer.
21
8. Press the A button.
21
9. Switch off the appliance at the end of the programme.
21
Transportation
22
Caution!
22
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers.
22
1. Turn off the tap.
22
2. Reduce the water pressure in the supply hose: ~ Page 52; cleaning and maintenance – filter in the water supply clogged
22
3. Disconnect the washing machine from the mains.
22
4. Drain any residual water: ~ Page 51; cleaning and maintenance – drain pump blocked, emergency draining
22
5. Remove the hoses.
22
6. Empty the dispensers. ~ Page 49
22
Fitting the transportation securing means:
22
1. Remove the covers and keep them in a safe place.
22
2. Insert all four sleeves.
22
Notes
22
Y Main points in brief
23
Main points in brief
23
* Getting to know the appliance
24
Getting to know the appliance
24
Washing machine
24
Control panel
25
Note:
25
Additional programme settings: ~ Page 38
25
Changing the default programme settings: ~ Page 36
25
A button for:
25
Display panel
26
Default programme settings:
26
i-DOS settings
26
Information on energy and water consumption: ~ Page 13
26
Further information
27
Z Laundry
28
Laundry
28
Prepare the laundry
28
Caution!
28
Damage to the appliance/fabrics
28
Sorting laundry
28
Note:
28
Note:
28
C Detergent
29
Detergent
29
Correct selection of detergent
29
Saving energy and detergent
29
Saving
29
Soiling/note
29
Note:
29
/ Overview of programmes
30
Overview of programmes
30
Programmes on the programme selector
30
Programme/type of laundry/information
30
Settings
30
Notes
30
Note:
31
Notes
31
Note:
32
Notes
32
Note:
32
Note:
32
Note:
33
1. Select a programme.
33
2. Add special detergent for outdoor clothing to compartment v u.
33
3. Press the A button. The programme stops before the last rinse cycle.
33
4. Add a waterproofing agent (max. 170 ml) to compartment v u.
33
5. Press the A button. After-treat the laundry in accordance with the manufacturer's instructions.
33
Notes
33
Notes
34
Notes
34
Notes
34
Note:
34
Notes
35
Starching
36
Note:
36
1. Switch on the appliance.
36
2. Select the Rinse programme.
36
3. Pour liquid starch into compartment v u in accordance with the manufacturer's instructions (clean first if necessary).
36
4. Press the A button.
36
Dyeing/bleaching
36
Soaking
36
1. Switch on the appliance.
36
2. Select the Cottons 30 °C programme.
36
3. Use i-DOS to dose your detergent or add it to compartment v u in accordance with the manufacturer’s instructions.
36
4. Press the A button. The programme starts.
36
5. After approx. 10 minutes, press the A button to pause the programme.
36
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
36
Notes
36
0 Programme default settings
36
Programme default settings
36
Temperature
36
Spin speed
36
Finished in
37
1. Select a programme.
37
2. Press the Finished in button repeatedly until the required number of hours is displayed.
37
Note:
37
3. Press the A button.
37
Note:
37
1. Press the A button.
37
2. Use the Finished in - or + button to change the number of hours.
37
3. Press the A button.
37
i-DOS settings
38
i-DOS w for detergent
38
Dosage strengths
38
i-DOS i for fabric softener
38
Dosage strengths
38
\ Additional programme settings
38
Additional programme settings
38
SpeedPerfect
38
Note:
38
EcoPerfect
38
Prewash
38
Notes
38
Rinse Plus
39
Easy Iron
39
Note:
39
1 Operating the appliance
39
Operating the appliance
39
Preparing the washing machine
39
Note:
39
1. Connect the mains plug.
39
2. Turn on the tap.
39
3. Open the door.
39
4. Check that the drum is completely drained. Drain if necessary.
39
Switching on the appliance/ selecting a programme
39
Note:
39
Placing laundry into the drum
40
: Warning
40
Danger of death!
40
Notes
40

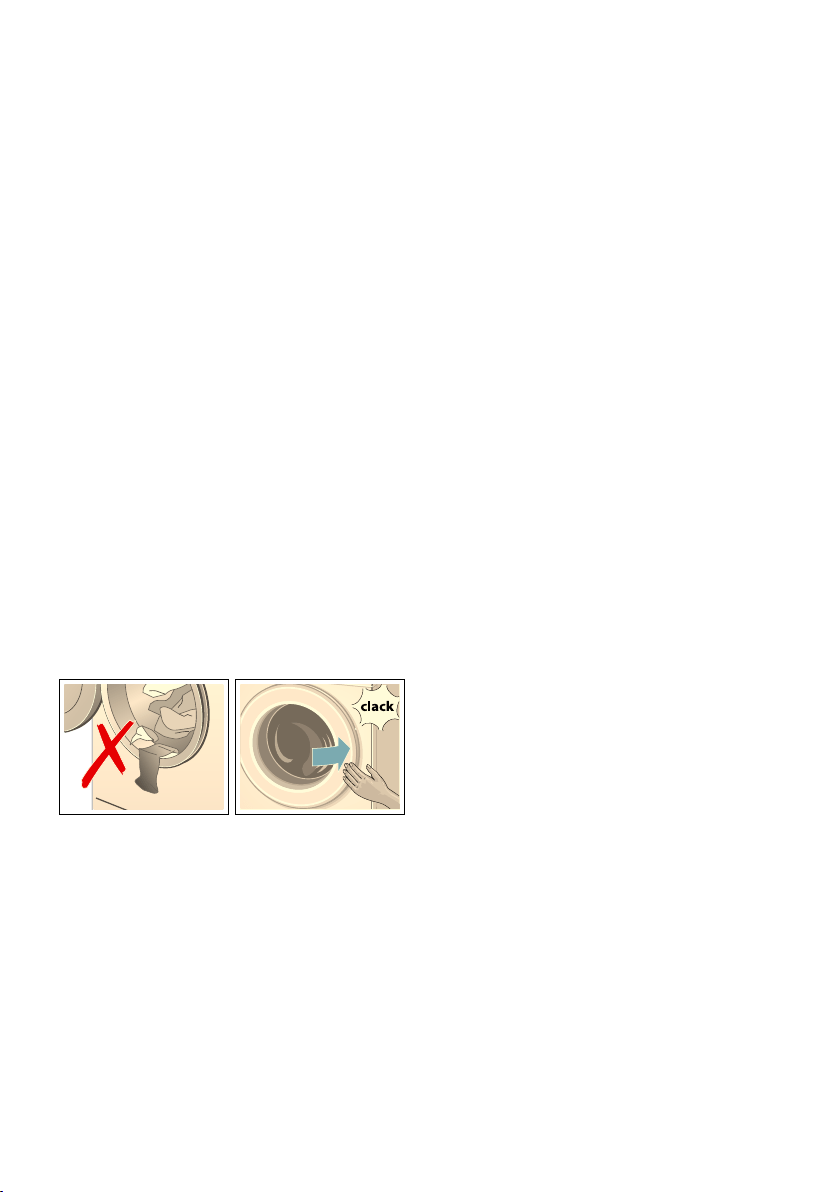

1. Unfold presorted laundry items and place them in the drum.
40
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
40
Measure and add detergent and care products
40
Change the programme default settings
40
Note:
40
Notes
40
Select additional programme settings
41
Start the programme
41
Note:
41
Child lock 3 sec.
41
Note:
41
Adding laundry
41
Notes
42
Changing the programme
42
1. Press the A button.
42
2. Select another programme.
42
3. Press the A button. The new programme starts from the beginning.
42
Cancel the programme
42
1. Press the A button.
42
2. To cool down laundry: Select Rinse.
42
3. Press the A button.
42
1. Press the A button.
42
2. Select Spin or Drain.
42
3. Press the A button.
42
Programme end during rinse hold
42
Programme end
42

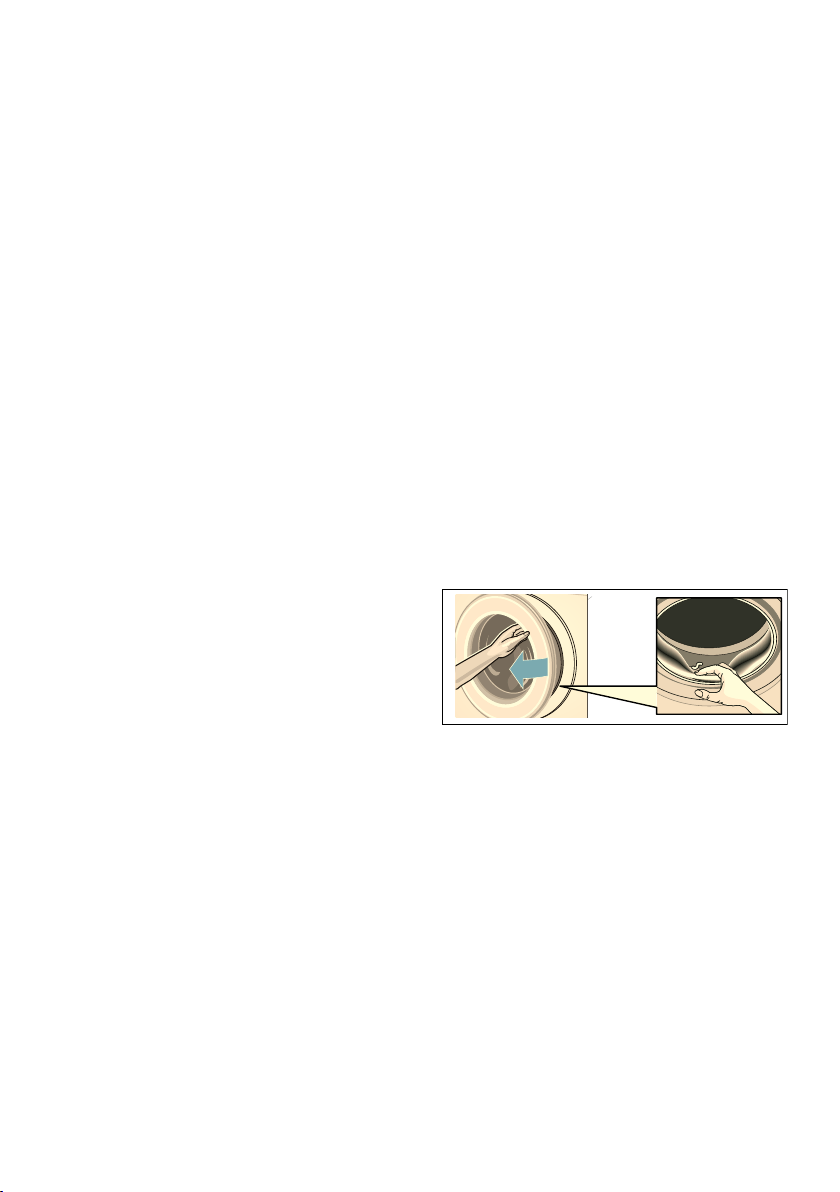

Removing laundry/switching off the appliance
42
1. Open the door and remove the laundry.
42
2. Press the # button. The appliance is switched off.
42
3. Turn off the tap.
42
Note:
42
Notes
42
a Intelligent dosing system
43
Intelligent dosing system
43
Intelligent dosing system in the detergent drawer
43
Initial use/filling the dispensers
43
Notes
43
Filling the dispensers:
43
1. Open the detergent drawer.
43
2. Open the dispenser lid(s).
43
3. Add detergent and/or fabric softener. Do not fill above the max. marking.
43
4. Close the lid(s).
43
5. Slowly push the detergent drawer in completely.
43
Everyday use
44
Indicator lights in the display panel:
44
(De)selecting intelligent dosage and adjusting the dosage strength:
44
Note:
44
Topping up the detergent/ fabric softener:
44
Basic settings
44
The basic dosages are:
44
My water hardness:
45
Degree of soiling →
45
Water hardness ↓
45
light
45
normal
45
heavy
45
very heavy
45
Notes
45
Changing the basic dosages:
45
1. Press the corresponding i-DOS button (w or i) for approx. 3 seconds. The preset basic dosage will appear in the display panel.
45
2. Set the required basic dosage using the Finished in - or + buttons.
45
3. The setting is activated without needing to be confirmed. You can now wait for a short while or press any button (except the i-DOS buttons) to revert to the original setting.
45
Note:
45
Manual dosage
46
: Warning
46
Eye/skin irritation!
46
Caution!
46
Damage to the appliance
46
Notes
46
Dosing and adding detergent:
46
1. Pull out the detergent drawer.
46
2. Add the correct dosage to compartment v u depending on:
46
3. Close the detergent drawer.
46
Q Appliance settings
47
Appliance settings
47
Activating the setting mode
47
1. Press the # button.
47
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
47
Changing the signal volume
47
Selecting/deselecting the appliance automatic switch- off
47
Switching the drum-care information signal on/off
47
Exiting setting mode
47
H Sensors
48
Sensors
48
Automatic load sensing
48
Unbalanced load detection system
48
Note:
48
AquaSensor
48
2 Cleaning and maintenance
48
Cleaning and maintenance
48
: Warning
48
Danger of death!
48
: Warning
48
Risk of poisoning!
48
Caution!
48
Damage to the appliance
48
Notes
48
Machine housing/control panel
49
Drum
49
Descaling
49
i-DOS detergent draw and its housing
49
1. Emptying the dispensers:
49
a) Pull out the detergent drawer.
49
b) Pull the catch (A) on the back of the drawer handle (in the centre at the bottom) slightly towards you. This unlocks the drawer handle (B), which you can then pull off by lifting it upwards.
49
c) To empty the dispensers, carefully pull off each of the sealing plugs and empty the contents into a suitable container.
49
d) Then push the sealing plugs back in completely.
49

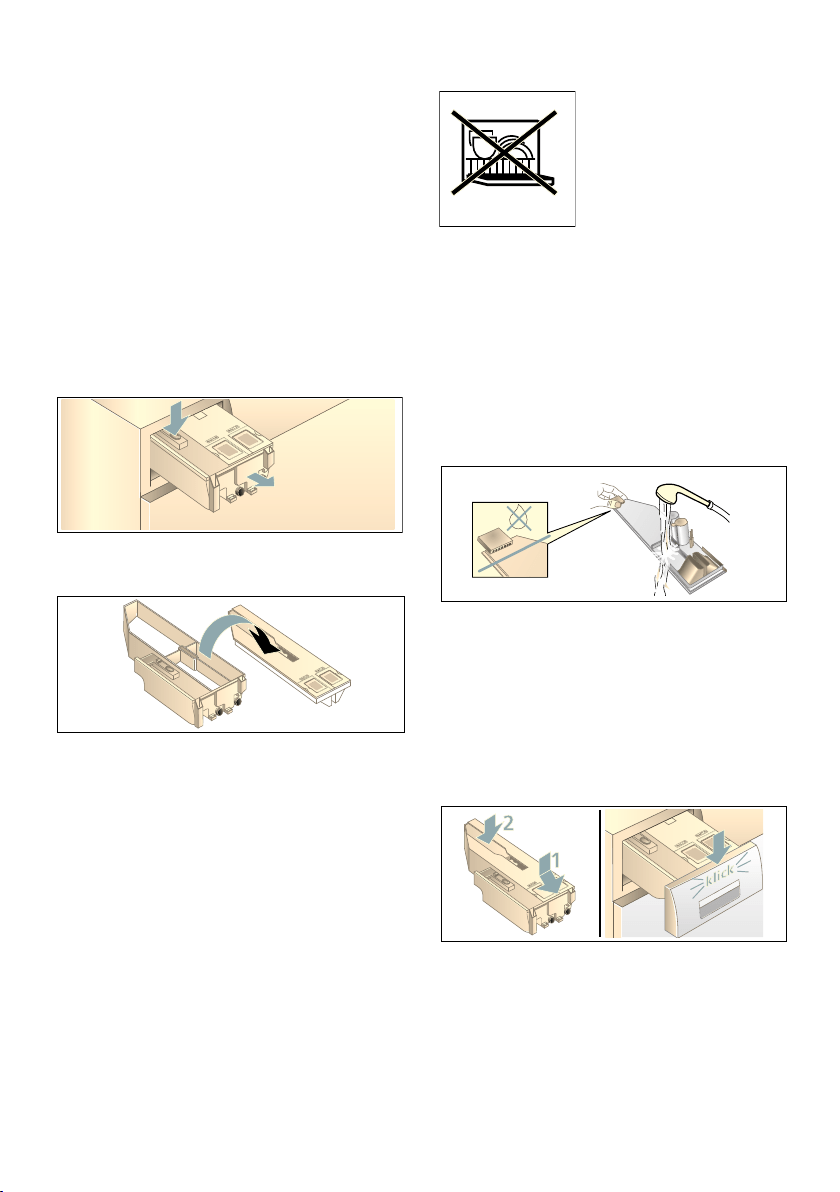

2. Cleaning the dispensers/detergent drawer:
50
a) Empty the dispensers before removing the drawer.
50
Note:
50
b) Pull out the drawer.
50
c) Press the catch and remove the drawer completely.
50
d) Carefully remove the drawer cover.
50
Caution!
50
e) Clean the drawer and the cover with a soft, damp cloth or a hand shower. Also clean the inner surfaces with a soft, damp cloth.
50
f) Dry the drawer and the cover and put them back together.
50
g) Push the drawer handle back in from above until you feel it click in place.
50
h) Clean the inside of the detergent- drawer housing.
50
i) Push the detergent drawer in completely.
50
The drain pump is blocked, emergency draining
51
: Warning
51
Risk of scalding!
51
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
51
2. Switch off the appliance. Pull out the mains plug.
51
3. Open and remove the service flap.
51
4. Take the drain hose out of the retainer.
51
5. Carefully unscrew the pump cover; residual water may leak out.
51
6. Put the service flap back on, lock it into place and close it.
51
Note:
51
The drain hose at the siphon is blocked
51
1. Switch off the appliance. Pull out the mains plug.
51
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
51
3. Clean the drain hose and siphon connecting piece.
51
4. Re-attach the drain hose and secure the connection point using the hose clamp.
51
Filter in the water supply blocked
52
First, reduce the water pressure in the supply hose:
52
1. Turn off the tap.
52
2. Select any programme (except Rinse/Spin/Empty).
52
3. Press the A button. Allow the programme to run for approximately 40 seconds.
52
4. Press the # button. The appliance is switched off.
52
5. Pull out the mains plug.
52
Then clean the filter:
52
1. Disconnect the hose from the tap.
52
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
52
3. Connect the hose and check for leaks.
52
3 Faults and what to do about them.
52
Faults and what to do about them.
52
Emergency release
52
: Warning
52
Risk of scalding!
52
: Warning
52
Risk of injury!
52
Caution!
52
Water damage
52
1. Switch off the appliance. Pull out the mains plug.
52
2. Drain the water. ~ Page 51
52
3. Pull the emergency release downwards with a tool and release.
52
Information on the display panel
53
Display
53
Cause/Remedy
53
Notes
53
Faults and what to do about them.
54
Faults
54
Cause/Remedy
54
1. Empty and clean. ~ Page 49
54
2. Refill. ~ Page 43
54
Note:
55
4 After-sales service
56
After-sales service
56
[ Consumption rates
57
Consumption rates
57
Energy and water consumption, programme duration and residual moisture for the main washing programmes
57
Programme
57
Additional function
57
Load
57
Energy consumption*
57
Water consumption*
57
Programme duration*
57
J Technical data
57
Technical data
57
Technical data
57
Information for test institute
58
r Aqua-Stop warranty
59
Aqua-Stop warranty
59
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
59
2. The liability guarantee is valid for the service life of the appliance.
59
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
59
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
59
File type: PDF
File name: Bosch WAW28640AU Washer.pdf
File size: 5.75 MB
File Language: English
Pages: 60
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Verified by
Shany D'Amore
on 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WAW28640AU
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WAY32891AU
HBC86K753B
HBC86P753B
HMT75M651B
HMT84M651B
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WAW28620AU
Bosch WAW28440AU
Bosch WAT28640
Bosch WAW28790AU
Bosch WAW28420AU
Bosch WAW28460AU
Bosch WAW28441AU
Bosch WAT24440AU
Bosch WAW32640AU
Bosch WAT28620AU
Bosch WAS28440AU
Bosch WAY32540AU
Bosch WAS32440AU
Bosch WAW28740EU
Bosch WAV28M40AU
Table of Contents
×
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 5
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 23
3
* Getting to know the appliance 24
3
Z Laundry 28
3
C Detergent 29
3
/ Overview of programmes 30
3
0 Programme default settings 36
3
\ Additional programme settings 38
3
1 Operating the appliance 39
4
a Intelligent dosing system 43
4
Q Appliance settings 47
4
H Sensors 48
4
2 Cleaning and maintenance 48
4
3 Faults and what to do about them. 52
4
4 After-sales service 56
4
[ Consumption rates 57
4
J Technical data 57
4
r Aqua-Stop warranty 59
4
8 Intended use
5
Intended use
5
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
10
: Warning
10
Risk of explosions/fire!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
11
Material damage/damage to the appliance
11
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16
Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
17
Tip:
17
Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18
Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
20
: Warning
20
Danger of death!
20
Notes
20
Before washing for the first time
21
Notes
21
Preparatory work:
21
1. Check the machine.
21
2. Fill the dispenser ß and i. ~ Page 43
21
3. Remove the protective film from the control panel.
21
4. Plug into the mains.
21
5. Turn on the tap.
21
Run the programme without laundry:
21
1. Switch on the appliance.
21
2. Close the door (do not load any laundry).
21
3. Set the Drum Clean 90 °C programme.
21
4. Open the detergent drawer.
21
5. Pour approx. 1 litre of water into compartment v u.
21
6. Pour standard washing powder into compartment v uII.
21
Note:
21
7. Close the detergent drawer.
21
8. Press the A button.
21
9. Switch off the appliance at the end of the programme.
21
Transportation
22
Caution!
22
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers.
22
1. Turn off the tap.
22
2. Reduce the water pressure in the supply hose: ~ Page 52; cleaning and maintenance – filter in the water supply clogged
22
3. Disconnect the washing machine from the mains.
22
4. Drain any residual water: ~ Page 51; cleaning and maintenance – drain pump blocked, emergency draining
22
5. Remove the hoses.
22
6. Empty the dispensers. ~ Page 49
22
Fitting the transportation securing means:
22
1. Remove the covers and keep them in a safe place.
22
2. Insert all four sleeves.
22
Notes
22
Y Main points in brief
23
Main points in brief
23
* Getting to know the appliance
24
Getting to know the appliance
24
Washing machine
24
Control panel
25
Note:
25
Additional programme settings: ~ Page 38
25
Changing the default programme settings: ~ Page 36
25
A button for:
25
Display panel
26
Default programme settings:
26
i-DOS settings
26
Information on energy and water consumption: ~ Page 13
26
Further information
27
Z Laundry
28
Laundry
28
Prepare the laundry
28
Caution!
28
Damage to the appliance/fabrics
28
Sorting laundry
28
Note:
28
Note:
28
C Detergent
29
Detergent
29
Correct selection of detergent
29
Saving energy and detergent
29
Saving
29
Soiling/note
29
Note:
29
/ Overview of programmes
30
Overview of programmes
30
Programmes on the programme selector
30
Programme/type of laundry/information
30
Settings
30
Notes
30
Note:
31
Notes
31
Note:
32
Notes
32
Note:
32
Note:
32
Note:
33
1. Select a programme.
33
2. Add special detergent for outdoor clothing to compartment v u.
33
3. Press the A button. The programme stops before the last rinse cycle.
33
4. Add a waterproofing agent (max. 170 ml) to compartment v u.
33
5. Press the A button. After-treat the laundry in accordance with the manufacturer's instructions.
33
Notes
33
Notes
34
Notes
34
Notes
34
Note:
34
Notes
35
Starching
36
Note:
36
1. Switch on the appliance.
36
2. Select the Rinse programme.
36
3. Pour liquid starch into compartment v u in accordance with the manufacturer's instructions (clean first if necessary).
36
4. Press the A button.
36
Dyeing/bleaching
36
Soaking
36
1. Switch on the appliance.
36
2. Select the Cottons 30 °C programme.
36
3. Use i-DOS to dose your detergent or add it to compartment v u in accordance with the manufacturer’s instructions.
36
4. Press the A button. The programme starts.
36
5. After approx. 10 minutes, press the A button to pause the programme.
36
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the programme or change the programme.
36
Notes
36
0 Programme default settings
36
Programme default settings
36
Temperature
36
Spin speed
36
Finished in
37
1. Select a programme.
37
2. Press the Finished in button repeatedly until the required number of hours is displayed.
37
Note:
37
3. Press the A button.
37
Note:
37
1. Press the A button.
37
2. Use the Finished in - or + button to change the number of hours.
37
3. Press the A button.
37
i-DOS settings
38
i-DOS w for detergent
38
Dosage strengths
38
i-DOS i for fabric softener
38
Dosage strengths
38
\ Additional programme settings
38
Additional programme settings
38
SpeedPerfect
38
Note:
38
EcoPerfect
38
Prewash
38
Notes
38
Rinse Plus
39
Easy Iron
39
Note:
39
1 Operating the appliance
39
Operating the appliance
39
Preparing the washing machine
39
Note:
39
1. Connect the mains plug.
39
2. Turn on the tap.
39
3. Open the door.
39
4. Check that the drum is completely drained. Drain if necessary.
39
Switching on the appliance/ selecting a programme
39
Note:
39
Placing laundry into the drum
40
: Warning
40
Danger of death!
40
Notes
40
1. Unfold presorted laundry items and place them in the drum.
40
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
40
Measure and add detergent and care products
40
Change the programme default settings
40
Note:
40
Notes
40
Select additional programme settings
41
Start the programme
41
Note:
41
Child lock 3 sec.
41
Note:
41
Adding laundry
41
Notes
42
Changing the programme
42
1. Press the A button.
42
2. Select another programme.
42
3. Press the A button. The new programme starts from the beginning.
42
Cancel the programme
42
1. Press the A button.
42
2. To cool down laundry: Select Rinse.
42
3. Press the A button.
42
1. Press the A button.
42
2. Select Spin or Drain.
42
3. Press the A button.
42
Programme end during rinse hold
42
Programme end
42
Removing laundry/switching off the appliance
42
1. Open the door and remove the laundry.
42
2. Press the # button. The appliance is switched off.
42
3. Turn off the tap.
42
Note:
42
Notes
42
a Intelligent dosing system
43
Intelligent dosing system
43
Intelligent dosing system in the detergent drawer
43
Initial use/filling the dispensers
43
Notes
43
Filling the dispensers:
43
1. Open the detergent drawer.
43
2. Open the dispenser lid(s).
43
3. Add detergent and/or fabric softener. Do not fill above the max. marking.
43
4. Close the lid(s).
43
5. Slowly push the detergent drawer in completely.
43
Everyday use
44
Indicator lights in the display panel:
44
(De)selecting intelligent dosage and adjusting the dosage strength:
44
Note:
44
Topping up the detergent/ fabric softener:
44
Basic settings
44
The basic dosages are:
44
My water hardness:
45
Degree of soiling →
45
Water hardness ↓
45
light
45
normal
45
heavy
45
very heavy
45
Notes
45
Changing the basic dosages:
45
1. Press the corresponding i-DOS button (w or i) for approx. 3 seconds. The preset basic dosage will appear in the display panel.
45
2. Set the required basic dosage using the Finished in - or + buttons.
45
3. The setting is activated without needing to be confirmed. You can now wait for a short while or press any button (except the i-DOS buttons) to revert to the original setting.
45
Note:
45
Manual dosage
46
: Warning
46
Eye/skin irritation!
46
Caution!
46
Damage to the appliance
46
Notes
46
Dosing and adding detergent:
46
1. Pull out the detergent drawer.
46
2. Add the correct dosage to compartment v u depending on:
46
3. Close the detergent drawer.
46
Q Appliance settings
47
Appliance settings
47
Activating the setting mode
47
1. Press the # button.
47
2. Press the Temperature button and, at the same time, turn the programme selector clockwise to position 2. Release the button.
47
Changing the signal volume
47
Selecting/deselecting the appliance automatic switch- off
47
Switching the drum-care information signal on/off
47
Exiting setting mode
47
H Sensors
48
Sensors
48
Automatic load sensing
48
Unbalanced load detection system
48
Note:
48
AquaSensor
48
2 Cleaning and maintenance
48
Cleaning and maintenance
48
: Warning
48
Danger of death!
48
: Warning
48
Risk of poisoning!
48
Caution!
48
Damage to the appliance
48
Notes
48
Machine housing/control panel
49
Drum
49
Descaling
49
i-DOS detergent draw and its housing
49
1. Emptying the dispensers:
49
a) Pull out the detergent drawer.
49
b) Pull the catch (A) on the back of the drawer handle (in the centre at the bottom) slightly towards you. This unlocks the drawer handle (B), which you can then pull off by lifting it upwards.
49
c) To empty the dispensers, carefully pull off each of the sealing plugs and empty the contents into a suitable container.
49
d) Then push the sealing plugs back in completely.
49
2. Cleaning the dispensers/detergent drawer:
50
a) Empty the dispensers before removing the drawer.
50
Note:
50
b) Pull out the drawer.
50
c) Press the catch and remove the drawer completely.
50
d) Carefully remove the drawer cover.
50
Caution!
50
e) Clean the drawer and the cover with a soft, damp cloth or a hand shower. Also clean the inner surfaces with a soft, damp cloth.
50
f) Dry the drawer and the cover and put them back together.
50
g) Push the drawer handle back in from above until you feel it click in place.
50
h) Clean the inside of the detergent- drawer housing.
50
i) Push the detergent drawer in completely.
50
The drain pump is blocked, emergency draining
51
: Warning
51
Risk of scalding!
51
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
51
2. Switch off the appliance. Pull out the mains plug.
51
3. Open and remove the service flap.
51
4. Take the drain hose out of the retainer.
51
5. Carefully unscrew the pump cover; residual water may leak out.
51
6. Put the service flap back on, lock it into place and close it.
51
Note:
51
The drain hose at the siphon is blocked
51
1. Switch off the appliance. Pull out the mains plug.
51
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
51
3. Clean the drain hose and siphon connecting piece.
51
4. Re-attach the drain hose and secure the connection point using the hose clamp.
51
Filter in the water supply blocked
52
First, reduce the water pressure in the supply hose:
52
1. Turn off the tap.
52
2. Select any programme (except Rinse/Spin/Empty).
52
3. Press the A button. Allow the programme to run for approximately 40 seconds.
52
4. Press the # button. The appliance is switched off.
52
5. Pull out the mains plug.
52

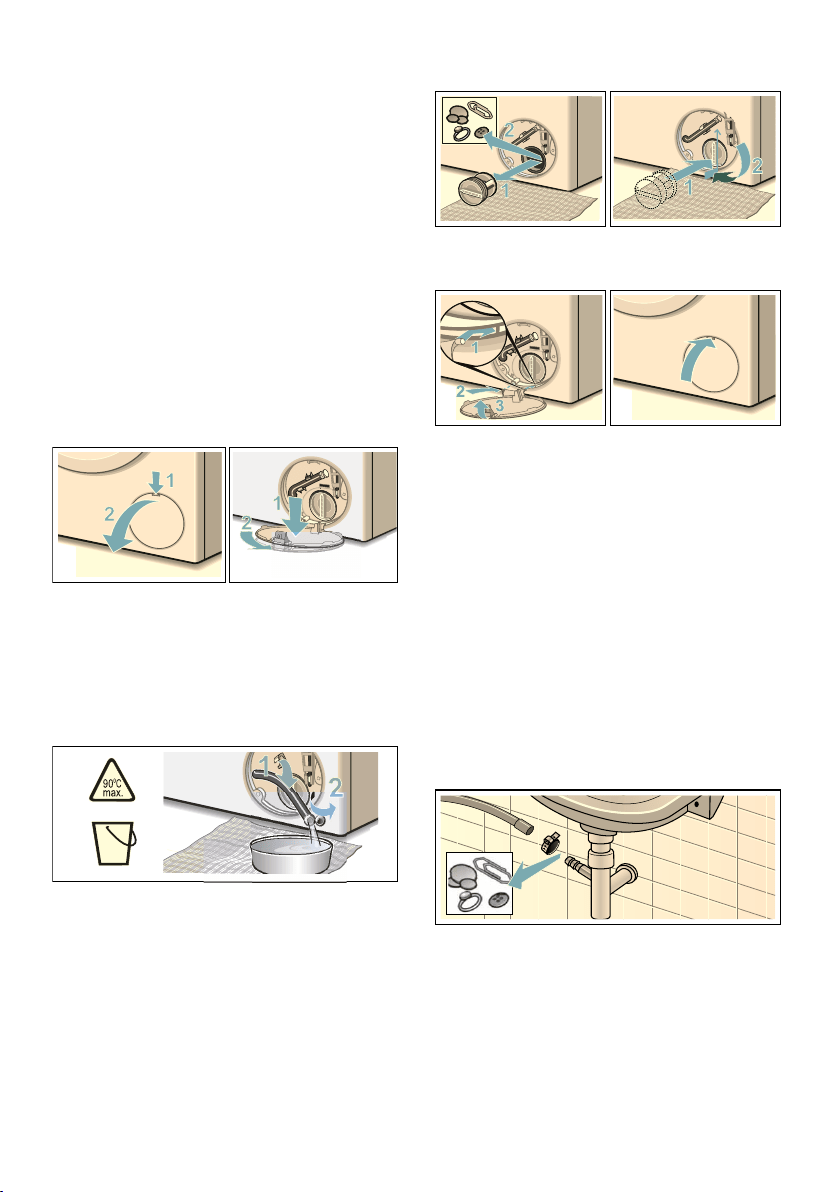

Then clean the filter:
52

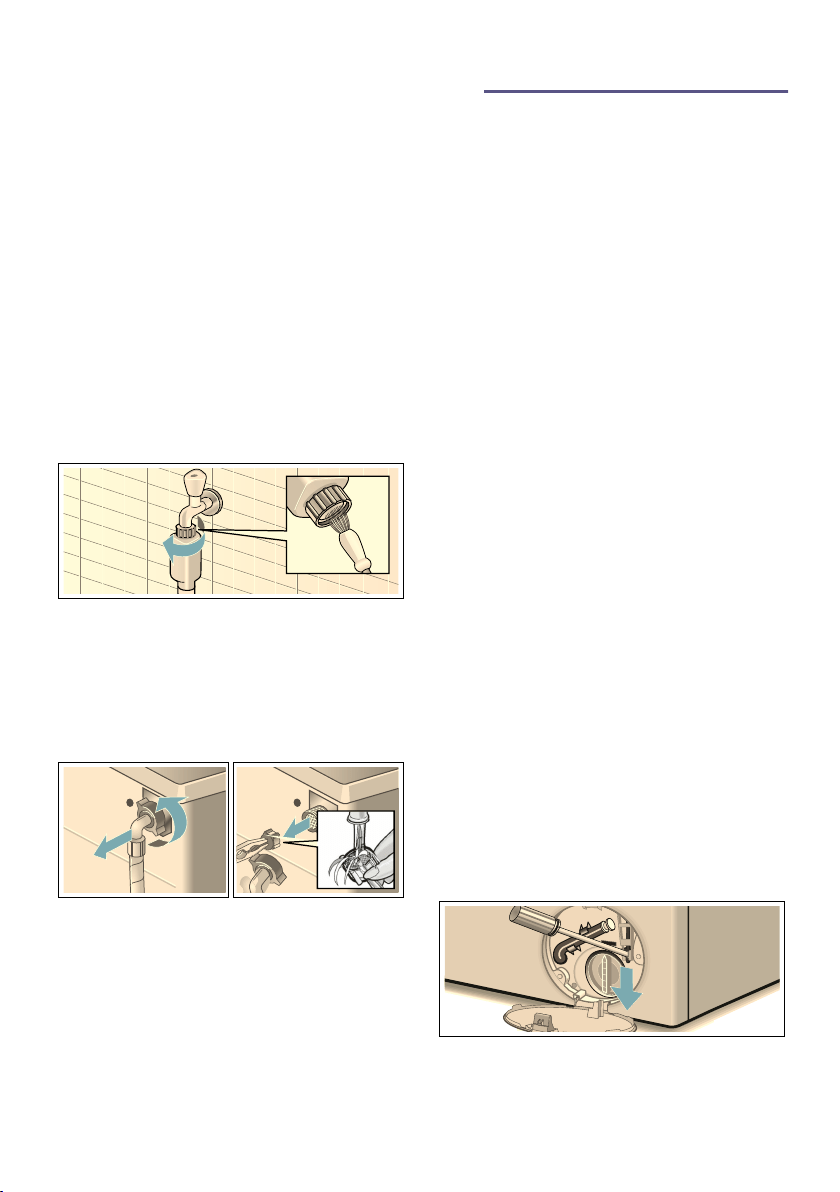

1. Disconnect the hose from the tap.
52
2. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
52
3. Connect the hose and check for leaks.
52
3 Faults and what to do about them.
52
Faults and what to do about them.
52
Emergency release
52
: Warning
52
Risk of scalding!
52
: Warning
52
Risk of injury!
52
Caution!
52
Water damage
52
1. Switch off the appliance. Pull out the mains plug.
52
2. Drain the water. ~ Page 51
52
3. Pull the emergency release downwards with a tool and release.
52
Information on the display panel
53
Display
53
Cause/Remedy
53
Notes
53
Faults and what to do about them.
54
Faults
54
Cause/Remedy
54
1. Empty and clean. ~ Page 49
54
2. Refill. ~ Page 43
54
Note:
55
4 After-sales service
56
After-sales service
56
[ Consumption rates
57
Consumption rates
57
Energy and water consumption, programme duration and residual moisture for the main washing programmes
57
Programme
57
Additional function
57
Load
57
Energy consumption*
57
Water consumption*
57
Programme duration*
57
J Technical data
57
Technical data
57
Technical data
57
Information for test institute
58
r Aqua-Stop warranty
59
Aqua-Stop warranty
59
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
59
2. The liability guarantee is valid for the service life of the appliance.
59
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
59
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
59
Search:
×
Search
