Operating Instructions
Home Theater Audio System
Model No. SC-HTB680
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
Model number suffix “EB” denotes UK model.
Included Installation Instructions
The installation work should be done by a qualified installation specialist. (> 13 to 18)
Before commencing work, carefully read these installation instructions and the operating instructions
to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this system.)
SC-HTB680EB_RQT9916-B.book 1 ページ ２０１４年１月１６日 木曜日 午後５時１８分
2
RQT9916
Safety precautions
Unit
≥ To reduce the risk of fire, electric shock or
product damage,
jDo not expose this unit to rain, moisture,
dripping or splashing.
jDo not place objects filled with liquids, such as
vases, on this unit.
jUse only the recommended accessories.
jDo not remove covers.
jDo not repair this unit by yourself. Refer
servicing to qualified service personnel.
≥ To prevent injury, this apparatus must be
securely attached to the wall in accordance with
the installation instructions.
AC mains lead
≥ To reduce the risk of fire, electric shock or
product damage,
jEnsure that the power supply voltage
corresponds to the voltage printed on this unit.
j
Insert the mains plug fully into the socket outlet.
jDo not pull, bend, or place heavy items on the
lead.
jDo not handle the plug with wet hands.
jHold onto the mains plug body when
disconnecting the plug.
jDo not use a damaged mains plug or socket
outlet.
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not
recharge, disassemble, heat above 60
o
C or
incinerate.
≥ Keep the Button-Type battery out of the reach of
children. Never put Button-Type battery in
mouth. If swallowed call your doctor.
Small object
≥ Keep the screws out of reach of children to
prevent swallowing.
≥ Keep the adhesive tape out of reach of children
to prevent swallowing.
≥ Keep the button-type battery out of reach of
children to prevent swallowing.
Unit
≥ Do not place sources of naked flames, such as
lighted candles, on this unit.
≥ This unit may receive radio interference caused
by mobile telephones during use. If such
interference occurs, please increase separation
between this unit and the mobile telephone.
≥ This unit is intended for use in moderate
climates.
≥ Product Identification Marking is located on the
bottom of the unit.
Placement
≥ Place this unit on an even surface.
≥ To reduce the risk of fire, electric shock or
product damage,
jDo not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
jDo not obstruct this unit’s ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
jDo not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
jRemove the battery if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
jDo not heat or expose to flame.
jDo not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
≥ When disposing of the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
WARNING CAUTION
SC-HTB680EB_RQT9916-B.book 2 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Precautions
RQT9916
3
Caution for AC Mains Lead
(For the AC mains plug of three pins)
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three
pin mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating of 5-
ampere and that it is approved by ASTA or BSI to
BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on
the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be
used until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the
AC mains plug fitted and follow the instructions
below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse cover
Figure A Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
SC-HTB680EB_RQT9916-B.book 3 ページ ２０１４年１月１６日 木曜日 午後５時１８分
4
RQT9916
Table of contents
Safety precautions............................................................................................ 2
Caution for AC Mains Lead.............................................................................. 3
Before use
Supplied items .................................................................................................. 5
This system (SC-HTB680) ...................................................................................................5
Accessories .........................................................................................................................5
Control reference guide ................................................................................... 6
This system (Front) ..............................................................................................................6
This system (Rear) ..............................................................................................................7
Remote control ....................................................................................................................8
Getting started
Step 1 Connections ......................................................................................... 9
Connection with the TV .......................................................................................................9
Connection from an HDMI compatible device ...................................................................10
Connection to a 4K Ultra HD TV ........................................................................................11
Using the IR Blaster ...........................................................................................................11
AC mains lead connection .................................................................................................12
Step 2 Placement........................................................................................... 13
Safety Precautions ............................................................................................................13
The active subwoofer ........................................................................................................13
Wireless interference .........................................................................................................13
Selecting the placement method .......................................................................................14
When placing the main unit in a rack or on a table ............................................................15
When attaching the main unit to a wall ..............................................................................16
Step 3 Wireless connections ........................................................................ 19
Active subwoofer wireless connection ...............................................................................19
Bluetooth
®
connection .......................................................................................................19
Remote control code ......................................................................................20
Operations
Using this system ...........................................................................................21
3D sound .........................................................................................................22
Sound menu ....................................................................................................22
Audio format ......................................................................................................................23
Setup menu .....................................................................................................24
Linked operations with the TV (VIERA Link “HDAVI Control
TM
”) ............... 25
Reference
Troubleshooting .............................................................................................26
About Bluetooth
®
............................................................................................29
Unit care ..........................................................................................................29
Licenses ..........................................................................................................29
Specifications ................................................................................................. 30
Limited Warranty (ONLY FOR AUSTRALIA)................................................. 33
SC-HTB680EB_RQT9916-B.book 4 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Operations
Reference
Before use
Precautions
RQT9916
5
Befo re us e

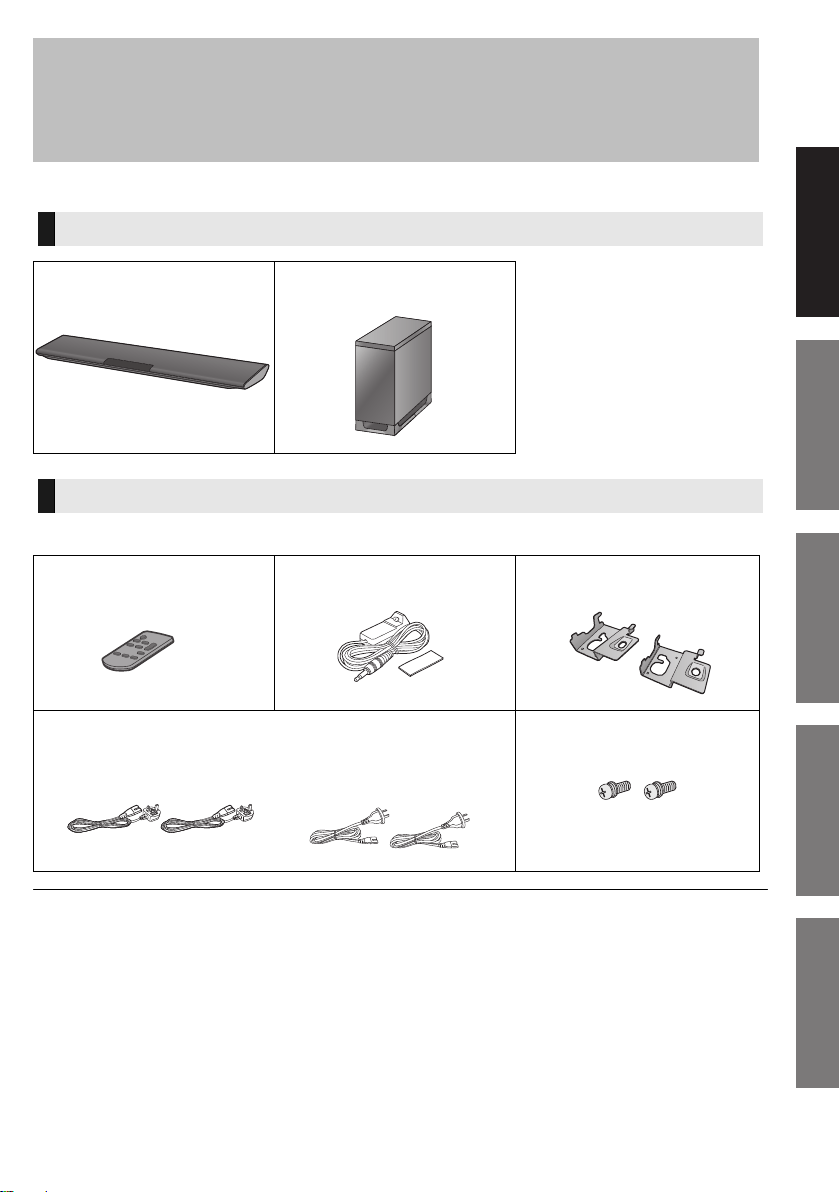

Supplied items
Check the supplied accessories before using this system.
≥ Product numbers are correct as of December 2013. These may be subject to change.
≥ The supplied AC mains lead is for use with this system only.
Do not use it with other equipment. Also, do not use cords from other equipment with this system.
≥ The illustrations shown may differ from your unit.
≥ These operation instructions are applicable to model SC-HTB680 for variety of regions.
Unless otherwise indicated, illustrations in these operating instructions are of the model for
the United Kingdom and Ireland.
≥ Operations in this operating instructions are described mainly with the remote control, but
you can perform the operations on the main unit if the controls are the same.
This system (SC-HTB680)
∏ 1 Main unit (speaker)
(SU-HTB680)
∏ 1 Active subwoofer
(SB-HWA680)
Accessories
∏ 1 Remote control (with a
battery)
(N2QAYC000098)
∏ 1 IR Blaster
(K2ZZ02C00007)
∏ 2 Wall mount brackets
(RMQ2281A, RMQ2281B)
∏ 2 AC mains leads
For the United Kingdom
and Ireland
(K2CT2YY00097)
For Australia and
New Zealand
(K2CJ2YY00093)
∏ 2Screws
(XYN5+J14FJK)
SC-HTB680EB_RQT9916-B.book 5 ページ ２０１４年１月１６日 木曜日 午後５時１８分
6
RQT9916
Control reference guide

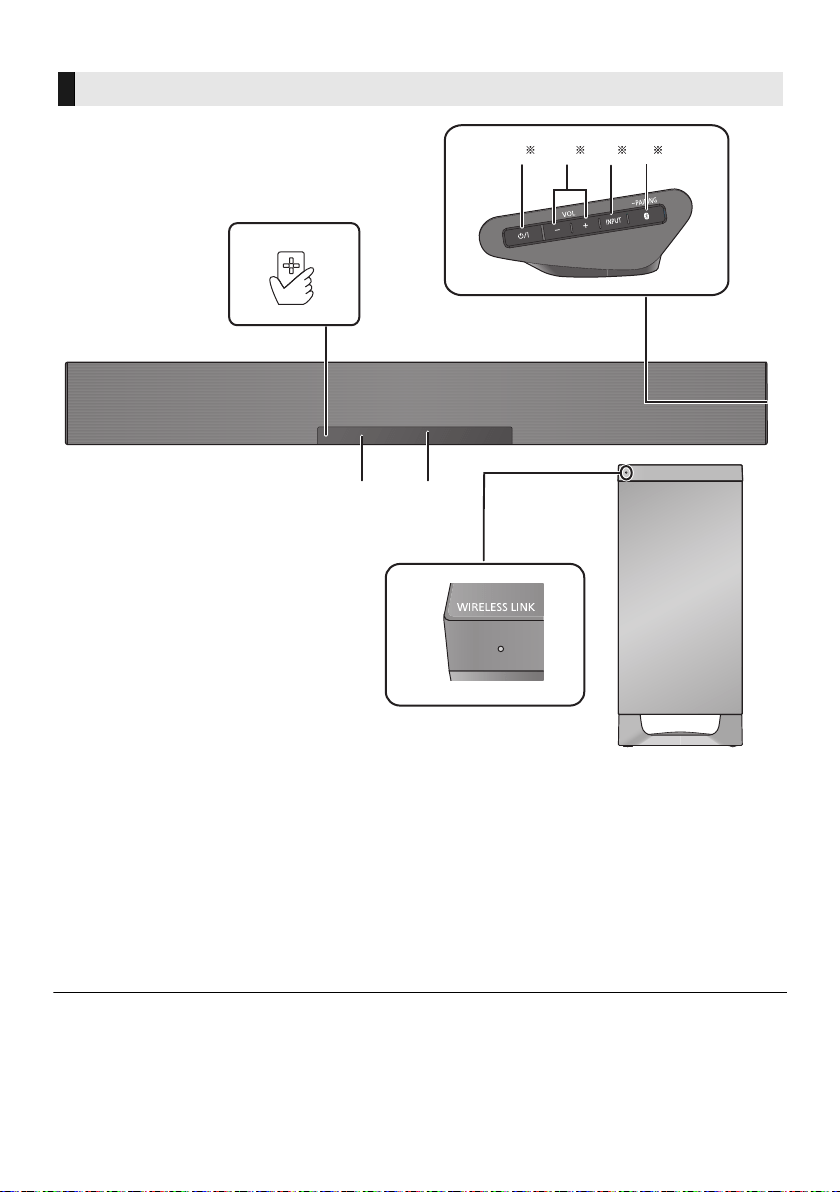

1 Standby/on switch (Í/I)
Touch to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of this system (> 21)
3 Select the input source (> 21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
4 Select the Bluetooth
®
device as the source
(> 21)
5 NFC touch area (> 20)
6 Remote control signal sensor (> 8)
7 Display
8 WIRELESS LINK indicator (> 19)
§
These switches work just by touching the marks. Each time you touch the switch, there will be a beep sound.
This system (Front)
7
8
5
6
2341
Main unit
Active subwoofer
SC-HTB680EB_RQT9916-B.book 6 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Before use
RQT9916
7

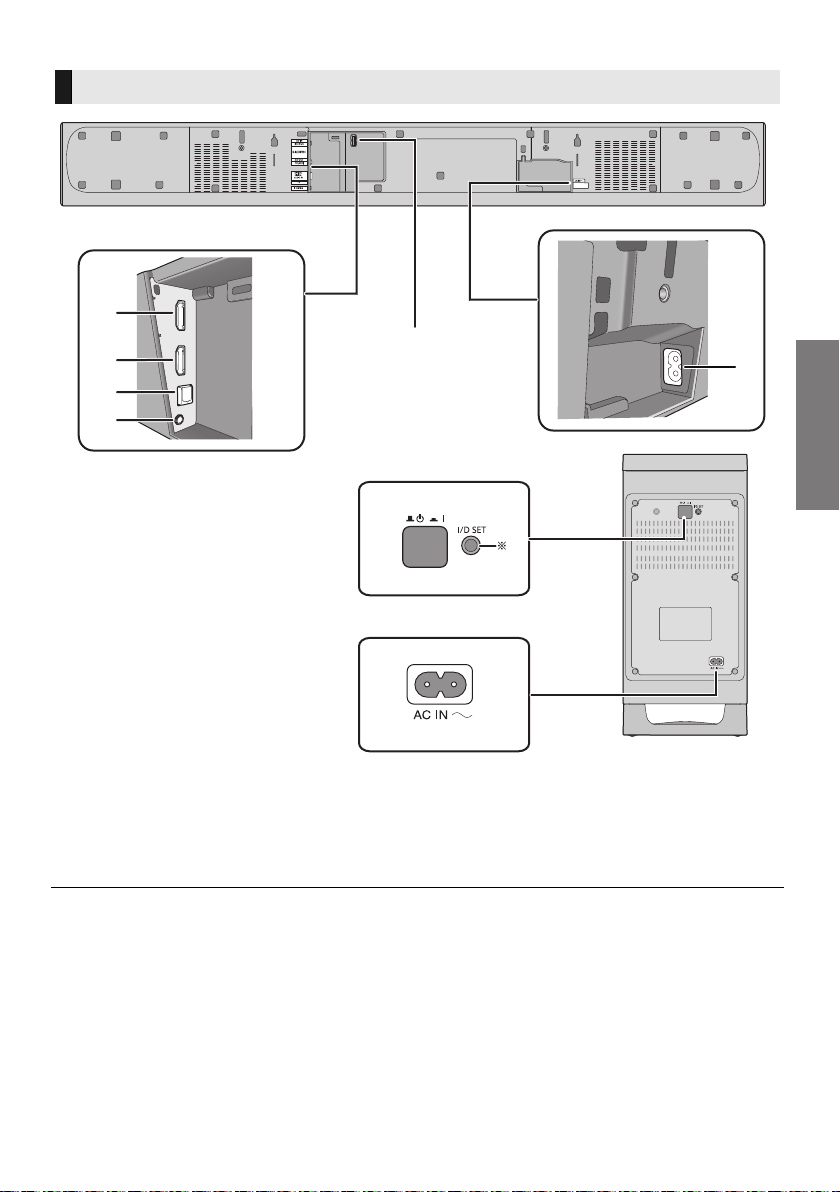

1 HDMI AV IN (BD/DVD) terminal (> 10)
2 HDMI AV OUT (TV (ARC)) terminal (ARC
compatible) (> 9, 10)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(> 10)
4 Ir SYSTEM terminal (> 11, 12)
5 USB port (for service use only)
6 AC IN terminal (> 12)
7 Active subwoofer on/off button (> 19)
§ The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 28)
This system (Rear)
7
6
2
1
3
4
5
6
Main unit
Active subwoofer
SC-HTB680EB_RQT9916-B.book 7 ページ ２０１４年１月１６日 木曜日 午後５時１８分
8
RQT9916

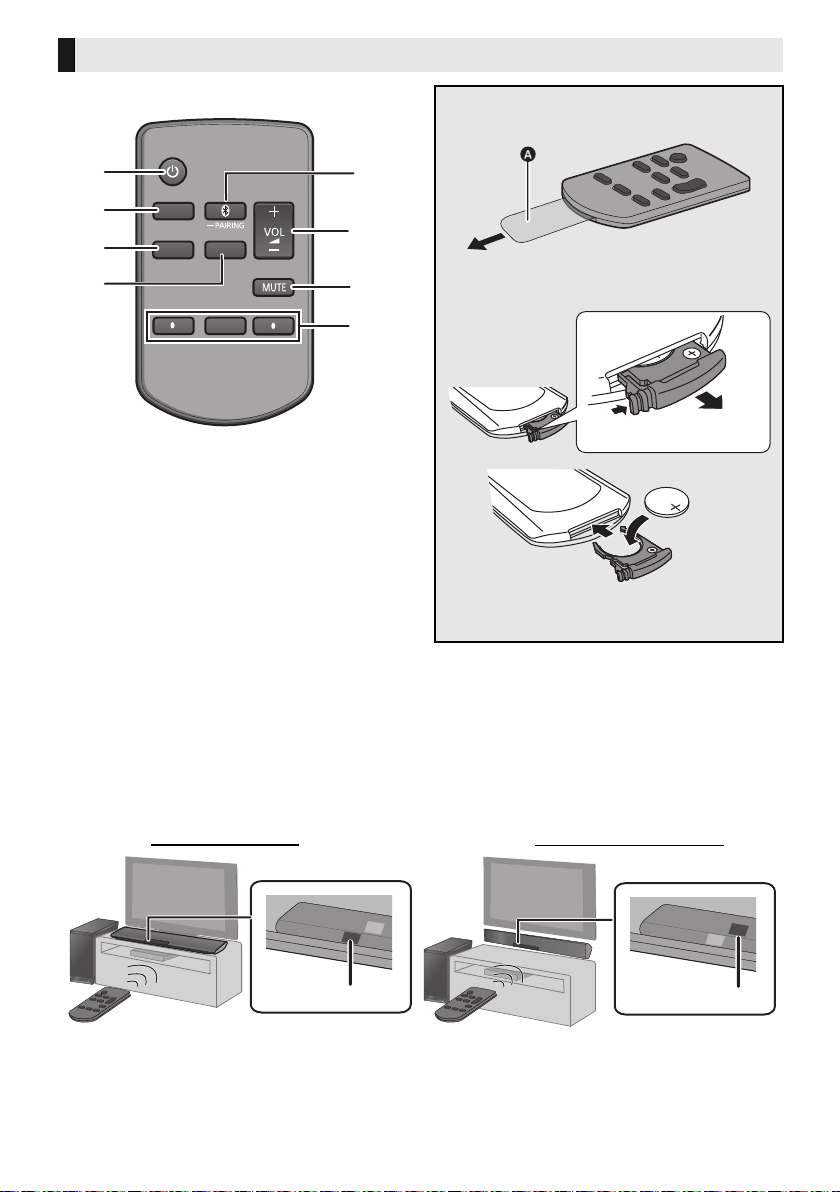

1 Turn the main unit on or off (> 21)
2 Select the input source (> 21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
3 Select the setup menu (> 24)
4 Select the sound menu (> 22)
5 Select the Bluetooth
®
device as the source
(> 21)
6 Adjust the volume of this system (> 21)
7 Mute the sound (> 21)
8 Select and confirm the option
∫ About remote control signal sensor
The remote control signal sensor is located on the main unit.
≥Use the remote control within the correct operation range.
Distance: Within approx. 7 m directly in front
Angle: Approx. 30
o
left and right
B Remote control signal sensor for table top layout
C Remote control signal sensor for wall mounting layout
Remote control
SOUND
1
5
6
7
8
2
INPUT
SETUP
OK
3
4
∫ Before using for the first time
Remove the insulation sheet A.
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)
≥ Set the button-type battery with its (i) mark
facing upward.
For table top layout
For wall mounting layout
SC-HTB680EB_RQT9916-B.book 8 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Before use
RQT9916
9
Getting started
Step 1 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are completed.
∫ HDMI (High-Definition Multimedia Interface)
≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 25) when used with a compatible Panasonic TV.
≥ Use the ARC compatible High Speed HDMI Cables. Non-HDMI-compliant cables cannot be utilised.
≥ It is recommended that you use Panasonic’s HDMI cable.
∫ IR (Infrared) Blaster
≥ Do not use the IR Blaster if the TV’s remote control sensor is not blocked by the main unit. (> 14)
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Make the connection.
A HDMI cable
Connection with the TV
Connection differs depending on the label printed next to the HDMI terminal.
Labelled “HDMI (ARC)”: Connection [A]
Not Labelled “HDMI (ARC)”: Connection [B]
[A] Labelled “HDMI (ARC)”
HDMI IN (ARC)
AV OUT
TV(ARC)
A
Be sure to connect to
the TV’s ARC
compatible terminal.
(Refer to the operating
instructions for the TV.)
TV
SC-HTB680EB_RQT9916-B.book 9 ページ ２０１４年１月１６日 木曜日 午後５時１８分
10
RQT9916

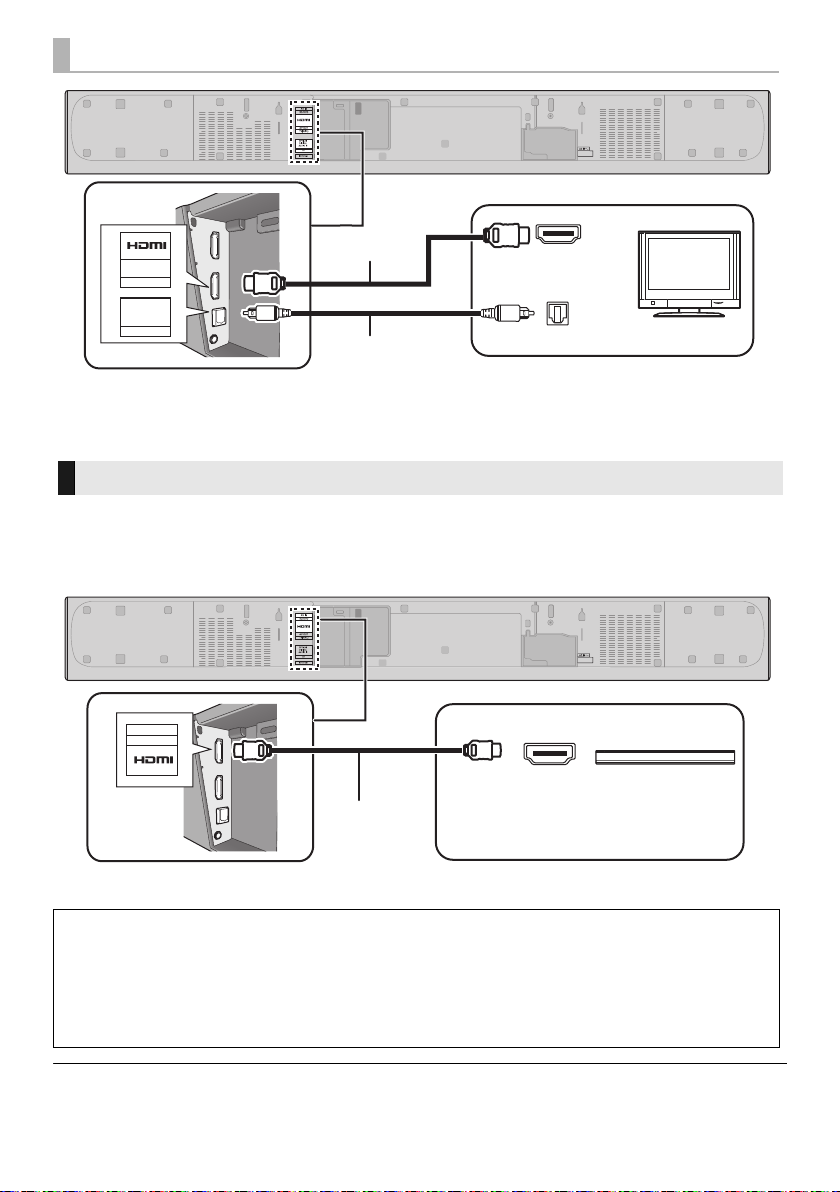

A HDMI cable
B Optical digital audio cable
≥ When you use the optical digital audio cable, insert
the tip correctly into the terminal.
You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to
this system.
Preparation
≥Connect the main unit to the TV. (> 9)
A HDMI cable
≥ Refer to the operating instructions of the connected HDMI compatible device for the necessary setting, to output the video and
audio signals.
[B] Not labelled “HDMI (ARC)”
HDMI IN
OPTICAL
OUT
TV
OPTICAL
DIGITAL
AUDIO IN
AV OUT
TV(ARC)
B
A
TV
Connection from an HDMI compatible device
∫ HDMI standby pass-through
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the HDMI AV IN terminal
will be sent to the TV connected to the HDMI AV OUT terminal (the sound will not be output from this system).
∫ 3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc player.
≥ The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL HD 3D TV.
HDMI OUT
BD/DVD
AV IN
A
e.g., Blu-ray Disc player
SC-HTB680EB_RQT9916-B.book 10 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
RQT9916
11
This system cannot pass-through the 4K content of a 4K compatible equipment to a 4K Ultra HD TV.
However, you can connect the system to a 4K Ultra HD TV to enjoy the 4K content.

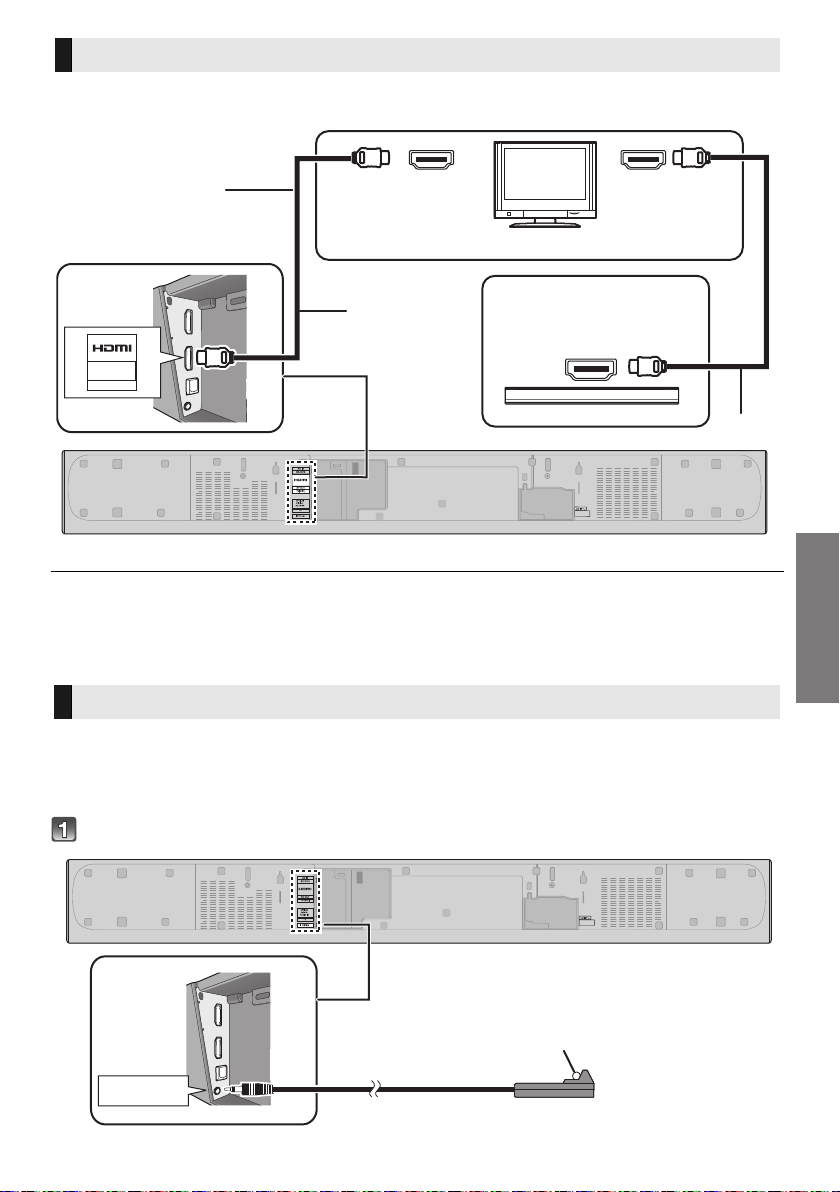

A HDMI cable
≥ Refer to the operating instructions of the 4K Ultra HD TV (VIERA) and the 4K/60p compatible equipment for setup and for
playing the 4K content.
≥ To enjoy multi-channel output from this system, set the audio output of other equipment to Bitstream.
≥ The audio signal input to this system is up to 5.1 channels.
With the IR Blaster connection, it is possible to send the IR signal received by this system’s remote
control signal sensor to the TV’s sensor.
Use the TV’s remote control within the operation range of this system’s remote control signal sensor.
≥For the operation range, refer to page 8.
Connect the jack plug to the main unit’s Ir SYSTEM terminal.
Connection to a 4K Ultra HD TV
Using the IR Blaster
HDMI IN (ARC)
HDMI OUT
HDMI IN (4K)
AV OUT
TV(ARC)
A
A
e.g., Blu-ray Disc player
(4K compatible)
TV
Connect both ends
to ARC compatible
HDMI terminals.
(4K compatible)
Ir SYSTEM
Infrared emitter
SC-HTB680EB_RQT9916-B.book 11 ページ ２０１４年１月１６日 木曜日 午後５時１８分
12
RQT9916
Place the infrared emitter in sight of the TV’s remote control signal
sensor.
≥ For the location of the TV’s remote control signal sensor, refer to the operating instructions for the TV.
Aim the TV’s remote control at this system’s remote control sensor and
operate the TV.
≥ For the location of this system’s remote control signal sensor, refer to page 8.
≥ Make sure to clean the surface, where the adhesive tape is to be attached.
≥ If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may remain. Once you have
confirmed the TV is operating correctly, secure it by attaching the adhesive tape.
≥ The supplied IR Blaster is only compatible with Panasonic TVs.
∫ Placement example
On the rear of the main unit:
≥ Connect only after all other connections are completed.

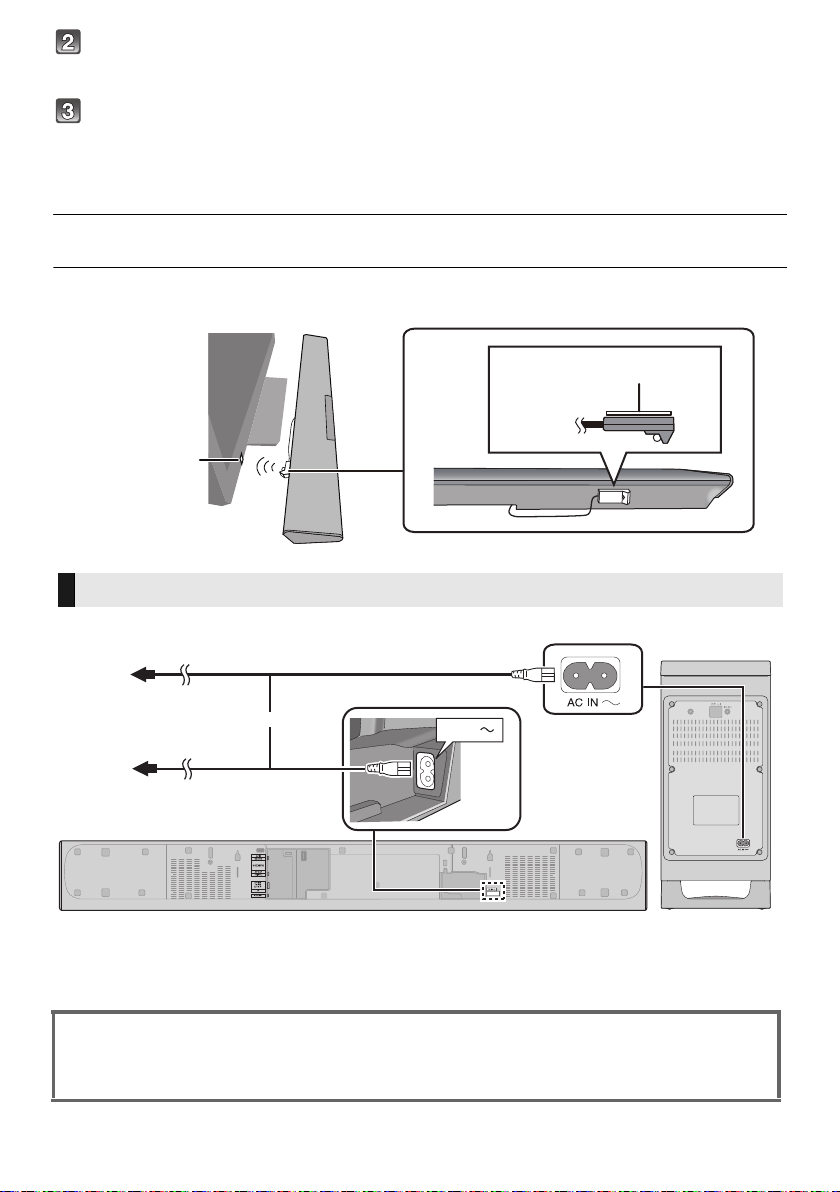

A To a household mains socket
B AC mains lead (supplied)
≥
This system consumes a small amount of AC power (
>
30) even when it is turned off. In the interest of power
conservation, if you will not be using this system for a long time, unplug it from the household mains socket.
AC mains lead connection
TV remote control
signal sensor
Adhesive tape (supplied)
AC IN
Saving energy
The main unit is designed to conserve its power consumption and save energy.
≥
The main unit will automatically switch to standby mode when no signal is input and no operation is
performed for approx. 20 minutes. Refer to page 24, “AUTO POWER DOWN” to turn this function off.
SC-HTB680EB_RQT9916-B.book 12 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Precautions
RQT9916
13
Step 2 Placement
≥ Do not hold the main unit in one hand to avoid injury, you may drop the main unit when carrying it.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
When carrying the active subwoofer
To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz band).
Safety Precautions
Professional installation is required.
The installation should never be done by any other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY DAMAGE AND/OR SERIOUS INJURY, INCLUDING
DEATH RESULTING FROM IMPROPER INSTALLATION OR INCORRECT HANDLING.
≥ Be sure to install the main unit as indicated within this operating Instructions.
≥ Attach using techniques suited to the structure and materials of the installation location.
Caution
≥ This system is to be used only as indicated in these instructions. Failure to do so may lead to
damage to the amplifier and/or the speaker, and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you experience a sudden change in performance.
≥ Do not attempt to attach the main unit to a wall using methods other than those described in this
manual.
The active subwoofer
A Do not hold the active subwoofer from this
opening.
The parts inside may get damaged.
B Always hold the bottom of the active subwoofer when
moving it.
Wireless interference
C Main unit/active subwoofer
D Wireless router, cordless phone and
other electronic devices: approx. 2 m
A
B
D
C
SC-HTB680EB_RQT9916-B.book 13 ページ ２０１４年１月１６日 木曜日 午後５時１８分
14
RQT9916
Choose a placement method that suits you best.
∫ When placing the main unit in front of the TV
The main unit may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic
Tracking System) sensor, remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D
compatible TV.
≥If interference occurs, move the main unit further away from the TV. If the TV still does not function
correctly, try using it in a rack or in the wall mount position.
∫ If the TV’s remote control sensor is blocked by the main unit
Try using the TV’s remote control from a different angle. If the problem persists, you can use the supplied
IR Blaster to relay the signal to the TV. (> 11, 1 2)
≥ Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.
≥ Do not use the main unit or the active subwoofer in a metal cabinet.
≥ Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with
thick curtains.
≥ If irregular colouring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the main unit and active
subwoofer further away from the TV.
≥ Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to the main unit and active
subwoofer.

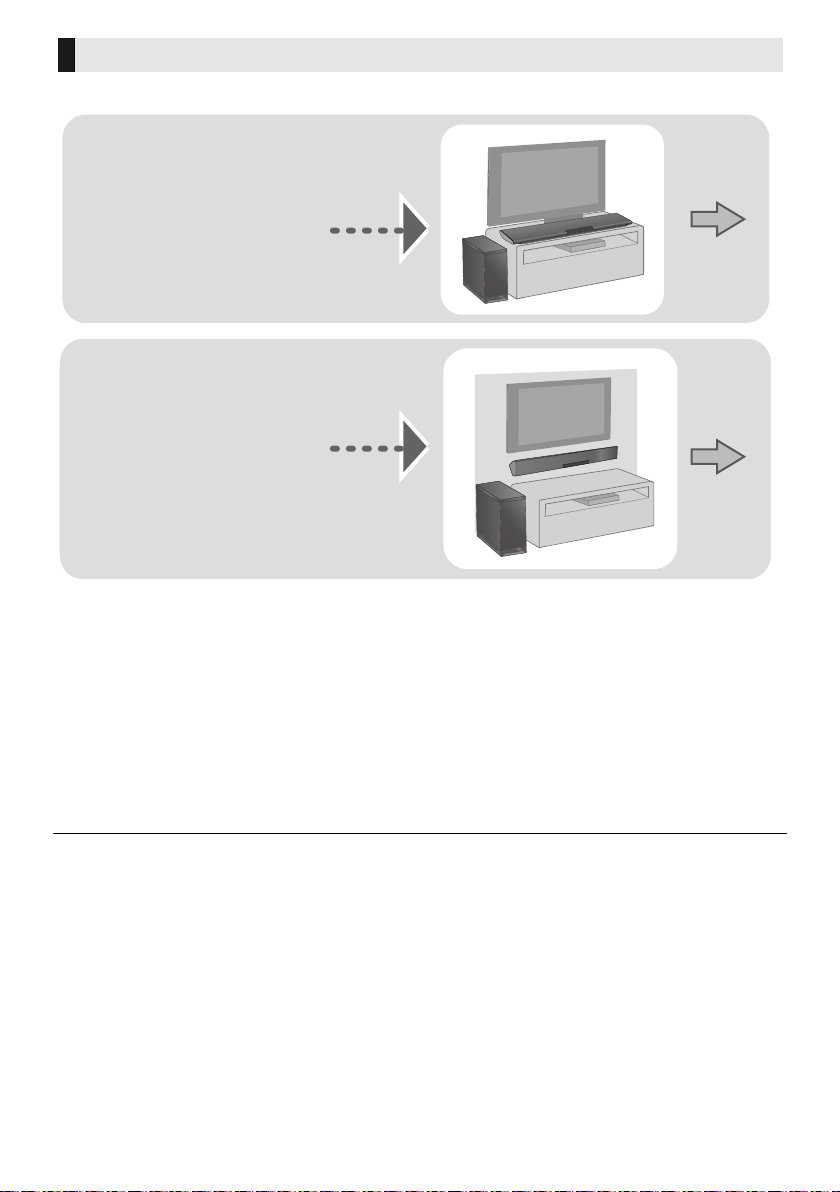

Selecting the placement method
When placing the main unit
in a rack or on a table
≥ Place the main unit on a flat
and horizontal surface.
When attaching the main
unit to a wall
≥ Place the main unit on a
flat and vertical surface.
Page 15
Page 16
SC-HTB680EB_RQT9916-B.book 14 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Precautions
RQT9916
15
Additionally required accessories (commercially available)
≥Fall prevention cord ...................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord) ............................................................................. k 2
≥ Use commercially available screws that are capable of supporting over 26 kg.
≥ Use a cord that is capable of supporting over 26 kg (with a diameter of about 1.5 mm).

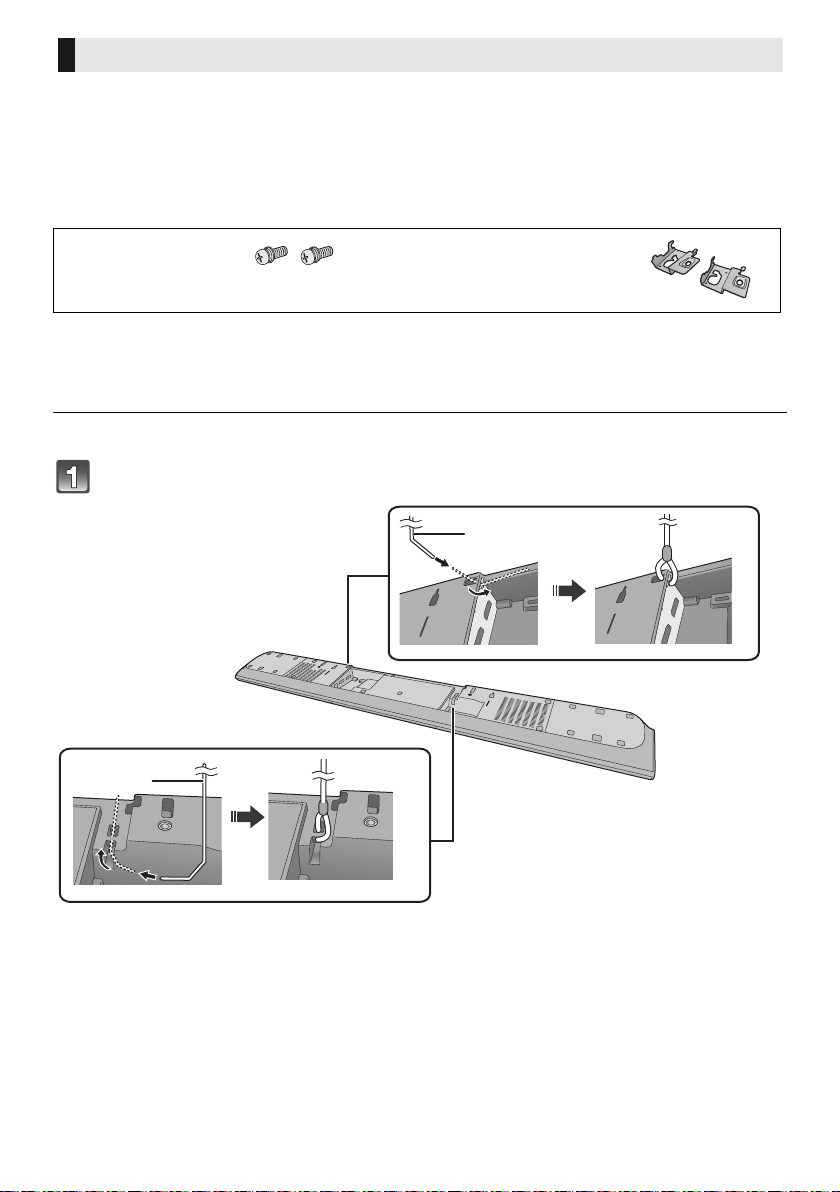

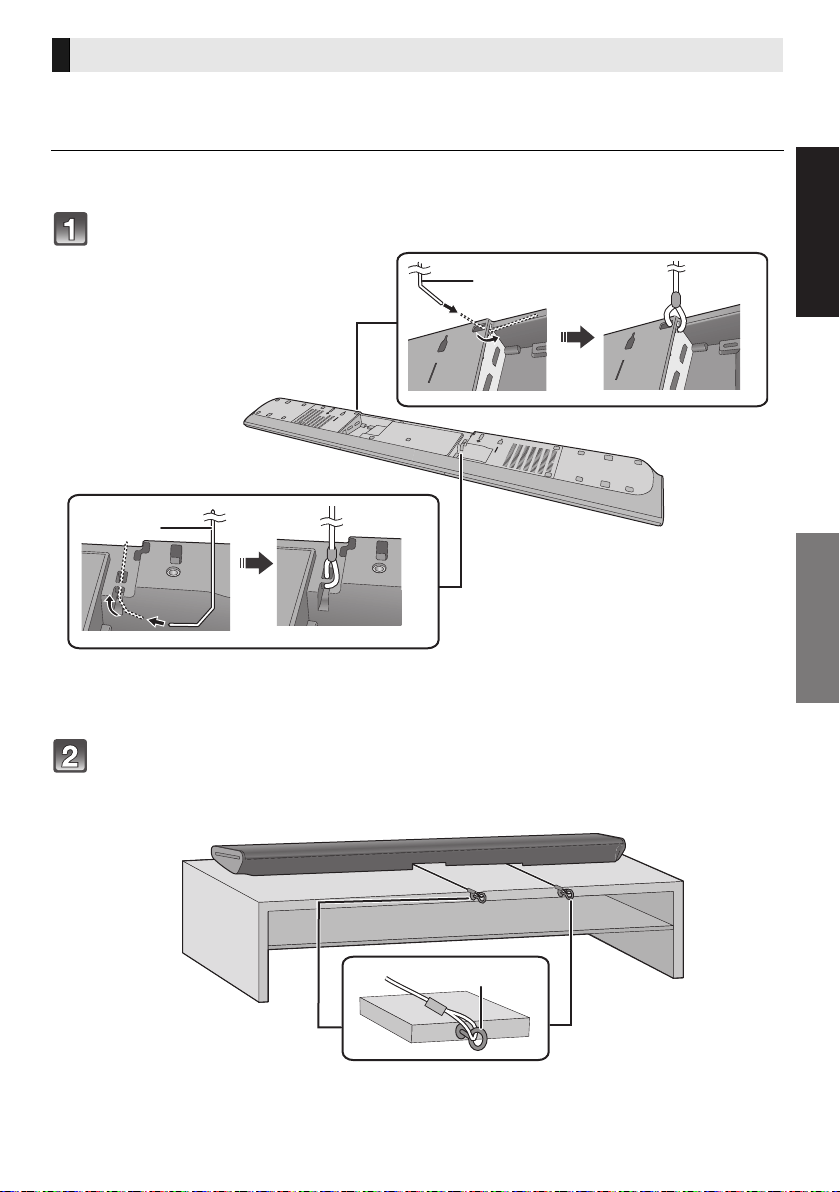

Attach the cord to the main unit.
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45
o
(as
illustrated above).
Place the main unit in the desired position and attach each cord onto the
rack or table.
≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.
B Screw eye
≥Attach at a position capable of supporting over 26 kg.
≥Depending on the placement of the main unit, the screwing position of the screw eye may differ.
When placing the main unit in a rack or on a table
SC-HTB680EB_RQT9916-B.book 15 ページ ２０１４年１月１６日 木曜日 午後５時１８分
16
RQT9916
The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the
screw used and the wall are strong enough to support the weight of at least 26 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 3 for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
Supplied accessories
Additionally required accessories (commercially available)
≥Screws for wall mounting ............................................................................................................. k 2
≥Fall prevention cord ..................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord)............................................................................ k 2
≥ Use a cord that is capable of supporting over 26 kg (with a diameter of about 1.5 mm).
Attach the cord to the main unit.
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45
o
(as
illustrated above).
When attaching the main unit to a wall
∏ 2Screws ∏ 2 Wall mount brackets
SC-HTB680EB_RQT9916-B.book 16 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Precautions
RQT9916
17

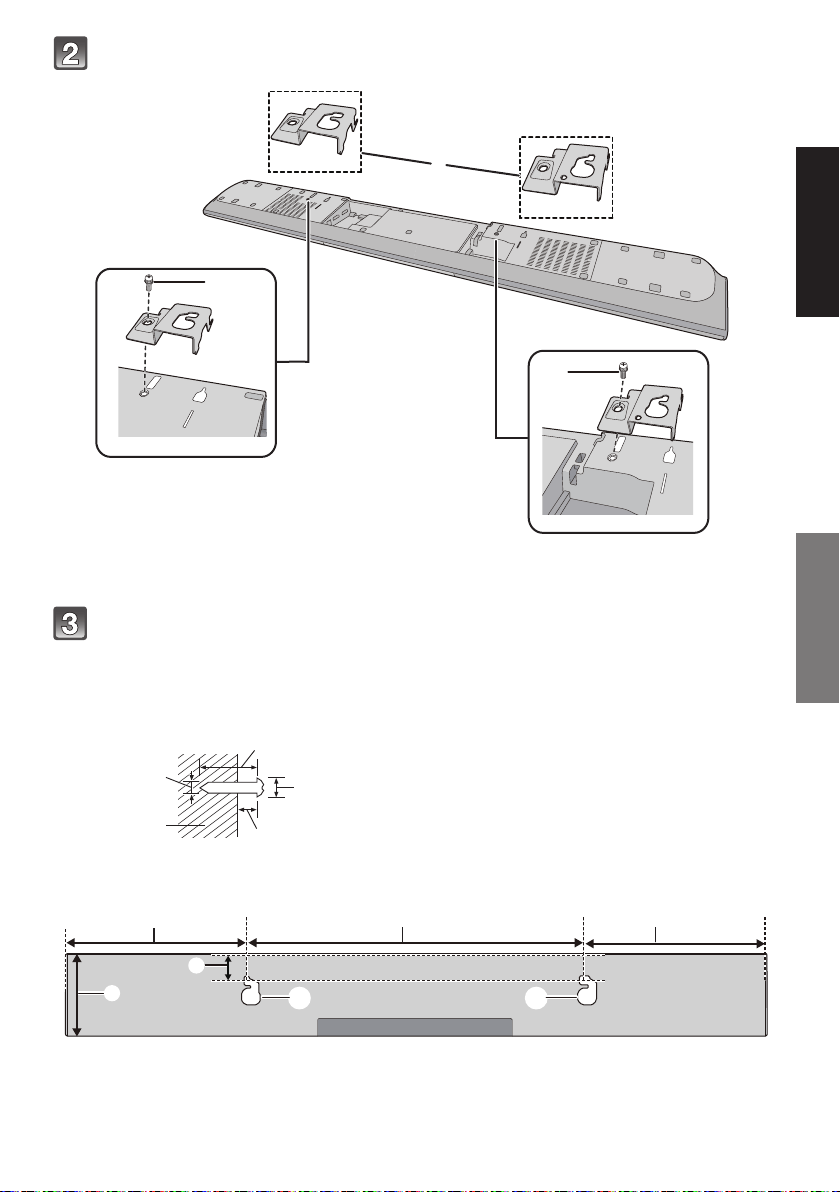

Attach the wall mount brackets to the main unit.
A Wall mount bracket (supplied)
B Screw (supplied)
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Position the main unit with at least 50 mm of free space to its right. If not, it may not be possible to access the touch keys.
≥ Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar
G 1.6 mm to 2.5 mm
H 400 mm I 275 mm J 275 mm
K 27 mm L 110 mm M Wall mounting hole
SC-HTB680EB_RQT9916-B.book 17 ページ ２０１４年１月１６日 木曜日 午後５時１８分
18
RQT9916
Fit the main unit securely onto the screw(s).

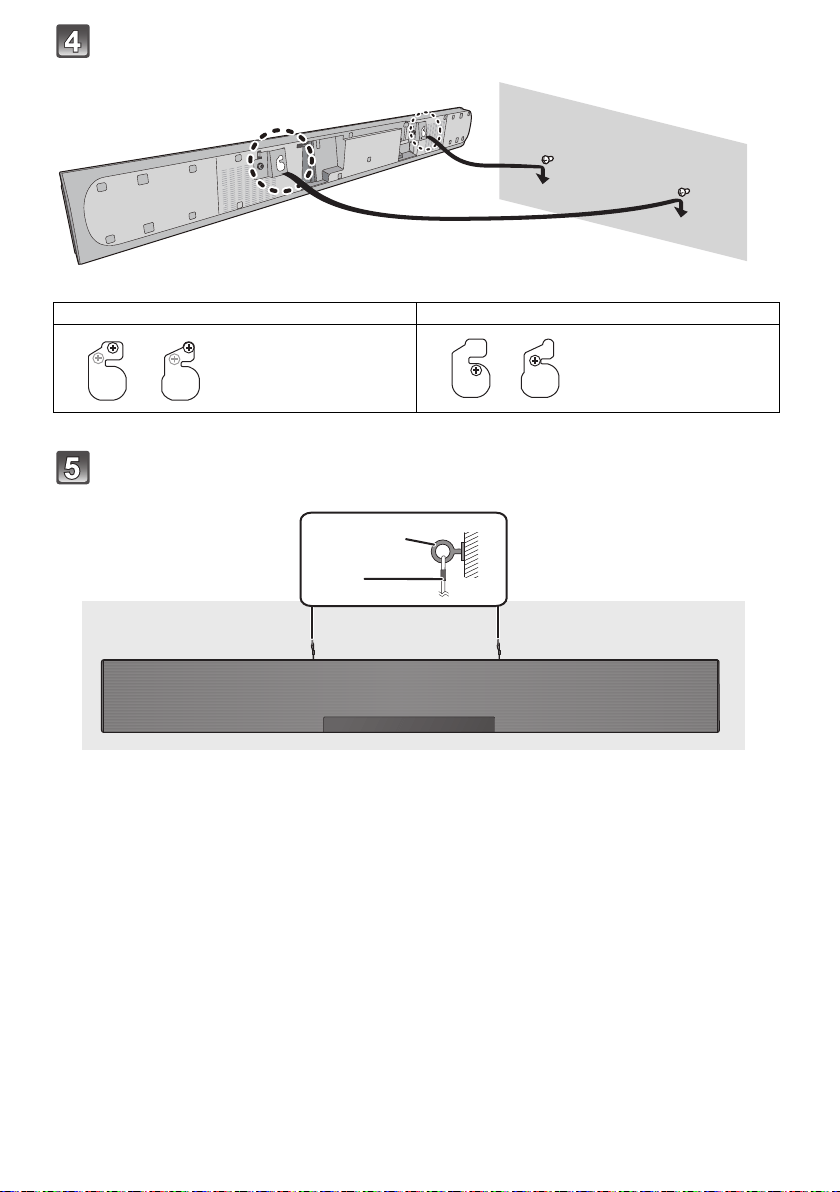

Secure the cord to the wall.
≥ Make sure that the slack of the cord is minimal.
A Screw eye
B Cord
DO DO NOT
≥ Move the speaker so
that the screw is in
this position.
≥ In this position, the
speaker will likely fall
if moved to the left or
right.
SC-HTB680EB_RQT9916-B.book 18 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Precautions
RQT9916
19

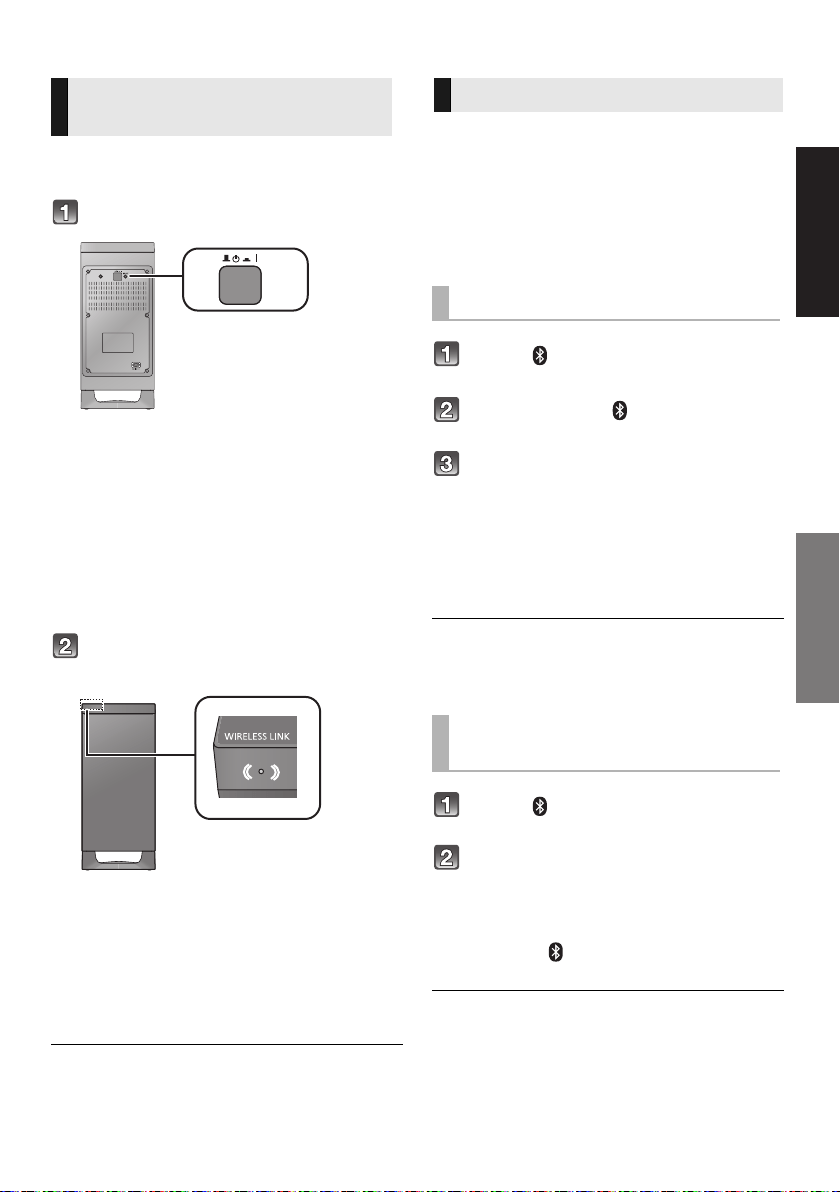

Step 3 Wireless connections
Preparation
≥ Turn on the main unit.
Press [BÍ CI].
Active subwoofer on/off button [B Í C I]
Use this button to turn the active subwoofer on
and off.
C I:
The active subwoofer is on.
B Í:
The active subwoofer is off.
The active subwoofer will still consume a small
amount of power even when it is turned off (
B
,
Í
).
Check that the wireless link is
activated.
WIRELESS LINK indicator
Lights red:
The wireless link is not activated.
Lights green:
The wireless link is activated.
Blinks green:
The active subwoofer is trying to activate the
wireless link with the main unit.
The wireless link will be activated when the main unit and the
active subwoofer are both turned on.
By using the Bluetooth
®
connection, you can listen
to the sound from the Bluetooth
®
audio device
from this system wirelessly.
≥
Refer to the operating instructions of the Bluetooth
®
device for
further instruction on how to connect a Bluetooth
®
device.
Preparation
≥ Turn on the Bluetooth
®
feature of the device and
place the device near the main unit.
Press [ ] to select “BLUETOOTH”.
≥ If “PAIRING” is indicated on the display, go to step 3.
Press and hold [ ] until “PAIRING”
is indicated on the display.
Select “SC-HTB680” from the
Bluetooth
®
device’s Bluetooth
®
menu.
≥ If prompted for the passkey on the Bluetooth
®
device, enter
“0000”.
≥ Once the Bluetooth
®
device is connected, the name of the
connected device will be indicated on the display for a few
seconds.
≥ You can register up to 8 devices with this system. If a 9th
device is paired, the device that has not been used for the
longest time will be replaced.
Press [ ] to enter Bluetooth
®
mode.
“BLUETOOTH READY” is indicated on the display.
Select “SC-HTB680” from the
Bluetooth
®
device’s Bluetooth
®
menu.
∫ Disconnecting a Bluetooth
®
device
Press and hold [ ] until the “BLUETOOTH
READY” is indicated on the display.
≥ When “BLUETOOTH” is selected as the source, this
system will automatically try and connect to the last
connected Bluetooth
®
device.
≥ The Bluetooth
®
device will be disconnected if a different
audio source (e.g. “TV”) is selected.
≥
This system can only be connected to one device at a time.
≥
To change the sound quality, refer to page 24 “LINK MODE”.
Active subwoofer
wireless connection
Bluetooth
®
connection
Bluetooth
®
pairing
Connecting a paired
Bluetooth
®
device
SC-HTB680EB_RQT9916-B.book 19 ページ ２０１４年１月１６日 木曜日 午後５時１８分
20
RQT9916
For NFC-compatible Android
TM
devices only
Simply by touching an NFC (Near Field
Communication)-compatible Bluetooth
®
device on
the main unit, you can complete all preparations,
from registering a Bluetooth
®
device to
establishing a connection.
≥ Android device version lower than 4.1 requires
the installation of the app “Panasonic Music
Streaming” (Free of charge). Download the app
to your Bluetooth
®
device.
– Enter “Panasonic Music Streaming” in the search
box of Google Play
TM
to search, and then select
“Panasonic Music Streaming”.
Preparation
≥ Turn on the NFC feature of the device.
Press [ ] to select “BLUETOOTH”.
Touch and hold your device on the
NFC touch area of the main unit [ ].
(> 6)
– Once the registration and connection of the
Bluetooth
®
device is complete, the name of the
connected device is indicated on the display for a
few seconds. Move the device away from the main
unit.
≥ When the connection is not established even if your
device has touched the NFC touch area, move the
device so it can be detected.
Start playback on the Bluetooth
®
device.
≥ If you touch another device to the main unit, you can
update the Bluetooth
®
connection. The previously
connected device will be disconnected automatically.
≥ If the image and sound are out of sync during playback,
restart the playback app you are using.
≥ When the connection is established, the playback may start
automatically depending on the type of device being used.
≥ The One-Touch Connection may not work properly
depending on the type of device being used.
Remote control code
When other Panasonic devices respond to this
system’s remote control, change the remote
control code on this system and the remote
control.
Preparation
≥ Turn off all other Panasonic products.
≥ Turn on the main unit.
∫ To set the code to “REMOTE 2”
Press and hold [MUTE] and [OK] for more than
4sec.
“REMOTE 2” is indicated on the display.
∫ To set the code to “REMOTE 1”
Press and hold [MUTE] and [4] for more than
4sec.
“REMOTE 1” is indicated on the display.
One-Touch Connection
(Connecting by NFC)
SC-HTB680EB_RQT9916-B.book 20 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Getting started
Operations
RQT9916
21
Operat ions
Using this system
Preparation
≥ Turn on the active subwoofer.
≥ Turn on the TV and/or connected device.
Press [Í] to turn on the main unit.
Select the source.
≥ This remote control cannot be used to control the
operations of the connected devices.
∫ When “BLUETOOTH” is selected as
the source
On the Bluetooth
®
device:
Select this system as the output source of the
connected Bluetooth
®
device and start the
playback.
∫ When “BD/DVD” is selected as the
source
On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.
∫ To adjust the volume of this system
Press [i VOL j].
≥ Volume range: 0 to 100
∫ To mute the sound
Press [MUTE].
≥ While muting, “MUTE” is indicated on the display.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is cancelled if the main unit is turned off.
≥ If there is sound coming out of the TV’s speakers, reduce
the volume of the TV to its minimum.
Press To select
[INPUT]
“TV” --------------# “BD/DVD”
^--- “BLUETOOTH”(---}
[] “BLUETOOTH”
SOUND
INPUT
SETUP
OK
If this system does not operate as
expected or sound is unusual, returning
the settings to the factory preset may
solve the problem. (> 26)
SC-HTB680EB_RQT9916-B.book 21 ページ ２０１４年１月１６日 木曜日 午後５時１８分
22
RQT9916

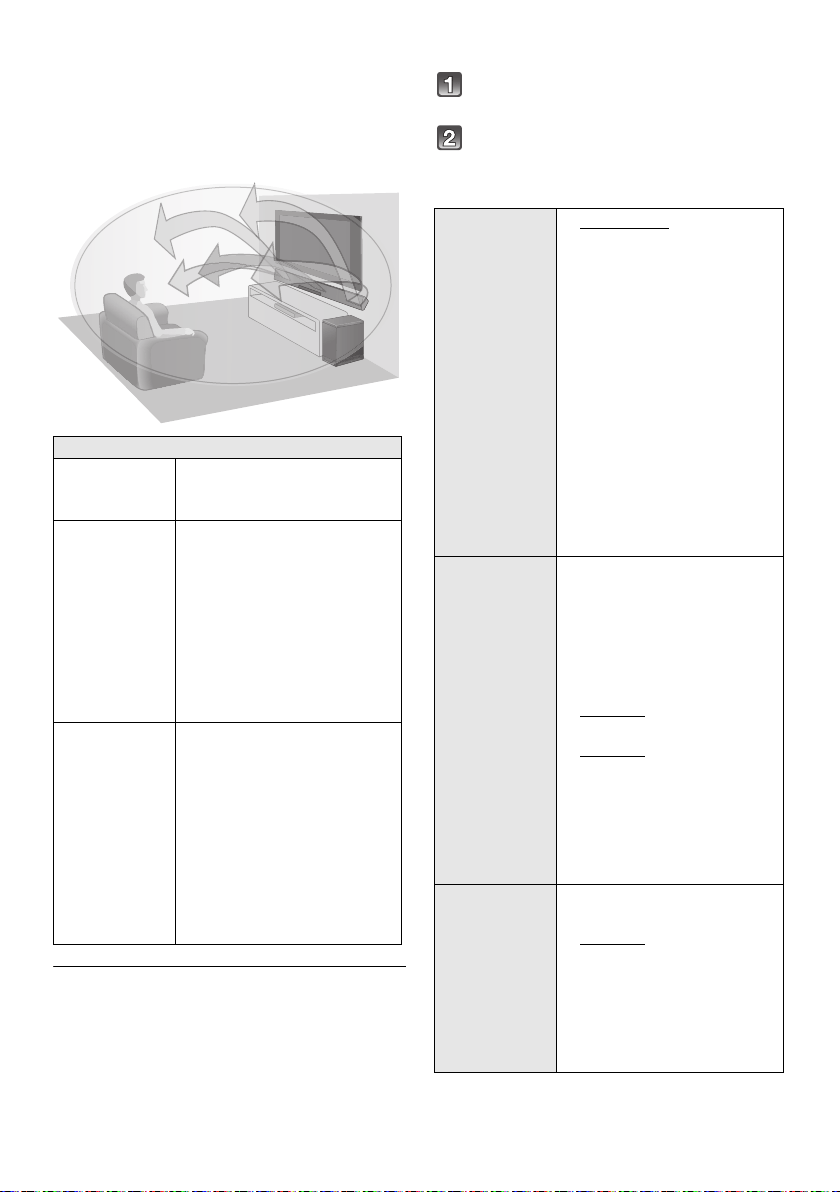

3D sound
This system provides a feeling that the sound and
the image are as one.
≥ To change the applied effect, refer to “Sound
menu”. (> right)
≥ Dolby Virtual Speaker effect is ON except STEREO mode.
≥ To turn off Dolby Virtual Speaker and the 3D surround
effects, select “STEREO” as the sound mode. (> right)
≥ To turn off the 3D surround and the Clear-mode dialog
effects, refer to “3D CLR DIALOG”. (> 23)
Sound menu
Press [SOUND] repeatedly to select
the sound effect.
Press [3, 4] repeatedly to select
the desired setting and then press
[OK].
3D sound
Dolby
®
Virtual
Speaker
With this effect you can enjoy
a surround sound effect
similar to 5.1ch.
3D surround
effect
Adding to the Dolby Virtual
Speaker effect, Panasonic
has applied its own sound
field controlling technology to
expand the sound field
forwards, backwards,
upwards, and downwards,
providing a sound with depth
and force that better matches
3D images.
Clear-mode
dialog
Sports commentary and
dialogs from TV dramas are
heard as if the sound is
coming from the TV, giving
the feeling that the sound and
the image are one.
Also, the dialog will stand out
from the other sounds during
normal volume playback and
when the volume is lowered
for night time viewing.
e.g., Image of 3D sound field
SOUND
MODE
STANDARD
: Best suited
for dramas and comedy
shows.
STADIUM: Produces a
realistic sound for live
sports broadcasts.
MUSIC: Enhance the
sound of musical
instruments and songs.
CINEMA: Produces three-
dimensional sound unique
to movies.
NEWS: Enhance the voice
of news and sports
commentaries.
STEREO: Play any source
of sound in stereo.
SUBWOOFER
You can adjust the amount
of bass. This system
automatically selects the
most suitable setting
according to the type of
playback source.
LEVEL 1
LEVEL 2
: Default for
2 channel audio source
LEVEL 3
: Default for multi-
channel audio source
LEVEL 4
The setting you make is
retained and recalled every
time you play the same
type of source.
DIALOG
Adjust the dialog level.
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
“DIALOG” is not indicated
on the display when “3D
CLR DIALOG” is set to
“OFF”.
SC-HTB680EB_RQT9916-B.book 22 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Operations
RQT9916
23
≥ The default setting is underlined. Changed settings will be
kept until it is changed again, unless otherwise indicated.
You can view the current audio format.
Press and hold [SOUND] for more than 4 sec.
H.BASS
Enhance the harmonic
bass effect.
ON
OFF
3D CLR
DIALOG
The 3D Clear Mode Dialog
feature creates a sound
field similar to the sound
coming from a TV screen
and makes dialogues
clearer.
ON
: 3D Surround, Clear
Mode Dialog and Dolby
Virtual Speaker effect
OFF: Dolby Virtual
Speaker effect
The setting is set back to
“ON” every time you turn
the main unit on.
DUAL
AUDIO
Sets the preferred audio
channel mode when there
are two audio modes
received by this system.
M1
: Main
M2: Secondary
M1 + M2:
Main + Secondary
This effect only works if the
audio output of the TV or
player is set to “Bitstream”
and “Dolby Dual Mono” is
available in the sound
source.
AGC
Auto gain control prevents
sudden loud sound by
reducing the sound level
automatically when the
input is too high.
ON
OFF
LOW VOL
MODE
Enhance the dialog in low
volume condition.
ON
OFF
Select “OFF” to cancel this
effect if the dialog does not
sound natural in low
volume condition.
Audio format
DOLBY
DIGITAL
Dolby Digital is the audio
source.
DTS DTS is the audio source.
PCM MULTI
Linear pulse-code
modulation is the audio
source.
PCM
2 channel pulse-code
modulation is the audio
source.
SC-HTB680EB_RQT9916-B.book 23 ページ ２０１４年１月１６日 木曜日 午後５時１８分
24
RQT9916
Setup menu
Press [SETUP] repeatedly to select
the setup item.
Press [3, 4] repeatedly to select
the desired setting and then press
[OK].
≥ The default setting is underlined. Changed settings will be
kept until it is changed again, unless otherwise indicated.
DIMMER
Dims the display after
5 seconds of inactivity.
ON
OFF
AUTO
POWER
DOWN
The main unit
automatically is turned off if
there is no audio input and
when you do not use it for
approx. 20 minutes.
ON
OFF
VOL
LIMITATION
Sets the volume limit to 50
when you turn on the main
unit although the volume is
set to above 50 before it is
turned off.
ON
OFF
BLUETOOTH
STANDBY
This function allows you to
connect a paired
Bluetooth
®
device when
the main unit is in standby
mode.
ON
OFF
The main unit will be
turned on automatically
when you connect a paired
Bluetooth
®
device.
LINK
MODE
Change the Bluetooth
®
connection link mode to
suit the connection type.
Make sure to disconnect
the current connected
device (“BLUETOOTH
READY” is indicated on the
display).
MODE 1: Emphasis on
connectivity.
MODE 2
: Emphasis on
sound quality.
VIERA
LINK
Turn on the VIERA Link
function.
ON
OFF
Select “OFF” when your
HDAVI Control device does
not work correctly with this
system. ARC will be
disabled. Connect an
optical digital audio cable.
Turn off all connected
devices and then turn them
on again after changing the
setting.
SC-HTB680EB_RQT9916-B.book 24 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Operations
RQT9916
25
Linked operations with the TV
(VIERA Link “HDAVI Control
TM
”)
Preparation
1 Confirm that the HDMI connection has been
made. (> 9, 10)
2 Set the “HDAVI Control” operations on the
connected equipment (e.g., TV).
3 For the optimal “HDAVI Control” operations
change the following settings on the
connected TV
§1
.
≥ Set the default speaker settings to this system.
§2
≥ Set the speaker selection settings to this system.
4 Turn on all “HDAVI Control” compatible
equipment and select the TV’s input for this
system so that the “HDAVI Control” function
works properly.
5 If a device is connected to the HDMI AV IN
terminal, start play to check that the picture is
displayed on the TV correctly.
When the connection or settings are changed,
repeat this procedure.
§1 The availability and function of the settings may vary
depending on the TV. Refer to the operating instructions
for the TV for details.
§2 If the TV has a default speaker setting within the VIERA
Link setting items, choosing this system as the default
speaker will automatically change the speaker selection
to this system.
≥ VIERA Link “HDAVI Control”, based on the control
functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a
unique function that we have developed and added. As
such, its operation with other manufacturers’ equipment
that supports HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is compatible
with Panasonic’s conventional HDAVI equipment.
≥ Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
To make sure that the audio is output from this
system, turn the main unit on by using the TV’s
remote control and selecting home cinema from
the speaker menu of VIERA Link menu.
The availability and function of the settings may
vary depending on the TV. Refer to the operating
instructions for the TV for details.
∫ Speaker control
You can select whether audio output is from this system
or the TV speakers by using the TV menu settings.
Home cinema
This system is active.
≥ When the main unit is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn the main unit on.
≥ You can control the volume setting of this system using the
volume or mute button on the TV remote control.
≥ If you turn off the main unit, TV speakers will be
automatically activated.
≥ Audio will automatically be output from this system if the TV
is compatible to VIERA Link “HDAVI Control 4” or later.
TV
TV speakers are active.
≥ The volume of this system is set to its minimum.
∫ Automatic input switching
When the following operations are performed, the
main unit will automatically change the input to
the corresponding source.
jWhen play starts on an HDMI connected
device.
§3
j
When the TV input or the TV channel is changed.
§3 If the speaker output setting on the TV is set to this
system, the TV and the main unit turn on automatically
(Power on link).
∫ Power off link
When the TV is turned off, the main unit also turns
off automatically. (This function does not work
when Bluetooth
®
is the source.)
∫ Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically
adjusted by adding time-lag to the audio output,
enabling you to enjoy smooth audio for the picture.
The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.
What is VIERA Link “HDAVI
Control”?
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
What you can do with
VIERA Link “HDAVI Control”
SC-HTB680EB_RQT9916-B.book 25 ページ ２０１４年１月１６日 木曜日 午後５時１８分
26
RQT9916
Reference
Troubleshooting
Before requesting service, make the following
checks. If you are in doubt about some of the
check points, or if the solutions indicated in the
following guide do not solve the problem, consult
your dealer for instructions.
No power.
≥ Unplug the AC mains lead for 10 sec before
plug in again.
≥ After turning the main unit on, if the main unit
immediately turns off, unplug the AC mains lead
and consult your dealer.
The remote control does not work properly.
≥ The battery is depleted. Replace it with a new
one. (> 8)
≥ It is possible that the insulation sheet has not
been removed. Remove the insulation sheet.
(> 8)
≥ It may be necessary to set the code of the
remote control again after changing the battery
of the remote control. (> 20)
≥ Use the remote control within the correct
operation range. (> 8)
≥ Check which remote control signal sensor is
working by the following operation.
jTouch and hold [INPUT] on the main unit for
more than 4 sec. “ON TABLE” or “ON WALL”
is indicated on the display for 4 sec.
jRefer to page 8 “About remote control signal
sensor” for the remote control signal sensor
location.
The main unit is automatically switched to
standby mode.
“AUTO POWER DOWN” function is on.
The main unit will automatically switch to standby
mode when no signal is input and no operation is
performed for approx. 20 minutes. Refer to page
24 to turn this function off.
The main unit is turned off when the TV’s
speakers are selected in the speaker control.
This is a normal feature when using VIERA Link
(HDAVI Control 4 or later). Please read the
operating instructions for the TV for details about
its power save feature. (> 25)
The switches on the main unit do not work.
[Í/I], [j VOL i], [INPUT], and [ ] on the main
unit are touch keys. Touch the switches with your
finger. They may not work if operated with your
fingernails or hands wearing gloves.
This system does not operate correctly.
If the HDMI cable is connected to the wrong
terminal (HDMI AV IN or HDMI AV OUT), this
system will not operate correctly. Turn the main
unit off, disconnect the AC mains lead and
reconnect the HDMI cable(s). (> 9, 10)
VIERA Link related operations no longer
function properly.
≥ Check the VIERA Link setting on the connected
devices.
≥ Have you turned the VIERA Link settings off?
(> 24)
≥ When the HDMI connections are changed, after
a power failure or after the AC mains lead has
been removed, VIERA Link operations may not
function properly.
jTurn on all the devices that are connected to
the TV with an HDMI cable and then turn the
TV on.
jTurn off the VIERA Link settings of the TV and
turn it on again. For details refer to the
operating instructions for the TV.
jWhile the main unit and the TV are connected
with the HDMI cable, turn on the TV and then
remove the main unit’s AC mains lead and
reconnect it again.
To return to the factory preset.
While the main unit is on, touch and hold [Í/I] on
the main unit for more than 4 sec.
(“RESET” is indicated on the display when this
system is reset.)
If this system does not operate as expected,
returning the settings to the factory preset
may solve the problem.
≥ The remote control code will return to
“REMOTE 1” when this system is returned to
the factory preset. To change the remote
control code, refer to page 20.
General operation
HDMI
SC-HTB680EB_RQT9916-B.book 26 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Reference
RQT9916
27
The first few seconds of audio cannot be
heard when using the HDMI connection.
This may occur during DVD-Video chapter
playback. Change the digital audio output setting
on the connected device from “Bitstream” to
“PCM”.
When operating an HDMI compatible device of
a different brand, the main unit reacts in an
unwanted manner.
HDAVI Control commands may use a different
signal depending on the brand of the device. In
this case, turn VIERA Link off. (> 24)
Pairing cannot be done.
Check the Bluetooth
®
device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or
the registration has been replaced. Try pairing
the device again. (> 19)
≥ This system might be connected to a different
device. Disconnect the other device and try
pairing the device again.
The device is connected but audio cannot be
heard through this system.
For some built-in Bluetooth
®
devices, you have to
set the audio output to “SC-HTB680” manually.
Read the operating instructions for the device for
details.
The sound is interrupted.
≥ The device is out of the 10 m communication
range. Bring the Bluetooth
®
device closer to the
main unit.
≥ Remove any obstacle between the main unit
and the device.
≥ Other devices that use the 2.4 GHz frequency
band (wireless router, microwaves, cordless
phones, etc.) are interfering. Bring the
Bluetooth
®
device closer to the main unit and
distance it from the other devices.
≥ Select “MODE1” for stable communication.
(> 24)
The One-Touch Connection (NFC feature) is
not working.
Turn on the NFC feature of the device.
No sound (or image).
≥ Turn muting off. (> 21)
≥ Check the connections to the other devices.
(> 9, 10)
≥ Make sure that the received audio signal is
compatible with this system. (> 30)
≥ Turn this system off and then on again.
≥ If the main unit is connected to the TV with only
an HDMI cable, make sure that the TV’s HDMI
terminal is labelled “HDMI (ARC)”. If not,
connect using the optical digital audio cable.
(> 9, 10)
≥ If the main unit is connected to a Panasonic TV
and turned on using the remote control or the
touch key on the main unit, sound might not be
output from this system. In this case, turn the
main unit on using the TV’s remote control.
(> 25)
≥ If the connections are correct, there might be a
problem with the cables. Redo the connections
with different cables.
≥ Check the audio output settings on the
connected device.
The dual audio cannot be changed from main
to secondary.
If the audio received from the connected device is
not “Dolby Dual Mono” or the output setting is not
“Bitstream”, the setting cannot be changed from
this system. Change the setting on the connected
device.
The volume is lowered when the main unit is
turned on.
“VOL LIMITATION” is on.
If the main unit is turned off with the volume
setting in the greater half (above 50), the main
unit will automatically lower the volume to the
middle (50) when the main unit is turned on.
(> 24)
The dialog is too persistent or the dialog does
not sound natural.
This system has a function to make the dialog
stand out when the volume is low. (> 23)
Bluetooth
®
Sound
SC-HTB680EB_RQT9916-B.book 27 ページ ２０１４年１月１６日 木曜日 午後５時１８分
28
RQT9916
There is no audio.
The power of the main unit turns off
automatically.
(When the main unit detects a problem, a safety
measure is activated and the main unit
automatically switches to standby mode.)
≥ There is a problem with the amplifier.
≥ Is the volume extremely high?
If so, lower the volume.
≥ Is this system placed in an extremely hot place?
If so, move this system to a cooler place and
wait a few moments and then try to turn it on
again.
If the problem persists, confirm the display, turn
this system off, remove the AC mains lead cord
and consult your dealer. Please be sure to
remember the display that was indicated and
inform the dealer.
“F61”
≥ There is a problem with the amplifier of the
system.
≥ Disconnect the AC mains lead and consult the
dealer.
“F70 HDMI”
≥ Check HDMI connection.
≥ Turn off the main unit and then switch it on
again.
≥ Disconnect the HDMI cable.
“F76”
≥ There is a problem with the power supply.
≥ Disconnect the AC mains lead and consult the
dealer.
No power.
Ensure the AC mains lead of the active subwoofer
is connected properly.
After turning the subwoofer on, it immediately
turns off.
Unplug the AC mains lead and consult your
dealer.
No sound from the subwoofer.
≥ Check that the active subwoofer is turned on.
≥ Check that the WIRELESS LINK indicator lights
green. (> 19)
The WIRELESS LINK indicator lights red.
≥ There is no link between the main unit and the
active subwoofer.
jCheck that the main unit is turned on.
jTurn the active subwoofer off and then back
on. Alternatively, turn the active subwoofer off,
disconnect the AC mains lead and then
reconnect it.
≥ The active subwoofer and the main unit may not
be paired correctly. Try the following operation.
(Wireless pairing)
1 Turn on the main unit and active subwoofer.
2 Press and hold [ID SET] on the rear of the
active subwoofer for more than 3 sec.
(The WIRELESS LINK indicator will blink in
red.)
3 While pressing and holding [INPUT] on
remote control, touch and hold [VOL i] on
the main unit for more than 4 sec.
(“SUBWOOFER PAIRING” will be indicated
on the display.)
≥ When the wireless pairing is successful, “PAIRED”
will be indicated on the display for 2 sec and
WIRELESS LINK indicator lights green.
4 Turn the main unit off and on.
≥ Consult your dealer if the problem persists.
Main unit displays
Active Subwoofer
SC-HTB680EB_RQT9916-B.book 28 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Reference
RQT9916
29
About Bluetooth
®
∫ Frequency band used
This system uses the 2.4 GHz frequency band.
∫ Certification of this device
≥ This system conforms to frequency restrictions
and has received certification based on
frequency laws. Thus, a wireless permit is not
necessary.
≥ The action below are punishable by law in some
countries:
jTaking apart or modifying the unit.
jRemoving specification indications.
∫ Restrictions of use
≥ Wireless transmission and/or usage with all
Bluetooth
®
equipped devices is not guaranteed.
≥ All devices must conform to standards set by
Bluetooth SIG, Inc.
≥ Depending on the specifications and settings of
a device, it can fail to connect or some
operations can be different.
≥ This system supports Bluetooth
®
security
features. But depending on the operating
environment and/or settings, this security is
possibly not sufficient. Transmit data wirelessly
to this system with caution.
≥ This system cannot transmit data to a
Bluetooth
®
device.
∫ Range of use
Use this device at a maximum range of 10 m.
The range can decrease depending on the
environment, obstacles or interference.
∫ Interference from other devices
≥ This system may not function properly and
troubles such as noise and sound jumps may
arise due to radio wave interference if the main
unit is located too close to other Bluetooth
®
devices or the devices that use the 2.4 GHz
band.
≥ This system may not function properly if radio
waves from a nearby broadcasting station, etc.
are too strong.
∫ Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc.).
Unit care
∫ Clean this system with a soft, dry
cloth
≥ When dirt is heavy, wring a cloth moistened in
water tightly to wipe the dirt, and then wipe it
with a dry cloth.
≥ When cleaning the speakers, use a fine cloth.
Do not use tissues or other materials (towels,
etc.) that can fall apart. Small grains may get
stuck inside the speaker cover.
≥ Never use alcohol, paint thinner or benzine to
clean this system.
≥ Before using chemically-treated cloth, carefully
read the instructions that came with the cloth.
∫ To dispose or transfer this system
This system may keep the user settings
information in the main unit. If you discard the
main unit either by disposal or transfer, then follow
the procedure to return all the settings to the
factory presets to delete the user settings. (> 26,
“To return to the factory preset.”)
≥ The operation history may be recorded in the
memory of the main unit.
Licenses
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide
patents issued & pending. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks & DTS Digital
Surround and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
HDAVI Control
TM
is a trademark of Panasonic Corporation.
The Bluetooth
®
word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Panasonic
Corporation is under license. Other trademarks and trade
names are those of their respective owners.
Google Play and Android are trademarks of Google Inc.
SC-HTB680EB_RQT9916-B.book 29 ページ ２０１４年１月１６日 木曜日 午後５時１８分
30
RQT9916
Specifications
§1 When the other connected devices are turned off.
AMPLIFIER SECTION
RMS output power: Dolby Digital Mode
Front ch (L, R ch)
70 W per channel (6 ≠), 1 kHz, 10 % THD
Centre ch (C ch)
70 W per channel (6 ≠),1kHz,10%THD
Subwoofer ch
140 W per channel (8 ≠), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power
350 W
TERMINAL SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input (BD/DVD)
1
Input connector
Type A (19 pin)
HDMI AV output (TV (ARC))
1
Output connector
Type A (19 pin)
Digital audio input (TV)
Optical digital input
Optical terminal
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
88.2 kHz, 96 kHz (only LPCM)
Audio format
LPCM, Dolby Digital, DTS Digital Surround
IR Blaster
Terminal Type
3.5 mm jack
USB Port
For service use only.
GENERAL
Power consumption
Main unit
36 W
Active subwoofer
23 W
In standby condition
Main unit
§1
When “BLUETOOTH STANDBY” is “OFF”
Approx. 0.48 W
When “BLUETOOTH STANDBY” is “ON”
Approx. 3 W
Active subwoofer
Power switch off
Approx. 0.25 W
The wireless link is not activated
Approx. 1.3 W
Power supply
AC 220 V to 240 V, 50 Hz
Dimensions (WkHkD)
Main unit
For table top layout
950 mmk53 mmk110 mm
For wall mounting layout
950 mmk110 mmk57 mm
Active subwoofer
180 mmk408 mmk306 mm
Mass
Main unit
For table top layout
Approx. 2.6 kg
For wall mounting layout
Approx. 2.7 kg
Active subwoofer
Approx. 5.0 kg
Operating temperature range
0
o
C to i40
o
C
Operating humidity range
20 % to 80 % RH (no condensation)
SC-HTB680EB_RQT9916-B.book 30 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Reference
RQT9916
31
≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
SPEAKER SECTION
Front speakers (Built-in)
Full range
6.5 cm cone type k1/ch
Centre speaker (Built-in)
Full range
6.5 cm cone type k1
Active subwoofer
Woofer
16 cm cone type k1
WIRELESS SECTION
Wireless module
Frequency Range
2.40335 GHz to 2.47735 GHz
No. of channels
38
Bluetooth
®
SECTION
Bluetooth
®
system specification
Version 3.0
Wireless equipment classification
Class 2
Supported profiles
A2DP
Operating frequency
2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Operating distance
10 m Line of Sight
SC-HTB680EB_RQT9916-B.book 31 ページ ２０１４年１月１６日 木曜日 午後５時１８分
32
RQT9916
[For]the]United]Kingdom]and]Ireland]
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
This product is intended for general consumer. (Category 3)
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries must not be mixed
with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
SC-HTB680EB_RQT9916-B.book 32 ページ ２０１４年１月１６日 木曜日 午後５時１８分
Reference
RQT9916
33
Limited Warranty (ONLY FOR AUSTRALIA)
Panasonic Warranty
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal
domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,
accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the
product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
6. To claim warranty service, when required, you should:
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and
do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a
major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair
or replace the product and will do so in a reasonable period of time from receiving notice from you.
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia
website www.panasonic.com.au or contact by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s) (e) DVD, Blu-ray or Recordable Discs
(b) Video or Audio Tapes (f) Video / Audio Heads from wear and tear in normal use
(c) SD cards or USB devices (g) Information stored on Hard Disk Drive, USB stick or SD card
(d) User replaceable Batteries (h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
etc
Telephone Panasonic’s Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name/address of the nearest Authorised Service Centre.
Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged
by you.
Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
Plasma/LCD televisions / displays (screen size greater than 103 cm)
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
PRO-031-F11 Issue: 4.0 01-01-2011
SC-HTB680EB_RQT9916-B.book 33 ページ ２０１４年１月１６日 木曜日 午後５時１８分
34
RQT9916
SC-HTB680EB_RQT9916-B.book 34 ページ ２０１４年１月１６日 木曜日 午後５時１８分
RQT9916
35
SC-HTB680EB_RQT9916-B.book 35 ページ ２０１４年１月１６日 木曜日 午後５時１８分
EU
Web Site: http://panasonic.net
Panasonic Corporation 2014
Panasonic Corporation
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Marketing Europe GmbH
Manufactured by:
Importer for Europe:
Panasonic Corporation
Kadoma, Osaka, Japan
RQT9916-B
F0114SB0
For the United Kingdom and Ireland customers
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0844 844 3899
≥ For customers within Ireland: 01 289 8333
≥ Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ For further support on your product, please visit our website:
www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your product with ease and confidence by phoning our
Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com
.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a
browse on our website for further details.
SC-HTB680EB_RQT9916-B.book 31 ページ ２０１４年１月１６日 木曜日 午後５時１８分
