Accessory
After installing the appliance, connect the power plug into a
socket outlet. Before moving and discarding the appliance,
disconnect the plug from the socket outlet.
Ambient Temperature
The appliance is designed to operate within a limited range of ambient
temperatures,depending on the climate zone. Do not use the appliance
at a temperature exceeding the limit.
The internal temperatures could be affected by the location of the
appliance, the ambient temperature, the frequency of door opening and
so on.
The climate class can be found on the rating label.
Climate Class
Ambient Temperature
Range ºC
SN (Extended Temperate) +10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
NOTE
*Australia, India, Kenya
The appliances rated from SN to T are intended to be used at an
ambient temperature between 10 ºC and 43 ºC.
Dimensions and Clearances
Too small of a distance from adjacent items may result in degradation of
freezing capability and increased electricity costs. Allow over 50mm
clearance from each adjacent wall when installing the appliance.
B
A
C
F
H
G
D
E
- Size(mm)
A 643
B 595
C 1737
D 541
E 578
F 643
G 1150
H 970
y
The automatic defrosting system in the appliance ensures that the
compartment remains free of ice buildup under normal operating conditions.
Do not place glass containers, bottles or cans (especially those containing
carbonated drinks) in the freezer compartment, shelves or ice bin that will
be exposed to temperatures below freezing.
If you are leaving the appliance turned off for an extended period of time,
remove all food and unplug the power cord. Clean the interior, and leave
the doors slightly ajar to prevent mold from growing in the appliance.
VACATION TIME

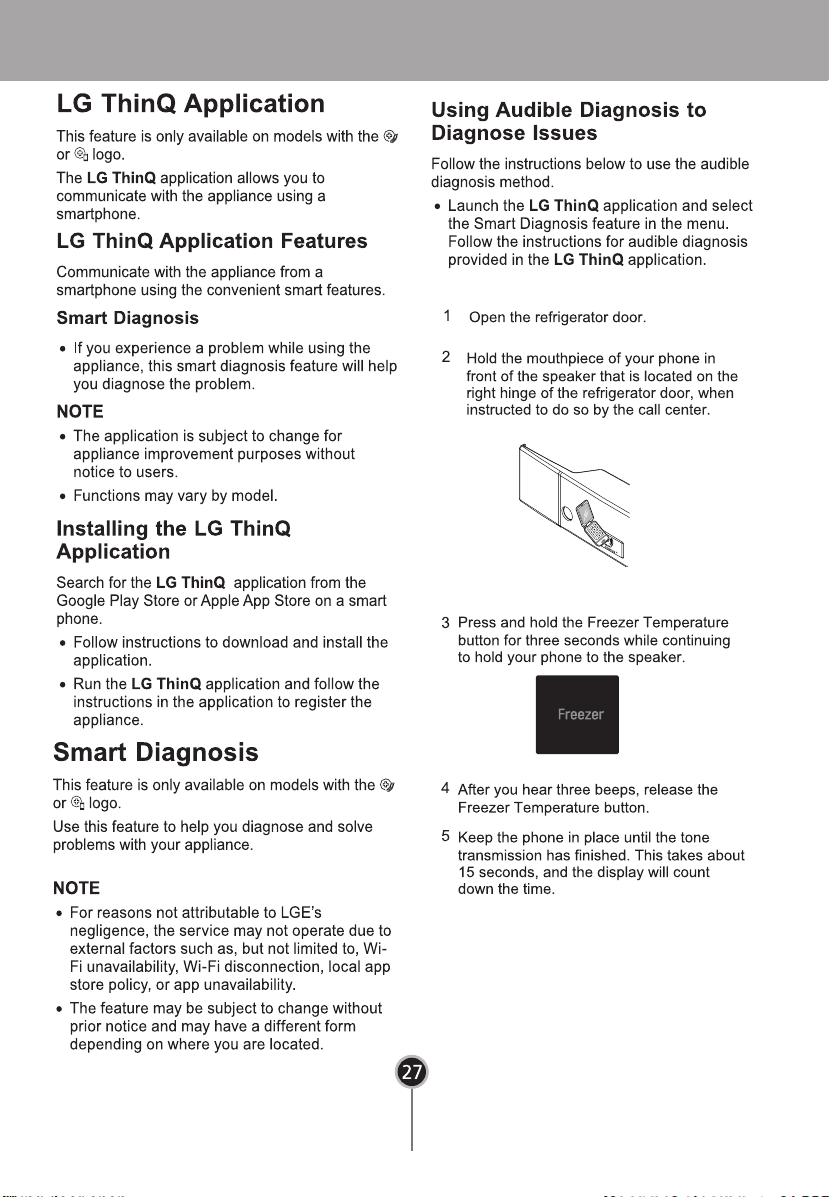

After the data transfer is
NOTE
• For best results, do not move the phone while
the tones are being transmitted.
complete, the diagnosis will be displayed in the
application.
SMART FUNCTIONS
