Rev.05_082218
If the appliance is equipped with a lock (some countries only),
keep the key out of reach of children.
Dimensions and Clearances
Too small of a distance from adjacent items may result in degradation of freezing capability and
increased electricity costs. Allow over 50mm clearance from each adjacent wall when installing
the appliance.
B
A
C
-
A
B
C
D
E
F
G
H
700 mm
700 mm
1850 mm
27 mm
673 mm
1230 mm
1160 mm
740 mm
705 mm
1850 mm
27 mm
673 mm
1230 mm
1200 mm
730 mm
705 mm
1850 mm
27 mm
673 mm
673 mm 713 mm 703 mm
1230 mm
1190 mm
Pocket Handle Bar Handle Easy Handle
Size
E
H
FG
D
catering and similar non-retail applications.
Ambient Temperature
The appliance is designed to operate within a limited
range of ambient temperatures, depending on the
climate zone. Do not use the appliance at a
temperature exceeding the limit.
The internal temperatures could be affected by the
location of the appliance, the ambient temperature,
the frequency of door opening and so on.
The climate class can be found on the rating label.
Climate Class
Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
*Australia, India, Kenya
NOTE
The appliances rated from SN to T are intended to
be used at an ambient temperature between
10 ºC and 43 ºC.
refrigerator and freezer compartment
-18
DOOR ALARM
1
Do not place glass containers, bottles or cans
(especially those containing carbonated drinks)
in the freezer compartment, shelves or ice bin
that will be exposed to temperatures below
freezing.
If there are chill compartments in the appliance,
do not store vegetables and fruits with higher
moisture content in the chill compartments as they
may freeze due to the lower temperature.

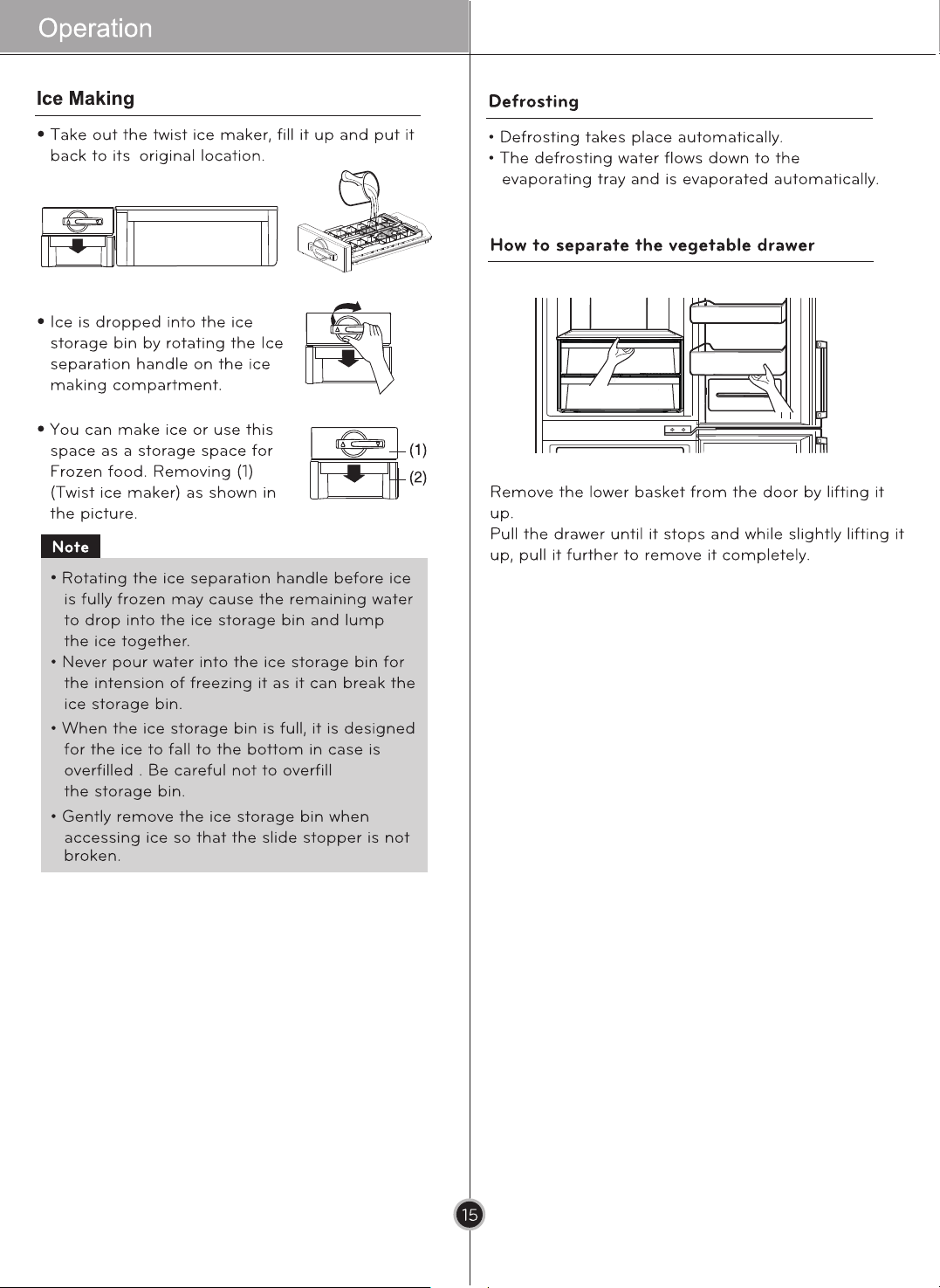

The automatic defrosting system in the appliance
ensures that the compartment remains free of ice
buildup under normal operating conditions.
In the event of a blackout, call the electricity
company and ask how long it is going to last.
- You should avoid door openings while the
power is off.
- When the power supply gets back to normal,
check the condition of the food.

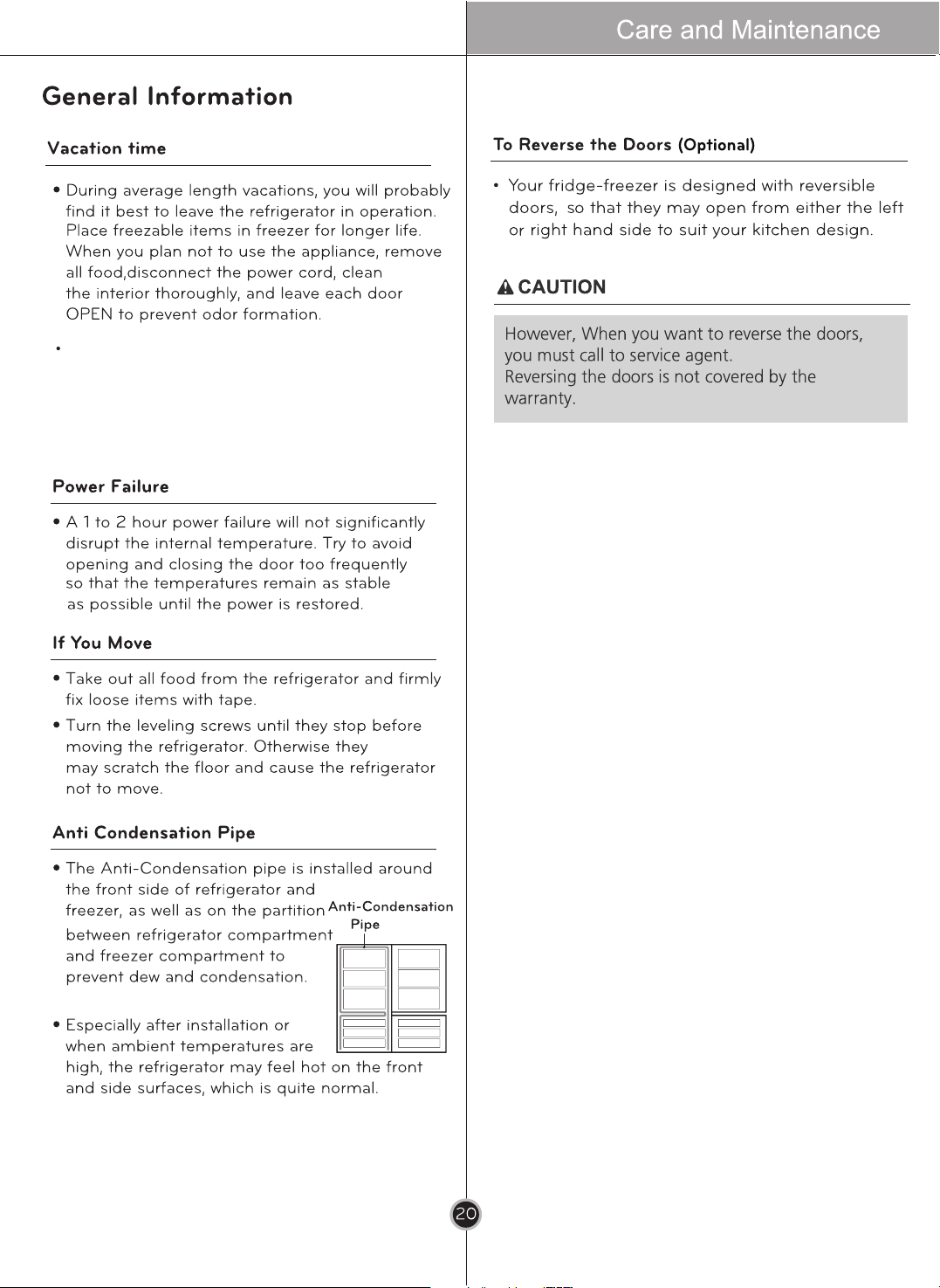

If you are leaving the appliance turned off for
an extended period of time, remove all food
and unplug the power cord. Clean the
interior, and leave the doors slightly ajar to
prevent mold from growing in the appliance.
• For appliances with the or logo
