FAMILIARISATION
Sunroof (Saloon)
This roof improves the ventilation and
light in the passenger compartment.
70 68
103
102
Tyre under-inflation detection
This equipment checks the pressure of
the tyres while driving and warns you if
a malfunction occurs.
Rear screen (SW)
This rear screen provides remarkable
accessibility and makes the loading
of objects easier without opening the
boot.

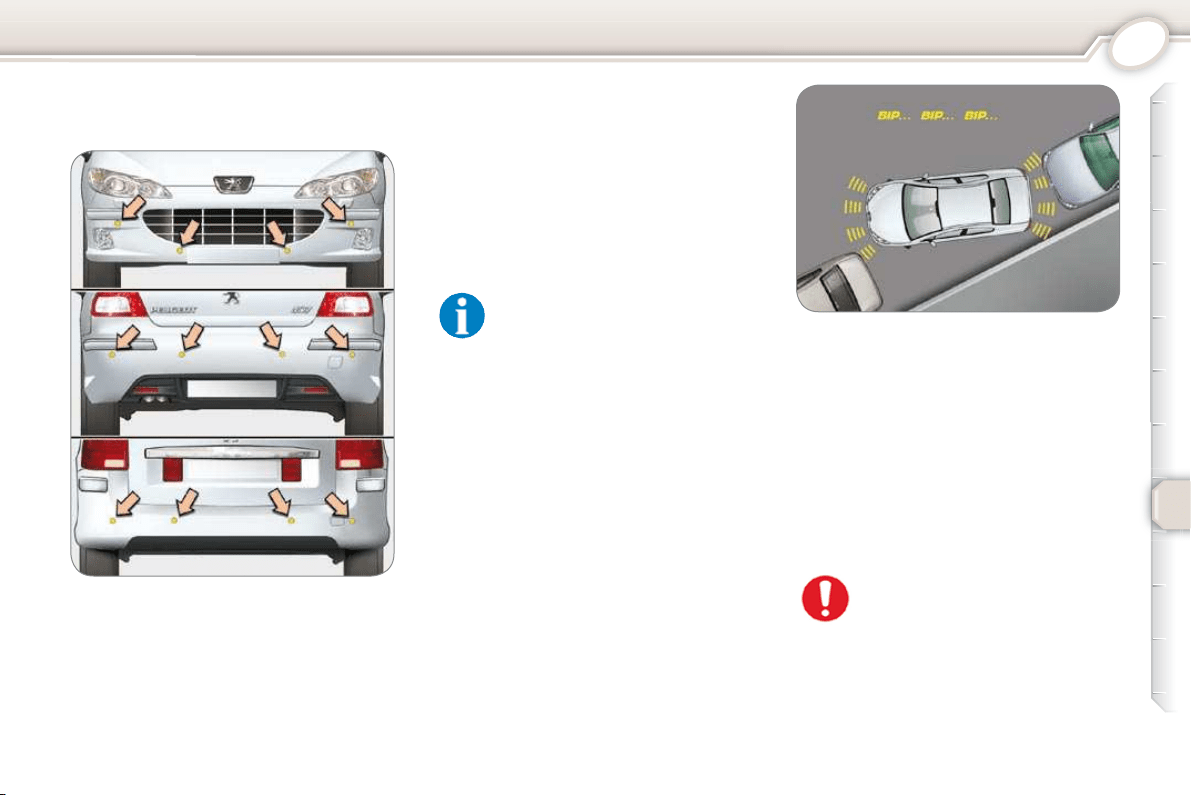

Visual and audible front and
rear parking assistance
This equipment warns you if an obsta-
cle is detected in front of or behind the
vehicle in forward or reverse gear.
FAMILIARISATION

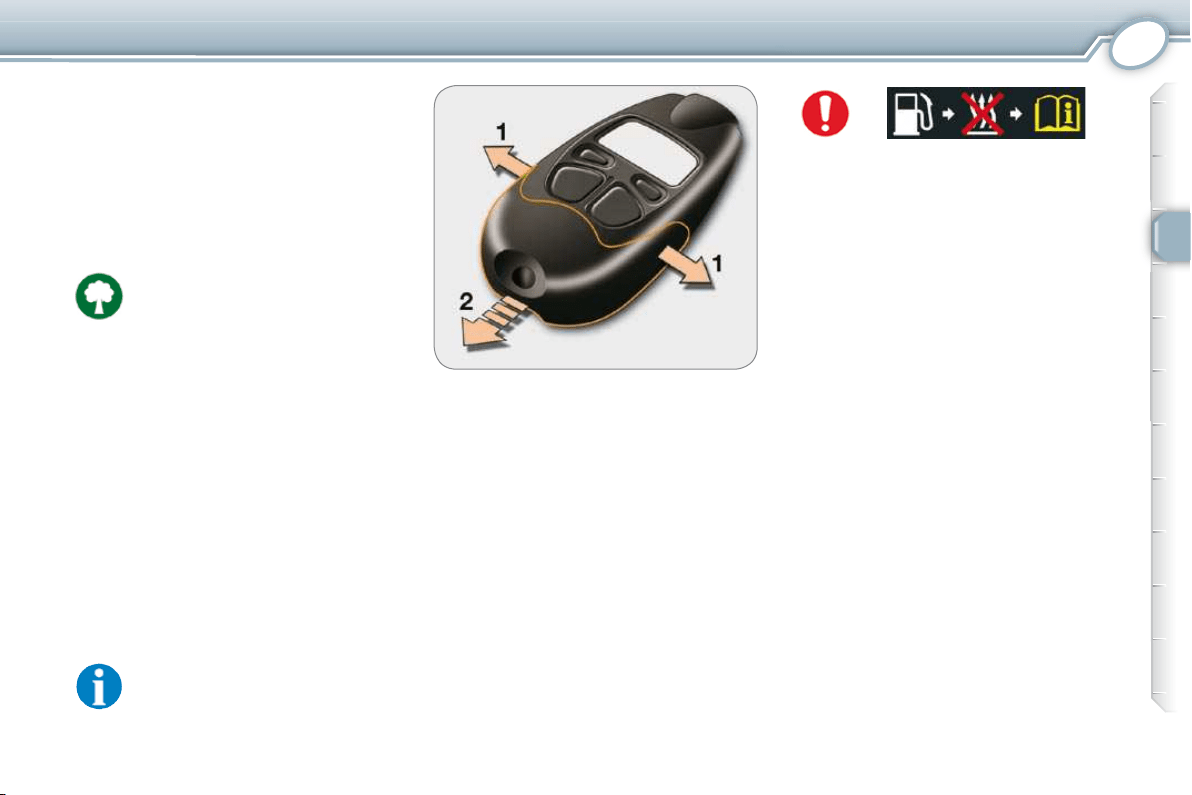

Remote control key
A. Unfolding/folding the key.
B. Unlocking the vehicle
(brief press).
C.
Unlocking and partial opening of the
boot (saloon) or of the rear screen (SW
)
(long press).
Also...
D. Normal locking
(a single press)
or
deadlocking of the vehicle
(two presses in succession).
Fuel tank
1. Opening of the fuel fi ller fl ap.
2. Opening and hooking of the fuel
tank cap.
Tank capacity: approximately 67 litres.

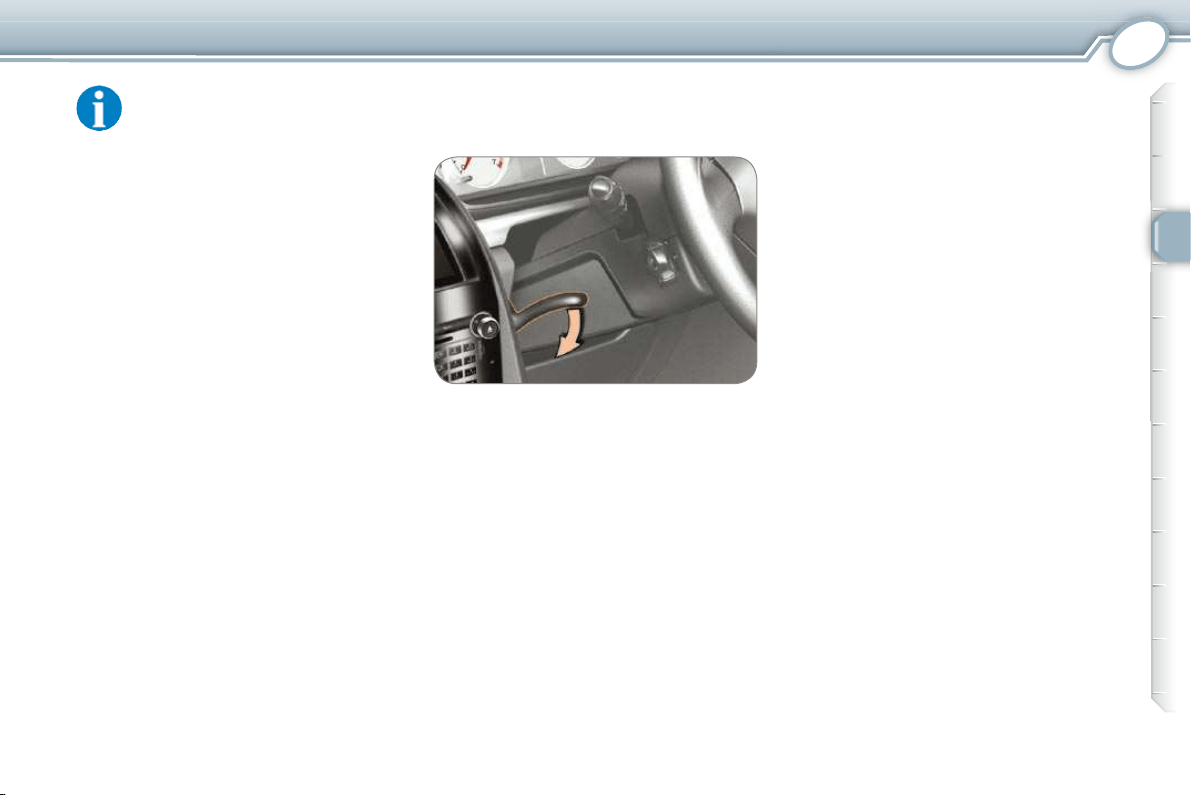

A. Interior control.
B. Exterior control.
61
72 106
Bonnet
FAMILIARISATION

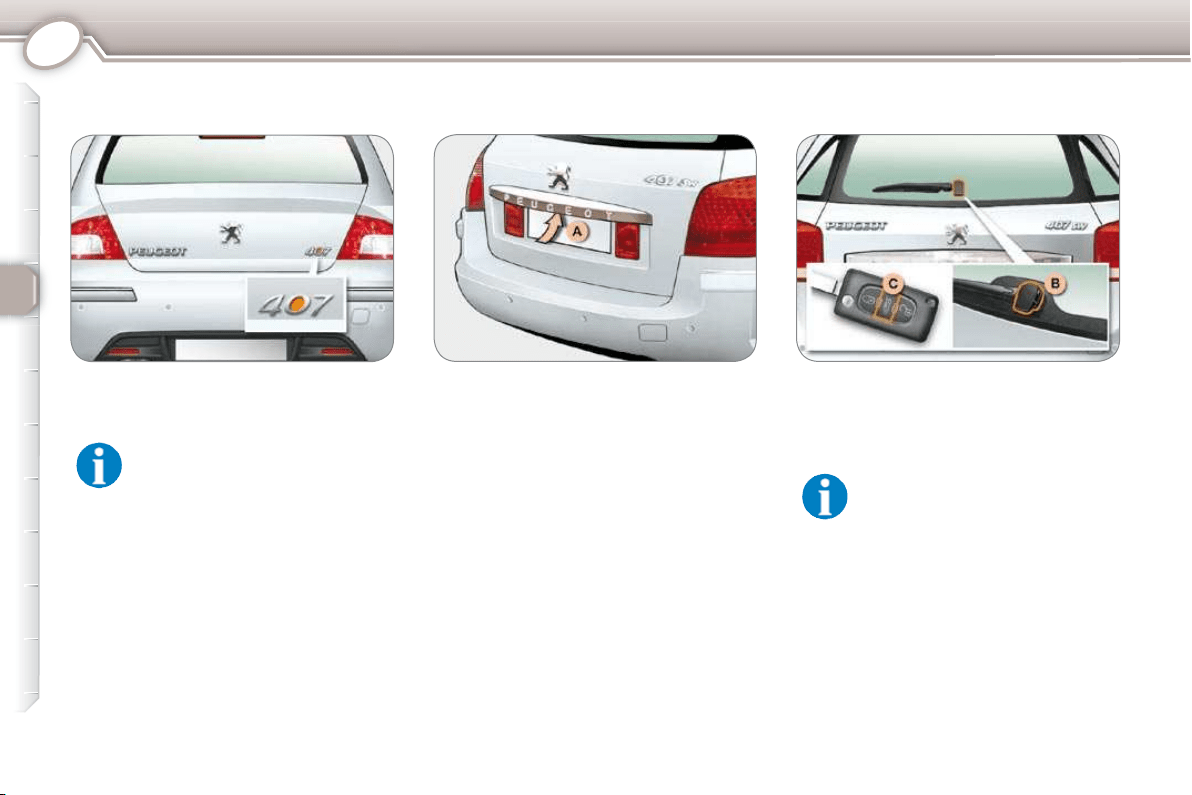

Press the button and raise the boot lid.
68 68
With the rear screen closed, to open the
boot , pull the handle A then raise the
tailgate.
Boot (SW)
Rear screen (SW) Panoramic roof (SW)
71
1. Opening of the shutter.
2. Closing of the shutter.
Boot (Saloon)
With the tailgate closed, to open the
rear screen , pull the handle B then
raise the rear screen.
The tailgate and the rear
screen cannot both be open
at the same time.
FAMILIARISATION
Automatic air conditioning
This automatic air conditioning system
guarantees comfort and a suffi cient
circulation of air in the passenger com-
partment.
4 or 6 speed automatic gearbox
This equipment permits driving in auto-
adaptive mode enhanced by a selection
suited to the dynamic driving conditions.
Audio and communication
systems
This equipment benefi ts from the lat-
est technology: MP3 compatible audio
equipment, Bluetooth hands-free tel-
ephone, colour display, audio system,
auxiliary sockets.
Cruise control/speed limiter
The cruise control system automatically
maintains the speed of the vehicle at the
value programmed by the driver, without
any action on the accelerator pedal.
The speed limiter system prevents the
vehicle from exceeding the programmed
speed.
36
137
98
INTERIOR
95
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment steering wheel
stalk.
2. Steering lock and ignition.
3. Steering wheel height and depth
adjustment.
4. Cruise control/speed limiter stalk.
5. Lights/Direction indicator stalk.
6. Air conditioned glove box.

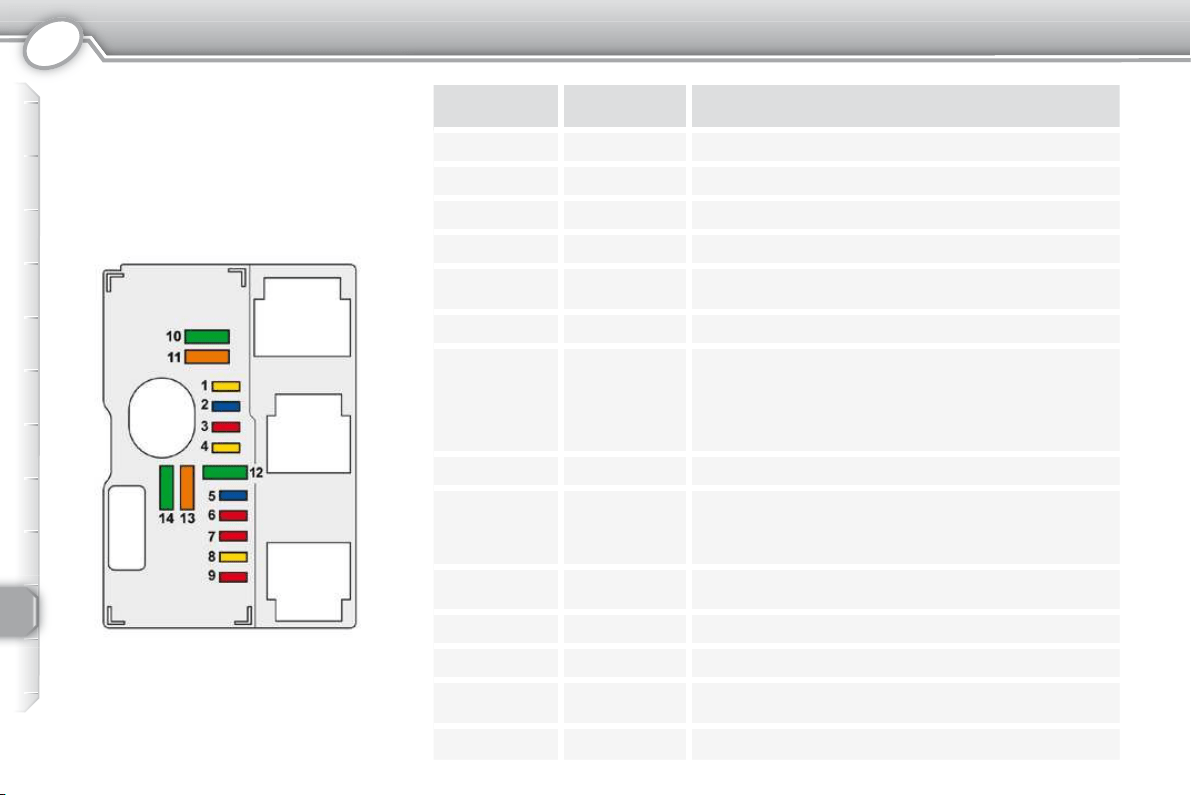

Fuse box.
7. Bonnet release.
8. Passenger-operated electric
window control.
9. Speakers (tweeters).
10. Air diffuser vent grille.
11. Instrument panel.
12. Wiper/Wash-wipe/Trip computer
stalk.
13. Headlamp height adjustment.
14. Storage compartment (driver’s side).
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Multifunction display.
2. Audio and telematics system.
3. Automatic air conditioning controls.

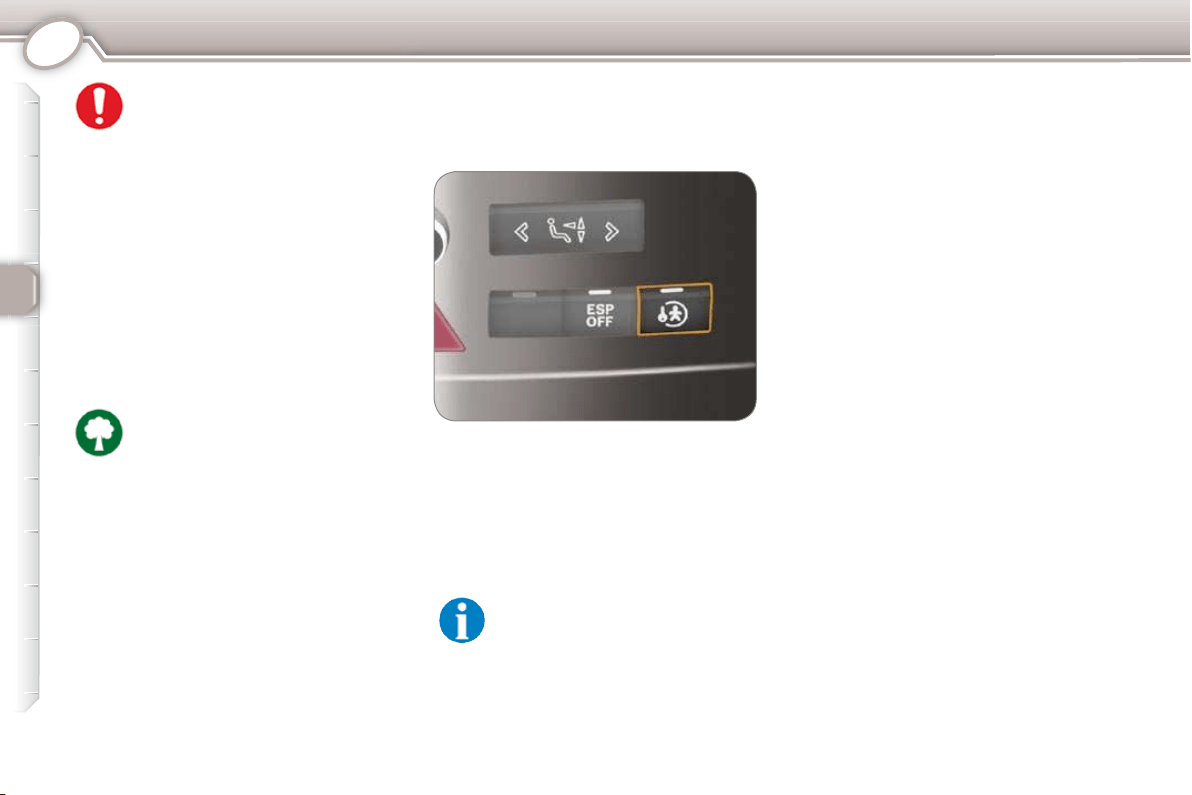

4. Deactivation of the audible parking
assistance.
Central locking from the inside.
Alarm control.
Hazard warning lights.

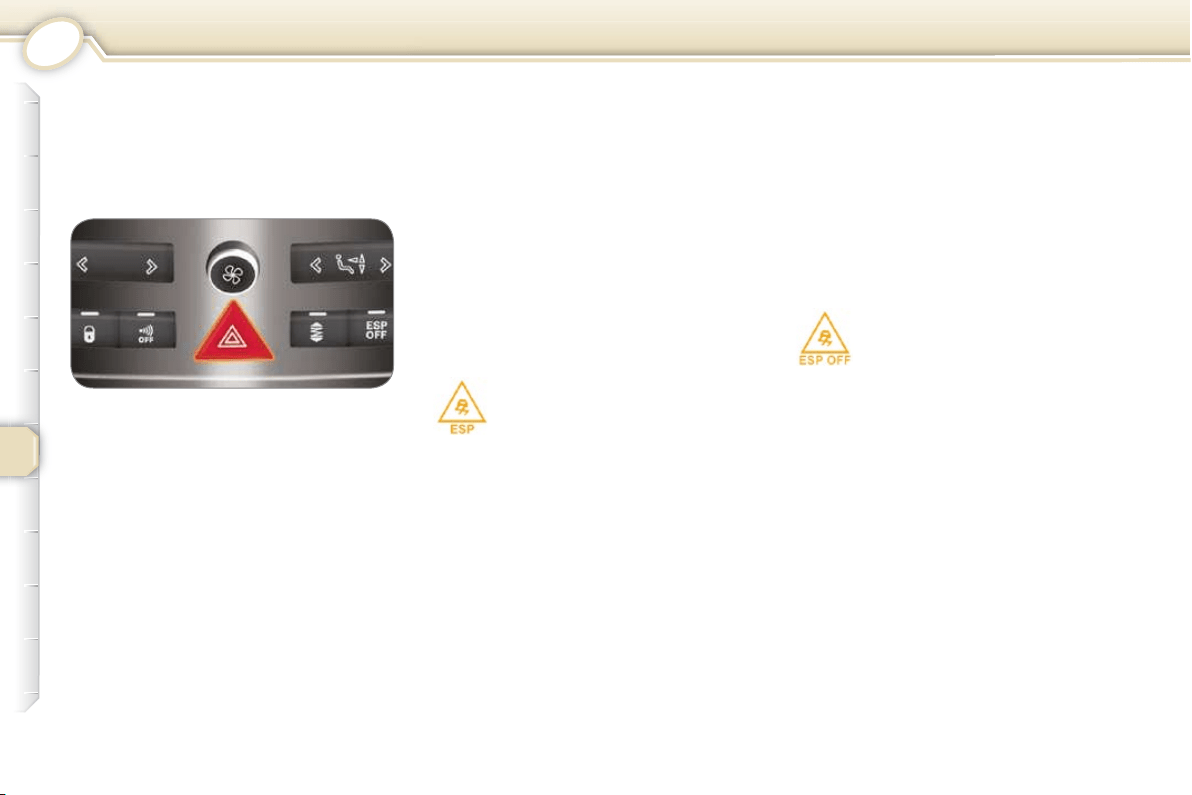

SPORT suspension control.
Deactivation of the ESP system.
Child lock.
5. Ashtray/Front lighter (100 W max).
6. Gear lever.
7. Handbrake.
8. Retractable cup/can holder.
9. Armrest with storage compartment
and USB socket.
10.
12 volt accessories socket (100 W max).
11. Rear ashtray.
139
213
PC Com
PC Nav
184
PC Sound
FAMILIARISATION
50

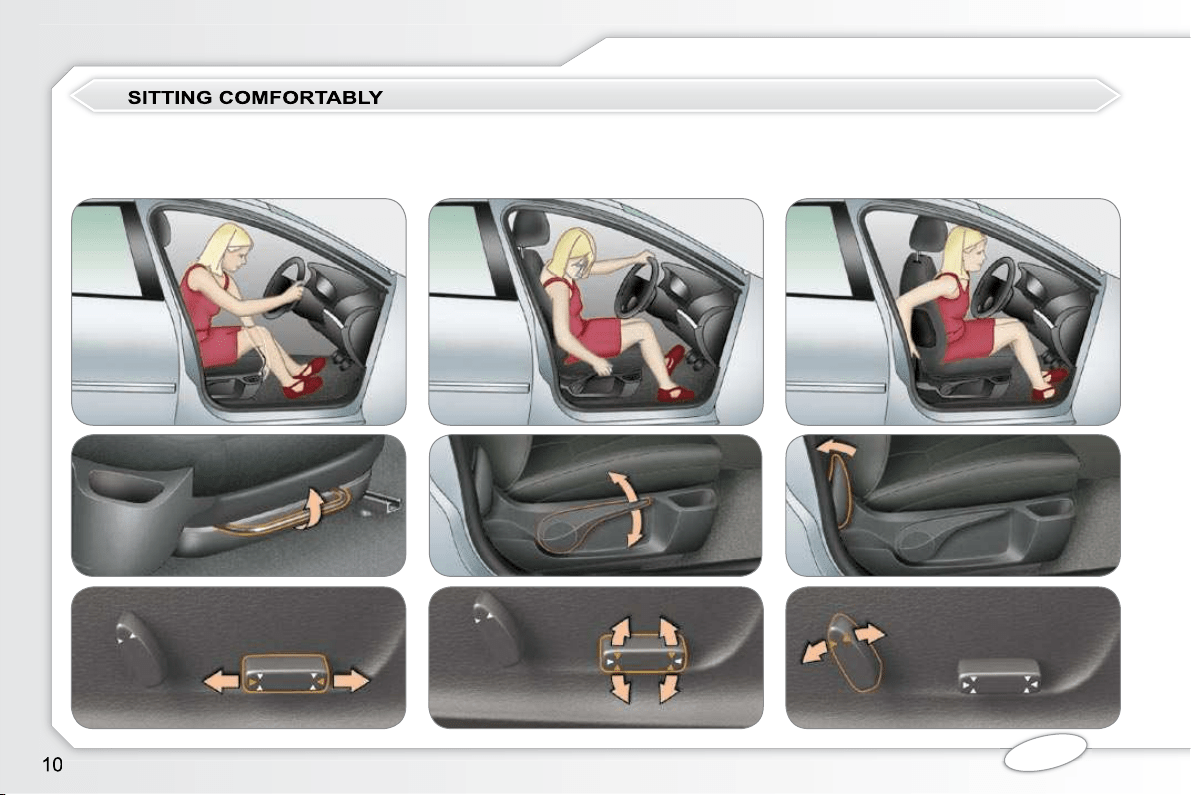

Forwards-backwards Height and angle of the driver’s seat
cushion
Seat back angle

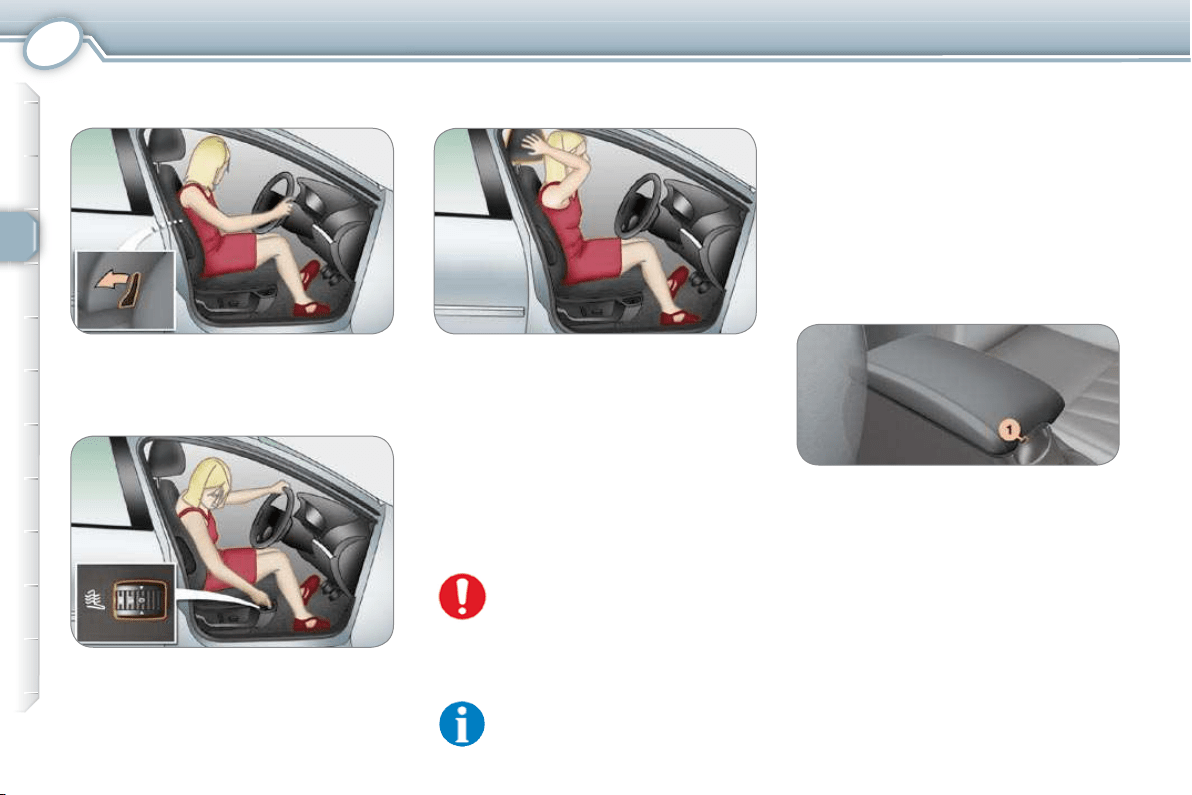

Front seat adjustments
FAMILIARISATION
1. Orientation du rétroviseur.
Manual
When stationary, unlock the steering
wheel by pushing the control forwards
then lock by pulling the control fully.
48
48

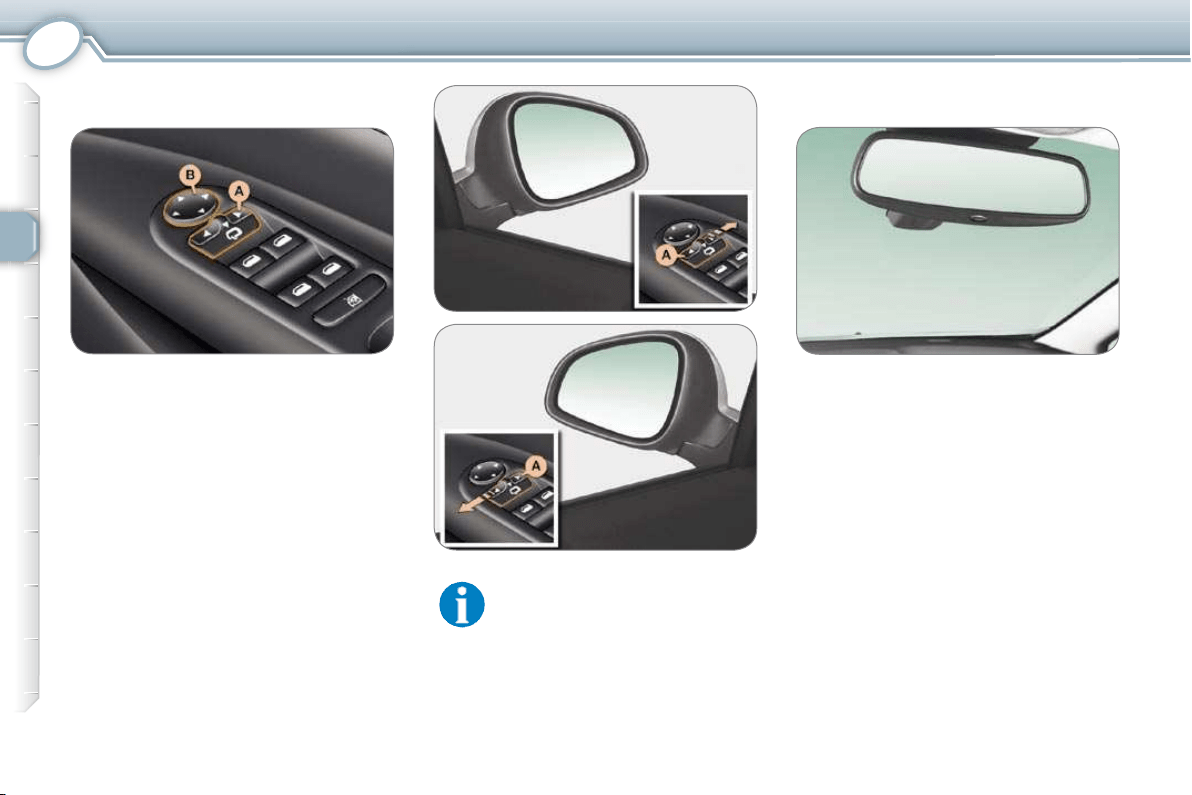

Exterior mirror adjustment
A. Selection of the mirror.
B. Adjustment of the position of the mirror.
Also...
To guarantee optimum visibility
during your manoeuvres, the
mirror lightens automatically
when reverse gear is engaged.
Steering wheel adjustment Automatic day/night interior
mirror adjustment
49
Also...
C. Folding/Unfolding.
FAMILIARISATION

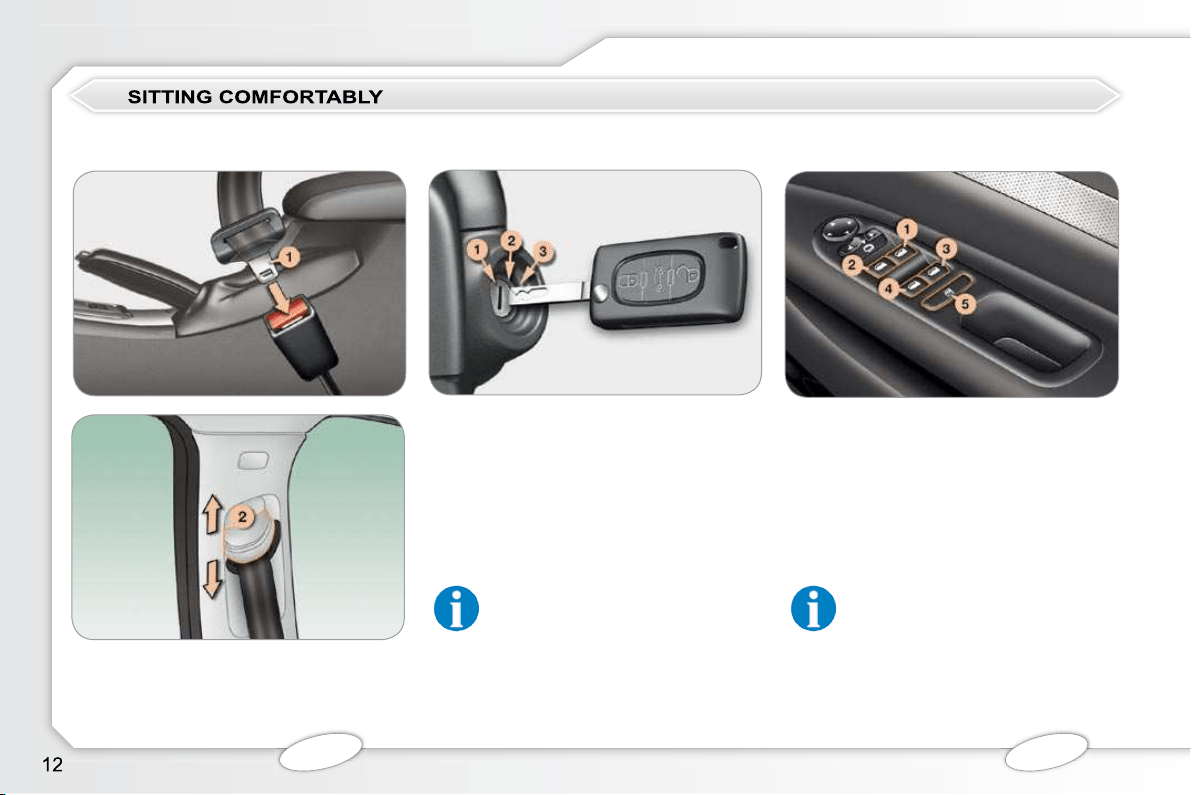

Front seat belt
1. Fastening.
2. Height adjustment.
1. Stop position.
2. Ignition position.
3. Starting position.
67

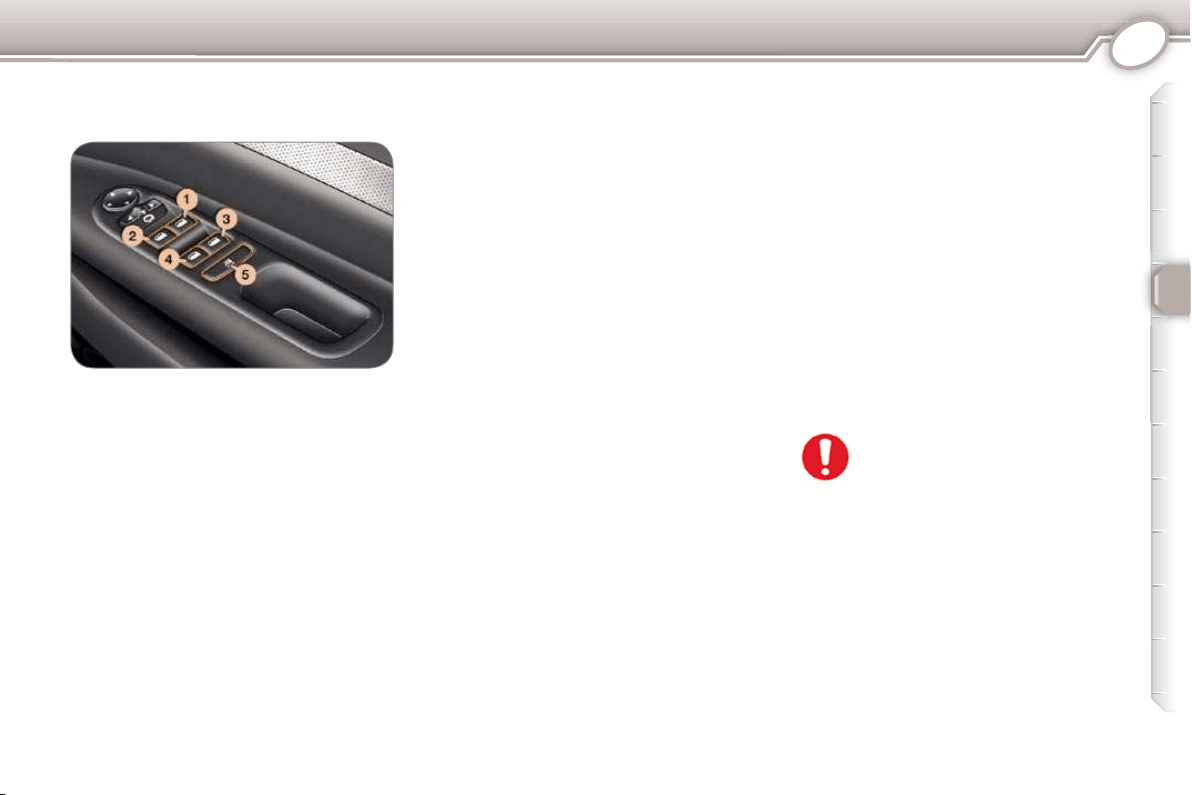

Electric window controls
1. Driver’s electric window switch.
2. Passenger electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
Ignition switch
88
Also...
5. Deactivation of the electric
window switches located in
the rear (child safety).
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.
FAMILIARISATION

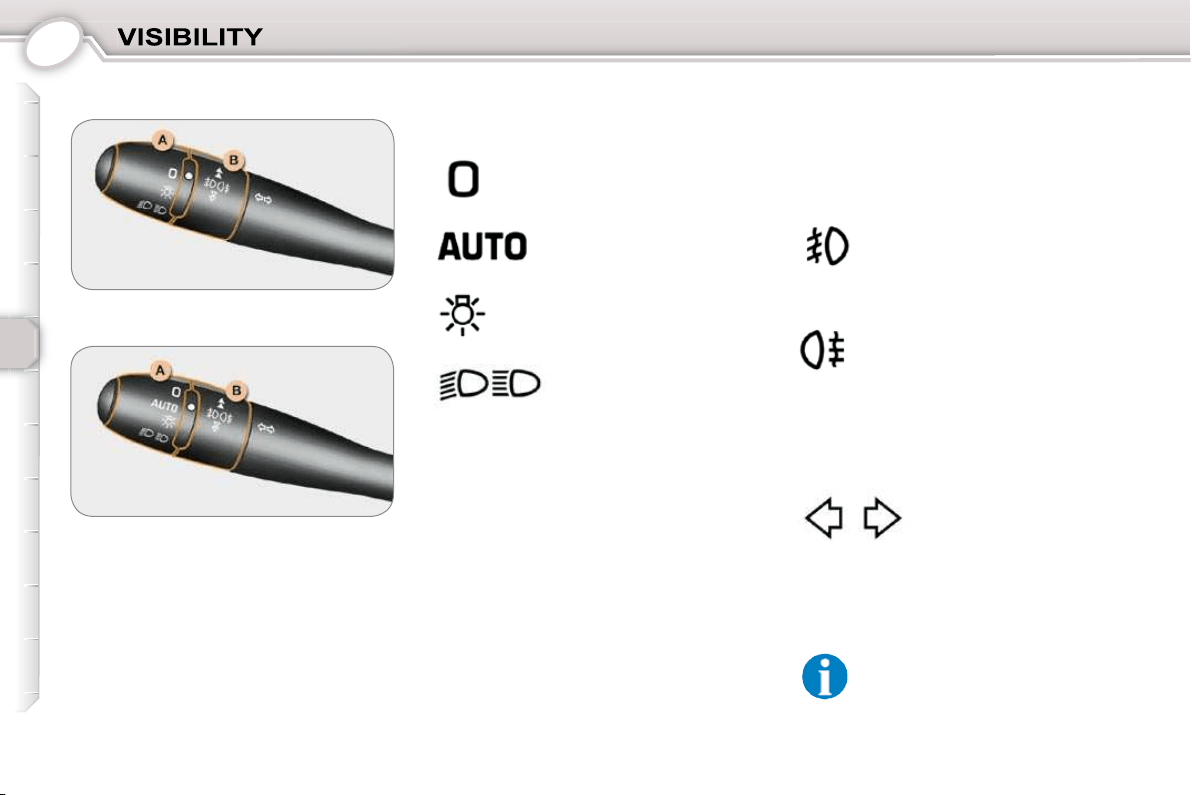

Lights
Ring B

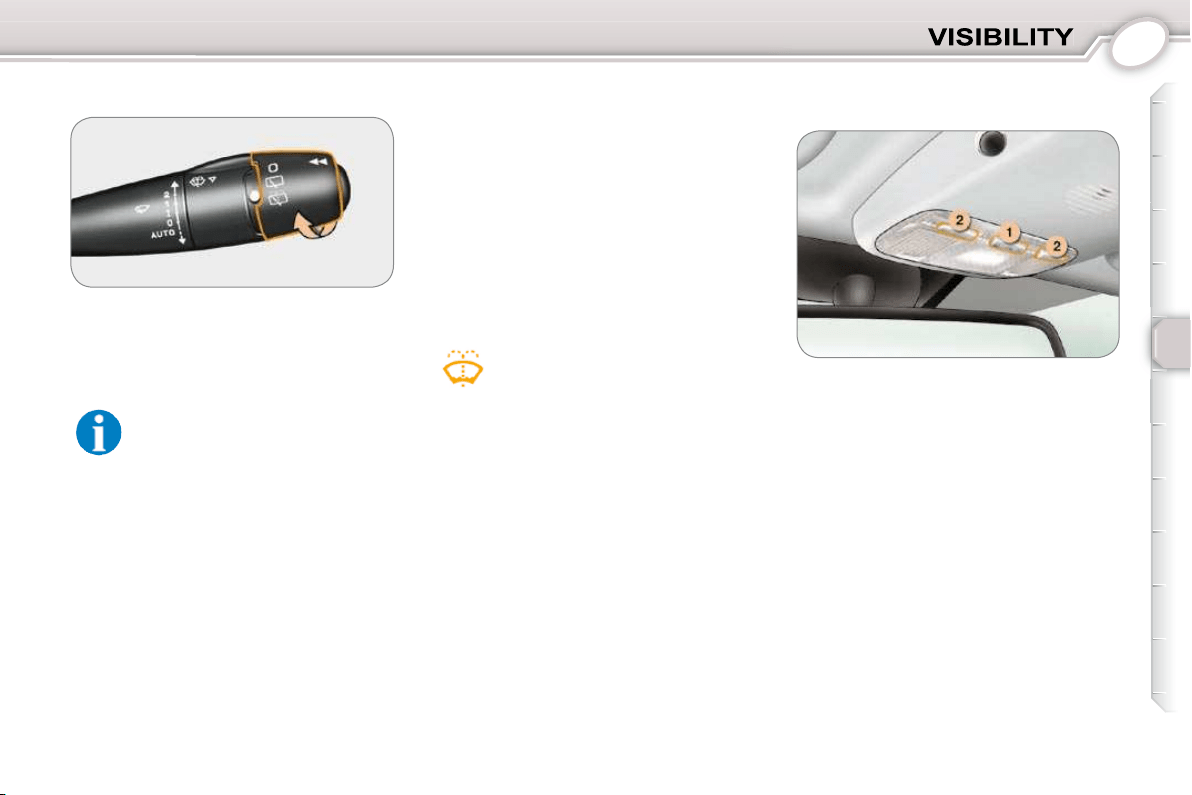

Windscreen wipers with intermittent wipe
2 Fast wipe.
1 Normal wipe.
I Intermittent wipe.
0 Park.
Single wipe.
Wipers
Rear wiper (SW)
Front fog lamps (one press).
Rear fog lamps (two presses).
Park.
Intermittent wipe.
Wash-wipe.
74
77 78

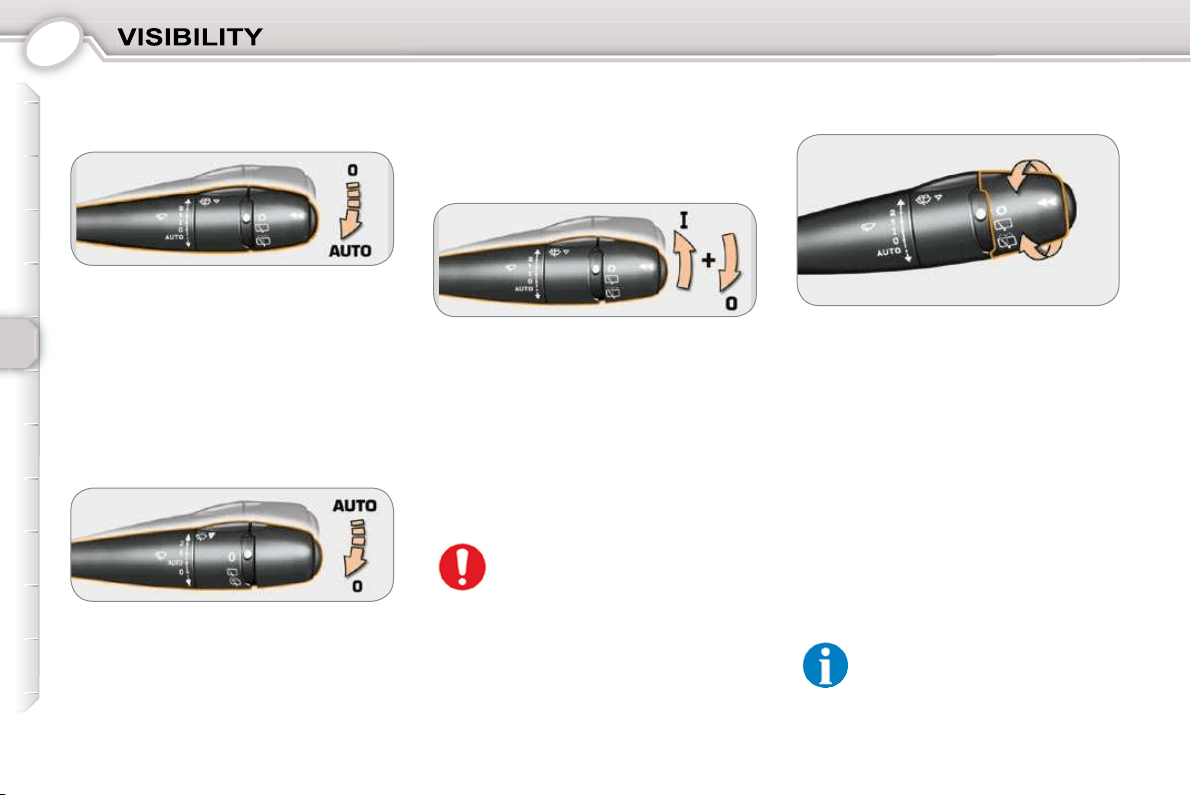

Automatic windscreen wipers
2 Fast wipe.
1 Normal wipe.
AUTO Automatic wipe.
0 Park.
Single wipe.
Ring A
Lights off
Automatic switching on of the
lights.
Side lights
Dipped/Main beam headlamps
Windscreen wipers with intermittent
and automatic wipe
2 Fast wipe.
1 Normal wipe.
I Intermittent wipe.
0 Park.
77
Automatic wipe then single
wipe.
FAMILIARISATION

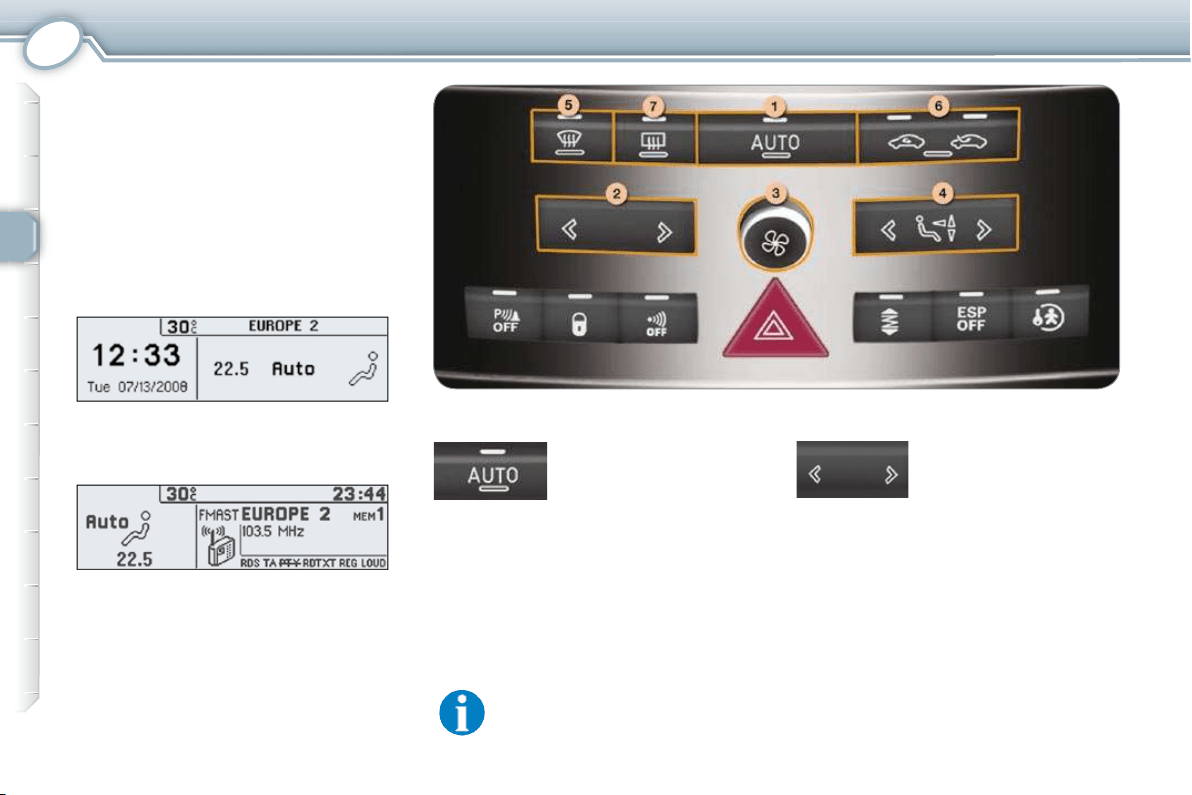

Automatic air conditioning (monozone)
1. Automatic programme (comfort).
2. Temperature adjustment.
3. Air fl ow adjustment.
36

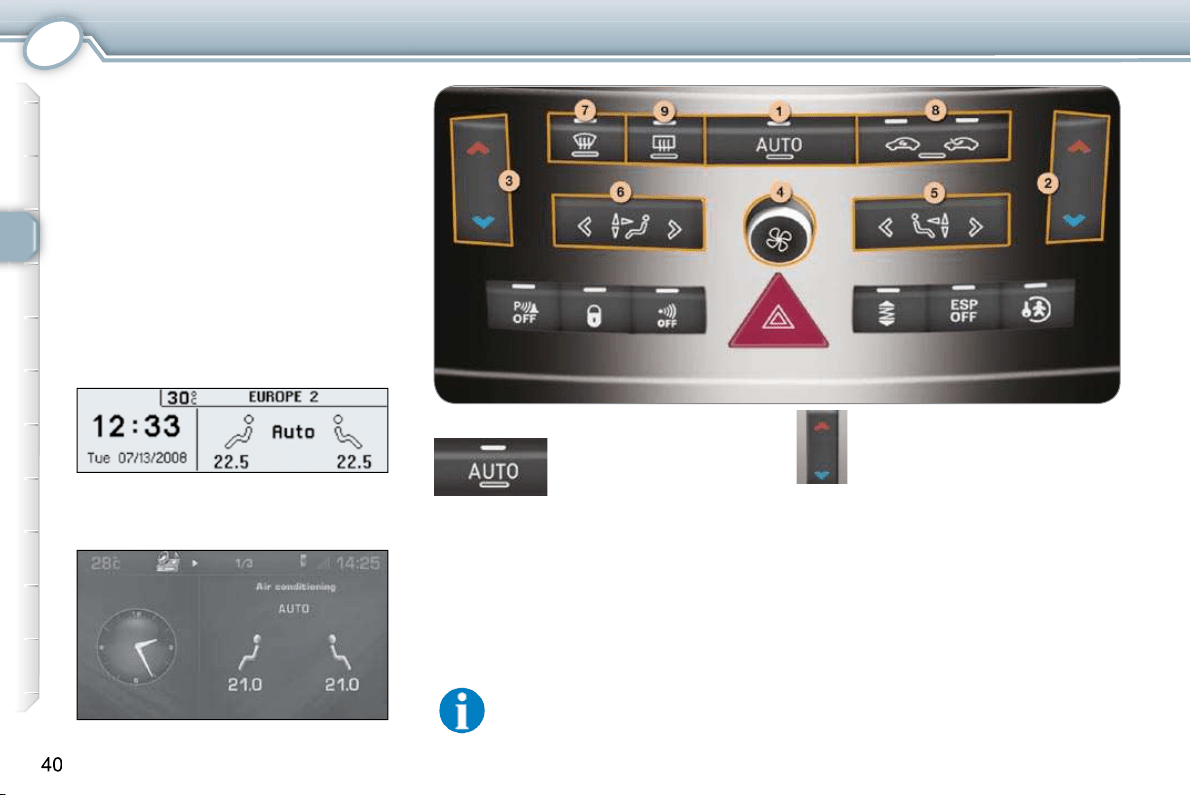

Automatic air conditioning (dual zone)
1. Driver and passenger automatic programme (comfort).
2. Driver’s side temperature adjustment.
Passenger’s side temperature adjustment.
3. Air fl ow adjustment.
40
Ventilation off.
4. Air distribution adjustment.
5. Front visibility control.
6. Rear screen demisting.
7. Intake of exterior air.
Recirculation of interior air.
Ventilation off.
4. Driver’s air distribution adjustment.
5. Passenger’s air distribution adjustment.
6. Front visibility control.
7. Rear screen demisting.
8. Intake of exterior air.
Recirculation of interior air.
FAMILIARISATION

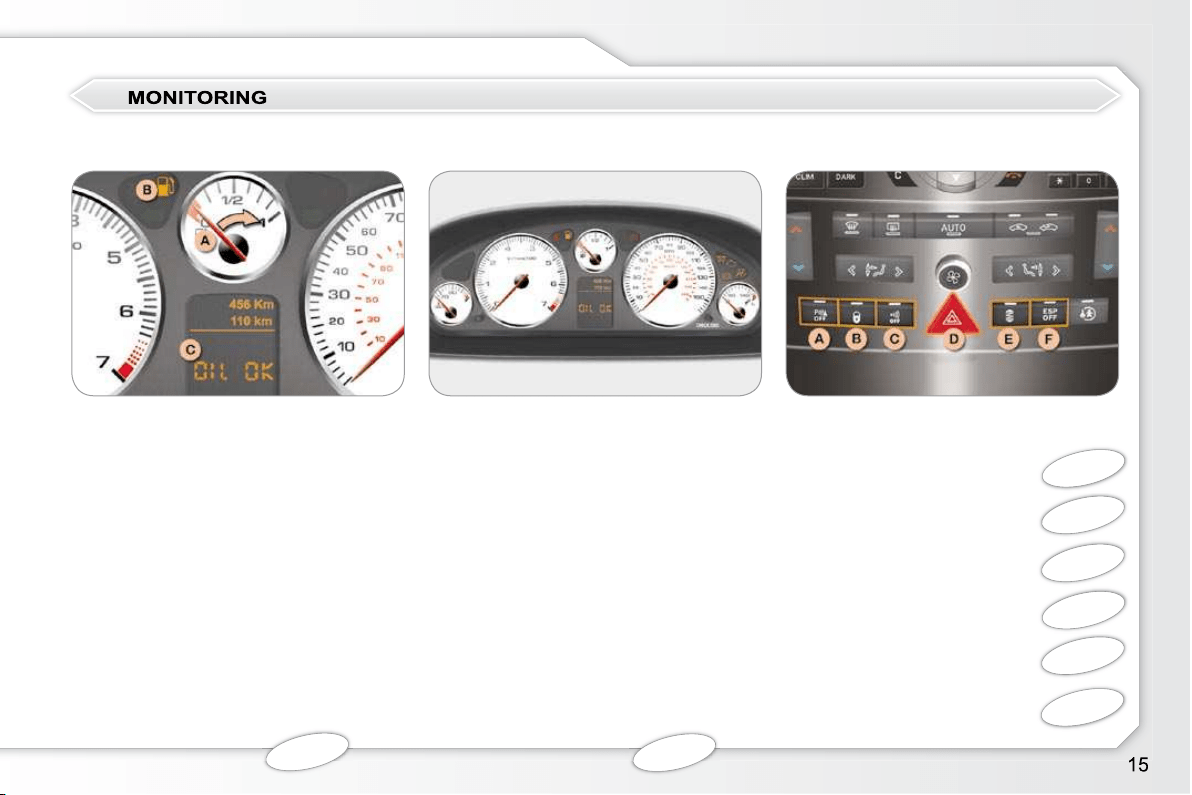

Instrument panel
A. When the ignition is on, the fuel
gauge needle should rise.
B. When the engine is running, its as-
sociated low level warning light
should switch off.
C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
Lighting of the indicator light indicates
the status of the corresponding function.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If any warning light remains on, refer to
the page concerned.
18
20
104
A. Audible front/rear parking
assistance off.
B. Central locking.
C. Interior protection alarm off.
D. Hazard warning lights.
E. Selection of the electroni-
cally controlled suspension.
F. Electronic stability pro-
gramme ESP off.
62
65
86
97
86
Warning lights Controls bar
FAMILIARISATION

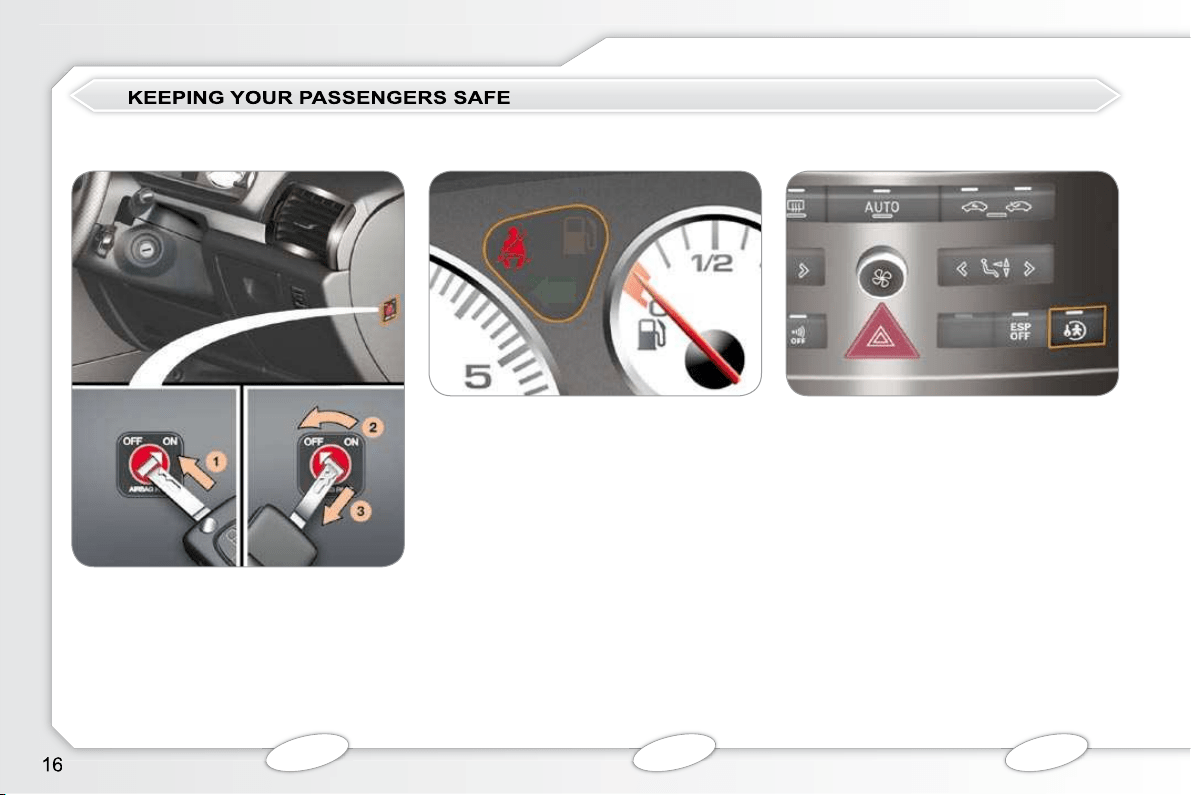

1. Insertion of the key.
2. Selection of the "OFF" position
3. Removal of the key keeping the
switch in this position.
This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion display.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the ignition is switched on , if a front
occupant has not fastened his seat belt
and if the vehicle speed is below 12 mph
(20 km/h) , you are warned by the seat belt
warning light which comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat belt
warning light which fl ashes, an audible
signal and a message on the multifunction
display locating the seat belt(s) left unfas-
tened.
Detection of fastening of the
front seat belts
91
88 64
Front passenger air bag Electric child lock
FAMILIARISATION
This enables the vehicle to maintain
a constant speed programmed by the
driver.

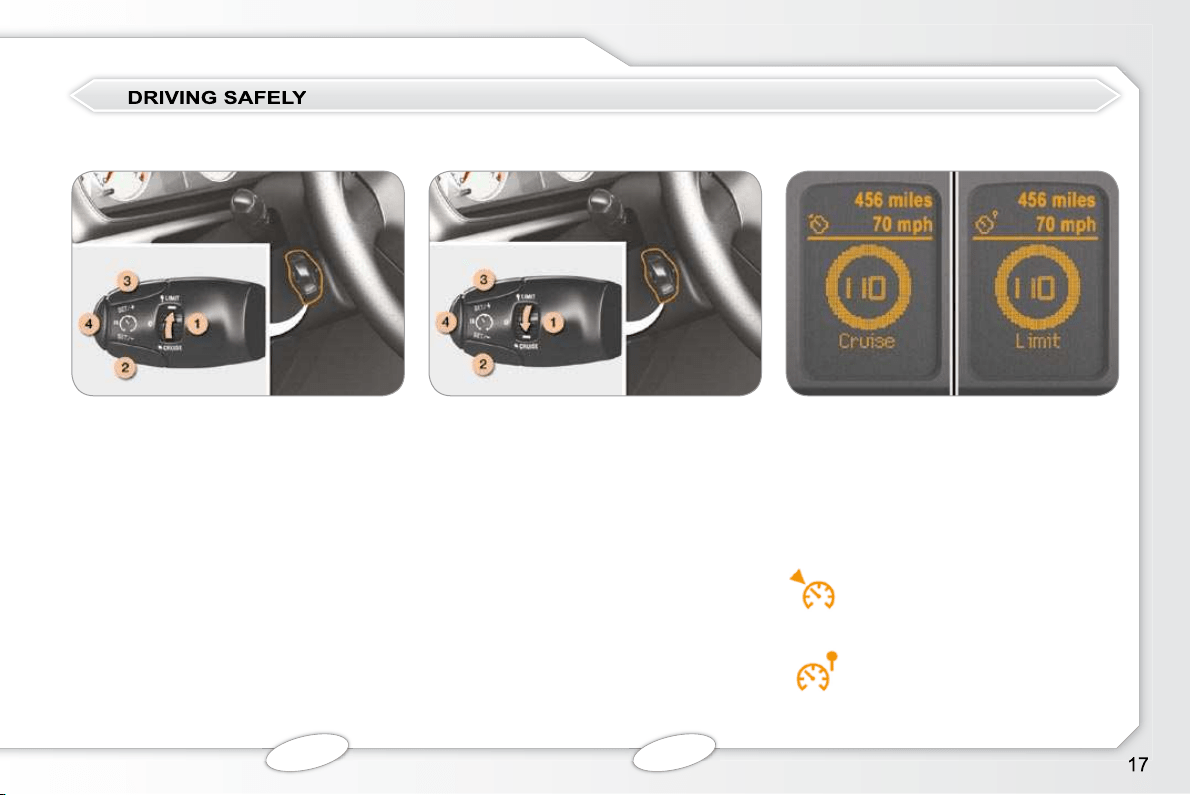

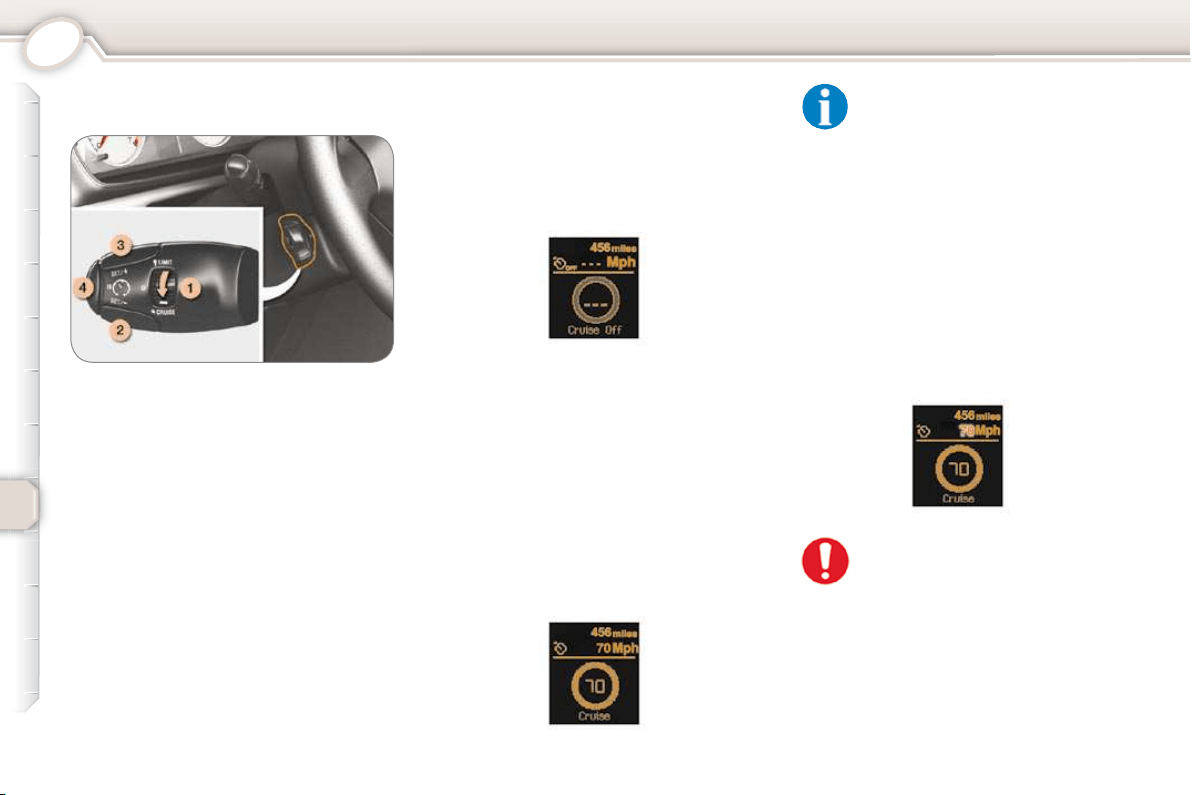

1. Cruise control mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Cruise control On/Off.
In order to be programmed or activat-
ed, the vehicle speed must be above
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceed-
ing the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).

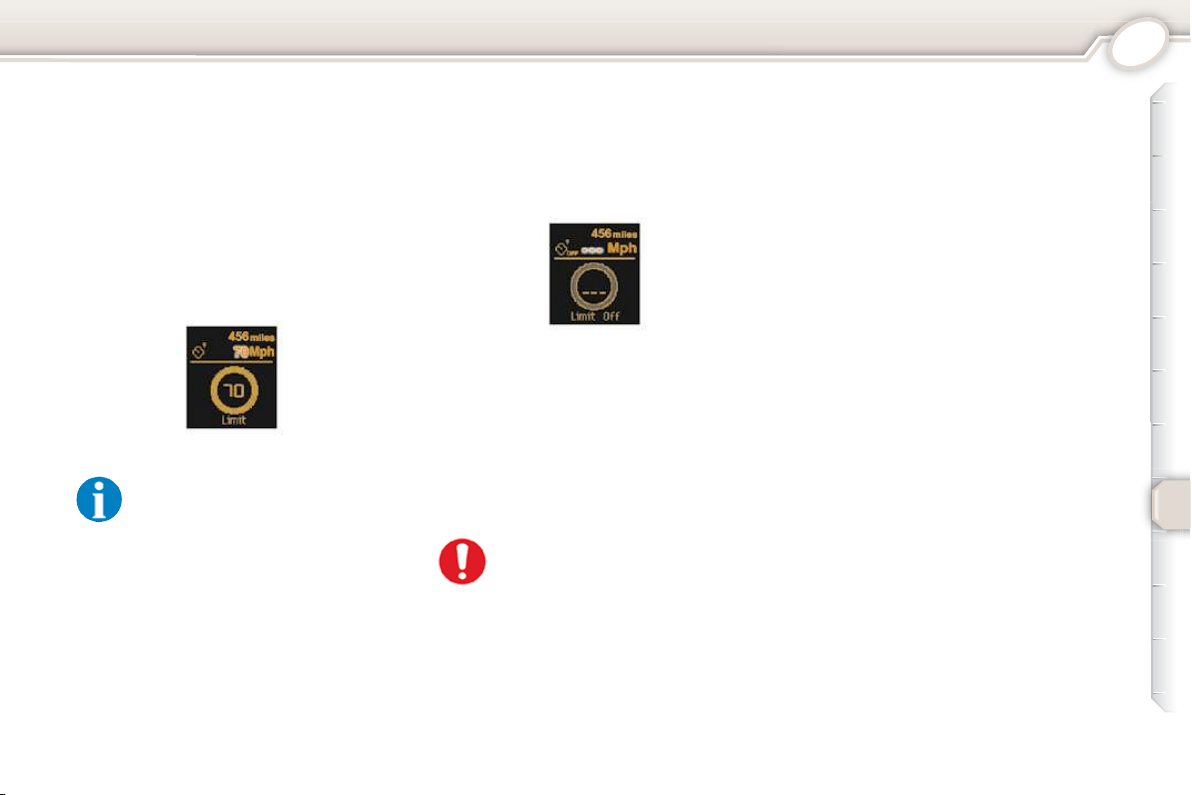

1. Speed limiter mode Selection/Off.
2. Decrease of the programmed value.
3. Increase of the programmed value.
4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control
98
100
Cruise control Instrument panel display
Speed limiter
1
18
1
19
1. Coolant temperature gauge.
2. Lighting on indicators:
dipped beam headlamps.
main beam headlamps.
front foglamps.
rear foglamps.
3. Rev counter dial.
4. Warning lamps:
seat belts not fastened in
the front.
fuel level.
left direction indicator.
5. Fuel level gauge.

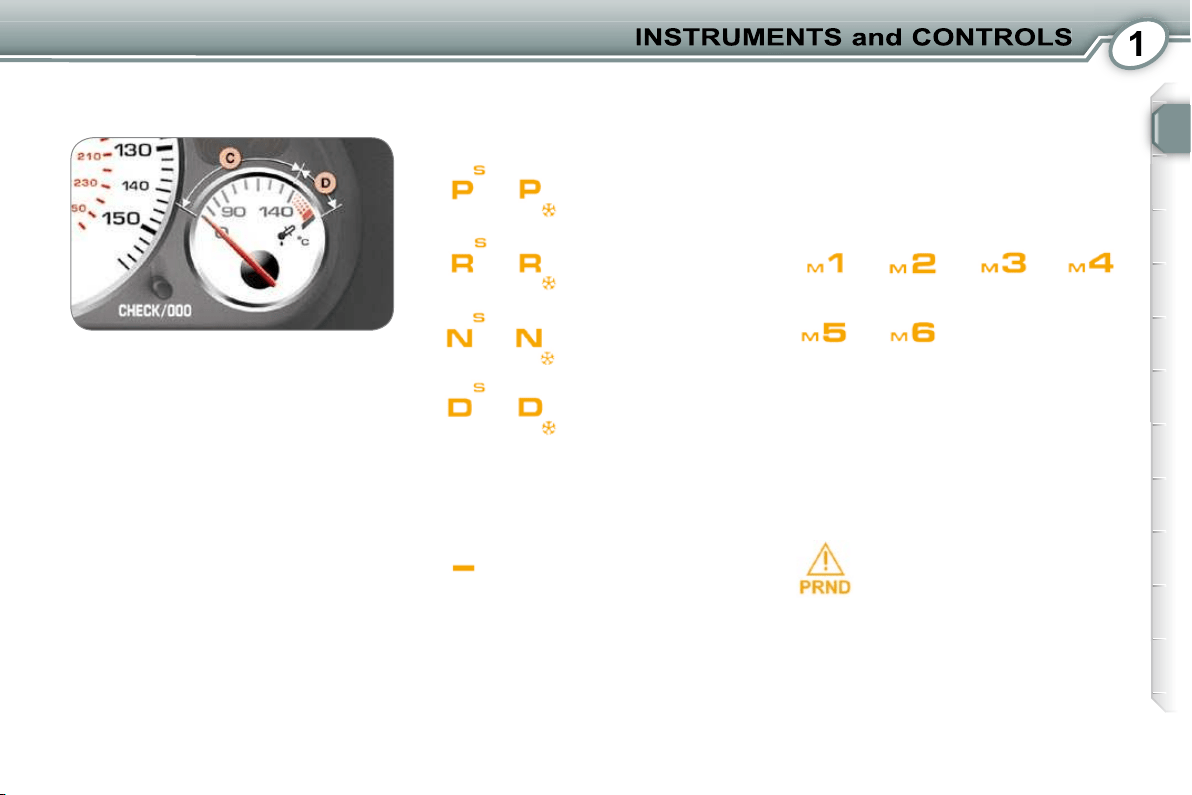

PETROL-DIESEL MANUAL AND AUTOMATIC
GEARBOX INSTRUMENT PANELS
10. CHECK and trip recorder zero
reset and service display button.
11. Instrument panel screen:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position
indicator.
Cruise control/speed limiter
reference value.
Service indicator.
Navigation instructions
CHECK (vehicle autotest).
Trip computer information
displays.
Warning and status displays.
12. Instrument panel lighting rheostat.
6. Warning lamps:
parking brake applied or brake
fl uid level or electronic brake force
distribution fault.
right direction indicator.
7. Speedometer.
8. Warning lamps:
emission control system.
anti-lock braking system (ABS).
passenger's airbag deactivated.
pre-heat (Diesel engine starting).
9. Engine oil temperature gauge.
1
20

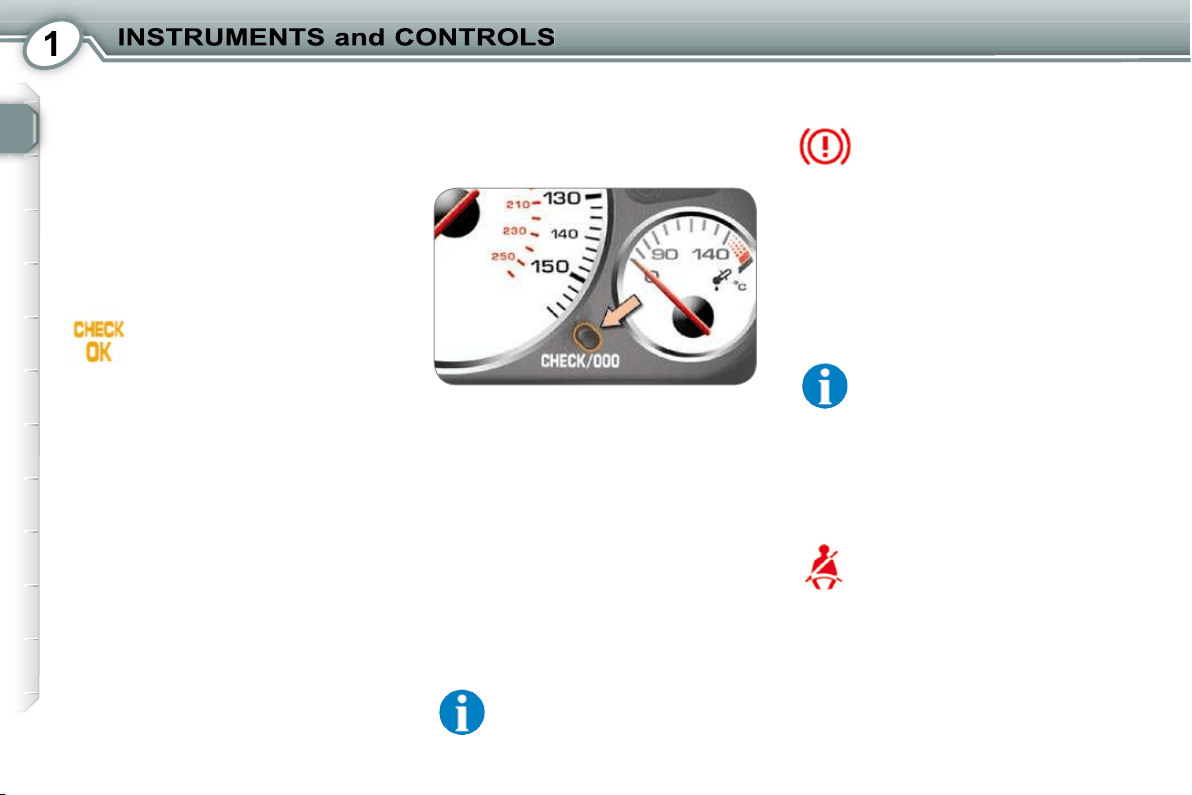

CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to fi nd out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated
or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault).
Braking system warning
lamp
WARNING LAMPS ON
THE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- an excessive drop in the brake fl u-
id level, in this case linked with the
STOP warning lamp,
- an electronic brake force distribu-
tion malfunction, linked with the
STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt.
The warning lamp is repea-ted
on the instrument panel screen
in the case of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* According to country.
1
20
CHECK (VEHICLE AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator lamp
has been displayed, the warning
lamp(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected:
the CHECK OK indicator lamp does
not appear and the warning lamp(s)
is(are) displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lamps of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indi-
cator lamp is displayed after
two seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to fi nd out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated
or deactivated (wipers, automatic
illumination of headlamps).
Manual CHECK
The passenger airbag deactiva-
ted indicator lamp * remains on
while the airbag is deactivated.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lamps
(in the event of a fault).
Braking system warning
lamp
WARNING LAMPS ON
THE INSTRUMENT PANEL
This indicates:
- parking brake applied or not fully
released,
- an excessive drop in the brake fl u-
id level, in this case linked with the
STOP warning lamp,
- an electronic brake force distribu-
tion malfunction, linked with the
STOP warning lamp.
Seat belt warning lamp
When the ignition is switched on, the
warning lamp comes on if a front oc-
cupant has not fastened or has unfas-
tened their seat belt.
The warning lamp is repea-ted
on the instrument panel screen
in the case of the last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
* According to country.
1
21
Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
warning lamp fl ashes or comes on
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible.
Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient conditions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen.
When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.
1
21
Fuel warning lamp
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning lamp
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
warning lamp fl ashes or comes on
continuously, this indicates an emis-
sion control system malfunction.
Contact a PEUGEOT dealer as soon
as possible.
Diesel engine pre-heat
warning lamp
Wait for the warning lamp to switch off
before starting. The illumination period
is determined by the ambient conditions.
Passenger's airbag
deactivated warning lamp *
If the warning lamp remains on, this
indicates that the passenger's airbag
has been deactivated intentionally.
If it comes on continuously above 6 mph
(10 km/h), it indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning lamp
* According to country.
The warning lamp is repea-
ted on the instrument panel
screen.
When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature warning
lamp comes on (linked with the STOP
warning lamp), stop as soon as it is
safe to do so.
Wait for the engine to cool down be-
fore topping up the level, if necessary.
As the cooling circuit is pressurised, in
order to prevent any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level, if
necessary.
Consult a PEUGEOT dealer.
1
22

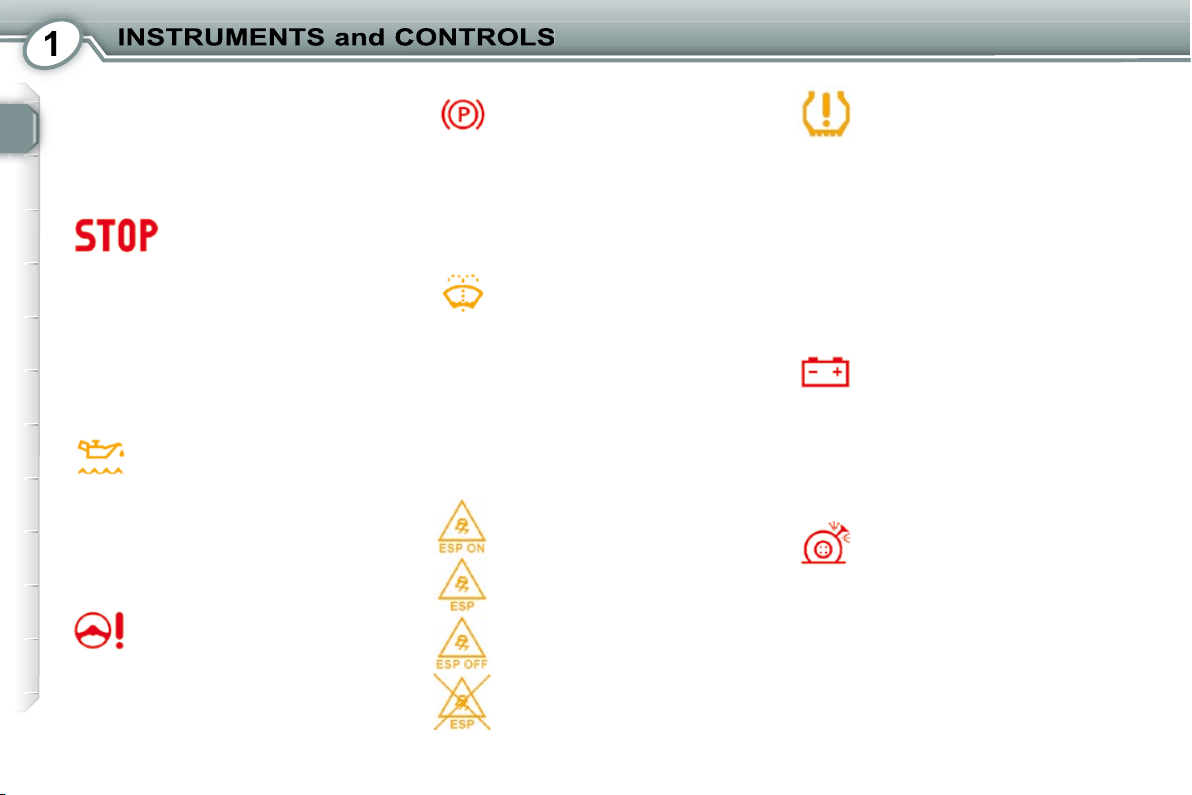

Battery charge warning
lamp
When the engine is running, this in-
dicates a charging circuit malfunction
(battery terminals, alternator belt).
Consult a PEUGEOT dealer.
Tyre under-infl ation warning
lamp
This indicates that the tyre pressure is
too low.
A message on the multifunction screen
indicates the wheel(s) concerned.
Refer to the information label affi xed
to the central pillar of the driver's door.
For your safety, check the tyre pres-
sures as soon as possible.
Electronic stability control system
(ESP) warning lamps
Activation warning lamp
Operation warning lamp
Deactivation warning lamp
Malfunction warning lamp
Power steering warning
lamp
This indicates a power steering fault.
It is linked with the STOP warning
lamp.
Consult a PEUGEOT dealer.
Parking brake warning lamp
This indicates that the parking brake is
still applied or has not been released
correctly.
It is linked with the braking system
warning lamp.
Low screenwash and
headlamp wash fl uid level
warning lamp
When the wipers are switched on, this
indicates that the fl uid level is too low.
Fill the screenwash and headlamp
wash fl uid reservoir.
Engine oil level warning
lamp
This indicates that the engine oil level
is too low.
WARNING LAMPS IN THE
INSTRUMENT PANEL SCREEN
These warning lamps are displayed
on the instrument panel screen.
STOP warning lamp
When this is displayed alone, it indi-
cates a power steering fault.
It comes on linked with the engine oil
pressure, coolant temperature, bra-
king system or punctured tyre warning
lamps.
Stop as soon as it is safe to do so.
Consult a PEUGEOT dealer.
Punctured tyre warning lamp
This indicates that one or more punc-
tured tyres have been detected.
A message on the multifunction screen
identifi es the wheel(s) concerned.
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so.
Consult a PEUGEOT dealer.
Stop as soon as it is safe to do so.
Change the damaged wheel and have
it repaired by a PEUGEOT dealer.
1
23
Tyre under-infl ation detection
system warning lamp
This indicates the absence or malfunc-
tion of one or more tyre pressure sen-
sors or a system fault.
Consult a PEUGEOT dealer.
Electronic engine
immobiliser warning lamp
This indicates an electronic engine im-
mobiliser system malfunction.
Consult a PEUGEOT dealer.
Front brake pad wear
warning lamp
This indicates that the brake pads are
worn.
For your safety, have them replaced
by a PEUGEOT dealer.
Fuel fi ller cap warning lamp
(according to version)
With the engine running, this indicates
that the fuel fi ller cap is incorrectly fi t-
ted or absent.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
Water in diesel fi lter
warning lamp
This indicates the presence of water in
the diesel fi lter. There is a risk of da-
mage to the injection system.
Contact a PEUGEOT dealer as soon
as possible.
Door/boot open warning
lamp
With the engine running, this indicates
that an opening has not been closed
correctly.
An illustration on the multifunction
screen identifi es the opening(s) con-
cerned.
It comes on in orange if the vehicle
speed is below 6 mph (10 km/h) and
in red if the vehicle speed is above
6 mph (10 km/h).
Airbag warning lamp
This indicates an airbag fault.
Consult a PEUGEOT dealer.
Automatic headlamp beam
adjustment system warning
lamp
This indicates that the automatic head-
lamp height adjuster is faulty.
Consult a PEUGEOT dealer.
Engine oil pressure warning
lamp
This indicates that the engine oil pres-
sure is too low.
It is linked with the STOP warning
lamp.
Stop as soon as it is safe to do so if it
comes on while the engine is running.
If the engine oil level is low, top up the
oil and contact a PEUGEOT dealer as
soon as possible.
1
24
Particle emission fi lter
saturation warning lamp
(Diesel engine)
With the engine running, this indicates
that the particle emission fi lter is star-
ting to become saturated (exceptionally
prolonged urban driving type conditions:
low speed, long traffi c jams...) or a low
diesel additive reservoir level.
In order to regenerate the fi lter, you are
advised to drive, as soon as possible
when the traffi c conditions permit, at a
speed of 40 mph (60 km/h) or above
for at least fi ve minutes (until the war-
ning lamp is switched off).
If the warning lamp remains on, con-
tact a PEUGEOT dealer.
Following prolonged use of the vehi-
cle at very low speeds or at idle, you
may, exceptionally, notice an emission
of water vapour at the exhaust during
acceleration. This does not affect the
performance of the vehicle or the en-
vironment.
Service warning lamp
This is displayed to indicate an engine
management system fault.
Contact a PEUGEOT dealer as soon
as possible.
Automatic gearbox fault
warning lamp
This indicates an automatic gearbox
fault.
The gearbox will operate in down-
graded mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.
Electronically controlled
suspension fault warning
lamp
This indicates an electronically con-
trolled suspension malfunction.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible.
Parking sensor system
warning lamp
In reverse gear, this indicates a park-
ing sensor system fault.
Consult a PEUGEOT dealer.
Electronically controlled
suspension indicator lamps
This comes on when the SPORT func-
tion is activated.
This comes on when the SPORT
function is deactivated.
Automatic illumination of
headlamps indicator lamp
Automatic illumination of
headlamps deactivation
indicator lamp
Automatic rain sensitive
wipers indicator lamp
Automatic rain sensitive
wipers deactivation
indicator lamp
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
This comes on when the AUTO func-
tion is activated.
This comes on when the AUTO func-
tion is deactivated.
1
25
This indicates an automatic
gearbox programme fault.
Automatic gearbox lever
position indicators
This indicates an automatic
gearbox malfunction.
4 or 6 speed automatic gearbox
"Park" indicator
"Reverse" indicator
"Neutral" indicator
"Drive" indicator
The letter S or the symbol associat-
ed with the gate lever position indicator
comes on, corresponds to the Sport or
Snow programme selected intentionally.
These correspond to the manual con-
trol of the gearbox, four or six speed.
When the engine speed is too low or
too high in relation for gear engaged,
the gear selected fl ashes for a few
seconds, then the actual gear is dis-
played, the auto-adaptive programme
having taken control temporarily.
Engine oil temperature gauge
When the ignition is switched on or
while the vehicle is moving, this indi-
cates the engine oil temperature.
When the needle is in zone C , the
temperature is correct.
When the needle is in zone D , the
temperature is too high.
Reduce your speed to lower the tem-
perature.
Manual indicator
1
26
SERVICE INDICATOR
This is a visual reminder of when the
next service is due. This service is to
be carried out according to the manu-
facturer's servicing schedule.
Service indicator zero re-set
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
Switch off the ignition,
Press and hold the trip recorder
reset button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears .
Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.
If the service is overdue , each time
the ignition is switched on and for
5 seconds, the distance and the span-
ner fl ash.
Example : when the ignition is switched
on and for 5 seconds, the display in-
dicates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level infor-
mation has been displayed, the total
distance recorder resumes normal op-
eration and the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last ser-
vice.
The distance remaining may be
weighted by the time factor, depen-
ding on the user's driving conditions.
Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising the service operations is lit.
The trip recorder display shows the
distance remaining (in round fi gures)
before the next service.
Example : when switching on the ig-
nition and for 5 seconds, the display
shows that 900 miles/km remain be-
fore the next service is due.
After this operation, if you
wish to disconnect the battery,
lock the vehicle and wait for at
least fi ve minutes, otherwise
the zero re-set will not be
registered.
1
27
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for approx-
imately 5 seconds, after the service
information.
Dipstick
There are 2 level marks on
the dipstick: never exceed
level A .
In position B , top up the
level via the oil fi ller cap,
using the type of oil suited
to your engine.
A = max.
B = min.
Trip recorder zero reset
Oil level correct
Lack of oil
Flashing indicates a lack of oil which
may damage the engine.
If the lack of oil is confi rmed by check-
ing with the dipstick, the level must be
topped up.
Oil level indicator fault
(fl ashing segments)
Check the oil level using the dipstick.
If the level is correct, the fl ashing indi-
cates an engine oil level gauge mal-
function.
Consult a PEUGEOT dealer.
The level observed on the dipstick is
only valid if the vehicle is parked on
level ground and the engine has been
off for more than 15 minutes.
The total distance is displayed in
zone A of the display and the trip dis-
tance in zone B .
Distance recorder
With the trip distance displayed, press
the button for a few seconds.
1
28

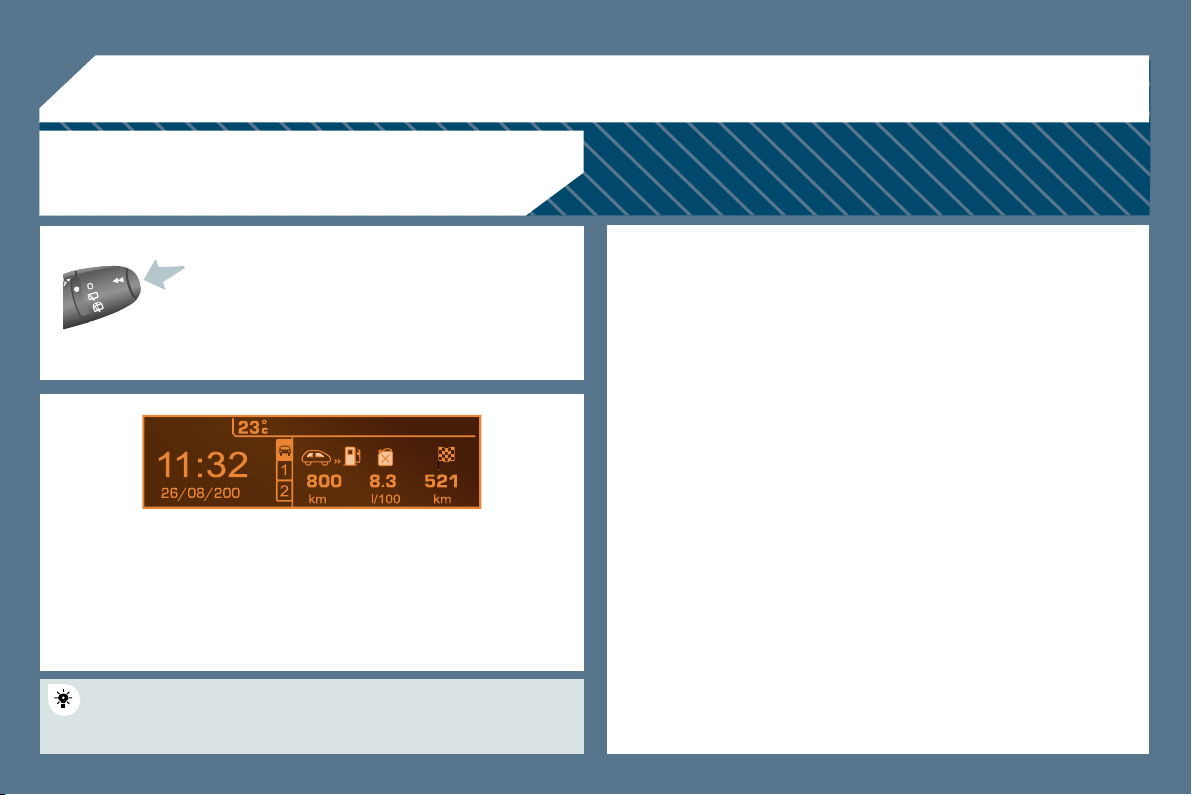

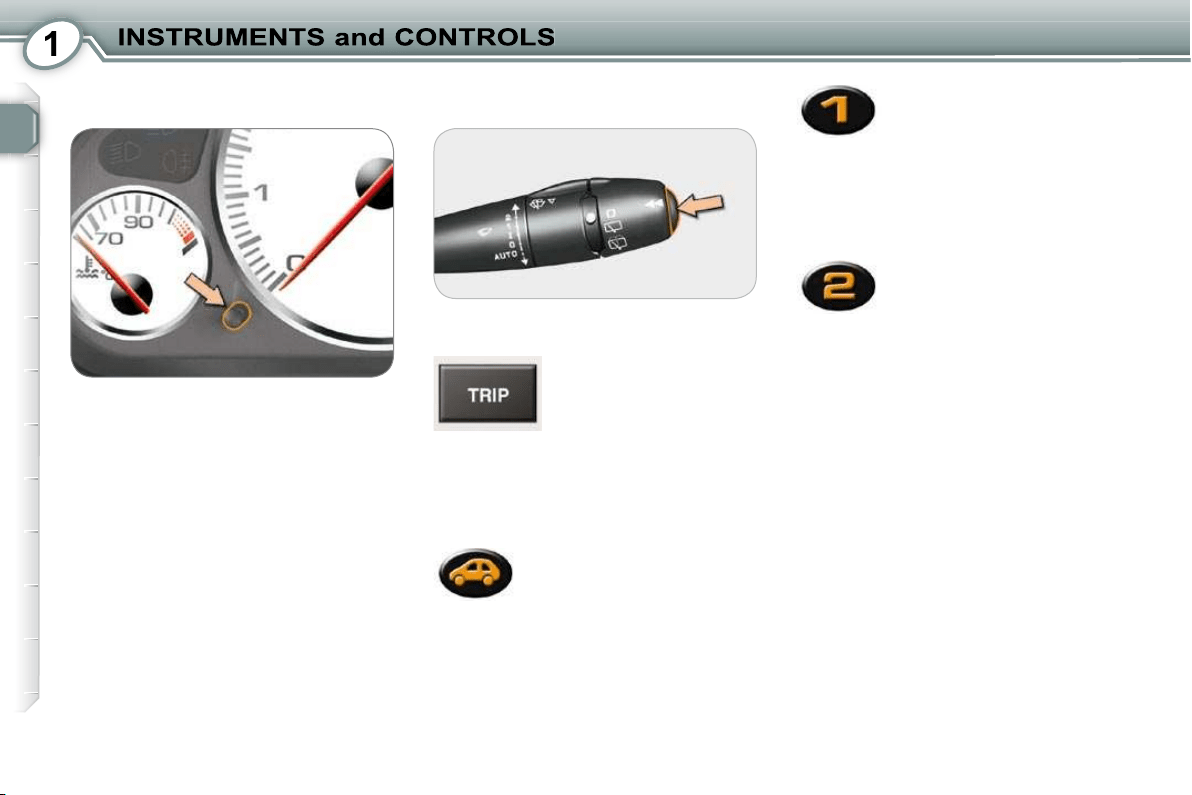

TRIP COMPUTER
or
TRIP: access to the trip
computer displays.
Each successive press on the button
located at the end of the wiper stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required trip is displayed,
press the control for more than
two seconds.
With the exterior lighting on, press the
button to vary the intensity of the ligh-
ting of the instruments and controls.
When the lighting reaches the mini-
mum (or maximum) setting, release
the button then press it again to in-
crease (or reduce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
- the "vehicle" tab with:
the range,
the current fuel
consumption
the distance
remaining.
- the trip "1" tab with:
the distance travelled,
the average fuel
consumption,
the average speed,
for the fi rst trip.
- the trip "2" tab with:
the distance travelled,
the average fuel
consumption,
the average speed,
for the second trip.
Trips
Trips "1" and ''2' ' are independent but
have identical application.
Trip "1" for example allows you to
make daily calculations and trip "2"
monthly calculations.
1
28
TRIP COMPUTER
or
TRIP: access to the trip
computer displays.
Each successive press on the button
located at the end of the wiper stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required trip is displayed,
press the control for more than
two seconds.
With the exterior lighting on, press the
button to vary the intensity of the ligh-
ting of the instruments and controls.
When the lighting reaches the mini-
mum (or maximum) setting, release
the button then press it again to in-
crease (or reduce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
- the "vehicle" tab with:
the range,
the current fuel
consumption
the distance
remaining.
- the trip "1" tab with:
the distance travelled,
the average fuel
consumption,
the average speed,
for the fi rst trip.
- the trip "2" tab with:
the distance travelled,
the average fuel
consumption,
the average speed,
for the second trip.
Trips
Trips "1" and ''2' ' are independent but
have identical application.
Trip "1" for example allows you to
make daily calculations and trip "2"
monthly calculations.
1
29

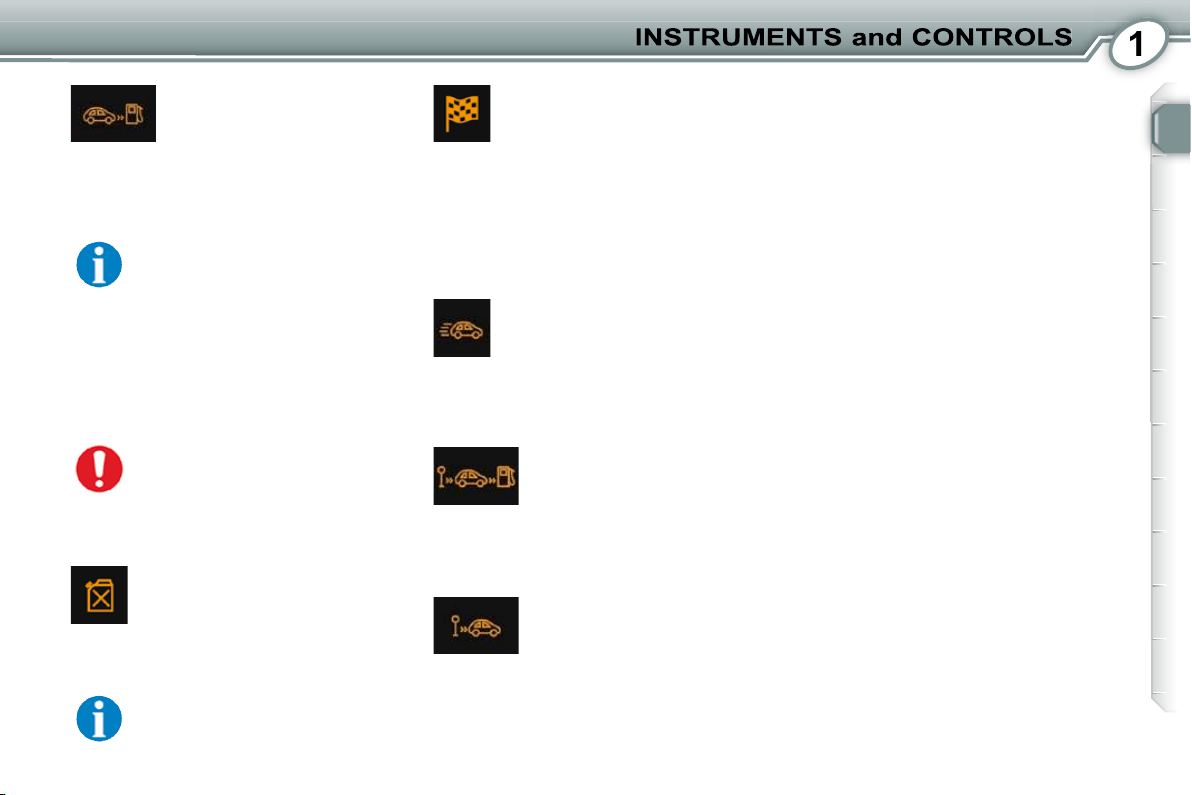

Range (miles or km)
Current fuel
consumption
(l/100 or km/l or mpg)
This is the average quantity of fuel con-
sumed during the last few seconds.
This shows the distance that can still
be covered with the fuel remaining in
the tank in accordance with the ave-
rage consumption over the last few
miles (kilometres).
Distance remaining to be
travelled (miles or km)
Average speed
(mph or km/h)
TRIP menu
Press the "MENU" button for access
to the main menu.
Select the "Trip computer" or "Ve-
hicle diagnostics" application using
the navigator, then confi rm or press
the "MODE" button until you gain ac-
cess to the trip computer screen, then
confi rm "OK" .
The "Trip computer" or "Vehicle diag-
nostics" menu offers various options:
- Alerts log,
- Status of the functions,
- Inputting the distance to be tra-
velled.
Average fuel
consumption
(l/100 or km/l or mpg)
Distance travelled
(miles or km)
Alerts log
This summarises the active warning
messages, displaying them on the
multifunction screen in succession.
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Distance remaining (miles or km)
When guidance is not activated, this
enables you to enter an approximate
distance to be travelled.
This fi gure may increase if
there is a change in the style
of driving or the road surface,
producing a signifi cant drop in
current fuel consumption.
When the range is less than 20 miles
(30 km), four bars are displayed. After
fi lling with fuel, the range is displayed
when it exceeds 62 miles (100 km).
If horizontal bars are displayed
for long periods instead of di-
gits, contact a dealer.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
This is the distance remaining to the
destination, either calculated at any
time by the navigation system if gui-
dance is activated or entered by the
user, minus the distance covered since
the distance was entered.
If digits are missing, dashes are dis-
played in their place.
This is the average fuel consumption
since the computer was last set to
zero.
This indicates the distance travelled
since the computer was last set to
zero.
Access via the main menu
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
2
MULTIFUNCTION SCREENS
30
MONOCHROME SCREEN C/
COLOUR SCREEN C (WITH
PEUGEOT CONNECT SOUND)
This displays the following information:
- time,
- date,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- check of openings,
- vehicle function status messages,
displayed temporarily,
- warning messages,
- audio functions,
- trip computer information,
- vehicle parameters,
- air conditioning settings,
- choice of language.
Main menu Defi ne the vehicle parameters
Permits the activation or deactivation
of certain driving and comfort elements.
Example: Automatic illumination of
headlamps.

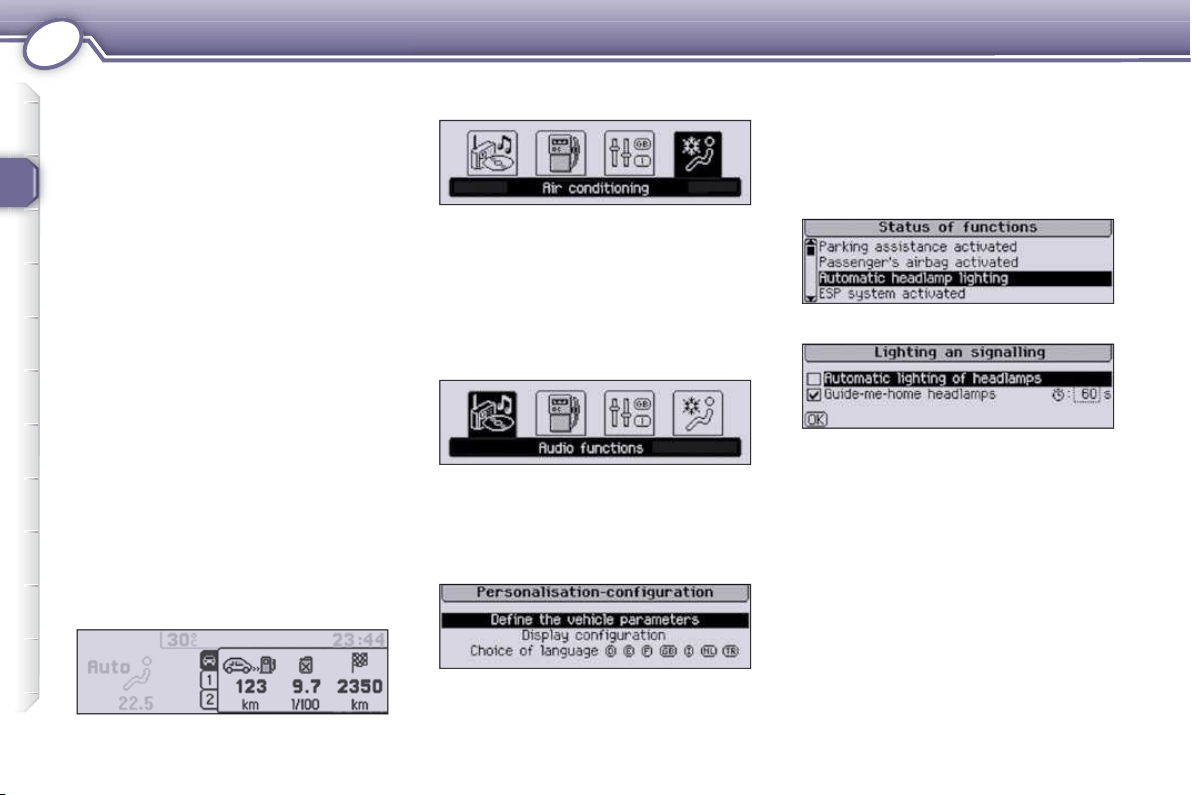

Press the "MENU" button for access
to the main menu and select one of
the following functions: Audio Func-
tions, Trip Computer, Personalisation/
Confi guration and Air Conditioning.
Example: display selected on "Audio
Functions".
The "Personalisation-Confi guration"
menu provides access to successive
confi rmation windows.

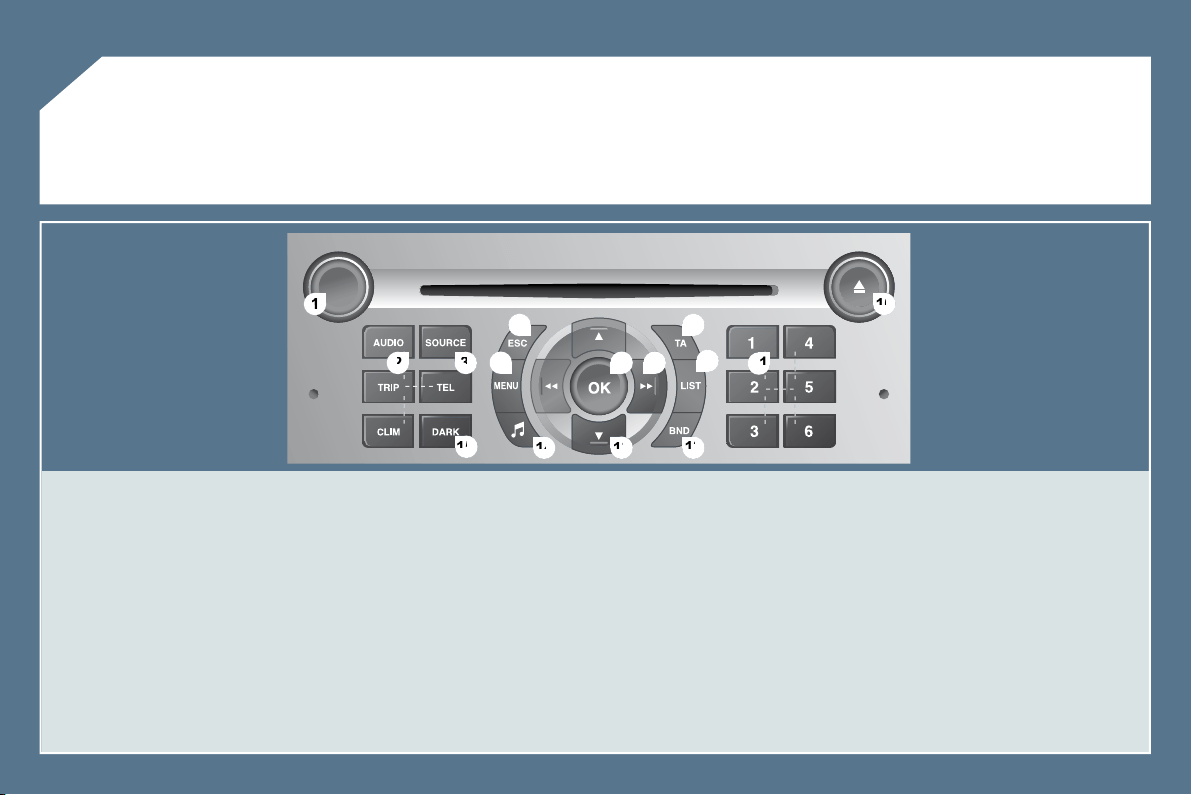

Management of the displays
The "AUDIO" , "TRIP" and "CLIM"
buttons on the audio equipment key-
pad permit displaying in the main win-
dow (on the right).
Example: TRIP
Choice of language
German, Spanish, French, English,
Italian, Dutch, Turkish, Portuguese
and Brazilian Portuguese.
2
MULTIFUNCTION SCREENS
31

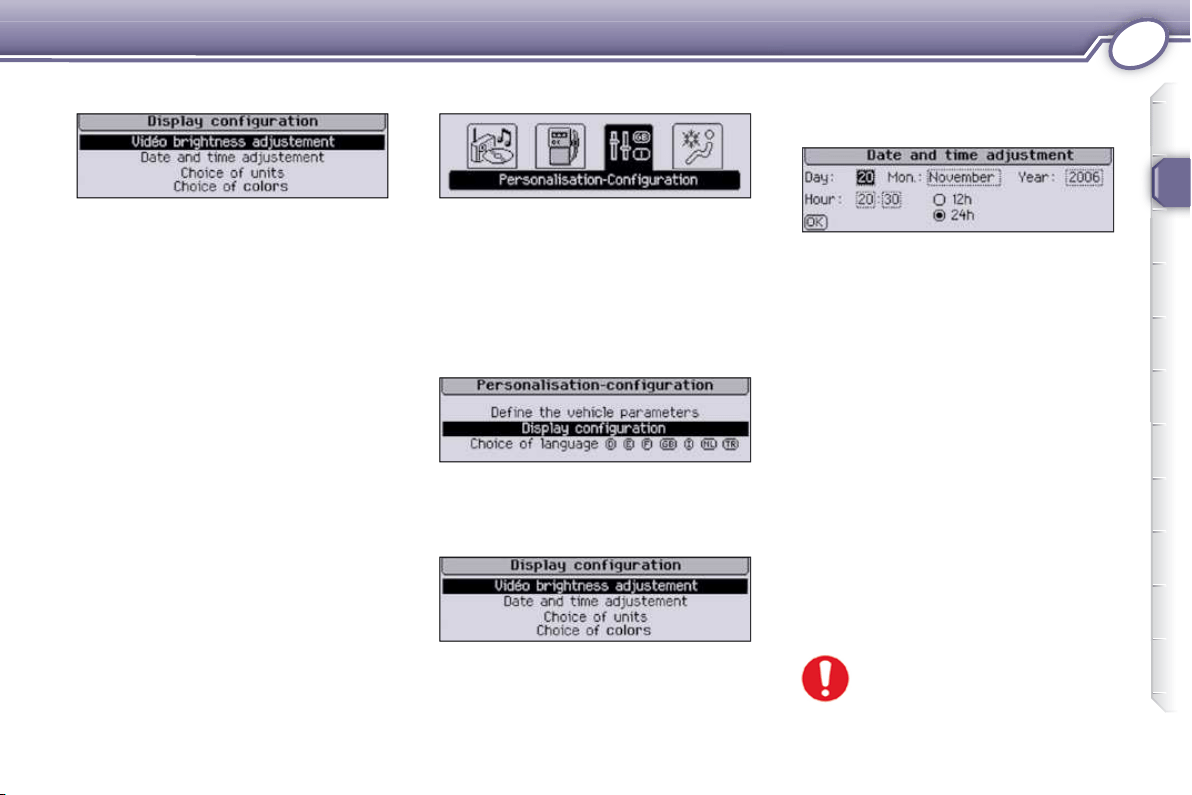

Display confi guration Changing the date and time Set the parameters one by one, using
the navigator, then confi rm by clicking
on "OK" .
From the list displayed, select "Display
confi guration" , then confi rm.
From the list displayed, select "Setting
the date and time" , then confi rm.
- Brightness, to be adjusted in accor-
dance with a scale between Moon
(-) and Sun (+).
- Selection of the units of measurement.
- Setting the date and time. Your op-
erational zone is displayed on the
screen. Use the navigator to move
from one selection to another.
Your new parameters are confi rmed
one by one, by pressing the naviga-
tor button. All of the parameters are
recorded if you click on OK, displayed
on the screen.
The ESCape button on the control pad
enables you to choose not to confi rm
your changes.
- Selection of the colours (on colour
screen C only).
From the menu, displayed on the
screen, select the icon "Personalisa-
tion-Confi guration" using the navi-
gator, then confi rm.
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
2
MULTIFUNCTION SCREENS
32
Display
This menu allows you to set the bright-
ness of the display, the display colour
scheme and the colour of the map
(day/night and auto mode).
Vehicle
This menu permits the activation or
deactivation of certain driving and
comfort systems:
- air conditioning (A/C),
- vehicle information,
- access to the vehicle,
- driving assistance,
- lighting confi guration,
- comfort lighting.
Units
This menu permits selection of the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100, miles and
mpg).
System
This menu permits restoring of the factory
confi guration, display of the software ver-
sion and activation of scrolling text.
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
COLOUR SCREEN (WITH PEUGEOT
CONNECT NAVIGATION)

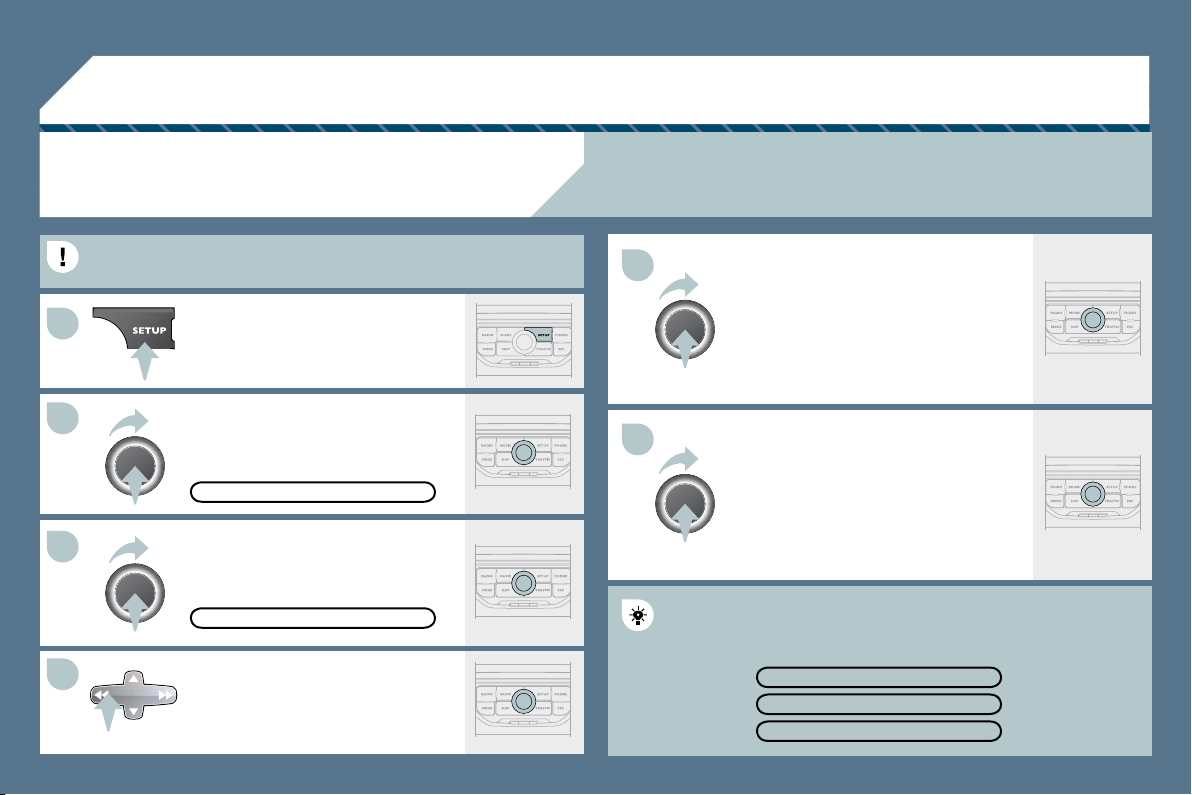

"SETUP" menu
Press the SETUP button to gain access
to the "SETUP" menu. This provides
access to the following functions:
- System language,
- Date & Time,
- Display,
- Vehicle,
- Units,
- System.
System language
This menu allows you to select
the language used by the display:
German, English, Spanish, French,
Italian, Dutch, Polish, Portuguese.
Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
"Audio and Telematics" section).
This displays the following information:
- time,
- date,
- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),
- check of openings,
- vehicle function status messages,
displayed temporarily,
- warning messages,
- audio functions,
- trip computer information,
- air conditioning settings,
- satellite navigation system information.
2
MULTIFUNCTION SCREENS
33

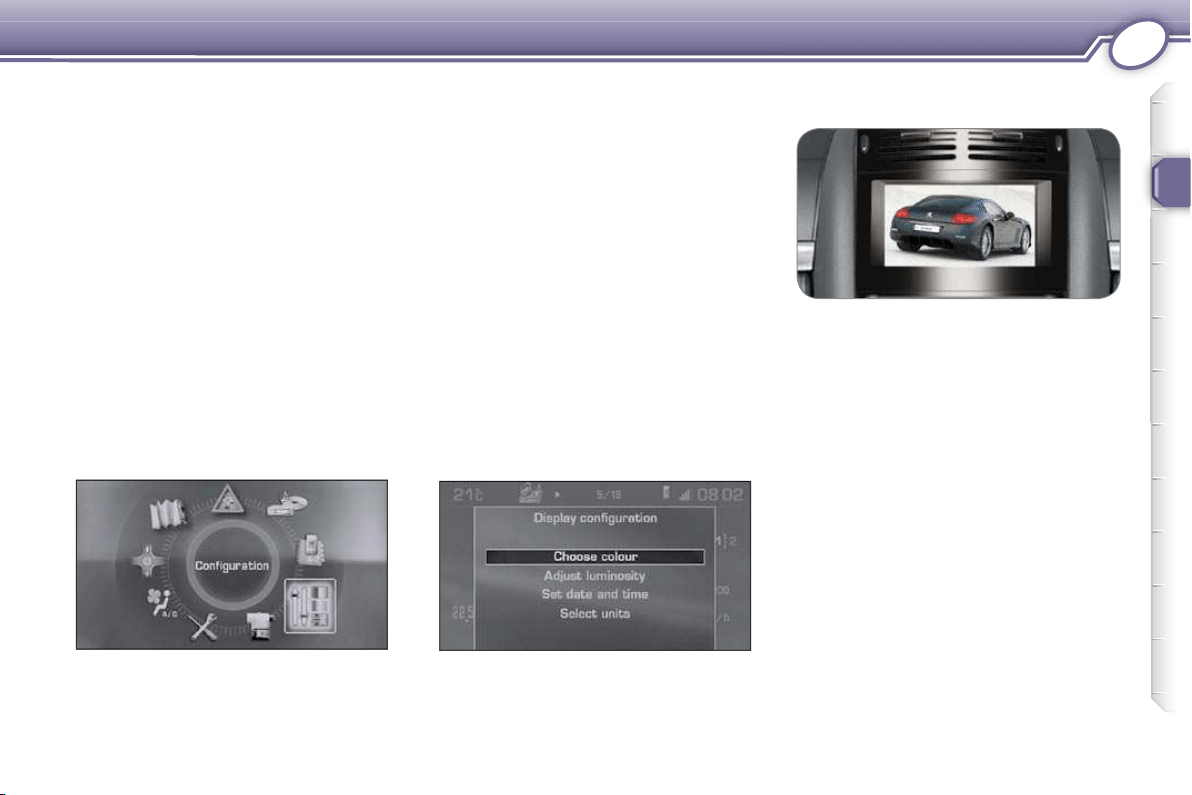

HIGH DEFINITION COLOUR
SCREEN (WITH PEUGEOT
CONNECT MEDIA)
This displays the following information:
- time,
- date,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- check of openings,
- vehicle function status messages,
displayed temporarily,
- warning messages,
- audio functions,
- trip computer information,
- air conditioning settings,
- satellite navigation system information.
Main menu
Display confi guration
Press the "MENU" button to gain ac-
cess to the main menu and select one
of the following functions: Navigation-
Guidance, Map, Traffi c Information,
Audio Functions, Telematics, Confi gu-
ration, Video, Vehicle Diagnostics and
Air Conditioning.
- Choose colour,
- Adjust brightness,
- Adjust date and time,
- Choose units.
Defi ne the vehicle parameters
Permits the activation or deactivation
of certain driving and comfort ele-
ments:
- permanent locking of the boot on
the 407 Saloon,
- automatic illumination of headlamps,
- automatic "guide-me-home" lighting,
- automatic rear wiping on engaging
reverse gear on the 407SW.
The "Confi guration" menu provides
access to the following functions:
- Display confi guration,
- Sound,
- Choice of language,
- Defi ne the vehicle parameters.
You can connect video equipment
(camcorder, digital camera, ...) to the
three video sockets, located in the
glove box.
Video display is only possible when
stationary.
Select the Video menu from the general
menu:
- "Activate video mode" to activate/
deactivate the video,
- "Video parameters" to set the dis-
play format, the brightness, the con-
trast and the colours.
Press the "ESC" or "DARK" button to
exit from video mode.
Press the "SOURCE" button several
times in succession to select an audio
source other than that of the video.
VIDEO MENU (WITH PEUGEOT
CONNECT MEDIA)
3
COMFORT
34
3
COMFORT
35
For even air distribution, take care
not to obstruct the exterior air intake
grille located at the bottom of the wind-
screen, the vents, the air outlets under
the front seats and the air extractor lo-
cated behind the fl aps in the boot.
In certain cases of particularly arduous
use (towing the maximum load on a
steep gradient in hot weather), cutting
off the air conditioning permits recov-
ery of the engine power and therefore
improvement of the towing capacity.
Close the windows to benefi t from the
full effectiveness of the air conditioning.
Ensure that the passenger compart-
ment fi lter is in good condition. Have
the fi lter elements replaced periodical-
ly. If you drive in a dusty environment,
replace it twice as often.
The air conditioning system does not
contain chlorine and is not harmful to
the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
The water formed by the air conditioning
condensation is discharged via an open-
ing provided for this purpose. Therefore,
a puddle of water may form underneath
the vehicle when stationary.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
1. Centre panel vents.
2. Adjustment of the glove box air
fl ow (see section"Interior layout").
3. Air outlet to passenger footwells.
4. Two ventilation vents at the rear at
the base of the centre console be-
tween the passengers.
5. Side vents.
6. Front windows demisting/defrosting
vents.
7.
Windscreen demisting/defrosting vents.
8. Sunshine sensor.
9. Air diffuser grille.
AUTOMATIC AIR
CONDITIONING REGULATION
Use of the automatic regulation of the
air conditioning is recommended. It per-
mits automatic and optimised control of
all of the following functions: air fl ow,
passenger compartment temperature
and air distribution, by means of vari-
ous sensors, so preventing the need
for you to change your reference set-
tings other than the value displayed.
Air diffuser
The air diffuser grille, located at the top
of the centre console, signifi cantly im-
proves distribution and fl ows and pre-
vents air currents, while maintaining an
optimum temperature inside the pas-
senger compartment.
Do not cover the sunshine sensor 8 .
It is required for regulation of the air
conditioning.
Advice on operation
To obtain even ventilation,
avoid closing the air diffuser
grille 9 .
In hot weather, in order to obtain in-
tense ventilation, you can close the
air diffuser grille and use vents 1 and
5 only.
If, when the vehicle has been parked
in the sun for a long time, the interior
temperature remains very high, do not
hesitate to ventilate the passenger
compartment for a few minutes.
3
COMFORT
36
DIGITAL AIR CONDITIONING
(MONO-ZONE)
Mono-zone: this is the overall regula-
tion of the temperature, distribution and
fl ow in the passenger compartment.
Control by the Auto programme
Automatic
programme -
comfort (1)
Press the "AUTO" button. The indicator
lamp comes on. The "AUTO" symbol is
displayed on the multifunction screen.
Depending on the level of comfort selected,
the system controls the air distribution, fl ow,
temperature and intake of air in order to pro-
vide comfort and an adequate circulation of
air in the passenger compartment. You do
not have to make any adjustments.
Press the right or left
arrow to change it.
Adjustment of the temperature (2)
To prevent too great a distri-
bution of cold air when the en-
gine is cold, the ventilation will
only reach its optimum level
progressively.
The symbols and messages associated
with the digital air conditioning controls
appear on the multifunction screen.
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit, depending on the screen
confi guration.
A setting around the value 21 makes
it possible to obtain optimum comfort.
However, depending on your require-
ments, a setting between 18 and 24
is usual.
3
COMFORT
37
Manual control
It is possible to adjust one or more
functions manually, while leaving the
other functions in automatic mode.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and is not ad-
vantageous (comfort).
To return to automatic mode, press the
"AUTO" button.
Blower (3)
Air fl ow
Turn the dial 3 to the
right to increase the
air fl ow or to the left
to reduce it.
Switching off the ventilation
Turn the dial 3 to the
left until the fl ow of
air stops.
Adjustment of air
distribution (4)
Successive or continuous pressure on
button 4 enables you to direct the fl ow
of air.
The "AUTO" button indicator lamp is
switched off.
The symbol (arrows) corresponding to
the chosen direction is displayed on
the multifunction screen.
Windscreen and front side windows.
Front and rear ventilation.
Front and rear footwells.
AUTO Automatic distribution.
Front visibility
control (5)
In certain cases, the comfort pro-
gramme may not be suffi cient to dem-
ist or defrost the windows (humidity,
several passengers, ice).
In this case, select the front vis-
ibility programme in order to clear
the windows quickly. The indicator
lamp comes on.
It controls the air conditioning, air fl ow
and intake and distributes the ventila-
tion to the windscreen and front side
windows.
The front visibility control symbol is
displayed on the multifunction screen.
Once the screen is clear, press button 1 to
return the system to the comfort setting.
To reactivate the air conditioning:
Press button 1 .
On entering the vehicle, the
interior temperature may be
much colder (or warmer) than
is comfortable. There is no
need to change the temperature dis-
played in order to obtain rapidly the
level of comfort required.
The automatic regulation of the air
conditioning settings is used to correct
the temperature difference as quickly
as possible.
The "AUTO" button indicator lamp is
switched off.
The air fl ow symbol (fan) is displayed
on the multifunction screen and is fi lled
according the value selected.
To prevent condensation and dete-
rioration of the quality of the air in the
passenger compartment, ensure that
an adequate fl ow of air is maintained.
The "OFF" symbol is displayed on the
multifunction screen.
This action switches off the display
and the indicator lamps.
It deactivates all of the system's func-
tions, with the exception of the rear
screen demisting.
The temperature-related comfort is no
longer controlled (temperature, humid-
ity, odour, condensation).
Avoid driving for too long with the air
conditioning off.
3
COMFORT
38
Intake of exterior
air/Recirculation of
interior air (6)
This function enables you to isolate
the passenger compartment from ex-
terior fumes and odours.
Press button 6 several times to
set the air intake mode, the indica-
tor lamp which corresponds to the
mode set comes on at your prefe-
rence:
- intake of exterior air. Forced ex-
terior air intake mode.
- recirculation of the air inside the
passenger compartment.
The indicator lamp for the mode
set comes on. Prolonged opera-
tion in interior air recirculation
mode may result in the formation
of condensation and deterioration
of the quality of the interior air.
Do not drive in air recirculation
mode for prolonged periods, ex-
cept in truly exceptional atmo-
spheric conditions.
The message associated with
the setting is displayed on the
multifunction screen.
Press button 6 to return to auto-
matic control of the air intake. The
two indicator lamps are switched
off.
For your comfort, when the igni-
tion is switched off, the settings are
stored until it is switched on again.
Rear screen
demisting (7)
The heated rear screen operates inde-
pendently of the air conditioning system.
Press button 7 , with the engine
running, to demist the rear screen
and the door mirrors. The indicator
lamp comes on.
Demisting is switched off automatical-
ly to prevent an excessive consump-
tion of current and depending on the
ambient temperature.
It may be stopped by pressing button 7
again or when the engine is switched off.
However, demisting resumes if the en-
gine is switched on again within one
minute.
Switch off the rear screen and door
mirror demisting when not needed as
lowering current consumption reduces
fuel consumption.
3
COMFORT
39
"AIR CON" menu
Press the "MENU" but-
ton for access to the main
menu, then confi rm.
The "Main menu" appears on the
multifunction screen.
Select the Air Conditioning icon using
the navigator buttons.
The "Air Conditioning" menu ap-
pears on the multifunction screen as
the main display.
Deactivation of the air conditioning
(AC-OFF)
Additional heating *
Vehicles which are fi tted with an HDI
engine may be equipped with auto-
matic additional heating to improve
your comfort.
When the engine is idling or when the
vehicle is stationary, a high-pitched
whistling noise and the emission of a
small amount of smoke and odour is
normal.
Deactivation may result in discomfort
(temperature, humidity, odour, con-
densation).
The symbol "AC OFF" is displayed on
the multifunction screen.
There is a risk that the temperature
setting value may not be reached and
you risk having condensation on the
windows.
You can cancel the deactivation by
pressing the "AUTO" button on the air
conditioning control panel.
* According to country.
3
COMFORT
DIGITAL AIR CONDITIONING
(DUAL-ZONE)
Dual-zone: this is the differentiated
regulation of the temperature and air
distribution on the driver's side and the
front passenger's side.
The driver and front passenger can
each adjust the temperature and the
distribution of the air to suit their re-
quirements.
Control by the Auto programme
Automatic
programme - driver
and passenger
comfort (1)
Press the "AUTO" button. The indicator
lamp comes on. The "AUTO" symbol is
displayed on the multifunction screen.
Adjustment of the
temperature on the driver's
side (2)
Adjustment of the temperature
on the passenger's side (3)
Press the up or down arrow to change
the temperature on the driver's side 2
or passenger's side 3 .
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit, depending on the screen
confi guration.
A setting around the value 21 makes
it possible to obtain optimum comfort.
However, depending on your require-
ments, a setting between 18 and 24
is usual.
To prevent too great a distri-
bution of cold air when the en-
gine is cold, the ventilation will
only reach its optimum level
progressively.
The symbols and messages associ-
ated with the digital air conditioning
controls appear on the multifunction
screen.
Depending on the level of comfort selected,
the system controls the air distribution, fl ow,
temperature and intake of air in order to pro-
vide comfort and an adequate circulation of
air in the passenger compartment. You do
not have to make any adjustments.
3
COMFORT
41
Blower (4)
Air fl ow
Turn dial 4 to the
right to increase the
air fl ow or to the left
to reduce it.
Turn the dial 4 to the
left until the fl ow of
air stops.
Switching off the ventilation
Adjustment of
the driver's air
distribution (5)
Successive or continuous pressure on
button 5 or 6 enables you to direct the
fl ow of air on the driver's side or on the
passenger side independently.
The "AUTO" button indicator lamp is
switched off.
The symbol (arrows) corresponding to
the chosen direction 5 or 6 is displayed
on the multifunction screen.
Windscreen and front side windows.
Front and rear ventilation.
Front and rear footwells.
AUTO Automatic distribution.
Adjustment of the
passenger's air
distribution (6)
Manual control
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and is not ad-
vantageous (comfort).
To return to automatic mode, press the
"AUTO" button.
On entering the vehicle, the
interior temperature may be
much colder (or warmer) than
is comfortable. There is no
need to change the temperature dis-
played in order to obtain rapidly the
level of comfort required.
The automatic regulation of the air
conditioning settings is used to correct
the temperature difference as quickly
as possible.
To reactivate the air conditioning:
Press button 1 .
The "AUTO" button indicator lamp is
switched off.
The air fl ow symbol (fan) is displayed
on the multifunction screen and is fi lled
according to the setting.
To prevent condensation and dete-
rioration of the quality of the air in the
passenger compartment, ensure that
an adequate fl ow of air is maintained.
The "OFF" symbol is displayed on the
multifunction screen.
This action switches off the display
and the indicator lamps.
It deactivates all of the system's func-
tions, with the exception of the rear
screen demisting.
The temperature-related comfort is no
longer controlled (temperature, humid-
ity, odour, condensation).
Avoid driving for too long with the air
conditioning off.
3
COMFORT
42
Front visibility
control (7)
In certain cases, the comfort pro-
gramme may not be suffi cient to dem-
ist or defrost the windows (humidity,
several passengers, ice).
In this case, select the front visibi-
lity programme in order to clear the
windows quickly. The indicator lamp
comes on.
It controls the air conditioning, air fl ow
and intake and distributes the ventila-
tion to the windscreen and front side
windows.
The front visibility control symbol is
displayed on the multifunction screen.
Once the screen is clear, press but-
ton 1 to return the system to the comfort
setting.
Intake of exterior
air/Recirculation of
interior air (8)
This function enables you to isolate
the passenger compartment from ex-
terior fumes and odours.
Press button 8 several times to
set the air intake mode, the indica-
tor lamp which corresponds to the
mode set comes on at your prefe-
rence:
- intake of exterior air. Forced ex-
terior air intake mode.
- recirculation of the air inside the
passenger compartment.
The indicator lamp which corre-
sponds to the mode set comes
on. Prolonged operation in inte-
rior air recirculation mode may
result in the formation of con-
densation and deterioration of
the quality of the interior air.
Do not drive in air recirculation
mode for prolonged periods, ex-
cept in truly exceptional atmo-
spheric conditions.
The message associated with
the control is displayed on the
multifunction screen.
Press button 8 to return to auto-
matic control of the air intake. The
indicator lamps are switched off.
For your comfort, when the igni-
tion is switched off, the settings are
stored until it is switched on again.
Rear screen
demisting (9)
The heated rear screen operates inde-
pendently of the air conditioning system.
Press button 9 , with the engine
running, to demist the rear screen
and the door mirrors. The indicator
lamp comes on.
Demisting is switched off automatically
to avoid an excessive consumption of
current and according to the ambient
temperature.
It may be stopped by pressing button 9
again or when the engine is switched off.
However, the demisting resumes if the
engine is switched on again within one
minute.
Switch off the rear screen and exte-
rior mirrors demisting when no longer
needed as lowering current consump-
tion reduces fuel consumption.
3
COMFORT
43
Deactivation of the air conditioning
(A/C-OFF)
Deactivation or activation of the
simultaneous Left-Right control
Activation of this function transfers the
driver's settings to the passenger.
Deactivation of this function allows a
return to the independent driver/pas-
senger settings.
Any manual action on button 4 or 6
cancels the simultaneous confi gura-
tion setting.
"AIR CON" menu
Press the "MENU" but-
ton for access to the
main menu, then confi rm.
The "Main menu" appears on the
multifunction screen.
Select the Air Conditioning icon using
the navigator buttons.
The "Air Conditioning" menu ap-
pears on the multifunction screen as
the main display.
Additional heating *
Vehicles which are fi tted with an HDI
engine may be equipped with auto-
matic additional heating to improve
your comfort.
When the engine is idling or when the
vehicle is stationary, a high-pitched
whistling noise and the emission of a
small amount of smoke and odour is
normal.
* According to country.
Deactivation may result in discomfort
(temperature, humidity, odour, con-
densation).
You can cancel the deactivation by
pressing the "AUTO" button on the air
conditioning control panel.
3
COMFORT
44
PROGRAMMABLE HEATING
Programming remote control
The heating system programming re-
mote control consists of the following
buttons and displays:
1. Scrolling functions menu buttons.
2. Function indicator lights: clock,
temperature, operating time, pro-
grammed time, heater operation,
heating management symbols.
3. Digital displays: time, temperature,
duration of operation, programmed
time or level of heating.
4. Off button.
5. On button.
Displaying the functions
If a malfunction of the programma-
ble heating system occurs, contact
a PEUGEOT dealer.
The programmable heating operates
independently of the engine.
When the engine is off, it pre-heats
the coolant circuit in order to benefi t
from an optimum engine operating
temperature from the time the engine
is switched on.
The programmable heating system is
switched on using the long range remote
control. Activation can be immediate or
deferred by means of a programming
function.
Displays on the remote control
screen
Press the buttons 1 in succession to
display the functions.
The fi rst press of the left-hand or right-
hand button displays the time.
Next, the left-hand button permits ac-
cess to the programming time then to
the level of heating (C1 to C5).
The right-hand button permits access
to the passenger compartment temper-
ature then to the duration of operation
of the heater if it is to be switched on
immediately.
The passenger compartment
temperature information is
only available when the en-
gine is off.
3
COMFORT
45

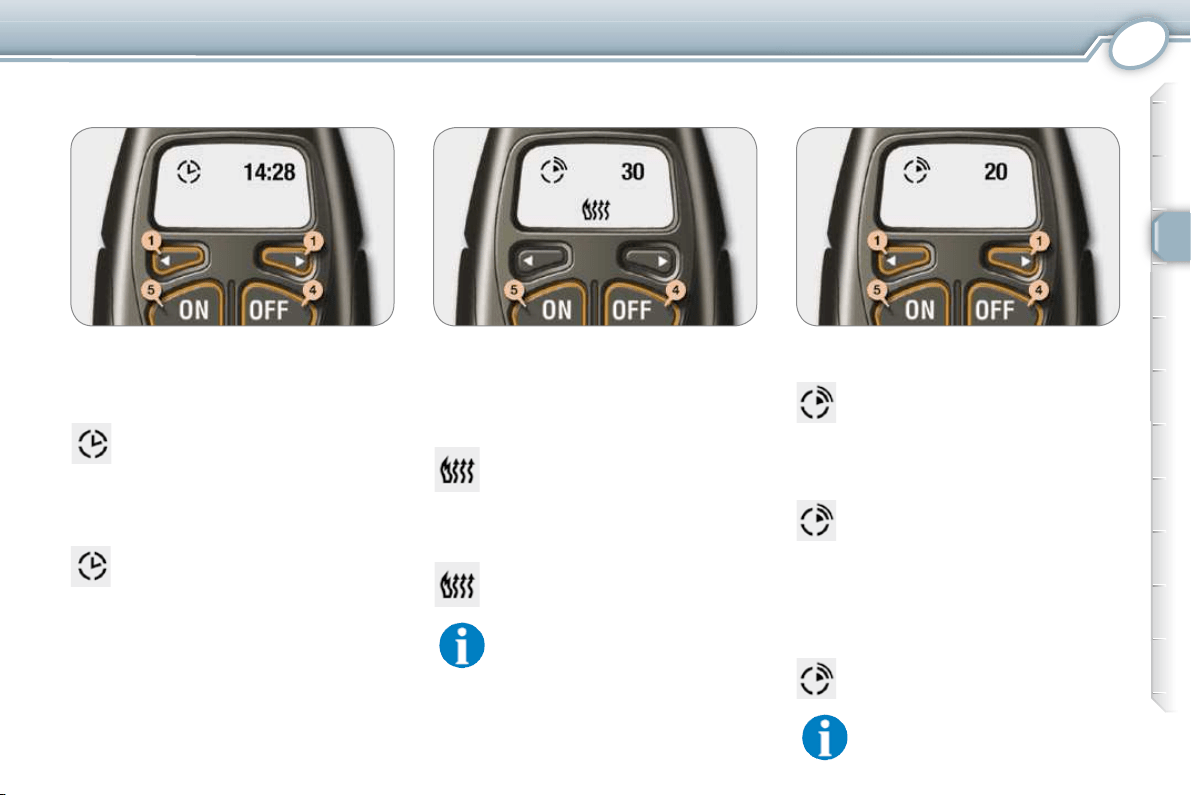

Once the time has been displayed, by
means of the buttons 1 , press buttons 4
and 5 simultaneously within 10 seconds.
This symbol fl ashes.
Setting the time
Set the time using the buttons 1 .
Press buttons 4 and 5 simultaneously
to save it.
This symbol is displayed (fi xed).
Press button 5 (ON) until the message
"OK" appears.
When the signal has been received,
the message "OK" is displayed along
with the duration of operation.
The heater starts and this sym-
bol is displayed.
Immediate activation
To deactivate the function, press but-
ton 4 (OFF) until the message "OK"
appears.
When carrying out these oper-
ations, if the message "FAIL"
appears, the signal has not
been received. Repeat the
procedure after changing your
location.
This symbol is switched off.
Setting the duration of
operation
Press the buttons 1 to display the du-
ration of operation.
This symbol is displayed.
Once the duration of operation has
been displayed, press buttons 4 and 5
simultaneously within 10 seconds.
This symbol fl ashes.
Set the duration by pressing the but-
tons 1 (adjustment in steps of 10 mins
and max value 30 mins).
Press buttons 4 and 5 simultaneously
to save the duration of operation.
This symbol is displayed (fi xed).
The factory setting value is
30 minutes.
3
COMFORT
46

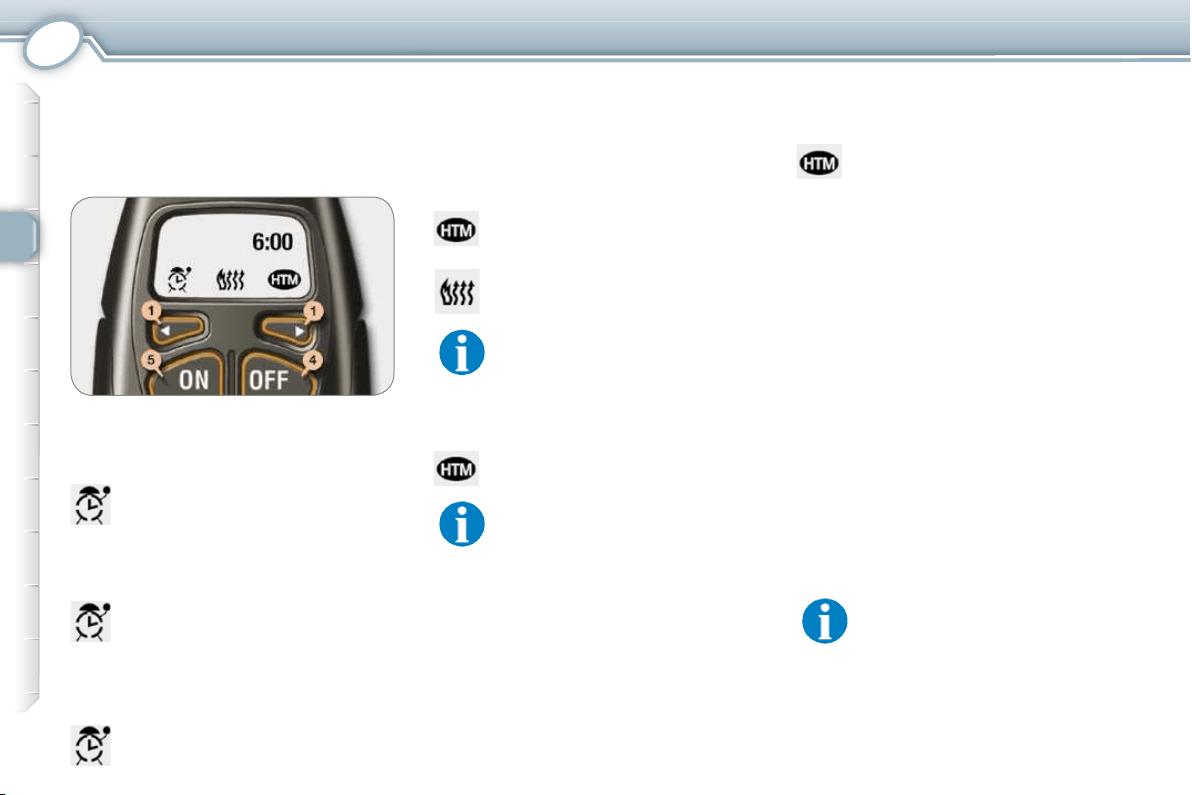

You must programme your departure time
in order for the system to calculate the op-
timum heater start time automatically.
Programming the heating
Set the time by pressing the buttons 1
and press buttons 4 and 5 simultane-
ously to save it.
Programming the departure time
Press the buttons 1 to display the pro-
gramming time.
This symbol is displayed.
Once the programming time has been
displayed, press buttons 4 and 5 si-
multaneously within 10 seconds.
This symbol fl ashes.
This symbol is displayed (fi xed).
Once the programming time has been
displayed by means of the buttons 1 ,
press button 5 (ON) until the message
"OK" appears.
Activation - deactivation
When the signal has been received,
the message "OK" is displayed
along with the symbol "HTM" .
To deactivate the programming, press
button 4 (OFF) until the message
"OK" appears.
HTM: Heat Thermo Management.
The symbol "HTM" is switched
off.
When carrying out these op-
erations, if the message "FAIL"
appears, the signal has not been
received. Repeat the procedure
after changing your location.
This symbol is displayed when
the heater starts.
Switching off the heating
Press button 5 (ON).
The symbol "HTM" remains on.
Changing the level of heating
The system offers 5 levels of heating
(from the lowest level C1 to the high-
est level C5 ).
Once the level of heating has been
displayed by means of the buttons 1 ,
press buttons 4 and 5 simultaneously.
The letter "C" fl ashes.
Set the level of heating by pressing
the buttons 1 .
Press buttons 4 and 5 simultaneously
to save the level selected. The letter
"C" is displayed (fi xed).
The factory pre-sets are re-
placed by the new settings
entered. The programmed
times are stored until the next
time they are changed.
When the departure time is acti-
vated, the level of heating cannot be
changed. The departure time must be
deactivated fi rst.
3
COMFORT
47
Always switch off the programmable
heating while fi lling with fuel to avoid
any risk of fi re or explosion.
To avoid any risk of poisoning and as-
phyxiation, the programmable heating
must not be used, even for short peri-
ods, in an enclosed space such as a ga-
rage or workshop which is not equipped
with an exhaust gas extraction system.
Do not park the vehicle on an infl am-
mable surface (dry grass, dead leaves,
paper…), there is a risk of fi re.
The programmable heating system
is supplied by the vehicle's fuel tank.
Before use, ensure that the quantity of
fuel remaining is suffi cient. If the fuel
tank is at the reserve, we strongly ad-
vise that you do not programme the
heating.
Changing the battery
The remote control is supplied by a
6V-28L battery, which is supplied.
Information on the display indicates
when it is time to replace this battery.
Unclip the casing then replace the
battery.
The remote control must then be reini-
tialised, see below.
As an accessory, your pro-
grammable heating can be
adapted to pre-heat your vehi-
cle's passenger compartment.
Reinitialising the remote control
If the vehicle's battery is disconnect-
ed or the remote control's battery is
replaced, the remote control must be
reinitialised.
After switching on the power, press
button 4 (OFF) for 1 second within the
next 5 seconds. If the operation has
taken place correctly the message
"OK" is displayed on the remote con-
trol screen.
If a problem occurs, the message
"FAIL" appears. Repeat the operation.
Do not discard the used bat-
teries, take them to an ap-
proved collection point.
3
COMFORT
48
REAR VIEW MIRROR
Automatic day/night rear view
mirror
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.
DOOR MIRRORS
Objects observed in the driver
and passenger mirrors are, in re-
ality, closer than they appear.
This must be taken into ac-
count in order to judge the distance of
vehicles approaching from behind cor-
rectly.
Folding back the mirrors
electrically
- from inside:
With the ignition on, move the
control A to the central position
then pull it rearwards.
- from outside:
Lock the vehicle using the re-
mote control * or the key.
This function can be deactivated.
Consult a PEUGEOT dealer.
When the vehicle is parked, the door
mirrors can be folded back manually.
* According to version.
Adjustment
Move control A to the right or to
the left to select the corresponding
mirror.
Direct control B in all four direc-
tions to adjust.
3
COMFORT
48
REAR VIEW MIRROR
Automatic day/night rear view
mirror
This automatically and gradually
changes between the day and night
positions. To prevent dazzling, the
glass of the mirror darkens automati-
cally depending on the intensity of the
light from behind. It clears as the light
(headlamps of following vehicles, sun-
light) decreases, ensuring maximum
visibility.
DOOR MIRRORS
Objects observed in the driver
and passenger mirrors are, in re-
ality, closer than they appear.
This must be taken into ac-
count in order to judge the distance of
vehicles approaching from behind cor-
rectly.
Folding back the mirrors
electrically
- from inside:
With the ignition on, move the
control A to the central position
then pull it rearwards.
- from outside:
Lock the vehicle using the re-
mote control * or the key.
This function can be deactivated.
Consult a PEUGEOT dealer.
When the vehicle is parked, the door
mirrors can be folded back manually.
* According to version.
Adjustment
Move control A to the right or to
the left to select the corresponding
mirror.
Direct control B in all four direc-
tions to adjust.
3
COMFORT
49
Special feature
To ensure maximum visibility
during manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
MANUAL ADJUSTMENT OF
STEERING WHEEL HEIGHT
AND REACH
When the vehicle is stationary, unlock
the steering wheel adjustmment by
pushing the lever forwards.
Adjust the height and reach of the
steering wheel then lock the adjust-
ment by pulling the lever fully back.
3
COMFORT
49
Special feature
To ensure maximum visibility
during manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
MANUAL ADJUSTMENT OF
STEERING WHEEL HEIGHT
AND REACH
When the vehicle is stationary, unlock
the steering wheel adjustmment by
pushing the lever forwards.
Adjust the height and reach of the
steering wheel then lock the adjust-
ment by pulling the lever fully back.
3
COMFORT
50
FRONT SEATS
Manual mode
Longitudinal adjustment
Lift the control bar and slide the seat
forwards or backwards.
Driver's seat cushion height and
angle adjustment
Pump up or down to the required
position.
Seat back angle adjustment
Operate the lever for your comfort.
3
COMFORT
51
Electric mode
Longitudinal adjustment
Push the control forwards or back-
wards to slide the seat.
Driver's seat cushion height and
angle adjustment
Height: tilt the rear of the control up
or down.
Tilt: tilt the front of the control up or
down.
Seat back angle adjustment
Tilt the control forwards or backwards
for your comfort.
The electrical functions of the driver's seat are deactivated one minute after the ignition is switched off.
To reactivate them, open the door or switch on the ignition.
3
COMFORT
52
Head restraint height and angle
adjustment
Front seat active head restraint
This system prevents "whiplash".
In the event of a rear impact, the action
of the body on the seat back moves
the head restraint forwards and up-
wards preventing the head from being
thrown back.
Front armrest
Driver's seat lumbar adjustment
Heated seats adjustment
0 : Off.
1 : Low.
2 : Medium.
3 : High.
The adjustment is correct when
the top of the head restraint is
aligned with the top of the head
of the occupant of the seat.
Never drive with the head re-
straints removed and stored in
the vehicle. This is dangerous
and they may be thrown in the
event of sharp braking. They must be
in place and adjusted correctly.
To change the position of the armrest:
Lift the handle 1 .
The armrest folds forwards and up-
wards.
To return to the initial position, push
the armrest backwards and press it to
engage.
Operate the lever to obtain the correct
position.
To raise or lower the head restraint,
pull it forwards then slide it.
To tilt the head restraint, tilt the lower
part forwards or backwards.
To remove the head restraint, move it
almost to the highest position, lift the
tab using a coin and pull it forwards
and upwards at the same time.
To refi t the head restraint, engage the
stalks in the holes keeping in line with
the seat back.
With the engine running, turn the dial.
The temperature of the seat is regu-
lated automatically.
3
COMFORT
53

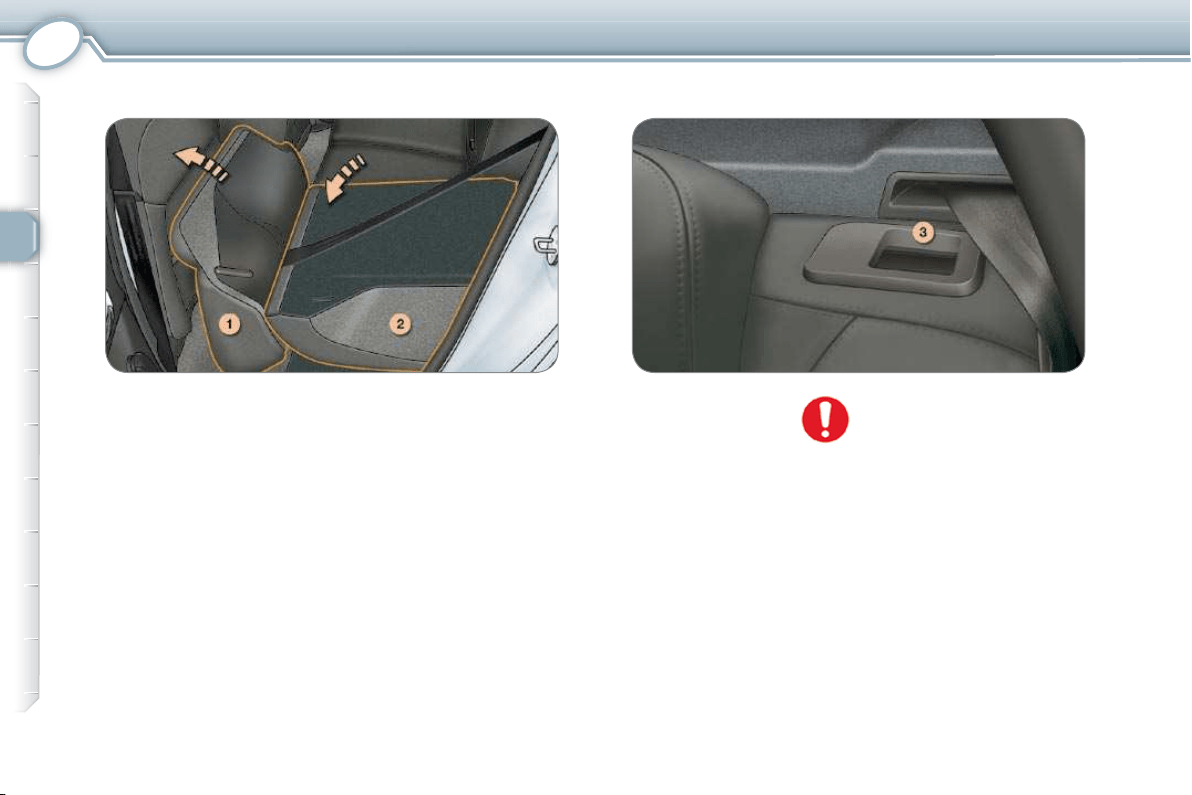

REAR SEATS (SALOON)
Note: the seat cushion 1 can be re-
moved with care to increase the vol-
ume of the load space.
Squeeze the seat cushion fi xings to
detach them from their fastenings.
When repositioning:
fold up the seat back 2 and lock it
(the red marker of control 3 should
no longer be visible),
fold up the seat 1 ,
refi t the head restraints if they were
removed.
Locking/unlocking the access
to the boot via the rear seats
Your vehicle's boot can be isolated
from the passenger compartment.
The red indicator on the control 3
should no longer be visible. If it is,
push the seat fully.
Insert the ignition key in the lock 4 .
Take care not to trap the seat
belt and to position the tongue
of each strap correctly in its
respective clasp before folding
down the seat back. This will enable
you to reposition the seat backs with
their seat belts and clasps ready to ac-
commodate your rear passengers.
To fold down the rear left seat or the
rear right seat, always start with the
seat cushion, never with the seat back
(risk of damage):
move the front seat(s) forward if
necessary,
place the head restraints in the low
position or remove them if necessary,
Check that the seat belt strap is posi-
tioned correctly at the side of the seat
back,
Ensure that the outer seat belt tongues
are engaged in their claps (the centre
seat belt must not be fastened),
lift the front of the seat cushion 1 ,
tilt the seat cushion 1 against the
front seat(s),
pull control 3 forwards to unlock
the seat back 2 ,
fold down the seat back 2 .
3
COMFORT
54
REAR SEATS (407SW)
Note: the seat cushion 1 can be re-
moved with care to increase the volume
of the load space.
Squeeze the seat cushion fi xings to
detach them from their fastenings.
When repositioning:
fold up the seat back 2 and lock it
(the red marker of control 3 should
no longer be visible),
fold up the seat 1 ,
refi t the head restraints if they were
removed.
Take care not to trap the seat
belt and to position the tongue
of each strap correctly in its
respective clasp before folding
down the seat back. This will enable
you to reposition the seat backs with
their seat belts and clasps ready to ac-
commodate your rear passengers.
To fold down the rear left seat or the
rear right seat, always start with the
seat cushion, never with the seat back
(risk of damage):
move the front seat(s) forward if
necessary,
place the head restraints in the low
position or remove them if necessary,
Check that the seat belt strap is posi-
tioned correctly at the side of the seat
back,
Ensure that the outer seat belt tongues
are fastened in their clasp (the centre
seat belt must not be fastened),
lift the front of the seat cushion 1 ,
tilt the seat cushion 1 against the
front seat(s),
pull control 3 forwards to unlock
the seat back 2 ,
fold down the seat back 2 .
3
COMFORT
55
CHILD SEAT IN THE FRONT
GENERAL POINTS RELATING
TO CHILD SEATS
* The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
When a "rearwards-facing"
child seat is installed on the
front passenger seat , it is
essential that the passenger
airbag is deactivated. Otherwise, the
child would risk being seriously in-
jured or killed if the airbag were to
infl ate .
"Rearwards-facing"
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends
on you.
For maximum safety, please
observe the following recom-
mendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and
a half metres tall must travel in
approved child seats suited to
their weight , on seats fi tted with a
seat belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying chil-
dren are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats of
your vehicle:
- "rearwards-facing" up to the age
of 2,
- "forwards-facing" over the age
of 2.
Intermediate longitudinal
position
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position with
the seat back upright and leave the
passenger airbag activated.
"Forwards-facing"
3
COMFORT
56
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-
Safe Plus"
Installed in the
rearwards-facing
position.
L2
"KIDDY Life"
The use of the
restraining cushion is
compulsory for carrying
young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of
6 years
(approximately 22 kg),
the booster is used on
its own.
L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt :
Passenger airbag OFF
3
COMFORT
57
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a) depending on the weight of the child and the seat in the vehicle:
Weight of the child/ indicative age
Seat
Below 13 kg
(groups 0 (b) and
0+)
Up to approx 1 year
9 to 18 kg
(group 1)
De 1 to 3 years
approx
15 to 25 kg
(group 2)
De 3 to 6 years
22 to 36 kg
(group 3)
De 6 to 10 years
approx
Front passenger
seat (c)
- fi xed U U U U
- height adjustable U(R) U(R) U(R) U(R)
Outer rear seats U U U U
Centre rear seat X X X X
a : Universal child seat: child seat which can be installed in all vehicles using the seat belt.
b : Group 0: from birth to 10 kg.
c : Consult the current legislation in your country before installing your child on this seat.
U : seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or
"forwards facing".
U (R) : identical to U , but the vehicle seat must be adjusted to the highest position.
X : seat which is not suitable for the installation of a child seat.
3
COMFORT

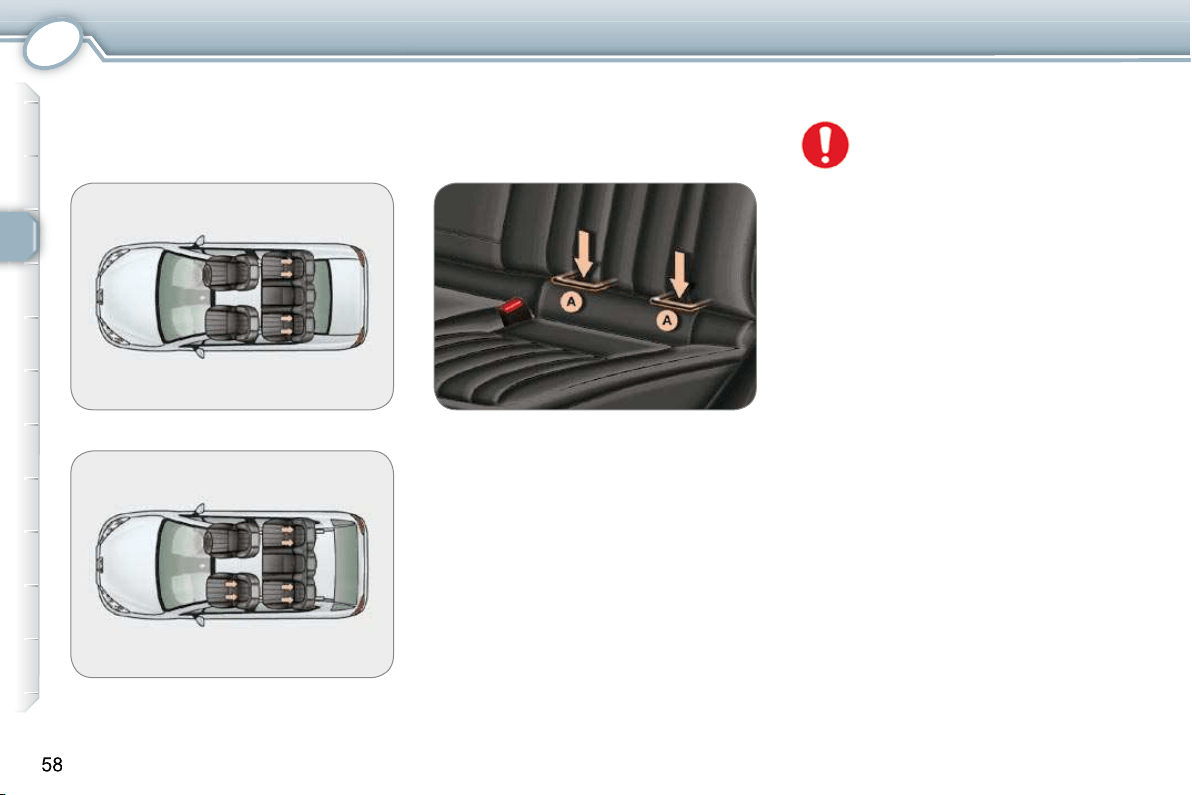

These are two rings located between
the seat back and the seat cushion.
"ISOFIX" MOUNTINGS
These seats are fi tted with ISOFIX
mountings.
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of a collision.
407 SALOON
407SW
This ISOFIX mounting system guaran-
tees reliable, safe and fast fi tting of the
child seat in your vehicle.
The ISOFIX child seats are fi tted with
two locks which are secured easily on
these lower rings A .
3
COMFORT
59

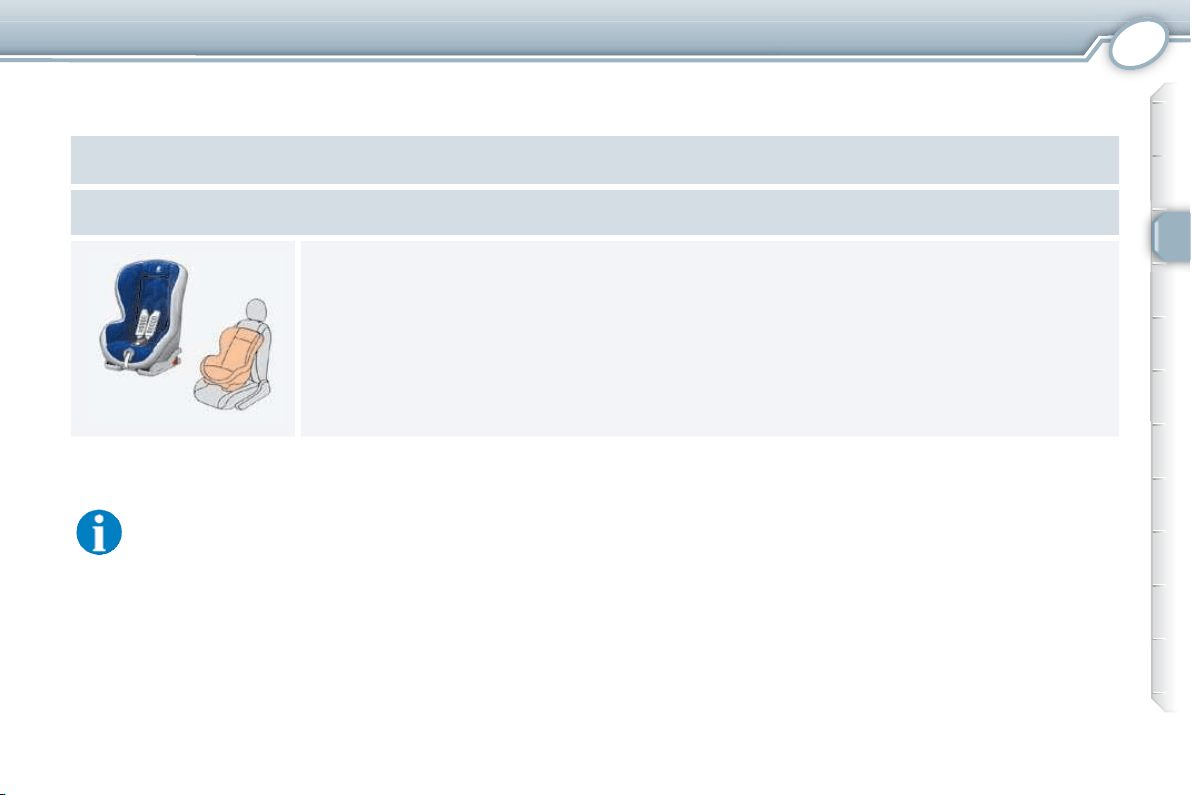

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
ISOFIX RÖMER Duo Plus (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards facing position, on the rear seats only.
Secured without the top strap.
Three child seat body angles: sitting, reclining and lying positions.
Adjust the vehicle's front seat so that the child's feet do not touch the seat back.
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that
it is secured to the vehicle's seat by means of the three point seat belt.
Follow the instructions for fi tting the child seat indicated in the seat manufacturer's installation guide.
3
COMFORT
60
ADVICE ON CHILD
SEATS
Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger airbag when
a "rearwards-facing" child seat is in-
stalled on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and unsu-
pervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
4
ACCESS
Using the key
Lock the vehicle (the direction indi-
cators come on for approximately
two seconds).
Turning the key again within fi ve
seconds deadlocks the vehicle
(the direction indicators come on
for approximately two seconds).
REMOTE CONTROL KEY
The key allows you, from the driver's
side, to lock or unlock the doors, the
boot and the fuel fi ller fl ap and fold
and unfold the door mirrors and in-
dependently it allows you to open or
close the glove box, lock or unlock the
access to the boot via the rear seats
(407 Saloon) and switch on the igni-
tion.
The remote control has the same
functions as the key as well as partial
opening of the boot (Saloon) or the
rear screen (407SW).
It is part of the key and is used for re-
mote locking and unlocking.
If one of the doors or the boot is open,
the central locking does not work.
Unlocking and partial opening of
the boot (saloon) or rear screen
(407SW)
Press and hold button D .
This action also unlocks the doors.
Unfolding/folding the key
To unfold or fold the key, press button A .
Locking
Press button B .
The direction indicators come on for
approximately two seconds and the
door mirrors fold.
Press and hold button B to close the
windows and sunroof automatically in
addition to locking.
Unlocking
Press button C .
The direction indicators fl ash rapidly
and the door mirrors unfold.
The "Folding of the door mirrors" func-
tion can be deactivated by a PEUGEOT
dealer.
Permanent locking of the boot
(saloon)
Deadlocking
This renders the external and internal
door controls inoperative.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Note: if the vehicle is locked
and unlocking is activated
inadvertently without a door
being opened within the next
30 seconds, the vehicle will lock au-
tomatically.
This function can be acti-
vated or deactivated via the
"personalisation - confi gu-
ration" menu and "Defi ne
the vehicle parameters" on
the multifunction screen.
Press button D on the remote
control key.
This will unlock the boot only.
4
ACCESS
62
Using the remote control
Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
A second press within fi ve seconds
deadlocks the vehicle (the direction
indicators come on for approximately
two seconds).
LOCKING/UNLOCKING FROM
THE INSIDE
MANUAL LOCKING
(EMERGENCY MODE)
Automatic central locking of
the doors
The doors can lock automatically
while driving (speed above 6 mph
[10 km/h]).
Press and hold the button to activate
or deactivate this function.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lamps come on
and the direction indicators fl ash
for a few seconds.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
diffi cult in an emergency.
If the vehicle is deadlocked,
the button is not active. In this
case, use the key or the re-
mote control to unlock.
Press the button.
This allows the doors and the boot to
be locked or unlocked.
Driver's door
Insert the key in the lock to lock or unlock
the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.
4
ACCESS

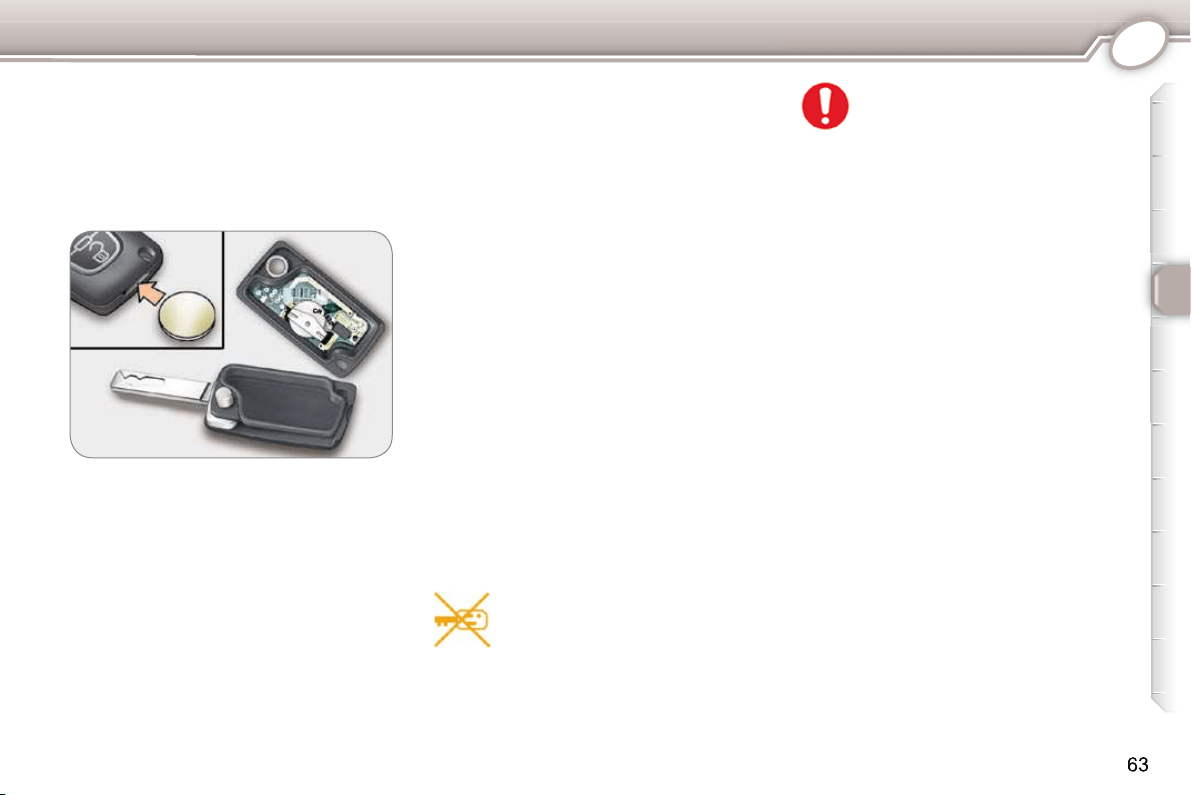

CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REINITIALISATION
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking but-
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
ELECTRONIC ENGINE
IMMOBILISER
Electronic engine immobiliser
indicator lamp
It is accompanied by a message on
the multi-function screen.
Your vehicle will not start.
Consult a PEUGEOT dealer.
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function correct-
ly, the following indicator lamp comes on:
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons of
your remote control out of range and
out of sight of your vehicle. You run the
risk of stopping it from working and the
remote control would have to be reini-
tialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.
Lost keys
Visit a PEUGEOT dealer with
the vehicle's V5 registration
document and your personal identifi -
cation documents.
The PEUGEOT dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement key.
4
ACCESS
64
Anti-theft protection
Do not make any modifi ca-
tions to the electronic engine
immobiliser system; this could
cause malfunctions.
CHILD LOCK
This prevents opening of both of the
rear doors from the inside.
With the ignition on, press the button.
A message appears on the multi-func-
tion display.
This system is independent and does
not, in any circumstances, take the
place of the central locking control.
Electric mode
When purchasing a second-
hand vehicle
Have the key codes memorised by a
PEUGEOT dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Always remove the ignition
key when leaving the vehicle,
even for a short time.
It is advisable to check that
the child lock is active each time the
ignition is switched on.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
4
ACCESS
62
Using the remote control
Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
A second press within fi ve seconds
deadlocks the vehicle (the direction
indicators come on for approximately
two seconds).
LOCKING/UNLOCKING FROM
THE INSIDE
MANUAL LOCKING
(EMERGENCY MODE)
Automatic central locking of
the doors
The doors can lock automatically
while driving (speed above 6 mph
[10 km/h]).
Press and hold the button to activate
or deactivate this function.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
press button B on the remote con-
trol, the courtesy lamps come on
and the direction indicators fl ash
for a few seconds.
Note: driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
diffi cult in an emergency.
If the vehicle is deadlocked,
the button is not active. In this
case, use the key or the re-
mote control to unlock.
Press the button.
This allows the doors and the boot to
be locked or unlocked.
Driver's door
Insert the key in the lock to lock or unlock
the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.
4
ACCESS
CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REINITIALISATION
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking but-
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
ELECTRONIC ENGINE
IMMOBILISER
Electronic engine immobiliser
indicator lamp
It is accompanied by a message on
the multi-function screen.
Your vehicle will not start.
Consult a PEUGEOT dealer.
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function correct-
ly, the following indicator lamp comes on:
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons of
your remote control out of range and
out of sight of your vehicle. You run the
risk of stopping it from working and the
remote control would have to be reini-
tialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.
Lost keys
Visit a PEUGEOT dealer with
the vehicle's V5 registration
document and your personal identifi -
cation documents.
The PEUGEOT dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement key.
4
ACCESS
CHANGING THE REMOTE
CONTROL BATTERY
Battery ref.: CR1620/3 volts.
To change the battery, unclip the casing
using a coin at the notch.
REINITIALISATION
Switch off the ignition.
Switch the ignition on again.
Press the remote control locking but-
ton immediately for a few seconds.
Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
ELECTRONIC ENGINE
IMMOBILISER
Electronic engine immobiliser
indicator lamp
It is accompanied by a message on
the multi-function screen.
Your vehicle will not start.
Consult a PEUGEOT dealer.
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic chip
which has a special code. When the ig-
nition is switched on, the code must be
recognised for starting to be possible.
If the system does not function correct-
ly, the following indicator lamp comes on:
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons of
your remote control out of range and
out of sight of your vehicle. You run the
risk of stopping it from working and the
remote control would have to be reini-
tialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.
Lost keys
Visit a PEUGEOT dealer with
the vehicle's V5 registration
document and your personal identifi -
cation documents.
The PEUGEOT dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement key.
4
ACCESS
64
Anti-theft protection
Do not make any modifi ca-
tions to the electronic engine
immobiliser system; this could
cause malfunctions.
CHILD LOCK
This prevents opening of both of the
rear doors from the inside.
With the ignition on, press the button.
A message appears on the multi-func-
tion display.
This system is independent and does
not, in any circumstances, take the
place of the central locking control.
Electric mode
When purchasing a second-
hand vehicle
Have the key codes memorised by a
PEUGEOT dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Always remove the ignition
key when leaving the vehicle,
even for a short time.
It is advisable to check that
the child lock is active each time the
ignition is switched on.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
4
ACCESS
64
Anti-theft protection
Do not make any modifi ca-
tions to the electronic engine
immobiliser system; this could
cause malfunctions.
CHILD LOCK
This prevents opening of both of the
rear doors from the inside.
With the ignition on, press the button.
A message appears on the multi-func-
tion display.
This system is independent and does
not, in any circumstances, take the
place of the central locking control.
Electric mode
When purchasing a second-
hand vehicle
Have the key codes memorised by a
PEUGEOT dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Always remove the ignition
key when leaving the vehicle,
even for a short time.
It is advisable to check that
the child lock is active each time the
ignition is switched on.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
4
ACCESS
65
ALARM
For all work on the alarm system, contact
a PEUGEOT dealer.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.
Self-protection function
The system checks for the
putting out of service of its
components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out
of the vehicle.
Press the locking button on the re-
mote control.
The monitoring system is active: the
indicator lamp on the button fl ashes
once per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
after a delay of 45 seconds.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric monitoring.
System which protects and provides a
deterrent against theft and break-ins.
It provides the following types of moni-
toring.
Deactivation
Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp on the button switches off.
Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric pro-
tection to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transport by sea.
Deactivation of the interior
volumetric monitoring
Switch off the ignition.
Within ten seconds, press the but-
ton until the indicator lamp is lit
continuously.
Get out of the vehicle.
Press the locking button on the re-
mote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp on the
button fl ashes once per second.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.
4
ACCESS
66
Reactivation of the interior
volumetric monitoring
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp on the button again
fl ashes once per second.
Triggering of the alarm
This is indicated by sounding of the
siren and fl ashing of the direction indi-
cators for thirty seconds.
The monitoring functions remain ac-
tive until the alarm has been triggered
eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing of
the indicator lamp on the button in-
forms you that the alarm was triggered
during your absence. When the igni-
tion is switched on, this fl ashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
Unlock the vehicle using the key in
the driver's door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops. The indicator lamp on the
button switches off.
Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using
the key in the driver's door lock.
Malfunction
When the ignition is switched on, fi xed
lighting of the indicator lamp on the
button indicates a malfunction of the
system.
Have it checked by a PEUGEOT dealer.
* According to country.
Automatic activation *
2 minutes after the last door or the
boot is closed, the system is activated
automatically.
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
4
ACCESS
67
ELECTRIC WINDOWS
Automatic operation:
To open or close the window, press or
pull switch fully: the window opens or
closes completely when the switch is
released. Pressing the switch again
stops the movement of the window.
The electric window switches remain
operational for approximately one min-
ute after the key has been removed
from the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate
them, switch the ignition on again.
Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
In the event of contact during
operation of the windows, you must re-
verse the movement of the window. To
do this, press the switch concerned.
When the driver operates the passen-
ger electric window switches, he must
ensure that no one is preventing cor-
rect closing of the windows.
The driver must ensure that the pas-
sengers use the electric windows cor-
rectly.
Be aware of children when operating
the windows.
REINITIALISATION OF
THE ELECTRIC WINDOWS
Following reconnection of the battery,
the safety anti-pinch function must be re-
initialised: the safety anti-pinch function
is not active during these operations.
- lower the window completely, then
raise it, it will rise in steps of a few
centimetres each time the switch is
pressed. Repeat the operation un-
til the window closes completely,
- continue to press the switch for at
least one second after reaching
this position, window closed.
Safety anti-pinch
When the window rises and meets an
obstacle, it stops and immediately par-
tially lowers again.
In the event of unwanted opening
of the window on closing, press the
switch until the window opens com-
pletely, then pull the switch immediate-
ly until the window closes. Continue to
hold the switch for approximately one
second after the window has closed.
The safety anti-pinch function is not
active during this operation.
Deactivating the rear window
controls
For the safety of your children, press
switch 5 to prevent operation of the rear
windows irrespective of their position.
When the button is pressed down, the
switches are deactivated. When the but-
ton is raised, the switches are active.
Manual operation:
To open or close the window, press
or pull the switch gently. The win-
dow stops as soon as the switch is
released.
1. Driver's electric window switch.
2. Passenger's electric window
switch.
3. Rear right electric window
switch.
4. Rear left electric window
switch.
5. Deactivating the rear electric
window switches (child safety).
4
ACCESS
68
BOOT (SALOON)
TAILGATE AND REAR SCREEN
(407SW)
Partial opening of the rear screen
Opening the tailgate and rear
screen
The tailgate and rear screen cannot
be opened at the same time.
With the rear screen closed, to open
the tailgate , operate the handle A ,
then lift the tailgate.
With the tailgate closed, to open the
rear screen , operate the handle B ,
then lift the rear screen.
The boot lighting is controlled by open-
ing the tailgate or the rear screen.
If the permanent locking of the
boot is activated, opening is
only possible by pressing the
remote control button.
Notes: the tailgate and rear
screen lock automatically when
driving at 6 mph (10 km/h) and
unlock when one of the doors
is opened.
When the rear wiper is in a wiping
position, the rear screen cannot be
opened until the end of the cycle.
Close the rear screen using the wiper
arm or by pressing the centre of the
glass.
To open the boot, press the push button
and raise the tailgate.
The locking or unlocking of the tailgate
and rear screen is simultaneous with
that of the doors.
With the tailgate closed, to partially
open the rear screen , press and hold
the unlocking button C on the remote
control.
4
ACCESS
68
BOOT (SALOON)
TAILGATE AND REAR SCREEN
(407SW)
Partial opening of the rear screen
Opening the tailgate and rear
screen
The tailgate and rear screen cannot
be opened at the same time.
With the rear screen closed, to open
the tailgate , operate the handle A ,
then lift the tailgate.
With the tailgate closed, to open the
rear screen , operate the handle B ,
then lift the rear screen.
The boot lighting is controlled by open-
ing the tailgate or the rear screen.
If the permanent locking of the
boot is activated, opening is
only possible by pressing the
remote control button.
Notes: the tailgate and rear
screen lock automatically when
driving at 6 mph (10 km/h) and
unlock when one of the doors
is opened.
When the rear wiper is in a wiping
position, the rear screen cannot be
opened until the end of the cycle.
Close the rear screen using the wiper
arm or by pressing the centre of the
glass.
To open the boot, press the push button
and raise the tailgate.
The locking or unlocking of the tailgate
and rear screen is simultaneous with
that of the doors.
With the tailgate closed, to partially
open the rear screen , press and hold
the unlocking button C on the remote
control.
4
ACCESS
69
"Rear screen open" warning
When the engine is running , if the
rear screen is not fully closed, you are
warned by a message on the multi-
function screen.
When the vehicle is moving (speed
greater than 6 mph (10 km/h)), if the
rear screen is not fully closed, you are
warned by an audible signal, a mes-
sage on the multifunction screen and
lighting of the service warning lamp.

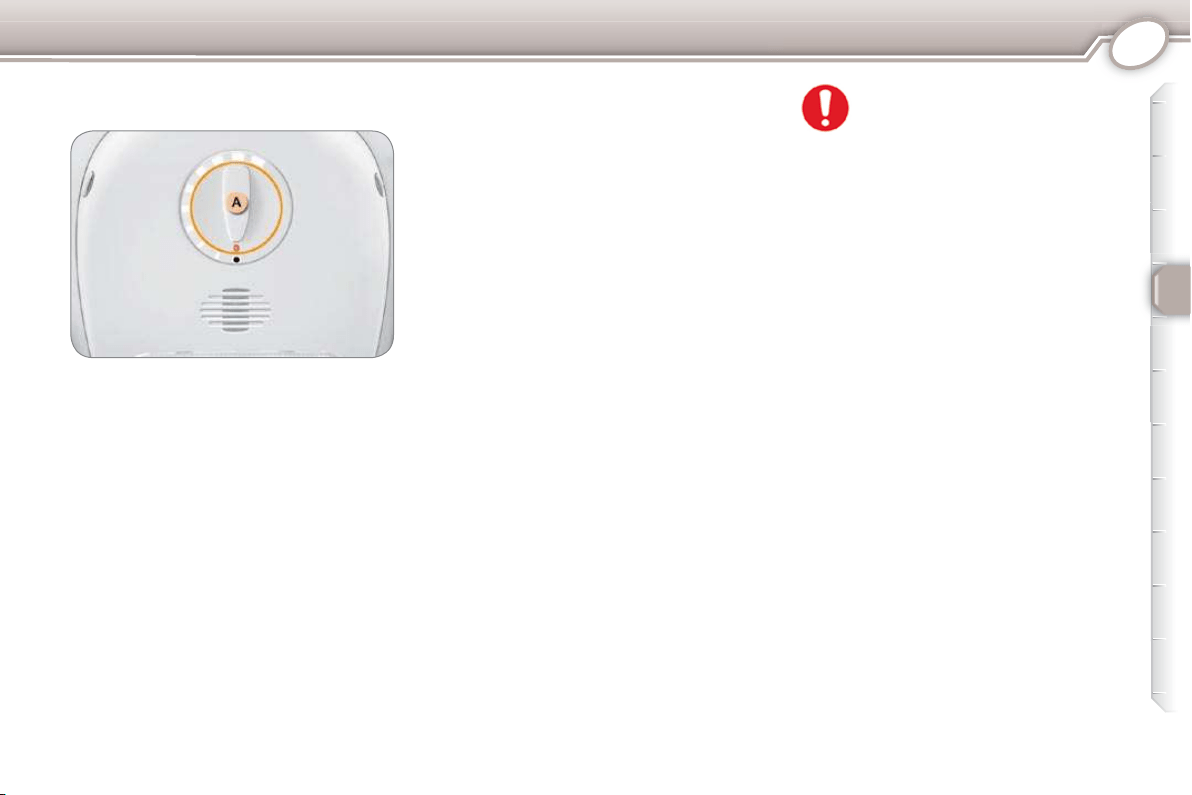

Tailgate release
This enables the tailgate to be un-
locked in the event of a central locking
fault.
- Fold back the rear seats to gain
access to the lock from inside the
boot.
- Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
4
ACCESS
70
Notes:
After reconnecting the battery, you
must reinitialise the safety anti-pinch:
- place the control in the maximum
partial opening position (3rd notch
to the right),
- wait until the roof is in the maxi-
mum partially open position,
- press the control for at least one
second.
In the event of unwanted opening of
the roof on closing (for example, in the
presence of ice), and immediately af-
ter the roof stops:
- move the control to the "O" position
and press the control immediately,
- continue to press the control until
the roof is fully closed.
SUNROOF (SALOON)
Always remove the key from
the ignition when leaving the
vehicle, even for a short time.
In the event of contact during
operation of the roof, you must reverse
the movement of the roof. To do this,
press the switch concerned.
When the driver operates the roof
switch, they must ensure that no one
is preventing correct closing of the
roof.
The driver must ensure that passen-
gers use the sunroof correctly.
Be aware of children when operating
the roof.
- To partially open the roof: Turn the
switch to the right (three possible
settings).
- To open the roof completely: Turn
the switch to the left (six possible
settings).
- To close it completely: Turn the
switch back to position "O".
- Safety anti-pinch: When the sun-
roof is closing and meets an ob-
stacle, it stops then partially opens
again.
The sunroof blind is manual.
4
ACCESS
71
Safety anti-pinch
If the blind encounters an obstacle
during closing, it stops and partially
opens again.
You must reinitialise the safety anti-
pinch within a maximum of fi ve sec-
onds after the blind has stopped:
- press part A of the control until the
blind is completely closed (closing
in stages of a few centimetres).
PANORAMIC SUNROOF (407SW)
In the event of contact du-
ring operation of the blind, you
must reverse its movement.
To do this, press the control
concerned.
When the driver operates the blind-
control, they must ensure that no one
is preventing the blind from closing
correctly.
The driver must ensure that the pas-
sengers use the blind correctly.
Pay attention to children during opera-
tion of the blind.
Notes:
Following reconnection of the battery,
in the event of a blind malfunction
while it is moving or immediately after
it has stopped, you must reinitialise
the safety anti-pinch:
- place the control in the fully open
position (position "0"),
- wait until the blind is in the fully
open position,
- press section A of the control for at
least three seconds.
In the event of unwanted opening of
the blind on closing, and immediately
after the blind has stopped:
- move the control to the fully closed
position (9th setting to the left) then
press part A of the control straight
away,
- continue to press the control until
the blind is fully closed.
The safety anti-pinch function is not
active during these operations.
Your vehicle is fi tted with a tinted glass
panoramic sunroof which increases
the light and visibility in the passen-
ger compartment. Its electric blind im-
proves temperature conditions.
The blind is controlled electrically by
a dial with nine opening positions.
To close: turn the dial to the left (nine
possible settings).
To open: return the dial to the initial
position "0" .
4
ACCESS
72
FUEL TANK
The capacity of the tank is approxi-
mately 67 litres.
When the low fuel level is
reached, this warning lamp
comes on in the instrument
panel, accompanied by an au-
dible signal and a message on the mul-
tifunction screen. When it fi rst comes
on, about 6 litres of fuel remains in
the tank.
If you run completely out of fuel
(Diesel), refer also to the "Checks"
section.
A label fi tted to the inside of the fuel
fi ller fl ap indicates which type of fuel
to use.
Additions of fuel must be of at least
5 litres to be taken into account by the
fuel gauge.
Opening the fuel fi ller may produce the
noise of an inrush of air. This vacuum
is entirely normal and results from the
sealing of the fuel system.
Low fuel warning
To refuel in complete safety:
you must switch off the engine,
open the fuel fi ller fl ap.
turn the cap to the left.
remove the cap and hang the end
on the hook located on the inside
of the fl ap.
fi ll the tank, but do not continue
after the third cut-off of the noz-
zle ; this may cause malfunctions.
After fi lling the tank:
refi t the cap,
close the fl ap.
Operating fault
A fuel gauge fault is indicated by the
fuel guage needle returning to zero.
Have it checked by a PEUGEOT dealer.
Refuelling
4
ACCESS
73
Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85% ethanol and 15% un-
leaded petrol, called E85).
So, regardless of the quantity of fuel
remaining in your tank and irrespec-
tive of its type (RON 95/RON 98, E85
or a mixture of the two), you can fi ll
your tank at any time with unleaded
petrol (RON 95 or RON 98) or ethanol
(E85).
There is no problem driving on unlea-
ded petrol only with this vehicle.
In winter conditions, star-
ting the engine from cold may
sometimes prove diffi cult.
During these very cold periods
you are advised to use unleaded pet-
rol rather than E85 to ensure optimum
starting conditions.
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10% ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100% ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).
4
ACCESS
73
Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85% ethanol and 15% un-
leaded petrol, called E85).
So, regardless of the quantity of fuel
remaining in your tank and irrespec-
tive of its type (RON 95/RON 98, E85
or a mixture of the two), you can fi ll
your tank at any time with unleaded
petrol (RON 95 or RON 98) or ethanol
(E85).
There is no problem driving on unlea-
ded petrol only with this vehicle.
In winter conditions, star-
ting the engine from cold may
sometimes prove diffi cult.
During these very cold periods
you are advised to use unleaded pet-
rol rather than E85 to ensure optimum
starting conditions.
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10% ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100% ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).
5
74
LIGHTING CONTROL STALK
Lighting on
With the ignition off, on opening the
driver's door an audible signal indi-
cates that you have left the lighting on
when leaving the vehicle.
Switch the lighting off.
Direction indicators
Dipped/main beam change
Pull the stalk fully towards you.
Front and rear foglamps (ring B)
Turn ring B forwards to switch on
and rearwards to switch off. The
status is confi rmed by the lamp on
the instrument panel.
Front foglamps (turn once)
Left: downwards. The
direction arrow indica-
tor lamp fl ashes on the
instrument panel.
Right: upwards. The
direction arrow indica-
tor lamp fl ashes on the
instrument panel.
If you forget to return the di-
rection indicator to its normal
position, the volume of the
audible signal will increase, if
you are driving at a speed greater than
40 mph (60 km/h) or if the control stalk
is held on for more than 20 seconds.
These operate with the sidelamps and
the dipped or main beam headlamps.
Rear foglamps (turn twice)
These operate when the front foglamps
are already on.
Front and rear lamps (ring A)
Turn ring A to the position re-
quired.
Automatic illumination of
headlamps,
Lighting off,
Sidelamps,
Dipped/main beam head-
lamps.
Model without AUTO lighting
Model with AUTO lighting
5
75
Automatic illumination of
headlamps
The dipped beam headlamps switch
on automatically if the light is poor and
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
the sunshine sensor can detect suffi -
cient light. The lighting will not come
on automatically. If necessary, you
must switch the dipped beam head-
lamps on manually.
Activation Manual "Guide-me-home" lighting
When you leave your vehicle, the side-
lamps and dipped beam headlamps
can be left on for a few seconds.
When the function is activated, the
indicator lamp comes on on the
5-dial instrument panel screen.
To deactivate or activate the
function, use the "Persona-
lisation - confi guration"
menu on your multifunction
screen.
For safety reasons, activation/
deactivation of the "Automatic
illumination of headlampss"
function via the menu must be
carried out when stationary.
To deactivate or activate the
"Automatic guide-me-home
lighting" function, use the
"Personalisation - confi-
guration" menu on your
multifunction screen.
The duration of the lighting
can be set via the "Person-
alisation - confi guration"
menu of your multifunction
screen.
Automatic "Guide-me-home"
lighting
When you leave your vehicle with
the automatic illumination of head-
lamps activated, the sidelamps and
dipped beam headlamps remain on
for the duration selected after the igni-
tion is switched off.
Deactivation
When the function is deactivated,
the indicator lamp comes on on the
5-dial instrument panel screen.
Do not cover the sunshine/
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
conditioning and for the automatic il-
lumination of headlamps.
If the sunshine/brightness sensor
does not function correctly, the
sidelamps and dipped beam headlam-
ps come on.
Consult a PEUGEOT dealer.
Activation:
switch off the engine,
"fl ash" the headlamps,
get out of the vehicle and lock it.
5
75
Automatic illumination of
headlamps
The dipped beam headlamps switch
on automatically if the light is poor and
when the windscreen wipers operate
continuously. They switch off when
the light is bright enough or the wind-
screen wipers stop.
Warning: in foggy weather or in snow,
the sunshine sensor can detect suffi -
cient light. The lighting will not come
on automatically. If necessary, you
must switch the dipped beam head-
lamps on manually.
Activation Manual "Guide-me-home" lighting
When you leave your vehicle, the side-
lamps and dipped beam headlamps
can be left on for a few seconds.
When the function is activated, the
indicator lamp comes on on the
5-dial instrument panel screen.
To deactivate or activate the
function, use the "Persona-
lisation - confi guration"
menu on your multifunction
screen.
For safety reasons, activation/
deactivation of the "Automatic
illumination of headlampss"
function via the menu must be
carried out when stationary.
To deactivate or activate the
"Automatic guide-me-home
lighting" function, use the
"Personalisation - confi-
guration" menu on your
multifunction screen.
The duration of the lighting
can be set via the "Person-
alisation - confi guration"
menu of your multifunction
screen.
Automatic "Guide-me-home"
lighting
When you leave your vehicle with
the automatic illumination of head-
lamps activated, the sidelamps and
dipped beam headlamps remain on
for the duration selected after the igni-
tion is switched off.
Deactivation
When the function is deactivated,
the indicator lamp comes on on the
5-dial instrument panel screen.
Do not cover the sunshine/
brightness sensor, located in
the centre of the windscreen.
It is used to regulate the air
conditioning and for the automatic il-
lumination of headlamps.
If the sunshine/brightness sensor
does not function correctly, the
sidelamps and dipped beam headlam-
ps come on.
Consult a PEUGEOT dealer.
Activation:
switch off the engine,
"fl ash" the headlamps,
get out of the vehicle and lock it.
5
76
MANUAL HEADLAMP
ADJUSTMENT
AUTOMATIC HEADLAMP
ADJUSTMENT
In cases of malfunction , the
warning lamp comes on on the
instrument panel screen, ac-
companied by an audible sig-
nal and a message on the multifunction
screen. The system places your head-
lamps to the low position.
Do not touch the xenon bulbs. Consult
a PEUGEOT dealer.
Daytime running lamps *
On vehicles which are equipped with day-
time running lamps, the dipped beam head-
lamps come on when the vehicle is started.
This indicator lamp comes on on
the instrument panel screen.
The instruments and controls
(multifunction screen, air con-
ditioning control panel...) are
only lit on switching to the
automatic illumination of headlamps
mode or when the lighting is switched
on manually.
* According to country.
For vehicles fi tted with halogen bulbs,
depending on the load in your vehicle,
adjusting the beam of your headlamps
is recommended.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate adjustment
2. 5 people + maximum authorised
loads.
-. Intermediate adjustment
3. Driver + maximum authorised loads.
Initial setting is position 0.
When stationary with the ignition
on , the system automatically corrects
the height of the beam, whatever the
load of the vehicle. The driver is then
assured of having optimum lighting
and not causing a nuisance to other
road users.
5
77
WINDSCREEN WIPER
CONTROL STALK
Windscreen wiper with intermittent
wipe
Windscreen wiper with automatic
wipe
The windscreen wiping
must be reactivated if the
ignition has been switched off
for more than one minute.
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the Intermittent position, the wiping
speed is in proportion to the vehicle
speed.
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press downwards).
In the AUTO position, no action on
your part is necessary.
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Windscreen wiper with Intermittent
and automatic wipe
The windscreen wiping
must be reactivated if the
ignition has been switched off
for more than one minute.
Automatic, then single wipe
(see following page).
In the AUTO position, no action on
your part is necessary.
In the Intermittent position, the wiping
speed is in proportion to the vehicle
speed.
5
78
Automatic rain sensitive
windscreen wipers
Activation
REAR WIPER CONTROL
(407 SW)
Deactivation
Do not cover the rain sensor
located on the windscreen be-
hind the rear view mirror.
When using an automatic car
wash to wash your vehicle, switch off
the ignition or check that the wiper
stalk is not in the automatic position.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipers.
Automatic rear wiper
If the windscreen wipers control is ac-
tivated and you engage reverse gear,
the rear wiper operates in intermittent
mode.
Note: if a bicycle carrier is
used, deactivate this function
by going to the "personalisa-
tion - confi guration" menu on
the multifunction screen or install a
special bicycle carrier approved by
PEUGEOT.
Turn the ring to the fi rst notch for inter-
mittent wiping.
The control must be reactivated if
the ignition has been switched off.
To do this, move the control to any
position then return it to the required
position.
Move the control to position 0 then re-
turn it to the AUTO position.
An indicator lamp comes on on the in-
strument panel screen, accompanied
by a message on the multifunction
screen.
In the AUTO position, the windscreen
wipers operate automatically and
adapt their speed to the intensity of
the rainfall.
Control with automatic wiping only
In the event of malfunction , the
windscreen wipers will operate in in-
termittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Control with Intermittent and
automatic wiping
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deacti-
vation indicator lamp comes on on the
instrument panel screen, accompa-
nied by a message on the multifunc-
tion screen.
Manual operation of the wiper stalk by
moving the stalk A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator
lamp comes on on the instrument pan-
el screen, accompanied by a message
on the multifunction screen.
5
78
Automatic rain sensitive
windscreen wipers
Activation
REAR WIPER CONTROL
(407 SW)
Deactivation
Do not cover the rain sensor
located on the windscreen be-
hind the rear view mirror.
When using an automatic car
wash to wash your vehicle, switch off
the ignition or check that the wiper
stalk is not in the automatic position.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipers.
Automatic rear wiper
If the windscreen wipers control is ac-
tivated and you engage reverse gear,
the rear wiper operates in intermittent
mode.
Note: if a bicycle carrier is
used, deactivate this function
by going to the "personalisa-
tion - confi guration" menu on
the multifunction screen or install a
special bicycle carrier approved by
PEUGEOT.
Turn the ring to the fi rst notch for inter-
mittent wiping.
The control must be reactivated if
the ignition has been switched off.
To do this, move the control to any
position then return it to the required
position.
Move the control to position 0 then re-
turn it to the AUTO position.
An indicator lamp comes on on the in-
strument panel screen, accompanied
by a message on the multifunction
screen.
In the AUTO position, the windscreen
wipers operate automatically and
adapt their speed to the intensity of
the rainfall.
Control with automatic wiping only
In the event of malfunction , the
windscreen wipers will operate in in-
termittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Control with Intermittent and
automatic wiping
Manual operation of the wiper stalk in-
terrupts the AUTO position, the deacti-
vation indicator lamp comes on on the
instrument panel screen, accompa-
nied by a message on the multifunc-
tion screen.
Manual operation of the wiper stalk by
moving the stalk A up and returning
it to position "0" interrupts the AUTO
position, the deactivation indicator
lamp comes on on the instrument pan-
el screen, accompanied by a message
on the multifunction screen.
5
79
Windscreen and headlamp wash
Pull the windscreen wiper stalk towards
you. The windscreen wash then the
windscreen wipers operate for a fi xed
period.
The headlamp wash is also activated,
if the headlamps are on .
When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning light comes on each time
the stalk is operated, until the reservoir
is fi lled.
FRONT COURTESY LAMP
The courtesy lamp can be deactivated
by pressing switch 1 with the door open.
The map reading lamps are not affected
by this and may be switched on.
To re-activate the lamps, press the
switch, with the door open.
Screenwash/
headlamp wash low
1. Courtesy lamp
2. Map reading lamps
With the key in the ignition on or starting
position, operate the relevant switch.
The front courtesy lamp comes on
when the ignition key is removed, on
unlocking the vehicle or on opening
one of the doors.
It gradually goes off after the ignition
has been switched on or when the ve-
hicle is locked.
Pressing switch 1 turns on the front
courtesy lamp.
Rear wash-wipe
Note: the rear wiper and rear
wash-wipe functions are de-
activated automatically when
the rear screen is opened.
Turn the ring beyond the fi rst notch,
the wash-wipe then the wiper operate
for a set period of time.
5
79
Windscreen and headlamp wash
Pull the windscreen wiper stalk towards
you. The windscreen wash then the
windscreen wipers operate for a fi xed
period.
The headlamp wash is also activated,
if the headlamps are on .
When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning light comes on each time
the stalk is operated, until the reservoir
is fi lled.
FRONT COURTESY LAMP
The courtesy lamp can be deactivated
by pressing switch 1 with the door open.
The map reading lamps are not affected
by this and may be switched on.
To re-activate the lamps, press the
switch, with the door open.
Screenwash/
headlamp wash low
1. Courtesy lamp
2. Map reading lamps
With the key in the ignition on or starting
position, operate the relevant switch.
The front courtesy lamp comes on
when the ignition key is removed, on
unlocking the vehicle or on opening
one of the doors.
It gradually goes off after the ignition
has been switched on or when the ve-
hicle is locked.
Pressing switch 1 turns on the front
courtesy lamp.
Rear wash-wipe
Note: the rear wiper and rear
wash-wipe functions are de-
activated automatically when
the rear screen is opened.
Turn the ring beyond the fi rst notch,
the wash-wipe then the wiper operate
for a set period of time.
5
80

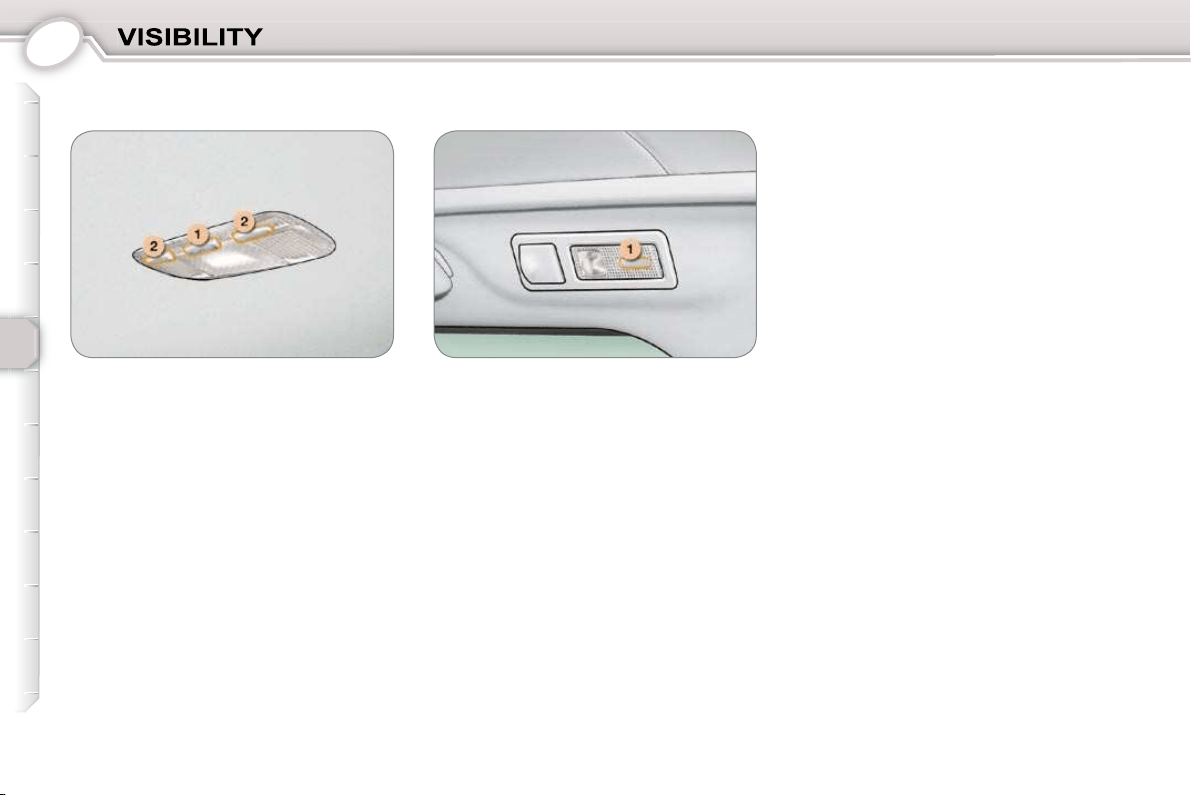

REAR COURTESY LAMP
(SALOON)
REAR READING LAMPS
(407 SW)
Sill illumination
The sill lighting is at the bottom of each
door panel.
The lamps come on automatically
when a door is opened and switch off
automatically when all of the doors are
closed.
Boot light
The boot light is located in the right-
hand boot trim.
It comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
1. Courtesy lamp
2. Map reading lamps
With the key in the ignition on or start-
ing position, operate the relevant
switch.
The rear courtesy lamp comes on
when the ignition key is removed, on
unlocking the vehicle or on opening
one of the doors.
It gradually goes off after the ignition
has been switched on or the vehicle
is locked.
Pressing switch 1 turns on the rear
courtesy lamp.
The courtesy lamp can be deactivated
by pressing switch 1 with the door open.
The map reading lamps are not affected
by this and may be switched on.
To re-activate the lamps, press the
switch, with the door open.
With the key in the ignition on or start-
ing position, press the corresponding
switch.
The rear reading lamps come on when
the key is removed from the ignition
and when the vehicle is unlocked.
They switch off gradually when the ig-
nition is switched on or when the ve-
hicle is locked.
Pressing switch 1 switches on the
rear reading lamp concerned for
ten minutes.
6
FITTINGS
81
INTERIOR FITTINGS
This is fi tted with a lock.
To open the glove box, lift the handle.
The glove box lights when the lid is
opened.
It is fi tted with three sockets for con-
necting video equipment (vehicle fi tted
with a 16/9 colour screen), a ventilation
nozzle that can be closed by means
of a dial, distributing conditioned air at
the same temperature as the vents of
the passenger compartment.
In cold weather, it is advisable to close
this nozzle to conserve the ambient air
inside the passenger compartment.
The glove box permits access to the
fascia fuse box.
To open the compartment, lift the cover
or operate the lever on the left (accord-
ing to version).
The storage compartment permits ac-
cess to the USB socket and the storing
of CDs and coins.
Rear storage container
Closed storage compartment,
driver’s side
Door tray
This permits the storing of maps, tourist
guides or a bottle of water.
Front ashtray (100 W max)
This is fi tted with a lighter socket or
12 volt socket.
Press the cover to open the ashtray.
To empty the ashtray, after opening,
grip the receptacle and remove it.
Retractable cup/can holder
This is located in front of the front armrest.
Press the cover to open the cup/can
holder.
12 volt accessories socket (100 W max)
This is a lighter type socket, fi tted with
a cap. It is supplied with current from
the ignition on position.
This permits the storing of small ob-
jects such as keys, a parking badge or
a mobile telephone.
Air conditioned glove box Front armrest
This is located at the back of the front
armrest.
To empty it, open it fully, press the upper
tab then pull to remove it.
6
FITTINGS
82

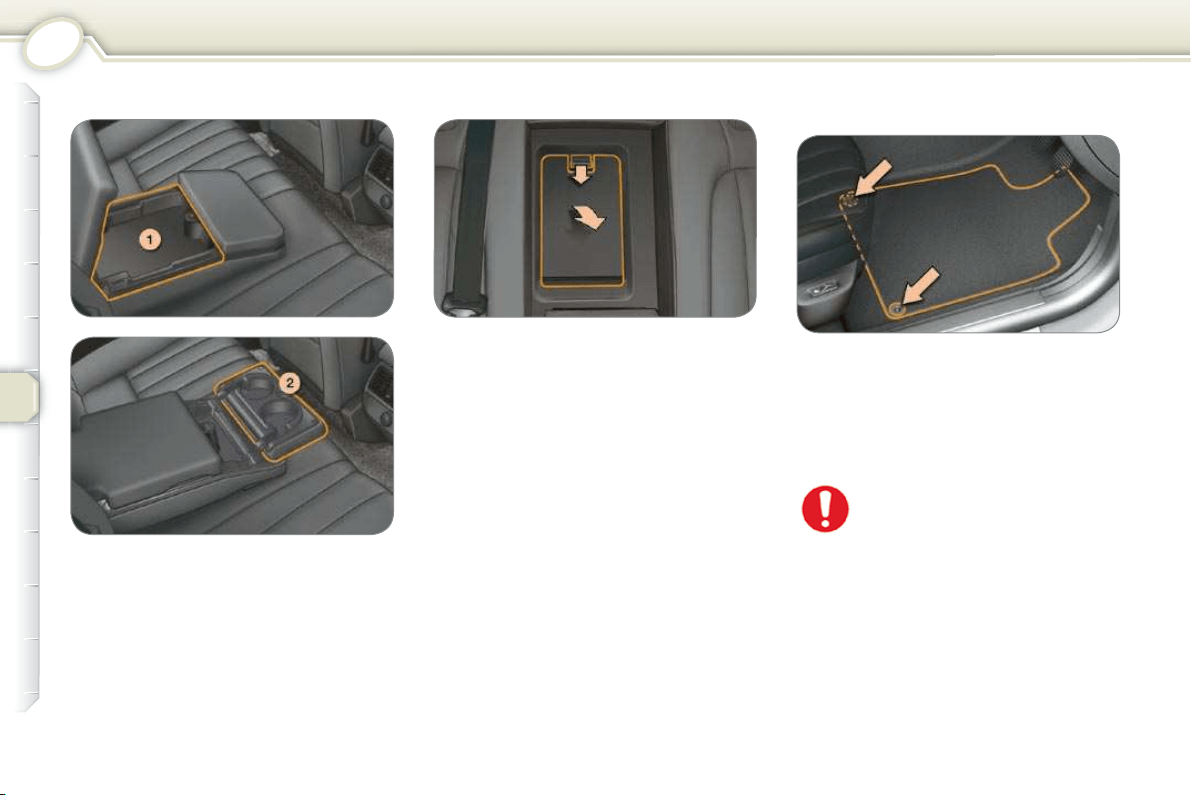

Rear armrest Fitting/Removing the mat
Storage compartments
There are two storage compartments
located in the boot side trim.
To gain access to a compartment:
turn the two screws to the right and
remove the panel.
Access to the ski flap
To prevent the mat from becom-
ing caught under the pedals:
- only use mats suited to
the fi xings already present
in the vehicle. It is essen-
tial that these fi xings are
used.
- never fi t one mat on top of another.
The rear armrest consists of two com-
partments with a hinged cover.
Storage compartment 1 :
Lift the cover.
Pull the handle down then towards you
to open the fl ap.
When removing the mat on the driver's
side, push the seat as far back as pos-
sible and remove the fi xings.
When refi tting, position the mat correct-
ly on the pin and clip the fi xings. Check
that the mat is secured correctly.
Cup holder 2 :
Fold the second cover forwards.
6
FITTINGS
83
BOOT FITTINGS (407 SW)
3. Load space cover
To remove:
Unclip the front ends and remove
the load space cover.
To install:
Position the front ends of the load
space cover on its support and
press lightly to put it in place.
1. 12V accessories socket (100 W
max) and boot lamp
This is a cigar lighter type 12 volt sock-
et. It is installed on the rear left trim
and is supplied from the ignition on
position.
The boot lamp is controlled by opening
the tailgate or rear screen.
4. Stowing rings
There are four stowing rings on the
boot fl oor to which the luggage retain-
ing net can be attached.
2. Storage boxes
There are two side storage boxes
which can contain:
- on the left: a can of oil, a fi rst aid
kit, a puncture repair aerosol,
- on the right (except when a JBL Hi-
Fi system is fi tted): a box of bulbs,
a warning triangle (support provi-
ded for this purpose), the luggage
retaining net.
6
FITTINGS
84

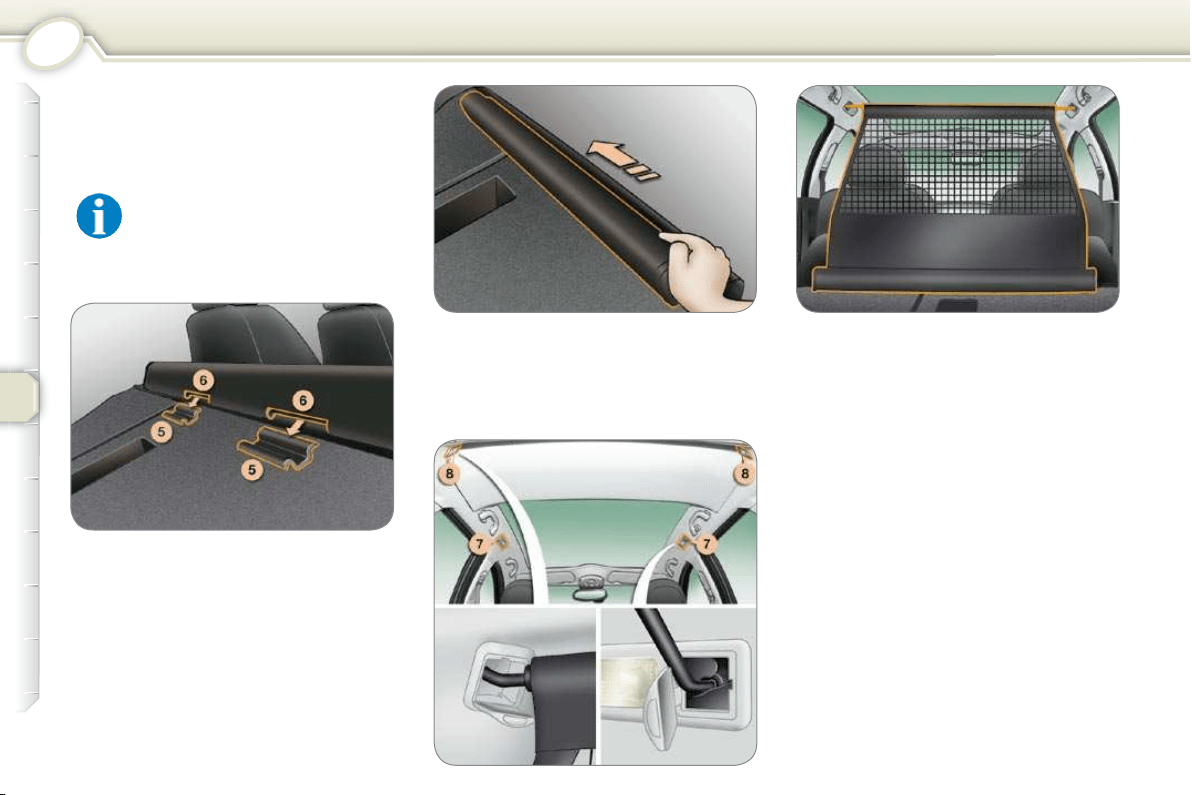

High load retaining net
The high load retaining net can be
used behind the front seats (row 1) or
behind the rear bench seat (row 2).
To install it:
fold the rear seat backs,
position the high load retaining net
roller above the two rails 5 located
behind the rear seats (2/3 bench
seat). The two notches 6 must be
placed above the two rails,
slide the two rails 5 in the notches 6 ,
push the roller (in the direction of
the length) from right to left to se-
cure it,
put the rear seat backs back in
place.
To use it in row 1 :
fold the rear seat backs,
open the covers 7 of the corre-
sponding upper fi xings,
unroll the high load retaining net
and position one end of the metal
bar in the corresponding fi xing co-
ver. Ensure that the hook is seated
correctly in the rail located inside
the cover 7 ,
pull the metal bar on the high load
retaining net to position the other
hook in the second fi xing cover.
Note : if it is used behind the
front seats, the rear seat backs
and cushions must be folded
(see section on rear seats).
6
FITTINGS
85
To use it in row 2 :
open the covers 8 of the corre-
sponding upper fi xings,
from the rear bench seat, unroll the
high load retaining net pushing it to
detach it from the retaining hooks,
position one of the ends of the
metal bar of the net in the corre-
sponding fi xing cover. Ensure that
the hook is seated correctly in the
rail located inside the cover 8 ,
position the other hook in the sec-
ond fi xing cover and pull the metal
bar towards you.

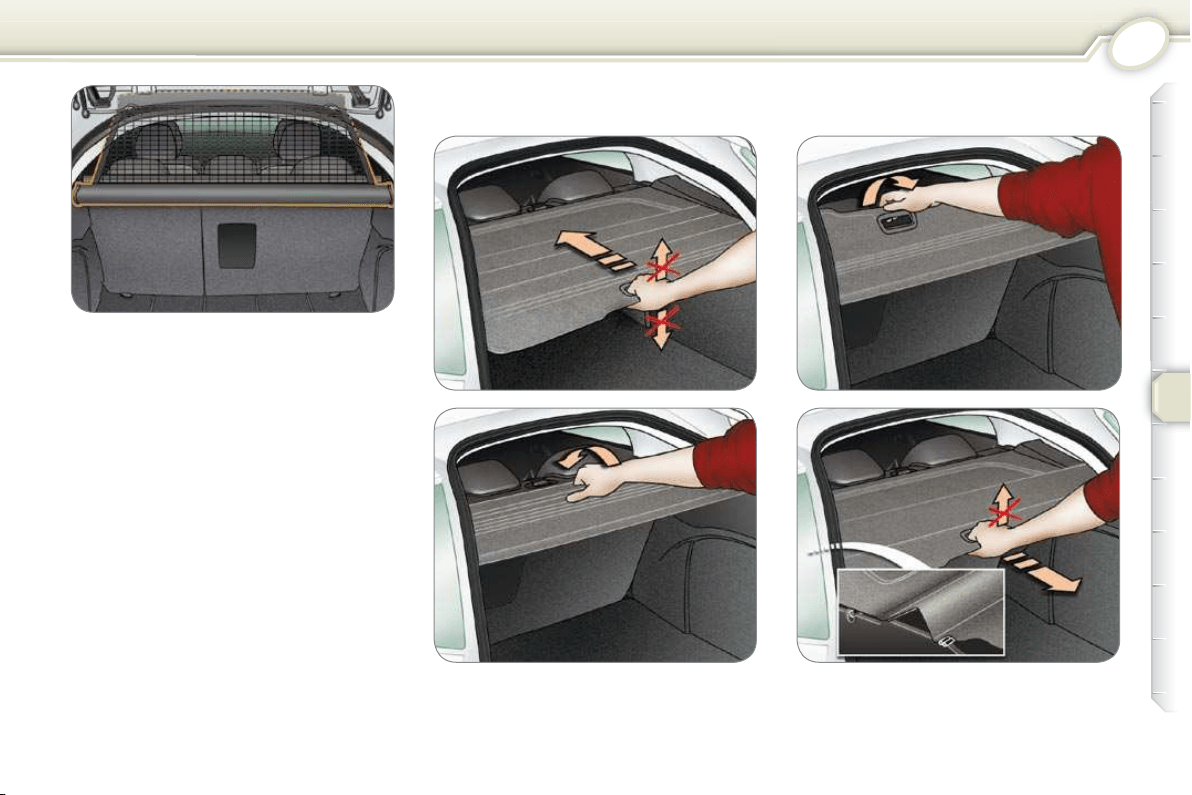

To unfold To fold
LOAD SPACE COVER (407 SW)
6
FITTINGS
85
To use it in row 2 :
open the covers 8 of the corre-
sponding upper fi xings,
from the rear bench seat, unroll the
high load retaining net pushing it to
detach it from the retaining hooks,
position one of the ends of the
metal bar of the net in the corre-
sponding fi xing cover. Ensure that
the hook is seated correctly in the
rail located inside the cover 8 ,
position the other hook in the sec-
ond fi xing cover and pull the metal
bar towards you.
To unfold To fold
LOAD SPACE COVER (407 SW)
7
SAFETY
86
HORN
Press one of the spokes of the steering
wheel.
HAZARD WARNING LAMPS
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.
It is also possible to switch them off by
pressing the button.
ELECTRONIC STABILITY
PROGRAMME (ESP)
This system is linked and complemen-
tary to the ABS system.
In the event of a signifi cant variation
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation
The indicator lamp comes on.
Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator light.
The system is triggered again:
automatically if the ignition is
switched off,
automatically above 30 mph (50 km/h),
manually by pressing the switch
again.
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
7
SAFETY
86
HORN
Press one of the spokes of the steering
wheel.
HAZARD WARNING LAMPS
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.
It is also possible to switch them off by
pressing the button.
ELECTRONIC STABILITY
PROGRAMME (ESP)
This system is linked and complemen-
tary to the ABS system.
In the event of a signifi cant variation
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation
The indicator lamp comes on.
Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.
Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator light.
The system is triggered again:
automatically if the ignition is
switched off,
automatically above 30 mph (50 km/h),
manually by pressing the switch
again.
Press the button, the direction indica-
tors fl ash.
They can operate with the ignition off.
7
SAFETY
87
Operating fault
When a malfunction of the system oc-
curs, the warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked.
Instrument panel indicator light.
The ESP offers exceptional
safety during normal driving,
but this should not encourage
the driver to take extra risks
(late braking) or drive at high speed.
Correct operation of the system depends
on compliance with the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
ANTI-LOCK BRAKING SYSTEM
(ABS)
The ABS increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or slip-
pery road surfaces.
This system comes into operation
automatically when there is a risk of
wheel lock.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
This indicates that the ABS is
faulty.
It also comes on on the instru-
ment panel screen.
If it comes on permanently above
6 mph (10 km/h), it indicates an ABS
malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an in-
crease in braking effi ciency.
When braking in an emergency, press
fi rmly without releasing the pressure.
In emergency braking, press
very fi rmly without releas-
ing the pressure.
Note: when changing wheels (tyres
and rims), make sure that these are
approved.
7
SAFETY
87
Operating fault
When a malfunction of the system oc-
curs, the warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked.
Instrument panel indicator light.
The ESP offers exceptional
safety during normal driving,
but this should not encourage
the driver to take extra risks
(late braking) or drive at high speed.
Correct operation of the system depends
on compliance with the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
ANTI-LOCK BRAKING SYSTEM
(ABS)
The ABS increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or slip-
pery road surfaces.
This system comes into operation
automatically when there is a risk of
wheel lock.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
This indicates that the ABS is
faulty.
It also comes on on the instru-
ment panel screen.
If it comes on permanently above
6 mph (10 km/h), it indicates an ABS
malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an in-
crease in braking effi ciency.
When braking in an emergency, press
fi rmly without releasing the pressure.
In emergency braking, press
very fi rmly without releas-
ing the pressure.
Note: when changing wheels (tyres
and rims), make sure that these are
approved.
7
SAFETY
88
SEAT BELTS
Detection of fastening of the front
seat belts
When the ignition is switched on , if a
front passenger has not fastened their
seat belt and if the vehicle speed is below
12 mph (20 km/h) , you are warned by
lighting of the seat belt warning lamp .
The warning lamp switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by fl ash-
ing of the seat belt warning lamp ,
an audible signal and a message on
the multifunction screen identifying the
unfastened seat belt(s).
Front seat belts with
pre-tensioner and force
limiter
In the event of a serious front impact,
the pre-tensioning system instantly
tightens the seat belts fi rmly against
the bodies of the occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pressure
of the seat belt against the chest of
the occupant, so increasing his pro-
tection.
Rear seat belts
The rear seats are all fi tted with a
three-point inertia reel seat belt.
The rear side seat belts have a force
limiter and may be fi tted with a pre-
tensioning inertia reel.
To fasten the seat belts
Pull the strap, then insert the
tongue into the buckle.
Check that the seat belt is secured
correctly by pulling the strap.
To unfasten the seat belts
Press the red button on the buckle.
Before folding the seat back, pull the
strap and insert the seat belt tongue
into the buckle. This precaution will
ensure that each seat belt is in place
when the rear seats are lifted again.
Note: a bag or an animal
placed on the front passenger
seat may cause illumination of
the warning lamp.
The audible signal ceases and the
warning lamp switches off when the
seat belt concerned is fastened.
After two minutes without any action
on the seat belts, the fl ashing warning
lamp remains on permanently and the
audible signal ceases. All of the warn-
ings cease when a door is opened or
when the engine is switched off.
Front seat belt height adjustment:
To lower the attachment point,
squeeze control 1 and slide it
downwards.
To raise the attachment point, slide
control 1 upwards.
7
SAFETY
89
The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained be-
fore setting off.
Wherever you are seated in the vehi-
cle, always fasten your seat belt, even
for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it.
Recommendations for children:
- use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one metre fi fty,
- do not use the strap-guide * when a
child seat is installed.
- never use the same seat belt to se-
cure more than one person,
- never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.
* According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or
fraying,
- must be pulled in front of you with
a smooth movement, checking that
it does not twist,
- must not be transformed or modifi ed
to avoid altering its performance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and rolled up correctly.
7
SAFETY
AIRBAGS
The airbags have been designed to
maximise the safety of the occupants
(with the exception of the rear centre
passenger) in the event of violent col-
lisions. They supplement the action of
the force-limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detec-
tion zones:
- in the event of a serious impact,
the airbags are deployed instanta-
neously and protect the occupants
of the vehicle (with the exception
of the rear centre passenger); im-
mediately after the impact, the air-
bags defl ate rapidly so that they do
not hinder the visibility of the oc-
cupants or their possible exit from
the vehicle,
- in the event of a minor impact or
rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone is
suffi cient to provide maximum pro-
tection in these situations.
Front airbags
The front airbags protect the driver
and front passenger in the event of a
serious front impact in order to limit the
risks of injury to the head and chest.
They are fi tted in the centre of the
steering wheel for the driver and in the
dashboard for the front passenger.

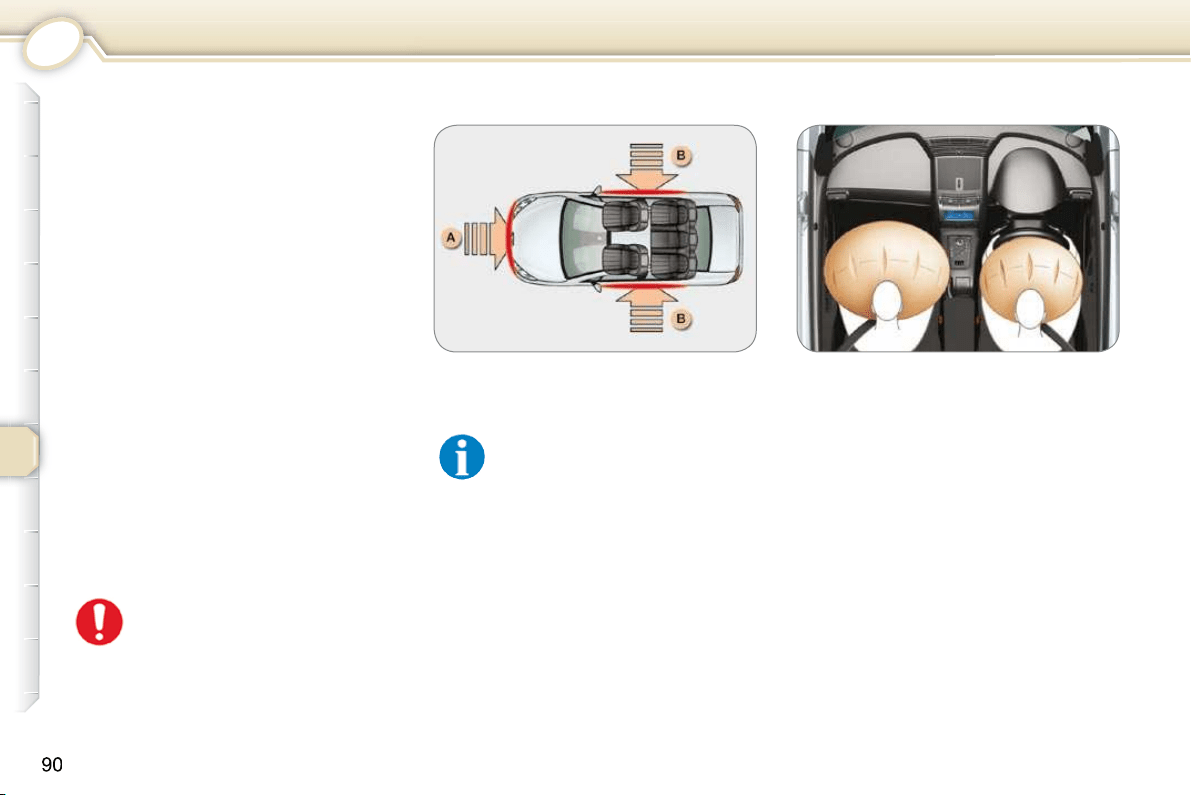

Impact detection zones
A. Front impact zone.
B. Side impact zone.
The deployment of one or
more airbags is accompanied
by a slight discharge of harm-
less smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
Activation
They are deployed simultaneously, ex-
cept in cases where the passenger's
front airbag is deactivated, in the event
of a serious front impact applied to all
or part of the front impact zone A , in
the longitudinal centreline of the vehi-
cle on a horizontal plane directed from
the front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
The airbags do not operate
when the ignition is off.
This equipment only operates
once. If a second impact occurs (during
the same or a subsequent accident),
the airbag will not operate.
7
SAFETY
91
Disarming the front
passenger's front air bag *
Reactivation
As soon as the child seat is removed,
turn the air bag slot to the "ON" position
to re-activate the air bag and thus ensure
its safety function.
To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing
child seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
With the ignition switched off ,
insert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the key
keeping the slot in this position.
The knee airbag protects the driver's
knees in the event of a serious front
impact.
It is fi tted in the dashboard below the
steering column.
In the event of a malfunction
* According to country.
Triggering
It is deployed at the same time as the
front airbags.
Instrument panel warning lamp.
If this warning lamp comes on, ac-
companied by an audible signal and a
message on the multifunction screen,
contact a PEUGEOT dealer to have
the system checked. The airbags may
no longer be deployed in the event of
a serious impact.
Knee airbag
When the ignition is on, this
warning light remains lit on the
instrument panel for the duration
of disarming.
In the "OFF" position, the passenger
air bag will not be triggered in the event
of an impact.
7
SAFETY
92
Front/rear * lateral airbags
The lateral airbags protect the driver
and passengers (with the exception
of the rear centre passenger) in the
event of a serious side impact in order
to limit the risks of injury to the chest.
The lateral airbags are fi tted in the
front seat back and in the rear door
armrest * .
Activation
The lateral airbags are deployed inde-
pendently of each other in the event
of a serious side impact applied to
all or part of the side impact zone B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane directed from the outside to the
inside of the vehicle.
The lateral airbag infl ates between
the front or rear occupant of the ve-
hicle and the corresponding door trim
panel.
* According to country.
A. Front impact zone.
B. Side impact zone.
Activation
It is deployed at the same time as the
corresponding side air bags in the
event of a serious side impact applied
to all or part of the side impact zone B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane directed from the outside to the
inside of the vehicle.
The curtain airbag infl ates between
the front or rear occupant of the ve-
hicle and the windows.
Impact detection zones
Curtain airbags
The curtain airbags protect the driver
and passengers (with the exception
of the rear centre passenger) in the
event of a serious side impact in order
to limit the risks of injury to the head.
The curtain airbags are fi tted in the
door pillars and the upper part of the
passenger compartment.
In the event of a malfunction
Instrument panel warning lamp.
If this warning lamp comes on, ac-
companied by an audible signal and a
message on the multifunction screen,
contact a PEUGEOT dealer to have
the system checked. The airbags may
no longer be deployed in the event of
a serious impact.
In the event of a minor impact
or bump to the side of the
vehicle or if the vehicle rolls
over, the airbag may not be
deployed.
In the event of a rear or front collision,
the airbag is not deployed.
7
SAFETY
93
Curtain air bags
Do not fi x or glue anything to the
pillars or the roof. This could cause
injury to the head when the curtain
air bag infl ates.
Do not remove the grab handles
installed on the roof, they play
a part in securing the curtain air
bags.
Front air bags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their
feet on the fascia.
Smoke as little as possible; deploy-
ment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering
wheel or hit it violently.
For the air bags to be fully
effective, observe the following
safety rules:
Wear a correctly adjusted seat belt.
Sit in a normal upright position.
Do not leave anything between
the occupants and the air bags
(a child, pet, object...). This could
hamper the operation of the air
bags or injure the occupants.
After an accident or if the vehicle
has been stolen or broken into,
have the air bag systems checked.
All work on the air bag system is
strictly forbidden unless it is carried
out by qualifi ed personnel of the
PEUGEOT network.
Even if all of the precautions men-
tioned are observed, a risk of in-
jury or of slight burns to the head,
chest or arms, when an air bag is
deployed, cannot be ruled out. The
bag infl ates almost instantly (within
a few milliseconds) then defl ates
within the same time discharging
the hot gas via openings provided
for this purpose.
* According to country.
Side air bags *
Only put approved covers on the
seats. These will not hamper the
deployment of the side air bags.
Consult a PEUGEOT dealer.
Do not fi x or glue anything to the
seat backs. This could cause injury
to the chest or arms when the side
air bag infl ates.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Steering column air bag *
Do not sit with your knees any
nearer to the steering wheel than
necessary.
7
SAFETY
91
Disarming the front
passenger's front air bag *
Reactivation
As soon as the child seat is removed,
turn the air bag slot to the "ON" position
to re-activate the air bag and thus ensure
its safety function.
To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-facing
child seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
were to infl ate.
With the ignition switched off ,
insert the key into the passenger air
bag disarming switch, turn it to the
"OFF" position, then remove the key
keeping the slot in this position.
The knee airbag protects the driver's
knees in the event of a serious front
impact.
It is fi tted in the dashboard below the
steering column.
In the event of a malfunction
* According to country.
Triggering
It is deployed at the same time as the
front airbags.
Instrument panel warning lamp.
If this warning lamp comes on, ac-
companied by an audible signal and a
message on the multifunction screen,
contact a PEUGEOT dealer to have
the system checked. The airbags may
no longer be deployed in the event of
a serious impact.
Knee airbag
When the ignition is on, this
warning light remains lit on the
instrument panel for the duration
of disarming.
In the "OFF" position, the passenger
air bag will not be triggered in the event
of an impact.
8
DRIVING
94
PARKING BRAKE
6-SPEED MANUAL GEARBOX
To release
Pull the lever up and press the button
to release the parking brake.
To apply
When parking on a slope, turn the
wheels towards the kerb and apply the
parking brake.
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push
the gear lever to the left then to the
front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
8
DRIVING
95
Gear selection gate
Move the lever in the gate to select
a position.
The indicator lamp corresponding
to the position selected appears on
the instrument panel screen.
P ark: to immobilise the vehicle and
to start the engine, with the parking
brake on.
R everse: to reverse (select this posi-
tion with the vehicle stationary, engine
at idle).
N eutral: to start the engine and to park,
with the parking brake on.
Note: if position N is inadvertently en-
gaged while driving, allow the engine
to return to idle before engaging posi-
tion D then accelerate.
D rive: to drive in automatic mode.
M anual: to drive selecting the gears.
S : sport programme.
: snow programme.
"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX
The four or six speed automatic gear-
box offers, as required, the comfort
of the auto-adaptive programme en-
hanced by a selection suited to dy-
namic driving conditions: sport, or to
driving on a slippery road: snow.
However, manual selection is still pos-
sible using the gear lever.
Moving Off
With the engine running, move off from
position P :
to exit position P, you have to
press the brake pedal,
select position R , D or M , then
gradually release the pressure on
the brake pedal; the vehicle moves
off immediately.
To move off from position N :
with your foot on the brake, release
the parking brake,
select position R , D or M , then
gradually release the pressure on
the brake pedal; the vehicle moves
off immediately.
Starting the engine
with the parking brake on, select
position P or N in the gate,
turn the ignition key.
When the engine is at idle,
brakes not applied, if position
R , D or M is selected, the ve-
hicle moves even without the
accelerator being pressed.
Do not leave children unsupervised
inside the vehicle, with position
R, D or M selected, with the en-
gine running, as the vehicle moves
even without the accelerator being
pressed.
With the ignition off, if the le-
ver is not in position P , an
audible signal is heard when
the driver's door is opened, or
after approximately 45 seconds. Move
the lever to position P . The audible
signal ceases.
When maintenance operations need
to be carried out with the engine run-
ning, apply the parking brake and se-
lect the P ark position.
8
DRIVING
Auto-adaptive programme
select position D in the gate: the
gearbox operates in auto-adaptive
mode, without any action on your
part, taking into account the follow-
ing parameters:
- the style of driving,
- the profi le of the road,
- the vehicle load.
To obtain maximum acceleration with-
out touching the lever, press the ac-
celerator down fully (kick down). The
programme will change down auto-
matically or will stay in the gear select-
ed until the maximum engine speed is
reached.
When the brake is applied, the pro-
gramme will change down automati-
cally in order to provide effi cient engine
braking.
Sport and Snow programmes
These are two special programmes.
The programme selected is displayed
on the instrument panel screen.
It is only possible to change
from one gear to another if
the vehicle speed and engine
speed permit. If they do not,
the vehicle will operate temporarily in
automatic mode.
When the vehicle is stationary or mo-
ving very slowly, the gearbox automa-
tically selects gear M1 .
Programmes S (sport) and (snow)
do not operate in manual gear selec-
tion mode.
Any operating abnormality is
indicated by lighting of this
warning lamp, accompanied
by an audible signal and a
message on the multi-function
screen.
In this situation the gearbox oper-
ates in downgrade mode (locked in
3rd gear). You may feel a substantial
knock when changing from P to R and
from N to R (this will not cause any
damage to the gearbox).
Do not exceed 60 mph (100 km/h) and
keep within local speed limits.
Have it checked by a PEUGEOT dealer.
Operating check
Operation with manual
selection of the gears
select position M in the gate,
push the lever to the + sign to
change up a gear and push again
to change up another gear,
pull the lever to the - sign to change
down a gear and pull again to
change down another gear.
You can change from position D (driv-
ing in automatic mode) to position M
(driving in manual mode) at any time.
Releasing the accelerator
sharply does not have any im-
mediate effect on the speed of
the vehicle.
Never select position N when
the vehicle is moving.
Never select positions P or R
unless the vehicle is stationary.
Never change between positions to
optimise braking on a slippery surface.
Sport programme
Press button S once the vehicle
has been started in position D , the
auto-adaptive programme favours
dynamic driving.
Snow programme
This programme improves starting and
drive when traction is poor.
Press button once the vehicle
has been started and position D has
been selected, the auto-adaptive
programme adjusts the performance
of the vehicle to the condition of the
slippery road.
You can deactivate the Sport or Snow
programme at any time by pressing
the button selected.
If the battery is fl at and the le-
ver is in position P , it will be
impossible to change to an-
other position.
In particular, do not force the lever
or there is a risk the gearbox may be
damaged.
8
DRIVING
97
Press switch 1 , the indi-
cator lamp comes on and
the SPORT warning lamp
comes on.
Press switch 1 again. The
indicator lamp is switched
off and the AUTO indicator
lamp comes on.
To return to automatic operation
In this position, the suspension is
maintained in the SPORT position.
In the event of a fault , it
comes on, accompanied by an
audible signal and a message
on the multifunction screen.
Select automatic operation and con-
tact a PEUGEOT dealer as soon as
possible.
Operating check
This is confi rmed by the switch lamp
and the indicator lamps.
CONTROLLED SUSPENSION
Manual selection of the SPORT
position
The suspension adapts automatically
and instantly to different driving styles
and road characteristics, improving
the comfort of the occupants and the
vehicle's road holding capabilities. The
suspension favours smooth shock ab-
sorption, ensuring a comfortable ride,
but as soon as conditions demand a
change (sporty driving, tight bends,
avoidance action, etc.) it automatically
selects fi rmer shock absorption, guar-
anteeing optimum road holding.
8
DRIVING
98
CRUISE CONTROL/SPEED
LIMITER
Selecting the function
Place switch 1 in the CRUISE po-
sition. The cruise control is not
yet active and no speed has been
memorised. The display indicates:
Switching the function off
Place switch 1 in position 0 or
LIMIT to switch the system off.
Note: It is possible to acce-
lerate and drive momentarily
at a speed greater than the
memorised speed. The value
memorised fl ashes. When the acce-
lerator pedal is released, the vehicle
will return to the memorised speed.
Cancelling the memorised speed
If you wish to cancel the memorised
speed:
Press button 4 or the brake or
clutch pedal. The display indicates
(e.g. at 70 mph (110 km/h)):
Activation/memorising a speed
As soon as you reach the chosen
speed, press button 2 or 3 . This
memorises the speed, which will be
maintained automatically. The display
indicates (e.g. at 70 mph (110 km/h)):
On a steep descent, the cruise
control, which does not act on
the brakes, is not able to pre-
vent the vehicle from exceeding
the programmed speed.
In no circumstances does the
cruise control replace the requirement to
respect speed limits, nor does it replace
the need for vigilance and responsibility
on the part of the driver.
We recommend that your feet remain
near the pedals.
Cruise control function
This enables the vehicle to maintain
a steady speed programmed by the
driver
In order for it to be memorised, the
vehicle speed must be greater than
25 mph (40 km/h) with at least fourth
gear engaged (second gear for the
automatic gearbox), with the engine
running .
8
DRIVING
99
Note: the speed memorised
is cancelled automatically if
the vehicle speed is less than
25 mph (40 km/h), or if the
manual gearbox is in a gear lower than
fourth (second gear for the automatic
gearbox) or if the ESP is activated.
Operating check
In the event of a cruise control malfunc-
tion, the memorised speed is erased,
the dashes fl ash for a few seconds:
Contact a PEUGEOT dealer to have
the system checked.
Do not use the cruise control
on slippery roads or in heavy
traffi c.
Changing a memorised speed
To memorise a speed higher than the
previous one, there are two options:
Without using the accelerator:
press button 3 ;
Using the accelerator:
exceed the memorised speed until
the required speed is reached,
press button 2 or 3 .
To memorise a speed lower than the
previous one:
press button 2 ;
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or decrease of the value in steps of
5 mph (5 km/h).
Recalling the memorised speed
After cancellation, press button 4 . Your
vehicle will return to the last memo-
rised speed. The display indicates
(e.g. at 70 mph (110 km/h)):
Cancelling the memorised speed
Place switch 1 in position 0 or LIMIT
or switch off the ignition.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat is positioned
correctly,
- never fi t one mat on top of another.
8
DRIVING
100
Selecting the function
Place switch 1 in the LIMIT posi-
tion. The limiter is not yet active.
By default the display indicates:
Switching the function off
Place switch 1 in position 0 or
CRUISE or switch off the ignition
to switch the system off. The last
speed programmed remains in the
memory.
Memorising a speed
A speed can be memorised without
activation of the limiter.
Pressing buttons 2 and 3 decreases or
increases the speed.
Short press: +/- 1 mph (1 km/h)
Long press: +/- 5 mph (5 km/h)
Maintained press: continuous increase
or decrease of the value in steps of
5 mph (5 km/h).
Activation/deactivation of the limiter
Pressing button 4 activates the limiter,
pressing this button again deactivates it.
When the limiter is active, the display
indicates (e.g. at 70 mph (110 km/h)):
On a steep descent or if the
driver accelerates sharply, the
speed limiter, which does not
act on the brakes, is not able
to prevent the vehicle from exceeding
the programmed speed.
In no circumstances does the speed
limiter replace the requirement to re-
spect speed limits, nor does it replace
the need for vigilance and responsibi-
lity on the part of the driver.
The driver must remain vigilant and
stay in complete control of his vehicle.
The operations must be car-
ried out with the engine run-
ning.
Speed limiter function
This prevents the vehicle speed ex-
ceeding the speed programmed by
the driver (minimum speed of 18 mph
(30 km/h)).
8
DRIVING
101
Exceeding the programmed speed
Additional pressing of the accelera-
tor to exceed the programmed speed
will have no effect unless the pedal is
pressed fi rmly (passing the point of
resistance ).
The limiter is deactivated temporarily
and displays the programmed speed
(e.g. at 70 mph (110 km/h)):
Note: the speed also fl ashes
when the speed limiter can-
not prevent the vehicle from
exceeding the programmed
speed (on a steep descent or in the
event of sharp acceleration).
To re-activate the limiter, release the
accelerator to slow down to a speed
below the programmed speed.
Operating check
In the event of a limiter malfunction,
the memorised speed is erased, the
dashes fl ash for a few seconds:
Contact a PEUGEOT dealer to have
the system checked.
To prevent the mat from becom-
ing caught under the pedals:
- ensure that the mat is po-
sitioned correctly,
- never fi t one mat on top of
another.
8
DRIVING
102
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Defl ated tyre
Instrument panel display warn-
ing lamp.
This is accompanied by the audible
signal and the message on the mul-
tifunction screen identifying the wheel
concerned.
If this warning lamp comes on, have
the tyre pressure checked as soon as
possible.
Puncture
This warning lamp, accompanied by
the audible signal and the message on
the multifunction screen identifying the
wheel concerned, is followed by illumi-
nation of the 'STOP' warning lamp.
Stop as soon as it is safe to do so,
avoiding any sudden movement of the
steering wheel and the brakes.
Change the damaged wheel (punc-
tured or very defl ated tyre), and have
the tyre pressure checked as soon as
possible.
Sensor(s) not detected or faulty
Instrument panel screen warn-
ing lamp.
All repairs and changing of
tyres on a wheel fi tted with this
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system re-
initialised by a PEUGEOT dealer.
The tyre under-infl ation detection sys-
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressures
checked regularly (see the label on
the door pillar) to ensure that the op-
timum dynamic performance of the
vehicle is maintained and prevent pre-
mature wear of the tyres, particularly
in arduous driving conditions (heavy
load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remem-
ber to check the pressure of the spare
wheel.
The tyre under-infl ation detection sys-
tem may experience temporary interfer-
ence due to electromagnetic emissions
on a frequency close to that used by the
system.
Note : this message is also
displayed when one of the
wheels is away from the ve-
hicle (being repaired) or when
one or more wheels without a sensor
are fi tted.
Instrument panel display warn-
ing lamp.
This is accompanied by the audible
signal and the message on the mul-
tifunction screen which indicates that
under-infl ation detection is absent
from one (or several) wheel(s) or that
there is a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
8
DRIVING
103
VISUAL AND AUDIBLE
FRONT AND REAR PARKING
SENSORS
To ensure optimum operation,
in bad weather or in winter,
ensure that the sensors are
not covered with mud, frost or
snow.
This system consists of proximity
sensors:
- four in the front bumper,
and
- four in the rear bumper.
Detection zone
The system is deactivated if
the vehicle is stationary for
more than 3 seconds.
Detection
The system is activated when:
- reverse gear is engaged,
- the speed is below 6 mph (10 km/h)
in forward gear.
It is accompanied by an audible signal
and/or displaying of the vehicle on the
multifunction screen.
It detects any obstacle (person, ve-
hicle, tree, gate, etc.) in front of or be-
hind the vehicle. However, it cannot
detect obstacles located directly under
the bumper.
An object, such as a stake, cone or any
other similar object may be detected
at the beginning of the manoeuvre but
may no longer be detected when the
vehicle comes close to it.
8
DRIVING
104
Deactivation
Press button A to deactivate the sys-
tem (child asleep in the rear...). The in-
dicator lamp on the button comes on.
Note: this function will be de-
activated automatically when
a trailer is being towed (vehi-
cle fi tted with a towbar recom-
mended by PEUGEOT).
If there is an operating fault,
when reverse gear is en-
gaged, the indicator lamp
fl ashes, accompanied by an
audible signal and a message on the
multifunction screen.
Reactivation
Press button A again to reactivate the
system. The indicator lamp on the but-
ton is switched off.
The proximity of the obstacle is indi-
cated by:
- an audible signal which becomes
more rapid as the vehicle ap-
proaches the obstacle,
- a graphic on the multifunction
screen, with blocks which become
increasingly close to the vehicle.
The obstacle is located in relation to
the emission of the audible signal by
the speakers; that is, front or rear and
right or left.
When the distance between the ve-
hicle and the obstacle is less than
approximately thirty centimetres, the
audible signal becomes continuous
and/or the "Danger" symbol appears
on the multifunction screen.
The system becomes inactive again:
- when you exit reverse gear,
- when the speed is above 6 mph
(10 km/h),
- at the end of the manoeuvre, when
stationary, after a few seconds
(front parking sensors only).
9
CHECKS
106
Bonnet stay
BONNET
Handle the exterior safety catch and
the bonnet stay with care when the en-
gine is hot (risk of burns).
Opening
From inside: pull the release lever on
the left-hand side under the dashboard
towards you.
From outside: move the safety catch to
the left and up then raise the bonnet.
Secure the stay in its housing to hold
the bonnet open.
Before closing the bonnet, replace the
stay in its clip.
Closing
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is fully closed.
9
CHECKS
107
1.8 LITRE 16V, 2 LITRE 16V,
2 LITRE 16V BIOFLEX PETROL
ENGINES
* According to country.
Important: if you have to re-
move or refi t the engine style
cover, handle it with care to
avoid damaging the fi xing clips.
Check the levels!
1. Power steering reservoir.
2. Engine coolant reservoir
(header tank).
3. Engine oil fi ller cap.
4. Brake fl uid reservoir.
5. Air fi lter.
6. Engine oil dipstick.
7. Screenwash and headlamp * wash
reservoir fi ller cap.
9
CHECKS
108
2.2 LITRE 16V AND 3 LITRE V6
24V PETROL ENGINES
* According to country.
Important: if you have to re-
move or refi t the engine style
cover, handle it with care to
avoid damaging the fi xing clips.
Check the levels!
1. Power steering reservoir.
2. Engine coolant reservoir
(header tank).
3. Engine oil fi ller cap.
4. Brake fl uid reservoir.
5. Air fi lter.
6. Engine oil dipstick.
7. Screenwash and headlamp * wash
reservoir fi ller cap.
9
CHECKS
109
1.6 LITRE HDI 16V AND
2 LITRE HDI 16V DIESEL
ENGINES
* According to country.
Important : if you have to re-
move/refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips.
Check the levels!
1. Power steering reservoir.
2. Engine coolant reservoir
(header tank).
3. Engine oil fi ller cap.
4. Brake fl uid reservoir.
5. Air fi lter.
6. Engine oil dipstick.
7. Screenwash and headlamp wash *
reservoir fi ller cap.
8. Priming pump.
9. Bleed screw.
9
CHECKS
110
2.2 LITRE HDI 16V DIESEL
ENGINES
* According to country.
Important: if you have to re-
move/refi t the engine style co-
ver, handle it with care to avoid
damaging the fi xing clips.
Check the levels!
1. Power steering reservoir.
2. Engine coolant reservoir
(header tank).
3. Engine oil fi ller cap.
4. Brake fl uid reservoir.
5. Air fi lter.
6. Engine ol dipstick.
7. Screenwash and headlamp wash *
reservoir fi ller cap.
8. Priming pump.
9. Bleed screw.
9
CHECKS
111
CHECKING THE LEVELS
These are normal maintenance opera-
tions which keep your vehicle in good
working order. Obtan advice from the
PEUGEOT dealer network or from the
Warranty and Maintenance Record
provided with the vehicle.
If you have to remove/refi t the engine
style cover, handle it with care to avoid
damaging the fi xing clips.
Dipstick
There are two marks on
the dipstick:
A = maximum
Never fi ll past this mark.
B = minimum
To maintain the reliability
of engines and emission
control systems, the use
of additives in engine oil is
prohibited.
Oil level
Check the level regularly and top
up between changes.
Check the level with the vehicle level,
the engine having been off for more
than 15 minutes, using the dipstick.
Oil change
It is essential that this is carried out at
the intervals specifi ed and the viscosity
of the oil chosen must meet the require-
ments laid down in the manufacturer's
servicing schedule. Ask for advice from
the PEUGEOT dealer network.
Note : avoid used oil coming into pro-
longed contact with the skin. Empty
the used oil into the containers provid-
ed for this purpose in the PEUGEOT
dealer network (France) or take it to
an approved recycling centre.
system is pressurised, wait for at least
one hour after the engine has stopped
before carrying out any work.
Oil filter
Replace the fi lter regularly in accor-
dance with the recommendations of
the servicing schedule.
Brake fluid change
Use the fl uid recommended by the
manufacturer, which fulfi ls the DOT4
standard.
It is essential that the brake fl uid is
changed at the intervals specifi ed in
the manufacturer's servicing schedule.
Note : avoid all contact with the skin;
the brake fl uid is harmful to health and
is very corrosive.
Used oil
Power steering reservoir
Use the fl uid recommended by the
manufacturer.
Open the reservoir, with the engine
at ambient temperature. The level
should always be above the MIN.
mark and close to the MAX. mark.
Cooling system
Screenwash and headlamp
wash level
To ensure optimum cleaning and avoid
freezing, this fl uid should not be topped
up or replaced with plain water.
Slacken the cap by two turns
to release the pressure to pre-
vent any risk of scalding. When
the pressure has dropped, re-
move the cap and top up the level.
Note : the coolant does not need to be
changed.
Use the fl uid recommended
by the manufacturer.
When the engine is warm, the
temperature of the coolant is
controlled by the engine fan. As this
fan can operate with the ignition key
removed and because the cooling
Do not dispose of used oil,
brake fl uid or coolant into
drains or onto the ground.
Take care when working un-
der the bonnet, as some parts
of the engine can be very hot
(risk of burns).
9
CHECKS
112
CHECKS
At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Have the fi lter elements
replaced regularly. If you
drive in dusty conditions,
change them twice as often.
Air filter and passenger compartment filter
Particle emission filter (Diesel)
It is essential that the particle emission
fi lter is maintained in accordance with
the manufacturer's servicing schedule,
by a PEUGEOT dealer.
Note : following prolonged operation
of the vehicle at very low speed or at
idle, you may, in exceptional circum-
stances, notice emissions of water va-
pour at the exhaust on acceleration.
This does not have any effect on the
performance of the vehicle or the en-
vironment.
On vehicles which are fi tted with a par-
ticle emission fi lter, the cooling fan may
operate after the vehicle has stopped,
even when the engine is cold.
Where the parking brake trav-
el is too great or there is a re-
duction in the performance of
the system, the parking brake
should be adjusted.
Have the system checked by a PEUGEOT
dealer.
Parking brake
Disc wear status
For any information relating to check-
ing disc wear, contact a PEUGEOT
dealer.
FUEL SUPPLY CUT-OFF
(PETROL) *
As a safety precaution, in certain cir-
cumstances the fuel supply to the en-
gine is cut off.
To re-establish the fuel supply:
RUNNING OUT OF FUEL
(DIESEL)
If you should run out of fuel, it is ne-
cessary to prime the fuel system.
The priming pump and the bleed screw
are located under the bonnet (see cor-
responding illustration in the technical
information section):
1.6 litre 16V HDI engine
- fi ll the fuel tank with at least fi ve li-
tres of diesel,
- squeeze and release the manual
priming pump until fuel appears in
the transparent pipe,
- operate the starter until the engine
starts.
2 litre 16V HDI engine
- fi ll the fuel tank with at least fi ve li-
tres of diesel,
- unscrew the bleed screw,
- squeeze and release the manual
priming pump until diesel is seen
escaping via the bleed screw,
- retighten the bleed screw,
- operate the starter until the engine
starts.
Brake pad wear depends on
the style of driving, in particu-
lar for vehicles which are used
in town, over short distances.
Brake pads
It may be necessary to check
the brake pads for wear, even
between services.
* According to version.
To ensure the best perfor-
mance from components as
important as the power steer-
ing and the braking system,
the manufacturer selects and offers
specifi c products, only use products
recommended by PEUGEOT.
Battery
To prevent damage to the electrical
units, high pressure washing of the en-
gine compartment is strictly prohibited .
press the red button on the angle
of the front right-hand suspension
housing, under the bonnet.
1010
PRACTICAL INFORMATION
113
CHANGING A WHEEL
Tools available
The following tools are located in
the holder in the centre of the spare
wheel:
1. Wheelbrace.
For removal of the wheel trim and
removal of the wheel securing
bolts.
2. Jack with integral handle.
For raising the vehicle.
3. Removable towing eye.
See corresponding section.
4. Bolt cover tool.
For removal of the bolt protectors
(covers) on alloy wheels.
Removal
For vehicles with steel wheels, de-
tach the trim using the wheelbrace 1
pulling at the valve passage hole.
For vehicles with alloy wheels, re-
move the covers using tool 4 .
Loosen the wheel bolts.
Take the jack from the tool kit.
Place the jack 2 in one of the four
locations underneath the vehicle
(the nearest one to the wheel to be
changed).
Extend the jack 2 until its base is in
contact with the ground.
Unscrew the bolts and remove the
wheel.
Access to the spare wheel and
the jack in the boot
Lift the fl oor using the grip. Secure
the grip behind the boot seal.
Never go underneath a ve-
hicle which is supported only
by a jack.
Park the vehicle on level, stable
and non-slippery ground.
Apply the parking brake, switch off
the ignition and engage fi rst or re-
verse gear (position P for the auto-
matic gearbox).
10
10
PRACTICAL INFORMATION
114
Fitting a wheel
Position the wheel.
Tighten the bolts by hand.
Partly tighten the bolts using the
wheelbrace.
Fold the jack 2 and remove it.
Fully tighten the bolts using the
wheelbrace 1 .
For vehicles with steel wheels, re-
fi t the wheel trim starting by plac-
ing its notch facing the valve and
press with the palm of the hand.
For vehicles with alloy wheels, refi t
the covers.
Put the tool holder back in position.
This helps to keep the boot fl oor in its
correct position, to prevent any de-
formation of the fl oor when loaded.
Tighten the spare wheel securing
strap to prevent noise and for your
safety in the event of impact.
Punctured tyre warning
lamp
Information on the instrument
panel:
Reminder: for your safety, always
change a wheel:
- on level, stable, non-slippery ground,
- with the parking brake applied,
- with fi rst or reverse gear engaged
(position P for the automatic gear-
box),
- never go underneath a vehicle
which is supported only by a jack.
Tyre under-infl ation detection
system warning lamp
These original equipment wheels are
fi tted with a pressure sensor (see
paragraph "Tyre under-infl ation detec-
tion"). The warning which detects the
removal or absence of a wheel fi tted
with the pressure sensor signals the
anomaly. Have the wheel repaired and
checked by a PEUGEOT dealer.
After changing the wheel:
- have the tightness of the bolts and
the tyre pressure of the spare wheel
checked as soon as possible.
- have the punctured wheel repaired
and refi t it to the vehicle as soon as
possible.
- have the spare wheel checked and
replace it in its boot recess.
Recommendations when using
the temporary spare wheel *
Your vehicle may be equipped with a
spare wheel with a different rim to that
of the standard wheel.
After use, replace it as soon as possible.
Follow the recommendations below
to avoid any alteration in vehicle han-
dling:
-
do not drive above 50 mph (80 km/h) ,
- do not fi t a wheel trim,
- drive carefully,
- check the infl ation pressure indicated
on the label.
* According to version and country.
1010
PRACTICAL INFORMATION

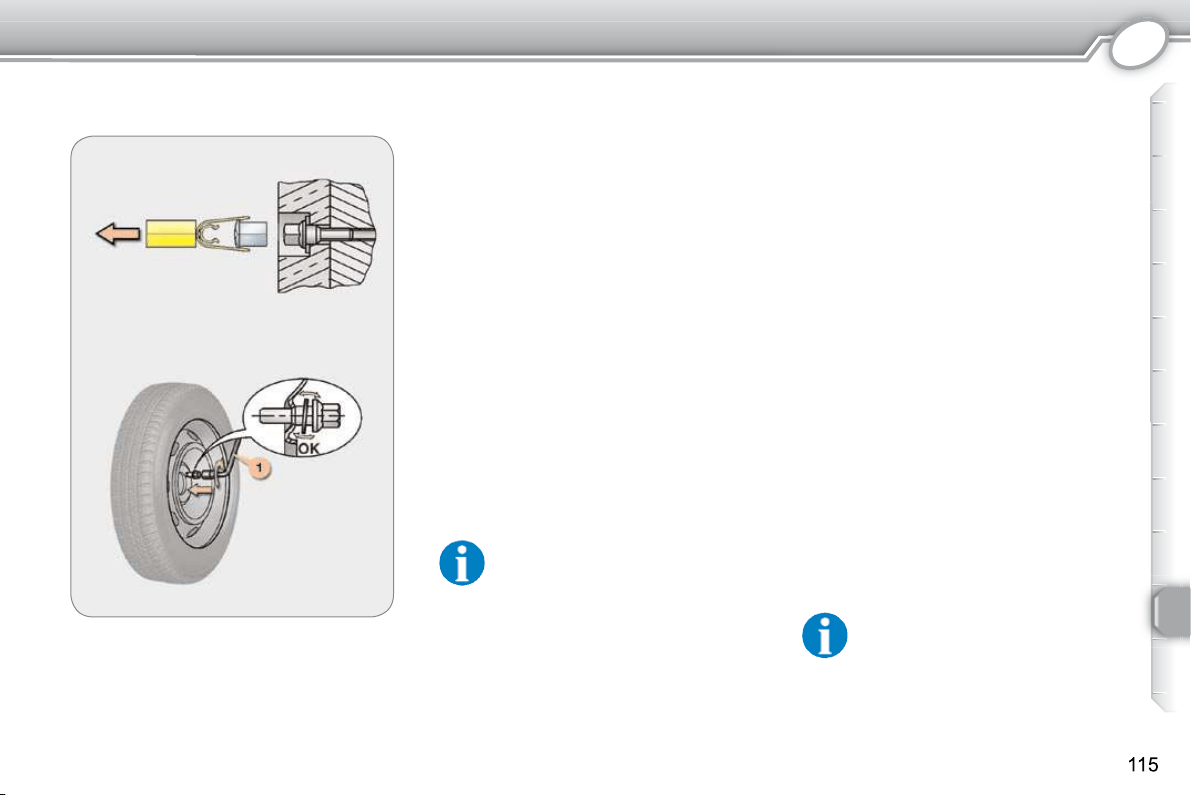

Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.
Fitting the spare wheel
If your vehicle is fi tted with a steel spare
wheel, when fi tting it, it is normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a par-
tial removable cover which is clipped
onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
Once it has been fi tted on your vehicle,
it must be removed when the ambient
temperature rises above 10 °C again.
Consult a PEUGEOT dealer.
215/55 R17 tyres cannot be
fi tted with standard snow
chains, contact a PEUGEOT
dealer.
* According to country.
Special features of alloy
wheels
Security bolts
Your wheels are fi tted with security
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the security bolt
socket and the wheelbrace 1 .
Fitting snow tyres
If you fi t snow tyres mounted on steel
wheels onto your vehicle, it is essen-
tial to use special bolts available from
your PEUGEOT dealer.
This security bolt socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the security bolt socket. This
will enable you to obtain a duplicate
security bolt socket from a PEUGEOT
dealer. You are advised to do the same
for the duplicate keys.
1010
PRACTICAL INFORMATION
Bolt covers
Alloy wheel bolts are covered by
chrome trims.
Use the yellow tool to remove the trims
before slackening the bolts.
Fitting the spare wheel
If your vehicle is fi tted with a steel spare
wheel, when fi tting it, it is normal when
tightening the bolts to notice that the
washers do not come into contact with
the rim. The spare wheel is secured by
the cone shape of each bolt.
VERY COLD CLIMATE SCREEN *
The very cold climate screen is a par-
tial removable cover which is clipped
onto the air intake grille to prevent the
accumulation of snow due to direct
splashes.
Once it has been fi tted on your vehicle,
it must be removed when the ambient
temperature rises above 10 °C again.
Consult a PEUGEOT dealer.
215/55 R17 tyres cannot be
fi tted with standard snow
chains, contact a PEUGEOT
dealer.
* According to country.
Special features of alloy
wheels
Security bolts
Your wheels are fi tted with security
bolts (one per wheel), placed under
chrome trims which must be removed
using the yellow tool, before the bolts
are unscrewed using the security bolt
socket and the wheelbrace 1 .
Fitting snow tyres
If you fi t snow tyres mounted on steel
wheels onto your vehicle, it is essen-
tial to use special bolts available from
your PEUGEOT dealer.
This security bolt socket was
given to you on delivery of
your vehicle with the duplicate
keys. Make a careful note of
the code number engraved on the
head of the security bolt socket. This
will enable you to obtain a duplicate
security bolt socket from a PEUGEOT
dealer. You are advised to do the same
for the duplicate keys.
10
10
PRACTICAL INFORMATION
116

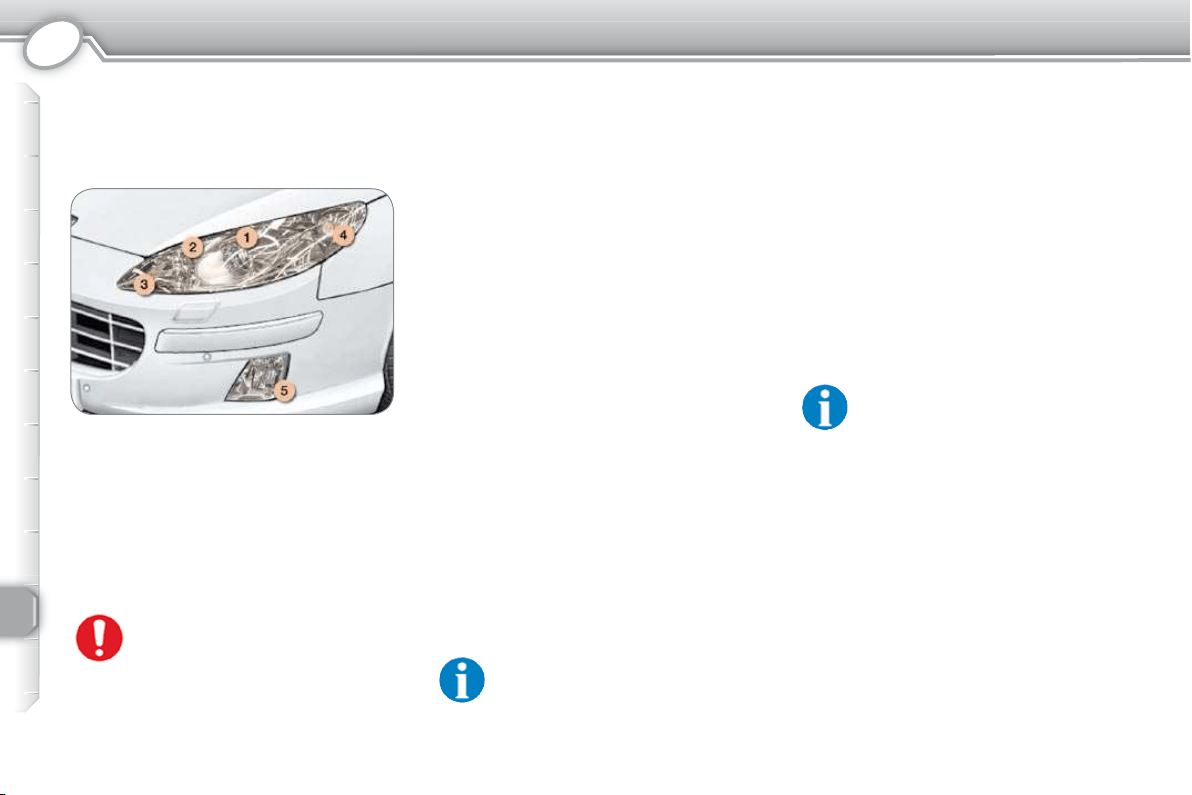

CHANGING A FRONT BULB
Handle the bulbs with a dry cloth.
2 - Main beam headlamps: H7-55W.
Remove the protective cover cor-
responding to the faulty bulb.
Disconnect the connector.
Press the end of the securing clips
to free the bulb. Change the bulb.
When fi tting the new bulb, ensure
that the direction notches are po-
sitioned correctly and the securing
clips are fi xed properly.
Reconnect the connector.
Refi t the protective cover.
4 - Direction indicators:
PY21W (amber).
Turn the bulb holder a quarter turn
and remove it.
Change the bulb.
WARNING: RISK OF ELEC-
TROCUTION
Front lamps
In the engine compartment, remove
the cover secured by one or two but-
terfl y screws, a plastic retainer clip and
two quarter turn screws.
1 - Dipped beam headlamps: H1-55W
or D2S-35W xenon bulb.
Xenon bulbs must be replaced by a
PEUGEOT dealer.
Amber coloured bulbs (direc-
tion indicators and side re-
peaters) must be replaced
with bulbs of identical specifi -
cation and colour.
5 - Front foglamps: H11 - 55W.
Turn the wheels to full lock.
Access to the bulb is via the fl ap in the
front mud fl ap.
Consult a PEUGEOT dealer.
The headlamps are fi tted with polycar-
bonate glass with a protective coating.
Do not clean them with a dry or abra-
sive cloth, nor with a detergent or sol-
vent product.
Ensure that the liquid used to fi ll the
wash-wipe and headlamp wash reser-
voir is of good quality.
High pressure washing :
when using a high pressure
washer on stubborn dirt, do
not persist on the headlamps,
the other lamps and their surrounds
to avoid damaging their coating and
seals.
In certain climatic conditions (low tem-
perature, humidity), condensation on
the inside surface of the headlamp
glass and rear lights glass is normal;
it disappears a few minutes after the
lighting is switched on.
3 - Sidelamps: W5W.
Remove the protective cover, dis-
connect the connector and then
remove the bulb and change it.
Put the connector back in place.
Reconnect the connector.
Refi t the protective cover.
1010
PRACTICAL INFORMATION
117

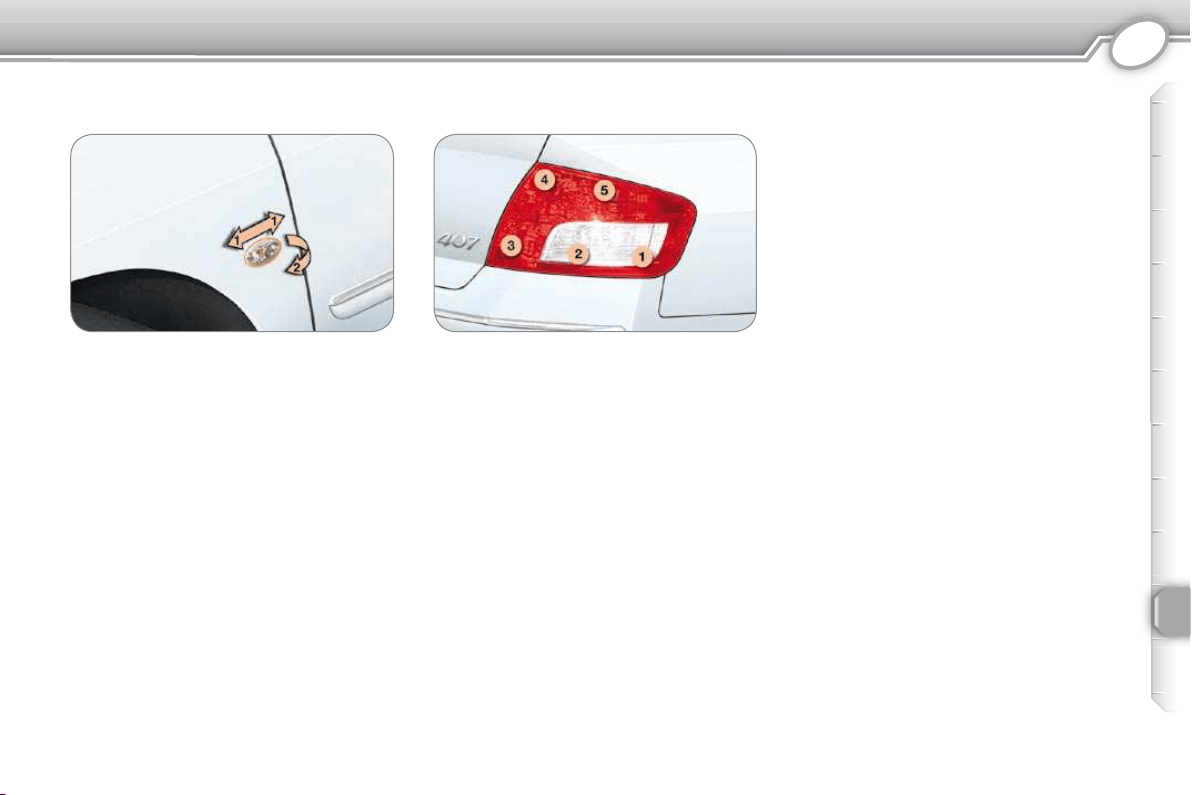

Integrated direction indicator side
repeaters
CHANGING A REAR BULB
(SALOON)
Third brake light:
Five W 5 W bulbs.
Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.
Press on the two tabs located at
the rear, near the rear screen.
Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.
Change the faulty bulb.
When refi tting, ensure that the
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.
Refi t the lamp fi xing nuts inside
the boot using the towing eye, if
necessary. When refi tting, ensure
that the lamp unit is positioned and
fi xed correctly.
Reconnect the electrical connector.
Number plate lamps : W5W.
Remove the transparent cover us-
ing a screwdriver blade.
Change the faulty bulb.
Push the repeater forwards or
backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi cation and colour.
1. Direction indicators :
PY21W (amber).
2. Reversing lamps : P21W.
3. Foglamps/sidelamps :
P21/4W.
4. Sidelamps : P21/4W.
5. Brake lamps/sidelamps : P21/4W.
Disconnect the electrical connector.
Unscrew the lamp fi xing nuts in-
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.
Remove the seal.
Unclip the bulb holder moving
aside the 5 tabs.
Unscrew the bulb and change it.
Refi t the bulb holder.
Reposition the seal.
1010
PRACTICAL INFORMATION
117
Integrated direction indicator side
repeaters
CHANGING A REAR BULB
(SALOON)
Third brake light:
Five W 5 W bulbs.
Remove the plastic cover carefully
by unclipping it at the centre and
on either side, perpendicular to its
direction of engagement.
Press on the two tabs located at
the rear, near the rear screen.
Pull the red transparent cover out-
wards while maintaining the pressure
on the tabs.
Change the faulty bulb.
When refi tting, ensure that the
tabs of the red transparent cover
are engaged correctly and that the
upper trim has been put back in
place correctly.
Refi t the lamp fi xing nuts inside
the boot using the towing eye, if
necessary. When refi tting, ensure
that the lamp unit is positioned and
fi xed correctly.
Reconnect the electrical connector.
Number plate lamps : W5W.
Remove the transparent cover us-
ing a screwdriver blade.
Change the faulty bulb.
Push the repeater forwards or
backwards and release it.
Unclip the repeater and change it.
Repeaters can be obtained from
PEUGEOT dealers.
Amber coloured bulbs (direction indi-
cators and side repeaters), must be
replaced with bulbs of identical speci-
fi cation and colour.
1. Direction indicators :
PY21W (amber).
2. Reversing lamps : P21W.
3. Foglamps/sidelamps :
P21/4W.
4. Sidelamps : P21/4W.
5. Brake lamps/sidelamps : P21/4W.
Disconnect the electrical connector.
Unscrew the lamp fi xing nuts in-
side the boot using the towing eye
(stored inside the spare wheel), if
necessary.
Remove the seal.
Unclip the bulb holder moving
aside the 5 tabs.
Unscrew the bulb and change it.
Refi t the bulb holder.
Reposition the seal.
10
10
PRACTICAL INFORMATION
118
CHANGING A REAR BULB
(407SW)
Left and right foglamps: P21W.
Carefully unclip the tailgate interior
trim.
Detach the sealing fi lm located be-
hind the lamp in question.
Remove the bulb holder turning it a
quarter of a turn.
Change the faulty bulb.
When refi tting, ensure that the bulb is
positioned correctly in the bulb holder.
Unclip the lamp (2 clips).
Disconnect the connector and re-
move the lamp.
Unclip the bulb holder moving
aside the 4 tabs.
Unscrew the bulb and change it.
Reconnect the connector.
Refi t the bulb holder. When refi tting
it, ensure that the lamp is correctly
positioned and secured, reclipping
the rear part then the front part.
Number plate lamps: W5W.
Insert a thin screwdriver in one of
the exterior holes of the transpar-
ent cover.
Push it towards the outside to unclip it.
Remove the transparent cover.
Change the faulty bulb.
Third brake lamp (diodes)
All work on the diode lamps must be
carried out by a PEUGEOT dealer.
Wing lamps
1. Brake lamps/sidelamps: P21/5W.
2. Reversing lamps: P21W.
3. Direction indicators: P21W.
These three bulbs are changed by re-
moving the lamp.
Remove the corresponding boot
side fl ap to gain access to the
lamp.
Remove the lamp fi xing nut inside
the boot.
Note: if necessary, use the wheelbrace
to remove the nuts.
In some climatic conditions
(e.g. low temperature or hu-
midity), the presence of misting
on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
1010
PRACTICAL INFORMATION
119
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (passenger side in
the glove box) and in the engine com-
partment (left-hand side).
Fascia fuses
To access the fuses, open the glove box. Open the fuse box cover by pressing the
two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi ed. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
A
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Air bags.
F4 10
ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.
F5 30
Front one-touch electric windows, sunroof
(Saloon), panoramic roof concealing fl ap
(407SW).
F6 30 Rear one-touch electric windows.
F7 5
Glove box lighting, side repeaters, front and rear
courtesy lamps, map reading lamps, courtesy
mirror.
F8 20
Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control unit,
navigation-telematics (according to country).
1010
PRACTICAL INFORMATION
119
CHANGING A FUSE
The fuse boxes are placed in the lower
part of the fascia (passenger side in
the glove box) and in the engine com-
partment (left-hand side).
Fascia fuses
To access the fuses, open the glove box. Open the fuse box cover by pressing the
two tabs at the top.
Replacing a fuse
Before replacing a fuse, the cause of
the incident must be found and recti-
fi ed. The fuse numbers are indicated
on the fuse box.
Always replace a faulty fuse
with a fuse of the same rating
(same colour).
Use the special pliers located
on the support next to the fuse box,
this support also contains the replace-
ment fuses.
Fuse N°
Rating
A
Functions
F1 15 Rear wiper.
F2 30 Central locking/deadlocking.
F3 5 Air bags.
F4 10
ESP dual function sensor, diagnostic connector,
sunroof (Saloon), steering wheel angle sensor.
F5 30
Front one-touch electric windows, sunroof
(Saloon), panoramic roof concealing fl ap
(407SW).
F6 30 Rear one-touch electric windows.
F7 5
Glove box lighting, side repeaters, front and rear
courtesy lamps, map reading lamps, courtesy
mirror.
F8 20
Multifunction display, audio equipment, steering
wheel control, trailer fuse box, alarm control unit,
navigation-telematics (according to country).
10
10
PRACTICAL INFORMATION
120
Fuse N°
Rating
A
Functions
F9 30 Lighter, telematics (according to country), rear 12 V accessories socket (100 W max).
F10 15 Tyre under-infl ation detection unit.
F11 15 Diagnostic socket, ignition switch.
F12 30
Hands-free kit, trailer socket, trailer fuse box, audible rear parking assistance, passenger’s
electric seat, rain and brightness sensor, alarm.
F13 5 Engine fuse box, windscreen wipers relay control.
F14 15 Driver’s electric seat, instrument panel, air conditioning control panel, air bags control unit.
F15 15 Electric child lock, rear doors deadlocking.
F17 40 Heated rear screen.
FS1 - PARC shunt.
1010
PRACTICAL INFORMATION
121
Fuse N°
Rating
A
Functions
G29 5 Telematics (according to country).
G30 30 Driver’s electric seat.
G31 30 Passenger’s electric seat.
G32 15 Rear 12 V accessories socket (100 W max).
G33 - Not used.
G34 - Not used.
G35 - Not used.
G36 - Not used.
G37 15 Six-speed automatic gearbox supply.
G38 30 Right and left heated seats.
G39 - Trailer fuse box (accessory).
G40 30 Audio Hi-Fi assembly.
1010
PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional pro-
tection for the electrical systems. All work
must be carried out by a PEUGEOT
dealer.
CHANGING A WINDSCREEN
WIPER BLADE
ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl at battery prevents the en-
gine from starting.
If the telephone is being used
when economy mode starts,
it will still be possible to fi nish
the call.
Placing the wiper blades in
the maintenance position
Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk.
This period may be signifi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.
10
10
PRACTICAL INFORMATION
122
Engine compartment fuses
To access the fuses located in the
engine compartment (next to the bat-
tery), remove the battery cover and
unclip the fuse box cover.
Close the fuse box cover carefully and
refi t the battery cover when you have
fi nished.
Fuse N°
Rating
A
Functions
1 20 Engine management control unit.
2 15 Horn.
3 10 Front and rear wash-wipe.
4 20 Headlamp wash.
5 15
Engine management actuators (fuel pump,
purge canister solenoid valves, ...).
6 10 Automatic gearbox control unit.
7 10
Switching and protection unit, intake air fl ow
sensor, clutch switch, six-speed automatic gear-
box switch, STOP switches, electrochromatic
mirror, panoramic roof concealing fl ap controls
(407SW).
8 20 Starter coil.
9 10
Xenon bulb electronic supply, STOP switch,
power steering electropump assembly, four-
speed automatic gearbox control unit, automatic
gearbox locking relay.
10 30
Engine management actuators (ignition coil,
solenoid valves, oxygen sensors).
11 40 Air conditioning blower or not used.
12 30 Windscreen wipers.
13 40 Built-in systems interface supply (ignition positive).
14 30 Air pump.
1010
PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional pro-
tection for the electrical systems. All work
must be carried out by a PEUGEOT
dealer.
CHANGING A WINDSCREEN
WIPER BLADE
ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl at battery prevents the en-
gine from starting.
If the telephone is being used
when economy mode starts,
it will still be possible to fi nish
the call.
Placing the wiper blades in
the maintenance position
Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk.
This period may be signifi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.
1010
PRACTICAL INFORMATION
123
The electrical system of your
vehicle is designed to oper-
ate with standard or optional
equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying the mal-
functions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and not
installed in accordance with its instruc-
tions, in particular when the combined
consumption of all of the additional
equipment connected exceeds 10 mil-
liamperes.
The maxi-fuses provide additional pro-
tection for the electrical systems. All work
must be carried out by a PEUGEOT
dealer.
CHANGING A WINDSCREEN
WIPER BLADE
ECONOMY MODE FUNCTION
After the engine has stopped, certain
electrical functions can be used for a
maximum duration of approximately
one hour, to prevent discharging of the
battery.
A fl at battery prevents the en-
gine from starting.
If the telephone is being used
when economy mode starts,
it will still be possible to fi nish
the call.
Placing the wiper blades in
the maintenance position
Less than one minute after swit-
ching off the ignition, press the
windscreen wiper stalk down once
to position the blades vertically on
the windscreen (maintenance po-
sition).
Replacing a blade
Lift the arm, then unclip the blade
and remove it.
Fit the new blade and fold down
the arm.
To reposition the blades, switch on the
ignition and operate the windscreen
wiper stalk.
This period may be signifi -
cantly reduced if the battery
charge is low.
Once the hour is over, a message ap-
pears on the multi-function display
and the active functions are put on
standby.
These functions are automatically re-
activated when the vehicle is started.
As winter approaches, have your bat-
tery checked by a PEUGEOT dealer.
10
10
PRACTICAL INFORMATION
124
To start the vehicle from another
battery:
- Connect the red cable to the positive
(+) terminals of the two batteries,
- Connect one end of the green or
black cable to the negative (-) ter-
minal of the slave battery,
- Connect the other end of the green
or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine
run,
- Wait for the engine to return to idle,
then disconnect the cables.
BATTERY (LOCATED IN THE
ENGINE COMPARTMENT)
Disconnecting/Reconnecting
the cables
1. Raise the locking plate A .
2. Position the open clip of the cable
on the positive (+) terminal of the
battery.
3. Press until the position checking
system B tilts.
4. Lock the clip by lowering the lock-
ing plate while pressing on the clip.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use giv-
en by the manufacturer the battery
charger,
- Reconnect starting with the nega-
tive (-) terminal,
-
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
Do not force the plate as lock-
ing is not possible if the clip is
not positioned correctly.
Start the procedure again.
1010
PRACTICAL INFORMATION
125
Without lifting (4 wheels on
the ground)
You must always use a towing bar.
The removable towing eye is inside
the spare wheel.
At the front and at the rear:
Unclip the cover,
Screw in the towing eye as far as it
will go.
Special requirements with an
automatic gearbox
When towing with the engine switched
off, there is no braking or steering as-
sistance.
Failure to observe this special require-
ment may lead to the destruction of
certain braking units and the absence
of braking assistance when the engine
is re-started.
TOWING YOUR VEHICLE
Lifting (2 wheels only on
the ground)
It is preferable to raise the vehicle with
a professional lifting device.
Place the gear lever in neutral
(position N in the case of the
automatic gearbox).
Towing a vehicle with an auto-
matic gearbox in reverse gear
is prohibited (no lubrication).
When towing with four wheels on the
ground, the following rules must be
observed:
- lever in position N ,
- tow the vehicle at less than 30 mph
(50 km/h) over a maximum dis-
tance of 30 miles (50 km).
- do not add oil to the gearbox.
10
10
PRACTICAL INFORMATION
126
FITTING ROOF BARS
(SALOON)
When fi tting transverse roof bars,
use the four quick-fi t fi xings provided
for this purpose. Lift the concealing
fl aps and adjust the roof bar quick-fi t
fi xings.
Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 80 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profi le of
the road to avoid damaging the roof
bars and the fi xings on the roof.
Be sure to refer to national legislation
in order to comply with the regulations
for transporting objects which are lon-
ger than the vehicle.
FITTING ROOF BARS (407SW)
When fi tting transverse roof bars, en-
sure that they are positioned correctly.
The correct positions are shown by
marks on each of the longitudinal
bars.
Use accessories approved by PEUGEOT
and follow the manufacturer's fi tting in-
structions.
Maximum authorised weight
on the roof bars, for a loading
height not exceeding 40 cm
(except bicycle carriers): 100 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.
1010
PRACTICAL INFORMATION
127
In all cases, pay attention to the coolant
temperature.
Lighting
TOWING A TRAILER, BOAT,
CARAVAN, ETC...
We recommend the use of original
PEUGEOT towbars and their harness-
es which have been tested and ap-
proved from the design stage of your
vehicle and that you entrust the fi tting
of the towbar to a PEUGEOT dealer.
If the towbar is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted us-
ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer's instructions.
Driving advice
Distribution of loads: distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
In the case of vehicles fi tted with an
HDI engine, it is advisable, following
intensive use (towing on a motorway,
prolonged driving, ...), to leave the en-
gine running at idle for approximately
20 seconds before switching off the ig-
nition. This limits any increase in the
temperature of the engine after it has
been switched off.
Note: in certain cases of par-
ticularly arduous use (towing
the maximum load in high
temperatures on a steep
slope), the engine automatically lim-
its its power and selects the appropri-
ate automatic gearbox gear in manual
mode. In this case, switching off the air
conditioning saves engine power and
increases towing capacity.
If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible.
Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver's side) and of
the trailer towed, observing the recom-
mended pressures.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradu-
ally.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Automatic adjustment
To avoid causing a nuisance to other
road users, this system automatical-
ly corrects the height of the beam of
xenon bulbs in relation to the vehicle
load after approximately 2 minutes.
The driver is then assured of having
optimum lighting.
10
10
PRACTICAL INFORMATION
128
ACCESSORIES
A wide range of accessories recom-
mended by PEUGEOT and original parts
are offered by the dealer network.
They all benefi t from PEUGEOT rec-
ommendation.
These accessories and parts, having
been tested and approved for reliabil-
ity and safety, are all adapted to your
PEUGEOT vehicle.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
Anti-theft alarm, parking sen-
sors, etched windows, wheel
security bolts, fi rst aid kit,
warning triangle, high vis-
ibility safety jacket, snow
chains, anti-slip covers, dog
guard, etc.
"Protection":
Seat covers compatible with
lateral airbags, mats, boot tray.
For leisure pursuits: roof
bars, transport accessories
(bicycle carrier, ski carrier),
roof box, child seats and
booster cushions, rear screen blind,
audio/telephone console, side blinds,
cool box.
Trailer towbar which must be fi tted by
the PEUGEOT Network.
"Touring":
Telephone, Bluetooth sys-
tem, satellite navigation, CD
changer, multimedia, connec-
tion for portable MP3 player
(in the glove box), USB Box.
"In-Car Technology":
Alloy wheels, wheel trims,
spoiler, leather steering
wheel, styling strips, door
spoilers, stainless steel sill
protectors.
"Styling":
Windscreen wash fl uid, inte-
rior and exterior cleaning and
maintenance products.
"Universal":
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
Please note this specifi c warning. You
are advised to contact a representa-
tive of the Marque to be shown the
range of recommended equipment
and accessories.
Note
To avoid any jamming under the pedals:
- ensure that the mat is positioned
and secured correctly,
- never place one mat on top of an-
other.
Depending on the country in
which the vehicle is sold, it
may be compulsory to have
a high visibility safety jacket,
warning triangle and spare
bulbs available in the vehicle.
Installation of radiocommunication
transmitters
It is advisable to contact a representa-
tive of the PEUGEOT marque before
installing accessory radiocommunica-
tion transmitters with external aerial
on your vehicle.
The PEUGEOT network will inform
you of the specifi cations (frequency
waveband, maximum output power,
aerial position, specifi c installation
conditions) of the transmitters which
can be fi tted, in accordance with the
Motor Vehicle Electromagnetic Com-
patibility Directive (2004/104/EC).
407SW: you can obtain "Van" conver-
sion kits to convert from a private ve-
hicle to a van.
11
11
TECHNICAL DATA
129
* Draining by gravity with oil fi ller cap open.
Model codes:
6D.../6E...
6FYC RFJC RFJF - XFVJ
Engines 1.8 litre 16V 2 litre 16V
2 litre 16V
BioFlex
3 litre V6 24V
Cubic capacity (cc) 1 749 1 997 1 997 2 946
Bore x stroke (mm) 82.7 x 81.4 85 x 88 85 x 88 87 x 82.6
EU standard maximum
power (kW)
92 103 103 155
Maximum power engine
speed (rpm)
5 500 6 000 6 000 6 000
EU standard maximum
torque (Nm)
163 191/200 200 290
Maximum torque engine
speed (rpm)
4 500 4 100/4 000 4 100 3 750
Fuel Unleaded Unleaded
Unleaded
E85 Unleaded
Catalytic converter Yes Yes Yes Yes
Gearbox - speeds Manual - 5 Manual - 5 Automatic - 4 Manual - 5 Automatic - 6
Oil capacity (in litres)
Engine (with fi lter
replacement) *
4.25 4.25 4.25 4.25 4.75
ENGINES AND GEARBOXES: PETROL
11
11
TECHNICAL DATA
130
Model codes:
6D.../6E...
9HZC RHRH RHRJ RHHA 4HPH 4HTH
Engines
1.6 litre HDI
16V
2 litre HDI 16V 2.2 litre HDI 16V
Cubic capacity (cm
3
) 1 560 1 997 2 179
Bore x stroke (mm) 75 x 88.3 85 x 88 85 x 96
EU standard maximum
power (kW)
80 103 100 120 120 125
Maximum power engine
speed (rpm)
4 000 4 000 3 750 4 000
EU standard maximum
torque (Nm)
240 320 340 370
Maximum torque engine
speed (rpm)
1 750 2 000 2 000 1 500
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle emission fi lter (PEF) Yes Yes Yes
Gearbox - speeds Manual - 5 Manual - 6 Automatic - 6 Automatic - 6 Manual - 6
Oil capacity (in litres)
Engine (with fi lter
replacement) *
3.5 5.25 5.25
ENGINES AND GEARBOXES: DIESEL
* Draining by gravity with oil fi ller cap open.
11
11
TECHNICAL DATA
131
Engines 1.8 litre 16V
2 litre 16V
2 litre 16V BioFlex
2 litre 16V
Gearbox Manual Manual Automatic
Model codes: 6D... 6FYC RFJC RFJF
Kerb weight * 1 559 1 582 1 613
Gross vehicle weight (GVW) 1 980 1 995 2 020
Gross train weight (GTW) ** 3 280 3 495 3 520
Unbraked trailer weight 735 745 750
Braked trailer weight (a) 1 300 (1) 1 500 (1) 1 500 (1)
Recommended nose weight 65 72 72
Engines 3 litre V6 24V
Gearbox Automatic
Model codes: 6D... XFVJ
Kerb weight * 1 729
Gross vehicle weight (GVW) 2 140
Gross train weight (GTW) ** 3 740
Unbraked trailer weight 750
Braked trailer weight (a) 1 600 (1)
Recommended nose weight 76
(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.
The braked trailer weight may be increased by (1) 300 kg, on condition that the load in the vehicle is reduced so that the GTW
is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load transfer.
* The kerb weight is equal to the unladen vehicle + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
SALOON WEIGHTS AND TOWED LOADS (IN KG): PETROL
11
11
TECHNICAL DATA
132
SALOON WEIGHTS AND TOWED LOADS (IN KG): DIESEL
Engines 1.6 litre HDI 16V 2 litre HDI 16V
Gearbox Manual Manual Automatic Automatic
Model codes: 6D... 9HZC RHRH RHRJ RHHA
Kerb weight * 1 596 1 672 1 732 1 751
Gross vehicle weight (GVW) 2 020 2 080 2 115 2 140
Gross train weight (GTW) ** 3 020 3 680 3 215 3 240
Unbraked trailer weight 750 750 750 750
Braked trailer weight (a) 1 000 (1) 1 600 (1) 1 100 (1) 1 100 (1)
Recommended nose weight 60 76 60 60
Engines 2.2 litre HDI 16V
Gearbox Manual
Model codes: 6D...
4HTH
4HPH
Kerb weight * 1 772
Gross vehicle weight (GVW) 2 125
Gross train weight (GTW) ** 3 725
Unbraked trailer weight 750
Braked trailer weight (a) 1 600 (2)
Recommended nose weight 74
(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.
The braked trailer weight may be increased by (1) 300 kg or (2) 250 kg, on condition that the load in the vehicle is reduced
so that the GTW is not exceeded. High ambient temperatures may result in a reduction in the performance of the vehicle in
order to protect the engine; when the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load
transfer.
* The kerb weight is equal to the unladen vehicle + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
11
11
TECHNICAL DATA
133
407 SW WEIGHTS AND TOWED LOADS (IN KG): PETROL
* The kerb weight is equal to the unladen vehicle + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.
The braked trailer weight may be increased by (1) 300 kg or (2) 100 kg, on condition that the load in the vehicle is reduced
so that the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load transfer.
Engines 1.8 litre 16V
2 litre 16V
2 litre 16V BioFlex
2 litre 16V
Gearbox Manual Manual Automatic
Model codes: 6E... 6FYC RFJC RFJF
Kerb weight * 1 622 1 645 1 676
Gross vehicle weight (GVW) 2 090 2 105 2 136
Gross train weight (GTW) ** 3 390 3 605 3 636
Unbraked trailer weight 750 750 750
Braked trailer weight (a) 1 300 1 500 1 500
Recommended nose weight 60 60 60
Engines 3 litre V6 24V
Gearbox Automatic
Model codes: 6E... XFVJ
Kerb weight * 1 792
Gross vehicle weight (GVW) 2 260
Gross train weight (GTW) ** 3 760
Unbraked trailer weight 750
Braked trailer weight (a) 1 500
Recommended nose weight 60
11
11
TECHNICAL DATA
134
* The kerb weight is equal to the unladen vehicle + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
(a) The braked trailer value corresponds to the towing capacity of the vehicle on a 12 % incline.
The braked trailer weight may be increased by 300 kg, on condition that the load in the vehicle is reduced so that the GTW
is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37 °C, restrict the towed weight to 600 kg, with no load transfer.
407 SW WEIGHTS AND TOWED LOADS (IN KG): DIESEL
Engines 1.6 litre HDI 16V 2 litre HDI 16V
Gearbox Manual Manual Automatic Automatic
Model codes: 6E... 9HZC RHRH RHRJ RHHA
Kerb weight * 1 659 1 735 1 797 1 815
Gross vehicle weight (GVW) 2 127 2 195 2 215 2 230
Gross train weight (GTW) ** 3 127 3 795 3 215 3 320
Unbraked trailer weight 750 750 750 750
Braked trailer weight (a) 1 000 (1) 1 600 1 000 (1) 1 000 (1)
Recommended nose weight 60 65 60 60
Engines 2.2 litre HDI 16V
Gearbox Manual
Model codes: 6E...
4HTH
4HPH
Kerb weight * 1 835
Gross vehicle weight (GVW) 2 275
Gross train weight (GTW) ** 3 875
Unbraked trailer weight 750
Braked trailer weight (a) 1 600 (1)
Recommended nose weight 76
11
11
TECHNICAL DATA
135
DIMENSIONS (IN MM)
407 saloon
407 SW
11
11
TECHNICAL DATA
136
A. Manufacturer's plate.
B. Vehicle Identifi cation Number (VIN)
on the bodywork.
C. VIN on the dashboard (visible at
the bottom of the windscreen).
D. Tyre pressures and paint colour
code label.
The label D on the pillar near to the door
hinges on the driver's side indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by
the manufacturer,
- the tyre pressures (the pressures
must be checked cold , atleast
once a month ),
- the paint colour code.
E. Front number plate.
IDENTIFICATION MARKINGS
In the event of replacement, a
front number plate of a height
less than or equal to 110 mm
must be fi tted provided that this
size conforms to current regulations.
Otherwise, contact a PEUGEOT dealer.
138
PEUGEOT ASSISTANCE
CUSTOMER CALL
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES
EMERGENCY CALL
Press this button to gain access to the
PEUGEOT services * .
Select "Customer call" to request
any information about the PEUGEOT
marque.
Select "PEUGEOT Assistance" to
make a breakdown assistance call.
In an emergency, press the SOS
button until a CONFIRMATION/
CANCELLATION screen is displayed.
A call is made * directly to
PEUGEOT
Emergency which receives locating
information from the vehicle and
can send a detailed alert to the
appropriate emergency services. In
countries where the call centre is not
operational, the call is directed to the
national emergency services (112).
* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
If necessary, the internal telephone is activated automa
utomatically to
make an emergency call.
In order for an emergency call to be made, a valid SIM c
SIM card must be
inserted.
EMERGENCY OR ASSISTANCE CALL using PC Com
139
139
Peugeot Connect Media
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
ugeot Connect Media
ugeot Connect Media
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The Peugeot Connect Media is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact a PEUGEOT dealer for
confi guration of the system.
For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the PC Com may switch off
after a few minutes.
CONTENTS
01 First steps p.
02 Voice commands and
steering mounted controls p.
03 Screen and main menu p.
04 Navigation - guidance p.
05 Traffi c information p.
06 Audio/Video p.
07 Telephone p.
08 Trip computer p.
09 Confi guration p.
10 Screen menu map p.
Frequently asked questions p.
140
141
143
146
156
159
168
172
174
175
180
140
01
1
1
20
20
8
8
9
9
5
5
4
4
3
3
2
2
19
19
16
16
11
11
10
10
18
18
12
12
6
6
7
7
13
13
15
15
14
14
17
17
FIRST STEPS
1.
On/Off and Volume adjustment.
2.
Selection of the source: radio, Jukebox, CD/DVD, CD
changer and auxiliary (AUX, if activated on the Confi guration
menu). Long press: CD copy to hard disc.
3.
Audio option adjustments: front/rear, left/right balance,
loudness, sound ambiences.
4.
Display the list of local radio stations, the tracks on the
CD/DVD or the MP3/USB/Jukebox directories.
Long press: update the local radio stations.
5.
Automatic search for a lower/higher frequency. Selection of
the previous/next CD/DVD, MP3, USB or Jukebox track.
Long press: fast forward and backward play.
6.
Selection of the wavebands FM1, FM2, FMast, AM.
7.
TA (Traffi c Announcement) function on/off.
Long press: access to the PTY mode
(radio Programme TYpes).
8.
Ejection of the CD/DVD.
9.
SIM card slot.
10.
Keypad for entering descriptions by successive presses.
11.
Access to the "PEUGEOT" services menu.
12.
Selection and confi rmation.
13.
Selection of the previous/next CD/DVD. Selection of the
previous/next MP3/USB/Jukebox directory.
14.
Selection of a lower/higher frequency.
15.
Cancellation of the current operation.
Long press: return to the current application.
16.
Display the main menu.
17.
Deletion of the last character entered or of the entire line.
18.
Modifi cation of the screen display.
Long press: reinitialisation of the Peugeot Connect Media
system.
19.
Selection of the display on the screen from the modes: TRIP,
TEL, CLIM, NAV and AUDIO.
20.
Long press on the SOS button: emergency call.
141
02
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station.
MP3/USB/JUKEBOX: selection of the next
directory.
Selection of the next item on a menu.
RADIO: selection of the previous stored station.
MP3/USB/JUKEBOX: selection of the previous
directory.
Selection of the previous item on a menu.
RADIO: automatic search for a higher
frequency.
CD/MP3/USB/JUKEBOX: selection of the next
track.
CD/USB: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/MP3/USB/JUKEBOX: selection of the
previous track.
CD/USB: continuous press: fast backwards
play.
- Change of sound source.
- Confi rmation of a selection.
- Pick up/Hang up the
telephone.
- Press for more than
2 seconds: access to the
telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing
the volume increase
and decrease buttons
simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
142
2
2
1
1
02
Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible
confi rmation signal between each word.
The list which follows is exhaustive.
To display the list of available voice commands, press
the end of the lights stalk to start the voice recognition,
then say HELP or WHAT CAN I SAY.
For the same operation, press and
hold the MENU button and select the
function VOICE COMMANDS LIST.
VOICE COMMANDS LIST
VOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
LEVEL 1
LEVEL 2
LEVEL 3
radio
memory
autostore
previous/next
list
1 to 6/*
cd player
Jukebox (if activated)
USB
previous/next track
track number/track
scan
random play
directory (CD-MP3 inserted)
list
1 to 250/*
previous/next
repeat
help/what can I say/cancel
call/guide to
"Pre-recorded description"
telephone
last number
voice box
voice mail
directory
"Pre-recorded description"
message
display
read
directory
"Pre-recorded description"
navigation
stop/resume
zoom in/out
view
*
destination
vehicle
traffi c info
display
read
display
audio
telephone
trip computer
Navigation
air conditioning
previous/next
stop
delete
yes/no
for all level 1 and 2
* help/what can I say/cancel
for all level 1, 2 or *
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
143
03
°
> COLOUR SCREEN
This displays the following information, via the audio control panel:
- time,
- date,
- ambient temperature (if there is a risk of ice, you are warned by a
message),
- audio source displays (radio, CD, jukebox, ...),
- telematic system displays (telephone, services, ...),
- check of openings (doors, boot, ...),
- warning messages (e.g.: "Fuel level low") and vehicle function status
messages (e.g.: "Auto lighting activated") displayed temporarily,
- trip computer information,
- GPS (Europe) satellite navigation system information.
The system uses the complete and detailed NAVTEQ maps installed directly on the equipment's hard disk.
Updates of the maps of the UK and of the other European countries, offered by our partner NAVTEQ, are available from the PEUGEOT network.
Screen confi guration: refer to the section - Screen menu map.
Telephone
Orange
Time:
Date:
144
03
SCREEN AND MAIN MENU
For maintenance of the
display, the use of a
soft, non-abrasive cloth
(spectacles cloth) is
recommended without any
additional product.
Long press on MENU: help.
MAP:
orientation, details, display.
AUDIO FUNCTIONS:
radio, CD, Jukebox, options.
TELEMATIC:
telephone, directory, SMS.
CONFIGURATION:
vehicle, display, time,
languages, voice, auxiliary
socket (AUX) parameters.
socket (AUX) parameters.
VIDEO:
activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log, status of the
functions.
NAVIGATION GUIDANCE:
GPS, stages, options.
TRAFFIC INFORMATION:
TMC information, messages.
AIR CONDITIONING:
on/off and dual-zone control
(according to equipment).
145
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
03
SCREEN AND MAIN MENU
Press the OK dial to access short-cut
menus according to the display on the
screen.
INTERNAL TELEPHONE:
call list
dial
phone book
voice mail
NAVIGATION (IF NAVIGATION IS IN PROGRESS):
resume/stop guidance
divert route
route type
consult traffi c info
zoom/scroll
MAP
TRIP COMPUTER:
alert log
status of functions
BLUETOOTH TELEPHONE:
call list
call
phone book
private mode/hands-free mode
place call on hold/resume call
CD (MP3 OR AUDIO):
copy CD to JBX/stop copy
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
RADIO:
enter a frequency
activate/deactivate RDS
activate/deactivate REG mode
hide/display "Radio Text"
JUKEBOX:
select playlist
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
USB:
copy USB to JBX/stop copy
eject USB
activate/deactivate Introscan
activate/deactivate random play
activate/deactivate repeat
DISPLAY ACCORDING TO THE CONTEXT
IN "ZOOM/SCROLL" MODE:
position info
select as destination
select as stage
store this position
exit
MAP
mode
guidance option
146
1
2
2
3
3
5
5
7
7
4
4
6
6
8
8
04
SELECTING A DESTINATION
Tip: for a detailed global view of the menus available, refer to the "Screen menu map" part of
this section.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the
DESTINATION CHOICE function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Turn the dial and select the ENTER
AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
NAVIGATION - GUIDANCE
147
9
9
11
11
12
12
13
13
15
15
10
10
14
14
04
Press the dial to confi rm the selection.
Turn the dial and select the letters of
the town one by one confi rming each
time by pressing the dial.
Turn the dial and select OK.
Press the dial to confi rm the selection.
To speed up the process, the POST CODE can be
entered instead of the name of the town.
Use the alphanumeric keypad to enter the letters and
digits and "*" to correct (limit of 5 characters).
Press the dial to confi rm the selection.
Select OK on the ENTER AN
ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions.
OK
OK
STORE
POI
Select the STORE function to record the address entered in a
directory record and press the dial to confi rm the selection.
The points of interest (POI) indicate all of the service locations in the
vicinity (hotels, various businesses, airports, ...).
PARIS
NAVIGATION - GUIDANCE
148
1
1
2
2
3
3
4
4
5
5
9
9
8
8
7
7
6
6
04
During guidance, press the MENU
button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the
JOURNEY LEGS AND ROUTE
function.
JOURNEY LEGS AND ROUTE
Select OK and press the dial to
confi rm the order of the stages.
When the new address has been
entered, select OK and press the dial
to confi rm.
Enter for example a new address.
Select the ADD A STAGE function
(9 stages maximum) and press the
dial to confi rm.
NEW ADDRESS
Press the dial to confi rm the selection.
ADD A STAGE
Select STRICT (the stage must be completed in order to continue to
the next destination) or PROXIMITY then press the dial to confi rm.
NAVIGATION - GUIDANCE
149
6
6
8
8
7
7
5
5
1
1
2
2
3
3
4
4
04
GUIDANCE SPEECH SYNTHESIS
Press the dial to confi rm the selection.
During announcements, the volume of each speech synthesis
function (guidance, traffi c information...) can be adjusted directly
using the volume adjustment control.
Select the ADJUST SPEECH
SYNTHESIS function and press the
dial to confi rm.
Press the dial then adjust the volume
of the speech synthesis or select the
DEACTIVATE function and press the
dial to confi rm.
Select OK and press the dial to
confi rm.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function.
OK
DEACTIVATE
ADJUST SPEECH SYNTHESIS
GUIDANCE OPTIONS
NAVIGATION - GUIDANCE
The volume of the Hazardous Locations POI alerts can only be adjusted during the alert using
the volume adjustment control.
150
04
List of POI
NAVIGATION - GUIDANCE
151
04
3
1
2
2
1
3
4
5
Download the "Risk areas POIs" update fi le onto a CD
ROM or USB stick from the Internet. This service is
available on https://www.wipinforadars.fr or
https://www.peugeot-connect-downloads.co.uk.
The fi les must be copied to the root on the chosen medium.
The fi les must be copied to the root on the chosen medium.
Insert the medium (CD ROM or USB stick) containing
the POI database into the system's CD player or USB
reader.
The system detects the medium inserted automatically.
Confi rm the start of the update by validating "YES".
UPDATING THE RISK AREAS POIs
NAVIGATION - GUIDANCE
The detailed procedure is available from PEUGEOT dea
T dealers.
Successful downloading is confi rmed by a message.
DISPLAYING THE HAZARDOUS
LOCATION POIs
Press the MENU button.
Select MAP and confi rm by pressing
OK.
Select MAP DETAILS and confi rm by
pressing OK.
Select TRANSPORT AND
AUTOMOBILES and confi rm by
pressing OK.
Tick "Hazardous Locations" and
confi rm by pressing OK.
152
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
04
GUIDANCE OPTIONS
The route presented depends directly on the guidance options.
Changing these options may completely change the route.
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to confi rm the selection.
Turn the dial and select the
GUIDANCE OPTIONS function.
Turn the dial and select the DEFINE
CALCULATION CRITERIA function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
DISTANCE/TIME
GUIDANCE OPTIONS
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example,
the DISTANCE/TIME function.
NAVIGATION - GUIDANCE
153
9
9
10
10
11
11
12
12
2
2
1
1
3
3
04
Turn the dial and select the TRAFFIC
INFO function if you wish to receive
the TRAFFIC INFO announcements.
Press the dial to confi rm the selection.
Select OK and press the dial to
confi rm.
TRAFFIC INFO
OK
Press the dial to confi rm the selection.
Tick this box for optimum operation of the traffi c information,
diversions will be suggested.
SETTING HAZARDOUS AREAS
ALERT PARAMETERS
Turn the dial and select the
SET HAZARDOUS AREAS
PARAMETERS function, then press
the dial to confi rm the warning
message. Press the dial to confi rm
the selection.
Select:
- visual warnings,
-
audible warnings with an
announcement duration (in seconds),
-
warn during guidance only, then select
OK and press the dial to confi rm.
OK
These functions are only available if the hazardous areas have
been downloaded and installed on the system.
SET HAZARDOUS AREAS PARAMETERS
Repeat steps 1 to 5 of the guidance option.
NAVIGATION - GUIDANCE
The volume of the Hazardous Locations POI alerts can only be adjusted during
the alert.
154
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
04
Press the MENU button.
Turn the dial and select the MAP
function.
Press the dial to confi rm the selection.
Turn the dial and select the MAP
DETAILS function.
Permits selection of the services
which can be seen on the map
(hotels, restaurants, hazardous
areas...).
ACTIONS ON THE MAP
MAP DETAILS
Press the dial to confi rm the selection.
Turn the dial and select the
orientation of your choice.
Select OK and press the dial to
confi rm.
Repeat steps 1 to 3 then turn the dial
and select the MAP ORIENTATION
function.
MAP ORIENTATION
OK
3D VIEW
MAP ORIENTATION
NORTH DIRECTION
VEHICLE DIRECTION
For improved visibility, beyond the scale of 10 km, the map
automatically switches to North Orientation.
NAVIGATION - GUIDANCE
155
1
1
2
2
3
3
4
4
5
5
6
6
7
7
04
Press the MENU button.
Press the dial to confi rm the selection.
Turn the dial and select the MAP
function.
Turn the dial and select the MAP IN
WINDOW or FULL SCREEN MAP
tab.
Select OK and press the dial to
confi rm.
Press the dial to confi rm the selection.
Turn the dial and select the DISPLAY
MAP function.
DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE
OK
FULL SCREEN MAP
DISPLAY MAP
MAP IN WINDOW
NAVIGATION - GUIDANCE
156
5
5
6
6
7
7
8
8
1
1
2
2
3
3
4
4
05
CONFIGURING THE FILTERING OF TMC
ANNOUNCEMENTS
The TMC (Traffi c Message Channel) messages provide information relating to the traffi c and the
weather conditions, received in real time and communicated to the driver in the form of audible
announcements and icons on the navigation map.
The guidance system may then suggest a diversion route.
Press the MENU button.
Turn the dial and select the TRAFFIC
INFORMATION function.
Press the dial to confi rm the selection.
FILTER TRAFFIC INFORMATION
Turn the dial and select the FILTER
TRAFFIC INFORMATION function.
TRAFFIC INFORMATION
Press the dial to confi rm the
selection.
Select the GEOGRAPHIC FILTER
function and press the dial to confi rm.
OK
ON THE ROUTE
AROUND THE VEHICLE
GEOGRAPHIC FILTER
Turn the dial and select the fi lter of
your choice.
Select OK and press the dial to
confi rm.
The fi lters are independent and their results are eliminated.
We recommend:
- a fi lter of 6 miles (10 km) around the vehicle in heavy traffi c,
- a fi lter of 30 miles (50 km) around the vehicle or a fi lter on the
route for motorway journeys.
157
1
1
2
2
3
3
4
4
6
6
5
5
7
7
05
OK
NEW MESSAGE DISPLAY
READ MESSAGES
CONFIGURING THE DISPLAYING OF THE
TMC MESSAGS
We recommend that you do not tick the NEW MESSAGE DISPLAY tab for regions with heavy traffi c.
Turn the dial and select the TRAFFIC
INFORMATION function.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Turn the dial and select the
CONFIGURE MESSAGE
ANNOUNCEMENT function.
Select the READ MESSAGES tab.
The Traffi c Information Messages will
be read by the voice synthesiser.
Select the NEW MESSAGE DISPLAY tab.
The traffi c information messages
are extended to the fi lters selected
(geographic...) and can also be
displayed when guidance is not active.
CONFIGURE MESSAGE ANNOUNCEMENT
TRAFFIC INFORMATION
Select OK and press the dial to
confi rm.
158
05
2
1
3
2
1
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, par example:
Black and blue triangle: general information, for example:
With the current audio source
displayed on the screen, press the
dial.
The shortcut menu for the source appears and gives acc
es access to:
Select Traffi c Announcements (TA)
and press the dial to confi rm and go
to the associated settings.
TA
The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a radio
station transmitting this type of message. When a traffi c report is
transmitted, the current audio source (Radio, CD, Jukebox, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.
RECEIVING TA MESSAGES
159
1
1
2
2
3
3
4
4
1
1
2
2
3
3
4
4
AUDIO/VIDEO
RADIO
SELECTING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND button to select a
waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display
the list of stations received locally
(60 maximum).
To update this list, press for more than
two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception,
including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does
not indicate any failure of the audio equipment.
RDS
Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select AUDIO FUNCTIONS then
press OK.
Press the MENU button.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative fequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.
ACTIVATE FREQUENCY FOLLOWING (RDS)
FM WAVEBAND PREFERENCES
160
1
1
2
2
06
AUDIO/VIDEO
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of
several tens of music fi les on a single disc.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
The audio equipment will only play fi les with the extension ".mp3"
with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.
Insert circular compact discs only. Some anti-pirating
systems, on original discs or CDs copied using
a personal recorder, may generate malfunctions
regardless of the quality of the original player.
Insert an audio CD or an MP3 compilation in the player,
play begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD to
listen to it.
Press one of the buttons to select a
track on the CD.
Press the LIST button to display
the list of tracks on the CD or of the
directories of the MP3 compilation.
The playing and displaying of an MP3 compilation may depend on
the recording programme and/or the parameter settings used. We
recommend use of the ISO 9660 recording standard.
MP3 CD
PLAYING A CD OR AN MP3 COMPILATION
CD
Empty CDs are not recognised and may damage the system.
161
2
2
3
3
1
1
5
5
6
6
4
4
06
OK
STOP COPY
COMPLETE CD
COPY CD TO JUKEBOX
AUDIO FUNCTIONS
Select COPY CD TO JUKEBOX and
press the dial to confi rm.
Select COMPLETE CD to copy
the entire CD and press the dial to
confi rm.
To stop the copy, repeat points 2 and 3.
Select STOP COPY and press the dial
to confi rm.
The AUTO CREATION tab automatically copies the CD by default
into an album of the type "album n°...".
The audio or MP3 CD is copied onto the hard disk. Copying may take
up to 20 minutes depending on the duration of the CD. During this
copying phase, it is not possible to listen to the albums previously
recorded on the hard disk or the CDs.
Select the letters one by one and select
OK to confi rm.
If it is not an MP3 CD, the Jukebox automatically compresses
the CD in MP3 format. The compression may take approximately
20 minutes depending on the duration of the CD. During this
compression phase, it is possible to listen to the CD or to albums
previously recorded on the hard disk.
A long press on the SOURCE button starts the copying of the CD.
It is not possible to copy fi les from the Jukebox to a CD.
The STOP THE CD COPY action does not delete the fi les which
have already been transferred onto the jukebox hard disk.
Select AUDIO FUNCTIONS then select
CD and press the dial to confi rm.
Insert an audio CD or an MP3
compilation and press the MENU
button.
JUKEBOX
COPYING A CD ONTO THE HARD DISK
AUDIO/VIDEO
162
1
1
1
1
2
2
06
Do not connect a hard drive or USB equipment other than USB
sticks in FAT 16 or FAT 32 format (NTFS not supported). This could
damage your installation.
Connect the stick to the port, directly or using a lead.
If the audio equipment is switched on, the USB source
is detected as soon as it is connected. Play begins
automatically after a delay which depends on the capacity
of the USB stick.
The fi le formats recognised are .mp3 (mpeg1 layer 3 only).
The list of compatible equipment is available from PEUGEOT dealers.
USING THE USB PORT
CONNECTING A USB STICK
The audio fi les are transmitted from a USB stick
to your audio system, to be listened to via the
vehicle's speakers.
Do not connect a hard drive or USB equipment
other than USB sticks in FAT 16 or FAT 32 format
(NTFS not supported). This could damage your
installation.
USB stick (1.1, 1.2 and 2.0):
- the USB sticks must be in FAT or FAT 32
format (NTFS not supported),
- navigation through the fi le base is by means of
the steering wheel controls.
AUDIO/VIDEO
163
2
2
1
1
3
3
4
4
5
5
2
2
3
3
1
1
06
COMPLETE DISC
COPY USB TO JUKEBOX
USB
Select USB and press the dial to
confi rm.
Select COPY USB TO JUKEBOX and
press the dial to confi rm.
Select COMPLETE DISC to copy the
entire USB stick and press the dial to
confi rm.
Select AUDIO FUNCTIONS and press
the dial to confi rm.
Insert a USB stick in the space provided
and press the MENU button.
JUKEBOX
If another source is being played,
press the SOURCE button several
times in succession and select USB
to play it.
Press one of the buttons to select a
track on the USB stick.
Press the LIST button to display the list
of folders on the MP3 USB stick.
To eject the USB stick, use the short-cut menu (press OK) or press
the MENU button, select AUDIO FUNCTIONS, USB, then select
EJECT USB.
The playing and displaying of an MP3 compilation may depend on
the parameters programme used.
JUKEBOX
Insert a USB stick in the space provided.
ded.
AUDIO/VIDEO
In order to be read, a USB stick must be in FAT 16 or 32 format.
The reader only reads USB sticks.
PLAYING AN MP3 USB STICK
COPYING AN MP3 USB STICK ONTO THE HARD DISK
164
6
6
7
7
5
5
2
2
3
3
4
4
1
1
06
RENAME
JUKEBOX
JUKEBOX MANAGEMENT
Press the MENU button.
Select AUDIO FUNCTIONS and
press the dial to confi rm.
Select the JUKEBOX function and
press the dial to confi rm.
Select the JUKEBOX MANAGEMENT
function and press the dial to confi rm.
Select the album to be renamed and
press the dial to confi rm.
Select the RENAME tab and press the
dial to confi rm.
Turn the dial and select the letters of
the album title one by one confi rming
each time by pressing the dial.
Use the alphanumeric keypad to enter the letters of the album title
one by one.
JUKEBOX
RENAMING AN ALBUM
AUDIO/VIDEO
165
8
8
2
2
3
3
1
1
06
DELETE
OK
JUKEBOX
Press the SOURCE button several
times in succession and select the
JUKEBOX function.
Press the LIST button.
Turn the dial to select the fi les.
Press the ESC button to return to the fi rst fi le level.
Select OK and press the dial to
confi rm.
To rename the tracks of an album, follow the same procedure,
selecting the tracks to be renamed.
Use the ESC button to exit from the list of tracks.
Select the DELETE function to delete an album or a
track from the Jukebox.
JUKEBOX
LISTENING TO THE JUKEBOX
AUDIO/VIDEO
166
1
1
2
06
Press the MENU button then select the CONFIGURATION function,
then SOUNDS, then ACTIVATE AUXILIARY SOURCE to activate
the audio/telephone auxiliary input.
Connect the portable equipment (MP3
player…) to the audio sockets (white and
red, RCA type) located in the glove box
using a suitable audio cable (JACK or
RCA).
Press the SOURCE button several
times in succession and select AUX.
The display and management of the commands is on the portable
equipment.
It is not possible to copy the fi les onto the hard disk via the auxiliary
input.
USING THE AUXILIARY INPUT (AUX)
AUDIO (JACK/RCA) CABLE NOT SUPPLIED
AUDIO/VIDEO
167
1
1
2
2
3
3
4
4
5
5
6
6
7
7
06
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video
sockets, located in the glove box.
Turn the dial and select the VIDEO
function.
After connecting the video equipment,
press the MENU button.
Turn the dial and select the
ACTIVATE VIDEO MODE function to
activate/deactivate the video.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Pressing the "SOURCE" button several times in succession permits
the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO
PARAMETERS function to set the
display format, the brightness, the
contrast and the colours.
Press the dial to confi rm the selection.
VIDEO MENU
Videos can only be displayed when stationary.
AUDIO/VIDEO
168
1
1
2
2
3
3
1
1
2
2
07
INTERNAL TELEPHONE
ENTERING THE PIN CODE
Access the slot by pressing the button
using the tip of a pen.
Install the SIM card
in the holder and
then insert it in the
slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the PC Com
audio and telematics system switched off and the ignition off.
Enter the PIN code on the keypad.
Confi rm the PIN code by pressing
button #.
PIN CODE
When entering your PIN code, tick the STORE PIN tab to gain
access to the telephone without having to enter this code when it is
used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)
169
3
3
2
2
1
1
4
4
07
The services offered by the telephone depend on the network, the SIM card and the compatibility of
the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which
services you have access to. A list of mobile telephones which offer the best range of services is
available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For reasons of safety, the driver should only carry out operations
which require prolonged attention when the vehicle is stationary
(pairing the Bluetooth mobile telephone to the hands-free kit).
Activate the telephone's Bluetooth function.
The last telephone connected is reconnected
automatically.
Select BLUETOOTH ACTIVATION
MODE, then ACTIVATED AND
VISIBLE. Press the dial to confi rm
each operation.
Press the MENU button, select
TELEMATICS, then BLUETOOTH
FUNCTIONS. Press the dial to
confi rm each operation.
On your telephone, select the name of
the PEUGEOT audio/telephone. Enter the
authentication code (0000 by default).
To fi nd and change the name of the PEUGEOT audio/telephone,
To fi nd and change the name of the PEUGEOT audio/telephone,
repeat step 2 then select CHANGE AUDIO/TELEPHON
PHONE NAME.
170
07
The call list consists of calls made from the vehicle's audiotelephone
only.
Once the telephone has been connected, the system can
synchronise the address book and the call list. Repeat step 2 then
select PHONE BOOK SYNCHRONISATION MODE. Select the
synchronisation of your choice and press the dial to confi rm.
The synchronisation may take a few minutes.
To change the telephone connected, repeat step 2 then select LIST
OF MATCHED TELEPHONES and press OK to confi rm. The list of
previously connected telephones (10 maximum) appears. Select the
telephone of your choice, confi rm, then select CONNECT and press
the dial to confi rm.
To change the authentication code, repeat step 2 then select
AUTHENTICATION CODE and save the code of your choice.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
171
1
1
2
2
3
3
5
5
6
6
4
4
07
USING THE TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL
function.
Press the PICK UP button to display
the telephone short-cut menu.
Press the dial to confi rm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad.
Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end
the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept
a call.
Press the HANG UP button to refuse
a call.
You can also press and hold the steering wheel
Tel button to access the telephone menu: calls log,
directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH
FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then select:
- DEACTIVATED: to use the internal telephone,
- ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones,
- ACTIVATED AND NOT VISIBLE: to use the bluetooth telephone, not visible to other telephones, it is
not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Select the
number required and confi rm to make the call.
DIAL
172
08
TRIP COMPUTER
- The "vehicle" tab: the range,
the current consumption and
the distance remaining to the
destination.
- Tab "1" (route 1) with: the average
speed, the average consumption
and the distance travelled
calculated over route "1".
- Tab "2" (route 2) with the same
functions for a second route.
A FEW DEFINITIONS
Range:
displays the distance which can travelled with the remaining fuel
detected in the tank, basd on the average consumption over the last few
miles (kilometres).
This displayed value may vary signifi cantly following a change in the vehicle
speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed. After
fi lling with at least 10 litres of fuel, the range is recalculated and is displayed
when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,
contact a PEUGEOT dealer.
Current fuel consumption:
only calculated and displayed above 20 mph
(30 km/h).
Average fuel consumption:
this is the average fuel consumption since the
last trip computer zero reset.
Distance travelled:
calculated since the last trip computer zero reset.
Distance remaining to the destination:
calculated with reference to the
fi nal destination, entered by the user. If guidance is activated, the navigation
system calculates it as a current value.
Average speed:
this is the average speed calculated since the last trip
computer zero reset (ignition on).
On-board computer
Route
Distance km
km/h
l/100
740
6.5
31
173
1
2
2
2
08
VEHICLE DIAGNOSTICS
WARNINGS LOG
STATUS OF FUNCTIONS
TYRE UNDER-INFLATION DETECTOR ZERO RESET
TRIP COMPUTER
VEHICLE DIAGNOSTICS
Each press of the button permits displaying of the different trip
computer data in succession, depending on the display.
Zero reset
When the required route is displayed, press the control for
more than two seconds.
CONTROL SHORT-CUTS
On-board computer
km
860
km
l/100
Instantaneous info.
Range
174
1
1
3
3
4
4
5
5
6
6
7
7
8
8
09
2
2
CONFIGURATION
ADJUSTING THE DATE AND TIME
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confi rm the selection.
Turn the dial and select the DISPLAY
CONFIGURATION function.
Adjust the settings one by one
confi rming by pressing the dial. Next
select the OK tab on the screen then
confi rm.
Press the dial to confi rm the selection.
ADJUST THE DATE AND TIME
DISPLAY CONFIGURATION
OK
Press the dial to confi rm the selection.
Turn the dial and select the ADJUST
THE DATE AND TIME function.
The CONFIGURATION function gives access to the colour, brightness and units settings and to voice
commands.
This adjustment must be carried out whenever the battery has been
disconnected.
175
1
2
3
3
2
1
4
4
2
3
4
3
1
2
3
3
3
4
4
4
4
4
4
4
5
5
5
5
3
4
4
4
3
3
3
2
3
4
4
4
4
4
4
2
2
3
3
3
3
2
3
3
3
4
4
4
4
10
MAIN FUNCTION
NAVIGATION - GUIDANCE
previous destinations
SCREEN MENU MAP
set speech synthesis
activate/deactivate road names
delete last destinations
MAP
CHOICE A
choice A1
choice A2
CHOICE B...
SELECT DESTINATION
enter an address
country:
town:
road:
N°/_:
curr. loc
Archive
POI
near
on the route
around current place
search by name
GPS coordinates
directory
JOURNEY LEGS AND ROUTE
add a stage
enter an address
directory
previous destinations
order/delete journey legs
divert route
chosen destination
GUIDANCE OPTIONS
defi ne calculation criteria
fastest
shortest
distance/time
with tolls
with ferry
traffi c info
STOP/RESUME GUIDANCE
MAP ORIENTATION
vehicle direction
north direction
3D view
MAP DETAILS
administration and safety
town halls, town centre
universities, colleges
hospitals
hotels, restaurants and shops
hotels
restaurants
vineyards
business centres
176
4
4
3
1
2
3
4
4
3
4
4
4
4
4
1
2
3
3
3
3
3
3
3
3
2
3
2
3
3
2
4
4
2
4
4
4
3
3
4
4
4
4
4
4
4
3
3
4
4
4
4
3
3
2
2
2
3
3
3
4
4
4
4
2
3
supermarkets, shopping
culture, tourism and shows
culture and museums
casinos and nightlife
cinemas and theatres
tourism
shows and exhibitions
sports and open air centres
sports centres
golf courses
skating rinks, bowling alleys
winter sports resorts
parks, gardens
theme parks
transport and automobile
airports, ports
stations, bus stations
vehicle rental
lay-bys, car parks
service stations, garages
read messages
new message display
TRAFFIC INFORMATION
SELECT TMC STATION
automatic TMC
manual TMC
list of TMC stations
MOVE THE MAP/FOLLOW VEHICLE
DISPLAY MAP
full screen
MAP
MAP
in window
MAP DATABASE DESCRIPTION
READ MESSAGES
FILTER TRAFFIC INFORMATION
geographic fi lter
store all messages
store messages
around the vehicle
on the route
road information
traffi c information
road closure
size limit
road condition
weather and visibility
urban/city information
parking
public transport
demonstrations
AUDIO FUNCTIONS
RADIO FAVOURITES
enter a frequency
activate/deactivate RDS mode
activate/deactivate regional mode
display/hide radio text
CD, USB, JUKEBOX FAVOURITES
activate/deactivate Introscan (SCN)
activate/deactivate Random mode (RDM)
activate/deactivate Repeat (RPT)
activate/deactivate display of CD info
CD
copy CD to Jukebox
copy complete CD
multiple selection
CONFIGURE MESSAGE ANNOUNCEMENT
177
1
4
2
3
3
3
4
4
2
4
3
4
4
4
4
4
3
2
3
4
4
4
4
3
3
3
3
4
4
3
3
5
5
5
3
3
2
3
5
5
3
2
4
3
5
4
3
4
3
4
4
3
3
4
4
4
4
4
3
5
4
5
5
2
3
4
4
current album
current track
eject CD
receive by infrared
exchange with SIM card
send all records to SIM
send one record to SIM
receive all SIM fi les
receive a SIM fi le
exchange with Bluetooth
TELEMATICS
call list
dial
directory
mailbox
services
customer contact centre
PEUGEOT assistance
PEUGEOT service
messages received
USB
copy USB to Jukebox
complete disc
multiple selection
current album
current track
eject USB
CALL
DIRECTORY
managing directory fi les
consult or modify a fi le
add a fi le
delete a fi le
delete all fi les
confi gure directory
select a directory
name directory
select starting directory
fi le transfer
exchange by infrared
send all records
send one record
TEXT MESSAGES (SMS)
read received text messages
send a text message
write a text message
delete list of text messages
TELEPHONE FUNCTIONS
network
network search mode
automatic mode
manual mode
networks available
length of calls
reset
manage PIN code
activate/deactivate
save PIN code
JUKEBOX
jukebox management
jukebox confi guration
hi-fi (320 kbps)
high (192 kbps)
normal (128 kbps)
playlist management
delete jukebox data
Jukebox status
178
6
3
3
3
4
1
2
3
3
3
3
2
4
5
5
4
5
5
1
3
2
3
1
2
3
3
2
2
2
3
3
4
4
4
3
2
2
2
3
4
3
4
4
3
3
3
4
4
4
4
1
2
2
Display short cuts version 8.2
modify PIN code
call options
confi gure calls
display my number
automatic reply after x ring(s)
ring options
for voice calls
for text messages (SMS)
text message ring
calls diversion to mailbox n°
delete calls log
CONFIGURATION
DISPLAY CONFIGURATION
choose colour
adjust luminosity
set date and time
select units
* The parameters vary according to vehicle.
SOUND
voice commands setting
speech synthesis setting
guidance instructions volume
other message volume
select female/male voice
activate/deactivate auxiliary source
VIDEO
VEHICLE DIAGNOSTICS
SELECT LANGUAGE
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
display formats
adjust luminosity
set colours
set contrasts
ALERT LOG
STATUS OF FUNCTIONS *
RESET TYRE PRESS. DETEC. SYS. *
phone book synchronisation mode
no synchronisation
view telephone phone book
view SIM card phone book
view all phone books
BLUETOOTH FUNCTIONS
activation mode
deactivated
activated and visible
activated and not visible
list of matched peripheral equipment
change the name of the audio/telephone
authentication code
DEFINE VEHICLE PARAMETERS *
ACTIVATING/DEACTIVATING THE SEPARATE LH-RH CONTROL
SWITCHING THE AIR CONDITIONING ON/OFF
AIR CONDITIONING
179
1
2
2
2
1
1
1
Press the MENU button for more
than 2 seconds to access the
following fl ow chart.
VOICE COMMANDS LIST
Press the Music button several
times in succession to access the
following settings.
AUTO VOLUME CORRECTION
Each audio source (Radio, CD, MP3,
Jukebox, CD changer) has its own
separate settings.
AUDIO/TELEPHONE DIAGNOSTICS
GPS COVERAGE
UNIT BACKUP POWER
UNIT DESCRIPTION
NAVIGATION DEMONSTRATION
SERVICES CONFIGURATION
LOUDNESS CORRECTION
TREBLE
BASS
MUSICAL AMBIENCE
FR - RR BALANCE
LH - RH BALANCE
180
There is a difference in
sound quality between
the different audio
sources (radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
The CD is ejected
automatically or is not
played by the player.
The CD is protected by an anti-pirating protection system
which is not recognised by the audio equipment.
The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.
The CD player sound
is poor.
Insert good quality CDs and store them in
suitable conditions.
The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
The table below groups together the answers to the most frequently asked questions.
QUESTION
SOLUTION
ANSWER
FREQUENTLY ASKED QUESTIONS
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the Audio section.
- The audio equipment's CD player does not
play DVDs.
- Due to inadequate quality, certain recorded
CDs will not be played by the audio system.
181
QUESTION
SOLUTION
ANSWER
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs
of 1 to 2 seconds in
radio mode.
During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.
Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use.
When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery.
The stored stations
do not function (no
sound, 87.5 Mhz is
displayed...) .
An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
Start the vehicle's engine to increase the battery
charge.
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
displayed...).
The vehicle is too far from the transmitter used by the station listened to or
there is no transmitter in the geographical area through which the vehicle
is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
182
QUESTION
SOLUTION
ANSWER
The TRAFFIC INFO
box is ticked. However,
certain traffi c jams
along the route are not
indicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information.
Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways, ...) are listed for the
traffi c information.
The time taken to
calculate a route
sometimes seems
longer than usual.
This phenomenon is normal. The system is
dependent on the traffi c information available.
The performance of the system may slow down temporarily if a CD is
being copied onto the Jukebox at the same time as a route is being
calculated.
Wait until the CD has been copied or stop the
copying before starting the guidance function.
Does the emergency call
function work without a
SIM card?
Certain national regulations impose the presence of a SIM card in order to
make an emergency call.
Insert a valid SIM card in the slot on the system.
My SIM card is not
recognised.
The system accepts 3.3 V SIM cards, the old 5 V and 1.8 V SIM cards are
not recognised.
Contact your telephone operator.
The altitude is not
displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly.
Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the MENU button, then
select AUDIO/TELEPHONE DIAGNOSTICS,
then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather,
the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.
183
QUESTION
SOLUTION
ANSWER
The route is not
calculated successfully.
The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls).
Check the exclusion criteria.
There is a long wait after
inserting a CD.
When a new medium is inserted, the system reads a certain amount of
data (folder, title, artist, etc.).
This may take a few seconds.
This phenomenon is normal.
I cannot connect my
Bluetooth telephone.
The telephone's Bluetooth function may be switched off or the equipment
may not be visible.
- Check that your telephone's Bluetooth function
is switched on.
- Check that your telephone is visible.
184
The Peugeot Connect Navigation is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer
for confi guration of the system.
Certain functions described in this handbook will become
available during the year.
Peugeot Connect Navigation
CONTENTS
01 First steps p.
02 Steering mounted controls p.
03 General operation p.
04 Navigation - Guidance p.
05 Traffi c information p.
06 Radio p.
07 Music media players p.
08 Bluetooth telephone p.
09 Confi guration p.
10
Trip computer/vehicle parameters
p.
11 Screen menu map p.
Frequently asked questions p.
For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation switches off following the activation of the
Energy Economy mode.
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE BY SD CARD
185
186
187
189
196
198
199
202
204
205
206
209
185
01
1
1
5
5
10
10
2
2
3
3
4
4
6
6
13
13
11
11
9
9
14
14
15
15
7
7
8
8
12
12
16
16
1.
Engine not running
- Short press: on/off.
- Long press: CD pause, mute for the radio.
Engine running
- Short press: CD pause, mute for the radio.
- Long press: reinitialisation of the system.
2.
Volume adjustment (each source is independent, including
also navigation messages and alerts)
3.
Access to the "Radio" Menu. Display the list of stations.
4.
Access to the "Music" Menu. Display the tracks.
6.
Access to the "Phone" Menu. Display the call list.
7.
Access to the "MODE" menu.
Selection of the successive display of:
Radio, Map, NAV (if navigation is in progress), Telephone (if a
conversation is in progress), Trip computer.
Long press: display of a black screen (DARK).
8.
Access to the "Navigation" Menu. Display the last destinations.
9.
Access to the "Traffi c" Menu. Display the current traffi c alerts.
10.
ESC: abandon the operation in progress.
11.
CD eject.
12.
Selection of the previous/next radio station from the list.
Selection of the previous/next MP3 directory.
Selection of the previous/next page of a list.
13.
Selection of the previous/next radio station.
Selection of the previous/next CD or MP3 track.
Selection of the previous/next line of a list.
14.
Buttons 1 to 6:
Selection of the stored radio station.
Long press: store the current radio station.
15.
SD card reader (navigation SD card only).
16.
Dial for selection of the screen display and according to the
context of the menu
Short press: contextual menu or confi rmation.
Long press press: contextual menu specifi c to the list
displayed.
FIRST STEPS
Peugeot Connect Navigation CONTROL PANEL
3 - 4.
Long press: access to the audio settings: front/rear and left/
right balance, bass/treble, equalizer, loudness, automatic
volume adjustment, initialise the settings.
5.
Access to the "SETUP" menu.
Long press: access to the GPS coverage and the
demonstration mode.
186
02
STEERING MOUNTED CONTROLS
RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.
Selection of the next entry in the address book.
RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.
RADIO: change to the previous radio station on the List.
Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.
- Change the sound source.
- Make a call from the address book.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the address book.
Volume increase.
Volume decrease.
Mute: function activated
by pressing the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.
187
03
GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen
menu map" section.
Press the MODE button several times in succession for access to the following menus:
For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
RADIO /MUSIC MEDIA PLAYERS
TELEPHONE
(If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION
(If guidance is in progress)
SETUP:
system language * , date and time * , display,
vehicle settings * , unit and system settings, "Demo
mode".
TRAFFIC:
TMC information and messages.
* Available according to model.
TRIP COMPUTER
188
03
1
2
3
3
2
1
1
1
3
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
1
GENERAL OPERATION
A press on the OK dial gives access to
short-cut menus according to the display
on the screen.
MUSIC MEDIA PLAYERS:
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
SHOW DESTINATION
TRIP INFO
Route type
Avoid
Satellites
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TRAFFIC INFO (TA)
RDS
RADIOTEXT
REGIONAL PROG.
AM
IN AM MODE
TA
REFRESH AM LIST
FM
FULL SCREEN MAP:
DISPLAY ACCORDING TO THE CONTEXT
TRAFFIC INFO (TA)
PLAY OPTIONS
NORMAL ORDER
RANDOM TRACK
REPEAT FOLDER
SCAN
SELECT MUSIC
TELEPHONE:
END CALL
HOLD CALL
DIAL
DTMF-TONES
PRIVATE MODE
MICRO OFF
ABORT GUIDANCE /RESUME GUIDANCE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
189
1
2
3
5
6
4
04
NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.
Select the "Destination input" function
and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by
one confi rming each time by pressing
the dial.
Once the country has been selected,
turn the dial and select the town
function. Press the dial to confi rm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions.
The navigation SD card data must not be modifi ed.
Map data updates are available from PEUGEOT dealers.
A pre-set list (by entering the fi rst few letters) of the towns in the
A pre-set list (by entering the fi rst few letters) of the towns in the
country selected can be accessed via the LIST button on
tton on the virtual
keypad.
Select the "Address input" function
and press the dial to confi rm.
ADDRESS INPUT
The list of the last 20 destinations appears under the Navigation
The list of the last 20 destinations appears under the Navigation
Menu function.
190
7
8
9
10
04
To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:
Delete entry
Delete list
Repeat steps 5 to 7 for the "Street"
and "House number" functions.
Turn the dial and select OK.
Press the dial to confi rm.
Select the "Save to address book" function to record th
ord the address
entered in a directory fi le. Press the dial to confi rm the selection.
entered in a directory fi le. Press the dial to confi rm the selection.
Peugeot Connect Navigationallows up to 500 contact fi les to be
Peugeot Connect Navigationallows up to 500 contact fi les to be
recorded.
To speed up the process, the post code can be entered
tered directly after
selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.
Then select "Start route guidance"
and the press the dial to confi rm.
During guidance, pressing the end
of the lighting stalk repeats the last
guidance instruction.
You can zoom in/zoom out on the map using the dial.
It is possible to scroll the map or select its orientation via the short-
It is possible to scroll the map or select its orientation via the short-
cut menu of the FULL SCREEN MAP. Press the dial then select
cut menu of the FULL SCREEN MAP. Press the dial then select
"Map settings".
Select the route type:
"Fast route", "Short route" or "Optimized route" and press the dial to
"Fast route", "Short route" or "Optimized route" and press the dial to
confi rm.
It is also possible to select a destination via "Choose from address
It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations".
CHOOSE FROM LAST DESTINATIONS
CHOOSE FROM LAST DESTINATIONS
CHOOSE FROM ADDRESS BOOK
START ROUTE GUIDANCE
NAVIGATION - GUIDANCE
191
4
3
2
1
7
6
5
04
NAVIGATION - GUIDANCE
ROUTE OPTIONS
Select the "Route dynamics" function.
This function gives access to the
"Traffi c independent" or "Semi-
dynamic" options.
Select the "Avoidance criteria"
function. This function provides
access to the AVOID options
(motorways, toll roads, ferries).
Turn the dial and select the
"Recalculate" function to take into
account the route options selected.
Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.
Select the "Route type" function and
press the dial to confi rm. This function
allows you to change the route type.
Select the "Route options" function
and press the dial to confi rm.
RECALCULATE
AVOIDANCE CRITERIA
ROUTE DYNAMICS
ROUTE TYPE
ROUTE OPTIONS
NAVIGATION MENU
The route selected by the Peugeot Connect Navigation audio/telephone depends directly on the route options.
Changing these options may change the route completely.
192
7
6
5
4
3
2
1
04
ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been
entered, select OK and press the dial
to confi rm.
Select "Recalculate" and press the
dial to confi rm.
Press the NAV button.
Press the NAV button again or select
the "Navigation" Menu function and
press the dial to confi rm.
Select the "Add stopover" function
(5 stopovers maximum) and press the
dial to confi rm.
Select the "Stopovers" function and
press the dial to confi rm.
OK
ADDRESS INPUT
ADD STOPOVER
STOPOVERS
"NAVIGATION" MENU
RECALCULATE
The stopover must be completed or deleted in order for the guidance
The stopover must be completed or deleted in order for the guidance
to continue to the next destination. Otherwise, the Peug
Peugeot Connect
Navigation will always return you to the previous stopov
topover.
Stopovers can be added to the route once the destination has been selected.
NAVIGATION - GUIDANCE
193
8
6
7
4
3
5
2
1
04
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.
Select the "POI nearby" function to
search for POIs around the vehicle.
Select the "POI search" function and
press the dial to confi rm.
NAVIGATION MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to
search for POIs in the city required.
Select the country then enter the
name of the city using the virtual
keypad.
Select the "POI near route" function to
search for POIs near the route.
Select the "POI in country" function
to search for POIs in the country
required.
Select the "POI near destination"
function to search for POIs near the
point of arrival of the route.
POI NEAR DESTINATION
POI NEAR ROUTE
POI IN COUNTRY
POI IN CITY
A list of cities present in the country selected can be acc
be accessed via
the LIST button on the virtual keypad.
The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various
businesses, airports...).
194
04
NAVIGATION - GUIDANCE
LIST OF PRINCIPAL POINTS OF INTEREST (POI)
* According to availability in the country.
This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.
195
5
6
3
2
1
4
04
NAVIGATION SETTINGS
Select "Set parameters for risk areas"
to gain access to the "Display on
map", "Visual alert" and "Sound alert"
functions.
Select the "POI categories on Map"
function to select the POIs to be
displayed on the map by default.
Press the NAV button.
Press the NAV button again or select
the Navigation Menu function and
press the dial to confi rm.
Select the "Settings" function and
press the dial to confi rm.
POI CATEGORIES ON MAP
SETTINGS
SET PARAMETERS FOR RISK AREAS
NAVIGATION MENU
NAVIGATION - GUIDANCE
Select the "Navi volume" function and
turn the dial to set the volume of each
voice synthesiser (traffi c information,
alert messages…).
NAVI VOLUME
The volume of the Risk Areas POIs alert can only be adjusted
during this type of alert.
UPDATING THE RISK AREAS POIs
This requires an SDHC (High Capacity) compatible reader.
Download the update fi le from the Internet (www.peugeot.fr or
www.peugeot.co.uk).
Open this fi le and copy the extracted documents to the DATABASE
folder on the SD card, replacing the existing fi les.
196
2
1
3
4
5
05
TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAY OF TMC MESSAGES
Then select the radius of the fi lter in
miles (km) required in accordance
with the route, press the dial to
confi rm.
When all of the messages on the
route are selected, the addition of a
geographical fi lter is recommended
(within a radius of 3 miles (5 km) for
example) to reduce the number of
messages displayed on the map.
The geographical fi lter follows the
movement of the vehicle.
The fi lters are independent and their results are cumulative.
The fi lters are independent and their results are cumulative.
We recommend a fi lter on the route and a fi lter around the vehicle of:
We recommend a fi lter on the route and a fi lter around the vehicle of:
- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,
- 2 miles (3 km) or 3 miles (5 km) for a region with heavy traffi c,
- 6 miles (10 km) for a region with normal traffi c,
- 30 miles (50 km) for long journeys (motorway).
Press the TRAFFIC button again or
select the Traffi c Menu function and
press the dial to confi rm.
Press the TRAFFIC button.
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions,
received in real time and transmitted to the driver in the form of audible announcements and
symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.
Select the "Geo. Filter" function and
press the dial to confi rm.
MESSAGES ON ROUTE
The list of TMC messages appears under the Traffi c Menu sorted in
The list of TMC messages appears under the Traffi c Menu sorted in
order of proximity.
ONLY WARNINGS ON ROUTE
TRAFFIC MENU
Select the fi lter of your choice:
ALL WARNING MESSAGES
ALL MESSAGES
The messages appear on the map
and on the list.
To exit, press ESC.
GEO. FILTER
197
05
2
1
3
2
1
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, par example:
Black and blue triangle: general information, for example:
With the current audio source
displayed on the screen, press the
dial.
The shortcut menu for the source appears and gives access to:
The shortcut menu for the source appears and gives access to:
Select Traffi c Announcements (TA)
and press the dial to confi rm and go
to the associated settings.
TA
The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a radio
station transmitting this type of message. When a traffi c report is
transmitted, the current audio source (Radio, CD, Jukebox, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.
RECEIVING TA MESSAGES
198
3
2
1
1
06
SELECTING A STATION
When the current radio station is
displayed on the screen, press the
dial.
The radio source short-cuts menu appears and provides access to
The radio source short-cuts menu appears and provides access to
the following short-cuts:
Select the function required and press
the dial to confi rm to gain access to
the corresponding settings.
TA
RDS, if displayed, allows you to continue listening to the same
RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in
station by automatic retuning to alternative frequencies. However, in
certain conditions, coverage of an RDS station may not be assured
certain conditions, coverage of an RDS station may not be assured
throughout the entire country as radio stations do not cover 100 % of
throughout the entire country as radio stations do not cover 100 % of
the territory. This explains the loss of reception of the sta
the station during
a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the
reception, including in RDS following mode. This phenomenon is a normal result of the way in which
radio waves are transmitted and does not in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to confi rm.
While listening to the radio, press one of the
buttons to select the previous or next station on
the list.
Press one of the buttons on the numeric keypad for more than
Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
Press the button on the numeric keypad to recall the stored radio
station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.
199
07
MUSIC MEDIA PLAYERS
CD, MP3/WMA CD
INFORMATION AND ADVICE
In order to be able to play a recorded CDR or CDRW, w
RW, when
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.
If the disc is recorded in another format it may not be played
If the disc is recorded in another format it may not be played
correctly.
It is recommended that the same recording standard is always used
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
In the particular case of a multi-session CD, the Joliet standard is
recommended.
The Peugeot Connect Navigation will only play audio fi les with the
The Peugeot Connect Navigation will only play audio fi les with the
extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and
extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and
the extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
the extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
It also supports the VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3
and the WMA format, an abbreviation of Windows Media Audio and
and the WMA format, an abbreviation of Windows Media Audio and
the property of Microsoft, are audio compression standards which
the property of Microsoft, are audio compression standards which
permit the recording of several tens of music fi les on a single disc.
permit the recording of several tens of music fi les on a single disc.
It is advisable to restrict fi le names to 20 characters, without using
It is advisable to restrict fi le names to 20 characters, without using
special characters (e.g.: " " ? ; ù) to avoid any play or display
special characters (e.g.: " " ? ; ù) to avoid any play or display
problems.
200
07
6
4
5
3
2
1
SELECTING/PLAYING MUSIC
CD, MP3/WMA CD
The playing and displaying of an MP3/WMA compilation may
The playing and displaying of an MP3/WMA compilation may
depend on the recording programme and/or the settings used. We
depend on the recording programme and/or the settings used. We
recommend the ISO 9660 fi le standard.
Press the MUSIC button.
Select the "Select music" function and
press the dial to confi rm.
Press the up or down button to select
the next/previous folder.
Select the music source required:
CD, MP3/WMA CD. Press the dial to
confi rm. Play begins.
SELECT MUSIC
Press the MUSIC button again or
select the "Music" Menu function and
press the dial to confi rm.
Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or rewind play.
"MUSIC" MENU
The list of tracks or MP3/WMA fi les appears under "Music" Menu.
The list of tracks or MP3/WMA fi les appears under "Music" Menu.
MUSIC MEDIA PLAYERS
201
4
3
1
2
07
MUSIC MEDIA PLAYERS
Connect the portable equipment (MP3/
WMA player…) to the audio sockets
(white and red, RCA type) in the glove
box using a JACK/RCA audio cable.
Press the MUSIC button then press
it again or select the Music Menu
function and press the dial to confi rm.
Select the AUX music source and
press the dial to confi rm. Play begins
automatically.
Select the "External device" function
and press the dial to activate it.
EXTERNAL DEVICE
The display and management of the controls is on the portable
The display and management of the controls is on the portable
equipment.
USING THE EXTERNAL INPUT (AUX)
AUDIO JACK-RCA CABLE NOT SUPPLIED
MUSIC MENU
202
1
2
3
2
1
4
08
telephone used. Check the telephone manual and with your network provider for details of the
services available to you. A list of mobile telephones with the best level of compatibility is available
from the dealer network.
BLUETOOTH TELEPHONE
CONNECTING A TELEPHONE
For reasons of safety and because they require prolong
rolonged attention
on the part of the driver, the operations for pairing the B
the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
Navigation must be carried out with the vehicle stationary. The
ignition must be on.
Activate the telephone's Bluetooth function.
The last telephone connected is reconnected
automatically.
Enter the authentication code on the
telephone. The code to be entered is
displayed on the screen.
To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to
confi rm.
Once the telephone has been connected, Peugeot Con
t Connect
Navigation can synchronise the address book and the c
the call list. This
synchronisation may take a few minutes * .
Select "Connect phone". Select the
telephone and press to confi rm.
The list of telephones connected previously (4 maximum) appears
The list of telephones connected previously (4 maximum) appears
on the multifunction screen. Select the telephone required for a new
on the multifunction screen. Select the telephone required for a new
connection.
Press the PHONE button.
For a fi rst connection, select
"Search phone" and press the dial to
confi rm. Then select the name of the
telephone.
SEARCH PHONE
CONNECT PHONE
203
08
2
1
1
3
2
Press the end of the steering mounted control to accept the call or
end the call in progress.
Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing the
dial.
RECEIVING A CALL
MAKING A CALL
An incoming call is announced by a ring and a superimposed display
An incoming call is announced by a ring and a superimposed display
on the multifunction screen.
YES
To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.
END CALL
Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
Select the "Phone" Menu function and
press the dial to confi rm.
The list of the last 20 calls made and received in the vehicle appears
The list of the last 20 calls made and received in the vehicle appears
under "Phone" Menu. You can select a number and press the dial to
under "Phone" Menu. You can select a number and press the dial to
make the call.
NO
It is also possible to select a number from the address book. You can
It is also possible to select a number from the address book. You can
select "Dial from address book". The Peugeot Connect Navigation
select "Dial from address book". The Peugeot Connect Navigation
can record up to 4 000 entries.
Press the end of the steering mounted control for more than two
Press the end of the steering mounted control for more than two
seconds to gain access to the address book.
"PHONE" MENU
DIAL NUMBER
To delete a number, press the PHONE button then press and hold on
To delete a number, press the PHONE button then press and hold on
a call number to display a list of actions including:
Delete entry
Delete list
BLUETOOTH TELEPHONE
204
4
3
2
1
6
5
09
CONFIGURATION
SETTING THE DATE AND TIME
The SETUP function gives access to the following options: System language, Date & Time, Display
(Brightness, Colour, Map colour), Vehicle, Units, System.
Set the parameters one by one using
the direction arrows and confi rm by
means of the dial.
Select the "Date format" function and
press the dial to confi rm.
Select the "Set date & time" function
and press the dial to confi rm.
Confi rm the format required using the dial.
Pressing the SET UP button for more than 2 seconds gives access to:
Pressing the SET UP button for more than 2 seconds gives access to:
These settings must be re-entered if the battery has been
These settings must be re-entered if the battery has been
disconnected.
Press the SET UP button.
Confi rm the format required using
the dial.
Select the "Time format" function and
press the dial to confi rm.
SET DATE & TIME
Select the "Date & Time" function and
press the dial to confi rm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
DEMO MODE
DATE & TIME
205
10
1
TRIP COMPUTER/VEHICLE PARAMETERS
TRIP COMPUTER
Press the MAIN button or press
the MODE button several times in
succession until the trip computer is
displayed.
- The "vehicle" tab:
The range, the current fuel
consumption and the distance
remaining.
- The "1" (trip 1) tab with :
The average speed, the average
fuel consumption and the distance
travelled calculated over route "1".
- The "2" (trip 2) tab with the same
functions for a second route.
Range:
displays the distance which can travelled with the remaining
displays the distance which can travelled with the remaining
fuel detected in the tank, basd on the average consumption over the
fuel detected in the tank, basd on the average consumption over the
last few miles (kilometres).
This displayed value may vary signifi cantly following a change in the
This displayed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
When the range falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and
After fi lling with at least 10 litres of fuel, the range is recalculated and
is displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in p
ly in place of the
digits, contact a PEUGEOT dealer.
Current fuel consumption:
only calculated and display
displayed above
20 mph (30 km/h).
Average fuel consumption:
this is the average fuel consumption
this is the average fuel consumption
since the last trip computer zero reset.
Distance travelled:
calculated since the last trip computer zero
calculated since the last trip computer zero
reset.
Distance remaining to the destination:
calculated wit
ed with reference
to the fi nal destination, entered by the user. If guidance is activated,
to the fi nal destination, entered by the user. If guidance is activated,
the navigation system calculates it as a current value.
Average speed:
this is the average speed calculated s
ated since the last
trip computer zero reset (ignition on).
Each press of the button at the end of the wiper stalk di
talk displays the
different trip computer information in succession, according to the
different trip computer information in succession, according to the
screen.
A FEW DEFINITIONS
206
11
1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
4
4
4
4
4
3
3
1
2
3
3
2
3
3
"RADIO" MENU
MAIN FUNCTION
CHOICE A
choice A1
choice A2
CHOICE B...
SCREEN MENU MAP
"MUSIC" MENU
"TRAFFIC" MENU
MESSAGES ON ROUTE
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
ALL MESSAGES
GEO. FILTER
Within 2 miles (3 km)
Within 3 miles (5 km)
Within 6 miles (10 km)
Within 30 miles (50 km)
Within 60 miles (100 km)
SELECT MUSIC
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings
WAVEBAND
FM
AM
MANUAL TUNE
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings
207
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
2
4
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
2
4
4
4
4
4
3
3
3
3
4
4
4
ROUTE OPTIONS
Route type
Fast route
Short route
Optimized route
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid ferries
Recalculate
STOPOVERS
Add stopover
Address input
Navigate HOME
Choose from address book
Choose from last destinations
Rearrange route
Replace stopover
Delete stopover
Recalculate
Fast route
Short route
Optimized route
"NAVIGATION" MENU
ABORT GUIDANCE/RESUME GUIDANCE
POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route
SETTINGS
Navi volume
POI categories on
MAP
Set parameters for risk areas
Display on
MAP
Visual alert
Sound alert
DESTINATION INPUT
Address input
Country
City
Street
House number
Start route guidance
Postal code
Save to address book
Intersection
City district
Geo position
MAP
Navigate HOME
Choose from address book
Choose from last destinations
TMC station information
208
1
2
3
4
1
3
4
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
2
3
4
4
4
4
2
4
3
4
3
3
3
3
3
3
3
3
2
4
4
2
3
4
4
3
4
4
4
2
3
3
3
"PHONE" MENU
"SETUP" MENU
DIAL NUMBER
SETTINGS
Select ring tone
Phone/Ring tone volume
Enter mailbox number
SYSTEM LANGUAGE *
Deutsch
English
Español
Français
Italiano
Nederlands
Polski
Portuguese
DATE & TIME *
Set date & time
Date format
Time format
Dark blue
MAP
colour
Day mode for
MAP
Night mode for
MAP
Auto. Day/Night for
MAP
VEHICLE *
Vehicle information
Alert log
Status of functions
DISPLAY
Brightness
Colour
Pop titanium
Toffee
Blue steel
Technogrey
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)
SYSTEM
Factory reset
Software version
Automatic scrolling
* Available according to model.
DIAL FROM ADDRESS BOOK
CALL LISTS
CONNECT PHONE
Search phone
Phones connected
Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details
209
sound quality between
the different audio
sources (radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the Linear musical ambience
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
The CD is ejected
automatically or is not
played by the player.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the Audio section.
- The audio equipment's CD player does not
play DVDs.
- Because of their quality level, certain writeable
CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
The CD player sound
is poor.
Insert good quality CDs and store them in
suitable conditions.
The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
QUESTION
SOLUTION
ANSWER
FREQUENTLY ASKED QUESTIONS
210
QUESTION
SOLUTION
ANSWER
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
displayed...).
The vehicle is too far from the transmitter used by the station listened to or
there is no transmitter in the geographical area through which the vehicle
is travelling.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1
to 2 seconds in radio
mode.
During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.
Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use.
When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
The stored stations do
not function (no sound,
87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
211
QUESTION
SOLUTION
ANSWER
The TA box is ticked.
However, certain traffi c
jams along the route
are not indicated in real
time.
On starting, it is several minutes before the system begins to receive the
traffi c information.
Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information.
The time taken to
calculate a route
sometimes seems
longer than usual.
This phenomenon is normal. The system is
dependent on the traffi c information available.
The performance of the system may slow down temporarily if a CD is
being copied onto the Jukebox at the same time as a route is being
calculated.
Wait until the CD has been copied or stop the
copying before starting the guidance function.
The altitude is not
displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly.
Wait until the system has started up completely.
Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button,
then select GPS coverage).
Depending on the geographical environment (tunnel...) or the weather, the
conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.
The route is not
calculated successfully.
The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls).
Check the exclusion criteria.
I receive a speed
camera alert for a
camera which is not on
my route.
The audible speed
camera alert is not
working.
The system announces all speed cameras located in a conical zone
forward of the vehicle. It may detect speed cameras on nearby or parallel
roads.
Audible alerts are not active.
The alert volume level is set to minimum.
Zoom the map to view the exact position of the
speed camera.
Activate audible alerts in Navigation Menu,
Settings, Set parameters for risk areas.
Increase the speed camera alert volume.
212
There is a long waiting
time after inserting a CD.
When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.).
This may take a few seconds.
This phenomenon is normal.
I cannot connect my
Bluetooth telephone.
A telephone connected
by Bluetooth is
inaudible.
The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.
The volume level depends on both the system and the telephone.
- Check that your telephone's Bluetooth function
is activated.
- Check that your telephone is visible.
Increase the Peugeot Connect Navigation volume
setting, possibly to maximum, and increase the
telephone volume level if necessary.
QUESTION
SOLUTION
ANSWER
213
Peugeot Connect Sound
CONTENTS
01 First steps p.
02 Steering mounted controls p.
03 Main menu p.
04 Audio p.
05 Peugeot Connect USB p.
06 Bluetooth p.
07 Confi guration p.
08 Trip computer p.
09 Screen menu map p.
Frequently asked questions p.
Your Peugeot Connect Sound is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact your PEUGEOT dealer for
confi guration of the system.
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.
AUDIO EQUIPMENT/BLUETOOTH
Connect Sound
Connect Sound
214
215
216
217
220
223
225
226
227
229
214
01
1
1
2
2
3
3
4
4
5
5
6
6
7
7
10
10
11
11
12
12
13
13
14
14
15
15
8
8
9
9
FIRST STEPS
1.
On/Off and volume adjustment.
2.
Selection of the display on the screen from the modes:
AUDIO, trip computer (TRIP), air conditioning (CLIM) and
Bluetooth hands-free (TEL).
The TEL button is not active if the Bluetooth option is not
fi tted.
3.
Selection of source: radio, CD.
4.
Display the main menu.
5.
Cancellation of the current operation/return to the previous
screen.
6.
Confi rmation.
7.
Automatic search for a lower/higher frequency.
Selection of previous/next CD or MP3 track.
8.
TA (Traffi c Announcement) function on/off. Long press:
access to the PTY (radio Programme TYpes) mode.
9.
Display the list of local stations, the tracks on the CD or
the MP3 directories.
10.
CD eject.
11.
Buttons 1 to 6:
Selection of a stored radio station.
Long press: storing a station.
12.
Selection of the FM1, FM2, FMast and AM wavebands.
13.
Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 directory.
14.
Setting audio options: front/rear balance, left/right balance,
loudness, sound ambience.
15.
The DARK button changes the screen display for greater
driving comfort at night.
1st press: lighting of the upper band only.
2nd press: black screen display.
3rd press: return to the standard display.
215
02
STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station.
USB: selection of the next genre/artist/
directory from the classifi cation list.
Selection of the next item on a menu.
RADIO: selection of the previous stored
station.
USB: selection of the previous genre/artist/
directory from the classifi cation list.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3/USB: selection of the next track.
CD/USB: continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/MP3/USB: selection of the previous track.
CD/USB: continuous press: fast reverse.
Selection of the next item.
Volume increase.
Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
- Change of sound source.
- Confi rmation of a selection.
- Pick up/Hang up the
telephone.
- Press for more than 2 seconds:
access to the telephone menu.
216
03
MAIN MENU
> COLOUR SCREEN C
> MONOCHROME SCREEN C
For a detailed global view of
the menus available, refer to
the "Screen menu map" section
of this chapter.
AUDIO FUNCTIONS : radio,
CD, options.
TRIP COMPUTER : entering of
distances, alerts, status of functions.
TELEPHONE : Bluetooth
hands-free, pairing,
management of a call.
PERSONALISATION-
CONFIGURATION : vehicle parameters,
display, languages.
AIR CONDITIONING: on/off and
dual-zone control (according to
equipment).
217
2
2
3
3
4
4
1
2
2
4
4
3
3
1
1
04
AUDIO
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more than
two seconds.
Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select AUDIO FUNCTIONS then
press OK.
Press the MENU button.
The external environment (hills, buildings, tunnels, basement car parks) may block reception, including
in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.
RADIO
SELECTING A STATION
218
04
1
1
1
1
2
3
3
3
3
2
2
AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.
To play a disc which has already been
inserted, press the SOURCE button
several times in succession and select
CD.
Press and hold one of the buttons for
fast forward or backward.
Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which may
take anything between a few seconds and several tens of seconds,
before play begins.
On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 directory levels. However, it is advisable to keep to a limit of
two levels to reduce the access time before the CD is played.
While the CD is being played, the directory fl ow chart is not followed.
All of the fi les are displayed on a single level.
To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.
Press and hold one of the buttons for
fast forward or backward play.
CD
PLAYING A CD
MP3 CD
PLAYING AN MP3 COMPILATION
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to display the list of tracks on the CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to display the list of directories of
the MP3 compilation.
219
04
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of
is an audio compression standard which permits the recording of
several tens of music fi les on a single disc.
In order to be able to play a recorded CDR or CDRW, when recording
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is always used
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
In the particular case of a multi-session CD, the Joliet standard is
recommended.
The audio equipment will only play fi les with the extension ".mp3"
The audio equipment will only play fi les with the extension ".mp3"
with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without using
It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.
MP3 CD
INFORMATION AND ADVICE
AUDIO
Empty CDs are not recognised and may damage the system.
Empty CDs are not recognised and may damage the system.
220
1
1
1
2
2
05
PEUGEOT CONNECT USB
The system puts together playlists (temporary memory) created over
a period which depends on the capacity of the USB equipment.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested is by
folder. When you reconnect, the classifi cation selected previously is
retained.
Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it is
connected. Play begins automatically after a delay
which depends on the capacity of the USB stick.
The fi le formats recognised are .mp3
(mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
The playlists types accepted are m3u, .pls, .wpl.
You have a USB port. The audio fi les are
transmitted from portable equipment such as
a digital player or a USB memory stick to your
Peugeot Connect Sound to be listened to via
the vehicle’s speakers.
USB key (1.1, 1.2 and 2.0) or iPod
®
of generation
®
5 or later:
- USB memory sticks should be formatted FAT
or FAT 32 (NTFS not supported),
- the iPod
®
lead is essential,
®
- navigation through the fi le database is by
means of the steering wheel controls,
- the iPod
®
software should be regularly updated
®
for the best connection.
The list of compatible equipment and the compression rates supported are available from
PEUGEOT dealers.
USING THE PEUGEOT CONNECT USB
CONNECTING A USB MEMORY STICK
221
3
3
4
4
1
1
5
5
2
2
05
PEUGEOT CONNECT USB
USING THE PEUGEOT CONNECT USB
Press LIST briefl y to display the
previously selected classifi cation.
Navigate through the list using the
left/right and up/down buttons.
Confi rm the selection by pressing OK.
The lists available are Artist, Genre and Playlist (as defi ned on
the iPod
®
).
®
Selection and Navigation are described in steps 1 to 5 above.
Do not connect a hard disk or USB devices other than audio
equipment to the USB port. This could damage your installation.
CONNECTING AN iPod
®
CONNECTING AN iPod
CONNECTING AN iPod
VIA THE USB PORT
®
Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.
Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the
classifi cation list currently being
played.
Press and hold LIST to display the
different classifi cations.
Select by Folder/Artist/Genre/Playlist,
press OK to select the classifi cation
required, then press OK again to confi rm.
- by Folder: all folders containing audio
fi les recognised on the peripheral
device, classifi ed in alphabetical order
without following the fl ow chart.
- by Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in
alphabetical order.
- by Genre: all of the genres defi ned in
the ID3 Tags.
- by Playlist: in accordance with the
playlists recorded on the USB device.
OK
222
05
1
1
2
2
2
2
1
1
The controls are displayed and managed via
the portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio
equipment.
The RCA auxiliary socket permits the connection of portable
equipment (MP3 player...).
Connect the portable equipment
(MP3 player…) to the audio sockets
(white and red, RCA type) using a
suitable cable (not supplied).
Press the SOURCE button several
times in succession and select AUX.
USING THE AUXILIARY SOCKET (AUX)
RCA SOCKET
ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE
PEUGEOT CONNECT USB
223
1
1
6
6
2
2
7
7
4
4
9
9
5
5
10
10
3
3
8
8
Saisir code authentification
0 1
OK Del
2 3 4 5 6 7 8 9
_
06
BLUETOOTH
For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your audio
equipment must be carried out with the vehicle stationary and the
ignition on.
Press the MENU button.
A window is displayed with "Searching...".
Activate the telephone’s Bluetooth function.
In the menu, select:
- Bluetooth telephone function - Audio
- Bluetooth confi guration
- Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth
equipment used.
Consult your telephone’s manual and your operator to fi nd out which services are available to you. A
list of mobile telephones which offer the best range of services is available from the network. Consult a
PEUGEOT dealer.
BLUETOOTH TELEPHONE
SCREEN C
(AVAILABILITY DEPENDS ON MODEL AND VERSION)
The TELEPHONE menu permits access to the following functions in
particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen:
enter a code with at least 4 digits.
Confi rm by pressing OK.
If pairing fails, the number of attempts is not limited.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.
A message is displayed on the screen of the
telephone chosen: to accept the pairing, enter
the same code on the telephone, then confi rm by
pressing OK.
"Pairing of Name_telephone successful" appears on the screen.
The automatic connection authorised is only active after the
"Pairing of Name_telephone successful" appears on the screen.
"Pairing of Name_telephone successful" appears on the screen.
telephone has been confi gured.
The automatic connection authorised is only active after the
The automatic connection authorised is only active after the
The directory and the call list can be accessed after
telephone has been confi gured.
telephone has been confi gured.
the synchronisation period.
PAIRING A TELEPHONE
* If your telephone is fully compatible.
The pairing can also be initiated from the telephone.
224
1
1
2
2
1
1
2
2
3
3
2
2
1
1
RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display
on the multifunction screen.
Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle’s telephone function menu or via the
telephone’s keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone
automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.
Press the steering mounted control OK to accept
the call.
From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.
Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone’s keypad,
with the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone’s music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the
keypad.
** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the Radio
control panel and the steering wheel
controls ** . The contextual information
can be displayed on the screen.
BLUETOOTH
225
1
2
2
3
3
4
4
5
6
6
7
7
8
8
07
CONFIGURATION
Press the MENU button.
Using the arrows, select
PERSONALISATION
CONFIGURATION.
Press to confi rm the selection.
Using the arrows, select DISPLAY
CONFIGURATION.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select ADJUST
DATE AND TIME.
Adjust the settings one by one
confi rming by pressing the OK button.
Next select the OK tab on the screen
then confi rm.
SETTING THE DATE AND TIME
SCREEN C
226
9
08
Each press of the button, located at the end of the
wipers stalk , permits displaying of the different trip
computer data in succession, depending on the
display.
- the "vehicle" tab with:
the range, the current consumption and the distance remaining to the
destination,
- the "1" tab (route 1) with:
the average speed, the average consumption and the distance travelled
calculated over route "1" ,
- the "2" tab (route 2) with the same characteristics for a second route.
A FEW DEFINITIONS
Range:
displays the distance which can travelled with the remaining fuel
detected in the tank, basd on the average consumption over the last few
miles (kilometres).
This displayed value may vary signifi cantly following a change in
the vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,
contact a PEUGEOT dealer.
Current fuel consumption:
only calculated and displayed above 20 mph
(30 km/h).
Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.
Distance travelled:
calculated since the last trip computer zero reset.
Distance remaining to the destination:
calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.
Average speed:
this is the average speed calculated since the last trip
computer zero reset (ignition on).
Zero reset
When the required route is displayed, press the control for more
than two seconds.
TRIP COMPUTER
VEHICLE DIAGNOSTICS
227
1
2
3
2
3
1
2
3
4
3
4
3
4
2
3
4
3
4
3
3
3
2
1
2
2
1
2
3
2
3
4
4
4
4
4
4
09
3
3
3
2
3
3
3
3
3
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
SCREEN MENU MAP
TRIP COMPUTER
MAIN FUNCTION
* The parameters vary according to vehicle
(refer to the "Multifunction displays" section).
CHOICE A
choice A1
choice A2
CHOICE B...
track random play (RDM)
activate/deactivate
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
cd changer repeat (RPT)
activate/deactivate
ENTER DISTANCE TO DESTINATION
distance: x km
ALERT LOG
diagnostics
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
STATUS OF FUNCTIONS *
functions activated or deactivated
PERSONALISATION - CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *
DISPLAY CONFIGURATION
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Français
Italiano
Nederlands
Portugues
Portugues-brasil
Screen C
228
1
2
3
2
1
2
3
3
1
2
2
2
2
1
2
1
2
2
AIR CONDITIONING
SWITCH OFF AIR CONDITIONING (A/C OFF)
TELEPHONE
BLUETOOTH CONFIGURATION
CONNECT/DISCONNECT AN EQUIPMENT
Telephone function
Audio Streaming function
CONSULT THE PAIRED EQUIPMENT
DELETE A PAIRED EQUIPMENT
PERFORM A
B
PERFORM A
PERFORM A
LUETOOTH SEARCH
MANAGE THE TELEPHONE CALL
TERMINATE THE CURRENT CALL
ACTIVATE SECRET MODE
CALL
CALLS LIST
DIRECTORY
SIMULTANEOUS LH-RH CONTROL
activate/deactivate
229
There is a difference in
sound quality between
the different audio
sources (radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
The CD is ejected
automatically or is not
played by the player.
- Check that the CD is inserted in the player
the right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- The audio equipment’s CD player does not
play DVDs.
- Due to their quality level, certain writeable CDs
will not be played by the audio system.
The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
The message "USB
peripheral error" is
displayed on the screen.
Recharge the battery of the peripheral device.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.
QUESTION
SOLUTION
ANSWER
FREQUENTLY ASKED QUESTIONS
The CD player sound
is poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in
suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
230
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information.
Tune to a radio station which broadcasts traffi c
information.
The radio station is not part of the regional traffi c information network.
QUESTION
SOLUTION
ANSWER
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
displayed...).
The vehicle is too far from the transmitter used by the station listened to or
there is no transmitter in the geographical area through which the vehicle
is travelling.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1
to 2 seconds in radio
mode.
During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.
Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use.
When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle’s battery.
Start the vehicle’s engine to increase the battery
charge.
The stored stations do
not function (no sound,
87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which
the stations are stored.
The message "the audio
system is overheated"
appears on the display.
Switch the audio system off for a few minutes to
allow the system to cool.
In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing
of the CD.
