P/NO : MFL67164790
HT806TH (HT806TH, SH86TH-S/ C, SH95TA-W)
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
DVD Home Theater
System
FOR THE WARRANTY TERMS & CONDITIONS,
PLEASE REFER TO BACK COVER OF THIS MANUAL.
HT806TH-D0_BGBRLL_ENG_4790.indd 1 2011-03-09 �� 10:25:43
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure that
may be of sucient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
HT806TH-D0_BGBRLL_ENG_4790.indd 2 2011-03-09 �� 10:25:44
Getting Started 3
Getting Started
1
Copyrights
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent copyrighted
material without permission. This product features the
copy protection function developed by Macrovision.
Copy protection signals are recorded on some
discs. When recording and playing the pictures of
these discs picture noise will appear. This product
incorporates copyright protection technology that
is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection
technology must be authorized by Macrovision, and
is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE
WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS
TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525
OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS,
IT IS RECOMMENDED THAT THE USER SWITCH THE
CONNECTION TO THE ‘STANDARD DEFINITION’
OUTPUT. IF THERE ARE QUESTIONS REGARDING
OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER
SERVICE CENTER.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot use
it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by
the European Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or
the local authorities.
3. The correct disposal of your
old appliance will help prevent
potential negative consequences
for the environment and human
health.
4. For more detailed information about
disposal of your old appliance,
please contact your city oce,
waste disposal service or the shop
where you purchased the product.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and
other relevant provisions of Directive
2004/108/EC, 2006/95/EC, and
2009/125/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The
Netherlands (Tel : +31–(0)36–547–8888)
POWER: This unit operates on a mains supply of
200-240V~, 50/60Hz.
WIRING: This unit is supplied with a BSI 1363
approved 13 amp mains plug, fused at 5 amp.
When replacing the fuse always use a 5 amp BS
1362, BSI or ASTA approved type. Never use this
plug with the fuse cover omitted. To obtain a
replacement fuse cover contact your dealer. If the
type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be
removed and a suitable type tted. Please refer to
the wiring instructions below:
WIRING: A mains plug removed from the mains
lead of this unit must be destroyed. A mains plug
with bared wires is hazardous if inserted in a
mains socket. Do not connect either wire to the
earth pin, marked with the letter E or with the
earth symbol
or coloured green or green and
yellow. If any other plug is tted, use a 5 amp fuse,
either in the plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are
coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours
of the wires in the mains lead of this unit may not
correspond with the coloured marking identifying
the terminals in your plug, proceed as follows: The
wire which is coloured blue must be connected
to the terminal which is marked with the letter
N or coloured black. The wire which is coloured
brown must be connected to the terminal which
is marked with the letter L or coloured red.
HT806TH-D0_BGBRLL_ENG_4790.indd 3 2011-03-09 �� 10:25:44
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 – Portable In
6 – USB Direct Recording
6 – Full HD up-scaling
6 – Home Theater Speaker ez Setup
6 Accessories
7 Introduction
7 – Playable Discs
7 – About the “&” Symbol Display
7 – Symbols Used in this Manual
7 – Regional Codes
8 Playable file Requirement

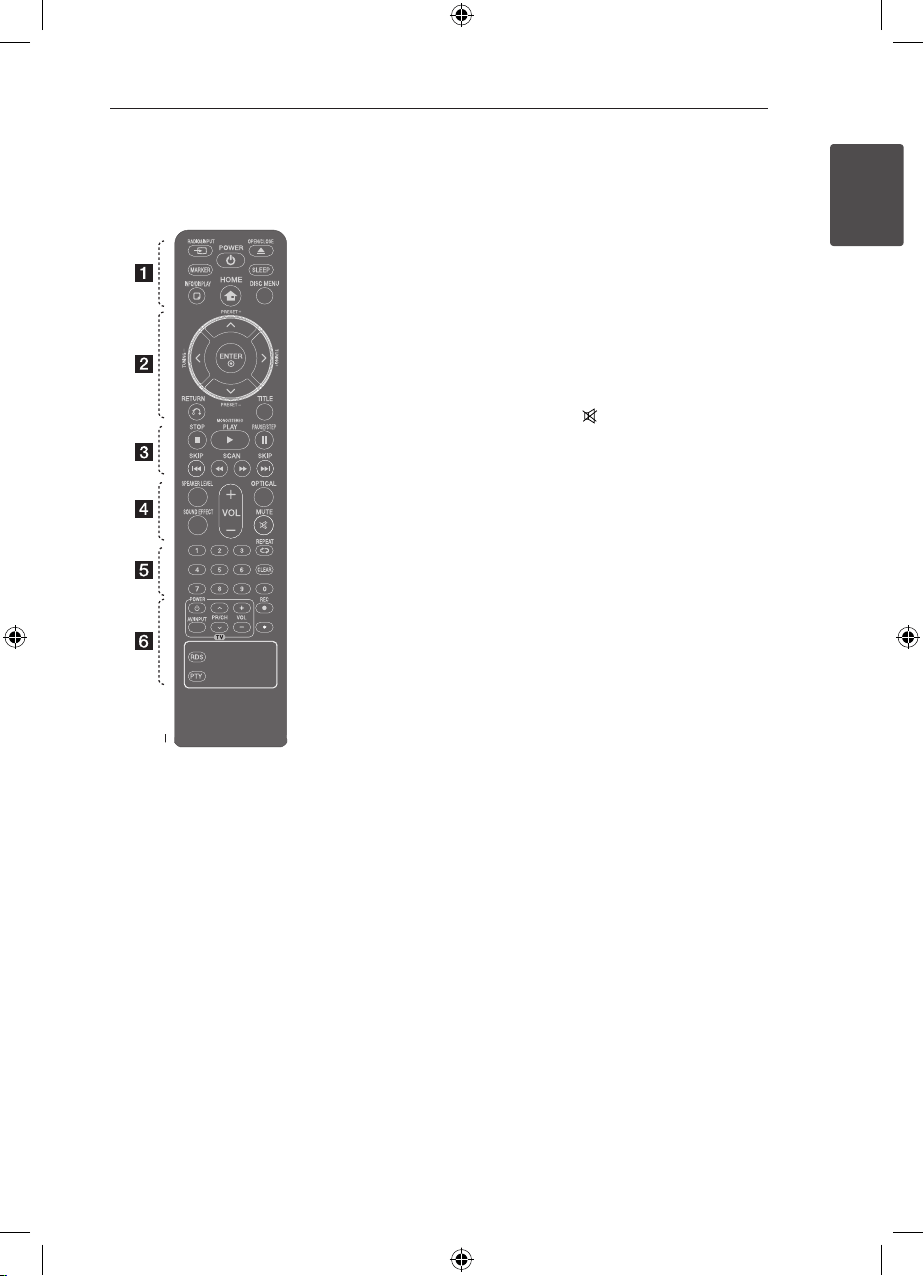

9 Remote control
10 Front panel
11 Rear panel
2 Connecting

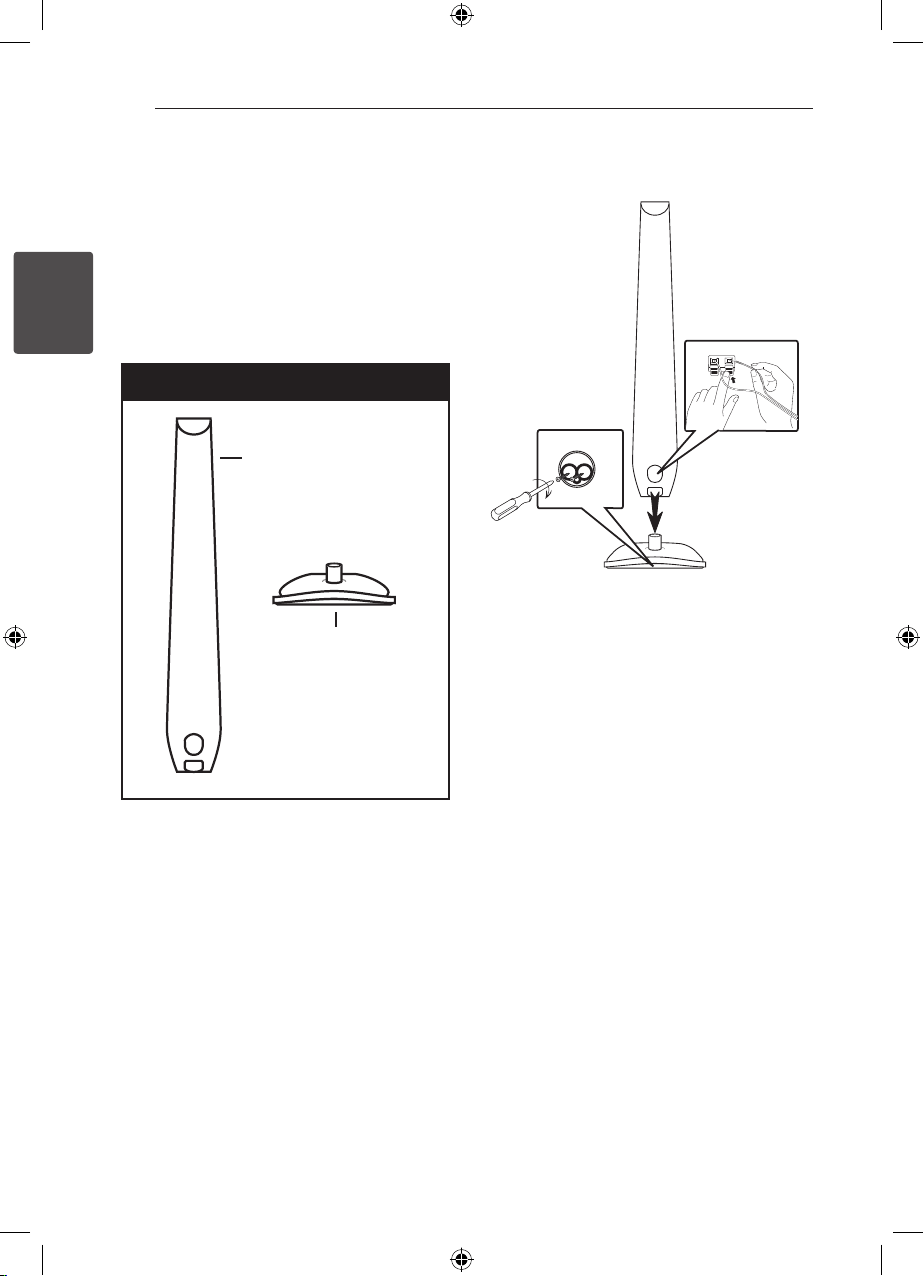

12 Assembling the speaker stand to the
speaker
13 Attaching the speakers to the unit

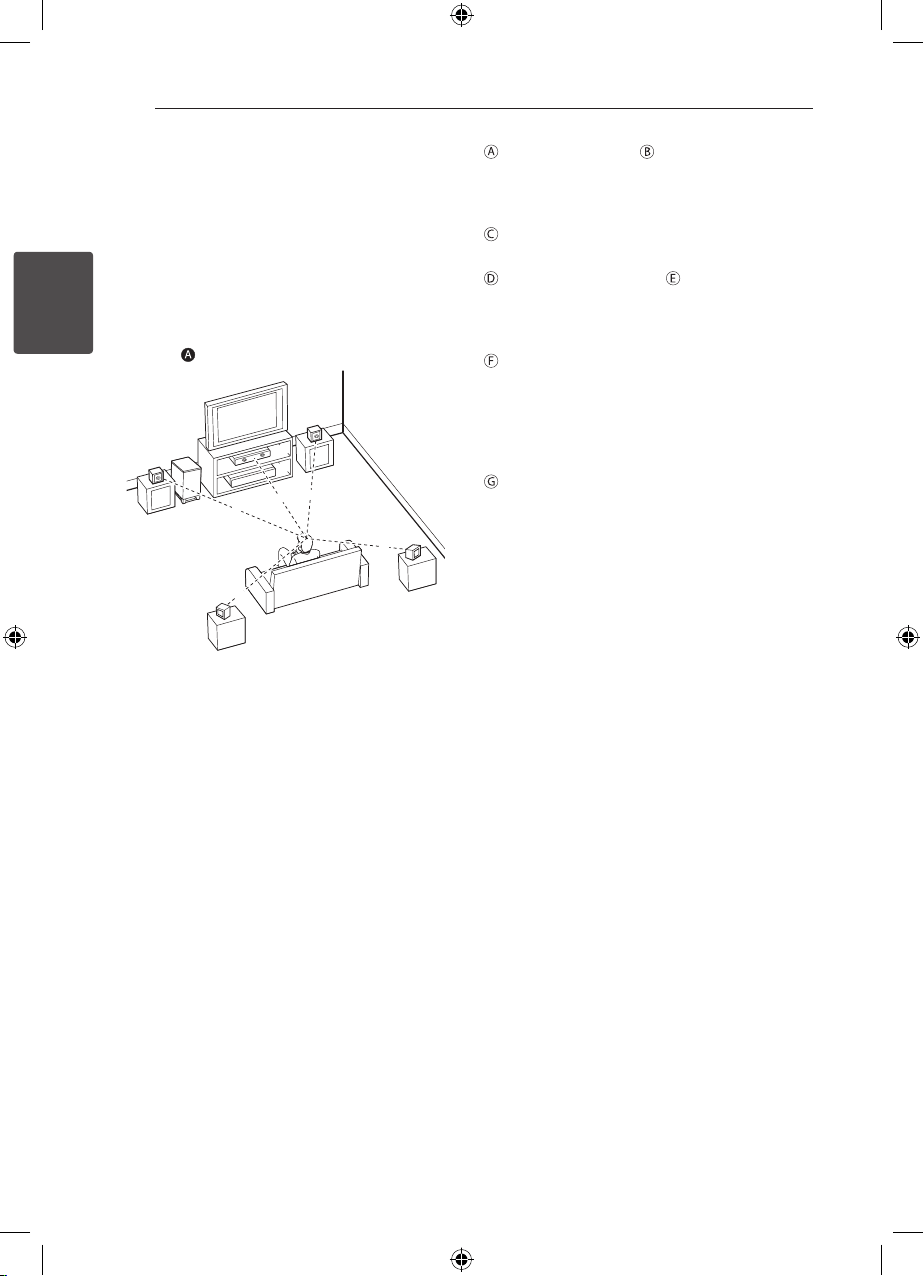

14 Positioning the system
15 Connections to Your TV

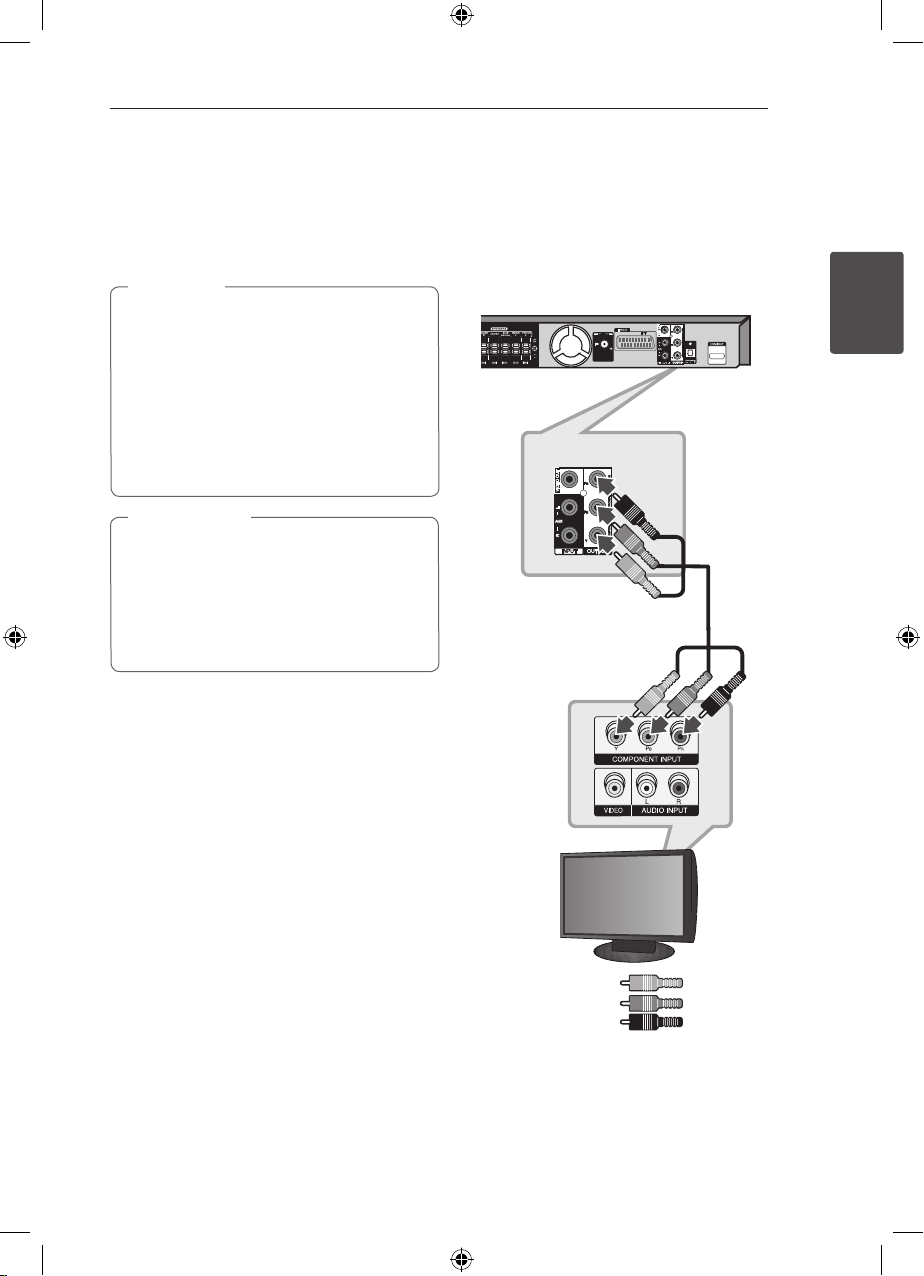

15 – Component Video Connection

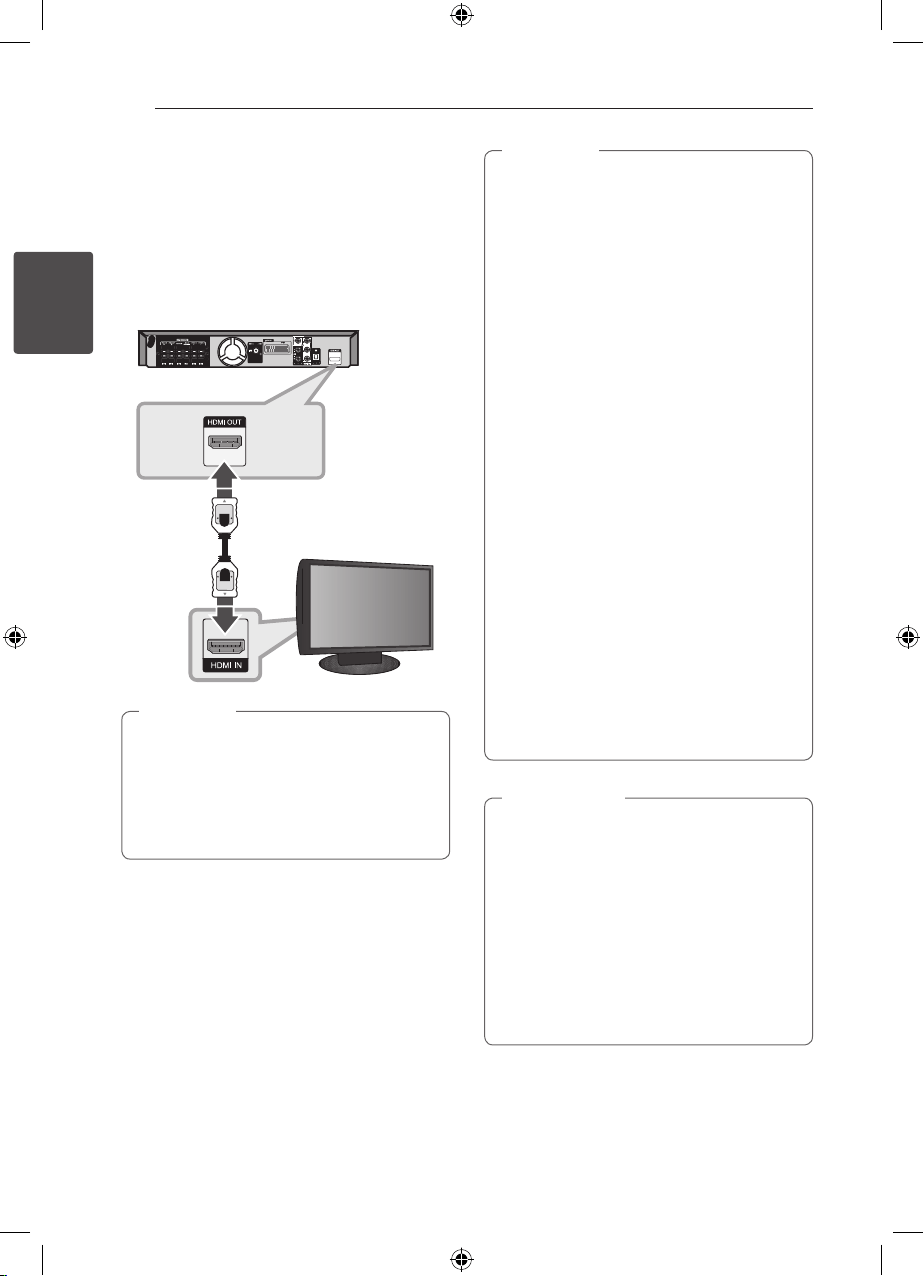

16 – HDMI Out Connection

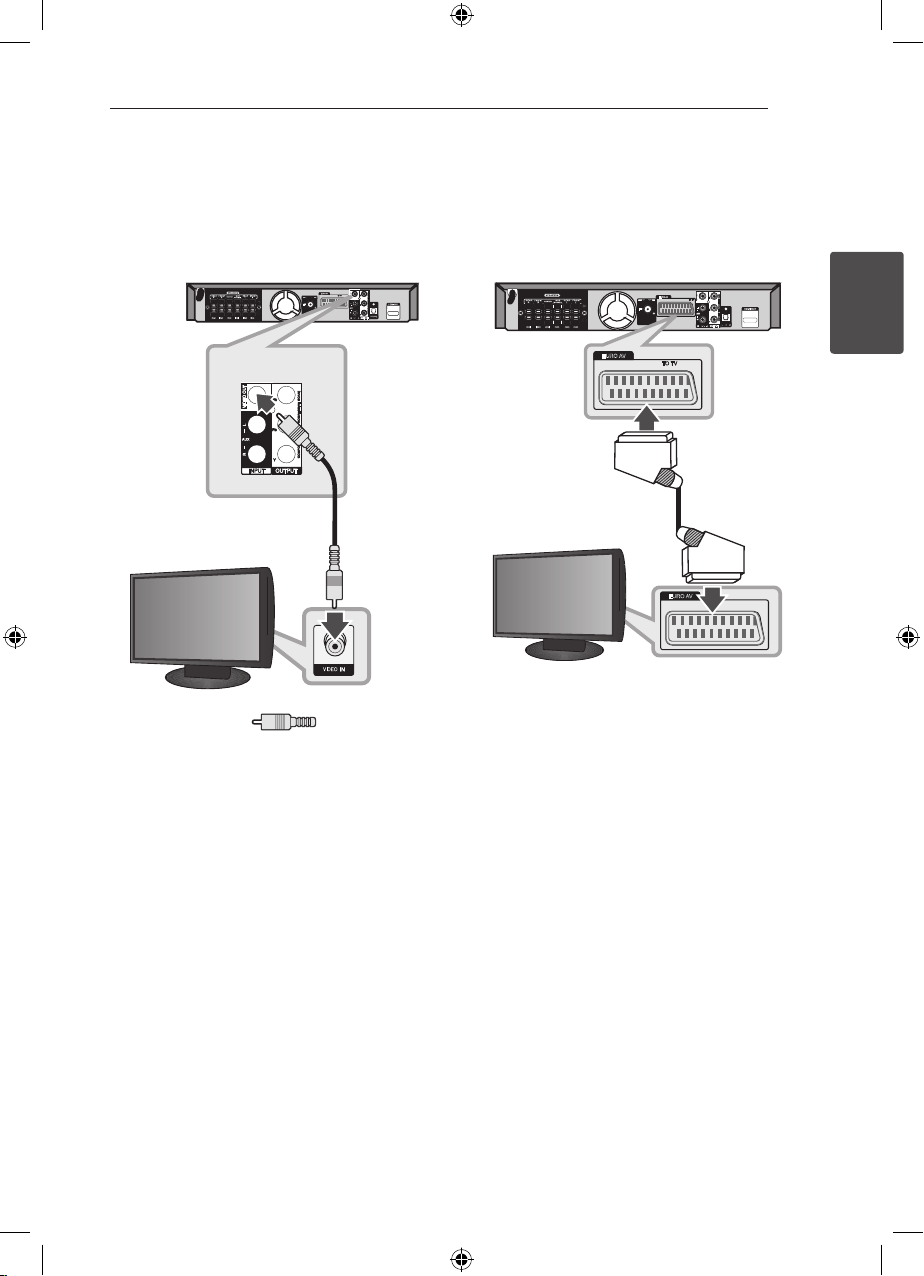

17 – Video Connection
17 – SCART Connection
18 – Resolution Setting
18 Video Output Resolution
19 Optional Equipment Connection

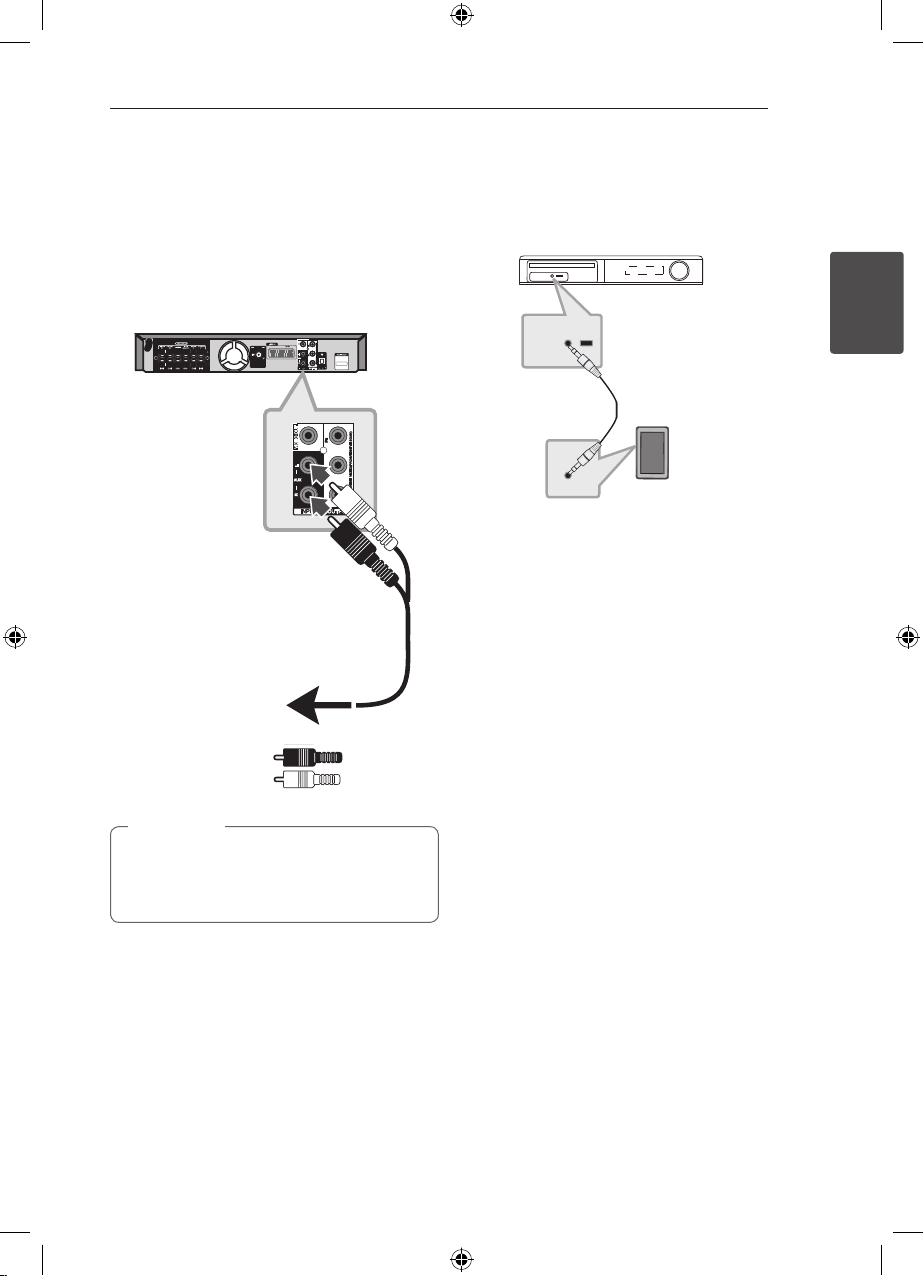

19 – AUX In Connection
19 – AUDIO (PORT. IN) In Connection
19 – Listening to music from your portable
player or external device
20 – USB Connection

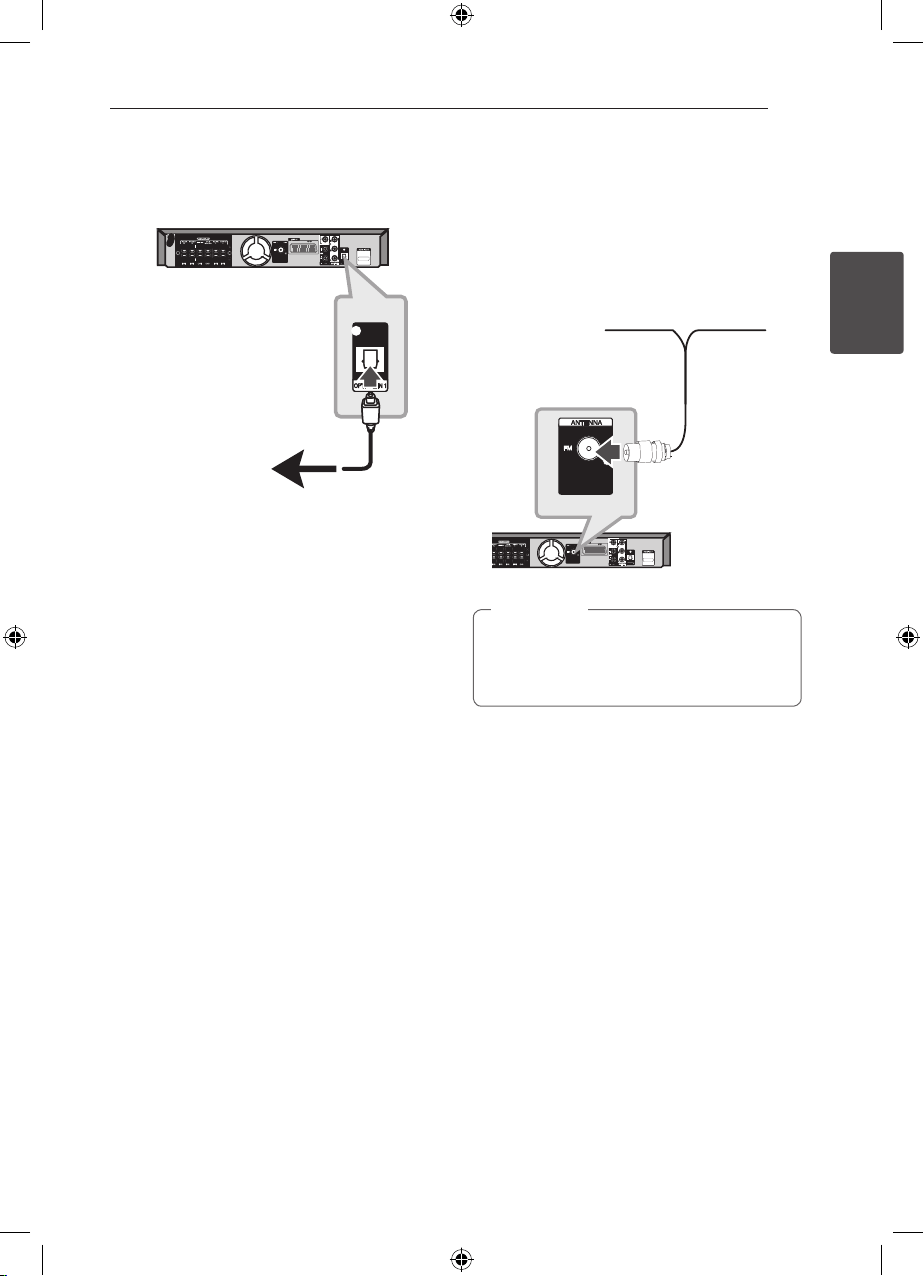

21 – OPTICAL In connection
21 – Home theater speaker ez setup
21 Antenna Connection
3 System Setting

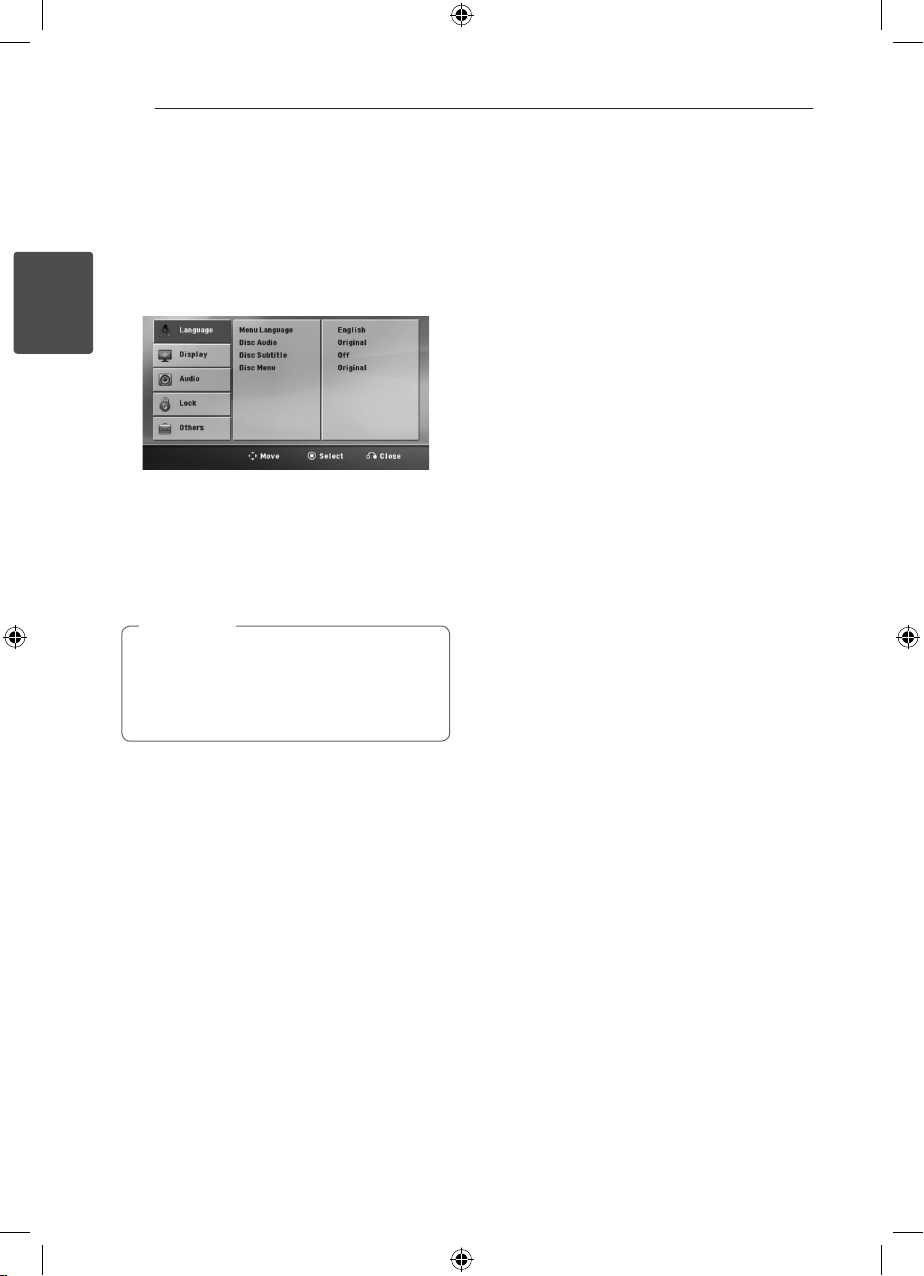

22 Adjust the setup settings
22 – OSD Initial language settings -
Optional
22 – To display and exit the Setup menu
23 – Language
23 – Display
24 – Audio
25 – Lock (Parental Control)
26 – Others
4 Operating

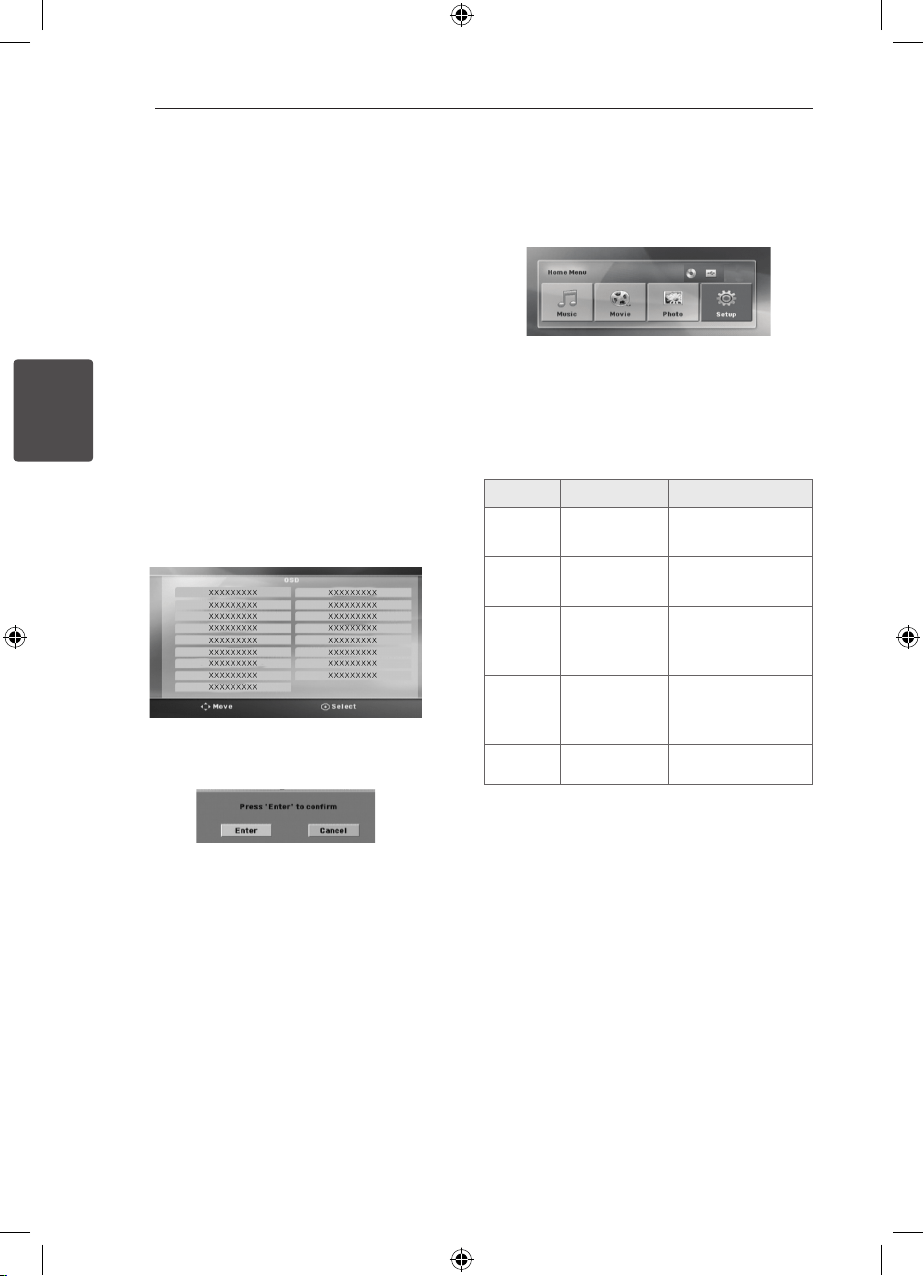

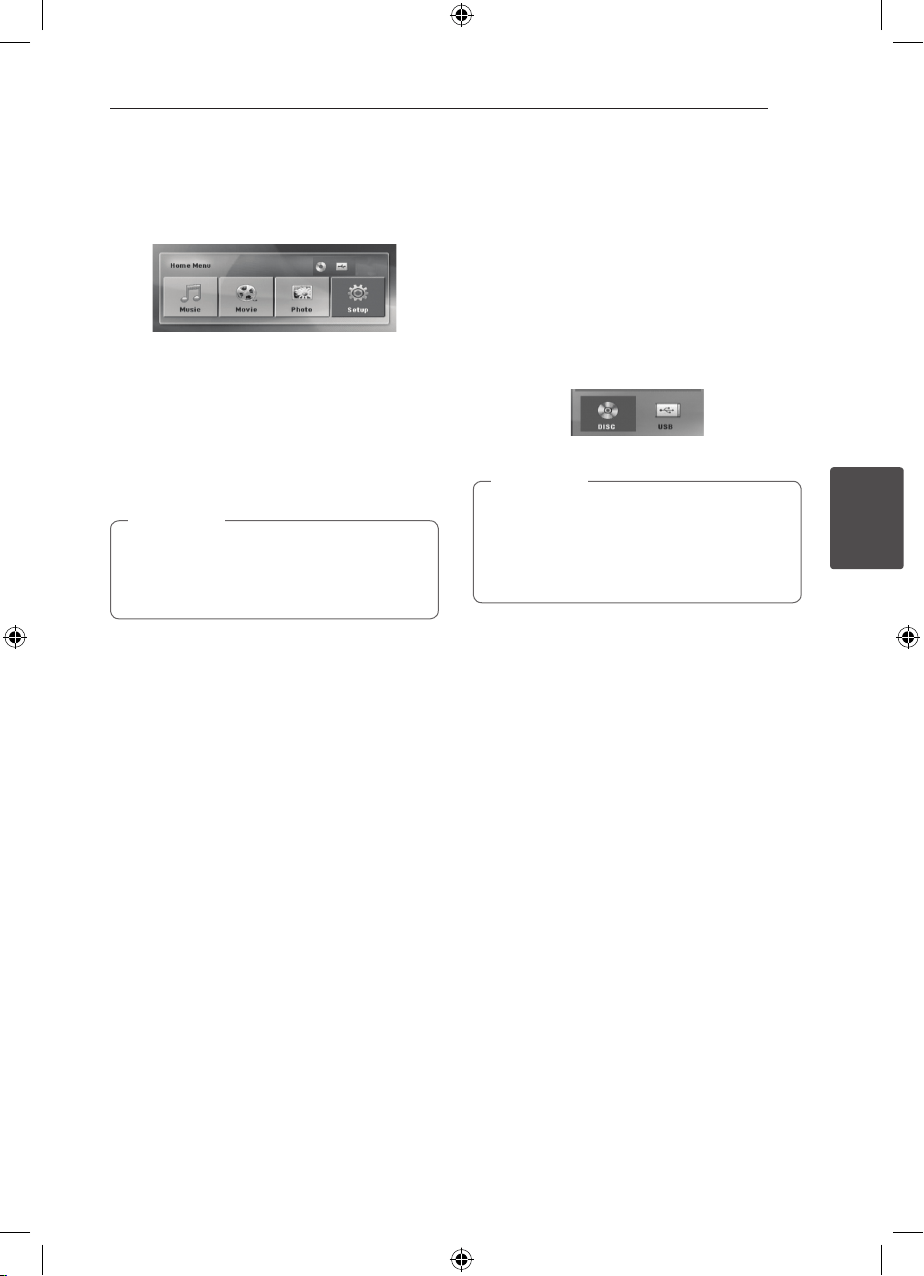

27 Using the Home Menu
27 Basic Operations
28 Other Operations
28 – Displaying Disc Information on-screen
29 – To display the DVD Menu
29 – To display the DVD title
29 – 1.5 times speed playback
29 – Screen Saver
29 – Starting play from selected time
29 – Resume playback
29 – Changing subtitle code page
30 – Marked Playback

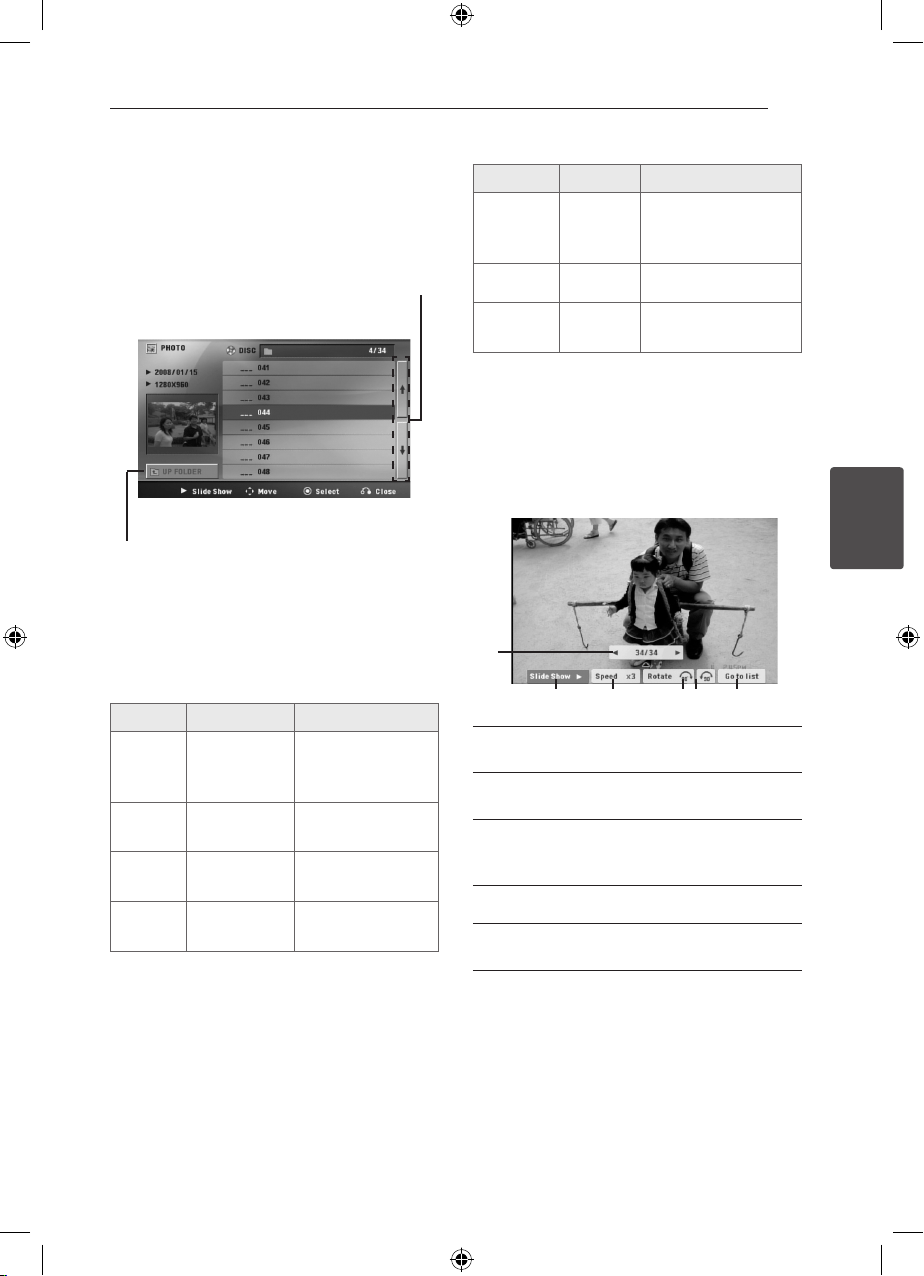

31 – Viewing a PHOTO file
32 – Sleep Timer Setting
32 – Dimmer
32 – Turn off the sound temporarily
32 – Last Scene Memory
32 – System Select - Optional

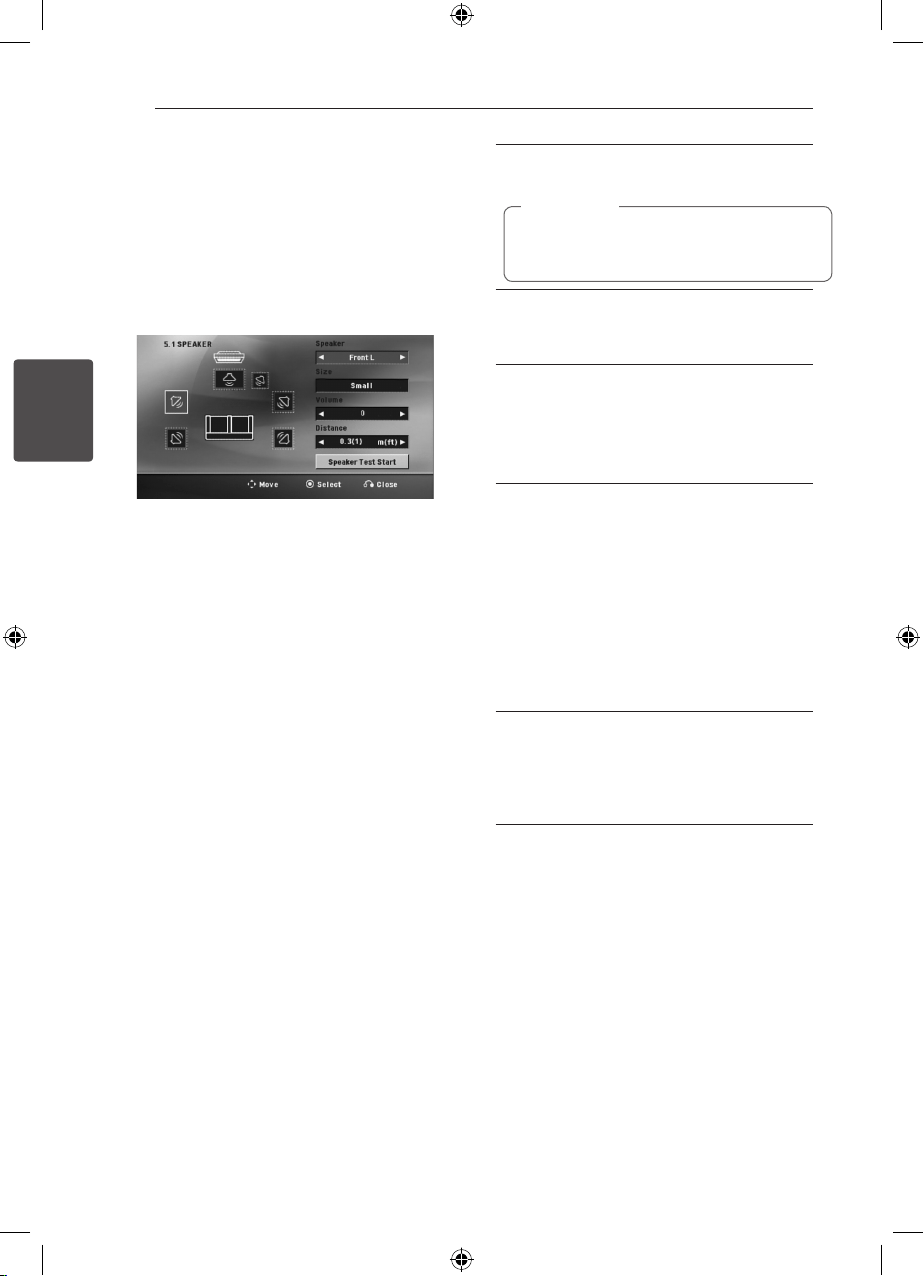

32 – Adjust the speaker level settings
33 Radio Operations
33 – Listening to the radio
33 – Presetting the Radio Stations
33 – Deleting all the saved stations
33 – Deleting a saved station
33 – Improving poor FM reception
33 – Seeing information about a radio
station
34 Sound adjustment
34 – Setting the surround mode
35 Advanced Operations
35 – Recording to USB
HT806TH-D0_BGBRLL_ENG_4790.indd 4 2011-03-09 �� 10:25:44
Table of Contents 5
1
2
3
4
5
6
7
5 Troubleshooting
36 Troubleshooting
6 Appendix
37 Maintenance
37 – Handling the Unit
37 – Notes on Discs
38 Area Code List
39 Language code List
40 Trademarks and Licenses
41 Specifications
7 Warranty
43 Warranty
HT806TH-D0_BGBRLL_ENG_4790.indd 5 2011-03-09 �� 10:25:44
Getting Started6
Getting Started
1
Unique Features
Portable In
Listen to music from your portable device. (MP3,
Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.
Full HD up-scaling
Views Full HD picture quality with simple setup.
Home Theater Speaker ez
Setup
Listen to sounds from TV, DVD and Digital device
with vivid 5.1 (2.1 or 2.0) ch mode.
Accessories
Please check and identify the supplied accessories.
Remote control (1) Battery (1)
FM antenna (1) Speaker cables (6)
HT806TH-D0_BGBRLL_ENG_4790.indd 6 2011-03-09 �� 10:25:44
Getting Started 7
Getting Started
1
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG les. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.
DVD-VIDEO (8 cm / 12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm / 12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm / 12 cm disc)
Video mode and nalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm / 12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the “
&
” Symbol
Display
“
&
” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specic media.
Symbols Used in this Manual
r
DVD-Video, DVD±R/RW in Video
mode or VR mode and nalized
t
Audio CDs
y
Video les contained in the
USB/Disc
u
Audio les contained in the
USB/Disc
i
Photo les
,
Note
Indicates special notes and operating features.
,
Tip
Indicates tip and hints for making the task easier.
>
Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.
y
Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
y
If you try to play a DVD with a dierent regional
code from your unit, the message “Check
Regional Code” appears on the TV screen.
HT806TH-D0_BGBRLL_ENG_4790.indd 7 2011-03-09 �� 10:25:44
Getting Started8
Getting Started
1
Playable file
Requirement
MP3/ WMA music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Support Version : v2, v7, v8, v9
y
Maximum les : Under 999
y
File extensions : “.mp3”/ “.wma”
y
CD-ROM le format : ISO9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO9660 le system.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
y
Max pixel in width : 2 760 x 2 048 pixel
y
Maximum les : Under 999
y
Some discs may not operate due to a dierent
recording format or the condition of disc.
y
File extensions: “.jpg”
y
CD-ROM le format : ISO9660/ JOLIET
DivX file requirement
DivX le compatibility with this unit is limited as
follows:
y
Available resolution: within 720 x 576 (W x H)
pixels.
y
The le name of the DivX subtitle should be
entered within 45 characters.
y
If there is impossible code to express in the
DivX le, it may be displayed as “ _ “ mark on the
display.
y
Frame rate : less than 30 fps.
y
If the video and audio structure of recorded
les is not interleaved, either video or audio is
outputted.
y
Playable DivX le : “.avi”, “.mpg”, “.mpeg”, “.divx”
y
Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
y
Playable Codec format : “DIVX3.xx”, “DIVX4.xx”,
“DIVX5.xx”, “MP4V3”, “3IVX”.
y
Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
y
For Discs formatted in Live le system, you can
not it on this unit.
y
If the name of movie le is dierent from that of
the subtitle le, during playback of a DivX le,
subtitle may not be display.
y
If you play a DivX le dier from DivXspec, it may
not operate normally.
HT806TH-D0_BGBRLL_ENG_4790.indd 8 2011-03-09 �� 10:25:44
Getting Started 9
Getting Started
1
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with
4
and
5
matched correctly.
• • • • • •
a
• • • • •
P
RADIO&INPUT: Changes
input sources.
MARKER: Marks play list.
1
POWER: Switches the unit ON
or OFF.
B
OPEN/CLOSE: Opens and
closes the disc Drawer.
SLEEP: Sets the System to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)
m
INFO/DISPLAY: Accesses On-
Screen Display.
n
HOME: Displays the [Home
Menu].
DISC MENU: Accesses the menu
on a DVD disc.
• • • • • •
b
• • • • •
W/S/A/D
(up/ down/ left/
right): Used to navigate on-screen
displays.
PRESET +/-: Selects programme
of Radio.
TUNING +/-: Tunes in the desired
radio station.
b
ENTER: Acknowledges menu
selection.
Presetting the radio stations.
x
RETURN: Moves backwards
in the menu or exits the setup
menu.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • •
c
• • • • •
Z
STOP: Stops playback.
d
PLAY, MONO/STEREO: Starts
playback. Selects Mono/ Stereo.
M
PAUSE/STEP: Pauses playback.
C/V
SKIP: Goes to the next
or previous chapter / track / le.
c/v
SCAN: Searches
backward or forward.
• • • • • •
d
• • • • •
SPEAKER LEVEL: Sets the sound
level of desired speaker.
SOUND EFFECT: Selects a sound
eect mode.
VOL -/+ (Volume): Adjusts
speaker volume.
OPTICAL: Changes input source
to optical directly.
MUTE: Mutes the sound.
• • • • • •
e
• • • • •
0-9 numerical buttons: Selects
numbered options in a menu.
h
REPEAT: Selects a play
mode. (Repeat/ Random)
CLEAR: Removes a number when
setting the password.
• • • • • •
f
• • • • •
TV Control buttons: Controls the
TV. (LG TV only)
-
You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (TV) and press PR/
CH (
W/S
) button repeatedly
until the TV turns on or o.
X
REC: USB Direct Recording.
?
: This button is not available.
RDS : Radio Data System.
PTY : Views the various displays of
the RDS.
Remote control
HT806TH-D0_BGBRLL_ENG_4790.indd 9 2011-03-09 �� 10:25:45
Getting Started10
Getting Started
1
Front panel
a b c d e f
k j i h g
a
1/!
(POWER)
Switches the unit ON or OFF.
b
R
(OPEN/CLOSE)
Opens or closes the disc tray.
c
T
(PLAY/PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
d
I
STOP
Stops playback.
e
Y/U
(SKIP)
Goes to next or previous le/track/chapter.
Searches backward or forward (Press and hold)
Tunes in the desired radio station.
f
FUNC. (FUNCTION)
Changes the input source or function.
g
VOLUME
Adjusts speaker volume.
h
Display window
Shows the current status of the unit.
i
Disc Tray
j
USB Port
Connects a USB device.
k
PORT. IN
Connects to a portable player with audio
outputs.
HT806TH-D0_BGBRLL_ENG_4790.indd 10 2011-03-09 �� 10:25:45
Getting Started 11
Getting Started
1
a
Power cord
b
Speakers connectors
Connects the speaker cables.
c
Cooling Fan
d
Antenna Connector
FM- Connects the FM wired antenna
e
SCART connetcor
f
VIDEO OUT
Connects to a TV with video inputs.
g
HDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
h
OPTICAL IN
Connects to optical audio equipment.
i
COMPONENT VIDEO (Y P
B
P
R
)OUTPUT
(PROGRESSIVE SCAN)
Connects to a TV with Y P
B
P
R
inputs.
j
AUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.
Rear panel
a b c d e f
j i h g
HT806TH-D0_BGBRLL_ENG_4790.indd 11 2011-03-09 �� 10:25:45
2 Connecting
12
Connecting
2
Connecting
Assembling the
speaker stand to the
speaker
Before connecting the speakers, assemble the
speakers. Please check the items for assembling the
speakers.
Preparation
Speaker
Stand
Attach the speakers to the speaker stands by
rotating the screws.
HT806TH-D0_BGBRLL_ENG_4790.indd 12 2011-03-09 �� 10:25:45
Connecting 13
Connecting
2
Attaching the speakers
to the unit
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit. To connect the cable to the unit, press
each plastic nger pad to open the connection
terminal. Insert the wire and release the nger
pad.
Connect the black stripe of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).
2. Connect the wires to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding:
Color Speaker Position
Grey Rear Rear right
Blue Rear Rear left
Green Center Center
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press each
plastic nger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the nger pad.
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
>
Caution
HT806TH-D0_BGBRLL_ENG_4790.indd 13 2011-03-09 �� 10:25:45
Connecting14
Connecting
2
Positioning the system
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions dier from the actual unit for
explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position ( ).
A
B
D
D
E
E
F
F
A
A
A
A
A
G
G
C
C
A
B
A
Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.
Center speaker: Place the center speaker above
or below the monitor or screen.
Surround left speaker (L)/ Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
Subwoofer: The position of the subwoofer is
not so critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it slightly
toward the center of the room to reduce the wall
reections.
Unit
HT806TH-D0_BGBRLL_ENG_4790.indd 14 2011-03-09 �� 10:25:46
Connecting 15
Connecting
2
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
y
Depending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
y
Please refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
,
Note
y
Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel.
y
Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
>
Caution
Component Video Connection
Connect the COMPONENT VIDEO OUTPUT
(PROGRESSIVE SCAN) jacks on the unit to the
corresponding input jacks on the TV using
component cables.
You can hear the sound through the system’s
speakers.
Unit
TV
Green
Blue
Red
HT806TH-D0_BGBRLL_ENG_4790.indd 15 2011-03-09 �� 10:25:47
Connecting16
Connecting
2
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
Unit
TV
y
You can fully enjoy digital audio and video
signals together with this HDMI connection.
y
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 18.)
,
Tip
y
If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
y
When you connect a HDMI or DVI
compatible device make sure of the
following:
- Try switching o the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p), 1
280 x 720p, 1 920 x 1 080i or 1 920 x 1 080p
video input.
y
Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
y
If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™
Cable.
,
Note
y
Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the unit and then turn it
on again.
y
When the HDMI connection with HDCP is
not veried, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
the HDMI connection, or disconnect the
HDMI cable.
>
Caution
HT806TH-D0_BGBRLL_ENG_4790.indd 16 2011-03-09 �� 10:25:47
Connecting 17
Connecting
2
Video Connection
Connect the VIDEO OUT jack on the unit to the
video in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Unit
TV
Yellow
SCART Connection
Connect the SCART jack on the unit to the SCART in
jack on the TV using a SCART cable.
You can hear the sound through the system’s
speakers.
Unit
TV
HT806TH-D0_BGBRLL_ENG_4790.indd 17 2011-03-09 �� 10:25:48
Connecting18
Connecting
2
Resolution Setting
The unit provides several output resolutions for
HDMI OUT and COMPONENT VIDEO OUT jacks. You
can change the resolution using [Setup] menu.
1. Press
n
HOME.
2. Use
A/D
to select the [Setup] and press
b
ENTER. The [Setup] menu appears.
3. Use
W/S
to select [Display] option then press
D
to move to the second level.
4. Use
W/S
to select the [Resolution] option
then press
D
to move to the third level.
5. Use
W/S
to select the desired resolution then
press
b
ENTER to conrm your selection.
If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:
Press
Z
STOP for more than 5 seconds.
,
Note
Video Output
Resolution
Displayed resolution in display window and
outputted resolution may dierent according to
connection type.
[HDMI OUT]: 1 080p, 1 080i, 720p and 480p (or
576p) and 480i (or 576i)
[COMPONENT VIDEO OUT]: 480p (or 576p) and 480i
(or 576i)
[VIDEO OUT]: 480i (or 576i)
HT806TH-D0_BGBRLL_ENG_4790.indd 18 2011-03-09 �� 10:25:49
Connecting 19
Connecting
2
Optional Equipment
Connection
AUX In Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
Unit
Red
White
To the audio output jacks
of your component
(TV, VCR, etc.)
If your TV has only one output for audio
(mono), connect it to the left (white) audio jack
on the unit.
,
Note
AUDIO (PORT. IN) In
Connection
Connect an output of portable device (MP3 or PMP
etc) to the AUDIO (PORT. IN) input connector.
MP3 player, etc...
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX
connector of the unit.
2. Turn the power on by pressing
1
(POWER).
3. Select the PORTABLE or AUX (L/R) INPUT
function by pressing
P
RADIO&INPUT.
4. Turn on the portable player or external device
and start it playing.
HT806TH-D0_BGBRLL_ENG_4790.indd 19 2011-03-09 �� 10:25:49
Connecting20
Connecting
2
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit
1. Choose a dierent function mode or press
Z
STOP twice in a row.
2. Remove the USB device from the unit.
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive : Devices that support USB2.0 or
USB1.1.
y
The USB function of this unit does not support
some USB devices.
USB device requirement
y
Devices which require additional program
installation connected to a computer, are not
supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than
a few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported. (Only
FAT(16/32) le system is supported.)
y
This unit is not supported when the total
number of les is 1 000 or more.
y
External HDD, Card readers, Locked devices,
or hard type usb devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
HT806TH-D0_BGBRLL_ENG_4790.indd 20 2011-03-09 �� 10:25:49
Connecting 21
Connecting
2
OPTICAL In connection
Connect an optical output of Unit (or Digital Device
etc) to the OPTICAL IN connector.
To the digital
optical output jack
of your component
Home theater speaker ez
setup
Listen to sound from TV, DVD and Digital Device
with 5.1(2.1 or 2)ch mode. Even in power o
mode, if you press OPTICAL, then power is on and
automatically changed to AUX OPT mode.
1. Connect the unit’s OPTICAL IN jack to jack on
optical out of your TV (or Digital Device etc.).
2. Select the AUX OPT by using the OPTICAL.
To select the AUX OPT directly.
3. Listen sound with 5.1(2.1 or 2)ch speaker.
4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM Wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it
as horizontal as possible.
,
Note
HT806TH-D0_BGBRLL_ENG_4790.indd 21 2011-03-09 �� 10:25:50
3 System Setting
System Setting22
System Setting
3
Adjust the setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 22 to 26.
OSD Initial language settings
- Optional
During the rst use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using
the unit. English will be selected as the initial
language.
1. Press
1
(POWER) to turn the unit on. The
language setup menu will appear on the screen.
2. Use
WSAD
to select a language then press
b
ENTER.
The conrm menu will appear.
3. Use
AD
to select the [Enter] then press
b
ENTER to nish the language setup.
To display and exit the Setup
menu
1. Press
n
HOME.
Displays the [Home Menu].
2. Select an [Setup] by using
AD
.
3. Press
b
ENTER.
Displays the [Setup].
4. Press
n
HOME or
x
RETURN to exit in the
[Setup] Menu.
About help menu for Setup
Menu Buttons Operation
ws
Move
WS
Moving to another
menu.
a
Move
A
Moving to previous
level.
d
Move
D
Moving to next
level or selecting
menu.
x
Close
x
RETURN
To exit the [Setup]
menu or [ 5.1
Speaker Setup].
b
Select
b
ENTER To conrm menu.
HT806TH-D0_BGBRLL_ENG_4790.indd 22 2011-03-09 �� 10:25:50
23
System Setting
3
Language
Menu Language
Select a language for the Setup menu and then on
screen display.
Disc Audio / Disc Subtitle / Disc
Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the
disc was recorded.
[Other]
To select another language, press numeric
buttons and then
b
ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 39. If you
enter the wrong language code, press CLEAR.
[O (for Disc Subtitle)]
Turn o Subtitle.
Display
TV Aspect
Select which screen aspect to use based on the
shape of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the
upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the
entire screen and cuts o the portions that do
not t. (If the disc/le is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)
TV Output Select
Select an option according to the TV connection
type.
[RGB]
When your TV is connected with the SCART
jack.
[YP
B
P
R
]
When your TV is connected with the
COMPONENT/ PROGRESSIVE SCAN jacks on the
unit.
Resolution
Sets the output resolution of the Component and
HDMI video signal. Refer to “Resolution Setting” for
details about the resolution (page 18).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If the COMPONENT
VIDEO OUT is only connected, this changes the
resolution to 480i (or 576i) as default resolution.
[1080p]
Outputs 1 080 lines of progressive video.
[1080i]
Outputs 1 080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[480p (or 576p)]
Outputs 480 (or 576) lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.
System Setting
HT806TH-D0_BGBRLL_ENG_4790.indd 23 2011-03-09 �� 10:25:50
System Setting24
System Setting
3
Audio
5.1 Speaker Setup
Make the following settings for the built-in 5.1
channel surround decoder.
1. Select [5.1 Speaker Setup] on the [Audio] menu.
2. Press
b
ENTER.
The [5.1 SPEAKER] appears.
3. Use
AD
to select the desired speaker.
4. Adjust options using
WSAD
buttons.
5. Returns to the previous menu by pressing
x
RETURN.
[Speaker]
Select a speaker that you want to adjust.
Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.
,
Note
[Size]
Since the speaker settings are xed, you cannot
change the settings.
[Volume]
Press
AD
to adjust the output level of the
selected speaker.
Front L/R : 0 ~ -5
SubWoofer, Rear L/R, Center : 5 ~ -5
[Distance]
After you connected speakers to your unit,
set the Distance between the speakers and
your listening point if the distance of Center
or Rear speakers is bigger than the distance
of Front speakers. This allows the sound from
each speaker to reach the listener at the same
time. Press
AD
to adjust the Distance of the
selected speaker. This distance is equivalent to
a dierence of the distance between Center or
Rear speaker and Front speakers.
[Test]
Select [Speaker Test Start] by using the
WS
and press
b
ENTER. Press
b
ENTER again to
stop. Adjust the volume to match the volume
of test signals memorized in the system.
HT806TH-D0_BGBRLL_ENG_4790.indd 24 2011-03-09 �� 10:25:50
System Setting 25
System Setting
3
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this eect.
Vocal
Select [On] to mix karaoke channels into normal
stereo.
This function is eective for multi-channel karaoke
DVDs only.
HD AV Sync
Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it eectively ‘waits’ for the picture to arrive:
this is called HD AV Sync. Use
WS
(on the remote
control) to scroll up and down through the delay
amount, which you can set at anything between 0
and 300m sec.
Lock (Parental Control)
Initial Setting the Area Code:
When you use this unit for the rst time, you have
to set the Area Code.
1. Select the [Lock] menu and then press
D
.
2. Press
D
.
To access the [Lock] options, you must input the
password you have created. Input a password
and press
b
ENTER. Enter it again and press
b
ENTER to verify. If you make a mistake before
pressing
b
ENTER, press CLEAR.
3. Select the rst character using
WS
buttons.
4. Press
b
ENTER and select the second character
using
WS
buttons.
5. Press
b
ENTER to conrm your Area code
selection.
Rating
Blocks playback of rated DVDs based on their
contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press
D
.
2. Input a password and press
b
ENTER.
3. Select a rating from 1 to 8 using the
WS
buttons.
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not
active and the disc plays in full.
4. Press
b
ENTER to conrm your rating selection.
HT806TH-D0_BGBRLL_ENG_4790.indd 25 2011-03-09 �� 10:25:50
4 Operating
System Setting26
System Setting
3
Password
You can enter or change password.
1. Select [Password] on the [Lock] menu and then
press
D
.
2. Press
b
ENTER.
3. Input a password and press
b
ENTER.
To change the password, press
b
ENTER when
the [Change] option is highlighted. Input a
password and press
b
ENTER. Enter it again
and press
b
ENTER to verify.
4. Press
n
HOME to exit the menu.
If you forget your password, you can clear it
using the following steps:
1. Select the [Setup] menu on the [Home
Menu].
2. Input the 6-digit number “210499” and
press
b
ENTER. The password is cleared.
,
Note
Area Code
Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
on page 38.
1. Select [Area Code] on the [Lock] menu then
press
D
.
2. Input a password and press
b
ENTER.
3. Select the rst character using
WS
buttons.
4. Press
b
ENTER and select the second character
using
WS
buttons.
5. Press
b
ENTER to conrm your Area code
selection.
Others
DivX VOD
We provide you with the DivX® VOD (Video On
Demand) registration code that allows you to rent
and purchase videos using the DivX® VOD service.
For more information, visit www.divx.com/vod.
[Register]
Displays the registration code of your player.
[Deregister]
Deactivate your player and display the
deactivation code.
All the downloaded videos from DivX VOD can
only be played back on this unit.
,
Note
HT806TH-D0_BGBRLL_ENG_4790.indd 26 2011-03-09 �� 10:25:50
Operating 27
Operating
4
Using the Home Menu
1. Press
n
HOME.
Displays the [Home Menu].
2. Select an option by using
AD
.
3. Press
b
ENTER then selected option menu.
[Music] – Displays [MUSIC] menu.
[Movie] – Start video media’s playback or displays
the [MOVIE] menu.
[Photo] – Displays [PHOTO] menu.
[Setup] – Displays the [Setup] menu.
You can not select the [Music], [Movie] or
[Photo] option when the USB device is not
connected or a disc is not inserted.
,
Note
Basic Operations
1. Insert the disc by using the
B
OPEN/CLOSE or
Connect the USB device to the USB port.
2. Press
n
HOME.
Displays the [Home Menu].
3. Select an option by using
AD
.
If you select the [Movie], [Photo] or [Music]
option when you connect up to two devices,
it appears as belows. Select a media then press
b
ENTER.
4. Press
b
ENTER then selected option menu.
y
For the most Audio CD and DVD-ROM discs,
playback starts automatically.
y
The unit plays only music le contained in
the USB storage device or disc automatically.
,
Note
HT806TH-D0_BGBRLL_ENG_4790.indd 27 2011-03-09 �� 10:25:50
Operating28
Operating
4
To Do this
Stop Press
Z
STOP.
Playback
Press
d
PLAY, MONO/
STEREO.
Pause Press
M
PAUSE/STEP.
Frame-by-
Frame playback
Press
M
PAUSE/STEP
repeatedly to play title Frame-
by-Frame. (DVD, DivX only)
Skipping to the
next/ previous
chapter/ track/
le
During playback, press
C/
V
SKIP to go to the next
chapter/ track/ le or to
return to the beginning of the
current chapter/ track/ le.
Press
C
SKIP twice briey
to step back to the previous
chapter/ track/ le.
Locating a
point quickly by
playing a le in
fast forward or
fast reverse
During playback, press
c
/
v
SCAN repeatedly to
select the required scan speed.
To return to normal speed,
press
d
PLAY, MONO/
STEREO.
Playing
repeatedly or
randomly
Press
h
REPEAT repeatedly,
and the current title, chapter
or track will be played back
repeatedly or randomly.
- DVD : Chapter/ Title/ O
- DivX : Title/ All/ O
- Audio CD/ MP3/ WMA : Track/
All/ Random/ O
Slowing down
the playing
speed
In the pause mode, press
SLOW (
c
or
v
) to select
the required speed. (DVD, DivX
only) The DivX le cannot be
slow down reverse playback.
Other Operations
Displaying Disc Information
on-screen
You can display various information about the disc
loaded on-screen.
1. Press
m
INFO/DISPLAY to show various
playback information.
The displayed items dier depending on the
disc type or playing status.
2. You can select an item by pressing
WS
and
change or select the setting by pressing
AD
.
Title – Current title number/ total number of titles.
Chapter – Current chapter number/ total number
of chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/ total number of angles.
If any button is not pressed for a few seconds,
the on-screen display disappears.
,
Note
HT806TH-D0_BGBRLL_ENG_4790.indd 28 2011-03-09 �� 10:25:50
Operating 29
Operating
4
To display the DVD Menu
r
When you play a DVD which contains several menu,
you can select the menu you want using the Menu.
1. Press DISC MENU.
The disc’s menu appears.
2. Select the menu by using
WSAD
.
3. Press
d
PLAY, MONO/STEREO to conrm.
To display the DVD title
r
When you play a DVD which contains several title,
you can select the title you want using the Menu.
1. Press TITLE.
The disc’s title appears.
2. Select the menu by pressing
WSAD
.
3. Press
d
PLAY, MONO/STEREO to conrm.
1.5 times speed playback
r
The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.
1. During playback, press
d
PLAY, MONO/
STEREO to play at 1.5 times speed. “
d
X1.5”
appears on the screen.
2. Press
d
PLAY, MONO/STEREO again to exit.
Screen Saver
The screen saver appears when you leave the unit
in Stop mode for about ve minutes.
Starting play from selected
time
ry
To start playing at any chosen time on the le or
title.
1. Press
m
INFO/DISPLAY during playback.
2. Press
WS
to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
For example, to nd a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.
4. Press
b
ENTER to conrm. Playback starts from
the selected time.
Resume playback
ryut
The unit records the point where you pressed the
Z
STOP depending on the disc.
If “
MZ
(Resume Stop)” appears on the screen briey,
press
d
PLAY, MONO/STEREO to resume playback
(from the scene point).
If you press
Z
STOP twice or unload the disc,
“
Z
”(Complete Stop) appears on the screen. The
unit will clear the stopped point.
The resume point may be cleared when a
button is pressed (for example;
1
(POWER),
B
OPEN/CLOSE, etc).
,
Note
Changing subtitle code page
y
If the subtitle is not displayed properly, you can
change the subtitle code page to view the subtitle
le properly.
1. During playback, press
m
INFO/DISPLAY to
display the On-Screen display.
2. Use
WS
to select the [Code Page] option.
3. Use
AD
to select desired code option.
4. Press
x
RETURN to exit the On-Screen display.
HT806TH-D0_BGBRLL_ENG_4790.indd 29 2011-03-09 �� 10:25:50
30
Operating
4
Operating

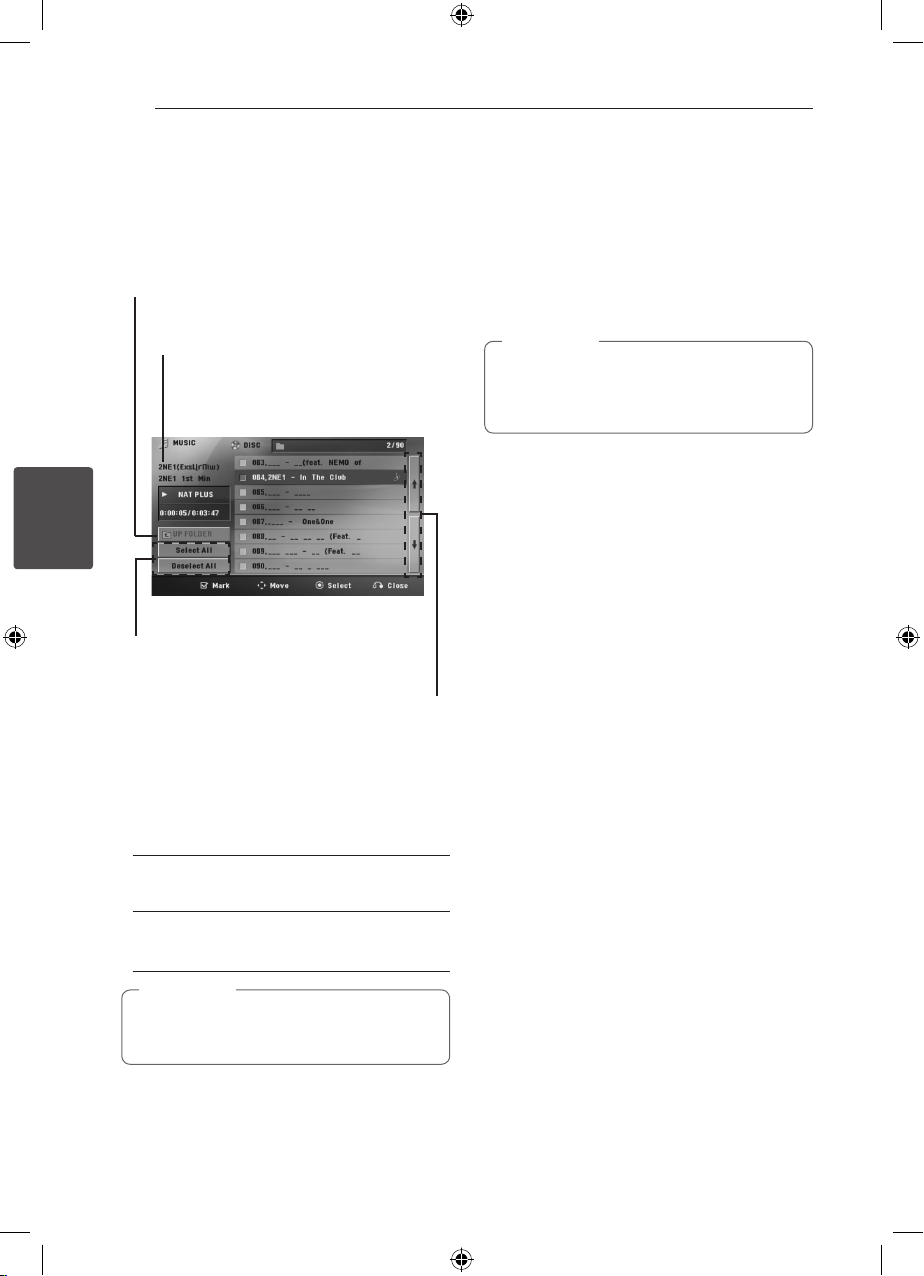

Marked Playback
ut
The mark function enables you to store your
favourite les from any disc or USB device in the
unit memory.
1. Select [Music] on the [Home Menu].
Returning to the upper folder.
(MP3/ WMA only)
Moving to the previous or
next le list.
Selecting all tracks/ les.
Deselecting all tracks/les.
File information will be displayed
according to the ID3TAG information
on the appropriate music le. (MP3
only)
2. Select a desired music on the [List] by using the
WS
then press MARKER to appears the mark on
the list.
3. Press
b
ENTER or
d
PLAY, MONO/STEREO.
Displays the play mode.
4. Select the play mode by using the
WS
and press
b
ENTER.
[Mark Play]
Marked playback.
[Current Play]
Normal playback.
If you want to select all les on the list, select
[Select All] and press
b
ENTER.
,
Note
To delete a Marker
1. Use
WS
to select the track that you wish to erase
from the marked le.
2. Press MARKER.
To delete all Markers
Use
WSAD
to select [Deselect All] then press
b
ENTER in program edit mode.
The markers are also cleared when the disc or
USB device is removed, the unit is switched to
power o or the function is switched to others.
,
Note
HT806TH-D0_BGBRLL_ENG_4790.indd 30 2011-03-09 �� 10:25:51
Operating 31
Operating
4
Viewing a PHOTO file
i
This unit can play discs with photo les.
1. Select [Photo] on the [Home Menu] and press
b
ENTER.
Moving to the previous or
next le list.
Returning to the upper
folder.
2. Press
WS
to select a folder, and then press
b
ENTER.
3. If you want to view a slide show, press
WS
to highlight a le and press
d
PLAY, MONO/
STEREO.
About help menu in the [Photo] menu
Menu Buttons Operation
d
Slide
Show
d
PLAY, MONO/
STEREO
Viewing a slide
show.
wsad
Move
WSAD
Moving to another
le or content.
b
Select
b
ENTER
Viewing a particular
le.
x
Close
x
RETURN
Returning to the
[Home Menu].
About help menu in the full screen
Menu Buttons Operation
Menu
m
INFO/
DISPLAY
Displaying the Option
menu.
a/d
Prev./ Next
A/D
Moving to another le.
x
Close
x
RETURN
Returning to the
[Photo] menu.
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
m
INFO/DISPLAY to display the option menu.
2. Select an option using
WSAD
.
a
b c d e
a Current photo/ Total number of photos –
Use
AD
to view previous/next photo.
b
Slide Show
z
/
M
– Press
ENTER to start
or pause slide show.
c
Speed x3/ x2/ x1 – Use
ENTER to select
a delaying speed between photos in a slide
show.
d
Rotate – Press
ENTER to rotate the photo.
e
Go to list – Press
ENTER to return [Photo]
menu.
HT806TH-D0_BGBRLL_ENG_4790.indd 31 2011-03-09 �� 10:25:51
Operating32
Operating
4
Sleep Timer Setting
Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will
turn o.
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
You can check the remaining time before the
Unit turns o.
Press SLEEP The remaining time appears in the
display window.
,
Note
Dimmer
Press SLEEP once. The display window will be
darken by half. To cancel it, press SLEEP repeatedly
until dim o.
Turn off the sound temporarily
Press MUTE to mute your unit.
You can mute your unit in order, for example, to
answer the telephone, appears the MUTE in the
display window.
Last Scene Memory
r
This unit memorizes last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the unit or switch
o the unit. If you load a disc that has the scene
memorized, the scene is automatically recalled.
System Select - Optional
You must select the appropriate system mode for
your TV system. Press and hold
M
PAUSE/STEP
for more than ve seconds to be able to select a
system in the [Home Menu].
If the USB device is connected or a disc is
inserted, this function is not operated.
,
Note
Adjust the speaker level
settings
You can adjust the sound level of each speaker.
1. Press SPEAKER LEVEL repeatedly to select a
desired speaker to set.
2. Press VOL -/+ to adjust the sound level of the
selected speaker while the level setting memu
is displayed on the display window.
3. Repeat and adjust the sound level of the other
speakers.
HT806TH-D0_BGBRLL_ENG_4790.indd 32 2011-03-09 �� 10:25:51
Operating 33
Operating
4
Radio Operations
Be sure that both FM aerials are connected. (Refer
to the page 21.)
Listening to the radio
1. Press
P
RADIO&INPUT until FM appears in
the display window.
The last received station is tuned in.
2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
or
Press TUNING (-/+) repeatedly.
3. Adjust the volume by rotating VOLUME on
the front panel or by pressing VOL (+/-)on the
remote control repeatedly.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned
down the volume.
1. Press
P
RADIO&INPUT until FM appears in
the display window.
2. Select the desired frequency by using TUNING
(-/+).
3. Press
b
ENTER a preset number will ash in
the display window.
4. Press PRESET (-/+) to select the preset number
you want.
5. Press
b
ENTER.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting all the saved stations
1. Press and hold CLEAR for two seconds.
“ERASE ALL” will ash up on the unit display.
2. Press CLEAR to erase all saved of the radio
stations.
Deleting a saved station
1. Press PRESET - / + to Select a preset number
you want to delete.
2. Press CLEAR, the preset number will blink in the
display window.
3. Press CLEAR again, to delete the selectd preset
number.
Improving poor FM reception
Press
d
PLAY, MONO/STEREO on the remote
control. This will change the tuner from stereo to
mono and usually improve the reception.
Seeing information about a
radio station
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about
the radio station being listened to. Press RDS
repeatedly to cycle through the various data types.
PS (Programme Service Name)
The name of the channel will appear in
the display
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or News)
will appear in the display.
RT (Radio Text)
A text message contains special
information from the broadcast station.
This text may scroll across the display.
CT (Time controlled by the channel)
This shows the time and date as
broadcast by the station.
You can search the radio stations by programme
type by pressing RDS. The display will show the last
PTY in use. Press PTY one or more times to select
your preferred programme type. Press
AD
. The
tuner will search automatically, when a station is
found the search will stop.
HT806TH-D0_BGBRLL_ENG_4790.indd 33 2011-03-09 �� 10:25:51
Operating34
Operating
4
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound elds. You can select a desired sound mode
by using SOUND EFFECT.
You can change the SOUND EFFECT using
AD
arrow key while the sound eect information is
displayed on.
The displayed items for the equalizer maybe
dierent depending on sound sources and eects.
On Display Description
NAT PLUS
The NAT PLUS is Natural Plus
sound eect. You can enjoy
the natural sound eect same
as a 5.1-channel.
NATURAL
You can enjoy comfortable
and natural sound.
Local
specialization
equalizer
Regionally optimized sound
eect. (DANGDUT/ ARABIC/
PERSIAN/ INDIA/ REGUETON/
MERENGUE/ SAMBA/ SALSA/
CUMBIA/ AFRO)
AUTO EQ
Realizes the sound equalizer
that is the most similar to the
genre of which is included in
the MP3 ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock pop, jazz or classic
concert.
MP3 OPT
This function is optimized for
compressible MP3, WMA le. It
improves the treble sound.
BASS
The BASS is Bass Blast. During
playback, reinforce the treble,
bass and surround sound
eect.
LOUDNESS
Improves the bass and treble
sound.
On Display Description
VIRTUAL
The VIRTUAL is VSM Plus.
You can enjoy more virtual
surround sound.
BYPASS
You can enjoy the sound
without equalizer eect.
y
In some of surround modes, some speakers,
there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.
y
You may need to reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
,
Note
HT806TH-D0_BGBRLL_ENG_4790.indd 34 2011-03-09 �� 10:25:51
Operating 35
Operating
4
Advanced Operations
Recording to USB
You can record music or sound souce to USB device
by connecting in to the port on the unit.
1. Connect the USB device to the unit.
2. Select a mode in which you want to record.
Play back a sound source rst.
3. Start the recording by pressing
X
REC.
4. To stop recording, press
Z
STOP.
[All tracks/ les recording]
Record to USB in stop or play mode.
[Program list recording]
After marking desired le(s) and you can record
it to USB (Refer to the page 30).
It’ll be stored as follows.
Audio CD
MP3/ WMA
The other
sources (Tuner,
AUX, Portable)
y
You can check the recording percentage
rate for the USB record on the screen during
the recording. (Audio CD or MP3/ WMA CD
only)
y
During recording MP3/WMA, there is no
sound.
y
When you stop recording during playback,
the le that has been recorded at that time
will be stored. (Audio CD only)
y
Do not remove the USB device or turn
o the unit during USB recording. If not,
an incomplete le may be made and not
deleted on PC.
y
If USB recording does not work, the
message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.
y
Multi card reader device or external HDD
can not be used for USB recording.
y
A le is recorded by 128 Mbyte (about 2
hours) when you record for a long term.
There are recorded less than 4 les.
y
When you stop recording during playback,
the le will not be stored.
y
In the state CD-G, DTS disc USB record is not
operated.
y
The les in the sub-folders are not recorded
during all track recording.
y
You may not record more than 999 les.
y
The numbering of the recording le is
entered from the lowest number. So if you
delete some of the recording les, the next
recording le could be the lowest number
among them.
,
Note
The making of unauthorized copies of copy-
protected material, including computer programs,
les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a
criminal oense. This equipment should not be
used for such purposes.
Be responsible
Respect copyrights.
HT806TH-D0_BGBRLL_ENG_4790.indd 35 2011-03-09 �� 10:25:51
5 Troubleshooting
6 Appendix
Troubleshooting36
Troubleshooting
5
Troubleshooting
PROBLEM CORRECTION
No power Plug the power cord into the wall outlet securely.
No picture
Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
Connect the video cables securely to both the TV and unit.
There is little or no sound
Select the correct input mode of the unit so you can hear the sound
from the unit.
Connect the audio cables into the connection terminals correctly.
Replace with a new audio cable.
The DVD picture quality is poor
Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play
Insert a disc.
Insert a playable disc (check the disc type, colour system and
regional code).
Place the disc with the label or printed side facing upwards.
Enter your password or change the rating level.
Humming noise heard while a DVD
or CD is playing
Clean the disc using a soft cloth with outward strokes.
Move unit and audio components further away from your TV.
Radio stations can’t be tuned in
properly
Check the antenna connection and adjust its position.
Attach an external aerial if necessary.
Tune to the station manually.
Preset some radio stations, see page 33 for details.
The remote control doesn’t work
well / at all
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the unit.
There is an obstacle in the path between the remote control and
the unit.
Remove the obstacle.
The battery in the remote control are at.
Replace the battery with new ones.
HT806TH-D0_BGBRLL_ENG_4790.indd 36 2011-03-09 �� 10:25:51
Appendix 37
Appendix
6
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
y
Do not use volatile liquids such as insecticide
spray near the unit.
y
Wiping with strong pressure may damage the
surface.
y
Do not leave rubber or plastic products in
contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that ngerprints do not
get on the surface. Never stick paper or tape on the
disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.
HT806TH-D0_BGBRLL_ENG_4790.indd 37 2011-03-09 �� 10:25:51
Appendix38
Appendix
6
Area Code List
Choose an area code from this list.
Area Code Area Code Area Code Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian
Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
HT806TH-D0_BGBRLL_ENG_4790.indd 38 2011-03-09 �� 10:25:51
Appendix 39
Appendix
6
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language Code Language Code Language Code Language Code
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
HT806TH-D0_BGBRLL_ENG_4790.indd 39 2011-03-09 �� 10:25:51
Appendix40
Appendix
6
Trademarks and
Licenses
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Denition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
DivX®, DivX Certied® and associated logos are
trademarks of DivX, Inc. and are used under
license.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an ocial
DivX Certied® device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your les into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certied® device must be registered in order to
play purchased DivX Video-on-Demand (VOD)
movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu.
Go to vod.divx.com for more information on how
to complete your registration.
What is SIMPLINK?
Some functions of this unit are controlled by
TV’s remote control when this unit and LG TV
with SIMPLINK are connected through HDMI
connection. Controllable functions by LG TV’s
remote control; Play, Pause, Scan, Skip, Stop,
Power O, etc.
y
Refer to the TV owner’s manual for the details
of SIMPLINK function.
y
LG TV with SIMPLINK function has the logo as
shown above.
y
Use a higher version cable than High Speed
HDMI™ Cable.
HT806TH-D0_BGBRLL_ENG_4790.indd 40 2011-03-09 �� 10:25:52
Appendix 41
Appendix
6
Specifications
General
Power requirements 200 - 240 V, 50/60 Hz
Power consumption 95 W
Dimensions (W x H x D) 360 x 62.5 x 312.3 mm without foot
Net Weight (Approx.) 2.8 kg
Operating temperature 41 °F to 95 °F (5 °C to 35 °C)
Operating humidity 5 % to 90 %
Bus Power Supply (USB) DC 5 V
0
500 mA
Inputs/ Outputs
VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT
(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
HDMI OUT (video/audio): 19 pin (Type A, HDMI™ Connector )
ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
DIGITAL IN (OPTICAL): 3 V (p-p), Optical jack x 1
PORT. IN 0.5Vrms (3.5 mm stereo jack)
Amplier
Stereo mode 141 W + 141 W (3 Ω at 1kHz)
Surround mode
Front 141 W + 141 W (3 Ω at 1 kHz)
Center
141 W (3 Ω at 1 kHz)
Surround
141 W + 141 W (3 Ω at 1 kHz))
Subwoofer
145 W (3 Ω at 60 Hz)
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
HT806TH-D0_BGBRLL_ENG_4790.indd 41 2011-03-09 �� 10:25:52
Appendix42
Appendix
6
Front Speaker
Type 2 Way 2 speaker
Impedance Rated 3 Ω
Input Power 141 W
Max. Input Power 282 W
Net Dimensions (W x H x D) 260 x 1 102 x 200 mm
Net Weight 2.68 kg
Rear Speaker
Type 2 Way 2 speaker
Impedance Rated 3 Ω
Input Power 141 W
Max. Input Power 282 W
Net Dimensions (W x H x D) 260 x 1 102 x 200 mm
Net Weight 2.68 kg
Centre Speaker
Type 2 Way 2 speaker
Impedance Rated 3 Ω
Input Power 141 W
Max. Input Power 282 W
Net Dimensions (W x H x D) 250 x 100 x 88 mm
Net Weight 0.6 kg
Passive Subwoofer
Type 1 Way 1 Speaker
Impedance Rated 3 Ω
Input Power 145 W
Max. Input Power 290 W
Net Dimensions (W x H x D) 190 x 385 x 318 mm
Net Weight 5.0 kg
Design and specications are subject to change
without notice.
HT806TH-D0_BGBRLL_ENG_4790.indd 42 2011-03-09 �� 10:25:52
Warranty 43
Warranty
7
Technology with the human touch
GUARANTEE
• LG Electronics U.K. Ltd. will provide the following services in order toexpedite this Guarantee.
1. All faulty components which fail due to defective manufacture will be replaced free of charge for a period
of 12 months from the original date of purchase.
2. The dealer (or his service agent) who sold the product will be
reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the
original date of purchase. These claims must be made in accordance with the published scale of
service charges and relevant claims procedure.
PLEASE NOTE:
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if unauthorized modications are made to
the apparatus, or if non standard components are used or if the serial number of the apparatus is removed,
defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from whom the equipment was
originally purchased. The dealer may, before carrying out service under guarantee, require a receipted
account as evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted
or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by this guarantee.
This guarantee does not aect your statutory rights.
• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE SURRENDERED
AT THE TIME GUARANTEE SERVICE IS PROVED.
• Product Registration Card :
It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This
will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should
modications be necessary.
• To obtain information or assistance: Call 0870 873 5454 Monday-Friday 9.00am-4.30pm
MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*
In all cases of diculty - consult your LG dealer from whom the product was purchased
LGEUK Website : www.lge.co.uk
( service website : www.lgelectronics.co.uk )
7 Warranty
