OWNER’S MANUAL
Network Blu-ray Disc
TM
/
DVD Home Cinema System
MODEL
HB905PA (HB905PA, SB95PA-F/S/C/W)
P/NO : MFL62863594
Please read this manual carefully before operating
your set and retain it for future reference.
FOR THE GUARANTEE TERMS & CONDITIONS,
PLEASE REFER TO INNER PAGE OF BACK COVER.
HB905PA-DH.BGBRLL_ENG_3594.indd 1HB905PA-DH.BGBRLL_ENG_3594.indd 1 2010.1.30 4:29:45 PM2010.1.30 4:29:45 PM
2 Safety Information
Safety Information
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
su cient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
Cautions and Warnings
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
con ned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service centre.
Use of controls, adjustments or the performance of
procedures other than those speci ed herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
1
Safety Information
HB905PA-DH.BGBRLL_ENG_3594.indd 2HB905PA-DH.BGBRLL_ENG_3594.indd 2 2010.1.30 4:29:48 PM2010.1.30 4:29:48 PM
Safety Information
3Safety Information
1
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the speci cation page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service centre.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord
exits the appliance. To disconnect power from the
mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
POWER: This unit operates on a mains supply of
200-240V~, 50/60Hz.
WIRING: This unit is supplied with a BSI 1363
approved 13 amp mains plug, fused at 5 amp.
When replacing the fuse always use a 5 amp BS
1362, BSI or ASTA approved type. Never use this
plug with the fuse cover omitted.
To obtain a replacement fuse cover contact your
dealer. If the type of plug supplied is not suitable
for the mains sockets in your home, then the plug
should be removed and a suitable type fitted.
Please refer to the wiring instructions below:
WARNING: A mains plug removed from the mains
lead of this unit must be destroyed. A mains plug
with bared wires is hazardous if inserted in a mains
socket. Do not connect either wire to the earth pin,
marked with the letter E or with the earth symbol
or coloured green or green and yellow.
If any other plug is tted, use a 5 amp fuse, either in
the plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are
coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours
of the wires in the mains lead of this unit may not
correspond with the coloured marking identifying
the terminals in your plug, proceed as follows:
The wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black. The wire which is
coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery
or battery pack, follow the steps in reverse order
than the assembly. To prevent contamination of
the environment and bring on possible threat
to human and animal health, the old battery or
the battery put it in the appropriate container at
designated collection points. Do not dispose of
batteries or battery together with other waste.
It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, re or the lile.
HB905PA-DH.BGBRLL_ENG_3594.indd 3HB905PA-DH.BGBRLL_ENG_3594.indd 3 2010.1.30 4:29:48 PM2010.1.30 4:29:48 PM
4 Safety Information
Safety Information
1
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC.
2. All electrical and electronic products
shall be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old
appliance will help prevent potential
negative consequences for the
environment and human health.
4. For more detailed information about
disposal of your old appliance, please
contact your city o ce, waste disposal
service or the shop where you
purchased the product.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and
other relevant provisions of Directive
2004/108/EC, 2006/95/EC, and
2009/125/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327
AE Almere. The Netherlands
(Tel : +31-(0)36-547-8888)
Notes on Copyrights
Because AACS (Advanced Access Content System)
is approved as content protection system for BD
format, similar to use of CSS (Content Scramble
System) for DVD format, certain restrictions are
imposed on playback, analogue signal output,
etc., of AACS protected contents. The operation of
this product and restrictions on this product may
vary depending on your time of purchase as those
restrictions may be adopted and/or changed by
AACS after the production of this product.
Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for BD format, which imposes certain restrictions
including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain
additional information on AACS, BD-ROM Mark,
BD+, or this product, please contact an authorized
Customer Service Centre.
Many BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programmes, videotapes, BD-ROM discs, DVDs,
CDs and other materials may subject you to civil
and/or criminal liability.
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 4HB905PA-DH.BGBRLL_ENG_3594.indd 4 2010.1.30 4:29:48 PM2010.1.30 4:29:48 PM
Safety Information
5Safety Information
1
Important Notice for TV colour system
The colour system of this player di ers according to
currently playing discs.
For example, when the player plays the disc recorded
in the NTSC colour system, the image is outputted as
a NTSC signal.
Only the multi system colour TV can receive all
signals outputted from the player.
If you have a PAL colour system TV, you will see
just distorted images when using discs or video
contents recorded in NTSC.
The multi system colour TV changes the colour
system automatically according to input signals.
In case that the colour system is not changed
automatically, turn it o and then on to see
normal images on screen.
Even if the disc recorded in NTSC colour system
are well displayed on your TV, these may not be
recorded correctly on your recorder.
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 5HB905PA-DH.BGBRLL_ENG_3594.indd 5 2010.1.30 4:29:49 PM2010.1.30 4:29:49 PM
6
Contents
1
Safety Information
3 Cautions and Warnings
2
Preparation
8 Introduction
8 About the “ ” Symbol
Display
8 Symbols Used in this
Manual
9 Supplied Accessories
9 Playable Discs
11 File compatibility
12 Regional Code
12 AVCHD (Advanced Video
Codec High Defi nition)
12 Certain System
Requirements
12 Compatibility Notes
13 Remote control
14 Front panel
15 Rear panel
3
Installation
16 Assemble the speakers
17 Speaker Connection
17 Attaching the speakers to
the player
18 Positioning the system
19 Connecting to Your TV
19 HDMI Connection
20 What is SIMPLINK?
21 Component Video
Connection
21 Video Connection
22 Resolution Setting
23 Antenna connection
23 Connections with external device
23 AUX Connection
24 PORT. IN connection
24 OPTICAL IN 1/2 connection
25 HDMI IN 1/2 connection
26 Connecting to your Home Network
26 Wired network connection
27 Wired Network Setup
29 USB device connection
31 Settings
31 Adjust the Setup Settings
31 [DISPLAY] Menu
33 [LANGUAGE] Menu
33 [AUDIO] Menu
34 [LOCK] Menu
35 [NETWORK] Menu
36 [OTHERS] Menu
37 Sound Effect
HB905PA-DH.BGBRLL_ENG_3594.indd 6HB905PA-DH.BGBRLL_ENG_3594.indd 6 2010.1.30 4:29:49 PM2010.1.30 4:29:49 PM
7
1
2
3
4
5
6
7
8
4
Operation
38 General Playback
40 Advanced Playback
44 On-Screen display
47 Enjoying BD-LIVE
48 Playing a movie fi le and VR disc
50 Viewing a photo
52 Listening to music
56 Playing the iPod
58 Radio Operations
59 Playing content via your home
network
64 Using NetCast
TM
Entertainment
Access
64 YouTube
TM
68 Picasa
TM
Web Albums

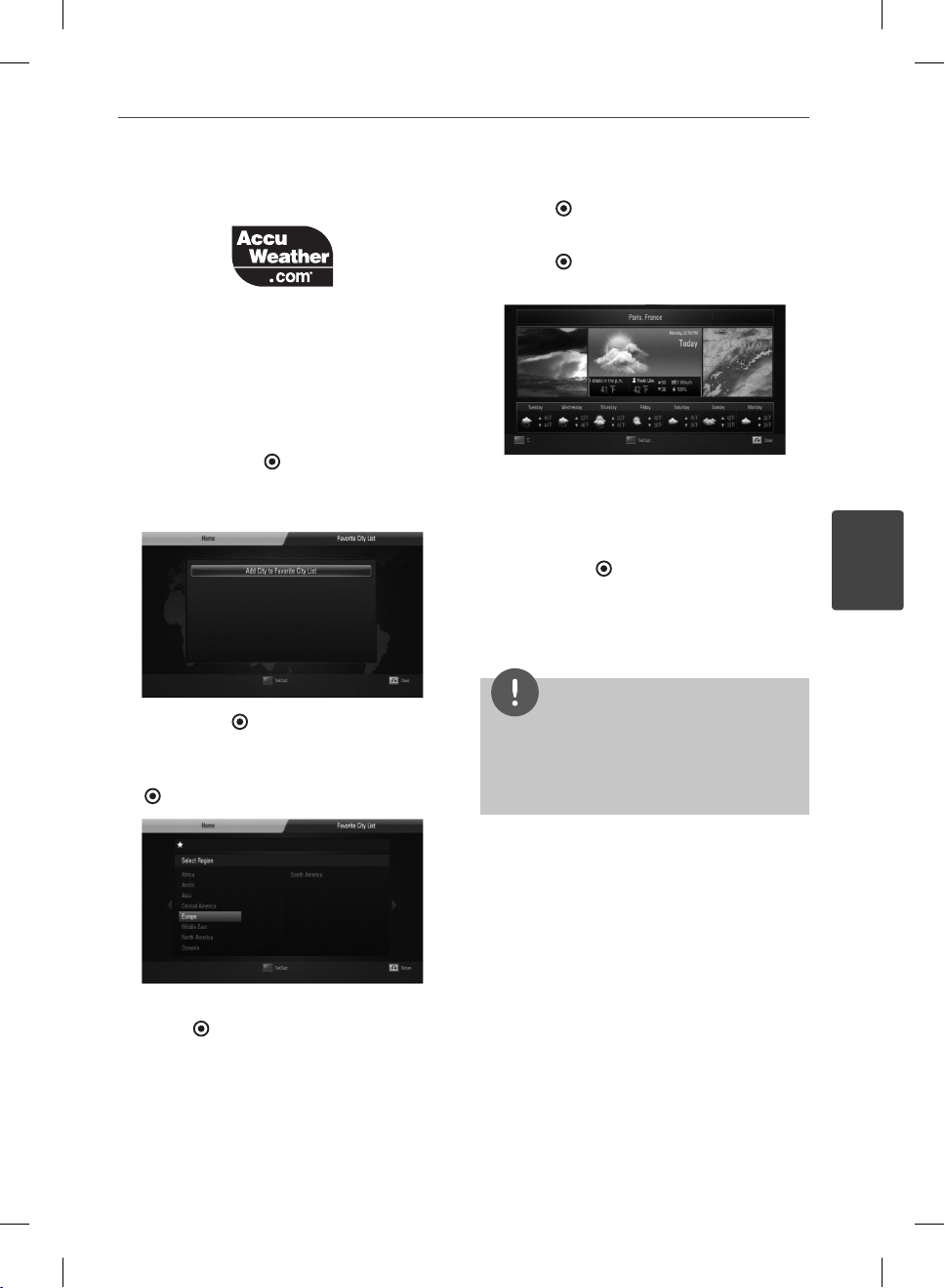

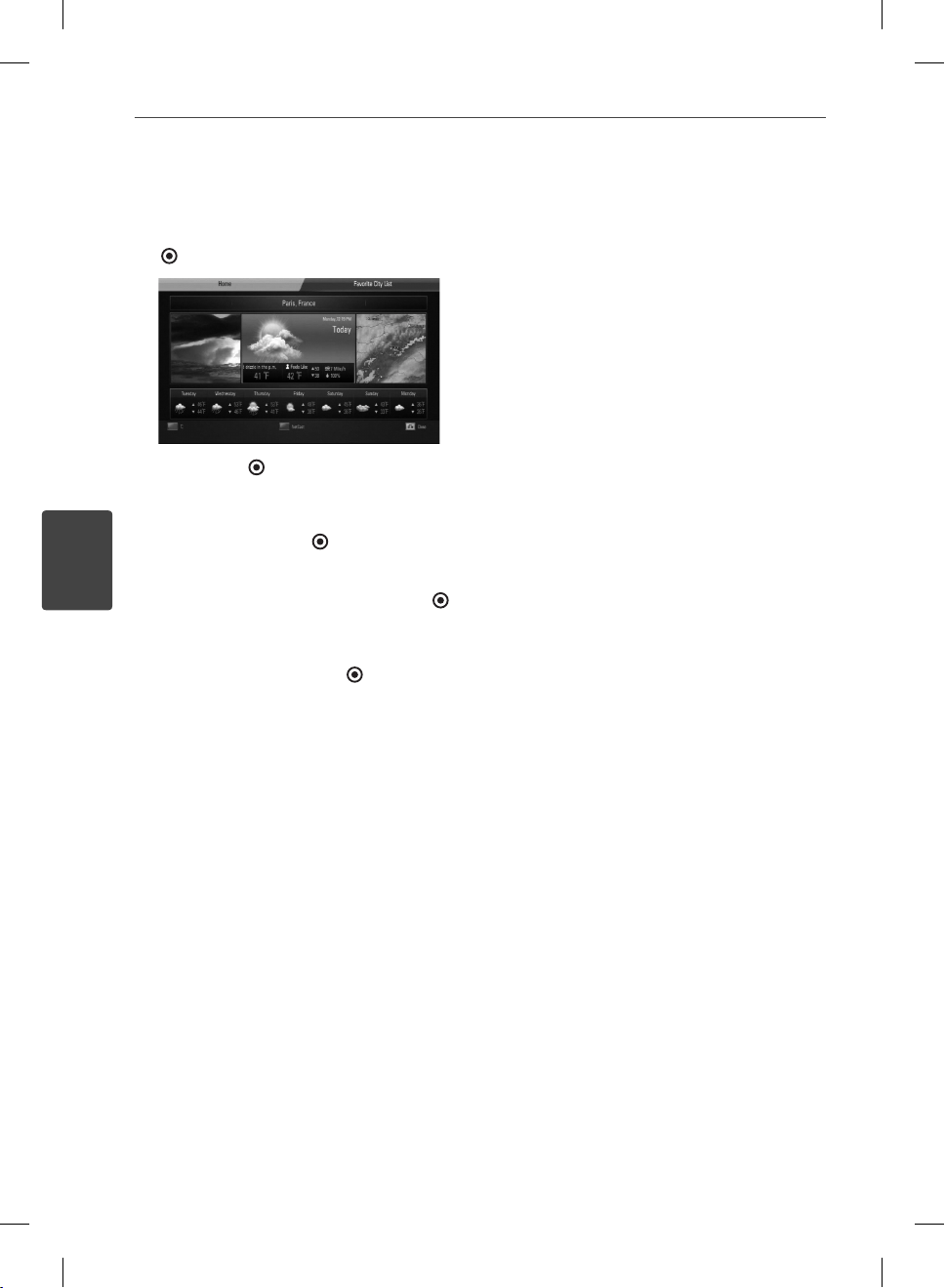

71 Using the AccuWeather
5
Maintenance
73 Notes on Discs
73 Handling the Unit
6
Troubleshooting
74 General
75 Picture
75 Sound
76 Network
7
Appendix
77 Controlling a TV with the Supplied
Remote Control
78 Area Code List
79 Language code List
80 Network Software Update
80 Network update notifi cation
80 Software Update
82 Video output resolution
83 Trademarks and Licences
85 Specifi cations
87 Important Information Relating to
Network Services
88 Open source software notice
89 Gracenote® End User Licence
Agreement
8
Warranty
91 GUARANTEE
HB905PA-DH.BGBRLL_ENG_3594.indd 7HB905PA-DH.BGBRLL_ENG_3594.indd 7 2010.1.30 4:29:49 PM2010.1.30 4:29:49 PM
8 Preparation
Preparation
2
2
Preparation
Introduction
About the “ ” Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not
available on that speci c media.
Symbols Used in this Manual
NOTE
Indicates special notes and operating features.
CAUTION
Indicates cautions for preventing possible
damages from abuse.
A section whose title has one of the following
symbols are applicable only to the disc
represented by the symbol.
BD
BD-ROM disc
DVD
DVD-Video, DVD±R/RW in
Video mode or VR mode
and nalized
AVCHD
DVD±R/RW in AVCHD
format
ACD
Audio CDs
MOVIE
Movie les
MUSIC
Music les
Photo les
HB905PA-DH.BGBRLL_ENG_3594.indd 8HB905PA-DH.BGBRLL_ENG_3594.indd 8 2010.1.30 4:29:49 PM2010.1.30 4:29:49 PM
9Preparation
2
Preparation
Supplied Accessories
Video cable (1) Colour-coded
Speaker Cables (6)
Remote control (1) Batteries (2)
FM antenna (1) Nero MediaHome4
Essentials software
CD-ROM (1)
Playable Discs
Blu-ray Disc
Discs such as movies that can
be p
urchased or rented.
BD-R/RE discs that contain
Movie, Music or Photo les.
-
-
DVD-VIDEO
8 / 12 cm disc
Discs such as movies that can be
purchased or rented.
DVD±R
8 / 12 cm disc
Video mode and nalized only
Supports the dual layer disc
also
Finalized AVCHD format
DVD±R discs that contain
Movie, Music or Photo les
-
-
-
-
DVD-RW
8 / 12 cm disc
VR mode
, Video mode and
nalized only
Finalized AVCHD format
DVD-RW discs that contain
Movie, Music or Photo les.
-
-
-
DVD+RW
8 / 12 cm disc
Video mode
and nalized only
AVCHD format
Finalized AVCHD format
DVD+RW discs that contain
Movie, Music or Photo les.
-
-
-
-
Audio CD
8 / 12 cm disc
CD-R/RW
8 / 12 cm disc
CD-R/RW discs that contain
audio titles, Movie, Music or
Photo les.
-
HB905PA-DH.BGBRLL_ENG_3594.indd 9HB905PA-DH.BGBRLL_ENG_3594.indd 9 2010.1.30 4:29:50 PM2010.1.30 4:29:50 PM
10 Preparation
Preparation
2
NOTE
Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD±R/RW)
disc itself, some CD-R/RW (or DVD±R/RW) discs
cannot be played on the unit.
Depending on the recording software & the
nalization, some recorded discs (CD-R/RW,
DVD±R/RW, BD-R/RE) may not be playable.
BD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a DVD or
CD Recorder may not play if the disc is damaged
or dirty, or if there is dirt or condensation on the
player’s lens.
If you record a disc using a personal computer,
even if it is recorded in a compatible format,
there are cases in which it may not play because
of the settings of the application software used
to create the disc. (Check with the software
publisher for more detailed information.)
This player requires discs and recordings to meet
certain technical standards in order to achieve
optimal playback quality.
Pre-recorded DVDs are automatically set to
these standards. There are many di erent
types of recordable disc formats (including
CD-R containing MP3 or WMA les) and these
require certain pre-existing conditions to ensure
compatible playback.
Hybrid disc have both BD-ROM and DVD (or CD)
layers on one side. On such discs, BD-ROM layer
will be only played back in this player.
Customers should note that permission is
required in order to download MP3 / WMA les
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live System,
you cannot use it on LG player. (Mastered/Live
File System : Disc format system for windows
Vista)
•
•
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 10HB905PA-DH.BGBRLL_ENG_3594.indd 10 2010.1.30 4:29:51 PM2010.1.30 4:29:51 PM
11Preparation
2
Preparation
File compatibility
Overall
Available File extensions:
“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”, “
.mkv”, “.mp4”, “.mp3”, “.wma”, “.wav”
Available le extensions di er depending
on the DLNA
servers.
Some “.wav” les are not supported on this
player.
The le name is limited to 180 characters.
Depending on the size and number of the
les, it may take several minutes to read the
contents on the media.
Maximum Files/Folder: Less than 2 000 (total
number of les and folders)
CD-R/RW, DVD±R/RW, BD-R/RE Format:
ISO 9660+JOLIET, UDF and UDF Bridge format
MOVIE
Available resolution size:
1 920 x 1 080 (W x H) pixels
Playable subtitle: SubRip (.srt / .txt), SAMI
(.smi), SubStation Alpha (.ssa/.txt), MicroDVD
(.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub),
SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD
Subtitle System (.txt)
VobSub (.sub) is not available in the
[Home Link] feature.
Playable Codec format: “DIVX3.xx”, “DIVX4.
xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard
playback only), H.264/MPEG-4 AVC, MPEG1 SS,
MPEG2 PS, MPEG2 TS
Playable Audio format: “Dolby Digital”, “DTS”,
“MP3”, “WMA”, “AAC”, “AC3”
Not all the WMA and AAC Audio format is
compatible with this unit.
Sampling frequency:
within 32 kHz to 48 kHz (WMA),
within 16 kHz to 48 kHz (MP3)
Bit rate:
within 20 kbps to 320 kbps (WMA),
within 32 kbps to 320 kbps (MP3)
•
•
•
•
•
•
NOTE
HD movie les contained on the CD or USB
1.0/1.1 may not played properly. BD, DVD or USB
2.0 are recommended to play back HD movie
les.
This player supports H.264/MPEG-4 AVC pro le
Main, High at Level 4.1. For a le with higher
level, the warning message will appear on the
screen.
This player does not support the les that are
recorded with GMC
*
1
or Qpel
*
2
. Those are video
encoding techniques in MPEG4 standard, like
DivX or XVID have.
*1 GMC – Global Motion Compensation
*2 Qpel – Quarter pixel
•
•
•
MUSIC
Sampling frequency:
within 8 kHz to 48 KHz (WMA),
within 11 kHz to 48 kHz (MP3)
Bit rate:
within 8 kbps to 320 kbps (WMA, MP3),
NOTE
This unit cannot support the ID3 Tag embedded
MP3 le.
The total playback time indicated on the screen
may not correct for VBR les.
•
•
Recommended size:
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
Progressive and lossless compression photo
image les are not supported.
•
HB905PA-DH.BGBRLL_ENG_3594.indd 11HB905PA-DH.BGBRLL_ENG_3594.indd 11 2010.1.30 4:29:51 PM2010.1.30 4:29:51 PM
12 Preparation
Preparation
2
Regional Code
This unit has a regional code printed on the
rear of the unit. This unit can play only BD-ROM
or DVD discs labeled same as the rear of the
unit or “ALL”.
AVCHD (Advanced Video Codec
High Defi nition)
This player can playback AVCHD format
discs. These discs are normally recorded and
used in camcorders.
The AVCHD format is a high de nition
digital video camera format.
The MPEG-4 AVC/H.264 format is capable
of compressing images at higher e ciency
than that of the conventional image
compressing format.
Some AVCHD discs use the “x.v.Colour”
format.
This player can playback AVCHD discs using
“x.v.Colour” format.
Some AVCHD format discs may not play,
depending on the recording condition.
AVCHD format discs need to be nalized.
“x.v.Colour” o ers a wider colour range than
normal DVD camcorder discs.
•
•
•
•
•
•
•
•
Certain System Requirements
For high de nition video playback:
High de nition display that has
COMPONENT or HDMI input jacks.
BD-ROM disc with high de nition content.
HDMI or HDCP capable DVI input on your
display device is required for some content
(as speci ed by disc authors).
For up-conversion of standard de nition
DVD, a HDMI or HDCP capable DVI input
on your display device is required for copy
protected content.
Compatibility Notes
Because BD-ROM is a new format,
certain disc, digital connection and other
compatibility issues are possible. If you
experience compatibility problems, please
contact an authorized Customer Service
Centre.
Viewing high-de nition content and up-
converting standard DVD content may
require a HDMI-capable input or HDCP-
capable DVI input on your display device.
Some BD-ROM and DVD discs may restrict
the use of some operation commands or
features.
You can use a USB device that is used
to store some disc related information,
including downloaded on-line content. The
disc you are using will control how long this
information is retained.
•
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 12HB905PA-DH.BGBRLL_ENG_3594.indd 12 2010.1.30 4:29:51 PM2010.1.30 4:29:51 PM
13Preparation
2
Preparation
Remote control
1
2
3
4
• • • • • • •
a
• • • • • •
1
(POWER): Switches the player
ON or OFF.
Z
OPEN/CLOSE: Opens and closes
the disc tray.
RADIO&INPUT: Changes input
mode.
0-9 numerical buttons: Selects
numbered options in a menu.
CLEAR: Removes a mark on the
search menu or a number when
setting the password.
REPEAT: Repeats a desired section
or sequence.
• • • • • • •
b
• • • • • •
m
/
M
SCAN: Searches
backward or forward.
.
/
>
SKIP: Goes to the next
or previous chapter / track / le.
x
(STOP): Stops playback.
B
(PLAY): Starts playback.
X
(PAUSE): Pauses playback
SPEAKER LEVEL: Sets the sound
level of desired speaker.
SOUND EFFECT: Selects a sound
e ect mode.
VOL +/- : Adjusts speaker volume.
OPTICAL: Changes input mode to
optical directly.
MUTE: Mute the unit.
• • • • • • •
c
• • • • • •
HOME: Displays or exits the
[Home Menu].
MUSI
C ID: When connected to the
network, can provide information
about the current song while
movie playback.
INFO/DISPLAY: Displays or exits
On-Screen Display.
Direction buttons: Selects an
option in the menu
.
ENTER: Acknowledges menu
selection.
O
RETURN: Exits the menu or
resumes playback.
TITLE/POPUP: Displays the DVD
title menu or BD-ROM’s pop-up
menu, if available.
DISC MENU: Accesses menu on a
disc.
• • • • • • •
d
• • • • • •
Coloured (R, G, Y, B) buttons: Use
to navigate on menus.
RDS: Radio Data System.
PTY: Views the programme type of
the RDS.
PTY SEARCH:
Searches programme type.
MONO/STEREO: Selects mono/
stereo in FM mode.
MARKER: Marks any point during
playback.
SEARCH: Displays or exits the
search menu.
SLEEP: Sets a certain period of time
after which the unit will switch to
o .
z
REC: Records an audio CD.
TV Control Buttons: See page 77.
Battery Installation
Remove the battery cover
on the rear of the Remote
Control, and insert two R03
(size AAA) batteries with
and matched correctly.
HB905PA-DH.BGBRLL_ENG_3594.indd 13HB905PA-DH.BGBRLL_ENG_3594.indd 13 2010.1.30 4:29:51 PM2010.1.30 4:29:51 PM
14 Preparation
Preparation
2
Front panel
12345
1
1
78 9
23 4 56
8 9
1 2 3 4 5 6
7
1
789
23 4 56
10
2345
6
78 9
10 11 12
67 8 9
10 11
12345
67 8 9
10 11
a
1/\
(POWER) Button
b
Disc Tray
c
iPod Dock
d
Remote sensor
e
Display window
f
Volume control
g
PORT. IN
h
USB Port
i
Operation buttons
Z
(OPEN/CLOSE)
B
/
X
(PLAY / PAUSE)
x
(STOP)
.
/
>
(SKIP)
F (Function)
Changes the input source or function.
HB905PA-DH.BGBRLL_ENG_3594.indd 14HB905PA-DH.BGBRLL_ENG_3594.indd 14 2010.1.30 4:29:53 PM2010.1.30 4:29:53 PM
15Preparation
2
Preparation
a
AC Power cord
Plug into the power source.
b
Speakers connectors
c
Cooling Fan
d
Antenna Connector
e
VIDEO OUT
f
AUX (L/R) INPUT
g
COMPONENT VIDEO (Y P
B
P
R
)
OUTPUT (PROGRESSIVE SCAN)
h
OPTICAL IN 1(TV) / 2
i
HDMI IN (type A, Version 1.3) 1/2
j
HDMI OUT (type A, Version 1.3)
Connect to TV with HDMI inputs.
k
LAN port
Rear panel
12345
1
78 9
12345
6
78
12345
6
1
89
23 45 76
1110
1
89
23 45 76
10
2 3 4 5
6
78 9
10 11 12
6 7 8 9
10
10
11
11
12345
67 8 9
10 11
HB905PA-DH.BGBRLL_ENG_3594.indd 15HB905PA-DH.BGBRLL_ENG_3594.indd 15 2010.1.30 4:29:53 PM2010.1.30 4:29:53 PM
16 Installation
Installation
3
Assemble the
speakers
Preparation
Cable
Attach the speaker to the stand, then secure
the connection with a supplied screw.
Draw the speaker wire through the inside of
the stand and also through the hole on the
bottom of the speaker.
CAUTION
Be careful that the speaker
should not fall down.
Otherwise it may result in the
speaker malfunctioning and
causing personal injury and/
or property damage.
3
Installation
HB905PA-DH.BGBRLL_ENG_3594.indd 16HB905PA-DH.BGBRLL_ENG_3594.indd 16 2010.1.30 4:29:54 PM2010.1.30 4:29:54 PM
17Installation
3
Installation
Speaker Connection
Attaching the speakers to the
player
1. Connect speaker wires to the main unit.
Each speaker wire is colour-coded. Use
matching colour wires for corresponding
speakers.
colour Speaker Position
Grey Rear Rear right
Blue Rear Rear left
Green Centre Centre
Orange Sub
woofer
Any front position
Red Front Front right
White Front Front left
2. Connect the speaker wire to the terminal
on the speaker.
Make sure the wire marked black goes in
to the terminal marked “–” (minus) and the
other wire goes in to the terminal marked
“+” (plus).
CAUTION
Be careful to make sure children not to put their
hands or any objects into the *speaker duct.
*Speaker duct: A hole for plentiful bass sound
on speaker cabinet (enclosure).
Place the centre speaker at a safe distance from
the child’s reach.
Otherwise it may result in the speaker falling
down and causing personal injury and/or
property damage.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 17HB905PA-DH.BGBRLL_ENG_3594.indd 17 2010.1.30 4:29:54 PM2010.1.30 4:29:54 PM
18 Installation
Installation
3
Positioning the system
The following illustration shows an example
of positioning the system. Note that the
illustrations in these instructions di er from the
actual unit for explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position (
A
).
A
B
D
E
F
A
A
A
A
A
G
C
A
Front left speaker (L)/
B
Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.
C
Centre speaker:
Place the centre speaker above or below the
monitor or screen.
D
Surround left speaker (L)/
E
Surround right speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
F
Subwoofer:
The position of the subwoofer is not so
critical, because low bass sounds are not
highly directional. But it is better to place
the subwoofer near the front speakers. Turn
it slightly toward the centre of the room to
reduce the wall re ections.
G
Unit
HB905PA-DH.BGBRLL_ENG_3594.indd 18HB905PA-DH.BGBRLL_ENG_3594.indd 18 2010.1.30 4:29:54 PM2010.1.30 4:29:54 PM
19Installation
3
Installation
Connecting to Your TV
Make one of the following connections,
depending on the capabilities of your existing
equipment.
HDMI connection (pages 19-20)
Component Video connection (page 21)
Video connection (page 21)
NOTE
Depending on your TV and other equipment
you wish to connect, there are various ways you
could connect the player. Use only one of the
connections described in this manual.
Please refer to the manuals of your TV, stereo
system or other devices as necessary to make
the best connections.
Make sure the player is connected directly to
the TV. Tune the TV to the correct video input
channel.
Do not connect your player via your VCR. The
image could be distorted by the copy protection
system.
•
•
•
•
•
•
•
HDMI Connection
If you have a HDMI TV or monitor, you
can connect it to this player using a HDMI
cable(Type A, Version 1.3). Connect the HDMI
OUT jack on the player to the HDMI IN jack on
a HDMI compatible TV or monitor.
HDMI Connection
Player
TV
HDMI IN 2
TV
Player
Set the TV’s source to HDMI (refer to TV’s
Owner’s manual).
HB905PA-DH.BGBRLL_ENG_3594.indd 19HB905PA-DH.BGBRLL_ENG_3594.indd 19 2010.1.30 4:29:55 PM2010.1.30 4:29:55 PM
20 Installation
Installation
3
NOTE
Changing the resolution when the connection
has already been established may result in
malfunctions. To solve the problem, turn o the
player and then turn it on again.
When the HDMI connection with HDCP is not
veri ed, TV screen is changed to black screen.
In this case, check the HDMI connection, or
disconnect the HDMI cable.
If there is noise or lines on the screen, please
check the HDMI cable (length is generally
limited to 4.5 m and use a high speed HDMI
cable (version 1.3).
If a connected HDMI device does not accept the
audio output of the
player, the HDMI
device’s audio sound may be distorted or may
not output.
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 22.)
Select the type of video output from the HDMI
OUT jack using [HDMI Color Setting] option on
the [Setup] menu (see page 32).
When you connect a HDMI or DVI compatible
device make sure of the following:
- Try switching o the HDMI/DVI device and this
player. Next, switch on the HDMI/DVI device
and leave it for around 30 seconds, then switch
on this player.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720x576p, 1280x720p, 1920x1080i or
1920x1080p video input.
Not all HDCP-compatible HDMI or DVI devices
will work with this player.
- The picture will not be displayed properly with
non-HDCP device.
- This player does not playback and TV screen is
changed to black screen.
•
•
•
•
•
•
•
•
What is SIMPLINK?
Some functions of this unit are controlled by
the TV’s remote control when this unit and LG
TV’s with SIMPLINK are connected through
HDMI connection.
Controllable functions by LG TV’s remote
control; Play, Pause, Scan, Skip, Stop, Power O ,
etc.
Refer to the TV owner’s manual for the details
of SIMPLINK function.
LG TV’s with SIMPLINK function has the logo as
shown above.
NOTE
Depending on the disc type or playing status,
some SIMPLINK operation may di er from your
purpose or not work.
When you use SIMPLINK function, you have to
connect to the OPTICAL IN 1 jack to enjoy TV
sound to your speaker system.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 20HB905PA-DH.BGBRLL_ENG_3594.indd 20 2010.1.30 4:29:55 PM2010.1.30 4:29:55 PM
21Installation
3
Installation
Component Video Connection
Connect the COMPONENT VIDEO OUT jacks on
the player to the corresponding input jacks on
the TV using Y Pb Pr cables. You can hear the
sound the through the system’s speaker.
Component Connection
Player
TV
Green
Blue
Red
TV
Player
Green
Blue
Red
NOTE
When you use COMPONENT VIDEO OUT
connection, you can change the resolution for the
output. (Refer to “Resolution setting” on page 22.)
Video Connection
Connect the VIDEO OUT jack on the player to
the video in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Video Connection
TV
Ye ll o w
Player
Player
TV
Yellow
HB905PA-DH.BGBRLL_ENG_3594.indd 21HB905PA-DH.BGBRLL_ENG_3594.indd 21 2010.1.30 4:29:56 PM2010.1.30 4:29:56 PM
22 Installation
Installation
3

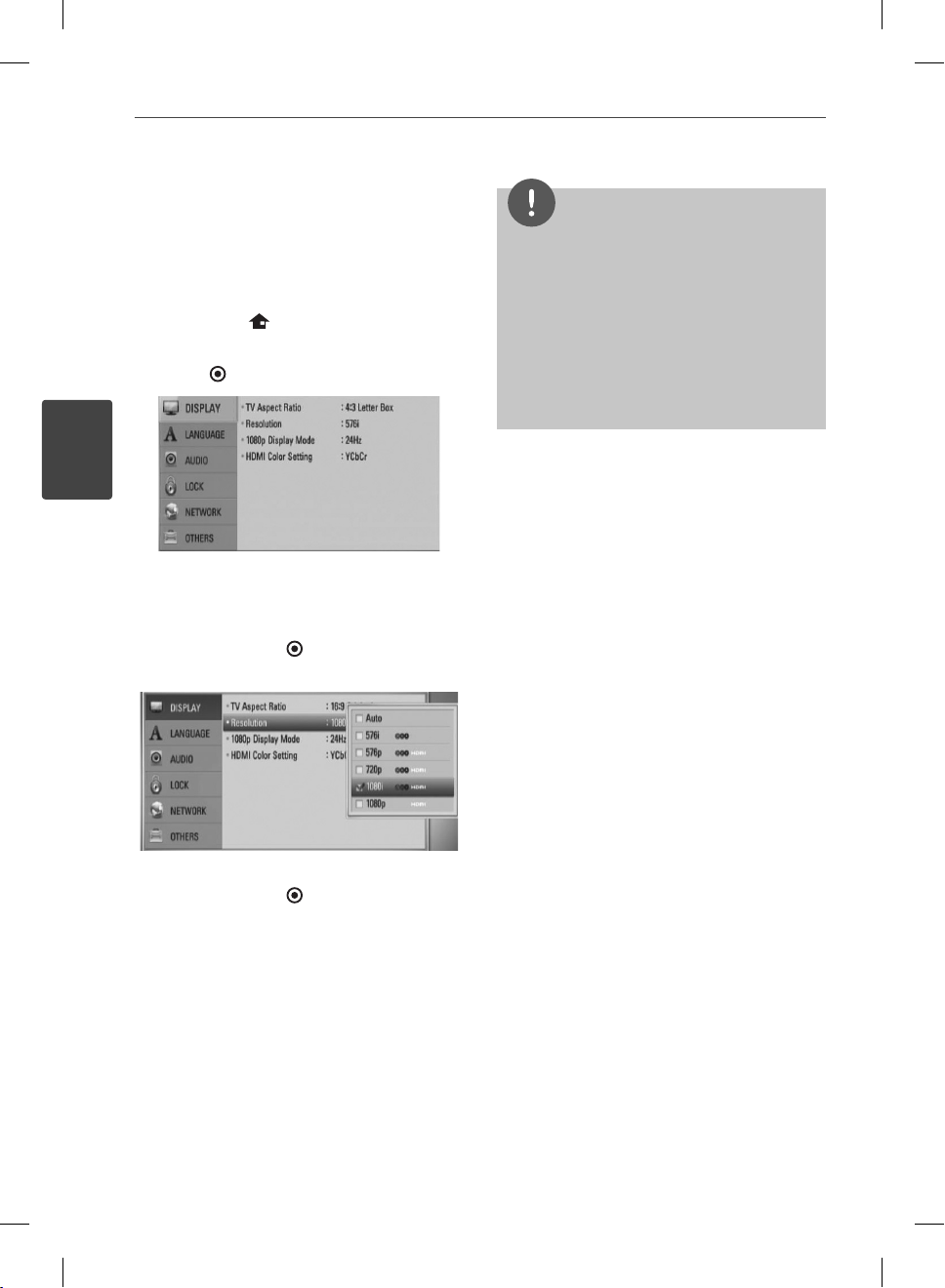

Resolution Setting
The player provides several output resolutions
for HDMI OUT and COMPONENT VIDEO OUT
jacks. You can change the resolution using
[Setup] menu.
1. Press HOME ( ).
2. Use
I
/
i
to select the [Setup] and press
ENTER (
). The [Setup] menu appears.
3. Use
U
/
u
to select [DISPLAY] option then
press
i
to move to the second level.
4. Use
U
/
u
to select the [Resolution] option
then press ENTER ( ) or
i
to move to the
third level.
5. Use
U
/
u
to select the desired resolution
then press ENTER (
) to con rm your
selection.
NOTE
If your TV does not accept the resolution you
have set on the player, you can set resolution to
576p as follows:
1. Press
Z
to open the disc tray.
2. Press
x
for more than 5 seconds.
Since several factors a ect the resolution of
video output, see “Video Output Resolution” on
page 82.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 22HB905PA-DH.BGBRLL_ENG_3594.indd 22 2010.1.30 4:29:56 PM2010.1.30 4:29:56 PM
23Installation
3
Installation
Antenna connection
Connect the supplied antenna for listening to
the radio.
Antenna Connection
Player
Player
NOTE
After connecting the FM wire antenna, keep it as
horizontal as possible. Be sure to fully extend the
FM wire antenna.
Connections with
external device
AUX Connection
You can enjoy the sound of your component
with the analogue audio output jacks from the
speakers of the system.
Connect the analogue audio output jacks of
your component into the AUX L/R (INPUT) on
this unit. And then select the [AUX] option by
pressing RADIO&INPUT and ENTER (
).
You can also use F button on the front panel to
select the input mode.
AUX Connection
Player
To the audio output jacks
of your component
(TV, VCR, etc.)
Red
White
Red
White
Player
To the audio output jacks
of your component
(TV, VCR, etc.)
HB905PA-DH.BGBRLL_ENG_3594.indd 23HB905PA-DH.BGBRLL_ENG_3594.indd 23 2010.1.30 4:29:56 PM2010.1.30 4:29:56 PM
24 Installation
Installation
3
PORT. IN connection
You can enjoy the sound of your portable
audio player from the speakers of the system.
Connect the headphones (or line out ) jack of
the portable audio player into the PORT. IN
of this unit. And then select the [PORTABLE]
option by pressing RADIO&INPUT and ENTER
(
).
You can also use F button on the front panel to
select the input mode.

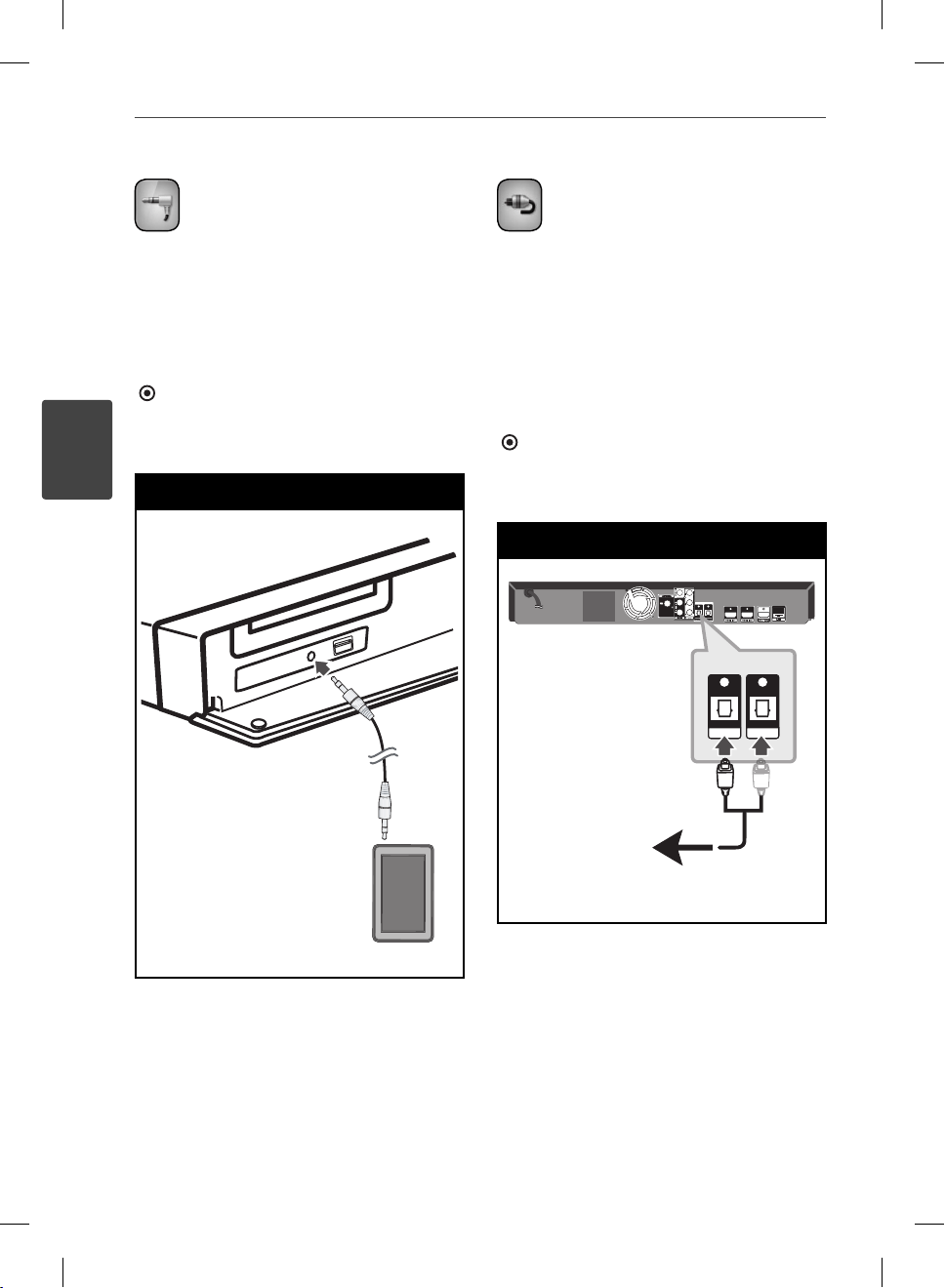

PORT.IN Connection
twZGSGUUU
OPTICAL IN 1/2
connection
You can enjoy the sound of your component
with the digital optical connection from the
speakers of the system.
Connect the optical output jack of your
component into the OPTICAL IN 1/2 jacks on
the unit. And then select the [OPTICAL 1/2]
option by pressing RADIO&INPUT and ENTER
(
). Or press OPTICAL to select directly.
You can also use F button on the front panel to
select the input mode.

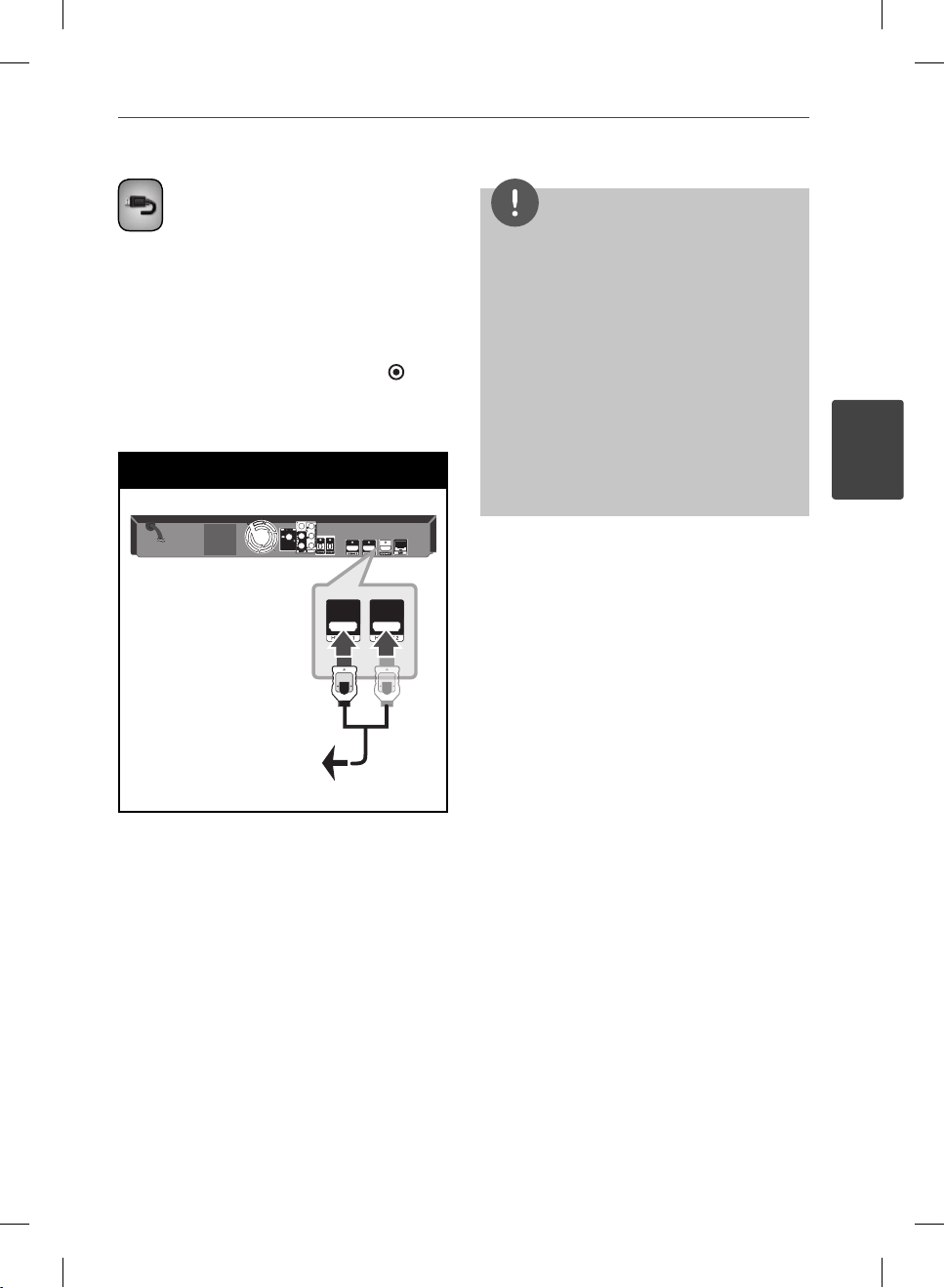

Optical Connection
To the digital
optical output jack
of your component
To the digital
optical output jack
of your component
HB905PA-DH.BGBRLL_ENG_3594.indd 24HB905PA-DH.BGBRLL_ENG_3594.indd 24 2010.1.30 4:29:57 PM2010.1.30 4:29:57 PM
25Installation
3
Installation
HDMI IN 1/2 connection
You can enjoy the pictures and sound of your
component with this connection.
Connect the HDMI OUT jack of your
component into the HDMI IN 1 or 2 jack on this
unit. And then select the [HDMI IN 1/2] option
by pressing RADIO&INPUT and ENTER (
).
You can also use F button on the front panel to
select the input mode.
HDMI 1/2 Connection
To the HDMI OUT jack
of your component
(set-top box, digital
satellite receiver,
video game machine,
etc.)
To the HDMI OUT jack
of your component
(set-top box, digital
satellite receiver,
video game machine,
etc.)
NOTE
You cannot change the video resolution at the
HDMI IN 1/2 mode. Change the video resolution
of the connected component.
If the video output signal is abnormal when your
personal computer is connected to HDMI IN
1/2 jack, change the resolution of your personal
computer to 576p, 720p, 1080i or 1080p.
The video signal from the HDMI input cannot be
output from the component or composite video
outputs.
The player sends audio from the HDMI inputs
to both the HDMI output and to the unit’s
speakers.
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 25HB905PA-DH.BGBRLL_ENG_3594.indd 25 2010.1.30 4:29:57 PM2010.1.30 4:29:57 PM
26 Installation
Installation
3
Connecting to your
Home Network
This player can be connected to a local area
network (LAN) via the LAN port on the rear
panel.
By connecting the unit to a broadband home
network, you have access to services such
as software updates, Home Link, BD-LIVE
interactivity and streaming services.
Wired network connection
Using a wired network provides the best
performance, because the attached devices
connect directly to the network and are not
subject to radio frequency interference.
Please refer to the documentation for your
network device for further instructions.
Connect the player’s LAN port to the
corresponding port on your Modem or Router
using a commercially available LAN or Ethernet
cable (CAT5 or better with RJ45 connector).
In the example con guration for wired
connection below, this player would be able to
access content from either of the PCs.
Wired Network Connection
Broadband
Service
Router
WAN
LAN 1
LAN 2
LAN 3
Player
PC
PC
Router
Broadband
Service
Player
NOTE
When plugging or unplugging the LAN cable,
hold the plug portion of the cable. When
unplugging, do not pull on the LAN cable but
unplug while pressing down on the lock.
Do not connect a modular phone cable to the
LAN port.
Since there are various connection
con gurations, please follow the speci cations
of your telecommunication carrier or internet
service provider.
If you want to access content from PCs or DLNA
servers, this player must be connected to the
same local area network with them via a router.
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 26HB905PA-DH.BGBRLL_ENG_3594.indd 26 2010.1.30 4:29:58 PM2010.1.30 4:29:58 PM
27Installation
3
Installation
Wired Network Setup
Before setting the wired network, you need to
connect the broadband internet to your home
network.
If there is a DHCP server on the local area
network (LAN) via wired connection, this player
will automatically be allocated an IP address.
After making the physical connection, a small
number of home networks may require the
player’s network setting to be adjusted. Adjust
the [NETWORK] setting as follow.
1. Select [Connection Setting] option in the
[Setup] menu then press ENTER (
).
2. Use
U
/
u
/
I
/
i
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
NOTE
If there is no DHCP server on the network and you
want to set the IP address manually, select [Static]
then set the [IP Address], [Subnet Mask], [Gateway]
and [DNS Server] using
U
/
u
/
I
/
i
and numerical
buttons. If you make a mistake while entering a
number, press CLEAR to clear the highlighted part.
3. Select [OK] and press ENTER ( ) to apply
network settings.
4. The player will ask you to test the network
connection. Select [OK] and press ENTER
(
) to complete the network connection.
5. If you select [Test] and press ENTER
(
) at step 4 above, the network
connection status is displayed on the
screen.
You can also test it on the
[Connection Status] in the [Setup] menu.
HB905PA-DH.BGBRLL_ENG_3594.indd 27HB905PA-DH.BGBRLL_ENG_3594.indd 27 2010.1.30 4:29:58 PM2010.1.30 4:29:58 PM
28 Installation
Installation
3
Notes on Network Connection:
Many network connection problems during
set up can often be xed by re-setting the
router or modem. After connecting the
player to the home network, quickly power
o and/or disconnect the power cable of
the home network router or cable modem.
Then power on and/or connect the power
cable again.
Depending on the internet service provider
(ISP), the number of devices that can
receive internet service may be limited by
the applicable terms of service. For details,
contact your ISP.
Our company is not responsible for
any malfunction of the player and/or
the internet connection feature due to
communication errors/malfunctions
associated with your broadband internet
connection, or other connected equipment.
The features of BD-ROM discs made
available through the Internet Connection
feature are not created or provided
by our company, and our company is
not responsible for their functionality
or continued availability. Some disc
related material available by the Internet
Connection may not be compatible with
this player. If you have questions about such
content, please contact the producer of the
disc.
Some internet contents may require a
higher bandwidth connection.
Even if the player is properly connected and
con gured, some internet contents may
not operate properly because of internet
congestion, the quality or bandwidth of
your internet service, or problems at the
provider of the content.
•
•
•
•
•
•
Some internet connection operations may
not be possible due to certain restrictions
set by the Internet service provider (ISP)
supplying your broadband Internet
connection.
Any fees charged by an ISP including,
without limitation, connection charges are
your responsibility.
A 10 Base-T or 100 Base-TX LAN port is
required for wired connection to this player.
If your internet service does not allow for
such a connection, you will not be able to
connect the player.
You must use a Router to use xDSL service.
A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with
your ISP, you may not be able to use the
internet connection feature contained in
this player or you may be limited to the
number of devices you can connect at the
same time. (If your ISP limits subscription
to one device, this player may not be
allowed to connect when a PC is already
connected.)
The use of a “Router” may not be allowed
or its usage may be limited depending on
the policies and restrictions of your ISP. For
details, contact your ISP directly.
Turn o all unused network equipment in
your local home network. Some devices
may generate network tra c.
For the purpose of the better transmission,
placing the player from the access point as
close as possible.
•
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 28HB905PA-DH.BGBRLL_ENG_3594.indd 28 2010.1.30 4:29:59 PM2010.1.30 4:29:59 PM
29Installation
3
Installation
USB device
connection
This player can play movie, music and photo
les contained in the USB device.
1. Insert a USB device to the USB port until it
ts into place.
USB Connection - 1
When you connect the USB device on
the HOME menu, the player plays a music
le contained in the USB storage device
automatically. If the USB storage device is
containing various types of les, a menu for
the le type selection will appear.
File loading may takes few minutes depending
on the number of content stored in the USB
storage device. Press ENTER ( ) while [Cancel]
is selected to stop loading.
2. Select [Movie], [Photo] or [Music] using
I
/
i
, and press ENTER ( ).
3. Select a le using
U
/
u
/
I
/
i
, and press PLAY
or ENTER (
) to play the le.
You can check the space of the USB device
on the screen.
4. Select the other mode. And withdraw the
USB device carefully.
USB Connection - 2
HB905PA-DH.BGBRLL_ENG_3594.indd 29HB905PA-DH.BGBRLL_ENG_3594.indd 29 2010.1.30 4:29:59 PM2010.1.30 4:29:59 PM
30 Installation
Installation
3
NOTE
This player supports USB ash memory/external
HDD formatted in FAT16, FAT32 and NTFS when
accessing les (music, photo, movie). However,
for BD-LIVE and Audio CD recording, only FAT16
and FAT32 formats are supported. Use the USB
ash memory/external HDD formatted in either
FAT16 or FAT32 when using BD-LIVE and Audio
CD recording.
The USB device can be used for the local storage
for enjoying BD-LIVE discs with Internet.
This unit can support up to 4 partitions of the
USB device.
Do not extract the USB device during operation
(play, etc.).
An USB device which requires additional
programme installation when you have
connected it to a computer, is not supported.
USB device: USB device that support USB 1.1
and USB 2.0.
Movie, music and photo les can be played.
For details of operations on each le, refer to
relevant pages.
Regular back up is recommended to prevent
data loss.
If you use a USB extension cable, USB HUB or
USB Multi-reader, the USB device may not be
recognised.
Some USB device may not work with this unit.
Digital camera and mobile phone are not
supported.
USB Port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
•
•
•
•
•
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 30HB905PA-DH.BGBRLL_ENG_3594.indd 30 2010.1.30 4:29:59 PM2010.1.30 4:29:59 PM
31Installation
3
Installation
Settings
Adjust the Setup Settings
You can change the settings of the player in
the [Setup] menu.
1. Press HOME (
).
2. Use
I
/
i
to select the [Setup] and press
ENTER ( ). The [Setup] menu appears.
3. Use
U
/
u
to select a rst setup option, and
press
i
to move to the second level.
4. Use
U
/
u
to select a second setup option,
and press ENTER (
) to move to the third
level.
5. Use
U
/
u
to select a desired setting, and
press
i
or ENTER ( ) to con rm your
selection.
[DISPLAY] Menu
TV Aspect Ratio
Select a TV aspect ratio option according to
your TV type.
[4:3 Letter Box]
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking
bars above and below the picture.
[4:3 Pan Scan]
Select when a standard 4:3 TV is connected.
Displays pictures cropped to ll your TV
screen. Both sides of the picture are cut o .
[16:9 Original]
Select when a 16:9 wide TV is connected.
The 4:3 picture is displayed with an original
4:3 aspect ratio, with black bars appearing
at the left and right sides.
[16:9 Full]
Select when a 16:9 wide TV is connected.
The 4:3 picture is adjusted horizontally (in a
linear proportion) to ll the entire screen.
HB905PA-DH.BGBRLL_ENG_3594.indd 31HB905PA-DH.BGBRLL_ENG_3594.indd 31 2010.1.30 4:29:59 PM2010.1.30 4:29:59 PM
32 Installation
Installation
3
NOTE
You cannot select [4:3 Letter Box] and [4:3 Pan
Scan] option when the resolution is set to higher
than 720p.
Resolution
Sets the output resolution of the Component
and HDMI video signal. Refer to page 22 and
82 or details about the resolution setting.
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution
best suited to the connected TV. If the
COMPONENT VIDEO OUT is only connected,
this changes the resolution to 1080i as
default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[576p]
Outputs 576 lines of progressive video.
[576i]
Outputs 576 lines of interlaced video.
1080p Display Mode
When the resolution is set to 1080p, select
[24 Hz] for smooth presentation of lm material
(1080p/ 24 Hz) with a HDMI-equipped display
compatible with 1080p/ 24 Hz input.
NOTE
When you select [24 Hz], you may experience
some picture disturbance when the video
switches video and lm material. In this case,
select [50 Hz].
Even when [1080p Display Mode] is set to
[24 Hz], if your TV is not compatible with
1080p/ 24 Hz
, the actual frame frequency of
the video output will be 50 Hz to match the
video source format.
•
•
HDMI Color Setting
Select the type of output from the HDMI
OUT jack. For this setting, please refer to the
manuals of your display device.
[YCbCr]
Select when connecting to a HDMI display
device.
[RGB]
Select when connecting to a DVI (RGB)
display device.
HB905PA-DH.BGBRLL_ENG_3594.indd 32HB905PA-DH.BGBRLL_ENG_3594.indd 32 2010.1.30 4:30:0 PM2010.1.30 4:30:0 PM
33Installation
3
Installation
[LANGUAGE] Menu
Display Menu
Select a language for the [Setup] menu and
on-screen display.
Disc Menu/ Disc Audio/
Disc Subtitle
Select the language you prefer for the audio
track (disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the
disc was recorded.
[Other]
Press ENTER (
) to select another language.
Use number buttons then ENTER (
) to
enter the corresponding 4-digit number
according to the language code list on
page 79.
[O ] (for Disc Subtitle only)
Turn o Subtitle.
NOTE
Depending on the disc, your language setting may
not work.
[AUDIO] Menu
Speaker Setup
To obtain the best possible sound, use the
speaker setup display to specify the volume
of the speakers you have connected and their
distance from your listening position. Use the
test to adjust the volume of the speakers to the
same level.
[Speaker]
Select a speaker that you want to adjust.
[Volume]
Adjust the output level of each speaker.
[Distance]
Adjust the distance between each speaker
and the listening position.
[Test/ Stop test tone]
The speakers will emit a test tone.
[OK]
Con rms the setting.
[Cancel]
Cancels the setting.
HB905PA-DH.BGBRLL_ENG_3594.indd 33HB905PA-DH.BGBRLL_ENG_3594.indd 33 2010.1.30 4:30:0 PM2010.1.30 4:30:0 PM
34 Installation
Installation
3

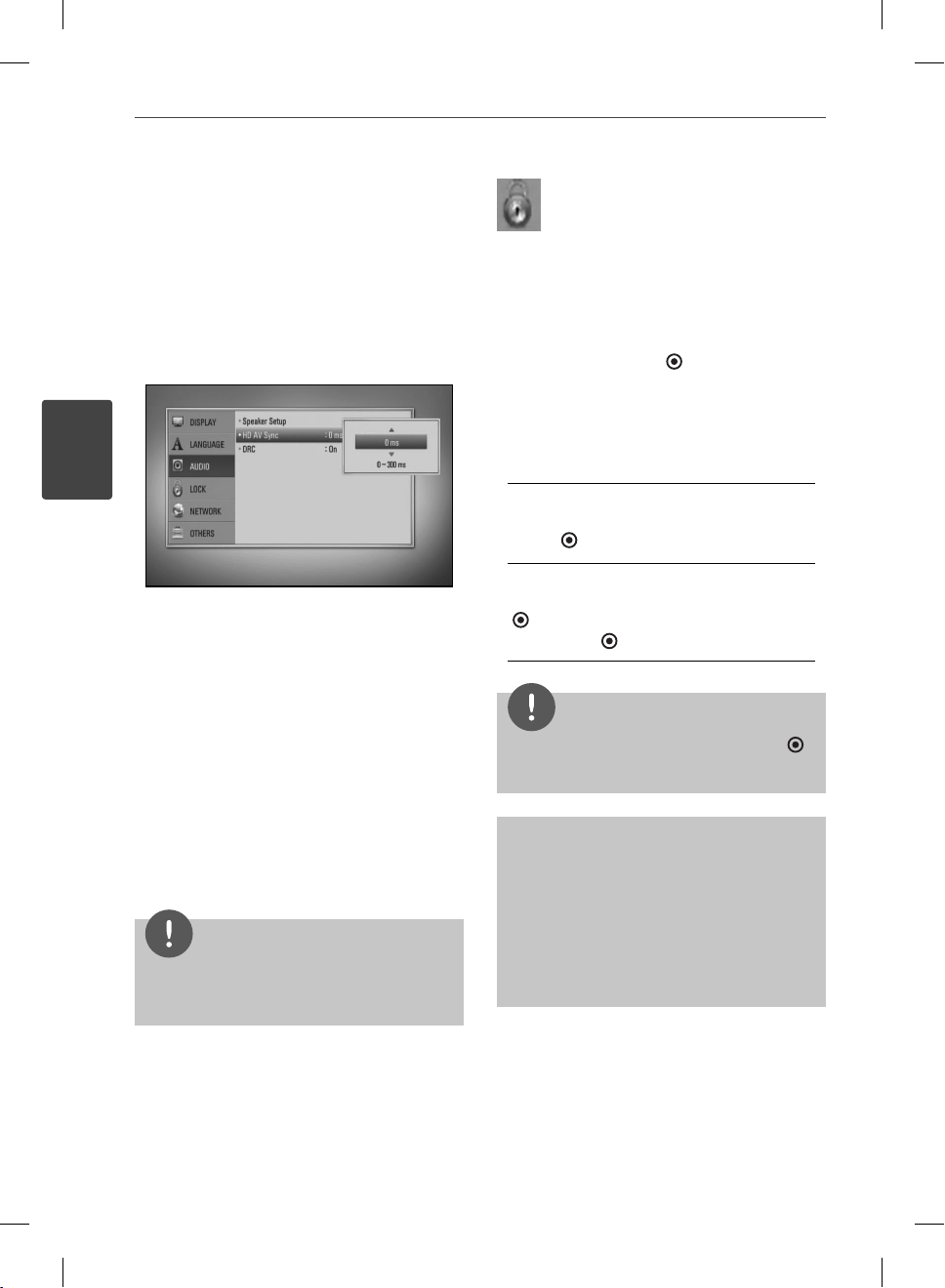

HD AV Sync
Sometimes Digital TV encounters a delay
between picture and sound. If this happens
you can compensate by setting a delay on the
sound so that it e ectively ‘waits’ for the picture
to arrive: this is called HD AV Sync. Use
U u
to
scroll up and down through the delay amount,
which you can set at anything between 0 and
300 ms.
The delay will vary depending on which digital
TV channel you are on. If you change channel
you may need to readjust the HD AV Sync.
DRC (Dynamic Range Control)
When a content encoded in Dolby Digital or
Dolby Digital Plus is playing back, you may
wish to compress the dynamic range of the
audio output (the di erence between the
loudest sounds and the quietest ones). This
allows you to listen to a movie at a lower
volume without losing clarity of sound. Set
[DRC] to [On] for this e ect.
NOTE
The DRC setting can be changed only when a
disc is not inserted or the unit is in complete stop
mode.
[LOCK] Menu
To access the any features in [LOCK] settings,
you must enter the 4-digit security code you
have created.
If you have not entered a password yet, you are
prompted to do so. Enter a 4-digit password
twice, and press ENTER ( ) to create a new
password.
Password
You can create or change the password.
[None]
Enter a 4-digit password twice, and press
ENTER (
) to create a new password.
[Change]
Enter the current password and press ENTER
(
). Enter a 4-digit password twice, and
press ENTER ( ) to create a new password.
NOTE
If you make a mistake before pressing ENTER
( )
,
press CLEAR. Then input the correct password.
If you forget your password,
If you forget your password, you can clear it using
the following steps:
1. Remove any disc that might be in the player.
2. Select [Lock] option in the [Setup] menu.
3. Use number buttons to enter “210499” on the
[Lock] Menu. The password is cleared.
HB905PA-DH.BGBRLL_ENG_3594.indd 34HB905PA-DH.BGBRLL_ENG_3594.indd 34 2010.1.30 4:30:1 PM2010.1.30 4:30:1 PM
35Installation
3
Installation
DVD Rating
Blocks playback of rated DVD based on their
content. (Not all discs are rated.)
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select this, parental control is not
active and the disc plays in full.
BD Rating
Set an age limit of BD-ROM play. Use number
buttons to input an age limit for BD-ROM
viewing.
[255]
All BD-ROM can be played.
[0-254]
Prohibits play of BD-ROM with
corresponding ratings recorded on them.
NOTE
The [BD Rating] will be applied only for the BD disc
that containing the Advanced Rating Control.
Area Code
Enter the code of the area whose standards
were used to rate the DVD video disc, based
on the list on page 78.
[NETWORK] Menu
The [NETWORK] settings are needed to use
the software update, BD Live, Home Link and
NetCast features.
Connection Setting
If your home network environment is ready
to connect the player, the player needs to
be set the network connection for network
communication. (See “Connecting to your
Home Network” on page 26.)
Connection Status
If you want to check the network status on
this player, select the [Connection Status]
options and press ENTER ( ) to check whether
a connection to the network and the internet
have been established.
BD-LIVE connection
You can restrict Internet access when BD-LIVE
functions are used.
[Permitted]
Internet access is permitted for all BD-LIVE
contents.
[Partially permitted]
Internet access is permitted only for BD-
LIVE contents which have content owner
certi cates. Internet access and AACS
Online functions are prohibited for all BD-
LIVE contents without a certi cate.
[Prohibited]
Internet access is prohibited for all BD-LIVE
contents.
HB905PA-DH.BGBRLL_ENG_3594.indd 35HB905PA-DH.BGBRLL_ENG_3594.indd 35 2010.1.30 4:30:1 PM2010.1.30 4:30:1 PM
36 Installation
Installation
3
[OTHERS] Menu
DivX VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an o cial
DivX Certi ed device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your les into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certi ed® device must be registered in order to
play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the
DivX VOD section in the device setup menu.
Go to vod.divx.com with this code to complete
the registration process and learn more about
DivX VOD.
[Register]
Displays the registration code of your player.
[Deregister]
Deactivate your player and display the
deactivation code.
NOTE
All the downloaded videos from DivX VOD with
this player’s registration code can only be played
back on this unit.
Auto Power Off
The screen saver appears when you leave
the player in Stop mode for about ve
minutes. If you set this option to [On], the unit
automatically turns itself o after the Screen
Saver is displayed for 25 minutes.
Set this option to [O ] to leave the screen
saver until the unit is operated by the user.
Initialize
Factory Set
You can reset the player to its original
factory settings.
BD Storage Clear
Initializes the BD contents from the
connected USB storage.
NOTE
If you reset the player to its original factory settings
using [Factory Set] option, you have to set all the
activation for the on-line services and network
settings again.
Software
Information
Displays the current software version.
Update
You can update the software by connecting
the unit directly to the software update
server (see page 80).
Disclaimer Notice
Press ENTER ( ) to view the notice of Network
Service Disclaimer on page 87.
HB905PA-DH.BGBRLL_ENG_3594.indd 36HB905PA-DH.BGBRLL_ENG_3594.indd 36 2010.1.30 4:30:2 PM2010.1.30 4:30:2 PM
37Installation
3
Installation
Sound Effect
You can select a suitable sound mode. Press
SOUND EFFECT repeatedly until the desired
mode appears on the front panel display or the
TV screen. The displayed items for the equalizer
maybe di erent depending on sound sources
and e ects.
[Natural]: You can enjoy comfortable and
natural sound.
[Bypass]: Software with multichannel surround
audio signals is played according to the way it
was recorded.
[Bass Blast]: Reinforce the bass sound
e ect from front left and right speaker and
subwoofer.
[PL ll Movie]: Performs Pro Logic ll movie
mode decoding to the input signal and
produces ve full-bandwidth output channels
from 2 channel sources. This setting is ideal for
watching videos of overdubbed or old movies.
This mode is available only to 2 channel
sources.
[PL ll Music]: Performs Pro Logic ll music mode
decoding to the input signal and produces
ve full-bandwidth output channels from
2 channel sources. This setting is ideal for
normal stereo sources such as CD. This mode is
available only to 2 channel sources.
[Clear Voice]: This mode makes voice sound
clear, improving the quality of voice sound.
[Virtual]: You can enjoy more dynamic sound
with improved centre channel.
[Game]: You can enjoy more virtual sound
while playing video games.
[Night]: This may be useful when you want to
watch movies at low volumes late at night.
[Mus. ReTouch]: When listening to MP3 les or
other compressed music, you can enhance the
sound. This mode is available only to 2 channel
sources.
[Loudness]: Improves bass and treble sound.
[Natural Plus]: You can enjoy the natural
sound e ect same as 5.1 channel.
HB905PA-DH.BGBRLL_ENG_3594.indd 37HB905PA-DH.BGBRLL_ENG_3594.indd 37 2010.1.30 4:30:2 PM2010.1.30 4:30:2 PM
38 Operation
Operation
4

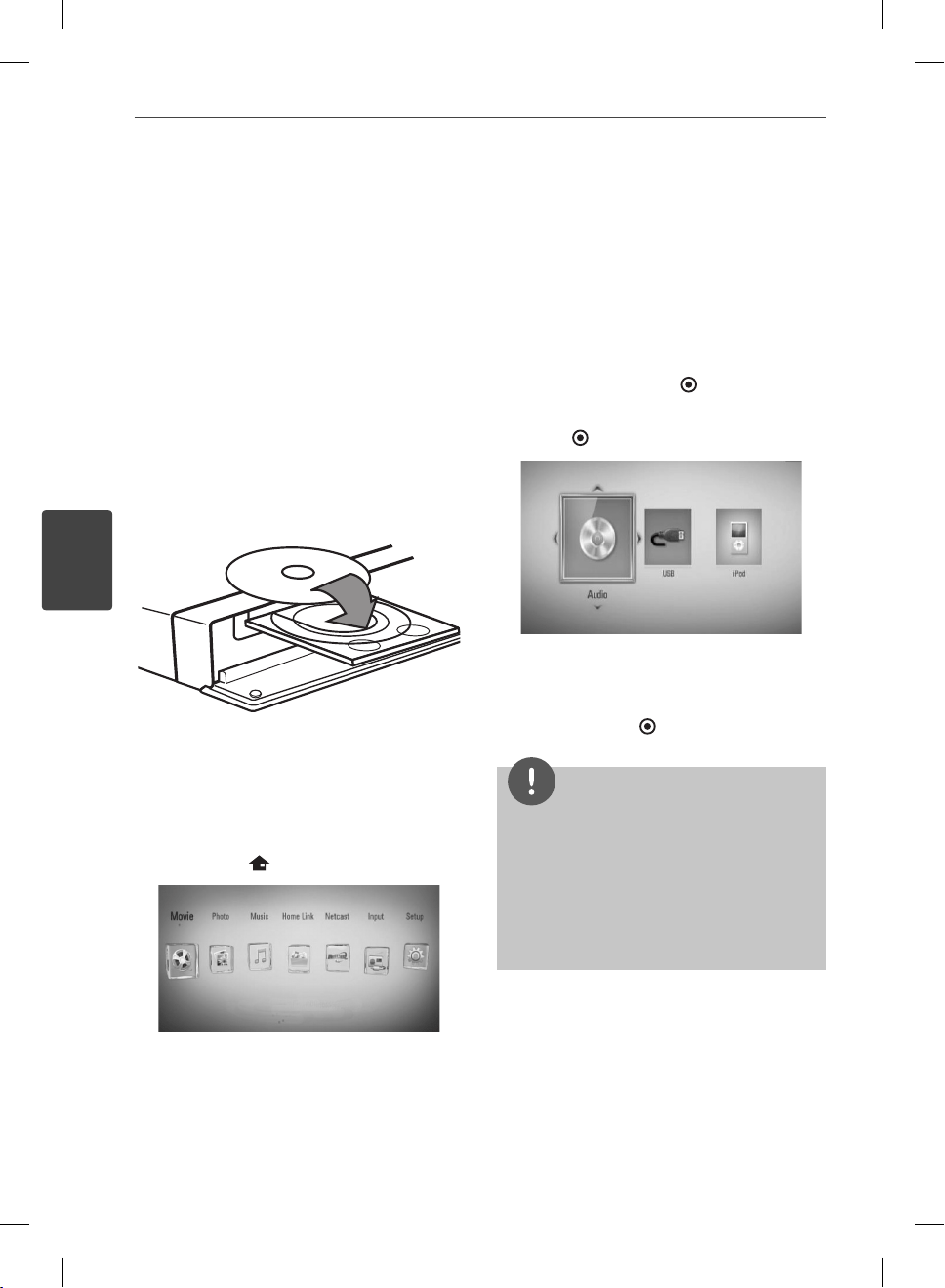

General Playback
Playing Discs
1. Press OPEN/CLOSE (
Z
), and place a disc on
the disc tray.
2. Press OPEN/CLOSE(
Z
) to close the disc
tray.
For the most Audio CD, BD-ROM and
DVD-ROM discs, playback starts
automatically.
3. Press HOME (
).
4. Select [Movie], [Photo] or [Music] using
I
/
i
, and press ENTER ( ).
5. Select the Disc option using
I
/
i
, and press
ENTER (
).
When you connect up to two devices, it
appears as above.
6. Select a le using
U
/
u
/
I
/
i
, and press
B
(PLAY) or ENTER (
) to play the le.
NOTE
Playback functions described in this manual are
not always available in every les and medium.
Some functions can be restricted depending on
many factors.
Depending on the BD-ROM titles, a USB device
connection may be needed for the proper
playback.
•
•
4
Operation
HB905PA-DH.BGBRLL_ENG_3594.indd 38HB905PA-DH.BGBRLL_ENG_3594.indd 38 2010.1.30 4:30:2 PM2010.1.30 4:30:2 PM
39Operation
4
Operation
To stop playback
Press
x
(STOP) while playback.
To pause playback
Press
X
(PAUSE) while playback.
Press
B
(PLAY) to resume playback.
To play frame-by-frame
Press
X
(PAUSE) while movie playback.
Press
X
(PAUSE) repeatedly to play Frame-by-
Frame playback.
To scan forward or backward
Press
m
or
M
to play fast forward or fast
reverse during playback.
You can change the various playback speeds
by pressing
m
or
M
repeatedly.
To slow down the playing speed
While the playback is paused, press
M
repeatedly to play various speeds of slow
motion.
To skip to the next/previous
chapter/track/fi le
During playback, press
.
or
>
to go to
the next chapter/track/ le or to return to the
beginning of the current chapter/track/ le.
Press
.
twice brie y to step back to the
previous chapter/track/ le.
Using the disc menu
BD
DVD
AVCHD
To display the disc menu
The menu screen may be displayed rst after
loading a disc which contains a menu. If you
want to display the disc menu while playback,
press DISC MENU.
Use
U
/
u
/
I
/
i
buttons to navigate through
menu items.
To display the Pop-up menu
Some BD-ROM discs contain Pop-up menu
that appears while playback.
Press TITLE/POPUP while playback, and use
U
/
u
/
I
/
i
buttons to navigate through menu
items.
HB905PA-DH.BGBRLL_ENG_3594.indd 39HB905PA-DH.BGBRLL_ENG_3594.indd 39 2010.1.30 4:30:3 PM2010.1.30 4:30:3 PM
40 Operation
Operation
4
Resume playback
BD
DVD
AVCHD
MOVIE
ACD
MUSIC
The unit records the point where you pressed
the
x
(STOP) depending on the disc.
If “
Xx
(Resume Stop)” appears on the screen
brie y, press
B
(PLAY)
to resume playback
(from the scene point).
If you press
x
(STOP) twice or unload the disc,
“
x
”(Complete Stop) appears on the screen.
The unit will clear the stopped point.
NOTE
The resume point may be cleared when a
button is pressed (for example;
1
(POWER),
Z
(OPEN/CLOSE), etc).
On BD-Video discs with BD-J, the resume
playback function does not work.
If you press
x
(STOP) once during BD-ROM
interactive title playback, the unit will be in
Complete Stop mode .
•
•
•
Advanced Playback
Repeat Playback
BD
DVD
AVCHD
ACD
MUSIC
During playback, press REPEAT repeatedly to
select a desired repeat mode.
BDs/DVDs
A-
– Selected portion will be repeated
continually.
Chapter
– The current chapter will be
played back repeatedly.
Title
– The current title will be played
back repeatedly.
To return to normal playback, press REPEAT
repeatedly to select [O ].
Audio CDs/Music les
– The current track or le will be
played back repeatedly.
– All the tracks or les will be played
back repeatedly.
– The tracks or les will be played back
in random order.
– All the tracks or les will be
played back repeatedly in random order.
– Selected portion will be repeated
continually. (Audio CD only)
To return to normal playback, press CLEAR.
NOTE
If you press
>
once during Repeat Chapter/
Track playback, the repeat playback cancels.
This function may not work on some disc or title.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 40HB905PA-DH.BGBRLL_ENG_3594.indd 40 2010.1.30 4:30:3 PM2010.1.30 4:30:3 PM
41Operation
4
Operation
Repeating a specifi c portion
BD
DVD
AVCHD
ACD
This player can repeat a portion you have
selected.
1. While playback, press REPEAT to select [A-]
at the beginning of the portion you wish to
repeat. And then press ENTER (
).
2. Press ENTER ( ) at the end of the portion.
Your selected portion will be repeated
continually.
3. To return to normal playback, press REPEAT
repeatedly to select [OFF] or press CLEAR.
NOTE
You cannot select a portion less than 3 seconds.
Marker Search
BD
DVD
AVCHD
MOVIE
You can start playback from up to nine
memorized points.
To enter a marker
1. While playback, press MARKER at the
desired point. The Marker icon appears on
the TV screen brie y.
2. Repeat step 1 to add up to nine markers.
To recall a marked scene
1. Press SEARCH and the search menu appears
on the screen.
2. Press a number button to select a marker
number that you want to recall. Playback
starts from the marked scene.
To delete a Marker
1. Press SEARCH and the search menu appears
on the screen.
2. Press
u
to highlight a marker number. Use
I
/
i
to select a marked scene that you
want to delete.
3. Press CLEAR and the marked scene is erased
from the search menu.
NOTE
This function may not work depending on discs,
titles, server ability.
All marked points are cleared if the title is in
complete stop (
x
) mode, the title is changed or
if you unload the disc.
If the total length of the title is less than
10 seconds, this function is not available.
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 41HB905PA-DH.BGBRLL_ENG_3594.indd 41 2010.1.30 4:30:4 PM2010.1.30 4:30:4 PM
42 Operation
Operation
4

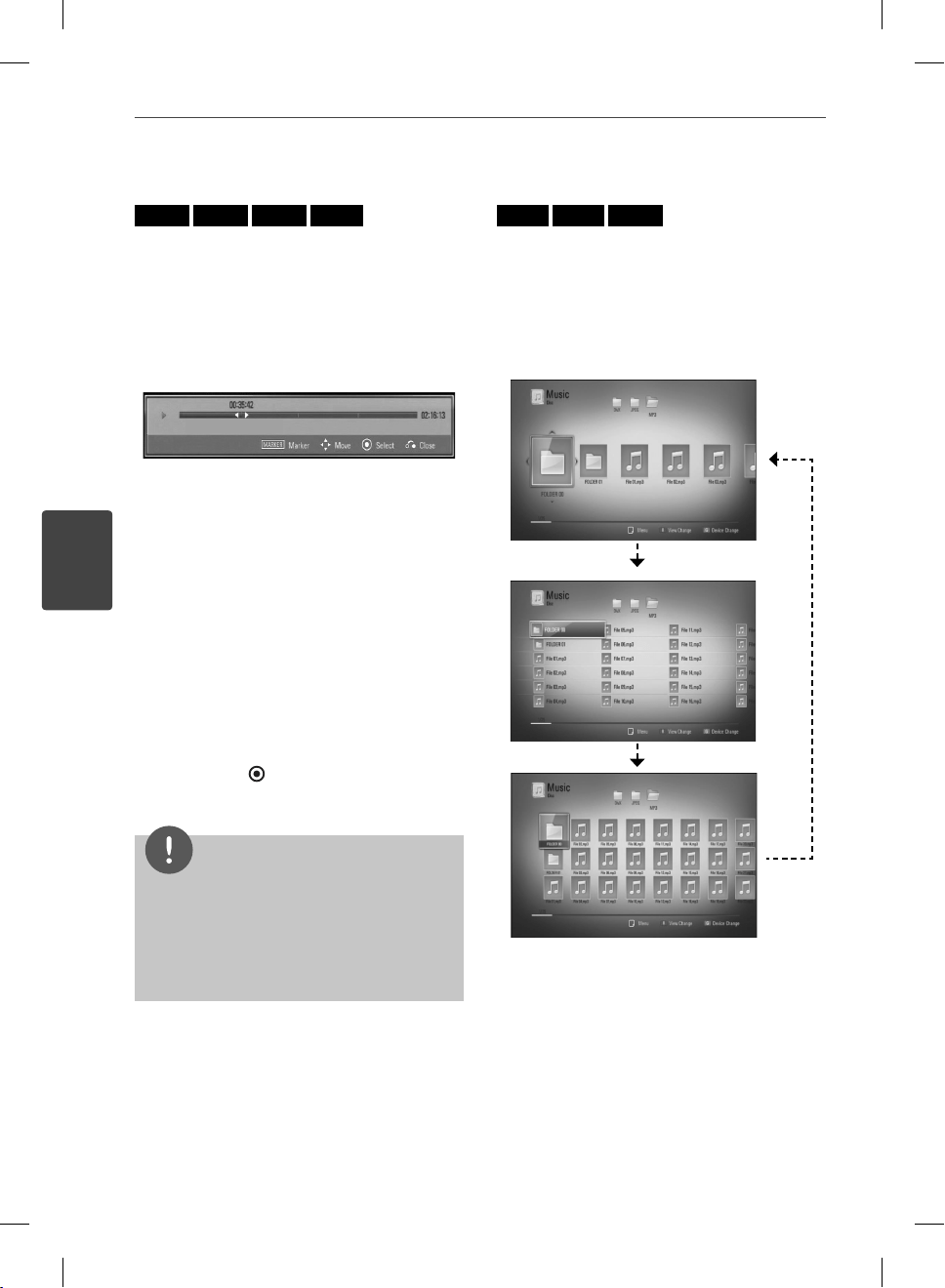

Using the search menu
BD
DVD
AVCHD
MOVIE
Using search menu, you can easy to nd the
point where you want to start playback.
To search a point
1. During playback, press SEARCH to display
the search menu.
2. Press
I
/
i
to skip the playback 15 seconds
forward or backward. You can select a
point that you want to skip by pressing and
holding
I
/
i
button.
To start playback from a marked
scene
1. Press SEARCH and the search menu appears
on the screen.
2. Press
u
to highlight a marker number. Use
I
/
i
to select a marked scene that you
want to start playback from.
3. Press ENTER (
) to start playback from the
marked scene.
NOTE
This function may not work depending on discs,
titles, server ability.
This function may not work on some [Home
Link] contents depending on the le type and
ability of the DLNA server.
•
•
Changing content list view
MOVIE
MUSIC
On the [Movie], [Music], [Photo] or [Home Link]
menu, you can change the content list view.
Method 1
Press red (R) coloured button repeatedly.
HB905PA-DH.BGBRLL_ENG_3594.indd 42HB905PA-DH.BGBRLL_ENG_3594.indd 42 2010.1.30 4:30:4 PM2010.1.30 4:30:4 PM
43Operation
4
Operation
Method 2
1. On the content list, press INFO/DISPLAY ( )
to display the option menu.
2. Use
U
/
u
to select the [View Change]
option.
3. Press ENTER ( ) to change the content list
view.
Viewing content information
MOVIE
The player can display the content information.
1. Select a le using
U
/
u
/
I
/
i
.
2. Press INFO/DISPLAY (
) to display the
option menu.
3. Select the [Information] option using
U
/
u
,
and press ENTER ( ).
The le information appears on the screen.
While movie playback, you can display the le
information by pressing TITLE/POPUP.
NOTE
The information displayed on the screen may not
correct comparing actual content information.
Last Scene Memory
BD
DVD
This unit memorizes the last scene from the
last disc that is viewed. The last scene remains
in memory even if you remove the disc from
the unit or switch o the unit. If you load a disc
that has the scene memorized, the scene is
automatically recalled.
NOTE
Last Scene Memory function for a previous disc
is erased once a di erent disc is played.
This function may not work depending on the
disc.
This unit does not memorize settings of a disc if
you switch o the unit before commencing to
play it.
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 43HB905PA-DH.BGBRLL_ENG_3594.indd 43 2010.1.30 4:30:5 PM2010.1.30 4:30:5 PM
44 Operation
Operation
4
On-Screen display
You can display and adjust various information
and settings about the content.
Displaying content information
on-screen
BD
DVD
AVCHD
MOVIE
1. While playback, press INFO/DISPLAY ( ) to
show various playback information.
a
h
g
f
e
d
c
b
i
a
Title – Current title number/total number
of titles
b
Chapter – Current chapter number/total
number of chapters
c
Time – Elapsed playing time/Total
playback time
d
Audio – Selected audio language or
channel
e
Subtitle – Selected subtitle
f
Angle – Selected angle/total number of
angles
g
TV Aspect Ratio – Selected a TV aspect
Ratio
h
Picture Mode – Selected picture mode
i
Movie Information – Select this option
and press ENTER (
) to display movie
information
2. Select an option using
U
/
u
.
3. Use
I
/
i
to adjust the selected option
value.
4. Press RETURN (
O
) to exit the On-Screen
display.
NOTE
If no button is pressed for a few seconds, the on-
screen display disappears.
A title number cannot be selected on some
discs.
Available items may di er depending on discs
or titles.
If BD interactive title is playing back, some
setting information is displayed on the screen
but prohibited to be changed.
To use the [Movie Information] option, the player
must be connected to the broadband internet
for accessing the Gracenote Media Database.
If the music information from the
Gracenote
®
media database is either not correct
or not exist, please contact Gracenote
®
at
http://www.gracenote.com for support.
LG is a licence of Gracenote
®
technology and is
not responsible or reliable for information from
the Gracenote
®
media database.
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 44HB905PA-DH.BGBRLL_ENG_3594.indd 44 2010.1.30 4:30:5 PM2010.1.30 4:30:5 PM
45Operation
4
Operation
Playing from selected time
BD
DVD
AVCHD
MOVIE
1. Press INFO/DISPLAY ( ) during playback.
The time search box shows the elapsed
playing time.
2. Select the [Time] option and then input
the required start time in hours, minutes,
and seconds from left to right.
For example, to nd a scene at 2 hours, 10
minutes, and 20 seconds, enter “21020”.
Press
I
/
i
to skip the pl
ayback 60 seconds
forward or backward.
3. Press ENTER (
) to start playback from
selected time.
NOTE
This function may not work on some disc or
titles.
This function may not work on some [Home
Link] contents depending on the le type and
ability of the DLNA server.
•
•
Hearing a different audio
BD
DVD
AVCHD
MOVIE
1. During playback, press INFO/DISPLAY (
) to
display the on-screen display.
2. Use
U
/
u
to select the [Audio] option.
3. Use
I
/
i
to select desired audio language,
audio track or audio channel.
NOTE
Some discs allow you to change audio selections
only via the disc menu. If this is the case, press
TITLE/POPUP or DISC MENU button and choose
the appropriate audio from the selections on
the disc menu.
Immediately after you have switched sound,
there may be a temporary discrepancy between
the display and actual sound.
On BD-ROM disc, the multi audio format (5.1CH
or 7.1CH) is displayed with [MultiCH] in the on-
screen display.
•
•
•
Selecting a subtitle language
BD
DVD
AVCHD
MOVIE
1. During playback, press INFO/DISPLAY (
) to
display the on-screen display.
2. Use
U
/
u
to select the [Subtitle] option.
3. Use
I
/
i
to select desired subtitle language.
4. Press RETURN (
O
) to exit the On-Screen
display.
NOTE
Some discs allow you to change subtitle selections
only via the disc menu. If this is the case, press
TITLE/POPUP or DISC MENU button and choose
the appropriate subtitle from the selections on the
disc menu.
HB905PA-DH.BGBRLL_ENG_3594.indd 45HB905PA-DH.BGBRLL_ENG_3594.indd 45 2010.1.30 4:30:6 PM2010.1.30 4:30:6 PM
46 Operation
Operation
4
Watching from a different
angle
BD
DVD
If the disc contains scenes recorded at di erent
camera angles, you can change to a di erent
camera angle during playback.
1. During playback, press INFO/DISPLAY (
) to
display the on-screen display.
2. Use
U
/
u
to select the [Angle] option.
3. Use
I
/
i
to select desired angle.
4. Press RETURN (
O
) to exit the On-Screen
display.
Changing the TV Aspect Ratio
BD
DVD
AVCHD
MOVIE
You can change the TV aspect ratio setting
while playback.
1. During playback, press INFO/DISPLAY (
) to
display the on-screen display.
2. Use
U
/
u
to select the [TV Aspect Ratio]
option.
3. Use
I
/
i
to select desired option.
4. Press RETURN (
O
) to exit the On-Screen
display.
NOTE
Even if you change the value of the [TV Aspect
Ratio] option in On-Screen display, the [TV Aspect
Ratio] option in the [Setup] menu is not changed.
Changing the Picture Mode
BD
DVD
AVCHD
MOVIE
You can change the [Picture mode] option
while playback.
1. During playback, press INFO/DISPLAY (
) to
display the on-screen display.
2. Use
U
/
u
to select the [Picture Mode]
option.
3. Use
I
/
i
to select desired option.
4. Press RETURN (
O
) to exit the On-Screen
display.
Setting the [User setting] option
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
2. Use
U
/
u
to select the [Picture Mode]
option.
3. Use
I
/
i
to select the [User setting] option,
and press ENTER (
).
4. Use
U
/
u
/
I
/
i
to adjust the [Picture Mode]
options.
Select [Default] option then press ENTER
( ) to reset the all adjustments.
5. Use
U
/
u
/
I
/
i
to select the [Close] options,
and press ENTER (
) to nish setting.
HB905PA-DH.BGBRLL_ENG_3594.indd 46HB905PA-DH.BGBRLL_ENG_3594.indd 46 2010.1.30 4:30:6 PM2010.1.30 4:30:6 PM
47Operation
4
Operation
Enjoying BD-LIVE
This unit allows you to enjoy functions such as
picture-in-picture, secondary audio and Virtual
packages, etc., with BD-Video supporting
BONUSVIEW (BD-ROM version 2 Pro le 1
version 1.1/ Final Standard Pro le).
Secondary video and audio can be played from
a disc compatible with the picture-in-picture
function. For the playback method, refer to the
instructions in the disc.
In addition to the BONUSVIEW function, BD-
Video supporting BD-LIVE (BD-ROM version
2 Pro le 2) that has a network extension
function allows you to enjoy more functions
such as downloading new movie trailers by
connecting this unit to the internet.
1. Check the network connection and settings
(pages 26-28).
2. Insert a USB storage device to the USB port
on the front panel.
A USB storage device is needed to
download bonus content.
USB Connection
3 . Press Home ( ), and set the [BD-LIVE
connection] option on the [Setup] menu
(page 35).
Depending on a disc, the BD-LIVE
function may not be operated if [BD-
LIVE connection] option is set to [Partially
Permitted].
4 . Insert a BD-ROM with BD-LIVE.
The operations are di er depending on the
disc. Refer to the manual supplied with the
disc.
NOTE
Do not extract the connected USB device while
content is being downloaded or a Blu-ray disc is
still in the disc tray. Doing so may damage the
connected USB device and BD-LIVE features may
not operate properly with the damaged USB
device anymore. If the connected USB device
seems damaged from such an action, you can
format the connected USB device from the PC
and reuse it with this player.
Some BD-LIVE contents may be restrictively
accessed in some territories by contents
provider’s own decision.
It may take up to several minutes to load and
start enjoying BD-LIVE contents.
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 47HB905PA-DH.BGBRLL_ENG_3594.indd 47 2010.1.30 4:30:7 PM2010.1.30 4:30:7 PM
48 Operation
Operation
4

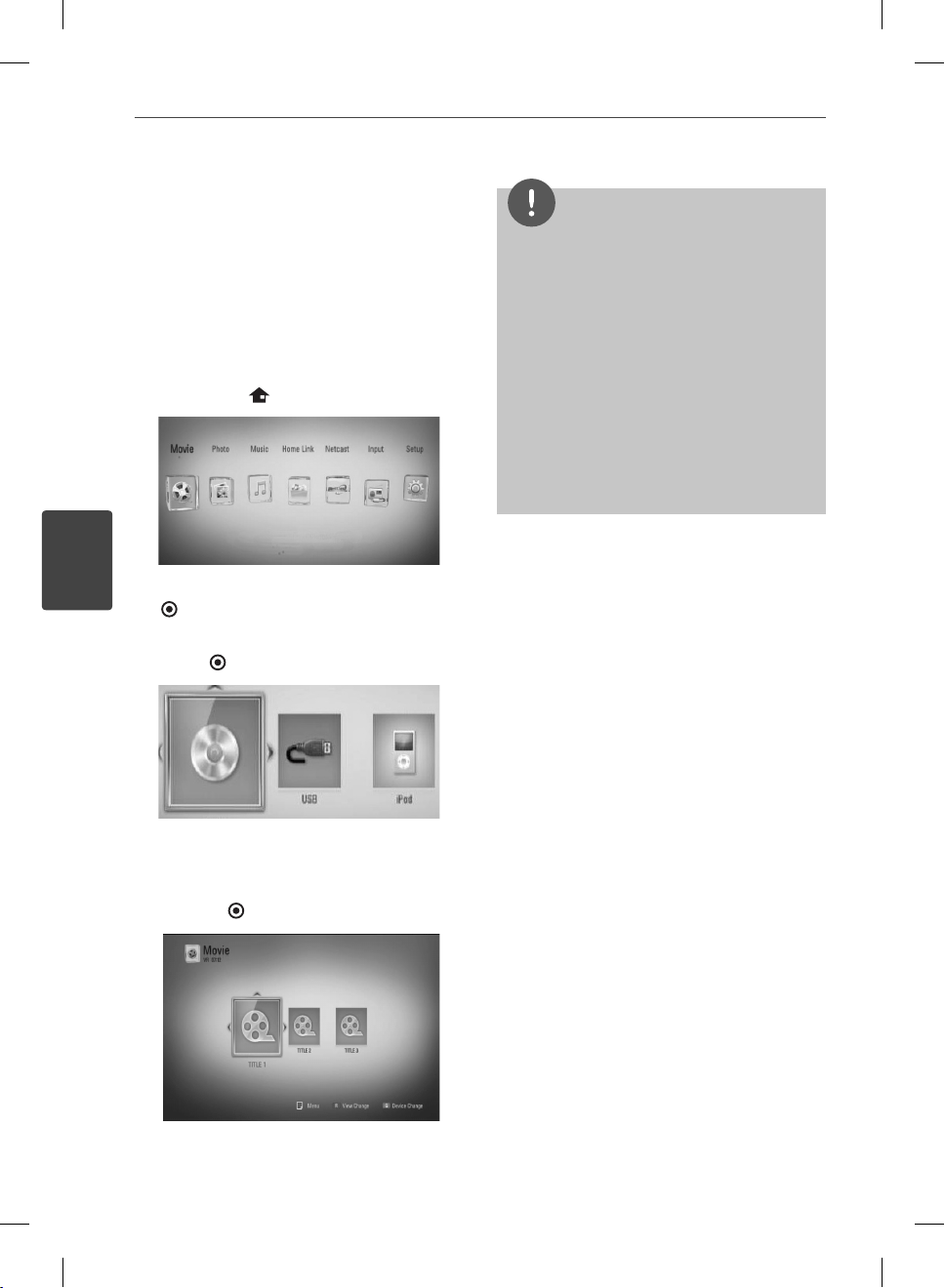

Playing a movie fi le
and VR disc
You can play DVD-RW discs that are recorded
in Video Recording (VR) format and movie les
contained in a disc or USB device.
1. Press HOME (
).
2. Select [Movie] using
I
/
i
, and press ENTER
( ).
3. Select the device using
I
/
i
, and press
ENTER (
).
When you connect up to two devices, it
appears as above.
4. Select a le using
U
/
u
/
I
/
i
, and press PLAY
or ENTER (
) to play the le.
NOTE
The le requirements are described on page 11.
You can use various playback functions. Refer to
pages 38-46.
Un nalized DVD VR format discs may not be
played in this player.
Some DVD-VR disc are made with CPRM data
by DVD recorder. This unit cannot support these
kinds of discs.
What is CPRM?
CPRM is a copy protection system (with
scramble system) only allowing the recording of
‘copy once’ broadcast programmes. CPRM stands
for Content Protection for Recordable Media.
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 48HB905PA-DH.BGBRLL_ENG_3594.indd 48 2010.1.30 4:30:7 PM2010.1.30 4:30:7 PM
49Operation
4
Operation
Selecting a subtitle fi le
MOVIE
If a movie le name and the subtitle le
name are the same, subtitle le is played
automatically when playing the movie le.
If the subtitle le name is di erent with the
movie le name, you need to select the subtitle
le on the [Movie] menu before playing the
movie.
1. Use
U
/
u
/
I
/
i
to select the subtitle le you
wish to play in the [Movie] menu.
2. Press ENTER (
).
Press ENTER ( ) again to deselect the
subtitle le. Selected subtitle le will be
displayed when you play the movie le.
NOTE
If you press
x
(STOP) while playback, the
subtitle selection is cancelled.
This function may not work in the [Home Link]
feature.
•
•
Changing subtitle code page
MOVIE
If the subtitle is not displayed properly, You
can change the subtitle code page to view the
subtitle le properly.
1. During playback, press INFO/DISPLAY (
) to
display the on-screen display.
2. Use
U
/
u
to select the [Code Page] option.
3. Use
I
/
i
to select desired code option.
4. Press RETURN(
O
) to exit the On-Screen
display.
HB905PA-DH.BGBRLL_ENG_3594.indd 49HB905PA-DH.BGBRLL_ENG_3594.indd 49 2010.1.30 4:30:8 PM2010.1.30 4:30:8 PM
50
Operation
Operation
4
Viewing a photo
You can view photo les using this player.
1. Press HOME (
).
2. Select [Photo] using
I
/
i
, and press ENTER
( ).
3. Select the device using
I
/
i
, and press
ENTER (
).
When you connect up to two devices, it
appears as above.
4. Select a le using
U
/
u
/
I
/
i
, and press
ENTER (
) to view the photo.
To play a slide show
Press
B
(PLAY) to start slide show.
To stop a slide show
Press
x
(STOP) while slide show.
To pause a slide show
Press
X
(PAUSE) while slide show.
Press
B
(PLAY) to re-start the slide show.
To skip to the next/previous photo
While viewing a photo in full screen, press
I
or
i
to go to the previous or next photo.
NOTE
The le requirements are described on page 11.
You can use various playback functions. Refer to
pages 38-46.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 50HB905PA-DH.BGBRLL_ENG_3594.indd 50 2010.1.30 4:30:8 PM2010.1.30 4:30:8 PM
51
Operation
4
Operation
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
INFO/DISPLAY (
) to display the option
menu.
2. Select an option using
U
/
u
.
a
g
f
e
d
c
b
h
a
Current photo/Total number of photos
– Use
I
/
i
to view previous/next photo.
b
Slide Show – Press ENTER (
) to start or
pause slide show.
c
Music Select – Select the background
music for the slide show.
d
Music –Press ENTER (
) to start or pause
background music.
e
Rotate – Press ENTER (
) to rotate the
photo clockwise.
f
Zoom – Press ENTER (
) to display the
[Zoom] menu.
g
E ect – Use
I
/
i
to select a transition
e ect between photos in a slide show.
h
Speed – Use
I
/
i
to select a delaying
speed between photos in a slide show.
3. Press RETURN (
O
) to exit the option menu.
Listening to music while slide
show
You can display photo les while listening to
music les.
1. Press HOME ( ).
2. Select [Photo] or [Home Link] using
I
/
i
,
and press ENTER ( ).
3. Select the [Disc] or [USB] option using
I
/
i
,
and press ENTER ( ).
Selecting a server or a share folder is
needed for [Home Link] menu.
4. Select a le using
U
/
u
/
I
/
i
, and press
ENTER (
) to view the photo.
5. Press INFO/DISPLAY (
) to display the
option menu.
6. Use
U
/
u
to select [Music Select] option,
and press ENTER ( ) to display the [Music
Select] menu.
HB905PA-DH.BGBRLL_ENG_3594.indd 51HB905PA-DH.BGBRLL_ENG_3594.indd 51 2010.1.30 4:30:9 PM2010.1.30 4:30:9 PM
52
Operation
Operation
4
7. Use
U
/
u
to select a device, and press ENTER
(
).
Device that you can select are di er
depending on the location of the photo le
you are displaying in full screen.
Photo location Available Device
Disc Disc, USB
USB Disc, USB
Share Folder on
your PC (CIFS)
CIFS
DLNA server DLNA server
8. Use
U
/
u
to select a le or a folder you wish
to play.
Select a folder and press ENTER ( ) to
display the lower directory.
Select
and press ENTER ( ) to display
the upper directory.
NOTE
When selecting music from [Home Link], folder
selection is not available. Only le selection is
available on the [Home link].
9. Use
i
to select [OK], and press ENTER ( )
to complete music selection.
Listening to music
The player can play Audio CDs and music les
1. Press HOME (
).
2. Select [Music] using
I
/
i
, and press ENTER
( ).
3. Select the device using
I
/
i
, and press
ENTER (
).
When you connect up to two devices, it
appears as above.
4. Select a music le or audio track using
U
/
u
/
I
/
i
, and press ENTER ( ) to play the
music.
NOTE
The le requirements are described on page 11.
You can use various playback functions. Refer to
pages 38-46.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 52HB905PA-DH.BGBRLL_ENG_3594.indd 52 2010.1.30 4:30:10 PM2010.1.30 4:30:10 PM
53
Operation
4
Operation

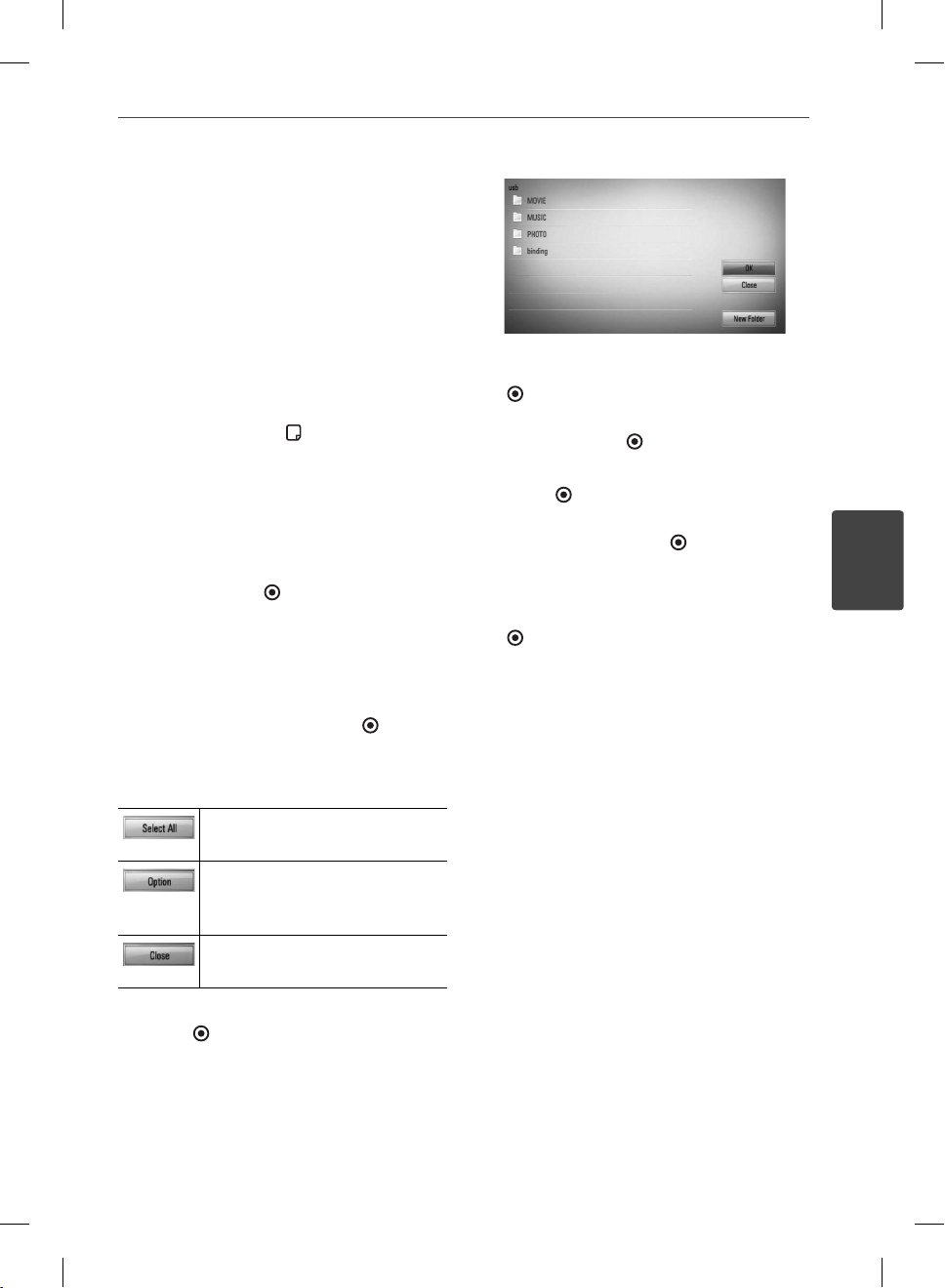

Audio CD Recording
You can record one desired track or all of the
tracks in Audio CD to a USB storage device.
1. Insert a USB storage device to the USB port
on the front panel.
2. Press
Z
(OPEN/CLOSE), and place an Audio
CD on the disc tray.
Press
Z
(OPEN/CLOSE) to close the disc
tray. The playback starts automatically.
3. Press INFO/DISPLAY (
) to display the
option menu.
Or
Press
z
REC button on the remote control.
You can record all musics in the audio CD.
4. Use
U
/
u
to select [CD Recording] option,
and press ENTER (
) to display the [CD
Recording] menu.
Repeat this step to select tracks as many as
you can.
5. Use
U
/
u
to select a track you wish to copy
on the menu, and press ENTER (
).
Repeat this step to select tracks as many as
you can.
Select all the tracks on an Audio
CD.
Selects an encoding option from
the pop-up menu (128 kbps,
192 kbps, 320 kbps or Lossless).
Cancels the recording and
returns to the previous screen.
6. Use
U
/
u
/
I
/
i
to select [Start], and press
ENTER (
).
7. Use
U
/
u
/
I
/
i
to select the destination
folder to be copied.
If you want to create a new folder, use
U
/
u
/
I
/
i
to select [New Folder] and press ENTER
( ).

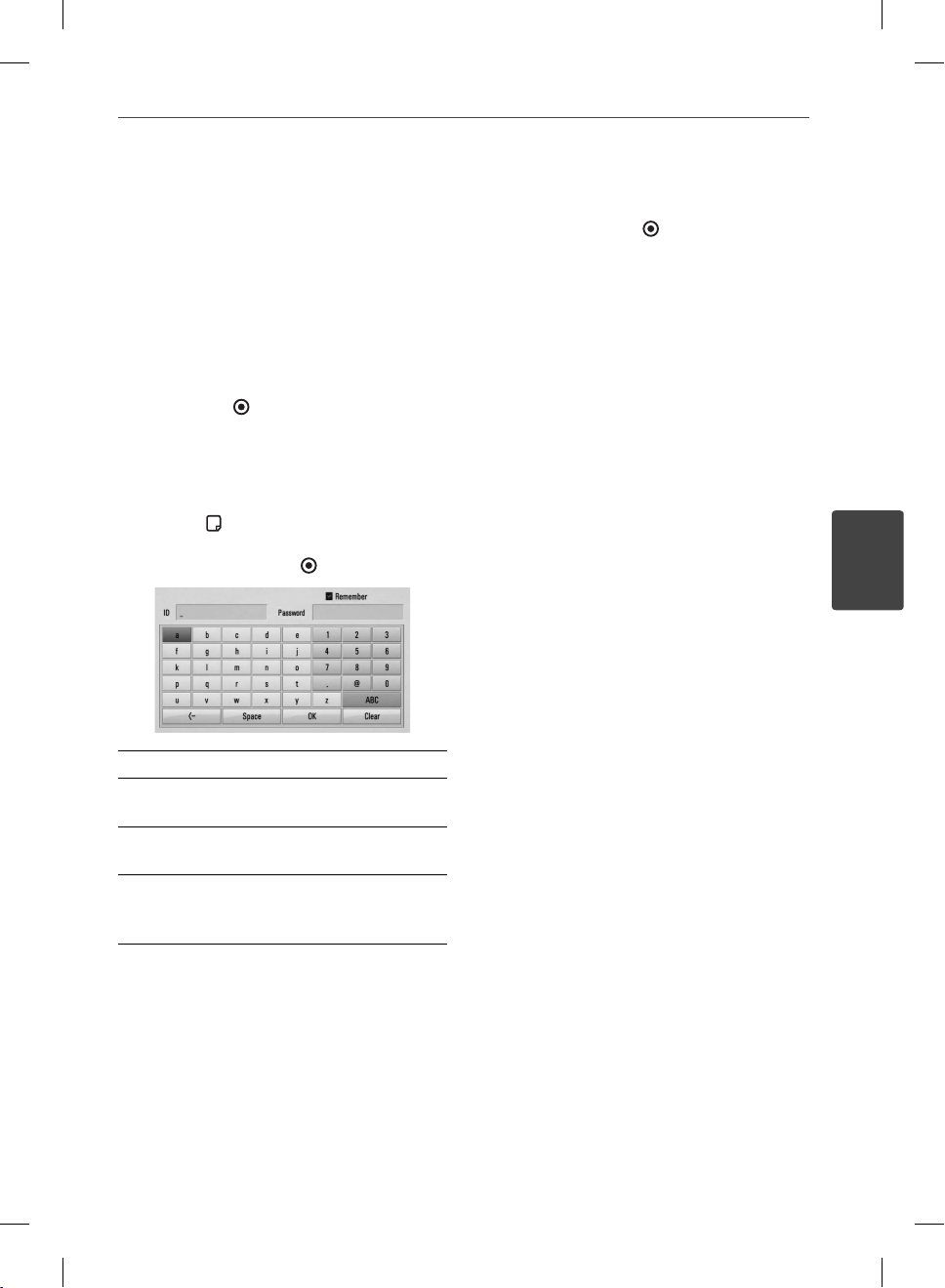

Enter a folder name using virtual keyboard,
and press ENTER ( ) while [OK] is selected.
8. Use
U
/
u
/
I
/
i
to select [OK], and press
ENTER (
) to start Audio CD recording.
If you want to stop in progressing Audio CD
recording, press ENTER ( ) while [Cancel] is
highlighted.
9. A message appears when Audio CD
recording is completed. Press ENTER
(
) to check the music le created in the
destination folder.
HB905PA-DH.BGBRLL_ENG_3594.indd 53HB905PA-DH.BGBRLL_ENG_3594.indd 53 2010.1.30 4:30:10 PM2010.1.30 4:30:10 PM
54
Operation
Operation
4
NOTE
The table below shows the average recording
time from an audio track with 4 minutes of
playback time to a music le with 192 kbps as an
example.
stop mode while playback
1.4 min. 2 min.
All times in the above table are approximate.
Actual recording time for USB storage device
varies depending on the USB storage device’s
ability.
Make sure that there is minimum of 50 MB free
space is needed when recording into the USB
storage device.
The length of the music should be longer than
20 seconds for the proper recording.
Do not turn o this player or extract the
connected USB storage device during Audio CD
recording.
•
•
•
•
•
•
The making of unauthorized copies of
copy-protected material, including computer
programmes, les, broadcasts and sound
recordings, may be an infringement of copyrights
and constitute a criminal o ense.
This equipment should not be used
for such purposes.
Be responsible
Respect copyrights
Viewing information from
Gracenote Media Database
The player can access to the Gracenote Media
Database and loads the music information so
that Track name, Artist Name, Genre and other
text information can be displayed on the list.
Audio CD
When you insert an Audio CD, the player starts
playback automatically and load the music title
from the Gracenote
®
Media Database.
If there is no music information from the
database, music titles will not appear on the
screen.
Music fi le
1. Select a music le or audio track using
U
/
u
/
I
/
i
.
2. Press INFO/DISPLAY (
) to display the
option menu.
3. Select the [Information] option using
U
/
u
,
and press ENTER (
).
The player accesses to Gracenote Media
Database for the music information.
HB905PA-DH.BGBRLL_ENG_3594.indd 54HB905PA-DH.BGBRLL_ENG_3594.indd 54 2010.1.30 4:30:11 PM2010.1.30 4:30:11 PM
55
Operation
4
Operation
BD/DVD
While listening to a music from the movie
playback, press MUSIC ID to start loading
music information from the Gracenote Media
Database.
NOTE
The player must be connected to the broadband
internet for accessing the Gracenote
®
Media
Database.
If the music information is not in the
Gracenote
®
Media Database, message appears
on the screen.
If the music information from the
Gracenote
®
media database is either not correct
or not exist, please contact Gracenote
®
at
http://www.gracenote.com for support.
Depending on the cases, it will takes a few
minutes to load music information from the
Gracenote
®
media database.
Information may be displayed in English, if your
own language is not available on the
Gracenote
®
media database.
This function is not available for NetCast on-line
content and content in DLNA servers.
LG is a licence of Gracenote
®
technology and is
not responsible or reliable for information from
the Gracenote
®
media database.
Audio CDs that users made for their only private
purposes cannot be supported in this feature
because they are not in the Gracenote Media
Database.
•
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 55HB905PA-DH.BGBRLL_ENG_3594.indd 55 2010.1.30 4:30:12 PM2010.1.30 4:30:12 PM
56
Operation
Operation
4
Playing the iPod
You can enjoy the sound with your iPod. For
details about iPod, refer to the iPod’s User
Guide.
Preparation
To view iPod’s Videos and Photos on the TV
screen.
- Be sure to use the video connection
through the VIDEO OUT jack on the rear
panel of this unit. Select the appropriate
video input mode on the TV.
- Depending on the iPod, make sure that
select Videos > Video settings, and then
set TV Out to Ask or On from your iPod.
For details about Video Settings, refer to
the iPod User Guide.
- The viewing photos is available only if this
unit is in iPod IN mode and you can view
photos only as a slide show. You have to
start a slide show on your iPod to view a
photo on a TV. For details about a slide
show, refer to the iPod User Guide.
Before connecting the iPod, turn this unit
o and reduce the volume of this unit to its
minimum.
1. Connect the iPod rmly.
To open the iPod Dock, pull iPod dock.
Connect the iPod
•
•
When you connect the iPod on the HOME
menu, the player plays a music automatically.
Or a menu for the le type selection will
appear.
2. Select a le using
U
/
u
/
I
/
i
, and press
ENTER (
) to play the le.
Enjoying iPod on the screen
1. Connect the iPod rmly.
2. Press HOME ( ).
3. Select [Music] or [Movie] using
I
/
i
, and
press ENTER (
).
If you connected the other device
(CD or USB), select the iPod on the menu.
4. Select a content using
U
/
u
/
I
/
i
, and press
ENTER ( ) to play.
You can search easily a content by power
scroll on the screen.
Power scroll
HB905PA-DH.BGBRLL_ENG_3594.indd 56HB905PA-DH.BGBRLL_ENG_3594.indd 56 2010.1.30 4:30:12 PM2010.1.30 4:30:12 PM
57
Operation
4
Operation
NOTE
If the iPod’s OSD language is selected to simple
chinese, the power scroll function is not operated
correctly.
Enjoying the iPod IN mode
You can operate your iPod by using the
supplied remote control and controls on your
iPod.
1. Connect the iPod rmly.
If you turn this unit on, your iPod is
automatically turned on and recharging
starts.
2. Press RADIO&INPUT to select iPod IN mode.
U
/
u
/
I
/
i
Selects an option in the menu.
B
/ENTER
Starts playback the music or
video.
X
To pause while it is playing. To
resume playing, press
B
(PLAY)
again.
m
/
M
Fast-forward or rewind a song
or video
.
/
>
Skip the playback forward or
backward .
REPEAT To select a desired repeat
mode: Track
( )
, All
( )
, O
(No display).
NOTE
An error message “CHECK IPOD” or “Connected
iPod model is not supported.” appears when:
- your iPod is not available for the function to be
operated.
An error message “CHECK IPOD” or “Please
update iPod’s software.” appears when:
- your iPod has an old software version.
t
Update your iPod software to latest version.
If this unit displays an error message, follow the
message. An error message “CHECK IPOD” or
“Please check your iPod.” appears when:
- the communication between this unit and
your iPod is failed.
t
Undock & re-dock your iPod in this unit.
- your iPod is not connected rmly.
- this unit recognises your iPod as unknown
device.
- your iPod is exceptionally low on power.
t
The battery needs to be charged.
t
If you charge the battery while iPod is
extremely low in power, it maytake longer
to charge.
You may use the dock adapter which should
be supplied with your iPod to the dock for the
stable use of the iPod. If you need an adapter,
consult your iPod dealer.
Compatibility with your iPod may vary
depending on the type of your iPod.
iPod touch and iPhone have any di erence in
operation other than iPod. You may need any
additional control to use them with this unit.
(e.g. “slide to unlock”)
If you use an application, make a call, or send
and receive SMS text message, etc. on iPod
touch or iPhone, disconnect it from iPod dock of
this unit and then use it.
Depending on your iPod’s software version, it
may not be possible to control your iPod from
this unit. We recommend installing the latest
software version.
The video quality depends on the video sources
on your iPod.
If you have a problem with your iPod, please visit
www.apple.com/support/ipod.
•
•
•
•
•
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 57HB905PA-DH.BGBRLL_ENG_3594.indd 57 2010.1.30 4:30:12 PM2010.1.30 4:30:12 PM
58
Operation
Operation
4
Radio Operations
Be sure that the antenna is connected.
(Refer to the page 23)
Listening to the radio
1. Press RADIO&INPUT until TUNER (FM)
appears in the display window. The last
received station is tuned in.
2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication
starts to change. Scanning stops when the
unit tunes in a station. Or Press TUNING (-/+)
repeatedly.
3. Adjust the volume by rotating VOLUME on
the front panel or by pressing VOL (+/- ) on
the remote control.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned
down the volume.
1. Press RADIO&INPUT until the TUNER (FM)
appears in the display window.
2. Select the desired frequency by using
TUNING (-/+).
3. Press ENTER (
) a preset number will ash
in the display window.
4. Press PRESET (-/+) to select the preset
number you want.
5. Press ENTER (
). The station is stored.
6. Repeat the steps 2 to 5 to store other
stations.
Deleting all the saved stations
Press and hold CLEAR for two seconds.
“ERASE ALL” will ash up. Then all the saved
stations are deleted.
Improving poor FM reception
Press B (blue) (MONO/STEREO) coloured
button on the remote control. This will change
the tuner from stereo to mono and usually
improve the reception.
See information about a radio
station
The FM tuner is supplied with the RDS (Radio
Data System) facility. This shows information
about the radio station being listened to. Press
RDS repeatedly to cycle through the various
data types:
PS (Programme Service Name)
The name of the channel will
appear in the display
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or
News) will appear in the display.
RT (Radio Text)
A text message contains special
information from the broadcast
station. This text may scroll across
the display.
CT (Time controlled by the channel)
This shows the time and date as
broadcast by the station.
HB905PA-DH.BGBRLL_ENG_3594.indd 58HB905PA-DH.BGBRLL_ENG_3594.indd 58 2010.1.30 4:30:13 PM2010.1.30 4:30:13 PM
59
Operation
4
Operation
Playing content via
your home network
The play can browse and play content on
your PC and DLNA certi ed media servers
connected on your home network.
About DLNA
This Player is a DLNA Certi ed digital media
player that can display and play movie,
photo and music content from your DLNA-
compatible digital media server (PC and
Consumer Electronics).
The Digital Living Network Alliance (DLNA)
is a cross-industry organization of consumer
electronics, computing industry and mobile
device companies. Digital Living provides
consumers with easy sharing of digital media
through a network in the home.
The DLNA certi cation logo makes it easy
to nd products that comply with the DLNA
Interoperability Guidelines. This unit complies
with DLNA Interoperability Guidelines v1.5.
When a PC running DLNA server software or
other DLNA compatible device is connected to
this player, some setting changes of software
or other devices may be required. Please refer
to the operating instructions for the software
or device for more information.
Accessing a DLNA media
server
1. Check the network connection and settings
(pages 26-28).
2. Press HOME (
).
3. Select [Home Link] using
I
/
i
, and press
ENTER (
).
4. Select a DLNA media server from the list
using
U
/
u
, and press ENTER ( ).
If you want to rescan available media server,
press the green (G) coloured button.
NOTE
Depending on the media server, this player may
needs to get permission from the server.
5. Select a le using
U
/
u
/
I
/
i
, and press
ENTER ( ) to play the le.
HB905PA-DH.BGBRLL_ENG_3594.indd 59HB905PA-DH.BGBRLL_ENG_3594.indd 59 2010.1.30 4:30:13 PM2010.1.30 4:30:13 PM
60 Operation
Operation
4
NOTE
The le requirements are described on page 11.
You can use various playback functions. Refer to
pages 38-46.
Because the compatibility and available playback
functions on the [
Home Link] menu are tested
on the bundle DLNA server (Nero MediaHome
4 Essentials) environment, le requirements and
playback functions on the [Home Link] menu
may di er depending on media servers.
The le requirements on page 11 are not always
compatible. There may have some restrictions
by le features and media server’s ability.
The thumbnail of the unplayable les can be
displayed in the [Home Link] menu, but those
cannot be played on this player.
If there is an unplayable music le in the [Home
Link] menu, the player skip the le and play the
next le.
Playing a movie subtitle
les are only available
on DLNA media server created by supplied Nero
MediaHome 4 Essentials software on this player
package.
The subtitle le name and movie le name have
to be the same and located at the same folder.
The playback and operating quality of the
[Home Link] function may be a ected by your
home network condition.
The les from removable media such as USB
drive, DVD-drive etc. on your media server may
not be shared properly.
•
•
•
•
•
•
•
•
•
•
About Nero MediaHome 4
Essentials
Nero MediaHome 4 Essentials is a software for
sharing movie, music and photo les stored
on your computer to this player as a DLNA-
compatiable digital media server.
NOTE
The Nero MediaHome 4 Essentials CD-ROM is
designed for PCs and should not be inserted in
this player or in any product other than a PC.
The supplied Nero MediaHome 4 Essenti
als CD-
ROM is a customized software edition only for
sharing les and folders to this player.
The supplied Nero MediaHome 4 Essentials
software does not support following functions:
Transcoding, Remote UI, TV control, Internet
services and Apple iTunes
This manual explains operations with the
English version of Nero MediaHome 4 Essentials
as examples. Follow the explanation referring to
the actual operations of your language version.
•
•
•
•
Installing Nero MediaHome 4
Essentials
Before you install Nero MediaHome 4
Essentials, check the system requirement
shown below.
Windows® XP (Service Pack 2 or higher),
Windows Vista® (no Service Pack required),
Windows® XP Media Centre Edition 2005
(Service Pack 2 or higher), Windows Server®
2003
Windows Vista® 64-bit edition (application
runs in 32-bit mode)
Hard drive space: 200 MB hard drive space
for a typical installation of Nero MediaHome
stand-alone
1.2 GHz Intel® Pentium® III or AMD
Sempron™ 2200+ processors
Memory: 256 MB RAM
•
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 60HB905PA-DH.BGBRLL_ENG_3594.indd 60 2010.1.30 4:30:14 PM2010.1.30 4:30:14 PM
61Operation
4
Operation
Graphics card with at least 32 MB video
memory, minimum resolution of 800 x 600
pixels, and 16-bit colour settings
Windows® Internet Explorer® 6.0 or higher
DirectX® 9.0c revision 30 (August 2006) or
higher
Network environment: 100 Mb Ethernet,
WLAN (IEEE 802.11b/g/n)
Start up your computer, and insert the Nero
MediaHome 4 Essentials CD-ROM into your
computer’s CD-ROM drive. An installation
wizard will walk you through the quick and
uncomplicated installation process. To install
Nero MediaHome 4 Essentials, proceed as
follows:
1. Close all Microsoft Windows programmes
and exit any anti-virus software that may be
running.
2. Insert the Nero MediaHome 4 Essentials
CD-ROM into your computer’s CD-ROM
drive.
3. Click [Nero MediaHome 4 Essentials]. The
installation is prepared and the installation
wizard appears.
4. Click the [Next] button to display the serial
number input screen. Click [Next] to go to
the next step.
5. If you accept all conditions, click [I accept
the Licence Conditions] check box and click
[Next]. Installation is not possible without
this agreement.
6. Click [Typical] and click [Next]. The
installation process is started.
7. If you want to take part in the anonymous
collection of data, select the check box and
click the [Next] button.
8. Click the [Exit] button to complete the
installation.
•
•
•
•
Sharing fi les and folders
On your computer, you must share the folder
contained movie, music and/or photo content
to play them using [Home Link] features.
This parts explains the procedure for selecting
the shared folders on your computer.
1. Double-click the “Nero MediaHome 4
Essentials” icon on the desktop.
2. Click [Network] icon on the left and de ne
your network name in the [Network name]
eld. The Network name you enter will be
recognised by your player.
3. Click [Shares] icon on the left.
4. Click [Local Folders] tab on the [Shares]
screen.
5. Click [Add] icon to open the [Browse Folder]
window.
6. Select the folder containing the les you
want to share. The selected folder is added
to the list of shared folders.
7. Click [Start Server] icon to start the server.
NOTE
If the shared folders or les are not displayed on
the player, click the folder on the [Local Folders]
tab and click [Rescan Folder] at the [More]
button.
Visit www.nero.com for more information and
software tools.
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 61HB905PA-DH.BGBRLL_ENG_3594.indd 61 2010.1.30 4:30:14 PM2010.1.30 4:30:14 PM
62 Operation
Operation
4
Accessing a share folder from
your PC
1. Start your PC that connected on your local
area network.
2. On your PC, share folders which contain
movie, photo or music les.
3. On the player, check the network
connection and settings (pages 26-28).
4. Press HOME (
).
5. Select [Home Link] using
I
/
i
, and press
ENTER (
).
6. Select a share folder from the list using
U
/
u
,
and press ENTER ( ).
If you want to rescan available media
servers, press the green(G) coloured button.
NOTE
Depending on the share folder, this player may
need to input network user ID and password for
accessing the folder.
7. Select a le using
U
/
u
/
I
/
i
, and press
ENTER ( ) to play the le.
NOTE
The le requirements are described on page 11.
You can use various playback functions. Refer to
pages 38-46.
The thumbnail of the unplayable les can be
displayed in the [Home Link] menu, but those
cannot be played on this player.
If there is an unplayable music le in the [Home
Link] menu, the player skips the le and play
next le.
The subtitle le name and movie le name have
to be the same and located at the same folder.
The playback and operating quality of the
[Home Link] function may be a ected by your
home network condition.
The les on an removable media such as USB
drive, DVD-drive etc. on your PC may not be
shared properly.
You may experience connection problems
depending on your PC’s environment.
•
•
•
•
•
•
•
•
PC requirements
Windows® XP (Service Pack 2 or higher),
Windows Vista® (no Service Pack required)
Windows 7®
1.2 GHz Intel® Pentium® III or AMD
Sempron™ 2200+ processors
Network environment: 100 Mb Ethernet,
WLAN (IEEE 802.11b/g/n)
NOTE
If you use Windows® XP or Windows Vista®, visit link
below for more information on le share settings.
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 62HB905PA-DH.BGBRLL_ENG_3594.indd 62 2010.1.30 4:30:14 PM2010.1.30 4:30:14 PM
63Operation
4
Operation
Entering a network user ID and the
password
Depending on your PC’s environment, you
may need to enter a network user ID and the
password for accessing a shared folder.
1. The keyboard menu appears automatically
if the network user ID and the password are
required.
2. Use
U
/
u
/
I
/
i
to select a character then
press ENTER ( ) to con rm your selection
on the keyboard menu.
To enter a letter with an accent mark, select
the letter from extended character set.
Example: Select “D” and then press INFO/
DISPLAY ( ) to display the extended
character set. Use
I
/
i
to select “D” or “Ď”
and then press ENTER ( ).
[Clear] – Clear all entered characters.
[Space] – Inserts a space at the cursor
position.
[<–] – Deletes the previous character at the
cursor position.
[ABC / abc / #+-=&] – Change the keyboard
menu settings to capital letters, small letters
or symbols.
3. When you nish entering the network user
ID and password, select [OK] using
U
/
u
/
I
/
i
and press ENTER (
) to access the folder.
The network user ID and password will
be remembered after accssing the folder
for your convenience. If you do not want
the network user ID and password to be
remembered, press red (R) coloured button
to un-tick the [Remember] check box
before accessing the folder.
HB905PA-DH.BGBRLL_ENG_3594.indd 63HB905PA-DH.BGBRLL_ENG_3594.indd 63 2010.1.30 4:30:15 PM2010.1.30 4:30:15 PM
64 Operation
Operation
4
Using NetCast
TM
Entertainment Access
You can use various content services via
Internet with NetCast Entertainment Access
feature.
1. Check the network connection and settings
(pages 26-28).
2. Press HOME ( ).
3. Select the [NetCast] using
I
/
i
, and press
ENTER (
).
4. Select an option using
I
/
i
, and press
ENTER (
).
YouTube
TM
– See pages 64-67
Picasa
TM
Web Albums – See pages 68-70
AccuWeather – See pages 71-72
5. While enjoying on-line content from
NetCast, press blue (B) coloured button to
go to NetCast Home screen.
NOTE
The content of NetCast services and service
related information, including user interface, is
subject to changes. Please refer to the web site
of each service for most up-to-date information.
The background image on the NetCast home
indicates the weather of your favorite city in the
AccuWeather feature.
•
•
YouTube
TM
You can browse, search and watch YouTube
TM
videos over the internet to your TV via your LG
Blu-ray disc player.
Watch YouTube
TM
videos on your TV
1. On the player, select the [YouTube
TM
] option
in the [NetCast] menu using
I
/
i
, and press
ENTER ( ).
2. Press
U
to select the option menu bar.
3. Use
I
/
i
to select an option and press
ENTER (
) to search videos.
4. Use
I
/
i
to select a video and press ENTER
(
) or
N
(play) to play the video.
Button Operation
B
or ENTER
Starts playback the video with
content detail.
INFO/
DISPLAY
Toggle between playback in
full screen and playback screen
with content detail.
X
To pause a video while it is
playing. To resume playing a
paused video, press
B
again.
x
Stops the video and displays
related videos list.
.
/
>
Skip the playback forward or
backward .
HB905PA-DH.BGBRLL_ENG_3594.indd 64HB905PA-DH.BGBRLL_ENG_3594.indd 64 2010.1.30 4:30:15 PM2010.1.30 4:30:15 PM
65Operation
4
Operation
About the YouTube
TM
menu
There are various options on the YouTube
TM
menu. Use
U
/
u
/
I
/
i
to select an option
and press ENTER (
) to select the options as
described below.
Featured – The featured videos list will be
displayed.
Recent Videos – The most recently updated
videos list will be displayed.
Most Viewed – The most viewed videos list
will be displayed. The period option appears
at the bottom of the screen.
Top Rated – The best rated videos list from
YouTube
TM
server will be displayed. The period
option appears at the bottom of the screen.
Search – The virtual keyboard will be
displayed. See “Searching videos” on page 67
for more detail.
History – The videos list that you previously
played on this unit will be displayed.
Maximum of 25 videos can be stored.
Favorites – This option will be appeared only
when the unit is in sign-in status. Displays the
videos list that is arranged in the YouTube
TM
server with your account. Some videos may
not appear on the [Favorites] list, even if the
videos are arranged in the server.
Sign in (Sign Out) – Displays the virtual
keyboard to sign in or returns to the sign-out
status.
See “Sign in with your YouTube
TM
account” on
page 67 for more details.
Local site – Choose which country’s videos
you would like to view. The countries listed on
the [Local Site] menu may di erent with those
listed on the YouTube
TM
web site.
NOTE
The YouTube
TM
menu can display 5 videos in the
videos list. Press green (G) or yellow (Y) buttons
to display previous/next 5 videos.
If you select the [Most Viewed] or [Top Rated]
option in the YouTube
TM
menu, the period
options appear at the bottom of the screen. Use
U
/
u
/
I
/
i
to select a period option and press
ENTER (
) to display the videos list within the
selected period.
The videos list searched from the player may
di er with the list searched from a web browser
on PC.
The playback of YouTube videos may be paused,
stopped or bu ering occurring often depending
on your broadband speed.
We recommend a minimum connection speed
of 1.5 Mbps. For the best playback condition, a
connection speed of 4.0 Mbps is required.
Sometimes your broadband speed varies based
on your ISP’s network conditions.
Contact your ISP if you have problems
maintaining a fast connection that is reliable, or
if you want to increase your connection speed.
Many ISPs o er a variety of broadband speed
options.
•
•
•
•
HB905PA-DH.BGBRLL_ENG_3594.indd 65HB905PA-DH.BGBRLL_ENG_3594.indd 65 2010.1.30 4:30:16 PM2010.1.30 4:30:16 PM
66 Operation
Operation
4
Using the virtual keyboard
On the virtual keyboard, there are two input
mode for the entering a character. Press the
yellow (Y) coloured button to toggle display
between keyboard mode and keypad mode.
Keyboard Mode
Use
U
/
u
/
I
/
i
to select a letter on the screen,
and press ENTER ( ) to con rm your selection.
[Cancel] – Return to the previous screen.
[Space] – Inserts a space at the cursor
position.
[Backspace] – Deletes the previous character
at the cursor position.
[ABC / abc / #+-=&] – Changes the virtual
keyboard settings to capital letters, small
letters or symbols.
Press CLEAR to clear all entered characters.
To enter a letter with an accent mark:
1. Select a letter using
U
/
u
/
I
/
i
on the virtual
key board.
2. Press INFO/DISPLAY (
) to display the
extended character set.
3. Use
I
/
i
to select a character then press
ENTER (
).
Available languages to enter on the keyboard
mode are as follows: English, Spanish, Italian,
French, German, Dutch, Portuguese, Swedish,
Polish and Czech.
Keypad Mode
This mode allows you to enter letters by
pressing the buttons on the remote control.
Press the buttons with the required letter once,
twice, three or four times until the letter is
displayed.
Button Operation
CLEAR Deletes the previous character
at the cursor position.
REPEAT Inserts a space at the cursor
position.
m
/
M
Change the character set of
the remote control (#+-=&,
123, ABC or abc)
NOTE
The keypad mode is available only in the
[YouTube
TM
] and [Picasa
TM
Web Albums] features.
HB905PA-DH.BGBRLL_ENG_3594.indd 66HB905PA-DH.BGBRLL_ENG_3594.indd 66 2010.1.30 4:30:16 PM2010.1.30 4:30:16 PM
