Samsung WW90M645OPM/EU WW6800 QuickDrive™ Washing Machine with AddWash™

User Manual - Transcript

• Page 1: Washing Machine User manual WW90M6 WW80M6 WW90M645OPWDC6803863V03ENindd 1 2018328 160254
• Page 2 - English - : 2 English Contents Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 Important safety precautions 5 Critical installation warnings 6 Installation cautions 8 Critical usage warnings 8 Usage cautions 10 Critical cleaning warnings 13 Instructions about the WEEE 14 Installation 15 Whats included 15 Installation requirements 17 Stepbystep installation 19 Before you start 27 Initial settings 27 Laundry guidelines 27 Detergent drawer guidelines 30 Operations 33 Control panel 33 Simple steps to start 35 Cycle overview 36 Special features 39 Settings 41 SmartThings 42 WW90M645OPWDC6803863V03ENindd 2 2018328 160254
• Page 3 - English - : English 3 Contents Maintenance 47 Eco drum clean Smart Check Emergency drain 49 Cleaning 50 Recovery from freezing 54 Care against an extended time of disuse 54 Troubleshooting 55 Checkpoints 55 Information codes 59 Specications 63 Fabric care chart 63 Protecting the environment 64 Specication sheet 65 Information of main washing cycles 68 WW90M645OPWDC6803863V03ENindd 3 2018328 160255
• Page 4 - English - : 4 English Safety information Safety information Congratulations on your new Samsung washing machine This manual contains important information on the installation use and care of your appliance Please take some time to read this manual to take full advantage of your washing machines many benets and features What you need to know about the safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance Please store the manual in a safe location close to the appliance for future reference Use this appliance only for its intended purpose as described in this instruction manual Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your washing machine Because the following operating instructions cover various models the characteristics of your washing machine may differ slightly from those described in this manual and not all warning signs may be applicable If you have any questions or concerns contact your nearest service centre or nd help and information online at wwwsamsungcom Important safety symbols What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury death andor property damage CAUTION Hazards or unsafe practices that may result in personal injury andor property damage NOTE Indicates that a risk of personal injury or material damage exists WW90M645OPWDC6803863V03ENindd 4 2018328 160255
• Page 5 - English - : English 5 Safety information These warning signs are here to prevent injury to yourself and others Please follow them explicitly After reading this manual store it in a safe place for future reference Read all instructions before using the appliance As with any equipment that uses electricity and moving parts potential hazards exist To safely operate this appliance familiarise yourself with its operation and exercise care when using it Important safety precautions WARNING To reduce the risk of re electric shock or injury to persons when using your appliance follow basic precautions including the following 1 This appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety 2 For use in Europe This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision 3 Children should be supervised to ensure that they do not play with the appliance 4 If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualied persons in order to avoid a hazard WW90M645OPWDC6803863V03ENindd 5 2018328 160255
• Page 6 - English - : 6 English Safety information Safety information 5 The new hosesets supplied with the appliance are to be used and old hosesets should not be reused 6 For appliances with ventilation openings in the base a carpet must not obstruct the openings 7 For use in Europe Children of less than 3 years should be kept away unless continuously supervised 8 CAUTION In order to avoid a hazard due to inadvertent resetting of the thermal cutout this appliance must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility Critical installation warnings WARNING The installation of this appliance must be performed by a qualied technician or service company Failure to do so may result in electric shock re an explosion problems with the product or injury The appliance is heavy therefore take care when lifting it Plug the power cord into a wall socket that meets local electrical specications Use the socket for this appliance only and do not use an extension cord Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re Ensure that the power voltage frequency and current are the same as those of the product specications Failure to do so may result in electric shock or re Plug the power plug into the wall socket rmly Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failure to do so may result in electric shock or re Plug the power plug into the wall socket so that the cord is running towards the oor If you plug the power plug into the socket in the opposite direction the electric wires within the cable may be damaged and this may result in electric shock or re WW90M645OPWDC6803863V03ENindd 6 2018328 160255
• Page 7 - English - : English 7 Safety information Keep all packaging materials out of the reach of children as these may be dangerous If a child places a bag over its head it may suffocate When the appliance power plug or power cord is damaged contact your nearest service centre This appliance must be properly grounded Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock re an explosion or problems with the product Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national regulations Do not install this appliance near a heater or any inammable material Do not install this appliance in a humid oily or dusty location or in a location exposed to direct sunlight or water rain drops Do not install this appliance in a location exposed to low temperatures Frost may cause the tubes to burst Do not install this appliance in a location where gas may leak This may result in electric shock or re Do not use an electric transformer This may result in electric shock or re Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or re Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance This may result in electric shock or re Do not pull the power cord when unplugging the power plug Unplug the power plug by holding the plug Failure to do so may result in electric shock or re This appliance should be positioned so that the power plug the water supply taps and the drain pipes are accessible WW90M645OPWDC6803863V03ENindd 7 2018328 160255
• Page 8 - English - : 8 English Safety information Safety information Installation cautions CAUTION This appliance should be positioned in such a way that the power plug is easily accessible Failure to do so may result in electric shock or re due to electric leakage Install your appliance on a solid level oor that can support its weight Failure to do so may result in abnormal vibrations movement noise or problems with the product Critical usage warnings WARNING If the appliance is ooded turn off the water amp power supplies immediately and contact your nearest service centre Do not touch the power plug with wet hands Failure to do so may result in electric shock If the appliance generates a strange noise a burning smell or smoke unplug the power plug immediately and contact your nearest service centre Failure to do so may result in electric shock or re In the event of a gas leak such as propane gas LP gas etc ventilate immediately without touching the power plug Do not touch the appliance or power cord Do not use a ventilating fan A spark may result in an explosion or re Do not let children play in or on the washing machine In addition when disposing of the appliance remove the washing machine door lever If trapped inside the product children may suffocate to death Make sure to remove the packaging sponge styrofoam attached to the bottom of the washing machine before using it Do not wash items contaminated with gasoline kerosene benzene paint thinner alcohol or other inammable or explosive substances This may result in electric shock re or an explosion WW90M645OPWDC6803863V03ENindd 8 2018328 160255
• Page 9 - English - : English 9 Safety information Do not open the washing machine door by force while it is operating hightemperature washingdryingspinning Water owing out of the washing machine may result in burns or cause the oor to be slippery This may result in injury Opening the door by force may result in damage to the product or injury Do not insert your hand under the washing machine while an operation is in progress This may result in injury Do not touch the power plug with wet hands This may result in electric shock Do not turn the appliance off by unplugging the power plug while an operation is in progress Plugging the power plug into the wall socket again may cause a spark and result in electric shock or re Do not let children or the inrm use this washing machine without proper supervision Do not let children climb in or onto the appliance This may result in electric shock burns or injury Do not insert your hand or a metal object under the washing machine while it is operating This may result in injury Do not unplug the appliance by pulling the power cord Always grip the plug rmly and pull it straight out of the outlet Damage to the power cord may cause a shortcircuit re andor electric shock Do not attempt to repair disassemble or modify the appliance yourself Do not use a fuse such as copper steel wire etc other than a standard fuse When the appliance needs to be repaired or reinstalled contact your nearest service centre Failure to do so may result in electric shock re problems with the product or injury If the water supply hose comes loose from the water tap and oods the appliance unplug the power plug Failure to do so may result in electric shock or re Unplug the power plug when the appliance is not being used for long periods of time or during a thunder or lightning storm Failure to do so may result in electric shock or re If any foreign substance enters into the appliance unplug the power plug and contact you nearest Samsung Customer Service This may result in electric shock or re Do not let children or pets play in or on your washing machine The washing machine door does not open easily from the inside and children may be seriously injured if trapped inside WW90M645OPWDC6803863V03ENindd 9 2018328 160256
• Page 10 - English - : 10 English Safety information Safety information Usage cautions CAUTION When the washing machine is contaminated by a foreign substance such as detergent dirt food waste etc unplug the power plug and clean the washing machine using a damp soft cloth Failure to do so may result in discolouration deformation damage or rust The front glass may be broken by a strong impact Take care when using the washing machine If the glass is broken it may result in injury After a water supply failure or when reconnecting the water supply hose open the water tap slowly Open the water tap slowly after a long period of nonuse The air pressure in the water supply hose or the water pipe may damage a product part or result in a water leak If a draining error occurs during an operation check if there is a draining problem If the washing machine is used when it is ooded because of a draining problem it may result in electric shock or re Insert the laundry into the washing machine completely so that the laundry does not get caught in the door If laundry gets caught in the door it may result in damage to the laundry or the washing machine or result in a water leak Turn the water supply off when the washing machine is not being used Ensure that the screws on the water supply hose connector are properly tightened Failure to do so may result in property damage or injury Ensure that the rubber seal and front door glass are not contaminated by a foreign substance eg waste thread hair etc If a foreign substance is caught in the door or the door is not completely closed it may cause a water leak Open the water tap and check if the water supply hose connector is rmly tightened and that there is no water leak before using the product If the screws on the water supply hose connector are loose it may result in a water leak The product you have purchased is designed for domestic use only WW90M645OPWDC6803863V03ENindd 10 2018328 160256
• Page 11 - English - : English 11 Safety information Using the product for business purposes qualies as a product misuse In this case the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse Do not stand on the appliance or place objects such as laundry lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance This may result in electric shock re problems with the product or injury Do not spray volatile material such as insecticide onto the surface of the appliance As well as being harmful to humans this may result in electric shock re or problems with the product Do not place objects that generate electromagnetic elds near the washing machine This may result in injury due to a malfunction Water drained during a hightemperature wash or drying cycle is hot Do not touch the water This may result in burns or injury If the water temperatue is high before drain it take time until the temperature goes down and it can be different depending on internal temperature Do not wash spin or dry waterproof seats mats or clothing unless your appliance has a special cycle for washing these items Woollen bedding rain covers shing vests ski pants sleeping bags diaper covers sweat suits and bicycle motor cycle and car covers etc Do not wash thick or hard mats even if the washing machine mark is on the care label This may result in injury or damage to the washing machine walls oor or clothing due to abnormal vibrations Do not wash throw rugs or doormats with rubber backing The rubber backing may come off and stick to inside the drum and this may result in malfunction such as a drainage error Do not operate the washing machine when the detergent drawer is removed This may result in electric shock or injury due to a water leak Do not touch the insides of the drum during or just after drying as it is hot This may result in burns Do not insert your hand into the detergent drawer This may result in injury as your hand may be caught by the detergent input device The liquid detergent guide applicable models only is not used for powder detergent Remove the guide when using powder detergent WW90M645OPWDC6803863V03ENindd 11 2018328 160256
• Page 12 - English - : 12 English Safety information Safety information Do not place any objects such as shoes food waste animals other than laundry into the washing machine This may result in damage to the washing machine or injury and death in the case of pets due to the abnormal vibrations Do not press the buttons using sharp objects such as pins knifes ngernails etc This may result in electric shock or injury Do not wash laundry contaminated by oils creams or lotions usually found in skincare shops or massage clinics This may cause the rubber seal to become deformed and result in a water leak Do not leave metal objects such as safety pins hair pins or bleach in the drum for long periods of time This may cause the drum to rust If rust starts appearing on the surface of the drum apply a neutral cleansing agent to the surface and use a sponge to clean it Never use a metal brush Do not use dry cleaning detergent directly and do not wash rinse or spin laundry contaminated by dry cleaning detergent This may result in spontaneous combustion or ignition due to the heat from the oxidation of the oil Do not use water from water coolingheating devices This may result in problems with the washing machine Do not use natural handwashing soap for the washing machine If it hardens and accumulates inside the washing machine it may result in problems with the product discolouration rust or bad odours Place socks and brassieres in a washing net and wash them with the other laundry Do not wash large laundry items such as bedding in the washing net Failure to do so may result in injury due to abnormal vibrations Do not use hardened detergent If it accumulates inside the washing machine it may result in a water leak Make sure that the pockets of all the clothing items to be washed are empty Hard sharp objects such as coins safety pins nails screws or stones can cause extensive damage to the appliance Do not wash clothing with large buckles buttons or other heavy metal objects Sort the laundry by colour on the basis of its colorfastness and select the recommended cycle water temperature and additional functions This may result in discolouration or fabric damage WW90M645OPWDC6803863V03ENindd 12 2018328 160256
• Page 13 - English - : English 13 Safety information Take care that childrens ngers are not caught in the door when you close it Failure to do so may result in injury Critical cleaning warnings WARNING Do not clean the appliance by spraying water directly onto it Do not use the a strong acidic cleaning agent Do not use benzene thinner or alcohol to clean the appliance This may result in discolouration deformation damage electric shock or re Before cleaning or performing maintenance unplug the appliance from the wall socket Failure to do so may result in electric shock or re WW90M645OPWDC6803863V03ENindd 13 2018328 160256
• Page 14 - English - : 14 English Safety information Safety information Instructions about the WEEE Correct Disposal of This Product Waste Electrical amp Electronic Equipment Applicable in countries with separate collection systems This marking on the product accessories or literature indicates that the product and its electronic accessories eg charger headset USB cable should not be disposed of with other household waste at the end of their working life To prevent possible harm to the environment or human health from uncontrolled waste disposal please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources Household users should contact either the retailer where they purchased this product or their local government ofce for details of where and how they can take these items for environmentally safe recycling Business users should contact their supplier and check the terms and conditions of the purchase contract This product and its electronic accessories should not be mixed with other commercial wastes for disposal For information on Samsungs environmental commitments and product speci regulatory obligations eg REACH visit samsungcomukaboutsamsungsamsungelectronics corporatecitizenshipdatacornerhtml WW90M645OPWDC6803863V03ENindd 14 2018328 160256
• Page 15 - English - : English 15 Installation Installation Follow these instructions carefully to ensure proper installation of the washing machine and to prevent accidents when doing laundry Whats included Make sure all the parts are included in the product package If you have a problem with the washing machine or the parts contact a local Samsung customer centre or the retailer 01 Release lever 02 Detergent drawer 03 Control panel 04 Door 05 Drum 06 Pump lter 07 Emergency drain tube 08 Filter cover 09 Worktop 10 Power plug 11 Drain hose 12 Levelling feet WW90M645OPWDC6803863V03ENindd 15 2018328 160257
• Page 16 - English - : 16 English Installation Installation Spanner Bolt caps Hose guide Cold water hose Hot water hose Liquid detergent guide Cap Fixer NOTE Bolt caps The provided number 3 to 6 of bolt caps depends on the model Hot water hose Applicable models only Liquid detergent guide Applicable models only WW90M645OPWDC6803863V03ENindd 16 2018328 160259
• Page 17 - English - : English 17 Installation Installation requirements Electrical supply and grounding AC 220240 V 50 Hz fuse or circuit breaker is required Use an individual branch circuit specic to the washing machine To ensure proper grounding the washing machine comes with a power cord featuring a threeprong grounding plug for use in a properly installed and grounded outlet Check with a qualied electrician or serviceperson if you are not sure about the grounding Do not modify the provided plug If it does not t the outlet call a qualied electrician to install a proper outlet WARNING Do NOT use an extension cord Use only the power cord that comes with the washing machine Do NOT connect the ground wire to plastic plumbing gas lines or hot water pipes Improperly connected grounding conductors may cause electric shock Water supply A proper water pressure for this washing machine is between 50 kPa and 800 kPa Water pressure less than 50 kPa may cause the water valve not to close completely Or it may take longer to ll the drum causing the washing machine to turn off Water taps must be within 120 cm from the rear of the washing machine so that the provided inlet hoses reach the washing machine To reduce the risk of leaks Make sure water taps are easily accessible Turn off the taps when the washing machine is not in use Check for any leaks at the water inlet hose ttings on a regular basis CAUTION Before using the washing machine for the rst time check all connections at the water valve and taps for any leaks Drain Samsung recommends a standpipe in height of 6090 cm The drain hose must be connected through the hose clip to the standpipe and the standpipe must fully cover the drain hose WW90M645OPWDC6803863V03ENindd 17 2018328 160259
• Page 18 - English - : 18 English Installation Installation Flooring For best performance the washing machine must be installed on a solid oor Wood oors may need to be reinforced to minimize vibration andor unbalanced loads Carpeting and soft tile surfaces are not a good resistance to vibrations and may cause the washing machine to move slightly during the spin cycle CAUTION Do NOT install the washing machine on a platform or a poorly supported structure Water temperature Do not install the washing machine in areas where water may freeze as the washing machine always retains some water in its water valves pumps andor hoses Frozen water left in the connection parts may cause damage to belts the pump and other components of the washing machine Alcove or closet installation Minimum clearance for stable operation Sides 25 mm Top 25 mm Rear 50 mm Front 550 mm If both the washing machine and a dryer are installed in the same location the front of the alcove or closet must have at least a 550 mm unobstructed air opening Your washing machine alone does not require a specic air opening WW90M645OPWDC6803863V03ENindd 18 2018328 160259
• Page 19 - English - : English 19 Installation Stepbystep installation STEP 1 Select a location Location requirements Solid level surface without carpeting or ooring that may obstruct ventilation Away from direct sunlight Adequate room for ventilation and wiring The ambient temperature is always higher than the freezing point 0 C Away from a heat source STEP 2 Remove the shipping bolts Unpack the product package and remove all shipping bolts 1 Loosen all shipping bolts on the rear of the machine using the supplied spanner 2 Fill the holes with the supplied plastic bolt caps Keep the shipping bolts for future use WW90M645OPWDC6803863V03ENindd 19 2018328 160259

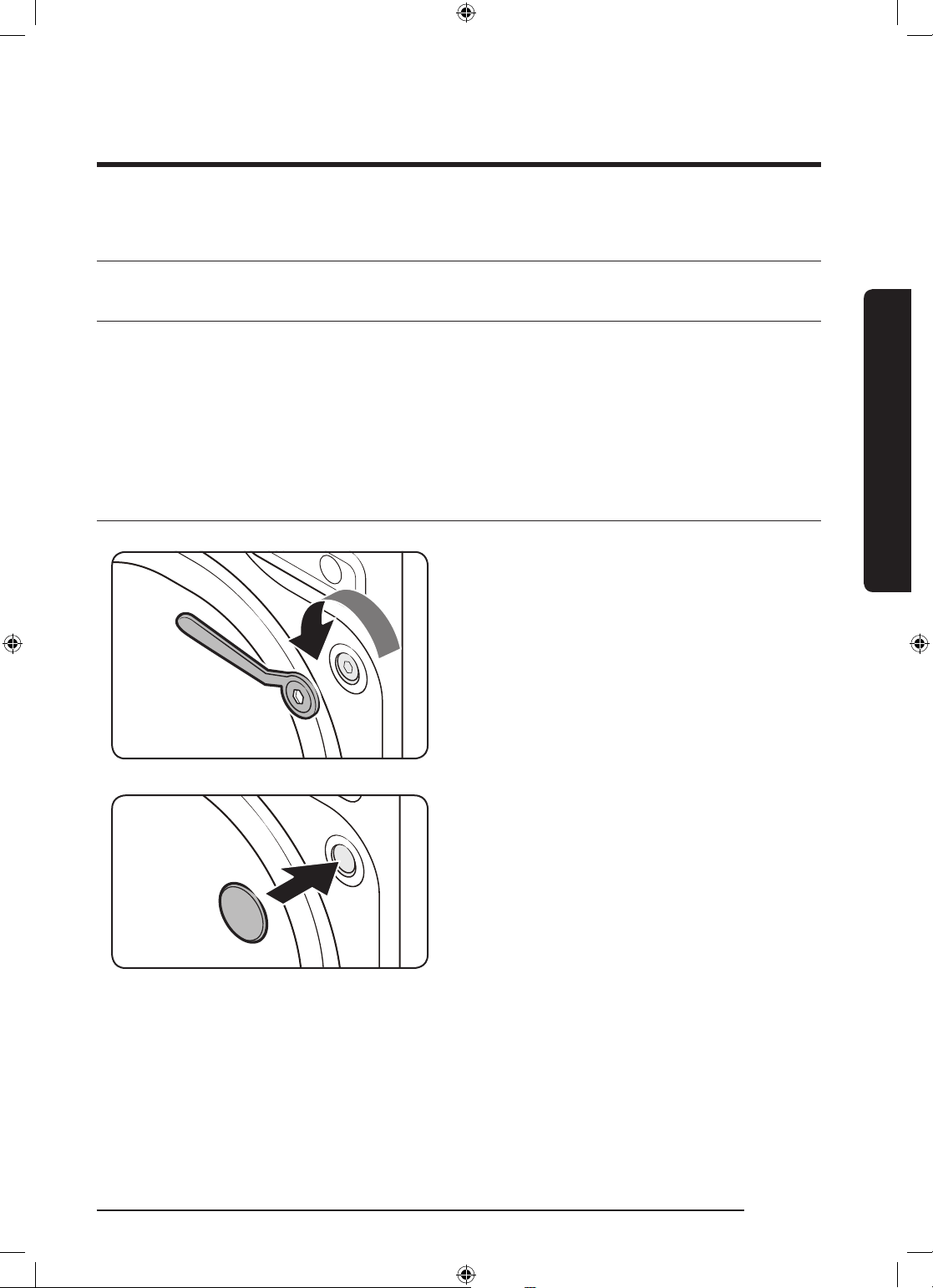

• Page 20 - English - : 20 English Installation Installation A 3 Close all plastic bolt caps on the rear of the washing machine CAUTION Do not remove the screw A that xes the hose clip WARNING Packaging materials can be dangerous to children Dispose all packaging material plastic bags polystyrene etc out of childrens reach WW90M645OPWDC6803863V03ENindd 20 2018328 160300
• Page 21 - English - : English 21 Installation STEP 3 Adjust the levelling feet 1 Gently slide the washing machine into position Excessive force may damage the levelling feet 2 Level the washing machine by manually adjusting the levelling feet 3 When levelling is complete tighten the nuts using the spanner STEP 4 Connect the water hose The provided hose adaptor may differ with the model This step guides you through connecting the connectortype adaptor If you are provided with the screwtype adaptor go to 7 A B Connect the water hose to the water tap 1 Remove the adaptor A from the water hose B 2 Use a Philips screwdriver to loosen four screws on the adaptor WW90M645OPWDC6803863V03ENindd 21 2018328 160301

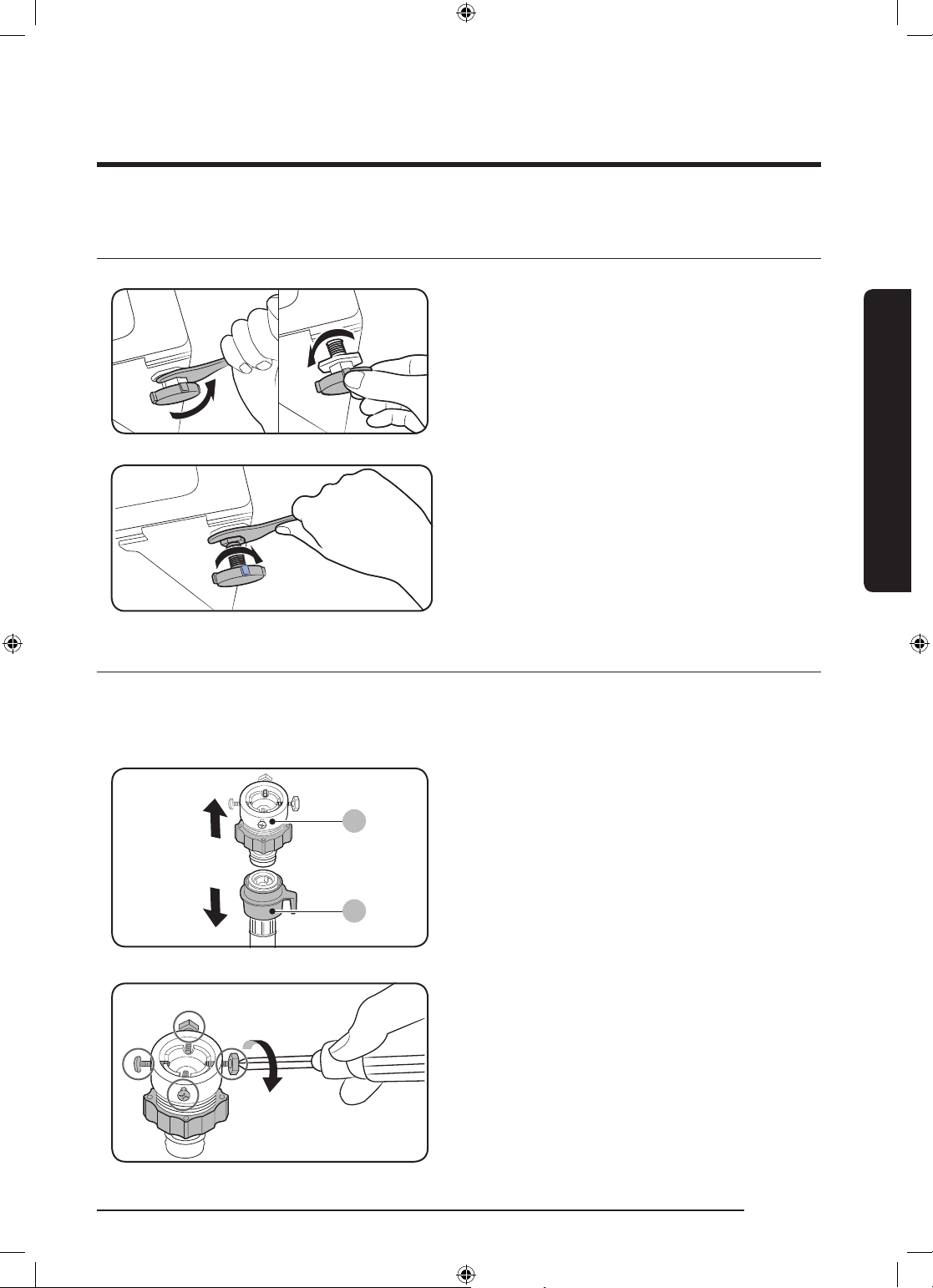

• Page 22 - English - : 22 English Installation Installation C 3 Holde the adaptor and turn part C in the arrow direction to loosen it by 5 mm C 4 Insert the adaptor into the water tap and tighten the screws while lifting up the adaptor 5 Turn part C in the arrow direction to tighten it E 6 While holding down part E connect the water hose to the adaptor Then release part E The hose ts into the adaptor with a clicking sound 7 If you are using a screw type of water tap use the provided screwtype adaptor to connect to the water tap as shown WW90M645OPWDC6803863V03ENindd 22 2018328 160301

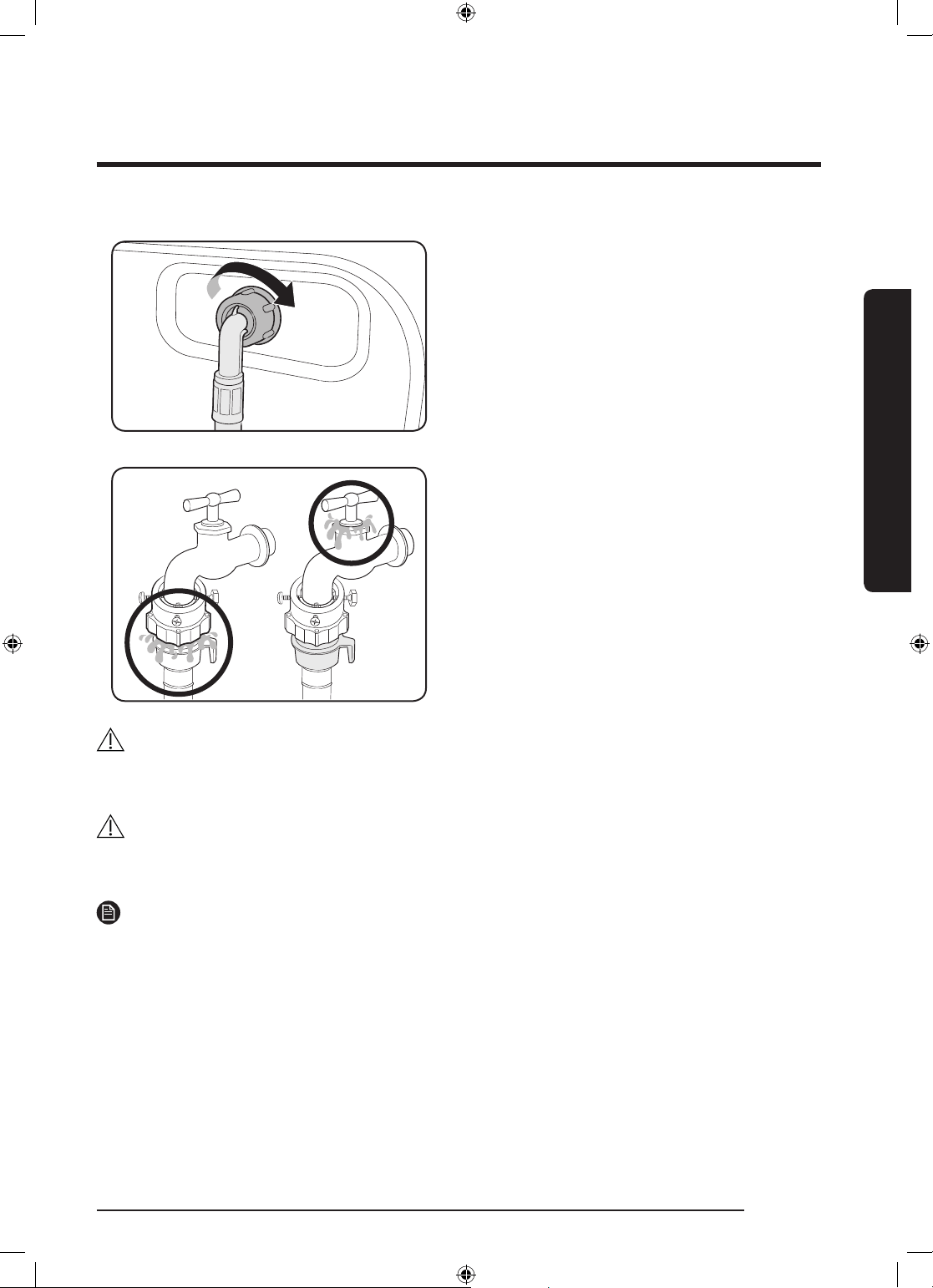

• Page 23 - English - : English 23 Installation 8 Connect the other end of the water hose to the inlet valve on the back of the washing machine Turn the hose clockwise to tighten 9 Open the water tap and check if there are any leaks around the connection areas If there are water leaks repeat the steps above WARNING Stop using the washing machine if there is a water leak and contact a local Samsung service centre Otherwise this may cause electric shock CAUTION Do not stretch the water hose by force If the hose is too short replace the hose with a longer highpressure hose NOTE After connecting the water hose to the adaptor check if it is connected properly by pulling the water hose downwards Use a popular type of water taps If the tap is squareshaped or too big remove the spacer ring before inserting the tap into the adaptor WW90M645OPWDC6803863V03ENindd 23 2018328 160302
• Page 24 - English - : 24 English Installation Installation For models with an additional hot water inlet 1 Connect the red end of the hot water hose to the hot water inlet on the back of the machine 2 Connect the other end of the hot water hose to the hot water tap Aqua hose applicable models only A The aqua hose alerts users of a risk of water leaks It senses the water ow and turns red on the centre indicator A in case of a leak NOTE The end of the aqua stop hose must be tted to the water tap and not the machine WW90M645OPWDC6803863V03ENindd 24 2018328 160303
• Page 25 - English - : English 25 Installation STEP 5 Position the drain hose The drain hose can be positioned in three ways A Over the edge of a wash basin The drain hose must be placed at a height of between 60 cm and 90 cm from the oor To keep the spout of the drain hose bent use the supplied plastic hose guide A Secure the guide to the wall using a hook to ensure stable drainage ln a drain pipe The drain pipe should be between 60 cm and 90 cm high It is advisable to use a 65 cm high vertical pipe Make sure the drain hose is connected to the stand pipe at a slant Drain standpipe requirements Minimum diameter of 5 cm Minimum carryaway capacity of 60 litres per minute WW90M645OPWDC6803863V03ENindd 25 2018328 160303

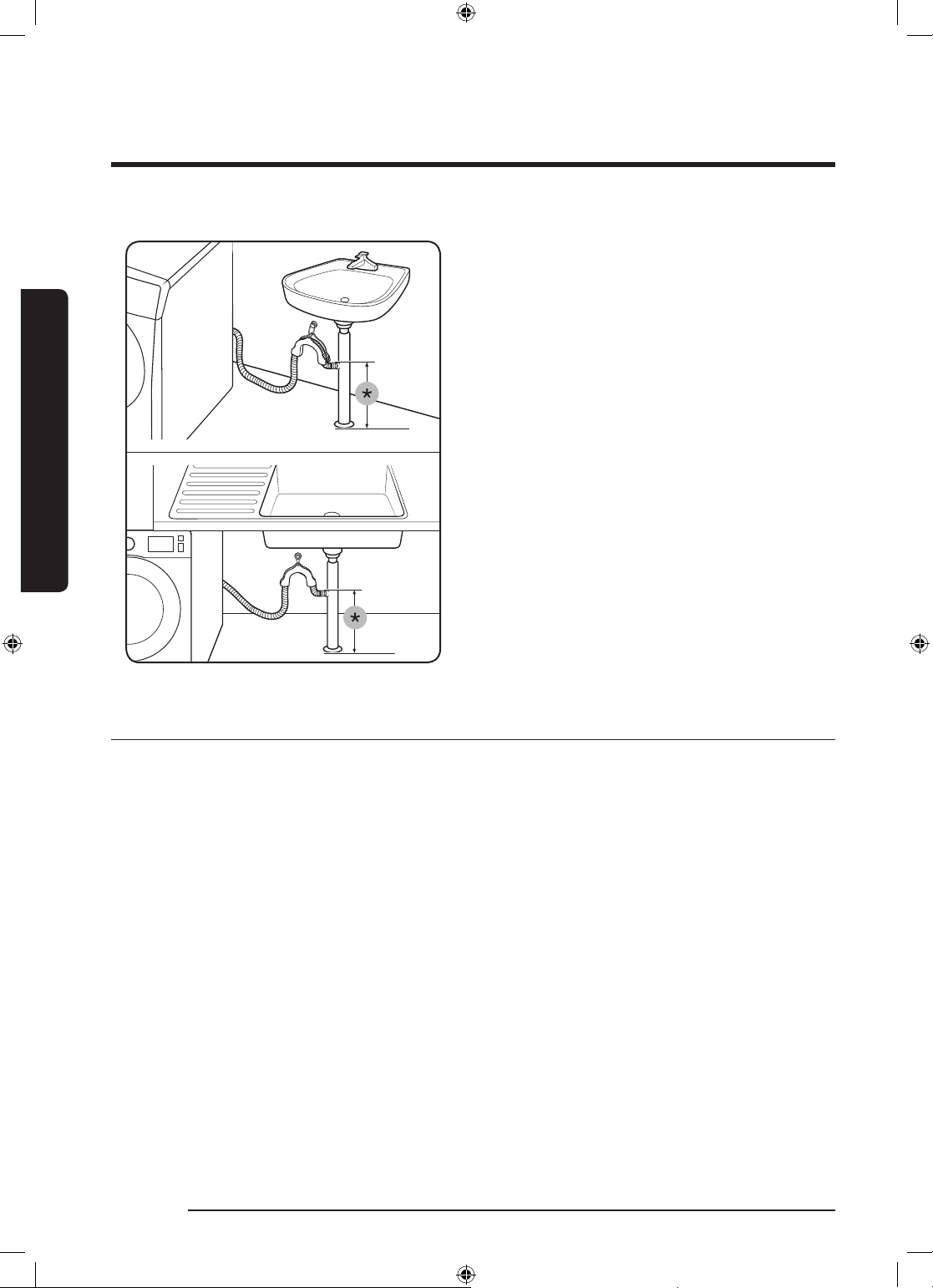

• Page 26 - English - : 26 English Installation Installation In a sink drain pipe branch The drain pipe branch mush be above the sink siphone so that the end of the hose is at least 24 in 60 cm above the ground 24 in 60 cm STEP 6 Power on Plug the power cord into a wall socket featuring an AC 220240 V 50 Hz approved electrical outlet protected by a fuse or circuit breaker Then press Power to turn on the washing machine WW90M645OPWDC6803863V03ENindd 26 2018328 160304
• Page 27 - English - : English 27 Before you start Before you start Initial settings Run Calibration recommended Calibration ensures accurate weight detection by the washing machine Make sure the drum is empty before running Calibration 1 Power off and then power on the washing machine 2 Hold down Temp and Delay End simultaneously for 3 seconds to enter Calibration mode The CB message appears 3 Press StartPause Hold to Start to run the Calibration cycle 4 The drum will rotate clockwise and counterclockwise for about 3 minutes 5 When the cycle is complete 0 appears on the display and the washing machine will turn off automatically The washing machine is now ready for use Laundry guidelines STEP 1 Sort Sort the laundry according to these criteria Care Label Sort the laundry into cottons mixed bres synthetics silks wools and rayon Colour Separate whites from colours Size Mixing differentsized items together in the drum improves the washing performance Sensitivity Wash delicate items separately for pure new woollen items curtains and silk items Check the labels on the items NOTE Make sure to check the care label on the clothing and sort them accordingly before starting the wash WW90M645OPWDC6803863V03ENindd 27 2018328 160304
• Page 28 - English - : 28 English Before you start Before you start STEP 2 Empty pockets Empty all the pockets of your laundry items Metal objects such as coins pins and buckles on clothing may damage other laundry items as well as the drum Turn clothing with buttons and embroideries inside out If pants or jacket zippers are open while washing the drum may be damaged Zippers should be closed and xed with a string Clothing with long strings may become entangled with other clothes Make sure to tie the strings before starting the wash STEP 3 Use a laundry net Brassieres water washable must be placed in a laundry net Metal parts of the brassieres may break through and tear other laundry items Small light clothing such as socks gloves stockings and handkerchiefs may become caught around the door Place them inside a ne laundry net Do not wash the laundry net by itself without other laundry This may cause abnormal vibrations that could move the washing machine and result in injury STEP 4 Prewash if necessary Select the Prewash option for the selected course if the laundry is heavily soiled Do not use the Prewash option when detergent is manually added into the drum or if applying liquid detergent STEP 5 Determine the load capacity Do not overload the washing machine Overloading may cause the washing machine to not wash properly For the load capacity for the type of clothing see page 36 NOTE When washing bedding or bedding covers the wash time may be lengthened or the spin efciency may be reduced For bedding or bedding covers the recommended maximum spin cycle speed is 800 rpm and the load capacity is 20 kg or less CAUTION Unbalanced laundry may reduce the spinning performance Make sure the laundry is fully inserted in the drum and not caught in the door Do not slam the door Close the door gently Otherwise the door may not be closed properly WW90M645OPWDC6803863V03ENindd 28 2018328 160304
• Page 29 - English - : English 29 Before you start STEP 6 Apply a proper detergent type The type of detergent depends on the type of fabric cotton synthetic delicate items wool colour wash temperature and degree of soiling Make sure to use the laundry detergent that is designed for automatic washing machines NOTE Follow the detergent manufacturers recommendations based on the weight of the laundry the degree of soiling and the hardness of the water in your local area If you are not sure about the water hardness contact a local water authority Do not use detergent that tends to be hardened or solidied This detergent may remain after the rinse cycle blocking the drain outlet If too many bubbles occur during a cycle a message of Sud will be displayed CAUTION When washing wool using the WOOL cycle use a detergent dedicated to wool items If used with the WOOL cycle powder detergent may remain on the laundry and discolour the laundry Laundry capsules To get the best results from using laundry capsules please follow these instructions 1 Put the capsule in the bottom of the empty drum towards the rear 2 Put the laundry in the drum on top of the capsule WW90M645OPWDC6803863V03ENindd 29 2018328 160305
• Page 30 - English - : 30 English Before you start Before you start CAUTION For cycles using cold water or cycles that complete in less than one hour the capsule may not dissolve completely Detergent drawer guidelines The washing machine provides a threecompartment dispenser the left compartment for the main wash the centre for fabric softeners and the right for the preliminary wash A 01 Prewash compartment Apply prewash detergent or starch Mainwash compartment Apply mainwash detergent water softener soaking detergent bleach andor stain removers Softener compartment Apply additives such as fabric softener Do not exceed the max line A CAUTION Do not open the detergent drawer while the washing machine is operating Do not use the following types of detergent Tablet or capsule types Ball or net types To prevent the compartment clogging concentrated or highlyenriched agents fabric softener or detergent must be diluted with water before being applied Before moving the washing machine make sure to empty the detergent drawer that might contain detergent andor fabric softener The content in the drawer may spill out on the oor WW90M645OPWDC6803863V03ENindd 30 2018328 160306

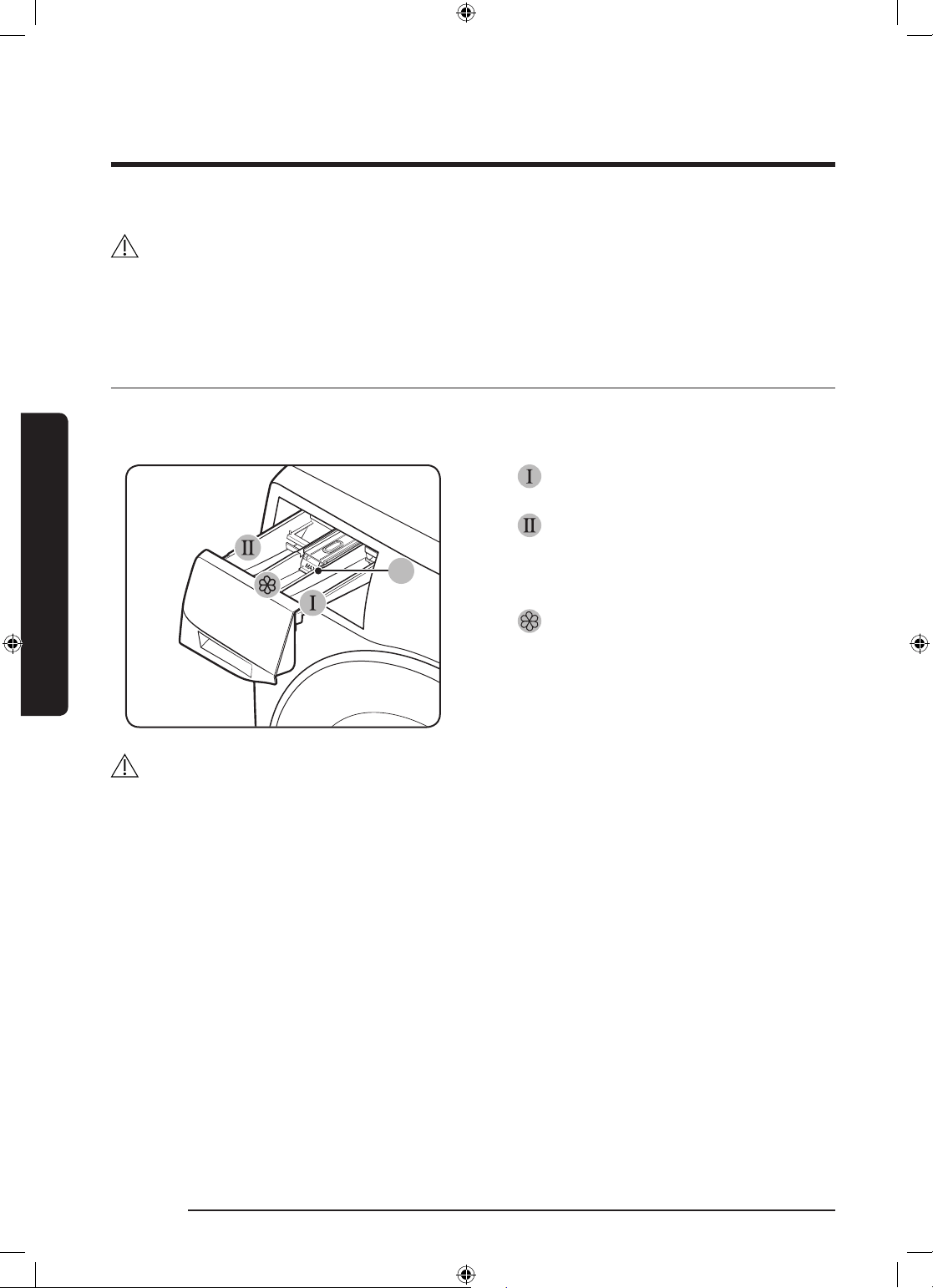

• Page 31 - English - : English 31 Before you start To apply washing agents to the detergent drawer 1 Slide open the detergent drawer 2 Apply laundry detergent to the mainwash compartment as instructed or recommended by the manufacturer To use liquid detergent see page 32 3 Apply fabric softener to the softener compartment Do not exceed the max line 4 If you want to prewash apply prewash detergent to the prewash compartment as instructed or recommended by the manufacturer 5 Close the detergent drawer WW90M645OPWDC6803863V03ENindd 31 2018328 160309
• Page 32 - English - : 32 English Before you start Before you start CAUTION Do not apply powder detergent to the liquid detergent guide Concentrated fabric softener must be diluted with water before applied Do not apply mainwash detergent to the softener compartment To use liquid detergent applicable models only A First insert the provided liquid detergent container in the mainwash compartment Then apply liquid detergent to the container below the marked max line A WW90M645OPWDC6803863V03ENindd 32 2018328 160311

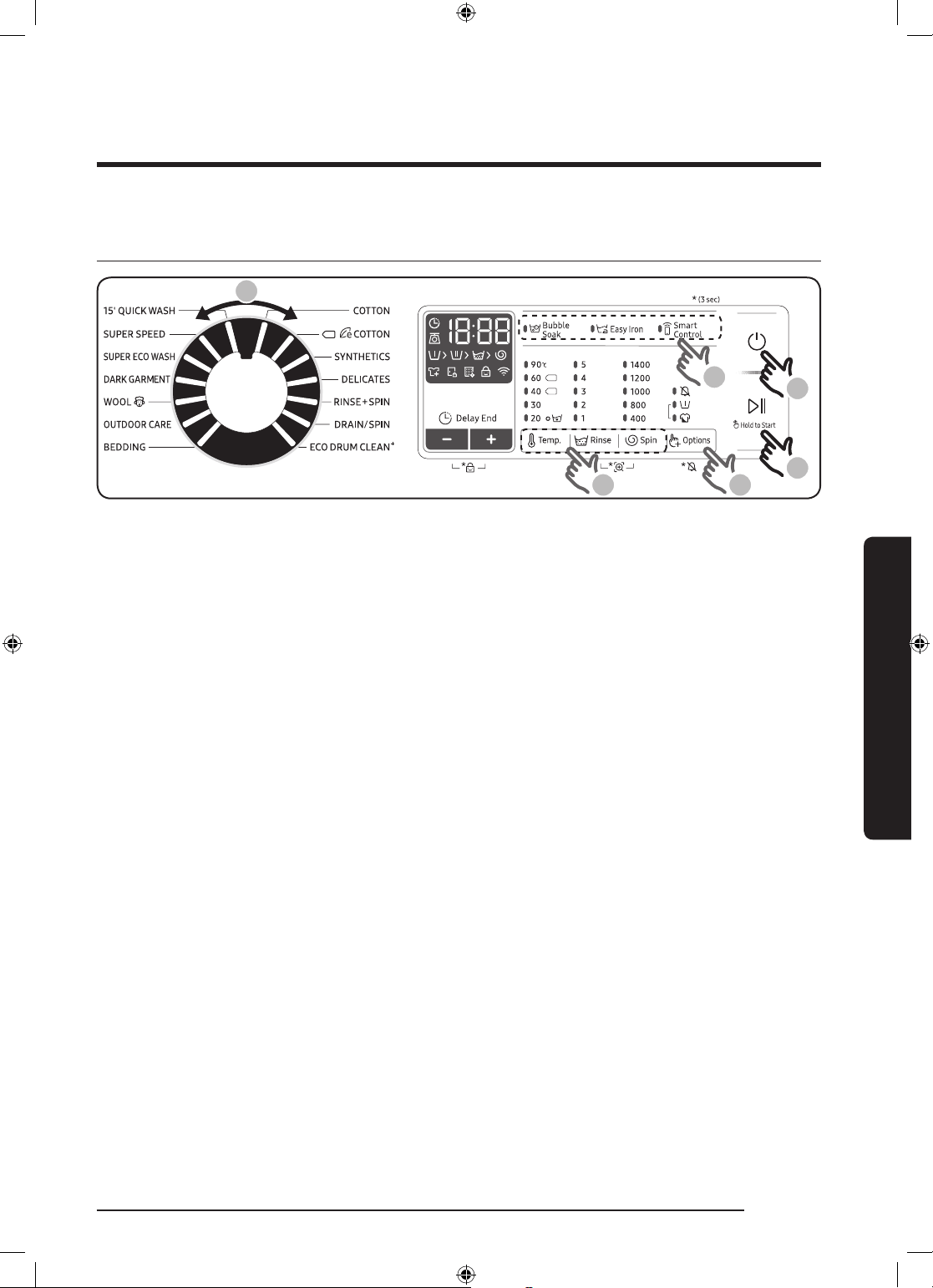

• Page 33 - English - : English 33 Operations Operations Control panel 01 Cycle Selector Turn the dial to select a cycle 02 Display The display shows current cycle information and estimated time remaining or an information code when a problem occurs For buttons and icons refer to the corresponding page 03 Temp Press to change the water temperature for the current cycle 04 Rinse Press to change the rinse count for the current cycle You can set the rinse count to a max of 5 depending on the cycle 05 Spin Press to change the spinning speed for the current cycle The revolutions per minute RPM differs with the model Rinse HoldNo indicator The nal rinse process is suspended so that the laundry remains in the water To unload the laundry run a drain or spin process To use the Rinse Hold option press Spin repeatedly until all rpm numeric indicators turn off Not available for the DRAIN SPIN cycle Spin Only To run the Spin Only cycle press Spin for 3 seconds When the cycle time and spinning speed appear press Spin repeatedly until a desired spinning speed is selected Then press and hold StartPause Hold to Start to start the cycle The spinning time depends on the selected cycle 06 Options Press to select the options Availability of the options depends on the cycle 07 Delay End Delay End lets you set the end time of the current cycle Based on your settings the start time of the cycle will be determined by the machines internal logic For example this setting is useful for programming your machine to nish a wash at the time you normally return home from work Press to choose a preset unit of hours WW90M645OPWDC6803863V03ENindd 33 2018328 160312
• Page 34 - English - : 34 English Operations Operations 08 Bubble Soak Press to activatedeactivate the Bubble Soak function This function helps remove a wide variety of stubborn stains Bubble Soak helps remove a variety of stubborn stains With Bubble Soak selected laundry is thoroughly soaked in water bubbles for effective washing Bubble Soak is available with and adds up to 30 minutes to these cycles COTTON SYNTHETICS BEDDING and SUPER SPEED 09 Easy Iron The spinning speed decreases to reduce wrinkles of the laundry Set the spinning speed up to 800 rpm 10 Smart Control Press to activatedeactivate the Smart Control function When the Smart Control function is activated you can control your washing machine using your mobile device For more information see the SmartThings section on page 42 11 Power Press to turn onoff the washing machine 12 StartPause Hold to Start Press and hold to start an operation or press to stop an operation temporarily For more information on the options see the Special features section WW90M645OPWDC6803863V03ENindd 34 2018328 160313
• Page 35 - English - : English 35 Operations Simple steps to start 1 Press Power to turn on the washing machine 2 Select a cycle in the cycle panel 3 Change the cycle settings Temp Rinse and Spin as necessary 4 To add an option press Options Use the button again to choose a preferred item 5 The machine supports the options of Bubble Soak Easy Iron and Smart Control for easy access To use an option item press the corresponding button 6 Press and hold StartPause Hold to Start To change the cycle during operation 1 Press StartPause Hold to Start to stop operation 1 Select a different cycle 2 Press StartPause Hold to Start again to start the new cycle WW90M645OPWDC6803863V03ENindd 35 2018328 160313
• Page 36 - English - : 36 English Operations Operations Cycle overview Standard cycles Cycle Description amp Max load kg COTTON For cottons bed linens table linens underwear towels or shirts The washing time and the rinse count are automatically adjusted according to the load Max COTTON Optimal performance with lower energy for cotton fabrics bed linens table linens underwear towels or shirts For energy saving the actual washing temperature may be lower than specied Max SYNTHETICS For blouses or shirts that are made of polyester diolen trevira polyamide perlon nylon or the like DELICATES For sensitive fabrics as rayon viscose and synthetics blended ber For best performance use liquid detergent RINSESPIN Featuring an additional rinse process after applying fabric softener to the laundry Max DRAINSPIN Select this cycle to drain the water and spin the drum Max ECO DRUM CLEAN Cleans the drum by removing dirt and bacteria from it Cleans the rubber door gasket by removing dirt from the gasket Perform once every 40 washes with no detergent or bleach applied It noties automatically after every 40 washes Make sure the drum is empty Do not use any cleaning agents for cleaning the drum 15 QUICK WASH For lightly soiled items in less than 20 kg that you want to wash quickly Use less than 20 g of detergent Using more than 20 g of detergent may leave detergent residue For liquid detergent use a max of 20 ml of liquid detergent WW90M645OPWDC6803863V03ENindd 36 2018328 160314
• Page 37 - English - : English 37 Operations Cycle Description amp Max load kg SUPER SPEED Fast completion within 39 minutes for everyday items such as underwear and shirts The cycle time will differ depending on the water supply conditions and the load and type of laundry SUPER ECO WASH Low temperature ecobubble cycle helps reduce power consumption DARK GARMENT Featuring additional rinses and reduced spinning to ensure that the laundry is washed gently and rinsed thoroughly WOOL Specic for machinewashable wool for loads less than 20 kg The wool cycle features ne pulsating and soaking to protect the wool bres from shrinkagedistortion A neutral detergent is recommended OUTDOOR CARE For outdoor clothes skiwear and sportswear that are made of functional materials such as spandex stretch and microbre BEDDING For bed spreads bed sheets bedding covers etc For best results wash only 1 type of bedding and make sure the load weighs less than 20 kg Options Option Description Intensive For badly soiled laundry The operation time for each cycle is longer than normal Pre Wash This will add a preliminary washing cycle before the main wash cycle Sound OnOff You can turn on or off the sound from the washing machine When this function is set to Off the AddWash alarm the melody of cycle completion and the poweroff beep will not sound However the other sounds stay active WW90M645OPWDC6803863V03ENindd 37 2018328 160315
• Page 38 - English - : 38 English Operations Operations Delay End You can set the washing machine to nish your wash automatically at a later time choosing a delay of between 1 to 24 hours in 1 hour increments The hour displayed indicates the time the wash will nish 1 Select a cycle with necessary settings 2 Press Delay End or the button repeatedly until a desired end time is set 3 Press and hold StartPause Hold to Start The Delay End indicator blinks and the washing machine tumbles the drum to sense the weight of the load if load sensing is preset for the selected cycle When complete it displays your set time with the timer running 4 To cancel the Delay End restart the washing machine by pressing Power Reallife case You want to nish a twohour cycle 3 hours later from now For this you add the Delay End option to the current cycle with the 3hour setting and Press and hold StartPause Hold to Start at 200 pm Then what happens The washing machine starts operating at 300 pm and ends at 500 pm Provided below is the time line for this example 200 pm Set the Delay End to 3 hours 300 pm Start 500 pm End Load sensor The load sensor icon lights up when you select a cycle that supports load sensing Some cycles may not support loading sensing Once you start the cycle the icon blinks or stays solid during the load sensing process and turns off when the process is complete WW90M645OPWDC6803863V03ENindd 38 2018328 160318

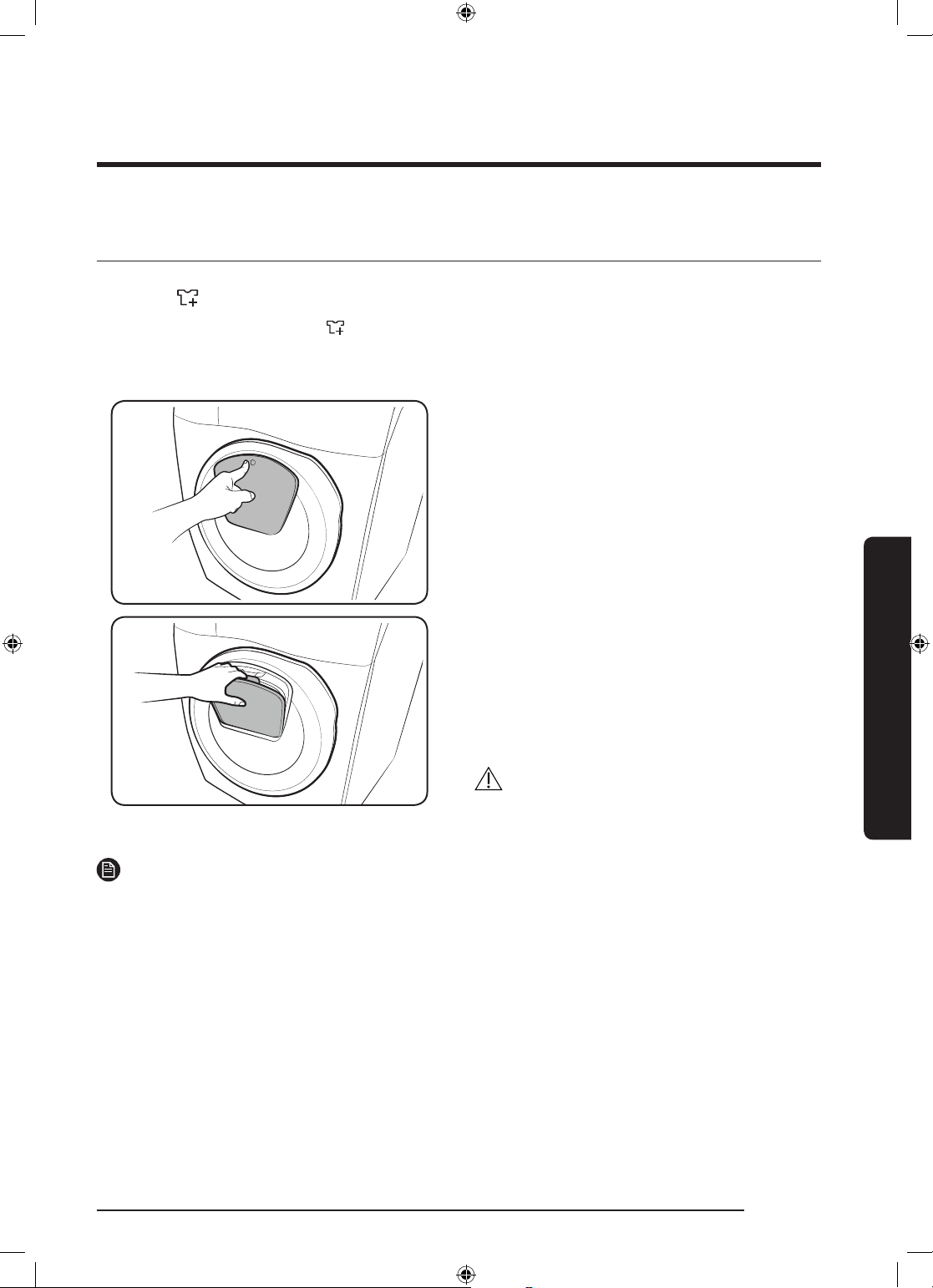

• Page 39 - English - : English 39 Operations Special features AddWash When the AddWash indicator is on you can stop operation of the machine and put additional laundry or softener into the drum The Add Door opens by more than 130 for easy access 1 Press StartPause Hold to Start to stop operation 2 Press the upper area of the Add Door until you hear a clicking sound to unlock Pull the handle of the Add Door to open 3 Open the Add Door and put additional laundry or softener into the drum 4 Push the Add Door until you hear a clicking sound to close 5 Press and hold StartPause Hold to Start to resume operation CAUTION Do not put excessive force on the Add Door It may break NOTE The water inside the drum does not leak if the Add Door is closed properly Water drops may form around the window but they do not leak from inside the drum WW90M645OPWDC6803863V03ENindd 39 2018328 160321
• Page 40 - English - : 40 English Operations Operations CAUTION Do not open the Add Door if suds have formed inside the drum that rise above the level of the Add Door Do not attempt to open the Add Door while the machine is operating without rst pressing StartPause Hold to Start Please note that the Add Door can be opened unintentionally without pressing StartPause Hold to Start when the wash is complete Do not add an excessive load through the Add Door Performance may be degraded Do not use the lower area of the Add Door as a handle Your ngers may be caught Make sure that no laundry is caught in the Add Door Keep your pets out of the washing machine especially the Add Door When using hot water for the wash the Add Door may appear to leak water after opening and closing the Add Door This is normal simply because steam emerging from the open Add Door has cooled and formed water drops on the surface When the Add Door closes the door seals up and no water can leak However you may encounter what appears to be water leak around the door some residual water remaining around the Add Door may form water drops This is normal Neither the main door or the Add Door can opened when the water temperature is over 50 C If the water level inside the drum is over a certain point the main door cannot be opened If an information code of DDC appears on the display see the Information codes section for further actions Keep the Add door and its surroundings clean at all times Debris or detergent on or around the seals of the Add door may cause a leak WW90M645OPWDC6803863V03ENindd 40 2018328 160321
• Page 41 - English - : English 41 Operations Settings Child Lock To prevent children or infants from accidentally starting or setting the washing machine Child Lock locks all buttons except for the Power button To activate Child Lock Press and hold and of the Delay End option simultaneously for 3 seconds Then press and hold StartPause Hold to Start to activate The door locks and the Child Lock indicator turns on To deactivate Child Lock temporarily You can deactivate Child Lock temporarily for 1 minute The door is unlocked for 1 minute and the Child Lock indicator blinks Press and hold and of the Delay End option simultaneously for 3 seconds NOTE If you open the door 1 minute or more after deactivating Child Lock an alarm sounds for up to 2 minutes If you close the door within 2 minutes the door locks and Child Lock is reactivated If you do not close the door or the door is not properly closed the alarm keeps sounding for 2 minutes To add laundry after activating Child Lock rst deactivate Child Lock or restart the washing machine To cancel the Child Lock Press and hold and of the Delay End option simultaneously for 3 seconds to deactivate and then press and hold the buttons again for 3 seconds to cancel Child Lock The door unlocks and the Child Lock indicator turns off Sound OnOff You can turn on or off the sound from the washing machine When this function is set to Off the AddWash alarm the melody of cycle completion and the poweroff beep will not sound However the other sounds stay active To mute the sound press and hold Options for 3 seconds To unmute the sound press and hold again for 3 seconds Your setting will be kept even after restarting the machine WW90M645OPWDC6803863V03ENindd 41 2018328 160322
• Page 42 - English - : 42 English Operations Operations SmartThings WiFi connection On your smartphone go to the Settings and turn on the wireless connection and select an AP Access Point NOTE This device is designed for household use only Class B and can be used in all residential areas This device may cause wireless interference and neither the manufacturer or the installer of this device can provide a safety measure of any kind Recommended encryption methods are WPATKIP and WPA2AES Newly developed Wi Fi protocols or unapproved WiFi protocols are not supported The reception sensitivity of a wireless network may be affected by surrounding wireless environments If your Internet provider has registered the MAC address of your PC or the modem module for permanent use your Samsung washing machine fails to connect to the Internet If this is the case contact your Internet provider The Internet rewall may interrupt your Internet connection If this happens contact your Internet provider If Internet failure continues after following the measurement of your Internet provider contact a local Samsung retailer or service centre For installing wired and wireless routers refer to the user manual of the router you use Samsung washing machine supports the WiFi 24 GHz protocols Samsung washing machine supports the IEEE80211 bgn 24 GHz SoftAP protocols IEEE80211n is recommended An unapproved wiredwireless router may fail to connect to Samsung washing machine Download On an app market Google Play Store Apple App Store Samsung Galaxy Apps nd the SmartThings app with a search term of SmartThings Download and install the app on your device NOTE The SmartThings app is available on thirdparty devices with Android OS 60 Marshmallow or higher Samsung devices with Android OS 50 Lollipop or higher and iOS devices with iOS 100 or higher For iPhones it must be iPhone 6 or higher The app is optimised for Samsung smartphones Galaxy S and Note series Some functions of the app may operate differently on thirdparty devices The app is subject to change without notice for improved performance WW90M645OPWDC6803863V03ENindd 42 2018328 160323
• Page 43 - English - : English 43 Operations Log in You must rst log into SmartThings with your Samsung account To create a new Samsung account follow the instructions on the app You dont need a separate app to create your account NOTE If you have a Samsung account use the account to log in A registered Samsung smartphone user automatically logs in To register your device to SmartThings 1 Make sure your smartphone is connected to a wireless network If not go to the Settings and turn on the wireless connection and select an AP Access Point 2 Select to run SmartThings on your smartphone 3 When a message of A new device is found select Add 4 If no message appears select and select your washing machine in a list of devices available If your washing machine is not listed select Device Type gt Specic Device Model and then add your washing machine manually 5 Register your washing machine to the SmartThings app as follows a Log into SmartThings with your Samsung account b Turn a WiFi connection on c Add your washing machine to SmartThings Make sure your washing machine is connected to SmartThings d When registration is complete your washing machine appears on your smartphone Washing Machine app Integrated control You can monitor and control your washing machine both at home and on the go Select the Washing Machine icon on SmartThings The Washing Machine page appears Check the operation status or notications related to your washing machine and change options or settings if necessary WW90M645OPWDC6803863V03ENindd 43 2018328 160323
• Page 44 - English - : 44 English Operations Operations SmartThings Category Checkpoint Description Monitoring Washing status You can check the current cycle and its options and the remaining cycle time Smart Control The Smart Control status is shown for the washing machine Self Check Use this to check if the washing machine operates normally Energy monitoring Use this to monitor the energy consumption status Control StartPauseCancel Select a cycle and necessary options and then select StartPause Cancel to start an operation to stop temporarily or to cancel the current operation My Favorite Add frequently used cycles and options to My Favorite for later use Notication Cycle completed Noties you the current cycle is complete AddWash alarm applicable models only Noties you of the addition of a new load Remaining laundry applicable models only Noties you of any laundry left after a cycle is complete WW90M645OPWDC6803863V03ENindd 44 2018328 160323
• Page 45 - English - : English 45 Operations Category Checkpoint Description QRator Laundry Recipe You can select the fabric type color and the soil level to get recommended options and wash cycles that you can start right away Laundry Planner You can set the desired time for a wash cycle to nish After you set the desired time you will get a recommended cycle that will end within the time you set and you can start or reserve the recommended cycle HomeCare Wizard Provides a regular report with an analysis of the machine operation state in a user set frequency every weekmonth You can use this regular report to check your usage pattern maintenance requirements and energy consumption for the set period of time Requires SmartThings available on Android and iOS Registration required Indicative results only WW90M645OPWDC6803863V03ENindd 45 2018328 160323
• Page 46 - English - : 46 English Operations Operations Open Source Announcement The software included in this product contains open source software You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailtoossrequestsamsungcom It is also possible to obtain the complete corresponding source code in a physical medium such as a CDROM a minimal charge will be required The following URL httpopensourcesamsungcomopensourceSMARTAT051seq0 leads to the download page of the source code made available and open source license information as related to this product This offer is valid to anyone in receipt of this information NOTE Hereby Samsung Electronics declares that the radio equipment type appliance is in compliance with Directive 201453EU The full text of the EU declaration of conformity is available at the following internet address The ofcial Declaration of conformity may be found at httpwwwsamsungcom go to Support gt Search Product Support and enter the model name WiFi max transmitter power 20 dBm at 2412GHz 2472GHz WW90M645OPWDC6803863V03ENindd 46 2018328 160324
• Page 47 - English - : English 47 Maintenance Maintenance Keep the washing machine clean to prevent deteriorated performance and to preserve its life cycle Eco drum clean Perform this cycle regularly to clean the drum by removing bacteria from it This cycle heats the water between 60 C and 70 C and it also removes accumulated dirt from the rubber door gasket 1 Press Power to turn on the washing machine 2 Turn the Cycle Selector to select ECO DRUM CLEAN 3 Press and hold StartPause Hold to Start CAUTION Do not use any cleaning agents for cleaning the drum Chemical residue in the drum may cause damage to the laundry or the drum of the washing machine ECO DRUM CLEAN reminder The ECO DRUM CLEAN reminder appears on the main screen once every 40 washes It is advisable to perform the ECO DRUM CLEAN regularly When you rst see this reminder you can ignore the reminder for 6 consecutiv washes From the 7 th wash the reminder no longer appears However it appears again on the second 40 th wash WW90M645OPWDC6803863V03ENindd 47 2018328 160325
• Page 48 - English - : 48 English Maintenance Maintenance Smart Check To enable this function you must rst download the Samsung Smart Washer app at the Play Store or the App Store and install it on a mobile device featuring a camera function The Smart Check function has been optimised for Galaxy amp iPhone series applicable models only 1 When the washing machine detects an issue to check an information code appears on the display To enter Smart Check mode press and hold Rinse and Spin simultaneously for 3 seconds 2 The washing machine starts the selfdiagnosis procedure and displays an information code if a problem is detected 3 Run the Samsung Smart Washer app on your mobile device and tap Smart Check 4 Put the mobile device close to the washing machines display so that the smartphone camera and the washing machine face each other Then the information code will be recognised automatically by the app 5 When the information code is recognised correctly the app provides detailed information about the problem with applicable solutions NOTE The function name Smart Check may differ depending on the language If the washing machine reects light on the display the app may fail to recognise the information code If the app fails to recognise the Smart Check code consecutively enter the information code manually onto the app screen WW90M645OPWDC6803863V03ENindd 48 2018328 160326
• Page 49 - English - : English 49 Maintenance Emergency drain In case of a power failure drain the water inside the drum before taking out the laundry A 1 Power off and unplug the washing machine from the electrical outlet 2 Gently press the top area of the lte cover A to open B 3 Put an empty spacious container around the cover and stretch the emergency drain tube to the container while holding the tube cap B C 4 Open the tube cap and let water in the emergency drain tube C ow into the container 5 When done close the tube cap and reinsert the tube Then close the lter cover NOTE Use a spacious container because the water in the drum may be more than expected WW90M645OPWDC6803863V03ENindd 49 2018328 160329

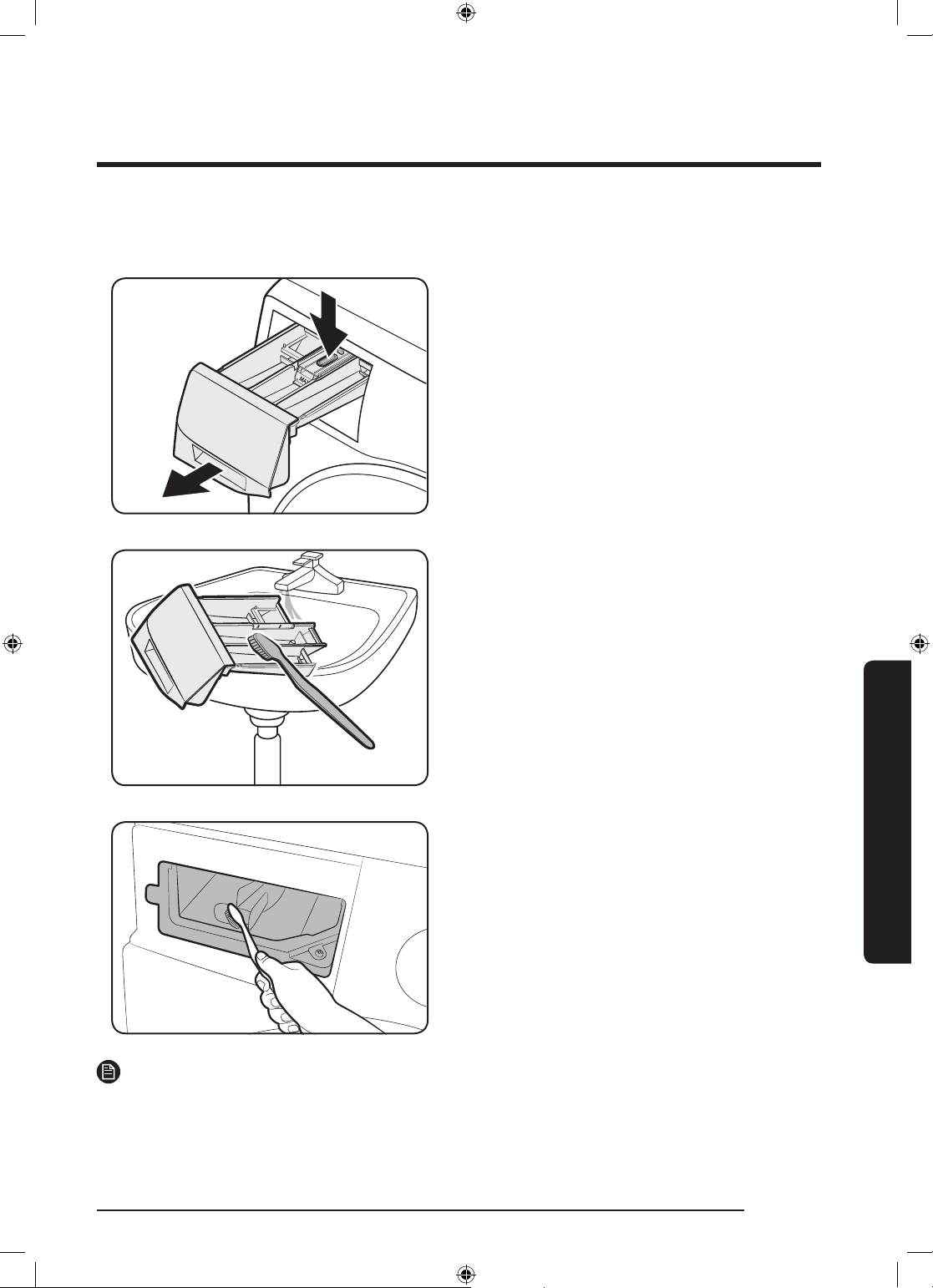

• Page 50 - English - : 50 English Maintenance Maintenance Cleaning Surface of the washing machine Use a soft cloth with a nonabrasive household detergent Do not spray water onto the washing machine Add Door A 1 Open the Add Door 2 Use a wet cloth to clean the Add Door Do not use cleaning agents Discolouration may occur Use caution when cleaning the rubber packing and the locking mechanism A Dust off the window area regularly 3 Wipe up and close the Add Door until you hear a clicking sound CAUTION Do not apply force on the Add Door It may break Do not leave the Add Door open while the machine is operating Do not put heavy objects on the Add Door at any time To prevent physical injury do not touch the Add Door while the drum is rotating Do not open the Add Door while the machine is operating This may cause physical injury Do not manipulate the feature panel while the Add Door is open This may cause physical injury or system failure Do not input objects other than laundry Do not input bulky items to the drum through the Add Door Do not pull out the rubber packing of the Add Door when cleaning This may cause damage WW90M645OPWDC6803863V03ENindd 50 2018328 160331
