2002.5 Peugeot 206 SW Dag User Manual

YOUR 206 AT A GLANCE

Each model may only be fitted with some of the equipment shown, according to its specification and the

technical requirements in the country of first registration of the vehicle.

206 SW: version available according to country.

Pages

Seats 72 - 81

Instruments and controls 28 - 29

Control panel 35 - 71, 93 - 94

Mirrors 96

Pages

Checks 111 - 118

Access 83 - 88

Changing a wheel 119 - 122

Changing a bulb 123 - 127

24-02-2003

YOUR 206 AT A GLANCE

24-02-2003

YOUR 206 AT A GLANCE

1 Driver's air bag

Horn

2 Lights and direction

indicators stalk

3 Passenger air bag disarming

switch*

4 Rear electric windows

disarming switch

5 Dynamic stability control

(ESP/ASR) button

6 Lighting rheostat for

instrument dials

7 Windscreen wiper/wind-

screen wash/trip computer

stalk

8 Audio equipment remote

control

9 Hazard warning lights switch

10 Multifunction display

11 Windscreen demisting vents

12 Side window demisting vents

13 Adjustable side vent

14 Passenger air bag

15 Adjustable centre vents

16 Glove box

17 Audio equipment

18 Control for heating,

ventilation, air conditioning

and heated rear screen and

mirrors

19 Front ashtray

20 Gear lever

21 Lighter

22 Electric mirror controls

23 Heated seats switch

24 Front electric window

controls

25 Handbrake

26 Bonnet opening control

27 Steering lock

28 Fuse box

29 Storage compartment

30 Steering wheel height adjust-

ment control

31 Headlamp height adjustment

* According to destination.

YOUR 206 AT A GLANCE

24-02-2003

KEYS

The keys allow you to indepen-

dently operate the locks on the

front doors and the tailgate

(saloon), the passenger airbag

disarming switch, the fuel filler

cap and the steering lock.

Central locking

From the driver's door, you can

lock and unlock the doors and

the tailgate.

If one of the doors, the tailgate

(206 SW) or the rear screen

(206 SW) is open, the central

locking does not work.

Remote control

Pressing button A remotely locks

the vehicle. This is confirmed by

fixed lighting of the direction indica-

tors for approximately two sec-

onds.

Pressing button B remotely

unlocks the vehicle.

This is confirmed by rapid flash-

ing of the direction indicators for

approximately two seconds.

206 SW: Pressing and holding

button B unlocks the vehicle and

opens the rear screen.

Leaving the ignition key in

If you leave the key in the igni-

tion, a buzzer reminds you of this

when opening the driver's door.

Locating the vehicle

To locate your vehicle, when you

have left it locked in a car park:

☞ press button A, the courtesy

lights will come on and the

indicator lights flash for a few

seconds.

STARTING

The 4 positions of the key in

the ignition:

STOP position: The ignition is

off.

1st notch, Accessories posi-

tion: The ignition is off but the

accessories can be used.

2nd notch, Running position:

The ignition is on.

Starting position: Operates the

starter.

Steering lock

Before starting, unlock the steer-

ing if necessary, by gently turning

the steering wheel at the same

time as you turn the key.

It is advisable to press the clutch

pedal while operating the starter,

to make starting easier.

YOUR 206 AT A GLANCE

24-02-2003

KEYS

The keys allow you to indepen-

dently operate the locks on the

front doors and the tailgate

(saloon), the passenger airbag

disarming switch, the fuel filler

cap and the steering lock.

Central locking

From the driver's door, you can

lock and unlock the doors and

the tailgate.

If one of the doors, the tailgate

(206 SW) or the rear screen

(206 SW) is open, the central

locking does not work.

Remote control

Pressing button A remotely locks

the vehicle. This is confirmed by

fixed lighting of the direction indica-

tors for approximately two sec-

onds.

Pressing button B remotely

unlocks the vehicle.

This is confirmed by rapid flash-

ing of the direction indicators for

approximately two seconds.

206 SW: Pressing and holding

button B unlocks the vehicle and

opens the rear screen.

Leaving the ignition key in

If you leave the key in the igni-

tion, a buzzer reminds you of this

when opening the driver's door.

Locating the vehicle

To locate your vehicle, when you

have left it locked in a car park:

☞ press button A, the courtesy

lights will come on and the

indicator lights flash for a few

seconds.

STARTING

The 4 positions of the key in

the ignition:

STOP position: The ignition is

off.

1st notch, Accessories posi-

tion: The ignition is off but the

accessories can be used.

2nd notch, Running position:

The ignition is on.

Starting position: Operates the

starter.

Steering lock

Before starting, unlock the steer-

ing if necessary, by gently turning

the steering wheel at the same

time as you turn the key.

It is advisable to press the clutch

pedal while operating the starter,

to make starting easier.

108

YOUR 206 AT A GLANCE

24-02-2003

Never race a cold

engine.

Never run the engine

in a confined space.

Do not make any modifications

to the steering lock.

Starting a petrol engine

Do not press the accelerator.

Operate the starter, without

releasing the key, until the

engine turns.

Starting a diesel

engine

Do not press the accele-

rator.

Turn the key to the ''Running''

position.

If the engine is warm enough, the

pre-heat light does not come on

and you can start immediately.

If the pre-heat light comes on,

wait for it to go out before

operating the starter.

If the engine stalls, it is necessary

to return the key to the ''STOP''

position before restarting.

FRONT AIR BAGS

Precautions regarding the

passenger air bag

For a vehicle fitted with a disarm-

ing switch:

– disarm the

air bag if

you install a

rear-facing

child seat,

– arm the air

bag for an

adult pas-

senger.

For a vehicle not fitted with a

disarming switch:

– do not install

a rear-fac-

ing child

seat on

the front

passenger

seat.

In no circumstances should you

place your feet or any other

object on the fascia.

Operating check

* According to destination.

Disarming the passenger

air bag*

Insert the ignition key in the switch

1 and turn it to:

– the ''ON'' position, the passen-

ger air bag is armed,

– the ''OFF'' position, the pas-

senger air bag is disarmed.

With the ignition on (2nd notch),

illumination of this warning light,

accompanied by an audible sig-

nal and the message

"Passenger air bag disarmed"

on the multifunction display, indi-

cates that the passenger air bag

is disarmed (switch in the "OFF"

position).

The warning light remains on

throughout the disarming process.

24-02-2003

89 91

YOUR 206 AT A GLANCE

STEERING WHEEL

CONTROLS

Lights

Front and rear lights (ring A)

Lights off

Side lights

Dipped/

main beam

headlamps

Automatic

switching on

of lights

Automatic switching on of lights

To activate or disarm the func-

tion, place the key in the acces-

sories position and the lights

stalk in position 0, then press the

end of the stalk for more than

four seconds.

Rear fog lamp (ring B)

Rear fog lamp

(rotation of the ring

forwards)

Front fog lamps/Rear fog lamp

(ring C)

Front fog lamps

(1st rotation of the ring

forwards).

Front fog lamps

and rear fog lamp

(2nd rotation of the

ring forwards).

Windscreen wipers

Front

2 Fast wipe

1 Normal wipe

I Intermittent wipe

AUTO Automatic wipe

0 Off

 Single wipe

Windscreen wash:

pull the stalk towards you.

Rear

Off Intermittent

Windscreen

wipe wash

Automatic wipe

In the AUTO position,

the wipers operate auto-

matically and adjust

their speed to the

intensity of the rainfall.

YOUR 206 AT A GLANCE

FRONT SEATS

1- Forwards/backwards adjust-

ment.

2- Access to the rear seats

(3-door).

3- Seat back angle adjustment.

4- Height adjustment.

5- Heated seats controls.

6- Head restraint height and

angle adjustment.

Never travel with the head

restraints removed.

Modifiable passenger seat

Access to the storage com-

partment:

– Push the seat as far back as

possible,

– Raise then pull the front of the

seat to unlock it, then tilt the

modifiable seat.

24-02-2003

Tonneau

To install the tonneau:

➜ position (1) one end of the tonneau roller in one of the two

supports,

➜ compress (2) the opposite end of the roller and put it in place,

➜ release it (3) so that it engages,

➜ unroll (4) the tonneau to the boot pillars,

➜ insert the tonneau guides in the rails on the pillars.

To remove the tonneau:

➜ remove the tonneau guides from the rails on the

pillars,

➜ put the tonneau back in its roller, compress it and

remove it from its support.

Rear seats

➜ Lift the front of the seat 1,

➜ Tilt the seat 1 against the front seats,

➜ Position the seat belt under the belt

holder 2,

➜

Pull control 3 to unlock the seat back 4,

➜ Remove or lower the head restraint,

➜ Tilt the seat back 4.

When refitting, take care not to trap the

seat belts.

103

YOUR 206 AT A GLANCE

24-02-2003

108

YOUR 206 AT A GLANCE

24-02-2003

Never race a cold

engine.

Never run the engine

in a confined space.

Do not make any modifications

to the steering lock.

Starting a petrol engine

Do not press the accelerator.

Operate the starter, without

releasing the key, until the

engine turns.

Starting a diesel

engine

Do not press the accele-

rator.

Turn the key to the ''Running''

position.

If the engine is warm enough, the

pre-heat light does not come on

and you can start immediately.

If the pre-heat light comes on,

wait for it to go out before

operating the starter.

If the engine stalls, it is necessary

to return the key to the ''STOP''

position before restarting.

FRONT AIR BAGS

Precautions regarding the

passenger air bag

For a vehicle fitted with a disarm-

ing switch:

– disarm the

air bag if

you install a

rear-facing

child seat,

– arm the air

bag for an

adult pas-

senger.

For a vehicle not fitted with a

disarming switch:

– do not install

a rear-fac-

ing child

seat on

the front

passenger

seat.

In no circumstances should you

place your feet or any other

object on the fascia.

Operating check

* According to destination.

Disarming the passenger

air bag*

Insert the ignition key in the switch

1 and turn it to:

– the ''ON'' position, the passen-

ger air bag is armed,

– the ''OFF'' position, the pas-

senger air bag is disarmed.

With the ignition on (2nd notch),

illumination of this warning light,

accompanied by an audible sig-

nal and the message

"Passenger air bag disarmed"

on the multifunction display, indi-

cates that the passenger air bag

is disarmed (switch in the "OFF"

position).

The warning light remains on

throughout the disarming process.

24-02-2003

95 96

ELECTRIC WINDOWS

1. Driver's electric window

Manual mode: press or pull the switch gently. The

window stops as soon as the switch is

released.

Automatic mode: press or pull the switch firmly.

One touch completely opens or closes the

window.

Automatic opening and closing only operate when

the engine is running.

2. Passenger's electric window.

3. Rear left electric window.

4. Rear right electric window.

ELECTRIC MIRRORS

Turn knob 5 to the right or to the left to select the cor-

responding mirror.

Move knob 5 in all four directions to adjust.

Electric folding mirrors

With the ignition on, turn knob 5 to position A.

YOUR 206 AT A GLANCE

24-02-2003

85 86

LOCKING/UNLOCKING THE TAILGATE AND THE REAR

SCREEN (206 SW)

It is not possible to open the tailgate and the rear screen simultaneously.

With the rear screen closed, to open the tailgate, operate the handle A

and lift the tailgate.

With the tailgate closed, to open the

rear screen, press and hold the

unlocking button on the remote con-

trol or operate the handle B, then lift

the rear screen using the windscreen

wiper arm (location C).

The lighting is activated on open-

ing the tailgate or the rear screen.

Note: Close the rear screen using the

windscreen wiper arm or by pressing

at the centre of the glass.

DOORS

The front doors

(saloon and 206 SW)

The rear doors

(206 SW)

YOUR 206 AT A GLANCE

24-02-2003

VOTRE 307 EN UN COUP D’ŒIL

97 88

YOUR 206 AT A GLANCE

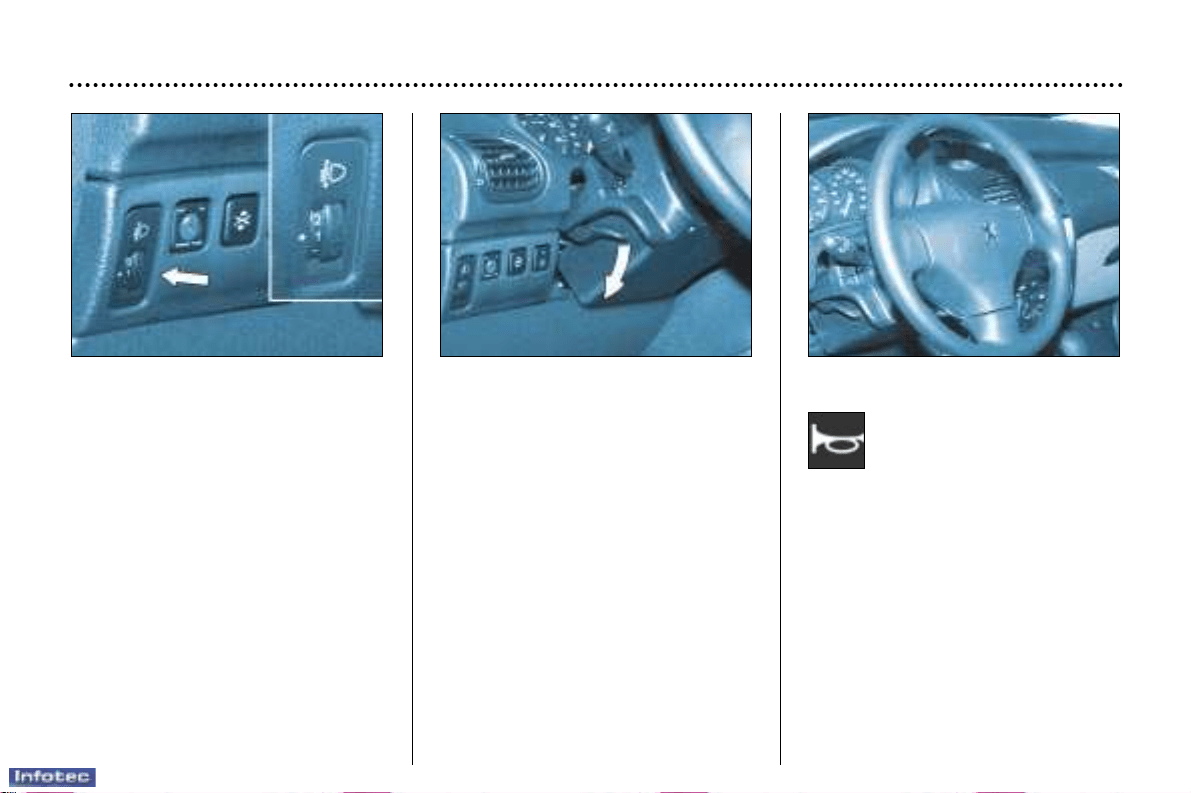

STEERING WHEEL HEIGHT

ADJUSTMENT

When stationary, lower the han-

dle to unlock the steering wheel.

Adjust to the desired height and

lift the handle to lock the steering

wheel.

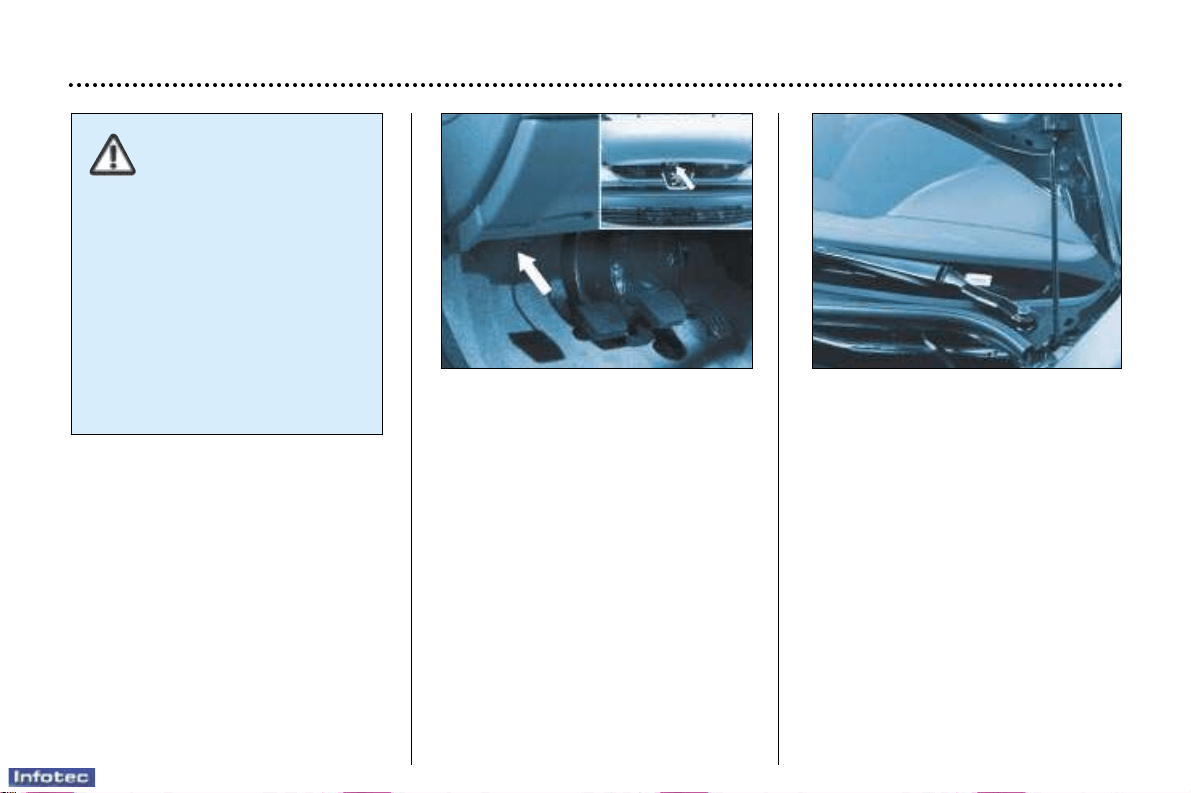

OPENING THE BONNET

From inside the vehicle: pull the

handle.

From the outside: lift the catch

and raise the bonnet. Secure the

strut to hold the bonnet open.

24-02-2003

104

YOUR 206 AT A GLANCE

P. Park.

R. Reverse.

N. Neutral.

D. Drive: in this position, all four gears change automatically.

3. Automatic changing of the first three gears only.

2. Automatic changing of the first two gears only.

A. Sport programme.

B. Snow programme.

THE AUTOMATIC AUTOADAPTIVE GEARBOX

Starting

To start the engine, place the selector lever in position N or P.

Press the brake to change out of position P and when selecting for-

ward or reverse gear.

Position of the selector lever

This is shown by an indicator on the instrument panel.

24-02-2003

YOUR 206 AT A GLANCE

N° Symbol Function

HEATING/AIR CONDITIONING

Setting the air

distribution.

Air intake control.2

Temperature

adjustment.

Demisting the rear

screen and mirrors.

Air flow adjustment.5

Air conditioning

control.

24-02-2003

YOUR 206 AT A GLANCE

N° Symbol Function

AUTOMATIC AIR CONDITIONING

Air flow adjustment.

Setting the air

distribution.

Air intake control.

Air conditioning

control.

Switching off.

Demisting the rear

screen and mirrors.

Temperature

adjustment.

Automatic comfort

programme.

Automatic visibility

programme.

24-02-2003

PEUGEOT SERVICING

Your vehicle benefits from extended service intervals.

• For petrol engines: every 30,000 km or every two years.

• For direct injection diesel engines: every 20,000 km or every two years.

• For indirect injection diesel engines: every 15,000 km or every two years.

The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the

oil between oil changes is normal.

This is why the PEUGEOT network is offering you an intermediate service between regular services.

The date of this visit is not shown by the service indicator. It is to be carried out at least every 15,000 km for petrol

engines; every 10,000 km for direct injection diesel engines and every 7,500 km for indirect injection diesel engines.

A Peugeot dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash up

to 2 litres).

If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every

3,000 to 5,000 km, depending on the conditions of use.

This extended servicing has been made possible by modifications to our vehicles and to the lubricants:

THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED BY THE

MANUFACTURER.

PEUGEOT SERVICING

24-02-2003

SPECIAL FEATURES

Some of your vehicle's vital components have specific servicing schedules.

The air bags and the pretensioning seat belts must be checked every 10 years.

The brake fluid must be replaced every 60,000 km or every 2 years.

The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).

The timing belt: consult your PEUGEOT dealer.

PEUGEOT SERVICING

Arduous conditions of use

If the vehicle is used in certain particularly arduous conditions:

• Continuous door-to-door use.

• Town use (e.g. taxi).

• Repeated short journeys, with the engine cold in low temperatures.

or in long stays in the following conditions:

• Hot countries with temperatures often above 30 °C.

• Cold countries with temperatures often below minus 15 °C.

• Countries with a dusty atmosphere.

• Countries whose lubricants or fuels do not conform to our recommendations.

It is necessary to follow an "Arduous conditions" servicing schedule, which includes special operations and shorter

service intervals:

• Every 20,000 km or every year for petrol engine vehicles.

• Every 15,000 km or every year for Direct Injection Diesel engine vehicles.

• Every 10,000 km or every year for Indirect Injection Diesel engine vehicles.

24-02-2003

SERVICE INDICATOR

This is a visual reminder of when the

next service is due. This service is

to be carried out according to the

manufacturer's servicing schedule.

Operation

As soon as the ignition is switched on

and for 5 seconds, the spanner sym-

bolising ''service operation'' is lit. The

trip recorder display shows you the

distance remaining (in round figures)

before the next service.

Example: 4,800 km remain before

the next service is due.

When the ignition comes on and for

5 seconds the display indicates:

5 seconds after the ignition is switched

on, the total distance recorder resumes

normal operation and the display

shows the total or trip distances.

The distance remaining before the

next service is less than 1,000 km.

Example: 900 km remain before the

next service is due.

When switching on the ignition and

for 5 seconds, the display shows:

5 seconds after the ignition is

switched on, the total distance

recorder resumes normal operation

and the symbol remains lit.

This indicates that a service should

be carried out shortly. The display

shows the total or trip distances.

The service is overdue

Each time the ignition is switched on

and for 5 seconds, the symbol and

the excess distance flash.

Example: the service is overdue by

300 km. The service should be car-

ried out very shortly.

When the ignition is switched on and

for 5 seconds, the display shows:

5 seconds after the ignition is

switched on, the total distance

recorder resumes normal operation

and the symbol remains lit. The

display shows the total or trip dis-

tances.

PEUGEOT SERVICING

24-02-2003

Resetting the service indicator

Your PEUGEOT dealer carries out this

operation after each service.

However, if you carry out the service

yourself, the reset procedure is as

follows:

– Switch off the ignition.

– Press and hold button 1.

– Switch on the ignition. The

display begins a 10 second count-

down.

–Keep button 1 pressed for

10 seconds.

The display shows [= 0] and the

service symbol disappears.

PEUGEOT SERVICING

24-02-2003

TYPES OF SERVICE

Each vehicle has its own servicing cycle, based upon the engine type.

This cycle consists of alternating two types of service, Aand C, intermediate visits and a few additional operations depending on your

vehicle; these correspond to key stages in the life of your 206.

Type B services are designed for less recent vehicles.

When the first service is carried out and at each subsequent service, your dealer will advise you of the type and

content of the next service due.

PEUGEOT SERVICING

THE MAINTENANCE CYCLE FOR YOUR 206 PETROL

Service every 30,000 km or 2 years.

1st service at

10,000 km or

6 months*.

This is necessary

in order to benefit

from the warranty

Automatic gearbox oil level every 60,000 km

These services are carried out with synthetic based oil; Fuel Economy oil or

synthetic oil may also be used.

* Whichever comes first.

Intermediate visit.

KM 30,000 60,000 90,000 120,000

150,000 180,000 210,000 240,000 270,000

24-02-2003

PEUGEOT SERVICING

Intermediate visit.

THE MAINTENANCE CYCLE FOR YOUR 206 INDIRECT INJECTION DIESEL

Service every 15,000 km or 2 years.

1st Service at

10,000 km or

6 months*

This is necessary in

order to benefit

from the warranty

These services are carried out with synthetic based oil; Fuel Economy oil or

synthetic oil may also be used.

* Whichever comes first.

KM 15,000 30,000 45,000 60,000 75,000

90,000 105,000 120,000 135,000 150,000 165,000

24-02-2003

PEUGEOT SERVICING

Intermediate visit.

THE MAINTENANCE CYCLE FOR YOUR 206 TURBO DIESEL HDI

Service every 20,000 km or 2 years.

1st Service at

10,000 km or 6 months*.

This is necessary in order

to benefit from the warranty

These services are carried out with synthetic based oil; Fuel Economy oil or

synthetic oil may also be used.

Do not use synthetic based oil for the 1.4 litre HDI Diesel engine.

* Whichever comes first.

KM 20,000 40,000 60,000 80,000 100,000

120,000 140,000 160,000 180,000 200,000 220,000 240,000

PEUGEOT SERVICING

Level

Operations Description of operations

1st service

Intermediate visit

DRAIN AND REFILL

- Engine oil.



- Bleed fuel filter (diesel only).



- Oil filter.



- Fuel filter (petrol).



REPLACE

- Fuel filter (diesel).



- Air filter element.



- Spark plugs (petrol).



- Engine oil (check + top up).



- Manual gearbox oil (check + top up).



- Battery (check + top up) if cap is removable.



LEVELS

- Front/rear screen-wash.



- Coolant (check + top up).



- Brake fluid (check + top up).



- Power steering fluid (check + top up, according to specification).



- Operation of lights and indicators.



- Condition of glass, headlamp and light lenses and mirrors.



- Horn.



- Windscreen washer jets.



- Condition of wiper blades.



- Condition and tension of the ancillary drive belts.



- Handbrake.



- Condition of hydraulic circuits (hoses and covers) and check for leaks.



CHECK

- Condition of rubber boots and gaiters.



- Brake pad wear.

 o

- Play in hubs, link rods, ball joints, flexible mountings.



- Shock absorbers for leaks.



- Rear drum brake lining wear.



- Condition and pressure of tyres (including spare wheel).



- Emission control check according to current legislation (petrol).



- Smoke opacity (diesel).



- Pollen filter (according to specification).

 o

- Visual check of the whole vehicle by a Peugeot technician.



SERVICE*

- Courtesy vehicle



ROAD TEST





: All driving conditions

: Arduous conditions * According to country.

24-02-2003

(1) Minimum quality standard: Petrol engines ACEAA3 and API SH/SJ; Diesel engines ACEAB3 and API CF/CD. ACEA = Association des Constructeurs Européens Automobiles (Association of European Automobile Manufacturers).

API = American Petroleum Institute. If oil is used which does not conform to the ACEAA3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.

* This Fuel Economy oil can only be used in engines designed for its use.

Do not use synthetic based oil for the 1.4 litre HDI Diesel engine.

TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE

(1)

PETROL DIESEL DIESEL PETROL

24-02-2003

RECOMMENDATIONS FOR

APPROVED LUBRICANTS

The oils which appear in the table

opposite are suitable for most

purposes.

The diagram opposite states the

optimum range of viscosity depending

on the temperatures at which the oils

are to be used.

It is also possible to use "superior

quality" synthetic oils.

In the absence of semi-synthetic or

synthetic oils, oils of API SH/SJ

quality (for petrol engines), or CD/CF

(for diesel engines) may be used by

following the "Arduous Conditions"

servicing schedule which specifies

shorter intervals.

Do not hesitate to ask for advice from

a PEUGEOT dealer to maintain

driving pleasure and to minimise the

maintenance cost of your vehicle.

For countries outside Europe, please

contact a local PEUGEOT dealer.

PEUGEOT SERVICING

ONLY ONLY

Manual Gearbox ESSO GEAR OIL BV

TOTALTRANSMISSION BV

75W 80 PR 9736.41 75W 80

ONLY

AL4 Automatic ATF 4HP20-AL4

Gearbox PR 9736.22

Power steering ESSO ATF D TOTAL FLUIDE AT42

PR 9730.94

Other approved products

Brake fluid PEUGEOT DOT4

Coolant

PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000

ONLY protection to minus 35 ºC

24-02-2003

INSTRUMENTS AND CONTROLS

INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX

1. Seat belt not fastened warning

light*

2. Passenger air bag disarming

warning light*

3. Front and side air bags warning

light

4. Front fog lamps indicator light

5. Anti-lock braking system (ABS)

warning light

6. Rear fog lamp indicator light

7. Diesel pre-heat warning light

8. Left hand direction indicator

9. Total distance recorder, service

indicator and engine oil level

indicator

10.Right hand direction indicator

11. Engine diagnostics warning light

12.Main beam headlamps indicator

light

13.Handbrake, low brake fluid level

and electronic brake force distri-

bution warning light

14.Dipped beam headlamps indica-

tor light

15.Battery charge warning light

16.Engine oil pressure and tempera-

ture warning light

17.Water in diesel filter warning light

18.Coolant temperature and low level

warning light

19.Engine oil temperature indicator

20.Total distance recorder button

21.Central (STOP) warning light

22.Speedometer

23.Coolant temperature indicator

24.Rev counter

25.Lighting rheostat button

26.Fuel level indicator

27.Low fuel level warning light

28.Dynamic stability control (ESP/ASR)

warning light

* According to destination.

24-02-2003

INSTRUMENTS AND CONTROLS

INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX

1. Seat belt not fastened warning

light*

2. Passenger air bag disarming

warning light*

3. Front and side air bags warning

light

4. Front fog lamps indicator light

5. Anti-lock braking system (ABS)

warning light

6. Rear fog lamp indicator light

7. Left hand direction indicator

8. Total distance recorder, service

indicator and engine oil level

indicator

9. Right hand direction indicator

10.Engine diagnostics warning light

11. Main beam headlamps indicator

light

12.Handbrake, low brake fluid level

and electronic brake force distri-

bution warning light

13.Dipped beam headlamps indica-

tor light

14.Battery charge warning light

15.Engine oil pressure and tempera-

ture warning light

16.Coolant temperature and low

level warning light

17.Operating programmes

18.Gear indicator

19.Total distance recorder button

20.Central (STOP) warning light

21.Speedometer

22.Coolant temperature indicator

23.Rev counter

24.Lighting rheostat button

25.Fuel level indicator

26.Low fuel level warning light

27.Dynamic stability control (ESP/ASR)

warning light

* According to destination.

24-02-2003

INSTRUMENTS AND CONTROLS

Handbrake, low brake

fluid and Electronic

Brake Force Distribution

system fault warning

light

Linked to the central (STOP) warning

light.

This indicates one of the following:

– that the handbrake is applied or

not fully released,

– an excessive drop in brake fluid

level (if the warning light remains

on even when the handbrake is

released).

– a fault in the Electronic Brake

Force Distribution system, if lit at

the same time as the ABS warning

light.

You must stop.

Consult a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS

A permanently lit warning light or

one flashing, with the engine run-

ning, indicates an operating fault

of the unit concerned. The illumi-

nation of certain warning lights

may be accompanied by an audi-

ble signal and a message on the

multifunction display. Do not

ignore this warning: consult a

PEUGEOT dealer as soon as

possible.

If the central STOP warning light

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

Anti-lock braking

system (ABS) warning

light

This comes on for 3 seconds each

time the ignition is switched on.

If the warning light remains on or

comes on above 12 km/h, this indi-

cates an ABS malfunction.

However, the vehicle retains conven-

tional servo-assisted braking.

Lighting of this warning light is

accompanied by an audible signal

and the message "ABS fault" on the

multifunction display.

Consult a PEUGEOT dealer.

Coolant temperature and

low coolant level warning

light

Linked to the central (STOP) warning

light.

You must stop.

Wait for the engine to cool before top-

ping up the level.

The cooling circuit is pressurised.

In the event of breakdown and to

prevent any risk of burns, unscrew

the cap by two turns to allow the

pressure to drop.

When the pressure has dropped,

remove the cap and top up the level.

Consult a PEUGEOT dealer.

Central (STOP)

warning light

Linked to the "engine

oil pressure", "coolant temperature

and low coolant level", "handbrake",

"low brake fluid level" and "electronic

brake force distribution system fault"

warning lights.

You must stop if the light flashes

with the engine running.

Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

Linked to the central (STOP) warning

light.

You must stop.

This warning light indicates one of

the following:

– insufficient oil pressure,

– a lack of oil in the lubrication cir-

cuit. Top up the level.

– an oil temperature which is too

high. The warning light is acom-

panied by an audible signal. To

lower the oil temperature, reduce

your speed.

Consult a PEUGEOT dealer.

24-02-2003

INSTRUMENTS AND CONTROLS

Seat belt not fastened

warning light*

When the ignition is switched on, this

indicator light comes on if the driver

has not fastened his seat belt.

Front and side air

bags warning light

The light will come on for a few seconds

when the ignition is switched on.

With the engine running, illumination

of this warning light is accompanied

by an audible signal and a message

on the multifunction display indicat-

ing a fault in the air bags.

Consult a PEUGEOT dealer.

Battery charge

warning light

This indicates one of the following:

– faulty operation of the charging

circuit,

– slack battery or starter terminals,

– a cut or slack alternator belt,

– an alternator failure.

Consult a PEUGEOT dealer.

Engine diagnostics

warning light

This comes on each time the ignition

is switched on.

If it comes on with the engine running,

this indicates incorrect operation of

the injection, ignition or emission con-

trol system. There is a risk of damage

to the catalytic converter (petrol

engine only).

Consult a PEUGEOT dealer.

Dynamic stability con-

trol system (ESP/ASR)

warning light

This comes on for a few seconds

each time the ignition is switched on.

If the warning light remains on or

comes on with the engine running, it

is accompanied by an audible signal

and the message "ESP/ASR not

operational" on the multifunction

display; consult a PEUGEOT dealer.

With the engine running and the vehi-

cle moving, it flashes when the sys-

tem comes into operation (if there is

a difference between the trajectory

followed by the vehicle and that

desired by the driver).

It lights permanently when the sys-

tem is disarmed.

* According to destination.

Water in diesel filter

indicator*

Consult a PEUGEOT dealer as soon

as possible.

There is a risk of damage to the

injection system.

Passenger air bag

disarming warning

light*

Illumination of this warning light is

accompanied by an audible signal

and the message "Passenger air

bag disarmed" on the multifunction

display.

If the passenger air bag is disarmed, the

warning light comes on when the igni-

tion is switched on and it remains on.

Always consult a PEUGEOT dealer if

the warning light flashes.

Low fuel level

warning light

When this light first comes on, you have

enough fuel to drive at least 50 km.

The tank capacity is approximately

50 litres.

Diesel engine pre-heat

warning light

Wait until the warning light goes out

before starting the engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

24-02-2003

INSTRUMENTS AND CONTROLS

Engine oil temperature

indicator

With the engine running, this indi-

cates the oil temperature:

– needle in zone (C), the tempera-

ture is correct,

– needle in zone (D), the tempera-

ture is too high. To lower the oil

temperature, reduce your speed.

Coolant temperature indicator

– needle in zone (A), the temperature

is correct,

– needle in zone (B), the temperature

is too high. The central STOP warn-

ing light flashes.

You must stop.

Consult a PEUGEOT dealer.

INSTRUMENTS AND CONTROLS

Instrument panel display

After switching on the ignition, three functions are shown in succession:

– service indicator (see corresponding section),

– engine oil level indicator,

– total distance recorder/total and trip distances.

Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver's door,

as well as on locking and unlocking the vehicle.

Engine oil level

When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the servicing information.

Maximum

Check the level using the dipstick to confirm whether the level indicated is correct; a surplus of

oil can cause damage to the engine.

Consult a PEUGEOT dealer without delay.

Minimum.

Check the level with the dipstick and top it up. The level indicated is only correct if the vehicle

has been on stable, level ground, with the engine stopped, for 10 minutes.

Oil level gauge fault

The 6 segments flash to indicate a fault in the oil level gauge.

There is a risk the engine will be damaged.

Consult a PEUGEOT dealer.

24-02-2003

INSTRUMENTS AND CONTROLS

Total distance recorde

Briefly pressing button 1 alternates

between the total and trip distance

displays.

To reset the trip recorder to zero,

when it is displayed press the button

for more than 3 seconds.

Hazard warning lights

Press the button, the direction indica-

tors flash.

They can operate with the ignition off.

Automatic lighting of hazard

warning lights*

When braking in an emergency,

depending on the force of decelera-

tion, the hazard warning lights come

on automatically. They switch off auto-

matically the first time you accelerate.

It is also possible to switch them off

by pressing the button.

* According to destination.

Lighting rheostat

With the lights on, press the button

to vary the intensity of the lighting of

the instrument panel and the multi-

function display. When the lighting

reaches the minimum (or maximum)

setting, release the button then

press it again to increase (or reduce)

the brightness.

As soon as the lighting is of the

required brightness, release the

button.

24-02-2003

YOUR 206 IN DETAIL

DISPLAY A

This displays the following information:

– the time,

– the date,

– the outside temperature (this

flashes if there is a risk of ice),

– the audio system displays,

– a door check (e.g.: ''left front door

open''),

– warning messages (e.g. ''remote

control battery flat'') or information

messages (e.g. ''economy mode

active''), displayed temporarily.

Adjusting the parameters

Press and hold button 1 for two seconds to access the settings; the data

flashes, indicating it is ready to be modified.

Then, each press of button 1 scrolls through the various data in the following

order:

– language of information displayed,

– hours (12 then 24 hour mode),

– minutes,

– year,

– month,

– day,

– unit of temperature (degrees Celsius or Fahrenheit).

Pressing button 2 alters the value of the parameter selected. Press and hold for

rapid advance (return to start after the last possible value).

After 7 seconds with no action, the main display returns; the modified data are

now recorded.

Note: Pressing button 2 briefly displays the outside temperature for a few

seconds.

24-02-2003

YOUR 206 IN DETAIL

Setting the parameters

Press and hold button 1 for two seconds to access the settings. The data

flashes, indicating it is ready to be modified.

Then, individual presses on button 1 allow you to scroll through the various data

in the following sequence:

– language in which the information is displayed,

– unit of distance (kms or miles),

– unit of temperature (degrees Celsius or Fahrenheit),

– time format (12 then 24 hour mode),

– hour,

– minutes,

– year,

– month,

– day.

Pressing button 2 allows you to change the data selected. Maintain the pressure

for rapid scrolling.

After 7 seconds without moving, the main display returns; the modified data are

now recorded.

DISPLAY B

This enables the following informa-

tion to be displayed:

– the time,

– the date,

– the outside temperature (this

flashes when there is a risk of

ice),

– the radio displays,

– a door check. The display shows

you, by means of a graphic,

whether a door is open.

– warning messages (e.g. ''battery

charge low'') or information mes-

sages (e.g. "fuel level low''), dis-

played temporarily. These can be

cleared by pressing button 1 or 2,

– the trip computer.

24-02-2003

YOUR 206 IN DETAIL

DISPLAY C

This enables the following informa-

tion to be displayed:

– the time,

– the date,

– the outside temperature (this

flashes when there is a risk of

ice),

– the radio displays,

– a door check. The display shows

you, by means of a graphic,

whether a door is open,

– the warning messages (e.g. "fuel level low''), displayed temporarily. These can

be cleared using the remote control,

– the trip computer (see corresponding section),

– the satellite navigation system (see corresponding section).

Setting the parameters

The remote control allows you to access the settings. Accessing the different

menus is described in the section ''Satellite Navigation System''.

24-02-2003

AUDIO RB3

YOUR 206 IN DETAIL

Stalk movement Function

1 - Press (behind) Increase volume

2 - Press (behind) Decrease volume

1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button

3 - Press Automatic search of higher frequencies (radio)

Selection of the next track (CD)

4 - Press Automatic search of lower frequencies (radio)

Selection of the previous track (CD)

5 - Press the end Change of source (radio/cassette/CD changer)

6 - Rotation Selection of next station stored in memory (radio) - Selection of next CD

(clockwise)

7 - Rotation Selection of previous station stored in memory (radio) - Selection of previous CD

(anti-clockwise)

24-02-2003

YOUR 206 IN DETAIL

Button Function

A Radio on/off.

B–Decrease volume.

C+Increase volume.

D RDS RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

ETATraffic information priority on/off.

F Press fully: cassette rewind.

G Press fully: cassette fast forward.

F+G jk Press half way: reversal of direction of play of the cassette.

jj kk Press fully: ejection of the cassette.

H ▲ Increase of the functions associated with button J.

I ▼ Decrease of the functions associated with button J.



Adjustment of bass, treble, loudness, sound distribution and automatic

volume correction.

K SRC Selection of source: radio, cassette or CD changer.

Press for more than 2 seconds: CD shuffle.

Automatic search of higher frequency.

Selection of next CD track.

M MAN Manual/automatic operation of buttons L and N in radio mode.

Automatic search of lower frequency.

Selection of previous CD track.

O BND Selection of FM1, FM2, FMast and AM wavebands.

AST Press for more than 2 seconds: automatic storing of stations in the memory (autostore).

1 to 6 Selection of station stored in the memory.

Press for more than 2 seconds: storing of a station in the memory.

Selection of a CD changer disc.

24-02-2003

GENERAL FUNCTIONS

On/off

With the ignition key in the accessories or ignition on position, press button A to switch the set on or off.

The set can operate for 30 minutes without the vehicle ignition being switched on.

Anti-theft system

The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another

vehicle.

The anti-theft system is automatic and requires no action on your part.

ADJUSTING THE VOLUME

Press button C to increase the volume, or button B to decrease it.

Continuous pressure on buttons B and C allows a gradual adjustment of the volume.

AUDIO SETTINGS

Press button J several times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),

fader (FAD), balance (BAL) and automatic volume correction.

Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button J

after configuration of the automatic volume correction.

Note: bass and treble settings are specific to each source. It is possible to set them differently for radio,

cassette (RB3), CD (RD3) and CD changer.

YOUR 206 IN DETAIL

24-02-2003

Adjusting the bass

When "BASS" is displayed, press button H or I to vary the setting.

– "BASS –9" for a minimum bass setting,

– "BASS 0" for a normal setting,

– "BASS +9" for a maximum bass setting.

Adjusting the treble

When "TREB" is displayed, press button H or I to vary the setting.

– "TREB –9" for a minimum treble setting,

– "TREB 0" for a normal setting,

– "TREB +9" for a maximum treble setting.

Adjusting the loudness

This function automatically emphasises bass and treble tones.

Press button H or I to switch the function on or off.

Adjusting the front/rear sound distribution (Fader)

When "FAD" is displayed, press button H or I.

Button H increases the volume in the front.

Button I increases the volume in the rear.

Adjusting the right/left sound distribution (Balance)

When "BAL" is displayed, press button H or I.

Button H increases the volume on the right-hand side.

Button I increases the volume on the left-hand side.

Automatic volume correction

This function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the

vehicle.

Press buttons H or I to switch the function on or off.

YOUR 206 IN DETAIL

24-02-2003

RADIO

Notes on radio reception

Your radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are subject

to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals

and the way in which they are transmitted.

On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.

On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles

(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter.

Selecting radio mode

Audio RB3: press button "SRC" several times in succession.

Audio RD3: press button P.

Selecting a waveband

Audio RB3: briefly press the "BND/AST" button to select the FM1, FM2, FMast and AM wavebands.

Audio RD3: briefly press button P to select the FM1, FM2, FMast and AM wavebands.

Automatic station search

Briefly press button L or N to search for the station immediately above or below. By continuing to

press the button in the direction selected, you will obtain continuous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

If the TA traffic programme is selected, only stations broadcasting this type of programme

are selected.

Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the

waveband, then in "DX" sensitivity (selection of the weakest and most distant transmitters).

To make a direct search in "DX" sensitivity, press button L or N twice.

YOUR 206 IN DETAIL

24-02-2003

Manual station search

Press the "MAN" button.

Briefly press button L or N to increase or decrease the frequency displayed.

By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

Pressing the "MAN" button again returns you to automatic station search.

Manual storing of stations in the memory

Select the station required.

Press and hold one of the buttons "1" to "6" for more than two seconds.

The sound stops then becomes audible again, confirming that the station has been stored in the memory.

Automatic storing of FM stations in the memory (autostore)

Audio RB3: press and hold the "BND/AST" button for more than two seconds.

Audio RD3: press and hold button P for more than two seconds.

Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast

waveband.

If it is not possible to find six stations, the remaining memories are empty.

Recalling stations stored in the memory

For each waveband, briefly press buttons "1" to "6" to recall the corresponding station.

YOUR 206 IN DETAIL

24-02-2003

RDS

Using the RDS (Radio Data System) function on FM

Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are

going through.

Briefly press the "RDS" button to switch the function on or off.

The multifunction display will show:

– "RDS" if the function is selected.

– "(RDS)" if the function is selected but not available.

RDS station following

The display indicates the name of the station selected. The radio is continually searching for the station which has the best

reception and which is transmitting the same programme.

Traffic information programme

Press the "TA" button to switch the function on or off.

The multifunction display will show:

– "TA" if the function is selected,

– "(TA)" if the function is selected but not available.

Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or

CD changer).

If you wish to interrupt a message, press the "TA" button; this switches the function off.

Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You

can adjust it using the volume button. The setting will be stored and will be used when the next messages are

broadcast.

Regional following mode

When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With

regional following mode you can keep listening to the same programme.

Press the "RDS" button for more than two seconds to switch the function on or off.

YOUR 206 IN DETAIL

24-02-2003

CASSETTE: AUDIO RB3

Selecting cassette mode

When a cassette is inserted, the cassette player will start automatically.

If a cassette is already inserted, press the "SRC" button until cassette mode is selected.

Note: before inserting the cassette, ensure that the tape is taut.

Ejecting the cassette

Fully press buttons F and G to eject the cassette from the player.

Direction of play

The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a

side.

To manually reverse the direction of play, press buttons F and G half-way.

Fast forward/rewind

Fully press button F or G to fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the current

side.

Recommendations for using casssettes

– Use good quality cassettes.

– Avoid the use of cassettes which play for longer than 90 minutes.

– Never expose the cassettes to heat or the direct rays of the sun.

– Re-tighten the tape if necessary before inserting the cassette in the player.

– Clean the playing head regularly with a damp type cleaning cassette.

YOUR 206 IN DETAIL

24-02-2003

CD CHANGER

Selecting CD changer mode

Audio RB3: press the "SRC" button several times in succession.

Audio RD3: press button R.

Selecting a disc

Press buttons "1" to "6" to select the corresponding disc.

Selecting a track

Press button L to select the next track.

Press button N to return to the start of the current track or to select the previous track.

Accelerated play

Press and hold button L or N for forwards or backwards accelerated play. Accelerated play stops as soon as the button is

released.

Shuffle

When the CD changer is selected:

– Audio RB3: press and hold the "SRC" button for two seconds;

– Audio RD3: press and hold button R for two seconds.

The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.

YOUR 206 IN DETAIL

The use of copied CDs may cause malfunctions.

Insert circular CDs only.

24-02-2003

YOUR 206 IN DETAIL

AUDIO RD3

Stalk movement Function

1 - Press (behind) Increase volume

2 - Press (behind) Decrease volume

1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button

3 - Press Automatic search of higher frequencies (radio) -

Selection of the next track (CD)

4 - Press Automatic search of lower frequencies (radio) -

Selection of the previous track (CD)

5 - Press the end Change of source (radio/CD/CD changer)

6 - Rotation Selection of next station stored in memory (radio) -

(clockwise) Selection of next CD

7 - Rotation Selection of previous station stored in memory (radio) -

(anti-clockwise) Selection of previous CD

24-02-2003

YOUR 206 IN DETAIL

Button Function

A Radio on/off.

B–Decrease volume.

C+Increase volume.

D RDS RDS function on/off.

Press for more than 2 seconds: regional following mode on/off.

ETATraffic information priority on/off.

Press for more than 2 seconds: PTY function on/off.

H ▲ Increase of the functions associated with button J.

I ▼ Decrease of the functions associated with button J.



Adjustment of bass, treble, loudness, sound distribution and automatic

volume correction.

Automatic search of higher frequency.

Selection of next CD track.

M MAN Manual/automatic operation of buttons L and N.

Automatic search of lower frequency.

Selection of previous CD track.

P Radio Selection of radio mode. Selection of FM1, FM2, FMast and AM wavebands.

Press for more than 2 seconds: automatic storing of stations in the memory (autostore).

QCDSelection of CD mode.

Press for more than 2 seconds: shuffle.

R CH.CD Selection of CD changer mode.

Press for more than 2 seconds: shuffle.

S ▲ Ejection of the CD.

1 to 6 Selection of station stored in the memory.

Press for more than 2 seconds: storing of a station in the memory.

Selection of a CD changer disc.

24-02-2003

RADIO

Notes on radio reception

Your radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are subject

to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals

and the way in which they are transmitted.

On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.

On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles

(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter.

Selecting radio mode

Audio RB3: press button "SRC" several times in succession.

Audio RD3: press button P.

Selecting a waveband

Audio RB3: briefly press the "BND/AST" button to select the FM1, FM2, FMast and AM wavebands.

Audio RD3: briefly press button P to select the FM1, FM2, FMast and AM wavebands.

Automatic station search

Briefly press button L or N to search for the station immediately above or below. By continuing to

press the button in the direction selected, you will obtain continuous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

If the TA traffic programme is selected, only stations broadcasting this type of programme

are selected.

Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the

waveband, then in "DX" sensitivity (selection of the weakest and most distant transmitters).

To make a direct search in "DX" sensitivity, press button L or N twice.

YOUR 206 IN DETAIL

24-02-2003

Manual station search

Press the "MAN" button.

Briefly press button L or N to increase or decrease the frequency displayed.

By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.

The scrolling stops at the first station found as soon as the button is released.

Pressing the "MAN" button again returns you to automatic station search.

Manual storing of stations in the memory

Select the station required.

Press and hold one of the buttons "1" to "6" for more than two seconds.

The sound stops then becomes audible again, confirming that the station has been stored in the memory.

Automatic storing of FM stations in the memory (autostore)

Audio RB3: press and hold the "BND/AST" button for more than two seconds.

Audio RD3: press and hold button P for more than two seconds.

Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast

waveband.

If it is not possible to find six stations, the remaining memories are empty.

Recalling stations stored in the memory

For each waveband, briefly press buttons "1" to "6" to recall the corresponding station.

YOUR 206 IN DETAIL

24-02-2003

RDS

Using the RDS (Radio Data System) function on FM

Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are

going through.

Briefly press the "RDS" button to switch the function on or off.

The multifunction display will show:

– "RDS" if the function is selected.

– "(RDS)" if the function is selected but not available.

RDS station following

The display indicates the name of the station selected. The radio is continually searching for the station which has the best

reception and which is transmitting the same programme.

Traffic information programme

Press the "TA" button to switch the function on or off.

The multifunction display will show:

– "TA" if the function is selected,

– "(TA)" if the function is selected but not available.

Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or

CD changer).

If you wish to interrupt a message, press the "TA" button; this switches the function off.

Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You

can adjust it using the volume button. The setting will be stored and will be used when the next messages are

broadcast.

Regional following mode

When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With

regional following mode you can keep listening to the same programme.

Press the "RDS" button for more than two seconds to switch the function on or off.

YOUR 206 IN DETAIL

24-02-2003

PTY function: Audio RD3

This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).

With FM selected, press the "TA" button for two seconds to switch this function on or off.

To search for a PTY programme:

– select the PTY function,

– briefly press button L or N to scroll down the list of the various types of programmes offered.

– when the programme of your choice is displayed, keep button L or N pressed for two seconds

to carry out an automatic search (after an automatic search the PTY function is switched off).

In PTY mode the different types of programmes can be stored in the memory. To do this, press the preselection buttons "1"

to "6" for two seconds. Briefly press the corresponding button to recall the type of programme stored in the memory.

EON system: Audio RD3

This connects stations which are part of the same network. It enables the broadcast of traffic information by a station that is

part of the same network as the station to which you are listening.

This service is available when you have selected the TA traffic information programme or the PTY function.

YOUR 206 IN DETAIL

24-02-2003

COMPACT DISC: AUDIO RD3

Selecting CD mode

After insertion of a disc, printed face upwards, the player starts automatically.

If a disc is already inserted, press button Q.

Ejecting the disc

Press button S to eject the disc from the player.

Selecting a track

Press button L to select the next track.

Press button N to return to the start of the current track or to select the previous track.

Accelerated play

Press and hold button L or N for forwards or backwards accelerated play.

Accelerated play stops as soon as the button is released.

Shuffle

When the CD player is selected, press and hold button Q for two seconds.

The tracks will be played in random sequence. Pressing button Q again for two seconds returns you to normal play.

Shuffle mode is de-activated each time the audio equipment is switched off.

YOUR 206 IN DETAIL

The use of copied CDs may cause malfunctions.

Insert circular CDs only.

24-02-2003

YOUR 206 IN DETAIL

CD CHANGER

This is located in the boot on the left-hand side. It holds up to 6 discs.

To insert a CD into the changer:

– open sliding panel A,

– press button B to eject the cartridge C,

– open one of the six compartments of the cartridge by pulling tab D,

– insert the CD into the cartridge, with the printed face upwards, and close

the compartment,

– insert the cartridge into the changer, observing the direction of the arrow,

– close the sliding panel A.

24-02-2003

YOUR 206 IN DETAIL

Direction arrows:

These enable you to move around the screen and

thus select a function.

On the welcome screen only, the up and down

arrows enable the brightness of the screen to be

adjusted.

The right and left arrows enable the complete

name of the road to be displayed temporarily,

during guidance, if the name exceeds the capacity

of the screen.

menu : this button allows access to the main menu. It can

be used at any time.

esc : escape button

"Short press": cancels the current operation and

returns to the previous screen.

"Press for more than 2 seconds": returns to the

welcome screen.

This button can be used in any menu. It is inactive

during guidance.

mod : mode button

"Short press": changes between date, navigation

and radio.

val : Validation button

Confirms the function selected.

Reference of the 2 batteries: 1.5 volts type LR03.

THE SATELLITE NAVIGATION

SYSTEM

Introduction

The satellite navigation system

guides you to the destination of your

choice by means of vocal and visual

instructions.

The heart of the system lies in the

use of a map database and a GPS

system. The latter enables your

position to be located by means of

several satellites.

The satellite navigation system con-

sists of the following components:

– the remote control,

– the display,

– the control unit,

– the last voice message recall

control,

– the CD ROM,

– the multifunction aerial.

The remote control

Pointing this at the screen enables the information contained in the various

menus to be selected.

A special compartment in the glove box permits storage of the remote control.

Some functions or services

described may vary depending on

the CD–ROM version or the coun-

try where the vehicle is sold.

24-02-2003

The display

When the menus are used, the functions which appear at

the bottom of the screen are presented in various ways:

1. Function selected.

2. Function inaccessible in this situation.

3. Function accessible.

Note: the "List" option is accessible for a maximum of 80

possible addresses.

YOUR 206 IN DETAIL

During guidance the screen displays different information

depending on the manoeuvres to be carried out:

1. Distance to next manoeuvre.

2. Next manoeuvre to be carried out.

3. Next road to take.

4. Time.

5. Exterior temperature.

6. Current road.

7. Distance to final destination.

8. Manoeuvre to be carried out.

24-02-2003

YOUR 206 IN DETAIL

The control unit

This is located in the glove box.

1. CD-ROM eject button.

2. CD-ROM compartment.

3. ON indicator light indicates that the control unit is sup-

plied with power.

4. CD indicator light shows that there is a CD-ROM in the

unit.

5. Remote control storage compartment.

The last voice message recall control

Pressing the button on the

end of the lights stalk allows

the last voice message to be

repeated, or, if appropriate, a

voice message to be heard

and a more detailed display of the approaching landscape

to be displayed.

The CD-ROM

This contains all the mapping

data.

It must be inserted with the

printed face upwards.

Use only CD-ROMs approved by PEUGEOT.

The use of copied compact discs may cause

faults.

24-02-2003

YOUR 206 IN DETAIL

Main menu

Switch on the ignition.

Press the "Menu" button to access the main menu.

Select a function using the direction arrows, then confirm

("VAL" button).

Following selection of the "Navigation/guidance" menu, a

screen warns you about the use of the navigation system.

Follow the regulations in force and do not use the remote

control while driving.

Press the "VAL" button to access the next screen.

The "Navigation/guidance" menu offers various options

for selecting guidance:

– By entering the address of a new destination.

– By selecting a service (hotel, station, airport...) available

in a town.

– By selecting an address stored in one of the two directo-

ries.

– By resuming previously interrupted guidance or by stop-

ping current guidance. Two messages may be displayed

depending on the previous actions: "Resume guid-

ance" or "Stop guidance".

– Radio functions are suspended when the system is in

guidance mode.

Navigation/Guidance

24-02-2003

YOUR 206 IN DETAIL

Enter the name of the street. Select the "Validate" function

then press the "VAL" button.

Note: the guidance can be activated from the time the town

is entered without the name of a street or a number. To do

this, select the "City centre" function.

Enter the number on the street. Select the "Validate" func-

tion then press the "VAL" button.

Note: the guidance can be activated as soon as the town

and street are entered without a number. To do this, select

the "Validate" function.

The last town entered is displayed.

To enter the name of another town, select each letter using

the direction arrows then confirm ("VAL" button) for each

letter.

If an error is made, the "Correct" function enables the last

letter entered to be cleared.

The "List" function indicates, as the name is entered, the

number of towns beginning with the same letters. If the list

contains less than 5 names, these are displayed automati-

cally. Select a town then confirm ("VAL" button).

The "Change" function enables the town entered to be

completely cleared.

When the complete name of the town is displayed, select

the "Validate" function then press the "VAL" button.

Note: following confirmation of a letter, only those letters

which could make up an existing name appear.

Entering a new destination

24-02-2003

YOUR 206 IN DETAIL

The complete destination is displayed. Select the

"Validate" function then press the "VAL" button.

Note: you can also change the destination or store it in one

of the two directories (see the section on storing an address

in a directory).

Select a criterion from the list offered then confirm ("VAL"

button). When the criterion of your choice is selected, select

the "Validate" function then press the "VAL" button.

Guidance begins, follow the instructions.

The last guidance criterion used is displayed.

Guidance begins automatically retaining this criterion if

there is no action within 5 seconds or following confirmation

of the "NO" function.

Follow the instructions.

If you wish to change the guidance criterion, select the

"YES" function then press the "VAL" button.

24-02-2003

YOUR 206 IN DETAIL

Selecting a service

The last address entered is displayed.

There are 3 options for defining the location in which you

wish to obtain a service:

– resume the last address entered by means of the

"Validate" function.

– enter the name of a new town then enter the street (or

the "City centre" function) by means of the "Change"

function.

– automatically enter your current location by using the

"Current location" function.

The address of the required service is displayed.

An indication on the right-hand side of the screen (e.g. 1/50)

indicates whether there are any other establishments (50

maximum) offering the same service within a radius of

approximately 50 km.

Use the "Next" or "Previous" functions to consult the list

offered.

When the establishment of your choice is displayed, select

the "Validate" function then press the "VAL" button. Select

a guidance criterion. Guidance begins, follow the instruc-

tions.

After confirming the address, select a service by scrolling

through the list using the direction arrows then press the

"VAL" button.

A cursor on the left-hand side of the screen indicates your

position in the list.

24-02-2003

YOUR 206 IN DETAIL

Storing an address in a directory

When a new address is entered, you can store it by select-

ing the "Store" function.

Selecting a stored destination

Enter the description of the address. If the description

already exists for a different address, you can replace the

old address with a new one.

Select the Personal or Professional directory, then press

the "VAL" button. The address is then stored in the direc-

tory of your choice.

Using the direction arrows, select the directory in which the

address you are looking for is stored then press the "VAL"

button.

The stored addresses are displayed.

A cursor on the left-hand side of the screen indicates your

position in the list. Select a description, by scrolling through

the list using the direction arrows, then press the "VAL"

button. The complete address is displayed. Select the

"Validate" function then press the "VAL" button. Select a

guidance criterion. Guidance begins, follow the instructions.

24-02-2003

YOUR 206 IN DETAIL

Display configuration

From the general menu, the "Configure display" menu

gives access to the following parameters:

– Adjustment of the display brightness.

– Adjustment of the date and time.

– Selection of the language of the display and voice infor-

mation (English, German, Spanish, French, Italian).

– Adjustment of formats and units. This enables you to

choose between Km/h or Mph and degrees Celsius or

Fahrenheit and to modify the format for the hours (12 or

24 hour mode).

Navigation options

From the main menu, the "Navigation options" menu

gives access to the following parameters:

– Management of the directories. It enables an address

stored under a description to be renamed or deleted. To

do this, select the directory and the description to be

changed.

– Voice synthesis volume adjustment.

– Deletion of all data stored in the two directories.

24-02-2003

YOUR 206 IN DETAIL

Guidance tools

Access to the "Guidance tools" menu is by pressing the

"VAL" button during guidance.

It enables:

– the current guidance criterion to be changed,

– the programmed destination to be displayed or changed,

– the voice synthesis volume to be adjusted,

– the current guidance to be stopped.

24-02-2003

YOUR 206 IN DETAIL

24-02-2003

VENTILATION

1. Windscreen de-icing or demisting vents.

2. Front window de-icing or demisting vents.

3. Side vents.

4. Centre vents.

5. Air outlet to front footwells.

6. Air outlet to rear footwells.

Advice on operation

– Place the air flow control at a level sufficient to ensure correct renewal of air in the passenger compartment. The ''OFF''

position cuts off all the air circulation in the passenger compartment.

Note: only use the ''OFF'' position occasionally (risk of condensation).

– Select the air distribution most suited to your requirements and the climatic conditions.

– Gradually adjust the temperature setting for your comfort.

– Position the outside air control to the left; the "Outside Air" position.

– For perfectly even air distribution, take care not to obstruct the exterior air intake grille on the bonnet, the vents and the

air ducts under the front seats. Check that the pollen filter is in good condition.

YOUR 206 IN DETAIL

24-02-2003

YOUR 206 IN DETAIL

1. Temperature adjustment

To be adjusted to your requirements.

From blue (exterior temperature) to

red (hot).

2. Air distribution adjustment

Windscreen and side win-

dows (de-icing/demisting).

To quickly de-ice or demist the wind-

screen and side windows:

– position the air intake control to

the left; the "Outside Air" position,

– turn the temperature and air flow

controls to maximum,

– close the centre and side vents.

HEATING/VENTILATION

24-02-2003

YOUR 206 IN DETAIL

Windscreen, side windows

and footwells.

Footwells.

These settings are recommended

for cold climates.

Centre and side vents.

This setting is recommended for hot

climates.

3. Air flow adjustment

Turn the control from posi-

tion 1 to position 4 to obtain

an air flow sufficient to

ensure your comfort.

4. Air intake control

Intake of exterior air.

This is the normal operating position.

Recirculation of interior air.

This position prevents exterior

odours and smoke entering the pas-

senger compartment and speeds up

the rate at which the passenger

compartment can be heated.

As soon as possible, position the

control in the exterior air intake

position to prevent misting of the

windows.

5. Demisting the rear screen and

the mirrors

With the engine running,

press once to demist the

rear screen and the mirrors.

It switches off automatically after

approximately twelve minutes.

Press again to switch it back on for

twelve minutes.

It is possible to stop demisting by

pressing the button again before the

end of the twelve minutes.

24-02-2003

YOUR 206 IN DETAIL

AIR CONDITIONING

1. Air conditioning

The air conditioning is designed to

operate in all seasons. In summer, it

enables the temperature to be low-

ered and in winter, above 0 °C, it

increases the effectiveness of the

demisting.

Press the switch to activate

the air conditioning. The indi-

cator light comes on.

The air conditioning does not oper-

ate while the air flow adjustment

control is in the "OFF" position.

Note:

It is quite normal that the condensa-

tion created by the air conditioning

results in a flow of water under the

vehicle when it is stationary.

2. Temperature adjustment

To be adjusted to your requirements.

From blue (cold when the air condi-

tioning is on) to red (hot).

24-02-2003

YOUR 206 IN DETAIL

3. Air distribution adjustment

Windscreen and side win-

dows (de-icing/demisting).

To quickly de-ice or demist the wind-

screen and side windows:

– turn the temperature and air flow

controls to maximum,

– close the centre vents,

– position the air intake control to

the left; the "Outside Air" position,

– start the air conditioning.

Windscreen, side windows

and footwells.

Footwells.

These settings are recommended

for cold climates.

Centre and side vents.

This setting is recommended for hot

climates.

5. Air intake control

Intake of exterior air.

This is the normal operating posi-

tion.

Recirculation of interior air.

This position prevents exterior

odours and smoke entering the pas-

senger compartment.

Used simultaneously with the air con-

ditioning, recirculation enables both

heating and cooling performance to

be improved.

Used without the air conditioning,

recirculation may result in misting of

the windows.

As soon as possible, position the

control in the exterior air intake

position.

Important precaution

Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month, to keep it in perfect working

order.

If the system does not produce

cold air, do not use it and contact a

PEUGEOT dealer.

4. Air flow adjustment

Turn the control from posi-

tion 1 to position 4 to obtain

an air flow sufficient to

ensure your comfort.

6. Demisting the rear screen and

the mirrors

With the engine running,

press once to demist

the rear screen and the

mirrors.

It switches off automatically after

approximately twelve minutes.

Press again to switch it back on for

twelve minutes.

It is possible to stop demisting by

pressing the button again before the

end of the twelve minutes.

24-02-2003

YOUR 206 IN DETAIL

AUTOMATIC AIR CONDITIONING

Automatic operation

1. Temperature adjustment

The chosen temperature is

displayed. Press the up and

down arrows to change it.

A setting around 21 °C

enables a comfortable tem-

perature to be obtained.

2. Automatic comfort programme

Press the "AUTO" button.

The system automatically

adjusts the atmosphere

inside the vehicle in accor-

dance with the temperature that you

have chosen. To do this, it controls

the temperature, the flow, the distri-

bution and the intake of air as well as

the air conditioning.

3. Automatic visibility programme

In some cases, the auto-

matic comfort programme

may not be sufficient for

de-icing or demisting of the

windows (humidity, several passen-

gers, ice etc.). In this case, select the

automatic visibility programme to

clear the windows quickly.

24-02-2003

YOUR 206 IN DETAIL

5. Air distribution

Pressing this button sever-

al times in succession

enables the air flow to be

directed in turn towards:

– the windscreen (de-icing or

demisting),

– the windscreen and the footwells,

– the footwells,

– the centre and side vents and the

footwells,

– the centre and side vents.

7. Air intake

Press this button for recir-

culation of the interior air.

Recirculation, shown on

the display, enables the

passenger compartment to be insu-

lated from exterior odours and

smoke.

Avoid prolonged recirculation of

interior air. To do this, press the

button again to resume intake of

exterior air.

4. Air conditioning

Press this button to switch

off the air conditioning. The

symbol "ECO" is displayed.

Automatic operation of the

air conditioning is resumed when the

button is pressed again. The symbol

"A/C" is displayed.

8. Switching the system off

The "OFF" button enables

the entire system to be

switched off.

Temperature-related com-

fort is no longer guaranteed.

Pressing the "OFF", "AUTO", or

"visibility" button again reactivates

the system with the values set

before it was switched off.

9. Demisting the rear screen

Press this button to demist

the rear screen and the

mirrors. Demisting switches

off automatically. It is pos-

sible to stop operation of the

demisting before it is switched off

automatically by pressing the button

again.

Important precaution

Operate the air conditioning for 5 to

10 minutes, once or twice a month,

to keep it in good working order.

If the system does not produce cold

air, do not use it and contact your

PEUGEOT dealer.

Manual operation

If you wish, you can make a different

choice from that offered by the sys-

tem by changing a setting. The other

functions will still be controlled auto-

matically. Pressing the "AUTO" but-

ton returns the system to completely

automatic operation.

6. Air flow

The flow of air can be

increased or reduced

by pressing buttons

+ or – respectively.

Note

It is quite normal that the condensa-

tion created by the air conditioning

results in a flow of water under the

vehicle when it is stationary.

To prevent condensation on the

inside of the vehicle in cold or wet

weather, you are advised to avoid

using the "ECO" mode.

YOUR 206 IN DETAIL

24-02-2003

YOUR 206 IN DETAIL

6. Head restraint height

adjustment

To raise the restraint, pull it

upwards.

The adjustment is correct

when the upper edge of the

head restraint is level with

the top of the head.

The head restraint has a frame

with notches, which prevent the

head restraint dropping down

(this is a safety device in the

event of an impact).

To lower the head restraint, it is

necessary to push simultaneously:

– the button located on the left

guide at the base of the head

restraint,

– the head restraint downwards.

To remove the head restraint,

press the lug.

Never drive with the

head restraints removed;

they must be in place

and correctly adjusted.

Rear head restraints

These have a high position for

when they are in use and a low

position for when they are stored.

They are removable.

To lower the head restraints,

press the lug.

To remove them, pull upwards as

far as the stop then press the

release control.

FRONT SEATS

1. Forwards-backwards

adjustment

Lift the control and slide the seat

forwards or backwards.

2. Access to rear seats

(3 door)

Pull one of the two handles to fold

the seat back and move the seat

forwards. On repositioning, the

seat returns to its initial position

It is impossible to access the rear

seats if the front seat is in the

reclining position.

3. Seat back angle adjustment

Push one of the two handles

towards the rear.

4. Seat height adjustment

Pull the handle upwards.

Remove your weight from the

seat to raise, or press on the seat

to lower.

5. Heated seats switch

Press the switch. The tempera-

ture is controlled automatically.

Press the switch again to stop

operation.

24-02-2003

YOUR 206 IN DETAIL

Storage compartment

– Lift the cover to gain access to the

storage compartment.

– Ensure that the cover is locked

correctly before folding back the

seat cushion.

Folding seat back

(all models)

– Remove the head restraint for

complete folding of the seat.

– Push either of the two handles 2

towards the rear to fold the seat

back.

Note: with the modifiable seat, this

can be tilted or removed in order to

fold down the seat back horizontally.

Modifiable front passenger

seat

Access to the storage

compartment

– Push the seat as far back as pos-

sible.

– Lift then pull the front of the seat

to unlock it.

– Tilt the seat cushion forwards.

24-02-2003

YOUR 206 IN DETAIL

Removing the modifiable

front passenger seat

– Push the seat as far back as pos-

sible.

– Lift then pull the front of the seat

to unlock it.

– Tilt the seat cushion forwards.

– Disconnect the heated seat con-

nector by pressing on the metal

wire.

– Pulling upwards, tilt the seat cush-

ion from left to right to make it

easier to remove.

Refitting the modifiable front

passenger seat

– Push the seat as far back as pos-

sible.

– Engage the seat fixing in the clips.

– Reconnect the heated seat con-

nector.

– Fold back the seat cushion.

24-02-2003

YOUR 206 IN DETAIL

6. Head restraint height

adjustment

To raise the restraint, pull it

upwards.

The adjustment is correct

when the upper edge of the

head restraint is level with

the top of the head.

The head restraint has a frame

with notches, which prevent the

head restraint dropping down

(this is a safety device in the

event of an impact).

To lower the head restraint, it is

necessary to push simultaneously:

– the button located on the left

guide at the base of the head

restraint,

– the head restraint downwards.

To remove the head restraint,

press the lug.

Never drive with the

head restraints removed;

they must be in place

and correctly adjusted.

Rear head restraints

These have a high position for

when they are in use and a low

position for when they are stored.

They are removable.

To lower the head restraints,

press the lug.

To remove them, pull upwards as

far as the stop then press the

release control.

FRONT SEATS

1. Forwards-backwards

adjustment

Lift the control and slide the seat

forwards or backwards.

2. Access to rear seats

(3 door)

Pull one of the two handles to fold

the seat back and move the seat

forwards. On repositioning, the

seat returns to its initial position

It is impossible to access the rear

seats if the front seat is in the

reclining position.

3. Seat back angle adjustment

Push one of the two handles

towards the rear.

4. Seat height adjustment

Pull the handle upwards.

Remove your weight from the

seat to raise, or press on the seat

to lower.

5. Heated seats switch

Press the switch. The tempera-

ture is controlled automatically.

Press the switch again to stop

operation.

24-02-2003

YOUR 206 IN DETAIL

REAR SEATS

To fold the rear seat(s):

– lift the front of the seat cushion 1,

– tilt the seat cushion 1 against the front seats,

– position the seat belt under the belt holder 2,

– pull control 3 to unlock the seat back 4,

– remove or lower the head restraint,

– tilt the seat back 4.

Always start with the seat, never the seat back (risk of damage).

When repositioning:

– fold up the seat back,

– fold back the seat cushion,

– reposition the lap belt and the buckles before locking the front of the seat cushion.

Take care not to trap the seat belts.

24-02-2003

YOUR 206 IN DETAIL

Removing the rear seat

– Tilt the seat cushion against the

front seats.

– Squeeze the seat fasteners to

release them from their attach-

ments.

– Remove the seat cushion.

TRANSPORTING LONG

OBJECTS

To allow the transportation of long

objects:

Front seat:

– remove the modifiable seat (see

corresponding paragraph) and

fold down the seat back.

Rear seat:

– remove the seat cushion,

– tilt the seat back.

24-02-2003

YOUR 206 IN DETAIL

"ISOFIX" MOUNTINGS

Available on the two side rear seats,

and on the front passenger seat, the

Isofix mountings allow for fitting of a

special child seat, sold by PEUGEOT

dealers

The locks incorporated in the child

seat fit onto the Isofix mountings

and ensure safe, reliable and fast

assembly.

In the front, the child seat must be

fitted in the "rear facing" position for

children from birth to 13 kg: front

seat as far forward as possible so

that the body of the child seat is in

contact with or as close as possible

to the fascia.

In this case, it is essential to dis-

arm the passenger air bag.

There is a risk that the child may

be killed or seriously injured if the

air bag inflates.

In exceptional cases, the child seat

may be fitted in the "forwards facing"

position if the rear seats are already

occupied by other children or if the

rear seats cannot be used (not pres-

ent, folded down). In this case, use

the Isofix mountings, the restraining

cushion of the child seat and the

seat belt and adjust the front pas-

senger seat to the most rearward

position. The passenger air bag may

be left active.

In the rear, the child seat may be fit-

ted in the "rear facing" or "forwards

facing" position. In this case, the

front seat must be in mid-way

position, with the seat back

upright.

The combined use of the Isofix

mountings, the restraining cushion

of the child seat and the seat belt is

compulsory for a "forwards facing"

seat.

The special approved child seat is

the Isofix KIDDY seat. It can be used

in the "rear facing" position from

birth to 13 kg and "forwards facing"

from 9 to 18 kg.

This seat can also be used on seats

not fitted with Isofix mountings: it is

then compulsory to attach it to the

vehicle's seat using the three-point

seat belt.

Follow the instructions for fitting

the child seat in the manufactur-

er's instruction booklet.

24-02-2003

CHILD SEATS

Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.

For maximum safety, please follow these precautions:

– All children under the age of 10 must travel in a special approved child seat*, adapted to their weight, in a seat fitted with

a seat belt.

– Front passenger seat*: children under the age of 10 must not travel in the "forwards facing" position**. The 'rearwards fac-

ing' position is permitted. In this position, it is compulsory to disarm the passenger air bag.

After carrying out numerous tests, PEUGEOT recommends the following systems:

Up to 18 months (up to 13 kg)

"Britax Babysure": installed in the rear-facing position in the front or in the rear using a three-point seat belt.

In the front, the passenger seat must be in the 'mid-way' position on the runner.

From 9 months to 3 or 4 years (9 to 18 kg)

"Römer Prince": installed in the rear using a three-point seat belt.

For the safety of your child, the seat and the restraining cushion must never be separated.

From 3 to 6 years (15 to 25 kg)

"Römer Vario'': installed in the rear with a three point seat belt.

YOUR 206 IN DETAIL

24-02-2003

YOUR 206 IN DETAIL

From 3 to 10 years (15 to 36 kg)

''Recaro Start'': installed in the rear with a three-point seat belt.

The height, width and length of the seat must be adjusted according to the

age and build of your child.

"Klippan Optima": installed in the rear with a three-point seat belt.

From the age of 6 years (approximately 22 kg), the booster is used on its

own.

Remember, even for short journeys, to fasten the three-point seat belts or the

child seat straps, keeping the slack in relation to the child's body to a minimum.

To prevent the doors from opening accidentally, use the child-lock.

Also, do not open the rear windows more than a third.

* According to current legislation in the country of destination.

**Unless the rear seats are already occupied by other children or the rear seats

cannot be used (because they are missing or folded down). In this case, move

the front passenger seat as far back as possible and leave the air bag active.

Never leave a child or an

animal in a vehicle which

is exposed to the sun

and has the windows

closed.

Never leave the keys within

reach of children inside the car.

Disarm the passenger air bag

when installing a "rearwards fac-

ing'" child seat on the front pas-

senger seat.

The child would risk being killed

or seriously injured were the air

bag to inflate.

Observe strictly the recommen-

dations for assembling the child

seat as shown in the child seat

instructions.

24-02-2003

YOUR 206 IN DETAIL

In accordance with the European regulation (Directive 2000/3), the table below indicates the extent to which each seat in

your vehicle may be fitted with a child seat:

U : universal category

UF : universal category, forward-facing.

X : no child restraint.

According to destination:

L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).

L2 : ROMER Prince E1 03301058 Universal (9 to18 kg).

L3 : ROMER Vario E1 03301120 Universal (15 to 25 kg).

L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).

L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).

L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg)*.

L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg)*.

* See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings.

Weight

Seat

< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg

Front passenger UUUU

Fixed seat, Height adjustable seat L1, L6 L2, L7 L3, L4, L5 L4, L5

Rear passenger UUUU

Side L1, L6 L2, L7 L3, L4, L5 L4, L5

Rear passenger XUFUFUF

Centre L2 L3, L4, L5 L4, L5

Three-point seat belt

Rear passenger XUFUFUF

Centre L2 L3

Two-point seat belt

24-02-2003

YOUR 206 IN DETAIL

SEAT BELTS

Seat belt height adjustment:

– to lower: pull the control towards

you and slide it downwards.

– to raise: slide the control upwards.

To lock the seat belts

Pull the strap, then insert the end

into the buckle.

Front seat belts with

pre-tensioner and force limiter

Safety in the event of front impacts

has been improved by the introduc-

tion of seat belts with pre-tensioner

and force limiter for the front seats.

Depending on the seriousness of

the impact, the pre-tensioning sys-

tem instantly tightens the seat belts

and pulls them against the bodies of

the occupants.

The pre-tensioning seat belts are

active when the ignition is on.

The force limiter eases the pressure

of the seat belt on the body of the

occupant in the event of an acci-

dent.

Rear seat belts

The rear seats are fitted with two

three-point inertia reel seat belts

and a lap belt (one-piece rear seat)

or with three three-point inertia reel

seat belts (two-part rear seat, 1/3 -

2/3).

To be effective, a seat

belt must be tightened

as close to the body as

possible.

Depending on the nature and

seriousness of the impact, the

pre-tensioning system may be

triggered before and independ-

ently of the air bags.

In all cases, the air bag warning

light on the instrument panel

comes on.

Following an impact, have the

system checked by a PEUGEOT

dealer.

The system has been designed

to be fully operational for ten

years.

For greater safety, have it

checked by a PEUGEOT dealer

within ten years following the ini-

tial purchase of the vehicle.

24-02-2003

YOUR 206 IN DETAIL

Changing the battery of

the remote control

Warning that the battery is flat is

given by an audible signal accompa-

nied by the message ''Remote con-

trol battery low'' on the multi-func-

tion display.

To replace the battery, remove the

screw then unclip the casing using a

coin at the ring (CR 2016/3 volt bat-

tery).

If the remote control does not work

after the battery has been changed,

reprogramme the remote control.

THE KEYS

The keys allow you to switch on the

ignition and operate the passenger

air bag disarming switch and the fuel

filler cap, as well as independently

operate the locks on the front doors.

Central locking

The keys allow you to lock or unlock

the doors and tailgate from the front

doors.

If one of the doors, the tailgate (206

SW) or the rear screen (206 SW) is

open, the central locking does not

work.

The remote control

This performs the same functions as

the key, at a distance.

Locking

Press button A to lock the vehicle.

This is confirmed by fixed lighting of

the direction indicators for approxi-

mately two seconds.

Unlocking

Press button B to unlock the vehicle.

This is confirmed by the rapid

flashing of the direction indicators.

206 SW: Press and hold button B to

unlock the vehicle and open the rear

screen.

Note: If the vehicle is locked and

unlocking is activated inadvertently,

unless the doors are opened within

30 seconds, the vehicle will lock

automatically (206 SW).

Avoid pressing the buttons of your

remote control out of range of your

vehicle. You risk causing it not to

work and the remote control would

then have to be reprogrammed.

Locating your car

To locate your car in a car park, if

you have locked it:

☞ press button A, the courtesy

lights come on and the direction

indicators flash for a few sec-

onds.

Key in ignition

A buzzer sounds on opening the dri-

ver's door, if the key has been left in

the ignition.

Programming

the remote control

☞ Switch off the ignition.

☞ Switch the ignition on again.

☞ Press button A.

☞ Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control

is now working again.

24-02-2003

YOUR 206 IN DETAIL

Make a careful note of the

number on each key. The key

number is coded on the label

attached to the key. If the

keys are lost, your PEUGEOT dealer

can rapidly supply you with new keys.

The high frequency remote control is a

high-performance system which has a

powerful beam.

Do not operate it while it is in your

pocket as there is a possibility that it

may unlock your vehicle, without you

being aware of it.

The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off,

except for reprogramming.

As a safety precaution (with children

on board), remove the ignition key

when you leave the vehicle, even for a

short time.

Do not repeatedly press the button of

your remote control out of range of

your vehicle. You risk causing it not to

work and the remote control would

have to be reprogrammed.

When purchasing a second-hand

vehicle:

– ensure that you are given the confi-

dential card;

– have the key codes memorised by a

PEUGEOT dealer, to ensure that the

keys in your possession are the only

ones which can start the vehicle.

Do not make any modifications to the

electronic engine immobiliser system.

Confidential card

The confidential card contains the

identification code necessary for any

work carried out by a PEUGEOT

dealer on the system. This code is

hidden by a film which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine maoagement

system as soon as the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.

The ignition key has an electronic

chip which has a special code.

When the ignition is switched on, the

code is recognised and starting is

possible.

If the system does not function

correctly, you are warned by an

audible signal and a message on the

multifunction display.

In this case, the vehicle will not start.

Contact a PEUGEOT dealer as

soon as possible.

24-02-2003

YOUR 206 IN DETAIL

Make a careful note of the

number on each key. The key

number is coded on the label

attached to the key. If the

keys are lost, your PEUGEOT dealer

can rapidly supply you with new keys.

The high frequency remote control is a

high-performance system which has a

powerful beam.

Do not operate it while it is in your

pocket as there is a possibility that it

may unlock your vehicle, without you

being aware of it.

The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off,

except for reprogramming.

As a safety precaution (with children

on board), remove the ignition key

when you leave the vehicle, even for a

short time.

Do not repeatedly press the button of

your remote control out of range of

your vehicle. You risk causing it not to

work and the remote control would

have to be reprogrammed.

When purchasing a second-hand

vehicle:

– ensure that you are given the confi-

dential card;

– have the key codes memorised by a

PEUGEOT dealer, to ensure that the

keys in your possession are the only

ones which can start the vehicle.

Do not make any modifications to the

electronic engine immobiliser system.

Confidential card

The confidential card contains the

identification code necessary for any

work carried out by a PEUGEOT

dealer on the system. This code is

hidden by a film which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine maoagement

system as soon as the ignition has

been switched off and therefore pre-

vents starting of the vehicle by any-

one who does not have the key.

The ignition key has an electronic

chip which has a special code.

When the ignition is switched on, the

code is recognised and starting is

possible.

If the system does not function

correctly, you are warned by an

audible signal and a message on the

multifunction display.

In this case, the vehicle will not start.

Contact a PEUGEOT dealer as

soon as possible.

24-02-2003

YOUR 206 IN DETAIL

THE DOORS

The front doors (saloon and 206 SW)

The rear doors (206 SW)

Opening the doors from outside

CHILD SAFETY LOCK

On each rear door this prevents

opening of the door from the inside.

Turn switch 1 a quarter turn using

the ignition key.

"Door open" warning

With the engine running, you are

warned if a door is not shut properly

by an audible signal and a message

or graphic on the multifunction dis-

play, indicating the door in question.

In addition, when the vehicle is

moving, if the courtesy light button

is in the "lighting on opening a door"

position, the courtesy light flashes.

Opening the doors from inside

Locking from inside

Without central locking

To lock, press button A. The button

locks the door in question.

The button on the driver's door locks

the door, the tailgate and the rear

screen (206 SW).

With central locking

To lock, press button A.

Locking one of the front doors locks

the front and rear doors, the tailgate

and the rear screen (206 SW).

On the rear doors, the button only

locks the door in question.

Unlocking from inside

To unlock, pull button A or operate

the handle.

24-02-2003

YOUR 206 IN DETAIL

LOCKING/UNLOCKING OF

THE TAILGATE (SALOON)

Without central locking:

To lock, turn the key from A to C.

To open, turn the key from A to B,

press the handle then lift the tailgate.

With central locking:

Locking and unlocking of the tailgate

is simultaneous with the doors.

The lighting is activated on open-

ing the tailgate.

LOCKING/UNLOCKING OF THE TAILGATE AND REAR

SCREEN (206 SW)

It is not possible to open the tailgate and the rear screen simultaneously.

Without central locking

The tailgate and rear screen are locked or unlocked via the driver's door lock.

With the rear screen closed, to open the tailgate, operate the handle A and lift the

tailgate.

With the tailgate closed, to open the rear screen, operate the handle B, then lift

the rear screen using the windcsreen wiper arm (location C).

With central locking

Locking or unlocking of the tailgate is simultaneous with the doors.

With the rear screen closed, to open the tailgate, operate the handle A and lift the

tailgate.

With the tailgate closed, to open the rear screen, press and hold the remote

control unlocking button or operate the handle B, then lift the rear screen using

the windscreen wiper arm (location C).

24-02-2003

YOUR 206 IN DETAIL

TAILGATE RELEASE (saloon)

This enables the tailgate to be

unlocked in the event of a central

locking fault.

– Fold back the rear seats to gain

access to the boot from inside the

vehicle,

– Pull the tailgate trim to release it,

– Pull the opening catch 1 upwards.

SUNROOF (saloon)

To open

Press part B of the switch. The sun-

roof will open in the intermediate

(comfort) position. To open com-

pletely, press part B again.

To close

Press part A of the switch. The sun-

roof will close in the intermediate

(comfort) position. To close com-

pletely, press part A again.

Panoramic sunroof screen

To move it to your chosen position,

press part A or B of the switch.

The lighting is activated on open-

ing the tailgate or the rear screen.

Notes: the tailgate and the rear

screen lock automatically while driv-

ing (from 10 km/h) and unlock when

one of the doors is opened.

When the rear windscreen wiper is

in a wiping position, the rear screen

can only be opned at the end of the

cycle.

Close the rear screen using the

windscreen wiper arm or by press-

ing the centre of the glass.

"Tailgate/rear screen open"

warning

With the engine running, if the tail-

gate or the rear screen is not prop-

erly closed, you are warned by an

audible signal and a message

"Tailgate open" or a diagram on the

multifunction display.

In addition, while driving, if the

courtesy light button is in the "light-

ing on opening the tailgate or rear

screen" position, the courtesy light

flashes.

24-02-2003

YOUR 206 IN DETAIL

TAILGATE RELEASE (saloon)

This enables the tailgate to be

unlocked in the event of a central

locking fault.

– Fold back the rear seats to gain

access to the boot from inside the

vehicle,

– Pull the tailgate trim to release it,

– Pull the opening catch 1 upwards.

SUNROOF (saloon)

To open

Press part B of the switch. The sun-

roof will open in the intermediate

(comfort) position. To open com-

pletely, press part B again.

To close

Press part A of the switch. The sun-

roof will close in the intermediate

(comfort) position. To close com-

pletely, press part A again.

Panoramic sunroof screen

To move it to your chosen position,

press part A or B of the switch.

The lighting is activated on open-

ing the tailgate or the rear screen.

Notes: the tailgate and the rear

screen lock automatically while driv-

ing (from 10 km/h) and unlock when

one of the doors is opened.

When the rear windscreen wiper is

in a wiping position, the rear screen

can only be opned at the end of the

cycle.

Close the rear screen using the

windscreen wiper arm or by press-

ing the centre of the glass.

"Tailgate/rear screen open"

warning

With the engine running, if the tail-

gate or the rear screen is not prop-

erly closed, you are warned by an

audible signal and a message

"Tailgate open" or a diagram on the

multifunction display.

In addition, while driving, if the

courtesy light button is in the "light-

ing on opening the tailgate or rear

screen" position, the courtesy light

flashes.

24-02-2003

YOUR 206 IN DETAIL

BONNET STRUT

Secure the strut to hold the bonnet

open.

Before closing the bonnet, replace

the strut in its housing.

To close

Lower the bonnet and release it at

the end of its travel. Check that the

bonnet is locked.

FILLING THE FUEL TANK

The tank must be filled with fuel with

the engine switched off.

Insert the key then turn it to the left.

Remove the cap.

A label indicates which type of fuel

to use.

If you fill your tank, do not continue

after the third cut-off of the pump

nozzle. This could result in vehicle

malfunctions.

The capacity of the tank is

approximately 50 litres.

OPENING THE BONNET

Inside the vehicle: pull the handle

on the left-hand side, under the

fascia.

Outside the vehicle: lift the catch

and raise the bonnet.

Always remove the key

from the ignition when

leaving the vehicle, even

for a short time.

If an obstacle is detected

when operating the roof, you must

reverse the movement of the roof.

To do this, press the control con-

cerned.

When the driver operates the roof

control, he must ensure that no

one is preventing correct closing

of the roof.

The driver must ensure that pas-

sengers use the sunroof correctly.

Be aware of children when operat-

ing the roof.

24-02-2003

YOUR 206 IN DETAIL

BONNET STRUT

Secure the strut to hold the bonnet

open.

Before closing the bonnet, replace

the strut in its housing.

To close

Lower the bonnet and release it at

the end of its travel. Check that the

bonnet is locked.

FILLING THE FUEL TANK

The tank must be filled with fuel with

the engine switched off.

Insert the key then turn it to the left.

Remove the cap.

A label indicates which type of fuel

to use.

If you fill your tank, do not continue

after the third cut-off of the pump

nozzle. This could result in vehicle

malfunctions.

The capacity of the tank is

approximately 50 litres.

OPENING THE BONNET

Inside the vehicle: pull the handle

on the left-hand side, under the

fascia.

Outside the vehicle: lift the catch

and raise the bonnet.

Always remove the key

from the ignition when

leaving the vehicle, even

for a short time.

If an obstacle is detected

when operating the roof, you must

reverse the movement of the roof.

To do this, press the control con-

cerned.

When the driver operates the roof

control, he must ensure that no

one is preventing correct closing

of the roof.

The driver must ensure that pas-

sengers use the sunroof correctly.

Be aware of children when operat-

ing the roof.

24-02-2003

YOUR 206 IN DETAIL

THE LIGHTS STALK

Front and rear lights

Selection is by turning ring A.

Lights off

Side lights

Dipped/main beam

headlamps

Automatic switching

on of lights

Vehicles fitted with a rear fog

lamp (ring B)

Rear fog lamp

This only operates with the dipped/

main beam headlamps.

Vehicles fitted with front fog

lamps and a rear fog lamp

(ring C)

Front fog lamps (first rota-

tion of the ring forwards)

Front and rear fog

lamps (2nd rotation of

the ring forwards)

Note: to switch off the rear fog lamp

and the front fog lamps, turn the ring

backwards twice in succession.

Direction indicators (flashers)

Left: downwards.

Right: upwards.

Dipped/Main beam change

Pull the stalk towards you.

Note: with the ignition off, when the

driver's door is opened, a buzzer

sounds if you have left your lights

on.

Front fog lamps and rear fog lamp

Rotate the ring forwards to switch on

and backwards to switch off. The

status is confirmed by the indicator

light on the instrument panel.

In good or rainy weather,

both day and night, the

front fog lamps and the

rear fog lamp are daz-

zling and are prohibited.

Do not forget to switch them off

when they are no longer needed.

24-02-2003

YOUR 206 IN DETAIL

AUTOMATIC SWITCHING ON

OF LIGHTS

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor and when the wind-

screen wipers operate continuously.

They switch off when the light

becomes bright enough or the wind-

screen wipers are switched off.

Note: In foggy weather or in snow

the brightness sensor can detect

sufficient light. As a result, the lights

will not come on automatically.

This function is active when the

vehicle is supplied to the customer.

To disarm or activate the function:

– Start with the key in the acces-

sories position (1st notch),

– Press the end of the lights stalk

for more than four seconds.

Note: after the ignition is switched

off and depending on the brightness,

the lights remain on for about

45 seconds or until the vehicle is

locked.

The brightness sensor, coupled

with the rain sensor, is located

in the centre of the windscreen,

behind the interior mirror. It is

used for automatic switching on

of the lights.

Operating check

Activation

Acivation of this function is accom-

panied by an audible signal and the

message "Automatic lighting

active'' on the multifunction display.

Disarming

Disarming of the function is accom-

panied by an audible signal.

Note: the function is temporarily dis-

armed when the driver uses the

manual lighting controls.

If the brightness sensor does not

function correctly, the system acti-

vates the function (the lights come

on). The driver is alerted by an audi-

ble signal, accompanied by the mes-

sage "Automatic switching on of

lights faulty" on the multifunction

display.

Contact a PEUGEOT dealer to have

the system checked.

24-02-2003

YOUR 206 IN DETAIL

Stalk with intermittent wipe

Front windscreen wiper

2 Fast wipe (heavy rain).

1 Normal wipe (moderate

rain).

I Intermittent wipe.

0 Off.

 Single wipe (press

downwards).

Windscreen and headlamp wash

Pull the windscreen wiper stalk

towards you. The windscreen wash

then the windscreen wipers operate

for a fixed period.

The windscreen wash and head-

lamp wash operate simultaneously

for a few seconds, only if the

dipped beam or main beam head-

lamps are on.

Operation

In position 1 or 2, when the vehicle

stops, the windscreen wiper

changes to a lower wiping speed,

then resumes its initial speed when

the vehicle starts again.

In the Intermittent position, the

wiping speed is proportional to the

speed of the vehicle.

In the AUTO position, the wiping

speed is proportional to the

heaviness of the rainfall.

When the ignition has been

switched off for more than one

minute with the stalk in the wipe

position, it is necesary to

reactivate this function. To do this,

move the stalk to any position, then

move it back to the required

position.

WINDSCREEN WIPER STALK

Stalk with automatic wipe

Front windscreen wiper

2 Fast wipe (heavy rain).

1 Normal wipe (moderate

rain).

AUTO Automatic wipe.

0 Off.

 Single wipe (press

downwards).

24-02-2003

YOUR 206 IN DETAIL

Automatic timed windscreen

wipers

In the AUTO position, the wind-

screen wipers operate automatically

and adapt their speed to the inten-

sity of the rainfall.

Operating check

Activation

When the function is activated, the

message "Automatic windscreen

wiping active" appears on the mul-

tifunction display.

In the event of malfunction, the

driver is informed by an audible sig-

nal and the message "Auto wind-

screen wiper faulty" on the multi-

function display.

In the event of malfunction in the

AUTO position, the windscreen

wiper will operate in intermittent

mode.

Contact a PEUGEOT dealer to have

the system checked.

When using an automat-

ic car wash, switch off

the ignition or check that

the wiper stalk is not in

the automatic position.

In winter, it is advisable to wait

for the windscreen to completely

clear of ice before operating the

automatic wipe.

Rear screen wiper

Turn ring A to the first

notch for intermittent wiping.

Rear screen wash

Turn ring A past the first

notch; the screen wash

then the wiper operate for

a fixed period.

206 SW: the rear screen wiper and

rear screen wash functions are dis-

armed when the rear screen is

open.

24-02-2003

YOUR 206 IN DETAIL

TRIP COMPUTER

Pressing the button on the end of the wiper stalk enables the following data to be

displayed:

Display B

– the range,

– the distance travelled,

– the average consumption,

– the current consumption,

– the average speed.

Zero reset

Press the stalk for more than two seconds.

Display C

– the current consumption and the range,

– the average consumption, the distance travelled and the

average speed calculated over a period "1",

– the average consumption, the distance travelled and the

average speed calculated over a period "2".

Periods "1" and "2" are defined by the frequency of the

zero reset. They allow, for instance, daily calculations over

period "1" and monthly calculations over period "2".

Zero reset

When the required period is displayed, press the stalk for

more than two seconds.

24-02-2003

YOUR 206 IN DETAIL

Range

The display shows the distance that

can still be covered with the fuel

remaining in the tank.

Note: this figure may rise if there is

a change in driving style or road sur-

face, causing a significant drop in

current fuel consumption.

If there are less than 3 litres of fuel

in the tank, only three segments will

be displayed.

Current fuel consumption

This gives the fuel consumption

recorded during the last two sec-

onds. This function is only displayed

when the vehicle is travelling at

more than 12 m.p.h. (20 km/h).

Average consumption

This is the ratio between the amount

of fuel consumed and the distance

travelled since the computer was

last reset to zero.

Average speed

This is obtained by dividing the dis-

tance travelled by the period of time

the vehicle has been in use (with the

ignition on), since the computer was

last reset to zero.

Distance travelled

This shows the distance travelled

since the computer was last reset to

zero.

After the trip computer has been

reset to zero, the range data

becomes meaningful only after the

vehicle has been in use for a certain

period.

If horizontal segments are displayed

instead of figures when driving, con-

tact a PEUGEOT dealer.

24-02-2003

YOUR 206 IN DETAIL

REAR QUARTER LIGHTS

(3 DOOR)

To partially open the rear windows,

tilt lever then push the window.

ELECTRIC WINDOWS

1. Driver's electric window

switch

You have two options:

– Manual operation:

Press or pull switch 1 gently. The

window stops as soon as the

switch is released.

– Automatic operation:

Press or pull switch 1 firmly. One

touch completely opens or closes

the window.

Automatic closing only operates

when the engine is running and only

on the driver's electric window.

2. Passenger's electric window

switch.

3. Rear left electric window switch.

4. Rear right electric window

switch.

Temporary disarming of the rear

windows (child safety)

This switch enables the rear

windows to be locked whatever their

position.

A1st press activates the control (the

indicator light on the button comes

on) and a 2nd press deactivates it

(the indicator light on the button

goes out).

Always remove the key

from the ignition when

leaving the vehicle, even

for a short time.

If an obstacle is detected

when operating the electric win-

dows, you must reverse the move-

ment of the window. To do this,

press the control concerned.

When the driver operates the pas-

senger electric window controls,

he must ensure that no one is

preventing correct closing of the

windows.

The driver must ensure that pas-

sengers use the electric windows

correctly.

Be aware of children when operating

the windows.

24-02-2003

YOUR 206 IN DETAIL

Manual interior mirror

The interior mirror has two positions:

– day (normal),

– night (anti-dazzle).

To change from one to the other,

push or pull the lever on the lower

edge of the mirror.

Manual exterior mirrors

Move the lever in all four directions

to adjust.

When the vehicle is parked, the

exterior mirrors can be folded back

manually.

ELECTRIC MIRRORS

Turn knob 1 to the right or to the left

to select the corresponding mirror.

Move knob 1 in all four directions to

adjust.

Electric folding mirrors

With the ignition on, turn knob 1 to

position A.

The exterior mirror on the driver's side is convex (outer edge defined

by a dotted line) in order to eliminate the 'blind spot'.

As a result, objects observed in the driver's and passenger's mirrors

are in reality closer than they appear.

This must be taken into account to correctly judge the distance of vehicles

approaching from behind.

24-02-2003

Rear courtesy light (206 SW)

Comes on when a door, the

tailgate or the rear screen is

opened. In this position the

courtesy light flashes while

driving if an access is not

closed correctly.

Off

Permanently on when the

key is in the accessories

position or with the ignition

on.

YOUR 206 IN DETAIL

COURTESY LIGHTS

Front courtesy light (button A)

Comes on when a door, the

tailgate (206 SW) or the

rear screen (206 SW) is

opened. In this position the

courtesy light flashes while

driving if an access is not

closed correctly.

Off

Permanently on when the key

is in the accessories position

or with the ignition on.

SUN VISOR

The sun visors are fitted with a van-

ity mirror, with a concealing flap on

the driver's side.

AREAS FOR TOLL CARDS/

CAR PARK TICKETS

The athermic windscreen has two

non-reflective zones located either

side of the base of the interior mirror.

They are intended for affixing toll

cards and/or car park tickets.

Map-reading light

With the key in the accessories or

ignition on position, turn button B to

the left or to the right.

24-02-2003

YOUR 206 IN DETAIL

HEADLAMP ADJUSTMENT

Depending on the load in your vehi-

cle, it is recommended that the

headlamp beam is adjusted.

0. 1 or 2 people in the front seats.

–. 3 people.

1. 5 people.

2. 5 people + maximum authorised

load.

3. Driver + maximum authorised

load.

Initial setting is position 0.

STEERING WHEEL HEIGHT

ADJUSTMENT

When stationary, lower the handle to

unlock the steering wheel.

Adjust to the desired height and lift

the handle to lock the steering

wheel.

HORN

Press one of the spokes or

the centre of the steering

wheel.

24-02-2003

YOUR 206 IN DETAIL

FRONT ASHTRAY

To empty, close the cover.

Pull the lug and release the ashtray

upwards.

LIGHTER

Press and wait a few minutes until it

springs out automatically.

It is supplied with power with the

ignition key in the accessories posi-

tion (1

notch).

GLOVE BOX

To open the glove box, lift the handle.

The light comes on when the cover

is opened.

1. Handbook pack storage.

2. Can holder.

3. Pen holder.

4. Spectacles storage.

5. Map storage.

6. Coin storage.

24-02-2003

YOUR 206 IN DETAIL

100

Stowing rings

Use the stowing rings on the boot

floor and on the back of the rear seat

to secure your luggage.

Luggage retaining net

Hooked onto the stowing rings, this

enables your luggage to be secured.

BOOT LAYOUT (SALOON)

Retaining strap

A strap secured to the side of the

boot enables you to secure various

objects (cans, first aid kit etc.).

Rear parcel shelf

To remove the shelf:

– unhook the two strings 1,

– slightly raise the shelf, then

remove it.

There are several options for storing

the shelf:

– either behind the front seats,

– or behind the rear seat using the

luggage retaining net,

– or flat in the boot.

24-02-2003

YOUR 206 IN DETAIL

102

24-02-2003

YOUR 206 IN DETAIL

103

BOOT LAYOUT (206 SW)

1. Grab handles and coat hooks

2. Coat hooks

There are six hooks to accommodate coats.

3. High load retaining net fastenings

The high load retaining net can be installed behind the front seats or behind the rear seat.

Open the covers of the corresponding upper fastenings.

Install one end of the metal bar in one of the two fastenings, compress the bar, then install the other end and release.

Secure the two net strap hooks behind the front seats, with the rear seat folded down, or in the stowing rings on the floor.

The rings are located directly below the corresponding upper fastenings.

Pull the two straps taut.

4. Hooks

There are two side hooks on which to hang light bags.

5. 12 V Socket for accessories

This is a 12 volt socket (lighter type) installed on the the rear left trim and supplied from the accessories position

(1st notch).

6. Storage nets

There are two nets (which cannot be removed) which can contain the luggage retaining net, a first aid kit etc.

7. Retaining straps

There are two straps for securing various objects: cans etc.

8. Tonneau

Note: release the rear seat back to make installation and removal of the tonneau easier.

To install it:

– position one end of the tonneau roller in one of the two supports,

– compress the opposite end of the roller and position it,

– release it to allow it to engage,

– unroll the tonneau as far as the boot pillars,

– insert the tonneau guides in the rails in the pillars.

To remove it:

– remove the tonneau guides from the pillar rails,

– return the tonneau into its roller, compress it and remove it from its support.

9. Stowing rings

There are eight stowing rings for securing the luggage retaining net: four on the rear seat back and four on the boot floor

(two of which are under the carpet, at the far end of the boot).

Warning triangle

The tailgate has a location intended for a warning triangle.

24-02-2003

YOUR 206 IN DETAIL

104

AUTOMATIC AUTOADAPTIVE GEARBOX

Moving Off

To move off, move the selector lever to position N or P. Press the brake to exit

position P.

Stopped or parked

Always leave the lever in position P when you get out of your vehicle.

If not, a buzzer will sound when you open the driver's door.

Positions of the selector lever

These positions are displayed on the instrument panel.

P. Park: use with the handbrake.

R. Reverse: this must only be engaged when the vehicle is stationary, engine

at idle.

N. Neutral: if N is engaged by mistake while the car is moving, allow the

engine to return to idle before engaging a new forward gear.

D. Drive: in this position, the four gears change automatically. The gear

change points vary depending on the programme selected.

3. Automatic changing of the first three gears only.

Select this position when you notice frequent changes between third and

fourth gear (town driving or on winding roads).

2. Automatic changing of the first two gears only.

This position is particularly suitable for mountain roads, when going uphill

(to make the best use of the engine's power) or downhill (engine braking).

24-02-2003

YOUR 206 IN DETAIL

105

Operating programmes

You have a choice of three operating

programmes:

– Autoadaptive (normal)

– Sport

– Snow

One press on button A or B will

select Sport or Snow respectively.

The selection is displayed on the

instrument panel. Pressing the but-

ton a second time will return to the

autoadaptive (normal) programme.

Autoadaptive programme (normal)

Gear changes are carried out on the

basis of various parameters, such

as:

– driving style,

– road characteristics,

– vehicle load.

The gearbox selects the most suit-

able programme from those in the

memory for the current driving con-

ditions.

Sport programme

The Sport programme automatically

favours more dynamic driving.

Snow Programme

In position D, the Snow programme

provides smooth driving suited to

slippery roads in order to improve

traction and stability. Starting is in

2nd gear and changing down is at

low engine speeds.

Special operating features

– During prolonged braking, the

gearbox changes down automati-

cally, so as to provide efficient

engine braking.

– If you take your foot off the accel-

erator suddenly (when you are

taken by surprise, for example),

the gearbox will not change up, so

as to improve safety.

– When the engine is cold, the gear-

box automatically selects a spe-

cial programme that enables the

engine to reach its ideal tempera-

ture more quickly in order to

decrease pollution.

Kickdown

For immediate maximum accelera-

tion without touching the gear lever,

press the accelerator pedal down as

far as it will go. The gearbox will

change down automatically or stay

in the gear selected, up to maximum

engine speed.

Any disruption of the sys-

tem is signalled by the

simultaneous flashing of

the Sport and Snow

lights on the instrument panel. In

such a case, the gearbox will oper-

ate in downgrade mode. You may

feel a substantial knock when

reverse is selected from P to R or

N to R (without any risk of damage

to the gearbox).

Do not exceed 100km/h.

Contact a PEUGEOT dealer with-

out delay.

When the engine is idling with the

car in gear, the car will move even

without you accelerating.

Do not accelerate while a gear is

being selected, when the vehicle is

stationary.

When stationary, have your foot on

the brake pedal when selecting a

gear.

Do not accelerate in gear with the

brakes on.

If work needs to be done with the

engine running, apply the hand-

brake and select position P.

Do not change down to brake on

slippery roads.

Never select position N when the

vehicle is moving.

Never engage P or R unless the

vehicle is stationary.

Do not leave children inside the

vehicle unsupervised when the

engine is running.

24-02-2003

YOUR 206 IN DETAIL

106

The normal operation of the ABS

may make itself felt by slight

vibrations of the brake pedal.

In emergency braking, press

very firmly without releasing

the pressure.

THE ABS ANTI-LOCK

BRAKING SYSTEM

The ABS system with Electronic

Brake Force Distribution (EBFD)

increases the stability and manoeu-

vrability of your vehicle, particularly

on poor or slippery road surfaces.

Note: when replacing wheels (tyres

and rims), ensure that they are

approved.

The anti-lock braking system comes

into operation automatically when

there is a risk of wheel lock.

Lighting of this warning

lamp, accompanied by an

audible signal and the mes-

sage "Braking fault" on

the multifunction display, indicates a

malfunction of the electronic brake

force distribution which could result

in loss of control of the vehicle when

braking.

Stop immediately.

Contact a PEUGEOT dealer.

HANDBRAKE

Applying

When parking, pull the handbrake to

immobilise your vehicle.

Releasing

Pull the handle and press the button

to release the handbrake.

Illumination of this warning

light and of the STOP warn-

ing light, accompanied by an

audible signal (at 10 km/h)

and the message "handbrake on" on

the multifunction display, indicates that

the handbrake is still applied or has

not been released fully.

EMERGENCY BRAKING

ASSISTANCE SYSTEM

In an emergency, this system

enables the optimum braking pres-

sure to be reached more quickly,

thus reducing the stopping distance.

It is triggered by the speed at which

the brake pedal is activated. The

effect of this is a reduction in the

resistance of the pedal and an

increase in braking efficiency.

24-02-2003

YOUR 206 IN DETAIL

107

TRACTION CONTROL (ASR)

AND DYNAMIC STABILITY

CONTROL (ESP)

These systems are linked and com-

plement the ABS.

The ASR system optimises drive to

prevent the wheels skidding, by

acting on the brakes of the drive

wheels and on the engine. It also

allows the directional stability of the

vehicle to be improved on accelera-

tion. If there is a variation between

the trajectory followed by the vehicle

and that required by the driver, the

ESP system automatically acts on

the engine and the brake of one or

more wheels, in order to put the

vehicle back on course.

Disarming the ASR/ESP

systems

In exceptional conditions (starting a

vehicle which is bogged down, stuck

in snow, on soft ground), it may be

advisable to disarm the ASR and

ESP systems, so that the wheels can

move freely and regain grip.

☞ Press the "ESP OFF" switch,

located under the steering wheel

to the left.

The switch lights up and the

warning light comes on: the

ASR and ESP systems no

longer have any effect on

the engine operation.

These are triggered again:

☞ automatically if the ignition is

switched off,

☞ automatically above 50 km/h,

☞ manually by pressing the switch

again.

Operation of the ASR and ESP

systems

When one of these two sys-

tems is operating, this light

flashes.

Operating check

When a malfunction of the

systems occurs, the switch

light flashes and the warning

light comes on, accompanied

by an audible signal and the

message "ESP/ASR system not ope-

rational" on the multifunction display.

Contact a PEUGEOT dealer to have

the system checked.

The ESP system offers

exceptional safety in nor-

mal driving, but this

should not encourage the

driver to take extra risks or drive at

high speed.

The correct functioning of this sys-

tem depends on observation of the

manufacturer's recommendations

regarding wheels (tyres and rims),

the braking components and the

electronic components, as well as

the PEUGEOT assembly and ope-

ration procedures.

After an impact, have the system

checked by a PEUGEOT dealer.

24-02-2003

YOUR 206 IN DETAIL

108

FRONT AIR BAGS

These are folded in the centre of the

steering wheel for the driver and in

the fascia for the front passenger.

They are deployed simultaneously,

except in cases where the air bag is

disarmed.

Front air bag malfunction

If this warning light comes

on, accompanied by a buz-

zer and the message "Air

bag fault" on the multifunction dis-

play, contact a PEUGEOT dealer to

have the system checked.

AIR BAGS

The air bags have been designed to

maximise the safety of the occu-

pants in the event of serious colli-

sions; they work in conjunction with

the force limiting seat belts.

In the event of a serious collision,

the electronic detectors record and

analyse any abrupt deceleration of

the vehicle: if the triggering thre-

shold is reached, the air bags inflate

instantly and protect the occupants

of the vehicle.

Immediately after the impact, the air

bags deflate rapidly, so that they do

not hinder the visibility of the occu-

pants nor their possible exit from the

vehicle.

The air bags will not be deployed in

collisions which are not serious, for

which the seat belt is sufficient to

provide maximum protection. The

seriousness of the collision depends

on the nature of the obstacle and the

speed of the vehicle at the moment

of impact.

Air bags only operate when the

ignition is switched on.

Note: the gas escaping from the air

bags can be a minor irritant.

Disarming the passenger

air bag*

To ensure the safety of your child,

it is essential to disarm the pas-

senger air bag when you install a

rear-facing child seat on the front

passenger seat.

☞ With the ignition switched off,

insert the key into the passenger

air bag disarming switch 1, turn it

to the "OFF" position, then remo-

ve the key keeping the slot in this

position.

The air bag warning light on the

instrument panel is lit throu-

ghout the disarming process.

* According to destination.

24-02-2003

YOUR 206 IN DETAIL

109

In the "OFF" position, the passen-

ger air bag will not be triggered in

the event of an impact.

As soon as the child seat is remo-

ved, turn the air bag slot to the "ON"

position to re-activate the air bag

and thus ensure the safety of your

passenger in the event of an impact.

Operating check

This is confirmed by an indicator

light, accompanied by an audible

signal and a message on the multi-

function display.

With the ignition on (2nd notch), illu-

mination of this warning light accom-

panied by an audible signal and the

message "Passenger air bag

disarmed" on the multifunction dis-

play, indicates that the passenger air

bag is disarmed (switch in the

"OFF" position).

SIDE AIR BAGS

These are incorporated into the

frame of the front seat back, on the

door side.

They are deployed independently of

each other depending on which side

the collision occurs, in collisions

which could cause injury to the

chest, the abdomen or the head.

Operating check

This is confirmed by a light on the

instrument panel.

It comes on for 6 seconds, each time

the ignition is switched on.

If the indicator light:

– does not light up when the ignition

is switched on, or

– does not go out after 6 seconds,

– flashes for 5 minutes then stays

on,

Contact a PEUGEOT dealer.

24-02-2003

YOUR 206 IN DETAIL

110

For the front and side air bags to be fully effective, observe the following safety rules:

• Wear a correctly adjusted seat belt.

• Sit in a normal upright position (passengers must not place their feet on the fascia).

• Ensure there is nothing between the occupants of the front seats and the air bags.

This could hamper the operation of the air bags or injure the occupants.

• All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT

network.

• After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.

• The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.

For greater safety, have them checked by a PEUGEOT dealer within ten years following the initial purchase of the

vehicle.

Front air bags

• Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

• Never remove or pierce the steering wheel or hit it violently.

• Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.

Side air bags

• Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag

inflates.

• Do not sit with the upper part of the body any nearer to the door than necessary.

• Use only approved covers on the front seats. Contact your PEUGEOT dealer.

24-02-2003

YOUR 206 IN DETAIL

109

In the "OFF" position, the passen-

ger air bag will not be triggered in

the event of an impact.

As soon as the child seat is remo-

ved, turn the air bag slot to the "ON"

position to re-activate the air bag

and thus ensure the safety of your

passenger in the event of an impact.

Operating check

This is confirmed by an indicator

light, accompanied by an audible

signal and a message on the multi-

function display.

With the ignition on (2nd notch), illu-

mination of this warning light accom-

panied by an audible signal and the

message "Passenger air bag

disarmed" on the multifunction dis-

play, indicates that the passenger air

bag is disarmed (switch in the

"OFF" position).

SIDE AIR BAGS

These are incorporated into the

frame of the front seat back, on the

door side.

They are deployed independently of

each other depending on which side

the collision occurs, in collisions

which could cause injury to the

chest, the abdomen or the head.

Operating check

This is confirmed by a light on the

instrument panel.

It comes on for 6 seconds, each time

the ignition is switched on.

If the indicator light:

– does not light up when the ignition

is switched on, or

– does not go out after 6 seconds,

– flashes for 5 minutes then stays

on,

Contact a PEUGEOT dealer.

24-02-2003

YOUR 206 IN DETAIL

110

For the front and side air bags to be fully effective, observe the following safety rules:

• Wear a correctly adjusted seat belt.

• Sit in a normal upright position (passengers must not place their feet on the fascia).

• Ensure there is nothing between the occupants of the front seats and the air bags.

This could hamper the operation of the air bags or injure the occupants.

• All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT

network.

• After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.

• The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.

For greater safety, have them checked by a PEUGEOT dealer within ten years following the initial purchase of the

vehicle.

Front air bags

• Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

• Never remove or pierce the steering wheel or hit it violently.

• Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.

Side air bags

• Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag

inflates.

• Do not sit with the upper part of the body any nearer to the door than necessary.

• Use only approved covers on the front seats. Contact your PEUGEOT dealer.

24-02-2003

PRACTICAL INFORMATION

111

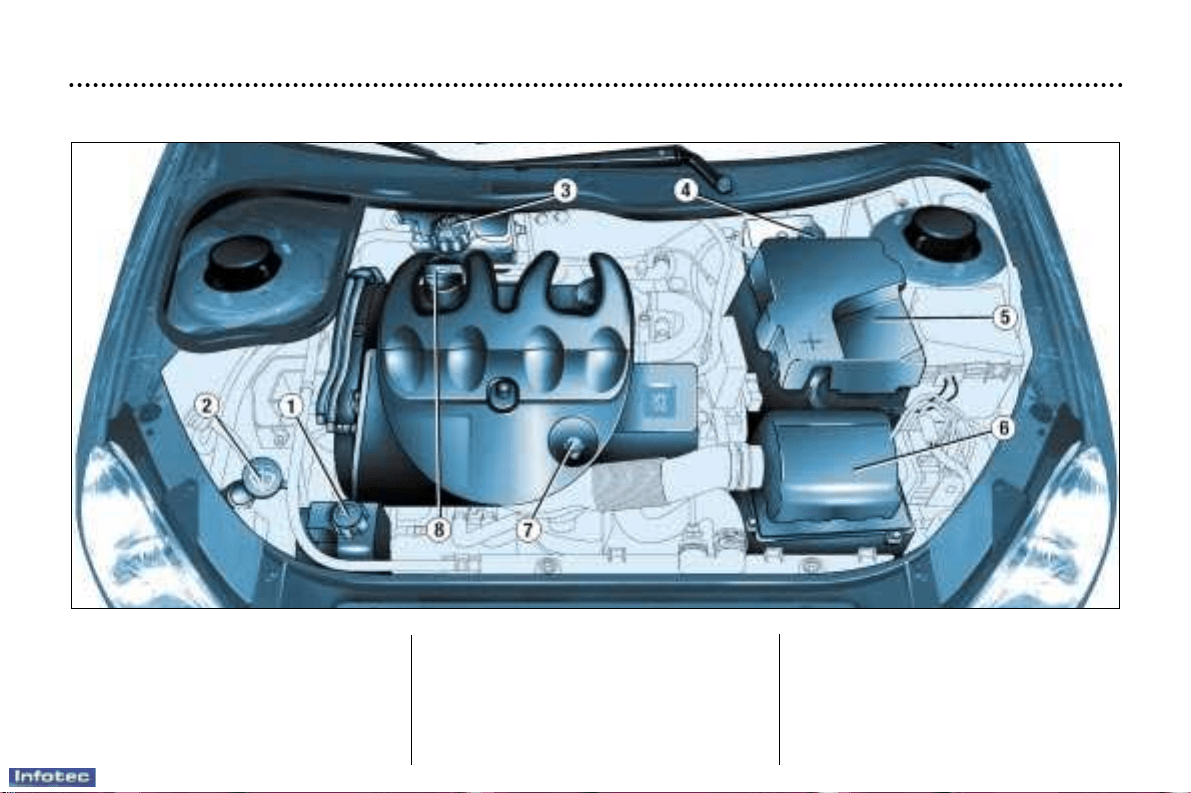

1. Power steering reservoir

2. Windscreen and headlamp wash

reservoir

3. Coolant reservoir

4. Brake fluid reservoir

5. Battery

6. Air filter

7. Dipstick

8. Engine oil filler cap

1.1 litre, 1.4 litre ENGINE

24-02-2003

PRACTICAL INFORMATION

112

1. Power steering reservoir

2. Windscreen and headlamp wash

reservoir

3. Coolant reservoir

4. Brake fluid reservoir

5. Battery

6. Air filter

7. Dipstick

8. Engine oil filler cap

1.6 litre 16V ENGINE

24-02-2003

PRACTICAL INFORMATION

113

1. Power steering reservoir

2. Windscreen and headlamp wash

reservoir

3. Coolant reservoir

4. Brake fluid reservoir

5. Battery

6. Air filter

7. Dipstick

8. Engine oil filler cap

2 litre 16V ENGINE

24-02-2003

PRACTICAL INFORMATION

114

1-Power steering reservoir

2-Windscreen and headlamp wash

reservoir

3- Coolant reservoir

4-Brake fluid reservoir

5-Battery

6-Air filter

7-Dipstick

8-Engine oil filler cap

9-Priming pump

1.4 litre turbo diesel HDI ENGINE

24-02-2003

PRACTICAL INFORMATION

115

1. Power steering reservoir

2. Windscreen and headlamp wash

reservoir

3. Coolant reservoir

4. Brake fluid reservoir

5. Battery

6. Air filter

7. Dipstick

8. Engine oil filler cap

1.9 litre diesel ENGINE

24-02-2003

PRACTICAL INFORMATION

116

1. Power steering reservoir

2. Windscreen and headlamp wash

reservoir

3. Coolant reservoir

4. Brake fluid reservoir

5. Battery

6. Air filter

7. Dipstick

8. Engine oil filler cap

2 litre turbo diesel HDI ENGINE

24-02-2003

PRACTICAL INFORMATION

117

CHECKING LEVELS

Engine

Oil level check

Carry out this check regularly and

top up between oil changes (the

maximum consumption is 0.5 litre

per 1,000 km).

The check must be carried out with

the vehicle level and the engine

cold.

There are two level

marks on the dipstick:

A = maximum.

B = minimum.

Viscosity grade selection

The oil selected must always meet

the manufacturer's requirements.

Oil filter

Change the cartridge regularly in

accordance with the recommenda-

tions of the servicing schedule.

Used oil

Avoid any prolonged contact of used

oil with the skin.

Do not discard used oil down drains

or onto the ground.

To maintain the reliability of the

engines and emission control sys-

tems, the use of additives in the oil is

prohibited.

Brake fluid reservoir

– The level must always be above

the DANGER mark on the tank.

– In the event of a significant drop in

the level, contact a PEUGEOT

dealer immediately

Fluid change

– Always to be carried out at the

intervals given in the manufactur-

er's servicing schedule.

– Use fluids approved by the manu-

facturer which comply with DOT4

standard.

Coolant reservoir

Use a coolant approved by the man-

ufacturer.

When the engine is warm, the

coolant temperature is controlled by

the engine fan. As this fan can oper-

ate with the ignition key removed

and because the cooling circuit is

pressurised, wait at least an hour

after switching off the engine before

carrying out any work.

In the event of a breakdown and to

avoid any risk of burns, unscrew the

cap two turns to let the pressure

drop. When the pressure has

dropped, remove the cap and top up

the level.

Oil change: in accordance with the

manufacturer's servicing schedule.

– Dipstick: never exceed the maxi-

mum mark A.

– Instrument panel gauge.

24-02-2003

PRACTICAL INFORMATION

118

Power steering reservoir

Open the reservoir, with the engine

cold. The level should always be

above the MINI mark, close to the

MAXI mark.

Manual gearbox

This does not need an oil change.

Check the level according to the

manufacturer's servicing schedule.

Windscreen and headlamp wash

reservoir

For best quality cleaning and for your

safety, we recommend that you use

products approved by PEUGEOT

(capacity 2.8 litres or 6.6 litres with

headlamp wash).

Air filter

Regular replacement of the filter ele-

ment is essential. If you drive in very

dusty conditions, change it twice as

often.

Battery

At the start of winter, have your battery

checked by a PEUGEOT dealer

Brake pads

Brake pad wear depends on the

style of driving, in particular for vehi-

cles used in town, for short journeys.

It may be necessary to check the

thickness of the pads even between

services.

Autoadaptive automatic gearbox

This does not need an oil change:

have the level checked by a PEU-

GEOT dealer according to the manu-

facturer's servicing schedule.

Only use products

approved by PEUGEOT.

To ensure best perform-

ance from components

as important as the power steer-

ing and the braking system,

PEUGEOT selects and offers

quite specific products.

RUNNING OUT OF FUEL

(DIESEL)

If you should run out of fuel, it is

necessary to re-prime the circuit:

1.4 litre HDI engine

– fill the fuel tank with at least five

litres of diesel,

– operate the manual re-priming

pump, until fuel appears in the

transparent pipe under the bonnet,

– operate the starter until the

engine starts.

24-02-2003

PRACTICAL INFORMATION

118

Power steering reservoir

Open the reservoir, with the engine

cold. The level should always be

above the MINI mark, close to the

MAXI mark.

Manual gearbox

This does not need an oil change.

Check the level according to the

manufacturer's servicing schedule.

Windscreen and headlamp wash

reservoir

For best quality cleaning and for your

safety, we recommend that you use

products approved by PEUGEOT

(capacity 2.8 litres or 6.6 litres with

headlamp wash).

Air filter

Regular replacement of the filter ele-

ment is essential. If you drive in very

dusty conditions, change it twice as

often.

Battery

At the start of winter, have your battery

checked by a PEUGEOT dealer

Brake pads

Brake pad wear depends on the

style of driving, in particular for vehi-

cles used in town, for short journeys.

It may be necessary to check the

thickness of the pads even between

services.

Autoadaptive automatic gearbox

This does not need an oil change:

have the level checked by a PEU-

GEOT dealer according to the manu-

facturer's servicing schedule.

Only use products

approved by PEUGEOT.

To ensure best perform-

ance from components

as important as the power steer-

ing and the braking system,

PEUGEOT selects and offers

quite specific products.

RUNNING OUT OF FUEL

(DIESEL)

If you should run out of fuel, it is

necessary to re-prime the circuit:

1.4 litre HDI engine

– fill the fuel tank with at least five

litres of diesel,

– operate the manual re-priming

pump, until fuel appears in the

transparent pipe under the bonnet,

– operate the starter until the

engine starts.

24-02-2003

PRACTICAL INFORMATION

119

CHANGING A WHEEL

(saloon)

Parking the vehicle

– If possible, park the vehicle on

level, stable and non-slippery

ground.

– Apply the handbrake, engage first

or reverse gear (position P for the

automatic gearbox).

Access to the spare wheel and

the jack

The wheel is located outside the

vehicle, under the boot, supported

by a metal carrier.

– Remove the wheelbrace 1,

secured on the rear right inner

panel of the boot.

– Using the wheelbrace 1, slacken the spare wheel carrier retaining bolt, located

inside the boot under the carpet.

– Lift the carrier to release the hook rearwards, then lower it.

– Remove the jack storage box 2 located in the spare wheel.

Removing a wheel

– Chock the rear of the wheel diagonally opposite the wheel to be changed,

using the jack storage box.

– Remove the wheel trim using the wheelbrace, by pulling at the valve passage

hole.

– Slacken the wheel bolts.

– Place the jack under the locating point on the sub-frame E that is closest to

the wheel to be changed. Ensure that the entire surface of the jack base plate

is in contact with the ground.

– Extend the jack, completely unscrew the bolts and remove the wheel.

24-02-2003

PRACTICAL INFORMATION

121

Refitting the wheel

– After positioning the wheel, lightly pre-tighten the bolts using the wheelbrace.

– Compress the jack and release it.

– Fully tighten the bolts using the wheelbrace.

– Replace the trim except in the case of a space-saver spare wheel, starting at

the valve passage hole, and press it on using the palm of the hand.

Note: If the vehicle is fitted in production with a wheel anti-theft lock, the trim cap

on the anti-theft bolt is in two parts.

Replacing the wheel in the carrier

– Replace the jack storage box in the wheel.

– Replace the support spacer 3 by clipping it to the space-saving spare wheel.

– Replace the wheel in the carrier directing the spacer 3 along the centre line of

the vehicle, with the opening towards the front as shown in the diagram above

(for a space-saving spare wheel only).

– Lift the wheel then the carrier and reposition the hook.

– Do not forget to fully tighten the spare wheel carrier retaining bolt.

– Stow the wheelbrace.

For your safety, always

change a wheel:

– on level, stable and non slippery

ground,

– with the handbrake applied,

– wiith first or reverse gear

engaged,

– with the vehicle chocked using

the jack storage box,

– never go underneath a vehicle

raised using a jack (use an axle

stand).

After changing the wheel

– Have the tightening of the bolts

and the pressure of the spare

tyre checked as soon as possi-

ble by a PEUGEOT dealer.

– Have the punctured tyre

repaired and replace it on the

vehicle as soon as possible.

– The space-saver spare wheel

fitted with a 115/70R15 tyre

must only be used temporarily:

–inflation pressure: 4.2 bars

(60 p.s.i.),

–maximum speed: 80 km/h.

24-02-2003

PRACTICAL INFORMATION

122

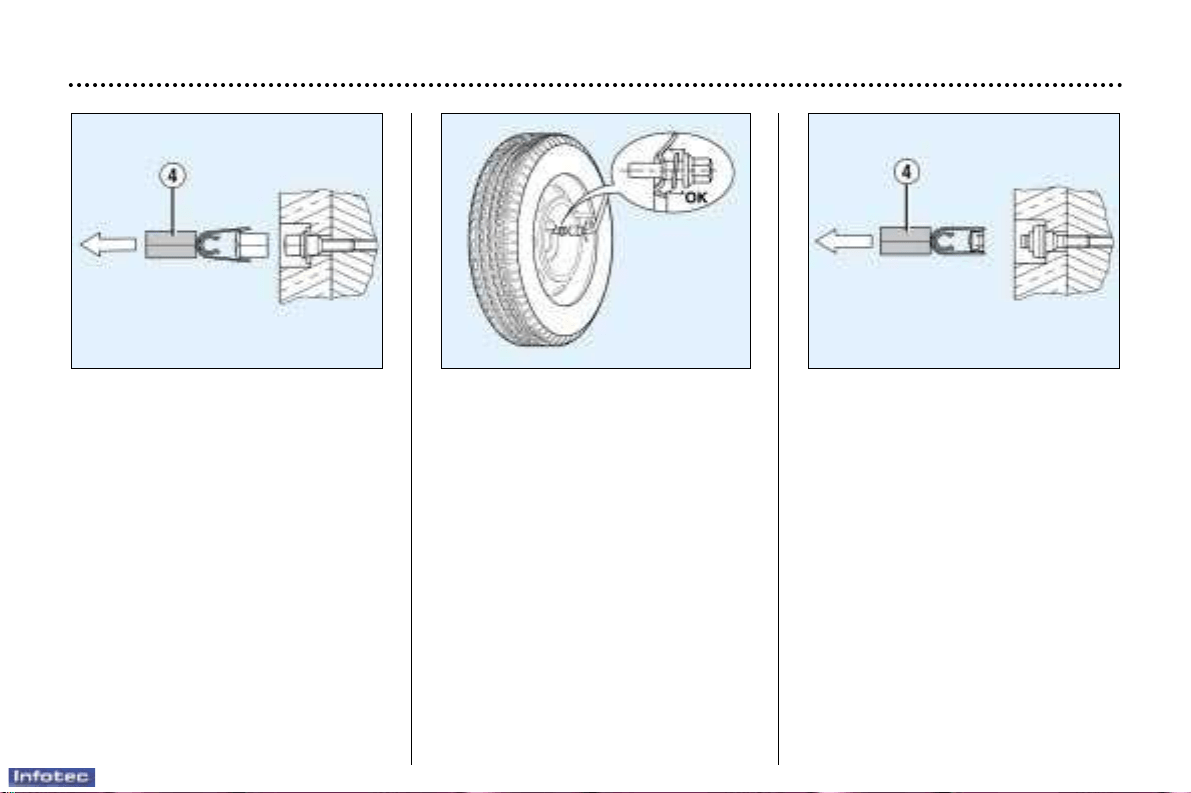

SPECIAL FEATURES OF

ALLOY WHEELS

Bolt covers

Alloy wheel bolts are covered by

chrome trims.

Use the yellow tool 4 to remove the

trims before slackening the bolts.

Tool 4 is located:

– on the saloon, on the rear right

inner panel of the boot,

– on the 206 SW, in the jack storage

compartment.

Fitting the spare wheel

If your vehicle is equipped with a

steel spare wheel, when fitting it, it is

normal to notice that the bolt wash-

ers do not come into contact with the

rim. The spare wheel is secured by

the cone-shape of each bolt.

Fitting snow tyres

If you fit snow tyres that are mount-

ed on steel rims onto your vehicle, it

is essential that you use special

bolts available from your PEUGEOT

dealer.

Anti-theft bolt*

If your wheels are fitted with an anti-

theft bolt (one per wheel), the

chrome trim and then the plastic

cover must be removed, using tool

4, before it is unscrewed using one

of the two anti-theft sockets (which

were given to you on delivery of your

vehicle along with the duplicate keys

and the confidential card) and the

wheelbrace 1.

Note: make a careful note of the

code number engraved on the top of

the anti-theft socket. This will enable

you to obtain a duplicate anti-theft

socket from your PEUGEOT dealer.

* According to model and destination.

24-02-2003

PRACTICAL INFORMATION

120

CHANGING A WHEEL

(206 SW)

Parking the vehicle

– If possible, park the vehicle on

level, stable and non-slippery

ground.

– Apply the handbrake, engage first

or reverse gear, (position P for the

automatic gearbox).

Access to the spare wheel and

the jack

The wheel is located outside the

vehicle, under the boot, supported

by a metal carrier.

– Remove the wheelbrace 1

secured under the right-hand boot

trim.

– Using the wheelbrace 1, slacken the spare wheel carrier retaining bolt located

inside the boot under the carpet.

– Lift the carrier to release the hook rearwards, then lower it.

– Remove the jack storage box 2 located in the spare wheel.

Removing a wheel

– Chock the rear of the wheel diagonally opposite the wheel to be changed,

using the collapsible chock located in jack storage box.

– Remove the wheel trim using the wheelbrace, by pulling at the valve passage

hole.

– Slacken the wheel bolts.

– Place the jack under the locating point on the sub-frame E that is closest to

the wheel to be changed. Ensure that the entire surface of the jack base plate

is in contact with the ground.

– Extend the jack, completely unscrew the bolts and remove the wheel.

24-02-2003

PRACTICAL INFORMATION

121

Refitting the wheel

– After positioning the wheel, lightly pre-tighten the bolts using the wheelbrace.

– Compress the jack and release it.

– Fully tighten the bolts using the wheelbrace.

– Replace the trim except in the case of a space-saver spare wheel, starting at

the valve passage hole, and press it on using the palm of the hand.

Note: If the vehicle is fitted in production with a wheel anti-theft lock, the trim cap

on the anti-theft bolt is in two parts.

Replacing the wheel in the carrier

– Replace the jack storage box in the wheel.

– Replace the support spacer 3 by clipping it to the space-saving spare wheel.

– Replace the wheel in the carrier directing the spacer 3 along the centre line of

the vehicle, with the opening towards the front as shown in the diagram above

(for a space-saving spare wheel only).

– Lift the wheel then the carrier and reposition the hook.

– Do not forget to fully tighten the spare wheel carrier retaining bolt.

– Stow the wheelbrace.

For your safety, always

change a wheel:

– on level, stable and non slippery

ground,

– with the handbrake applied,

– wiith first or reverse gear

engaged,

– with the vehicle chocked using

the jack storage box,

– never go underneath a vehicle

raised using a jack (use an axle

stand).

After changing the wheel

– Have the tightening of the bolts

and the pressure of the spare

tyre checked as soon as possi-

ble by a PEUGEOT dealer.

– Have the punctured tyre

repaired and replace it on the

vehicle as soon as possible.

– The space-saver spare wheel

fitted with a 115/70R15 tyre

must only be used temporarily:

–inflation pressure: 4.2 bars

(60 p.s.i.),

–maximum speed: 80 km/h.

24-02-2003

PRACTICAL INFORMATION

122

SPECIAL FEATURES OF

ALLOY WHEELS

Bolt covers

Alloy wheel bolts are covered by

chrome trims.

Use the yellow tool 4 to remove the

trims before slackening the bolts.

Tool 4 is located:

– on the saloon, on the rear right

inner panel of the boot,

– on the 206 SW, in the jack storage

compartment.

Fitting the spare wheel

If your vehicle is equipped with a

steel spare wheel, when fitting it, it is

normal to notice that the bolt wash-

ers do not come into contact with the

rim. The spare wheel is secured by

the cone-shape of each bolt.

Fitting snow tyres

If you fit snow tyres that are mount-

ed on steel rims onto your vehicle, it

is essential that you use special

bolts available from your PEUGEOT

dealer.

Anti-theft bolt*

If your wheels are fitted with an anti-

theft bolt (one per wheel), the

chrome trim and then the plastic

cover must be removed, using tool

4, before it is unscrewed using one

of the two anti-theft sockets (which

were given to you on delivery of your

vehicle along with the duplicate keys

and the confidential card) and the

wheelbrace 1.

Note: make a careful note of the

code number engraved on the top of

the anti-theft socket. This will enable

you to obtain a duplicate anti-theft

socket from your PEUGEOT dealer.

* According to model and destination.

24-02-2003

PRACTICAL INFORMATION

123

Side lights W 5 W

Turn the pin connector B a quarter turn and remove it.

Change the bulb.

Single unit headlamp H4 55/60 W

– Disconnect the connector.

– Remove the rubber protector.

– Press the two ends of the securing clip to release it.

Change the bulb A.

– On fitting, ensure that the direction notches are in the

correct position and that the clip is secured correctly.

– Refit the rubber protector carefully.

– Reconnect the connector.

Double unit headlamp H7 55 W

– Pull tab C upwards and remove the protective cover.

– Disconnect the connector.

– Press the end of the securing clip to release it. Change

the faulty bulb.

– On fitting, ensure that the direction notches are in the

correct position and that the clip is secured correctly.

– Reconnect the connector.

– Refit the protective cover.

CHANGING A BULB

Dipped/main beam headlamps

Note

– Only touch the bulbs with a dry cloth.

– To change the bulbs on the right-hand side, remove the windscreen wash reservoir filler pipe first.

– Condensation may form inside the headlamps. It will disappear when they are used.

24-02-2003

PRACTICAL INFORMATION

124

Direction indicator side

repeater WY5W amber

Push the repeater forwards or back-

wards and release the assembly.

Hold the connector and turn the

transparent cover a quarter turn.

Change the bulb.

Direction indicators PY21W

amber

Turn the pin connector C a quarter

turn and remove it.

Change the bulb.

Only use H4 bulbs of

brands:

– GE/TUNGSRAM,

– PHILIPS,

– OSRAM,

to avoid damaging the head-

lamps.

These comply with the anti-UV

(ultraviolet) specifications neces-

sary for the correct operation and

reliability of the headlamps.

The headlamps are fitted with

polycarbon glass with a protec-

tive coating. We strongly advise

against cleaning them using a dry

or abrasive cloth or using deter-

gents or solvents.

Use a soft, damp cloth.

24-02-2003

PRACTICAL INFORMATION

126

Front fog lamps H1 55 W

Press under the access flap to

release it.

Open the flap.

Turn the cover to remove it.

Disconnect the bulb.

Press the two ends of the securing

clip to release the bulb.

Third brake light 5 bulbs

W 5 W (saloon)

Using a 10 mm spanner, unscrew

the 2 nuts A.

Release the light unit.

Squeeze the two tabs B to release

the bulb holder.

Change the faulty bulb.

Third brake light (206 SW)

This is fitted with electroluminescent

diodes.

In the event of a fault, consult a

PEUGEOT dealer.

24-02-2003

PRACTICAL INFORMATION

125

Rear lights (saloon)

Release the top of the boot side

trim.

Unscrew the wing bolt inside the

boot using the wheelbrace if neces-

sary.

Disconnect the connector A.

Release the light unit.

Release spanner B from the bulb

holder.

Unscrew nut C using spanner B and

remove the bulb holder.

Change the faulty bulb.

When refitting, stow spanner B on

support D and refit the light.

Saloon 206 SW

1. Direction indicators

PY 21 W (saloon)

P 21 W (206 S W).

2. Reversing lights P 21 W.

3. Brake lights/side lights

P 21/5 W.

The amber bulbs must

be replaced by bulbs of

identical specification

and colour.

Rear lights (206 SW)

Unclip the top of the boot trim using

a coin.

Unscrew the two wing bolts using

the wheelbrace if necessary.

Release the light unit.

Disconnect the connector.

Move aside the tabs 1 and remove

the bulb holder 2.

Change the faulty bulb.

When refitting, refit the boot trim by

engaging it from the bottom then

clipping the top.

24-02-2003

PRACTICAL INFORMATION

126

Front fog lamps H1 55 W

Press under the access flap to

release it.

Open the flap.

Turn the cover to remove it.

Disconnect the bulb.

Press the two ends of the securing

clip to release the bulb.

Third brake light 5 bulbs

W 5 W (saloon)

Using a 10 mm spanner, unscrew

the 2 nuts A.

Release the light unit.

Squeeze the two tabs B to release

the bulb holder.

Change the faulty bulb.

Third brake light (206 SW)

This is fitted with electroluminescent

diodes.

In the event of a fault, consult a

PEUGEOT dealer.

24-02-2003

PRACTICAL INFORMATION

127

Rear fog lamp P 21 W

Unclip the lamp and release the

assembly.

Turn the pin connector a quarter turn

and remove it.

Change the bulb.

Number plate lights W 5 W

Insert a thin screwdriver into one of

the outer holes of the transparent

cover.

Push it outwards to unclip it.

Remove the transparent cover.

Change the faulty bulb.

24-02-2003

PRACTICAL INFORMATION

128

CHANGING A FUSE

The fuse boxes are located under

the fascia and in the engine com-

partment.

Fascia fuse box

Unscrew the catch a quarter turn

using a coin then remove the cover

to gain access to the fuses.

The spare fuses and the pliers A are

secured on the inside of the fascia

fuse box cover.

Removing and fitting a fuse

Before changing a fuse, the cause of the fault must be found and remedied. The

fuse numbers are indicated on the fuse box.

Use the pliers A.

Always replace a faulty fuse (identification according to fuse) with a fuse

of the same rating.

Correct

Pliers A

Incorrect

24-02-2003

PRACTICAL INFORMATION

130

Engine compartment fuse

box

To gain access to the box in the

engine compartment (next to the

battery), unclip the cover.

After carrying out work, close the

cover very carefully.

The electrical circuit of

your vehicle is designed

to operate with standard

or optional equipment.

Before installing other electrical

equipment or accessories in your

vehicle, consult a PEUGEOT

dealer.

Some electrical accessories or

the way in which they are fitted

may have an adverse effect on

the operation of your vehicle (its

electronic control circuits, the

audio circuit and the electrical

charging circuit).

PEUGEOT declines any respon-

sibility for expenses incurred

through the repair of your vehicle

or for any malfunctions resulting

from the installation of auxiliary

accessories, not supplied and

not recommended by PEUGEOT

and not installed in accordance

with PEUGEOT's instructions, in

particular for any equipment the

power consumption of which

exceeds 10 milliamps.

* The maxi fuses provide additional protection for the electrical systems. Any

work on these fuses must be carried out by a PEUGEOT dealer.

Fuse N

Rating Functions

1* 20 A Fan unit

2* 60 A ABS/ESP

3* 30 A ABS/ESP

4* 70 A Built-in systems interface supply

5* 70 A Built-in systems interface supply

6* – Not used

7* 30 A Ignition switch supply

8* – Not used

24-02-2003

PRACTICAL INFORMATION

131

Fuse N

Rating Functions

1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor -

Air flow sensor (diesel)

2 15 A Canister solenoid valve - Fuel pump

3 10 A ABS/ESP engine control unit - ESP stop switch

4 10 A Automatic gearbox control unit - Engine control unit

5 – Not used

6 15 A Front fog lamps

7 20 A Headlamp wash pump

8 20 A Fan assembly relay - Engine control unit - Diesel injection pump -

Diesel high pressure regulator - Engine management solenoid valve

9 15 A Left-hand dipped beam

10 15 A Right-hand dipped beam

11 10 A Left-hand main beam

12 15 A Right-hand main beam

13 15 A Horns

14 10 A Front and rear windscreen wash pumps

15 30 A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit -

Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater -

Injectors

16 30 A Air pump relay

17 30 A High and low speed windscreen wiper

18 40 A Air conditioning fan

24-02-2003

PRACTICAL INFORMATION

128

CHANGING A FUSE

The fuse boxes are located under

the fascia and in the engine com-

partment.

Fascia fuse box

Unscrew the catch a quarter turn

using a coin then remove the cover

to gain access to the fuses.

The spare fuses and the pliers A are

secured on the inside of the fascia

fuse box cover.

Removing and fitting a fuse

Before changing a fuse, the cause of the fault must be found and remedied. The

fuse numbers are indicated on the fuse box.

Use the pliers A.

Always replace a faulty fuse (identification according to fuse) with a fuse

of the same rating.

Correct

Pliers A

Incorrect

24-02-2003

PRACTICAL INFORMATION

129

Fuse Rating Functions

1 15 A Heated seat - Alarm

4 20 A Multifunction display - Navigation control unit - Boot lighting - Audio equipment

5 15 A Automatic gearbox diagnostics

6 10 A Coolant level - Automatic gearbox - Audio equipment -

Steering wheel angle sensor (ESP)

7 15 A Driving school accessory - Alarm fitted as an accessory

9 30 A Rear electric windows

10 40 A Rear screen and mirror demisting

11 15 A Rear windscreen wiper

12 30 A Front windscreen wiper - Sunroof

14 10 A Engine fuse box - Air bags - Steering wheel controls - Rain sensor

15 15 A Instrument panel - Multifunction display - Navigation control unit - Air conditioning - Audio equipment

16 30 A Locking/unlocking controls for doors, bonnet and boot

20 10 A Right-hand brake light

21 15 A Left-hand brake light - 3rd brake light

22 30 A Front courtesy light and rear courtesy light (206 SW) - Map reading light -

Glove box lighting - Lighter - Rear 12 volt socket (206 SW)

S1 Shunt PARC shunt

24-02-2003

PRACTICAL INFORMATION

132

BATTERY

To charge the battery using a battery charger:

– Disconnect the battery,

– Follow the instructions for use given by the battery charger manufacturer,

– Reconnect starting with the negative (–) terminal,

– Check that the terminals and connectors are clean. If they are covered with

sulphate (white or greenish deposit), disconnect them and clean them.

To start the vehicle from another battery:

– Connect the red cable to the positive (+) terminals of the two batteries,

– Connect one end of the green or black cable to the negative (–) terminal of the

slave battery,

– Connect the other end of the green or black cable to an earth point on the bro-

ken down vehicle as far as possible from the battery,

Operate the starter, let the engine run.

Wait for the engine to return to idle, then disconnect the cables.

– Never disconnect a terminal when the engine is running.

– Never charge a battery without first disconnecting the terminals.

– After every reconnection of the battery, switch on the ignition and

wait 1 minute before starting to allow the electronic systems to be

initialised. If slight difficulties are experienced after this, please

contact a PEUGEOT dealer.

It is advisable to disconnect the battery if the vehicle is not to be used

for a period of more than one month.

ECONOMY MODE FUNCTION

After the engine has stopped, with

the key in the accessories position,

certain functions (windscreen wiper,

electric windows, sunroof, courtesy

lights, audio equipment etc.) can

only be used for thirty minutes, to

prevent discharging the battery.

Once the thirty minutes are over, the

message "Economy mode active"

appears on the multifunction display

and the active functions are put on

standby.

A flat battery will prevent the engine

from starting.

24-02-2003

PRACTICAL INFORMATION

133

FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain

factory-fitted audio equipment:

– roof aerial,

– coaxial aerial cable,

– basic interference suppression,

– supply to front speakers,

– supply to rear speakers and

tweeters,

– two 8-way connectors.

Making the connections

A1:–

A2:–

A3:–

A4:–

A5:–

A6:(+ve) Ignition positive

A7:(+ve) Permanent

A8:Earth

B1:(+) Rear right speaker

B2:(–) Rear right speaker

B3:(+) Front right speaker and

tweeter

B4:(–) Front right speaker and

tweeter

B5:(+) Front left speaker and

tweeter

B6:(–) Front left speaker and

tweeter

B7:(+) Rear left speaker

B8:(–) Rear left rear speaker

FITTING SPEAKERS

The factory-fitted equipment allows

the fitting of:

– 165 mm diameter speakers in the

front doors,

– 130 mm diameter speakers in the

rear doors,

– 22.5 mm diameter tweeters in the

mirror trims.

Consult a PEUGEOT dealer.

24-02-2003

PRACTICAL INFORMATION

134

Without lifting (four wheels on the ground)

You must always use a tow bar.

Saloon

From the front or the rear

Attach the tow bar to the towing eye.

206 SW

From the front, attach the tow bar to the towing eye.

From the rear:

– unclip the cover using a coin,

– screw the towing eye (located in the jack storage compartment) as far as it will go.

By lifting (two wheels only on the ground)

It is preferable to lift the vehicle by the wheels.

Special features of the automatic

gearbox

When towing with all four wheels on

the ground, the following rules must

be adhered to:

– gear lever in position N,

– tow the vehicle at a speed less

than 50 km/h over a distance of

not more than 50 km,

– do not add oil to the gearbox.

Saloon rear towing eye

206 SW rear towing eye

Never use the radiator crossmember.

TOWING YOUR VEHICLE

24-02-2003

PRACTICAL INFORMATION

135

TOWING A TRAILER,

CARAVAN, BOAT etc,

Only use original PEUGEOT tow

bars that have been tested and

approved from the design stage of

your vehicle. The tow bar must be

fitted by a PEUGEOT dealer.

Your vehicle is basically designed

for transporting people and luggage

but it may also be used for towing a

trailer.

Driving with a trailer subjects the

towing vehicle to more significant

stress and its driver must be particu-

larly careful.

Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by

10 % and so on for every 1 000

metres of altitude.

Driving advice

Distribution of loads: distribute the

load in the trailer so that the heavi-

est items are as close as possible to

the axle and the nose weight

approaches the maximum permitted

without exceeding it.

Cooling: towing a trailer on a slope

increases the temperature of the

coolant. As the fan is electrically

controlled, its cooling capacity is not

dependent on the engine speed.

On the contrary, use a high gear to

lower the engine speed, and reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the

coolant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres: check the tyre pressures of

the towing vehicle and of the trailer,

observing the recommended pres-

sures.

Braking: towing increases the brak-

ing distance.

Lights: check the electrical sig-

nalling on the trailer.

Side wind: take into acount the

increased sensitivity to side wind.

24-02-2003

PRACTICAL INFORMATION

136

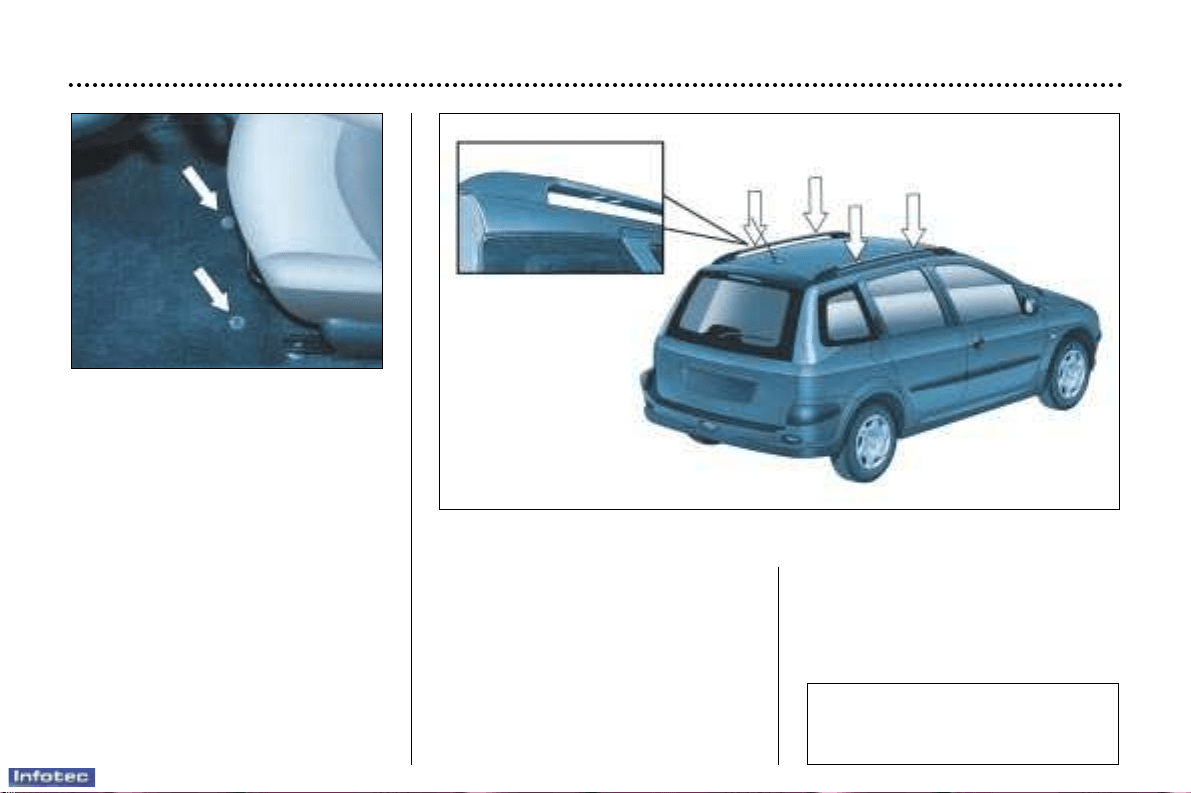

Removing the mat

When removing the mat on the dri-

ver's side, move the seat as far back

as possible and remove the fixings.

When refitting the mat, position it

and replace the fixings by turning

them a quarter of a turn.

When fitting transverse roof bars,

ensure that they are positioned

correctly.

The correct positions are shown by

marks on each of the longitudinal

bars.

Use accessories approved by

PEUGEOT and follow the manufac-

turer's fitting instructions.

Maximum authorised

weight on the roof rack:

75 kg

FITTING ROOF BARS (206 SW)

24-02-2003

PRACTICAL INFORMATION

137

BODYWORK MAINTENANCE

To preserve the paintwork and the

plastic trim on your vehicle, we rec-

ommend that you wash them regu-

larly.

– by hand: there are no specific pre-

cautions to take;

– using an automatic car wash:

repeated use of poorly maintained

automatic car washes can lead to

the appearance of microscopic

scratches which give the paint-

work a matt appearance (espe-

cially visible on dark colours);

– using a high pressure washer:

always follow the recommenda-

tions on the equipment (pressure

and spraying distance).

If there are damaged areas on the

vehicle (painted bumpers or

headlamps), it is not recommend-

ed to direct the high pressure jet

onto them. Wash these areas by

hand.

Also avoid the entry of water into

the locks.

For all questions relating to the

maintenance of your vehicle, con-

tact an approved dealer who can

advise you on quality products

selected by our departments.

– Clean off bird drop-

pings, resinous

deposits, tar stains

and grease marks as

soon as possible;

(these all contain substances

which can cause serious dam-

age to the paintwork).

– Do not use a dry or abrasive

cloth, or detergent or solvent

products to clean the double

lens, complex surface head-

lamps as they are fitted with

polycarbonate glass covered in

a protective finish.

– Do not use petrol, oil or cloth

stain removers to clean the

bodywork and plastic parts of

your vehicle.

– To prevent the development of

bodywork corrosion as a result

of accidental damage (stone

chips, scratches etc.), have

them repaired swiftly.

24-02-2003

PRACTICAL INFORMATION

138

206 ACCESSORIES

For your PEUGEOT only use accessories and original parts approved by the manufacturer.

These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety,

which PEUGEOT cannot guarantee for other products.

A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the

PEUGEOT guarantee.

Safety : Anti-theft alarms, window engraving, wheel locks, warning triangle, first aid kit...

Protection : Covers compatible with side air bags, carpets, boot tray...

Communication : Audio/telephone, hands-free kit, on-board satellite navigation system, CD changers, radios,

speakers, radio trim, rear shelf fitted with 4 speakers (saloon)...

Customising : Alloy wheels, trims, sunroof*, front fog lamps, mud flaps, tailgate spoiler (saloon), sport

exhaust, aluminium and wood panel trim, door sills, body kit, wing extenders...

* To fit a sunroof, it is essential that only original PEUGEOT products are used.

Comfort : Centre armrest, writing table, passenger seat protection, large storage box, bottle holder, CD

or cassette storage, telephone console, door deflectors, under shelf storage (saloon)...

Leisure : Tow bar, roof bars, roof boxes, ski carrier, bicycle carrier**, snow chains...

** Do not fit the bicycle carrier on the spoiler or on the rear screen.

Children : Booster seats and child seats, Kiddy Isofix seat, sun blinds...

Maintenance products : Windscreen wash fluid, interior and exterior maintenance and cleaning products...

Van : Kit for conversion into a van...

24-02-2003

TECHNICAL DATA

139

PETROL

Models

2CHFX 2CK6D 2CKFW 2CNFU 2ANFU 2CRFN

Model codes 2AHFZ 2AK6D 2AKFW 2HNFU 2ENFU 2ARFN

2SHFX 2EKFW 2KNFU 2ERFN

2EHFX

ENGINES 1.1 litre 1.4 litre 1.4 litre 1.6 litre 16V 2 litre 16V

Cubic capacity (cm

) 1 124 1 360 1 360 1 587 1 997

Bore x stroke (mm) 72 x 69 75 x 77 75 x 77 78.5 x 82 85 x 88

EU standard maximum power (kW) 44.1 55 55 80 100

Maximum power at engine speed (rpm) 5 500 5 500 5 500 5 800 6 000

EU standard maximum torque (Nm) 94 118 120 147 190

Maximum torque at engine speed (rpm) 2 700 2 800 2 800 4 000 4 100

Fuel Unleaded Leaded Unleaded Unleaded Unleaded

Catalytic converter Yes No Yes Yes Yes

Gearbox Manual Manual Manual Automatic Manual Automatic Manual

(5 speed) (5 speed) (5 speed) (4 speed) (5 speed) (4 speed) (5 speed)

Oil capacity (in litres)

Engine (with cartridge replacement) 3.2 (2) - 3.4 (3) 3 (2) - 3.25 (3) 3 (2) - 3.25 (3) 3 (2) - 3.25 (3) 3.2 (2) - 3.4 (3) 3.2 (2) - 3.4 (3) 4.25

Gearbox-Final drive 2 2 2 _ 2 _ 1.9

ENGINES AND GEARBOXES

(2) Draining by gravity – (3) Draining by suction.

24-02-2003

TECHNICAL DATA

140

DIESEL

2C8HX 2CWJY

Models 2A8HX 2AWJY 2CRHY 2ERHY 2CRHYU

Model codes 2S8HX 2SWJY 2ARHY 2KRHY 2ARHYU

2E8HX 2TWJY 2HRHY

ENGINES 1.4 litre Turbo HDI 1.9 litre 2 litre Turbo HDI

2 litre Turbo HDI (ECO)

Cubic capacity (cm

) 1 398 1 867 1 997 1 997

Bore x stroke (mm) 73.7 x 82 82.2 x 88 85 x 88 85 x 88

EU standard maximum power (kW) 50 51 66 66

Maximum power at engine speed (rpm) 4 000 4 600 4 000 4 000

EU standard maximum torque (Nm) 150 125 205 205

Maximum torque at engine speed (rpm) 1 750 2 500 1 900 1 900

Fuel Diesel Diesel Diesel Diesel

Catalytic converter Yes Yes Yes Yes

Gearbox Manual Manual Manual Manual

(5 speed) (5 speed) (5 speed) (5 speed)

Oil capacity (in litres)

Engine (with cartridge replacement) 3.8 4.8 4.5 4.5

Gearbox-Final drive 2 1.9 1.9 1.9

ENGINES AND GEARBOXES

24-02-2003

TECHNICAL DATA

141

SALOON CONSUMPTION

Fuel consumption values correct at time of printing.

In accordance with directive 99/100 in M.P.G. (litres/100 km)

Engine Gearbox Model Urban driving Inter- Mixed Emission of

codes urban CO

by weight

g/Km

1.1 litre Manual HFXF 34.4 (8.2) 56.5 (5) 45.6 (6.2) 148

1.1 litre Manual HFXU/A 33.6 (8.4) 54.3 (5.2) 44.9 (6.3) 151

1.4 litre Manual K6D2 30.0 (9.4) 51.4 (5.5) 40.4 (7) 162

1.4 litre Manual KFWF 33.6 (8.4) 56.5 (5) 44.9 (6.3) 149

KFWA 33.2 (8.5) 54.3 (5.2) 44.9 (6.3) 151

1.4 litre Automatic KFWR 29.7 (9.5) 52.3 (5.4) 40.9 (6.9) 165

1.6 litre 16V Manual NFUF 32.8 (8.6) 55.4 (5.1) 44.1 (6.4) 153

HNFUF 32.5 (8.7) 49.6 (5.7) 41.4 (6.8) 161

1.6 litre 16V Automatic NFUR 28.5 (9.9) 51.4 (5.5) 40.0 (7.1) 171

HNFUR 27.6 (10.2) 48.7 (5.8) 37.6 (7.5) 179

2 litre 16V Manual RFNF 26.4 (10.7) 46.3 (6.1) 36.7 (7.7) 185

1.4 litre Turbo HDI Manual 8HXF 51.4 (5.5) 77.1 (3.6) 65.7 (4.3) 113

1.9 litre Diesel Manual WJYF 38.2 (7.4) 64.2 (4.4) 51.4 (5.5) 144

WJYU 36.2 (7.8) 62.1 (4.6) 48.7 (5.8) 153

2 litre Turbo HDI Manual RHYF 42.8 (6.6) 68.9 (4.1) 56.5 (5) 136

HRHYF 40.9 (6.9) 64.2 (4.4) 53.3 (5.3) 144

2 litre Turbo HDI (ECO)

Manual RHYU 48.7 (5.8) 74.3 (3.8) 62.8 (4.5) 120

24-02-2003

TECHNICAL DATA

142

206 SW CONSUMPTION

In accordance with directive 99/100 in M.P.G. (litres/100 km)

Engine Gearbox Model Urban Inter- Mixed Emission of

codes driving urban CO

by weight

g/Km

1.1 litre Manual 2EHFXF 32.5 (8.7) 54.3 (5.2) 43.5 (6.5) 156

1.4 litre Manual 2EKFWF 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 153

2EKFWA 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 153

1.6 litre 16V Manual 2ENFUF 32.8 (8.6) 55.4 (5.1) 44.1 (6.4) 153

2KNFUF 32.5 (8.7) 51.4 (5.5) 42.2 (6.7) 159

1.6 litre 16V Automatic 2ENFUR 28.5 (9.9) 51.4 (5.5) 40.0 (7.1) 171

2KNFUR 27.6 (10.2) 48.7 (5.8) 37.6 (7.5) 179

2 litre 16V Manual 2ERFNF 25.7 (11) 45.6 (6.2) 35.8 (7.9) 189

1.4 litre Turbo HDI Manual 2E8HXF 50.4 (5.6) 74.3 (3.8) 64.2 (4.4) 117

2 litre Turbo HDI Manual 2ERHYF 41.4 (6.8) 68.9 (4.1) 55.4 (5.1) 138

2KRHYF 40.9 (6.9) 64.2 (4.4) 53.3 (5.3) 144

24-02-2003

TECHNICAL DATA

143

3 and 5 DOOR

Engine

1.1 litre 1.4 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V 2 litre 16V

Gearbox

Manual Manual Automatic Manual Automatic Manual

Model codes: HFX KFWF/A KFWR NFUF NFUR RFN

K6D

• Kerb weight 985 1 025 1 055 1 100 1 055 1 125

• Gross vehicle weight (GVW) 1 405 1 450 1 480 1 567 1 614 1 560

• Gross train weight (GTW)* 1 920 2 365 2 395 2 467 2 504 2 475

• Unbraked trailer 485 510 525 550 550 560

• Braked trailer (within GTW) 700 1100 1 100 1 100 1 100 1 100

WEIGHTS AND TOWING LOADS (IN KG)

* In the case of a towing vehicle, the speed is limited to 100 km/h.

3 and 5 DOOR VANS

Engine

1.4 litre HDI 1.9 litre D 2 litre HDI

2 litre HDI

1.1 litre 1.4 litre HDI 1.9 litre D

(ECO)

Gearbox

Manual Manual Manual Manual Manual Manual Manual

Model codes: 8HX WJY RHY RHYU HFXU 2S8HXF WJYU

2SHFX 2SWJY

• Kerb weight 1 061 1 084 1 145 1 145 900 1 049 1 000

• Gross vehicle weight (GVW) 1 525 1 525 1 585 1 585 1 405 1 525 1 525

• Gross train weight (GTW)* 2 425 2 440 2 500 2 500 1 920 2 425 2 440

• Unbraked trailer 530 540 570 500 485 524 540

• Braked trailer (within GTW) 1 100 1 100 1 100 1 100 700 1 100 1 100

24-02-2003

TECHNICAL DATA

144

5 DOOR

Engine

1.1 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V 2 litre 16V 1.4 litre HDI 2 litre HDI

Gearbox

Manual Manual Manual Automatic Manual Manual Manual

Model codes: HFX KFW NFUF NFUR RFN 8HX RHY

• Kerb weight 1 064 1 073 1 148 1 190 1 192 1 110 1 191

• Gross vehicle weight (GVW) 1 450 1 490 1 560 1 580 1 560 1 530 1 600

• Gross train weight (GTW)* 1 950 2 390 2 460 2 480 2 460 2 430 2 500

• Unbraked trailer 500 500 500 500 500 500 500

• Braked trailer (within GTW) 500 900 900 900 900 900 900

WEIGHTS AND TOWING LOADS 206 SW (IN KG)

* In the case of a towing vehicle, the speed is limited to 100 km/h.

24-02-2003

TECHNICAL DATA

145

SALOON DIMENSIONS (3 AND 5 DOOR VERSIONS) 206 SW DIMENSIONS

24-02-2003

TECHNICAL DATA

146

THE IDENTIFICATION FEATURES OF YOUR 206

A. Manufacturer's plate (location according to model).

B. Serial number on the bodywork (location according to model).

C. Serial number on the fascia.

D. Tyres and paint reference.

The label D on the driver's centre door pillar gives:

–the wheel and tyre sizes,

–the brands of tyres approved by the manufacturer,

–the tyre pressures: (tyre pressure checks must be carried out cold, at least every month).

–the paint colour reference.

Saloon 206 SW

2002.5 Peugeot 206 SW Dag

Product's Documents

User Manual

Specifications

Peugeot 2002.5 PEUGEOT 206 SW DAG Questions and Answers

Related Products

Sealey VS2005 Diesel Injector Puller for Citroen, Peugeot, Fiat

Sealey VSE4785 Front Pivot Arm Bush Tool for Peugeot 407/508, Citroen C5/C6

DRAPER 27211 Engine Timing Kit (Fiat, Citroen, Peugeot)

DRAPER 27171 Engine Timing Kit (Citroen, Land Rover, Peugeot)

DRAPER 26913 Engine Timing Kit (Citroen, Fiat, Peugeot)

DRAPER 27118 Engine Timing/Overhaul Kit (Citroen, Peugeot)
