INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

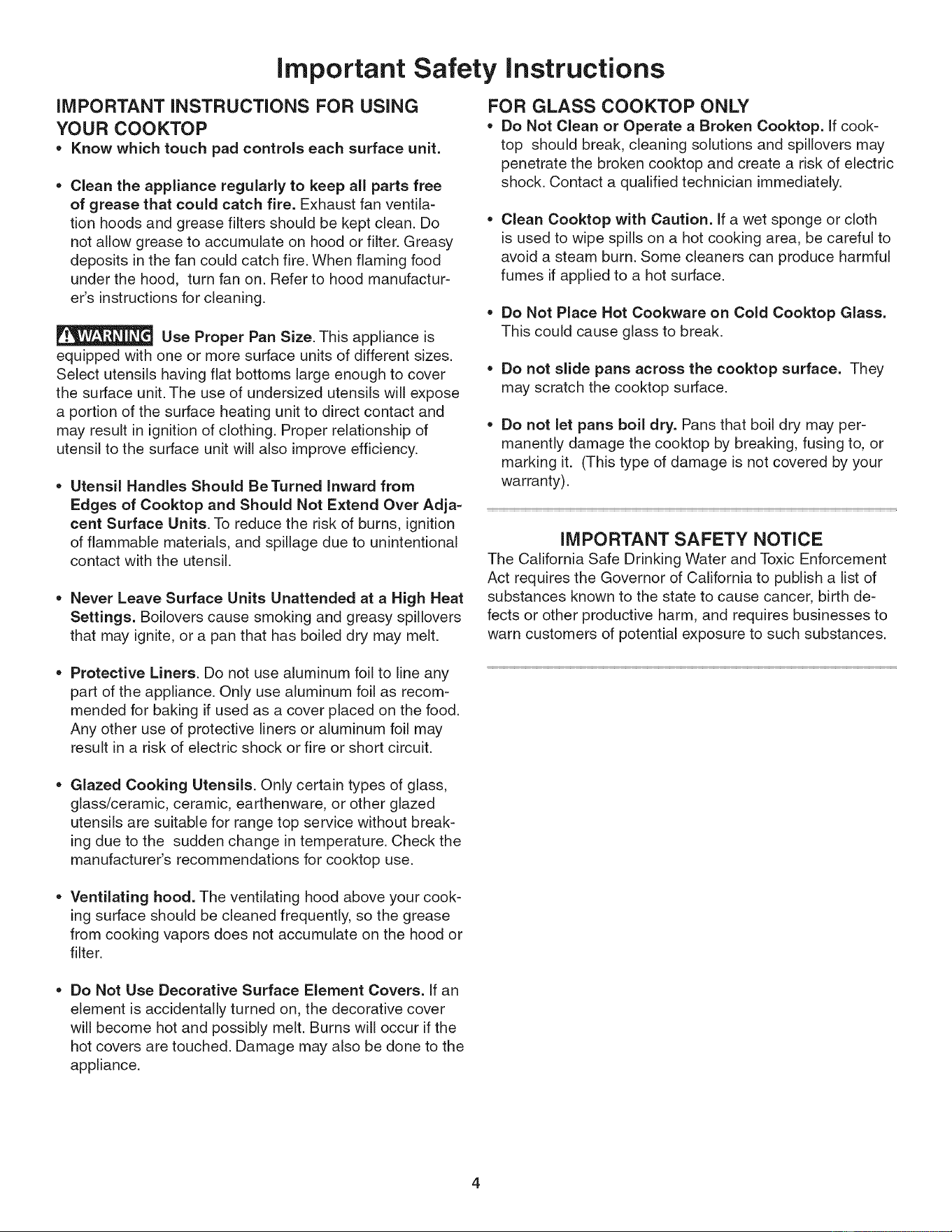

llr__FOR YOUR SAFETY: Do not store or use gasoline or other
iflammable vapors and liquids in the vicinity of this or any other appliance,
Canada
Cooktop Dimensions
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-
wire or four-wire cable, 240/208 volt, 60 hertz, AC
only electrical supply with ground.
• Minimum distance between cooktop and overhead
cabinetry is 30" (76.2 cm).
Cooktop Cutout
Dimensions
C
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Figure 1
MODEL A:WIDTH B.DEPTH CHEIGHT D.BOXWtDTH E.BOXDEPTH
30"CeramicModel 30s/8(77.8) 213/8(54,4) 2% (6.7) 28V8(71.4) I9_/8(48,9)
30"CeramicModel 28Y_(72.4) 29(73.7) 195/8(49.8) 20_A(51,4) 5(12.7)
All dimensions are in inches (cm).
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for
installation of the junction box on the wall at the back of the cooktop.
Printed in China
P/N 318205404 (0901) Rev. B
English - pages 1-5
Espahol- pages 6-10
Fran_ais- pages 11-15
Notes / Notas - page 16
