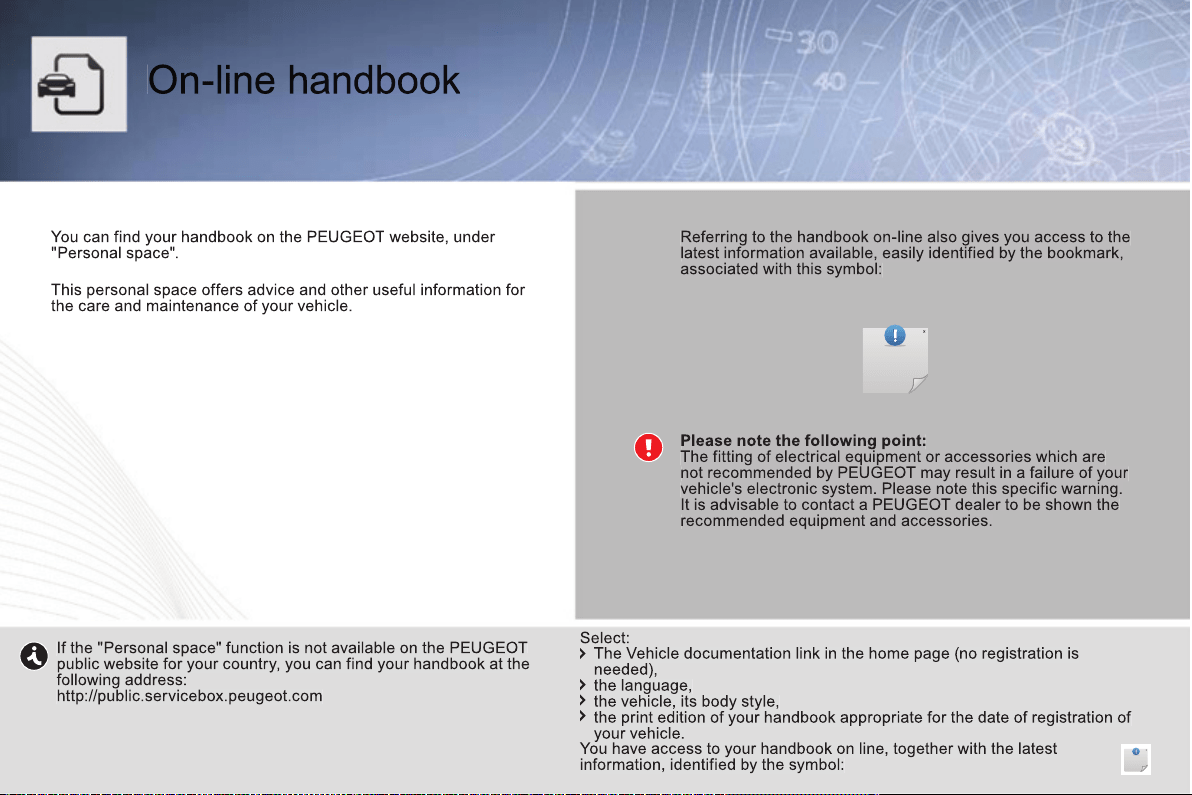

On-line handbook
You can find your handbook on the
PEUGEOT
website, under
"Personal space".
Referring to the handbook on-line also gives you access to the
latest information available, easily identified by the bookmark,
associated with this symbol:
If the "Personal space" function is not available on the
PEUGEOT
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com
The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of
your vehicle.
Please note the following point:
The fitting of electrical equipment or accessories which are
not recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specific warning.
It is advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.
Select:
You have access to your handbook on line, together with the latest
information, identified by the symbol:
!
i
1
Thank you for choosing a 308 CC, a
symbol of confi dence, passion and in-
spiration.
Page reference:
this symbol invites you to refer to
the pages which provide details
of the function.
Key
Protection of
the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.
Information:
this symbol draws your attention
to additional information for better
use of your vehicle.
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Your vehicle is fi tted with only some of the
equipment described in this document,
depending on its trim level, version and
the specifi cation for the country in which
it was sold.
WELCOME
This handbook has been designed to
enable you to make the most of your
vehicle in all situations.
Therefore, on the fi rst few pages, you
will fi nd a list of contents followed by a
quick reference guide intended to make
it easier for you to become familiar with
your vehicle.
All of the details specifi c to your ve-
hicle, comfort, safety, driving, are then
presented in this handbook, to increase
your appreciation of the vehicle and to
help you make the most of it.
2
CONTENTS
Instrument panels 21
Warning and indicator lamps 23
Indicators 31
Instrument panel buttons 35
Trip computer 37
Ventilation 45
Rear screen demist - defrost 47
Dual-zone digital
air conditioning 48
Windstop 50
Front seats 53
"AIRWAVE" system 56
Rear seats 57
Mirrors 58
Steering wheel adjustment 60
COMFORT 45
60
Remote control key 61
Alarm 66
Electric windows 68
Doors 70
Boot 73
Fuel tank 74
Misfuel prevention (Diesel) 75
ACCESS 61
75
Lighting controls 76
LED lamps 78
Daytime running lamps 78
Automatic illumination of
headlamps 79
Welcome lighting 80
Headlamp adjustment 80
Directional lighting 81
Wiper controls 82
Automatic rain sensitive wipers 83
Courtesy lamps 84
Interior mood lighting 85
VISIBILITY 76
85
FAMILIARISATION 4
18
MONITORING
21
38
Monochrome screen C
(PEUGEOT Connect Sound
(RD5)) 39
Setting the date / time 41
Retractable colour screen
(PEUGEOT Connect Navigation
(RT6)) 42
Setting the date / time 43
MULTIFUNCTION
SCREENS
39
44
Interior fi ttings 86
Lockable glove box 87
Lockable front armrest 88
Boot fi ttings 91
FITTINGS
86
92
1
5
4
3
2
6
ECO-DRIVING
19
20
3
CONTENTS
Direction indicators 93
Hazard warning lamps 93
Horn 93
Emergency or assistance call 94
Braking assistance systems 94
Trajectory control systems 95
Front seat belts 97
Airbags 100
Child seats 104
Deactivating the passenger's
front airbag 105
ISOFIX child seats 110
SAFETY 93
113
Parking brake 114
Manual gearbox 114
Gear shift indicator 115
Automatic gearbox 116
Stop & Start 119
Tyre under-infl ation detection 122
Speed limiter 124
Cruise control 126
Parking sensors 128
DRIVING 114
129
Bonnet 131
Running out of fuel (Diesel) 132
Petrol engines 133
Diesel engines 134
Checking levels 135
Checks 138
CHECKS
130
139
Temporary puncture repair kit 140
Changing a wheel 145
Snow chains 149
Changing a bulb 150
Changing a fuse 155
12 V battery 161
Energy economy mode 164
Changing a wiper blade 165
Towing the vehicle 165
Towing a trailer 167
Very cold climate screen 168
Accessories 168
PRACTICAL
INFORMATION
140
169
Petrol engines 170
Weights (petrol) 171
Diesel engines 172
Weights (Diesel) 173
Dimensions 174
Identifi cation markings 175
TECHNICAL
DATA
170
DATA 170 DATA
176
AUDIO EQUIPMENT
and
TELEMATICS
177
251
VISUAL
SEARCH
252
255
ALPHABETICAL
INDEX
256
260
Emergency or assistance 177
PEUGEOT
Connect Navigation (RT6)
PEUGEOT Connect Navigation (RT6)PEUGEOT
179
PEUGEOT
Connect Sound (RD5)
PEUGEOT Connect Sound (RD5)PEUGEOT
233
7
8
9
10
11
81
140
50
119
6
4

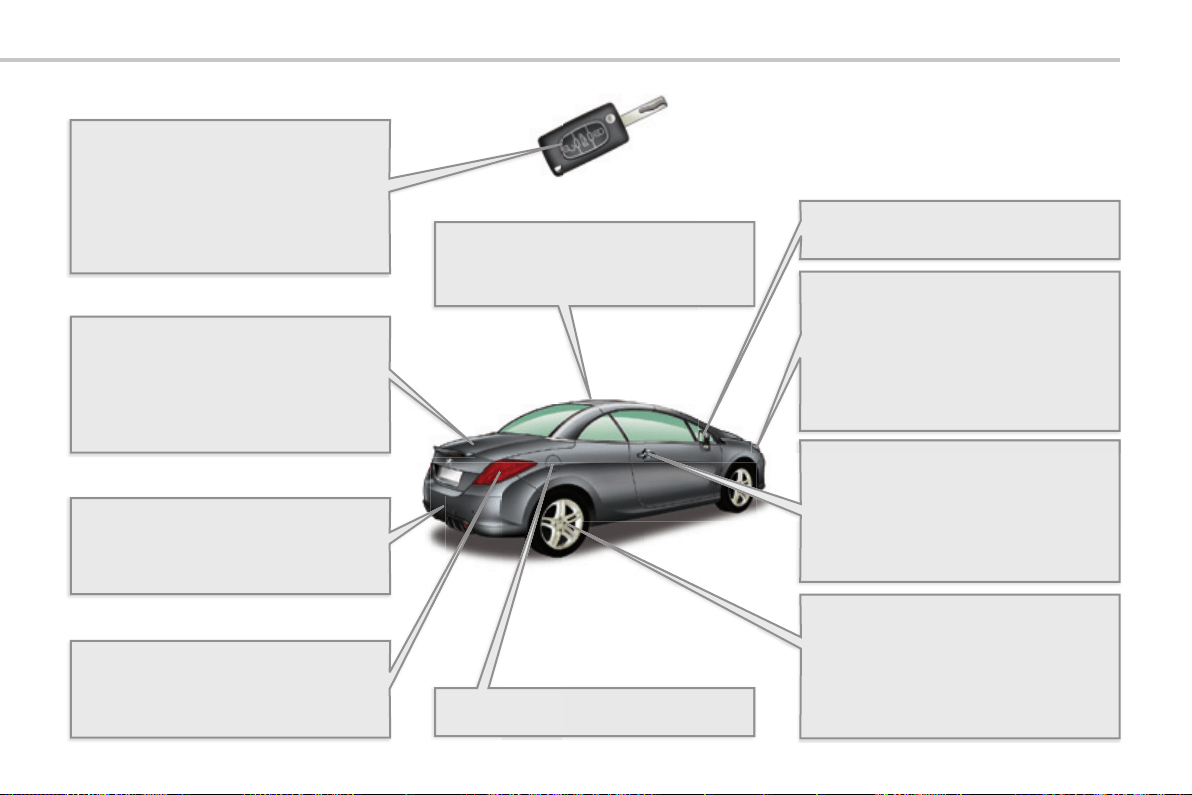

FAMILIARISATION

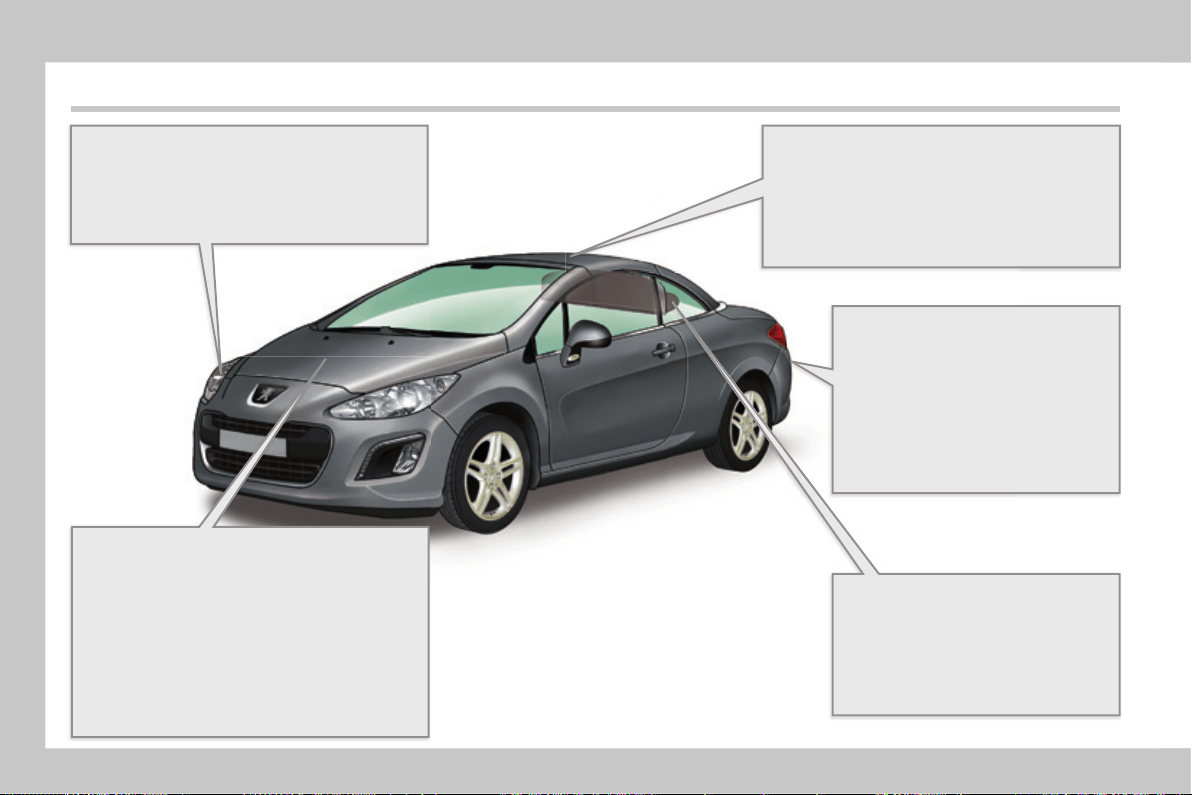

Directional lighting
This lighting automatically provides
additional visibility when cornering.
Retractable roof
This system changes from the "coupé"
confi guration to the "cabriolet" confi gura-
tion and vice versa with a single action.
Windstop
In the "cabriolet" confi guration,
this comfort system reduces
air swirl at the front seats.
EXTERIOR
Temporary puncture repair
kit
This kit is a complete system,
consisting of a compressor
and a sealant cartridge, for the
temporary repair of a tyre.
Stop & Start
This system puts the engine temporar-
ily into standby during stops in the traf-
fi c (red lights, traffi c jams, etc....). The
engine restarts automatically as soon
as you want to move off. The Stop &
Start system reduces fuel consumption,
exhaust emissions and the noise level
when stationary.
61 85 74
80
5
FAMILIARISATION

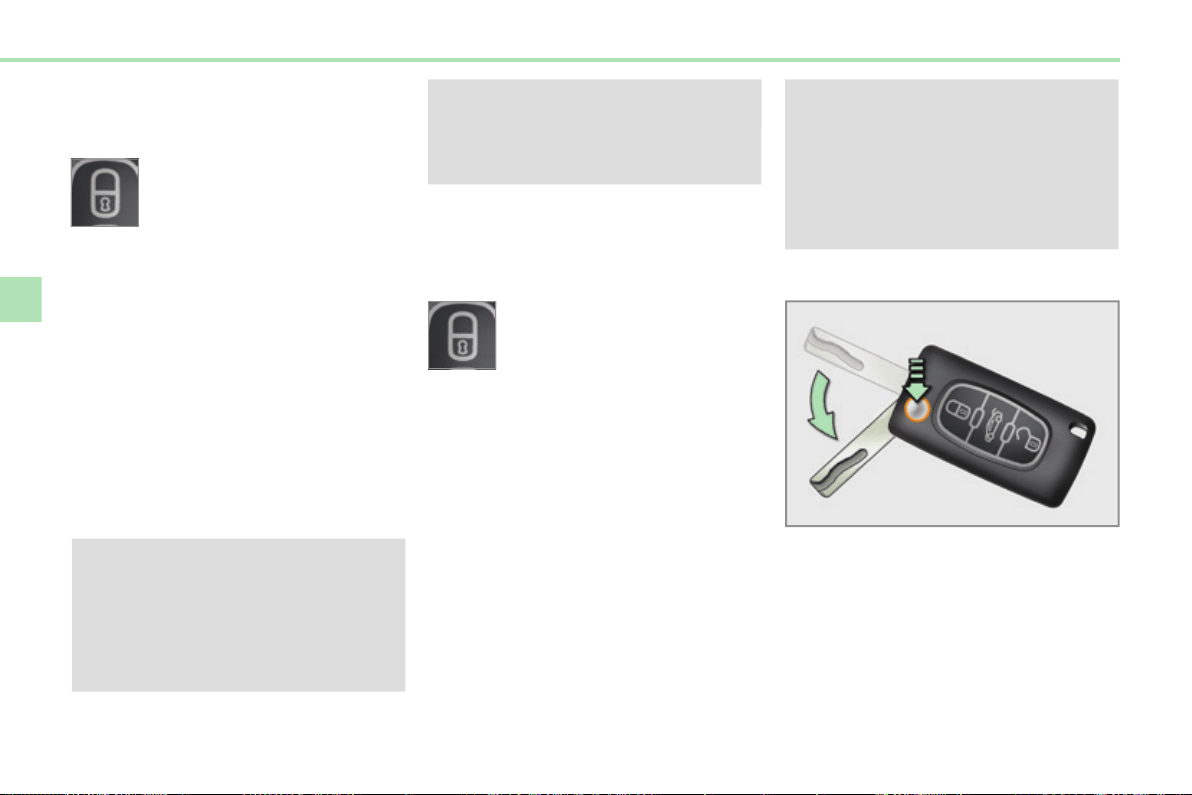

Remote control key

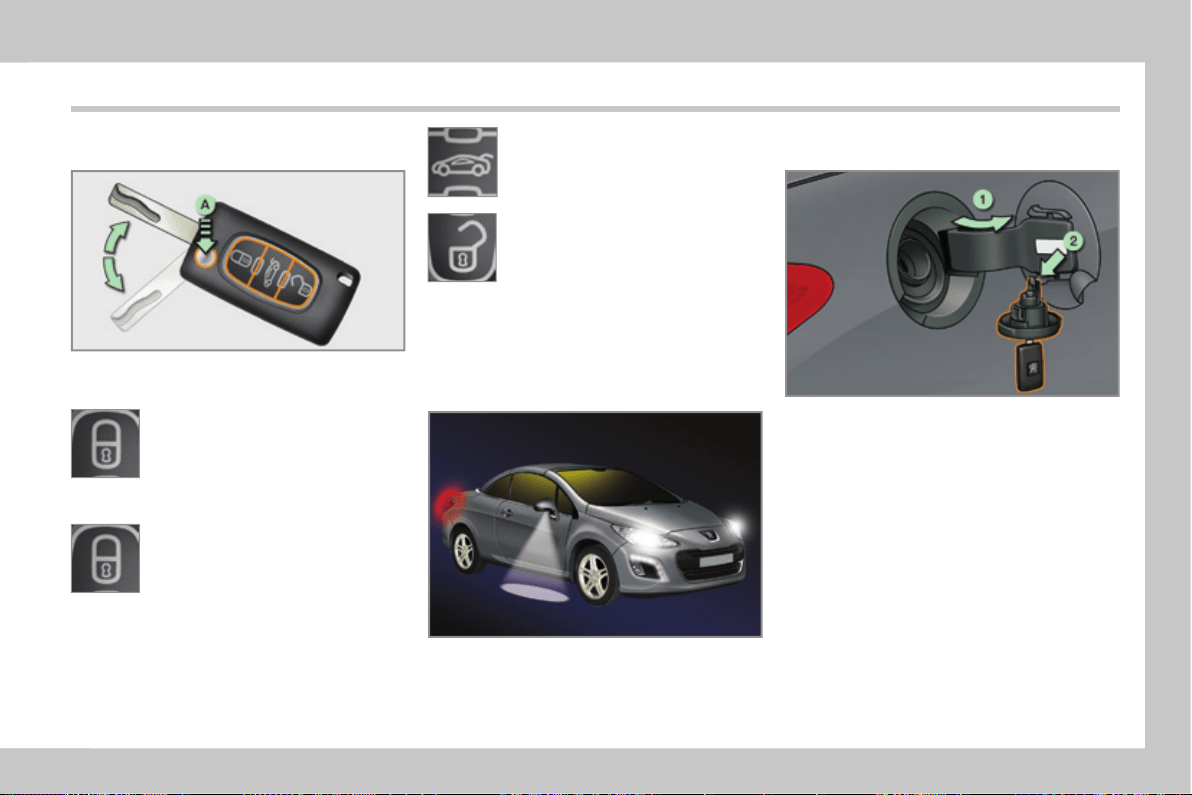

A. Unfolding / Folding the key
(fi rst press this button).
Normal locking
(press once; fi xed lighting of
the direction indicators).

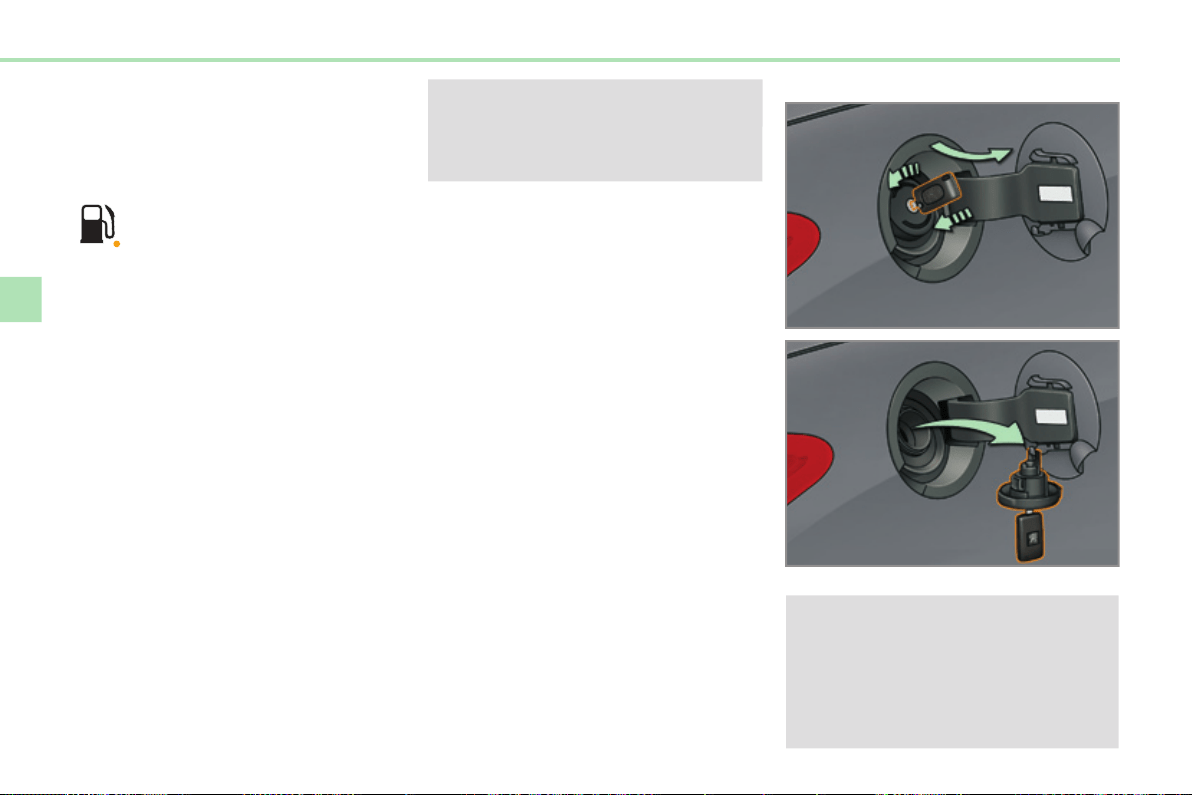

Fuel tank
1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
60 litres.
Unlocking and partial opening
of the boot
(press for more than two sec-
onds).
When the light is poor, detected by a
sensor, the remote switching on of the
dipped beam headlamps, sidelamps
and side spotlamps makes your ap-
proach to the vehicle easier.
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the door sill lamps and the foot-
well lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
ACCESS
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators).
Locking the vehicle using the remote
control or the key also locks the glove
box and the front armrest.
!
!
i
!
6
FAMILIARISATION
ACCESS
Retractable roof
The operation of the roof is the ex-
clusive responsibility of the driver.
To avoid any risk of injury when
operating the roof, ensure that no
one is standing near the moving
parts.
You are strongly advised not to op-
erate the roof in strong winds.
When washing your vehicle:
- lock the vehicle using the re-
mote control or the key,
- avoid spraying the upper part
of the windows,
- keep the end of the high pres-
sure nozzle at least 1 metre
from the windows and door
seals.
When the vehicle has been washed
or after rain, wait until the roof has
dried before opening it.
It is preferable to operate the roof
with the engine running and the ve-
hicle stationary. Wait until the end of
operation message appears in the
multifunction screen before moving
off.
The operation can only be carried
out when moving if the speed is be-
low 6 mph (10 km/h), and you are
driving smoothly on level ground.
Preliminary conditions
Start the engine
You must ensure that:
- the electric windows are initialised
(see the corresponding section),
- the ambient temperature is higher
than -15 °C.
Precautions to be taken before
operating the roof
Park the vehicle on level ground.

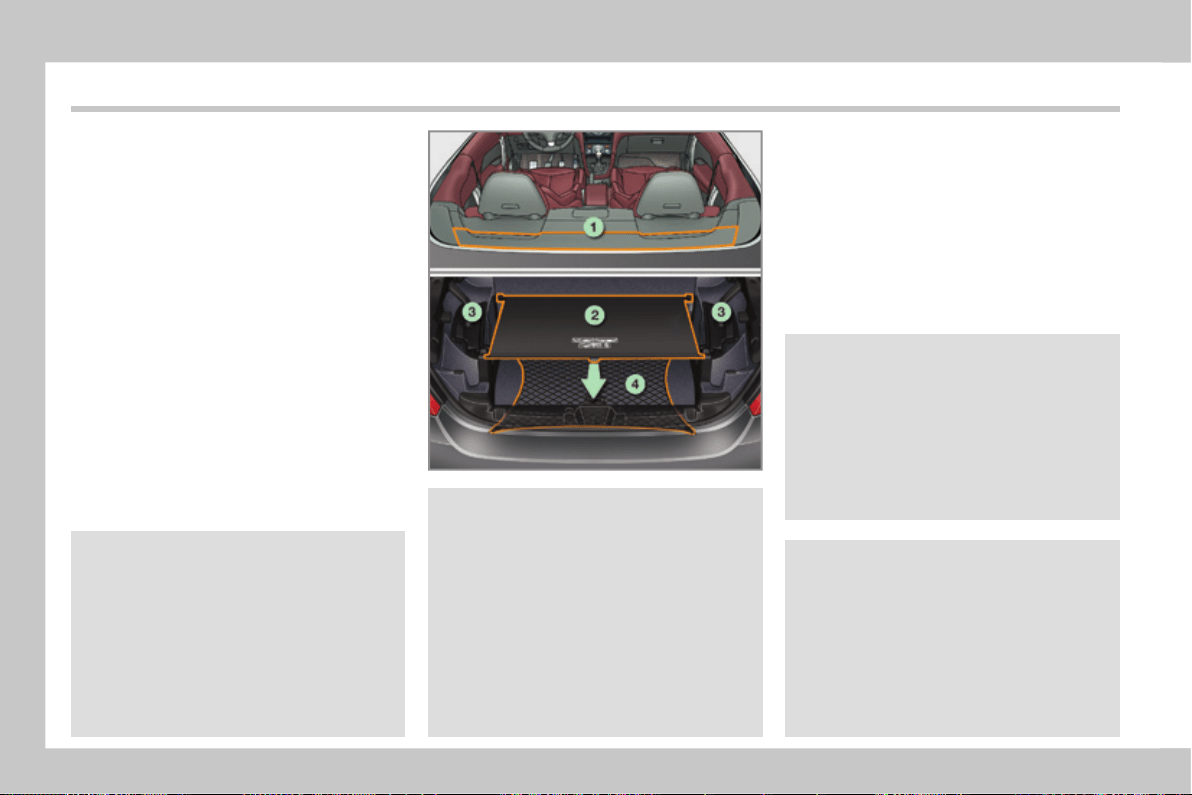

Check that no objects could hinder
the operation of the roof:
- nothing should be placed on the
moving rear shelf 1 , on the boot
screen 2 or on the side trims 3 ,
- if luggage is transported in the
boot, it must not lift the boot
screen,
- any objects, such as a jacket or
umbrella, placed in the boot, must
be secured using the luggage re-
taining net 4 .
Check that the boot screen 2 is se-
cured fi rmly.
Close the boot correctly.
After the roof has been operated
fully four times in succession, the
system switches to protection
mode temporarily to avoid dam-
age to the roof motors. Let the
system rest for approximately ten
minutes; if you are unable to oper-
ate the roof after this time, contact
a PEUGEOT dealer or a qualifi ed
workshop.
!
i
!
i
!
7
FAMILIARISATION
ACCESS
Retractable roof operations
Opening the roof
Pull this control until the roof
opening operation is com-
plete.
Closing the roof
Press this control until the
roof closing operation is
complete.

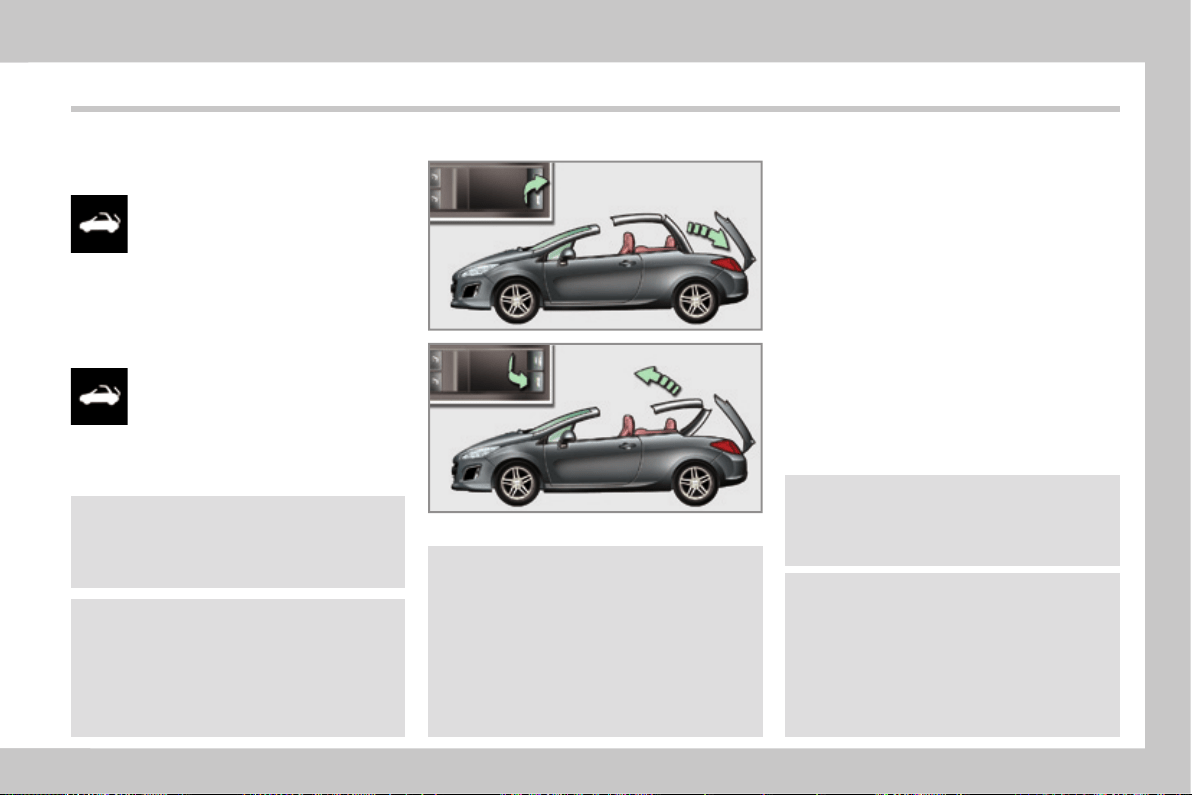

Change to "cabriolet" confi guration:
- the four windows lower partially,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
Change to "coupé" confi guration:
- the four windows lower partially,
- the boot opens,
- the roof unfolds and locks automati-
cally,
- the boot closes.
To ensure that the roof operates cor-
rectly, do not release the control while
the roof is moving.
However, in the event of any danger,
release the control, the roof stops; then,
once the danger had been eliminated,
complete the movement required.
Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch off
the ignition, start the engine again,
then start the operation required
again.
If the problem persists, contact a
PEUGEOT dealer or a qualifi ed
workshop.
The electric window controls and
the control for all four windows are
deactivated while the roof is in op-
eration.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The roof's electronic control unit
may interrupt the operation in
progress as a precaution (ex-
ample: door movement and roof
operation in quick succession). In
this case, release the control, then
activate it again to complete the
operation required.
87, 88
85
56
233
179
8
FAMILIARISATION

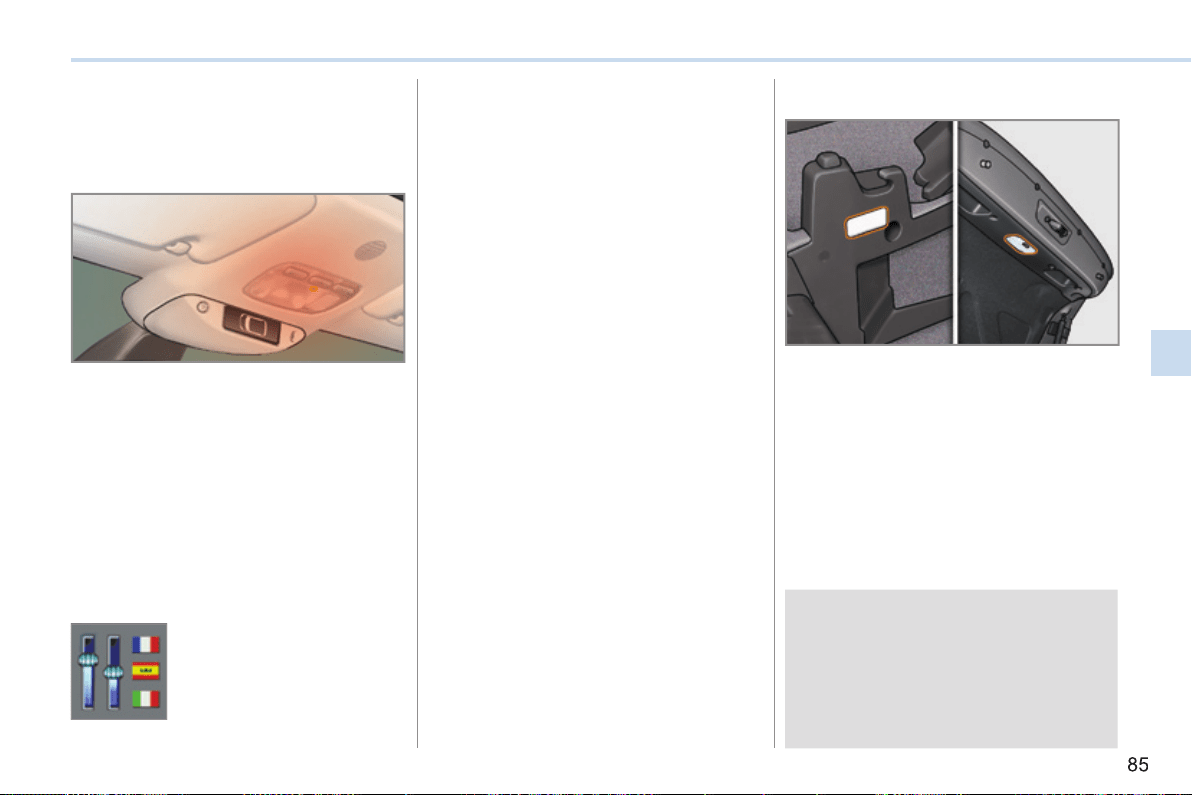

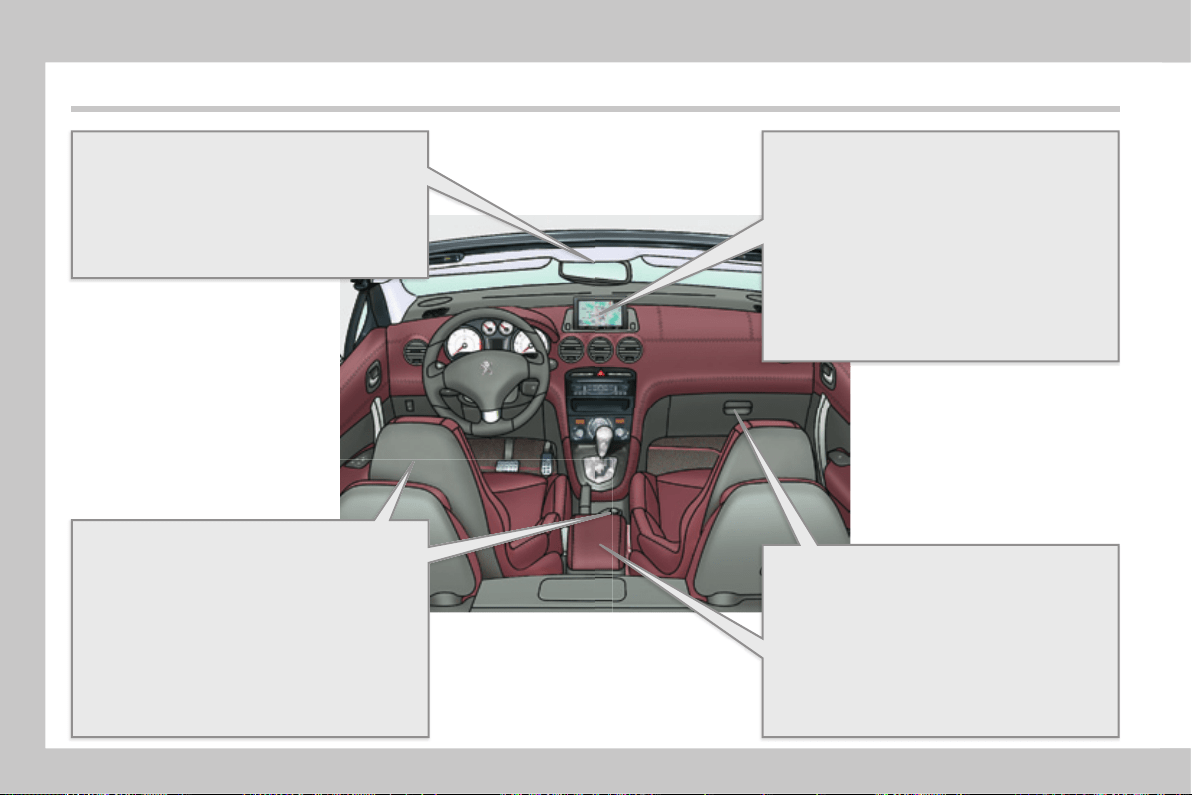

Interior mood lighting
This subdued lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
"AIRWAVE" system
Incorporated in each front head re-
straint, this heating system improves
your comfort around the neck in cold
weather, particularly in the "cabriolet"
confi guration. It operates most effec-
tively with the Windstop installed in the
raised position.
Audio and telematics systems
These systems benefi t from the latest technol-
ogy: MP3 compatible PEUGEOT Connect Sound,
PEUGEOT Connect Bluetooth, PEUGEOT
Connect Navigation (RT6) with retractable colour
screen, JBL audio system, auxiliary sockets.
Secure storage compartments
The glove box and the front armrest are
designed to remain locked, even in the
"cabriolet" confi guration. They can only
be locked using the remote control or
the key at the same time as the rest of
the vehicle.
INTERIOR
PEUGEOT Connect Sound
PEUGEOT Connect Navigation (RT6)
9
FAMILIARISATION

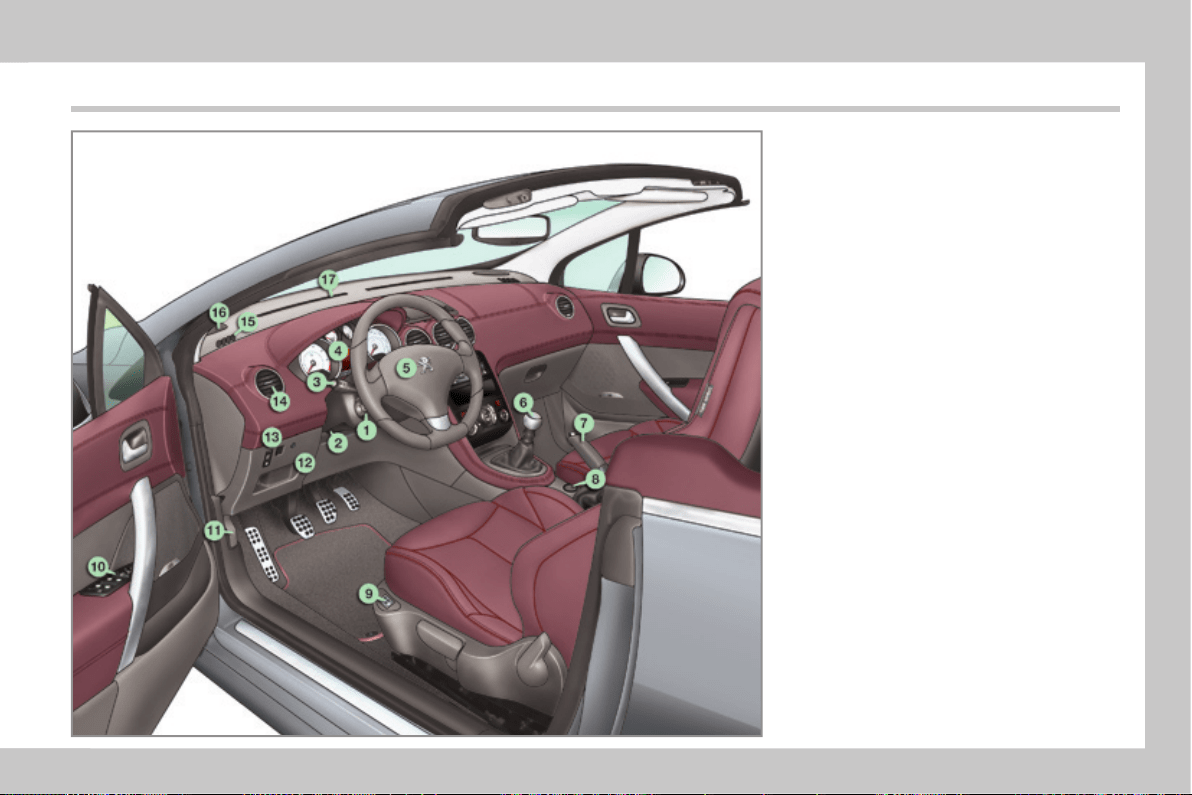

1. Cruise control / speed limiter
switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator
control stalk.
4. Instrument panel.
5. Driver's front airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. 12 V accessory socket.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11. Bonnet release.
12. Fusebox.
13. Manual headlamp height
adjustment.
Stop & Start button.
14. Side adjustable air vent.
15. Front side window demisting vent.
16. Speaker (tweeter).
17. Windscreen demisting vent.
INSTRUMENTS AND CONTROLS
10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.

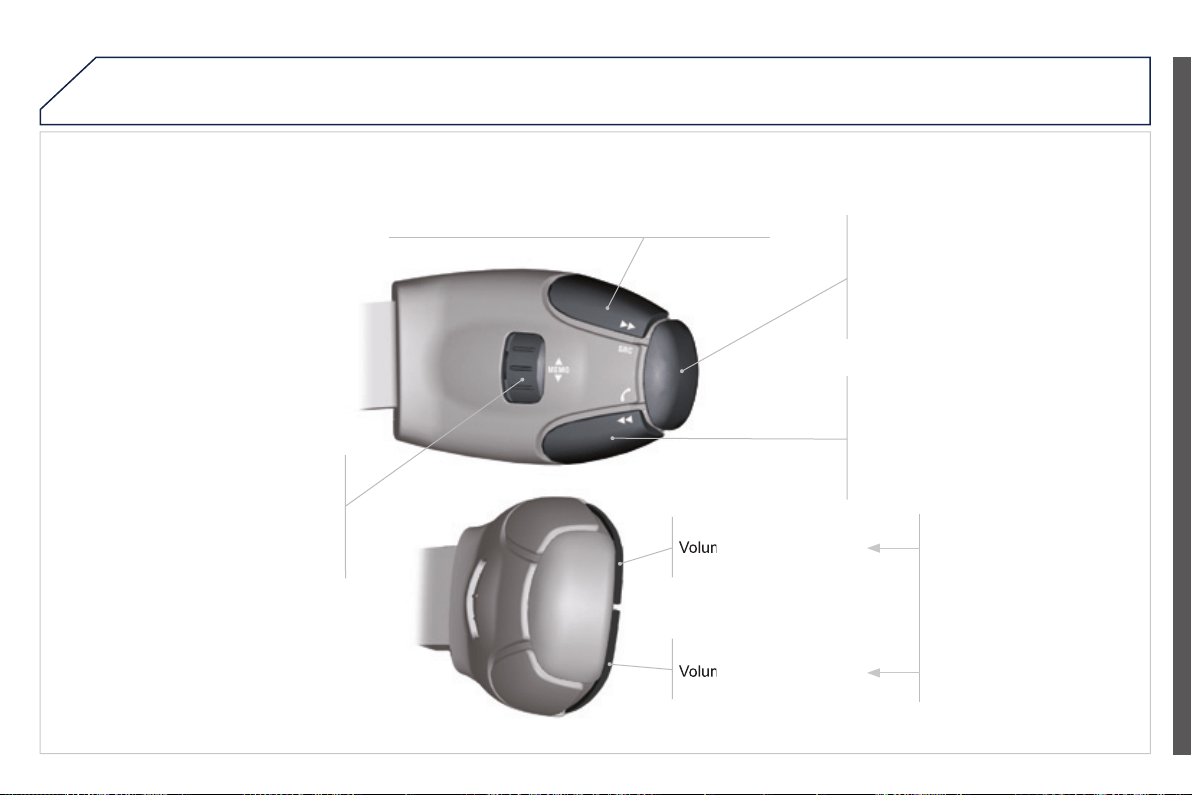

2. Audio and telematics system
steering mounted control stalk.
3. Wipers / screenwash / trip
computer control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's front airbag.
8. Passenger's front airbag
deactivation switch.
9. Glove box / Audio/video sockets.
10. Retractable roof control.
Control for all four windows.
11. Storage compartment.
12. "AIRWAVE" system controls.
13. Front armrest.
14. Front ashtray.
15. Heating / air conditioning controls.
16. Audio and telematics system.
17. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
DSC/ASR systems button.
Parking sensors button.
PEUGEOT services button.
53
54
11
FAMILIARISATION

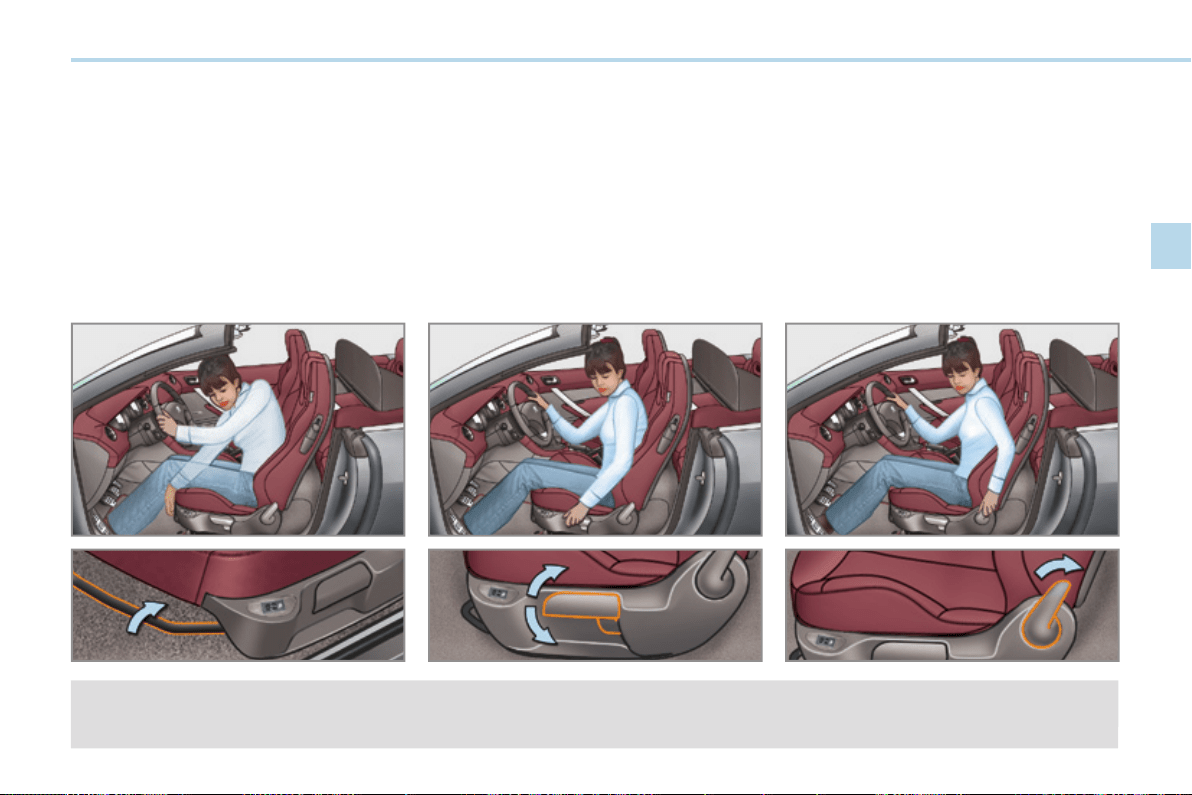

Front seats
Manual adjustments
Forwards-backwards Seat back angle Height
SITTING COMFORTABLY
Electric adjustments
!i
88 60
55
57
56
12

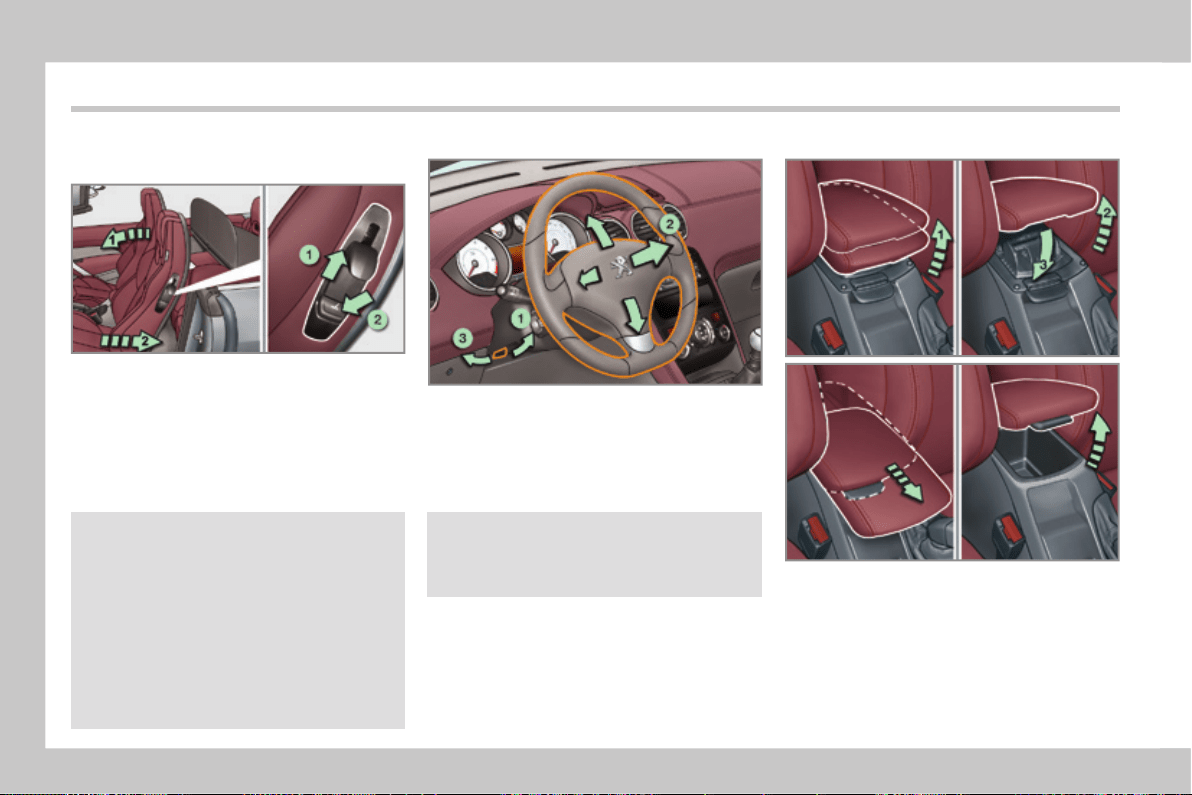

FAMILIARISATION
SITTING COMFORTABLY
Steering wheel adjustment
1. Release the adjustment mechanism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
Front seats
Other functions available...
Storing driving positions (driver's
electric seat).
Electric access to the rear seats
Lockable front armrest
For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle,
only when using the remote control or
the key.
As a safety precaution, these op-
erations must only be carried out
when stationary.
1. Control for release of the seat back
and automatic forward movement of
the seat.
2. Control for returning the seat to the
initial position.
"AIRWAVE" system.
Heated seats.
i
97 58
60
59
13
FAMILIARISATION
SITTING COMFORTABLY

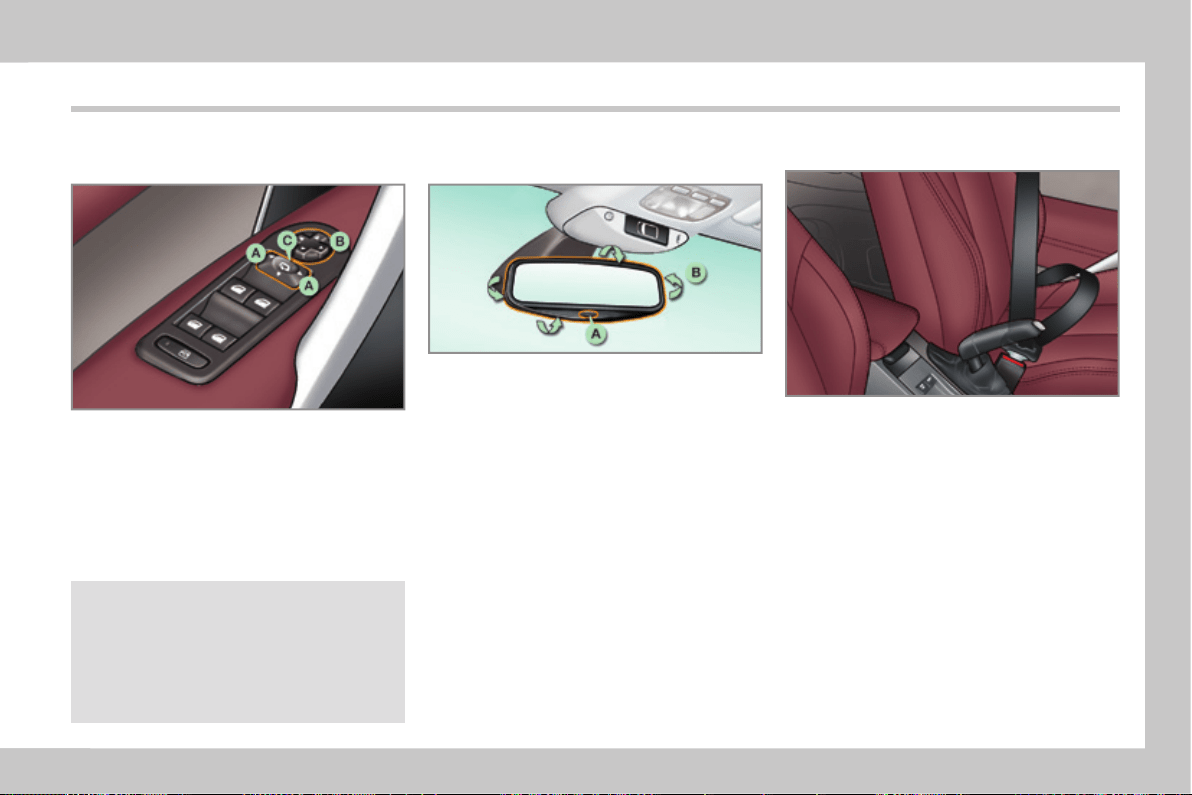

Door mirrors
Adjustment
Other functions available...
Folding / Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
Rear view mirror Front seat belts
1. Position the strap.
2. Fasten the buckle.
3. Check the fastening by pulling the
strap.
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the
mirror glass in four directions.
C. De-selection of the mirror.
Automatic day/night model
A.
Light level detection of the automatic
day/night mode.
B. Mirror adjustment.
76 93
83
82
14
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.
Direction indicators
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Front and rear foglamps.
Stalk A: windscreen wipers
Wipers
Three fl ashes
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available re-
gardless of the speed, but you will fi nd it
particularly useful when changing lane
on fast roads.
Switching on "AUTO"
Press the stalk down and release it.
Switching off "AUTO"
Push the stalk up and return it to
p osition "0" .
21
23
177
177
67
71
95
129
15
FAMILIARISATION
* Depending on version.
MONITORING

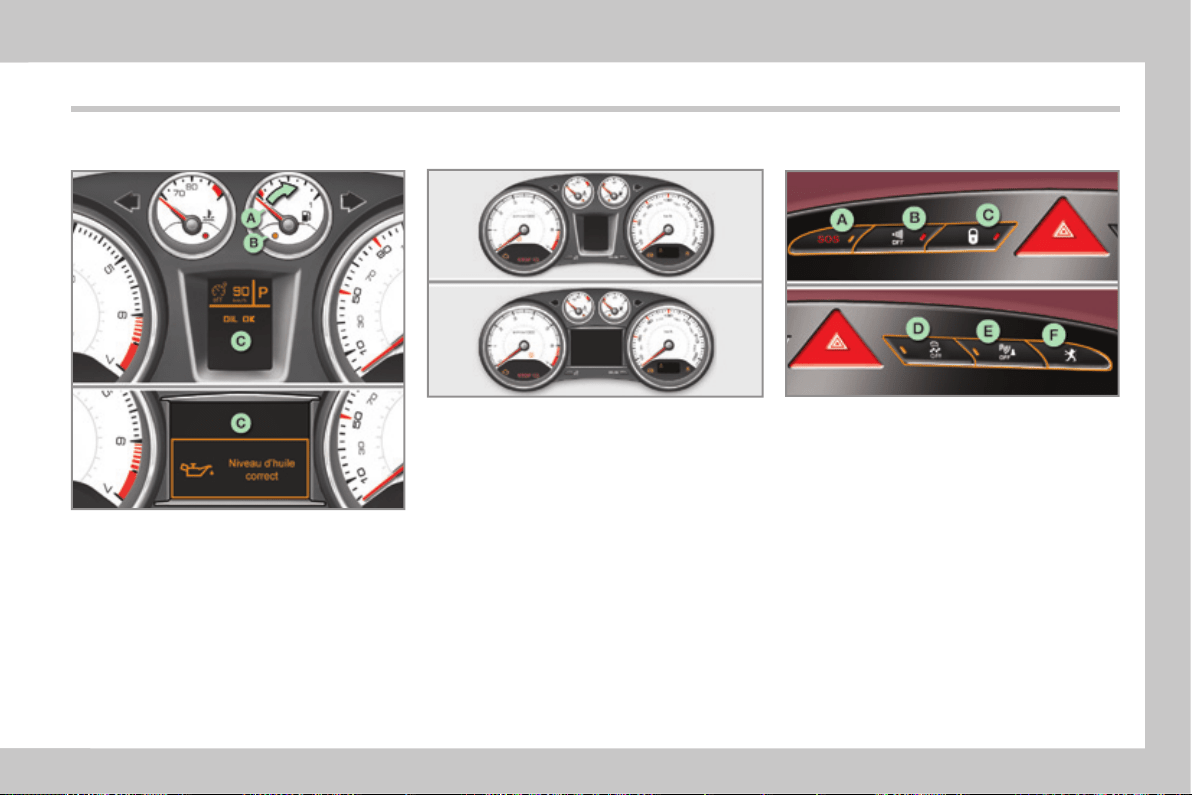

Instrument panel Switch panel
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its associ-
ated low level warning lamp should
go off.
C. With the ignition on, the oil level indi-
cator * should display for a few sec-
onds that this level is correct.
If the levels are not correct, top up the
l evels which are low.
Illumination of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
table concerned.
Warning lamps
B. Deactivation of the alarm interior
volumetric monitoring.
C. Central locking.
D.
Deactivation of the DSC/ASR systems.
E. Deactivation of the front and rear
parking sensors.
F. Access to PEUGEOT services.
i
101 97, 101 63
16
FAMILIARISATION

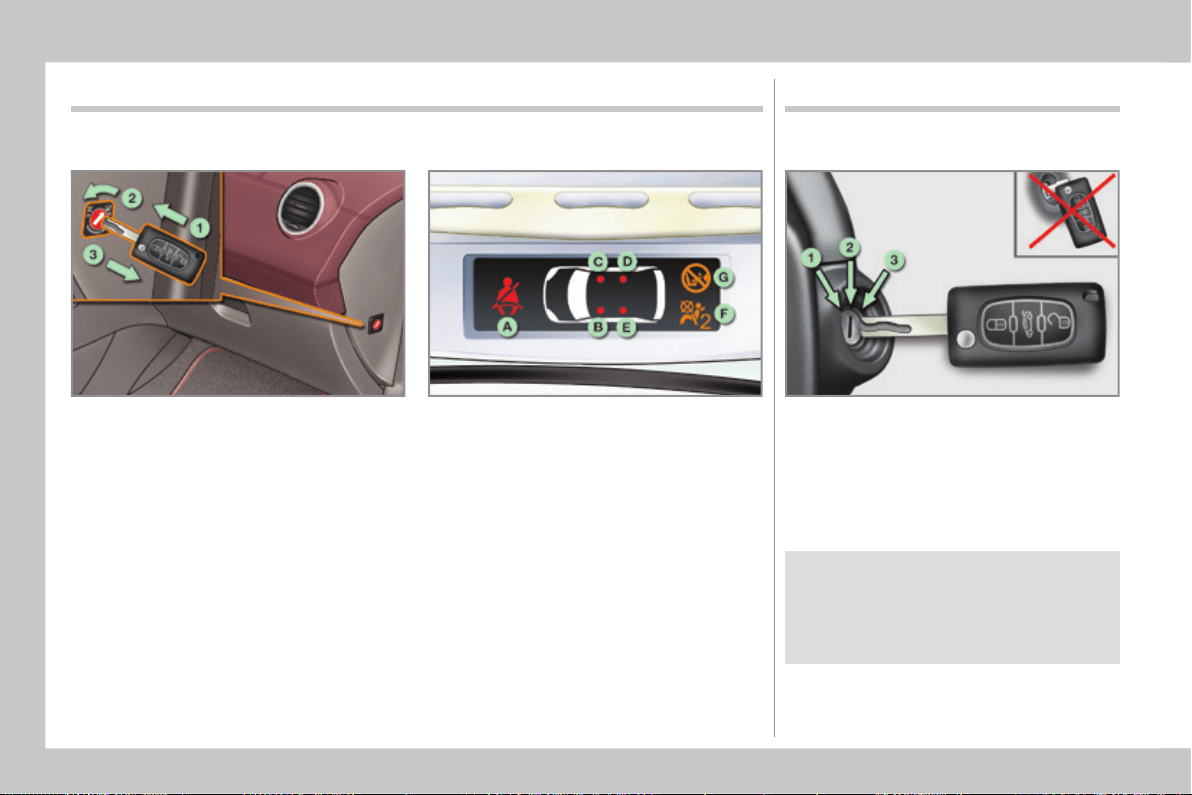

Passenger's front airbag
STARTING
1. Insert the key.
2. Select position:
"OFF" (deactivation), with "rear-
ward facing" child seat,
"ON" (activation), with front passen-
ger or "forward facing" child seat.
3. Remove the key keeping the switch
in the new position.
1. Stop position.
2. Ignition on (Running) position.
3. Starting position.
A. Front and/or rear seat belts not fas-
tened / unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp.
E. Rear left seat belt warning lamp.
F. Passenger's front airbag deactivated
warning lamp.
G. Passenger's front airbag activated
warning lamp.
Seat belts and passenger's
front airbag
PASSENGER SAFETY
Ignition switch
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.
!
i
i
119 120
17
FAMILIARISATION
DRIVING SAFELY
Stop & Start
The "ECO" warning lamp comes on
in the instrument panel and the en-
gine is put automatically into standby:
The "ECO" warning lamp goes
off and the engine restarts au-
tomatically:

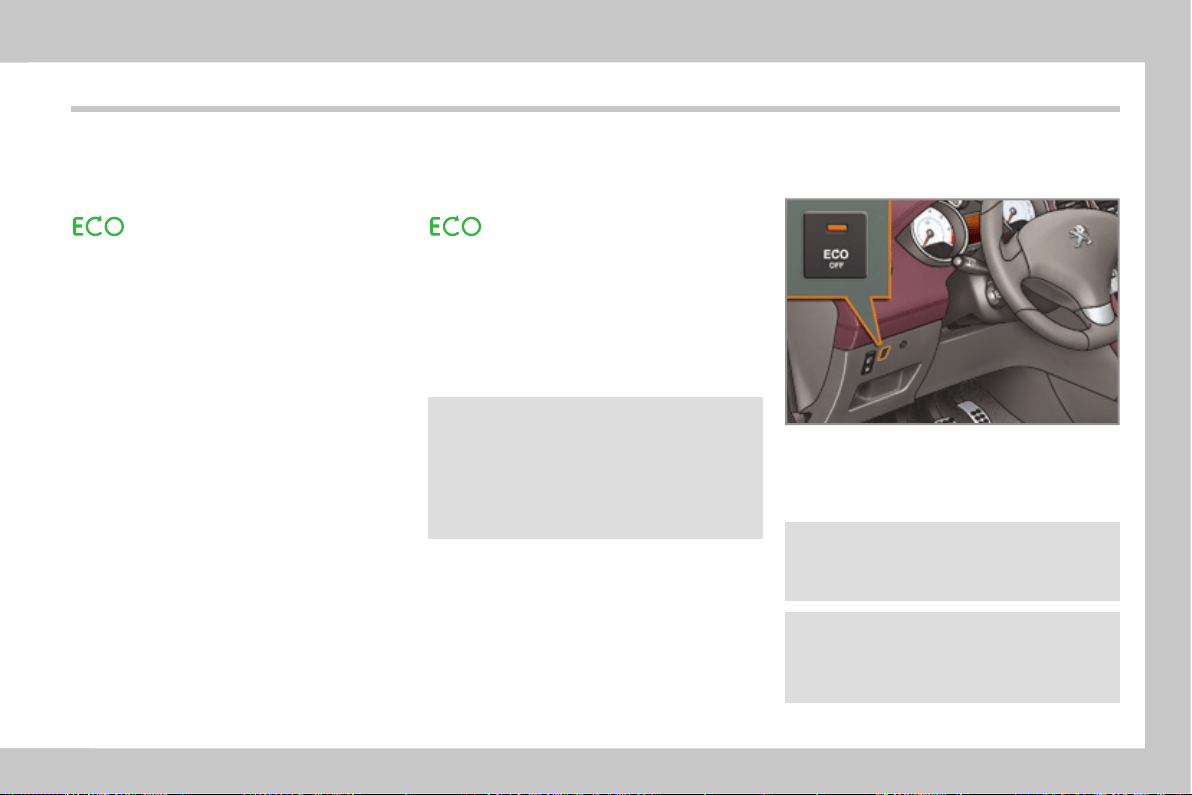

You can deactivate the system at
any time by pressing the "ECO OFF"
switch; the warning lamp in the button
comes on.
Activation / Reactivation Going into engine STOP mode Going into engine START mode
- with a manual gearbox; at speeds
below 12 mph (20 km/h), when you
place the gear lever into neutral and
release the clutch pedal.
In certain circumstances, STOP mode
may not be available; the "ECO" warn-
ing lamp fl ashes for a few seconds,
then goes off.
- with a manual gearbox; when you
fully depress the clutch pedal.
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatical-
ly. An alert message is displayed
asking you fully depress the clutch
pedal.
The system is reactivated auto-
matically every time the engine is
started with the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition with the key.
In certain circumstances, START mode
may be invoked automatically; the
"ECO" warning lamp fl ashes for a few
seconds, then goes off.
126 124
18
FAMILIARISATION
DRIVING SAFELY

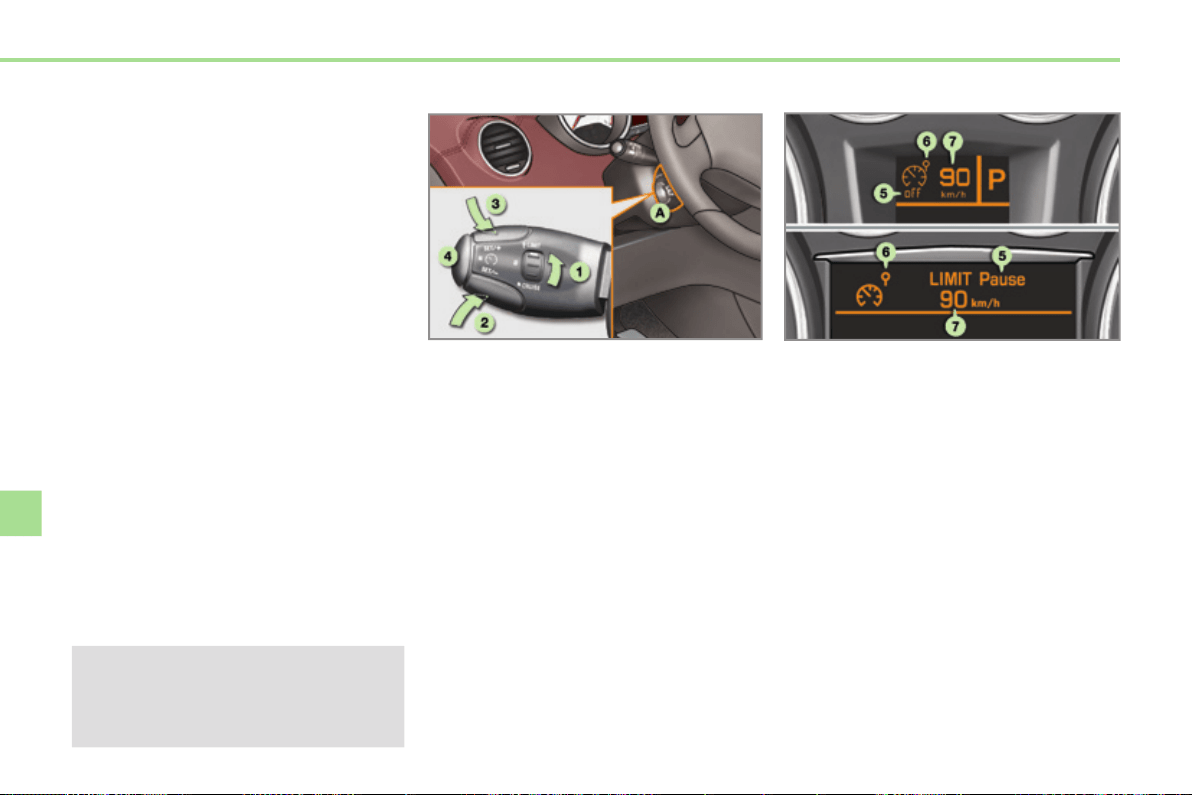

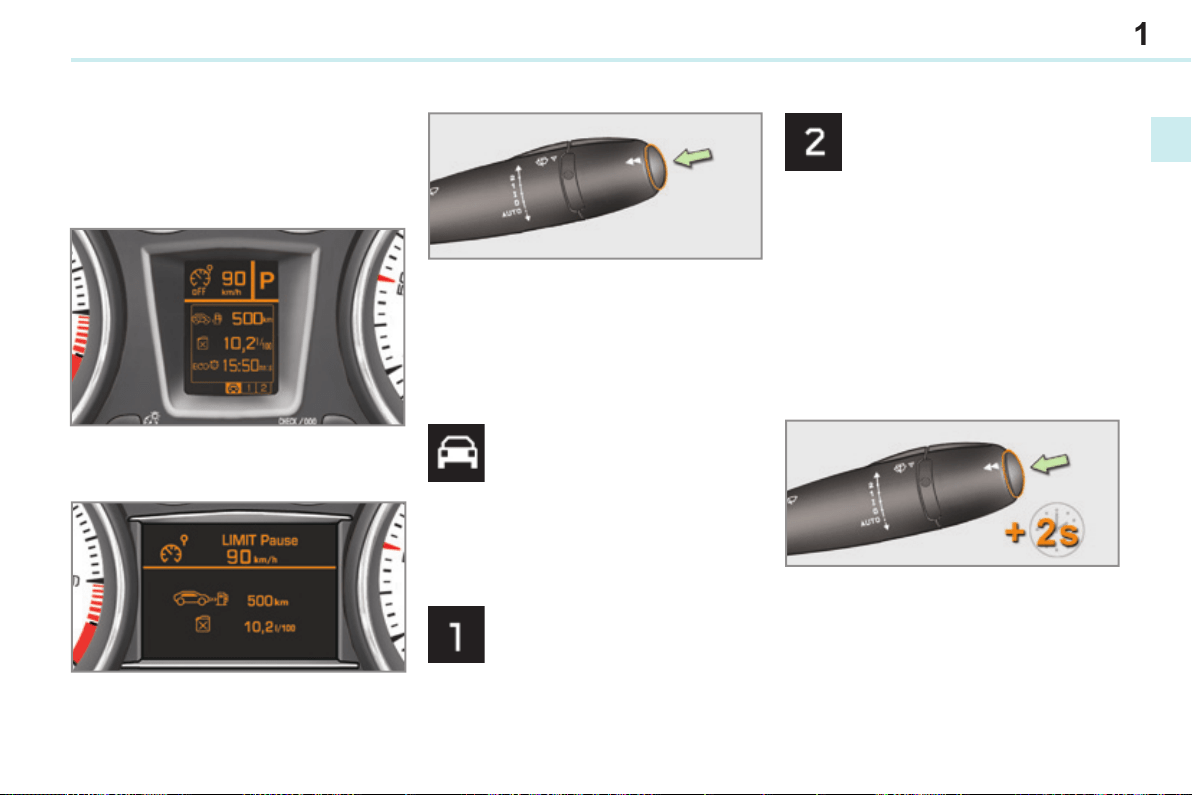

Speed limiter "LIMIT"
1. Limiter mode Selection / Off.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter On / Off.
1. Cruise control mode Selection / Off.
2. Programme a speed / Decrease the
programmed value.
3. Programme a speed / Increase the
programmed value.
4. Cruise control Off / Resume.
Cruise control "CRUISE"
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the automatic gearbox).
The values must be set with the engine
running.
Display in the instrument panel
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
Cruise control
Speed limiter
19
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2
emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up
without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to
automatic mode and avoid pressing the accelerator pedal
heavily or suddenly.
The gear shift indicator invites you engage the most suitable
gear: as soon as the indication is displayed in the instru-
ment panel, follow it straight away.
For vehicles fi tted with an electronic or automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accel-
erator progressively. These practices contribute towards a
reduction in fuel consumption and CO
2
emissions and also
helps reduce the background traffi c noise.
If your vehicle has cruise control, make use of the system at
speeds above 25 mph (40 km/h) when the traffi c is fl owing
well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too
warm, ventilate it by opening the windows and air vents
b efore using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the
air vents open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (s unroof
and window blinds...).
Switch off the air conditioning, unless it has automatic regu-
lation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not
a utomatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level
of light does not require their use.
Avoid running the engine before moving off, particularly in
winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia
devices (fi lm, music, video game...), you will contribute
t owards limiting the consumption of electrical energy, and
so of fuel.
Disconnect your portable devices before leaving the vehicle.
20
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest
items in the bottom of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle and reduce wind resis-
tance (roof bars, roof rack, bicycle carrier, trailer...). Use a
roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refi t your sum-
mer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to
the label in the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil fi lter,
air fi lter, passenger compartment fi lter...) and observe the
schedule of operations recommended in the warranty and
maintenance record.
When refuelling, do not continue after the third cut-off of the
nozzle to avoid any overfl ow.
At the wheel of your new vehicle, it is only after the fi rst
1 800 miles (3 000 kilometres) that you will see the fuel
c onsumption settle down to a consistent average.
1
i
21
MONITORING
INSTRUMENT PANELS, PETROL OR DIESEL, MANUAL
OR AUTOMATIC GEARBOX
5. Small screen.
6. Central screen.
7. Control button.
Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).
8. Instrument panel lighting dimmer.
Adjusts the brightness of the lighting
of the instruments and controls.
Dials
1. Rev counter.
Indicates the speed of rotation of the
engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the en-
gine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remain-
ing in the tank.
4. Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator * ,
service indicator.
(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
section related to the button or
function and its associated display.
The following functions are displayed in
accordance with the selection.
- Result of the CHECK.
- Alert messages symbol.
- Speed limiter / Cruise control.
- Gear shift indicator.
- Automatic gearbox.
- Trip computer.
* Depending on version.
1
i
22
MONITORING
INSTRUMENT PANELS, PETROL OR DIESEL, MANUAL
OR AUTOMATIC GEARBOX, WITH NAVIGATION
* Depending on version.
Dials
1. Rev counter.
Indicates the speed of rotation of the
engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the en-
gine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remain-
ing in the tank.
4. Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
5. Small screen.
6. Central screen.
7. Control button.
Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis-
tance recorder or service indicator).
8. Instrument panel lighting dimmer.
Adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to the
section related to the button or
function and its associated display.
Displays
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator * ,
service indicator.
(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed in
accordance with the selection.
- Result of the CHECK.
- Alert messages.
- Speed limiter / Cruise control.
- Gear shift indicator.
- Automatic gearbox.
-
Navigation - Guidance / Trip computer.
- Repeat of the current speed.
1
!
23
MONITORING
The illumination of a warning lamp
is always accompanied by the dis-
play of an additional message, to
assist you in identifying the fault.
If you encounter any problems,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Warning and indicator lamps
Visual indicators which inform the driver
of the occurrence of a fault (warning
lamp) or of the operation of a system
(operation or deactivation indicator
lamp).
Associated warnings
The illumination, fi xed or fl ashing, of certain
warning lamps may be accompanied by an
audible signal and a message in the screen.
Depending on your version of instrument
panel, illumination of the warning lamp is
also accompanied by:
When the ignition is switched on
Certain warning lamps come on for
a few seconds when the ignition is
switched on.
When the engine is started, these warn-
ing lamps should go off.
If they remain on, before moving off,
refer to the information for the warning
lamp concerned.
Warning lamps
When the engine is running or the ve-
hicle is being driven, the illumination of
one of the following warning lamps in-
dicates a fault which requires action on
the part of the driver.
- a symbol in the central instrument
panel screen and a message in the
multi-function screen,
or
- a symbol and a message in the
central instrument panel screen.
1
24
MONITORING
Warning lamp is on Cause Action/Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied
by an audible
signal and a
message in the
screen.
Illumination of this warning
lamp is associated with
a serious fault with the
braking system, power
steering, engine lubrication
system or cooling system.
Stop as soon as it is safe to do so as there is a
risk that the engine will cut out while driving.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.
Braking
fi xed,
associated
with the STOP
warning lamp.
The braking system fl uid
level is too low.
You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP
and ABS
warning lamp.
The electronic brake force
distribution (EBFD) system
has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
Maximum
coolant
temperature
fi xed with the
needle in the
red zone.
The temperature of the
cooling system is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or a qualifi ed workshop.
Seat belt not
fastened /
unfastened
fi xed, then
fl ashing in the
passenger's
seat belt and
front airbag
warning lamp
display.
The driver or front
passenger has not fastened
or has unfastened their seat
belt.
Pull on the belt in question and insert the tongue
in the buckle.
For more information, refer to the "Seat belts"
section.
At least one rear passenger
has unfastened their seat
belt.
1
25
MONITORING
Service
temporarily,
accompanied
by a message.
Minor faults have occurred
for which there is no
specifi c warning lamp.
Identify the fault by reading the message
displayed in the screen, such as, for example:
- doors, boot or bonnet open,
- low engine oil level,
- low screenwash/headlamp wash reservoir
level,
- remote control battery fl at,
- a fault with tyre under-infl ation detection,
- saturation of the particle emission fi lter
(Diesel) (see the "Checks" - "Checking
levels / Particle emissions fi lter" section).
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.
fi xed,
accompanied
by a message
and an audible
signal.
Major faults have occurred
for which there is no
specifi c warning lamp.
Identify the fault by reading the message shown
in the screen and you must then contact a
PEUGEOT dealer or a qualifi ed workshop.
Warning lamp is on Cause Action/Observations
Engine
autodiagnosis
system
fl ashing.
The engine management
system has a fault.
Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
fi xed.
The emission control
system has a fault.
The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.
Directional
headlamps
fl ashing.
The directional headlamps
system has a fault.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
1
26
MONITORING
Low fuel level
fi xed with the
needle in the
red zone,
accompanied
by an audible
signal and a
message.
When it fi rst comes on there
remains approximately
6 litres of fuel in the tank.
At this point, you begin to
use the fuel reserve.
Refuel as soon as possible to avoid running out
of fuel.
Until suffi cient fuel has been added, this warning
lamp will come on every time the ignition is
switched on, accompanied by an audible signal
and a message.
This audible signal and message are repeated
with increasing frequency as the fuel level drops
towards "0" .
Fuel tank capacity: approximately 60 litres .
Never continue to drive until you run out of fuel,
as this could damage the emission control and
injection systems.
Warning lamp is on Cause Action/Observations
Anti-lock
Braking
System
(ABS)
fi xed.
The anti-lock braking
system has a fault.
The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a PEUGEOT dealer or a qualifi ed workshop
without delay.
Dynamic
stability
control
(DSC/ASR)
fl ashing.
The DSC/ASR regulation is
operating.
The system optimises traction and improves the
directional stability of the vehicle in the event of
loss of grip or trajectory.
fi xed.
The DSC/ASR system has
a fault.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
Under-
infl ation
fi xed.
The pressure in one or
more wheels is too low.
Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when
the tyres are cold.
+
fl ashing
then fi xed,
accompanied
by the Service
warning lamp.
The tyre pressure
monitoring system has
a fault or no sensor is
detected on one of the
wheels.
Under-infl ation detection is not assured.
Have the system checked by a PEUGEOT dealer
or a qualifi ed workshop.
1
27
MONITORING
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.
It may be accompanied by an audible signal.
Depending on your version of instrument panel, illumination of the indicator lamp may also be accompanied by:
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato r
fl ashing with
buzzer.
The lighting stalk is pushed
down.
Right-hand
direction
indicator
fl ashing with
buzzer.
The lighting stalk is pushed
up.
Hazard
warning
lamps
fl ashing with
audible signal.
The hazard warning
lamps switch, located on
the dashboard, has been
operated.
The left-hand and right-hand direction indicators
and their associated indicator lamps fl ash
simultaneously.
- a symbol in the central instrument
panel screen and a message in the
multifunction screen,
or
- a symbol and a message in the
central instrument panel screen.
1
28
MONITORING
Warning lamp is on Cause Action/Observations
Front
foglamps
fi xed.
The front foglamps are
switched on.
Turn the ring on the stalk rearwards twice to
switch off the front foglamps.
Rear
foglamps
fi xed.
The rear foglamps are
switched on.
Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Diesel engine
pre-heating
fi xed.
The ignition switch is at the
2nd position (ignition on).
Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.
Stop & Start
fi xed.
When the vehicle stops (red
lights, traffi c jams,...) the
Stop & Start system has
put the engine into STOP
mode.
The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.
fl ashes for a
few seconds,
then goes off.
STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically.
For more information on special cases with
STOP mode and START mode, refer to the
"Stop & Start" section.
Dipped beam
headlamps
fi xed.
The lighting stalk is in the
"Dipped beam headlamps"
position or in the "AUTO"
position in conditions of low
light.
Main beam
headlamps
fi xed.
The lighting stalk is pulled
towards you.
Pull the stalk again to return to dipped beam
headlamps.
1
29
MONITORING
Warning lamp is on Cause Action/Observations
Passenger's
front airbag
fi xed on the
seat belt and
passenger's
front airbag
warning lamps
display.
The control switch, located
on the passenger's side of
the dashboard, has been
placed in the "ON" position.
The passenger's front
airbag is activated.
In this case, do not install
a "rearward facing" child
seat.
While you do not have a rearward facing child
seat fi tted to the front passenger seat, it is
recommended that the passenger's front airbag
be activated.
On the other hand, before fi tting a rearward
facing child seat, you must turn the control switch
to the "OFF" position.
Parking brake fi xed.
The parking brake is
applied or not properly
released.
Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Parking brake" section.
1
30
MONITORING
Warning lamp is on Cause Action/Observations

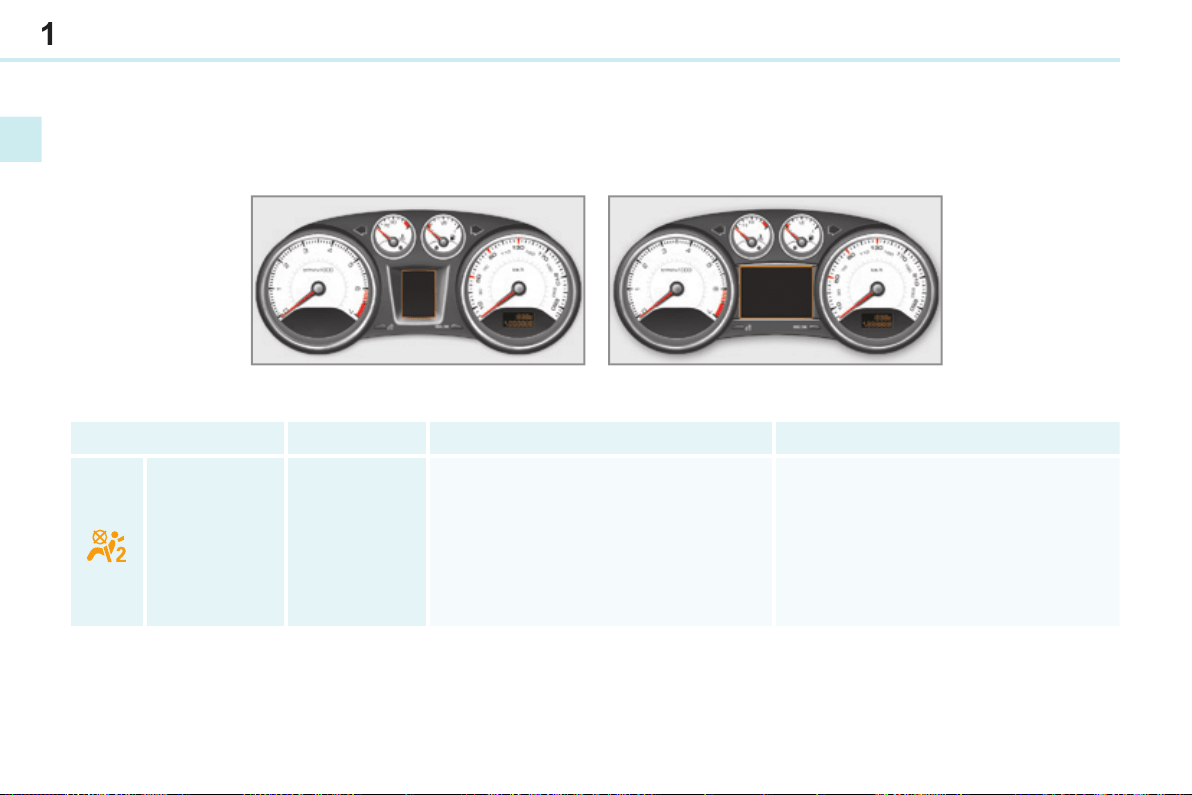

Deactivation warning lamps
The other deactivation indicators appear in the form of pictograms in the large screen, located in the centre of the instrument
panel.
Their display may be accompanied by an audible signal and a message in the screen.
Passenger's
front airbag
fi xed in the
seat belt
and front
passenger's
airbag warning
lamps display.
The control switch, located on the
passenger's end of the dashboard, is
set to the "OFF" position.
The passenger's front airbag is
deactivated.
You can install a rear-facing child seat
on the front passenger seat.
To activate the front passenger's
airbag, set the switch to the
"ON" position; in this case, it is not
possible to fi t a child seat in the rear-
facing position on this seat.
1
31
MONITORING

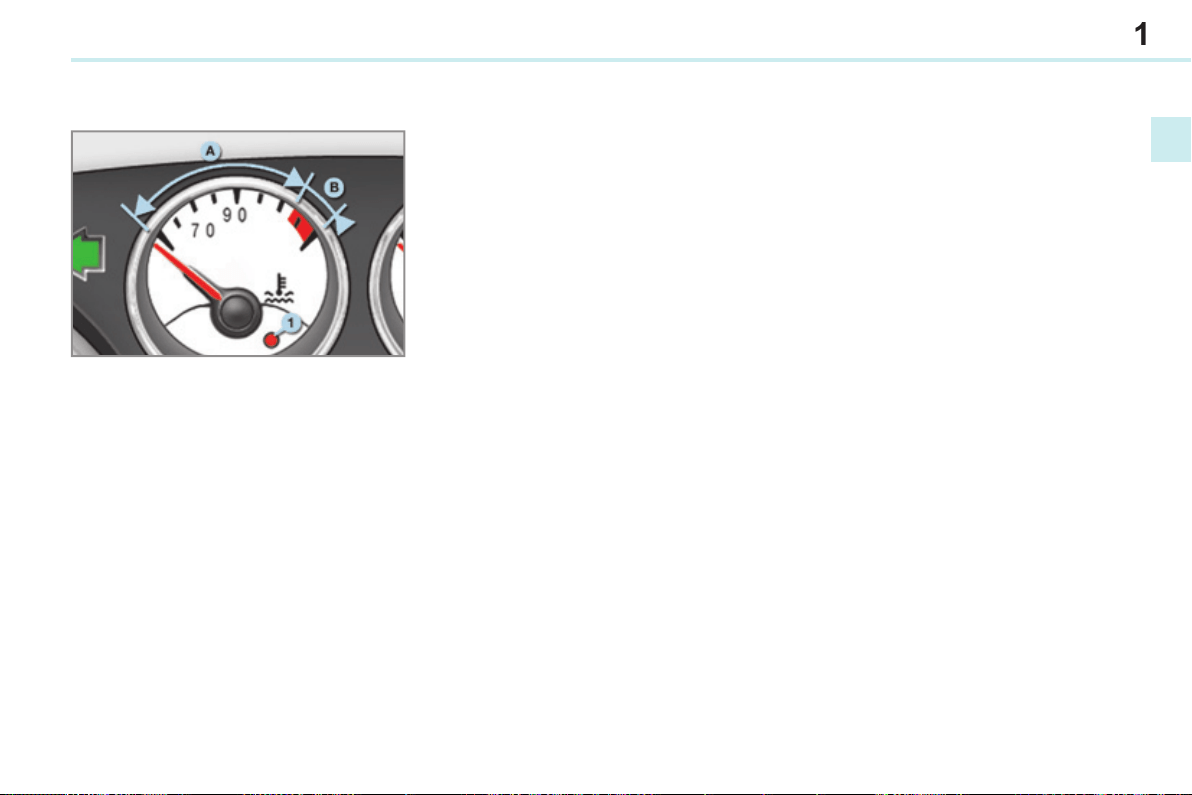

Coolant temperature indicator
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warning
lamp come on, accompanied by an
audible signal and a message in the
screen.
You must stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to
allow the pressure to drop,
when the pressure has dropped,
remove the cap,
top up the level to the "MAX" mark.
1
i
32
MONITORING
The level shown will only be cor-
rect if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
Engine oil level indicator *
Oil level correct
Oil level low
Oil level indicator fault
In the event of a fault with the electric
indicator, the engine oil level is no lon-
ger monitored.
This is signalled by the fl ashing of
"OIL" , or the display of a message "Oil
level incorrect" in the instrument panel,
accompanied by illumination of the ser-
vice warning lamp and an audible sig-
nal.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine.
Refer to the "Checks of levels" section.
This is signalled by the fl ashing of "OIL--"
or the display of a message "Oil level mea-
surement invalid" in the instrument panel
Contact a PEUGEOT dealer or a qualifi ed
workshop.
When the system has a fault, you
should check the engine oil level using
the manual dipstick (located under the
bonnet).
Refer to the "Checks of levels" section.
On versions fi tted with an electric oil
level indicator, the state of the engine
oil level is displayed in the instrument
panel for a few seconds when the ig-
nition is switched on, after the service
information.
* Depending on version.
1
33
MONITORING
Service indicator
This information is displayed for a few
seconds when the ignition is switched
on. It informs the driver when the next
service is due, in accordance with the
manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- the distance travelled,
- the time elapsed since the last
service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 7 seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The instrument
panel central screen indicates the distance
remaining before the next service is due.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 500 miles (900 km) remain
before the next service is due.
For 7 seconds after the ignition is switched
on, the central screen indicates:
The spanner remains on in the small
screen to indicate that a service must
be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the in-
strument panel central screen.
Example: 1 700 miles (2 800 km) re-
main before the next service is due.
For 7 seconds after the ignition is switched
on, the central screen indicates:
1
i
i
34
MONITORING
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be registered.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the ".../000" button
on the right of the instrument panel,
switch on the ignition; the distance
recorder display begins a count-
down,
when the instrument panel central
screen indicates "=0" , release the
button; the spanner disappears from
the screen.
The distance remaining may be
weighted by the time factor, de-
pending on the type of motoring the
vehicle is used for.
Therefore, the spanner may also
come on if you have exceeded the
period since the last service speci-
fi ed in the warranty and mainte-
nance record.
Service overdue
For 7 seconds after the ignition is switched
on, the spanner fl ashes to indicate that
the service must be carried out as soon as
possible.
Example: the service is overdue by
300 miles (300km).
For 7 seconds after the ignition is switched
on, the central screen indicates:
The spanner remains on in the small
screen to indicate that a service should
have been carried out.
Retrieving the service information
You can access the service information
at any time.
This information appears, depending
on version, when running through the
manual check procedure.
Briefl y press the ".../000" button on
the right of the instrument panel.
The service information is displayed
for a few seconds on the instrument
panel central screen, then disap-
pears.
1
35
MONITORING

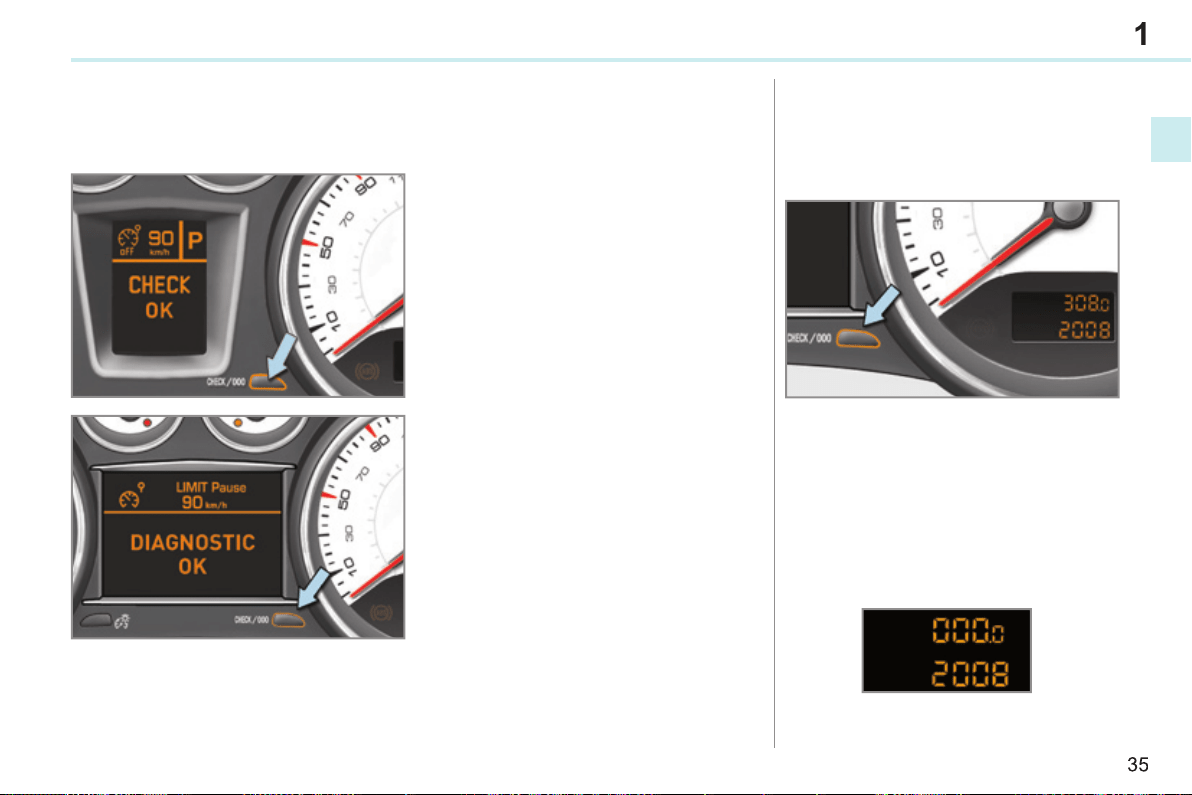

Manual Check
This function allows you to check the status
of the vehicle (reminder of the active alert
warnings) and the service information.
With the engine running, to start
a manual check, briefl y press
the "CHECK/000" button on the
instrument panel.
If no faults have been detected, "CHECK
OK" appears in the instrument panel
central screen.
If a "minor" fault has been detected, the
warning lamp concerned then "CHECK
OK" appear in the instrument panel
central screen. Contact a PEUGEOT or
a qualifi ed workshop.
If a "major" fault has been detected, only
the warning lamps concerned appear
in the instrument panel central screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Distance recorders
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Total distance recorder
Measures the total distance travelled by
the vehicle since its fi rst registration.
With the ignition on, press and hold
this button until zeros appear.
Trip distance recorder
Measures the distance travelled since it
was last reset to zero by the driver.
1
36
MONITORING

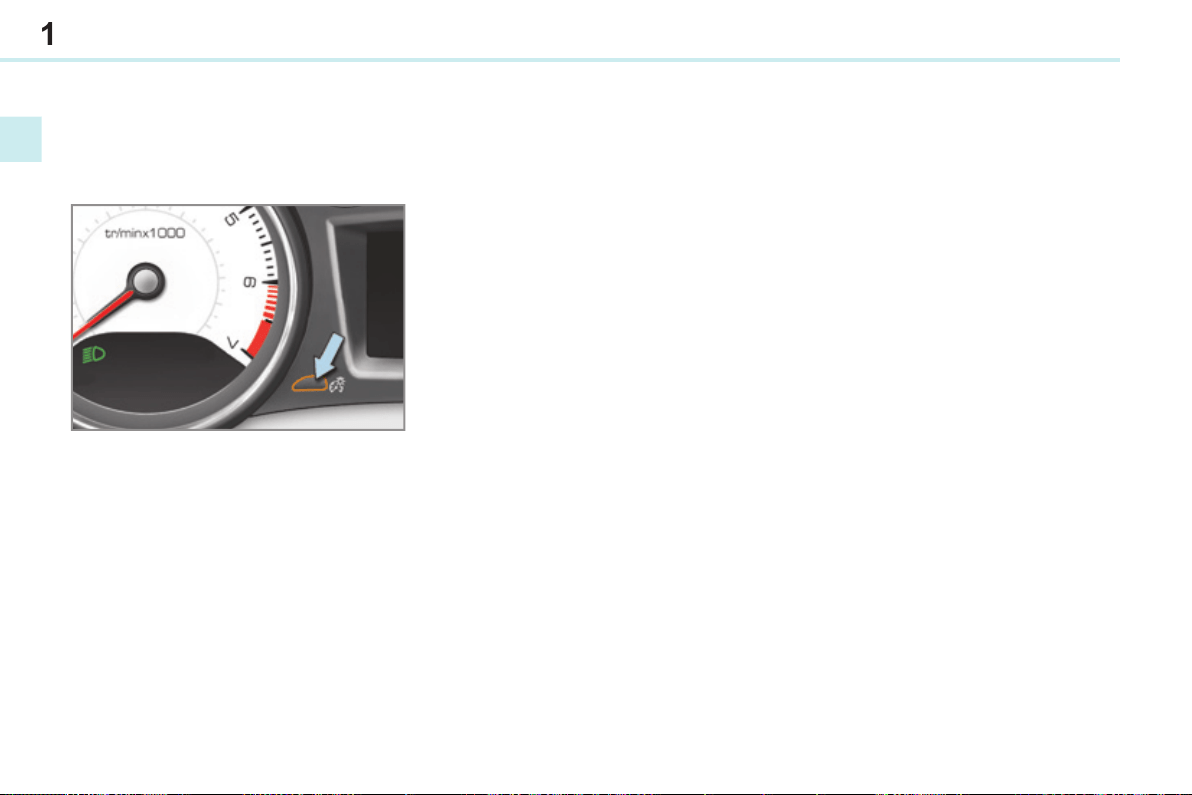

Lighting dimmer
Permits manual adjustment of the bright-
ness of the instruments and controls to suit
the ambient light level. Only operates when
the vehicle lighting is on, with the exception
of the daytime running lamps.
Activation
Press the button to change the
brightness of the instruments and
controls.
When the lighting reaches the mini-
mum setting, release the button,
then press again to increase it.
or
When the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it.
When the lighting reaches the level
of brightness required, release the
button.
Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.
1
37
MONITORING
TRIP COMPUTER
System that gives you information on
the journey in progress (range, fuel con-
sumption…).
Display of information
Central instrument panel screen
Cycle through the information with
successive short presses on this
button.
Central instrument panel screen
with navigation
Trip zero reset
- The current information tab,
for the trip in use, with:
● the range,
● the current fuel
consumption,
● the Stop & Start time
counter.
- The trip "1" tab with:
● the distance travelled,
● the average fuel
consumption,
● the average speed.
- The trip "2" tab with:
● the distance travelled,
● the average fuel
consumption,
● the average speed.
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.
The trip computer can display:
When the trip required is displayed,
press this button.
Trips "1" and "2" are independent but
their use is identical.
For example, trip "1" can be used for
daily fi gures, and trip "2" for monthly
fi gures.
1
!
i
i
38
MONITORING
Trip computer, a few definitions
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continu-
ously while driving in place of the
digits, contact a PEUGEOT dealer
or a qualifi ed workshop.
This function is only displayed from
20 mph (30 km/h).
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi cant
change in the current fuel con-
sumption.
Range
(miles or km)
The distance which can still
be travelled with the fuel re-
maining in the tank (related to the aver-
age fuel consumption over the last few
miles (kilometres) travelled).
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Stop & Start time counter
(minutes / seconds or hours /
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
2
39

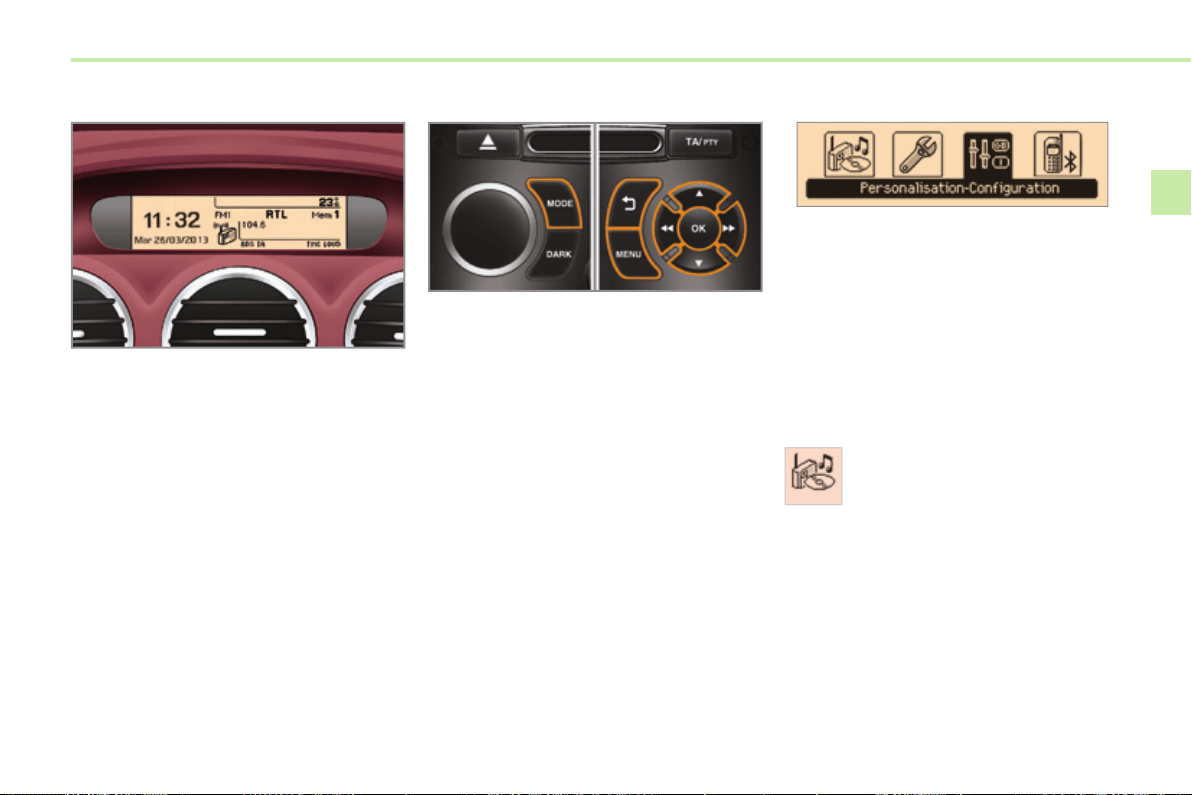

MULTIFUNCTION SCREENS
Main menu
"Audio functions" menu
Press the "MENU" button for access
to the main menu :
- audio functions,
- diagnosis vehicle,
- personalisation-confi guration,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
With the PEUGEOT Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText) or the CD
(introscan, shuffl e, CD repeat).
For more information on the "Audio
functions" application, refer to the
PEUGEOT Connect Sound section.
MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND (RD5))
Displays in the screen
Depending on the context, this displays:
- time,
- date,
- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),
- visual parking sensor information,
- audio functions (radio, CD...),
- telephone information and directo-
ries,
- alert messages,
- settings menus for the screen and
vehicle equipment.
Controls
From the control panel of your PEUGEOT
Connect Sound, you can:
press the "MENU" button to gain
access to the main menu ,
press the " " or " " buttons to
scroll through the items on the
screen,
press the "MODE" button to change
the permanent application (audio
source...),
press the " " or " " buttons to
change a setting value,
press the "OK" button to confi rm,
or
press the "Back" button to abandon
the operation in progress.
2
40
MULTIFUNCTION SCREENS

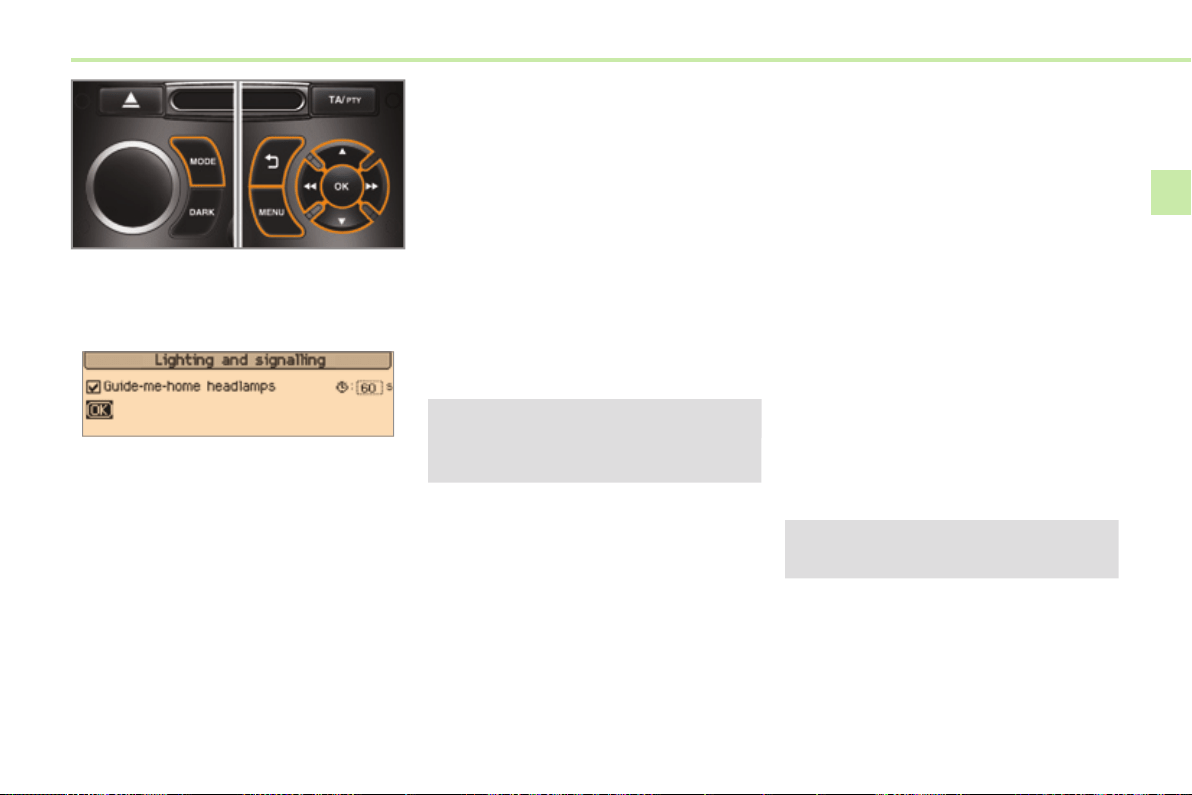

Example: setting of the duration of the
"guide-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
"Diagnosis vehicle"
menu
Press the "MENU" button to gain
access to the main menu.
Press the arrows, then the "OK"
button to select the " Diagnosis vehi-
cle " menu.
On the " Diagnosis vehicle " menu,
select the following application:
Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen.
Once this menu has been selected, you
can consult the alert log.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- selective unlocking (refer to "Access"),
- "guide-me-home" lighting (refer to
"Visibility"),
- interior mood lighting (refer to "Vis-
ibility"),
- daytime running lamps (refer to
"Visibility"),
- rear parking sensors (refer to "Driv-
ing").
"Personalisation-
Configuration" menu
Once this menu has been selected, you
have access to the following functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
"Telephone" menu
With the PEUGEOT Connect Sound
switched on, once this menu has
been selected you can confi gure your
Bluetooth hands-free kit (pairing), con-
sult the various telephone directories
(calls log, services...) and manage your
communications (pick up, hang up, call
waiting, secret mode...).
For more information on the "Telephone"
application, refer to the PEUGEOT
Connect Sound section.
2
!
!
41
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must be done only when sta-
tionary.
Display confi guration
Once this menu has been selected, you
have access to the following settings:
- brightness-video setting,
- date and time setting,
- choice of units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Russe,
Türkçe * ).
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
to confi rm.
Press the " " or " " buttons, then
the "OK" button to select the "OK"
box and confi rm or press the "Back"
button to cancel.
* Depending on country of sale.
Setting the date / time
Press the "MENU" button for ac-
cess to the main menu .
Press the " " or " " button to select
the "Personalisation-confi guration"
menu; confi rm the selection by press-
ing the "OK" button.
Press the " " or " " button to select
the "Display confi guration" menu;
confi rm the selection by pressing
the "OK" button.
This setting must be made after discon-
necting and reconnecting the battery.
Press the " " or " " button to se-
lect the "Date and time adjustment"
menu; confi rm the selection by
pressing the "OK" button.
Press the " " or " " button to se-
lect a setting to adjust; confi rm the
selection by pressing the "OK" but-
ton.
Press the " " or " " button to
change the value of the setting;
confi rm the selection by pressing
the "OK" button.
Repeat the last two steps in full for
each setting to adjust.
Press the " " or " " button to se-
lect the "OK" box ; confi rm the se-
lection by pressing the "OK" button.
The date and time are set; you are
t aken back to the previous screen.
2
!
i
42
MULTIFUNCTION SCREENS
"SETUP" menu
Press the "SETUP" button to gain
access to the confi guration menu:
- "Display confi guration",
- "Voice synthesiser",
- "Choice of language",
- "Vehicle settings",
- "Alert log".
For safety reasons, confi guration
of the multifunction screen by the
driver must be done only when sta-
tionary.
Displays in the screen
Depending on the context, it displays:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- the sequences of opening and clos-
ing the roof,
- visual parking sensor information,
- audio functions,
- telephone information and direc-
tories,
- satellite navigation system infor-
mation,
- settings menus for the screen, navi-
gation system and vehicle equip-
ment.
RETRACTABLE COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION (RT6))

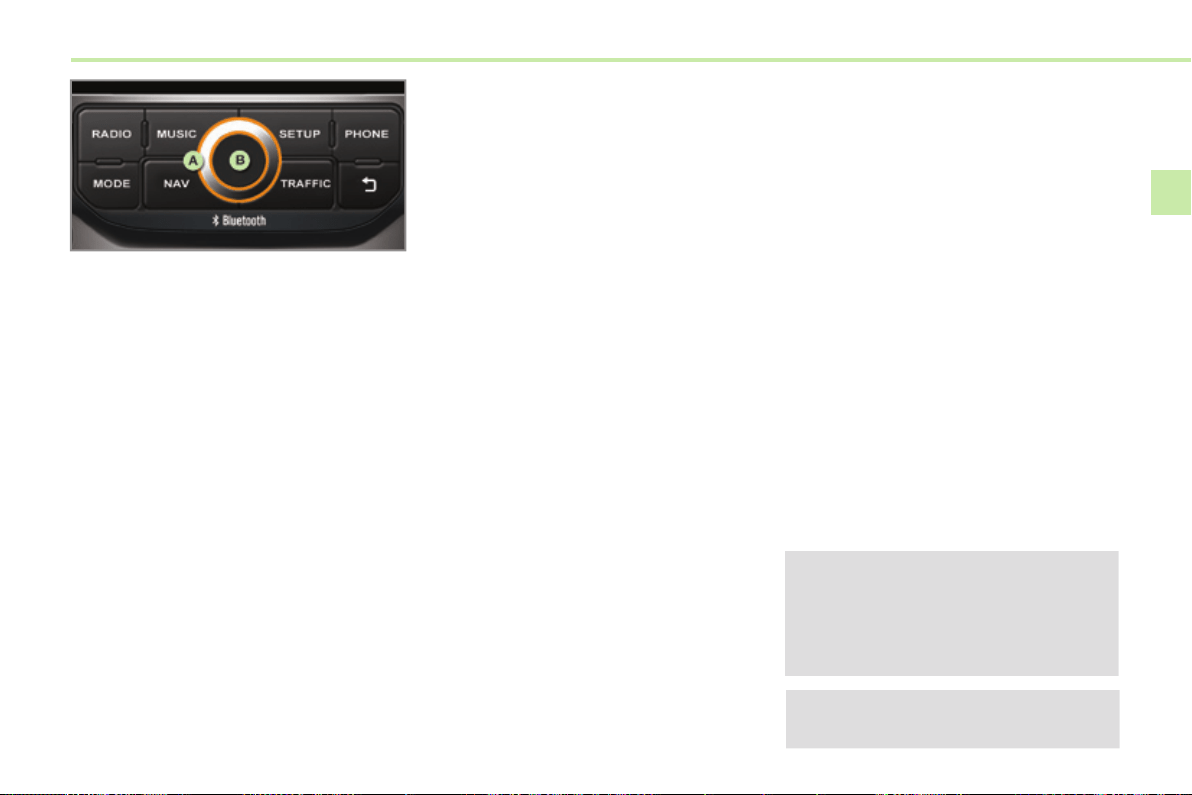

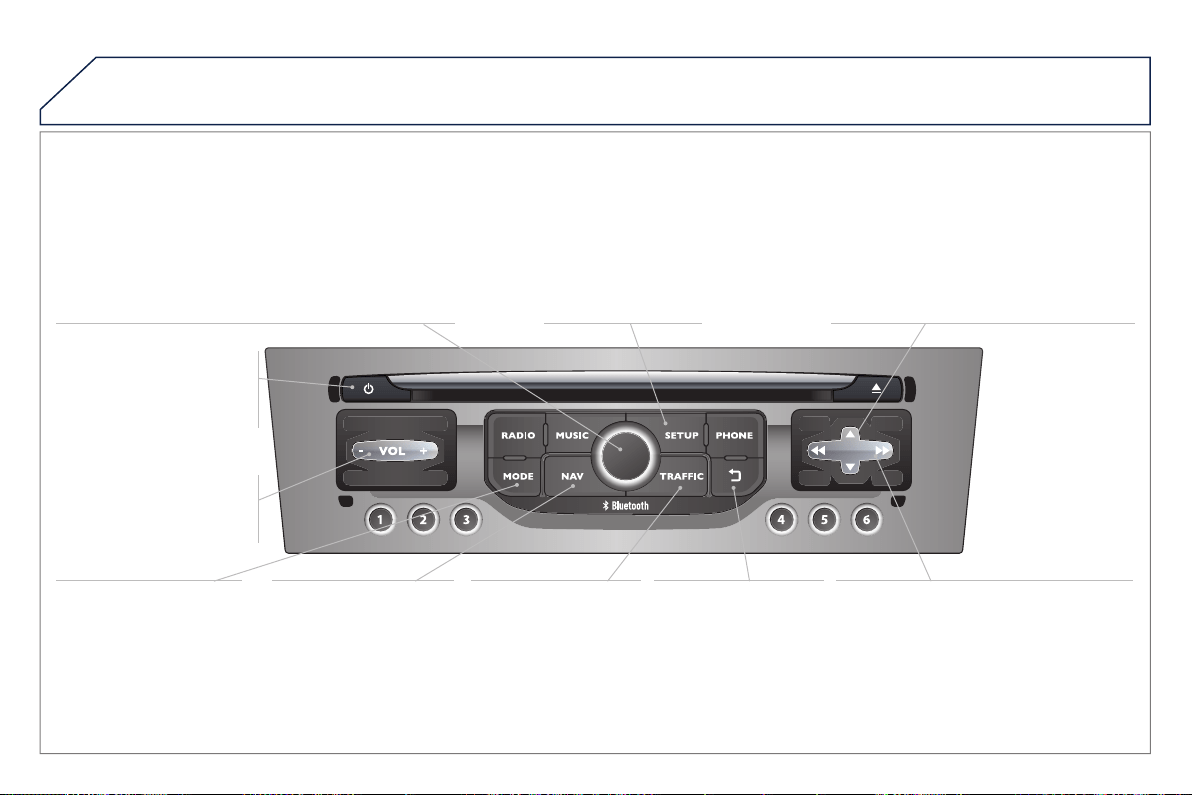

Controls
From the navigation system control
panel, to select one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"PHONE" or "SETUP" button to
gain access to the corresponding
menu,
turn the knob A to select a function,
an item in a list,
press button B to confi rm the selec-
tion,
or
press the "Back" button to abandon
the current operation and return to
the previous display.
For operation of the retractable
screen (opening, closing, adjust-
ment of the position, etc.), refer to
the section "Access to the retract-
able screen".
For more information on these applica-
tions, refer to the "PEUGEOT Connect
Navigation (RT6)" section.
2
i
!
43
MULTIFUNCTION SCREENS
Display confi guration
This menu is used to select the colour
scheme for the screen, adjust its bright-
ness, set the date and time and select
the units for distance (km or miles),
fuel consumption (l/100 km, mpg or
km/l) and temperature (°Celsius or
°Fahrenheit).
Voice synthesiser
This menu is used to set the volume for
navigation instructions and to select the
type of voice (male or female).
Choice of language
This menu allows you to select the
language used by the screen: French,
English, Italian, Portuguese, Spanish,
German, Dutch, Turkish, Polish,
Russian).
Vehicle settings *
This menu is used to activate or deacti-
vate certain driving and comfort equip-
ment, sorted by category:
- Access to the vehicle
● Plip action: "Driver's door" or "All
doors".
- Parking assistance
- Rear wiper operation
● Operation of rear wiper in reverse
(Rear wiper coupled to reverse;
see "Visibility"),
- Lighting confi guration (see
"Visibility"):
●
Duration of guide-me-home lighting,
● Directional headlamps (Main / ad-
ditional directional lighting),
● Mood lighting (Interior mood light-
ing),
● Daytime running lamps ** .
Alert log
This summarises the active alerts by
displaying their associated messages
in turn.
* Depending on version.
** Depending on country of sale.
When setting the time you can
select "Synchronise minutes with
GPS", so that the minutes are set
automatically by satellite reception.
Setting the date / time
Press the "SETUP" menu for ac-
cess to the confi guration menu.
Turn the knob A to select "Display
confi guration"; confi rm the selection
by pressing the button B .
Turn the knob A to select "Set date
and time"; confi rm the selection by
pressing the button B .
Turn the knob A to select a setting
to adjust; confi rm the selection by
pressing the button B .
Press the" " or " " button to
change the value of the setting ;
confi rm the selection by pressing
the button B .
Repeat the last two steps in full for
each setting to adjust.
The date and time are set; you are
t aken back to the previous screen.
This setting must be made after disconnect-
ing and reconnecting the battery.
2
44
MULTIFUNCTION SCREENS

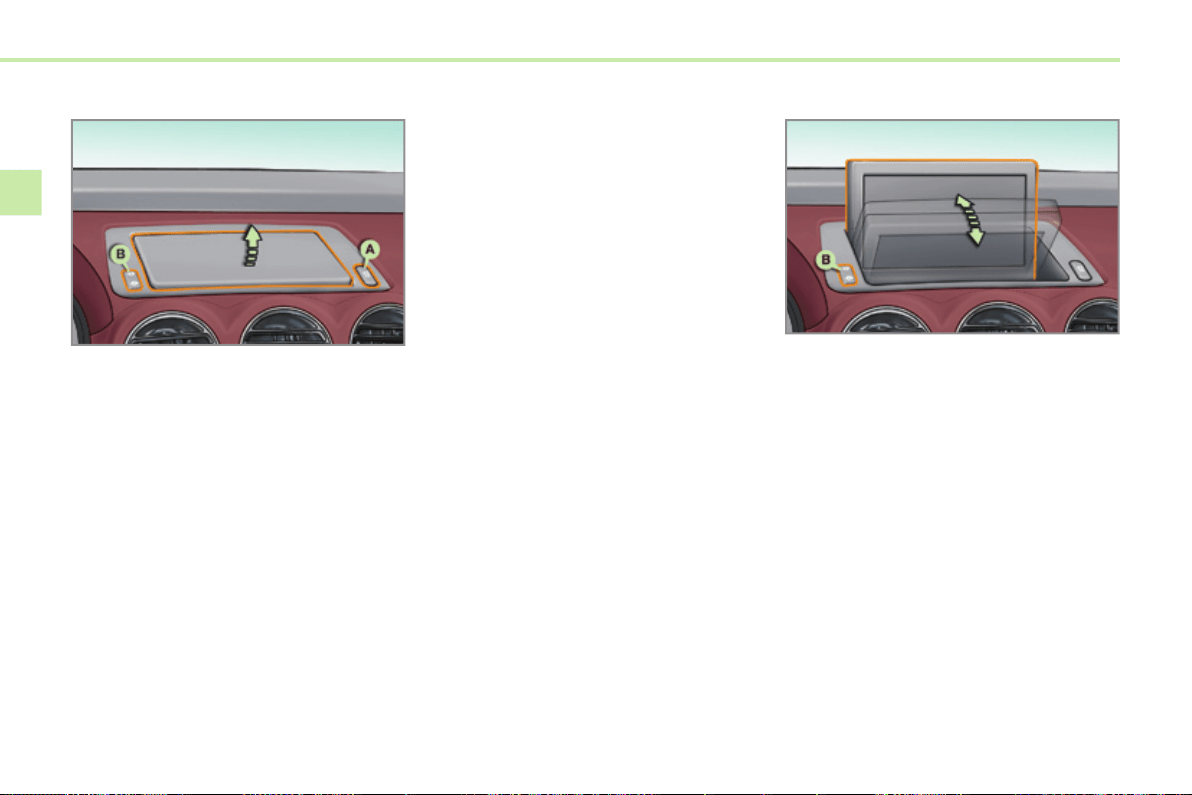

Access to the retractable screen
The screen opens automatically when
the ignition is switched on. It closes au-
tomatically three seconds after switch-
ing off the ignition if the audio and
telematics system is switched off.
You can open or close the screen at
any time, with the ignition on, using
control A .
- Press button A : the screen folds.
- Press button A again: the screen
opens again.
You can adjust the angle of the screen
to one of four defi ned positions, by re-
peated presses on the front or back of
the control B . The position of the screen
is memorised on closing.
Adjusting the angle of the screen
If you have closed the screen, it will
open again automatically:
- on switching on the audio and navi-
gation system (unless it had been
closed manually while the system
was in operation),
- when an outgoing telephone call is
made,
- when a voice command is given,
- when a warning message linked with
the STOP warning lamp is displayed
(PEUGEOT Connect Navigation
(RT6)).
3
45
COMFORT
VENTILATION
Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit
(heating),
- passage through a cooling circuit
(air conditioning).
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger
compartment is fi ltered and originates
either from the outside via the grille lo-
cated at the base of the windscreen or
from the inside in air recirculation mode.
Control panel
The controls of this system are grouped
together on control panel A on the centre
console. Depending on the model, the
functions offered are:
- the level of comfort required,
- air fl ow,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning
controls.

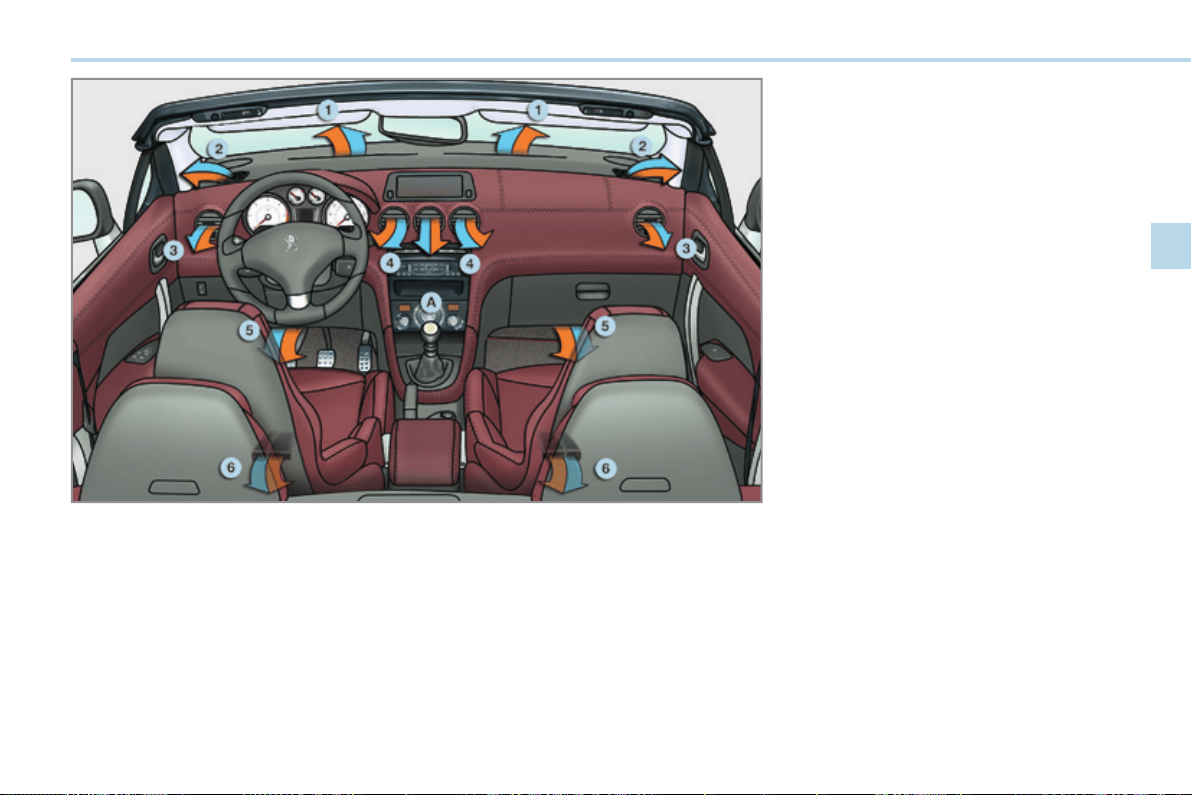

Air distribution
1.
Windscreen demisting-defrosting vents.
2.
Front side window demisting-defrosting
vents.
3. Side adjustable air vents.
4. Central adjustable air vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
3
i
i
46
COMFORT
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the guidelines on opera-
tion and maintenance below:
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard; this is used
for regulation of the air conditioning system.
Operate the air conditioning system for at least 5 minutes, once or twice a
month to keep it in perfect working order.
Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its second special active fi lter, it contributes to the purifi cation
of the air breathed by the occupants and the cleanness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly, as recommended in the warranty and
maintenance record.
If the system does not produce cold air, switch it off and contact a
PEUGEOT dealer or a qualifi ed workshop.
In the "cabriolet" confi guration, installing the windstop and using the
"AIRWAVE" systems improves comfort.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engine power and
therefore improvement of the towing capacity.
If the interior temperature remains
very high after the vehicle has been
parked in the sun for a considerable
time, fi rst ventilate the passenger
compartment for a few minutes.
Place the air fl ow control at a suf-
fi cient level to provide an adequate
renewal of air in the passenger com-
partment.
The air conditioning system does not
contain chlorine and does not pres-
ent any danger to the ozone layer.
Stop & Start
The heating and air conditioning systems only work when the engine is run-
ning. To maintain a comfortable temperature in the passenger compartment,
you can temporarily deactivate the Stop & Start system (see the correspond-
ing section).
3
i
i
47
COMFORT
The control button is located
on the heating or air condition-
ing system control panel.
REAR SCREEN DEMIST -
DEFROST
Switching on
The rear screen demisting/defrosting
can only operate when the engine is
running.
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated
with the button switches off.
If the engine is switched off before the
demisting/defrosting is switched off au-
tomatically, demisting/defrosting will re-
sume next time the engine is switched on.
Switch off the demisting/de-
frosting of the rear screen and
door mirrors as soon as ap-
propriate as lower current con-
sumption results in reduced
fuel consumption.
The demist/defrost is deactivated
when the retractable roof is stored
in the boot.
3
i i
i
48
COMFORT
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will reach its optimum
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only.
On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to change the
value displayed in order to obtain
the comfort required. The system
corrects the difference in tempera-
ture automatically and as quickly
as possible.
The air conditioning can only operate
with the engine running.
The driver and front passen-
ger can each adjust the tem-
perature to their requirements.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left / right
setting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation
Press the "AUTO" button.
The indicator lamp in the
button comes on.
2. Driver's side adjustment

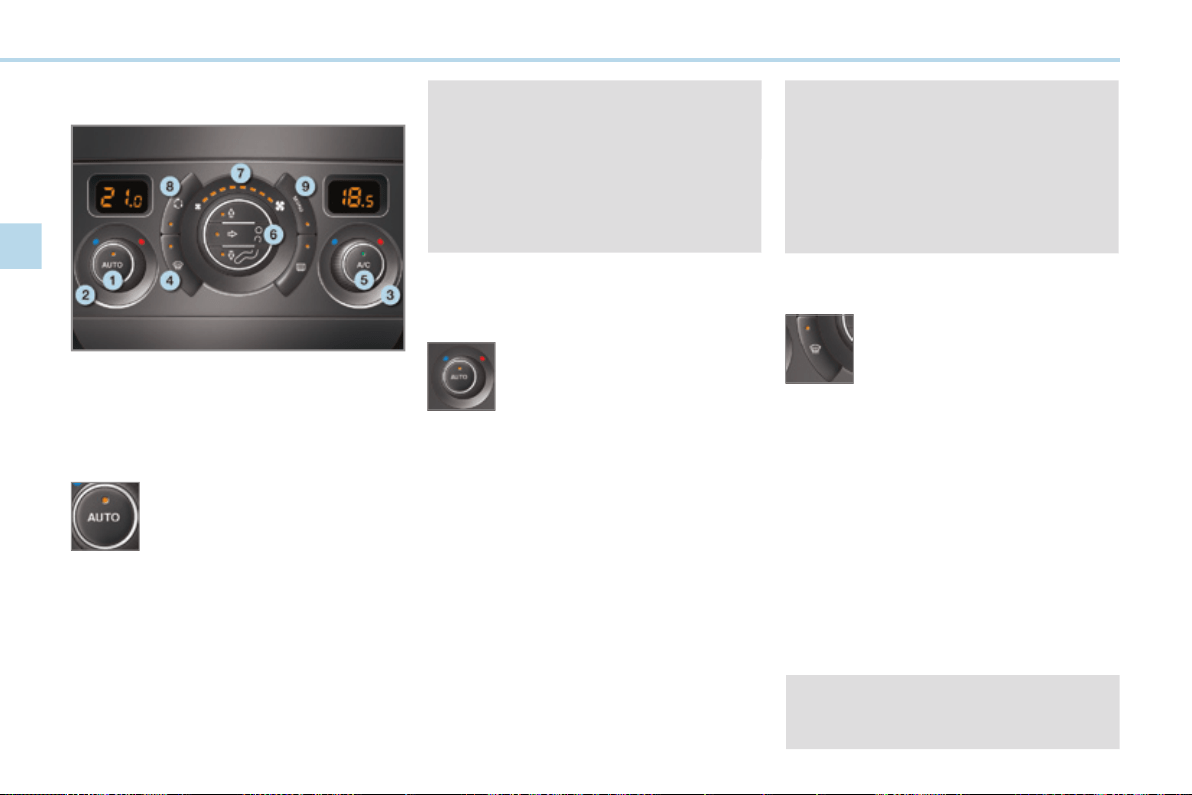

DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with automatic
adaptation in the "cabriolet" confi gura-
tion.
The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the "visibility"
button again or press the "AUTO"
button, the indicator lamp in the but-
ton goes off and the indicator lamp
in the "AUTO" button comes on.
1. Automatic comfort programme
3. Passenger's side adjustment
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
3
!
i
49
COMFORT

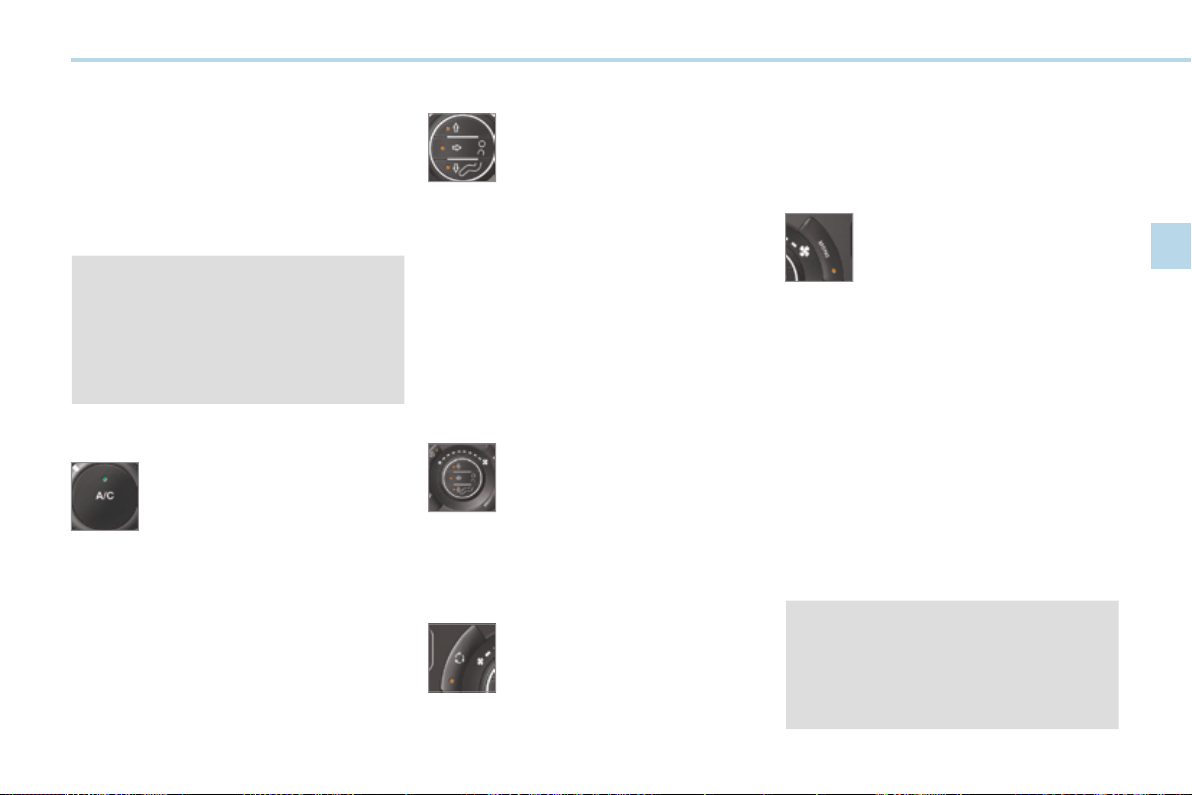

Manual operation
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning.
6. Air distribution adjustment
Press one or more buttons
to direct the air fl ow towards
the:
7. Air fl ow adjustment
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
8. Air intake / Air recirculation
Switching the system off
Turn the air fl ow control to the left
until all of the indicator lamps go off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no lon-
ger guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.
Turn the air fl ow dial to the right or
press the "AUTO" button to reacti-
vate the system with the values set
before it was switched off.
Press this button for recir-
culation of the interior air.
The indicator lamp in the
button comes on.
5. Air conditioning On / Off
Avoid prolonged operation in inte-
rior air recirculation mode or driving
for long periods with the system off
(risk of condensation and of dete-
rioration of the air quality).
- windscreen and side windows (dem-
isting or defrosting),
- windscreen, side windows and vents,
- windscreen, side windows, vents and
footwells,
- vents and footwells,
- vents,
- footwells,
- windscreen, side windows and foot-
wells.
The air fl ow indicator lamps, between
the two fans, come on progressively ac-
cording to the value requested.
As soon as possible, press this but-
ton again to permit the intake of out-
side air and prevent the formation of
condensation. The indicator lamp in
the button goes off.
For maximum cooling or heating
of the passenger compartment, it
is possible to exceed the minimum
value 14 or the maximum value 28.
Turn control 2 or 3 to the left
until "LO" is displayed or to the
right until "HI" is displayed.
9. Mono-zone / Dual-zone
Press this button to equal-
ise the comfort value on the
passenger side with that
on the driver's side (mono-
zone). The indicator lamp in
the button comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.
Switching the system off could result in
discomfort (humidity, condensation).
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C" button comes on.
3
50
COMFORT
Windstop folded
FITTING / REMOVING THE
WINDSTOP
In the "cabriolet" confi guration, the
windstop improves comfort in the pas-
senger compartment.
The vertical part of the windstop can be
folded down to improve rear visibility
during manoeuvres.
It is supplied folded in four.
Windstop unfolded
Fitting
Clip the ends of the assembly until a
click is heard.
Unfold the windstop by opening the
two parts to 90° until a click is heard.
Unfold the windstop frame guides.
Engage the guides in the points
located behind each corner of the
back of the rear bench seat.
Unfold each of the two parts fully.
3
i
51
COMFORT
Engage the shafts of the windstop
frame in the openings in the rear
side trim so that the red indicators
are concealed.
When installing the windstop for the fi rst
time:
position a size 10 open-ended span-
ner on the hexagonal part of the
shaft,
tighten or slacken without forcing on
each side to adjust the depth setting.
Lastly, always check that the wind-
stop is retained securely before use
in the "cabriolet" confi guration.
Removal
Press and pull on the shaft supports
to release the shafts from the open-
ings in the rear side trim; the red in-
dicators then become visible.
It is not necessary to remove the
windstop when operating the roof.
3
52
COMFORT
Pull the windstop forwards to re-
lease the guides from the points,
located behind each corner of the
back of the rear bench seat.
Fold the windstop frame guides.
Storing
In the storage box (version
equipped with a temporary tyre
repair kit)
Raise the boot carpet and hook its
handle on the boot seal.
Store the folded windstop in the cor-
responding recess in the box.
Lower the boot carpet.
In the boot (version equipped with
a spare wheel)
Stow the folded windstop securing it
using the luggage retaining net.
Fold the windstop closing the two
large parts on themselves.
Unclip each end individually.
Fold each of the two parts on them-
selves.
3
!
53
COMFORT
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a seat back which can
be adjusted to adapt your position for ease of driving and comfort.
Forwards-backwards adjustment
Raise the control and slide the seat
forwards or backwards.
Driver's or passenger's seat height
adjustment
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.
Seat back angle adjustment
Push the control rearwards.
Manual adjustments
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused by the presence of objects on the fl oor behind the seat or rear passengers.
If the seat jams, stop the movement immediately.
3
i
!
54
COMFORT
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a seat back which
can be adjusted to adapt your position for ease of driving and comfort.
Forwards-backwards adjustment
Push the control forwards or rear-
wards to slide the seat.
Seat cushion height and angle
adjustment
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.
Seat back angle adjustment
Tilt the control forwards or rear-
wards to adjust the angle of the seat
back.
Electric adjustments
The electrical functions of the seat are
deactivated approximately one min-
ute after the ignition is switched off.
To reactivate them, switch on the
ignition.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused by the presence of objects on the fl oor behind the seat or rear passengers.
If the seat jams, stop the movement immediately.
3
!
i
55
COMFORT
Additional manual
adjustments
Additional electric
adjustments
Access to the rear seats
Pull the control A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place,
press the control B until the seat re-
turns to its initial position.
Access to the rear seats
Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place,
move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object is pre-
venting the seat slide from returning
to its initial position; the return to this
position is necessary for longitudinal
locking.
This function is deactivated while
driving.
3
i
!
i
56
COMFORT

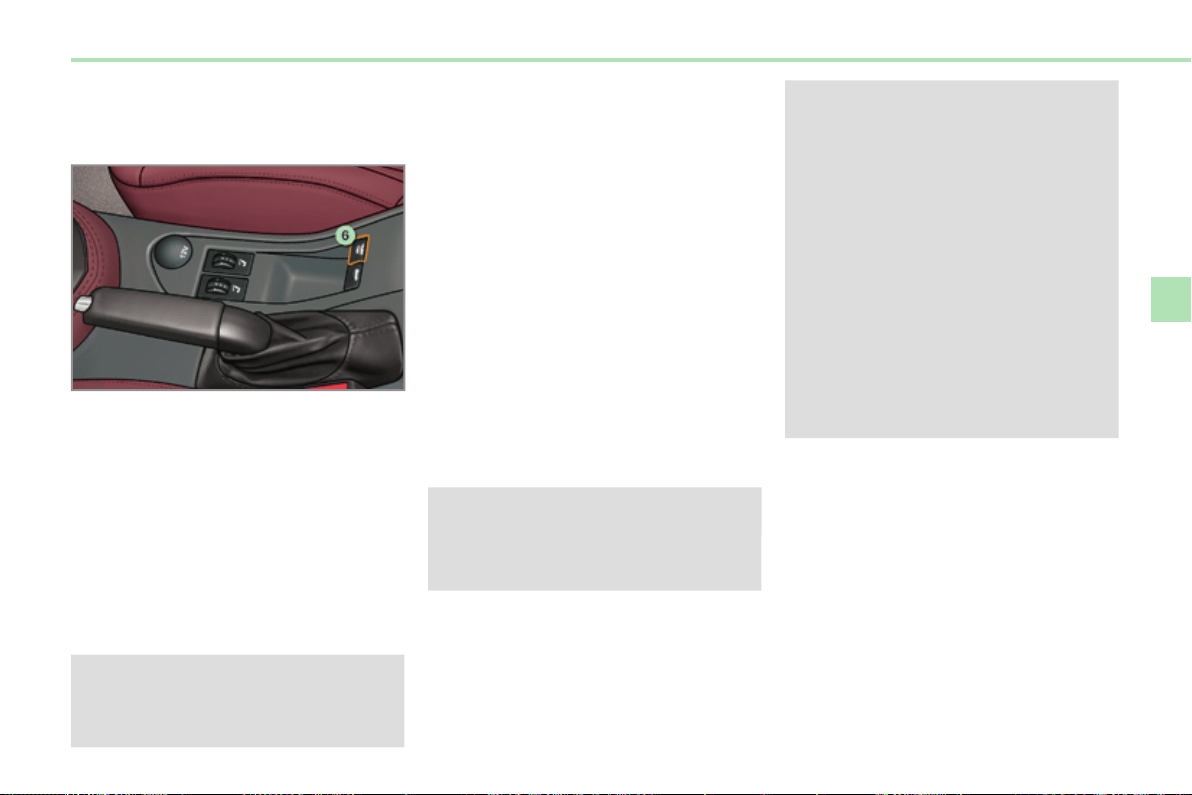

Controlling the "AIRWAVE" system
When the engine is running, the
"AIRWAVE" system, located in the head
restraint of each front seat, can be con-
trolled separately to produce heated
blown air directed towards the neck of
each occupant.
Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
Use the corresponding adjustment
dial, placed on the centre console,
to set the temperature and fl ow of
blown air required:
0: Off.
1: Low.
2: Medium.
3: High.
Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature.
Do not use the "AIRWAVE" system
if a child seat is installed on the
front passenger seat.
In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.
3
!
!
57
COMFORT

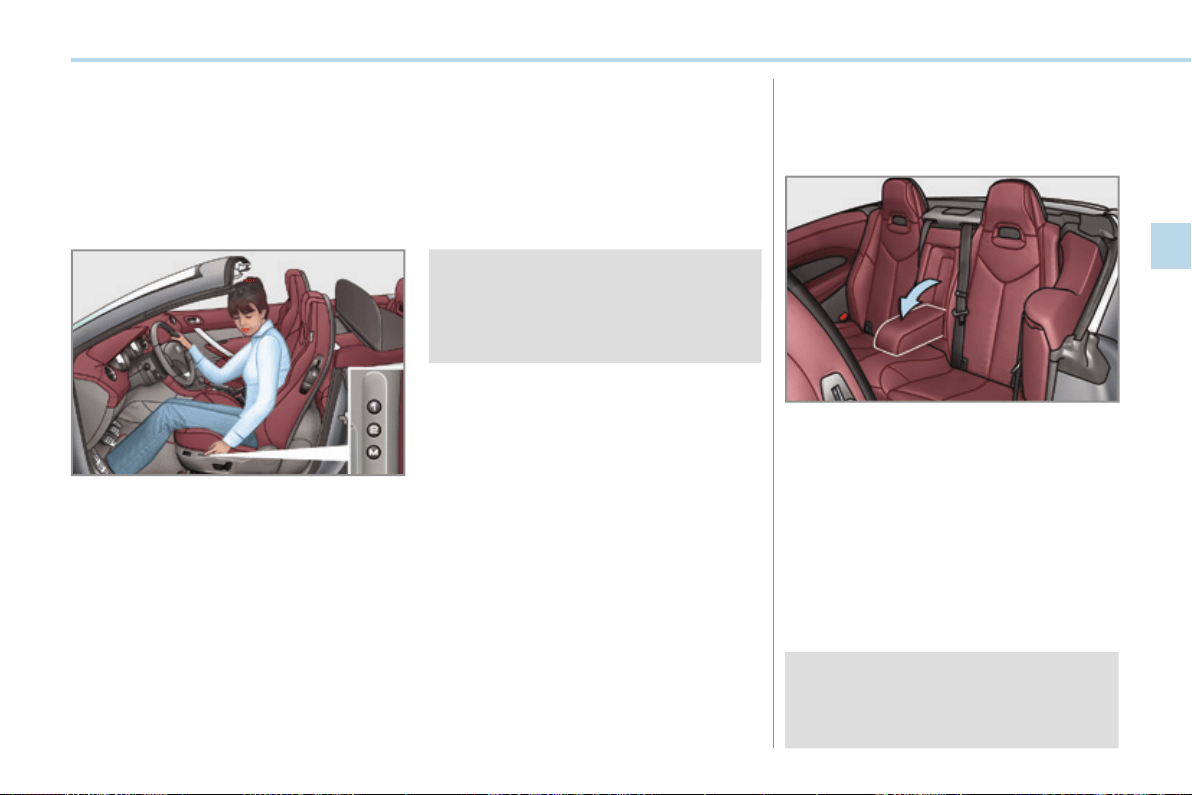

STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.
Recalling a stored position
Storing a position
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and your door mirrors.
Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers.
The rear head restraints are fi xed. They
incorporate the roll-over bars (refer to
the "Safety - Roll-over bars" section).
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2
Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
3
!
i
i
!
58
COMFORT
The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

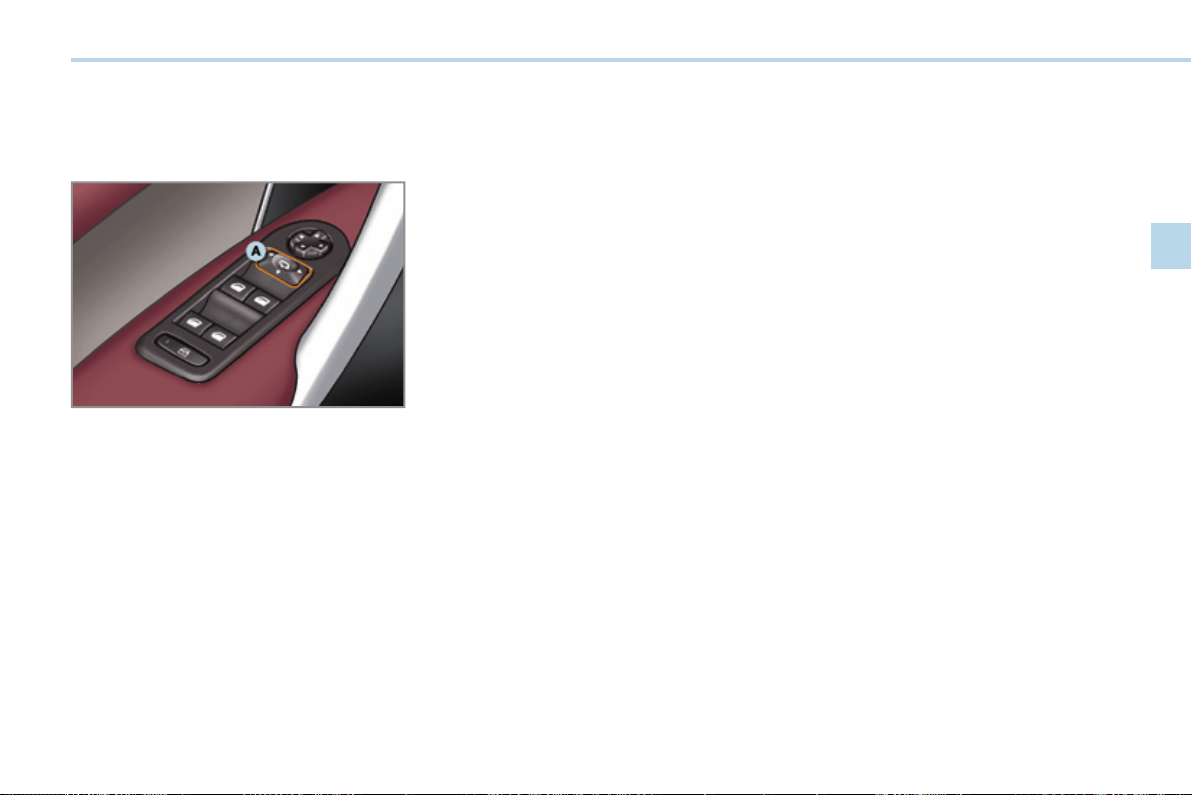

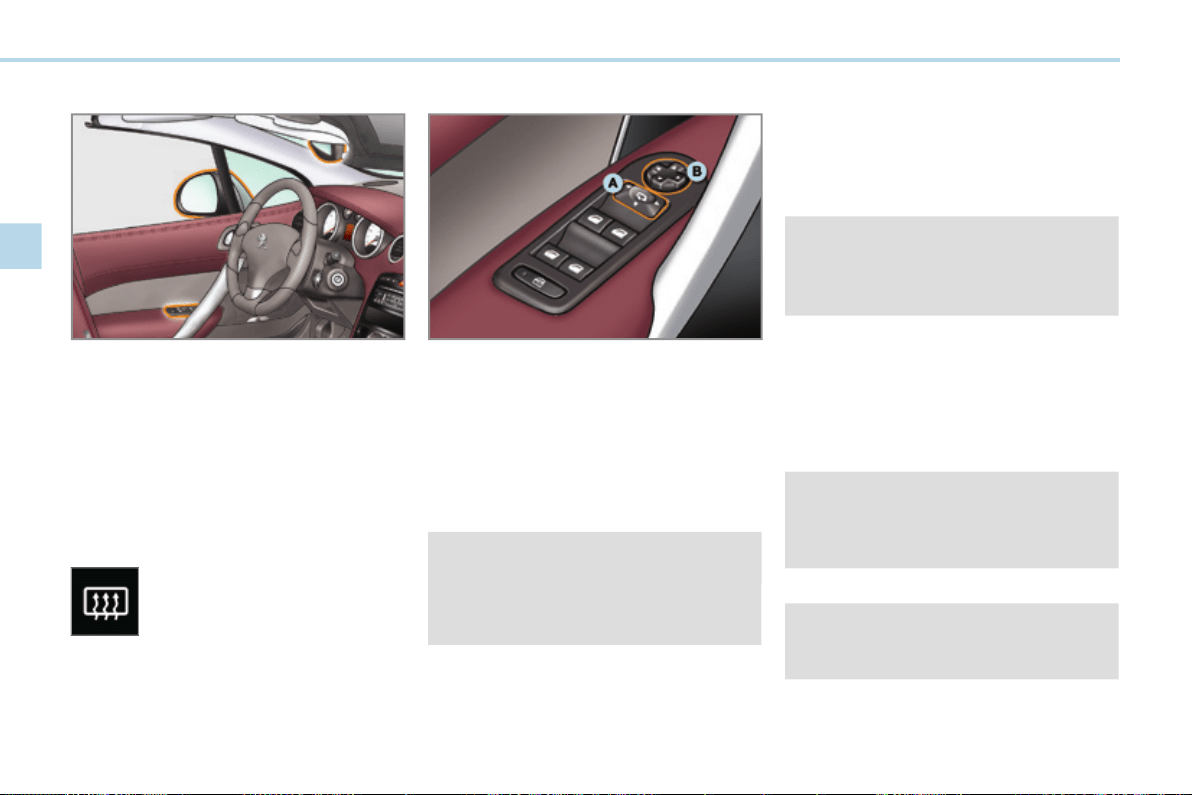

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces.
Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
the control A in the central position
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Demisting - Defrosting
Unfolding
From outside: unlock the vehicle us-
ing the remote control or the key.
From inside: with the ignition on, pull
the control A in the central position
rearwards.
If the mirrors are folded using con-
trol A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates by switch-
ing on the heated rear screen
(refer to the "Rear screen
demist-defrost" page).
Move control A to the right or to the
left to select the corresponding mirror.
Move control B in all four directions
to adjust.
Return control A to the central position.
If necessary the mirrors can be
folded manually.
Adjustment
3
59
COMFORT
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on
With the engine running, engage re-
verse gear.
Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming
With the engine running, engage
reverse gear.
Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
Exit reverse gear and wait ten seconds.
or
Return control A to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off.
3
!
i
!
60
COMFORT
STEERING WHEEL ADJUSTMENT
When stationary , pull the control
lever to release the adjustment
mechanism.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these op-
erations should only be carried out
with the vehicle stationary.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...
4
61
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Unlocking and partial opening of the
boot
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action unlocks the vehicle fi rst.
Press the open padlock
once to unlock the driver's
door only.
Selective unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing and locking of the vehicle using the
lock or from a distance, as well as of the
interior storage compartments (glove
box and front armrest). It is also used to
locate and start the vehicle, as well as
providing protection against theft.

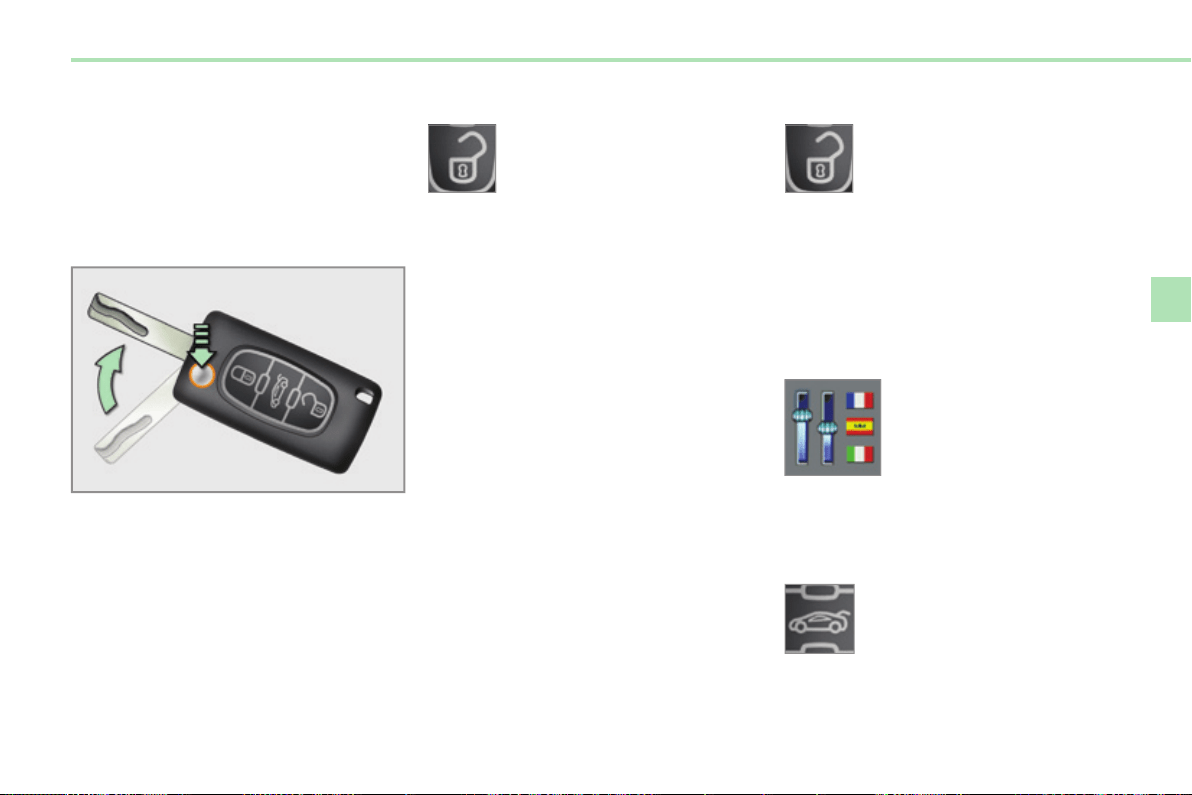

Unfolding the key
First press this button to unfold the
key.
Unlocking the vehicle
The direction indicators fl ash for a few
seconds.
The central unlocking also unlocks the
glove box and the front armrest com-
partment.
According to version, the door mirrors
unfold, the alarm is deactivated.
Press the open padlock to
unlock the vehicle.
Complete unlocking using the key
Turn the key forward in the driver's
door lock to unlock the vehicle.
Complete unlocking using the
remote control
Press the open padlock again to un-
lock the passenger's door and the
boot.
The direction indicators fl ash for a few
seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated.
The complete or selective
unlocking parameter is set
via the vehicle confi gura-
tion menu.
Complete unlocking is acti-
vated by default.
4
!
i
i
62
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Folding the key
First press this button to fold the
key.
If you do not press the button when fold-
ing the key, there is a risk of damage to
the mechanism.
Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone
inside the vehicle when it is dead-
locked.
If one of the doors or the boot is still
open, the central locking does not
take place.
If a door or the boot is not opened
after unlocking the vehicle, the
v ehicle will lock itself again auto-
matically after thirty seconds but
without reactivating the alarm.
Deadlocking using the remote
control
Deadlocking using the key
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer or a qualifi ed
workshop.
Press the closed padlock
to lock the vehicle com-
pletely.
Press the closed padlock
again within fi ve seconds
to deadlock the vehicle.
Locking the vehicle
Press the closed padlock
to lock the vehicle com-
pletely.
Normal locking using the key
Turn the key rearward in the driver's
door lock to lock the vehicle com-
pletely.
Normal locking using the remote
control
The direction indicators come on for a
few seconds.
Depending on version, the door mirrors
fold, the alarm is activated.
The direction indicators come on for a
few seconds.
The central locking also locks the glove
box and the front armrest compartment.
Depending on version, the door mirrors
fold, the alarm is activated.
Turn the key rearwards in the driv-
er's door lock to lock the vehicle
completely.
Turn the key rearwards again within
fi ve seconds to deadlock the vehicle.
4
!
i
63
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Locating your vehicle
Press the closed padlock
to locate your locked ve-
hicle in a car park.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start;
contact a PEUGEOT dealer as soon as
possible.
This is indicated by lighting of the cour-
tesy lamps and side spotlamps and
fl ashing of the direction indicators for a
few seconds.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting
code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release
the key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch.
Switching off the engine leads to a
loss of braking assistance.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
If the key has been left in the igni-
tion switch at position 2 (Ignition
on) , the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop) , then
back to position 2 (Ignition on) .
Key left in the "Ignition on" position
On opening the driver's door, an alert
message is displayed, accompanied by
an audible signal, to remind you that the
key is still in the ignition switch at posi-
tion 1 (Stop) .
4
64
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
Changing the battery
Battery ref.: CR1620 / 3 volts. Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition
on) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Unclip the casing using a coin at the
notch.
Slide the fl at battery out of its loca-
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
4
!
65
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your
p ersonal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transpon-
der code required to order a new key.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a
very short period.
In all cases, it is essential to remove the key from the ignition switch when
leaving the vehicle.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicle.
4
!
i
66
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
ALARM
System which protects and provides a de-
terrent against theft and break-ins. It pro-
vides the following types of monitoring.
Locking the vehicle with full
alarm system
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Activation
Switch off the ignition and get out of
the vehicle.
Press the locking button on the re-
mote control.
The monitoring system is active: the in-
dicator lamp in the button fl ashes once
per second.
After the locking button on the remote
control is pressed, the exterior perime-
ter monitoring is activated after a delay
of 5 seconds and the interior volumetric
monitoring after a delay of 45 seconds.
- Exterior perimeter
The system checks for opening of the
vehicle.
The alarm is triggered if anyone tries to
open a door, the boot, the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compart-
ment or moves inside the vehicle.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
central control or the wires of the siren
are put out of service or damaged.
Deactivation
Press the unlocking button on the
remote control.
The alarm system is deactivated: the in-
dicator lamp in the button goes off.
If an opening (door, boot...) is
not closed fully, the vehicle is not
locked but the exterior perimeter
monitoring will be activated after
a delay of 45 seconds at the same
time as the interior volumetric mon-
itoring.
If a door or the boot is not opened
after unlocking the vehicle, the
v ehicle will lock itself again auto-
matically after thirty seconds but
without reactivating the alarm.
4
!
i
67
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Triggering of the alarm
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp in the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this
fl ashing stops immediately.
Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
Unlock the vehicle using the key in
the driver's door lock.
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops. The indicator lamp in the but-
ton goes off.
Lock or deadlock the vehicle using
the key in the driver's door lock.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
In "cabriolet" confi guration, interior
volumetric monitoring is deactivated
automatically.
Deactivation of the interior
volumetric monitoring
Switch off the ignition.
Within ten seconds, press the but-
ton until the indicator lamp is on
continuously.
Get out of the vehicle.
Press the locking button on the re-
mote control immediately.
The exterior perimeter monitoring alone
is activated: the indicator lamp in the
button fl ashes once per second.
Locking the vehicle with exterior
perimeter monitoring only
Deactivate the interior volumetric moni-
toring to avoid unwanted triggering of
the alarm in certain cases such as:
- leaving a pet in the vehicle,
- leaving a window partially open,
- washing your vehicle.
Reactivation of the interior
volumetric monitoring
Press the unlocking button on the
remote control to deactivate the ex-
terior perimeter monitoring.
Press the locking button on the re-
mote control to activate all the moni-
toring functions.
The indicator lamp in the button again
fl ashes once per second.
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for thirty seconds.
Operating fault
When the ignition is switched on, fi xed
illumination of the indicator lamp in the
button indicates a fault with the system.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Automatic activation *
2 minutes after the last door or the boot
is closed, the system is activated auto-
matically.
To avoid triggering the alarm on en-
tering the vehicle, fi rst press the un-
locking button on the remote control.
* Depending on country of sale.
4
i
i
68
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
The rear windows do not have an
automatic mode or safety anti-
pinch function for closing.
The electric window controls re-
main operational for about 45 sec-
onds after switching off the ignition
or until the vehicle is locked after
opening a door.
if it is not possible to operate the
passenger's window from the driv-
er's control panel, carry out the
o peration from the passenger's
door panel.

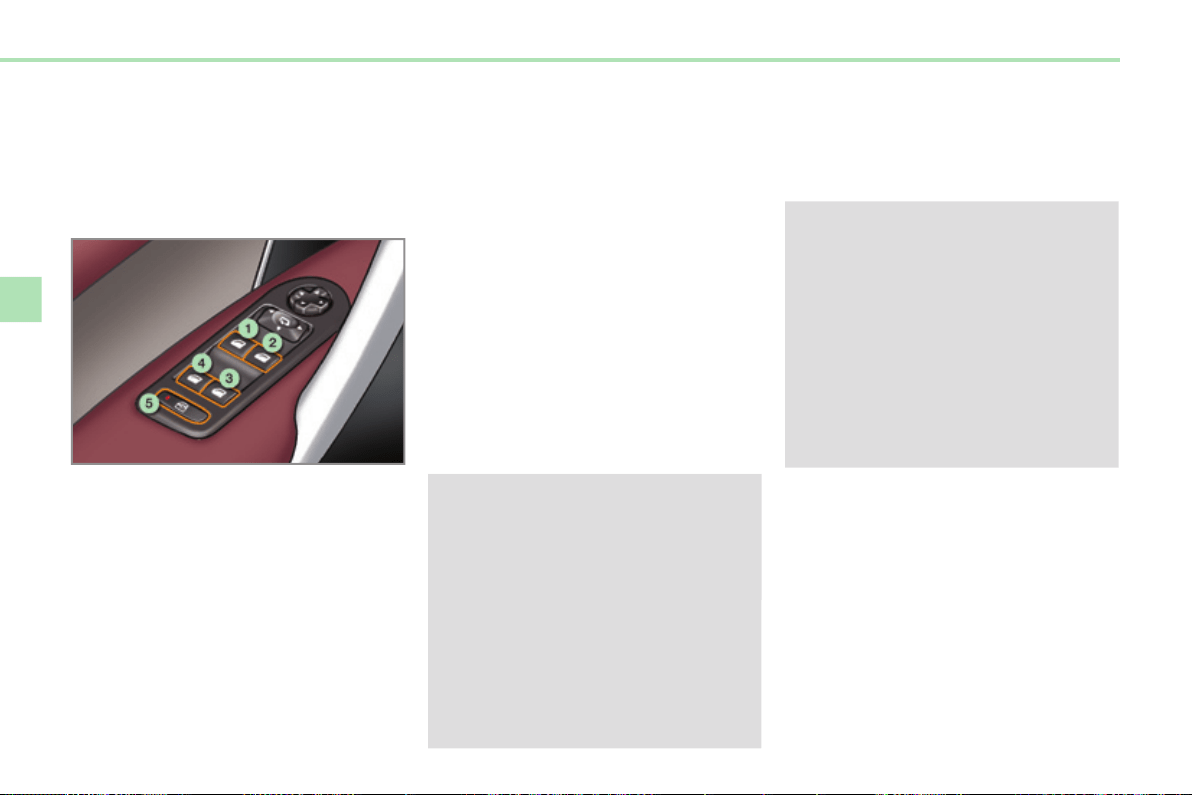

ELECTRIC WINDOWS
Fitted with an anti-pinch system on the
front windows and a system which con-
trols all four windows on all models.
1. Driver's electric window.
2. Passenger's electric window.
3. Rear right electric window.
4. Rear left electric window.
5. Deactivation of electric windows
at the rear.
If the window opens unintentionally
when closing is requested (for ex-
ample, in the presence of ice):
press the switch until the win-
dow opens completely,
then pull the switch immediately
until the window closes,
continue to pull the switch for
approximately three seconds
after the window has closed.
The safety anti-pinch function is
not active during these opera-
tions.
Front windows safety anti-pinch
In automatic mode, when the front win-
dow rises and meets and obstacle it
stops and partially lowers again.
- automatic mode
Press or pull switch 1 fully. The win-
dow opens or closes completely
when the switch is released.
Pressing the switch again stops the
movement of the window.
One-touch electric windows
You have two options:
- manual mode
Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
Deactivation of the electric
windows at the rear
For the safety of your children,
press switch 5 to deactivate the rear
electric window switches regardless
of their position.
When the indicator lamp is on, the rear
switches are deactivated.
When the indicator lamp is off, the rear
switches are activated.
4
!
i
i
69
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows
Switch for all four windows
This switch opens or closes all of the
windows at once.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is pre-
venting correct closing of the win-
dows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows. For each of the controls on
the control pad on the driver's side:
release the switch and pull it again
until it closes completely,
hold the switch for approximately
three seconds after closing,
press the switch to lower the win-
dow automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety anti-pinch function is not
active during these operations.
Press switch 6 and release it. The
windows open completely.
Pressing the switch again stops the
movement of the windows.
or
Pull switch 6 and hold it in this posi-
tion. The windows close completely.
If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver.
4
!
i
i
i
i
70
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013

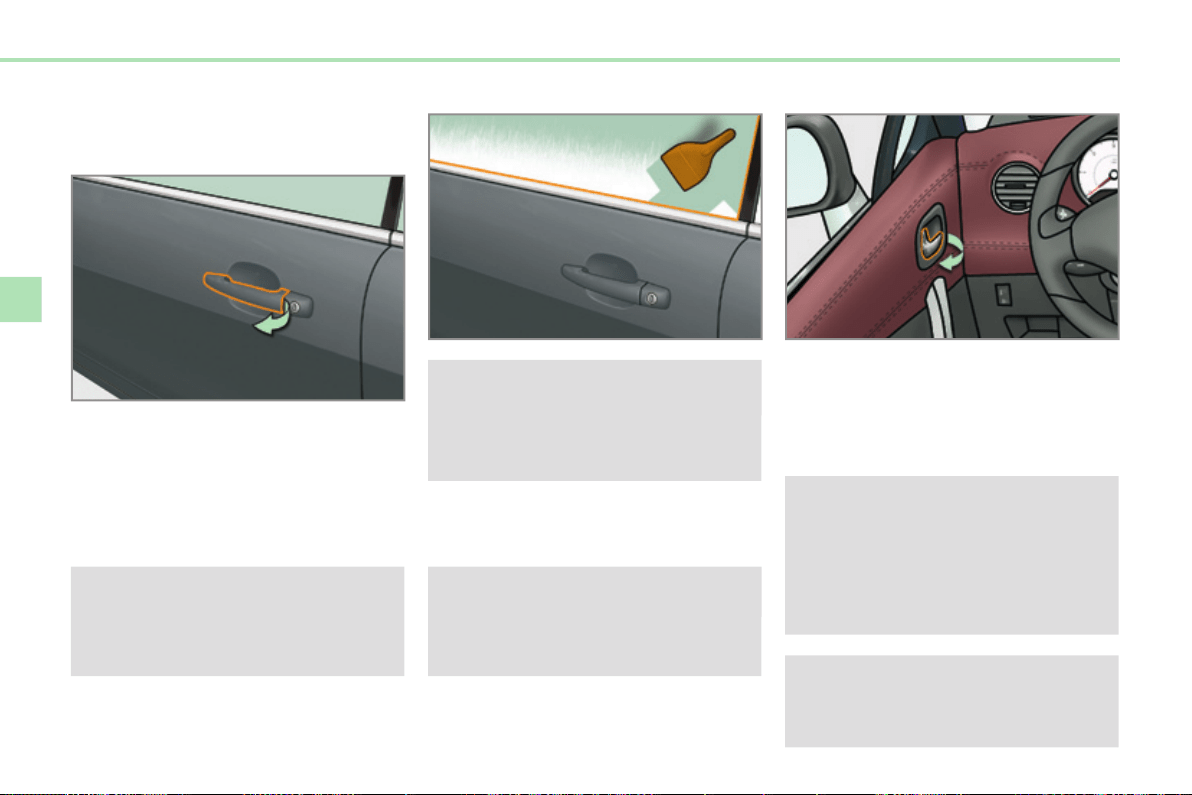

DOORS
After unlocking the vehicle com-
pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by
a few millimetres to permit opening
of the door.
From inside
Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by
a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only.
With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the passenger's door control
unlocks the passenger's door
and the boot.
In freezing conditions, the presence
of ice may hinder the automatic par-
tial opening of the window; remove
the ice which may have formed along
the lower seal, located at the base of
the window .
4
i
i
!
!
!
71
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
When locking/deadlocking from
outside
When the vehicle is locked or
deadlocked from the outside, the
red indicator lamp fl ashes and the
button is inactive.
For normal locking, pull the in-
terior door control to open the
vehicle.
For deadlocking, you have to
use the remote control or the
key to unlock the vehicle.

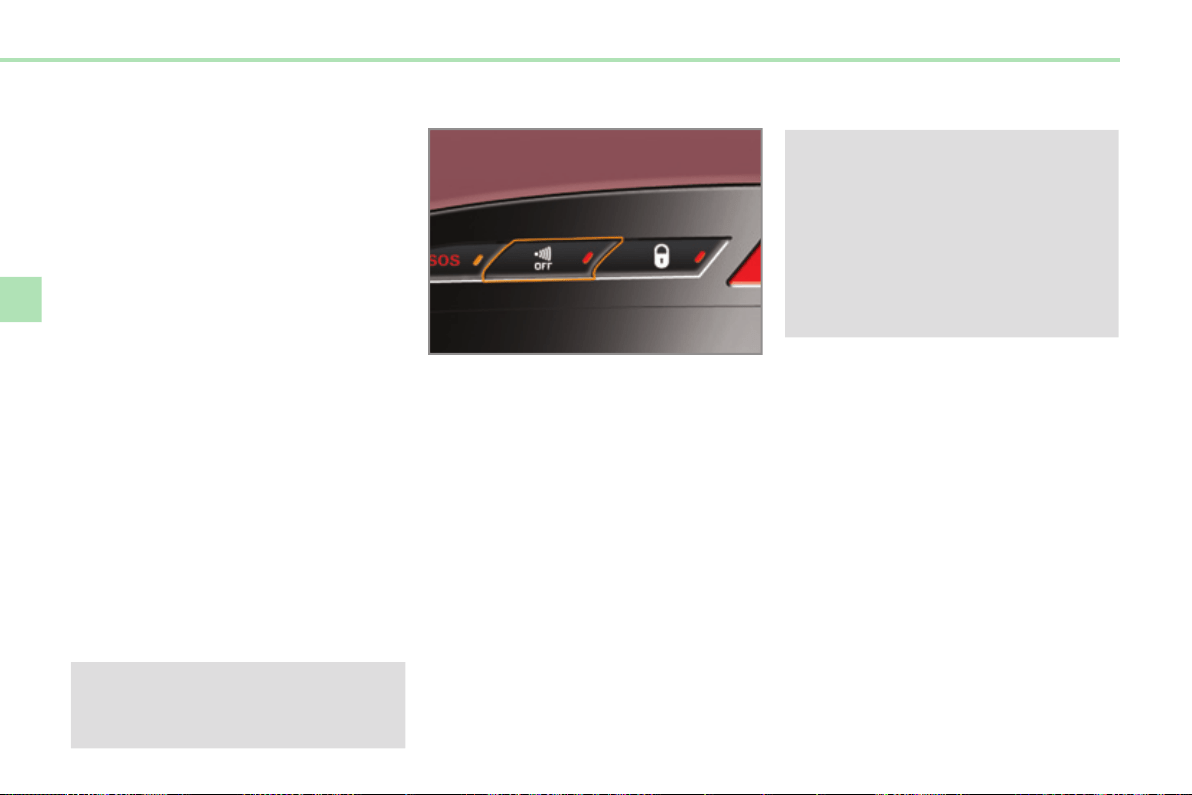

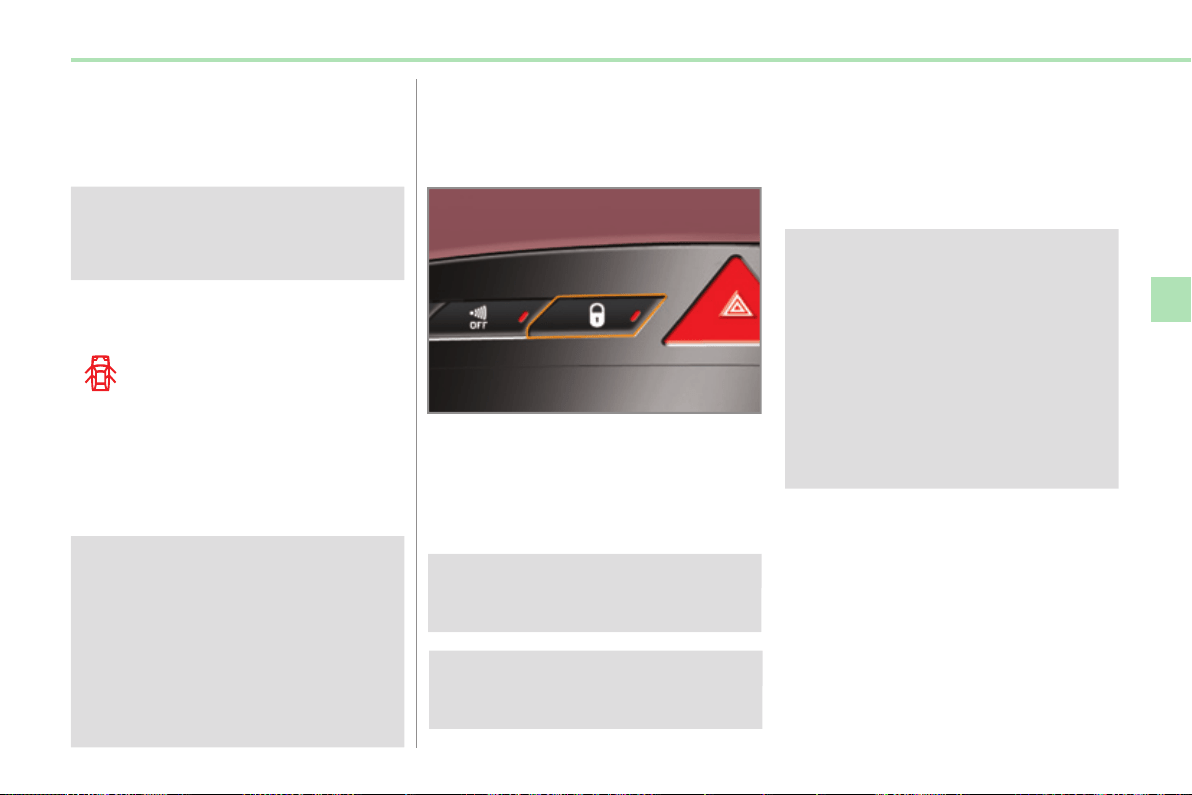

Central locking control
System which provides full manual
locking or unlocking of the doors and
boot from the inside.
Locking
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
If one of the doors or the boot is
open, the central locking from the
inside does not take place.
Unlocking
Press this button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
Closing
The window rises automatically after a
few seconds and adjusts to provide per-
fect sealing when closed.
- when the engine is run-
ning , this warning lamp
comes on, accompanied by
a message in the screen for
a few seconds,
When washing your vehicle:
- fi rst lock the vehicle using the
remote control or the key,
- avoid spraying the upper part of
the windows,
- keep the end of the high pres-
sure nozzle at least 1 metre
from the windows and door
seals.
When a door is not closed correctly:
Be aware of the risk of pinching
when the window rises automati-
cally on closing the door.
The glove box and the front arm-
rest compartment are not locked so
that they remain accessible.
-
when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompanied
by an audible signal and a message in
the screen for a few seconds.
4
!
72
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013

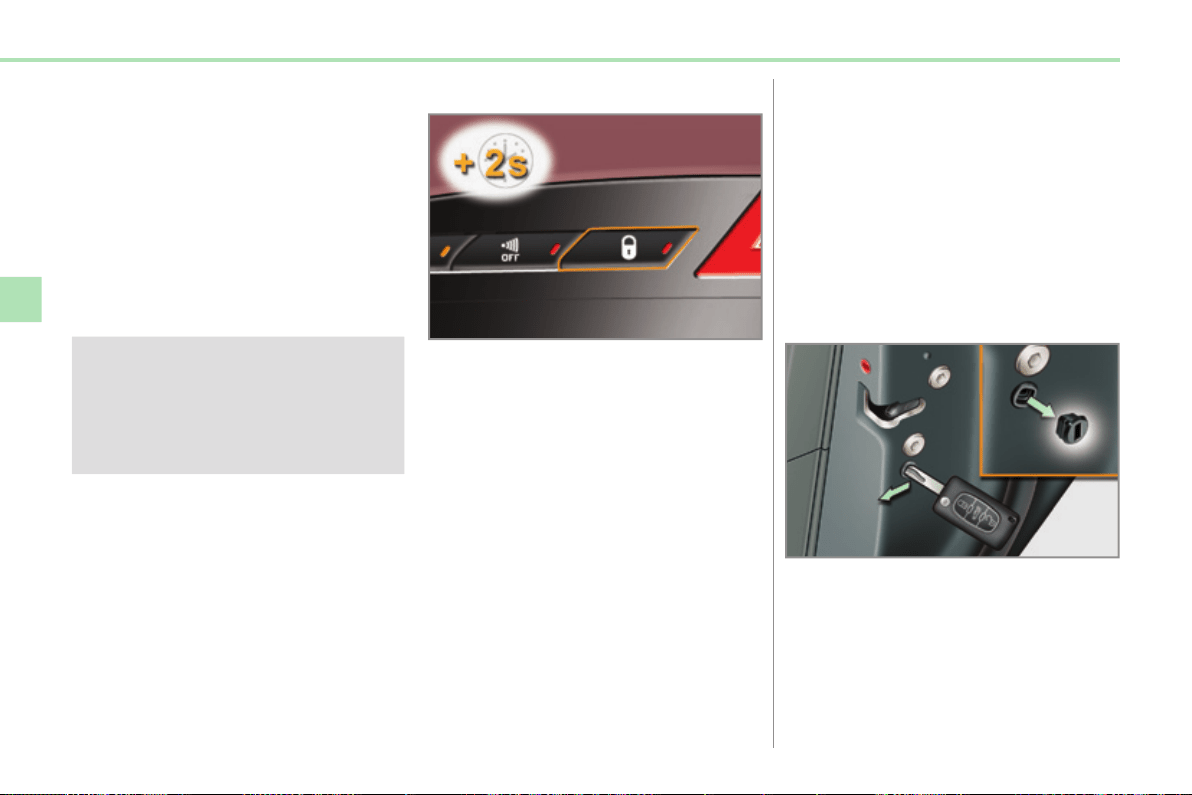

Activation
Press this button for more than
two seconds.
A confi rmation message appears in the
multifunction screen.
Deactivation
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen.
Emergency locking
To lock or unlock the doors mechani-
cally in the event of a central locking
system failure or fl at battery.
Using the key, remove the black cap
on the edge of the door.
Insert the key in the cavity without
forcing, then without turning it, move
the the latch sideways towards the
interior of the door.
Remove the key and refi t the cap.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door
Pull the interior door opening control.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.
Anti-intrusion security
System which provides full automatic lock-
ing or unlocking of the doors and boot while
driving.
You can activate or deactivate this function.
Unlocking
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock au-
tomatically.
4
i
i
73
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Unlocking and partially opening
the boot
BOOT
Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration, if
the vehicle is locked.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open-
ing control,
- by pressing the manual central lock-
ing control A , when the key is not in
the ignition switch.
Opening
After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the boot lid.
When selective unlocking is acti-
vated, the boot can also be opened
by a second press on the open
padlock on the remote control.
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Contact a PEUGEOT
dealer or a qualifi ed workshop.
Closing
Lower the boot lid to the horizontal
position, using one of the interior
grab handles.
Press fi rmly on the boot lid, over the
third brake lamp, guiding it down un-
til fully closed.
If the boot lid is not closed correctly:
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message in
the screen for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the screen for a few seconds.
4
i
!
74
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an
inrush of air. This vacuum, which
is completely normal, is caused by
the sealing of the fuel system.
FUEL TANK
To fi ll the tank safely:
the engine must be switched off,
open the fuel fi ller fl ap,
insert the key in the cap, then turn it
to the left,
When refuelling is complete:
put the cap back in place,
turn the key to the right, then re-
move it from the cap,
close the fi ller fl ap.
remove the cap and secure it on the
hook, located on the inside of the
fl ap,
fi ll the tank, but do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Capacity of the tank: approximately
60 litres.
Refuelling
A label affi xed to the inside of the fi ller
fl ap reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge.
When the low fuel level is reached,
this warning lamp comes on in the
instrument panel, accompanied by
an audible signal and a message
in the multifunction screen. When the lamp
fi rst comes on, there is approximately
6 litres of fuel remaining.
Until suffi cient fuel has been added, this
warning lamp appears every time the ig-
nition is switched on, accompanied by an
audible signal and a message. When driv-
ing, this audible signal and message are
repeated with increasing frequency, as the
fuel level drops towards "0" .
Operating fault
A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
gauge needle.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
With Stop & Start, never refuel with
the system in STOP mode; you
must switch off the ignition with the
key.
Low fuel level
You must refuel to avoid running out of
fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
4
i
i
75
ACCESS
308CC_EN_CHAP04_OUVERTURES_ED01-2013
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 or E24 type petrol
biofuels (containing 10 % or 24 % etha-
nol), conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
MISFUEL PREVENTION
(DIESEL) *
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
Operation
It remains possible to use a fuel
can to fi ll the tank.
In order to ensure a good fl ow of
fuel, do not place the nozzle of the
fuel can in direct contact with the
fl ap of the misfuel prevention de-
vice and pour slowly.
When a petrol fi ller nozzle is introduced
into the fuel fi ller neck of your Diesel
vehicle, it comes into contact with the
fl ap. The system remains closed and
prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impos-
sible.
Before travelling abroad, we rec-
ommend that you check with the
PEUGEOT dealer network, whether
your vehicle is suitable for the fuel
pumps in the country in which you
want to travel.
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
PEUGEOT dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
* According to country of sale.
5
76
VISIBILITY
EXTERIOR LIGHTING
CONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
-
main beam headlamps to see clearly
when the road is clear.
Additional lighting
Other lamps are fi tted to fulfi l the re-
quirements of particular driving condi-
tions:
- a rear foglamp to be seen from a
distance,
- front foglamps for even better for-
ward vision,
- directional headlamps for improved
visibility when cornering,
- daytime running lamps to be seen
during the day.
Settings
Various automatic lighting control modes
are also available depending on options:
- daytime running lamps,
- automatic illumination of headlamps,
- directional lighting,
- guide-me-home lighting.
Manual controls
Automatic illumination of
headlamps.
The lighting is controlled directly by the
driver by means of the ring A and the
stalk B .
Lamps off.
Sidelamps.
B. Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk.
Dipped headlamps or
main beam headlamps.
Displays
Illumination of the corresponding indi-
cator lamp in the instrument panel con-
fi rms that the lighting selected is on.
A. Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
5
!
i
i
77
VISIBILITY
Front and rear foglamps.
Press, turning ring C :
forwards once to switch on the front
foglamps,
forwards again to switch on the rear
foglamp,
rearwards once to switch off the rear
foglamp,
rearwards again to switch off the
front foglamps.
In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the sunshine
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer necessary.
Switching off the lamps when
the ignition is switched off
On switching off the ignition, all
of the lamps turn off immediately,
except for dipped beam if guide-
me-home lighting is activated.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
Switching on the lamps after the
ignition is switched off
To reactivate the lighting control, ro-
tate ring A to the "0" position - lamps
off, then to the desired position.
On opening the driver's door a tem-
porary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent discharg-
ing of the battery.
When the lighting is switched off au-
tomatically (with AUTO model) or
when the dipped beam headlamps
are switched off manually, the front fo-
glamps and the sidelamps will remain
on.
Turn the ring rearwards to switch off
the front foglamps, the sidelamps
will then switch off.
5
78
VISIBILITY
Manual guide-me-home lighting
The temporary illumination of the
dipped beam headlamps after the ve-
hicle's ignition has been switched off
makes the driver's exit easier when the
light is poor.
Switching on
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.
This function is assured:
- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.
- for other countries where it is pro-
vided,
by the use of dedicated light emit-
ting diode (LED) lamps; this function
can be activated or deactivated via
the vehicle confi guration menu.
The lighting control stalk must be placed
in position "0" or "AUTO" (day mode).
Deactivation of the daytime running
lamps is effective after operating the
lighting control or after the next engine
start; activation is immediate.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are not
illuminated, except in night mode with
manual or automatic illumination of
headlamps.
LED lamps
Where LED lamps are fi tted, the fi la-
ment bulbs for the daytime running
lamps/sidelamps in the front lamp units
are not used.
They come on when the engine is started.
Depending on the destination country,
they are used for:
- daytime running lamps * in day mode
and sidelamps in night mode (they
are brighter when daytime running
lamps),
or
- sidelamps in day and night mode.
* function that can be set in the vehicle
confi guration menu.
5
!
AUTO
79
VISIBILITY
Automatic illumination of headlamps
When a low level of ambient light is de-
tected by a sunshine sensor, the num-
ber plate lamps, sidelamps and dipped
beam headlamps are switched on auto-
matically, without any action on the part
of the driver. They can also come on if
rain is detected, at the same time as
automatic operation of the windscreen
wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn the ring to the "AUTO" posi-
tion. The activation of the function
is accompanied by the display of a
message in the screen.
Deactivation
Turn the ring to another position.
Deactivation of the function is ac-
companied by the display of a mes-
sage in the screen.
In fog or snow, the sunshine sen-
sor may detect suffi cient light. In
this case, the lighting will not come
on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Operating fault
Automatic "guide-me-home"
lighting
When the automatic illumination of
headlamps function is activated (light-
ing control stalk in the " AUTO " posi-
tion), under low ambient light the dipped
beams headlamps come on automati-
cally when the ignition is switched off.
In the event of a malfunction of
the sunshine sensor, the lighting
comes on, this warning lamp is
displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualifi ed
workshop.
Programming
Activation or deactivation,
as well as the duration of
the guide-me-home light-
ing, is set in the vehicle
confi guration menu.
5
i
i
!
80
VISIBILITY
EXTERIOR WELCOME
LIGHTING
The remote switching on of the light-
ing and side spotlamps makes your
approach to the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The dipped beam headlamps and
the sidelamps come on, as well as
the side spotlamps, located in the
exterior mirrors; your vehicle is also
unlocked.
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
Initial setting is position "0" .
To avoid dazzling other road users, the
height of the halogen bulb headlamps
must be adjusted according to the load
in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2. 4 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
AUTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs.
Contact a PEUGEOT dealer or a
qualifi ed workshop.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp is displayed on
the instrument panel, accom-
panied by an audible signal and
a message in the screen.
The system then places your headlamps
in the lowest position.
5
i
i
81
VISIBILITY
DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
mately 12 mph (20 km/h) and associ-
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting
Programming
Operating fault
The function is activated or
deactivated via the vehicle
confi guration menu.
If a fault occurs, this warning
lamp fl ashes in the instrument
panel, accompanied by a mes-
sage in the screen.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Travelling abroad
If using your vehicle in a country
that drives on the other side of the
road, the headlamps must be ad-
justed to avoid dazzling on-coming
drivers.
Contact a PEUGEOT dealer or a
qualifi ed workshop.
5
82
VISIBILITY
WIPER CONTROLS
Control stalk for the various windscreen
wiping modes for clearing rain and
cleaning the windscreen.
Manual operation of the
windscreen wipers
Fast (heavy rain).
Normal (moderate rain).
Intermittent (proportional to
the speed of the vehicle).
Park.
Programming
An automatic mode is also available,
providing automatic rain sensitive wind-
screen wipers.
This control stalk allows selection of the
most suitable wiping speed according
to the weather conditions.
Automatic, then single
wipe (see the corre-
sponding section).
Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped or main beam head-
lamps are on , with the vehicle moving .
To reduce the consumption of the fl uid
by the headlamp washers, they oper-
ate only with every seventh use of the
screenwash or every 25 miles (40 km)
during a given journey.
5
!
i
83
VISIBILITY
Screenwash/headlamp wash low
In the case of vehicles fi tted
with headlamp washers, when
the minimum level of the res-
ervoir is reached, this warning
lamp and/or the service warning lamp
is displayed in the instrument panel, ac-
companied by an audible signal and a
message in the screen.
Next time you stop, fi ll the screenwash /
headlamp wash fl uid reservoir.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
is fi lled.
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO" position.
It is accompanied by a message in the
screen.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0" .
It is accompanied by a message in the
screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
5
i
i
84
VISIBILITY

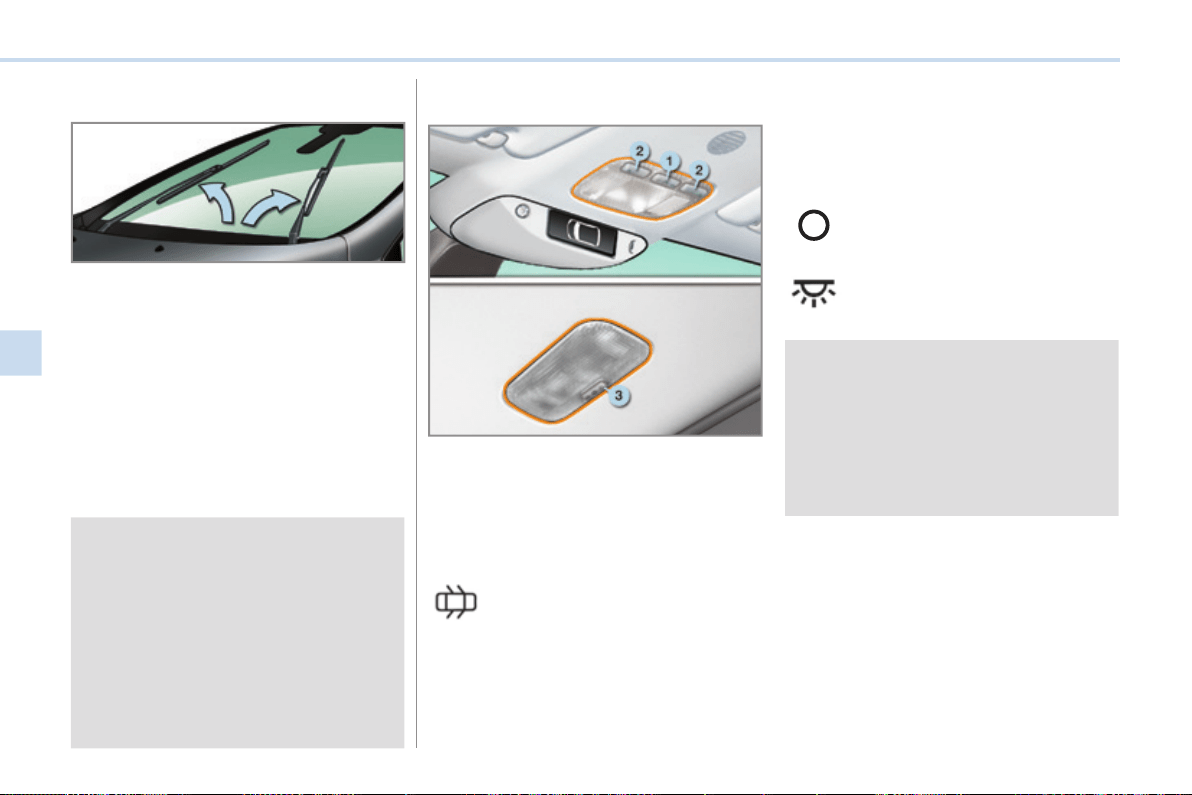

Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
To maintain the effectiveness of the
"fl at-blade" type of wiper blades, it
is advisable to:
- handle them with care,
- clean them regularly using
soapy water,
- avoid using them to retain card-
board on the windscreen,
- replace them at the fi rst signs of
wear.
COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamp
3. Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when the remote control locking
button is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting.
Map reading lamps
With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Any action on the wiper stalk in the
minute after switching off the igni-
tion places the blades vertically on
the screen.
To park the blades again, switch on
the ignition and operate the wiper
stalk.
5
i
85
VISIBILITY
INTERIOR MOOD LIGHTING
Different lighting times are available:
- when the ignition is off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running, no
limit.
Your vehicle is fi tted with two boot
lamps; one in the left-hand boot side
trim and a second in the boot lid interior
trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING
BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on
Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches
off automatically after a certain time,
when one of the doors is opened or the
ignition is switched on.
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The function is activated or
deactivated via the vehicle
confi guration menu.
This function is activated
by default.
6
86
FITTINGS

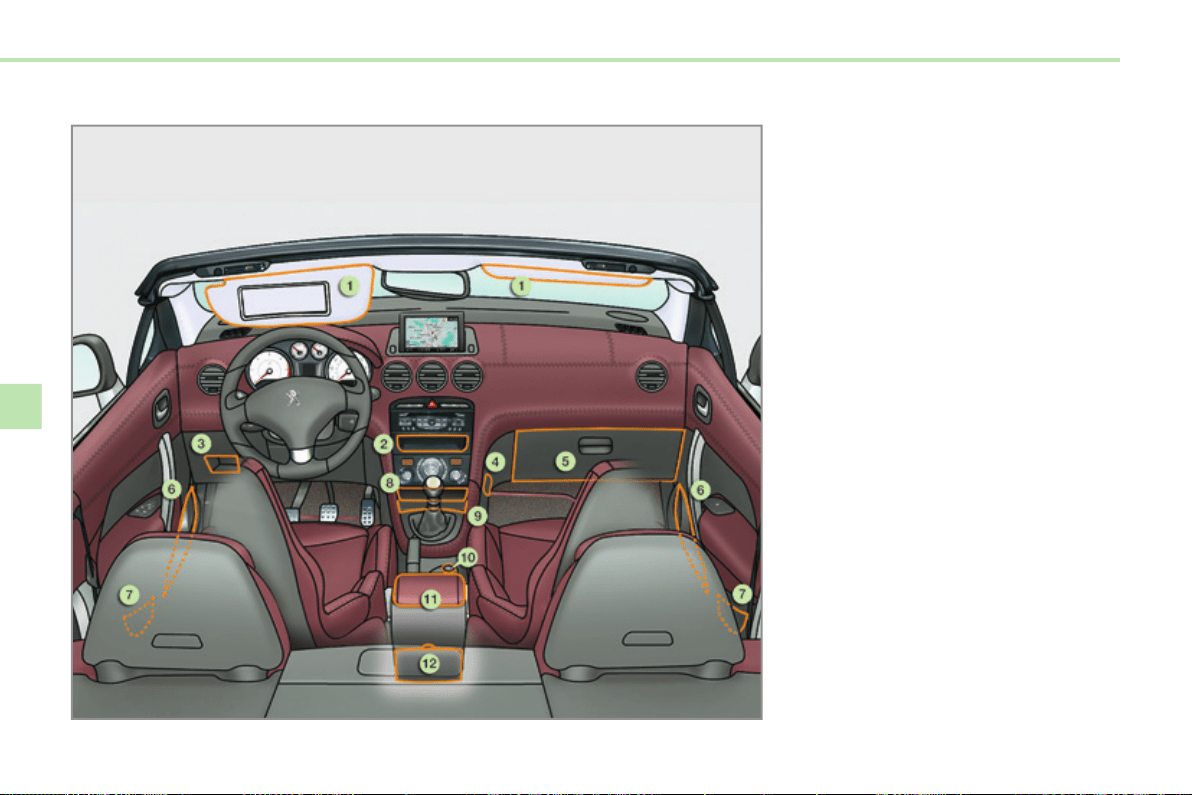

INTERIOR FITTINGS
1. Sun visor
(see details on following page)
2. Storage compartment
3. Storage for oddments
4. Bag hook
(see details on following page)
5. Lockable, refrigerated glove box
(see details on following page)
6. Large door pockets
7. Small door pockets
8. Illuminated ashtray
(see details on following page)
9. Storage compartment with
non-slip carpet
10. 12 V accessory socket
(see details on following page)
11. Lockable front armrest
(see details on following page)
12. Storage box
(see details on following page)
6
87
FITTINGS

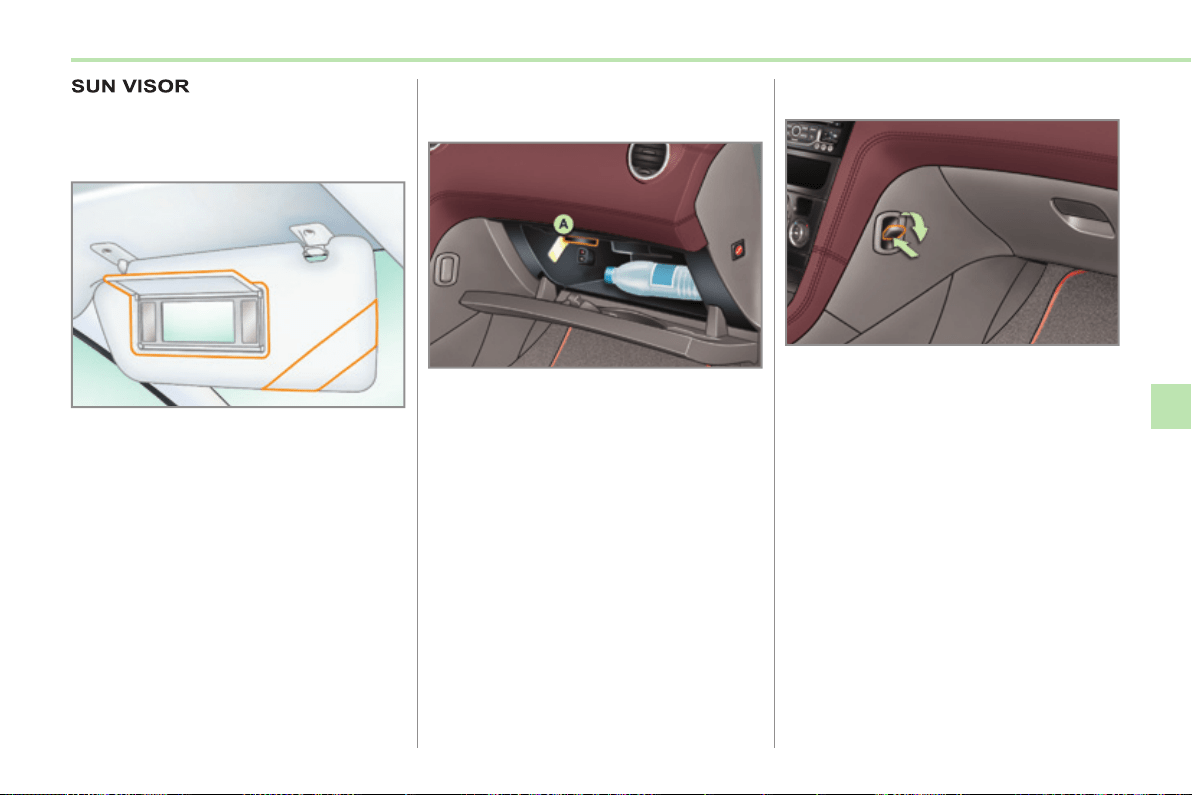

LOCKABLE, REFRIGERATED
GLOVE BOX
This has areas for storing a bottle of
w ater, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.
To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A ,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder.
BAG HOOK
Press the lower part of the hook to
unfold it.
Hang the strap of your bag on the
hook to secure it.
6
88
FITTINGS
LOCKABLE FRONT ARMREST
Comfort and storage for the driver and
front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key.
Storage
It can hold up to 6 CDs.
Raise the lever 1 .
Raise the lid fully.
Slide the lid fully forwards or rear-
wards.
Raise the lid to the required position
(low, intermediate or high).
If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position.
Longitudinal adjustment
Height adjustment
PEUGEOT CONNECT USB
This connection box, consisting of a
USB port, is located in the front armrest.
It permits the connection of a portable
device, such as an iPod
®
digital audio
player of generation 5 or later or a USB
stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them in the multifunction screen.
When in use connected to the USB
port, the portable equipment charges
automatically.
For more information on the use of this
equipment, refer to the "Audio equip-
ment and telematics" section.
6
89
FITTINGS

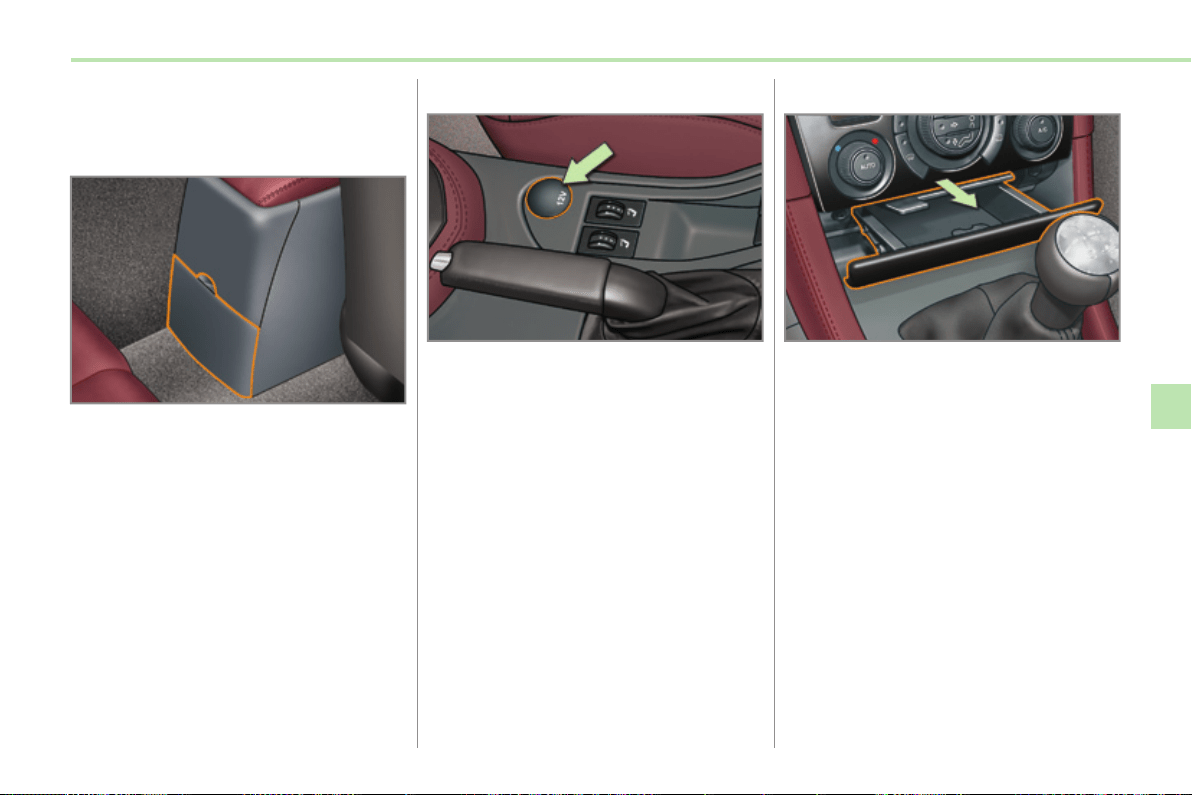

STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.
To empty the box, after opening,
press the tab and remove it.
12 V ACCESSORY SOCKET
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
ILLUMINATED ASHTRAY
Pull the drawer for access to the
ashtray.
To empty the ashtray, after opening,
press the tab and remove the ashtray.
6
!
90
FITTINGS
To avoid any risk of jamming of the
pedals:
- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must
be used,
- never fi t one mat on top of an-
other.
The use of mats not approved by
PEUGEOT may interfere with ac-
cess to the pedals and hinder the
operation of the cruise control /
speed limiter.
The mats approved by PEUGEOT
have two fi xings located below the
seat.

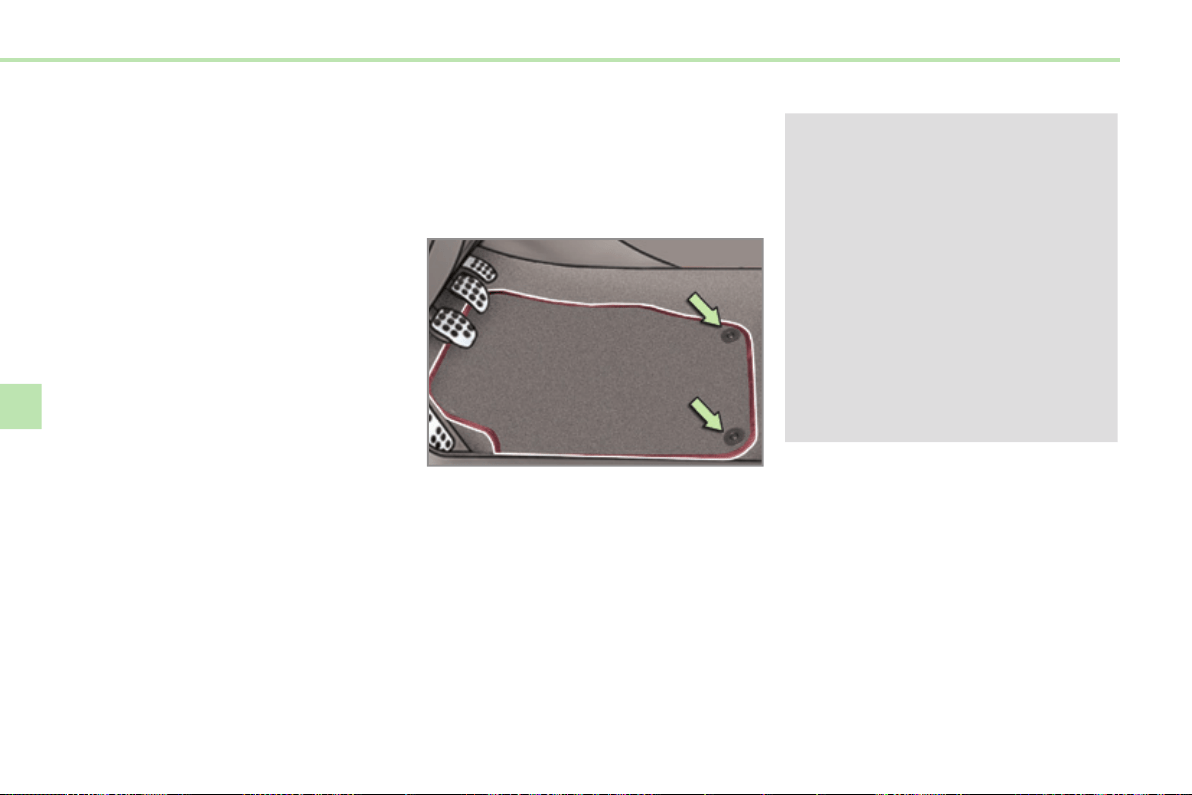

MATS
Removable carpet protection.
Refitting
To refi t the mat on the driver's side:
position the mat correctly,
refi t the fi xings by pressing,
check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
unclip the fi xings,
remove the mat.
6
91
FITTINGS
BOOT FITTINGS
1. Stowing rings
2. Luggage retaining net
(see details on following page)
3. Boot screen
(see details on following page)
4. Storage net
5. Luggage retaining strap
6. Storage box (version fi tted with a
temporary tyre repair kit)
(see details on following page)
or
Tool box (version fi tted with a
standard spare wheel)
(refer to the "Practical information -
Changing a wheel" section)
6
i
92
FITTINGS

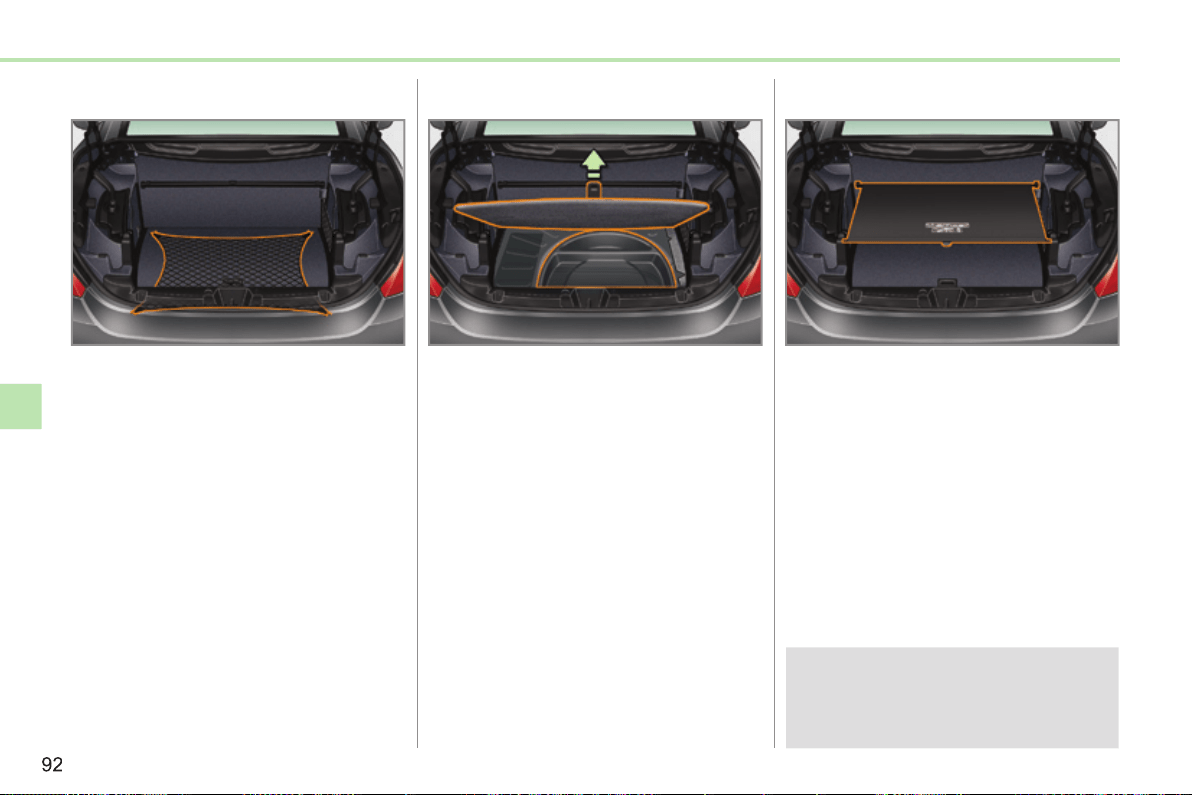

Hooked onto the stowing rings, this en-
ables you to secure your luggage.
Luggage retaining net
Raise the boot carpet to gain access
to the storage box.
Hook the boot carpet on the boot
seal using its handle.
This has areas for storing the windstop
and two warning triangles.
By removing this box you gain access
to the temporary tyre repair kit and the
vehicle tools.
Storage box Boot screen
In the "cabriolet" confi guration, this de-
fi nes the luggage space in the boot.
When the boot screen is unfolded,
check that the luggage:
- never raises it,
- is never placed on top of it.
The load space cover must always
be unfolded before a roof opening
manoeuvre is triggered (refer to
"Familiarisation - Opening" section).
7
i
i
93
SAFETY
DIRECTION INDICATORS
If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Left: lower the lighting stalk passing
the point of resistance.
Right: raise the lighting stalk passing
the point of resistance.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- overtaking a cyclist or pedes-
trian,
- when approaching an area
where there is no visibility.
Audible warning to alert other road us-
ers to an imminent danger.
7
!
i
!
94
SAFETY

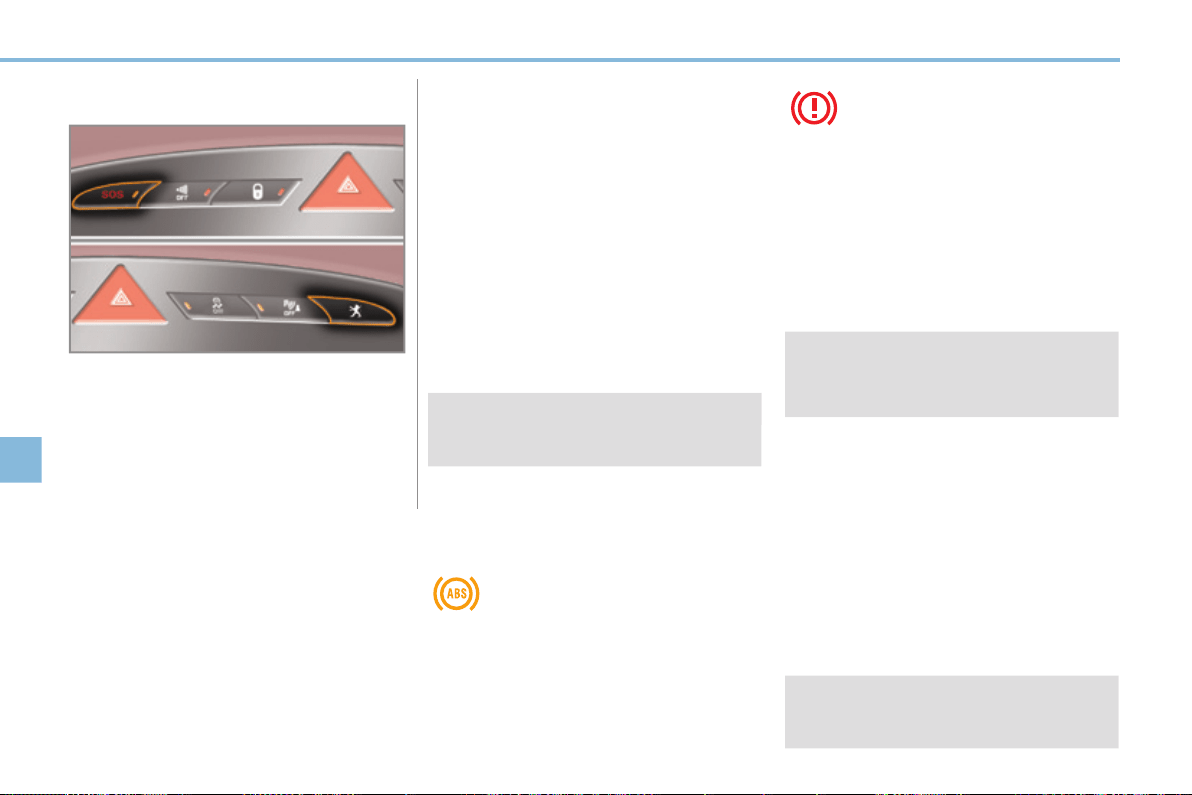

BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution
(EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.
When braking in an emergency,
press very fi rmly without releasing
the pressure.
When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions.
Operating fault
If this warning lamp comes on,
accompanied by an audible
signal and a message in the
screen, it indicates a malfunc-
tion of the anti-lock braking system
which could result in loss of control of
the vehicle when braking.
If this warning lamp comes on,
together with the STOP and
ABS warning lamps, accompa-
nied by an audible signal and
a message in the screen, it indicates a
malfunction of the electronic brake force
distribution which could result in loss of
control of the vehicle when braking.
Emergency braking assistance
System which, in an emergency, en-
ables you to obtain the optimum braking
pressure more quickly, thus reducing the
stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
When braking in an emergency,
press fi rmly without releasing the
pressure.
You must stop as soon as it is safe
to do so.
In either case, contact a PEUGEOT
dealer or a qualifi ed workshop.
EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio equipment
and telematics" section.
7
!
95
SAFETY
The ASR/DSC systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations on:
- wheels (tyres and rims),
- braking components,
- electronic components,
- repair and assembly proce-
dures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer or a qualifi ed workshop.
Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground, ...), it may be ad-
visable to deactivate the ASR and DSC
systems, so that the wheels can move
freely and regain grip.

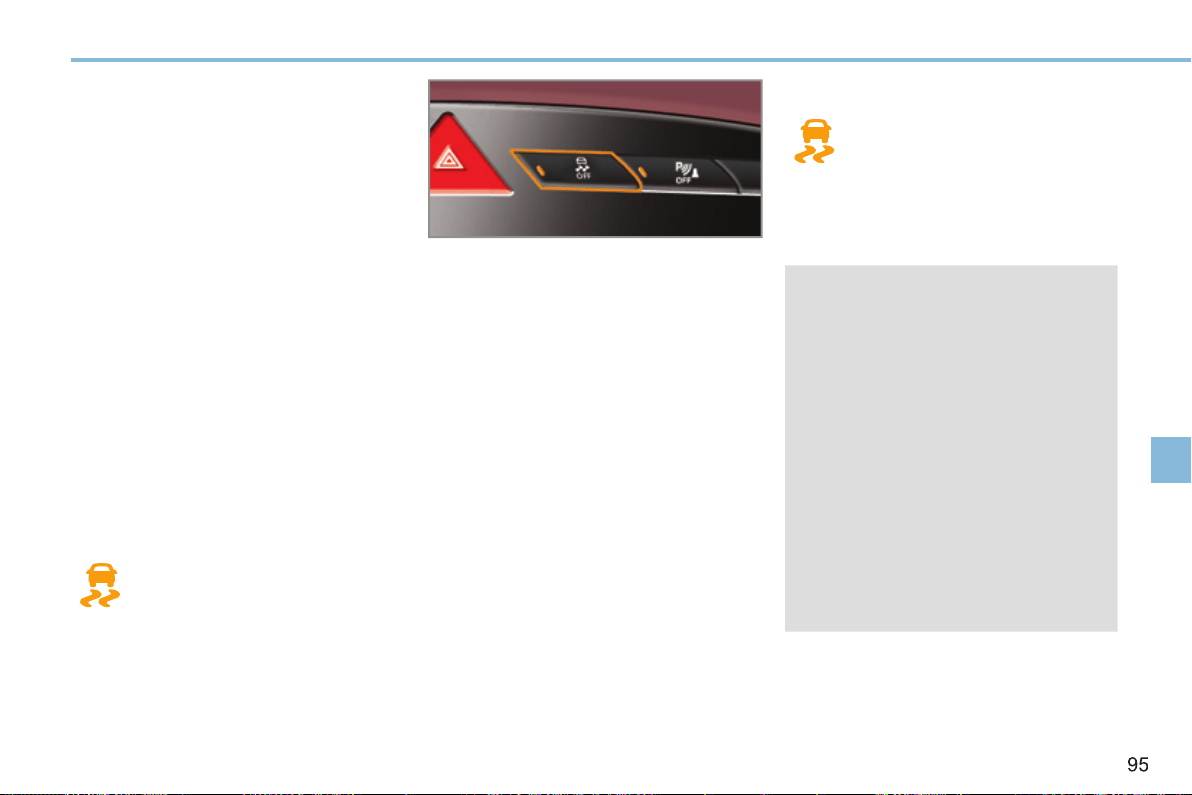

Press this button, located in the mid-
dle of the dashboard.
Illumination of the indicator lamp in the
button indicates that the ASR and DSC
systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).
Press this button again to reactivate
them manually.
Operating fault
If this warning lamp comes on,
accompanied by an audible
signal and a message in the
screen, this indicates a mal-
function of these systems.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
TRAJECTORY CONTROL
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
Anti-slip regulation (ASR) and
dynamic stability control (DSC)
They come into operation in the event
of a grip or trajectory problem.
This is indicated by fl ashing of
this warning lamp in the instru-
ment panel.
The anti-slip regulation (also known as
traction control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability control acts on
the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
7
!
96
SAFETY
ROLL-OVER BARS
System which protects all of the oc-
cupants restrained by their seat belt
should the vehicle roll over.
The roll-over bars are incorporated in
the back of the rear bench seat. Their
presence is indicated by the words
"Rollover Protection".
Activation
They are triggered simultaneously
should the vehicle roll over.
Operating fault
If this warning lamp comes on on
the instrument panel, accompanied
by an audible signal and a message
in the screen, contact a PEUGEOT
dealer or a qualifi ed workshop to
have the system checked.
In order to ensure the correct opera-
tion and the deployment of the roll-over
bars if roll-over is detected, the follow-
ing conditions must be complied with:
- no accessory which is not recom-
mended by PEUGEOT should
be in contact with or fi xed to the
roll-over bars,
- no object should block or stop the
movement of the roll-over bars,
- the area above the roll-over bars
should be clear of any objects.
7
97
SAFETY

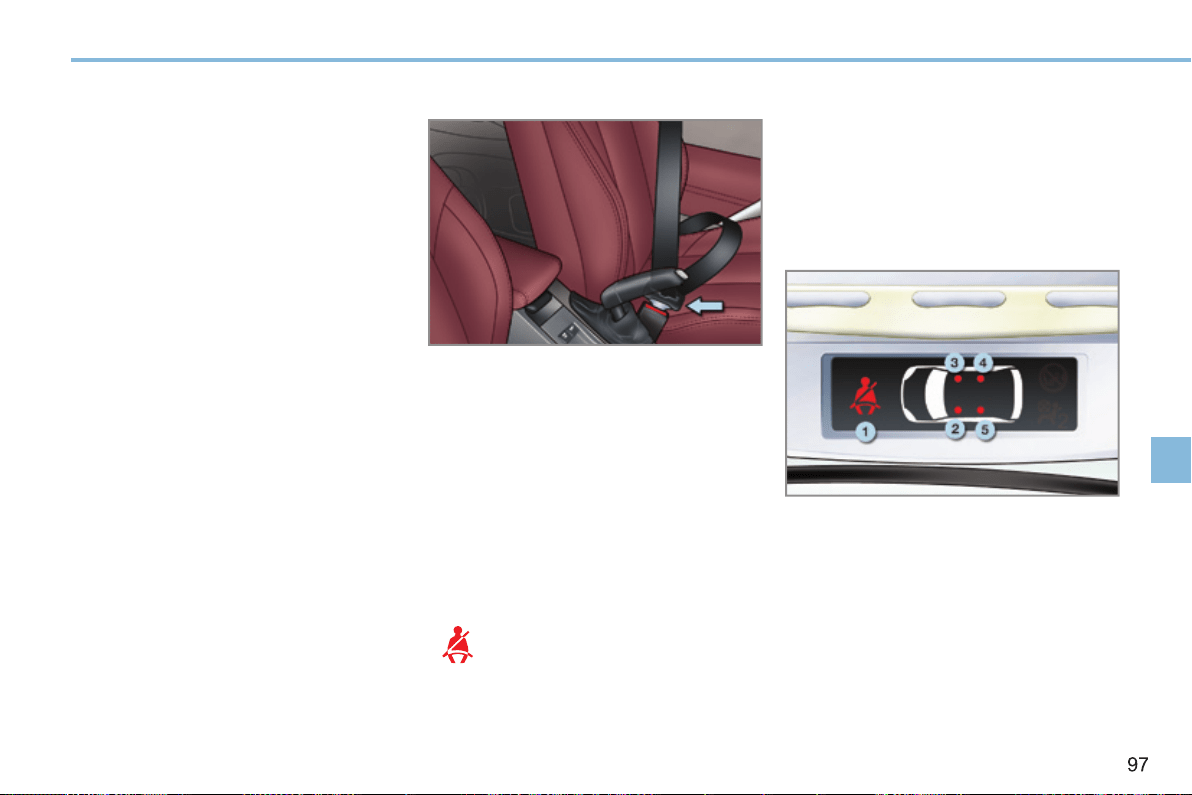

SEAT BELTS
Front seat belts
Seat belt not fastened / unfastened
warning
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
When the ignition is switched
on, this warning lamp comes
on in the seat belt and passen-
ger's front airbag warning lamp
display, if the driver and/or the
front passenger has not fas-
tened their seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
1. Front and/or rear seat belts not fas-
tened / unfastened warning lamp.
2. Front left seat belt warning lamp.
3. Front right seat belt warning lamp.
4. Rear right seat belt warning lamp.
5. Rear left seat belt warning lamp.
Seat belt not fastened / unfastened
warning lamps display
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two min-
utes accompanied by an audible signal
of increasing volume. Once these two
minutes have elapsed, this warning
lamp remains on until the driver and/or
the front passenger fastens their seat
belt.
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure of
the seat belt on the chest of the occupant,
so improving their protection.
7
i
98
SAFETY
Rear seat belts
The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter.
Fastening
Remove the strap from the guide A
before use.
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or the vehicle mov-
ing at a speed below approximately
12 mph (20 km/h), the corresponding
warning lamps 4 and 5 come on in red
for approximately 30 seconds, if the
seat belt is not fastened.
When the vehicle is moving at a speed
of more than approximately 12 mph
(20 km/h), the corresponding warn-
ing lamp 4 or 5 comes on in red, ac-
companied by an audible signal and a
message on the multifunction screen, if
a rear passenger has unfastened their
seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
Seat belt unfastened warning
This warning lamp comes on in the seat
belt and passenger's front airbag warn-
ing lamps display, when one or more
rear passengers unfasten their seat
belt.
In the "cabriolet" confi guration, if
the rear seats are not occupied,
slide the straps in the guides A to
prevent fl uttering of the rear seat
belts (leather seats only).
From approximately 12 mph
(20 km/h), this warning lamp
fl ashes for two minutes ac-
companied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the one or more
rear passengers fasten their seat belt.
7
i
99
SAFETY
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not interchange the seat belt buck-
les as they will not fulfi l their role fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a collision,
emergency braking or if the vehicle rolls
over. You can release the device by
pulling fi rmly on the strap and releasing
it so that it reels in slightly.
In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a
smooth movement, checking that
it does not twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety
regulations, for all repairs on your
vehicle, go to a qualifi ed workshop
with the skills and equipment needed,
which a PEUGEOT dealer is able to
provide.
Have your seat belts checked regu-
larly by a PEUGEOT dealer or a
qualifi ed workshop, particularly if the
straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly.
Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
In the event of an impact
Depending on the nature and serious-
ness of the impact , the pretensioning
device may be deployed before and in-
dependently of the airbags. Deployment
of the pretensioners is accompanied by
a slight discharge of harmless smoke
and a noise, due to the activation of the
pyrotechnic cartridge incorporated in the
system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer
or a qualifi ed workshop.
7
i
!
100
SAFETY
AIRBAGS
The airbags have been designed to
maximise the safety of the occupants in
the event of violent collisions. They sup-
plement the action of the force-limiting
seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:
- in the event of a serious impact,
the airbags are deployed instanta-
neously and contribute towards pro-
tecting the occupants of the vehicle;
immediately after the impact, the
airbags defl ate rapidly so that they
do not hinder the visibility of the oc-
cupants or their possible exit from
the vehicle,
- in the event of a minor impact or
rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone con-
tributes towards providing your pro-
tection in these situations.
The deployment of one or more
airbags is accompanied by a slight
discharge of smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but sen-
sitive individuals may experience
some irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
Front airbags
Deployment
The airbags are deployed, except the pas-
senger's front airbag it it has been deacti-
vated, in the event of a serious front impact
to all or part of the front impact zone A , in
the longitudinal centreline of the vehicle on
a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the tho-
rax and head of the front occupant of the
vehicle and the steering wheel, driver's
side, and the dashboard, passenger's side
to cushion their forward movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags do not operate when
the ignition is off.
This equipment only operates once.
If a second impact occurs (during
the same or a subsequent acci-
dent), the airbag will not operate.
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.
7
!
101
SAFETY
Operating fault
If this warning lamp comes on
or fl ash, accompanied by an
audible warning and a mes-
sage in the screen, contact a
PEUGEOT dealer or a qualifi ed work-
shop to have the system checked. The
airbags may no longer be deployed in
the event of a serious impact.
Reactivation
When you remove the child seat, with
the ignition off, turn the control switch
to the "ON" position to reactivate the
airbag and so assure the safety of your
front passenger in the event of an im-
pact.
On switching the ignition on,
this warning lamp comes on in
the seat belt and passenger's
front airbag warning lamps dis-
play for approximately one minute, so
as to signal the activation of the pas-
senger's front airbag.
To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rearward facing" child seat on the
front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were deployed.
On switching on the ignition this
warning lamp comes on in the
seat belt and passenger's front
airbag warning lamps display. It
stays on until the airbag is re-
activated.
Deactivation
Only the passenger's front airbag can
be deactivated.
With the ignition off , insert the key
in the passenger airbag deactivation
switch.
Turn it to the "OFF" position.
Then, remove the key keeping the
switch in the new position.
7
i
102
SAFETY
Lateral airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the pelvis, chest and head.
The lateral airbags are fi tted on the door
side:
- in the front seat back frame (chest-
pelvis airbag),
-
in the front head restraint (head airbag).
Deployment
The lateral airbags are deployed uni-
laterally in the event of a serious side
impact applied to all or part of the side
impact zone B , perpendicular to the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
outside towards the inside of the vehicle.
The lateral airbags infl ate between the
front occupant of the vehicle and the
corresponding door trim panel.
Operating fault
Impact detection zones
A. Front impact zone.
B. Side impact zone.
If this warning lamp in the instru-
ment panel comes on, accompa-
nied by an audible signal and a
message in the screen, contact
a PEUGEOT dealer or a qualifi ed work-
shop to have the system checked. The
airbags may no longer be deployed in the
event of a serious impact.
In the event of a light impact or
bump to the side of the vehicle of
if the vehicle rolls over, the airbags
may not be deployed.
In the event of a rear or front colli-
sion, the airbags are not deployed.
7
!
103
SAFETY
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system must be
carried out by a PEUGEOT dealer or
a qualifi ed workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when
an airbag is deployed cannot be ruled
out. The bag infl ates almost instantly
(within a few milliseconds) then defl ates
within the same time discharging the
hot gas via openings provided for this
purpose.
Front airbags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cause burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Lateral airbags
Fit only approved covers on the seats, compatible with deployment of the lateral
airbags. For information on the range of seat covers suitable for your vehicle,
contact a PEUGEOT dealer (see "Practical information - Accessories").
Do not fi x or attach anything to the seat backs. This could cause injury to the
chest or arms if the lateral airbag is deployed.
Do not fi x or attach anything to the front head restraints (articles of clothing...).
This could cause injury to the head if the lateral airbag is deployed.
Do not sit with the upper part of the body any nearer to the door than necessary.
7
i
104
SAFETY
GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European regu-
lations, all children under the age
of 12 or less than one and a half
metres tall must travel in ap-
proved child seats suited to their
weight , on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearward fac-
ing" position both in the front and
in the rear.
* The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country.
CHILD SEAT IN THE FRONT *
"Forward-facing" "Rearward-facing"
When a "rearward-facing" child seat is
installed on the front passenger seat ,
adjust the seat to the intermediate lon-
gitudinal and highest position, with the
backrest straightened.
The passenger airbag must be deacti-
vated. Otherwise, the child would risk
being seriously injured or killed if the
airbag were to infl ate .
When a "forward-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal and highest position
with seat backrest straightened and
leave the passenger's airbag activated.
* Refer to the current legislation in your
country before installing a child seat
on this seat.
Ensure that the seat belt is correct-
ly tensioned.
For child seats with a support leg,
ensure that the support leg is in
stable contact with the fl oor. If nec-
essary, adjust the passenger seat.
Passenger seat adjusted to the inter-
mediate longitudinal position.
7
!
i
105
SAFETY
Passenger airbag OFF
Never install a rearward facing
child restraint system on a seat
protected by an active front airbag.
This could cause the death of the
child or serious injury.
DEACTIVATING THE
PASSENGER'S FRONT AIRBAG
The warning label present on both sides
of the passenger's sun visor repeats
this advice. In line with current legisla-
tion, the following tables contain this
warning in all of the languages required.
For information on deactivating the
passenger's front airbag, refer to
the "Airbags" section.
7
AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това можеда причини СМЪРТ
или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CS
NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DA
Brug aldrig en bagudvendt barnestol på et sæde der er beskyttet af en aktiv airbag. Død eller alvorlig skade på barnet kan forekomme.
DE
Verwenden Sie NIEMALS einen Kindersitz oder Babyschale gegen die Fahrtrichtung bei AKTIVIERTEM Airbag, TOD oder ERNSTHAFTE
VERLETZUNGEN können die Folge sein.
EL
Μη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
EN
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD
can occur
ES
NO INSTALAR NUNCA EL SISTEMA DE RETENCIÓN PARA NIÑOS DE ESPALDAS AL SENTIDO DE LA CIRCULACIÓN SOBRE UN ASIENTO
PROTEGIDO CON UN COJÍN INFLABLE FRONTAL ( AIRBAG ) ACTIVADO. ESTO PUEDE CAUSAR LA MUERTE DEL BEBE O HERIRLO
GRAVEMENTE.
ET
Ärge kasutage kunagi lapse turvatooli seljaga sõidusuunas sõiduki istmel mis on kaitstud AKTIVEERITUD TURVAPADJAGA. See võib põhjustada
lapsele RASKEID VIGASTUSI või SURMA.
FI
ÄLÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVATYYNY. Sen laukeam-
inen voi aiheuttaa LAPSEN KUOLEMAN tai VAKAVAN LOUKKAANTUMISEN.
FR
NE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE frontal
ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GRAVEMENT
HR
NIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi moglo
uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HU
SOHA ne használjon menetiránynak háttal beszerelt gyermekülést olyan ülésen, amely AKTIVÁLT ÁLLAPOTÚ (BEKAPCSOLT)
FRONTLÉGZSÁKKAL van védve. Ez a gyermek halálát vagy súlyos sérülését okozhatja.
IT
NON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale ATTIVATO.
Ciò potrebbe provocare la MORTE o FERITE GRAVI al bambino.
LT
NIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO PAGALVĖS.
Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TRAUMUOTAS.
LV
NAV PIEĻAUJAMS uzstādīt uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera vietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
106
SAFETY
7
MT
Qatt m’ghandek thalli tifel/tifl a marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifl a
NL
Plaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de airbag
kan het KIND ERNSTIG OF DODELIJK GEWOND raken.
NO
Installer ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE, BARNET
risikerer å bli DREPT eller HARDT SKADET.
PL
NIGDY nie instalować fotelika dziecięcego w pozycji «tyłem do kierunku jazdy»na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKTYWNYM.W przeciwnym razie dziecko narażone będzie na ŚMIERĆ lub BARDZO POWAŻNE OBRAŻENIA CIAŁA w
momenicie wyzwolenia poduszki powietrznej
PT
NUNCA instale um sistema de retenção para crianças de costas para a estrada, num banco protegido por um AIRBAG frontal ACTIVADO. Esta
instalação poderá provocar FERIMENTOS GRAVES ou a MORTE da CRIANÇA.
RO
Nu instalati NICIODATA un sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAG frontal
ACTIVAT. Aceasta ar putea provoca MOARTEA COPILULUI sau RANIREA lui GRAVA.
RU
ВО ВСЕХ СЛУЧАЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье, защищенном
ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНКА или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ
SK
NIKDY nepoužívajte na prednom sedadle chránenom AKTÍVNYM AIRBAGOM detské zadržiavacie zariadenie umiestnené v proti smere jazdy.
Môže to spôsobiť SMRŤ, alebo VÁŽNE ZRANENIE DIEŤAŤA.
SL
NIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLAZINA pred sprednjim sopotnikovim sedežem
AKTIVIRANA. Takšna namestitev lahko povzroči SMRT OTROKA ali HUDE POŠKODBE.
SR
NIKADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VAZDUŠNIM JASTUKOM ispred njega, jer mogu nas-
tupiti SMRT ili OZBILJNA POVREDA DETETA.
SV
Använd ALDRIG en bakåtvänd barnstol i ett säte skyddat av en AKTIV AIRBAG framför det. Det kan orsaka ALLVARLIGA eller DÖDLIGA skador
på barnet.
TR
KESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya ÇOK
AĞIR YARALANMASINA sebep olabilir.
107
SAFETY
7
108
SAFETY
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt .
Group 0+: from birth to 13 kg Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-Safe
Plus"
Installed in the rearward
facing position.
L2
"KIDDY Comfort Pro"
The impact shield must
be used for carrying
young children
(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
"KLIPPAN Optima"
From approxmately 6 years (from 22 kg),
the booster is used on its own.
L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.
7
109
SAFETY

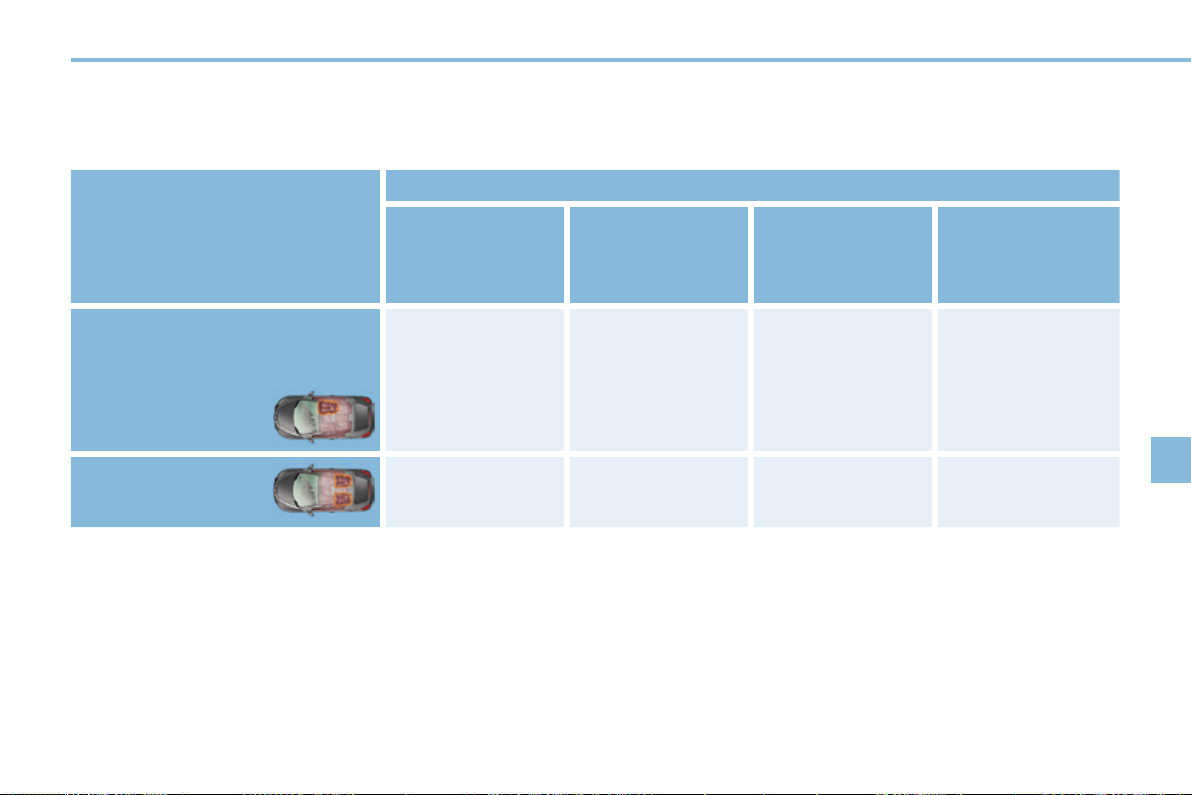

LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car" cots cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
(d) To install a child seat, move the front seat forward, then put the seat back in the upright position to leave enough space for
the child seat and the child's legs. The front seat can be moved further forward than the intermediate longitudinal position.
U : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rearward facing" and/
or "forward facing".
U(R1) : same as to U , with the vehicle's seat adjusted to its middle longitudinal position.
U(R2) : same as U , with the vehicle's seat adjusted to its highest position.
Seat
Weight of the child /indicative age
Less than 13 kg
(groups 0 (b)
and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years
approx
From 15 to 25 kg
(group 2)
From 3 to 6 years
approx
From 22 to 36 kg
(group 3)
From 6 to 10 years
approx
Front passenger seat (c)
- fi x e d
- height adjustable
U(R1)
U(R2)
U(R1)
U(R2)
U(R1)
U(R2)
U(R1)
U(R2)
Outer rear
seats (d)
U U U U
7
!
i
110
SAFETY

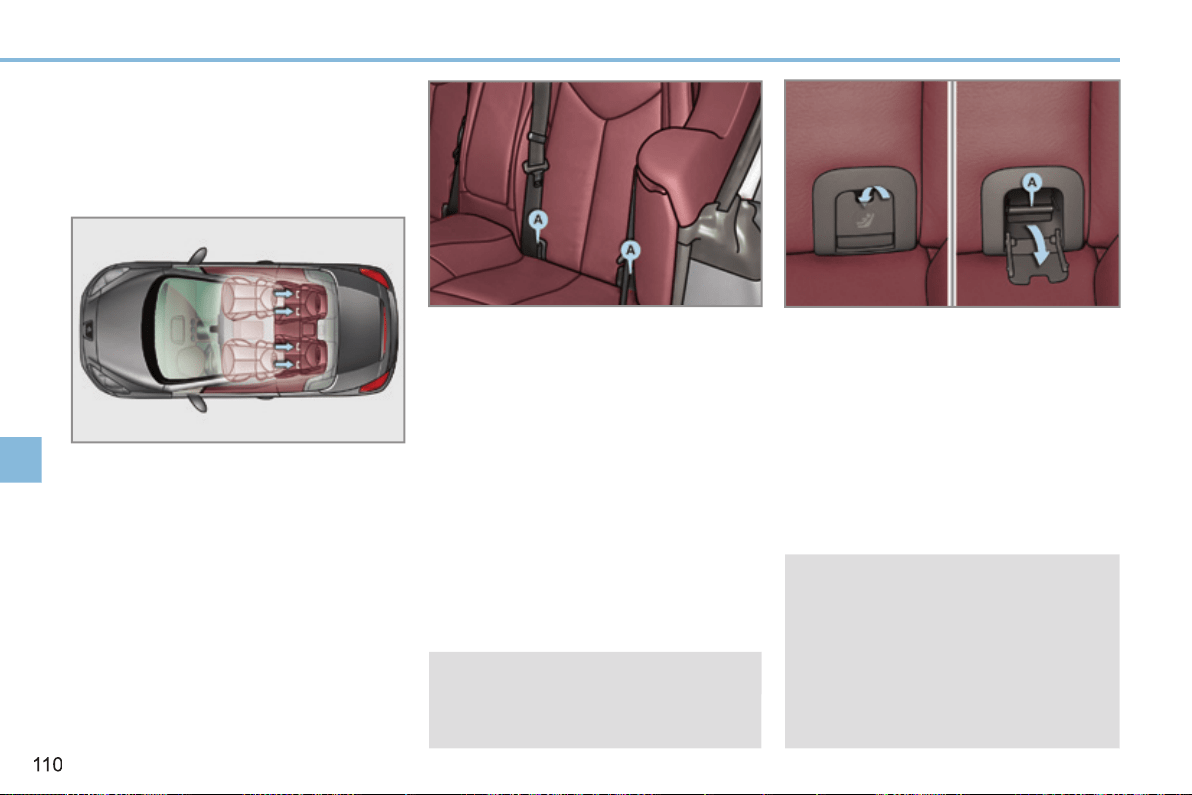

"ISOFIX" MOUNTINGS
Your vehicle has been approved to the
latest ISOFIX regulations .
The seats represented below are fi tted
with these regulation ISOFIX mountings:
These are two rings A for each seat, lo-
cated between the seat back and seat
cushion of the vehicle's seat, indicated
by a label.
The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of a collision.
Observe in full the fi tting instruc-
tions in the installation handbook
provided with the child seat.
For installing ISOFIX child seats
in your vehicle, refer to the table
showing the locations for fi tting
ISOFIX child seats.
These rings are located behind covers.
For access to them:
insert the ignition key in the cut-out
in the cover,
pull it forwards to unclip it and then
fold it down.
This ISOFIX mounting system provides
reliable, safe and fast fi tting of the child
seat in your vehicle.
The ISOFIX child seats are fi tted with
two latches which are secured easily on
these rings A .
7
i
111
SAFETY

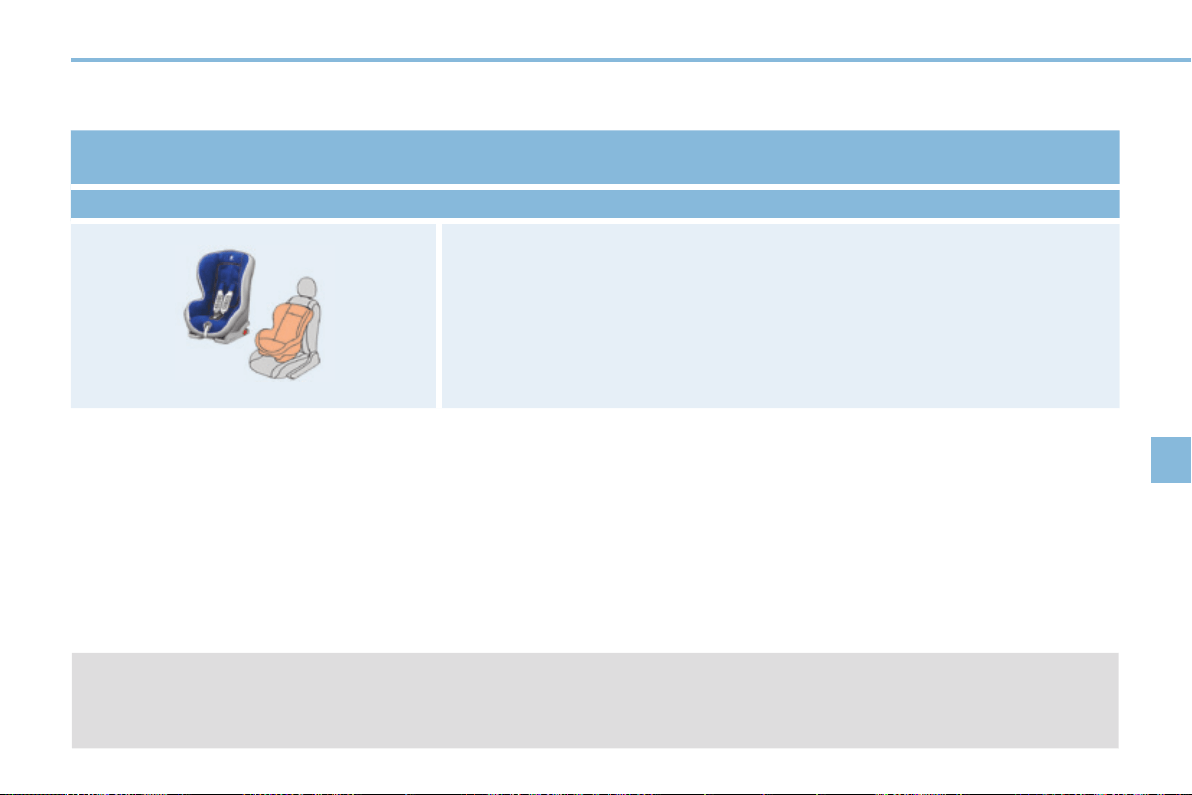

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi tted with ISOFIX mountings.
In this case, it is essential that it is secured to the vehicle's seat by means of the seat belt.
Adjust the vehicle's front seat so that the child's feet do not touch the seat back.
Follow the instructions for fi tting the child seat indicated in the seat manufacturer's installation guide.
"RÖMER Duo Plus ISOFIX"
(size category B1 )
Group 1: from 9 to 18 kg
Installed in the "forward facing" position only.
Attached to the rings A without the upper strap.
Three child seat body angles: sitting, reclining and lying positions.
7
112
SAFETY
LOCATIONS FOR FITTING ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.
IL-SU: seat suitable for the installation of an I sofi x S emi- U niversal seat either:
- "rearward facing" fi tted with a support leg,
- "forward facing" fi tted with a support leg.
IL1: seat adapted for the installation of a "RÖMER Duo Plus ISOFIX" child seat, approved specifi cally for your vehicle. In this
vehicle, the ISOFIX child seat is used without a top tether.
X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child / indicative age
Less than 10 kg
(group 0)
Up to approx.
6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Infant car seat * " rearward facing" " rearward facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
ISOFIX universal and semi-
universal child seats which
can be installed on the outer
rear seats
X X IL-SU X IL-SU
IL-SU
IL1
* Infant car seats and "car" cots cannot be installed on the front passenger seat.
7
!
113
SAFETY
ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the vehicle's seat.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum , even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is as close
as possible to the backrest of the vehi-
cle's seat, even in contact if possible.
Children at the front
The legislation on carrying children on
a front passenger seat is specifi c to
each country. Refer to the legislation
in force in your country.
Deactivate the passenger airbag
when a "rearward facing" child seat is
installed on the front seat. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
infl ate.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
Installation of a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
Do not use the passenger's "AIRWAVE"
system if a child seat is installed on the
front seat.
8
!
i
!
114
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and en-
gage a gear.

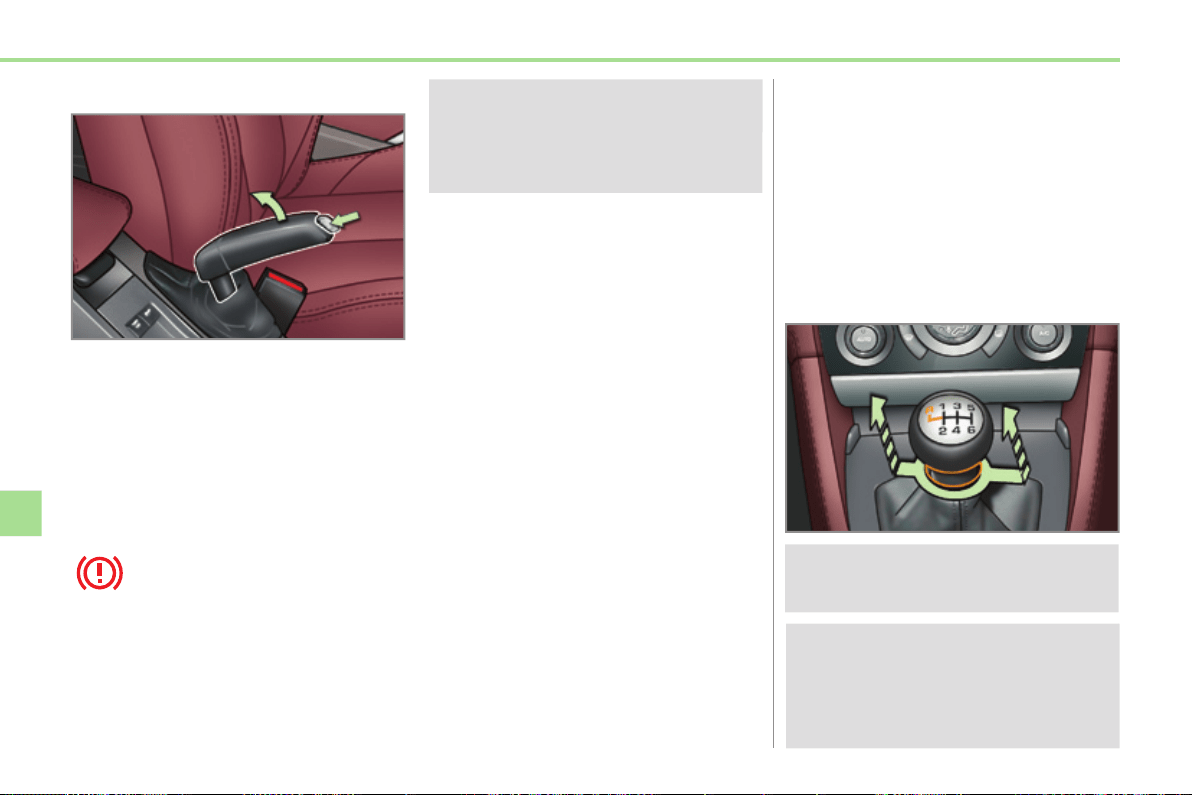

PARKING BRAKE
Applying
Pull the parking brake lever fully up
to immobilise your vehicle.
When the vehicle is being driv-
en, if this warning lamp and the
STOP warning lamp come on,
accompanied by an audible sig-
nal and a message on the multifunction
screen, this indicates that the parking
brake is still on or has not been properly
released.
Releasing
Pull the parking brake lever gently,
press the release button then lower
the lever fully.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear
Raise the ring under the knob and
move the gear lever to the left then
forwards.
Engaging 5 th or 6 th gear
Move the lever fully to the right to
engage 5 th or 6 th gear.
8
i
i
i
115
DRIVING

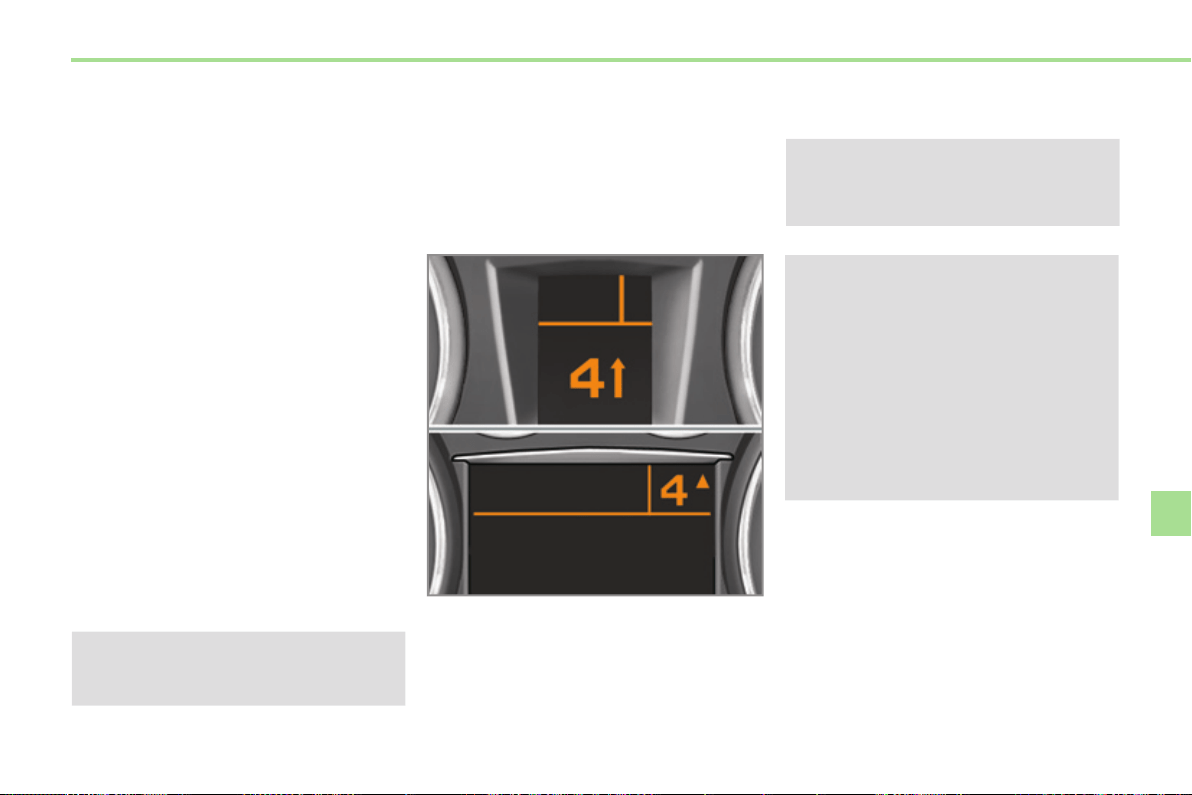

GEAR SHIFT INDICATOR
System which reduces fuel consump-
tion by advising the driver to change up.
Operation
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one (or more)
gear(s). You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
ry. In fact, the confi guration of the road,
the amount of traffi c and safety remain
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
The information appears in the instru-
ment panel in the form of an arrow.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power, ac-
celeration, braking, ...).
The system never suggests:
- engaging fi rst gear,
- engaging reverse gear,
- engaging a lower gear.
Example:
- You are in third gear.
- You press the accelerator pedal.
- The system may suggest that you
engage a higher gear.
With an automatic gearbox, the
system is only active in manual
mode.
On vehicle fi tted with a manual
gearbox, the arrow may be ac-
companied by the gear recom-
mended.
8
116
DRIVING
"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX
Six speed automatic gearbox which of-
fers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
There are two driving modes:
- automatic operation for electronic
management of the gears by the
gearbox, with the sport programme
for a more dynamic driving style or
the snow programme to facilitate
driving when grip is poor.
- manual operation for sequential
changing of the gears by the driver.
Gear lever positions
P. Park.
- Immobilisation of the vehicle, park-
ing brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle sta-
tionary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, park-
ing brake on.
- Starting the engine.
D. Automatic operation.
M. + / - Manual operation with sequen-
tial changing of the six gears.
Press forwards to change up
through the gears.
or
Press rearwards to change down
through the gears.
Displays in the instrument panel
When you move the lever in the gate
to select a position, the corresponding
symbol is displayed in the instrument
panel.
P. Park
R. Reverse
N. Neutral
D1... D6. Drive (Automatic driving)
S. Sport programme
. Snow programme
M1... M6. Manual (Sequential driving)
-. Invalid value during manual operation
Gear selection gate
1. Gear lever.
2. Button "S" (sport) .
3. Button " " (snow) .
8
!
!
i
i
117
DRIVING
Moving off
Apply the parking brake.
Select position P or N .
Start the engine.
If this procedure is not followed, there
is an audible signal, accompanied by a
message in the screen.
With the engine running, press the
brake pedal.
Release the parking brake.
Select position R , D or M ,
Gradually release the brake pedal.
The vehicle then moves off.
If position N is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D to accelerate.
When the engine is running at idle,
with the brakes released, if posi-
tion R , D or M is selected, the vehicle
moves even without the accelerator
being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the park-
ing brake and select position P .
A message is displayed if you try
to move the gear lever from posi-
tion P without pressing the brake
pedal.
Automatic operation
Select position D for automatic
changing of the six gears.
The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
D and the gears selected automatically
appear in succession in the instrument
panel.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Never select position N while the
vehicle is moving.
Never select positions P or R un-
less the vehicle is completely sta-
tionary.
Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.
Sport programme "S"
Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
S appears in the instrument
panel.
Snow programme " "
Press button " ", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
appears in the instrument
panel.
8
PRND
!
i
118
DRIVING
Return to automatic operation
At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.
Manual operation
Select position M for sequential
changing of the six gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
M and the gears engaged
manually appear in succes-
sion in the instrument panel.
If the engine speed is too low or too
high, the gear selected fl ashes for a few
seconds, then the actual gear engaged
is displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle.
Operating fault
There is a risk of damage to the
gearbox:
- if you press the accelerator and
brake pedals at the same time,
- if you force the lever from posi-
tion P to another position when
the battery is fl at.
To reduce fuel consumption during
a long period stationary with the
engine running (traffi c jam, etc.),
place the gear lever in position N
and apply the parking brake.
If the lever is not in position P ,
when the driver's door is opened
or approximately 45 seconds after
the ignition is switched off, there is
an audible signal is heard accom-
panied by a message.
Return the lever to position P ;
the audible signal stops and the
message disappears.
When the ignition is on, the il-
lumination of this warning lamp,
accompanied by an audible
signal and a message in the
screen, indicates a gearbox malfunction.
In this case, the gearbox switches
to emergency mode and is locked in
3rd gear. You may feel a substantial
knock when changing from P to R and
from N to R . This will not cause any
damage to the gearbox.
Do not exceed a speed of 60 mph
(100 km/h), local speed restrictions per-
mitting.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
This warning lamp may also come on if
a door is opened.
8
!
i
i
119
DRIVING
STOP & START
The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, etc...). The engine
restarts automatically - START mode -
as soon as you want to move off. The
restart takes place instantly, quickly and
silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption, ex-
haust emissions and the noise level
when stationary.
Operation
Going into engine STOP mode
The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby:
- with a manual gearbox , at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
If your vehicle is fi tted with
it, a time counter calculates
the sum of the periods in
STOP mode during a jour-
ney. It rests itself to zero ev-
ery time the ignition is switched on with
the key.
For your comfort when parking,
STOP mode is not available for a
few seconds after coming out of
reverse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for ex-
ample.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,
- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,
- demisting is active,
- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO" warning lamp fl ash-
es for a few seconds, then goes
off.
This operation is perfectly normal.
In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.
8
i
i
!
120
DRIVING
Going into engine START mode
The "ECO" warning lamp goes
off and the engine starts:
- with a manual gearbox , when you
fully depress the clutch pedal.
Special cases: START invoked
automatically
For your safety and comfort, START
mode is invoked automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox,
- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO" warning lamp fl ash-
es, then goes off.
This operation is perfectly normal.
Deactivation
If the system has been deactivated
in STOP mode, the engine restarts
immediately.
At any time, press the "ECO
OFF" switch to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message in the screen.
Reactivation
Press the "ECO OFF" switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp go-
ing off, accompanied by a message in
the screen.
The system is reactivated auto-
matically at every new start using
the key.
With a manual gearbox in STOP
mode, if a gear is engaged without
fully depressing the clutch pedal, a
message is displayed asking you
to depress the clutch pedal to re-
start the engine.
8
!
!
121
DRIVING

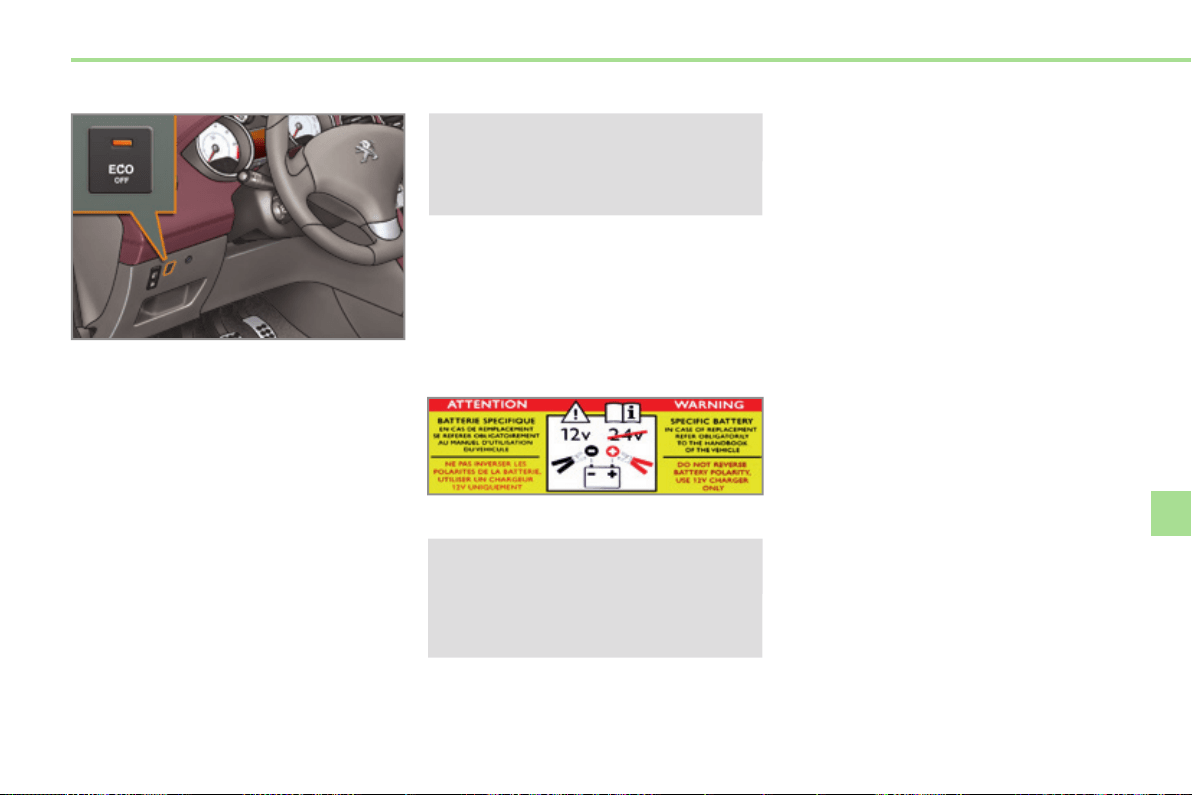

Operating fault
In the event of a malfunction with the
system, the "ECO OFF" switch warning
lamp fl ashes, then comes on continu-
ously.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then neces-
sary to switch off the ignition and start
the engine again using the key.
Maintenance
Before working under the bonnet,
deactivate the Stop & Start system
to avoid any risk of injury result-
ing from automatic operation of
START mode.
This system requires a battery with a
special specifi cation and technology
(reference numbers available from a
PEUGEOT dealer or a qualifi ed work-
shop).
Fitting a battery not listed by
PEUGEOT introduces the risk of mal-
function of the system.
The Stop & Start system makes
use of advanced technology. All
work on this battery must be done
by a PEUGEOT dealer or a quali-
fi ed workshop.
8
i
i
!
!
122
DRIVING
TYRE UNDER-INFLATION
DETECTION
A pressure sensor is located in the
valve of a each of these tyres.
The system triggers an alert if a drop
in pressure is detected in one or more
tyres.
This system does not avoid the
need to check the tyre pressures
regularly and before a long journey.
Driving with under-infl ated tyres
adversely affects road holding,
extends braking distances and
causes premature tyre wear, par-
ticularly under arduous conditions
(vehicle loaded, high speed, long
journey).
System which automatically checks the
pressures of the tyres while driving.
The system continuously monitors the
pressures of the four tyres, as soon as
the vehicle is moving.
The tyre under-infl ation detection
system is an aid to driving which
does not replace the need for the
driver to be vigilant or to drive re-
sponsibly.
Driving with under-infl ated tyres in-
creases fuel consumption.
The tyre pressures for your vehicle
can be found on the tyre pressure
label (see the "Identifi cation mark-
ings" section).
The tyre pressures must be
checked when the tyres cold (vehi-
cle stopped for 1 hour or after driv-
ing for less then 6 miles (10 km) at
moderate speed). Otherwise, add
0.3 bar to the values indicated on
the label.
Spare wheel
Don't forget to also check the tyre
pressure of the spare wheel.
If your vehicle has an alloy spare
wheel, this also has a sensor.
If your vehicle has a steel spare
wheel, this may be fi tted with a
sensor * . Check whether a sensor
is fi tted to a steel wheel.
8
i
!
i
!
123
DRIVING
The alert is given by the fi xed il-
lumination of this warning lamp,
accompanied by an audible signal
and the display of a message.
Operating fault Under-inflation alert
The loss of pressure detected does
not always lead to visible deforma-
tion of the tyre. Do not rely on just
a visual check.
The alert is maintained until the
tyre or tyres concerned is reinfl at-
ed, repaired or replaced.
The fl ashing and then fi xed il-
lumination of this warning lamp
accompanied by the illumination
of the service warning lamp in-
dicates a fault with the system.
This alert is also displayed when
one or more wheels is not fi tted
with a sensor (steel spare wheel *
or other wheels fi tted with winter
tyres).
Go to a PEUGEOT dealer or a
qualifi ed workshop to have the
system checked or, following the
repair of a puncture, to have the
original wheel, equipped with a
sensor, refi tted.
In this case, monitoring of the tyre pres-
sures is not assured.
Reduce speed, avoid sudden steer-
ing movements or harsh brake ap-
plications.
Stop as soon as it is safe to do so.
In the event of a puncture, use the
temporary puncture repair kit or the
spare wheel (according to equip-
ment),
or
if you have a compressor, the one in
the temporary puncture repair kit for
example, check the four tyre pres-
sures when cold,
or
if it is not possible to check the tyre
pressures at the time, drive carefully
at reduced speed.
* Depending on version.
In the event of a problem on one of the
tyres, a symbol or a message is dis-
played, depending on equipment, to
identify it.
8
i
124
DRIVING
SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect.
The speed limiter is switched on man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator fi rmly.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched off.
The speed limiter cannot, in any cir-
cumstances, replace the need to re-
spect speed limits, nor can it replace
the need for vigilance and responsi-
bility on the part of the driver.
Steering mounted controls
The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection wheel
2. Value decrease button
3. Value increase button
4. Speed limiter on / off button
Displays in the instrument panel
The programmed information is grouped
together in the instrument panel screen.
5. Speed limiter on / off indication
6. Speed limiter mode selection indication
7. Programmed speed value
8
!
125
DRIVING
Programming
Turn wheel 1 to the "LIMIT" po-
sition: the speed limiter mode is
selected but is not switched on
(OFF / Pause).
You do not have to switch the speed
limiter on in order to set the speed.
Set the speed value by pressing button 2 or 3 (e.g.:
55 mph (90 km/h)).
You can then change the programmed speed using buttons 2
and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Switch the speed limiter on by pressing button 4 .
Switch the speed limiter off by pressing button 4 : the
display confi rms that it has been switched off (OFF /
Pause).
Switch the speed limiter back on by pressing button 4
again.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly past the point of resistance .
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the programmed speed.
Return to normal driving
Turn wheel 1 to the "0" position: the speed limiter mode
is deselected.
Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
On a steep descent or in the event
of sharp acceleration, the speed
limiter will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is posi-
tioned correctly,
- do not fi t one mat on top of an-
other.
8
i
126
DRIVING
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gagement of:
- fourth gear on a manual gearbox,
- second gear on an automatic gear-
box, in sequential driving mode,
- position D on an automatic gearbox.
The cruise control is switched off man-
ually or by pressing the brake or clutch
pedal or on triggering of the DSC/ASR
systems for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.

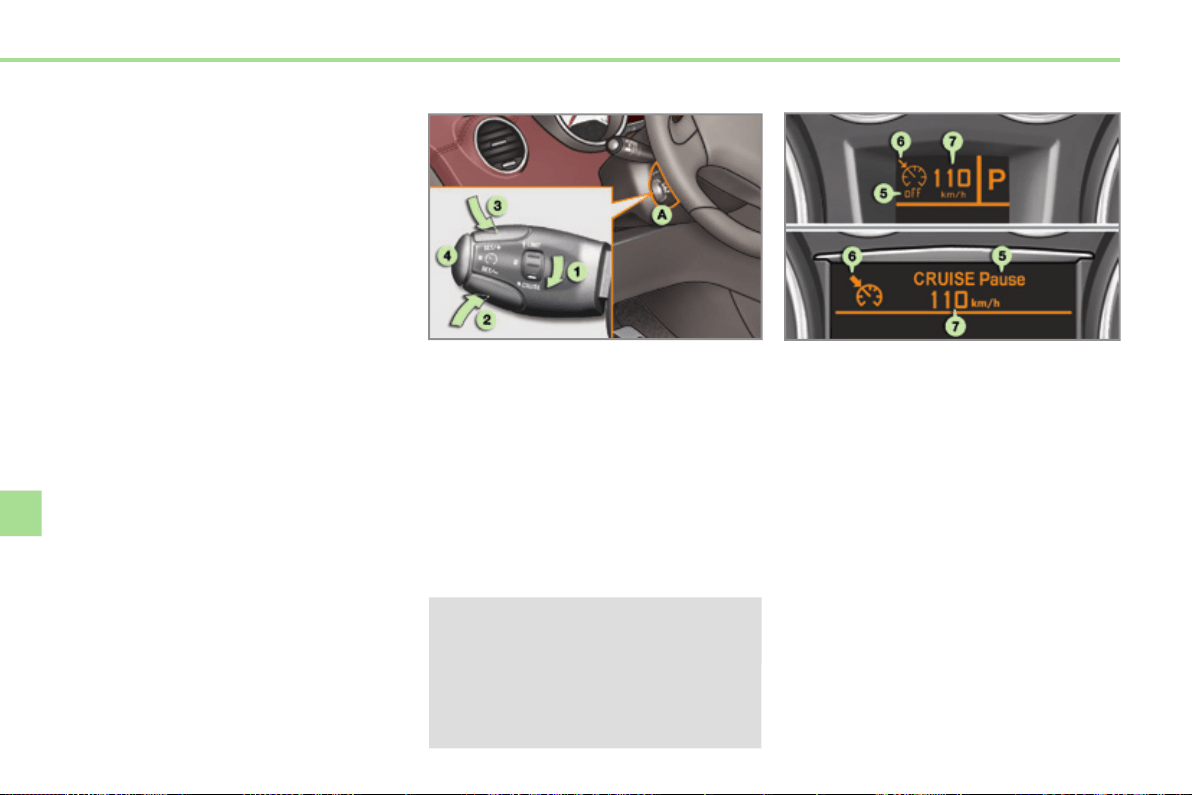

The controls of this system are grouped
together on lever A .
1. Cruise control mode selection wheel
2. Speed programming / decrease pro-
grammed value button
3. Speed programming / increase pro-
grammed value button
4. Cruise control off / resume button
The programmed information is grouped
together on the instrument panel screen.
5. Cruise control off / resume indica-
tion
6. Cruise control mode selection indi-
cation
7. Programmed speed value
Steering mounted controls Displays in the instrument panel
The cruise control cannot, in any
circumstances, replace the need to
respect speed limits, nor can it re-
place the need for vigilance and re-
sponsibility on the part of the driver.
You are advised to keep your feet
near the pedals at all times.
8
!
127
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is posi-
tioned correctly,
- never fi t one mat on top of an-
other.
Programming
Turn wheel 1 to the "CRUISE"
position: the cruise control mode
is selected but is not switched on
(OFF / Pause).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-
cels the fl ashing of the speed.
Return to normal driving
Turn wheel 1 to the "0" position: the cruise control mode
is deselected.
Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT or a
qualifi ed workshop.
Set the programmed speed by ac-
celerating to the required speed,
then press button 2 or 3 (e.g.:
70 mph (110 km/h)).
Switch off the cruise control by pressing button 4 : the dis-
play confi rms that it has been switched off (OFF / Pause).
Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using buttons 2
and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
8
!
128
DRIVING

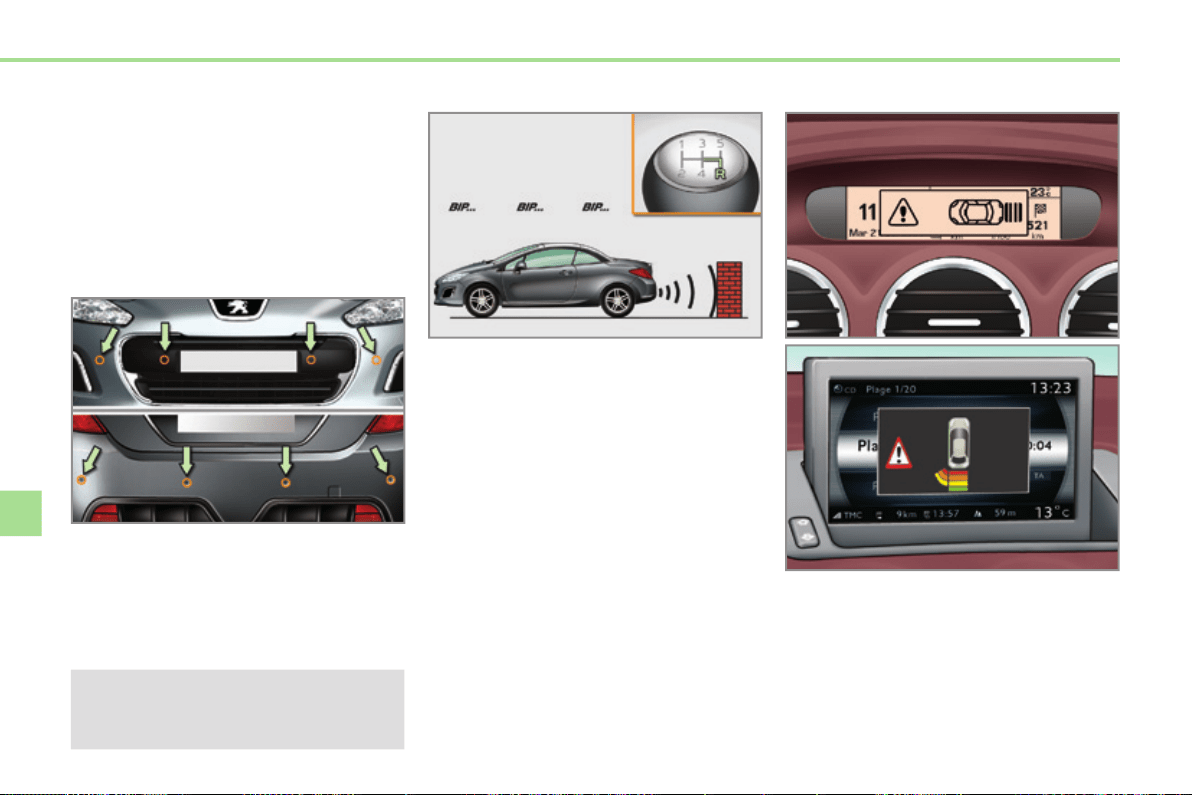

PARKING SENSORS
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate,
etc.) which comes within the fi eld of de-
tection of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots.
This function cannot, in any cir-
cumstances, take the place of the
vigilance and responsibility of the
driver.
Rear parking sensors
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequen-
cy of which increases as the vehicle ap-
proaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than ap-
proximately thirty centimetres, the audi-
ble signal becomes continuous.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
come out of reverse gear.
This supplements the audible signal
by displaying bars in the multifunction
screen which move progressively near-
er to the vehicle. When the obstacle is
near, the "Danger" symbol is displayed
in the screen.
Visual assistance
8
i i
129
DRIVING
Front parking sensors
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still be-
low 6 mph (10 km/h).
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.

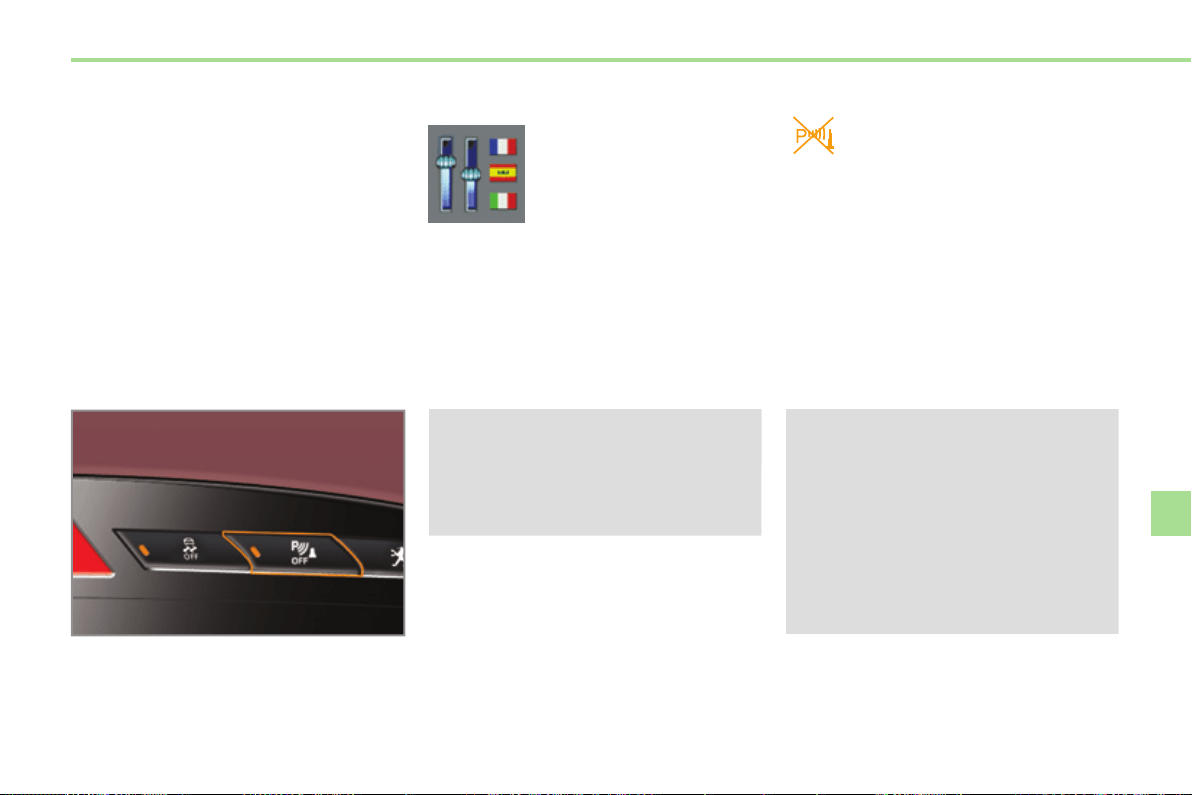

The function is deactivated by pressing
this button. The indicator lamp in the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp in the
button goes off.
Deactivation / Activation of the rear
parking sensors
The function will be deactivated
automatically if a trailer is being
towed or a bicycle carrier is fi tted
(vehicle fi tted with a towbar or bi-
cycle carrier recommended by
PEUGEOT).
Operating fault
In the event of a malfunction of
the system, when reverse gear
is engaged this warning lamp
is displayed in the instrument
panel and/or a message appears in the
screen, accompanied by an audible sig-
nal (short beep).
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
Certain sound sources (motorcy-
cle, lorry, pneumatic drill, etc.) may
trigger the audible signals of the
parking sensor system.
The function is deactivated
or activated via the vehicle
confi guration menu.
The status of the function
is stored when the ignition
is switched off.
Deactivation / Activation of the front
and rear parking sensors
9
130
CHECKS
PEUGEOT & TOTAL
PEUGEOT & TOTAL
Partners in performance and
protection of the environment
Innovation at the service of performance
The TOTAL Research and Development teams
develop lubricants for PEUGEOT which satisfy
the requirements of the latest technical innova-
tions incorporated in PEUGEOT vehicles.
This ensures that you obtain the best perfor-
mance and the maximum engine life.
RECOMMENDS
Reduced exhaust emissions
TOTAL lubricants are formulated to optimise
the effi ciency of engines and the protection
of the emissions post-treatment systems. It is
crucial to observe the servicing recommenda-
tions made by PEUGEOT to ensure correct
operation.
9
i
!
!
!
131
CHECKS
BONNET
Open the front left door.
Pull the interior bonnet release le-
ver A , located at the bottom of the
door aperture.
Push the exterior safety catch B to
the left and raise the bonnet.
Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
secured correctly.
Opening
The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
Do not open the bonnet in high
winds.
When the engine is hot, handle the
exterior safety catch and the bon-
net stay with care (risk of burns).
Before doing anything under the
bonnet, switch off the Stop & Start
system to avoid any risk of injury
resulting from an automatic change
to START mode.
Unclip the stay C from its housing.
Fix the stay in the notch to hold the
bonnet open.
Because of the presence of electri-
cal equipment under the bonnet, it
is recommended that exposure to
water (rain, washing, ...) be limited.
9
i
132
CHECKS
RUNNING OUT OF FUEL
(DIESEL)
1.6 litre HDi engine
Fill the fuel tank with at least fi ve li-
tres of diesel.
Open the bonnet.
If necessary, unclip the styling cover
for access to the priming pump.
Squeeze and release the priming
pump repeatedly until resistance is
felt (there may be resistance at the
fi rst press).
Operate the starter until the engine
starts (if the engine does not start at
the fi rst attempt, wait around 15 sec-
onds before trying again).
If the engine does not start after a
few attempts, operate the priming
pump again then start the engine.
Clip the styling cover back in place.
Close the bonnet.
2 litre HDi engine
Fill the fuel tank with at least fi ve li-
tres of Diesel.
Open the bonnet.
If necessary, unclip the style cover
for access to the priming pump.
Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe.
Operate the starter until the engine
starts (if the engine fails to start at
the fi rst attempt, wait around 15 sec-
onds before trying again).
If the engine fails to start after a few
attempts, operate the priming pump
again, then the starter.
Put the style cover back in position
and clip it in place, ensuring that it
has clipped correctly.
Close the bonnet.
If the engine does not start fi rst
time, don't keep trying but start the
procedure again from the begin-
ning.
On vehicles fi tted with HDi engines, the
fuel system must be primed if you run
out of fuel; refer to the corresponding
engine compartment view.
If the tank on your vehicle is fi tted with
a misfuel prevention device, refer to the
"Misfuel prevention (Diesel)" section.
9
133
CHECKS
PETROL ENGINES
The various caps and covers allow access
for checking the levels of the various fl uids
and for replacing certain components.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. Brake fl uid reservoir.
5. Battery/Fuses.
6. Fusebox.
7. Air fi lter.
8. Engine oil dipstick.
9. Engine oil fi ller cap.
9
134
CHECKS
DIESEL ENGINES
The various caps and covers allow ac-
cess for checking the levels of the various
fl uids, for replacing certain components
and for priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. Brake fl uid reservoir.
5. Battery / Fuses.
6. Fusebox.
7. Air fi lter.
8. Engine oil dipstick.
9. Engine oil fi ller cap.
10. Priming pump * .
* According to engine.
9
!
i
135
CHECKS
CHECKING LEVELS
Engine oil level
The check is carried out either
when the ignition is switched
on using the oil level indicator
in the instrument panel for ve-
hicles with and electric oil level gauge,
or using the dipstick.
It is normal to top up the oil level
between two services (or oil chang-
es). PEUGEOT recommends that
you check the level, and top up
if necessary, every 3 000 miles
(5 000 kms).
Take care when working under the
bonnet, as certain areas of the en-
gine may be extremely hot (risk of
burns) and the cooling fan could
start at any time (even with the ig-
nition off).
A = MAX
To ensure that the reading is correct,
your vehicle must be parked on a level
surface and the engine having been off
for more than 30 minutes.
Check all of these levels regularly, in
line with the warranty and maintenance
record. Top them up if necessary, un-
less otherwise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Checking using the dipstick
Refer to the "Petrol engine" or "Diesel
engine" section for the location of the
dipstick in the engine compartment of
your vehicle.
Take the dipstick by its coloured grip
and remove it completely.
Wipe the end of the dipstick using a
clean non-fl uffy cloth.
Refi t the dipstick and push fully
down, then pull it out again to make
the visual check: the correct level is
between the marks A and B .
B = MIN
If you fi nd that the level is above the A
mark or below the B mark, do not start
the engine .
- If the level is above the MAX mark
(risk of damage to the engine), con-
tact a PEUGEOT dealer or a quali-
fi ed workshop.
- If the level is below the MIN mark,
you must top up the engine oil.
Oil grade
Before topping-up the oil or changing
the oil, check that the oil is the correct
grade for your engine and conforms to
the manufacturer's recommendations.
9
i
136
CHECKS
Brake fluid level
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Power steering fluid level
The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold,
unscrew the cap to check the
level.
Changing the fl uid
Refer to the warranty and maintenance
record for details of the interval for this
operation.
When the engine is warm, the tempera-
ture of the coolant is regulated by the
fan.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Topping up the engine oil level
Refer to the "Petrol engine" or "Diesel
engine" section for the location of the oil
fi ller cap in the engine compartment of
your vehicle.
Unscrew the oil fi ller cap to reveal
the fi ller aperture.
Add oil in small quantities, avoiding
any spills on engine components
(risk of fi re).
Wait a few minutes before checking
the level again using the dipstick.
Add more oil if necessary.
After checking the level, carefully re-
fi t the oil fi ller cap and the dipstick in
its tube.
After topping up the oil, the check
when switching on the ignition with
the oil level indicator in the instru-
ment panel is not valid during the
30 minutes after topping up.
Engine oil change
Refer to the warranty and maintenance
record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
9
!
137
CHECKS
Screenwash and headlamp
wash fluid
In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you next stop
the vehicle.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.
Avoid prolonged contact of used oil
or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a PEUGEOT deal-
er or a qualifi ed workshop (France)
or to an authorised waste disposal
site.
Used products Diesel fuel additive level (Diesel
with particle emissions filter)
Topping up
The reservoir must be topped up with-
out delay by a PEUGEOT dealer or a
qualifi ed workshop.
The additive reservoir low level
is indicated by fi xed illumination
of this warning lamp, accompa-
nied by an audible signal and a
message that the particle emis-
sions fi lter additive level is too
low.
In wintry conditions, the use of an ethyl
alcohol or methanol base fl uid is recom-
mended.
9
i
138
CHECKS
CHECKS
Battery
The battery does not require any
maintenance.
However, check that the termi-
nals are clean and correctly tight-
ened, particularly in summer and
winter.
When carrying out work on the battery, refer
to the "Battery" section for details of the pre-
cautions to be taken before disconnecting
the battery and following its reconnection.
Air filter and passenger compartment filter
Refer to the warranty and
maintenance record for details
of the replacement intervals
for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary .
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the warranty and
maintenance record for details
of the replacement interval for
this component.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specifi c 12 V lead-acid bat-
tery with special technology and specifi -
cation. The involvement of a PEUGEOT
dealer or a qualifi ed workshop is essen-
tial when replacing or disconnecting the
battery.
Particle emission filter (Diesel)
On a new vehicle, the fi rst particle
fi lter regeneration operations may
be accompanied by a "burning"
smell, which is perfectly normal.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
The start of saturation of the
particle emissions fi lter is in-
dicated by the temporary illu-
mination of this warning lamp,
accompanied by an audible
signal and a message on the risk of
blockage of the particle emissions fi lter.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, refer to the
"Additive level" section.
Unless otherwise indicated, check these
components in accordance with the war-
ranty and maintenance record and accord-
ing to your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed workshop.
9
!
139
CHECKS
Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifi cation.
In order to optimise the operation
of units as important as those in the
braking system, PEUGEOT selects
and offers very specifi c products.
After washing the vehicle, damp-
ness, or in wintry conditions, ice
can form on the brake discs and
pads: braking effi ciency may be
reduced. Make light brake applica-
tions to dry and defrost the brakes.
Brake disc wear
Brake pads Parking brake
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information on checking
brake disc wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop.
If excessive travel or a loss of
effectiveness of this system
is noticed, the parking brake
must be checked, even be-
tween two services.
Checking this system must be done by
a PEUGEOT dealer or a qualifi ed work-
shop.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the warranty and
maintenance record for the
details of the level checking
interval for this component.
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the warranty and
maintenance record for details
of the level checking interval
for this component.
10
i
140
PRACTICAL INFORMATION
Access to the kit
The kit is stowed in the boot under
the fl oor. It is installed in the tool box,
located under the storage box.
TEMPORARY PUNCTURE
REPAIR KIT
A. "Sealant" or "Air" position selector.
B. On "I" / off "O" switch.
C. Defl ation button.
D. Pressure gauge (in bar and p.s.i.).
E. Compartment housing:
- a cable with adaptor for 12 V
socket,
- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
Description of the kit
F. Sealant cartridge.
G. White pipe with cap for repair.
H. Black pipe for infl ation.
I. Speed limit sticker.
The speed limit sticker I must be
affi xed to the vehicle's steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair of a tyre so
that you can drive to the nearest garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
10
i !
141
PRACTICAL INFORMATION
Repair procedure
1. Sealing
Switch off the ignition. Uncoil the white pipe G fully.
Unscrew the cap from the white
pipe.
Connect the white pipe to the valve
of the tyre to be repaired.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
Start the vehicle and leave the en-
gine running.
Avoid removing any foreign bodies
which have penetrated into the tyre.
Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep this product out of the reach
of children.
Turn the selector A to the
"sealant" position.
Check that the switch B is in
position "O" .
10
i
ii
142
PRACTICAL INFORMATION
Switch on the compressor by mov-
ing the switch B to position "I" until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your ve-
hicle with traces of fl uid. Keep the kit
to hand.
Drive immediately for approximate-
ly three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph (20 and 60 km/h)), to plug
the puncture.
Stop to check the repair and the tyre
pressure using the kit.
Do not start the compressor before
connecting the white pipe to the tyre
valve: the sealant product would be
expelled through the pipe.
Tyre under-infl ation detection
If the vehicle is fi tted with tyre
under-infl ation detection, the under-
infl ation warning lamp will remain on
after the wheel has been repaired
until the system is reinitialised by
a PEUGEOT dealer or a qualifi ed
workshop.
If after around 5 to 7 minutes
the pressure is not attained, this
i ndicates that the tyre is not repair-
able; contact a PEUGEOT dealer
or a qualifi ed workshop for assis-
tance.
10
!
143
PRACTICAL INFORMATION
2. Infl ation
Turn the selector A to the
"air" position.
Uncoil the black pipe H fully.
Connect the black pipe to
the valve of the wheel.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
Start the vehicle again and leave the
engine running.
Adjust the pressure using the com-
pressor (to infl ate: switch B in
p osition "I" ; to defl ate: switch B in
position "O" and press button C ),
in accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer or qual-
ifi ed workshop for assistance.
Remove and stow the kit.
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).
As soon as possible, go to a
PEUGEOT dealer or a qualifi ed
workshop.
You must inform the technician
that you have used this kit. After in-
spection, the technician will advise
you on whether the tyre can be re-
paired or if it must be replaced.
10
!
!
144
PRACTICAL INFORMATION
Removing the cartridge
Stow the black pipe.
Detach the angled base from the
white pipe.
Support the compressor vertically.
Unscrew the cartridge from the
bottom.
Beware of discharges of fl uid.
The expiry date of the fl uid is indi-
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new
sealant cartridge, available from
PEUGEOT dealers or from a quali-
fi ed workshop.
Checking tyre pressures /
inflating accessories
You can also use the compressor, with-
out injecting any product, to:
- check or adjust the pressure of your
tyres,
- infl ate other accessories (balls, bi-
cycle tyres...).
Turn the selector A to the
"Air" position.
Uncoil the black pipe H fully.
Connect the black pipe to
the valve of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.
Connect the compressor's electri-
cal connector to the vehicle's 12 V
socket.
Start the vehicle and let the engine
run.
Adjust the pressure using the com-
pressor (to infl ate: switch B in po-
sition "I" ; to defl ate: switch B in
position "O" and press button C ),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.
Remove the kit then stow it.
The vehicle's electric system al-
lows the connection of a compres-
sor for long enough to infl ate a tyre
after a puncture repair or for infl at-
ing a small infl atable accessory.
10
i
145
PRACTICAL INFORMATION
CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the fl oor.
For access to them:
change to the "coupé" confi guration,
open the boot,
raise the fl oor,
secure it by hooking its handle on
the boot seal,
unclip and remove the box contain-
ing the tools.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
1. Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.
2. Jack with integral handle.
For raising the vehicle.
3. Bolt cover removal tool.
For removing the bolt fi nishers
(covers) on alloy wheels.
4. Socket for the security bolts (lo-
cated in the glove box).
For adapting the wheelbrace to
the special "security" bolts.
List of tools
Access to the tools
Wheel with trim
When removing the wheel , detach the trim fi rst using the wheelbrace 1 pull-
ing at the valve passage hole.
When refi tting the wheel , refi t the trim starting by placing its notch facing the
valve and press around its edge with the palm of your hand.
10
i
i
146
PRACTICAL INFORMATION
Fitting the steel spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the steel spare wheel. The
wheel is secured by the conical
contact of each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel
may be steel or alloy.
For access to it, refer to the paragraph
"Access to the tools".
Taking out the wheel
Unscrew the yellow central bolt.
Raise the spare wheel towards you
from the rear.
Take the wheel out of the boot.
Putting the wheel back in place
Put the wheel back in its housing.
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
Tighten fully until the central bolt
clicks to retain the wheel correctly.
Put the box back in place in the
c entre of the wheel and clip it.
Tyre under-infl ation detection
The spare wheel is not fi tted with a
sensor. The punctured wheel must
be repaired by a PEUGEOT dealer
or a qualifi ed workshop.
10
i
147
PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-
slippery ground.
Apply the parking brake, switch off
the ignition and engage fi rst gear *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the ve-
hicle and wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.
Removing a wheel
List of operations
Remove the bolt cover from each of
the bolts using the tool 3 .
Fit the security socket 4 on the
wheelbrace 1 to slacken the security
bolt.
Slacken the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.
Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
Remove the bolts and store them in
a clean place.
Remove the wheel.
* position P for the automatic gearbox.
10
i
148
PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the cen-
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer or
a qualifi ed workshop without delay.
Have the punctured wheel repaired
without delay and replace it on the
vehicle as soon as possible.
When the spare wheel is different
from the other wheels, we strongly
recommend that your drive with
particular care.
Fitting a wheel
List of operations
Put the wheel in place on the hub.
Screw in the bolts by hand.
Pre-tighten the security bolt using
the wheelbrace 1 fi tted with the se-
curity socket 4 .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 4 .
Tighten the other bolts using the
wheelbrace 1 only.
Refi t the bolt covers on each of the
bolts.
Store the tools in the box.
10
i
i
i
149
PRACTICAL INFORMATION
SNOW CHAINS
In wintry conditions, snow chains im-
prove traction as well as the behaviour
of the vehicle when braking.
The snow chains must be fi tted
only to the front wheels. They
must never be fi tted to "space-
saver" type spare wheels.
Take account of the legislation in
force in your country on the use
of snow chains and the maximum
running speed authorised.
Advice on installation
If you have to fi t the chains during
a journey, stop the vehicle on a fl at
surface on the side of the road.
Apply the parking brake and posi-
tion any wheel chocks to prevent
movement of your vehicle.
Fit the chains following the instruc-
tions provided by the manufacturer.
Move off gently and drive for a
few moments, without exceeding
30 mph (50 km/h).
Stop your vehicle and check that the
snow chains are correctly tightened.
Avoid driving on roads that have
been cleared of snow, to avoid
damaging your vehicle's tyres
and the road surface. It is recom-
mended that before you leave,
you practise fi tting the snow
chains on a level and dry surface.
If your vehicle is fi tted with alloy
wheels, check that no part of the
chain or its fi xings is in contact
with the wheel rim.
Use only the chains designed to be fi t-
ted to the type of wheel fi tted to your
vehicle:
For more information on snow chains,
contact a PEUGEOT dealer or a quali-
fi ed workshop.
Original tyre size
Maximum link
size.
225/40 R18 7 mm
225/45 R17 9 mm
215/55 R16 9 mm
205/55 R16 9 mm
10
!
!
!
150
PRACTICAL INFORMATION
Risk of electrocution
Xenon bulbs (D1S) must be re-
placed by a PEUGEOT dealer or a
qualifi ed workshop.
CHANGING A BULB
Model with halogen headlamps
1. Direction indicators
(PY 21W amber).
2. Dipped beam headlamps (H7).
3. Main beam headlamps (H1).
4. Daytime running lamps /
sidelamps (LEDs).
5. Foglamps (H8).
1. Direction indicators
(PY21W SV silver).
2. Directional dipped / main beam
headlamps (D1S).
3. Additional main beam
headlamps (H1).
4. Daytime running lamps /
sidelamps (LEDs).
5. Foglamps (H8).
Model with xenon and directional
headlamps
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
use a sponge and soapy water
or a pH neutral product,
when using a high pressure
washer on persistent marks, do
not keep the lance directed to-
wards the lamps or their edges
for too long, so as not to dam-
age their protective coating and
seals.
Front lamps
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
Do not touch the bulb directly
with your fi ngers, use a lint-free
cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
10
i
!
151
PRACTICAL INFORMATION
Changing halogen main beam
headlamps or additional main beam
headlamps
Changing dipped beam headlamp
bulbs (only on models with halogen
headlamps)
Changing direction indicator
bulbs
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the seal-
ing of the headlamp.
Turn the bulb holder a quarter of a
turn and extract it.
Pull the bulb out and change it.
To refi t, carry out these operations in re-
verse order.
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Spread the springs to release the
bulb.
Pull the bulb out and change it.
To reassemble, carry out these opera-
tions in reverse order.
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Squeeze the springs to release the
bulb.
Pull the bulb out and change it.
To reassemble, carry out these opera-
tions in reverse order.
10
152
PRACTICAL INFORMATION
Changing front foglamp bulbs
To replace these bulbs contact a PEUGEOT
dealer or a qualifi ed workshop.
Changing the side spotlamps
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
Changing integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
Tilt the screwdriver to extract the re-
peater and remove it.
Disconnect the repeater connector.
To reassemble, carry out these opera-
tions in reverse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement
repeaters.
Changing the daytime running
lamps/sidelamps
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
10
!
153
PRACTICAL INFORMATION
Rear lamps
1. Brake lamps (LEDs).
2. Sidelamps (LEDs).
3. Direction indicators (LEDs).
4. Foglamp (P21W).
5. Reversing lamp (P21W).
Changing the foglamp and reversing
lamp bulbs
These two bulbs are changed from out-
side the rear bumper:
On the left-hand side, take care not
to touch the silencer; risk of burns,
if you change the bulb after switch-
ing off the ignition.
turn the bulb holder one quarter of a
turn and remove it,
turn the bulb one quarter of a turn
and change it.
To refi t, carry out these operations in re-
verse order.
Changing brake lamps, sidelamps
and direction indicators
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
10
!
154
PRACTICAL INFORMATION
Changing the third brake lamp
(LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
Changing the number plate lamp
bulbs (W5W)
Insert a thin screwdriver in one of
the exterior holes of the lens.
Push it towards the outside to unclip it.
Remove the lens.
Pull the bulb out and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
surrounds to avoid damaging their
protective coating and seals.
10
!
i
155
PRACTICAL INFORMATION
PEUGEOT will not accept responsi-
bility for the cost incurred in repairing
your vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected ex-
ceeds 10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.
CHANGING A FUSE
Access to tooling
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
For access to them:
turn the screw a quarter of a turn to
the left,
unclip the cover by pulling the top
right,
disengage and pull away the cover,
remove carrier on the back of which
is fi tted the tweezer.
Changing a fuse
Before changing a fuse, you must:
identify and correct the cause of the
fault,
switch off all all electrical consumers,
immobilise the vehicle and switch
the ignition off,
identify the failed fuse using the al-
location tables and layout diagrams
in the following pages.
Good Failed
Tweezer
When changing a fuse, you must:
use the special tweezer to extract
the fuse from its housing and check
its fi lament,
always replace the failed fuse with
a fuse of the same rating (same co-
lour); using a different rating may
cause faults (risk of fi re).
If the fuse fails again soon after it is
changed, have the electrical system
checked by a PEUGEOT dealer or a
qualifi ed workshop.
10
156
PRACTICAL INFORMATION
Dashboard fuses
The fusebox is placed in the lower
dashboard (left-hand side).
Access to the fuses
refer to the paragraph "Access to
tooling".
Fuse tables
Fuse N° Rating Functions
F1 - Not used.
F2 30 A Earth for locking and deadlocking.
F3 5 A Airbags and pretensioners control unit.
F4 10 A
Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.
F5 30 A
Front one-touch electric windows, folding mirrors
supply.
F6 30 A
Rear one-touch electric windows, exterior door
opening controls.
F7 5 A
Front and rear courtesy lamps, map reading lamps,
sun visor lighting, glove box lighting.
F8 20 A
Audio equipment, radio/telephone, multifunction screen, tyre
under-infl ation detection, interior storage compartments.
F9 30 A Front 12 V socket, cigarette lighter.
F10 15 A
Steering mounted controls, alarm siren, alarm
control unit.
F11 15 A Low current ignition switch.
10
157
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 15 A
Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, retractable roof unit.
F13 5 A Engine fusebox, airbags.
F14 15 A
Multifunction screen, amplifi er, hands-free kit, rain/
sunshine sensor, parking sensors control unit,
passenger's seat memory unit.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors demist/defrost.
SH - PARC shunt.
Fuse N° Rating Functions
G36 30 A Driver and passenger heated seats.
G37 5 A Trailer fusebox.
G38 30 A Driver's seat memory unit.
G39 - Not used.
G40 30 A Hi-Fi amplifi er, passenger's seat memory unit.
10
158
PRACTICAL INFORMATION
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
ing paragraph).
When you have fi nished, refi t the
cover carefully to ensure correct
sealing of the fusebox.
Fuse table
Fuse N° Rating Functions
F1 20 A
Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).
F2 15 A Horn.
F3 10 A Front screenwash.
F4 20 A Headlamp wash.
F5 15 A
Purge canister, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP), oil
vapour heater (1.6 litre THP), Diesel fuel heater
(1.6 litre HDI).
F6 10 A Vehicle speed sensor, ABS/ESP control unit.
F7 10 A
Power steering control unit, automatic gearbox,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A
Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel), door mirror controls.
F10 30 A
Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).
F11 40 A Air conditioning fan.
10
159
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 - Not used.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A
Oil vapour heater (1.6 litre VTi), purge canister
electrovalve (1.6 litre VTi), oxygen sensors (petrol),
air cooling electrovalves (Diesel).
F20 10 A
Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).
F21 5 A
Fan assembly relay supply, Valvetronic relay control
(1.6 litre VTi), Turbo cooling (1.6 litre THP), air fl ow
sensor (1.6 litre HDI).
10
!
160
PRACTICAL INFORMATION
Table of fuses above the battery
Fuse N° Rating Functions
F1 - Not used.
F2 5 A Dual function brake switch.
F3 5 A Battery charge unit.
F4 25 A ABS/ESP electrovalves.
F5 - Not used.
F6 15 A Automatic gearbox.
All work on the other types of fuses (midi-fuses and maxi-fuses) must only be
done by a PEUGEOT dealer or a qualifi ed workshop.
10
!
i
i
!
161
PRACTICAL INFORMATION
12 V BATTERY
Access to the battery
The battery is located under the bonnet.
To gain access to it:
open the bonnet using the interior
release lever, then the exterior safe-
ty catch,
secure the bonnet stay,
remove the plastic cover on the (+)
terminal.
The presence of this label, in par-
ticular with the Stop & Start system,
indicates the use of a 12 V lead-acid
battery with special technology and
specifi cation; the involvement of
a PEUGEOT dealer or a qualifi ed
workshop is essential when replac-
ing or disconnecting the battery.
After refi tting the battery, the
Stop & Start system will only be
active after a continuous period of
immobilisation of the vehicle, a pe-
riod which depends on the climatic
conditions and the state of charge
of the battery (up to about 8 hours).
Procedure for starting the engine us-
ing another battery or charging a dis-
charged battery.
Before doing any work
Immobilise the vehicle: apply the
parking brake, put the gearbox into
neutral (or position P if your ve-
hicle has an automatic gearbox),
then switch off the ignition.
Check that all electrical systems
are off.
Do not reverse the polarity and
use only a 12 V charger.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Ensure that the battery posts and
terminals are clean. If covered in
sulphate (white or green deposits),
remove and clean them.
The batteries contain harmful sub-
stances such as sulphuric acid
and lead. They must be disposed
of in accordance with regulations
and must not, in any circumstanc-
es, be discarded with household
waste.
Take used remote control batter-
ies and vehicle batteries to a spe-
cial collection point.
10
i
!
162
PRACTICAL INFORMATION
Disconnecting the (+) cable
Raise the locking tab D fully to re-
lease the cable terminal clamp E .
Reconnecting the (+) cable
Position the open clamp E of the
cable on the positive post (+) of the
battery.
Press vertically on the clamp E to
position it correctly on the battery.
Lock the clamp by spreading the po-
sitioning lug and then lowering the
tab D .
Do not apply excessive force on the
tab as locking will not be possible
if the clamp is not positioned cor-
rectly; start the procedure again.
Starting using another battery
When your vehicle's battery is dis-
charged, the engine can be started using
a slave battery (external or on another
v ehicle) and jump lead cables.
First check that the slave battery
has a nominal voltage of 12 V and
a capacity at least equal to that of
the discharged battery.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the (+) terminal
when the engine is running.
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B (or
earth point on the other vehicle).
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle (or on
the engine mounting).
Start the engine of the vehicle with
the good battery and leave it run-
ning for a few minutes.
Operate the starter on the broken
down vehicle and let the engine run
If the engine does not start straight
away, switch off the ignition and wait
a few moments before trying again.
Wait until the engine returns to idle
then disconnect the jump lead ca-
bles in the reverse order.
10
i
i
!
!
i
163
PRACTICAL INFORMATION
With Stop & Start, the battery does
not have to be disconnected for
charging.
Charging the battery using
a battery charger
When your vehicle's battery is dis-
charged or when the vehicle is to be
out of use for a prolonged period, you
can charge the battery using a battery
charger.
Contact a PEUGEOT dealer or a quali-
fi ed workshop for the specifi cation of
chargers compatible with your battery.
Before disconnecting
Go to the battery.
Close the retractable roof.
Check that the doors and boot are
closed but not locked.
Switch off the ignition and wait for at
least four minutes.
If the vehicle is to not going to be used for
more than a month, it is recommended
that the battery be disconnected.
Charging
Disconnect the (+) terminal.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Connect the charger's red cable to
the (+) terminal of the battery, then
the black cable to the (-) terminal.
Once the battery is fully charged,
disconnect the charger cables in re-
verse order.
Charging should be carried out in
a well-ventilated area and away
from naked fl ames and sources of
sparks, so as to avoid any risk of
explosion and fi re.
Do not try to charge a frozen bat-
tery; fi rst thaw it out so as to avoid
the risk of explosion.
If the battery had frozen, before
charging, have it checked by a
PEUGEOT dealer or qualifi ed
workshop who will ensure that
the internal components have not
been damaged and that the casing
is not cracked, which would cause
a leak of toxic and corrosive acid.
Some functions are not available
if the battery is not suffi ciently
charged.
Reinitialisation after
reconnection
After any reconnection of the battery,
switch on the ignition and wait at least
one minute before starting, to allow time
for the initialisation of the electronic sys-
tems.
By referring to the corresponding sec-
tions, you should set or initialise the fol-
lowing systems yourself:
- remote control,
- electric windows and automatic par-
tial opening of door glasses,
- time and date,
- audio and navigation system set-
tings.
Check that no alert message or
warning lamp comes on after
switching on the ignition.
However, if minor problems persist
after carrying out these operations,
contact a PEUGEOT dealer or a
qualifi ed workshop.
10
!
!
i
164
PRACTICAL INFORMATION
Observe this minimum period of
engine running to maintain the cor-
rect level of charge in the battery.
Do not repeatedly restart of the en-
gine to restore immediate use of
systems.
If a telephone call is being made at this
time, it will be maintained for 5 min-
utes with the hands-free kit of your
PEUGEOT Connect Sound (RD5)
or PEUGEOT Connect Navigation
(RT6).
ENERGY ECONOMY MODE
System which manages the duration of use of certain functions to conserve a suf-
fi cient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio and
telematics system, windscreen wipers, dipped beam headlamps, courtesy lamps,
etc. for a maximum combined duration of thirty minutes.
This period may be reduced considerably if the battery is not fully charged.
Coming out of economy mode
These functions are reactivated auto-
matically next time the vehicle is started.
To resume the use of these functions
immediately, start the engine and let it
run for at least 5 minutes.
Going into to economy mode
Once this period has elapsed, a mes-
sage appears in the multifunction
screen indicating that the vehicle has
gone into economy mode and the ac-
tive functions are put on standby.
LOAD REDUCTION MODE
System which manages the use of
certain functions in relation to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily
deactivates certain functions, such as
the air conditioning, the "AIRWAVE"
systems, the heated rear screen...
Certain deactivated functions are reac-
tivated automatically as soon as condi-
tions permit.
A fl at battery prevents the engine
from starting (refer to the "12 V bat-
tery" section).
10
i
165
PRACTICAL INFORMATION
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
TOWING THE VEHICLE
Procedure for having your vehicle
towed or for towing another vehicle us-
ing a removable towing eye.
Access to the tools
The towing eye is installed in the boot
under the fl oor.
For access to it:
change to the "coupé" confi guration,
open the boot,
raise the fl oor,
secure it by hooking its handle on
the boot seal,
remove the towing eye from the
holder.
General recommendations
Observe the legislation in force in
your country.
Ensure that the weight of the tow-
ing vehicle is higher than that of the
towed vehicle.
The driver must remain at the
wheel of the towed vehicle and
must have a valid driving licence.
When towing a vehicle with all four
wheels on the ground, always use
an approved towing bar; rope and
straps are prohibited.
The towing vehicle must move off
gently.
When towing a vehicle with the
engine off, there is no longer any
power assistance for braking or
steering.
In the following cases, you must
a lways call on a professional re-
covery service:
- vehicle broken down on a mo-
torway or fast road,
- four-wheel drive vehicle,
- when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
- towing with only two wheels on
the ground,
- where there is no approved
towing bar available...
10
i
166
PRACTICAL INFORMATION
Towing your vehicle
On the front bumper, unclip the cover
by pressing on its left part.
Screw the towing eye in fully.
Install the towing bar.
Place the gear lever in neutral (posi-
tion N on the automatic gearbox).
Release the steering by turning the
ignition key one position and re-
lease the parking brake.
Switch on the hazard warning lamps
on the towed vehicle.
Move off gently and drive slowly for
a limited distance.
Failure to observe this instruction
could result in damage to certain
components (braking, transmis-
sion...) and the absence of braking
assistance the next time the en-
gine is started.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on both vehicles.
Move off gently and drive slowly for
a limited distance.
Towing another vehicle
10
i
i
167
PRACTICAL INFORMATION
TOWING A TRAILER
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1000 metres, the maximum towed load
must be reduced by 10 % for every
1000 metres of altitude.
Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind.
Towbar suitable for the attachment of a
trailer or installation of a bicycle carrier,
with additional lighting and signalling.
Driving advice
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to
a PEUGEOT dealer or a qualifi ed
workshop.
If the towbar is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted in accordance with
the vehicle manufacturer's instruc-
tions.
Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
In all cases, keep a check on the cool-
ant temperature.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.
Tyres
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lighting
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed.
10
i
!
168
PRACTICAL INFORMATION
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi xing clips one by one.
Do not forget to remove the very
cold climate screen when:
- the ambient temperature ex-
ceeds 10 °C,
- towing,
- driving at speeds above 75 mph
(120 km/h).
* According to country.
Removal
Use a screwdriver as a lever to
release each fi xing clip in turn.
"Comfort":
windstop, cover for windstop, reading
lamp, parking sensors...
"Transport solutions":
boot liner, towbar-mounted bicycle car-
rier, towbars, towbar wiring harnesses...
ACCESSORIES
A wide range of accessories and
genuine parts is available from the
PEUGEOT dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
"Styling":
alloy wheels, front spoiler, gear lever
knobs...
"Safety and security":
anti-theft alarm, security wheel bolts,
breathalyser, fi rst aid kit, warning tri-
angle, high visibility vest, stolen vehicle
tracking system, child booster cush-
ions, winter equipment...
** To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of another.
"Protection":
mats ** , bumper protection strips, ve-
hicle protective cover...
When fi tting a towbar and its wir-
ing harness outside the PEUGEOT
dealer network, this fi tment must
be done following the vehicle man-
ufacturer's recommendations.
10
!
i
i
169
PRACTICAL INFORMATION
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You
are advised to contact a PEUGEOT
representative to be shown the
range of recommended equipment
and accessories.
Depending on the legislation in
force in the country, certain safety
equipment may be compulsory:
high visibility safety vests, warn-
ing triangles, breathalyzers, spare
bulbs, spare fuses, a fi re extin-
guisher, a fi rst aid kit, mud fl aps at
the rear of the vehicle.
By visiting a PEUGEOT dealer, you can
also obtain products for maintenance and
cleaning (interior and exterior), including
products in the "TECHNATURE" range,
products for topping up (screenwash...),
touch-up pens and paint aerosols in the
exact colour of your vehicle, and refi lls
(sealant cartridge for the temporary punc-
ture repair kit), ...
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).
"Multimedia":
portable satellite navigation systems,
Bluetooth hands-free kit, telephone
carrier...
11
170
TECHNICAL DATA
* The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legisla-
tion (Directive 1999/99/EC).
PETROL ENGINES AND GEARBOXES
Engines
1.6 litre VTi
120 hp
1.6 litre THP
156 hp
1.6 litre THP
150 hp
1.6 litre THP
163 hp
Gearboxes
Manual
(5-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Model codes:
4B...
5FS-0 5FV-8 5FV-A 5FE-J 5FM-J
Cubic capacity (cc) 1 598 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8 77 x 85.8
Max power: EU standard (kW) * 88 115 110 120
Max power engine speed (rpm) 5 660 6 000 6 000
Max torque: EU standard (Nm) 160 240 240
Max torque engine speed (rpm) 4 250 1 400 1 400
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
Engine oil capacity (in litres)
Engine (with fi lter replacement)
4.25 4.25 4.25
11
171
TECHNICAL DATA
PETROL WEIGHTS AND TOWED LOADS (IN KG)
Engines
1.6 litre VTi
120 hp
1.6 litre THP
156 hp
1.6 litre THP
150 hp
1.6 litre THP
163 hp
Gearboxes Manual Manual Automatic Automatic Automatic
Model codes:
4B...
5FS-0 5FV-8 5FV-A 5FE-J 5FM-J
- Unladen weight 1 480 1 515 1 530 1 540 1 540
- Kerb weight 1 555 1 590 1 605 1 615 1 615
- Gross vehicle weight
(GVW)
1 885 1 940 1 970 1 970 1 970
- Gross train weight (GTW)
on a 12 % gradient 2 985 3 340 3 240 2 770 2 770
- Braked trailer (within GTW
limit)
on a 10 % or 12 % gradient 1 100 1 400 1 270 800 800
- Braked trailer ** (with load
transfer within GTW limit)
1 200 1 400 1 270 800 800
- Unbraked trailer 750 750 750 750 750
- Recommended nose weight 64 64 64 64 64
** The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is
reduced by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road
holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
a mbient temperature is higher than 37 °C, limit the towed weight.
11
172
TECHNICAL DATA
Engines
1.6 litre e-HDi
112 hp
2.0 litre HDi
163 hp
Gearboxes
Manual
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Model codes:
4B...
9HR-8/S RHH-8 RHH-A
Cubic capacity (cc) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) * 82 120
Max power engine speed (rpm) 3 600 3 750
Max torque: EU standard (Nm) 270 340
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter Yes Yes
Engine oil capacity (in litres)
Engine (with fi lter replacement)
3.75 -
* The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation
(Directive 1999/99/EC).
DIESEL ENGINES AND GEARBOXES
.../S: e-HDi model, fi tted with Stop & Start.
11
173
TECHNICAL DATA
Engines
1.6 litre e-HDi
112 hp
2.0 litre HDi
163 hp
Gearboxes Manual Manual Automatic
Model codes: 4B... 9HR-8/S RHH-8 RHH-A
- Unladen weight 1 535 1 577 1 625
- Kerb weight 1 610 1 652 1 700
- Gross vehicle weight (GVW) 1 950 2 025 2 050
- Gross train weight (GTW)
on a 12 % gradient 3 050 3 525 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 500 1 500
- Braked trailer ** (with load transfer
within GTW limit)
1 200 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit the towed weight.
DIESEL WEIGHTS AND TOWED LOADS (IN KG)
** The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is
reduced by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road
holding.
11
174
TECHNICAL DATA
DIMENSIONS (IN MM)
11
i
175
TECHNICAL DATA
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.
If the infl ation pressures are too
low, this increases fuel consump-
tion.
The infl ation pressures must be
checked when the tyres are cold,
at least once a month.
A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the
bodywork near the damper support.
For access to it, raise the plastic
cover.
B. VIN on the windscreen lower
cross member.
This number is indicated on a self-
adhesive label which is visible
through the windscreen.
C. Manufacturer's label.
This number is indicated on a self-
destroying label affi xed to the door
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
This label is affi xed to the door aper-
ture, on the driver's side.
It bears the following information:
- the tyre infl ation pressures, laden
and unladen,
- the tyre sizes,
- the infl ation pressure of the spare
wheel,
- the paint colour code.
11
176
TECHNICAL DATA
177
EMERGENCY OR ASSISTANCE CALL
178
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
"PEUGEOT Connect SOS" centre * .
The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.
When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .
Pressing this button again immediately cancels the request. The green
LED goes off. Cancellation is confi rmed by a voice message
To cancel a call, tell the "PEUGEOT Connect SOS" call centre that the call
was a mistake.
"PEUGEOT Connect SOS" immediately locates your vehicle, starts
communication with you in your language ** , and where necessary sends
the appropriate public emergency services ** . In countries where the
service is not available, or when the locating service has been expressly
declined, the call sent directly to the emergency services (112) without the
vehicle location.
If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
* Subject to the general conditions for the service available from dealers
and to technological and technical limitations.
If the orange LED fl ashes: there is a system
fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.
For technical reasons and in particular to improve the quality of
"PEUGEOT CONNECT services" services to customers, the manufacturer
reserves the right to carry out updates to the vehicle's on-board
telematic system.
PEUGEOT Connect SOS PEUGEOT Connect Assistance
Operation of the system
** Depending on the geographical cover of "PEUGEOT Connect SOS",
"PEUGEOT Connect Assistance" and the offi cial national language
selected by the owner of the vehicle.
The list of countries covered and PEUGEOT CONNECT services
services is available from dealers or at www.peugeot.co.uk.
179
The system is protected in such a way that it will only
operate in your vehicle.
PEUGEOT Connect Navigation (RT6)
01 First steps - Control panel
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Radio
08 Music media players
09 Audio settings
10 Configuration
11 Screen menu map
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
180
182
183
185
198
201
211
214
220
221
222
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM
Frequently asked questions
p.
226
01
180
Select:
- the next lower / higher radio
frequency automatically.
- the previous / next CD track, MP3
track or media.
- the left / right of the screen when a
menu is displayed.
Move left / right in "
Move the map
" mode.
Abandon the current
operation, up one level
in the menu.
Long press: return to
the permanent display.
Open the
"
Confi guration
" menu.
Long press: access
to the GPS coverage
and the navigation
demonstration mode.
Open the "
Traffi c
information
" menu
and display the current
traffi c alerts.
Select:
- the previous/next line in a list or menu.
- the previous / next media folder.
- step by step selection of the previous/
next radio frequency.
- the previous / next MP3 folder.
Move up/down, in "
Move the map
" mode.
FIRST STEPS
Access to the
"
Navigation - guidance
"
menu and display the
recent destinations.
Short press without the
engine running: on / off.
Short press with the engine
running: audio source off /
restore.
MODE
button: Selection
of the type of permanent
display.
Long press: black screen
(DARK).
Selection and confi rmation OK dial:
Selection of an item on the screen or in a list or a menu,
then confi rmation with a short press.
Other than for menus and lists, a short press displays a
contextual menu depending on the current screen.
Rotation with map displayed: zoom the map scale in and out.
Volume adjustment (each
source is independent,
including TA messages and
navigation instructions).
01
181
Continuous press:
reinitialisation of the system.
Open the "
Telephone
" menu
and display the list of recent
calls or accept an incoming call.
FIRST STEPS
Short press: select pre-set radio station.
Long press: pre-set the current station.
Access to the "
MUSIC
" menu, and display of the CD/MP3/
Apple
®
tracks and folders.
®
tracks and folders.
®
Long press: display the audio settings screen for the
"
MEDIA
" (CD/USB/iPod/Streaming/AUX) sources.
Access to the "
RADIO
" menu and
display the list of stations received.
Long press: display the audio settings
screen for the radio tuner source.
02
182
RADIO: select the previous/next preset
station.
Select the next entry in the address book.
Select the next entry in the address book.
SRC/TEL
button:
change the audio source,
start a call from the address book,
call/end call on the telephone,
press for more than 2 seconds: access
to the address book.
RADIO: change to the previous radio
station in the list.
Long press: automatic search for a
lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
RADIO: change to the next radio station in the list.
Long press: automatic search for a higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.
Volume increase.
Volume increase.
Volume decrease.
Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.
STEERING MOUNTED CONTROLS
03
183
For the details of the menus, refer to the "Screen menu map"
section.
For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
"
RADIO
"
"
TELEPHONE
"
(If conversation in progress)
SETUP
: PARAMETERS
date and time, display confi guration, sound, vehicle
settings.
Changing the audio source:
RADIO
: RADIO broadcasts.
MUSIC
: playing MUSIC.
Press the
MODE
button several times in succession for access to the following displays:
"
FULL SCREEN MAP
"
"
MAP IN WINDOW
"
(If navigation guidance in
progress)
GENERAL OPERATION
03
184
A press on the knob gives access
to short-cut menus according to the
display in the screen.
Display according to context
RADIO:
Activate / Deactivate TA
Activate / Deactivate RDS
MUSIC MEDIA PLAYERS,
CD or USB (according to
media):
Play modes:
Normal
Random
Random on all media
Repetition
TELEPHONE (call in
progress):
Private mode
FULL SCREEN MAP OR
IN A NEW WINDOW:
Stop / Restore guidance
Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as stage
Save this place (contacts)
Quit map mode
Guidance criteria
Put call on hold
DTMF ring tones
Hang up
1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1
Change waveband
FM
AM
2
2
1
TA
1
GENERAL OPERATION
04
185
List of recent destinations.
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
Navigation - guidance
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
To delete the list of recent destinations, select "
Guidance
options
" in the navigation menu then select "
Delete last
destinations
" and confi rm. Select "
Yes
" and confi rm. Select " Yes " and confi rm. Select "
" then confi rm.
Deleting just one destination is not possible.
Go from the list to the menu (left/right).
"
Select destination
"
"
Journey leg and route
"
"
Guidance options
"
"
Map management
"
"
Stop / Restore guidance
"
Press
NAV
.
or
To make full use of all of the
functions of your navigation
system, update the mapping
regularly. Contact a
PEUGEOT dealer or order
your mapping update at
http://peugeot.navigation.com
A short press on the end of the
lighting control stalk repeats
the last navigation message.
NAVIGATION - GUIDANCE
Access to the "NAVIGATION" menu
04
186
Press
NAV
to display the
"
Navigation - guidance
" menu.
Towards a new destination
Selecting a destination
Select "
Select destination
" and
confi rm, then select "
Enter an address
"
and confi rm.
Select the "
Country
" function then
confi rm.
Select the "
Town
" or "
Post code
"
function then confi rm.
Select the letters in the name of the
town or the characters in a post code
one at a time, confi rming each one with
the knob.
Selection the town from the list offered,
then confi rm .
A pre-set list (by entering the fi rst few
letters) of the towns in the country selected
can be accessed directly by selecting and
confi rming "
List
" in the screen.
List " in the screen. List
If possible, enter the "
Road
" and "
N°/X
"
information in the same way.
Select "
Archive
" to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.
Confi rm "
OK
" to start guidance.
Select the guidance criteria: "
Fastest
route
", "
Shortest route
" or optimised
"
Distance/Time
", then select the
desired restriction criteria: "
With tolls
",
"
With Ferry
", or "
Traffi c info
" then
confi rm "
OK
".
NAVIGATION - GUIDANCE
04
187
Towards a recent destination
Press
NAV
to display the
"
Navigation - guidance
" menu.
Select the desired destination and
confi rm to start guidance.
Towards a contact in the contacts directory
Select "
Select destination
" and
confi rm, then select "
Directory
" and
confi rm.
Selection the desired destination from
your contacts and confi rm "
OK
" to start
the guidance.
Press
NAV
to display the
"
Navigation - guidance
" menu.
Navigation towards a contact is only possible if it has an address
entered in the audio navigation system.
Delete recent destinations
Press
NAV
to display the
"
Navigation - guidance
" menu.
Select "
Options
" and confi rm and then
"
Delete recent destinations
" and
confi rm.
NAVIGATION - GUIDANCE
04
188
Select "
Select destination
" and
confi rm, then select "
GPS coordinates
"
and confi rm.
Enter the GPS coordinates and confi rm
"
OK
" to start the guidance.
Press
NAV
to display the
"
Navigation - guidance
" menu.
Towards GPS coordinates
Towards a point on the map
With the map displayed, press
OK
to
display the contextual menu. Select
"
Move the map
" and confi rm.
Press
OK
to display the contextual
menu for "
Move the map
" mode.
Select "
Select as destination
" or
"
Select as stage
" and confi rm.
Move the cursor using the control to
identify the desired destination.
NAVIGATION - GUIDANCE
04
189
Towards points of interest (POI)
The points of interest (POI) indicate all of the service locations in the vicinity
(hotels, various businesses, airports…).
Select the "
Enter an address
" function
and confi rm, then select
Select
destination
and confi rm.
To select a POI close to your current location,
select "
POI
" and confi rm, then select "
Around
the current place
" and confi rm.
To select a POI as a stage on the route,
select "
POI
" and confi rm, then select "
On
the route
" and confi rm.
To select a POI as a destination, fi rst
enter the country and town (see "Towards
a new destination"), select "
POI
" and
confi rm, fi nally select "
Near
" and confi rm.
Near " and confi rm. Near
Search for POIs in the categories
suggested in the following pages.
Select "
Search by Name
" to search for POIs by name and not by
proximity.
Select the POI and confi rm "
OK
" to start
the guidance.
Press
NAV
to display the
"
Navigation - guidance
" menu.
NAVIGATION - GUIDANCE
04
190
NAVIGATION - GUIDANCE
This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.
Service station
Garage
PEUGEOT
Covered car park
Car park
Rest area
Hotel
Restaurant
Cafeteria
Bed and breakfast
Railway station
Bus station
Port
Industrial estate
Supermarket
Vending machine
Sports complex, sports centre,
sports ground
Swimming pool
Winter sports resort
Airport
Theme parks
Hospital, Chemist, Vet
Police station
Town hall
Post offi ce
Museum, Culture, Theatre,
Historic monument
Tourist information, Tourist
attraction
Risk areas / Danger areas *
List of principal points of interest (POI)
* According to availability in the country.
School
An annual mapping update allows new points of interest to be presented to you.
You can also update the Risk areas / Danger areas every month.
The detailed procedure is available on:
http://peugeot.navigation.com.
Cinema
04
191
NAVIGATION - GUIDANCE
Select:
- "Visual alert"
- "Audible alert"
- "Alert only in guidance"
- "Overspeed alarm only".
The choice of time of notifi cation defi nes
how long in advance that Risk area
warnings are given.
Select "
OK
" to confi rm the screen.
Select "
Guidance options
" and confi rm,
then select "
Set parameters for risk
areas
" and confi rm.
These functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updating risk area POIs can be found at
http://peugeot.navigation.com.
Press
NAV
to display the "
Navigation -
guidance
" menu.
Settings for risk area / danger area alerts
04
192
Adding a stage
Press
NAV
to display the
"
Navigation - guidance
" menu.
Select "
Journey leg and route
" then
confi rm.
Select "
Close to
" a route passing
close to the stage or "
Strict
" for a route
passing through the stage.
Confi rm "
OK
" to start the guidance, and
give a general indication of the guidance
route.
Select "
Add a stage
" then confi rm
The address of the stage is entered as
a destination, by "
Enter an address
",
a contact in "
Directory
", or "
Previous
destinations
".
Organising stages
To organise stages, carry out operations 1
to 2 again, then select "
Order/delete
journey legs
" and confi rm.
Select and confi rm to save the
modifi cations.
Select the stage that you want to move
in the order.
Select "
Delete
" to delete the stage.
NAVIGATION - GUIDANCE
04
193
Route options
Calculation criteria
Select "
Guidance options
" and confi rm.
Select "
OK
" and confi rm to save the
modifi cations.
Select "
Defi ne calculation criteria
" and
confi rm.
This function allows modifi cation of:
- the guidance criteria: ("
Fastest
route
", "
Shortest route
",
"
Distance/Time
"),
- the exclusion criteria: ("
With tolls
"
or "
With Ferry
"),
- traffi c avoidance: ("
Traffi c info
").
Press
NAV
to display the
"
Navigation - guidance
" menu.
If traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.
NAVIGATION - GUIDANCE
04
194
Press
NAV
to display the
"
Navigation - guidance
" menu.
Map management
Selecting the points of interest displayed on the map
Select "
Map management
" and confi rm.
Select from the various categories the
ones that you want to display on the
screen.
Select "
Map details
" and confi rm.
Select "
Default
" to have only "
Filling stations, garages
" and
"
Risk areas
" appear on the map (if installed in the system).
Select "
OK
" then confi rm and select
"
OK
" again then confi rm to save the
modifi cations.
NAVIGATION - GUIDANCE
04
195
Select "
Map management
" and confi rm.
Select:
- "
Vehicle direction
" to have the map
follow the direction of travel,
- "
North direction
" to keep the map
always North up,
- "
Perspective view
" to display a
perspective view.
Select "
Map orientation
" and confi rm.
The colour of the map, different from the day and night mode, is
confi gured in the "
SETUP
" menu.
Map orientation
Press
NAV
to display the
"
Navigation - guidance
" menu.
Street names are visible on the map from the 100 m scale.
NAVIGATION - GUIDANCE
04
196
Press
NAV
to display the
"
Navigation - guidance
" menu.
Navigation voice synthesis
Select "
Guidance options
" and confi rm.
Adjusting the volume / Deactivation
Select "
Set speech synthesis
" and
confi rm.
Select the volume graph and confi rm.
Select "
Deactivate
" to deactivate voice messages.
Select "
OK
" and press the dial to
confi rm.
Adjust the volume to the desired level
and confi rm.
The volume of messages can be adjusted during the transmission
of the message using the volume adjustment control.
The volume setting of guidance messages is also accessible via
the "
SETUP
" / "
Voice synthesis
" menu.
NAVIGATION - GUIDANCE
04
197
Male voice / Female voice
Press
SETUP
to display the
confi guration menu.
Select "
Select male voice
" or "
Select
female voice
" then confi rm "
Yes
" then confi rm " Yes " then confi rm "
" to
activate a male or female voice. The
system restarts.
Select "
Voice synthesis
" and confi rm.
NAVIGATION - GUIDANCE
05
198
Access to the "
TRAFFIC INFORMATION
" menu
List of TMC messages in order
of distance from the vehicle.
Go from the list to the menu (left/right).
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
Traffi c information
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Geographic fi lter
"
Geographic fi lter " Geographic fi lter
"
Select TMC station
"
(automatic, manual)
"
Display/Do not display
messages
"
or
Press "
TRAFFIC
".
TRAFFIC INFORMATION
05
199
Configure the filtering and display of TMC messages
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a traffi c problem.
Press the
TRAFFIC
button to display the
"
Traffi c information
" menu.
Select the "
Geographic fi lter
" function
Geographic fi lter " function Geographic fi lter
and confi rm.
The system offers a choice of:
- "
Retain all the messages
",
or
- "
Retain the messages
"
- "
Around the vehicle
",
(confi rm the mileage to modify
and select the distance),
- "
On the route
".
Confi rm "
OK
" to save the modifi cations.
We recommend:
- a fi lter on the route and
- a fi lter around the vehicle of:
- 12 miles (20 km) in urban areas,
- 30 miles (50 km) on motorways.
TRAFFIC INFORMATION
05
200
Principal TMC symbols
Red and yellow triangle: traffi c information, for example:
Black and blue triangle: general information, for example:
Weather reports
Modifi ed signage
Risk of explosion
Traffi c reports
Narrow carriageway
Road closed
Wind
Slippery surface
Demonstration
Fog
Accident
Danger
Parking
Delay
No entry
Snow / ice
Roadworks
Traffi c jam
Receiving TA messages
The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, …) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.
Press
RADIO
to display the "
FM / AM
band
" menu.
Select "
Guidance options
" then
confi rm.
Activate or deactivate "
TA
" then confi rm.
The volume setting for TA messages can be adjusted only during the
transmission of this type of alert.
Activate or deactivate the function at any time by pressing
the button.
During a message, press the button to interrupt it.
TRAFFIC INFORMATION
06
201
Access to the "
TELEPHONE
" menu
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
Telephone
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Dial
"
"
Directory of contacts
"
"Contacts management
"
"
Phone functions
"
"
Bluetooth functions
"
"
Hang up
"
Go from the list to the menu (left/right).
or
List of recent calls sent and
received with the telephone
connected to the system.
Press this button.
To make a call, select a number in the list and confi rm "
OK
"
to start the call.
Connecting a different telephone deletes the list of
recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of
contacts in progress.
Telephone call in
progress.
In the top bar of the permanent
display
USING THE TELEPHONE
06
202
USING THE TELEPHONE
Pairing a Bluetooth telephone
First connection
For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must be
carried out with the
vehicle stationary
.
In the Bluetooth menu of your telephone, select
the name of the system from the list of devices
detected.
Press this button.
Select "
Bluetooth functions
" and
confi rm.
Select "
Peripherals search
" and confi rm.
The list of peripheral devices detected
is displayed. Wait until the "
Connect
"
button is available.
You can check the compatibility of your telephone at www.peugeot.co.uk
(services).
Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
confi guration).
Quick procedure from the telephone
Enter a minimum 4 fi gure code in the telephone and
confi rm.
Enter the same code in the system,
select "
OK
" and confi rm.
Procedure from the system
06
203
USING THE TELEPHONE
Select "
Connect
" and confi rm.
The system offers to connect the
telephone:
- in "
Hands-free mode
" (telephone
only),
- in "
Audio
" mode (streaming: playing
music fi les on the telephone),
- or "
All
" (for selection of both
modes).
Select "
OK
" and confi rm.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is
started.
The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
The "
Hands-free mode
" should be used in preference if
"Streaming" is not desired.
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services available to you.
Depending on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.
On return to the vehicle, the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modify the automatic connection mode, remove the pairing
and pair the telephone again with the desired mode.
Enter a minimum 4 fi gure code in the telephone
and confi rm.
Enter the same code in the system,
select "
OK
" and confi rm.
Select the name of the desired
peripheral from the list of devices
detected then confi rm .
06
204
USING THE TELEPHONE
Directory configuration / Synchronisation with the telephone
Press
PHONE
then select "
Contacts
management
" and confi rm.
Select "
New contact
" to enter a new
contact.
Select "
Sort by Name/First name
" to
choose the order in which they appear.
Select "
Delete all contacts
" to delete
the contacts saved in the system.
Select "
Synchronization options
":
- No synchronization: only the
contacts saved in the system
(always present).
- Display telephone contacts: only
the contacts saved in the telephone.
- Display SIM card contacts: only
the contacts saved on the SIM card.
- Display all phone contacts:
contacts on the SIM card and in
the telephone.
Select "
Import all the entries
" to import
all the contacts in the telephone and
save them in the system.
Once imported, a contact remains visible
whatever telephone is connected.
Select "
Contact mem. status
" to see the
number of contacts saved in the system
or imported, and the free memory.
06
205
Editing, importing or deleting a contact
Press
PHONE
then select "
Directory of
contacts
" and confi rm.
Select the desired contact and confi rm.
Select "
Open
" to view a contact on the
telephone or modify a contact saved in
the system.
Select "
Import
" to copy a contact from
the telephone to the system.
Select "
Delete
" to delete a contact
recorded in the system.
USING THE TELEPHONE
Select
OK
or press the back button to exit
this menu.
Once the contact has been imported, the Bluetooth symbol
disappears, replaced by the telephone symbol which shows that the
contact has been saved in the system.
It is not possible to modify or delete contacts in the telephone or the
SIM card via the Bluetooth connection.
In the "
Directory of contacts
" menu, the import and deletion of
contacts is done one by one.
06
206
USING THE TELEPHONE
Press
PHONE
twice.
Select "
Dial
" then confi rm.
Select "
Directory of contacts
" then
confi rm.
Dial the telephone number using the
virtual keypad selecting each number
in turn.
Confi rm "
OK
" to make the call.
Press
TEL
or twice on
PHONE
.
Calling a new number
Calling a contact
Select the desired contact and confi rm.
If access was via the
PHONE
button,
select "
Call
" and confi rm.
Select the number and confi rm to start
the call.
Making a call
Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls.
06
207
USING THE TELEPHONE
Calling a recently entered number
Press
TEL
, select "
Call list
" and
confi rm,
Select the desired number and confi rm.
To erase the calls log, press
PHONE
twice, select "
Phone
functions
" and confi rm then select "
Delete calls log
" and confi rm.
Ending a call
Press
PHONE
then select "
OK
" to end
the call.
Or make a long press on
TEL
at the
steering mounted controls.
Or make two short presses on
TEL
at
the steering mounted controls.
Or press the
MODE
button, as many
times as necessary, until the telephone
screen is displayed.
Press
PHONE
to display the calls log.
or
Press "
OK
" to display the contextual
menu then select "
Hang up
" and
confi rm.
It is always possible to start a call directly from the telephone; park
the vehicle as a safety measure.
06
208
USING THE TELEPHONE
Receiving a call
An incoming call is announced by a ring and a superimposed display
on the screen.
"
Yes
" Yes "
" to accept the call is selected by
default.
Press "
OK
" to accept the call.
Select "
No
" and confi rm to reject the
call.
A short press on
TEL
accepts an
incoming call.
A long press on
TEL
rejects an incoming
call.
06
209
Options during a call *
During a call, press the
MODE
button
several times to select display of the
telephone screen, then press "
OK
" to
open the contextual menu.
Select "
Private mode
" and confi rm to
take the call on the handset.
Or select "
Hands-free mode
" and
confi rm to take the call via the vehicle's
speakers.
Select "
Put call on hold
" and confi rm to
put the current call on hold.
Or select "
Resume the call
" and
confi rm to resume the call on hold.
Select "
DTMF ring tones
" to use the
numerical keypad, so as to navigate
through the menu of an interactive vocal
server.
Select "
Hang up
" to end the call.
* Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference
call by making 2 calls in succession*.
Select "
Conference
mode call
" in the
contextual menu accessible using this
button.
Or make a short press on this button.
USING THE TELEPHONE
06
210
Press
PHONE
twice.
Select "
List of the paired peripherals
"
and confi rm.
It is possible to:
- "
Connect
" or "
Disconnect
" the
selected telephone,
- delete the pairing of the selected
telephone.
It is also possible to select all pairings.
Managing paired telephones
Changing the ringtone
Press
PHONE
twice.
Select "
Phone functions
" and confi rm.
Select "
Ring options
" and confi rm.
You can adjust the volume and the type
of ringtone.
Select "
Bluetooth functions
".
Select "
OK
" and confi rm to save the
changes.
USING THE TELEPHONE
07
211
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
FM / AM band
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Change Waveband
" ("
AM / FM
")
"
Guidance options
" ("
TA, RDS
")
"
Audio settings
" (see this section)
"
Update radio list
"
Alphabetical list of stations
received.
Press
or
or use the rotary control to select
the previous or next station in the list.
Go from the list to the menu (left/right).
or
Press
RADIO
.
RADIO
Access to the "
RADIO
" menu
07
212
By alphabetical list
Press
RADIO
, select the station of your
choice and confi rm.
By automatic frequency search
Press
or
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel at the steering
mounted controls.
By manual frequency search
Press
or
to adjust the radio
frequency step by step.
Selecting a station
The external environment (hill, building, tunnel, underground car park…) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.
The quality of reception is represented by the number of
active waves in this symbol.
Press
RADIO
or
OK
to display the
contextual menu.
Changing waveband
Select "
Change waveband
".
Select "
AM / FM
" and confi rm.
RADIO
07
213
Press the button on the numerical keypad to recall a
preset station.
Or press then turn the thumb wheel at the steering
mounted controls.
Presetting a station
After selecting a station, press one of the buttons
on the numerical keypad for 2 seconds to preset
the current station.
An audible signal confi rms that the station has been
preset.
Press
RADIO
.
Activate / Deactivate RDS
RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception
of the station during a journey.
Select "
Guidance options
" then
confi rm.
Activate or deactivate "
RDS
" then
confi rm.
RADIO
08
214
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
MEDIA
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
Change media
"
"
Eject USB device
"
(if USB connected)
"
Play mode
" ("
Normal
",
"
Random
", "
Random on all
media
", "
Repetition
")
"
Audio settings
" (see this section)
"
Activate / Deactivate AUX input
"
List of the current media
tracks.
Go from the list to the menu (left/right).
or
Press
MUSIC
.
MUSIC MEDIA PLAYERS
Access to the "
MUSIC MEDIA PLAYER
" menu
08
215
CD, MP3 CD / USB player
The audio equipment will only play audio fi les with ".wma, .aac, .fl ac,
.ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u…) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are greater than 32 KHz.
It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format (udf, …), it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Information and advice
The system supports USB mass storage or iPod devices via the USB
port (suitable cable not supplied).
If a partitioned USB memory key is connected to the system, only the
fi rst partition is recognised.
Control of the peripheral device is with the audio system controls.
The number of tracks is limited to 2000 maximum, 999 tracks per
folder.
If the current consumption at the USB port exceeds 500 mA, the
system goes into protection mode and deactivates the port.
Other peripherals, not recognised on connection, must be connected
to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a USB memory stick must be formatted
FAT 16 or 32.
The system does not support the operation of an Apple
®
player and a
®
player and a
®
USB memory stick connected at the same time.
It is recommended that offi cial Apple
®
USB cables are used to ensure
®
USB cables are used to ensure
®
correct operation.
MUSIC MEDIA PLAYERS
08
216
Insert the CD in the player, insert the USB
memory stick in the USB player or connect
the USB peripheral to the USB port using a
suitable cable (not supplied) .
The system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the fi rst
connection.
Reduce the number of non-music fi les and
the number of folders to reduce the waiting
time.
The playlists are updated every time the
ignition is switched off or connection of a
USB memory stick. However, the system
memorises these lists and if they are not
modifi ed, the loading time will be shorter.
Play starts automatically after a period which
depends on the capacity of the USB memory
stick.
Selection of source
The
SOURCE
button on the steering mounted controls allows a
direct change to the next media source.
"
CD / CD MP3
"
"
USB, iPod
"
"
AUX
"
"
STREAMING
"
"
RADIO
"
Press
MUSIC
to display the "
MEDIA
"
menu.
Select "
Following media source
" and
confi rm.
Repeat the operation as many times as necessary to obtain the
desired media source (except for radio which is accessible either
with
SOURCE
or
RADIO
).
Sources
MUSIC MEDIA PLAYERS
08
/
/
/
/
/
/
/
+
/
/
/
217
Selecting a track
Previous track.
Next track.
Previous folder.
Next folder.
Fast forward.
Fast backward.
Pause: long press on
SRC
.
MUSIC: List of USB or CD tracks or
folders
Up or down in the list.
Confi rm, next menu level.
Up one menu level.
Long press
Long press
MUSIC MEDIA PLAYERS
08
218
Audio streaming
Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.
Connect the telephone: see "
USING THE TELEPHONE
".
Select "
Audio
" or "
All
" profi le.
If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.
Once connected in streaming mode, the telephone is considered to be
a media source.
It is recommended that you activate "
Repeat
" on the Bluetooth
peripheral.
MUSIC MEDIA PLAYERS
Connecting APPLE
®
Connecting APPLE
®
Connecting APPLE
players
®
players
®
Connect the Apple
®
player to the USB port using a suitable cable (not
®
player to the USB port using a suitable cable (not
®
supplied).
Play starts automatically.
Control is via the audio system.
The classifi cations available are those of the portable device
connected (artists / albums / genres / playlists / audiobooks /
podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The "Shuffl e tracks" mode on an iPod
®
corresponds to the "Random"
®
corresponds to the "Random"
®
mode on the audio system.
The "Shuffl e albums" mode on an iPod
®
corresponds to the "Random
®
corresponds to the "Random
®
all" on the audio system.
"Shuffl e tracks" is restored by default on each connection.
The version of software in the audio system may not be compatible
with the generation of your Apple
®
player.
®
player.
®
08
219
MUSIC MEDIA PLAYERS
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED
Connect the portable device (MP3,
WMA player…) to the RCA audio
sockets (white and red) using a JACK-
RCA audio cable.
Press
MUSIC
to display the "
MUSIC
"
menu.
Select "
Activate / Deactivate AUX
input
" and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.
Display and management of the controls are via the portable device.
09
220
AUDIO SETTINGS
They are accessible by the
MUSIC
button in the control panel or by a long
press on
RADIO
according to the source
in use.
- "
Equalizer
" (choice of 6 musical ambiences)
Equalizer " (choice of 6 musical ambiences) Equalizer
- "
Bass
"
- "
Treble
"
- "
Loudness
" (Activate/Deactivate)
- "
Distribution
" ("
Driver
", "
Driver ", " Driver
All passengers
")
- "
Le-Ri balance
" (Left/Right)
- "
Fr-Re balance
" (Front/Rear)
- "
Auto. Volume
" depending on road speed (Activate/Deactivate)
The audio settings (
Equalizer
,
Equalizer , Equalizer
Bass
,
Treble
and
Loudness
) are
different and independent for each sound source.
The settings for distribution and balance are common to all sources.
The distribution (or spatialisation using the Arkamys
©
system) of sound
©
system) of sound
©
is an audio process that allows the audio quality to be adapted to the
number of listeners in the vehicle.
On-board audio: Arkamys
©
Sound Staging.
©
Sound Staging.
©
With Sound Staging, the driver and passengers are immersed in an
"audio scene" recreating the natural atmosphere of an auditorium:
truly a part of the scene and its surroundings.
This new sensation is made possible by software in the audio system
which processes the digital signals from the media players (radio,
CD, MP3…) without changing the audio settings. This processing
takes account of the characteristics of the passenger compartment to
produce optimum results.
The Arkamys
©
software installed in your audio system processes
©
software installed in your audio system processes
©
the digital signal from the media players (radio, CD, MP3, …) and
recreates a natural musical scene, with harmonious placement of
instruments and voices in the space in front of passengers, level with
the windscreen.
10
221
CONFIGURATION
Press
SETUP
to display the
"
Confi guration
" menu.
Select "
Choose colour
" and confi rm to
Choose colour " and confi rm to Choose colour
select the screen colour harmony and
the map presentation mode:
- day mode,
- night mode,
- automatic day/night mode,
according to whether the
headlamps are on.
Select "
Adjust luminosity
" and confi rm
to adjust the screen brightness.
Press "
OK
" to save the changes.
The settings for day and night are
independent.
Select "
Display confi guration
" and
confi rm.
Display configuration
11
222
SCREEN MENU MAP(S)
"Navigation - guidance"
MENU
Enter an address
Select destination
Directory
GPS coordinates
Journey leg and route
Add a stage
Enter an address
Directory
Previous destinations
Order/delete journey legs
Divert route
Chosen destination
Guidance options
Defi ne calculation criteria
Delete last destinations
Map management
Map orientation
MAIN FUNCTION
Option A1
Option A11
Option A
Option B…
Map details
Move the map
Mapping and updating
Description of risk areas database
Stop / Restore guidance
1
2
3
1
3
3
2
2
2
2
1
3
1
1
2
2
2
2
2
2
2
2
2
2
1
1
Set parameters for risk areas
2
Fastest route
2
Shortest route
Distance/Time
With tolls
2
2
2
With Ferry
2
Traffi c info
2
Set speech synthesis
Fastest route
Shortest route
3
3
2
Distance/Time
With tolls
3
3
With Ferry
Traffi c info
3
3
3
3
3
North direction
Vehicle direction
Perspective view
11
223
Select TMC station
Automatic TMC
Manual TMC
List of TMC stations
Display / Do not display
messages
"TRAFFIC INFORMATION"
MENU
Geographic filter
Retain all the messages:
Retain the messages:
Around the vehicle
On the route
1
2
2
2
1
2
2
3
3
1
SCREEN MENU MAP(S)
Dial
Directory of contacts
Call
Open
Import
"TELEPHONE" MENU
1
2
2
2
1
2
2
2
2
1
2
3
3
3
2
2
2
1
1
1
3
3
3
2
3
2
2
3
List of the paired peripherals
Connect
Disconnect
Delete
Delete all
Contact mem. status
Phone functions
Ring options
Delete calls log
Bluetooth functions
Peripherals search
Rename radiotelephone
Hang up
Display all phone contacts
Delete
Contacts management
New contact
Delete all contacts
Import all the entries
Synchronization options
Display telephone contacts
No synchronization
Display SIM card contacts
2
Cancel
2
Sort by First name/Name
3
Cancel
11
224
SCREEN MENU MAP(S)
1
1
2
1
1
2
2
2
2
2
2
2
3
3
2
2
2
1
Random on all media
Repetition
Audio settings
Activate / Deactivate AUX
input
"MUSIC" MENU
Change Media
Read mode
Normal
Random
All passengers
Le-Ri balance
Fr-Re balance
Auto. Volume
Update radio list
Bass
Treble
Loudness
Distribution
Driver
1
2
2
1
1
3
3
3
3
3
3
2
Equalizer
"RADIO" MENU
Change Waveband
Guidance options
TA
RDS options
Audio settings
None
Classical
Jazz
Rock
Techno
Vocal
2
2
2
2
USB/iPod
AUX
CD
Bluetooth streaming
2
AM / FM
3
Activated / Deactivated
3
Activated / Deactivated
11
225
2
3
3
1
4
2
2
1
4
4
2
2
Night mode
Auto Day/Night
Adjust luminosity
Set date and time
"SETUP" MENU
Display configuration
Choose colour
Harmony:
Cartography:
Day mode
Speech synthesis setting
Guidance instructions volume
Select male voice/Select female voice
2
Select units
2
3
3
2
Lighting confi guration
Parking assistance
Rear wiper in reverse
Guide-me-home lighting time
1
Define vehicle parameters *
2
Wiper operation
3
Directional headlamps
3
Mood lighting
3
Daytime running lamps
* The settings vary according to the vehicle.
2
Alert log
1
Trip computer
2
Status of functions
2
Français
1
Select language
2
English
2
Italiano
2
Portuguese
2
Español
2
Deutsch
2
Nederlands
2
Turkish
2
Polski
2
Русский
SCREEN MENU MAP(S)
226
The following table groups together the answers to the most frequently asked questions concerning your audio system.
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
The route calculation is
not successful.
The guidance criteria may conflict with the current location (exclusion of
toll roads on a toll motorway).
Check the guidance criteria on the Navigation
Menu, "Guidance options"\ "Define calculation
criteria".
I am unable to enter my
post code.
The system only accepts post codes of up to 5 characters.
The POIs do not appear.
The POIs have not been selected.
Select the POIs in the list of POIs.
The risk areas audible
warning does not work.
The audible warning is not active.
Activate audible warnings in the Guidance options
menu, "Navigation - guidance", "Set parameters
for risk areas".
The system does not
suggest a detour around
an incident on the route.
The guidance criteria do not take account of TMC messages.
Select the "Traffic info" function in the list of
guidance criteria.
I receive a Risk area alert
which is not on my route.
Other than guidance, the system announces all Risk areas positioned in a
cone located in front of the vehicle. It may provide an alert for a Risk area
located on nearby or parallel roads.
Zoom in on the map to view the exact position of
the Risk area. Select "On the route" to no longer
receive alerts other than guidance or to reduce the
time for the announcement.
227
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
Certain traffic jams
along the route are not
indicated in real time.
On starting, it is several minutes before the system begins to receive the
traffic information.
Wait until the traffic information is being received
correctly (display of the traffic information icons on
the map).
The filters are too restrictive.
Modify the "Geographic filter" settings.
In certain countries, only major routes (motorways…) are listed for the
traffic information.
This phenomenon is normal. The system is
dependent on the traffic information available.
The altitude is not
displayed.
On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly.
Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then
select "GPS coverage").
Depending on the geographical environment (tunnel…) or the weather,
the conditions of reception of the GPS signal may vary.
This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
I am unable to connect
my Bluetooth telephone.
The telephone's Bluetooth function may be switched off or the telephone
may not be visible.
- Check that your telephone's Bluetooth
function is switched on.
- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system.
You can check the compatibility of your telephone
on www.peugeot.co.uk (services)
The volume of the
telephone connected
in Bluetooth mode is
inaudible.
The volume depends both on the system and on the telephone.
Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of telephone
communication.
Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, …).
228
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
Some contacts are
duplicated in the list.
The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated.
Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown
in alphabetical order.
Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order.
Modify the display setting in the telephone
directory.
The system does not
receive SMS text messages.
The Bluetooth mode does not permit sending SMS text messages to the
system.
The CD is ejected
automatically or is not
played by the player.
The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
- Check that the CD is inserted in the player the right
way up.
- Check the condition of the CD: the CD cannot be
played if it is too damaged.
- Check the content in the case of a recorded CD:
refer to the information and advice in the "MUSIC
MEDIA PLAYERS" section.
- The audio system's CD player does not play DVDs.
- Some recorded CDs will not be played by the audio
system because they are not of the correct quality.
The CD has been recorded in a format that is not compatible with the player (udf, …).
The CD is protected by an anti-pirating protection system which is not
recognised by the audio system.
There is a long waiting
period following the insertion
of a CD or connection of a
USB memory stick.
When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes.
This phenomenon is normal.
The CD player sound is
poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
229
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
Some characters in the
media information are not
displayed correctly while
playing.
The audio system does not display some types of characters.
Use standard characters to name tracks and
folders.
Playing of streaming files
does not start.
The peripheral device connected does not support automatic play.
Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio.
The Bluetooth profile does not allow the transfer of this information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed…).
The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in the
geographical area.
The environment (hills, buildings, tunnels, basement car parks…) block
reception, including in RDS mode.
This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
I cannot find some radio
stations in the list of
stations received.
The station is not received or its name has changed in the list.
Some radio stations send other information in place of their name (the
title of the song for example).
The system interprets this information as the name of the station.
The name of the radio
station changes.
230
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected.
The selection of an equalizer setting imposes the balance settings.
Modifying one without the other is not possible.
Modify the balance or equalizer settings to obtain
the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected.
The selection of a distribution setting imposes the balance settings.
Modifying one without the other is not possible.
Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing an
distribution setting,
the balance setting is
deselected.
There is a difference in
sound quality between
the different audio
sources (radio, CD…).
For optimum sound quality, the audio settings for Volume, Bass, Treble,
Equalizer and Loudness can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD…).
Check that the audio settings for (Volume, Bass,
Treble, Equalizer, Loudness) are adapted to
the sources listened to. It is advisable to set the
AUDIO functions (Bass, Treble, Fr-Re balance,
Le-Ri balance) to the middle position, select the
"None", musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
231
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
With the engine off, the
system switches off after
a few minutes of use.
When the engine is switched off, the system's operating time depends on
the battery charge.
The switch-off is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
Playback of my USB
memory stick starts only
after a very long wait
(around 2 to 3 minutes).
Some files supplied with the memory stick may greatly slow down access
to reading the memory stick (multiplication by 10 of the catalogue time).
Delete the files supplied with the memory stick
and limit the number of sub-folders in the file
structure on the memory stick.
When I connect my
iPhone as telephone and
to the USB port at the
same time, I am unable
to play the music files.
When the iPhone connects automatically as a telephone, it forces the
streaming function. The streaming function takes the place of the USB
function which is then not useable, there is a period without sound of the
track being played with Apple
®
players.
®
players.
®
Disconnect and reconnect to the USB port
(the USB function takes priority over streaming).
When I connect my Apple
®
player or my BlackBerry
®
player or my BlackBerry
®
player or my BlackBerry
to the USB port, I have
alert messages on the
current consumption by
the USB port.
When charging, the current consumption of these smartphones is greater
than the rating of the USB port, which is 500 mA.
232
233
PEUGEOT Connect Sound (RD5)
Your PEUGEOT Connect Sound (RD5) is coded in such
a way that it will only operate in your vehicle.
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.
AUDIO SYSTEM / BLUETOOTH
®
01 First steps
02 Steering mounted controls
03 Main menu
04 Audio
05 PEUGEOT Connect USB
06 Bluetooth
07 Screen menu map(s)
Frequently asked questions
p.
p.
p.
p.
p.
p.
p.
p.
234
235
236
237
241
243
246
249
CONTENTS
01
234
FIRST STEPS
Eject CD.
Select source:
radio, audio CD / MP3 CD, USB,
Jack connection, Streaming,
AUX.
Select the screen display
mode:
Date, audio functions, trip
computer, telephone.
Automatic frequency search
down/up.
Select previous/next CD, MP3
or USB track.
Audio settings: front/
rear fader, left/right
balance, bass/treble,
loudness, audio
ambiences.
Display the list of
local stations.
Long press: CD
tracks or MP3
folders (CD / USB).
TA (Traffi c Announcements)
on/off.
Long press: PTY * (radio
Programme TYpe) mode.
Display main menu.
The DARK button changes the screen display
for improved driving comfort at night.
1
st
press: upper bar only illuminated.
2
nd
press: black screen.
3
rd
press: return to standard display.
On/off, volume setting.
Buttons 1 to 6:
Select a pre-set radio station.
Long press: pre-set a station.
Select next frequency down/up.
Select previous/next MP3 folder.
Select previous/next folder / genre /
artist / playlist (USB).
Confi rm.
Selection of AM / FM
wavebands.
Abandon the current
operation.
*
Available according to version.
*
Available according to version.
*
02
235
STEERING MOUNTED CONTROLS
Radio: automatic search for a higher frequency.
CD / MP3 / USB: selection of the next track.
CD / USB: continuous press: fast forwards play.
Move in the list.
Change audio source.
Confi rm a selection.
Call/end call on the telephone.
Press for more than 2 seconds:
telephone main menu.
Radio: automatic search for a lower
frequency.
CD / MP3 / USB: selection of the
previous track.
CD / USB: continuous press: fast
reverse.
Move in the list.
Radio: select the previous/next pre-set
station.
USB: select genre / artist / folder from
the classifi cation list.
Select the previous/next item in a menu.
Volume increase.
Volume increase.
Volume decrease.
Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
03
236
MAIN MENU
AUDIO FUNCTIONS
:
radio, CD, USB, options.
Screen C
For a detailed global view of the
menus available, refer to "Screen
menu map" in this section.
TELEPHONE
:
hands-free kit, pairing,
management of a call.
PERSONALISATION-
CONFIGURATION
:
vehicle parameters,
display, languages.
VEHICLE DIAGNOSTICS
:
alert log.
04
237
AUDIO
Press the SOURCE button several
times in succession and select the
radio.
Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.
Press one of the buttons to carry out
a manual search up / down for radio
frequencies.
Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
than two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...)
may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure
of the audio system.
RDS
Radio
Selecting a station
Press the MENU button.
Select AUDIO FUNCTIONS then
press OK.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select ACTIVATE RDS then press
OK. RDS appears on the screen.
In radio mode, press OK directly to activate / deactivate RDS
mode.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout the
country as radio stations do not cover 100 % of the territory. Under conditions
of very weak reception, the system may change to a regional station.
04
238
AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the vehicle's player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.
CD
Playing a CD
To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to display the list of tracks on
the CD.
Press and hold one of the buttons for
fast forwards or fast backwards.
Receiving TA messages
Press the TA button to activate or
deactivate traffi c messages.
The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.
04
239
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of
several tens of music fi les on a single disc.
In order to be able to play a recorded CDR or CDRW, when
recording, the ISO 9660 level 1.2 or Joliet fi le format is
recommended.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording format is always
used for an individual disc, with as low a speed as possible
(4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet format is
recommended.
The audio system will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.
MP3 CD
Information and advice
AUDIO
Empty CDs are not recognised and may damage the system.
Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which
may take anything between a few seconds and several tens of
seconds, before play begins.
MP3 CD
Playing an MP3 compilation
On a single disc, the CD player can read up to 255 MP3 fi les
spread over 8 folder levels. However, it is advisable to keep to
a limit of two levels to reduce the access time before the CD is
played.
While the CD is being played, the folder structure is not followed.
All of the fi les are displayed on a single level.
To play a disc which has already
been inserted, press the SOURCE
button several times in succession
and select CD.
Press one of the buttons to select a
folder on the CD.
Press the LIST REFRESH button to display the list of directories of
the MP3 compilation.
Press and hold one of the buttons for
fast forward or backward play.
Press one of the buttons to select a
track on the CD.
04
240
The display and control is via the portable device.
First adjust the volume of your portable device.
Then adjust the volume of your audio
system.
Using the auxiliary socket (AUX)
Adjusting the volume of the auxiliary source
RCA sockets
AUDIO
Do not connect a device to both the RCA sockets and the USB
port at the same time.
Connect the portable device
(MP3 player…) to the audio
sockets (white and red, RCA
type) using a suitable JACK /
RCA cable (not supplied).
Press the SOURCE button several
times in succession and select AUX.
The RCA auxiliary sockets permit the connection of a portable
device (MP3 player...).
05
241
PEUGEOT CONNECT USB
The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB
memory stick.
The fi le formats supported are .mp3 (mpeg1
layer 3 only) and .wma (standard 9 only,
128 kbits/sec compression).
Certain playlist formats are supported (.m3u, ...)
On reconnection of the previous memory stick
used, play is resumed automatically with the last
track played.
You have a USB port. The
audio fi les are transmitted
from a portable device - digital
player or a USB memory
stick - to your PEUGEOT
Connect Sound (RD5) and
heard via the vehicle's
speakers.
USB memory stick (1.1, 1.2 and 2.0) or Apple
®
player of
®
player of
®
generation 5 or later:
- USB memory sticks should be formatted FAT or FAT 32
(NTFS not supported),
- the Apple
®
player lead is essential,
®
player lead is essential,
®
- navigation through the fi le database is also possible by
means of the steering mounted controls.
Using the PEUGEOT CONNECT USB
Connecting a USB memory stick
Other Apple
®
players of earlier
®
players of earlier
®
generations and players using
the MTP protocol * :
- play only via a JACK /
RCA lead (not supplied)
connected to the RCA
sockets,
- navigation through the
fi le database is from the
portable device.
* Depending on vehicle.
05
242
Using the PEUGEOT CONNECT USB
Press LIST briefl y to display the
previously selected classifi cation.
Navigate through the list using the left/
right and up/down buttons.
Confi rm the selection by pressing OK.
The lists available are Artist, Genre and Playlist (as defi ned in
the Apple
®
player).
®
player).
®
Selection and Navigation are described in steps 1 to 4 above.
Do not connect a hard disk or USB connection device other
than audio equipment to the USB port. This could damage your
installation.
Connecting an Apple
®
Connecting an Apple
®
Connecting an Apple
player via the USB port
®
player via the USB port
®
Press one of these buttons to gain
access to the previous / next track on
the classifi cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.
Press one of these buttons to
gain access to the previous / next
Genre, Folder, Artist or Playlist on
the classifi cation list currently being
played.
Press and hold LIST to display the
different classifi cations.
Select by Folder / Artist / Genre / Playlist,
press OK to select the classifi cation
required, then press OK again to confi rm.
- by Folder: all folders containing audio
fi les recognised on the peripheral
device.
- by Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in
alphabetical order.
- by Genre: all of the genres defi ned in
the ID3 Tags.
- by Playlist: in accordance with the
playlists recorded on the USB device.
PEUGEOT CONNECT USB
06
243
BLUETOOTH
For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Press the MENU button.
A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
confi guration.
In the menu, select:
- Bluetooth telephone function -
Audio
- Bluetooth confi guration
- Perform a Bluetooth search
The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you.
Bluetooth telephone
Screen C
The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed in the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.
A message that the pairing has been successful appears in the
screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.
A message is displayed in the screen of the
telephone chosen. To accept the pairing, enter the
same code on the telephone, then confi rm with OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.
(Available according to model and version)
* If your telephone is fully compatible.
If pairing fails, the number of attempts is not limited.
Go to www.peugeot.co.uk for more information (compatibility,
more help, ...).
Pairing a telephone / First connection
06
244
Receiving a call
An incoming call is announced by a ring and a superimposed
display in the vehicle's screen.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.
Press this button to accept the call.
Making a call
From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.
Press this button for more than two seconds for
access to your directory, then navigate with the
thumb wheel.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.
BLUETOOTH
The system accesses the telephone's contacts directory, depending
on compatibility, and while the Bluetooth connection with it is
maintained.
With certain telephones connected by Bluetooth you can send
a contact to the directory of the audio system.
Contacts imported in this way are saved in a permanent directory
visible to all, whatever the telephone connected.
The menu for the directory is not accessible if it is empty.
06
245
Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. Refer to the steps in "Pairing
a telephone" on the previous pages. During the
pairing phase, the vehicle must be stationary with
the key in the ignition.
Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.
Bluetooth audio streaming *
Wireless transmission of music fi les on the telephone, played via
the audio equipment. The telephone must be able to manage the
appropriate Bluetooth profi les (Profi les A2DP / AVRCP).
* Depending on the compatibility of the telephone.
** In certain cases, playing of the Audio fi les must be initiated from the
keypad.
*** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button ** .
The tracks to be played can be
controlled as usual via the buttons on
the audio system control panel and
the steering mounted controls *** .
The contextual information can be
displayed on the screen.
During a call, press this button for more than
2 seconds.
Confi rm with OK to end the call.
Ending a call
BLUETOOTH
07
246
SCREEN MENU MAP(S)
activate / deactivate RDS
activate / deactivate REG mode
activate / deactivate radiotext
RADIO
activate / deactivate Intro
CD / MP3 CD
activate / deactivate track repeat
(the entire current CD for CD, the entire
current folder for MP3 CD)
activate / deactivate random play
(the entire current CD for CD, the entire
current folder for MP3 CD)
activate / deactivate track repeat (of the
current folder / artist / genre / playlist)
USB
activate / deactivate random play
(of the
current folder / artist / genre / playlist)
1
1
1
1
1
1
1
1
S
creen
C
Press the OK dial for access to short-cut menus according
to the display in the screen:
07
247
SCREEN MENU MAP(S)
Audio functions
Alternative frequencies (RDS)
activate / deactivate
FM waveband settings
Regional mode (REG)
activate / deactivate
Radio-text information (RDTXT)
activate / deactivate
1
2
3
4
3
4
3
4
Play modes
Album repeat (RPT)
activate / deactivate
Track random play (RDM)
activate / deactivate
2
3
4
3
4
Vehicle diagnostics
Alert log
1
2
S
creen
C
Pressing the MENU button displays:
07
248
SCREEN MENU MAP(S)
Bluetooth telephone
Connect/Disconnect an equipment
Consult the paired equipment
Bluetooth confi guration
Telephone function
Audio Streaming function
Delete a paired equipment
Perform a Bluetooth search
Calls list
Call
Directory
Terminate the current call
Manage the telephone call
Activate secret mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
Video brightness adjustment
Display confi guration
Defi ne the vehicle settings
*
Personalisation-Configuration
normal video
inverse video
brightness (- +) adjustment
Date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h / 24 h mode
Choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
Choice of language
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The parameters vary according to vehicle.
249
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between
the different audio
sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source
(radio, CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player.
The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not
play DVDs.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.
250
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
I am unable to access my
voicemail.
Few telephones or service providers allow the use of this function.
The CD player sound is
poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable.
Set the treble or bass level to 0, without selecting
an ambience.
The stored stations do
not function (no sound,
87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...).
The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode.
This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
251
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
Sound cut-outs of 1 to
2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station.
Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use.
When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display.
In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD.
Switch the audio system off for a few minutes to
allow the system to cool.
252
VISUAL SEARCH
EXTERIOR
Boot ......................................71, 73
Temporary puncture
repair kit ...........................140-144
Changing a wheel .............. 145-148
- tools
- removing / refi tting
Changing bulbs..................153-154
- rear lamps
- 3rd brake lamp
- number plate lamps
Parking sensors ................. 128-129
Towbar ...................................... 167
Towing ...............................165-166
Remote control key................61-65
- opening / closing
- unlocking / partial opening of
the boot
- anti-theft protection
- starting
- battery
Accessories .......................168-169
Retractable roof .........................6-7
Fuel tank ................................ 74-75
Door mirrors ...........................58-59
Side spotlamps ................... 80, 152
Doors .....................................70-72
- opening / closing
- central locking
- emergency locking
Alarm .....................................66-67
Electric windows ....................68-69
Lighting controls ....................76-80
Directional lighting ......................81
Headlamp height adjustment ....80-81
Changing bulbs..................150-152
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance .....................94
Trajectory control ........................ 95
Tyre under-inflation
detection ..........................122-123
Snow chains .............................149
Tyre pressures ..........122, 144, 175
253
VISUAL SEARCH
INTERIOR
Boot fittings ............................ 91-92
- stowing rings
- luggage retaining net
- luggage retaining strap
- storage net
- storage box
Installing the windstop ...........50-52
Child seats .................104-109, 113
ISOFIX child seats ............. 110-112
Rear seats ..................................57
Front seats.............................53-57
"AIRWAVE" systems ...................56
Seat belts...............................97-99
Airbags ..............................100-103
Deactivating the passenger's front
airbag .............................101, 105
Interior fittings ........................86-90
- lockable glove box
- mat
- lockable front armrest
Roll-over bars .............................96
254
VISUAL SEARCH
INSTRUMENTS AND CONTROLS
Multifunction screens ............. 39-44
Hazard warning lamps ................93
Switch panel ...............................15
Emergency and assistance
call ....................................94, 177
Instrument panels ..................21-22
Warning lamps ....................... 23-30
Indicators ...............................31-34
Buttons ..................................35-36
- Check / service indicator /
trip distance recorder
- lighting dimmer
Lighting controls ....................76-80
Headlamp height adjustment ....80-81
Stop & Start .......................119-121
Speed limiter......................124-125
Cruise control ....................126-127
Door mirrors ...........................58-59
Electric windows ....................68-69
Dashboard fuses ...............155-157
Opening the bonnet .................. 131
Steering wheel adjustment .........60
Horn ............................................ 93
Courtesy lamps...........................84
Seat belt / passenger's front airbag
warning lamps display ..............97
Rear view mirror .........................60
Sun visor.....................................87
Wiper controls........................82-84
Trip computer ........................37-38
PEUGEOT Connect
Navigation (RT6) .............179-232
Setting the date/time...................43
PEUGEOT Connect Sound
..... 233-251
Setting the date/time...................41
Ventilation ..............................45-46
Digital air conditioning ...........48-49
Demisting - defrosting
the rear screen .........................47
Parking brake ........................... 114
Manual gearbox ........................ 114
Gear shift indicator ................... 115
Automatic gearbox............. 116-118
"AIRWAVE" system controls ....... 56
Retractable roof control .............6-7
Control for all four windows ........69
255
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE
Running out of fuel, Diesel .......132
Checking levels .................135-137
- oil
- brake fl uid
- power steering fl uid
- coolant
- screenwash/headlamp wash
fl uid
- additive (Diesel with particle
emissions fi lter)
Changing bulbs..................150-154
- front
- rear
Petrol engines....................170-171
Diesel engines ...................172-173
Dimensions ............................... 174
Identification markings ..............175
Opening the bonnet .................. 131
Under the bonnet, petrol ...........133
Under the bonnet, Diesel ..........134
Battery ...............................161-164
Energy economy mode.............164
Engine compartment
fuses ........................155, 158-160
Checking components .......138-139
- air fi lter
- passenger compartment fi lter
- oil fi lter
- particle emissions fi lter (Diesel)
- brake pads / discs
256
ALPHABETICAL INDEX
ABS and EBFD systems
..................
94
Accessories
....................................
168
Accessory socket, 12V
.....................
89
Access to rear seats
.........................
55
Adjusting headlamps
........................
80
Adjusting the steering
wheel
............................................
60
Airbags
...........................................
100
Airbags, front
..........................
100
,
103
Airbags, lateral
.......................
102
,
103
Air conditioning
.....................
19
,
46, 48
Air conditioning, digital
.....................
48
Air filter
...........................................
Air filter ...........................................Air filter
138
Air flow
..............................................
45
Air vents
...........................................
45
Alarm
................................................
66
Anti-lock braking system (ABS)
........
94
Anti-swirl net
.....................................
50
Anti-theft
...........................................
63
Armrest, front
....................................
88
Armrest, rear
....................................
Armrest, rear ....................................Armrest, rear
57
Ashtray
.............................................
89
Assistance call
..................
94
,
177
,
178
Audible warning
................................
93
Audio streaming (Bluetooth)
....
218
,
245
Audio systems
................................
179
Automatic illumination
of headlamps
..........................
76
,
79
Automatic operation of hazard
warning lamps
..............................
93
Battery
.............................
138
,
161-163
Battery, charging
............................
163
Battery, remote control
...............
64
,
65
Bluetooth (hands-free)
............
202
,
243
Bluetooth
(telephone)
.........................
202, 243
Bonnet
............................................
131
Bonnet stay
....................................
131
Boot
..................................................
73
Boot (fittings)
...............................
91-92
Boot lamp
.........................................
85
Boot (opening)
..................................
61
Boot screen
......................................
92
Brake discs
.....................................
139
Brake lamps
...................................
153
Brake pads
.....................................
139
Braking assistance
system
..........................................
94
Capacity, fuel tank
............................
74
CD MP3
..................................
215, 239
Central locking
..................................
71
Changing a bulb
......................
150
-154
Changing a fuse
......................
155-160
Changing a wheel
....................
145-148
Changing a wiper blade
...........
84
,
165
Changing the date
......................
41
,
43
Changing the remote control battery
....
Changing the remote control battery
....
Changing the remote control battery
64
Changing the time
......................
41
,
43
CHECK
.............................................
35
Checking levels
.......................
135-137
Checking the engine oil level
...
32, 135
Checking tyre pressures
(using the kit)
.............................
144
Checks
.....................................
133
-
139
Children
.....................
99, 101, 104-113
Child seats
...............................
104
-
113
Child seats, conventional
...............
108
Closing the boot
...............................
73
Closing the doors
.............................
70
Closing the retractable roof
................
Closing the retractable roof ................Closing the retractable roof
6
Cold climate screen
........................
168
Colour screen, retractable
...........
42
-
44
Connectors, audio
....
88
, 219,
240
,
241
Control for retractable roof
.................
Control for retractable roof .................Control for retractable roof
6
Control for the four windows
............
68
Coolant level
.............................
31
,
136
Coolant temperature indicator
..........
Coolant temperature indicator ..........Coolant temperature indicator
31
Courtesy lamps
................................
84
Courtesy mirror
.................................
Courtesy mirror .................................Courtesy mirror
87
Cruise control
.................................
126
Automatic rain sensitive windscreen
wipers
.....................................
82
,
83
Auxiliary
sockets
.......................
219, 240
,
241
A
B
C
Cabriolet (configuration)
..........
6
,
46
,
48
,
50
,
56
,
66
,
73
,
87
,
88
,
92
,
97
257
ALPHABETICAL INDEX
Emergency call
.................
94
,
177
,
178
Emergency starting
........................
162
Emergency warning
lamps
............................................
93
Energy economy mode
..................
164
Engine compartment
..............
133
,
134
Engine compartment
fusebox
.......................................
158
Engine, Diesel
..................
75
,
132
,
134
Engine oil
........................................
135
Engine oil level indicator
..........
Engine oil level indicator ..........Engine oil level indicator
32
,
135
Engine, petrol
...........................
75
,
133
Engines
...................................
170
,
172
Environment
...............................
19
,
65
Equipment settings
..............
19, 39
,
42,
46, 47, 65, 122, 137
Filling with fuel
............................
74, 75
Fitting a wheel
................................
148
Fittings, boot
.....................................
91
Flashing indicators
...................
93
,
152
Foglamps, front
................
77
,
150
,
152
Foglamps, rear
.........................
Foglamps, rear .........................Foglamps, rear
77
,
153
Front seats
.................................
53
,
54
Fuel
.......................................
19
,
74
,
75
Fuel consumption
.............................
19
Fuel filler cap
....................................
74
Fuel filler flap
..............................
74
,
75
Fuel gauge
.....................
15, 21, 22, 74
Gearbox, automatic
..........
19
,
116
,
139
Gearbox, manual
......
19
,
114
,
119
,
139
Gear lever, automatic
gearbox
......................................
116
Gear lever, manual gearbox
...........
114
Gear shift indicator
.........................
Gear shift indicator .........................Gear shift indicator
115
Glove box
.........................................
87
G.P.S.
.............................................
185
Guidance
........................................
185
Guide-me-home
..........................
78, 79
Date (setting)
..............................
41
,
43
Daytime running lamps
.....
78
,
150, 152
Deactivating the passenger airbag
...
101
Deadlocking
......................................
62
Defrosting
.........................................
47
Dials and gauges
........................
21
,
22
Diesel additive level
........................
137
Dimensions
.....................................
174
Dipped beam
....................
76
,
150
,
151
Dipstick
.....................................
32
,
135
Directional lighting
............................
81
Direction indicators
...
93
,
150
, 151,
153
Doors
................................................
70
Doors emergency control
.................
72
Door pockets
....................................
86
Driving economically
........................
19
Driving positions (storing)
.................
57
Dynamic stability control (DSC)
....
26
,
95
D
E
F
Fuel tank
.....................................
74
,
75
Fusebox, dashboard
.......................
156
Fuses
..............................................
155
EBA
(Emergency braking assistance)
....
94
Eco-driving
........................................
19
Economy mode
..............................
164
Electric window controls
...................
68
Electronic brake force distribution
(EBFD)
.........................................
94
Electronic engine immobiliser
.....
63
,
65
Emergency braking system
..............
94
G
H
Halogen headlamps
.......................
150
Hands-free kit
.........................
202
,
243
Hazard warning lamps
......................
93
Headlamp adjustment
......................
80
Headlamps, directional
.............
81
,
150
Headlamp wash
................................
82
Headlamp wash reservoir
...............
137
Head restraints, rear
.........................
57
Heated seats
....................................
56
258
ALPHABETICAL INDEX
Oil change
......................................
135
Oil consumption
..............................
135
Oil filter
...........................................
Oil filter ...........................................Oil filter
138
Oil level
.....................................
32
,
135
Labels, identification
.......................
175
Lamps, rear
....................................
Lamps, rear ....................................Lamps, rear
153
Lamps, warning and indicator
.....
Lamps, warning and indicator .....Lamps, warning and indicator
23
-30
LED daytime running lamps
.............
78
Level, brake fluid
............................
136
Level, headlamp wash
..............
83
,
137
Level, power steering fluid
.............
136
Levels and checks
...................
133-137
Lighting bulbs (replacement)
..........
150
Lighting control stalk
.........................
76
Lighting dimmer
................................
Lighting dimmer ................................Lighting dimmer
36
Lighting, guide-me home
............
78
,
79
Lighting, interior
..........................
Lighting, interior ..........................Lighting, interior
84
,
85
Lighting on reminder
.........................
77
Loading
.............................................
19
Load reduction mode
......................
164
Locating your vehicle
........................
63
Locking from the inside
....................
71
Locking the boot
...............................
73
Luggage retaining net
.......................
92
Luggage retaining strap
....................
91
Identification plates
.........................
175
Ignition
..............................................
63
Indicators, direction
..........................
93
Inflating accessories
(using the kit)
.............................
144
Inflating tyres
....................................
19
Inputs for audio
system
..........
88, 175, 219
,
240
,
241
Instrument panel lighting
..................
36
Instrument panels
.................
21
,
22
,
35
Instrument panel screen
.....
21
,
22
,
115
Interior fittings
...................................
86
Interior mood lighting
........................
85
ISOFIX child seats
...................
111
,
112
ISOFIX mountings
..........................
110
Heating
.............................................
48
Height and reach adjustment,
steering wheel
..............................
60
Horn
..................................................
93
Navigation
.......................................
185
Neck heater
......................................
Neck heater ......................................Neck heater
56
Neck heater control
..........................
56
Number plate lamps
.......................
153
I
J
M
K
L
N
O
Keeping children safe
....
99, 101, 104-113
Key in ignition warning
.....................
63
Key with remote control
...............
61
-
65
Main beam
........................
76
,
150
,
151
Maintenance
.....................................
19
Map reading lamps
...........................
84
Markings, identification
...................
175
Mat
....................................................
90
Menu, main
.....................................
236
Mini fuel level
....................................
74
Mirror, rear view
................................
60
Mirrors, door
...............................
Mirrors, door ...............................Mirrors, door
58
,
59
Misfuel prevention
............................
75
Mountings for ISOFIX seats
...........
110
MP3 CD
..................................
215, 239
Music media players
.......................
214
Jack
................................................
145
JACK socket
...........................
219
,
241
259
ALPHABETICAL INDEX
Radio
......................................
211
,
237
RCA sockets
...........................
219, 240
Rear screen (demisting)
...................
47
Recharging the battery
...................
163
Reduction of electrical load
............
164
Regeneration of the particle
emissions filter
...........................
emissions filter ...........................emissions filter
138
Reinitialising partial opening
of the windows
.............................
69
Reinitialising the electric windows
....
69
Reinitialising the remote control
.......
64
Remote control
............................
61
-
65
Removable screen (snow shield)
....
168
Removing a wheel
..........................
147
Removing the mat
............................
90
Repair kit, puncture
..................
92
,
140
Replacing bulbs
.......................
150
-154
Replacing fuses
.......................
155-160
Replacing the air filter
....................
Replacing the air filter ....................Replacing the air filter
138
Replacing the oil filter
.....................
Replacing the oil filter .....................Replacing the oil filter
138
Replacing the passenger
compartment filter
......................
compartment filter ......................compartment filter
138
Replacing wiper blades
............
84
,
165
Resetting the service indicator
.........
Resetting the service indicator .........Resetting the service indicator
34
Resetting the trip recorder
................
Resetting the trip recorder ................Resetting the trip recorder
35
Retractable roof
............................
Retractable roof ............................Retractable roof
6
,
92
Rev counter
................................
Rev counter ................................Rev counter
21
,
22
Reversing lamps
.............................
153
Risk areas (update)
........................
190
Roll-over bars
.............................
57
,
96
Paint colour code
............................
175
Parking brake
.........................
114
,
139
Parking sensors, front
....................
129
Parking sensors, rear
.....................
Parking sensors, rear .....................Parking sensors, rear
128
Particle emission filter
.............
Particle emission filter .............Particle emission filter
136-138
Passenger compartment filter
........
Passenger compartment filter ........Passenger compartment filter
138
PEUGEOT
Connect Assistance
.....
178
PEUGEOT
Connect Navigation
(RT6)
....................................
42
,
179
PEUGEOT
Connect SOS
...............
178
PEUGEOT
Connect Sound
(RD5)
............................
39
,
233
,
246
Player, CD MP3
......................
215, 239
Port, USB
.................................
88
,
241
Priming the fuel system
..................
132
Protecting children
.....
99, 101, 104-113
Puncture
.........................................
140
Routine checks
.......................
138
,
139
Running out of fuel (Diesel)
............
132
Opening the bonnet
........................
131
Opening the boot
........................
61
,
73
Opening the doors
................
61
,
70
,
72
Opening the retractable roof
..............
Opening the retractable roof ..............Opening the retractable roof
6
Opening the retractable screen
........
44
Opening the windows
.......................
68
Operation indicator lamps
...........
23-30
P
R
S
Screen, colour and mapping
....
183
,
222
Screen menu map
..................
222
,
246
Screen, monochrome
.............
236
,
246
Screen, multifunction (with audio
equipment)
.......................
39
,
42
,
44
Screenwash fluid level
..............
83
,
137
Screenwash, front
............................
82
Screen-wash reservoir
...................
Screen-wash reservoir ...................Screen-wash reservoir
137
Seat adjustment
.........................
53
,
54
Seat belts
......................
24
,
97
-
99
,
108
Seats, electric
.............................
54
,
57
Seats, rear
..................................
Seats, rear ..................................Seats, rear
57
,
96
Serial number, vehicle
....................
175
Service indicator
...............................
Service indicator ...............................Service indicator
33
Servicing
...........................................
19
Setting the clock
.........................
41
,
43
Short-cut menus
.............................
184
Sidelamps
...................
76
,
78
,
150
,
153
Side repeater
..................................
Side repeater ..................................Side repeater
152
Snow chains
...................................
149
Spare wheel
...................
122
,
145
,
146
Speed limiter
..................................
Speed limiter ..................................Speed limiter
124
Speedometer
..............................
Speedometer ..............................Speedometer
21
,
22
Spotlamps, side
........................
80
,
152
Starting using another battery
........
162
260
ALPHABETICAL INDEX
Vehicle configuration
..................
39
,
42
Vehicle diagnosis
..............................
39
Vehicle identification
.......................
175
Ventilation
...................................
45
,
46
Warning lamps
.............................
23
-30
Weights
...................................
171
,
173
Welcome lighting
........................
80
,
85
Window controls
...............................
68
Windstop
...........................................
50
Wiper control stalk
......................
82
,
83
Wipers
........................................
82
,
83
Under floor storage
...........................
92
Under-inflation (detection)
..............
122
Unlocking
..........................................
61
Unlocking from the inside
.................
71
Unlocking the boot
......................
61
,
73
Update risk areas
...........................
190
USB (
PEUGEOT
Connect)
.......
88
,
241
Table of weights
......................
171
,
173
Tables of engines
...................
170
,
172
Tables of fuses
...............................
155
Tank, fuel
..........................................
75
Technical data
.........................
170
-
175
Telephone
...............................
202
,
243
Temperature control
for heated seats
...........................
56
Temperature, coolant
........................
31
Temporary puncture repair kit
.....
Temporary puncture repair kit .....Temporary puncture repair kit
92
,
140
Third brake lamp
............................
153
T
U
W
V
Starting the vehicle
...................
63
,
116
Steering mounted controls,
audio
...................................
182, 235
Stopping the vehicle
.................
63
,
116
Stop & Start
.........................
38
,
48
,
74
,
119
,
131
,
138
,
161
Storage
.................................
86
,
88, 89
Storage box
................................
89
,
92
Storage compartments
.....................
86
Storage net
.......................................
91
Storing driving positions
...................
57
Stowing rings
....................................
91
Sun visor
..........................................
Sun visor ..........................................Sun visor
87
Synchronising the remote control
.....
64
Synthesiser, voice
..........................
196
System, navigation
.........................
185
TMC (Traffic info)
............................
199
Tools
...............................................
145
Total distance recorder
.....................
Total distance recorder .....................Total distance recorder
35
Towbar
............................................
Towbar ............................................Towbar
167
Towed loads
...........................
171
,
173
Towing another vehicle
...................
165
Traction control (ASR)
................
26
,
95
Traffic information (TA)
...........
200
,
238
Traffic information (TMC)
........
199
,
200
Trailer
.............................................
Trailer .............................................Trailer
167
Trajectory control systems
...............
95
Trip computer
.............................
Trip computer .............................Trip computer
37
,
38
Trip distance recorder
......................
Trip distance recorder ......................Trip distance recorder
35
Tyre pressures
................................
175
Tyres
.................................................
19
Tyre under-inflation
detection
.............................
122
,
146
Xenon headlamps
..........................
150
X
09-13
This handbook describes all of the
equipment available in the whole
range.
This document is an integral part of
your vehicle. It should be passed on
to the new user in the event of sale or
transfer.
Reproduction or translation of all
or part of this handbook is prohib-
ited without written authorisation from
Automobiles PEUGEOT.
Printed in the EU
Your vehicle will be fi tted with some
of this equipment described in this
document, depending on its trim level,
version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations
are given without any obligation.
Automobiles PEUGEOT reserves the
right to modify the technical specifi -
cations, equipment and accessories
without having to update the current
handbook.
Automobiles PEUGEOT declares, by ap-
plication of the provisions of the European
regulation (Directive 2000/53) relating to
End of Life Vehicles, that it achieves the
objectives set by this regulation and that
recycled materials are used in the manu-
facture of the products that it sells.
Anglais
For any work on your vehicle, use
a qualifi ed workshop that has the
technical information, competence
and equipment required, which a
PEUGEOT dealer is able to provide.
Anglais
AN. 14308.0640
www.peugeot.com
