Operating and Installation Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must
read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 09 968 630
Contents
2
IMPORTANT SAFETY INSTRUCTIONS................................................................. 4
FCC Declaration of Conformity.............................................................................. 12
FCC Radiation Exposure Statement...................................................................... 12
Industry Canada Statement................................................................................... 12
Caring for the environment.................................................................................
13
Description of functions......................................................................................
14
Con@ctivity 2.0 function ........................................................................................ 15
Guide to the appliance.........................................................................................
16
Operation (Automatic mode)...............................................................................
18
Cooking with Con@ctivity 2.0 (Automatic mode)................................................... 18
Temporarily exiting Automatic mode ..................................................................... 20
Resuming Automatic mode ................................................................................... 20
Operation (Manual mode)....................................................................................
21
Cooking without Con@ctivity 2.0 (Manual mode).................................................. 21
Turning on the fan .................................................................................................. 21
Selecting the power level....................................................................................... 21
Selecting the Delayed shut down time .................................................................. 21
Turning off the fan.................................................................................................. 21
Turning cooktop lighting On/Off............................................................................. 22
Power management............................................................................................... 22
Operation (Automatic and Manual modes)........................................................
23
Filter saturation indicator ....................................................................................... 23
Adjusting the filter saturation indicator for grease filters .................................. 23
Activating/changing the grease filter saturation counter .................................. 24
Checking the elapsed operating time............................................................... 24
Cleaning and care................................................................................................
25
Stainless steel housing .......................................................................................... 25
Panels and grease filters for edge extraction......................................................... 26
OdorFree Charcoal Filter........................................................................................ 29
Resetting the filter saturation counter for the filter ........................................... 30
Disposing of the OdorFree Charcoal Filter........................................................ 30
Installation ............................................................................................................
31
Before installation .................................................................................................. 31

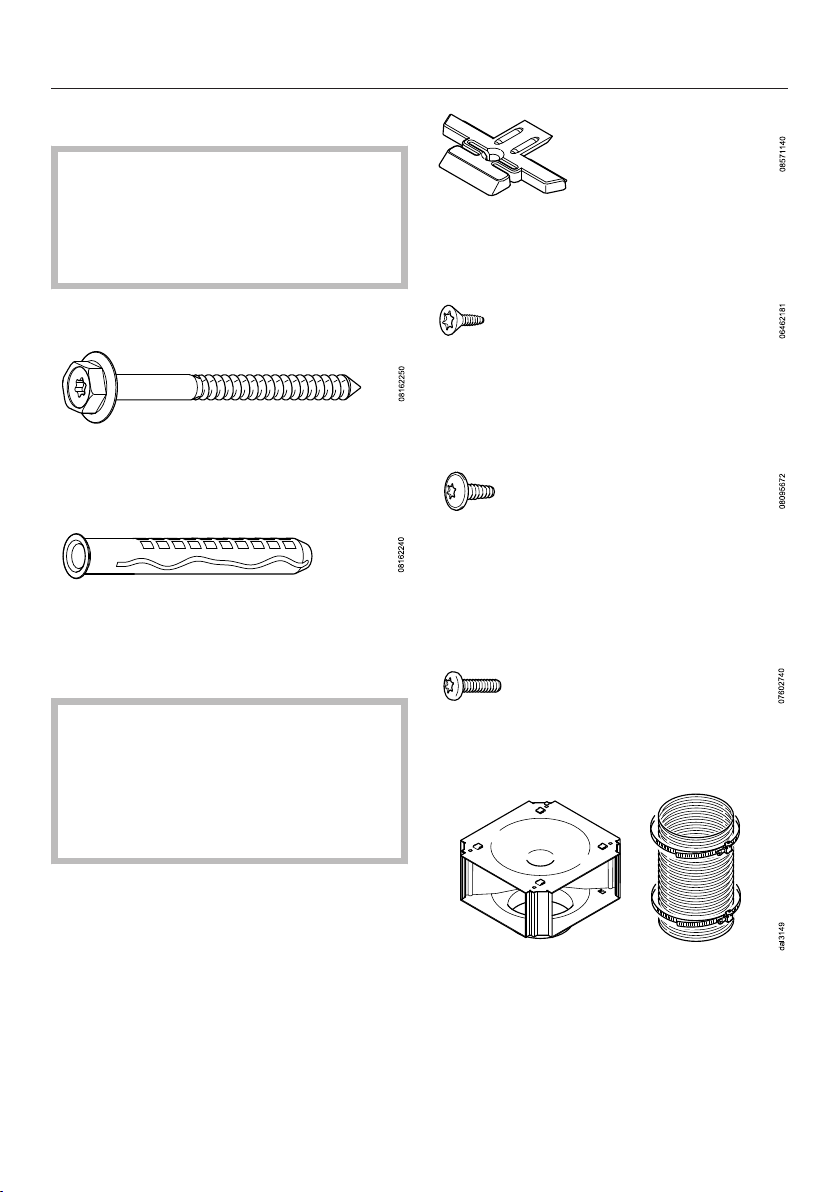

Installation parts..................................................................................................... 31
Appliance dimensions............................................................................................ 32
Distance between cooktop and ventilation hood (S) ............................................. 33
Installation recommendations................................................................................ 34
Contents
3
Structural support .................................................................................................. 34
Removing the protective film ................................................................................. 34
Exhaust duct.........................................................................................................
46
Condensate trap .................................................................................................... 47
Electrical connection...........................................................................................
48
Grounding Instructions .......................................................................................... 48
Activating Con@ctivity 2.0................................................................................... 49
Installation of the Con@ctivity 2.0 stick ................................................................. 49
Activating the Con@ctivity 2.0 function ................................................................. 49
Activating the ventilation hood ......................................................................... 49
Activating the cooktop...................................................................................... 50
Activation failed ................................................................................................ 50
Deactivating Con@ctivity 2.0 ................................................................................. 50
Service and warranty...........................................................................................
51
Location of the data plate ...................................................................................... 51
Technical data ..................................................................................................... 52
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Impr
oper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for
the first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Use
C
AUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This applianc
e is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is designed for domestic use and for use in
simil
ar residential environments.
This venti
lation hood is not intended for outdoor use.
It
must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
coo
king surfaces.
P
ersons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Children
As w
ith any appliance, close supervision is necessary when used
by children.
Please super
vise children in the vicinity of the hood and do not let
them play with it.
Dange
r of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Technical safety
W
ARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
man
ufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at
the ser
vice panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installatio
n, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
A d
amaged ventilation hood oven can be dangerous. Always
check for visible signs of damage. Never use a damaged ventilation
hood.
IMPORTANT SAFETY INSTRUCTIONS
6
Be cer
tain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
T
o avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance. When in doubt, consult a qualified electrician.
Do not use a power bar or e
xtension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
T
o ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Only open the housing as described in the enclosed "Installation
diagr
am" and in the "Cleaning and care" section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
IMPORTANT SAFETY INSTRUCTIONS
7
Defective co
mponents should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
During
installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
r
emoved.
– The power cable (if present) has been unplugged from the socket
(pull the plug no
t the cord).
Proper use
W
ARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings.
Boi
lovers cause smoking and greasy spillovers may ignite. Heat
oils slowly on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
all
owed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the siz
e of the cooking area.
Never use an open flame beneath the ventilation hood.
T
o avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
IMPORTANT SAFETY INSTRUCTIONS
8
W
ARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal
tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
The venti
lation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burne
rs in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
co
okware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventila
tion hood on whenever a burner is in use to
prevent damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
9
Overheat
ed oils and fats can ignite and set the ventilation hood
on fire.
When cooking with oils or fats, do not leave pots, pans or fryers
unattended. Never leave an electric grill unattended when grilling.
F
at and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
A filt
er containing too much grease is a fire hazard!
The filters should be cleaned or replaced at regular intervals.
Please no
te that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
W
ARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by
quali
fied person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of
ga
ses through the flue (chimney of fuel burning equipment to
prevent back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA) and
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
T
o determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety r
egulations prohibit the installation of a ventilation hood
above solid fuel stoves.
Insufficient distance between the cooking appliance and the
ventil
ation hood can result in damage to the hood.
The minimum safety distances between the appliance and the
bottom of the ventilation hood specified in the "Installation" section
must be maintained, unless the appliance's manufacturer has
indicated that a greater distance is required.
If more than one cooking appliance is used beneath the ventilation
hood, and if different minimum safety distances apply for these
appliances, you should use the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
Be sur
e to observe the information contained in the "Installation"
section when mounting the ventilation hood.
Metal par
ts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air shou
ld not be vented into a chimney or vent flue
which is otherwise in use and should not be channeled into ducting
which ventilates rooms with fuel-burning installations.
If
exhaust air is to be extracted into a chimney or vent flue no
longer used for other purposes, be sure to comply with all applicable
regulations.
W
ARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
12
Cleaning and care
Never use a st
eam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only ge
nuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
FCC Declaration of Conformity
These device
s comply with FCC Rules Part 15. This equipment
has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment co
mplies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20 cm) between
the radiator and your body.
Industry Canada Statement
This digi
tal apparatus does not exceed the Class B limits for
Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
Caring for the environment
13
Disposal of the packing
mat
erial
The cardboard box and packing
mat
erials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bag
s, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your ho
usehold waste.
Old appliances may contain materials
that can be r
ecycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensur
e that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
Description of functions
14
The following functions are available on
your ventilation hood, depending on the
model:
Vented mode
The air is drawn into the ventilation
hood. It is then cleaned by the edge
e
xtraction panels and the grease filters
and directed outside.

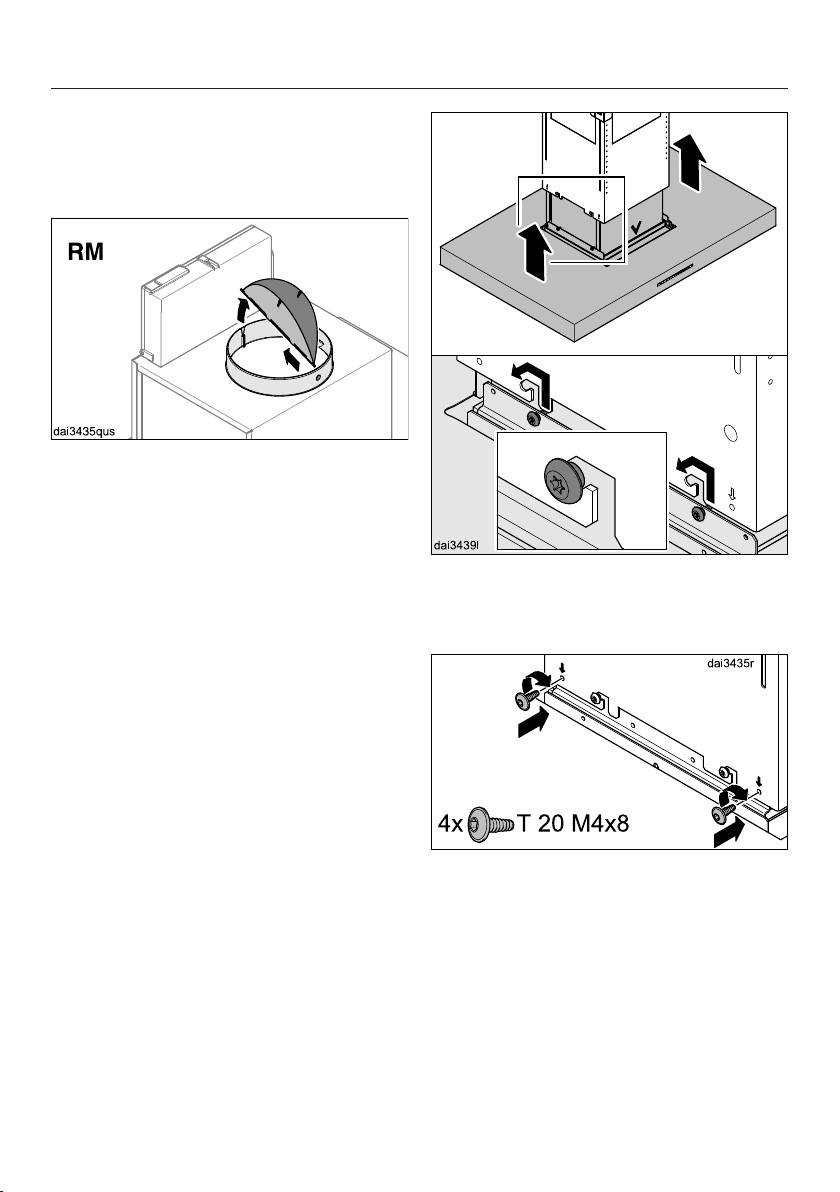

Non-return flap
A non-return flap in the ducting
pr
events the exchange of inside and
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
A non-return flap has been provided
with the hood in case your ducting
does not have o
ne. It is inserted into
the outlet duct collar of the fan.
Recirculation mode
(Only DA 6596 D requires a
Recir
culation kit and OdorFree Charcoal
Filter (available as optional
accessories); see "Technical data" for
more information.)
The air is drawn in and cleaned first by
the edge e
xtraction panels and the
grease filters, and then by an OdorFree
Charcoal Filter. The cleaned air is then
recirculated back into the kitchen.
Description of functions
15
Con@ctivity 2.0 function
Automatic control
This hood features a communication
fun
ction which enables the automatic
control of the hood based on the
operational status of a Miele cooktop.
To enable the communication function,
th
e cooktop must be equipped with the
corresponding Con@ctivity 2.0 stick .
Please refer to the installation
instructions for the Con@ctivity 2.0
stick t
o determine whether connection
to your cooktop is possible.
There must be radio contact between
the cooktop and the hood for you to be
able to use the Con@ctivity 2.0 function
(see "Activating Con@ctivity 2.0").
The cooktop transmits information
about its oper
ational status to the hood
using a radio signal.
– When a burner is turned on, the
coo
ktop lighting on the hood turns
on automatically. After a brief delay,
the ventilation hood fan also comes
on.
– During cooking, the hood
automatically selects the fan level
based on the number of burners in
operation and their power levels.
– Once you have turned off the
coo
ktop, the fan and the lighting will
turn off automatically after a
predetermined delay.
Detailed information about this function
can be found under "Operation."
Guide to the appliance
16
Guide to the appliance
17
a
Telescopic chimney
b
Chimney
c
Canopy
d
Control panel
e
Grease filter
f

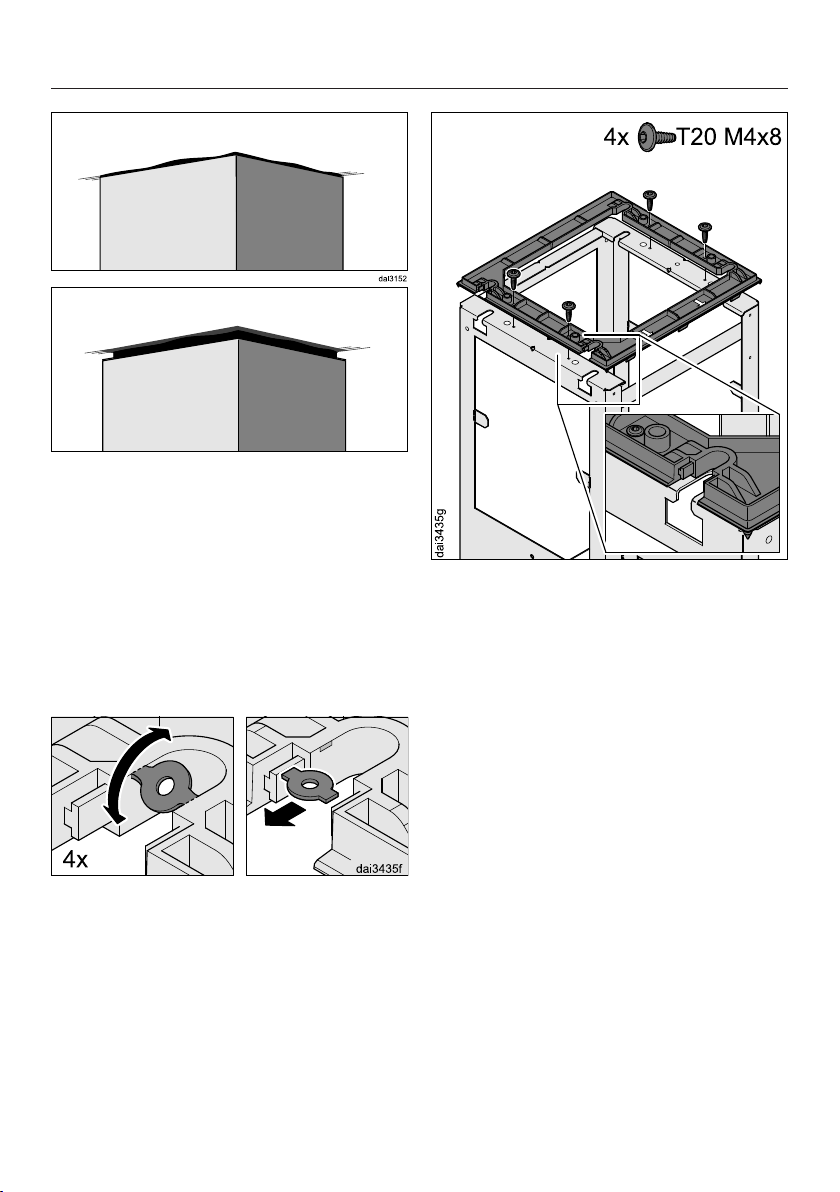

Spacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The hood can be installed with or without the spacer frame.
g
Recirculation vent
(only for recirculation mode, DA 6596 only)
h
Cooktop lighting
i
OdorFree Charcoal Filter
Optional accessory for recirculation mode (DA 6596 D only)
j
Edge extraction panels
Optional accessories
DRP 6590 D glass (3 elements)
DRP 6590
D stainless steel (3 elements)
DRP 6520 D glass (4 elements)
DRP 6520 D stainless steel (4 elements)
k
Button for cooktop lighting
l
On/Off button for fan
m
Buttons for setting the fan power
n
Button for delayed shut-down function
o
Filter saturation indicator
Operation (Automatic mode)
18
When Con@ctivity 2.0 is active, the
hoo
d always operates in Automatic
mode (see "Activating Con@ctivity
2.0").
See "Cooking without Con@ctivity 2.0"
for informa
tion on manually operating
the hood.
Cooking with Con@ctivity 2.0
(Au
tomatic mode)
Turn on a burner to the desired power
setting.
The hood lighting will come on.
After a few seconds, the fan will come
on, briefly oper
ating at power level 2
before immediately switching to level 1.
The hood selects the fan level
aut
omatically during cooking.
This level is determined by the total
output of the coo
ktop, i.e. the number
of burners in operation and the power
settings selected.
If you select a higher power setting
on the
cooktop or switch on multiple
burners, the hood will switch to a
higher fan level.
If you select a lower power setting on
the cooktop or turn off a burner, the
hood will accordingly switch to a
lower fan level.
Examples for fan levels 1 t
o 4
Reaction time
Changing the power setting on the
coo
ktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the coo
ktop transmits the information
to the hood in intervals.
The reaction time can vary from a few
secon
ds to a couple of minutes.
Operation (Automatic mode)
19
Cooking process
If,
for example, you switch on a
burner at the highest power setting to
heat cookware in preparation for
searing and then reduce the power
level after approx. 60 to 90 seconds*,
a cooking process is recognized.
The hood turns on automatically and,
after the cooktop power level has been
reduced, switches back to fan level 3,
where it remains for approx. 5 minutes.
After this, the fan level is once again
det
ermined by the Con@ctivity function.
Y
ou can also manually select a
different fan level before then.
Turning off
T
urn off all burners.
Over the next few minutes, the
ventilation hood fan setting will
decr
ease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air
.
– From the intensive setting IS, the fan
immedia
tely switches to level 3.
– If the fan is operating at level 3, it will
switch t
o level 2 after approx. 1
minute.
– From level 2, the fan switches to level
1 aft
er 2 minutes.
– After 2 minutes at level 1, the fan
aut
omatically turns off.
– After another 30 seconds, the lighting
turns off.
The cooking process is now finished.
Operation (Automatic mode)
20
Temporarily exiting Automatic
mode
To temporarily exit the Automatic mode
when cooking:
Manu
ally select a different fan level,
or
Manually turn the hood off, or
Activat
e the Delayed shut down
function on the ventilation hood.
The fan turns off after the delay time
selected, and the lighting will remain
on.
The ventilation hood functions can now
be oper
ated manually (see "Cooking
without Con@ctivity 2.0").
Resuming Automatic mode
The ventilation hood resumes
Aut
omatic mode:
If the ventilation hood has not been
used for a period of app
rox. 5
minutes after the manual selection of
a fan level, or
If the manuall
y selected fan level
once again matches the automatic
setting, or
If the ventilation hood fan and the
coo
ktop have been turned off for at
least 30 seconds.
Automatic mode will resume the next
time the cooktop is turned on.
If you wish to manually operate the
ventilation hood for a complete
cooking process, turn on the
ventilation hood fan before turning
on the cooktop.
If the ventilation hood and the
cooktop have been turned off for at
least 30 seconds after you have
finished cooking, Automatic mode
will resume the next time the cooktop
is turned on.
Operation (Manual mode)
21
Cooking without Con@ctivity
2.0 (Manual mode)
The hood can be operated manually if:
– The Con@ctivity 2.0 function is not
activated.
– You have temporarily deactivated the
Con@ctivity 2.0 function (see
"T
emporarily exiting Automatic
mode").
Turning on the fan
P
ress the On/Off button .
The fan turns on at level 2. The
symbol and 2 will light up in the fan
level
display.
Selecting the power level
Power levels 1 t
o 3 can be used for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g. during searing, select the IS level
as an intensive setting.
P
ress the "" button for a lower
power level or the "" button to
select a higher level.
Reducing power of the intensive
setting
If power management is activated
(
default setting), the fan automatically
switches back to level 3 after 5
minutes.
Selecting the Delayed shut
down time
It is a good idea to let the fan run for a
few more minutes after cooking in order
to neutralize any lingering vapors and
odors in the air.
W
ith the Delayed shut down function, it
is possible to have the fan automatically
shut off after a predetermined period of
time.
Aft
er you have finished cooking,
press the Delayed shut down button
5 15
– Once: fan turns off after 5 minutes (5
lights up).
– Twice: fan turns off after 15 minutes
(15 lights up).
– If you press the Delayed shut down
butt
on 515 again, the fan remains
turned on (515 goes out).
Turning off the fan
P
ress the On/Off button to turn the
fan off.
The symbol will go out.
Operation (Manual mode)
22
Turning cooktop lighting
On/Off
The cooktop lighting can be turned on
a
nd off separately from the fan.
T
o do so, press the button.
The symbol is lit when the co
oktop
lighting is turned on.
Power management
The ventilation hood features a power
manag
ement system for switching off
the lighting and reducing the fan power
setting automatically.
– If the intensive setting is selected, the
fan aut
omatically switches to level 3
after 5 minutes.
– If the fan is set to level 3, 2 or 1, it
switches t
o the next-highest fan
setting after 2 hours and then in 30-
minute intervals until the fan
eventually switches off.
– If the cooktop lighting is on, it
automatically turns off after 12 hours.
Turning power management On/Off
T
urn off the fan and the lighting.
P
ress the Delayed shut down button
5 15 for approx. 10 seconds until 1
appears in the fan level display.
The
n, press the following buttons in
order:
– The lighting button ,
– Followed by the "" button and then
– The lighting button again.
If power management is switched on,
the 1 and IS indicat
ors will be
continuously lit.
If it is turned off, 1 and IS will flash.
P
ress the "" button to turn power
management off.
The 1 and IS indicat
ors will flash.
T
o turn it on, press the "" button.
The 1 and IS indicat
ors are constantly
lit.
Co
nfirm the setting by pressing the
Delayed shut down button 5 15.
All the indicator lights will go out.
If the setting is not confirmed within 4
minu
tes, the ventilation hood
automatically reverts to the old setting.
Operation (Automatic and Manual modes)
23
Filter saturation indicator
The number of hours the hood has
been in oper
ation is stored in appliance
memory.
The filter saturation indicators show
when the filt
ers need to be cleaned or
changed by lighting up the grease filter
symbol or OdorFree Charcoal Filter
symbol . Additional information on
cleaning and changing the filters and
resetting the filter saturation counters
can be found under "Cleaning and
care."
Adjusting the filter saturation
ind
icator for grease filters
You can set the filter saturation
indicat
or to suit your cooking habits.
The factory default setting is an interval
of 30 hours.
– Select a shorter time (20 hours) if you
oft
en fry foods.
– We also recommend a shorter
cleaning interval if you only cook
occasionally. This will prevent grease
buildup from hardening and making
cleaning more difficult.
– Select a longer cleaning interval of 40
or 50
hours if you use very little fat
when cooking.
Press the On/Off button to turn the
fan off.
P
ress the Delayed shut down button
515 and the filter saturation button
at the same time.
The grease filter symbol on the filt
er
saturation button and one of the fan
power level indicators will flash.
Fan power level indicators 1 t
o IS show
the current time setting:
Indicator 1................................
20 hours
Indicator 2................................
30 hours
Indicator 3................................
40 hours
Indicator IS ..............................
50 hours
P
ress the "" symbol for a shorter
operating time, or the "" symbol to
select a longer operating time.
Co
nfirm the selection by pressing the
filter saturation indicator .
All the indicator lights will go out.
If the setting is not confirmed within 4
minutes, the ventilation hood
automatically reverts to the old setting.
Operation (Automatic and Manual modes)
24
Activating/changing the grease filter
satur
ation counter
The OdorFree Charcoal Filter is required
for r
ecirculation mode.
The filter saturation counter for the
OdorF
ree Charcoal Filter requires one-
time activation and must be set to
match your cooking habits.
Press the On/Off button to turn the
fan off.
P
ress the "" symbol and the filter
saturation indicator at the same
time.
The OdorFree Charcoal Filter symbol
and one of the fan power level
indicat
ors will flash.
Fan power level indicators 1 t
o IS show
the current time setting:
Indicator 1 .............................
120 hours
Indicator 2..............................
180 hours
Indicator 3..............................
240 hours
Indicator IS..........................
deactivated
P
ress the "" symbol for a shorter
operating time, or the "" symbol to
select a longer operating time.
Co
nfirm the selection by pressing the
filter saturation indicator .
All the indicator lights go out.
If the setting is not confirmed within 4
minutes, the ventilation hood
automatically reverts to the old setting.
Checking the elapsed operating time
Before the set operating time interval
has been r
eached, you can check what
percentage of the time has elapsed.
P
ress the On/Off button to switch
the fan on.
P
ress and hold the filter saturation
indicator :
– Once, to check the grease filter
oper
ating time. The grease filter
symbol lights up.
– Twice, to check the charcoal filter
satur
ation. The OdorFree Charcoal
Filter symbol lights up.
One or more of the fan power level
indicat
ors will flash simultaneously.
The number of flashing indicators
shows the elapsed oper
ating time as a
percentage.
Indicator 1
..................................... 25%
Indicators 1 and 2
......................... 50%
Indicators 1 t
o 3 ............................ 75%
Indicators 1 t
o IS ......................... 100%
The elapsed operating time remains
st
ored in the memory when the
ventilation hood is turned off or if
power to the appliance is lost.
Cleaning and care
25
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Befor
e cleaning or servicing the
hood, disconnect it from the power
supply.
Stainless steel housing
General
The surfaces and control buttons are
susce
ptible to scratching and
chipping.
Observe the following cleaning
instructions.
Cle
an all surfaces and control
buttons using warm water and liquid
dish soap only, applying the mixture
with a sponge cloth.
Make sure that no water gets into
the interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
Aft
er cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive cleaners such as scouring
powder
, scouring liquid, abrasive
sponges such as pot scourers, or
used sponges that still contain
residues from abrasive cleaners
Special instructions for stainless
st
eel surfaces
(does not apply to control buttons)
S
tainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner, available from
Miele.
T
o prevent the surfaces from quickly
becoming dirty again, we
recommend treating them with a
stainless steel care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Special instructions for RAL color
finish housing
(special order)
Obser
ve the general cleaning
instructions contained in this chapter.
Minor scratches on the surface are
inevitable when cleaning the housing.
Depending on the lighting in the
kitchen, this may negatively affect the
app
liance's appearance.
Cleaning and care
26
Special instructions for control
butt
ons
Do not leave dirt and debris on the
butt
ons for any length of time.
Otherwise they may become
discol
ored or damaged.
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
t
o clean the control buttons.
Panels and grease filters for
edge e
xtraction
The edge extraction panels and the
r
eusable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the hood.
A
dirty filter is a fire hazard!
Cleaning intervals
Over longer periods of time, fat buildup
on the gr
ease filter hardens and makes
cleaning more difficult. Therefore, we
recommend cleaning the grease filters
once every 3-4 weeks.
By illuminating the grease filter symbol,
the filter saturation counter reminds
you to regularly clean the grease filters.
Y
ou can adjust the interval of the filter
saturation counter to match your
cooking habits (see "Operation").
Cleaning and care
27

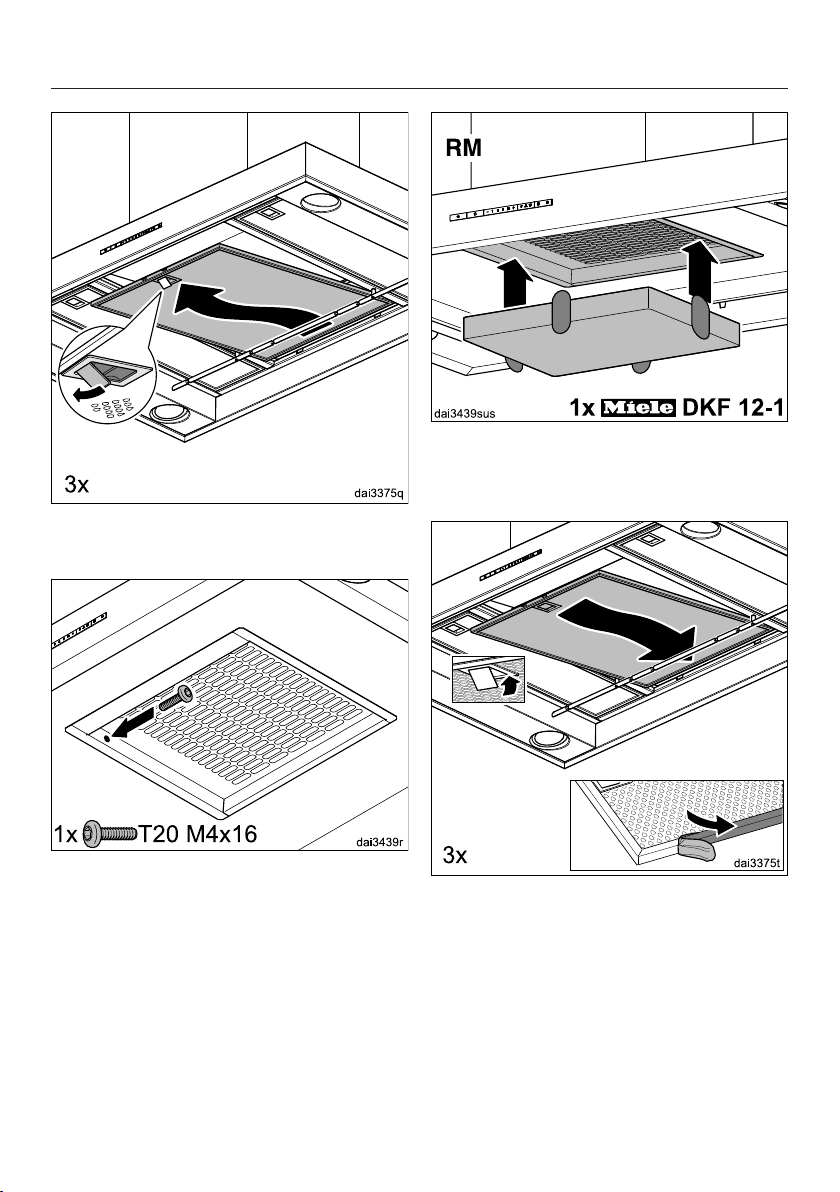

Removing the panels and grease
filt
ers
The grease filters and panels can fall
ou
t when you are handling them.
This can result in damage.
Make sure you hold the filters and
panel
s securely at all times when
handling them.
DA 6596 D: Pull the front edge of the
panels down out of the lock, lower
them slightly, unhook them at the
back, and take them out.
D
A 6526 D: Pull the outer edge of the
panels down out of the lock, lower
them slightly, unhook them in the
middle, and take them out.
T
o remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning the panels by hand
F
ollow the instructions under
"Housing."
Cleaning the grease filters by hand
Cle
an the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
t
o the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degr
easer sprays
– Oven sprays
Cleaning and care
28
Cleaning the panels and grease
filt
ers in the dishwasher
Place
the panels and filters as upright
or inclined as possible in the lower
basket. Ensure that the spray arm is
not obstructed.
Use a household dishwasher
det
ergent.
Selec
t a program with a wash
temperature between 122°F (50°C)
and 149°F (65°C).
Depending on the detergent used,
clean
ing the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the filters
in any way.
After cleaning
Aft
er cleaning, leave the filters on an
absorbent surface to dry.
When r
emoving the panels and
grease filters for cleaning, also clean
off any accessible oil or grease
buildup from the housing. Doing so
will prevent a fire hazard.
Rein
stall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.

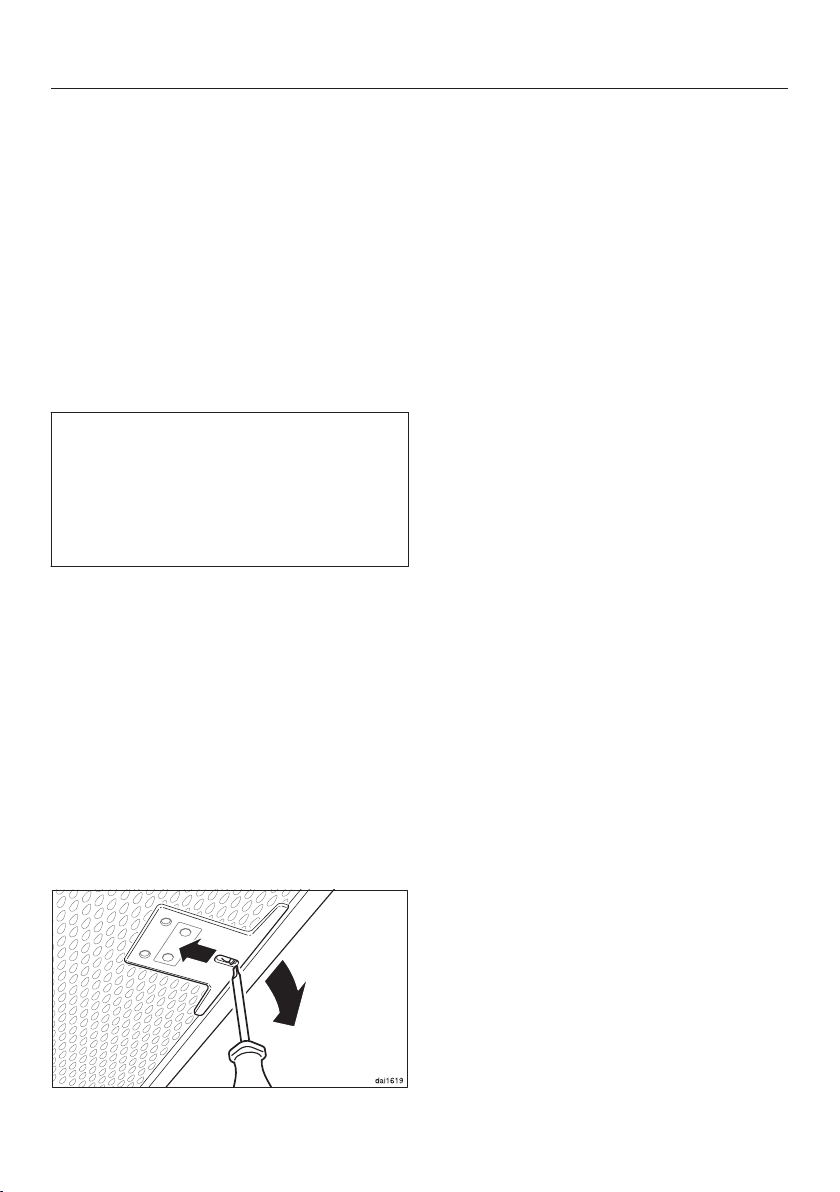

If the filt
ers have been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Ho
ok the panels onto the support
rod.
Lift up the fr
ont of the panels and
push them into the lock until they
engage.
Cleaning and care
29
Resetting the filter saturation
count
er for the grease filters
Once cleaning is complete, the filter
satur
ation counter must be reset.
While
the fan is turned on, press the
filter saturation indicator for
approx. 3 seconds until 1 is the only
indicator flashing.
The grease filter symbol goes out.
When cleaning the grease filters before
the full oper
ating time has elapsed:
P
ress the filter saturation indicator
for approx. 6 seconds until 1 is
the only indicator flashing.
OdorFree Charcoal Filter
If the hood is equipped for recirculation,
an OdorF
ree Charcoal Filter must be
installed in addition to the grease filters.
This filter is designed to absorb odor-
causing agents and is mounted in the
canopy above the grease filters.
OdorFree Charcoal Filters are available
fr
om your Miele dealer or from Miele.
See "Technical data" for the type and
reference number.
Installing/replacing the OdorFree
Char
coal Filter
T
o install or replace the OdorFree
Charcoal Filter, the grease filters must
first be removed as described above.
Remo
ve the OdorFree Charcoal Filter
from its packaging.
P
ress the OdorFree Charcoal Filter
into the frame.
Rein
sert the grease filters and the
panels.
When insta
lling the filter for the first
time, activate the filter saturation
counter (see "Operation").
When to change the OdorFree
Char
coal Filter
Always r
eplace the OdorFree
Charcoal Filter whenever it no longer
absorbs kitchen odors effectively.
Replace the filter at least once every
6 months.
The OdorFree Charcoal Filter saturation
coun
ter will light up to remind you to
change the charcoal filter regularly.
The
OdorFree Charcoal Filter
saturation counter requires one-time
activation before use (see the
"Operation" chapter).
Cleaning and care
30
Resetting the filter saturation
count
er for the filter
If the filter saturation counter is
activat
ed, it must be reset each time
the filter is changed.
T
o do this, press the filter saturation
indicator twice with the fan
turned on and hold it for approx. 3
seconds until 1 is the only indicator
flashing. The OdorFree Charcoal
Filter symbol will go out.
If you replace the OdorFree Charcoal
Fil
ter before the full operating time
elapses:
P
ress the filter saturation indicator
twice and hold it for approx. 6
seconds until 1 is the only indicator
flashing.
Disposing of the OdorFree Charcoal
Fil
ter
Used OdorF
ree Charcoal Filters can
be disposed of with normal
household waste.
Installation
31
Before installation
Befor
e installing the appliance,
read all of the information contained
in this chapter and also in the
"IMPORTANT SAFETY
INSTRUCTIONS" section.
Installation parts

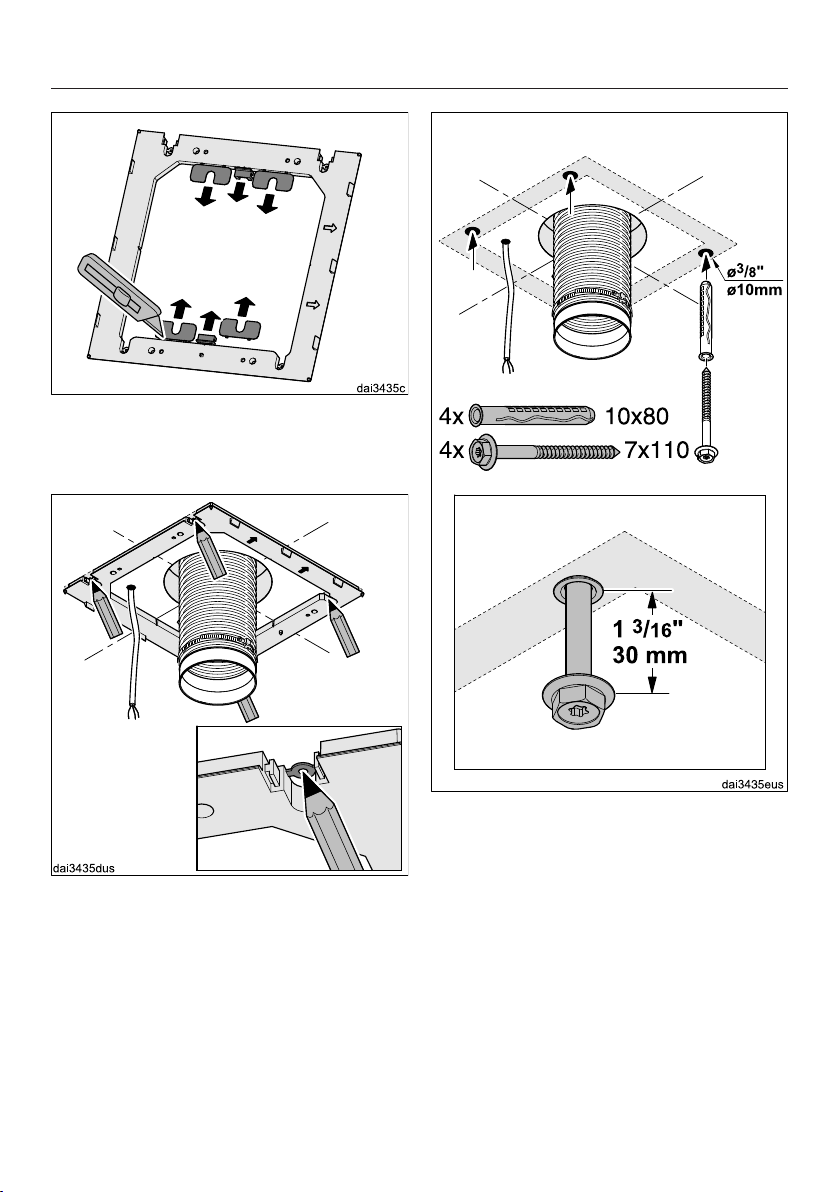

4 screws, 6 9/16" x 4 5/16"
(7 x 110 mm) and
4 plugs, 3/8" x 3 1/8" (10 x 80 mm)
for securing the ventilation hood to the
ceiling (not for use in USA / CDN).
The screws and plugs are designed
for use in
solid ceilings only.
Use different fasteners for other
cei
ling construction types. Make
sure that the ceiling can support the
load.

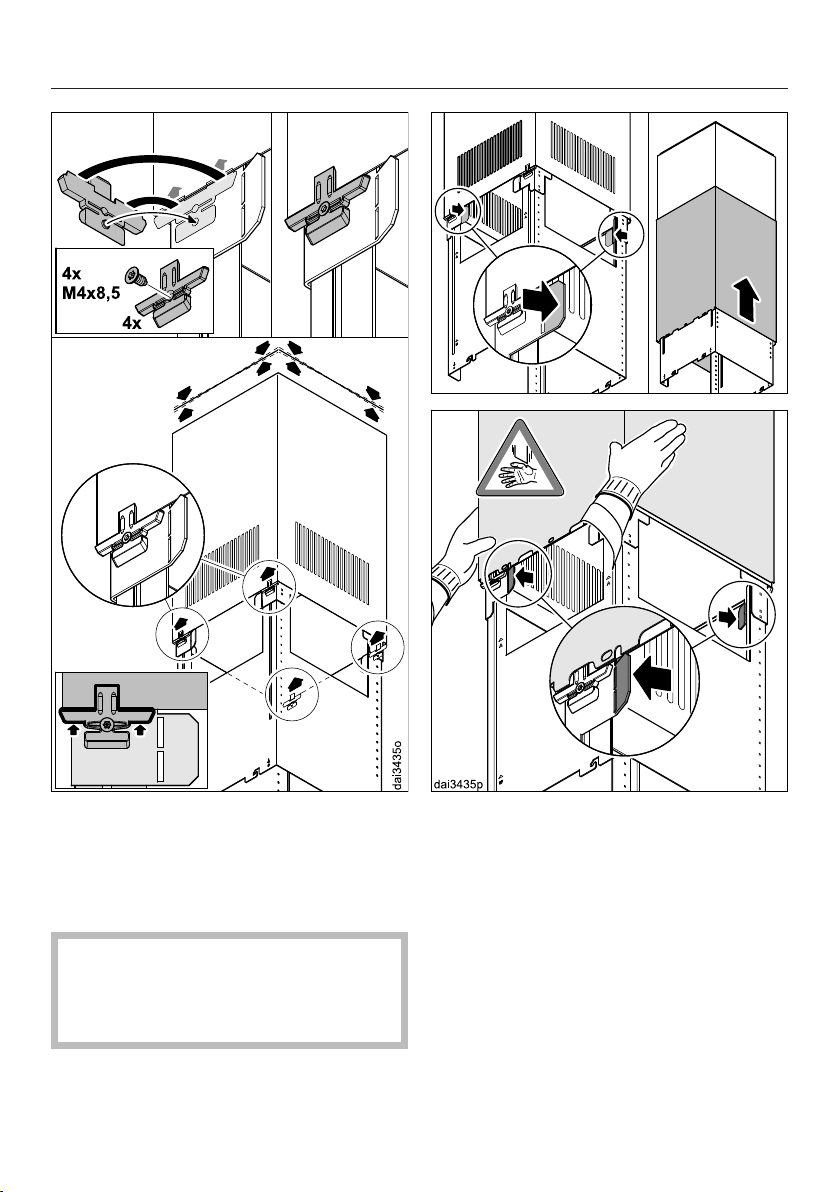

4 extension piece holders
for aligning and securing the telescopic
chimney
4 screws M3/16" x 5/16"
(M4 x 8.5 mm)
for securing the extension piece
holders.

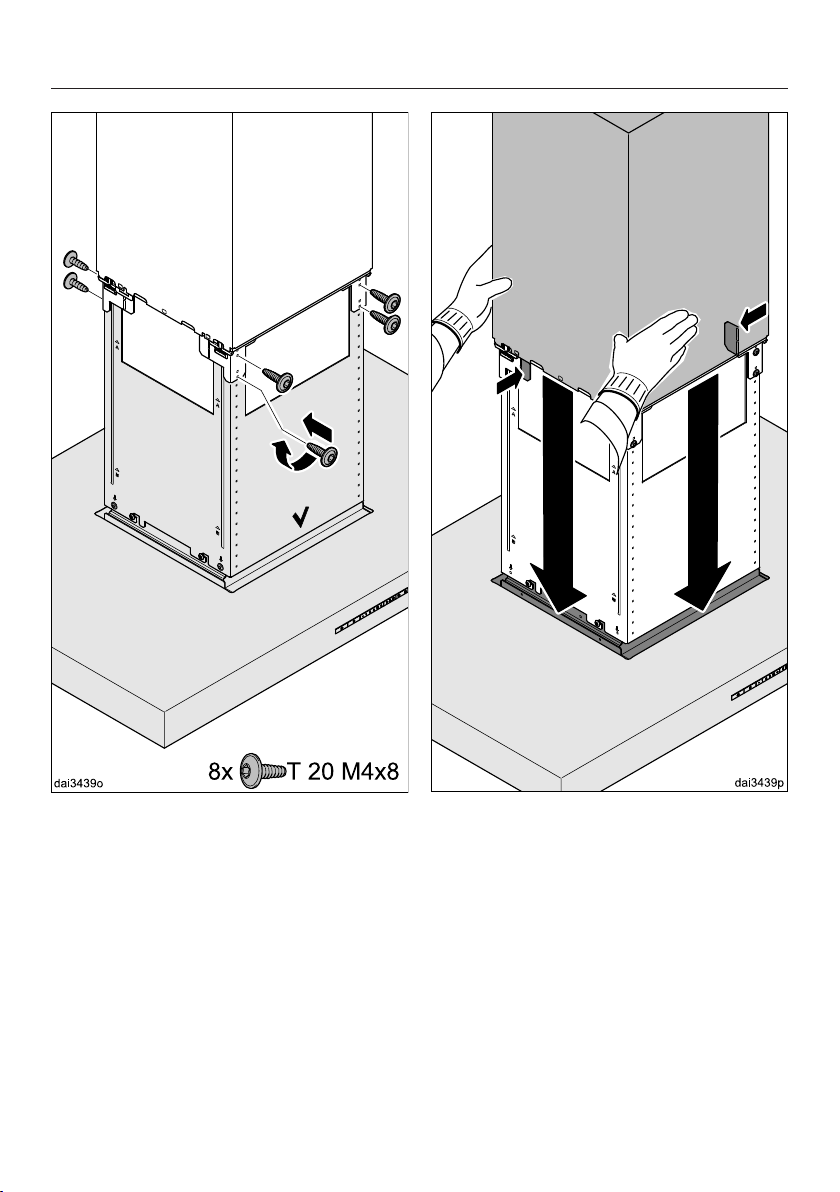

14 screws M3/16" x 5/16"
(M4 x 8 mm)
for securing the spacer frame and
sec
uring the hood to the installation
frame.
1 screw M3/16" x 5/8" (M4 x 16 mm)
for securing the chimney.
DUI 32 recirculation kit for
r
ecirculation mode
(not supplied, available as an optional
accesso
ry). The kit includes a
directional unit, aluminum hose, and
hose clips.
Installation
32
Appliance dimensions
a
Mounting area for the exhaust ducting and power cable. In recirculation mode,
onl
y the power cord is required.
b
Possible height range for appliance in vented mode
c
Possible height range for appliance in recirculation mode
d
Alternative installation with spacer frame
e
Air vent positioned at the top for recirculation
Installation
33
f
A power cord is required to connect the hood to the socket in the ceiling. With
e
xtraction mode flexible ducting is also required.

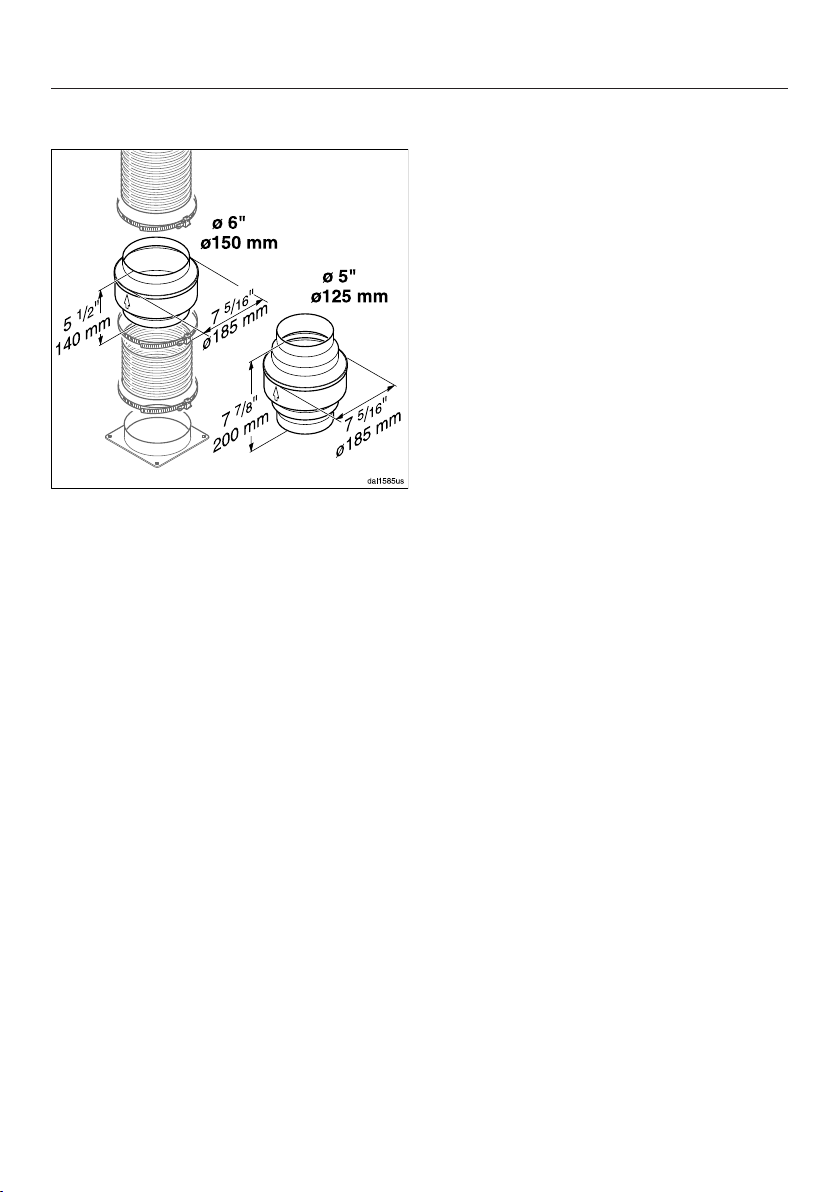

Exhaust connection 6" (150 mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
foll
ow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the "IMPORTANT SAFETY
INS
TRUCTIONS" section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric/Induction cooktop 24" (610 mm)
Electric grill, deep fat fryer (electric) 26" (660 mm)
Multi-burner gas cooktop
≤ 43,000 B
TU/hr (12.6 W),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660 mm) 30" (760 mm)
Multi-burner gas cooktop
≤ 73,800 B
TU/hr (21.6 W),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760 mm)
Multi-burner gas cooktop
> 73,800 B
TU/hr (21.6 W),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single-burner gas cooktop
≤ 20,500 B
TU/hr (6 kW)
26" (660 mm) 30" (760 mm)
Single-burner gas cooktop
≤ 27,600 B
TU/hr (8.1 kW)
30" (760 mm)
Single-burner gas cooktop
> 27,600 B
TU/hr (8.1 kW)
Not possible
Installation
34
Installation recommendations
– We also recommend a distance of at
least 25 1/2" (650 mm) above electric
coo
ktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always tak
e the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance
from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
mak
e sure that the hood covers the
cooktop. The hood should be
positioned centrally over the
cooktop, not to the side or rear.
– The cooktop should be no wider than
the ho
od. Preferably, it should be
narrower.
– The mounting area must be easily
accessible. The ventilation hood
sho
uld be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Structural support
The hood must be attached to rigid
structur
al framing that is supported
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
Removing the protective film
The housing components are covered
by a p
rotective film to prevent them
from becoming damaged during
transport.
Please
remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation
35
8
5
/
8
"
220 mm
8
5
/
8
"
220 mm
dai3435aus

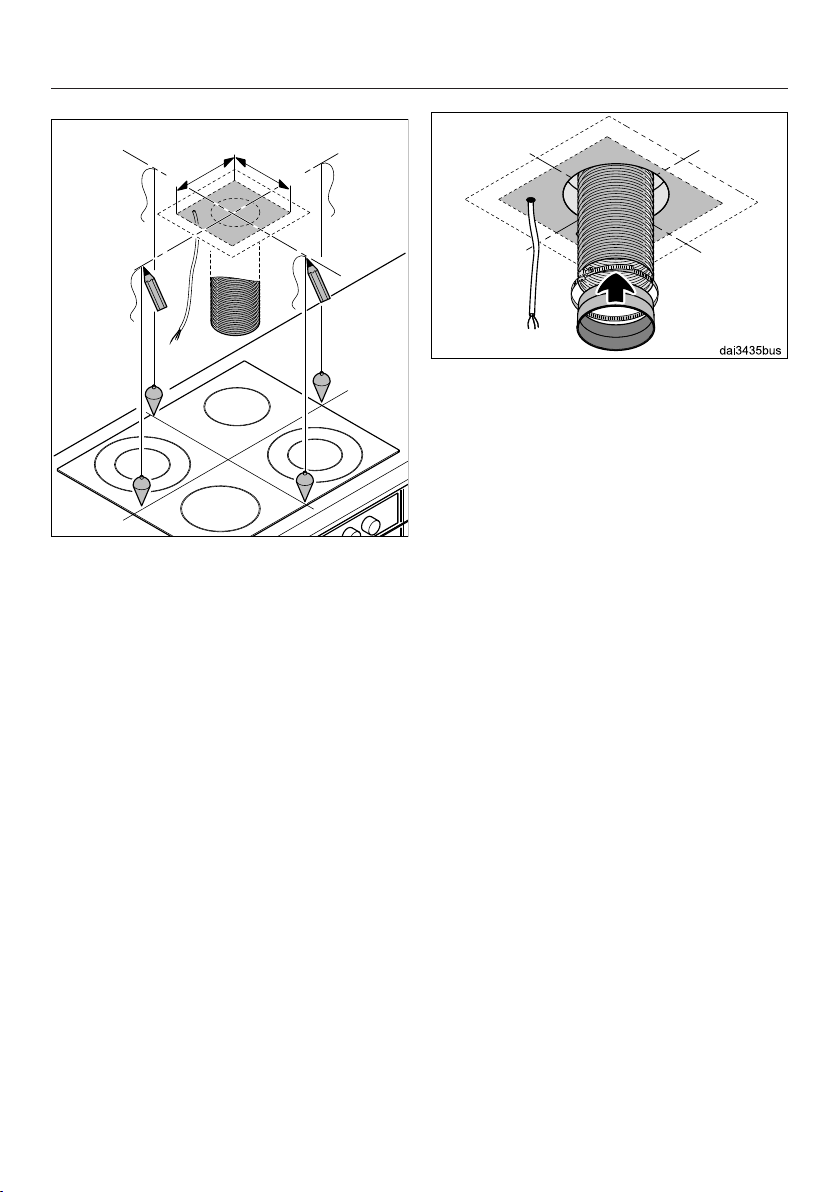

Dr
aw two intersecting lines on the
ceiling.
F
or vented mode:
– Place a section of the exhaust
ducting in the ceiling and feed it
down thr
ough the cross-sectional
area as illustrated. Exhaust ducting of
approx. 27 9/16" (700 mm) length is
required between the ceiling and the
hood exhaust socket.
– Secure the exhaust ducting to the
e
xhaust socket, e.g. with a hose clip
(available as an optional accessory)
on flexible ducting.
Place
the power cord and guide it
through the ceiling in the area shown.
A power cord approx. 27 9/16" (700
mm) in length is required between the
ceiling and the hood connectors.
Installation
36
Use a kni
fe to release the four
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
Drill four holes 3/8" (10 mm),
appr
ox. 4 1/2" (115 mm) deep for the
plugs supplied.
Place the four plugs in the holes and
scr
ew in the four screws so that they
protrude by approx. 1 3/16" (30 mm).
Installation
37
The spac
er frame can be installed
between the chimney and the ceiling.
This creates a shadow which gives the
illusion of a gap between the ceiling
and the chimney. This is useful if the
ceiling is not level or is uneven. The
hood is aligned vertically with the
spacers supplied. Visual irregularities
between the chimney and the ceiling
are then concealed by the shadow.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
Mou
nt the spacer frame onto the
installation frame.
Installation
38
Han
g the installation frame on the
four screws. The front of the frame is
marked with a "V."
If using the spacer fr
ame, place the
two covers into the fixing holes.
Alig
n the installation frame and
secure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood
vertically.
Installation
39
Ho
lding the installation frame
securely, remove the two fixing
screws and extend the installation
frame to its maximum length.
Replace
the screws.
The directional unit from recirculation
kit DUI 32 (optional
accessory) is
installed for recirculation mode (RM):
Bend the four r
etaining tabs on the
installation frame outwards.
Place
the power cord inside the
installation frame.
Fi
t the directional unit as shown,
noting the marking on the front.
Bend the r
etaining tabs back and
approx. 45° inwards to hold the
directional unit in place.
Installation
40

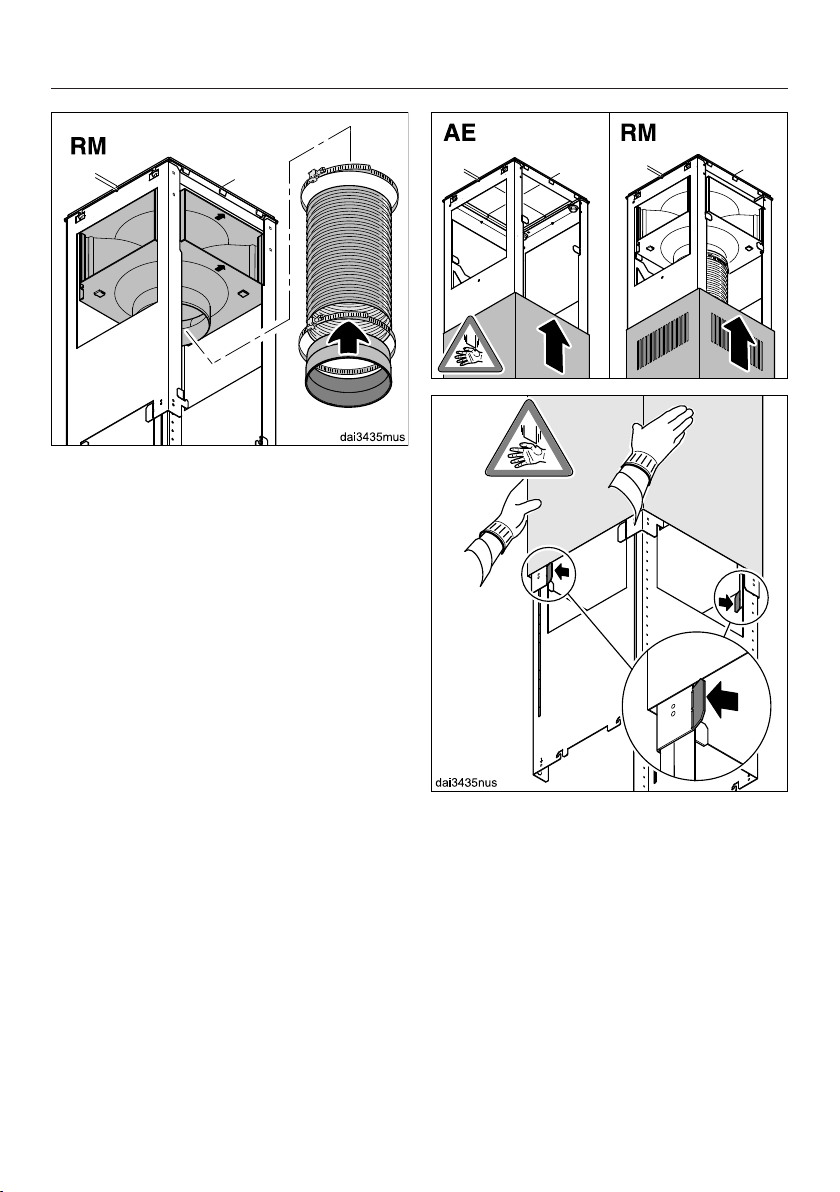

Secur
e the exhaust socket to the
hose using a hose clip.
Secur
e the hose to the directional
unit socket using a hose clip.
Che
ck that the hose is held securely.
P
ush the telescopic chimney over the
installation frame:
– with the recirculation grilles at the
bott
om for vented mode (AE),
– with the recirculation grilles at the top
for r
ecirculation mode (RM).
Bend the two r
etaining tabs outwards
to prevent the telescopic chimney
from slipping down again.
Installation
41
Fi
t the four telescopic chimney
clamps. When the screws are
tightened, the clamps spread out and
push the telescopic expansion piece
upwards.
Tighten the screws only until the top
edge of the t
elescopic chimney is
evenly aligned with the ceiling or the
spacer frame.
Bend back the two retaining tabs.
P
ush the chimney over the telescopic
chimney and bend the retaining tabs
outwards again to prevent the
chimney from slipping down again.
Installation
42
A non-return flap is supplied with the
hoo
d or is already fitted in the exhaust
socket of the motor unit (depending on
model).
W
ith vented mode (AE) insert the
non-return flap in the exhaust socket
if your ducting system is not
equipped with one.
Recirculation mode (RM) does not
require the non-return flap to be
inserted. If there is one present, it
should be removed.
Han
g the hood on the brackets,
making sure that the controls are at
the front.
Secur
e the hood with the screws
supplied.
Installation
43
Co
nnect the power cord. See
"Electrical connection."
Place
the exhaust ducting onto the
exhaust socket.
Unsc
rew both screws from the
installation frame again.
The canopy can now be adjusted to the
desir
ed height, observing the
permissible height ranges:
– With vented mode: upwards as far as
it will go
, downwards only to the "A"
marking.
– With recirculation mode: upwards as
far as the "U",
downwards as far as it
will go.
Follow the instructions in "Appliance
dimensions." Safety distances
between the coo
ktop and ventilation
hood must be observed.
Installation
44
Raise the canopy to the desired
height and secure it with the screws.
Ho
ld the chimney securely, bend
back the retaining tabs and carefully
lower it.
The chimney will locate in the cut-out in
the cano
py.
Installation
45
Remo
ve the grease filters from the
hood.
Insert the safety screw on the inside.
W
ith recirculation mode (RM)
ventilation hoods, insert the OdorFree
Charcoal Filter.
C
arefully remove the protective foil
from the grease filters.
Rein
sert the grease filters.
Exhaust duct
46
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
pr
operly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
cr
awl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPOR
TANT SAFETY
INSTRUCTIONS" to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smoo
th pipes or flexible
duct hoses made from non-
flammable materials for exhaust
ductwork.
T
o achieve the greatest possible air
extraction with the lowest noise
levels, please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150 mm).
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and str
aight as possible.
– If elbows are needed, make sure they
have
a large radius.
– The exhaust duct itself must not be
kin
ked or compressed.
– Make sure that all connections are
secu
re and airtight.
Remember that any constriction of
the ai
rflow will reduce extraction
performance and increase operating
noise.
If the e
xhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent (available
as an optional accessory).
If the e
xhaust air is to be conducted
into a vent flue, the intake piece must
be aligned with the flow direction of
the flue.
When installing the exhaust duct
horizontally, you must slope it away
from the source by at least 1 cm per
meter (3/8" per 3 1/4'). This ensures
that condensate cannot drain back
into the ventilation hood.
If the e
xhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.
Exhaust duct
47
Condensate trap
In addition to insulating the exhaust
duct, w
e recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of 5"
(125 mm) or 6" (150 mm).
When insta
lling a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
Electrical connection
48
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
per
formed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF whil
e installation or repair work
is performed.
Verify that the voltage, load and
cir
cuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
in
vestigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
applianc
e to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
r
esult in a risk of electric shock.
This appliance must be grounded. In
the even
t of an electrical short
circuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the
electrical system of the house
checked by a qualified electrician.
To increase security before the
machine is installed, it is
r
ecommended to install a protective
switch(30mA).
The
hood must be hard wired
accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
Activating Con@ctivity 2.0
49
Installation of the Con@ctivity
2.0 stick
In order for you to be able to use the
Con@ctivity 2.0 function, the cookt
op
must be equipped with a Con@ctivity
2.0 stick.
See the r
elevant installation
instructions of the Con@ctivity 2.0
stick.
Activating the Con@ctivity 2.0
function
To use the Con@ctivity 2.0 function, the
r
adio link between the cooktop and the
ventilation hood must be activated.
Both appliances must be installed and
oper
ational.
Wireless connection must be activated
on the ven
tilation hood and the cooktop
at the same time. Activation on the
ventilation hood is described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.
Activating the ventilation hood
Th
e cooktop and hood must be
switched off.
P
ress the delayed shut-down button
515 for approx. 10 seconds until
the 1 indicator appears in the fan
level display.
The
n, press the following buttons in
order:
– The "" butt
on,
– Followed by the "" button,
– And then the lighting button .
The hood is in log on / log off mode.
If the wireless connection is already
activat
ed, 2 and 3 will light up at the
same time.
If there is no wireless connection, 2 and
3 will flash constantly (Con@ctivity 2.0
is already activated or a remote control
is logged on).
T
o activate Con@ctivity 2.0, press the
"" button.
The search for a wireless connection
will star
t.
As this is happening, begin activation
on the
cooktop.
Activating Con@ctivity 2.0
50
Activating the cooktop
While the ventilation hood is
sear
ching for a wireless connection,
start activation on the cooktop.
More information can be found in the
operating instructions for the
cooktop.
When the co
oktop registers that
connection has been established,
confirm activation on the ventilation
hood with the delayed shut-down
button 515. All indicators will go
out.
Co
nfirm activation on the cooktop.
The Con@ctivity 2.0 function is now
r
eady for use.
If you do not confirm within 4 minutes,
activation will be canceled.
You only need to carry out the
activati
on procedure once. If the
appliances are disconnected from the
electricity supply, for example during
a loss of power, they will still remain
activated.
Activation failed
If a wir
eless connection cannot be
established despite activation of the
Con@ctivity function on the
ventilation hood and cooktop, the
function must first be deactivated
and then reactivated on both
appliances.
Deactivating Con@ctivity 2.0
Deac
tivation on the hood is similar to
the activation procedure. Select the
"" button instead of the "" button.
T
o deactivate the cooktop, please
refer to the corresponding operating
instructions.
Please keep in mind that disabling the
connection will also disable any
r
emote control function being used.
The remote control must then be
reactivated.
Service and warranty
51
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Mie
le Technical Service.
The telephone number for the Technical
Ser
vice Department is listed at the back
of these instructions.
When contacting Miele, please state
the model and serial number of your
ventilation hood.
These
can be found on the data plate.
Location of the data plate
The data plate is visible once you have
r
emoved the grease filters.
Warranty
The warranty period for this appliance
is 2 years.
For further information, please refer to
your warr
anty booklet.
Technical data
52
Fan motor 350 W
Cooktop lighting 4 x 3 W
Total connected load 362 W
Voltage, Frequency 120 V AC, 60 Hz
Fuse rating 15 A
Weight 74.8 lbs (34 kg)
Optional accessories for recirculation mode:
Recir
culation kit DUI 32 and OdorFree Charcoal Filter DKF 12
Contains
FCC
ID: 2ACUWEI8800
IC: 5669C-EI8800
This device complies with Part 15 of the FCC Rules and with Industry Canada
lice
nce-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
53
M.-Nr. 09 968 630 / 01en-US
DA 6596 D
