Installation and operating instructions
Tumble dryer
WTWH75I9SN
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTWH75I9SN/04:
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Energy-saving tips 13
3
5 Installing and connecting the appliance 13
3
2 Appliance settings 18
3
9 Quick reference guide 20
3
* Familiarising yourself with your appliance 21
3
/ Overview of programmes 24
3
0 Programme settings 26
3
Z Laundry 28
3
1 Operating the appliance 29
3
o Home Connect 34
3
Œ Draining the condensation water 40
3
D Cleaning and maintenance 43
3
Y Information on the display 45
4
3 Help with the appliance 46
4
L Transporting the appliance 48
4
[ Consumption values 49
4
{ Technical specifications 50
4
) Disposal 50
4
4 After-sales service 51
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of poisoning/material damage!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Energy-saving tips
13
Energy-saving tips
13
Note:
13
If the maximum load is exceeded, this extends the programme duration and increases energy consumption.
13
Note:
13
If Wi-Fi is activated, the appliance will not switch itself off automatically.
13
5 Installing and connecting the appliance
13
Installing and connecting the appliance
13

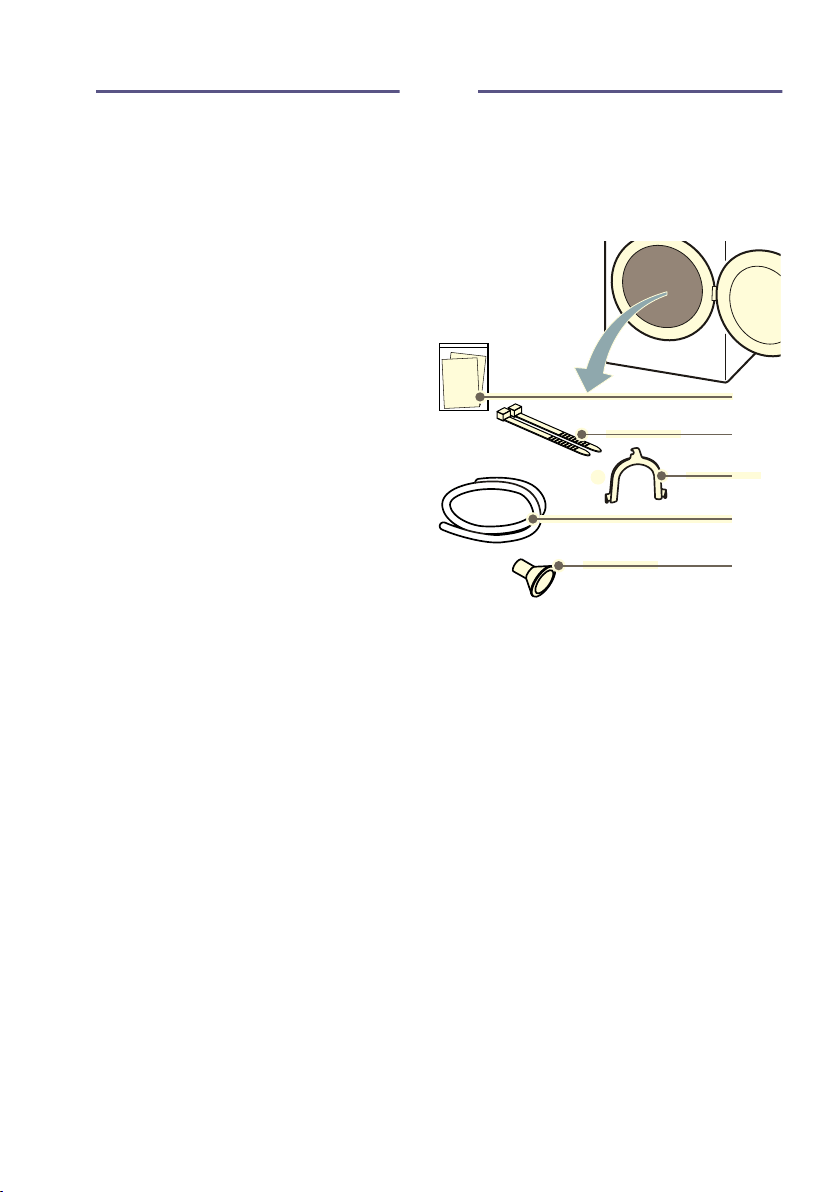

Included with the appliance:
13
1. Remove any packaging and protective covers completely from the appliance.
14
2. Open the door.
14
3. Remove all the accessories from the drum.
14
Caution!
14
Risk of material damage/damage to the appliance
14
Installing the appliance
14
: Warning
14
Risk of death!
14
: Warning
14
Risk of explosions/fire!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
14
Risk of injury/material damage/ damage to the appliance!
14
: Warning
15
Risk of injury!
15
Caution!
15
Material damage/damage to the appliance
15
Caution!
15
Risk of material damage and damage to the appliance
15
1. Place the appliance on a clean, even, solid surface.
15
2. Check that the appliance is level using a spirit level.
15
3. If necessary, turn the appliance feet to make sure it is level.
15
Notes
15
Connecting the appliance
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of fire/material damage/damage to the appliance!
16
: Warning
16
Risk of injury!
16

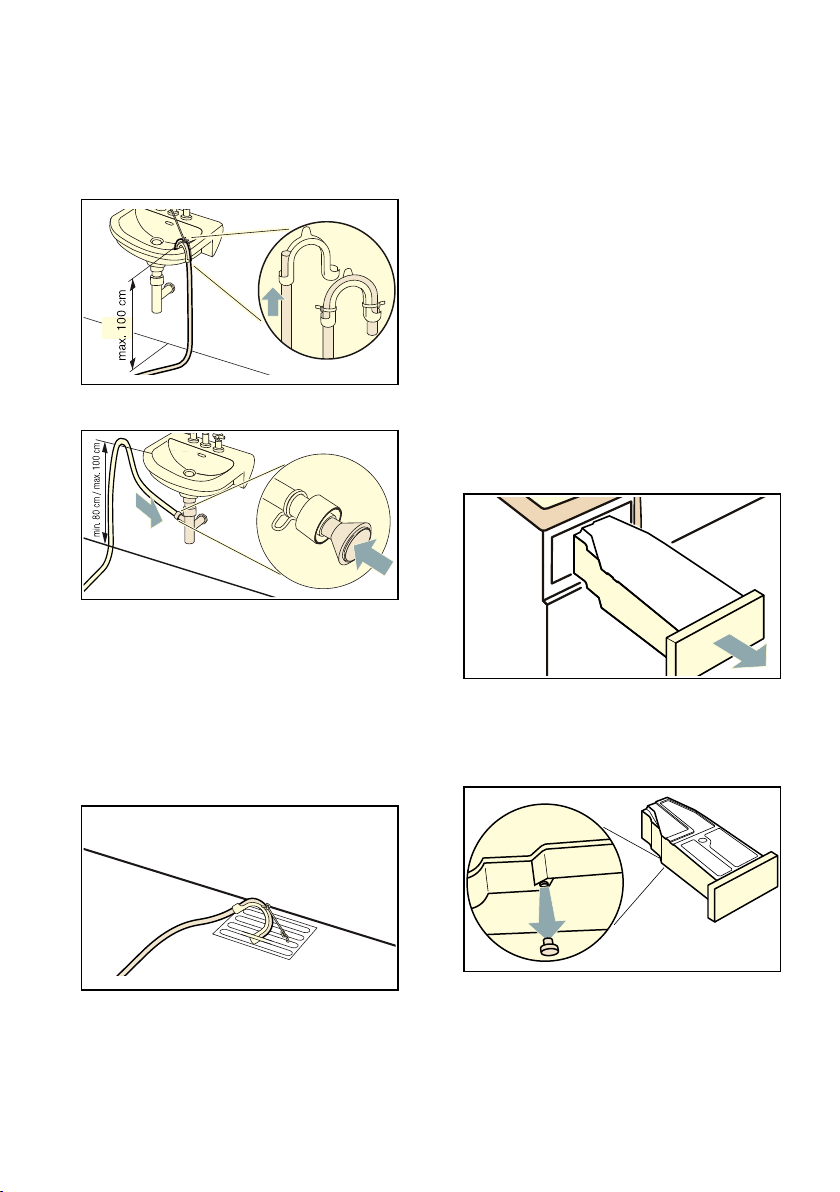

1. Connecting the drain hose. ~ Page 40
17
2. Plug the appliance's mains plug into the designated socket.
17
3. Check that the mains plug is in securely.
17
Caution!
17
Risk of material damage/damage to the appliance
17
Note:
17
If in doubt, have your appliance connected by a qualified professional.
17
Before using the appliance for the first time
17
Note:
17
Once the appliance has been properly installed and connected, it is ready to use. No further steps are necessary.
17
Optional accessories
17
2 Appliance settings
18
Appliance settings
18
Childproof lock
18
Note:
18
The childproof lock will remain active, even once the appliance has been switched off. If you wish to change settings on the control panel when you turn on the appliance, you will need to deactivate the childproof lock.
18
Activating setting mode
18
1. Switch on the appliance.
18
2. Turn the programme selector to position 1.
18
3. Press (Adjust drying level) ô and, at the same time, turn the programme selector to position 2.
18
4. Release (Adjust drying level) ô.
18
Changing the audible signal volume
18
1. Activate setting mode.
18
2. Turn the programme selector to the required position.
18
3. Use the (Ready in) ñ + or – button to set the volume you require (0 = off; 4 = very loud).
18
Switching the automatic switch-off function on/off
19
1. Activate setting mode.
19
2. Turn the programme selector to position 4.
19
3. Use the (Ready in) ñ + or – button to switch the appliance's automatic switch-off function on or off.
19
Note:
19
If Wi-Fi is activated, the appliance will not switch itself off automatically.
19
Exiting setting mode
19
9 Quick reference guide
20

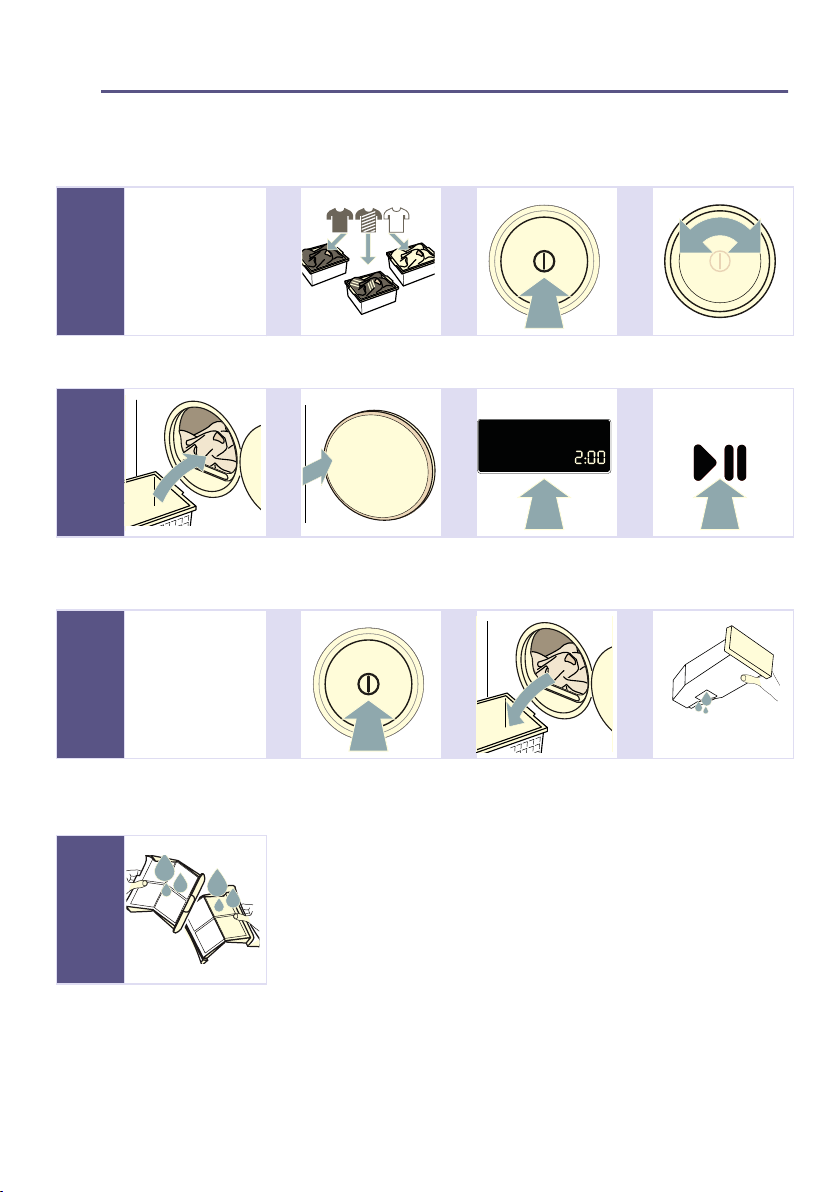

Quick reference guide
20
Note:
20
The appliance must be correctly installed and connected. ~ Page 13
20
* Familiarising yourself with your appliance
21
Familiarising yourself with your appliance
21

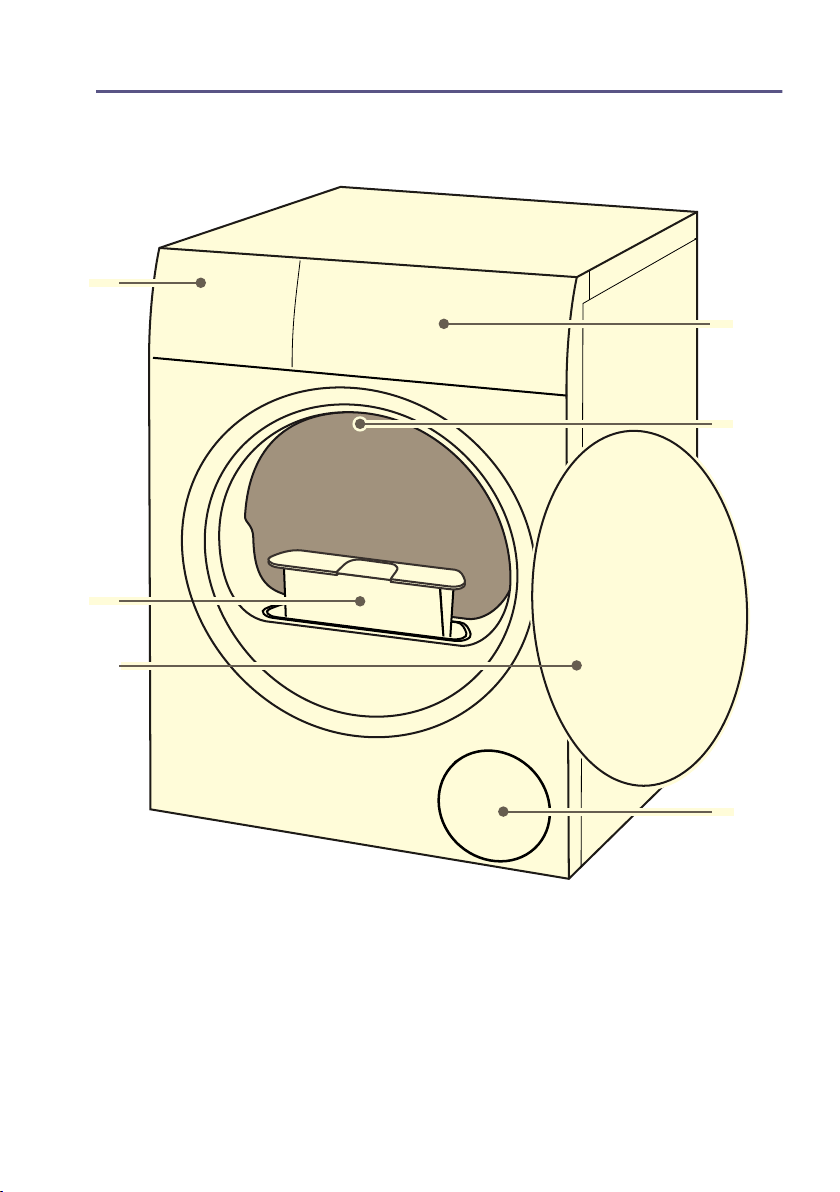

Appliance overview
21

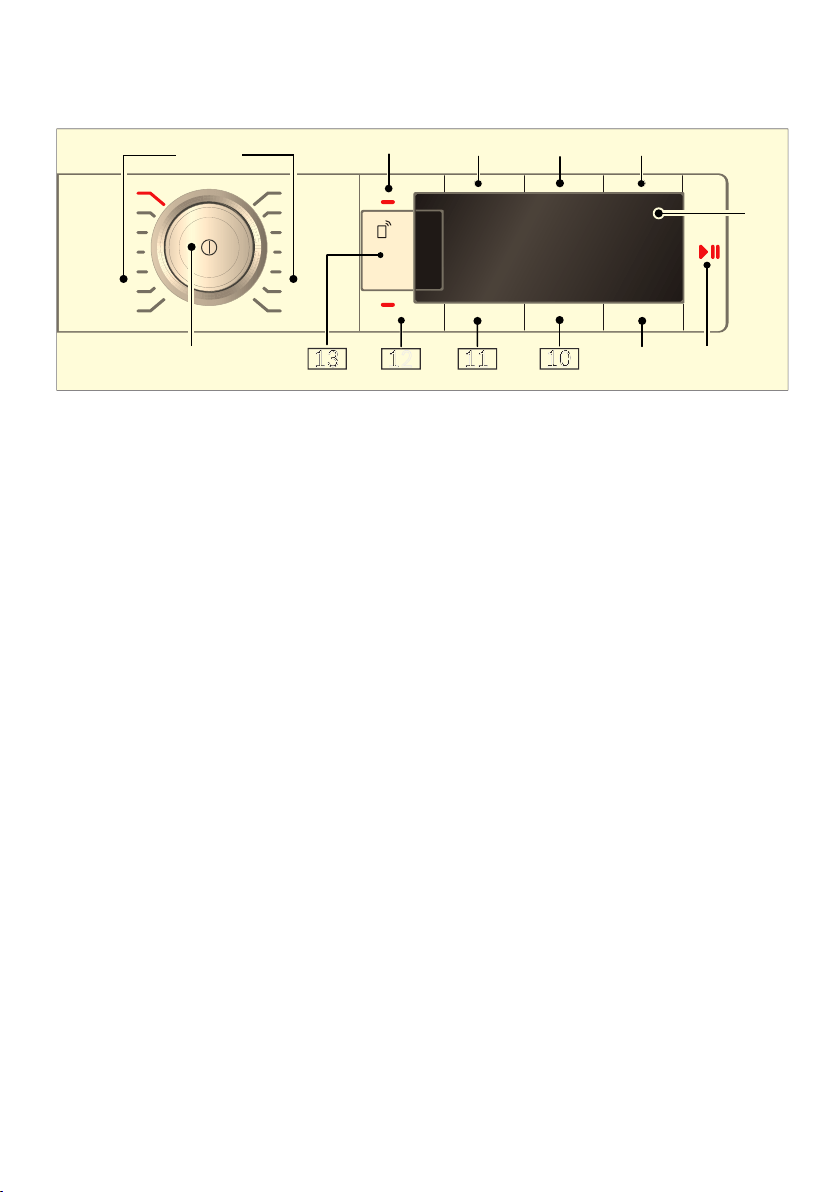

Panel
22
Programme selector
22
A for:
22
Display
23
/ Overview of programmes
24
Overview of programmes
24
Programme
24
Maximum load
24
Notes
24
Note:
24
Notes
24
Note:
24
Note:
25
Notes
25
Note:
25
0 Programme settings
26
Programme settings
26
Buttons
26
Displays
26
Explanations and information
26
Note:
26
Notes
26
1. Select a programme.
27
2. Press (Ready in) ñ repeatedly until the required number of hours is displayed.
27
Note:
27
3. Press (Start/Pause) A.
27
Note:
27
Z Laundry
28
Laundry
28
Preparing the laundry
28
: Warning
28
Risk of explosions/fire!
28
Caution!
28
Risk of damage to the drum and laundry
28
Notes
28
Sorting laundry
28
Note:
28
Load the laundry item by item into the appliance. For more effective drying, do not stuff an entire bundle of laundry into the dryer at once.
28
Caution!
28
Risk of material damage to the dryer or laundry
28
Note:
29
You can select a timed programme to add extra drying time for laundry that is still damp.
29
Caution!
29
Risk of material damage to the appliance and laundry
29
1 Operating the appliance
29
Operating the appliance
29

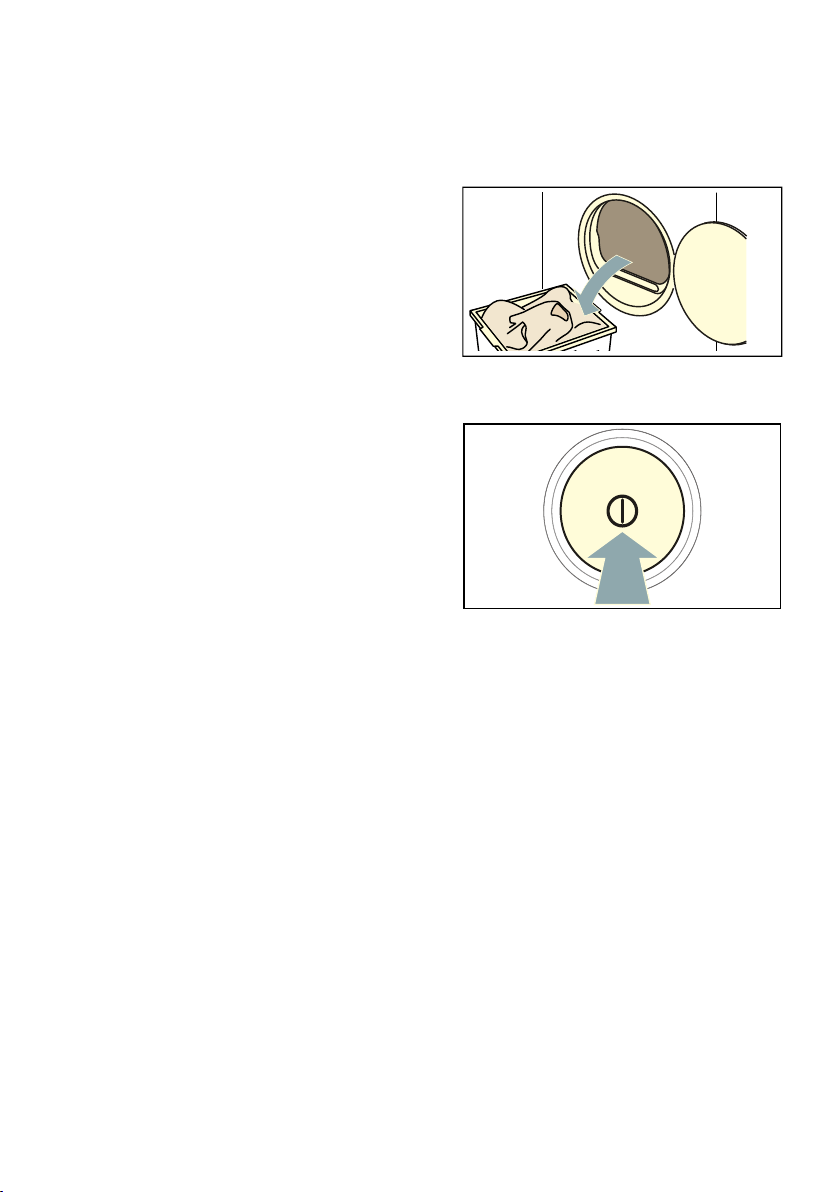

Loading laundry and switching on the appliance
29
Note:
29
The appliance must be correctly installed and connected. ~ Page 13
29
1. Prepare and sort the laundry.
29
2. Press # to switch on the appliance.
29
3. Open the door.
29
4. Load the laundry unfolded into the drum.
30
5. Close the appliance door.
30
Caution!
30
Risk of material damage to the appliance or laundry.
30
Note:
30
The appliance's drum is lit up after the door is opened and closed and once the programme has started. The drum's interior light goes out on its own.
30
Setting a programme
30
Note:
30
If you have activated the childproof lock, you must deactivate it before you can set a programme. ~ Page 18
30
1. Set the programme you require.
30
2. Adjust the programme settings, if required. ~ "Programme settings" on page 26
30
Starting a programme
30
Note:
30
If you want to prevent the programme from being adjusted inadvertently, you can activate the childproof lock. ~ Page 18
30
Programme progress
30
Note:
30
When a programme is selected, the expected drying time for the maximum permitted load is displayed. The moisture sensor measures the residual moisture in the laundry as it is being dried. The programme duration and the remaining time indicated on the...
30
Changing the programme or adding more laundry
31
1. Open the door or press (Start/ Pause) A to pause the programme.
31
2. Add or remove laundry.
31
3. If required, select a different programme or a different programme setting. ~ "Overview of programmes" on page 24 ~ "Programme settings" on page 26
31
4. Close the door.
31
5. Press (Start/Pause) A.
31
Note:
31
The programme duration is updated on the display, depending on the load and on the residual moisture in the laundry. The values displayed may change when the programme or load is changed.
31
Cancelling the programme
31
Caution!
31
Risk of fire. Laundry may catch fire.
31
Programme end
31
Removing laundry and switching off the appliance
31
1. Remove the laundry.
31
2. Press # to switch off the appliance.
31

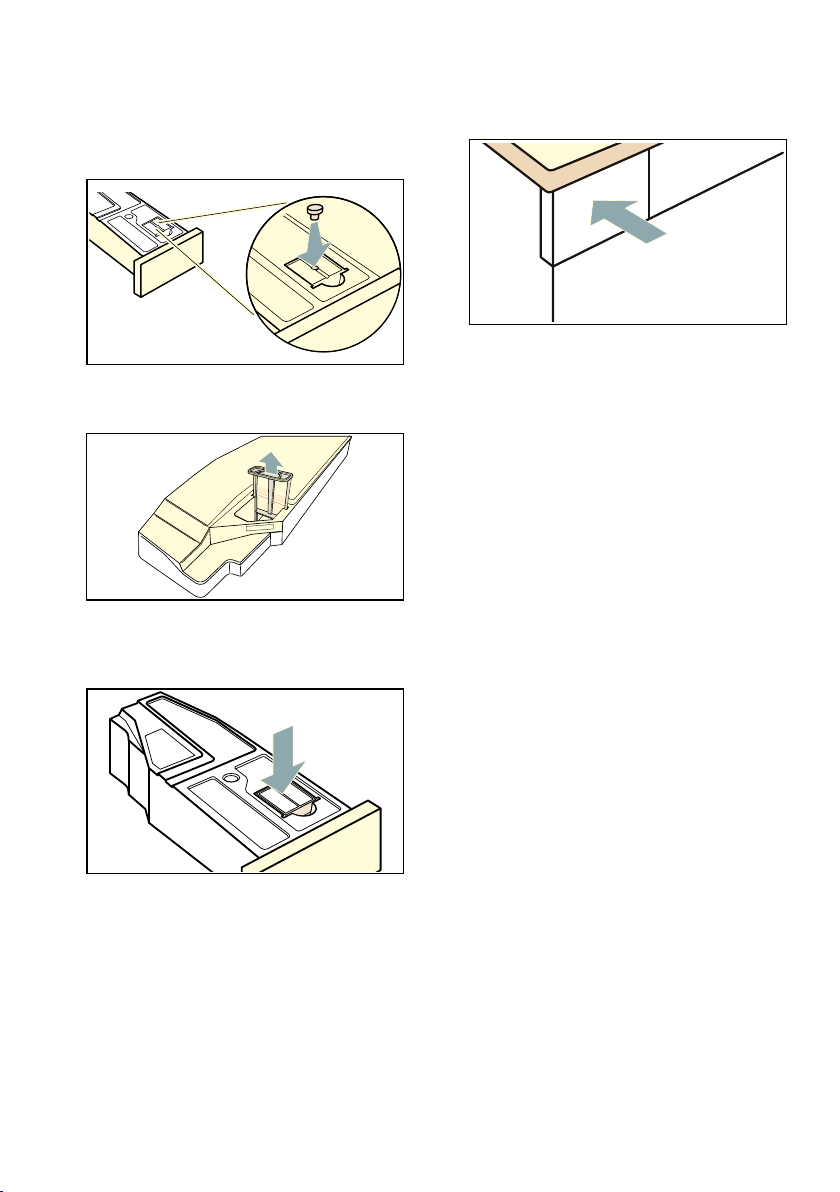

Emptying the condensation container
32
1. Pull out the condensation container horizontally.
32
2. Pour out the condensation water.
32
Caution!
32
Risk of harm to health and material damage
32
3. Push the condensation container back into the appliance until you feel it lock into place.
32
Note:
32
The filter in the condensation container filters the condensation water, which is used during the appliance's automatic cleaning cycle. The filter is cleaned by emptying out the condensation water. You should still check the filter regularly for any ...
32

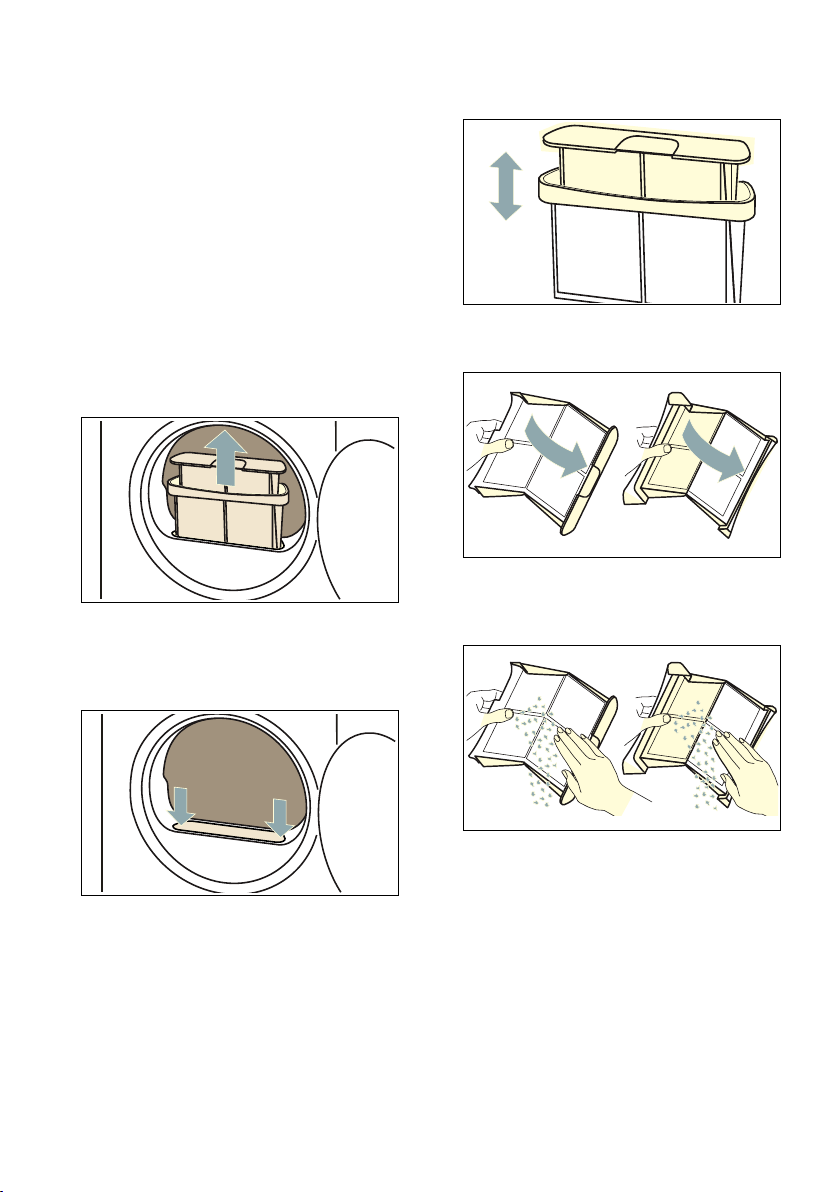

Removing the fluff
33
Note:
33
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is clogged or dirty, this reduces the flow of air, preventing the appliance from achieving optimal drying results. Dirty fluff filters increase the pow...
33
Clean the fluff filter after each drying cycle:
33
1. Open the door and remove all fluff from it.
33
2. Pull out the two-part fluff filter.
33
3. Remove the fluff from the fluff filter recess. Ensure that no fluff falls into the open shaft.
33
4. Pull the two-part fluff filter apart.
33
5. Open the two parts of the filter.
33
6. Remove all fluff from both parts of the filter.
33

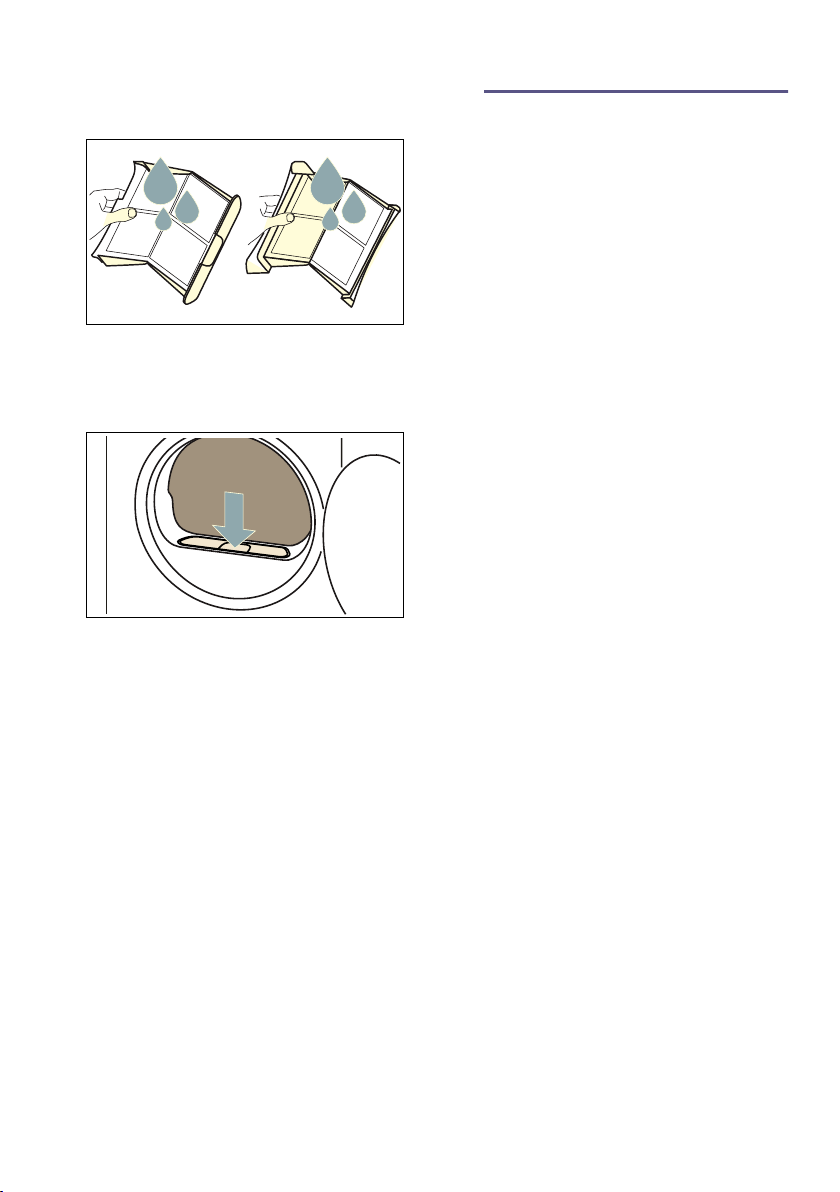

7. Rinse off fluff under warm, running water.
34
8. Dry the two parts of the fluff filter, snap them shut and reinsert the filter.
34
Caution!
34
Material damage/damage to the appliance
34
o Home Connect
34
Home Connect
34
1. Install the Home Connect app on your mobile device.
34
2. Register in the Home Connect app.
34
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
34
4. Connect your appliance to the Home Connect app.
34
Notes
35
Calling up the Home Connect menu
35
1. Switch on the appliance.
35
2. Press and hold } (Remote Start) for at least 3 seconds.
35
Note:
35
Briefly press } (Remote Start) to exit the Home Connect menu.
35
Connecting to the home network and the Home Connect app
35
Notes
35
Note:
35
To connect your appliance to the home network, Wi-Fi must be activated on the appliance. Wi-Fi is deactivated on the appliance by default and is activated automatically when you connect your appliance to your home network.
35
Connecting to your home network automatically
36
1. Press (Start/Pause) A.
36
2. Activate the WPS function on your home network router within the next 2 minutes.
36
Note:
36
If you are not able to establish a connection, check whether your appliance is within range of your home network.Try connecting automatically again or connect your appliance manually.
36
Connecting to your home network manually
36
1. Set the programme to position 2.
36
2. Press (Start/Pause) A.
36
3. Call up the Wi-Fi setting on the mobile device.
36
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
37
5. Once you have connected successfully, open the Home Connectؘ app on your mobile device and carry out the steps in the app.
37
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
37
7. Carry out the last steps in the Home Connect app to connect your appliance.
37
Note:
37
If you are not able to establish a connection, check whether your appliance is within range of your home network. Try connecting manually again.
37
Connecting to the Home Connect app
37
1. Set the programme to position 3.
37
2. Press (Start/Pause) A.
37
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
37
Note:
37
If you were not able to establish a connection, check whether your mobile end device is within range of your home network or is connected to this. Try connecting to the Home Connect app again.
37
Activating/deactivating Wi-Fi
38
1. Set the programme to position 4.
38
2. Press (Start/Pause) A.
38
Notes
38
Resetting your network settings
38
1. Set the programme to position 5.
38
2. Press (Start/Pause) A.
38
3. Press (Start/Pause) A.
38
Note:
38
If you want to operate your appliance via the Home Connect app again, you will need to reconnect it to your home network and to the Home Connect app.
38
Updating the software
39
1. Set the programme to position 6.
39
2. Press (Start/Pause) A.
39
3. Press (Start/Pause) A.
39
Note:
39
The software update may take several minutes. Do not switch the appliance off while updates are being installed.
39
Information on data protection
39
Note:
39
Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.
39
Declaration of Conformity
39
Œ Draining the condensation water
40
Draining the condensation water
40
Connect the drain hose as follows:
40
1. Remove any accessories from the drum.
40
2. Remove all items from the bag.
40
3. Detach the condensation hose from the socket.
40
Note:
40
4. Place the condensation hose in the "parked" position.
40
5. Take the drain hose from the accessories and attach it to the free socket, pushing it up to the stop.
40
6. Secure the other side of the drain hose using the remaining accessories, depending on the connection situation.
41
Caution!
41
Risk of material damage due to leaks or draining water.
41
Caution!
41
Risk of accumulated water being drawn back into the appliance and causing material damage.
41
7. Pull out the condensation container horizontally and empty it.
41
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
41
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
42
10. Pull the filter out of its snap-in lock.
42
11. Place the filter into the recess on the condensation container.
42
12. Slide in the condensation container until it clicks into place.
42
Note:
42
If you want to drain the condensation water back into the condensation container, reverse these steps.
42
Caution!
42
Risk of material damage/damage to the appliance
42
D Cleaning and maintenance
43
Cleaning and maintenance
43
Cleaning the appliance
43
: Warning
43
Risk of death!
43
: Warning
43
Risk of poisoning!
43
: Warning
43
Risk of electric shock/material damage/damage to the appliance!
43
Caution!
43
Material damage/damage to the appliance
43
Cleaning the moisture sensor
43
Note:
43
The moisture sensor measures the amount of moisture in the laundry. After long periods of usage, the moisture sensor may become covered by a fine layer of limescale or detergent and care product residue. These deposits must be removed regularly, othe...
43
1. Open the door.
43
2. Clean the moisture sensor with a rough sponge.
44
Caution!
44
Risk of damaging the moisture sensor.
44
Cleaning the filter in the condensation container
44
Note:
44
The filter in the condensation container cleans the condensation water, which is used during the appliance's automatic cleaning cycle.
44
1. Pull out the condensation container horizontally.
44
2. Pour out the condensation water.
44
3. Remove the filter.
44
4. Clean the filter under warm, running water or in the dishwasher.
44
5. Push the filter in until you feel it lock into place.
44
Caution!
44
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
44
6. Push the condensation container in until you feel it lock into place.
44
Y Information on the display
45
Information on the display
45
Faults
45
Cause/remedy
45
Note:
45
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 51
45
3 Help with the appliance
46
Help with the appliance
46
Faults
46
Cause/remedy
46
Note:
46
Note:
46
Note:
47
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 51
47
L Transporting the appliance
48
Transporting the appliance
48
: Warning
48
Risk of injury/material damage/ damage to the appliance!
48
: Warning
48
Risk of injury!
48
1. Pull out the condensation container horizontally and empty it.
48
2. Push the condensation container back into the appliance until you feel it lock into place.
48
3. Switch on the appliance.
48
4. Set any programme.
48
5. Press (Start/Pause) A.
48
6. Wait for 5 minutes.
48
7. Empty the condensation container again.
48
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 40
48
Caution!
48
9. Switch off the appliance.
48
10. Disconnect the appliance's mains plug from the power supply.
48
Caution!
48
Risk of material damage/damage to the appliance
48
[ Consumption values
49
Consumption values
49
Consumption values table
49
9 kg
49
4.5 kg
49
9 kg
49
4.5 kg
49
1400
49
146
49
98
49
1.77
49
1.09
49
1000
49
166
49
108
49
2.06
49
1.24
49
800
49
186
49
118
49
2.35
49
1.39
49
1400
49
109
49
71
49
1.26
49
0.76
49
1000
49
129
49
81
49
1.55
49
0.91
49
800
49
149
49
91
49
1.84
49
1.06
49
3.5 kg
49
3.5 kg
49
800
49
57
49
0.55
49
600
49
65
49
0.65
49
Most efficient programme for cotton laundry
49
The "standard cottons programme" below (denoted by the ü symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption.
49
Standard programmes for cottons in accordance with current EU regulation 932/2012
49
Programme + dryness level
49
Load
49
(in kg)
49
Energy consumption
49
(in kWh)
49
Programme duration
49
(in min)
49
{ Technical specifications
50
Technical specifications
50
) Disposal
50
Disposal
50
Caution!
50
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
50
4 After-sales service
51
After-sales service
51
File type: PDF
File name: wtwh75i9sn-04.pdf
File size: 2.16 MB
File Language: English
Pages: 52
Author: Bosch
Published: 2019-11-10 00:00:00
Updated: 2023-07-20
Verified by
Shany D'Amore
on 2023-07-20
Download File
Specifications
Brand:
Bosch
Model: WTWH75I9SN/04
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
SHE55M12UC/57
HWD3050UC/02
NGM3654UC/01
HGI8054UC/03
NKN645BA1C/01
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTWH7540
Bosch WTU876I9SN/03
Bosch WTWH7561GB
Bosch WTG86260EE/04
Bosch WTE86300US/04
Bosch WTV76100US/04
Bosch WTH8528PSN/07
Bosch WTR85VP8SN/02
Bosch WTA74201SG/04
Bosch WTH83000GB/04
Bosch WTG8640XIR/04
Bosch WTX8HKL9SN/01
Bosch WTW855R9SN/07
Bosch WTW85P49SN/08
Bosch WTY88780EU/04
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Energy-saving tips 13
3
5 Installing and connecting the appliance 13
3
2 Appliance settings 18
3
9 Quick reference guide 20
3
* Familiarising yourself with your appliance 21
3
/ Overview of programmes 24
3
0 Programme settings 26
3
Z Laundry 28
3
1 Operating the appliance 29
3
o Home Connect 34
3
Œ Draining the condensation water 40
3
D Cleaning and maintenance 43
3
Y Information on the display 45
4
3 Help with the appliance 46
4
L Transporting the appliance 48
4
[ Consumption values 49
4
{ Technical specifications 50
4
) Disposal 50
4
4 After-sales service 51
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of explosions/fire!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
9
Risk of fire/material damage/ damage to the appliance!
9
: Warning
10
Risk of poisoning/material damage!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
12
Risk of poisoning!
12
: Warning
12
Risk of electric shock/material damage/damage to the appliance!
12
: Warning
12
Risk of injury/material damage/damage to the appliance!
12
Caution!
12
Material damage/damage to the appliance
12
7 Energy-saving tips
13
Energy-saving tips
13
Note:
13
If the maximum load is exceeded, this extends the programme duration and increases energy consumption.
13
Note:
13
If Wi-Fi is activated, the appliance will not switch itself off automatically.
13
5 Installing and connecting the appliance
13
Installing and connecting the appliance
13
Included with the appliance:
13
1. Remove any packaging and protective covers completely from the appliance.
14
2. Open the door.
14
3. Remove all the accessories from the drum.
14
Caution!
14
Risk of material damage/damage to the appliance
14
Installing the appliance
14
: Warning
14
Risk of death!
14
: Warning
14
Risk of explosions/fire!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
14
Risk of injury/material damage/ damage to the appliance!
14
: Warning
15
Risk of injury!
15
Caution!
15
Material damage/damage to the appliance
15
Caution!
15
Risk of material damage and damage to the appliance
15
1. Place the appliance on a clean, even, solid surface.
15
2. Check that the appliance is level using a spirit level.
15
3. If necessary, turn the appliance feet to make sure it is level.
15
Notes
15
Connecting the appliance
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of electric shock/fire/material damage/damage to the appliance!
16
: Warning
16
Risk of fire/material damage/damage to the appliance!
16
: Warning
16
Risk of injury!
16
1. Connecting the drain hose. ~ Page 40
17
2. Plug the appliance's mains plug into the designated socket.
17
3. Check that the mains plug is in securely.
17
Caution!
17
Risk of material damage/damage to the appliance
17
Note:
17
If in doubt, have your appliance connected by a qualified professional.
17
Before using the appliance for the first time
17
Note:
17
Once the appliance has been properly installed and connected, it is ready to use. No further steps are necessary.
17
Optional accessories
17
2 Appliance settings
18
Appliance settings
18
Childproof lock
18
Note:
18
The childproof lock will remain active, even once the appliance has been switched off. If you wish to change settings on the control panel when you turn on the appliance, you will need to deactivate the childproof lock.
18
Activating setting mode
18
1. Switch on the appliance.
18
2. Turn the programme selector to position 1.
18
3. Press (Adjust drying level) ô and, at the same time, turn the programme selector to position 2.
18
4. Release (Adjust drying level) ô.
18
Changing the audible signal volume
18
1. Activate setting mode.
18
2. Turn the programme selector to the required position.
18
3. Use the (Ready in) ñ + or – button to set the volume you require (0 = off; 4 = very loud).
18
Switching the automatic switch-off function on/off
19
1. Activate setting mode.
19
2. Turn the programme selector to position 4.
19
3. Use the (Ready in) ñ + or – button to switch the appliance's automatic switch-off function on or off.
19
Note:
19
If Wi-Fi is activated, the appliance will not switch itself off automatically.
19
Exiting setting mode
19
9 Quick reference guide
20
Quick reference guide
20
Note:
20
The appliance must be correctly installed and connected. ~ Page 13
20
* Familiarising yourself with your appliance
21
Familiarising yourself with your appliance
21
Appliance overview
21
Panel
22
Programme selector
22
A for:
22
Display
23
/ Overview of programmes
24
Overview of programmes
24
Programme
24
Maximum load
24
Notes
24
Note:
24
Notes
24
Note:
24
Note:
25
Notes
25
Note:
25
0 Programme settings
26
Programme settings
26
Buttons
26
Displays
26
Explanations and information
26
Note:
26
Notes
26
1. Select a programme.
27
2. Press (Ready in) ñ repeatedly until the required number of hours is displayed.
27
Note:
27
3. Press (Start/Pause) A.
27
Note:
27
Z Laundry
28
Laundry
28
Preparing the laundry
28
: Warning
28
Risk of explosions/fire!
28
Caution!
28
Risk of damage to the drum and laundry
28
Notes
28
Sorting laundry
28
Note:
28
Load the laundry item by item into the appliance. For more effective drying, do not stuff an entire bundle of laundry into the dryer at once.
28
Caution!
28
Risk of material damage to the dryer or laundry
28
Note:
29
You can select a timed programme to add extra drying time for laundry that is still damp.
29
Caution!
29
Risk of material damage to the appliance and laundry
29
1 Operating the appliance
29
Operating the appliance
29
Loading laundry and switching on the appliance
29
Note:
29
The appliance must be correctly installed and connected. ~ Page 13
29
1. Prepare and sort the laundry.
29
2. Press # to switch on the appliance.
29
3. Open the door.
29
4. Load the laundry unfolded into the drum.
30
5. Close the appliance door.
30
Caution!
30
Risk of material damage to the appliance or laundry.
30
Note:
30
The appliance's drum is lit up after the door is opened and closed and once the programme has started. The drum's interior light goes out on its own.
30
Setting a programme
30
Note:
30
If you have activated the childproof lock, you must deactivate it before you can set a programme. ~ Page 18
30
1. Set the programme you require.
30
2. Adjust the programme settings, if required. ~ "Programme settings" on page 26
30
Starting a programme
30
Note:
30
If you want to prevent the programme from being adjusted inadvertently, you can activate the childproof lock. ~ Page 18
30
Programme progress
30
Note:
30
When a programme is selected, the expected drying time for the maximum permitted load is displayed. The moisture sensor measures the residual moisture in the laundry as it is being dried. The programme duration and the remaining time indicated on the...
30
Changing the programme or adding more laundry
31
1. Open the door or press (Start/ Pause) A to pause the programme.
31
2. Add or remove laundry.
31
3. If required, select a different programme or a different programme setting. ~ "Overview of programmes" on page 24 ~ "Programme settings" on page 26
31
4. Close the door.
31
5. Press (Start/Pause) A.
31
Note:
31
The programme duration is updated on the display, depending on the load and on the residual moisture in the laundry. The values displayed may change when the programme or load is changed.
31
Cancelling the programme
31
Caution!
31
Risk of fire. Laundry may catch fire.
31
Programme end
31
Removing laundry and switching off the appliance
31
1. Remove the laundry.
31
2. Press # to switch off the appliance.
31
Emptying the condensation container
32
1. Pull out the condensation container horizontally.
32
2. Pour out the condensation water.
32
Caution!
32
Risk of harm to health and material damage
32
3. Push the condensation container back into the appliance until you feel it lock into place.
32
Note:
32
The filter in the condensation container filters the condensation water, which is used during the appliance's automatic cleaning cycle. The filter is cleaned by emptying out the condensation water. You should still check the filter regularly for any ...
32
Removing the fluff
33
Note:
33
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is clogged or dirty, this reduces the flow of air, preventing the appliance from achieving optimal drying results. Dirty fluff filters increase the pow...
33
Clean the fluff filter after each drying cycle:
33
1. Open the door and remove all fluff from it.
33
2. Pull out the two-part fluff filter.
33
3. Remove the fluff from the fluff filter recess. Ensure that no fluff falls into the open shaft.
33
4. Pull the two-part fluff filter apart.
33
5. Open the two parts of the filter.
33
6. Remove all fluff from both parts of the filter.
33
7. Rinse off fluff under warm, running water.
34
8. Dry the two parts of the fluff filter, snap them shut and reinsert the filter.
34
Caution!
34
Material damage/damage to the appliance
34
o Home Connect
34
Home Connect
34
1. Install the Home Connect app on your mobile device.
34
2. Register in the Home Connect app.
34
3. Connect your appliance to your home network automatically or manually (you only need to do this the first time).
34
4. Connect your appliance to the Home Connect app.
34
Notes
35
Calling up the Home Connect menu
35
1. Switch on the appliance.
35
2. Press and hold } (Remote Start) for at least 3 seconds.
35
Note:
35
Briefly press } (Remote Start) to exit the Home Connect menu.
35
Connecting to the home network and the Home Connect app
35
Notes
35
Note:
35
To connect your appliance to the home network, Wi-Fi must be activated on the appliance. Wi-Fi is deactivated on the appliance by default and is activated automatically when you connect your appliance to your home network.
35
Connecting to your home network automatically
36
1. Press (Start/Pause) A.
36
2. Activate the WPS function on your home network router within the next 2 minutes.
36
Note:
36
If you are not able to establish a connection, check whether your appliance is within range of your home network.Try connecting automatically again or connect your appliance manually.
36
Connecting to your home network manually
36
1. Set the programme to position 2.
36
2. Press (Start/Pause) A.
36
3. Call up the Wi-Fi setting on the mobile device.
36
4. Connect the mobile device to the Home Connect Wi-Fi network and enter the password (key) HomeConnect.
37
5. Once you have connected successfully, open the Home Connectؘ app on your mobile device and carry out the steps in the app.
37
6. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
37
7. Carry out the last steps in the Home Connect app to connect your appliance.
37
Note:
37
If you are not able to establish a connection, check whether your appliance is within range of your home network. Try connecting manually again.
37
Connecting to the Home Connect app
37
1. Set the programme to position 3.
37
2. Press (Start/Pause) A.
37
3. Once your appliance is displayed in the app, carry out the last steps in the Home Connect app.
37
Note:
37
If you were not able to establish a connection, check whether your mobile end device is within range of your home network or is connected to this. Try connecting to the Home Connect app again.
37
Activating/deactivating Wi-Fi
38
1. Set the programme to position 4.
38
2. Press (Start/Pause) A.
38
Notes
38
Resetting your network settings
38
1. Set the programme to position 5.
38
2. Press (Start/Pause) A.
38
3. Press (Start/Pause) A.
38
Note:
38
If you want to operate your appliance via the Home Connect app again, you will need to reconnect it to your home network and to the Home Connect app.
38
Updating the software
39
1. Set the programme to position 6.
39
2. Press (Start/Pause) A.
39
3. Press (Start/Pause) A.
39
Note:
39
The software update may take several minutes. Do not switch the appliance off while updates are being installed.
39
Information on data protection
39
Note:
39
Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.
39
Declaration of Conformity
39
Œ Draining the condensation water
40
Draining the condensation water
40
Connect the drain hose as follows:
40
1. Remove any accessories from the drum.
40
2. Remove all items from the bag.
40
3. Detach the condensation hose from the socket.
40
Note:
40
4. Place the condensation hose in the "parked" position.
40
5. Take the drain hose from the accessories and attach it to the free socket, pushing it up to the stop.
40
6. Secure the other side of the drain hose using the remaining accessories, depending on the connection situation.
41
Caution!
41
Risk of material damage due to leaks or draining water.
41
Caution!
41
Risk of accumulated water being drawn back into the appliance and causing material damage.
41
7. Pull out the condensation container horizontally and empty it.
41
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
41
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
42
10. Pull the filter out of its snap-in lock.
42
11. Place the filter into the recess on the condensation container.
42
12. Slide in the condensation container until it clicks into place.
42
Note:
42
If you want to drain the condensation water back into the condensation container, reverse these steps.
42
Caution!
42
Risk of material damage/damage to the appliance
42
D Cleaning and maintenance
43
Cleaning and maintenance
43
Cleaning the appliance
43
: Warning
43
Risk of death!
43
: Warning
43
Risk of poisoning!
43
: Warning
43
Risk of electric shock/material damage/damage to the appliance!
43
Caution!
43
Material damage/damage to the appliance
43
Cleaning the moisture sensor
43
Note:
43
The moisture sensor measures the amount of moisture in the laundry. After long periods of usage, the moisture sensor may become covered by a fine layer of limescale or detergent and care product residue. These deposits must be removed regularly, othe...
43
1. Open the door.
43
2. Clean the moisture sensor with a rough sponge.
44
Caution!
44
Risk of damaging the moisture sensor.
44
Cleaning the filter in the condensation container
44
Note:
44
The filter in the condensation container cleans the condensation water, which is used during the appliance's automatic cleaning cycle.
44
1. Pull out the condensation container horizontally.
44
2. Pour out the condensation water.
44
3. Remove the filter.
44
4. Clean the filter under warm, running water or in the dishwasher.
44
5. Push the filter in until you feel it lock into place.
44
Caution!
44
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
44
6. Push the condensation container in until you feel it lock into place.
44
Y Information on the display
45
Information on the display
45
Faults
45
Cause/remedy
45
Note:
45
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 51
45
3 Help with the appliance
46
Help with the appliance
46
Faults
46
Cause/remedy
46
Note:
46
Note:
46
Note:
47
If you cannot rectify the fault yourself by turning the appliance off and then on again, please contact our after-sales service.~ Page 51
47
L Transporting the appliance
48
Transporting the appliance
48
: Warning
48
Risk of injury/material damage/ damage to the appliance!
48
: Warning
48
Risk of injury!
48
1. Pull out the condensation container horizontally and empty it.
48
2. Push the condensation container back into the appliance until you feel it lock into place.
48
3. Switch on the appliance.
48
4. Set any programme.
48
5. Press (Start/Pause) A.
48
6. Wait for 5 minutes.
48
7. Empty the condensation container again.
48
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 40
48
Caution!
48
9. Switch off the appliance.
48
10. Disconnect the appliance's mains plug from the power supply.
48
Caution!
48
Risk of material damage/damage to the appliance
48
[ Consumption values
49
Consumption values
49
Consumption values table
49
9 kg
49
4.5 kg
49
9 kg
49
4.5 kg
49
1400
49
146
49
98
49
1.77
49
1.09
49
1000
49
166
49
108
49
2.06
49
1.24
49
800
49
186
49
118
49
2.35
49
1.39
49
1400
49
109
49
71
49
1.26
49
0.76
49
1000
49
129
49
81
49
1.55
49
0.91
49
800
49
149
49
91
49
1.84
49
1.06
49
3.5 kg
49
3.5 kg
49
800
49
57
49
0.55
49
600
49
65
49
0.65
49
Most efficient programme for cotton laundry
49
The "standard cottons programme" below (denoted by the ü symbol) is suitable for drying cotton laundry with a normal dampness level, and is the most efficient programme for drying damp cotton laundry in terms of combined energy consumption.
49
Standard programmes for cottons in accordance with current EU regulation 932/2012
49
Programme + dryness level
49
Load
49
(in kg)
49
Energy consumption
49
(in kWh)
49
Programme duration
49
(in min)
49
{ Technical specifications
50
Technical specifications
50
) Disposal
50
Disposal
50
Caution!
50
Risk of fire/risk of poisoning/risk of material damage and damage to the appliance
50
4 After-sales service
51
After-sales service
51
Search:
×
Search
