F-series Assemble User Manual
Contact: Peter.Wan
Tel:+86-755-29371519-8018
Mobile: 13823548639
Fax:+86-755-29235565-8008
Email:peter@greentouch.com.cn
Skype:wanli889
QQ:2355562940
Wechat:13823548639
Web: www.touchscreenfactory.com
Add:3rd Floor,Building A2,ShenZhen Low-Carbon Science Industrial
Park,Sillicon Valley Power,Guiyue Road,Zhangge Market,Guanlan
Town,LongHua New District,ShenZhen City,518110,China
2

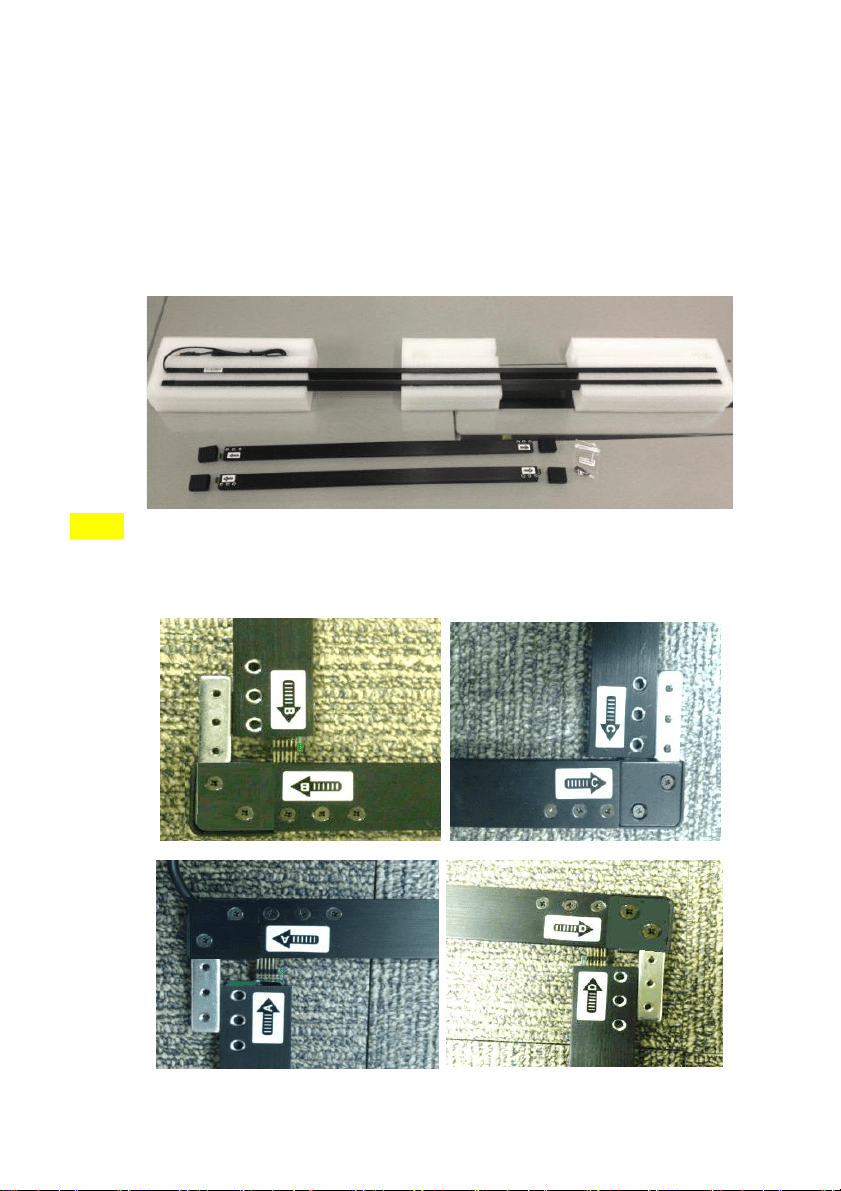

Accessory list (as below pic):
1. X axis transmitting tub：1 PCS
2. Y axis transmitting tub：1 PCS
3. Y axis receiving tube： 1 PCS
4. X axis receiving tube： 1 PCS
Screws (KM2.5×4mm) ：14Pcs ((2pcs backup)
Step1 :
Match the NO. on the touch frame (No. A match No.A, No.B match No.B, No.C match No.C ,No.D
match No.D)
3
Step2:
Open the cover of each corner (as below)
4
Step3:
Connect the spare part via the 10pin connector and fix the cover of corner
Step 4 :

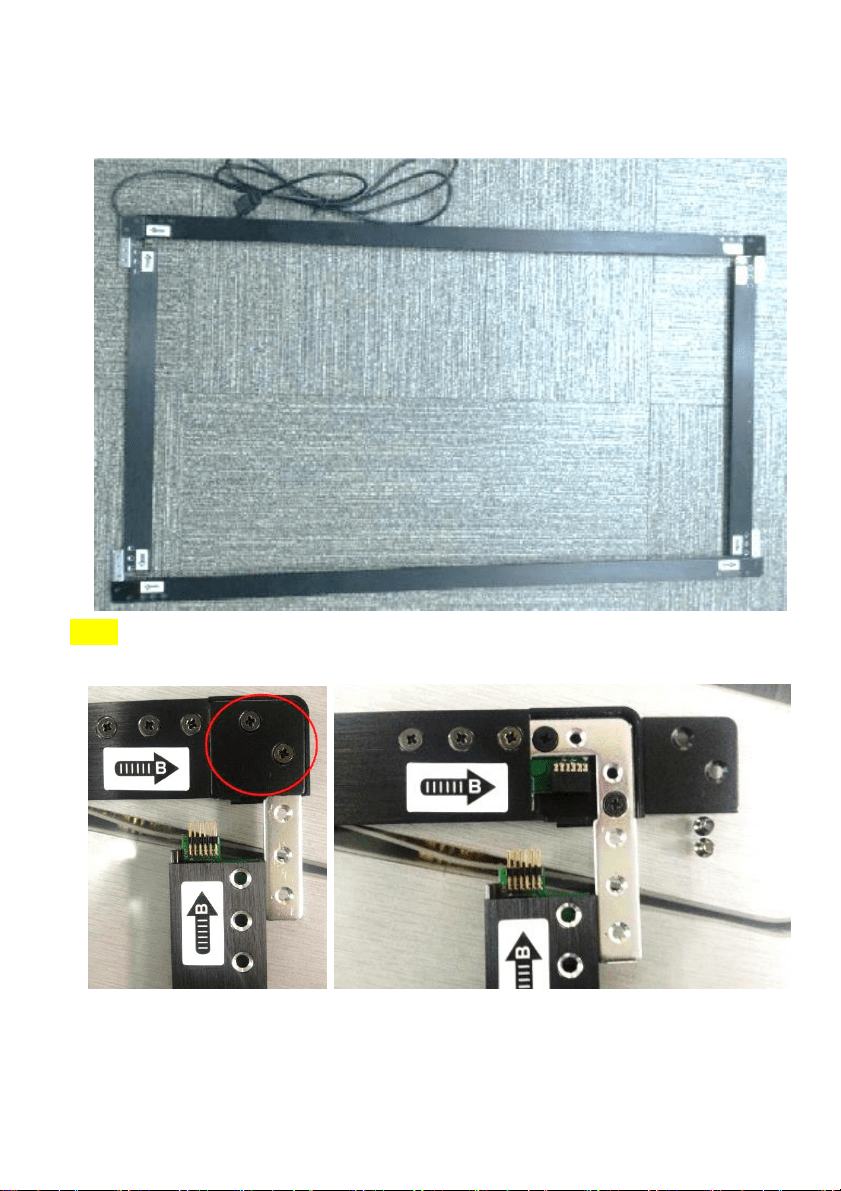

According to the same principle, repeat the corner B,C,D and finish the assembling as below
.
Attention:
1. Must open the cover of the corner before connecting the frame (as below) , in case the 10 pin
connector broke.
