User Manual Bosch HGN10G050/01 Oven

Documents for Bosch HGN10G050/01

User Manual

For HGN10G050/01. Also, The document are for others Bosch models: HGN10G050, HGN10G060

• [en] Instruction manual1
  • Built-in oven1
  • HGN10G050, HGN10G0601
• Ú Table of contents[en] Instruction manual3
  • Your new appliance 63
  • Before using the oven for the first time 73
  • How to operate your oven 73
  • Care and cleaning 93
  • Troubleshooting 113
  • After-sales service 123
  • Energy and environment tips 123
  • Acrylamide in foodstuffs 123
  • Tips for using your appliance 133
    • : Important safety information3
      • Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.3
      • This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.3
      • Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.3
      • Only allow a licensed professional to connect the appliance. Damage caused by incorrect connection is not covered under warranty. Call the after-sales service if you want to convert your appliance to a different type of gas.3
      • This appliance is intended for domestic use and the household environment only. This appliance must only be used to prepare food and drinks and must never be used as a heater. Do not leave the appliance unattended during operation. Only use the appli...3
      • This appliance is intended for use up to a maximum height of 2000 metres above sea level.3
      • This appliance is not intended for operation with an external clock timer or a remote control.3
      • This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...3
      • Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.3
      • Keep children below the age of 8 years old at a safe distance from the appliance and power cable.3
      • Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.3
  • Risk of overheating!4
    • In the event of a power cut, the cooling fan does not work. The appliance may overheat. The touchable parts become very hot and may cause injury. Due to the high temperatures, the appliance and the fitted unit could be damaged. In the event of a powe...4
  • What to do if you smell gas!4
    • Escaping gas may cause an explosion.4
    • If you smell gas or notice any faults in the gas installation:4
      • ■ Immediately shut off the gas supply or close the gas cylinder valve.4
      • ■ Immediately extinguish all naked flames and cigarettes.4
      • ■ Do not use any light or appliance switches and do not pull any plugs out of sockets. Do not use any telephones or mobile phones within the building.4
      • ■ Open windows and ventilate the room.4
      • ■ Call the after­sales service or the gas supplier.4
  • Risk of asphyxiation!4
    • The use of a gas cooker leads to a build-up of heat, moisture and products of combustion in the room where the appliance is installed. Ensure that the installation room is well ventilated. The natural ventilation openings must be kept open or a mecha...4
    • Risk of fire!4
      • ■ A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof...4
      • Risk of fire!4
        • ■ Combustible objects that are left in the cooking compartment may ignite. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug the mains plug or switc...4
      • Risk of fire!4
        • ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.4
      • Risk of fire!4
        • ■ The appliance becomes very hot and flammable materials could catch fire. Never store or use flammable objects (e.g. spray cans, cleaning agents) under the appliance or in its immediate vicinity. Never place flammable items on or in the appliance.4
      • Risk of fire!4
        • ■ Under no circumstances should a baking sheet, a baking tray, a pan or another form of cookware be placed directly on the oven floor. This causes the floor of the appliance to overheat and can seriously damage the bottom of the fitted unit.4
      • Risk of fire!4
        • ■ The rear of the appliance becomes very hot. This may cause damage to the power cables. Electricity and gas lines must not come into contact with the rear of the appliance.4
    • Risk of burns!5
      • ■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.5
      • Risk of serious burns!5
        • ■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.5
      • Risk of burns!5
        • ■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care5
      • Risk of burns!5
        • ■ The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.5
    • Risk of scalding!5
      • ■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.5
      • Risk of scalding!5
        • ■ When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.5
      • Risk of scalding!5
        • ■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.5
    • Risk of injury!5
      • ■ Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.5
      • Risk of injury!5
        • ■ Incorrect repairs are dangerous. Repairs may only be carried out, and damaged power and gas lines replaced, by an after- sales engineer trained by us. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Shut ...5
      • Risk of injury!5
        • ■ Faults or damage to the appliance are dangerous. Never switch on a faulty appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Shut off the gas supply. Contact the after-sales service.5
    • Risk of electric shock and serious injury!5
      • ■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.5
      • Risk of electric shock!5
        • ■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.5
      • Risk of electric shock!5
        • ■ When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.5
      • Causes of damage5
        • Caution!5

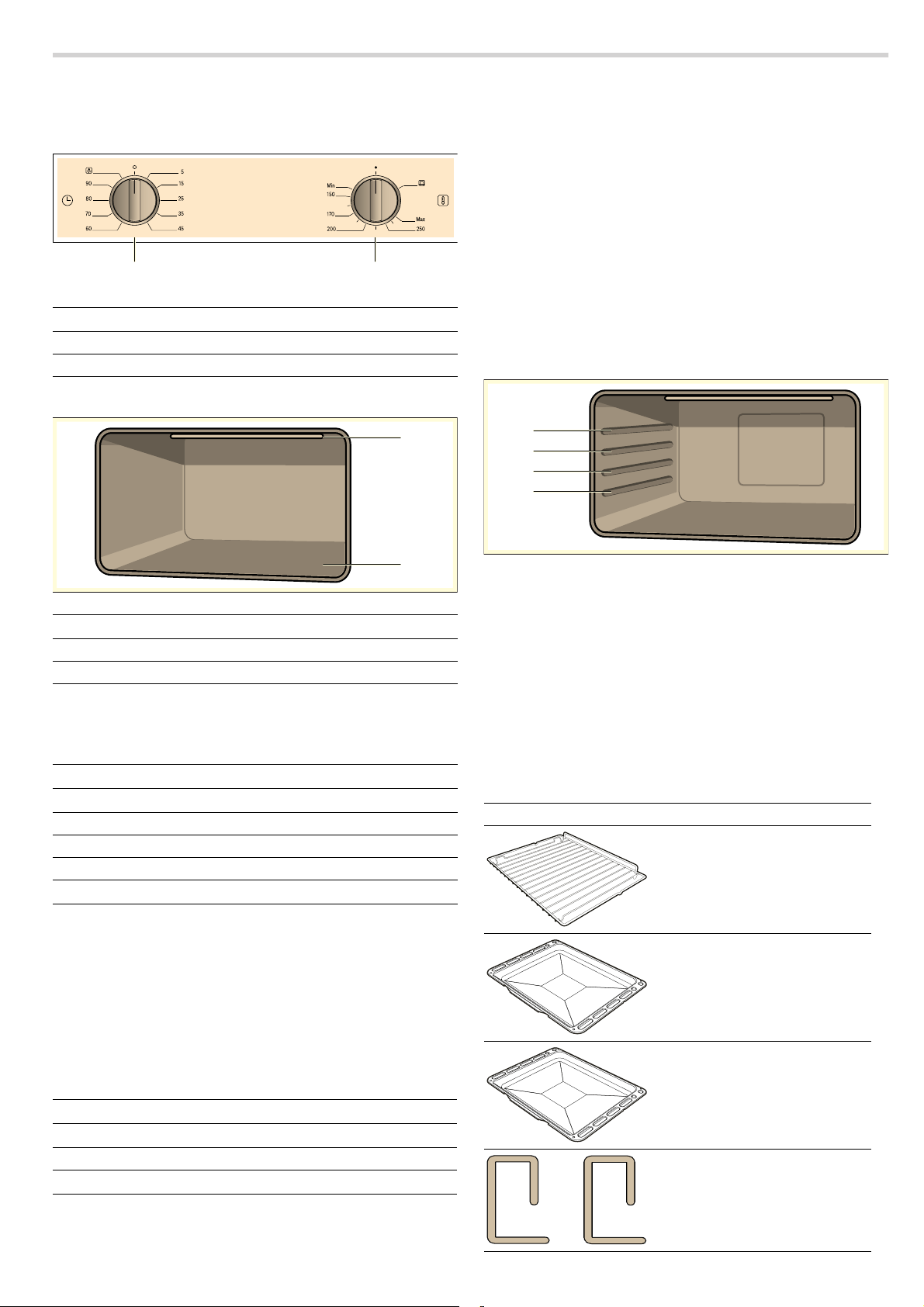

    • Your new appliance6
      • The oven6
        • Control knob for oven6
      • The timer6
      • Cooling fan6
      • Accessories6
        • : Risk of fire!6
    • Before using the oven for the first time7
      • Baking out the oven7
        • Precleaning the oven7
          • 1. Remove accessories and hook-in racks from the cooking compartment.7
          • 2. Fully remove any remaining packaging, such as small pieces of polystyrene, from the cooking compartment.7
          • 3. Some parts are covered with a protective film. Remove the protective film.7
          • 4. Clean the outside of the appliance with a soft, damp cloth.7
        • 5. Clean the cooking compartment with hot soapy water.7
          • Heating up the oven7
            • 1. Turn the temperature selector to the maximum temperature.7
        • 2. Switch off the oven after 45 minutes.7
          • Recleaning the oven7
            • 1. Clean the cooking compartment with hot soapy water.7
        • 2. Fit the hook-in racks.7
      • Cleaning the accessories7
    • How to operate your oven7
      • Oven lighting7
      • Operating modes7
      • Operating the oven7
        • 1. Open the appliance door.7
        • 2. Press the control knob for the oven and turn it to the 250 °C position.7
        • 3. Press and hold the control knob for a few seconds until the flame stabilises.7
        • 4. Close the appliance door carefully.7
        • 5. Turn the control knob to set the desired temperature. Do not turn the knob beyond the "Min" position.7
        • : Risk of fire!7
      • Operating the grill7
        • Notes7
          • 1. Open the appliance door.7
          • 2. Press the control knob for the oven and turn it to the G position.7
          • 3. Press and hold the control knob for a few seconds until the flame stabilises.7
          • 4. Close the appliance door carefully.7
      • Operating the rotary spit8
        • 1. Place the joint as centrally as possible on the rotary spit and secure it at both ends with the retaining clips.8
          • 2. With poultry, bind the ends of the wings underneath the back and the thighs against the body. This prevents them from overbrowning.8
          • 3. Pierce the skin on the underside of the wings to allow the fat to escape.8
          • : Risk of burns!8
        • 1. Insert the rotary spit shelf at level 2 as far as it will go.8
          • 2. Slide the rotary spit into the motor mount in the back wall of the cooking compartment (a).8
          • 3. Place the rotary spit on the rotary spit shelf (b).8
          • Note8
            • 4. Unscrew the handle (c).8
            • 5. Pour water into a baking tray and slide the baking tray into shelf position 1 to collect the drips of fat.8
            • 6. Close the appliance door.8
          • : Risk of burns!8
          • : Risk of burns!8
            • 1. Carefully open the appliance door and screw the handle back onto the rotary spit.8
            • 2. Carefully pull the rotary spit from the mount in the back wall and remove it.8
            • 3. Remove the rotary spit shelf and the baking tray.8
      • Operating the timer8
        • 1. Turn the control knob clockwise as far as the stop.8
        • 2. Turn the control knob anti-clockwise until you reach the required cooking time.8
    • Care and cleaning9
      • Notes9
        • : Risk of electric shock!9
        • : Risk of burns!9
      • Cleaning agents9

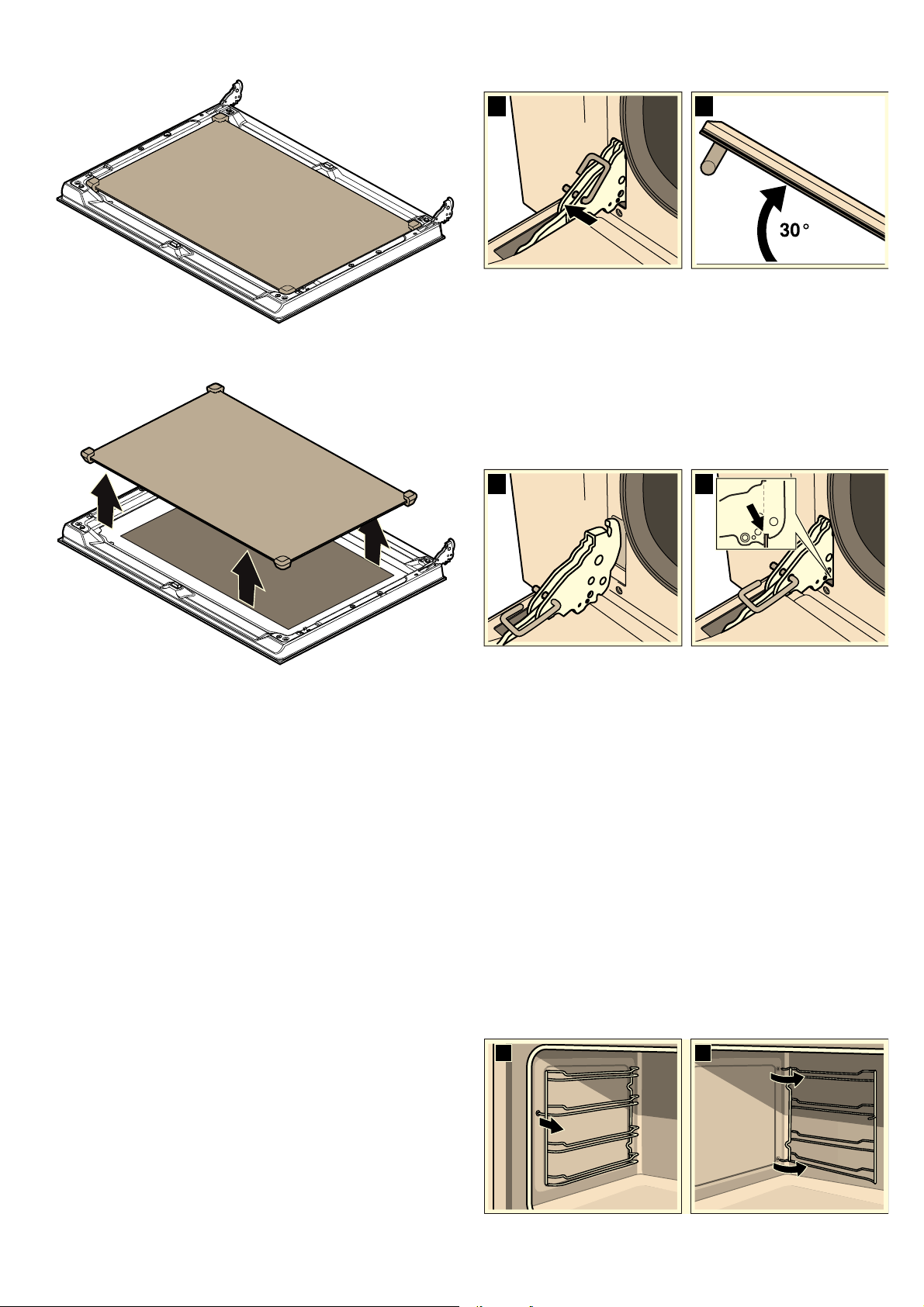

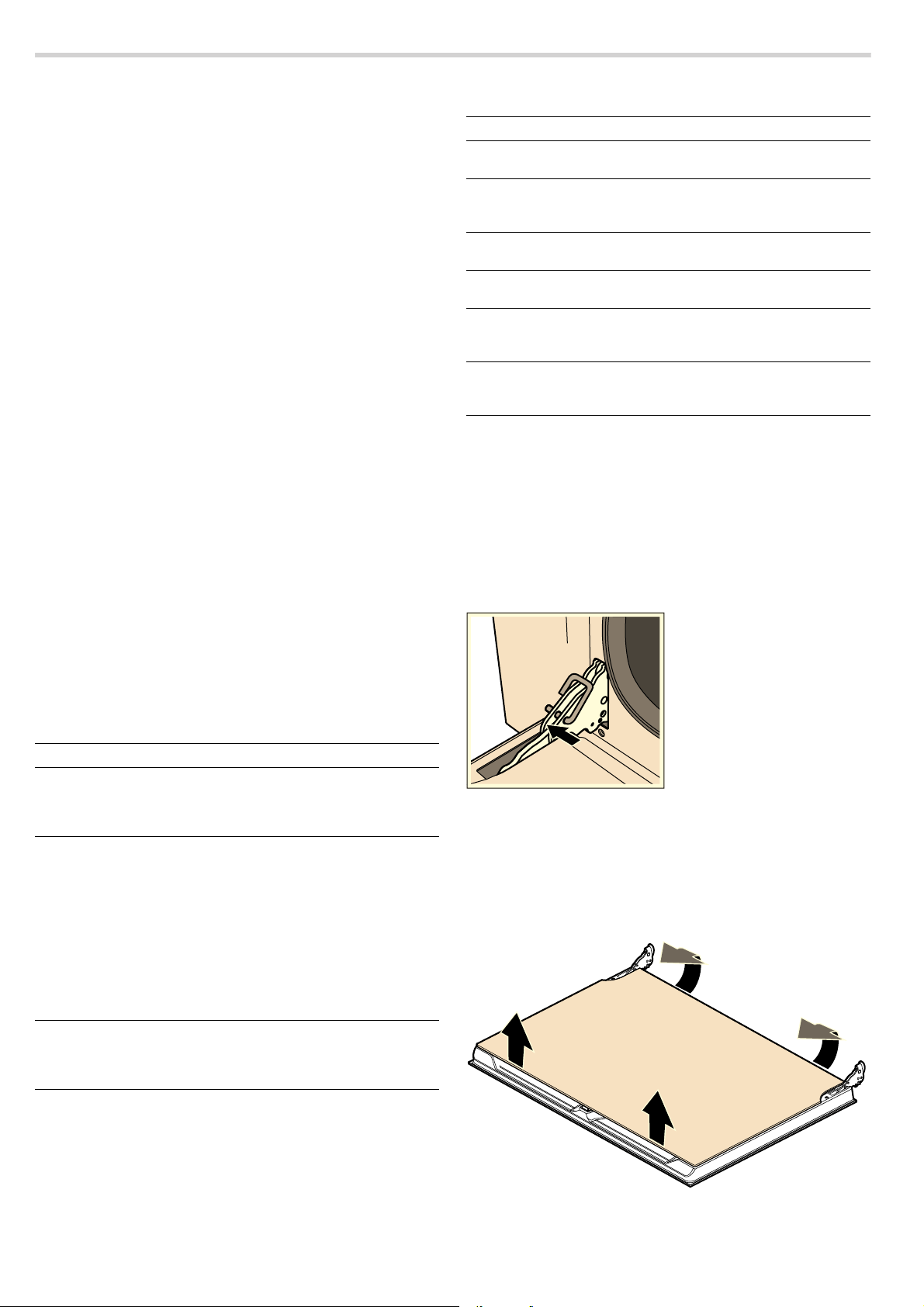

      • Removing and installing the door panels9
        • Removing the door panels9
          • 1. Open the oven door fully.9
          • 2. Lock both hinges on the left and right using the locking pin.9
          • Note9
            • 3. Lift the bottom of the inner panel slightly until the fastening pins come out of the holder (1).9
            • 4. Carefully lift the top of the inner panel until the fastening pins come out of the holder (2).9
          • Caution!9
            • 5. Remove the inner panel.9
            • 6. Remove the middle panel.10
          • Note10
          • : Risk of injury!10
        • Fitting the door panels10
        • 1. Reinsert the middle panel.10
          • Note10
            • 2. Reinsert the inner panel.10
          • Note10
            • 3. Remove the locking pins and close the oven door.10
      • Removing and fitting the appliance door10
        • Removing the appliance door10
          • 1. Open the oven door fully.10
          • 2. Lock both hinges on the left and right using the locking pin (a).10
          • Note10
            • 3. Grip the oven door on either side with both hands and close the oven door by approx. 30° (b).10
            • 4. Raise the oven door slightly and pull it out.10
          • Note10
        • Fitting the appliance door10
          • 1. Grip the oven door on either side with both hands.10
          • 2. Slide the hinges into the slots in the oven (a).10
          • Note10
            • 3. Lower the door downwards.10
            • 4. Remove the locking pins.10
          • : Risk of injury!10
      • Removing and inserting the hook-in racks10
        • Removing the hook-in racks10
        • 1. Grip the front of the hook-in rack and pull it to the middle of the cooking compartment.10
          • 2. Fold out the hook-in rack further and pull it from the rear holes of the side panel.10
          • 3. Hold the catalytic cooking compartment panel in place.10
          • 4. Remove the hook-in rack from the cooking compartment.10
          • Inserting the hook-in rack11
            • 1. Hold the catalytic cooking compartment panel in place.11
            • 2. Insert the hooks of the hook-in rack into the rear holes in the side panel.11
            • 3. Press the front hook of the hook-in rack into the hole.11
    • Troubleshooting11
      • : Risk of injury!11
      • Replacing the oven light bulb11
        • : Risk of electric shock!11
          • 1. Allow the cooking compartment to cool down.11
          • 2. Open the appliance door.11
          • 3. Place a tea towel in the cooking compartment to prevent damage.11
          • 4. Remove the hook-in racks.11
          • 5. Remove the glass cover. To do this, open the glass cover at the front with your hand. Should you experience difficulties removing the glass cover, use a spoon to help.11
          • 6. Remove the oven light bulb.11
          • 7. Replace the oven light bulb with a bulb of the same type:11
          • Voltage: 230 V;11
          • Power: 40 W;11
          • Fitting: G9;11
            • 8. Refit the glass cover for the oven light bulb.11
            • 9. Refit the hook-in racks.11
            • 10. Remove the tea towel.11
            • 11. Switch the circuit breaker back on.11
            • 12. Check that the oven lighting is working again.11
    • After-sales service12
      • To book an engineer visit and product advice12
    • Energy and environment tips12
      • Saving energy12
      • Environmentally-friendly disposal12
    • Acrylamide in foodstuffs12
    • Tips for using your appliance13
      • Notes13
      • Baking13
      • Baking tips13
        • Roasting and grilling13
          • Roasting tips13
          • Grilling tips13
          • Tips on using the rotary spit14
      • Roasting tips14
