LED BACKLIGHT TV
OPERATION MANUAL
Please choose your favourite page from the content.
If you want to close the operation manual, press the EXIT
button.
Also, if you want to return to the previously displayed page,
press the (Back) button.
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>>
1. Part Names
1-1. TV
1-3. Remote Control Unit
2. How to select the TV Mode
2-1. Using the Remote Control Unit
2-2. HOME screen
2-4. Settings
2-5. Chromecast built-in compatible
devices
2-6. Tools
3. Tool Operation
3-1. Introduction
3-2. View Setting
3-3. Picture
3-22. Audio
4. Settings
4-1. TV
4-22. Personal
4-28. Network & Peripherals
5. Direct Button Operation
5-1. Changing Channels
5-2. Changing Volume
5-3. MUTE
5-4. FLASHBACK
5-5. AUDIO AD
5-6. Sleep Timer
5-7. VIEW MODE
5-10. NETFLIX
5-11. YouTube™
6. Enjoying Photo/Music/Video Playback
6-1. Preparation
6-3. Selecting the Folders to Play Back
6-6. Playing Back Files on a USB Memory
Device/Home Network Server
6-15. Playing Back Files from a Portable
Device
7. Using LINK Operation
7-1. Controlling HDMI Equipment Using
LINK Operation
8. Using a PC
8-1. Setting Audio Input
9. Using the Internet
9-1. Connecting to the Internet
9-3. Using Keyboard and Mouse
9-4. Notes
10. Appendix
10-1. Troubleshooting
10-3. Troubleshooting - Error Message
10-4. Information on the Software License
for This Product
11. Trademarks
12. Specifications
12-1. TV
12-2. Wireless LAN

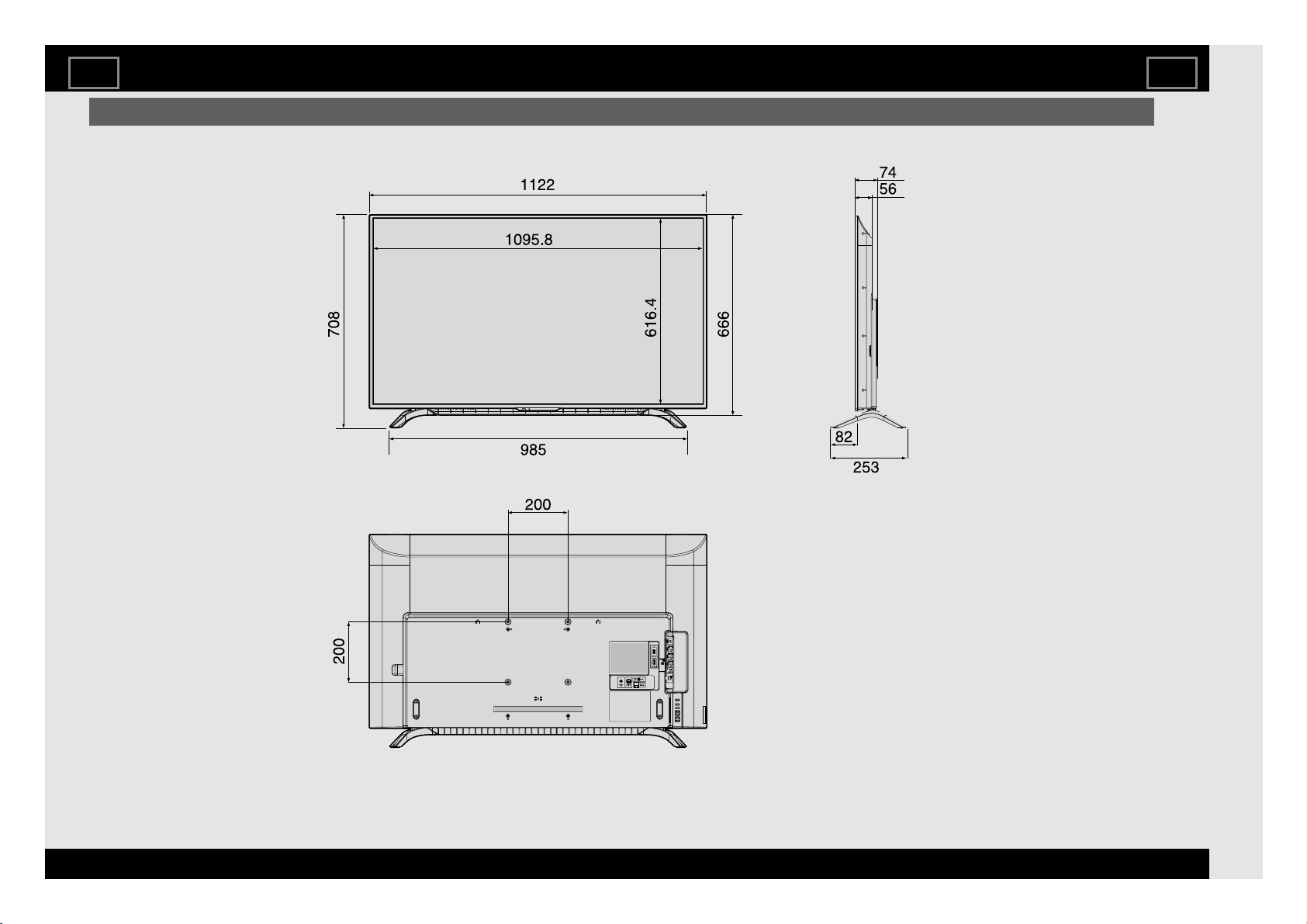

13. Dimensional Drawings
13-1. 4T-C50AL1X / 4T-C50AL2X
Contents
EN Contents
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<

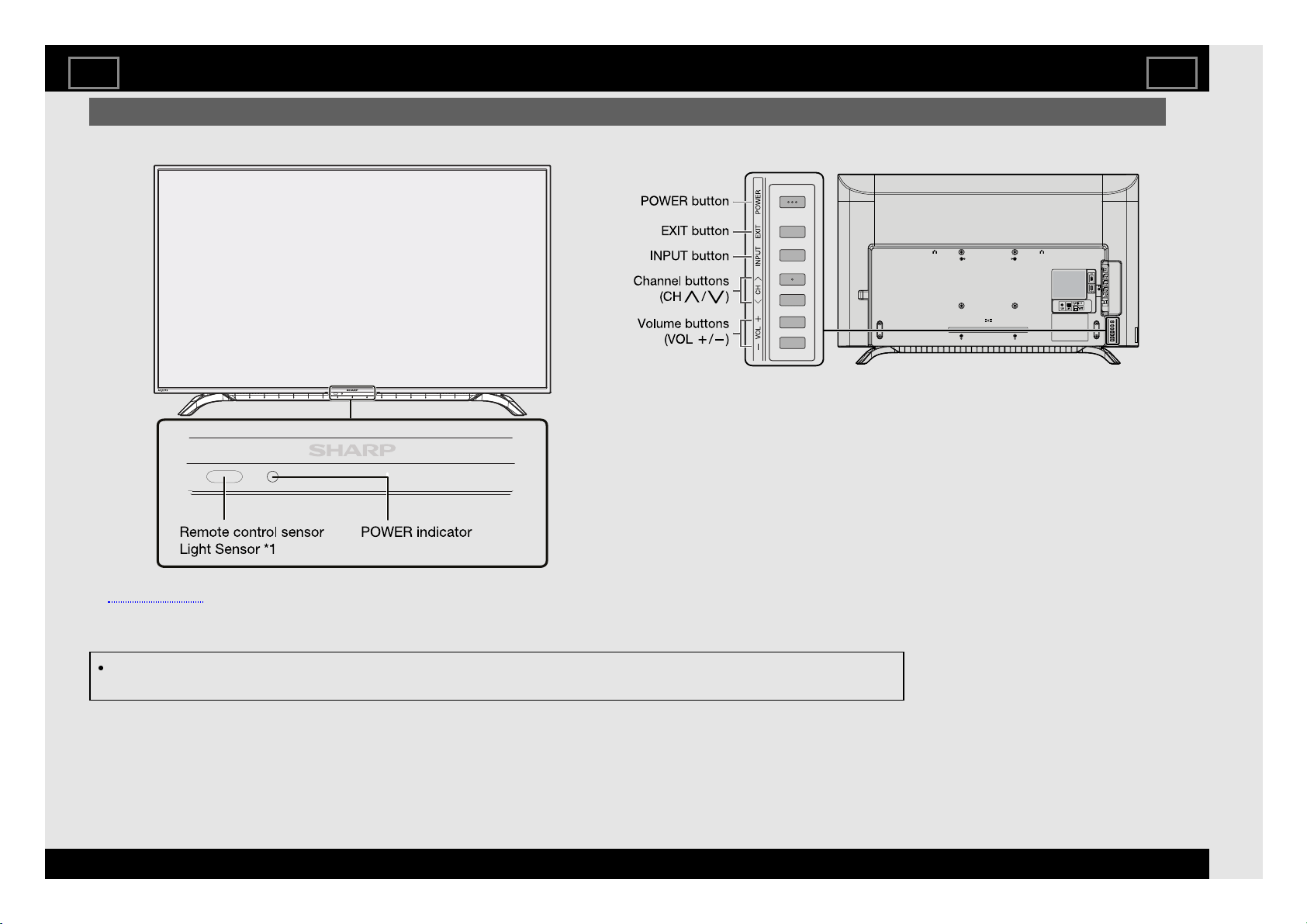

TV
(Front)
*1 See page 3-4.
(Side)
The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly
from the actual operations.
Part Names
EN 1-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
TV (Continue)
(Rear)
HDMI IN 1 and 2 terminals are all
capable of receiving 4K60P
4:4:4 signals.
To receive 4K60P 4:4:4 signals, on the
Devices menu, set the HDMI type to
"Full". (See page 4-9)
*1 See the Setup Guide. And see page 7-1
for external equipment connection.
*2 Use HDMI IN 2 to connect ARC-
compatible equipment.
*3 See page 8-1 for details on the Audio
Select function.
*4 Usually do not connect anything to this
terminal as it reserved only for service
personnel.
Part Names
EN 1-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Remote Control Unit
1 POWER: Switch the TV power on or enter standby.
2 Buttons for useful operations
(Reveal hidden teletext)
Display hidden characters.
(Hold)
Stop updating teletext pages automatically or release the hold mode.
(Top/Bottom/Full)
Set the area of magnification.
(Subpage)
Display the teletext subpage directly.
(Teletext)
Select the teletext mode.
(Subtitle)
Switch subtitle languages on / off.
3 0-9: Set the channel.
(See page 5-1.)
4
(FLASHBACK): Return to the previous channels, HDMI IN 1
through 4, or video input mode.
(See page 5-4.)
5 OPC: To switch the optical picture control on and off.
(See page 3-4.)
6 VOL+/-: Set the volume.
(See page 5-2.)
7 MUTE: Mute the sound.
(See page 5-3.)
8 SLEEP: Set the sleep timer.
(See page 5-6.)
9 AUDIO AD: Selects the audio mode during multichannel audio broadcasts.
(See page 5-5.)
10 External equipment operational buttons: Operate the external
equipment.
Part Names
EN 1-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Remote Control Unit (Continue)
11 R, G, Y, B: The coloured buttons are correspondingly used to select the
coloured items on the screen.
12 AV MODE: Select an audio or video setting.
(See page 3-3.)
13 VIEW: Select the screen size.
(See pages 5-7 to 5-9.)
14
(Back): Return to the previous screen.
15
/ / / , (ENTER): Select a desired item on the screen.
16 EXIT: Turn off the menu screen and application.
17 Voice: Start a Voice Search.
Speak the word that you want to search for into the microphone at the bottom
of the remote control. When you are using the microphone, do not cover this
part with your hand.
18 NETFLIX: Display the NETFLIX screen.
If you press the NETFLIX button when the TV is turned off, the TV turns on
and the NETFLIX screen is displayed.
(See page 5-10.)
Part Names
EN 1-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Remote Control Unit (Continue)
19 POWER (DEVICES):
Switch the devices power on or enter standby.
20 TV: Press to access analogue and digital TV mode.
21 INPUT: Select an input source.
22 CH
/ : Select the channel. (See page 5-1.)
23 EPG: DTV: Display the EPG screen.
24 DISPLAY: Display the channel information.
25 INFO
DTV: Display the programme information.
26 SURROUND: Select surround setting.
27
(HOME): Display the HOME screen. (See pages 2-1 and 2-2 to 2-3.)
28 TOOL: Display the Tool screen.
(See page 2-6.)
29 e-manual: Display the operation manual.
30 YouTube: Display the YouTube screen.
31 Microphone: Used in Voice searches and apps. When you are using the
Microphone, do not cover this part with your hand.
Part Names
EN 1-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Using the Remote Control Unit
The main TV modes can be displayed by pressing the TOOL button on the remote control unit.
How to select the TV Mode
HOME screen
Press
(HOME) to display the HOME screen.
Example
Tools
Press TOOL to display the Tools screen.
See pages 2-6 and 3-1 to 3-33 for details of Tools.
EN 2-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
HOME screen
To display the HOME screen, press the (HOME) button on the remote control unit.
Example
Start a Search.
Among the applications installed on the TV, the icons for the favourite applications are shown inside here. (Favourite applications can
be added / deleted / changed its order by users.)
Apps : Click to jump to Apps screen where all the installed applications are listed.
The contents of the programmes that user is watching or watched are displays here.
Notification: Display the notifications.
Inputs: Icon to select an input source.
E-Manual: Icon for the built-in operation manual.
Settings: Various settings can be configured here.
xxxxx xxxx For details on the settings, see the next explanation.
NOTE
When you are using the microphone, see page 1-5.
How to select the TV Mode
EN 2-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
HOME screen (Continue)
Example
Channels served by install applications are displayed here. Channels can be changed the display order of channels by users.
Add or delete HOME screen channel.
How to select the TV Mode
EN 2-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Settings
Various settings can be configured from Settings on the HOME screen. The
follow settings can be configured.
TV
Input/Output: See pages 4-8 to 4-14.
Sound: System sound and Surround sound.
Quick start: You can reduce the TV's start-up time after turning on the power
with the remote control unit.
Apps: View a list of applications.
Screen saver: Set the Screen saver.
Broadcast related setting: See pages 4-15 to 4-21
Channel setting: See pages 4-2 to 4-7
Storage & reset: View the memory usage status or perform a reset.
When you perform a reset, the TV will be returned to the factory preset values,
and the Google™ Accounts will also be deleted.
About: Check for system updates and view various information.
Network &
Peripherals
Network Network setting: Configure the WiFi and Ethernet settings.
Wake on LAN: Enable the TV to be started by a signal over a
LAN.
Google Cast: Configure various Chromecast built-in settings.
RC setting: Switch the Remote Control settings.
Bluetooth: Add accessory.
System/Function Date & time: Set the date and time.
Language: You can select a language. Select from among 12 languages.
(English (UK), English (US), French, Portuguese, Simplified Chinese,
Indonesian, Thai, Vietnamese, Arabic, Russian and Persian and Malay)
Keyboard: Switch the keyboard setting.
Home screen: Home screen customise settings.
Google: Switch the Google function settings.
Accessibility: Configure Caption, Talkback, and SwitchAccess settings. Some
of the Caption settings may not be applied.
TV location: Select "Home" or "Store" for the location where you plan to install
the TV.
Personal Location: Configure the location settings.
Security & restrictions: See pages 4-22 to 4-24.
Usage & Diagnostics: Help improve your Android TV™ by automatically
sending diagnostic and usage data to Google. This information won't be used to
identify you and helps teams working on things like apps performance and new
Google features. Find out more at http://google.com/AndroidUsageHelp.
Power Control: See pages 4-25 to 4-27.
Accounts Add account: Add an account.
NOTE
The menu may be different depending on when you purchased the TV.
How to select the TV Mode
EN 2-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Chromecast built-in compatible devices
When you connect a device such as a Chromecast built-in compatible
smartphone or tablet to this TV, you can enjoy video and audio from the
device on the TV's large screen and speakers.
1 Configure the settings from "HOME" > "Settings" > "Network &
Peripherals" > "Google Cast (Chromecast built-in)".
2 Enable the Chromecast built-in function on the Chromecast built-in
compatible device and connect to the TV.
(The TV screen changes according to the behavior of the device)
NOTE
When the TV is turned off or the connection is ended on the device, you
must connect the device again.
For details about the operation of the Chromecast built-in compatible
device, check the manual for that device.
How to select the TV Mode
EN 2-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Tools
The View Setting, Picture and Audio menus can be configured on the Tools screen.
See pages 3-2, 3-3 to 3-21, and 3-22 to 3-33 for details on the settings for each menu.
How to select the TV Mode
EN 2-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
About Menu Items
Some menu items may not be displayed
depending on the selected input source.
NOTE
The screens in the operation manual are for
explanation purposes (some are enlarged,
others cropped) and may vary slightly from
the actual screens.
The order of explanations for each menu
item in the following pages is not necessarily
in accordance with the alignment of the items
on the screen.
Introduction
Tool Operation
EN 3-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
View Setting
View Mode
You can select the screen size.
Normal: Keeps the original aspect ratio in a
full screen display.
Full: For 16:9 squeeze pictures.
Cinema 16:9: For 16:9 letterbox pictures.
Bars may appear on the top and bottom
with some programmes.
Cinema 14:9: For 14:9 letterbox pictures.
Bars may appear on the top and bottom
with some programmes.
Zoom 14:9: For 14:9 letterbox pictures. A thin
side bar appears on each side, and you
may also see bars on the top and bottom
with some programmes.
Underscan: Displays an image with the same
number of pixels on the screen when
receiving HD signals only.
Dot by Dot: Detects the resolution of the
signal and displays an image with the same
number of pixels on the screen.
NOTE
Some items do not appear depending on
the type of received signal.
Tool Operation
EN 3-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
AV Mode (Changing Pic.Quality)
AV Mode gives you several viewing options to
choose from to best match the surrounding
environment of the TV, which can vary due to
factors like room brightness, type of
programme watched or the type of device
connected.
These settings will be automatically saved on
each input for convenience.
STANDARD: For a highly defined image in a
normal lighting.
MOVIE: For a movie.
GAME: Lowers image brightness for easier
viewing.
PC: For PC.
PHOTO: For a photo.
DYNAMIC:For a clear-cut image emphasizing
high contrast, useful for sports viewing.
DYNAMIC (FIXED): Changes the image and
sound settings to the factory preset values.
No adjustments are allowed.
NOTE
When you play games, "GAME" is
recommended for AV Mode.
You can select AV Mode by pressing AV
MODE on the remote control unit.
Tool Operation
EN 3-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
OPC (Light Sensor)
Automatically adjusts the brightness of the
screen.
Select from the following available settings.
OPC/Display/Max./Min.
NOTE
When set to "On", the Light Sensor senses
the surrounding light and automatically
adjusts the backlight brightness. Make sure
nothing obstructs the Light Sensor, which
could affect its ability to sense surrounding
light.
Tool Operation
EN 3-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Backlight
Adjusts the picture to your preference with the
following picture settings.
Selected
item
button button
Backlight The screen
dims
The screen
brightens
NOTE
"Backlight" is not available when you set
"OPC" (Light Sensor) to "On".
Tool Operation
EN 3-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Contrast
Adjusts the picture to your preference with the
following picture settings.
Selected
item
button button
Contrast For less
contrast
For more
contrast
Tool Operation
EN 3-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Brightness
Adjusts the picture to your preference with the
following picture settings.
Selected
item
button button
Brightness For less
brightness
For more
brightness
Tool Operation
EN 3-7
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Colour
Adjusts the picture to your preference with the
following picture settings.
Selected
item
button button
Colour For less colour
intensity
For more colour
intensity
Tool Operation
EN 3-8
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Tint
Adjusts the picture to your preference with the
following picture settings.
Selected
item
button button
Tint Skin tones
become reddish
Skin tones
become
greenish
Tool Setup Operation
EN 3-9
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Sharpness
Adjusts the picture to your preference with the
following picture settings.
Selected
item
button button
Sharpness For less
sharpness
For more
sharpness
Tool Operation
EN 3-10
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
C.M.S. (Colour Management System)
Colour tone is managed using the six-colour
adjustment setting.
C.M.S.-hue: This is a standard to adjust the
colour either more reddish or more bluish in
tone.
A lower value makes the image darker.
Tool Operation
EN 3-11
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
C.M.S. (Colour Management System)
Colour tone is managed using the six-colour
adjustment setting.
C.M.S.-saturation: Increases or decreases
the saturation of a selected colour.
A lower value makes the image darker.
Tool Operation
EN 3-12
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
C.M.S. (Colour Management System)
Colour tone is managed using the six-colour
adjustment setting.
C.M.S.-value: A higher value makes the
image brighter.
A lower value makes the image darker.
Tool Operation
EN 3-13
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
Colour temp. (Colour Temperature)
For a better white balance, use colour
temperature correction.
High: White with bluish tone
Mid-High:
Middle:
Mid-Low:
Low: White with reddish tone
Tool Operation
EN 3-14
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
Resolution
Please select 4K resolution mode based on
your watching preference.
Select from the following available settings.
Detail/Wide Edge
Tool Operation
EN 3-15
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
Active Contrast
Automatically adjusts the image contrast
according to the scene.
On: Produces higher contrast image in any
scene.
Off: No adjustment.
Tool Operation
EN 3-16
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
Gamma Adjustment
Adjusts the differences of picture tones
between bright parts and dark parts. The
adjustment range of the gamma can be set to a
maximum of +3 and a minimum of -3 by
pressing or .
Tool Operation
EN 3-17
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
HDR Gamma Adjustment
Emphasize the differences of picture tones
between bright parts and dark parts. The
adjustment range of the gamma can be set to a
maximum of +2 and a minimum of -2 by
pressing or .
NOTE
"HDR Gamma Adjustment" is available
only when receiving HDR signal.
Tool Operation
EN 3-18
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
Film Mode (3:2 pull-down)
This function provides high-quality playback of
images originally encoded at 24
frames/second, such as films.
Select from the following available settings.
Advanced/Standard/Off
NOTE
"Film Mode" does not function depending
on input signal type.
Tool Operation
EN 3-19
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Picture (Continue)
Advanced
Digital Noise Reduction
Produces a clearer video image.
Auto: Automatically adjusts the level of noise
reduction.
High/Middle/Low: You can select a desired
level for viewing a clearer video image.
Off: No adjustment.
NOTE
"Digital Noise Reduction" is not available
when PC format is being input.
Tool Operation
EN 3-20
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio
Audio Mode
This function allows you to convert the audio
quality.
Select from the following available settings.
STANDARD/DYNAMIC/CLEAR
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-22
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Auto Volume
Different sound sources sometimes do not
have the same loudness level, such as a
programme and its commercial breaks. The
Auto Volume reduces this problem by
equalizing it.
On: Reduces the loudness gaps among
different sound source. The result is
automatically adjusted according to the
sound sources.
Off: No adjustment.
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-23
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Treble
You can adjust the sound quality to your
preference with the following settings.
Selected
item
button button
Treble For weaker
treble
For stronger
treble
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-24
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Bass
You can adjust the sound quality to your
preference with the following settings.
Selected
item
button button
Bass For weaker
bass
For stronger
bass
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-25
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Balance
You can adjust the sound quality to your
preference with the following settings.
Selected
item
button button
Balance Decrease audio
from the right
speaker
Decrease audio
from the left
speaker
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-26
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Surround
The surround function produces Surround
effect from the speakers.
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
For some discs, setup may be required on
your BD/DVD player. In this case, please
refer to the operation manual of your
BD/DVD player.
Tool Operation
EN 3-27
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Surround mode
This function allows you to select surround
mode for surround on.
Select from the following available settings.
Living/Theater/Hall
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
"Surround mode" is not available when you
set "Surround" to "Off".
Tool Operation
EN 3-28
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Harmonics enhancer extended
This function improves the sound quality by
extending the selected range.
Select from the following available settings.
All Range/Low Range/Off
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-29
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Reset Audio
Returns Audio Settings to their factory preset
values. To reset, select "Yes" and then press
(ENTER).
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-30
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Clear Voice
This function emphasises speech against
background noise for greater clarity.
Select from the following available settings.
Normal/Low/High/Off
NOTE
"Audio Mode" is not available when you set
"Audio Out" to "Variable".
(See page 4-10.)
Tool Operation
EN 3-32
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Audio (Continue)
Audio Description Setting (DTV only)
This function allows you to enable output of
audio description if the TV receives a signal
including audio description.
NOTE
The audio description sound is
superimposed on the main audio when you
select a broadcast compatible with audio
description.
This function is available only for DTV
broadcasts.
The audio description sound is
superimposed on the main audio only when
the sound is output on the speaker sound
output, headphone sound output and sound
for audio out output. The sound is not output
on the digital audio output and the HDMI
sound output.
This function is not available for the
AQUOS Audio speaker system.
This function does not work during USB-
recording playback.
Tool Operation
EN 3-33
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
TV
Channel Setting
Auto installation
When the TV is powered on for the first time after purchase, the initial auto
installation wizard appears. Follow the menus and make the necessary
settings one after another.
Confirm the following before turning on the power
Is the antenna cable connected?
Is the AC cord plugged in?
1 Press POWER on the TV.
The initial auto installation wizard appears.
2 Setting the OSD language.
x Press / to select the desired language, and then press (ENTER).
3 Press "Yes" or "No" to allow Android™ device (phone, tablet or other
x device) to setup TV.
4 Press / to select your Wi-Fi network.
5 Press / to sign in Google account.
6 Press / to view Google Terms of Service and Google Privacy
x Policy.
7 Press "Yes" or "No" to allow Google use your device location.
8 Press "Yes" or "No" to set permission for Google to use your TV diagnosis
x and usage data.
9 Press / to select desired TV name or to customize it.
10 Press / to install desired applications.
11 Setting the country.
x Press / to select your country or area, and then press
x (ENTER).
This setting screen only appears during the initial auto installation.
Auto installation will be executed.
NOTE
Digital (DVB-T/T2) broadcasting cannot be viewed in the area where
digital broadcasting is not yet launched.
DTV concerned menu may not displayed in some country.
12 Press / to view Sharp Terms of Use and Sharp Privacy Policy.
13 Selecting the location of the TV.
xx Press / to select where you will use this TV, and then press
xx (ENTER).
Home:
Settings are optimised for normal home viewing and energy efficiency.
“STANDARD” will be the default value for the “AV Mode” setting.
Store:
Settings are designed for maximum impact in retail store displays.
“DYNAMIC (FIXED)” will be the default value for the “AV Mode” setting. If
the “AV Mode” is changed, the TV will automatically switch back to
“DYNAMIC (FIXED)” when there is no operation using the TV or remote
control unit for 30 minutes.
NOTE
Store: A demonstration image will be displayed after initial auto
installation is completed. If you have chosen “Store” by mistake, go to
“HOME” > “Settings” > “System/Function” > “TV location” > select “Home”
again.
14 You have to follow the procedure shown below to pair the remote control
xx unit with the TV.
15 Initial setup has finished.
16 After completing the initial setup, application introductions and tutorials will
be displayed.
Settings
EN 4-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Channel Setting
Channel Registration
You can add new channels from your installed 3rd party TV apps.
Once you've added new channels, you can watch 3rd party TV app channels on [TV] input, which can
be chosen from Home screen and Input menu.
Settings
EN 4-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Channel Setting
Programme Setup
You can tune channels manually and you can confirm DTV's signal level.
Digital Setting (DTV only)
You can reconfigure the DTV channel settings automatically or manually.
Manual Search
Add new services within a specified frequency band.
Enter the frequency using / buttons.
NOTE
The “Digital Setting” menu is available only for watching TV in DTV mode.
Analogue Setting
You can reconfigure the TV channel settings automatically or manually.
Frequency
Tune the frequency of the stored channel to your desired position.
Sound Sys.
Select the optimum sound system (Broadcasting system) to received (B/G, D/K, I, M).
NOTE
The “Analogue Setting” menu is available only for watching TV in ATV mode.
Settings
EN 4-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Channel Setting
Programme Setup
Antenna setup-DIGITAL
If you install a DTV antenna for the first time or relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking the antenna setup screen.
Settings
EN 4-7
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Input/Output
HDMI Type Selection
Sets the HDMI type for HDMI IN 1 and 2 terminals.
Set to "Full" when an HDMI 4K60P 4:4:4 device is connected, and set to "Limited" when an HDMI 4:2:0
device is connected.
Settings
EN 4-9
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Input/Output
Audio Out
Allows you to select what controls the audio output.
Fixed: Sound via speaker is adjusted with VOL+/- on the remote control unit or on the TV.
Sound via the AUDIO OUT terminal is not adjustable and outputs at a consistent level.
Variable: Sound via the AUDIO OUT terminal is adjusted with VOL+/- on the remote control unit or on
the TV.
When connected to the terminal, Sound via speaker is muted.
Settings
EN 4-10
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Input/Output
Audio Select HDMI
This function sets the terminal to output the computer audio.
The adjustment items vary depending on the input source. Select the input source corresponding to the
terminal connected to the PC and then adjust the desired item.
To perform the operation, refer to "HOME" > "Settings" > "TV" > "Input/Output" > "Audio Select HDMI".
HDMI 3
HDMI: Select this when the TV and PC are connected using an HDMI-certified cable and audio is input
via the same cable.
HDMI+AV Input: Select this when the TV and PC are connected using a HDMI-certified cable and the
audio is input via a Ø 3.5 mm stereo minijack.
NOTE
When "Audio Select HDMI " is set to "HDMI+AV Input", sound will not be produced if you use only
an HDMI-certified cable to connect HDMI-compatible equipment. To produce sound, you should
make an analogue audio connection.
If you want to connect HDMI-compatible equipment using only an HDMI-certified cable, set "Audio
Select HDMI" to "HDMI".
"Audio Select HDMI" can only be set for the HDMI IN 3.
Settings
EN 4-11
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Input/Output
Digital Audio Output
You can output digital audio to an AV amplifier or similar device whose DIGITAL AUDIO INPUT terminal
is connected to the DIGITAL AUDIO OUT terminal on the TV. Please select an audio output format
compatible with the audio format of the programme you are watching and the equipment connected.
Select from the following available settings.
PCM/Dolby Digital/Bitstream (SPDF)/Bitstream (ARC)
NOTE
Analogue channel audio, Video input audio, PC input audio and HDMI-Analogue input audio are
output in PCM mode even when "Bitstream" is selected.
PCM digital input signals are output in PCM mode even when "Bitstream" is selected.
Settings
EN 4-12
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Input/Output
Speaker Select (ARC)
You can select to listen to the TV sound only from the LINK-compatible audio system.
Internal Speaker: The sound is output from the TV speaker.
External Devices: The sound from the TV speaker is muted and only the sound from the LINK-
compatible audio system is audible.
You can use VOL+/- and MUTE.
Settings
EN 4-13
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Programme Title Display (DTV only)
This function allows you to display programme information such as the title and airtime by tuning a
channel.
NOTE
This function is available only when the DTV mode is selected.
Settings
EN 4-15
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Auto Wide (DTV only)
The “Auto Wide” allows the TV to switch automatically among the different picture size.
NOTE
Use “View Mode” if an image does not switch to the appropriate picture size. When the broadcast
signal contains no aspect ratio information, the function will not work even if enabled.
Settings
EN 4-16
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Text Language
If Teletext information does not display correctly, perform the procedure below.
Select from among six kinds of language tables: West Europe, East Europe, Greek/Turkish, Cyrillic,
Arabic and Farsi.
Each table is compatible with the Teletext languages listed below.
West Europe — English, French, Scandinavian, Turkish, German, Spanish, Italian
East Europe — Polish, French, Scandinavian, Czech, German, Slovenian/Croatian, Italian,
Rumanian
Greek/Turkish — English, French, Scandinavian, Turkish, German, Spanish, Italian, Greek
Cyrillic — English, Russian, Estonian, Czech, German, Slovenian/Croatian, Ukrainian, Lettish
Arabic — English, French, Scandinavian, Turkish, German, Hebrew, Italian, Arabic
Farsi — English, French, Scandinavian, Turkish, German, Hebrew, Italian, Farsi
NOTE
Teletext can be displayed only when it is sent by a network. Not used to convert between
languages.
Settings
EN 4-17
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Initial Teletext Page (DTV only)
If you set the language of the initial page (this page is displayed for the first time after pressing ) for
teletext in DTV mode, it will start from the selected language page.
NOTE
This function is available for teletext in DTV mode. This is not available for teletext in ATV or
external input mode.
If the initial teletext page of the selected language in this function is not included in a received
broadcast, the default initial page will be displayed.
Settings
EN 4-18
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Digital Audio Language (DTV only)
Switching the multi audio languages
Set up to two preferred multi audio languages to display if the audio languages are available.
Each time you press AUDIO AD on the remote control unit, the audio language switches.
NOTE
This function depends on audio language information from broadcasters.
If audio for the selected language is not included in a received broadcast, audio will not be output
for that language.
Settings
EN 4-19
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Subtitle
Set up to two preferred subtitle languages (including subtitles for the hearing impaired) to display if
subtitles are available.
Selectable items
1st language
2nd language
For Hearing Impaired
Switching subtitle languages
Each time you press on the remote control unit, the subtitle switches.
Set “For Hearing Impaired” to “Yes”
Subtitles for the hearing impaired have priority over each of the subtitle language settings
(e.g., “1st language”, “2nd language”, etc.).
NOTE
Subtitles will not be displayed when the programme does not contain subtitle information.
Settings
EN 4-20
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
TV (Continue)
Broadcast related setting
Download Setting
Searching for updates
The TV automatically determines whether a new software version is available when the TV is in standby
mode.
Item
Enable Automatically searches for new software updates available when the TV is in standby mode.
Disable Does not search for update information.
<
Settings
EN 4-21
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Personal
Security & restrictions
Parental control (DTV only)
Password
Allows you to use a Password to protect certain settings from being accidentally changed.
Input Password:
Input the Password currently set.
Setting Password:
You can set and change the Password by using 0-9.
NOTE
As a precautionary measure, make a note of your Password and keep it in a familiar place.
The TV Channel Setup and Parental Control will not be selectable from the menu if you do not first
configure your Password.
Settings
EN 4-22
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Personal (Continue)
Security & restrictions
Parental control (DTV only)
Used to enable or disable the parental control function. This function will not be selectable from the
menu if you do not first configure your password.
Rating (Guaranteed by SHARP)
Singapore
No limitation: No blocking.
General (G): Suitable for all ages.
Parental Guidance (PG): Suitable for all, but parents should guide their young.
Parental Guidance 13 (PG13): Suitable for persons ages 13 and above but parental guidance is advised for
children below 13.
No Children Under 16 (NC16): Suitable for persons aged 16 and above.
Mature (M18): Suitable for persons aged 18 and above.
Restricted 21 (R21): Restricted to persons aged 21 and above.
Thailand
No limitation: No blocking.
Preschool: Suitable for preschool aged 3-5 years old.
Children: Suitable for children between 6-12 years old.
General (G): Suitable for all ages.
Parental Guidance 13 (PG13): Suitable for persons ages 13 and above but parental guidance is advised for
children below 13.
Parental Guidance 18 (PG18): Suitable for persons ages 18 and above but parental guidance is advised for
children below 18.
Adults: Unsuitable for children and youngsters.
Rating (Not Guaranteed by SHARP)
This is used in countries other than Singapore and Thailand.
Settings
EN 4-23
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Personal (Continue)
Security & restrictions
Unknown sources
Allow installation of apps from sources other than the Play Store.
Verify apps
Disallow or warn before installation of apps that may cause harm.
Create restricted profile
Configure the restriction settings.
<
Settings
EN 4-24
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Personal (Continue)
Power Control
No operation off
When you enable this function, the TV automatically shuts down if no operation is performed for more
than 3 hours. (30 min/1 hour/3 hours/Disable)
NOTE
When it is 5 minutes before the power shuts down, the remaining time will start to keep appearing
every minute.
Settings
EN 4-25
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Personal (Continue)
Power Control
No signal off
When this function is enabled, the TV automatically shuts down if no signal is received for more than
15 minutes.
NOTE
When it is 5 minutes before the power shuts down, the remaining time will start to keep appearing
every minute.
When a TV programme finishes, this function may not operate.
Settings
EN 4-26
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Personal (Continue)
Power Control
Operation Lock Out
This function locks the operation buttons on the TV.
Disable: No adjustment.
Button Control Lock: All buttons on the TV, except POWER, are locked.
Settings
EN 4-27
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Example
Network & Peripherals
Network
AQUOS Remote Control
Set this function when operating the TV from equipment connected by LAN or wireless LAN.
Remote Control App
When "Remote Control App" is selected, "Change" will be highlighted. Press (ENTER).
Detailed Settings
Make the detailed settings (Login ID, password).
Follow the on-screen instructions to configure the settings.
Settings
EN 4-28
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Changing Channels
You can change channels in several ways.
Method 1
Using CH
/ on the remote control unit or
on the TV.
Method 2
Using remote control buttons 0-9.
Examples:
To select a 1 or 2-digit channel number
(e. g., Channel 5):
Press 5
(ENTER)
To select a 3-digit channel number (e. g.,
Channel 115):
Press 1
1 5 (ENTER)
NOTE
When selecting a 1-digit channel number, it
is not necessary to press 0 before the
number.
When you enter 0-9 only, channel selection
will be made if there is no operation within a
few seconds.
If you push "0" by itself, nothing will
happen.
Complete the above steps within a few
seconds.
Direct Button Operation
EN 5-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Changing Volume
You can change the volume by pressing
VOL+/- on the TV or on the remote control unit.
To increase the volume, press VOL +.
To decrease the volume, press VOL -.
Audio status
Output device
Output Select
Fixed Variable
TV Speaker Variable Sound Mute
AUDIO OUT
Fixed Sound (Volume
MAX)
Variable Sound
DIGITAL AUDIO OUT,
HDMI IN 2 (ARC)
Fixed Sound (Volume
MAX)
Fixed Sound (Volume
MAX)
Direct Button Operation
EN 5-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
FLASHBACK
Press
(FLASHBACK) to switch to the
previously tuned channel or previous input
mode.
Press (FLASHBACK) again to switch
back to the currently tuned channel.
NOTE
(FLASHBACK) will not work if no
channel has been changed after the TV is
turned on.
With (FLASHBACK), only input from
TV, HDMI 1 through 4, or Video will be
stored in Memory.
Direct Button Operation
EN 5-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
AUDIO AD
Switching the digital audio format (DTV
only)
If multi sound modes are received, each time
you press AUDIO AD the mode switches.
NOTE
The sound mode screen disappears in six
seconds.
Selectable items vary depending on the
received broadcasts.
The audio description sound is selected
depending on the main audio.
Switching the analogue audio format
You can switch between multiple audio modes
when watching a multiple audio or stereo
broadcast programme.
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press AUDIO AD, the mode
switches between Nicam Stereo and Mono.
When receiving a bilingual signal
Each time you press AUDIO AD, the mode
switches among Nicam Dual1, Nicam Dual2
and Mono.
When receiving a monaural signal
Each time you press AUDIO AD, the mode
switches between Nicam Mono and Mono.
In the TV mode of A2 TV broadcasts
When receiving a stereo signal
Each time you press AUDIO AD, the mode
switches between Stereo and Mono.
When receiving a bilingual signal
Each time you press AUDIO AD, the mode
switches among Dual1 and Dual2.
When receiving a monaural signal
When you press AUDIO AD, “Mono” displays.
Direct Button Operation
EN 5-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Sleep Timer
Allows you to set a time when the TV
automatically switches to standby.
Press SLEEP.
The remaining time displays when the
sleep timer has been set.
Each time you press SLEEP, the remaining
time switches as shown below.
When set, the time automatically starts
counting down.
If you want to adjust the sleep timer, you
can press SLEEP twice then change the
time setting.
When it is 5 minutes before the time
expires, the remaining time will start to keep
appearing every minute.
NOTE
Select "Off" by pressing SLEEP to cancel
the sleep timer.
The TV will enter standby when the
remaining time reaches 0.
Direct Button Operation
EN 5-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
VIEW MODE
You can select the screen size.
1 Press VIEW.
View Mode selection displayed.
2 Press
/ to select the View Mode and then press (ENTER).
For HD programmes
Full Underscan
Displays with an overscan image. Crops all sides of screen. Displays an image with the same number of pixels on the screen when
receiving HD signals only.
NOTE
When using Underscan, it is possible to see noise or bars around different outer portions of the
screen. Please change view mode to correct this.
This feature is available with TV, HDMI IN 1-4, and Video input.
Availability in other input modes varies according to the individual App specifications.
Some items do not appear depending on the type of received signal.
Direct Button Operation
EN 5-7
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
VIEW MODE (Continue)
For 4:3 programmes
Example: Screen size images
Normal Full Cinema 16:9
Normal
Keeps the original aspect ratio in a full
screen display.
For 16:9 squeeze pictures.
For 16:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.
Cinema 14:9 Zoom 14:9
For 14:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.
For 14:9 letterbox pictures. A thin side bar
appears on each side, and you may also
see bars on the top and bottom with some
programmes.
Direct Button Operation
EN 5-8
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
VIEW MODE (Continue)
For PC
Example: Screen size images
Input signal Normal Full Cinema 16:9 Dot by Dot
4:3 Keeps the original
aspect ratio in a full
screen display.
An image fully fills the
screen.
For viewing widescreen
programmes. The top
and bottom of the
image is cropped.
Detects the resolution
of the signal and
displays an image with
the same number of
pixels on the screen.
Input signal Full Dot by Dot
16:9 An image fully fills the
screen.
Detects the resolution
of the signal and
displays an image with
the same number of
pixels on the screen.
NOTE
Connect the PC before making adjustments. See the Setup Guide.
Selectable screen size may vary with input signal type.
Direct Button Operation
EN 5-9
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
NETFLIX
Displays the NETFLIX screen.
Press NETFLIX.
NOTE
If you press the NETFLIX button when the
TV is turned off, the TV turns on and the
NETFLIX screen is displayed.
To enjoy Netflix, you need to make:
—a broadband Internet connection
(See page 9-1.)
—settings of Internet Setup
(See page 9-1.)
Direct Button Operation
EN 5-10
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
YouTube
Displays the YouTube screen.
Press YouTube.
NOTE
If you press the YouTube button when the
TV is turned off, the TV turns on and the
YouTube screen is displayed.
To enjoy YouTube, you need to make:
—a broadband Internet connection
(See page 9-1.)
—settings of Internet Setup
(See page 9-1.)
Direct Button Operation
EN 5-11
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Preparation
You can connect the TV to a USB memory device, USB hard drive, Home Network server to enjoy viewing pictures, listening to music, and watching videos.
NOTE
Depending on the USB memory device/USB hard drive/Home Network server, the TV may not be able to recognise the recorded data.
It may take time to read the recorded data if the USB memory device/USB hard drive/Home Network server contains many files or folders.
Use only alphanumeric characters for naming files.
File names over 80 characters (may vary depending on character set) may not be displayed.
Connecting a USB Memory Device/USB Hard Drive
Insert the USB memory device with recorded photos, music or videos into the USB 1 or USB 2 terminal on the TV.
If USB memory devices are inserted into multiple terminals, the USB 1 terminal has priority.
Enjoying Photo/Music/Video Playback
EN 6-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Preparation (Continue)
When connecting a USB hard drive, be sure to use a hard drive with an AC adapter.
Do not remove a USB memory device from the TV while transferring files, using the slide show function, or switching screens, or before you exit "Content
Player".
Do not insert and remove a USB memory device/USB hard drive to and from the TV repeatedly.
When using a card reader, be sure to insert a USB memory device first.
CAUTION
Do not use a USB extension cable when connecting a USB memory device to the USB terminal on the TV.
Using a USB extension cable with the USB memory device may prevent the TV from performing correctly.
Connecting a Home Network Server
Connect the TV to the Home Network server using an ETHERNET cable.
You can also connect a Home Network server by using a wireless LAN.
NOTE
Do not disconnect a Home Network server from the TV while transferring files, when a screen is switching to another or before you exit "Content Player".
Do not connect and disconnect a Home Network server from the TV repeatedly.
Enjoying Photo/Music/Video Playback
EN 6-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Selecting the Folders to Play Back
To play back data on a USB memory device insert the USB memory device on the TV.
1 Select "Open Contents Player" from the Devices screen, or launch the Content Player app from
HOME screen.
2 Press
/ to select "Music", "Video" or "Photo", and then press (ENTER).
Example
3 Press / (or / ) to select the drive/server where you want to find your file, and then press
(ENTER).
4 Press
/ to select the desired folder, and then press (ENTER).
NOTE
USB only support device up to DC5V 1.5A.
Enjoying Photo/Music/Video Playback
EN 6-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Selecting the Folders to Play Back (Continue)
NOTE
If the TV is turned off and then on again, the number assigned to the USB may change.
USB Device Compatibility
USB device USB Memory, USB card reader (Mass
Storage class), USB hard drive
File system FAT/FAT32
Photo file format
Format JPEG, PNG, BMP
Music file format
Format Sampling rate
[KHz]
Bitrate
[Kbps]
MP3 8/11.025/12/16/
22.050/24/32/44.1/48
8~320
AAC 32/44.1/48 8~320
WMA 8/11.025/16/22.05/
32/44.1/48/64/88.2/96
8~384
WAV 8/11.025/12/16/
22.050/24/32/44.1/48
8~1024
Enjoying Photo/Music/Video Playback
EN 6-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Selecting the Folders to Play Back
(Continue)
Video file format
Container Video Audio
AVI
MPEG-1
MPEG-2
MPEG-4
H.264
PCM
MP2: MPEG-1 Layer2
MP3: MPEG-1 Layer3
AAC
AC3
WMA
MKV
MPEG-1
MPEG-2
MPEG-4
H.264
VP8
H.265(HEVC)
PCM
MP2: MPEG-1 Layer2
MP3: MPEG-1 Layer3
AAC
AC3
WMA
VORBIS
ASF
MPEG-4
VC1(WMV3)
MP3: MPEG-1 Layer3
WMA
PS
MPEG-1
MPEG-2
MP2: MPEG-1 Layer2
MP3: MPEG-1 Layer3
AC3
TS
MPEG-2
VC1(WMV3)
H.264
H.265(HEVC)
MP2: MPEG-1 Layer2
AAC
AC3
MP4
MPEG-4
H.264
H.265(HEVC)
VP8
VC1(WMV3)
MP2: MPEG-1 Layer2
MP3: MPEG-1 Layer3
AAC
NOTE
Progressive format jpeg files are not
supported.
USB 1.1 devices may not be played
properly.
Operation using USB hubs is not
guaranteed.
Some video file formats may not be played
depending on the file.
Some images may not be displayed in the
appropriate aspect ratio depending on the
file format.
File extensions are not used to determine
the file format.
Home Network Server Compatibility
Photo file
format
JPEG
Music file
format
WAV, MP3
Video file format MPEG2-PS, MPEG2-TS,
WMV, ASF, MP4, MOV,
AVI
NOTE
Progressive format jpeg files are not
supported.
Some video file formats may not be played
depending on the file or the server.
Enjoying Photo/Music/Video Playback
EN 6-5
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB Memory Device/Home Network Server
Photo Mode
Viewing Thumbnails
Example
Buttons for thumbnail/list operations
Buttons Description
/
Select a desired item.
In Thumbnail mode: Select a desired item.
In List mode. Return to the previous process.
In Thumbnail mode: Select a desired item.
In List mode, when selecting a folder icon: Enter this directory.
In List mode, when selecting a photo file: Enlarge the photo.
(ENTER)
When selecting a folder icon: Enter this directory.
When selecting a photo file: Enlarge the photo.
(Back)
In Thumbnail mode: Return to the previous process.
In List mode. Exit application.
B (blue) Change Thumbnail/List mode.
Y (yellow) Display the Menu screen.
Enjoying Photo/Music/Video Playback
EN 6-6
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB Memory Device/Home Network Server (Continue)
Menu for thumbnail operations
Press
/ to select an item and make settings to your preferences.
Example
Sort
You can change the way in which files are ordered.
Press
/ to select "Type", "Date" or "Name", and then press (ENTER).
Media Type
Switch the media type when the Recursive Parser display is displayed.
Thumbnail Size
Change the thumbnail size.
Small/Medium/Large
Recursive Parser
Display all files according to the Media Type settings.
NOTE
You can see the file name, file size and pixel size of the selected photo in the upper-left corner of
the screen.
When you are viewing the Content Player app, you cannot configure Picture/Audio settings.
Enjoying Photo/Music/Video Playback
EN 6-7
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB
Memory Device/Home Network
Server (Continue)
Slide Show
The photos displayed on the thumbnail
selection screen are displayed as a slide show.
Buttons for slide show operation
Buttons Description
Play the Slide Show.
Pause the Slide Show.
/ / / ,
(ENTER)
Select the desired item.
(Back)
Return to the thumbnail selection
screen.
Y (yellow) Display the USB Menu screen.
Menu for slide show
Example
Repeat
Set whether to show the slide show repeatedly.
None/Repeat One/Repeat All
Shuffle
Shuffle the image files within the folder and
display as a slide show.
Duration
Specify the length of time before the next
image appears.
Press
/ to select the desired length of the
time, and then press
(ENTER).
Short/Medium/Long
Effect
Specify the effect for transitioning to the next
image.
None/Dissolve/Wipe right/Wipe
left/Wipe up/Wipe down
Box in/Box out/Random
Rotate*
Rotate the photo by 90 degrees to the right.
* Only displayed when playback is paused.
Zoom*
Zoom in on the image.
Normal/Zoom1/Zoom2
* Only displayed when playback is paused.
Sort
You can change the way in which files are
ordered.
Press
/ to select "Type", "Date" or "Name",
and then press
(ENTER).
NOTE
The slide show continues until you press
(Back).
For setting the slide show speed, select
"Duration" on the Menu screen.
Enjoying Photo/Music/Video Playback
EN 6-8
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB Memory Device/Home Network Server (Continue)
Music Mode
Viewing Thumbnails
Example
Buttons for thumbnail/list operations
Buttons Description
/
Select a desired item.
In Thumbnail mode: Select a desired item.
In List mode. Return to the previous process.
In Thumbnail mode:Select a desired item.
In List mode, when selecting a folder icon: Enter this directory.
In List mode, when selecting a music file: Play music.
(ENTER)
When selecting a folder icon: Enter this directory.
When selecting a music file: Play music.
(Back)
In Thumbnail mode: Return to the previous process.
In List mode. Exit application.
B (blue) Change Thumbnail/List mode.
Y (yellow) Display the MENU screen.
NOTE
When you are viewing the Content Player app, you cannot configure Picture/Audio settings.
Enjoying Photo/Music/Video Playback
EN 6-9
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB Memory Device/Home Network Server (Continue)
Menu for thumbnail operations
Example
Sort
You can change the way in which files are ordered.
Press
/ to select "Date", "Genre", "Artist" or "Album", and then press (ENTER).
Media Type
Switch the media type when the Recursive Parser display is displayed.
Thumbnail Size
Change the thumbnail size.
Small/Medium/Large
Recursive Parser
Display all files according to the Media Type settings.
Enjoying Photo/Music/Video Playback
EN 6-10
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB
Memory Device/Home Network
Server (Continue)
Playing Mode
Buttons for playing mode
Buttons Description
The fast reverse speed changes every
time you press
.
The fast forward speed changes every
time you press
.
Pause the music.
Go to the previous file.
Go to the next file.
/ / / ,
(ENTER)
Select a desired item.
(Back)
Return to the previous process.
Y (yellow) Display the Menu screen.
NOTE
The displayed play time may differ slightly
from the actual play time depending on the
files.
Menu for playing mode
Example
Repeat
Configure the repeat playback settings.
None/Repeat One/Repeat All
Shuffle
Shuffle the music within the folder.
Hide Spectrum/Show Spectrum
Show or hide the spectrum.
Lyric
You can change the lyric display type.
This is only available when a lyrics file (".lrc") is
present.
Only UTF-8 character code lyric files (without
BOM) are supported.
Enjoying Photo/Music/Video Playback
EN 6-11
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB Memory Device/Home Network Server (Continue)
Video Mode
Viewing Thumbnails
Example
Buttons for thumbnail/list operations
Buttons Description
/
Select a desired item.
In Thumbnail mode: Select a desired item.
In List mode. Return to the previous process.
In Thumbnail mode: Select a desired item.
In List mode, when selecting a folder icon: Enter this directory.
In List mode, when selecting a video file: Play the video file.
(ENTER)
When selecting a folder icon: Enter this directory.
When selecting a video file: Play the video file.
(Back)
In Thumbnail mode: Return to the previous process.
In List mode. Exit application.
B (blue) Change Thumbnail/List mode.
Y (yellow) Display the Menu screen.
Enjoying Photo/Music/Video Playback
EN 6-12
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB Memory Device/Home Network Server (Continue)
Menu for thumbnail operations
Example
Sort
You can change the way in which files are ordered.
Press
/ to select "Type", "Date" or "Name", and then press (ENTER).
Media Type
Switch the media type when the Recursive Parser display is displayed.
Thumbnail Size
Change the thumbnail size.
Small/Medium/Large
Recursive Parser
Display all files according to the Media Type settings.
NOTE
When you are viewing the Content Player app, you cannot configure Picture/Audio settings.
Enjoying Photo/Music/Video Playback
EN 6-13
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files on a USB
Memory Device/Home Network
Server (Continue)
Playing Mode
Buttons for playing mode
Buttons Description
The fast reverse speed changes every
time you press
.
Play the video
The fast forward speed changes every
time you press
.
Pause the video.
Go to the previous file.
Stop the video.
Go to the next file.
/ / / ,
(ENTER)
Select a desired item.
(Back)
Return to the previous process.
Y (yellow) Display the Menu screen.
Menu for playing mode
Example
Repeat
Configure the repeat playback settings.
None/Repeat One/Repeat All
Screen Mode
Set the screen size.
Auto/Original
Enjoying Photo/Music/Video Playback
EN 6-14
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files from a Portable Device
With the remote playback function, you can use your portable device to play back pictures, video, and
music on the Home Network server.
Preparation
Use Wi-Fi to connect the smartphone or tablet to the TV.
NOTE
A wireless access point is required to use a portable device.
Enjoying Photo/Music/Video Playback
EN 6-15
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Playing Back Files from a Portable Device (Continue)
1 Select "Open Contents Player" from the Devices screen, or launch the Content Player app from
HOME screen.
2 Press
/ to select "Remote play" icon, and then (ENTER).
3 While the TV is in standby mode, send photos/music/video from the smartphone, tablet, or similar
device to the TV.
To use the remote playback function, your portable device must be a DLNA Certified Digital Media
Controller.
NOTE
This function will only start when the standby screen of Remote play is displayed after you launch the
Content Player app from the HOME screen.
This function may not work while an Internet application is being used.
For information on the compatible formats, see "Home Network Server Compatibility" on page 6-5.
Some Digital Media Controllers and Remote play applications are not supported. In this situation,
regardless of whether the file can be played back, the message "Playback not possible" may be
displayed, and playback may be stopped.
Enjoying Photo/Music/Video Playback
EN 6-16
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Controlling HDMI Equipment Using LINK Operation
What’s LINK Operation?
Using the HDMI CEC (Consumer Electronics Control) protocol, with LINK
Operation you can interactively operate compatible system equipment
(Blu-ray disc equipment, AV amplifier, DVD).
By connecting LINK-compatible devices with HDMI-certified cables to the
TV, you can control a recorder or AV amplifier using the remote control of
the TV.
LINK Operation allows you to operate the HDMI-connected equipment
with one remote control.
NOTE
HDMI IN 1 and 2 terminals are all capable of receiving 4K60P 4:4:4
signals.
To receive 4K60P 4:4:4 signals, on the Devices menu, set the HDMI type
to "Full". (See page 4-9)
For connecting the TV to LINK-compatible equipment, use commercially
available cables.
Point the remote control toward the TV, not to connected HDMI
equipment.
Video noise may occur depending on the type of HDMI cable used. Make
sure to use an HDMI-certified cable.
Up to 3 pieces of HDMI recording equipment and one AV amplifier can be
connected using this system.
NOTE
If the equipment does not operate, turn on the equipment and select the
appropriate input source using POWER (DEVICES).
The LINK feature may not operate properly when an HDMI splitter or AV
selector unit is used. These devices may cause interruptions to the image
and/or sound.
Connected LINK-compatible devices can be operated without changing the
settings of the remote control unit.
One Touch Play
While the TV is in standby mode, it automatically turns on and plays back the
image from the HDMI source.
Single remote control
The LINK Operation automatically recognizes the connected HDMI device
and you can control the TV and the devices as if using a universal remote
control.
Control the LINK-compatible audio system
Set the volume of LINK-compatible audio system.
NOTE
The above description is an example of the LINK Operation function.
Refer to this operation manual and the operation manual of the LINK-
compatible device to be used with this TV.
Using LINK Operation
EN 7-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Controlling HDMI Equipment Using
LINK Operation (Continue)
One Touch Playback
LINK Operation allows you to operate the
HDMI-connected equipment with one remote
control.
Press
to start playing back a title.
The last played programme is played back.
You can use the following buttons during
broadcast viewing.
Buttons Description
Hold down this button to go in
reverse.
Starts playback.
Hold down this button to fast
forward.
Stops playback.
Sets pauses and still pictures.
Pressing quickly once takes you to
the start of the chapter currently
playing. Each time you press it, you
move back to the start of the
previous chapter.
Pressing quickly once takes you to
the start of the next chapter. Each
time you press it, you move ahead to
the start of the next chapter.
Using LINK Operation
EN 7-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Setting Audio Input
Audio Select HDMI
This function sets the terminal to output the computer audio.
The adjustment items vary depending on the input source. Select the input
source corresponding to the terminal connected to the PC and then adjust the
desired item.
To perform the operation, refer to "HOME" > "Settings" > "TV" >
"Input/Output" > "Audio Select HDMI".
HDMI 3
HDMI: Select this when the TV and PC are connected using an HDMI-
certified cable and audio is input via the same cable.
HDMI+AV Input: Select this when the TV and PC are connected using a
HDMI-certified cable and the audio is input via a Ø 3.5 mm stereo
minijack.
NOTE
When "Audio Select HDMI" is set to "HDMI+AV Input", sound will not be
produced if you use only an HDMI-certified cable to connect HDMI-
compatible equipment. To produce sound, you should make an analogue
audio connection.
If you want to connect HDMI-compatible equipment using only an HDMI-
certified cable, set "Audio Select HDMI" to "HDMI".
"Audio Select HDMI" can only be set for the HDMI IN 3.
Using a PC
EN 8-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Connecting to the Internet
By connecting your TV to a broadband system, you can access the Internet from the TV.
You can enjoy a variety of streaming content and Internet applications.
It is necessary to configure the network settings in order to enjoy streaming content and internet applications.
These settings can be configured from "HOME" > "Settings" > "Network & Peripherals" > "Network".
NOTE
To connect your TV to the Internet, you must have a broadband Internet connection.
If you do not have a broadband Internet connection, consult the store where you purchased your TV or ask your Internet service provider or telephone
company.
When an Internet connection is made, an Ethernet and wireless connection cannot be used at the same time. Use only one of the connection types.
Using an ETHERNET cable
Use an ETHERNET cable (commercially available) to connect the ETHERNET terminal on the TV to your broadband router (commercially available).
Using the wireless LAN
This TV is equipped with a wireless LAN function.
For a wireless LAN connection, you must use wireless setup to connect the access point and TV.
Using the Internet
EN 9-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Connecting to the Internet (Continue)
NOTE
This TV has a built-in wireless LAN function. Using a separate wireless USB LAN adapter may result in radio communications that do not comply with
regulations on radio communications. Therefore, do not use a separate wireless LAN adapter.
A wireless LAN connection and performance cannot be guaranteed for all residential environments. In the following cases, the wireless LAN signal may
be poor or drop, or the connection speed may become slower.
- When used in buildings made with concrete, reinforced steel, or metal
- When placed near objects that obstruct the signal
- When used with other wireless devices that emit the same frequency
- When used in the vicinity of microwave ovens and other devices that emit a magnetic field, electrostatic charge, or electromagnetic interference
When there is significant interference in the 2.4-GHz frequency (such as from other wireless LAN devices, Bluetooth® devices, 2.4-GHz cordless
telephones, and microwave ovens), it is recommended that you use a wireless LAN router/access point that supports IEEE802.11ac (5 GHz) and set the
access point to transmit at 5 GHz. For setup details, see the operation manual of your access point.
Operations cannot be guaranteed when used with access points that do not have Wi-Fi® certification.
A wireless LAN router/access point is required to connect the TV to the Internet using a wireless LAN. See the operation manual of your access point for
setup.
If your access point is set to a stealth mode (that prevents detection by other devices), you may not be able to establish a connection. In this case,
disable the stealth mode on the access point.
A stable connection speed is required to play back streaming content. Use an Ethernet connection if the wireless LAN speed is unstable.
Before transferring to a third party or disposal, be sure to initialize the wireless LAN settings.
Please follow the legislation in your country when using the wireless LAN outdoors.
If you have failed to connect to the Internet in the above operation, then an error message will appear. In this case, press EXIT to exit from the connected
TV feature to make changes to the network settings.
If you still cannot connect to the Internet, please consult your Internet service provider or telephone company.
You cannot configure the settings from "HOME" > "Settings" > "Network & Peripherals" > "Network" while using an application. If you must configure your
"Network" settings, press the EXIT key to exit the function.
Using the Internet
EN 9-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Using Keyboard and Mouse
You can use a keyboard or mouse for operating
the TV when using applications.
When you use the USB devices, connect
the device to the USB terminal on the TV.
When you use the bluetooth device, make
necessary settings with "Bluetooth".
NOTE
The keyboard or mouse may not operate
properly depending on the application being
used.
The bluetooth device may not operate
properly depending on the device being
used.
Using the Internet
EN 9-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Notes
DISCLAIMERS
This SHARP device facilitates the access to content and services provided by third parties. The content and services accessible via this device belong to
and may be proprietary to third parties. Therefore, any use of such third party content and services must be in accordance with any authorization or terms
of use provided by such content or service provider. SHARP shall not be liable to you or any third party for your failure to abide by such authorization or
terms of use. Unless otherwise specifically authorized by the applicable content or service provider, all third party content and services provided are for
personal and non-commercial use; you may not modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative
works from, transfer or sell in any manner or medium any content or services available via this device.
SHARP is not responsible, nor liable, for customer service-related issues related to the third party content or services. Any questions, comments or
service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider.
You may not be able to access content or services from the device for a variety of reasons which may be unrelated to the device itself, including, but not
limited to, power failure, other Internet connection, or failure to configure your device properly. SHARP, its directors, officers, employees, agents,
contractors and affiliates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether
or not it could have been avoided.
ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN "AS-IS" AND "AS AVAILABLE" BASIS
AND SHARP AND ITS AFFILIATES MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE
OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY, TITLE, USEFULNESS, LACK OF NEGLIGENCE
OR ERROR-FREE OR UNINTERRUPTED OPERATION OR USE OF THE CONTENT OR SERVICES PROVIDED TO YOU OR THAT THE CONTENT
OR SERVICES WILL MEET YOUR REQUIREMENTS OR EXPECTATIONS.
SHARP IS NOT AN AGENT OF AND ASSUMES NO RESPONSIBILITY FOR THE ACTS OR OMISSIONS OF THIRD PARTY CONTENT OR SERVICE
PROVIDERS, NOR ANY ASPECT OF THE CONTENT OR SERVICE RELATED TO SUCH THIRD PARTY PROVIDERS.
IN NO EVENT WILL SHARP AND/OR ITS AFFILIATES BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, PUNITIVE, CONSEQUENTIAL OR OTHER DAMAGES, WHETHER THE THEORY OF LIABILITY IS BASED ON CONTRACT, TORT,
NEGLIGENCE, BREACH OF WARRANTY, STRICT LIABILITY OR OTHERWISE AND WHETHER OR NOT SHARP AND/OR ITS AFFILIATES HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Using the Internet
EN 9-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Troubleshooting
Problem Possible Solution
No power Check if you pressed POWER on the remote control unit.
Is the AC cord disconnected?
Has the power been turned on?
Unit cannot be
operated.
External influences such as lightning, static electricity, may cause improper
operation. In this case, operate the unit after first turning off the power of the
TV or unplugging the AC cord and replugging it in after 1 or 2 minutes.
Remote
control unit
does not
operate.
Is the equipment to be operated by the remote control unit set correctly?
Press TV to set the remote control unit to the setting for operating the TV.
Are batteries inserted with polarity (+, -) aligned?
Are batteries worn out? (Replace with new batteries.)
Are you using it under strong or fluorescent lighting?
Is a fluorescent light illuminated near the remote control sensor?
Picture is cut
off/with sidebar
screen.
Are screen mode adjustments such as picture size made correctly?
Pages 5-7 to 5-9
Strange
colour, light
colour, or
colour
misalignment
Adjust the picture tone.
Pages 3-3 to 3-21
Is the room too bright? The picture may look dark in a room that is too
bright.
Power is
suddenly
turned off.
Is the sleep timer set?
Page 5-6
Check the power control settings.
Pages 4-25 to 4-27
The unit's internal temperature has increased. Remove any objects blocking
vent or clean.
Problem Possible Solution
No picture Is connection to other components correct?
If the PC image is not displayed, check the following:
- When connecting a laptop PC to the TV, check that display output mode
of the PC is set to external monitor.
For 4K60P signals applied to an HDMI input, the external device may not
be outputting signals correctly. Set "HDMI Type Selection" to "Limited".
Page 4-9
Picture quality of
HD programmes
is poor.
To enjoy HD images from external equipment, you are required to set up
HDMI connection or component connection.
If the programme content is not of HD quality, HD images cannot be
displayed. Check that the programme you are viewing provides HD
images.
The HD cable/satellite set-top box may need to be configured to output
HD images via cable/satellite.
The cable/satellite broadcast may not support a signal resolution of
1080p.
The TV
sometimes makes
a cracking sound.
This is not a malfunction. This happens when the cabinet slightly expands
and contracts according to change in temperature. This does not affect the
TV's performance.
Appendix
EN 10-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Troubleshooting (Continue)
Problem Possible Solution
No sound Is connection to other components correct?
Is the volume too low?
Page 5-2
Is "Variable" selected in "Audio Out"?
Page 4-10
Have you pressed MUTE on the remote control unit?
Page 5-3
Check the audio output of the connected external equipment. Is
the volume too low or muted?
When external equipment is connected via an HDMI cable, you
may need to configure the audio to be output through the HDMI
cable.
When audio is not output from external equipment connected to
the HDMI IN 3 terminal, check the "Audio Select HDMI" setting.
Page 8-1
Even when external equipment is connected using an HDMI-
certified cable, an audio cable connection may be required
depending on the type of equipment and the media being played
back. In this case, in addition to connecting an HDMI-certified
cable to the HDMI IN 3 terminal, connect a Ø 3.5 mm stereo
minijack cable to the AUDIO IN terminal and set "Audio Select
HDMI" to "HDMI+AV Input".
Page 8-1
When connecting a PC via an HDMI-certified cable, check the
following:
- Is the audio output of the PC configured correctly? Check the
audio output settings and output audio format in Sound Properties
on the PC.
The audio formats compatible with this TV are PCM, Dolby Digital.
With other formats, audio cannot be output.
- Depending on the board, only video signals may be output. In this
case, in addition to connecting an HDMI-certified cable to the HDMI
IN 3 terminal, connect a Ø 3.5 mm stereo minijack cable to the
AUDIO IN terminal and set "Audio Select HDMI" to "HDMI+AV
Input".
Page 8-1
Problem Possible Solution
Chromecast built-in
image/ audio cannot be
output to the TV.
Check pairing.
Appendix
EN 10-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Troubleshooting - Error Message
The example of an
error message
displayed on a
screen
Possible Solution
No broadcast now. Check the antenna cable. Check that the antenna is correctly
setup.
Check the broadcast time in the programme guide.
An incompatible audio
signal has been received.
Check the output device
settings.
This message is displayed when an audio format other than
PCM, Dolby Digital is input.
- Set the audio output format of connected external HDMI
equipment to PCM, Dolby Digital.
- Refer to the operation manual of the external equipment for
setting details.
Appendix
EN 10-3
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Information on the Software License for This Product
Software License
You can read the software licenses in the on-screen display menu. Refer to
"HOME" > "Settings"> "TV" > "About" > "Legal information" > "Open source
licenses" .
Software composition
The software included in this product is comprised of various software
components whose individual copyrights are held by SHARP or by third
parties.
Cautions regarding use in high and low temperature environments
When the unit is used in a low temperature space (e.g. room, office),
the picture may leave trails or appear slightly delayed. This is not a
malfunction, and the unit will recover when the temperature returns to
normal.
Do not leave the unit in a hot or cold location. Also, do not leave the unit
in a location exposed to direct sunlight or near a heater, as this may
cause the cabinet to deform and the front panel to malfunction.
Storage temperature: -20°C to +60°C
Appendix
EN 10-4
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Google, Android, Android TV, YouTube and other related marks and logos are
trademarks of Google LLC.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are trademarks
of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance
®
.
The Wi-Fi Protected Setup™ Logo is a certification mark of Wi-Fi Alliance
®
.
The Bluetooth
®
word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by SHARP Corporation is
under license. Other trademarks and trade names are those of their respective
owners.
Manufactured under license from Eilex International, LLC.
Eilex PRISM is a trademark of Eilex International, LLC.
VIR Filter is a trademark of Eilex International, LLC.
Eilex Technology Description
Eilex PRISM™ equalizes acoustic power volume density frequency response
and corrects time and phase alignment errors of a speaker system. Speakers
with Eilex PRISM perform as near-perfect electro-acoustic transducers
providing true-to-original sound with the highest musicality and intelligibility.
VIR Filter™ is high-performance filter developed for audio purposes.
ANY USE OF THIS PRODUCT IN ANY MANNER OTHER THAN
PERSONAL USE THAT COMPLIES WITH THE MPEG-2 STANDARD FOR
ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA IS
EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE
PATENTS IN THE MPEG-2 PATENT PORTFOLIO, WHICH LICENSE IS
AVAILABLE FROM MPEG LA, LLC, 6312 S. Fiddlers Green Circle,
Suite 400 E, Greenwood Village, Colorado 80111 U.S.A.
THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO
LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1
STANDARD (“VC-1 VIDEO") AND/OR (ii) DECODE VC-1 VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-
COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO
LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES
IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE
VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL
USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH
THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii)
DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR
WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO
PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING
THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL
USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
Trademarks
EN 11-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
TV
Item Model: 4T-C50AL1X / 4T-C50AL2X
LCD panel 126 cm
Resolution 8,294,400 pixels (3840 x 2160)
Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV Function
TV-standard
Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K1 NTSC: M
Digital DVB-T / DVB-T2
Receiving Channel
VHF/UHF 44.25—863.25 MHz
CATV S1—S41 ch (including Hyperband)
TV-tuning system Auto Preset 99 ch
STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G MTS: M
Audio amplifier 10 W x 2
Terminals
ANT (Antenna input) UHF/VHF 75 Ω DIN type
SERVICE ONLY Ø 3.5 mm jack
INPUT 1 HDMI HDMI (HDMI input)
INPUT 2 (ARC) HDMI HDMI (HDMI input), ARC
INPUT 3 HDMI HDMI (HDMI input)
INPUT 4 HDMI HDMI (HDMI input)
INPUT 5 AUDIO in, VIDEO in
USB 1 USB (DC5V 1.5A output)
USB 2 USB (DC5V 1.5A output)
ETHERNET (10/100 BASE-T) Network connector
DIGITAL AUDIO OUTPUT Optical S/PDIF digital audio output
OUTPUT Ø 3.5 mm stereo jack (audio output)
OSD language English (UK)/English (US)/Simplified Chinese/Arabic/French/Portuguese/Russian/Persian/Thai/Vietnamese/Indonesia/Malay
Power Requirement AC 110 — 240 V, 50/60 Hz
Power Consumption 150 W (0.95 W Standby)
Dimensions without stand 1122 (W) x 666 (H) x 74 (D) mm
with stand 1122 (W) x 708 (H) x 253 (D) mm
Weight without stand (with stand) 12.5 kg (13.0 kg)
Operating temperature 0°C to +40°C
As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures
indicated are nominal values of production units. There may be some deviations from these values in individual units.
Specification may differ depending on the selected country.
CAUTION
Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no
responsibility for improper mounting or mounting that results in accident or injury.
Carefully read the instructions that come with the bracket before beginning work.
Specifications
EN 12-1
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
Wireless LAN
Specification
Standard IEEE 802.11a/b/g/n/ac
Security
Static WEP (64/128 bit kry index 1 only)
WPA-PSK (TKIP)
WPA2-PSK (AES)
Modulation
IEEE802.11b: DBPSK, DQPSK, CCK / DSSS HRDSSS
IEEE802.11a: BPSK, QPSK, 16QAM, DBPSK, DQPSK, CCK / OFDM
IEEE802.11g: BPSK, QPSK, 16QAM, DBPSK, DQPSK, CCK, PBCC / OFDM
IEEE802.11n: BPSK, QPSK, 16QAM, 64QAM / OFDM
IEEE802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM / OFDM
Throughput
IEEE802.11b: 1, 2.5, 5, 11Mbps
IEEE802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
IEEE802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
IEEE802.11n: ～300Mbps
IEEE802.11ac: ～866.6Mbps
Specifications
EN 12-2
ENGLISH | FRANÇAIS | PORTUGUÊS | РУССКИЙ | 中文 | INDONESIA | ภาษาไทย | TIẾNG VIỆT | ﻲﺑرﻋ | АҒЫЛШЫН | O'ZBEK TILIDA
>><<
