Register your product and get support at
www.philips.com/welcome
EN HDD & DVD PLAYER / RECORDER WITH DIGITAL TUNER
DVDR3575H/37
STOP
ARRÊT
ALTO
Recording Playback EditingIntroduction Connections Basic Setup Function Setup Others
E2H40UD_v4.indd 1E2H40UD_v4.indd 1 2008/06/02 13:34:452008/06/02 13:34:45
2EN2EN
PRECAUTIONS
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below,
so don't miss out. Complete and return your Product Registration Card at once, or register online at
www.philips.com/welcome to ensure:
Return your Product Registration Card or register online at
www.philips.com/welcome today to get the very most from your purchase.
Know these
safety symbols
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
*Proof of
Purchase
Returning the enclosed card guar-
antees that your date of purchase
will be on file, so no additional
paperwork will be required from
you to obtain warranty service.
*Product Safety
Notification
By registering your product, you'll
receive notification - directly from
the manufacturer - in the rare
case of a product recall or safety
defect.
*Additional
Benefits
Registering your product guar-
antees that you'll receive all of
the privileges to which you're
entitled, including special money-
saving offers.
Visit our World Wide Web Site at http://www.philips.com/welcome
For Customer Use
Enter below the Serial No. which is located on the rear of
the cabinet. Retain this information for future
reference.
Model No. _______________________________________
Serial No. _______________________________________
This “bolt of lightning” indicates uninsulated material
within your unit may cause an electrical shock. For
the safety of everyone in your household, please do
not remove product covering.
The “exclamation point” calls attention to features
for which you should read the enclosed literature
closely to prevent operating and maintenance
problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to rain or
moisture, and objects filled with liquids, such as vases,
should not be placed on this apparatus.
CAUTION: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la
lame la plus large de la fiche dans la borne correspondante de
la prise et pousser jusqu’au fond.
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.
You’ve selected one of the best-built, best-
backed products available today. We’ll do
everything in our power to keep you happy
with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re
entitled to protection by one of the most
comprehensive warranties and outstanding
service networks in the industry. What’s more,
your purchase guarantees you’ll receive all
the information and special offers for which
you qualify, plus easy access to accessories
from our convenient home shopping
network.
Most importantly, you can count on our
uncompromising commitment to your total
satisfaction.
All of this is our way of saying welcome - and
thanks for investing in a PHILIPS product.
P.S. To get the most from your PHILIPS
purchase, be sure to complete and
return your Product Registration Card
at once, or register online at:
www.philips.com/welcome
E2H40UD_v4.indd 2E2H40UD_v4.indd 2 2008/06/02 13:34:462008/06/02 13:34:46
3EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
3EN
PRECAUTIONS

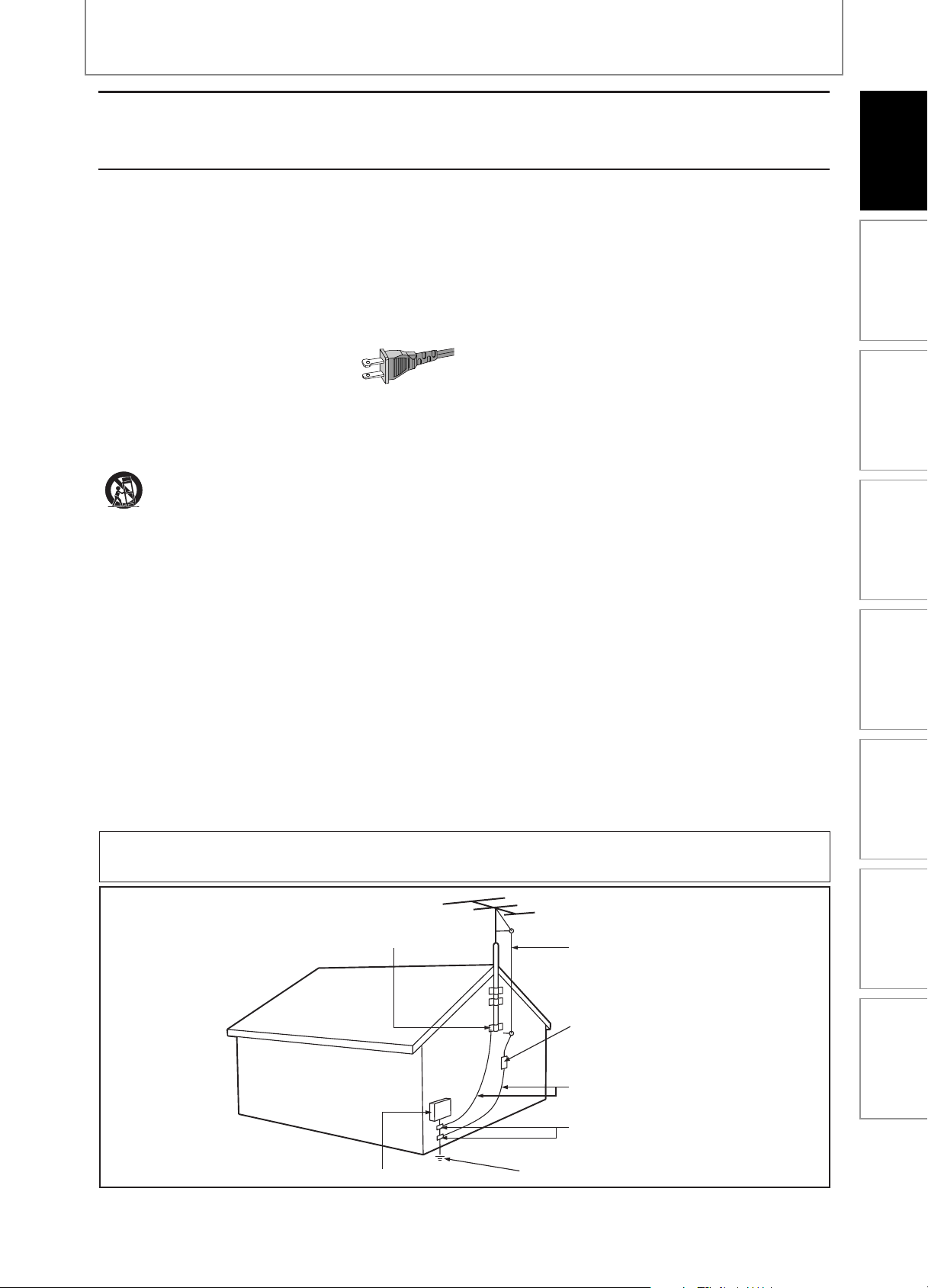

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specif
ies that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as practical.
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
Example of Antenna Grounding
as per NEC - National Electric Code
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and third
grounding prong. The wide blade or third prong
are provided for your safety. When the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.
Use only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus combi-
nation to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects
have fallen into apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. This product may contain lead and mercury. Disposal of these materi-
als may be regulated due to environmental considerations. For dis-
posal or recycling information, please contact your local authorities or
the Electronic Industries Alliance: www.eia.org
16. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Tilt/Stability - All televisions must comply with recommended inter-
national global safety standards for tilt and stability properties of its
cabinet design.
●
Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet which could ultimately
overturn the product.
●
Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could unsus-
pectingly fall from the top of the set and cause product damage
and/or personal injury.
18. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from
power lines.
20. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984,
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding connectors, location of antenna-dis-
charge unit, connection to grounding electrodes, and requirements
for the grounding electrode. See Figure below.
21. Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
a) Warning: To reduce the risk of fire or electric shock, this apparatus
should not be exposed to rain or moisture and objects filled with
liquids, such as vases, should not be placed on this apparatus.
22. Battery Usage CAUTION - To prevent battery leakage that may result
in bodily injury, property damage, or damage to the unit:
●
Install all batteries correctly, with + and - aligned as marked on the
unit.
●
Do not mix batteries (old and new or carbon and alkaline, etc.).
●
Remove batteries when the unit is not used for a long time.
23. Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of fire or
electric shock.
24. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
25. Replacement Parts - When replacement parts are required, be sure
the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
26. Safety Check - Upon completion of any service or repairs to this prod-
uct, ask the service technician to perform safety checks to determine
that the product is in proper operating condition.
AC Polarize
d
Plu
g
E2H40UD_v4.indd 3E2H40UD_v4.indd 3 2008/06/02 13:34:472008/06/02 13:34:47
4EN4EN
PRECAUTIONS
Welcome!
Congratulations on your purchase, and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at
www.philip.com/welcome.
This product lets you record on HDD/DVD and play back DVD/CD of various kinds.
Read this user manual carefully to learn how to use the features described in this manual.
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose this device to rain or moisture.
Federal Communications Commission (FCC) Warning: Any unauthorized changes or modifications to this device
void the user’s authority to operate it.
• Do not stand the unit up vertically. Install the unit in a horizontal and stable position.
• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.
Department of Health and Human Services (DHHS) Certification: Complies with 21 Center for Radiation (CFR)
chapter 1 subchapter J applicable at time of manufacture.
Laser Safety: This unit employs a laser. Only a qualified service person should remove the cover or attempt to
service this device, due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO
BEAM. THE BEAM IS LOCATED INSIDE, NEAR THE DECK MECHANISM.
Special Information for Canadian Users: This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada.
Radio/TV Interference: This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the device and the receiver.
3) Connect the device into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
Copyright Notice: The making of unauthorized copies of copy-protected material, including computer programs,
files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This
device should not be used for such purposes.
Copyright Protection: Unauthorized copying, broadcasting, public performance, and lending of Discs are
prohibited.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Notice for Progressive Scan Use: Consumers should note that not all high definition television sets are fully
compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with
525 (480) progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’
output. If there are questions regarding your TV set compatibility with this 525p (480p) DVD player, please contact our
customer service center.
Declaration of Conformity
Model Number: DVDR3575H/37
Trade Name: Philips
Responsible Party: PHILIPS CONSUMER ELECTRONICS
A Division of Philips Electronics North America Corp
P.O. Box 671539 Marietta, GA30006 0026
1-888-PHILIPS (744-5477)
Copyright 2007 Philips. All rights reserved.
E2H40UD_v4.indd 4E2H40UD_v4.indd 4 2008/06/02 13:34:492008/06/02 13:34:49
5EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
5EN
PRECAUTIONS
User Manual

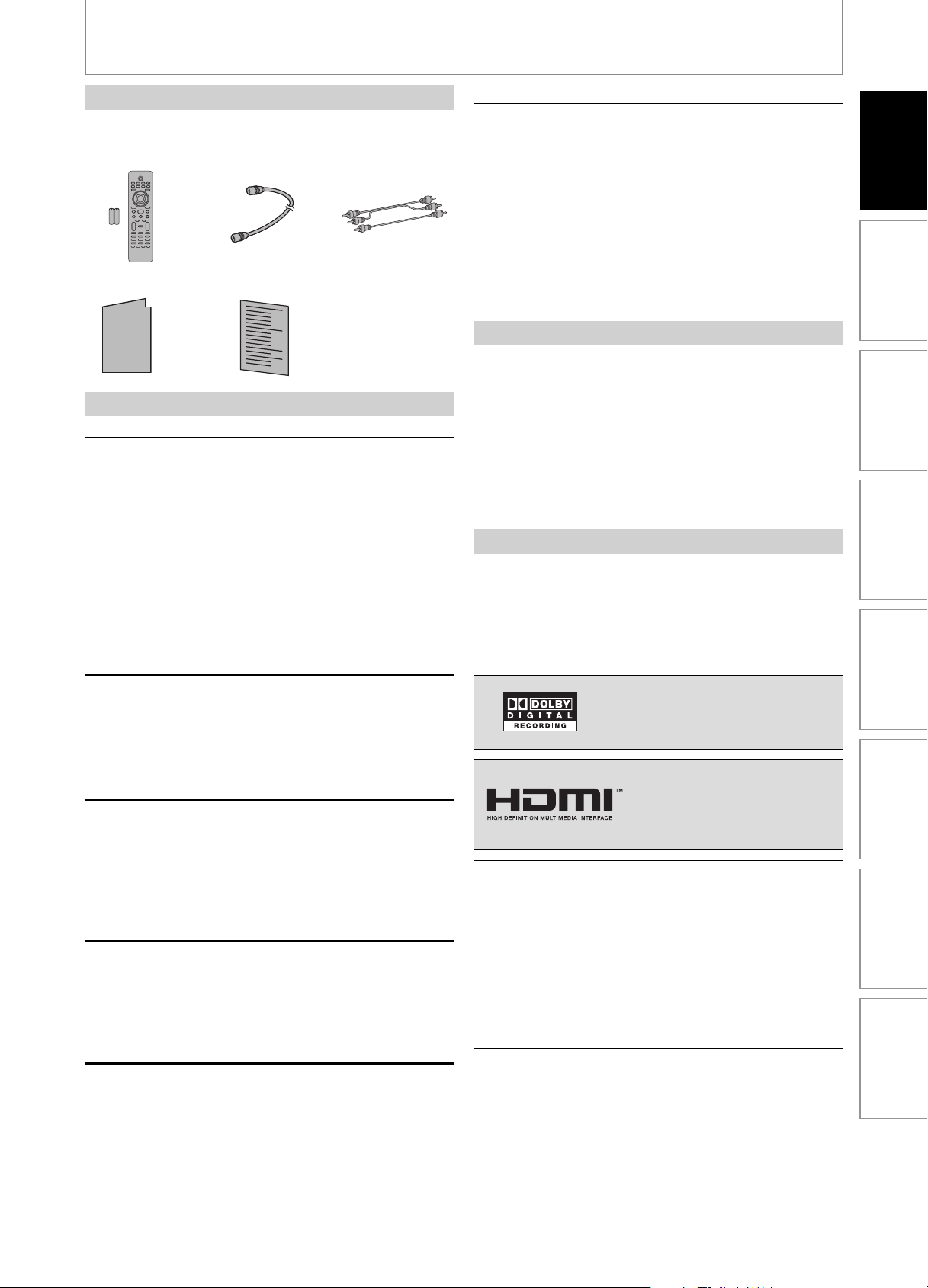

Supplied Accessories
remote control
with batteries
(AAAx2)
RF coaxial cable RCA audio/video
cables
user manual quick start guide
For safety and optimum performance of this unit:
• Install the unit in a horizontal and stable position. Do
not place anything directly on top of the unit. Do not
place the unit directly on top of the TV.
• Shield it from direct sunlight and keep it away from
devices of intense heat. Avoid dusty or humid places.
Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes on
the sides of the unit. Avoid locations subject to strong
vibration or strong magnetic fields.
HDD handling
• HDD is a precision apparatus that is susceptible to
vibration, strong impact or dirt. Depending on the
installation environment or handling, the unit may
become partially damaged or in the worst case,
recording or replaying may not be available. Especially
while the HDD is in motion, do not subject it to
vibration or strong impact or pull out the power plug.
And if a power failure occurs, the content of the
recording / replaying program may be lost.
• HDD rotates at high speed when in operation. Be sure
that rotation has stopped and then move the unit
without subjecting it to strong impact or vibration.
Installation Location
Maintenance
HDMI, the HDMI logo and High-
Definition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC.
Moisture condensation may occur inside the unit when it
is moved from a cold place to a warm place or after
heating a cold room or under conditions of high
humidity. Do not use this unit at least for 2 hours until its
inside gets dry.
Moisture Condensation Warning
Servicing
• Please refer to relevant topics on “TROUBLESHOOTING”
on pages 114-118 before returning the product.
• If you need to call a customer service representative,
please know the model number and serial number of
your product before you call. This information is
displayed on the back of the product. Also, please take
a moment to identify the problem you are having, and
be prepared to explain this to the representative. If you
believe the representative will need to help you with
operations, please stay near the product. Our
representatives will be happy to assist you. For online
reference, please visit our web site at http://www.
philips.com/welcome
Cleaning the cabinet
• Wipe the front panel and other exterior surfaces of the
unit with a soft, slightly damp cloth.
• Never use a solvent, thinner, benzene or alcohol to
clean the unit. Do not spray insecticide liquid near the
unit. Such chemicals may discolor the surface or
damage the unit.
Cleaning discs
• When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center to out. Do not
wipe in a circular motion.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, detergent, abrasive
cleaning agents or antistatic spray intended for analog
records.
Cleaning the disc lens
• If this unit still does not perform properly although you
refer to the relevant sections and to
“TROUBLESHOOTING” in this user manual, the laser
optical pickup unit may be dirty. Consult your dealer or
an Authorized Service Center for inspection and
cleaning of the laser optical pickup unit.
Disc handling
• Handle the discs so that fingerprints and dust do not
adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is
not used.
Manufactured under license from
Dolby Laboratories. “Dolby” and the
double-D symbol are trademarks of
Dolby Laboratories.
Dolby Digital Recording
“Dolby® Digital Recording enables consumers to record
high-quality video with stereo sound on recordable DVD
discs. The technology, when utilized instead of PCM
recording, also saves recordable disc space, allowing for
higher video resolution or extended recording time on
each DVD. DVDs created using Dolby Digital Recording
will play back on all DVD-video players.”
Note: This is true when the players are compatible with
actual recordable DVD discs.
E2H40UD_v4.indd 5E2H40UD_v4.indd 5 2008/06/02 13:34:492008/06/02 13:34:49
6EN6EN
CONTENTS
Introduction
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

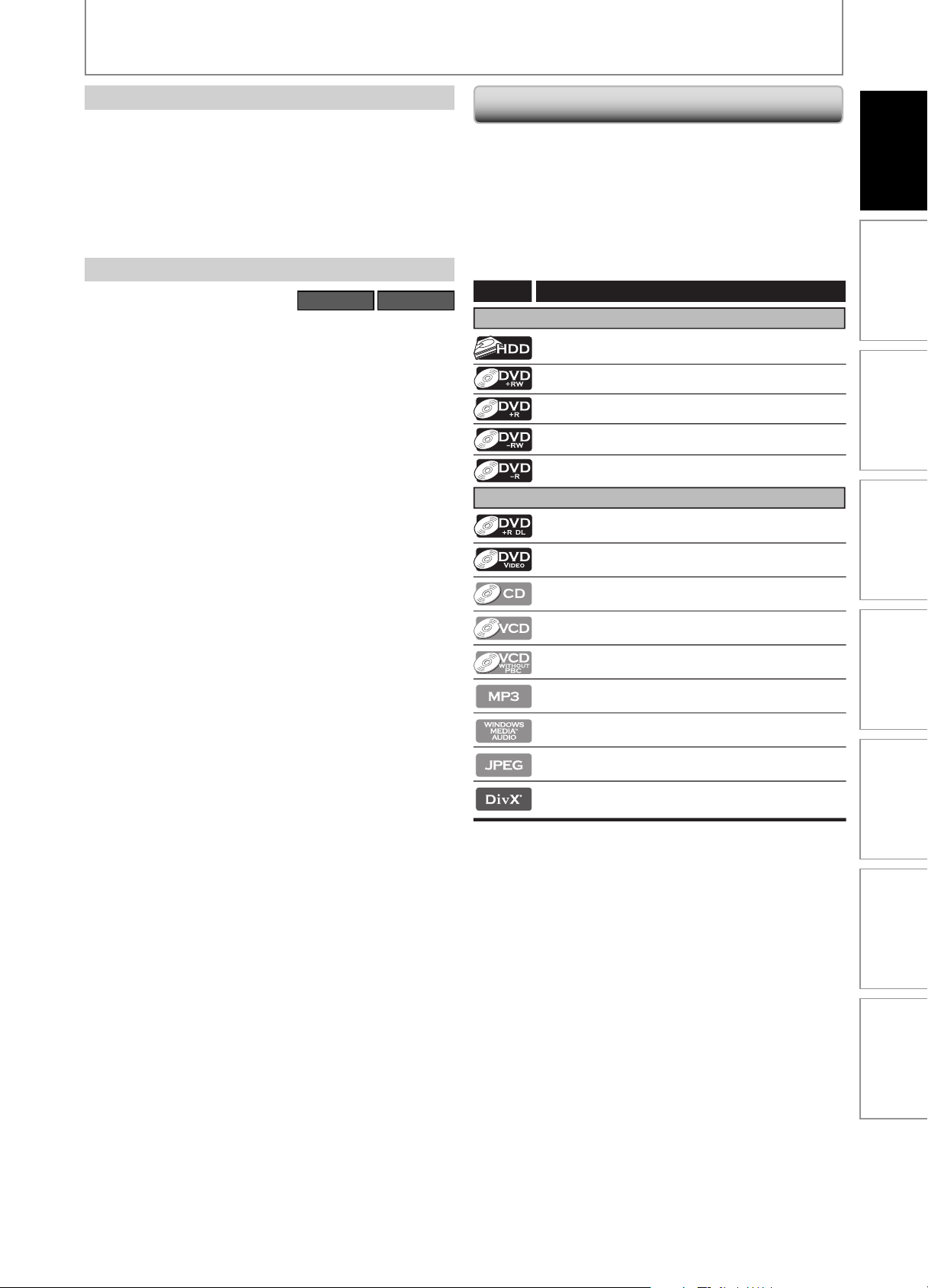

Symbols Used in this User Manual . . . . . . . . . . . . . . . . . . .9
FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . 10
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

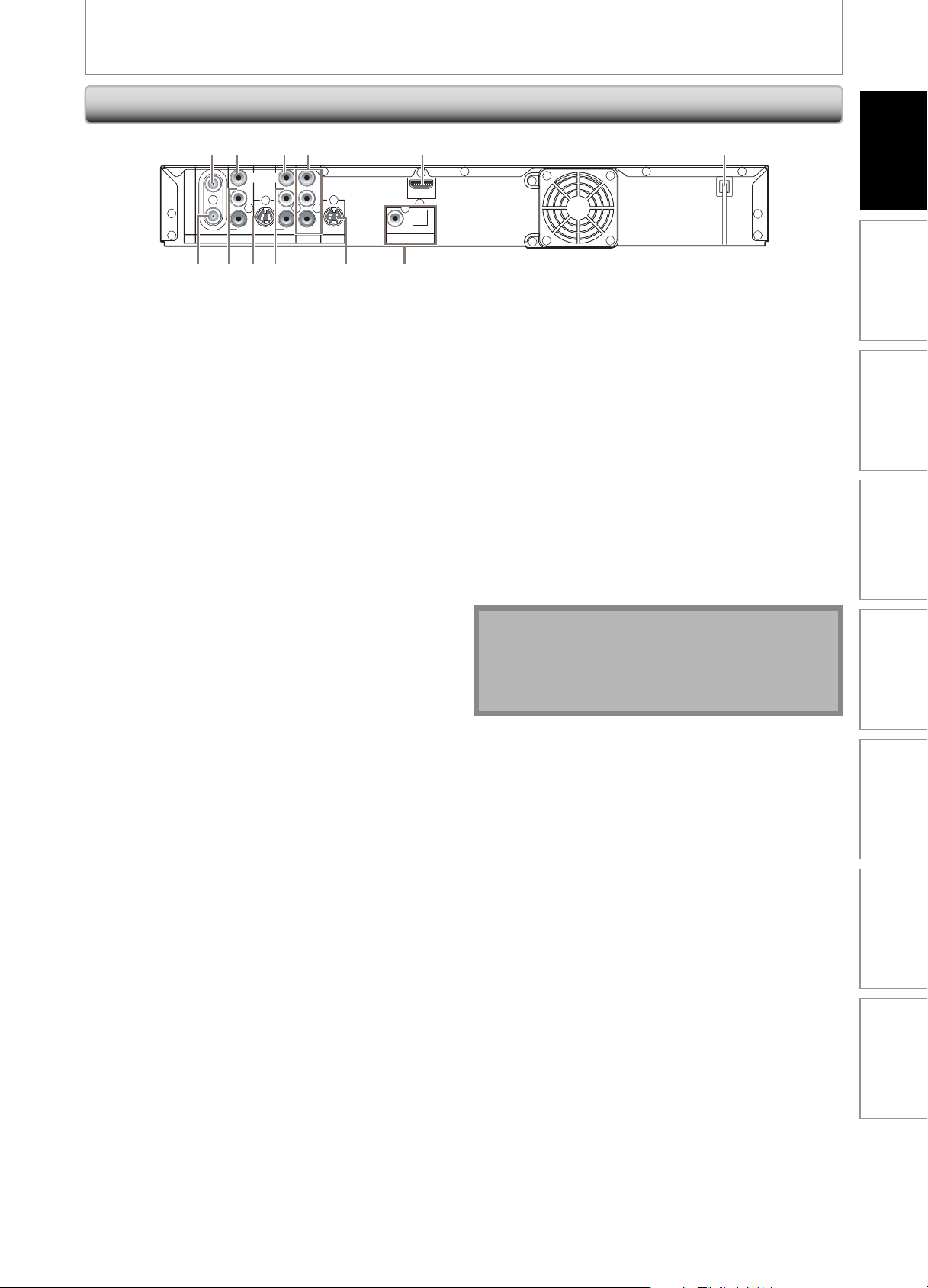

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connections
ANTENNA CABLE CONNECTION . . . . . . . . . . . . . . . . . . 15
RF MODULATOR CONNECTION. . . . . . . . . . . . . . . . . . . 16

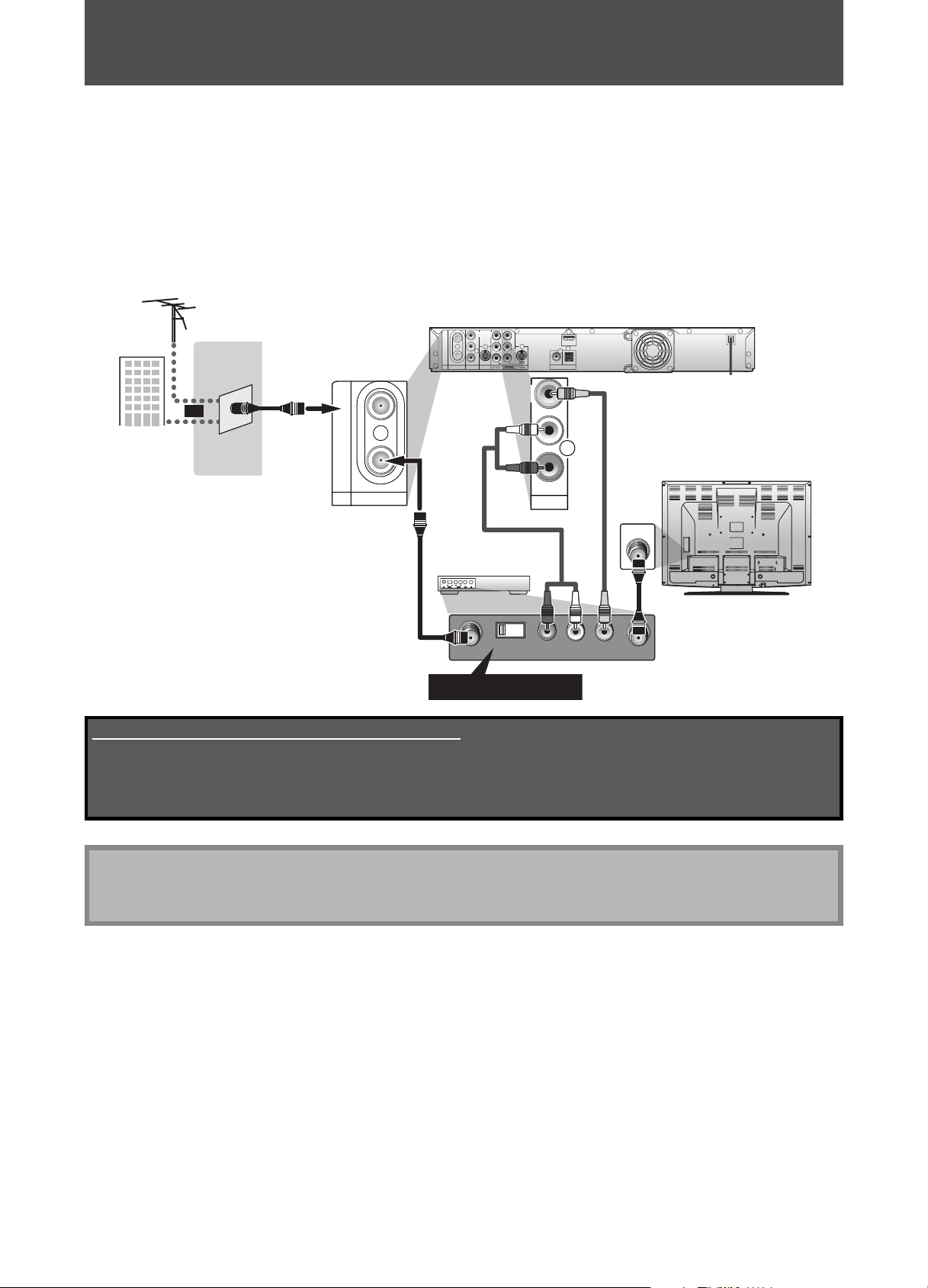

CONNECTION TO A CABLE / SATELLITE BOX. . . . . . . 17
CONNECTION TO A TV. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CONNECTION TO AN AUDIO SYSTEM . . . . . . . . . . . . . 20
Basic Setup
BEFORE YOU START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Finding the Viewing Channel on Your TV . . . . . . . . . . 21
Guide to On-Screen Display / Menu. . . . . . . . . . . . . . . . 22
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switching HDD / DVD Mode. . . . . . . . . . . . . . . . . . . . . . . 25
How to Insert a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
INITIAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CHANNEL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auto Channel Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Adding / Deleting Channels . . . . . . . . . . . . . . . . . . . . . . . 28
SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Auto Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Manual Clock Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Daylight Saving Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TUNER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Switching Analog Mode / Digital Mode . . . . . . . . . . . . 32
Channel Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Selecting TV Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
DTV Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Closed Caption Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Recording
INFORMATION ON RECORDING . . . . . . . . . . . . . . . . . . 38
BEFORE RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Make Recording Compatible . . . . . . . . . . . . . . . . . . . . . . 40
Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . 40
BASIC RECORDING &
ONE-TOUCH TIMER RECORDING . . . . . . . . . . . . . . . . . 41
TIMER RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Hints for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . 46
SPECIAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Pause Live TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Overwriting from the Beginning of the Title. . . . . . . . 48
Overwriting in the Middle of the Title. . . . . . . . . . . . . . 48
Hints for Overwriting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
DUBBING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Information on Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Settings for an External Device . . . . . . . . . . . . . . . . . . . . 51
Recording from an External Device . . . . . . . . . . . . . . . . 52
Information on DV Dubbing . . . . . . . . . . . . . . . . . . . . . . . 53
DVC to HDD / DVD Dubbing. . . . . . . . . . . . . . . . . . . . . . . 54
Selected Title Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
One Title Dubbing (HDD to DVD only) . . . . . . . . . . . . . 58
PROTECTING A DISC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PLAYING THE DISCS ON OTHER DVD PLAYERS . . . . 60
Finalizing a Disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Auto Finalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
E2H40UD_v4.indd 6E2H40UD_v4.indd 6 2008/06/02 13:34:502008/06/02 13:34:50
7EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
7EN
CONTENTS
Playback
INFORMATION ON PLAYBACK . . . . . . . . . . . . . . . . . . . 62
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Direct Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Playback from the Title List . . . . . . . . . . . . . . . . . . . . . . . . 65
Playing Back an Audio CD and a CD-RW/-R
with MP3/Windows Media™ Audio/JPEG Files . . . . . . 67
Playing Back a USB Device
with MP3/Windows Media™ Audio/JPEG Files . . . . . . . . . . . . 68
Playing Back a DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Using the Title / Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . 71
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Fast Forward / Fast Reverse Playback . . . . . . . . . . . . . . 72
Variable Skip / Variable Replay. . . . . . . . . . . . . . . . . . . . . 72
Rapid Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Step by Step Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Slow Forward / Slow Reverse Playback. . . . . . . . . . . . . 73
Time Shift Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Simultaneous Playback and Recording. . . . . . . . . . . . . 73
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Marker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Program Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
SELECTING THE FORMAT OF AUDIO AND VIDEO . . 79

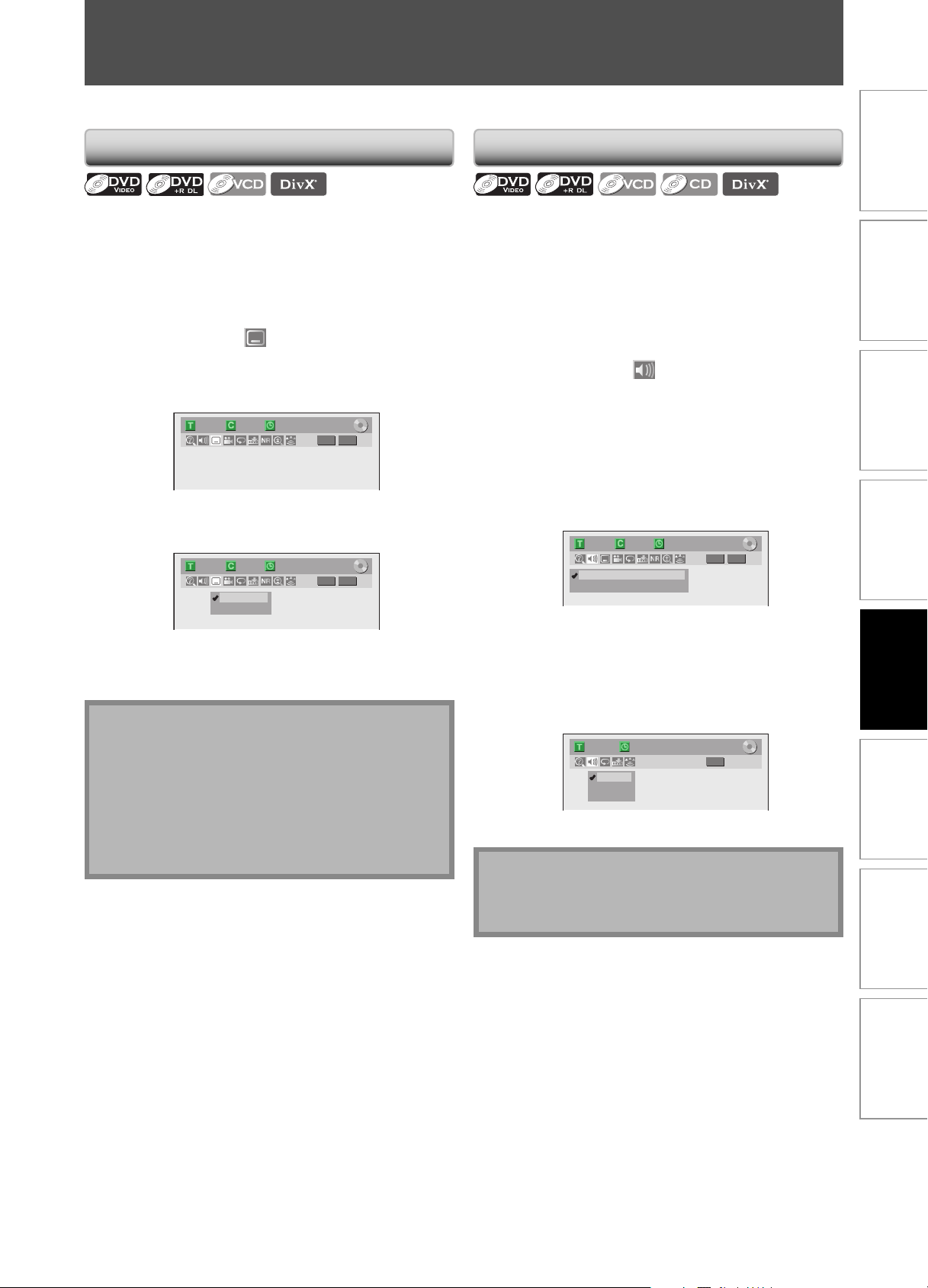

Switching Subtitles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Switching Audio Soundtrack . . . . . . . . . . . . . . . . . . . . . . 79
Switching Virtual Surround System . . . . . . . . . . . . . . . . 80
Switching Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . 80
Reducing Block Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Editing
INFORMATION ON EDITING. . . . . . . . . . . . . . . . . . . . . . 81

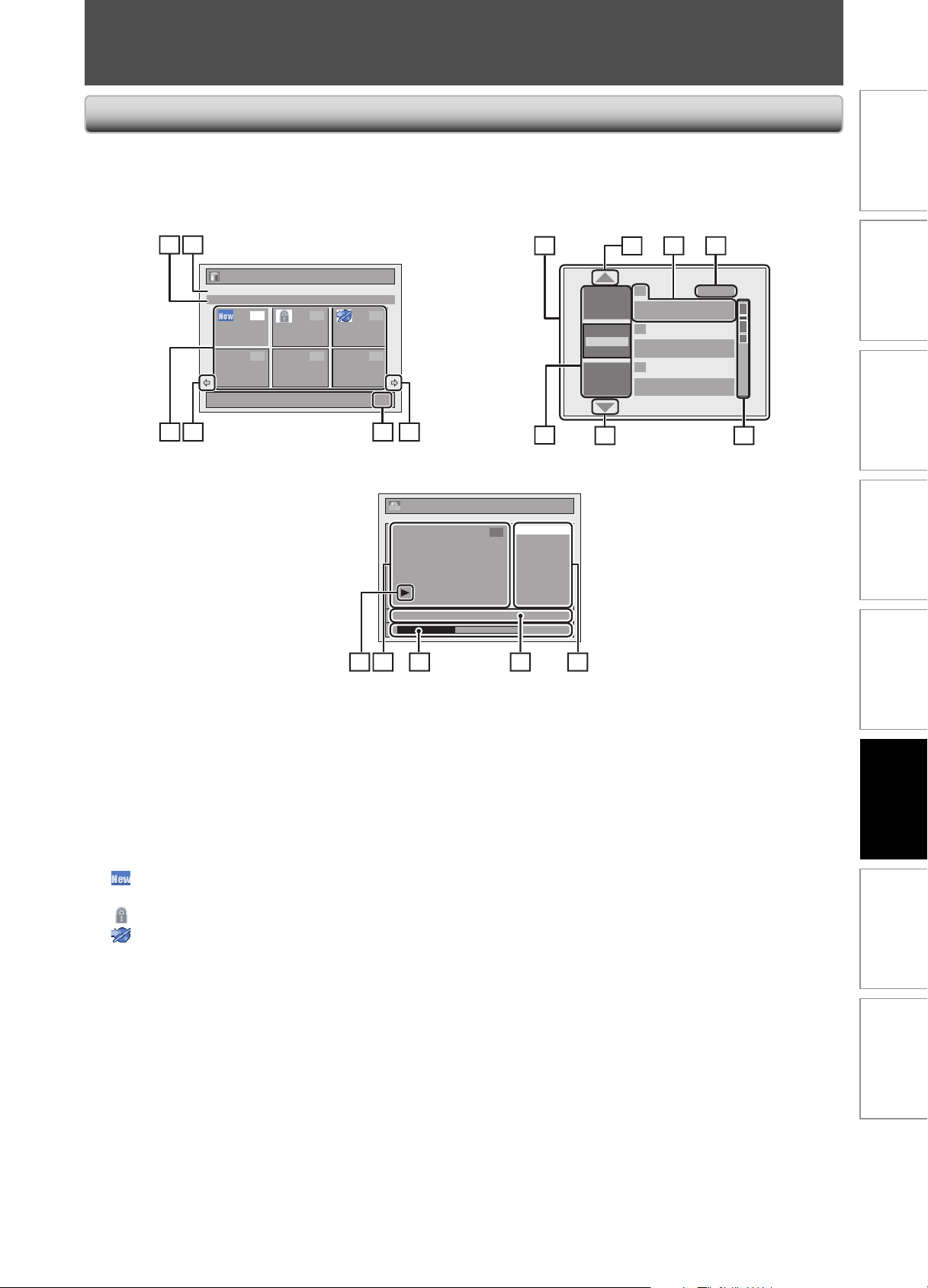

Guide to a Title List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Edit Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
How to Access the Edit Menu. . . . . . . . . . . . . . . . . . . . . . 82
EDITING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Deleting a Title. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Deleting Selected Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Putting Names on Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Chapter Marks (Add) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Chapter Marks (Delete) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Chapter Marks (Delete All). . . . . . . . . . . . . . . . . . . . . . . . . 89
Dividing a Title. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Deleting a Scene of a Title . . . . . . . . . . . . . . . . . . . . . . . . . 91
Protecting a Title. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Hiding Chapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Setting an Index Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Putting Name on Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Erasing Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Making Edits Compatible. . . . . . . . . . . . . . . . . . . . . . . . . . 98
Deleting All Titles in HDD. . . . . . . . . . . . . . . . . . . . . . . . . . 99
Function Setup
LIST OF SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
SETUPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
DivX® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Reset All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Others
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Frequently Asked Questions. . . . . . . . . . . . . . . . . . . . . . 117
LANGUAGE CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
E2H40UD_v4.indd 7E2H40UD_v4.indd 7 2008/06/02 13:34:502008/06/02 13:34:50
8EN8EN
FEATURES
This unit not only plays back the contents on internal HDD, DVD, or CD, but also offers features for you to record on HDD or DVD
and edit them after that.
The following features are offered with this unit.
This unit allows you to record on the HDD, a DVD+RW/-
RW (rewritable) and a DVD+R/-R (one-time write). You can
choose any one for your convenience. Even if you choose
DVD-RW/-R, these discs will automatically be recorded in the
DVD+VR mode.
HDD
DVD
Up to 36 program recording:
You can program the unit to record up to 36 programs within
a one-month period. Daily or weekly program recordings are
also available.
One-touch timer recording (OTR):
You can easily set a recording time as you prefer. Every time
[REC I] is pressed during recording, the recording time
will be increased by 30 minutes up to 6 hours. The record-
ing automatically stops when the recording time you set is
reached or the disc is full.
Automatic chapter mark setting:
Chapter marks will be put on recordings as you set before
attempting to record.
Automatic title list making:
The unit makes a title list with the index automatically.
HDD
160 GB hard disc:
This unit is equipped with a 160GB hard disc which allows
you to record up to 198 hours (with SLP mode).
Pause live TV:
With [PAUSE LIVE TV] button, you can virtually pause and
resume the live TV broadcast.
DVD
Alternate recording:
If there is no recordable disc in the unit, if the disc does
not have enough space to complete the recording, or if
the material is “copy-once” program and prohibited to be
recorded on a DVD, the unit will detect it and automatically
record to the HDD even when DVD is selected as the record-
ing media.
This feature is available only for timer recording. Not avail-
able for one-touch timer recording.
Recording
HDD
DVD
Deleting a title:
You can delete a title which you do not need anymore.
Putting names on titles:
You can put your favorite names on titles.
Setting / clearing chapter marks:
You can set / clear chapter marks on titles.
Dividing titles:
You can divide a title into 2 or more.
HDD
Deleting a scene of a title:
You can delete a scene from a title as you like.
DVD
Hiding chapters:
To keep others from playing back some chapters without
permission, you can hide chapters.
Setting an Index Pictures:
You can change pictures for an index.
Putting name on disc:
You can put your favorite disc name.
Editing
Playback
Dubbing
With this unit, you can enjoy bi-directional dubbing between
HDD and DVD.
HDD
DVD
High speed dubbing (HDD ➔ DVD only):
This feature offers you the dubbing speed of 12 times the
SLP mode dubbing at the maximum.
Just dubbing (HDD ➔ DVD only):
When dubbing from HDD to DVD, if you set the recording
mode to “Auto”, the recording mode will automatically be
adjusted so the titles will fit nicely in the remaining space of
the disc.

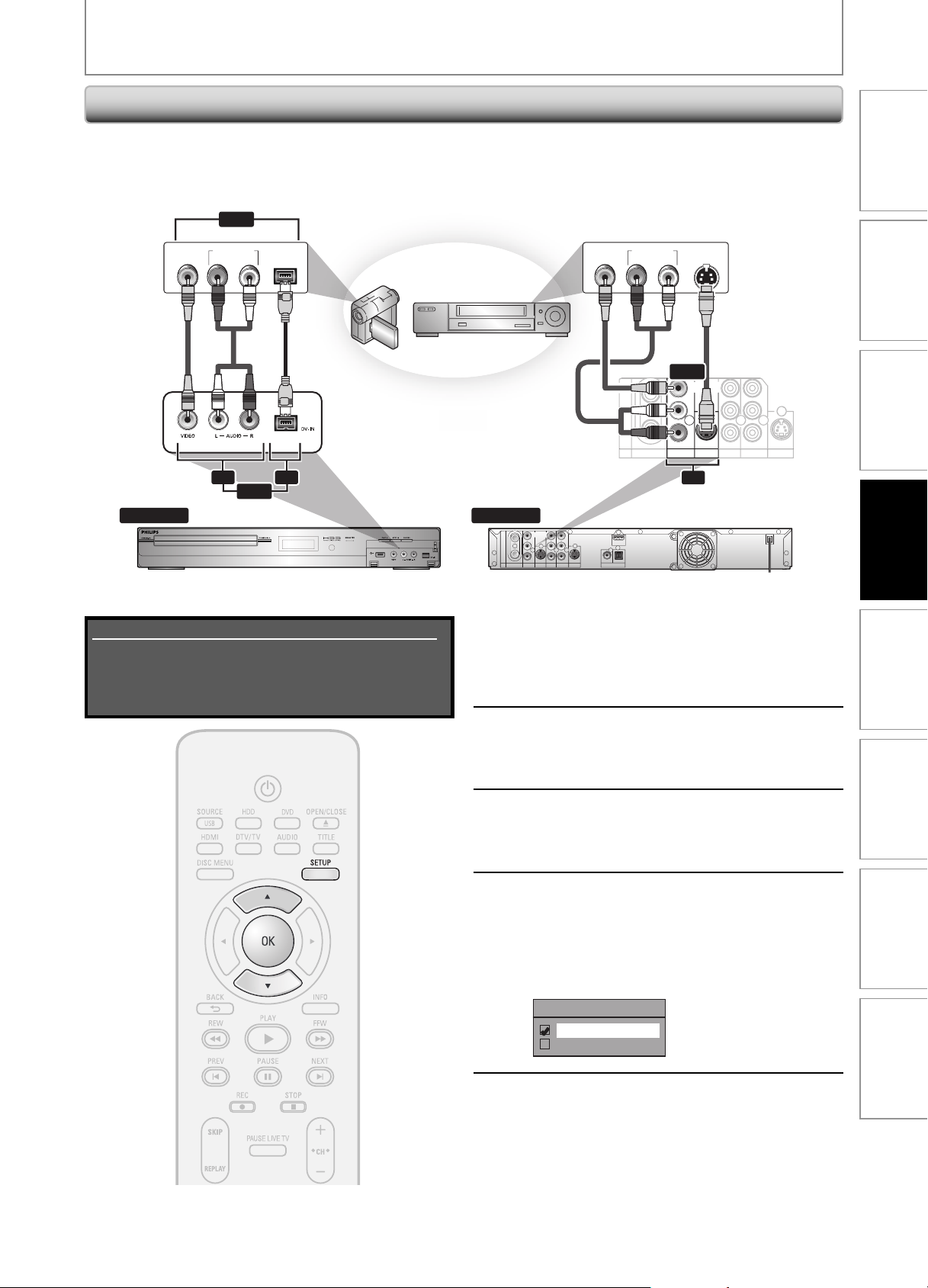

DV dubbing:
This function helps you to easily dub the contents of the DVC
(digital video camcorder) to HDD/DVD.
HDD
DVD
Theater surround sound in your home:
When connecting the unit to an amplifier or a decoder which
is compatible with Dolby Digital, you can experience the theat-
er surround sound from discs with surround sound system.
Quick search for what you want to watch:
You can easily find the part you want to watch using the
search functions. You can search for a desired point by title,
chapter or time.
Virtual surround system:
You can enjoy stereophonic space through your existing 2
channel stereo system.
Variable skip:
You can skip forward a certain time, which is specified in
“Playback” menu in advance, with one-touch while playback.
Variable replay:
You can skip back a certain time, which is specified in
“Playback” menu in advance, with one-touch while playback.

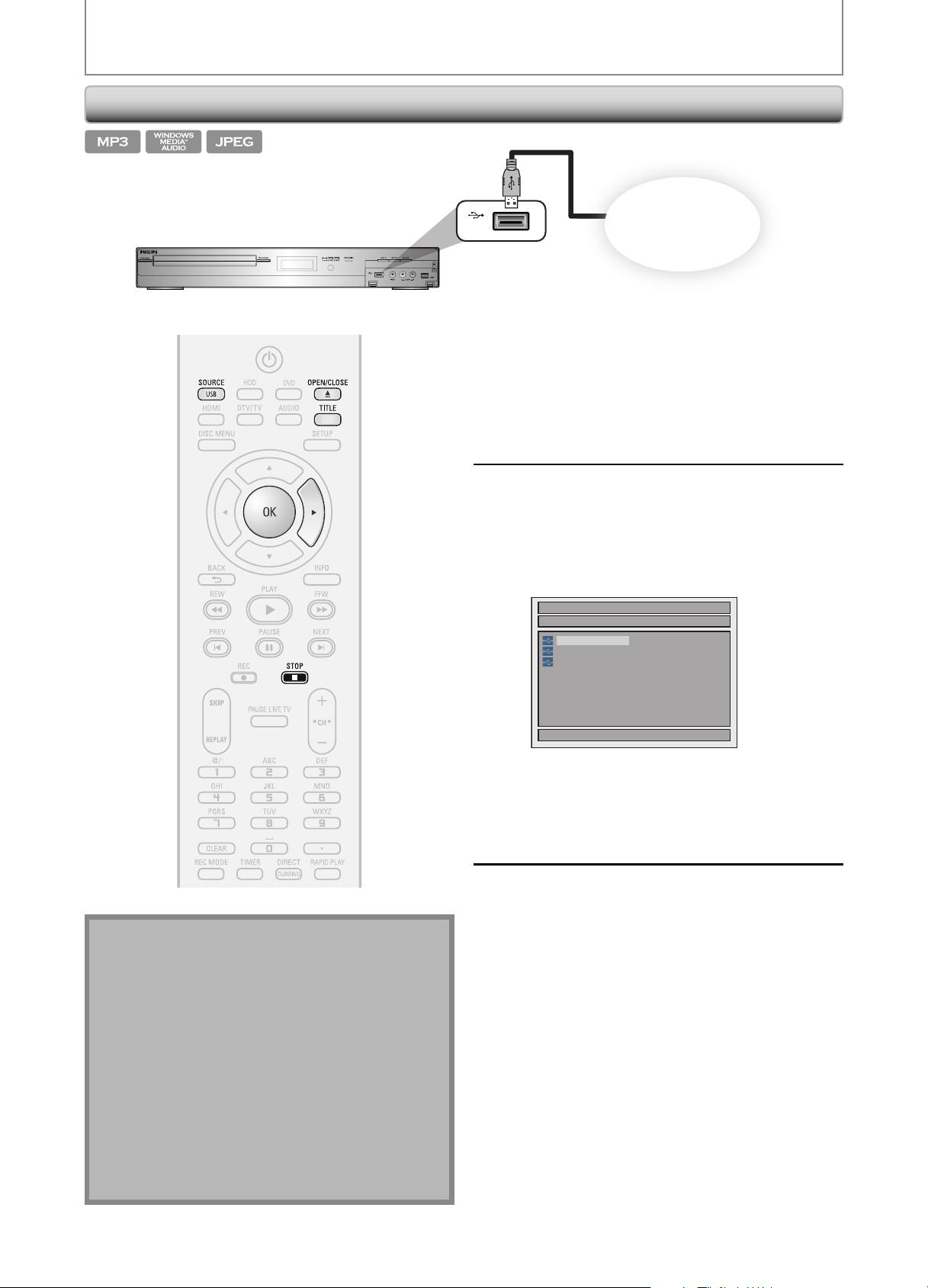

Playing back MP3/Windows Media™ Audio/JPEG files
recorded in a USB device.
HDD
Time shift playback:
You can play back a title being recorded from the beginning
while recording continues.
DVD
Playing back MP3/Windows Media™ Audio/JPEG/DivX®
files:
You can enjoy MP3/Windows Media™ Audio/JPEG/DivX® files
which are recorded on CD-RW/-R.
DivX® files can also be recorded on DVD+RW/+R or DVD-RW/-R.
E2H40UD_v4.indd 8E2H40UD_v4.indd 8 2008/06/02 13:34:502008/06/02 13:34:50
9EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
9EN
Available for playing back discs on a regular DVD player:
Recorded discs can be played back on regular DVD players,
including computer DVD drives compatible with DVD-video
playback. Although DVD+R are playable on other units
without finalization in most cases, it is recommended to
finalize in order to stabilize the performance. For DVD-RW/-R,
you need to finalize the recorded discs to play back on other
DVD players.
Compatibility
HDD
DVD
Progressive scan system:
Unlike conventional interlace scanning, the progressive scan
system provides less flickering and images in higher
resolution than that of traditional television signals.
HDMI (High-Definition Multimedia Interface):
You can enjoy clearer audio/video output when connecting
this unit to a display device with an HDMI-compatible port.
Others
Symbols Used in this User Manual
To specify for which media type each function is, we put the
following symbols at the beginning of each item to operate.
* DVD-RW/-R recorded in VR mode or non compatible
recording format are not playable.
* DVD-RW recorded in the mode other than +VR is not
recordable on this unit unless you erase all contents in the
disc (refer to page 97).
* DVD-R recorded in the mode other than +VR is not
recordable on this unit.
Symbol
For Recording, Playing Back, and Editing
Description
Description refers to HDD
For Playback only
Description refers to DVD+RW
Description refers to DVD+R
Description refers to audio CD
Description refers to video CD with PBC function
Description refers to video CD without PBC
function
Description refers to CD-RW/-R with MP3 les
Description refers to CD-RW/-R with Windows
Media™ Audio les
Description refers to CD-RW/-R with JPEG les
Description refers to DVD+RW/+R, DVD-RW/-R and
CD-RW/-R with DivX
®
les
Description refers to DVD-video
If you do not nd any of the symbols listed above under the
function heading, the operation is applicable to all media.
Description refers to DVD+R DL
Description refers to DVD-RW
Description refers to DVD-R
FEATURES
E2H40UD_v4.indd 9E2H40UD_v4.indd 9 2008/06/02 13:34:502008/06/02 13:34:50
10 EN10 EN
FUNCTIONAL OVERVIEW
(
*
) The unit can also be turned on by pressing these buttons.
1. STANDBY-ON
button
Press to turn the unit on and off.
2. Disc tray
Place a disc when opening the disc tray.
3. OPEN/CLOSE A button*
Press to open or close the disc tray.

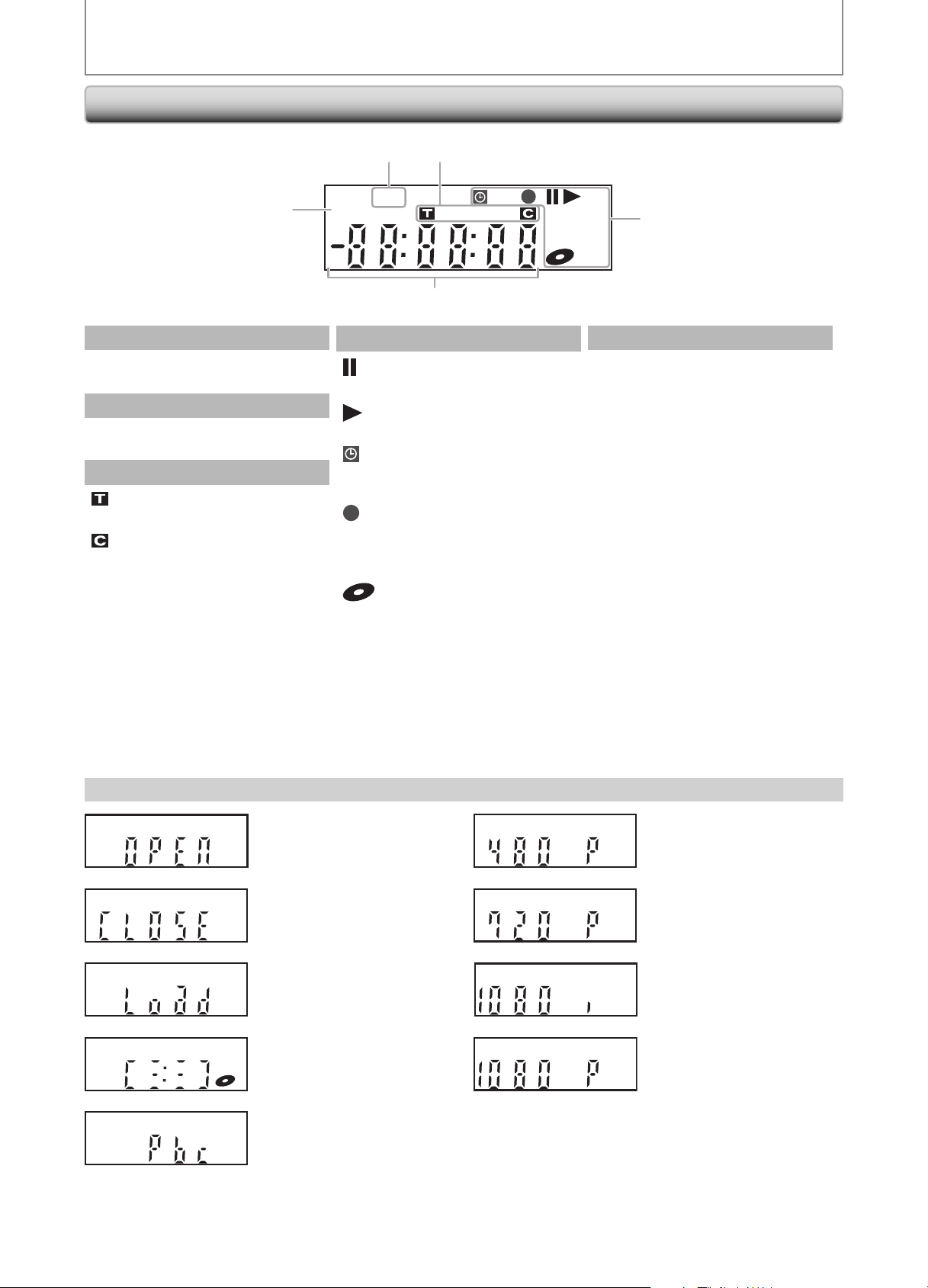

4. Display
Refer to “Front Panel Display” on page 14.
5. HDD ACTIVE indicator
Appears when HDD is in recording, dubbing, or play-
ing back.
6. PLAY B button*
Press to start or resume playback.
7. STOP C button
Press to stop playback or recording.
8. RECORD button
Press once to start a recording. Press repeatedly to
start one-touch timer recording.
9. DV-IN jack (E3)
Use to connect the DV output of external device with
a DV cable.
10. AUDIO input jacks (E2)
Use to connect external device with a RCA audio
cable.
11. VIDEO input jack (E2)
Use to connect external device with a RCA video
cable.
12. USB input jack (USB)
You can plug your USB device here, and play back the
contents in it.
13. Infrared sensor window
Receive signals from your remote control so that you
can control the unit from a distance.
Front Panel
HDD & DVD PLAYER / RECORDER DVDR
3575
H
1 2 3* 5 6* 7 8
910111213
4
USB
E2H40UD_v4.indd 10E2H40UD_v4.indd 10 2008/06/02 13:34:502008/06/02 13:34:50
11EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
11EN
1. ANTENNA IN jack
Use to connect an antenna.
2. VIDEO IN jack (E1)
Use to connect external device with a RCA video
cable.
3. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other
device with a RCA video cable.
4. COMPONENT VIDEO OUTPUT jacks
Use to connect a TV monitor with component video
inputs with a component video cable.
5. HDMI OUT jack
Use an HDMI cable to connect to a display with an
HDMI compatible port.
6. AC Power Cord
Connect to a standard AC outlet to supply power to
this unit.
7. DIGITAL AUDIO OUTPUT (COAXIAL/OPTICAL) jacks
Use to connect an AV receiver, Dolby Digital decoder
or other device with a digital audio coaxial/optical
input jack with a digital audio coaxial/optical cable.
8. S-VIDEO OUT jack
Use to connect the S-video input of a TV monitor, AV
receiver or other device with an S-video cable.
9. AV OUT jacks
Use to connect a TV monitor, AV receiver or other
device with a RCA audio cable.
10. S-VIDEO IN jack (E1)
Use to connect the S-video output of external device
with an S-video cable.
11. AV IN jacks (E1)
Use to connect external device with a RCA audio
cable.
12. ANTENNA OUT jack
Use to connect an RF coaxial cable to pass the signal
from the ANTENNA IN to your TV.
Note
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
• This unit does not have the RF modulator.
Rear Panel
FUNCTIONAL OVERVIEW
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV IN
AV O UT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
1 2 43 65
10 8
712 11 9
E2H40UD_v4.indd 11E2H40UD_v4.indd 11 2008/06/02 13:34:502008/06/02 13:34:50
12 EN12 EN
FUNCTIONAL OVERVIEW
Using a Remote Control
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the remote
control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the infrared
sensor window of the unit.
• Remote control for different devices can interfere with
each other. Avoid using remote control for other device
located close to the unit.
• Replace the batteries when you notice a fall off in the
operating range of the remote control.
• The maximum operable ranges from the unit are as
follows.
- Line of sight: approx. 23 feet (7m)
- Either side of the center:
approx. 16 feet (5m) within 30°
- Above: approx. 16 feet (5m) within 15°
- Below: approx. 10 feet (3m) within 30°
Install the batteries (AAAx2) matching the polarity
indicated inside battery compartment of the remote
control.
Note
Incorrect use of batteries can result in hazards such as
leakage and bursting. Please observe the following:
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
Although they may look similar, different batteries
may have different voltages.
• Make sure that the + and - ends of each battery
match the indications in the battery compartment.
• Remove batteries from battery compartment that is
not going to be used for a month or more.
• When disposing of used batteries, please comply
with governmental regulations or environmental
public instruction’s rules that apply in your country
or area.
• Do not recharge, short-circuit, heat, burn or
disassemble batteries.
1
Open the cover.
2
Insert batteries.
Make sure to match + and - on the batteries to
the marks indicated in the battery compartment.
3
Close the cover.
Remote Control
Installing the Batteries in the Remote Control
HDD & DVD PLAYER / RECORDER DVDR
3575
H
16feet (5m)
30˚
16feet (5m)
30˚
23feet (7m)
HDD & DVD RECORDER
3
1
2
4
5
6
9
11
22*
23
20
21
24
26
10
27
12
28
14
15
17
18
19
16
31
32
33
34
13
29
25
7
8*
3
0
E2H40UD_v4.indd 12E2H40UD_v4.indd 12 2008/06/02 13:34:522008/06/02 13:34:52
13EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
13EN
FUNCTIONAL OVERVIEW
(
*
) The unit can also be turned on by pressing these buttons.
1. STANDBY-ON
yy
button
• Press to turn the unit on and off.
2. DTV/TV button
• Press to switch between digital TV (DTV) mode and
analog TV (TV) mode.
3. SOURCE / USB button
• Press to select the appropriate input.
4. HDMI button
• Press to set the HDMI connector’s video signal out-
put mode.
5. DISC MENU button
• Press to display the disc menu.
6. AUDIO button
• Press to switch the audio language for digital TV.
• Press to display the audio menu during playback.
7. Cursor K / L / { / B buttons
• Press to select items or settings.
8. PLAY B button*
• Press to start playback or resume playback.
9. BACK
button
• Press to return to the previously displayed menu
screen.
10. REW E button
• During playback, press to fast reverse the playback.
• When playback is in pause, press to slow reverse
the playback.
11. PAUSE F button
• Press to pause playback or recording.
12. PREV
button
• During playback, press to return to the beginning of
the current chapter, track or file.
• When playback is in pause, press repeatedly to
reverse the playback step by step.
13. REC I button
• Press once to start a recording.
• Press repeatedly to start the one-touch timer
recording.
14. SKIP button
• Skips by the amount of time set in advance.
15. REPLAY button
• Replays by the amount of time set in advance.
16. Number/Character buttons
• Press to select channel numbers.
• Press to select a title/chapter/track/file on display.
• Press to enter values for the settings in the main
menu.
• Press to enter title names.
17. CLEAR button
• Press to clear the information once entered, to clear
the marker settings, or to cancel the programming
for CD, etc.
18. REC MODE button
• Press to switch the recording mode.
19. TIMER button
• Press to display the timer programming list.
20. HDD button
• Press to select the HDD output mode.
21. DVD button
• Press to select the DVD output mode.
22. OPEN/CLOSE A button*
• Press to open or close the disc tray.
23. TITLE button
• Press to display the title list.
24. SETUP button
• Press to display the main menu.
• During playback, press and hold for more than 3
seconds to switch the progressive scanning mode
to the interlace mode.
25. OK button
• Press to confirm or select menu items.
26. INFO button
• Press to display the display menu on or off.
27. FFW D button
• During playback, press to fast forward the playback.
• When playback is in pause, press to slow forward
the playback.
28. NEXT
button
• During playback, press to skip to the next chapter,
track or file.
• When playback is in pause, press repeatedly to for-
ward the playback step by step.
29. STOP C button
• Press to stop playback or recording.
• Press to exit from the title list.
30. PAUSE LIVE TV button (HDD)
• Press twice to pause live TV program you are watch-
ing. Press it again to continue watching it.
31. CH
/ buttons
• Press to change the channel up and down.
32. Confirm ( • ) button
Analog mode:
• Press to confirm the channel selection made by
[the Number buttons].
Digital mode:
• Press to confirm the major / minor channel
selection made by [the Number buttons].
33. RAPID PLAY button
• During playback, press to play back in a slightly
faster/slower mode with keeping the audio quality.
34. DIRECT DUBBING button
• During playback, press to start dubbing right away.
• In stop mode, press to display “Dubbing” menu.
E2H40UD_v4.indd 13E2H40UD_v4.indd 13 2008/06/02 13:34:522008/06/02 13:34:52
14 EN14 EN
Appears when data is being
written on a disc.
Appears when a disc is loaded
on the disc tray.
Appears when the PBC function
is activated. (Video CD playback
only. Refer to page 63.)
Appears when the disc tray is
closing.
Appears when the disc tray is
opening.
Display Message
Appears when HDMI output
mode (720p) is selected.
Appears when HDMI output
mode (1080p) is selected.
Appears when HDMI output
mode (480p) is selected.
Appears when HDMI output
mode (1080i) is selected.
FUNCTIONAL OVERVIEW
Front Panel Display
PM
DTV BS CS DR CD
VCR
HDDDB
DVD
1
5
3
4
2
1.
PM
: Appears in the afternoon
with the clock display.
2.
DT
V
: Appears when the channel
is in DTV mode.
3. Title / track / file and chapter mark
: Appears when indicating a
title / track / file number.
: Appears when indicating a
chapter number.
4. Current status of the unit
: Appears when playback is
paused.
: Appears when playing back
a disc.
: Appears when the timer
programming or OTR has
been set and is proceeding.
: Appears during recording
process.
: Flashes when a recording
pauses.
: Appears when a disc is in
this unit.
DB
: Appears during dubbing.
HDD
: Appears when the unit is in
HDD mode.
DVD
: Appears when the unit is in
DVD mode.
5. Displays the following
• Elapsed playback time
• Current title / chapter / track /
file number
• Recording time / remaining time
• Clock
• Channel number
• Remaining time for one-touch
timer recording
• Selected HDMI OUTPUT mode
E2H40UD_v4.indd 14E2H40UD_v4.indd 14 2008/06/02 13:34:532008/06/02 13:34:53
15EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup Others
15EN
ANTENNA CABLE CONNECTION
This section describes how to connect your unit to an antenna, cable box, etc.
* Once connections are completed, turn on the TV and
begin initial setting.
Channel scanning is necessary for the unit to memorize
all available channels in your area.
(Refer to “INITIAL SETTING” on page 26.)
Note
• For your safety and to avoid damage to the device, please unplug the RF coaxial cable from the ANTENNA IN jack
before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be
more effective than set-top versions.
• Antenna out is for tuner pass through only. HDD/DVD playback through the RF is not possible.
ANT. IN
VHF / UHF
antenna
RF coaxial cable
cable TV
company
or
rear of your TV
disconnectdisconnect
1
1
12
L
HDMI OUT
O
OUTPUT
T
REAM
rear of this unit
rear of your TV
connect
4
Plug in the power cord of this unit and your TV to the AC outlet.
1
Disconnect the power cord of your TV from the AC outlet.
2
Disconnect RF coaxial cable from antenna input jack of your TV.
3
Connect cables to the unit.
Make the basic connection as illustrated below.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your
local store.
IN
OUT
ANTENNA
IN
OUT
VIDEO
OUT
R
L
R
L
VIDEO
IN
S-VIDEO
ANTENNA
COAXIAL OPTICAL
AV I N
AV OUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
VIDEO
OUT
R
L
AV OUT
rear of your TV
ANT. IN
rear of this unit
VIDE
O
O
OU
T
AUDIO IN
LR
VIDEO IN
VHF / UHF
antenna
RF coaxial cable
RF coaxial cable
or
RCA audio
cable
RCA video
cable
cable TV
company
This connection is for
TV loop through only
E2H40UD_v4.indd 15E2H40UD_v4.indd 15 2008/06/02 13:34:542008/06/02 13:34:54
16 EN16 EN
RF MODULATOR CONNECTION
If your TV has antenna in jack only, it is still possible to connect this unit to your TV by using a commercially available
stereo audio/video RF modulator. In this case, follow the instructions below.
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area.
If your RF modulator has a modulator/antenna switch, set it according to the manual supplied with the RF
modulator.
4) Plug in the power cords of the devices to the AC outlet.
5) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.
For more details, follow the manual supplied with the RF modulator.
Note
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
• The quality of picture may become poor if this unit is connected to an RF modulator.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
rear of this unit
rear of your TV
rear of your RF modulator
(not supplied)
IN
OUT
ANTENNA
IN
OUT
VIDEO
OUT
Y
B
/C
B
R
L
VIDEO
IN
S-VIDEO
ANTENNA
COAXIAL OPTICAL
AV I N
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
RCA audio cable
RCA video
cable
AUDIO IN TO TVANT. IN
LR
CHANNEL
43
VIDEO IN
ANT. IN
Set channel 3 or 4
VIDEO
OUT
R
L
AV OUT
RF coaxial cable
RF coaxial cable
VHF / UHF
antenna
RF coaxial
cable
cable TV
company
or
E2H40UD_v4.indd 16E2H40UD_v4.indd 16 2008/06/02 13:34:552008/06/02 13:34:55
17EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup Others
17EN
CONNECTION TO A CABLE / SATELLITE BOX
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Plug in the power cords of the devices to the AC outlet.
Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
• Instead of using video out jack of this unit, you can also use S-VIDEO OUT jack, COMPONENT VIDEO OUT jack, or
HDMI OUT jack (no audio out jack connection required) for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the
cable/satellite box is turned on.
• You cannot record one channel while watching another channel.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
ANT. IN
RF OUTANT. IN
AUDIO IN
LR
VIDEO IN
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV I N
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
AUDIO OUT
LR
VIDEO
OUT
S-VIDEO
OUT
IN
OUT
ANTENNA
OUT
VIDEO
OUT
Y
PR/CR
PB/CB
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEO
AV IN
AV OUT
COMPONENT
VIDEO OUTPUT
IN
or
This connection is for
TV loop through only
cable/
satellite
box
satellite
dish
e.g.)
cable TV
company
rear of this unit
rear of your TV
RF coaxial
cable
RF coaxial cable
RCA audio
cable
RCA video cable
RCA audio
cable
RCA video
cable
or
S-video cable
E2H40UD_v4.indd 17E2H40UD_v4.indd 17 2008/06/02 13:34:562008/06/02 13:34:56
18 EN18 EN
COMPONENT
VIDEO IN
Y
PB/CB
PR/CR
Y
P
R
/C
R
P
B
/C
B
COMPONENT
VIDEO OUTPUT
(Green)
(Blue)
(Red)
(Green)
(Blue)
(Red)
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
S-VIDEO
COAXIAL OPTICAL
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
HDMI OUT
AUDIO IN
LR
R
L
AV OUT
Make one of the following connections, depending on the capabilities of your existing device.
OUT
S-VIDEO
S-VIDEO IN
TV
this unit
Note for HDMI connection
• A simple 1-cable connection with a device having an HDMI (high-definition multimedia interface) connector
allows digital transfer of the digital images of DVD-video and other devices.
When connecting with an HDMI cable, the audio signal will be output as the digital audio signal simultaneously,
so you do not need the analog audio connection described above.
Note
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be
distorted due to the copy protection system.
To set progressive scan mode, refer to page 110
• This unit is compatible with the progressive scan system. The feature provides you with the higher quality images than the
traditional output system does. To utilize this feature, you must set “Progressive Scan” to “ON”.
CONNECTION TO A TV
VIDEO
OUT
R
L
AV OU T
VIDEO
IN
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
and or or
HDMI OUT
HDMI IN
HDMI
cable
analog audio
RCA
audio cable
RCA
video
cable
S-video
cable
component
video cable
Method 3
better picture
COMPONENT
VIDEO OUT
Method 2
good picture
S-VIDEO OUT
Method 1
standard picture
VIDEO OUTAV OUT
Method 4
best picture
HDMI OUT
or
E2H40UD_v4.indd 18E2H40UD_v4.indd 18 2008/06/02 13:34:572008/06/02 13:34:57
19EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup Others
19EN
HDMI Mode and Actual Output Signals
Press [HDMI] to select the HDMI output mode. The output mode changes as follows every time [HDMI] is pressed.
Front Panel Display Video Output Signal
480 Progressive
Press [HDMI]
720 Progressive
Press [HDMI]
1080 interlaced
Press [HDMI]
1080 Progressive
Press [HDMI]
• The HDMI mode that is not supported by display device will be skipped.
CONNECTION TO A TV
*HDMI: High Definition Multimedia Interface
Copyright protection system
To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the
display device (or an AV amplifier) support a copyright protection system called HDCP (high-bandwidth digital
content protection system). HDCP is copy protection technology that comprises data encryption and authentication
of the connected AV device. This unit supports HDCP. Please read the operating instructions of your display device
(or AV amplifier) for more information.
Note
• When using HDCP-incompatible display device, the image will not be viewed properly.
• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; however,
this unit cannot be controlled by another device via the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit
length) maybe limited by the device that is connected.
• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In
connections with device such as this unit, audio signals are not output from the HDMI output connector.
• When this unit’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMI-
DVI converter cable, the signals are output in digital RGB.
Audio recording format of the disc Dolby Digital setting of this unit Actual output
DVD-video
Dolby Digital
PCM 2channel PCM
Stream Dolby Digital
LPCM
PCM
2channel PCM
Stream
DivX®
Dolby Digital
PCM 2channel PCM
Stream Dolby Digital
MP3 / MP2
PCM
2channel PCM
Stream
For audio CD, video CD, and MP3 / Windows Media™ Audio files, 2 channel PCM will be output regardless of the
“Dolby Digital” setting.
*1 If the connected device is not compatible with HDMI BITSTREAM, audio will be output as PCM even if you select
“Stream” in “Dolby Digital” setting.
Refer to page 112 for “HDMI” setting.
Actual Output Modes by Media
E2H40UD_v4.indd 19E2H40UD_v4.indd 19 2008/06/02 13:34:572008/06/02 13:34:57
20 EN20 EN
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV IN
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
R
L
AV OUT
AUDIO IN
LR
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV I N
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
COAXIAL
DIGITAL AUDIO INPUT
OPTICAL
DIGITAL AUDIO INPUT
COAXIAL OPTICAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
or
CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
stereo system
audio
analog audio
input jacks
RCA audio cable
AV OUT
2 Channel Analog Audio Connection Digital Audio Connection
Dolby Digital decoder, MD deck or DAT deck
digital audio coaxial / optical
input jacks
digital audio coaxial / optical
cable
DIGITAL AUDIO OUTPUT
this unit
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Setting
Setup >General Setting >Playback >Disc Audio >
Dolby Digital
Connection
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
Stream
Connecting to an MD deck or DAT deck. PCM
If not connected to any external devices. PCM
* To complete these settings, refer to page 105.
Optical cable (commercially available)
• Optical cable (commercially available) may be damaged when bent at sharp angles. Ensure cables are coiled in
loops with a diameter of 6 inches (15cm) or more when storing them.
• Use a cable which is 9.8 feet (3m) or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.
E2H40UD_v4.indd 20E2H40UD_v4.indd 20 2008/06/02 13:34:582008/06/02 13:34:58
21EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
21EN
BEFORE YOU START

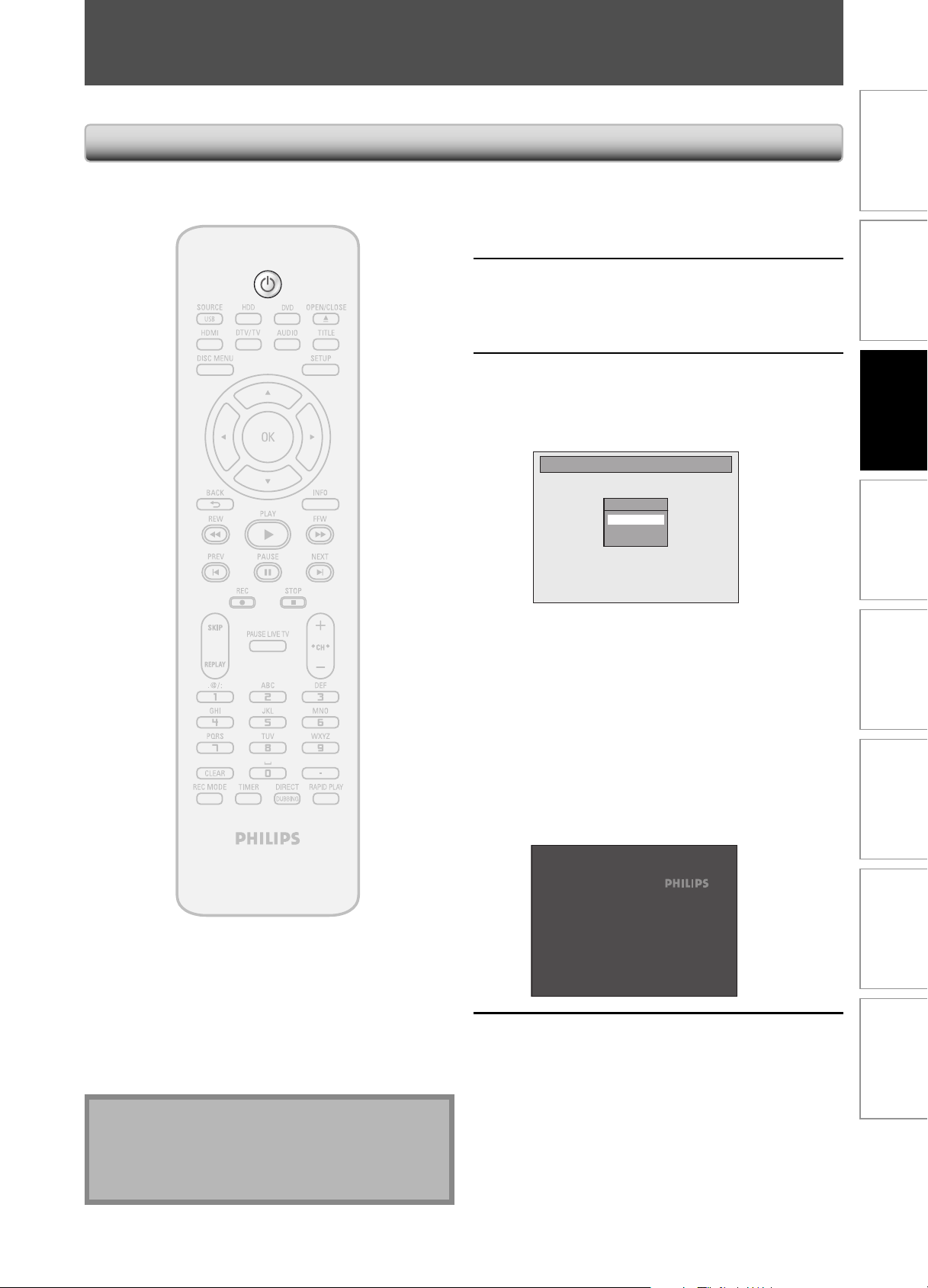

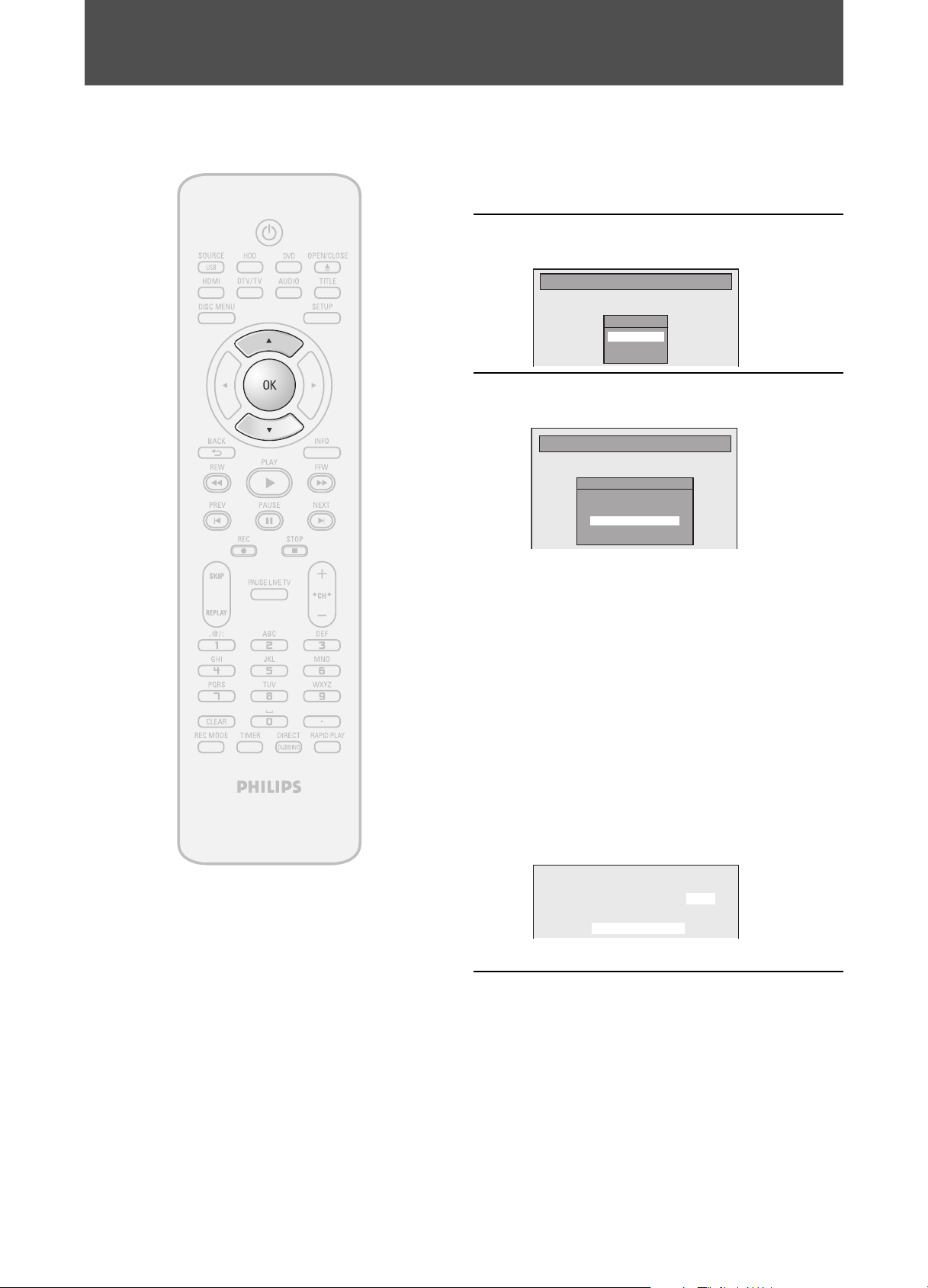

After you have completed all the connections, you must find the viewing channel (external input channel) on your TV.
1
After you have made all the
necessary connections, press
[STANDBY-ON
yy] to turn on the unit.
2
Turn on your TV.
• If connected to your VCR make sure it is
switched off or in standby mode before
proceeding.
3
Press “2” on the TV’s remote control,
then press channel down button
repeatedly until you see “Initial
Setup” menu.
Initial Setup
OSD Language
English
Français
Español
This is the correct viewing channel (external
input channel) for the recorder.
• For some TVs, there may be a button on the
TV’s remote control that accesses the external
input channel. It may be labeled “SOURCE”,
“AV”, or “SELECT”. In such case, press it
repeatedly. Refer to your TV’s user manual for
details.
• If more than 10 minutes have past since you
have turned on the unit, you may see the
PHILIPS screen saver instead of “Initial Setup”
menu.
PHILIPS screen saver:
4
Proceed to step 2 in “INITIAL
SETTING” on page 26.
Finding the Viewing Channel on Your TV
Note
• Video input selection varies for different brand’s
models of TVs.
• Consult your TV manufacturer if none of the above is
successful.
HDD & DVD RECORDER
E2H40UD_v4.indd 21E2H40UD_v4.indd 21 2008/06/02 13:34:582008/06/02 13:34:58
22 EN22 EN
CH 10
1/ 5 1/ 5
DVD
Video
0:01:00 / 1:23:45
DVD SP 1h53m
6
5
7
1 2
4
3
512
* This is an example screen only for explanation.
Displayed items may vary depending on the disc you
insert.
1. Indicates the file type or a disc type and format mode.
(DVD mode only)
2. Indicates a channel number or selected external input
channel. (If USB device is connected and USB input
channel is selected, “USB” will appear.)
3. Indicates the component in use, a recording mode and
possible recording time left.
The on-screen indication of the possible recording
time left on HDD / DVD may differ from the actual
recordable time as this unit employs the variable
bit rate encoding system which varies the recording
(storage) amount of data in conformity with the
amount of information on the video.
4. Indicates an operation status.
5. Each icon means:
: Search
: Audio
: Subtitle (DVD mode only)
: Angle (DVD mode only)
: Repeat
: Marker
: Noise Reduction
: Zoom
: Surround
6. Indicates the current title number/total number of
titles, the current chapter number/total number of
chapters, and time lapse of the current title playback/
total duration of the title.
7. Indicates the component in use.
: HDD
: DVD
This unit uses the following on-screen displays and menus to guide you to the easy operations.
The on-screen displays give you the information on the loaded disc, the disc/file in playback, or the HDMI status, etc.
The menus allow you to change the various kinds of settings for playing back, recording, or editing to suite your preference.
Guide to On-Screen Display / Menu
DTV Program Guide
English 1/2
A Day of Memories
KABC
A quarter-century ago, which may now
qualify as the good old days of
newspapering, run-of-paper sales
accounted for 80 percent of the
industry's advertising revenues.
DTV 6.1
1 5
52
53
54
1. Broadcast station
2. Program title (max. 2 lines displayed)
3. Audio language (“Other” is displayed when the
audio language cannot be acquired, or the acquired
languages are other than English, Spanish or French.)
4. Program guide (max. 6 lines displayed)
5. Channel number
Note
• When the program guide is displayed in more than 7
lines, use [K / L] to scroll.
• “No description provided” is displayed when the
program guide is not provided.
HDD / DVD / USB device Information / Menu
The on-screen display changes in the following order
as you press [INFO].
OFF
DTV Program Guide (only in DTV mode)
HDD / DVD Information/Menu
Title Name Information
(only when DVD+RW/DVD+R/DVD-RW/DVD-R, or HDD
is in playback)
or
File Name Information
(only when a CD with MP3/Windows Media™ Audio/
JPEG/DivX® files is in playback)
Windows Media™ Audio Tag Information
(only when a Windows Media™ Audio file is in playback)
HDMI Information
(only for the images output through the HDMI output)
BEFORE YOU START
E2H40UD_v4.indd 22E2H40UD_v4.indd 22 2008/06/02 13:34:582008/06/02 13:34:58
23EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
23EN
Artist Name Information
Artist Name
11
1
Title Name Information
Title Name
1
11
1. Indicates artist/title information (only when available)
• First, artist name will be displayed.
• If you press [INFO] one more time, title name will be
displayed.
Windows Media™ Audio Tag Information
Video Info. : 480p YCbCr
Audio Info. : Bitstream
21
3
4
3
* This is an example screen only for explanation.
Displayed items may vary depending on the disc you
insert.
1. Indicates the resolution of the HDMI output image.
2. Indicates the HDMI video format.
3. Indicates the HDMI audio format.
4. Indicates an operation status.
HDMI Information
BEFORE YOU START
Title Name Information
Title Name
My Title
1
File Name Information
File Name
My File
1
1. Displays title/file name.
Title/File Name Information
Main Menu
Press [SETUP] to display the main menu. Then use
[K / L] to select a menu and press [OK] to display the
menu. These menus provide entries to all main functions
of the unit.
Setup
Timer Programming
Title List
Disc Edit
HDD Menu
General Setting
Dubbing
CD Playback Mode
(or )
USB Playback Mode
11
22
33
44
45
46
47
1. General Setting:
To go to general setting menu.
2. Timer Programming:
To program a timer recording.
3. Title List:
To call up the title list.
4. Disc Edit:
To set up the DVD setting.
5. HDD Menu:
To set up the HDD setting.
6. Dubbing:
• To dub the content of the HDD to DVD or vice versa.
• “Dubbing” is available only when a recordable disc is
loaded.
7. CD Playback Mode:
To set up the CD playback setting.
• “CD Playback Mode” is available only when an audio
CD, a video CD, a CD-RW/-R with MP3 / Windows
Media™ Audio / JPEG files is inserted into the unit.
USB Playback Mode:
To set up the USB playback setting.
• ”USB Playback Mode” is available only when a USB
device is connected and when USB input channel is
selected.
E2H40UD_v4.indd 23E2H40UD_v4.indd 23 2008/06/02 13:34:592008/06/02 13:34:59
24 EN24 EN
1. Edit Disc Name:
Allows you to rename the disc.
2. Erase Disc: (DVD+RW/DVD-RW only)
Allows you to erase all contents in the disc and format it.
3. Make Edits Compatible: (DVD+RW only)
Allows you to memorize the editing status on the
disc if you have added or deleted chapters, or made
chapters hidden on this unit, and to effect it when
playing back on the other unit.
Finalize: (DVD+R/DVD-RW/-R only)
Allows you to finalize a disc containing recorded titles.
4. Disc Protect :
Allows you to protect a disc from accidental editing or
recording.
5. Random Play:
Allows you to activate the random playback feature.
6. Program Play: (audio CD/video CD only)
Allows you to activate the program playback feature.
7. PBC (Video CD only):
Allows you to select images or information on the
menu screen by activating PBC (playback control)
function.
8. Slide Show: (JPEG files only)
Allows you to select the display time of the slide show
mode.
9. Delete All Titles:
Allows you to delete all titles, including the protected
titles, in the HDD title list.
10. Delete All Unprotected Titles:
Allows you to delete all unprotected titles in the HDD
title list.
11. HDD
DVD:
Allows you to dub from HDD to DVD.
12. DVD
HDD:
Allows you to dub from DVD to HDD.
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
1
2
3
4
1
2
3
4
<Disc Edit menu (DVD+RW)>
CD Playback Mode
Random Play
Program Play
PBC (Video CD only)
Slide Show
1
2
3
4
5
6
7
8
<CD Playback Mode menu>
Disc Edit
Edit Disc Name
Finalize
Disc Protect OFF ON
1
2
3
1
3
4
<Disc Edit menu (DVD+R/DVD-R)>
BEFORE YOU START
Disc Edit / HDD Menu / Dubbing / CD Playback Mode
Disc Edit
Edit Disc Name
Erase Disc
Finalize
Disc Protect OFF ON
1
2
3
4
1
2
3
4
<Disc Edit menu (DVD-RW)>
General Setting Menu
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
Parental Lock
Disc Audio
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Variable Skip / Replay
1
2
3
4
5
2
3
4
5
1
2
3
4
5
6
7
8
9
1
10
1. Playback:
To set up the unit to play back discs as you prefer.
2. Display:
To set up the OSD screen as you prefer.
3. Video:
To set up the video setting.
4. Recording:
To set up the unit to record to discs as you prefer.
5. Clock:
To set up the clock of the unit as you need.
6. Channel:
To adjust the channel setting of the unit as you prefer.
7. DivX:
To set up the setting for the DivX® playback.
8. HDMI:
To set up the HDMI connection setting.
9. Reset All:
To reset the setting to the factory default.
10.
:HDD
:DVD
Indicates the available mode for the selected function.
Delete All Titles
Delete All Unprotected Titles
HDD Menu
1
2
9
10
<HDD Menu>
HDD DVD
DVD HDD
Dubbing
1
2
11
12
<Dubbing menu>
E2H40UD_v4.indd 24E2H40UD_v4.indd 24 2008/06/02 13:34:592008/06/02 13:34:59
25EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
25EN

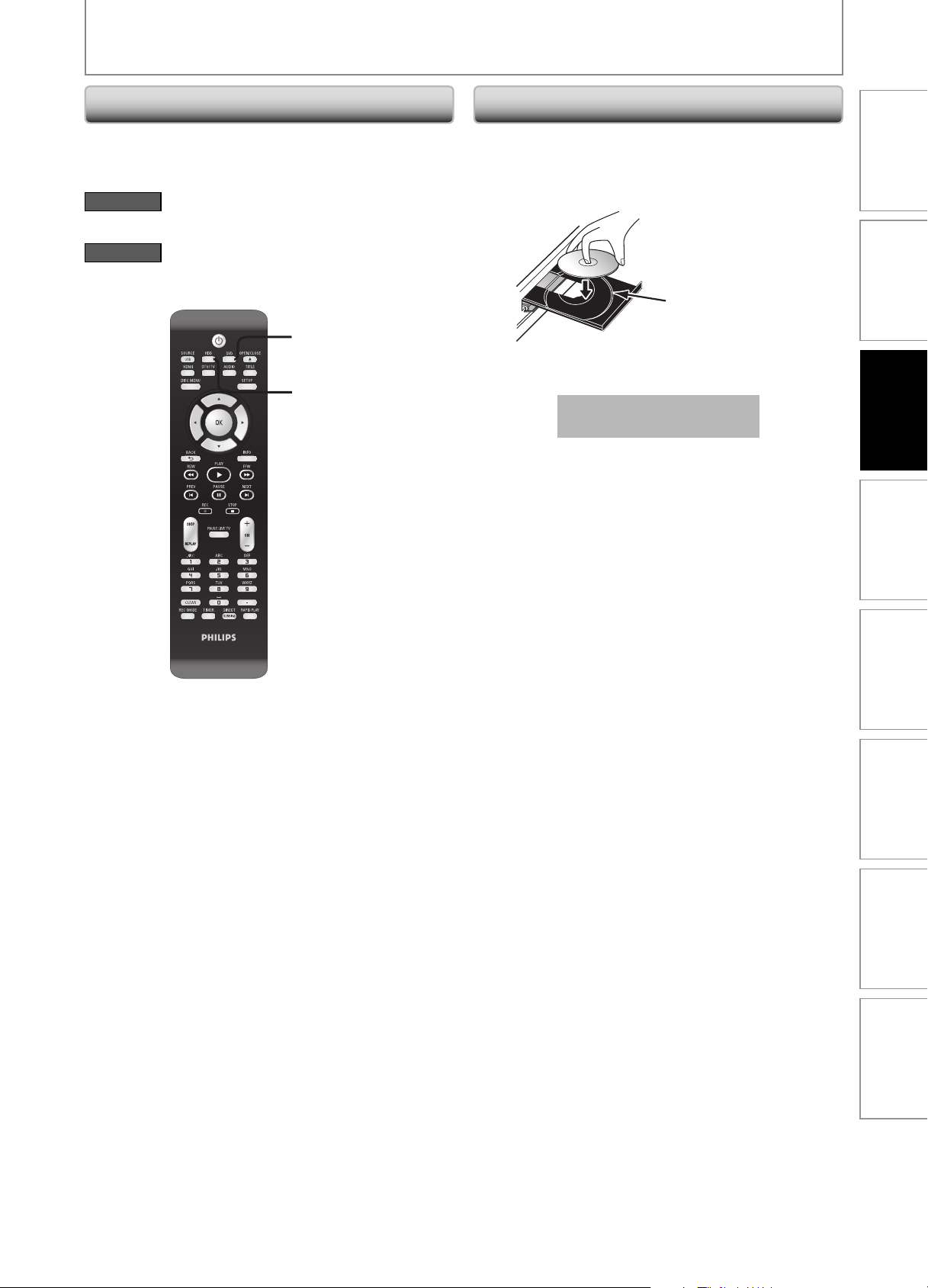

Because this unit is a combination of HDD and DVD
recorder, you must first select which component (output
mode) you wish to operate.
HDD mode
Press [HDD] to activate the HDD component.
DVD mode
Press [DVD] to activate the DVD component.
HDD button
DVD button
HDD & DVD RECORDER
Switching HDD / DVD Mode
BEFORE YOU START

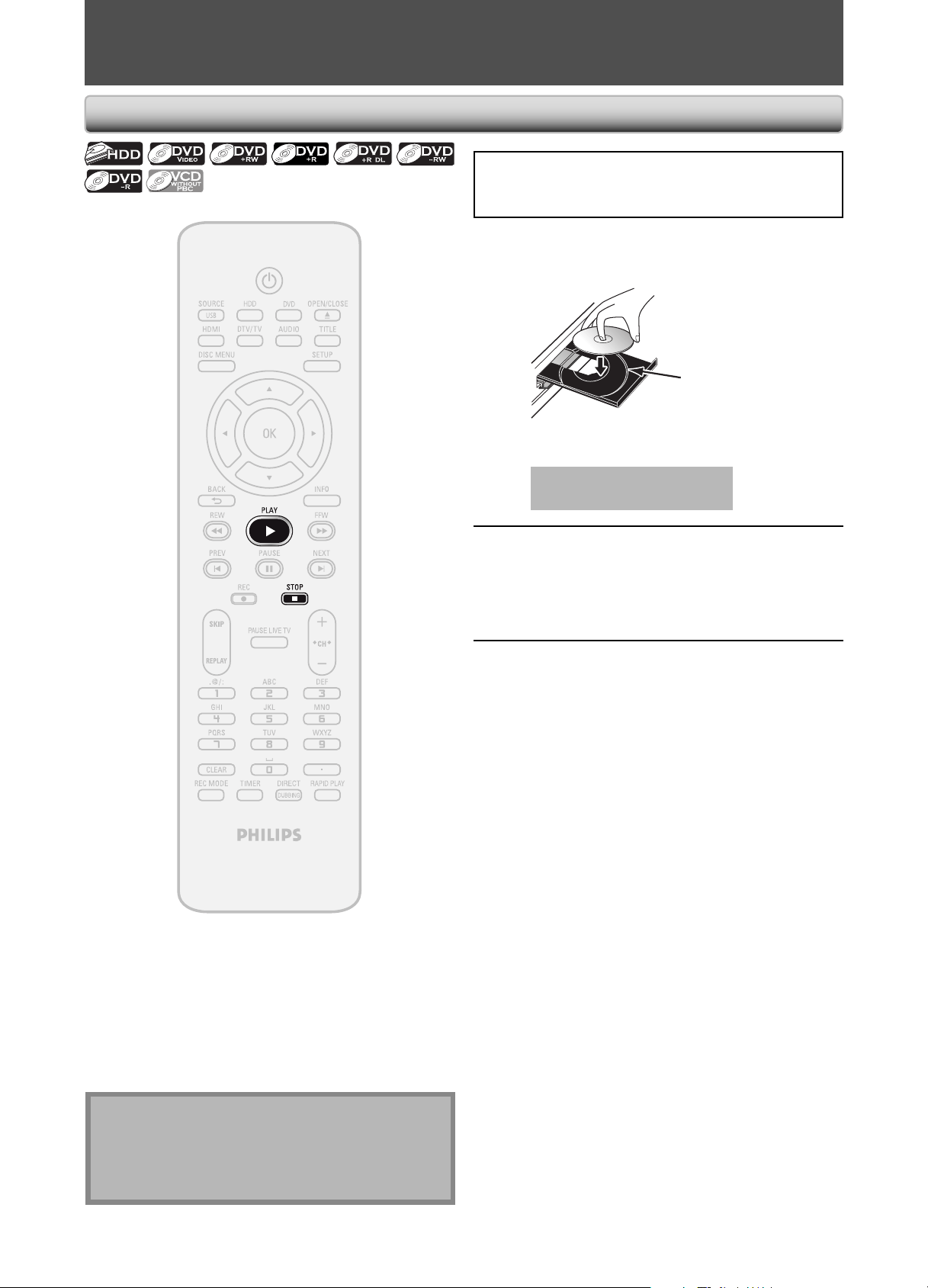

1) Press [OPEN/CLOSE A] to open the disc tray.
2) Place the disc on the disc tray with its label side
facing up.
Align the disc to
the disc tray guide.
3) Press [OPEN/CLOSE A] to close the disc tray.
It may take a while to load
the disc.
To eject the disc:
Press [OPEN/CLOSE A] to open the disc tray, then
remove the disc before turning off the unit.
• When inserting a brand-new DVD+RW/DVD-RW, the unit
automatically starts to format.
• If titles have been recorded on the disc, the title list is
displayed. Press [STOP C] to exit the title list.
How to Insert a Disc
E2H40UD_v4.indd 25E2H40UD_v4.indd 25 2008/06/02 13:35:002008/06/02 13:35:00
26 EN26 EN
INITIAL SETTING
You need to follow these steps when you turn on this unit for the first time.
1
Follow the procedure in “Finding the
Viewing Channel on Your TV” on
page 21 to display “Initial Setup”
menu.
2
Use [K / L] to select your desired
language, then press [OK].
Initial Setup
OSD Language
English
Français
Español
3
Use [K / L] to select the type of
broadcasting signal, then press [OK].
Initial Setup
Channel Preset
Make sure the antenna is
connected to “ANTENNA IN” jack.
Antenna
Cable (Analog)
Cable (Analog / Digital)
The unit will start getting channels available in
your area.
Antenna:
(When using antenna)
The channels broadcasted in analog TV and
digital TV are automatically scanned and
memorized. Only the receivable channels in the
area will be memorized.
Cable (Analog):
(When using basic cable)
The channels broadcasted in analog CATV are
automatically scanned and memorized.
Cable (Analog / Digital):
(When using basic cable)
The channels broadcasted in analog CATV and
digital CATV are automatically scanned and
memorized.
Auto Presetting Now
CH 1
Entry screen for the clock setting will appear.
4
Proceed to step 5 in “Manual Clock
Setting” on page 31.
• If a PBS (public broadcasting station) is
available in your area, follow “Auto Clock
Setting” on page 30.
HDD & DVD RECORDER
E2H40UD_v4.indd 26E2H40UD_v4.indd 26 2008/06/02 13:35:012008/06/02 13:35:01
27EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
27EN

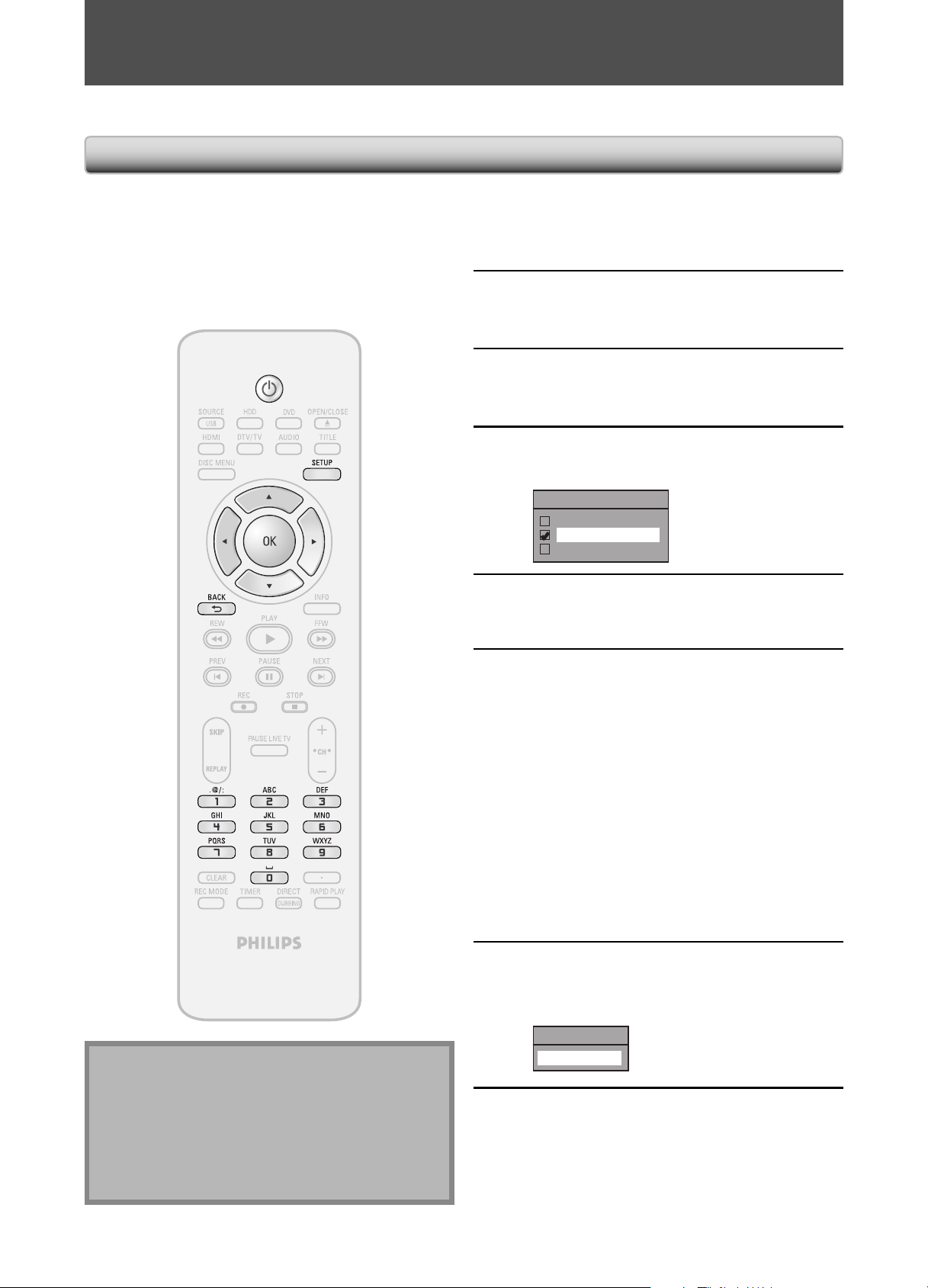

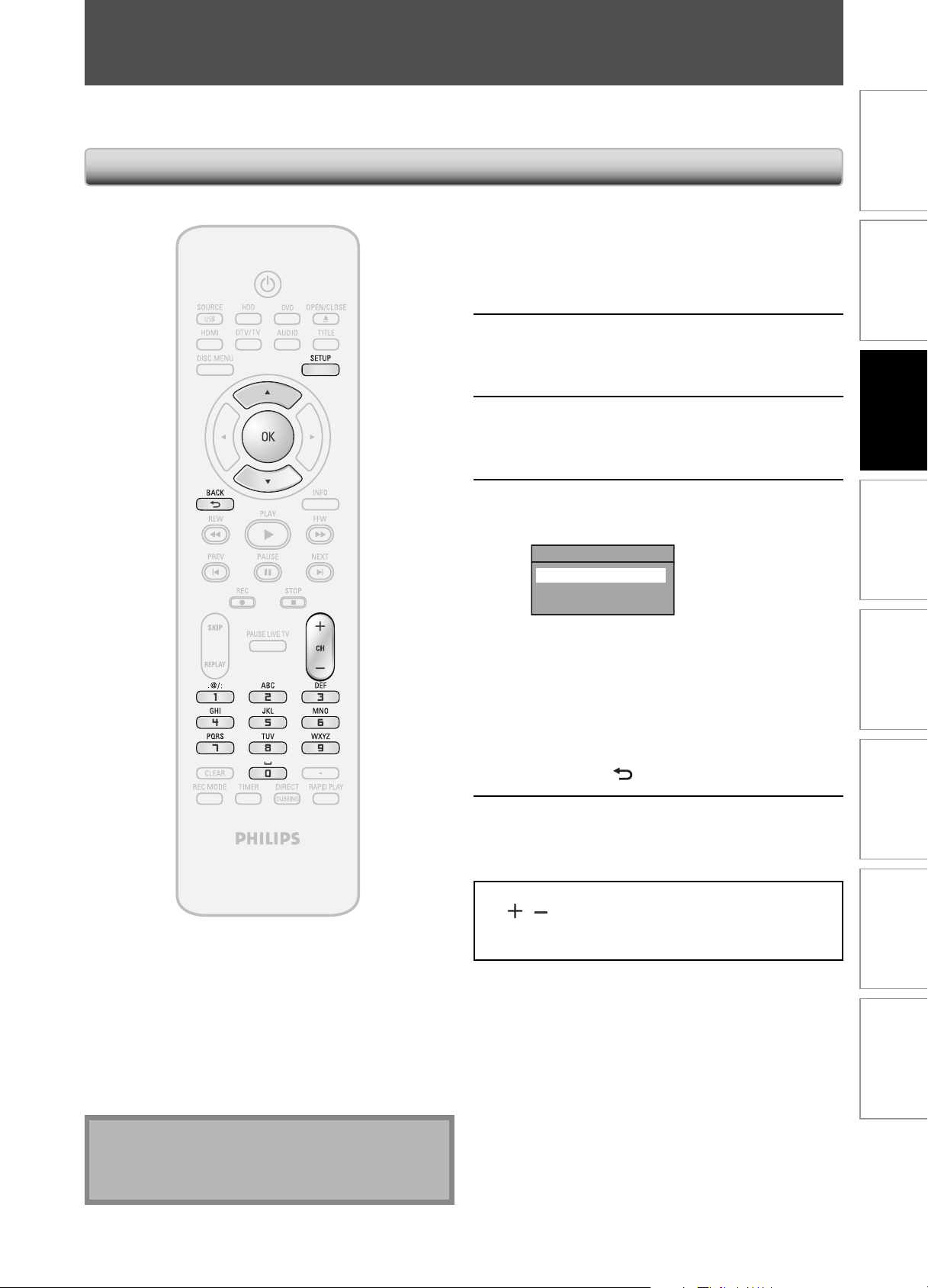

CHANNEL SETTING
If you have changed antenna connection, we recommend that you program available channels in your area with the
following procedures.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Channel”, then
press [OK].
“Channel” menu will appear.
3
Use [K / L] to select “Auto Channel
Preset”, then press [OK].
4
Use [K / L] to select the type of
broadcasting signal, then press [OK].
Auto Channel Preset
Antenna
Cable (Analog)
Cable (Analog / Digital)
The unit will start getting channels available in
your area.
• When aerial antenna is connected, select
“Antenna”.
• When connected to CATV, select “Cable
(Analog)” or “Cable (Analog/Digital)”.
To cancel the auto channel preset during
scanning:
Press [BACK
] or [SETUP] to cancel.
5
When scanning is over, press [SETUP]
to exit.
To cycle through only the memorized channels, use
[CH
/ ].
To select a channel directly (including the ones not
memorized), use [the Number buttons].
Auto Channel Scan
Note
• If the auto channel preset is canceled during
presetting, some channels not yet preset may not be
received.
HDD & DVD RECORDER
E2H40UD_v4.indd 27E2H40UD_v4.indd 27 2008/06/02 13:35:012008/06/02 13:35:01
28 EN28 EN
1
Press [DTV/TV] to select the mode
(DTV or TV) to/from which you want
to add/delete channels.
2
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
3
Use [K / L] to select “Channel”, then
press [OK].
“Channel” menu will appear.
4
Use [K / L] to select “Manual Channel
Preset”, then press [OK].
Auto Channel Preset
Manual Channel Preset
TV Audio Select
• If you are adding or deleting analog TV/CATV
channels, go to
ANALOG
to continue.
• If you are deleting digital TV/CATV channels, go
to
DIGITAL
to continue.
Adding / Deleting Channels
CHANNEL SETTING
You may want to add or delete TV channels if your
channel lineup changes or if you no longer watch some
channels.
Adding channel is only available for the analog TV
channels.
Make sure
• You perform “Auto Channel Scan” before adding or
deleting the channels.
HDD & DVD RECORDER
E2H40UD_v4.indd 28E2H40UD_v4.indd 28 2008/06/02 13:35:022008/06/02 13:35:02
29EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
29EN
ANALOG
5
Select the channel number to add or
delete.
• Use [CH / ] to cycle through only the
memorized channels.
• Use [{ / B] to cycle through all the channels
including the ones not memorized.
• Use [the Number buttons] to select a channel
directly.
• When a memorized channel is selected, “Add”
is checked and highlighted as a default.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a
default.
6
Use [K / L] to select “Add” or
“Delete”, then press [OK].
Manual Channel Preset
CH 2
Add
Delete
Your setting will be activated and it will
automatically switch to the next channel so that
you can continue adding or deleting channels.
7
Press [SETUP] to exit.
DIGITAL
5
Select the channel number to delete.
• Only the major channel is displayed in “Manual
Channel Preset” menu. (The channel number
displayed in the parenthesis is a virtual channel
number)
• Use [CH
/ ] to cycle through only the
memorized channels.
• You cannot use [{ / B] for the digital TV
channel selection.
• Use [the Number buttons] to select a channel
directly.
• When a memorized channel is selected, “Add”
is checked and highlighted as a default.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a
default.
6
Use [K / L] to select “Delete”, then
press [OK]. Then select the next
channel to delete.
• If the setting is complete, press [BACK ] to
activate “Manual Channel Preset”.
Manual Channel Preset
Add
Delete
DTV 2 (CH - - - )
Your setting will be activated.
WARNING:
• For the digital TV channels, you cannot recover the
deleted channels once they are deleted unless you
perform the auto channel preset again.
7
Press [SETUP] to exit.
CHANNEL SETTING
E2H40UD_v4.indd 29E2H40UD_v4.indd 29 2008/06/02 13:35:032008/06/02 13:35:03
30 EN30 EN
SETTING THE CLOCK
Set the clock before you try the timer programming. If a PBS (public broadcasting station) is available in your area,
follow “Auto Clock Setting” below. If not, follow “Manual Clock Setting” on page 31.
Note
• The clock may set itself automatically after you
connect the antenna/cable signal and plug in the
power cord.
• Only the analog PBS channel signal is effective for
auto clock setting.
• The unit receives the clock data at 12:00 a.m. / p.m.
from the PBS channel when the power is off.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Clock”, then
press [OK].
“Clock” menu will appear.
3
Use [K / L] to select “Auto Clock
Setting”, then press [OK].
4
Use [K / L] to select “Auto”, then
press [OK].
Auto Clock Setting
OFF
Auto
Manual
5
Press [SETUP] to exit.
6
Press [STANDBY-ON yy] to turn off
the unit.
This unit will search for the time only when the
power is off. Leave it off for several minutes to
give this unit time to set the clock.
Auto Clock Setting
This unit can set the time and date automatically by
referring to a PBS station.
Make sure
• The antenna/cable TV connections are correct.
• Channels are set. (Refer to page 27.)
• If this unit is connected to a cable/satellite box,
select the local PBS station on them to set the clock
automatically.
1
Select “Manual” at step 4, then press
[OK].
2
Use [the Number buttons] or [K / L]
to enter your PBS channel number,
then press [OK].
Set Channel No.
CH 1
3
Press [SETUP] and turn off the unit.
If the unit chooses an incorrect PBS channel, set the PBS
channel manually by following the steps below.
HDD & DVD RECORDER
E2H40UD_v4.indd 30E2H40UD_v4.indd 30 2008/06/02 13:35:042008/06/02 13:35:04
31EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
31EN
SETTING THE CLOCK
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Clock”, then
press [OK].
“Clock” menu will appear.
3
Use [K / L] to select “Daylight Saving
Time”, then press [OK].
4
Use [K / L] to select “ON (MAR -
NOV)”, “ON (APR - OCT)” or “OFF”,
then press [OK].
Daylight Saving Time
ON (MAR - NOV)
ON (APR - OCT)
OFF
ON (MAR - NOV):
Move forward one hour on the second Sunday in
March and move back one hour on the first
Sunday in November.
ON (APR - OCT):
Move forward one hour on the first Sunday in
April and move back one hour on the last
Sunday in October.
5
Press [SETUP] to exit.
Daylight Saving Time
When “Daylight Saving Time” is “ON”, the unit clock will
automatically adjust the time in order to fit the daylight
saving time.
“ON (MAR - NOV)” has been selected as the default.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Clock”, then
press [OK].
“Clock” menu will appear.
3
Use [K / L] to select “Clock Setting”,
then press [OK].
4
Use [K / L] to select calendar or time,
then press [OK].
Clock Setting
JAN / 01 / 2007 ( MON )
12 : 00 AM
5
Use [{ / B] to select an item to set,
and use [K / L] to select the contents
to suit your preference, then press
[OK] when you finish setting all the
contents.
Clock Setting
JAN / 01 / 2007 ( MON )
12 : 00 AM
Your setting will be activated.
The clock start counting when you press [OK].
6
Press [SETUP] to exit.
Note
• Your setting will be canceled if you press [BACK ]
before pressing [OK] at step 5.
• Your clock setting will be lost if either there is a power
failure or this unit has been unplugged for more than
30 seconds when you set the clock manually.
• For setting the day, year, hour, and minute,
[the Number buttons] can also be used.
• You can set the built-in calendar from the year 2007
up to 2056.
Manual Clock Setting
E2H40UD_v4.indd 31E2H40UD_v4.indd 31 2008/06/02 13:35:052008/06/02 13:35:05
32 EN32 EN
TUNER SETTINGS
Switching Analog Mode /
Digital Mode
You can easily switch the analog TV (NTSC) and digital TV
(ATSC) with the remote control.
Press [DTV/TV] on the remote control.
• The analog mode and digital mode switch alternately.
Note
• When you switch the analog mode to the digital
mode, it may take about 10 seconds until the digital
channel selection is completed. The following screen
is displayed while switching the mode.
Now Scanning
DTV 125. 1
Channel Selection
<Digital TV Channels>
Enter the major and minor channel number with [the
Number buttons] to select a channel you want to watch.
For 1-digit number
e.g.) 2-2 ch:
major channel [0] + [2] or [2] + [•]
minor channel [0] + [2], [2] + [•] or
[2] + leave it for 2 seconds.
For 2-digit number
e.g.) 35-16ch:
major channel [3] + [5]
minor channel [1] + [6]
• If you enter 1 digit for major channel and leave it for 2
seconds, the number will be taken as the major channel
and lowest minor channel of the major channel will be
displayed.
• If there is no minor channel input, lowest minor channel
of the major channel will be displayed.
Note
• It may take up to 5 to 7 seconds to switch the digital
TV channels.
• In digital TV broadcasting, 2 or more channels, called
minor channels, are simultaneously broadcast on one
main channel, called major channel.
About digital TV broadcasting:
With its high definition broadcast, digital broadcasting far
surpasses analog broadcasting in both its picture and
sound quality.
What is the minor channel?
By using high compression technology, digital
broadcasting offers a service that enables multiple signals
to send simultaneously.
Therefore, you can select more than one program per
major channel since digital broadcasting technology
distinguishes between multiple channels broadcast by a
signal network.
: change automatically
: change manually by using [CH / ]
CH4-1
18:00
18:30
19:00
19:30
20:00
CH4-2
CH4-1
CH4-1
CH4-3
smallest
CH
smallest
CH
CH4-3
CH4
CH4-2CH4-1
smallest
CH
smallest
CH
ATSC (digital mode)NTSC (analog mode)
[Air Time]
major channel
minor channel
Select channels by using [CH / ] or [the Number
buttons] found on remote control.
[CH
/ ]
Use [CH
/ ] to change the channel.
[the Number buttons]
Press the channel number with [the Number buttons] to
select a channel you want to watch.
<Analog TV Channels>
Enter the channel number with [the Number buttons] to
select a channel you want to watch.
For 1-digit number
e.g.) 2 ch: [0] + [2], [2] + [•] or
[2] + leave it for 2 seconds.
For 2-digit number
e.g.) 12ch: [1] + [2]
E2H40UD_v4.indd 32E2H40UD_v4.indd 32 2008/06/02 13:35:062008/06/02 13:35:06
33EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
33EN
1
Press [AUDIO] to cycle through
available audio languages.
English 1/2
• When you press [AUDIO], selected language
will be displayed on the TV screen.
• Every time you press [AUDIO], the language
will be switched.
e.g.) English 1/3 ➔ Spanish 2/3 ➔ Other 3/3
• Available languages differ depending on the
broadcast.
• The language information display will
automatically disappear.
• When you record digital TV broadcasting, the
audio language you have selected will be
recorded.
Note
• You cannot change the audio language for the timer
recording of digital TV broadcasting.
• Pressing [AUDIO] does not control external device
audio.
• When there is only one audio channel on the
broadcast, pressing [AUDIO] does not display
anything.
TUNER SETTINGS
This section describes how to switch the TV audio. When you record a TV program, only the audio selected here will be
recorded.
Selecting TV Audio
Digital TV
HDD & DVD RECORDER
E2H40UD_v4.indd 33E2H40UD_v4.indd 33 2008/06/02 13:35:062008/06/02 13:35:06

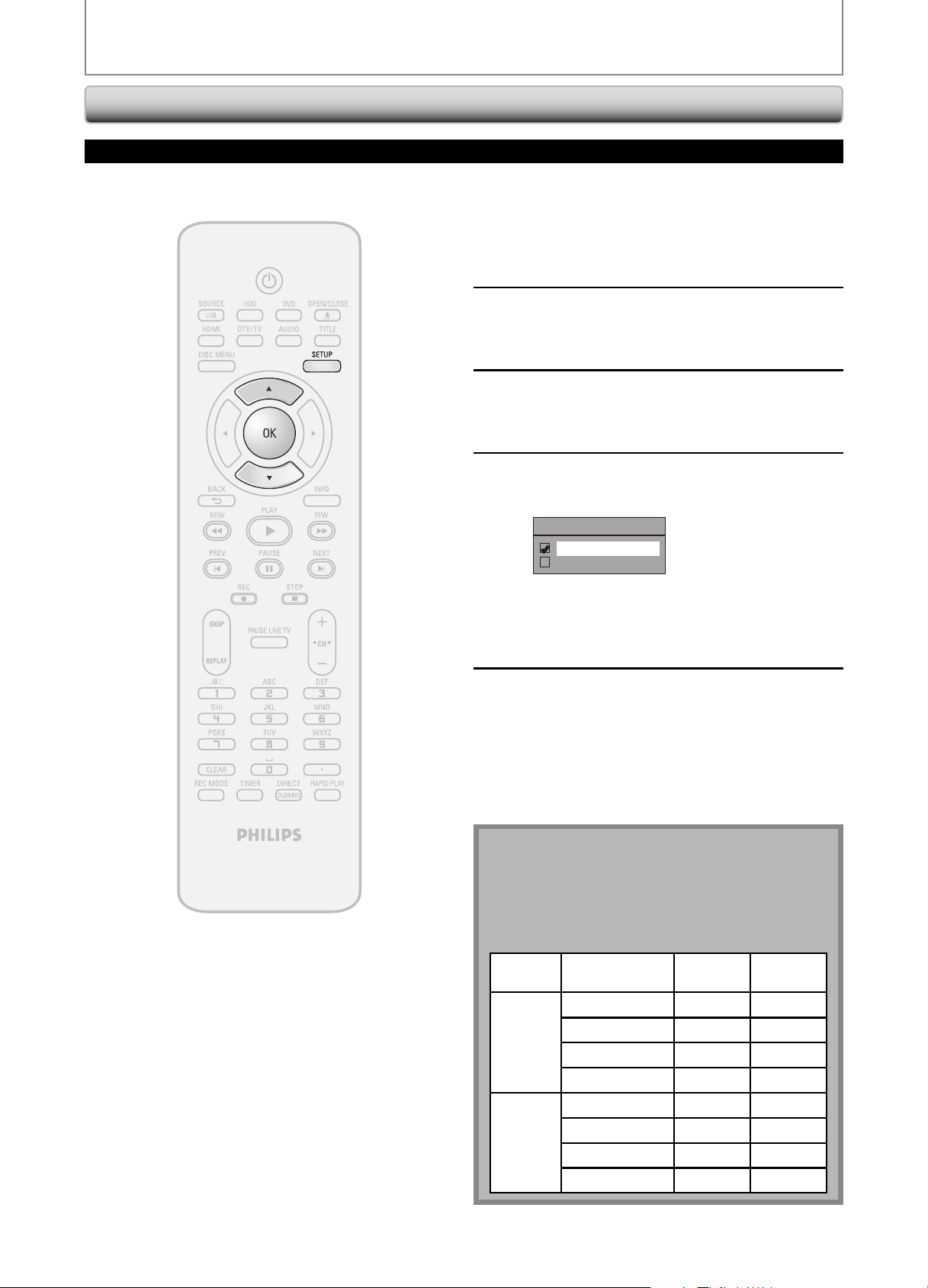

34 EN34 EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Channel”, then
press [OK].
“Channel” menu will appear.
3
Use [K / L] to select “TV Audio
Select”, then press [OK].
4
Use [K / L] to select “Stereo” or
“SAP”, then press [OK].
TV Audio Select
Stereo
SAP
Stereo:
Outputs main-audio.
SAP (secondary audio program):
Outputs sub-audio.
5
Press [SETUP] to exit.
Note on recording analog TV audio
• When you record an analog TV program available in
second audio or stereo, you have to select either
“Stereo” or “SAP” in “General Setting” menu
beforehand. Refer to the following table to check an
appropriate setting.
Selected
audio
Broadcast
audio
Disc
recording
Audio
output
Stereo STEREO+SAP STEREO STEREO
STEREO STEREO STEREO
MONO+SAP MONO MONO
MONO MONO MONO
SAP STEREO+SAP SAP SAP
STEREO STEREO STEREO
MONO+SAP SAP SAP
MONO MONO MONO
TUNER SETTINGS
Selecting TV Audio (cont’d)
Analog TV
HDD & DVD RECORDER
E2H40UD_v4.indd 34E2H40UD_v4.indd 34 2008/06/02 13:35:072008/06/02 13:35:07
35EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
35EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Display”, then
press [OK].
3
Use [K / L] to select “CC Style”, then
press [OK].
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
4
Use [K / L] to select “DTV CC”, then
press [OK].
CC Style
DTV CC
User Setting
Font Size
Font Style
Edge Type
Font Opacity
Font Color
Back Opacity
Back Color
5
Use [K / L] to the desired DTV closed
caption, then press [OK].
DTV CC
OFF
Service1
Service2
Service3
Service4
Service5
Service6
OFF:
Select if you do not want DTV CC. This is the
default.
Service 1 to Service 6:
Select one of these before changing any other
item in the closed caption menu. Choose
“Service 1” under normal circumstances.
6
Press [SETUP] to exit.
TUNER SETTINGS
DTV Closed Caption
Digital TV
Digital TV has its own closed captions called DTV CC. Use this menu to change the settings for DTV CC.
Note
• Even if you set “DTV CC” to anything other than
“OFF”, its effect will temporarily be canceled while
recording.
HDD & DVD RECORDER
E2H40UD_v4.indd 35E2H40UD_v4.indd 35 2008/06/02 13:35:072008/06/02 13:35:07
36 EN36 EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Display”, then
press [OK].
3
Use [K / L] to select “CC Style”, then
press [OK].
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
4
Use [K / L] to select “User Setting”,
then press [OK].
CC Style
DTV CC
User Setting
Font Size
Font Style
Edge Type
Font Opacity
Font Color
Back Opacity
Back Color
5
Use [K / L] to select “ON”, then press
[OK].
User Setting
ON
OFF
TUNER SETTINGS
Closed Caption Style
Digital TV
Digital TV can also change the style of its closed caption such as font, color or size, etc.
HDD & DVD RECORDER
E2H40UD_v4.indd 36E2H40UD_v4.indd 36 2008/06/02 13:35:082008/06/02 13:35:08
37EN
Recording Playback EditingIntroduction Connections
Basic Setup
Function Setup Others
37EN
6
Use [K / L] to select the item and
switch the setting for each item you
want to set, then press [OK].
• When “User Setting” is set to “ON”, you can set
the following items. CC style set by “User
Setting” will be displayed.
• The setting description for each item is shown
below.
<Font Size>
Font size of the displayed caption can be
switched as below.
Font Size
Middle
Large
Small
<Font Style>
Font style of the displayed caption can be
switched as below.
Font Style
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
<Edge Type>
Edge type of the displayed caption can be
switched as below.
Edge Type
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
<Font Opacity>
Font opacity of the displayed caption can be
switched as below.
Font Opacity
Solid
Translucent
Flash
<Font Color>
Font color of the displayed caption can be
switched as below.
Font Color
Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
<Back Opacity>
Background opacity of the displayed caption can
be switched as below.
Back Opacity
Solid
Translucent
Flash
<Back Color>
Background color of the displayed caption can
be switched as below.
Back Color
Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
7
Press [SETUP] to exit.
TUNER SETTINGS
E2H40UD_v4.indd 37E2H40UD_v4.indd 37 2008/06/02 13:35:092008/06/02 13:35:09
38 EN38 EN
INFORMATION ON RECORDING
Logo
Attributes
8cm/12cm, single-sided,
single layer disc
Approx. max. recording time
(SLP mode):
360 minutes (4.7GB) (for 12cm)
108 minutes (1.4GB) (for 8cm)
DVD+RW DVD+R
DVD-RW
DVD-R
This unit can record to DVD+RW, DVD+R, DVD-RW and
DVD-R.
DVD+R/DVD-R can only be recorded to once. DVD+RW/
DVD-RW can be recorded to and erased many times.
DVD-RW/-R will be recorded in the DVD+VR mode
automatically in this unit.
• Following discs are recommended for good recording
quality and are proven to be compatible with this unit.
However, depending on the media condition the unit
may not read the disc properly.
Verbatim DVD+R 8x, DVD+RW 4x,
DVD-R 8x, DVD-RW 2x
JVC DVD-RW 4x
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x
SONY DVD+R 4x/8x/16x, DVD+RW 4x
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
• You can play back DVD+RW on most DVD players
without finalizing. However, if you have added or
deleted chapters, or made chapters hidden, you
must perform “Make Edits Compatible” before being
able to see those effects on other units. (Refer to
page 98 for more details.) To play back discs other
than DVD+RW on other DVD players, you will need
to finalize.
Recordable Discs
Before you make a recording, read the following information.
• DVD-RW recorded in the mode other than +VR is not
recordable on this unit unless you erase all contents in
the disc (refer to page 97).
• DVD-R recorded in the mode other than +VR is not
recordable on this unit.
Unrecordable Discs
HDD : 600 titles
99 chapters per title
DVD : 49 titles per disc
254 chapters per disc
99 chapters per title
Maximum recordable numbers of title / chapters
E2H40UD_v4.indd 38E2H40UD_v4.indd 38 2008/06/02 13:35:092008/06/02 13:35:09
39EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
39EN
You can select a recording mode among 6 options, and
the recording time will depend on the recording mode
you select as follows.
Recording
mode
Recording
time
Video/sound
quality
60 min
120 min
150 min
180 min
240 min
360 min
12cm Disc
8cm Disc
(poor)
(poor)
(good)
(good)
HQ
SP
SPP
LP
EP
SLP
18 min
36 min
45 min
54 min
72 min
108 min
HQ
SP
SPP
LP
EP
SLP
33 hrs
66 hrs
82.5 hrs
99 hrs
132 hrs
198 hrs
HDD
(Internal)
(poor)
(good)
HQ
SP
SPP
LP
EP
SLP
Disc size
• The recording time is only an estimate. The actual
recording time may differ.
• The audio and video quality gets poorer as the recording
time becomes longer.
• Each time [REC MODE] is pressed, recording mode and
its allowed recording time will be displayed.
Note
• This unit cannot record to CD-RW or CD-R.
• All high definition pictures will be down converted to
the standard definition pictures when they are
recorded on this unit.
• DVD+RW/+R, DVD-RW/-R and CD-RW/-R recorded on
a personal computer or a DVD or CD recorder may
not be played back if the disc is damaged or dirty or
if there is condensation on the player’s lens.
• If you record a disc using a personal computer, even
if it is recorded in a compatible format it may not be
played back because of the settings of the
application software used to create the disc. (Check
with the software publisher for more detailed
information.)
• Since the recording is made by the VBR (variable bit
rate) method, depending on the picture you are
recording, the actual remaining time for recording
may be a little shorter than the remaining time
displayed on the TV screen.
• You cannot record copy-protected program using
this unit. (Copy-protected signal is included in DVD-
video or some satellite broadcasts.)
• You cannot record “copy-once only” program on
DVD.
Recording Mode
INFORMATION ON RECORDING
HDD is a special device which has high recording density
and is suited for long-time recording or high-speed
cueing but by contrast, has many factors which can cause
breakage. Use HDD on the premise that you should dub
the recorded programs to a DVD to protect your precious
videos.
HDD is a temporary storage location:
HDD is not a permanent storage location of the recorded
contents. Be sure to use it as a temporary storage location
until you watch the programs once, edit them, or dub
them to a DVD.
Be sure to dub (back up) data promptly if you find
abnormalities in HDD:
If there is mechanical trouble with the HDD, grinding or
other sounds may be heard or blocky noise may appear
on the image. If you continue to use as it is, deterioration
may continue and eventually the HDD may not be used
at all. If you notice these symptoms of a failing HDD,
promptly dub the data to a DVD. When an HDD fails,
recovery of recorded content (data) may be impossible.
About the remaining capacity of HDD recording time:
The on-screen indication of the possible recording time
left on HDD / DVD may differ from the actual recordable
time as this unit employs the variable bit rate encoding
system which varies the recording (storage) amount of
data in conformity with the amount of information on the
video.
Before recording to the HDD, ensure there is sufficient
space on the HDD by deleting unnecessary titles in
advance.
About HDD
E2H40UD_v4.indd 39E2H40UD_v4.indd 39 2008/06/02 13:35:092008/06/02 13:35:09
40 EN40 EN
BEFORE RECORDING
Use this feature to make the unfinalized +VR mode discs
recorded on other unit recordable on this unit. When you
make an additional recording on this unit with “Make
Recording Compatible” set to “ON”, the title list is
automatically converted to our style.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [OK].
“General Setting” menu will appear.
2) Use [K / L] to select “Recording”, then press [OK].
“Recording” menu will appear.
3) Use [K / L] to select “Make Recording Compatible”,
then press [OK].
4) Use [K / L] to select “ON” or “OFF”, then press [OK].
Make Recording Compatible
ON
OFF
ON: Title list will be replaced when you make
additional recordings to the discs recorded by
other units.
OFF: Prohibiting additional record to the disc that
has a title list created by other units.
5) Press [SETUP] to exit.
Make Recording Compatible Setting for Auto Chapter
You can set a specified time for chapter marks.
1) Press [SETUP] and use [K / L] to select “General
Setting”, then press [OK].
“General Setting” menu will appear.
2) Use [K / L] to select “Recording”, then press [OK].
“Recording” menu will appear.
3) Use [K / L] to select “Auto Chapter”, then press [OK].
4) Use [K / L] to select a desired time option, then
press [OK].
Auto Chapter
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
5) Press [SETUP] to exit.
Note
• The interval for auto chapter marks may slightly
differ.
• A blank chapter may be created depending on the
remaining time of the disc.
E2H40UD_v4.indd 40E2H40UD_v4.indd 40 2008/06/02 13:35:092008/06/02 13:35:09
41EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
41EN
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
If you are recording to the HDD, press [HDD] first, then
proceed to step 2.

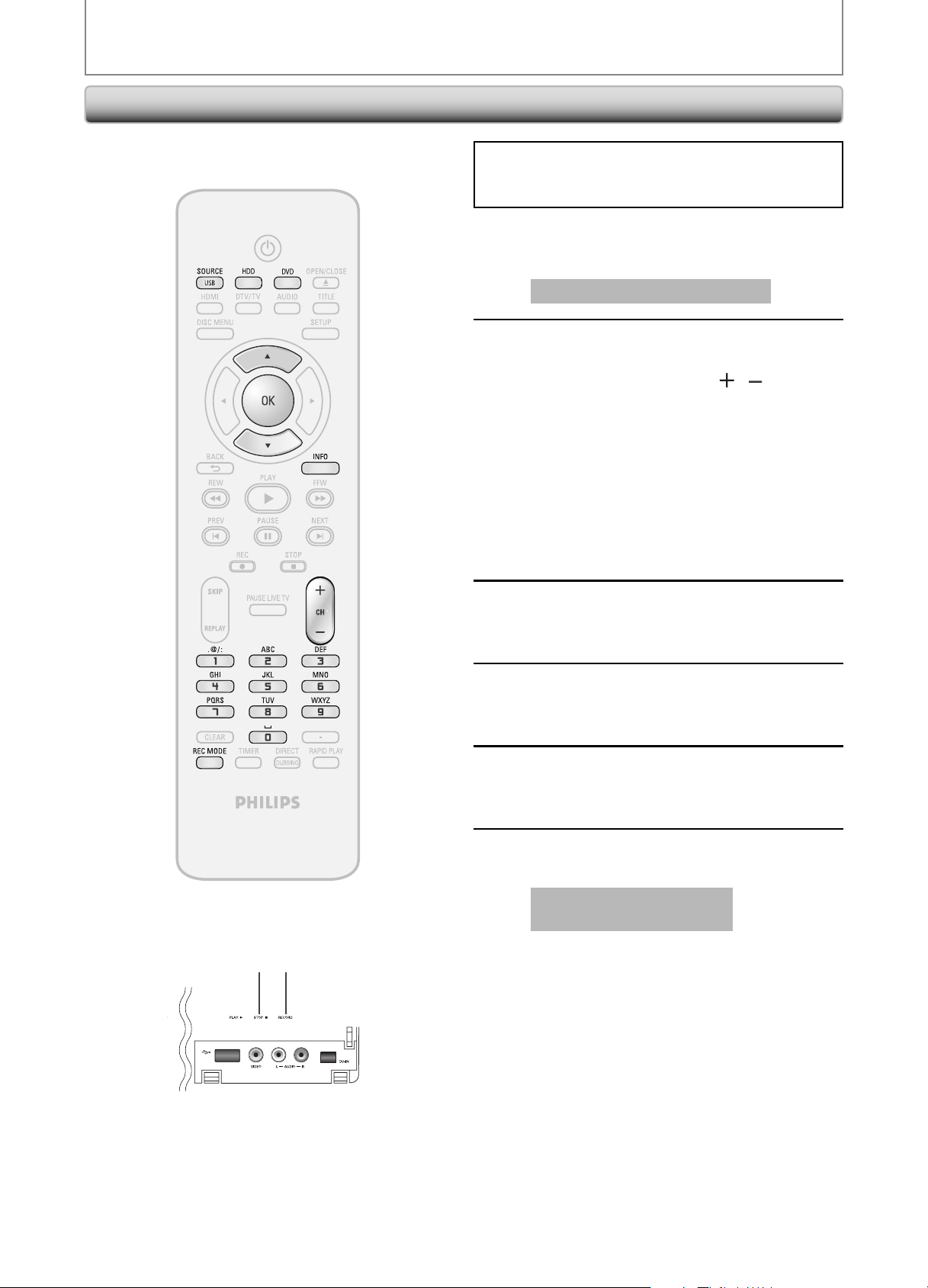

If you are recording to a disc, press [DVD] first.
1
Insert a recordable disc (refer to page
25 on how to insert a disc).
Align the disc to
the disc tray guide.
* Make sure the disc is compatible with this unit.
(Refer to page 38 for the list of compatible discs.)
It may take a while to load
the disc.
• When inserting a brand-new DVD+RW/DVD-
RW, the unit automatically starts to format.
( Except when HDD is recording, or when there
is a timer program which starts in 15 minutes.)
• If titles have been recorded on the disc, the
title list is displayed. Press [STOP C] to exit the
title list.
2
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 39.
DVDSP 0h58m
3
Select the appropriate external input
channel by pressing [SOURCE / USB]
or [CH
/ ].
Press [DTV/TV] to select analog TV or
digital TV, then use [CH
/ ] or [the
Number buttons] to select a desired
channel to record.
Refer to “Switching Analog Mode/Digital Mode”
and “Channel Selection“ on page 32.
CH 12
Follow the steps to record TV programs.
Instructions continue on the next page.
HDD & DVD RECORDER
E2H40UD_v4.indd 41E2H40UD_v4.indd 41 2008/06/02 13:35:102008/06/02 13:35:10
42 EN42 EN
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
5
Press [STOP C] to stop recording.
As for DVD recording, the title list will appear
automatically after writing to a disc complete.
(Refer to “Guide to a Title List” on page 81.)
e.g.) DVD+R
Writing to Disc
Finalize the recordings so that the disc
can be played on regular DVD players.
90%
1 SP
2
EMPTY TITLE
1:41:17
SP
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
• Press [STOP C] to exit the title list.
4
Press [REC I] to start recording.
“I HDD” or “I DVD” will be displayed for 5 seconds.
e.g.) DVD
I
DVD
Press [PAUSE F] to pause recording.
Press [PAUSE F]] or [REC I] again to restart
recording.
To set one-touch timer recording (OTR)...
This is a simple way to set the recording time in blocks
of 30 minutes.
Press [REC I] repeatedly until the desired recording
time (30 minutes to 6 hours) appears on the TV screen.
One-touch timer recording will start.
0h30m 1h00m
(normal recording)
5h30m6h00m
I
0h30m
To change the recording length during the one-
touch timer recording:
Press [REC I] repeatedly until the desired length appear.
To cancel the one-touch timer recording within the
specified time:
Press [STOP C].
When the recording is completed, the unit will ask
you whether to turn off the unit except under
conditions listed below.
- If a timer recording is programmed to start in 4 minutes.
- During playback of HDD or DVD.
- While displaying menus or information on the screen.
• The unit will be turned off automatically if you select
“Yes” or if you do not reply in 1 minute.
Note
• When you press [REC I], recording starts immediately and continues until the disc is full or you stop recording.
• This unit cannot record images as aspect ratio of 16:9. The 16:9 images will be recorded as 4:3.
• When the unit clock has not been set, the space for a date and time of title names will be blank.
• When you record a TV program, you have to select the TV channel audio beforehand. Only the selected channel
audio will be recorded. Refer to “Selecting TV Audio” on pages 33-34 for more details.
• This unit cannot record in both stereo and SAP (secondary audio program) at the same time.
• You cannot change the recording mode during the recording pause mode.
• You can change a channel to be recorded during the recording pause mode.
• You can play back a title on one component while making a recording on other. To do so, simply select the
component (HDD or DVD) you like to use for the playback by pressing [HDD] or [DVD] during HDD / DVD
recording. And then follow the normal playback procedure.
• If playback and recording are in progress at the same time, select the appropriate component by pressing [HDD]
or [DVD] before you press [PAUSE F] or [STOP C] to pause or stop the operation.
Note for one-touch timer recording
• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press
[INFO] to see it on the TV screen.
• Unlike the timer recording, you can perform the following operations during one-touch timer recording.
- Turning off the power to stop one-touch timer recording.
- Using [REC I].
• You cannot use the pause function during one-touch timer recording.
E2H40UD_v4.indd 42E2H40UD_v4.indd 42 2008/06/02 13:35:122008/06/02 13:35:12
43EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
43EN
TIMER RECORDING
1
Press [TIMER].
2
Use [K / L] to select “New Program”,
then press [OK].
Timer Programming
1/1
MON FEB/19 11:30AM
Date Start End CH
New Program
3
Use [K / L] to enter the date, then
press [B].
Date
FEB/20
REC To Mode
HDD SP
SP 2h00m
Start
- - : - -
End
- - : - -
CH
DTV125. 1
Daily
MON-SAT
JAN/01
JAN/31
MON-FRI
SAT
FRI
SUN
You can program the unit to record up to 36 programs
within a month in advance. Daily or weekly program
recordings are also available.
Before recording, make sure
• Set the clock before setting a timer programming.
• If you are recording to a disc, insert a recordable disc
with enough recordable space.
Note
• If you have not set the clock yet:
Entry screen for the clock setting will appear instead
of the timer programming list at step 1. Continue
with the step 4 in “Manual Clock Setting” on page 31
before setting a timer programming.
• Use [s / B] to move the cursor to the left and the
right in the entry screen for the timer programming.
Instructions continue on the next page.

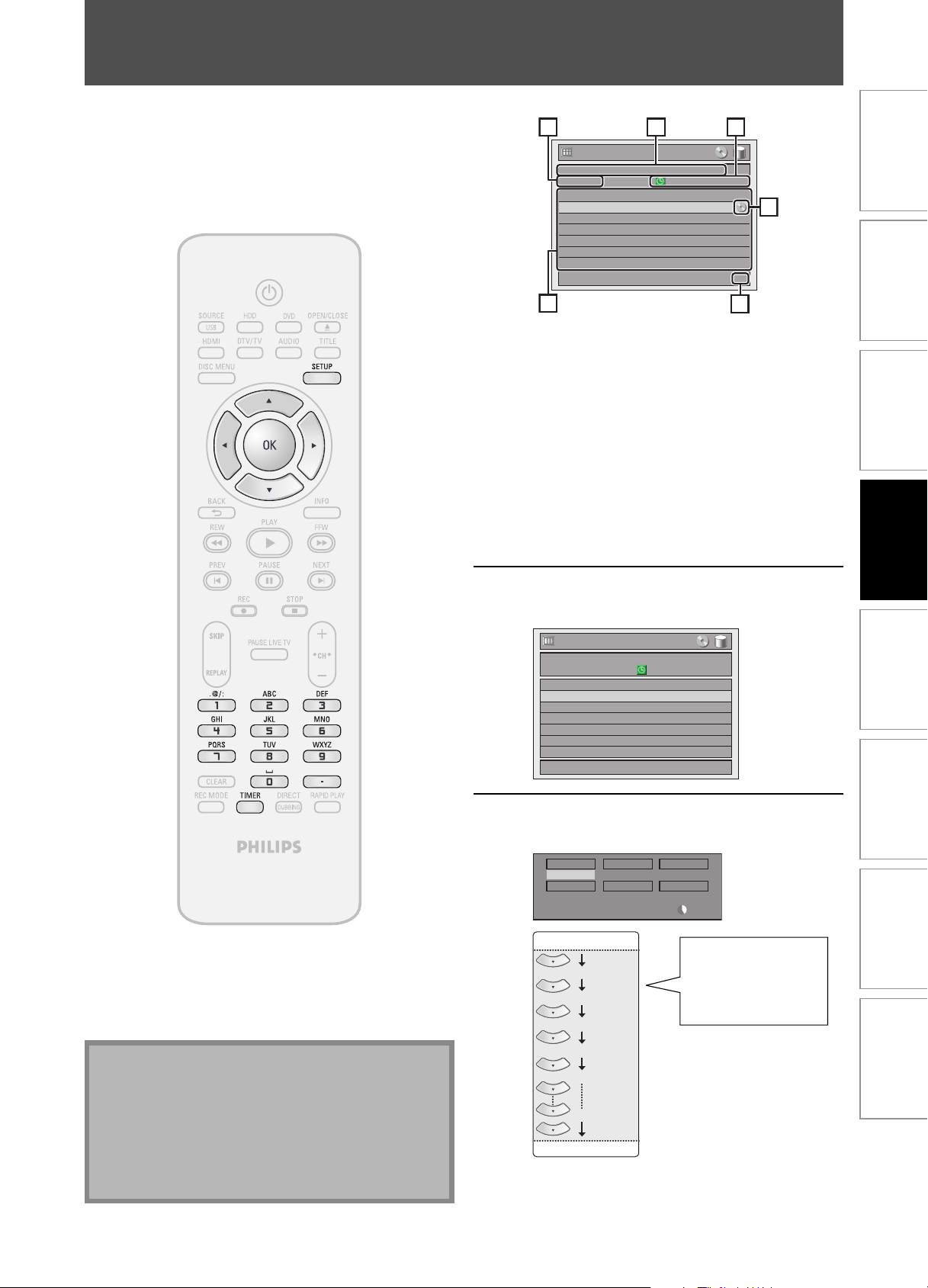

Guide to Timer Programming Display
Timer Programming
1/1
SP (1:00)
FEB/20/07 10:30 AM 125.1 SP
Date Start End CH
FEB/20 10:30AM 11:30AM DTV125. 1
New Program
MON FEB/19 11:30AM
1
5
3
4
2
6
1 Title of a timer program (Contains date, time, channel,
recording mode of the program)
2 Current date and time
3 Recording mode, and length of the recording
4 Timer program list
5 Total number of pages and current page (6 pages
maximum)
6 Recording media
When pressing [L] at
the current date, the
date will change as
follows.
e.g.) January 1st
HDD & DVD RECORDER
E2H40UD_v4.indd 43E2H40UD_v4.indd 43 2008/06/02 13:35:122008/06/02 13:35:12
44 EN44 EN
4
Use [K / L / s / B] or [the Number
buttons] to enter the start and end
time, then press [B].
Date
FEB/20
REC To Mode
HDD SP
SP 2h00m
Start End
- - : - -
CH
DTV125. 1
10 : 30AM
5
Use [K / L / s / B] to select analog
(“- - -”) / digital (“DTV”) mode or
external input (E1 / E2), then press
[B].
e.g.) external input mode
Date
FEB/20
REC To Mode
HDD SP
SP 1h00m
Start End
CH
E1
11 : 30AM
10 : 30AM
To record from external input (e.g., cable/
satellite box), select E1 or E2.
Use [K / L] to select the channel number to
record.
For digital mode, select both major and minor
channels. Refer to “How to select a channel
number for the timer recording” on page 45
for more details.
e.g.) analog mode
Date
FEB/20
REC To Mode
HDD SP
SP 1h00m
Start End
CH
10
11 : 30AM
10 : 30AM
e.g.) digital mode
Date
FEB/20
REC To Mode
HDD SP
SP 1h00m
Start End
CH
DTV125. 1
11 : 30AM
10 : 30AM
6
Use [K / L] to select the recording
media (“HDD” or “DVD”), then press
[B].
e.g.) recording to DVD
Date
FEB/20
REC To Mode
DVD SP
SP 1h00m
Start
10 : 30AM
End
11 : 30AM
DTV125. 1
CH
7
Use [K / L] to select a recording
mode.
Date
FEB/20
REC To Mode
DVD
SP 1h00m
Start End
CH
DTV125. 1
11 : 30AM
10 : 30AM
SP
Refer to “Recording Mode” on page 39.
• You can check the remaining recordable space
of the disc when you select the recording mode.
Date
FEB/20
REC To Mode
DVD
SP 1h00m
Start End
CH
DTV125. 1
11 : 30AM
10 : 30AM
SP
Auto recording mode select (DVD only)...
When “Auto” is selected as a recording mode, the unit
calculates how much time is available on the disc and
selects the best recording mode available
automatically to complete recording the program.
Date
FEB/20
REC To Mode
DVD
Auto 1h00m
Start End
CH
DTV125. 1
11 : 30AM
10 : 30AM
Auto
• “Auto” is only available for one program in the timer
program list.
Alternate recording (DVD only)...
If there is no recordable disc in the unit, if the disc does
not have enough space to complete the recording, or if
the material is “copy-once” program and prohibited to be
recorded on a DVD, the unit will detect it and automati-
cally record to the HDD even when DVD is selected as
the recording media.
If the available space on the HDD
is less than that of DVD, the unit will not perform the
alternate recording.
This feature is available only for timer
recording. Not available for one-touch timer recording.
8
Press [OK] when all items are
entered.
will appear on the front panel display.
Timer Programming
1/1
MON FEB/19 11:30AMSP (1:00)
FEB/20/07 10:30 AM 125.01 SP
Date Start End CH
FEB/20 10:30AM 11:30AM DTV125. 1
New Program
Your program setting is now stored.
• To set another program, repeat steps 2 to 8.
• To exit, press [TIMER] or [SETUP].
• When 2 or more programs are overlapped,
“Timer program overlapped” appears, and the
overlapped program will be displayed in blue.
• To correct the timer program refer to
“Checking, canceling, or correcting the timer
programming information” on page 45.
TIMER RECORDING
E2H40UD_v4.indd 44E2H40UD_v4.indd 44 2008/06/02 13:35:132008/06/02 13:35:13
45EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
45EN
How to select a channel number for the timer recording
Analog TV
For channel number 2-6 press, press [B] or [ • ] to decide the channels. For other channels (7-69),
the channel will be decided as soon as you enter the channel number.
Analog CATV
For channel number 1-12 press, press [B] or [ • ] to decide the channels. For other channels (13-
125), the channel will be decided as soon as you enter the channel number.
Digital TV
For channel number 1-9 press, press [B] or [ • ] to decide the channels. For other channels (10-99),
the channel will be decided as soon as you enter the channel number.
Digital CATV
For channel number 1-13 press, press [B] or [ • ] to decide the channels. For other channels (14-
135), the channel will be decided as soon as you enter the channel number.
minor channels
For channel number 1-9 press, press [B] or [ • ] to decide the channels. For other channels (10-99),
the channel will be decided as soon as you enter the channel number.
<Hint>
• You can decide the 1-digit channel number by pressing 0 first , then enter desired 1-digit channel number.
e.g.) “5”: [0]+[5]
• For selecting the channels with [K / L] you need to press [B] or [ • ] to decide the channel number.
• For selecting the minor channels with [K / L], please make sure the minor channel your are selecting is existed.
[K / L] does not skip the non-existed minor channels.
TIMER RECORDING
Checking, canceling, or correcting the timer
programming information
If the timer program did not complete correctly,
the error number appears in the timer pro-
gramming list.
1) Press [TIMER].
2) Check the information.
Timer Programming
1/1
SP (1:00)
FEB/20/07 10:30 AM 125.1 SP
Date Start End CH
FEB/20 10:30AM 11:30AM DTV125. 1
New Program
MON FEB/19 11:30AM
3-A) To delete the timer program:
1 Use [K / L] to select the program you want to
delete, then press [OK].
2 Use [K / L] to select “Delete”, then press [OK].
Confirmation window will appear.
3 Use [K / L] to select “Yes”, then press [OK].
3-B) To correct the timer program:
1 Use [K / L] to select the program you want to
correct, then press [OK].
2 Use [K / L] to select “Program Change”, then
press [OK].
3 Correct the timer program by using
[K / L / { / B], then press [OK].
4) Press [TIMER] to exit.
Note
• Press [TIMER] to check the timer recording in progress.
• As to the timer recording in progress (which is shown
in red in the timer program list), you only can edit
the end time. The changes made during recording
will be recognized as only specific to that recording
in progress and it will not affect the daily or the
weekly recording setting.
Timer Programming
1/1
SP (1:00)
FEB/20/07 10:30 AM 125.1 SP
Date Start End CH
E41 FEB/20 10:30AM 11:30AM DTV125. 1
New Program
TUE FEB/20 1:00PM
Each error number means:
E1-22
E37-39
Recording error other
than below
E42 No disc when
recording
E24 Unrecordable disc E43 Already 49 titles
recorded
E25-26 Copy prohibited
program
E44 Already 254 chapters
recorded
E29 Disc protected E45 Copy prohibited
program
E30 Disc full E46 It is impossible to
record additionally
on a disc recorded
by other units
when setting “
Make Recording
Compatible” to “OFF”.
E35 PCA full *1
E36 Already finalized
video format disc
E40 Some portion has
not been recorded
because of program
overlapping.
Recording did not
start at the start time.
E47 Already 600 titles
recorded on the HDD
E49 HDD recording is
canceled due to the
insufficiency of the
disc space on the
HDD.
E41 Power failed
• E23, E27, E28, E31, E32, E33 and E34 are not displayed.
• A program with the error number is grayed in the timer
programming list.
• Timer program with an error number will be cleared
once the entry screen for the program is displayed.
*1 PCA is a disc's space reserved for recording test.
Press [STOP C] to stop the timer recording in
progress.
To stop the timer recording in progress
E2H40UD_v4.indd 45E2H40UD_v4.indd 45 2008/06/02 13:35:142008/06/02 13:35:14
46 EN46 EN
TIMER RECORDING
Hints for Timer Recording
When the starting time is the same:
A program set previously (PROG. A) has priority.
PROG. A
PROG. B
actual
recording
PROG. A
PROG. B
The rst 2 minutes (at the longest) will be cut o.
PROG. A
• Timer program which has the earlier start time will be placed first in the timer program list, and be given priority over
the programs with the later start time when timer programs overlap.
• When timer programs overlap, the first 2 minutes (at the longest) of the later recording will be cut off.
• When 2 or more timer programs have the same start time, the program set first will be given priority.
• A timer recording of lower priority will be canceled or start from the middle.
• Check the overlapped timer programmings and change the priority if necessary.
• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer
programming will be lost.
• When recording to a DVD, if a disc is not inserted, the unit will perform the alternate recording to the HDD (refer to
page 44).
• When a timer recording is completed, the unit will ask you whether to turn off the unit if there is no timer recording
which starts within 4 minutes, except under conditions listed below.
- During playback of HDD or DVD.
- While displaying menus or information on the screen.
• The unit will be turned off automatically if you select “Yes” or if you do not reply in 1 minute.
• When the programmed starting and ending time are earlier than the current time, the setting will not be accepted
and be cleared for redoing.
• If the starting time is earlier and the ending time is later than the current time, the recording will start right after you
press [OK] at step 8 on page 44.
• You cannot change the audio language for the timer recording of digital TV broadcasting.
• Timer recording whose recording time exceeds 12 hours cannot be made.
• It is prohibited to turn off the unit from 4 minutes before the programmed starting time.
• It is prohibited to change channel from 15 seconds before the programmed starting time.
• [REC I] does not work from 2 minutes before the programmed starting time. If it comes to 2 minutes before the
starting time during regular or one-touch timer recording, the recording in progress will be stopped.
• Playback of DVD is prohibited from 2 minutes before the programmed starting time when the recording media is
DVD. If it comes to 2 minutes before the programmed starting time during DVD playback, the playback will be
stopped.
The Priority of Overlapped Settings
Note for DVD recording
• When the recording time of 2 programs are overlapped, or
the end time of a program and the start time of another
program is the same, the first 2 minutes (at the longest) of
the subsequent program will be cut off.
• If the cut-off portion comes up to 3 minute or more, this
program will be displayed with error number E40 in the
timer programming list.
PROG. A
PROG. B
actual
recording
The rst 2 minutes (at the longest) will be cut o.
PROG. BPROG. A
When the end time of the programming
currently being recorded and the start time
of the subsequent program are same:
The beginning of the PROG. B may be cut o.
E2H40UD_v4.indd 46E2H40UD_v4.indd 46 2008/06/02 13:35:152008/06/02 13:35:15
47EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
47EN
SPECIAL RECORDING
Pause Live TV
Note
• If you press [PAUSE LIVE TV] when the unit is in DVD
mode, the output mode will automatically be
switched to HDD, and the unit will start the time shift
playback of the title being recorded.
• You can also use the special playback functions such as
[REW E ], [FFW D] etc. during pause live TV mode.
• The programs you recorded with [PAUSE LIVE TV]
will not be stored in the title list.
• [REC I] is invalid during pause live TV mode.
• You can no longer fast forward the playback when it
comes to a few second before the current recording
point.
• Pause live TV mode will stop not only when you
press [STOP C] twice, but also when the disc runs
out of space, when the recording time exceeds 12
hours, or when it comes to 2 minutes before timer
recording.
HDD & DVD RECORDER
With [PAUSE LIVE TV], even if you leave your couch
while you are watching TV through this unit, you can
come back and watch the rest of the program from right
where you left at any convenient time with just one touch
of a button.
1
When you leave the TV, press [PAUSE
LIVE TV] twice.
With the first press, the unit will start recording
the TV broadcast.
With the second press, the unit will be in the
pause mode as soon as it starts the time shift
playback (refer to page 73). (It is as if you paused
the live TV broadcast.)
2
When you come back, press [PAUSE
LIVE TV] again.
The pause mode will be canceled, and the
playback will start from the point you pressed
the button for the second time in step 1.
• While viewing the recorded content, you can
pause and resume the playback by pressing
[PAUSE LIVE TV].
Press Stop once to resume Live TV.
Press Stop twice to stop PAUSE LIVE TV MODE.
PAUSE LIVE TV MODE
Press Stop once to resume Live TV.
Press Stop twice to stop PAUSE LIVE TV MODE.
PAUSE LIVE TV MODE
[PAUSE LIVE TV]
3
Press [STOP C] once to resume live
TV.
Press [STOP C] twice to stop pause
live TV mode.
E2H40UD_v4.indd 47E2H40UD_v4.indd 47 2008/06/02 13:35:152008/06/02 13:35:15
48 EN48 EN
SPECIAL RECORDING
You can overwrite the existing title from the beginning.
1) Press [STANDBY-ON
yy].
Make sure that the TV input is set on the unit.
2) Load the disc that includes a title to be overwritten.
It takes a while to display
the title list.
Title list will appear.
If the title list does not appear, press [TITLE].
3) Press [REC MODE] to select a recording mode.
Refer to “Recording Mode” on page 39.
4) Use [K / L] to select a title to be overwritten, then
press [OK].
1 SP
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
5) Use [K / L] to select “Overwrite”, then press [OK].
1 SP
2
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Edit
Overwrite
Play
6) Select the channel you want to record.
(Refer to page 32 on how to select a channel.)
e.g.) DVD+RW
CH 12
11
+RW
0:01:00
DVD SP
DVD
2h00m
F I
selected title number
to be overwritten
7) Press [REC I].
Overwriting recording starts.
The elapsed-time counter starts running.
8) Press [STOP C] to stop recording.
Title name is also overwritten.
This operation may take a
while to be completed.
You can overwrite the existing title from the selected
position.
1) Follow the steps 1, 2 and 4 on the left.
2) Use [K / L] to select “Play”, then press [OK].
Playback will start.
3) Press [PAUSE F] at the point from which you want
to start overwriting.
4) Press [REC I].
“F I DVD”, display menu, channel, and the time lapse
will be displayed as illustrated on the left.
5) Select the channel you want to record.
(Refer to page 32 on how to select a channel.)
6) Press [REC I] again.
Overwriting recording starts.
7) Press [STOP C] to stop recording.
This operation may take a
while to be completed.
Overwriting from the Beginning of
the Title
Note
• The remaining recording time is displayed on the
bottom right corner of the TV screen during
overwriting.
Note
• Recording mode of the overwriting title is the same
as that of the original (overwritten) title when
overwriting in the middle of the title.
• Title name will not be overwritten.
Overwriting in the Middle of the Title
E2H40UD_v4.indd 48E2H40UD_v4.indd 48 2008/06/02 13:35:162008/06/02 13:35:16
49EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
49EN
SPECIAL RECORDING
When you overwrite on the unnecessary title, there were various circumstances such as follows. Please note that
following cases only describe the overwriting without any recording mode discrepancy. To avoid accidental deletion
please check if there is no important title after the overwriting point.
When overwriting title is shorter than the existing title:
(overwriting from the beginning of the title)
overwrite
recording : A
existing title : B
after
overwriting
30 - 180 seconds will be cut o.
When overwriting title is longer than the existing title:
(overwriting from the beginning of the title)
overwrite
recording : A
existing title : B
after
overwriting
When overwriting in the middle of the title:
30 - 180 seconds will be cut o.
30 - 180 seconds will be cut o.
overwrite
recording : A
existing title : B
after
overwriting
overwrite
recording : A
existing title : B
existing title : C
after
overwriting
title name : A
title name : A
title name : B
title name : A
title name : C
title name : B*
title name : B
*
Overwritten section and the rest of the sections will
have the same title name as the original existing
title (B).
Hints for Overwriting
Note
• When a title name is overwritten, its index picture is also overwritten.
• “Auto Chapter” interval time is reset at the overwriting start point.
• A chapter mark is put the beginning of the overwrite title when overwriting in the middle of the title.
E2H40UD_v4.indd 49E2H40UD_v4.indd 49 2008/06/02 13:35:162008/06/02 13:35:16
50 EN50 EN
“High”
This unit is compatible with the high speed dubbing from
HDD to DVD.
High speed dubbing offers you the dubbing speed of 12
times the SLP mode dubbing. To perform the high speed
dubbing, set the recording mode to “High”.
• Duration of high speed dubbing will vary depending on
the recording mode or the title amount.
• High speed dubbing is not available when;
- recording mode is set to other than “High”.
- dubbing from a DVD to the HDD.
- there is not enough space in the disc.
- duration of the title is more than 5 hours.
• During dubbing (except for high speed dubbing), you
only can use [STOP C] on the front panel, and any other
buttons will be invalid.
“Auto”
When “Auto” is selected as a recording mode, the unit
calculates how much time is available on the disc and
selects the best recording mode available automatically.
• “Auto” is available only when dubbing from HDD to
DVD.
• The recording may be cut short when the available
recording space of the disc is too limited.
Note on dubbing
• During normal dubbing, you can watch the playback
picture of the title being dubbed (the audio cannot
be changed). During high speed dubbing, however,
the playback picture will not appear.
• Dubbing of a “copy-once only” program is not
possible with this unit.
• If you stop the dubbing halfway, the contents will be
dubbed up to the point where you stop the dubbing
(except for the high speed dubbing). With high
speed dubbing, nothing will be dubbed if you stop it
halfway.
• To stop the dubbing in progress, press [STOP C] on
the front panel.
Guide to Dubbing Menu Display
You can dub the contents of the HDD to DVD or vice verse. Before you start dubbing, refer to page 38 to see the
recording compatibility.
Recording Mode for Dubbing
Information on Dubbing
DUBBING
HDD DVD
1/1
3000 MB
Dubbing List
Add
Delete All
Dubbing Start
1
2
3
4
5
1 Dubbing direction
2 Dubbing menu
3 Remaining recordable space
4 Dubbing list
5 Current page number / total number of pages
Other modes
Refer to page 39 for the information on other modes.
E2H40UD_v4.indd 50E2H40UD_v4.indd 50 2008/06/02 13:35:172008/06/02 13:35:17
51EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
51EN
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
AV IN
AV OUT
COMPONENT
VIDEO OUTPUT
IN
HDD & DVD PLAYER / RECORDER DVDR
3575
H
USB
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV IN
AV O UT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
front of this unit rear of this unit
AUDIO OUT DV-OUT
LR
VIDEO
OUT
AUDIO OUT
LR
VIDEO
OUT
S-VIDEO
OUT
to E1 IN
external device
(camcorder, VCR etc.)
S-video
cable
RCA
video
cable
DV cable
(4-pin)
RCA
video
cable
RCA
audio
cable
RCA
audio
cable
to E2 & E3 IN
or
E1
E2 E3
or
or
or
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Video”, then
press [OK].
Submenu will appear.
3
Use [K / L] to select “Video Input”,
then press [OK].
4
Use [K / L] to select the input jack
type to connect, then press [OK].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
Video Input - E1 (Rear)
Video In
S-Video In
5
Press [SETUP] to exit.
Connect the external device properly to the unit by using input jacks either E2 and E3 (Front) or E1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of E2 (Front).
Use S-video or the RCA audio/video cables for this connection.
When connecting a DV-camcorder, use DV input jack of E3 (Front) instead of S-VIDEO IN or VIDEO IN jack
.
Settings for an External Device
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your
local store.
DUBBING
E2H40UD_v4.indd 51E2H40UD_v4.indd 51 2008/06/02 13:35:172008/06/02 13:35:17
52 EN52 EN
USB
DUBBING
Recording from an External Device
If you are recording to the HDD, press [HDD] first, then
proceed to step 2.
If you are recording to a disc, press [DVD] first.
1
Insert a recordable disc (refer to page
25 on how to insert a disc).
It takes a while to load the disc.
2
Select the appropriate external input
channel (E1, E2 or E3) by pressing
[SOURCE / USB] or [CH
/ ].
• If the external device is connected to the rear
of this unit, select E1.
• If the external device is connected to the front
of this unit, select E2 or E3.
• If you are connecting the digital video
camcorder to the DV-IN jack of this unit, refer
to pages 53-55.
• You can also select E1, E2 or E3 channel by using
[the Number buttons].
e.g.) For E1, press [0], [0], [1].
3
Press [REC MODE] to select a
recording mode.
Refer to “Recording Mode” on page 39.
4
Press [RECORD] on the unit to start
recording.
5
Start playback on the external device
to record from.
6
Press [STOP C] on the unit to stop
recording.
This operation may take a
while to be completed.
Before recording from an external device, refer to the
instructions for the connection on page 51.
6 4
HDD & DVD RECORDER
E2H40UD_v4.indd 52E2H40UD_v4.indd 52 2008/06/02 13:35:172008/06/02 13:35:17
53EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
53EN
1) Connect your DVC to the DV-IN jack on the front panel using a DV cable. (Use the DV cable that has 4-pin input jack
and is compliance with the IEEE1394 standards.)
2) Press [SOURCE / USB] repeatedly to select the appropriate external input channel for DV-IN (E3).
3) Press [INFO] to display the DVC information on the screen.
1. DV icon
2. Indicator of active device
• With “Control” highlighted, press
[OK] to display the available
devices to control with the
remote control of this unit. Use
[K / L] to select the device you
wish to operate, then press [OK].
- Select “HDD” / “DVD” to control
this unit with the remote control
of this unit.
- Select “DV Input” to control your
DVC with the remote control of
this unit.
3. Recording audio mode
• “DV Audio” can be changed. With
“DV Audio” selected, press [OK]
to display “DV Audio” menu. Use
[K / L] to select the audio you
wish to output, then press [OK].
- Select “Stereo1” to dub the stereo
sound.
- Select “Stereo2” to dub the sound
with after recording sound.
- Select “Mix” to dub the stereo1
and stereo2.
4. Command menu
• ”Start Rec” or “Pause Rec” will
appear.
5. External input channel
6. Product name of your DVC
• If the unit cannot recognize the
input signal from the DVC or if it
is the unknown product, “No
Device” or “****” will appear
instead.
7. Status of the current operation
and the time counter
Each icon means (Available icons
may vary depending on the DVC):
DVC is in stop mode.
DVC is in playback mode.
DVC is in pause mode.
DVC is fast forwarding.
(standard speed)
DVC is fast forwarding.
(faster than above)
DVC is fast forwarding.
(faster than above)
DVC is slow forwarding.
(standard speed)
DVC is slow forwarding.
(faster than above)
DVC is slow forwarding.
(faster than above)
DVC is fast forwarding.
(in stop mode)
DVC is fast reversing.
(in stop mode)
DVC is fast reversing.
(standard speed)
DVC is fast reversing.
(faster than above)
DVC is fast reversing.
(faster than above)
DVC is in slow reverse
playback.
DVC is in recording.
DVC is in recording pause
mode.
The following instructions are described with the operations using the remote control of this unit.
E3 (DV-IN)
AB-1234
0:12:34
1/ 1 1/ 1
+
RW
Control DVD
DV Audio Stereo1
Start Rec
DVD SP 2h00m
E3 (DV-IN)
AB-1234
0:12:34
1/ 1 1/ 1
+
RW
DVD SP 2h00m
2
3 7
1
4
5
6
The menu changes according to
what mode of DVC.
Switch the mode on the DVC
to video mode for the dubbing
information.
When the DVC is in
video mode...
When the DVC is in camera
mode...
DVD mode DVD mode
This function helps you to easily dub the contents in the DVC (digital video camcorder) to HDD or DVD.
You can control basic operations of the DVC from the remote control of this unit if the DVC is in video mode.
Please also read the operating instructions of your DVC for more information.
DUBBING

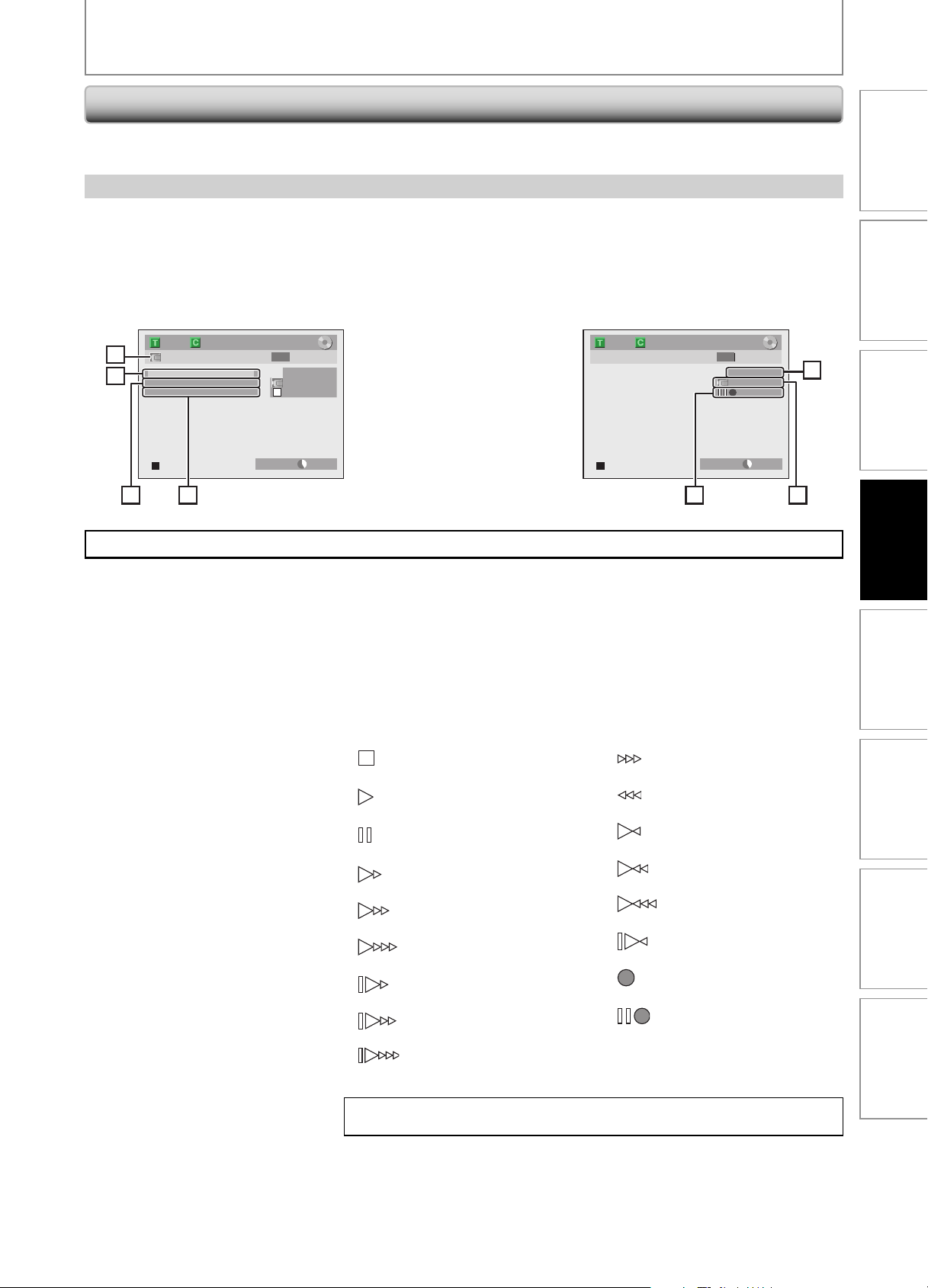

Information on DV Dubbing
Guide to DV and On-Screen Display
E2H40UD_v4.indd 53E2H40UD_v4.indd 53 2008/06/02 13:35:192008/06/02 13:35:19
54 EN54 EN
DVC to HDD / DVD Dubbing
Preparing for DV dubbing (DVC to HDD):
• Make sure your DVC is in video mode.
Preparing for DV dubbing (DVC to DVD):
• Insert a recordable DVD.
• Make sure your DVC is in video mode.
If you are dubbing to the HDD, press [HDD] first.
If you are dubbing to a disc, press [DVD] first.
1
Use [SOURCE / USB] or [CH / ] to
select “E3 (DV-IN)” channel.
AB-1234
0:00:00
E3 (DV-IN)
2
Press [REC MODE] to select a
recording mode.
(Refer to page 39.)
3
Press [INFO].
4
With “Control” highlighted, press
[OK] to display the available devices
to control with the remote control of
this unit. Use [K / L] to select “DV
Input”, then press [OK].
e.g.) DVC to DVD dubbing
AB-1234
0:00:00
E3 (DV-IN)
DV Audio Stereo1
Start Rec
Control DVD
1/ 1 1/ 1
+
RW
DVD SP 2h00m
Now you can operate your DVC with the remote
control of this unit.
Before recording from DVC, refer to page 51 for
connection instructions.
HDD & DVD RECORDER
DUBBING
E2H40UD_v4.indd 54E2H40UD_v4.indd 54 2008/06/02 13:35:202008/06/02 13:35:20
55EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
55EN
Note for DV dubbing
• If you press [PAUSE F] at step 5, the tape will rewind to the point a few seconds preceding the paused point
when you press [OK] at step 6, then, it will start dubbing when it comes to the paused point.
• The unit does not send out the output signal to DVC.
• For the proper operation, connect DVC to the unit directly. Do not connect this unit and DVC via any other unit.
• Do not connect more than 1 DVC.
• The unit can only accept DVC. Other DV device such as cable/satellite box or D-VHS VCR cannot be recognized.
• If no video signal is detected from the DVC during DVC to HDD / DVD dubbing, the recording will be paused and
“I” will flash on the TV screen. The recording will resume when the unit detects the video signal again.
• When the DVC is in camera mode, refer to “Guide to DV and On-Screen Display” on page 53.
• Date / time and cassette memory data will not be recorded.
• Pictures with a copy-guard signal cannot be recorded.
• A DV terminal is a terminal that can use the transmission mode conforming to the IEEE 1394 standards called “Fire
Wire”. It enables digital dubbing between DV devices with little degradation.
• You cannot dub from DVC to the both HDD and DVD at the same time.
5
Press [PLAY B] to start playing back
the DVC, and find the point where
you wish to start dubbing.
Press [STOP C] when you come to the
desired start point.
6
Use [K / L] to select “Start Rec”, then
press [OK].
The dubbing will start.
To stop dubbing;
1) Use [K / L] to select “Control”,
then press [OK].
2) Use [K / L] to select “HDD” or
“DVD” (whichever the recording
component you are using), then
press [OK].
3) Press [STOP C].
DUBBING
E2H40UD_v4.indd 55E2H40UD_v4.indd 55 2008/06/02 13:35:222008/06/02 13:35:22
56 EN56 EN

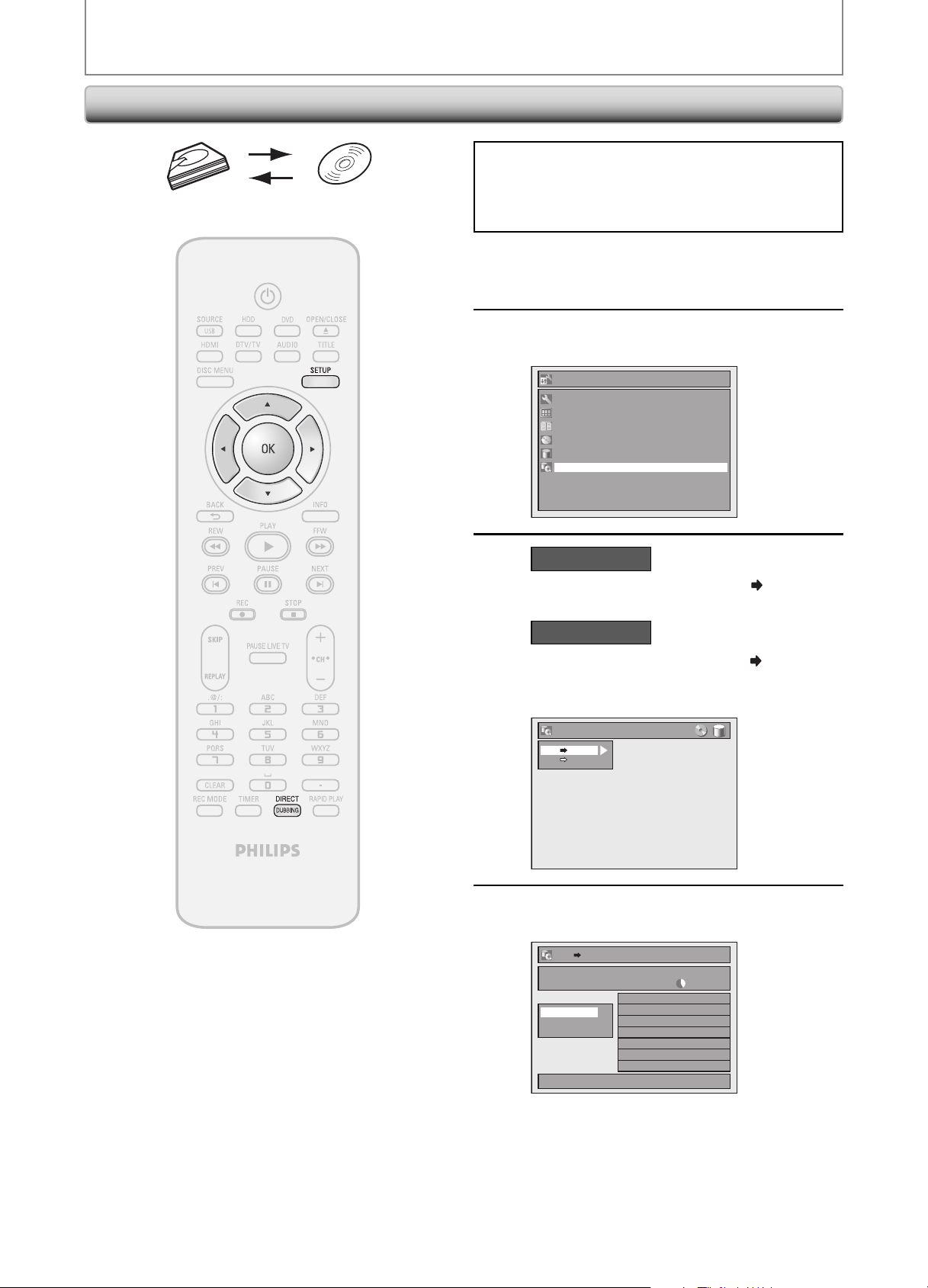

Selected Title Dubbing
Preparing for dubbing (HDD to DVD):
• Insert a recordable DVD.
Preparing for dubbing (DVD to HDD):
• Insert a disc to be dubbed.
1
Press [SETUP] in stop mode.
2
Use [K / L] to select “Dubbing”, then
press [OK].
Setup
Timer Programming
Title List
Disc Edit
HDD Menu
General Setting
Dubbing
3
HDD to DVD
Use [K / L] to select “HDD DVD”,
then press [OK].
DVD to HDD
Use [K / L] to select “DVD HDD”,
then press [OK].
e.g.) HDD ➔ DVD
HDD DVD
DVD HDD
Dubbing
4
Use [K / L] to select “Add”, then
press [OK].
HDD DVD
1/1
3000 MB
Dubbing List
Add
Delete All
Dubbing Start
• If you have registered any dubbing before,
they will be listed in the dubbing title list.
HDD & DVD RECORDER
DUBBING
E2H40UD_v4.indd 56E2H40UD_v4.indd 56 2008/06/02 13:35:222008/06/02 13:35:22
57EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
57EN
5
Use [K / L / s / B] to select a desired
title, then press [OK].
e.g.) HDD
Title List
1 / 6
ABCDE
12:00AM (10:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
The title is now registered in the dubbing list.
6
Repeat steps 4 to 5 until you register
all the titles to be dubbed.
To delete a title:
1 Go to the dubbing list, then use [K / L] to
select a title. Then press [OK].
2 Use [K / L] to select “Delete”, then press
[OK].
3 Use [K / L] to select “Yes”, then press [OK].
To move a title:
1 Go to the dubbing list, then use [K / L] to
select a title. Then press [OK].
2 Use [K / L] to select “Move”, then press [OK].
3 Use [K / L] to select a desired insert point,
then press [OK].
To erase all the titles in the dubbing title list:
1 Use [K / L] to select “Delete All” in the
dubbing menu, then press [OK].
2 Use [K / L] to select “Yes”, then press [OK].
Final confirmation message will appear.
3 Use [K / L] to select “Yes”, then press [OK].
• To go back and forth between dubbing menu
and dubbing list, use [s / B].
7
After adding all the titles you want,
use [K / L] to select “Dubbing Start”
in the dubbing menu, then press
[OK].
8
Use [s / B] to select a desired
recording mode, then press [OK].
HDD DVD
3000 MB
500 MBDubbing Titles
Please select REC MODE.
LP EP SLP AutoHigh HQ SP SPP
Confirmation message will appear.
• Depending on the dubbing direction, the
available recording mode varies.
• When dubbing from HDD to DVD, you can
select “High” to perform the high speed
dubbing (refer to “Recording Mode for
Dubbing” on page 50 for more details).
9
Use [K / L] to select “Yes”, then press
[OK].
Start Dubbing?
Yes
No
Dubbing will start.
• It may take awhile to prepare for the dubbing.
To stop the dubbing in progress:
Press [STOP C] on the front panel.
DUBBING
One-touch Dubbing...
With one-touch dubbing, you can start dubbing right
away with just one touch.
To dub the contents in a DVD which is finalized on
other unit, use this function.
During playback of the title you want to dub, press
[DIRECT DUBBING].
If you are playing back a DVD, DVD to HDD dubbing will
start right away.
If you are playing back HDD, HDD to DVD dubbing will
start right away.
• The dubbing will start from the beginning of the title
being played back.
• The unit will dub only the title being played back.
• When dubbing from HDD to DVD, recording mode will
automatically be set to “High” whenever the conditions
are met (refer to page 50). Otherwise, the last selected
recording mode will automatically be applied.
To stop the dubbing in progress:
Press [STOP C] on the front panel.
E2H40UD_v4.indd 57E2H40UD_v4.indd 57 2008/06/02 13:35:232008/06/02 13:35:23
58 EN58 EN

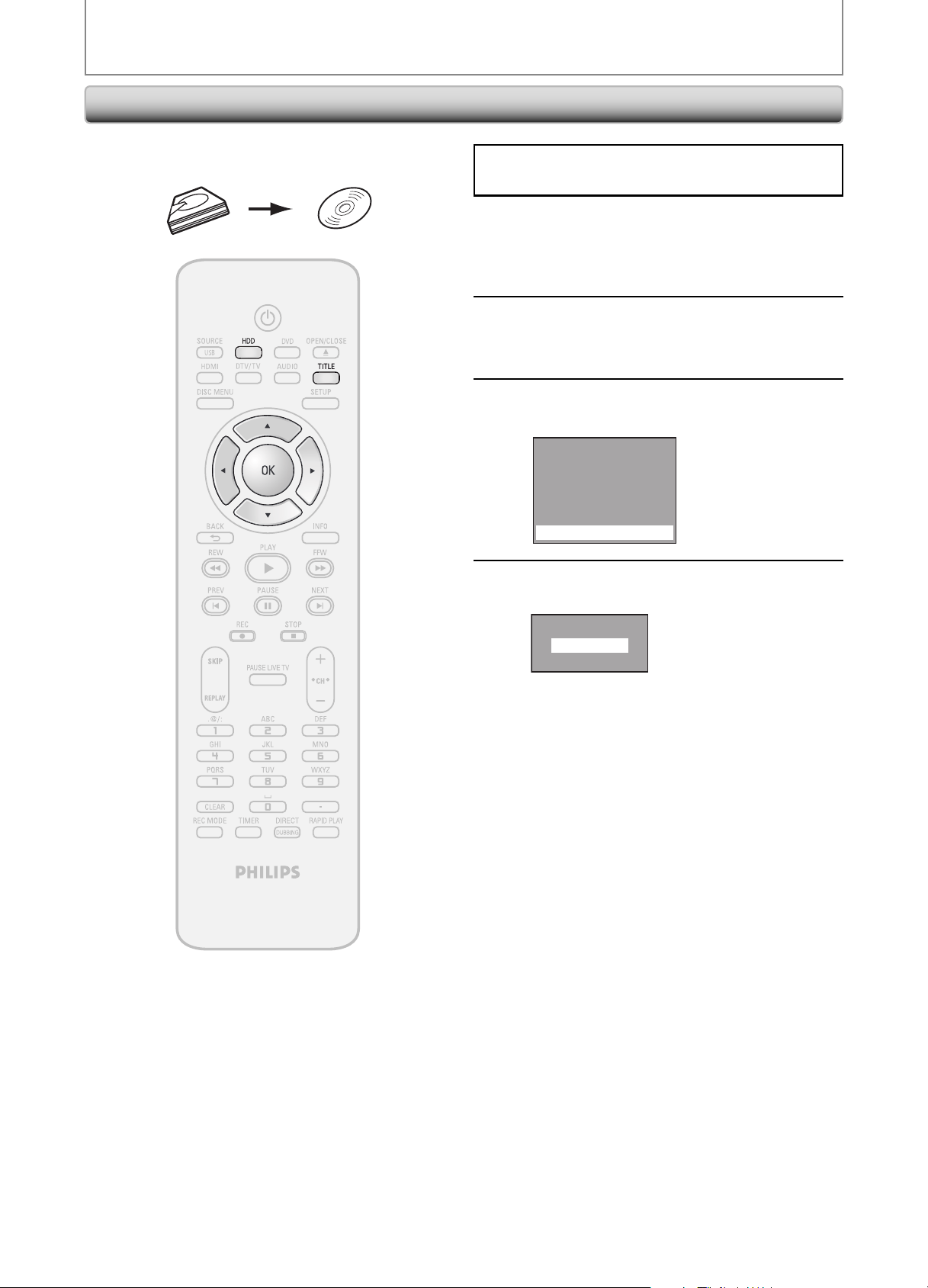

One Title Dubbing (HDD to DVD only)
Preparing for dubbing:
• Insert a recordable DVD.
Press [HDD] first.
1
Press [TITLE].
2
Use [K / L / s / B] to select a desired
title to dub, then press [OK].
3
Use [K / L] to select “Dubbing”, then
press [OK].
Resume Playback
Play From Start
Edit
Title Delete
Delete Multiple Titles
Dubbing
4
Use [K / L] to select “Yes”, then press
[OK].
Start Dubbing?
Yes
No
Dubbing of the selected title will start.
To stop the dubbing in progress:
Press [STOP C] on the front panel.
HDD & DVD RECORDER
DUBBING
This function lets you select one specific title from the
title list for dubbing.
E2H40UD_v4.indd 58E2H40UD_v4.indd 58 2008/06/02 13:35:232008/06/02 13:35:23
59EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
59EN

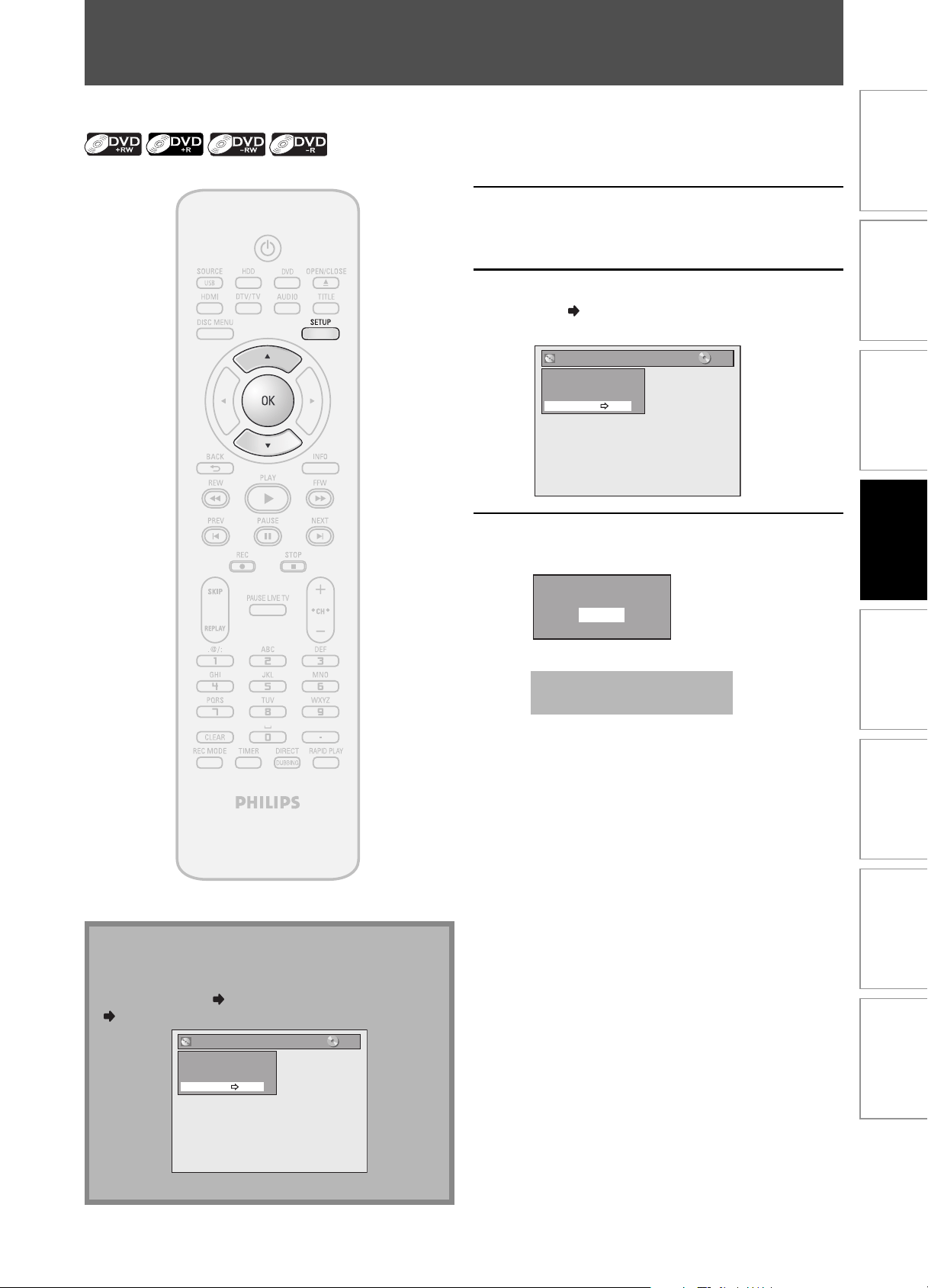

PROTECTING A DISC
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
3
Use [K / L] to select “Disc Protect
OFF
ON”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
4
Use [K / L] to select “Yes”, then press
[OK].
Protect this disc?
Yes
No
Disc is now protected.
This operation may take a
while to be completed.
To prevent accidental recording, editing or erasing the
titles, you can protect them from “Disc Edit” menu.
Note
To cancel the disc protection:
• When you insert a disc protected with this unit,
“Disc Protect ON
OFF” will appear instead of “OFF
ON” at step 3.
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect ON OFF
To release the protect for the disc, select “Yes” at step 4.
HDD & DVD RECORDER
E2H40UD_v4.indd 59E2H40UD_v4.indd 59 2008/06/02 13:35:242008/06/02 13:35:24
60 EN60 EN

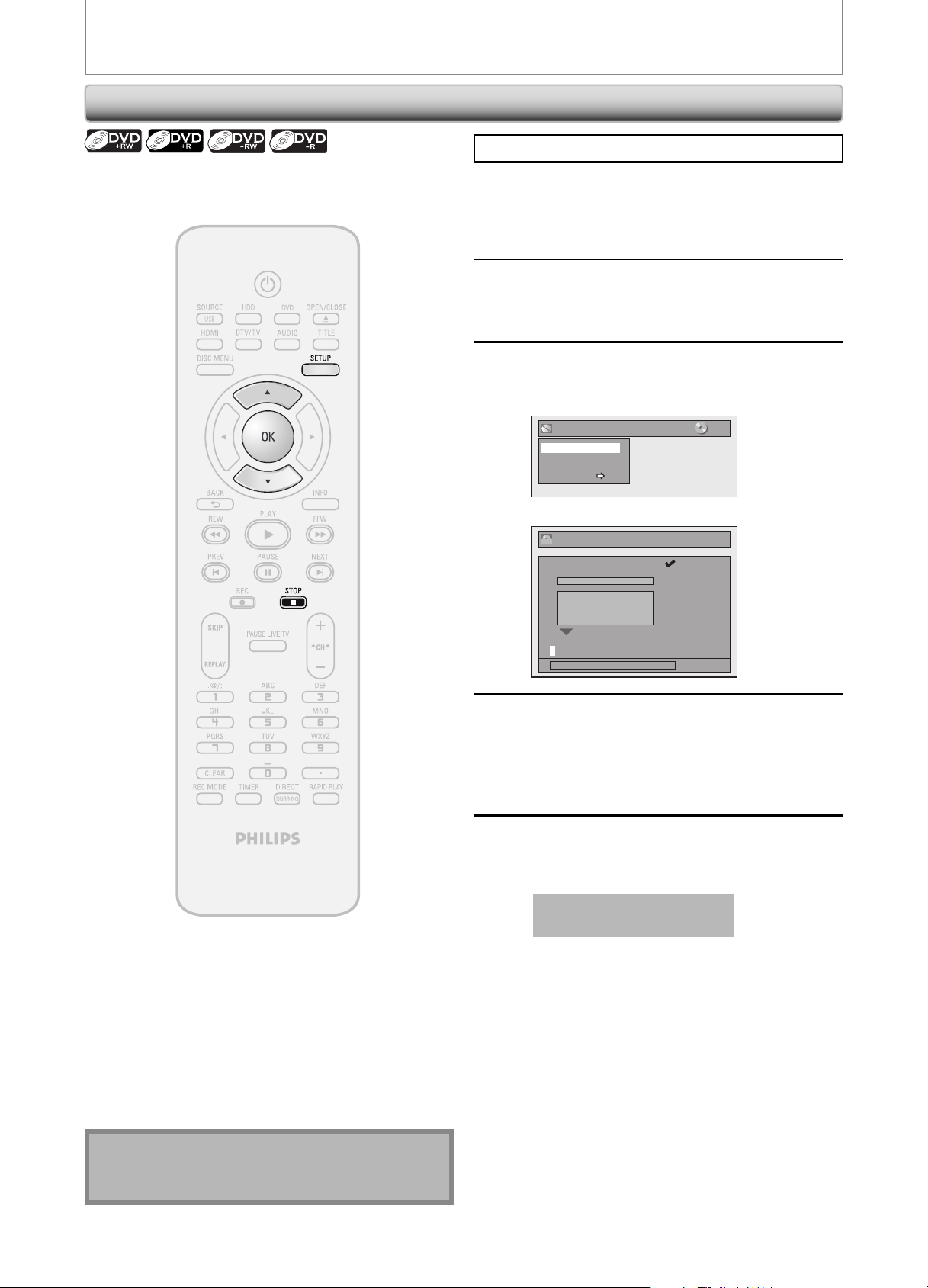

PLAYING THE DISCS ON OTHER DVD PLAYERS

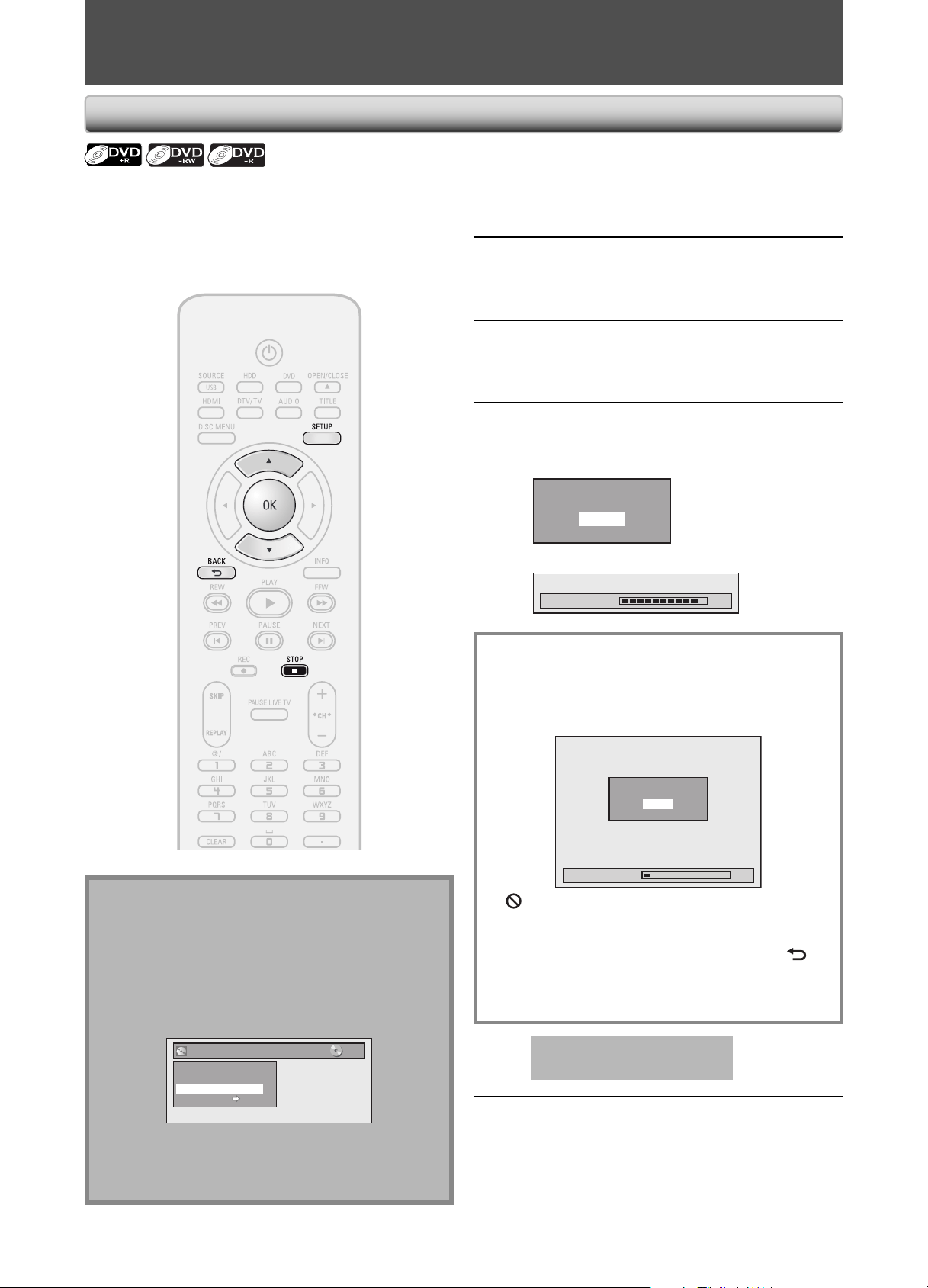

Finalizing a Disc
1
Press [SETUP].
If you are in the title list, you need to exit from
the list by pressing [STOP C] before you are able
to access the main menu.
2
Use [K / L] to select “Disc Edit”, then
press [OK].
“Disc Edit” menu will appear.
3
Use [K / L] to select “Finalize”, then
press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
e.g.) DVD+R, DVD-R
Finalize disc?
Yes
No
Finalizing will start.
Finalizing 90%
To cancel finalizing...
(DVD-RW only)
• To cancel finalizing at step 4, press [STOP C], select
“Yes” with [K / L], then press [OK]. Finalizing is
canceled and the unit will be in stop mode.
Finalizing 5%
Yes
No
Do you want to cancel ?
• If appears when pressing [STOP C], you cannot
cancel finalizing because the finalizing has been in
certain progress.
• When selecting “No” and press [OK] or [BACK
] ,
finalizing will be continued.
• You cannot cancel finalizing the DVD+R/DVD-R once
it has started.
This operation may take a
while to be completed.
5
Finalizing is completed.
You will need to finalize DVD+R, DVD-RW or DVD-R to
play them back on other DVD players.
Finalizing may take several minutes up to an hour.
A shorter recording period on the disc will require a
longer time period for finalization. Do not unplug the
power cord during finalization.
Note
• During recording to the HDD, “Disc Edit” menu
cannot be accessed.
• Once you have finalized a DVD+R/ DVD-R, you
cannot edit or record anything on that disc.
• There is no need to finalize DVD+RW.
• When you insert a DVD-RW finalized with this unit,
“Undo Finalize” will appear instead of “Finalize”.
Disc Edit
Edit Disc Name
Erase Disc
Undo Finalize
Disc Protect ON OFF
To release the finalizing for the disc, select “Undo
Finalize” at step 3.
* DO NOT power off during finalization, this will result
in malfunction.
E2H40UD_v4.indd 60E2H40UD_v4.indd 60 2008/06/02 13:35:252008/06/02 13:35:25
61EN
Recording
Playback EditingIntroduction Connections Basic Setup Function Setup Others
61EN
PLAYING THE DISCS ON OTHER DVD PLAYERS
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Recording”,
then press [OK].
“Recording” menu will appear.
3
Use [K / L] to select “Auto Finalize”,
then press [OK].
4
Use [K / L] to select “Disc Full” or
“End of Timer Rec”, then press [OK].
Auto Finalize
Disc Full
End of Timer Rec
5
Use [K / L] to select “ON”, then press
[OK].
e.g.) “Disc Full”
Disc Full
ON
OFF
Your setting will be activated.
6
Press [SETUP] to exit.
You can finalize discs automatically using this function.
You can use this function to finalize discs after finishing
all timer recordings and at the end of the disc space.
Auto Finalizing
HDD & DVD RECORDER
E2H40UD_v4.indd 61E2H40UD_v4.indd 61 2008/06/02 13:35:272008/06/02 13:35:27
62 EN62 EN

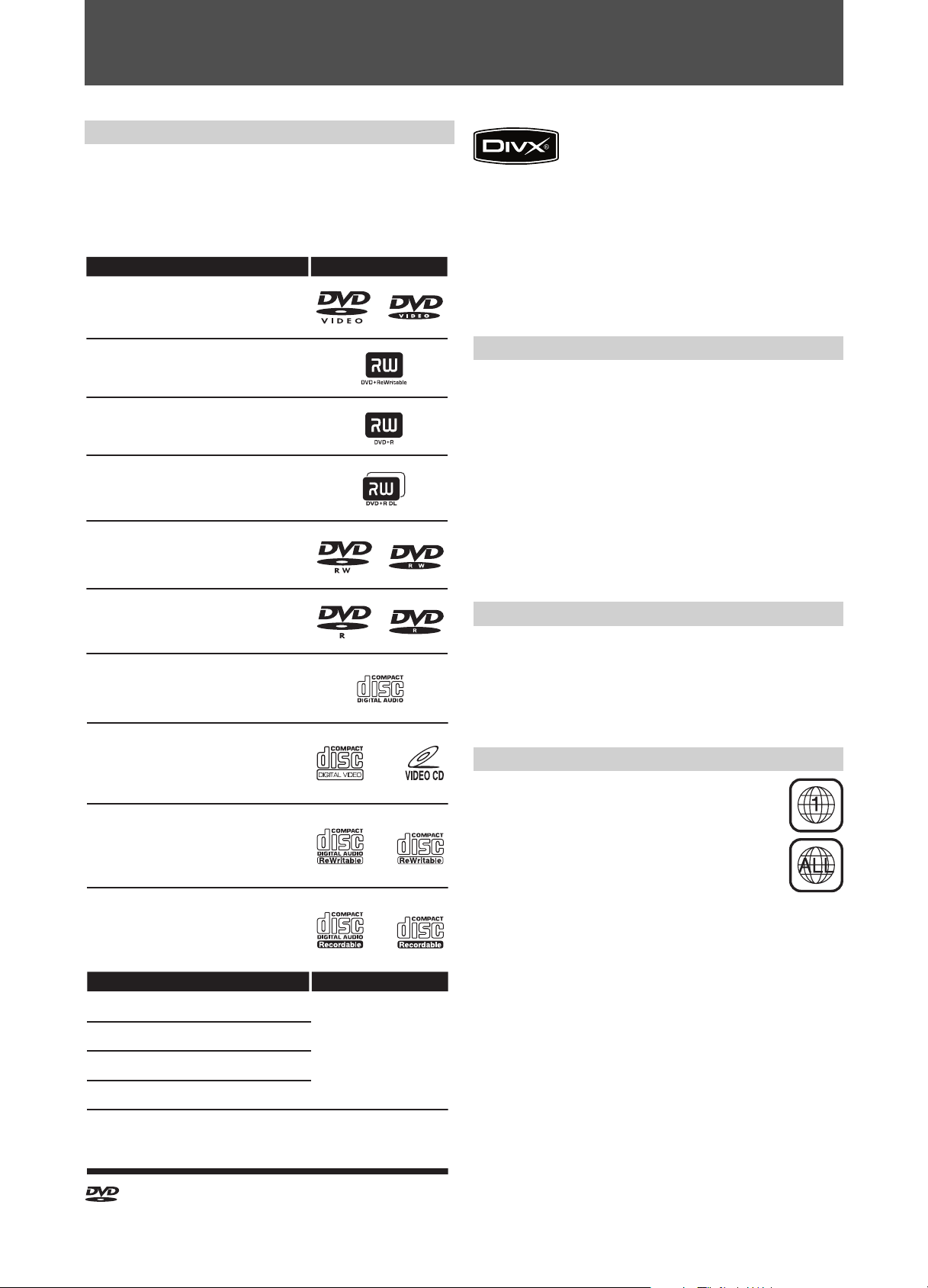

INFORMATION ON PLAYBACK
Before you play back DVD, read the following information.
This unit is compatible to play back the following discs.
To play back a DVD, make sure that it meets the
requirements for region codes and color systems as
described below. You can play back discs that have the
following logos will play back on the unit. Other disc
types are not guaranteed to play back.
Playable Discs and Files
DVD is recorded in different color systems throughout
the world. The most common color system is NTSC
(which is used primarily in the United States and Canada).
This unit uses NTSC, so DVD you play back must be
recorded in the NTSC system. You cannot play back DVD
recorded in other color systems.
Color Systems
This unit has been designed to play back DVD
with region 1. DVD must be labeled for ALL
regions or for region 1 in order to play back on
the unit. You cannot play back DVD that are
labeled for other regions. Look for the symbols
on the right on your DVD. If these region
symbols do not appear on your DVD, you cannot
play back the DVD in this unit.
The number inside the globe refers to region of the
world.
A DVD labeled for a specific region can only play back on
the unit with the same region code.
Region Codes
LogosPlayable discs
MediaPlayable les
CD-DA
MP3
Windows Media™ Audio
CD-RW/-R
USB device
JPEG
DivX®
CD-RW/-R
DVD+RW/+R
DVD-RW/-R
CD-DA (audio CD)
video CD
CD-RW
CD-R
DVD-video
DVD+RW
DVD+R
DVD-RW
(Finalized video mode discs only)
DVD-R
(Finalized video mode discs only)
DVD+R Double Layer
is a trademark of DVD Format/Logo Licensing Corporation.
DivX, DivX Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
• Official DivX® Certified product; Plays DivX® 6.0, DivX® 5,
DivX® 4, DivX® 3, and DivX®VOD video content (in
compliance with DivX Certified™ technical requirements).
• Discs containing the DivX® files with the DivX® GMC (Global
Motion Compensation) playback feature, which is DivX®
supplemental function, cannot be played back on this unit.
* This unit cannot play back the disc contents protected
by Windows Media Digital Rights Management (DRM).
The following discs will not play back on this unit.
• CD-ROM • Compact Disc-Interactive (CD-I)
• DVD-RAM • Video Single Disc (VSD)
• DVD-ROM • DVD-audio
• Unfinalized disc
• DVD contains MP3/Windows Media™ Audio/JPEG files
• DVD-R or DVD-RW recorded in VR mode or non
compatible recording format
On the following disc, the sound may not be heard.
• Super audio CD - Only the sound on the CD layer can be
heard. The sound on the high-density super audio CD
layer cannot be heard.
Unplayable Discs
E2H40UD_v4.indd 62E2H40UD_v4.indd 62 2008/06/02 13:35:282008/06/02 13:35:28

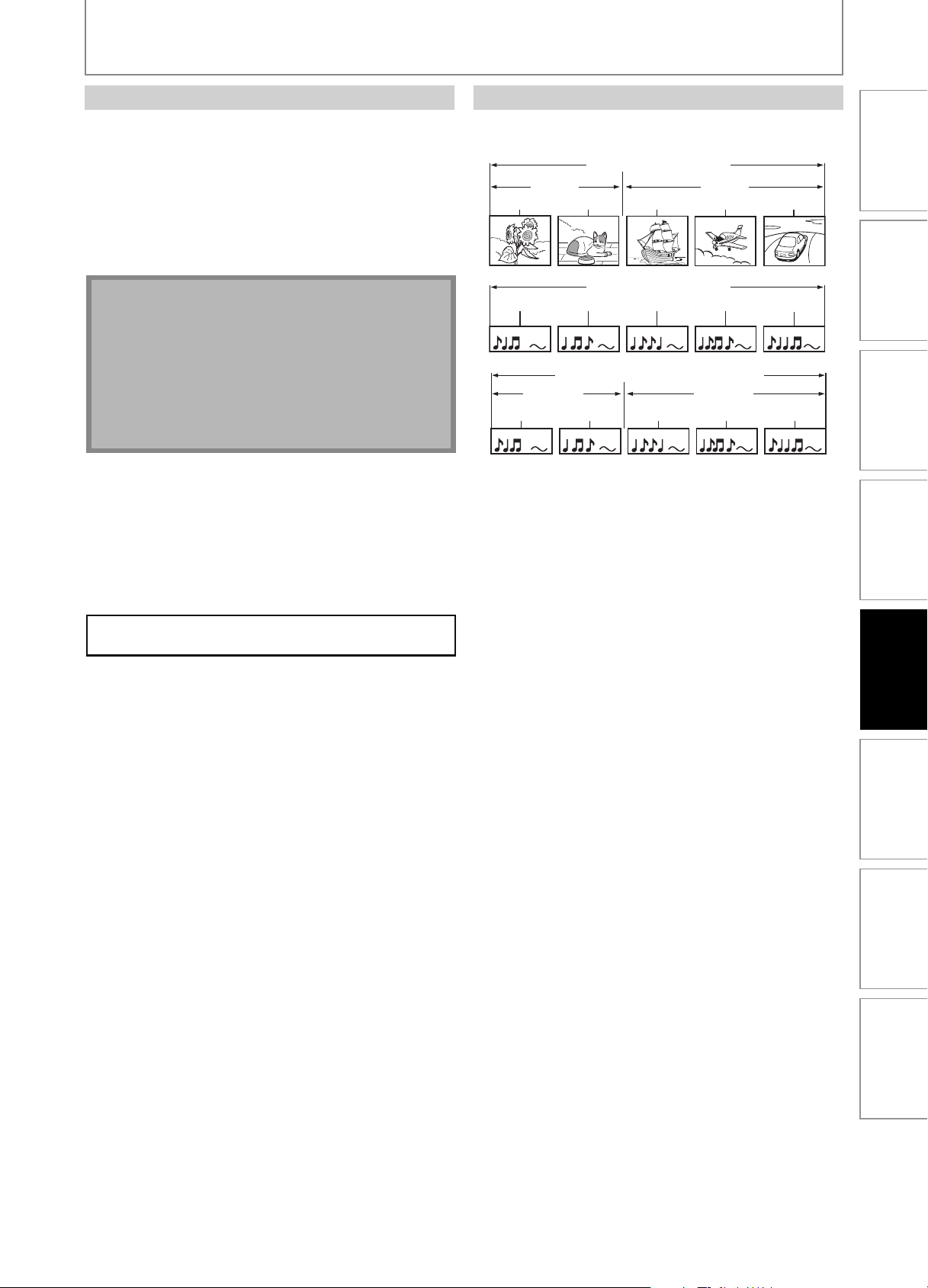

63EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
63EN
You can select images or information on the menu
screen by activating the PBC (playback control) function
of the video CD.
This unit conforms to ver.1.1 and ver. 2.0 of video CD
standard with PBC function.
Ver.1.1 (without PBC function): You can enjoy playback
picture as well as music CD.
Ver.2.0 (with PBC function): While using a video CD with
PBC function, “PBC” appears on the TV screen.
Note
• PBC setting turns to “ON” when loading video CD
with PBC function, thus, even after setting PBC to
“OFF” and ejecting the video CD then reloading the
video CD, this setting turns to “ON” automatically.
• Some operations cannot be performed while PBC
function is on. Cancel PBC function temporarily to
perform those operations by following the
instruction below.
1) Press [SETUP].
2) Use [K / L] to select “CD Playback Mode”, then
press [OK].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “PBC (Video CD only)”, then
press [OK].
4) Use [K / L] to select “ON” or “OFF”, then press [OK].
Your setting will be activated.
You can play back interactive software using menu
screens. Refer to instructions in the video CD.
PBC (playback control) for Video CD
The contents of HDD / DVD are generally divided into
titles. Titles may be further subdivided into chapters.
Hint for HDD / DVD Playback
DVD-video
title 1 title 2
chapter 1 chapter 2 chapter 1 chapter 2 chapter 3
audio CD, video CD
track 1 track 2 track 3 track 4 track 5
MP3, Windows Media™ Audio, JPEG
folder 1 folder 2
file 1 file 2 file 3 file 4 file 5
INFORMATION ON PLAYBACK
E2H40UD_v4.indd 63E2H40UD_v4.indd 63 2008/06/02 13:35:292008/06/02 13:35:29
64 EN64 EN
BASIC PLAYBACK
Direct Playback
If you are playing back the titles in HDD, press [HDD]
first, then proceed to step 2.
If you are playing back the titles in DVD, press [DVD] first.
1
Insert a disc (refer to page 25 on how
to insert a disc).
Align the disc to
the disc tray guide.
* Make sure the disc is compatible with this unit.
(Refer to page 62 for the list of compatible discs.)
It may take a while to load
the disc.
2
Press [PLAY B] to start playback.
If you are playing back a DVD-video or video CD
with PBC function, a menu may appear.
Refer to “Using the Title / Disc Menu” on page
71.
3
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 72.
Note
• Some discs may start playback automatically.
• You can select images or information on the menu
screen by activating PBC (playback control) function
(page 63).
HDD & DVD RECORDER
E2H40UD_v4.indd 64E2H40UD_v4.indd 64 2008/06/02 13:35:292008/06/02 13:35:29

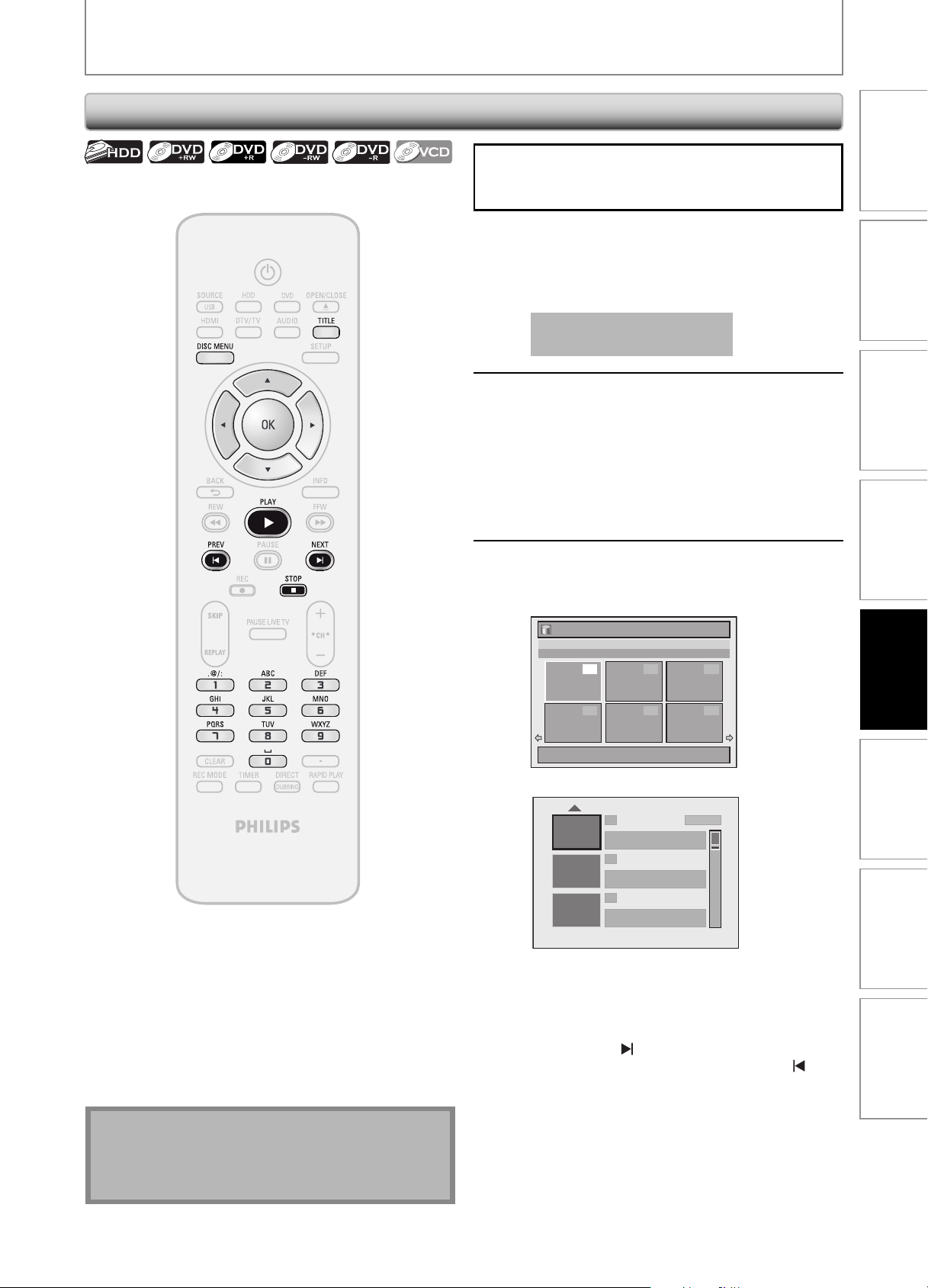

65EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
65EN
BASIC PLAYBACK
If you are playing back the titles in HDD, press [HDD]
first, then proceed to step 2.
If you are playing back the titles in DVD, press [DVD] first.
1
Insert a disc (refer to page 25 on how
to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 62 for the list of compatible discs.)
It may take a while to load
the disc.
2
For HDD, press [TITLE] to call up the
title list. For DVD, the title list will
automatically appear when you
insert a disc. Otherwise, press [TITLE]
or [DISC MENU].
• To exit the title list, press [STOP C].
• To resume the title list, press [TITLE].
3
Use [K / L // s / B] to select a desired
title, then press [OK].
<HDD title list>
Title List
1 / 6
JAN/ 1/07 12:00AM CH10 SP
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
<DVD title list>
1 SP
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
• For Video CD, when “PBC (Video CD only)” in
“CD playback Mode” menu is set to “ON”, the
video CD main menu will appear when
inserting a disc. In such case, select a
numbered menu with [the Number buttons].
• Press [NEXT ] (for HDD) / [B] (for DVD) to
display the next page, and press [PREV
] (for
HDD) / [{] (for DVD ) to display the previous
page.
Note
• Some discs may start playback automatically.
• You can also start playback by pressing [PLAY B]
instead of [OK] at step 3.
Playback from the Title List
Instructions continue on the next page.
HDD & DVD RECORDER
E2H40UD_v4.indd 65E2H40UD_v4.indd 65 2008/06/02 13:35:302008/06/02 13:35:30
66 EN66 EN
4
Use [K / L] to select “Play” (for DVD),
or select “Resume Playback” or “Play
from Start” (for HDD), then press [OK].
e.g.) DVD
1 SP
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
Edit
Overwrite
Play
Playback will start.
5
Press [STOP C] once to stop playback
temporarily.
• Refer to “Resume Playback” on page 72.
Note for DVD title list
If you want to see disc information, press [{ ] when the
first page of the title list is displayed or press [ K ] when
the first title is selected but not when “Play”, “Edit” or
“Overwrite” is highlighted.
e.g.) DVD+RW
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect OFF
Make Edits Compatible Needed
e.g.) DVD+R
No Disc Name
Disc DVD+R
Total Titles 5
Disc Space Used 1:30:48
Disc Protect OFF
Finalize Finalized
1. Disc name
(Default “No Disc Name”)
2. Disc type
(DVD+RW/DVD+R/ DVD-RW/DVD-R)
3. Total number of title
(include “EMPTY TITLE”)
4. Total time of recorded disc space
5. Status of disc protection
(“ON” is protected disc.)
6. Making edits compatible/finalize
• When DVD+RW is inserted:
If the disc needs to be set “Make Edits Compatible”,
“Needed” is displayed. Otherwise, “Not Needed” is
displayed. (Refer to page 98.)
• When DVD+R, DVD-RW or DVD-R is inserted:
If “Finalize” is done, “Finalized” is displayed.
Otherwise, “Unfinalized” is displayed.
BASIC PLAYBACK
E2H40UD_v4.indd 66E2H40UD_v4.indd 66 2008/06/02 13:35:322008/06/02 13:35:32
67EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
67EN
BASIC PLAYBACK
Playing Back an Audio CD and a CD-RW/-R with MP3/Windows Media™ Audio/JPEG Files
Press [DVD] first.
1
Insert a playable disc (refer to page
25 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 62 for the list of compatible discs.)
It may take a while to load
the disc.
When an audio CD is inserted, track list will
appear.
When a CD-RW/-R with MP3/Windows Media™
Audio/JPEG files is inserted, file list will appear.
• To exit the track/file list, press [STOP C].
• To resume the track/file list, press [TITLE].
Note
• The audio source of MP3 files cannot be recorded as
digital sound by an MD or DAT deck.
• Files whose extension is other than “.mp3(MP3)”
“.wma(Windows Media™ Audio)” or “.jpg / .jpeg(JPEG)”
will not be listed.
• Some unplayable folders or files may be listed due to
the recording status.
• High-resolution JPEG files take longer to be displayed.
• Progressive JPEG files (JPEG files saved in progressive
format) cannot be played back on this unit.
2
Use [K / L] to select a desired folder
or track/file, then press [OK].
e.g.) Audio CD
File List
DISC NAME
1/ 2
A
B
1 JPEG file1
2 JPEG file2
3 MP3 file1
4 MP3 file2
5 WMA file1
6 WMA file2
When selecting track/file:
Playback will start.
When selecting the folder (Not available for audio CD):
The files in the folder will appear.
Use [K / L] to select the file or folder you want to play
back, then press [OK].
• Press [PLAY B], [OK] or [B] to move to any lower
hierarchies.
• Press [s] or [BACK
] to move back to the previous
hierarchy.
Hints for audio CD tracks and MP3 / Windows Media™
Audio / JPEG files:
• Folders are shown by
.
• Audio CD tracks are shown by
.
• MP3 files are shown by
3
.
• Windows Media™ Audio files are shown by
.
• JPEG files are shown by
.
• The system can recognize up to 255 folders, up to 99
tracks/999 files.
• Letters of a file/folder name overflowing the given space
will be displayed as “...”. Unrecognizable characters will
be replaced with asterisks.
• If there are no files in the folder, “No Files” will be displayed.
It is recommended that files to be played back in this
unit are recorded under the following specifications:
<MP3 / Windows Media™ Audio>
• Sampling frequency : 44.1 kHz or 48 kHz.
• Constant bit rate : 112 kbps - 320 kbps (MP3),
48 kbps - 192 kbps
(Windows Media™ Audio).
<JPEG>
• Upper limit : 6,300 x 5,100 dots.
• Lower limit : 32 x 32 dots.
• File size of image maximum : 12 MB.
E2H40UD_v4.indd 67E2H40UD_v4.indd 67 2008/06/02 13:35:332008/06/02 13:35:33
68 EN68 EN
BASIC PLAYBACK
Playing Back a USB Device
with MP3/Windows Media™ Audio/JPEG Files
You can play back the contents in a USB device.
1
Press [SOURCE / USB] repeatedly to
select the appropriate external input
channel for USB device.
This will set the unit in the USB mode.
• To exit the USB mode, select any other input
channel.
2
Plug in your USB device.
If USB memory is connected;
- file list will appear.
If USB card reader is connected;
- drive selection screen will appear.
File List
Detected USB Devices
1/ 1
A:
B:
C:
Select the desired drive, then press
[OK] or [B].
File list will appear.
• To exit the file list, press [STOP C].
• To resume the file list, press [TITLE].
3
Follow the step 2 in “Playing Back an
Audio CD and a CD-RW/-R with MP3/
Windows Media™ Audio/JPEG Files”
on page 67.
Compatible device:
– USB memory
– USB card reader
Incompatible device:
– USB hub
– USB device with inner hub
– PC
– Cameras
– Devices that need to install drivers
(e.g. some MP3 players)
HDD & DVD PLAYER / RECORDER DVDR
3575
H
USB
front of this unit
USB
USB memory
or
USB card reader
Note
• If you turn on the unit by pressing [OPEN/CLOSE A],
the disc tray will not open if the unit is in the USB
mode.
• Resume function will be canceled when you exit the
USB mode.
• If the USB device is plugged in when you are
programming a timer recording, the entry screen for
the timer programming will disappear.
• This unit can recognize up to 16 cards when a card
reader is connected.
• When the unit is in the USB mode, you cannot
change the output mode (HDD/DVD).
• Do not disconnect the USB device while the indicator
on the device is flickering.
E2H40UD_v4.indd 68E2H40UD_v4.indd 68 2008/06/02 13:35:352008/06/02 13:35:35

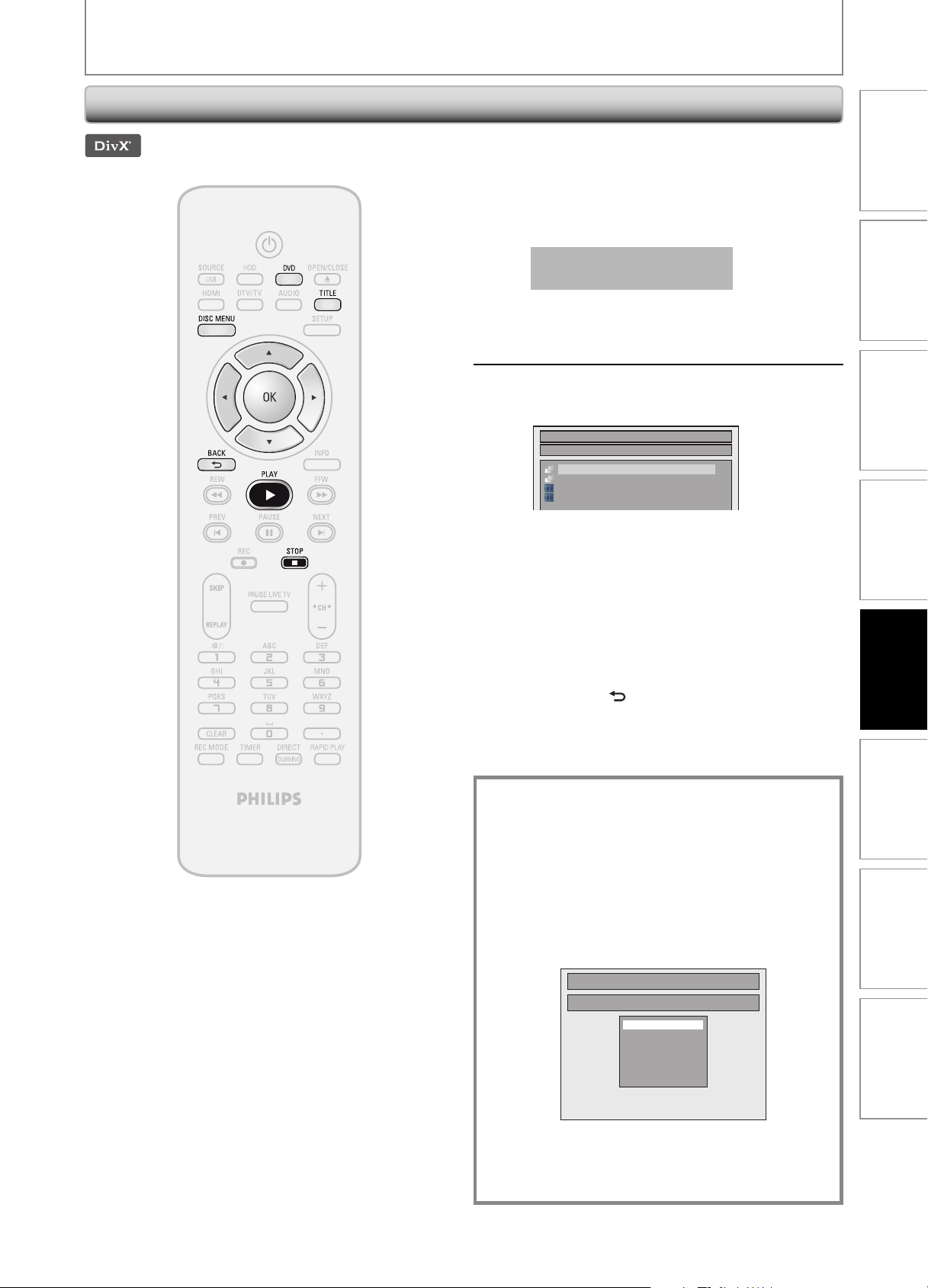

69EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
69EN
BASIC PLAYBACK
Playing Back a DivX®
Press [DVD] first.
1
Insert a playable disc (refer to page
25 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 62 for the list of compatible discs.)
It may take a while to load
the disc.
File list will appear automatically.
• To exit the file list, press [STOP C].
• To resume the file list, press [TITLE].
2
Use [K / L] to select the desired
folder or file, then press [OK].
File List
DISC NAME
Folder1
Folder2
1 DivX File1
2 DivX File2
When selecting file:
Playback will start.
When selecting folder:
The files in the folder will appear.
Use [K / L] to select the file you want to play back, then
press [OK].
• Press [PLAY B], [OK] or [B] to move to any lower
hierarchy.
• Press [s] or [BACK
] to move back to the folder
above.
To play back the DivX® subtitle created by
the user...
The subtitle created by the user can be displayed
during DivX® playback.
1) After selecting the DivX® file, the “Subtitle List”
will appear when “DivX Subtitle” is set to
anything other than “OFF”. (Refer to page 111.)
2) Use [K / L] to select the desired extension you
want to display, then press [OK].
Subtitle List
DivX File1
OFF
SMI
SRT
SUB
ASS
SSA
TXT
DivX® with the subtitle starts playback. The subtitle
cannot be displayed when the setting is “OFF”.
• If there is more than one extension, the extension
selection appears in the subtitle list.
HDD & DVD RECORDER
E2H40UD_v4.indd 69E2H40UD_v4.indd 69 2008/06/02 13:35:362008/06/02 13:35:36
70 EN70 EN
It is recommended that files to be played back in this
unit are recorded under the following specifications:
Official DivX® Certified product
• Playable codec of AVI files : DivX®3.x, DivX®4.x, DivX®5.x
• Maximum size of image : 720 x 480 @30 fps
720 x 576 @25 fps
• Sampling frequency of audio : 8 kHz - 48 kHz
• Audio type : MPEG1 audio layer 3(MP3),
MPEG1 audio layer 2,
Dolby Digital
Hint for the purchased or rental official DivX®
Certified product
• When you purchased or rental a DivX® file through the
official site of DivX® video which is called DivX® Video-
On-Demand (VOD) services, a registration code is
required every time you get the new file from the DivX®
VOD services. Refer to “DivX® VOD” on page 111.
BASIC PLAYBACK
Note for DivX®
• DivX® is a codec (compression/decompression) that can
compress images to a very small amount of data. The
software can compress video data from almost any
devices to the size that can be sent on the Internet
without compromising visual quality of the images.
• A file with an extension of “.avi” and “.divx” is called an
DivX® file. All files with the “.avi” extension are recognized
as MPEG4.
• Files whose extension other than “.avi” and “.divx” will not
be listed on the DivX® menu. However, unplayable folders
and files may be displayed, depending on the recording
conditions.
• Even if the file has an extension of either “.avi” and “.divx”,
this unit cannot play it back if it is recorded in the format
other than DivX®.
• A symbol of
is shown on the top of the file name.
• A maximum of 255 folders or 999 files may be recognized
in a disc.
• Up to 8 hierarchies can be recognized in a folder. Files in
the 9th or deeper hierarchies cannot be played back.
• When there are 9 or more files, a down arrow “L” appears,
indicating that the user can view another part on the
previous page. The current page number and the number
of total pages are shown below the down arrow “L”.
• Letters of a file/folder name overflowing the given space
will be displayed as “...”. Unrecognizable characters will be
replaced with asterisks.
• You can play back the disc recorded in multi-session.
• It may take a while for audio and images to be output
after you inserted a disc and pressed [PLAY B].
• When playing back the files recorded in high bit rates, the
images can be interrupted in some occasions.
• Although DivX® logo has been obtained for this unit, it
may not be able to play back some data, depending on
the characteristics, bit rates, or audio format settings, etc.
• A DivX® file whose file size exceeds 2 GB cannot be played
back.
• If a large-sized DivX® file is selected, it may take a while to
start the playback (over 20 seconds sometimes).
• If you try to playback the DivX® file that has the screen
resolution which this unit does not support, the playback
will be stopped and error message will appear.
• If DivX® files written on a CD-RW/-R cannot be played
back, rewrite them on a DVD+RW/+R or DVD-RW/-R and
try to play back.
• For more information for DivX®, please visit
http://www.divx.com.
• If you insert a CD-RW/-R with
DivX® files that are mixed
with MP3/Windows Media™
Audio/JPEG files, the
playback media selection
screen will be displayed.
Please select “Video” and
proceed to next step.
• Press [DISC MENU] to call up the playback media
selection screen in stop mode.
• If you select “Audio & Picture”, instead of “Video” on the
playback media selection screen, this unit can play back
MP3/Windows Media™ Audio/JPEG files.
• Some DivX® files cannot be played back on this unit due
to the configuration and characteristics of the disc, or due
to the condition of recording and authoring software.
• You cannot play back the
DivX® VOD files obtained
with different registration
codes on this unit. Press
[TITLE] and select other files
that can be played back.
• Multi-session burn DivX®
DVD cannot be played back
on this unit.
Note for DivX® Subtitle
• To utilize this function, the following conditions must
meet.
– “DivX Subtitle” must be activated in “DivX” menu. (Refer
to “DivX Subtitle” on page 111.)
– Playback file and the subtitle file must have the same
name.
– Playback file and the subtitle file must locate in the same
folder.
– Only the subtitle files with the following extensions are
supported; .smi (.SMI), .srt (.SRT), .sub (.SUB), .ass (.ASS), .
ssa (.SSA), .txt (.TXT).
(.sub (.SUB) and .txt (.TXT) files may not be recognized.)
– The subtitles that exceeds the playback time of the DivX®
file will not be displayed.
Please select the media
to play back.
Audio & Picture
Video
This player is not authorized to
play this video.
Please push 'TITLE'.
Authorization Error
• Some DivX® VOD files are
restricted with the limited
playable times (you cannot
play them back beyond the
limit). If your DivX® VOD file
has such limit, the playback
confirmation screen will
appear.
Use [s / B] to select “Yes” if you want to play back the
file, or to select “No” if you do not wish to play it back.
Then, press [OK] to confirm the selection.
• You cannot play back the
DivX® VOD files, of which
rental period has been
expired. In such case, press
[TITLE] and select other files
that can be played back.
This rental has views left.
Do you want to use one
of your views now?
DivX
®
VOD Rental
Yes
No
This rental is expired.
Please push 'TITLE'.
Rental Expired
E2H40UD_v4.indd 70E2H40UD_v4.indd 70 2008/06/02 13:35:372008/06/02 13:35:37
71EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
71EN
BASIC PLAYBACK
Using the Title / Disc Menu
DVD or video CD with PBC function may contain a title
list, which describes the contents of the disc, or a disc
menu, which guides you through the available functions
in the disc.
Press [DVD] first.
1) Insert a disc (refer to page 25 on how to insert a
disc).
* Make sure the disc is compatible with this unit. (Refer
to page 62 for the list of compatible discs.)
It may take a while to load the disc.
2) Press [TITLE] or [DISC MENU] to call up the title list
or disc menu.
3) Use [K / L / { / B] to make a selection, and then
press [OK] to enable your selection.
4) Press [STOP C] to exit.
1) During playback, press [PAUSE F].
Playback will be paused.
F
2) Press [PLAY B] to return to the normal playback.
Note
• You can select a numbered menu with [the Number
buttons] also.
• Menus vary among discs. Refer to the information
accompanying the disc for details.
• [TITLE] or [DISC MENU] will not always be active
with all DVD.
• For video CD, when “PBC (Video CD only)” in “CD
Playback Mode” menu is “ON”, the video CD main
menu will appear when inserting a disc.
Note
• On DVD, set “Still Mode” to “Field” in “Playback”
menu if pictures in the pause mode are blurred.
(Refer to page 106.)
Pause
E2H40UD_v4.indd 71E2H40UD_v4.indd 71 2008/06/02 13:35:382008/06/02 13:35:38
72 EN72 EN
SPECIAL PLAYBACK
During playback, you can skip forward or backward by
the amount of time you set in “Playback” menu. To set
the time amount, refer to “
8
Variable Skip / Replay” on
page 106.
During playback, press [SKIP] if you want to skip
forward. Press [REPLAY] if you want to skip backward.
You can play back from where you stopped playing back
the disc last.
1) During playback, press [STOP C].
The resume message will appear.
Resume ON
2) Press [PLAY B].
In a few seconds, playback will resume from the point
at which it stopped last. You can resume playback at
the same point even if you turn off the unit (HDD/DVD
only).
To cancel the resume playback and start playing back
the disc from the beginning, press [STOP C] again
while the playback is stopped.
For HDD:
You can set a resume point per every title.
For DVD+RW/+R, DVD-RW/-R, Video CD, Audio CD,
MP3 files, JPEG files, and DivX® files:
You can set only one resume point per disc.
Resume Playback
Note
• For MP3/Windows Media™ Audio/JPEG files, playback
will resume from the beginning of the file at which
playback was stopped.
• Some video CD with the PBC function resume
playback from the beginning of the track.
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
2x:
20x:
40x:
reverse (approx. speed)
5x:
20x:
40x:
1) During playback, press [FFW D] or [REW E].
Every time you press [FFW D] or [REW E],
approximate speed will be changed as follows.
Fast forward or fast reverse playback across titles (for
HDD/DVD) or files (for MP3 / Windows Media™ Audio
files) is not possible.
20x
normal
speed
playback
2x 20x5x 40x40x
For video CD, approximate forward/reverse speeds are
2x, 8x, 16x.
For audio CD, MP3/Windows Media™ Audio files,
approximate speed is fixed at 8x with sound (indicated
with / ).
Picture quality of DivX® files in fast reverse is lower
than that in fast forward.
For some DivX® files, fast forward/fast reverse may not
function.
2) Press [PLAY B] to return to the normal playback.
Fast Forward / Fast Reverse Playback
Variable Skip / Variable Replay
Rapid playback function is available only during
playback.
This function is available only on discs recorded in the
Dolby Digital format, and plays back in a slightly faster/
slower speed while keeping the sound quality just as
normal playback.
1) During playback, press [RAPID PLAY].
B
:
Press [RAPID PLAY] once during playback.
Plays back approximately at 0.8 times of normal
playback.
B
:
Press [RAPID PLAY] twice during playback.
Plays back approximately at 1.3 times of normal
playback.
B :
Press [RAPID PLAY] 3 times to play back in
normal speed.
No effects.
2) Press [PLAY B] to continue the normal playback.
Rapid Playback
Note
• Audio (language) setting cannot be changed while
using this mode.
• This feature may not work at some point in a disc.
• Audio is PCM during rapid playback mode except
when using digital audio connection.
• When using digital audio connection (COAXIAL /
OPTICAL or HDMI), the LPCM sound (2 channel) will
be output.
E2H40UD_v4.indd 72E2H40UD_v4.indd 72 2008/06/02 13:35:392008/06/02 13:35:39
73EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
73EN
SPECIAL PLAYBACK
Step by Step Playback
1) During playback, press [PAUSE F].
Playback will be paused and sound will be muted.
2) Press [NEXT
] repeatedly.
Playback will advance one frame (or step) at a time
when you press [NEXT
] with the sound muted.
To play back step by step backward:
Press [PREV
] repeatedly.
Every time you press the button, the playback will go
backward by one frame.
• Press and hold [PREV
] / [NEXT ] to reverse/
advance continuously.
3) Press [PLAY B] to continue the normal playback.
Note
• Only step by step forward playback is available for
playing back video CD and DivX® files.
Note
• Forward/reverse speed will be indicated with icons
as follows.
forward (approx. speed)
1/16x:
1/8x:
1/3x:
reverse (approx. speed)
1/16x:
1/8x:
1/4x:
• For some DivX® files, slow forward/slow reverse may
not function.
• Only slow forward is available when playing back
video CD and DivX® files.
Slow Forward / Slow Reverse Playback
1) During playback, press [PAUSE F]. Then press
[FFW D] or [REW E].
Every time you press [FFW D] or [REW E],
approximate speed will be changed as follows. (The
sound will remain muted.)
1/8x
pause
1/16x 1/8x1/16x 1/3x1/4x
To return to the normal playback, press [PLAY B].
You can play back a title being recorded from the
beginning while recording continues.
1) During recording, press [PLAY B].
Playback of the title you are recording will start from
the beginning.
• Elapsed playback time will be displayed in the front
panel display.
2) To stop the playback, press [STOP C] once.
• The front panel display will switch back to show the
elapsed recording time.
Time Shift Playback
Note
• If you press [STOP C] twice, it will stop the
recording.
• You cannot use the OTR function during time shift
playback.
With regard to HDD, you can continue recording a
program while playing back another title in the same
component (HDD).
To do so, press [TITLE] during recording and select a title
you like to play back, and then press [PLAY B].
(You can also start the playback from the title list menu.)
To playback a title being recorded while continuing
to record, refer to “Time shift playback” above
(available only with HDD).
Simultaneous Playback and Recording
Note
• Video CD, Audio CD, MP3/JPEG files recorded on a
disc and DivX® files can also be played back during
HDD recording.
E2H40UD_v4.indd 73E2H40UD_v4.indd 73 2008/06/02 13:35:422008/06/02 13:35:42
74 EN74 EN
SPECIAL PLAYBACK

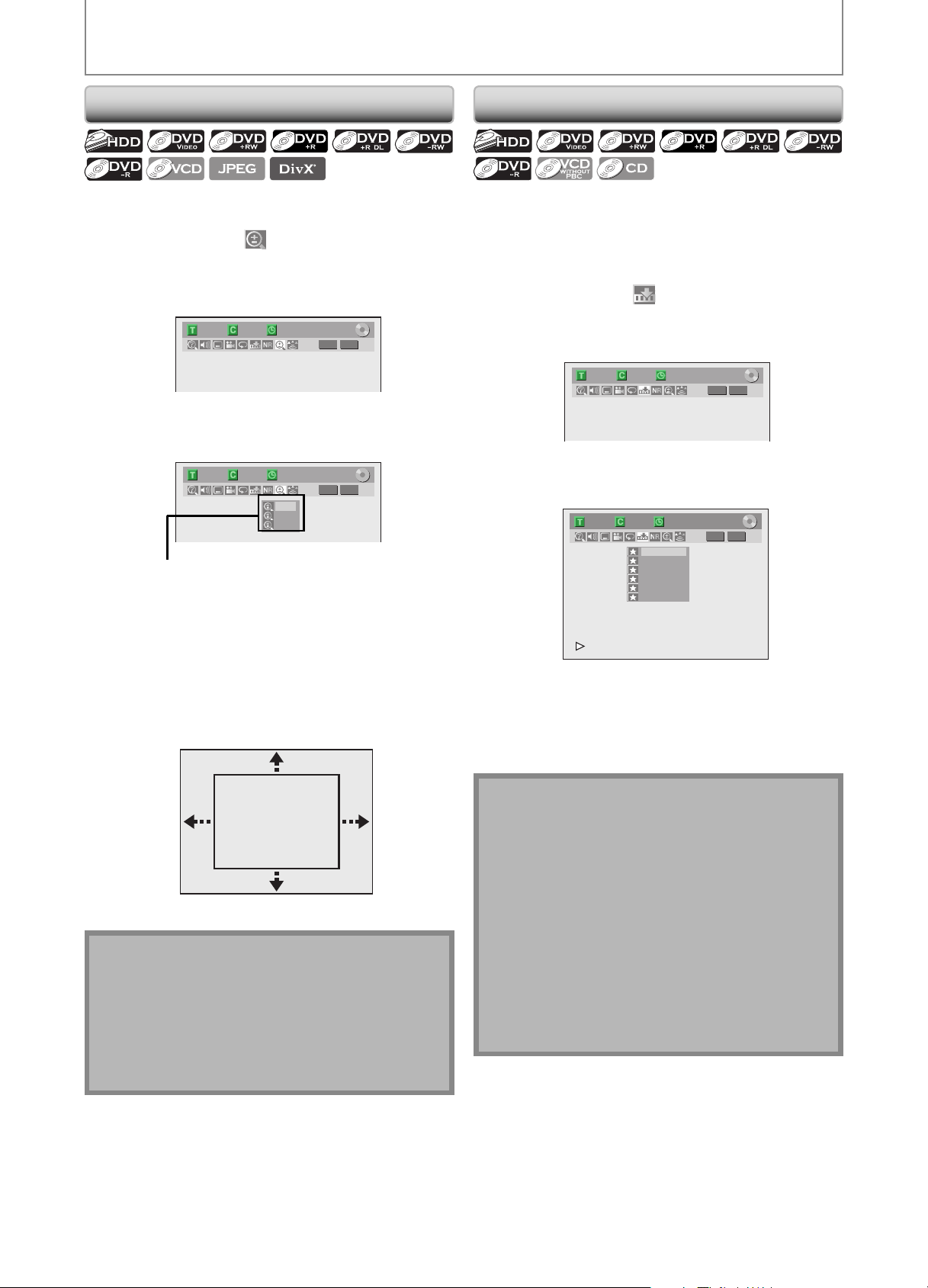

Zoom
Note
• When selecting a smaller factor than the current one,
the zoom area will not be displayed.
• To exit the zoom menu, press [INFO] again at step 1.
• To cancel the zoom function, select “x1.0” using
[K / L], then press [OK].
• You cannot slide the zoomed picture on some JPEG
files.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired zoom factor to zoom,
then press [OK].
1/ 5 1/ 5
DVD
× 1.2
× 1.5
× 2.0
0:01:00 / 1:23:45
Video
Zoom menu will appear.
There are four options
(x1.0, x1.2, x1.5 and x2.0), these are displayed
excluding the current zoom rate.
Zoom area will be displayed.
4) Use [K / L / { / B] to select a desired zoom
position, then press [OK].
Zoom playback will start.
This feature allows you to assign a specific point on a title
to be called back later.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the marker
list.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired marker number.
When it reaches the desired point, press [OK].
1/ 5 1/ 5
DVD
---
---
---
---
---
---
1
2
3
4
5
6
0:01:00 / 1:23:45
Video
The title (track) number and the time will be displayed.
4) To return to the marker later:
Use [K / L] to select the desired marker number,
then press [OK].
Marker Setting
Note
• To clear a marker, select the marker number to be
cleared, then press [CLEAR].
• All markers will be erased when you operate these
operations listed below.
– opening the disc tray (CD/DVD only)
– turning off the power (CD/DVD only)
– make additional recording on the disc (DVD only)
– editing any title (DVD only)
– dividing the title (HDD only)
– deleting a scene of the title (HDD only)
• You can mark up to 6 points.
• Marker setting is not available when you play back
the video CD with PBC function.
E2H40UD_v4.indd 74E2H40UD_v4.indd 74 2008/06/02 13:35:452008/06/02 13:35:45
75EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
75EN
Repeat Playback
Random Playback
Available repeat function may vary depending the discs.
1) During playback press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired repeat type, then
press [OK].
e.g.) HDD/DVD-video
1/ 5 1/ 5
DVD
OFF
Title
Chapter
A – B
0:01:00 / 1:23:45
Video
e.g.) audio CD, video CD
1/ 5
CD
0:00:15 / 0:05:00
OFF
Track
All
A – B
e.g.) MP3/Windows Media™ Audio/JPEG files
1/ 5 0:00:15
MP3
OFF
Track
All
Group
The selected repeat playback will start.
Repeat
Title
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Title (HDD/DVD only):
The current title will be played back repeatedly.
Chapter (HDD/DVD only):
The current chapter will be played back repeatedly.
All (DVD/audio CD/video CD without PBC function/
CD or USB device with MP3, Windows Media™
Audio, JPEG/DVD or CD with DivX® files):
All titles in the media will be played back repeatedly.
A-B (HDD/DVD/audio CD/video CD without PBC
function/DivX® files only):
Desired section can be played back repeatedly.
1) Use [K / L] to select “A-B”, then press [OK].
2) Press [OK] at the desired starting point A.
3) Press [OK] at the desired ending point B.
Track (audio CD/video CD without PBC function/MP3,
Windows Media™ Audio, JPEG or DivX® files only):
The current track or file will be played back repeatedly.
Group (MP3/Windows Media™ Audio/JPEG/DivX®
files only):
The current folder will be played back repeatedly.
You can play back a disc randomly instead of playing
back in the original order.
1) Press [SETUP].
2) Use [K / L] to select “CD Playback Mode” or “USB
Playback Mode”, then press [OK].
“CD Playback Mode” or “USB Playback Mode” menu
will appear.
3) Use [K / L] to select “Random Play”, then press
[OK].
Random playback will start.
Note
• To cancel random playback, press [STOP C] twice
during random playback. “OFF” appears on the TV
screen.
• For video CD with PBC function, the PBC setting will
be switched to off automatically when you start
random playback.
Note
• Point B for the repeat A-B playback should be set
within the same title or track as point A.
• To cancel the repeat playback, select “OFF” at step 3.
The repeat setting will also be canceled when you
stop playback.
• You cannot select “Group” during the random
playback.
• For some DivX® files, A-B repeat playback may not
function.
• Repeat playback is not available when you play back
the video CD with PBC function.
SPECIAL PLAYBACK
E2H40UD_v4.indd 75E2H40UD_v4.indd 75 2008/06/02 13:35:472008/06/02 13:35:47
76 EN76 EN
Program Playback
Note
• To erase tracks you selected, press [CLEAR] at step 4.
• You can make program settings up to 50 tracks.
• To cancel program playback, press [STOP C] twice
during program playback. “OFF” appears on the TV
screen.
• Program information will be retained until you power
off the unit or open the disc tray.
• You may also select a desired track using [the
Number buttons] at step 4.
• For video CD with PBC function, the PBC setting will
be switched to off automatically when you start
program playback.
You can program the disc to play back in your desired
order.
1) Press [SETUP].
2) Use [K / L] to select “CD Playback Mode”, then press
[OK].
“CD Playback Mode” menu will appear.
3) Use [K / L] to select “Program Play”, then press
[OK].
4) Use [K / L] to select a desired track, then press [OK]
or [B].
CD Playback Mode
Program Play
0:00:00Total
--
-- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Repeat this step until you program all the desired
tracks.
5) Press [PLAY B].
CD Playback Mode
Program Play
0:31:07Total
09
04 10 06 -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- --
Program playback will start.
Slide Show
You can select the display time between 5 seconds and
10 seconds.
1) Follow steps 1 and 2 in “Random Playback” on page
75.
2) Use [K / L] to select “Slide Show”, then press [OK].
3) Use [K / L] to select the display time, then press
[OK].
4) Press [SETUP] to exit.
Note
• Large-size JPEG files take a few moments to be
displayed.
SPECIAL PLAYBACK
E2H40UD_v4.indd 76E2H40UD_v4.indd 76 2008/06/02 13:35:482008/06/02 13:35:48
77EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
77EN

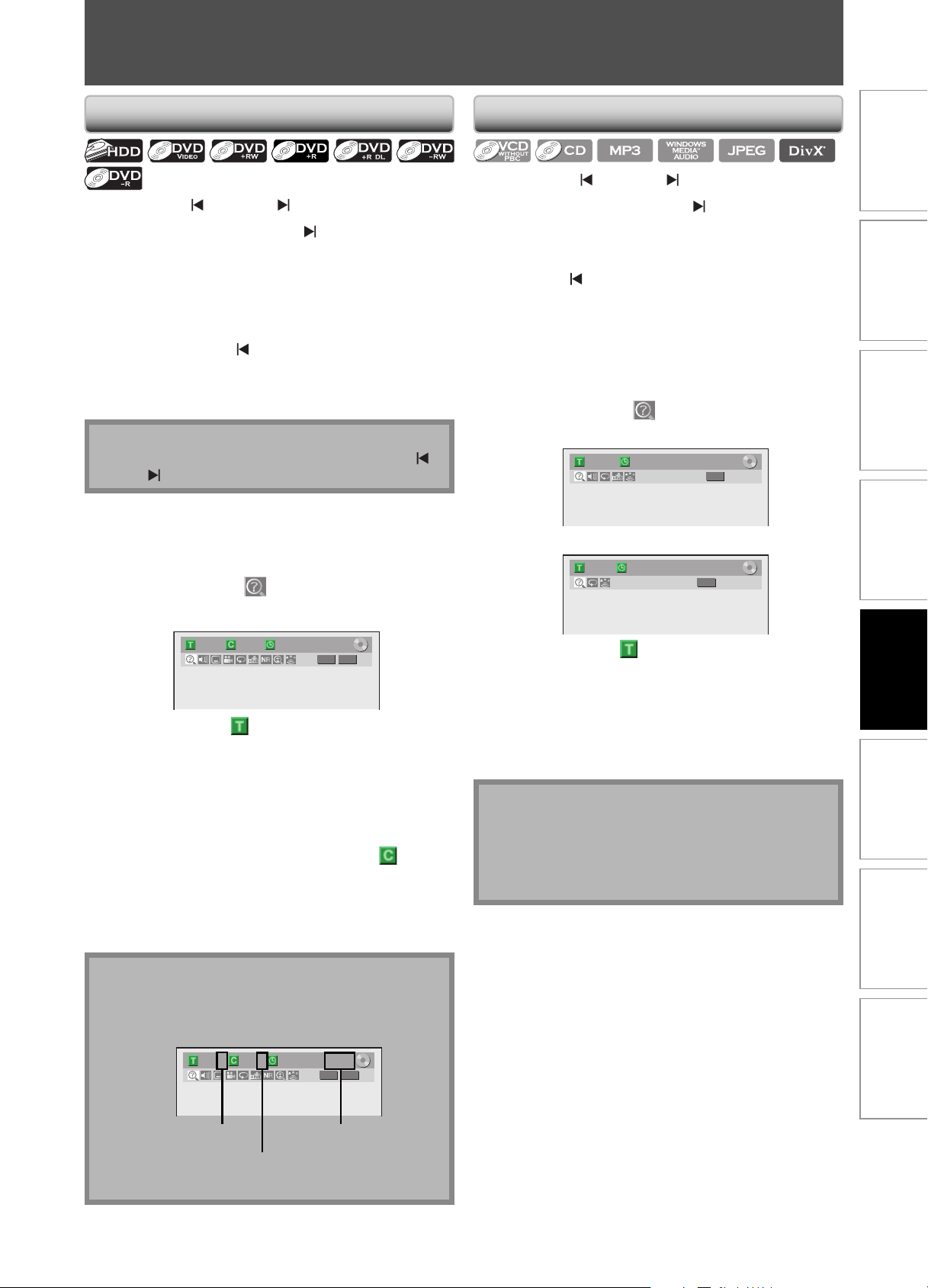

SEARCH
Using [PREV ] / [NEXT ]
1) During playback, press [NEXT ] to skip the current
title or chapter and move to the next.
The title or chapter will move forward by one at a time.
• If there is no chapter in one title, the current title will
be skipped.
To go back to the beginning of the current title or
chapter, press [PREV
].
Press it repeatedly to go to the previous title or
chapter. The title or chapter will move backward one
at a time.
Using [INFO]
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
The number next to will be highlighted.
3) Title:
Use [K / L] or [the Number buttons] to enter a
desired title number to search, then press [OK].
Title search will start.
Chapter:
Press [B] to move to the number next to
for
chapter.
Use [K / L] or [the Number buttons] to enter a
desired chapter number to search, then press [OK].
After the search, playback will start automatically.
Title / Chapter Search
Using [PREV ] / [NEXT ]
1) During playback, press [NEXT ] to skip the current
track/file and move to the next.
The track/file will move forward one at a time.
To go back to the beginning of the current track/file,
press [PREV
].
Press it repeatedly to go to the previous track/file. The
track/file will move backward one at a time.
Track Search
Note
• During CD playback you can enter a track number
directly using [the Number buttons] for track search
without displaying the menu.
• Track search is not available when you play back the
video CD with PBC function.
Using [INFO]
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) audio CD
1/ 5
CD
0:00:15 / 0:05:00
e.g.) MP3 files
1/ 5 0:00:15
MP3
The number next to will be highlighted.
3) Use [K / L] or [the Number buttons] to enter a
desired track/file number to search, then press
[OK].
After the search, playback will start automatically.
Note
• In search mode display, total numbers of each search
contents (title/chapter/time) are shown as a
denominator.
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD
Video
total number
of titles
total number
of chapters
total time
of the title
Note
• With regard to HDD, chapter search using [PREV ] /
[NEXT
] is available only within the same title.
E2H40UD_v4.indd 77E2H40UD_v4.indd 77 2008/06/02 13:35:492008/06/02 13:35:49
78 EN78 EN
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD
Video
e.g.) audio CD
1/ 5
CD
0:00:15 / 0:05:00
The number next to will be highlighted.
To move to the number next to
, press [B].
When time search is not available,
and time
counter are not displayed.
3) Use [K / L / { / B] or [the Number buttons] to
enter a desired time to search, then press [OK].
After the search, playback will start automatically.
Note
• Time search is available only in the same track, file or
title.
• Time search is not available when you play back the
video CD with PBC function.
Time Search
SEARCH
E2H40UD_v4.indd 78E2H40UD_v4.indd 78 2008/06/02 13:35:522008/06/02 13:35:52
79EN
Recording
Playback
EditingIntroduction Connections Basic Setup Function Setup Others
79EN
DVD-video may have subtitles in 1 or more languages.
Available subtitle languages can be found on the disc
case. You can switch subtitle languages anytime during
playback.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired subtitle language,
then press [OK].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
1.English
Video
Subtitle will be displayed in the selected language.
When selecting “OFF”, subtitle will disappear.
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Subtitles
Note
• Some discs will only allow you to change the subtitle
from the disc menu. Press [TITLE] or [DISC MENU] to
display the disc menu.
• If a 4-digit language code appears in the subtitle
menu, refer to the “LANGUAGE CODE” on page 119.
• For disc with DivX® files, the TV screen only displays
the number of subtitle languages and “_ _ _ _“ next
to the numbers.
You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back.
When playing back a DVD-video recorded with 2 or more
soundtracks (these are often in different languages), you
can switch them during playback. When playing back
video CD, audio CD you can switch “L/R”(stereo), “L”(left)
or “R”(right).
1) During playback press [INFO], then proceed to
step 2), or press [AUDIO] then proceed to step 3).
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
3) Use [K / L] to select a desired audio soundtrack or
audio channel, then press [OK].
For DVD-video, DivX® files
• Audio soundtrack will switch.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
1.Dolby Digital 5.1ch English
2.Dolby Digital 2ch English
Video
• If the title contains both main and sub audio, you can
further select “L” (main), “R” (sub), or “L/R” (mixed of
main and sub).
For audio CD, video CD
• Audio channel will switch.
e.g.) audio CD
1/ 5
CD
0:00:15 / 0:05:00
1. L/R
2. L
3. R
Switching Audio Soundtrack
Note
• Some discs will only allow you to change the
soundtrack from the disc menu. Press [TITLE] or
[DISC MENU] to display the disc menu.
E2H40UD_v4.indd 79E2H40UD_v4.indd 79 2008/06/02 13:35:532008/06/02 13:35:53
80 EN80 EN

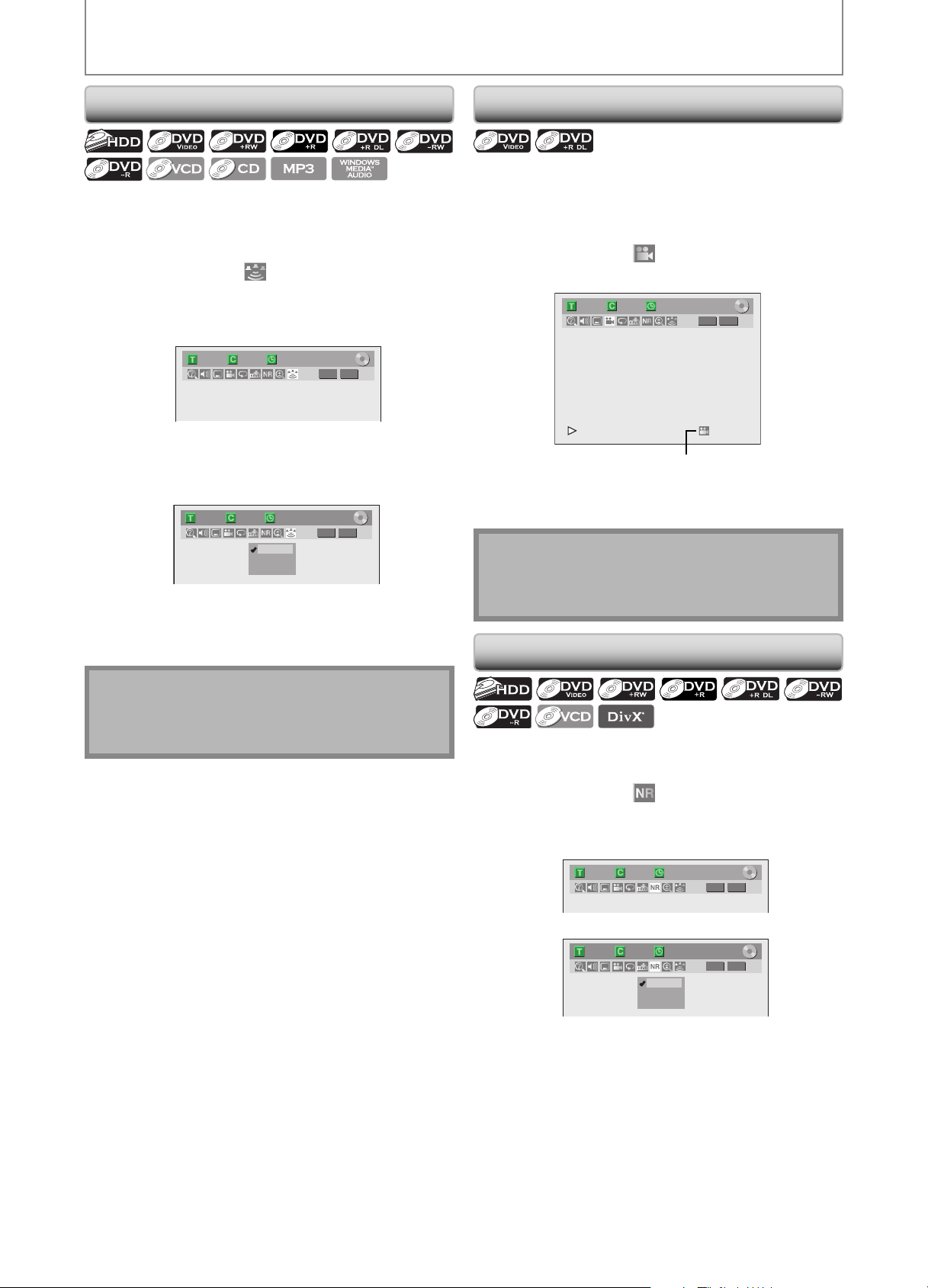

You can enjoy stereophonic virtual space through your
existing 2 channel stereo system.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select “OFF”, “Type 1” or “Type 2”,
then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
OFF
Type 1
Type 2
Video
OFF : no effect
Type 1 : natural effect
Type 2 : emphasized effect
Note
• Select “OFF” in a case sound is distorted.
• The setting will be kept even when the unit is turned
off.
Switching Virtual Surround System
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Camera Angles
Reducing Block Noise
Some DVD-video have scenes shot from 2 or more
angles. Angle information should be on the disc case if
the disc contains multi-angle scenes.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
Angle icon appears when a switching camera angle is
available.
Angle will switch each time you press [OK].
This function reduces noise in the playback picture.
1) During playback, press [INFO].
2) Use [{ / B] to select
, then press [OK] within 1
second or wait for 1 second to display the selection
menu.
e.g.) DVD-video
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
3) Use [K / L] to select a desired option, then press
[OK].
1/ 5 1/ 5
DVD
0:01:00 / 1:23:45
Video
OFF
Type 1
Type 2
Your setting will be activated.
OFF : When playing back titles with a few noises
such as DVD-video.
Type 1 : For the titles recorded in long time mode
such as SLP mode.
Type 2 : Same as type 1, only more effective.
Note
• Angle icon does not appear on the TV screen in a
case you set “Angle Icon” to “OFF” in “Playback”
menu. Refer to page 106.
E2H40UD_v4.indd 80E2H40UD_v4.indd 80 2008/06/02 13:35:552008/06/02 13:35:55
81EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
81EN
INFORMATION ON EDITING
Guide to a Title List
1. Title name (editable): Recording date, time, channel
and the recording mode will be assigned
automatically as the title name until you edit it.
2. Title information: Time at which the recording of
the title was started, duration of the title, date
recorded, channel recorded, and the recording mode
in which the title was recorded.
3. Title List: List of titles recorded on the HDD. Each
title is indicated by its index picture. Following icons
may be displayed on the index picture.
: Indicating the title has never been played back
yet.
: Indicating the title is protected.
: Indicating the title is a copy-protected title.
I : If you call up the title list while recording, “I”
will be displayed on the index picture of the
title currently being recorded.
4. Arrow: Indicating there is a previous / next page.
5. Title list page number: Current page / total pages.
6. Title list: List of the titles recorded on the disc, and
their information.
7. Arrow: Indicating there is a previous / next page.
8. Title information: On the first line, title name
(editable) is displayed. On the second line, the length
of the title is displayed.
Empty title: The portion of the disc where there is no
recordings are made. As for the empty title, available
recording time by the selected recording mode is
displayed on the second line.
9. Recording mode: Currently selected recording mode
is displayed here.
10. Capacity indicator: Indicating the position and the
amount of each title in the disc. The portion for the
selected title is highlighted.
• It may not indicate the precise capacity of the disc.
• If the duration of a title is too short, it may not be
reflected in the capacity indicator.
11. Index pictures: A cut from the recorded content is
displayed here.
12. Submenu: Submenus for the selected menu are
displayed here.
13. Title name (editable): If you do not name the title,
the recorded date, time, channel, and the recording
mode are displayed here.
14. Progress bar: Indicating the progress of the
playback.
15. Preview window: Preview of the selected title is
displayed here.
16. Playback status: Indicating the current playback
status of the selected title.
Press [STOP C] to exit the title list.
Title list allows you to check the titles recorded on the HDD or the disc easily. You can choose a title to play back from
this list and easily edit the titles as you prefer.
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Overwrite
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
Play
Edit
SP
Chapter Mark
Hide Chapter
Index Picture
Title Dividing
Edit Title Name
Title Delete
Edit
NOV/22/07 11:35AM CH13 EP
0:00:59
2
+VR
Title List
1 / 6
JAN/ 1/07 12:00AM CH10 SP
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
7
7
121314
15
16
10
98
11
6
2 1
3
4 45
DVD modeHDD mode
e.g.) DVD
Press [HDD], then press [TITLE]. Press [DVD], then press [TITLE].
E2H40UD_v4.indd 81E2H40UD_v4.indd 81 2008/06/02 13:35:582008/06/02 13:35:58
82 EN82 EN
Edit Menu
Note
• Once you have finalized a DVD+R/ DVD-R, you
cannot edit or record anything on that disc.
INFORMATION ON EDITING
How to Access the Edit Menu
Press [HDD] first.
1) Press [TITLE].
2) Use [K / L / { / B] to select a desired title, then
press [OK].
Title List
1 / 6
JAN/ 1/07 12:00AM CH10 SP
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
3) Use [K / L] to select “Edit”, then press [OK].
Resume Playback
Play From Start
Edit
Title Delete
Delete Multiple Titles
Dubbing
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Protect
JAN/ 1/07 12:00AM CH10 LP
0:02:59
1
DVDHDD
Press [DVD] first.
1) Press [TITLE].
2) Use [K / L] to select a desired title, then press [OK].
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
SP
3) Use [K / L] to select “Edit”, then press [OK].
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Overwrite
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
SP
Edit
Play
Edit
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Hide Chapter
NOV/21/07 11:00AM CH12 SP
0:00:59
1
+VR
✔ : Available : Not available *
1
: -RW/+RW discs only *
2
: +RW discs only
Media
HDD DVD
Available Futures
Putting names on titles
✔✔
Deleting a title
✔✔
Deleting selected titles
✔
Deleting a scene of a title
✔
Adding / deleting chapter marks
✔✔
Hiding chapters
✔
Protecting a title
✔
Dividing a title
✔✔ *
1
Setting an index picture
✔
Finalizing a disc
✔
Making edits compatible
✔ *
2
Putting name on disc
✔
Setting or Releasing disc protect
✔
E2H40UD_v4.indd 82E2H40UD_v4.indd 82 2008/06/02 13:35:582008/06/02 13:35:58
83EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
83EN
EDITING
Deleting a Title
You can delete a title which you do not need anymore.
Please be advised that the title once deleted cannot be
brought back.
If you are editing the titles on HDD, press [HDD] first.
If you are editing the titles on DVD, press [DVD] first.
1
Press [TITLE].
2
Use [K / L / { / B] to select a desired
title to delete, then press [OK].
If you are editing the titles on HDD, proceed to step 4.
If you are editing the titles on DVD, proceed to step 3.
HDD mode
Title List
1 / 1
Title 1
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
DVD mode
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
SP
HDD & DVD RECORDER
Note
• For DVD+RW/DVD-RW, the available disc space will
increase only when the last recorded title in the title
list is deleted. For DVD+R/DVD-R, the disc space will
not be affected.
• Deleted part of the titles in the capacity indicator
changes in color.
• As for DVD+RW/DVD-RW if you delete the title, deleted
title will be displayed as “EMPTY TITLE”.
• For DVD, it may take a while to write the data to the
disc after you press [OK] at step 5.
Instructions continue on the next page.
E2H40UD_v4.indd 83E2H40UD_v4.indd 83 2008/06/02 13:35:592008/06/02 13:35:59
84 EN84 EN
EDITING
3
Use [K / L] to select “Edit”, then
press [OK].
1
2
3
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Overwrite
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
SP
Edit
Play
4
Use [K / L] to select “Title Delete”,
then press [OK].
HDD mode
Resume Playback
Play From Start
Edit
Title Delete
Delete Multiple Titles
Dubbing
DVD mode
Edit
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Hide Chapter
NOV/21/07 11:00AM CH12 SP
0:00:59
1
+VR
Confirmation message will appear.
5
Use [K / L] to select “Yes”, then press
[OK].
Final confirmation message will appear. Select
“Yes”, then press [OK].
The title is now deleted.
Title List
1 / 1
JAN/ 1/07 12:00AM CH10 SP
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5
2 3
1
2
3
EMPTY TITLE
0:21:14 SP
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
EMPTY TITLE
1:37:52 SP
SP
E2H40UD_v4.indd 84E2H40UD_v4.indd 84 2008/06/02 13:36:002008/06/02 13:36:00
85EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
85EN
EDITING

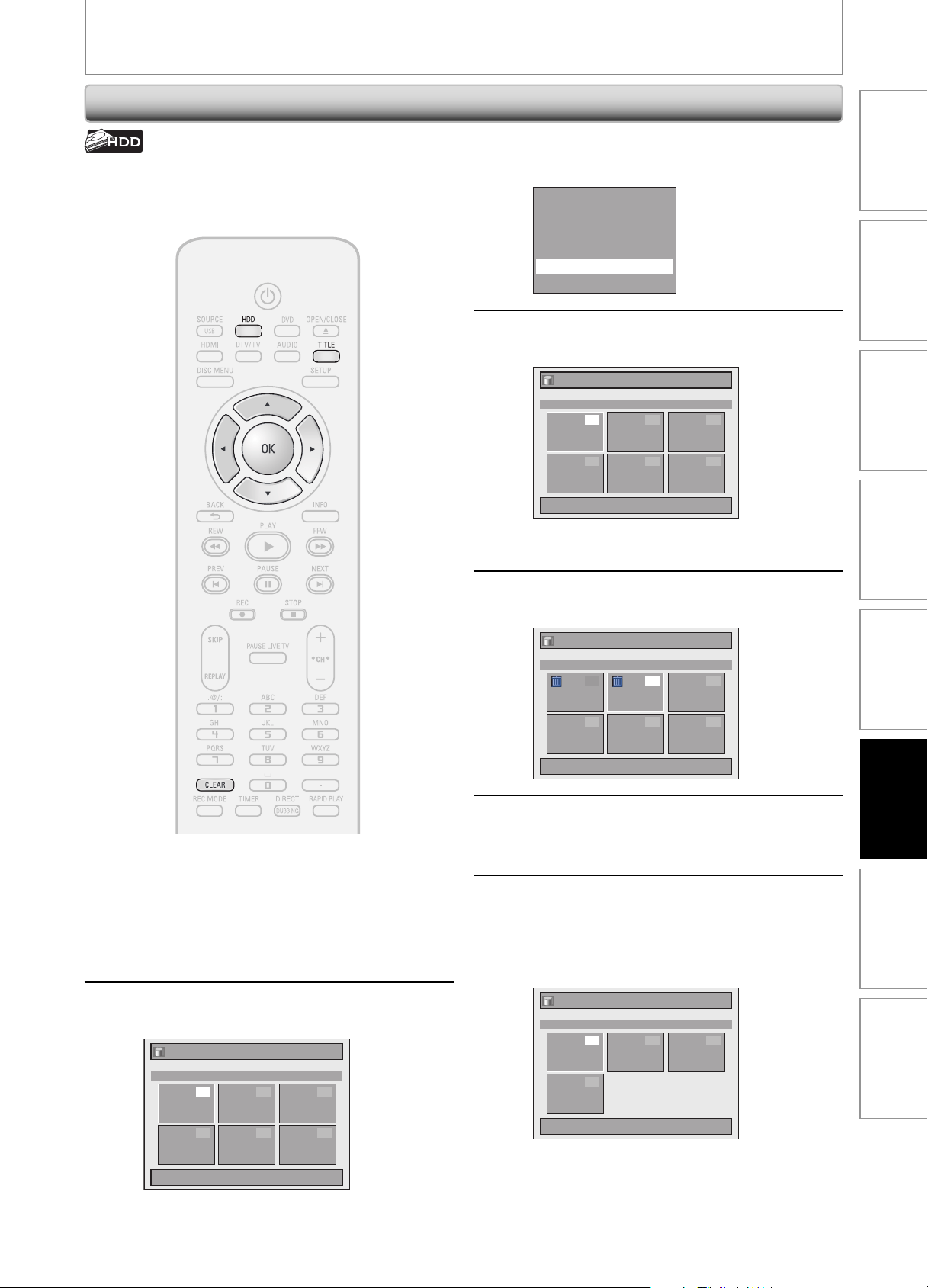

Deleting Selected Titles
3
Use [K / L] to select “Delete Multiple
Titles”, then press [OK].
Resume Playback
Play From Start
Edit
Title Delete
Delete Multiple Titles
Dubbing
4
Use [K / L / { / B] to select the title
you want to delete, then press [OK].
Title List
1 / 1
Title 1
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
Trash mark will appear indicating the title is
marked for deletion.
5
Repeat step 4 until you select all the
titles you want to delete.
Title List
1 / 1
Title 1
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
6
Press [CLEAR].
Confirmation message will appear.
7
Use [K / L] to select “Yes”, then press
[OK].
Final confirmation message will appear. Select
“Yes”, then press [OK].
Titles are now deleted.
Title List
1 / 1
Title 1
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4
2 3
To remove the trash mark from the title:
Select the title with the trash mark, then press
[OK].
You can delete titles which you do not need anymore.
Please be advised that the titles once deleted cannot be
brought back.
1
Press [HDD], then press [TITLE].
2
Use [K / L / { / B] to select any title,
then press [OK].
Title List
1 / 1
Title 1
12:00AM (1:00:00) JAN/ 1/07
CH10 SP
1
4 5 6
2 3
E2H40UD_v4.indd 85E2H40UD_v4.indd 85 2008/06/02 13:36:012008/06/02 13:36:01
86 EN86 EN
EDITING

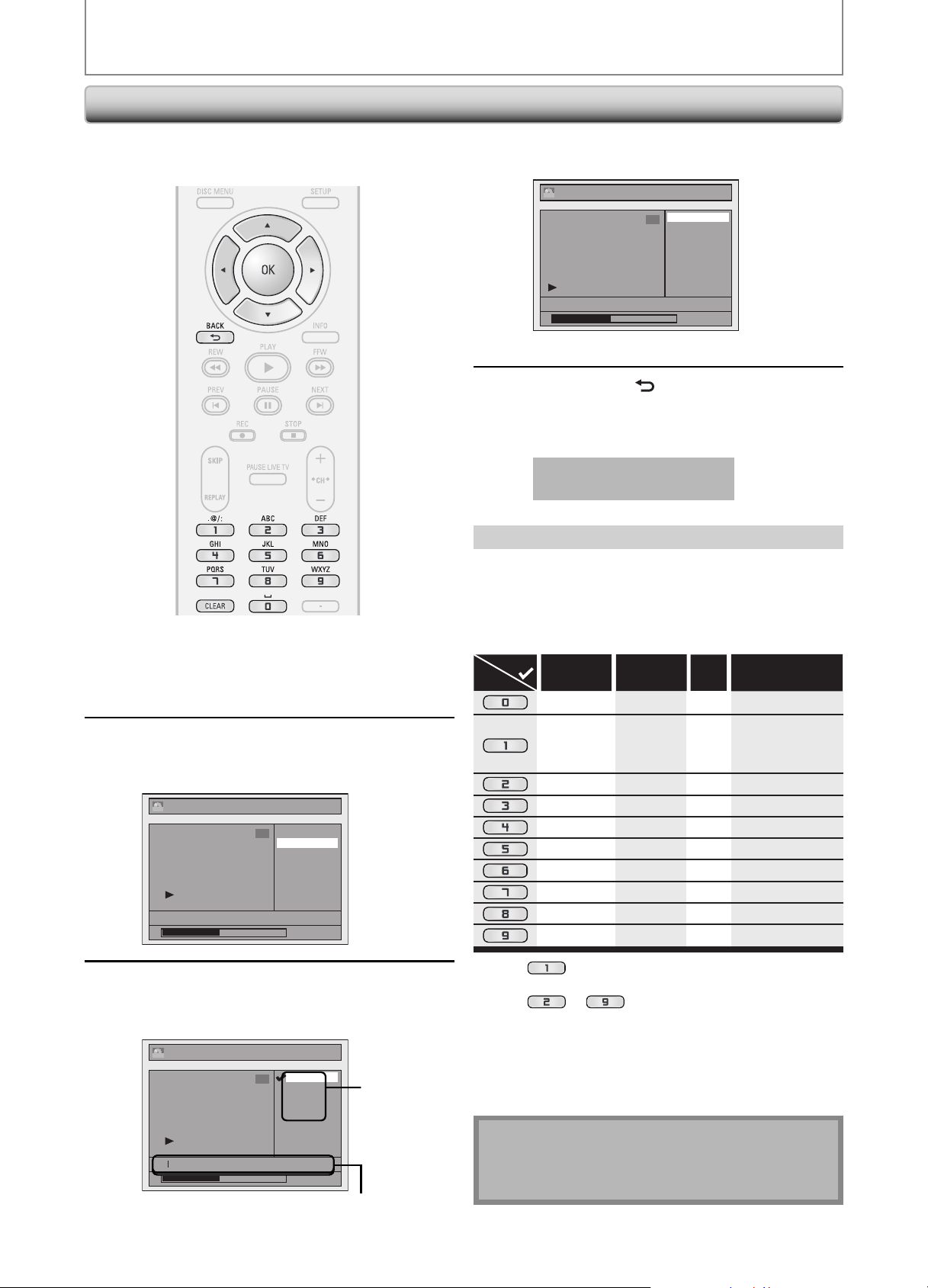

Putting Names on Titles
4
Use [K / L] to select “Yes”, then press
[OK].
Edit - Edit Title Name
No
Yes
MY FAVORITE
1
0:00:59
+VR
The title name is now updated.
5
Press [BACK ] once or repeatedly to
go back to the title list.
For DVD, the data will be written onto the disc
momentarily.
This operation may take a
while to be completed.
You can put title names on the titles and change the
names from this menu.
1) Use [K / L] to select a desired character set, then
press [OK].
2) Follow the list below, use [the Number buttons]
repeatedly until the desired letter appears.
When you finish entering a title name, press [OK].
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
! ” # $ % & ’ ( )
*
+ , - . / : ; < = >
? @ [ ] ^ _ { | }
2
3
4
5
6
7
8
9
0
1
ABC
abc @ ! ?
123
(*1) (*1)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
Select
Press
<space> <space> <space>
*1 Press , character set will be changed to the “ @!? ”
mode automatically.
*2 Press
to , character set will be changed to
the previous input mode automatically.
• To delete letters, press [CLEAR] repeatedly.
Holding [CLEAR] will delete all letters.
• Use [s / B] to move the cursor to the left and right.
• You can enter up to 30 letters.
Note
• Undefined letters in a title name are shown by “*”. If
you delete them, adjoining letters may change to “*”
or other.
Guide to Edit Title Name
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Edit Title
Name”, then press [OK].
e.g.) DVD
Edit
Title Delete
Edit Title Name
Chapter Mark
Index Picture
Title Dividing
Hide Chapter
NOV/21/07 11:00AM CH12 SP
0:00:59
1
+VR
3
To enter a title name, follow the
steps of “Guide to Edit Title Name”
on this page.
Edit - Edit Title Name
abc
ABC
123
@! ?
M
0:00:59
1
+VR
character set
area for entering title names
E2H40UD_v4.indd 86E2H40UD_v4.indd 86 2008/06/02 13:36:022008/06/02 13:36:02
87EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
87EN
EDITING

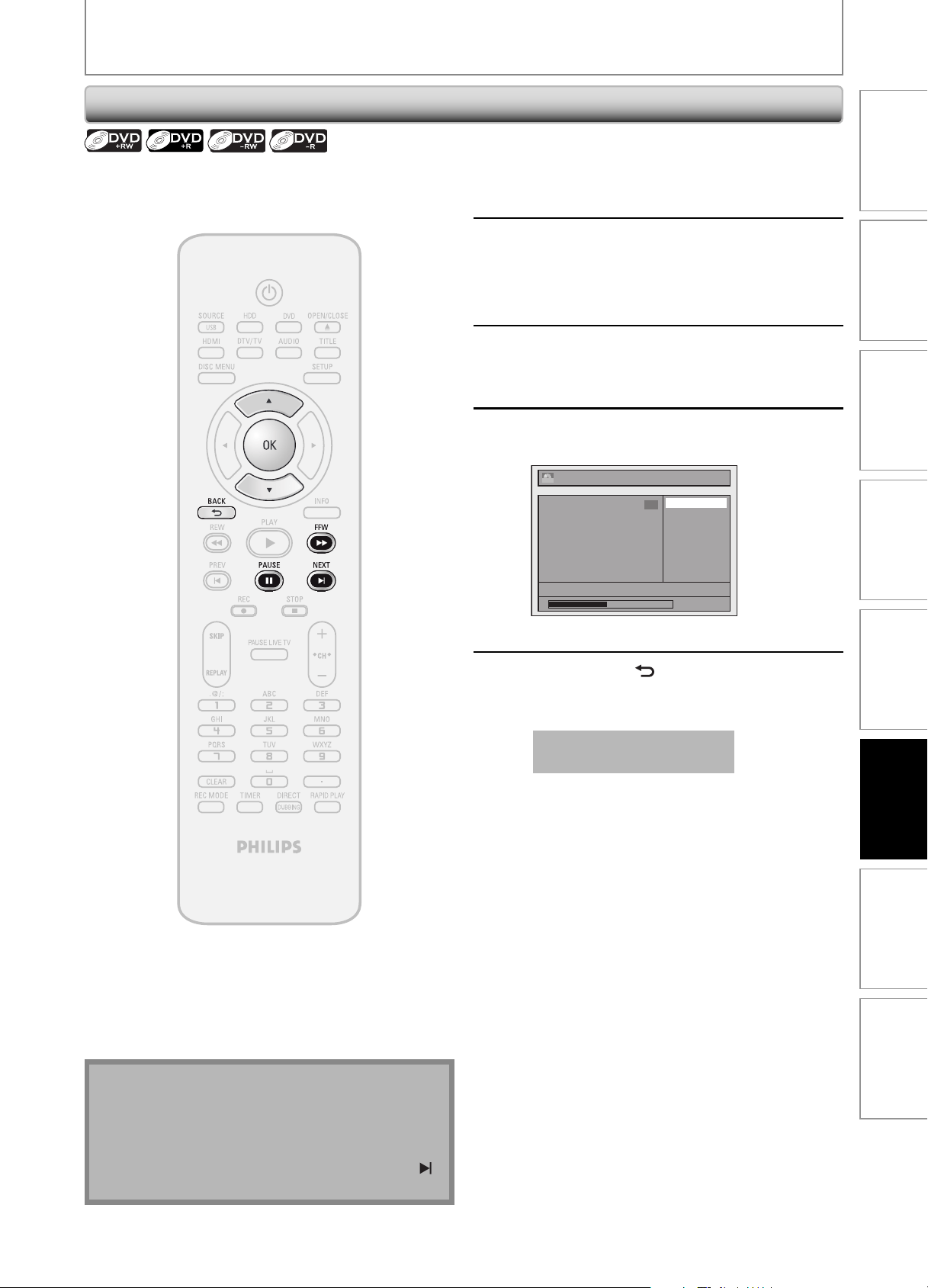

Chapter Marks (Add)
To add a chapter mark:
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Chapter Mark”,
then press [OK].
Submenu will appear.
3
Play back the title up to the point
where you want to set a new chapter
mark.
When it comes to the desired point, press
[PAUSE F].
4
Use [K / L] to select “Add”, then press
[OK].
e.g.) DVD
Delete
Delete All
Add
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 1/ 1
Edit - Chapter Mark
+VR
5
Use [K / L] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Add
No
Yes
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 1/ 1
F
+VR
A new chapter mark is now added.
To add more chapter marks, repeat steps 3 to 5.
6
Press [BACK ] once or repeatedly to
go back to the title list.
For DVD, the data will be written onto the disc
momentarily.
This operation may take a
while to be completed.
You can put chapter marks in each title. Once a chapter is
marked, you can use it for the chapter search feature.
Note for adding or deleting chapter marks
• Maximum number of chapter marks in a title is 99
(for HDD/DVD) and the maximum number of chapter
marks in total is no limit (for HDD) / 254 (for DVD).
If the number of the chapter marks exceed the limit,
you cannot add any more chapter marks.
• Only with regard to DVD editing, you may not be
able to add chapter marks depending on the
duration of the title or the number of chapters.
• Only with regard to DVD editing, remaining time of
the disc may decrease when adding chapter marks or
increase when clearing chapter marks depending on
the recording time or edited contents.
• When you search for a point at step 3, you can also
use the special playback functions such as [NEXT
],
[FFW D] etc.
HDD & DVD RECORDER
E2H40UD_v4.indd 87E2H40UD_v4.indd 87 2008/06/02 13:36:042008/06/02 13:36:04
88 EN88 EN
EDITING
Chapter Marks (Delete)
To delete a chapter mark:
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Chapter Mark”,
then press [OK].
Submenu will appear.
3
Use [PREV ] / [NEXT ] to go to the
chapter with the chapter mark
number you want to delete, then
press [PAUSE F].
Chapter mark number is displayed on the
preview screen.
e.g.) DVD
Delete
Delete All
Add
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
Edit - Chapter Mark
+VR
4
Use [K / L] to select “Delete”, then
press [OK].
5
Use [K / L] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete
No
Yes
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
F
+VR
The selected chapter mark is now deleted.
To delete more chapter marks, repeat steps 3 to
5.
6
Press [BACK ] once or repeatedly to
go back to the title list.
For DVD, the data will be written onto the disc
momentarily.
This operation may take a
while to be completed.
HDD & DVD RECORDER
Note
• You cannot delete the chapter mark 1.
E2H40UD_v4.indd 88E2H40UD_v4.indd 88 2008/06/02 13:36:052008/06/02 13:36:05
89EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
89EN
EDITING
Chapter Marks (Delete All)
To delete all chapter marks:
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Chapter Mark”,
then press [OK].
Submenu will appear.
3
Use [K / L] to select “Delete All”,
then press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete All
No
Yes
NOV/21/07 11:00AM CH12 SP
0:00:59
1
Chapter 2/ 2
F
+VR
Final confirmation message will appear. Select
“Yes”, then press [OK].
All chapter marks are now deleted.
Chapter 1/ 1
Edit - Chapter Mark
NOV/21/07 11:00AM CH12 SP
1
0:00:59
+VR
Delete
Delete All
Add
5
Press [BACK ] once or repeatedly to
go back to the title list.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
HDD & DVD RECORDER
E2H40UD_v4.indd 89E2H40UD_v4.indd 89 2008/06/02 13:36:062008/06/02 13:36:06
90 EN90 EN
EDITING
Dividing a Title
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Play back the title up to the point
where you want to divide the title.
When it comes to the desired point, press
[PAUSE F].
3
Use [K / L] to select “Title Dividing”,
then press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
The title is now divided into 2 new titles, and it
will go back to the title list automatically. Title
name of the divided titles are identical, and
index pictures are reset to the first scene at this
point.
You can divide one title into 2 new titles.
Note
• If an internal HDD or a DVD contains the maximum
number of titles (HDD: 600, DVD+RW/-RW: 49), you
cannot divide any titles.
• With DVD+RW/-RW, you cannot divide the titles if the
total number of chapters has already reached 254.
• When you search for a point at step 2, you can also
use the special playback functions such as [NEXT
],
[FFW D] etc.
• For DVD, it may start writing data to the disc as you
complete the editing procedure.
HDD & DVD RECORDER
E2H40UD_v4.indd 90E2H40UD_v4.indd 90 2008/06/02 13:36:082008/06/02 13:36:08
91EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
91EN
EDITING
Deleting a Scene of a Title
You can delete a specific part of a title.
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Scene Delete”,
then press [OK].
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Protect
JAN/ 1/07 12:00AM CH10 LP
1 : 25 : 47
1
3
Play back the title up to the point
where you want to set a start point
for the scene to be deleted, then
press [OK].
Edit - Scene Delete
Start
End
Preview
Delete
JAN/ 1/07 12:00AM CH10 LP
1 : 00 : 00
1
Start point is now set, and the highlight
automatically moves to “End”.
4
Press [PLAY B] to start playback
again. Play back the title up to the
point where you want to set an end
point, then press [OK].
Edit - Scene Delete
Start
End
Preview
Delete
JAN/ 1/07 12:00AM CH10 LP
1 : 15 : 00
1
End point is now set, and the highlight
automatically moves to “Preview”.
The portion for deletion is indicated in red in the
progress bar at the bottom of the screen.
HDD & DVD RECORDER
Instructions continue on the next page.
Note
• When you search for the start/end point at step 3/4,
you can also use the special playback functions such
as [NEXT
], [FFW D] etc.
E2H40UD_v4.indd 91E2H40UD_v4.indd 91 2008/06/02 13:36:092008/06/02 13:36:09
92 EN92 EN
EDITING
5
With “Preview” highlighted, press
[OK] to preview the result.
Before and after 5 seconds of the deleted scene
can be previewed every time you press [OK].
• If you are not satisfied with the result, use
[K / L] to go back to “Start” or “End”, and try
setting them again.
• If you are satisfied with the result, proceed to
step 6.
Before
editing
Edited
start point end point
6
Use [K / L] to select “Delete” then
press [OK].
Edit - Scene Delete
Start
End
Preview
Delete
JAN/ 1/07 12:00AM CH10 LP
1 : 40 : 00
1
7
Use [K / L] to select “Yes” then press
[OK].
Edit - Scene Delete
Yes
No
JAN/ 1/07 12:00AM CH10 LP
0 : 07 : 00
1
Final confirmation message will appear. Select
“Yes” using [K / L] and then press [OK].
The selected scene is now deleted.
8
Press [BACK ] once or repeatedly to
go back to the title list.
E2H40UD_v4.indd 92E2H40UD_v4.indd 92 2008/06/02 13:36:102008/06/02 13:36:10
93EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
93EN
EDITING
Protecting a Title
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Protect”, then
press [OK].
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Protect
JAN/ 1/07 12:00AM CH10 LP
1 : 25 : 47
1
3
With “OFF ON” selected, press
[OK].
Edit - Protect
OFF ON
JAN/ 1/07 12:00AM CH10 LP
1
1 : 25 : 47
The title is now protected.
• If the title is already protected, “ON
OFF” will
appear instead. Press [OK], to release the title
from protection.
• The protected title will be marked with
icon.
4
Press [BACK ] once or repeatedly to
go back to the title list.
To prevent the accidental editing, or erasing of the titles,
you can protect them in “Edit” menu.
HDD & DVD RECORDER
E2H40UD_v4.indd 93E2H40UD_v4.indd 93 2008/06/02 13:36:102008/06/02 13:36:10
94 EN94 EN
EDITING
Hiding Chapters
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Use [K / L] to select “Hide Chapter”,
then press [OK].
Submenu will appear.
3
Use [PREV ] / [NEXT ] to go to the
chapter you want to hide, then press
[PAUSE F].
4
Use [K / L] to select “Hidden”, then
press [OK].
Edit - Hide Chapter
Hidden
Visible
0:00:59
1
NOV/21/07 11:00AM CH12 SP
Chapter 2/ 2 Visible
+VR
The chapter is now hidden.
5
Press [BACK ] once or repeatedly to
go back to the title list.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
If you want hidden chapters to be “Visible”,
select the chapter to be shown. Then use
[K / L] to select “Visible” at the step 4 on this
page.
Data will be written onto the disc momentarily.
After that, title list is displayed.
Note
• ”Hidden” will be displayed in the preview window
while previewing the hidden chapter.
• When you make all chapters in the title “Hidden”,
“Hidden” is displayed on an index picture of the title
list.
1
2
3
NOV/22/07 11:35
AM
CH13 EP
NOV/22/07 0:10:33
NOV/21/07 11:00
AM
CH12 SP
NOV/21/07 0:20:44
Hidden
EMPTY TITLE
1:37:52 SP
SP
You can hide chapters from the title list.
Hidden chapters are skipped during playback.
HDD & DVD RECORDER
E2H40UD_v4.indd 94E2H40UD_v4.indd 94 2008/06/02 13:36:122008/06/02 13:36:12
95EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
95EN
EDITING
Setting an Index Picture
1
Follow steps in “How to Access the
Edit Menu” on page 82 to display
“Edit” menu.
2
Play back the title to find the scene
you want to use as an index picture.
When it comes to the desired point,
press [PAUSE F].
3
Use [K / L] to select “Index Picture”,
then press [OK].
4
Use [K / L] to select “Yes”, then press
[OK].
No
Yes
1
Edit - Index Picture
NOV/21/07 11:00AM CH12 SP
0:00:59
F
+VR
A new index picture is now set.
5
Press [BACK ] once or repeatedly to
go back to the title list.
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
Note
• If the selected picture for an index picture is
overwritten, the index picture is reset to the first
scene of the title.
• When you search for the point at step 2, you can also
use the special playback functions such as [NEXT
],
[FFW D] etc.
You can set your desired scene as an index picture for
each title.
HDD & DVD RECORDER
E2H40UD_v4.indd 95E2H40UD_v4.indd 95 2008/06/02 13:36:132008/06/02 13:36:13
96 EN96 EN
Putting Name on Disc
Press [STOP C] if you are playing back a disc.
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
3
Use [K / L] to select “Edit Disc
Name”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
A window for entering a title name will appear.
Edit Disc Name
abc
ABC
123
@! ?
0:00:00
+VR
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect OFF
Make Edits Compatible Needed
4
To enter a disc name, follow the steps
of “Guide to Edit Title Name” on page
86.
When you finish entering a title name, press
[OK].
5
Use [K / L] to select “Yes”, then press
[OK].
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
The disc name is now updated.
Note
• You cannot select “Disc Edit” when finalized DVD+R
or DVD-R is inserted.
You can put a name on the disc and change it from this
menu.
EDITING
HDD & DVD RECORDER
E2H40UD_v4.indd 96E2H40UD_v4.indd 96 2008/06/02 13:36:142008/06/02 13:36:14
97EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
97EN
EDITING
Erasing Disc
Press [STOP C] if you are playing back a disc.
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
3
Use [K / L] to select “Erase Disc”,
then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
4
Use [K / L] to select “Yes”, then press
[OK].
When you press “Yes”, all the
contents in the disc will be erased.
Are you sure to erase the disc?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
The contents of the disc is now deleted.
You can erase all titles on a disc.
Note
• When you select “Yes” at step 4, all contents of the
disc will be erased.
HDD & DVD RECORDER
E2H40UD_v4.indd 97E2H40UD_v4.indd 97 2008/06/02 13:36:162008/06/02 13:36:16
98 EN98 EN
EDITING
Making Edits Compatible
Press [STOP C] if you are playing back a disc.
1
Press [SETUP].
2
Use [K / L] to select “Disc Edit”, then
press [OK].
3
Use [K / L] to select “Make Edits
Compatible”, then press [OK].
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
4
Use [K / L] to select “Yes”, then press
[OK].
Activate the Make Edits Compatible?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a
while to be completed.
If you have added or deleted chapters, or made chapters
hidden, you must perform “Make Edits Compatible” to
see those effects on other unit.
HDD & DVD RECORDER
E2H40UD_v4.indd 98E2H40UD_v4.indd 98 2008/06/02 13:36:172008/06/02 13:36:17
99EN
Recording Playback
Editing
Introduction Connections Basic Setup Function Setup Others
99EN
EDITING
Deleting All Titles in HDD
HDD & DVD RECORDER
Press [STOP C] if you are playing back a disc.
1
Press [SETUP].
2
Use [K / L] to select “HDD Menu”,
then press [OK].
3
Use [K / L] to select the desired type
of deletion, then press [OK].
Select “Delete All Unprotected Titles” if you want
to delete only the unprotected titles.
Select “Delete All Titles” if you want to delete all
titles including the ones protected.
Delete All Titles
Delete All Unprotected Titles
HDD Menu
4
Use [K / L] to select “Yes”, then press
[OK].
Delete entire titles?
Yes
No
Final confirmation message will appear. Select
“Yes”, then press [OK].
Titles are now deleted.
E2H40UD_v4.indd 99E2H40UD_v4.indd 99 2008/06/02 13:36:172008/06/02 13:36:17
100 EN100 EN
LIST OF SETTINGS
The following table is the contents which you can set and the default setting.
Refer to the following table for useful operation.
Setup Items (highlight is the default) Contents
General Setting
Playback
Pages 103-106
Parental Lock
OFF
level 8 [Adult] to 1 [Kid Safe]
Set the parental level for DVD playback.
Disc Audio Dynamic Range
Control
ON
OFF
Compressing the range of sound volume.
PCM
48kHz
96kHz
Set whether the sound recorded in 96kHz will
be down sampled in 48kHz.
Dolby Digital PCM
Stream
Set the type of sound signal which outputs
from the digital audio output jack.
Disc Menu Language
English
French
Spanish
Other
Set the language for disc menu language.
Audio Language
Original
English
French
Spanish
Other
Set the language for audio.
Subtitle Language
OFF
English
French
Spanish
Other
Set the language for subtitles.
Angle Icon
ON
OFF
Set whether or not to display the angle icon.
Still Mode
Auto
Field
Frame
Set the type of still image in pausing playback.
Variable Skip / Replay Variable Skip
5 seconds
15 seconds
30 seconds
1 minute
5 minutes
Set the amount of skip time when you press
[SKIP].
Variable Replay
5 seconds
15 seconds
30 seconds
1 minute
5 minutes
Set the amount of rewind time when you
press [REPLAY].
Display
Pages 107-108
OSD Language
English
Français
Español
Set the language for OSD (on-screen display).
Screen Saver OFF
5minutes
10minutes
15minutes
30minutes
Set the idling time before the screen saver
starts.
FL Dimmer Auto
Bright
Dark
Set the brightness of the front panel display.
CC Style
Pages 35-37
DTV CC
OFF
Service1
Service2
Service3
Service4
Service5
Service6
Set the type of the DTV closed caption.
User Setting ON
OFF
Set the whether or not CC style setting is
effective.
Font Size
Middle
Large
Small
Set font size of the displayed caption.
E2H40UD_v4.indd 100E2H40UD_v4.indd 100 2008/06/02 13:36:182008/06/02 13:36:18
101EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
101EN
LIST OF SETTINGS
Setup Items (highlight is the default) Contents
General Setting
Display
Pages 107-108
CC Style
Pages 35-37
Font Style
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
Set font style of the displayed caption.
Edge Type
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
Set edge type of the displayed caption.
Font Opacity
Solid
Translucent
Flash
Set the font opacity of the displayed caption.
Font Color Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Set the font color of the displayed caption.
Back Opacity
Solid
Translucent
Flash
Set back opacity of the displayed caption.
Back Color Transparent
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Set back color of the displayed caption.
V-Chip00
Downloadable Rating
Change Password
Set the downloadable rating.
Video
Pages 109-110
Progressive Scan ON
OFF
Set to the progressive scan mode (set to "ON")
or to the interlace scan mode(set to "OFF").
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
Set a picture size according to aspect ratio of
your TV.
Video Input
Page 51
Video In
S-Video In
Set the video input type for E1 external input.
Recording Auto Chapter
Page 40
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
Insert chapter marks at even time interval.
Auto Finalize
Page 61
Disc Full ON
OFF
Set the unit to finalize the disc automatically.
End of Timer Rec ON
OFF
Make Recording Compatible
Page 40
ON
OFF
Set to prohibiting additional recording (OFF)
or to replace the title list after recording (ON).
E2H40UD_v4.indd 101E2H40UD_v4.indd 101 2008/06/02 13:36:192008/06/02 13:36:19
102 EN102 EN
Note
• Your change to each settings stays on even when the power is off.
• An item which is not currently available is grayed in the settings.
LIST OF SETTINGS
Setup Items (highlight is the default) Contents
General Setting
Clock
Pages 30-31
Clock Setting Set the clock.
Auto Clock Setting OFF
Auto
Manual
Set the clock automatically.
Daylight Saving Time
ON(MAR-NOV)
ON(APR-OCT)
OFF
Set the clock for the daylight saving time.
Channel
Pages 27-29
Auto Channel Preset
Antenna
Cable (Analog)
Cable (Analog/Digital)
Tune the channels automatically.
Manual Channel Preset Tune the channels manually.
TV Audio Select
Pages 33-34
Stereo
SAP
Set the analog TV audio type for output and
recording.
DivX
Page 111
DivX®VOD Provide DivX®VOD registration code.
DivX Subtitle OFF
English
French
Spanish
German
Italian
Swedish
Dutch
Russian1
Russian2
Hungarian
Polish
Czech
Set the language for DivX® Subtitle.
HDMI
Page 112
Format RGB
YCbCr
Set the color space for the HDMI output.
HDMI Audio ON
OFF
Set whether or not to output the HDMI audio
signal.
RGB Range Normal
Enhanced
Set the black-white contrast level for HDMI
RGB output.
Reset All Page 113 Yes
No
Set to the default setting.
E2H40UD_v4.indd 102E2H40UD_v4.indd 102 2008/06/02 13:36:192008/06/02 13:36:19
103EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
103EN
SETUPS
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Playback”, then
press [OK].
General Setting
Playback
Display
Video
Recording
Clock
Channel
DivX
HDMI
Reset All
3
Use [K / L] to select a desired item,
then press [OK].
1
2
3
4
5
6
7
8
Parental Lock
Disc Audio
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Variable Skip / Replay
Submenu will appear.
4
Refer to
1
to
8
on pages 104-106
and set the selected item.
5
When you finish with setting, press
[SETUP] to exit.
Playback
HDD & DVD RECORDER
E2H40UD_v4.indd 103E2H40UD_v4.indd 103 2008/06/02 13:36:192008/06/02 13:36:19
104 EN104 EN
SETUPS
1
Parental Lock (Default: OFF) (DVD only)
Some DVD-video feature a parental lock level. Playback
will stop if the ratings exceed the levels you set, it will
require you to enter a password before the disc will
playback. This feature prevents your children from
viewing inappropriate material.
Use [K / L] to select the desired level, then press [OK].
Parental Lock
OFF
8 [Adult]
7 [NC 17]
6 [R]
5 [PG R]
4 [PG 13]
3 [PG]
2 [G]
1 [Kid Safe]
If a password has not been set yet, proceed to
A
.
If a password has been set already, proceed to
B
.
Note
• Parental lock function may not be available to some
discs.
• With some DVD, it may be difficult to find if they are
compatible with parental lock. Be sure to check if the
parental lock function operates in the way that you
have set.
• Record the password in case you forget it.
• If there is a DVD in the unit when you set up the
parental lock, press [OPEN/CLOSE A] to activate the
parental lock level.
A
A password has not been set yet.
Use [K / L] to select “Yes”. Use [the Number buttons]
to enter a new password except for 4737, then press
[OK].
Change Password?
Yes
No
Password Input
Yes
Your setting will be activated.
B
A password has been set already.
• Use [the Number buttons] to enter the current
password.
Password Input
Your setting will be activated.
• If you want to change password, use [K / L] to select
“Yes”. Use [the Number buttons] to enter a new
password, then press [OK].
<change the password>
Change Password?
Yes
No
Password Input
Yes
Your setting will be activated.
Note
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forget the password or you want to clear
all settings in “Parental Lock” menu, enter 4,7,3,7
using [the Number buttons] in password input
window. Password will be cleared and parental levels
will be set to “OFF”.
Playback (cont’d)
E2H40UD_v4.indd 104E2H40UD_v4.indd 104 2008/06/02 13:36:202008/06/02 13:36:20
105EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
105EN
SETUPS
2
Disc Audio
Choose the appropriate audio setting for your external
device.
It will only affect a disc playback.
Use [
K
/
L
] to select a desired item, then press
[OK]
.
Disc Audio
Dynamic Range Control
PCM
Dolby Digital
A
B
C
A
Dynamic Range Control (Default : ON) (DVD only)
Set to “ON” to compress the range between soft and loud
sounds.
Use [K / L] to select a setting, then press [OK].
Dynamic Range Control
ON
OFF
Your setting will be activated.
Note
• Dynamic range control function is available only with
the titles which are recorded in the Dolby Digital
format.
B
PCM (Default : 48kHz)
Use [K / L] to select a setting, then press [OK].
PCM
48kHz
96kHz
Your setting will be activated.
48kHz : If your amplifier/decoder is NOT compatible
with 96kHz PCM, select “48kHz”. 96kHz sound
will be output in 48kHz.
96kHz : If your amplifier/decoder is compatible with
96kHz PCM, select “96kHz”. 96kHz sound will
be output.
Note
When playing back disc with copyright protection
• Even if you select “96kHz”, the sound will be down
sampled at 48kHz.
C
Dolby Digital (Default : Stream)
Use [K / L] to select a setting, then press [OK].
Dolby Digital
PCM
Stream
Your setting will be activated.
PCM : Converts the Dolby Digital into PCM (2 channel).
When your amplifier/decoder is NOT
compatible with Dolby Digital, set to “PCM”.
Stream : Outputs Dolby Digital signals
When your amplifier/decoder is compatible
with Dolby Digital, set to “Stream”.
• With regard to DVD playback, if the audio source is in
Dolby Digital format, set “Dolby Digital” to “PCM” so that
you can switch to main audio (L), sub audio (R), or a
combination of both (L / R) using your amplifier /
decoder.
3
Disc Menu Language (Default : English) (DVD only)
Set the language for disc menu.
Use [K / L] to select a setting, then press [OK].
Disc Menu Language
English
French
Spanish
Other
Your setting will be activated.
4
Audio Language (Default : Original) (DVD only)
Set the audio language.
Use [K / L] to select a setting, then press [OK].
Audio Language
Original
English
French
Spanish
Other
Your setting will be activated.
• When “Original” is selected, the audio language will be
in the disc’s default language.
Playback (cont’d)
E2H40UD_v4.indd 105E2H40UD_v4.indd 105 2008/06/02 13:36:212008/06/02 13:36:21
106 EN106 EN
SETUPS
5
Subtitle Language (Default : OFF) (DVD only)
Set the subtitle language.
Use [K / L] to select a setting, then press [OK].
Subtitle Language
OFF
English
French
Spanish
Other
Your setting will be activated.
If “Other” is selected for
3
to
5
, press 4-digit code
using [the Number buttons].
Code Input
----
• When you finish entering the code, press [OK]. Refer
to the language code table on page 119.
Note
• Only the languages supported by the disc can be
selected.
• Audio language setting may not be available to
some discs.
• You can change or switch off the subtitles on a DVD
also from the disc menu if it is available.
• Press [CLEAR] or [s] to erase numbers entered
incorrectly.
6
Angle Icon (Default : ON) (DVD only)
Set to “ON” to show the angle icon during the playback.
Use [K / L] to select a setting, then press [OK].
Angle Icon
ON
OFF
Your setting will be activated.
7
Still Mode (Default : Auto) (DVD only)
Select “Auto” usually.
Use [K / L] to select a setting, then press [OK].
Still Mode
Auto
Field
Frame
Your setting will be activated.
Auto : Optimum resolution setting (“Field” or
“Frame”) will be selected.
Field : Images in the still mode will be stabilized.
Frame : Images in the still mode will be highly defined.
Note
•
Frame is 1 completed video image made up of 2
fields (There are 30 frames per second of NTSC video).
8
Variable Skip / Replay
Assign [SKIP] or [REPLAY] to skip or rewind by a certain
amount of time when they are pressed.
Use [K / L] to select a desired item, then press [OK].
Variable Skip
Variable Replay
A
B
Refer to the explanations below and set the selected item.
A
Variable Skip (Default: 30 seconds)
Sets the amount of skip time for [SKIP].
Variable Skip
5 seconds
15 seconds
30 seconds
1 minute
5 minutes
B
Variable Replay (Default: 30 seconds)
Sets the amount of rewind time for [REPLAY].
Variable Replay
5 seconds
15 seconds
30 seconds
1 minute
5 minutes
Playback (cont’d)
E2H40UD_v4.indd 106E2H40UD_v4.indd 106 2008/06/02 13:36:222008/06/02 13:36:22
107EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
107EN
SETUPS
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
2
Use [K / L] to select “Display”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
OSD Language
Screen Saver
FL Dimmer
CC Style
V-Chip
1
2
3
4
5
Selection menu will appear.
4
Refer to
1
to
5
on page 108 and set
the selected item.
• For
4
refer to pages 35-37.
5
When you finish with setting, press
[SETUP] to exit.
Display
HDD & DVD RECORDER
E2H40UD_v4.indd 107E2H40UD_v4.indd 107 2008/06/02 13:36:232008/06/02 13:36:23
108 EN108 EN
SETUPS
1
OSD Language (Default : English)
Set the language for the on-screen display.
Use [K / L] to select a setting, then press [OK].
OSD Language
English
Français
Español
Your setting will be activated.
2
Screen Saver (Default : 10 minutes)
Set the time to activate the screen saver function on the
TV screen.
Use [K / L] to select a setting, then press [OK].
Screen Saver
OFF
5 minutes
10 minutes
15 minutes
30 minutes
Your setting will be activated.
3
FL Dimmer (Default: Bright)
Set the front panel display brightness.
Use [K / L] to select a setting, then press [OK].
FL Dimmer
Auto
Bright
Dark
You can choose one from “Auto”, “Bright” and “Dark”.
If “Auto” is selected, the display gets dark when the
power is off.
5
V-Chip
You can set the viewing limitation for the digital TV
programs to prevent your children from watching
inappropriate programs.
This feature is available only after the digital TV
ratings have been downloaded.
• The ratings can be downloaded by the unit
automatically if it is available in your area.
1) Use [the Number buttons] to enter the access
password.
If you have not set the password, first, use [the Number
buttons] to set the access password, then press [OK].
The number you entered will be stored as the access
password.
Password Input
2) Use [K / L] to select a desired item, then press [OK].
V-Chip
Downloadable Rating
Change Password
A
B
A
Downloadable Rating
Set the rating system via digital broadcasting, or clear the
downloaded ratings.
If the broadcasting signal does not have the
downloadable rating information, the message below
will appear.
Downloadable Rating is currently not available.
• This message will also appear when you try to access
“DOWNLOADABLE RATING” after you have cleared the
downloadable rating information, and the new information has
not been downloaded since.
To set the rating:
Use [K / L] to select “BLOCK SETTING” then press [
OK
] to
show the various types of ratings. Use [K / L] to select a
desired rating to set, then press [
OK
] to show the levels
for the rating. Use [K / L] to select a level, then press
[
OK
] to switch “VIEW” or “BLOCK”. If you set one level to
“BLOCK”, all the higher levels will be turned to “BLOCK”
automatically.
To clear the downloadable rating information and its
setting:
Use [K / L] to select “CLEAR DOWNLOADABLE
RATING”, then press [OK].
B
Change Password
Change the current password.
Use [the Number Buttons] to enter new access
password.
Note
• When you forget the access password at step 1),
enter 4,7,3,7 using [the Number buttons] in the
password input window. Password will be cleared.
• Depending on the type of rating system, you may set
the levels individually.
Display (cont’d)
E2H40UD_v4.indd 108E2H40UD_v4.indd 108 2008/06/02 13:36:242008/06/02 13:36:24
109EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
109EN
SETUPS
Press [STOP C] if you are playing back a disc.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
2
Use [K / L] to select “Video”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
Progressive Scan
TV Aspect
Video Input
1
2
3
Submenu will appear.
4
Refer to
1
to
2
on page 110 and set
the selected item.
• For
3
refer to page 51.
5
When you finish with setting, press
[SETUP] to exit.
Video
HDD & DVD RECORDER
E2H40UD_v4.indd 109E2H40UD_v4.indd 109 2008/06/02 13:36:252008/06/02 13:36:25
110 EN110 EN
1
Progressive Scan (Default : OFF)
This unit is compatible with the progressive scan system.
The feature provides you with the higher definition
images than the traditional output system does. To utilize
this feature, you must set progressive scan mode to “ON”.
1) Use [K / L] to select “ON“, then press [OK].
Progressive Scan
ON
OFF
2) Use [{ / B] to select “Yes“, then press [OK].
Activating progressive scan:
Check your TV has progressive scan
and connect with component video cable.
NOTE :
Activate? Yes No
If there is no picture or picture is
distorted after selecting “Yes”,
Wait about 15 seconds for auto recovery.
3) Use [K / L] to select “Yes“ within 15 seconds, then
press [OK].
Your setting will be activated.
Note
• If your TV is compatible with progressive scan (525p /
480p), you are recommended to use the HDMI or
component video cable (commercially available) to
connect this unit to the TV. (Refer to “Method 3” or
“Method 4” on page 18.) If not, use the RCA video
cable and set the progressive scan to “OFF” or press
and hold [SETUP] for more than 3 seconds during
HDD / DVD playback.
• When selecting “No” or not pressing any buttons on
the unit or remote control within 15 seconds at step 3,
progressive scan remains to be “OFF” (interlace scan).
2
TV Aspect (Default: 4:3 Letter Box)
You can select the TV aspect ratio to match the formats of
what you are playing back with the unit and your TV
screen (4:3 standard or 16:9 widescreen TV).
Use [K / L] to select a setting, then press [OK].
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on the
top and bottom of the TV screen when playing back a
wide-screen picture. Select “4:3 Pan & Scan” for a full
height picture with both sides trimmed when playing
back wide-screen picture.
If you have a widescreen TV:
Select “16:9 Wide”.
Video (cont’d)
SETUPS
E2H40UD_v4.indd 110E2H40UD_v4.indd 110 2008/06/02 13:36:262008/06/02 13:36:26
111EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
111EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “DivX”, then
press [OK].
3
Use [K / L] to select a desired item,
then press [OK].
DivX
R
VOD
DivX Subtitle
1
2
4
Refer to
1
and
2
on this page and
set the selected item.
5
When you finish with setting, press
[SETUP] to exit.
1
DivX® VOD (DVD only)
This unit allows you to play back the files purchased or
rented from DivX® VOD (video-on-demand) services. The
files are available on the internet. When you purchase or
rent DivX® VOD files on the internet, you will be asked to
enter an activation/registration code. This menu item
provides you with the activation/registration code.
On how to activate this unit for the DivX® VOD file
playback, visit www.divx.com/vod.
Your registration code is :
To learn more visit
www.divx.com/vod
DivX
R
VOD
2
DivX Subtitle (Default : OFF) (DVD only)
Set the DivX® subtitle.
Use [K / L] to select a setting, then press [OK].
DivX Subtitle
OFF
English
French
Spanish
German
Italian
Swedish
Your setting will be activated.
DivX®
Note
• Only the languages supported by the disc can be
selected.
• Audio language setting may not be available to
some discs.
• You can change or switch off the subtitles on a DVD
also from the disc menu if it is available.
• One registration code is only valid for one DivX® VOD
file.
• The registration code will be displayed in 8
characters which consist of numbers between 0 to 9
and capital letters chosen randomly.
• You must first download the file from the internet
and play it back on this unit before you are able to
get another code.
• You must follow this step every time you purchase or
rent a DivX® VOD file from the internet.
• For more information for DivX®, please visit
http://www.divx.com/vod.
SETUPS
HDD & DVD RECORDER
E2H40UD_v4.indd 111E2H40UD_v4.indd 111 2008/06/02 13:36:262008/06/02 13:36:26
112 EN112 EN
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “HDMI”, then
press [OK].
HDMI
SETUPS
HDD & DVD RECORDER
3
Use [K / L] to select a desired item,
then press [OK].
Format
HDMI Audio
RGB Range
1
2
3
4
Refer to
1
to
3
on this page and set
the selected item.
5
When you finish with setting, press
[SETUP] to exit.
1
Format (Default : RGB)
You can select the color space for HDMI output.
Set the appropriate color space for your display device.
Use [K / L] to select a setting, then press [OK].
• When the connected device is not compatible with the
Y/Cb/Cr, HDMI signal is output as RGB regardless of the
setting.
Format
RGB
YCbCr
Your setting will be activated.
2
HDMI Audio (Default : ON)
If you do not want to output the audio through HDMI
(when you digitally output the audio through the DIGITAL
AUDIO OUT jack to your audio system, etc.), you can set
the HDMI audio output off.
Use [K / L] to select a setting, then press [OK].
• Set to “OFF” when not outputting the HDMI sound.
HDMI Audio
ON
OFF
Your setting will be activated.
3
RGB Range (Default : Normal)
You can adjust the RGB range to make the dark areas of
the HDMI images brighter.
Use [K / L] to select a setting, then press [OK].
• Select “Enhanced“ if the black-white contrast is not clear.
• This setting is effective only for HDMI RGB output.
RGB Range
Normal
Enhanced
Your setting will be activated.
E2H40UD_v4.indd 112E2H40UD_v4.indd 112 2008/06/02 13:36:272008/06/02 13:36:27
113EN
Recording Playback EditingIntroduction Connections Basic Setup
Function Setup
Others
113EN
Reset the setting to default.
1
Press [SETUP] and use [K / L] to
select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
Use [K / L] to select “Reset All”, then
press [OK].
3
Select “Yes” using [K / L] , then press
[OK].
Reset to factory default?
Yes
No
4
Select “Yes” again using [K / L] ,
then press [OK].
Are you sure?
Yes
No
Your setting in recording will be initialized.
Reset All
SETUPS
Note
• The settings listed below will remain unchanged
even after resetting to the factory default.
– OSD language setting
– Channel setting
– Clock setting
– Parental lock setting
– V-Chip setting
– Timer programming information
– DivX® registration code
HDD & DVD RECORDER
E2H40UD_v4.indd 113E2H40UD_v4.indd 113 2008/06/02 13:36:282008/06/02 13:36:28
114 EN114 EN
TROUBLESHOOTING
Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Symptom Remedy
POWER
The power does not turn on. • Check that the AC power cord is connected securely.
• Batteries of the remote control are weak.
The unit turns on automatically
without any operation.
• The unit turns on automatically 2 seconds before the timer recording.
The OSD language menu appears
every time the power turns on.
• Finish up the language setting procedure by selecting a language in the
OSD language menu. Press [OK] to activate the setting.
GENERAL
The unit does not function. • “ ” or error message appears if the operation is prohibited.
• Batteries of the remote control are weak or exhausted.
No picture, sound or menu appears on
the screen.
• Check if the connections are made securely and correctly.
• Check if the cables are damaged.
• Check if a correct external input channel is selected on your TV. (Refer to
page 21.)
• Check if you have completed the channel setting. (Refer to pages 27 to 29.)
Clock setting and channel setting
cannot be performed.
• If a recording is in progress, these operations cannot be performed.
The unit does not operate properly. • Moisture has condensed inside the unit. Remove the disc and leave the
unit turned on for about 2 hours until the moisture evaporates. (Refer to
page 5.)
The disc tray cannot be opened. • Check the external input channel. In USB mode, you cannot open the
disc tray.
Playback image freezes for a second. • During the playback of 2 layered disc, picture may freeze for a moment
when the 1st layer switches to the 2nd layer. This is not a malfunction.
“Repairing” appears on the TV screen.
Repairing
• If there is a power failure or unplugging during recording, finalizing,
formatting or editing (even after “Repairing” disappears), a repairing
process will begin automatically just after turning the unit on again.
It may take several minutes up to about several hours.
In a case you intend to cancel the
repairing process.
Repairing
Do you want to cancel a repairing
process? When selecting “Yes”,
the disc may not be usable.
Yes
No
• If you intend to cancel the repairing process, press [OPEN/CLOSE A]
on the front panel, then select “Yes” and press [OK]. After that, press
[OPEN/CLOSE A] to take out the disc. The disc canceled during the
repairing process MAY NOT work.
The clock display does not appear in
the front panel display.
• Check that the AC power cord is connected securely.
• (In case of power failure) Check the breaker and clock setting.
When you forget the password for
parental lock.
• Please cancel the password and the set level. (Refer to page 104.)
No analog TV closed captions are
output.
• If you are using HDMI connection to watch the TV programs through
this unit’s tuner, analog TV closed caption cannot be output. Try using
other connection.
DV signal cannot be input. • Before connection, turn on the power supplies for both this unit and the
DVC, and make sure that these units have stopped.
• Only a “DVC-SD” signal can be input from the DVC to this unit. Other
types of signals are not supported.
• Do not connect any device other than the DVC. Even if a recorder or PC
with another DV terminal is connected, the DV function will not operate.
• If the DVC is not recognized after connection, turn off the power supply
for the unit and re-connect the DVC.
The DVC cannot be operated with this
unit.
• Signal input or DVC operation from this unit may be disabled
depending on the type of DVC.
• If a DVC signal cannot be input, use an external input (E1/E2) for analog
connection via audio/video cables.
• DVC control may be disabled depending on the type of DVC, even in a
mode other than camera mode. In this case, switch to DVD control and
execute the normal recording procedure while operating the DVC.
E2H40UD_v4.indd 114E2H40UD_v4.indd 114 2008/06/02 13:36:292008/06/02 13:36:29
115EN
Recording Playback EditingIntroduction Connections Basic Setup Function Setup
Others
115EN
TROUBLESHOOTING
GENERAL
Certain functions of the DVC cannot
operate.
• Some functions may not operate depending on the type of DVC. For
example, if the DVC does not support slow playback mode, the slow
playback function is disabled.
• With E3(DV-IN), the disc display menu does not appear unless disc
playback is executed.
DV audio signal cannot be switched. • For recording with the DVC, the recording audio signal can be set to 12
bits or 16 bits. However, when 16-bit recording mode is selected, audio
signal cannot be switched. To record an audio signal, set it to 12 bits.
No image from HDMI connection. • Check the HDMI connection. (Check the status of the HDMI related
indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device
supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches
the supported input format of other connected device.
CHANNEL
TV channels cannot be changed. • Check if the connections are made securely and correctly.
• Check if the cables are damaged.
• Try channel setting by following the steps on pages 27 to 29.
Only specific channels do not appear. • The channels may be set to be skipped. (Refer to pages 28-29.)
The external input channels (such as
E1, E2 or E3) cannot be skipped.
• This unit does not skip the external input channels. This is not a
malfunction.
RECORDING
GENERAL
The image from the external device
cannot be displayed or recorded.
• Try pressing [SOURCE / USB] repeatedly.
• Turn on all connected devices.
• Check if the connections are made securely and correctly.
HDD / DVD
Recording is impossible. • It is prohibited to make a recording from 2 minutes before the
programmed start time of a timer recording.
• This unit cannot record programs that contain copy protection signal.
This is not a malfunction.
• The space of the recording media may be used up. Try deleting
unnecessary titles, or exchange it with the recordable media.
• The maximum number of titles or chapters has exceeded. Delete the
unnecessary titles to make enough space or insert a new recordable media.
• Check if the connections are made securely and correctly.
• Check the external input channel. In USB mode, you cannot make a
recording on HDD/DVD.
Timer recording cannot be
performed.
• The internal clock of the unit may have been stopped due to a power
failure that lasted for more than 30 seconds. Reset the clock. (Refer to
pages 30 to 31.)
HDD
Titles which were supposed to be
recorded by the pause live TV
function cannot be found in the
title list.
• Titles recorded by the pause live TV function will not be stored in the title
list. They may be stored temporarily in the title list, but will be deleted
when you exit the pause live TV mode. Pause live TV mode will stop not
only when you press
[STOP C] twice, but also when the disc runs out of
space, when the recording time exceeds 12 hours, or when it comes to 2
minutes before timer recording. This is not a malfunction.
DVD
Recording is impossible. • Copy-once programs cannot be recorded on DVD. This is not a
malfunction.
• Check if the disc is protected or nalised. Undo the protection or the
nalisation.
• DVD-RW once formatted on other unit cannot be recorded on this unit
unless all the contents in the disc are erased.
• Check if the connections are made securely and correctly.
The indication
“
Writing to Disc 100%
”
does not disappear.
• “
Writing to Disc 100%
” may remain on screen for the
maximum of 20 seconds even after it reached 100%. This is not a
malfunction.
E2H40UD_v4.indd 115E2H40UD_v4.indd 115 2008/06/02 13:36:292008/06/02 13:36:29
116 EN116 EN
TROUBLESHOOTING
PLAYBACK
GENERAL
TV aspect ratio does not match
your TV screen.
• Check the TV Aspect Ratio. (Refer to page 110.)
• A di erent aspect ratio will be used when the aspect ratio speci ed by
the disc is not supported by this unit.
Playback picture is distorted.
Color of the picture is abnormal.
• During fast forward or fast reverse, playback picture may be distorted.
This is not a malfunction.
• Connect to TV directly. When you connect this unit with the television
via VCR or other devices, the picture may be distorted due to the copy-
protection signal.
• Check if the cables are damaged.
• Keep the equipment which may cause electrical disturbances, such as a
cellular phone, away.
There is no sound, or no subtitle. • Turn on all connected devices.
• Check if the external input channel is set correctly.
• Check if the connections are made securely and correctly.
• If using the HDMI connection, sound is not output when “HDMI Audio”
is set to “OFF”.
• Check the RCA audio cable connection. If you are using HDMI-DVI
conversion cable, you must connect the RCA audio cable, too.
• If using the HDMI connection, check whether the output format of this
unit (HDMI FORMAT) matches the supported input format of other
connected device.
HDD/DVD
Playback does not start from the
beginning.
• Resume function may be activated. Refer to page 72 to cancel the
resume point.
Playback is impossible. • Check the external input channel. In USB mode, you cannot play back
the titles in HDD/DVD.
HDD
HDD playback suddenly stops. • When DVD recording finishes during HDD playback, the unit will stop
the HDD playback, and start writing data to the DVD. This is not a
malfunction.
DVD
Playback cannot be performed. • Check if the playable disc is inserted.
• Check if the disc is loaded correctly with the labeled side facing up.
• Discs made on other devices or on personal computers cannot be
played back on this unit unless it is nalised on the device.
Even if it is nalised, the performance of those discs are not guaranteed
on this unit.
• The disc may be dirty or awed. Clean the disc.
• Check if all the connections are made correctly.
• Check the parental lock setting. (Refer to page 104.)
• Playback of DVD is prohibited from 2 minutes before the programmed
start time of a timer recording when the recording media is DVD.
There is no sound, or no subtitle. • Check if the “Disc Audio” is set correctly. (Refer to page 105.)
• There is a possibility that the selected subtitle language is not
supported by the disc.
Digital audio setting cannot be
changed to main audio (L), sub
audio (R) or combination of both.
• If the audio source is in the Dolby Digital format, set the Dolby Digital
Setting to “PCM” in “Playback” menu. (available only for DVD) (Refer to
page 105.)
Audio language or the subtitle
language of the DVD cannot be
changed.
• Multilingual subtitles are not supported by the disc.
• Some audio languages or the subtitle languages can be changed only
from the disc menu. Please refer to the disc’s manual.
Camera angles cannot be changed. • Even though the multi-angle feature is supported by the disc, that does
not mean all the scenes are shot from multi-angles. Changing angles are
available only for those scenes shot from the multi-angle.
The disc cannot be played back on
other player even though it is
finalized properly.
• Some DVD players do not play back the disc made on other recorder.
Refer to the manual of the unit.
EDITING
HDD / DVD
Titles cannot be edited or deleted. • The titles or the disc itself may be protected. Cancel the protection by
following the steps on page 93 for title protection and page 59 for disc
protection.
Dubbing cannot be executed. • When the number of the titles or the chapters exceeds the maximum
recordable number, the dubbing will not be executed.
• Dubbing of a “copy-once only” program is not possible with this unit.
E2H40UD_v4.indd 116E2H40UD_v4.indd 116 2008/06/02 13:36:302008/06/02 13:36:30
117EN
Recording Playback EditingIntroduction Connections Basic Setup Function Setup
Others
117EN
TROUBLESHOOTING
Frequently Asked Questions
– Can I record to CD-RW/-R? No, this unit records only HDD/DVD.
– Can I record to USB device? No, you cannot. USB device can only be played back on
this unit.
– Can I dub the contents in the USB device to HDD/DVD? No, you cannot.
– Can I play back DVD-video that is bought in another
country?
Possible when the region code of the disc is 1 and All.
– Can I connect the unit to my PC? No, you cannot control the unit by PC.
– Can I program a timer recording with cable/satellite
box?
Yes, you can. Select “E1” or “E2” as your recording
channel, and leave the cable / satellite box on (pages 17,
43-46).
– Can I record one channel while watching another
channel using a cable / satellite box?
It depends on your connection configurations. For
more details, please kindly contact your cable / satellite
provider.
– Can I connect this unit directly to a TV which only has
an antenna in jack using an RF coaxial cable?
No. You need an RF modulator (commercially available)
to connect this unit to a TV which only has an antenna in
jack (page 16). This unit does not have an RF modulator.
– Can I change the channels on the cable / satellite box
using the remote control of this unit?
No. Changing the channels on the cable / satellite box
using this unit’s remote control is not possible. You
need to use the remote control supplied with the cable /
satellite box to change the channels on the cable / satellite
box.
EDITING
DVD
Titles cannot be edited or deleted. • The titles in the DVD+R/-R cannot be edited or deleted if they are
nalised. If it is DVD-RW, undo the nalisation by following the steps on
page 60.
The capacity of the disc doesn’t
increase even if the recorded
program is deleted.
• With DVD+RW/-RW, the disc space will increase only when the last
title in the original is deleted. With DVD-R/+R, deleting a title will not
increase the disc space.
Dubbing cannot be executed. Check if the disc is compatible for recording (refer to page 38).
REMOTE CONTROL
The remote control does not function. • No batteries in the remote or the batteries may be weak. Replace the
batteries.
• Make sure there is no obstacle between the remote and the unit.
• Try getting closer to the unit. (Refer to page 12.)
• If above solutions do not solve the problem, please call an Authorized
Service Center.
E2H40UD_v4.indd 117E2H40UD_v4.indd 117 2008/06/02 13:36:302008/06/02 13:36:30
118 EN118 EN
Error message Cause Solution
Disc Error
— Please eject the disc. —
Playback feature may not be available on
this Disc.
• Unplayable disc is inserted in the unit.
• The disc is upside down.
• Insert the standardized disc which bear
the marks on page 62.
• Insert the disc with the labeled side
facing up.
Region Error
— Please eject the disc. —
Playback is not authorized in your region.
• Playback is not authorized in the region
of the DVD-video which you inserted in
the unit.
• Insert the DVD-video with region codes
1 or ALL.
Parental Lock On
The current selected parental level
prohibits playback.
• The current selected parental level
prohibits playback.
• Check “Parental Lock” setting in
“Playback” menu (page 104).
Recording Error
This program is not allowed to be
recorded.
• The recording function encountered
the copy prohibited program.
• You cannot record copy prohibited
programs.
Recording Error
This program is not recordable in +VR
mode.
• You are trying to record the copy-once
program.
• You cannot record the copy-once
program.
Recording Error
Cannot record on this disc.
• You are trying to record onto the disc
which is unrecordable, or the disc status
is unable to record.
• The disc is dirty.
• The disc is damaged.
• Insert the recordable disc, and ensure
the disc status satisfies the recording
requirements (page 38).
• Clean the disc with a cleaning cloth.
• Replace the disc.
Recording Error
This disc is protected and not recordable.
• You are trying to record on to the
protected disc which is set in “Disc Edit”
menu.
• Release the disc protect setting in “Disc
Edit” menu (page 59).
Recording Error
Disc is full.
(No area for new recording)
• You are trying to record onto the disc
which has no space for recording.
• Insert the recordable disc with enough
recording space.
Recording Error
You cannot record more than 49 titles on
one disc.
(The maximum is 49)
• You are trying to record onto the disc
on which the number of recording titles
comes up to the maximum (49).
• Delete unnecessary titles (pages 83-84).
Recording Error
You cannot record more than 254 chapters
on one disc.
(The maximum is 254)
• You are trying to record onto the
DVD+RW or DVD-RW on which the
number of recording chapters comes
up to the maximum (254).
• Delete unnecessary chapter marks
(pages 88-89).
Recording Error
You cannot record on this disc as Power
Calibration Area is full.
• When recordings are performed
repeatedly onto an unstable disc, this
area may come up to be full.
• Every time you insert a disc for
recording, the disc’s working area will
be taken up. And if you repeat this
frequently, it will be used up sooner
and you may not be able to record full
49 titles.
• Insert a new disc.
Recording Error
This disc is already finalized.
• You are trying to record onto the disc
already finalized.
• Release the finalizing for this disc
(page 60).
Recording Error
The disc has no recording compatibility.
Set “Make Recording Compatible” to
“ON” to convert the disc.
• You are trying to record onto the
disc that had been recorded by other
recorders.
• Set “Make Recording Compatible” to
“ON” to rewrite the menu, after that you
will record to disc (page 40).
Recording Error
You cannot record more than 600 titles
on HDD. (The maximum is 600).
• You are trying to record onto the HDD
when total title number is already at its
limit.
• Delete unnecessary titles (page 85).
Recording Error
Cannot record on this HDD.
• The internal HDD is dirty or damaged.
• There is not enough space on the
internal HDD.
• Contact the customer service center.
• Delete unnecessary titles (page 85).
* If you are still having trouble with the unit after checking “TROUBLESHOOTING”, write down the error code and the
error description for calling our help line mentioned on the front page to locate an Authorized Service Center.
TROUBLESHOOTING
E2H40UD_v4.indd 118E2H40UD_v4.indd 118 2008/06/02 13:36:302008/06/02 13:36:30
119EN
Recording Playback EditingIntroduction Connections Basic Setup Function Setup
Others
119EN
LANGUAGE CODE
Language Code
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
Cambodian 5759
Catalan 4947
Chinese 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish 5047
Dutch 6058
English 5160
Esperanto 5161
Estonian 5166
Faroese 5261
Fiji 5256
Finnish 5255
French 5264
Frisian 5271
Galician 5358
Georgian 5747
German 5051
Greek 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Language Code
Hungarian 5467
Icelandic 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish 5347
Italian 5566
Japanese 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean 5761
Kurdish 5767
Laothian 5861
Latin 5847
Latvian; Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian 6061
Occitan 6149
Oriya 6164
Oromo (Afan) 6159
Panjabi 6247
Pashto; Pushto 6265
Persian 5247
Polish 6258
Portuguese 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian 6461
Language Code
Russian 6467
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish 5165
Sundanese 6567
Swahili 6569
Swedish 6568
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish 6664
Turkmen 6657
Twi 6669
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
E2H40UD_v4.indd 119E2H40UD_v4.indd 119 2008/06/02 13:36:302008/06/02 13:36:30
120 EN120 EN
Analog Audio
An electrical signal that directly represents sound.
Compare this to digital audio which can be an electrical
signal, but is an indirect representation of sound. See also
“Digital Audio”.
Aspect Ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the TV screen
is almost square); widescreen models are 16:9 (the TV
screen is almost twice as wide as it is high).
Chapter
Just as a book is split up into several chapters, a title on a
DVD is usually divided into chapters. See also “Title”.
Component Video Output
Each signal of luminance (Y) and component (PB/CB, PR/
C
R) is independent to output so that you can experience
picture color as it is.
Also, due to compatibility with progressive video
(525p/480p), you can experience higher-density picture
than that in interlace (525i/480i).
Digital Audio
An indirect representation of sound by numbers. During
recording, the sound is measured at discrete intervals
(44,100 times a second for CD audio) by an analog-
to-digital converter, generating a stream of numbers.
On playback, a digital-to-analog converter generates
an analog signal based on these numbers. See also
“Sampling Frequency” and “Analog Audio”.
DivX®
DivX® is a codec (compression/decompression) that can
compress images to a very small amount of data.
Dolby Digital
The system to compress digital sound developed by
Dolby Laboratories. It offers you sound of stereo(2ch) or
multi channel audio.
Finalize
To make DVD, which have been recorded on, possible to
play back in DVD players. With this unit, it is possible to
finalize DVD+R, DVD-RW, and DVD-R.
HDMI (high definition multimedia interface)
A digital interface between audio and video source. It can
transmit component video, audio, and control signal with
one cable connection.
JPEG (joint photographic experts group)
JPEG is a method of compressing still image files. You can
copy JPEG files on CD-RW/-R from a computer and play
back the files on this unit.
MP3 (MPEG audio layer 3)
MP3 is a method of compressing files. You can copy MP3
files on CD-RW/-R from the computer and play back the
files on this unit.
PBC (playback control) (video CD only)
This function enables you to play back interactive
software using a menu screen. See also “Video CD”.
PCM (pulse code modulation)
The most common system of encoding digital audio,
found on CD and DAT. Excellent quality, but requires a
lot of data compared to formats such as Dolby Digital
and MPEG audio. For compatibility with digital audio
recorders (CD, MD and DAT) and AV amplifiers with
digital inputs, this unit can convert Dolby Digital and
MPEG audio to PCM. See also “Digital Audio”.
Progressive Scan (525p/480p)
A type of display that does not split each frame into
fields, and instead scans directly through all the scanlines
of each frame in order. Progressive scan provides less
flickering and higher image resolution than traditional
(525i/480i) TV signals. Refer to page 110 for instructions
on selective progressive scan mode.
Region Code
Regions associate discs and players with particular areas
of the world. This unit will only play back discs that have
compatible region codes. You can find the region code
of your unit by looking on the rear panel. Some discs are
compatible with more than one region (or all regions).
Sampling Frequency
The rate which sound is measured by a specified interval
to turn into digital audio data. The numbers of sampling
in one second defines as sampling frequency. The higher
the rate, the better the sound quality.
SAP (secondary audio program)
Sub-audio channel which is delivered separately from
main-audio channel. This audio channel is used as an
alternate in bilingual broadcasting.
S-Video Output
It delivers independently each signal of color(C) and
luminance(Y) to TV as video signals, so that higher-quality
picture will be gained.
Title (DVD only)
A collection of chapters on DVD. See also “Chapter”.
Track
Audio CD use tracks to divide up the content of a
disc. The DVD equivalent is called a chapter. See also
“Chapter”.
Video CD
A digital format for store video data in compact disc.
Windows Media™ Audio
Windows Media™ Audio is the audio compressing
technology developed by Microsoft. You can copy
Windows Media™ Audio files on CD-RW/-R from a
computer and play them back on this unit.
GLOSSARY
E2H40UD_v4.indd 120E2H40UD_v4.indd 120 2008/06/02 13:36:302008/06/02 13:36:30
121EN
Recording Playback EditingIntroduction Connections Basic Setup Function Setup
Others
121EN
SPECIFICATIONS
Note
• The specifications and design of this product are subject to change without notice.
General
System DVD+RW/+R, DVD-RW/-R, DVD-video, CD-DA, Video CD, CD-RW/-R
Power requirements 120V AC +/-10%, 60Hz +/-5%
Power consumption 33W (standby: 5.5W)
Dimensions (width x height x depth) 16.6 x 2.4 x 11.5 inches (420 x 59 x 290mm)
Weight 7.5 lbs. ( 3.4kg )
Operating temperature 41°F (5°C) to 104°F (40°C)
Operating humidity Less than 80% (no condensation)
TV format ATSC / NTSC-M TV standard
Recording
Recording format +VR (video recording) format
Recording discs
DVD+Rewritable, DVD+Recordable
DVD-Rewritable, DVD-Recordable (+VR mode only)
Video recording format
Sampling frequency
Compression format
13.5 MHz
MPEG 2
Audio recording format
Sampling frequency
Compression format
48 kHz
Dolby Digital
Tuner
Tuning system Channel frequency synthesized tuning system
Channel coverage (ATSC / NTSC)
Terrestrial
CATV
VHF 2~13, UHF 14~69
2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A1, 5A
Terminals
Front
Audio input
RCA jack x 2 2V rms (input impedance: more than 22kΩ)
Video input
RCA jack x 1 1Vp-p (75Ω)
USB input
TYPE A USB 2.0
DV input
DV 4-pin jack x 1 IEEE 1394
Rear
VHF/UHF/CATV input and output
F-type 75Ω unbalanced
Audio input
RCA jack x 2 2V rms (input impedance: more than 22kΩ)
Audio output
RCA jack x 2 2V rms (output impedance: more than 1kΩ)
Video input
RCA jack x 1 1Vp-p (75Ω)
Video output
RCA jack x 1 1Vp-p (75Ω)
S-video input
Mini DIN 4-pin x 1 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
S-video output
Mini DIN 4-pin x 1 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
Component video out
RCA jack x 3 Y: 1Vp-p (75Ω) P
B/CB: 700mVp-p (75Ω) PR/CR: 700mVp-p (75Ω)
Digital audio output
RCA jack x 1
Optical jack x 1
500mVp-p (75Ω)
Digital connector
HDMI output
HDMI jack x 1
Video: 480p, 720p, 1080i, 1080p
Audio: 2 channel linear PCM 32, 44.1 and 48kHz
E2H40UD_v4.indd 121E2H40UD_v4.indd 121 2008/06/02 13:36:302008/06/02 13:36:30
122 EN122 EN
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the per-
son receiving the product as a gift against defects in materials and
workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect in material
or workmanship occurs and a valid claim is received by Philips
within the Warranty Period. At its option, Philips will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or ser-
viceable used parts and is at least functionally equivalent or most
comparable to the original product in Philips current inventory,
or (3) refund the original purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship from
the date of the replacement or repair for ninety (90) days or for
the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product or
part is exchanged, any replacement item becomes your property
and the replaced item becomes Philips’ property. When a refund
is given, your product becomes Philips’ property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements
can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-
TATIONS:
This Limited Warranty applies only to the new products manu-
factured by or for Philips that can be identified by the trademark,
trade name, or logo affixed to it. This Limited Warranty does not
apply to any non-Philips hardware product or any software, even
if packaged or sold with the product. Non-Philips manufacturers,
suppliers, or publishers may provide a separate warranty for their
own products packaged with the bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained within
the product, or any non-Philips product or part not covered by
this warranty. Recovery or reinstallation of programs, data or
other information is not covered under this Limited Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, neglect, misapplication, or non-Philips product, (b)
to damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product or
a part that has been modified without the written permission of
Philips, or (d) if any Philips serial number has been removed or
defaced, or (e) product, accessories or consumables sold “AS IS”
without warranty of any kind by including refurbished Philips
product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.
• Product repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary con-
tent for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of Philips.
• Damage or claims for products not being available for use, or
