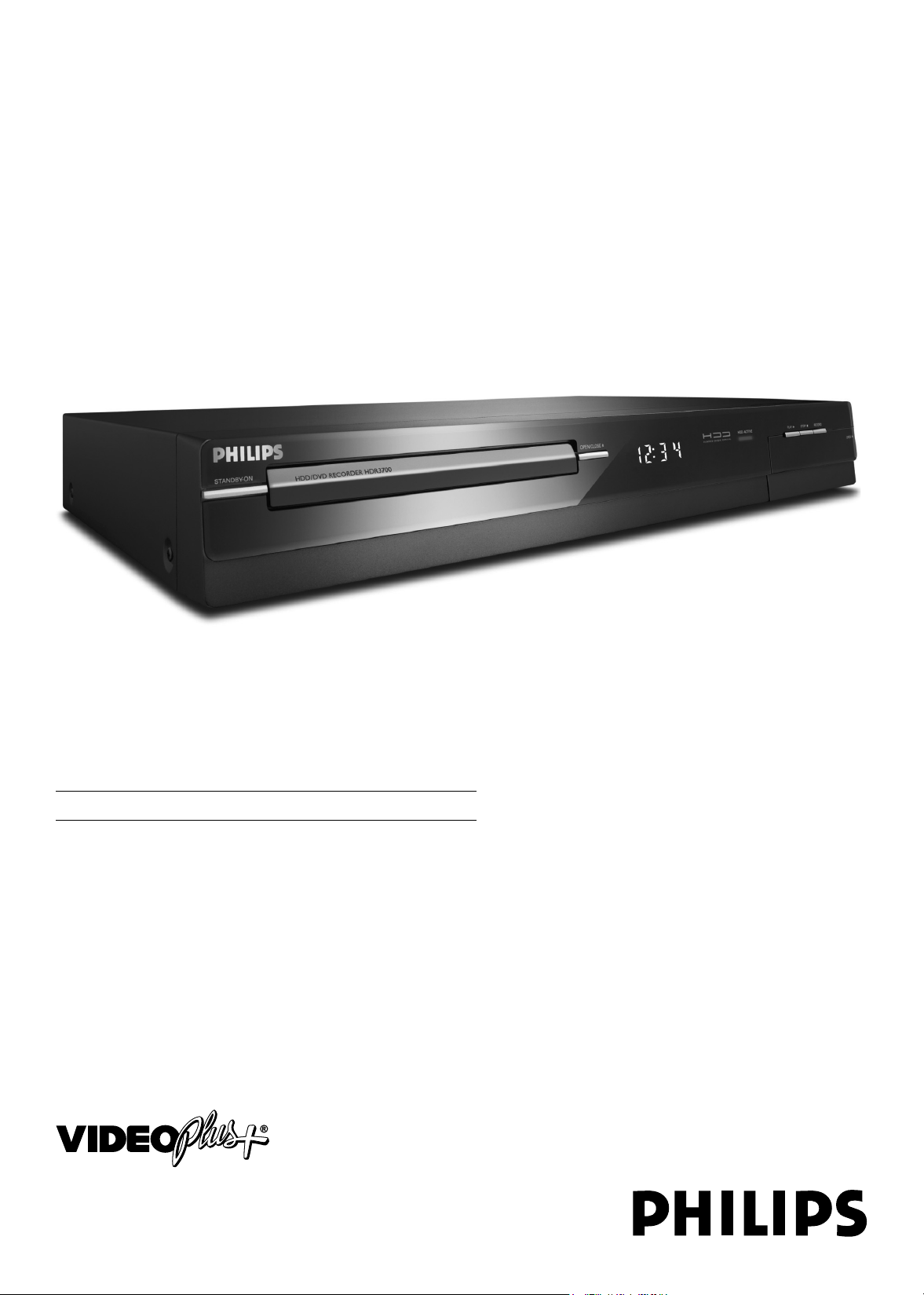

HDR3700
Register your product and get support at
www.philips.com/welcome
EN Hard Disk/DVD Recorder
VIDEO Plus+ and PlusCode are registered trademarks
of Gemstar Development Corporation.
The VIDEO Plus+ system is manufactured under
license from Gemstar Development Corporation.
E2N41BN_EN.book Page 1 Wednesday, July 2, 2008 4:36 PM
2
EN
Precautions
Introduction
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
The important note is located on the rear of the cabinet.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Laser Safety
This unit employs a laser. Only a qualified service
personnel should remove the cover or attempt to
service this unit, due to the possibility of eye injury.
CAUTION: USE OF CONTROLS OR
ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN
HAZARDOUS RADIATION
EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN AND
INTERLOCK DEFEATED. DO NOT
STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK
MECHANISM.
Power Supply
The power supply is connected and the unit is live
when the mains cable is plugged into a 220 - 240 V~,
50 Hz AC outlet. To operate the unit, press
[Q (STANDBY-ON)].
WARNING: LIVE PARTS INSIDE.
DO NOT REMOVE ANY SCREWS.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
Caution
1. Do not attempt to open the cabinet. There are no
parts inside you can service. Refer all servicing to
qualified service personnel.
2. Slots and openings in the cabinet at the sides and
underneath are provided for ventilation. To ensure
reliable operation and to protect the unit from
overheating, these openings must not be blocked
or covered.
Avoid installation in enclosed spaces such as
bookcases unless suitable ventilation is provided.
3. Keep the unit away from radiators and other heat
sources.
4. Avoid use near strong magnetic fields.
5. Do not push objects of any kind into the unit
through the cabinet slots or openings as they
could touch electrically live parts or short circuit
parts resulting in a fire or electric shock.
6. To prevent fire or shock hazard, do not expose
this apparatus to dripping or splashing, no objects
filled with liquids, such as vases, should be placed
on the apparatus.
7. Do not stand the unit vertically. Use the unit in a
horizontal (flat) position only.
8. This product is in Stand-by mode when turned off
while the mains cable is connected.
9. Do not place any combustible objects on the
device (candles, etc.).
10. Before moving the unit, be sure to remove any
discs and unplug the mains cable from the AC
outlet.
12. The mains plug shall remain readily operable.
13. Read both instruction manuals to ensure correct
and safe installation and interconnection of the
unit in multimedia systems.
11.
Disconnect the mains plug to shut off the unit, if you
suspect a fault has developed, or if it will not be used
for an extended period.
14. Keep a distance of 20 cm around the ventilation
openings of the apparatus.
E2N41BN_EN.book Page 2 Wednesday, July 2, 2008 4:36 PM
3
EN
This product complies with the radio interference
requirements of the European Community. This
product complies with the requirements of the
following directives and guidelines: 2006/95/EC,
2004/108/EC.
Philips Consumer Electronics
Philips, Glaslaan 25616 JB Eindhoven,
The Netherlands
Recycle Notice
Copyright Notice
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be
authorised by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless
otherwise authorised by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable
and can be reused. Please dispose of any
materials in accordance with your local recycling
regulations.
This product consists of materials which
can be recycled and reused if
disassembled by a specialised company.
Following information is only for EU-member states:
The use of the symbol indicates that this product
may not be treated as household waste.
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be
caused by inappropriate waste
handling of this product. For more
detailed information about recycling
of this product, please contact your
local city office, your household
waste disposal service or the shop
where you purchased the product.
Pb, Hg, Cd
Following information is only valid
EU-member States:
Disposal of batteries and/or accumulators
The crossed out wheeled dust bin symbol
indicates that batteries and/or accumulators must
be collected and disposed of separately from
household waste.
If the battery or accumulator contains more than
the specified values of lead (Pb), mercury (Hg),
and/or cadmium (Cd) defined in the Battery
Directive (2006/66/EC), then the chemical
symbols for lead (Pb), mercury (Hg) and/or
cadmium (Cd) will appear below the crossed out
wheeled dust bin symbol.
By participating in separate collection of batteries,
you will help to assure the proper disposal of
products and batteries and thus help to prevent
potential negative consequences for
the environment and human health.
For more detailed information about
the collection and recycling
programmes available in your
country, please contact your local
city office or the shop where you
purchased the product.
Important Notes for Users in U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp
plug. To change a fuse in this type of plug proceed as
follows:
1. Remove fuse cover and fuse.
2. Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets,
it should be cut off and an appropriate plug fi tted in its
place.
If the mains plug contains a fuse, this should have a
value of 5 Amp. If a plug without a fuse is used, the
fuse at the distribution board should not be greater
than 5 Amp.
Note: The severed plug must be disposed off to avoid
a possible shock hazard should it be insertedinto a 13
Amp socket elsewhere.
Mains plug
The wires in the mains lead are coloured with the
following code: blue = neutral (N),
brown = live (L).
• As these colours may not correspond with the
• Connect the blue wire to the terminal
• Connect the brown wire to the terminal
• Do not connect either wire to the earth terminal in
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath of
the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performer’s Protection Acts 1958 to 1972.
colour markings identifying the terminals in your
plug, proceed as follows:
marked N or coloured black.
marked L or coloured red.
the plug, marked E (or e) or coloured green (or
green and yellow).
Installation Location
For safety and optimum performance of this unit:
• Install the unit in a horizontal and stable position.
• Keep the unit away from electronic equipment
such as an amplifier, TV, etc. to prevent warping,
damage, fire and malfunction.
• Shield the unit from direct sunlight and keep away
from sources of intense heat. Avoid dusty or humid
locations. Avoid locations with insufficient ventilation
for suitable heat dissipation. Do not block the
ventilation holes on the sides of the unit. Avoid
locations subject to strong vibration or strong
magnetic fields.
• Do not place anything directly on top of the unit.
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 3 Wednesday, July 2, 2008 4:36 PM
4
EN
Moisture Condensation Warning
Moisture condensation may occur inside the unit
when it is moved from a cold place to a warm place,
after heating a cold room, or under conditions of high
humidity. Do not use the unit for at least 2 hours to
allow the inside to dry.
Avoid the Hazards of Electrical Shock
and Fire
• Do not handle the mains cable with wet hands.
• Do not pull on the mains cable to disconnect it from
AC outlet. Grasp it by the plug.
• If, by accident, water is spilled on the unit, unplug
the mains cable immediately and take the unit to an
authorised service centre for servicing.
Notice for the Progressive Scan
Outputs
Consumers should note that not all high definition
television sets are fully compatible with this product
and may cause artifacts to be displayed in the picture.
In case of picture problems with 480 or 576
progressive scan output, it is recommended that the
user switch the connection to the ‘standard definition’
output. If there are questions regarding your TV set
compatibility with this 480p or 576p product, please
contact our customer service centre.
Norge
Typeskiltfinnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er derfor
ikke frakoplet nettet så lenge apparatet er
tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio HDR3700
Philips risponde alle prescrizioni dell’art.
2 comma 1 del D.M. 28 Agosto 1995 n.
548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 25616 JB Eindhoven,
The Netherlands
For Customer Use
Enter below the Serial No. which is located on the
rear of the cabinet. Retain this information for
future reference.
Model No. _______________________________
Serial No. _______________________________
Manufactured under license from
Dolby Laboratories. Dolby and the
double-D symbol are trademarks of
Dolby Laboratories.
“Dolby
®
Digital Stereo Creator enables consumers
to create stereo DVD-Videos with stunning Dolby
Digital sound tracks at home. The technology,
when utilised instead of PCM recording, also
saves recordable disc space, allowing for higher
video resolution or extended recording time on
each DVD. DVDs mastered using Dolby Digital
Stereo Creator will play back on all DVD-Video
players.”
Note: This is true when the players are compatible
with actual recordable DVD discs.
HDMI, the HDMI logo
and High-Definition
Multimedia Interface are
trademarks or registered
trademarks of HDMI
Licensing LLC.
DivX, DivX Ultra
Certified, and associated
logos are trademarks of
DivX, Inc. and are used
under license.
DVB is a registered trademark of the
DVB project
E2N41BN_EN.book Page 4 Wednesday, July 2, 2008 4:36 PM
5
EN
Maintenance
CLEANING THE UNIT
Use a soft cloth slightly moistened with a mild
detergent solution. Do not use solutions containing
alcohol, spirits, ammonia or abrasives.
CLEANING DISCS
If a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the centre out. Do not wipe in a
circular motion.
Do not use solvents such as benzine, thinners,
commercially available cleaners, detergent, abrasives
cleaning agents or antistatic spray intended for
analogue records.
DISC HANDLING
Handle the discs so that fingerprints and dust do not
adhere to the disc surfaces.
Always store the disc in its protective case when it is
not in use.
HDD HANDLING
• HDD is a precision apparatus that is susceptible to
vibration, strong impact or dirt. Depending on the
installation environment or handling, the unit may
become partially damaged or in the worst case,
recording or replaying may not be available.
Especially while the HDD is in motion, do not subject
it to vibration or strong impact or pull out the power
plug. And if a power failure occurs, the content of
the recording / replaying programme may be lost.
• HDD rotates at high speed when in operation. Be
sure that rotation has stopped and then move the
unit without subjecting it to strong impact or
vibration.
SERVICING
If the unit becomes inoperative, do not try to correct
the problem by yourself. There are no user
serviceable parts inside. Turn the unit off, unplug the
mains cable, and consult your dealer or an authorised
service centre.
CLEANING THE DISC LENS
If the unit does not perform correctly even though you
have referred to “Troubleshooting” and the relevant
sections in the User Manual, the laser optical pickup
unit may be dirty. Consult your dealer or an
authorised service centre for inspection and cleaning
of the laser optical pickup unit.

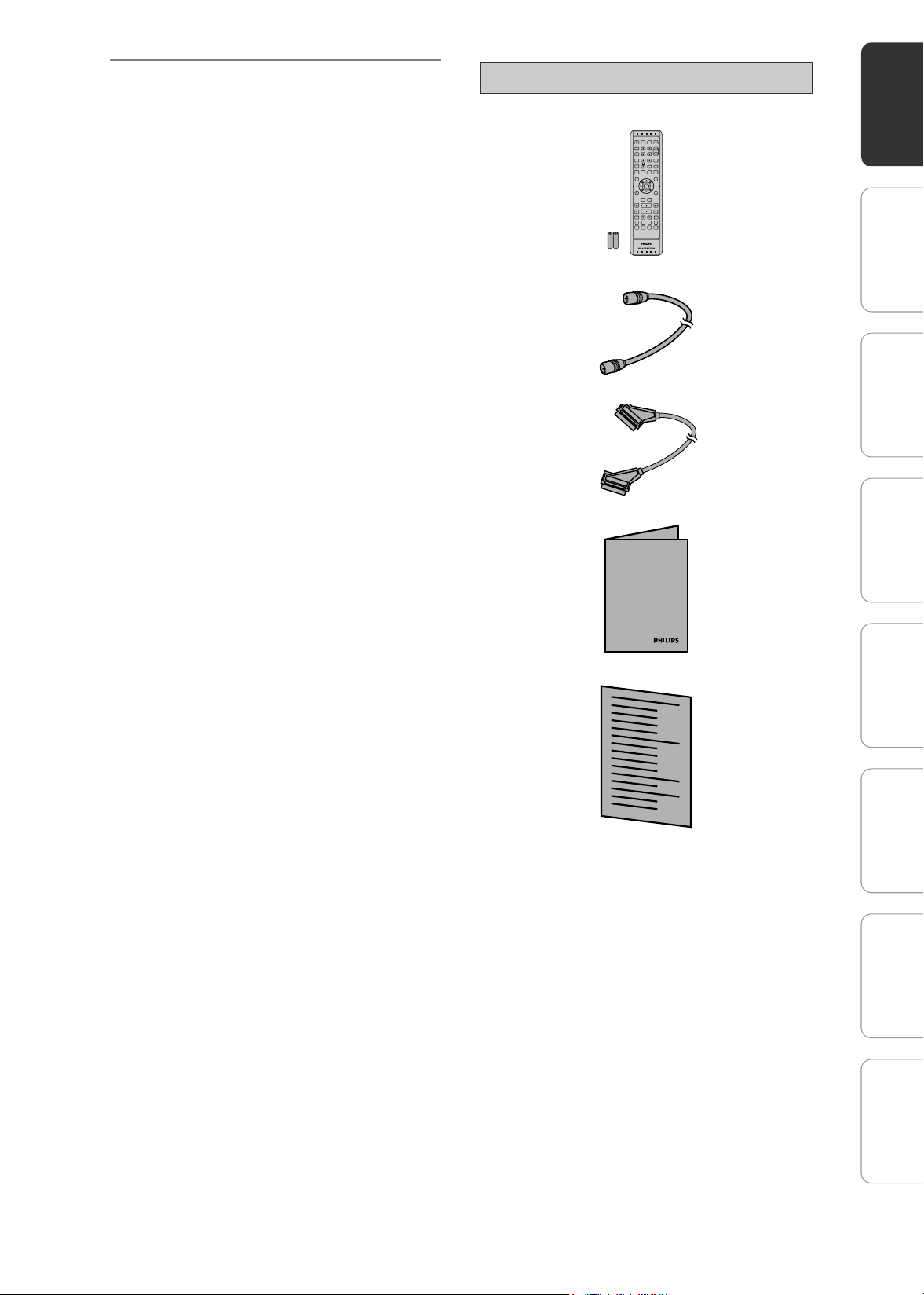

• Remote control with two R6 (AA) batteries
•RF cable
• Scart cable
• User Manual
• Quick Start Guide
Accessories Supplied

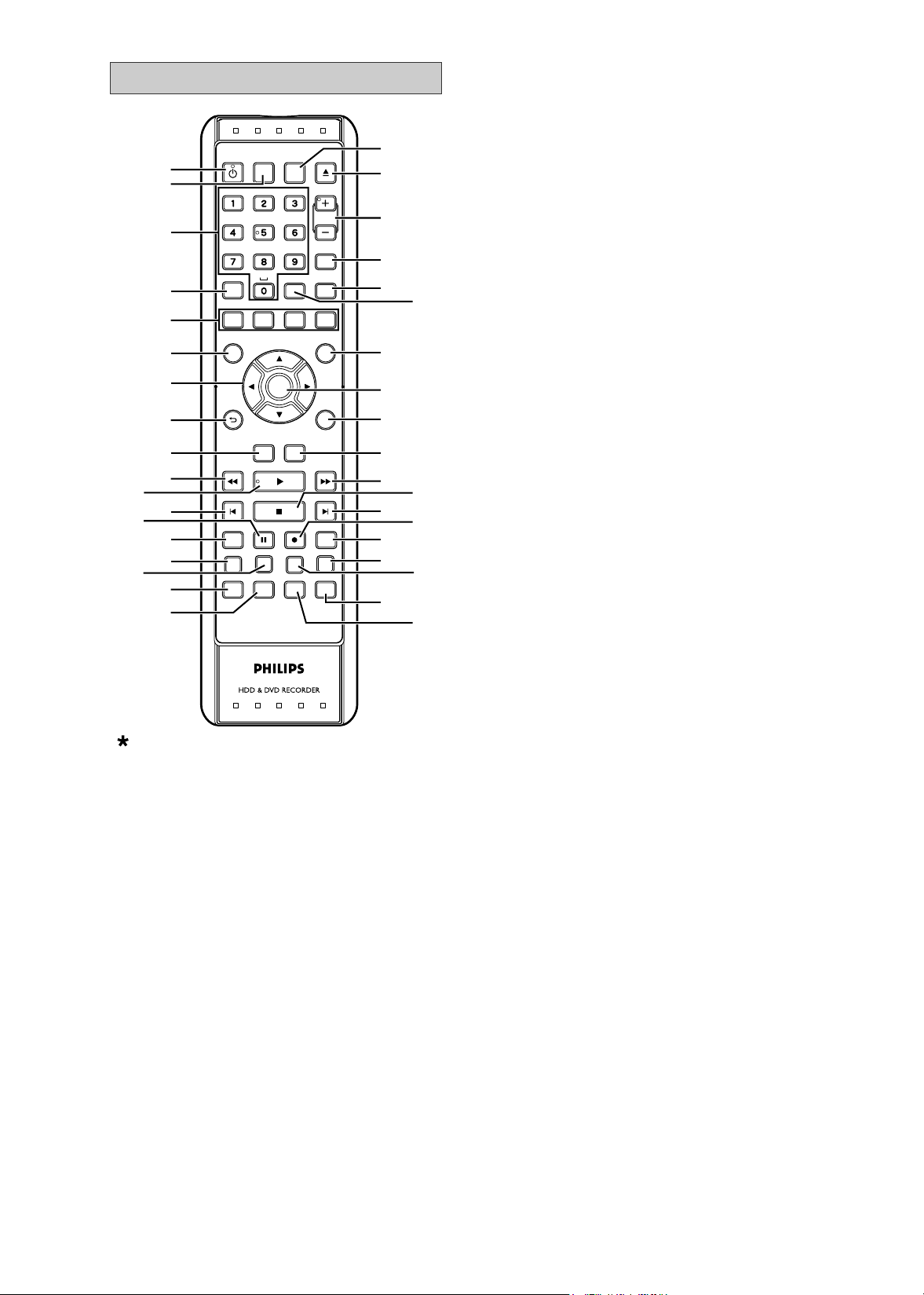

LIVE TVSOURCE
.@/:
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
AUDIO
PROGRAM
DISC MENU GUIDE
BACK
DISPLAY
REPLAY
TEXT
SAT. REC
TIMER HOME
VIDEO Plus+
HDMI
REC MODE
INFO
CLEAR
SUBTITLE
OK
TITLE
DVDHDD
SKIP
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 5 Wednesday, July 2, 2008 4:36 PM
6
EN
Table of Contents
Introduction ........................................... 2
Precautions .......................................................... 2
Features ............................................................... 7
Guide to the User Manual .................................... 7
Functional Overview............................................. 8
Installing Batteries in the Remote Control.......... 11
Switching HDD / DVD mode .............................. 12
Guide to On-Screen Displays............................. 12
Front Panel Display Guide ................................. 16
Connections ........................................ 17
Connections ....................................................... 17
Initial Setup.......................................... 21
Initial Setup ........................................................ 21
Control TV Programmes .................................... 22
Recording ............................................ 25
Information on Recording................................... 25
Selecting the Sound Mode ................................. 27
Basic Recording ................................................. 28
One-touch Timer Recording (OTR).................... 29
Time Shift Buffer ................................................ 29
Timer Recording................................................. 30
Timer Recording (EPG)...................................... 33
Series Link Timer Recording ............................. 34
Timer Recording Using
the VIDEO Plus+
®
System............................... 35
Satellite Recording ............................................. 37
Settings for External Equipment......................... 38
Information on Digital Video Dubbing................. 39
Digital Video Camera to HDD / DVD Dubbing ... 40
Information on Dubbing...................................... 41
Protecting a Disc ................................................ 44
Finalising Discs .................................................. 44
Playback ............................................... 46
Information on Playback ..................................... 46
Basic Playback ................................................... 47
Additional Playback Functions............................ 54
Search ................................................................ 57
Repeat / Random / Programme Playback /
Slide Show ...................................................... 59
Selecting the Format of Audio and Video ........... 60
Editing .................................................. 63
Guide to a Title List............................................. 63
Deleting All Titles in HDD ................................... 72
General Settings .................................. 73
Disc Playback ..................................................... 75
Display................................................................ 78
Video .................................................................. 79
DivX
®
.................................................................. 80
HDMI .................................................................. 81
Channel Installation ............................................ 82
Digital TV Settings .............................................. 88
Setting the Clock ................................................ 89
Reset All ............................................................. 90
Others ................................................... 91
Troubleshooting.................................................. 91
Language Code .................................................. 95
Glossary ............................................................. 96
Specifications ..................................................... 97
E2N41BN_EN.book Page 6 Wednesday, July 2, 2008 4:36 PM
7
EN
Features
The following features are available with this unit.
Analogue-Digital tuner:
This product is equipped with a hybrid analogue-
digital tuner. It features analogue TV reception, digital
terrestrial TV and Radio reception. To select between
the analogue and digital TV modes, simply press
[SOURCE] repeatedly.
Video upscaling to 1080p: [E Page 18]
You can now watch the DVDs in the highest picture
quality available for your HDTV.
This unit offers full high-definition video playback up
to 1080p resolution for an amazing viewing
experience. A highly detailed picture and increased
sharpness delivers a more true-to-life picture.
FlexTime: [E Page 56]
You can be truly flexible with your time now with
FlexTime. FlexTime allows you to start watching a TV
programme while it is still being recorded, you do not
need to wait for the recording to finish before starting
to watch it.
Time Shift Buffer : [E Pages 29 - 30]
As soon as you turn on your unit, the TV channel it is
tuned to will be stored into the Time Shift Buffer. Think
of this as a temporary storage for TV programmes
allowing you great flexibility. It can contain up to 6
hour of TV programmes and will automatically flush
anything that is older. You can keep the contents in
HDD for later viewing or copying to recordable DVD.
The unit needs to be turned on for the Time Shift
Buffer to be active. When the unit is turned off, the
Time Shift Buffer is automatically cleared.
EPG(Electronic Programme Guide,
On-screen TV guide): [E Pages 23 - 24]
The EPG lists all the digital TV programme
information for the upcoming 7 days. You can also
use it to schedule recordings.
VIDEO Plus+: [E Page 35]
This is a simple programming system for recorders.
To use it, enter the programming numbers associated
with your television programme. You can find this
number in your favourite listings magazine.
EasyLink: [E Pages 81 - 82]
EasyLink uses the HDMI CEC (Consumer Electronics
Control) industry standard protocol to share
functionality with all HDMI CEC compliant devices
over HDMI. It enables the connected devices to
control each other with a single remote control.
Satellite recording: [E Pages 37 - 38]
This function enables you to record a programme
from your Satellite Receiver or any other device.
Make sure that the device is connected to the AV2
(AUX) socket of this unit, and the timer setting has
been done on the connected device.
i.LINK: [E Pages 40 - 41]
i.LINK, also known as “Fire Wire” or “IEEE 1394”, is a
digital connection for connecting your camcorder to
enable you to make high quality copies of your
camcorder videos.
The connector can be found behind the front flap
door.

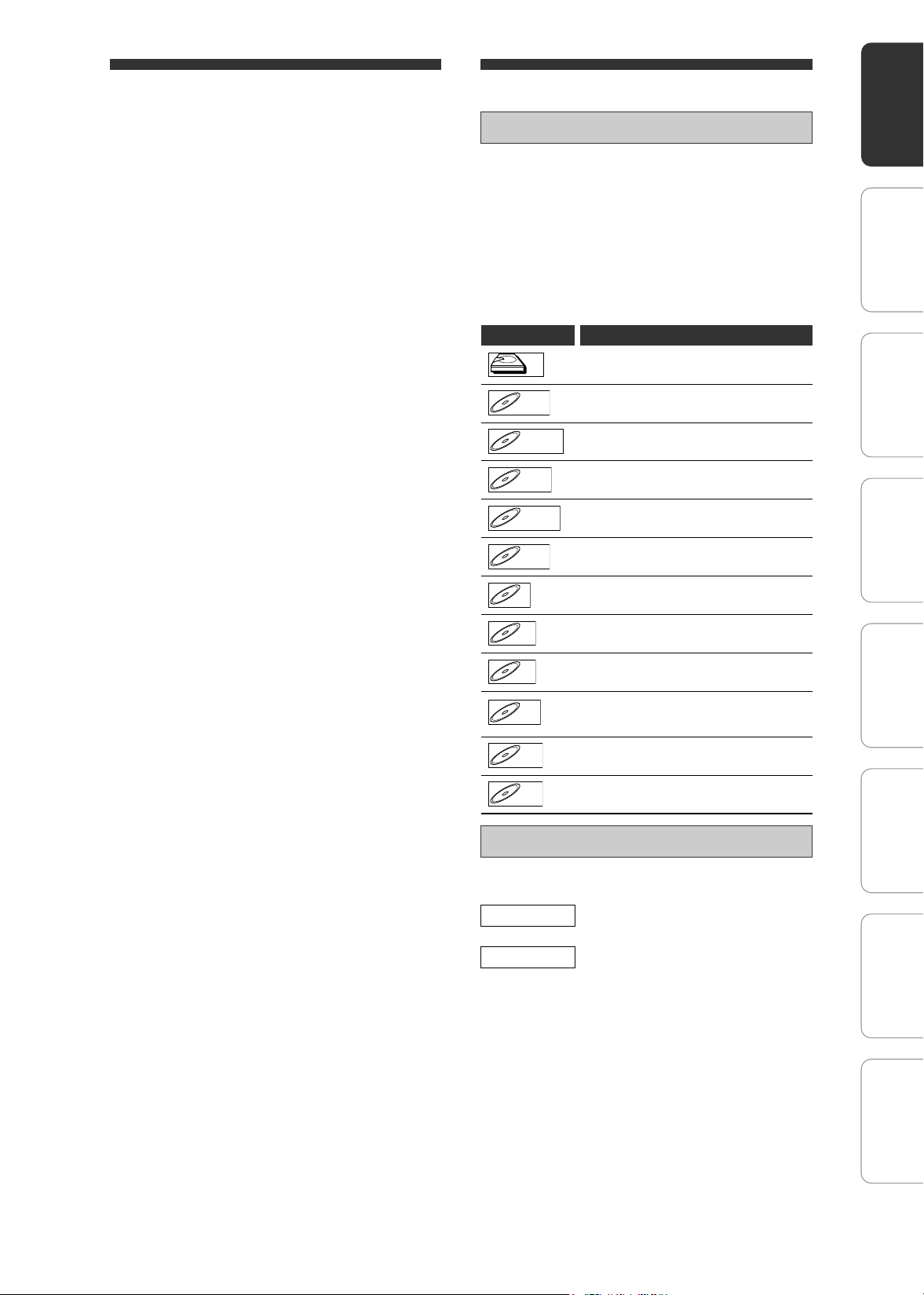

Guide to the User Manual
To show what recording mode or disc type applies to
each function, the following symbols appear at the
beginning of each operating item.
* DVD-RW/-R recorded in VR mode or non
compatible recording format are not playable.
* DVD-RW recorded in the mode other than +VR is
not recordable on this unit unless you erase all
contents in the disc. (See page 71.)
* DVD-R recorded in the mode other than +VR is not
recordable on this unit.
The following is the description for the symbols for
tuner setting used in this manual.
Symbols Used in the User Manual
Symbol Description
Available to (internal) HDD
Available to DVD-Videos
Available to DVD+RW discs
Available to DVD+R discs
Available to DVD-RW discs
Available to DVD-R discs
Available to Audio CDs
Available to Video CDs
Available to DVD+RW/+R, DVD-RW/-R
and CD-RW/-R discs with MP3 files
Available to DVD+RW/+R, DVD-RW/-R
and CD-RW/-R discs with Windows
Media™ Audio files
Available to DVD+RW/+R, DVD-RW/-R
and CD-RW/-R discs with JPEG files
Available to DVD+RW/+R, DVD-RW/-R
and CD-RW/-R discs with DivX
®
files
Symbols for Tuner Setting
ANALOG
: Settings only for the Analogue
mode
DIGITAL
: Settings only for the digital mode
HDDHDD
D
D
VD-V
VD-V
DVD-V
D
D
VD+R
VD+R
W
W
DVD+RW
D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
CD
CD
CD
VCD
VCD
VCD
MP3
MP3
MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG
DivX
®
DivX
®
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 7 Wednesday, July 2, 2008 4:36 PM
8
EN
Functional Overview
1 STANDBY-ON button
• Press to turn the unit on and off.
2 Disc tray
• Place a disc when the disc tray is opened.
3 OPEN\CLOSE A button*
• Press to open or close the disc tray.
4Display
• Refer to “Front Panel Display Guide” on
page 16.
5 HDD ACTIVE indicator
• Appears when HDD is in recording, dubbing, or
playback.
6PLAYB button*
• Press to start or resume playback.
7STOPC button
• Press to stop playback or recording.
• Press to stop timer recording.
8 RECORD button
• Press once to start a recording. Press
repeatedly to start one-touch timer recording.
9DVIN jack (AV4)
• Use to connect the Digital Video output of
external device with a DV cable.
10 AUDIO input jacks (AV3)
• Use to connect external device with an RCA
audio cable.
11 VIDEO input jack (AV3)
• Use to connect external device with an RCA
video cable.
12 S-VIDEO input jack (AV3)
• Use to connect the S-video output of external
device with an S-video cable.
13 Infrared sensor window
• Receive signals from your remote control so that
you can control the unit from a distance.
Front Panel
12
3*
56*
101112
13
478
9
You can also turn on the unit by pressing these buttons.
Button names described in the User Manual
The instructions in this manual are described mainly with the operations using the remote control. Some
operations can be carried out using the buttons on the front panel.
E2N41BN_EN.book Page 8 Wednesday, July 2, 2008 4:36 PM
9
EN

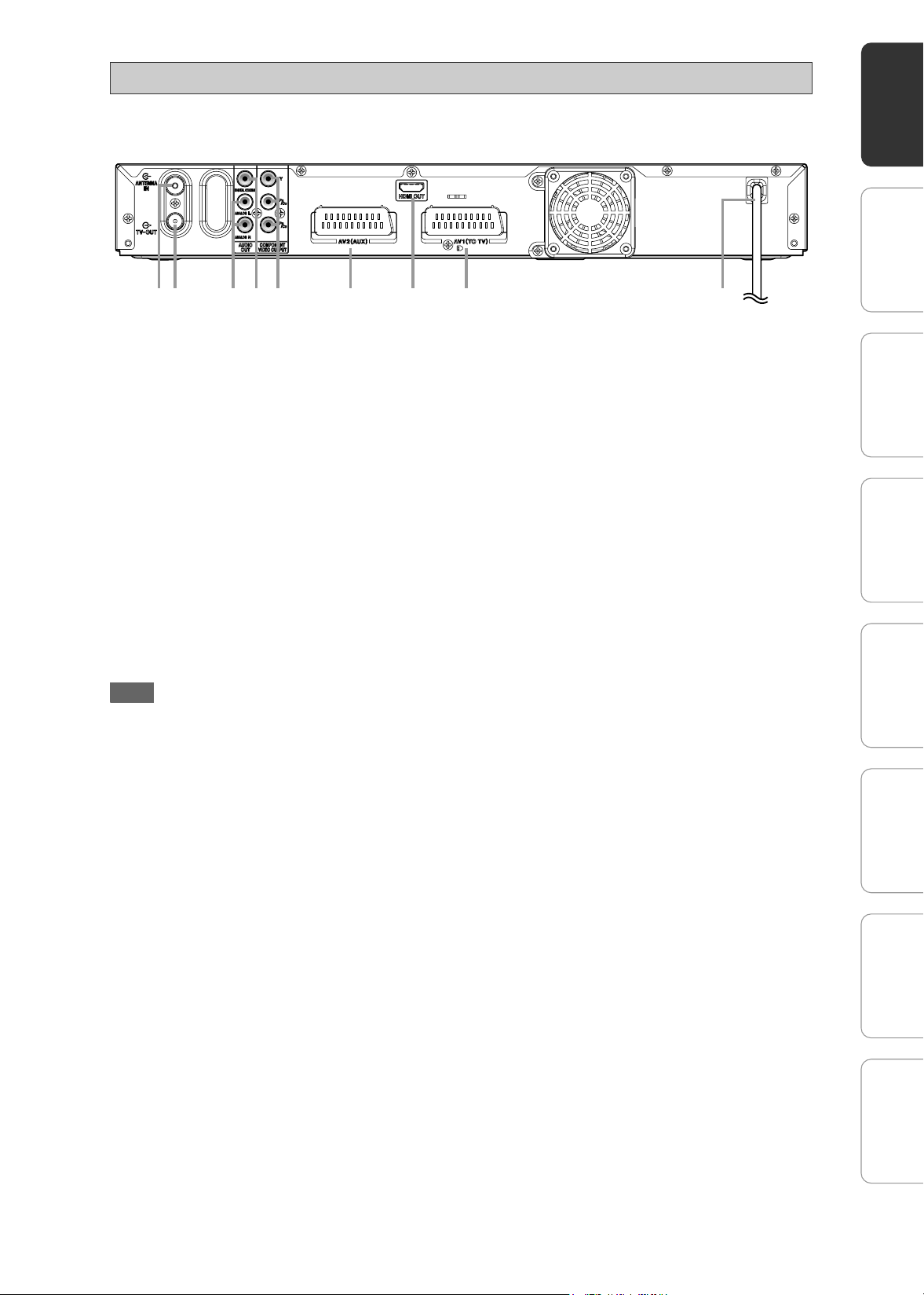

1 ANTENNA IN
• Connect to an antenna or a cable.
2TV-OUT
• Connect to the Aerial jack on your TV, cable box
or direct broadcast system to output the signal
received. Use the supplied RF cable.
3 AUDIO OUT (ANALOG L\R) jacks
• Connect to the audio input jacks on your TV.
Use a commercially available Audio cable.
4 AUDIO OUT (DIGITAL COAXIAL) jack
• Connect to an amplifier with a digital input jack
such as a Dolby Digital decoder or MPEG
decoder. Use a commercially available Coaxial
cable.
5 COMPONENT VIDEO OUTPUT jacks
• Connect to the component video input jacks on
your TV. Use a commercially available
Component Video cable.
6 AV2 (AUX) socket
• Connect to VCR, camcorder, or other Audio-
Video equipment (Cable Box, Satellite Receiver,
etc). Use a commercially available Scart cable.
7 HDMI OUT jack
• Connect to a display with an HDMI compatible
port. Use a commercially available HDMI cable.
8AV1 (TOTV) socket
• Connect to the Scart socket on your TV. Use the
supplied Scart cable.
9 Mains cable
• Connect to a standard AC outlet.
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage
to the unit.
• After turning off the unit, leave the mains cable plugged for about one minute.
Otherwise it may cause the data loss or the unit may not work properly.
• This unit does not have an RF modulator.
Rear Panel
12 53 4 7 96 8
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 9 Wednesday, July 2, 2008 4:36 PM
10
EN
The unit can also be turned on by pressing these
buttons.
1 Q (STANDBY-ON) button
• Press to turn on or off the unit.
2 SOURCE button
• Press to select the digital, analogue mode or
appropriate input (AV1, AV2, AV3, DV (AV4)).
3 Alphanumeric keypad
• Press to select channel numbers.
• Press to select a title / chapter / track on the
display.
• Press to enter values for settings in “HOME”
menu.
• Press to enter the characters in edit function.
• Press to enter the VIDEO Plus+ number when
you programme the timer recording with the
VIDEO Plus+ system.
4 TEXT button
• Press to switch Teletext on or off. (for digital
broadcast services)
5 RED/GREEN/YELLOW/BLUE button
• Press to follow the digital TV instruction
displayed on-screen (EPG, Edit Channels
(DIGITAL), etc).
6 DISC MENU button
• Press to display the Disc menu during playback.
7Direction U \ D \ L \ P buttons
• Press to move the cursor and determine items
or settings.
8BACKU button
• Press to return to the previously displayed menu
screen.
9HDD button
• Press to select the HDD output mode.
10 E (REW) button
• During playback, press to start fast reverse.
•
When playback is paused, press to start reverse in
slow motion.
11 B (PLAY) button*
• Press to start or resume playback.
12 S (PREV) button
• During playback, press twice in quick
successions to skip to the previous chapter or
track.
• When playback is paused, press to play reverse
step by step.
13 F (PAUSE) button
• Press to pause playback or recording.
14 REPLAY button
• Press to replay by the amount of time set in
advance.
15 SAT.REC button (HDD)
• Press to activate the Satellite Timer Recording.
16 HDMI button
• Press to set the HDMI connector’s video signal
output mode.
17 TIMER button
• Press to display the timer programme setting
menu.
18 VIDEO plus+ button
• Press to program a timer recording with the
VIDEO Plus+ system.
19 LIVE TV button
• While playing back the Time Shift Buffer, press
to switch to Live TV mode to view current
broadcast programme.
20 A (OPEN\CLOSE) button (DVD)*
• Press to open or close the disc tray.
21 PROGRAM + / – buttons
• Press to change the channel up or down.
22 AUDIO button
• For analogue channels when receiving a
bilingual broadcast, press to change the audio
out setting to “Main”, “Sub” or “Main/Sub”.
•
Press to change the bilingual audio source of an
external equipment to “Main”, “Sub” or “Main /
Sub”. (Available only when the “External Input
Audio” in “HOME” menu is set to “Bilingual” in
advance.)
•
Press to select the sound mode for digital
channels.
•
Press to display the audio menu during playback.
23 SUBTITLE button
• During playing back DVD or watching a digital
channel which has subtitle information, press to
call up the Subtitle menu.
Remote Control
LIVE TVSOURCE
.@/:
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
AUDIO
PROGRAM
DISC MENU GUIDE
BACK
DISPLAY
REPLAY
TEXT
SAT. REC
TIMER HOME
VIDEO Plus+
HDMI
REC MODE
INFO
CLEAR
SUBTITLE
OK
TITLE
DVDHDD
SKIP
1
24
25
27
28
26
30
32
37
35
29
31
33
34
36
3
5
4
6
7
2
9
8
11
16
13
10
12
14
15
17
18
19
20
*
21
22
23
*
( )
E2N41BN_EN.book Page 10 Wednesday, July 2, 2008 4:36 PM
11
EN
24 CLEAR button
• Press to clear the password once entered.
• Press to erase tracks on “Programme Play”.
• Press to clear the selecting marker number in
the marker setup mode.
• Press to clear the programme once entered in
the CD programme playback mode.
• Press to clear all the selected titles after
selecting the titles on “Delete Multiple Titles” in
HDD mode.
25 GUIDE button
• Press to enter/exit the Electronic Programme
Guide (On-screen TV guide) in digital mode.
26 OK button
• Press to acknowledge or approve a menu
selection.
• While watching a digital channel, press to
display the “Quick select” menu.
27 DISPLAY button
• Press to display the On-Screen Display.
28 DVD button
• Press to select the DVD output mode.
29 D (FFW) button
• During playback, press to start fast forward.
•
When playback is paused, press to start forward in
slow motion.
30 C (STOP) button
• Press to stop playing back or recording.
31 T (NEXT) button
• During playback, press to skip to the next
chapter or track.
• When playback is paused, press to advance
step by step.
32 I (RECORD) button
• Press once to start a recording.
• Press repeatedly to start a One-touch Timer
Recording.
33 SKIP button
• Skips by the amount of time set in advance.
34 INFO button
•
Press to display the digital TV programme
information.
35 REC MODE button
• Press to switch the recording mode.
36 HOME button
• Press to display “HOME” menu in stop mode.
37 TITLE button
• Press to display the Title list.

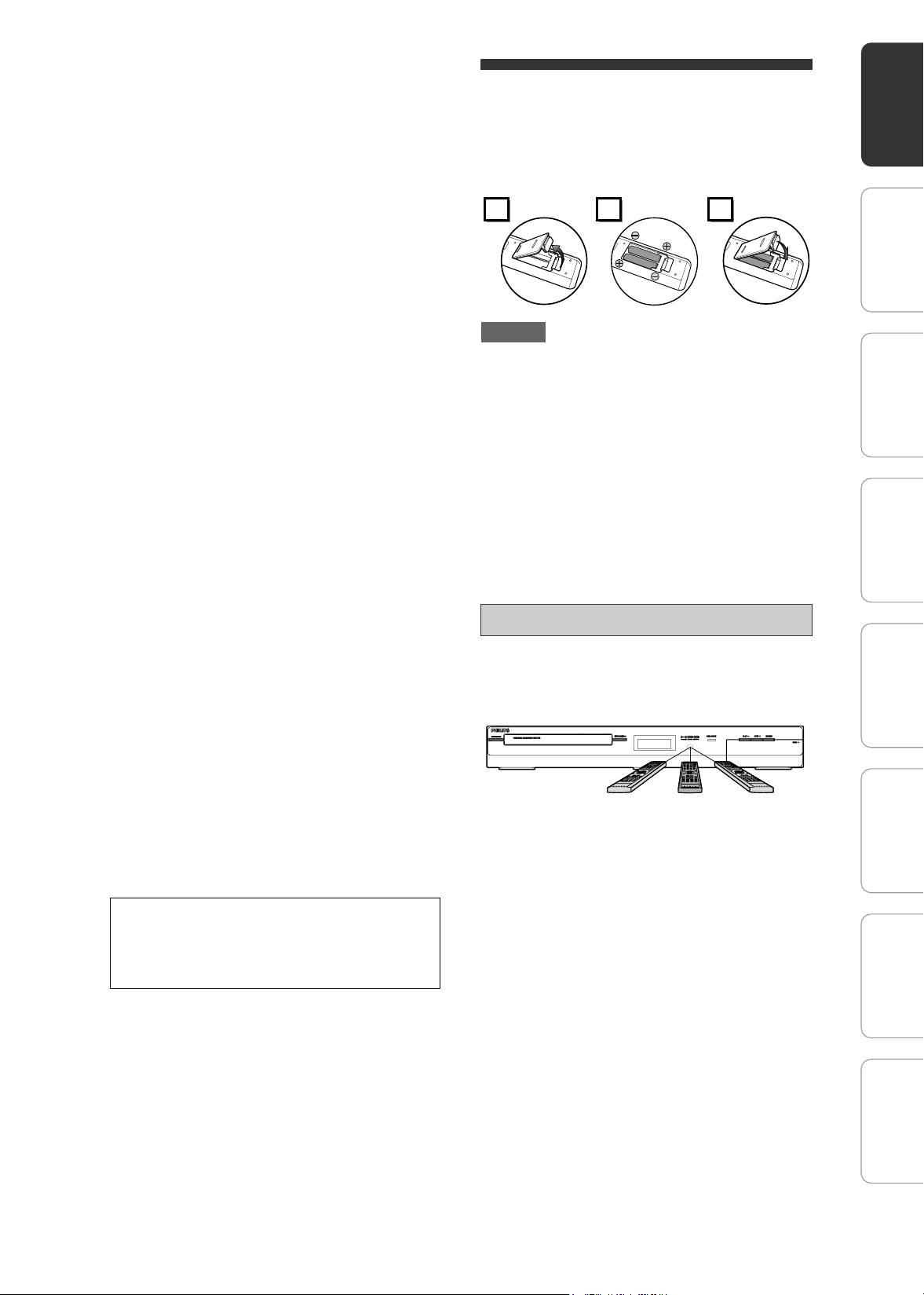

Installing Batteries in the
Remote Control
Install two R6 (AA) batteries (supplied) into the
remote control, carefully match with the polarity
indicated inside the battery compartment.
Caution
• Incorrect use of batteries can result in hazards such
as leakage and bursting.
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
• Make sure that the plus (+) and minus (–) ends of
each battery match the indications inside the battery
compartment.
• Remove batteries if the equipment will not be used
for a month or more.
• When disposing used batteries, please comply with
governmental regulations or the public instructions
for environmental protection that apply in your
country or area.
• Do not recharge, short-circuit, heat, burn or
disassemble batteries.
• Make sure there is no obstacle between the remote
control and the remote control sensor on the unit.
• Use within the operating range and angle as shown.
• The maximum operable range as follows:
• Remote control operation may become unreliable if
the remote control sensor of the unit is being
exposed by the strong sunlight or fluorescent light.
• Remote controls for different devices can interfere
with each other. Be careful when using remote
controls for other equipment located close to the
unit.
• Replace the batteries when the operating range of
the remote control reduces.
Button names described in the User Manual
The instructions in this manual are described mainly
with the operations using the remote control. Some
operations can be carried out using the buttons on
the front panel.
About the Remote Control
Line of sight:
approximately 7 m
Either side of centre:
approximately 5 m within
30 degrees
21 3
Remote control
5 m (30°)7 m
5 m (30°)
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 11 Wednesday, July 2, 2008 4:36 PM
12
EN

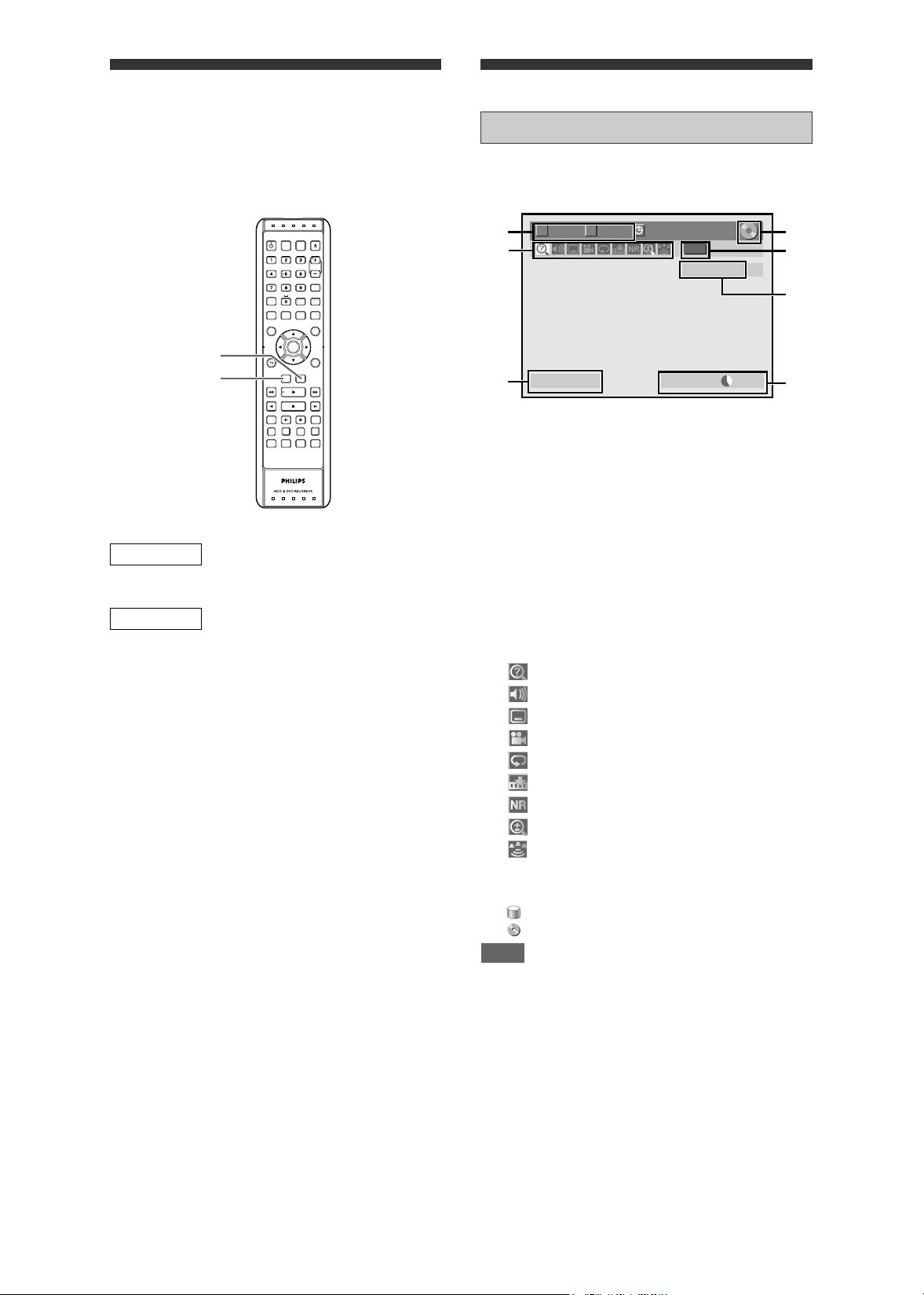

Switching HDD / DVD mode
Because this unit is a combination of an HDD and a
DVD recorder, you must select which component you
want to operate first. Unit will wake up from standby in
last defined mode. Refer to HDD ACTIVE indicator or
on-screen indication to know which mode the unit is in.
Press [HDD] on the remote control.
Press [DVD] on the remote control.

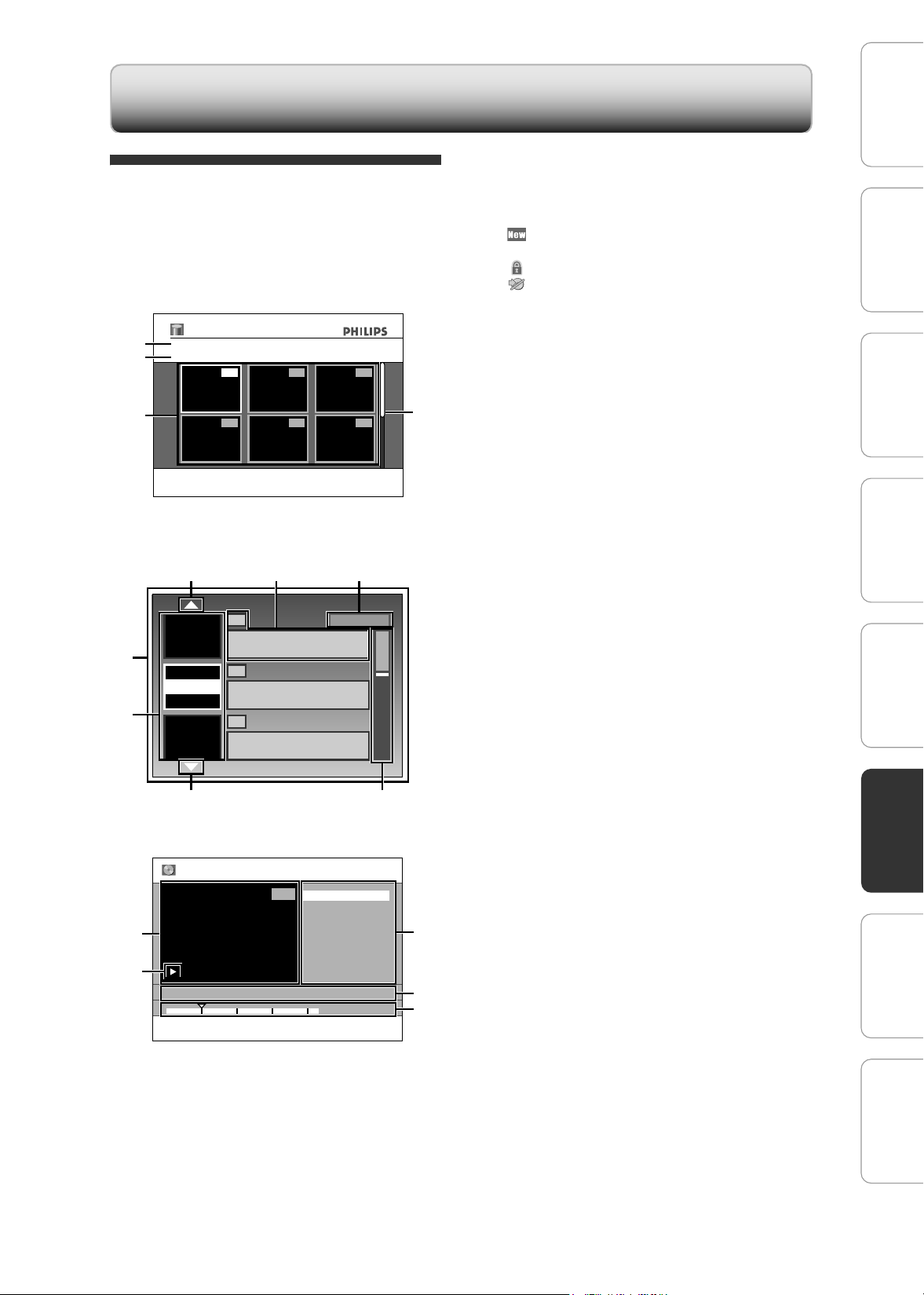

Guide to On-Screen Displays
With a disc inserted into the unit, press [DISPLAY] to
display the On-Screen Display. The menu shows
information about what is recorded on the disc.
This is an example screen for explanation. Displayed
items vary depending on the actual mode.
1 Indicates a disc type. (DVD mode only)
2 Indicates a channel number, station
name (analogue channel only) or
selected external input mode.
3 Indicates a media, recording mode and
possible recording time left.
4 Indicates the current title number/total
number of titles, the current chapter
number/total number of chapters, and
time lapse of the current title playback/
total duration of the title.
5 Each icon means:
6 Indicates an operation status.
7 Indicates the component in use.
: HDD
: DVD
Note
• For some descriptions on this manual, only one disc
type is indicated as an example.
HDD
DVD
LIVE TVSOURCE
.@/:
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
AUDIO
PROGRAM
DISC MENU GUIDE
BACK
DISPLAY
REPLAY
TEXT
SAT. REC
TIMER HOME
VIDEO Plus+
HDMI
REC MODE
INFO
CLEAR
SUBTITLE
OK
TITLE
DVDHDD
SKIP
HDD button
DVD button
DISPLAY Menu
: Search
: Audio
: Subtitle
: Angle
: Repeat
: Marker
: Noise Reduction
: Zoom
: Surround
27
$6"
4 #
HM
$6$30
(R
1
2
3
4
5
1
2
3
4
5
66
7
Resume ON
E2N41BN_EN.book Page 12 Wednesday, July 2, 2008 4:36 PM

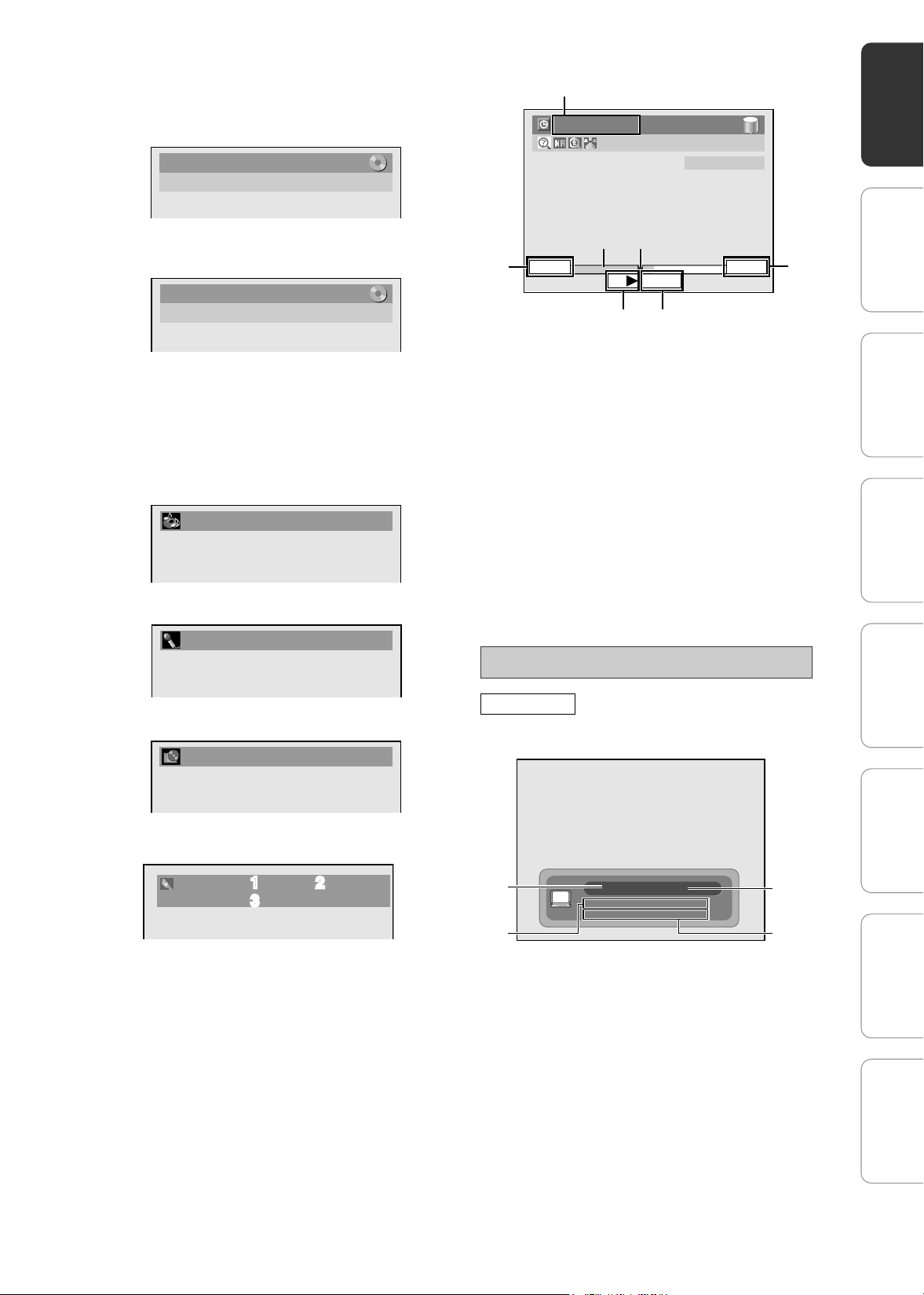

13
EN
Press [DISPLAY] while the On-Screen Display is
displayed to display the following information.
1 Indicates the resolution of the HDMI
output image.
2 Indicates the HDMI video format.
3 Indicates the HDMI audio format.
• “- - -” will be displayed, when it does not have any
information.
1 Start time of the Time Shift Buffer
2 Status of the Time Shift Buffer
3 Time of current Time Shift Buffer
playback
4 Current time of the Live TV programme
broadcast
5 The progress of the Time Shift Buffer
6 Current point of the playback of Time
Shift Buffer
7 Elapsed time of the playback of the Time
Shift Buffer / total time of the Time Shift
Buffer
Press [INFO] while viewing a digital TV programme to
display the programme information.
1 Channel number
2 Channel name
3 Current programme information
4 Next programme information
The window will automatically close after 3 seconds,
or press [INFO] to exit.
<Title / File Name Information>
Title name information
(only when DVD or HDD is in playback)
File name information
(only when DVD or CD with MP3/Windows
Media™ Audio/JPEG/DivX
®
/Kodak Picture
CD files is in playback)
<MP3 / Windows Media™ Audio Tag Information>
(only when DVD or CD with MP3 / Windows
Media™ Audio files is in playback)
Title name information
Artist name information
Album name information
<HDMI Information>
(only for the images output through the HDMI
output)
Title Name
My Title
File Name
My File
Title Name
Artist Name
Album Name
11
2
2
3
3
480p YCbCr/
Video Info. :
Audio Info. : Bitstream
<Time Shift Buffer Information>
Live: Indicates when watching Live TV
B : Indicates playback from Time Shift Buffer
INFO Menu
DIGITAL
2:59:44 / 3:31:31
10:10
7:10
10:42
1
23
4
5
6
7
$6"
4
10:00 -11:00
11:00 -12:00
TV gossip show
UKTV Gold
Cooking show
1
3
2
4
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 13 Wednesday, July 2, 2008 4:36 PM
14
EN
Press [HOME] to display the main menu. Then use
[U \ D] to select a menu and press [OK] to display
the sub menu. These menus provide entries to all
main functions of the unit.
1 Title List:
To call up the title list.
2 Timer Programming:
To program a timer recording.
3 Disc Editing:
To edit discs.
4 HDD Settings:
To set up the HDD setting.
5 Dubbing:
To dub the content of the HDD to DVD or vice versa.
• “Dubbing” is available only when a recordable disc
is loaded.
6 Disc Playback Mode:
To set up the disc playback setting.
• “Disc Playback Mode” is available only when an
audio CD, a video CD , a DVD or a CD with MP3 /
Windows Media™ Audio / JPEG / DivX
®
/ Kodak
Picture CD files is inserted into the unit.
7 General Settings:
To go to “General Settings” menu.
1Disc Playback:
To set up the unit to play discs as you prefer.
2Display:
To set up the OSD screen as you prefer.
3Video:
To set up the video setting.
4 Recording:
To set up the unit to record to HDD/DVD as you
prefer.
5Clock:
To set up the clock of the unit as you need.
6 Channel:
To adjust the channel installation of the unit as you prefer.
7DivX:
To set up the DivX
®
playback setting.
8HDMI:
To set up the HDMI connection setting.
You cannot select if the HDMI cable is not connected.
9 Digital TV Settings:
To set up the digital TV setting.
10 Reset All:
To reset all the settings to the factory default.
1 Adult Lock:
To set the Pincode for “Adult Lock”.
2 Language:
To set up the language for audio, subtitle and
Tele text .
3 Tuner Version Info:
To display the information of the software of digital TV
module.
See page 88.
Home
1
2
3
4
5
6
7
HOME
Title List
Timer Programming
Disc Editing
HDD Settings
Dubbing
Disc Playback Mode
General Settings Press HOME to exit
General Settings
Digital TV Settings
1
2
3
4
5
6
7
General Settings
Disc Playback
Display
Video
Recording
Clock
Channel
DivX
Still Mode
General Settings
Angle Icon
Subtitle Language
Audio Language
Disc Menu Language
Disc Audio
Parental Lock
9
10
8
General Settings
HDMI
Digital TV Settings
Reset All
General Settings
EasyLink
Black Level
HDMI Audio
Format
1
2
3
General Settings
Digital TV Settings
Adult Lock
Language
Tuner Version Info
ON
OFF
E2N41BN_EN.book Page 14 Wednesday, July 2, 2008 4:36 PM
15
EN
e.g.) DVD+RW
e.g.) DVD-RW
1 Edit Disc Name:
Allows you to edit disc name.
2 Erase Disc (DVD+RW/DVD-RW only):
Allows you to erase all the contents in the disc
and format it.
3 Make Edits Compatible (DVD+RW only):
If you had edited the disc, (e.g.deleted or hidden
chapters), this setting allows edits on disc to be
seen on playback on other units.
4 Disc Protect OFF A ON:
Allows you to protect a disc from accidental
editing or recording.
5 Finalise (DVD+R/DVD-RW/-R only):
Allows recordings to be played back in other
units. Do note that no edits/delete is possible after
finalisation.
6Random Play:
Allows you to activate the random playback
feature.
7 Programme Play
(Audio CD/Video CD only):
Allows you to activate the programme playback
feature.
8 PBC (Video CD only):
Allows you to select images or information on the
menu screen by activating PBC (playback control)
function.
9 Slideshow Interval
(JPEG/Kodak Picture CD files only):
Allows you to select the display time of the slide
show mode.
10 Delete All Titles:
Allows you to delete all titles, including the
protected titles in the HDD title list.
11 Del Unprotected Titles:
Allows you to delete all unprotected titles in the
HDD title list.
12 HDDADVD:
Allows you to dub from HDD to DVD.
13 DVDAHDD:
Allows you to dub from DVD to HDD.
Note
• Items in the “Dubbing” menu may be greyed out
depending upon what media is loaded into the unit,
and copy protection that may be present.
Disc Editing / Disc Playback Mode /
HDD Settings / Dubbing
<Disc Editing menu>
<Disc Playback Mode menu>
<HDD Settings menu>
<Dubbing menu>
ALL
8
7
6
5
4
3
Change Password?
Yes
No
1
2
3
4
Disc Editing
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Editing
Disc Protect OFF
A
ON
ALL
8
7
6
5
4
3
Change Password?
Yes
No
5
Disc Editing
Edit Disc Name
Erase Disc
Finalise
Disc Editing
Disc Protect OFF
A
ON
ALL
8
7
6
5
Change Password?
Yes
No
6
7
8
9
Disc Playback Mode
Random Play
Programme Play
Disc Playback Mode
PBC (Video CD only)
Slideshow Interval
ALL
8
7
6
5
Change Password?
Yes
No
10
11
HDD Settings
Delete All Titles
Del Unprotected Titles
HDD Settings
ALL
8
7
6
5
Change Password?
Yes
No
12
1
3
Dubbing
HDDADVD
DVDAHDD
Dubbing
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 15 Wednesday, July 2, 2008 4:36 PM
16
EN

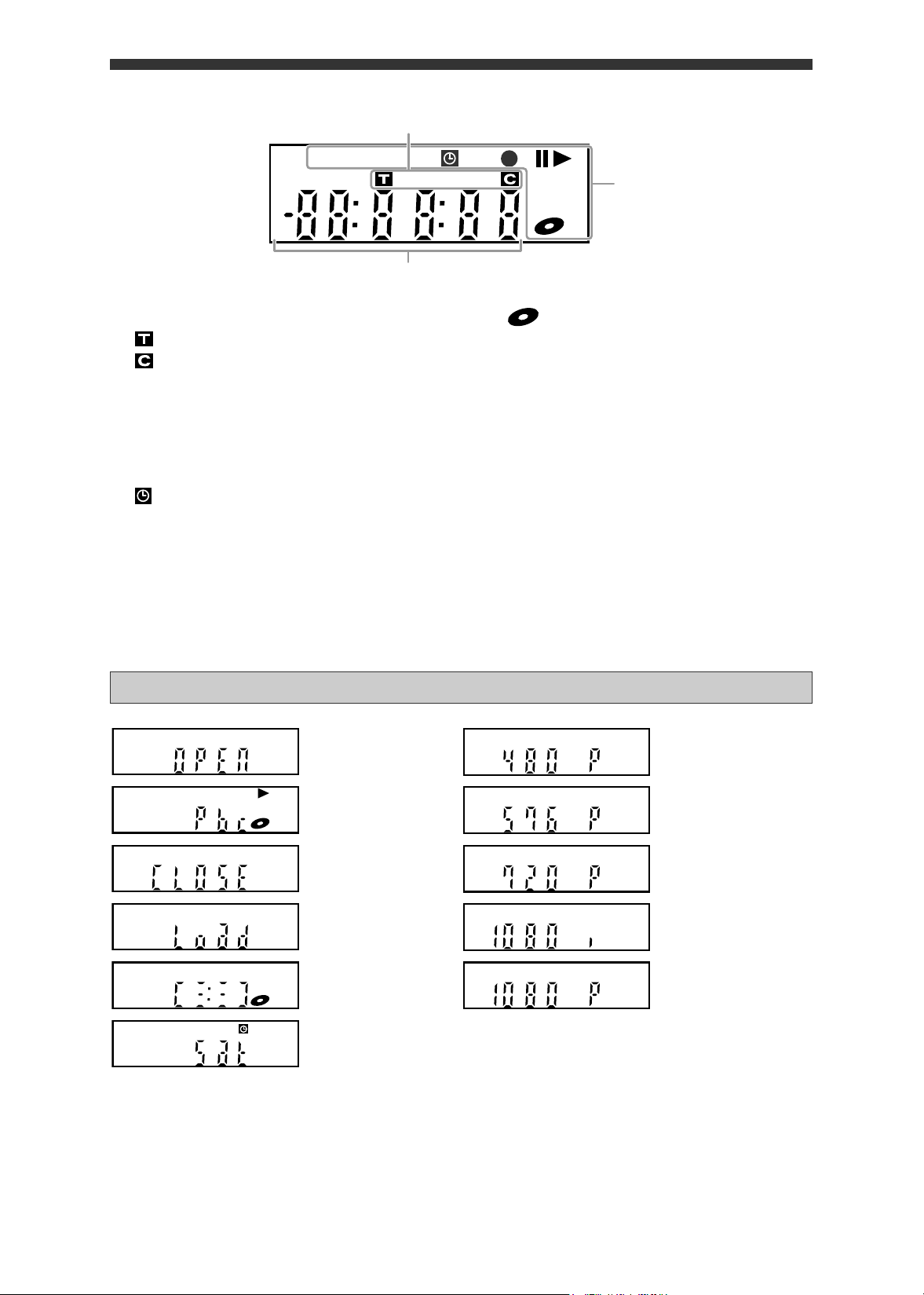

Front Panel Display Guide
1 Title / Track and Chapter number
2 Current status of the unit
3 Displays the following
• Playback time
• Current title / chapter / track number
• Recording time / remaining time
•Clock
• Channel number
• One-touch Timer Recording (OTR) remaining
time
• Selected HDMI output mode
DB
DTV
3
2
1
: Title / track number
: Chapter number
F: Appears when disc playback is paused.
Appears during step by step playback.
B:
Appears when playing back an HDD or disc.
F B: Appears during slow forward / reverse
playback.
: Appears when
-Timer Programming
-One-touch Timer Recording (OTR) is set
and is operating
-Satellite Recording standby mode
Flashes when timer programming was not
executed because of some error.
I: Appears when recording or dubbing.
Flashes when recording being paused.
: Appears when a disc is in this unit.
: Appears during dubbing.
: Appears when the channel is in digital
mode.
DB
DT
V
Display Messages
The disc tray is opening.
Appears when HDMI
output mode (480p) is
selected.
The PBC function of the
Video CD is activated.
Appears when HDMI
output mode (576p) is
selected.
The disc tray is closing.
Appears when HDMI
output mode (720p) is
selected.
A disc is loading.
Appears when HDMI
output mode (1080i) is
selected.
Data is being recorded
on a disc.
Appears when HDMI
output mode (1080p) is
selected.
Appears when the unit is
in standby for Satellite
recording.
E2N41BN_EN.book Page 16 Wednesday, July 2, 2008 4:36 PM
17
EN

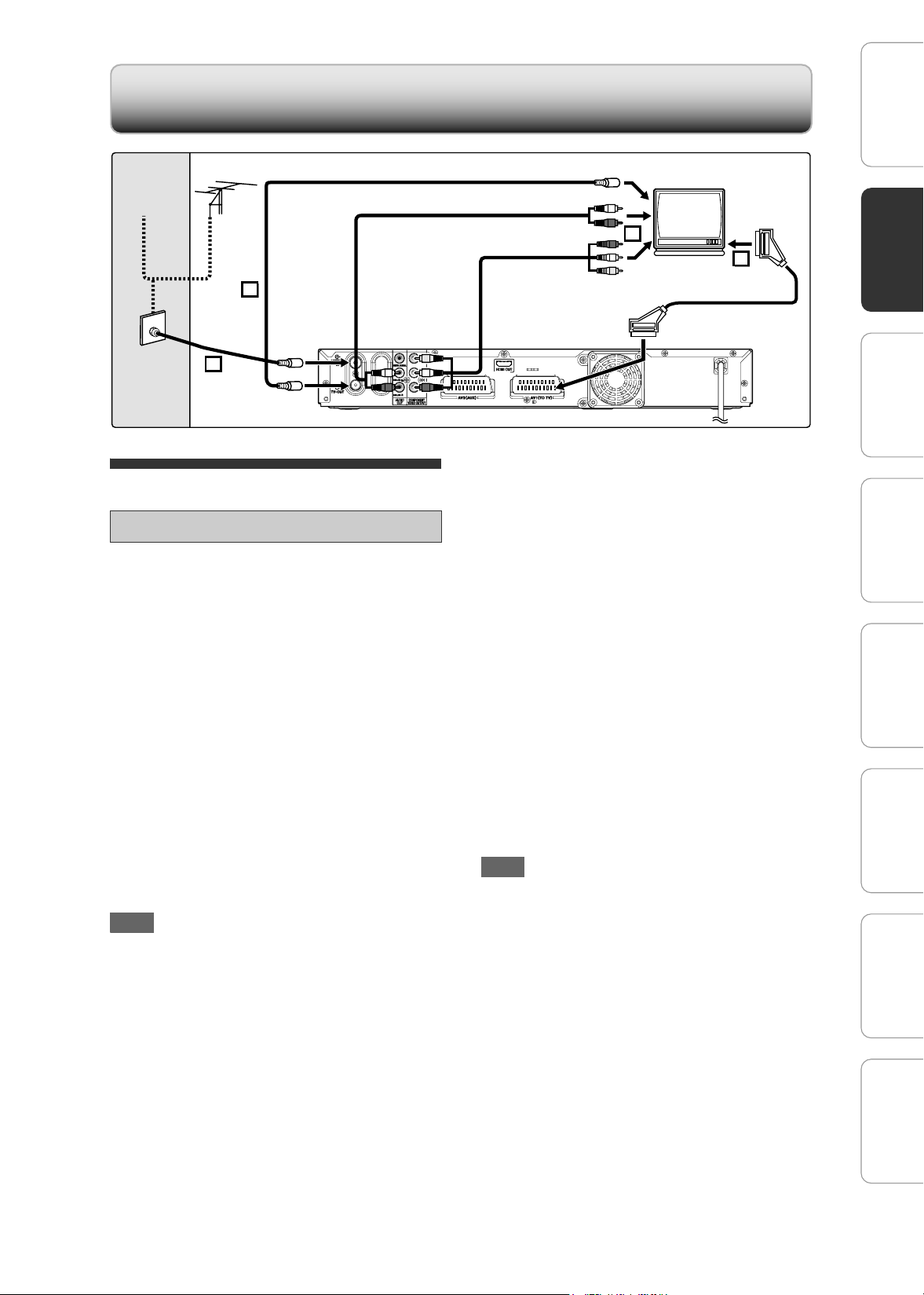

Connections
Connect the unit to a TV after considering the
capabilities of your existing equipment.
Before installation, unplug your TV and this
unit.
1 Connect the antenna or cable to the
ANTENNA IN jack of this unit.
2 Connect the TV-OUT jack of this unit
to the Aerial jack of your TV. Use the
supplied RF cable.
For video/audio connections, you can use
SCART cable, component cables or HDMI
cable (for HDMI-compatible TV).
A. Using the Scart socket
Connect AV1 (TO TV) Scart socket of
this unit to the Scart socket of your
TV. Use the supplied Scart cable.
Note
• Switch the input selector on your TV to an
appropriate external input channel.
• Connect this unit directly to the TV. If the AV cables
are connected to a VCR, pictures may be distorted
due to the copy protection system.
• When changing the “Active Video Output” setting to
“SCART(RGB)”, “Component (Interlace)” or
“Component (Progressive)”, connect to the
corresponding jack on the TV. If the setting is
changed, for example, to “Component (Interlace)” or
“Component (Progressive)” while the scart cable is
connected to the TV, a distorted video may be
output at Scart output for a short while.
• If the external equipment (e.g. cable box,
Canal+ decoder) is connected to AV2, the picture of
the external equipment will be output except during
the DVD playback of this unit. Turn off the external
equipment or press [DISPLAY] to output the picture
of this unit.
B.Using the COMPONENT VIDEO OUTPUT
jacks and the AUDIO OUT (ANALOG L\R)
jacks (for DVD or Tuner)
If your TV has Component Video input jacks, use a
Component Video cable and an Audio cable (to
connect the AUDIO OUT (ANALOG L\R) jacks).
• The progressive scan video quality is only available
when using Component connection and a
progressive scan TV. It provides superior picture
quality when watching DVD movies.
1 Connect the component video
cables (red/ blue/green - not
supplied) from the COMPONENT
VIDEO OUTPUT jacks of this unit to
the corresponding component video
input jacks (usually labelled as Y Pb/
Cb Pr/Cr or YUV) on the TV.
2 Connect the audio cable (red/white -
not supplied) from the AUDIO OUT
(ANALOG L\R) jacks of this unit to
the audio input jacks on your TV.
Note
• Switch the input selector on your TV to an
appropriate external input channel.
• After you have made the connections, set the
“Active Video Output” setting. (See pages 79 - 80.)
• The default setting is “SCART(RGB)”.
To enable component video connection, you must
set the unit's video output correctly.
1 Make an addition video connection from this unit
to your TV using the supplied Scart cable.
2 Turn on your TV to the correct viewing channel for
the Scart connection.
3 When you have completed the “Initial Setup”, set
“Active Video Output" to
“Component(Progressive)” in “HOME” menu.
• If your TV is not compatible with progressive scan,
set “Active Video Output” setting to “Component
(Interlace)”.
•
Use a commercially available adaptor if the Video input
jacks of your TVs or monitors are the BNC type.
• Only component and HDMI connections are
compatible with the Progressive Scan.
Connections
B
A
1
2
Audio cable (not supplied)
Scart cable (supplied)
RF cable
(supplied)
To A e r i a l ja c k
Antenna
Cable
Signal
RF cable
(not supplied)
or
Component Video cable
(not supplied)
or
Connecting to a TV
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 17 Wednesday, July 2, 2008 4:36 PM
18
EN
C. Connecting to a TV with an HDMI
Compatible Port (for DVD or Tuner)
[HDMI CONNECTION]
A simple 1-cable connection with a device having an
HDMI (high-definition multimedia interface) connector
allows digital transfer of both digital video signals and
multi-channel audio signals. This is the best method
to connect this unit. It can minimise the deterioration
of image quality.
Use the HDMI cable (commercially available) for
connection.
Connect the HDMI output jack of this unit to the HDMI
input jack of TV.
Selecting HDMI mode
Press [HDMI] to select the HDMI output mode. The
output mode changes as follows every time [HDMI] is
pressed. 576p (PAL) / 480p (NTSC) J 720p J 1080i
J 1080p (An HDMI mode that is not supported by the
display device will be skipped.)
Actual Output Modes by Media
For Audio CD, Video CD and MP3 files, 2 channel
PCM will be output regardless of the “Dolby Digital”
setting.
If the connected device is not compatible with HDMI
BITSTREAM, audio will be output as PCM even if you
select “Stream” in “Dolby Digital” setting.
(See page 76.)
Copyright protection system
To play back the digital video images of a DVD via an
HDMI connection, it is necessary that both the player
and the display device (or an AV amplifier) support a
copyright protection system called HDCP
(high-bandwidth digital content protection system).
HDCP is copy protection technology that comprises
data encryption and authentication of the connected
AV device. This unit supports HDCP. Please read the
operating instructions of your display device
(or AV amplifier) for more information.
* HDMI: High Definition Multimedia Interface
Note
• Switch the input selector on your TV to an
appropriate external input channel.
• Some HDMI TVs/monitors from different
manufacturers may adhere to different standards
resulting in unreliable signal transfers.
• When using an HDCP-incompatible display device,
the image will not be viewed properly.
• Among the devices that support HDMI, some
devices can control other devices via the HDMI.
• The audio signals from the HDMI connector
(including the sampling frequency, the number of
channels and bit length) may be limited by the
device that is connected.
• Among the monitors that support HDMI, some do
not support audio output (for example, projectors).
In connection with device such as this unit, audio
signals are not output from the HDMI output
connector.
• When this unit’s HDMI connector is connected to a
DVI-D compatible monitor (HDCP compatible) with
an HDMI-DVI conversion cable, the signals are
output in digital RGB.
Audio recording format
of the disc
Dolby Digital /
MPEG setting of
this unit
Actual output
DVD-video
Dolby
Digital
PCM 2channel PCM
Stream Dolby Digital
LPCM
PCM
2channel PCM
Stream
MPEG
PCM 2channel PCM
Stream MPEG
DivX
®
Dolby
Digital
PCM 2channel PCM
Stream Dolby Digital
MP3
PCM
2channel PCM
Stream
MP2
PCM 2channel PCM
Stream MPEG
HDMI IN
HDMI OUT
TV
To HDMI
input jack
this unit
HDMI cable (not supplied)
E2N41BN_EN.book Page 18 Wednesday, July 2, 2008 4:36 PM
19
EN

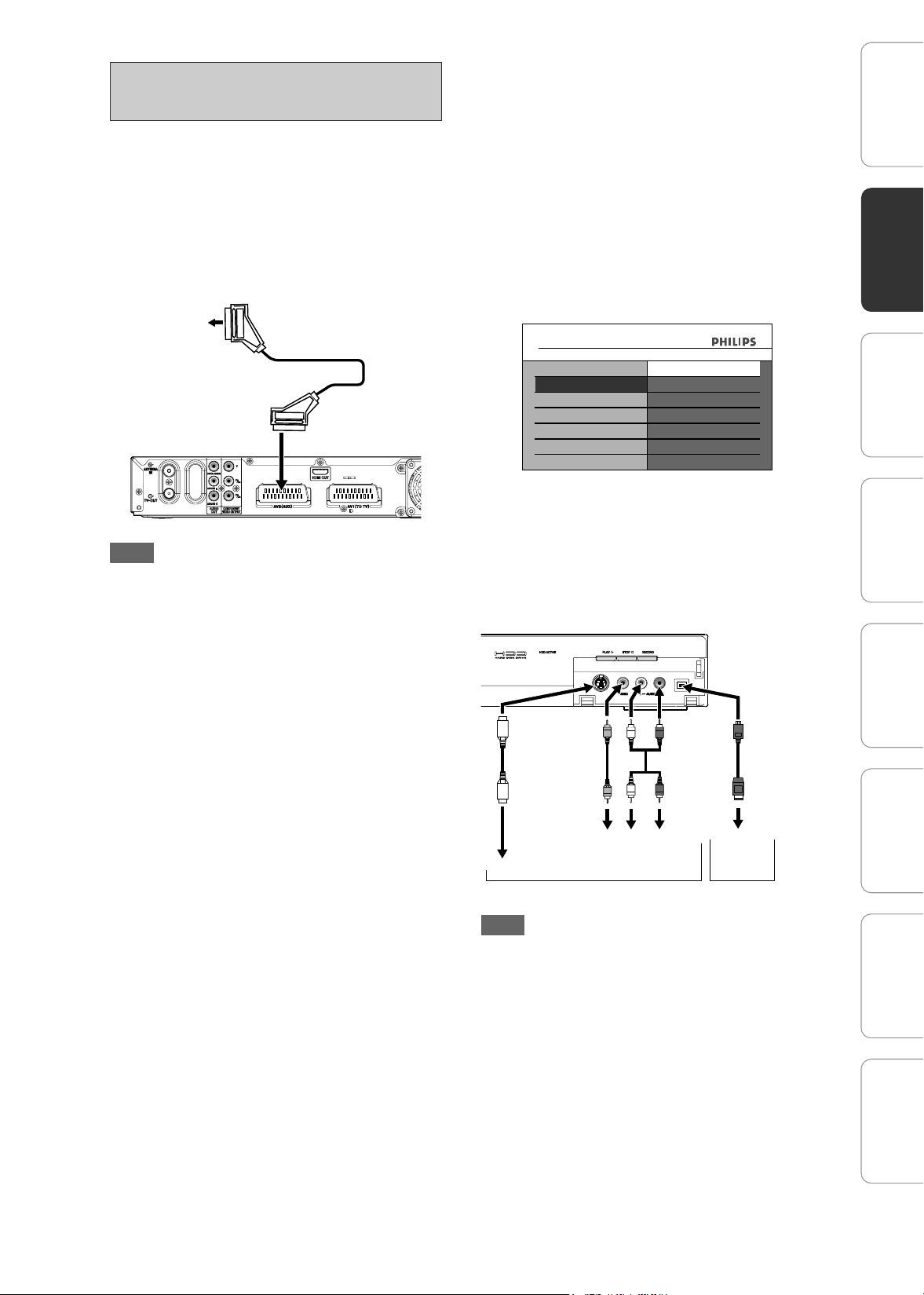

This unit has four input terminals which can be
selected using [PROGRAM + / –] on the remote
control, AV1 or AV2 on the rear panel and AV3 or
AV4 on the front panel. Be sure that all the units are
switched off before making connections.
Recording from a DVD player, VCR, Satellite
Box or other Audio-Video equipment with a
Scart output socket (AV2)
Note
• Switch the input selector on your TV to an
appropriate external input channel.
• When you record a TV programme from a Cable
Box/Satellite Receiver, you must connect a Scart
cable to AV2 (AUX). (See pages 37 - 38.)
•
When AV2 is connected to an active source
(e.g. cable box, Canal+ decoder), the source will be
automatically seen on TV connected at AV1. If you
want to monitor the signal from other input, you must
press
[DISPLAY]
first. Then, select the desired input
to monitor with
[SOURCE]
or
[PROGRAM + / –]
.
• Switch the input selector on your TV to an
appropriate external input channel.
Recording from a camcorder or other
Audio-Video equipment with no Scart output
socket (AV3 / AV4)
Connect to AUDIO input jacks on the front panel
using an RCA audio cable.
1 If no S-VIDEO input jack is available,
connect to VIDEO input jack on the front
panel using an RCA Video cable.
2 Change the setup when using S-VIDEO
input jack. (Refer to “Active Video Input” on
this page.)
3 When connecting a DV-camcorder, use DV
input jack of AV4 (Front) instead of
S-VIDEO IN or VIDEO IN jack.
For AV3 jacks, you have to select S-VIDEO input or VIDEO
input jacks depending on the connected devices.
Active Video Input
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Video” using [U \ D], then
press [OK].
3 Select “Active Video Input” using
[U \ D], then press [OK].
4 Select the input jack type to be used
using [U \ D], then press [OK].
• If you want to use VIDEO input jack
(Composite), select “Video In”.
• If you want to use S-VIDEO input jack, select
“S-Video In”.
5 Press [HOME] to exit.
Note
• When connecting an external device of monaural
output to this unit, use AUDIO L jack of AV3.
• Switch the input selector on your TV to an
appropriate external input channel.
Connecting to an External
Equipment
AV output
socket (Scart)
Scart cable (not supplied)
AV2 (AUX)
General Settings
TV Shape
Video
Active Video Input
Active Video Input
Active Video Output
Video In
S-Video In
AV3 / AV4 (Front)
AUDIO OUT
Audio cable
(not supplied)
DV cable
(4-pin)
(not supplied)
(for DVD or
Tuner)
DV OUT
Video cable
(not supplied)
VIDEO OUT
S-VIDEO OUT
S-Video cable
(not supplied)
or
AV3 AV4
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 19 Wednesday, July 2, 2008 4:36 PM
20
EN

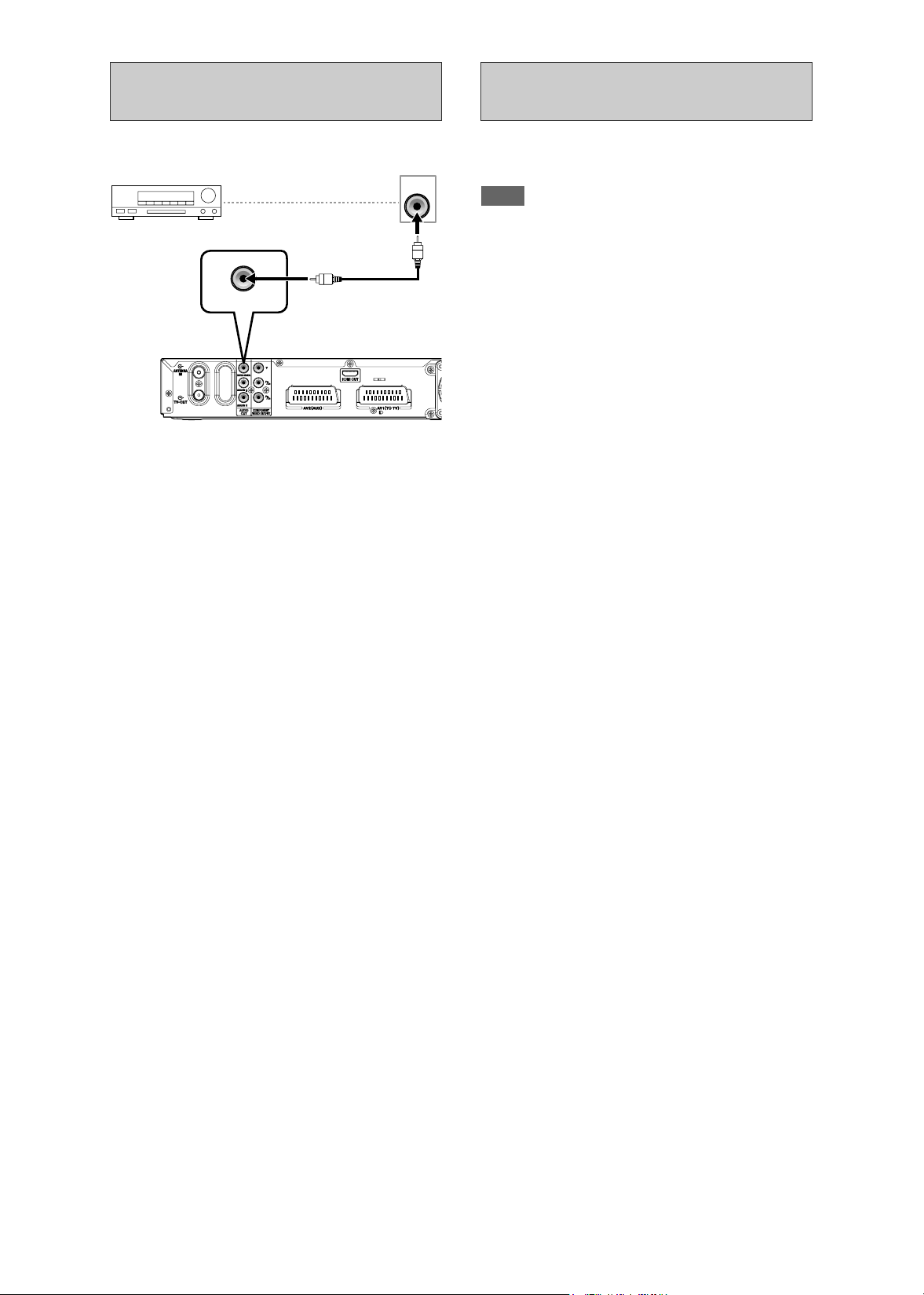

The connections illustrated above are
optional for better sound
1 For clear digital sound quality,
connect the AUDIO OUT
(DIGITAL COAXIAL) of the unit to
your digital audio equipment.
If the audio format of the digital output does not
match the capabilities of your receiver, the
receiver will produce a strong, distorted sound or
no sound at all.
Connecting a Dolby Digital™ decoder or
MPEG decoder
• Connecting multi-channel Dolby Digital decoder
allows you to enjoy the Multi-channel Dolby Digital
surround system.
• After connecting to a Dolby Digital decoder, set
“Dolby Digital” to “Stream” in “Disc Audio” menu.
(See page 76.)
• After connecting to a MPEG decoder, set “MPEG” to
“Stream” in “Disc Audio” menu. (See page 76.)
• Switch the input selector on your TV to an
appropriate external input channel.
Connecting to an MD deck or DAT deck
• The audio source recorded in Dolby Digital Multi-
channel surround format cannot be recorded using
an MD or DAT deck as a digital sound.
• If not connected to a Dolby Digital decoder, set
“Dolby Digital” to “PCM” in “Disc Audio” menu.
Playing back a DVD using incorrect settings may
generate noise distortion and damage speakers.
• Set “Dolby Digital” and “MPEG” to “PCM” in “Disc
Audio” menu for connecting to an MD or DAT deck.
• You can use AUDIO OUT (ANALOG L\R) jacks for
the connection of your audio system.
• Switch the input selector on your TV to an
appropriate external input channel.
Switch the input selector on your TV to an appropriate
external input channel. For details, refer to the User
Manual of your TV.
Note
• Connect this unit directly to the TV. If the AV cables
are connected to a VCR, pictures may be distorted
due to the effects of the copy protection system.
Digital Audio for Better Sound
Quality (for DVD or Tuner)
COAXIAL
DIGITAL COAXIAL
Dolby Digital decoder
or MPEG decoder, etc.
Digital audio
input jacks
Coaxial cable
(not supplied)
After You Have Completed
Connections
E2N41BN_EN.book Page 20 Wednesday, July 2, 2008 4:36 PM
21
EN
Initial Setup
When you turn on this unit for the first time, you need
to follow these steps.
1 Press [Q (STANDBY-ON)].
2 Turn on the TV. Select the input to
which the unit is connected.
“Initial Setup” will automatically appear.
3 Select the type of tuner to install
using [U \ D]. Then press [OK].
The unit will start scanning channels available in
your area.
Digital tuning:
Only the digital channels receivable in your area
are automatically scanned and stored.
Digital&Analog Tuning:
Both analogue and digital channels receivable in
your area are automatically scanned and stored.
Analog tuning:
Only the analogue channels receivable in your
area are automatically scanned and stored.
• If no channel has been stored, the antenna
confirmation display will appear. Press [OK] to start
auto scanning again or press [BACK U] to cancel
the Initial Setup.
• Make sure this unit, TV and Cable Box/Satellite
Receiver (if available) are all connected correctly
and switched on.
4 After the channel search is finished,
“Clock Setting” will appear. Press
[OK] if you want to adjust the current
date and time, then follow steps
below, or press [BACK U] or
[HOME] to exit.
• The current date and time will appear
automatically.
• The message : “Wait for a moment.” will appear
while the clock data is being updated.
5 Enter the date (day / month / year)
using [U \ D].
Press [P] to move the cursor to the next field. If
you want to go back to the previous field, press
[L].
6 Enter the time (hour / minute) using
[U \ D].
The clock will start.
• Although seconds are not displayed, they will be
counted from zero.
7 Press [OK] to exit.
Note
• Leave the unit in standby for 1 minute after
completing the initial installation and do not unplug
the mains power of the unit. The unit needs this
1 minute to store all the channels. After 1 minute,
you can remove the mains power if you need to.
Initial Setup
Initial Setup
Make sure the antenna is
connected to "ANTENNA IN" jack.
Digital tuning
Auto Tuning
Digital&Analog Tuning
Analog tuning
Initial Setup
TUE
Clock Setting
01/01/2008
0:00
( )
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 21 Wednesday, July 2, 2008 4:36 PM
22
EN
You can select the TV aspect ratio to ensure match of
programme format with the connected TV (4:3
standard or 16:9 Widescreen TV).
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Video” using [U \ D], then
press [OK].
3 Select “TV Shape” using [U \ D],
then press [OK].
4 Select the desired option using
[U \ D], then press [OK].
5 Press [HOME] to exit.
Hint
If you have a standard TV:
• Select “4:3 Letter Box” for a full width picture
with black bars at the top and bottom.
• Select “4:3 Pan scan” for a full height picture
with both sides trimmed.
If you have a wide screen TV:
• Select “16:9 Widescreen”.
Control TV Programmes
The following operations are available while viewing
TV channels through this unit’s tuner.
1 Press [Q (STANDBY-ON)] to turn on
the unit.
Turn on the TV and be sure to select the input to
which the unit is connected.
2 Press [SOURCE] to select digital,
analogue or external input mode,
then select the desired channel to
record using [PROGRAM + / –] or
[Alphanumeric keypad].
The TV programme you are tuned to
is automatically stored in the Time
Shift Buffer. This allows you to
pause the Live TV and resume
playback at any time.
• To record the contents of Time Shift Buffer, refer
to “Recording the Contents of the Time Shift
Buffer” on pages 29 - 30.
• To play back of Time Shift Buffer, refer to
“Playback of Time Shift Buffer” on page 57.
Watching digital TV broadcast
This unit is able to receive free-to-air DVB-T
(Digital Video Broadcast-Terrestrial) television and
radio channels. As new services are added over time,
make sure to regularly update and install new
channels. See “Manual Tuning (DIGITAL)” on
page 85 for details.
Changing the subtitle/audio language
This operation works only for broadcasts with multiple
subtitle/audio languages.
•
Press
[AUDIO]
or
[SUBTITLE]
on the remote
control.(See page 24 for more details.)
Showing the programme information
•Press [INFO] on the remote control to display
programme information screen. After 3 seconds,
programme information screen will automatically
disappear.
Selecting the TV Shape
General Settings
Video
TV Shape
Active Video Input
Active Video Output
4:3 Letter Box
4:3 Pan scan
16:9 Widescreen
4:3 Letter Box
4:3 Pan scan
16:9 Widescreen
TV Shape
Viewing Live TV
LIVE TVSOURCE
.@/:
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
AUDIO
PROGRAM
DISC MENU GUIDE
BACK
DISPLAY
REPLAY
TEXT
SAT. REC
TIMER HOME
VIDEO Plus+
HDMI
REC MODE
INFO
CLEAR
SUBTITLE
OK
TITLE
DVDHDD
SKIP
[Q (STANDBY-ON)] [SOURCE]
[PROGRAM + / –
]
[Alphanumeric keypad]
E2N41BN_EN.book Page 22 Wednesday, July 2, 2008 4:36 PM
23
EN
Using [Alphanumeric keypad]:
You can select a channel using
[Alphanumeric keypad]
.
• Analogue channels will be stored in channel 1-99
and digital channels will be stored in channel 1-899
after it is scanned by this unit.
Using [SOURCE] button:
You can switch between digital channels, analogue
channels and external input (AV1/AV2/AV3/DV(AV4))
by pressing [SOURCE] repeatedly. The mode
changes as follows:
Please be noted that the analogue/digital channel will
be skipped when it is not stored at all.
Using [PROGRAM + / –] button:
• You can switch between digital channels when
watching digital programmes.
• You can switch between analogue channels when
watching analogue programmes.
• You can switch between the external inputs when
enjoying data from external devices.
Note
• You cannot switch between the digital channels, the
analogue channels and external inputs.
You can switch between TV audio modes by pressing
[AUDIO]. Each mode is indicated on the TV screen.
• During reception of analogue bilingual broadcasts
• If the programme does not have more than one
sound track, [AUDIO] is not effective.
Many broadcasters provide a Digital Text Service in
the form of a dedicated Teletext channel. This Digital
Text Service includes high quality text and graphics
along with advanced navigation options.
1
Press [TEXT] to display Teletext screen.
• Digital Text for the TV channel you have
selected will be displayed.
2 Use [RED] / [GREEN] / [YELLOW] /
[BLUE] to follow the instructions on
screen.
3 Press [TEXT] to switch the Teletext
display off.
Note
• This unit supports MHEG5 data service.
• This unit does not support MHP data service.
• If you display the Teletext screen during the
recording, the Teletext screen will be recorded. In
addition, you cannot use [Alphanumeric keypad]
for changing Teletext pages. Use [U \ D \ L \ P]
and [OK] to change the Teletext pages.
Electronic programme guide (On-screen TV guide)
gives you a list of the digital TV programmes and
detailed information about the programmes.
1 In stop mode, press [GUIDE].
• Select the TV programme using
[U \ D \ L \ P], then press [HOME] or
[GUIDE] to exit.
• From the EPG screen, you can also set the
timer recording. Select the TV programme using
[U \ D \ L \ P], then press [OK] or [BLUE] to
go to “Timer Programming” menu. Refer to
“Timer Recording (EPG)” on page 33.
e.g.) Daily mode
1 EPG menu mode
2 Current date / time
3 Date of selected programme
4 Channel number / name
5 Channel programme
6
Currently Highlighted Programme on EPG
7 Programmes set for the timer recording
: Programmes set for the series link timer
recording.
: Once only timer recording.
• For the series link timer recording, refer to
“Series Link Timer Recording” on page 34.
Select a Channel
e.g.) digital channel
6 ch: Press [6], then wait for 2 seconds or
press [0], [0], [6].
15 ch: Press [1], [5], then wait for 2 seconds or
press [0], [1], [5].
173 ch:Press [1], [7], [3], then wait for 2 seconds
(entering three-digit channel number is
only valid with digital channels).
Selecting the Audio Mode
ANALOG
Mode Audio output
Display on
the TV screen
Main Main audio from both speakers Main
Sub Sub audio from both speakers Sub
Main /
Sub
•
Main audio from the left speaker
•
Sub audio from the right speaker
Main/Sub
the last digital CH the last analogue CH
the last external input
(AV1/AV2/AV3/DV(AV4))
Digital Text Service
DIGITAL
EPG (Electronic Programme Guide)
DIGITAL
1
2
4
3
5
6
10:25-11:10 news
12:00-13:00 show
13:00-13:30 musical
13:30-14:35 variety show
19:30-20:00 news
20:00-21:00 drama
Date 18/01/2008
Time 10:30:56
18/01/2008 (Friday)
10:25-11:10 The Montel
1
2
3
4
5 E4
6
7
Daily mode
1 ITV1
2 ITV2
3 ITV3
4 Channel
5 E4
6 More 4
D/W
Series Extended Timer
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 23 Wednesday, July 2, 2008 4:36 PM
24
EN
•Press [GUIDE] to exit.
•Press [RED] or [GUIDE] to switch between “Daily
mode” and “Weekly mode”.
•Press [GREEN] to see another series/part of the
selected programme or recommended programme
related to the selected program.
•Press [BLUE] to set a timer recording for the
selected TV programme.
•Press [YELLOW] to see more detailed information
of the selected programme.
Using user guide
Press [INFO] to display the user guide. You can see
each explanation of the buttons which can be used in
“EPG” menu. Press [BACK U] to return to “EPG”
menu.
Note
• EPG cannot be displayed during recording.
• For “Daily mode”, only programme listings for
current viewed channel is displayed.
• For “Weekly mode”, program listings for channels
available are displayed. The display is not
constrained to only one channel.
• [GREEN] is available only when the selected
programme has the series link tag.
Digital channels also contain multiple audio
languages. You can select the desired audio
language.
1 While viewing a digital TV
programme, press [AUDIO].
2 Select “Stereo”, “Right” or “Left”
using [L \ P].
3 Select your desired audio language
using [U \ D].
• The available audio language varies depending
on the digital TV broadcasts.
4 Press [OK] to activate the settings.
Note
• If the programme is changed, the audio language
will be switched back to the default language you set
in the “Digital TV Settings”. Refer to “Language
Setting” on page 88.
Digital channels also contain subtitles. You can select
the desired subtitle.
1 While viewing a digital TV
programme, press [SUBTITLE].
• If the programme has no subtitle information,
“No information” will appear.
2 Select “ON” using [L \ P].
• If you do not want to display the subtitle, select
“Off” using [L \ P].
3 Select your desired subtitle
language using [U \ D].
• The available subtitle language varies
depending on the digital TV broadcasts.
4 Press [OK] to activate the settings.
Note
• If the programme is changed, the subtitle language
will be switched back to the default language you set
in the “Digital TV Settings”. Refer to “Language
Setting” on page 88. If the default subtitle language
is not available on the new programme, no subtitle
will be displayed.
Multiaudio
DIGITAL
English
Stereo
Multiaudio
Subtitle
DIGITAL
English
On
Subtitle
E2N41BN_EN.book Page 24 Wednesday, July 2, 2008 4:36 PM
25
EN

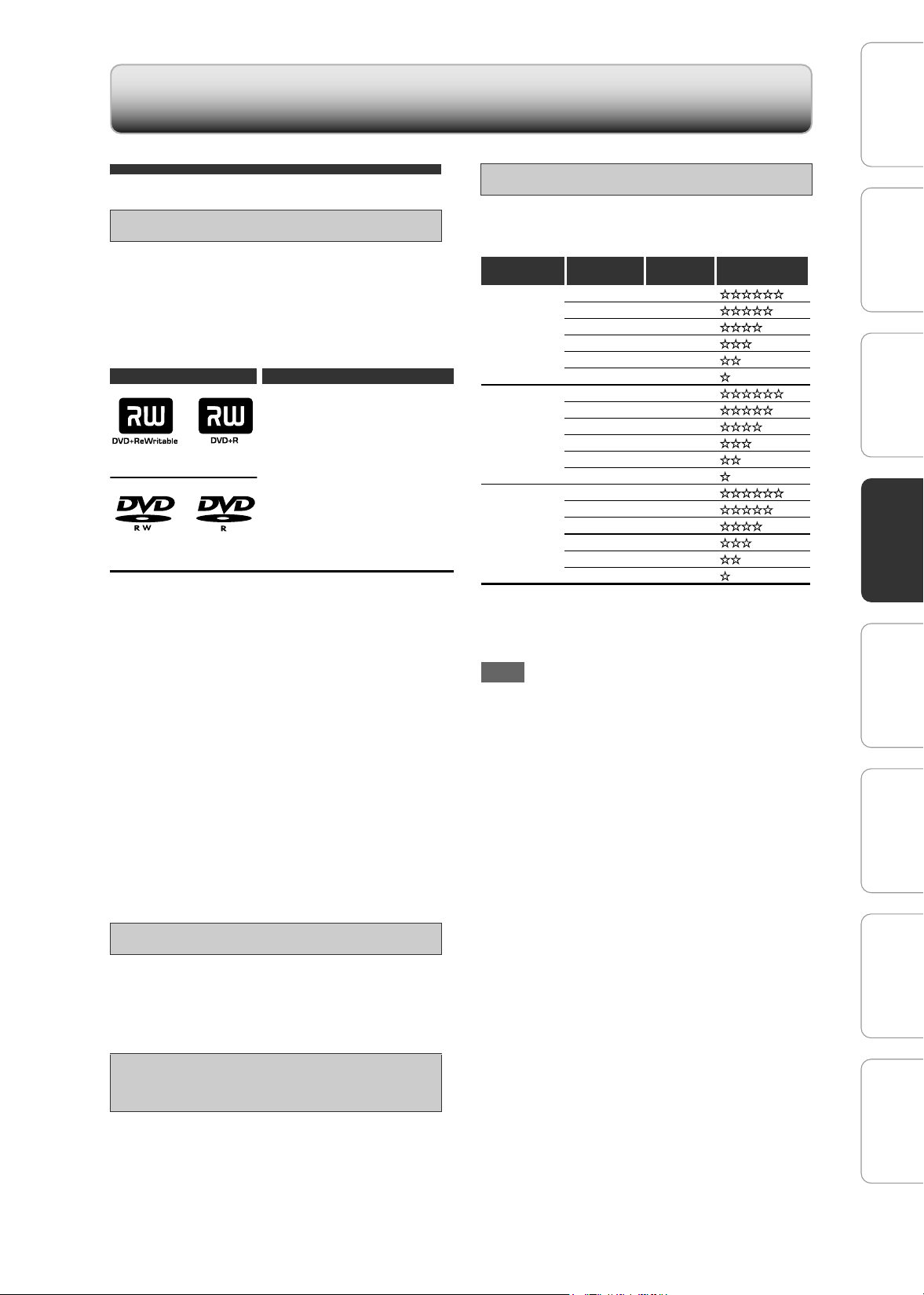

Information on Recording
This unit can record to DVD+RW, DVD+R, DVD-RW
and DVD-R.
DVD+R/DVD-R can only be recorded to once.
DVD+RW/ DVD-RW can be recorded to and erased
many times.
DVD-RW/-R will be recorded in the DVD+VR mode
automatically in this unit.
• Following discs are recommended for good
recording quality and are proven to be compatible
with this unit.
However, depending on the media condition the unit
may not read the disc properly.
Performance of any other discs are not guaranteed.
• You can play back DVD+RW on most DVD
players without finalising. However, if you have
added or deleted chapters, or made chapters
hidden, you must perform “Make Edits
Compatible” before being able to see those
effects on other units. (Refer to page 72 for more
details.) To play back discs other than DVD+RW
on other DVD players, you will need to finalise.
• DVD-RW recorded in the mode other than +VR is
not recordable on this unit unless you erase all
contents in the disc (refer to page 71).
• DVD-R recorded in the mode other than +VR is not
recordable on this unit.
You can select a recording mode from 6 options.
The recording time will vary depending on the
recording mode you select as follows.
• The recording times are estimates and actual
recording time may differ.
• The audio and video quality gets poorer as the
recording time gets longer.
Note
• This unit cannot record on CD-RW or CD-R discs.
• DVD+RW/+R, DVD-RW/-R and CD-RW/-R discs
recorded on a personal computer or a DVD or CD
recorder may not be played back if the disc is
damaged or dirty or if there is condensation on the
recorder’s lens.
• If you record a disc using a personal computer, even
if it is recorded in a compatible format, it may not be
played back because of the settings of the
application software used to create the disc. (Check
with the software publisher for more detailed
information.)
• Since recording is performed using the Variable Bit
Rate (VBR) method, the actual remaining time for
recording may be a little shorter than the remaining
time displayed on the OSD, depending on the
picture you are recording.
• You can only record “Copy-once only” programme
on an internal HDD.
Recording
Recordable Discs
Logo Attributes
8 cm/12 cm, single-sided,
single layer disc
Approx. max. recording time (SLP
mode):
360 minutes (4.7 GB) (for 12 cm)
108 minutes (1.4 GB) (for 8 cm)
Verbatim DVD+R 8x,
DVD-R 8x,
DVD+RW 4x,
DVD-RW 2x
JVC DVD-RW 4x
Maxell DVD+R 4x/8x/16x, DVD-R 8x/16x
SONY DVD+R 4x/8x/16x, DVD+RW 4x
TDK DVD+R 4x/8x/16x
Unrecordable Discs
Maximum Recordable Numbers of
Title / Chapters
HDD : 600 titles
99 chapters per title
DVD : 49 titles per disc
254 chapters per disc
99 chapters per title
DVD+RW DVD+R
DVD-RW
DVD-R
Recording Mode
Disc
Recording
Mode
Recording
Time
Video / Sound
Quality
DVD
8 cm
HQ (1Hr) 18 min
SP (2Hr) 36 min
SPP (2.5Hr) 45 min
LP (3Hr) 54 min
EP (4Hr) 72 min
SLP (6Hr) 108 min
DVD
12 cm
HQ (1Hr) 60 min
SP (2Hr) 120 min
SPP (2.5Hr) 150 min
LP (3Hr) 180 min
EP (4Hr) 240 min
SLP (6Hr) 360 min
HDD
160 GB
HQ 30 hrs
SP 60 hrs
SPP 75 hrs
LP 90 hrs
EP 120 hrs
SLP 180 hrs
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 25 Wednesday, July 2, 2008 4:36 PM
26
EN
HDD is a special device which has high recording
density and is suited for long-time recording or high-
speed cueing but by contrast, has many factors which
can cause breakage. Use HDD on the premise that
you should dub the recorded programmes to a DVD
disc to protect your precious videos.
HDD is a temporary storage location:
HDD is not a permanent storage location of the
recorded contents. Be sure to use it as a temporary
storage location until you watch the programmes
once, edit them, or dub them to a DVD disc.
Be sure to dub (back up) data promptly if you find
abnormalities in HDD:
If there is mechanical trouble with the HDD, grinding
or other sounds may be heard or blocky noise may
appear on the image. If you continue to use as it is,
deterioration may continue and eventually the HDD
may not be used at all. If you notice any symptoms of
a failing HDD, promptly dub the data to a DVD disc.
When an HDD fails, recovery of recorded content
(data) may be impossible.
About the remaining capacity of HDD recording
time:
In recording to HDD, the Remaining Capacity Display
may differ from the actual recordable time as this unit
adopts Variable Bit Rate encoding, which varies the
recording (storage) amount of data in accordance
with the amount of information in the video signal.
Before recording to the HDD, ensure there is
sufficient space on the HDD by deleting unnecessary
titles in advance.
Use this feature to make the unfinalised +VR mode
discs recorded on other unit recordable on this unit.
When you make an additional recording on this unit
with “Make Rec. Compatible” set to “ON”, the title list
is automatically converted to this unit’s style.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Recording” using [U \ D],
then press [OK].
3 Select “Make Rec. Compatible”
using [U \ D], then press [OK].
4 Select “ON” or “OFF” using [U \ D],
then press [OK].
5 Press [HOME] to exit.
The unit inserts a chapter marker periodically (every 5
minutes by default) during recording. Using the “Auto
Chapter” menu, you can turn this function off or
change the time period.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Recording” using [U \ D],
then press [OK].
3 Select “Auto Chapter” using
[U \ D], then press [OK].
4 If you want to set “Auto Chapter” off,
select “OFF” using [U \ D], then
press [OK].
If you want to change the time period
for “Auto Chapter”, select the required
time period using [U \ D], then press
[OK].
5 Press [HOME] to exit.
Note
• The interval for auto chapter may be up to 2 minutes
different from the time option you set.
• While recording, no more chapter mark will be
added after coming up to the maximum chapter
mark number.
About HDD
Make Recording Compatible
ON: Title list will be replaced when you make
additional recordings to the discs recorded by
other units.
OFF: Prohibiting additional record to the disc that has
a title list created by other units.
DVD+RWDVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
General Settings
Recording
Auto Chapter
Auto Finalise
Make Rec. Compatible
Make Rec. Compatible
Recording Language
External Input Audio
Video Standard
ON
OFF
Setting Auto Chapter
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
General Settings
Recording
Auto Chapter
Auto Finalise
Make Rec. Compatible
Recording Language
External Input Audio
Video Standard
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
General Settings
Recording
Auto Chapter
Auto Finalise
Make Rec. Compatible
Recording Language
External Input Audio
Video Standard
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
Auto Chapter
E2N41BN_EN.book Page 26 Wednesday, July 2, 2008 4:36 PM
27
EN

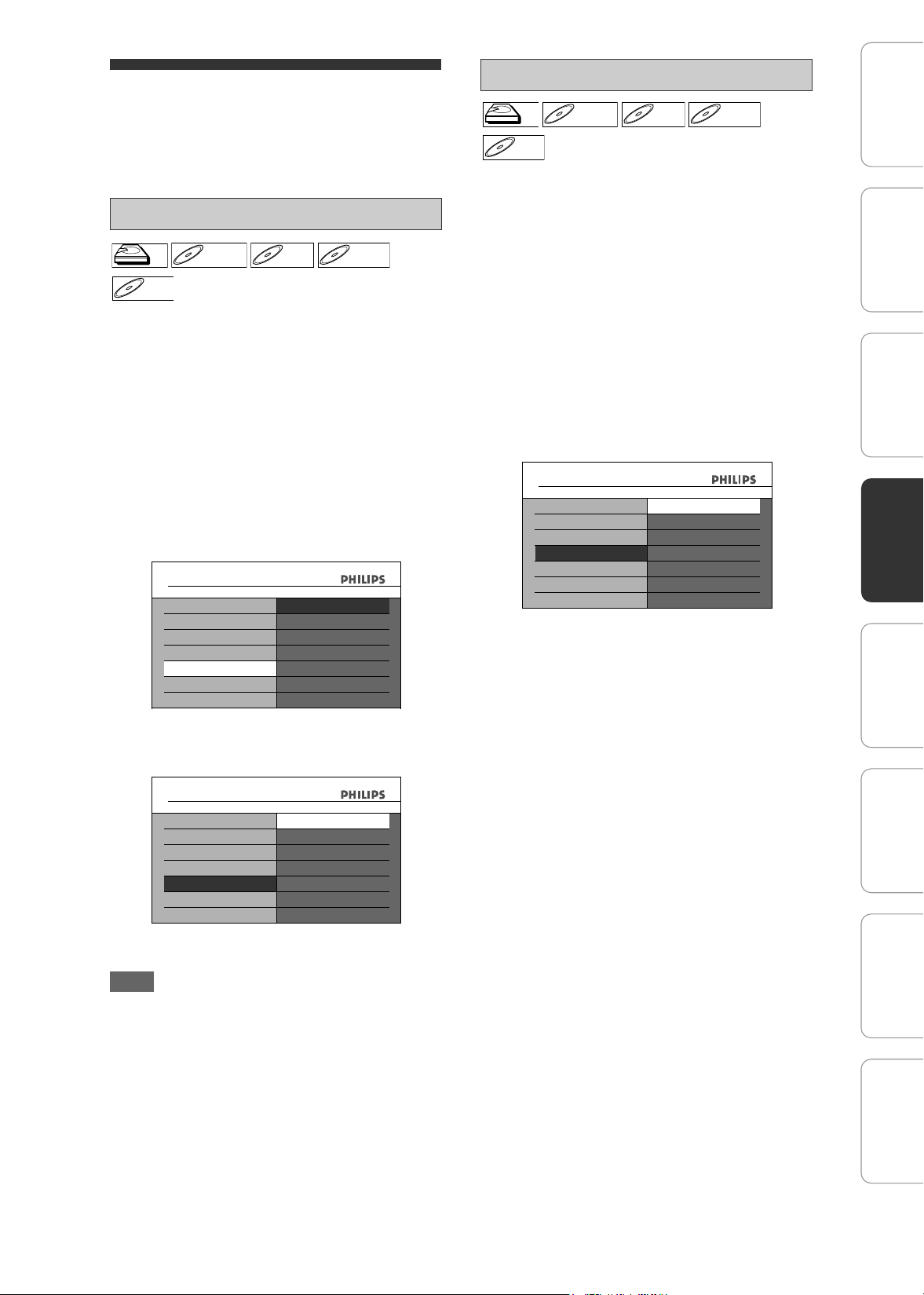

Selecting the Sound Mode
This unit can receive bilingual audio broadcasts.
You can switch between different audio by pressing
[AUDIO]. When you do a manual record of an
analogue or digital channel, only selected audio will
be recorded.
When the external input audio is a bilingual
broadcast, you can choose “Stereo” or “Bilingual” to
record on an HDD/DVD. This setting is only for
recording external input (AV1/AV2/AV3).
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Recording” using [U \ D ],
then press [OK].
3 Select “External Input Audio” using
[U \ D], then press [OK].
4 Select “Stereo” or “Bilingual” using
[U \ D], then press [OK].
5 Press [HOME] to exit.
Hint
• If you select “Stereo”:
Audio will be recorded as “stereo audio”.
• If you select “Bilingual”:
Audio will be recorded as “bilingual audio”. (See
“Setting Recording Language” on this page for more
detail.)
You can select either “Main” or “Sub” audio to record
a bilingual broadcast.
This setting is only for recording analogue channel.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Recording” using [U \ D],
then press [OK].
3 Select “Recording Language” using
[U \ D], then press [OK].
4 Select “Main” or “Sub” using
[U \ D], then press [OK].
5 Press [HOME] to exit.
Setting External Input Audio
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
General Settings
Recording
Auto Chapter
Auto Finalise
Make Rec. Compatible
Recording Language
External Input Audio
Video Standard
Stereo
Bilingual
General Settings
Recording
Auto Chapter
Auto Finalise
Make Rec. Compatible
Recording Language
External Input Audio
Video Standard
Stereo
Bilingual
External Input Audio
Setting Recording Language
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
General Settings
Recording
Auto Chapter
Auto Finalise
Make Rec. Compatible
Recording Language
External Input Audio
Video Standard
Main
Sub
Recording Language
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 27 Wednesday, July 2, 2008 4:36 PM
28
EN

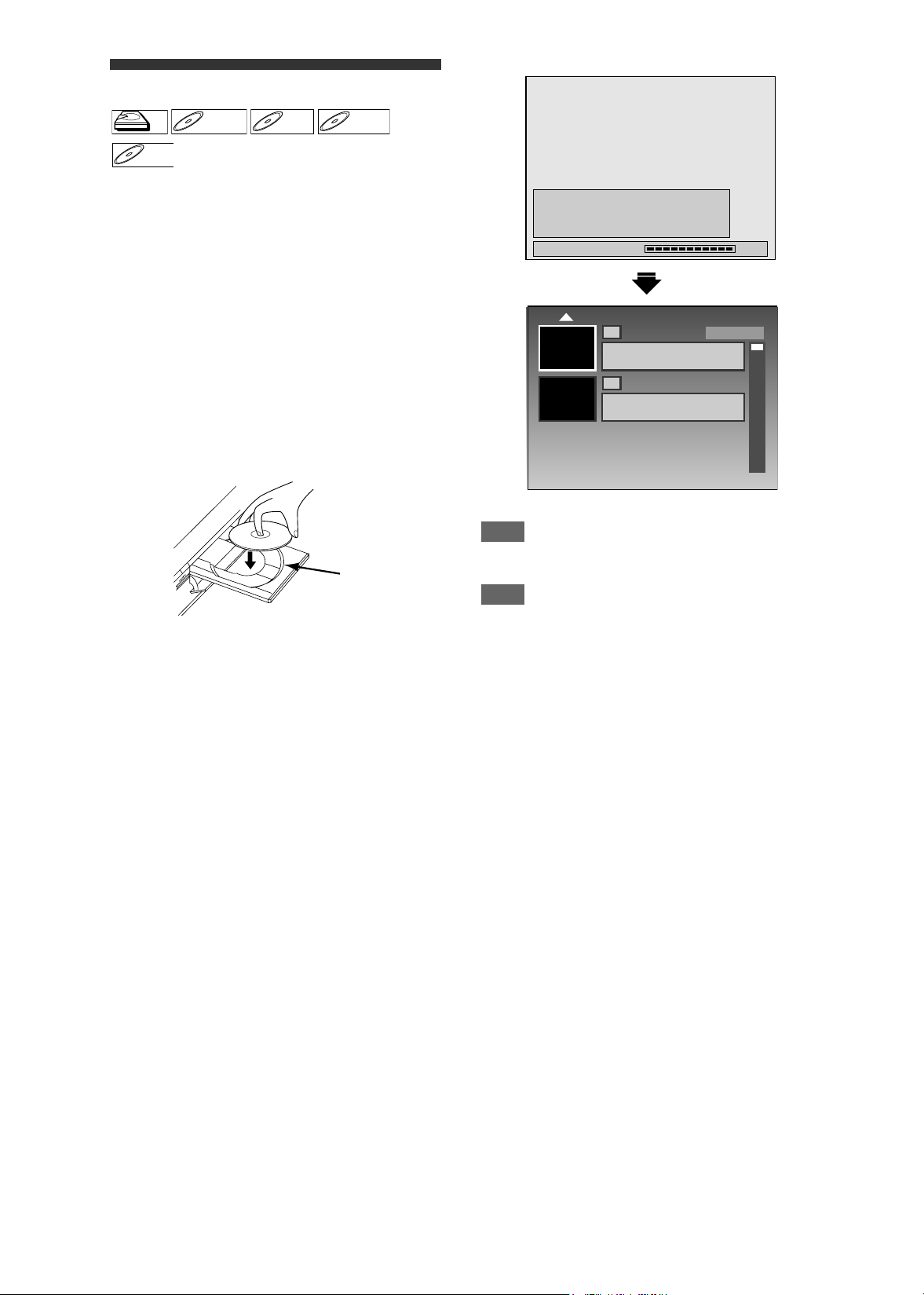

Basic Recording
Follow the steps below to record a TV programme.
1 Press [Q (STANDBY-ON)] to turn on
the unit.
Turn on the TV and be sure to select the input to
which the unit is connected.
If you are recording to the HDD, press [HDD],
then proceed to step
5.
If you are recording to a disc, press [DVD].
2 Press [A (OPEN\CLOSE)] to open
the disc tray.
3 Place the disc on the disc tray with
its label facing up. Be sure to align
the disc with the disc tray guide.
4 Press [A (OPEN\CLOSE)] to close
the disc tray.
5 Select the recording mode using
[REC MODE]. (See page 25.)
6 Press [SOURCE] to select digital,
analogue or external input mode,
then select the desired channel to
record using [PROGRAM + / –] or
[Alphanumeric keypad].
7 Press [I (RECORD)] to start
recording.
The “I HDD” or “I DVD” mark will be displayed
on the TV screen briefly.
To pause the recording, press [F (PAUSE)].
Press [F (PAUSE)] or [I (RECORD)] again to
restart the recording.
8 Press [C (STOP)] to stop the
recording.
This operation may take a few moments to
complete.
As for DVD recording, the title list will appear
automatically after writing to a disc complete.
(Refer to “Guide to a Title List” on page 63.)
e.g.) DVD+R
•Press [C (STOP)] to exit the title list.
Hint
• You can change the channel in the REC pause
mode.
Note
• Recording continues until the disc is full (as for
HDD, 12 hours after the recording starts) or you stop
the recording.
• If the clock is not set, the date and time of title
names will be 01/01/08 and 00:00.
• You cannot change the recording mode in the pause
mode.
• Even if the analogue channel you are recording is in
SECAM TV system, this unit automatically converts
it to PAL TV system during recording.
• If the external equipment (e.g. cable box,
Canal+ decoder) is connected to AV2, the picture of
the external equipment will be output except during
the DVD playback of this unit. Turn off the external
equipment or press [DISPLAY] to output the picture
from this unit.
• You can play back a title on one component while
making a recording on the other component. To do
so, simply select the component (HDD or DVD) you
want to use for the playback by pressing [HDD] or
[DVD] during HDD / DVD recording. And then follow
the normal playback procedure.
• If playback and recording are in progress at the
same time, select the appropriate component by
pressing [HDD] or [DVD] before you press
[F (PAUSE)] or [C (STOP)] to pause or stop the
operation.
• NTSC recording is prohibited in this unit.
• This unit cannot record images as aspect ratio of
16:9. The 16:9 images will be recorded as 4:3.
• When you record a TV programme, you have to
select the TV channel audio beforehand. Only the
selected channel audio will be recorded.
• Pressing [Q (STANDBY-ON)] during recording will
terminate the recording.
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
Disc tray guide
90%
Writing to Disc
Please finalise the disc when the writing is
completed before playing back on other DVD
players.
1
2
01/01/08 11:00 12 SP
01/01/08 0:20:00
0:05:00 SP(2Hr)
EMPTY TITLE
SP(2Hr)
E2N41BN_EN.book Page 28 Wednesday, July 2, 2008 4:36 PM
29
EN

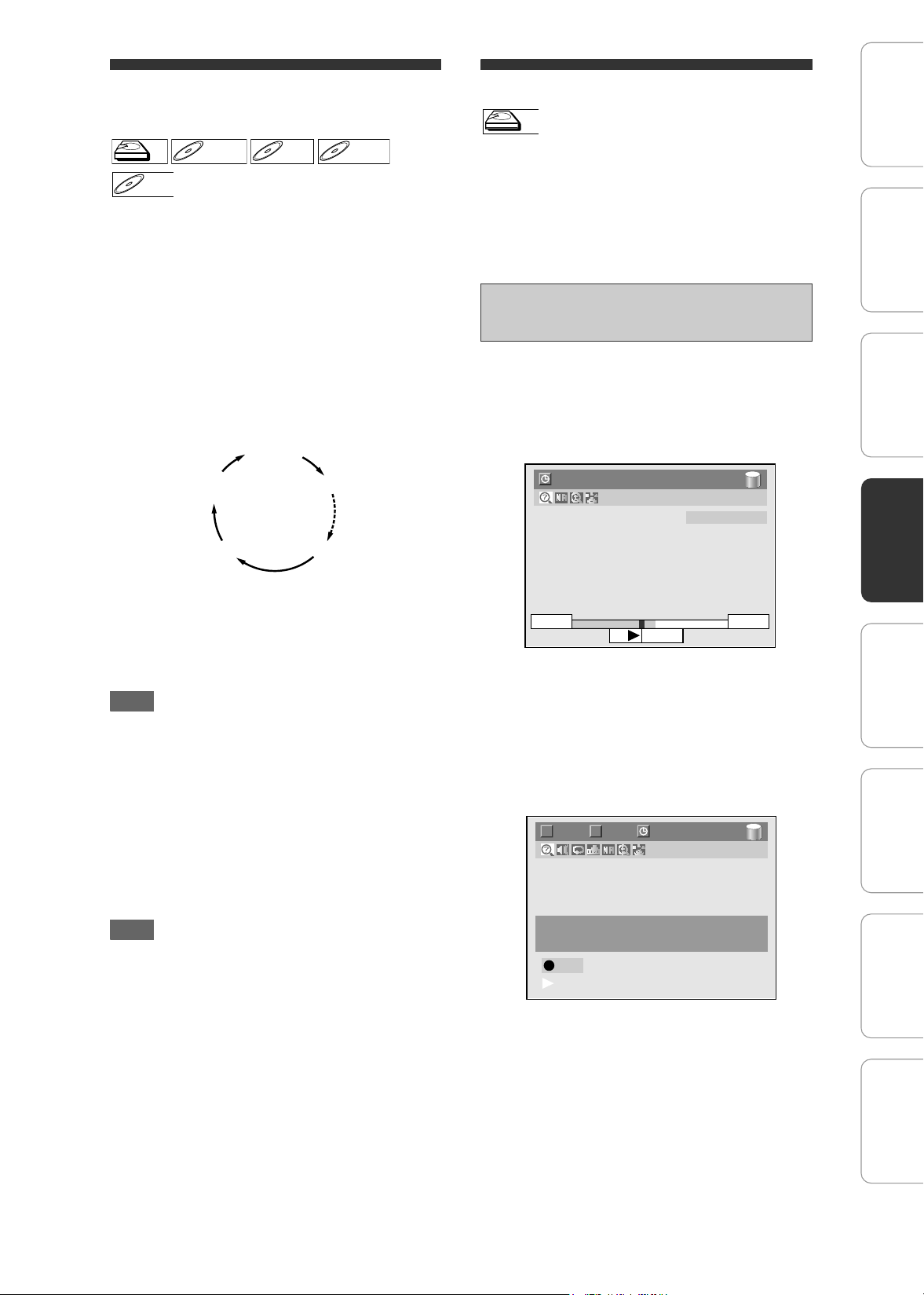

One-touch Timer Recording
(OTR)
This is a simple way to set the recording time in
blocks of 30 minutes. Ensure the disc you are
recording to has enough space to contain the OTR
Record duration.
1 Follow steps 1 to 6 in “Basic
Recording” on page 28.
2 Press [I (RECORD)] repeatedly until
the desired recording time (30
minutes to 6 hours) appears on the
TV screen.
One-touch Timer Recording will start.
• When the unit reaches the specified time, it will
be turned off automatically.
• To change the recording length during One-
touch Timer Recording, press [I (RECORD)]
repeatedly until the desired length appears.
• To cancel One-touch Timer Recording within
the specified time, press [C (STOP)].
Hint
• The remaining recording time will appear on the TV
screen during One-touch Timer Recording. Press
[DISPLAY] to see it on the TV screen.
• The remaining recording time will be displayed on
the front panel display during One-touch Timer
Recording.
• Unlike the timer recording, you can perform the
following operations during One-touch Timer
Recording.
- Put unit to standby. (One-touch timer recording will
be cancelled.)
-Use [I (RECORD)] on the remote control.
Note
• You cannot use the pause function during One-
touch Timer Recording.
• The unit will be turned off automatically under the
following conditions.
- No space remains on the disc.
- If a power failure occurs.
• You cannot change the channel when this unit is in
any recording mode (normal recording, One-touch
Timer Recording or timer recording).
•Pressing [Q (STANDBY-ON)] during recording will
terminate the recording.
Time Shift Buffer
Every time you turn on this unit, this unit automatically
records the channel currently viewed and temporarily
stores the recorded content to the HDD (Time Shift
Buffer). By using this function, you can pause or view
earlier parts of the current TV programme. You may
also start to record from the beginning of the TV
programme. Time shift buffer can store programmes
up to a duration of 6 hours. If maximum duration is
exceeded, earliest programme will be removed.
1 When watching TV programme
through this unit’s tuner, use
[S (PREV)], [E (REW)], or
[REPLAY] to locate your desired
point to start recording.
• If you press [DISPLAY], the Time Shift Buffer
information will appear.
• It is possible to skip to your desired time by the
time search on the display of the Time Shift
Buffer in addition to [S (PREV)], [E (REW)] or
[REPLAY].
2 Press [I (RECORD)] to start
recording.
From the selected point, the contents of the Time
Shift Buffer become a recording title in the HDD
while the unit continues to record the current
content of the channel.
3 Press [C (STOP)] twice to stop
recording.
The recording stops.
If you press [C (STOP)] once, the image on the TV
screen goes back to current content of the channel
while Time Shift Buffer continues.
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
0h30m
6h00m
5h30m
1h00m
Normal
Recording
Recording the Contents of the
Time Shift Buffer
HDDHDD
2:59:44 / 3:31:31
$6"
7:10
10:42
10:10
T C
100/100 1/ 1 0:00:34 / 0:32:34
HDD
Press Stop to resume Live TV.
Press Stop twice to stop recording.
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 29 Wednesday, July 2, 2008 4:36 PM
30
EN
Note
• In Time Shift Buffer, when you display the digital
programme information, the on-screen display will
be recorded as the part of the picture.
• When you record the contents of the Time Shift
Buffer, the recording mode is always SP.
• If there is not enough recordable space on HDD to
record from the selected point to current point, you
cannot record the content of Time Shift Buffer.
• After recording from Time shift buffer, portion that is
copy protected will not be seen on playback and
“Content is Copy Protected.” message is indicated.
• Using [LIVE TV] makes it possible to go back to the
current position of the TV programme broadcast.
• When you press [PROGRAM + / –] to change the
channel to digital Video channel, the message :
“This action will clear the Time Shift Buffer. Do you
want to continue?” will appear. Selecting “Yes”, the
Buffer is cleared and the channel will be changed.
• When you press [HOME], [TITLE] or [DISC MENU],
the message : “Time Shift Buffer will be cleared
depending on your selection. Do you want to
continue?” may appear.
• In HDD mode, you can pause the program when
you press [F (PAUSE)] during the program live on
the air. Furthermore, you can resume it by pressing
[B (PLAY)] in pause mode.
• Once it has exceeded 6 hours, the beginning of
Time Shift Buffer will be deleted accordingly, and
the elapsed time displayed will be unchanged.
Timer Recording
You can set the unit to record up to 36 programmes,
up to a month in advance. Daily or weekly programme
recordings are also available.
• Be sure to set the clock before entering a timer
programming.
Insert a recordable disc.
1 In stop mode, press [TIMER].
“Timer Programming” list will appear.
2 Select “New Programme” using
[U \ D], then press [OK].
• If there are 7 programmes or more, use
[S (PREV)],/[T (NEXT)]to turn the page.
3 Enter the date using [U \ D], then
press [P].
Each time you press [D] at the current date, the
timer recording date will change as follows.
e.g., 1st January
4 Enter the time to start and to end
using [U \ D], then press [P].
The Time Shift Buffer will be stopped, cleared
in following cases:
- Turning off the power
- Start recording
- Editing titles or goes into editing menu
- Start dubbing
- Digital Video input (AV4)
- Using any functions in “Disc Editing” or “HDD
Settings”
- Selecting items in “Channel” setting:
“Digital&Analog Tuning”
“Digital Channel Setup” J “Edit Channels”
“Digital Channel Setup” J “Auto Tuning”
“Digital Channel Setup” J “Manual Tuning”
“Digital Channel Setup” J “Signal Information”
“Analog Channel Setup” J “Auto Tuning”
“Analog Channel Setup” J “Manual Tuning”
“Analog Channel Setup” J “Sort Channels”
• The Time Shift Buffer will automatically resume
for new recording
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
01/01 12:00 13:00 1
01/01 12:00 13:00 1
Timer Programming
New Programme
TUE
CHEndStartDate
01/0112:00
Press TIMER to exit
STTL
01/01
31/01
Daily
M-F
W-SAT
W-FRI
W-SUN
(Mon.-Fri.)
01/01 12:00 13:00 1
01/01 --:-- --:--
SLP
--- 1
SLP
1h00m
Timer Programming
CH
CHEndStartDate
Start EndDate
OFF
Mode STTL
OFF
Skip
REC To
DVD
Set date
TUE 01/0112:00
STTL
E2N41BN_EN.book Page 30 Wednesday, July 2, 2008 4:36 PM
31
EN
5 Select the channel number to record
using [U \ D], then press [P].
To record from the external input, select “AV1”,
“AV2”, or “AV3”.
6 Select the recording media (“HDD”
or “DVD”) using [U \ D], then press
[P].
7 Select the recording mode using
[U \ D], then press [P].
Refer to “Recordable Discs” on page 25.
8 For digital channel recording:
Select “STTL” to “ON” or “OFF”
using [U \ D].
If you set “STTL” to “ON”, subtitle will be recorded
too.
9 Press [OK] when all information
required is entered.
“Timer Recording will clear the Timer Shift Buffer.”
will appear, and then your programme setting is
stored.
• To set another programme, repeat steps
2 to 9.
• To exit, press [TIMER].
• When 2 or more programmes are overlapped,
“Timer programme overlapped” appears, and
the overlapped programme will be displayed in
blue. To correct the timer programme, refer to
“To Check/Delete/Amend Timer Programme” on
page 31.
The icon will appear on the front panel display.
Note
• If you have not set the clock, the clock setting
window will appear instead of the “Timer
Programming” list. Continue from step
4 in “Manual
Clock Setting” on page 89 to set the clock before
programming the timer.
•Press [U \ D] to move the cursor in “Timer
Programming” list.
• If the timer recording starts when the power is on,
- to watch the channel being recorded (during timer
recording), switch the input on your TV to the
recorder source.
- during timer recording, you may hear the audio of the
channel being recorded if you have an audio amplifier
(connected to your recorder audio output) switched
on. If so, please switch off the audio amplifier.
• If you want to use the unit during the timer recording
which starts in standby, press [Q (STANDBY-ON)]
to switch the input on your TV to the recorder
source.
Alternate recording (DVD only)...
• If there is no disc or not enough space on DVD or
copy once source, recording will be done to HDD
even when DVD is selected during timer
programming.
• If the available space on the HDD is less than that of
DVD, the unit will not perform the alternate
recording. This feature is available only for timer
recording and not available for one-touch timer
recording.

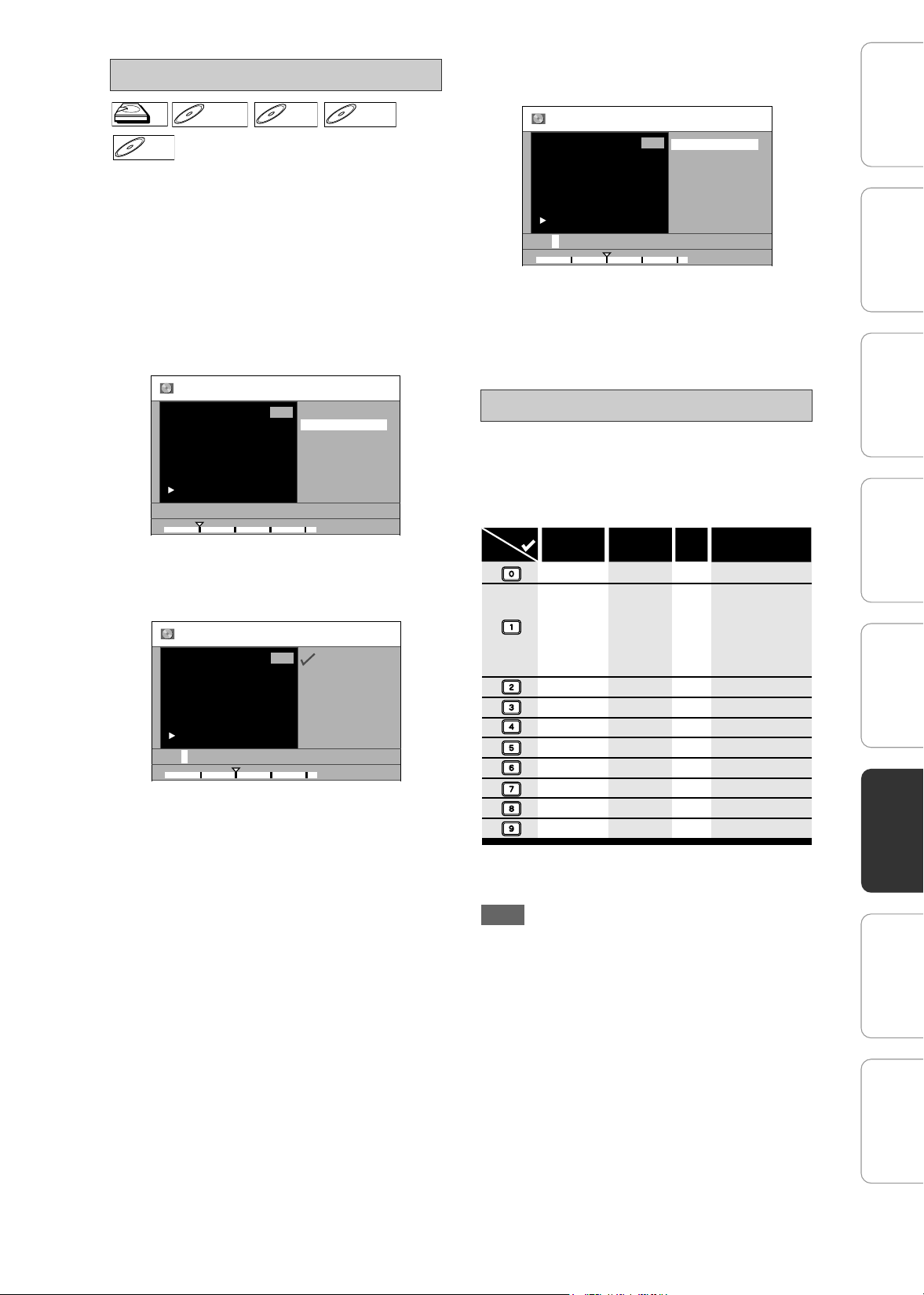

1 Press [TIMER].
2 A) To delete the timer programme:
1) Select the programme you want to delete using
[U \ D], then press [OK].
2) Select “Delete” using [U \ D], then press
[OK].
Confirmation window will appear.
3) Select “Yes” using [U \ D], then press [OK].
B) To correct the timer programme:
1) Select the programme you want to correct
using [U \ D], then press [OK].
2) Select “Edit Programme” using [U \ D], then
press [OK].
3) Correct the timer programme by using
[U \ D \ L \ P], then press [OK].
3 Press [TIMER] to exit.
To see list of programmed timers, press [TIMER].
You can deactivate the periodical (Daily, Mon-Fri or
Weekly) timer recording temporarily.
1 In stop mode, press [TIMER].
2 Select the periodical timer recording
programme you want to skip using
[U \ D], then press [OK].
3 Select “Edit Programme” using
[U \ D], then press [OK].
4 Move the cursor to the “Skip” field
using [L \ P], then select “ON” using
[U \ D] and then press [OK] to
activate the setting.
•“✔” will be displayed on the left side of the timer
programme.
• The setting will go back to “OFF” after the
programme is skipped once.
01 /01 / 08 12:00 1 SLP SLP( 1:00)
01/01 12:00 13:00 1
01/01 12:00 13:00 1
01/01 12:00 13:00 1
Timer Programming
CHEndStartDate
New Programme
TUE 01/0112:00
Press OK to edit or delete programme
STTL
To Check/Delete/Amend Timer
Programme
To Skip Periodical Timer
Programme
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 31 Wednesday, July 2, 2008 4:36 PM
32
EN
Press [STOP C] on the front panel of the
unit or [C (STOP)] on the remote control
to stop current timer recording.
• You can also stop the timer recording in progress by
deleting the timer programme. Press [TIMER] while
the timer recording is in progress, then follow steps
2-A) and 3 of the “To Check/Delete/Amend Timer
Programme” on page 31.
The error number appears on “Timer Programming”
list.
The error numbers indicate:
• Timer programme with an error number will be
cleared once the entry screen for the
programme is displayed.
• If a power failure occurs or the unit is unplugged for
more than 30 seconds, the clock setting and all
timer settings will be lost.
• If a disc is not inserted or if a inserted disc is not
recordable (finalised DVD+R, finalised DVD-RW/-R,
a fully recorded disc, etc.), the unit will perform the
alternate recording to the HDD. (See page 31.)
• When a timer recording is completed, the unit will
ask you whether to turn off the unit if there is no
timer recording which starts within 4 minutes, except
under conditions listed below.
- During playback of HDD or DVD.
- While displaying menus or information on the
screen.
The unit will be turned off automatically if you select
“Yes” or if you do not reply in 1 minute.
• When the programmed starting and ending time are
earlier than the current time, the setting will not be
accepted.
• The audio language which is selected in the “Digital
TV Settings” will be recorded for the timer recording
of digital TV broadcasting.
• Timer recording whose recording time exceeds 12
hours cannot be made.
• It is prohibited to turn off the unit 4 minutes before
the programmed starting time.
• It is prohibited to change channel from 15 seconds
before the programmed starting time.
• [I (RECORD)] does not work from 2 minutes
before the programmed starting time. If it comes to 2
minutes before the starting time during regular or
one-touch timer recording, the recording in progress
will be stopped.
• Playback of DVD/CD is prohibited from 2 minutes
before the programmed starting time when the
recording media is DVD. If it comes to 2 minutes
before the programmed starting time during DVD/
CD playback, the playback will be stopped.
• When 2 or more programmes are overlapped,
“Timer programme overlapped” appears, and the
overlapped programme will be displayed in blue. To
correct the timer programme refer to “To Check/
Delete/Amend Timer Programme” on page 31.
• If the Start time is earlier and the End time is later
than the current time, the recording will start
immediately after you press [OK] at step
9 on
page 31.
To Stop Timer Recording in
Progress
Error Codes for Timer Recording
that Does Not Work Correctly
E1–E22,
E37–E39 : Recording error
E25/E51
:
:
• Copy prohibited programme
• Cannot record because of the
NTSC/PAL-60 signal is received.
E26–E28 : Copy prohibited programme
E30 : Disc full
E40
:
:
• There are some unrecorded parts
due the overlapped timer
programmes.
• Recording did not start at the start
time.
E41 : Power failure
E45 : Copy prohibited programme
E46 : You are trying to record onto the
unfinalised +VR mode discs recorded
on other unit.
E47 : Already 600 titles recorded on the
HDD.
E49 : There was no disc space on the HDD
at the starting time for the HDD timer
recording.
E50 : HDD recording is cancelled due to the
insufficiency of the disc space on the
HDD.
01/01E40 12:00 13:00 1
Timer Programming
New Programme
TUE
CHEndStartDate
01/0112:00
STTL
Press TIMER to exit
Hints for the Timer Recording
E2N41BN_EN.book Page 32 Wednesday, July 2, 2008 4:36 PM
33
EN

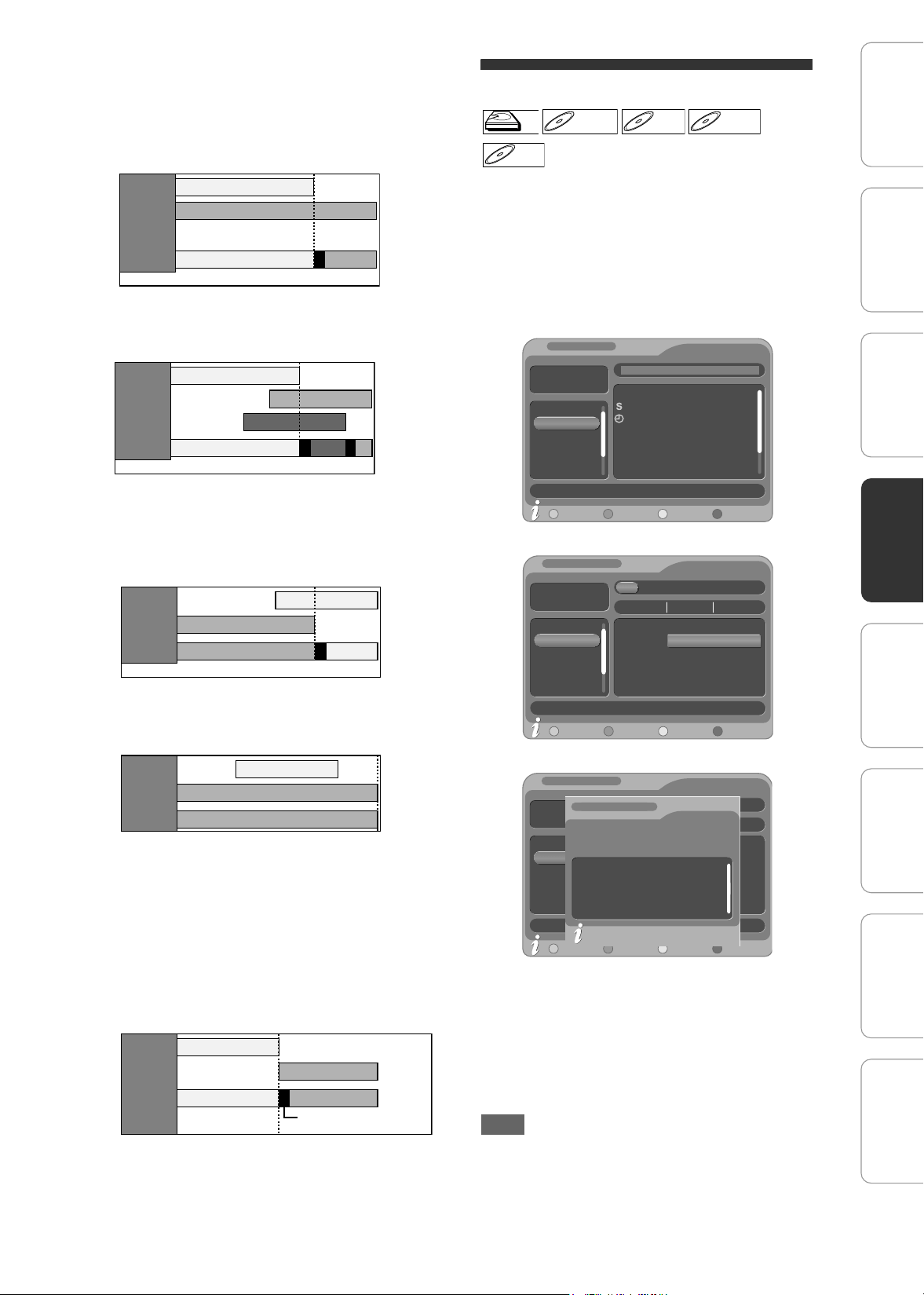

Priority of overlapped settings
The unit follows below certain rules of Timer priority in
case of overlap timers. See below.
If the starting time is same:
• The timer programming set first (PROG. 1) has
priority.
When the starting time and the ending time for
each programmes are different:
• A programme that has earlier start time has priority.
If the recording time is partially overlapped:
• The timer programming with the earlier start time
(PROG. 2) has priority. PROG. 1 will start after
PROG. 2 recording is complete.
If the recording time entirely overlaps:
• The shorter timer programming (PROG. 1) is not
recorded.
Note for DVD recording
• If the recording time of two programmes are
overlapped, or the End time of a programme and the
Start time of another is same, the first 2 minutes (at
the longest) of the subsequent programme will be
cut off.
If the End time of the programme currently being
recorded and the Start time of the subsequent
programme are same:
• The beginning of the PROG. 2 may be cut off.
* If the cut off time exceeds 3 minutes, the error
number “E40” will appear in “Timer Programming”
list.
Timer Recording (EPG)
EPG (Electronic programme guide) is an easy-to-use
onscreen programme guide that lists all the digital TV
programmes available in your area.
With EPG, it allows much easier timer programming
of digital channels.
1 While viewing a digital TV
programme, press [GUIDE].
List of digital TV programmes will be displayed.
e.g.) Daily mode
Press [RED] to display “Weekly mode”.
Press [YELLOW] to display “Extended”.
2 Select a desired programme using
[U \ D \ L \ P], then press [OK] or
[BLUE].
“Timer Programming” menu appears.
3 Set “End”, “REC To”, “Mode” and
“STTL” using [U \ D \ L \ P ], then
press [OK].
Note
• EPG timer recording will stop if the broadcaster
sends the EPG programme end or if you press
[STOP C] on the front panel or press [C (STOP)]
on the remote control.
PROG. 2
recording
will start
after
PROG. 1
recording
is
completed.
Actual
recording
The first 2 minutes (at the longest) will be cut off.
PROG. 2
PROG. 1
PROG. 1
PROG. 2
The first 2 minutes (at the longest) will be cut off.
PROG. 2
PROG. 1
PROG. 3
PROG. 1
PROG. 3
PROG. 2
Actual
recording
The first 2 minutes (at the longest) will be cut off.
Actual
recording
PROG. 2
PROG. 1
PROG. 2
PROG. 1
Actual
recording
PROG. 2
PROG. 1
PROG. 2
Actual
recording
The first 2 minutes (at the
longest) will be cut off.*
PROG. 2
PROG. 1
PROG. 2PROG. 1
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
10:25-11:10 The Oprah Winfrey S
12:30-13:00 Coronation Street
13:00-13:30 Emmerdale
13:30-14:35 The Jeremy Kyle Sho
14:35-15:25 The Ricki Lake Show
19:00-20:00 The New Adventures
20:00-21:00 The BRIT Awards 200
18/01/2008
10:21:56
18/01/2008
10:25-11:10 The Oprah Winfrey Show
0001 ITV1
0002 ITV2
0003 ITV3
0004
0005 E4
0006 More 4
Daily mode
Extended Timer
date
time
(Tuesday)
Channel
D/W Series
1 ITV1
2 ITV2
3 ITV3
4
5 E4
6 More 4
10:00 11:00 12:00
19/01/2008
10:24:00
Quiz Call Quiz Call
Frien Frien Smallville Holly Girls
Easter Parad Deal or N Jamie The
ITV4 return Marri Marri Now and Ag
My P The N CITV returns at 06:00
11:00-12:00 Quiz Call
date
time
D/W Series Extended Timer
Weekly mode
Fri
Sat
Sun
Mon Tue Thu FridWed
Channel
0001 ITV1
0002 ITV2
0003 ITV3
0004
0005 E4
0006 More 4
10:00 11:00 12:00
19/01/2008
10:24:00
Quiz Call Quiz Call
Frien Frien Smallville Holly Girls
Easter Parad Deal or N Jamie The
ITV4 return Marri Marri Now and Ag
My P The N CITV returns at 06:00
10:25-11:10 Quiz Call
date
time
D/W Series Extended Timer
Weekly mode
Fri
Sat
Sun
Mon Tue Thu FridWed
Channel
Oprah and her studio audience discus
s more controversial topics.
10:25-11:10 The Oprah Winfrey Sho
Language: eng
Parent Rating: 0
Weekly mode
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 33 Wednesday, July 2, 2008 4:36 PM
34
EN
Series Link Timer Recording
With the EPG system, when you can program a timer
recording for a TV programme, you can also set timer
recording for future episodes of a TV series. It is also
possible to set for the broadcaster to recommend
related programmes to you.
1
Press
[BLUE]
while displaying EPG.
• List of digital programmes will be displayed.
2
Select a desired programme using
[U \ D \ L \ P]
, then press [GREEN].
• Subsequent episodes and recommended
programme related to the selected TV programme
will be displayed in “Series list”.
3
Press [BLUE] or
[OK]
.
• Use the cursor using [U \ D], then press
[YELLOW] to see more detailed information of the
selected programme.
• If the programmes in “Series list” was already set for
timer recording,“ ” or “ ” will be displayed.
“ ” refers to recommended programme related to the
TV programme.
4
Set “REC To”, “Mode” and “STTL” using
[U \ D \ L \ P]
, then press
[OK]
.
• In “Timer Programming” list, “ ” will be displayed
for the Series Link Timer Recording programmes
Note
•
If you delete or correct one of the series link timer
recording programmes, all related programmes will be
deleted or corrected.
• [GREEN]
is available only when the selected
programme has the series link tag.
•
Series Link Timer Recording always starts from the first
available date. If you want to record on specific dates
only of the series, please use normal Timer Recording.
Recording split programmes
With EPG system, when you set the first part for timer
recording, rest of the parts will be automatically set for
timer programme.
Alternate instance recording
If you set a timer programme that overlaps with another,
this unit will search whether the same TV programme is
broadcasted in a different time, and if found, you will be
asked whether to set a timer programme for it.
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
Date 01/04/2008
Time 12:05:15
261 SIT1 2008/04/01 12:05-12:07 News Updat
261 SIT1 2008/04/01 12:10-12:11 Weather
261 SIT1 2008/04/02 12:05-12:07 News Updat
261 SIT1 2008/04/02 12:10-12:11 Weather
Extended Timer
Series list
1/1
01/04 12:07 12:10
261
01/0412:07
Series (Part 2)
LP ( 0:03)
Date Start End CH
Timer Programming
THU
New Programme
STTL
E2N41BN_EN.book Page 34 Wednesday, July 2, 2008 4:36 PM
35
EN

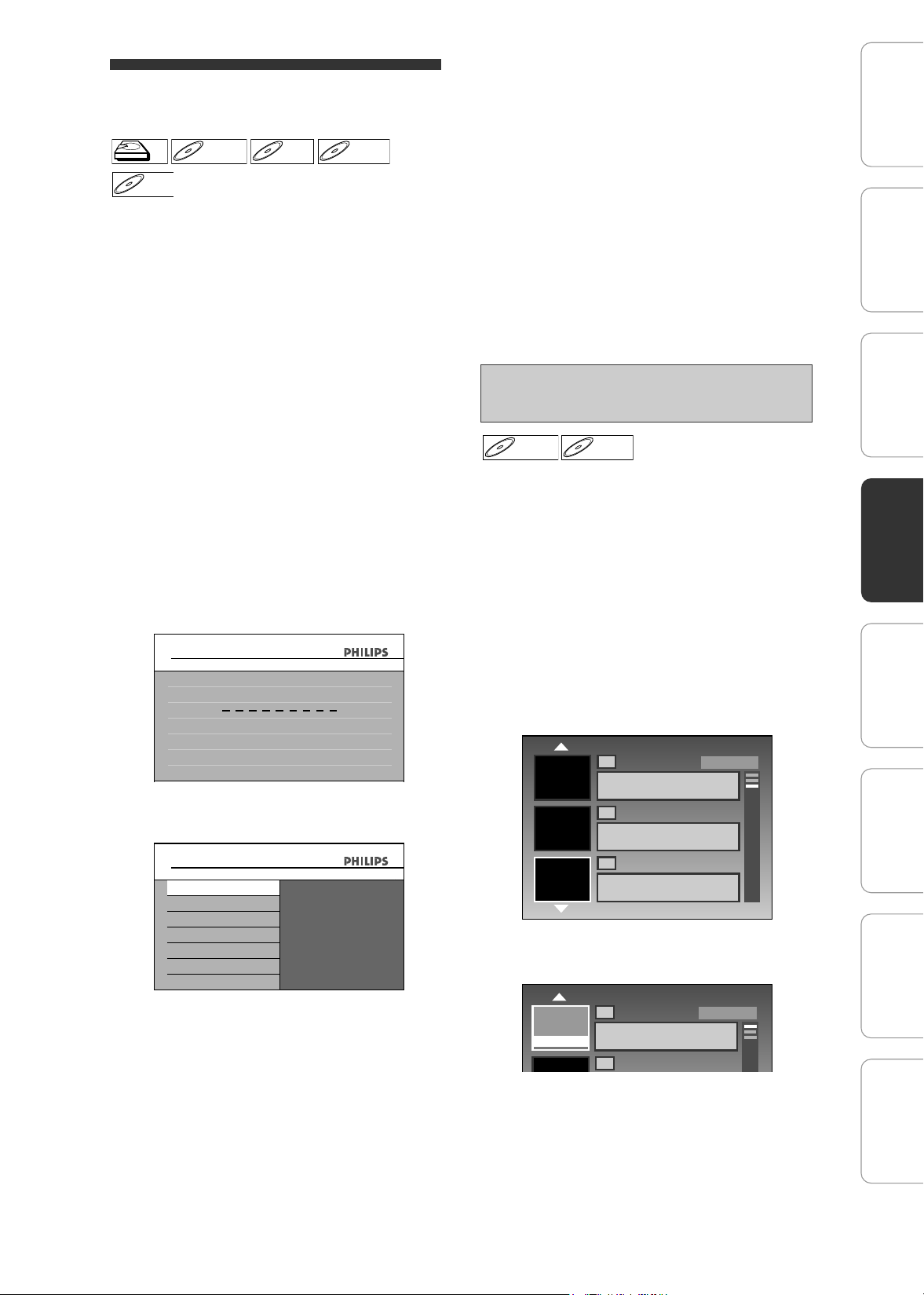

Timer Recording Using the
VIDEO Plus+
®
System
You can program the timer using the VIDEO Plus+
programming numbers that are printed in your local
TV guide magazine (analogue channel only).
1 In stop mode, press
[the VIDEO Plus+ button].
VIDEO Plus+ Programming window will appear.
• If you have not set the clock, the clock setting
window will appear instead. In such a case,
continue from step
4 in “Manual Clock Setting”
on page 89 before programming the timer
recording.
• If the “Timer Programming” list is full, the “Timer
Programming” mode is activated instead of the
VIDEO Plus+ programming mode.
•
Press
[TIMER]
in the
VIDEO Plus+
programming
mode to switch to the “Timer Programming” mode.
•Press [the VIDEO Plus+ button] to exit.
2
Set the VIDEO Plus+ programming
number of the programme you want to
record using [Alphanumeric keypad],
then press [OK].
• You can clear one letter by pressing [L] and all
the letters by pressing [CLEAR].
3
Select the desired recording frequency
using [
U \ D
], then press [OK].
Once:
To record a TV programme once, as you set.
Daily:
To record a TV programme at the same time on
the same channel everyday.
Mon-Fri:
To record a TV programme at the same time on
the same channel from Monday through Friday.
Weekly:
To record a TV programme at the same time on
the same channel every week.
4 If “---” appears for recording
channel, select a recording channel
using [U \ D], then press [P].
• If the channel linking to the VIDEO Plus+ code
is installed in the unit, its preset number will be
indicated in the menu.
• If your local channel information is not
programmed in the unit’s memory, “– – –” may
appear.
• If you select the channel number using [U \ D],
it is stored in the unit’s memory (only analogue
channels). If not, “---” may appear.
• If necessary, correct the information as you
wish.
5 Press [TIMER] when all information
required is entered.
You can overwrite the existing title from the
beginning.
1 Load the disc that includes a title to
be overwritten.
Title list will appear.
If the title list does not appear, press [TITLE].
2 Press [REC MODE] to select a
recording mode.
Refer to “Recordable Discs” on page 25.
3 Use [U \ D] to select a title to be
overwritten, then press [OK]
4 Use [U \ D] to select “Overwrite”,
then press [OK]
5 Select the channel you want to
record.
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
Timer Programming
VIDEO Plus+ System
Please enter a PlusCode No.
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Timer Programming
VIDEO Plus+ System
Once
Daily
Mon-Fri
Weekly
Overwriting from the Beginning of
the Title
DVD+RWDVD+RW D
D
VD-
VD-
R
R
W
W
DVD-RW
1
DVB 123 SP
0:10:00
2
01/01/08 12:00 DVB 123 SP
10/01/08 0:10:00
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
3
SP(2Hr)
1
DVB 123 SP
0:10:00
2
SP(2Hr)
Play
Edit
Overwrite
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 35 Wednesday, July 2, 2008 4:36 PM
36
EN
Refer to page 23 on how to select a channel.
6 Press [I (RECORD)].
Overwriting recording starts.
The elapsed-time counter starts running.
7 Press [C (STOP)] to stop recording.
Title name is also overwritten.
Note
• The remaining recording time is displayed on the
bottom right corner of the TV screen during
overwriting.
You can overwrite the existing title from the selected
position.
1 Follow the steps 1 to 3 of
“Overwriting from the Beginning of
the Title” on page 35.
2 Use [U \ D] to select “Play”, then
press [OK].
Playback will start.
3 Press [F (PAUSE)] at the point from
which you want to start overwriting.
4 Press [I (RECORD)].
5 Select the channel you want to
record.
Refer to page 23 on how to select a channel.
6 Press [I (RECORD)] again.
Overwriting recording starts.
7 Press [C (STOP)] to stop recording.
Note
• Recording mode of the overwriting title is the same
as that of the original (overwritten) title.
• Title name will not be overwritten.
When you overwrite a Title, take note of following
scenarios mentioned. Do note the scenarios is for
overwriting without recording mode discrepancy. To
avoid accidental deletion please check that there is no
important title after selected point before overwriting.
When overwriting title is shorter than the existing
title:
(overwriting from the beginning of the title)
When overwriting title is longer than the existing
title:
(overwriting from the beginning of the title)
Overwriting in the Middle of the Title
11
+
RW
1
T C
DVD SP(2Hr)
0:01:00
2h00m
DVD
selected title number to
be overwritten
DVD+RWDVD+RW
D
D
VD-
VD-
R
R
W
W
DVD-RW
Hints for Overwriting
overwrite
recording : A
existing title : B
after overwriting
30 - 180 seconds will be cut off.
title name : A title name : B
overwrite
recording : A
existing title : B
after overwriting
title name : A
overwrite
recording : A
existing title : B
existing title : C
30 - 180 seconds will be cut off.
after overwriting
title name : A
title
name : C
E2N41BN_EN.book Page 36 Wednesday, July 2, 2008 4:36 PM
37
EN
When overwriting in the middle of the title:
*
1
Overwritten section and the rest of the sections will have
the same title name as the original existing title (B).
Note
• When a title is overwritten, it will split up the title into
the existing title and the new overwrite title. NO
chapter mark will be inserted.
• “Auto Chapter” interval time is reset at the
overwriting start point.
• A chapter mark is put at the beginning of the
overwrite title when overwriting in the middle of the
title.

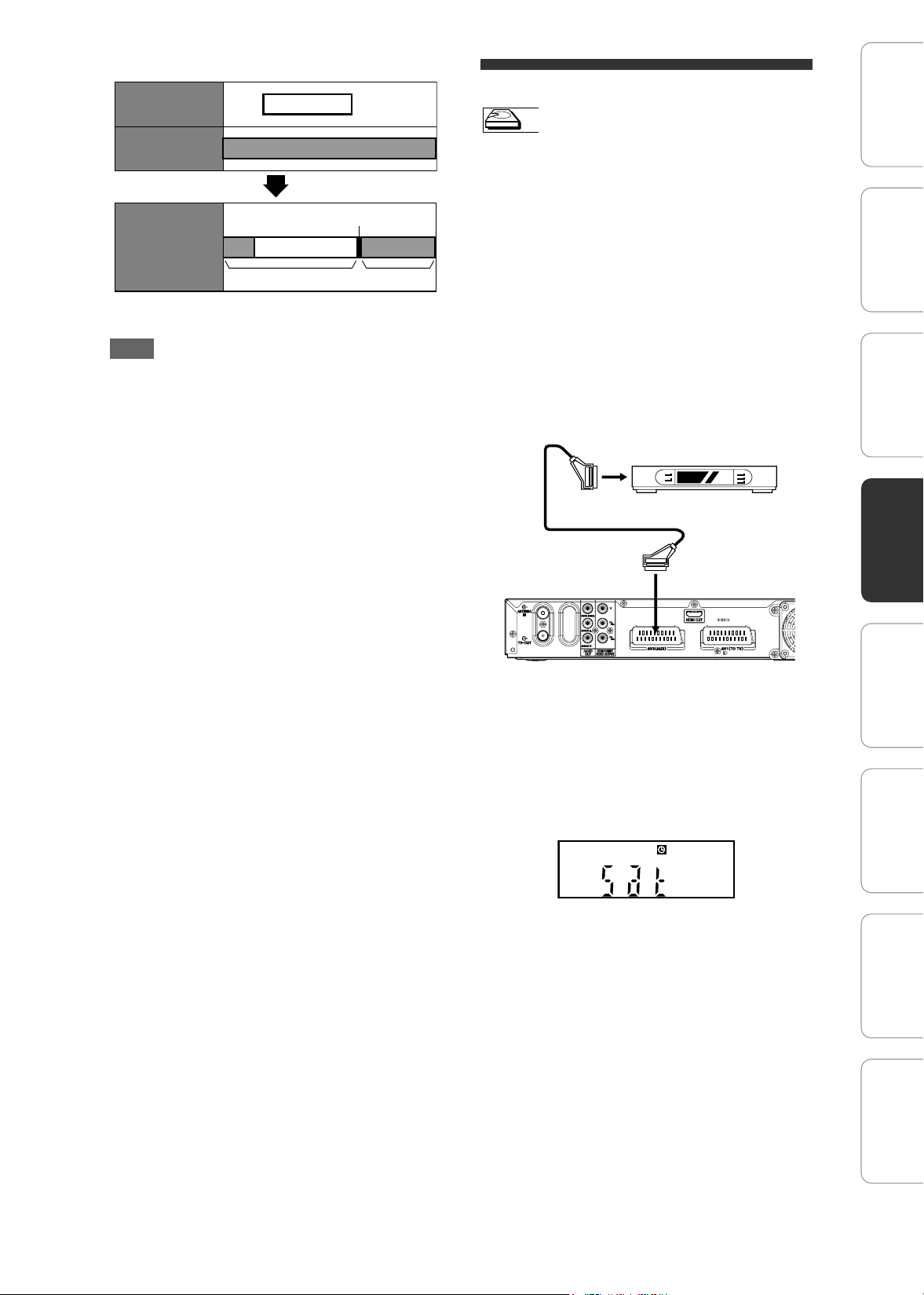

Satellite Recording
You can set the unit to start recording whenever it
detects the video scart control from the Cable Box/
Satellite Receiver.
Preparing for the Satellite Recording:
[Preparation of the Cable Box/Satellite
Receiver]
• The Cable Box/Satellite Receiver should be
equipped with some kind of timer function.
program a timer on the Cable Box/Satellite
Receiver Box. (Refer to the tuner’s manual on
how to set the timer.)
• Make sure to turn off the Cable Box/Satellite
Receiver when you finish setting.
[Preparation of this unit]
• Make sure to select the desired Recording
mode beforehand.
1 In stop mode, press [HDD] then
select the recording mode for HDD
using [REC MODE].
2 Press [SAT.REC].
• “Sat” will appear on the front panel display and
the unit goes into the Satellite Recording
standby mode.
3 When the Cable Box/Satellite
Receiver wakes up due to timer,
Satellite recording will start on the
unit.
4 When the Cable Box/Satellite
Receiver goes back to standby after
timer, Satellite recording stops and
unit returns to standby.
To cancel the Satellite Recording function in the
Satellite Recording standby mode:
Press [Q (STANDBY-ON)] or [SAT.REC] to turn on
the unit.
overwrite
recording : A
existing title : B
after overwriting
title name :B*
1
30 - 180 seconds will be cut off.
title name : B
HDDHDD
Scart cable (not supplied)
Cable Box/Satellite Receiver
(not supplied)
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 37 Wednesday, July 2, 2008 4:36 PM
38
EN
To cancel the Satellite Recording function while
the Satellite Recording is in progress:
Press [STOP C] on the front panel of the unit, or
press [C (STOP)] on the remote control.
Note
• If the satellite recording starts when the power is on,
the TV will switch over to the channel being
recorded.
• If you want to use the unit during the satellite
recording which starts in standby, press
[Q (STANDBY-ON)] to switch the input on your TV
to the recorder source.
• Recording picture will be distorted if the copy
protection signal is being detected during Satellite
Timer Recording.
• [SAT.REC] does not work under the following
circumstances:
- “HOME” menus are displayed.
- “Timer Programming” menu is displayed.
- Title list or any file list is displayed.
• When a regular Timer Recording and the Satellite
Timer Recording are overlapped, the examples are
given below.
Settings for External Equipment
When you record from external equipment, you can
set the format Auto, PAL or SECAM.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Recording” using [U \ D],
then press [OK].
3 Select “Video Standard” using
[U \ D], then press [OK].
4 Select “Auto”, “PAL” or “SECAM”
using [U \ D], then press [OK].
5 Press [HOME] to exit.
Note
• During recording, when a signal other than PAL or
SECAM is detected, an error message appears on
the screen and recording will be paused. Recording
will be resumed when a PAL or SECAM signal is
detected.
Before recording from external equipment, see page
19 for connection instructions.
1 Turn on the TV and the unit, and
select the input of the TV to which
the unit is connected.
If you are recording to the HDD, press [HDD].
If you are recording to a disc, press [DVD] and
insert a recordable disc.
Example 1
Example 2
Example 3
Timer
Recording
Satellite
Recording
Actual
Recording
Timer
Recording
Satellite
Recording
Actual
Recording
Timer
Recording
Satellite
Recording
Actual
Recording
Video Standard
Auto : The Video Standard will be set
automatically according to the
recording material.
PAL : The Video Standard will be set to PAL.
SECAM: The Video Standard will be set to
SECAM.
Recording from External Equipment
General Settings
Auto Chapter
Recording Video Standard
Auto Finalise
Make Rec. Compatible
Auto
PAL
Recording Language
External Input Audio
Video Standard
SECAM
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
E2N41BN_EN.book Page 38 Wednesday, July 2, 2008 4:36 PM
39
EN
2 Select the input terminal to which the
external equipment is connected
(AV1, AV2, or AV3).
To use the input jacks on the rear of the unit,
select “AV1” or “AV2” position by pressing
[SOURCE] or [PROGRAM + / –].
To use the input jacks on the front of this unit,
select “AV3” position by pressing [SOURCE] or
[PROGRAM + / –].
3 Select a recording mode using
[REC MODE]. (See page 25.)
4 Press [RECORD] on the unit to start
recording.
5 Ensure external equipment is turned
on and at correct state for recording.
Refer to Equipment instruction
manual.
6 Press [STOP C] on the unit to stop
recording.
Note
• During recording, recording will be paused when a
signal other than PAL or SECAM is detected. (See
“Video Standard” on page 38 for details.)
• If the external equipment (e.g. cable box,
Canal+ decoder) is connected to AV2, the picture of
the external equipment will be output except during
the DVD playback of this unit. Turn off the external
equipment or press [DISPLAY] to output the picture
of this unit.
Information on Digital Video
Dubbing
This function helps you to dub the contents in the
DVC (digital video camera) to HDD or DVD easily.
You can control basic operations of the DVC from the
remote control of this unit if the DVC is in video mode.
1 Connect your DVC to the DV IN jack
on the front panel using a DV cable.
(Use the DV cable that has 4-pin
input jack and is compliance with the
IEEE 1394 standards.)
2 Press [PROGRAM + / –] or [SOURCE]
and [PROGRAM + / –] to select the
appropriate external input channel
for DV IN jack (AV4).
3 Press [DISPLAY] to display the DVC
information on the screen.
When the DVC is in video mode...
When the DVC is in camera mode...
The menu changes according to the mode of DVC.
Switch the mode on the DVC to video mode for the
dubbing information.
Guide to DV and On-Screen Display
AV4 (DV-IN)
AB-1234
0:12:34
1/ 1 1/ 1
DVD SP(2Hr) 2h00m
-
RW
2
3
1
4
T C
Control
DV Audio
Start Rec
DVD
Stereo1
AB-1234
0:12:34
1/ 1 1/ 1
-
RW
5
6
T C
DVD SP(2Hr) 2h00m
AV4 (DV-IN)
7
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 39 Wednesday, July 2, 2008 4:36 PM
40
EN
1DV icon
2 Indicator of active device
• With “Control” highlighted, press [OK] to display
the available devices to control with the remote
control of this unit. Select the device you want to
operate using [U \ D], then press [OK].
- Select “HDD” / “DVD” to control this unit with the
remote control of this unit.
- Select “DVC” to control your DVC with the
remote control of this unit.
3 Recording audio mode
• “DV Audio” can be changed. With “DV Audio”
selected, press [OK] to display “DV Audio”
menu. Select the audio you want to output using
[U \ D], then press [OK].
- Select “Stereo1” to dub the stereo sound.
- Select “Stereo2” to dub the sound that was
added after the recording.
- Select “Mix” to dub the stereo1 and stereo2.
4 Command menu
• “Start Rec” or “Pause Rec” will appear.
5 External input channel
6 Product name of your DVC
• If the unit cannot recognise the input signal from
the DVC or if it is the unknown product, “No
Device” or “****” will appear instead.
7 Status of the current operation and the
time counter
Each icon means (Available icons may vary
depending on the DVC):
• The actual speed varies depending on your digital
video camera.
Digital Video Camera to HDD /
DVD Dubbing
Before recording from DVC, see page 19 for
connection instructions.
If you are dubbing to the HDD, press [HDD] first.
If you are dubbing to a disc, press [DVD] first.
1 Select “AV4 (DV-IN)” channel using
[PROGRAM + / –] or [SOURCE] and
[PROGRAM + / –].
2 Press [REC MODE] to select a
recording mode. (See page 25.)
3 Press [DISPLAY].
4 With “Control” highlighted, press
[OK] to display the available devices
to control with the remote control of
this unit. Select “DVC” using
[U \ D], then press [OK].
e.g.) DVC to DVD dubbing
Now you can operate your DVC with the remote
control of this unit.
5 Press [B (PLAY)] to start playing
back the DVC, and find where you
want to start dubbing.
Press [C (STOP)] when it comes to
the desired start point.
The following instructions are described with
the operations using the remote control of this
unit.
DVC is in stop mode.
DVC is in playback mode.
DVC is in pause mode.
DVC is fast forwarding. (standard speed)
DVC is fast forwarding. (faster than above)
DVC is fast forwarding. (faster than above)
DVC is slow forwarding. (standard speed)
DVC is slow forwarding. (faster than above)
DVC is slow forwarding. (faster than above)
DVC is fast forwarding. (without picture)
DVC is fast reversing. (without picture)
DVC is fast reversing. (standard speed)
DVC is fast reversing. (faster than above)
DVC is fast reversing. (faster than above)
DVC is in slow reverse playback.
DVC is in recording.
DVC is in recording pause mode.
Please also read the operating instructions of
your DVC for more information.
Preparing for DV dubbing (DVC to HDD):
• Make sure your DVC is in video mode.
Preparing for DV dubbing (DVC to DVD):
• Insert a recordable DVD.
• Make sure your DVC is in video mode.
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
AV4 (DV-IN)
AB-1234
0:00:00
AB-1234
0:00:00
1/ 1 1/ 1
-
RW
T C
AV4 (DV-IN)
DVD SP(2Hr) 2h00m
Control
DV Audio
Start Rec
DVD
Stereo1
E2N41BN_EN.book Page 40 Wednesday, July 2, 2008 4:36 PM
41
EN
6 Select “Start Rec” using [U \ D],
then press [OK].
The dubbing will start.
To stop dubbing;
1 Select “Control” using [U \ D], then press
[OK].
2 Select “HDD” / “DVD” using [U \ D]
(whichever the recording component you
are using), then press [OK].
3 Press [C (STOP)].
Note
• The unit does not send out the output signal to DVC.
• For the proper operation, connect DVC to the unit
directly. Do not connect this unit and DVC via any
other unit.
• Do not connect more than one DVC.
• The unit can only accept DVC. Other DV device
such as cable/satellite box or D-VHS VCR cannot
be recognised.
• If no video signal is detected from the DVC during
DVC to HDD or DVD dubbing, the recording will be
paused and “I” will flash on the TV screen. The
recording will resume when the unit detects the
video signal again.
• When the DVC is in camera mode, refer to “Guide to
DV and On-Screen Display” on pages 39 - 40.
• Pictures with a copy-guard signal cannot be
recorded.
• A DV terminal is a terminal that can use the
transmission mode conforming to the IEEE 1394
standards called “Fire Wire”. It serves as the
interface that connects the PC and peripheral device
such as “i.LINK” (registered trademark of SONY). It
enables digital dubbing between DV devices with
little degradation.
• You cannot dub from DVC to both HDD and DVD at
the same time.
Information on Dubbing
You can dub the contents of the HDD to DVD or vice
versa. Before you start dubbing, refer to page 26 to
see the recording compatibility.
1 Dubbing direction
2 Dubbing menu
3 Remaining recordable space
4 Dubbing list
“High”:
This unit is compatible with the high speed dubbing
from HDD to DVD.
If you dub a title recorded in SLP mode to DVD+R/-R,
dubbing speed will be 24 times at the maximum. To
perform the high speed dubbing, set the recording
mode to “High”.
• Duration of high speed dubbing will vary depending
on the recording mode and the title amount.
• High speed dubbing is not available when;
- recording mode is set to other than “High”.
- dubbing from a DVD to the HDD.
- there is not enough space in the DVD.
- duration of the title is more than 5 hours.
• During dubbing (except for high speed dubbing),
you can use [STOP C] on the front panel or press
[C (STOP)] on the remote control, and any other
buttons will be invalid.
“Auto”:
When “Auto” is selected as a recording mode, the unit
calculates how much time is available on the disc and
selects the best recording mode available
automatically.
• The recording may be cut short when the available
recording space of the disc is too limited.
Note
• During normal dubbing, you can watch the playback
picture of the title being dubbed (the audio cannot
be changed). During high speed dubbing, however,
the playback picture will not appear.
• Dubbing of a “copy-once only” programme is not
possible with this unit.
• If you stop the dubbing halfway, the contents will be
dubbed up to the point where you stop the dubbing
(except for the high speed dubbing). With high
speed dubbing, nothing will be dubbed if you stop it
halfway.
• To stop the dubbing in progress, press [STOP C] on
the front panel or press [C (STOP)] on the remote
control.
Guide to Dubbing Menu Display
Recording Mode for Dubbing
4000 MB
1
1
2
3
4
Dubbing
Add Title
HDDADVD
Move Title
Delete Title
Dubbing List
Delete All
1.Title 1
Start Dubbing
Add title to the dubbing list
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 41 Wednesday, July 2, 2008 4:36 PM
42
EN

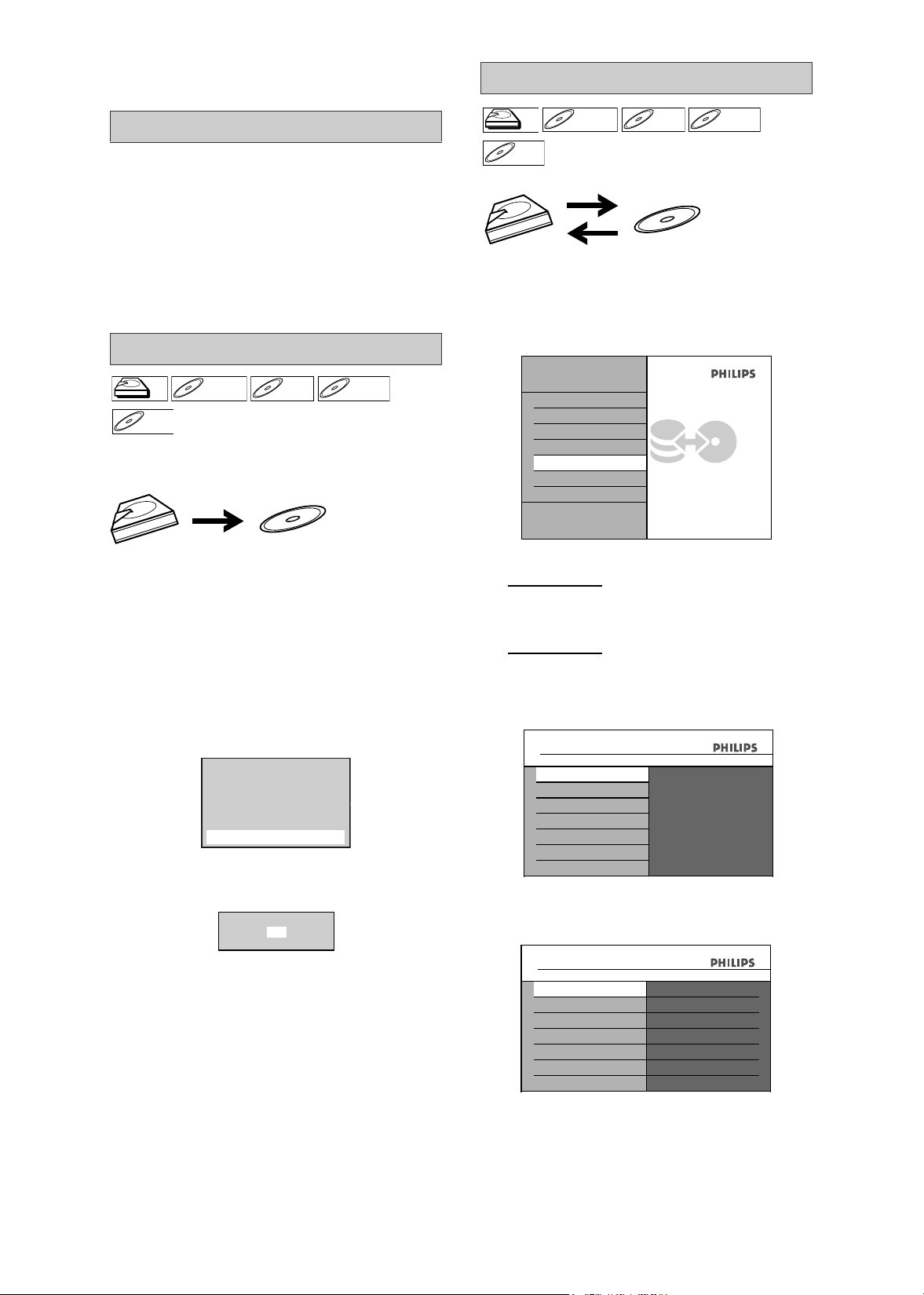

Other modes
Refer to page 25 for the information on other modes.
Limitation (DVD to HDD):
• If a copy control signal is detected during
dubbing, the dubbing will be stopped.
Preparing for dubbing (HDD to DVD):
• Insert a recordable DVD.
Preparing for dubbing (DVD to HDD):
• Insert a disc to be dubbed.
• Discs dubbed with other devices may not be
dubbed.
This function lets you select one specific title from the
title list for dubbing.
Press [HDD] first.
1 Press [TITLE].
2 Select a desired title to be dubbed
using [U \ D \ L \ P], then press
[OK].
3 Select “Dubbing” using [U \ D],
then press [OK].
4 Select “Yes” using [U \ D], then
press [OK].
Now you can operate your DVC with the remote
control of this unit.
To stop the dubbing in progress:
Press [STOP C] on the front panel.
Press [C (STOP)] on the remote control.
1 In stop mode, press [HOME].
2 Select “Dubbing” using [U \ D],
then press [OK].
3
Select “HDDADVD” using [U \ D],
then press [OK].
Select “DVDAHDD” using [U \ D],
then press [OK].
e.g.) HDDADVD
4 Select “Add Title” using [U \ D],
then press [OK].
• If you have registered any dubbing before, they
will be listed in the dubbing title list.
Before Starting Dubbing
One-Title Dubbing
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
1
45
2
Play From Start
Edit
Title Delete
Dubbing
Resume Playback
Delete Multiple Titles
Start Dubbing?
Yes
No
Selected Title Dubbing
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
HOME
Title List
Timer Programming
Disc Editing
HDD Settings
Dubbing
Disc Playback Mode
General Settings
Press HOME to exit
HDDADVD
DVDAHDD
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Dubbing
HDDADVD
Dubbing
DVDAHDD
Dubbing
Add Title
Move Title
Delete Title
Delete All
Start Dubbing
Dubbing List
HDDADVD
E2N41BN_EN.book Page 42 Wednesday, July 2, 2008 4:36 PM
43
EN
5 Select a desired title using
[U \ D \ L \ P], then press [OK].
e.g.) HDD
The title is now registered in the dubbing list.
6 Repeat steps 4 to 5 until you register
all the titles to be dubbed.
e.g.) HDDADVD
To delete a title:
1 Select “Delete Title” in the dubbing menu
using [U \ D]. Then press [OK].
2 Select the desired title in the dubbing list.
Then press [OK]. Final confirmation
message will appear.
3 Select “Yes” using [U \ D], then press
[OK].
To move a title:
1 Select “Move Title” in the dubbing menu
using [U \ D]. Then press [OK].
2 Select the desired title in the dubbing list.
Then press [OK].
3 Select a desired insert point using [U \ D],
then press [OK].
To erase all the titles in the dubbing title list:
1 Select “Delete All” in the dubbing menu
using [U \ D], then press [OK].
2 Select “Yes” using [U \ D], then press
[OK]. Final confirmation message will
appear.
3 Select “Yes” using [U \ D], then press
[OK].
7 After adding all the titles you want,
select “Start Dubbing” in the
dubbing menu using [U \ D], then
press [OK].
8 Select a desired recording mode
using [U \ D], then press [OK].
e.g.) HDDADVD
Confirmation message will appear.
• Depending on the dubbing direction, the
available recording mode varies.
• When dubbing from HDD to DVD, you can
select “High” to perform the high speed dubbing.
9 Select “Yes” using [U \ D], then
press [OK].
Dubbing will start.
• It may take awhile to prepare for the dubbing.
During normal dubbing (except for High speed
dubbing), time taken to do the dub may be equal
to record duration (for example, 1 hour title
means waiting for 1 hour).
To stop the dubbing in progress:
Press [STOP C] on the front panel.
Press [C (STOP)] on the remote control.
Note
• Dubbing will be cancelled 2 minutes before starting
timer recording.
• During normal dubbing (except for High speed
dubbing), time taken to do the dub may be equal to
record duration (for example, 1 hour title means
waiting for 1 hour).
12:00 (1:00:00) 01/01/08 1 SP
01/01/08 12:00 (1:00:00)
1
456
23
Title List
Dubbing
Add Title
Move Title
Delete Title
Delete All
Start Dubbing
Dubbing List
HDDADVD
1.01/01/08 12:00 1
500 MB
Dubbing
High
HQ
SP
SPP
LP
Select Recording Mode
EP
SLP
HDDADVD
Dub. Titles
500 MB
Dubbing
High
HQ
SP
SPP
LP
Start Dubbing?
Select Recording Mode
EP
SLP
No
Yes
HDDADVD
Dub. Titles
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 43 Wednesday, July 2, 2008 4:36 PM
44
EN
Protecting a Disc
To prevent accidental over-recording, editing or
erasing of recordings, you can protect them using
Disc Protect Function.
Insert a recordable disc.
1 In stop mode, press [HOME].
2 Select “Disc Editing” using [U \ D],
then press [OK].
3 Select “Disc Protect OFF A ON”
using [U \ D], then press [OK].
4 Select “Yes” using [U \ D], then
press [OK].
The disc is protected.
Note
• You can select only “Disc Protect ON A OFF” when
a protected disc is inserted.
To cancel the disc protect:
• Select “Disc Protect ON A OFF” at step 3, then
select “Yes”.
• If you insert a disc protected with this unit, “Disc
Protect ON A OFF” will appear instead of
“OFF A ON”.
Finalising Discs
You will need to finalise discs to play them back in
other units.
Finalising may take between several minutes and an
hour.
A shorter recording period on the disc will require a
longer time period for finalisation. Do not unplug the
mains cable during finalisation.
Insert a recordable disc before
finalising.
1 In stop mode, press [HOME].
2 Select “Disc Editing” using [U \ D],
then press [OK].
3 Select “Finalise” using [U \ D], then
press [OK].
4 Select “Yes” using [U \ D], then
press [OK].
e.g.) DVD-RW disc
Finalising will start.
To cancel finalising (DVD-RW disc only):
At step 4, press [C (STOP)]. Select “Yes” using
[U \ D], then press [OK]. Finalising is cancelled
and the unit switches to stop mode.
If “ ” appears when [C (STOP)] is pressed, you
cannot cancel finalising because the finalising has
already reached at a critical point in its process.
If “No” is selected and [OK] or [BACK U] is
pressed, finalising is continued.
You cannot cancel finalising a DVD+R and
DVD-R disc once it has started.
5 Finalising is complete.
DVD+RWDVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
Disc Editing
Edit Disc Name
Erase Disc
Finalise
Disc Protect OFF
A
ON
Finalise disc?
Disc Editing
No
Yes
Finalise
10%
Do you want to cancel ?
Yes
No
Finalising
E2N41BN_EN.book Page 44 Wednesday, July 2, 2008 4:36 PM
45
EN
Hint
• Once you have finalised DVD+R/-R, you cannot
record anything on that disc.
• There is no need to finalise DVD+RW.
• If you insert a DVD-RW disc finalised with this unit,
“Undo Finalise” will appear instead of “Finalise”. To
release the finalisation of the disc, select “Undo
Finalise” at step
3.
Note
• DO NOT power off during finalising. This may result
in a malfunction.
You can finalise discs automatically when the disc
space runs out if you set this in “Recording” menu.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Recording” using [U \ D],
then press [OK].
3 Select “Auto Finalise” using [U \ D],
then press [OK].
4 Select “ON” using [U \ D], then
press [OK].
5 Press [HOME] to exit.
Auto Finalise
DVD+RDVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
General Settings
Auto Chapter
Auto Finalise
Make Rec. Compatible
Recording Language
External Input Audio
Recording
Video Standard
OFF
ON
Auto Finalise
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 45 Wednesday, July 2, 2008 4:36 PM
46
EN

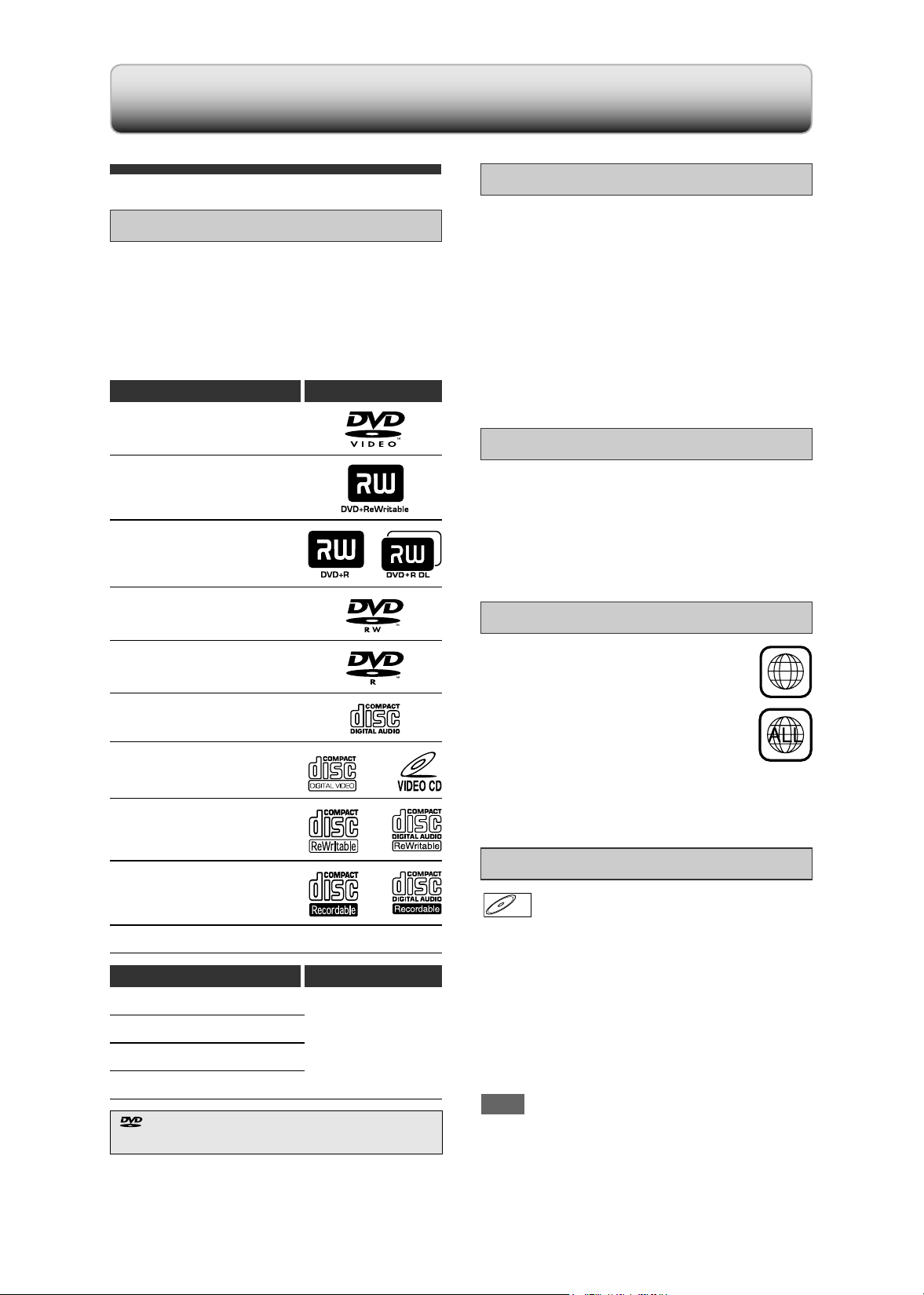

Information on Playback
You can play back all the discs listed on the right.
Before attempting to play back a DVD, make sure it
meets the requirements for Region Codes and Colour
Systems as described in this section. Discs that bear
any of the logos shown below will be played back
correctly in this unit. Other disc types are not
guaranteed to be played back.
* This unit cannot play back the disc contents
protected by Windows Media Digital Rights
Management (DRM).
The following discs will not play back on this unit.
On the following disc, the sound may not be heard.
• Super audio CD - Only the sound on the CD layer
can be heard. The sound on the high-density super
audio CD layer cannot be heard.
DVDs are recorded using different colour systems
throughout the world. The most common colour
system, used primarily in the U.K. and other EU
countries, is PAL.
This unit uses the PAL system. However, it is also
possible to play back DVDs using other colour
systems, such as NTSC.
This unit has been designed to play DVD
with region 2. DVD must be labelled for All
regions or for region 2 in order to play on the
unit. You cannot play back DVDs that are
labelled for other regions. Look for the
symbols on the right on your DVD. If these
region symbols do not appear on your DVD,
you cannot play back the DVD in this unit.
The number inside the globe refers to region of the
world.
A DVD labelled for a specific region can only play
back on a unit with the same region code.
This unit conforms to ver.1.1 and ver.2.0 of the Video
CD standard playback control (PBC) function. This
enables you to play back interactive software using
menu screens. Refer to the information
accompanying the Video CD.
Ver.1.1 (without PBC function): You can still enjoy
playback of pictures and music from the CD.
Ver.2.0 (with PBC function): “Pbc” will appear on the
screen and display when playing back a Video CD
with the PBC function.
Hint
• When playing back Video CDs with the PBC
function, “Pbc” is displayed instead of the playing
back time and current track indications on the front
panel display.
Playback
Playable Discs
Disc
Logo
DVD-Video
DVD+RW(Single layer)
DVD+R(Single/Double layer)
DVD-RW
(Finalised video mode discs
only)
DVD-R
(Finalised video mode discs
only)
CD-DA (AUDIO CD)
video CD
CD-RW
CD-R
Kodak Picture CD
Playable files
Media
MP3
CD-RW/-R
DVD+RW/+R
DVD-RW/-R
Windows Media™ Audio
JPEG
DivX
®
is a trademark of DVD Format/Logo Licensing
Corporation.
Unplayable Discs
• CD-ROM • Compact Disc-Interactive
(CD-I)
• Video Single Disc (VSD) • DVD-ROM
• DVD-RAM • DVD-audio
• Unfinalised disc
• DVD-RW/-R recorded in VR mode or non
compatible recording format
•Blu-ray Disc •HD DVD
Colour Systems
Region Codes
PBC Function for Video CDs
2
VCDVCD
E2N41BN_EN.book Page 46 Wednesday, July 2, 2008 4:36 PM
47
EN

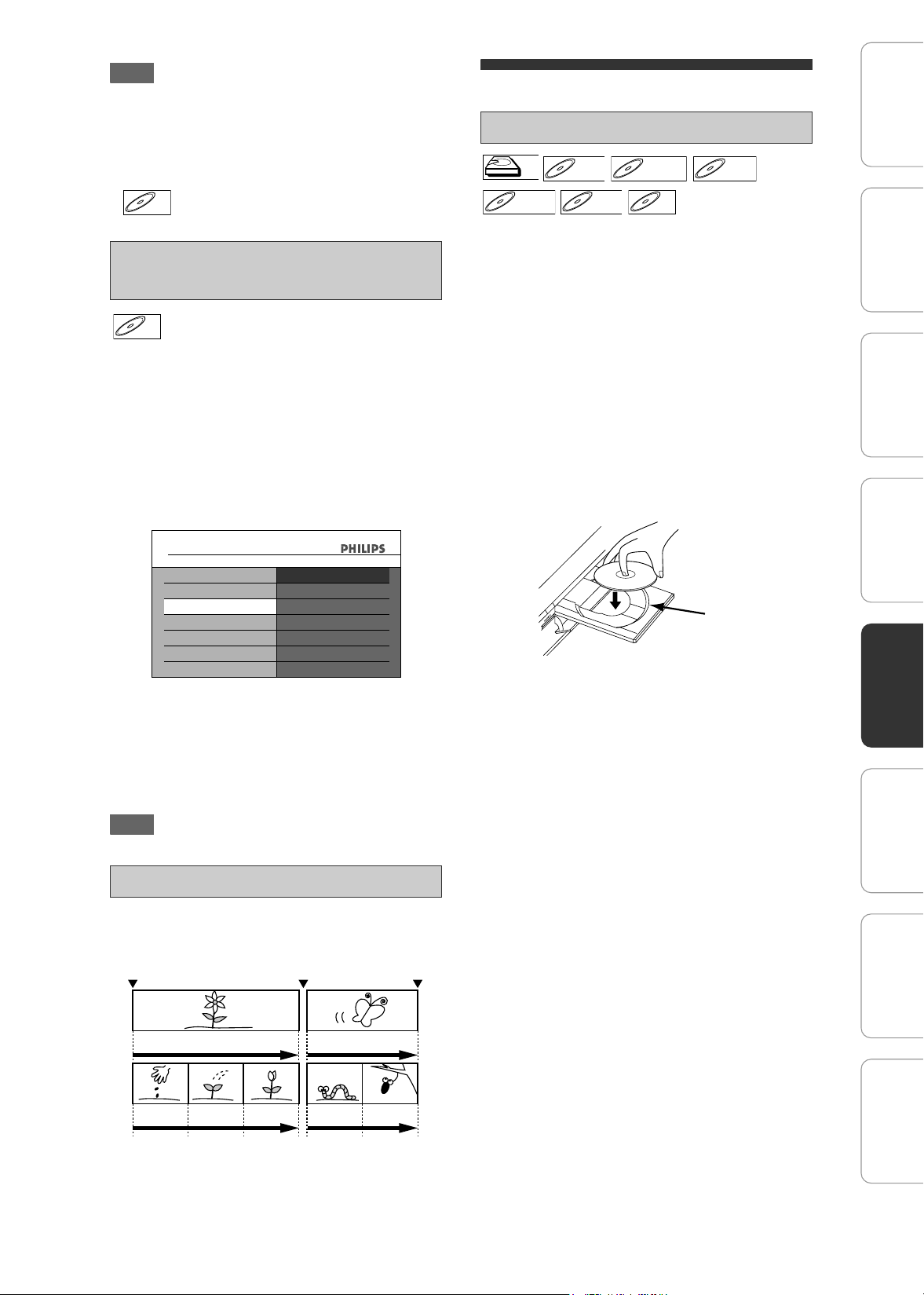

Note
• Some operations cannot be performed unless the
function is cancelled either automatically or
intentionally by you.
• Operations that are not available when the PBC
function is set to “ON” are indicated by the following
symbol in this manual:
Insert a Video CD.
1 In stop mode, press [HOME].
2 Select “Disc Playback Mode” using
[U \ D], then press [OK].
3 Select “PBC (Video CD only)” using
[U \ D], then press [OK].
4 Select “OFF” using [U \ D], then
press [OK].
5 Press [HOME] to exit.
To recall the PBC function, select “ON” at step 4
above.
Note
The default setting of “PBC (Video CD only)” is “ON”.
The contents of an HDD / DVD are generally divided
into titles. Titles are sometimes further subdivided into
chapters.
Basic Playback
1 Press [Q (STANDBY-ON)] to turn on
the unit.
Turn on the TV and be sure to select the input to
which the unit is connected.
If you are playing back the titles in HDD, press
[HDD] first, then proceed to step
5.
If you are playing back the titles in DVD, press
[DVD] first.
2 Press [A (OPEN\CLOSE)] to open
the disc tray.
3 Place the disc on the disc tray with
its label facing up. Be sure to align
the disc with the disc tray guide.
4 Press [A (OPEN\CLOSE)] to close
the disc tray.
5 Press [P (PLAY)] to start playback.
If you are playing back a DVD-video or video CD
with PBC function, a menu may appear. See on
pages 46 - 47 and 53.
6 Press [C (STOP)] to stop playback
temporarily.
Refer to “Resume Playback” on page 54.
To eject the disc, press [A (OPEN\CLOSE)] to
open the disc tray, then remove the disc. Press
[A (OPEN\CLOSE)] to close the disc tray before
turning off the unit.
Cancelling and Recalling the PBC
Function
Hint for HDD / DVD Playback
VCDVCD
(PBC OFF)
VCDVCD
(PBC OFF)
Disc Playback Mode
Random Play
Disc Playback Mode
Programme Play
PBC (Video CD only)
Slideshow Interval
ON
OFF
Start Rec. Stop/Start Stop Rec.
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
Direct Playback
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R VCD
VCD
VCD
Disc tray guide
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 47 Wednesday, July 2, 2008 4:36 PM

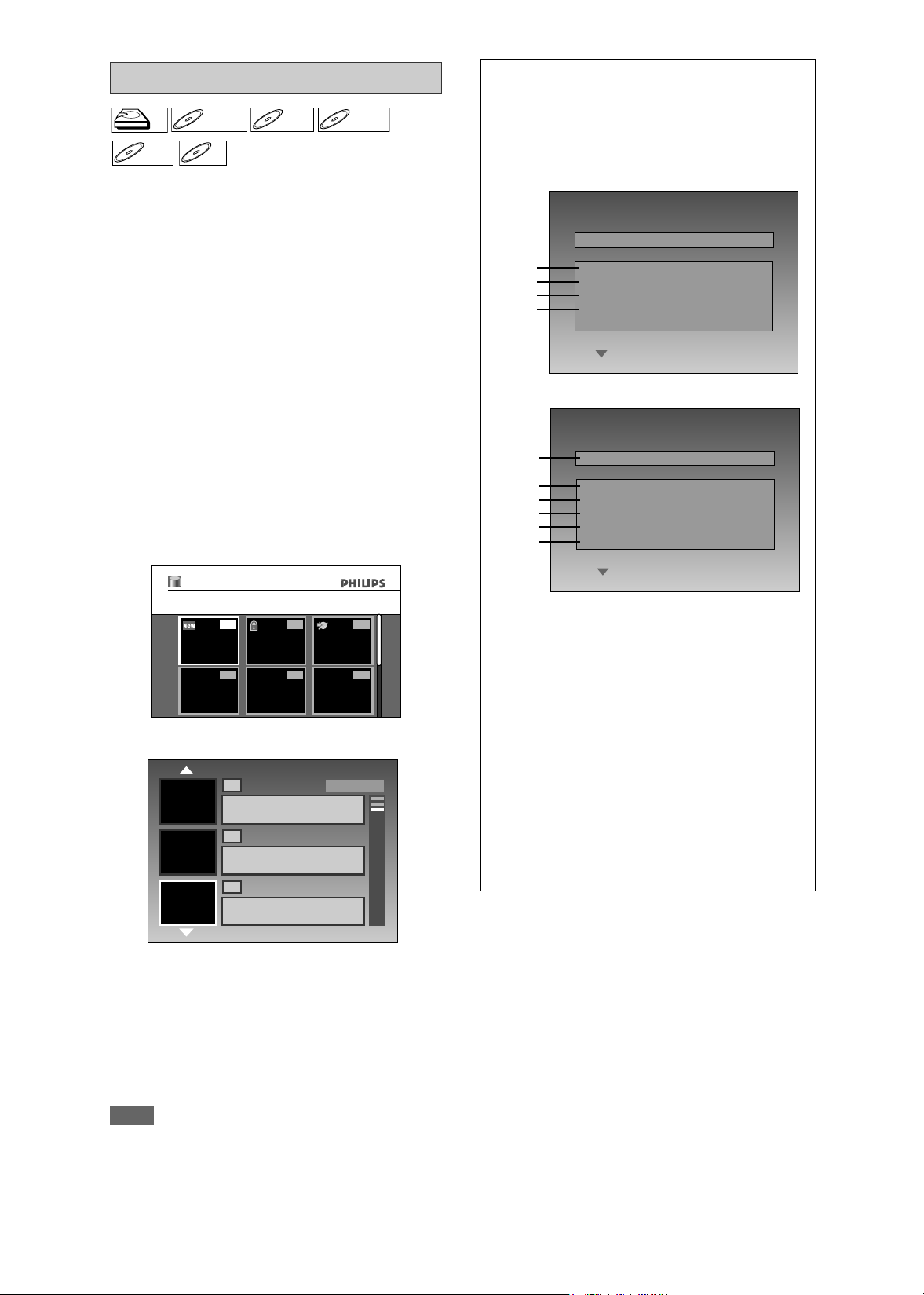

48
EN
If you are playing back the titles in HDD, press [HDD]
first, then proceed to step
2.
If you are playing back the titles in DVD, press [DVD]
first.
1 Follow steps 1 to 4 in “Direct
Playback” on page 47.
* Make sure the disc is compatible with this unit.
(Refer to page 46 for the list of compatible discs.)
2 For HDD, press [TITLE] to call up the
title list. For DVD, the title list will
automatically appear when you
insert a disc. Otherwise, press
[TITLE] or [DISC MENU].
• To exit the title list, press [C (STOP)].
• To resume the title list, press [TITLE].
3 Use [U \ D \ L \ P] to select a
desired title, then press [OK].
<HDD title list>
<DVD title list>
• For Video CD, when “PBC (Video CD only)” in “Disc
Playback Mode” menu is set to “ON”, the video CD
main menu will appear when inserting a disc. In
such case, select a numbered menu with
[Alphanumeric keypad].
•Press [T (NEXT)] (for HDD) / [B] (for DVD) to
display the next page, and press [S (PREV)] (for
HDD) / [L] (for DVD) to display the previous page.
Note
• Some discs may start playback automatically.
• You can also start playback by pressing [B (PLAY)]
instead of [OK] at step
3.
Playback from the Title List
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R VCD
VCD
VCD
12:00 (1:00:00) 01/01/08 1 SP
01/01/08 12:00 (1:00:00)
1
456
23
Title List
1
DVB 123 SP
0:10:00
2
01/01/08 12:00 DVB 123 SP
10/01/08 0:10:00
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
3
SP(2Hr)
Note for DVD Title List
If you want to see disc information, press [L] when
the first page of the title list is displayed or press [U]
when the first title is selected but not when “Play”,
“Edit” or “Overwrite” is highlighted.
e.g.) DVD+RW
e.g.) DVD+R
1. Disc name
(Default “No Disc Name”)
2. Disc type
(DVD+RW/DVD+R/ DVD-RW/DVD-R)
3. Total number of title
(include “EMPTY TITLE”)
4. Total time of recorded disc space
5. Status of disc protection
(“ON” is protected disc.)
6. Making edits compatible/finalise
• When DVD+RW is inserted:
If the disc needs to be set “Make Edits
Compatible”, “Needed” is displayed. Otherwise,
“Not Needed” is displayed. (Refer to page 72.)
• When DVD+R, DVD-RW or DVD-R is inserted:
If “Finalise” is done, “Finalised” is displayed.
Otherwise, “Unfinalised” is displayed.
3
0:30:48
1
2
3
4
5
6
No Disc Name
Disc
Total Titles
Disc Space Used
Disc Protect
Make Edits Compatible
DVD+RW
OFF
Needed
5
1:30:48
1
2
3
4
5
6
No Disc Name
Disc
Total Titles
Disc Space Used
Disc Protect
Finalise
DVD+R
OFF
Finalised
E2N41BN_EN.book Page 48 Wednesday, July 2, 2008 4:36 PM

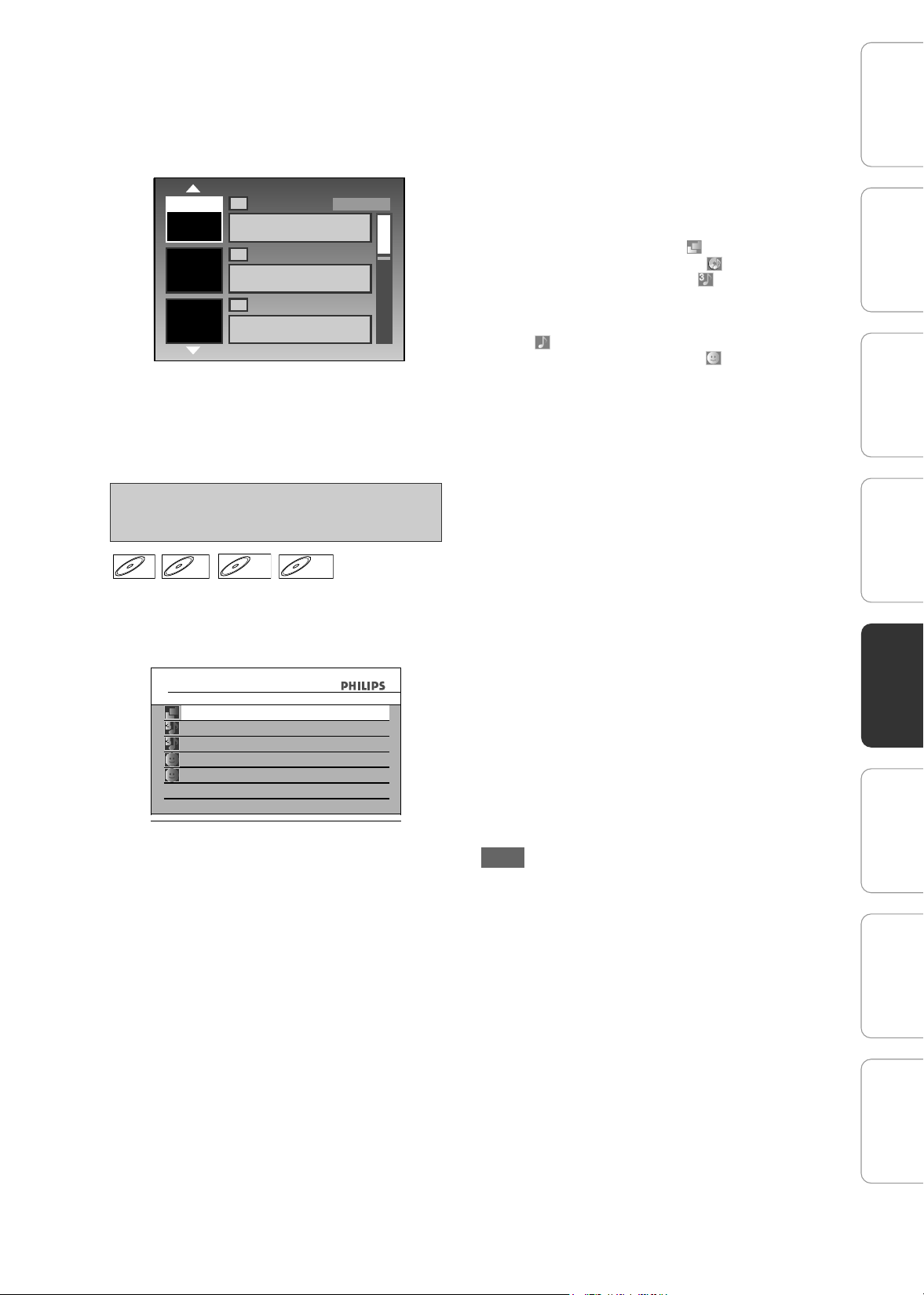

49
EN
4 Use [U \ D] to select “Play” (for
DVD), or select “Resume Playback”
or “Play From Start” (for HDD), then
press [OK].
e.g.) DVD+R
Playback will start.
5 Press [C (STOP)] once to stop
playback temporarily.
Refer to “Resume Playback” on page 54.
1 Follow steps 1 to 4 in “Direct
Playback” on page 47.
The “File List” will appear.
To exit the “File List”, press [TITLE] or press
[C (STOP)].
To resume the “File List”, press [TITLE].
2 Press [U \ D] to select the desired
folder or track / file, then press [OK].
If a track / file is selected:
Playback will start.
If a folder is selected:
The files in the folder will appear.
Press [U \ D] to select the folder you want, then
press [OK].
•Press [B (PLAY)], [OK] or [P] to move to any
lower folders.
•Press [L] or [BACK U] to move back to the
folder above.
•Press [DISPLAY] to view information of MP3.
Hints for Audio CD tracks and MP3 / Windows
Media™ Audio / JPEG files:
• Folders are shown with the icon.
• Audio CD tracks are shown by icon.
• MP3 files are shown with the icon.
Playback will start from the selected track and
continue with each one after.
• Windows Media™ Audio files are shown
by icon.
• JPEG files are shown with the icon.
• The unit can recognise up to 255 folders and up
to 99 tracks / 999 files.
• Letters of a file / folder name overflowing the
given space will be displayed as “...”.
• Unplayable folders and tracks / files may be
displayed depending on the recording
conditions.
• For MP3 file recorded in Variable Bit Rate
(VBR), the unit may not display the actual
elapsed time.
• If there are no files in the folder, “No Files” is
displayed.
• High resolution or large-size JPEG files take a
few moments to be displayed.
• It is not possible to play back progressive
JPEGs (JPEG files saved in progressive format)
on this unit.
• It is not possible to play back JPEG files of 12
MB or more.
It is recommended that files to be played back in
this unit are recorded under the following
specifications:
[MP3 / Windows Media™ Audio]
[JPEG] Size of picture
Note
• MP3 files cannot be recorded as digital sound using
an MD or DAT deck.
• Files with extensions other than “.mp3 (MP3)”/
“.wma (Windows Media™ Audio)” or “.jpg /
.jpeg (JPEG)” will not be listed in the “File List”.
• Some folders or tracks listed in the File List may be
unplayable due to their recording status.
• The “File List” displays only up to 8 folders and file
names.
Notes on JPEG:
After file is displayed for 5 seconds or 10 seconds (set
in the “Slideshow Interval” on page 60), the display
moves to the next file.
During JPEG playback, press [P] or [L] to rotate a
picture 90 degrees clockwise or counterclockwise
respectively. (Not available when the display menu
appears.)
Playing Back an Audio CD, MP3,
Windows Media™ Audio or JPEG
1
2
3
01/01/08 12:00 8 SP
01/01/08 1:55:00
0:05:00 SP(2Hr)
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
EMPTY TITLE
SP(2Hr)
Play
Edit
Overwrite
CDCD MP3MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG
VOL_200801011200
File List
Folder
MP3 File1
MP3 File2
JPEG File1
JPEG File2
• Sampling frequency : 44.1 kHz or 48 kHz
• Constant Bit Rate : 112 kbps to 320 kbps
• Upper limit : 6,300 x 5,100 dots
• Lower limit : 32 x 32 dots
• Capacity limit : less than 12 MB
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 49 Wednesday, July 2, 2008 4:36 PM
50
EN
Notes on JPEG or Kodak Picture CD:
After track is displayed for 5 seconds or 10 seconds
(set in the “Slideshow Interval” on page 60), the
display moves to the next file.
During JPEG or Kodak Picture CD playback, press
[P] or [L] to rotate a picture 90 degrees clockwise or
counterclockwise respectively.
(Not available when the display menu appears.)
1 Follow steps 1 to 4 in “Direct
Playback” on page 47.
The “File List” will appear.
To exit the “File List”, press [TITLE] or press
[C (STOP)].
To resume the “File List”, press [TITLE].
2 Press [U \ D] to select the desired
folder or file, then press [OK].
If a file is selected:
Playback will start.
If a folder is selected:
The files in the folder will appear.
Press [U \ D] to select the file or folder you
want, then press [OK].
•Press [B (PLAY)], [OK] or [P] to move to any
lower folders.
•Press [L] or [BACK U] to move back to the
folder above.
Kodak Picture CD
The Picture CD is a service to convert photographs
taken by a conventional film camera into digital data
and write the data on a CD. You can enjoy picture
images on the TV set by playing back the Picture
CDs.
For details of Kodak Picture CD, contact a shop that
provides developing service of Kodak Inc.
Press [DVD] first.
1 Press [TITLE].
• To exit the Picture CD thumbnail List, press
[TITLE] , [C (STOP)] or [BACK U].
The track number of the items currently played
back is highlighted.
Use [U \ D \ L \ P] to move among the
pictures one by one and use [T(NEXT)] /
[S(PREV)] to the next / previous page.
2 Press [U \ D \ L \ P] to select a
desired track to be played back,
then press
[B (PLAY)] or [OK].
An image will be played back from the selected
track and go to the next one in turn.
3 Press [C (STOP)] to stop playback.
ABC
Pictures
Playing Back a DivX
®
DivX
®
DivX
®
VOL_200801011200
File List
Folder1
Folder2
1 DivX File1
2 DivX File2
3 DivX File3
E2N41BN_EN.book Page 50 Wednesday, July 2, 2008 4:36 PM
51
EN
It is recommended that files to be played back in
this unit are recorded under the following
specifications:
DivX
®
Subtitle
The subtitle created by the user can be displayed
during DivX
®
playback.
1 After the DivX
®
media file is
selected, “Subtitle List” will appear.
2 Select the desired extension of the
subtitle file you want to display
using [U \ D], then press [OK].
DivX
®
with the subtitle starts
playback. The subtitle cannot be
displayed when the setting is
“OFF”.
• If there is more than one extension, the
extension selection will appear in “Subtitle
List”.
Note
• “DivX Subtitle” must be activated in the DivX Menu.
(Refer to “DivX Subtitle” on page 80.)
• Playback file and the subtitle file must have the
same name.
• Playback file and the subtitle file must locate in the
same folder.
• Only the subtitle files with the following extensions
are supported; .smi (.SMI), .srt (.SRT), .sub
(.SUB), .ass (.ASS), .ssa (.SSA), .txt (.TXT), (.sub
(.SUB) and .txt (.TXT) files may not be recognised.)
• The subtitles that exceed the playback time of the
DivX
®
file will not be displayed.
• “DivX Subtitle” function is invalid if subtitle file does
not come with any extension.
SMI
SRT
SUB
ASS
SSA
TXT
1 DivX File1
Subtitle List
OFF
DivX
®
VOD
This unit allows you to play back the files purchased
or rented from DivX
®
Video-On-Demand (VOD)
services. The files are available on the internet.
When you purchase or rent DivX
®
VOD files on the
internet, you will be asked to enter a registration
code. This menu item provides you with the
registration code.
1 Press [HOME].
2 Select “General Settings” using
[U \ D], then press [OK].
3 Select “DivX” using [U \ D], then
press [OK].
4 Select “DivX
®
VOD” using [U \ D].
Your registration code will appear.
Note
• One registration code is only valid for one
DivX
®
VOD file.
• You must first download the file from the internet
and play it back on this unit before you are able to
get another code.
• You must follow this step every time you purchase
or rent a DivX
®
VOD file from the internet.
• For more information for DivX
®
, please visit
http://www.divx.com/vod
.
DivX
®
DivX
®
General Settings
Disc Playback
General Settings
Display
Video
Recording
Clock
Channel
DivX
DivX
®
VOD
DivX Subtitle
DivX
®
VOD
code is :
To learn more visit
www.divx.com/vod
Your registration
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 51 Wednesday, July 2, 2008 4:36 PM
52
EN
[DivX
®
]
• Official DivX
®
Ultra Certified product
• Plays all versions of DivX
®
video (including DivX
®
6)
with enhanced playback of DivX
®
media files and
the DivX Media Format.
• Discs containing the DivX
®
files with the DivX
®
GMC
(Global Motion Compensation) playback feature,
which is DivX
®
supplemental function, cannot be
played back on this unit.
Hint for the purchased or rental official DivX
®
Ultra
Certified product
• When you purchased or rental a DivX
®
file through
the official site of DivX
®
Video which is called DivX
®
Video-On-Demand (VOD) services, a registration
code is required every time you get the new file from
the DivX
®
VOD services. Refer to “DivX
®
VOD” on
page 51.
• Some DivX
®
VOD files are restricted with the limited
playable times (you cannot play them back beyond
the limit). If your DivX
®
VOD file has such limit, the
playback confirmation screen will appear.
Use [U \ D] to select “Yes” if you want to play back
the file, or to select “No” if you do not want to play it
back. Then press [OK] to confirm the selection.
•
You cannot play back the DivX
®
VOD files of which
rental period has been expired. In such case, press
[TITLE]
and select other files that can be played back.
Hint
•DivX
®
is a codec (compression/decompression) that
can compress images to a very small amount of
data. The software can compress video data from
almost any source to a size that can be sent on the
Internet without compromising visual quality of the
images.
• A file with an extension of “.avi” and “.divx” is called
an DivX
®
file. All files with the “.avi” extension are
recognised as MPEG4.
• Files whose extension other than “.avi” and “.divx”
will not be listed on the DivX
®
menu. However,
unplayable groups or tracks may be displayed,
depending on the recording conditions.
• Even if the file has an extension of either “.avi” and
“.divx”, this unit cannot play it back if it is recorded in
the format other than DivX
®
.
•
Folders are known as Groups; files are known as tracks.
• A symbol of is shown on the top of the file name.
• A maximum of 255 folders or 999 files may be
recognised in one disc.
• Up to 8 hierarchies can be recognised in one folder.
Files in the 9th or deeper hierarchies cannot be
played back.
• If the track extends beyond the scope of screen, a
down arrow “ ” appears, indicating that the user
can view another part on the next page. The current
page number and the number of total pages are
shown on the right of the down arrow “ ”.
• Letters of a file / folder name overflowing the given
space will be displayed as “...”.
• You can play back the disc recorded in multi-
session.
• It may take awhile for audio and images to be output
after you inserted a disc and pressed [B (PLAY)].
• When playing back the files recorded in high bit
rates, the images can be interrupted in some
occasions.
• Although DivX
®
logo has been obtained for this unit,
it may not be able to play back some data,
depending on the characteristics, bit rates, or audio
format settings, etc.
• Use the software recognised by the DivX, Inc. when
you make DivX
®
files.
•A DivX
®
file whose file size exceeds 2 GB cannot be
played back.
• If you try to play back the DivX
®
file that has the
screen resolution which this unit does not support,
the playback will be stopped and error message will
appear.
• If a large-sized DivX
®
file is selected, it may take
awhile (over 20 seconds sometimes) to start the
playback.
• If DivX
®
files written on CD discs cannot be played
back, rewrite them on a DVD disc and try to play
back.
• For more information for DivX
®
, please visit
http://www.divx.com
.
• If you insert a CD-RW/-R with DivX
®
files that are
mixed with MP3/Windows Media™ Audio/JPEG
files, the Playback Media Selection screen will be
displayed. Please select “Video” and proceed to
next step.
• Playable Codec of AVI files : DivX
®
3.x,
DivX
®
4.x,
DivX
®
5.x,
DivX
®
6.x
• Maximum size of image : 720 x 480 @30 fps
720 x 576 @25 fps
• Sampling frequency of audio : 8 kHz - 48 kHz
• Audio type : MPEG1 audio layer
3 (MP3), MPEG1
audio layer 2,
Dolby Digital
DivX
®
VOD Rental
This rental has 3 views left.
Do you want to use one
of your 3 views now?
Yes
No
Rental Expired
This rental is expired.
Please push 'TITLE'.
Please select the media
to play back.
Video
Audio & Picture
E2N41BN_EN.book Page 52 Wednesday, July 2, 2008 4:36 PM
53
EN
•Press [DISC MENU] to call up the Playback Media
Selection screen in stop mode.
• If you select “Audio & Picture” instead of “Video” on
the Playback Media Selection screen, this unit can
play back MP3/Windows Media™ Audio/JPEG files.
•
You cannot play back the DivX
®
VOD files obtained
with different registration codes on this unit. Press
[TITLE]
and select other files that can be played back.
•
This unit does not support the DivX
®
file with UDF format.
A DVD contains a disc menu, which lists the contents
and enables you to customise playback. The menu
may offer choices for subtitle languages, special
features, and chapter selection. Usually this
information appears automatically when you start
playback, but sometimes you need to press
[DISC MENU] to display the menu.
1 Press [DISC MENU].
If the feature is not available, “ ” may appear on
the TV screen.
2 Select an item using [U \ D \ L \ P],
then press [OK].
Repeat this step until all the features you want are
set up or to start playing back the disc from the
menu. The following operations are available.
[DISC MENU] button:
Displays the disc menu, which will vary among
discs, and may be same with the Title menu.
[U \ D \ L \ P] buttons:
Move the cursor from item to item on the screen.
[OK] button:
Selects the currently highlighted menu option.
[Alphanumeric keypad]:
Selects a numbered menu option (available on
certain discs).
3 Press [DISC MENU] to exit the disc
menu.
Note
• Menus vary among discs. Refer to the information
accompanying the disc for details.
Some DVDs have a Title menu, which lists the titles
available on the DVD. You can start playing back
such discs at a specific title.
1 Press [TITLE].
The “Title Menu” will appear.
• For some discs, the “Title Menu” appears
automatically.
If the feature is not available, “ ” may appear on
the TV screen.
2 Select a desired item using
[U \ D \ L \ P], then press [OK].
The disc will start playing back at the title you
selected. The following operations are available.
[TITLE] button:
Displays the DVD “Title Menu” which will vary
between discs.
[U \ D \ L \ P] buttons:
Move the cursor from item to item on the screen.
[OK] button:
Selects the currently highlighted menu option.
[Alphanumeric keypad]:
Selects a numbered menu option (available on
certain discs).
3 Press [C (STOP)] to exit.
Note
• [TITLE] will not be available for some DVDs.
• Menus vary among discs. Refer to the information
accompanying the disc for details.
1 Select a desired file using [U \ D],
then press [B (PLAY)] or [OK].
2 If the “Title Menu” is available on the
file, audio language, subtitle options,
chapter for the title and other
options will appear for selection.
3 Select desired item using
[U \ D \ L \ P], then press [OK].
[TITLE] button:
Displays “File List” for DivX
®
video files.
[DISC MENU] button:
Displays “Title Menu” for DivX
®
video files.
[U \ D \ L \ P] buttons:
Move the cursor from item to item on the screen.
[OK] button:
Selects the currently highlighted menu option.
[Alphanumeric keypad]:
Selects a numbered menu option (available on
certain discs).
4 Press [TITLE] or [C (STOP)] to exit.
Playing Back Discs Using the Disc
Menu
Authorization Error
This player is not authorized to play
this video.
Please push 'TITLE'.
DVD-VDVD-V
Playing Back a Disc Using the Title
Menu
Playing Back a DivX
®
Video File
Using the Title Menu
DVD-VDVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
DVD-RDVD-R
DivX
DivX
®
DivX
®
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 53 Wednesday, July 2, 2008 4:36 PM
54
EN

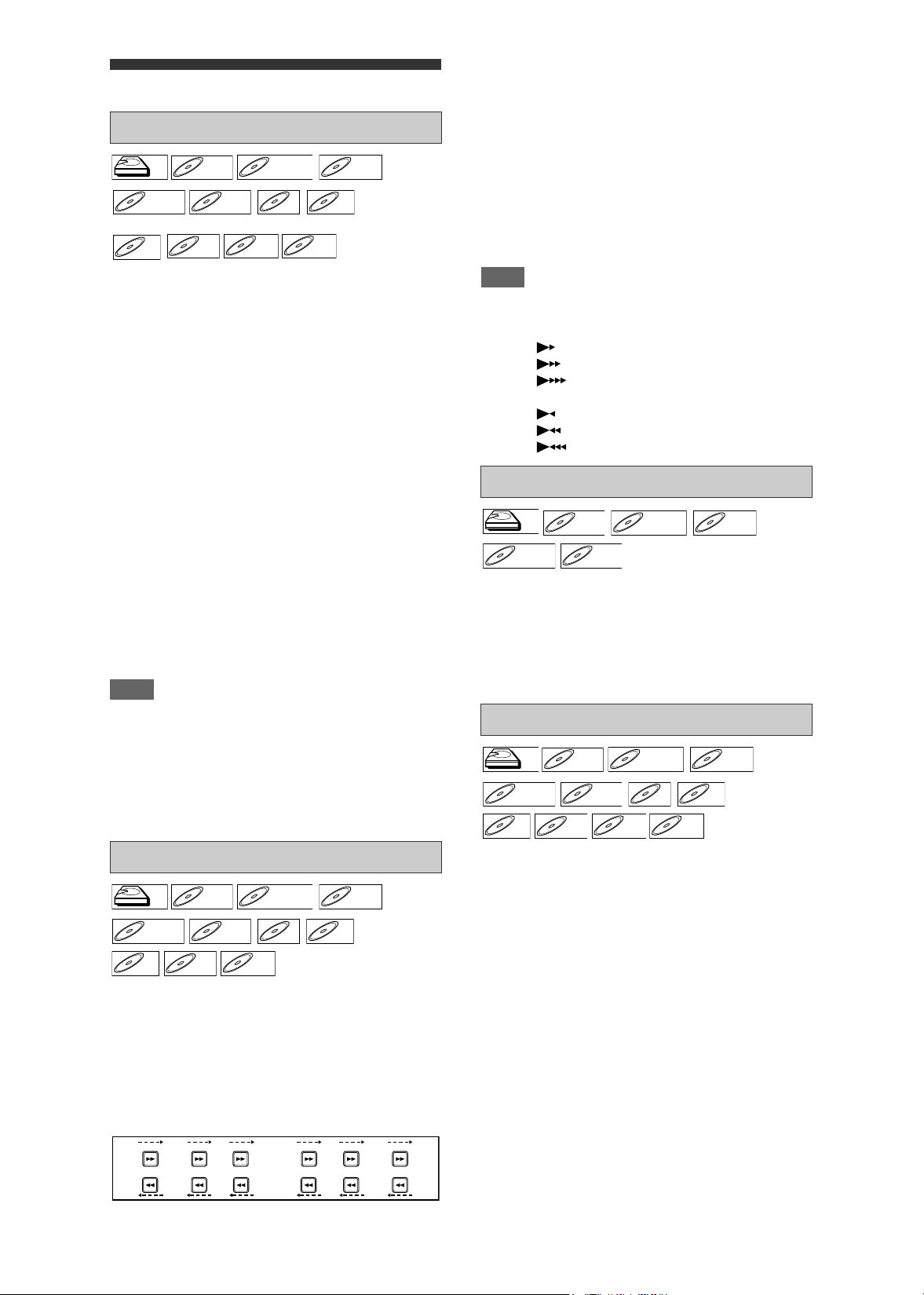

Additional Playback Functions
You can resume playback from the point where you
stopped it before.
1 During playback, press [C (STOP)].
The resume message will appear.
2 Press [B (PLAY)].
In a few seconds, playback will resume from the
point at which you stopped it before. Even if you
turn off the unit, you can resume playback at the
same point after turning back on the unit.
For title in the HDD, you can also play from the
resume point by selecting “Resume Playback” at
step
5 of “Direct Playback” on page 47.
To cancel the resume playback:
Press [C (STOP)] while playback is stopped.
For HDD:
You can set a resume point per every title.
For DVD-Videos, DVD+RW/+R, DVD-RW/-R, Video
CD, Audio CD, MP3 files, JPEG files, and DivX
®
files:
You can set only one resume point per disc.
Note
• For Video CDs, if you turn PBC on using “HOME”
menu, the resume function is cancelled.
• For MP3 / Windows Media™ Audio / JPEG files,
playback will resume from the beginning of the track
at which playback was stopped.
• When you press [C (STOP)] during resume
playback, the front panel display will show the
elapsed time of the video.
1 During playback, press [D (FFW)]
or [E (REW)].
Each time you press [D (FFW)] or [E (REW)],
the approximate speed will change as follows.
Fast forward or fast reverse playback across titles
(for DVDs) or tracks / files (for Video CD / MP3 /
Windows Media™ Audio / DivX
®
) is not possible.
• For Audio CDs and MP3 files approximate
speed is fixed at 8x with sound.
• For Video CDs, approximate forward / reverse
speeds are 2x, 8x and 16x.
•For DivX
®
files, approximate forward speeds are
2x, 20x and 40x, and approximate reverse
speeds are 5x, 20x and 40x.
• To return to playback at normal speed, press
[B (PLAY)].
• Picture quality of DivX
®
files in fast reverse is
lower than that in fast forward.
•For some DivX
®
files, Fast forward/Fast reverse
may not function.
Hint
• Forward / reverse speeds are indicated with icons
as follows.
Forward (Approx. Speed):
2x:
20x:
40x:
Reverse (Approx. Speed):
5x:
20x:
40x:
During playback, you can skip forward or backward by
the amount of time you set in “Disc Playback” menu.
To set the time amount, refer to “Skip/Replay Interval”
on pages 77 - 78.
During playback, press [SKIP] if you want to skip
forward. Press [REPLAY] if you want to skip
backward.
1 During playback, press [F (PAUSE)].
Playback will pause with the sound muted.
2 Press [B (PLAY)] to resume
playback.
Resume Playback
Fast Forward / Fast Reverse
HDDHDD
D
D
VD-V
VD-V
DVD-V
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R CD
CD
CD
VCD
VCD
VCD
(PBC OFF)
MP3MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG DivX
®
DivX
®
HDDHDD
D
D
VD-V
VD-V
DVD-V
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R CD
CD
CD VCD
VCD
VCD
MP3
MP3
MP3
Windows
Media
Audio
Windows
Media
Audio
TM
DivX
®
DivX
®
REV
FWD
REV
FWD
REV
FWD
REV
FWD
REV
FWD
REV
FWD
20x 2x 20x5x 40x40x
Normal
speed
playback
Skip & Replay
Pause
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
HDDHDD
D
D
VD-V
VD-V
DVD-V
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW D
D
VD-R
VD-R
DVD-R CD
CD
CD VCD
VCD
VCD
MP3
MP3
MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG DivX
®
DivX
®
E2N41BN_EN.book Page 54 Wednesday, July 2, 2008 4:36 PM
55
EN

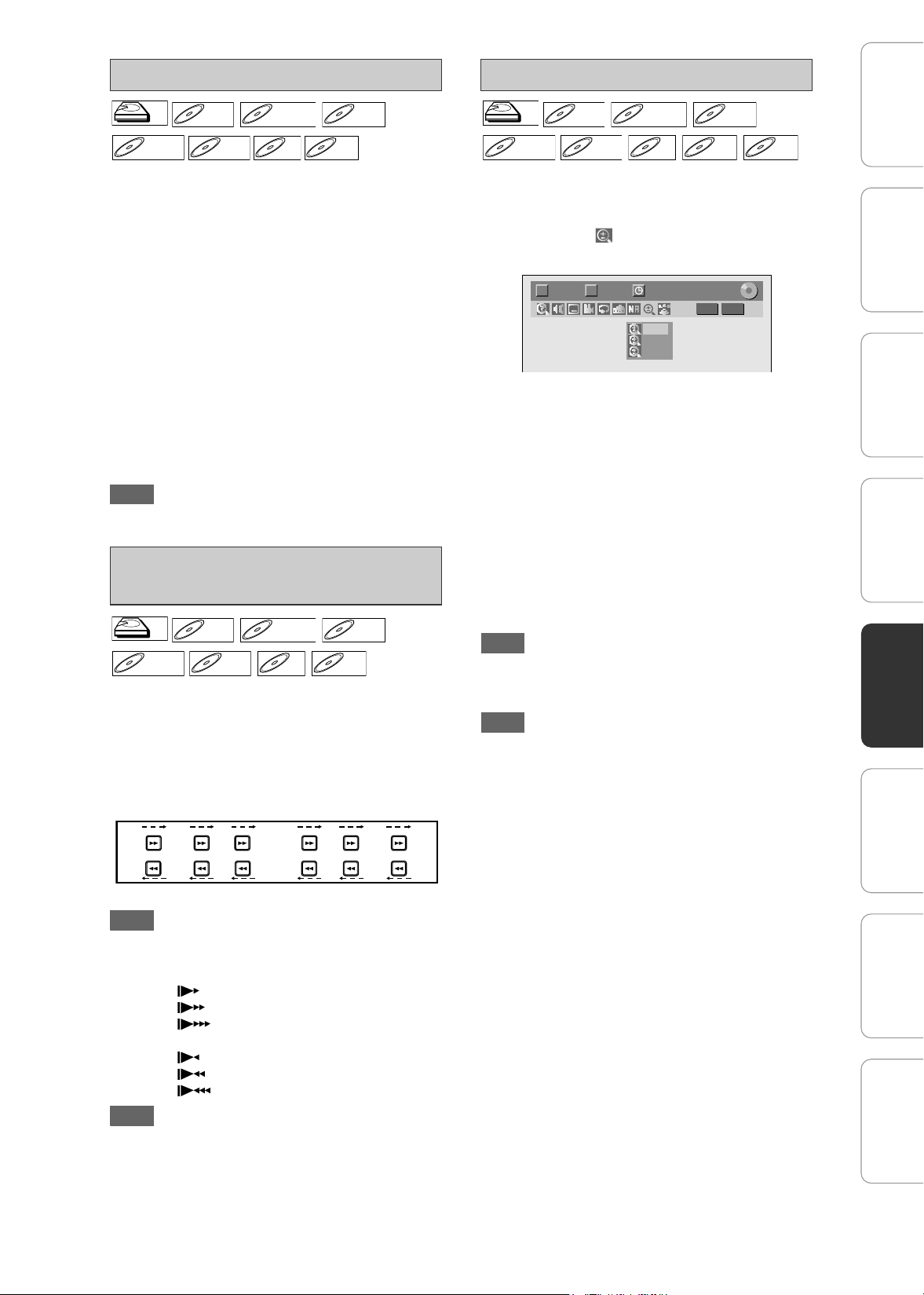

1 During playback, press [F (PAUSE)].
2 Press [S (PREV)] / [T (NEXT)]
repeatedly.
Each time you press [T (NEXT)], playback will
go forward one frame (or step) at a time with the
sound muted.
To go backward one frame (or step), press
[S (PREV)].
Press and hold [T (NEXT)] to continue going
forward.
To continue going backward, press and hold
[S (PREV)].
3 Press [B (PLAY)] to resume
playback.
Note
• Only step by step forward is available when playing
back Video CDs and discs with DivX
®
files.
1 During playback, press [F (PAUSE)],
then press [D (FFW)] or
[E (REW)].
Each time you press [D (FFW)] or [E (REW)],
the approximate speed changes as follows.
(The sound will remain muted.)
To return to normal playback, press [B (PLAY)].
Hint
• Forward / reverse speeds are indicated with icons
as follows.
Forward (Approx. Speed):
1/16x:
1/8x:
1/3x:
Reverse (Approx. Speed):
1/16x:
1/8x:
1/4x:
Note
•For some DivX
®
files, Slow forward may not
function.
• Only slow forward is available when playing back
Video CDs and discs with DivX
®
files.
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK].
Four options are available, “x 1.0”, “x 1.2”, “x 1.5”
and “x 2.0”. These are displayed excluding the
current zoom rate.
3 Select the desired zoom factor to
zoom using [U \ D], then press
[OK].
The zoom area is displayed.
4 Select the desired zoom position
using [U \ D \ L \ P], then press
[OK].
Zoom playback will start.
Hint
• To cancel the zoom function, select “x 1.0” using
[U \ D], then press [OK].
Note
• If selecting a smaller factor than that currently
selected, the zoom area is not displayed.
• You cannot slide the zoomed picture on some JPEG
files.
Step by Step Playback
Slow Forward /
Slow Reverse Playback
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R VCD
VCD
VCD DivX
DivX
®
DivX
®
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R VCD
VCD
VCD DivX
DivX
®
DivX
®
REV
FWD
REV
FWD
REV
FWD
REV
FWD
REV
FWD
REV
FWD
1
/8x
1
/
1
6x
1
/8x
1
/
1
6x
1
/3x
1
/4x
Pause
Zoom
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R VCD
VCD
VCD JPEG
JPEG
JPEG DivX
DivX
®
DivX
®
DVD
Video
T C
1/ 1 1/ 1 0:01:00 / 1:23:45
x 1.2
x 2.0
x 1.5
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 55 Wednesday, July 2, 2008 4:36 PM
56
EN
You can assign a specific point on a disc to return
later.
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK] within 1 second, or
wait for 1 second to display the
marker list.
e.g.) Marker setup menu for DVD-Video
3 Select the desired marker number
using [U \ D]. When the disc
reaches the desired point, press
[OK].
The title (track) number and the time are
displayed.
4 To return to the marker, select the
desired marker number using
[U \ D], then press [OK].
Hint
• To clear a marker, select the marker number you
want to clear, then press [CLEAR].
• You can mark up to 6 points.
Note
• All markers are erased when you perform the
following operations.
- Opening the disc tray (CD/DVD only)
- Turning off the power (CD/DVD only)
- Making additional recording on the disc (DVD only)
- Editing any title (DVD only)
- Dividing the title (HDD only)
- Deleting a scene of the title (HDD only)
• Marker setting is not available when you play back
the Video CD with PBC function.
To play back a title being recorded while
continuing to record:
You can play back from the beginning of a title that is
currently being recorded to.
1 During recording, press [B (PLAY)].
Playback of the title you are recording will start
from the beginning.
• Elapsed playback time will be displayed on the
front panel display.
2 To stop the playback, press
[C (STOP)] once
.
The front panel display will switch back to show
the elapsed recording time.
If you press [C (STOP)] twice
, it will stop the
recording.
Note
• You can also use the special playback functions
such as [D (FFW)], [E (REV)] etc. during
chasing playback mode.
• [I (RECORD)] is invalid during FlexTime function.
• You can no longer fast forward the playback when it
comes to a few seconds before the current
recording point.
To play back previously recorded title:
You can continue recording a programme while
playing back another title in the same component
(HDD).
1 During recording, press [TITLE].
2 Select a desired title using
[U \ D \ L \ P], then press
[B (PLAY)].
3 To stop the playback, press
[C (STOP)] once
.
The front panel display will switch back to show
the elapsed recording time.
If you press [C (STOP)] twice
, it will stop the
recording.
To playback a title being recorded while
continuing to record, refer to “To play back a title
being recorded while continuing to record:”
(available only with HDD).
Note
• Video CD, Audio CD, MP3/JPEG files recorded on a
disc and DivX
®
files can also be played back during
HDD recording.
Marker Setup
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R CD
CD
CD
VCD
VCD
VCD
(PBC OFF)
1/ 5 1/ 5
---
---
---
---
---
---
1
2
3
4
5
6
0:01:00 / 1:23:45
T C
DVD
Video
FlexTime Function
HDDHDD
E2N41BN_EN.book Page 56 Wednesday, July 2, 2008 4:36 PM
57
EN
On playback of Time Shift Buffer, you can pause or go
back to view earlier parts of the TV programme that is
currently being watched. For the Time Shift Buffer,
refer to “Time Shift Buffer” on pages 29 - 30.
To pause and resume the TV programme:
1 When watching TV programme
through this unit’s tuner, press
[F (PAUSE)].
The TV programme will be paused and its sound
will be muted.
2 Press [B (PLAY)] to resume the TV
programme you were watching from
where you have paused.
To go back the TV programme:
When watching TV programme
through this unit’s tuner, press
[S (PREV)], [E (REW)], [T (NEXT)],
[D (FFW)] or [REPLAY].
• While playing back the Time Shift Buffer,
pressing [S (PREV)] or [T (NEXT)] skips
playback point 5 minutes backward or forward.
To go back to the specific time:
1 When watching TV programme
through this unit’s tuner, press
[DISPLAY], then press [OK].
2 Use [U \ D \ L \ P] or
[Alphanumeric keypad] to enter a
desired time, then press [OK].
• While playing back the Time Shift Buffer, press
[LIVE TV] to go back to the current position of
the TV programme broadcast.
• While playing back the Time Shift Buffer, press
[C (STOP)] to cancel the playback.
•
When watching TV programme at live or on play
back from Time Shift Buffer, press
[DISPLAY]
once to display the Time Shift Buffer information.
• Noise reduction, zoom and virtual surround
functions are available while playing back the
Time Shift Buffer.
Note
• While on playback of Time Shift Buffer, you will
not be able to change channel or audio/subtitle
languages for digital channels.
• If you change to DVD mode or when this unit
turns on for the timer recordings, the Time Shift
Buffering will not be performed.
• When this unit turns on for the timer recordings,
the Time Shift Buffering will not be performed.
• For the contents of the Time Shift Buffer, you
cannot change the TV audio.
•
Once it has exceeded 6 hours, the beginning of
Time Shift Buffer will be deleted accordingly, and
the elapsed time displayed will be unchanged.
Search
Using [S (PREV) / T (NEXT)] buttons
1 During playback, press [T (NEXT)]
to skip the current title or chapter
and move to the next.
The unit moves to the next title or chapter one
after another.
To go back to the previous title or chapter, press
[S (PREV)] twice in quick successions.
Note
• For playback from HDD, [S (PREV)] or [T (NEXT)]
does not allow playback to go to the next and
previous title.
Using the [DISPLAY] button
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK].
for the title number is highlighted.
Searching for a Title:
3 Enter the desired title number to
search for using [U \ D] or
[Alphanumeric keypad], then press
[OK].
Title search will start.
Hint
• Total number of chapters and playback time of the
selected title are also displayed.
Searching for a Chapter:
3 Press [L \ P] to highlight the number
displayed in the right side of the
icon.
4 Enter the desired chapter number to
search for using [U \ D] or
[Alphanumeric keypad], then press
[OK].
Chapter search will start.
Hint
• The title number and playback time of the selected
chapter are also displayed.
Playback of Time Shift Buffer
HDDHDD
Title / Chapter Search
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 57 Wednesday, July 2, 2008 4:36 PM
58
EN
Using [S (PREV) / T (NEXT)] buttons
1 During playback, press [T (NEXT)]
to skip the current track and move to
the next.
The unit moves to the next track one after
another.
To go back to the previous track, press
[S (PREV)] twice in quick succession. The unit
moves backward one track at a time.
Using the [DISPLAY] button
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK].
for the track number is highlighted.
3 Enter the desired track number to
search for using [U \ D] or
[Alphanumeric keypad], then press
[OK].
Track search will start.
Hint
• For Video CDs, you can perform the track search
function in stop mode without turning PBC off
manually.
Note
• During Random playback or Programme playback,
you cannot search the desired track.
You can search the desired track directly.
Using [Alphanumeric keypad]
1 During playback, if the display menu
is not displayed, press
[Alphanumeric keypad] to enter the
desired track number.
Note
• During Random playback or Programme playback,
you cannot search the desired track directly.
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK].
for the title or track number is highlighted.
3 Press [L \ P] to highlight .
4 Enter the desired time to search for
using [U \ D] or
[Alphanumeric keypad], then press
[OK].
Time search will start.
Note
• During Random playback or Programme playback,
you cannot search the desired time.
• The title number and chapter number of the setting
time are also displayed.
• Time search function is available only in the same
track or title.
Track Search
Direct Search
CDCD
VCD
VCD
VCD
(PBC OFF)
MP3MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG
DivX
®
DivX
®
CDCD
Time Search
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R CD
CD
CD
VCD
VCD
VCD
(PBC OFF)
DivX
®
DivX
®
E2N41BN_EN.book Page 58 Wednesday, July 2, 2008 4:36 PM
59
EN
Repeat / Random / Programme
Playback / Slide Show
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK] within 1 second, or
wait for 1 second to display the
selection menu.
3 Select the desired option to repeat
using [U \ D], then press [OK].
The selected repeat playback will start.
The following operations are available.
Title:
The current title will be played back repeatedly.
(HDD, DVD and DivX
®
video file only)
Chapter:
The current chapter will be played back
repeatedly. (HDD, DVD only)
All:
The current disc will be played back repeatedly.
(Audio CD, Video CD, MP3, Windows Media™
Audio, JPEG and DivX
®
only)
A-B:
The A-B point will be played back repeatedly.
(HDD, DVD, Audio CD, Video CD and DivX
®
only)
•Press [OK] to decide the starting point (A).
•Press [OK] after setting point (A) to select the
ending point (B).
Track:
The current track will be played back repeatedly.
(Audio CD, Video CD, MP3, Windows Media™
Audio, JPEG and DivX
®
media file only)
Group:
The current group will be played back repeatedly.
(MP3, Windows Media™ Audio, JPEG and DivX
®
media file only)
Hint
• To cancel the repeat playback, select “OFF” at step
3. The repeat setting is also cancelled when you
stop playback.
Note
• Point B for the repeat A-B playback should be set
within the same title or track as point B.
• You cannot select “Group” during the random
playback of MP3 and JPEG files.
• Chapter / Track repeat will be cancelled whenever a
Chapter / Track is skipped forward or backward.
•For some DivX
®
files, A-B Repeat playback may not
function.
• For Video CDs with PBC function, repeat playback
does not work while the PBC function is on.
• Disc for which the number of recording titles comes
up to the maximum.
• When the DivX
®
media file changes to DivX
®
video
file while repeat setting is done, the repeat setting
will be cleared.
You can use this function to play back a disc
randomly instead of in the recorded order.
1 In stop mode, press [HOME].
2 Select “Disc Playback Mode” using
[U \ D], then press [OK].
“Disc Playback Mode” menu will appear.
3 Select “Random Play” using
[U \ D], then press [OK].
Random playback will start.
Hint
• To cancel random play, press [C (STOP)] twice
during random play. “OFF” appears on the screen.
• For Video CDs with PBC function, the PBC setting
will be switched to off automatically when you start
random playback.
Note
• During random play, if you forward the track to the
end, the playback speed of the next track will be
normal.
• During random play, you cannot use the search
function except for the search with [S (PREV)] /
[T (NEXT)]. By pressing [S (PREV)], you can
return only to the beginning of the current track.
You can program the disc to play back in your desired
order.
1 Follow steps 1 to 2 in “Random Play”
on this page.
2 Select “Programme Play” using
[U \ D], then press [OK].
Repeat Playback
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R CD
CD
CD
VCD
VCD
VCD
(PBC OFF)
MP3MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG DivX
®
DivX
®
Random Play
Programme Play
CDCD
VCD
VCD
VCD
(PBC OFF)
MP3MP3
Windows
Media
Audio
Windows
Media
Audio
TM
JPEGJPEG
CD
CD
CD
VCD
VCD
VCD
(PBC OFF)
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 59 Wednesday, July 2, 2008 4:36 PM
60
EN
3 Select the desired track using
[U \ D], then press [OK] or [P].
4 Press [B (PLAY)] to start programme
playback.
Hint
• To erase tracks you selected, press [CLEAR].
• You can make up to 50 track settings.
• To cancel programme play, press [C (STOP)] twice
during programme play. “OFF” appears on the
screen.
• You may also select the desired track using
[Alphanumeric keypad] at step
3.
• For Video CDs with PBC function, the PBC setting
will be switched to off automatically when you start
programme playback.
Note
• During programme play, if you forward the track to
the end, the playback speed of the next track will be
normal.
• During programme play, you cannot use the search
function except for the search with [S (PREV)] /
[T (NEXT)].
You can select the display time between 5 seconds
and 10 seconds.
1 Follow steps 1 to 2 in “Random Play”
on page 59.
2 Select “Slideshow Interval” using
[U \ D], then press [OK].
3 Select the display time using
[U \ D], then press [OK].
4 Press [HOME] to exit.
Note
• Large-size JPEG files take awhile to be displayed.
Selecting the Format of Audio
and Video
You can select the format of audio and video to suit
the content of the disc you are playing back.
Many DVD-Videos have subtitles in one or more
languages. The available languages are usually
printed on the disc case. You can switch subtitle
languages at any time during playback.
1 During playback, press [DISPLAY].
Or press [SUBTITLE] during playback and follow
from step
3.
2 Select the icon using [L \ P],
then press [OK] within 1 second, or
wait for 1 second to display the
selection menu.
3 Select the desired subtitle language
using [U \ D], then press [OK].
Subtitles are displayed in the selected language.
For DivX
®
video files, several tag information
exists. Some examples are shown as follows.
e.g.)
Note
• With some discs it is only possible to change the
subtitle language from the disc menu. Press [TITLE]
or [DISC MENU] to display the disc menu.
• If a 4-digit language code appears in the subtitle
menu at step
3, refer to the “Language Code” on
page 95.
•For DivX
®
media files, the screen only displays the
number of subtitle languages.
Slideshow Interval
Random Play
Program Play
PBC (Video CD only)
Slideshow Interval
0:00:00
Disc Playback Mode
Disc Playback Mode
Programme Play
Total
JPEGJPEG
Switching Subtitles
Letterbox: Subtitle for the letterbox version of
the movie.
Wide screen: Subtitle for the widescreen
version of the movie.
Children: Subtitle for an audience of
children.
DVD-VDVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
DivX
DivX
®
DivX
®
E2N41BN_EN.book Page 60 Wednesday, July 2, 2008 4:36 PM

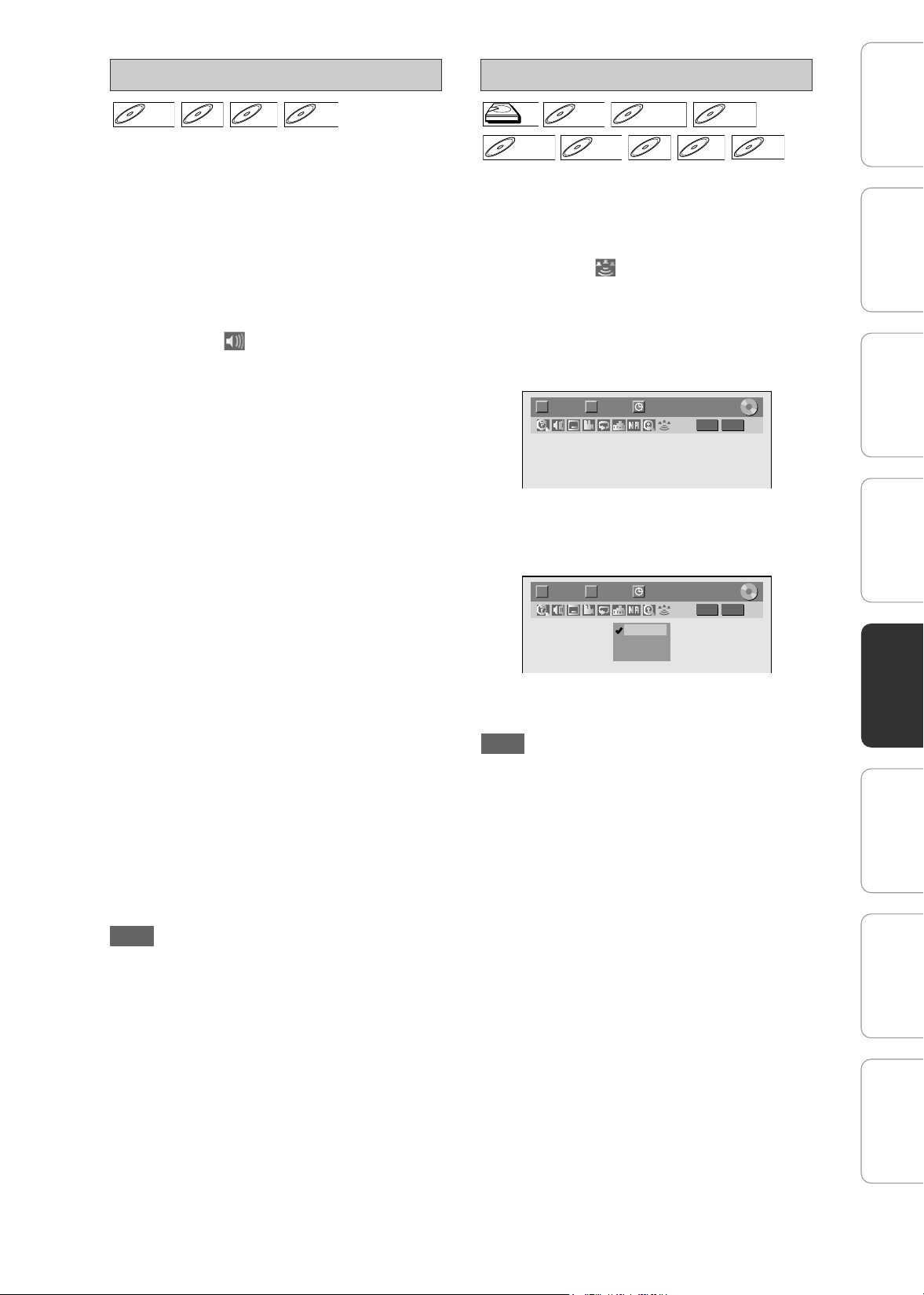

61
EN
When playing back a DVD-Videos recorded with two
or more soundtracks (often in different languages),
you can switch among them during playback.
When playing back Audio CDs or Video CDs, you can
switch among the left, the right channel and stereo.
For audio CD, skip to step
2 or press [AUDIO] and
skip to step
3.
1 During playback, press [DISPLAY].
Or press [AUDIO] during playback and follow
from step
3.
2 Select the icon using [L \ P],
then press [OK] within 1 second, or
wait for 1 second to display the
selection menu.
3 Select a desired audio soundtrack or
audio channel using [U \ D], then
press [OK].
With a DVD-Video or DivX
®
files:
Audio soundtrack will switch.
Example:
English J Spanish J French
If the title contains both main and sub audio, you
can further select L (main), R (sub), L/R (mixed of
main and sub).
With an Audio CD or Video CD:
The Audio channel will switch.
Example:
L/R J L J R
For DivX
®
Video files, several audio tag
information exists. Some examples are shown as
follows.
e.g.)
Director Commentary:
Audio recorded comment of the movie director.
Writer Commentary:
Audio recorded comment of the movie writer.
Cast Commentary:
Audio recorded comment of the movie actors.
Note
• For some discs, it is only possible to change the
soundtrack from the disc menu. Press [TITLE] or
[DISC MENU] to display the disc menu.
• If a 4-digit language code appears in the menu at
step
3, refer to the “Language Code” on page 95.
You can enjoy stereophonic virtual space through
your existing 2 channel stereo system.
1 During playback, press [DISPLAY].
Display menu will appear.
2 Select the icon using [L \ P],
then press [OK] within 1 second, or
wait for 1 second to display the
selection menu.
Virtual Surround menu will appear.
e.g.) DVD-Video
3 Select “OFF”, “Type 1” or “Type 2”
using [U \ D], then press [OK].
e.g.) DVD-Video
Note
• Select Virtual Surround to “OFF” in case the sound
is distorted.
• The setting will be kept “OFF” when the unit is
turned off.
Switching Audio Soundtrack
DVD-VDVD-V CD
CD
CD
VCD
VCD
VCD
DivX
®
DivX
®
Switching Virtual Surround System
• OFF:
No effect
• Type 1:
Natural effect
• Type 2:
Emphasised effect
HDDHDD
D
D
VD-V
VD-V
DVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R CD
CD
CD MP3
MP3
MP3
Windows
Media
Audio
Windows
Media
Audio
TM
DVD
Video
T C
1/ 5
1/ 5 0:01:00 / 1:23:45
DVD
Video
T C
1/ 5
1/ 5 0:01:00 / 1:23:45
OFF
Type 1
Type 2
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 61 Wednesday, July 2, 2008 4:36 PM
62
EN
Some DVD-Videos feature scenes shot from two or
more angles. The disc case is usually marked with an
angle icon if the disc has multi-angle scenes.
1 During playback, press [DISPLAY].
The angle icon appears when a switching camera
angle is available. (Available only when the angle
icon appears in bottom right on the TV screen.)
2 Select the icon using [L \ P],
then press [OK].
The angle will switch each time you press [OK].
Note
• If the Angle Icon setting is “OFF” in “HOME” menu,
the icon will appear only when the disc is played
back and the Display menu appears. (See page 77.)
• Even when the icon is not displayed, you can
select the angle if the currently played back title has
at least two multi-angle scenes.
1 During playback, press [DISPLAY].
2 Select the icon using [L \ P],
then press [OK] within 1 second, or
wait for 1 second to display the
selection menu.
Noise Reduction menu will appear.
3 Select the desired option using
[U \ D], then press [OK].
This function reduces noise in the playback picture.
When playing back discs recorded in long time modes
such as EP or SLP, select “Type 1” or “Type 2”.
“Type 2” is more effective.
When playing back discs with a little noise, such as
DVD-Videos, select “OFF”.
Switching Camera Angles
Reducing Block Noise
DVD-VDVD-V
HDD
HDD
HDD
DVD-VDVD-V D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
DVD-RDVD-R VCD
VCD
VCD DivX
DivX
®
DivX
®
E2N41BN_EN.book Page 62 Wednesday, July 2, 2008 4:36 PM
63
EN
Guide to a Title List
Title list allows you to check the titles recorded on the
HDD or the disc easily. You can choose a title to play
back from this list and easily edit the titles as you
prefer.
Press [HDD], then press [TITLE].
e.g.) HDD mode
Press [DVD], then press [TITLE].
e.g.) DVD mode
e.g.) DVD
1 Title name (editable): Recording date,
time, channel and the recording mode will
be assigned automatically as the title name
until you edit it.
2 Title information: Time at which the
recording of the title was started, duration of
the title, date recorded, channel recorded,
and the recording mode in which the title
was recorded.
3 Title List: List of titles recorded on the HDD.
Each title is indicated by its index picture.
Following icons may be displayed on the
index picture.
4 Page indicator: Indicating there is a
previous / next page.
5 Title list: List of the titles recorded on the
disc, and their information.
6Arrow: Indicating there is a previous / next
page.
7 Title information: On the first line, title
name (editable) is displayed. On the second
line, the title information is displayed.
EMPTY TITLE: The portion of the disc
where there is no recordings are made. As
for the empty title, available recording time
by the selected recording mode is displayed
on the second line.
8 Recording mode: Currently selected
recording mode is displayed here.
9 Capacity indicator: Indicating the position
and the amount of each title in the disc. The
portion for the selected title is highlighted.
• It may not indicate the precise capacity of the
disc.
• If the duration of a title is too short, it may not be
reflected in the capacity indicator.
10 Index pictures: A cut from the recorded
content is displayed here.
11 Submenu: Submenus for the selected
menu are displayed here.
12 Title name (editable): If you do not name
the title, the recorded date, time, channel,
and the recording mode are displayed here.
13 Progress bar: Indicating the progress of the
playback.
14 Preview window: Preview of the selected
title is displayed here.
15 Playback status: Indicating the current
playback status of the selected title.
Press [BACK U] to exit the edit menu.
Press [L] to cancel the settings and exit
the edit menu.
Press [C (STOP)] to exit the title list.
Editing
1
456
23
12:00 (1:00:00) 01/01/08 1 SP
01/01/08 12:00 1SP
1
2
3
4
Title List
1
2
3
01/01/08 12:00 8 SP
01/01/08 1:55:00
0:05:00 SP(2Hr)
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
6 8
9
10
7
5
6
EMPTY TITLE
SP(2Hr)
Play
Edit
Overwrite
01/01/08 12:00 1 SP
0:00:59
1
12
13
14
15
11
Edit
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Title Dividing
Index Picture
: Indicating the title has never been
played back yet.
: Indicating the title is protected.
:
Indicating the title is a copy-protected title.
I :
If you call up the title list while recording, “
I
”
will be displayed on the index picture of the
title currently being recorded.
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 63 Wednesday, July 2, 2008 4:36 PM

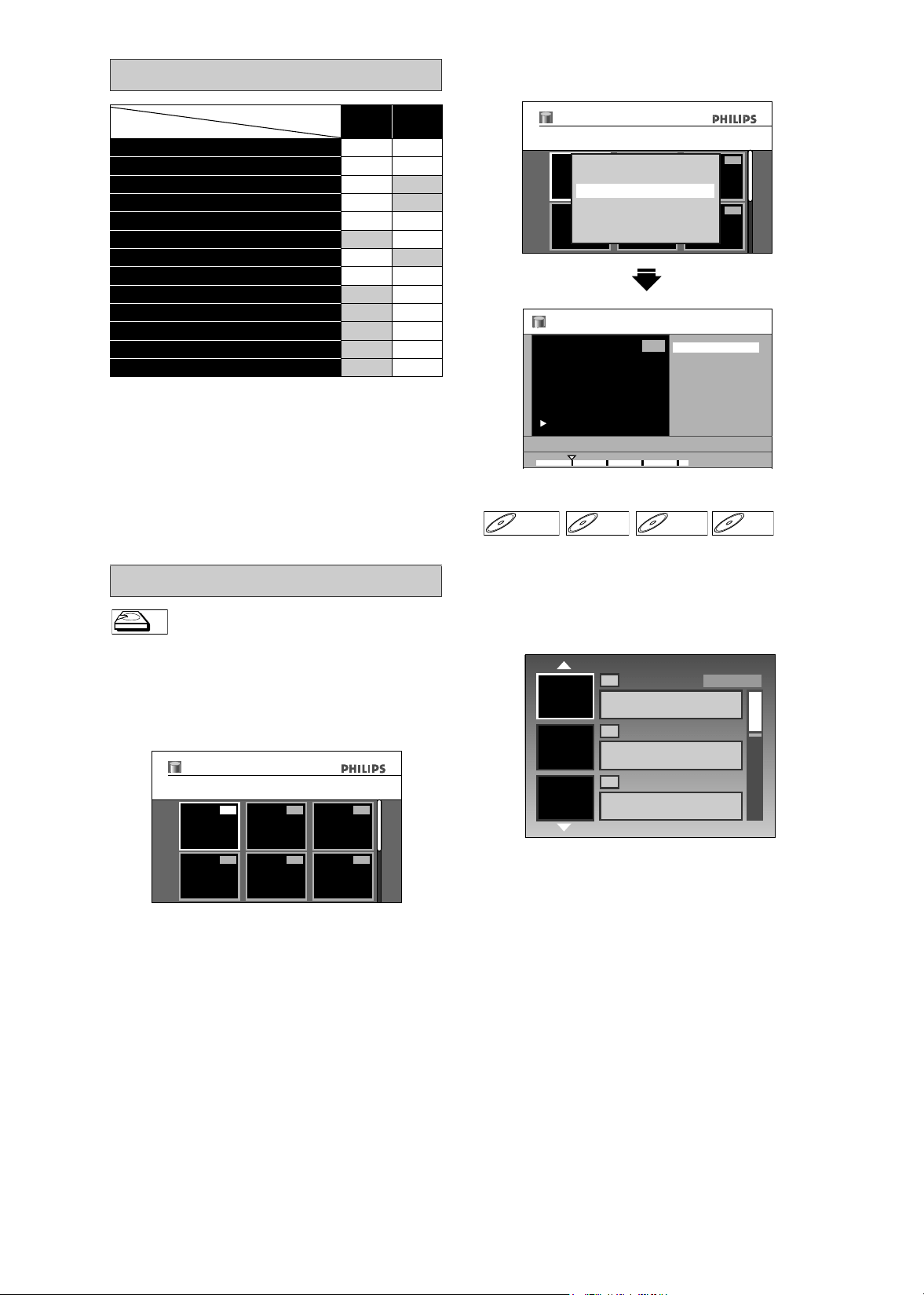

64
EN
✔:Available Grey: Not available
*1:DVD-RW/+RW discs only
*2:DVD+R/-RW/-R discs only
*3:DVD+RW discs only
• Once you have finalised a DVD+R/ DVD-R, you
cannot edit or record anything on that disc.
• While recording a title to an HDD or a DVD, only
deleting HDD titles is available.
Press [HDD] first.
1 Press [TITLE].
2 Use [U \ D \ L \ P] to select a
desired title, then press [OK].
3 Use [U \ D] to select “Edit”, then
press [OK].
Press [DVD] first.
1 Press [TITLE].
2 Use [U \ D \ L \ P] to select a
desired title, then press [OK].
Edit Menu
Media
Available Futures
HDD DVD
Editing names on titles ✔✔
Deleting a title ✔✔
Deleting selected titles ✔
Deleting a scene of a title ✔
Adding / deleting chapter marks ✔✔
Hiding chapters ✔
Protecting a title ✔
Dividing a title ✔ ✔
*1
Setting an index picture ✔
Finalising a disc ✔
*2
Making edits compatible ✔
*3
Editing name on disc ✔
Setting or Releasing disc protect ✔
How to Access the Edit Menu
HDDHDD
1
456
23
01/01/08 1 SP
01/01/08 12:00 1SP
12:00 (1:00:00)
Title List
1
456
23
01/01/08 1 SP
01/01/08 12:00 1SP
12:00 (1:00:00)
Title List
Play From Start
Edit
Title Delete
Dubbing
Resume Playback
Delete Multiple Titles
01/01/08 12:00 1 SP
0:02:59
1
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Protect
DVD+RWDVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
1
2
3
01/01/08 12:00 8 SP
01/01/08 1:55:00
0:05:00 SP(2Hr)
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
EMPTY TITLE
SP(2Hr)
E2N41BN_EN.book Page 64 Wednesday, July 2, 2008 4:36 PM

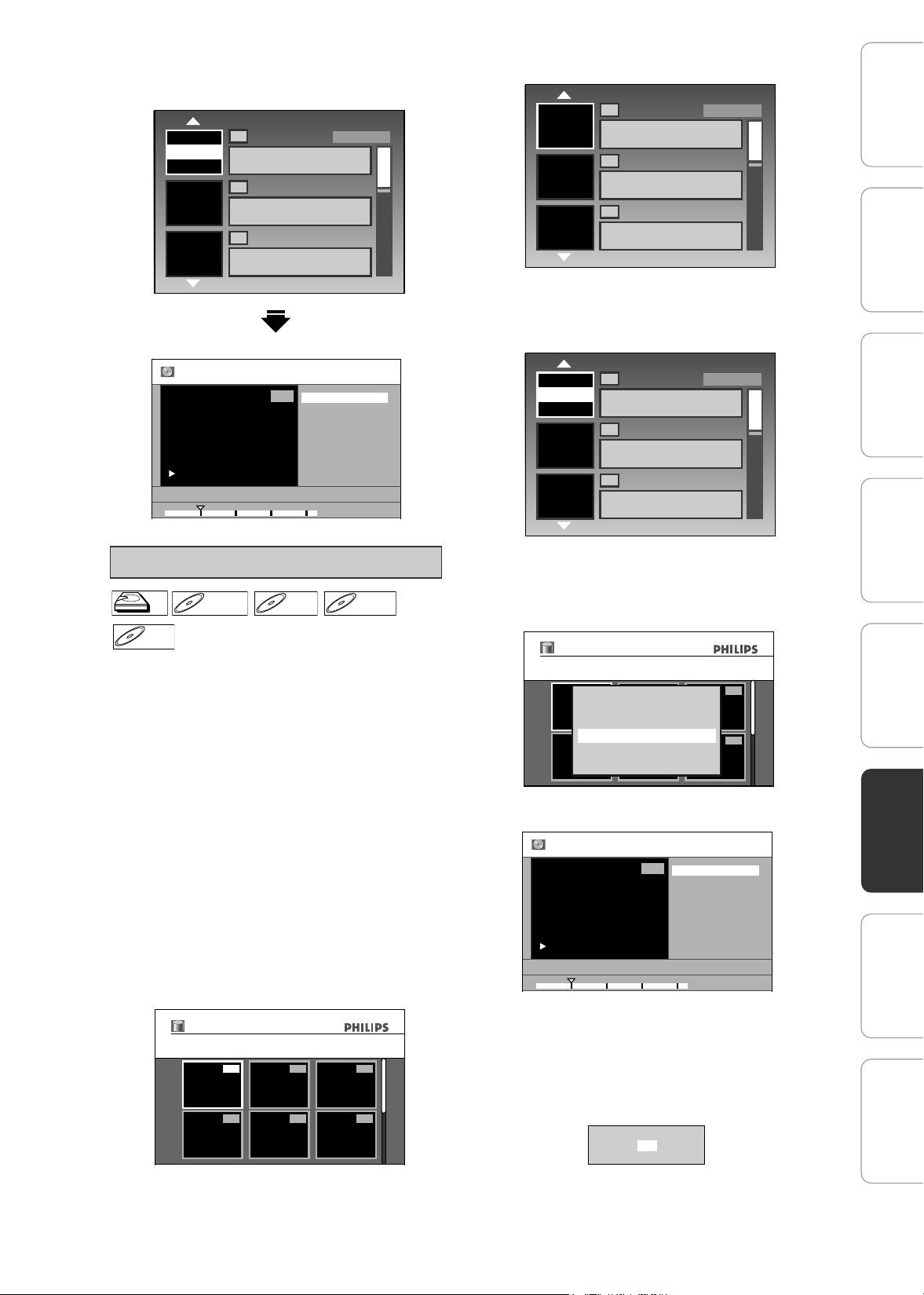

65
EN
3 Use [U \ D] to select “Edit”, then
press [OK].
You can delete a title which you do not need
anymore. Please be advised that the title once
deleted cannot be brought back.
If you are editing the titles on HDD, press [HDD]
first.
If you are editing the titles on DVD, press [DVD]
first.
1 Press [TITLE] or [DISC MENU].
2 Use [U \ D \ L \ P] to select a
desired title to delete, then press
[OK].
If you are editing the titles on HDD, proceed to
step
4.
If you are editing the titles on DVD, proceed to
step
3.
e.g.) HDD mode
e.g.) DVD mode
3 Use [U \ D] to select “Edit”, then
press [OK].
4 Use [U \ D] to select “Title Delete”,
then press [OK].
e.g.) HDD mode
e.g.) DVD mode
Confirmation message will appear.
5 Use [U \ D] to select “Yes”, then
press [OK].
Final confirmation message will appear.
The title is now deleted.
Deleting a Title
1
2
3
01/01/08 12:00 8 SP
01/01/08 1:55:00
0:05:00 SP(2Hr)
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
EMPTY TITLE
SP(2Hr)
Play
Edit
Overwrite
01/01/08 12:00 8 SP
0:00:59
1
Edit
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Title Dividing
Index Picture
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
1
456
23
01/01/08 1 SP
12:00 (1:00:00)
Title List
Title1
1
2
3
01/01/08 12:00 8 SP
01/01/08 1:55:00
0:05:00 SP(2Hr)
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
EMPTY TITLE
SP(2Hr)
1
2
3
01/01/08 12:00 8 SP
01/01/08 1:55:00
0:05:00 SP(2Hr)
01/01/08 17:00 DVB 123 SP
10/01/08 0:10:00
EMPTY TITLE
SP(2Hr)
Play
Edit
Overwrite
1
456
23
01/01/08 1 SP
12:00 (1:00:00)
Title List
Title1
Play From Start
Edit
Title Delete
Dubbing
Resume Playback
Delete Multiple Titles
01/01/08 12:00 8 SP
0:00:59
1
Edit
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Title Dividing
Index Picture
Delete this title?
Yes
No
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 65 Wednesday, July 2, 2008 4:36 PM
66
EN
Note
• For HDD, DVD+RW/DVD-RW, the available disc
space will increase only when the last recorded title
in the title list is deleted. For DVD+R/DVD-R, the
disc space will not be affected.
• Deleted part of the titles in the capacity indicator
changes in colour.
• As for DVD+RW/DVD-RW if you delete the title,
deleted title will be displayed as “EMPTY TITLE”.
• For DVD, it may take a while to write the data to the
disc after you press [OK] at step
5.
You can delete titles which you do not need anymore.
Please be advised that the titles once deleted cannot
be brought back.
1 Press [HDD], then press [TITLE].
2 Use [U \ D \ L \ P] to select any
title, then press [OK].
3 Use [U \ D] to select “Delete
Multiple Titles”, then press [OK].
4 Use [U \ D \ L \ P] to select the title
you want to delete, then press [OK].
Trash mark will appear indicating the title is
marked for deletion.
5 Repeat step 4 until you select all the
titles you want to delete.
6 Press [CLEAR].
Confirmation message will appear.
7 Use [U \ D] to select “Yes”, then
press [OK].
Final confirmation message will appear. Select
“Yes”, then press [OK].
Titles are now deleted.
To remove the trash mark from the title:
Select the title with the trash mark, then press
[OK].
Deleting Selected Titles
HDDHDD
1
456
23
01/01/08 1 SP
12:00 (1:00:00)
Title List
Title1
1
456
23
01/01/08 1 SP
12:00 (1:00:00)
Title List
Title1
Play From Start
Edit
Title Delete
Dubbing
Resume Playback
Delete Multiple Titles
1
456
23
01/01/08 1 SP
12:00 (1:00:00)
Title List
Title1
456
23
01/01/08 2 SP
12:00 (1:00:00)
1
Title List
Title2
Delete this title?
Yes
No
E2N41BN_EN.book Page 66 Wednesday, July 2, 2008 4:36 PM
67
EN
You can put title names on the titles and change the
names from this menu.
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Edit Title
Name”, then press [OK].
e.g.) DVD
3 To enter a title name, follow the
steps of “Guide to Editing Title
Names” on this page.
4 Use [U \ D] to select “Yes”, then
press [OK].
The title name is now updated.
5 Press [BACK U] once or repeatedly
to go back to the title list.
For DVD, the data will be written onto the disc
momentarily.
• Characters set will be changed to the “@ ! ?”
automatically if you press [1] after you selected the
“ABC” or “abc” mode.
Note
• To delete letters, press [CLEAR] repeatedly. Press
and hold [CLEAR] to delete all letters.
•Press [L \ P] to move the cursor to the left or right.
• You can enter up to 30 letters.
• Unrecognisable characters will be replaced with
asterisks (*). If you delete them, adjoining
characters may change to asterisks (*) or other.
Editing Title Name
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
01/01/08 12:00 1 SP
1:05:00
1
Edit
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Title Dividing
Index Picture
1:05:00
1
ABC
Edit-Edit Title Name
A B C
a b c
1 2 3
@ ! ?
Guide to Editing Title Names
Step 1 : Select the desired character set using
[U \ D], then press [OK].
Step 2 : Using the list below as a guide, press
[Alphanumeric keypad] repeatedly until the
desired letter appears.
1:05:00
1
ABC
Edit-Edit Title Name
Yes
No
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
! ” # $ % & ’ ( )
∗
+ , - . / : ; < = >
? @ [ ] ^ _ { | }
2
3
4
5
6
7
8
9
0
1
ABC
abc @ ! ?
123
––
–
–
–
–
–
–
–
–
Press
Select
<space> <space> <space>
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 67 Wednesday, July 2, 2008 4:36 PM
68
EN
You can put chapter marks in each title. Once a
chapter is marked, you can use it for the chapter
search feature.
To add a chapter mark:
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Chapter
Mark”, then press [OK].
3 Play back the title up to the point
where you want to set a new chapter
mark.
When it comes to the desired point, press
[F (PAUSE)].
4 Use [U \ D] to select “Add”, then
press [OK].
e.g.) DVD
5 Use [U \ D] to select “Yes”, then
press [OK].
A new chapter mark will be added.
To add more chapter marks, repeat steps
3 to 5.
6 Press [BACK U] once or repeatedly
to go back to the title list.
For DVD, the data will be written onto the disc
momentarily.
Note
•
Maximum number of chapter marks in a title is 99 (for
HDD/DVD) and the maximum number of chapter
marks in total is no limit (for HDD) / 254 (for DVD).
If the number of the chapter marks exceed the limit,
you cannot add any more chapter marks.
• Only with regard to DVD editing, you may not be
able to add chapter marks depending on the
duration of the title or the number of chapters.
• Only with regard to DVD editing, remaining time of
the disc may decrease when adding chapter marks
or increase when clearing chapter marks depending
on the recording time or edited contents.
• When you search for a point at step
3, you can also
use the special playback functions such as
[T (NEXT)], [D (FFW)] etc.
To delete a chapter mark:
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Chapter
Mark”, then press [OK].
Submenu will appear.
3 Use [S (PREV)] / [T (NEXT)] to go to
the chapter with the chapter mark
number you want to delete, then
press [F (PAUSE)].
Chapter mark number is displayed on the preview
screen.
e.g.) DVD
4 Use [U \ D] to select “Delete”, then
press [OK].
5 Use [U \ D] to select “Yes”, then
press [OK].
The selected chapter mark will be deleted.
To delete more chapter marks, repeat steps
3
to
5
.
6 Press [BACK U] once or repeatedly
to go back to the title list.
For DVD, the data will be written onto the disc
momentarily.
Note
• You cannot delete the chapter mark 1.
To delete all chapter marks (DVD only):
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Chapter
Mark”, then press [OK].
3 Submenu will appear.
Adding or Deleting Chapter Markers
Manually
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
01/01/08 12:00 1 SP
1:05:00
1
Edit-Chapter Mark
Add
Chapter
Delete
3 / 5
Delete All
01/01/08 12:00 1 SP
1:05:00
1
Edit-Chapter Mark-Add
Yes
No
Chapter
3 / 5
01/01/08 12:00 1 SP
1:05:00
1
Edit-Chapter Mark
Add
Chapter
Delete
3 / 5
Delete All
01/01/08 12:00 1 SP
1:30:00
1
Edit-Chapter Mark-Delete
Yes
No
Chapter
3 / 5
E2N41BN_EN.book Page 68 Wednesday, July 2, 2008 4:36 PM
69
EN
4 Use [U \ D] to select “Delete All”,
then press [OK].
5 Use [U \ D] to select “Yes”, then
press [OK].
Final confirmation message will appear. Select
“Yes”, then press [OK].
All chapter marks are now deleted.
6 Press [BACK U] once or repeatedly
to go back to the title list.
Data will be written onto the disc momentarily.
To prevent the accidental editing, or erasing of the
titles, you can protect them in “Edit” menu.
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Protect”, then
press [OK].
3 With “OFF A ON” selected, press
[OK].
The title is now protected.
• If the title is already protected, “ON A OFF” will
appear instead. Press [OK], to release the title
from protection.
• The protected title will be marked with icon.
4 Press [BACK U] once or repeatedly
to go back to the title list.
You can divide one title into 2 new titles.
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Play back the title up to the point
where you want to divide the title.
3 When it comes to the desired point,
press [F (PAUSE)].
4 Use [U \ D] to select “Title
Dividing”, then press [OK].
5 Use [U \ D] to select “Yes”, then
press [OK].
The title is now divided into 2 new titles, and it will
go back to the title list automatically. Title name of
the divided titles are identical, and index pictures
are reset to the first scene at this point.
Note
• If an internal HDD or a DVD contains the maximum
number of titles (HDD: 600, DVD+RW/-RW: 49), you
cannot divide any titles.
• With DVD+RW/-RW, you cannot divide the titles if
the total number of chapters has already reached
254.
• When you search for a point at step
2, you can also
use the special playback functions such as
[T (NEXT)], [D (FFW)] etc.
• For DVD, it may start writing data to the disc as you
complete the editing procedure.
You can delete a specific part of a title.
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Scene
Delete”, then press [OK].
Protecting a Title
01/01/08 12:00 1 SP
1:30:00
1
Edit-Chapter Mark-Delete All
Yes
No
Chapter
3 / 5
01/01/08 12:00 1 SP
1:30:00
1
Edit-Chapter Mark
Add
Chapter
Delete
1 / 1
Delete All
HDDHDD
01/01/08 12:00 1 SP
1:05:00
1
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Protect
01/01/08 12:00 1 SP
1:05:00
1
Edit-Protect
OFF A ON
Dividing a Title
Deleting a Scene of a Title
HDDHDD
D
D
VD+R
VD+R
W
W
DVD+RW
D
D
VD-
VD-
R
R
W
W
DVD-RW
HDDHDD
01/01/08 12:00 1 SP
1:00:00
1
Edit
Scene Delete
Edit Title Name
Chapter Mark
Title Dividing
Protect
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 69 Wednesday, July 2, 2008 4:36 PM
70
EN
3 Play back the title up to the point
where you want to set a start point
for the scene to be deleted, then
press [OK].
Start point is now set, and the highlight
automatically moves to “End”.
4 Play back the title up to the point
where you want to set an end point,
then press [OK].
End point is now set, and the highlight
automatically moves to “Preview”.
The portion for deletion is indicated in red in the
progress bar at the bottom of the screen.
5 With “Preview” highlighted, press
[OK] to preview the result.
Before and after 5 seconds of the deleted scene
can be previewed every time you press [OK].
• If you are not satisfied with the result, use
[U \ D] to go back to “Start” or “End”, and try
setting them again.
• If you are satisfied with the result, proceed to
step
6.
6 Use [U \ D] to select “Delete” then
press [OK].
7 Use [U \ D] to select “Yes” then
press [OK].
Final confirmation message will appear. Select
“Yes” using [U \ D] and then press [OK].
The selected scene is now deleted.
8 Press [BACK U] once or repeatedly
to go back to the title list.
Note
• When you search for the Start/End point at step 3 or
4, you can also use the special playback functions
such as [T (NEXT)], [D (FFW)] etc.
You can hide chapters from the title list.
Hidden chapters are skipped during playback.
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Use [U \ D] to select “Hide
Chapter”, then press [OK].
3 Use [S (PREV) / T (NEXT)] to go to
the chapter you want to hide, then
press [F (PAUSE)].
4 Use [U \ D] to select “Hidden”, then
press [OK].
The chapter is now hidden.
5 Press [BACK U] once or repeatedly
to go back to the title list.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
If you want hidden chapters to be “Visible”,
select the chapter to be shown. Then use
[U \ D] to select “Visible” at the step
4.
Data will be written onto the disc momentarily.
After that, title list is displayed.
01/01/08 12:00 1 SP
2:00:00
1
Edit-Scene Delete
Start
End
Preview
Delete
01/01/08 12:00 1 SP
3:00:00
1
Edit-Scene Delete
Start
End
Preview
Delete
Before
editing
Editing
start point end point
01/01/08 12:00 1 SP
3:00:00
1
Edit-Scene Delete
Start
End
Preview
Delete
Hiding Chapters
01/01/08 12:00 1 SP
2:05:00
1
Edit-Scene Delete
Yes
No
DVD+RWDVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
01/01/08 12:00 8 SP
3:00:00
1
Edit-Hide Chapter
Hidden
Visible
Chapter 3/5 Visible
E2N41BN_EN.book Page 70 Wednesday, July 2, 2008 4:36 PM
71
EN
Note
• “Hidden” will be displayed in the preview window
while previewing the hidden chapter.
• When you make all chapters in the title “Hidden”,
“Hidden” is displayed on an index picture of the title
list.
You can set your desired scene as an index picture
for each title.
1 Follow steps in “How to Access the
Edit Menu” on pages 64 - 65 to
display “Edit” menu.
2 Play back the title to find the scene
you want to use as an index picture.
When it comes to the desired point,
press [F (PAUSE)].
3 Use [U \ D] to select “Index
Picture”, then press [OK].
4 Use [U \ D] to select “Yes”, then
press [OK].
A new index picture is now set.
5 Press [BACK U] once or repeatedly
to go back to the title list.
Note
• If the selected picture for an index picture is
overwritten, the index picture is reset to the first
scene of the title.
• When you search for the point at step
2, you can
also use the special playback functions such as
[T (NEXT)], [D (FFW)] etc.
You can put a name on the disc and change it from
this menu.
Press [C (STOP)] if you are playing back a disc or if
you are displaying the “Title Menu”.
1 Press [HOME].
2 Use [U \ D] to select “Disc Editing”,
then press [OK].
3 Use [U \ D] to select “Edit Disc
Name”, then press [OK].
e.g.) DVD+RW
4 To enter a disc name, follow the
steps of “Guide to Editing Title
Names” on page 67.
When you finish entering a title
name, press [OK].
5 Use [U \ D] to select “Yes”, then
press [OK].
Data will be written onto the disc momentarily.
You can erase all titles on a disc.
Press [C (STOP)] if you are playing back a disc or if
you are displaying the “Title Menu”.
1 Press [HOME].
2 Use [U \ D] to select “Disc Editing”,
then press [OK].
3 Use [U \ D] to select “Erase Disc”,
then press [OK].
4 Use [U \ D] to select “Yes”, then
press [OK].
e.g.) DVD+RW
Data will be written onto the disc momentarily.
The contents of the disc is now deleted.
Note
• When you select “Yes” at step 4, all contents of the
disc will be erased.
Setting an Index Picture
Editing Name on Disc
DVD+RWDVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
01/01/08 12:00 1 SP
1:05:00
1
Edit-Index Picture
Yes
No
DVD+RWDVD+RW D
D
VD+R
VD+R
DVD+R
D
D
VD-
VD-
R
R
W
W
DVD-RW
D
D
VD-R
VD-R
DVD-R
Erasing Disc
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Disc Editing
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Editing
Disc Protect OFF
A
ON
abc
ABC
123
@! ?
2
0:00:03
ABC
Edit Disc Name
Disc
Total Titles
Disc Space Used
Disc Protect
Make Edits Compatible
DVD+RW
OFF
Not Needed
No Disc Name
DVD+RWDVD+RW
D
D
VD-
VD-
R
R
W
W
DVD-RW
ALL
8
7
6
5
4
3
Disc Editing
Edit Disc Name
Erase Disc
Disc Editing
all the contents in the
When you press "Yes",
Make Edits Compatible
Disc Protect OFF
A
ON
Erase Disc
Are you sure to
disc will be erased.
erase the disc?
No
Yes
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 71 Wednesday, July 2, 2008 4:36 PM
72
EN
If you have added or deleted chapters, or made
chapters hidden, you must perform “Make Edits
Compatible” to see those effects on other unit.
Press [C (STOP)] if you are playing back a disc.
1 Press [HOME].
2 Use [U \ D] to select “Disc Editing”,
then press [OK].
3 Use [U \ D] to select “Make Edits
Compatible”, then press [OK].
4 Use [U \ D] to select “Yes”, then
press [OK].
Data will be written onto the disc momentarily.
Deleting All Titles in HDD
Press [C (STOP)] if you are playing back an HDD or
disc.
1 Press [HOME].
2 Use [U \ D] to select “HDD
Settings”, then press [OK].
3 Use [U \ D] to select the desired
type of deletion, then press [OK].
Select “Delete All Titles” if you want to delete all
titles including the ones protected.
Select “Del Unprotected Titles” if you want to
delete only the unprotected titles.
4 Use [U \ D] to select “Yes”, then
press [OK].
“Are you sure?” will appear. Select “Yes” using
[U \ D], and then press [OK].
Titles are deleted.
Making Edits Compatible
DVD+RWDVD+RW
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Disc Editing
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Editing
Disc Protect OFF
A
ON
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Disc Editing
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Editing
Disc Protect OFF
A
ON
Make Edits Compatible
Activate the
Make Edits Compatible?
Yes
No
HDDHDD
Delete All Titles
Del Unprotected Titles
HDD Settings
HDD Settings
Delete All Titles
Del Unprotected Titles
HDD Settings
HDD Settings
Delete entire titles?
Yes
No
E2N41BN_EN.book Page 72 Wednesday, July 2, 2008 4:36 PM
73
EN
The following table is the contents which you can set and the default settings (highlighted).
Refer to the following table for useful operation.
Items with * (asterisk) will be taken from “Initial Setup”.
General Settings
HOME Items (highlight is the default) Contents
General Settings
Disc Playback
Parental Lock
E Page 75
level 1 to 8
Set the parental level for DVD disc
playback.
Disc Audio
E Page 76
Dynamic Range
Control
OFF
Compressing the range of sound volume.
PCM
96kHz
Set whether the sound recorded in 96 kHz
will be down sampled to 48 kHz.
Dolby Digital
PCM Set whether to convert Dolby Digital into
PCM or to output Dolby Digital signals.
MPEG
Stream
Set whether to convert MPEG into PCM or
to output MPEG signals.
Disc Menu Language
E Page 76
Other
Set the language for Disc Menu.
Audio Language
E Page 77
English
Other
Set the language for audio.
Subtitle Language
E Page 77
English
Other
Set the language for subtitles.
Angle Icon
E Page 77
OFF
Set whether or not to display the angle
icon.
Still Mode
E Page 77
Field
Frame
Set the type of still image in pausing
playback.
Skip/Replay Interval
E
Pages 77 - 78
Skip 5 seconds
30 seconds
1 minute
5 minutes
Set the amount of skip time when you
press [SKIP].
Replay
5 seconds
30 seconds
1 minute
5 minutes
Set the amount of rewind time when you
press [REPLAY].
TV System
E Page 78
Auto
Set the TV system.
Display Screen Saver
E Page 78
OFF
5 minutes
15 minutes
30 minutes
Set the idling time before the screen saver
starts.
Front panel brightness
E Page 79
Bright
Dim
OFF
Set the brightness of the Front Panel
Display.
Video TV Shape
E Page 79
4:3 Letter Box
4:3 Pan scan
Set a picture size according to aspect ratio
of your TV.
Active Video Input
E Page 19
S-Video In
Set the video input type for the external
input.
Active Video Output
E Pages 79 - 80
Component (Progressive)
Component (Interlace)
Set the video output mode.
Recording Auto Chapter
E Page 26
OFF
10 minutes
15 minutes
30 minutes
60 minutes
Insert chapter marks periodically.
Auto Finalise
E Page 45
ON Set the unit to finalise the disc
automatically.
Make Rec. Compatible
E Page 26
ON Set to prohibiting additional recording
(OFF) or to replace the title list after
recording (ON).
Recording Language
E Page 27
Sub
Set the audio type for recording.
External Input Audio
E Page 27
Bilingual
Set the external input audio type for
recording.
Video Standard
E Page 38
PAL
SECAM
Set the Video Standard to “PAL” or
“SECAM” automatically.
Set the Video Standard to “PAL”.
Set the Video Standard to “SECAM”.
All
ON
48kHz
Stream
PCM
English
Original
OFF
ON
Auto
15 seconds
15 seconds
PA L
10 minutes
Auto
16:9 Widescreen
Video In
SCART
(
RGB
)
5 minutes
OFF
OFF
Main
Stereo
Auto
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 73 Wednesday, July 2, 2008 4:36 PM
74
EN
Note
• Your change to each setting stays on even when the power is switched off.
• An item not currently available is greyed in the settings.
General Settings
Clock
Clock Setting
*
E
Page 89
Set the clock manually.
Auto Clock Setting
E Page 89
OFF
Set the clock automatically.
Channel
Digital&Analog Tuning
*
E
Page 82
Tune the digital and analogue channels
automatically.
Digital Channel
Setup
Edit Channels
E Page 85
Lock the digital channels, edit the favourite
lists.
Auto Tuning
*
E
Page 84
Tune the digital channels automatically.
Manual Tuning
E Page 85
Tune the digital channels manually.
Signal
Information
E Page 87
Display the detailed information of the
current digital channel.
Analog Channel
Setup
Auto Tuning
*
E
Page 83
Tune the analogue channels
automatically.
Manual Tuning
E
Pages 83 -84
Tune the analogue channels manually.
Sort Channels
E Page 84
Move the analogue channels to different
position.
DivX DivX
®
VOD
E Page 51
Provide DivX
®
VOD registration code.
DivX Subtitle
E Page 80 English
French
Spanish
German
Italian
Swedish
Dutch
Russian1
Russian2
Hungarian
Polish
Czech
Set the language for DivX
®
Subtitle.
HDMI Format
E Page 81
YCbCr
Set the colour space for the HDMI output.
HDMI Audio
E Page 81
OFF
Set whether to output the HDMI audio
signal or not.
Black Level
E Page 81
Enhanced
Set this function to adjust the noise
reduction.
EasyLink
E Page 81
OFF
Set whether to utilise the EasyLink
function. The EasyLink function allows all
components connected via an HDMI cable
to act in conjunction with this unit.
Digital TV
Settings
Adult Lock
E Page 86
ON Set the viewing limitation for the digital
channels.
Language Audio
E Page 88
Gaelic
Welsh
Set the audio language for digital TV.
Subtitle
E Page 88
Gaelic
Welsh
Set the subtitle language for digital TV.
Digital Teletext
Service
E Page 88
Gaelic
Welsh
Set the Digital Teletext Service language.
Tuner Version Info
E Page 88
Check the current digital system software
version of this unit.
Reset All
E Page 90
Set to the default setting.
HOME Items (highlight is the default) Contents
ON
OFF
RGB
ON
Normal
ON
OFF
English
English
English
E2N41BN_EN.book Page 74 Wednesday, July 2, 2008 4:36 PM
75
EN
Disc Playback
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Disc Playback” using
[U \ D], then press [OK].
3 Select a desired item using [U \ D],
then press [OK].
4 Refer to pages 75 to 78 and set the
selected item.
5 When you finish with the setting,
press [HOME] to exit.
Set “Parental Lock” level.
Change “Parental Lock” level using
[U \ D], then press [OK].
Proceed to either of the following steps.
Parental level
Note
• “Parental Lock” function may not be available on
some discs.
• It may be difficult to determine if some DVDs
support the parental lock function. Be sure to
confirm that “Parental Lock” function operates in the
way that you have set.
• Record the password in case you forget it.
Select “Yes” using [U \ D], then
press [OK]. Enter a new password
using [Alphanumeric keypad], then
press [OK].
Your setting is activated.
If you select “No”, press [HOME] to exit.
Enter the current password using
[Alphanumeric keypad].
If you want to change the password,
select “Yes” using [U \ D], then
press [OK].
Enter a new password using
[Alphanumeric keypad], then press
[OK].
Your setting is activated.
Note
•Press [CLEAR] to erase numbers entered
incorrectly.
• If you forget your password or you want to clear all
settings in “Parental Lock”, enter [4], [7], [3], [7]
using [Alphanumeric keypad] at the option
window. Your password is cleared and parental
levels are set to “All”.
1
Parental Lock (Default: All) (DVD only)
All: All parental locks are cancelled.
8: DVD software of any grade (adult /
general / children) can be played back.
7 to 2: Only DVD software intended for general
use and children can be played back.
1: Only DVD software intended for children
can be played back.
1
2
3
4
5
6
7
Parental Lock
Disc Audio
Disc Playback
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
9
8
Skip/Replay Interval
TV System
Disc Playback
General Settings
Parental Lock
Disc Audio
Disc Playback
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
All
8
7
6
5
4
3
A password is not yet set
A password is already set
Change Password?
No
Yes
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Password Input
Ye s
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Password Input
Change Password?
No
Yes
ALL
8
7
6
5
4
3
Change Password?
Yes
No
Password Input
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 75 Wednesday, July 2, 2008 4:36 PM
76
EN
Choose the appropriate audio setting for your
external device.
It will only affect a disc playback.
Select a desired item using [U \ D],
then press [OK].
Set to “ON” to make the dynamic range narrower.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
“Dynamic Range Control” function is effective
only with analogue audio connection.
Note
• “Dynamic Range Control” function is available only
on discs recorded in the Dolby Digital format.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
Note
When playing back a disc with copyright protection:
• Even if you select “96kHz”, the sound is down
sampled to 48 kHz.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
Set “Disc Menu Language”.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
2
Disc Audio
A
Dynamic Range Control (Default: ON)
(DVD only)
B
PCM sampling (Default: 48kHz)
48kHz: If your amplifier / decoder is NOT
compatible with 96 kHz PCM, select
“48kHz”. Sound recorded at 96 kHz is
down sampled to 48 kHz.
96kHz: If your amplifier / decoder is compatible
with 96 kHz PCM, select “96kHz”. Sound
is sampled at 96 kHz.
A
B
C
D
Dynamic Range Control
PCM
Disc Audio
Dolby Digital
MPEG
General Settings
Dynamic Range Control
PCM
Disc Audio
Dolby Digital
MPEG
ON
OFF
Dynamic Range Control
General Settings
Dynamic Range Control
PCM
Disc Audio
Dolby Digital
MPEG
48kHz
96kHz
PCM
C
Dolby Digital conversion (Default: Stream)
PCM: Converts the Dolby Digital into PCM
(2 channel).
If your amplifier / decoder is NOT
compatible with Dolby Digital, set to
“PCM”.
Stream: Outputs Dolby Digital signals.
If your amplifier / decoder is compatible
with Dolby Digital, set to “Stream”.
D
Settings for MPEG (Default: PCM)
(DVD only)
PCM: Converts MPEG into PCM.
If your amplifier / decoder is NOT
compatible with MPEG, set to “PCM”.
Stream: Outputs MPEG Audio signals.
If your amplifier / decoder is compatible
with MPEG, set to “Stream”.
3
Disc Menu Language (Default: English)
(DVD only)
General Settings
Dynamic Range Control
PCM
Disc Audio
Dolby Digital
MPEG
PCM
Stream
Dolby Digital
General Settings
Dynamic Range Control
PCM
Disc Audio
Dolby Digital
MPEG
PCM
Stream
MPEG
General Settings
Parental Lock
Disc Audio
Disc Playback
Other
English
Disc Menu Language
Audio Language
Disc Menu Language
Subtitle Language
Angle Icon
Still Mode
E2N41BN_EN.book Page 76 Wednesday, July 2, 2008 4:36 PM
77
EN
Set “Audio Language”.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
If “Original” is selected, the audio language is the
default of the inserted disc.
Set “Subtitle Language”.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
If “Other” is selected, enter the
appropriate 4-digit code using
[Alphanumeric keypad].
Refer to “Language Code” on page 95.
When you finish entering the code,
press [OK].
Hint
• You can also change or switch off the subtitles on a
DVD from the disc menu if it is available.
•Press [CLEAR] or [L] to erase numbers entered
incorrectly.
Note
• You can only select the languages supported by the
inserted disc.
• “Audio Language” setting may not be available for
some discs.
Set “Angle Icon”.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
Set “Still Mode”.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
Note
• An individual picture on TV screen is called Frame,
which consists of two separate images called Fields.
Some pictures may be blurred at the “Auto” setting
in still mode due to their data characteristics.
Assign [SKIP] or [REPLAY] to skip or rewind by a
certain amount of time when they are pressed.
Select a desired item using [U \ D],
then press [OK].
4
Audio Language (Default: Original)
(DVD only)
5
Subtitle Language (Default: OFF) (DVD only)
General Settings
Parental Lock
Disc Audio
Disc Playback
English
Original
Disc Menu Language
Audio Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Other
General Settings
Parental Lock
Disc Audio
Disc Playback
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
OFF
English
Other
Subtitle Language
ALL
8
7
6
5
4
3
Code Input
6
Angle Icon (Default: ON) (DVD only)
7
Still Mode (Default: Auto) (DVD only)
Auto: Automatically select the best resolution
setting (“Frame” or “Field”) based on the
data characteristics of the pictures.
Field: Select “Field” when the pictures are still
unstable even if “Auto” is selected. “Field”
stabilises the pictures, although the picture
quality may become coarse due to the
limited amount of data.
Frame:
Select “Frame” to display relatively
motionless pictures in higher resolution.
“Frame” improves the picture quality,
although it may destabilise the picture due to
simultaneous output of two fields of data.
8
Skip/Replay Interval
General Settings
Parental Lock
Disc Audio
Disc Playback
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
OFF
Angle Icon
ON
General Settings
Parental Lock
Disc Audio
Disc Playback
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Auto
Field
Frame
Still Mode
General Settings
Skip/Replay Interval
Skip
Replay
5 seconds
15 seconds
30 seconds
1 minute
5 minutes
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 77 Wednesday, July 2, 2008 4:36 PM
78
EN
Refer to the explanations below and set the
selected item.
A : Skip (Default: 15 seconds)
Sets the amount of skip time for [SKIP].
B : Replay (Default: 15 seconds)
Sets the amount of rewind time for [REPLAY].
Set “TV System”.
Select a setting using [U \ D], then
press [OK].
Your setting will be activated.
Note
• With discs recorded using the PAL system, a PAL
signal is output for viewing on a PAL system TV.
• Discs recorded with the PAL system cannot be
viewed on an NTSC system TV.
• With discs recorded using the NTSC system, an
NTSC signal is output for viewing on an NTSC or
Multi system TV.
• With discs recorded using the NTSC system, select
PAL to view on a PAL system TV.
Display
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Display” using [U \ D], then
press [OK].
3 Select the desired item using
[U \ D], then press [OK].
4 Refer to pages 78 - 79 and set the
selected item.
5 When you finish with the setting,
press [HOME] to exit.
Set the screen saver time delay.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
9
TV System (Default: PAL) (DVD only)
PAL: Outputs a modified PAL signal for viewing
discs recorded with the NTSC system on a
PAL system TV.
Auto: Changes the video system (PAL / NTSC)
automatically according to the format of
the inserted disc.
General Settings
Skip
Replay
Skip/Replay Interval
5 seconds
15 seconds
30 seconds
Skip
1 minute
5 minutes
General Settings
Skip
Replay
Skip/Replay Interval
5 seconds
15 seconds
30 seconds
Replay
1 minute
5 minutes
General Settings
Skip/Replay Interval
TV System
Disc Playback
Auto
TV System
PAL
1
Screen Saver (Default: 10 minutes)
1
2
Front panel brightness
Screen Saver
Display
General Settings
Screen Saver
Front panel brightness
Display
5 minutes
Screen Saver
OFF
10 minutes
15 minutes
30 minutes
E2N41BN_EN.book Page 78 Wednesday, July 2, 2008 4:36 PM
79
EN
Set the front panel display brightness.
Select a setting using [U \ D], then
press [OK].
You can choose one from “Auto”, “Bright”, “Dim”
or “OFF”.
If “Auto” is selected, the display becomes dimmer
when the set is in standby.
If “OFF” is selected,the power consumption of the
unit will be lower in standby state.
The brightness of the front panel display will
become dimmer while the unit is in on, and it will
be off while the unit is in standby.
Note
• If you set “Front panel brightness” to “OFF”, output
of the picture from the external device through AV2
to AV1 (input of the picture from AV2 and output of
the picture from AV1.) is not available when this unit
is off.
Video
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Video” using [U \ D], then
press [OK].
3 Select the desired item using
[U \ D], then press [OK].
4 Refer to this page and set the
selected item.
For “ ”, refer to page 19 for details.
5 When you finish with the setting,
press [HOME] to exit.
You can select the TV aspect ratio to match the
formats of what you are playing back with the unit and
your TV screen (4:3 standard or 16:9 widescreen TV).
Select the desired setting using
[U \ D], then press [OK].
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on
the top and bottom of the TV screen when playing
back a wide-screen picture. Select “4:3 Pan scan” for
a full height picture with both sides trimmed when
playing back wide-screen picture.
If you have a widescreen TV:
Select “16:9 Widescreen”.
This unit is compatible with the Progressive Scan
System. This feature provides better quality video
output compared to interlace. You can enjoy
Progressive Scan image by using HDMI OUT or
COMPONENT VIDEO OUTPUT. To utilise the
Progressive Scan system through the COMPONENT
VIDEO OUTPUT, you must set Video Output mode in
“HOME” menu on the following steps.
“SCART(RGB)” is selected as the default.
• When you set the “Active Video Output” setting,
make sure that the AV1 (TO TV) Scart socket is
connected to your TV with Scart cable.
2
Front panel brightness (Default: Auto)
General Settings
Screen Saver
Front panel brightness
Display
Bright
Front panel brightness
Auto
Dim
OFF
1
TV Shape (Default: 16:9 Widescreen)
3
Active Video Output (Default: SCART(RGB))
1
2
3
TV Shape
Active Video Input
Video
Active Video Output
2
2
General Settings
TV Shape
Active Video Input
Video
4:3 Pan scan
4:3 Letter Box
Active Video Output
16:9 Widescreen
TV Shape
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 79 Wednesday, July 2, 2008 4:36 PM
80
EN
1 Select the desired setting using
[U \ D], then press [OK].
• If your TV is compatible with progressive
scanning (576p/480p), connect the TV to the
COMPONENT VIDEO OUTPUT jacks of this
unit and select “Component (Progressive)” and
set your TV to the progressive scan mode.
• If your TV is not compatible with progressive
scan, select “Component (Interlace)” for
component connect, or select “SCART(RGB)”
for Scart cable connection.
• Refer to page 17 for more details.
Only if you select the “Component (Progressive)”,
proceed to step
2 If you select “Component
(Interlace)” or “SCART(RGB)”, your setting is
activated.
2 Use [U \ D] to select “Yes”. Press
[OK].
Final confirmation window will appear.
3 Use [U \ D] to select “Yes”. Press
[OK] within 15 seconds.
Your setting is activated.
Note
• When changing “Active Video Output” setting
(“SCART(RGB)”, “Component (Interlace)” or
“Component (Progressive)”), connect to the
corresponding jack on the TV. If the setting is
changed, for example, to “SCART(RGB)” while the
COMPONENT VIDEO OUTPUT jacks are used to
connect to the TV, a distorted video signal may
result.
DivX
®
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “DivX” using [U \ D], then
press [OK].
3 Select the desired item using
[U \ D], then press [OK].
For “ ”, refer to page 51 for details.
Select the desired setting using
[U \ D], then press [OK].
4 When you finish with the setting,
press [HOME] to exit.
General Settings
TV Shape
Active Video Input
Video
Component (Progressive)
SCART(RGB)
Active Video Output
Component (Interlace)
Active Video Output
Activating progressive scan:
Check your TV has progressive scan
and connect with component video cable.
NOTE : If there is no picture or picture is
distorted after selecting "Yes",
Wait about 15 seconds for auto recovery.
Activate? Yes
No
Confirm again to use progressive scan.
If picture is good, select "Yes".
Yes
No
2
DivX Subtitle (Default: OFF)
1
2
DivX
®
VOD
DivX Subtitle
DivX
1
General Settings
DivX
®
VOD
DivX Subtitle
DivX
English
OFF
French
DivX Subtitle
German
Spanish
Italian
Swedish
E2N41BN_EN.book Page 80 Wednesday, July 2, 2008 4:36 PM
81
EN
HDMI
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
• Make sure that the HDMI cable is connected and the
TV input is set to HDMI.
2 Select “HDMI” using [U \ D], then
press [OK].
3 Select the desired item using
[U \ D], then press [OK].
4 Refer to pages 81 - 82 and set the
selected item.
5 When you finish with the setting,
press [HOME] to exit.
You can select the colour space for HDMI output.
Set the appropriate colour space for your display
device.
Select a setting using [U \ D], then
press [OK].
• When the connected device is not compatible with
the Y/Cb/Cr, HDMI signal is output as RGB
regardless of the setting.
Your setting is activated.
If you do not want to output the audio through HDMI
(when the digital audio output of the unit is connected
to an audio amplifier system, etc.), you can set the
HDMI audio output off.
Select a setting using [U \ D], then
press [OK].
• Set to “OFF” when the HDMI sound is not output.
Your setting is activated.
You can adjust the black level to make the dark areas
of the HDMI images brighter.
Select a setting using [U \ D], then
press [OK].
• Select “Enhanced” if the black-white contrast is not
clear.
• This setting is effective only for HDMI RGB output.
Your setting is activated.
This feature is only applicable if this unit is connected
to HDMI CEC compliant TV/device. It enables all the
linked devices response or react to certain commands
simultaneously with one touch control.
Select a setting using [U \ D], then
press [OK].
Your setting is activated.
1
Format (Default: RGB)
1
2
3
4
Format
HDMI Audio
HDMI
Black Level
EasyLink
General Settings
Format
HDMI Audio
HDMI
YCbCr
RGB
Black Level
EasyLink
Format
2
HDMI Audio (Default: ON)
3
Black Level (Default: Normal)
4
EasyLink (Default: ON)
General Settings
Format
HDMI Audio
HDMI
OFF
ON
Black Level
EasyLink
HDMI Audio
General Settings
Format
HDMI Audio
HDMI
Enhanced
Normal
Black Level
EasyLink
Black Level
General Settings
Format
HDMI Audio
HDMI
OFF
ON
Black Level
EasyLink
EasyLink
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 81 Wednesday, July 2, 2008 4:36 PM
82
EN
How to enjoy the EasyLink function
1 Turn on the HDMI CEC operations on
your TV and other connected
devices. See TVs/devices manual for
details.
2 You can now enjoy the EasyLink
controls.
One touch play (Auto wake-up TV)
When you press [P (PLAY)], this unit will wake- up
from standby mode and start disc play (if a video disc
is found in the disc compartment) and it will also turn
on your TV and switch to the correct viewing channel.
One touch power off (System standby)
When you press and hold [Q (STANDBY-ON)], it will
put to standby this unit and all the linked devices via
HDMI CEC. This unit will also response to standby
command from other HDMI CEC compliant devices.
Note
• Philips does not guarantee 100 % interoperability
with all HDMI CEC compliant devices.
Channel Installation
You can retune this unit or edit the channel
installation by the following methods.
Program the tuner to scan both analogue and digital
channels available in your area.
1 In stop mode, press [HOME]. After
pressing [HOME], the message
“Time Shift Buffer will be cleared
depending on your selection. Do you
want to continue?” will appear.
Select “Yes”.
2 Select “General Settings” using
[U \ D], then press [OK].
“General Settings” menu will appear.
3 Select “Channel” using [U \ D],
then press [OK].
4 Select “Digital&Analog Tuning”
using [U \ D], then press [OK].
The unit will start storing channels available in
your area.
Wait for several minutes to finish channel storing.
• Analogue channels will be stored in channel 01-
99 after it is scanned by this unit.
5 Press [HOME] to exit.
You can select only the channels stored in this
unit by using [PROGRAM + / –].
To cancel auto tuning
Press [BACK U] or [HOME] during scanning.
Note
• The selection will be affected by how you receive TV
channels in your local area.
• If the auto tuning is cancelled during scanning,
some channels may not be stored.
Digital & Analog Tuning
General Settings
Channel
Digital&Analog Tuning
Digital Channel Setup
Analog Channel Setup
E2N41BN_EN.book Page 82 Wednesday, July 2, 2008 4:36 PM
83
EN
Program the tuner to scan analogue channels
available in your area.
1 In stop mode, press [HOME]. After
pressing [HOME], the message
“Time Shift Buffer will be cleared
depending on your selection. Do you
want to continue?” will appear.
Select “Yes”.
2 Select “General Settings” using
[U \ D], then press [OK].
“General Settings” menu will appear.
3 Select “Channel” using [U \ D],
then press [OK].
4 Select “Analog Channel Setup”
using [U \ D], then press [OK].
5 Select “Auto Tuning” using [U \ D],
then press [OK].
The unit will start storing channels available in
your area.
Wait for several minutes to finish channel storing.
• Analogue channels will be stored in channel 01-
99 after it is scanned by this unit.
6 Press [HOME] to exit.
You can select only the channels stored in this
unit by using [PROGRAM + / –].
To cancel auto tuning
Press [BACK U] or [HOME] during scanning.
Note
• The selection will be affected by how you receive TV
channels in your local area.
• If the auto tuning is cancelled during scanning,
some channels not yet tuned may not be received.
• You cannot change the channel when this unit is in
any recording mode (normal recording, One-touch
Timer Recording or timer recording).
You can manual tune to and set each analogue
channel.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Channel” using [U \ D],
then press [OK].
3 Select “Analog Channel Setup”
using [U \ D], then press [OK].
4 Select “Manual Tuning” using
[U \ D], then press [OK].
5 Select “Position” using [U \ D],
then press [P].
6 Select the position number you want
to use using [Alphanumeric keypad]
or [U \ D], then press [L].
• You can select position number 01-99.
7 Select “Channel” using [U \ D],
then press [P].
8 Press [U \ D] to start scanning.
• The tuner will begin to search up or down
automatically. When a channel is found, the unit
will stop searching and the picture will appear
on the TV screen.
• You can select a desired channel number using
[Alphanumeric keypad]. Refer to the following
Channel Plan table and press the three digits to
select the channel number.
(To select channel 4, press [0] first and then
press [4].) Or press [4] and then wait for 2
seconds after “--4” appears.
• If this is the channel you want, press [L].
Auto Tuning (ANALOG)
ANALOG
General Settings
Channel
Digital&Analog Tuning
Digital Channel Setup
Analog Channel Setup
Auto Tuning
Manual Tuning
Sort Channels
Analog Channel Setup
Manual Tuning (ANALOG)
ANALOG
Channel Plan
CH Indication TV Channel
01 – 10 IRA-IRJ, GAP
21 – 69 E21 – E69
74 – 78 X, Y, Z, Z+1, Z+2
80 – 99, 100 S1 – S20, GAP
121 – 141 S21 – S41
01
2
General Settings
Analog Channel Setup
Position
ON
Channel
Decoder
Skip
Manual Tuning
OFF
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 83 Wednesday, July 2, 2008 4:36 PM
84
EN
This unit can receive the Hyper and Oscar
frequency bands.
• To set “Skip” to “ON”, select “Skip” using
[U \ D], then press [P]. Select “OFF” using
[U \ D], then press [L].
• If you want to decode scrambled signals, select
“Decoder” using [U \ D], then press [P]. Select
“ON” using [U \ D], then press [L].
• To store another channel, repeat steps
5 to 8.
9 Press [HOME] to exit.
You can set the unit to skip channels. You can no
longer receive or watch when you access channels
using [PROGRAM + / –].
1 Follow steps 1 to 4 in “Manual
Tuning (ANALOG)” on page 83.
2 Select “Position” using [U \ D],
then press [P].
3 Select the position number you want
to skip using [Alphanumeric keypad]
or [U \ D], then press [L].
4 Select “Skip” using [U \ D], then
press [P].
5 Select “ON” using [U \ D], then
press [L].
• To skip another channel, repeat steps 2 to 5.
6 Press [HOME] to exit.
You can change the order of the stored channels
according to your preference.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Channel” using [U \ D],
then press [OK].
3 Select “Analog Channel Setup”
using [U \ D], then press [OK].
4 Select “Sort Channels” using
[U \ D], then press [OK].
5 Select the preset number of the
channel you want to change using
[U \ D], then press [OK].
•
“
✔
” will be displayed on the left side of “Pos. CH”.
• You cannot select a position number where
“– – –” appears next to the number, because
“Skip” is set to “ON” for that position number.
6 Move the channel to another
position number using [U \ D], then
press [OK].
• To move another channel, repeat steps 5 to 6.
7 Press [HOME] to exit.
You can programme the tuner to scan only the digital
channels that you can receive in your area.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Channel” using [U \ D],
then press [OK].
3 Select “Digital Channel Setup” using
[U \ D], then press [OK].
4 Select “Auto Tuning” using [U \ D],
then press [OK].
The unit will start storing channels available in
your area.
The tuner scans and memorises all the active
digital channels (TV / Radio) in your area.
•Press [OK] after Auto Tuning is completed, then
the digital channel at lowest preset will appear
on the screen.
5 Press [HOME] to exit.
You can use [PROGRAM + / –] to access the
stored digital channels.
Note
• If you press [BACK U] during the scanning,
the screen will return to the previous displayed
menu, and Auto Tuning will be cancelled.
• If you press [HOME] during the scanning, this
operation will stop and the lowest number of
digital channels will appear on the TV screen.
Skip a Preset Channel
ANALOG
Sort Channels (ANALOG)
ANALOG
Auto Tuning (DIGITAL)
DIGITAL
General Settings
Channel
Digital Channel Setup
Digital&Analog Tuning
Digital Channel Setup
Analog Channel Setup
Manual Tuning
Edit Channels
Signal Information
Auto Tuning
1 ITV1
2 ITV2
3
4 E4
Channel48 UHF
700 BBC Radio 1
701 BBC Radio 2
702 Magic Radio
703 Classic FM
690000kHz/8M
60%
Channel search
TV channelS.No. Radio channelS.No.
Progress
Channel
E2N41BN_EN.book Page 84 Wednesday, July 2, 2008 4:36 PM
85
EN
You can manual tune to digital channels and do
update install for new channels.
1 Follow steps 1 to 3 in “Auto Tuning
(DIGITAL)” on page 84.
2 Select “Manual Tuning” using
[U \ D], then press [OK].
3 Select your desired position number
using [U \ D], then press [OK].
• The tuner will begin to search up or down
automatically. When a digital channel is found,
the unit will stop searching.
• When “Update” is selected, the unit will update
new digital TV and radio services, which have
not yet been stored. (This adds only the new
channels to your existing preset list, after the
last preset position.)
4
Press [HOME] to activate the setting.
With “Quick select” menu, you can select your
favourite digital channel quickly. Refer to “Edit Group
Lists” on page 86.
1 Press [OK] while watching a digital
channel.
• “Quick select” menu will appear.
2
Press [
L \ P
] to select your favourite
group list. (“All”, “Group1” - “Group8”)
• “All” shows a list of all the stored digital
channels.
• If the favourite group does not have any
channels, the group will be skipped.
3 Select the digital channel you want
to watch using [U \ D], then press
[OK].
4 Press [BACK U] to exit.
With “Edit Channels” menu, you can see all the stored
digital channels and sort them into the group lists
(“Quick select”) or set the viewer limitation (“Adult
Lock”), etc.
1 Follow steps 1 to 3 in “Auto Tuning
(DIGITAL)” on page 84.
2 Select “Edit Channels” using
[U \ D], then press [OK].
• “Edit Channels” menu will appear.
1 Channel numbers
2 Channel names
3 Channel information
4 Channel installation
3 Press [HOME] to exit.
Note
•Press [INFO] to display the user guide. You can see
each explanation of the buttons which can be used
in “Edit Channels” menu. Press [BACK U] to
return to “Edit Channels” menu.
Manual Tuning (DIGITAL)
DIGITAL
Quick Select
DIGITAL
General Settings
Digital Channel Setup Manual Tuning
Channel
Update
1
2 ITV1
3 ITV2
4 ITV3
5
6 E4
7 More 4
Channel nameS.No.
Quick select
Moving picture 576i
All
Channel
Edit Channels (DIGITAL)
DIGITAL
1
2
4
3
1 1
2 ITV1
3 ITV2
4 ITV3
5 4
6 E4 4
Crystal Palac 562000kHz/8M
Edit Channels
Channel nameS.No.
Moving picture 576i
Fav Skip Lock Del
Channel
England
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 85 Wednesday, July 2, 2008 4:36 PM
86
EN
You can sort each digital channel into 8 different
favourite group lists (“Group1” - “Group8”). With
“Quick select” menu, you can select your favourite
digital channel quickly. Refer to “Quick Select” on
page 85.
1 Follow steps 1 to 2 in “Edit Channels
(DIGITAL)” on page 85.
2 Select the digital channel you want
to add to the favourite group list
using [U \ D], then select the
number of the favourite group list
you want to add to using
[Alphanumeric keypad] ([1] - [8]).
• The number you selected will appear.
•Press [0] to cancel from the favourite group list.
3 Press [HOME] to exit.
You can set the unit to skip the unwanted digital
channels when you use [PROGRAM + / –].
1 Follow steps 1 to 2 in “Edit Channels
(DIGITAL)” on page 85.
2 Select the digital channel you want
to skip using [U \ D], then press
[GREEN].
• “ ” will appear.
•Press [GREEN] to cancel. “ ” will disappear.
3 Press [HOME] to exit.
You can set the unit to limit the access to the digital
channels.
1 Follow steps 1 to 2 in “Edit Channels
(DIGITAL)” on page 85.
2 Select the digital channel you want
to lock by using [U \ D], then press
[YELLOW].
• “ ” will appear.
•Press [YELLOW] to cancel. “ ” will disappear.
3 Press [HOME] to exit.
• Once you turn off the unit, Pincode will be
required to view the locked channels.
• To set the Pincode, refer to “Pincode Setting for
Adult Lock” on page 88.
4 Switch the unit to standby in order
for the settings to take effect.
You can delete the digital channels from the stored
digital channels.
1 Follow steps 1 to 2 in “Edit Channels
(DIGITAL)” on page 85.
2 Select the digital channel you want
to delete using [U \ D], then press
[BLUE].
• “ ” will appear.
•Press [BLUE] to cancel. “ ” will disappear.
3 Press [HOME] to exit.
• The channel has been deleted from the “Edit
Channels” menu.
Edit Group Lists
DIGITAL
Skip Channels
DIGITAL
1 1
2 ITV1
3 ITV2
4 ITV3
5 4
6 E4 4
Crystal Palac 562000kHz/8M
Edit Channels
Channel nameS.No.
Moving picture 576i
Fav Skip Lock Del
Channel
England
1 1
2 ITV1
3 ITV2
4 ITV3
5 4
6 E4 4
Crystal Palac 562000kHz/8M
Edit Channels
Channel nameS.No.
Moving picture 576i
Fav Skip Lock Del
Channel
England
Adult Lock
DIGITAL
Delete Channels
DIGITAL
1
2 ITV1
3 ITV2
4 ITV3
5 4
6 E4 4
Crystal Palac 562000kHz/8M
Edit Channels
Channel nameS.No.
Moving picture 576i
Fav Skip Lock Del
Channel
England
Crystal Palac 562000kHz/8M
1 1
2 ITV1
3 ITV2
4 ITV3
5 4
6 E4 4
Edit Channels
Channel nameS.No.
Moving picture 576i
Fav Skip Lock Del
Channel
England
E2N41BN_EN.book Page 86 Wednesday, July 2, 2008 4:36 PM
87
EN
You can change the order of the stored channels
according to your preference when you use
[PROGRAM + / –] by swapping positions of the two
channels.
1 Follow steps 1 to 2 in “Edit Channels
(DIGITAL)” on page 85.
2 Select the digital channel of which
you want to change the position
using [U \ D], then press [OK].
3 Select the channel you want to
replace with using [U \ D], then
press [OK].
• The two channels swap positions.
4 Press [HOME] to exit.
You can edit the digital channel names according to
your preference.
1 Follow steps 1 to 2 in “Edit Channels
(DIGITAL)” on page 85.
2 Select the digital channel for name
editing using [U \ D]. Then press
[RED].
• Name editing display will appear.
3 Edit the name using the
[Alphanumeric keypad].
•Press [Alphanumeric keypad] repeatedly until
the desired letter appears.
•Press [L \ P] to move the cursor left or right.
•Press [RED] to select alphabet or numbers.
•Press [GREEN] to select capital or lower case
letters.
•Press [YELLOW] to insert a space.
•Press [BLUE] to delete a letter.
4 After completion, press [OK].
5 Press [HOME] to exit.
Note
• You can enter up to 19 letters.
You can check the detailed information of the current
digital channel.
1 Follow steps 1 to 3 in “Auto Tuning
(DIGITAL)” on page 84.
2 Select “Signal Information” using
[U \ D], then press [OK].
• “Signal Information” display will appear.
3 Press [HOME] to exit.
• “Signal Information” is not available for
analogue channel and external input (AV1/AV2/
AV3/Digital Video (AV4)).
• “Signal Information” is also not available while
the Pincode input field for locked digital channel
is displayed.
Sort Channels (DIGITAL)
DIGITAL
Edit Channel Names
DIGITAL
S. No. Channel Name
1 Moving picture 576i 1
2 ITV1
3 ITV2
4 ITV3
5 Channel 4
6 E4 4
England Crystal Palace 562000kHz/8M
N
2
4
5
6
g
e
8
TUV
0
SPACE
0-9 A->a INS DEL
7
PQRS
9
WXYZ
JKL
45
GHI
6
MNO
2
ABC
1
@S#
3
DEF
Edit Channels
Fav Skip Lock Del
Signal Information
DIGITAL
80%
90%
DVB-T 8M
474000KHz A.PID 0274
8M V.PID 0273
P.PID 0512
12:00-15:00 CITV 576i
15:00-18:00 CITV 576i
15 CITV
Frequency
Bandwidth
Signal
Quality
England
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 87 Wednesday, July 2, 2008 4:36 PM
88
EN
Digital TV Settings
You can make settings of the digital tuner from the
“Digital TV Settings”.
You can set “Adult Lock” to “ON” or “OFF” and also
change Pincode.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Digital TV Settings” using
[U \ D], then press [OK].
3 Select “Adult Lock” using [U \ D],
then press [OK].
4 Select “ON” or “OFF” using [U \ D],
then press [OK].
5 To set “Adult Lock” to “ON”:
1) Enter your desired Pincode using
[Alphanumeric keypad], then press [OK].
2) For confirmation, enter the Pincode again
using [Alphanumeric keypad] then press
[OK].
To set “Adult Lock” to “OFF”:
Enter the Pincode using
[Alphanumeric keypad].
• While entering the Pincode, use [L] or [CLEAR]
to clear the numbers erroneously entered.
• If you forget the Pincode, press [4], [7], [3], [7]
to cancel the Pincode.
6 Press [HOME] to exit.
Note
• Once “Adult Lock” has been set to “ON”, Pincode
will be required in order to view the locked channels
or make the timer recording of them, and when you
try to execute the “Auto Tuning” for digital TV or
“Edit Channels”.
• “Adult Lock” settings will only take effect after the
unit goes to and wake up from standby.
1 Follow steps 1 to 2 in“Pincode
Setting for Adult Lock” on this page.
2 Select “Language” using [U \ D],
then press [OK].
3 Select the item by which you want to
change the language using [U \ D],
then press [OK].
4 Select a language using [U \ D],
then press [OK].
5 Press [HOME] to exit.
Note
• The “Audio” and “Subtitle” setting may not be
available for some broadcasts.
• To change the audio language, refer to “Multiaudio”
on page 24.
• To display the subtitle or choose the subtitle
language, refer to “Subtitle” on page 24.
You can check the current digital system software
version of this unit.
1 Follow steps 1 to 2 in “Pincode
Setting for Adult Lock” on this page.
2 Select “Tuner Version Info” using
[U \ D].
3 Press [HOME] to exit.
Pincode Setting for Adult Lock
DIGITAL
General Settings
Digital TV Settings
Adult Lock
Language
Tuner Version Info
ON
OFF
Language Setting
DIGITAL
Audio : Set the Audio language
Subtitle : Set the Subtitle language
Digital Text Service : Set the Digital Teletext language
Tuner Version Info
DIGITAL
General Settings
Digital TV Settings
Audio
Subtitle
English
Gaelic
Welsh
Digital Text Service
E2N41BN_EN.book Page 88 Wednesday, July 2, 2008 4:36 PM
89
EN
Setting the Clock
This unit receives time signals from the analogue /
digital channels, and sets the clock automatically.
Ensure analogue or digital channels are installed.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Clock” using [U \ D], then
press [OK].
3 Select “Auto Clock Setting” using
[U \ D], then press [OK].
4 Select “ON” using [U \ D], then
press [OK].
5 Press [HOME] to exit.
6 Press [Q (STANDBY-ON)] to turn the
unit off.
• The Auto clock function is activated.
• This unit will search for the time whenever the
unit is put to standby.
• Leave the unit off for about 10 seconds to give it
time to set the clock.
Hint
• If you want to cancel “Auto Clock Setting”, select
“OFF” using [U \ D], and then press [OK] at step
4.
Note
• The default setting of “Auto Clock Setting” is “ON”.
• The clock may set itself automatically after you
connect the antenna cable to the unit and plug in the
mains cable. In this case, the current time will
appear on the front panel display.
• If there are only analogue channels stored in this
unit:
- The channel assigned to “01” must receive the
PDC signal in order to set the clock automatically.
- The unit will correct the current time by receiving
PDC broadcasts whenever the power is turned off.
- Between 23:00 and 1:00, the Auto Clock function
will not operate even when the power is turned off.
• The clock cannot be set automatically if you are not
receiving a channel in your area that carries a time
signal. In this case, set the clock manually.
• The unit will also correct the current time
automatically at 8:00 if the unit is in standby mode or
if you are watching digital channel.
• The time will be downloaded from the currently
viewed digital channel.
• Auto Clock will be activated by a digital channel you
are watching.
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D],
then press [OK].
2 Select “Clock” using [U \ D], then
press [OK].
3 Select “Clock Setting” using
[U \ D], then press [OK].
Default date will appear.
4 Press [OK] again.
5 Enter the date (day / month / year)
using [U \ D].
Press
[
P
]
to move the cursor to the next field. If you
want to go back to the previous field, press
[
L
]
.
6 Enter the time (hours / minutes)
using [U \ D], then press [OK].
The clock will start.
7 Press [HOME] to exit.
Note
• Your clock setting will be lost if either a power failure
occurs or the unit is unplugged for more than 30
seconds.
• If you have installed digital channels and
programmed timers in this unit, the “Clock” option
will not be selectable.
Auto Clock Setting
General Settings
General Settings
Disc Playback
Display
Clock Setting
Auto Clock Setting
Video
Recording
Clock
Channel
DivX
Manual Clock Setting
General Settings
Clock
Clock Setting
Auto Clock Setting
Clock Setting
0:00
01/01/2008
(TUE)
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 89 Wednesday, July 2, 2008 4:36 PM
90
EN
Reset All
1 In stop mode, press [HOME]. Select
“General Settings” using [U \ D ],
then press [OK].
2 Select “Reset All” using [U \ D],
then press [OK].
3 Select “Yes” using [U \ D], then
press [OK].
“Are you sure?” will appear. Select “Yes” using
[U \ D], and then press [OK].
4 When you finish with the setting,
press [HOME] to exit.
Note
• The settings listed below will remain unchanged
even after resetting to the factory default.
- Clock setting
- Channel installation
- Parental lock setting
-DivX
®
VOD code
- Timer Programmes
- Digital TV Settings
General Settings
HDMI
Digital TV Settings
General Settings
Reset All
ALL
8
7
6
5
4
3
Reset to factory
Reset All
Yes
No
default?
E2N41BN_EN.book Page 90 Wednesday, July 2, 2008 4:36 PM
91
EN
Troubleshooting
Before requesting service for this unit, check the table below for a possible cause of the problem you are
experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore
proper operation.
Others
Symptom Remedy
POWER
The power does not turn on. • Check that the AC power cord is connected securely.
• Batteries of the remote control are weak.
The unit turns on automatically without any
operation.
• The unit turns on automatically 2 seconds before the timer recording.
GENERAL
The unit does not function. • “ ” or error message appears if the operation is prohibited.
• Batteries of the remote control are weak or exhausted.
No picture, sound or menu appears on the
screen.
• Check if the connections are made securely and correctly.
• Check if the cables are damaged.
• Check if a correct external input channel is selected on your TV.
(See page 19.)
• Check if you have completed “Channel” setting. (See pages 82 - 87.)
“Clock” setting and “Channel” setting cannot
be performed.
• If a recording is in progress, these operations cannot be performed.
The unit does not operate properly. • Moisture has condensed inside the unit. Remove the disc and leave the
unit turned on for about 2 hours until the moisture evaporates.
(See page 4.)
The clock display does not appear on the front
panel display.
• Check that the AC power cord is connected securely.
• (In case of power failure) Check the breaker and “Clock” setting.
When you forget the password for parental
lock.
• Please cancel the password and the set level. (See page 75.)
DV signal cannot be input. • Before connecting, turn on the power supplies for both this unit and the
DVC, and make sure that these units have stopped.
• Only a “DVC-SD” signal can be input from the DVC to this unit. Other
types of signals are not supported.
• Do not connect any device other than the DVC. Even if a recorder or PC
with another DV terminal is connected, the DV function will not operate.
• If the DVC is not recognised after connection, turn off the power supply
for the unit and re-connect the DVC.
The DVC cannot be operated with this unit. • Signal input or DVC operation from this unit may be disabled depending
on the type of DVC.
• If a DVC signal cannot be input, use an external input (AV2/AV3) for
analogue connection via audio/video cables. Use Scart adaptor for
connecting to AV2.
• DVC control may be disabled depending on the type of DVC, even in a
mode other than camera mode. In this case, switch to DVD control and
execute the normal recording procedure while operating the DVC.
Certain functions of the DVC cannot operate. • Some functions may not operate depending on the type of DVC. For
example, if the DVC does not support slow playback mode, the slow
playback function is disabled.
• With DV (AV4), the disc display menu does not appear unless disc
playback is executed.
DV audio signal cannot be switched. • For recording with the DVC, the recording audio signal can be set to 12
bits or 16 bits. However, when 16-bit recording mode is selected, audio
signal cannot be switched. To record an audio signal, set it to 12 bits.
No image from HDMI connection. • Check the HDMI connection. (Check the status of the HDMI related
indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device
supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches
the supported input format of other connected device.
• If the unit is connected to the unauthorised display device with an HDMI
cable, the audio and video signals may not be output when playing back
a commercial DVD-video.
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 91 Wednesday, July 2, 2008 4:36 PM
92
EN
Symptom Remedy
CHANNEL
TV channels cannot be changed. • Check if the connections are made securely and correctly.
• Check if the cables are damaged.
• Try “Channel” setting by following the steps on pages 82 - 87.
• Check if you are performing the Time Shift Buffer. In such a case, press
[LIVE TV].
Changes for DVB channels such as tuning and
channel editing are not saved.
• After tuning or making any changes to DVB channels, press
[Q (STANDBY-ON)] to save. Do not unplug the AC mains cable for at
least 1 minute.
Only specific channels do not appear. • The channels may be set to be skipped. (See page 84.)
RECORDING
GENERAL
The image from the external device cannot be
displayed.
• Try pressing [SOURCE] repeatedly.
• Turn on all connected devices.
• Check if the connections are made securely and correctly.
HDD / DVD
Recording is impossible. • It is prohibited to make a recording from 2 minutes before the
programmed start time of a timer recording.
• This unit cannot record programmes that contain copy protection signal.
This is not a malfunction.
• The space of the recording media may be used up. Try deleting
unnecessary titles, or exchange it with the recordable media.
• The maximum number of titles or chapters has exceeded. Delete the
unnecessary titles to make enough space or insert a new recordable
media.
• Check if the connections are made securely and correctly.
Timer recording cannot be performed. • The internal clock of the unit may have been stopped due to a power
failure that lasted for more than 30 seconds. Reset the clock.
(See page 89.)
HDD
The picture of the Time Shift Buffer
disappears.
• The contents of the Time Shift Buffer will be cleared in some cases
(Changing input channel etc.). (See page 30.)
When playing back the title recorded from the
Time Shift Buffer, the digital TV programme
information is displayed and it cannot be
disappeared.
• In the Time Shift Buffer, when you display the digital TV programme
information, the information will be recorded as the part of the picture.
DVD
Recording is impossible. • Copy-once programmes can only be copied onto an Internal HDD.
• Check if the disc is protected or finalised. Undo the protection or the
finalisation.
• Check if the connections are made securely and correctly.
“Repairing” appears on the TV screen. • If there is a power failure or unplugging during recording, finalising,
formatting or editing (even after “Repairing” disappears), a repairing
process will begin automatically just after turning the unit on again.
• It may take several minutes up to about several hours.
In a case you intend to cancel the repairing
process.
• If you intend to cancel the repairing process, press [OPEN\CLOSE A]
on the front panel, then select “Yes” and press [OK]. After that, press
[A (OPEN\CLOSE)] to take out the disc. The disc cancelled during the
repairing process MAY NOT work.
The indication
“ ” does
not disappear.
• “ ” may remain on screen for the
maximum of 20 seconds even after it reached 100 %. This is not a
malfunction.
PLAYBACK
GENERAL
TV aspect ratio does not match your TV
screen.
• Check “TV Shape” setting. (See page 79.)
• A different aspect ratio will be used when the aspect ratio specified by
the disc is not supported by this unit.
Playback picture is distorted.
Colour of the picture is abnormal.
• During fast forward or fast reverse, playback picture may be distorted.
This is not a malfunction.
• Connect to TV directly. When you connect this unit with the television via
VCR or other devices, the picture may be distorted due to the copy-
protection signal.
• Check if the cables are damaged.
• Keep the equipment which may cause electrical disturbances, such as a
cellular phone, away.
Repairing
Repairing
Do you want to cancel a repairing
process? When selecting "Yes",
the disc may not be usable.
Ye s
No
100%
Writing to Disc
100%
Writing to Disc
E2N41BN_EN.book Page 92 Wednesday, July 2, 2008 4:36 PM
93
EN
PLAYBACK
GENERAL
There is no sound, or no subtitle. • Turn on all connected devices.
• Check if the external input channel is set correctly.
• Check if the connections are made securely and correctly.
• If using the HDMI connection, sound is not output when “HDMI Audio” is
set to “OFF”.
• Check the RCA audio cable connection. If you are using HDMI-DVI
conversion cable, you must connect the RCA audio cable, too.
• If using the HDMI connection, check whether the output format of this
unit (HDMI FORMAT) matches the supported input format of other
connected device.
HDD/DVD
Playback does not start from the beginning. • Resume function may be activated. Refer to page 54 to cancel the
resume point.
HDD
HDD playback suddenly stops. • When DVD recording finishes during HDD playback, the unit will stop the
HDD playback, and start writing data to the DVD. This is not a
malfunction.
DVD
Playback cannot be performed. • Check if the playable disc is inserted.
• Check if the disc is loaded correctly with the labelled side facing up.
• Discs made on other devices or on personal computers cannot be
played back on this unit unless it is finalised on the device.
• Even if it is finalised, the performance of those discs are not guaranteed
on this unit.
• The disc may be dirty or flawed. Clean the disc.
• Check if all the connections are made correctly.
• Check “Parental Lock” setting. (See page 75.)
• Playback of DVD is prohibited from 2 minutes before the programmed
start time of a timer recording when the recording media is DVD.
There is no sound, or no subtitle. • Check if all the connections are made correctly.
• Check if the “Disc Audio” is set correctly. (See page 76.)
• There is a possibility that the selected subtitle language is not supported
by the disc.
Digital audio setting cannot be changed to
main audio (L), sub audio (R) or combination
of both.
• If the audio source is in the Dolby Digital format, set “Dolby Digital”
setting to “PCM” in “Disc Playback” menu. (available only for DVD)
(See page 76.)
Audio language or the subtitle language of the
DVD cannot be changed.
• Multilingual subtitles are not supported by the disc.
• Some audio languages or the subtitle languages can be changed only
from the disc menu. Please refer to the disc’s manual.
Angles cannot be changed. • Even though the multi-angle feature is supported by the disc, that does
not mean all the scenes are shot from multi-angles. Changing angles is
available only for those scenes shot from the multi-angle.
The disc cannot be played back on other
player even though it is finalised properly.
• Some DVD players do not play back the disc made on other recorder.
Refer to the manual of the unit.
EDITING
HDD / DVD
Titles cannot be edited or deleted. • The titles or the disc itself may be protected. Cancel the protection by
following the steps on page 69 for title protection and page 44 for disc
protection.
Dubbing cannot be executed. • When the number of the titles or the chapters exceeds the maximum
recordable number, the dubbing will not be executed.
DVD
Titles cannot be edited or deleted. • The titles in the DVD+R/-R cannot be edited or deleted if they are
finalised. If it is DVD-RW, undo the finalisation by following the steps on
pages 44 - 45.
The capacity of the disc doesn’t increase even
if the recorded programme is deleted.
• With DVD+RW/-RW, the disc space will increase only when the last title
is deleted. With DVD-R/+R, deleting a title will not increase the disc
space.
Dubbing cannot be executed. • Check if the disc is compatible for recording. (See page 25.)
REMOTE CONTROL
The remote control does not function. • No batteries in the remote control or the batteries may be weak. Replace
the batteries.
• Make sure there is no obstacle between the remote control and the unit.
• Try getting closer to the unit. (See page 11.)
• If above solutions do not solve the problem, please call an Authorised
Service Centre.
Symptom Remedy
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 93 Wednesday, July 2, 2008 4:36 PM
94
EN
* If you are still having trouble with the unit after checking all the Troubleshooting points, write down the error code
and the error description and consult your dealer or an authorised service centre.
Error message Cause Solution
Disc Error
-- Please eject the disc. --
Playback feature may not be
available on this disc.
• An unplayable disc is inserted in the unit.
• The disc is upside down.
• Insert a standard disc.
• Insert the disc with the labelled side facing
up.
Region Error
-- Please eject the disc. --
Playback is not authorized in
your region.
• Playback is not authorised in the region of
the DVD-Video that you inserted in the
unit.
• Insert a DVD-Video with region codes 2 or
ALL.
Parental Lock On
The current selected parental
level prohibits playback.
• The current selected parental level in
“HOME” menu prohibits playback.
• Check the “Parental Lock” setting.
(See page 75.)
Recording Error
This programme is not allowed
to be recorded.
• The recording function encountered a
copy prohibited programme.
• Original source is in NTSC system.
• You cannot record copy prohibited
programmes.
Recording Error
Can not record on this disc.
• You are trying to record onto a disc that is
unrecordable, or the disc status does not
satisfy recording requirements.
• The disc is dirty.
• The disc is damaged.
• Insert a recordable disc, and ensure the
disc status satisfies the recording
requirements. (See page 25.)
• Clean the disc with a cleaning cloth.
• Replace the disc.
• Switch to HDD mode.
• Disc may need formatting.
Recording Error
This disc is protected and not
recordable.
• You are trying to record onto the protected
disc which is set in “Disc Editing” menu.
• Release the disc protect setting in “Disc
Editing” menu. (See page 44.)
Recording Error
You cannot record more than 49
titles on one disc.
(The maximum is 49)
• You are trying to record onto the disc for
which the number of recording titles
comes up to the maximum (49).
• Delete unnecessary titles.
(See pages 65 - 66.)
Recording Error
You cannot record more than
254 chapters on one disc.
(The maximum is 254)
• You are trying to record onto the
DVD+RW or DVD-RW disc for which the
number of recording chapters comes up
to the maximum (254).
• Delete unnecessary chapter marks.
(See pages 68 - 69.)
Recording Error
You cannot record on this disc
as Power Calibration Area is full.
• When recordings are performed
repeatedly onto an unstable disc, this
area may become full.
• Every time you insert a disc for recording,
part of the disc’s working area will be
used. If you repeat this frequently, it will
be used up quicker and you may not be
able to record maximum number of titles
for the disc.
• Insert a new disc.
Recording Error
This disc is already finalised.
• You are trying to record onto a disc that is
already finalised.
• Release the finalising for the disc.
(See pages 44 - 45.)
Recording Error
The disc has no recording
compatibility.
Set "Make Rec. Compatible" to
"ON" to convert the disc.
• You are trying to record onto the
unfinalised +VR mode discs recorded on
other unit.
• Set “Make Rec. Compatible” to “ON” to
rewrite the menu, after that you will record
to disc. (See page 26.)
Recording Error
You cannot record more than
600 titles on HDD.
(The maximum is 600.)
• You are trying to record onto the HDD
when total title number is already at its
limit.
• Delete unnecessary titles.
(See pages 65 - 66.)
Recording Error
Can not record on this HDD.
• The internal HDD is dirty or damaged.
• There is not enough space on the internal
HDD.
• Contact the customer service centre.
• Delete unnecessary titles.
(See pages 65 - 66.)
E2N41BN_EN.book Page 94 Wednesday, July 2, 2008 4:36 PM
95
EN
Language Code
Language Code
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
Cambodian 5759
Catalan 4947
Chinese 7254
Corsican 4961
Croatian 5464
Czech 4965
Danish 5047
Dutch 6058
English 5160
Esperanto 5161
Estonian 5166
Faroese 5261
Fiji 5256
Finnish 5255
French 5264
Frisian 5271
Galician 5358
Georgian 5747
German 5051
Greek 5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Hungarian 5467
Icelandic 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish 5347
Italian 5566
Japanese 5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean 5761
Kurdish 5767
Laothian 5861
Latin 5847
Latvian; Lettish 5868
Lingala 5860
Language Code
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian 6061
Occitan 6149
Oriya 6164
Oromo (Afan) 6159
Panjabi 6247
Pashto; Pushto 6265
Persian 5247
Polish 6258
Portuguese 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian 6461
Russian 6467
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Language Code
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish 5165
Sundanese 6567
Swahili 6569
Swedish 6568
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish 6664
Turkmen 6657
Twi 6669
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
Language Code
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 95 Wednesday, July 2, 2008 4:36 PM
96
EN
Glossary
Analogue audio
An electrical signal that directly
represents sound. In contrast,
digital audio can also be an
electrical signal, but is an indirect
representation of sound. See also
“Digital audio”.
Aspect ratio
The width of a TV screen relative to
its height. Conventional TVs are 4:3
(i.e., the screen is almost square).
Widescreen models are 16:9 (the
screen is almost twice as wide as its
height).
Chapter (HDD/DVD)
Just as a book is split up into
several chapters, a title on an HDD/
DVD is usually divided into
chapters. See also “Title(HDD/
DVD)”.
Component video output
Each signal of luminance(Y) and
component (P
B
/C
B
, P
R
/C
R
) is
independent to output so that you
can experience picture colour as it
is intended to be.
Also, due to compatibility with
progressive video (576p/480p), you
can experience high-definition
picture than that in interlace (576i/
480i signal).
Digital audio
An indirect representation of sound
using numbers. During recording,
the sound is measured at discrete
intervals (44,100 times a second for
CD audio) by an analogue-to-digital
converter, generating a stream of
numbers. On playback, a digital-to-
analogue converter generates an
analogue signal based on these
numbers. See also “Sampling
frequency” and “Analogue audio”.
Dolby Digital
A system developed by Dolby
Laboratories that compresses
digital sound. It works with stereo
(2ch) or multi-channel audio.
Finalise
To make DVDs that have been
recorded playable in DVD players. It
is possible to finalise DVD-RW/-R
and DVD+R discs with this unit.
HDMI
(High Definition Multimedia
Interface)
A digital interface between audio
and video source. It can transmit
component video, audio, and
control signal with one cable
connection.
JPEG
(Joint Photographic Experts
Group)
JPEG is a method of compressing
still image files. You can copy JPEG
files on CD-RW/-R discs from a
computer and play back the files on
this unit.
MP3
(MPEG Audio Layer 3)
MP3 is a method of compressing
files. You can copy MP3 files on
CD-RW/-R discs from a computer
and play back the files on this unit.
PBC (Video CD only)
(Playback Control)
This function enables you to play
back interactive software using a
menu screen. See also “Title (Video
CD)”.
PCM
(Pulse Code Modulation)
PCM is a format that converts audio
into digital data. It is mainly used for
Audio CDs and DAT. This unit can
play back sounds as realistic as
possible by converting even
compressed Dolby Digital and
MPEG audio to PCM.
Progressive Scan (576p/480p)
A type of display that does not split
each frame into fields, and instead
scans directly through all the
scanlines of each frame in order.
Progressive Scan provides less
flickering and higher image
resolution than traditional (576i/
480i) TV signals. Refer to pages 17
and 79 - 80 for instructions on the
Progressive Scan mode selection.
Region code
Regions associate discs and
players with particular areas of the
world. This unit will only play back
discs that have compatible region
codes. You can find the region code
of your unit by looking on the rear
panel. Some discs are compatible
with more than one region (or all
regions).
Sampling frequency
The rate at which sound is
measured by a specified interval to
turn it into digital audio data. The
number of samples in one second is
defined as the sampling frequency.
The higher the rate is, the better the
possible sound quality.
Title
(HDD/DVD)
A collection of chapters on an HDD/
DVD. See also “Chapter (HDD/
DVD)”.
(Video CD)
The contents of a Video CD. When
playing back a Video CD with the
PBC function, the Title Menu will
appear automatically.
Track
Audio CDs and Video CDs use
tracks to divide the contents of a
disc. The DVD equivalent is called a
chapter. See also “Chapter (HDD/
DVD)”.
Windows Media™ Audio
Windows Media™ Audio is the
audio compressing technology
developed by Microsoft. You can
copy Windows Media™ Audio files
on CD-RW/-R from a computer and
play them back on this unit.
E2N41BN_EN.book Page 96 Wednesday, July 2, 2008 4:36 PM
97
EN
Specifications
Note
The specifications and design of this product are subject to change without notice.
General
HDD Internal 3.5 inch HDD 160 GB
Power requirements 220–240 V ± 10 %, 50 Hz ± 0.5 %
Power consumption 35 W
Power consumption (standby) 5.8 W (When “Front panel brightness” is set to “OFF”: 2.5 W)
Weight 3.8 kg
Dimensions (width x height x depth) 420 x 59 x 315 mm
Operating temperature 5°C to 40°C
Operating humidity Less than 80 % (no condensation)
TV system PAL-I
Recording
Recording format +VR format
Recordable discs DVD+Rewritable, DVD+Recordable
DVD-Rewritable, DVD-Recordable (+VR mode only)
Video recording format
Sampling frequency
Compression format
13.5 MHz
MPEG
Audio recording format
Sampling frequency
Compression format
48 kHz
Dolby Digital
Tuner
Receivable channels IRA - E69 (For analogue channels)
E21 - E69 (For DVB-T channels)
Input/Output
Front Panel : (AV3 / AV4)
Video input
Input level
One RCA connector
1 Vp-p (75 Ω)
S-Video input
Input level
One Mini DIN 4-pin jack
Y (luminance) 1 Vp-p (75 Ω)
C (colour) 300 mVp-p (75 Ω)
Audio input
Input level
Two RCA connectors
2 Vrms (input impedance: more than 10 kΩ)
Digital Video input
Digital Video 4-pin jack
IEEE 1394
Rear Panel :
VHF/UHF antenna input/output terminal 75 Ω
Audio input /output Two 21-pin scart sockets (AV1, AV2)
Video input /output
Input /output level
Two 21-pin scart sockets (AV1, AV2)
1 Vp-p (75 Ω) each
Component video output
Output level
Three RCA connectors
Y: 1.0 Vp-p (75 Ω)
P
B
/C
B
, P
R
/C
R
: 0.7 Vp-p (75 Ω) each
Audio output
Output level
Two RCA connectors
2 Vrms (output impedance: 680 Ω)
Digital audio output
Output level
One Coaxial pin jack
500 mVp-p (75 Ω)
HDMI output HDMI jack
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 97 Wednesday, July 2, 2008 4:36 PM
98
EN
E2N41BN_EN.book Page 98 Wednesday, July 2, 2008 4:36 PM
99
EN
Introduction Connections Initial Setup Playback Editing Others
General Settings
Recording
E2N41BN_EN.book Page 99 Wednesday, July 2, 2008 4:36 PM
© 2008 Philips Consumer Lifestyle
All right reserved
jpkm_0838/05-1
1VMN25834 / E2N41BN
