Combo Wine Refrigerator
+
2 Drawers Refrigerator
Model: WRD2-108
Built-in / Freestanding

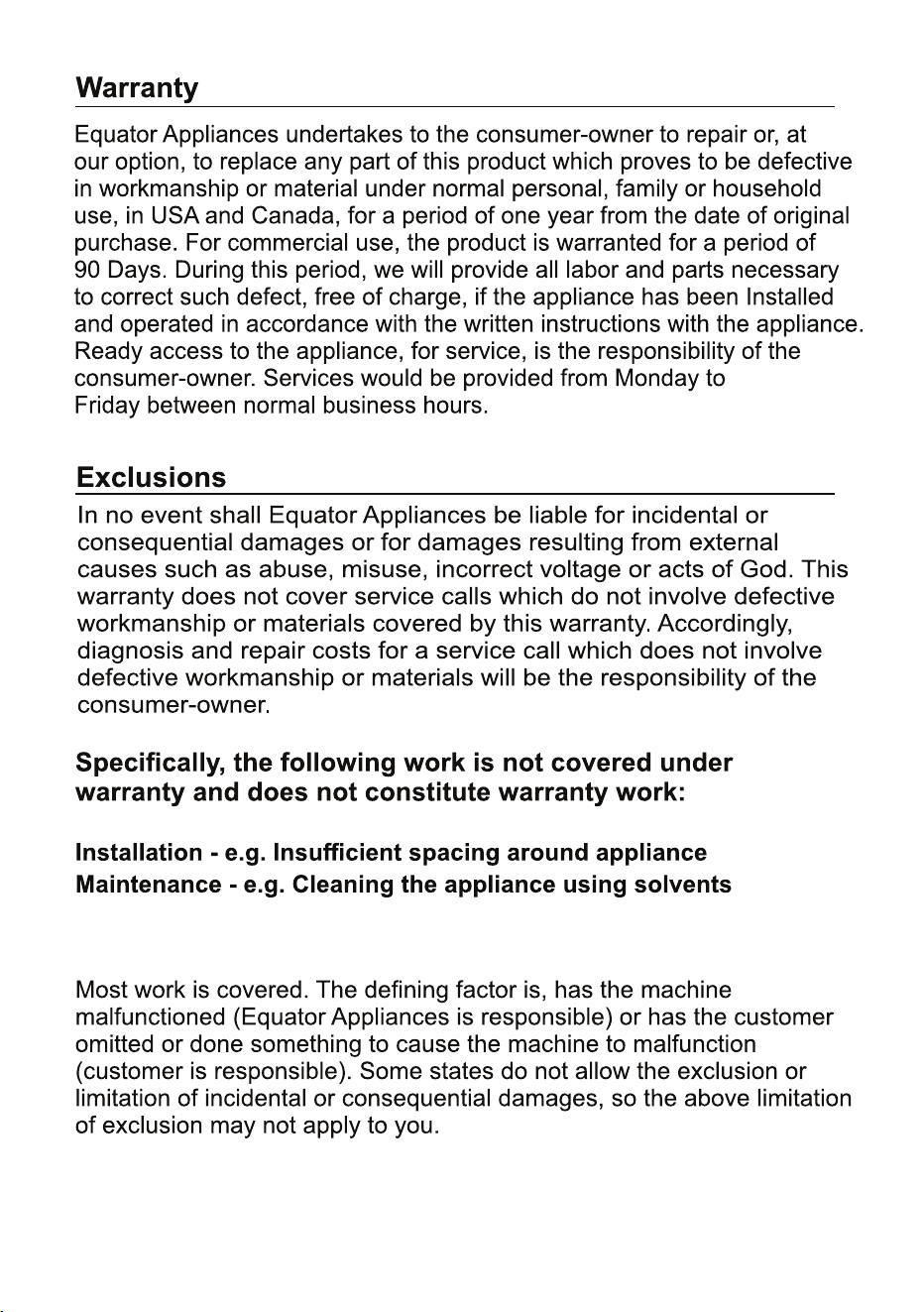

Mishandling - e.g. Breakage of glass
Chat-AI
1. Scan Chat-AI
Open Smart Phone
Open Camera
Click the Link
2. Register online at ApplianceDesk.com/Warranty
3. Chat-AI is also used to obtain Product Information,
Manuals and Updates
Congratulations on your new Combo Wine Refrigerator + 2 Drawer
Refrigerator!
In addition to its contemporary design, this is a highly sophisticated
engineered product that will give you many years of satisfaction.
Here are some of the best reasons for buying your appliance:
It's a Wine Refrigerator and you can separate your
Red Wines and White Wines.
In Red Wines you have 3 Different Sub Temperatures: 54 ~ 65
o o
F F.
In your 2 Drawers you can put Foods: Olives, Cheese and certain
other foods but not foods that are perishable
In White Wines you have 3 Different Sub Temperatures: 41 ~ 54
o o
F F.
Before discarding the appliance, remove the door and drawers in
order to prevent risk of child entrapment. Leave shelves in place.
Safety
1
Do not move the appliance while it is loaded with bottles and food.
Place the appliance in a room where the temperature is between
o o o o
Installation
2
Leave about 1/4 inch (5 mm) on the sides and above the appliance.
Leave about 1 inch (20 mm) between the back of the appliance
and the wall.
Place the appliance on a flat level surface. Adjust the feet of the
appliance as needed to make it level.
This appliance can be Freestanding or Built-in.
Ensure the bottom vent in front of the appliance is not obstructed.
Built-in
This appliance is intended for storage of wine, beverages and food,
and for household use only.
The combo appliance is a wine refrigerator on top with 6 shelves,
that can keep up to 84 wine bottles / 212 cans cool at the
optimum temperature.
o o
Store white wines on the top 3 shelves: F F.41 ~ 54
o o
Store red wines on the bottom 3 shelves: F F.54 ~ 65
Operation
Control Panel
Ventilation Fans
Air Outlet
Upper Refrigerator
Drawer
Lower Refrigerator
Drawer
3
Wine Refrigerator
with 6 shelves
Ventilation Outlet
See Table on the next page for further details.
Below the wine refrigerator, there are two refrigerator drawers,
which can be used to store beverages and food that is not
easily perishable.
Press the Power ON/OFF key to turn on the Wine Refrigerator and
Refrigerator Drawers.
Press the Light key to turn on the LED light and continue to press to
select one of 7 colors. The selected color will illuminate in the Wine
Refrigerator cabinet.
Press the Up and Down keys to increase or decrease the temperature.
Pressing the temperature Up and Down keys simultaneously for
o o
This appliance has two temperature zones in the Wine Refrigerator, and a
separate range in the Refrigerator Drawers. The table below provides
storage recommendations for different wine types for optimum results.
Control Panel
Wine Refrigerator Control
Drawers Control
4
Drawers
Red
Wine
Light
(Pinot Noir, Burgundy)
Medium
(Merlot, Zin)
Full-bodied
(Cab, Syrah)
Champagne
White
Rosé
White
Recommended storage of Wines, Beverages and Foods
Drawers
Beverages and preserved foods
34 ~ 50 (1 ~10 )
o o o o
F F C C
1
2
3
4
5
6
Champagne
White - Chardonnay, Pinot Grigio
Rosé
Light - Pinot Noir, Burgundy
Medium - Merlot, Zinfandel
Full-bodied - Cabernet, Syrah
Wine Category Type of Wine
Temperature Range
41 ~ 54
o o
F F
o o
C C(5 ~12 )
54 ~ 65
o o
F F
(12 ~18 )
o o
C C
White
Red
Ideal refrigerator temperature is: 35˚F to 38˚F (1.7˚C to 3.3˚C).
Do not store uncooked seafood, poultry and meats.
If the Drawer temperature is set above 38˚F, please do not store any items
that require refrigeration.
12 12 12
The Wine Refrigerator door can be reversed to open from the
opposite side.
Follow these steps:
Door Reversal (Optional)
Use a screwdriver to remove the upper and lower hinges of the door
and remove the door.
Remove hole cap and screws from the opposite side of the cabinet and
attach them to the side where the door was removed.
Attach the door on the opposite side of the cabinet using the hinges
and screws.
Ensure the hinges are aligned and tighten the screws to complete the
door reversal process.
1.
2.
3.
4.
WRD2-108
17 cu. ft.
84 Bottles / 212 Cans
110V/60Hz
R600a
41 ~ -54 F / 54 ~ 65 F
34 ~ 50 F
196.2
71.7 x 23.4 x 27.1 inch
Specifications Table
5
Wine Temperature (Upper/Lower)
Drawer Temperature
Make sure the power cord is unplugged before moving or cleaning the
back of the appliance.
Clean the outside and inside of the appliance regularly, using water and
mild detergent.
Problem Possible Cause and Solution
Not Working
Check the fuse.
Check if it is plugged in correctly to the power source.
Temperature is not set correctly.
Adjust the temperature.
Move unit if near a heat source or in direct sunlight.
Check for proper ventilation and that air inlet or outlet is not blocked.
Door opened frequently or not shut properly.
Door seal is damaged.
Too many bottles stored on the same shelf.
Too much noise
Appliance not placed on flat surface or not level. Adjust the feet to
level it.
Some parts are loose causing rattling.
The appliance is against a wall.
Door does not
close properly
Check the seal.
Shelves are not positioned properly. Adjust the shelves.
Check that bottles are stored correctly and fit in the cabinet.
Not Cooling
The following phenomenon is normal:
Moisture on the glass door – wipe with dry cloth
Sound of fluid is the compressor when it is starting or stopping
Flowing sound of refrigerant in the refrigeration system
Condensation forming inside the cabinet – wipe with dry cloth
Maintenance
Troubleshooting
6
Equator Advanced Appliances USA,
founded in 1991, offers Efcient, High-Quality,
and Innovative household appliances.
Our Vision is to enhance our Customer’s
Quality of Life!
Our Mission is to simplify domestic chores
and save Time, Space, and Energy.
