iBasso Audio
USER GUIDE
Android Basic Features Introduction
WiFi Connection/Bluetooth Connection
Contents
Package Components
Main Features
Specifications
Names of Parts & Functions
8-9
6-7
2-5
10-14
15-27
16-17
Application (APP) Installation/App， to Uninstall/USB Connections
18-21
Power Off/Reboot/System Switching
27
System Settings
22-26
iBasso Mango Music Player Application
28-62

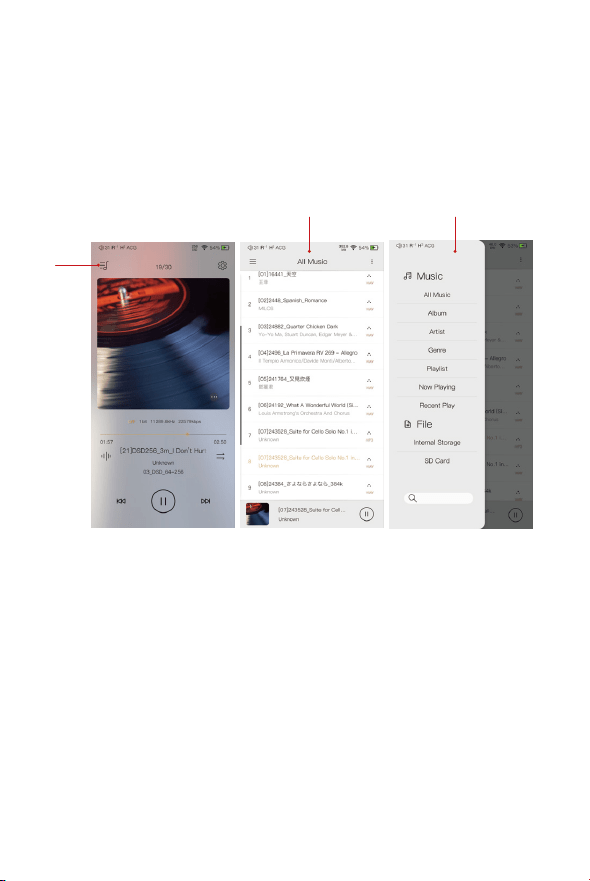

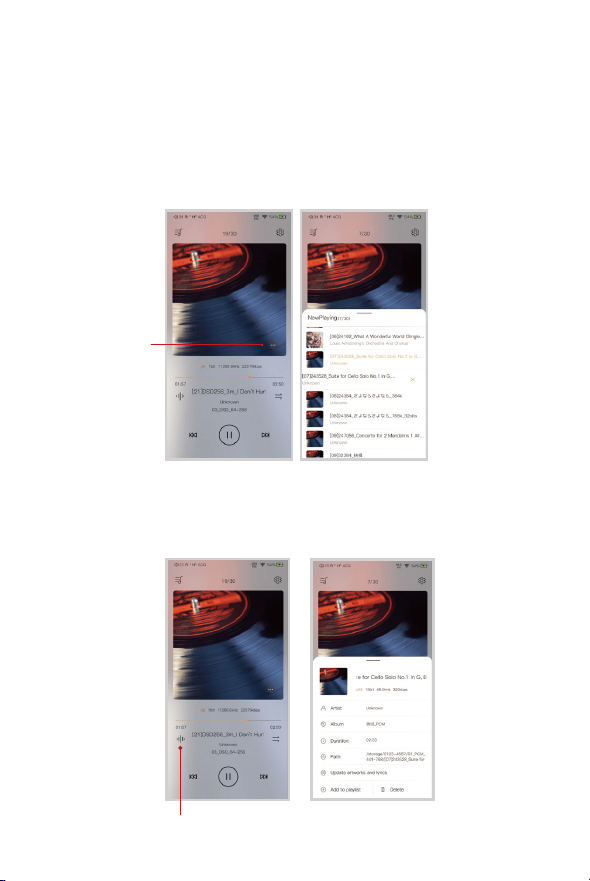

Playback Screen (home screen)
28

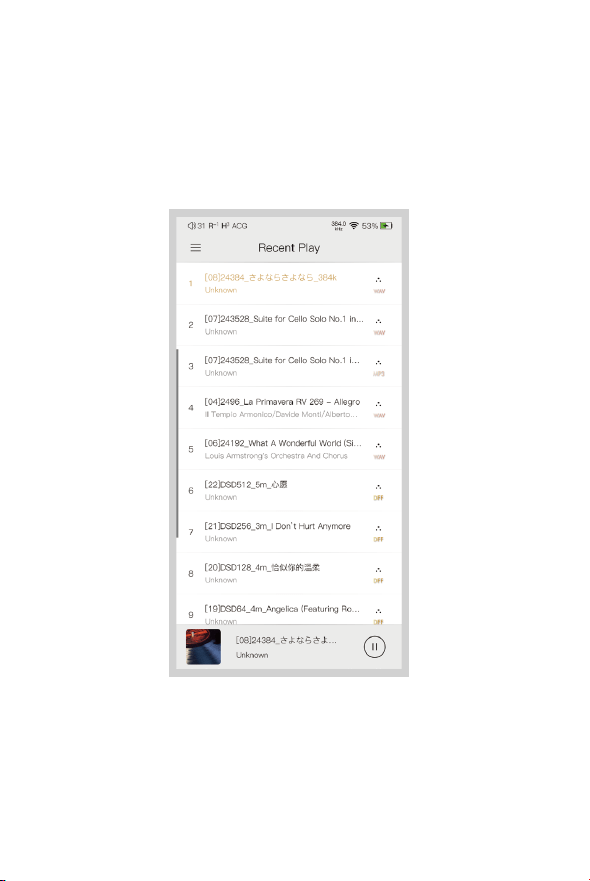

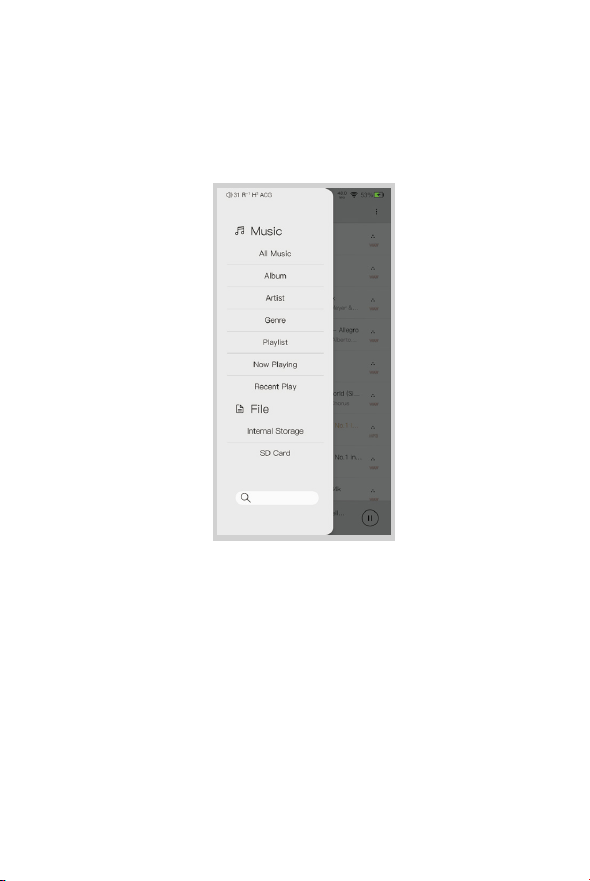

Music Screen
29-43
Settings Screen
44-62
System Switching
63
Mango OS
63-66
Mango OS User Interface
64

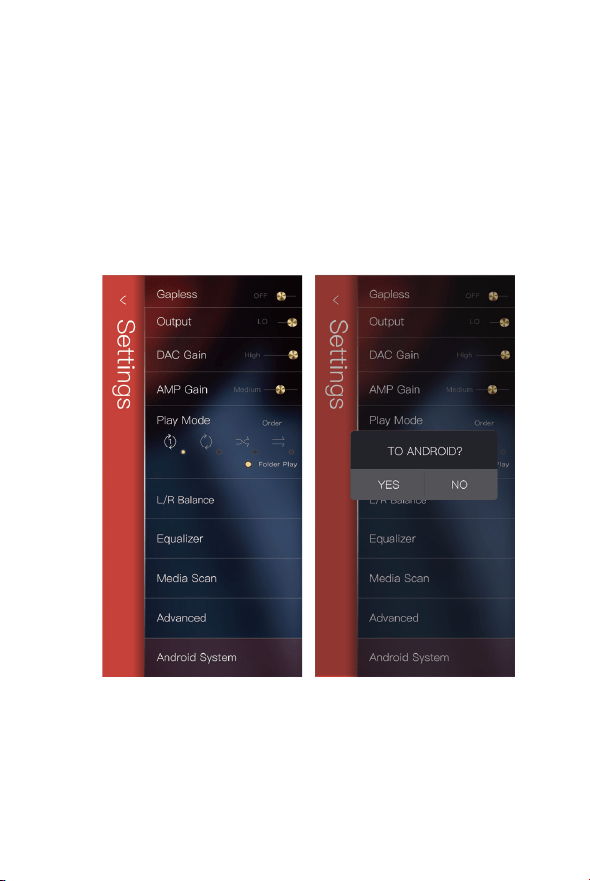

To Return to The Android System
65

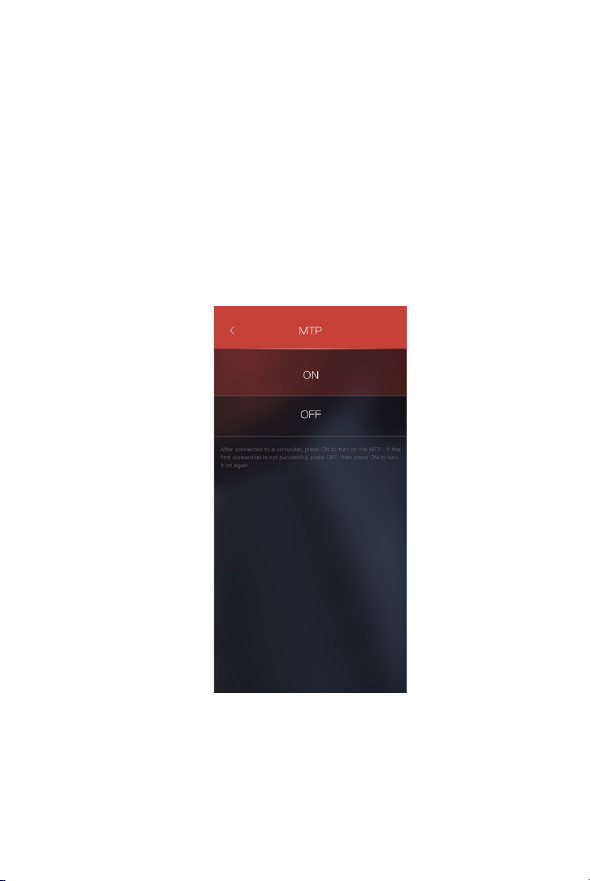

MTP
66
USB-C cable
2
Package Components
Coaxial Cable Balanced Burn-in Cable
12V AC Adapter
Leather CaseDX340 Player
Screen Protector
Quick Start Guide
Warranty Card
Coaxial Cable：
Connect the coaxial cable to an external DAC, to allow
the DX340 to work as a digital transport.
3
Leather Case：
Use the leather case to protect the DX340 chassis from
scratches.
4
USB-C Cable：
Connect the USB-C cable to a computer for charging,
data transfer, and USB-DAC function.The USB-C cable
can also be used with a USB charger to charge the
battery.
12V AC Adapter：
Plug the 12V AC adapter into the AMP card’s DC-IN to
power the AMP card. The AMP card is now working on
+/-12V, and the DC-IN super gain can be enabled. The
output power is up to 2150mW+2150mW@32ohm.
Screen Protector：
Use the screen protector to protect the DX340 screen
from scratches.
Warranty Card：
The warranty will be requested at the time of warranty
repair. Please retain the warranty card.
Quick Start Guide:
This reviews the basic functions of the DX340.
Balanced Burn-in Cable：
Plug the burn-in cable into the output socket and keep
playing music to burn-in the DX340. The burn-in process
helps the DX340's sound reach its full potential by forming
the capacitors and stabilizing the electronic components
used.
5
Tips for burn-in
The use of the cable is very straightforward. The burn-in
cable is used to form the capacitors and to condition the rest
of the circuitry. The method for burn-in is to use normal
resolution music, as higher resolution causes more heat due
to the higher demand on the system. Also, use a normal
listening volume, as the higher volume will have a higher
power consumption therefore more heat will be generated.
While burning in the DX340, both the balanced and the single
ended components are being affected and burned in.
The burn-in time can be from 100 to 200 hours and the
burn-in doesn't have to be continual. You can power off the
player and continue the burn-in process after a few days. It
is also not mandatory to use the burn-in cable, we supply it
as a convenience for when you are not listening to the DX340
and you would like to get your dap conditioned as soon as
possible. You can also just listen to the player and enjoy the
music as your player goes through this process while playing
through IEMs or headphones.
6
Main Features
-
In-house developed discrete DAC, consisting of 16 sets of
cascaded 8E PWM-DACs.
-
Support of PCM up to 32bit/768kHz.
-
Support of Native DSD up to 512x.
-
6.0″ I080P AMOLED (1080*2160), with In-Cell capacitive
touch panel.
-
Support of QC3.0 and PD3.0 quick charge.
-
In-house developed FPGA-Master3.0 as the core of the
audio system.
-
2 Accusilicon ultra-low phase noise Femtosecond
oscillators.
-
11nm Octa-Core Qualcomm Snapdragon 665 SoC.
-
Advanced harmonic adjustment function.
-
8GB RAM + 256GB ROM.
-
USB DAC function that supports up to 32bit/768kHz and
DSD512x.
-
USB digital output that outputs up to PCM 32bit/384kHz,
Native DSD256, and DoP DSD128.
-
Mini coaxial output that supports up to 768kHz.
-
Support of 5G WiFi and Bluetooth 5.0.
7
-
Support of SDXC and SDHC Micro SD cards.
-
Support of USB3.1 Superspeed transfer.
-
4 settings for hardware gain control.
-
100 steps for volume control.
-
Patented replaceable AMP card design.
-
Audio Formats Supported: APE, FLAC, WAV, WMA, AAC,
ALAC, AIFF, OGG, MP3, DFF, DSF, and DXD.
-
Support for M3U and M3U8 playlists.
-
Patented dual battery power structure with dedicated power
management for each battery. 4000mAh 3.8V Li-Polymer
battery for the digital section and 2100mAh 3.8V Li-Polymer
battery for the AMP card section.
8
Specifications
Maximum output level：
Output Power：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
Maximum output level：
Output Power：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
8.3Vrms (12V DC-IN)
6.23Vrms (Battery)
2150mW + 2150mW @32ohm，THD＜1% (12V DC-IN)
1200mW + 1200mW @32ohm，THD＜1% (Battery)
10Hz-22kHz -0.7dB
10Hz-40KHz -2.2dB
123dB
123dB
-119dB (A-wt, 600ohm load)
-117dB (A-wt, 300ohm load)
-106dB (A-wt, 32ohm load)
-140dB
4.2Vrms (12V DC-IN)
3.16Vrms (Battery)
550mW + 550mW @32ohm，THD＜1% (12V DC-IN)
312mW + 312mW @32ohm，THD＜1% (Battery)
10Hz-22kHz -0.7dB
10Hz-40KHz -2.2dB
123dB
123dB
-117dB (A-wt, 600ohm load)
-117dB (A-wt, 300ohm load)
-104dB (A-wt, 32ohm load)
-138dB
4.4mm Balanced Phone Port：
3.5mm Single Ended Phone Out:
9
11hours
((The play time varies with different
resolutions, volume used and headphone/IEM
loads.)
Average Play Time:
Maximum output level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
2Vrms
10Hz-22kHz -0.7dB
10Hz-40KHz -2.2dB
123dB
123dB
-119dB
-145dB
Maximum output level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
1Vrms
10Hz-22kHz -0.7dB
10Hz-40KHz -2.2dB
118dB
118dB
-110dB
-135dB
4.4mm Balanced Line Out：
3.5mm Single Ended Line Out：
10
Names of Parts & Functions
Coaxial Output Port:
Use the coaxial cable to play music stored in the DX340 on an
external device with a coaxial input port. Mini coaxial output has
the highest output priority which would close the phone out or
line out when coaxial cable plugged in. The output of this port is
up to 768kHz.
4.4mm Balanced Output
Micro SDUSB-CCoaxial Output Port
3.5mm Single-ended Output 12V DC-IN
As shown in the picture above, users can choose TS, TRS,
TRRS standard 3.5 sockets.
The first section "T" is the coaxial signal, and the last section "S" is ground.
Coaxial signal
Ground
11
4.4mm Balanced Output
Plug in the 4.4mm balanced earphone and output sound through
the 4.4mm balanced phone port.
When LO is selected, this port works as a 4.4mm balanced line
out port.
3.5mm Single Ended Output
Plug in the 3.5mm single-ended monitor and output sound
through the phone port.
When LO is selected, this phone out port works as a 3.5mm
single ended line out port.
USB-C Port
Connect the DX340 to a computer or a USB charger to charge
the DX340.
Connect the DX340 to a computer to allow the DX340 to work
as a card reader or an external storage.
Connect the DX340 to an OTG storage device to play music
files stored in this OTG storage device.
Connect the DX340 to a Windows PC or a Mac computer to
work as a USB DAC.
12
Micro SD Card Slot
Insert a Micro SD card into the DX340 to access its stored files.
USB-C
6.0inch AMOLED
Coaxial Output
Port
Micro SD
Power/Volume
Previous/Rewind
Play/Pause
Next/Fast Forward
13
Power：
Volume：
Previous/Rewind：
Next/Fast Forward：
Play/Pause：
Rotate the wheel clockwise to increase the volume.
Rotate the wheel counter clockwise to decrease the volume.
Short Press - Play the next track.
Long Press - Fast forward.
Short Press - Play/Pause.
On the Mango OS, long press the play button
to lock the screen.
Short Press - Replay previous track.
Long Press - Rewind.
Short Press - Power the LCD screen on and off.

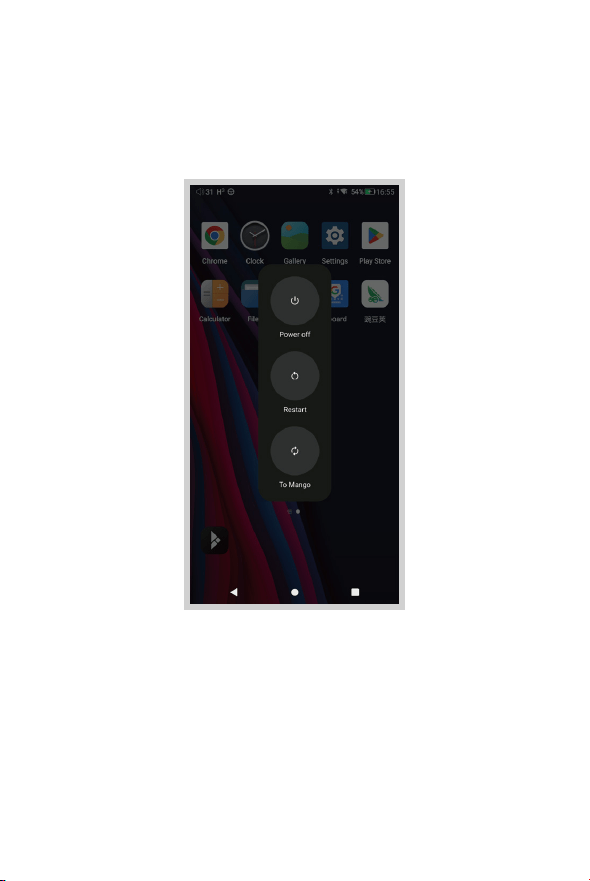

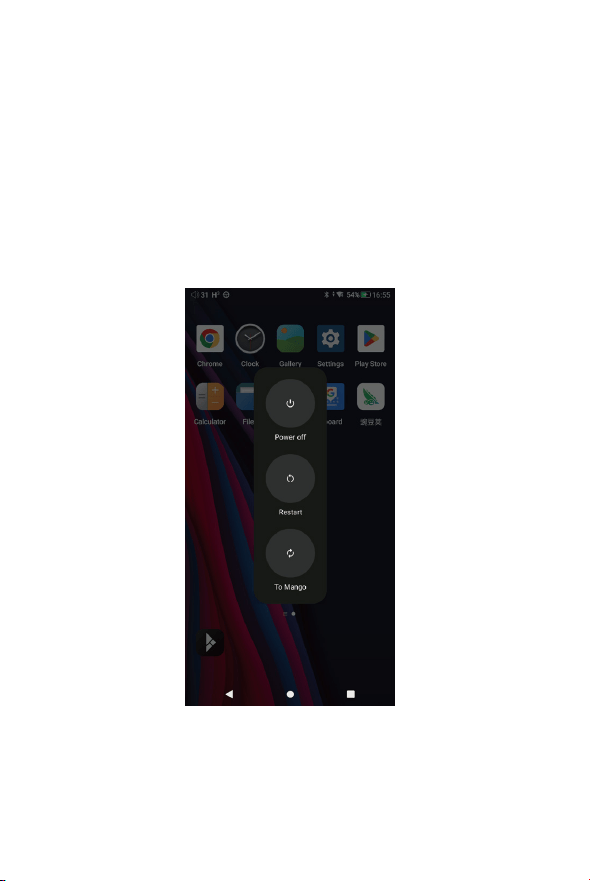

Long Press - To display the pop up window with three
options that are Power off, Reboot, and To Mango.
The DX340 can work as a USB DAC for Windows PC, Mac
computer, and Linux computer. It is driver free on Mac computer
and Linux computer. With Mac computers, the DX340 Supports
PCM up to 32bit/384kHz and DoP DSD up to 128x. For Windows
PC, one can download the driver from iBasso.com and install it
following the steps, before using the USB DAC function. The
DX340 supports ASIO protocol, and supports up to 32bit/768kHz
PCM, and native DSD up to 512x when be used as a USB-DAC
on Windows OS.
Power on/off:
1. Press and hold the power button to power on.
2. After the DX340 is powered on, a long press of the Power
button to display the pop up window, press Power Off button
to power off the DX340.
Power on/off the screen:
Single press the power button to power on/off the screen after
the DX340 has been powered on.
Reset:
When the DX340 stops unexpectedly during operation and the
keys are no longer responsive, press and hold the power button
for 10 seconds to reset the DX340.
Charging:
DX340 supports two quick charge protocols, QC3.0 and PD3.0.
Charging can be done with quick charger that is compliant the
stated 2 protocols, or any USB charger with 5V output voltage
and 2A or above output current. A full charge takes about 2.5
hours with the afore mentioned quick charge types.
Connecting to a computer to work as a USB DAC:
Basic Operation:
14
15

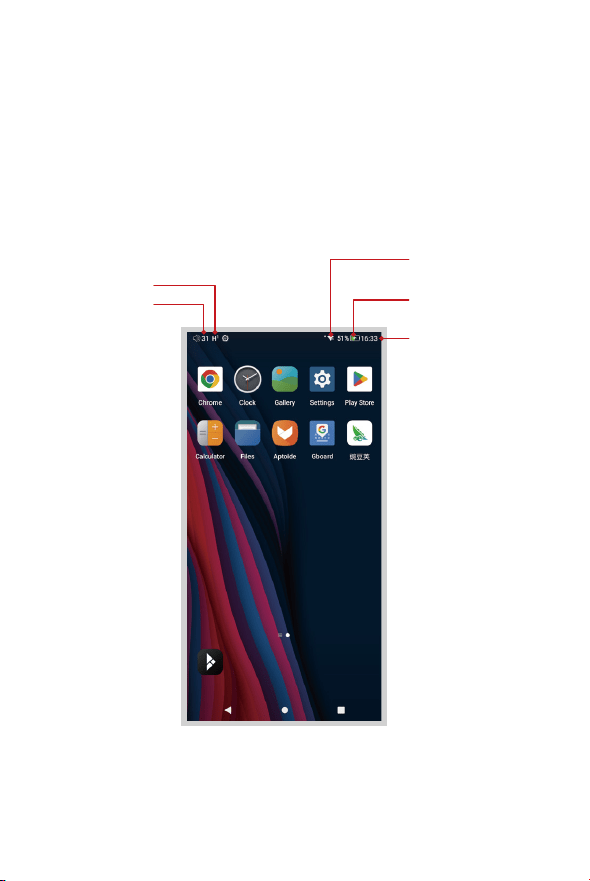

Battery indicator
WiFi
Time
Volume
Harmonic
Android Basic Features
Introduction
16

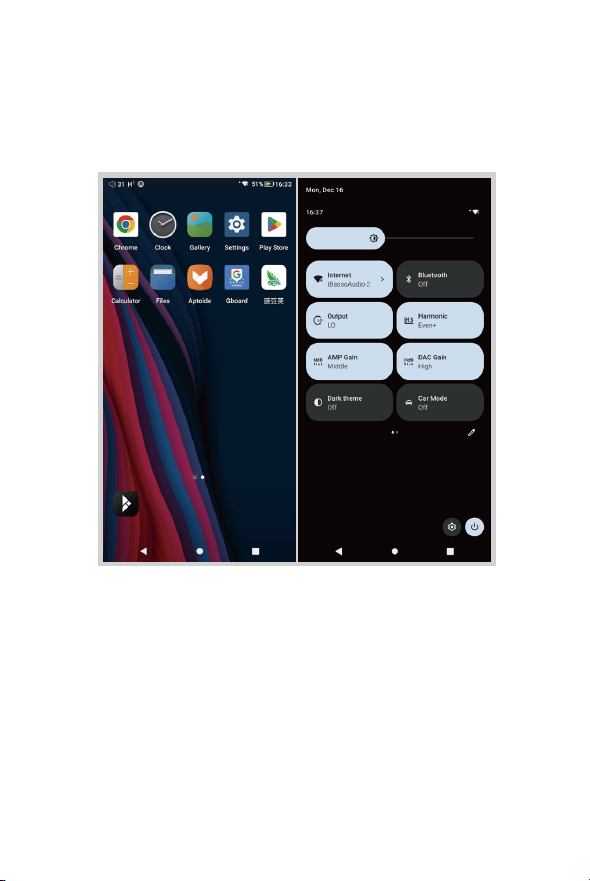

WiFi Connection:
① On the Android desktop, from the top, swipe down
the screen to display the notification bar.
② Press the Wireless local area network(WLAN) to turn
on the WiFi function. The first time you enter the
WLAN, you need to choose the hot spot you will be
using and enter the password. From this point
forward your password for this hotspot will be
remembered and you simply press the WLAN icon
to connect to the WiFi internet.
17

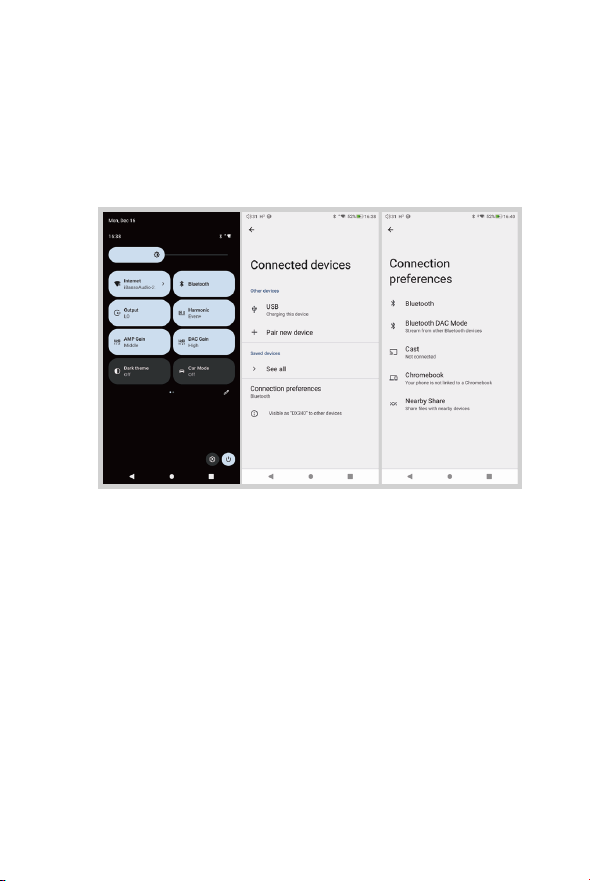

Bluetooth Connection:
① On the Android desktop, swipe down from the top
of the screen to display the notification bar.
② Press the Bluetooth icon to turn on the Bluetooth
function. The DX340 will automatically search for
the nearby Bluetooth device. At the same time, the
DX340 will be visible to the nearby devices.
Choose the device that you would like to pair with.
After the device has been paired, you can use the
DX340 in the Bluetooth mode.
APP Installation:
18
Method 1:
① Google Play and Aptoide are pre-installed on the
DX340.
② Launch one of them.
③ Search for the APP that you would like to install.
④ Download the APP and install it.

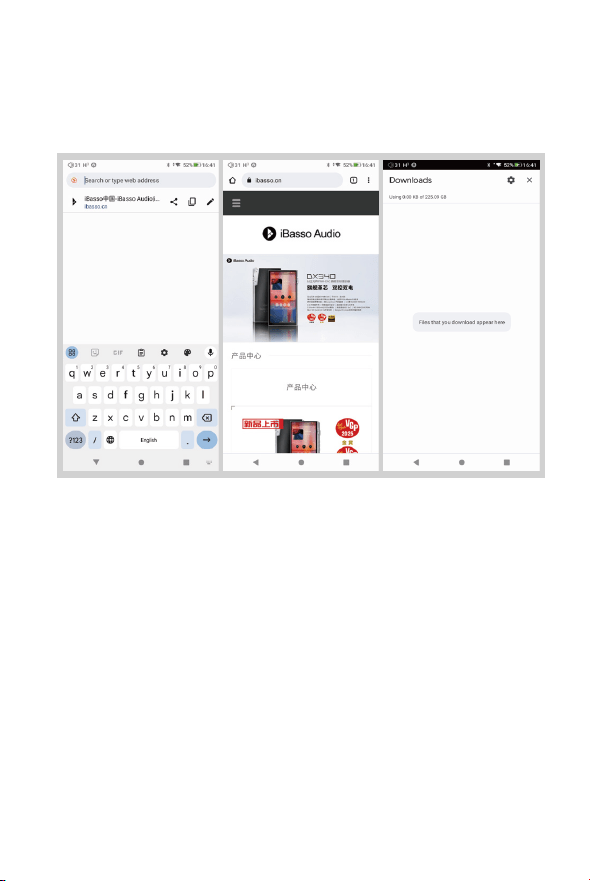

Method 2:
① Press the internet browser on the desktop.
② Enter the website address of the APP.
③ Find the download icon on the website and start
the download.
④ Return to the desktop and open download
manager.
⑤ Press the on downloaded app and install it.
App, to Uninstall:
19

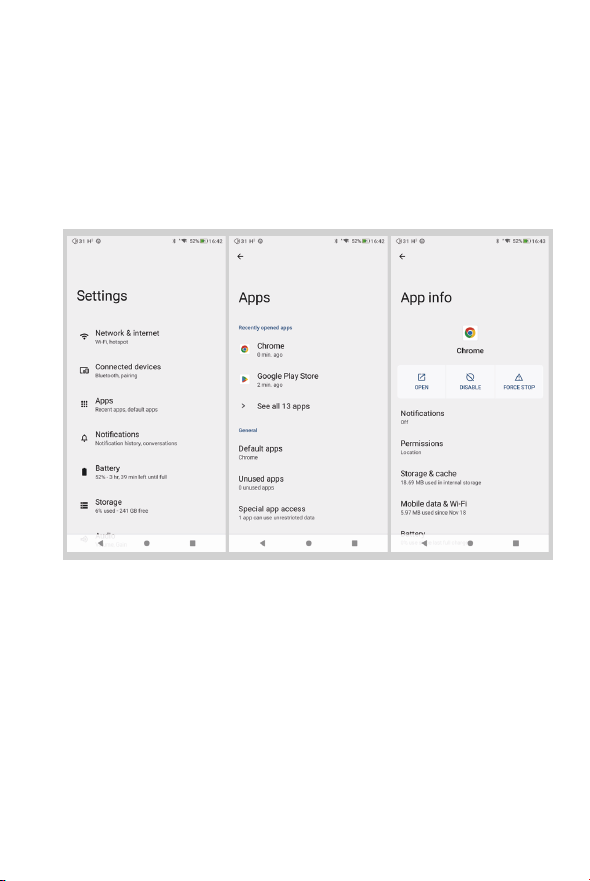

① Press the Settings icon on the desktop and scroll
down and press APPs.
② Press the APP that you would like to uninstall.
③ Press uninstall to delete the APP.
20
USB Connections:
Connect the DX340 to the computer using the furnished
USB-C cable. The DX340 will show on the computer as
an external storage. Users can transfer files by copying
and pasting.
*If you are using a Mac computer, please make sure the
MTP software Android File Transfer is installed.
21
Charge The Connected Device:
① Connect the DX340 to a device.
② The USB option appears at the bottom of the notification
bar drop down window
③ After pressing it, you can select the USB connection
purpose.
After turning on the function of charging connected
devices, you can charge the devices connected to the
DX340.

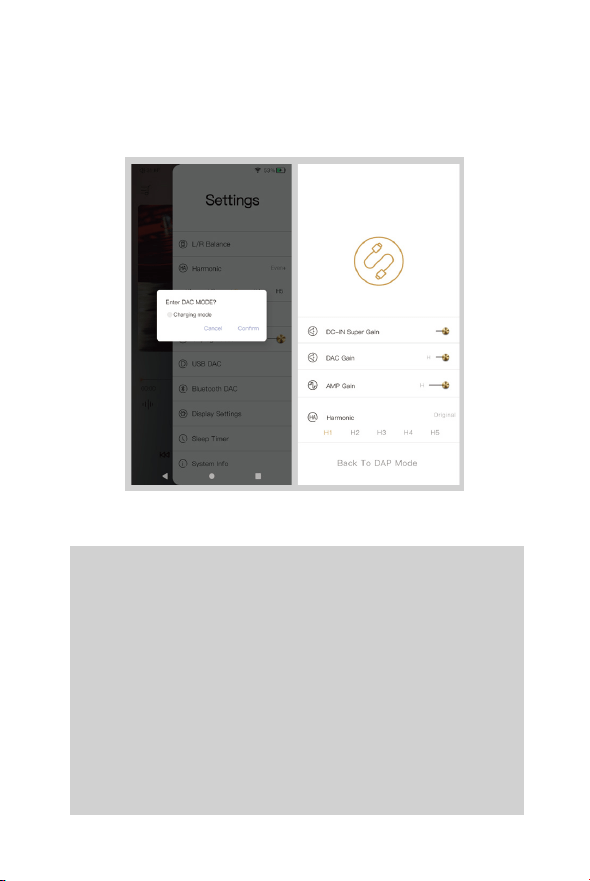

USB Soundcard:
The DX340 can work as a USB DAC for Windows PC,
Mac computer, and Linux computer. It is driver free on
Mac computer and Linux computer. With Mac computers,
the DX340 Supports PCM up to 32bit/384kHz and DoP
DSD up to 128x. For Windows PC, one can download
the driver from iBasso.com and install it following the
steps, before using the USB DAC function. The DX340
supports ASIO protocol, and supports up to 32bit/768kHz
PCM, and native DSD up to 512x when be used as a
USB-DAC on Windows OS.
22

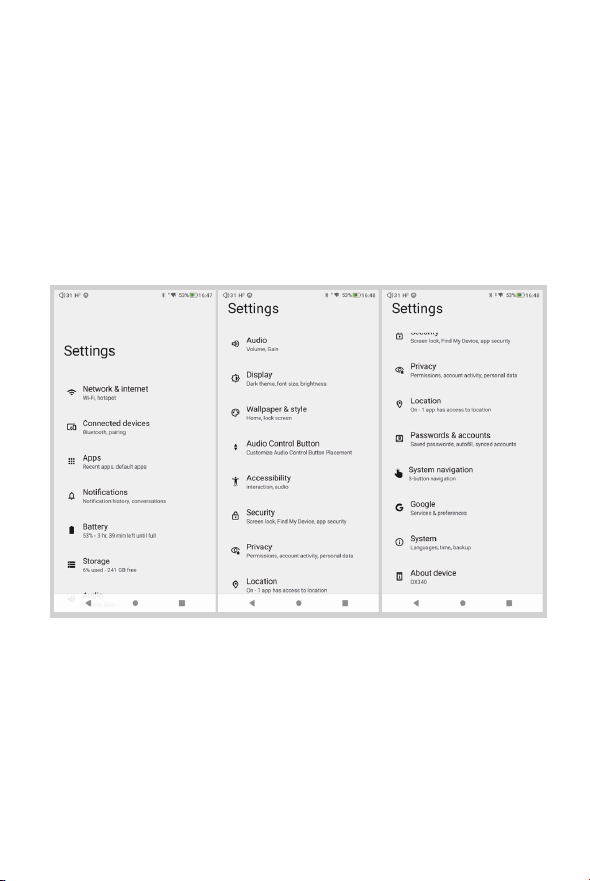

System Settings:
Press Settings icon on the DX340 desktop to go into system
settings.
23
Audio Settings:
① AMP Gain: One of the three gains can be selected.
② DAC Gain: One of the two gains can be selected.
③ Output: Phone out and Line out can be selected.
④ Harmonic: One of the five options can be selected.
One can use this setting to change the audio harmonic.
⑤ Volume Limitation: This sets the volume to a maximum
presetpoint.
⑥ Volume Control Wheel: The volume knob can be set
according to needs.
⑦ DC-IN Super Gain: This option is available after the 12V
AC adapter is plugged. The output power will be greatly
increased with this option ON.
⑧ Car Mode: When this option is enabled, the DX340 will
power on upon connection to a USB power source. Upon
booting into the OS, the audio playback will be automatically
started. When the USB power source is disconnected, the
audio playback will be automatically paused, and the DX340
will be powered off.
Press Settings Icon, then press Audio Settings.
Firmware Update:
24
Online Update:
① Make sure the DX340 is connected to WiFi.
② After online update is selected, press Check Update.
③ Press Download, the DX340 will start downloading
the available update package.
④ After the download is complete, press Update Now to
start the firmware update.
DX340
DX340 DX340
DX340
Local Update:
① Download the firmware file from our website.
If it is a rar file, extract it.
② Press the icon located on the top right corner,
then press Local Update.
③ Browse the folder where the firmware file is saved,
and select the firmware file.
④ Press Update Now to start the firmware update.
25
DX340 DX340
26
Firmware Version:
① Press Settings icon, System, About DX340.
② Scroll down the page, the Build number is the
firmware version.
Power Off, Reboot, And
System Switching:
① Long press the power button for 3 seconds.
② There is a pop up window with three options.
③ When To Mango is selected, system will be
switched to Mango OS.
27
iBasso Mango Music Player
Application
28

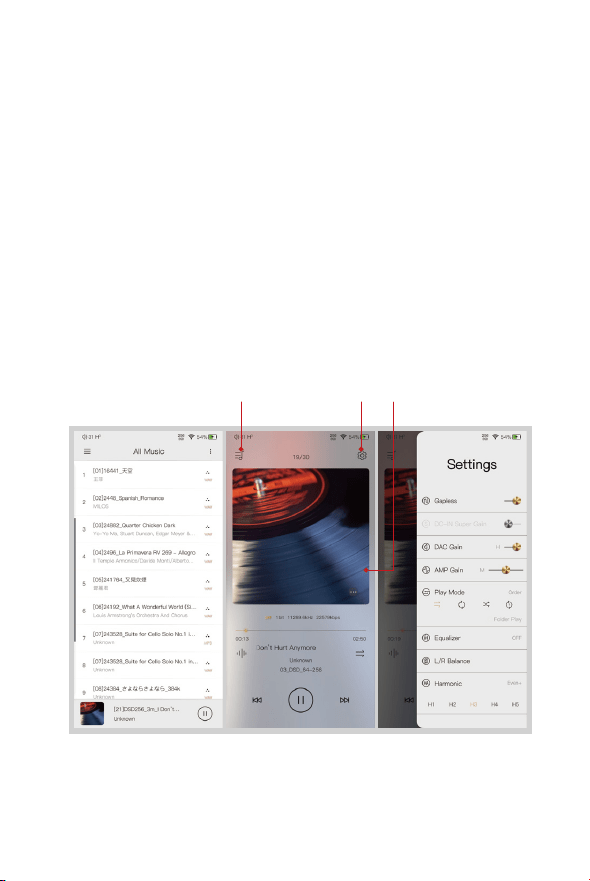

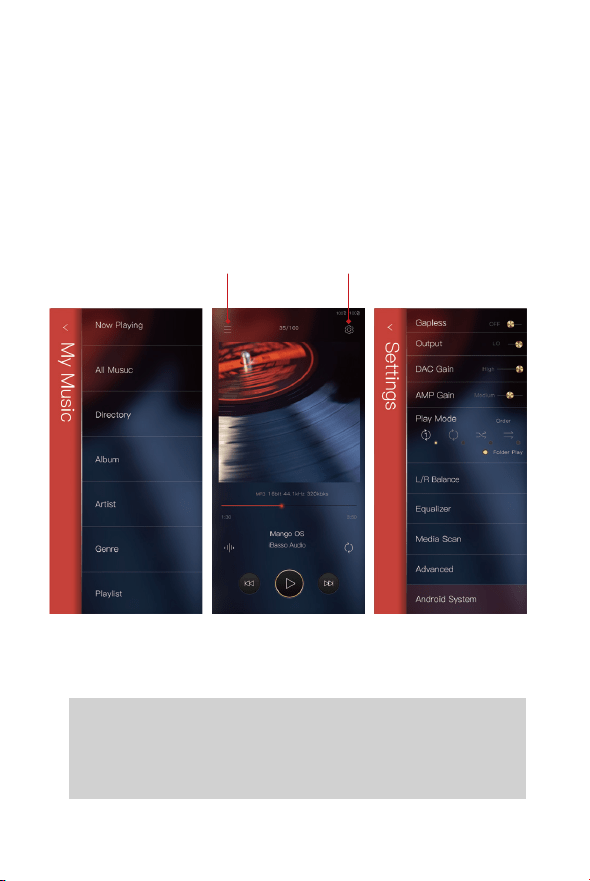

iBasso Audio Mango music player is composed of the Playback
screen (home screen), Music screen and Settings.
When on the playback screen, one can swipe left and right on
the Album artwork area ③ to switch a song: Press the icon on
the top left corner ① to go into Music Screen.
Press the icon on the top right corner ② to go into Settings.
No matter which sub screens of the Music Screen you are
browsing, press the thumbnail icon on the bottom left to return
to the playback screen.
① ② ③
29
Playback Screen (home screen):
Music screen
Settings
Battery indicator
WiFi
Sample Rate
Volume
L/R Balance
Harmonic
Equalizer
Track title
Artist name
Music info
Previous/Rewind
Play Mode
Next/Fast Forward
Play/Pause
Now Playing
30
Now Playing Screen:
Music Info Screen:
Press the icon located on the bottom right to display the
now playing screen. One can swipe a song to the left to display
the Delete button. Press the delete button to remove it from this
now playing list.
Press the Music info icon ②, the album artwork will show the
music info. Press the music info icon again, it will return to
album artwork.
①
②
31
Music Screen:
Press the Music Screen icon ① will go into the Music Screen②.
Swipe from left to right on the Music Screen will bring up the
Navigation Menu③.
①
② ③
32
Song sorting②
Return to
navigation menu①
Playback bar
Thumbnail artwork
⑥
Play/Pause
Track title and artist name
of the song that is playing
Now playing
Music format
Long press
④
Quickly position
the current playing
music file⑤
Music order
Track title
/Artist name
Swipe to trigger
the Navigation
Menu③
Return:
Press the Return button① will move back one page at a time,
until return to the navigation menu.

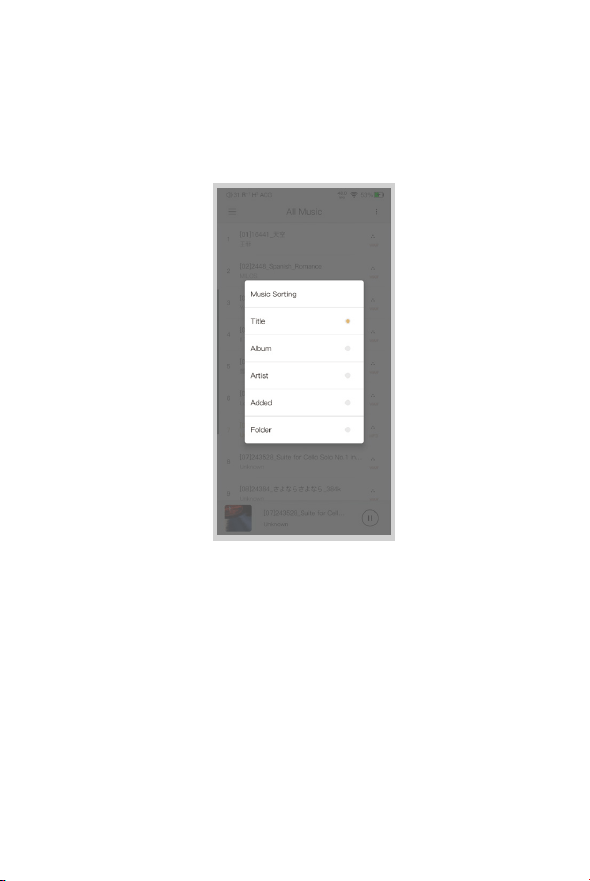

Sorting:
Click the Sorting icon② to pop-up the sorting options. You
can select "Title/Album/Artist/Time/Folder" to sort the All
Music.
33
Swipe to trigger the Navigation Menu：
Swipe from left to right to bring up the navigation menu.
Long Press:
Long pressing a song will pop up a window with more
options.
Quickly position the current playing music file:
On the All Music screen, press the Position icon to quickly
position the current playing music file.
Thumbnail artwork:
Press⑥ to return to the playback screen.
Click the Sorting icon to pop-up the sorting options. You
can select "Title/Album/Artist/Time/Folder" to sort the All
Music.
Sorting:
34
Swipe from left to right to bring up the Navigation Menu.
One can choose among All Music, Album, Artist, Genre,
Now Playing, Playlist, Internal Storage, and SD card. Also,
the search bar is located at the bottom of the Navigation
Menu.
Navigation Menu：
35

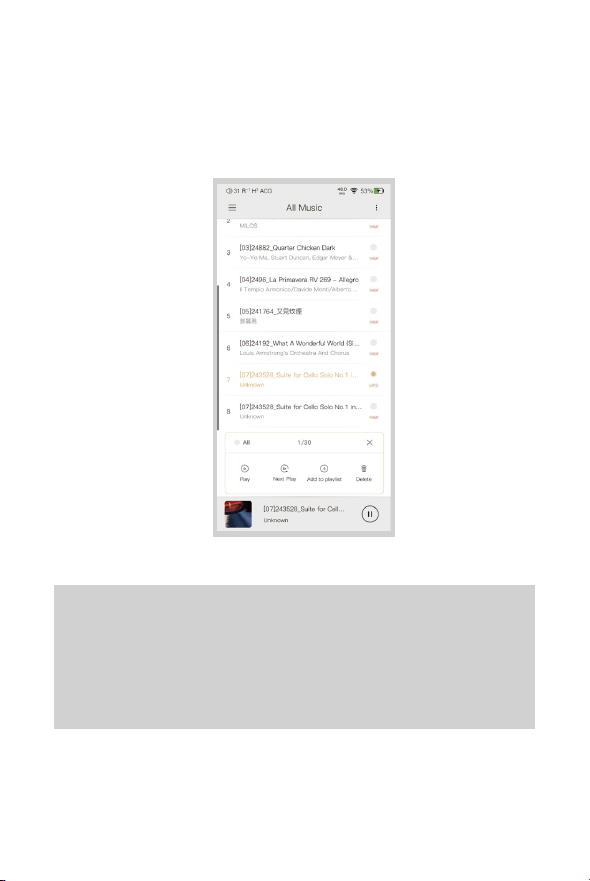

Further Options:
Long Press of a song will pop up a window with further
options that allows to play this song, add this song to a
playlist, or delete this song.
Long Press Pop-up:
36

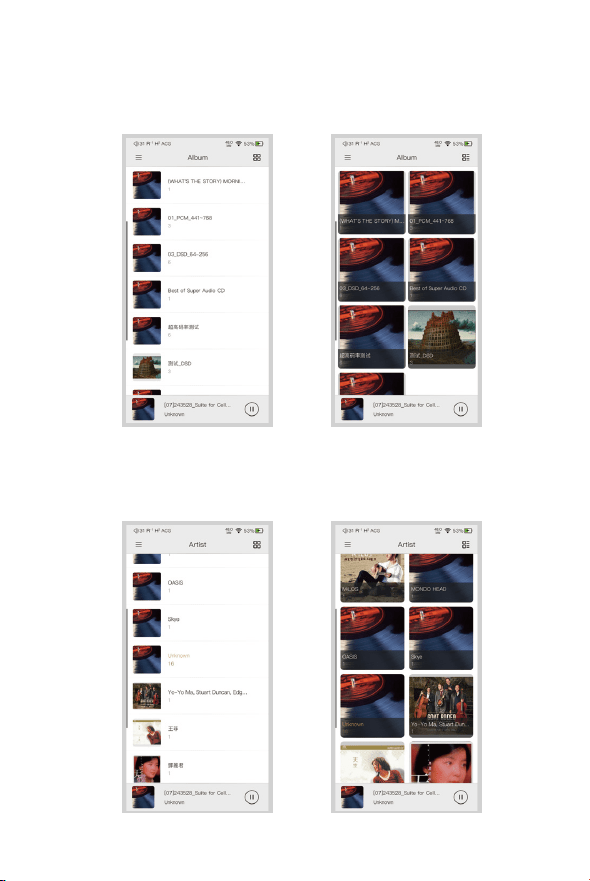

Artist View:
Thumbnail view Artwork view
Thumbnail view Artwork view
37
Album View:
38

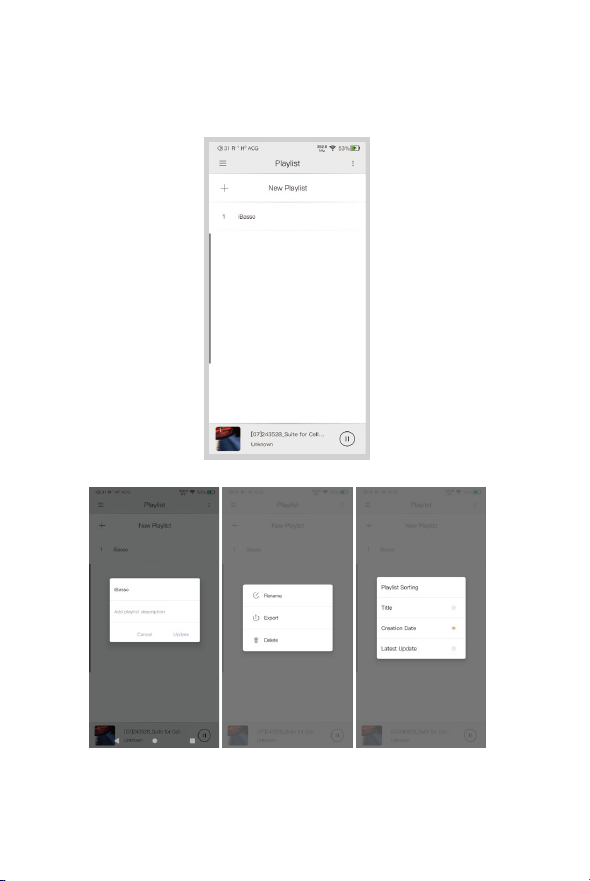

Playlist View:
39
Further Options:
A Long press of the playlist will popup a window with further
options, which allows renaming the playlist, exporting the
playlist, or deletion of the playlist.
The playlist can be found on the internal storage of the iBasso
/mango player folder, after the playlist has been exported.
New Playlist:
Press the New Playlist to create a playlist. On the pop-up
window, one can name the playlist and add playlist description.
Sorting：
Click the Sorting icon to pop-up the sorting options. One can
select “Title/Creation Time/ Latest Update" to sort the playlists.
40
Recent Play:
50 recently played tracks are listed.
41

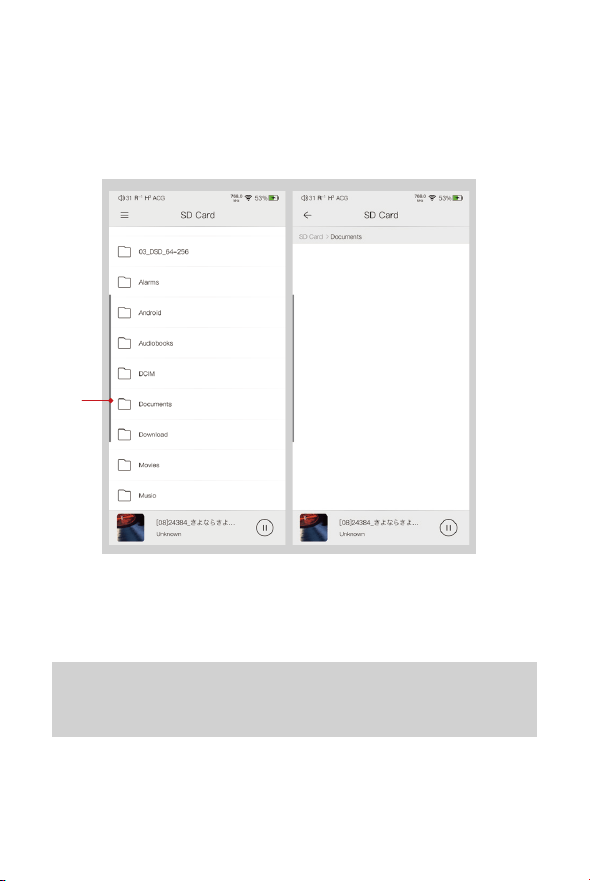

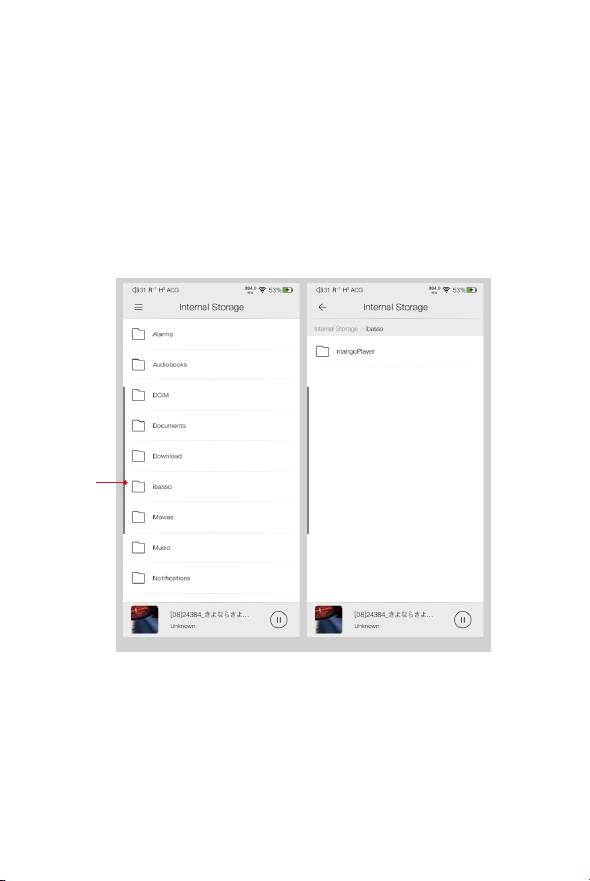

File：
Press Internal Storage or SD Card on the Navigation Menu to go
into Directory view. One can browse the music files under internal
storage and SD card via folder structure.
①
42
①
Press the return button① will move back one page at a time.
43
Input the keywords to search a track, an album, or an artist.
Search Screen:
44
Gapless:
One can enable the gapless to eliminate the gap between
two tracks.
DC-IN Super Gain:
This option is available after the 12V AC adapter is
plugged. The output power will be greatly increased
with this option ON.
Settings Screen:
Press the Settings icon to go into settings screen.
DAC Gain:
There are two gain settings.
45
Play Mode:
Folder Play:

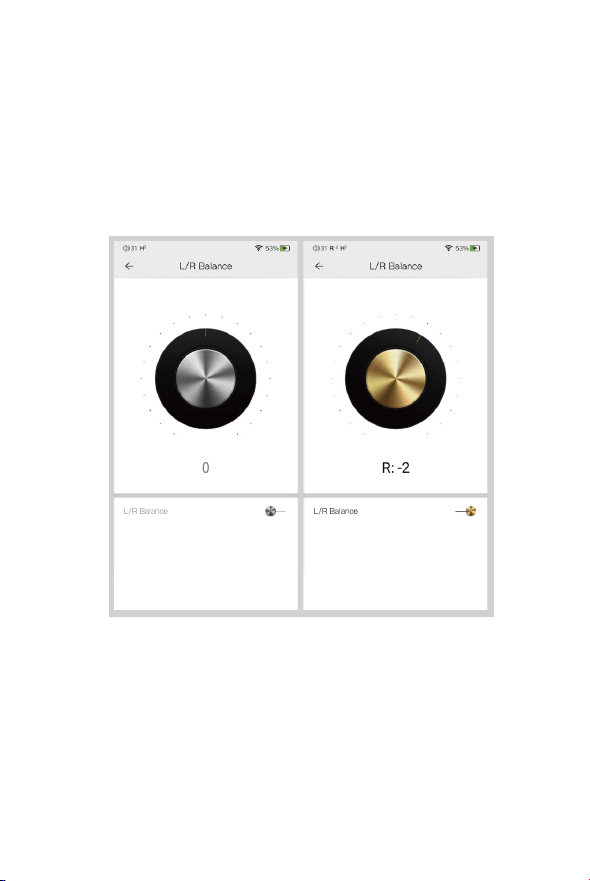

L/R Balance:
Press to go into the L/R balance setting page.
One can choose the desired play mode here.
To enable the folder play function, tick the Folder Play,
then select either the order play mode or loop play mode.
After a full media scan, or rescan the library, you can go
to Directory and select a song under a folder. After this
folder is played, the DX340 will play the next folder.
AMP Gain:
There are three gain settings.

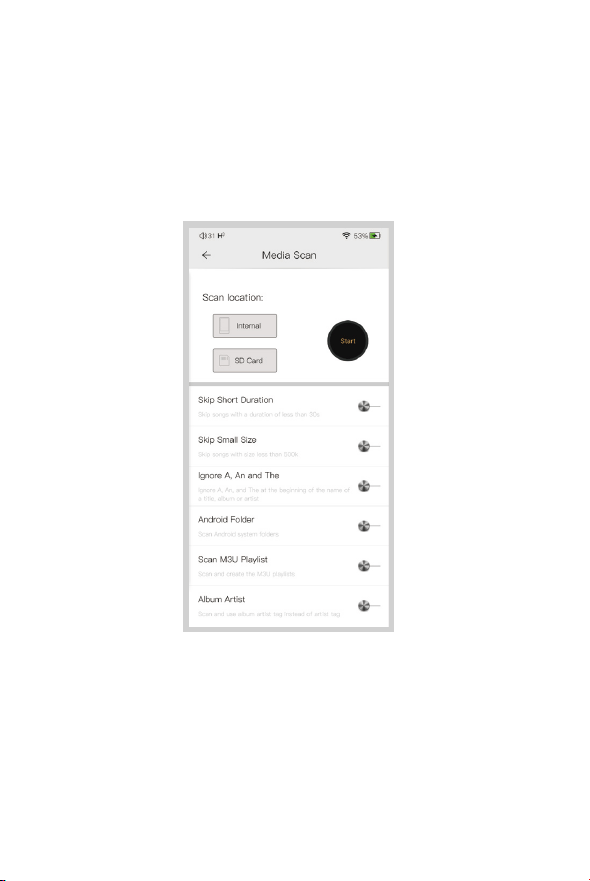

Media Scan:
Press to go into the Media Scan settings page.
Unplug Pause:
When Unplug Pause is enable, the music playback will be
paused when unplugging the earphone from the player.
Harmonic:
One of the five options can be selected to change the
audio harmonics.
H1: Original, no harmonic adjustment applied.
H2: Natural, slight adjustments on both the odd and even
harmonics to make music more natural.
H3: Even+, increases the even harmonics. The sound
becomes more tube-like.
H4: Odd+, increases the odd harmonics. The sound
becomes more dynamic.
H5: All, combines both the H3 and H4.
46
The DX340 has two types of Equalizers, Graphic EQ and Parametric
EQ.
Equalizer:
47
Pre-set EQ:
There are 5 kinds of pre-set EQ and a custom option.
One can quickly set the equalizer as desired by selecting
them.
How to Adjust The EQ Settings:
Press on the response curve, the 10 band slide bars will
show up. One can adjust the EQ settings by positioning
the bars up or down.
Press the button of the Graphic Equalizer to enable the Graphic
Equalizer.
Graphic Equalizer:
48
Parametric Equalizer:
Press the button of the Parametric Equalizer to enable it.
Parametric Equalizer:
How to Go Into The Parametric EQ Setting Screen:
Press the response curve to go into the parametric
EQ setting screen.
Press the button of the Parametric Equalizer to enable it.
49
① Settings on the Selection Bar:
One can swipe left and right to select a setting.
Parametric Equalizer Setting Screen:
③
④
⑤
⑥
⑦
②
①
50
③ Status:
Status of each filter. One can turn on or turn off
the selected filter.
④ Filter Type:
There are eight kinds of filters. Select one of the
filters.
⑤ Central Frequency (Fc)：
This is the central frequency. Input a value between
33Hz to 16,000Hz.
This is the gain for each central frequency. Input a
value between -20dB to 20dB.
⑥ Gain:
This is the quality factor. Input a value between 0.3
to 20.
⑦ Q Factor:
② Filter Navigation Bar:
There are maximum of 6 filters allowed for each
setting. One can swipe left and right to select a
filter, then customize it.
51
Central Frequency (Fc):
The central frequency of each filter setting.
Gain:
The gain for the central frequency.
Quality Factor:
The range of effect of the filter.
As shown on the pictures below, the larger value of the
Q factor, the smaller the effect compared the central
frequency. The smaller value of the Q factor, the larger
the effect in relation to the central frequency.
The following are the curves of the filters
(Fc=100Hz, gain=4dB)
Parametric Equalizer Setting Instruction:
1. Low Pass Filter
The frequency higher than the central frequency will be affected.
Gain setting is ineffective with low pass filter.
2 3 4 56 10 20 30 100 200 1k
①. Q=0.7071 ②. Q=20
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
52
2. High Pass Filter
The frequency smaller than the central frequency will be affected.
Gain setting is ineffective with high pass filter.
3. All Pass Filte
There is no effect beside the central frequency. Gain setting is
ineffective with all pass filter.
③. Q=0.7071 ④. Q=20
2 3 4 56 10 20 30 100 200 1k
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
⑤.
2 3 4 56 10 20 30 100 200 1k
53
4. Band Filter
There is not a large effect on the central frequency. The frequency
beside the central frequency has similar effect. Gain setting is
ineffective with band filter.
5. Peak Filter
There is a large effect on the central frequency. The frequency beside
the central frequency has similar effect.
⑥. Q=0.7071 ⑦. Q=20
2 3 4 56 10 20 30 100 200 1k
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
⑧. Q=0.7071 ⑨. Q=20
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
2 3 4 56 10 20 30 100 200 1k
54
6. Notch Filter
The central frequency has obvious reduction. The frequency beside
the central frequency has similar effect. Gain setting is ineffective
with notch filter.
7. High Shelf Filter
There is a wide effect on the frequency that is higher than the
central frequency.
2 3 4 56 10 20 30 100 200 1k
⑩. Q=0.7071 ⑪. Q=20
4 5 6 78 9 10 20 30 40 50 100 200
300 1k
⑫. Q=0.7071 ⑬. Q=20
4 5 6 78 9 10 20 30 40 50 100 200
300 1k
2 3 4 56 10 20 30 100 200 1k
55
8. Low Shelf Filter
There is a wide effect on the frequency that is lower than the central
frequency.
⑭. Q=0.7071 ⑮. Q=20
4 5 6 78 9 10 20 30 40 50 100 200
300 1k
2 3 4 56 10 20 30 100 200 1k
56
L/R Balance:
Slide clockwise to decrease the volume in right channel. Slide in
counterclockwise to decrease the volume in left channel.
57
Media Scan:
58
The DX340 can work as a USB DAC for Windows PC,
Mac computer, and Linux computer. It is driver free on
Mac computer and Linux computer. With Mac computers,
the DX340 Supports PCM up to 32bit/384kHz and DoP
DSD up to 128x. For Windows PC, one can download the
driver from iBasso.com and install it following the steps,
before using the USB DAC function. The DX340 supports
ASIO protocol, and supports up to 32bit/768kHz PCM,
and native DSD up to 512x when be used as a USB-DAC
on Windows OS.
If Charging Mode is selected, the DX340 will charge when
connected to the host device as a USB DAC.
USB DAC:
59
Bluetooth DAC:
DX340 Bluetooth DAC.
After turning on the Bluetooth DAC, Bluetooth devices
such as a mobile phone can be paired with the DX340.
The DX340 can now stream from the connected Bluetooth
device.
Note: When in Bluetooth DAC mode, the DX340 supports
AAC and SBC.
60
Display Settings:
Ambient mode:
Use album artwork as the background picture.
Normal mode:
Use the selected picture as the background picture.
Playback screen album artwork, choose to display rectangular
artwork or rounded artwork.
Lock screen artwork:
Display the album artwork on the lock screen.
Year tag:
Display year information of the ID3 on the playback screen.
Alphabetic scrolling bar:
Use alphabetic scrolling bar instead of the traditional
scrolling bar.
61
Set the count down sleep timer to power off the DX340.
The left hand side is the value of hours. The right hand is
the value of minutes. The DX340 will be powered off
after the counter has completed. If there are any operations
in the meanwhile, the DX340 will start the counter again
after the last operation.
Sleep Timer:
62
One can see the Mango music player APP version on
this screen. Also, one can see the space available of
the internal memory and micro SD card.
System Info:
63
Mango OS
To reboot to Mango OS from Android, first of all, long press
the power button for 3 seconds to pop up a window with three
options. When “To Mango” is selected, the system will switch
to the Mango OS.
64
The Mango OS User interface is composed of three parts:
Music playback screen (homepage), my music, and settings.
On the Music playback screen, press the icon① to go to My
Music, press the icon② to go to Settings.
① ②
* The Mango OS operation is similar to the iBasso
Mango APP, please refer to the iBasso Mango APP
instruction for any questions.
65
To return to the Android System, go into the settings menu,
press “Android System”, then press “Yes”.
66
MTP (File Transfer)
After MTP is turned on, the DX340 can be connected to a
computer for file transfer.
