PLANNING GUIDE
36" PROFESSIONAL
COOKTOPS & BACKGUARDS
—
CPV2-364GD, CPV2-366,
BGCV2-1236, BGCV2-3036 & BGCV2-3036H models
CONTENTS
36" Professional Cooktops
CPV2-364GD, CPV2-366
PAGE
in mm
Key Design Decisions
4 16
Ventilation Requirements
5 17
36" Professional Cooktop
CPV2-364GD
Product & Cavity Dimensions 6 18
Clearance Dimensions 7 19
Cavity Preparation 8 20
36" Professional Cooktop
CPV2-366
Product & Cavity Dimensions
9 21
Clearance Dimensions
10 22
Cavity Preparation
11 23

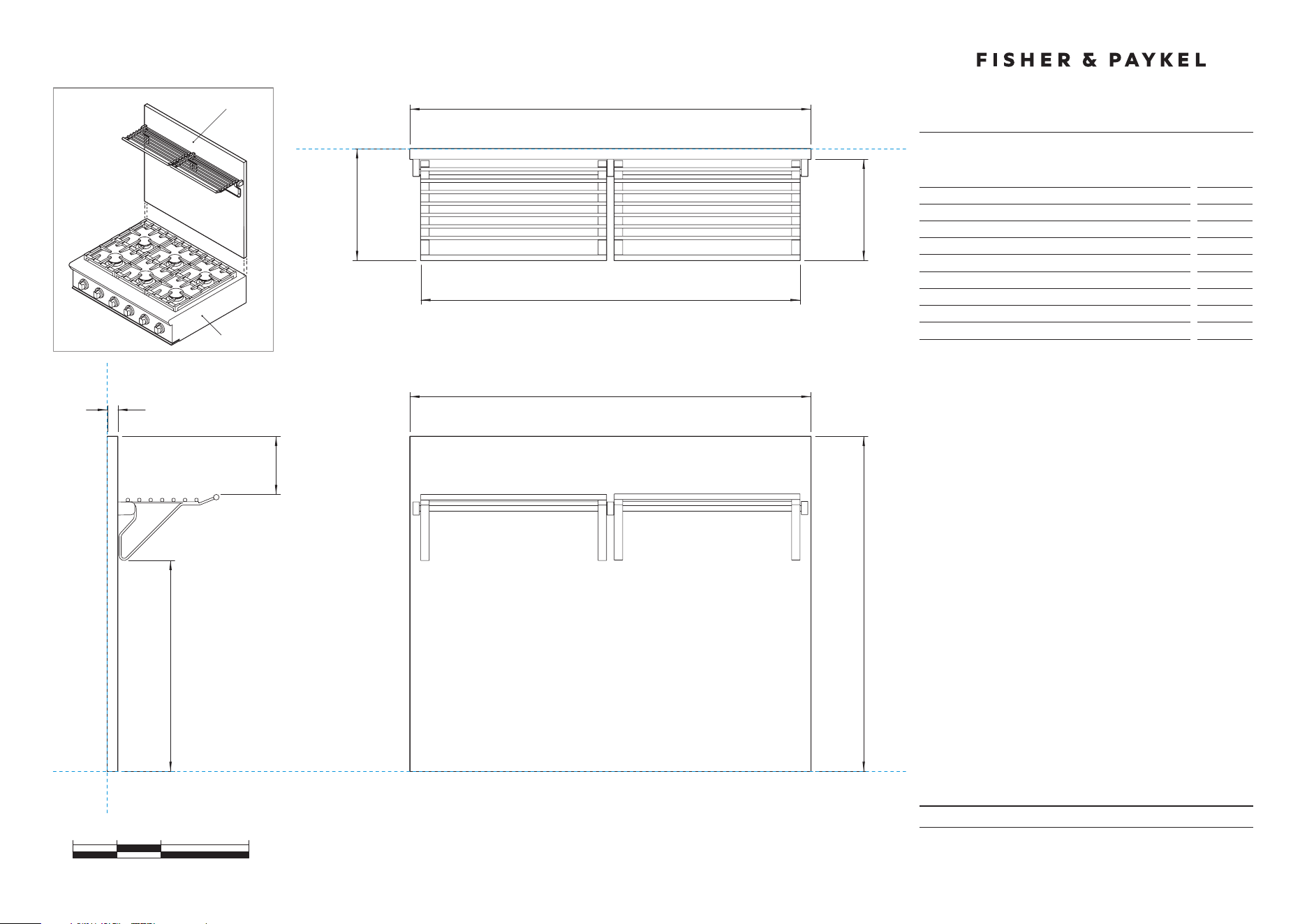

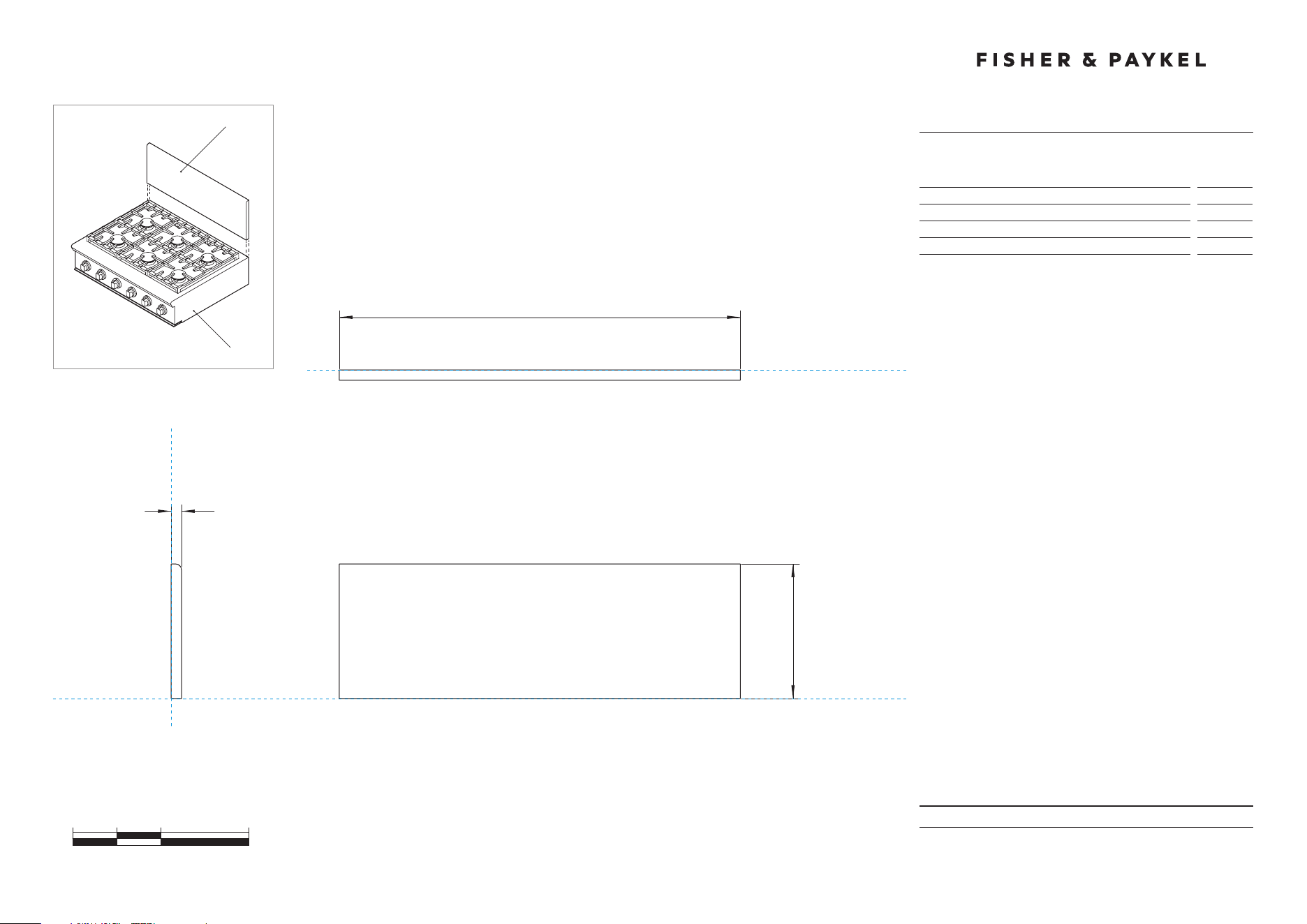

36" Professional Range Backguard
BGCV2-1236
Product Dimensions 12 24
36" Professional Range Backguard
BGCV2-3036
Product Dimensions 13 25
36" Professional Range Backguard
BGCV2-3036H
Product Dimensions 14 26
IMPERIAL
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

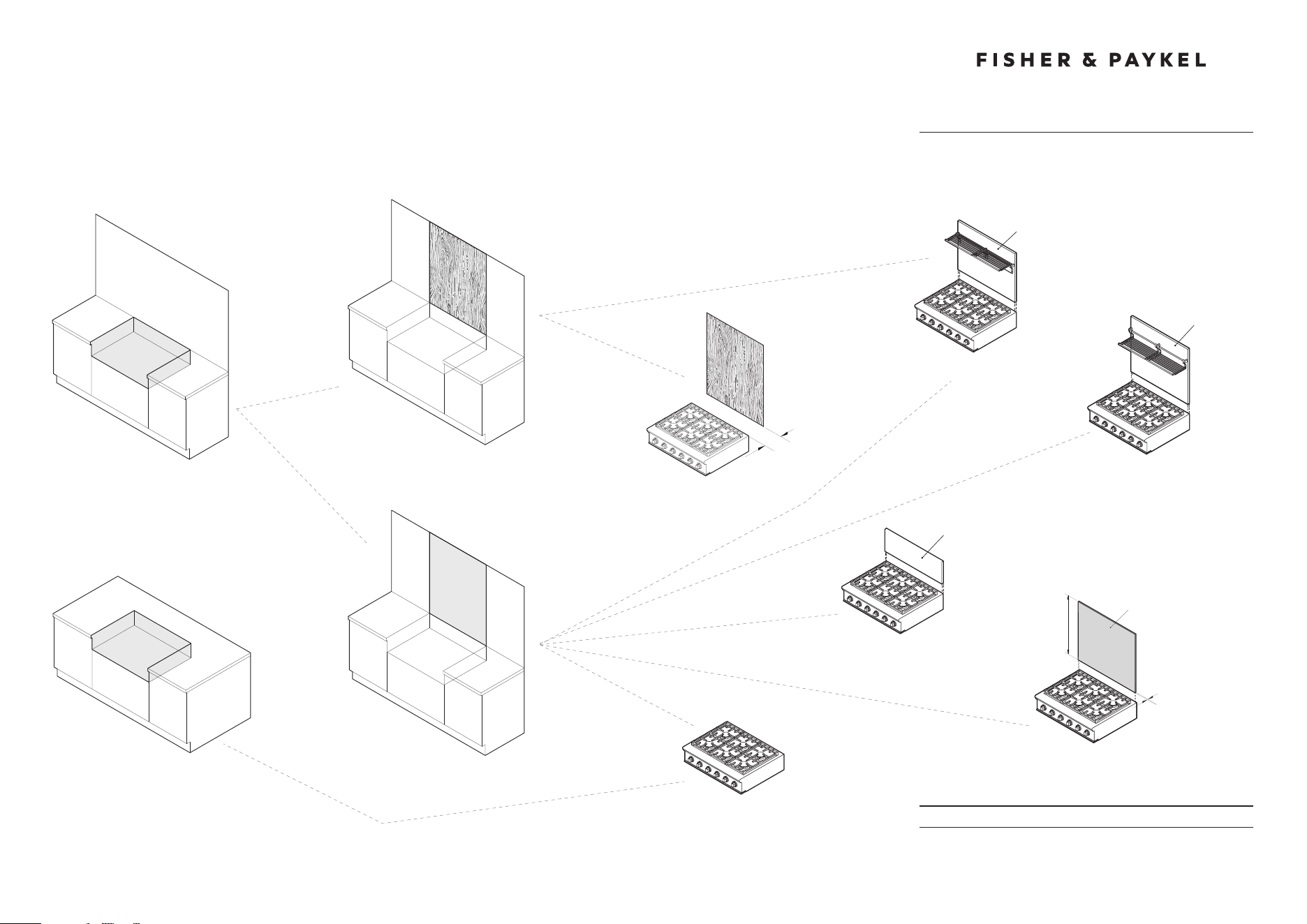

KEY DESIGN DECISIONS
36" Professional Gas Cooktop
INSTALL TYPE
1
REAR SURFACE
2
BACKGUARD OPTIONS
3
WALL
ISLAND
COMBUSTIBLE
NON COMBUSTIBLE
NO BACKGUARD
LOW BACKGUARD
LOW SHELF BACKGUARD
HIGH SHELF BACKGUARD
BGCV2-3036
BGCV2-3036H
BGRV2-1236
NO BACKGUARD
MIN 6"
CLEARANCE
CUSTOM FABRICATED* BACKGUARD
*Fabricated from non combustible materials only
CUSTOM
BACKGUARD*
MAX 15/16''
MIN 30''
Model no:
CPV2-364GD, CPV2-366
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

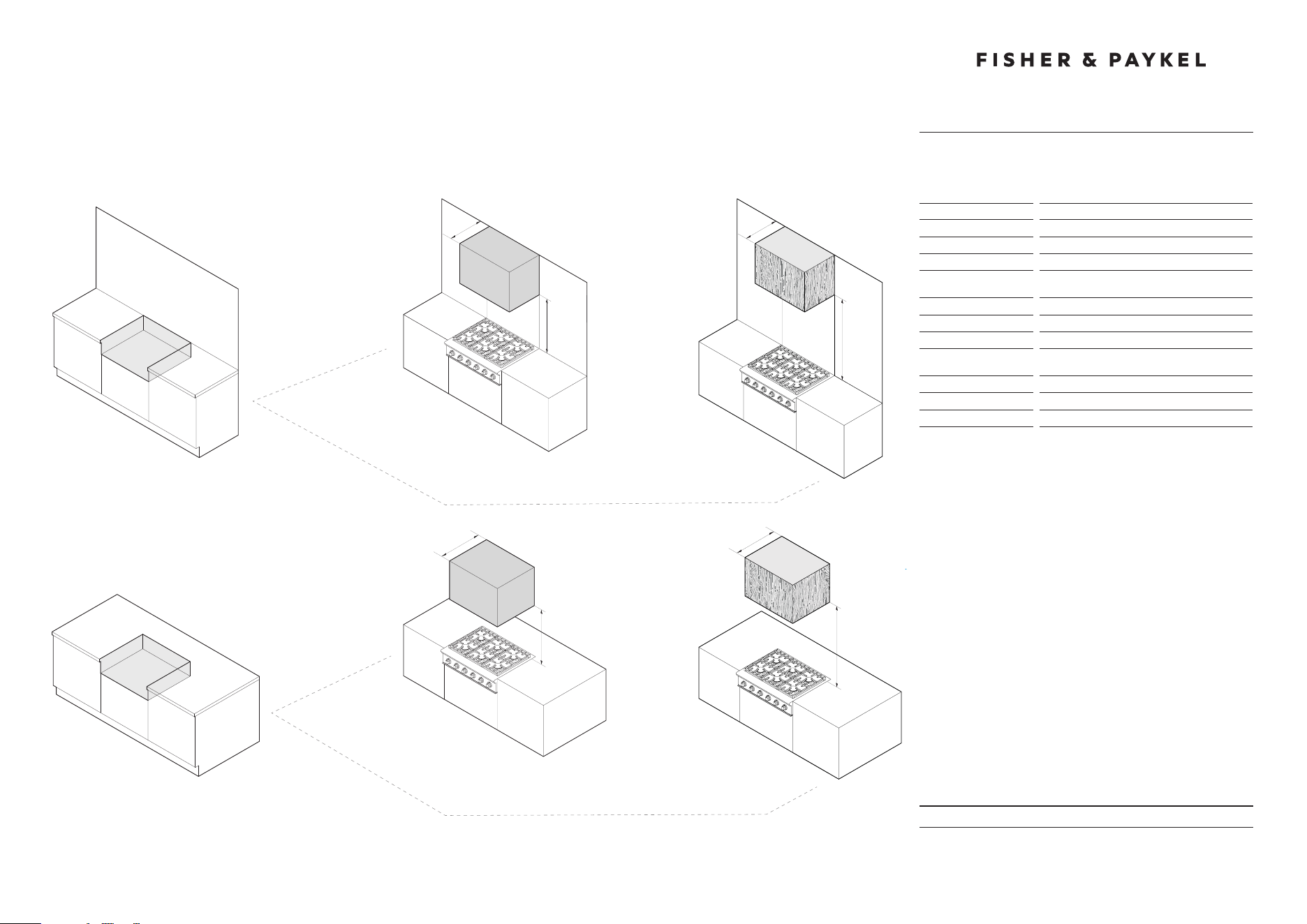

VENTILATION REQUIREMENTS
36" Professional Gas Cooktop
MIN 36"
INSTALL TYPE
1
WALL
ISLAND
HOOD SURROUND MATERIAL
2
NON COMBUSTIBLE
23"
NON COMBUSTIBLE
MIN
30"
MAX
36"
MIN 30"
MAX 36"
30"
COMBUSTIBLE
COMBUSTIBLE
30"
MIN 36"
23"
Model no:
CPV2-364GD, CPV2-366
Note: CPV2-366 illustrated but all dimensions apply to the above models
Specifications
Ventilation Unit
Wall Installation
Wall Chimney Hood
23'' Deep x Unit Width
Blower
600 CFM
Ventilation Unit
Island Installation
Island Chimney Hood
30'' Deep x Unit Width
Blower
600 CFM
Ventilation Unit
Wall and Island Installation
Downdraft*
Unit Width
Blower
600 – 1200 CFM
Note: A suitable ventilation unit must be installed with the cooktop.
The above indicates the minimum blower capacity recommended for
ventilation units.
* Not illustrated.
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

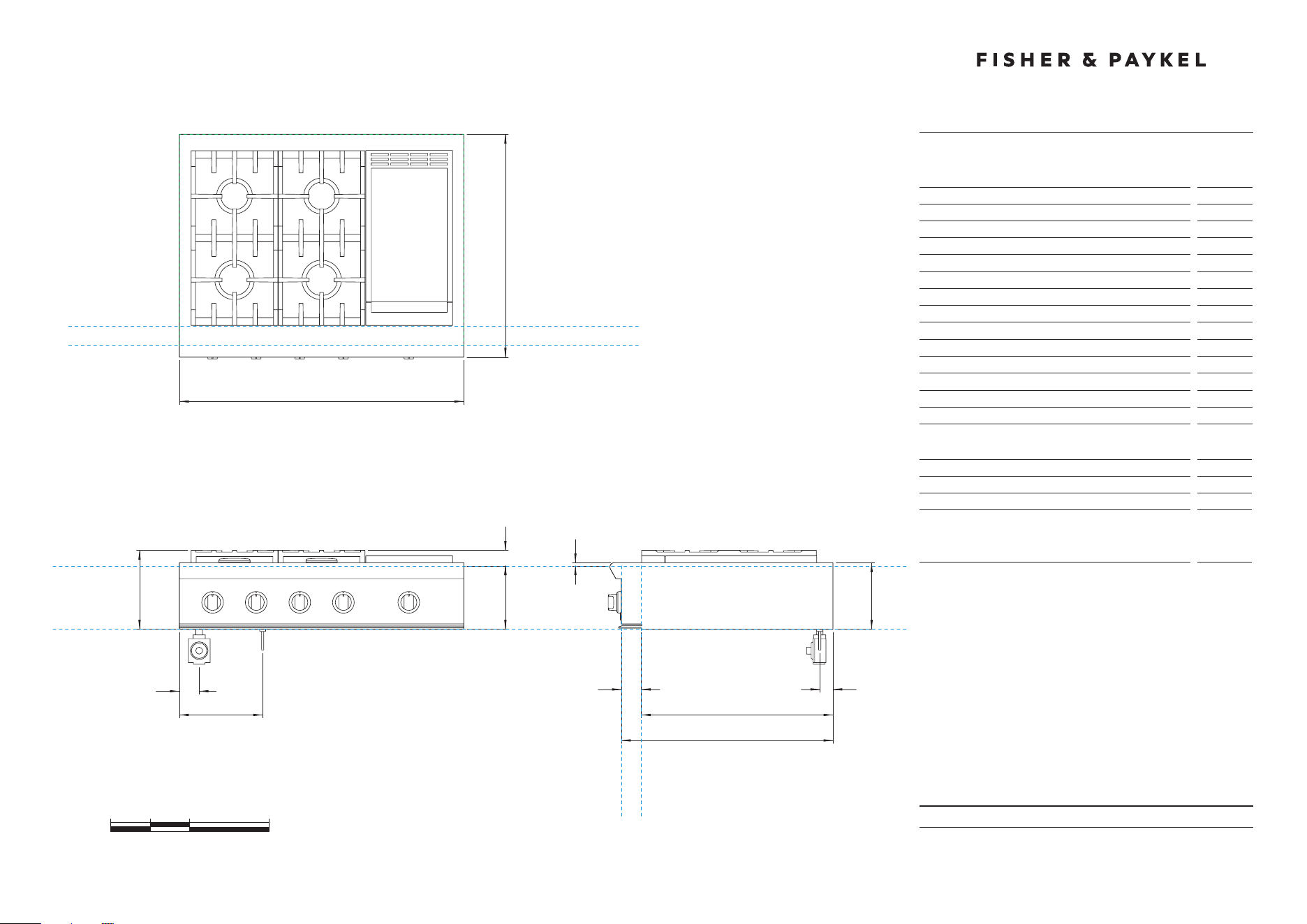

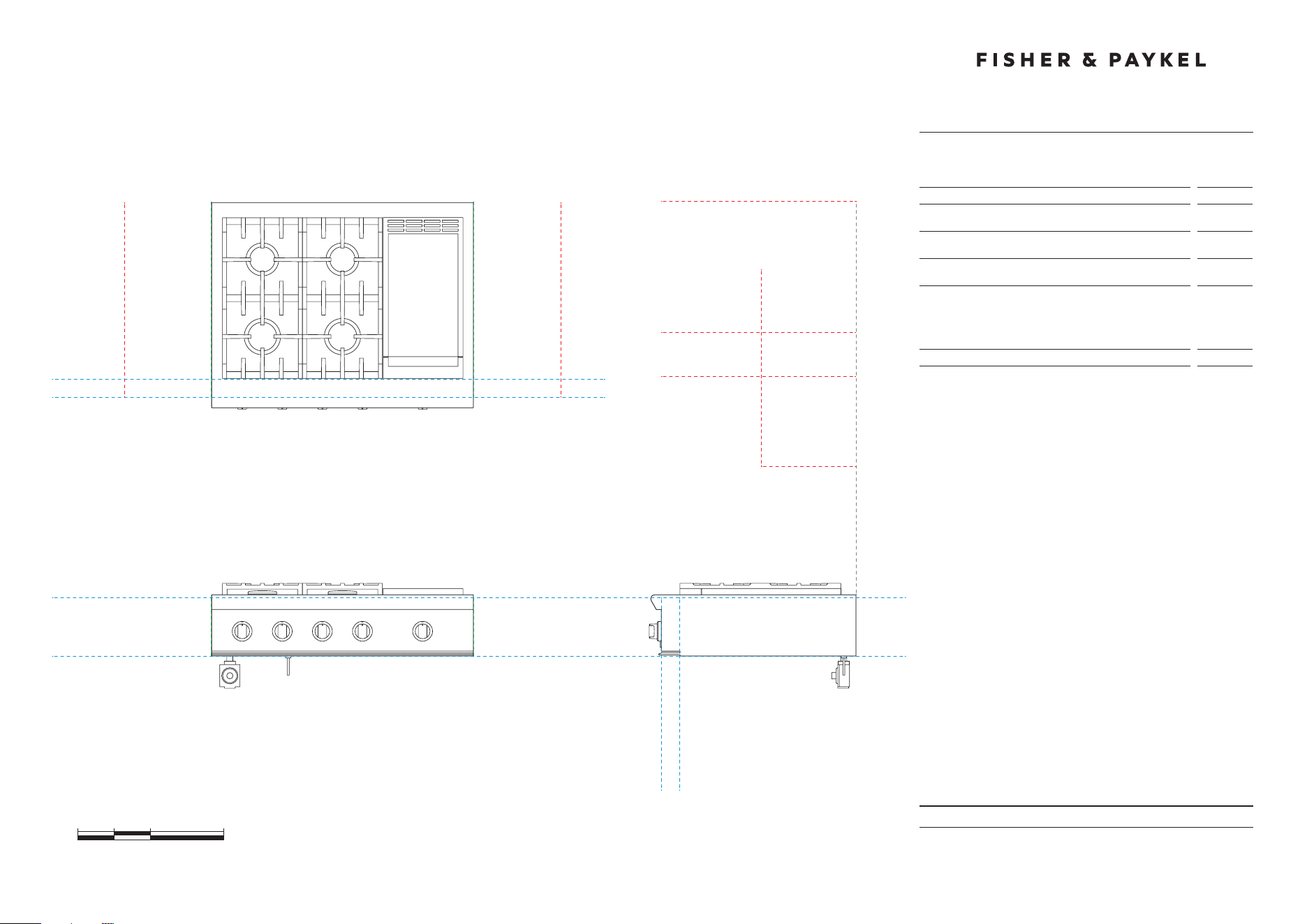

PRODUCT & CAVITY DIMENSIONS
36" Professional Gas Cooktop

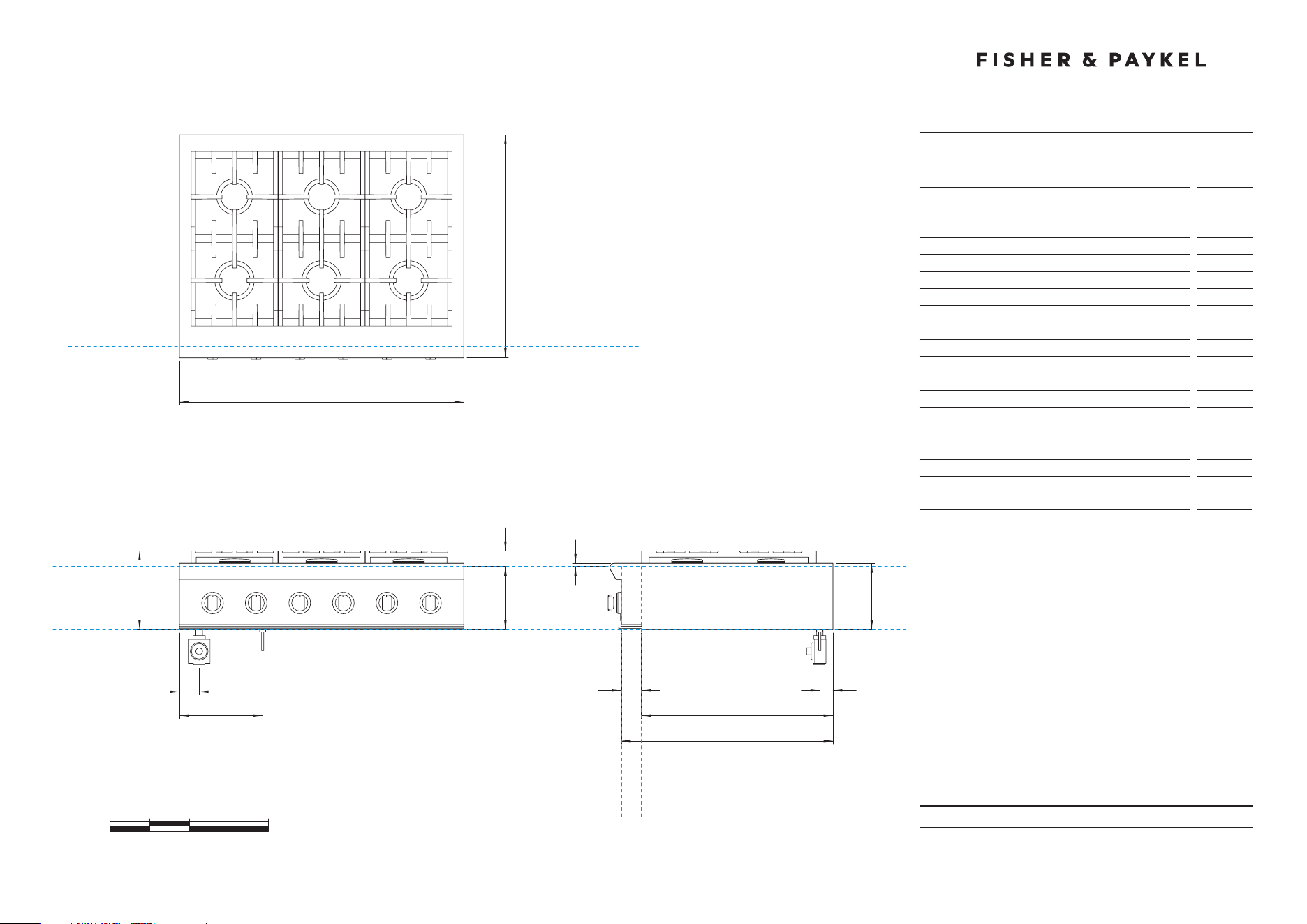

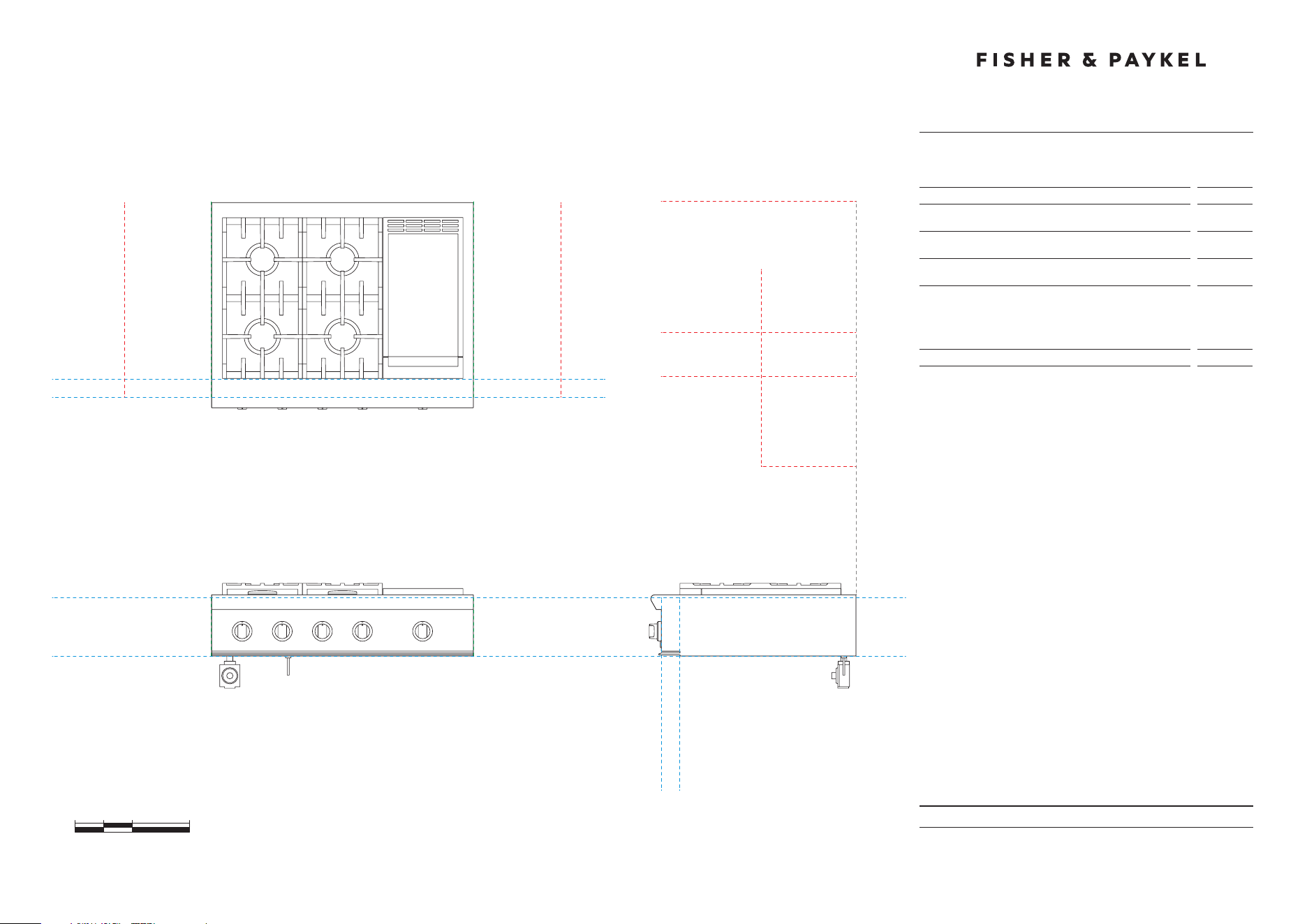

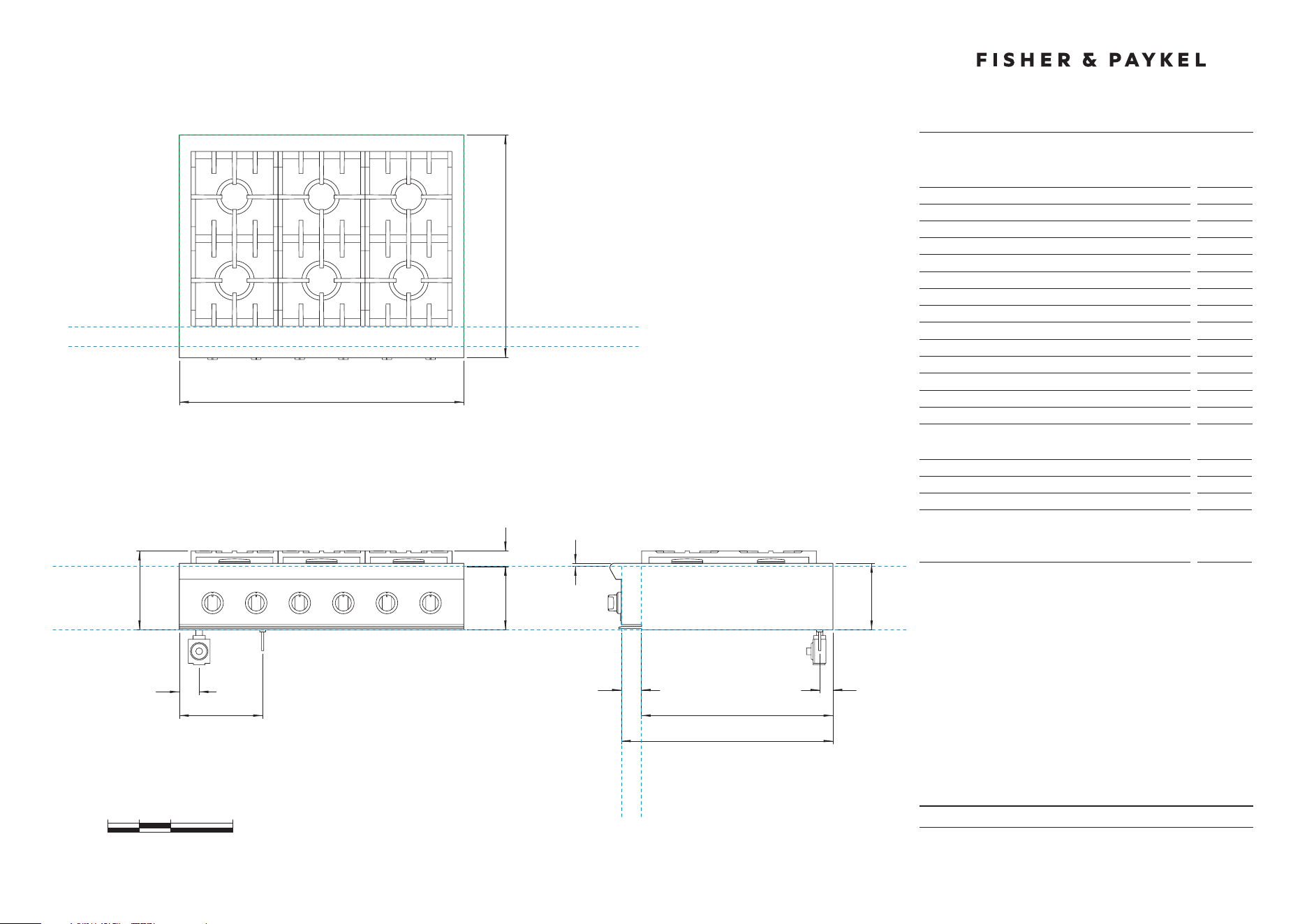

0 5 10 20
inches
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL
PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
DATUM :
TOP OF
COUNTERTOP
DATUM :
CABINET SURFACE
BELOW COOKTOP
35 7/8''
C
F
28 1/8''
D
E
A
FRONT VIEW
PLAN VIEW
G
PROFILE VIEW
I
H
B
J
K
L
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
M
8''
Model no:
CPV2-364GD
Product Dimensions
in
A Height below countertop datum to bottom of chassis
8''
B Overall height of product (bottom of chassis to top of grates)
9 15/16''
C Overall width of cooktop
35 7/8''
D Overall depth of cooktop
28 1/8''
E Height above countertop datum to top of grates
1 15/16''
F Height from countertop datum to chassis top surface
3/8''
G Height of chassis
8 3/8''
H Depth from rear of chassis to cabinetry datum - projecting
24 3/16''
I Depth from rear of chassis to cabinetry datum - flush
26 11/16
''
J Depth of control panel
2 1/2''
K Distance from left edge of chassis to center line of gas inlet
2 1/2''
L Distance from left edge of chassis to center line of power cord
10 1/2''
M Distance from rear edge of chassis to center line of gas/power
1 5/8''
Cutout Dimensions
in
Overall height of cutout
8''
Overall width of cutout
min 36''
Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
24 3/16''
max
26 11/16''
INDICATES CABINETRY DATUM -----------------------------------------
INDICATES CUTOUT -------------------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
36" Professional Gas Cooktop
Model no:
CPV2-364GD
Cabinetry Dimensions
in
A Minimum width of ventilation hood installed above cooktop
- not shown*
36''
B Minimum vertical distance between countertop and cabinet
extending above counter
18''
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
12''
D Minimum clearance from cooking surface to:
– combustible surface centered above the cooking surface
– combustible covering for ventilation hood centered above
the cooking surface
– non-combustible surface centered above the cooking surface
54''
36''
30''
E Maximum overall depth of overhead cabinetry
13''
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
VENTILATION HOOD
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
0 5 10 20
inches
D
E
D
D
B
CC
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

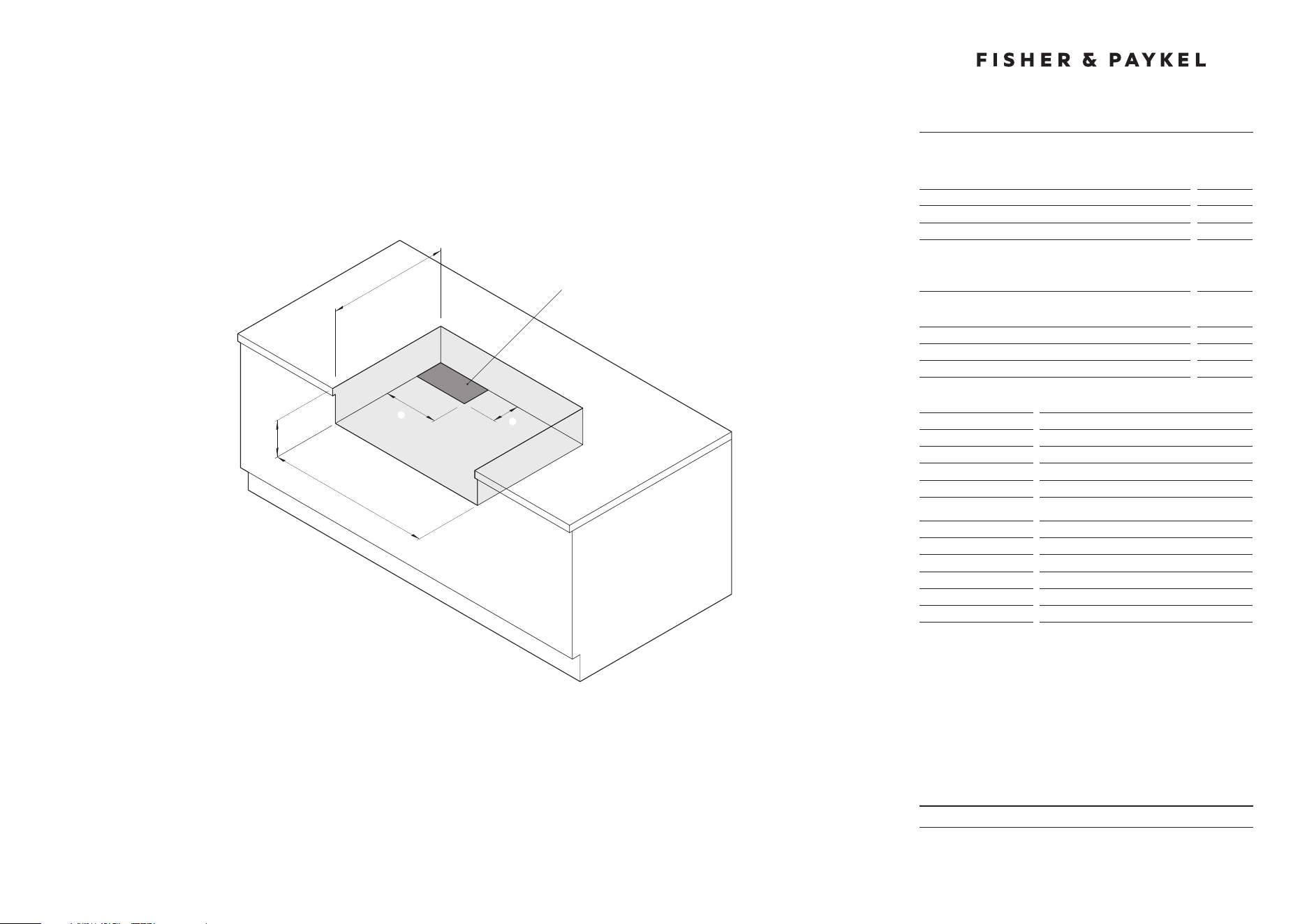

CAVITY PREPARATION
36" Professional Gas Cooktop
Model no:
CPV2-364GD
Cavity Dimensions
in
A Overall height of cutout
8''
B Overall width of cutout
min 36''
C Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
24 3/16''
max
26 11/16''
Electrical and Gas Supply Cutout
in
D Depth of supply area from rear of cutout
6''
E Width of supply area from left side of cutout
12''
Specifications
36" Models
Electrical
Supply
120 VAC, 60Hz
Max. Current Draw
15 amp
Service
15 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the cooktop regulator.
B
C
A
e
D
ELECTRICAL & GAS
SUPPLY CUTOUT
PRODUCT & CAVITY DIMENSIONS
36" Professional Gas Cooktop
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
0 5 10 20
inches
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL
PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
DATUM :
TOP OF
COUNTERTOP
DATUM :
CABINET SURFACE
BELOW COOKTOP
35 7/8''
C
F
28 1/8''
D
E
A
FRONT VIEW
PLAN VIEW
G
PROFILE VIEW
I
H
B
J
K
L
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
M
8''
Model no:
CPV2-366
Product Dimensions
in
A Height below countertop datum to bottom of chassis
8''
B Overall height of product (bottom of chassis to top of grates)
9 15/16''
C Overall width of cooktop
35 7/8''
D Overall depth of cooktop
28 1/8''
E Height above countertop datum to top of grates
1 15/16''
F Height from countertop datum to chassis top surface
3/8''
G Height of chassis
8 3/8''
H Depth from rear of chassis to cabinetry datum - projecting
24 3/16''
I Depth from rear of chassis to cabinetry datum - flush
26 11/16
''
J Depth of control panel
2 1/2''
K Distance from left edge of chassis to center line of gas inlet
2 1/2''
L Distance from left edge of chassis to center line of power cord
10 1/2''
M Distance from rear edge of chassis to center line of gas/power
1 5/8''
Cutout Dimensions
in
Overall height of cutout
8''
Overall width of cutout
min 36''
Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
24 3/16''
max
26 11/16''
INDICATES CABINETRY DATUM -----------------------------------------
INDICATES CUTOUT -------------------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
36" Professional Gas Cooktop
Model no:
CPV2-366
Cabinetry Dimensions
in
A Minimum width of ventilation hood installed above cooktop
- not shown*
36''
B Minimum vertical distance between countertop and cabinet
extending above counter
18''
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
12''
D Minimum clearance from cooking surface to:
– combustible surface centered above the cooking surface
– combustible covering for ventilation hood centered above
the cooking surface
– non-combustible surface centered above the cooking surface
54''
36''
30''
E Maximum overall depth of overhead cabinetry
13''
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
0 5 10 20
inches
D
E
D
B
CC
MINIMUM CLEARANCE:
VENTILATION HOOD
D
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CAVITY PREPARATION
36" Professional Gas Cooktop
Model no:
CPV2-366
Cavity Dimensions
in
A Overall height of cutout
8''
B Overall width of cutout
min 36''
C Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
24 3/16''
max
26 11/16''
Electrical and Gas Supply Cutout
in
D Depth of supply area from rear of cutout
6''
E Width of supply area from left side of cutout
12''
Specifications
36" Models
Electrical
Supply
120 VAC, 60Hz
Max. Current Draw
15 amp
Service
15 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the cooktop regulator.
B
C
A
e
D
ELECTRICAL & GAS
SUPPLY CUTOUT
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

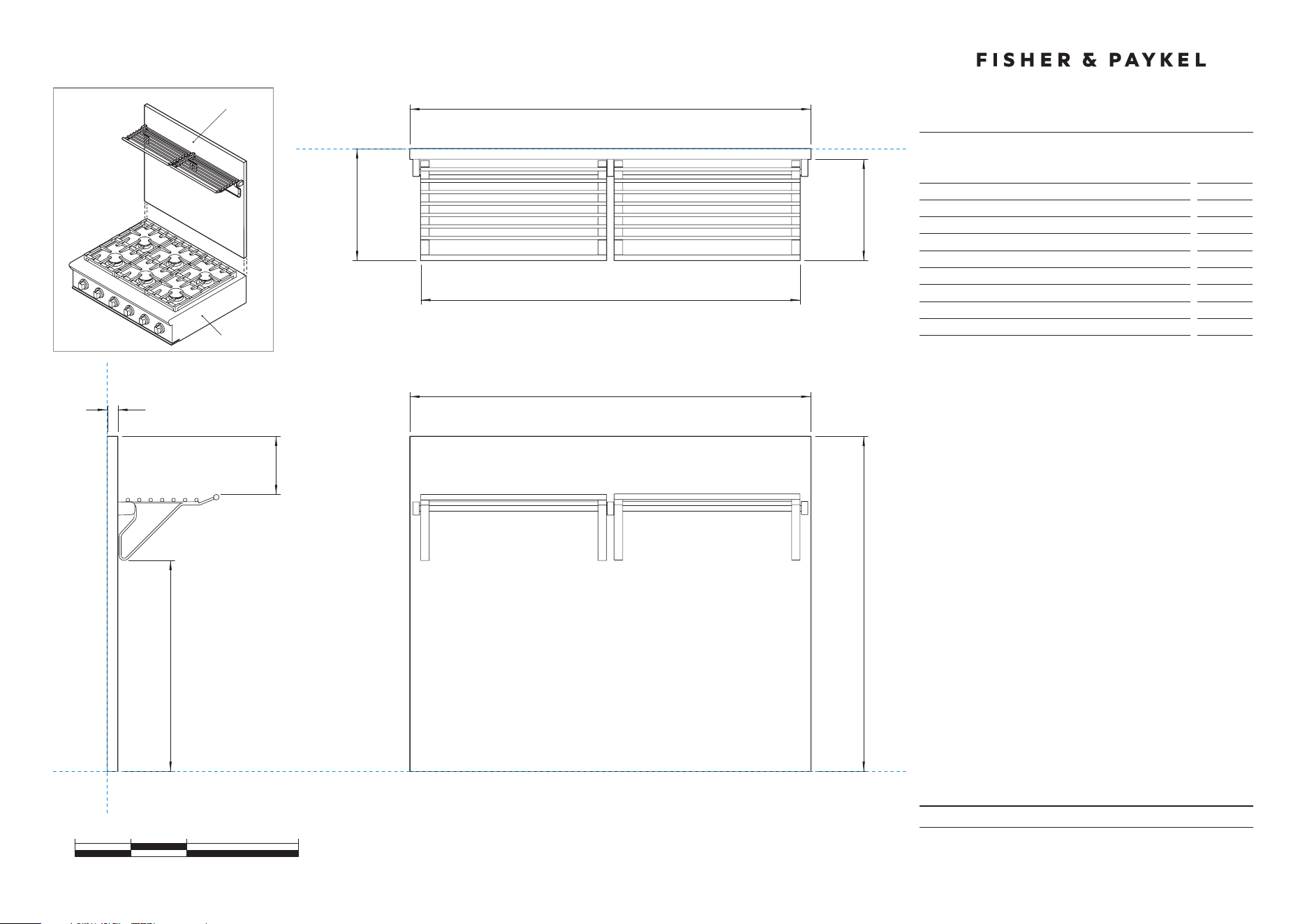

PRODUCT DIMENSIONS
36" Professional Gas Cooktop
0 5 10 20
inches
35 7/8''
B
12''
15/16''
A
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF PRODUCT
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
BGCV2-1236
CPV2-366NOT TO SCALE
Model no:
BGCV2-1236
Product Dimensions
in
A Overall height of backguard
12
''
B Overall width of backguard
35 7/8
''
C Overall depth of backguard
15/16
''
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com

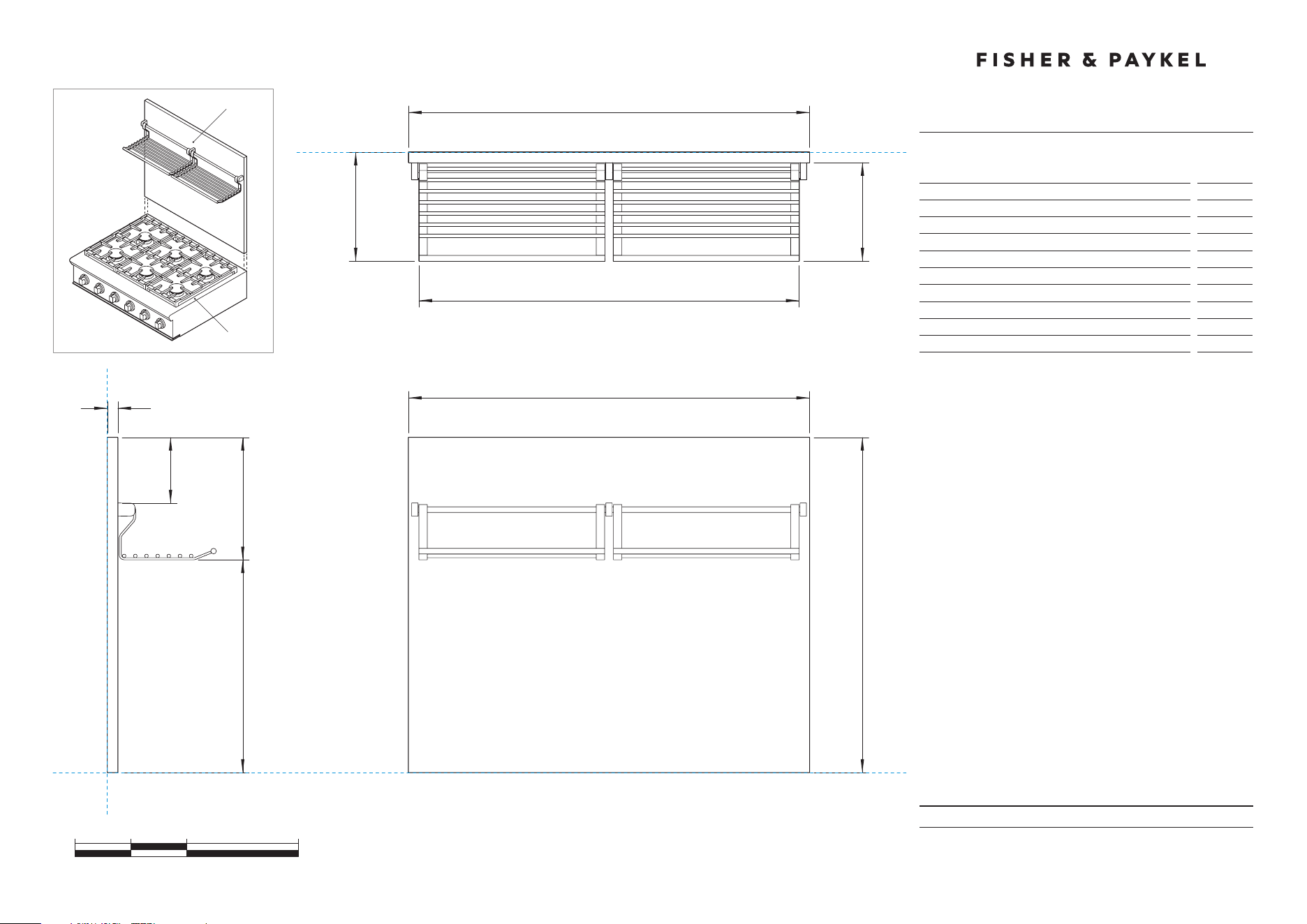

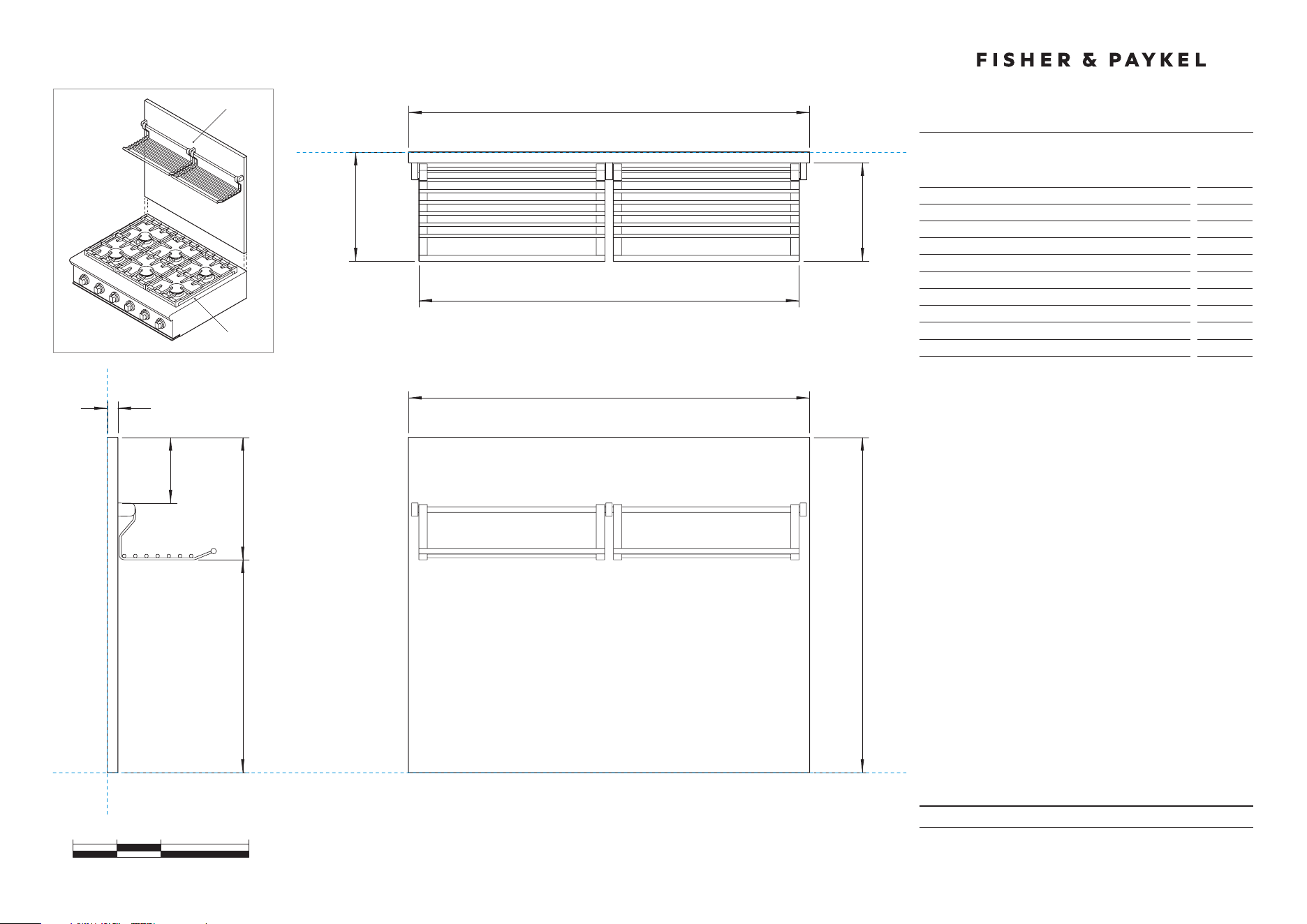

PRODUCT DIMENSIONS
36" Professional Cooktop Backguard
0 5 10 20
inches
35 7/8"
B
35 15/16"
B
30"
15/16"
A
f
e
h
g
i
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF PRODUCT
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
d
BGCV2-3036
CPV2-366
NOT TO SCALE
Model no:
BGCV2-3036
Product Dimensions
in
A Overall height of backguard
30"
B Overall width of backguard
35 7/8"
C Overall depth of backguard and racks
9 3/4"
D Depth of backguard
15/16"
E Depth of racks
8 13/16"
F Width of racks
34 1/16"
G Distance from top of backguard to bottom of racks
10 15/16"
H Distance from bottom of backguard to bottom of racks
19 1/16"
I Distance from top of backguard to top of brackets
5 7/8"
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
36" Professional Cooktop Backguard
0 5 10 20
inches
35 7/8"
B
35 7/8"
B
30"
A
f
e
h
g
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF PRODUCT
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
d
BGCV2-3036H
CPV2-366
NOT TO SCALE
15/16"
Model no:
BGCV2-3036H
Product Dimensions
in
A Overall height of backguard
30"
B Overall width of backguard
35 7/8"
C Overall depth of backguard and racks
10"
D Depth of backguard
15/16"
E Depth of racks
9 1/16"
F Width of racks
33 15/16"
G Distance from top of backguard to top of racks
5 3/8"
H Distance from bottom of backguard to bottom of racks
18 7/8"
INDICATES PRODUCT DATUM -------------------------------------------
METRIC
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
INSTALL TYPE
1
REAR SURFACE
2
BACKGUARD OPTIONS
3
WALL
ISLAND
COMBUSTIBLE
NON COMBUSTIBLE
NO BACKGUARD
LOW BACKGUARD
LOW SHELF BACKGUARD
HIGH SHELF BACKGUARD
BGCV2-3036
BGCV2-3036H
BGRV2-1236
NO BACKGUARD
CUSTOM FABRICATED* BACKGUARD
*Fabricated from non combustible materials only
CUSTOM
BACKGUARD*
Model no:
CPV2-364GD, CPV2-366
KEY DESIGN DECISIONS
36" Professional Gas Cooktop
MIN 152mm
CLEARANCE
MAX 24mm
MIN 762mm
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
INSTALL TYPE
1
WALL
ISLAND
HOOD SURROUND MATERIAL
2
NON COMBUSTIBLE
NON COMBUSTIBLE
COMBUSTIBLE
COMBUSTIBLE
VENTILATION REQUIREMENTS
36" Professional Gas Cooktop
584mm
MIN
762mm
MAX
914mm
MIN 762mm
MAX 914mm
762mm
762mm
MIN
914mm
584mm
MIN 914mm
Model no:
CPV2-364GD, CPV2-366
Note: CPV2-366 illustrated but all dimensions apply to the above models
Specifications
Ventilation Unit
Wall Installation
Wall Chimney Hood
584mm Deep x Unit Width
Blower
600 CFM
Ventilation Unit
Island Installation
Island Chimney Hood
762mm Deep x Unit Width
Blower
600 CFM
Ventilation Unit
Wall and Island Installation
Downdraft*
Unit Width
Blower
600 – 1200 CFM
Note: A suitable ventilation unit must be installed with the cooktop.
The above indicates the minimum blower capacity recommended for
ventilation units.
* Not illustrated.
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT & CAVITY DIMENSIONS
36" Professional Gas Cooktop
0 100 200 400
millimetres
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL
PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
DATUM :
TOP OF
COUNTERTOP
DATUM :
CABINET SURFACE
BELOW COOKTOP
911
C
F
714
D
E
A
FRONT VIEW
PLAN VIEW
G
PROFILE VIEW
I
H
B
J
K
L
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
M
203
Model no:
CPV2-364GD
Product Dimensions
mm
A Height below countertop datum to bottom of chassis
203
B Overall height of product (bottom of chassis to top of grates)
253
C Overall width of cooktop
911
D Overall depth of cooktop
714
E Height above countertop datum to top of grates
50
F Height from countertop datum to chassis top surface
10
G Height of chassis
213
H Depth from rear of chassis to cabinetry datum - projecting
614
I Depth from rear of chassis to cabinetry datum - flush
677
J Depth of control panel
64
K Distance from left edge of chassis to centre line of gas inlet
63
L Distance from left edge of chassis to centre line of power cord
267
M Distance from rear edge of chassis to centre line of gas/power
42
Cutout Dimensions
mm
Overall height of cutout
203
Overall width of cutout
min 914
Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
614
max
678
INDICATES CABINETRY DATUM -----------------------------------------
INDICATES CUTOUT -------------------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
36" Professional Gas Cooktop
Model no:
CPV2-364GD
Cabinetry Dimensions
mm
A Minimum width of ventilation hood installed above cooktop
- not shown*
914
B Minimum vertical distance between countertop and cabinet
extending above counter
457
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
305
D Minimum clearance from cooking surface to:
– combustible surface centered above the cooking surface
– combustible covering for ventilation hood centered above
the cooking surface
– non-combustible surface centered above the cooking surface
1372
914
762
E Maximum overall depth of overhead cabinetry
330
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
D
E
D
B
CC
0 100 200 400
millimetres
MINIMUM CLEARANCE:
VENTILATION HOOD
D
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CAVITY PREPARATION
36" Professional Gas Cooktop
Model no:
CPV2-364GD
Cavity Dimensions
mm
A Overall height of cutout
203
B Overall width of cutout
min 914
C Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
614
max
678
Electrical and Gas Supply Cutout
mm
D Depth of supply area from rear of cutout
152
E Width of supply area from left side of cutout
305
Specifications
36" Models
Electrical
Supply
120 VAC, 60Hz
Max. Current Draw
15 amp
Service
15 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the cooktop regulator.
B
C
A
e
D
ELECTRICAL & GAS
SUPPLY CUTOUT
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT & CAVITY DIMENSIONS
36" Professional Gas Cooktop
0 100 200 400
millimetres
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL
PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
DATUM :
TOP OF
COUNTERTOP
DATUM :
CABINET SURFACE
BELOW COOKTOP
911
C
F
714
D
E
A
FRONT VIEW
PLAN VIEW
G
PROFILE VIEW
I
H
B
J
K
L
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
M
203
Model no:
CPV2-366
Product Dimensions
mm
A Height below countertop datum to bottom of chassis
203
B Overall height of product (bottom of chassis to top of grates)
253
C Overall width of cooktop
911
D Overall depth of cooktop
714
E Height above countertop datum to top of grates
50
F Height from countertop datum to chassis top surface
10
G Height of chassis
213
H Depth from rear of chassis to cabinetry datum - projecting
614
I Depth from rear of chassis to cabinetry datum - flush
677
J Depth of control panel
64
K Distance from left edge of chassis to centre line of gas inlet
63
L Distance from left edge of chassis to centre line of power cord
267
M Distance from rear edge of chassis to centre line of gas/power
42
Cutout Dimensions
mm
Overall height of cutout
203
Overall width of cutout
min 914
Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
614
max
678
INDICATES CABINETRY DATUM -----------------------------------------
INDICATES CUTOUT -------------------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CLEARANCE DIMENSIONS
36" Professional Gas Cooktop
Model no:
CPV2-366
Cabinetry Dimensions
mm
A Minimum width of ventilation hood installed above cooktop
- not shown*
914
B Minimum vertical distance between countertop and cabinet
extending above counter
457
C Minimum clearance from left and right edge of range to
nearest vertical combustible surface
305
D Minimum clearance from cooking surface to:
– combustible surface centered above the cooking surface
– combustible covering for ventilation hood centered above
the cooking surface
– non-combustible surface centered above the cooking surface
1372
914
762
E Maximum overall depth of overhead cabinetry
330
DATUM : BOTTOM OF CHASSIS
FRONT VIEW PROFILE VIEW
DATUM :
TOP OF COUNTERTOP
CABINET FACE FOR
INSTALLATION WITH
PROJECTING CONTROL PANEL
CABINET FACE FOR
INSTALLATION WITH
FLUSH CONTROL PANEL
PLAN VIEW
MINIMUM CLEARANCE:
COMBUSTIBLE SURFACE
MAXIMUM OVERALL DEPTH
OF OVERHEAD CABINETRY
MINIMUM CLEARANCE:
ADJACENT OVERHEAD CABINET
MINIMUM CLEARANCE:
NON-COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
MINIMUM CLEARANCE:
NEAREST VERTICAL
COMBUSTIBLE SURFACE
CABINET FACE FOR INSTALLATION
WITH PROJECTING CONTROL PANEL
CABINET FACE FOR INSTALLATION
WITH FLUSH CONTROL PANEL
D
E
D
B
CC
0 100 200 400
millimetres
MINIMUM CLEARANCE:
VENTILATION HOOD
D
INDICATES CABINETRY CLEARANCES --------------------------------
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
CAVITY PREPARATION
36" Professional Gas Cooktop
Model no:
CPV2-366
Cavity Dimensions
mm
A Overall height of cutout
203
B Overall width of cutout
min 914
C Overall depth of cutout for projecting control panel
Overall depth of cutout for flush control panel
max
614
max
678
Electrical and Gas Supply Cutout
mm
D Depth of supply area from rear of cutout
152
E Width of supply area from left side of cutout
305
Specifications
36" Models
Electrical
Supply
120 VAC, 60Hz
Max. Current Draw
15 amp
Service
15 amp circuit
Gas – Natural
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure
Supply Pressure: 6” to 9” W.C.
Gas – LP
Connection
1/2” NPT Minimum 5/8” dia. flex line
Supply Pressure*
11” to 14” W.C.
A regulator is required at the LP source to provide a maximum pressure
of 14” W.C. to the cooktop regulator.
B
C
A
e
D
ELECTRICAL & GAS
SUPPLY CUTOUT
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
0 100 200 400
millimetres
911
B
305
23
A
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF PRODUCT
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
BGCV2-1236
CPV2-366NOT TO SCALE
Model no:
BGCV2-1236
Product Dimensions
mm
A Overall height of backguard
305
B Overall width of backguard
911
C Overall depth of backguard
23
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
36" Professional Cooktop Backguard
0 100 200 400
millimetres
911
B
911
B
762
23
A
f
e
h
g
i
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF PRODUCT
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
d
BGCV2-3036
CPV2-366
NOT TO SCALE
Model no:
BGCV2-3036
Product Dimensions
mm
A Overall height of backguard
762
B Overall width of backguard
911
C Overall depth of backguard and racks
248
D Depth of backguard
23
E Depth of racks
224
F Width of racks
865
G Distance from top of backguard to bottom of racks
278
H Distance from bottom of backguard to bottom of racks
484
I Distance from top of backguard to top of brackets
150
INDICATES PRODUCT DATUM -------------------------------------------
DATE: 02.05.2018
IMPORTANT: Throughout this guide, dimensions may vary by ±2mm (1/16'').
Read the installation guide for detailed information on installing the product.
For full installation instructions and specifications visit fisherpaykel.com
PRODUCT DIMENSIONS
36" Professional Cooktop Backguard
0 100 200 400
millimetres
911
B
911
B
762
23
A
f
e
h
g
FRONT VIEW
PLAN VIEW
PROFILE VIEW
c
DATUM : BOTTOM OF PRODUCT
DATUM : BACK OF PRODUCT
DATUM : BACK OF PRODUCT
d
BGCV2-3036H
CPV2-366
NOT TO SCALE
Model no:
BGCV2-3036H
Product Dimensions
mm
A Overall height of backguard
762
B Overall width of backguard
911
C Overall depth of backguard and racks
254
D Depth of backguard
23
E Depth of racks
230
F Width of racks
862
G Distance from top of backguard to top of racks
136
H Distance from bottom of backguard to bottom of racks
480
INDICATES PRODUCT DATUM -------------------------------------------
IMPORTANT: The product dimensions and specifications
applyat the date of issue. Under our policy of continuous
product improvement, these dimensions and specifications
may change at any time. Dimensions may vary by ±2mm (1/16").
Please read the installation guide for detailed information
oninstalling the product or visit fisherpaykel.com.
May 2018
