MAC Encore™ Wash
CLD and WRM
Safety and Installation Manual

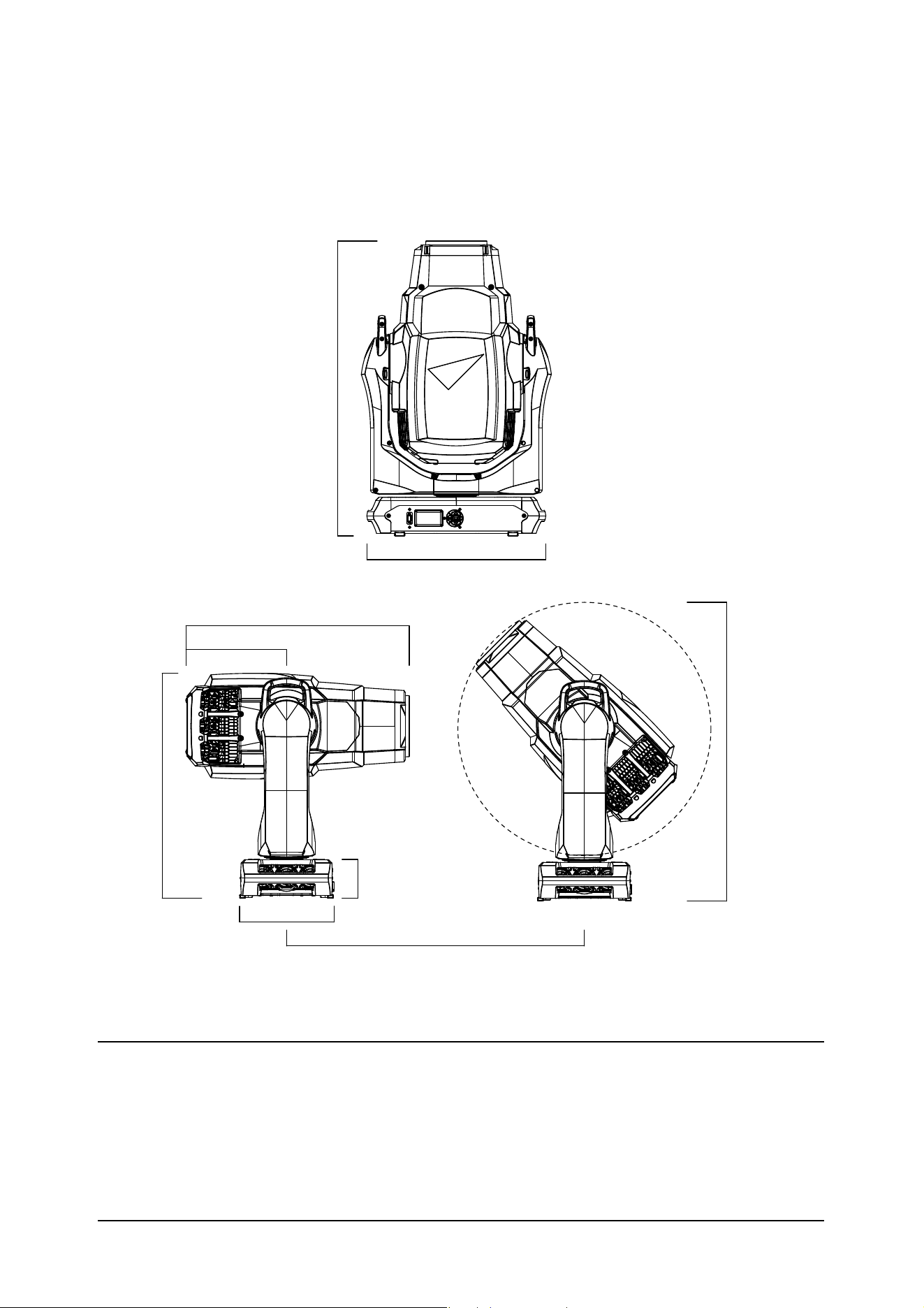

Dimensions
All measurements are given in millimeters
562
252
568
239
452
745
755
98
650
©2017-2018 HARMAN PROFESSIONAL DENMARK ApS. All rights reserved. Features, specifications and appearance are subject
to change without notice. HARMAN PROFESSIONAL DENMARK ApS and all affiliated companies disclaim liability for any injury,
damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance
on the information contained in this document. Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS
registered in the United States and/or other countries.
HARMAN PROFESSIONAL DENMARK ApS
• Olof Palmes Alle 18 • 8200 Aarhus N • Denmark
HARMAN PROFESSIONAL SOLUTIONS U.S.
• 8500 Balboa Blvd. • Northridge • CA 91329 • USA
www.martin.com
MAC Encore Wash Safety and Installation Manual, P/N 5093558-00, Rev. D
Contents
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Packing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Physical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DMX data link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Tilt lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Access to the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Access to the multi-module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Replacing optical components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the fixture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Applying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 MAC Encore™ Wash Safety and Installation Manual
Safety Information
The following symbols are used to identify important safety information on the product and in this document:
Warning! The MAC Encore Wash™ contains components that are accessible and live at high
voltage while the fixture is connected to power. These components remain under tension for up to
30 minutes after power is disconnected. Only technicians who are authorized by Martin® and who
have access to the Martin service documentation for the MAC Encore Wash are permitted to open
the fixture.
Warning! Risk Group 2 product according to EN 62471. This product produces intense light output
that may be hazardous if suitable precautions are not taken. Do not view the light output with optical
instruments or any device that may concentrate the beam.
This product presents risks of severe injury or death due to fire and burn hazards, electric shock and falls if
the safety precautions in this manual are not followed.
Read this manual before installing, powering or servicing the fixture. Follow the safety precautions and
observe all warnings in this manual, in the MAC Encore Wash User Guide, and printed on the fixture.
The latest versions of this Safety and Installation Manual and the MAC Encore Wash User Guide are
available for download from the MAC Encore Wash Support & Downloads page on the Martin website at
www.martin.com. Before you install, operate or service the MAC Encore Wash, check the Martin website
and make sure that you have the latest user documentation for the fixture. Document revisions are indicated
at the bottom of page 2.
This product is for professional use only. It is not for household use. Respect all locally applicable laws,
codes and regulations when installing, powering, operating or servicing the fixture.
Install, operate and service Martin products and accessories only as directed in their user documentation, or
you may create a safety hazard or cause damage that is not covered by product warranties.
The latest software, manuals and other documentation for all Martin products are available for download at
www.martin.com
Technical Support
If you have questions about how to install or operate the fixture safely, please contact Harman Professional
Technical support:
• For technical support in North America, please contact: HProTechSupportUSA@harman.com
Phone: (844) 776-4899
• For technical support outside North America, please contact your national distributor.
WARNING!
Read the safety precautions in this section before
installing, powering, operating or servicing this
product.
DANGER!
Safety hazard.
Risk of severe
injury or death.
DANGER!
Hazardous
voltage. Risk of
lethal or severe
electric shock.
WARNING!
Fire hazard.
WARNING!
Burn hazard. Hot
surface. Do not
touch.
WARNING!
Intense light
emission.
WARNING!
Refer to user
documentation.
Safety Information 5
PROTECTION FROM ELECTRIC SHOCK
• Do not remove any cover from the fixture except as described under “Service and maintenance” on
page 13.
• Disconnect the fixture from AC power before servicing it and when it is not in use.
• Ensure that the fixture is electrically connected to ground (earth).
• Use only a source of AC power that complies with local building and electrical codes and has both
overload and ground-fault (earth-fault) protection.
• The cable used to connect the fixture to AC power must be 14 AWG or 1.5 mm
2
minimum conductor size
and heat-resistant to 90° C (194° F) minimum. It must have three conductors and an outer cable diameter
of 5 - 15 mm (0.2 - 0.6 in.). In the USA and Canada, the cable must be UL/CSA-recognized, hard usage,
type SJT or equivalent. In the EU, the cable must be type H07RN-F or equivalent.
• Before using the fixture, check that all power distribution equipment and cables are in perfect condition
and rated for the current requirements of all connected devices.
• Isolate the fixture from power immediately if the power plug or any seal, cover, cable, or other component
is damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs
have been completed.
• Use only a Neutrik TRUE1 NAC3FX-W cable connector to connect to the power input socket.
• Do not expose the fixture to rain or moisture.
• The MAC Encore Wash contains components that are accessible and live at high voltage while the fixture
is connected to power and that remain under tension for 30 minutes after power is disconnected. Only
technicians who are authorized by Martin and who have the Martin service documentation for the MAC
Encore Wash are permitted to open the fixture.
• Refer any service operation not described in this manual or in the MAC Encore Wash User Guide to
Martin Service or an authorized Martin Service partner.
• The light source contained in this fixture may only be replaced by Martin Service or an authorized Martin
Service partner.
PROTECTION FROM BURNS AND FIRE
• The exterior of the fixture becomes hot during use. After 5 minutes of operation a surface temperature of
75° C (167° F) shall be expected. The maximum steady state surface temperature is also 75° C (167° F).
Avoid contact by persons and materials.
• Allow the fixture to cool for at least 30 minutes before handling.
• Keep all combustible materials (e.g. fabric, wood, paper) at least 0.2 m (8 in.) away from the fixture.
• Keep flammable materials well away from the fixture.
• Ensure that there is free and unobstructed airflow around the fixture.
• Provide a minimum clearance of 0.2 m (8 in.) around fans and air vents.
• Do not illuminate surfaces within 2.0 m (6.6 ft.) of the fixture.

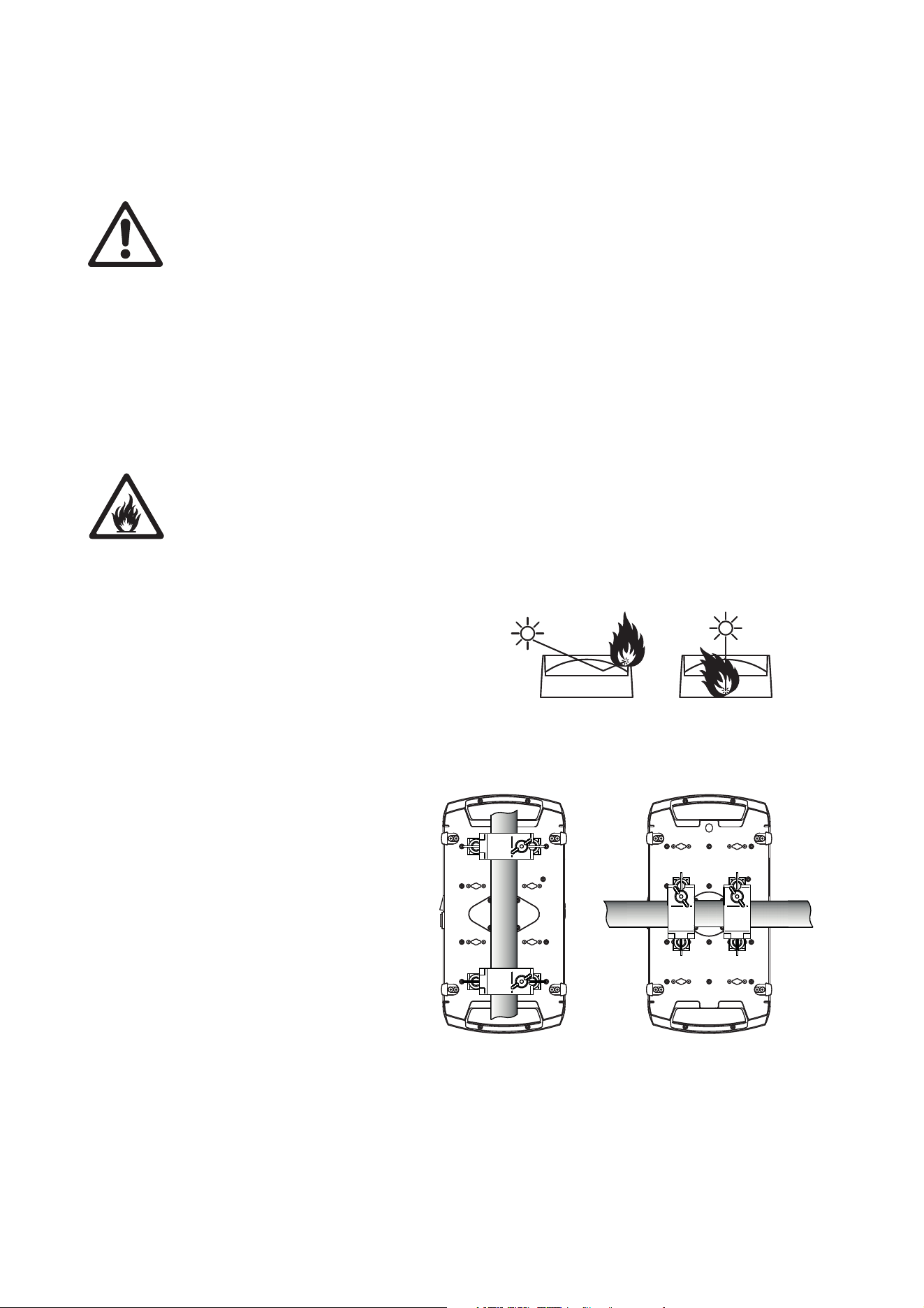

• Do not expose the front glass to sunlight or any other strong light source from any angle. Lenses can
focus the sun's rays inside the fixture, creating a potential fire hazard.
• Do not attempt to bypass thermostatic switches or fuses.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
• Do not modify the fixture in any way not described in this manual or the fixture’s User Guide or install
other than genuine Martin parts. Do not stick filters, masks or other materials onto any lens or other
optical component. Use only accessories approved by Martin to mask or modify the light beam.
PROTECTION FROM EYE INJURY
• This fixture is a Risk Group 2 product according to EN 62471. It emits possibly hazardous optical
radiation. It falls into the Risk Group categories shown below according to EN 62471.
• Do not look directly into the fixture’s light output.
DO NOT RISK GROUP
2
RISK GROUP
1
0.2 m
(7.9 ins.)
16.5 m
(54.2 ft.)
18.6 m
(61.1 ft.)
EXPOSE
RISK GROUP
EXEMPT
6 MAC Encore™ Wash Safety and Installation Manual
• Do not expose persons to the fixture’s light output from a distance of less than 0.2 m (8 ins.).
• Do not look at LEDs with magnifiers, telescopes, binoculars or similar optical instruments that may
concentrate the light output.
• Ensure that persons are not looking at the LEDs when the fixture lights up suddenly. This can happen
when power is applied, when the fixture receives a DMX signal, or when certain control menu items are
selected.
• To minimize the risk of eye irritation or injury, disconnect the fixture from power at all times when the
fixture is not in use, and provide well-lit conditions to reduce the pupil diameter of anyone working on or
near the fixture.
PROTECTION FROM INJURY
• Fasten the fixture securely to a fixed surface or structure when in use. The fixture is not portable when
installed.
• Do not lift or carry the fixture alone.

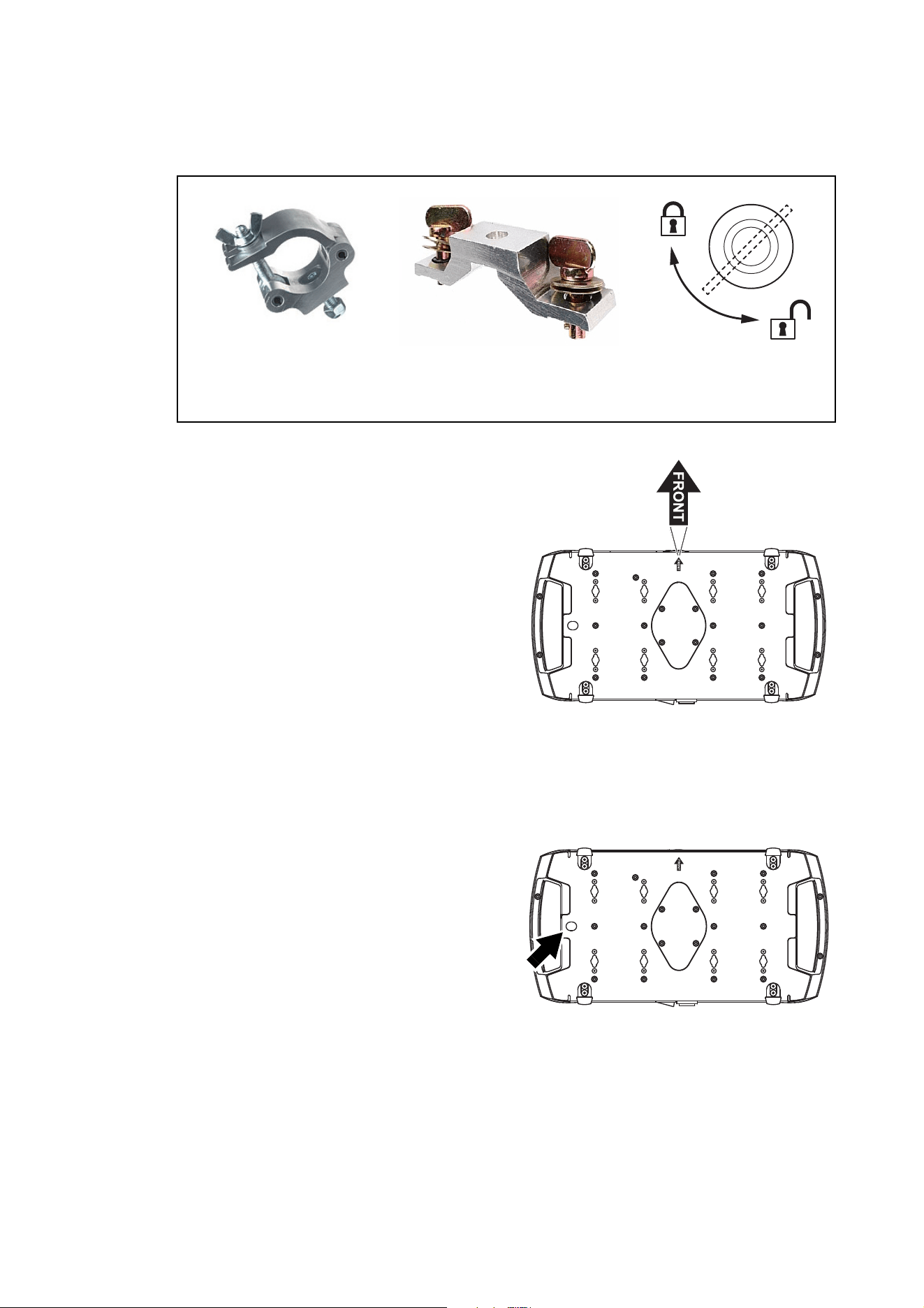

• Use two evenly spaced omega brackets with clamps to suspend the fixture from rigging structures. Do not
use only one clamp.
• When clamping the fixture to a truss or other supporting structure at any other angle than with the yoke
hanging vertically downwards, use two half-coupler clamps. Do not use G-clamps, quick-trigger clamps or
any other type of clamp that does not completely encircle the supporting structure when fastened.
• When suspending the fixture, check that the supporting structure and all hardware used to suspend the
fixture can hold at least 10 times the weight of all devices suspended from them and that the installation
respects all similar safety factors that are required by locally applicable regulations. Check that the
structure and hardware are in perfect condition and suitable for their purpose.
• If the fixture is installed in a location where it may cause injury or damage if it falls, install as described in
this manual a secondary attachment such as a safety cable that is approved by an official body such as
TÜV as a safety attachment for the weight that it secures. The safety cable must comply with EN
60598-2-17 Section 17.6.6 or BGV C1 / DGUV 17, and must be capable of bearing a static suspended
load at least six times (or more if required by locally applicable regulations) the weight that it secures.
• Eliminate as much slack as possible in the secondary attachment (by looping the safety cable more than
once around the rigging truss, for example).
• If the safety cable attachment point becomes deformed, do not suspend the fixture. Have the fixture
repaired by an authorized Martin service partner.
• Check that all external covers and rigging hardware are securely fastened.
• Block access below the work area and work from a stable platform whenever installing, servicing or
moving the fixture.
• Allow enough clearance around the head to ensure that it cannot collide with an object or another fixture
when it moves.
Introduction 7
Introduction
Thank you for selecting the MAC Encore Wash from Martin. This moving-head spotlight is available in CLD
(cold white LED) and WRM (warm white LED) variants. Both variants offer the following features:
• Powerful white LED engine
• Full-spectrum CMY color mixing and color temperature control
• Color wheel
• Iris effect
• Motorized zoom and focus
• Internal barn doors, system can be rotated +/-100°
• Fresnel lens as standard. PC lens with longer throw and tighter beam available as optional accessory
• Pre-programmed synchronizable FX (effect combination presets) including Animotion FX
• Full-range dimming with four dimming curve options
• Electronic shutter effect with variable speed regular and random strobe
• Backlit graphic display and battery power (mains power not required for fixture setup)
• Auto-sensing switch-mode power supply.
For the latest firmware updates, documentation, and other information about this and all Martin products,
please visit the Martin website at http://www.martin.com
Unpacking
The MAC Encore Wash is packed in a cardboard box that is designed to protect the fixture during shipment.
Two packaging options are available in the cardboard box – the fixture can be supplied in either:
• expanded polystyrene that is not intended for re-use, or

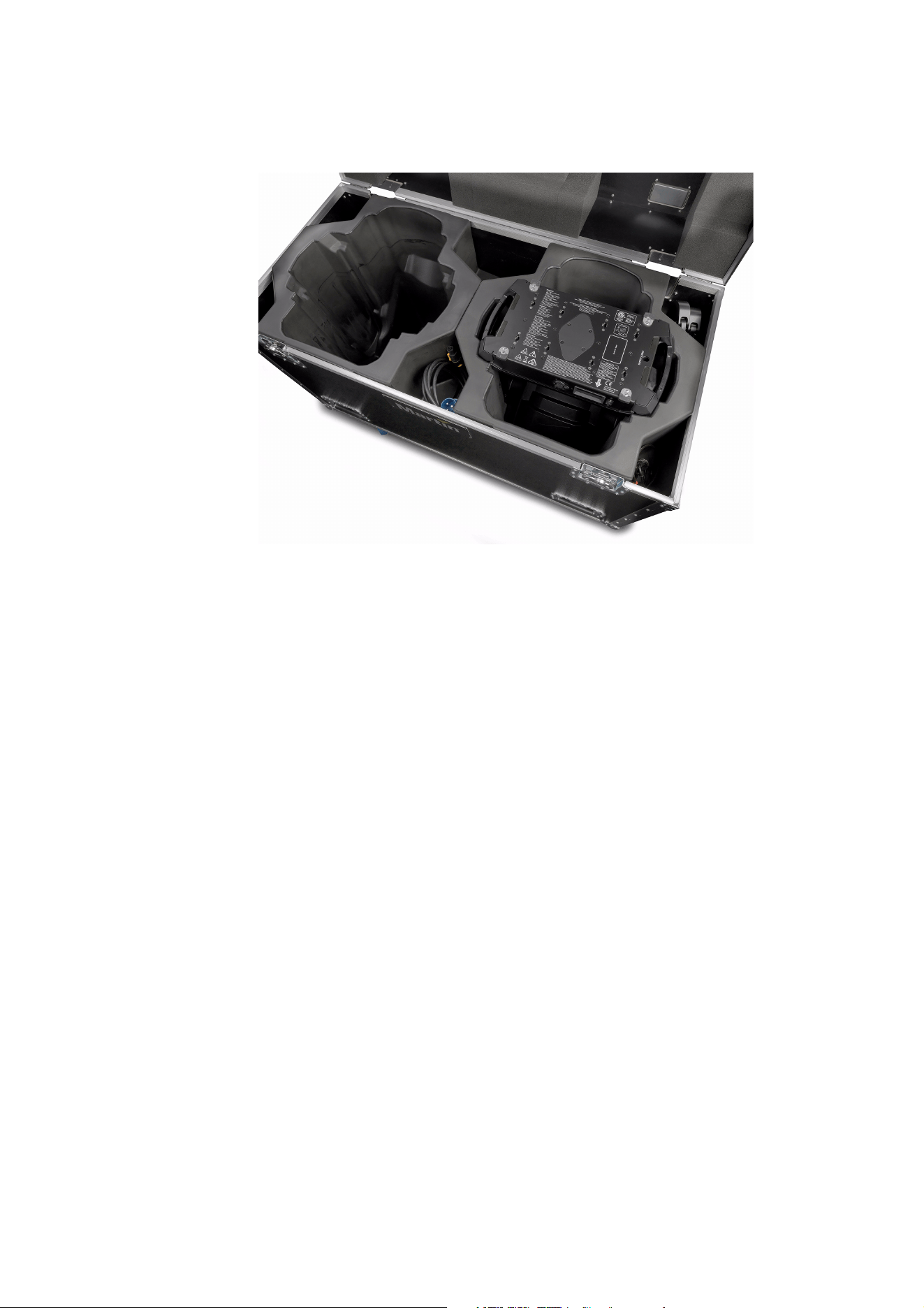

• a SIP (Superior Impact Protection) insert that is designed to be installed in the 2-unit Martin MAC Encore
Wash flightcase or custom-made flightcases.
This Safety and Installation Manual is included with the fixture. The MAC Encore Wash User Guide,
containing full details of setting up, controlling and monitoring the fixture, is available for download from the
MAC Encore Wash Product Support page on the Martin website at www.martin.com. If you have any
difficulty locating either of these two documents, please contact your Martin supplier for assistance.
Tilt lock
Release the tilt lock before applying power to the fixture.

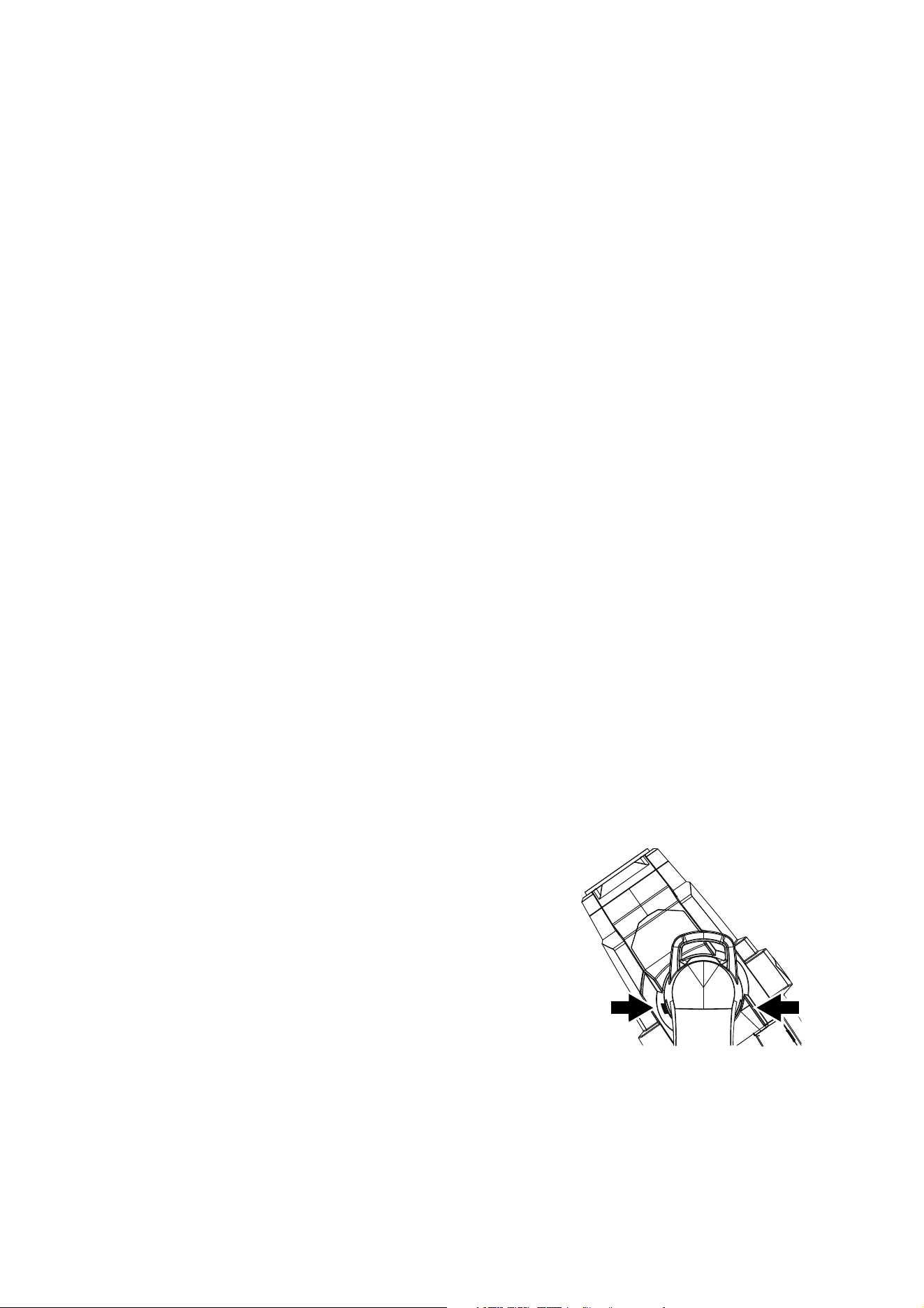

See Figure 1. Release the tilt lock by pushing the lock in
towards the yoke (you can reapply the tilt lock by first
checking that the power is off and then pushing the lock
back in towards the yoke from the other side).
Packing
Important! Allow the fixture to cool and release the tilt lock
before packing it in its flightcase.
A rugged two-unit flightcase (see Figure 2) is available
from Martin for the MAC Encore™. The flightcase
accepts two durable molded SIP (Superior Impact
Protection) foam inserts that are supplied in cardboard boxes with fixtures if you select the SIP option at
time of ordering.
Figure 1: Tilt lock
8 MAC Encore™ Wash Safety and Installation Manual
The SIP inserts are designed to protect the head without the tilt lock (see Figure 1) applied. Release the tilt
lock before putting a fixture into a flightcase for transport. Leaving the tilt lock applied may cause damage
that is not covered by the product warranty.
Figure 2: Martin flightcase for the MAC Encore
Physical installation 9
Physical installation
Warning! The MAC Encore Wash has a powerful pan motor. The torque reaction when the head is
panned suddenly can cause the base to move if the fixture is standing unsecured on a surface. Do
not apply power to the MAC Encore Wash unless the base is securely fastened to a surface or to
rigging hardware.
Warning! Use two clamps to rig the fixture. Do not hang the fixture from only one clamp. Lock each
clamp with both 1/4-turn fasteners. Fasteners are locked only when turned a full 90° clockwise.
Warning! When suspending the fixture above ground level, secure it against failure of primary
attachments by attaching a safety wire that is approved as a safety attachment for the weight of the
fixture to the attachment point in the base. Do not use the carrying handles for secondary
attachment.
Warning! When clamping the fixture to a truss or other structure at any other angle than with the
yoke hanging vertically downwards, use two clamps of half-coupler type. Do not use any type of
clamp that does not completely encircle the structure when fastened.
Warning! Position or shade the head so that the front lens will not be exposed to sunlight or another
strong light source from any angle – even for a few seconds. See Figure 3. The MAC Encore Wash’s
lens can focus the sun's rays, creating a potential fire hazard and causing damage.
Important! Do not point the output from other lighting fixtures at the MAC Encore Wash, as powerful
light can damage the display.
See Figure 3. Lenses can focus sunlight and
strong light, presenting a risk of fire and
damage to the fixture. Shield or shade the
head if necessary.
The MAC Encore Wash can be
fastened to a surface such as a
stage or clamped to a truss in
any orientation. Clamps must be
half-coupler type (see Figure 5)
or equivalent type that fully
encircles the truss unless the
fixture is installed with the yoke
hanging vertically downwards,
in which case other clamp types
that are approved for the
supported weight may be used.
The mounting points in the base
allow omega brackets and
rigging clamps to be fastened
as shown in Figure 4.
Clamping the fixture
on a truss
1. Check that all rigging hardware is undamaged and can bear at least 10 times the weight of the fixture or
as required by locally applicable regulations. Check that the supporting structure can safely bear the
Figure 3: Potential sunlight damage
Figure 4: Clamp bracket positions
10 MAC Encore™ Wash Safety and Installation Manual
weight of all installed fixtures, clamps, cables, auxiliary equipment, etc. and complies with locally
applicable regulations.
2. Bolt each rigging clamp securely to an omega bracket with an M12 bolt (minimum grade 8.8) and
self-locking nut.
3. See Figure 4 on page 9. Align the first clamp
and bracket with 2 mounting points in the base,
and engage both the clamp bracket’s
quarter-turn fasteners in corresponding sockets
in the base. See Figure 5. Turn the levers on
the quarter-turn fasteners a full 90° clockwise
to lock. Repeat for the second clamp.
4. Block access under the work area. See Figure
6. Note the position of the arrow marked
FRONT on the base of the fixture. Working
from a stable platform, hang the fixture on the
truss with the arrow marked FRONT facing
towards the area to be illuminated. Tighten the
rigging clamps.
5. See Figure 7. Install a safety cable that is
approved as a safety attachment for the weight
of the fixture by looping it through the safety
attachment point (arrowed) in the bottom of the
base and around a secure anchoring point so
that the safety cable will catch the fixture if a primary attachment fails. Remove as much slack as
possible from the safety cable (by looping it twice around the anchoring point, for example).
6. Check that the tilt lock is released. Check that
there are no combustible materials within 0.2 m
(8 in.) or surfaces to be illuminated within 2.0 m
(6.6 ft.) of the fixture, and that there are no
flammable materials nearby.
7. Check that there is no possibility of heads or
yokes colliding with other fixtures. Note that
pan and tilt range on the MAC Encore Wash
can be limited via the control panel to allow
fixtures to be installed closer to each other or
to obstacles with no risk of collision (see User
Guide for details).
8. Check that other lighting fixtures cannot project
light at the MAC Encore Wash, as powerful
illumination can damage the fixture’s display.
Figure 5: Martin rigging hardware
Half-coupler Omega bracket for
rigging clamp rigging clamp attachment
90°
Locking quarter-
turn fasteners
SAFETY CABLE
Figure 6: Front of fixture
SAFETY CABLE
Figure 7: Safety cable attachment point
AC power 11
AC power
Warning! Read '“Safety Information” on page 4 before connecting the fixture to AC mains power.
For protection from electric shock, the fixture must be electrically connected to ground (earth). The
AC mains power distribution circuit must be equipped with a fuse or circuit breaker and
ground-fault (earth-fault) protection.
Power input
Important! Connect the MAC Encore Wash directly to AC power. Do not connect it to a dimmer
system; doing so may damage the fixture.
The MAC Encore Wash features an auto-sensing switch-mode power supply that automatically adapts to
AC mains power at 120-240 V (nominal), 50/60 Hz. Do not connect the fixture to power that is not within this
range.
The MAC Encore Wash requires a power input cable with a Neutrik TRUE1 NAC3FX-W cable connector for
AC mains power input. The cable must meet the requirements listed under “Protection from electric shock”
on page 5.
Connecting to an AC mains power source
The power cable can be hard-wired to a building installation circuit or fitted with a mains plug (cord cap) to
allow connection to local AC mains power outlets. If you install a mains plug, install a grounding-type
(earthed) plug rated minimum 10 A, 250 V (example rating: EN 60309-2 CEE 2P+E 16A/250VAC), following
the plug manufacturer’s instructions. Table 1 shows some possible mains power pin identification schemes;
if the pins are not clearly identified, or if you have any doubts about proper installation, consult a qualified
electrician.
Applying power
To apply power to the MAC
Encore Wash:
1. Check that the tilt lock is
released, that the base is
held securely, and that
personal safety will not be put
at risk when the fixture lights
up and moves.
2. See Figure 8. insert the
TRUE1 power connector into
the Mains Input socket
(arrowed) and twist clockwise
to engage.

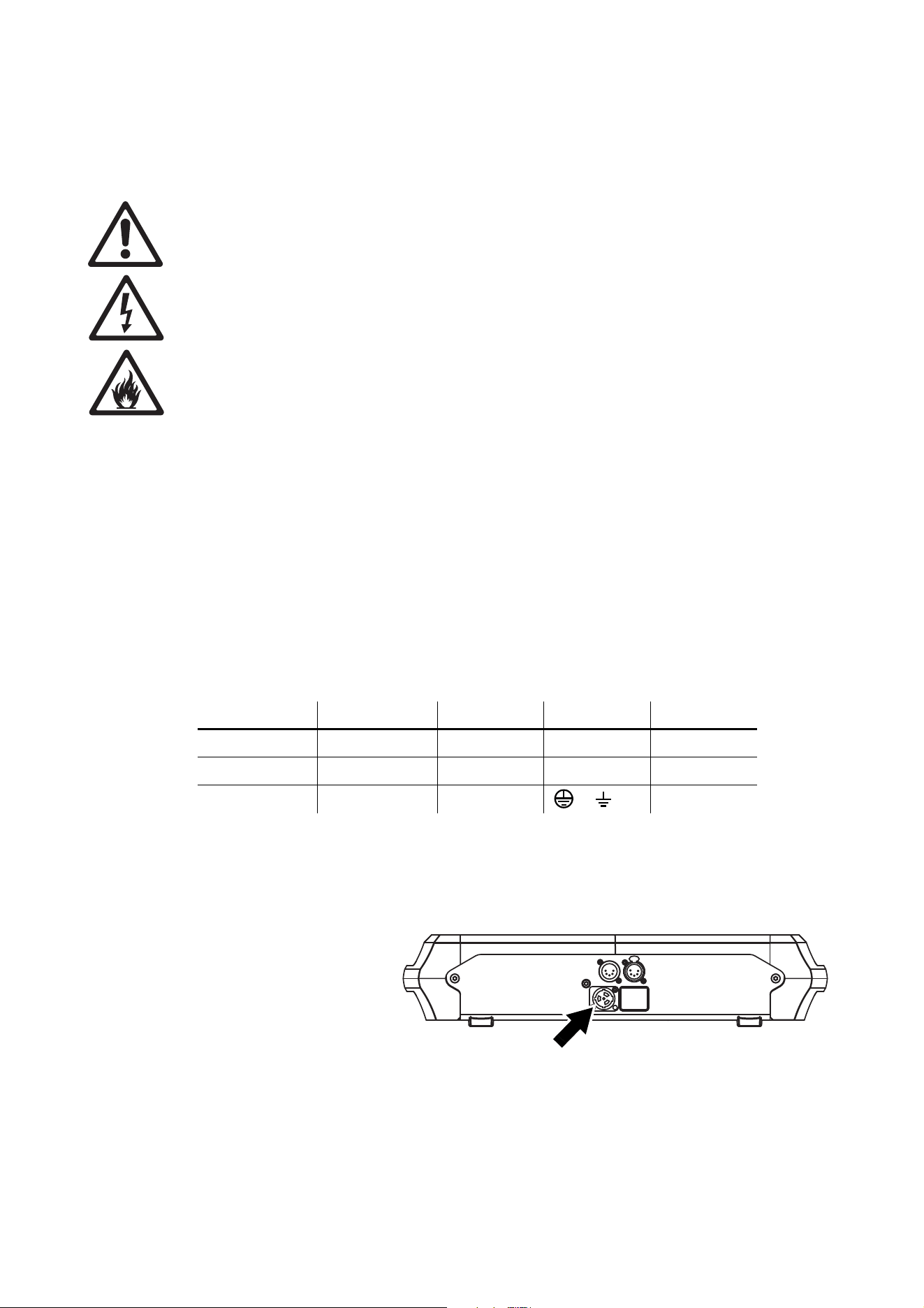

Wire Color (US) Wire Color (EU) Pin Symbol Screw (US)
black brown live L yellow or brass
white blue neutral N silver
green yellow/green ground (earth) or green
Table 1: Cord cap (mains plug) connections
Figure 8: Mains input socket
12 MAC Encore™ Wash Safety and Installation Manual
DMX data link
The MAC Encore Wash has 5-pin locking XLR sockets for DMX and RDM input and output (see Figure 8 on
page 11). The default pin-out on both sockets is:
• pin 1 to shield
• pin 2 to data 1 cold (-)
• pin 3 to data 1 hot (+).
Pins 4 and 5 are not used by the fixture but are bridged between input and output sockets. These pins can
therefore be used as a pass-through connection for an additional data signal if required.
Tips for reliable data transmission
• Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot transmit
control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft). Heavier
gauge cable and/or an amplifier is recommended for longer runs.
• To split the data link into branches, use one of the splitter-amplifiers available from Martin (see under
“Accessories” in the product specifications given at the end of this document.)
• Do not overload the link. Up to 32 devices may be connected on a serial link.
• Install a DMX termination plug on the last fixture on the link.
Connecting the data link
1. Connect the DMX data output from the controller to the MAC Encore Wash’s data input (male XLR)
socket.
2. Run the data link from the MAC Encore Wash’s data output (female XLR) socket to the data input of the
next fixture.
3. Terminate the data link by connecting a 120 Ohm, 0.25 Watt resistor between the data 1 hot (+) and
cold (-) conductors (and between data 2 hot and cold if used) at the data output of the last fixture on the
link. If a splitter is used, terminate each branch of the link.
Service and maintenance 13
Service and maintenance
Warning! Read “Safety Information” on page 4 before servicing the MAC Encore Wash.
Warning! Disconnect the fixture from AC mains power and allow to cool for at least 30 minutes
before handling. Do not stare into the light output. Be prepared for the fixture to light and move
suddenly when connected to power.
Warning! The MAC Encore Wash™ contains components that are accessible and live at high
voltage while the fixture is connected to power and that remain under tension for 30 minutes after
power is disconnected. Only technicians who are authorized by Martin and who have the Martin
service documentation for the MAC Encore Wash are permitted to open the fixture. Users may carry
out external cleaning as described in this section, following the warnings and instructions provided,
but any service operation not described in this manual or in the fixture’s User Guide must be
referred to a qualified service technician.
Important! Excessive dust, smoke fluid, and particle buildup degrades performance, causes
overheating and will damage the fixture. Damage caused by inadequate cleaning or maintenance is
not covered by the product warranty.
The user must clean the MAC Encore Wash periodically to maintain optimum performance and cooling. The
user may also upload firmware (fixture software) to the fixture via the DMX data input port or USB port using
firmware and instructions from Martin. All other service operations on the MAC Encore Wash must be
carried out by Martin, its approved service agents or trained and qualified personnel using the official Martin
service documentation for the MAC Encore Wash.
Installation, on-site service and maintenance can be provided worldwide by the Martin Professional Global
Service organization and its approved agents, giving owners access to Martin’s expertise and product
knowledge in a partnership that will ensure the highest level of performance throughout the product’s
lifetime. Please contact your Martin supplier for details.
It is Martin policy to apply the strictest possible calibration procedures and use the best quality materials
available to ensure optimum performance and the longest possible component lifetimes. However, optical
components are subject to wear and tear over the life of the product, resulting in gradual changes in color
over many thousands of hours of use. The extent of wear and tear depends heavily on operating conditions
and environment, so it is impossible to specify precisely whether and to what extent performance will be
affected. However, you may eventually need to replace optical components if their characteristics are
affected by wear and tear after an extended period of use and if you require fixtures to perform within very
precise optical and color parameters.
Tilt lock
The tilt position of the head can be locked for service. See Figure 1 on page 7. Push the lock in towards the
yoke in one direction to lock the head and back in from the other side to unlock the head.
Important! Release the tilt lock before applying power to the fixture and before packing the fixture in its
flightcase.
Access to the head
Warning! Disconnect from power and allow to cool for 30 minutes before opening the head.
To open the head:
1. Disconnect the fixture from power, allow components to cool for 30 minutes and apply the tilt lock.

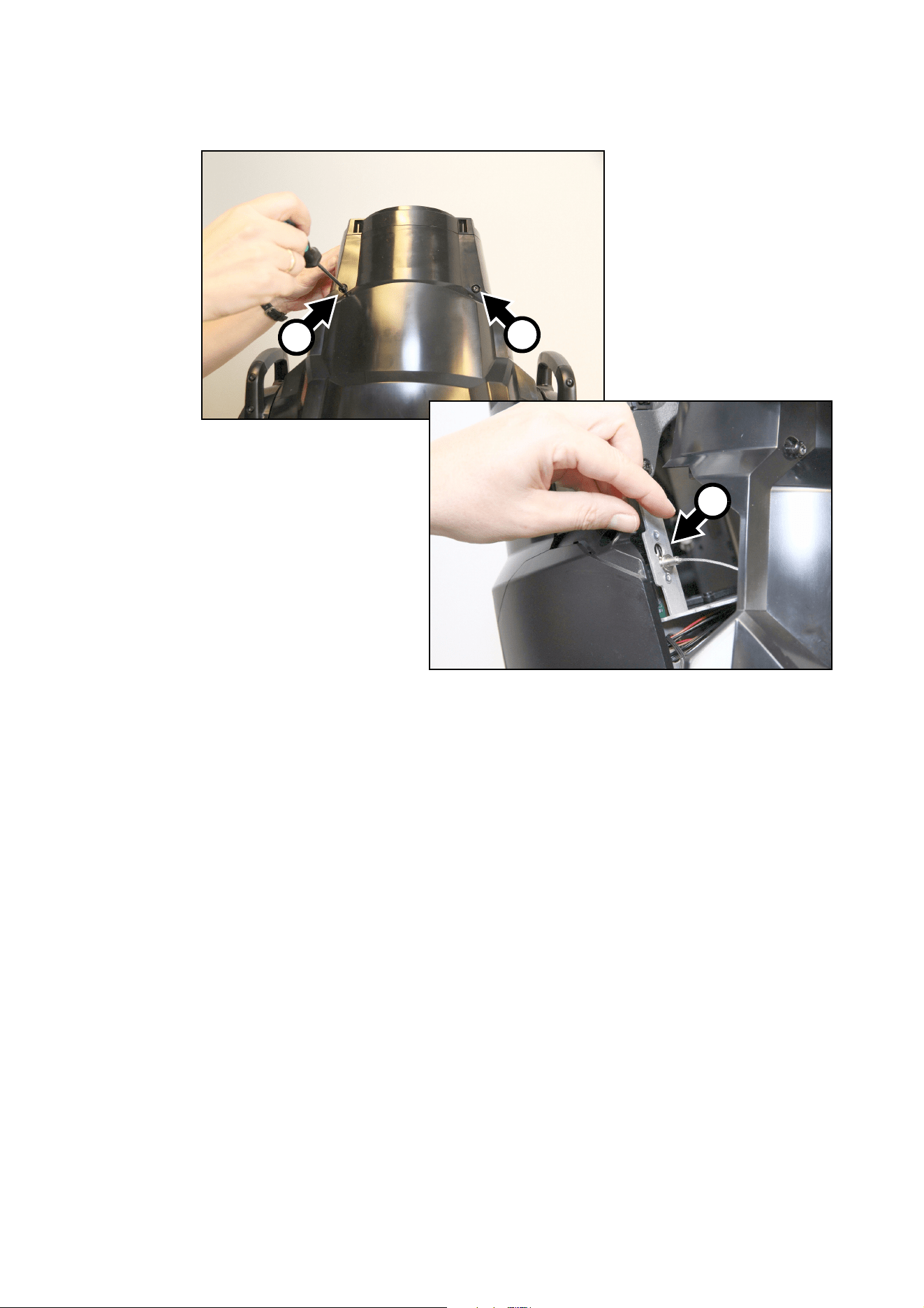

2. See Figure 9. Remove the top head cover by loosening its two Torx 25 captive retaining screws A until
the screws turn freely. Lift the front of the cover slightly away from the head, then slide the cover towards
the front of the head to release the rear of the cover.
14 MAC Encore™ Wash Safety and Installation Manual
3. You can let the head cover hang on its safety wire, but for easiest access push the cover’s safety wire
retaining clip B in towards the head chassis, slide the clip until you can remove it, then remove the head
cover completely from the fixture.
4. For easiest access to the components inside the head, position the head at an angle with the front
facing downwards as shown in Figure 9, then apply the tilt lock.
To reinstall the top head cover:
1. See Figure 9. Hold the cover up to the head and fasten its safety wire retaining clip B into the head
chassis by pressing the clip through its hole and then sliding it until it is held securely.
2. Slide the rear of the cover towards the back of the head until its retaining clips locate, then swing the
front of the cover in towards the head and fully tighten the cover’s two Torx 25 retaining screws. Check
that the cover is securely fastened to the head.
3. Release the tilt lock before applying power or packing the MAC Encore Wash in its flightcase.
Figure 9: Access to the head
A
A
B
Service and maintenance 15
Access to the multi-module
Access to the color wheel in the multi-module is easiest if you remove the module from the head.
To remove the multi-module:
1. Remove the top head cover, position the head with the front glass angled downwards and the top side
facing upwards, and apply the tilt lock (see “Access to the head” on page 13).
2. See Figure 10. Unplug the multi-module’s data I/O plug A and power plug B from positions PL 100 and
PL 110 on the distribution PCB. and unhook the multi-module wireset from its cutout C in the head
chassis.
3. See Figure 11. Loosen the two Torx 20 screws D (arrowed) to release the multi-module. Position the
head so that the front lens is pointing downwards, then lift the module out of the head and place it on a
work surface as shown in Figure 12.

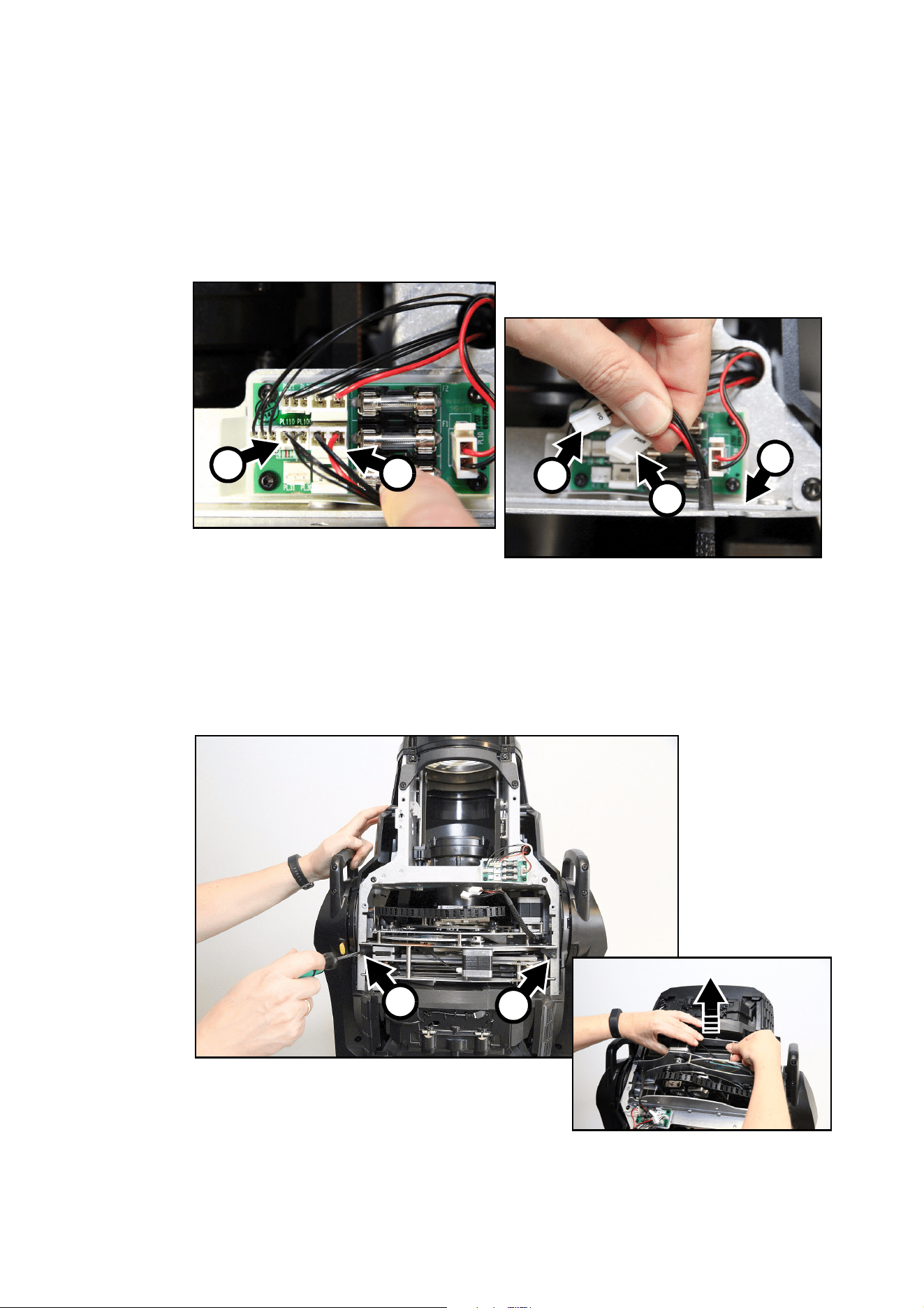

Figure 10: Disconnecting the multi-module
B
A
B
A
C
Figure 11: Removing the multi-module
D
D
16 MAC Encore™ Wash Safety and Installation Manual
4. Use the steps above as a guide
when reinstalling the
multi-module. Check that you do
not trap any wires during
reinstallation.
Do not disassemble the multi-module
itself without service documentation
or assistance from Martin Service.
Cleaning
Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog
fluid residues, etc. degrades the fixture’s light output and cooling ability.
Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore
impossible to specify precise cleaning intervals for the MAC Encore Wash. Cooling fans suck in airborne
dust and smoke particles, and in extreme cases fixtures may require cleaning after surprisingly few hours of
operation. Environmental factors that may result in a need for frequent cleaning include:
• Use of smoke or fog machines.
• High airflow rates (near air conditioning vents, for example).
• Presence of cigarette smoke.
• Airborne dust (from stage effects, building structures and fittings or the natural environment at outdoor
events, for example).
If one or more of these factors is present, inspect fixtures within their first few hours of operation to see
whether cleaning is necessary. Check again at frequent intervals. This procedure will allow you to assess
cleaning requirements in your particular situation. If in doubt, consult your Martin dealer about a suitable
maintenance schedule.
Work in a clean, well lit area. Use gentle pressure only when cleaning. Do not use any product that contains
abrasives. Do not use solvents. Use care when cleaning optical components: surfaces are fragile and easily
scratched.
To clean the fixture:
1. Disconnect the fixture from power and allow it to cool for at least 30 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the fixture and the air vents at
the back and sides of the head and in the base with low-pressure compressed air.
3. Clean the front glass on the front of the head by wiping gently with a soft, clean, lint-free cloth moistened
with a weak detergent solution. Do not rub the surface hard: lift particles off with a soft repeated press.
Dry with a soft, clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an
unscented tissue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the fixture is dry before reapplying power.
Lubrication
The MAC Encore Wash does not require lubrication under normal circumstances. Moving parts can be
checked and a long-lasting teflon-based grease reapplied by a Martin service partner if necessary.

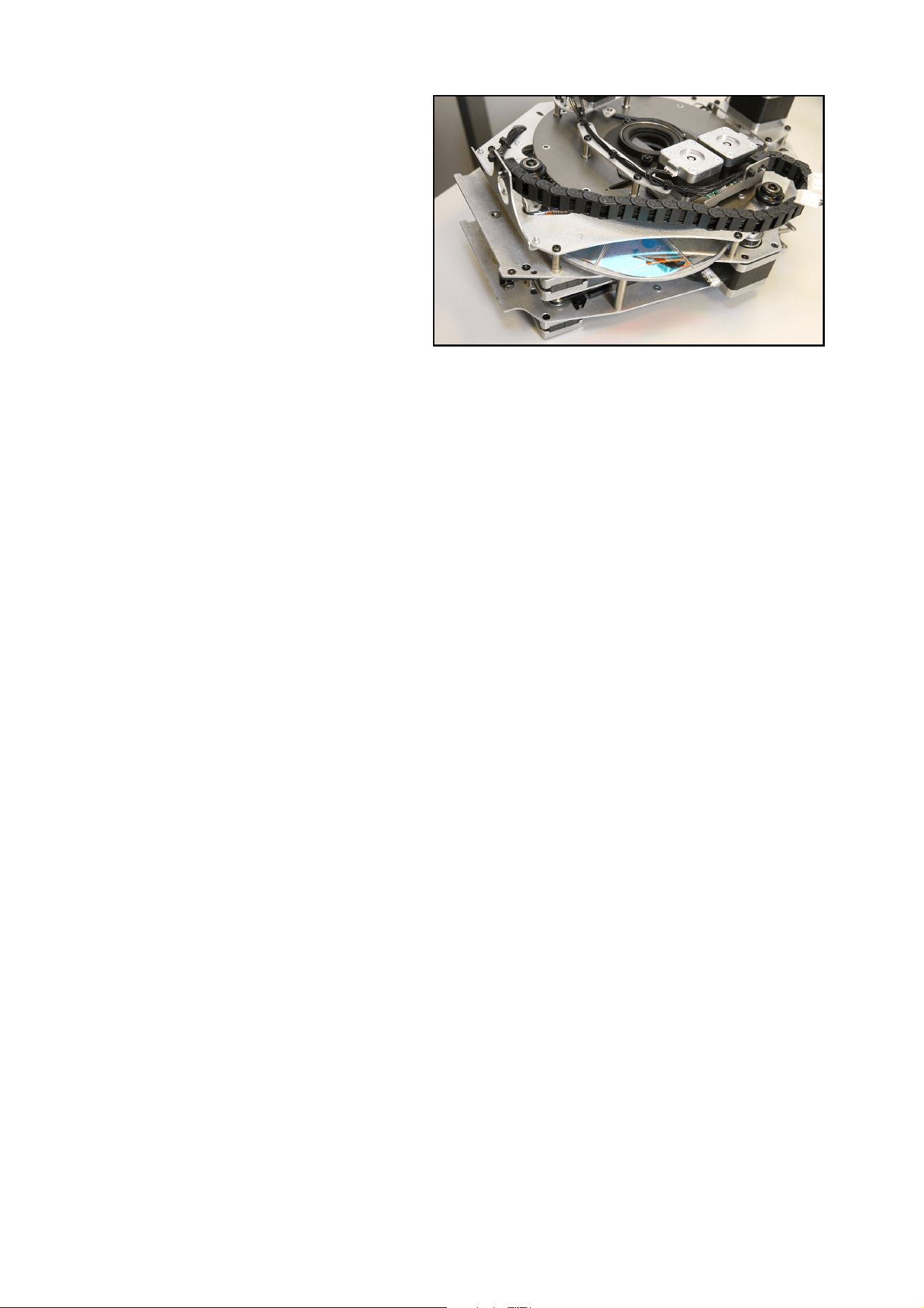

Figure 12: Multi-module on work surface
Service and maintenance 17
Replacing optical components
Optical components have fragile coatings and are exposed to very high temperatures. Use only genuine
Martin parts. Handle and store components with care. Wear cotton gloves while handling them and keep
them perfectly clean to reduce the risk of heat damage.
Replacing color filters
The MAC Encore Wash has six dichroic color filters. See the MAC Encore Wash User Guide available for
download from www.martin.com for filter names and part numbers.
Use only genuine Martin™ color filters. Handle and store filters with care. Wear cotton gloves while handling
them and keep them perfectly clean.
To replace a color filter:
1. Disconnect the fixture from power and allow it to cool for 30 minutes.
2. Remove the top head cover, position the head with the front glass angled downwards and the top side
facing upwards, and apply the tilt lock (see “Access to the head” on page 13).
3. Remove the multi-module from the head (see “Access to the multi-module” on page 15).
4. See Figure 13. Turn the color
wheel A until the filter B that
you want to replace is
accessible. Put on clean
cotton gloves. Push the outer
edge of the filter up and away
from the color wheel slightly
to release it, then pull the
filter carefully out of its clip
and remove it. Store the filter
resting on a clean, soft
surface or in a filter rack.
5. To insert a color filter, put on
clean cotton gloves and turn the filter so
that its coated side will face towards the
LEDs (turn the filter so that the coated
side faces towards the CMY flags in the
multi-effects module).
To find out which side of a color filter is
coated, hold an object against the glass.
On the side of the glass that is not
coated, you will see a small gap
between the object and its reflection.
6. See Figure 14. Slide the filter fully into
its clip in the center of the color wheel.
Make sure that the outer edge of the
filter locates inside the lip C on the edge
of the color wheel so that the filter is
held securely.
7. If necessary, continue replacing filters
one by one as described above.
8. If no further service work is to be carried out, reinstall the module and head covers as described in
“Access to the multi-module” on page 15 and “Access to the head” on page 13. Release the tilt lock
before reapplying power.
B
A

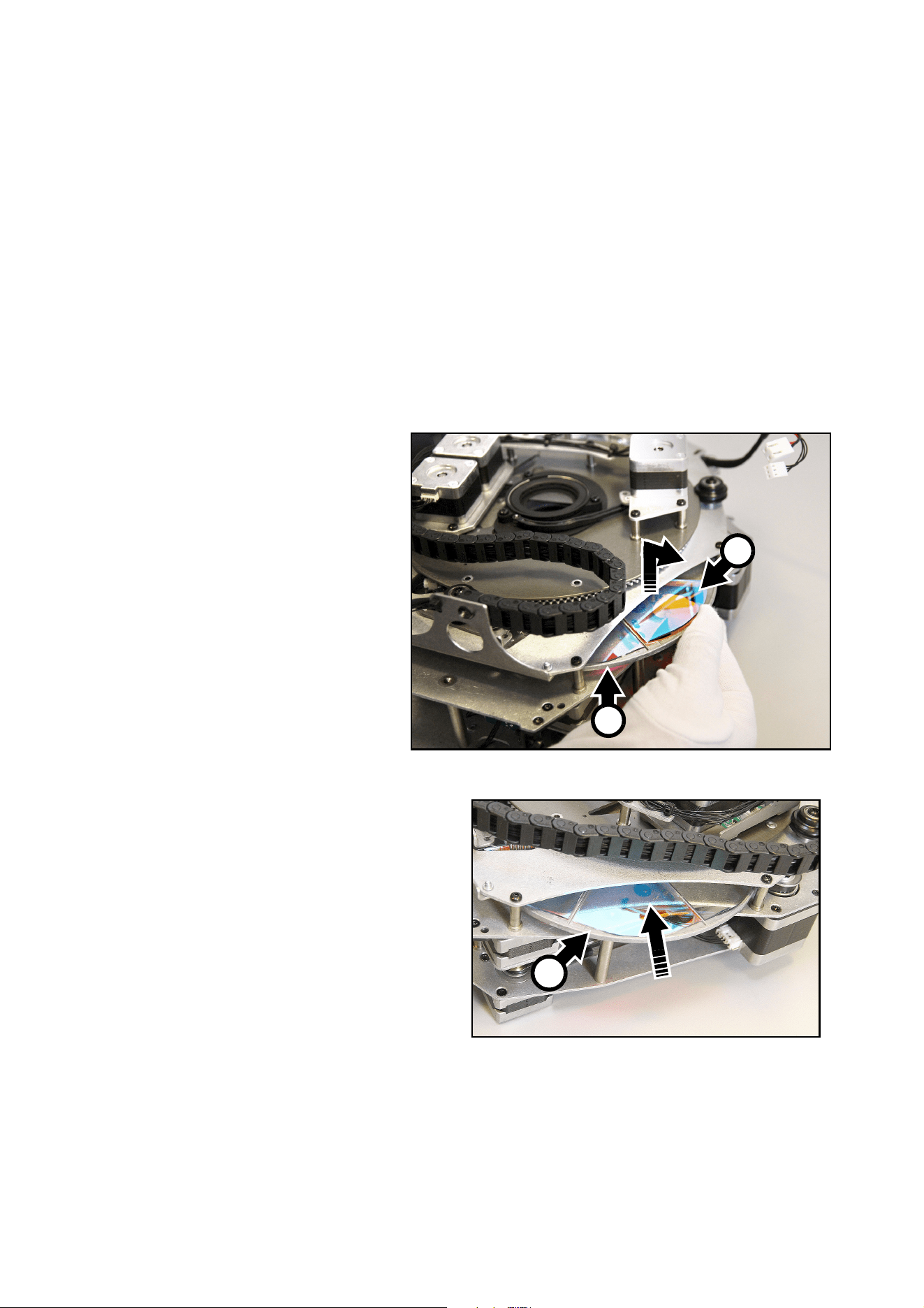

Figure 13: Color filter removal
Figure 14: Color filter installation
C
18 MAC Encore™ Wash Safety and Installation Manual
Using the fixture
Before using the fixture, download and read the latest version of the MAC Encore Wash User Guide from
the MAC Encore Wash Support & Downloads page on the Martin website at www.martin.com. The User
Guide contains details of:
• The effects available in the fixture.
• The control options available using DMX.
• The setup, monitoring and control options available using the onboard control and display panel.
• RDM (Remote Device Management) compatibility.
• Software service functions.
Applying power
Warning! Before applying power to the fixture:
• Carefully review the safety information starting on page 4 of this manual.
• Check that the head covers are correctly installed.
• Check that the installation is safe and secure.
• Check that the base is fastened securely so that the torque reaction when the head is panned will
not cause the base to move.
• Check that the head tilt lock is released (see “Tilt lock” on page 7).
To apply power, connect a power cable with a TRUE1 power input connector to the MAINS IN power input
socket. Insert the connector and twist clockwise to engage.
Troubleshooting 19
Troubleshooting
Problem Probable cause(s) Remedy
One or more of the fixtures is
completely dead.
No power to fixture.
Check that power is switched on and cables are
plugged in.
Fuse blown or internal fault.
Contact Martin Service or authorized service
partner. Do not remove base or yoke covers,
attempt to replace a fuse or carry out any repairs or
service that are not described in this Safety and
Installation Manual unless you have both
authorization from Martin and official Martin service
documentation.
Fixtures reset correctly but
respond erratically or not at all
to the controller.
Bad data link.
Inspect connections and cables. Correct poor
connections. Repair or replace damaged cables.
Data link not terminated.
Insert DMX termination plug in data output socket
of the last MAC Encore Wash on the data link.
Incorrect addressing of fixtures. Check fixture address and protocol settings.
One of the fixtures is defective and is
disturbing data transmission on the link.
Unplug the XLR in and out connectors and connect
them directly together to bypass one fixture at a
time until normal operation is regained. Have the
fixture serviced by a qualified technician.
Timeout error after fixture reset. Effect requires mechanical adjustment.
Check fixture’s stored error messages for more
information. Contact Martin Service or authorized
Martin service partner.
Mechanical effect loses
position.
Mechanical train requires cleaning,
adjustment, or lubrication.
Check fixture’s stored error messages for more
information. Contact Martin Service or authorized
Martin service partner.
Light output cuts out
intermittently.
Fixture is too hot.
Check fixture’s stored error messages for more
information.
Allow fixture to cool.
Clean fixture.
Reduce ambient temperature.
Table 2: Troubleshooting
20 MAC Encore™ Wash Safety and Installation Manual
Specifications
Physical
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .452 mm (17.8 in.)
Width (across yoke) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .480 mm (18.9 in.)
Height (maximum) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .755 mm (29.8 in.)
Height (head straight up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .745 mm (29.4 in.)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28.5 kg (62.9 lbs.)
Minimum center-to-center distance in side-by-side installation . . . . . . . . . . . . . . . . . . . . .730 mm (28.8 in.)
Dynamic Effects
Color mixing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CMY, independently variable 0 - 100%
Color temperature control, CLD variant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Variable 2700 - 6000 K
Color temperature control, WRM variant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Variable 3000 - 7000 K
Color wheel . . . . . . .6 interchangeable dichroic filters + open, indexing, continuous rotation, random color
Barn doors . . . . . . . . . Internal, two blades with individually controllable insertion, +/- 100° module rotation
Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Variable 0 - 100%
Dimmer/shutter . . . . . . . . . . . . . . . . . . . . . 0 - 100% continuous dimming, regular and random strobe and
pulse effects, instant open and blackout
Dimming options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Choice of four dimming curves
Pre-programmed effects . . . . . . . . . . . . . . . . . Two ranges of FX, independent or synchronized/combined
Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Motorized
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Motorized
Pan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540°
Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268°
Position correction system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Absolute position monitoring
Control and Programming
DMX channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Setting and addressing . . . . . . . . . . . Control panel with backlit graphic display and jog wheel or via DMX
16-bit control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dimming, pan and tilt
Movement control options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tracking and vector
Fixture identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . User-settable ID number
DMX compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USITT DMX512-A
RDM compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI/ESTA E1.20
Transceiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RS-485
Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Opto-isolated RS-485
Fixture software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .USB memory device or over DMX link
Optics
Light source . . . . . . . . . . . . . . . . . . 6000 K white LEDs (CLD variant) / 3000 K white LEDs (WRM variant)
Total LED engine power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .468 W
Minimum LED lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . 14° - 60° one-tenth peak (1:4)
Zoom range with PC lens (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11° - 58° one-tenth peak (1:5)
*Figure obtained under manufacturer´s test conditions
Photometric Data
CLD variant
Light engine luminous output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
≥ 39 400 lumens
Fixture luminous output with Fresnel lens (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
≥ 11 000 lumens
Fixture luminous output with PC lens (optional accessory)
. . . . . . . . . . . . . . . . . . . ≥ 12 000 lumens
CRI (Color Rendering Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 80
CQS (Color Quality Scale). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 80
TM-30 Rf (IES TM-30-15 Fidelity Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 80
TM-30 Rg (IES TM-30-15 Gamut Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 95
TLCI (Television Lighting Consistency Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 70
Specifications 21
WRM variant
Light engine luminous output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
≥ 31 500 lumens
Fixture luminous output with Fresnel lens (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
≥ 8500 lumens
Fixture luminous output with PC lens (optional accessory)
. . . . . . . . . . . . . . . . . . . . .≥ 9500 lumens
CRI (Color Rendering Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 90
CQS (Color Quality Scale). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 90
TM-30 Rf (IES TM-30-15 Fidelity Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 90
TM-30 Rg (IES TM-30-15 Gamut Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 98
TLCI (Television Lighting Consistency Index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 90
Construction
Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High-impact flame-retardant thermoplastic
Protection rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP20
Installation
Mounting points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 pairs of 1/4-turn locks
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dry location only, must be fastened to surface or structure
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Any
Minimum distance to combustible materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 m (8 in.)
Minimum distance to illuminated surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 m (6.6 ft.)
Connections
AC power input . . . . . . . . . . . . . . Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-pin locking XLR
Electrical
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120-240 V nominal, 50/60 Hz
Power supply unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto-ranging electronic switch mode
Power consumption, all effects static, zero light output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 W
Half-cycle RMS inrush current at 230 V, 50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.3 A
Typical Power and Current
120 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0 A, 596 W, PF 0.998
208 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9 A, 581 W, PF 0.988
230 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 A, 580 W, PF 0.981
240 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2 A, 585 W, PF 0.979
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%.
PF = power factor
Thermal
Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Combined convection and forced air (temperature-regulated,
low noise, user-definable levels)
Maximum surface temperature, steady state, at Ta 40° C . . . . . . . . . . . . . . . . . . . . . . . . . . . 75° C (167° F)
Maximum ambient temperature (Ta max.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° C (104° F)
Minimum ambient temperature (Ta min.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5° C (41° F)
Total heat dissipation (calculated, +/- 10%) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 BTU/hr.
Approvals
EU safety . . . . . . . . . . . . . . . . . . . . . . EN 60598-2-17, EN 62471, EN62493
EU EMC . . . . . . . . . . . . . . . . . . . . . . . . .EN 55015, EN 55032, EN 55103-2,
EN 61000-3-2, EN 61000-3-11, EN 61547
US safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL 1573
US EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 15 Class A
Canadian safety . . . . . . . . . . . . . . . . . . . . . . . . . .CSA C22.2 No. E598-2-17
Canadian EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICES-003 Class A
Australia/NZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCM
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
22 MAC Encore™ Wash Safety and Installation Manual
Accessories
Optical
PC (planoconvex) lens for MAC Encore™ Wash. . . . . . . P/N TBA, see www.martin.com from end of 2017
Cables and connectors
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to
Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) . . . . . . . . . . . . . . . . . . . . . P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to
Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.) . . . . . . . . . . . . . . . . . . . . . P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to
TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to
TRUE1 NAC3FX-W (female), 5 m (16.4 ft.). . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91610174
Cable Connector, Neutrik power CON TRUE1 NAC3FX-W (female). . . . . . . . . . . . . . . . . . . P/N 91611789
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only) . . . . . . . . . . . . . . . . . P/N 91602003
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only). . . . . . . . P/N 91602007
Half-coupler Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91604007
Flightcases
Two-unit Flightcase for MAC Encore™ (please order SIP variant
fixtures to obtain the required SIP foam flightcase inserts) . . . . . . . . . . . . . . . . P/N 91515048
Related Items
Martin® Companion software suite (incl. firmware uploader) . . . . . . Free download from www.martin.com
Martin® Companion Cable USB/DMX hardware interface . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91616091
Martin® RDM 5.5 Splitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90758150
Ordering Information
MAC Encore™ Wash CLD EPS (in cardboard box, polystyrene packaging). . . . . . . . . . . . . P/N 90234040
MAC Encore™ Wash CLD SIP (in cardboard box with SIP foam flightcase insert). . . . . . . . P/N 90234045
MAC Encore™ Wash WRM EPS (in cardboard box, polystyrene packaging). . . . . . . . . . . . P/N 90234025
MAC Encore™ Wash WRM SIP (in cardboard box with SIP foam flightcase insert). . . . . . . P/N 90234030
Specifications subject to change without notice. For the latest product specifications, including photometric
data, see www.martin.com
Specifications 23
Photobiological Safety Warning
The label shown on the right is displayed on this product. If it becomes difficult or impossible to
read, it must be replaced using the illustration on the right to reproduce a new label.
FCC Compliance
This device complies with Part 15, Class A, of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Canadian Interference-Causing Equipment Regulations - Règlement sur le
Matériel Brouilleur du Canada
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le Matériel
Brouilleur du Canada.
EU Declaration of Conformity
An EU Declaration of Conformity covering this product is available on the product’s Tech Docs / Support & Downloads page on the Martin
website at www.martin.com.
Conditional Connection
For conformity with mains voltage fluctuations and flicker according to EN 61000-3-11 during extensive use of continuous strobe effects,
the user must determine, in consultation with the mains power supply authority if necessary, that the equipment is connected to a supply
impedance of less than 0.34 ohms at 50 Hz.
Hibernation Mode
’Hibernation mode’ is intended as an option to reduce the consequences of having a product fully operational in dirty environments or in
situations where noise level is crucial such as during live performances. The small reduction in energy consumption in Hibernation Mode
is only a subordinate effect.
Intellectual Property Rights
MAC Encore™ products are covered by one or more of these patents:
CN101430080; CN102713425; CNZL200810128720.0; CNZL200810128776.6; CNZL200810144668.8; CNZL201080025103.3;
CNZL201180014884.0; CNZL201380004370.6; CZ17567; EP2058586; EP2113714; EP2117284; EP2136136; EP2326150;
EP2443381; EP2536974; EP2550686; EP2828577; EP2881650; US6971770; US7,703,948; US7,789,543; US7,905,630;
US7,942,535; US7,990,673; US7222997; US7498756; US8,449,141; US8,708,535; US8,770,762; US9217551; US9217559;
and/or one or more of these patent applications:
CN104696882; CN104698579; CN104976548; CN105402641; CN201410740291.8; CN201410742572; DKPA201700088;
EP17167067.2; EP2091302; EP2881651; EP2881652; EP2881653; EP2927579; EP2995852; US2015/0285483; US20150159827;
US20150159828; US20150159830; US20160069540; US20160102850;
and/or one or more other intellectual property rights, including one or more intellectual property rights listed on www.martin.com/ipr
Disposing of this product
Martin products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council
of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable.
Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details
of local arrangements for the disposal of Martin products.
This product contains a lithium battery. Ensure that it is disposed of correctly and responsibly by an authorized
recycling or waste disposal center at the end of its life. Where applicable, Martin participates in schemes whose aim is
to ensure that local recycling and/or waste disposal centers accept batteries from Martin products.
GROUPE DE RISQUE 2
358'(1&( -Produit à émission de
radiations visibles potentiellement
dangereuses. Ne pas fixer le
faisceau en fonctionnement.
Risque de lésions oculaires.
CAUTION Possibly hazardous
optical radiation emitted from this
product. Do not stare at operating lamp.
May be harmful to the eyeV.
RISK GROUP 2
www.martin.com • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark
Tel: +45 8740 0000 • Fax +45 8740 0010
