INSTALLATION GUIDE
for the
SB-T-TCMAX/10TW3
SKU# 94616
2014-Up Toyota Tundra CrewMax
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital
that the Stealthbox
®
be properly mounted to the vehicle according to
these instructions. Failure to mount the enclosure properly presents two
problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW3-D8
Nominal Impedance: 2 ohms
Continuous Power Handling: 800 watts (RMS method)
Continued on Next Page
2
5
OUT
OF
SB-T-TCMAX/10TW3 INSTR_SKU# 011431

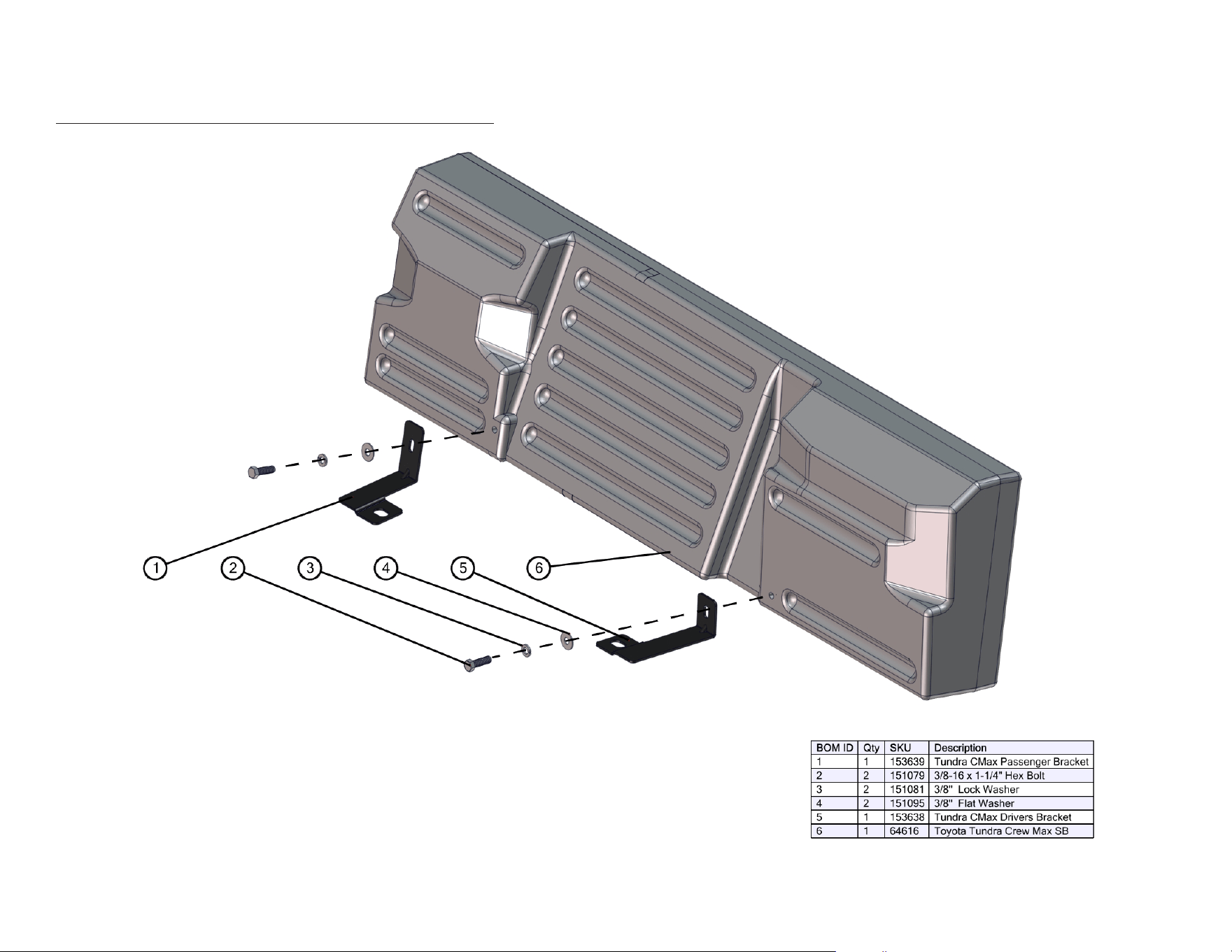

INCLUDED HARDWARE
Continued on Next Page
Page 2 • JL Audio, Inc., 2017
SB-T-TCMAX/10TW3 INSTR_SKU# 011431
POWER RECOMMENDATION

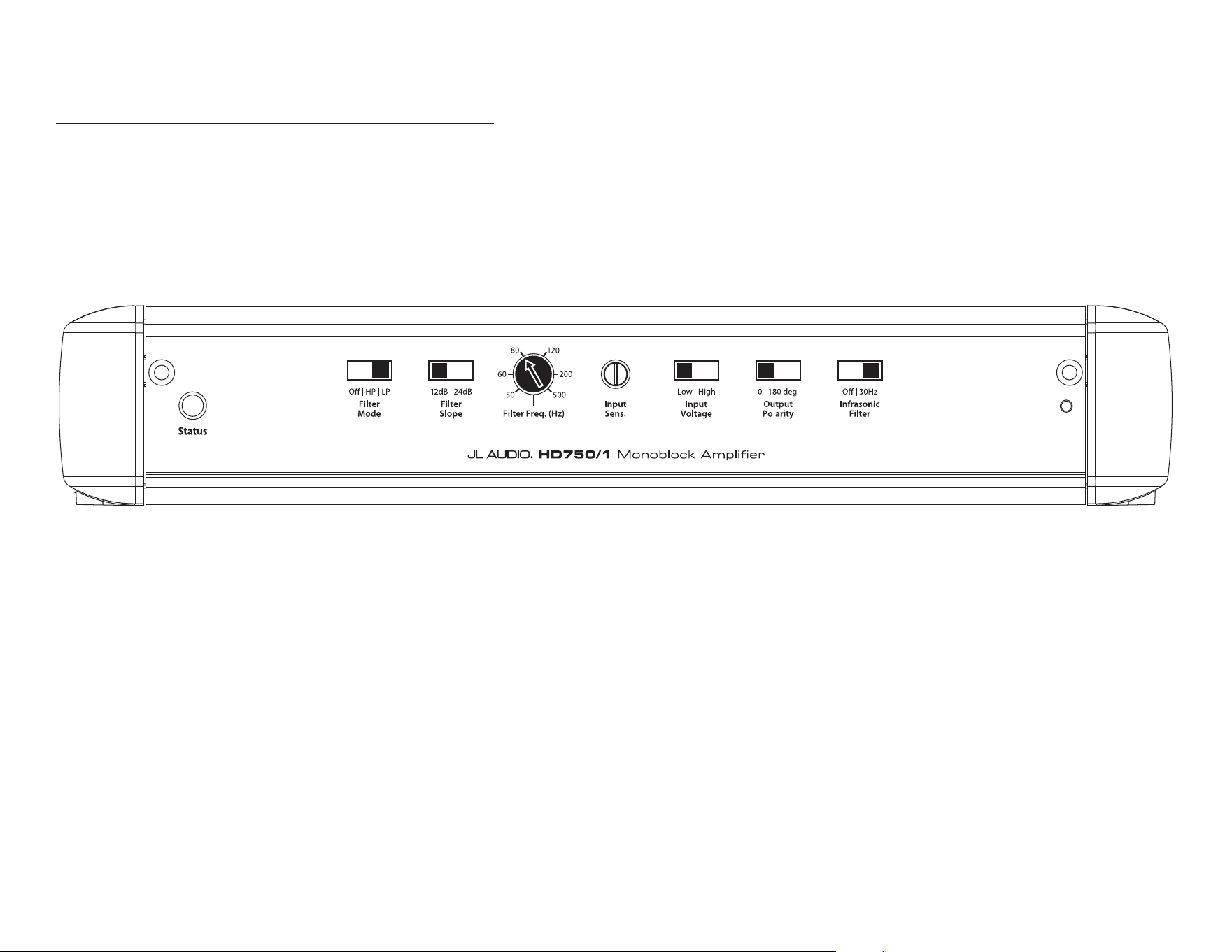

JL Audio recommends high quality ampliers such as the JL Audio HD750/1. The diagram below shows the recommended crossover settings for the HD750/1. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2017
SB-T-TCMAX/10TW3 INSTR_SKU# 011431
Page 4 • JL Audio, Inc., 2017 Continued on Next Page

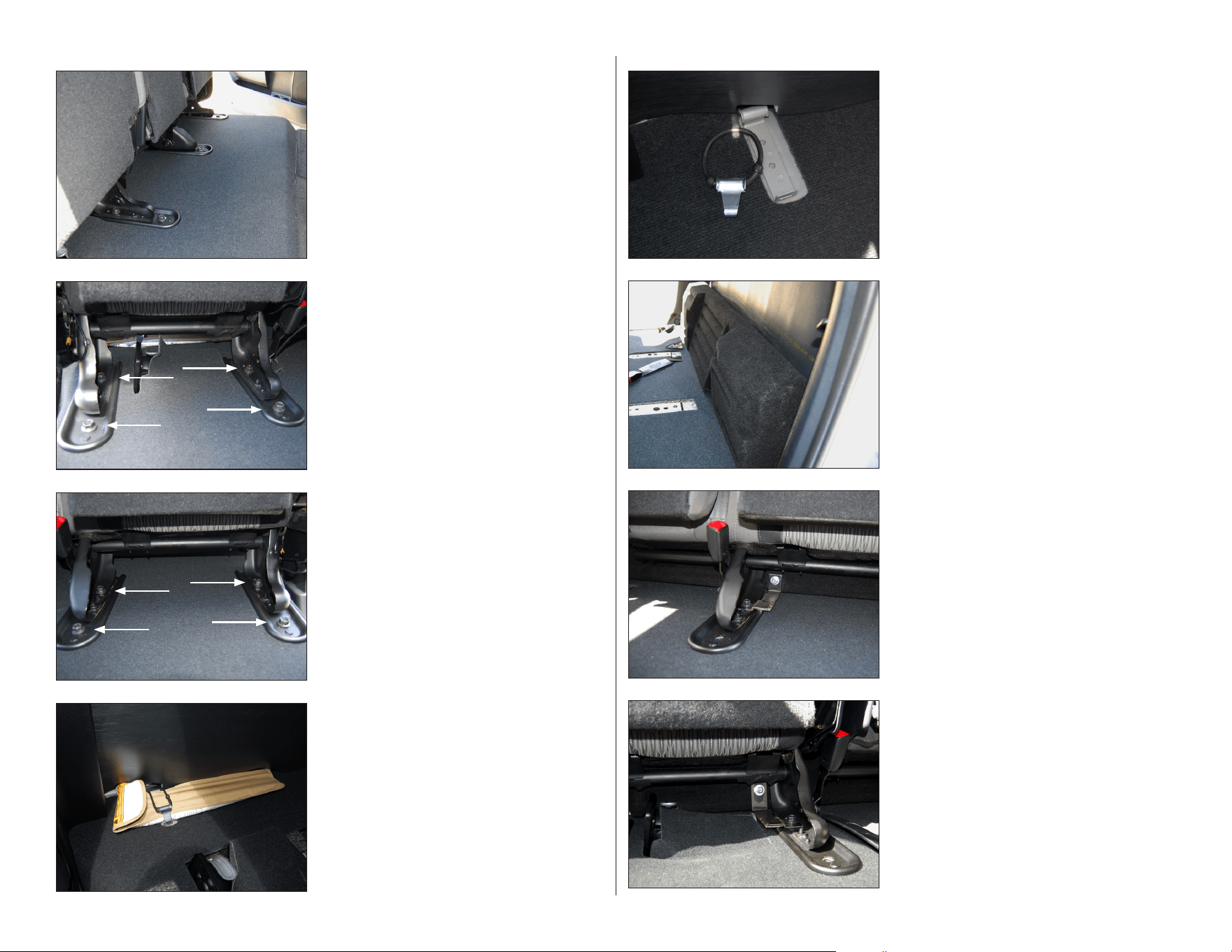

STEP 8
Secure the Passenger Bracket to the threaded
insert on the Stealthbox® using a 3/8 - 16 x
1-1/4” Hex Bolt, 3/8” Lock Washer, and 3/8” Flat
Washer, and hand tighten.
Align the holes in both brackets with the inner,
rear holes in the seat brackets. Reinstall the
inner 17mm factory bolts, then fully tighten all
eight factory bolts and the two 3/8 - 16 x 1-1/4”
Hex Bolts.
STEP 7
Carefully place the rear seats back into the
vehicle. Hand tighten the outer 17 mm factory
bolts to ensure the seats are properly aligned.
Secure the Drivers Bracket to the threaded
insert on the Stealthbox® using a 3/8 - 16 x
1-1/4” Hex Bolt, 3/8” Lock Washer, and 3/8” Flat
Washer, and hand tighten.
STEP 6
Place the Stealthbox® into the vehicle against
the back wall of the cab. Be sure the notch on
the bottom of the enclosure lines up over the
bracket that held the jack tools.
Attach speaker cable to the terminal cup on
the passenger side of the enclosure, and route
the cable as necessary.
STEP 5
Remove the jack tools and the retainer clip.
STEP 4
Carefully remove the rear seats from the
vehicle.
STEP 3
Remove the four indicated 17mm factory seat
bolts on the driver’s side. Note that the inner,
rear bolt has a different thread than the others.
STEP 2
Remove the four indicated 17mm factory seat
bolts on the passenger side.
STEP 1
Empty the rear seat area of the vehicle, and
fold the rear seats up.
SB-T-TCMAX/10TW3 INSTR_SKU# 011431
Page 5 • JL Audio, Inc., 2017
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6x9”- Front Doors
Fits JL Audio Models: TR690-CXi, C2-690tx
Rear Speaker Size / Location: 6-1/2”- Rear Door
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, and “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc. “Ahead of the
Curve”, its respective logo, and “How we play” are trademarks of JL Audio, Inc.
Printed in USA • ©2017 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 011431 • ver. 02.28.2017 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
