SEP24.0101
BML Island
BML-E30CG, BML-E36CG
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation
Register Your Product Today
zephyronline.com/registration
2
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
3
BML-C Use, Care, and Installation Guide
Contents
Page
Safety Information ............................................................................ 4-6
Types of Safety Warnings ................................................................... 4
General Safety ..................................................................................4-5
Operation ........................................................................................... 5
Electrical Requirements ...................................................................... 6
Federal Communication Commission Interface Statement ................. 6
List of Materials ................................................................................... 7
Installation Instructions .....................................................................8-17
Ducting Calculation Sheet .................................................................. 8
Mounting Height, Clearance, & Ducting ...........................................9-10
Ducting Options ................................................................................. 11
Hood Specifications ............................................................................12
Electrical Supply ................................................................................. 13
Mounting the Hood .......................................................................... 14-16
Ductless Recirculation ........................................................................17
Recirculating Kit Installation ...............................................................17
Features & Controls ............................................................................ 18
Electronic Touch .................................................................................18
Maintenance ....................................................................................19-20
Hood & Filter Cleaning .....................................................................19-20
LED Light Replacement...................................................................... 20
CFM Selector Conversion .................................................................21-22
CFM Selector ......................................................................................21
Enabling CFM Selector ...................................................................... 22
Wiring Diagram .................................................................................. 23
Troubleshooting............................................................................... 24-25
List of Parts & Accessories .................................................................. 26
Limited Warranty ............................................................................... 27
Product Registration ........................................................................... 28
4
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
c) Do not use replacement parts that have not been
recommended by the manufacturer (e.g. parts made at home
using a 3D printer).
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
5
BML-C Use, Care, and Installation Guide
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWINGa:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
aBased on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
Operation
► Always leave safety grilles and filters in place. Without
these components, operating blowers could catch onto hair,
fingers and loose clothing.
► The manufacturer declines all responsibility in the event
of failure to observe the instructions given here for
installation, maintenance and suitable use of the product.
The manufacturer further declines all responsibility for
injury due to negligence and the warranty of the unit
automatically expires due to improper maintenance.
► There shall be adequate ventilation of the room when the
range hood is used at the same time as appliances burning
gas or other fuels.
► There is a fire risk if cleaning is not carried out in
accordance with the instructions.
► Do not flame under the range hood.
► The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
► If the SUPPLY CORD is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
CAUTION
Accessible parts may become hot when used with cooking
appliances.
6
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Safety Information
Electrical Requirements
Important:
► Observe all governing codes and ordinances.
► It is the customer’s responsibility to be aware of these below:
► To contact a qualified electrical installer.
► To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
► If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
► Do not ground to a gas pipe.
► Check with a qualified electrician if you are not sure the range hood is properly grounded.
► Do not have a fuse in the neutral or ground circuit.
► This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
► Instructions for bonding the appliance to ground:
The grounding-type attachment plug provided with this appliance shall be connected to a grounding-type receptacle installed in
accordance with CSA C22.1, Canadian Electrical Code, Part I. In the event of an electrical short circuit, bonding to ground reduces
the risk of electric shock.
WARNING: Improper bonding to ground can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the
appliance is properly bonded to ground. Do not use an extension cord. If the poewr supply cord is too short, have a qualified
electrician install an outlet near the appliance.
► A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
READ AND SAVE THESE INSTRUCTIONS
7
BML-C Use, Care, and Installation Guide

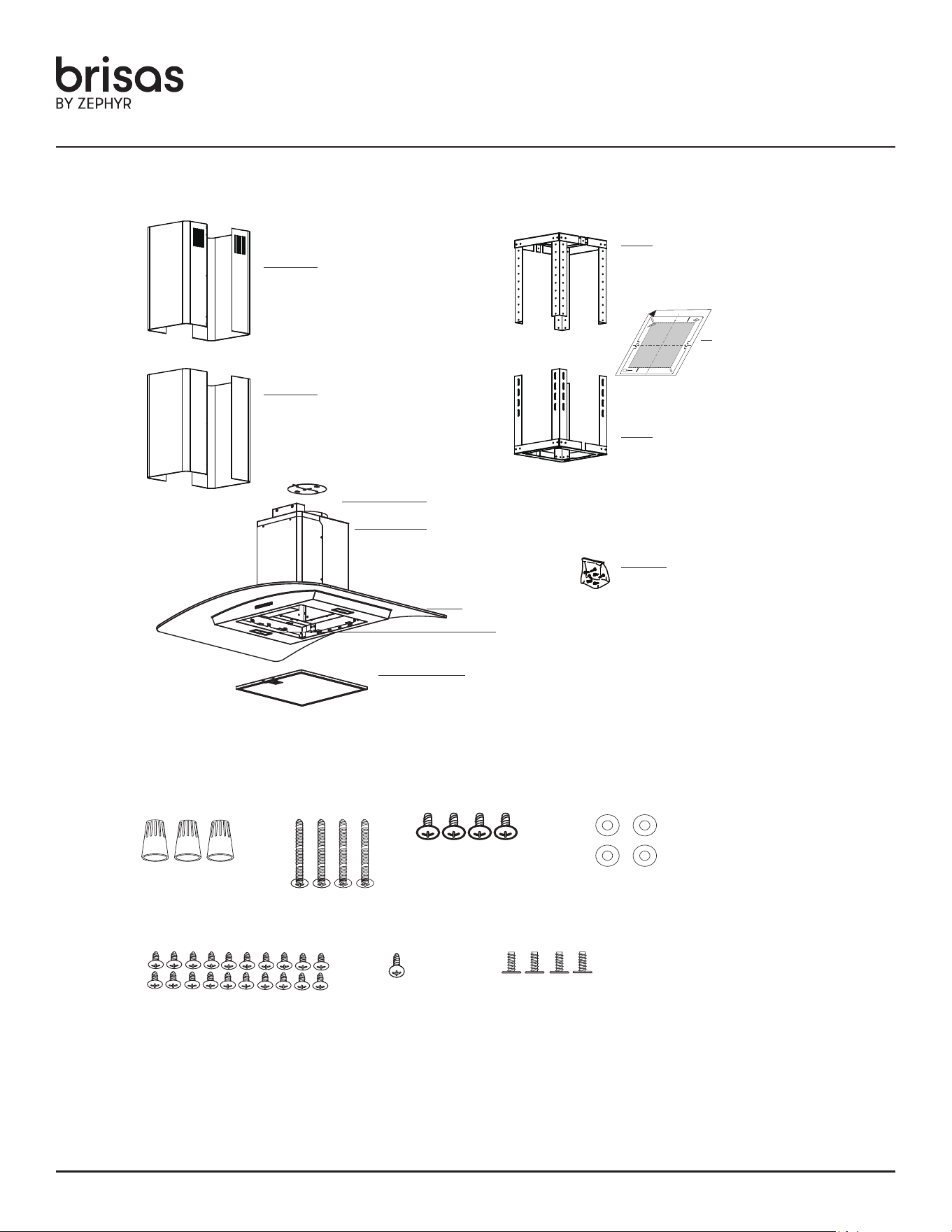

List of Materials
1 - Hardware package
1 - Top support frame
1 - Bottom support frame
2 - Top duct covers
2 - Bottom duct covers
1 - Hood body w/ blower (pre-installed)
1 - Canopy, glass
1 - Aluminum mesh filter
2 - 6W LED lights
1 - 6” round damper (pre-installed)
PARTS SUPPLIED
HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Duct cover extension (B1C-00ML)
- Recirculating kit (BRC-0107)
A
B
Front of Hood
C
L
/
Cut-Out Shaded Area
1 - Paper ceiling
template
(3) Wire Nuts
(4) #6 x 1-1/2”
wood screws
(20) M4 x 8 pan-head
machine screws
(1) M4 x 12
safety screw
(4) 3/16 x 5/8 pan-head
machine screws
(4) ø12 OD / ø5
ID Washers
(4) 3/16 x 1/4 screws
8
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Installation Instructions

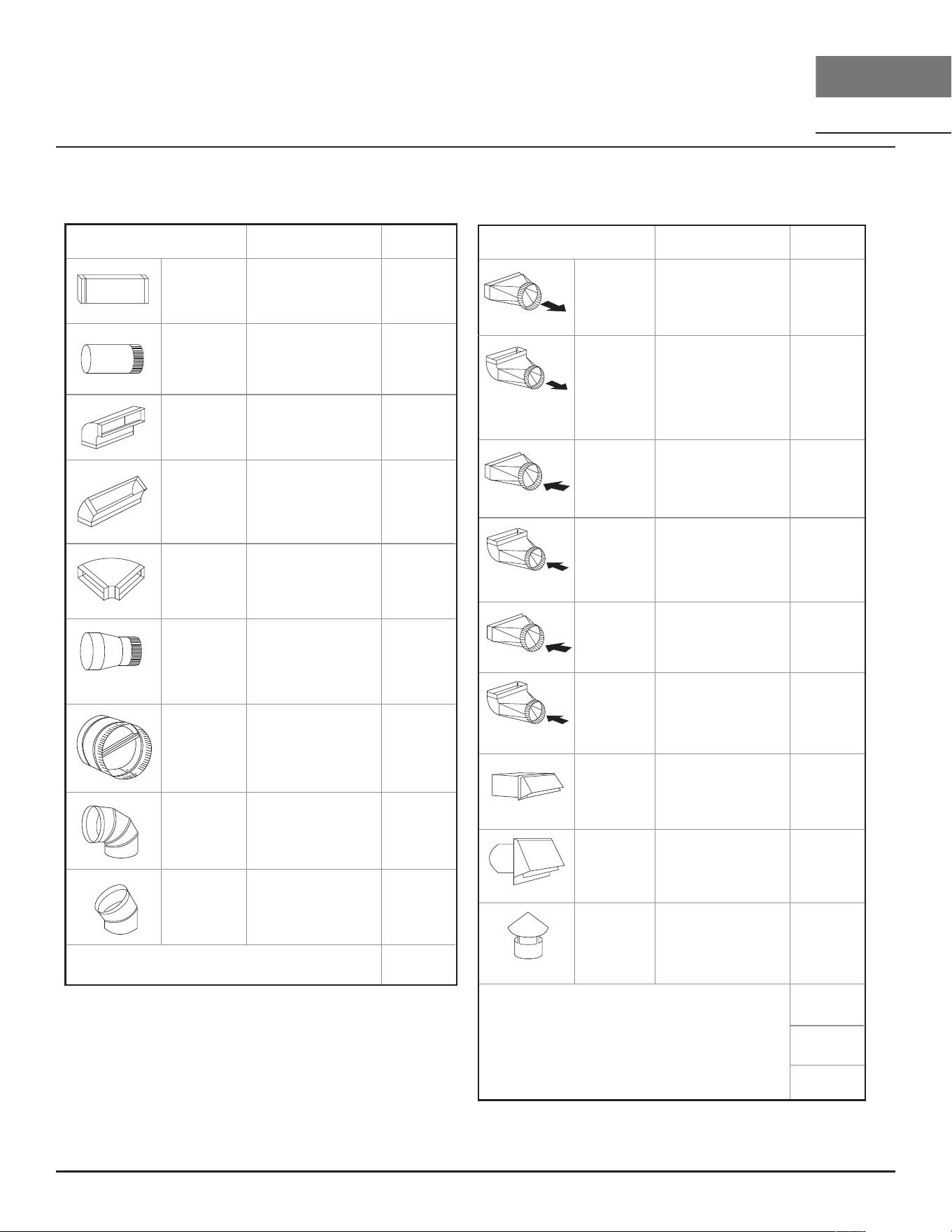

Duct pieces
To tal
Equivalent number
length x used =
3- 1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =
Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) =
Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
90
0
elbow
20 Ft. x ( ) =
Ft.
6”, 7”, 8”, 10”
Round,
90
0
15 Ft.
x ( ) =
Ft.
6”, 7”, 8”, 10”
Round,
45
0
9 Ft. x ( ) =
Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =
Ft.
Subtotal column 1 =
Duct pieces
To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) =
Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3- 1/ 4” x 10”
rect.
transition
1 Ft. x ( ) =
Ft.
6” round to
3- 1/ 4” x 10”
rect.
transition
90
0
elbow
16 Ft. x ( ) =
Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) =
Ft.
7” round to
3- 1/ 4” x 10”
rect.
transition
90
0
elbow
23 Ft. x ( ) =
Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) =
Ft.
3- 1/ 4” x 10”
Rect. 90
0
elbow
15 Ft. x ( ) =
Ft.
3- 1/ 4” x 10”
Rect. 45
0
elbow
9 Ft. x ( ) =
Ft.
3- 1/ 4” x 10”
Rect. 90
0
flat elbow
24 Ft. x ( ) =
Ft.
3- 1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) =
Ft.
Ft. x ( ) =
Ft.
15
6”, 7“, 8”
Round
in-line
damper
Ducting Calculation Sheet
9
BML-C Use, Care, and Installation Guide
Installation Instructions
Mounting Height, Clearance, & Ducting
min. A
min. B
max. C
36”
24” min.
34” max.
min. D
min. E
max. F
minimum (A) 28” 48”
min. recirc. (B) 28” 48”
maximum (C) 36-1/2” 75”
minimum (D) 88” 108”
min. recirc. (E) 87-1/2” 108”
maximum (F) 106-1/2” 145”
Standard
Duct Cover
Extension
Duct Cover
Hood Heights
Ceiling Heights
10
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Installation Instructions
Mounting Height, Clearance, & Ducting
A minimum of 6” round duct is recommended to maintain maximum air flow eciency.
Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
Also use the ducting calculation sheet (on page 8) to compute total available duct run when using
elbows, transitions and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood bottom should be no less than 24”.
Maximum mount height should be no higher than 34”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its
performance and eciency.
If available, also refer range manufacturer’s height clearance requirements and recommended hood
mounting height above range. Always check your local codes for any dierences.
For shipment and installation damages:
► Please fully inspect unit for damage before installation.
► If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
► If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
► If the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.
11
BML-C Use, Care, and Installation Guide
Installation Instructions

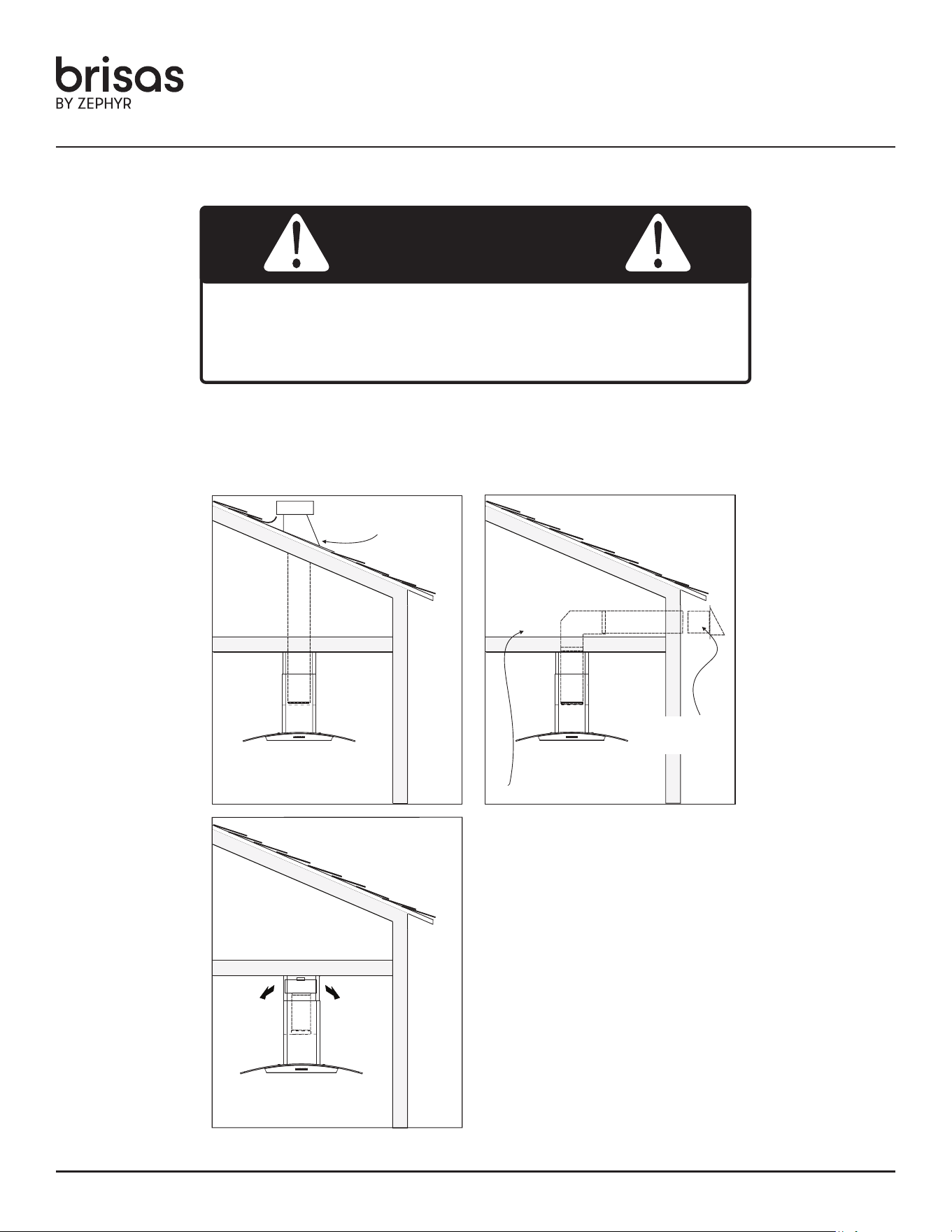

Ducting Options
► Use single wall rigid metal ductwork only.
► Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
Sot or crawl space
Side wall cap w/
gravity damper
Roof pitch w/
flashing & cap
Ductless
recirculating
(blower
housing)
(blower
housing)
(blower
housing)
12
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Installation Instructions

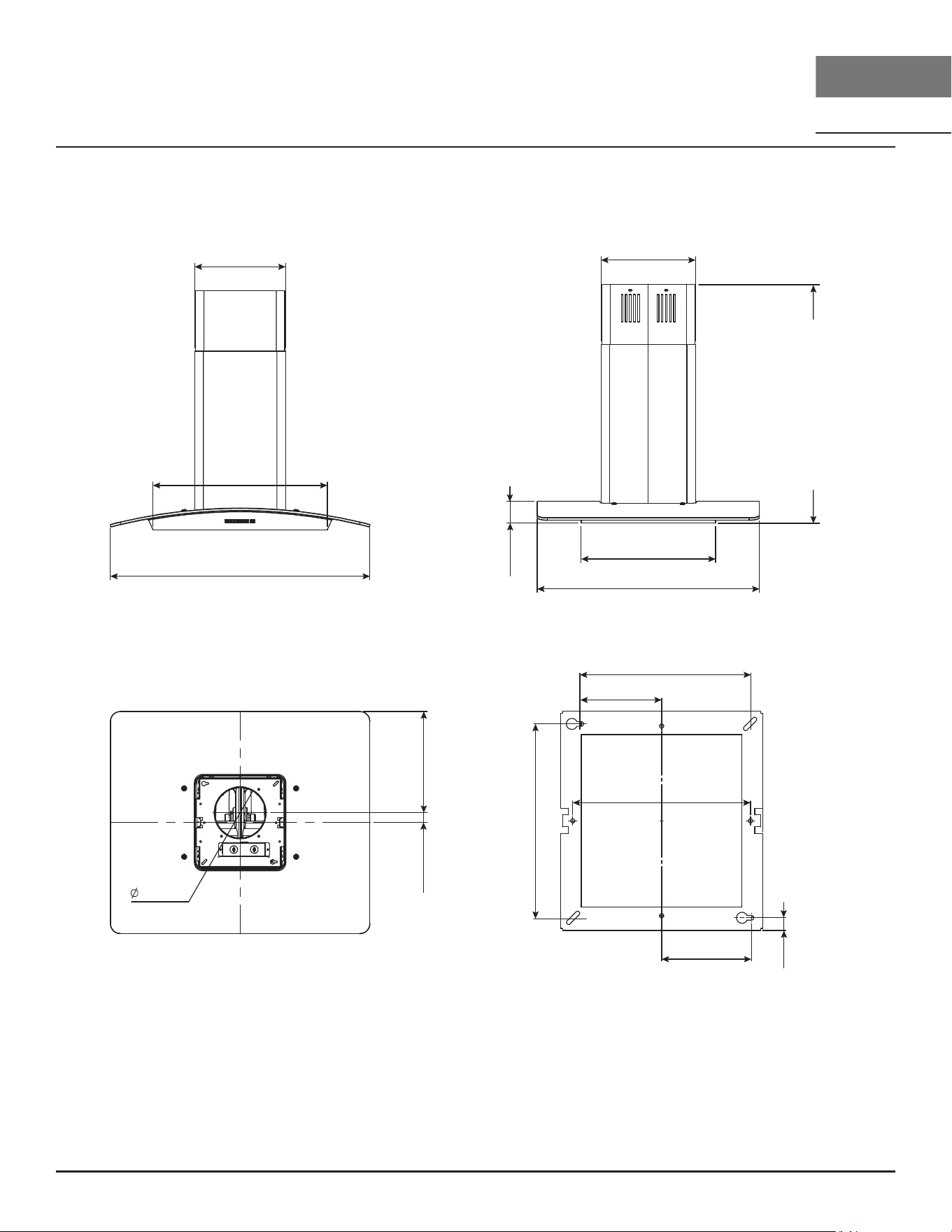

Hood Specications
FRONT
TOP
SIDE
TOP SUPPORT FRAME
(TOP VIEW)
C/L
C/L
(30”) 29-
7/8”, (36”) 35-1/8”
6”
11-11/16”
1-
1/8”
2-
1/2”
20-1/16”
10-
7/16”
10-
7/8”
15-
1/2”
25-
9/16”
3-
3/4”
8”
8-
1/4”
8-3/4”
4-3/16”
5/8”
Standard
Min. ducted: 28”
Min. recirc.: 28“
Max. ducted: 36-
1/2”
B1C-00ML
Min. ducted: 48”
Min. recirc.: 48”
Max. ducted: 75”
13
BML-C Use, Care, and Installation Guide
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.
Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
Cable Lock
FIG. A
14
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Installation Instructions
Mounting the Hood

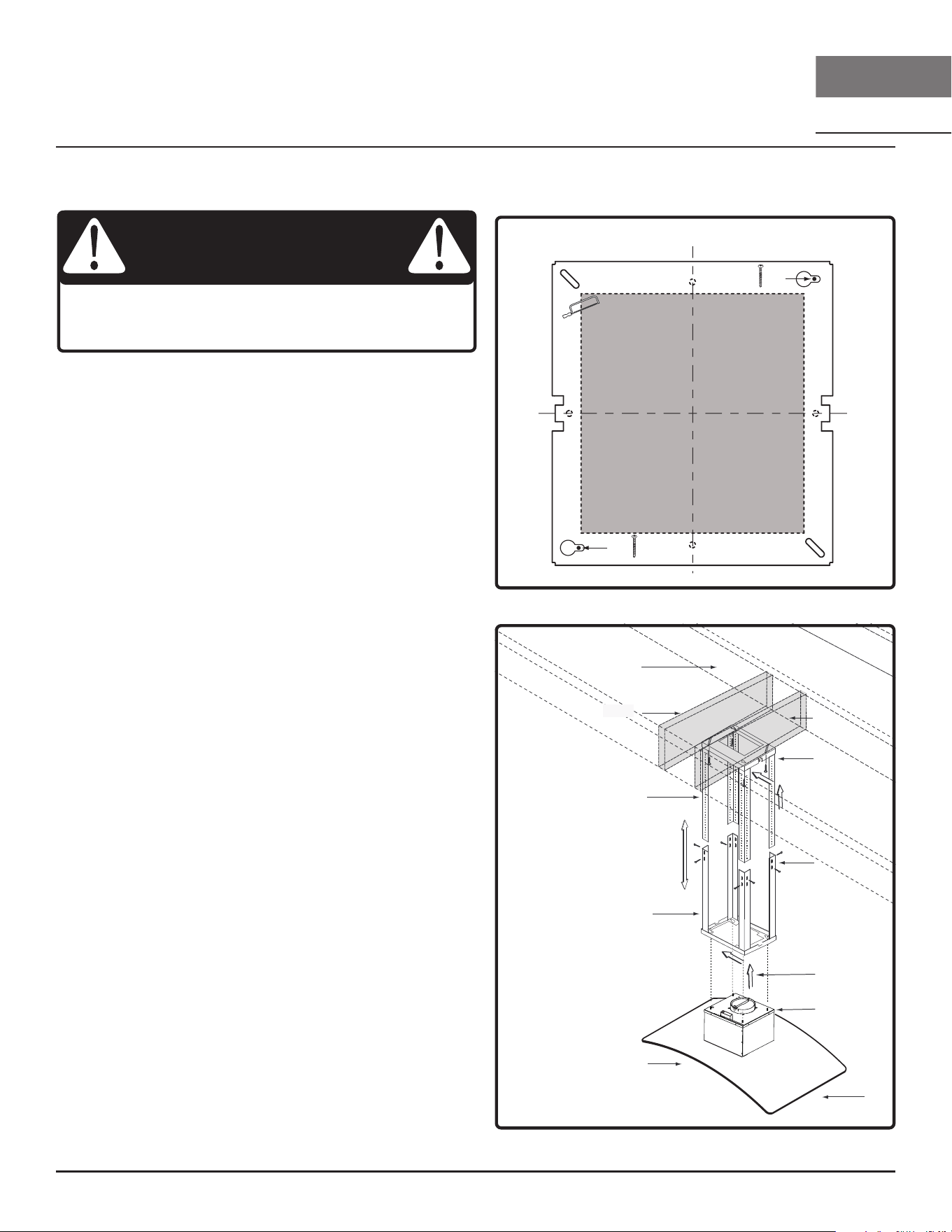

Ceiling Preparation
1. Determine hood mounting location and
temporarily tape paper template (included with
the hood) to the ceiling.
2. Cut-out internal shaded area of template
to allow the ducting and electrical to pass
through (approx. 7”W x 7-1/2”D).
3. Add wood blocking (min. 2” x 4”) onto ceiling
joists to reinforce ceiling above the drywall.
(FIG. C1).
4. Secure (2) #6 x 1-1/2” wood screws into points
A and B of the paper template (FIG. B). Do not
completely tighten screws, leave approximately
1/4” exposed.
Hood Preparation
5. Remove screws securing top and bottom
support frames together.
6. Adjust support frame to accommodate the
desired hood height and re-assemble the frame
using the previously removed screws (2 screws
for each support frame arm). (FIG. C2).
Hood is intended to be mounted to a finished
ceiling.
CAUTION
3
1
2
6
5
4
Ceiling Joists
Wood Blocking
Top Support Frame
Bottom Support Frame
Hood Body/Canopy
front
FIG. C
A
B
Front of Hood
C
L
/
Cut-Out Shaded Area
FIG. B
15
BML-C Use, Care, and Installation Guide
Installation Instructions
Mounting the Hood
7. Lift support frame assembly up to the ceiling making sure the word
“front” on the top support frame faces the front of the hood where the
controls will be located (FIG. D). The key-holes on the top support frame
should cover the wood screws previously installed in the ceiling. Slide
support frame towards narrow end of key-holes to lock the frame in
place.
8. Install the last (2) #6 x 1-1/2” wood screws with washers into the two
remaining corners of the top support frame to secure it to the ceiling.
Tighten all screws.
9. Lift aluminum mesh filters from hood. Place canopy over blower housing
located on top of hood and secure it to hood body using (4) 3/16 x 5/8
pan-head machine screws through the filter opening (FIG. E).
FIG. D
FRONT
FIG. E
10. Lift hood body and align the (4) pre-installed mounting screws on top of blower housing (FIG. C5
on Page 14) with the (4) key holes on the bottom of the support frame. (FIG. F) Slide hood towards
the narrow end of key holes to lock in place. Hand tighten each of the (4) screws to secure hood
to bottom of support frame. Install (1) M4 x 12mm safety screw into bottom support frame to
further secure the hood. (FIG. F). Reinstall aluminum mesh filters.
11. Install electrical and duct work. Seal duct work with aluminum duct tape.
12. Power up hood, verify all functions and check for leaks around duct tape.
FIG. F
16
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Installation Instructions
Mounting the Hood

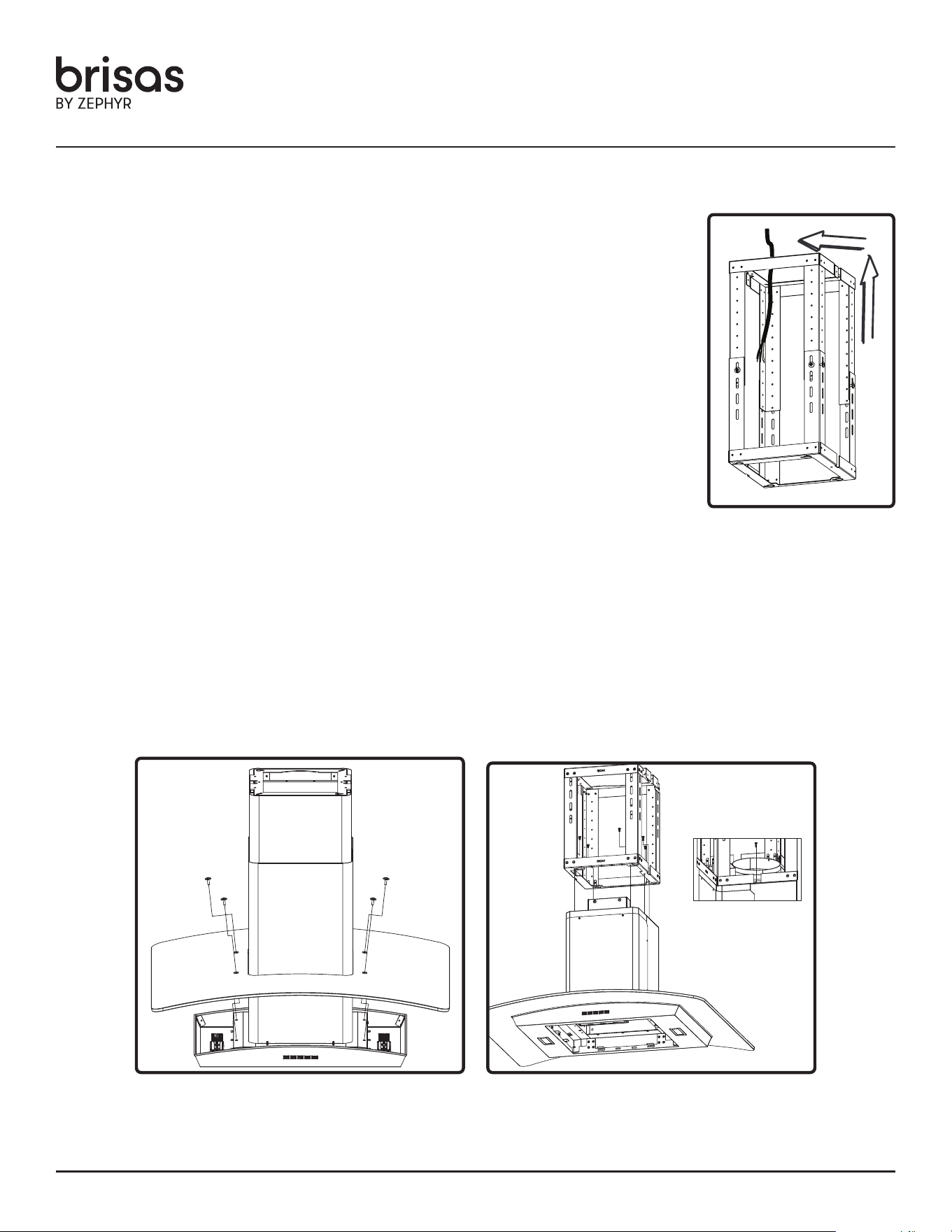

13. Assemble top duct covers (with louver holes) together over top support frame, secure top duct
covers together by magnetic strips.
NOTE: If using hood in ductless recirculating mode you must install the air diverter plate to the top
support frame prior to assembling the duct covers. Turn to page 17 for more details.
14. Secure top duct covers to top support frame by using (4) 3/16 x 1/4 screws (2 screws for each top
duct cover). (FIG. G1).
15. Assemble bottom duct covers together over top duct covers and secure together by magnetic
strips. Bottom duct covers should rest on top of the hood body.

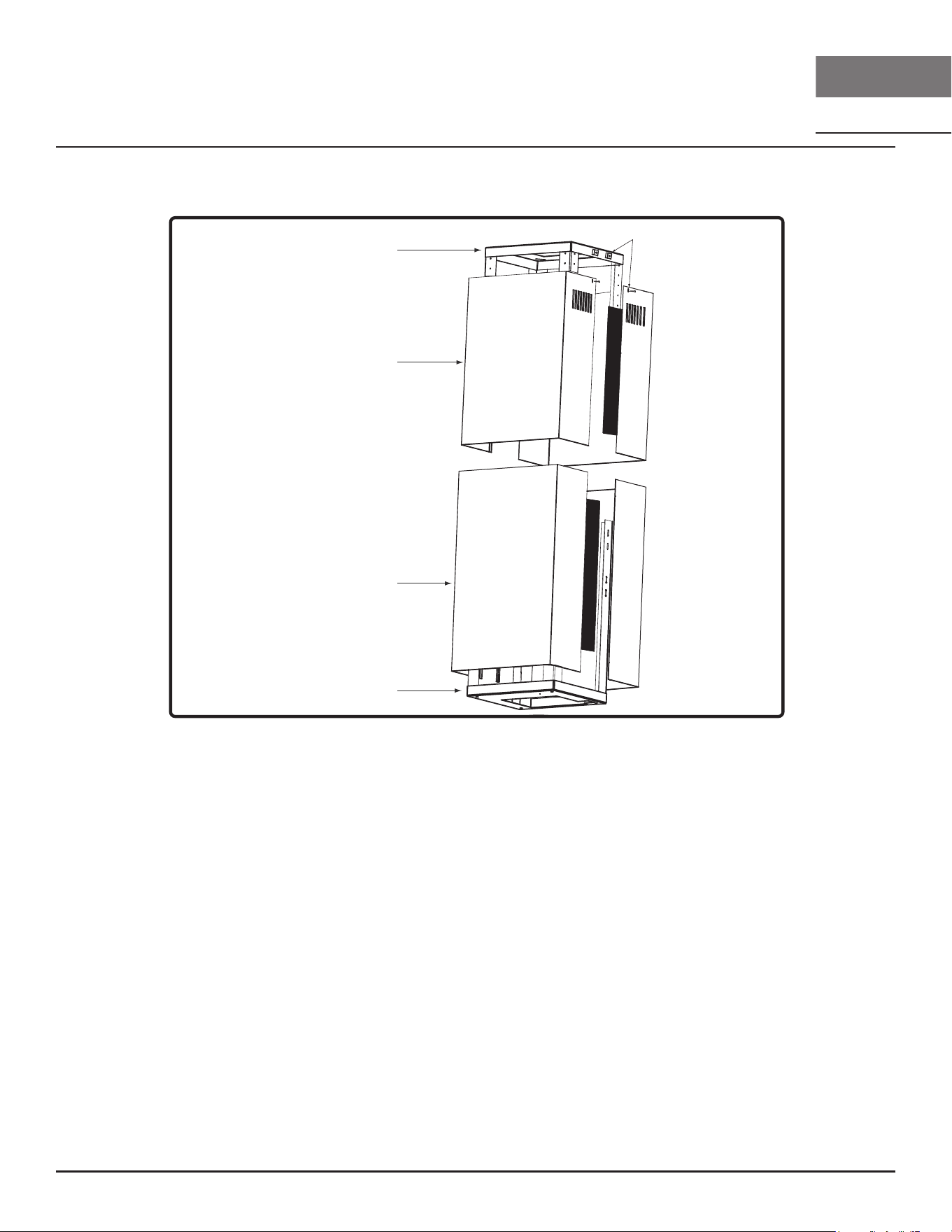

1
Top Duct Covers
Top Support Frame
Bottom Duct Covers
Bottom Support Frame
FIG. G
17
BML-C Use, Care, and Installation Guide
Installation Instructions
Ductless Recirculation

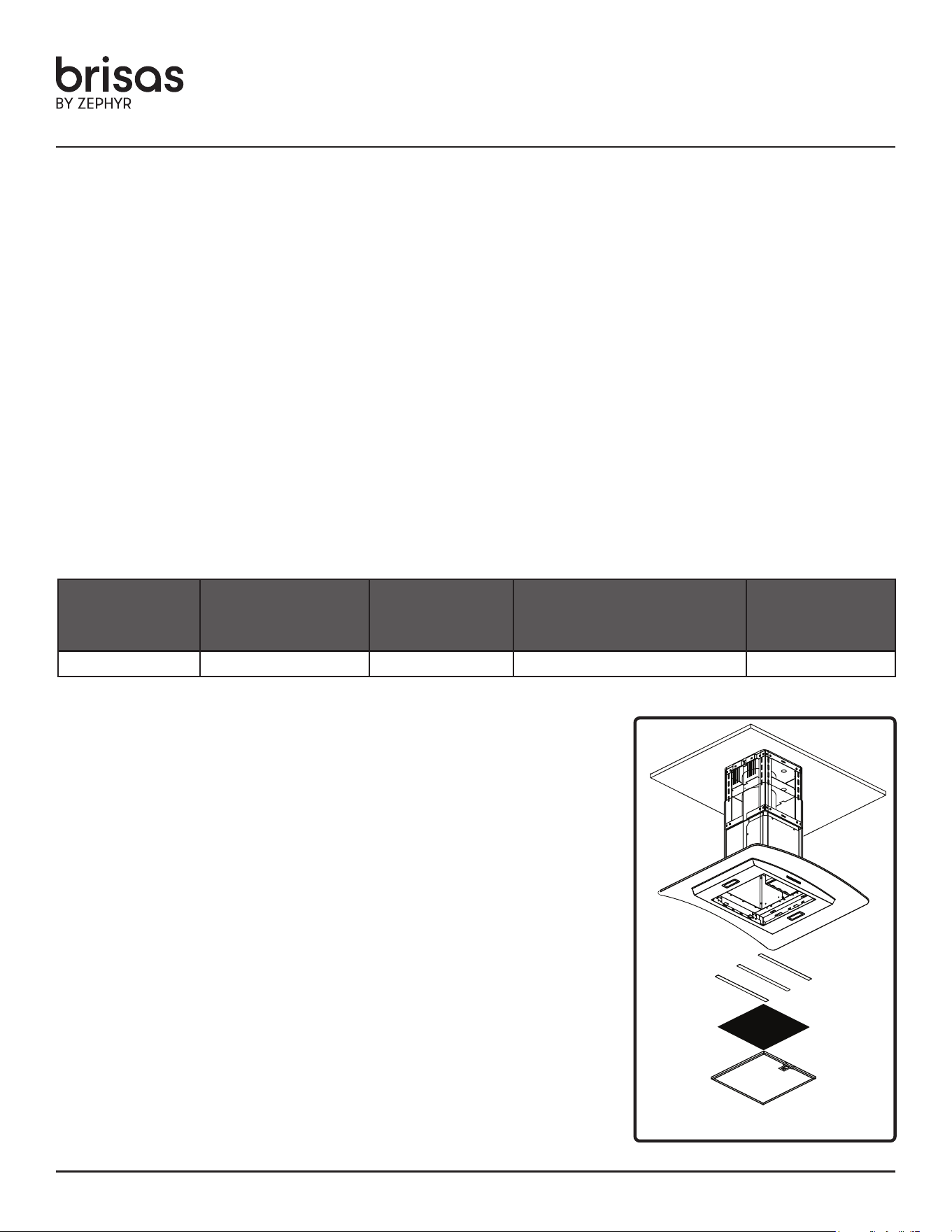

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
grease filter set. Order according to its part number below. The grease filters are intended to capture
residue from cooking, and the optional charcoal filters help to purify fumes exhausted from cooking
for recirculation.
Recirculating Kit Installation (required if no ducting is used)
For detailed installation instructions, please refer to the manual included with the recirculating kit.
The kit includes the charcoal filters, charcoal filter brackets, and air diverter plate.
Hood Model
Recirculating Kit
Part Number
Filters in
Package
Charcoal Filter
Replacement Part
Number
Quantity to
Order
BML BRC-0107 1 Z0F-C091 1
1. Secure air diverter plate to wall below duct cover bracket, FIG. H.
Run 6" ducting from top of hood and secure to air diverter plate.
2. Remove the grease filter from hood. Place charcoal filter over the
back side of the grease filter.
3. Secure charcoal filterto back side of the grease filter(s) by (3)
brackets.
4. Re-install grease filter.
5. Charcoal filters must be replaced every 200 hours of use (or
approximately every 3 to 4 months based on an average of 1 - 2
hours of daily cooking time).
DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be
changed more often depending on cooking habits.
FIG. H
18
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Features & Controls
Electronic Touch
1. POWER BUTTON
► The POWER button will turn the power on and o for the entire hood (fan and lights). The hood
has a memory function and will remember the last speed and light level it was turned o at.
DELAY OFF FUNCTION: With the fan on, press and hold the POWER button for 2 seconds. The fan
will change to speed 1 and the POWER button will blink on and o, indicating the delay o timer
has started. After 5 minutes, the hood will power o. Pressing the POWER button while the delay
o function is enabled will turn o the hood and cancel the delay o function.
CFM SELECTOR: CFM Selector allows the installer to set the maximum fan CFM to align with local
codes and regulations.
► To verify the maximum fan CFM, press and hold the POWER button for 5 seconds while the
entire hood is powered o. If all three fan speed indicators illuminate = default maximum CFM.
If two fan speed indicators illuminate = 290 maximum CFM.
2. FAN 1 - FAN 3 BUTTONS
► There are three fan speed levels. 1 for low speed, 2 for medium speed, and 3 for high speed.
3. LIGHTS BUTTON
► There are two light levels, low and high.
► From o, press once for low, and press twice for high. Press again to power o the lights.
19
BML-C Use, Care, and Installation Guide
Maintenance
Hood & Filter Cleaning
Surface Maintenance
► Do not use corrosive detergents, abrasive detergents or oven cleaners.
► Do not use any product containing chlorine bleach or any product containing chloride.
► Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel
Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub
in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser
detergent.
After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the
direction of the stainless steel grain.
Cleaning the Grease Filters
The grease filters are intended to trap residue and grease from cooking. Although the filters should
never need replacing, they are required to be cleaned every 30 days or more often depending on
cooking habits.
Grease filters may be placed in dishwasher at low heat or soaked in hot soapy water. Dry filters and
re-install before using hood.
20
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Maintenance

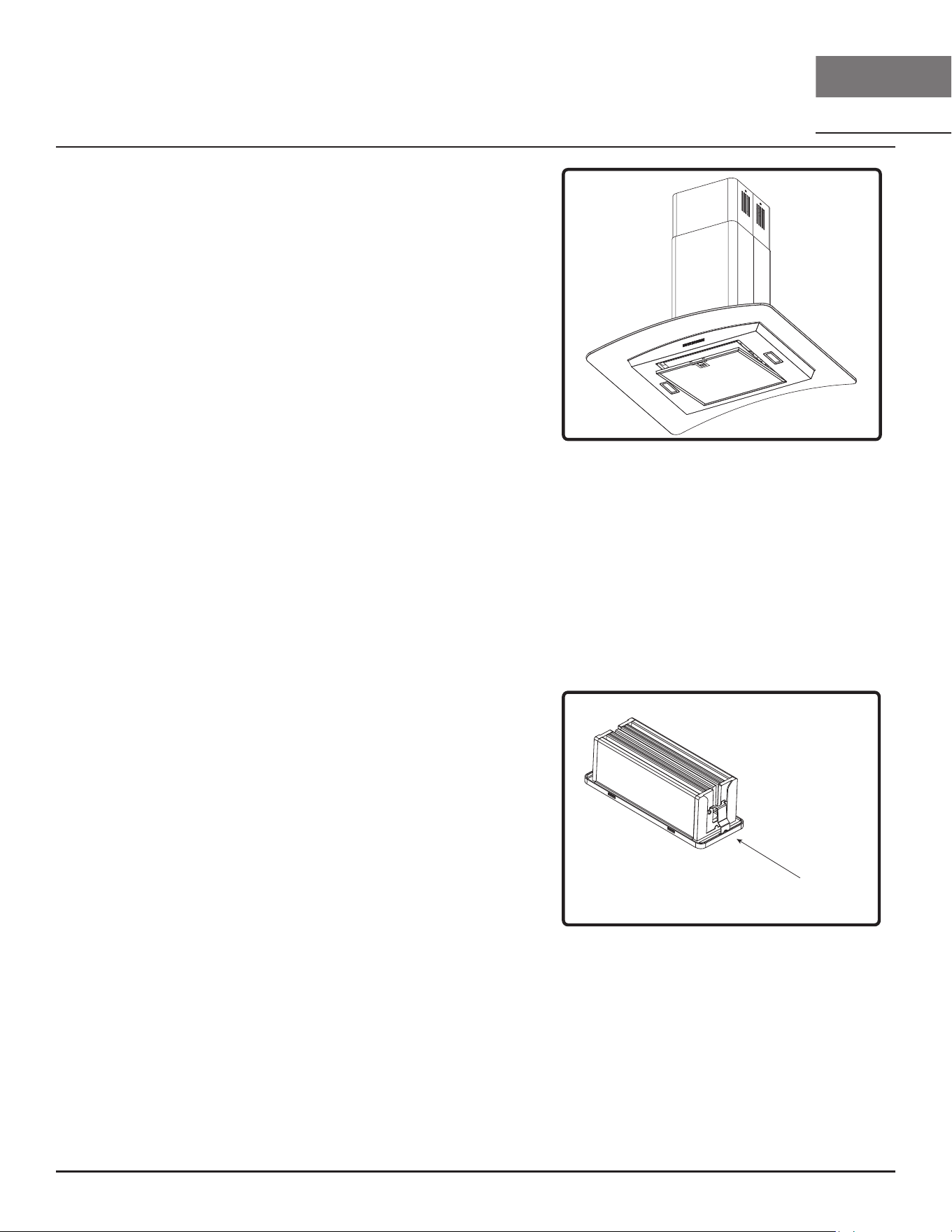

Installing the Grease Filters (FIG. I):
1. Pull down on filter latch to release the filter tabs.
2. Pull down on front of filter to remove the grease filters.
FIG. I
LED Light Replacement
In the unlikely event that your LED lights fails, please visit
https://store.zephyronline.com to order replacement parts.
See the list of parts and accessories page for part numbers
and contact information.
LED Removal (FIG. J):
1. Remove grease filter.
2. Remove the light panel by (2) screws each.
3. Disconnect LED light quick connector.
4. Push in the two side clips on the ends of the LED light.
5. Push LED light through the light panel opening.
Push the clip
FIG. J
21
BML-C Use, Care, and Installation Guide
CFM Selector
Some local codes limit the maximum amount of CFM a range hood can move. CFM Selector allows
you to control the maximum blower CFM without the need for expensive make up air kits. CFM
Selector enables the installer to easily set the maximum blower speed to the CFM level, 290 CFM. The
usage of CFM Selector may not be necessary for your installation. Please check your local codes for
CFM restrictions.
Hood must be disconnected from the main power prior to
performing the conversion instructions listed below. Failure to do
so could result in personal injury or damage to the product.
CAUTION
After re-positioning the jumper and powering on the hood, the
CFM cannot be changed again.
CAUTION
CFM Selector Conversion
22
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS

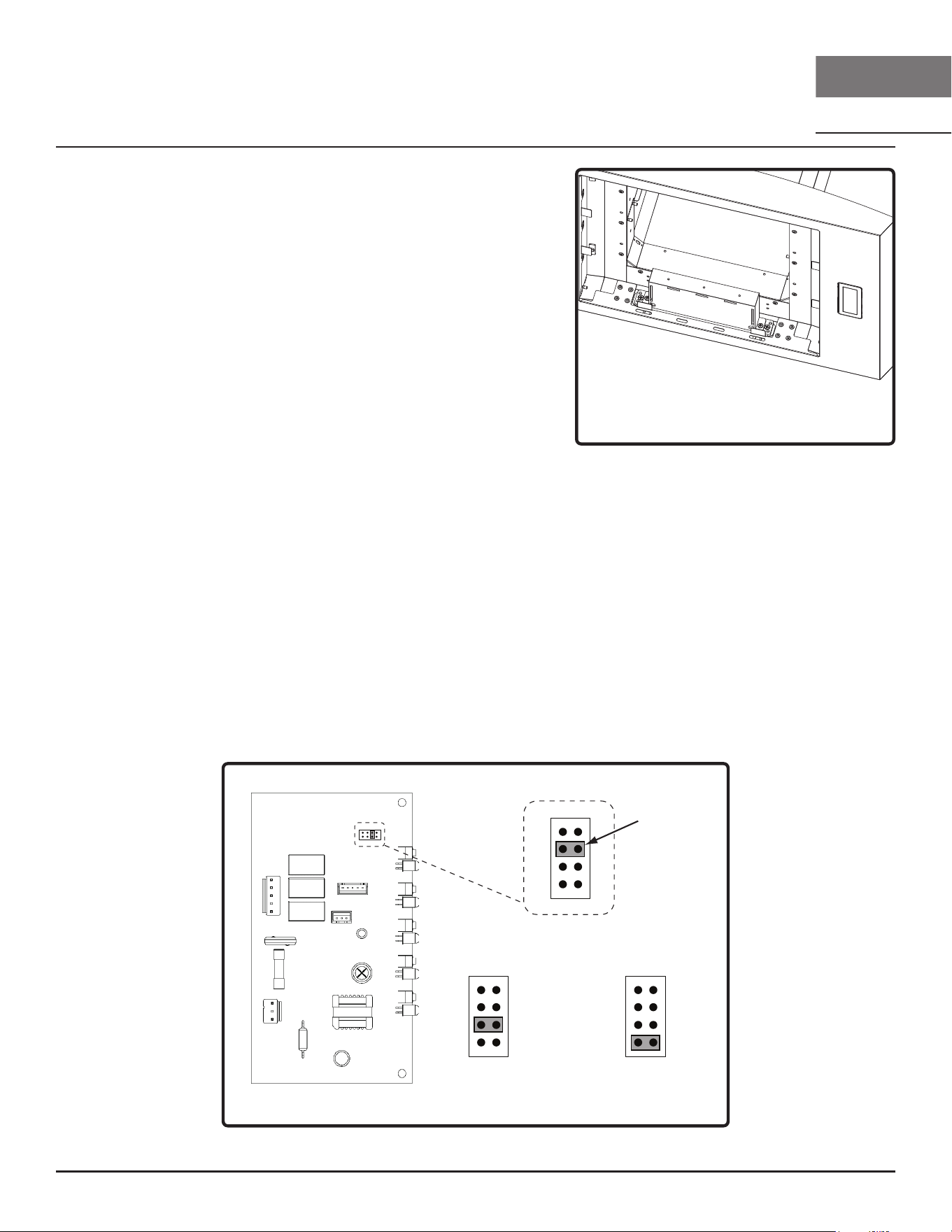

CFM Selector Conversion
Enabling CFM Selector
To enable CFM Selector:
1. Before hood installation, gain access to PC board by
following the steps shown on FIG. K.
2. Change plastic jumper positioning as shown in FIG. L to
set the desired maximum blower CFM.
3. Re-install PC board and continue with hood installation.
4. Remove the appropriate foil CFM sticker included with
the hood literature and place inside the hood body
below the wiring diagram or in another clearly visible
location.
To verify if your installer enabled CFM Selector:
1. With hood o, hold the POWER button for 5 seconds. If
all three fan speed indicators illuminate = default max.
CFM. If two fan speed indicators illuminate = max. 290
CFM.
2. When CFM Selector is enabled, the number of blower
speeds will be reduced.
3. There should also be a foil label located inside the hood
body near the wiring diagram that indicates the blower
CFM.
FIG. K
PC Board
1
3
5
7
2
4
6
8
Ju mp e r 5 - 6 or 7-8
DEFAULT POSITION
Default Max. Blower CFM
Ju mp e r 3 - 4
Max. Blower CFM
390
Ju mp e r 1 - 2
Jumper Pins
Plastic
Jumper
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
Max. Blower CFM
290
FIG. L
1. Remove grease filter.
2. Access the control board by removing (2) screws.
23
BML-C Use, Care, and Installation Guide

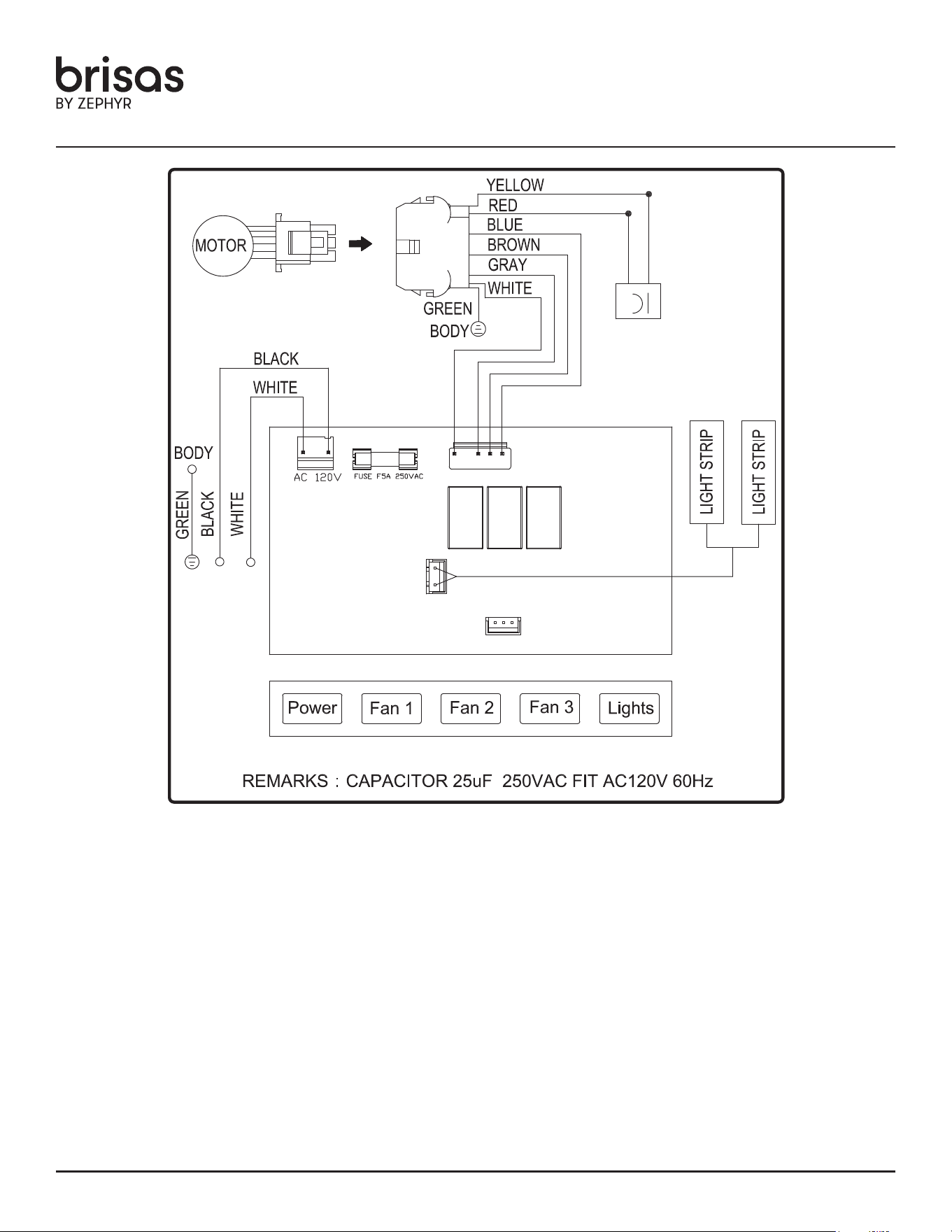

Wiring Diagram
Power consumption shown for default CFM blower configuration
BML - Max: 3A, 390 CFM: 2.1A, 290 CFM: 1.8A
24
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Troubleshooting
Possible Problem Possible Cause Solutions
After installation, the
unit doesn’t work.
The power source is not turned ON. Make sure the circuit breaker and the unit’s
power is ON.
The power line and the cable
locking connector is not connecting
properly.
Check the power connection with the unit is
connected properly.
The switch board or control board
wirings are disconnected.
Make sure the wirings at the switch board
and control board are connected properly.
The switch board or control board is
defective.
Change the switch board or control board.
The wires on control board are loose. Make sure the wires on the control board
are connected properly.
Light works, but blower
is not turning.
The blower wire is not connected. Make sure the blower wire is plugged into
the molex connector.
The thermally protected system
detects if the blower is too hot to
operate and shuts the blower down.
The blower will function properly after the
thermally protected system cool down.
Damaged capacitor. Change the capacitor.
The blower is defective, possibly
seized.
Change the blower.
The unit is vibrating. The blower is not secured in place. Tighten the blower in place.
Damaged blower wheel. Replace the blower.
The hood is not secured in place. Check the installation of the hood.
The unit is whistling. A filter is not in the correct position. Adjust the filters until the whistling stops.
The duct pipe connections are not
sealed or connected properly.
Check the duct pipe connections to be sure
all connections are sealed properly.
The blower is working,
but the LED lights are
not.
The LED light connector is
disconnected.
Connect the LED light connector.
Defective LED light. Change the LED light.
The switch board or control board is
defective.
Change the switch board or control board.
25
BML-C Use, Care, and Installation Guide
Troubleshooting
The hood is not venting
out properly.
Using the wrong size of ducting. Change the ducting to the correct size.
The hood might be hanging to high
from the cook top.
Adjust the distance between the cook top
and the bottom of the hood within 24” and
34” range.
The wind from the opened windows
or opened doors in the surrounding
area are aecting the ventilation of
the hood.
Close all the windows and doors to eliminate
the outside wind flow.
Blockage in the duct opening or
ductwork.
Remove all the blocking from the duct work
or duct opening.
Filter is vibrating. Filter is loose. Adjust or change the filter.
Spring clip is broken on the filter. Change the spring clip.
The speed levels of the
blower sound the same.
Using the wrong size of ducting. Change the ducting to at least 6" or higher.
Possible Problem Possible Cause Solutions
26
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
List of Parts & Accessories
Description Part Number
Replacement Parts
LED Light, 6W Z0B0047
Aluminum Mesh Filter 50200071
Optional Accessories
Recirculating Kit BRC-0107
Replacement Charcoal Filter (each) Z0F-C091
Duct Cover Extension B1C-00ML
To order parts, visit us online at https://store.zephyronline.com.
27
BML-C Use, Care, and Installation Guide
Limited Warranty
JAN21.0401
Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein
as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or
workmanship as follows:
One Year Limited Warranty for Parts: For one year from the date of your original purchase of the Products, we will provide,
free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing
defects subject to the exclusions and limitations below. We may choose, in our sole discretion, to repair or replace parts
before we elect to replace the Products.
One Year Limited Warranty for Labor: For one year from the date of your original pu
rch
ase of the Products, we will
provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to
manufacturing defects subject to the exclusions and limitations below. After the first year from the date of your original
purchase, you are responsible for all labor costs associated with this warranty.
Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and
does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service
required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and char-
coal filters and fuses; (b) any Products or parts which have been subject
to
freight damage, misuse, negligence, accident,
faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other
than by us); (c) commercial or government use of the Products or use otherwise inconsistent with its intended purpose; (d)
natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning
products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service
trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts
of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service
area, additional charges may apply for shipping costs for warranty repair at our designat
e
d service locations and for the
travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year
from the date of your original purchase, you are also responsible for all labor costs associated with this warranty. All Products
must be installed by a qualified professional installer to be eligible for warranty repairs or service.
Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL
OT
H
ER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES
IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that
applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the
same one-year and one-year periods described above if permitted by applicable law. Any oral or written description of the
Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to
using, implementing or permitting use of the Prod
u
cts, you shall determine the suitability of the Products for the intended
use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to
use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty
service. This warranty is not transferable from the original purchaser and only applies to the consumer residence where the
Product was originally installed located in the United States and Canada. This warranty is not extended to resellers.
To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or
telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and serial number;
and (c) describe the nature of any defect in
the
Product or part. At the time of the request for warranty service, you must
present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty
exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible
for all shipping, travel, labor and other costs related to the services. This warranty is not extended or restarted upon warranty
repair or replacements.
Please check our website for any additional Product information,
www.zephyronline.com.
Zephyr, 2277 Harbor Bay Parkway, Alameda, CA 94502
TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS
United States Customers please call: 1-888-880-8368 or contact us at: zephyronline.com/contact
Canada Customers please call: 1-800-361-0799 or Email: [email protected]
Limited Warranty
28
BML-C Use, Care, and Installation Guide
BML
ISLAND
BRISAS
Product Registration
Congratulations on the purchase of your
Zephyr product! Please take a moment to
register your new Zephyr product at
www.zephyronline.com/registration
Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502
Prompt registration helps in more ways
than one.
IT’S IMPORTANT
Ensures warranty coverage should you need
service.
Ownership verification for insurance purposes.
Notification of product changes or recalls.
