INSTALLATION MANUAL
MKIII DIGITAL INPUT MODULE - DIM
STEP 4
Remove the existing input module from the amplier.
Do not pull the module too far out of the amplier
chassis; this could cause the ribbon cable to become
disconnected internally.
STEP 5
Remove the ribbon cable that is connected to the header
on the existing input module you are removing.
STEP 6
Carefully line up the ribbon cable with the header. Push
the ribbon cable into the header on the Digital Input
Module.
STEP 7
Carefully insert the Digital Input Module into the
amplier being certain not to dislodge any components
as you insert the module. Install the two screws that
secure the module to the chassis.
CONNECTIONS
Each input also has a buffered loop output. The buffered
loop output allows an audio source to be shared with
multiple ampliers.
Select the input in the Sonarc setup software normally.
No special settings are required in the Sonarc setup
software when using the Digital Input Module.
Thank you for purchasing the Digital Input Module for your
Sonance DSP series amplier. The Digital Input Module is
compatible with only these amplier models: DSP 2-150
MKIII, DSP 2-750 MKIII and DSP 8-130 MKIII.
INSTALLATION
STEP 1
Turn the amplier off. Touch one nger to any open RCA
connector on the existing input module to discharge any
static electricity.
STEP 2
Disconnect the power cord.
STEP 3
Remove the two mounting screws that secure the existing
input module to the amplier chassis (see Figure 1).

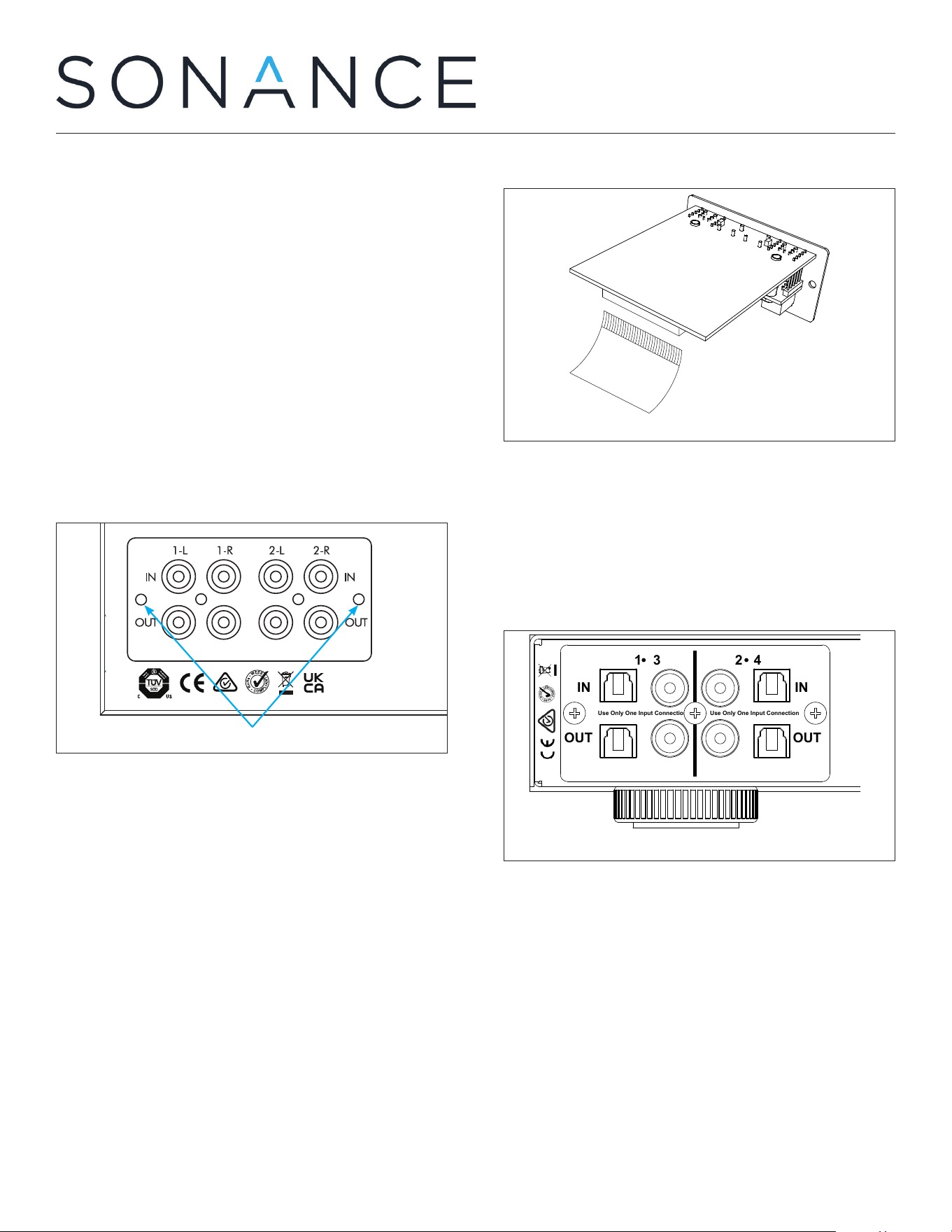

Figure 2: Digital Input Module
Figure 3: DIM Connections
IN
OUT
IN
OUT
1 3
Use Only One Input Connection
Use Only One Input Connection
2 4
1R
1L
DSP 2-750 MKIII
Figure 1: Remove the Two Screws
2
©2023 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations. Due to continuous product improvement, all features and speci-
cations are subject to change without notice. For the latest Sonance product specication information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777
10.06.2023
