Owner’s Manual
Purchased product
may differ from image.
U442-DOCK24DL2A
USB-C Universal Docking
Station, Dual Display
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
2
Package Includes
• DisplayLink chipset supports dual video output to both Windows and Mac OS
• Extends a USB-C port or USB-A port (by connecting a USB-A to Type-C
converter) into multiple video, data, audio, Ethernet and charging ports
• HDMI and DisplayPort outputs each support up to 4K/60 Hz and can be
used simultaneously
• DisplayPort supports DP++ which enables the connection of a passive DP to
HDMI adapter to connect to an HDMI display
• RJ45 port connects to a wired Gigabit Ethernet network
• Connect peripherals to the USB 3.2 Gen 1 hub ports with max 5 Gbps
data transfer
• Max 134W or 100W power from the DC power supply adapter
• U442-DOCK24DL2A
• Owner’s Manual
• USB-C Cable with USB-A adapter
• External Power Supply (Input 100-240V, 50/60 Hz, 2.5A Max;
Output 21V 7.1A, 149.1W)
Optional Accessories
• P580-Series DisplayPort Cables
• P569-Series HDMI Cables
• N201-Series Cat6 Patch Cables
• Assorted USB-A Device Cables
Product Features
3

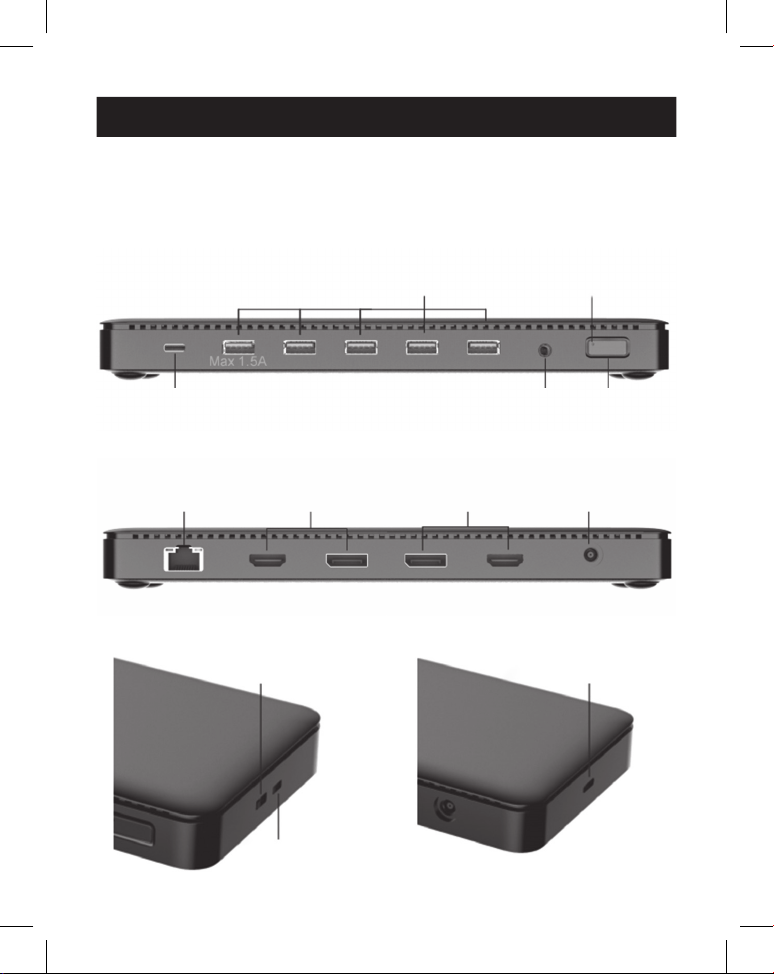

Installation
Notes:
• The product can be locked to a desk by fixing the desk through the anti-theft lock hole to prevent
users from taking it out of the office.
• The function is the same between the K Lock and Standard Nano lock ports. The only difference
is the keyholes sizes.
Stream 2: HDMI
or DP USB Mode
Max 4K/60 Hz
Stream 1: HDMI
or DP USB Mode
Max 4K/60 Hz
20V Power
Supply
RJ45 Gigabit
Ethernet
LED
USB-C
Max 5G
Power
Switch
3.5 mm
Audio
USB-A
Max 5G
K Lock
USB-C or USB-A host
(Through a cable to host)
Standard
Nano
4
Operation
Notes:
• This product has a fire-rated enclosure that complies with IEC 62368-1.
• The included USB host cable is approved to UL 9990 for safe charging of the host laptop.
• While this product has overcurrent protection on all USB ports, it is recommended that the dock
not be left unattended when high-powered devices are connected to any of these ports.
• When high-powered equipment is connected to the docking station via the USB-C PD port, the
connected equipment should have a fire enclosure.
• Suitably rated USB cables with an electrical rating that meets or exceeds the power rating of the
connected USB ports should be used.
1. Install the most recent DisplayLink USB Graphics Driver compatible with your
operating system on your computer before using this product. Without this
driver, the docking station will not properly support audio/video output. You
can download the appropriate driver from the DisplayLink official website.
2. After installing the driver, a Mac OS based computer will check for
"DisplayLink" in the "Security and Privacy" and "Screen Recording" sections.
3. The HDMI and DisplayPort video outputs each support 4K/60 Hz output, and
two outputs can be used simultaneously (HDMI/HDMI, DP/DP or HDMI/DP) to
transmit dual 4K/60 Hz video to two connected displays.
4. Actual video output is determined by the graphics card of the host computer,
the maximum resolution supported by the connected display(s), and the
quality of video cable used to connect the dock to the display(s).
5. Audio output can be switched by choosing the desired output from your
computer’s audio settings. If the audio setting is set to the docking station, no
audio will be output from connected displays when a headset is connected.
6. Video output is not supported when used with an Apple iPad.
5
Specifications
Input USB-C Female (Connect to Host)
Output Video Output 1: DP or HDMI (USB Mode)
Video Output 2: DP or HDMI (USB Mode)
USB 3.2 Type-C Gen 1 (5 Gbps) x1
USB-A 3.2 Gen 1 (5 Gbps) x5
3.5 mm Audio
RJ45 x1
DC Jack x1
USB-C Female (To Host) Supports DisplayLink USB mode
Ethernet RJ45 (Female)
Power Switch The dock’s power button turns on by default upon
connecting the dock to a power source.
The Power indicator LED will turn bright white.
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Temperature 14 to 158°F (-10 to 70°C)
Storage Humidity 5% to 90% RH, Non-Condensing
Mechanical
Unit Dimensions [H x W x D] 8.85 x 3.34 x 0.86 in. (225 x 84 x 22 mm)
Unit Weight 0.795 lb. (0.36 kg)
6
Specifications
Video/Network/Audio/Power
Max Supported Video
Resolution(s)
HDMI (Single Output): 4K@60 Hz
Displayport (Single Output): 4K@60 Hz
HDMI1 + HDMI2 (Dual Output): 4K@60 Hz
DisplayPort1 + DisplayPort2 (Dual Output): 4K@60 Hz
HDMI1 + DisplayPort1 (Dual Output): 4K@60 Hz
Network Speed Support 10/100/1000Mbps (Gigabit) bandwidth
Audio Specications • Support microphone and headphone for audio in and out
• Support CTIA
• DAC support 48 kHz Sample Rate, 16-bit
• ADC input supports 48 kHzSample Rate, 16-bit
Note: Headsets with built-in control panels are not supported
DC Power Jack Option 1: DC 100W, max 65W to host
Option 2: DC 134W, max 96W to host
Standby Power <30mA@20V
Regulatory Approvals FCC, RoHS
7
Warranty and Product Registration
1-Year Limited Warranty
We warrant our products to be free from defects in materials and workmanship for a period of
one (1) year from the date of initial purchase. Our obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/
support/product-returns before sending any equipment back for repair. This warranty does
not apply to equipment which has been damaged by accident, negligence or misapplication or
has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states
do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s)
or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any
costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of
software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Product Registration
Visit Tripplite.Eaton.com/warranty today to register your new product. You’ll be automatically
entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Regulatory Compliance Identification Numbers
For the purpose of regulatory compliance certifications and identification, your product has
been assigned a unique series number. The series number can be found on the product
nameplate label, along with all required approval markings and information. When requesting
compliance information for this product, always refer to the series number. The series number
should not be confused with the marking name or model number of the product.
Eaton has a policy of continuous improvement. Specifications are subject to change without
notice.
