Safety instructions and warnings
- WARNING: do not seal ventilation openings on
the appliance housing or enclosure.
- WARNING: only use the mechanical devices or
other aids recommended by the manufacturer to
help speed up the defrosting process.
- WARNING: do not damage the refrigerant circuit.
- WARNING: do not use any electrical devices in the
refrigerator compartment which do not comply with
the design recommended by the manufacturer.
- WARNING: the mains cable must not be dam-
aged while installing the appliance.
- WARNING: multi-sockets or distributor strips
and other electronic devices (such as halogen
transformers) must not be positioned and oper-
ated at the rear of appliances.
- WARNING: danger of injury through electric
shock. There are live parts under the cover. Only
have the interior LED light replaced or repaired
by customer service staff or trained personnel.
- WARNING: risk of injury from the LED lamp. The
light intensity of the LED light complies with laser
class RG 2. If the cover is defective, do not look
directly at the light through optical lenses from
close distance. This may damage your eyes.
- WARNING: this appliance must be secured as
described in the operating instructions (Installa-
tion instructions) to rule out any potential risks
due to its instability.
- Do not stand on the plinth, drawers or doors or
use them to support anything else.
- This appliance may be used by children aged 8
and over and by people with reduced physical,
sensory or mental abilities or a lack of experi-
ence and expertise if they are supervised or have
been instructed on the safe use of the appliance
and have understood the risks associated with
it. Children must not be allowed to play with the
appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
Children aged 3 or over and 8 or younger may
load and unload the refrigerator/freezer.
- Do not store any explosive substances, such as
aerosol containers with flammable propellant
gas, inside the appliance.
- To prevent injury and damage to property, the
appliance should only be installed by two people.
- After unpacking it, check the appliance for signs
of damage. Contact the supplier if it is damaged.
Do not connect the appliance to the mains power
supply.
- Avoid prolonged skin contact with cold surfaces
(e.g. chilled/frozen products). If necessary, take
safety action (e.g. gloves).
-Do not eat ice cream, particulary ice lollies or ice
cubes, immediately after taking them from the
freezer compartment as there is a risk of "burn-
ing" because of the very cold temperatures.
- Do not consume food which has been stored for
too long, as it could cause food poisoning.
- All repairs and work on the appliance may only
be carried out by customer service personnel
or other trained personnel. The same applies to
changing the mains power cable.
- Only carry out repair and other work on the ap-
pliance when the mains plug has visibly been
disconnected.
- Only install, connect and dispose of the appliance
as described in these operating instructions.
- In the event of a fault, pull out the plug or switch
o the fuse.
- When disconnecting the appliance from the
mains, pull on the plug. Do not pull on the cable.
- If you have a lockable appliance, do not keep the
key near the appliance or within reach of children.
- The appliance is designed for use in enclosed
areas. Do not operate the appliance outdoors or
in areas where it is exposed to splash water or
damp conditions.
Priority of warnings
DANGER
identies a situation involving direct
danger which, if not obviated, may result
in death or severe bodily injury.
WARNING
identies a dangerous situation which,
if not obviated, may result in death or
severe bodily injury.
CAUTION
identies a dangerous situation which,
if not obviated, may result in minor or
medium bodily injury.
NOTICE
identies a dangerous situation
which, if not obviated, may result in
damage to property.
Note
identies useful information and tips.
17
EN
Symbols on the appliance
The symbol can be located on the compressor. It
refers to the oil in the compressor and indicates
the following danger: swallowing or inhaling can
be fatal. This is only relevant for recycling. There
is no danger in normal operation.
Warning about inammable substances.
A sticker to this eect may be applied to the rear
of the appliance. It refers to the foampadded
panels in the door and/or the housing. This is
only relevant for recycling. Do not remove the
sticker.
- Do not use the interior LED light to light the room.
The interior LED light is only designed to illuminate
the interior of the appliance.
- Do not allow naked ames or ignition sources to
enter the appliance.
- Alcoholic drinks or other vessels containing al-
cohol should be sealed tightly for storage.
- When transporting or operating the appliance at
an altitude of more than 1500 m above sea level,
the glass pane in the door can break due to the
reduction in air pressure. Broken fragments are
sharp-edged and can cause serious injury.
Disposal notes
The appliance contains reusable materials and should
be disposed of properly - not simply with unsorted
household refuse. Appliances which are no longer
needed must be disposed of in a professional and
appropriate way, in accordance with the current local
regulations and laws.
When disposing of the appliance, ensure that the refrigerant circuit
is not damaged to prevent uncontrolled escape of the refrigerant
it contains (data on type plate) and oil.
• Disable the appliance.
• Pull out the mains plug.
• Cut through the connection cable.
WARNING
Danger of suocation due to packing material
and plastic lm!
Do not allow children to play with packaging
material.
Take the packaging material to an ocial collec-
tion point.
Range of appliance use
The appliance is suitable solely for storing wine in a
domestic environment or similar. This includes, for
example, use
- in staff kitchenettes, bed and breakfast establish-
ments,
- by guests in cottages, hotels, motels and other forms
of accommodation,
- in catering and similar services in the wholesale trade.
Use the appliance solely as is customary within a domestic envi-
ronment. All other types of use are inadmissible. The appliance
is not suitable for storing and cooling medicines, blood plasma,
laboratory preparations or similar substances and products cov-
ered by the 2007/47/EC Medical Devices Directive. Any misuse
of the appliance may result in damage to or spoilage of stored
goods. Furthermore, the appliance is not suitable for operation
in potentially explosive atmospheres.
EPREL database
As from 1 March 2021, information about energy labelling and
ecodesign requirements will be available in the European product
database (EPREL). You can access the product database using
the following link: https://eprel.ec.europa.eu/. You will be asked
to enter the model identier. You will nd the model identier on
the type plate.
18

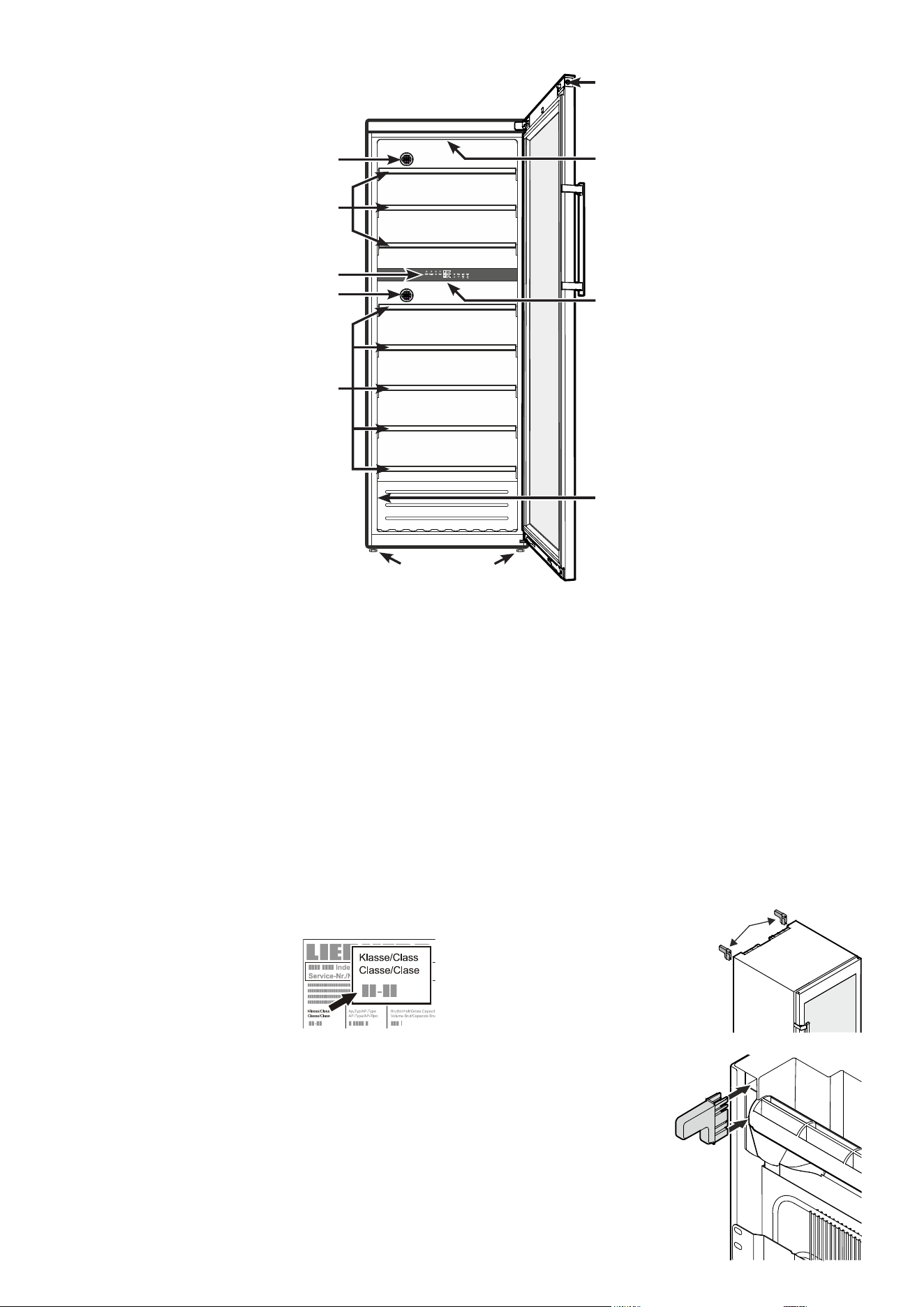

Description of the appliance
Activated charcoal lter
Adjustable-height feet
Operating and control elements
Type plate
Lock
Interior light
(LED light strip)
Activated charcoal lter
Interior light
(LED light strip)
Pull-out shelves
Pull-out shelves
Saving energy
- Always ensure good ventilation. Do not cover ventilation open-
ings or grille.
- Always keep fan slits clear.
- Avoid positioning the appliance in direct sunlight or near cookers,
radiators or similar sources of heat.
- The energy consumption depends on the installation conditions,
e.g. the ambient temperature.
- Keep the time the appliance is open to a minimum.
Accumulated dust increases the energy consumption:
- Once a year, dust the refrigerating unit together with the metal
grid of the heat exchanger at the back of the appliance.
Climate rating
The climate rating indicates the room
temperature at which the appliance may
be operated in order to achieve full refrig-
eration performance.
The climate rating is indicated on the
type plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
Climate rating Room temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
SN-ST +10°C to +38°C
SN-T +10°C to +43°C
Do not operate the appliance outside the
specied room temperature range.
Setting up
• Avoid positioning the appliance in direct sunlight or near cookers,
radiators and similar sources of heat.
• The floor on which the appliance stands should be horizontal
and level.Compensate for uneven floors with the adjustable feet.
• Standard EN 378 specifies that the room in which you install
your appliance must have a volume of 1 m
3
per 8 g of R 600a
refrigerant used in the appliance, so as to avoid the formation of
inflammable gas/air mixtures in the room where the appliance is
located in the event of a leak in the refrigerant circuit. The quantity
of refrigerant used in your appliance is indicated on the type plate
on the inside of the appliance.
• Always install the appliance directly against the wall.
• To ensure that the stated energy con-
sumption is achieved, the wall spacers
supplied with the appliance must be
used. This increases the depth of the
appliance by approx. 35 mm.
The appliance is fully operational even
if the spacers are not used. It does,
however, have a slightly higher energy
consumption.
Fit the spacers to the back of
the appliance on the left and
right at the top.
19
EN
• If several appliances are installed next to each other, leave a gap
of 50 mm between them.
If this gap is too narrow, condensation forms between the side
walls.
• Place the appliance in its final position at the place of installation.
• To adapt the height of the appliance to the surrounding furniture
a top unit can be added.
A gap of at least 50 mm depth must be provided behind and along
the entire width of this unit so as to ensure sufficient ventilation.
The area of ventilation underneath the ceiling should be at least
300 cm
2
.
Electrical connection
Only operate the appliance with alternating current (AC).
The permissible voltage and frequency are indicated on the type
plate. The position of the type plate is shown in the section entitled
Description of the appliance.
The socket must be properly earthed and protected by a fuse.
The tripping current of the fuse must be between 10 A and 16 A.
The socket must not be situated behind the appli-
ance and must be easily accessible.
Do not connect the appliance using an exten-
sion cable or extension socket.
Do not use stand-alone inverters (conversion
of direct current to alternating/three-phase
current) or energy-saving plugs. Risk of dam-
age to the electronic control system!

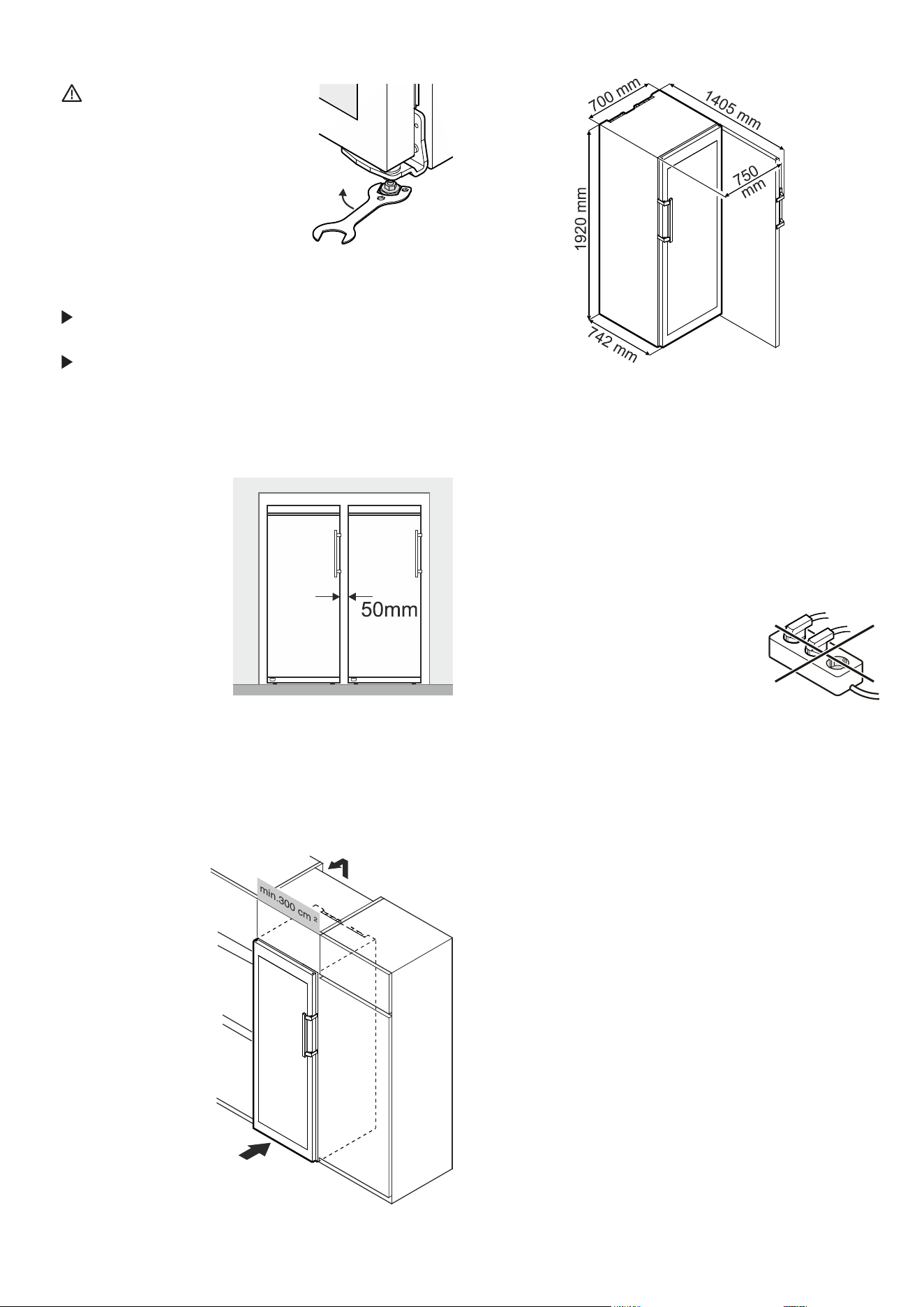

Appliance dimensions
CAUTION
Risk of injury or damage from
the appliance tipping or the
door falling open!
If the additional adjustable foot
on the base support is not cor-
rectly positioned on the oor,
there is a risk of the door falling
open or the appliance tipping. This can lead to
injury or property damage.

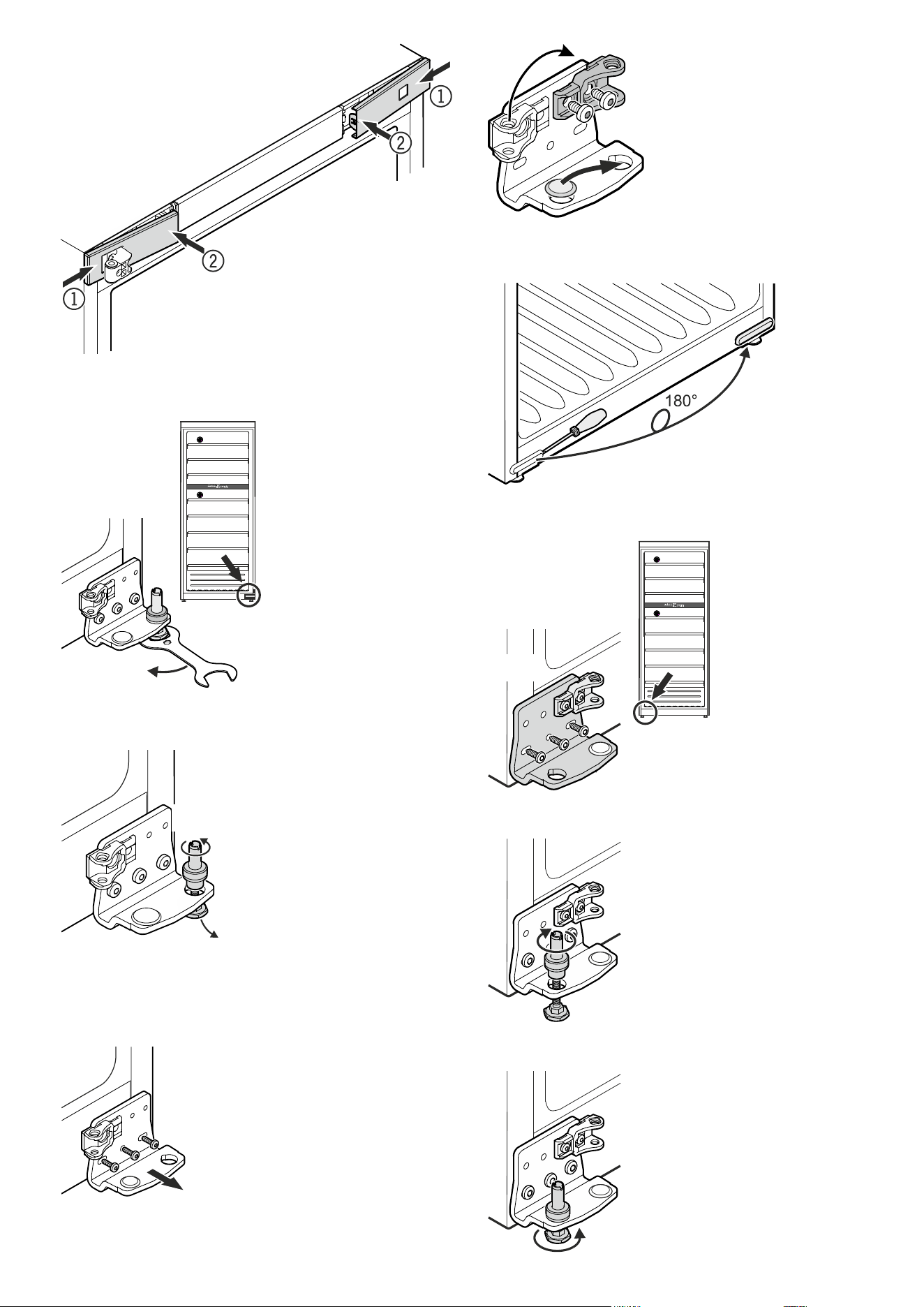

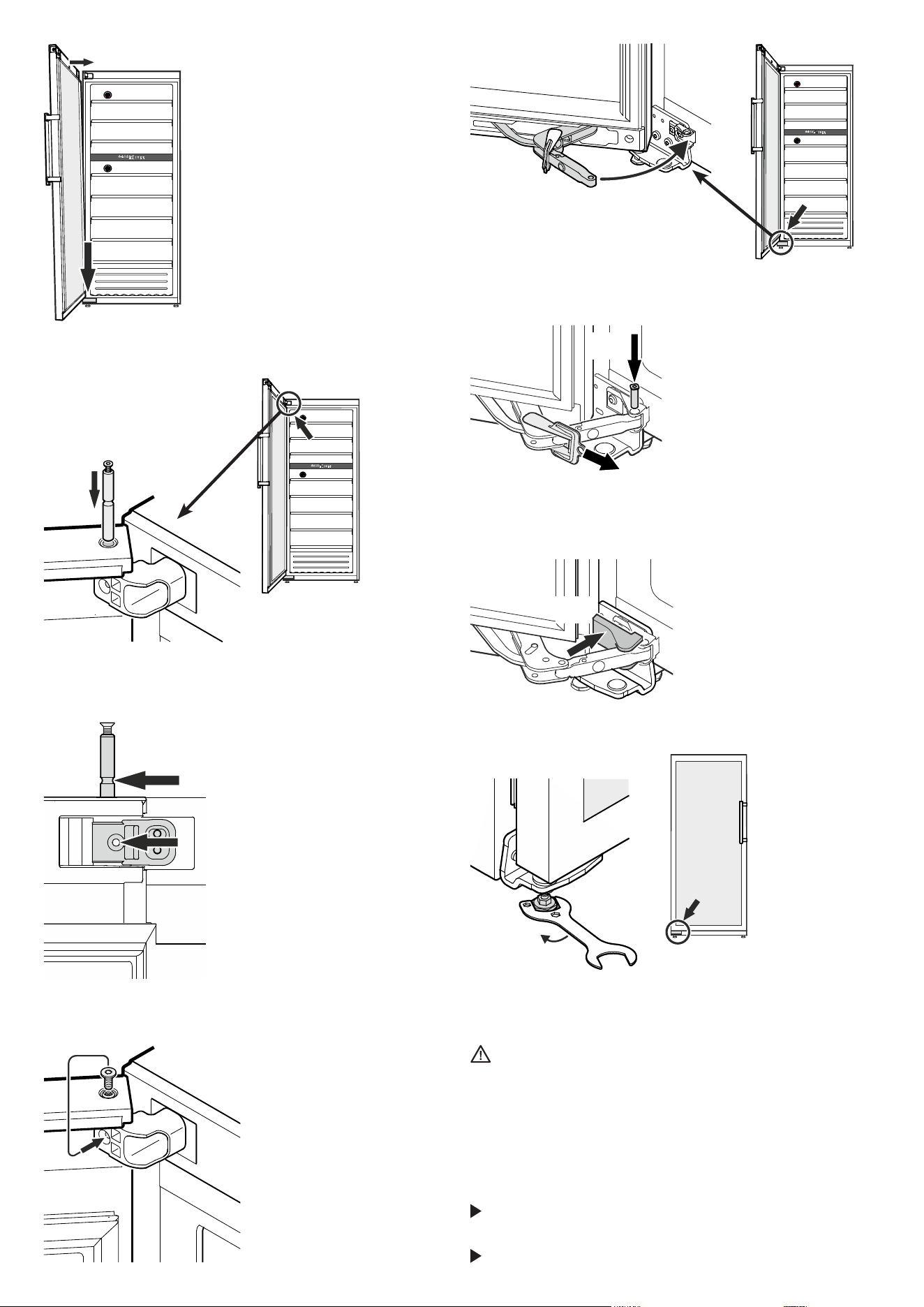

Unscrew the additional adjustable foot on the
support until it reaches the oor.
Then turn it another 90°.
20
Setting the temperature
The temperature of both com-
partments can be set sepa-
rately.
(1)
Upper compartment
(2)
Lower compartment
Reducing the temperature Press the Down button.
Increasing the temperature
Press the Up button.
- When pressing one of the buttons for the first time, the display
will start to flash.
- Pressing this button again enables you to change the temperature
setting.
- The electronic control system will switch over automatically about
5 seconds after the last time you pressed the button, and the
actual temperature will be displayed.
The temperature can be set at between +5°C and +20°C.
The following drinking temperatures are recommended for the
various types of wine.
Red wines: +14°C to +20°C
Rosé wines: +10°C to +12°C
White wines: +8°C to +12°C
Sparkling wines, Prosecco: +7°C to +9°C
Champagne: +5°C to +7°C
If you are storing wine for long periods of time, it should be stored
at a temperature of between +10°C and +12°C.
Switching the appliance on and o
Switching the appliance on
Press the On/O button until the temperature display
lights up.
Switching the appliance o
Keep the On/O button pressed for approx. 3 seconds so that
the temperature display goes out.

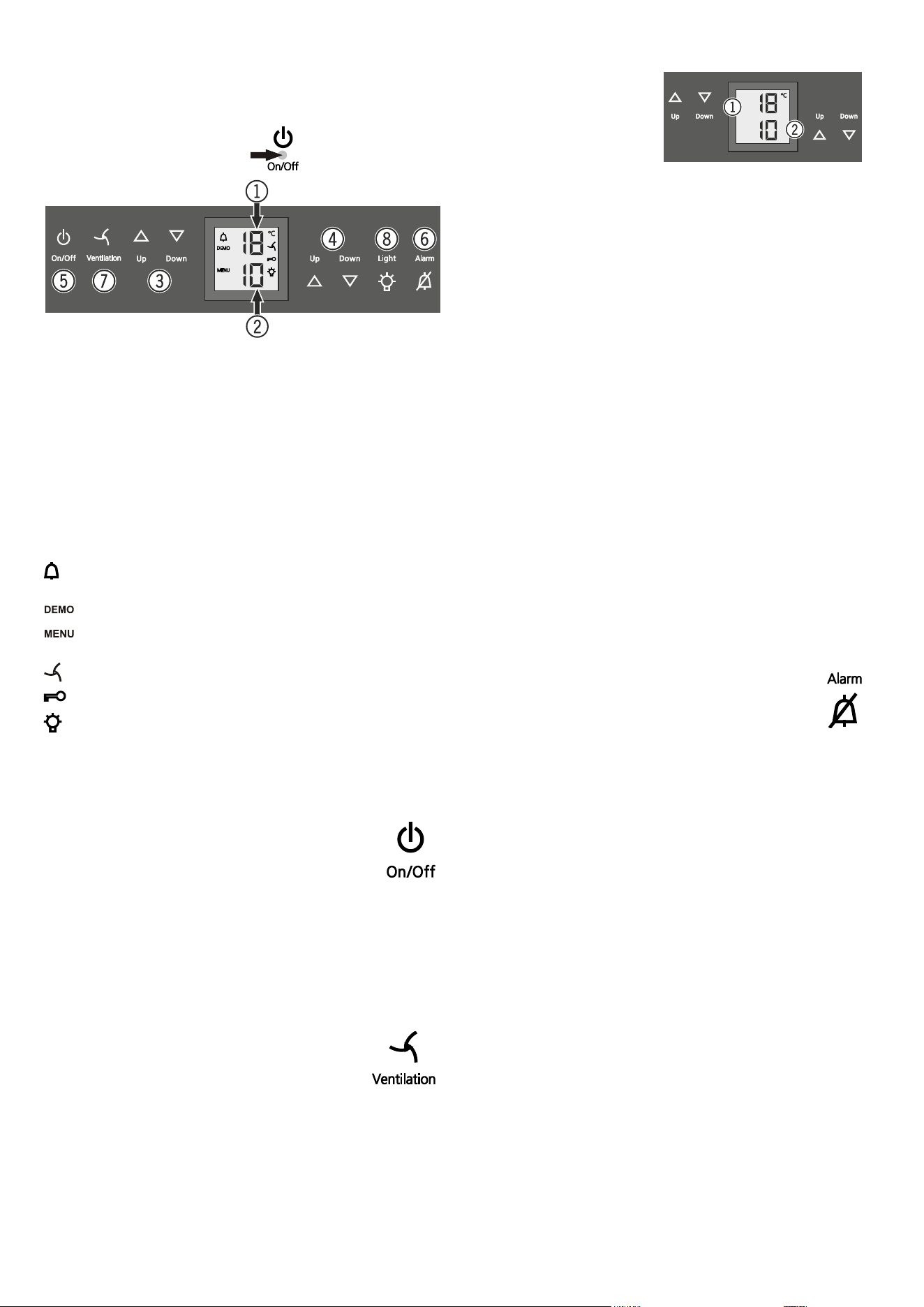

Operating and control elements
The electronic control panel has the "touch capacitance
technology". Any function can be activated by touching the
corresponding icon.
The exact contact point is
between the symbol and its label
(1)
Upper compartment temperature display
(2)
Lower compartment temperature display
(3)
Upper compartment temperature setting buttons
(4)
Lower compartment temperature setting buttons
(5)
On/O button (switching the appliance on and off)
(6)
Audible warning On/O button
(7)
Fan switch
(8)
Interior light On/O button
Symbols in the display
Alarm (symbol flashes if the temperature inside the appli-
ance is too high or too low)
Demo mode is activated
Setup mode is activated (activating the child lock and
adjusting the display brightness
The interior fan runs constantly
Child lock is activated
The interior light is switched on constantly
Fan
The interior fan ensures a constant and even interior temperature
and a suitable climate for wine storage.
The humidity in the appliance can be increased even
further by activating the Ventilation button. This has
a particularly positive eect for long-term storage.
The increased level of humidity prevents the corks from drying out.
Note
If the appliance is operated in a low ambient temperature, the fan
may also run when the fan function is deactivated.
Door open alarm
If the door is left open for more than 60 seconds, the audible
warning signal will sound.
If the door must be opened for a lengthy period to place
items into the appliance, cancel the audible warning
signal by pressing the Alarm button.
The alarm switches back to standby when the door is shut.
Temperature alarm
If the temperatures in the interior are out of the permitted range,
the audible warning signal will sound and the temperature display
will ash.
• Cancel the audible warning signal by pressing the Alarm button.
The temperature display will stop ashing as soon as the tem-
perature in the interior has reached the set value.
Temperature alarm after a fault in the appliance
If the appliance develops a fault, the temperature in the interior
may rise too high or fall too low. The audible warning signal will
sound and the temperature display will ash.
If the temperature displayed is too high (warm), rst check whether
the door is closed correctly.
If the temperature display continues to show a value that is too high
or too low after one hour, contact the customer service department.
• Cancel the audible warning signal by pressing the Alarm button.
If F1, F8, E1, E2, E7, or E8 appears in the display, the appliance
has suered a fault. In this case, contact the customer service
department.
21
EN
Interior light
The interior of the appliance is lit by an LED light strip at the top
of each compartment.
The interior light will always switch on when the appliance door
is opened.
The interior light will go out approx. 5 seconds after the door is
closed.
Press the Light button if you want the interior light to be
on even when the door is closed.
Note
This function applies to the lighting of both compartments.
Furthermore, the brightness of the lighting can be adjusted.
• Press the Light button.
• Press and hold the Light button
and at the same time press the
temperature setting buttons to in-
crease or decrease the brightness.
Note: The brightness will change in all compartments.
Air exchange with activated charcoal
lter
The way in which wines continue
to mature depends on the ambient
conditions. The quality of the air is
therefore decisive for preserving
the wine.
We recommend that you replace the
illustrated lter once a year. Filters can
be obtained from your dealer.
Changing the lter:
Take the lter by the handle. Turn it
90° to the left or right and remove.
Inserting the lter:
Insert with the handle in a vertical
position. Turn it 90° to the left or right
until it clicks into place.
Safety lock
The lock in the appliance door is
equipped with a safety mechanism.
Locking the appliance:
• Insert the key as shown by arrow 1.
• Turn the key 180°.
To unlock the appliance, the same
procedure must be repeated in the
same order.

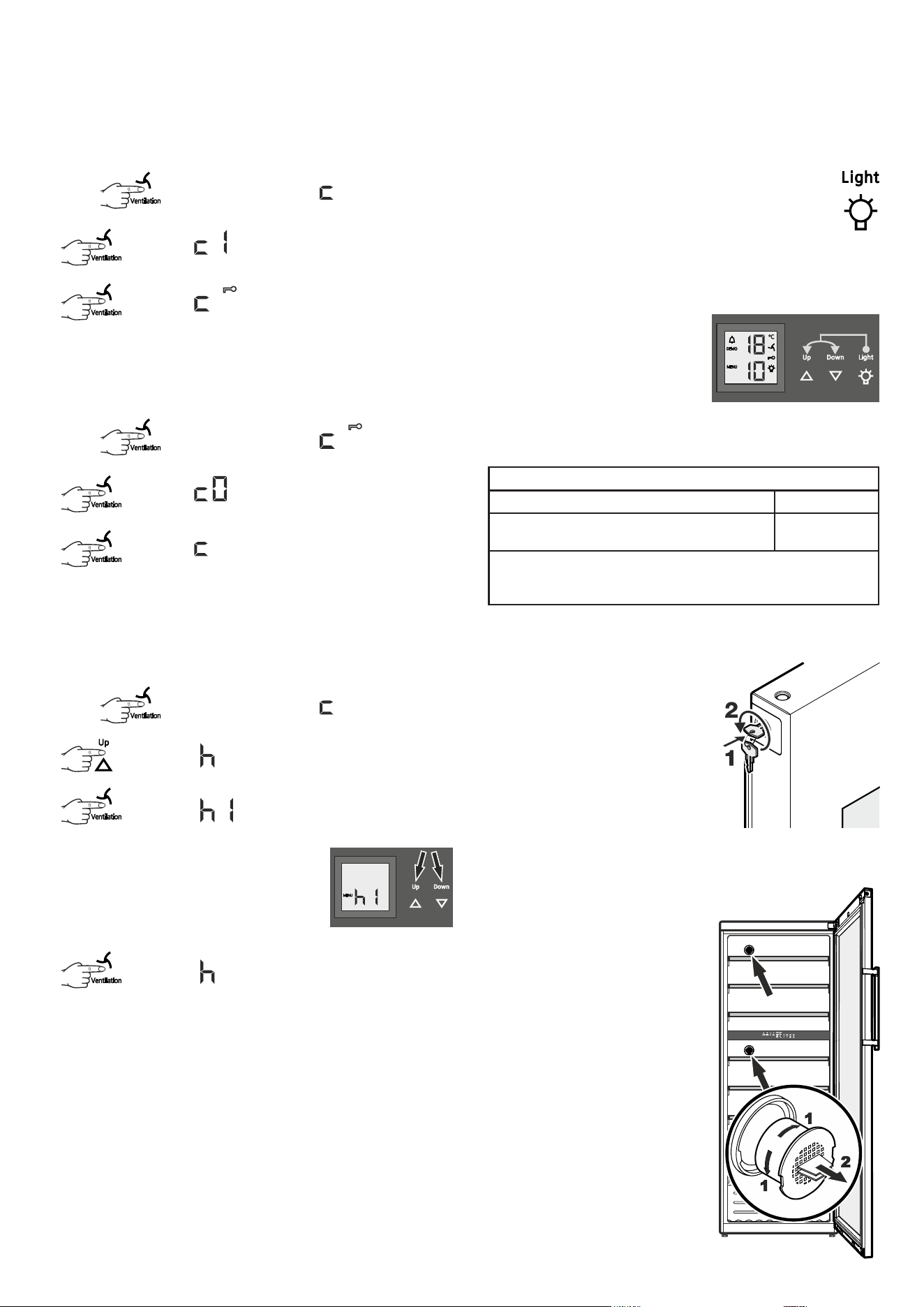

Adjusting the display brightness
Press for 5 seconds. Display =
Display =
Display =
Use buttons Up and Down to select the
desired setting.
h0 = display lighting off
h1 = minimum brightness
h5 = maximum brightness
Display =
Exit setup mode by pressing the On/Off button.
The adjusted brightness will be activated after one minute.
Note
If a button is pressed, the display lights up for one minute at
maximum brightness.
When commissioning the appliance, the adjusted brightness will
only be active once the set interior temperature of the appliance
has been reached.
Setup mode
In set-up mode you can set the child lock and adjust the brightness
of the display. The child lock is designed to protect the appliance
from being switched o and the temperature setting from being
changed accidentally.
Activating the child lock
Press for 5 seconds. Display =
Display =
Display =
Exit setup mode by pressing the On/Off button.
Deactivating the child lock
Press for 5 seconds. Display =
Display =
Display =
Exit setup mode by pressing the On/Off button.
Lighting
Class
1
Light source
This product contains a light source that meets
energy eciency rating G
LED
1
The appliance may contain light sources with dierent
energy eciency classes. The lowest energy eciency class
is indicated.
22
Number of bottles
7
24
7
24
24
40
Total 211 bottles
24
13
24
24
Storage diagram
for 0.75 l Bordeaux bottles to standard NF H 35-124
Labels
The appliance is supplied with one
label for each wooden shelf.
Use these to label the type of wine
stored on each shelf.
Additional labels can be obtained from
your dealer.
Click the label holder into place and
slide the label in from the side.
Important
The maximum load per wooden shelf is 35 kg.

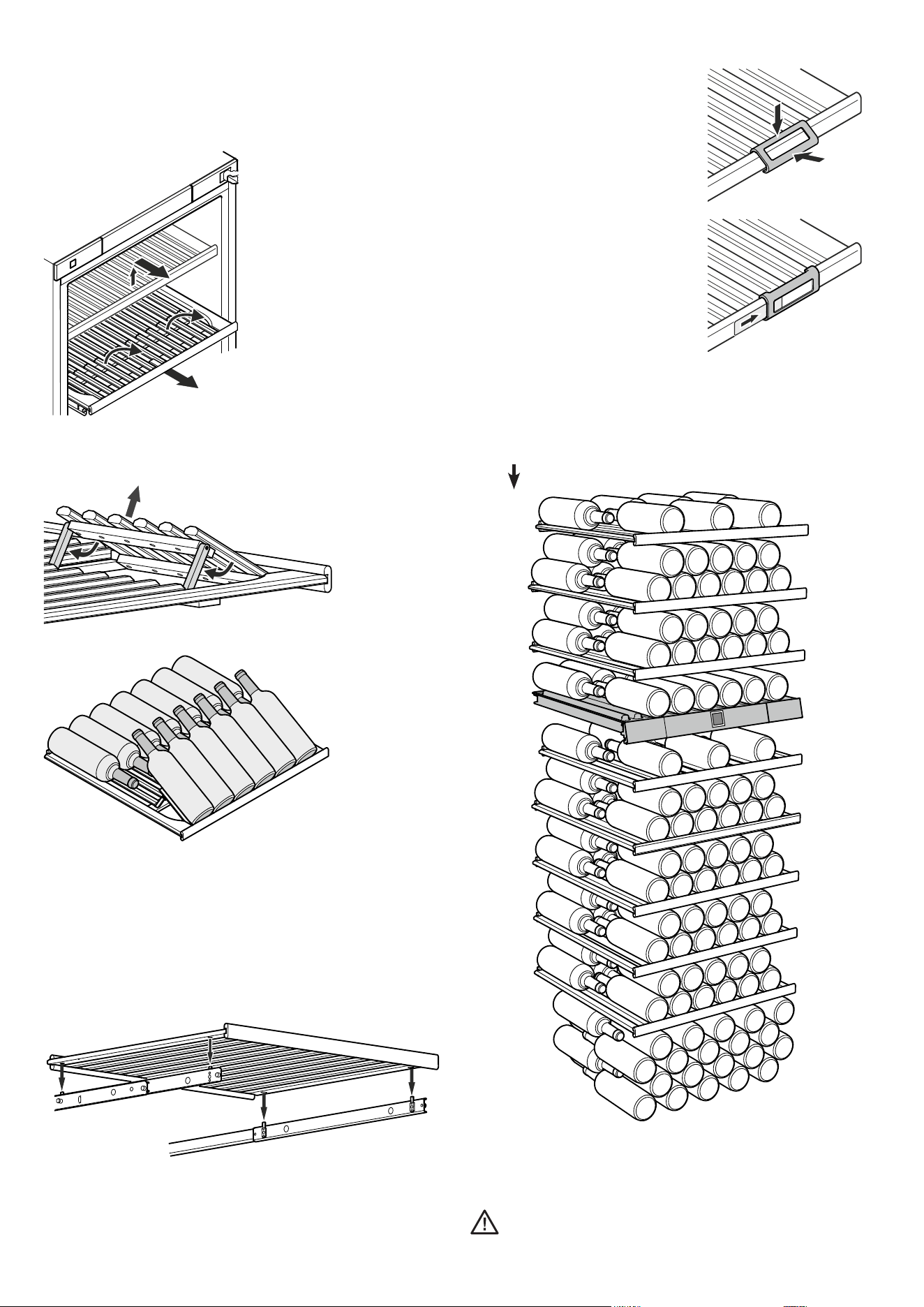

Presentation shelf
The middle pull-out shelf in the top compartment can be used
for the presentation of wine bottles or to keep opened bottles at
the perfect temperature. The presentation shelf can be used in
both zones.
The wooden shelf above it must
be removed so that the presenta-
tion shelf can be used. Raise and
remove the shelf.
Pull the presentation shelf for-
wards as far as it will go.
The front section of the pres-
entation shelf consists of two
segments which can be raised
separately.
Raise the segment and pivot the two supports
downwards.
Bottles can be stored behind the
raised segment.
Inserting the wooden shelf
Fit the upper wooden shelf again for using the presentation shelf
for storing bottles normally (with the segments not raised).
Extend the pull-out rails as far as they will go.
Place the wooden shelf with its bore holes face down on the pins
on the pull-out rails.
23
EN
Malfunctions
• F1, F8, E1, E2, E7, or E8 appears in the display.
– The appliance has suffered a fault. Contact the customer service
department.
You may be able to rectify the following faults by checking
the possible causes yourself.
• Appliance does not function:
– Is the appliance switched on?
– Is the plug correctly fitted in the mains socket?
– Is the fuse intact?
• When inserting the mains plug, the refrigeration unit does
not switch on, but a value is shown in the temperature
display.
– Demo mode is activated.
Contact the customer service department.
• Loud running noise:
– Is the appliance set up firmly on the floor?
– Does the appliance cause nearby items of furniture or objects to
vibrate? Please note that noises caused by the refrigerant circuit
cannot be avoided.
• The temperature is not low enough:
– Is the temperature setting correct (see "Setting the temperature")?
– Does the separately installed thermometer show the correct
reading?
– Is the ventilation system working properly?
– Is the appliance set up too close to a heat source?
If none of the above causes
apply and you cannot rectify
the fault yourself, contact the
nearest customer service de-
partment stating the type des-
ignation
(1)
, service number
(2)
and appliance number
(3)
as
indicated on the type plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
Cleaning
A failure to follow these instructions may result in the food being
spoilt.
Before cleaning, always disconnect the appliance
from the mains. Pull out the plug or switch o the
fuse.
Surfaces which may come into contact with food
and accessible drain systems must be cleaned at
regular intervals.
If the door is left open for a lengthy period, the
temperature in the appliance's compartments may
rise dramatically.
• Clean the inside, equipment parts and outer walls with lukewarm
water and a little detergent. Do not use chemical solvents or any
cleaning agents containing sand or acid.
• Use a glass cleaner to clean the glass surfaces and a commercially
available stainless-steel cleaning agent for the stainless-steel
surfaces.
CAUTION
Risk of damage to the appliance components and
risk of injury due to hot steam.
Do not use steam cleaning equipment to clean
the appliance.
• Ensure that no cleaning water penetrates into the electrical
components or ventilation grille.
• Dry all parts well with a cloth.
• Do not damage or remove the type plate on the inside of the
appliance. It is very important for servicing purposes.
If the appliance is left empty for a lengthy period, it must be
switched o, defrosted, cleaned and dried and the door is to be
left open to prevent mould formation.
24
Changing over door hinges
Door hinges should only be changed by a trained expert.
Changing the door hinges must be done by two people.
3. Slide red safety bracket over
the hinge.
The two knobs on the safety
bracket must be fully insert-
ed into the marked openings
on the hinge.

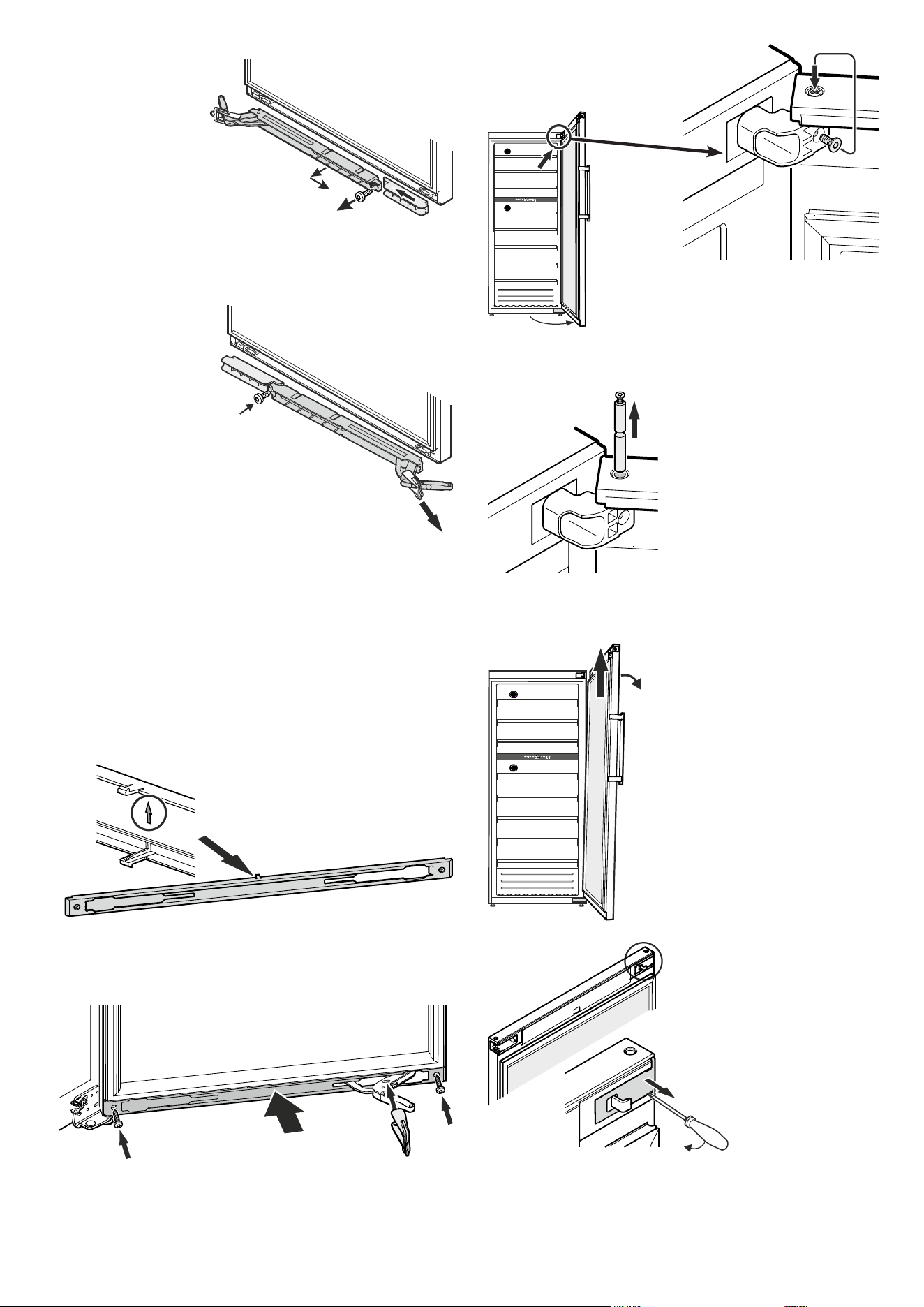

1. Open door as far as possible.
2. Remove cover.
1
2
3
4
5
6
6
4. Remove pin.
5. Pivot soft stop mechanism to
the right.
6. Remove screws.

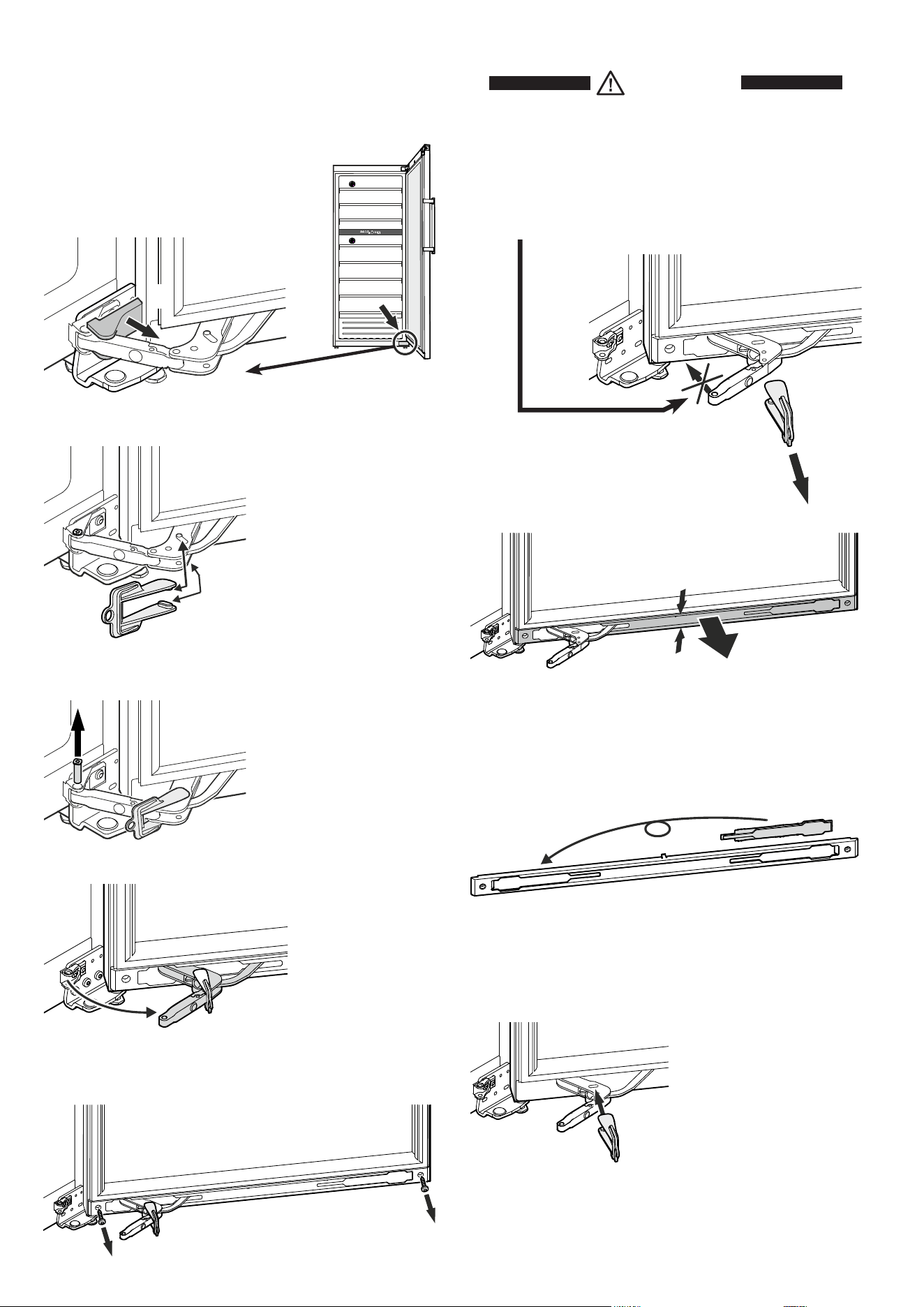

WARNING!
Do not move the front section of the soft stop
mechanism in the direction indicated when
the safety bracket has been removed.
The hinge may be closed suddenly by the
strong integrated spring mechanism. This can
cause serious hand or nger injuries.
7
7. Remove red safety bracket.
8
9
10
8. Compress the cover in centre and release.
Remove cover.
9. Transfer plate to other side of cover.
10. Slide red safety bracket over
the hinge.
25
EN
11. Remove screw.
12. Pivot soft stop
mechanism out-
wards on the right,
pull to the right and
remove.
13. Slide spacer to the left and re-
move.
11
12
13
17
18
14. Turn spacer through
180° and re-t on the
opposite side.
15. Rurn soft stop mechanism
through 180° and re-t on the oppo-
site side. Then secure both parts with the
screw.
16. Remove red safety bracket.
Refer to warning in point 7.
An arrow is visible on the inside of the cover
near its centre.
This must point upwards when tted.
Note for tting bottom door cover
17. Position cover and screw into place.
18. Slide red safety bracket over the hinge.
14
15
16
19
20
21
22
19. Remove screw from hinge bracket and
screw 3 to 4 turns into the hinge pin.
Important
The door weighs 30 kg.
The door must now be held secure
by somebody.
20. Pull out hinge pin.
21. Tilt door slightly to the side and
remove by lifting upwards.
22. Release cover with a small
screwdriver and remove.
26
28
28
29
30
31
32
28. Release covers on the inside, slide them to-
wards the outside and remove.
29. Unscrew hinge bracket.
30. Unscrew closing bracket.
31. Re-fit closing bracket on the
opposite side.
32. Re-fit hinge bracket on the opposite
side. Insert screws in the marked
openings.

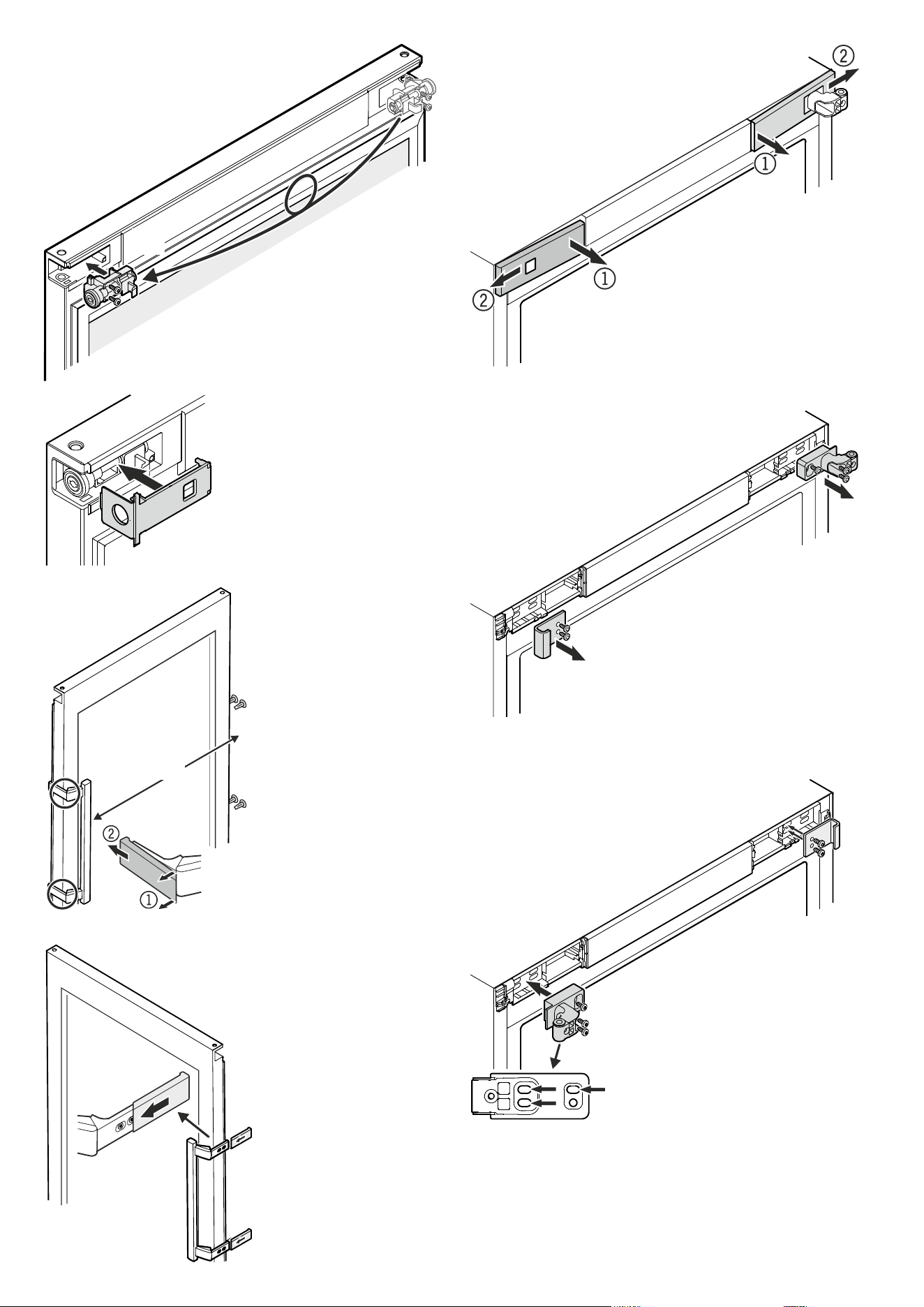

25. Release pressure plates at
the front
(1)
and pull them
backwards to remove
(2)
.
26. Transfer door handle and
plugs to the opposite side.
26
25
23
24
23. Unscrew lock and re-fit on the op-
posite side.
24. Click cover into place.
27. Push on pressure plates
until they engage.
27
27
EN
33
34
35
38
33. Slide cover (with the smaller
opening) from outside to inside
and click into place.
34. Guide cover with the larger opening over the hinge
bracket, slide it from outside to inside and click into
place.
35. Undo adjustable foot with the
spanner provided.
36. Pull hinge pin upwards and un-
screw it from the adjustable foot.
37. Pull adjustable foot downwards
to remove.
36
37
38. Unscrew hinge bracket.
41
41. Remove cover, turn it through 180° and re-fit on
the opposite side.
42
43
44
42. Screw hinge bracket into place.
43. Fit adjustable foot from underneath
and attach hinge pin to it.
44. Insert pin fully into hinge bracket and
tighten adjustable foot by hand.
39. Transfer fastener for soft stop
mechanism on hinge bracket to
the opposite side.
40. Transfer cover to the opposite
side.
39
40
28
45
46
48
45. Place door on pin and move the top
of it to the hinge bracket.
46. Insert hinge pin.
Important
The door must now be held secure by
somebody.
47
47. Push in hinge pin until groove in
the pin lines up with bore hole
in the hinge bracket.
Front view of top hinge bracket
48. Undo screw in hinge pin and
screw into bore hole in hinge
bracket.
53. Place the appliance in its final position at the place of instal-
lation.
49
52
50
51
49. Move soft stop mechanism hinge to the
fastener.
50. Insert pin.
51. Remove red safety
bracket.
52. Click cover into place.
53
CAUTION
Risk of injury or damage from the appliance tipping
or the door falling open!
If the additional adjustable foot on the base sup-
port is not correctly positioned on the oor, there
is a risk of the door falling open or the appliance
tipping. This can lead to injury or property damage.
Unscrew the additional adjustable foot on the
support until it reaches the oor.
Then turn it another 90°.
29
EN
Shutting your appliance down
If your appliance is to be shut down for any length of time, switch
it o and disconnect the plug or switch o or remove the fuse.
Clean the appliance and leave the door open in order to prevent
unpleasant smells.
The appliance complies with the relevant safety regulations
and EU Directives 2014/35/EU, 2014/30/EU, 2009/125/EG and
2011/65/EU.
54
56
55
54. Release cover on the inside and slide to
the outside.

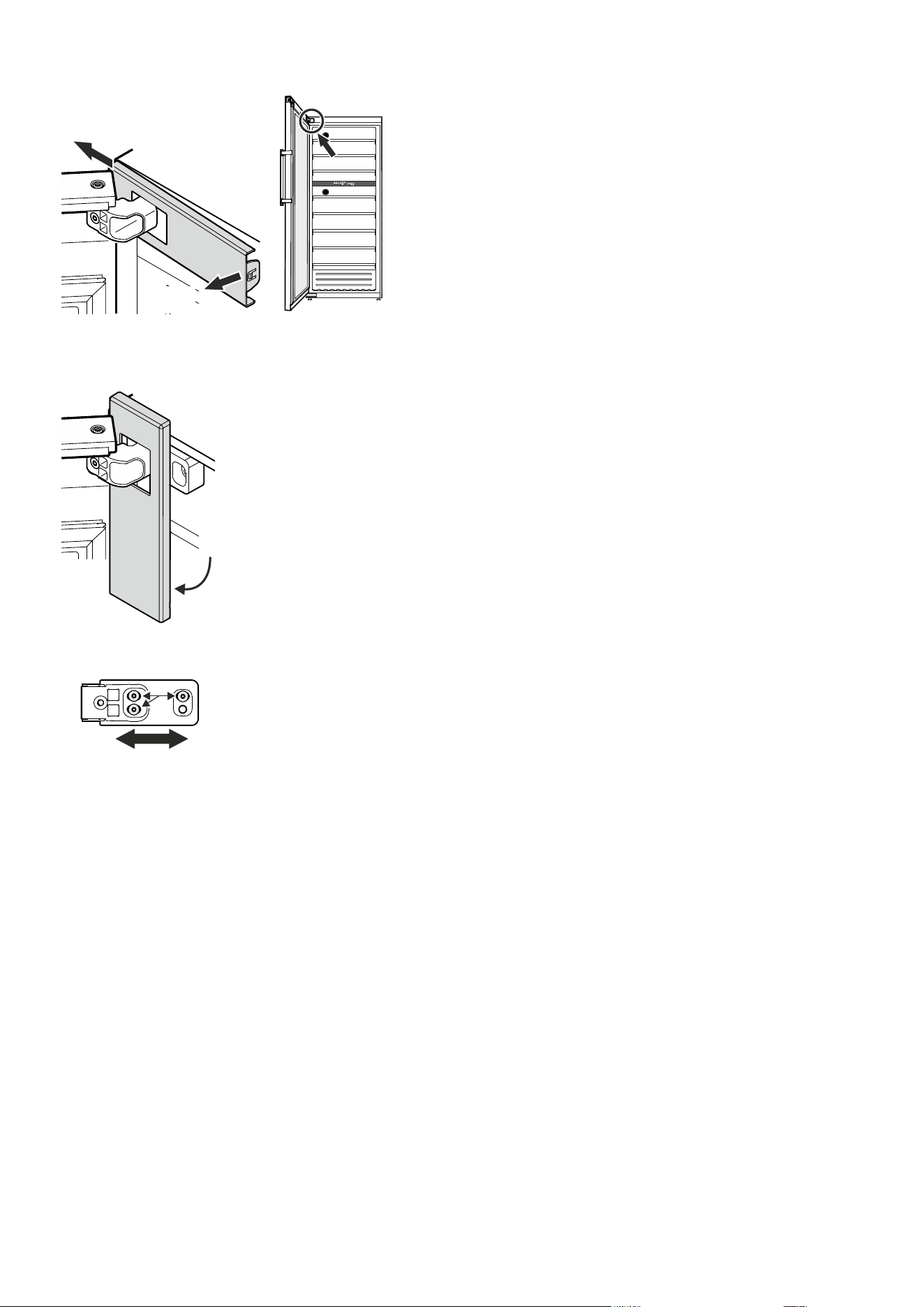

Adjusting the lateral tilt of the door
If the door is at an angle, adjust the angle.
Front view of top hinge bracket
55. Turn cover downwards.
56. Undo screws and slide hinge bracket
to the right or left.
Tighten screws.
Re-fit cover following the instructions
above in reverse order.
Close door and check that it is
aligned with the side walls of the
appliance.
Liebherr Hausgeräte Lienz GmbH
Dr.-Hans-Liebherr-Strasse 1
A-9900 Lienz
Österreich
www.liebherr.com
*708533502*
