User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 2
2 Appliance at a glance............................................ 4
2.1 Scope of delivery.......................................................... 4
2.2 Overview of appliances and equipment................... 4
2.3 SmartDevice.................................................................. 4
2.4 Appliance range of use............................................... 4
2.5 Conformity..................................................................... 5
2.6 Spare parts.................................................................... 5
3 Functionality of the Touch display....................... 5
3.1 Navigation and symbol explanation......................... 5
3.2 Menus............................................................................. 5
3.3 Sleep mode................................................................... 6
4 Putting into operation........................................... 6
4.1 Switching on appliance (first use)............................ 6
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Storage sketches......................................................... 7
6 Saving energy........................................................ 7
7 Controls................................................................. 7
7.1 Control and display elements.................................... 7
7.1.1 Status display..............................................................7
7.1.2 Display symbols..........................................................8
7.1.3 Acoustic signals..........................................................8
7.2 Appliance functions..................................................... 8
7.2.1 Notes on the appliance functions........................... 8
7.2.2 Switching appliance on and off .............................. 8
7.2.3 WiFi.............................................................................. 9
7.2.4 Temperature ..............................................................10
7.2.5 Temperature unit......................................................10
7.2.6 SabbathMode........................................................... 10
7.2.7 HumiditySelect..........................................................11
7.2.8 Lighting intensity ......................................................11
7.2.9 Display brightness .................................................. 12
7.2.10 Door alarm ................................................................12
7.2.11 Alarm Sound...............................................................12
7.2.12 Key Sound...................................................................13
7.2.13 Display lock ...............................................................13
7.2.14 Display PIN................................................................14
7.2.15 Language ...................................................................14
7.2.16 Device information ..................................................14
7.2.17 Software ................................................................... 15
7.2.18 Reminder ................................................................... 15
7.2.19 Demo mode............................................................... 15
7.2.20 Resetting to factory settings ................................16
7.3 Messages...................................................................... 16
7.3.1 Warnings.................................................................... 16
7.3.2 Reminder.....................................................................17
8 Features................................................................. 17

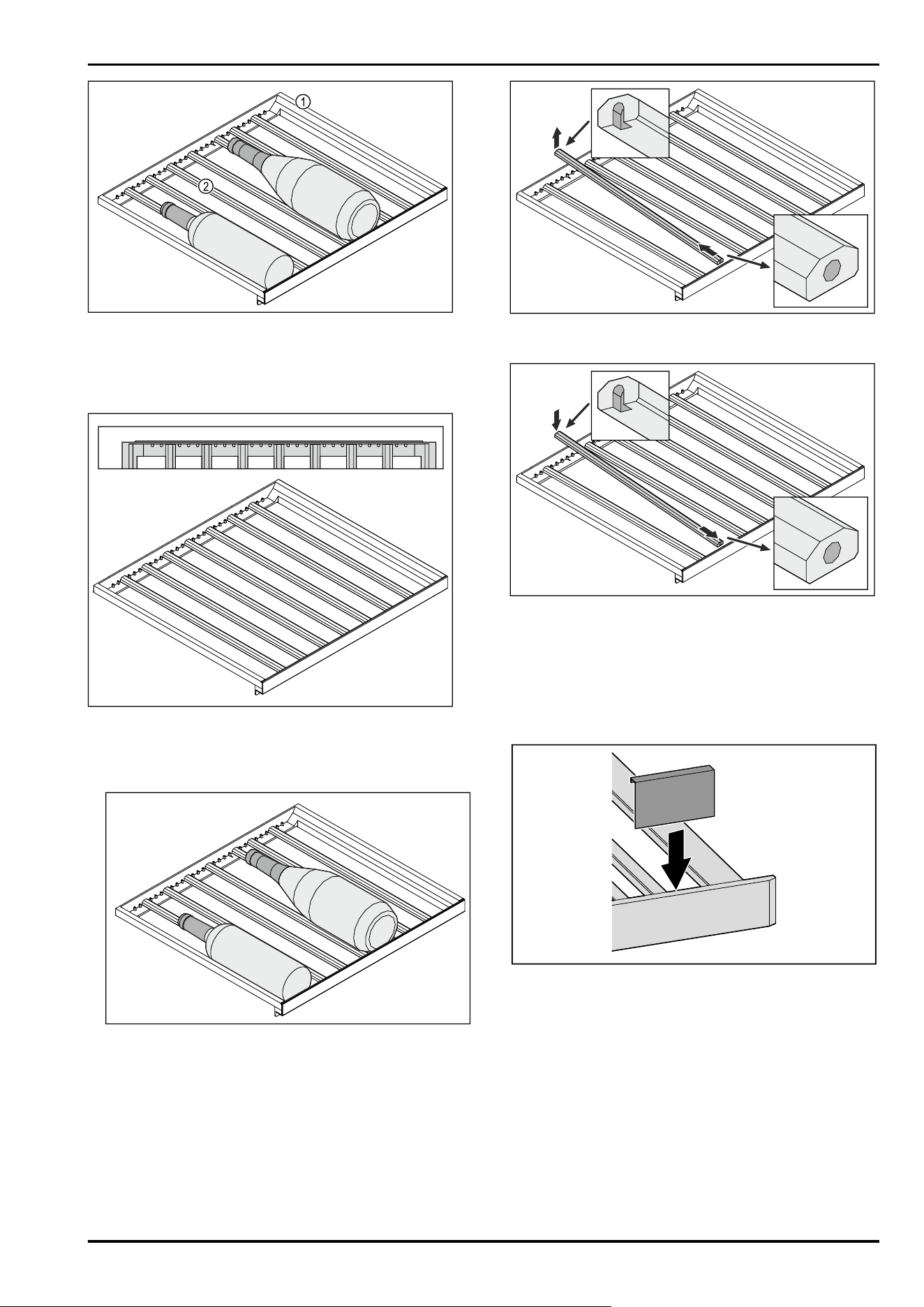

8.1 Wooden grid.................................................................. 17
8.2 Labels............................................................................. 18
9 Maintenance.......................................................... 18
9.1 FreshAir activated carbon filter................................. 18
9.2 Cleaning the appliance............................................... 19
10 Customer help....................................................... 20
10.1 Technical specifications............................................. 20
10.2 Operating noises.......................................................... 20
10.3 Technical fault.............................................................. 20
10.4 Customer Service......................................................... 21
10.5 Model plate................................................................... 22
11 Shutting down....................................................... 22
12 Disposal................................................................. 22
12.1 Preparing appliance for disposal.............................. 22
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 22
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information on the Internet
The digital manual with additional information
can be found via the QR code on the front of
the manual or by entering the service number
at home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
WP..
46..
1 General safety instructions
Please keep these instructions in a safe place and pass
them on to any subsequent owners.
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This device can be used by children and people with
impaired physical, sensory or mental abilities or with a
lack of experience and knowledge provided that they are
General safety instructions
2 * Depending on model and options
supervised or have received instruction in the safe use of
this device, and about the resulting hazards.
Children must not play with this appliance. Cleaning and
user maintenance work must not be carried out by chil‐
dren without adult supervision. Children aged between
3 and 8 are allowed to load and unload the appliance.
Children below the age of 3 must be kept away from the
appliance unless they are under continuous adult super‐
vision.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity in
an emergency. It must not be located in the area behind
the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
Do not damage the mains power cable. Do not operate
the appliance with a defective mains power cable.
-
If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer
or its service agent.
-
Only customer service or other specially trained staff
may repair or perform other operations on the appliance.
-
Only assemble, connect and dispose of the appliance
according to the instructions.
-
Special lights, such as LED lights on the appliance, are
used to illuminate the interior of the appliance and are
not suitable for room lighting.
-
The manufacturer is not liable for damage caused by a
faulty fixed water connection.
Fire hazard:
-
This appliance contains a refrigerant which is environ‐
mentally friendly, but flammable. Leaking refrigerant may
ignite. It is hazardous for anyone other than an Author‐
ised Service Person to service this appliance. In Queens‐
land, the authorised Service Person MUST hold a Gas
Work Authorisation for hydrocarbon refrigerants, to carry
out Servicing or repairs where the gas system is being
opened or charged.
-
The coolant used (information on the model plate) is
ecofriendly but also flammable. Any leaking coolant may
ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not handle ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not store explosives or sprays using combustible
propellants such as butane, propane, pentane, etc. in the
appliance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
-
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
-
WARNING: Do not damage the refrigerant circuit.
-
Please be sure to store alcoholic drinks or other pack‐
aging containing alcohol in tightly closed containers.
Any alcohol that leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g
wear gloves.
-
Do not consume ice cream, water ice or ice cubes imme‐
diately and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical
heating or steam cleaning equipment, open flames or
defrosting sprays to defrost.
-
Do not use sharp implements to remove the ice.
Risk of crushing:
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other specific
advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
General safety instructions
* Depending on model and options 3
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”
2.2 Overview of appliances and equip‐
ment
3
3
5
6
7
2
4
1
2
2
2
2
2
Fig. 1 WP.. 4652 /5252 / W5250
(1)
Type plate (5) Lock*
(2) Grid shelves (6) Control elements and
temperature display
(3) Adjustable feet (7) Activated charcoal filter
(4) Interior lighting
2.3 SmartDevice
SmartDevice is the networking solution for your wine
storage cabinet.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (see 7.2.3WiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
2.4 Appliance range of use
Intended use
The appliance is only suitable for storing wine in a domestic
or domestic-like environment. This includes, for example,
using
-
in staff kitchens, bed and breakfast establishments,
-
by guests in country houses, hotels, motels and other
accommodation,
-
for catering and similar services in the wholesale trade.
The appliance is not suitable for freezing food;
The appliance is not suitable as a built-in unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly forbidden:
-
Storing and refrigerating medicines, blood plasma, labo‐
ratory preparations or similar substances and products
based on the Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage to the goods
stored or they may spoil.
Climate classifications
Depending on the climate classification the appliance is
designed to operate in restricted ambient temperatures. The
climate classification applying to your appliance is printed
on the rating plate.
Note
► Keep to the specified ambient temperatures in order to
guarantee that the appliance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
Appliance at a glance
4 * Depending on model and options
Climate clas‐
sification
for ambient temperatures of
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
2.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2.6 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press and hold the Back naviga‐
tion arrow for 3seconds:
Jumps back to the status
display in the main menu or from
the Settings menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Symbol Description
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 3.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
Functionality of the Touch display
* Depending on model and options 5
Menu Description
Advanced
menu
The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.
(see 3.2.2 Opening the Advanced menu)
3.2.1 Opening the Settings menu
Fig. 2 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.2.2 Opening the Advanced menu
Fig.3Access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance has been installed and connected in
accordance with the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see3 Functionality of the Touch display)
Switch on the appliance using the Touch display:
► If the display is in sleep mode: Press the confirmation
symbol.
► Carry out action steps according to the illustration.
Fig. 4 Example illustration
▷ The status display appears. (see 7.1 Control and display
elements)
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(see 7.2.19Demo mode)
More information:
-
Start the SmartDevice for the first time. (see 2.3 Smart‐
Device) and (see 7.2.3WiFi)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
Putting into operation
6 * Depending on model and options
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
Keep liquids in closed containers.
-
Position storage shelves according to the height required.
-
Observe maximum load weight. (see 10.1 Technical speci‐
fications)
5.2 Storage sketches
5.2.1 WP.. 4652
Fig. 5 Total of 107 bottles (for 0.75 l Bordeaux bottles)
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 2.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
7 Controls
7.1 Control and display elements
The display provides a quick overview of the current appli‐
ance status, the temperature setting, the status of func‐
tions and settings as well as alarm and error messages.
It is operated using the navigation arrows and confirmation
symbol.
Functions can be activated or deactivated and setting
values can be changed.
Fig.6Display
(1)
Status display (3) Forward navigation
arrow
(2) Backwards navigation
arrow
(4) Confirm
7.1.1 Status display
Fig. 7 Status display
(1)
Temperature, upper
zone
(2) Temperature, lower zone
The status display shows the temperature and is the home
display. You navigate from here to the other functions and
settings. The status display may show a range of display
symbols.
Storage
* Depending on model and options 7
7.1.2 Display symbols
Display symbols provide information about the status of the
appliance.
Symbol Appliance status
Standby
Appliance is switched off.
Flashing standby symbol
Appliance is starting up.
Flashing temperature
Target temperature not yet
reached. Appliance cooling to
temperature set.
Temperature display
Status display with white
border
Appliance is locked.
D in the display
Appliance is in DemoMode.
Flashing symbol
A fault is still active.
Error symbol
Appliance is in error state.
White bar at the bottom
Submenu
White background
Default, active setting or
active value
Increasing bar
Press button for 3 seconds to
activate setting.
Decreasing bar
Press button for 3 seconds to
deactivate setting.
Status display symbols
7.1.3 Acoustic signals
A signal sounds in the following cases:
-
If a function or a value is confirmed.
-
If a function or a value can either not be activated or not
deactivated.
-
As soon as an error occurs.
-
If there is an alarm message.
The alarms can be switched on and off in the customer
menu.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance. (see 7.1 Control and
display elements)
7.2.2 Switching appliance on and off
Using this setting the entire appliance can be switched on
and off.
Switching on appliance
Without activated DemoMode:
Fig.8
► Carry out action steps according to the illustration.
With activated DemoMode:
Fig.9
► Carry out action steps according to the illustration.
Note
Deactivate DemoMode before countdown finishes.
Fig. 10
▷ The temperature appears in the display.
Switching off appliance
Fig.11
Controls
8 * Depending on model and options
Fig.12
► Carry out action steps according to the illustration.
▷ Standby symbol is shown in the display.
▷ Display switches off after approximately 10 minutes.
7.2.3 WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see 2.3 SmartDevice)
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig.13
Fig. 14
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig. 15
WiFi
WiFi
Fig. 16
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig.17
Fig. 18
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 19
WiFi
SSID:
FritzBox12345678
FW: XXXXXXXXXX
HW: XXXXXXXXXX
10s
Controls
* Depending on model and options 9
Fig.20
Fig. 21 Status display
► Carry out action steps according to the illustration.
7.2.4 Temperature
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of refrigerated items
Setting temperature
Fig. 22 Changing temperature from 7°C to 9°C and from
5°C to 7°C
► Carry out action steps according to the illustration.
▷ Temperature is set.
7.2.5 Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.23
Fig. 24 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
7.2.6 SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
Fig.25
Controls
10 * Depending on model and options
Fig. 26
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.27
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
7.2.7 HumiditySelect
Use this function to set the humidity inside your appliance.
Setting the humidity correctly will have a positive effect
on the structure of the corks during long-term storage and
prevent them from drying out.
Note
The frequency and duration for which the door is open influ‐
ence the humidity in the appliance.
You can choose between two humidity settings:
HumiditySe‐
lect function
Temperature
setting on
the appli‐
ance
Application/energy
consumption
Standard
(preset)
10-12°C average humidity in the envi‐
ronment between 50-80%
low energy consumption of
the appliance
High 10-12°C average humidity in the envi‐
ronment < 50%
energy consumption of the
appliance increases
Increasing the humidity in the appliance
Fig.28
Fig.29
► Carry out action steps according to the illustration.
▷ Humidity in the appliance increases.
Setting the humidity in the appliance to standard
Fig.30
2s
Fig.31
► Carry out action steps according to the illustration.
▷ Humidity in the appliance decreases.
7.2.8 Lighting intensity
This setting allows the interior brightness to be adjusted
incrementally.
The following brightness values can be set:
-
Off
-
20%
-
40%
-
60%
-
80%
-
100% (default)
Setting lighting intensity
Fig.32
Controls
* Depending on model and options 11
Fig.33
► Carry out action steps according to the illustration.
▷ The lighting intensity increases or decreases accordingly.
7.2.9 Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
20%
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig.34
Fig. 35 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
7.2.10 Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.36
Fig. 37 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig. 39
Fig.40
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
7.2.11 Alarm Sound
This function enables all alarm sounds, such as door alarm,
to be switched on and off.
Activating Alarm Sound
Fig. 41
Fig. 42
► Carry out action steps according to the illustration.
▷ Alarm Sound is activated.
Controls
12 * Depending on model and options
Deactivating Alarm Sound
Fig.43
Fig.44
► Carry out action steps according to the illustration.
▷ Alarm Sound is deactivated.
7.2.12 Key Sound
This function makes it possible to switch all confirmation
sounds and the Startsound on and off.
Activating Key Sound
Fig.45
Fig.46
► Carry out action steps according to the illustration.
▷ Key Sound is activated.
Deactivating Key Sound
Fig. 47
Fig.48
► Carry out action steps according to the illustration.
▷ Key Sound is deactivated.
7.2.13 Display lock
This setting avoids accidental operation of the appliance.
Application:
-
Prevent settings and functions being changed uninten‐
tionally.
-
Prevent appliance being switched off unintentionally.
-
Prevent temperature being set unintentionally.
Note
Despite the display lock being activated, the door lock can
be opened and locked at any time using the PIN code
(see 7.2.14Display PIN) .
Activating display lock
Fig. 49
Fig. 50 Example uses the preset display code 1 1 1.
► Carry out action steps according to the illustration.
▷ The display lock is activated.
▷ The status display appears.
Unlocking the display for a short time
Fig.51
► Carry out action steps according to the illustration.
▷ The display lock is deactivated.
▷ The status display appears.
Controls
* Depending on model and options 13
7.2.14 Display PIN
Use this function to change the display PIN. The display
PIN is set to 1 1 1 on delivery. If you have forgotten the
display PIN, you can reset the display PIN by resetting the
appliance to the factory settings. (see 7.2.20 Resetting to
factory settings )
Changing the display PIN
Fig.52
Fig. 53 Example illustration: Change display PIN from
factory setting 1 1 1 to 234
Fig. 53 Example illustration: Change display PIN from
factory setting 1 1 1 to 234
Fig. 53 Example illustration: Change display PIN from
factory setting 1 1 1 to 234
► Carry out action steps according to the illustration.
▷ Display PIN is changed.
7.2.15 Language
This setting allows the display language to be set.
Setting language
Fig.54
Fig.55
► Carry out action steps according to the illustration.
▷ The selected language is set.
7.2.16 Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch display)
Controls
14 * Depending on model and options
Indicating the device information
Fig.56
Fig.57
► Carry out action steps according to the illustration.
▷ Display indicates device information.
7.2.17 Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Display indicates software version.
7.2.18 Reminder
This function allows you to activate or deactivate the
reminder to change theFreshAir activated charcoal filter.
Deactivating the reminder
Fig.60
Fig.61
► Carry out steps according to the illustration.
▷ Reminder is deactivated.
Activating the reminder
Fig. 62
Fig.63
► Carry out steps according to the illustration.
▷ Reminder is activated.
7.2.19 Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and a “D” appears on the
status display, demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see 7.2.20 Resetting
to factory settings )
Activating demo mode
Fig.64
Fig.65
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “D” appears in the status display.
Controls
* Depending on model and options 15
Deactivating demo mode
Fig.66
Fig. 67
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
7.2.20 Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.68
Fig. 69
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Messages
7.3.1 Warnings
Warnings are issued by means of an audio signal and visu‐
ally via a symbol on the display. The signal gets louder until
the warning is acknowledged.
Message
Cause Remedy
Door open
This message appears if the door is
open for too long.
Close the door.
Press the confirmation button.
Alarm is ended.
Note
You can set how long it takes
for this message to appear
(see 7.2.10Door alarm ) .
Temperature alarm
This message appears if the
temperature does not match the set
temperature. Reasons for the differ‐
ences in temperature can be:
⁃ Warm items for refrigeration have
been placed inside.
⁃ Too much warm room air flowed
in when rearranging and removing
refrigerated products.
The power was cut off for a
prolonged period.
Press the confirmation button.
Warmest temperature is
displayed.
Press the confirmation button.
The current temperature flashes
and the display alternates with
the temperature alarm symbol
until the set temperature is
reached.
Check the quality of the refriger‐
ated goods.
Controls
16 * Depending on model and options
Message Cause Remedy
Error
The appliance is defective, there is
an appliance fault or a component
of the appliance is faulty.
Transfer refrigerated goods.
Press the confirmation button.
Error code is displayed.
Press the confirmation button.
If present, another error code is
indicated.
or
Status screen with flashing error
symbol is displayed
Pressing the navigation buttons
indicates error code(s) again.
Note the error code(s) and
contact customer service.
Power failure
The message appears after an
interruption in the power supply if
the temperature is above the alarm
limit when the power returns.
Press the confirmation button.
The warmest temperature is
displayed.
Press the confirmation button.
Alarm is cancelled and current
temperature is indicated.
Check the quality of the refriger‐
ated goods.
WLAN error
WLAN connection is interrupted. Check the connection.
Press the confirmation button.
Alarm is ended.
WLAN WWW error
The message appears if there is no
Internet connection via WLAN.
Check the connection.
Press the confirmation button.
Alarm is ended.
7.3.2 Reminder
Reminders appear when you are being asked to do some‐
thing. They are issued by means of an audio signal and visu‐
ally via a symbol on the display. Acknowledge the message
by pressing the confirmation button.
Message Cause Remedy
ReplaceFreshAir acti‐
vated charcoal filter
The message appears every 6 months. ReplaceFreshAir activated charcoal filter,
Reminder is closed.
8 Features
8.1 Wooden grid
The appliances are equipped with a wooden grid for wine
storage.
Features
* Depending on model and options 17
Fig. 70 Example illustration
(1)
Wooden grid (2) Bar
The standard positions for the bars are indicated by
notches. If you use these, you can store the maximum
number of bottles. (see 5.2 Storage sketches)
Fig. 71 Arrangement of the bars for maximum number of
bottles.
8.1.1 Moving the bar
Fig. 72 Example illustration
You can remove the bars in the wooden rack to store larger
or smaller bottles.
Fig. 73 Example illustration
► Lift and pull out the bar at the rear.
Fig. 74 Example illustration
► Insert the bar in the desired position.
8.2 Labels
Description labels as accessories can be purchased from
your specialist dealer. You can use these to note the types
of wine that are stored in the respective compartment.
Fig.75
► Attach the label from above.
9 Maintenance
9.1 FreshAir activated carbon filter
Wine is constantly developing according to its ambient
conditions, so air quality is essential for preservation.
The FreshAir activated charcoal filter guarantees optimal air
quality.
❑
Change the activated charcoal filter every 6 months.
❑
Dispose of the activated charcoal filter with regular
household waste.
Maintenance
18 * Depending on model and options
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
9.1.1 Replacing the FreshAir activated charcoal
filter
Must be carried out multiple times depending on the equip‐
ment.
Fig. 76
► Remove the panel.
Fig.77
► Pull the drawer out.
Fig.78
► Pull out the filter.
Fig.79
► Insert the new filter.
Fig.80
► Push the drawer in.
Fig.81
► Set the panel back in place.
9.2 Cleaning the appliance
9.2.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
9.2.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
Maintenance
* Depending on model and options 19
9.2.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
9.2.4 Cleaning the equipment
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Cleaning with a damp, lint-free cloth:
- Bottle shelf
► Clean the equipment.
9.2.5 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Cooling 5°C to 20°C
Maximum loading weight for
the bottle rack
Bottle shelf 60 kg
Bottle rack with
telescopic rails
25 kg
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
Customer help
20 * Depending on model and options
Defect Cause Remedy
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ The ambient temperature is too
high.
► Problem solution: (see2.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
The exterior
surfaces of the
appliance are
warm.*
→ The heat of the refrigeration circuit
is used to avoid condensation.
► This is normal.
10.3.2 Features
Defect Cause Remedy
Mould on the wine
bottles
→ Similar to other types of bearing,
a slight layer of mould can form
depending on the type of adhesive
used for the label.
► Remove any adhesive residues.
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
Customer help
* Depending on model and options 21
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
-or-
► Refer to the type plate for appliance information.
(see 10.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
10.5 Model plate
The type plate is located on the bottom left of the inside of
the appliance.
Fig.82
(1)
Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see 7.2.2 Switching appliance on
and off )
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 9.2Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Shutting down
22 * Depending on model and options
Disposal
* Depending on model and options 23
home.liebherr.com/fridge-manuals
wine cooling cabinet
Issue date:20250707
Part number index:7083588-00
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
