Congratulations on the purchase of your new appli‐
ance. With this purchase, you have chosen all the
advantages of the latest refrigeration technology, guar‐
anteeing you a high-quality appliance with a long life
span and high operating safety.
The equipment of your appliance gives you the highest
level of day-to-day ease of operation.
Together we are making an active contribution to the
conservation of our environment by purchasing this
appliance which is manufactured in an environmentally
friendly process with the use of recyclable materials.
We hope you enjoy your new appliance.
The manufacturer is constantly working to improve all
types and models. Therefore, please be aware that we
reserve the right to make changes to the shape, equip‐
ment and technology.

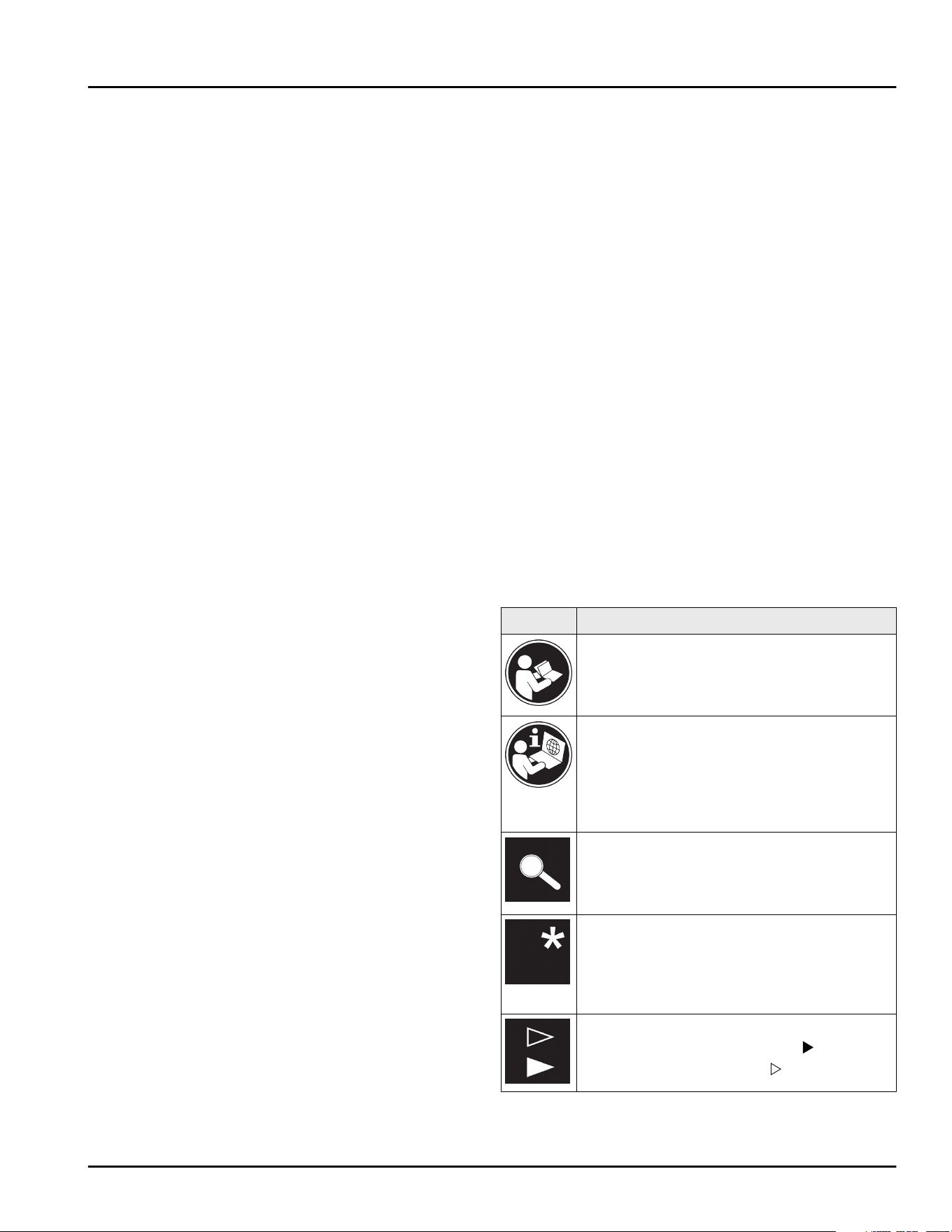

Symbol
Explanation
Read instructions
Please read the information in these
instructions carefully to understand all of
the benefits of your new appliance.
Additional information online
The digital manual with supplemental
information can be found online by scan‐
ning the QR code on the front page of this
manual or by entering the service number
at home.liebherr.com/fridge-manuals.
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of
models, so there may be differences.
Sections that apply to certain models only
are indicated by an asterisk (*).
Instructions and results
Instructions are marked with a
.
Results are marked with a
.
2 * Depending on model and options
Symbol Explanation
Videos
Videos about the appliances are available
on the YouTube channel of Liebherr-Hausg‐
eräte.
Open-source licenses:
The appliance includes software components that
make use of open-source licenses. You can find
information on the open-source licenses to be used
here: home.liebherr.com/open-source-licenses
These operating instructions apply to:
UW
3710
3720
1 General safety instructions
Please keep these operating instructions in a safe
place so you can refer back to them at any time.
If you pass the appliance on, please hand these oper‐
ating instructions to the new owner.
Read and follow these instructions. They contain
safety information which is important for safe and
problem-free installation and operation. Always read
and follow the safety information.
Dangers for the user:
-
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance. Cleaning and user maintenance must
not be performed by children unless they are super‐
vised. Children between the ages of 3 and 8 may
load and unload the appliance. Children under the
age of 3 must be kept away from the appliance
unless they are constantly supervised.
-
IMPORTANT: The power plug must be easily acces‐
sible so that the appliance can be disconnected
from the mains quickly in an emergency. It must not
be behind the back of the appliance.
-
The socket must be easily accessible so that the
appliance can be disconnected quickly from the
electricity in an emergency. It must not be located in
the area behind the appliance.
-
Always hold the appliance at the plug when discon‐
necting it from the household power. Do not pull on
the cable.
-
Disconnect the power plug or fuse if there is a
malfunction.
-
Do not damage the power cable. Do not operate the
appliance with a faulty power cable. If the supply
cord is damaged, it must be replaced by the manu‐
facturer, its service agent or similarly qualified
persons in order to avoid a hazard. For Plug and Play
connections, the change may be carried out by the
customer.
-
Repairs and work on the appliance may only be
carried out by Customer Service or other specifically
trained qualified personnel.
-
Only install, connect and dispose of the appliance in
accordance with the instructions.
-
Only operate the appliance after it has been
installed.
Risk of fire:
-
The refrigerant contained within the appliance
(specifications on the identification plate) is environ‐
mentally friendly, but flammable. Leaking refrigerant
can ignite.
•
WARNING: Do not damage the refrigerant circuit.
•
Do not handle ignition sources inside the appli‐
ance.
•
WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer (e.g. steam cleaning appliances,
heating appliances, ice cream makers).
•
If refrigerant leaks: Remove naked flames or igni‐
tion sources located near the area of the leak.
Ventilate the room well. Contact Customer
Service.
-
Do not operate the appliance near explosive gases.
-
Do not store or use gasoline or other flammable
gases and liquids near the appliance.
-
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
You can recognize such spray cans by the printed list
of contents or by a flame symbol. Any leaking gases
can be ignited by electrical components.
-
Alcoholic beverages or other containers holding
alcohol must always be tightly sealed for storage
purposes. Any leaking alcohol can be ignited by elec‐
trical components.
Risk of falling or toppling over:
-
WARNING: To avoid a hazard due to instability of the
appliance, it must be fixed in accordance with the
instructions.
-
Do not stand on the base, drawers, doors etc. or use
them as improper supports. This applies in particular
to children.
Danger of poisoning:
-
Do not consume spoiled food.
Danger of frostbite, feeling of numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or
chilled/frozen food or take protective measures, e.g.
wear gloves.
Risk of injury and damage:
-
Hot steam may cause injuries. Do not use any elec‐
trical heating or steam cleaning equipment, naked
flames or defrosting sprays for defrosting measures.
General safety instructions
* Depending on model and options 3
-
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
-
Do not remove ice using sharp objects.
-
WARNING: Keep clear of obstruction all ventilation
openings in the appliance enclosure or in the struc‐
ture for building-in.
-
WARNING: Risk of child entrapment. Before you
throw away your old refrigerator or freezer:
•
Take off the doors.
•
Leave the shelves in place so that children may
not easily climb inside.
Risk of crushing:
-
Do not hold onto the hinge when opening and
closing the door. Fingers may become trapped.
California Proposition 65
-
WARNING: This product can expose you to chemi‐
cals including Diisononyl Phthalate (DINP), which is
known to the State of California to cause cancer,
and Di-isodecyl Phthalate (DIDP), which is known to
the State of California to cause birth defects or
other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
FCC Warning *
-
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.*
FCC information *
-
This appliance has been tested and found to comply
with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference from an installation in residen‐
tial areas. This appliance generates, uses and can
radiate radio-frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this appliance
does cause harmful interference to radio or televi‐
sion reception, which can be determined by
switching the appliance on and off, the user should
try to correct the interference by one or more of the
following measures:*
•
Reorient or relocate the receiving antenna.*
•
Increase the distance between the appliance and
receiver.*
•
Connect the appliance to an outlet on a circuit
different from that to which the receiver is
connected.*
•
Consult the dealer or an experienced radio/TV
technician for help.*
FCC Radio Frequency Exposure Statement *
-
This appliance is found to comply with FCC radio
frequency (RF) exposure limits set for an uncon‐
trolled environment. This transmitter must not be set
up or operated in conjunction with another antenna
or another transmitter.*
-
This appliance should be installed and operated with
a minimum space of 200 mm (7 7/8 in) between the
antenna and your body. The user must follow the
specific operating instructions to ensure compliance
with RF exposure.*
IC information *
-
This appliance has license-exempt transmitters/
receivers, which comply with the license-exempt
Radio Standards Specification (RSS) of Innovation,
Science and Economic Development Canada. Opera‐
tion is subject to the following two conditions:*
•
This appliance may not cause interference.*
•
This device must accept any interference,
including interference that may cause undesired
operation of the device.*
IC Radio Frequency Exposure Statement *
-
This appliance meets the IC RSS-102 limits for radia‐
tion exposure, which were defined for an uncon‐
trolled environment. This appliance should be
installed and operated so that there is a minimum
space of 200mm(7 7/8in) between the antenna and
your body.*

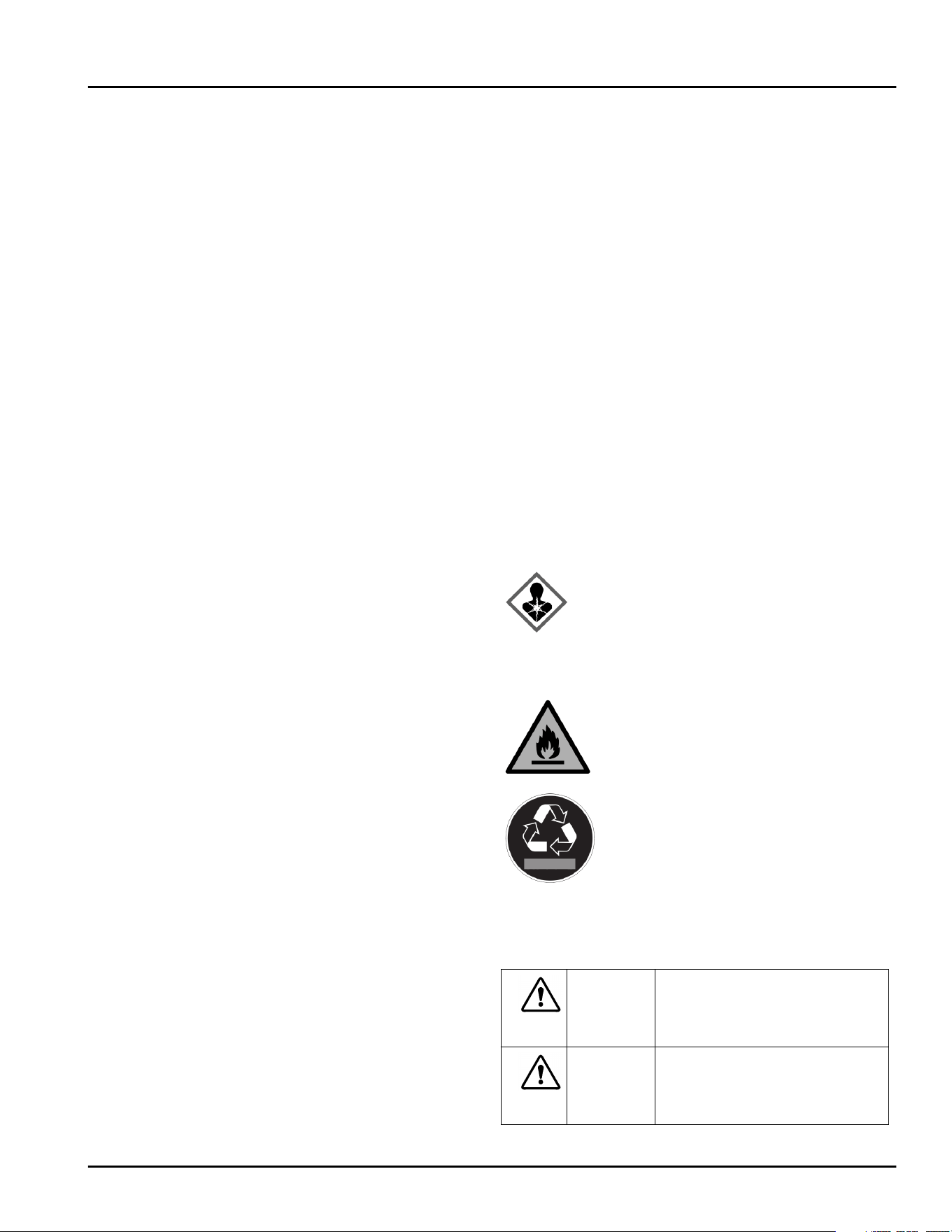

Symbols on the device:
The symbol may be located on the
compressor. It refers to the oil in the
compressor and refers to the following
danger: Can be fatal if swallowed or
inhaled. This notice only applies for
recycling. There is no danger during
normal operation.
WARNING: Risk of fire / flammable
materials. The symbol is located on the
compressor and indicates the danger
from flammable materials. Do not
remove the label.
This label or a similar one may be
located on the rear of the appliance.
This label indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
notice only applies for recycling. Do not
remove the label.
Observe the warning messages and other detailed
information in the other sections:
DANGER
Indicates an immediately
hazardous situation, which if
not avoided, will result in death
or serious injury.
WARNING Indicates a hazardous situa‐
tion, which if not avoided,
could result in death or serious
injury.
General safety instructions
4 * Depending on model and options
CAUTION Indicates a hazardous situa‐
tion, which if not avoided,
could result in minor or
moderate injury.
NOTICE Indicates a hazardous situa‐
tion, which if not avoided,
could result in damage to prop‐
erty.
Note Indicates useful advice and
tips.
2 The appliance at a glance
2.1 Delivered contents
Check all parts for transport damage. If you have any
complaints, please contact the retailer or customer
service. (see 10.4 Customer Service)
Delivery contains the following parts:
-
Integrated appliance
-
Equipment (depending on your model)
-
Installation parts (depending on your model)
-
User Guide
-
Installation Guide
-
Warranty documents

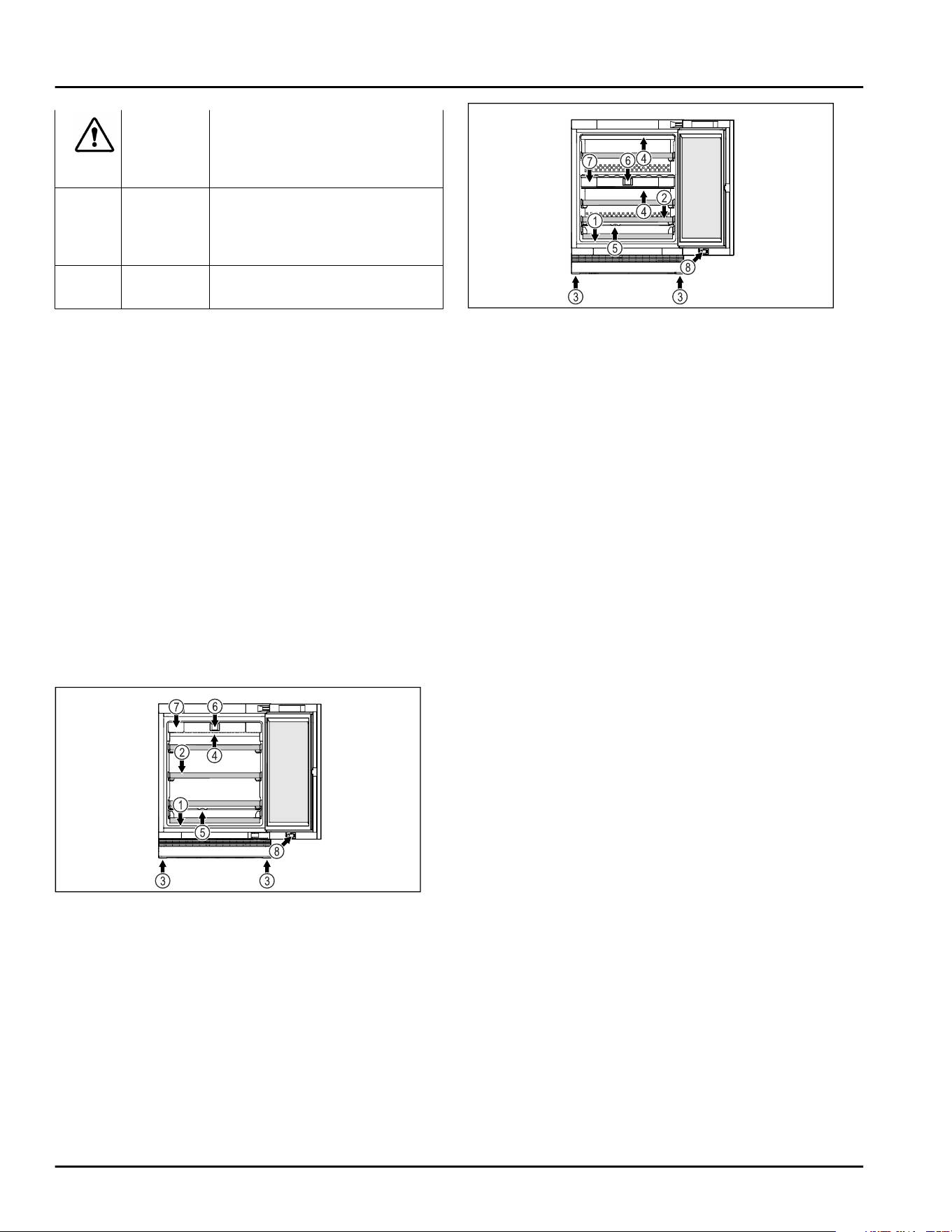

2.2 Overview of appliances and equip‐
ment
Fig. 1 Exemplary illustration of the front side
Equipment
(1)
Type plate (5) Defrost water drain
(2) Support rack (6) Operating elements
and temperature
display
(3) Adjustable foot (7) FreshAir activated
charcoal filter
(4) Interior lighting* (8) Lock*
Fig. 2 Exemplary illustration of the front side
Equipment
(1)
Type plate (5) Defrost water drain
(2) Support rack (6) Operating elements
and temperature
display
(3) Adjustable foot (7) FreshAir activated
charcoal filter
(4) Interior lighting* (8) Lock*
2.3 SmartDevice
SmartDevice is the networking solution for your wine
storage cabinet.
If your appliance is SmartDevice-enabled or compat‐
ible, you can quickly and easily connect your appliance
to your WiFi. With the SmartDevice app, you can
operate your appliance from a mobile device. Addi‐
tional functions and setting options are available in the
SmartDevice app.
SmartDevice-
enabled appli‐
ance:*
Your appliance is capable of being
a SmartDevice. To be able to
connect your device to WiFi, you
need to download the SmartDevice
app.*
SmartDevice-
compatible
appliance:*
Your appliance is compatible for
use with the SmartDeviceBox. You
must first purchase and install the
SmartDeviceBox. In order to
connect your appliance to the WiFi,
you need to download the Smart‐
Device app.*
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
The SmartDeviceBox is available from the Liebherr
Service Center. The address for your respective
country can be found on the back of the instructions.*
The appliance at a glance
* Depending on model and options 5
Downloading the
SmartDevice
app:
After you have installed and
configured the SmartDevice app,
you can connect your appliance to
your WLAN using your SmartDevice
app the WLAN device function
(see 7.2.3WiFi) .
2.4 Range of appliance use
Normal use
-
staff kitchen areas in shops, offices and other
working environments;
-
farm houses and by clients in hotels, motels and
other residential type environments;
-
bed and breakfast type environments;
-
catering and similar non-retail applications.
The appliance is not suitable for freezing food;
The appliance is suitable for integrated under worktop
use
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-
Storage and cooling of medication, blood plasma,
laboratory preparations or similar substances and
products in accordance with the CMDCAS and FDA
510(k)
-
Use outdoors
-
Use in moist areas exposed to the rain
-
Use in outdoor areas with very high humidity
-
Use in areas at risk of explosion
Incorrect appliance use can cause damage to the
stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific ambient
temperature limits according to its climate rating The
climate rating for your appliance is printed on the
rating plate
Note
► To guarantee trouble-free operation, comply with the
indicated ambient temperatures.
Climate
rating
for ambient temperatures from
SN 10°C(50°F) to 32°C(90°F)
N 16°C(61°F) to 32°C(90°F)
ST 16°C(61°F) to 38°C(100°F)
T 16°C(61°F) to 43°C(109°F)
Climate
rating
for ambient temperatures from
SN-ST 10°C(50°F) to 38°C(100°F)
SN-T 10°C(50°F) to 43°C(109°F)
2.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable
safety regulations and with the corresponding direc‐
tives.
2.6 Spare parts
Spare parts for functional and storable parts of the
equipment are available for 15 years.
3 Functionality of the
Touch&Swipe display
You operate your appliance using the Touch & Swipe
display. You select appliance functions in the
Touch & Swipe display (hereafter referred to as display)
by tapping them. If you do not perform any action on
the display for 10 seconds, the display either jumps
back to the higher-level menu or directly to the status
display.
3.1 Navigation and symbol explana‐
tion
In the illustrations, different symbols are used to navi‐
gate the display. The following table describes these
symbols.
Symbol
Description
Briefly touch the display:
Activates/deactivates function.
Confirms selection.
Opens submenu.
Touch the display for a specified
time (e.g. 3seconds):
Activates/deactivates function or
value.
Swipe left or right:
Navigate in the menu.
Briefly touch the Back symbol:
Jumps back one menu level.
Functionality of the Touch&Swipe display
6 * Depending on model and options

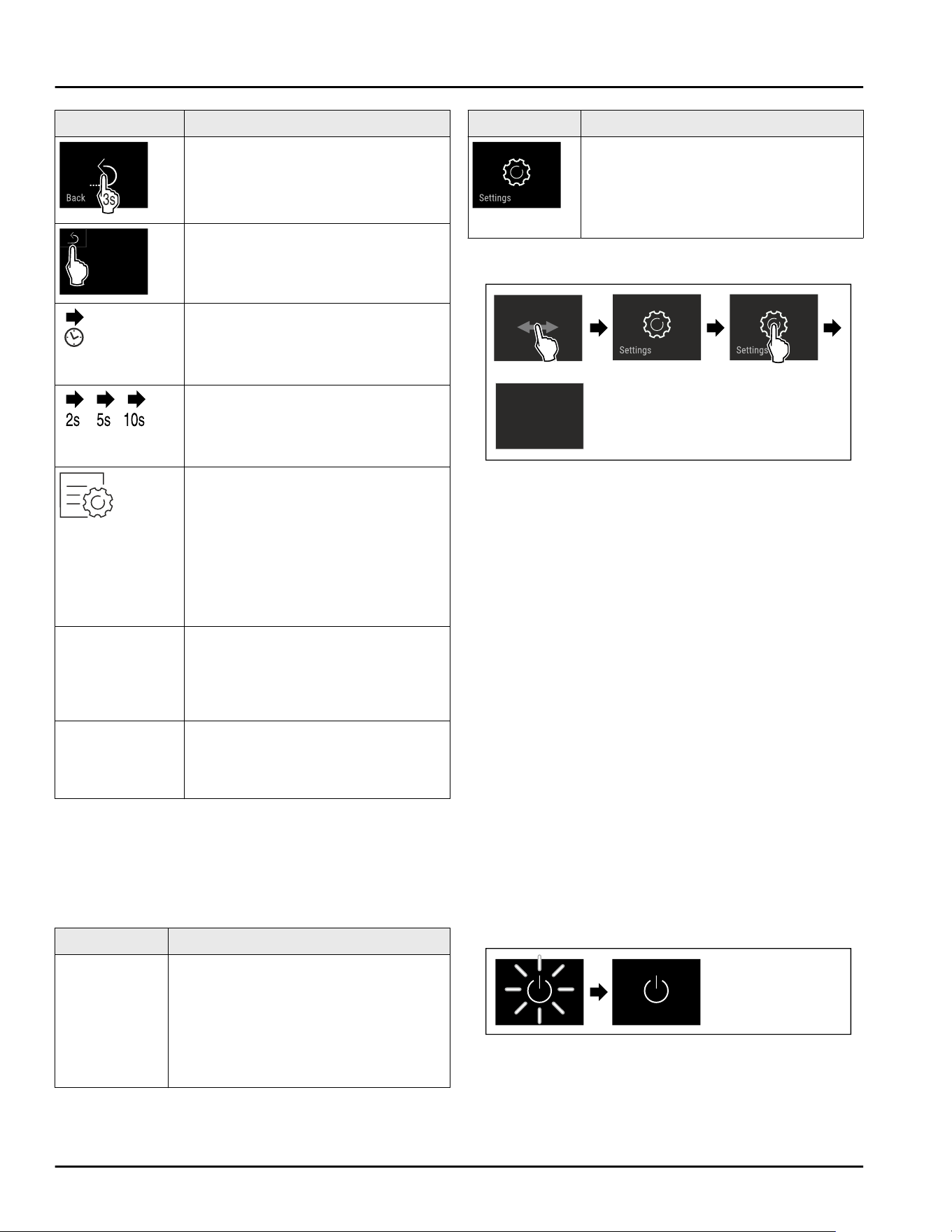

Symbol Description
Press and hold the Back symbol for
3seconds:
Jumps back to the status display.
Briefly touch the Back symbol at
the top left:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds for
the following message to appear in
the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu and
opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
No action for
10seconds
If you do not perform any action on
the display for 10 seconds, the
display either jumps back to the
higher-level menu or directly to the
status display.
Close door and
open it again.
If you close the door and immedi‐
ately open it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions are distributed over various
menus:
Menu
Description
Main menu When you switch the appliance on,
you are automatically in the main
menu.
From here you can navigate to the
most important appliance functions,
to the Settings menu and to the
Advanced menu.
Menu Description
Settings menu
The Settings menu contains addi‐
tional appliance functions for setting
up your appliance.
3.2.1 Opening the Settings menu
Fig. 3 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display
brightness is dimmed.
3.3.1 Ending sleep mode
► Touch the display briefly with your finger.
▷ Sleep mode is ended.
4 Start-up
4.1 Switching on the appliance (first
use)
Make sure that the following requirements are fulfilled:
- Appliance is set up and connected.
- All adhesive strips, adhesive and protective films
and transport locks are removed from inside and
outside the appliance.
Fig. 4 Example illustration
► Standby symbol appears is flashing: Wait until the
start process has completed.
▷ Display shows the standby symbol.
Start-up
* Depending on model and options 7
If the appliance is delivered with default settings, you
must first set the screen language first before commis‐
sioning.
Français Nederlands
Language
Deutsch
Fig.5

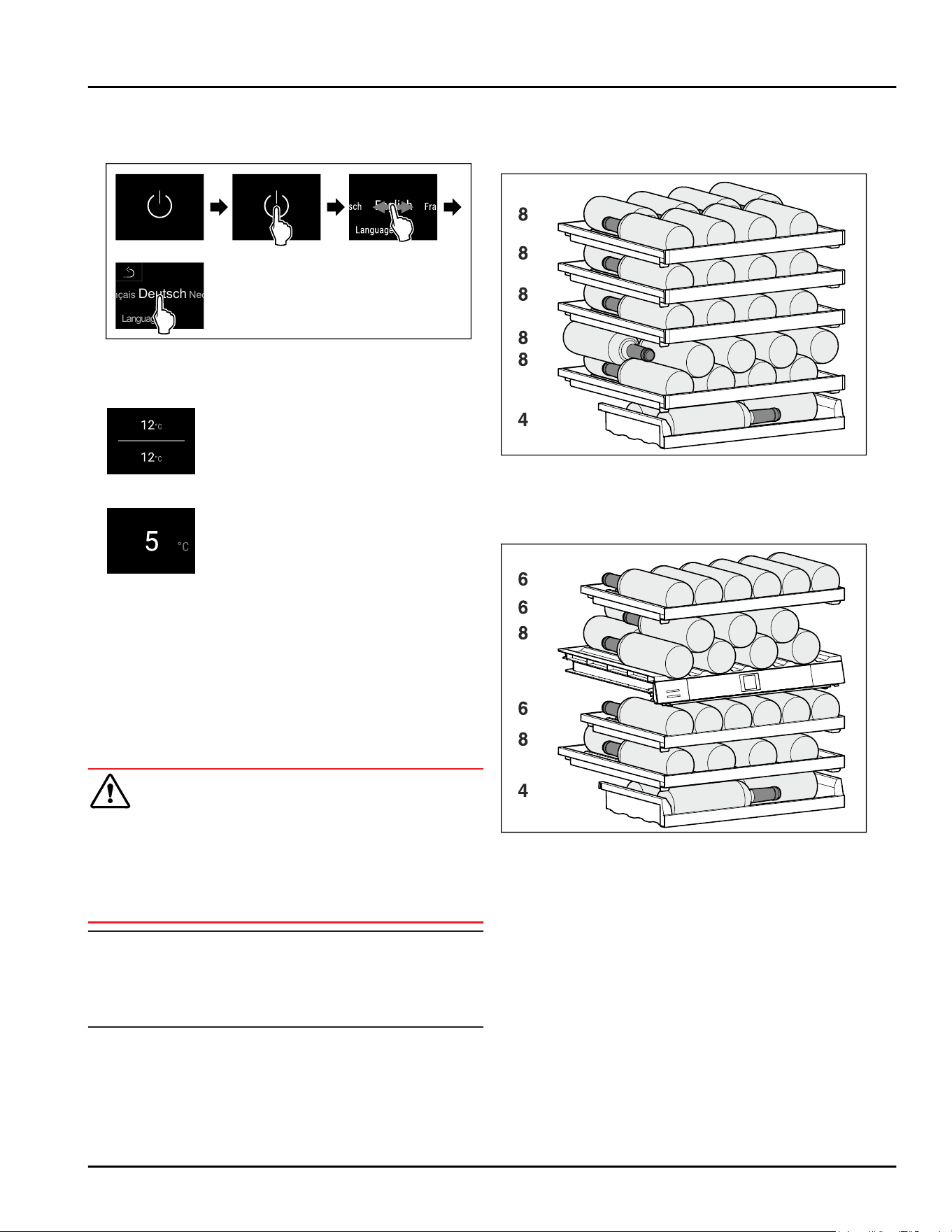

► Carry out action steps according to the illustration.
▷ Language is set.
Fig. 7 Status display
Fig. 7 Status display
▷ The appliance is ready for use once the temperature
appears in the display.
▷ The temperature display flashes until the set
temperature is reached.
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire from electrical appliances!
If you use electrical devices in the food area of your
appliance, they may case a fire.
► Do not use electrical devices in the food area of the
appliance if they have not been recommended by the
manufacturer.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance
► Always keep the air slots unobstructed.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
5.2 Storage sketch
5.2.1 UW3710
Fig. 8 Total of 44 bottles (0.75 l Bordeaux bottles according to
standard NF H 35-124)
5.2.2 UW3720
Fig. 9 Total of 38 bottles (0.75 l Bordeaux bottles according to
standard NF H 35-124)
Storage
8 * Depending on model and options

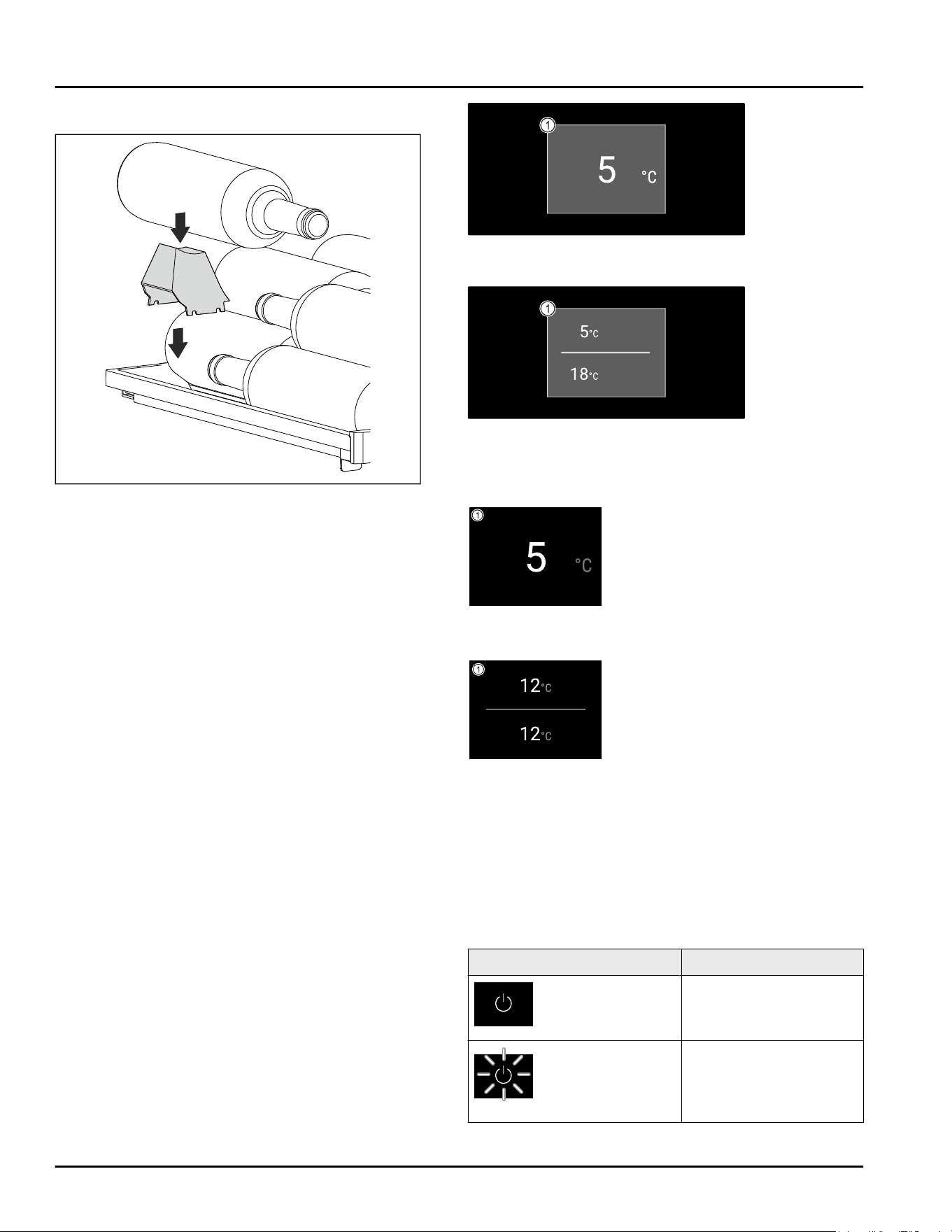

5.2.3 Using the bottle support*
Fig. 10
6 Energy saving
-
Always ensure good ventilation. Keep clear of
obstruction all ventilation openings in the appliance
enclosure or in the structure for building-in.
-
Never block air slits in the fan.
-
Do no install the appliance in an area with direct
sunlight, next to a heating unit or similar.
-
If you install the appliance directly next to an oven,
its energy consumption may increase slightly. This
depends on the service life and how often the oven
is used.
-
Energy consumption depends on installation condi‐
tions such as the ambient temperature
(see2.4 Range of appliance use) . A warmer ambient
temperature can increase the energy consumption.
-
Avoid opening the appliance door for any longer then
necessary
-
The lower the temperature is set the higher the
energy consumption.
7 Use
7.1 Control and display elements
The display provides a quick overview of the current
appliance status, the temperature setting, the status
of functions and settings as well as alarm and error
messages.
They are operated directly on the Touch & Swipe
display by swiping and tapping.
Functions can be activated or deactivated and settings
values can be changed.
Fig. 11 Touch&Swipe display*
(1) Status display
Fig. 12 Touch&Swipe display*
(1)
Status display
7.1.1 Status display
Fig. 13 Status display*
(1)
Temperature
Fig. 14 Status display*
(1)
Temperature
The status display is the initial display.
You can navigate from the functions and settings from
the status display.
7.1.2 Display symbols
The display symbols provide information about the
current status of the appliance.

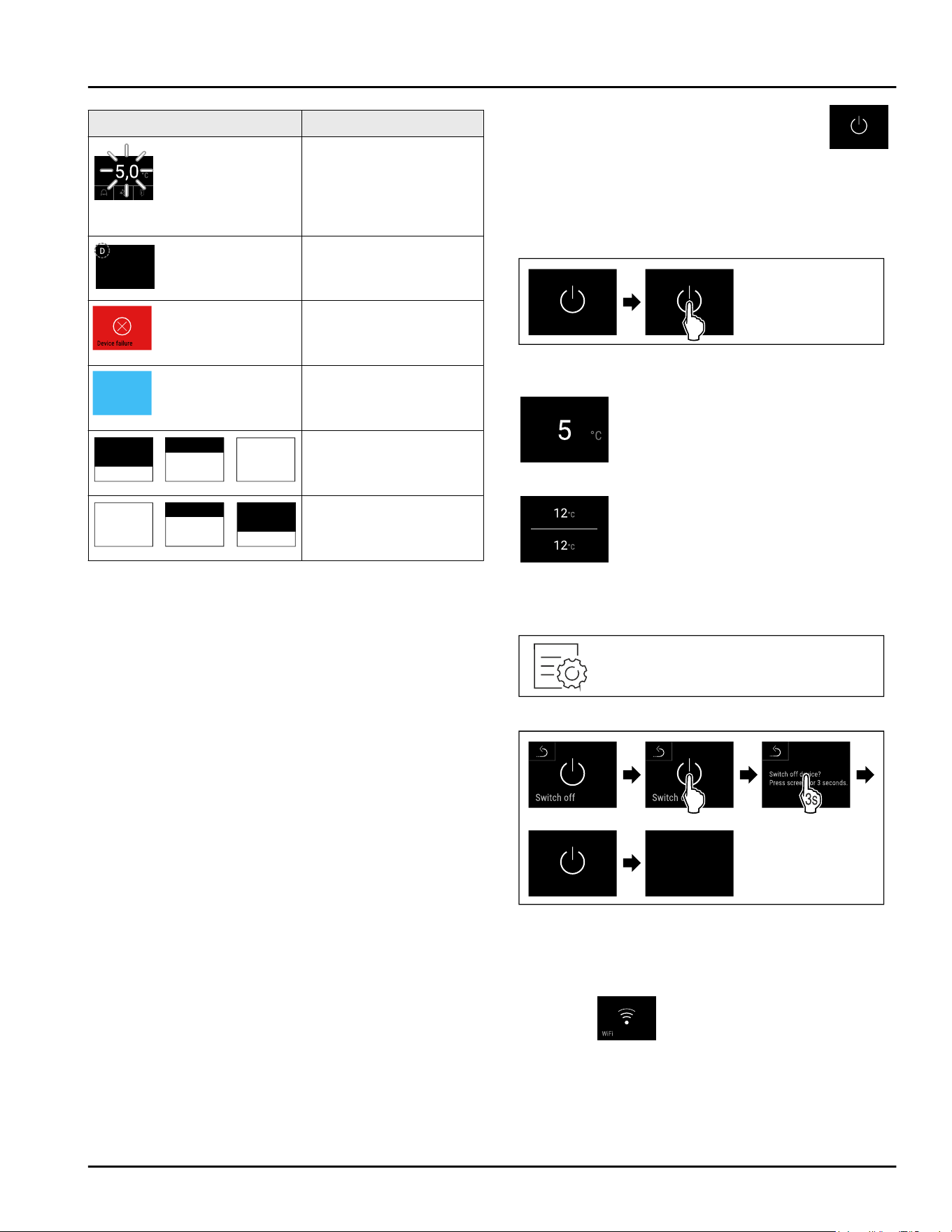

Symbol
Appliance status
Standby symbol
Appliance is switched
off.
Standby symbol
(flashing)
Appliance is starting
up.
Energy saving
* Depending on model and options 9
Symbol Appliance status
Temperature (flashing)
Target temperature not
yet reached. Appliance
cooling to set tempera‐
ture.
D in the display
Appliance is in demo
mode.
Error symbol (red)
Appliance is in error
state.
Background (blue)
Active setting or active
function
Bars (increasing)
Press for 3 seconds to
activate the setting.
Bars (decreasing)
Press for 3 seconds to
deactivate the setting.
Status display symbols
7.1.3 Acoustic signals
A signal sounds in the following cases:
-
If a function or a value is confirmed.
-
If a function or a value can neither be activated nor
deactivated.
-
As soon as a fault occurs.
-
If there is an alarm message.
The alarms can be switched on and off in the customer
menu.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that
your appliance is fully functional.
Before you alter, activate or deactivate the appliance
functions, make sure that the following requirements
are met:
❑
You have read and understood the descriptions of
how the display works. (see 3 Functionality of the
Touch&Swipe display)
❑
You have familiarized yourself with the operating
and display elements of your appliance.
(see 7.1 Control and display elements)
7.2.2 Switching appliance on and off
This function makes it possible to switch the entire
appliance on and off.
Switching on appliance
Without activated demo mode:
Fig. 15
► Carry out action steps according to the illustration.
Fig. 17 Status display
Fig. 17 Status display
▷ The temperature appears in the display.
Switching off appliance
Fig. 18
Fig. 19
► Carry out action steps according to the illustration.
▷ Standby symbol is shown in the display.
▷ Display switches off after about 10 minutes.
7.2.3 WiFi
Use this function to connect your appliance to WiFi.
You can then operate it via the SmartDevice app on a
mobile device. You can also use this function to
disconnect or reset the WiFi connection.
Use
10 * Depending on model and options
To connect your device to WiFi, you need the SmartDe‐
viceBox.*
More information on the SmartDevice: (see 2.3 Smart‐
Device)
Note
The SmartDevice function is not available in the
following countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.*

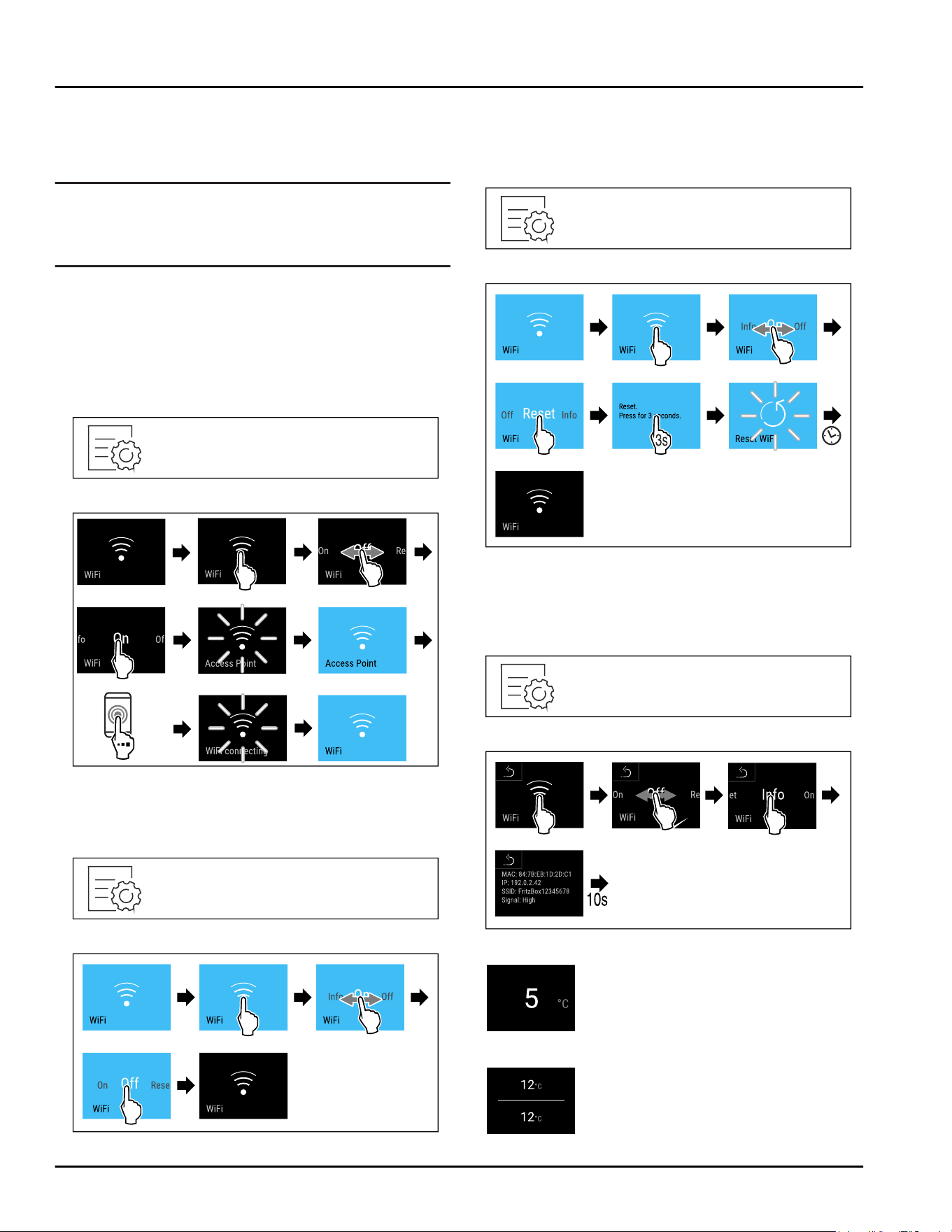

Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see 2.3 SmartDevice) *
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig.20
Fig.21
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig.22
Fig.23
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 24
Fig.25
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 26
Fig.27
Fig. 28 Status display
Use
* Depending on model and options 11
Fig. 28 Status display
► Carry out action steps according to the illustration.
7.2.4 Temperature
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of refrigerated
items
Note
The temperature may differ from the temperature
displayed in some areas of the interior.
At the correct temperature, refrigerated items will keep
for longer. This avoids disposing of food unnecessarily.

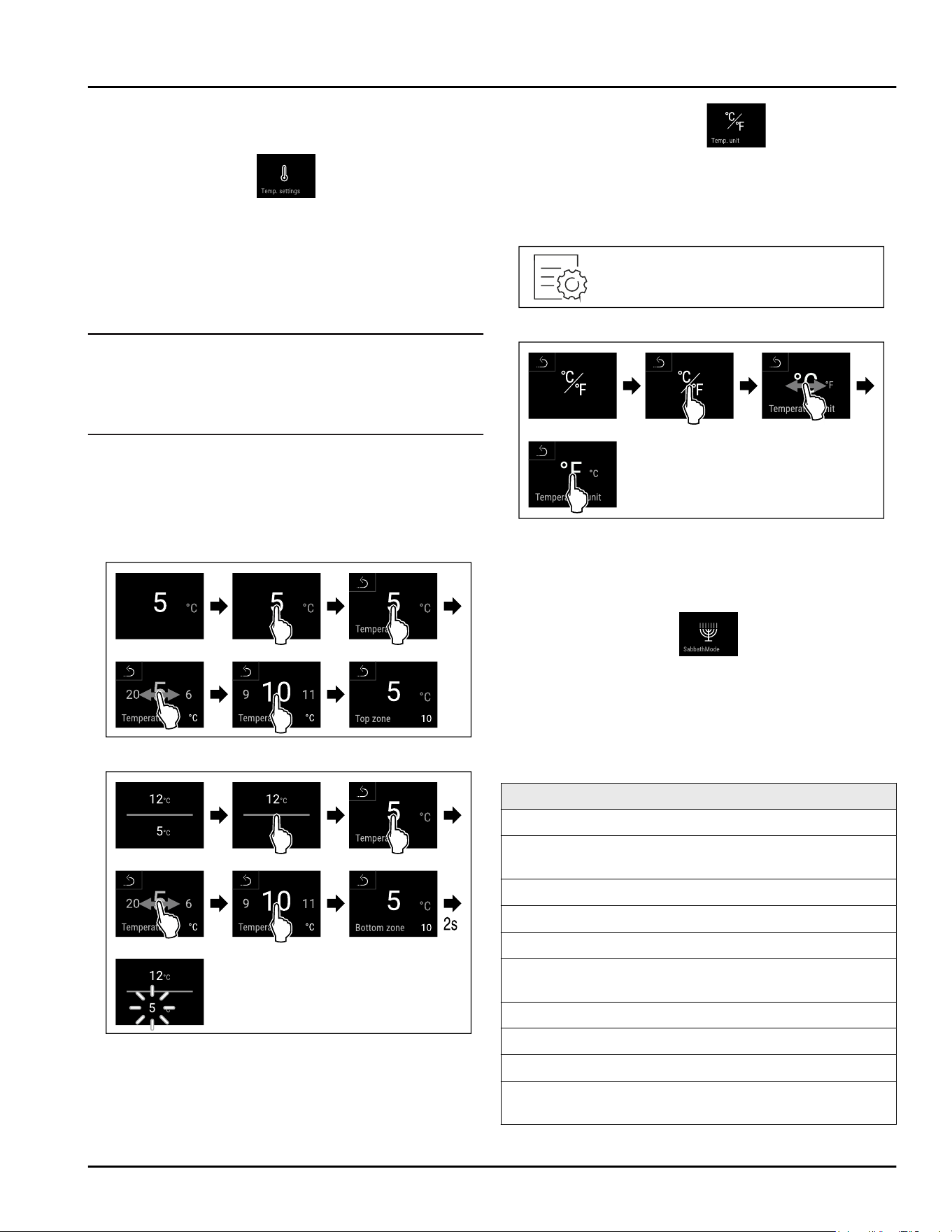

Setting the temperature
The following steps describe how to increase the
temperature, for example, from 5 °C (41 °F) to
10°C(50°F).
► Tap the temperature.*
► Tap the temperature of the desired zone.*
Fig.29*
Fig.30*
► Carry out action steps according to the illustration.
▷ Temperature is set.
7.2.5 Temperature unit
Use this function to set the temperature unit. You can
set the temperature unit in either degrees Celsius or
degrees Fahrenheit.
Setting the temperature unit
Fig.31
Fig. 33 Example illustration: Switching between
degrees Celsius or degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ Temperature unit is set.
7.2.6 SabbathMode
This function activates and deactivates SabbathMode.
If you activate this function, some electronic functions
are switched off. Your appliance thereby meets the reli‐
gious requirements of Jewish holidays such as the
Sabbath and complies with STAR-K Kosher certifica‐
tion.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivating
SabbathMode function are disabled.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Memories are not listed. The set time interval is
stopped.
Memories and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
After a power failure, the device returns to
SabbathMode.
Appliance status
Use
12 * Depending on model and options
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.

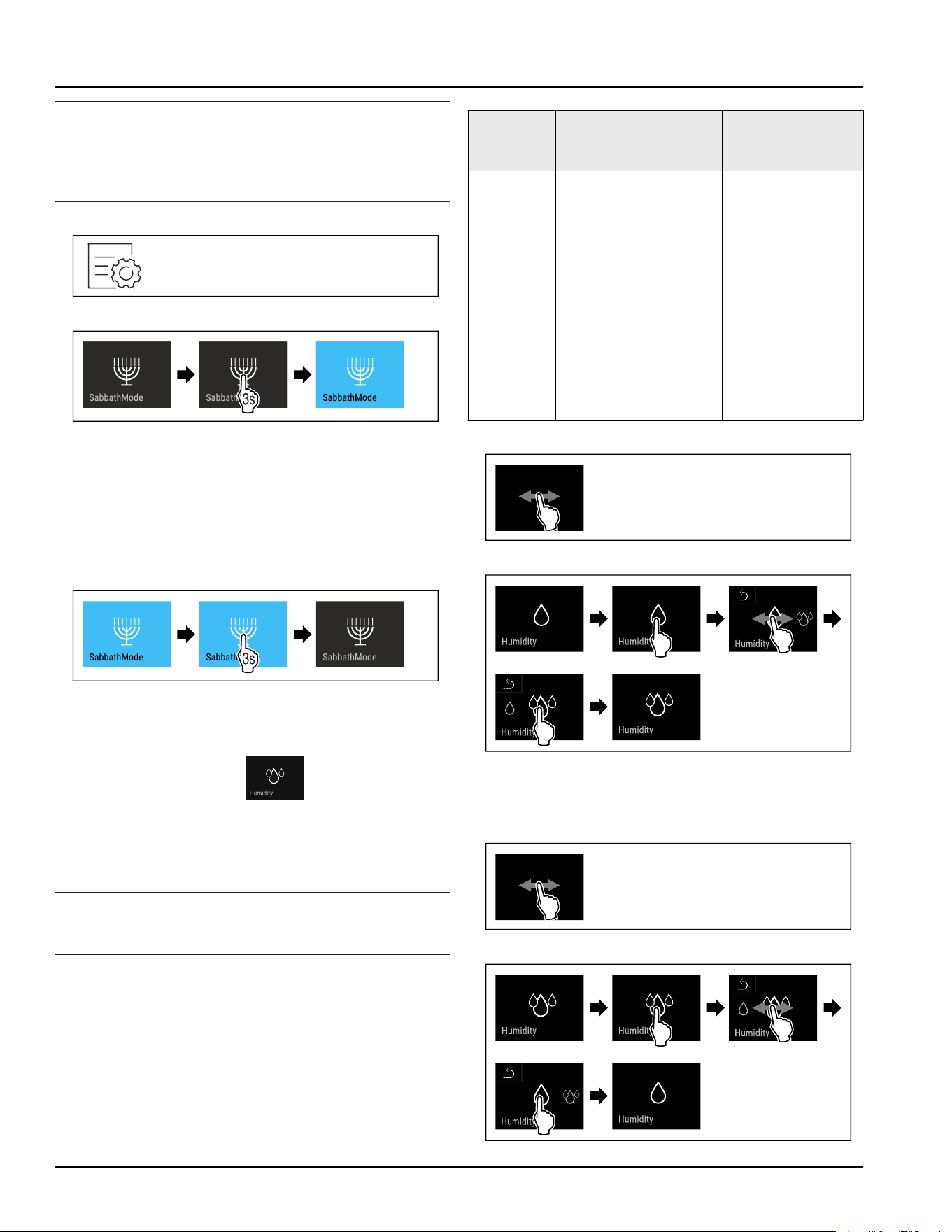

Activating SabbathMode
Fig.34
Fig.35
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ Status display continuously shows SabbathMode.
Deactivating SabbathMode
SabbathMode is automatically deactivated after
80 hours. However, you can also manually deactivate
SabbathMode at any time:
Fig.36
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
7.2.7 HumiditySelect
Use this function to set the humidity inside your appli‐
ance. Setting the humidity correctly will have a positive
effect on the structure of the corks during long-term
storage and prevent them from drying out.
Note
The frequency and duration for which the door is open
influence the humidity in the appliance.
You can choose between two humidity settings:
Humidity‐
Select
function
Temperature setting
on the appliance
Application/
energy consump‐
tion
Standard
(preset)
10(50)-12°C(54°F) average humidity
in the environ‐
ment between
50-80%
low energy
consumption of
the appliance
High 10(50)-12°C(54°F) average humidity
in the environ‐
ment < 50%
energy consump‐
tion of the appli‐
ance increases
Increasing humidity in the appliance
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ Humidity in the appliance increases.
Setting humidity in the appliance to standard
Fig. 39
Use
* Depending on model and options 13
Fig.40
► Carry out action steps according to the illustration.
▷ Humidity in the appliance decreases.

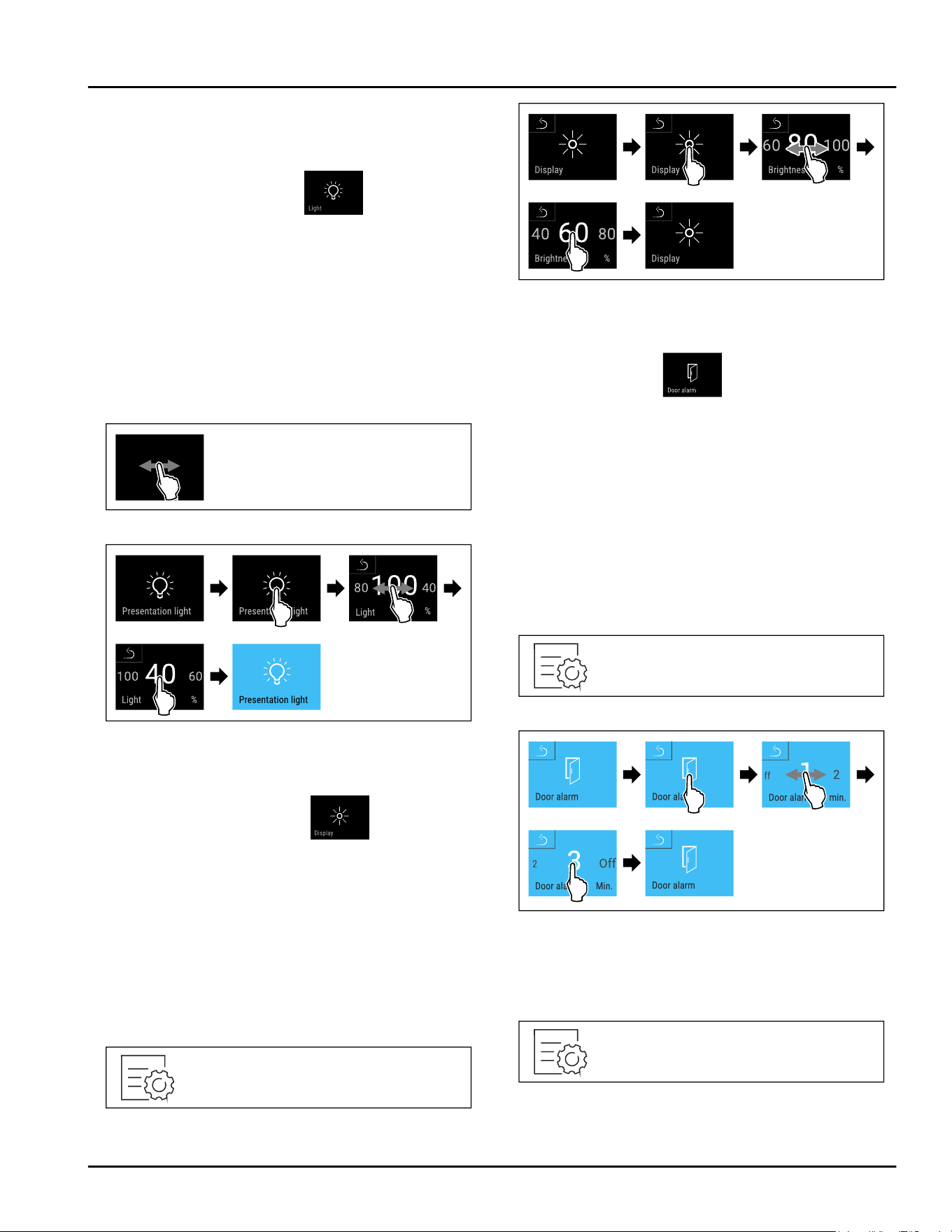

7.2.8 Presentation light *
Use this function to adjust the interior lighting.
You can set the following brightness levels:
-
Off
-
20%
-
40%
-
60%
-
80%
-
100% (default)
Adjusting the lighting
Fig. 41
Fig. 42 Example illustration: Switching from 100% to 40%
► Carry out action steps according to the illustration.
▷ Brightness is set.
7.2.9 Display Brightness
Use this function to set the brightness of the display
gradually.
You can set the following brightness levels:
-
20%
-
40%
-
60%
-
80%
-
100% (default setting)
Setting the brightness
Fig.43
Fig. 44 Example illustration: Switching from 80% to 60%.
► Carry out action steps according to the illustration.
▷ Brightness is set.
7.2.10 Door alarm
Use this function to activate or deactivate the door
alarm. The door alarm sounds if the door is open for
too long. The door alarm is activated upon delivery. You
can set how long to door can remain open until the
door alarm sounds.
You can set the following values:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm

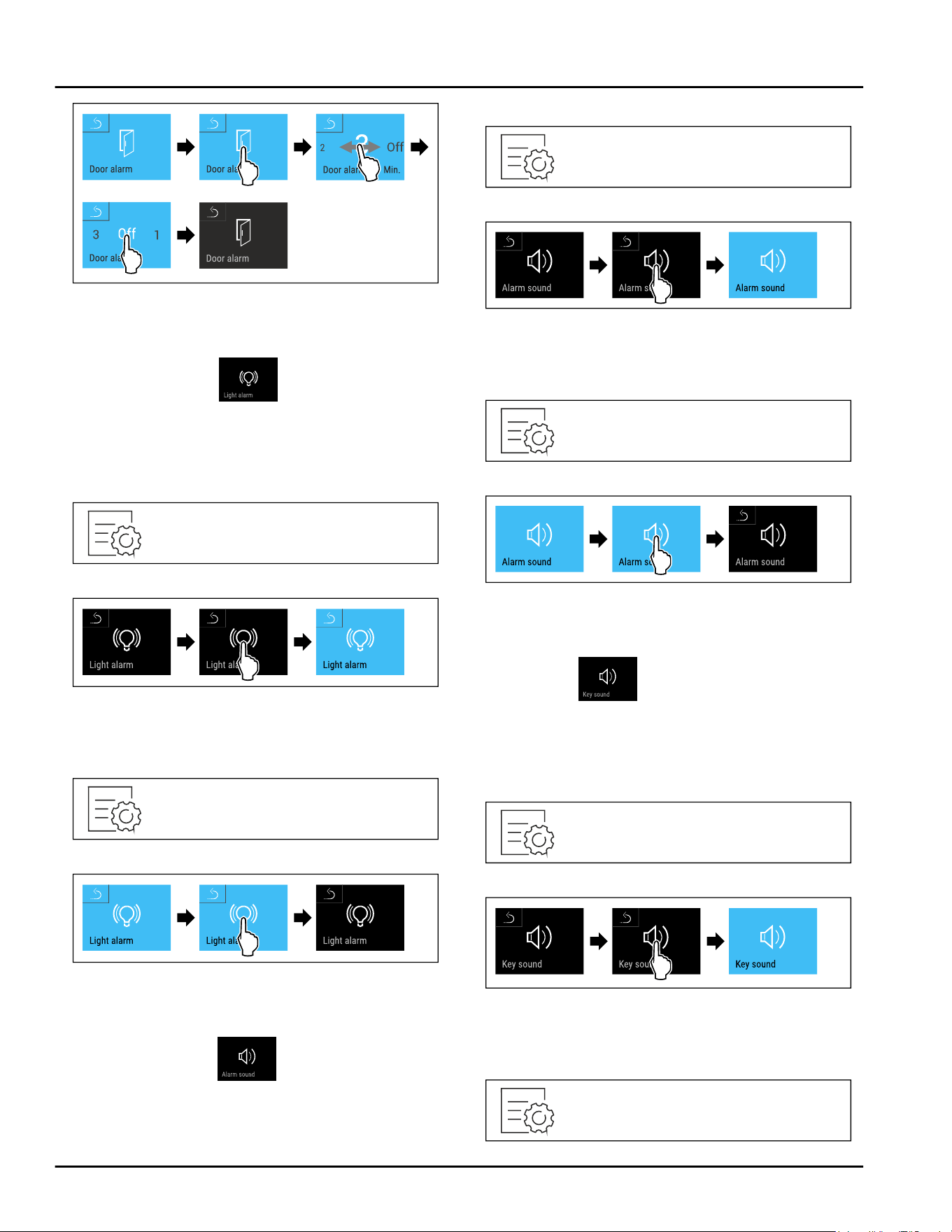

Fig.45
Fig. 46 Example illustration: Changing the door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ Door alarm is set.
Deactivating door alarm
Fig.48
Use
14 * Depending on model and options
Fig. 49
► Carry out action steps according to the illustration.
▷ Door alarm is deactivated.
7.2.11 Light alarm
This setting allows the visual alarm messages in the
display to also be emphasized by flashing appliance
lighting.
Activating the light alarm
Fig.50
Fig.51
► Carry out action steps according to the illustration.
▷ The light alarm is activated.
Deactivating the light alarm
Fig.52
Fig.53
► Carry out action steps according to the illustration.
▷ The light alarm is activated.
7.2.12 Alarm tone
This function enables all alarm sounds, such as the
door alarm, to be switched on and off.
Activating the alarm tone
Fig.54
Fig.55
► Carry out action steps according to the illustration.
▷ Alarm tone is activated.
Deactivating the alarm tone
Fig.56
Fig.57
► Carry out action steps according to the illustration.
▷ Alarm tone is deactivated.
7.2.13 Beep
This function makes it possible to switch all button
sounds, confirmation sounds, and the startup sound on
and off.
Activating the beep
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Beep is activated.
Deactivating the beep
Use
* Depending on model and options 15
Fig.60
Fig.61
► Carry out action steps according to the illustration.
▷ Beep is deactivated.
7.2.14 Display lock
This setting avoids accidental use of the appliance.
Application:
-
Prevent settings and functions being changed unin‐
tentionally.
-
Prevent the appliance from being switched off unin‐
tentionally.
-
Prevent the temperature from being adjusted unin‐
tentionally.
Activating the display lock

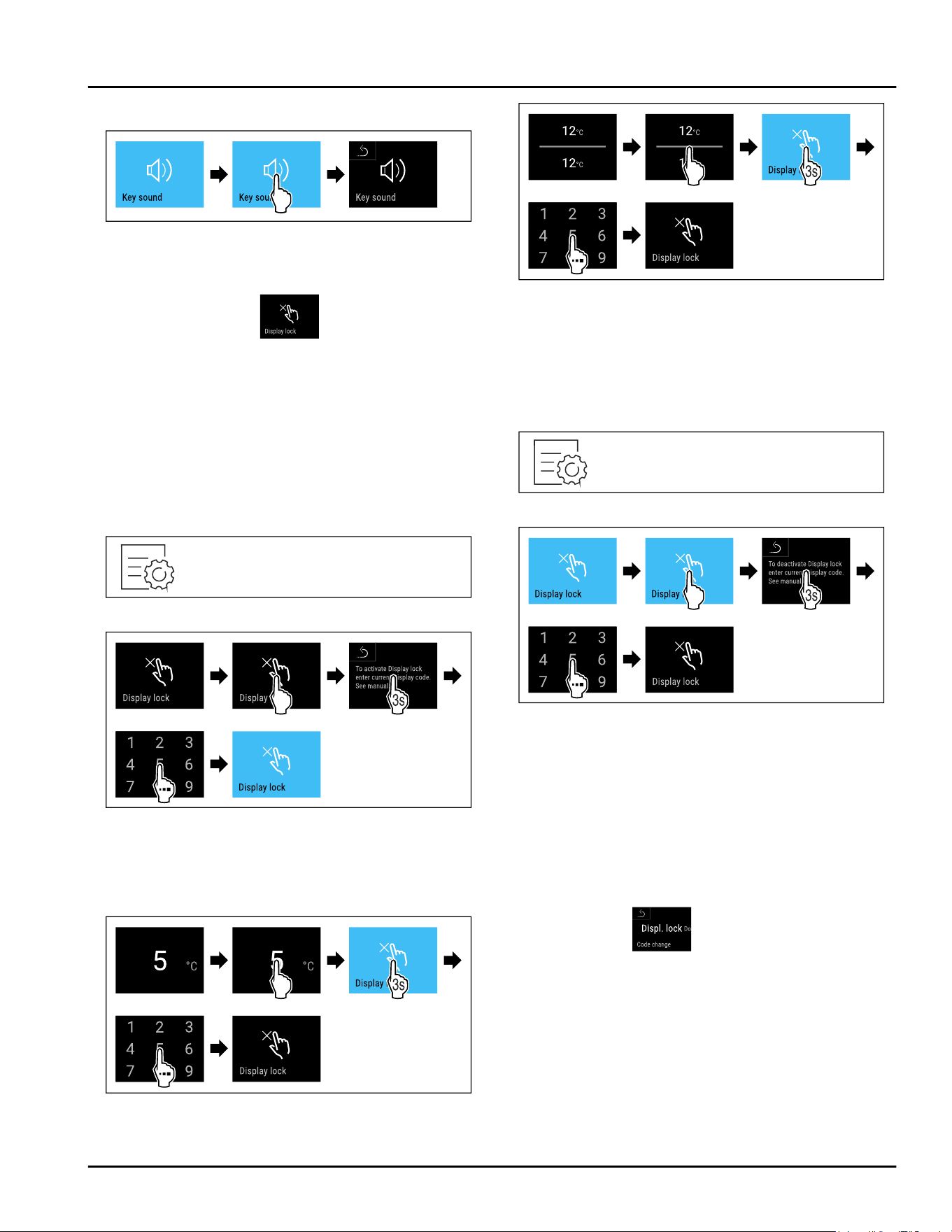

Fig. 62
Fig.63
► Carry out action steps according to the illustration.
▷ The display lock is activated.
▷ The status display appears.
Temporarily unlocking the display lock
Fig.64*
Fig.65
*
► Carry out action steps according to the illustration.
▷ The display lock is deactivated.
▷ The status display appears.
Deactivating the display lock
► Carry out action steps (see Temporarily unlocking
the display lock) .
Fig.66
Fig. 67
► Carry out action steps according to the illustration.
▷ The display lock is deactivated.
▷ The status display appears.
7.2.15 Access codes
There are access codes for some functions. The
following functions cannot be used until the relevant
access code is entered:
-
Display lock
Display lock code
You can also use this function to change or reset the
display lock code for the door lock.
Changing the display lock code
You change the code in three steps:
- Enter the old code.
- Enter the new code.
- Confirm the new code.
Use
16 * Depending on model and options
Note
In the example below, you can change the factory-set
code1111 to the new code2345.

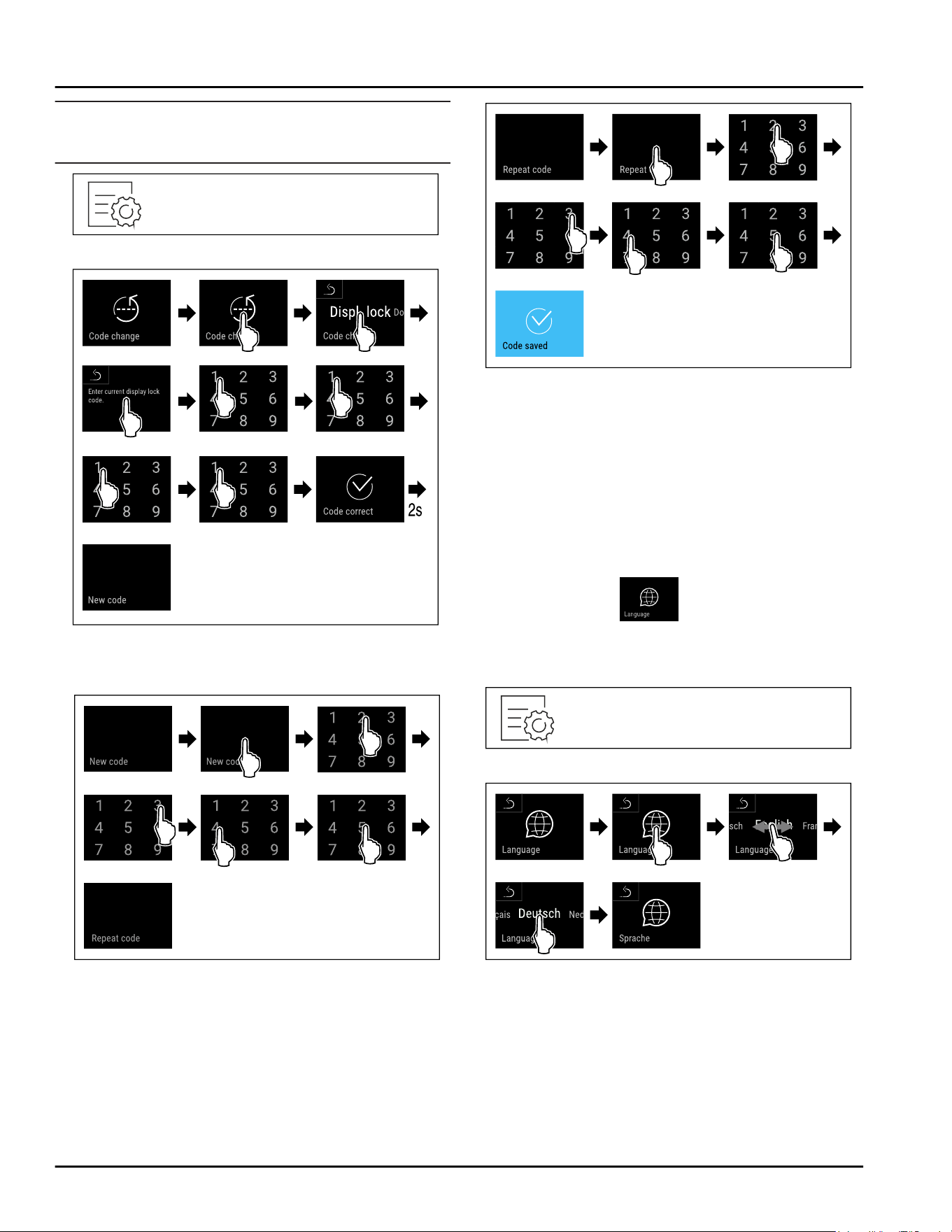

Fig.68
Fig. 69
► Carry out action steps according to the illustration.
▷ Old code was successfully entered.
Fig.70
► Carry out action steps according to the illustration.
▷ New code was successfully entered.
Fig.71
► Carry out action steps according to the illustration.
▷ New code was successfully confirmed.
▷ Code has been changed.
Resetting the display lock code
If you have forgotten the code, you can reset it.
► Reset the appliance to factory settings.
(see 7.2.20 Resetting to factory settings )
▷ Appliance is reset to the original settings.
▷ The factory-set code is:1111
7.2.16 Language
This setting allows the display language to be set.
Setting the language
Fig.72
Fig.73
► Carry out action steps according to the illustration.
▷ The selected language is set.
Use
* Depending on model and options 17
7.2.17 Appliance and software informa‐
tion
Use this function to display the model name, index,
serial number and service number of your appliance.
You will need the appliance information when you
contact customer service. (see 10.4 Customer Service)

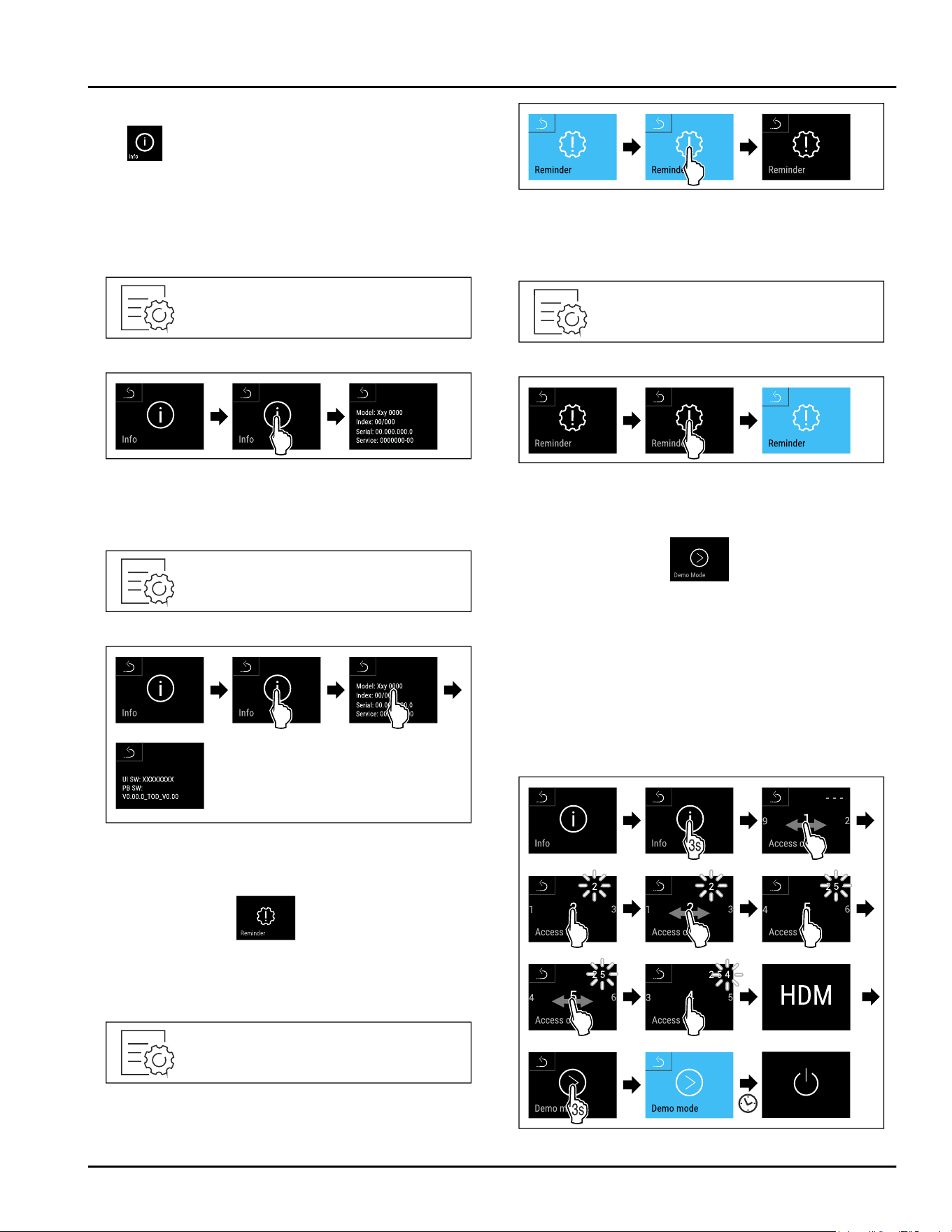

Display appliance information
Fig. 74
Fig.75
► Carry out action steps according to the illustration.
▷ Display shows the appliance information.
Display software information
Fig. 76
Fig.77
► Carry out action steps according to the illustration.
▷ Display shows the software information.
7.2.18 Reminder
This function activates and deactivates the reminder to
change the FreshAir activated charcoal filter.
Deactivating the reminder
Fig.78
Fig.79
► Carry out steps according to the illustration.
▷ Reminder is deactivated.
Activating the reminder
Fig.80
Fig.81
► Carry out steps according to the illustration.
▷ Reminder is activated.
7.2.19 Demo mode
Demo mode is a special feature for dealers who want
to demonstrate appliance features. If you activate
demo mode, all refrigeration functions are deactivated.
If you switch on your appliance and a “D” appears on
the status display, demo mode is already activated.
If you activate and then deactivate demo mode, the
appliance will be reset to factory defaults.
(see 7.2.20 Resetting to factory settings )
Activating demo mode
Use
18 * Depending on model and options

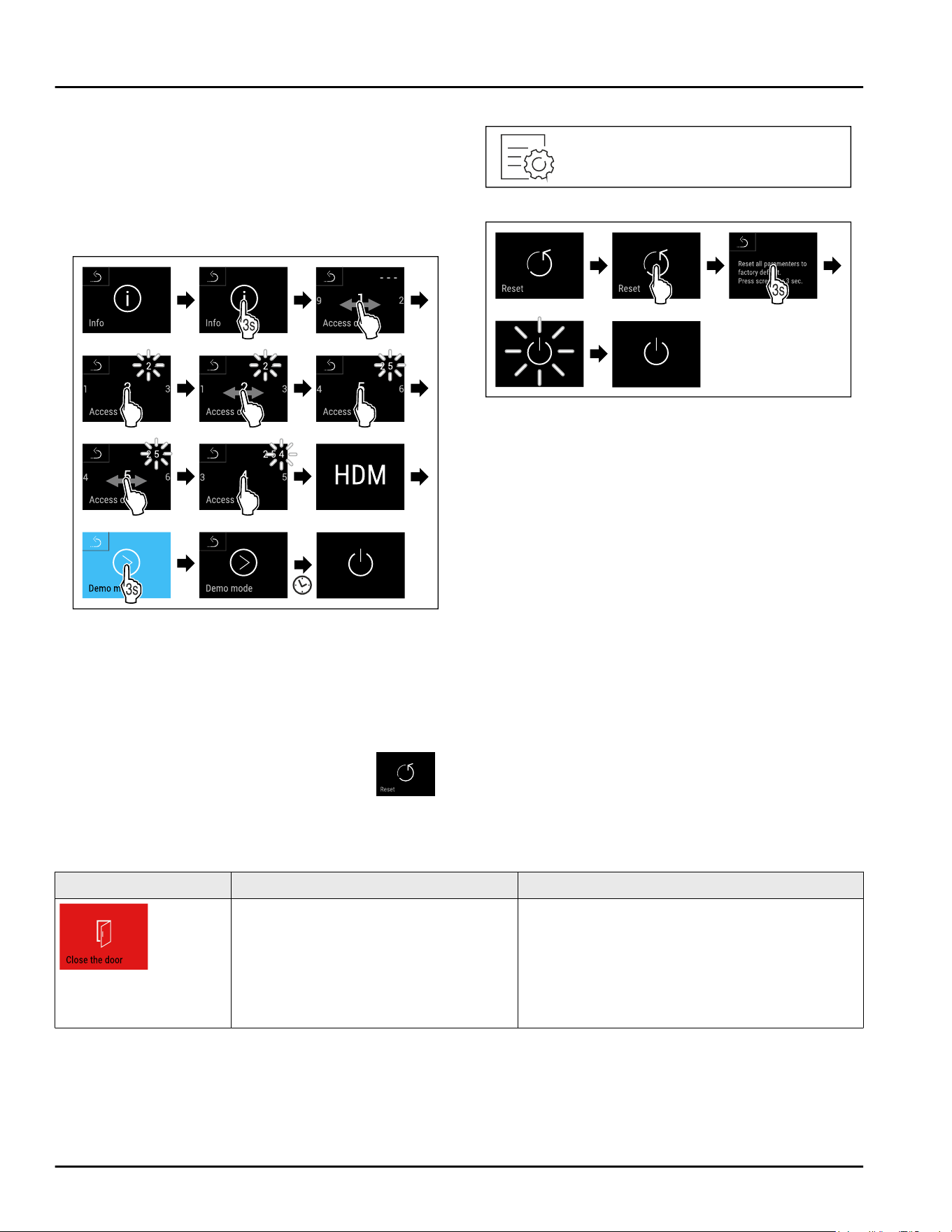

Fig.82
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on the
appliance (first use))
▷ “D” appears in the status display.
Deactivating demo mode
Fig.83
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on the
appliance (first use))
▷ Appliance is reset to factory settings.
7.2.20 Resetting to factory settings
Use this function to reset all settings to factory
settings. All settings you have made so far are reset to
their original settings.
Performing a reset
Fig.84
Fig.85
► Carry out action steps according to the illustration.
▷ Appliance is reset.
▷ Appliance is switched off.
► Restart the appliance. (see 4.1 Switching on the
appliance (first use))
7.3 Messages
7.3.1 Warnings
Warnings are issued by means of an audio signal and
visually via a symbol on the display. The signal gets
louder until the warning is acknowledged.

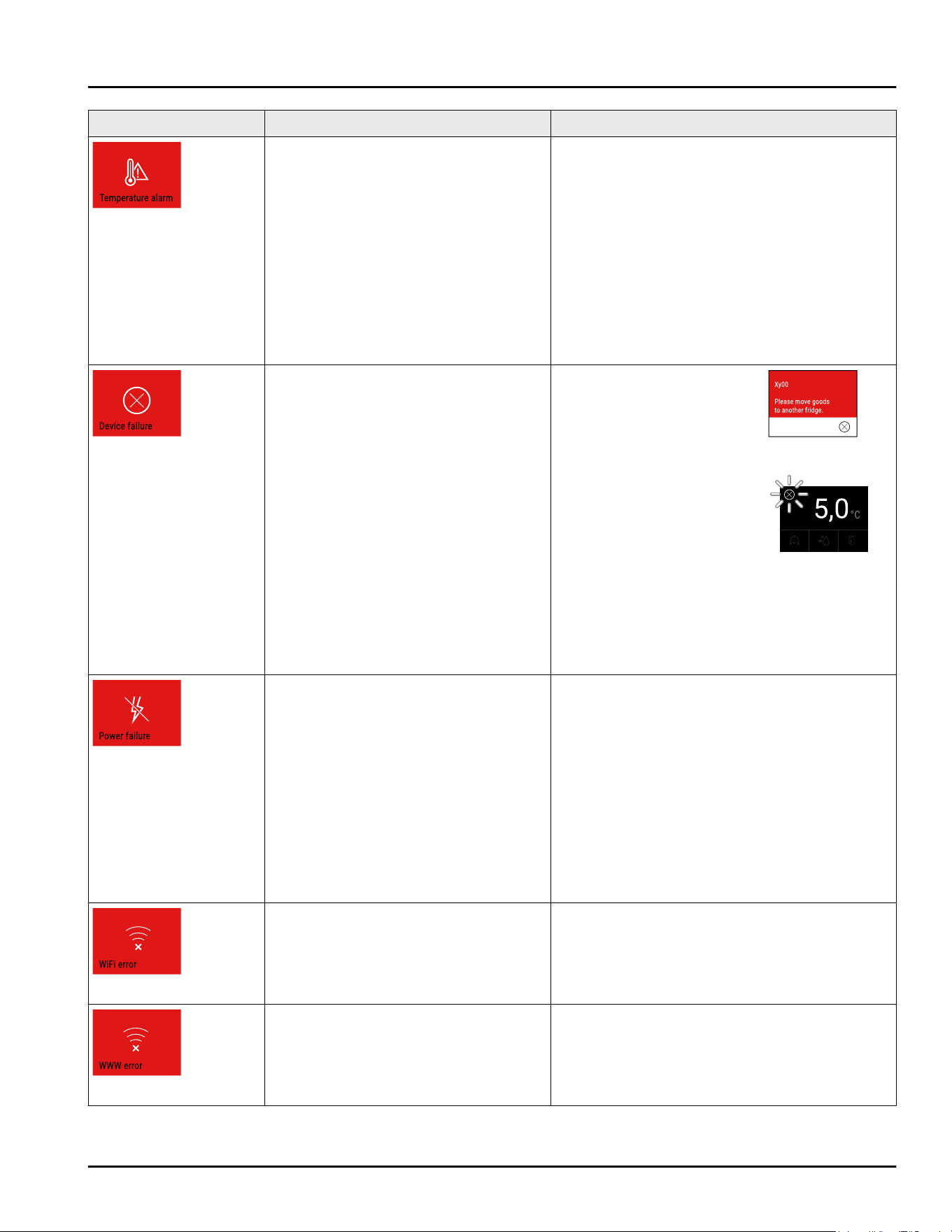

Message (red)
Cause Remedy
Door open
The message appears if the door is
open for too long.
Close the door.
Tap briefly.
Alarm is stopped.
Note
The time until the message appears can be
set. (see 7.2.10Door alarm )
Use
* Depending on model and options 19
Message (red) Cause Remedy
Temperature alarm
This message appears if the tempera‐
ture does not match the set tempera‐
ture. Reasons for differences in
temperature can be:
Warm produce for cooling has been
placed inside.
Too much warm room air has flowed in
during the rearrangement and removal
of food.
The power was cut off for a prolonged
period.
Tap briefly.
Information about errors and appliance status
are displayed.
Tap briefly.
Warmest/coldest temperature, date and time
are displayed.
Tap briefly.
The status screen is displayed.
The current temperature and the alarm symbol
flash red until the set temperature is reached.
Check the quality of the refrigerated goods.
Error
The appliance is malfunctioning, there
is an appliance error or a component
of the appliance has a fault.
Store refrigerated items
elsewhere.
Tap briefly.
The error code (e.g. BT021)
is displayed.
Tap briefly.
A further error code is
displayed if there is one
or
Status screen is displayed
with flashing error symbol.
Swiping or tapping the display will show the
error code(s) again.
Make a note of error code(s) and contact
Customer Service. (see 10.4 Customer Service)
Power failure
The message appears following an
interruption to the electricity supply.
Tap briefly.
Battery’s state of charge, information about
errors and appliance status are displayed
Tap briefly.
The warmest temperature and the time when
there was a power outage are displayed.
Tap briefly.
The status screen is displayed.
The current temperature and the alarm symbol
flash red until the set temperature is reached.
Check the quality of the refrigerated goods.
WiFi error
WiFi connection is interrupted. Check connection.
Press briefly.
Alarm is stopped.
WWW error, WiFi
This message appears if there is no
internet connection via WiFi.
Check connection.
Press briefly.
Alarm is stopped.
Use
20 * Depending on model and options
7.3.2 Reminders
Reminders appear when you are prompted to take
action. They are issued by means of an audio signal
and visually via a symbol on the display. Acknowledge
the message by pressing the confirmation button.
Message (yellow) Cause Remedy
FreshAir filter
Replace FreshAir acti‐
vated charcoal filter
The message appears every 6 months. Replace FreshAir activated charcoal
filter.
Press briefly.
Reminder is closed.
8 Equipment
8.1 Wooden grid shelf
Appliances are equipped with a wooden grid shelf for
wine storage.

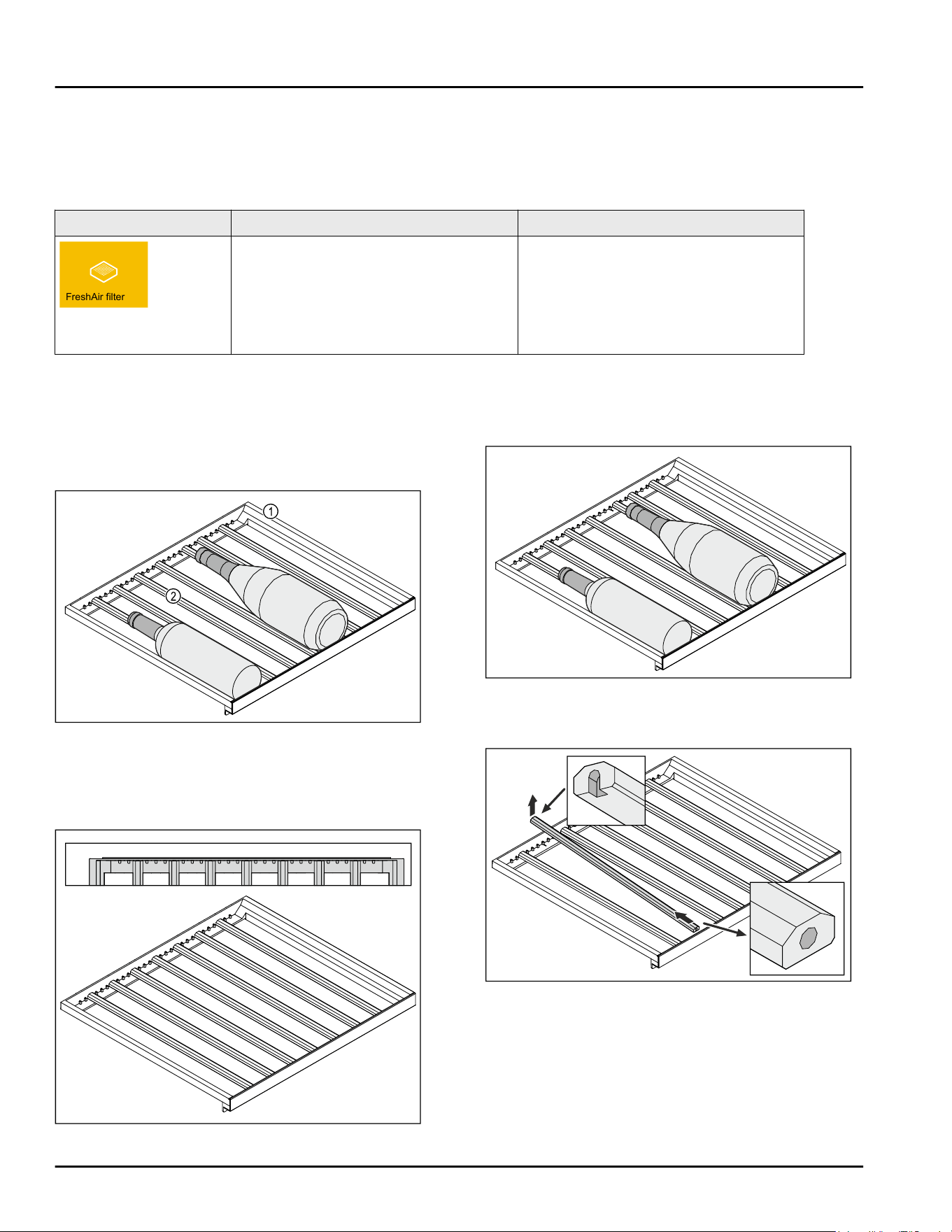

Fig. 86 Example illustration
(1)
Wooden grid shelf (2) Rail
The standard positions for the rails are indicated with
notches. If you use these, you can store the maximum
number of bottles. (see 5.2 Storage sketch)
Fig. 87 Arrangement of rails for the maximum number of
bottles.

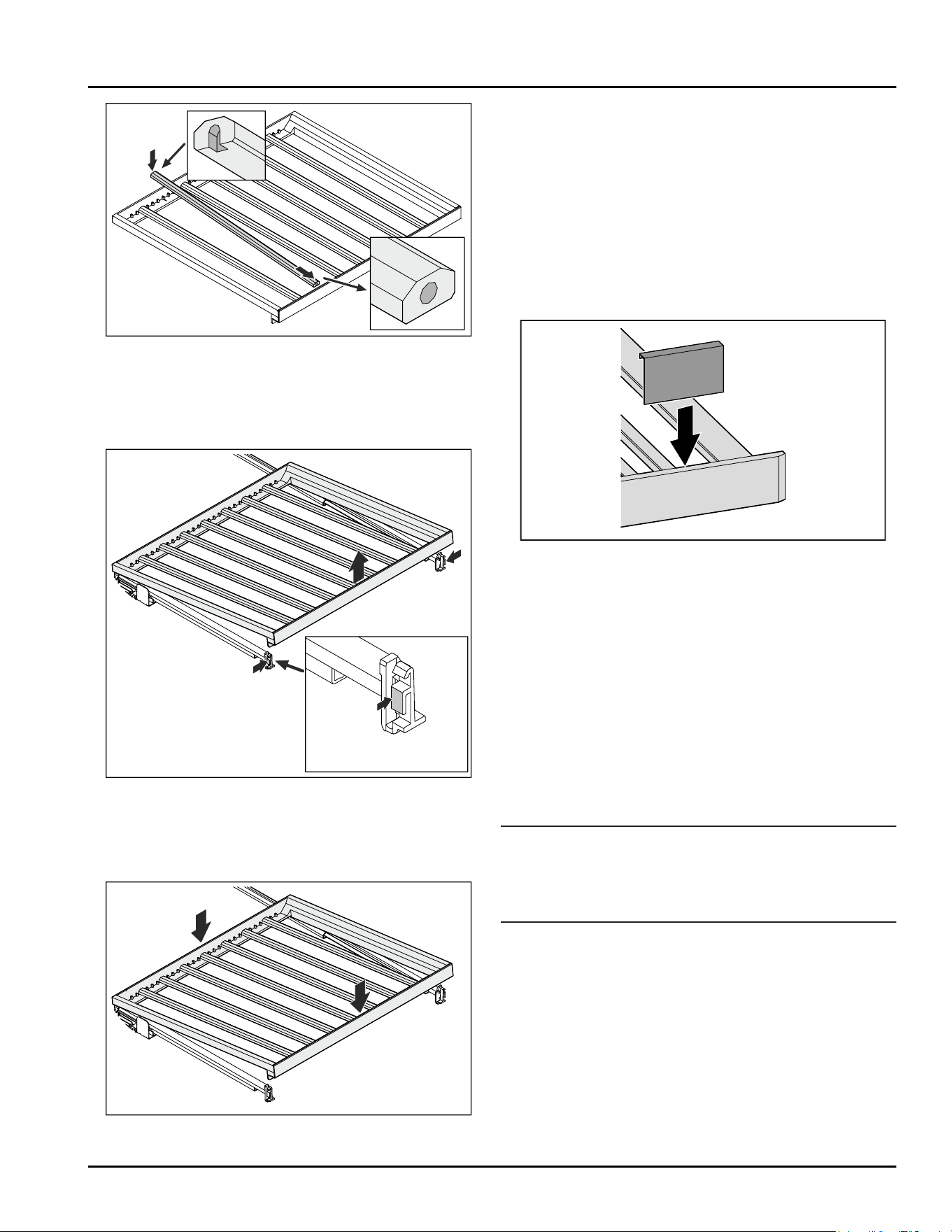

8.1.1 Moving the rail
Fig. 88 Example illustration
To store larger or smaller bottles, you can remove the
rails in the wooden grid shelf.
Fig. 89 Example illustration
► Lift the back of the rail up and pull it out.
Equipment
* Depending on model and options 21
Fig. 90 Example illustration
► Insert the rail in the desired position.
8.1.2 Removing the wooden grid shelf
You can remove the wooden grid shelf for cleaning.
Fig. 91 Example illustration
► Push in slightly on both sides and remove the
wooden grid shelf upward.
8.1.3 Inserting the wooden grid shelf
Fig. 92 Example illustration
►
Place the wooden grid shelf to the back on the right
and left rails.
► Lower the front of the wooden grid shelf.
▷ The wooden grid shelf latches in.
▷ The wooden grid shelf sits firmly on the rails.
8.2 Description labels
Description labels as accessories can be purchased
from your specialist dealer. You can use these to note
the types of wine that are stored in the respective
compartment.
Fig. 93
► Attach the description label from above.
9 Maintenance
9.1 FreshAir activated charcoal filter
Wine is constantly developing according to its ambient
conditions, so air quality is essential for preservation.
The FreshAir activated charcoal filter guarantees
optimal air quality.
❑
Change the activated charcoal filter every 6 months.
❑
Dispose of the activated charcoal filter with regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr Service Center. The address for your
respective country can be found on the back of the
instructions.
Maintenance
22 * Depending on model and options

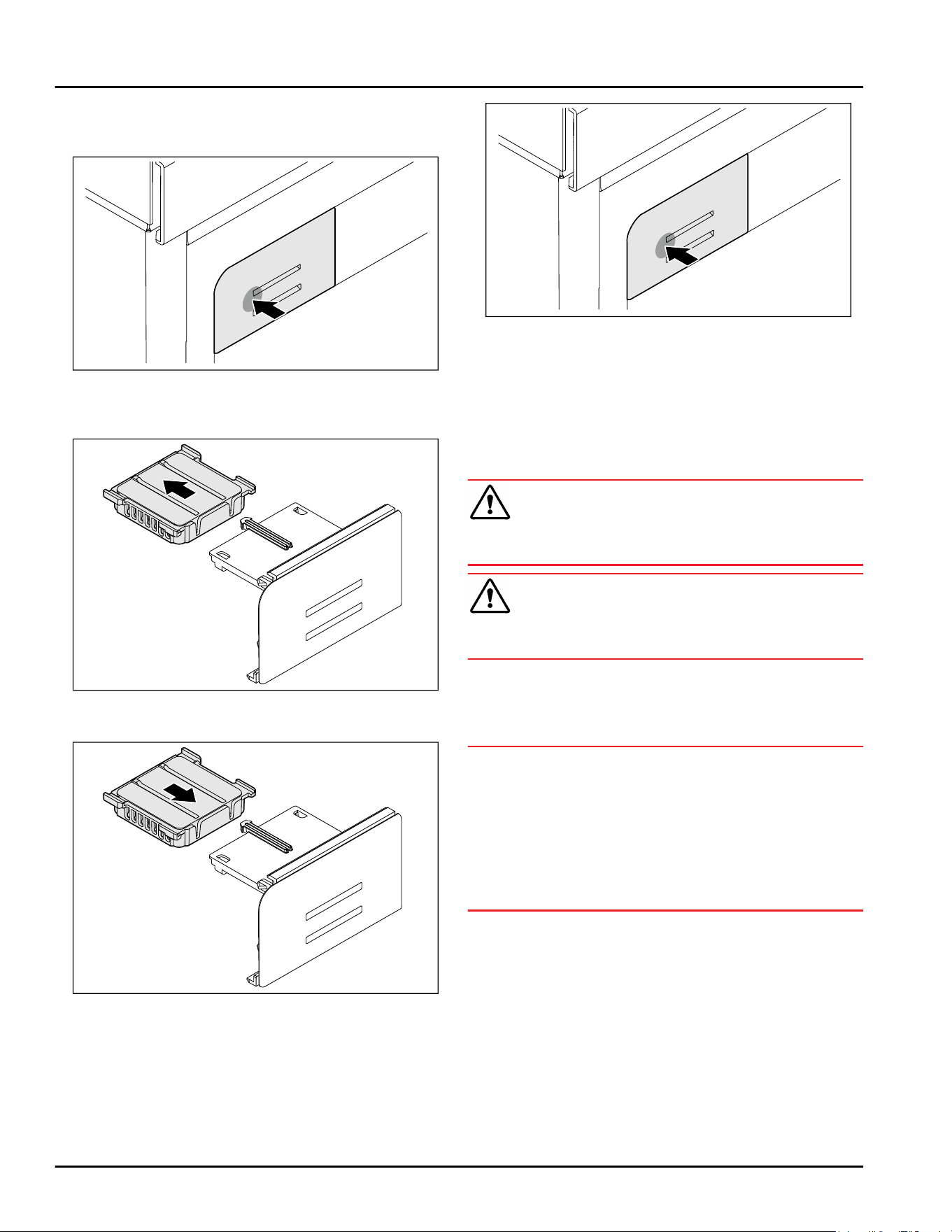

9.1.1 Replace the FreshAir activated char‐
coal filter
Fig. 94 Example illustration
► Press the filter holder in, release it again and pull it
out.
Fig. 95 Example illustration
► Remove the old filter from the bracket.
Fig. 96 Example illustration
► Snap in the new filter into the bracket.
Fig. 97 Example illustration
► Press in the filter bracket as far as it will go and let it
go.
▷ The FreshAir activated charcoal filter is replaced.
9.2 Cleaning the appliance
9.2.1 Preparation
WARNING
Danger of electric shock.
► Unplug refrigerator or disconnect power.
WARNING
Danger of fire
► Do not damage the refrigerant circuit.
► Empty appliance.
► Pull out the power plug.
9.2.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
► Do not use steel wool or sponges that scour or
scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
► Plastic surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
► Drain hole: remove any deposits with a thin item
such as a cotton bud.
Maintenance
* Depending on model and options 23
9.2.3 Cleaning the equipment
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
► Do not use steel wool or sponges that scour or
scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
Clean with a soft, clean cloth, lukewarm water and a
little washing up liquid:
- Shelf
Clean with a damp cloth:
- Retracting rails
Please note: the grease in the tracks is there for
lubrication purposes and must not be removed!
► Disassemble the equipment: see the relevant
section.
► Clean the equipment.
9.2.4 After cleaning
► Wipe dry the appliance and items of equipment
► Connect and switch on the appliance.
► Repeat cleaning regularly.
10 Customer support
10.1 Technical specifications
Temperature zone
Cool: 5°C(41°F) to 20°C(68°F)
For appliances with a WiFi connection:*
Frequency specification*
Frequency band 2.4GHz
Maximum radi‐
ated power
< 100 mW
Purpose of the
wireless equip‐
ment
Integration in the local WiFi
network for data communication
10.2 Operating noises
The appliance makes noises while in operation.
-
At less cooling output the appliance saves energy
but takes longer to cool items. The volume is lower.
-
At a higher cooling output the food cools more
quickly. The volume is higher.
Examples:
•
Activated functions (see 7.2Appliance functions)
•
Running fan
•
Freshly sorted food
•
High ambient temperature
•
Door opened for long periods
Noise Possible cause Type of noise
Bubbling and
splashing
Coolant is
flowing into the
cooling circuit.
Normal noise
Spitting and
hissing
Coolant is
spraying into the
cooling circuit.
Normal noise
Humming The appliance
cools. The
volume depends
on the cooling
output.
Normal noise
Sipping noises The self-closing
door is being
opened and
closed.
Normal noise
Whirring and
murmuring
The fan is
running.
Normal oper‐
ating noise
Clicking Components are
being switched
on and off.
Normal
switching noise
Rattling or
humming
Valves are
active.
Normal
switching noise
Noise Possible
cause
Type of
noise
How to
resolve
Vibration Unsuitable
installation
Error noise Check
installation.
Set up the
appliance.
Clattering Equipment,
Objects
inside the
appliance
Error noise Secure
equipment
parts.
Leave a gap
between
items.
10.3 Technical faults
Your appliance is designed and manufactured for reli‐
able operation and a long service life. If a malfunction
nonetheless occurs during operation, please check
whether the malfunction is due to an operating error. In
this case, you will have to be charged for the costs
incurred, even during the warranty period.
You may be able to rectify the following faults yourself.
Customer support
24 * Depending on model and options
10.3.1 Appliance function
Defect Cause Remedy
The appliance
does not work.
The appliance is not switched on. ► Switch on the appliance.
The power plug is not properly
inserted in the wall socket.
► Check the power plug.
The powerfuse in the wall socket
is not OK.
► Check the fuse.
Power failure. ► Keep the appliance closed.
The IEC socket is not correctly
plugged into the appliance.
► Check the IEC socket.
The temperature
is not cold
enough
This means that the door of the
appliance is not closed properly
► Close the appliance door
Insufficient ventilation ► Clear and clean the ventilation grille.
The ambient temperature is too
high
► Problem solution: (see2.4 Range of appliance use)
The appliance was opened too
frequently or for too long
► Wait to see if the required temperature corrects
itself. If not, contact Customer Service.
(see 10.4 Customer Service)
The temperature is incorrectly set ► Set to a colder temperature and check after 24
hours.
The appliance is too near to a heat
source (stove, heater etc).
► Change location of appliance or the heat source.
The appliance was not properly
installed in the recess.
► Make sure the appliance was installed correctly
and the door closes properly.
The door seal is
defective or
should be
replaced for
other reasons.
On some appliances the door seal
is interchangeable. You can
replace it without the use of any
special tools.
► Contact Customer Service. (see 10.4 Customer
Service)
The door seal is
defective or
should be
replaced for
other reasons.
The door seal is interchangeable.
You can replace it without the use
of any special tools.
► Contact Customer Service. (see 10.4 Customer
Service)
The appliance is
iced up or
condensation is
building.
The door seal may have slipped
out of its groove.
► Check the door seal is well placed in the groove.
10.3.2 Equipment
Defect Cause Remedy
The interior light
does not turn on.
The appliance is not switched on. ► Switch on the appliance.
Customer support
* Depending on model and options 25
Defect Cause Remedy
The door was open for more than
15 minutes.
► If the door is open, the interior lighting switches
off automatically after about 15 minutes.
The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer
Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer support) . If you cannot rectify the
problem, contact Customer Service.
You can find the address in the enclosed brochure
“Liebherr-Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► A damaged power cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service
or a similarly qualified person.
► For appliances with plug and play connection cables,
the change can be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is
available:
❑
Appliance name (model and index)
❑
Service no. (service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
-or-
► Refer to the type plate for appliance information.
(see 10.5 Rating plate)
► Take note of the appliance information.
► Notify customer service: Report errors and the appli‐
ance information.
▷ This will help us give you fast and accurate support.
► Follow further instructions from Customer Service.

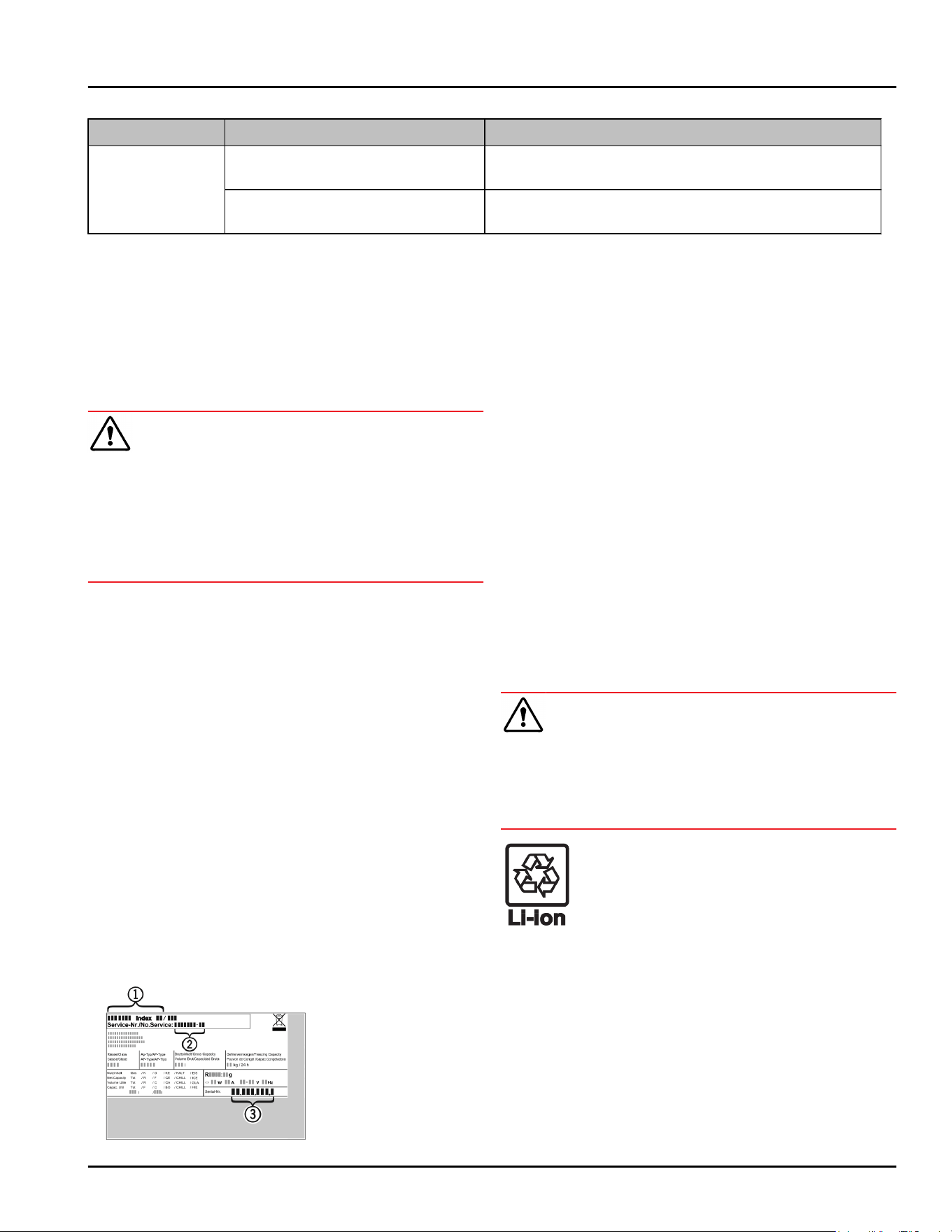

10.5 Rating plate
The type plate is on the bottom on the inside of the
appliance.
Fig.98
(1) Appliance name (3) Serial no.
(2) Service no.
► Information from the nameplate.
11 Decommissioning
► Empty appliance.
► Switch off appliance. (see 7.2.2 Switching appliance
on and off )
► Pull the power plug from the outlet.
► If necessary, remove the IEC socket: Pull the IEC
socket out of the appliance plug while turning it to
the left and right at the same time.
► Clean appliance. (see 9.2Cleaning the appliance)
► Leave the door open to prevent unpleasant odors.
12 Disposal
12.1 Preparing the appliance for
disposal
WARNING
Risk of child entrapment!
Before you throw away your old refrigerator or freezer:
► Take off the doors.
► Leave the shelves in place so that children may not
easily climb inside.
Liebherr uses batteries in some of its appli‐
ances. You should remove these before
disposal of the old appliance for environ‐
mental reasons. If your appliance contains
batteries, a corresponding notice is
attached to the appliance.
Lamps If you can remove the lamps yourself
without destroying them, also remove these
before disposal.
► Take the appliance out of operation.
► If possible: Remove lamps without destroying them.
Decommissioning
26 * Depending on model and options
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be collected separately from
unsorted municipal waste so
it can be recycled.
Dispose of batteries sepa‐
rately from the old appliance.
Certain batteries should NOT
go in household garbage or
recycling bins. Waste
batteries can always be recy‐
cled or taken to household
hazardous waste collection
points. To prevent fires from
lithium-ion batteries, tape
battery terminals and/or
place batteries in separate
plastic bags and never put
these batteries in household
garbage or recycling bins.
Lamps
Dispose of removed lamps via
the respective collection
systems.
For USA: Check the Responsible Appli‐
ance Disposal (RAD) program
to find a RAD partner near
you.
For Canada: Follow your local guidance
about recycling and disposal
capabilities near you.
WARNING
Leaking refrigerant and oil!
Fire. The refrigerant contained within the appliance is
environmentally friendly, but flammable. The oil
contained within the appliance is flammable. Escaping
refrigerant and oil can ignite if they are of high enough
concentration and are exposed to an external heat
source.
► Do not damage the pipelines of the coolant circuit
and the compressor.
► Observe the notes on appliance transport.
► Transport the appliance away without damaging it.
► Dispose of batteries, lamps, and the appliance
according to the above specifications.
Disposal
* Depending on model and options 27
home.liebherr.com/fridge-manuals
Multi-temperature wine cabinet
Issue date:20251127
Part number index: 7083724-00
For Service in the U.S.: Liebherr Service Center
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada: Liebherr Service Center
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road, Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320 | Fax: (519) 357-1326
