User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Safety information and warnings......................... 3
1.1 Intended use................................................................. 3
1.2 Climate classes............................................................ 3
1.3 User group..................................................................... 3
1.4 Installation and commissioning................................ 3
1.5 Safe handling of the appliance.................................. 3
1.6 Cleaning......................................................................... 3
1.7 Faults, damage and repairs........................................ 3
1.8 Disposal......................................................................... 4
1.9 Conformity..................................................................... 4
1.10 SVHC substances in accordance with the REACH
Regulation..................................................................... 4
1.11 EPREL database........................................................... 4
1.12 Open source licences.................................................. 4
1.13 Spare parts.................................................................... 4
1.14 Symbols on the appliance.......................................... 4
1.15 Warning levels.............................................................. 4
2 Appliance at a glance............................................ 4
2.1 Scope of delivery.......................................................... 4
2.2 Overview of the appliance and equipment.............. 5
2.3 SmartDevice.................................................................. 5
3 Functionality of the Touch display....................... 5
3.1 Navigation and symbol explanation......................... 5
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 6
4 Putting into operation........................................... 6
4.1 Switching on appliance (first use)............................ 6
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Storage sketch............................................................. 7
6 Saving energy........................................................ 8
7 Controls................................................................. 8
7.1 Control and display elements.................................... 8
7.1.1 Status display............................................................. 8
7.1.2 Display symbols..........................................................8
7.1.3 Acoustic signals..........................................................9
7.2 Appliance functions..................................................... 9
7.2.1 Notes on the appliance functions............................9
7.2.2 Switching appliance on and off .............................. 9
7.2.3 WiFi.............................................................................. 9
7.2.4 Temperature ..............................................................10
7.2.5 Temperature unit...................................................... 11
7.2.6 SabbathMode............................................................ 11
7.2.7 HumiditySelect......................................................... 12
7.2.8 Display brightness .................................................. 12
7.2.9 Door alarm ................................................................13
7.2.10 Light alarm *.............................................................. 13
7.2.11 Alarm Sound...............................................................13
7.2.12 Key Sound...................................................................14
7.2.13 Display lock...............................................................14
7.2.14 Display PIN................................................................15
7.2.15 Language ...................................................................16
7.2.16 Appliance and software information.................... 16
7.2.17 Reminder....................................................................16
7.2.18 Demo mode............................................................... 17
7.2.19 Resetting to factory settings ................................ 17
7.3 Messages...................................................................... 18
7.3.1 Warnings.................................................................... 18
7.3.2 Reminder.....................................................................19
8 Features................................................................. 19
8.1 Wooden grid.................................................................. 19
8.2 Labels............................................................................. 20
9 Maintenance.......................................................... 20
9.1 FreshAir activated carbon filter................................. 20
9.2 Cleaning the appliance............................................... 21
10 Customer help....................................................... 22
10.1 Technical specifications............................................. 22
10.2 Operating noises.......................................................... 22
10.3 Technical fault.............................................................. 22
10.4 Customer Service......................................................... 23
10.5 Model plate................................................................... 24
11 Shutting down....................................................... 24
12 Disposal................................................................. 24
12.1 Preparing the appliance for disposal........................ 24
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 24
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
UWgb
3631
3632
2 * Depending on model and options
1 Safety information and warnings
Keep this user information in a safe place so that you can
refer to it at any time.
If you pass on the appliance, pass this user information on
to subsequent owners.
To use the appliance properly and safely, read this user
information carefully before installation and use. Always
follow the instructions, safety instructions and warnings
contained therein. They are important so that you can install
and operate the appliance safely and properly.
1.1 Intended use
This appliance is intended for household use and similar
applications such as:
-
in staff kitchen areas in shops, offices and other work
areas
-
in agricultural environments and by guests in hotels,
motels and other accommodation
-
in bed and breakfasts
-
in catering and similar wholesale operations
Further uses:
-
This appliance is intended exclusively for storing wine.
-
This appliance is not suitable for freezing food.
-
This appliance is suitable for integrated under-counter
installation.
All other types of application are impermissible.
1.2 Climate classes
Depending on its climate class, the appliance is designed
for operation within certain ambient temperature limits. The
climate class for your appliance is printed on the type plate.
Note
► In order to guarantee fault-free operation comply with
the specified ambient temperatures.
Climate class for ambient temperatures from
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.3 User group
-
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowl‐
edge if they have been given supervision or instruction
concerning use of the appliance in a safe way and under‐
stand the hazards involved.
-
Children must not play with the appliance.
-
Children must not carry out cleaning and user mainte‐
nance without supervision.
1.4 Installation and commissioning
-
Only install and connect the appliance in accordance
with the instructions in the user information.
-
Install the appliance according to the instructions in the
user information to prevent the appliance from tipping
over.
-
Do not close the ventilation openings in the appliance
housing or in the installation housing.
-
Do not damage the mains cable. The appliance must not
be operated with a defective mains cable.
-
Do not place portable multiple sockets or power supply
units at the rear of the appliance.
-
It must be easy to access the socket so that the appli‐
ance can be quickly disconnected from the power supply
in case of an emergency. It must not be behind the appli‐
ance.
1.5 Safe handling of the appliance
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. These types of aerosol can be identified by the
list of contents printed on it, or by a flame symbol. Any
leaking gas may ignite due to electrical parts.
-
Keep burning candles, lamps and other objects with
naked flames away from the appliance, so that these do
not set fire to the appliance.
-
Alcoholic beverages and other containers bearing alcohol
must be sealed tight for storage. Any leaking alcohol may
ignite due to electrical parts.
-
Avoid prolonged skin contact with cold surfaces or with
cold/frozen food. Use gloves for protection, for example.
-
The refrigerant contained (information on the type plate)
is environmentally friendly but flammable. Leaking refrig‐
erant may ignite.
•
Do not damage the refrigeration circuit.
•
Do not use any ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer service.
-
Only open the door for a short time. This prevents the
temperature inside the appliance from rising.
-
Do not reach between the door and the appliance when
opening and closing. Fingers may become trapped.
-
The temperature in the warmest part of the appliance
may be higher than the set temperature.
1.6 Cleaning
-
Regularly clean surfaces that come into contact with
food.
-
Clean the defrost water drain regularly.
-
Do not use an electric heater or steam cleaner, naked
flames or defrost spray to speed up the defrosting
process.
-
Do not remove the ice with sharp objects.
1.7 Faults, damage and repairs
-
If the mains connection cable of the appliance is
damaged, replace the mains connection cable.
-
Repairs and interventions on the appliance may only be
carried out by the customer service or by other qualified
personnel trained for this purpose.
-
In the event of malfunctions and appliance faults, pull
out the mains plug or switch off the fuse. Always hold
the plug when pulling out the mains plug. Never tug on
the cable.
Safety information and warnings
* Depending on model and options 3
1.8 Disposal
-
The appliance contains valuable materials and is marked
with the appropriate symbol. (see 1.14 Symbols on the
appliance)
•
Do not dispose of the appliance in the household
waste.
•
Dispose of the appliance free of charge at your
local recycling centre using the Class 1 collection
containers.
•
When purchasing a new appliance, return the old
appliance to the retailer free of charge.
•
Provide information about return options.
-
If the appliance contains lamps that you can remove
yourself without damaging them:
•
Remove lamps before disposal.
•
Dispose of lamps via the appropriate collection
systems.
-
Your appliance may contain personal data.
•
Delete personal data before disposal.
-
The appliance contains refrigerant (information on the
type plate) and oil. The refrigerant inside the appliance
is environmentally friendly, but flammable. The oil it
contains is also flammable. Escaping refrigerant and oil
can ignite in high concentrations and in contact with an
external heat source.
•
Do not damage the refrigeration circuit.
•
Only dispose of the appliance in accordance with the
instructions in the user information.
1.9 Conformity
The coolant circuit has been tested for leak-tightness. When
installed, the appliance complies with the relevant safety
regulations and directives.
For the EU
market:*
The appliance complies with Directive
2014/53/EU.*
For GB market:* The appliance complies with the Radio
Equipment Regulations 2017 SI 2017 No.
1206.*
The full text of the EU Declaration of Conformity is available
at the following web address: www.liebherr.com
1.10 SVHC substances in accordance
with the REACH Regulation
You can use the following link to check whether your appli‐
ance contains SVHC substances in accordance with the
REACH Regulation:
home.liebherr.com/en/en/liebherr-experience/sustaina‐
bility/environment/scip/scip.html
1.11 EPREL database
From 1 March 2021, the information on energy labelling and
eco-design requirements will be available in the European
product database (EPREL). The product database can be
accessed via the following link https://eprel.ec.europa.eu/.
Here, you are asked to enter the model identifier. You will
find the model identifier on the type plate.
1.12 Open source licences
The appliance contains software components that use open
source licences. Information on the open source licences
used can be found here:
home.liebherr.com/open-source-licences
1.13 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
1.14 Symbols on the appliance
This symbol may be found on the
compressor. It pertains to the oil in the
compressor and indicates the following
danger: Can be fatal if swallowed or with
penetration of the respiratory tract. This
information is only significant for recycling.
No risk exists with normal use. Do not
remove this symbol.
Warning: Fire hazard due to flammable
substances. This symbol is located on the
compressor and can also be found in other
places on the appliance. This symbol warns
of flammable substances. Do not remove
this symbol.
This or a similar symbol may be on the rear
of the appliance. It indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
information is only significant for recycling.
Do not remove this symbol.
This symbol is located on the type plate.
It indicates that the appliance contains
valuable materials and that you must not
dispose of it with household waste.
(see1.8Disposal)
1.15 Warning levels
DANGER
Identifies an immediately
dangerous situation that will
result in death or serious bodily
injuries if it is not prevented.
WARNING
Identifies a dangerous situation
that could result in death or
serious bodily injury if it is not
prevented.
CAUTION
Identifies an immediately
dangerous situation that could
result in slight or moderate injuries
if it is not prevented.
ATTENTION Identifies a hazardous situation
that could result in property
damage if it is not prevented.
Note Identifies useful information and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Built-in appliance
Appliance at a glance
4 * Depending on model and options
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
Service Brochure
2.2 Overview of the appliance and
equipment
Fig. 1 Example illustration, front end
Equipment
(1)
Type plate (5) Condensation drainage
(2) Shelves (6) Controls and tempera‐
ture display
(3) Adjustable foot (7) FreshAir activated
carbon filter
(4) Interior lighting (8) Lock
Fig. 2 Example illustration, front end
Equipment
(1)
Type plate (5) Condensation drainage
(2) Shelves (6) Controls and tempera‐
ture display
(3) Adjustable foot (7) FreshAir activated
carbon filter
(4) Interior lighting (8) Lock
2.3 SmartDevice
SmartDevice is the networking solution for your wine
storage cabinet.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
enabled appli‐
ance:*
Your appliance is capable of being a
SmartDevice. To be able to connect
your device to WiFi, you need to
download the SmartDevice app.*
SmartDevice-
compatible appli‐
ance:*
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.*
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:*
home.liebherr.com/shop/de/deu/
smartdevicebox.html*
Downloading the
SmartDevice app:
After installing and configuring
the SmartDevice app, you can
connect your appliance to your Wi-Fi
(see 7.2.3 WiFi ) using the SmartDe‐
vice app and the appliance's Wi-Fi
function.
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.*
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Functionality of the Touch display
* Depending on model and options 5
Symbol Description
Press and hold the Back naviga‐
tion arrow for 3seconds:
Jumps back to the status
display in the main menu or from
the Settings menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Close the door and open
it again.
If you close the door and
immediately open it again, the
display jumps directly back to
the status display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Menu Description
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
3.2.1 Opening the Settings menu
Fig. 3 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure the following prerequisites are met:
- Appliance is installed and connected.
- All adhesive strips, adhesive and protective films and
transport locks are removed from inside and outside the
appliance.
Fig. 4 Example illustration
The standby symbol flashes until the startup process is
complete.
The standby symbol is shown in the display.
If the appliance has been supplied with factory settings, the
screen language first needs to be selected when using for
the first time.
Putting into operation
6 * Depending on model and options
Fig.5
► Carry out action steps according to the illustration.
Fig.6*
Fig.7*
▷ The appliance is switched on once the temperature
appears in the display.
▷ The temperature display flashes until the set tempera‐
ture is reached.
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
5.2 Storage sketch
5.2.1 UWgb 3631
Fig. 8 Total 44 bottles (0.75 l Bordeaux bottles as per
standard NF H 35-124)
5.2.2 UWgb 3632
Fig. 9 Total 32 bottles (0.75 l Bordeaux bottles as per
standard NF H 35-124)
5.2.3 Using the bottle holder*
Fig. 10
Storage
* Depending on model and options 7
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-
If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature . A warmer ambient
temperature can increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
7 Controls
7.1 Control and display elements
The display provides a quick overview of the current appli‐
ance status, the temperature setting, the status of func‐
tions and settings as well as alarm and error messages.
It is operated using the navigation arrows and confirmation
symbol.
Functions can be activated or deactivated and setting
values can be changed.
Fig.11Display*
(1)
Status display (3) Forwards navigation
arrow
(2) Backwards navigation
arrow
(4) Confirm
Fig.12Display*
(1)
Status display (3) Forwards navigation
arrow
(2) Backwards navigation
arrow
(4) Confirm
7.1.1 Status display
Fig. 13 Status display with temperature*
Fig. 14 Status display*
(1) Temperature, upper
zone
(2) Temperature, lower zone
The status display shows the temperature and is the home
display. You navigate from here to the other functions and
settings. The status display may show a range of display
symbols.
7.1.2 Display symbols
Display symbols provide information about the status of the
appliance.
Symbol
Appliance status
Standby
Appliance is switched off.
Flashing standby symbol
Appliance is starting up.
Flashing temperature
Target temperature not yet
reached. Appliance cooling to
temperature set.
*
*
Temperature display
*
*
D in the display
Appliance is in DemoMode.
*
*
Flashing symbol
A fault is still active.
Error symbol
Appliance is in error state.
White bar at the bottom
Submenu
Saving energy
8 * Depending on model and options
Symbol Appliance status
White background
Default, active setting or
active value
Increasing bar
Press button for 3 seconds to
activate setting.
Decreasing bar
Press button for 3 seconds to
deactivate setting.
Status display symbols
7.1.3 Acoustic signals
A signal sounds in the following cases:
-
If a function or a value is confirmed.
-
If a function or a value can either not be activated or not
deactivated.
-
As soon as an error occurs.
-
If there is an alarm message.
The alarms can be switched on and off in the customer
menu.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance. (see 7.1 Control and
display elements)
7.2.2 Switching appliance on and off
Using this setting the entire appliance can be switched on
and off.
Switching on appliance
Without activated DemoMode:
Fig. 15
► Carry out action steps according to the illustration.
With activated DemoMode:
Fig. 16
► Carry out action steps according to the illustration.
Note
Deactivate DemoMode before countdown finishes.
Fig.17*
Fig. 18*
▷ The temperature appears in the display.
Switching off appliance
Fig. 19
Fig.20
► Carry out action steps according to the illustration.
▷ Standby symbol is shown in the display.
▷ Display switches off after approximately 10 minutes.
7.2.3 WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.*
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.*
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see 2.3 SmartDevice) *
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Controls
* Depending on model and options 9
Fig.21
Fig.22
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig.23
WiFi
WiFi
Fig. 24
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig.25
Fig. 26
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig.27
WiFi
SSID:
FritzBox12345678
FW: XXXXXXXXXX
HW: XXXXXXXXXX
10s
Fig.28
Fig. 29 Status display
Fig. 29 Status display
► Carry out action steps according to the illustration.
7.2.4 Temperature
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of refrigerated items
Controls
10 * Depending on model and options
Setting temperature
Fig. 30 Changing temperature from 7°C to 9°C*
Fig. 31 Changing temperature from 7°C to 9°C and from
5°C to 7°C*
► Carry out action steps according to the illustration.
▷ Temperature is set.
7.2.5 Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.32
Fig. 33 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
7.2.6 SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
Fig.34
Controls
* Depending on model and options 11
Fig.35
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.36
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
7.2.7 HumiditySelect
Use this function to set the humidity inside your appliance.
Setting the humidity correctly will have a positive effect
on the structure of the corks during long-term storage and
prevent them from drying out.
Note
The frequency and duration for which the door is open influ‐
ence the humidity in the appliance.
You can choose between two humidity settings:
HumiditySe‐
lect function
Temperature
setting on
the appli‐
ance
Application/energy
consumption
Standard
(preset)
10-12°C average humidity in the envi‐
ronment between 50-80%
low energy consumption of
the appliance
High 10-12°C average humidity in the envi‐
ronment < 50%
energy consumption of the
appliance increases
Increasing the humidity in the appliance
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ Humidity in the appliance increases.
Setting the humidity in the appliance to standard
Fig. 39
2s
Fig.40
► Carry out action steps according to the illustration.
▷ Humidity in the appliance decreases.
7.2.8 Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
20%
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig. 41
Controls
12 * Depending on model and options
Fig. 42 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
7.2.9 Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.43
Fig. 44 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.46
Fig. 47
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
7.2.10 Light alarm
*
This setting allows the visual alarm messages in the display
to also be emphasised by flashing appliance lighting.
Activating light alarm
Fig.48
Fig. 49
► Carry out action steps according to the illustration.
▷ The light alarm is activated.
Deactivating light alarm
Fig.50
Fig.51
► Carry out action steps according to the illustration.
▷ The light alarm is activated.

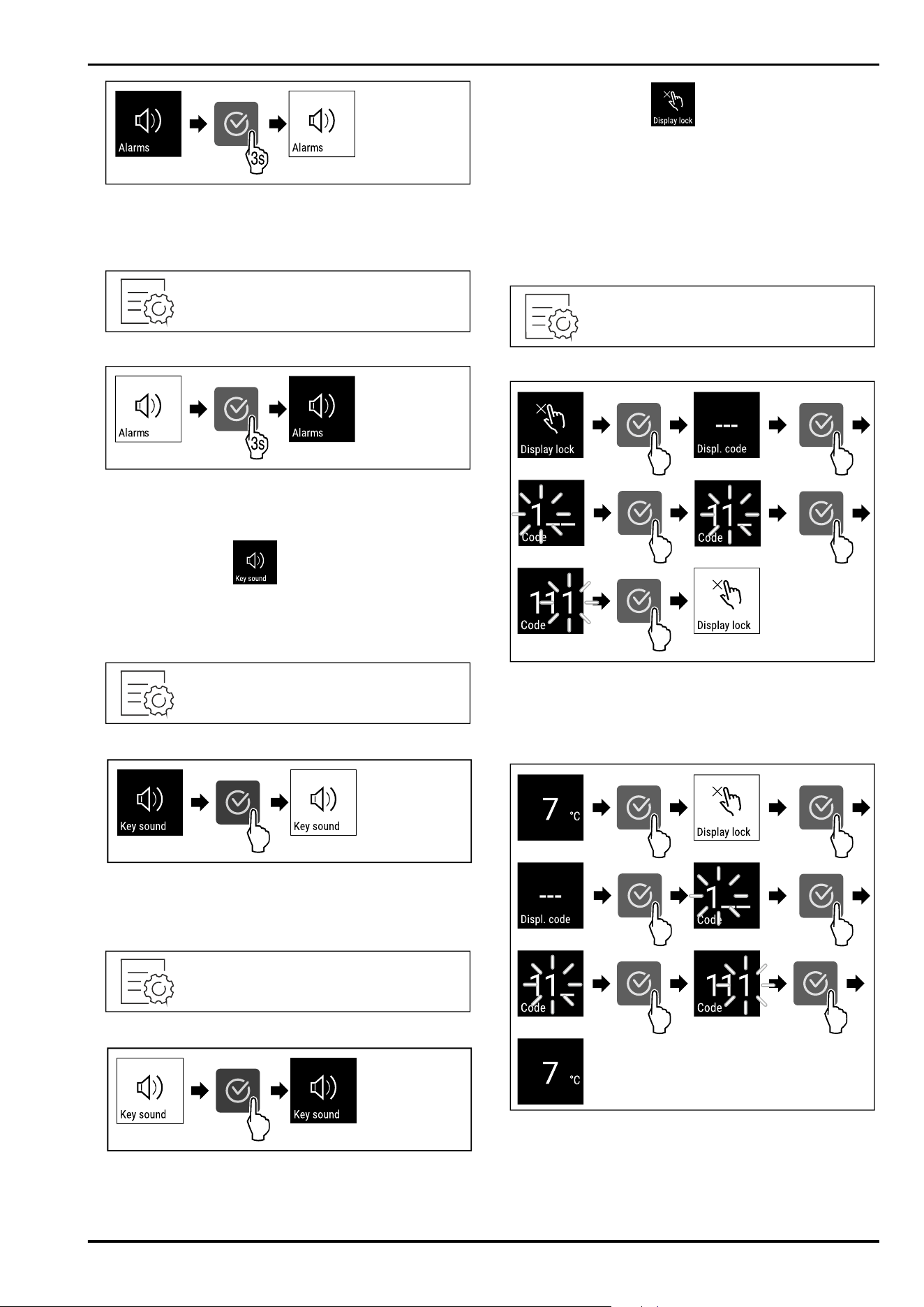

7.2.11 Alarm Sound
This function enables all alarm sounds, such as door alarm,
to be switched on and off.
Activating Alarm Sound
Fig.52
Controls
* Depending on model and options 13
Fig.53
► Carry out action steps according to the illustration.
▷ Alarm Sound is activated.
Deactivating Alarm Sound
Fig.54
Fig.55
► Carry out action steps according to the illustration.
▷ Alarm Sound is deactivated.
7.2.12 Key Sound
This function makes it possible to switch all confirmation
sounds and the Startsound on and off.
Activating Key Sound
Fig.56
Fig.57
► Carry out action steps according to the illustration.
▷ Key Sound is activated.
Deactivating Key Sound
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Key Sound is deactivated.
7.2.13 Display lock
This setting avoids accidental operation of the appliance.
Application:
-
Prevent settings and functions being changed uninten‐
tionally.
-
Prevent appliance being switched off unintentionally.
-
Prevent temperature being set unintentionally.
Activating the display lock
Fig.60
Fig. 61 Example uses the preset display code 1 1 1.
► Carry out action steps according to the illustration.
▷ The display lock is activated.
▷ The status display appears.
Unlocking the display lock for a short time
Fig. 62*
Controls
14 * Depending on model and options
Fig.63*
► Carry out action steps according to the illustration.
▷ The display lock is deactivated.
▷ The status display appears.
Deactivating the display lock
► Carry out action steps (see Unlocking the display lock for
a short time) .
Fig.64
Fig.65
► Carry out action steps according to the illustration.
▷ The display lock is deactivated.
▷ The status display appears.
7.2.14 Display PIN
Use this function to change the display PIN. The display
PIN is set to 1 1 1 on delivery. If you have forgotten the
display PIN, you can reset the display PIN by resetting the
appliance to the factory settings. (see 7.2.19 Resetting to
factory settings )
Changing the display PIN
Fig.66
Fig. 67 Example illustration: Change display PIN from
factory setting 1 1 1 to 234
Fig. 67 Example illustration: Change display PIN from
factory setting 1 1 1 to 234
Controls
* Depending on model and options 15
Fig. 67 Example illustration: Change display PIN from
factory setting 1 1 1 to 234
► Carry out action steps according to the illustration.
▷ Display PIN is changed.
7.2.15 Language
This setting allows the display language to be set.
Setting language
Fig.68
Fig. 69
► Carry out action steps according to the illustration.
▷ The selected language is set.
7.2.16 Appliance and software information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
Indicating the device information
Fig.70
Fig.71
► Carry out action steps according to the illustration.
▷ Display indicates device information.
Displaying software information
Fig.72
Fig.73
► Carry out action steps according to the illustration.
▷ Display shows software information.
7.2.17 Reminder
Use this function to activate or deactivate the reminder to
change the FreshAir activated carbon filter.
Deactivating the reminder
Fig. 74
Fig.75
► Carry out steps according to the illustration.
▷ Reminder is deactivated.
Activating the reminder
Fig. 76
Controls
16 * Depending on model and options
Fig.77
► Carry out steps according to the illustration.
▷ Reminder is activated.
7.2.18 Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and a “D” appears on the
status display, demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see 7.2.19 Resetting
to factory settings )
Activating demo mode
Fig.78
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “D” appears in the status display.
Deactivating demo mode
Fig.79
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
7.2.19 Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.80
Fig.81
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))
Controls
* Depending on model and options 17
7.3 Messages
7.3.1 Warnings
Warnings are issued by means of an audio signal and visu‐
ally via a symbol on the display. The signal gets louder until
the warning is acknowledged.
Message Cause Remedy
Door open
This message appears if the door is
open for too long.
Close the door.
Press the confirmation button.
Alarm is ended.
Note
You can set how long it takes
for this message to appear
(see 7.2.9Door alarm ) .
Temperature alarm
This message appears if the
temperature does not match the set
temperature. Reasons for the differ‐
ences in temperature can be:
⁃ Warm items for refrigeration have
been placed inside.
⁃ Too much warm room air flowed
in when rearranging and removing
refrigerated products.
The power was cut off for a
prolonged period.
Press the confirmation button.
Warmest temperature is
displayed.
Press the confirmation button.
The current temperature flashes
and the display alternates with
the temperature alarm symbol
until the set temperature is
reached.
Check the quality of the refriger‐
ated goods.
Error
The appliance is defective, there is
an appliance fault or a component
of the appliance is faulty.
Transfer refrigerated goods.
Press the confirmation button.
Error code is displayed.
Press the confirmation button.
If present, another error code is
indicated.
or
Status screen with flashing error
symbol is displayed
Pressing the navigation buttons
indicates error code(s) again.
Note the error code(s) and
contact customer service.
Power failure
The message appears after an
interruption in the power supply if
the temperature is above the alarm
limit when the power returns.
Press the confirmation button.
The warmest temperature is
displayed.
Press the confirmation button.
Alarm is cancelled and current
temperature is indicated.
Check the quality of the refriger‐
ated goods.
WLAN error
WLAN connection is interrupted. Check the connection.
Press the confirmation button.
Alarm is ended.
Controls
18 * Depending on model and options
Message Cause Remedy
WLAN WWW error
The message appears if there is no
Internet connection via WLAN.
Check the connection.
Press the confirmation button.
Alarm is ended.
7.3.2 Reminder
Reminders appear when you are being asked to do some‐
thing. They are issued by means of an audio signal and visu‐
ally via a symbol on the display. Acknowledge the message
by pressing the confirmation button.
Message Cause Remedy
ReplaceFreshAir acti‐
vated charcoal filter
The message appears every 6 months. ReplaceFreshAir activated charcoal filter,
Reminder is closed.
8 Features
8.1 Wooden grid
The appliances are equipped with a wooden grid for wine
storage.
Fig. 82 Example illustration
(1)
Wooden grid (2) Bar
The standard positions for the bars are indicated by
notches. If you use these, you can store the maximum
number of bottles. (see 5.2 Storage sketch)
Fig. 83 Arrangement of the bars for maximum number of
bottles.
8.1.1 Moving the bar
Fig. 84 Example illustration
You can remove the bars in the wooden rack to store larger
or smaller bottles.
Features
* Depending on model and options 19

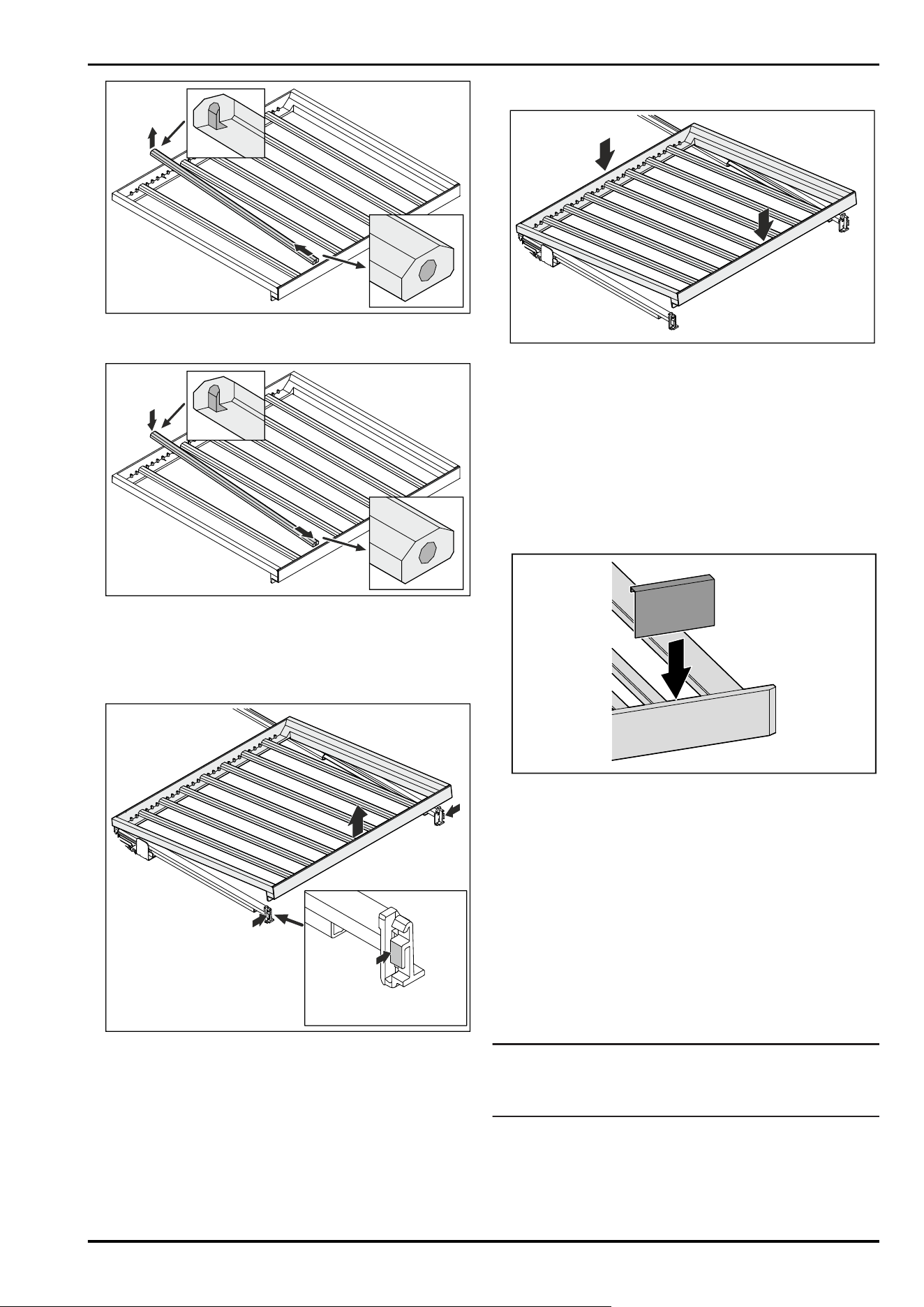

Fig. 85 Example illustration
► Lift and pull out the bar at the rear.
Fig. 86 Example illustration
► Insert the bar in the desired position.
8.1.2 Removing the wooden grid
You can remove the wooden grid for cleaning.
Fig. 87 Example illustration
► Press in slightly on both sides and lift up to remove.
8.1.3 Inserting the wooden grid
Fig. 88 Example illustration
► Place the wooden grid at the rear on the rails on the right
and left.
► Lower the wooden grid at the front.
▷ The wooden grid locks in.
▷ Wooden grid is firmly seated in the rails.
8.2 Labels
Description labels as accessories can be purchased from
your specialist dealer. You can use these to note the types
of wine that are stored in the respective compartment.
Fig.89
► Attach the label from above.
9 Maintenance
9.1 FreshAir activated carbon filter
Wine is constantly developing according to its ambient
conditions, so air quality is essential for preservation.
The FreshAir activated charcoal filter guarantees optimal air
quality.
❑
Change the activated charcoal filter every 6 months.
❑
Dispose of the activated charcoal filter with regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
Maintenance
20 * Depending on model and options
9.1.1 Replacing the FreshAir activated charcoal
filter
Fig. 90 Example illustration
► Press the filter holder in, release it again and pull it out.
Fig. 91 Example illustration
► Remove the old filter from the holder.
Fig. 92 Example illustration
► Snap the new filter into the holder.
Fig. 93 Example illustration
► Press the filter holder in as far as it will go and release.
▷ FreshAir activated charcoal filter has been changed.
9.2 Cleaning the appliance
9.2.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
►
Empty the appliance.
► Remove mains connector.
9.2.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove deposits using a thin item (for
example a cotton bud).
9.2.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Dividing shelf
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
► To disassemble components: see the relevant section.
► Clean the components.
9.2.4 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Repeat cleaning regularly.
Maintenance
* Depending on model and options 21
10 Customer help
10.1 Technical specifications
Temperature range
Cooling 5°C to 20°C
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
For appliances with a WiFi connection:*
Frequency specification*
Frequency band 2.4GHz
Maximum radiated
power
< 100 mW
Purpose of the
wireless equipment
Integration in the local WiFi network
for data communication
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Noise Possible cause Type of noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Customer help
22 * Depending on model and options
Defect Cause Remedy
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Problem solution:
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
► Check if the appliance was installed correctly and that
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ You can replace the door seal,
depending on your model. It can
be replaced without the need for
special tools.
► Contact Customer Service. (see 10.4 Customer Service)
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
-or-
► Refer to the type plate for appliance information.
(see 10.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
Customer help
* Depending on model and options 23
10.5 Model plate
The type plate is located on the bottom inside of the
machine.
Fig. 94
(1)
Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see 7.2.2 Switching appliance on
and off )
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 9.2Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
Ensure that the following requirements are met:
❑
Meaning of the symbols on the appliance: are familiar.
(see 1.14Symbols on the appliance)
❑
Notes on disposal are familiar. (see1.8Disposal)
12.1 Preparing the appliance for
disposal
► Shutting your appliance down. (see11Shutting down)
► Remove lamps without damage.
12.2 Disposing of the appliance in an
environmentally friendly manner
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Remove the appliance without damaging it.
► Dispose of lamps in accordance with the aforementioned
specifications.
► Dispose of appliance according to specifications.
Shutting down
24 * Depending on model and options
Disposal
* Depending on model and options 25
home.liebherr.com/fridge-manuals
wine cooling cabinet
Issue date:20251127
Part number index: 7083720-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
