Gigabit Ethernet Media Converter
Note: It is recommended to use a TP-Link SFP module on TL-MC200, because other vendors’ modules may be incompatible.
LC-SC Fiber Cable
Package Contents: Media Converter, Power Adapter, User Guide

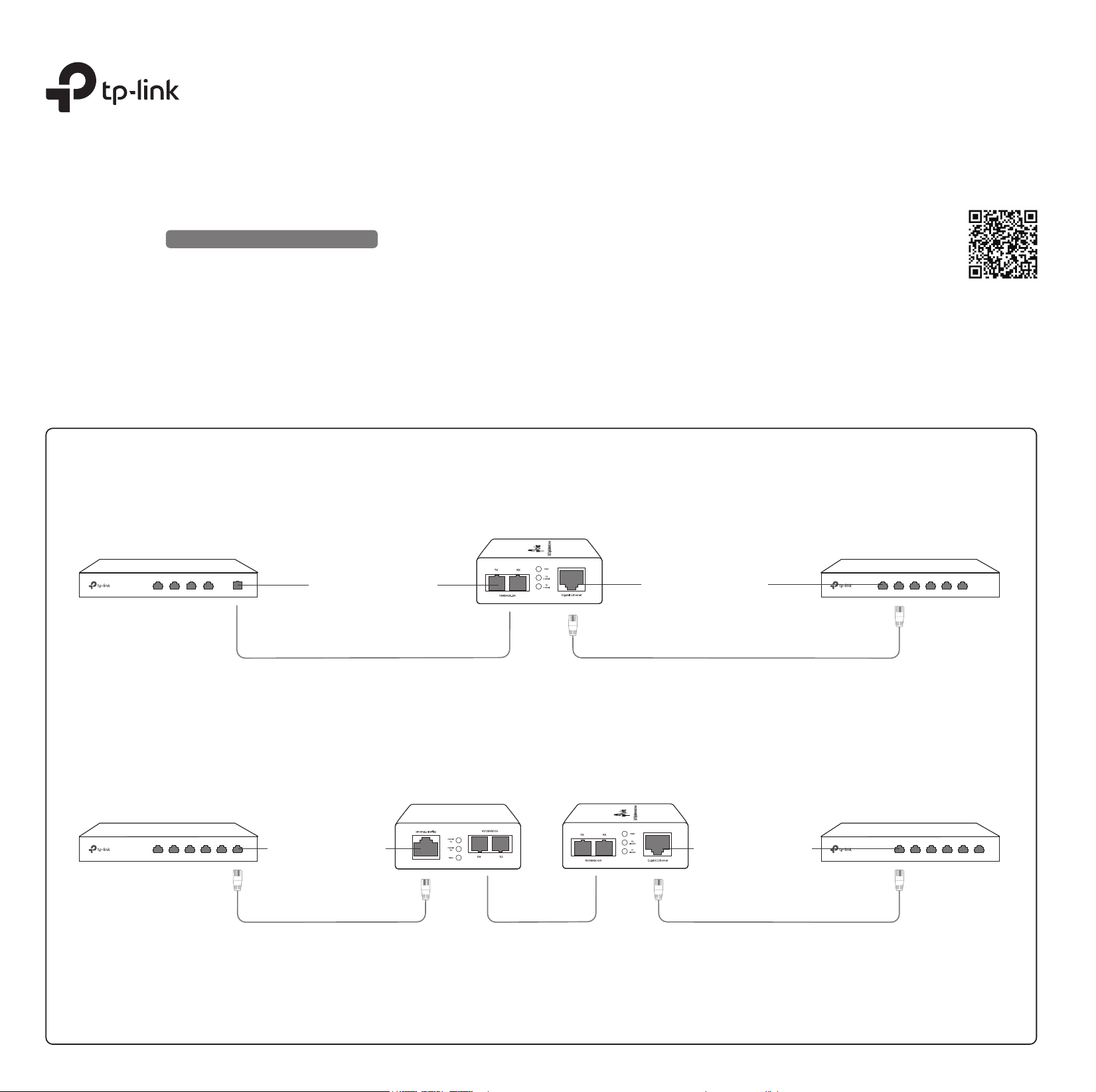

Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet device
with optical interfaces
Media Converter Ethernet device
without optical interfaces
Gigabit Ethernet interface
Twisted-Pair Cable
Note:
1. Either two TL-MC101 converters or two TL-MC102 converters can work cooperatively. Two TL-MC200 converters with a pair of SFP module can work cooperatively.
2. One TL-MC200 can also cooperate with one TL-MC101 or one TL-MC102. However, the mode and wavelength of the SFP module used in TL-MC200 must be the same as the opposite end.
3. Connect the TX port of one converter to the RX port of the other using a ber cable.
Scenario 2: Connect Devices without Optical Interfaces
Twisted-Pair Cable Twisted-Pair Cable
Ethernet device
without optical interfaces
Media Converter Media Converter
Ethernet device
without optical interfaces
Enlarge Your Ethernet Network
TL-MC101/TL-MC102/TL-MC200
Note: TL-MC102 is used as an example throughout this guide. Other models may dier in appearance.
For technical support and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the QR code.
Gigabit Ethernet interface
Gigabit Ethernet interface
1000BASE-X interface
Fiber Cable
LED Explanation
On: Power on.
O: Power o.
PWR
On: There is a valid link for FX Port.
O: There is no valid link for FX Port.
Flashing: FX Port is transmitting or receiving data.
Link/Act
FX
On: There is a valid link for TP Port.
O: There is no valid link for TP Port.
Flashing: TP Port is transmitting or receiving data.
Link/Act
TP
Specications
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3zStandards
PWR, FX Link/Act, TP Link/Act
For TL-MC101/TL-MC102: SC ber connector, RJ-45 jack
For TL-MC200: SFP port, RJ-45 jack
LED
Twisted-Pair
Interface
General Specifications
External Power Adapter: 9V/0.6A
Wave Length
Fiber
Power
For TL-MC101: 1310nm
For TL-MC102: 850nm
For TL-MC200: depends on the used SFP module
For TL-MC101: 9/125μm single-mode ber (≤20km)
For TL-MC102: 62.5/125μm multi-mode ber (≤220m);
50/125μm multi-mode ber (≤550m)
For TL-MC200: depends on the used SFP module
10Base-T: 2-pair UTP/STP of Cat. 3 or above (≤100m)
100Base-TX: 2-pair UTP/STP of Cat. 5 or above (≤100m)
1000Base-T: 4-pair UTP/STP of Cat. 5e or above (≤100m)
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Adapter shall be installed near the equipment and shall be easily accessible.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can
injure your eyesight.
Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any
questions, please don't hesitate to contact us.
This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
CE Mark Warning
FCC STATEMENT
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів
та вимогам, що передбачені чинними законодавчими актами України.
CAN ICES-3 (A)/NMB-3(A)
Industry Canada Statement
E
xplana�on of the symbols on the product label
S
ymbols may vary from products. The label is at the bottom of the product.

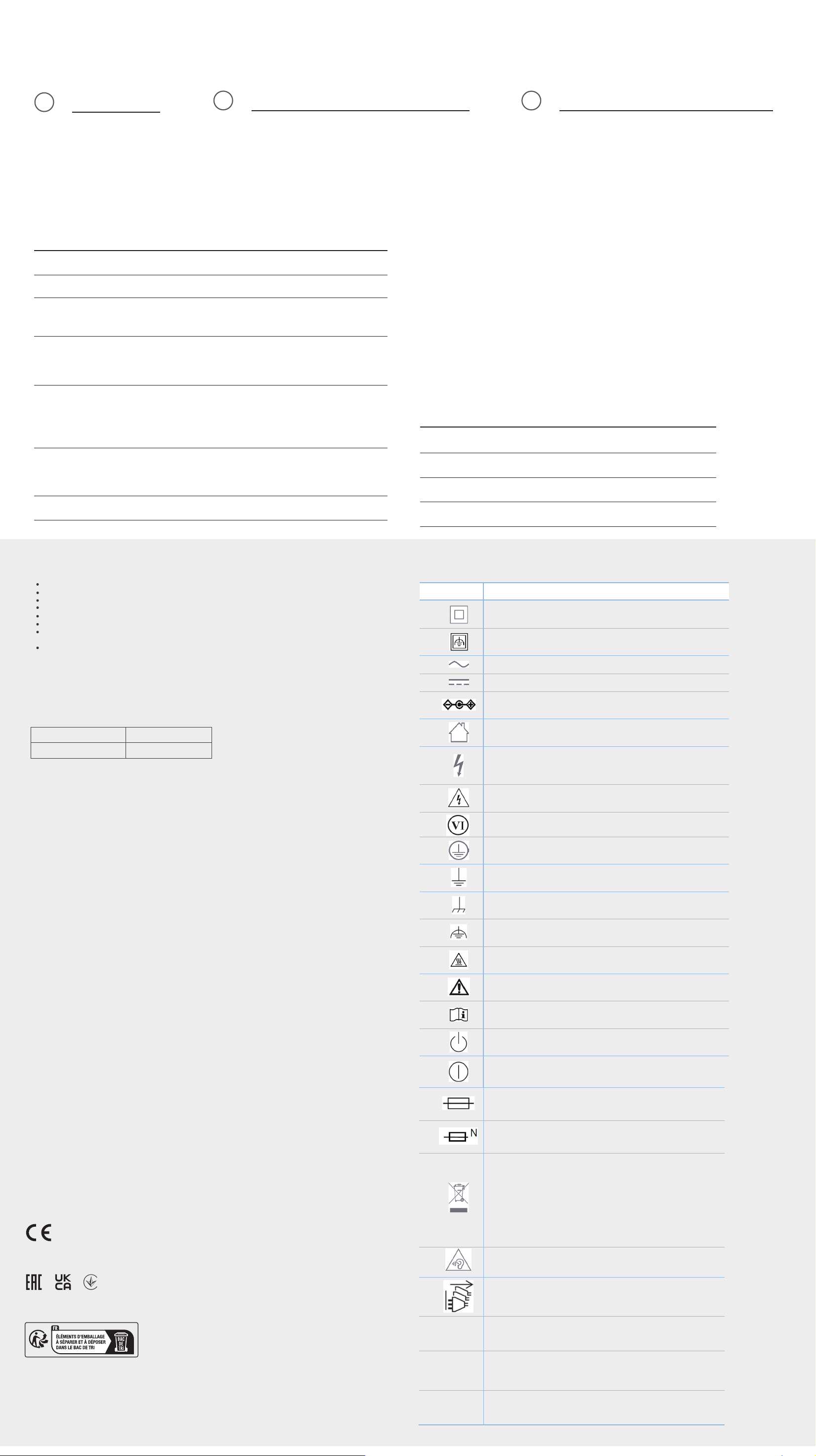

Symbol
Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
Direct current
Pola rity of d.c. power connector
For indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy eciency Marking
Protective earth
Earth
Frame or chassis
Functional earthing
Caution, hot surface
Caution
Opera tor's manual
Stand-by
"ON"/"OFF" (push-push)
Fuse
Fuse is used in neutral N
Caution, avoid listening at high volume levels for long periods
Disconnection, a ll power plugs
m
Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap / micro
-
disconnection construction
(for other versions except US)
ε
Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Product Name: Gigabit Ethernet Media Converter
Model Number: TL-MC101/TL-MC102/TL-MC200
Responsible party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the
applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the
equipment is properly maintained and operated.
Issue Date: 2024.06.05
Product Name: Power Adapter
Model Number: T090060-2B1
Component Name Model
Power Adapter T090060-2B1
Operation Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Humidity 5% to 90%RH non-condensing
Operation Humidity 10% to 90%RH non-condensing
Environmental and Physical Specifications
