©2023 TP-Link 7106510217 REV6.2.1
Fast Ethernet Media Converter
Enlarge Your Ethernet Network
Package Contents: Converter, Power Adapter, User Guide
LED Explanation
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
On: Power on
O:
Power o
PWR
On: Valid link
Flashing: Transmitting or receiving data
O: Invalid link
FX
Link/Act
On: Valid link
Flashing: Transmitting or receiving data
O: Invalid link
TP
Link/Act
LC-SC Fiber Cable
Twisted-Pair Cable
Fiber CableTwisted-Pair Cable Twisted-Pair Cable
10/100M
PWR
TP
Link/Act
FX
Link/Act
TX RX
10/100M
PWR
TP
Link/Act
FX
Link/Act
TX RX
10/100M
PWR
TP
Link/Act
FX
Link/Act
TX RX

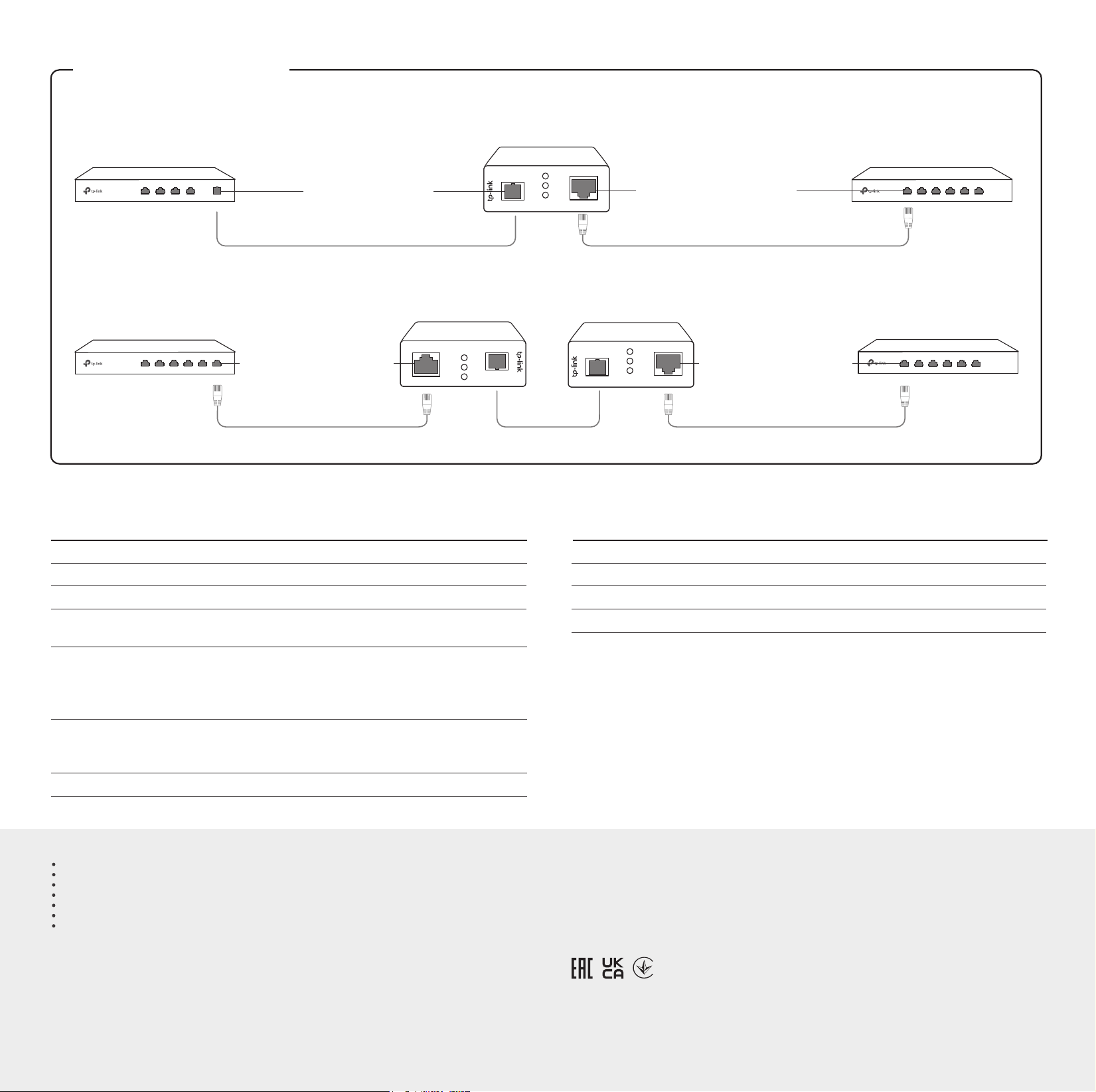

Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet Device
with Optical Interfaces
Ethernet Device
without Optical Interfaces
Media Converter
10BASE-T/100BASE-TX Interface
100BASE-X (Fiber) Interface
Note:
1. Please use two Media Converters of the same model to work properly.
2. Please connect the TX port of one converter to the RX port of the other using a ber cable.
Scenario 2: Connect Devices without Optical Interfaces
Ethernet Device
without Optical Interfaces
Media Converter Media Converter
Ethernet Device
without Optical Interfaces
10BASE-T/100BASE-TX Interface
10BASE-T/100BASE-TX Interface
For MC100CM/MC110CS
